Click Image to Enlarge

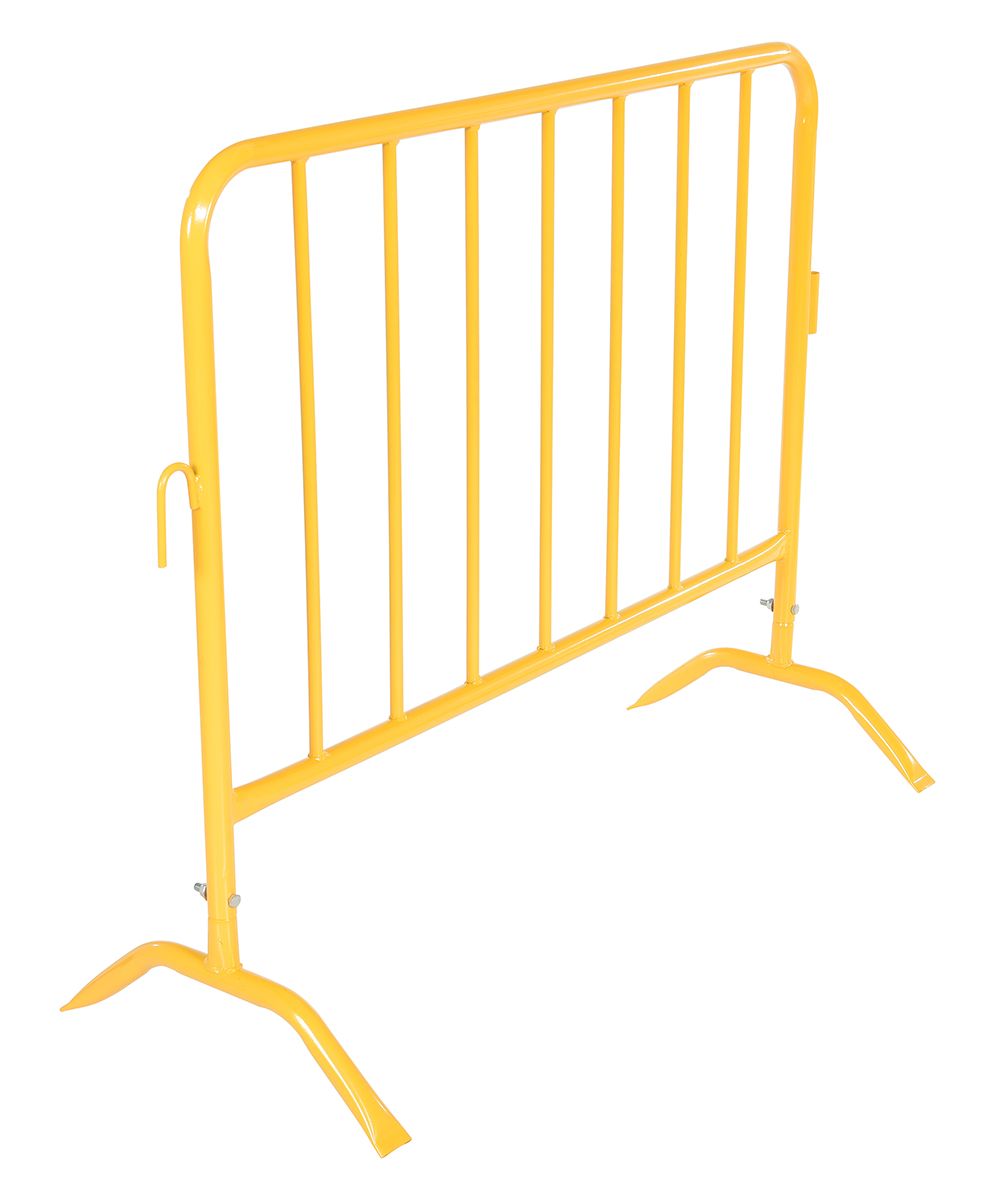

model: PRAIL-48-Y

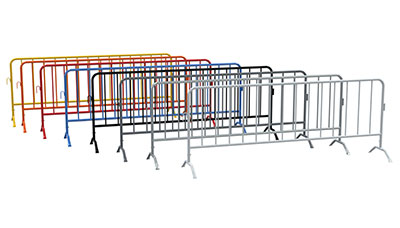

Crowd Control Interlocking Barriers
SERIES: PRAIL

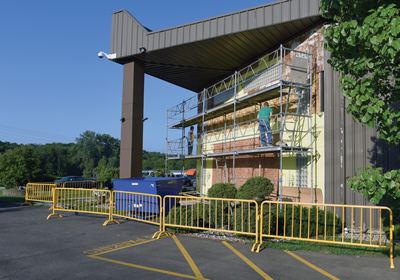

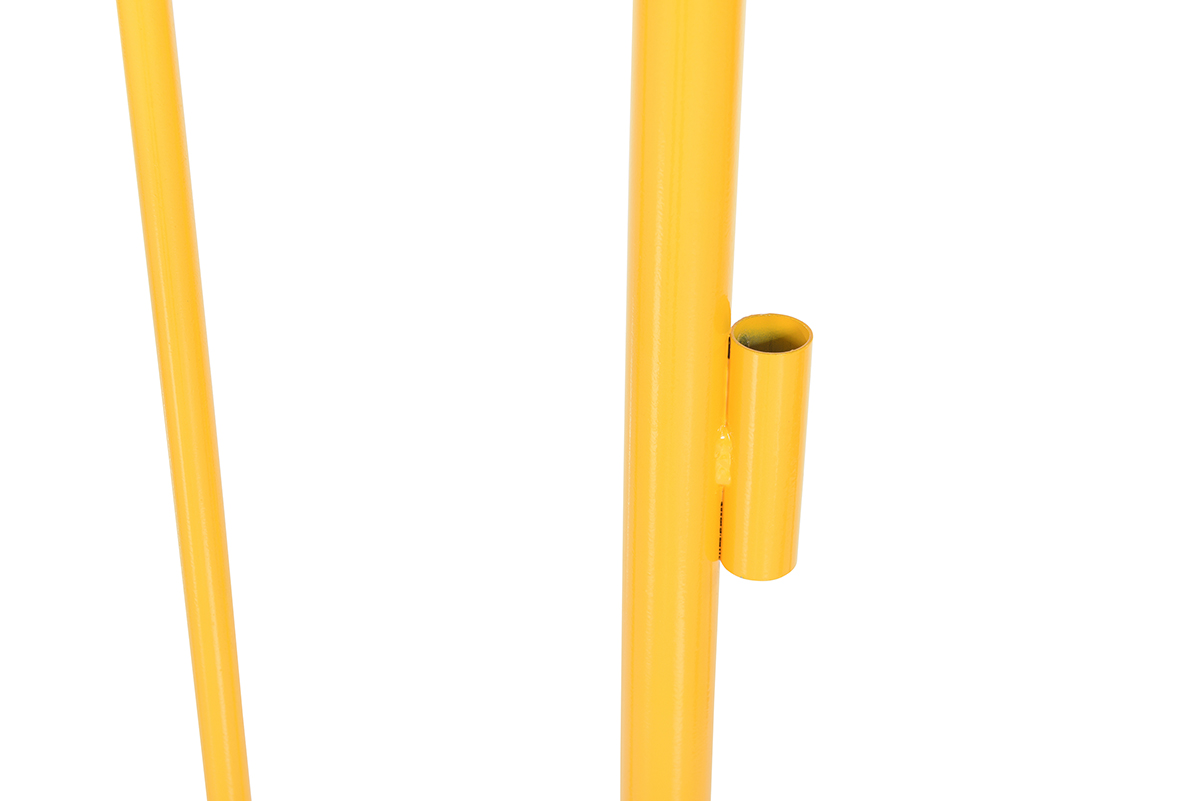

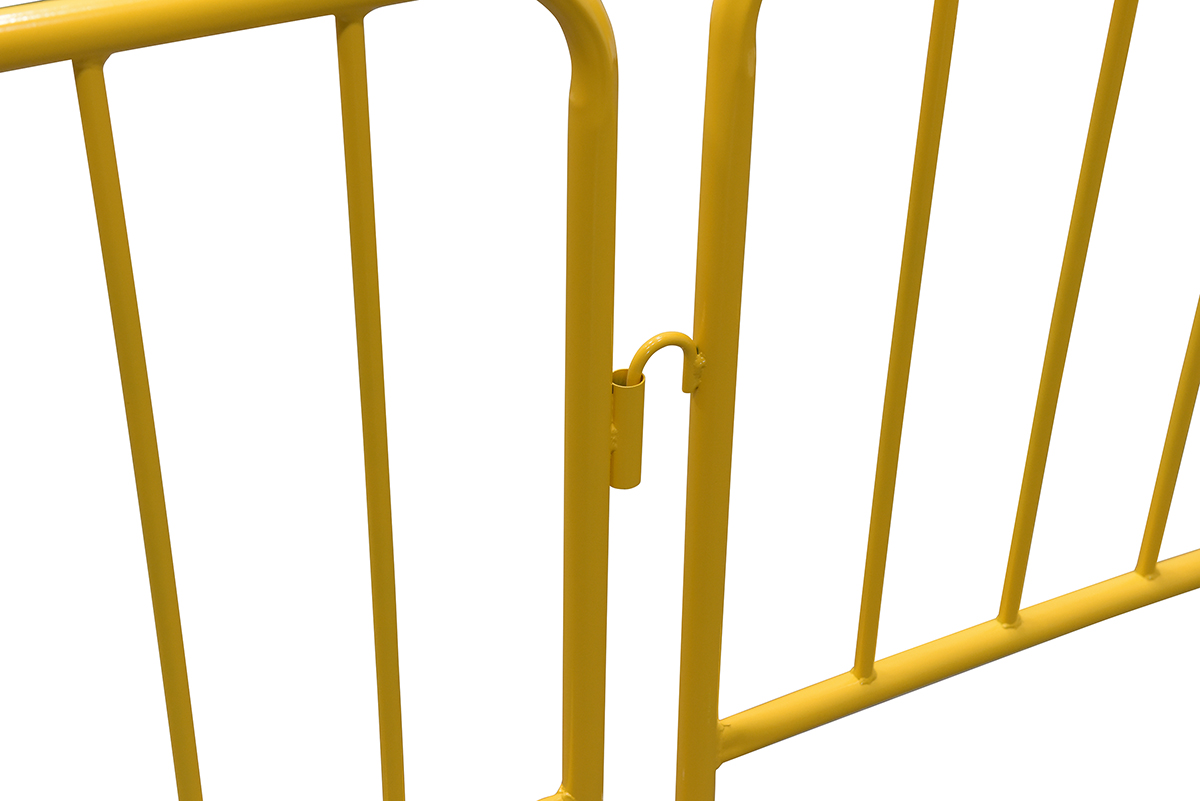

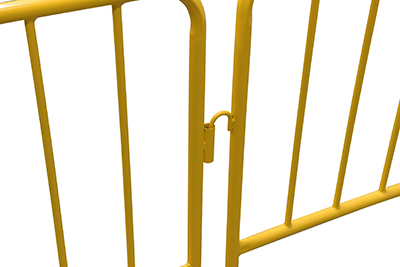

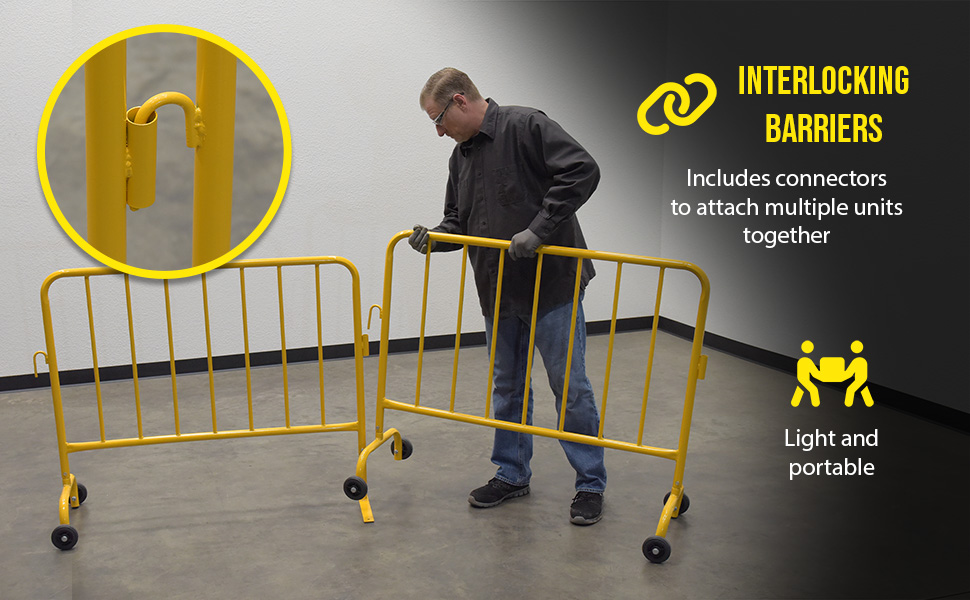

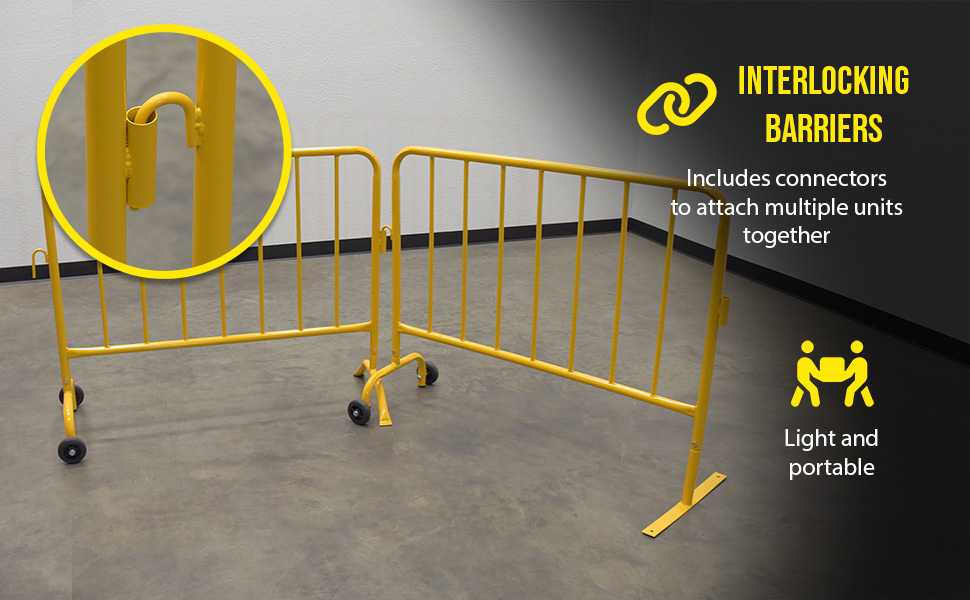

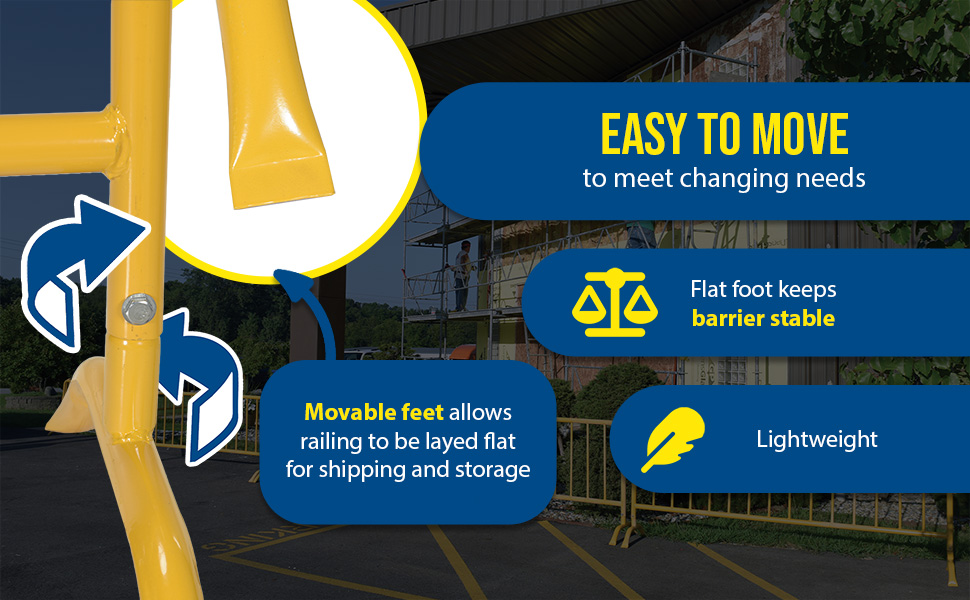

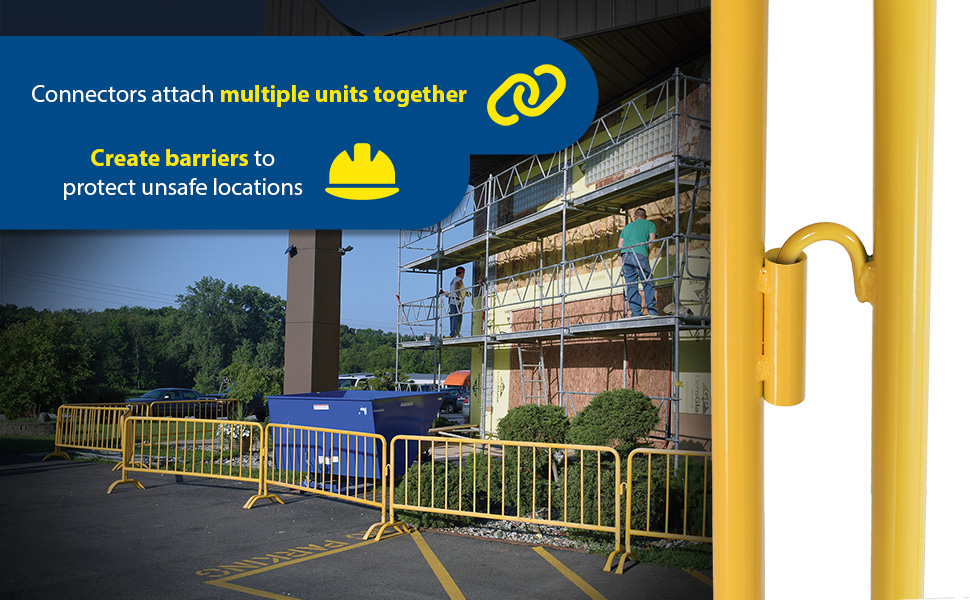

Attractive and functional design ideal for directing personnel. Interlocking portable railing has many commercial and industrial applications. Easy to move to meet changing needs. Upright bars are vertically spaced at 5-7/8" intervals for the light-weight barriers and 5-3/4" for the heavy-duty style. Each railing includes connectors to attach multiple units together to form long runs. Overall size is 102"L x 40"H. Feet are removable so railing will lay flat for shipping and storage. Variety of foot styles available. Rugged welded steel construction.

Attractive and functional design ideal for directing personnel. Interlocking portable railing has many commercial and industrial applications. Easy to move to meet changing needs. Upright bars are vertically spaced at 5-7/8" intervals for the light-weight barriers and 5-3/4" for the heavy-duty style. Each railing includes connectors to attach multiple units together to form long runs. Overall size is 102"L x 40"H. Feet are removable so railing will lay flat for shipping and storage. Variety of foot styles available. Rugged welded steel construction.

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Crowd Control Interlocking Barricades

Model Image PDF Overall Size
(LxWxH)
Foot
Style
Rail
Diameter
Wt.
(lbs)
Galvanized Finish
PRAIL-102-G icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-5/16" Both Curved 1-1/4" 85
PRAIL-102-G-WW icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20"x39-3/4" Both Wheels 1-1/4" 85
PRAIL-102-G-FF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-11/16" Both Flat 1-1/4" 85
PRAIL-102-G-WF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-3/4" (1) Wheel, (1) Flat 1-1/4" 85
PRAIL-102-G-W icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-3/4" (1) Wheel, (1) Curved 1-1/4" 85
PRAIL-102-HD-G icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-3/32"x40-5/16" Both Curved 1-5/8" 105
PRAIL-102-HD-G-WW icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20"x41-1/4" Both Wheels 1-5/8" 105
PRAIL-102-HD-G-FF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-1/8"x40-11/16" Both Flat 1-5/8" 105
PRAIL-102-HD-G-WF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-1/8"x41-1/4" (1) Wheel, (1) Flat 1-5/8" 105
PRAIL-102-HD-G-W icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20"x41-1/4" (1) Wheel, (1) Curved 1-5/8" 105
Powder Coat Safety Yellow Finish

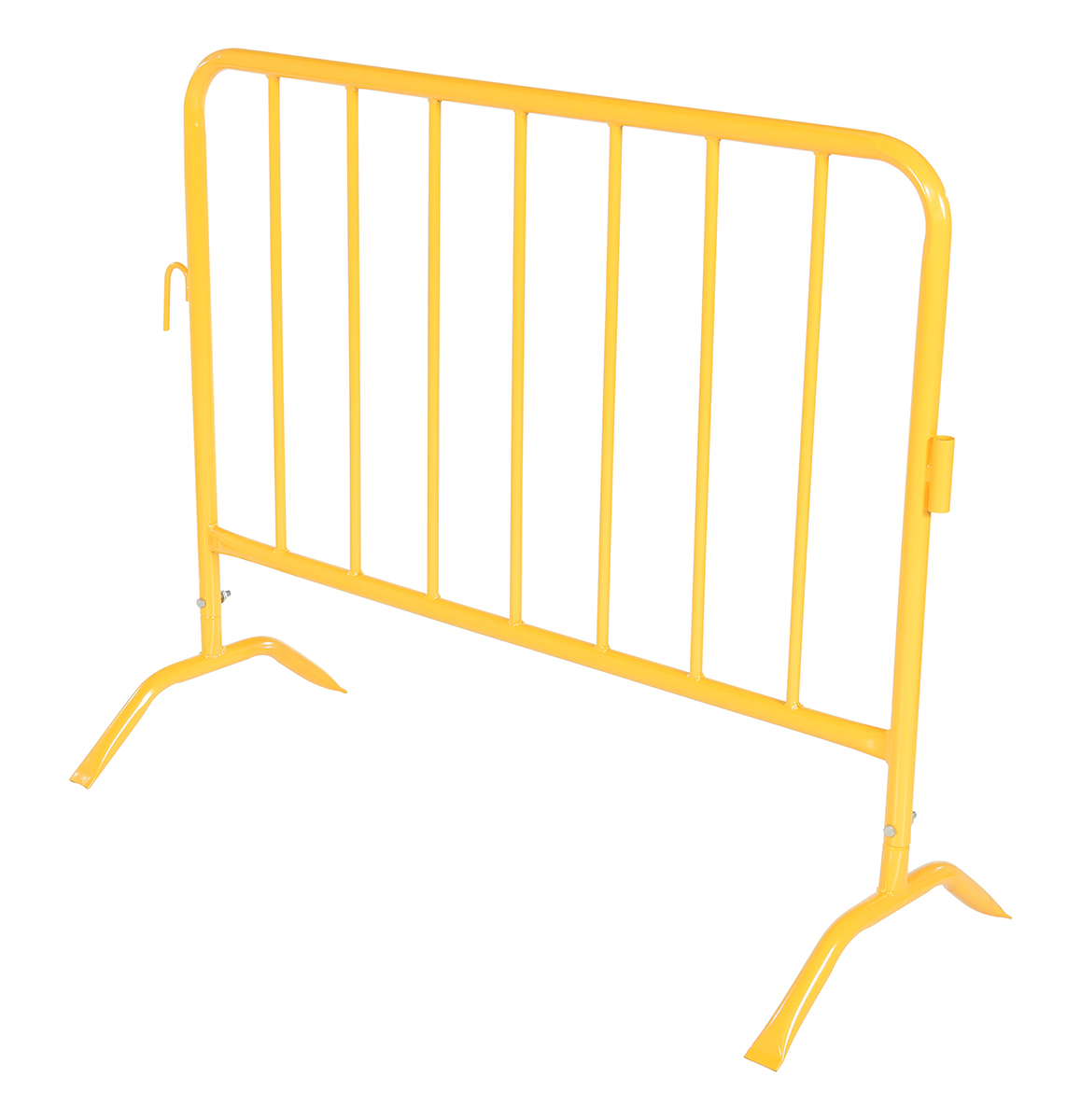

PRAIL-48-Y tilt_m4.jpg 47-1/2"x20-1/8"x39-1/2" Both Curved 1-1/4" 38
PRAIL-48-Y-FF tilt_m4.jpg 47-1/2"x20-1/8"x39-11/16" Flat Feet 1-1/4" 38

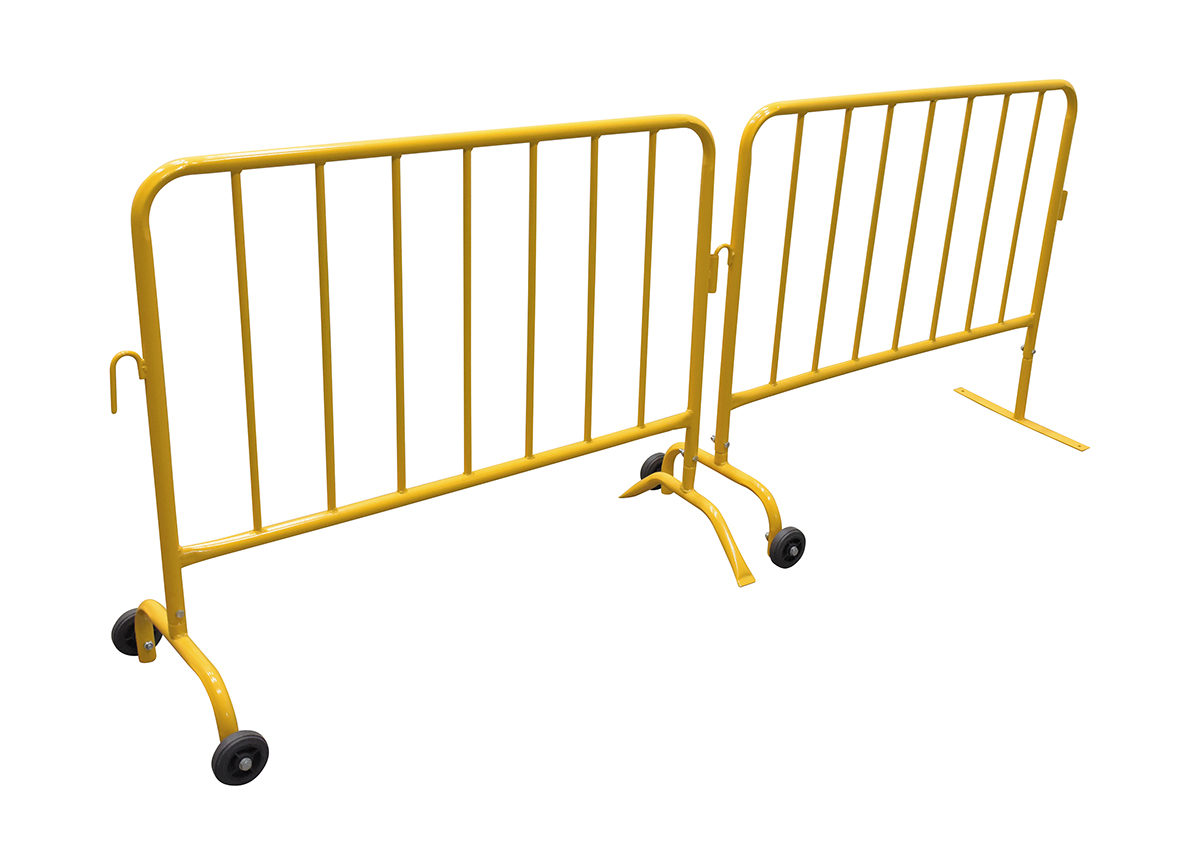

PRAIL-48-Y-W tilt_m4.jpg 47-1/2"x20-1/8"x39-3/4" 1 Curved, 1 Wheeled 1-1/4" 38
PRAIL-48-Y-WF tilt_m4.jpg 47-1/2"x20-1/8"x39-3/4" 1 Flat, 1 Wheeled 1-1/4" 38
PRAIL-48-Y-WW tilt_m4.jpg 47-1/2"x20-1/8"x39-3/4" Both Wheeled 1-1/4" 38
PRAIL-102-Y icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-5/16" Both Curved 1-1/4" 85
PRAIL-102-Y-WW icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20"x39-3/4" Both Wheels 1-1/4" 85
PRAIL-102-Y-FF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-11/16" Both Flat 1-1/4" 85
PRAIL-102-Y-WF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-3/4" (1) Wheel, (1) Flat 1-1/4" 85
PRAIL-102-Y-W icon_approvaldrawings.jpgtilt_m4.jpg 101-3/16"x20-1/8"x39-3/4" (1) Wheel, (1) Curved 1-1/4" 85
PRAIL-102-HD-Y icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-3/32"x40-5/16" Both Curved 1-5/8" 105

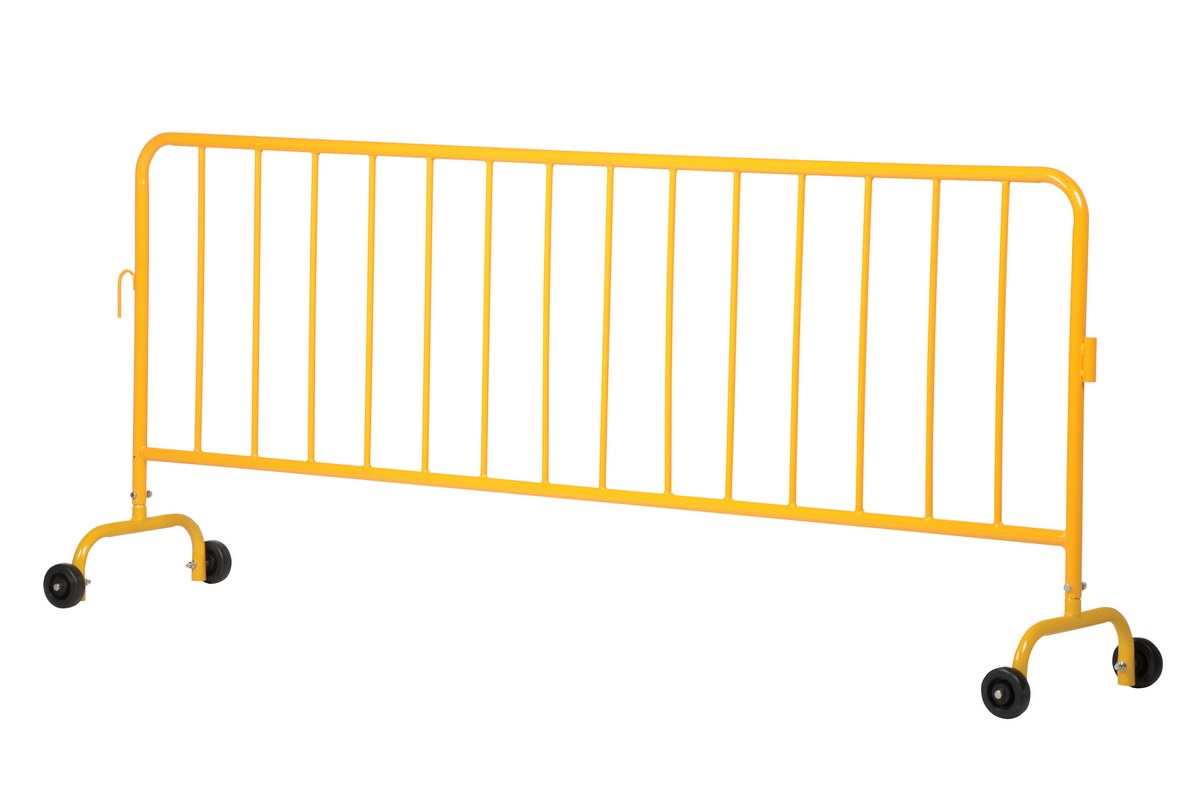

PRAIL-102-HD-Y-WW icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20"x41-1/4" Both Wheels 1-5/8" 105

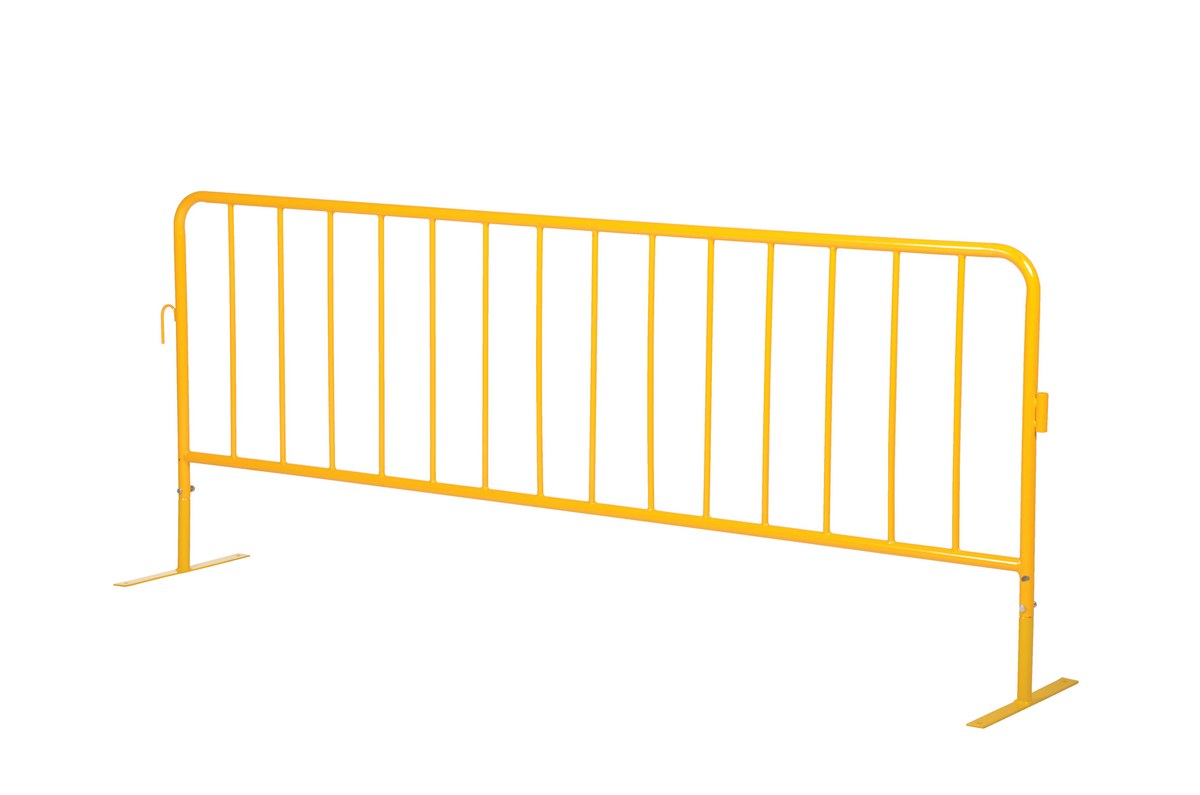

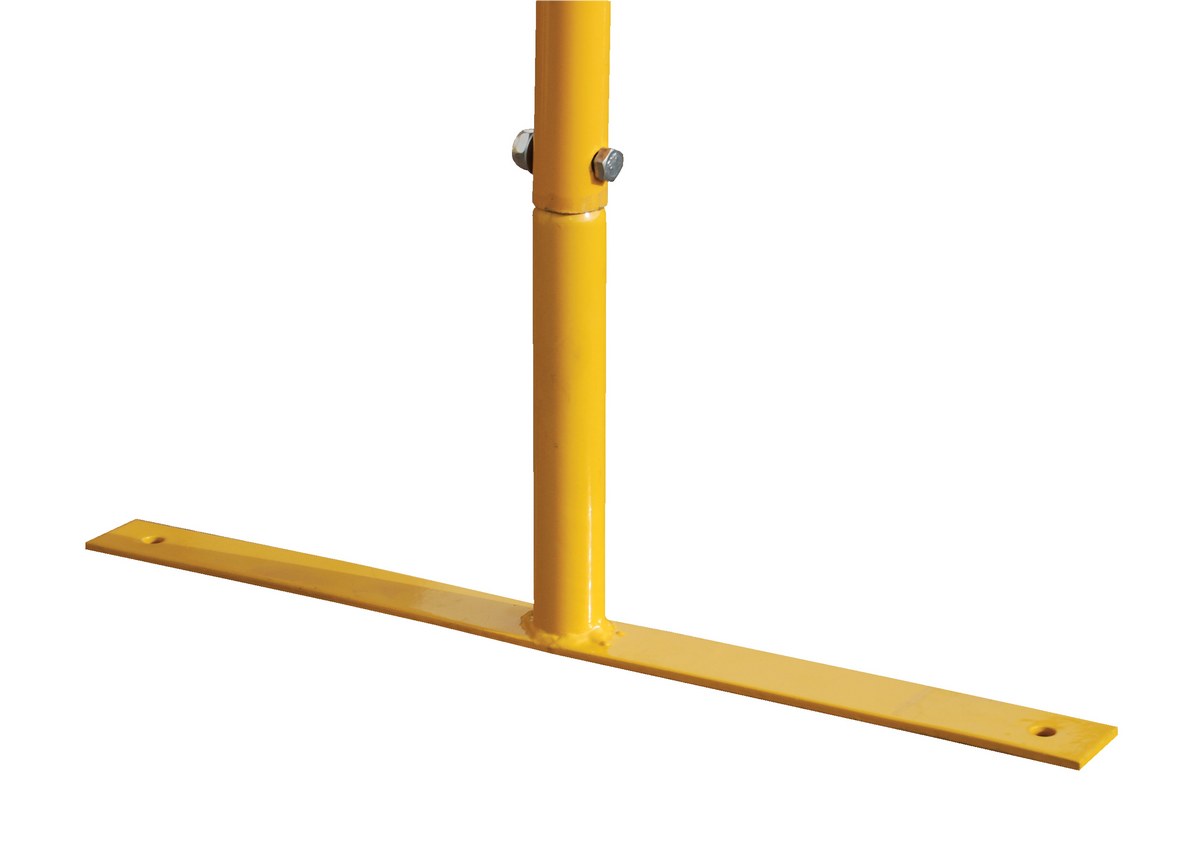

PRAIL-102-HD-Y-FF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-1/8"x40-11/16" Both Flat 1-5/8" 105
PRAIL-102-HD-Y-WF icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20-1/8"x41-1/4" (1) Wheel, (1) Flat 1-5/8" 105
PRAIL-102-HD-Y-W icon_approvaldrawings.jpgtilt_m4.jpg 101-3/4"x20"x41-1/4" (1) Wheel, (1) Curved 1-5/8" 105
Stainless Steel Type 304 Finish
PRAIL-102-SS icon_approvaldrawings.jpgtilt_m4.jpg 104-1/4"x20-1/8"x39" Both Curved 1-1/4" 85
PRAIL-102-HD-SS icon_approvaldrawings.jpgtilt_m4.jpg 101-3/8"x21-1/2"x40-1/2" Both Curved 1-5/8" 105

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)

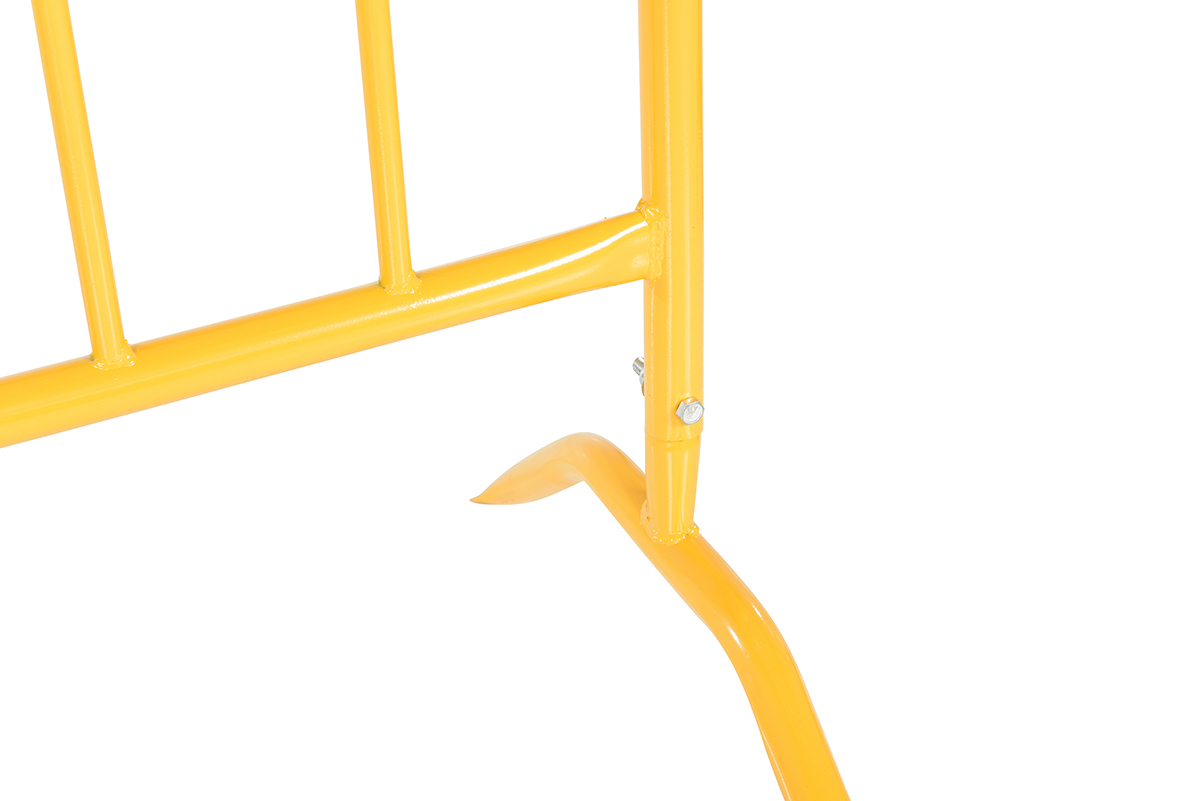

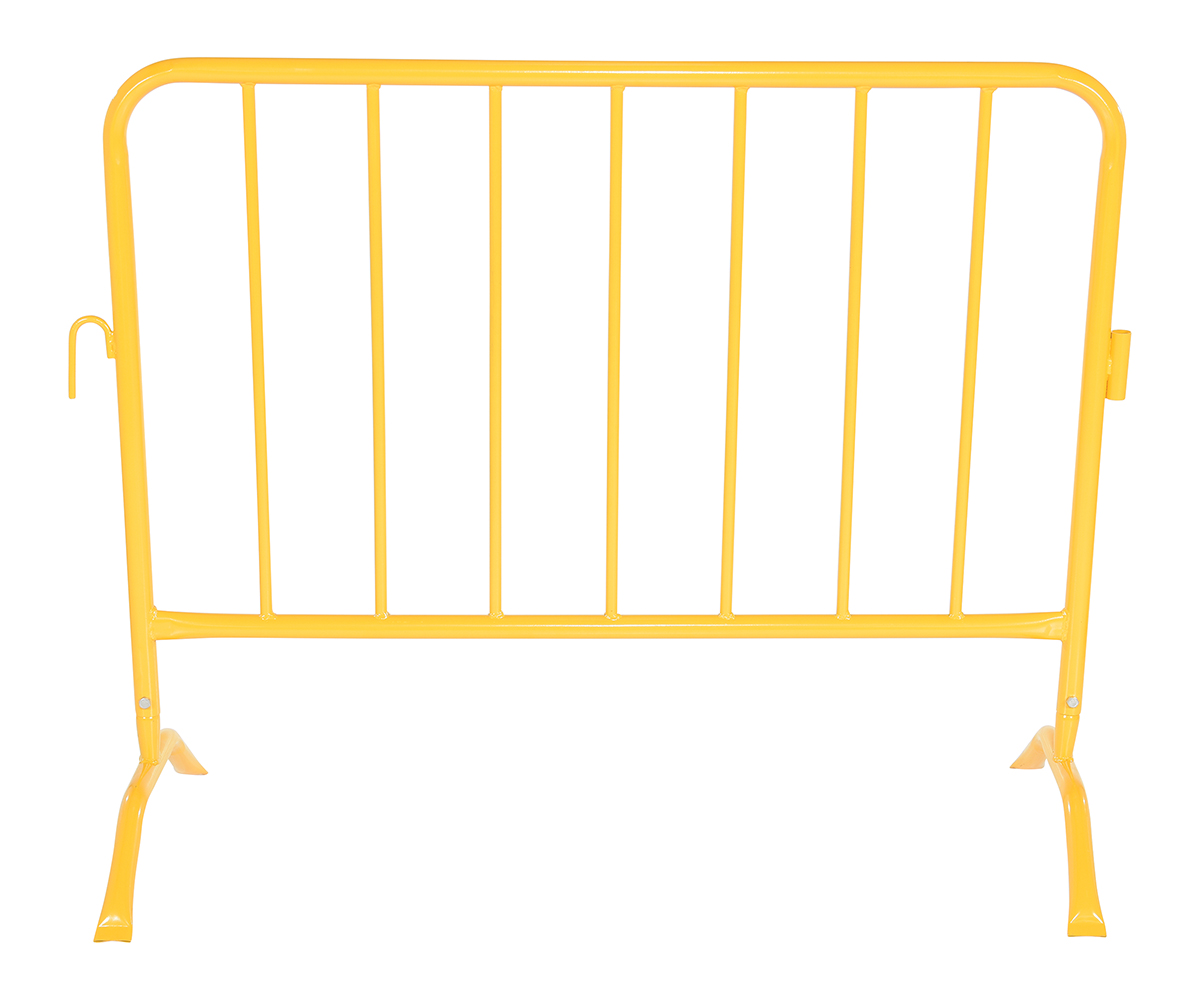

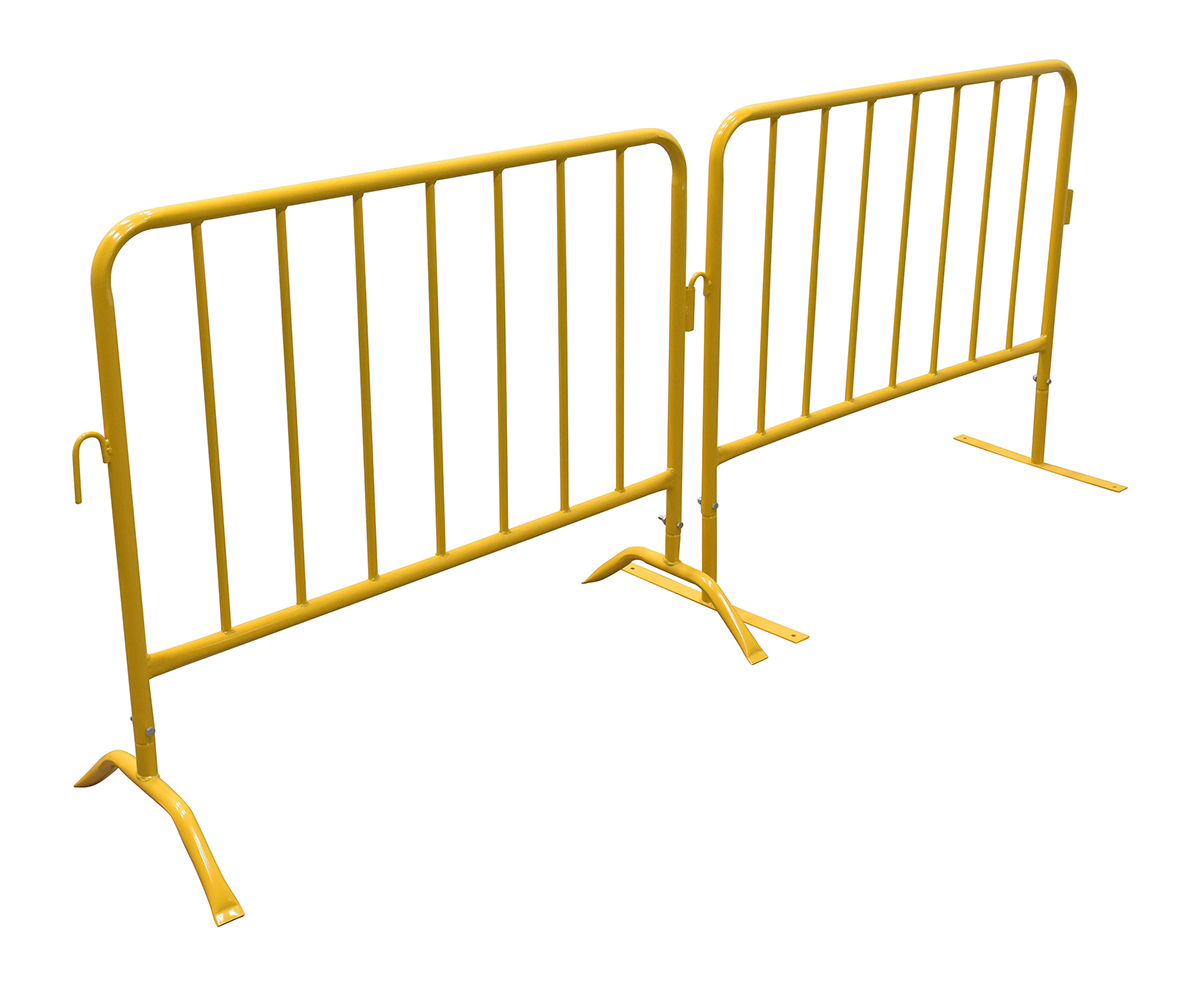

PRAIL-48-Y 30 Days Limited WarrantyYELLOW BARRIER 48" W/CURVED FEET: 39

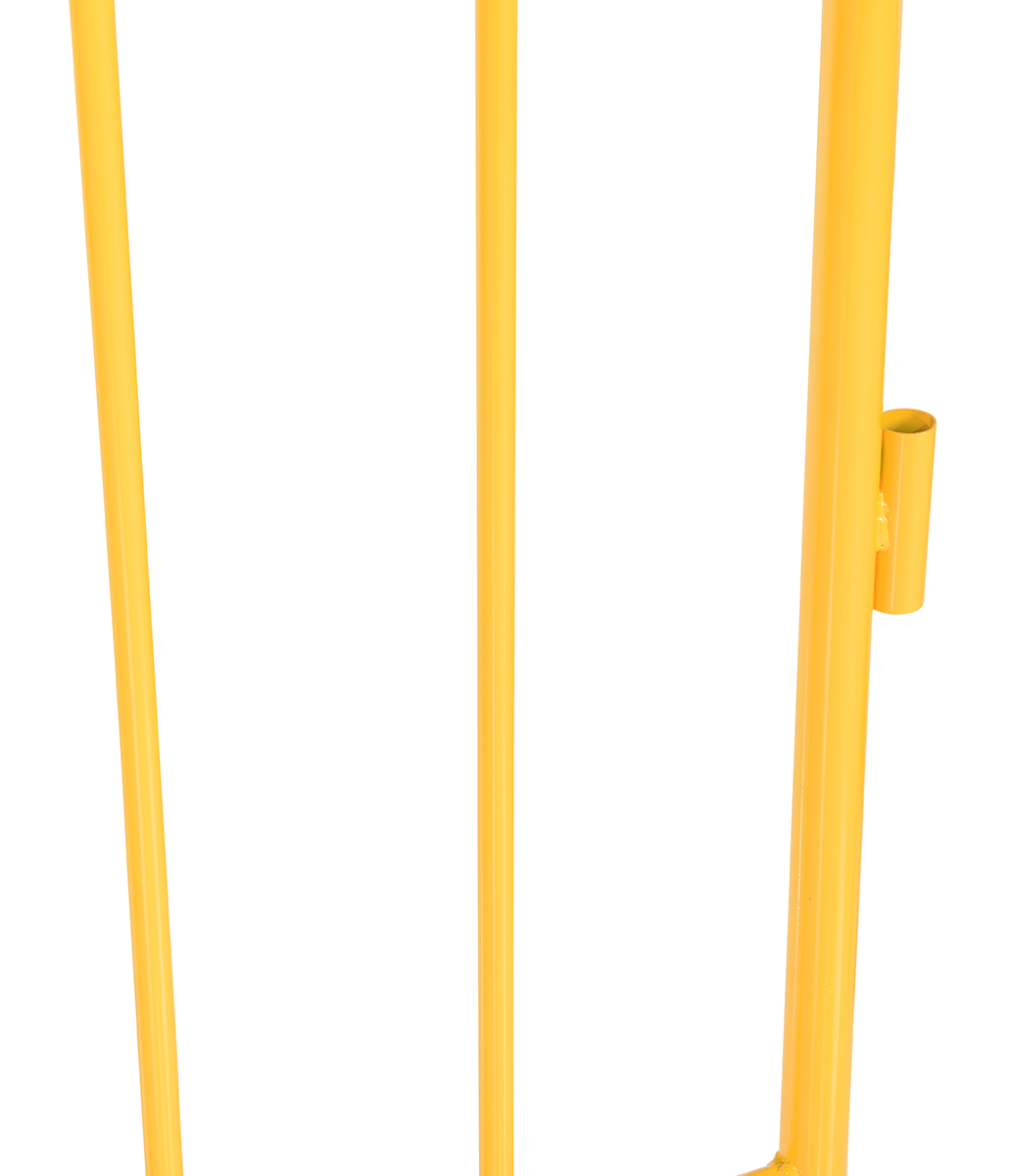

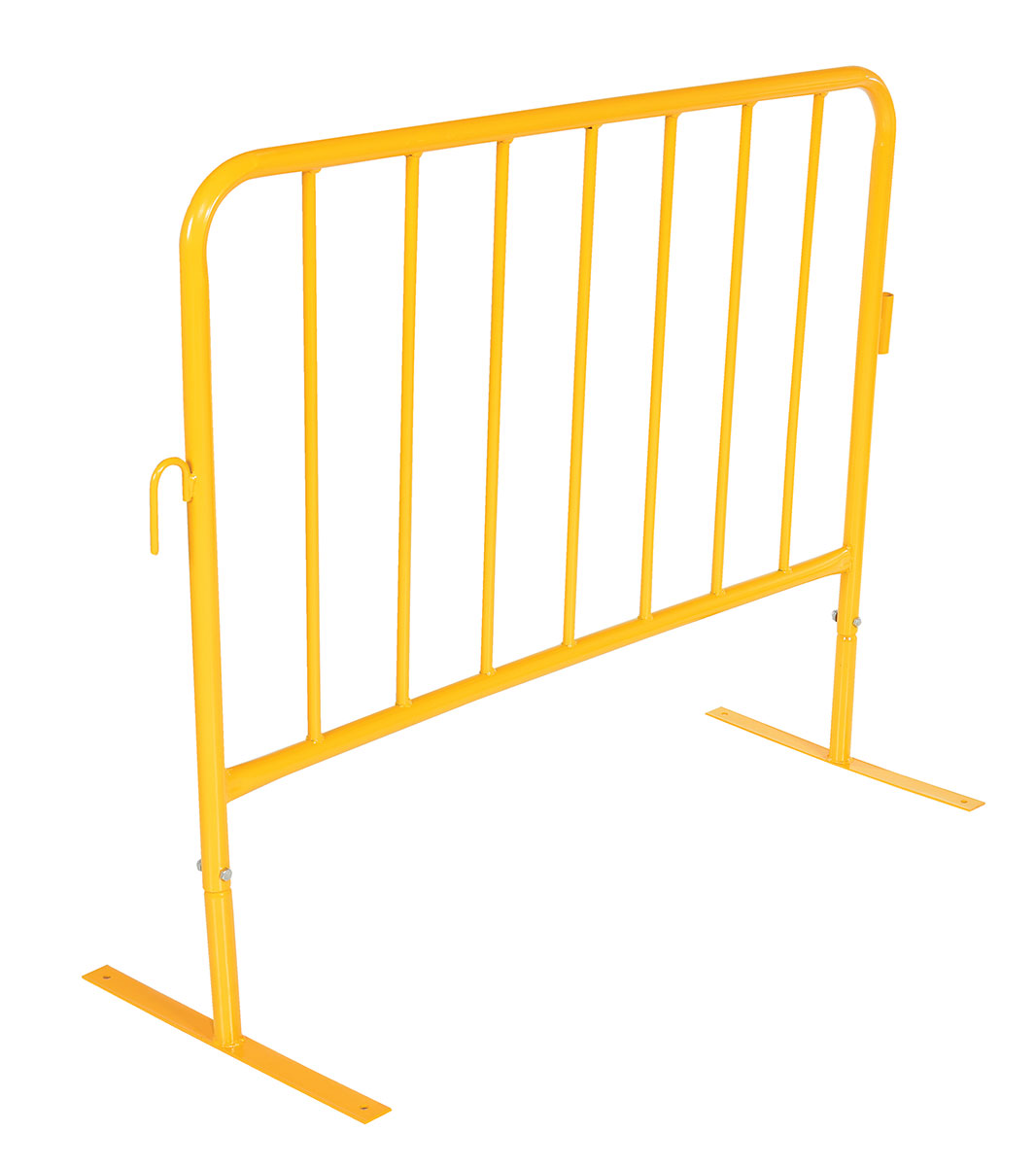

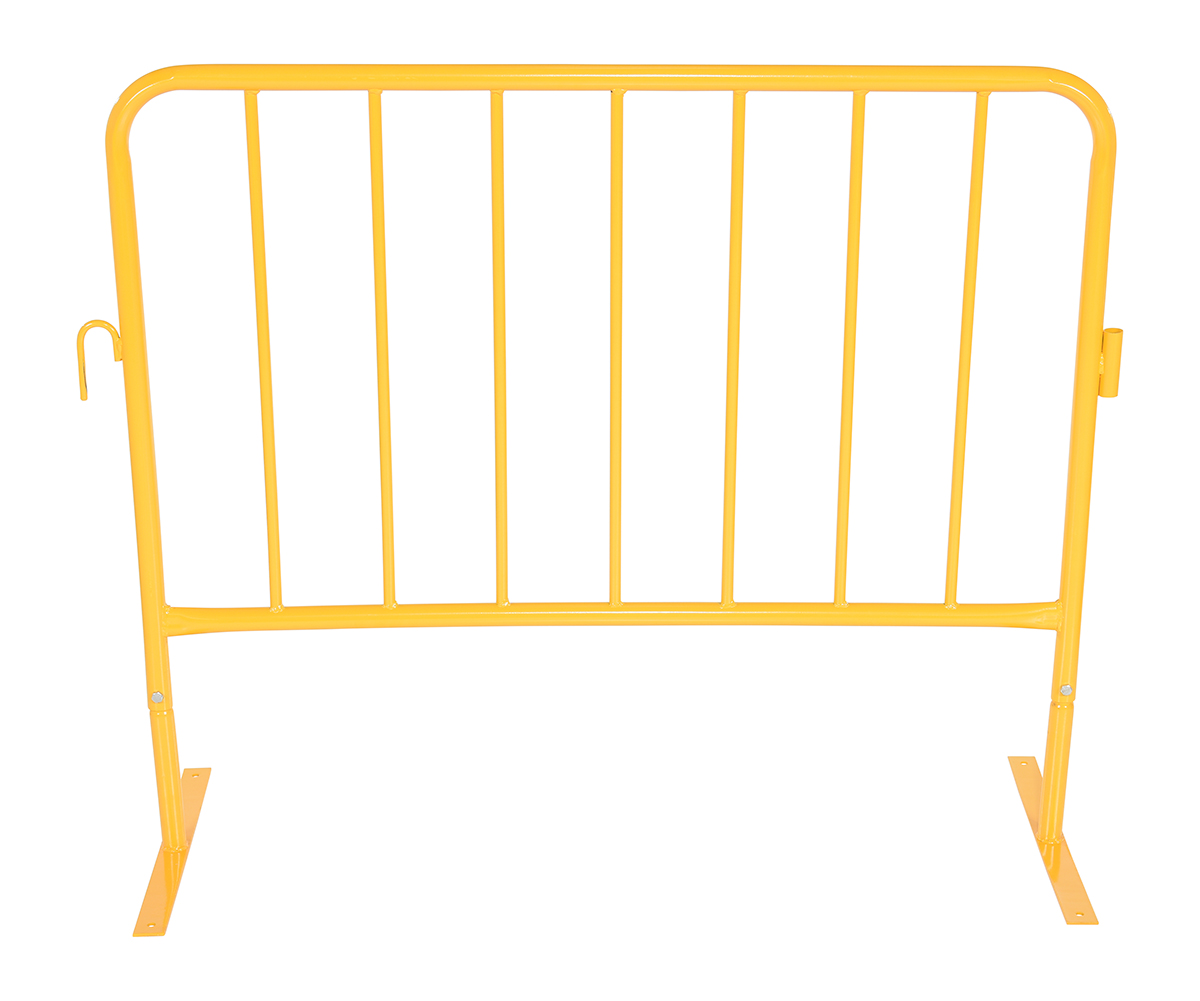

PRAIL-48-Y-FF 90 Days Limited WarrantyYELLOW BARRIER 48" W/FLAT FEET: 38

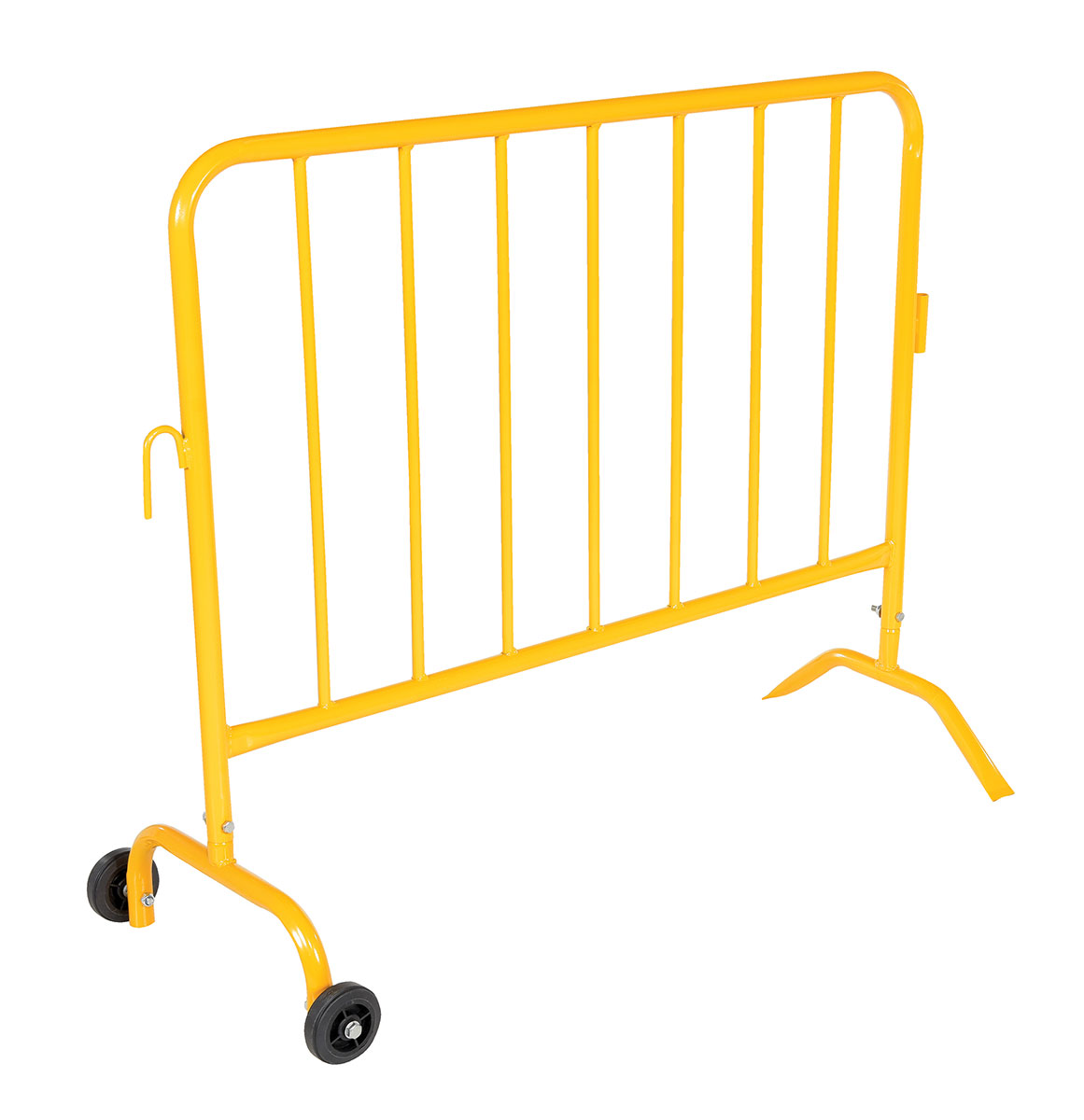

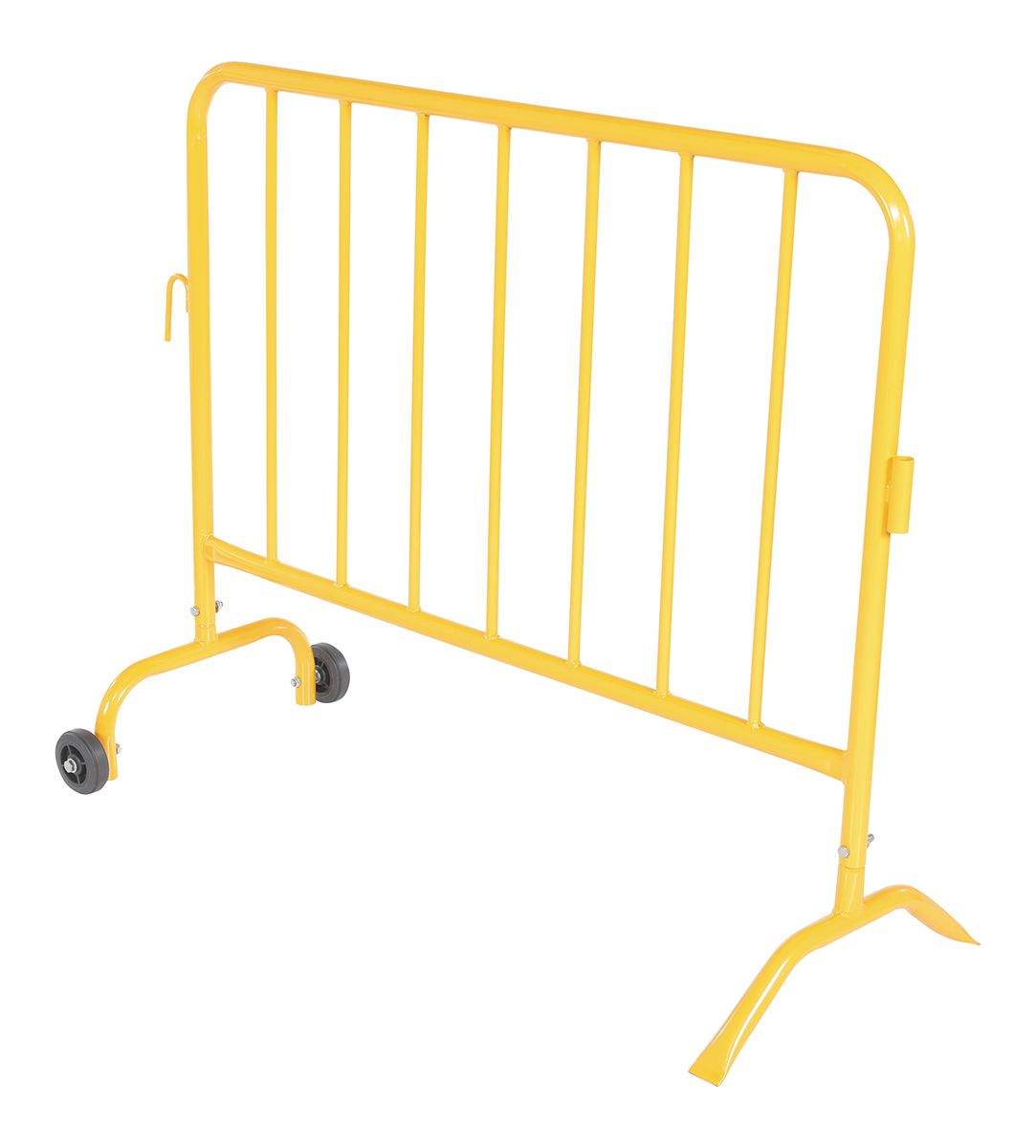

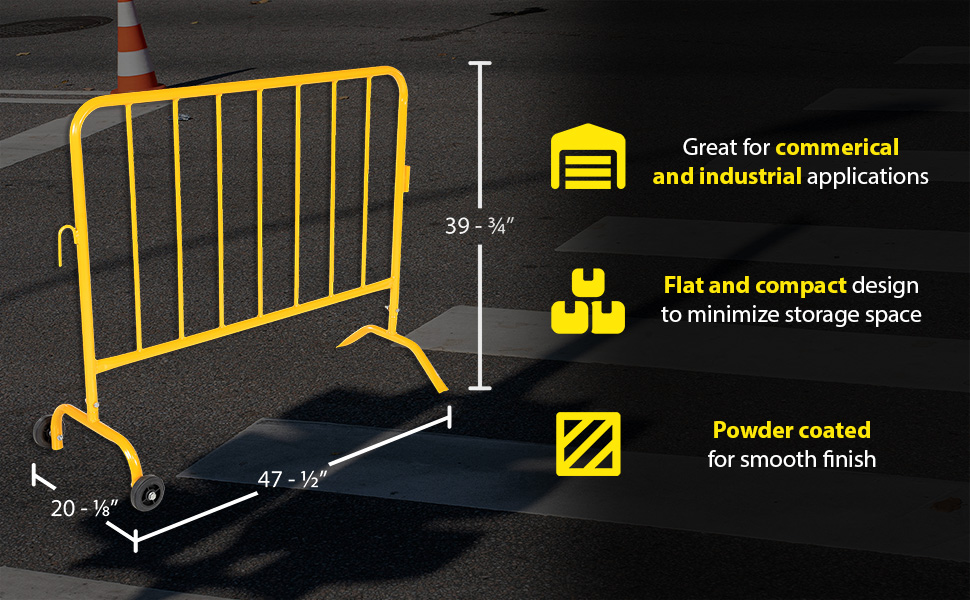

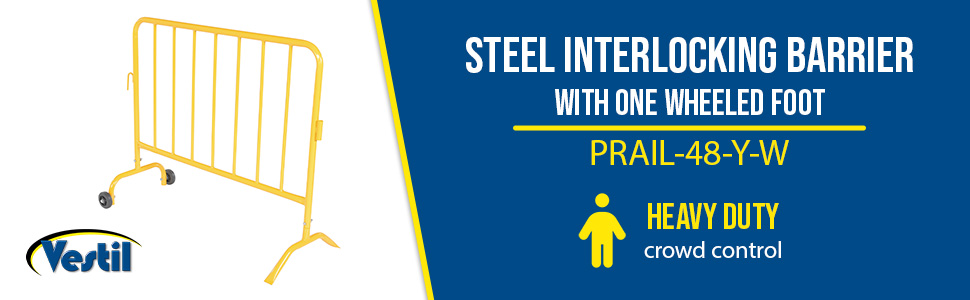

PRAIL-48-Y-W 90 Days Limited WarrantyYELLOW BARRIER 48" W/FEET (1)CURVED (1) WHEELEDCasters: (2) Rigid 3-3/4"x1-1/4"38

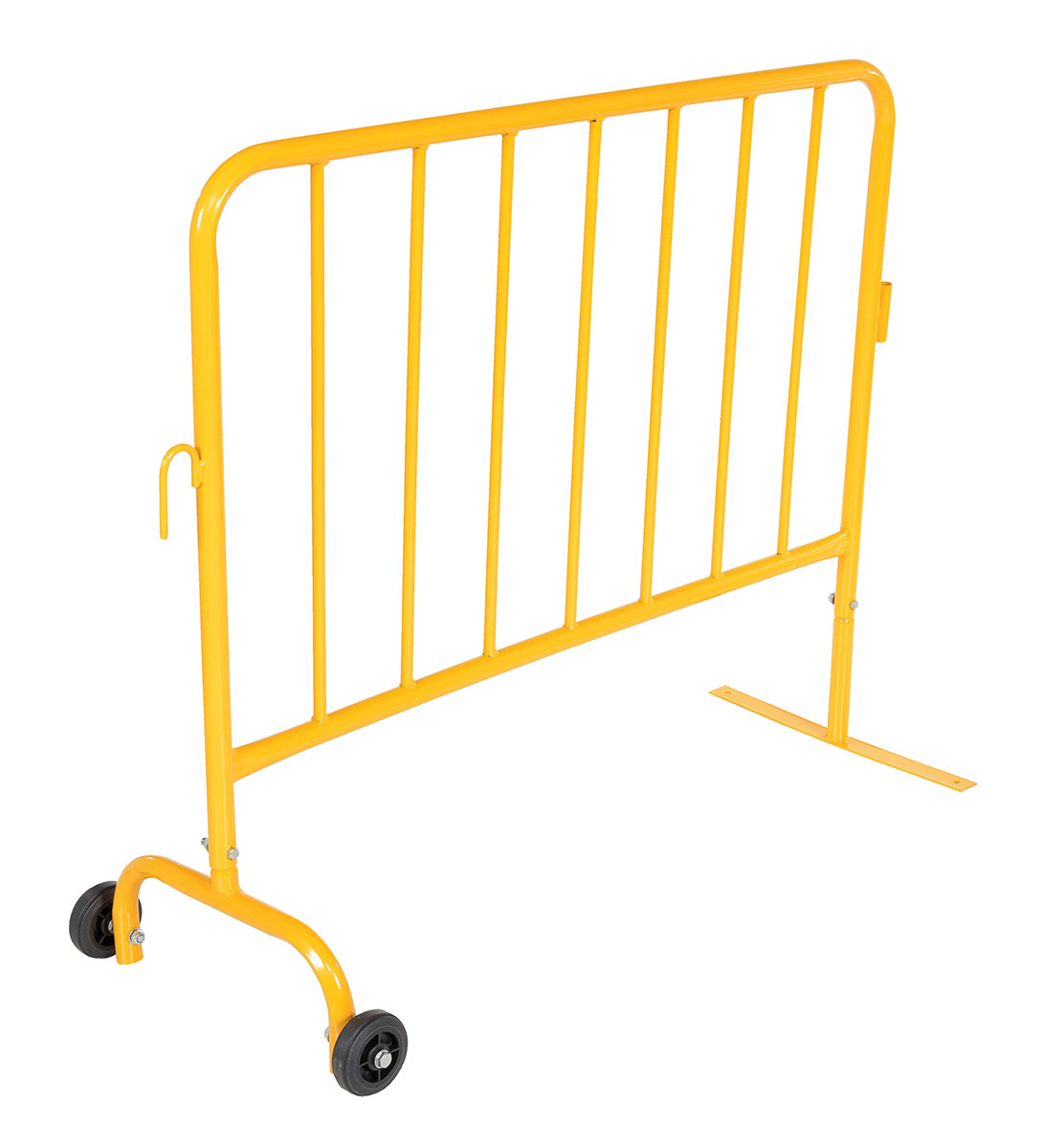

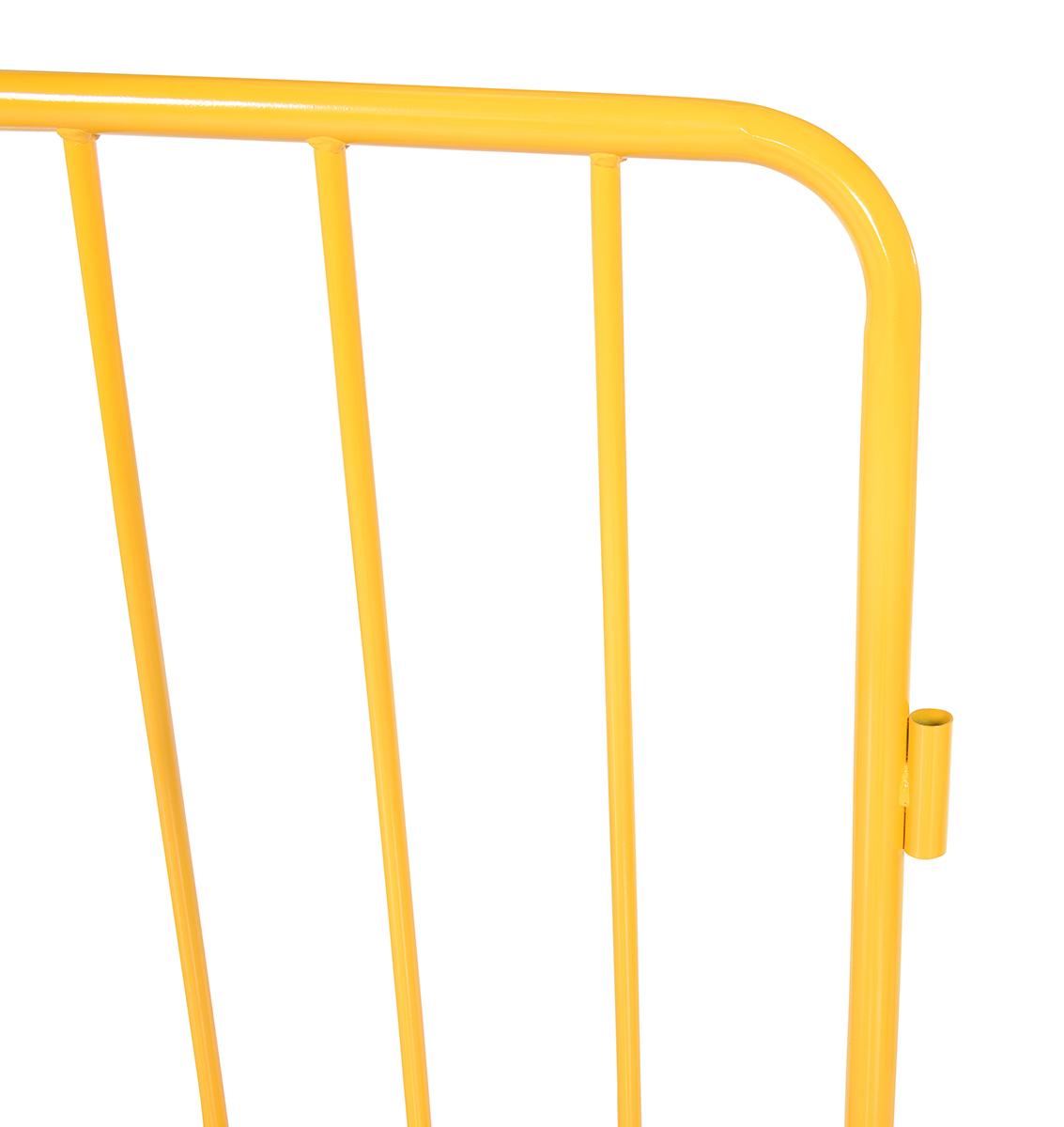

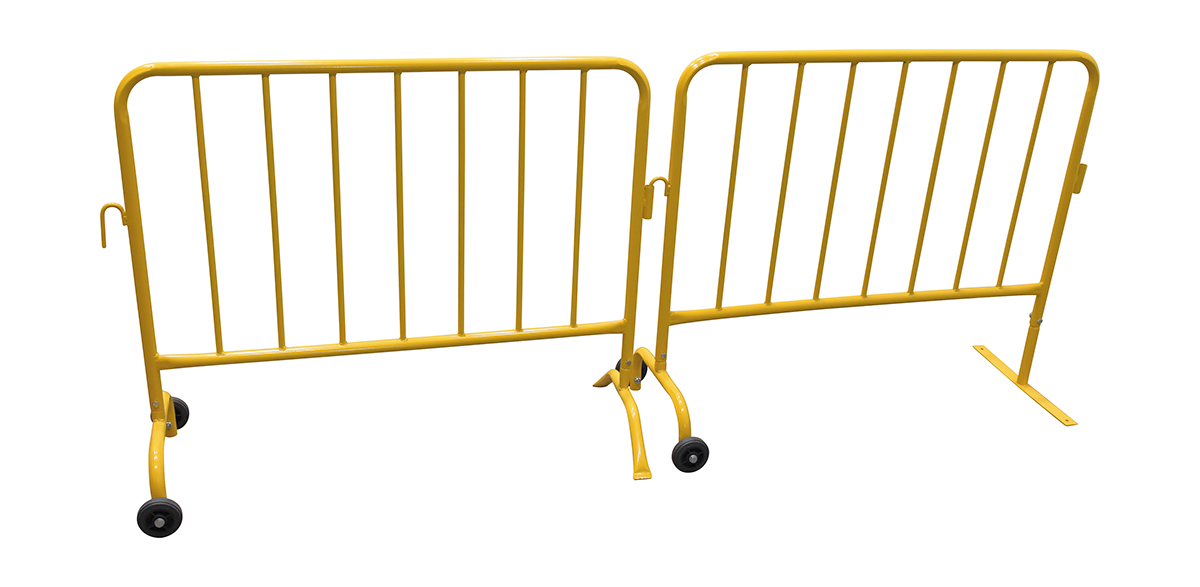

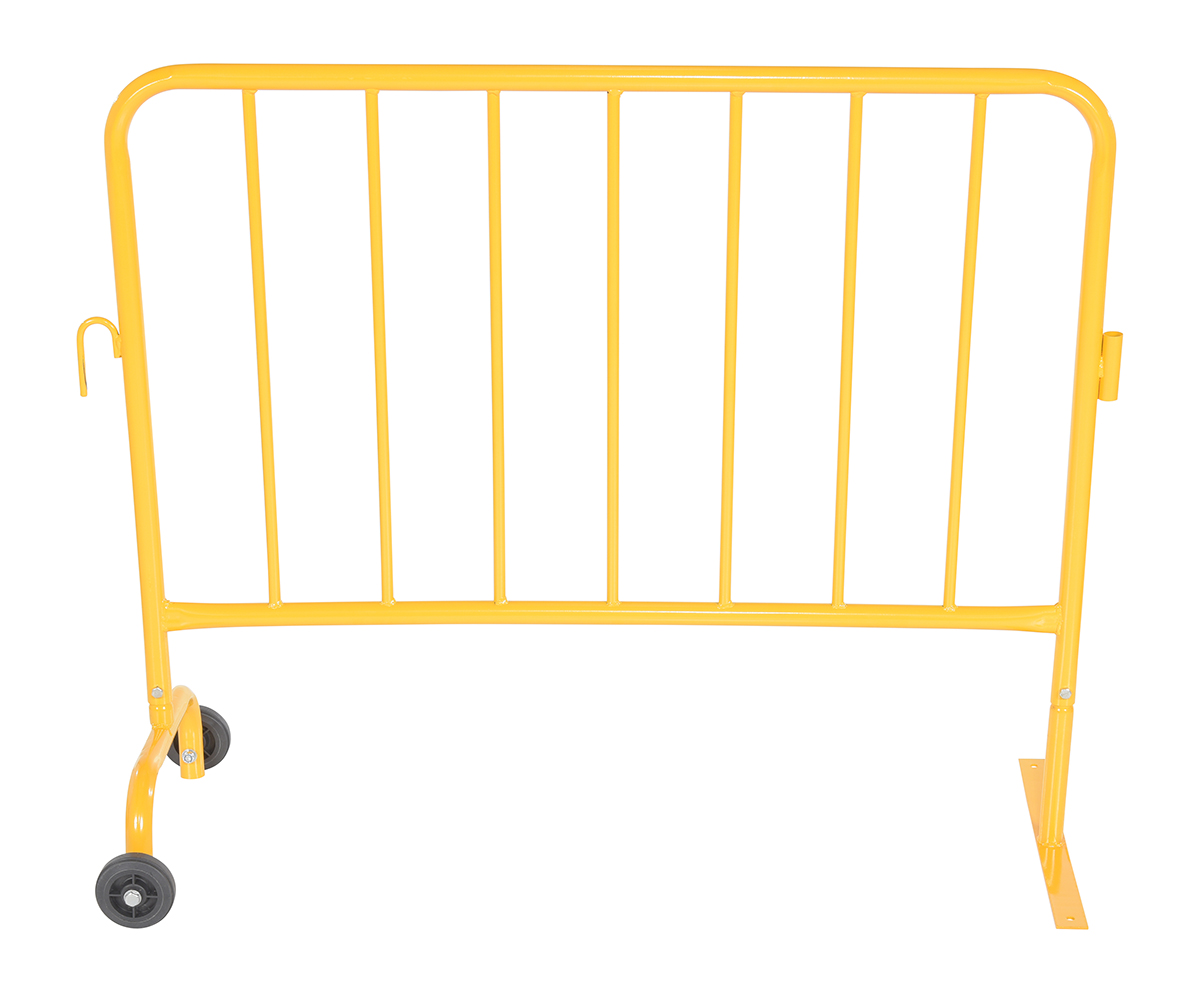

PRAIL-48-Y-WF 90 Days Limited WarrantyYELLOW BARRIER 48" W/FEET (1)FLAT (1) WHEELEDCasters: (2) Rigid 3-3/4"x1-1/4"38

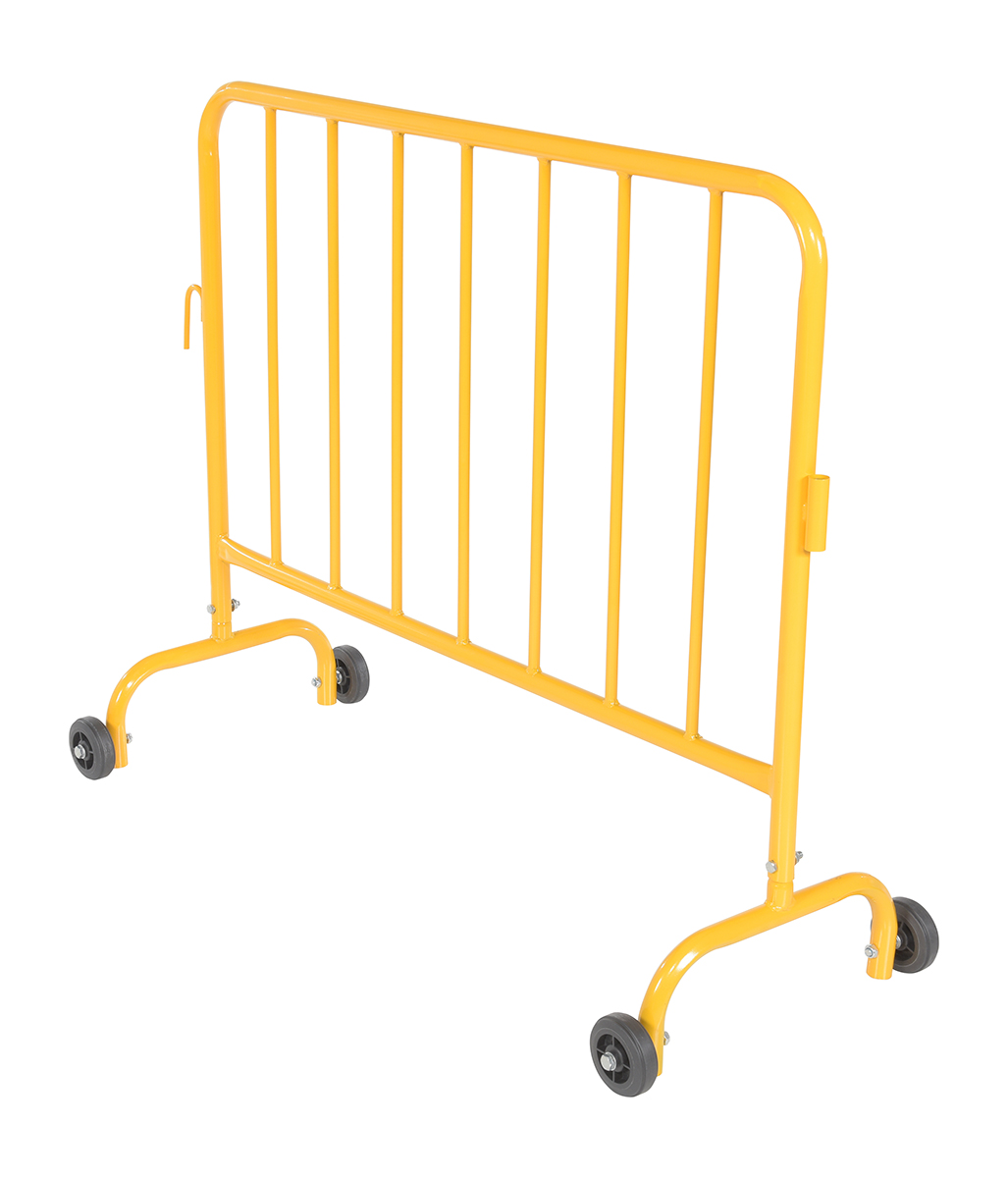

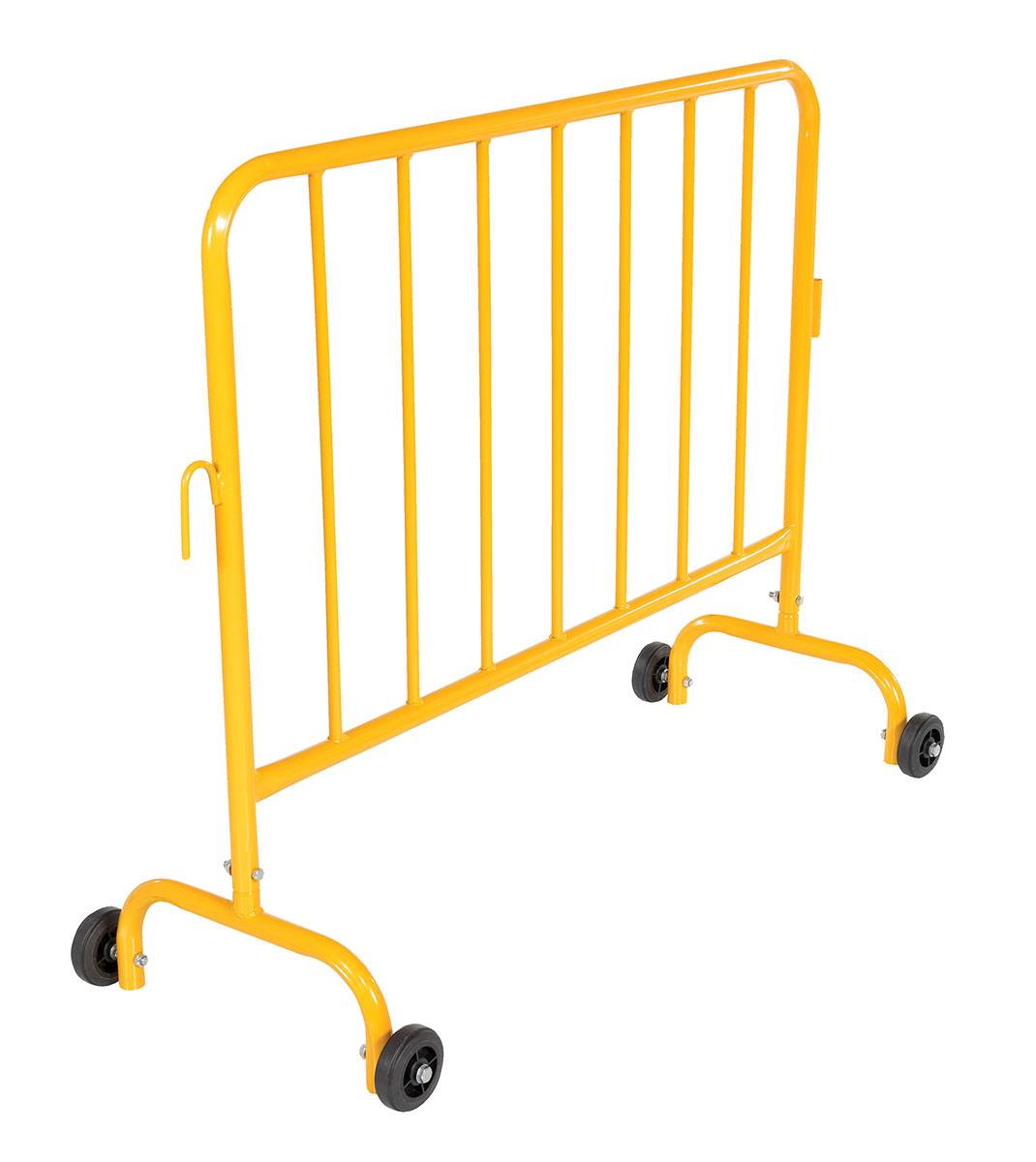

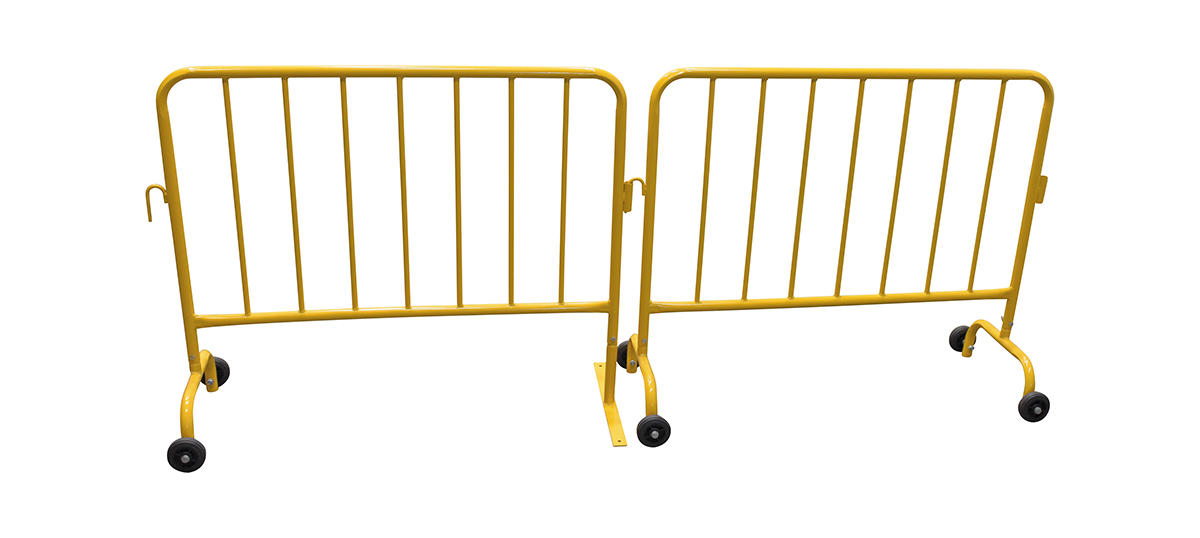

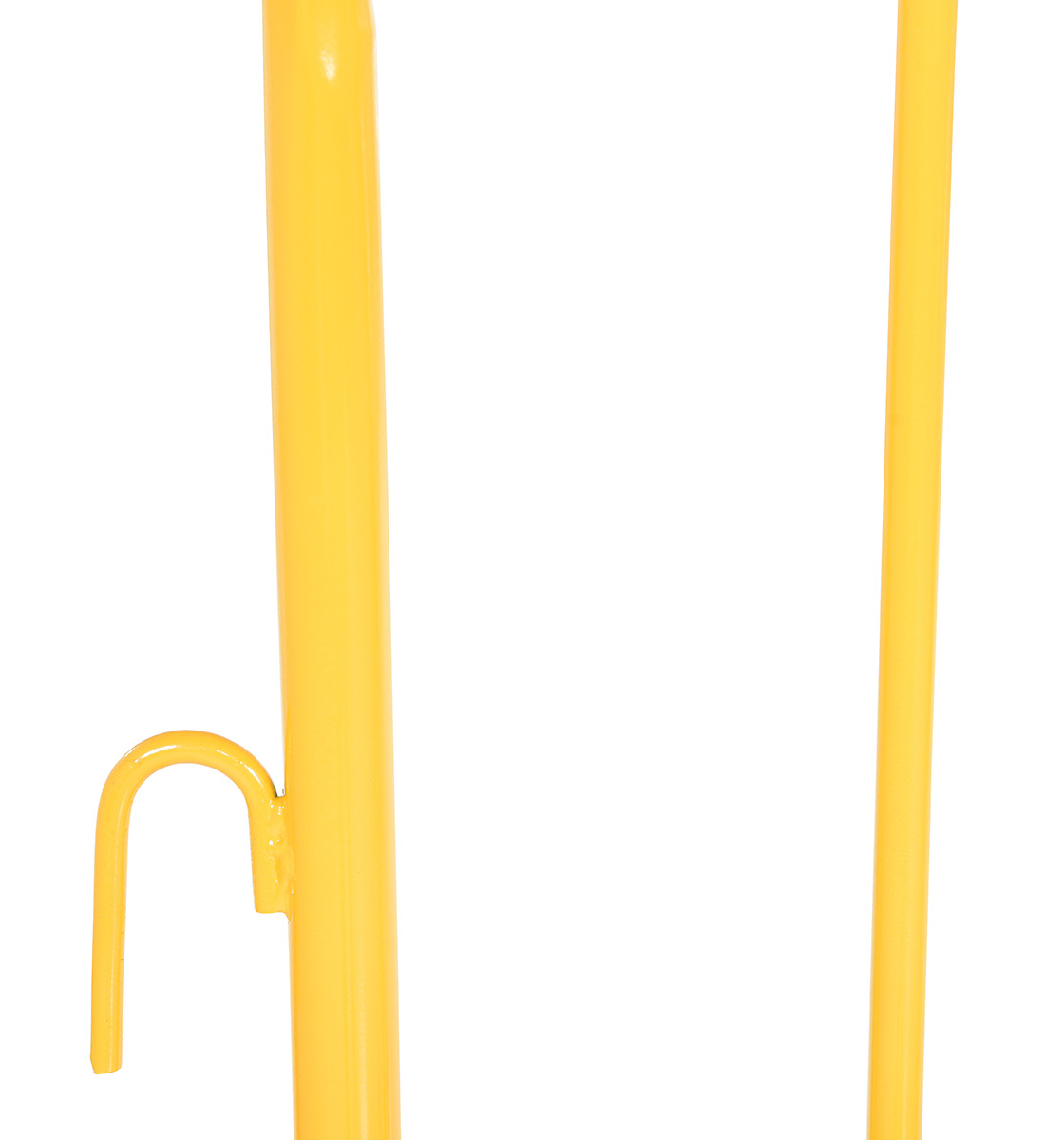

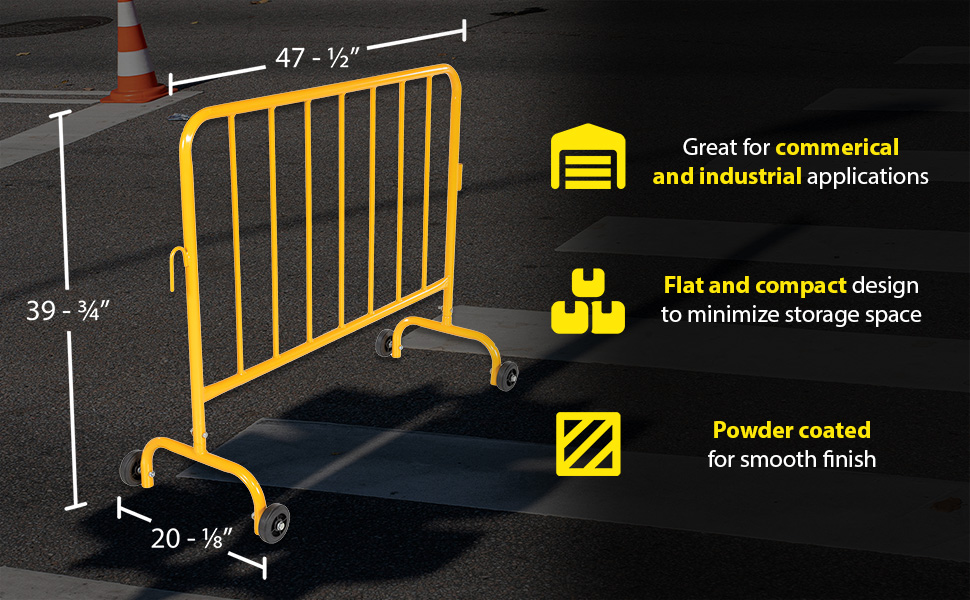

PRAIL-48-Y-WW 90 Days Limited WarrantyYELLOW BARRIER 48" W/WHEELED FEETCasters: (4) Rigid 3-3/4"x1-1/4"38

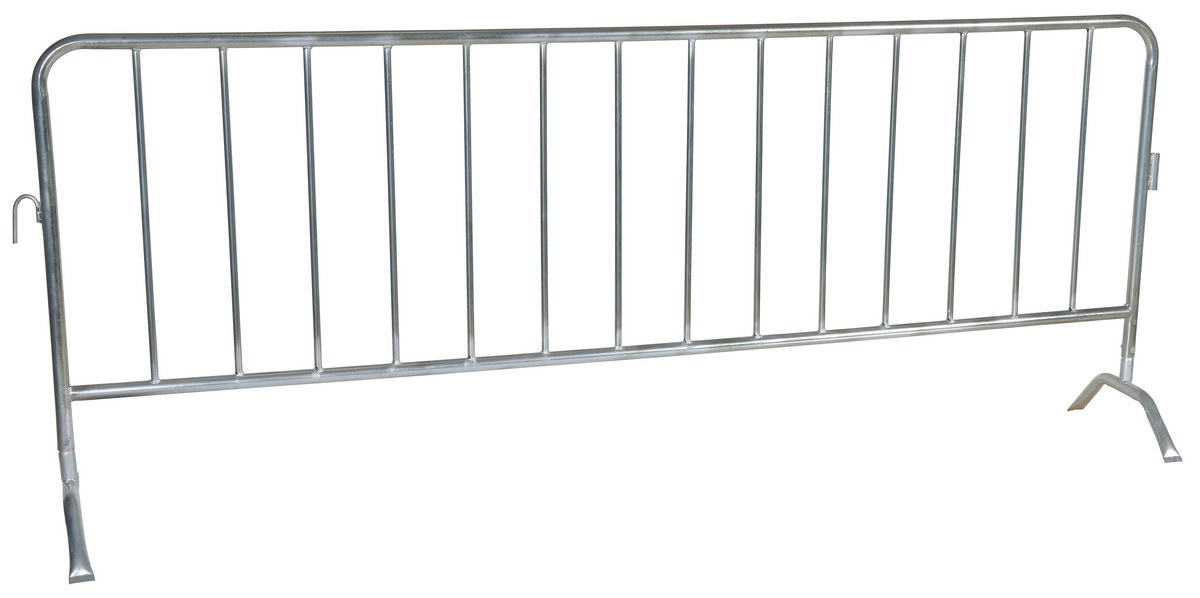

PRAIL-102-G download.gif30 Days Limited WarrantyGALVANIZED BARRIER W/CURVED FEETVertical Bar Spacing (in.): 5-7/885

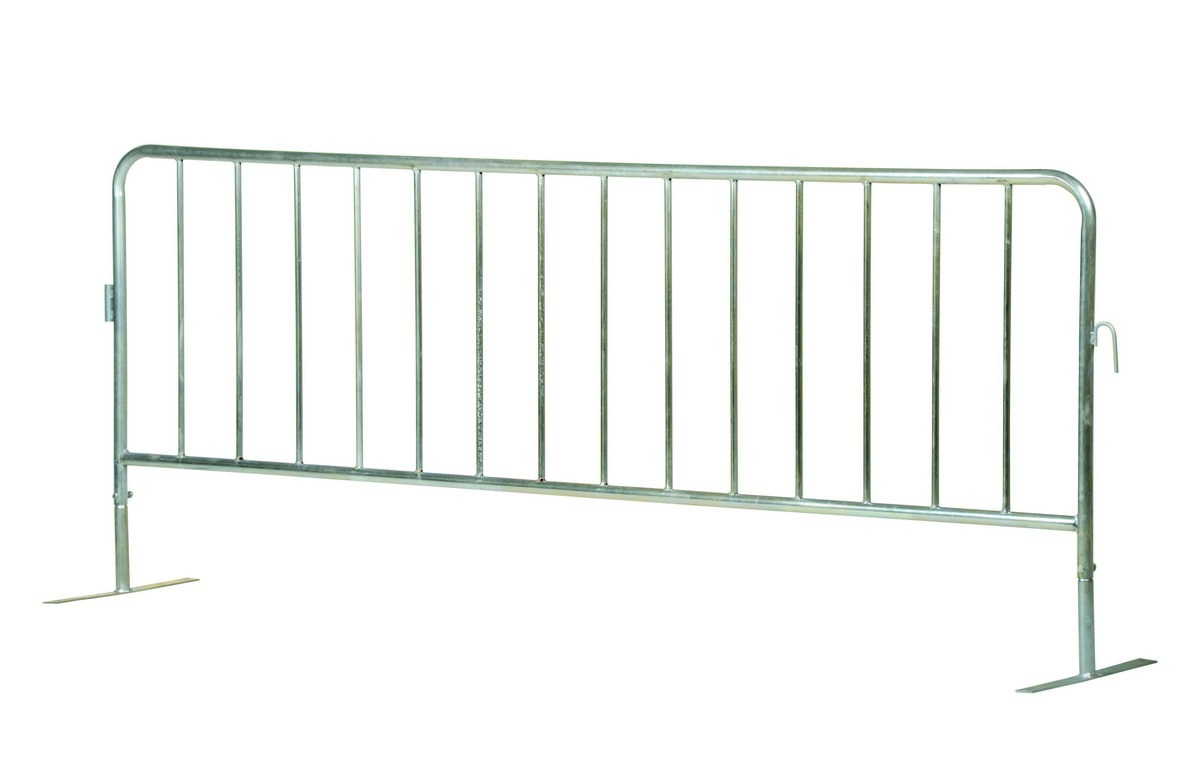

PRAIL-102-G-FF download.gif30 Days Limited WarrantyGALVANIZED BARRIER W/FLAT FEETVertical Bar Spacing (in.): 5-7/885
PRAIL-102-G-W download.gif30 Days Limited WarrantyGALVANIZED BARRIER W/1 WHEEL, 1 CURVEDVertical Bar Spacing (in.): 5-7/885

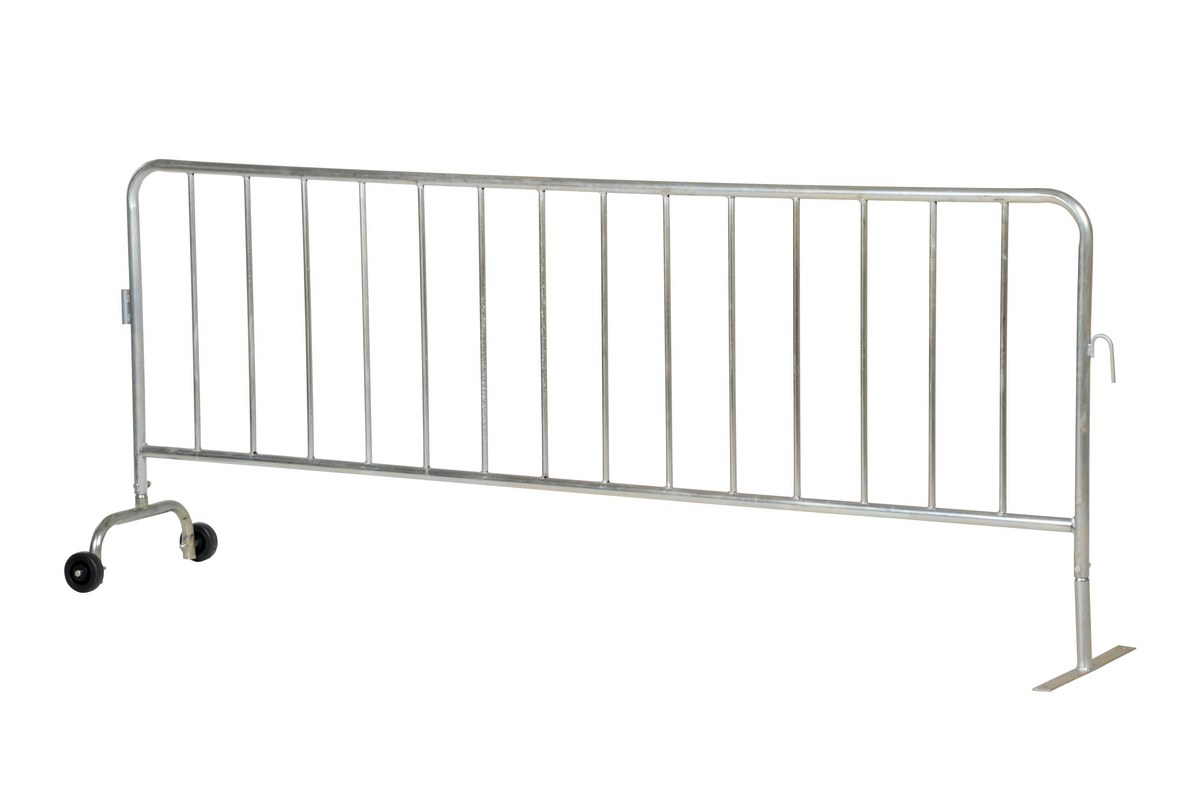

PRAIL-102-G-WF download.gif30 Days Limited WarrantyGALVANIZED BARRIER W/1 WHEEL, 1 FLATVertical Bar Spacing (in.): 5-7/885
PRAIL-102-G-WW download.gif30 Days Limited WarrantyGALVANIZED BARRIER W/2 WHEELSVertical Bar Spacing (in.): 5-7/885

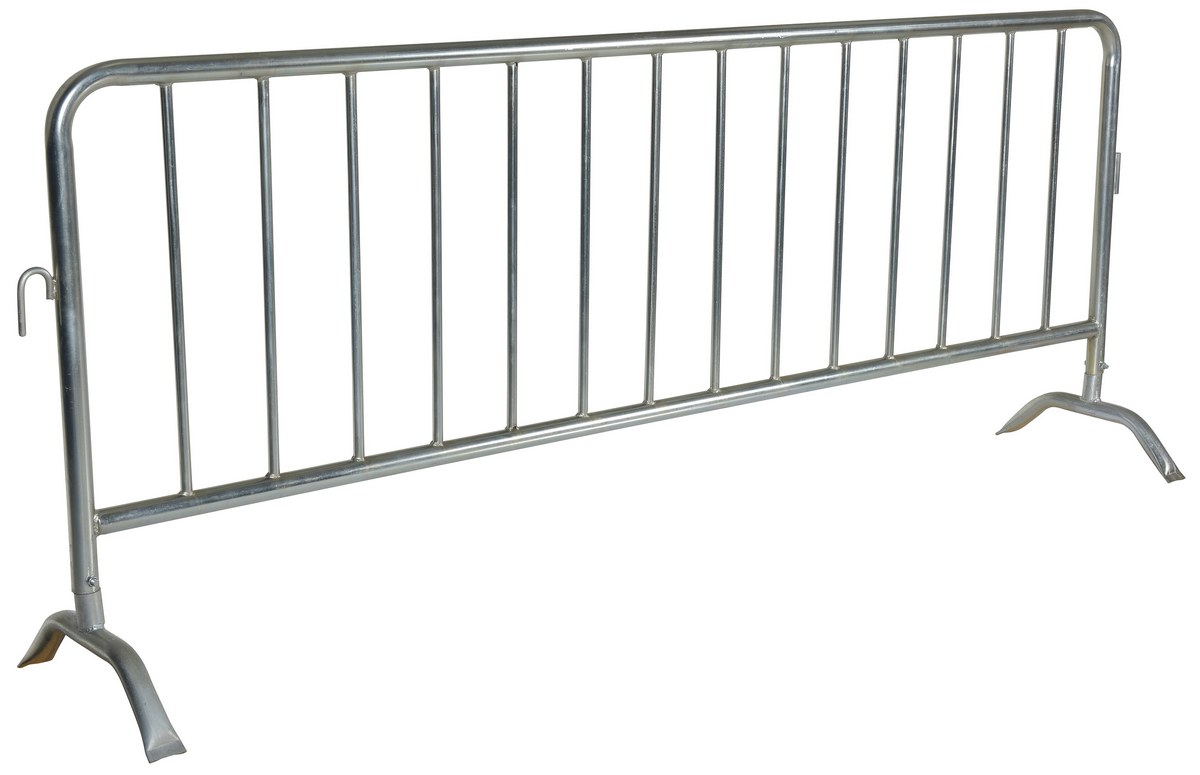

PRAIL-102-HD-G download.gif30 Days Limited WarrantyHD GALVANIZED BARRIER W/CURVED FEETVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-HD-G-FF download.gif30 Days Limited WarrantyHD GALVANIZED BARRIER W/FLAT FEETVertical Bar Spacing (in.): 5-3/4105

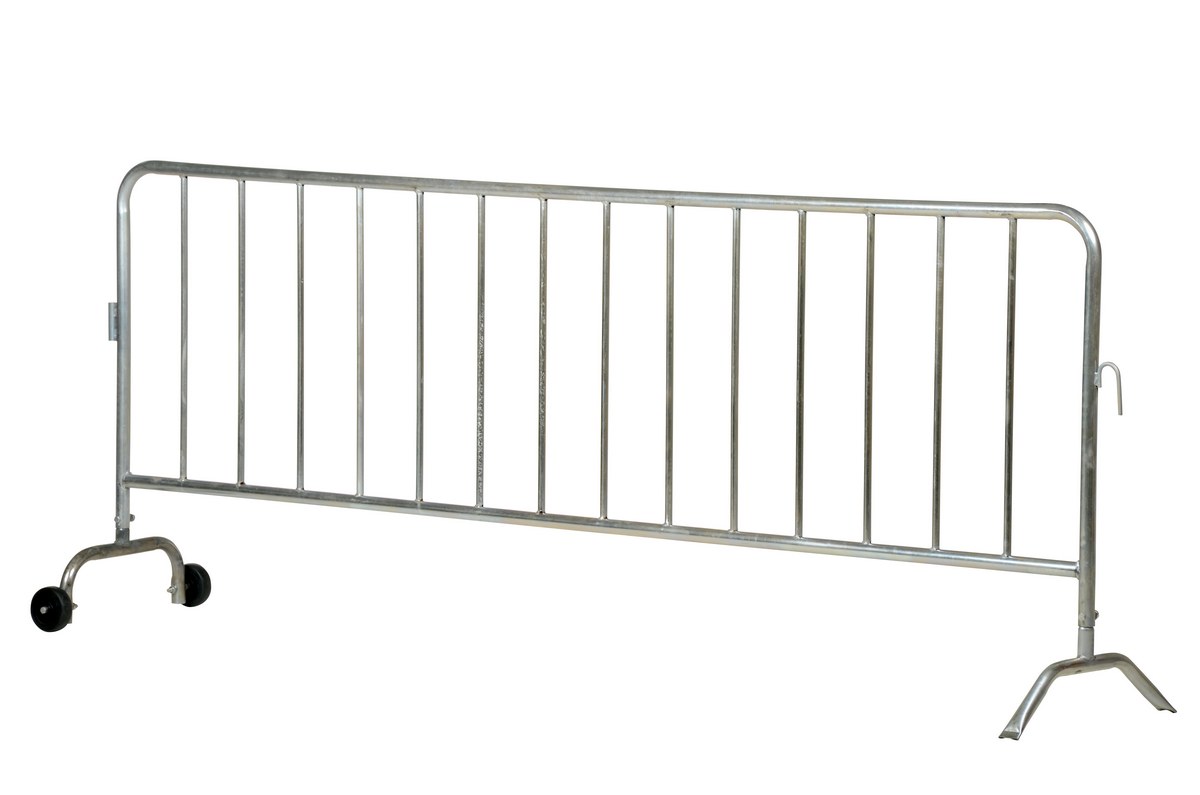

PRAIL-102-HD-G-W download.gif30 Days Limited WarrantyHD GALVANIZED BARRIER W/1 WHEEL-1 CURVEDVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-HD-G-WF download.gif30 Days Limited WarrantyHD GALVANIZED BARRIER W/1 WHEEL, 1 FLATVertical Bar Spacing (in.): 5-3/4105

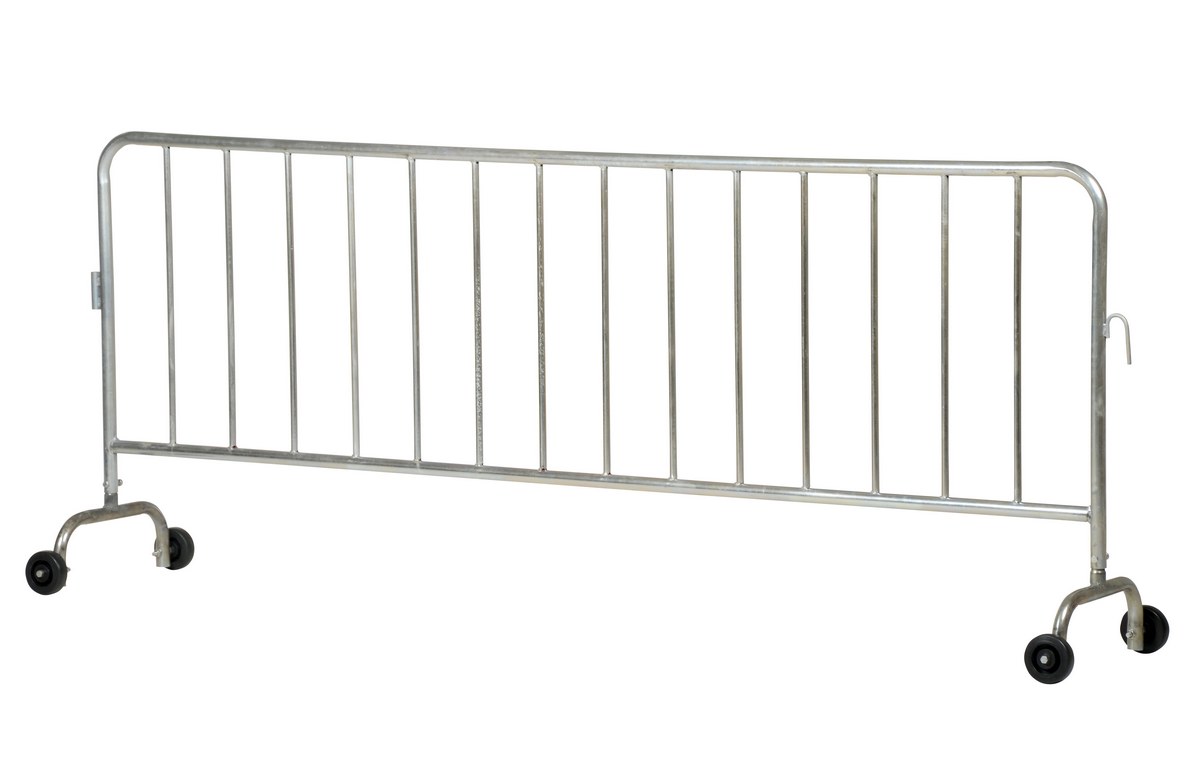

PRAIL-102-HD-G-WW download.gif30 Days Limited WarrantyHD GALVANIZED BARRIER W/2 WHEELSVertical Bar Spacing (in.): 5-3/4105

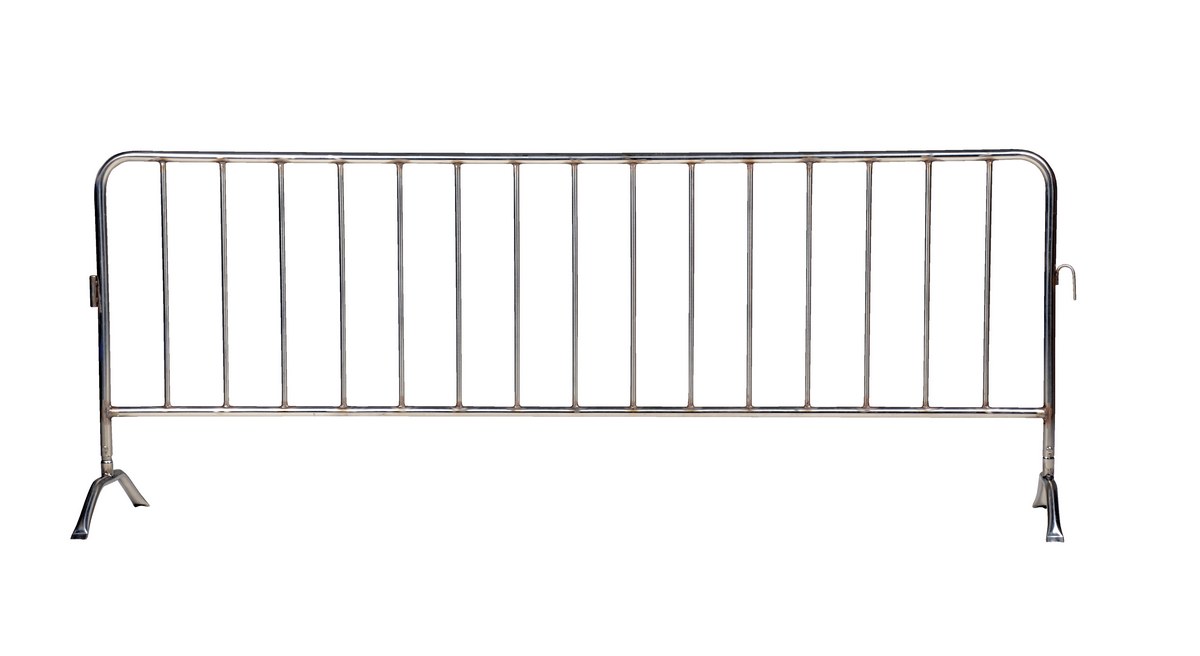

PRAIL-102-HD-SS download.gif30 Days Limited WarrantyHD SS BARRIER W/CURVED FEET 1-5/8 INVertical Bar Spacing (in.): 5-3/4105

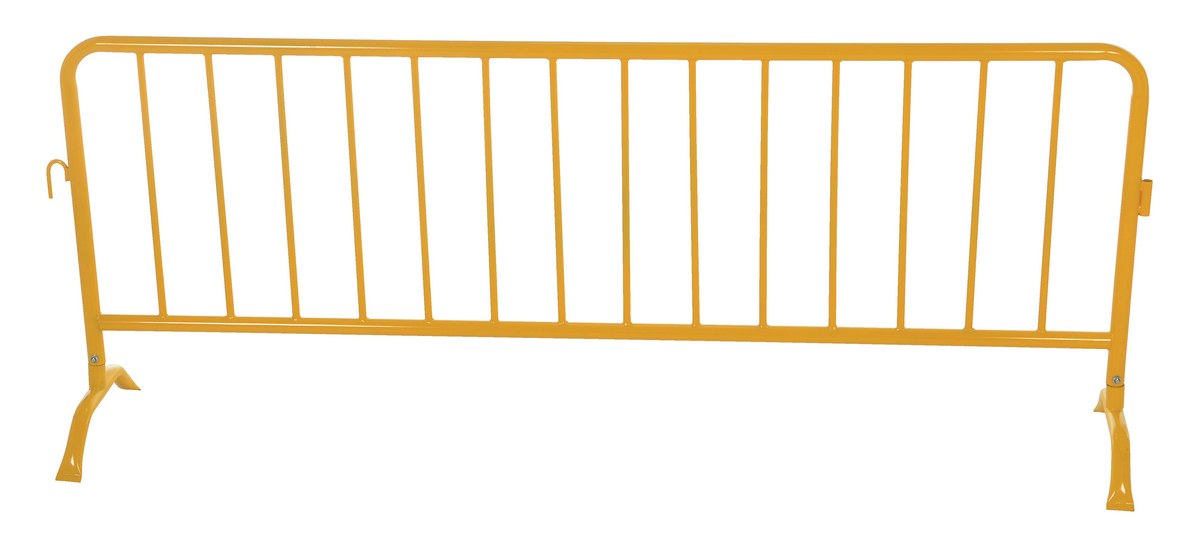

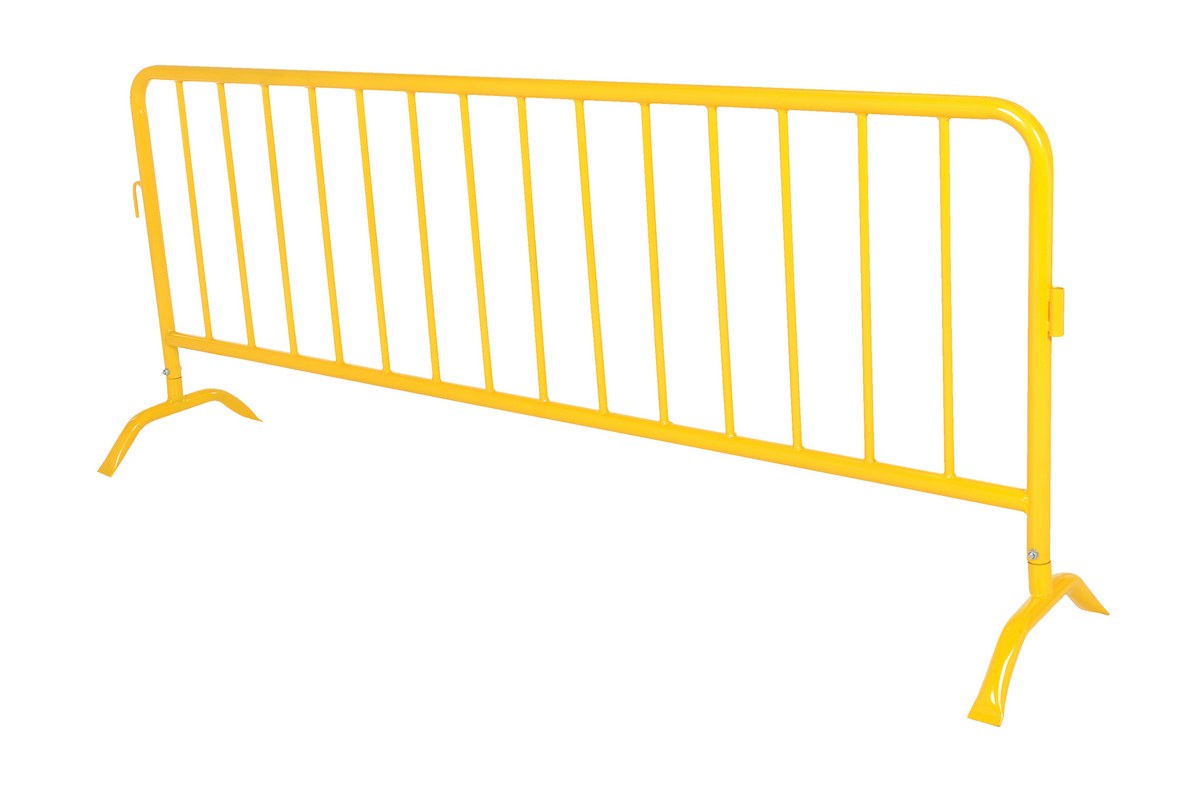

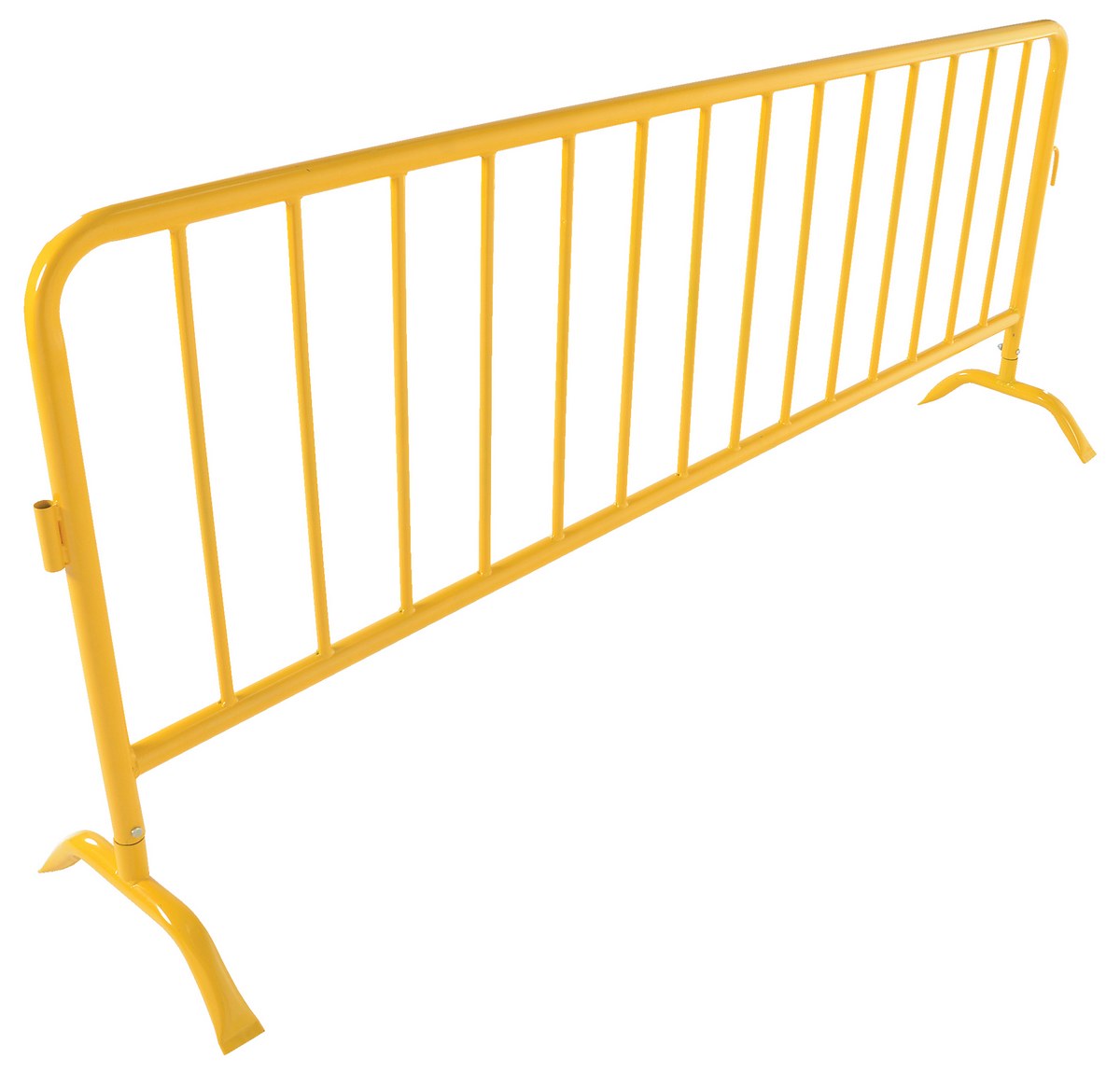

PRAIL-102-HD-Y download.gif30 Days Limited WarrantyHD YELLOW BARRIER W/CURVED FEETVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-HD-Y-FF download.gif30 Days Limited WarrantyHD YELLOW BARRIER W/FLAT FEETVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-HD-Y-W download.gif30 Days Limited WarrantyHD YELLOW BARRIER W/1 WHEEL, 1 CURVEDVertical Bar Spacing (in.): 5-3/4105

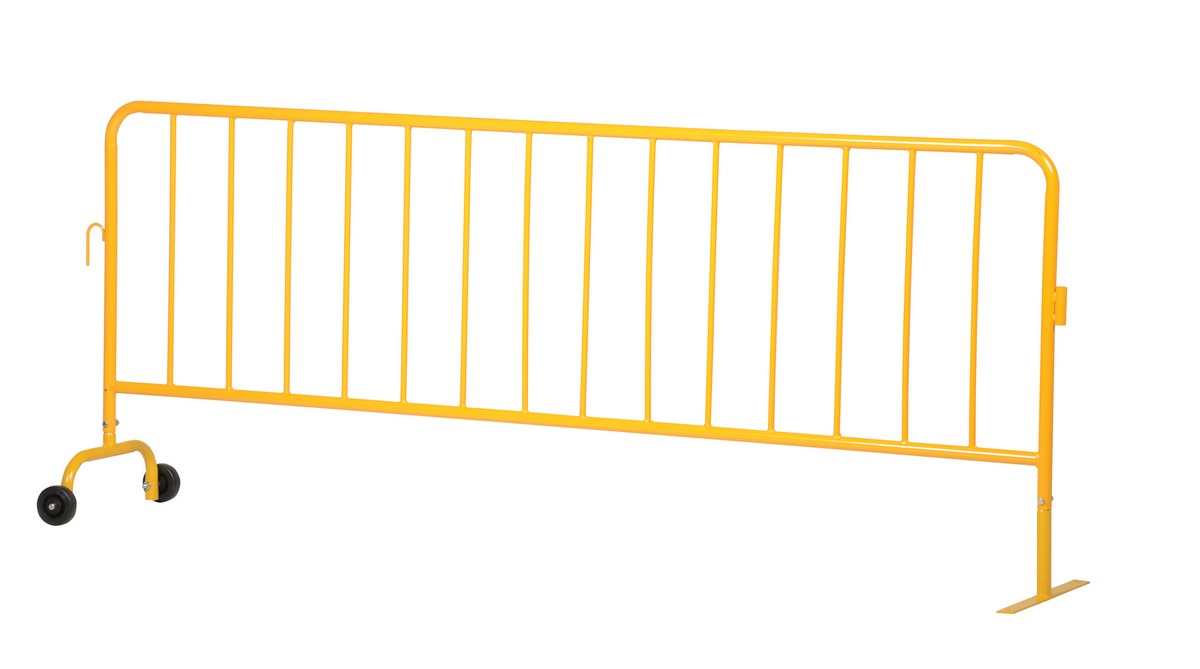

PRAIL-102-HD-Y-WF download.gif30 Days Limited WarrantyHD YELLOW BARRIER W/1 WHEEL, 1 FLATVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-HD-Y-WW download.gif30 Days Limited WarrantyHD YELLOW BARRIER W/2 WHEELSVertical Bar Spacing (in.): 5-3/4105
PRAIL-102-SS download.gif30 Days Limited WarrantyHD SS BARRIER W/CURVED FEET 1-1/4 INVertical Bar Spacing (in.): 5-7/885

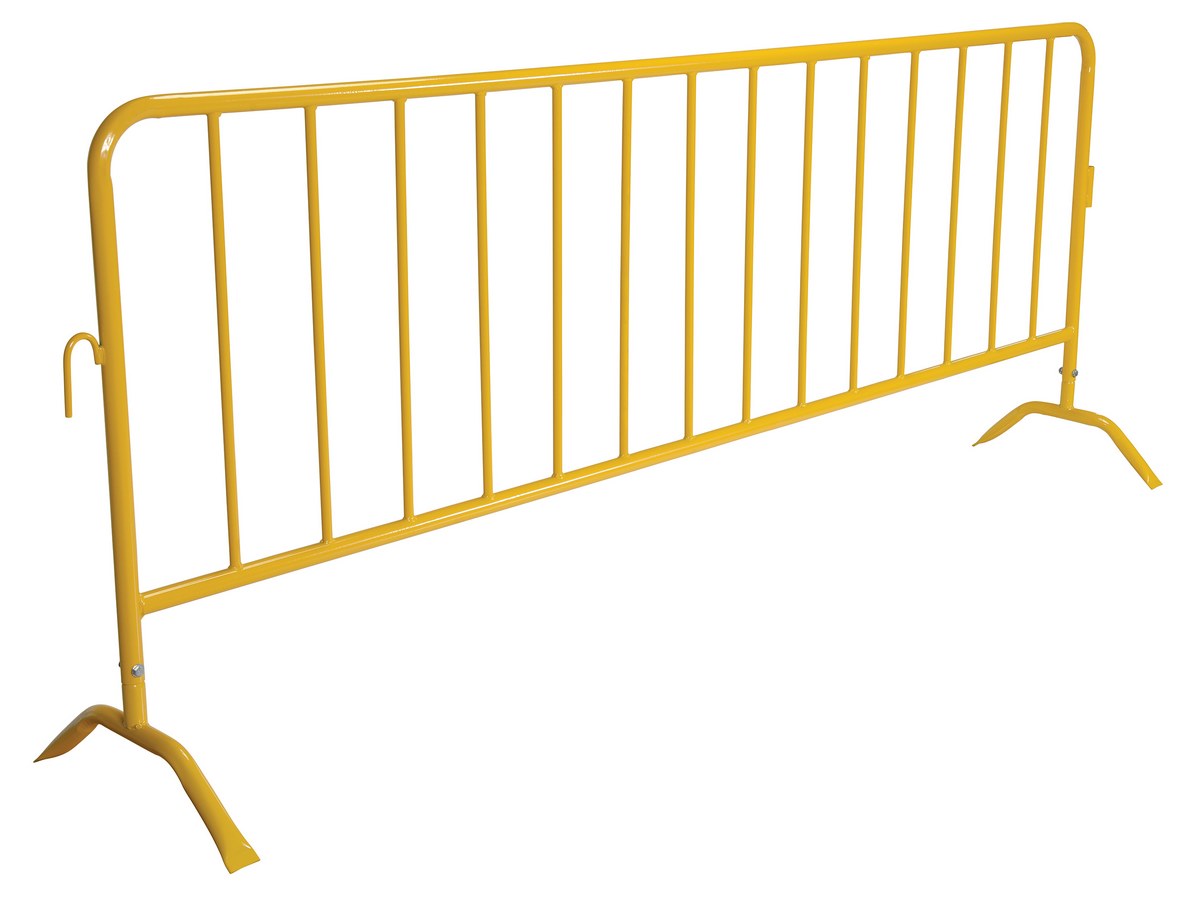

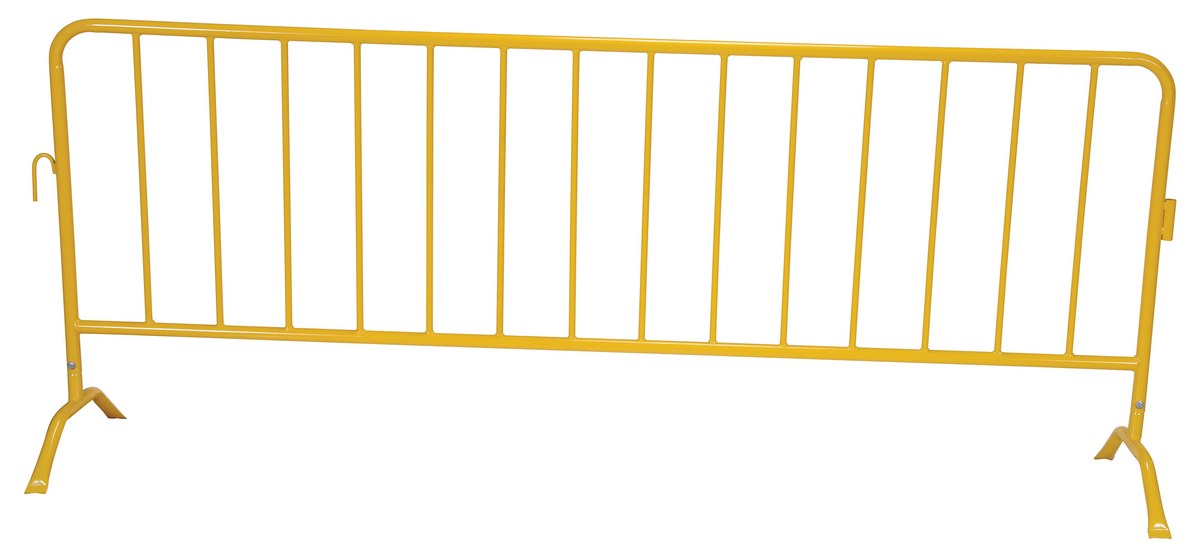

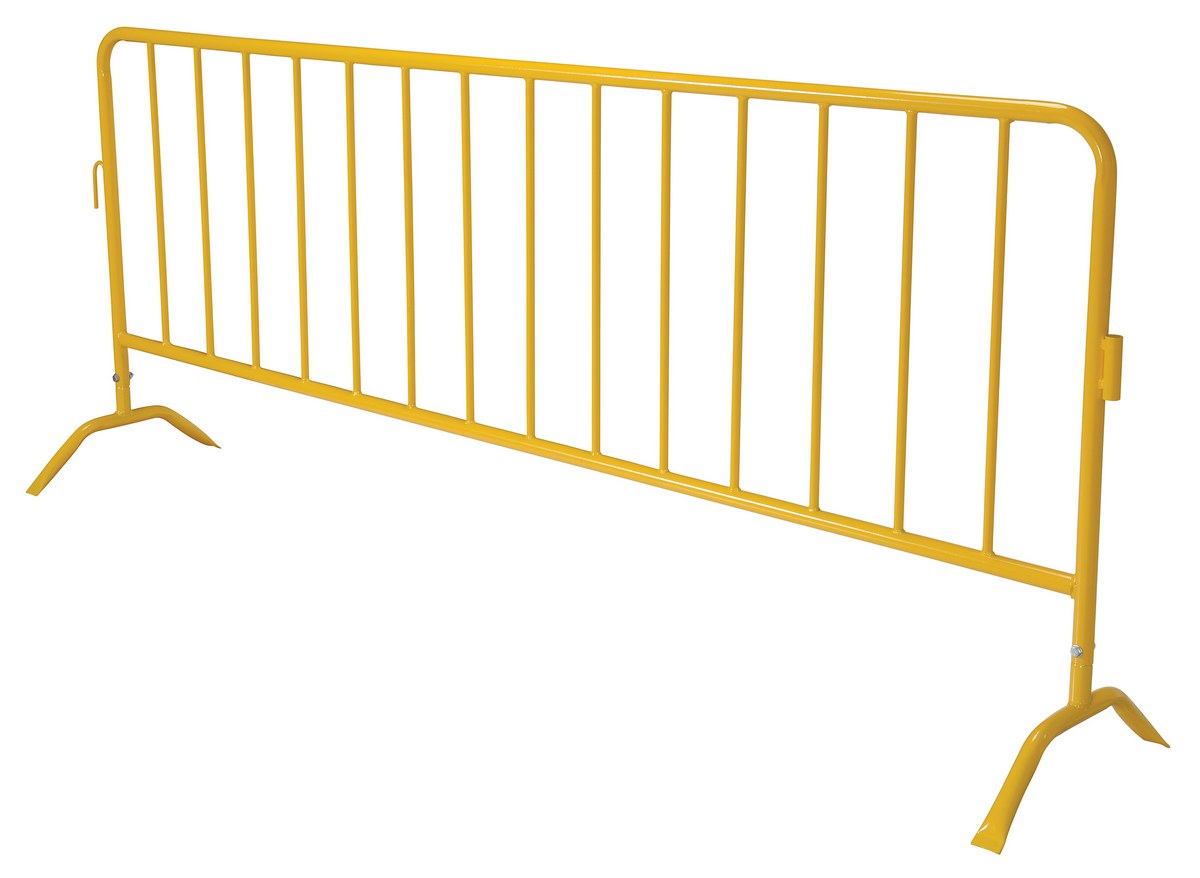

PRAIL-102-Y download.gif30 Days Limited WarrantyYELLOW BARRIER W/CURVED FEETVertical Bar Spacing (in.): 5-7/885
PRAIL-102-Y-FF download.gif30 Days Limited WarrantyYELLOW BARRIER W/FLAT FEETVertical Bar Spacing (in.): 5-7/885

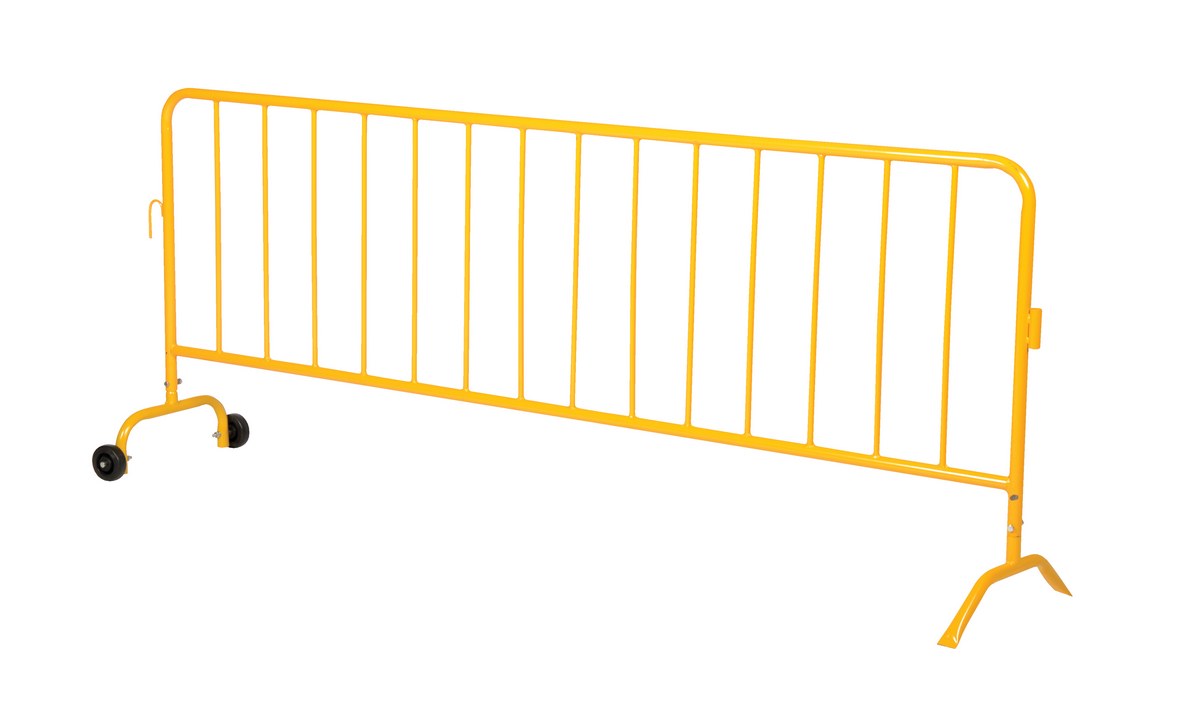

PRAIL-102-Y-W download.gif30 Days Limited WarrantyYELLOW BARRIER W/1 WHEEL, 1 CURVEDVertical Bar Spacing (in.): 5-7/885
PRAIL-102-Y-WF download.gif30 Days Limited WarrantyYELLOW BARRIER W/1 WHEEL, 1 FLATVertical Bar Spacing (in.): 5-7/885
PRAIL-102-Y-WW download.gif30 Days Limited WarrantyYELLOW BARRIER W/2 WHEELSVertical Bar Spacing (in.): 5-7/885



Crowd Control Interlocking Barriers PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

PRAIL-48-Y
PRAIL-48-Y-FF
PRAIL-48-Y-W
PRAIL-48-Y-WF
PRAIL-48-Y-WW
PRAIL-102-G
PRAIL-102-G-FF
PRAIL-102-G-W
PRAIL-102-G-WF
PRAIL-102-G-WW
PRAIL-102-HD-G
PRAIL-102-HD-G-FF
PRAIL-102-HD-G-W
PRAIL-102-HD-G-WF
PRAIL-102-HD-G-WW
PRAIL-102-HD-SS
PRAIL-102-HD-Y
PRAIL-102-HD-Y-FF
PRAIL-102-HD-Y-W
PRAIL-102-HD-Y-WF
PRAIL-102-HD-Y-WW
PRAIL-102-SS
PRAIL-102-Y
PRAIL-102-Y-FF
PRAIL-102-Y-W
PRAIL-102-Y-WF
PRAIL-102-Y-WW

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: What is the gauge of steel of this product?

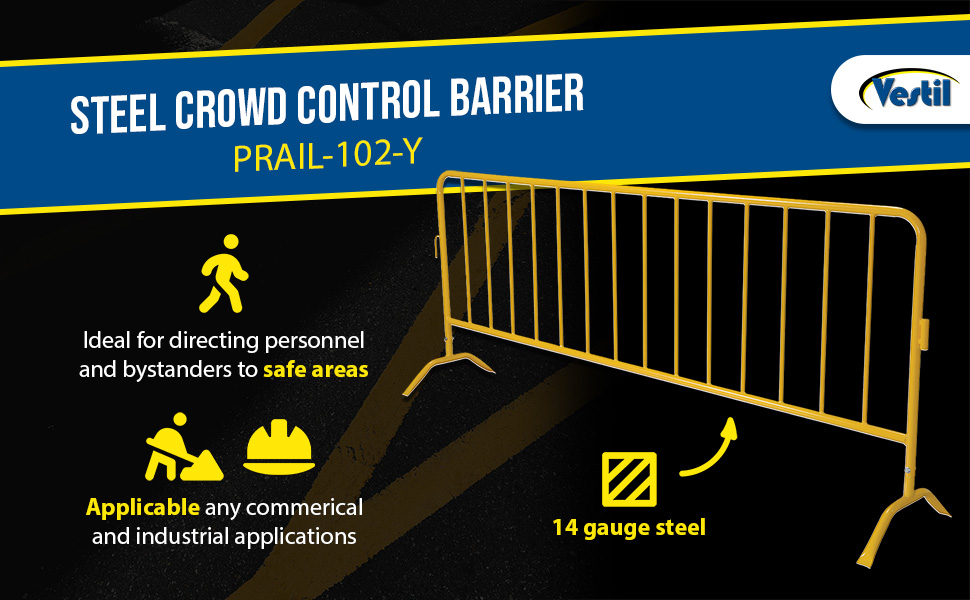

A: The PRAIL is 14 gauge steel.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
