model: BOL-36-5.5


SERIES: BOL

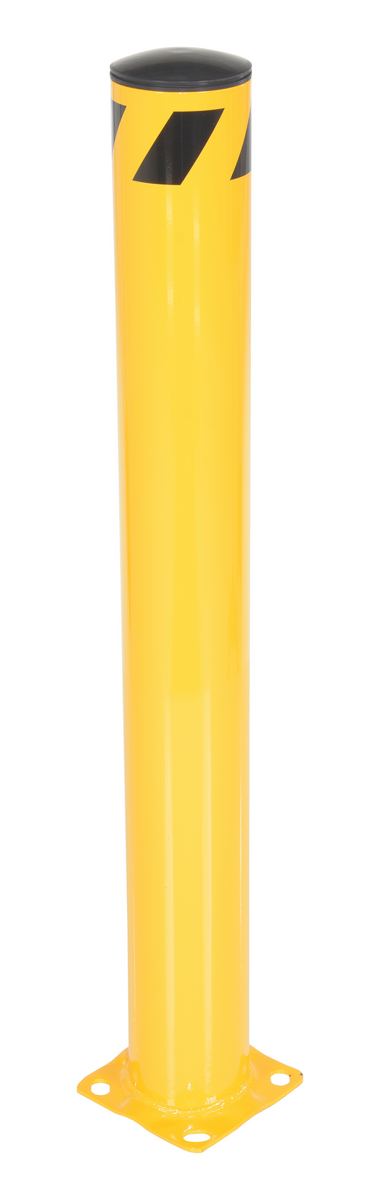

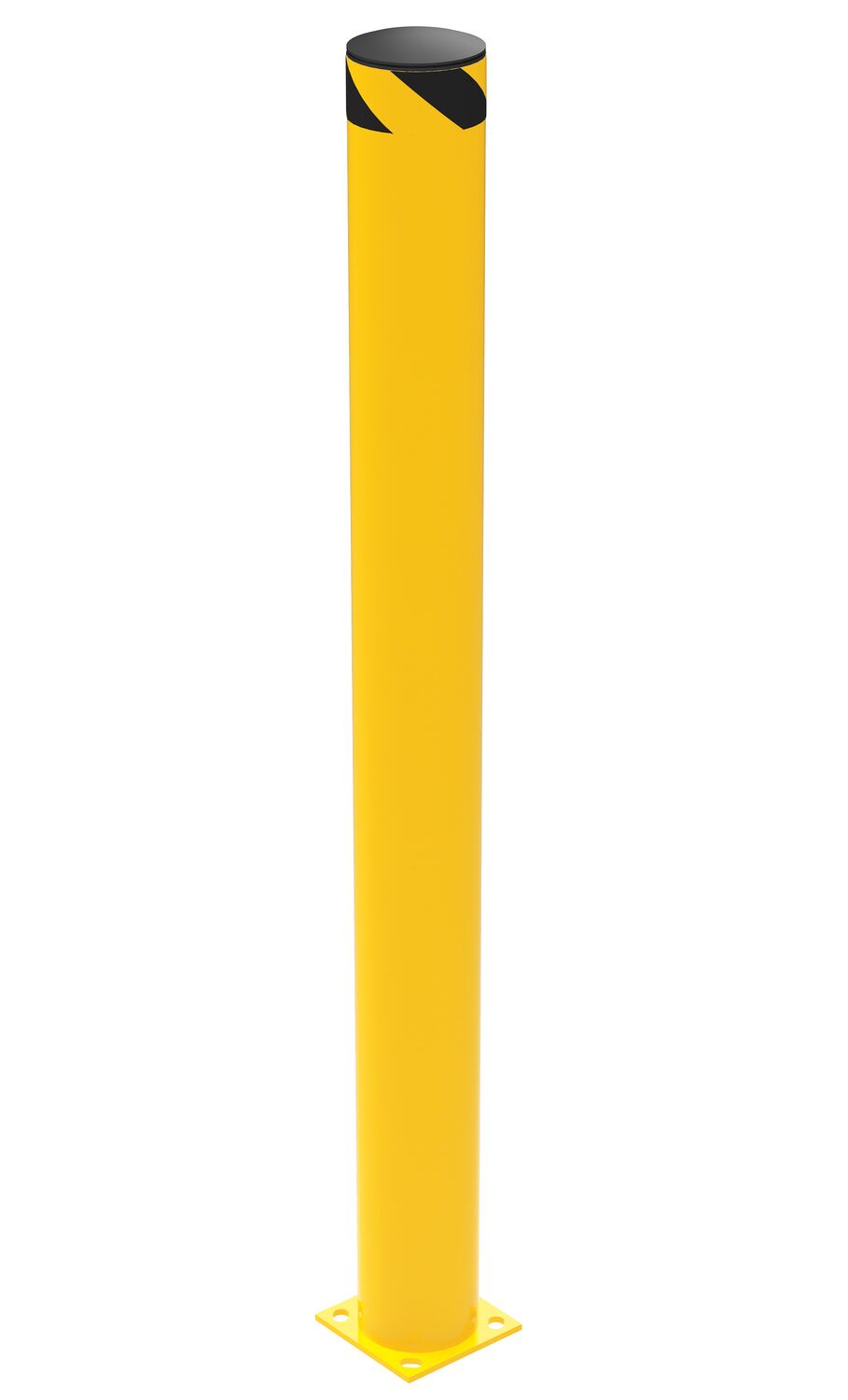

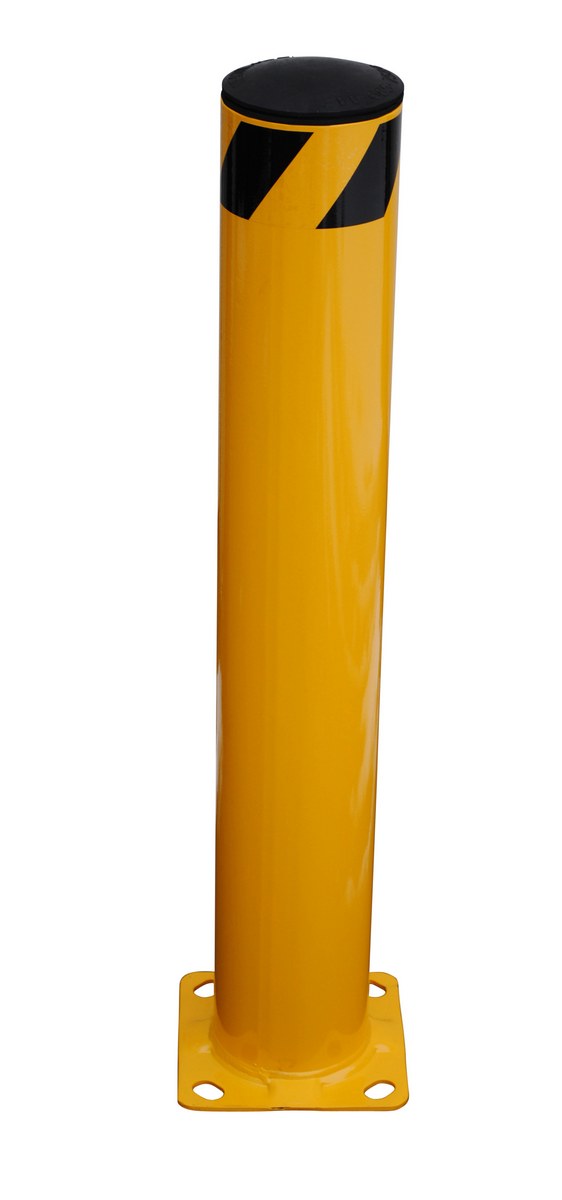

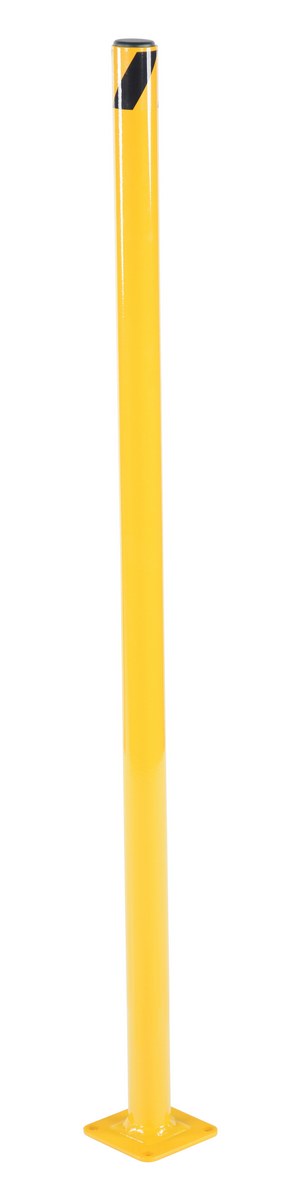

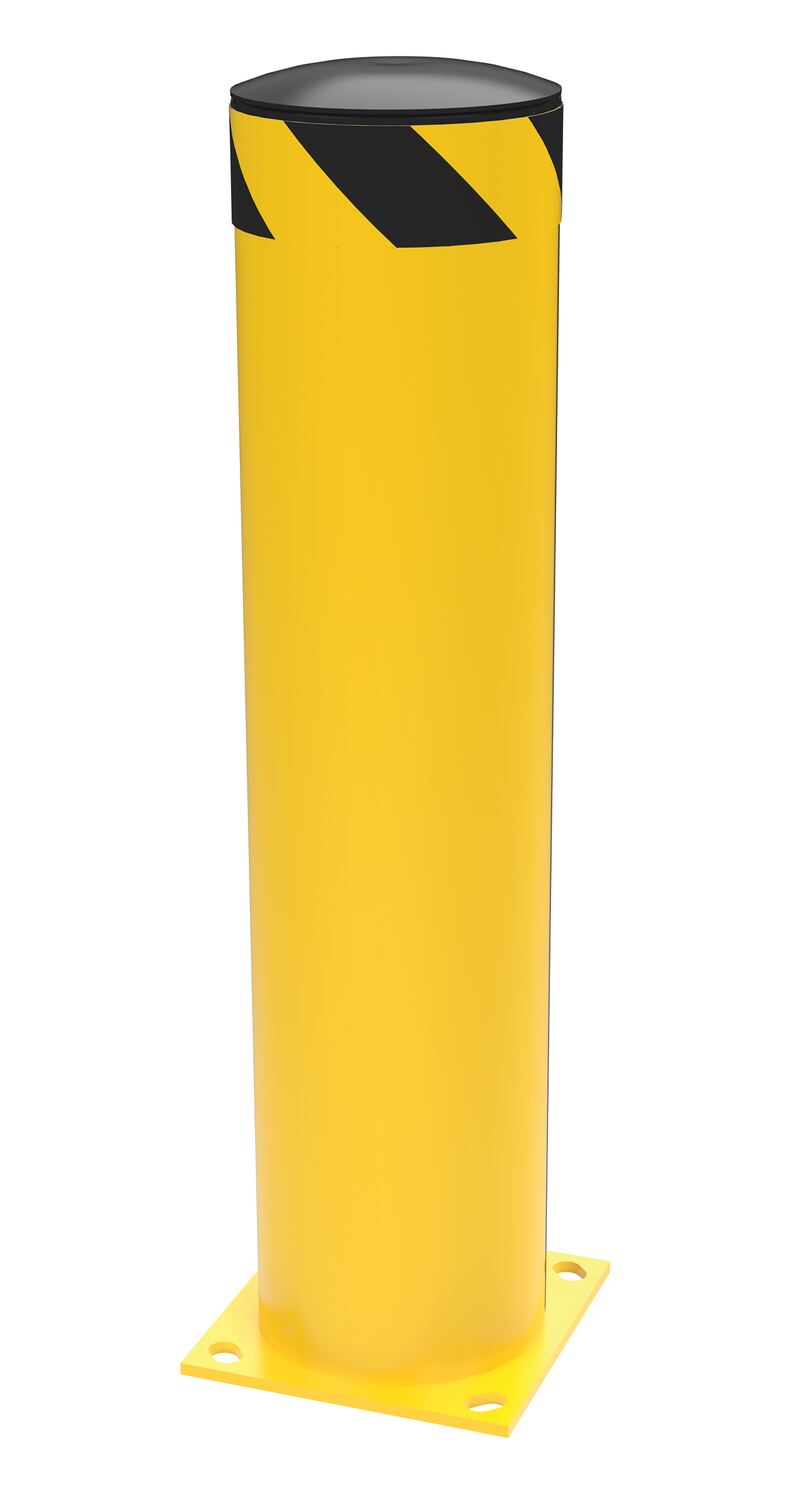

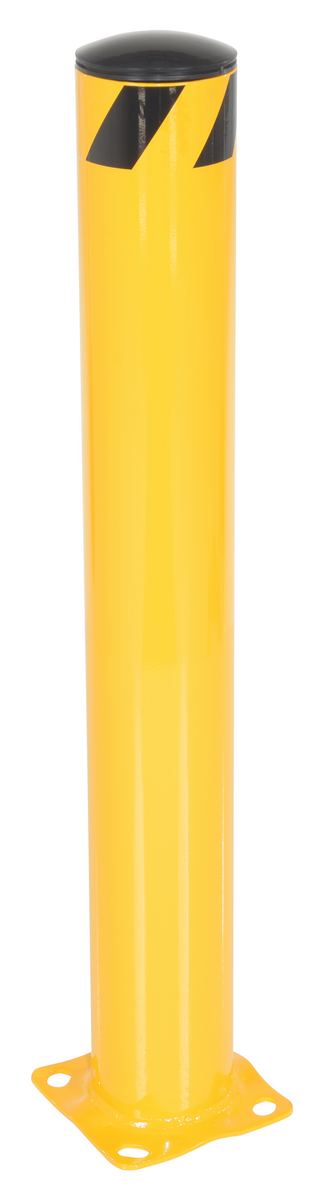

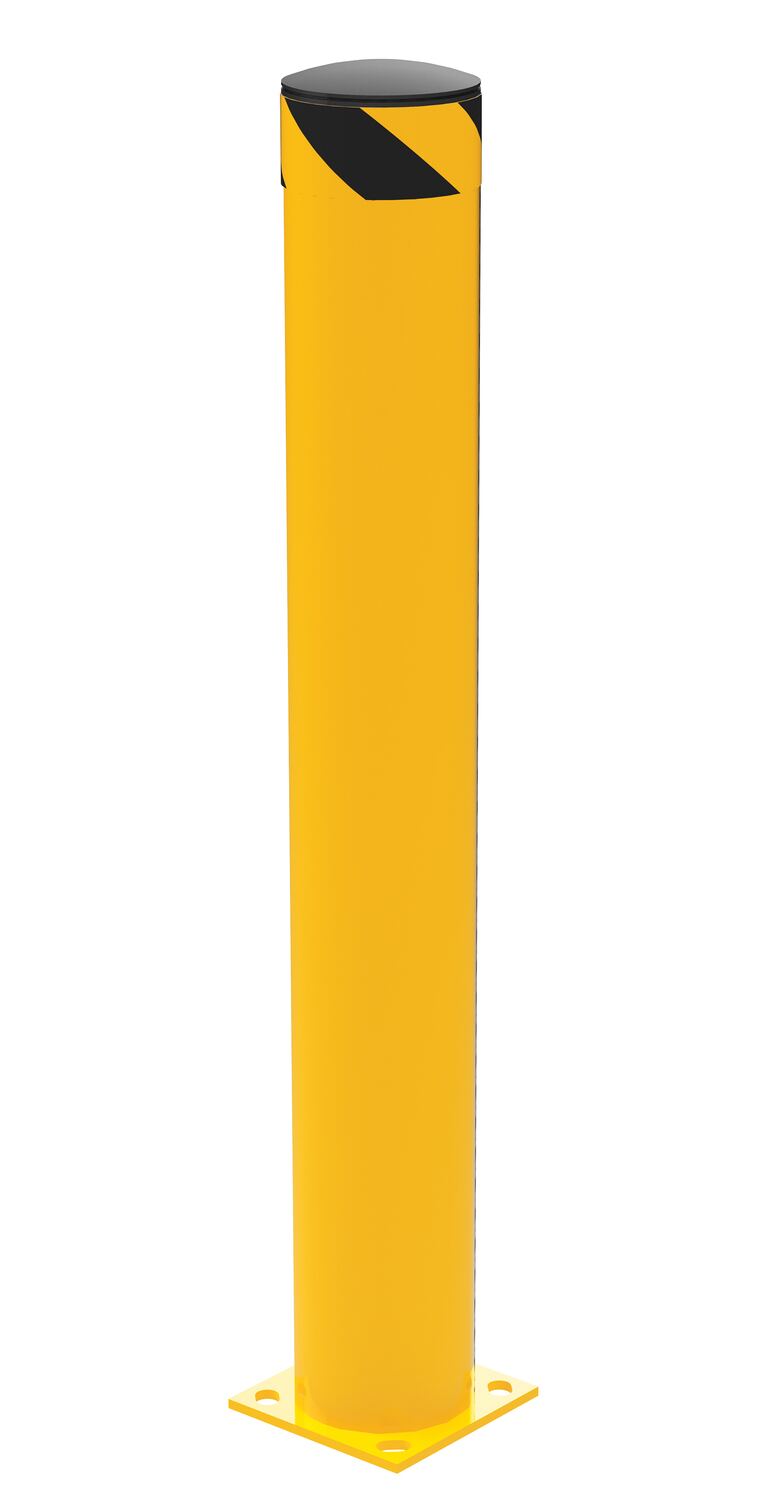

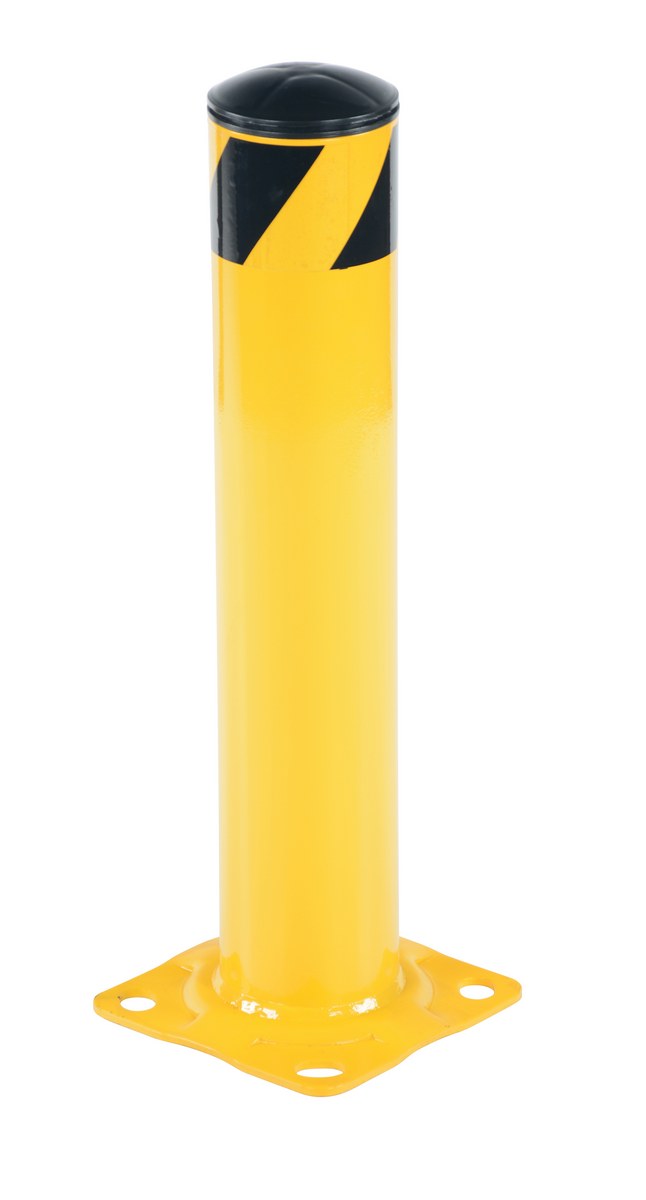

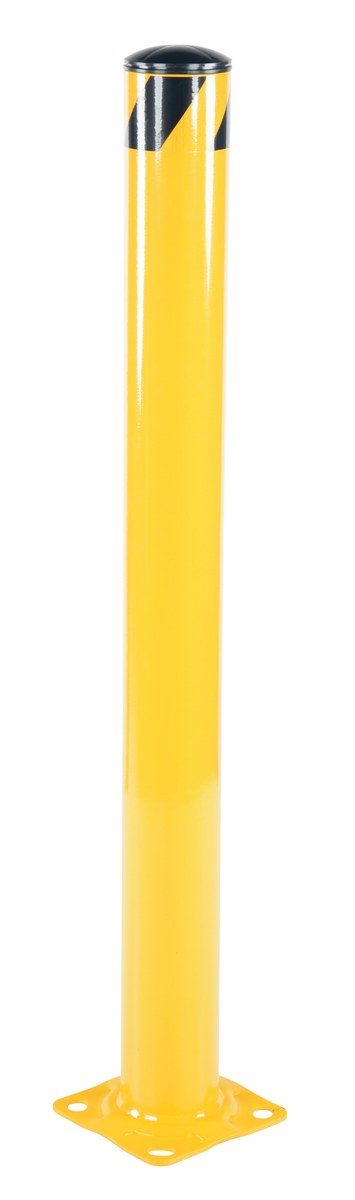

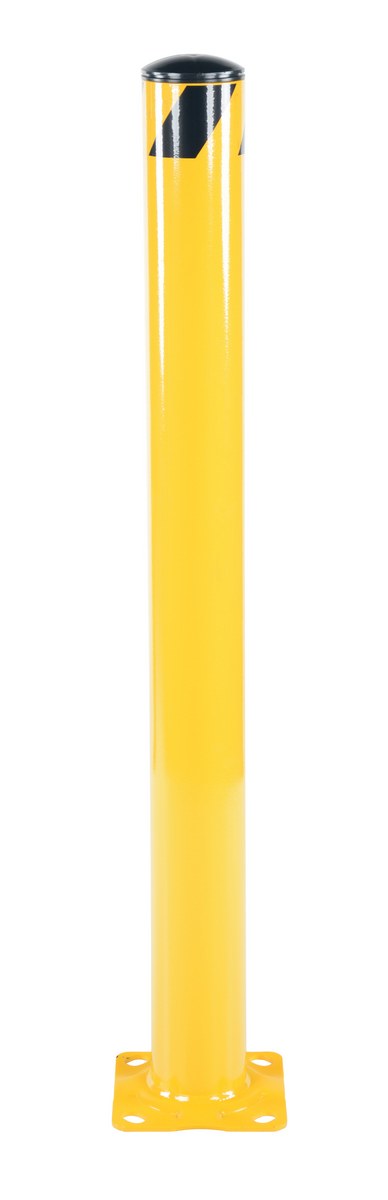

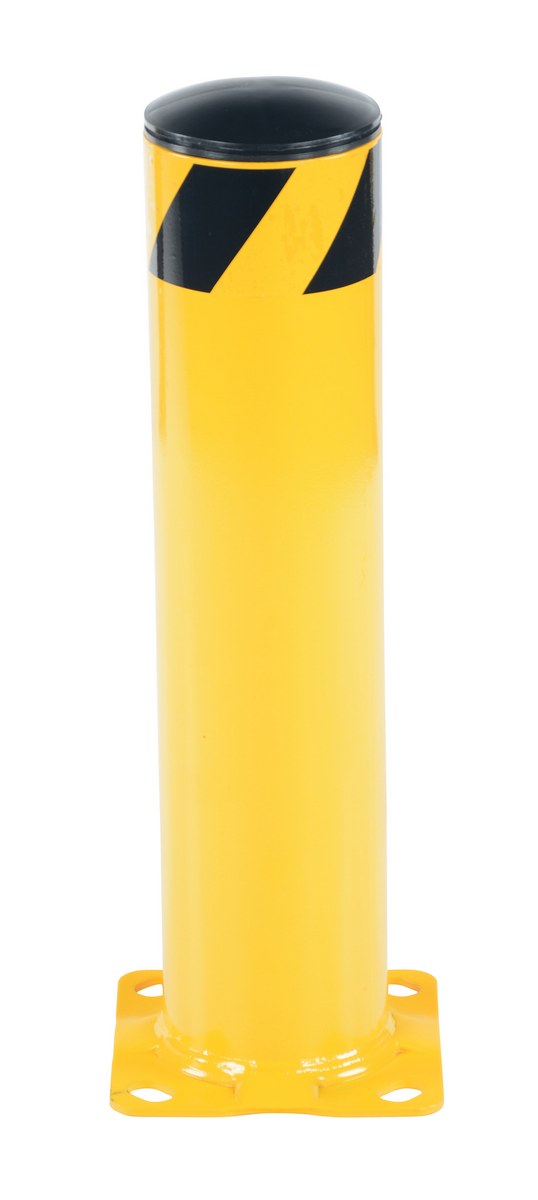

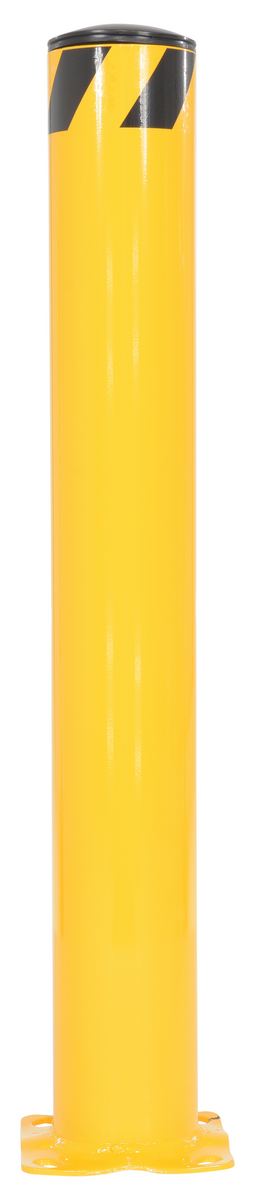

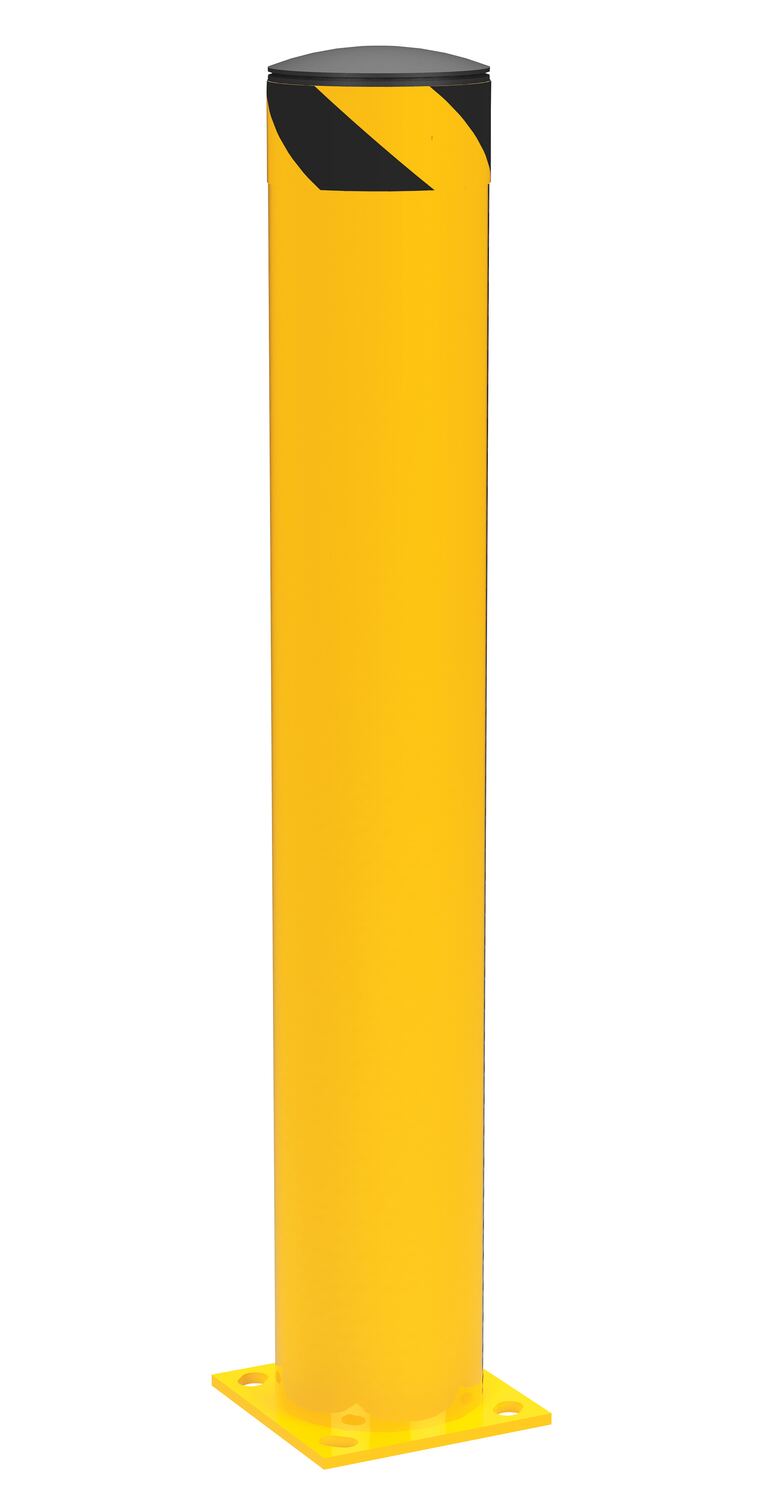

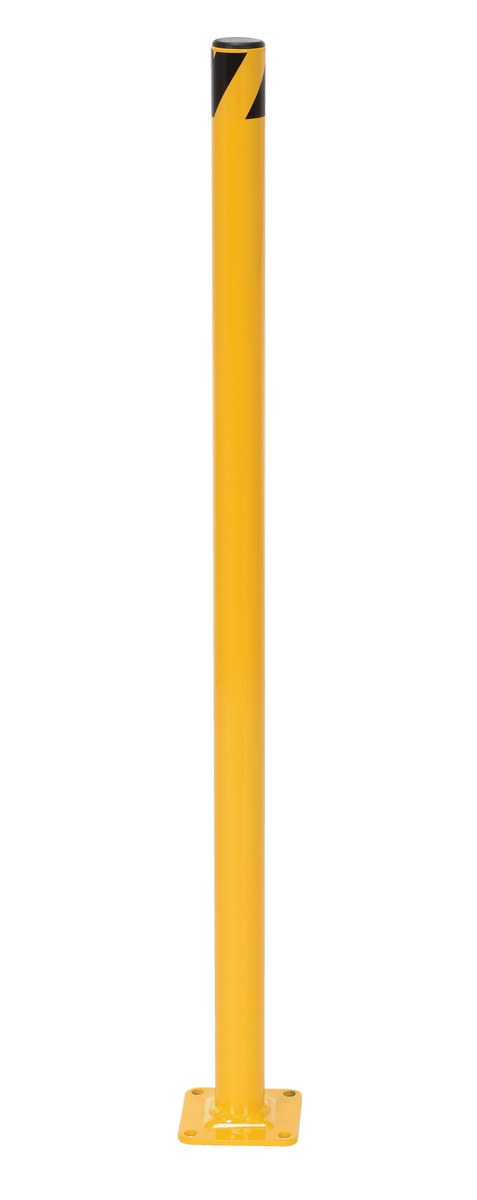

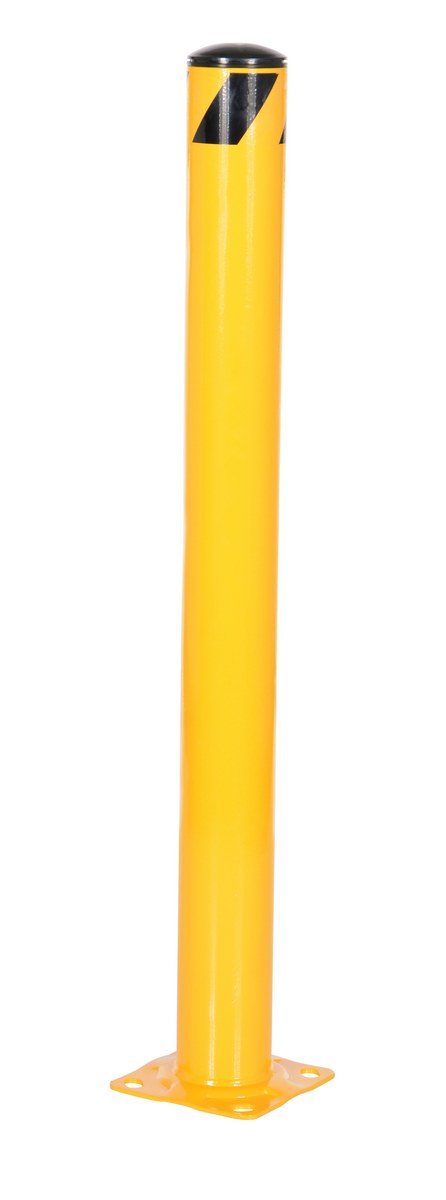

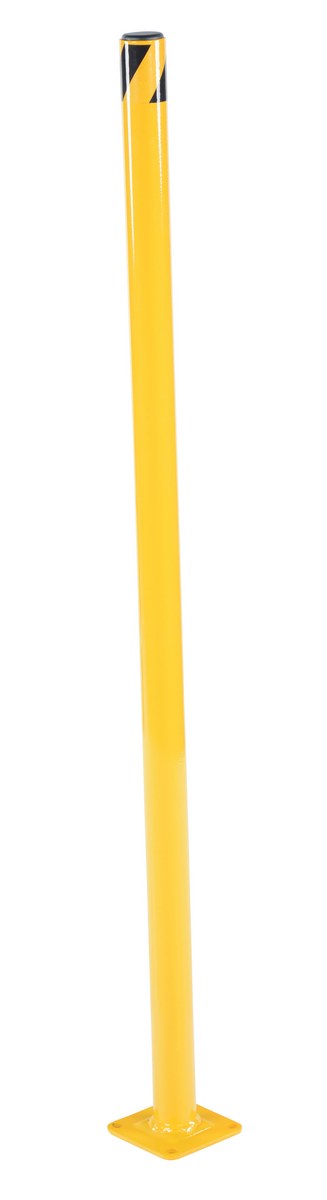

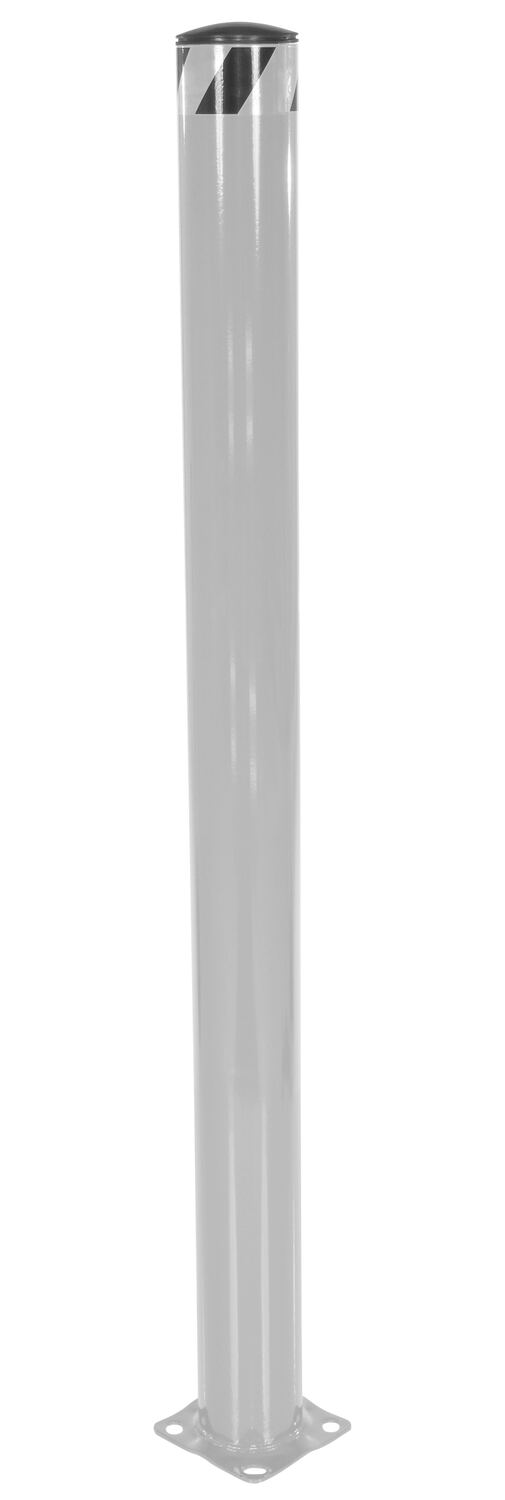

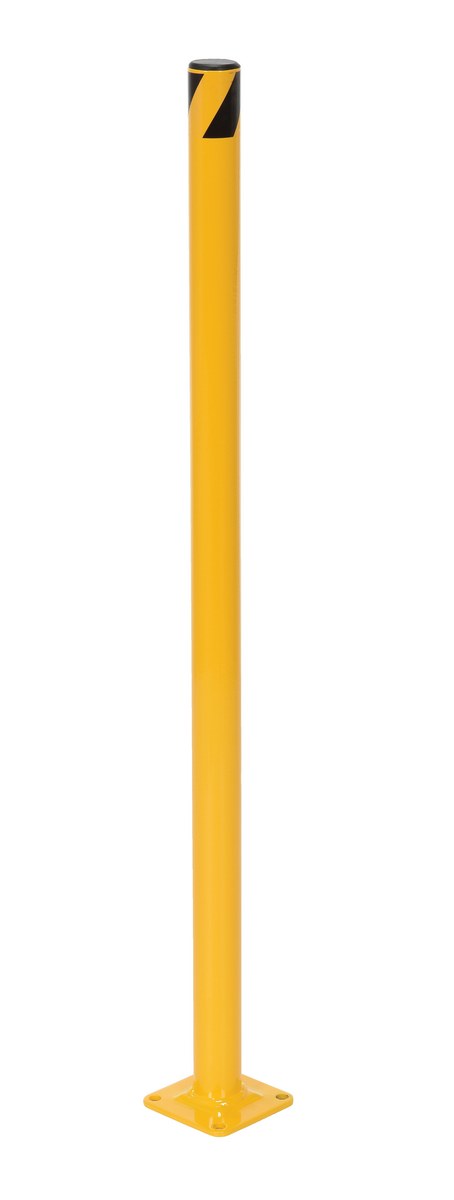

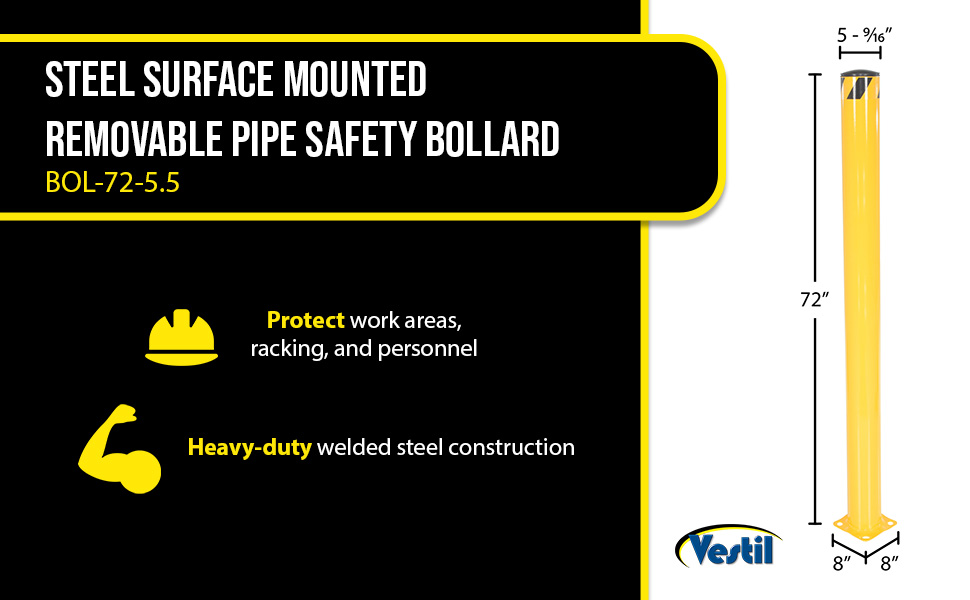

Steel Pipe Safety Bollards

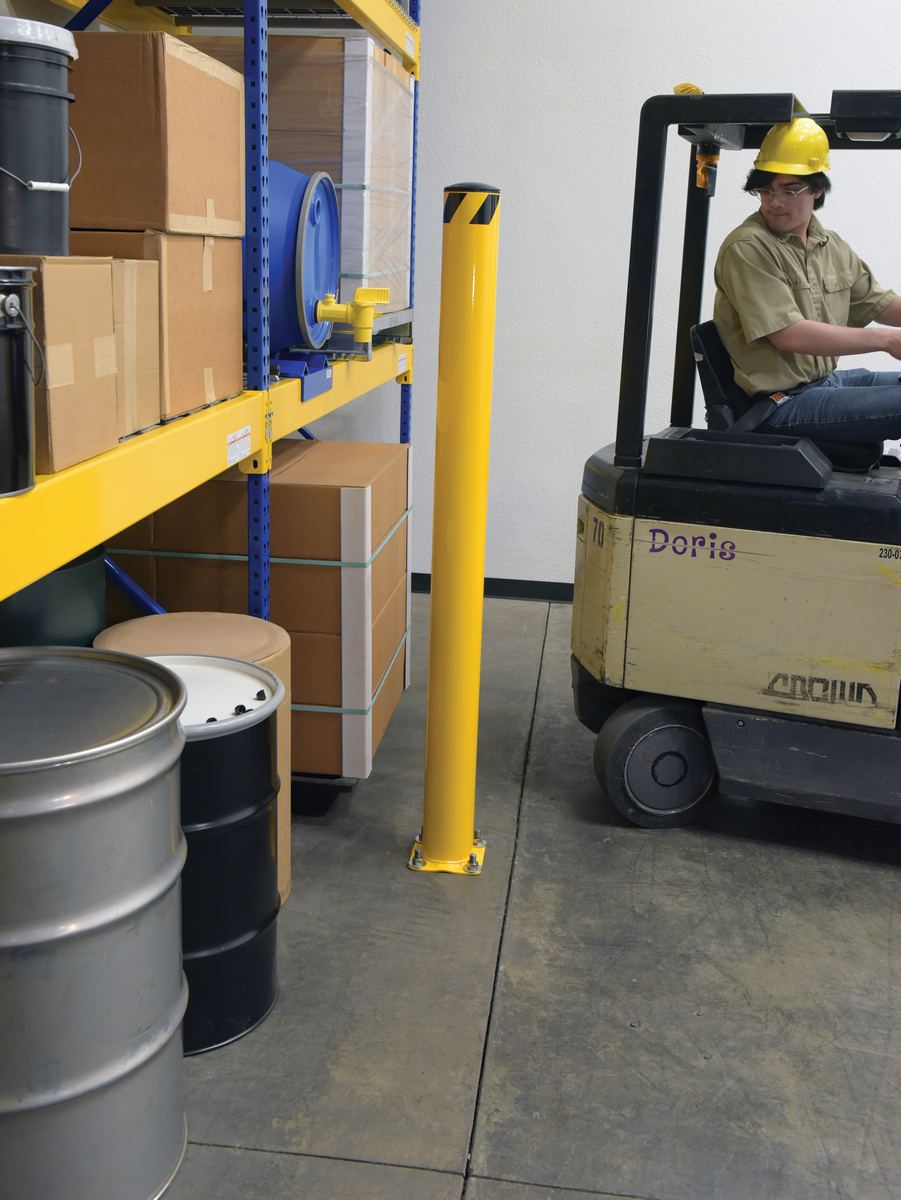

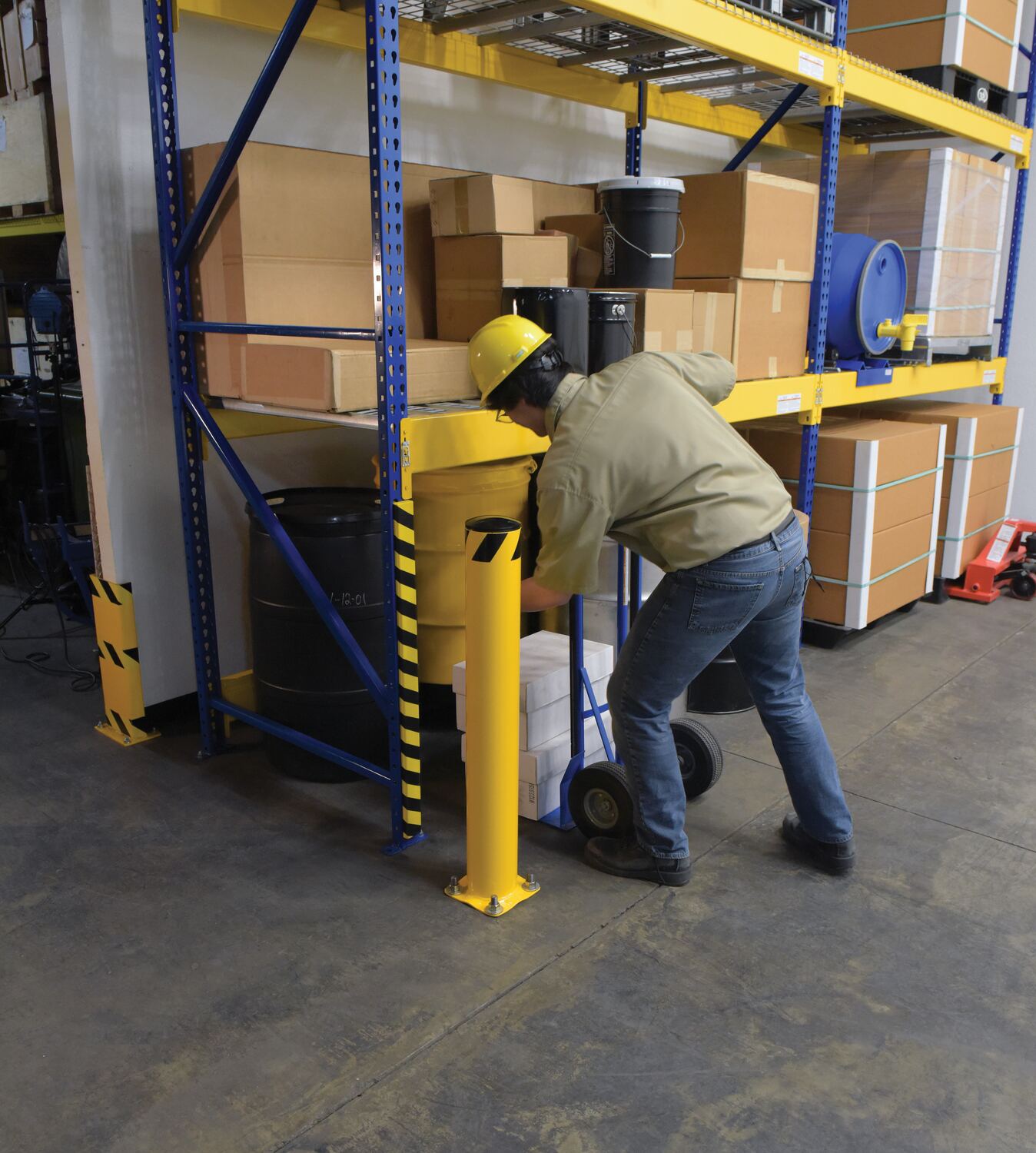

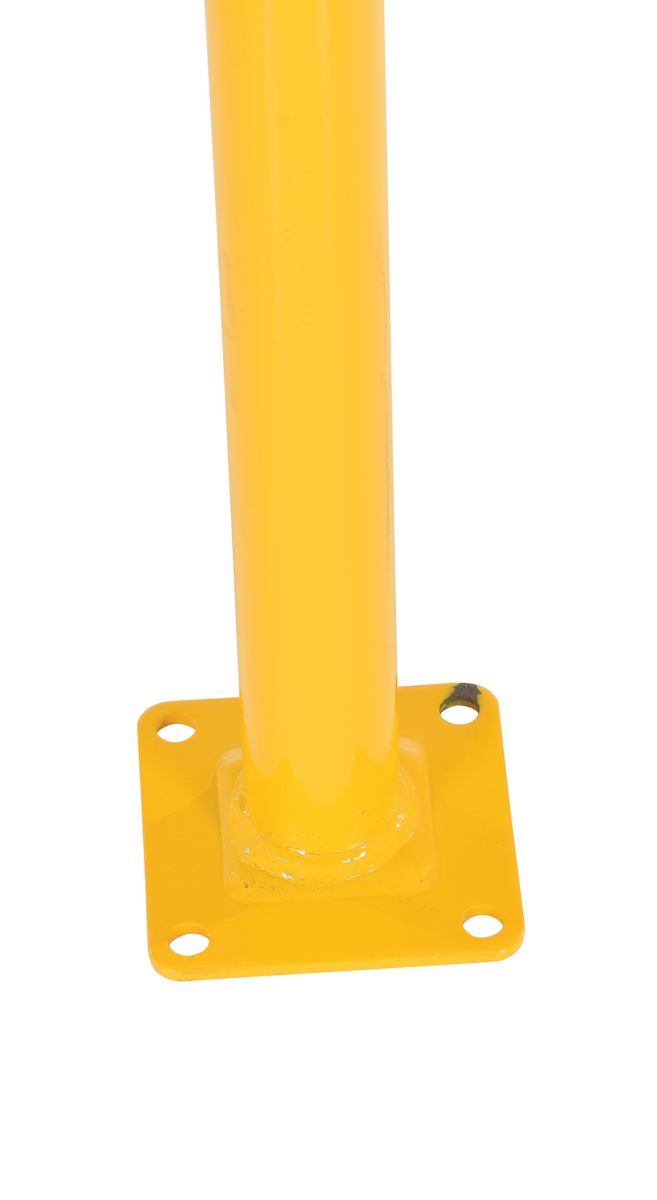

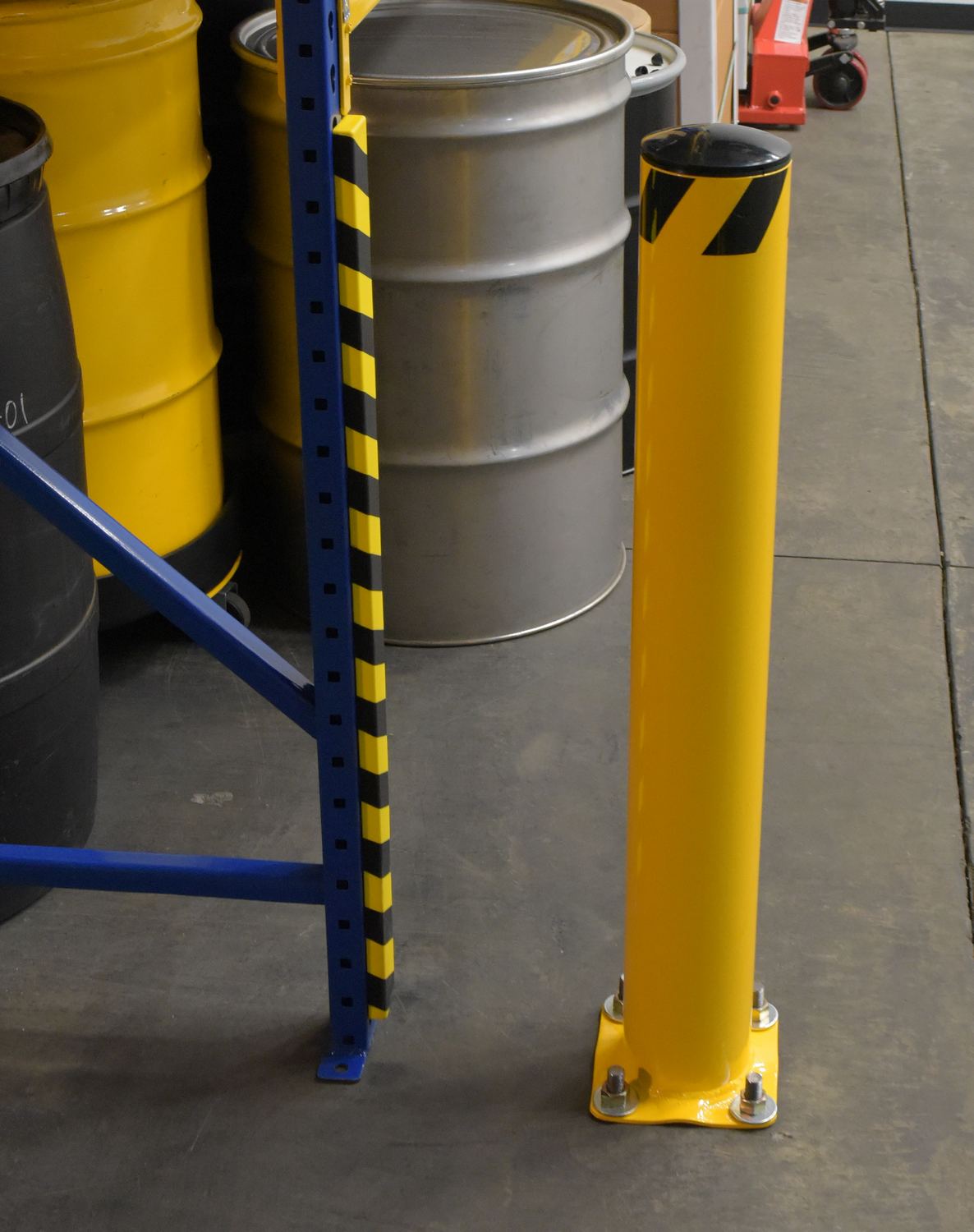

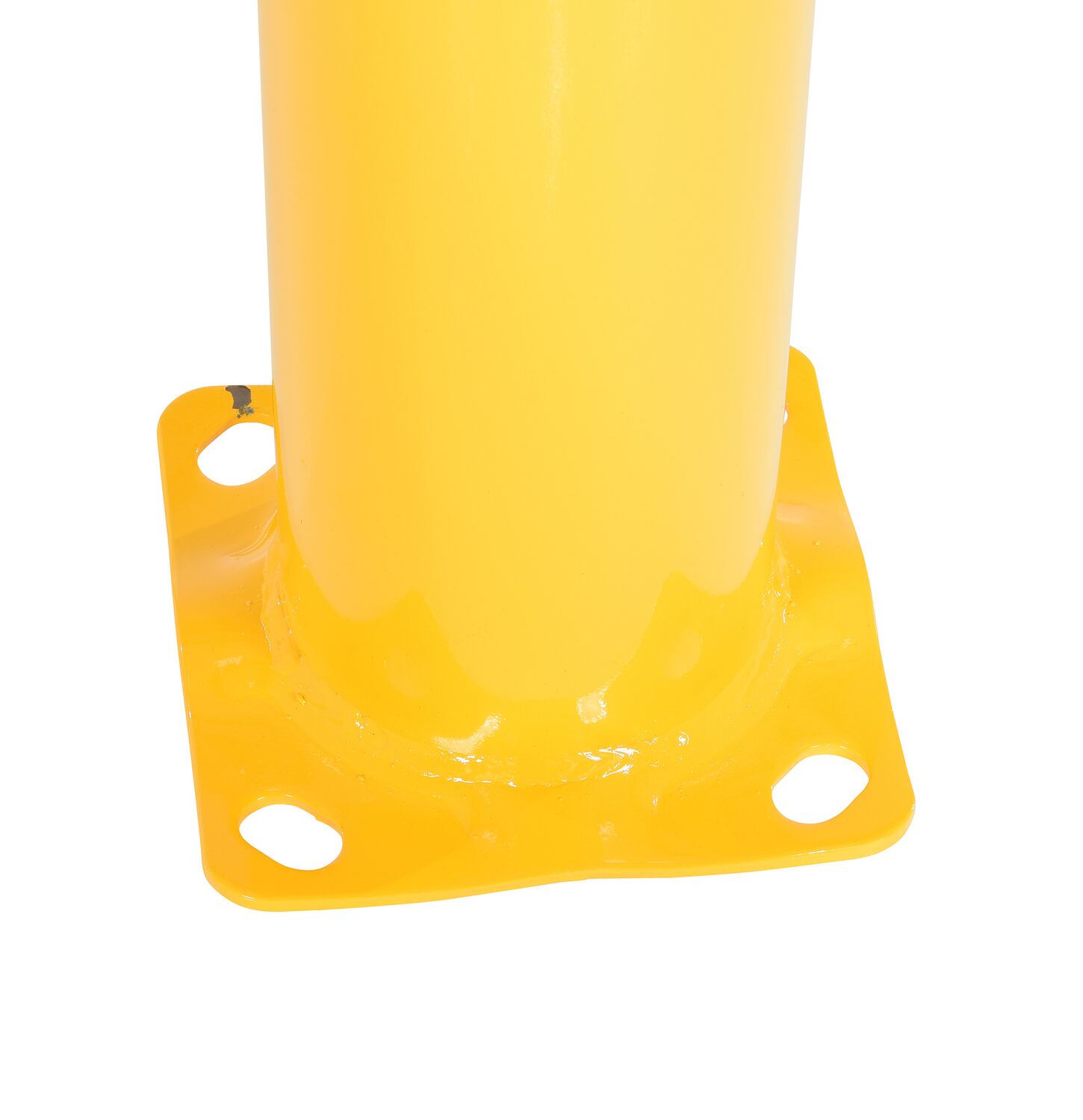

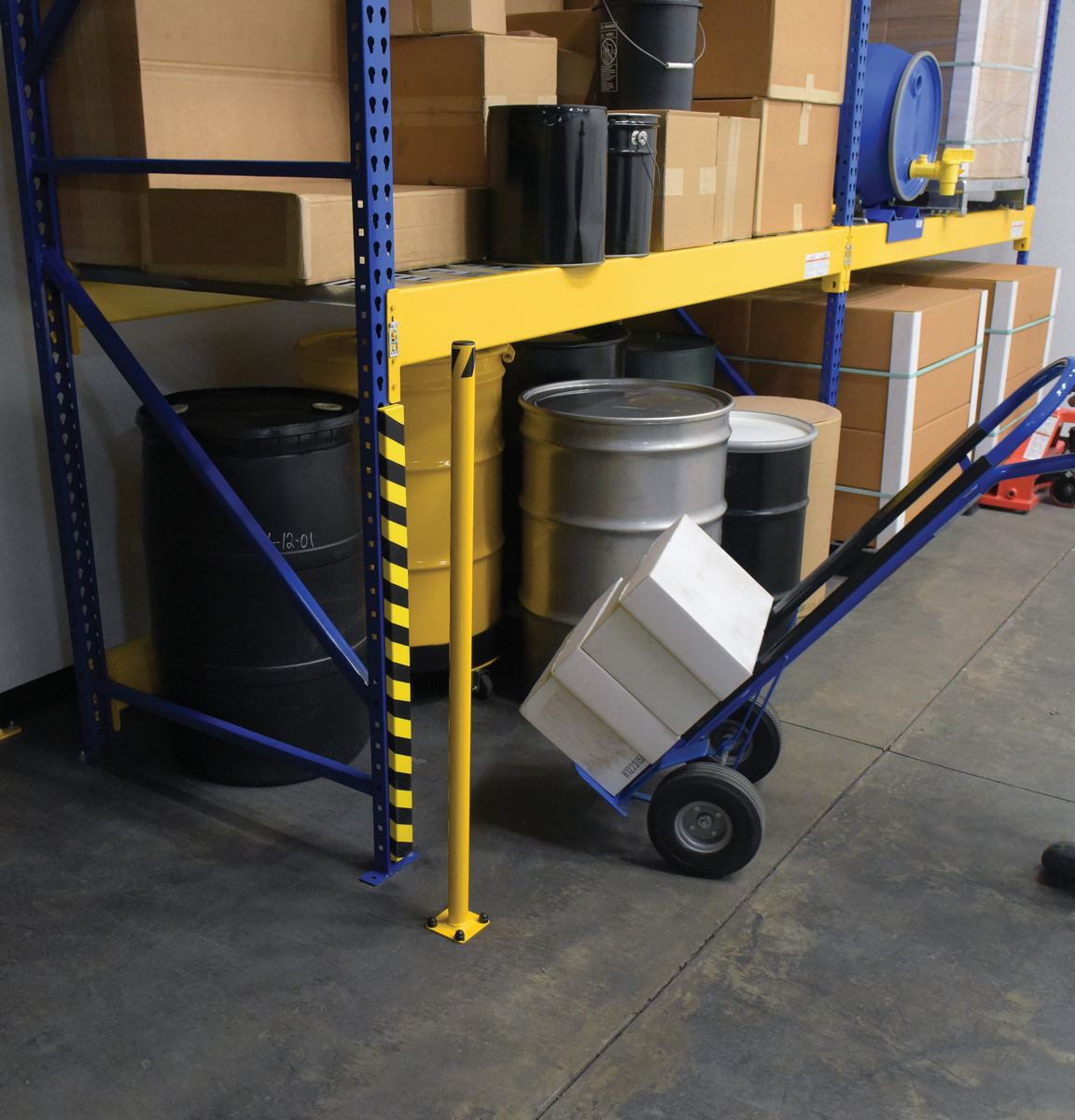

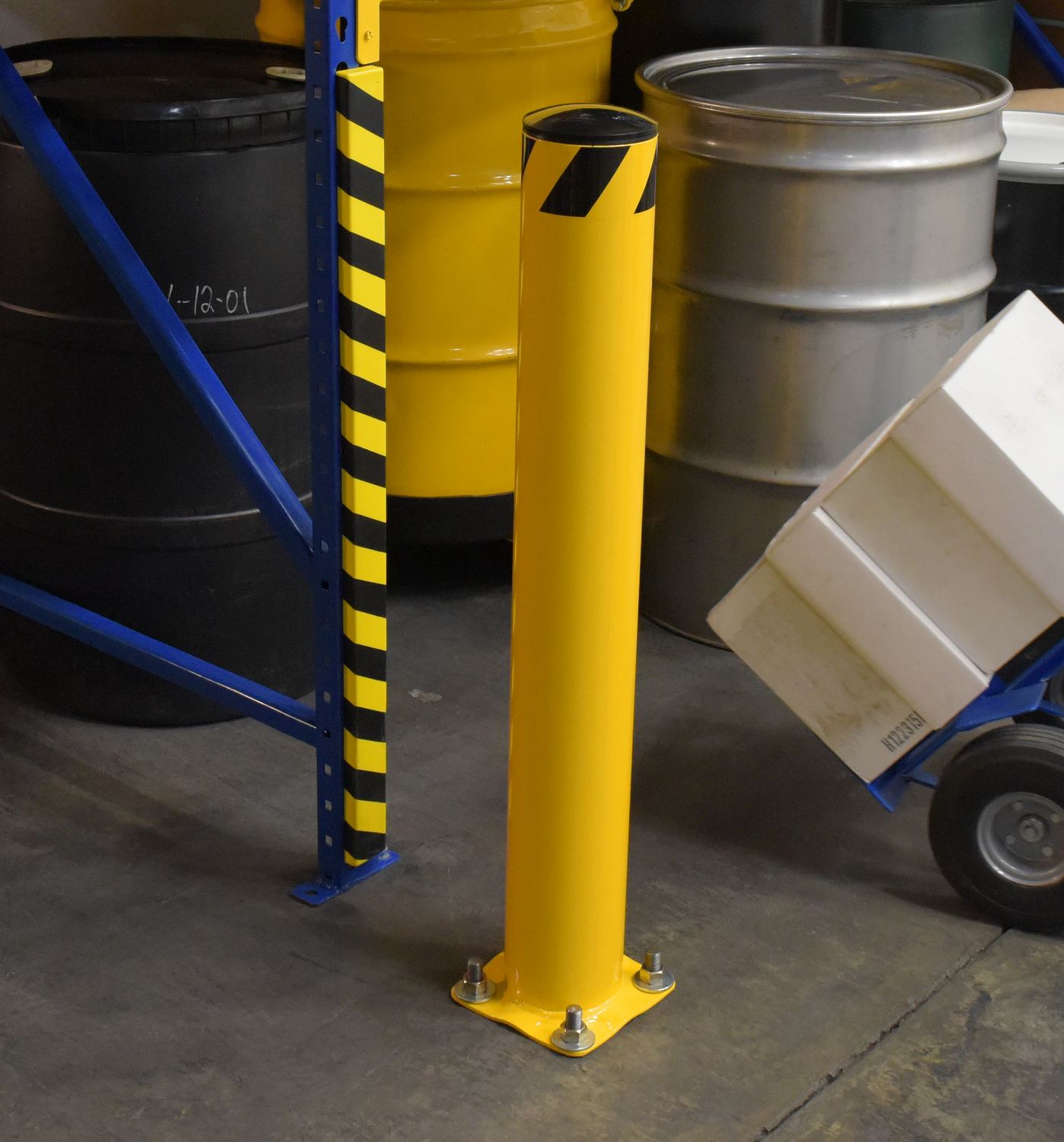

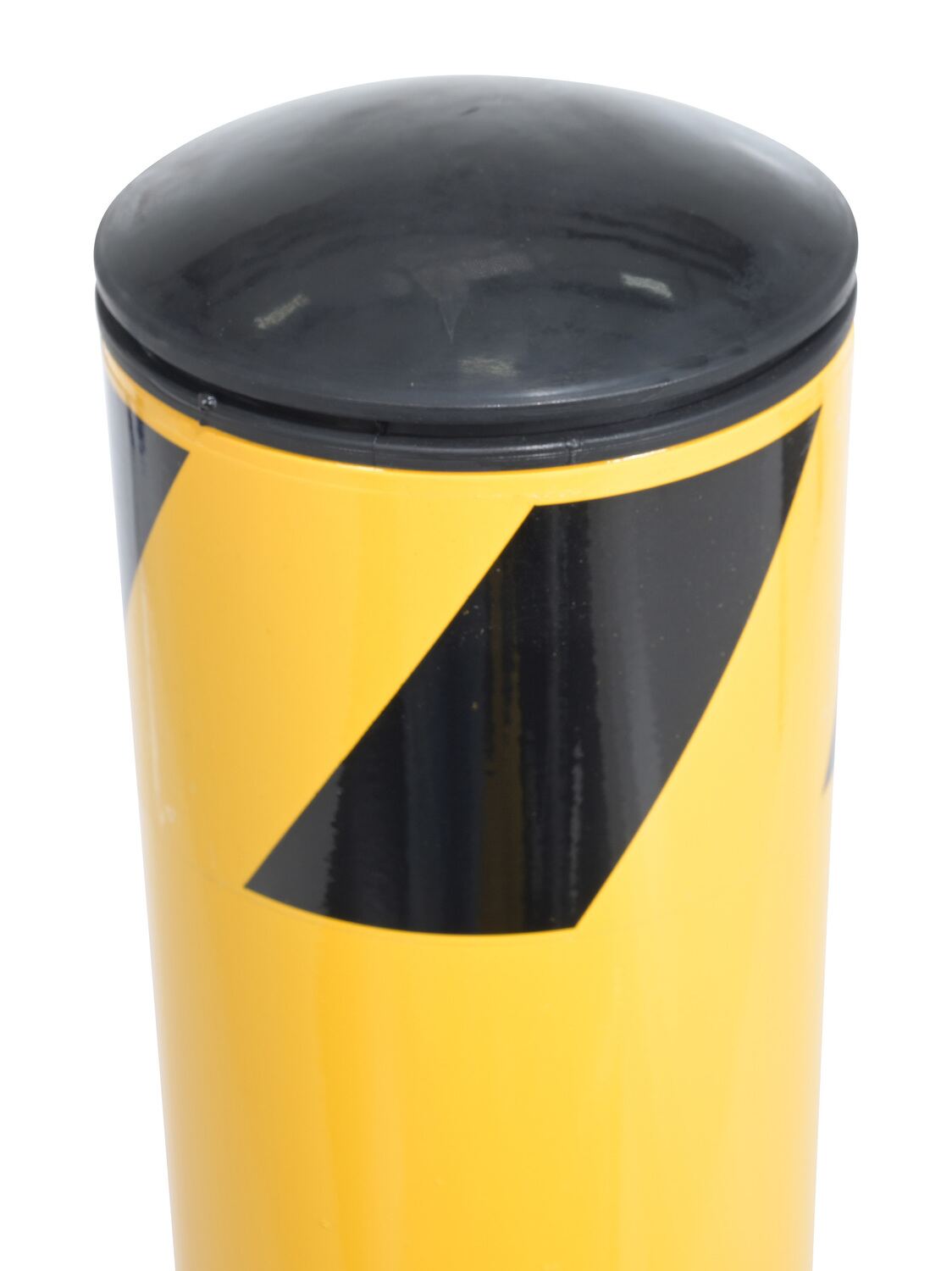

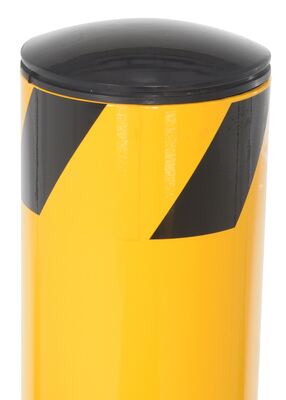

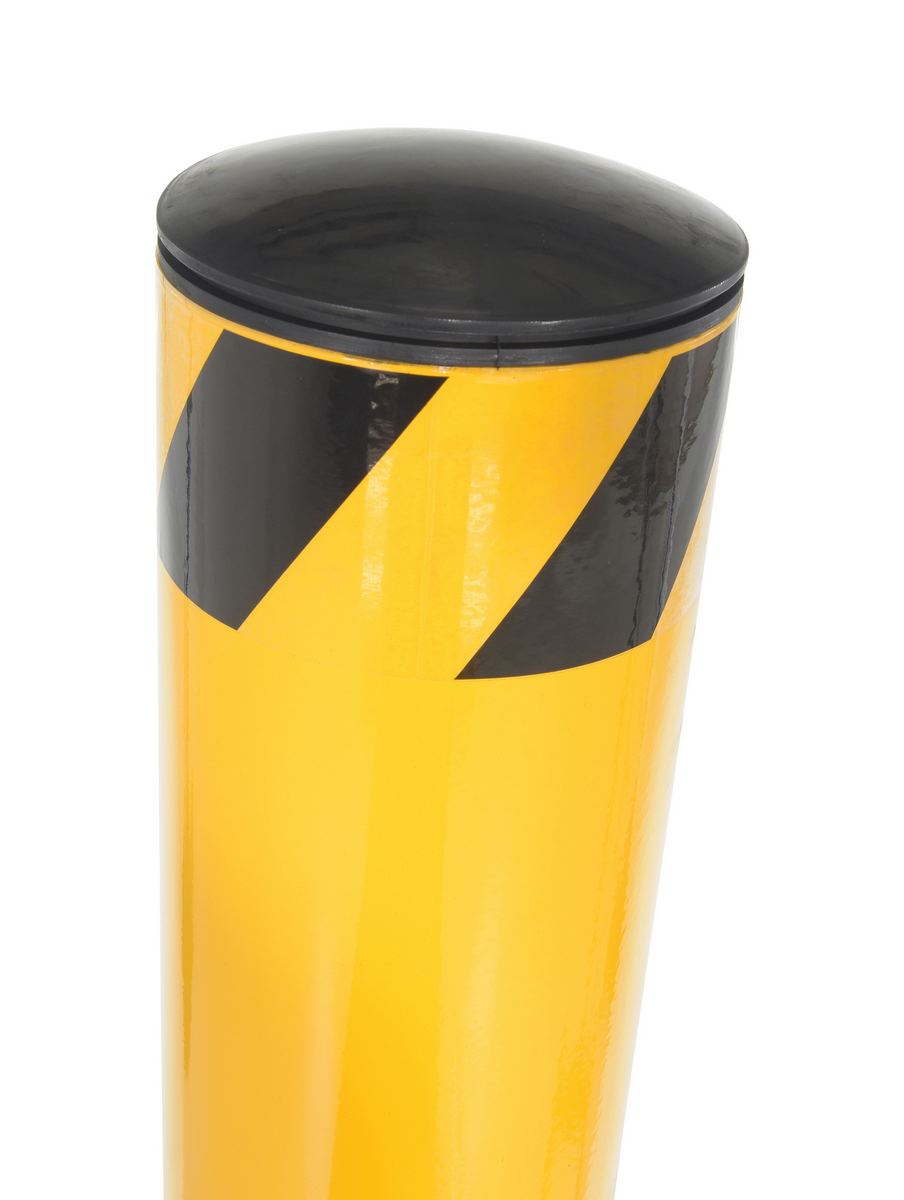

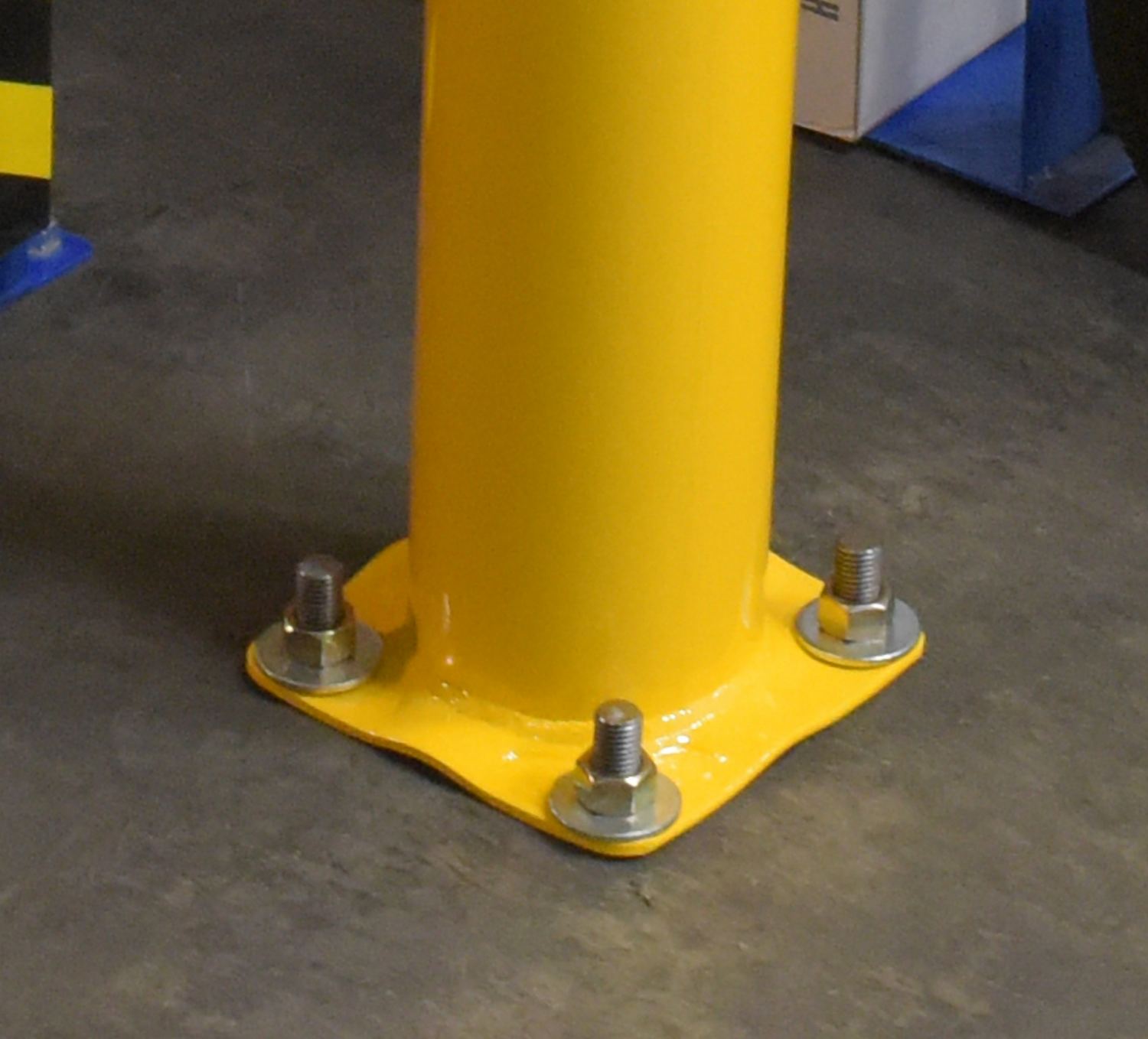

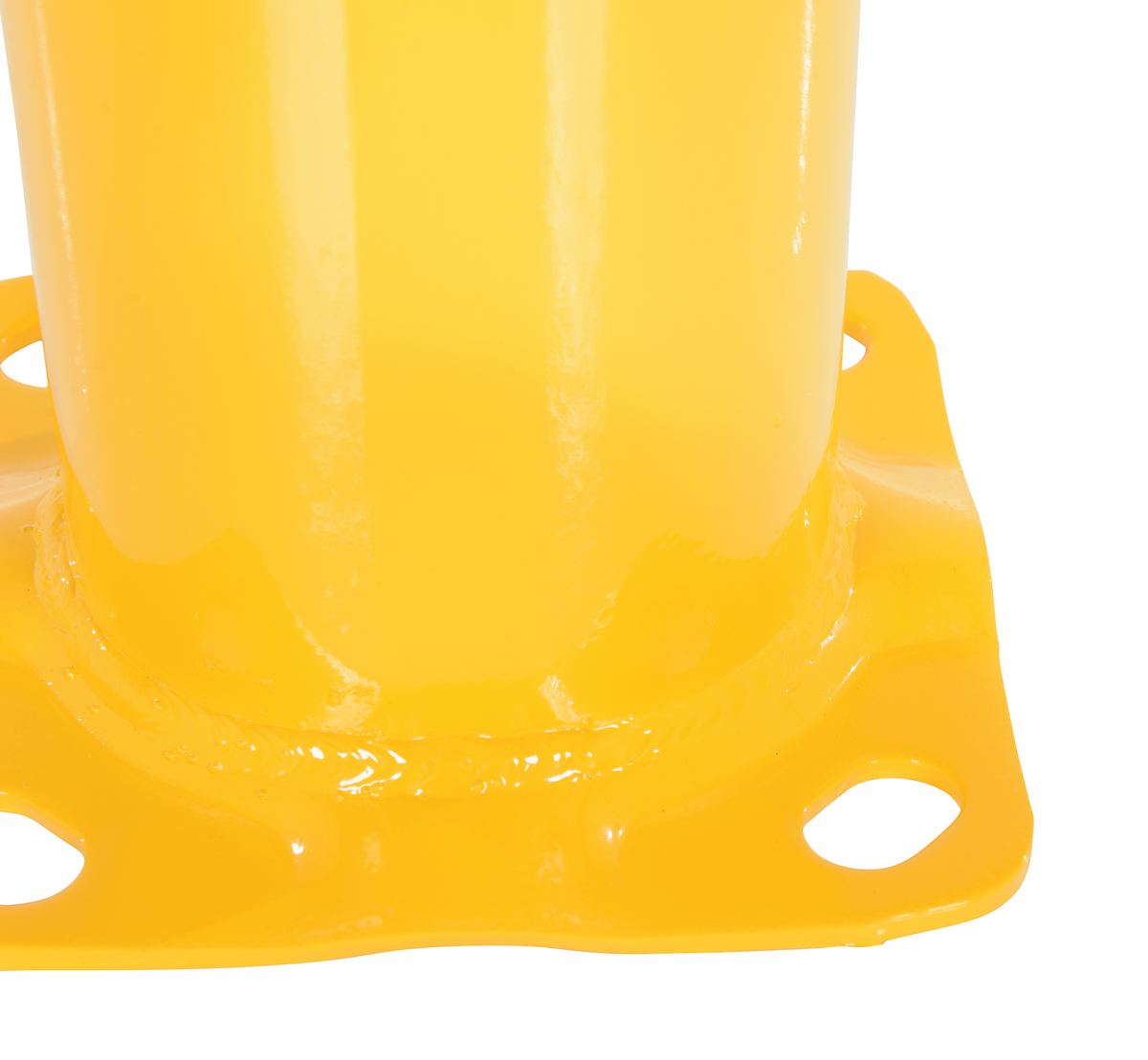

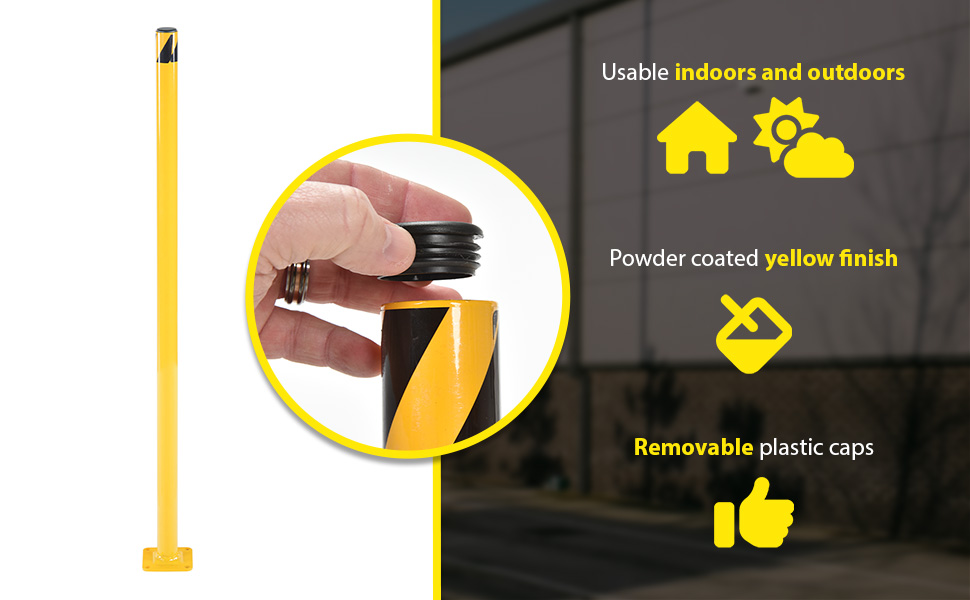

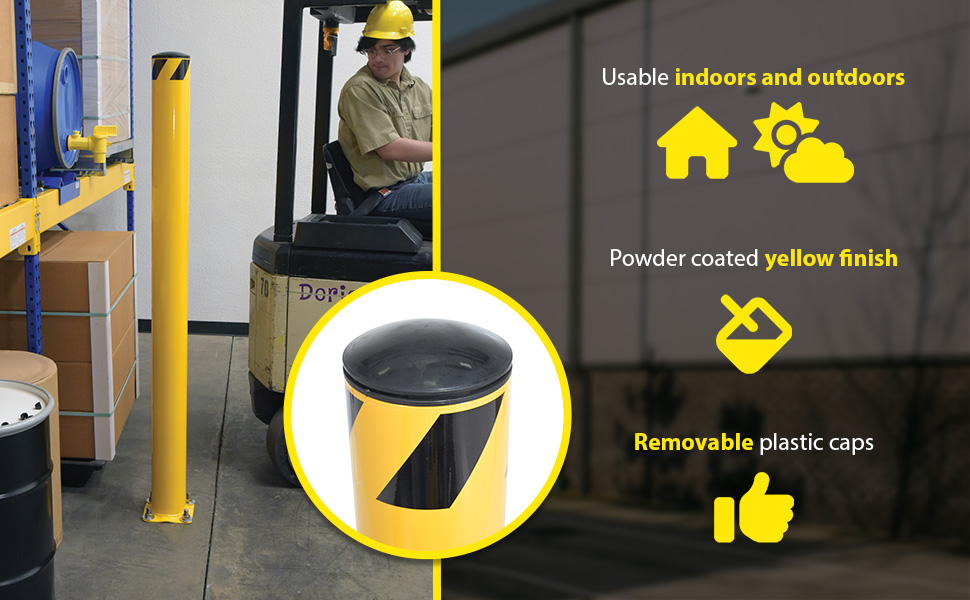

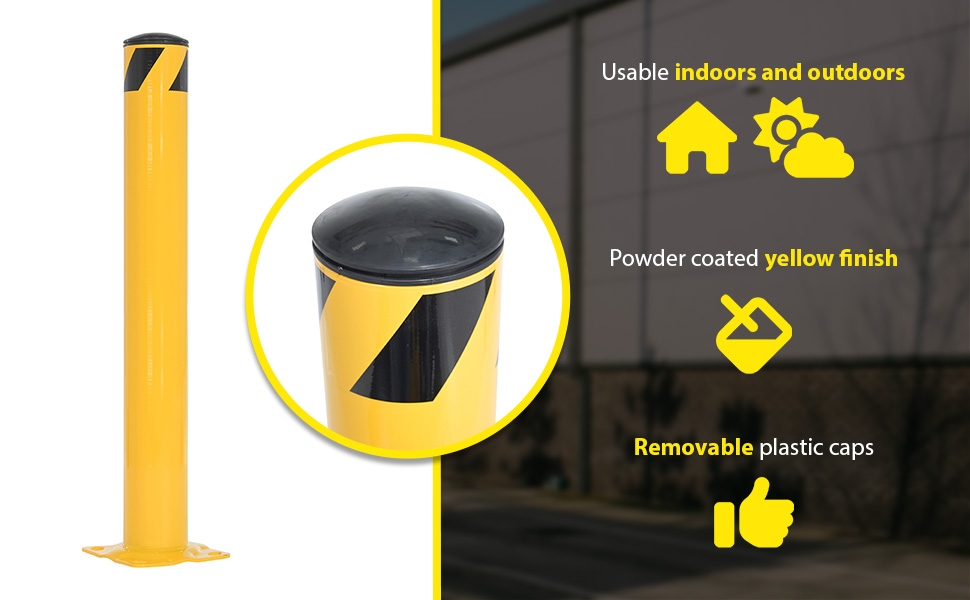

Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic caps are removable on ,1-3/4", 4-1/2" and 5-1/2" diameter units and bollard may be filled with concrete. Steel caps are welded on the 6-5/8, 8-5/8" diameter units. Base plate includes four (4) pre-drilled mounting holes. Mounting kits and replacement caps available. Baked in powder coat finish for added toughness.

Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic caps are removable on ,1-3/4", 4-1/2" and 5-1/2" diameter units and bollard may be filled with concrete. Steel caps are welded on the 6-5/8, 8-5/8" diameter units. Base plate includes four (4) pre-drilled mounting holes. Mounting kits and replacement caps available. Baked in powder coat finish for added toughness.

Other Bollards

Replaceable Bollard Caps

Replaceable Bollard Caps

Protective Dome Covers for Bollards

Protective Dome Covers for Bollards

Plastic Bollard Covers

Plastic Bollard Covers

Bollard/Post Covers

Bollard/Post Covers

Decorative Bollard Covers

Decorative Bollard Covers

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Safety Steel Pipe Bollards

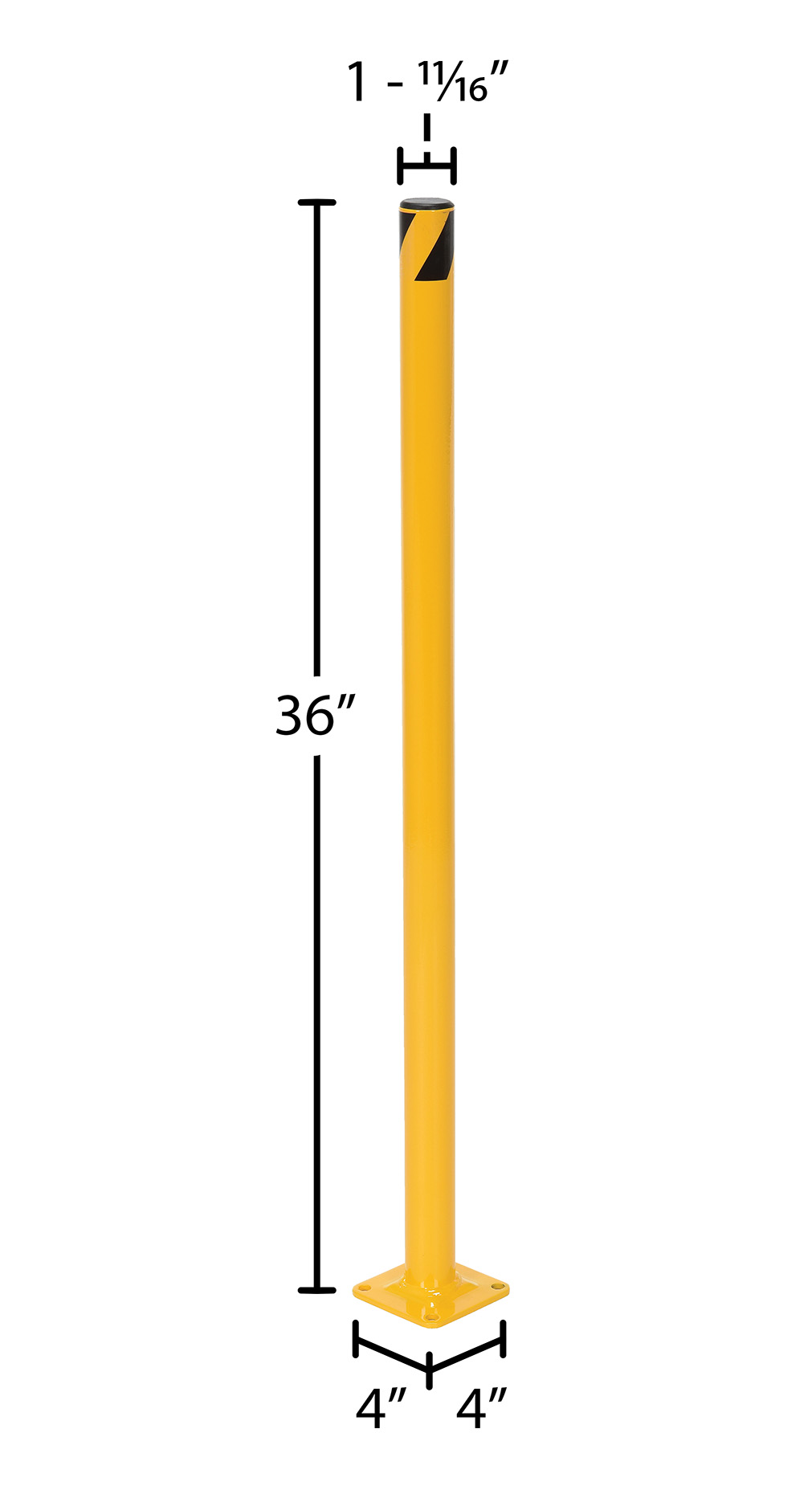

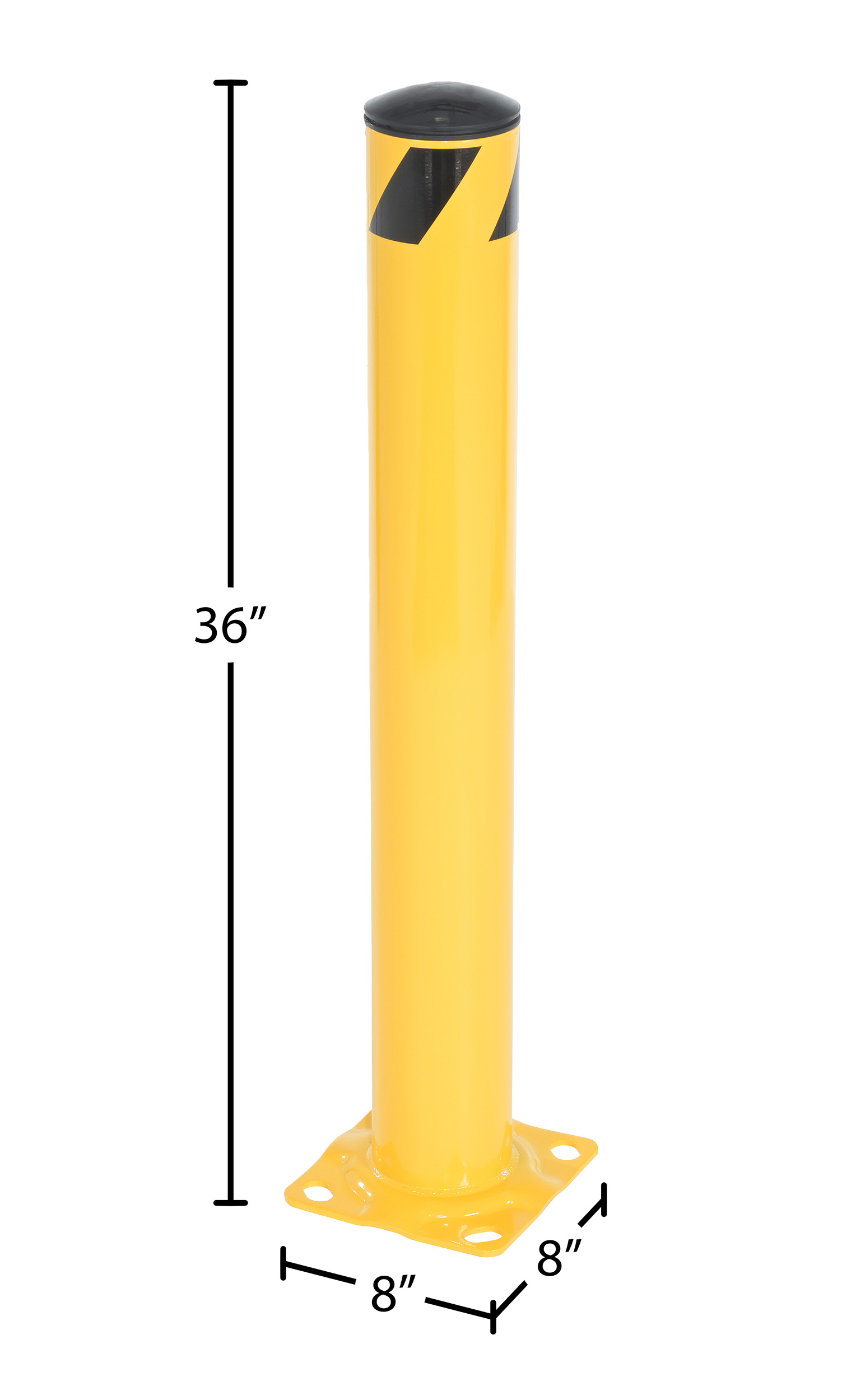

Model PDF Description Height Outside
Dia.
Base Plate
(WxL)
Wt.
(lbs)

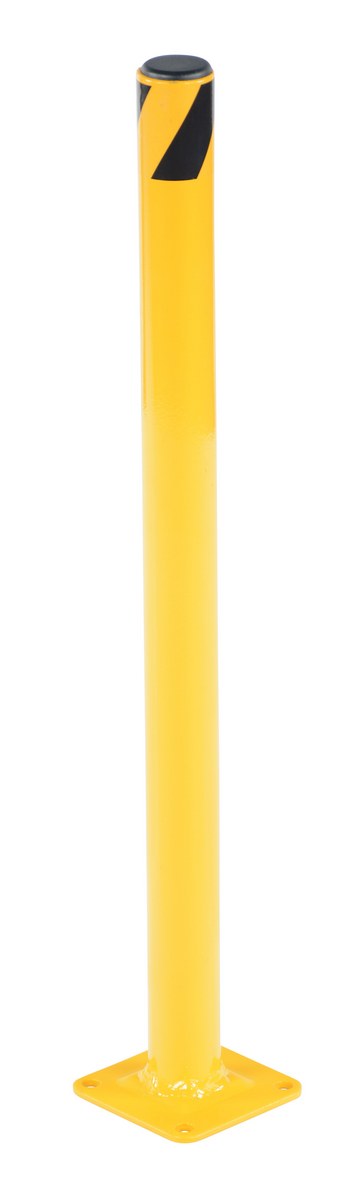

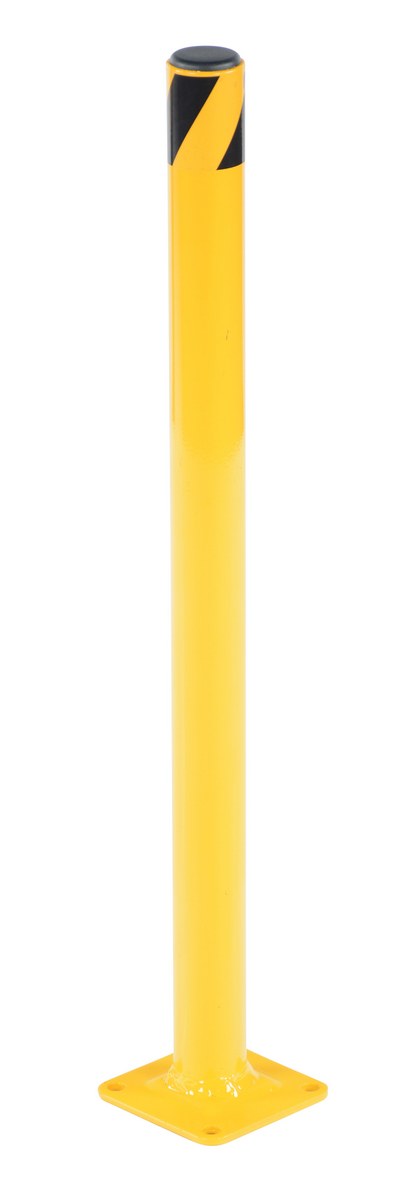

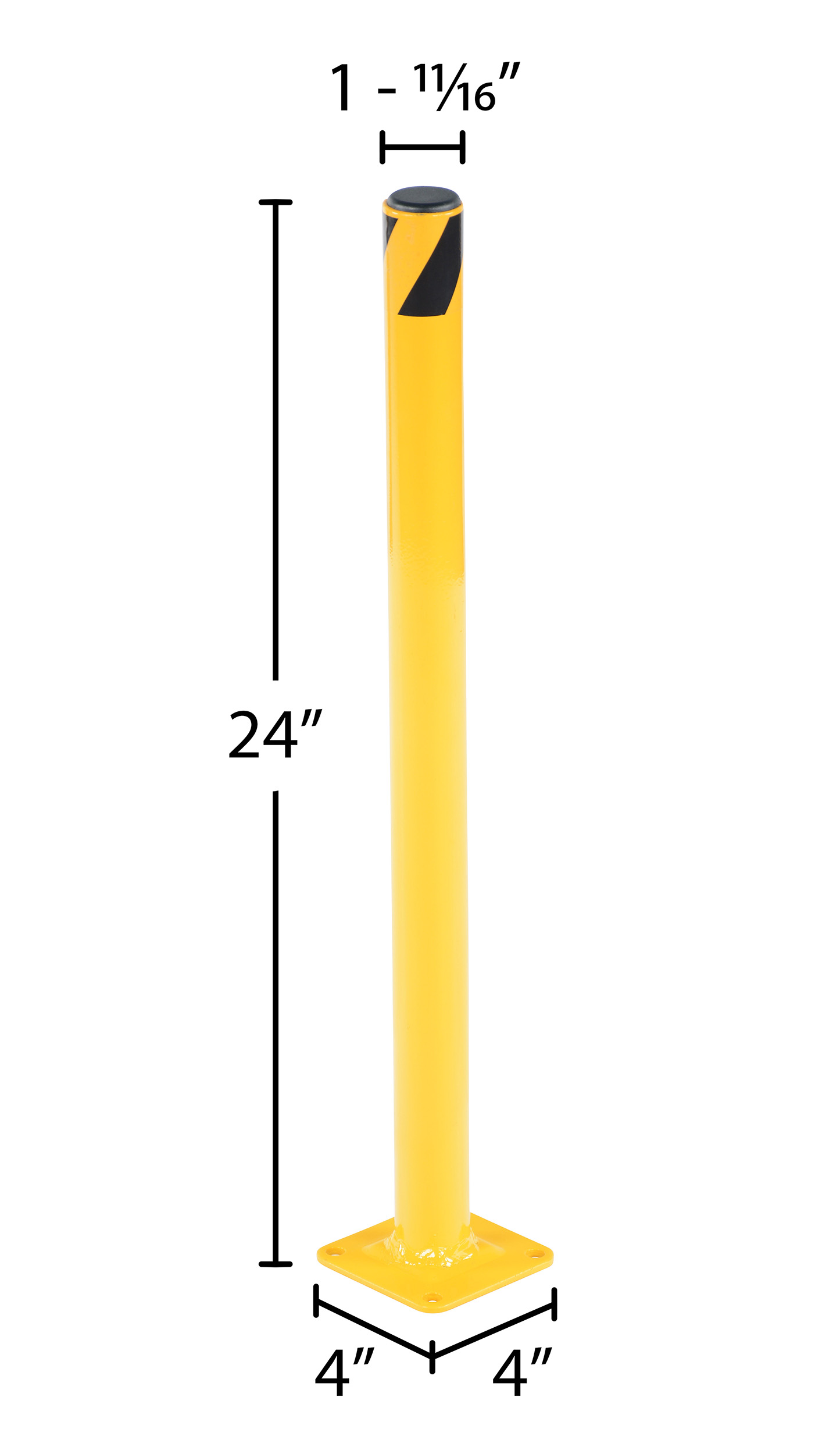

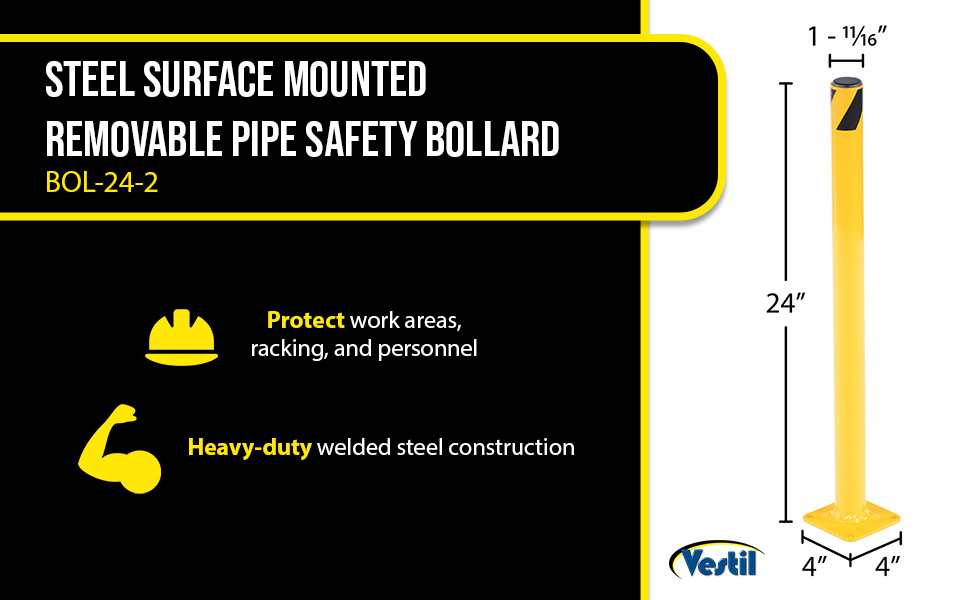

BOL-24-2 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 24" 1-3/4" 4"x4" 6

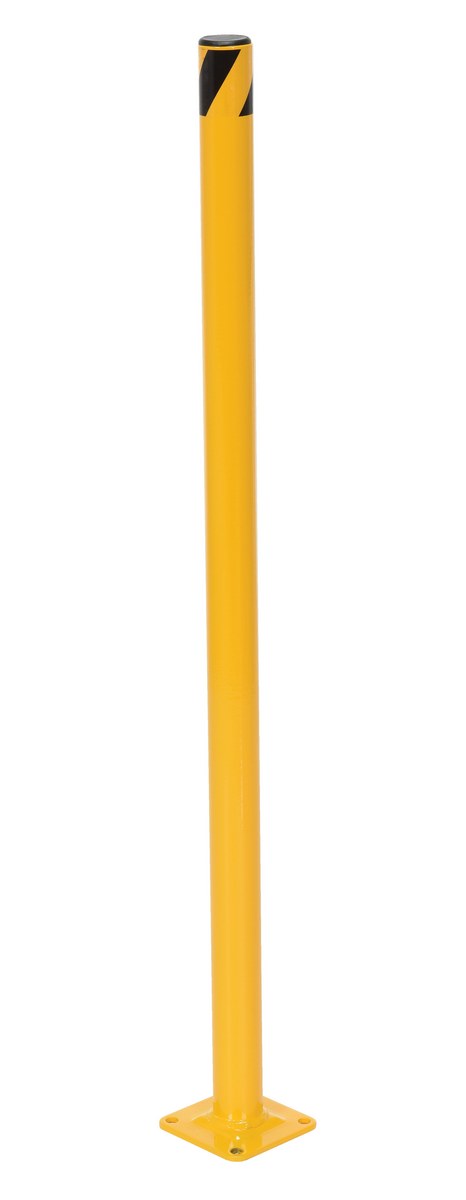

BOL-36-2 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 36" 1-3/4" 4"x4" 9

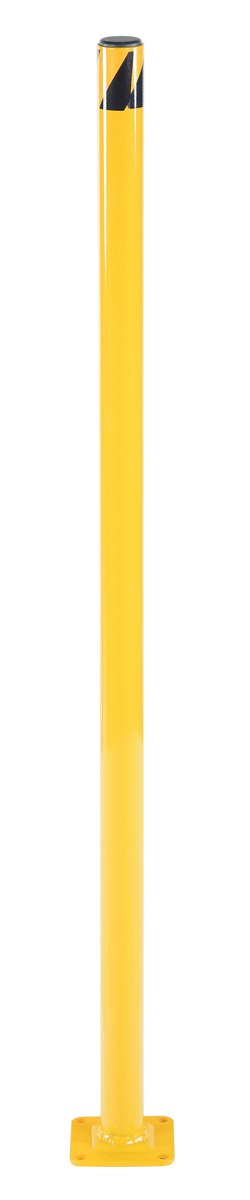

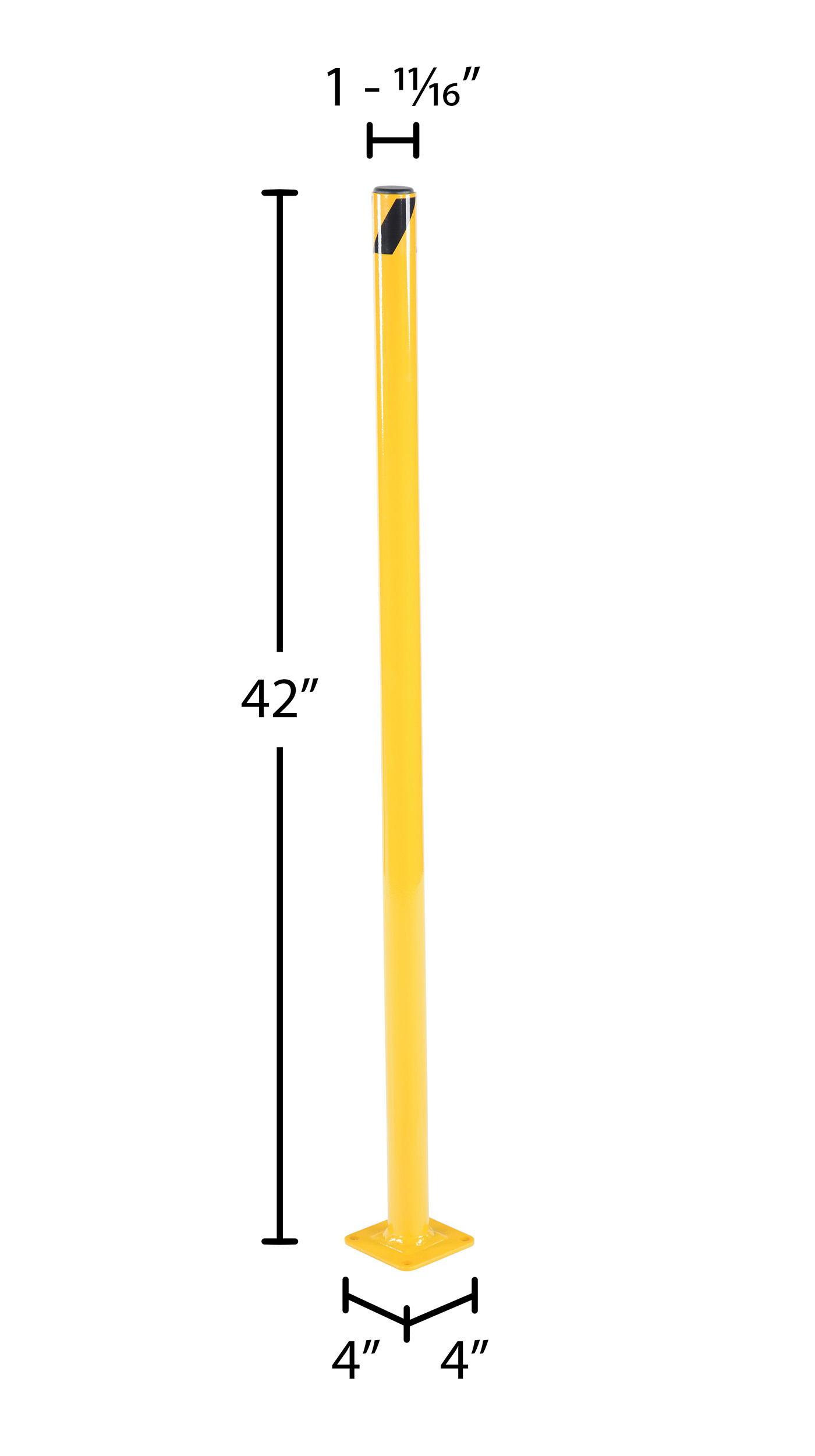

BOL-42-2 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 42" 1-3/4" 4"x4" 10

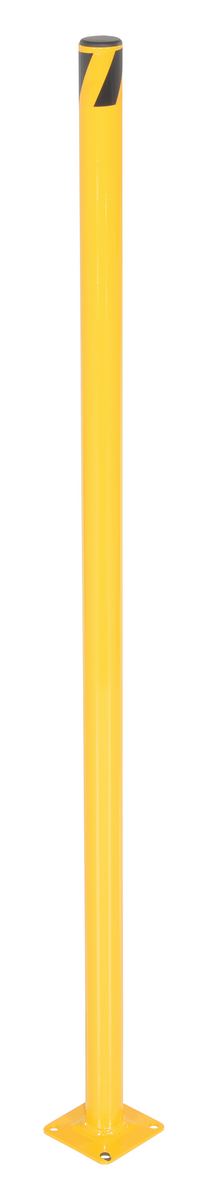

BOL-48-2 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 48" 1-3/4" 4"x4" 11

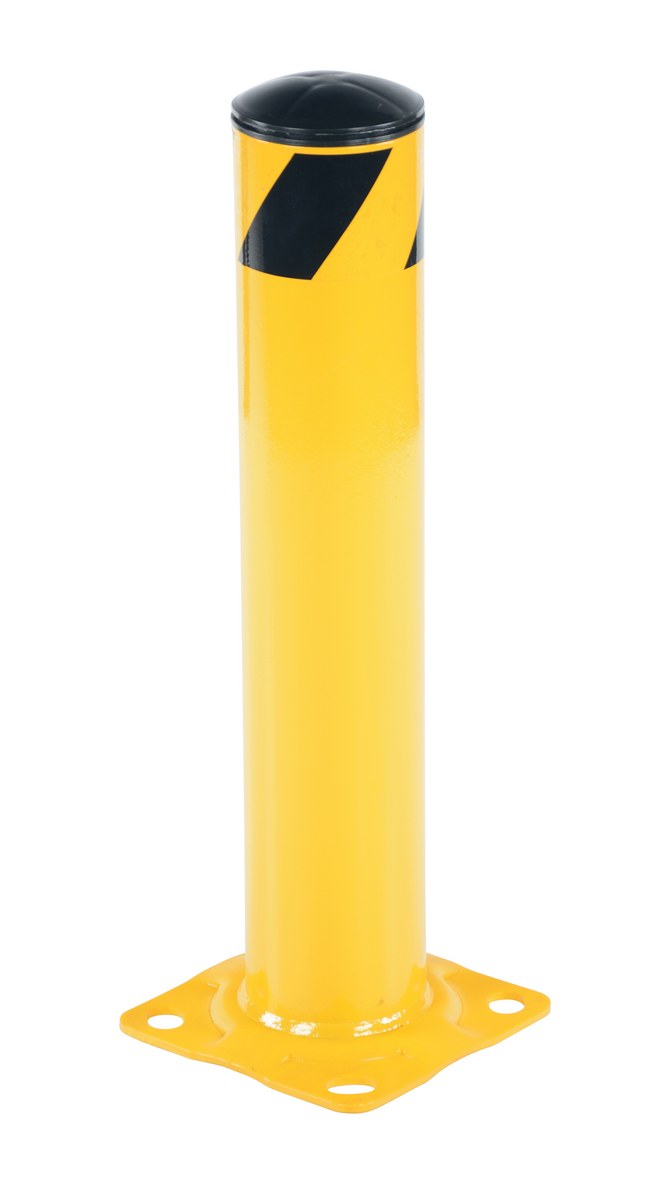

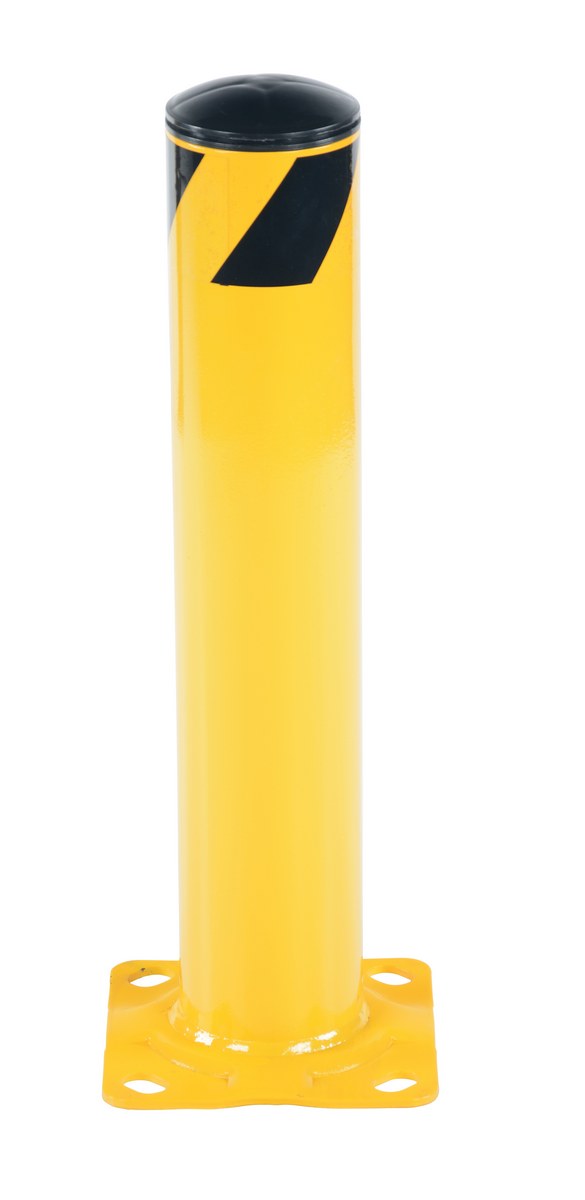

BOL-24-4.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 24" 4-1/2" 8"x8" 17

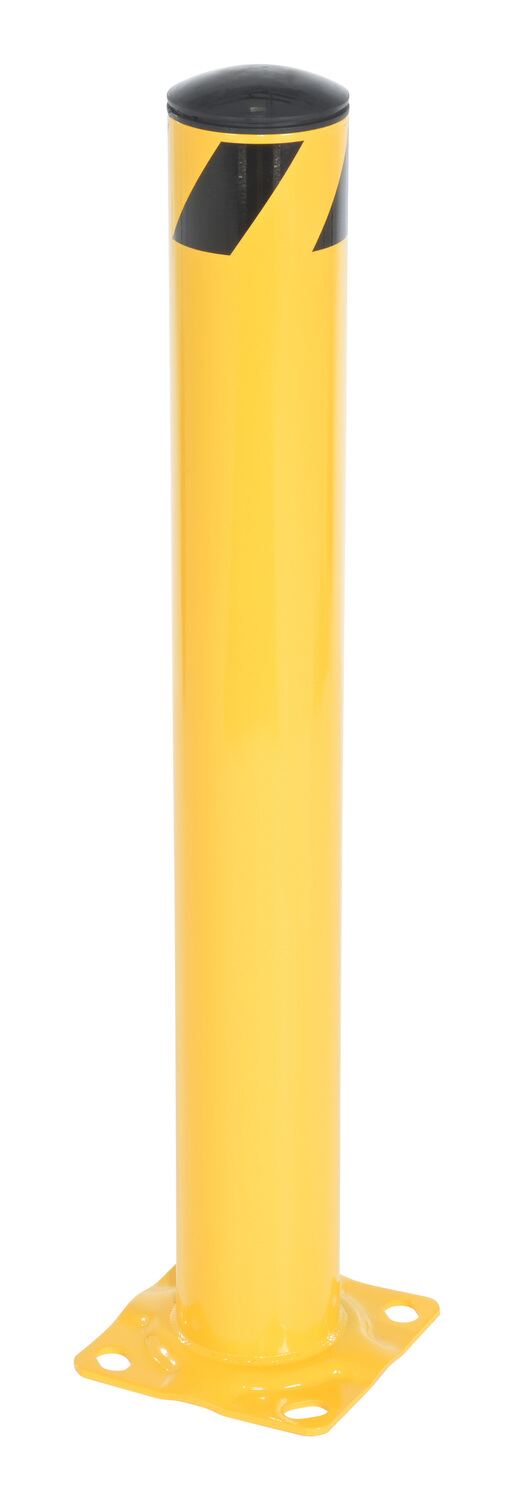

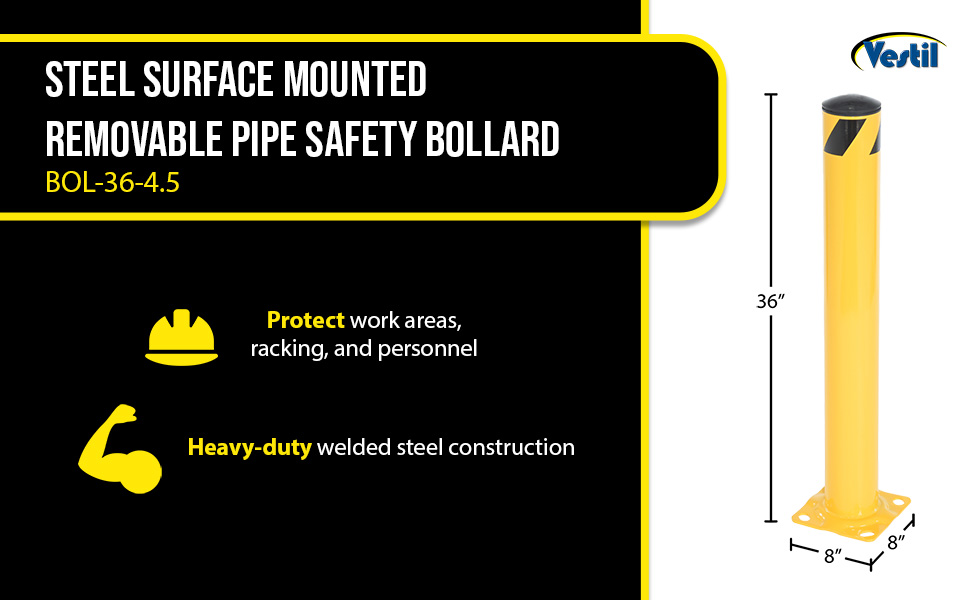

BOL-36-4.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 36" 4-1/2" 8"x8" 22

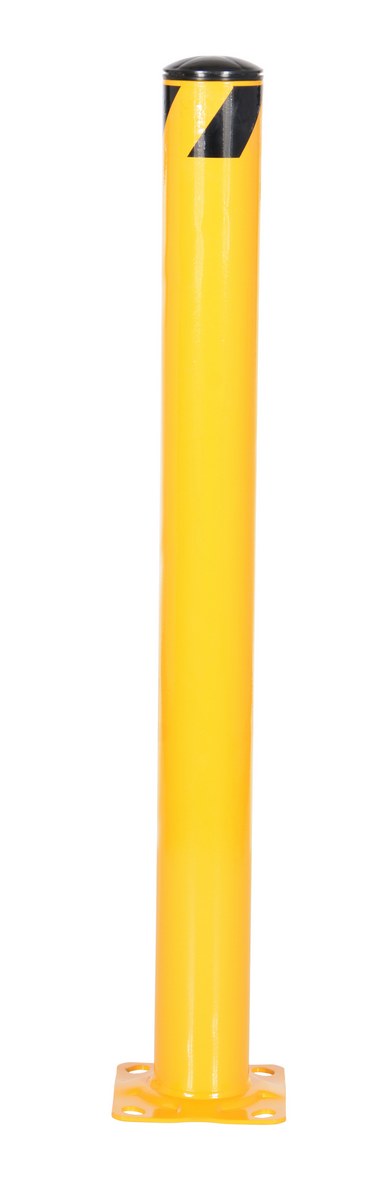

BOL-42-4.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 42" 4-1/2" 8"x8" 26

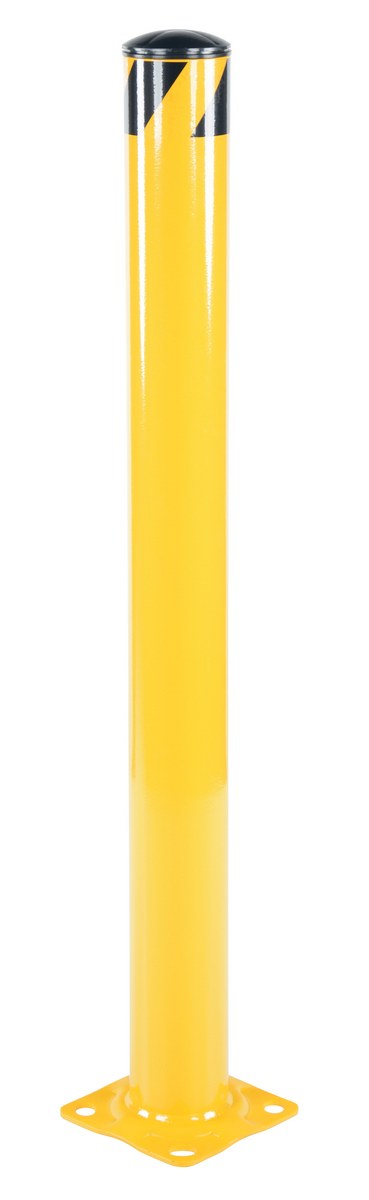

BOL-48-4.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 48" 4-1/2" 8"x8" 29
BOL-62-4.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 62" 4-1/2" 8"x8" 39
BOL-72-4.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 72" 4-1/2" 8"x8" 49

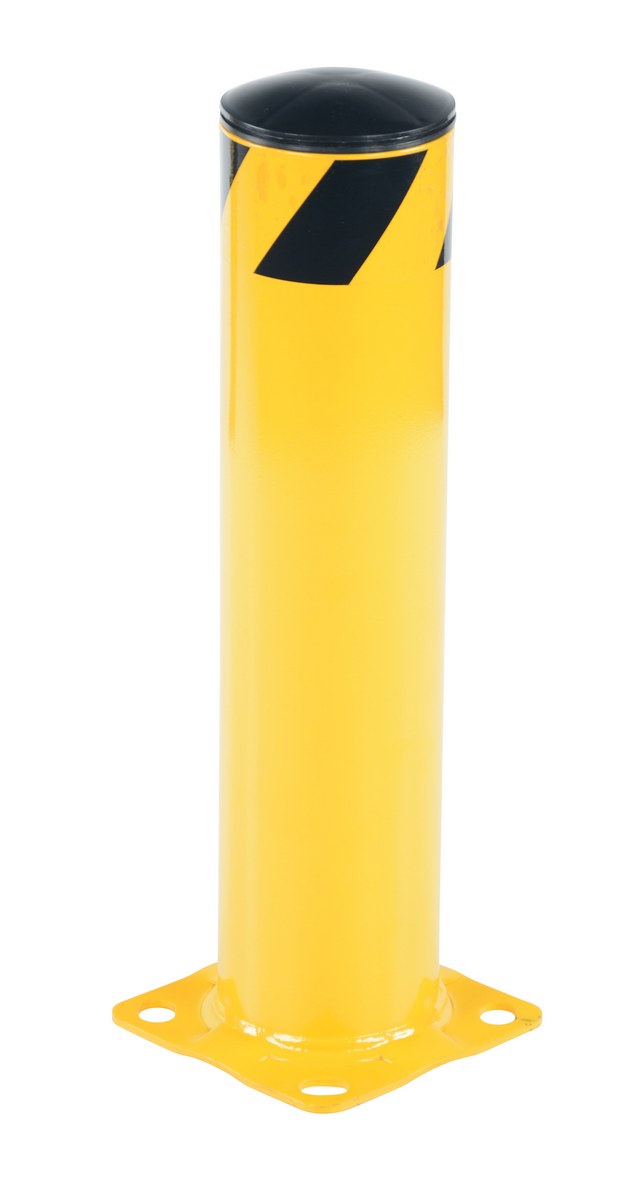

BOL-24-5.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 24" 5-1/2" 8"x8" 20

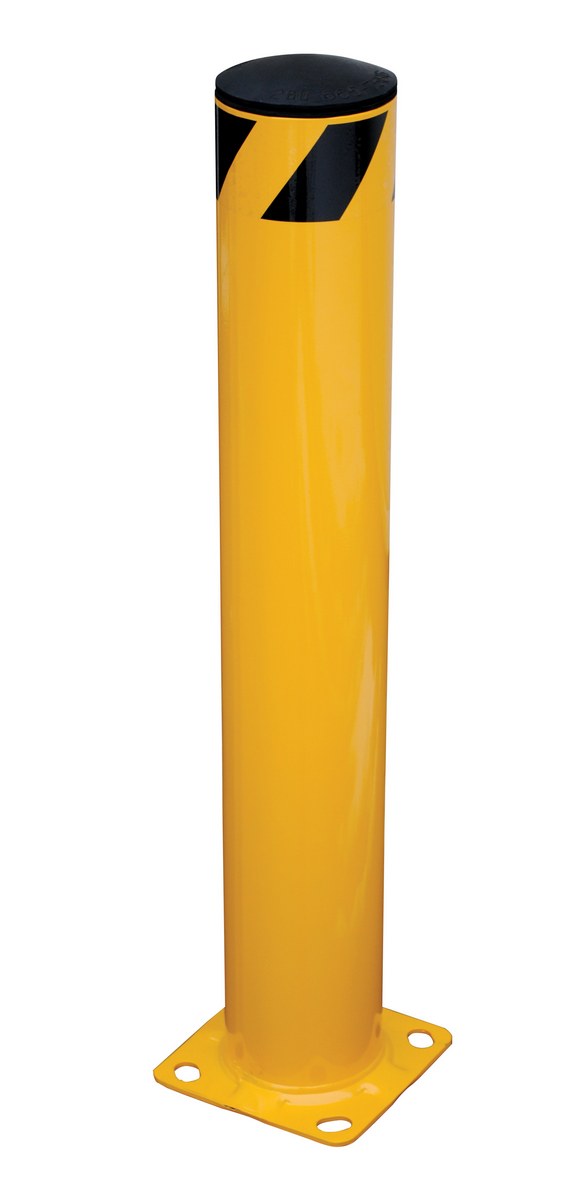

BOL-36-5.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 36" 5-1/2" 8"x8" 26

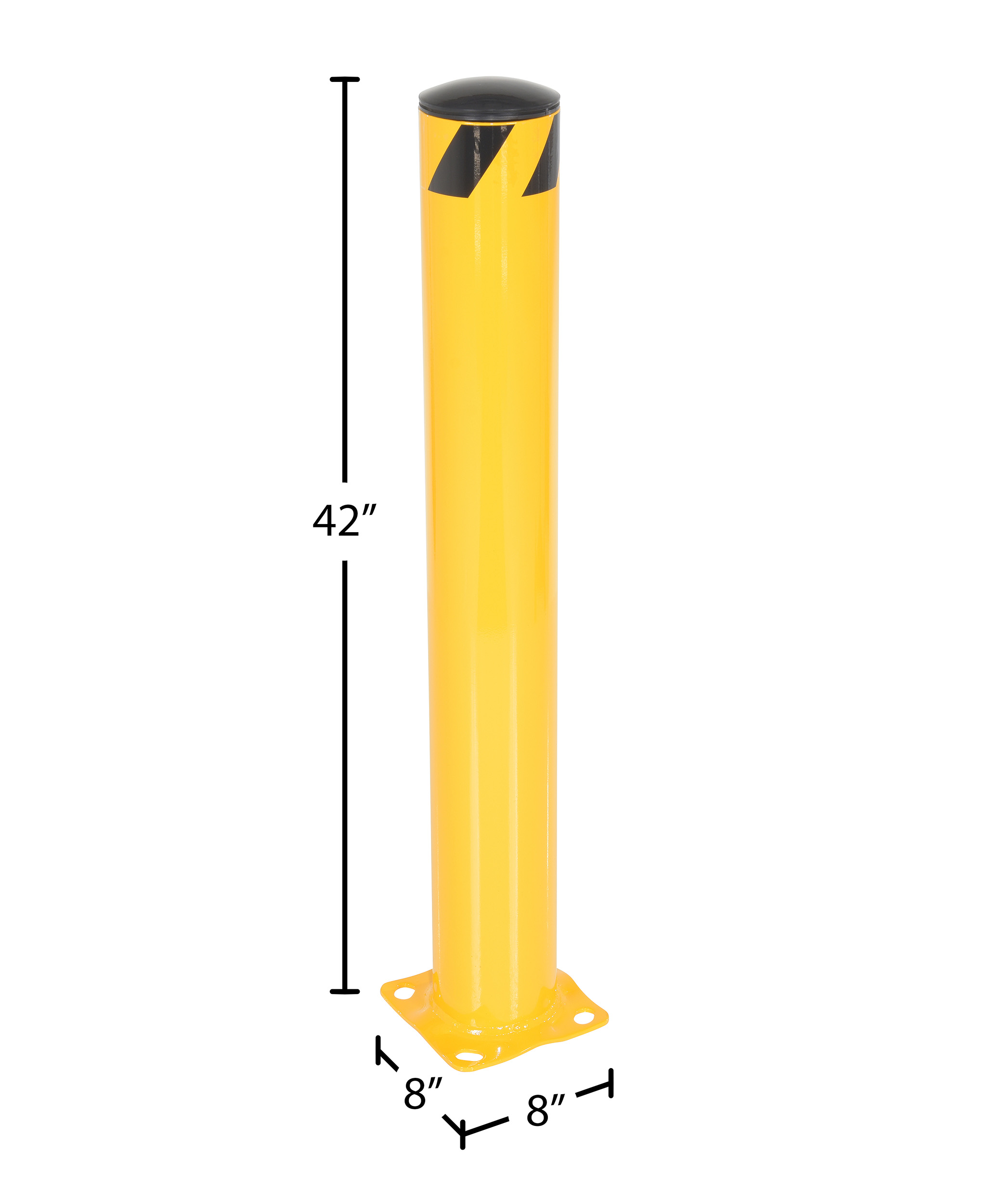

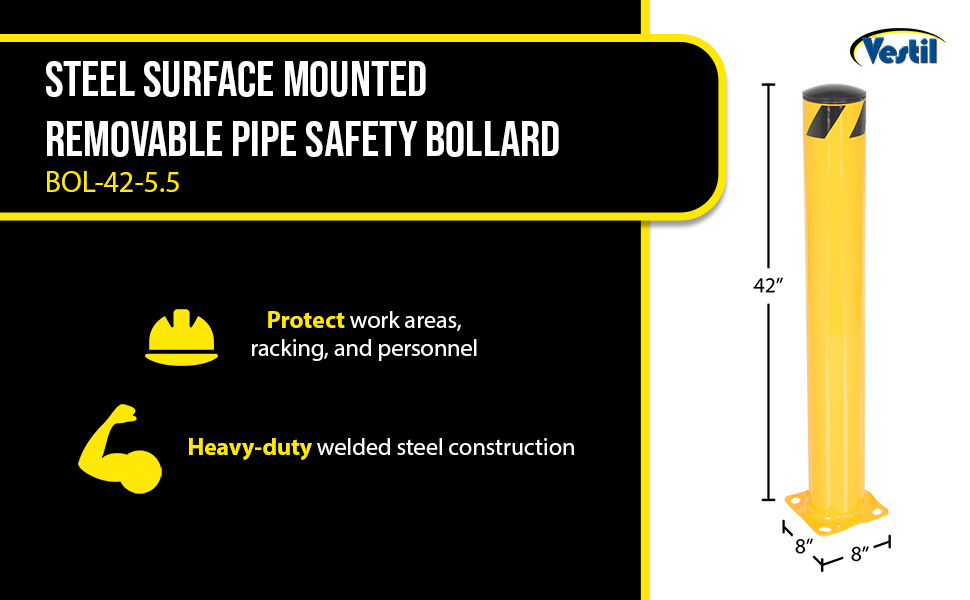

BOL-42-5.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 42" 5-1/2" 8"x8" 30

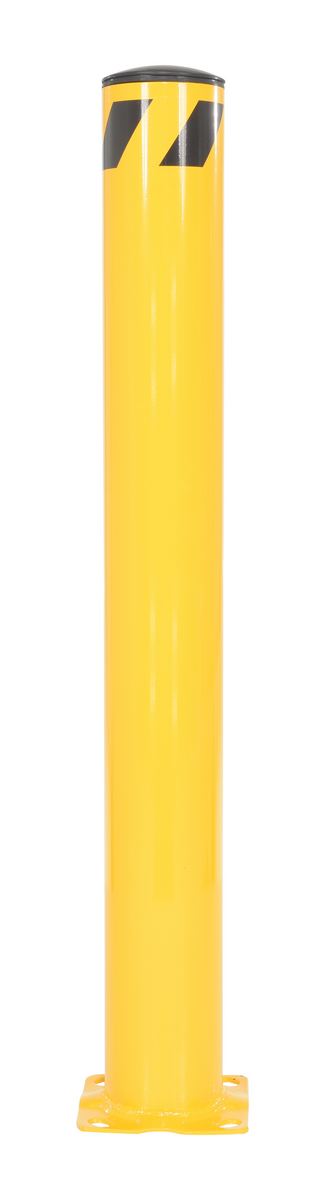

BOL-48-5.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 48" 5-1/2" 8"x8" 35
BOL-62-5.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 62" 5-1/2" 8"x8" 45

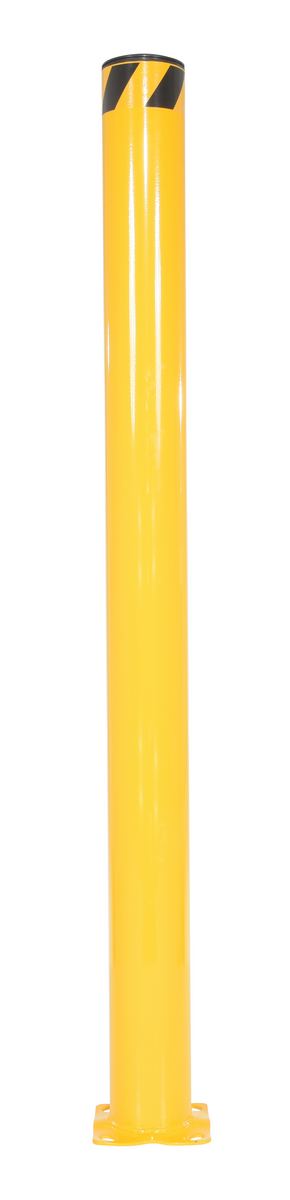

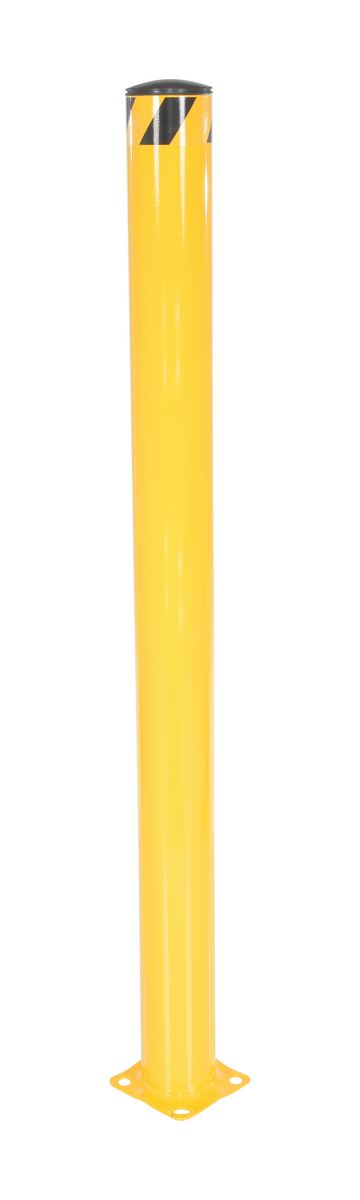

BOL-72-5.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 72" 5-1/2" 8"x8" 55

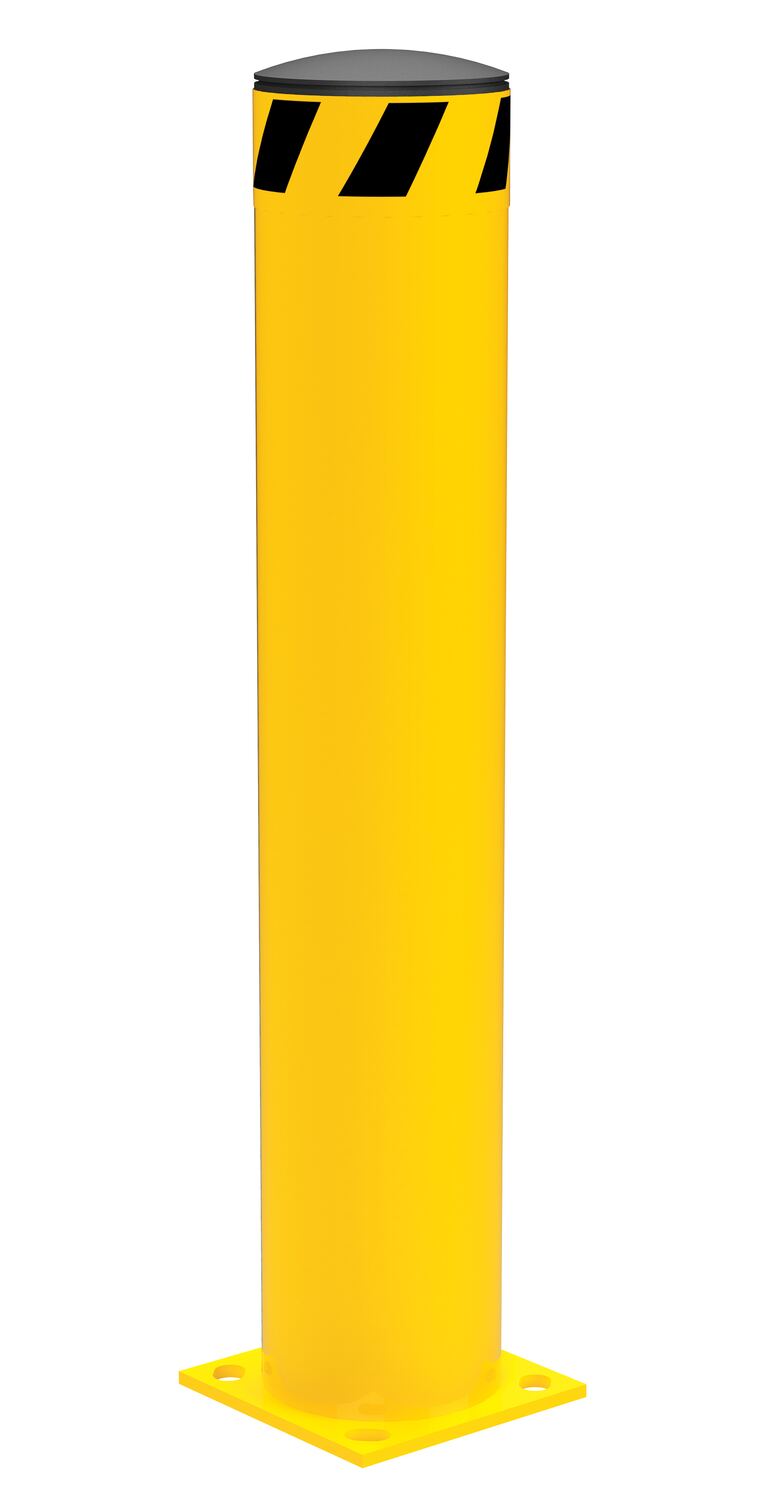

BOL-36-6.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 36" 6-5/8" 8"x8" 30
BOL-42-6.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 42" 6-5/8" 8"x8" 49
BOL-48-6.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 48" 6-5/8" 8"x8" 51

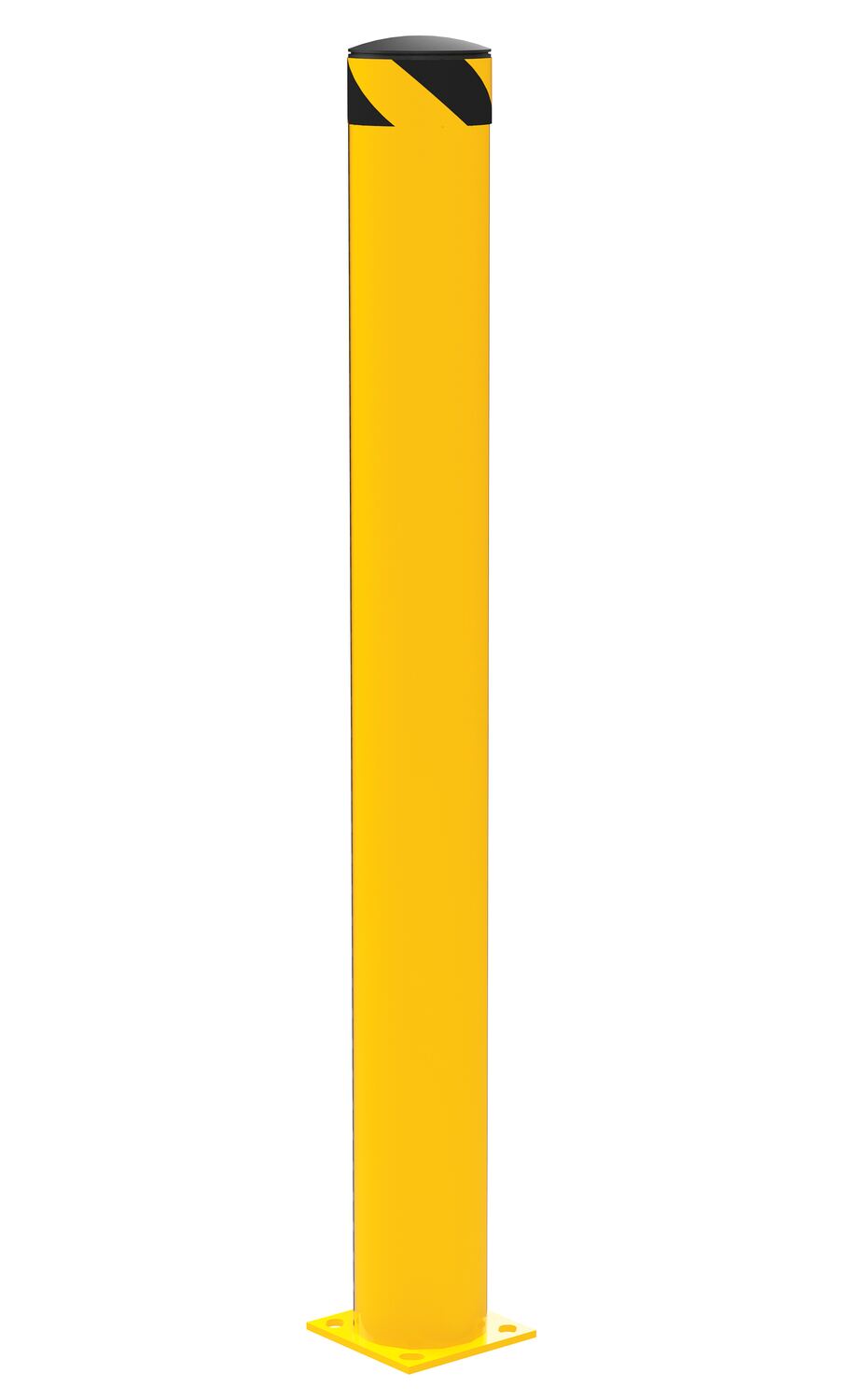

BOL-62-6.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 62" 6-5/8" 8"x8" 61
BOL-72-6.5 icon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 72" 6-5/8" 8"x8" 71
BOL-36-8.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 36" 8-5/8" 10"x10" 53

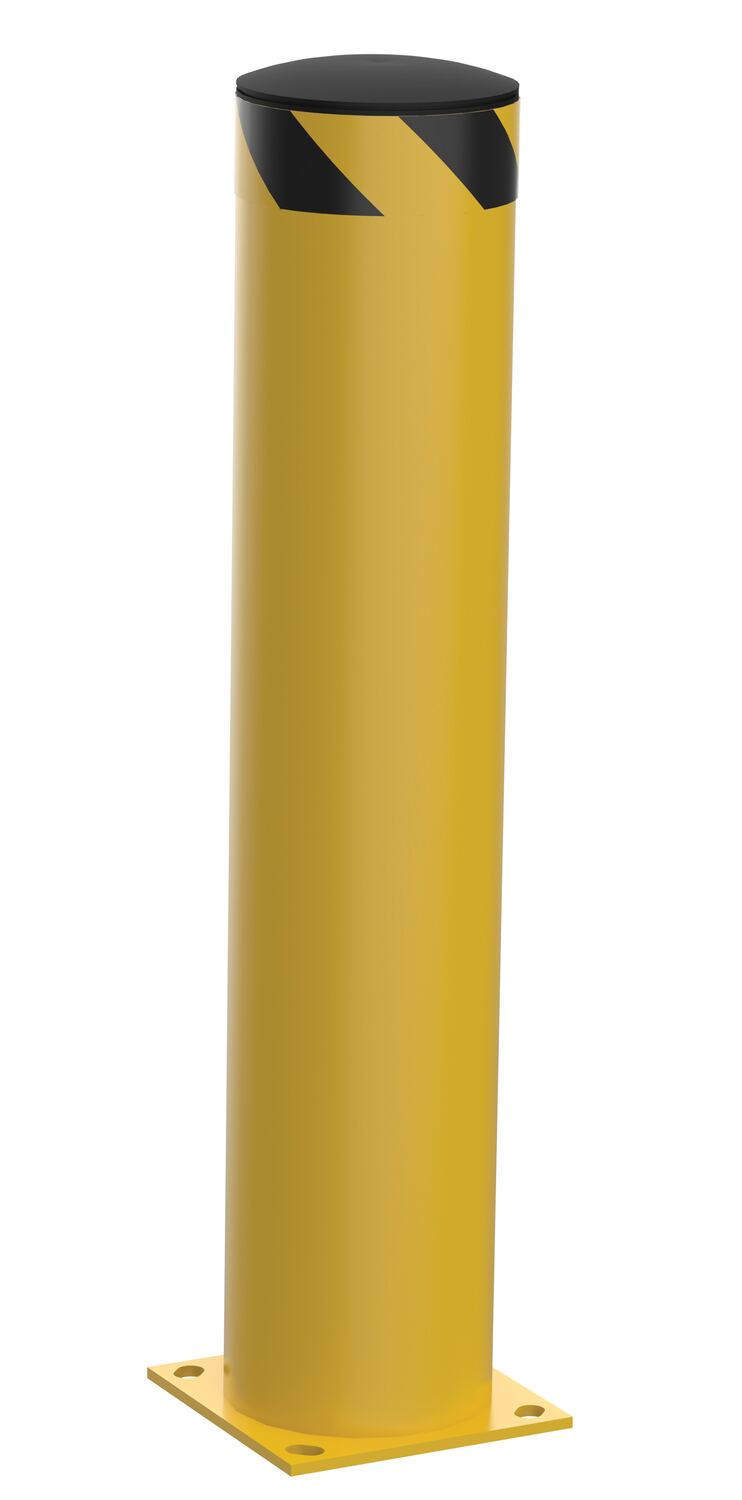

BOL-42-8.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 42" 8-5/8" 10"x10" 110

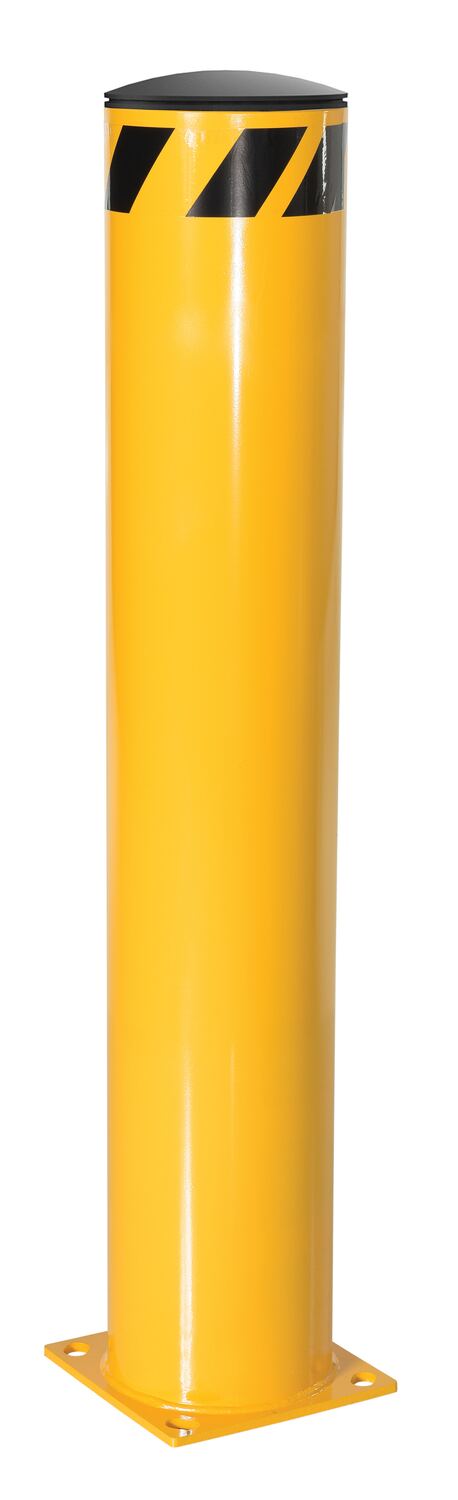

BOL-48-8.5 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate Yellow Steel Pipe Bollard 48" 8-5/8" 10"x10" 126

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options
Model Description WT.

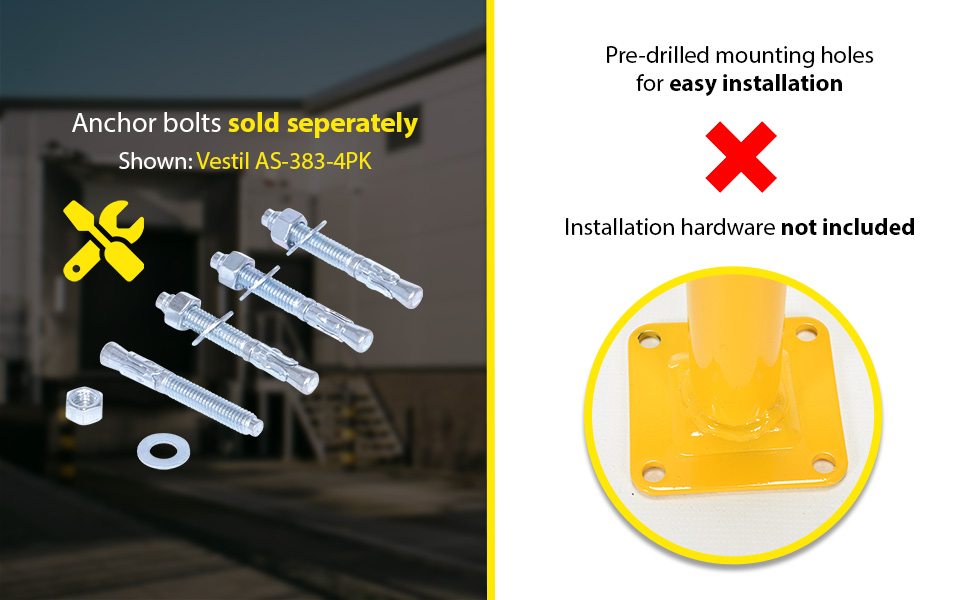

AS-383 Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units) 1
AS-383-4PK Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units) 4
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

BOL-24-2

BOL-24-2

BOL-24-4.5

BOL-24-4.5

BOL-24-4.5-RED

BOL-24-4.5-RED

BOL-24-5.5

BOL-24-5.5

BOL-24-5.5-RED

BOL-24-5.5-RED

BOL-36-2

BOL-36-2

BOL-36-4.5

BOL-36-4.5

BOL-36-4.5-RED

BOL-36-4.5-RED

BOL-36-5.5

BOL-36-5.5

BOL-36-5.5-RED

BOL-36-5.5-RED

BOL-36-6.5

BOL-36-6.5

BOL-36-8.5

BOL-36-8.5

BOL-42-2

BOL-42-2

BOL-42-4.5

BOL-42-4.5

BOL-42-4.5-RED

BOL-42-4.5-RED

BOL-42-5.5

BOL-42-5.5

BOL-42-5.5-RED

BOL-42-5.5-RED

BOL-42-6.5

BOL-42-6.5

BOL-42-8.5

BOL-42-8.5

BOL-48-2

BOL-48-2

BOL-48-4.5

BOL-48-4.5

BOL-48-5.5

BOL-48-5.5

BOL-48-6.5

BOL-48-6.5

BOL-48-8.5

BOL-48-8.5

BOL-62-4.5

BOL-62-4.5

BOL-62-5.5

BOL-62-5.5

BOL-62-6.5

BOL-62-6.5

BOL-72-4.5

BOL-72-4.5

BOL-72-5.5

BOL-72-5.5

BOL-72-6.5

BOL-72-6.5






Steel Pipe Safety Bollards PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

BOL-24-2
BOL-24-4.5
BOL-24-4.5-RED
BOL-24-5.5
BOL-24-5.5-RED
BOL-36-2
BOL-36-4.5
BOL-36-4.5-RED
BOL-36-5.5
BOL-36-5.5-RED
BOL-36-6.5
BOL-36-8.5
BOL-42-2
BOL-42-4.5
BOL-42-4.5-RED
BOL-42-5.5
BOL-42-5.5-RED
BOL-42-6.5
BOL-42-8.5
BOL-48-2
BOL-48-4.5
BOL-48-5.5
BOL-48-6.5
BOL-48-8.5
BOL-62-4.5
BOL-62-5.5
BOL-62-6.5
BOL-72-4.5
BOL-72-5.5
BOL-72-6.5

Testing Certificates

BOL-36-4.5
BOL-24-4.5-RED
BOL-24-4.5
BOL-72-6.5
BOL-72-5.5
BOL-72-4.5
BOL-62-6.5
BOL-62-5.5
BOL-62-4.5
BOL-48-8.5
BOL-48-6.5
BOL-42-8.5
BOL-42-6.5
BOL-36-8.5
BOL-36-6.5
BOL-48-5.5
BOL-48-4.5
BOL-48-2
BOL-42-5.5-RED
BOL-42-5.5
BOL-42-4.5-RED
BOL-42-2
BOL-36-5.5-RED
BOL-36-5.5
BOL-36-2
BOL-24-5.5-RED
BOL-24-5.5
BOL-24-2
BOL-42-4.5
BOL-36-4.5-RED

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: What is the schedule of the bollard?

A: The 2" bollard is 1 1/4" schedule-10 pipe. (.109" wall)


Q: What is the schedule of the bollard?

A: The 4.5" bollard is 4" schedule-10 pipe. (.120" wall)


Q: What is the schedule of the bollard?

A: The 5.5" bollard is 5" schedule-10 pipe. (.134" wall)


Q: What is the schedule of the bollard?

A: The 6.5" bollard is 6" schedule-10 pipe. (.134" wall)


Q: What is the schedule of the bollard?

A: The 8.5" bollard is 8" schedule-10 pipe. (.148" wall)


Q: What metal are the anchor bolts ?

A: The anchor bolts are zinc plated steel.


Q: What is the impact rating of the bollard?

A: The impact rating for the bollard is 4,000 lbs. force at 4 MPH


Q: What is the impact rating of the bollard?

A: The 5.5" bollard has an impact rating of 4,000 lbs. force at 4 MPH.


Q: What is the impact rating of the bollard?

A: The bollard has an impact rating of 4,000 lbs. of force at 4 MPH.
