model CGP-36
SERIES: CGP

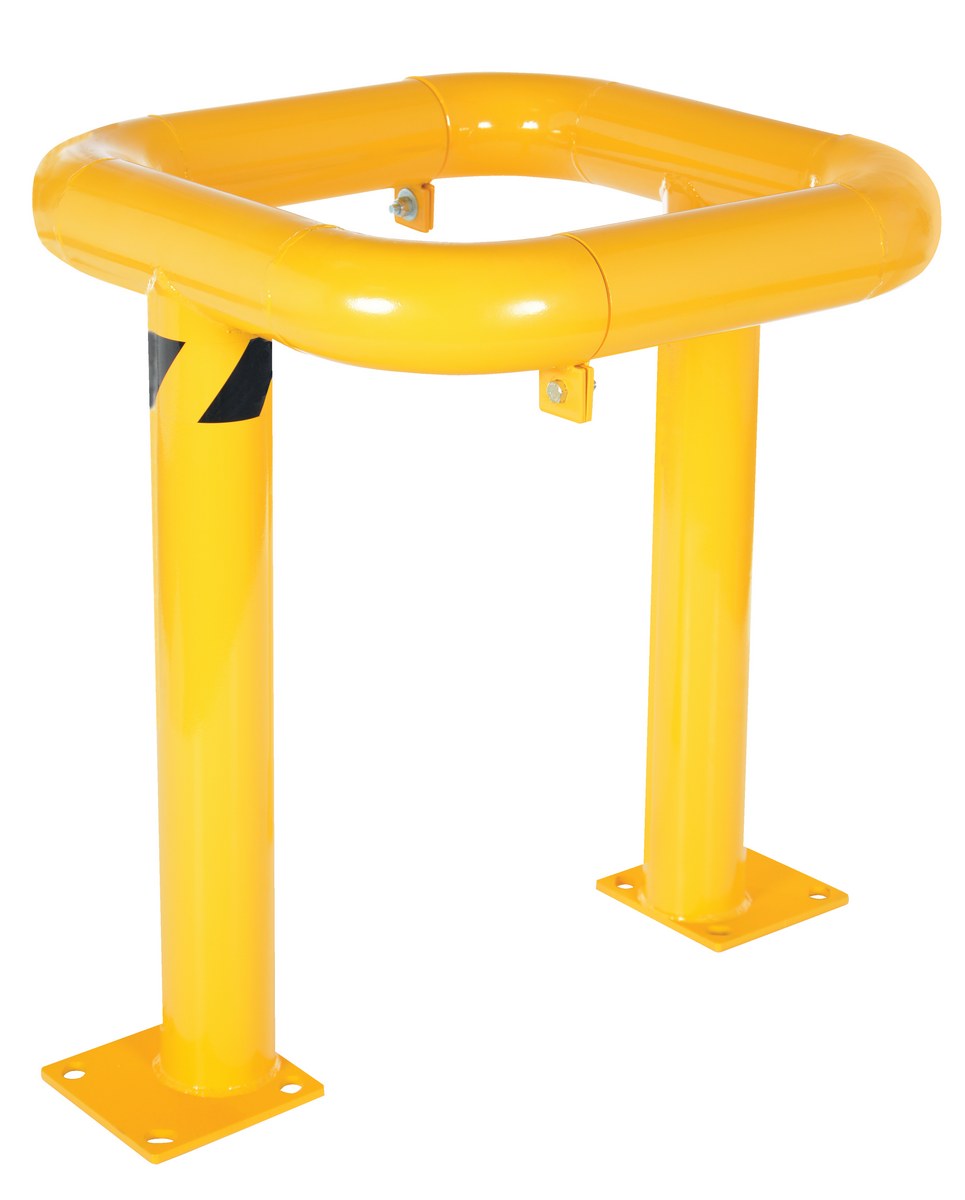

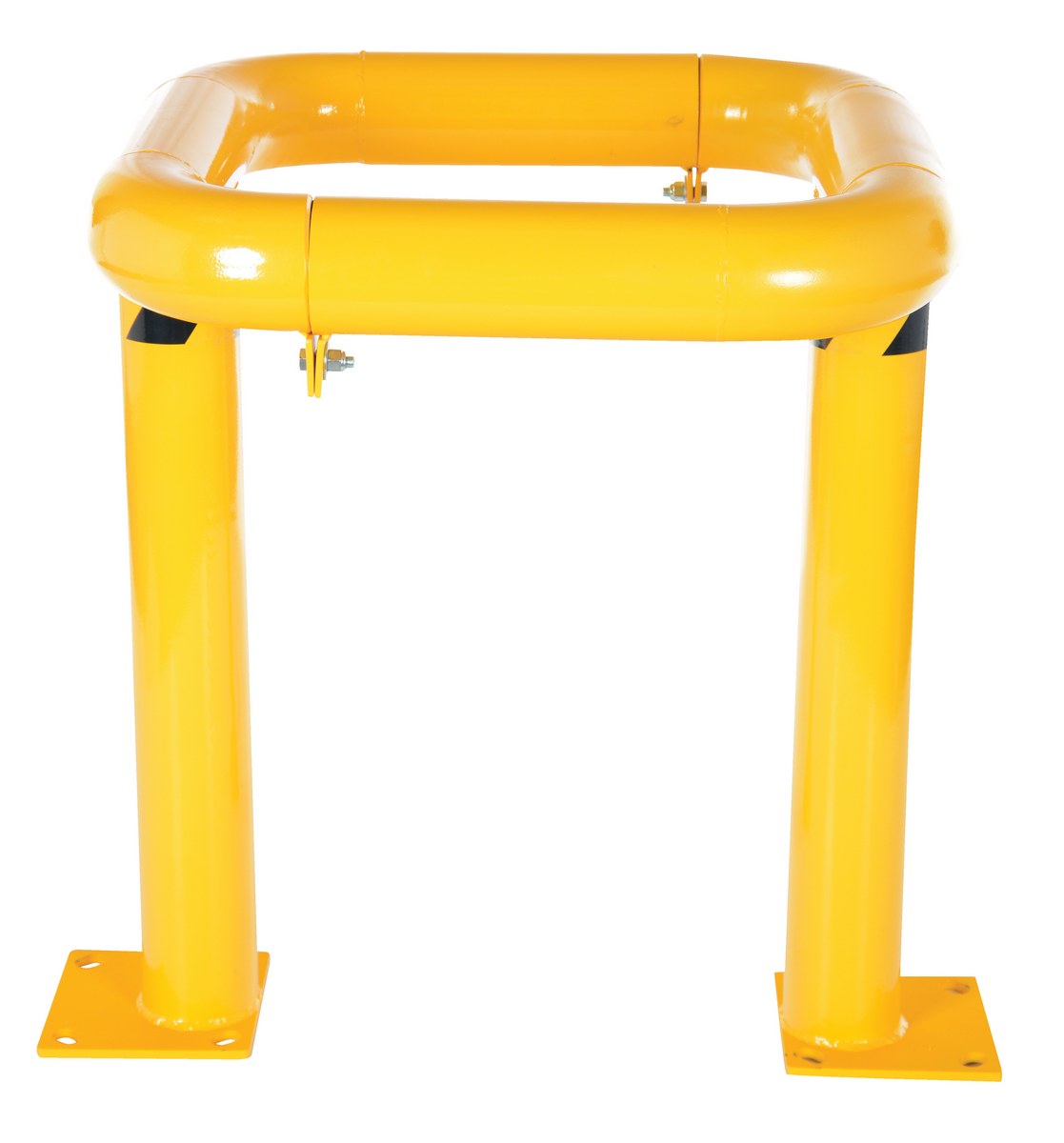

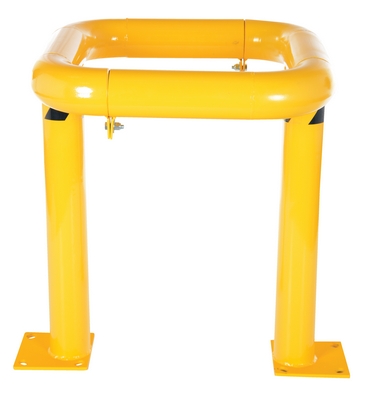

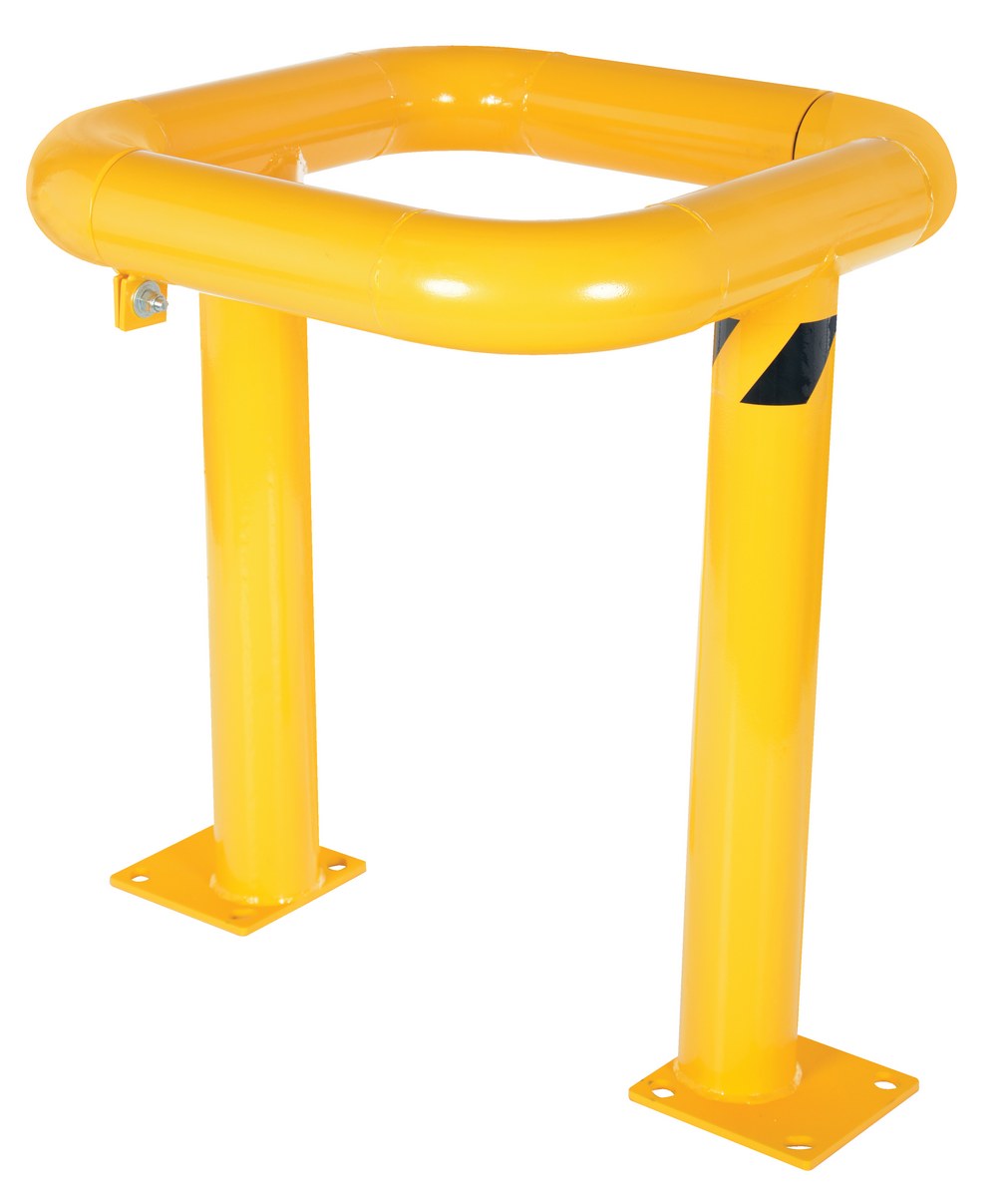

Heavy Duty Column Protectors

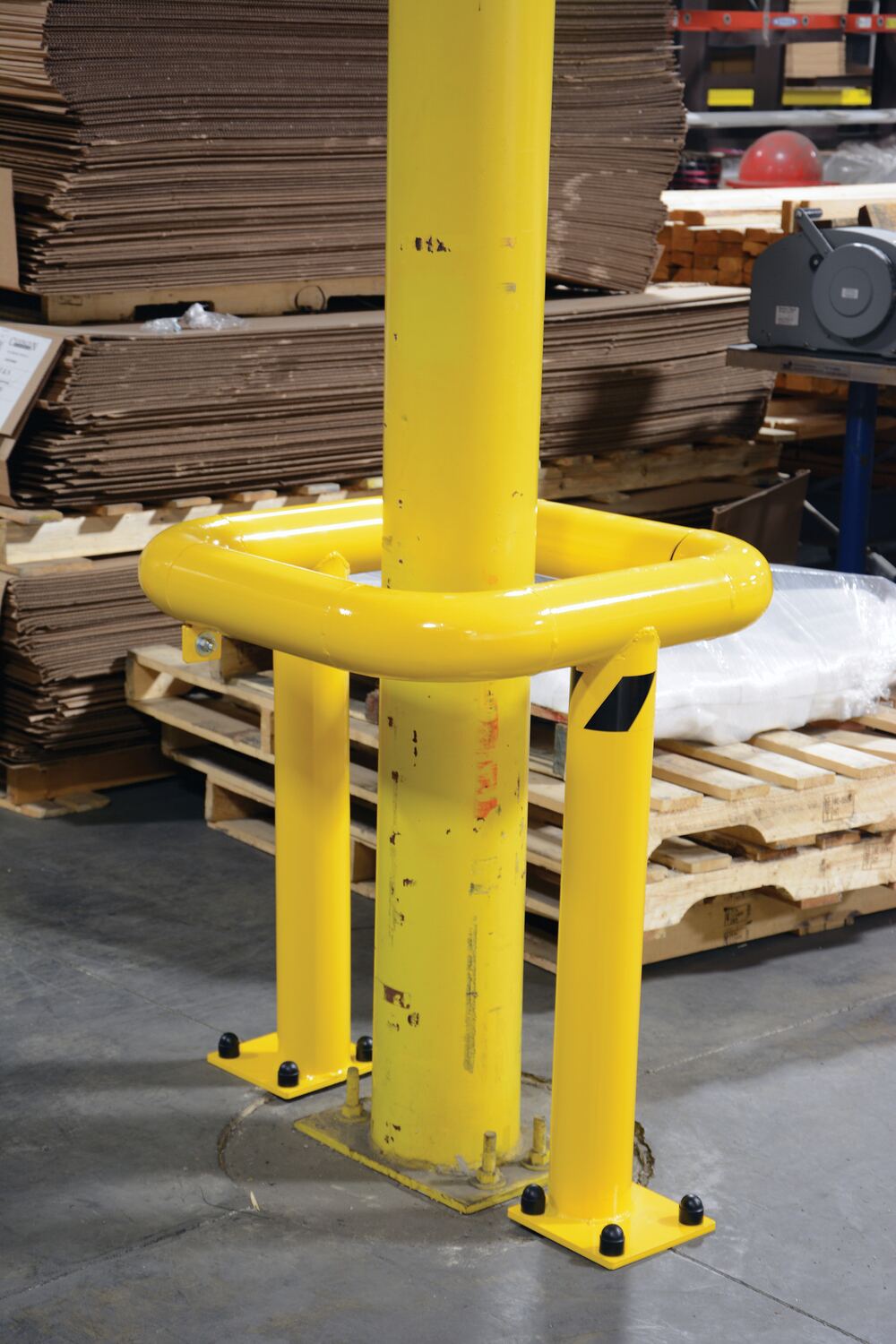

Two-piece design for protecting in-plant columns and other vertical support members. Hardware is included to connect both pieces together. Heavy duty welded steel construction. Each base plate includes (4) pre-drilled mounting holes. Concrete mounting hardware sold separately. Powder coat safety yellow finish.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Heavy Duty Column Protectors

Model PDF's Height Inside
Width
Inside
Length
Wt.
(lbs)
CGP-24 icon_approvaldrawings.jpgWarranty PDF 23-3/4" 20-5/8" 20-5/8" 125
CGP-36 icon_approvaldrawings.jpgWarranty PDF 35-3/4" 20-5/8" 20-5/8" 137
CGP-48 icon_approvaldrawings.jpgWarranty PDF 47-3/4" 20-5/8" 20-5/8" 140
AS-344 Anchor Bolts For Concrete (1) 3/4"x4" 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4"x4" 4
