model: TEG-24-24-4


SERIES: TEG

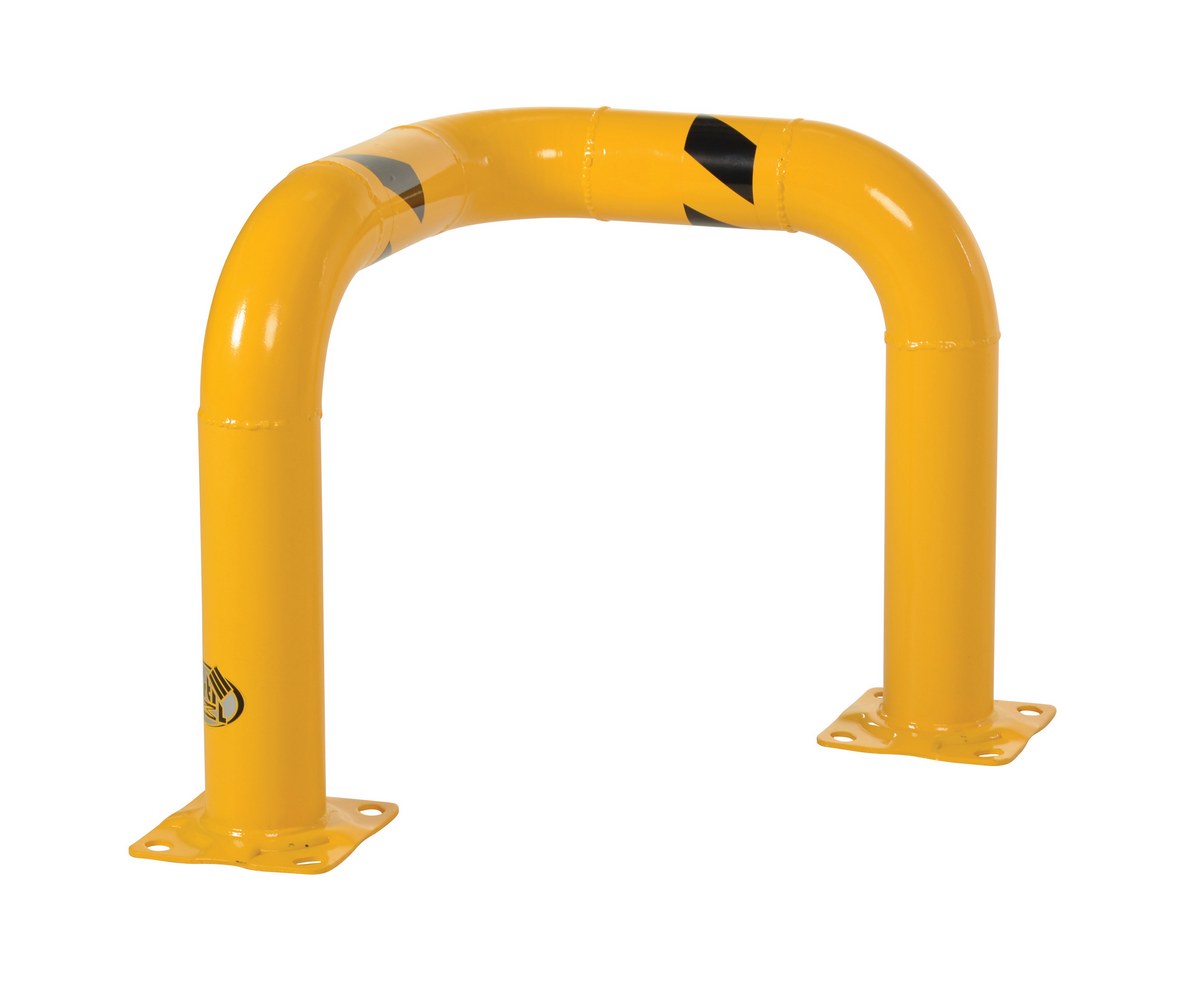

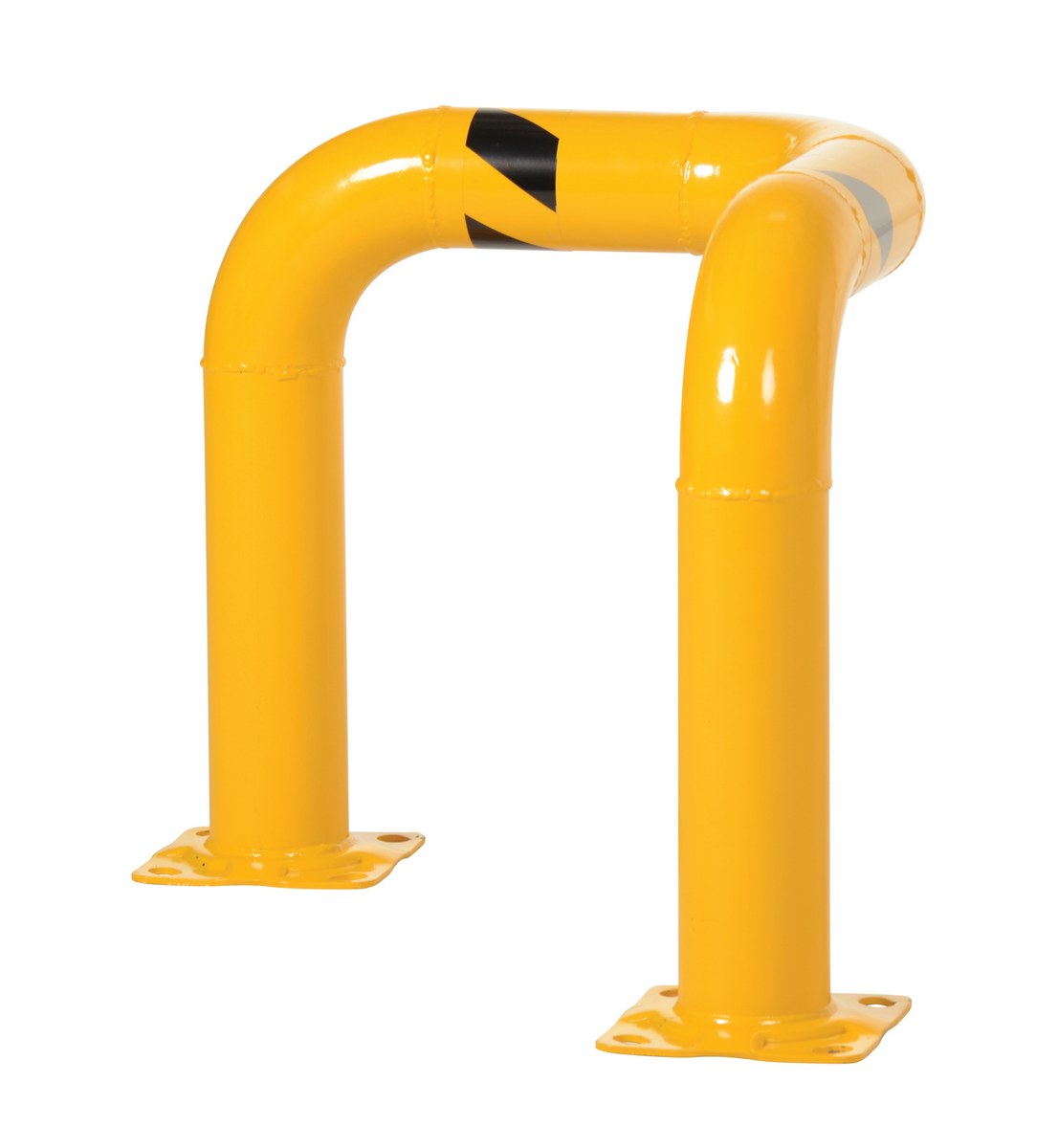

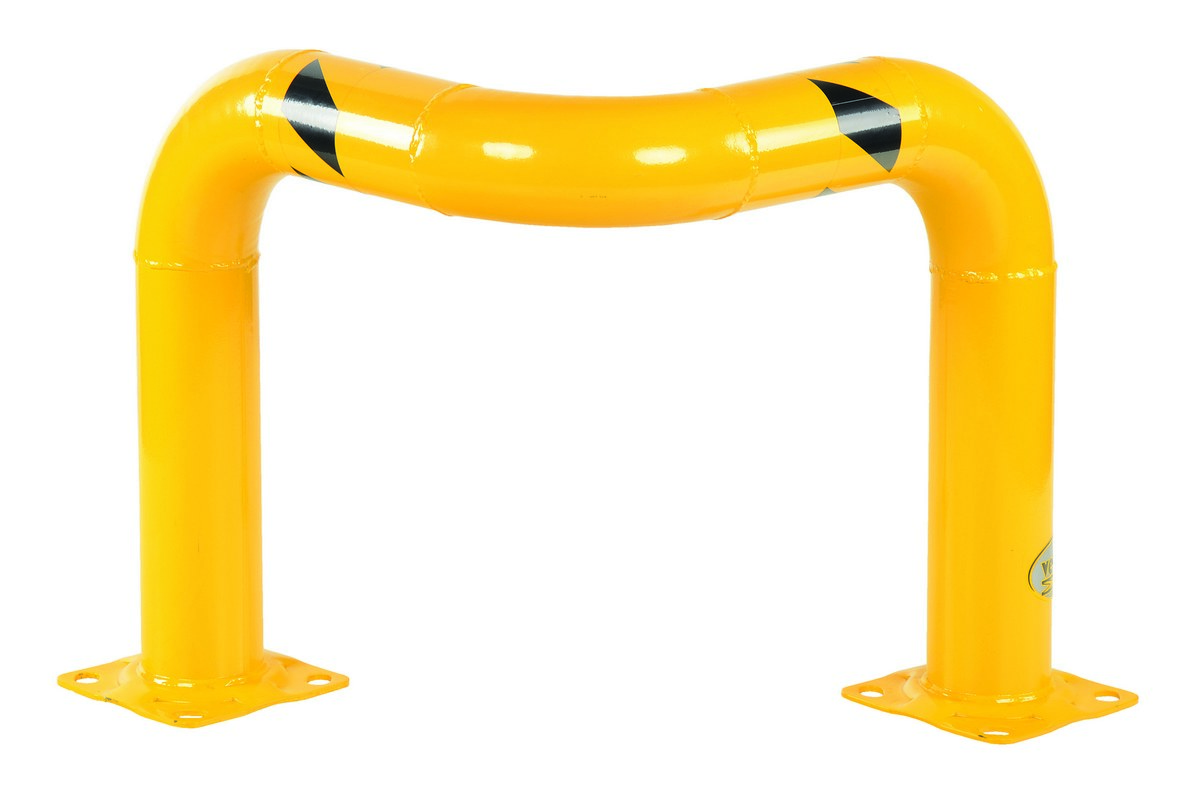

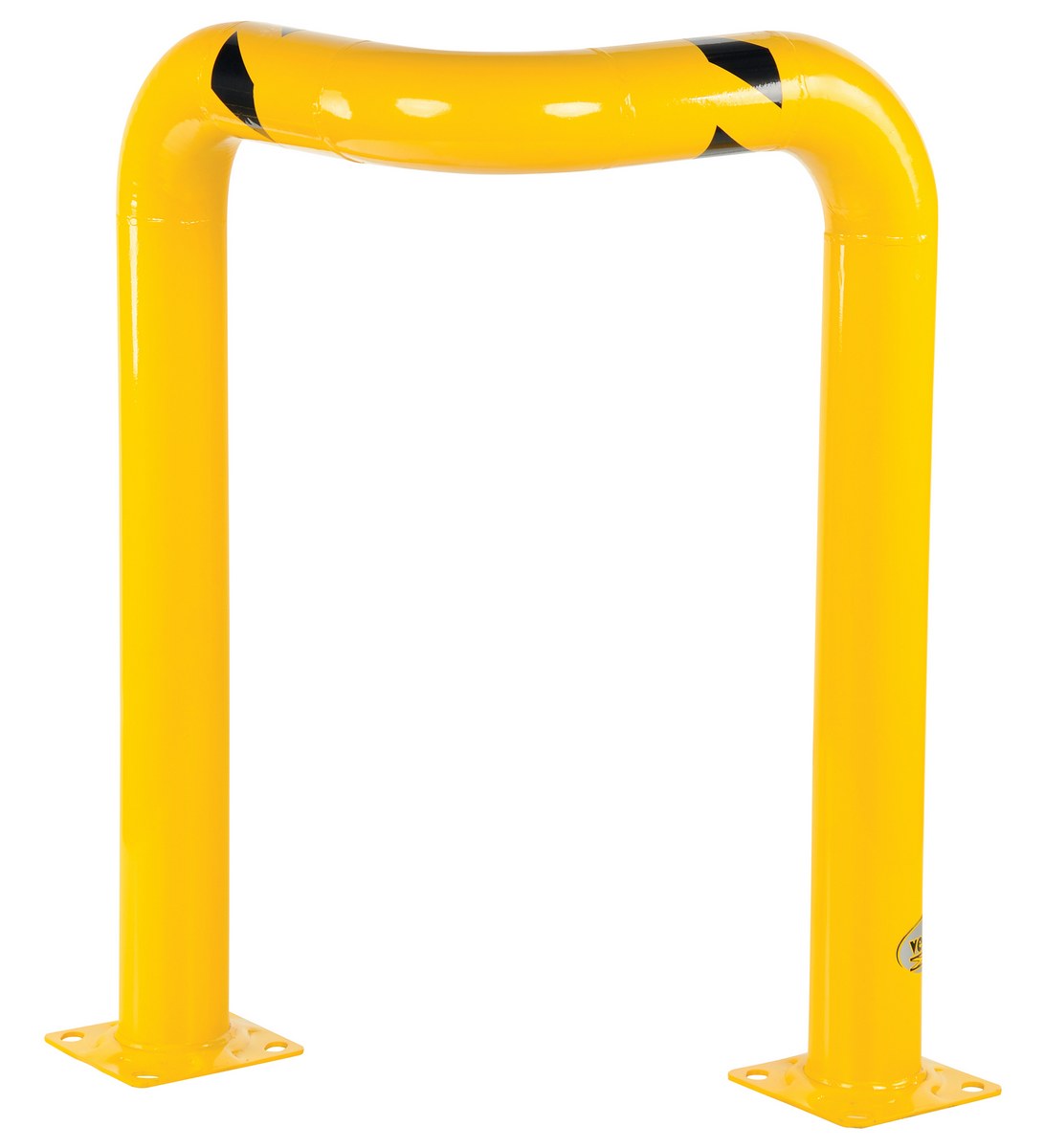

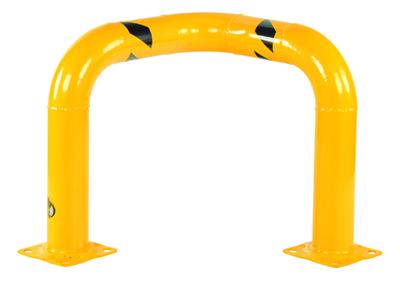

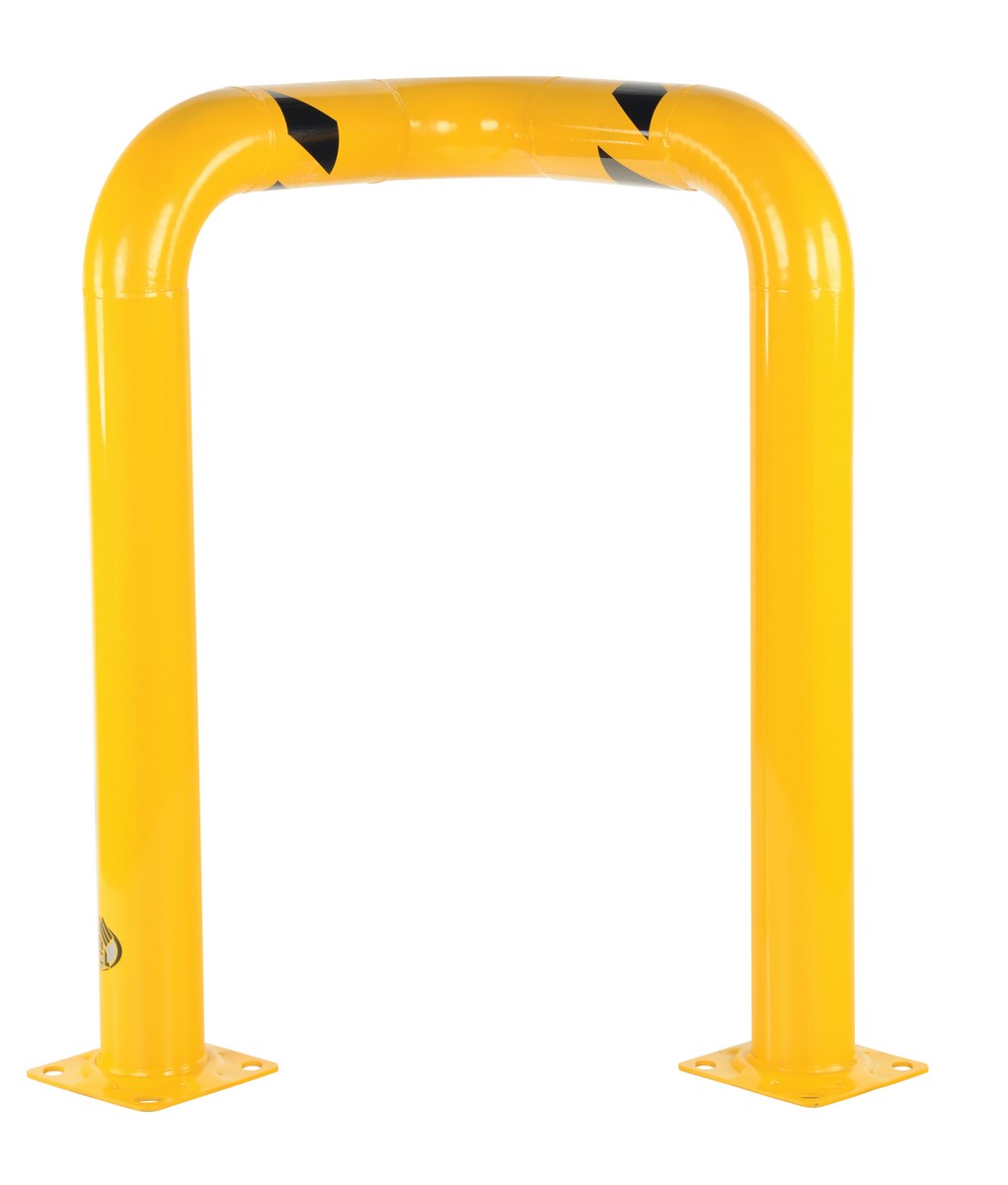

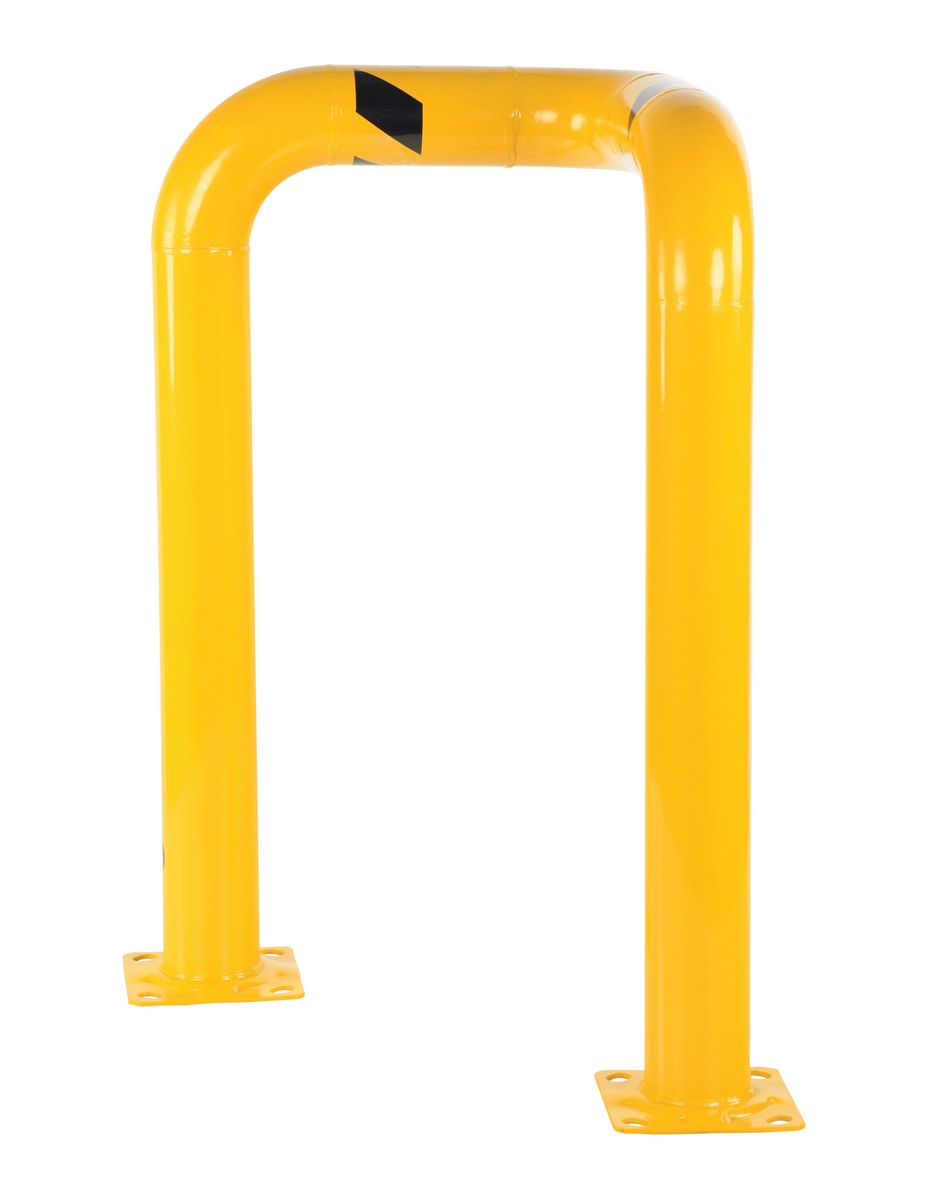

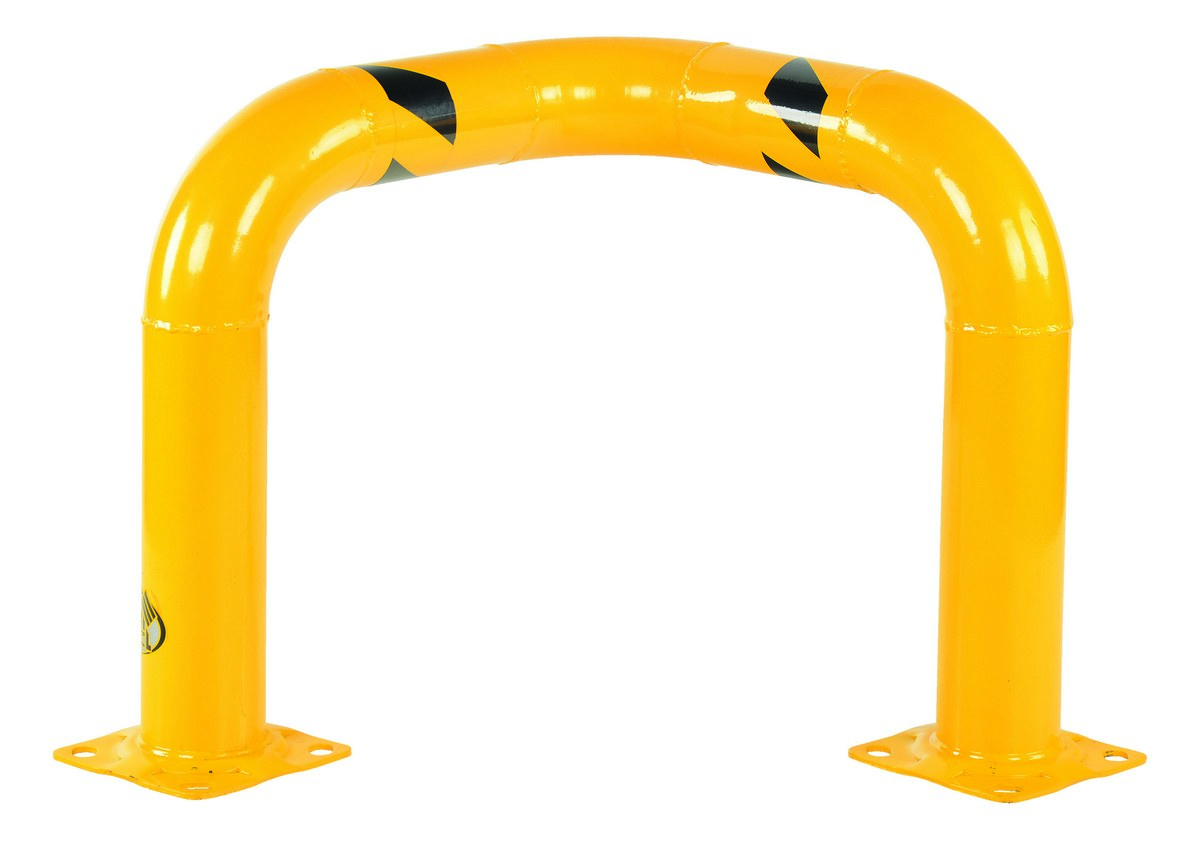

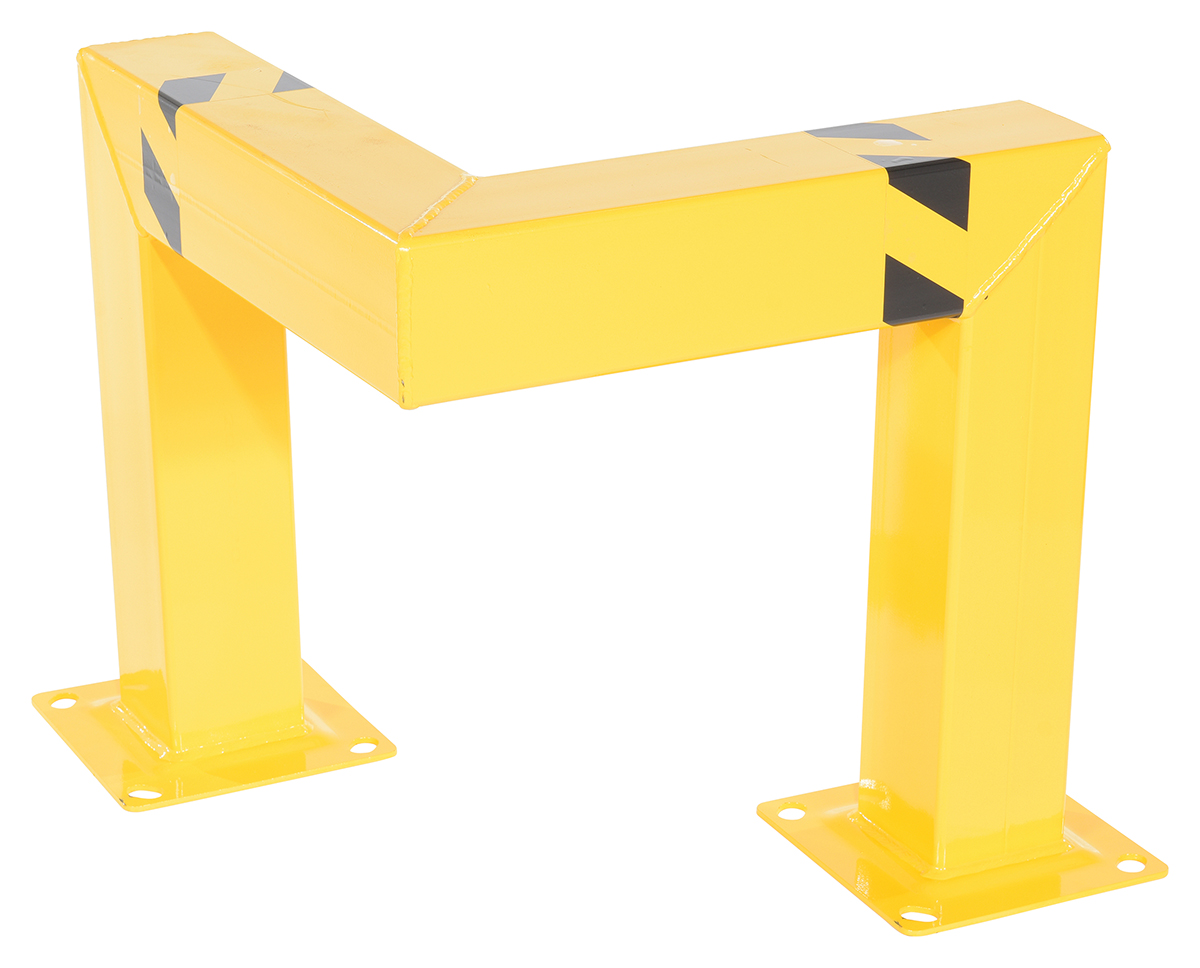

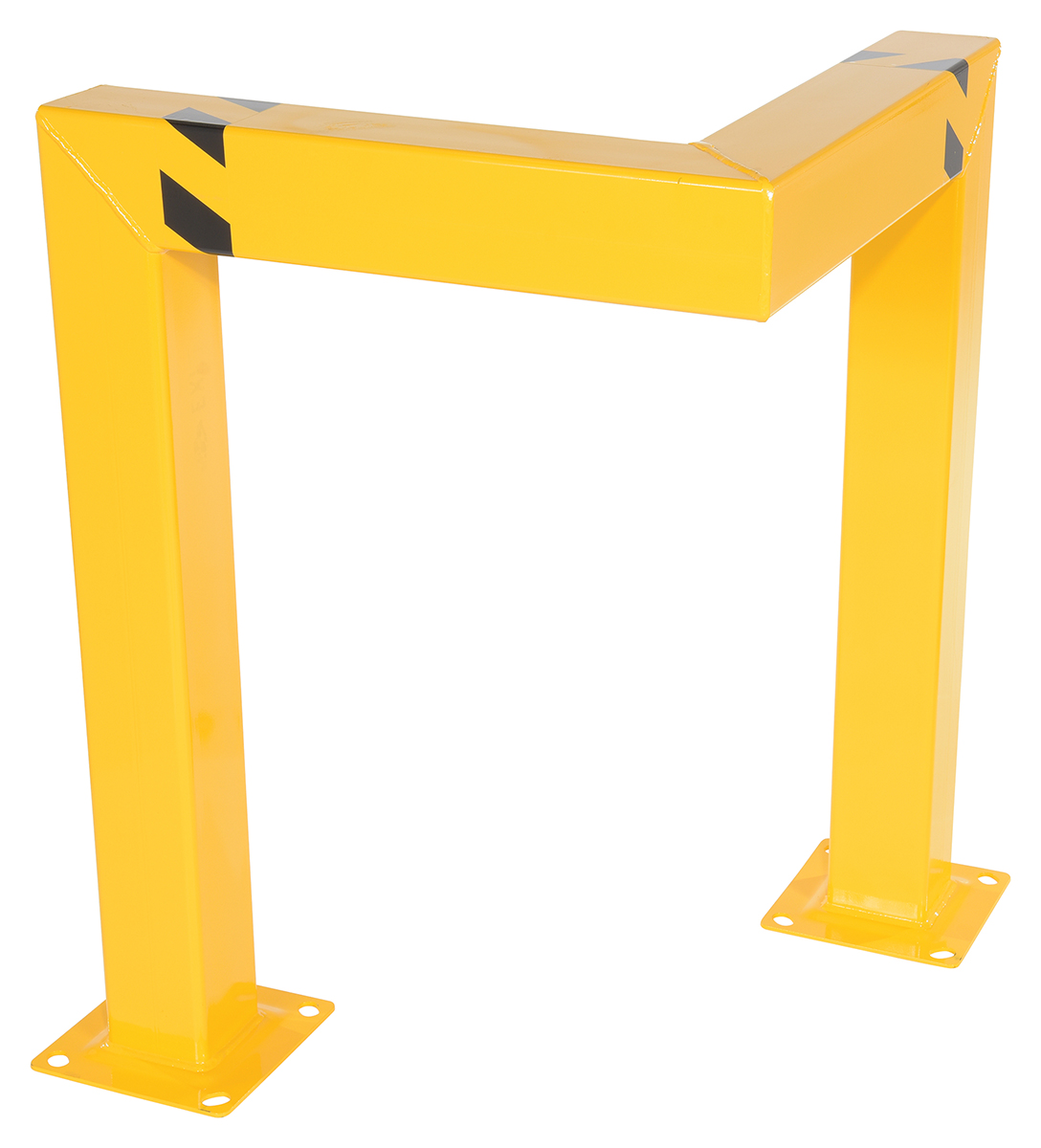

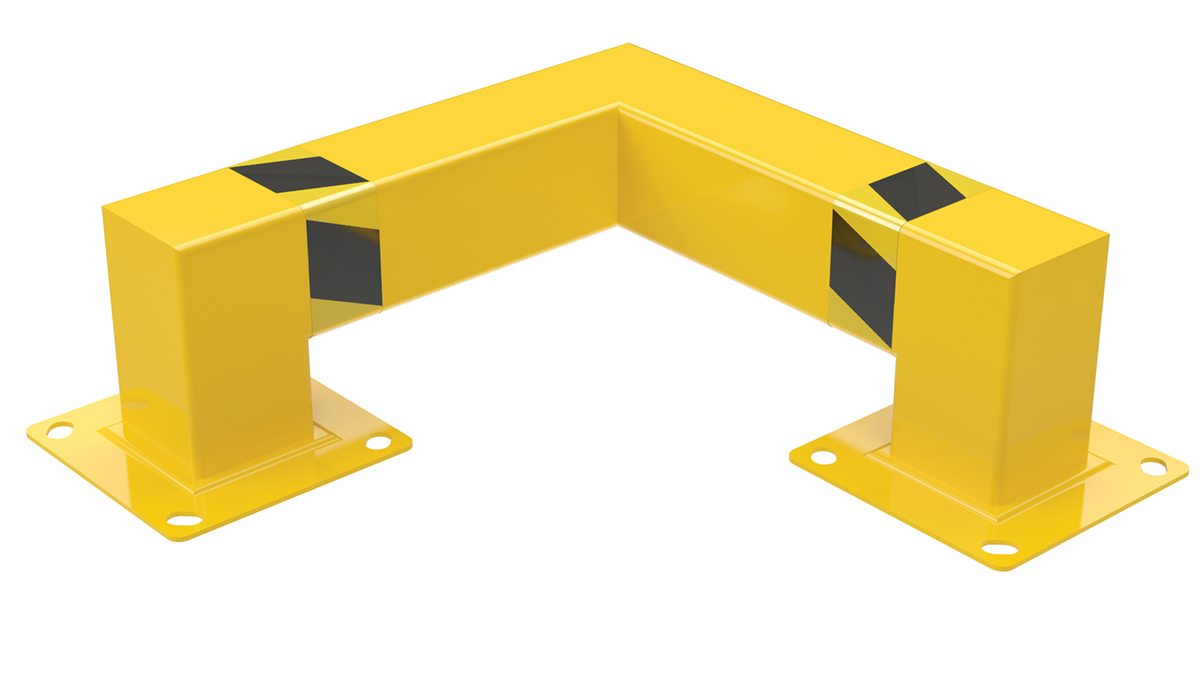

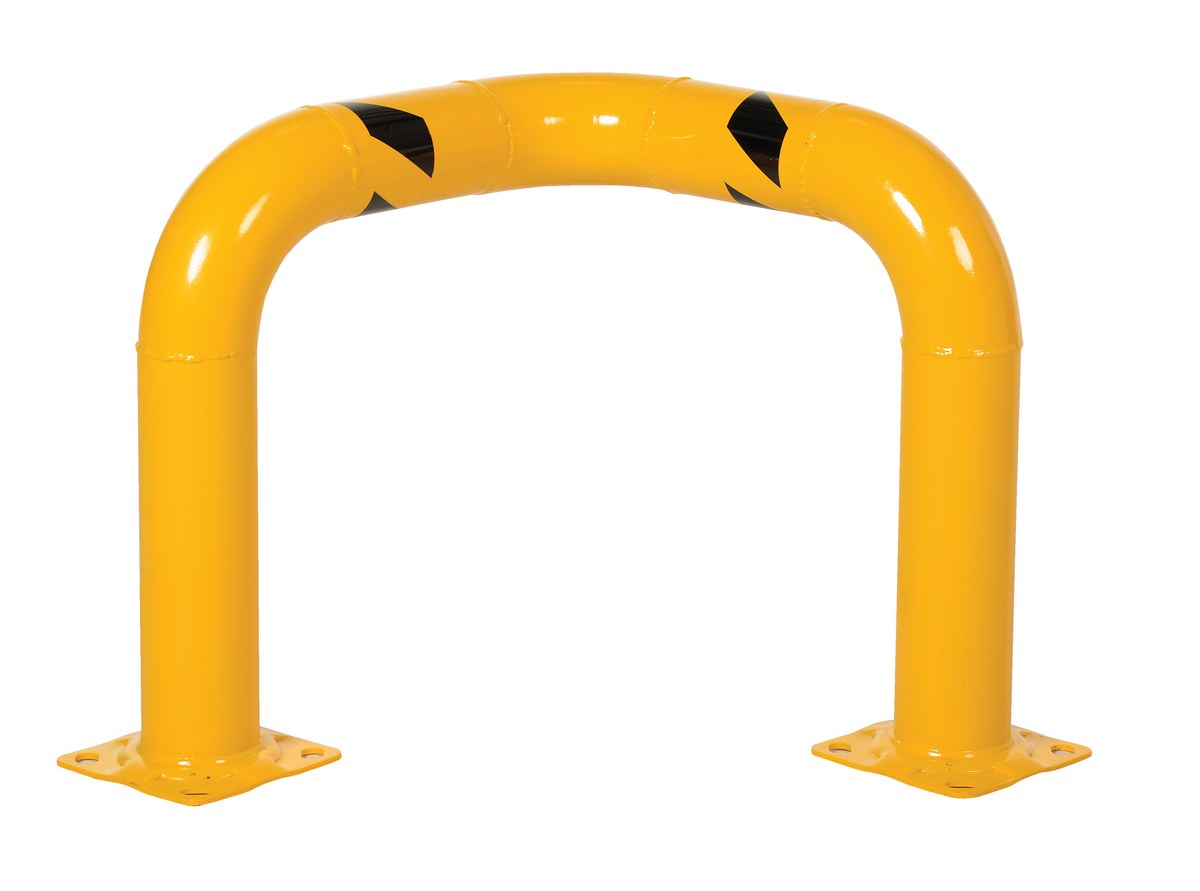

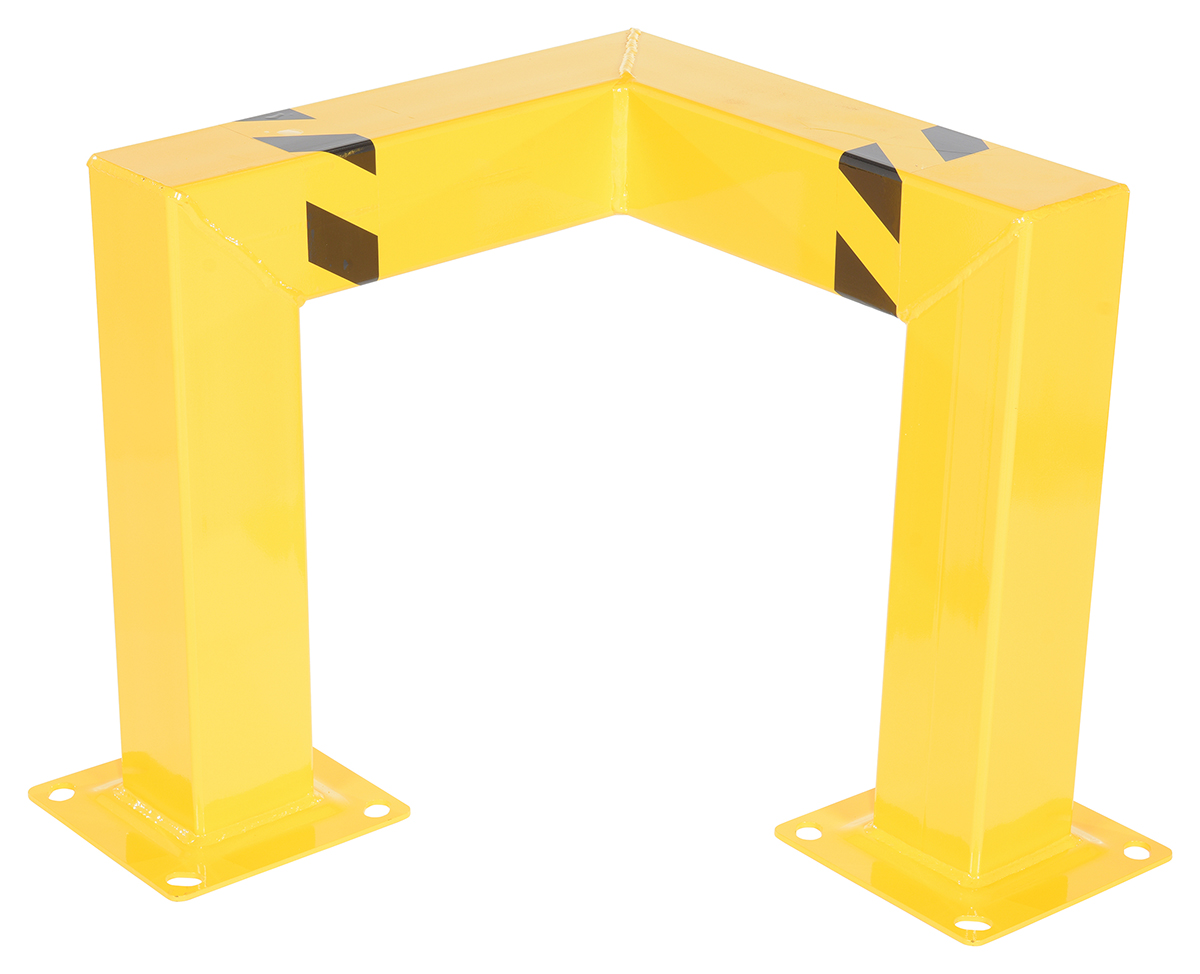

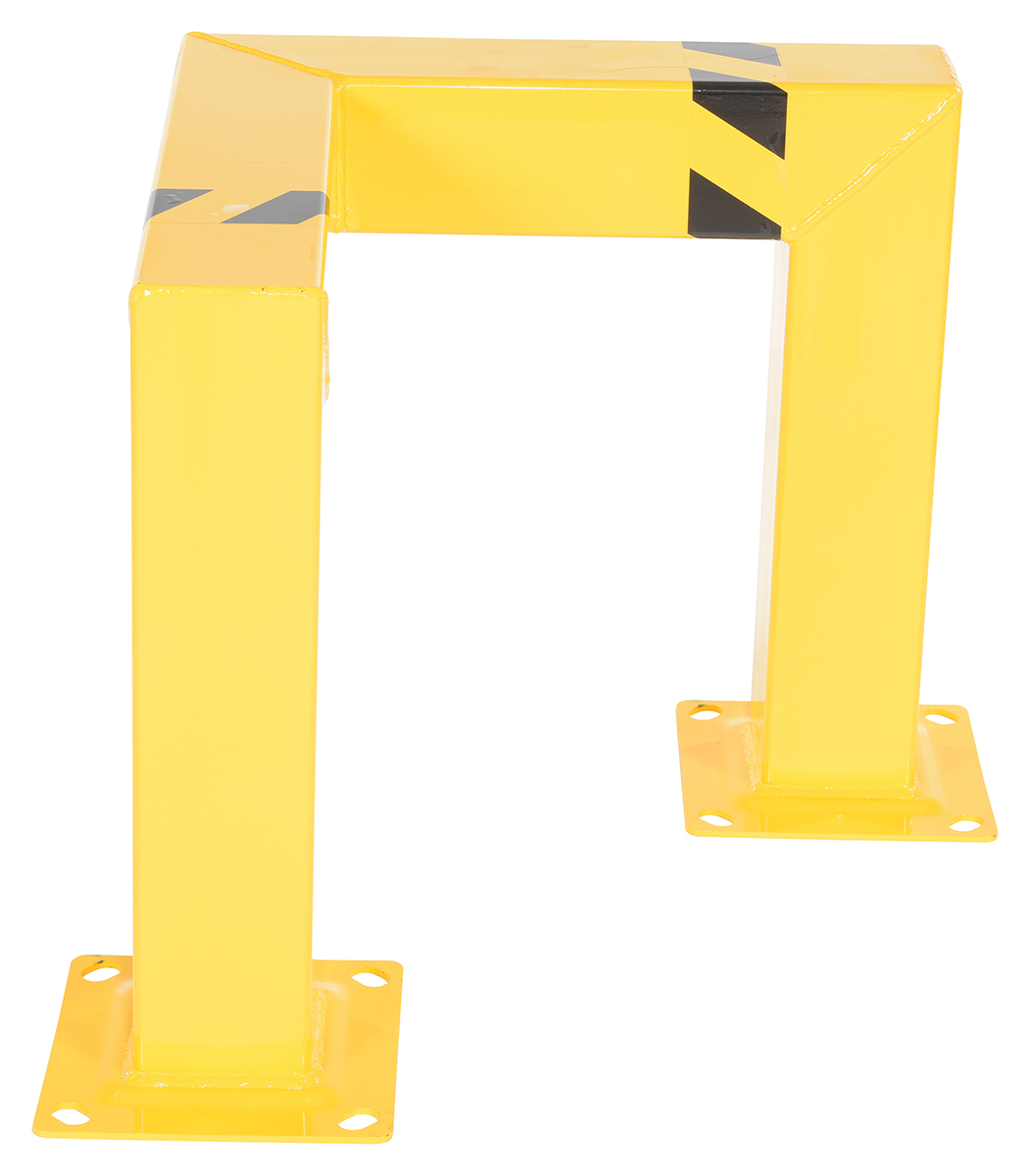

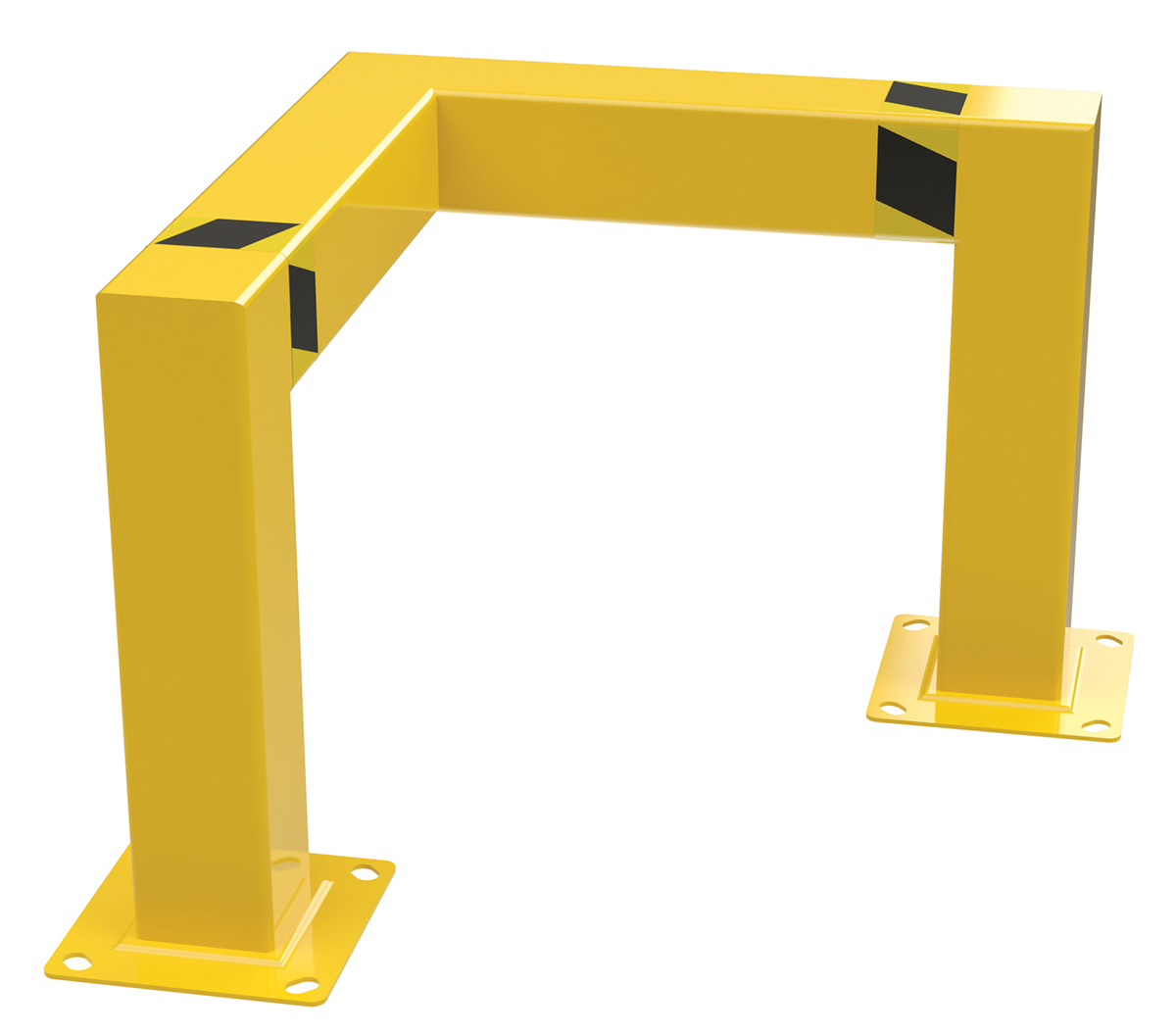

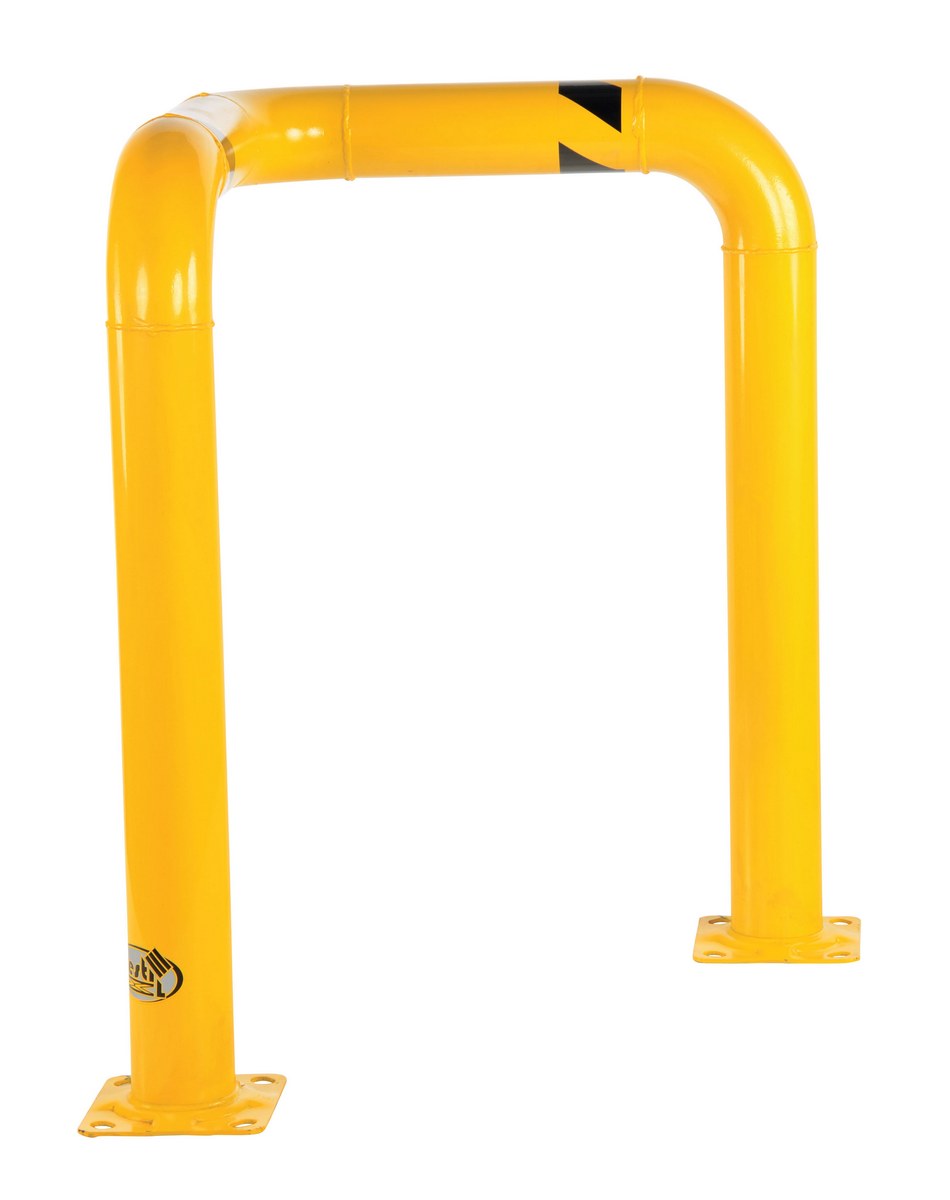

90 Degree Triple Elbow Guards

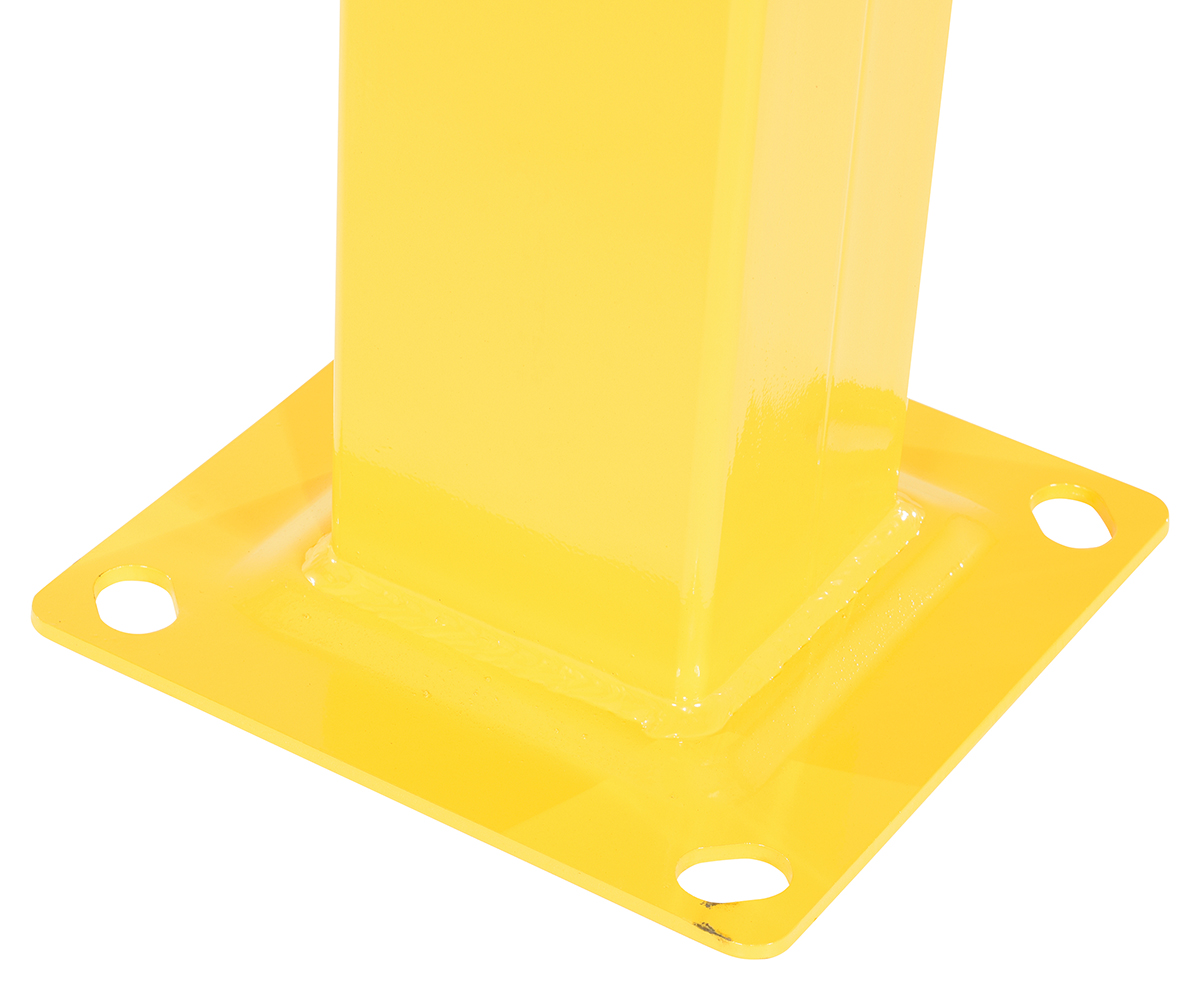

Protect the corners of machinery, buildings and offices. The 90 degree bend fits snug around corners to provide the ultimate protection against lift trucks or other mobile equipment. Base plate size is 8" x 8". Welded steel construction. Baked-in powder-coated toughness.

Protect the corners of machinery, buildings and offices. The 90 degree bend fits snug around corners to provide the ultimate protection against lift trucks or other mobile equipment. Base plate size is 8" x 8". Welded steel construction. Baked-in powder-coated toughness.

Other Machinery Guards

High Profile Machinery Guards with Welded Mesh

High Profile Machinery Guards with Welded Mesh

Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Floor Stop Bollards

Floor Stop Bollards

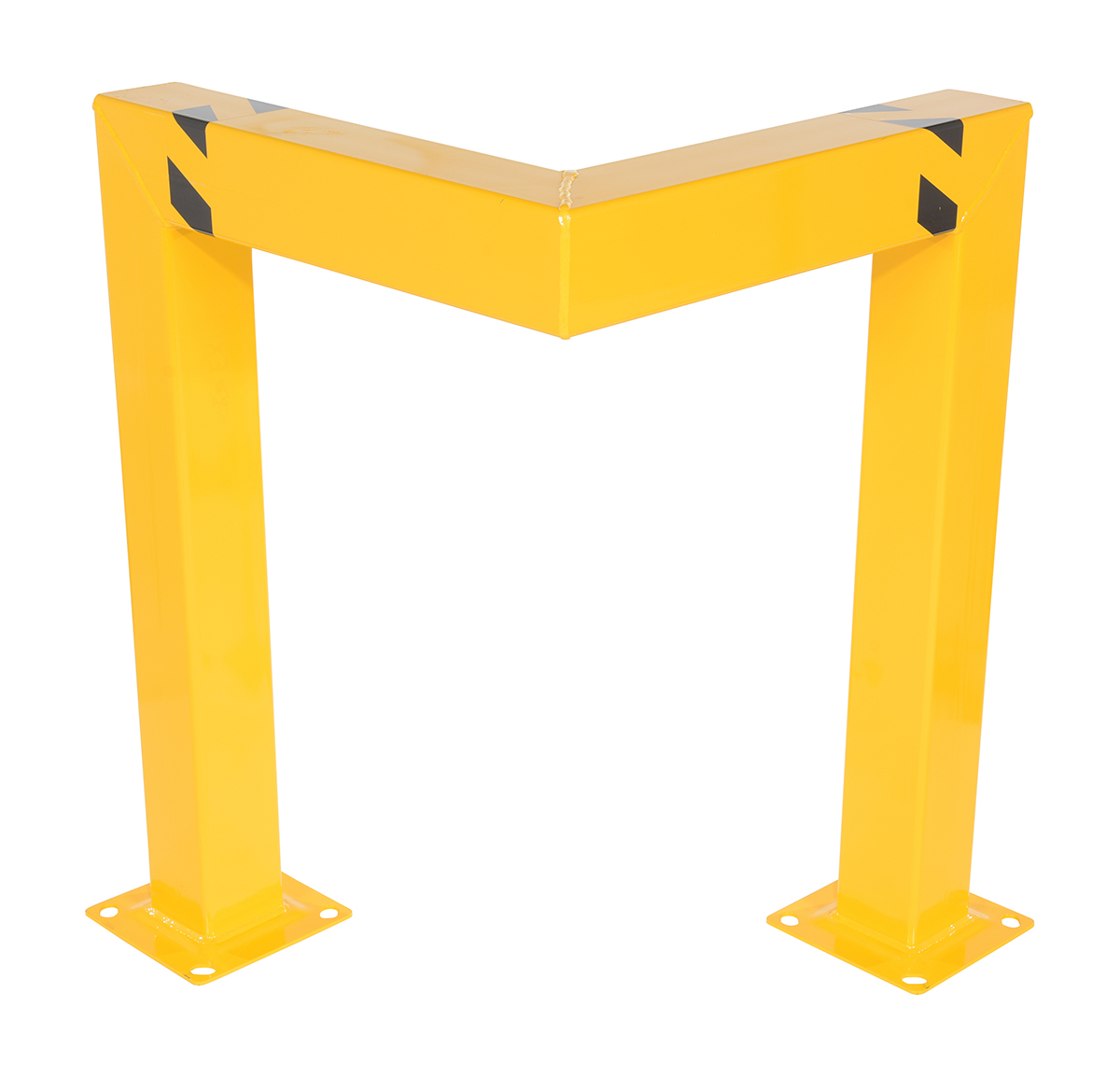

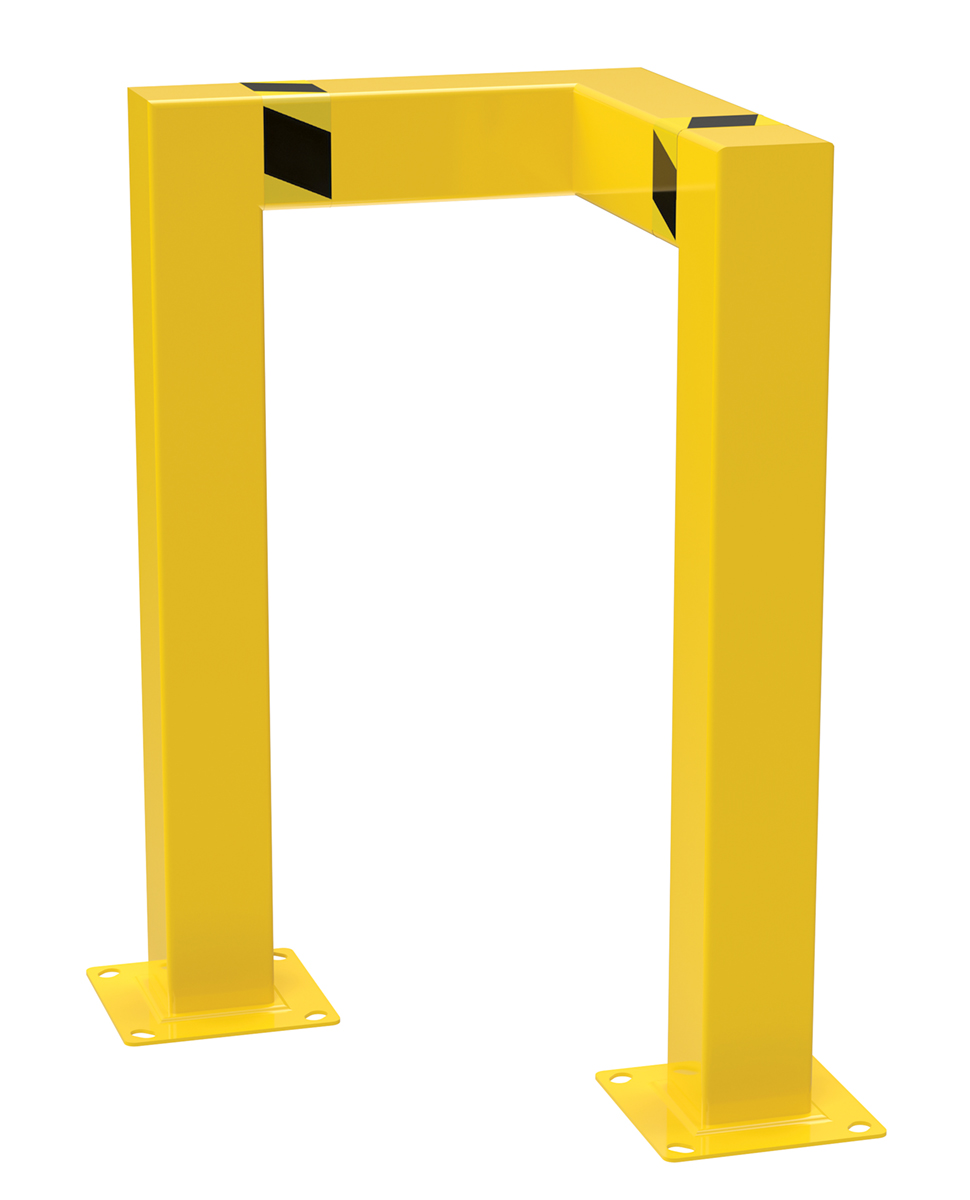

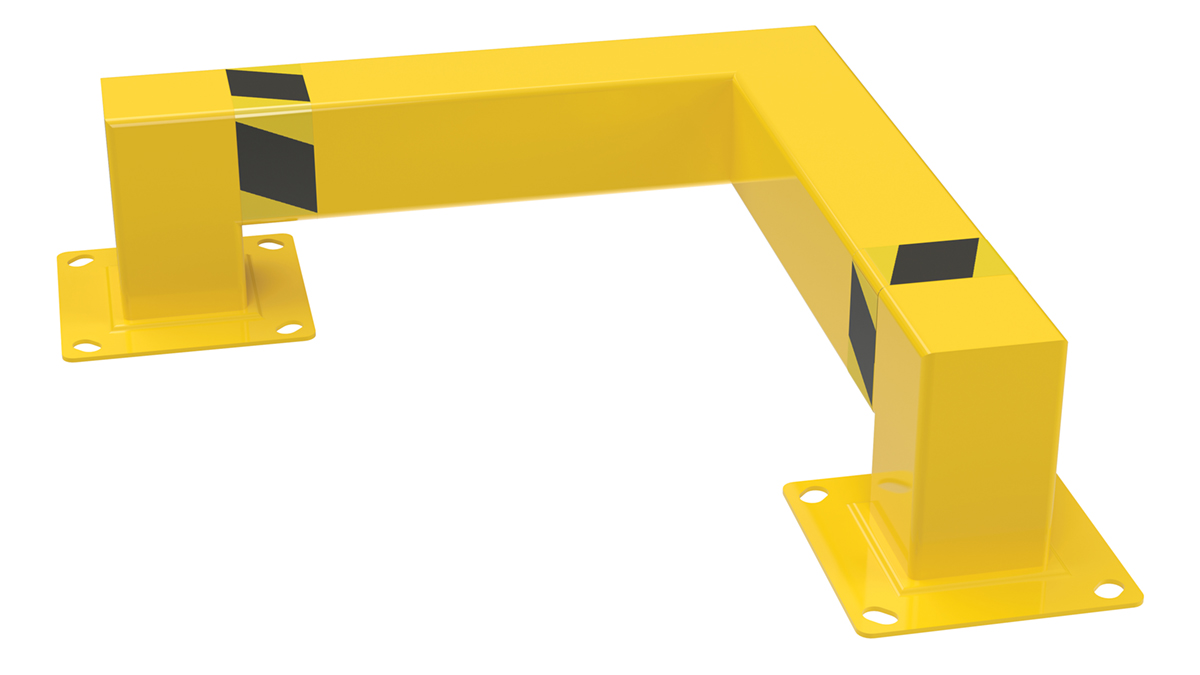

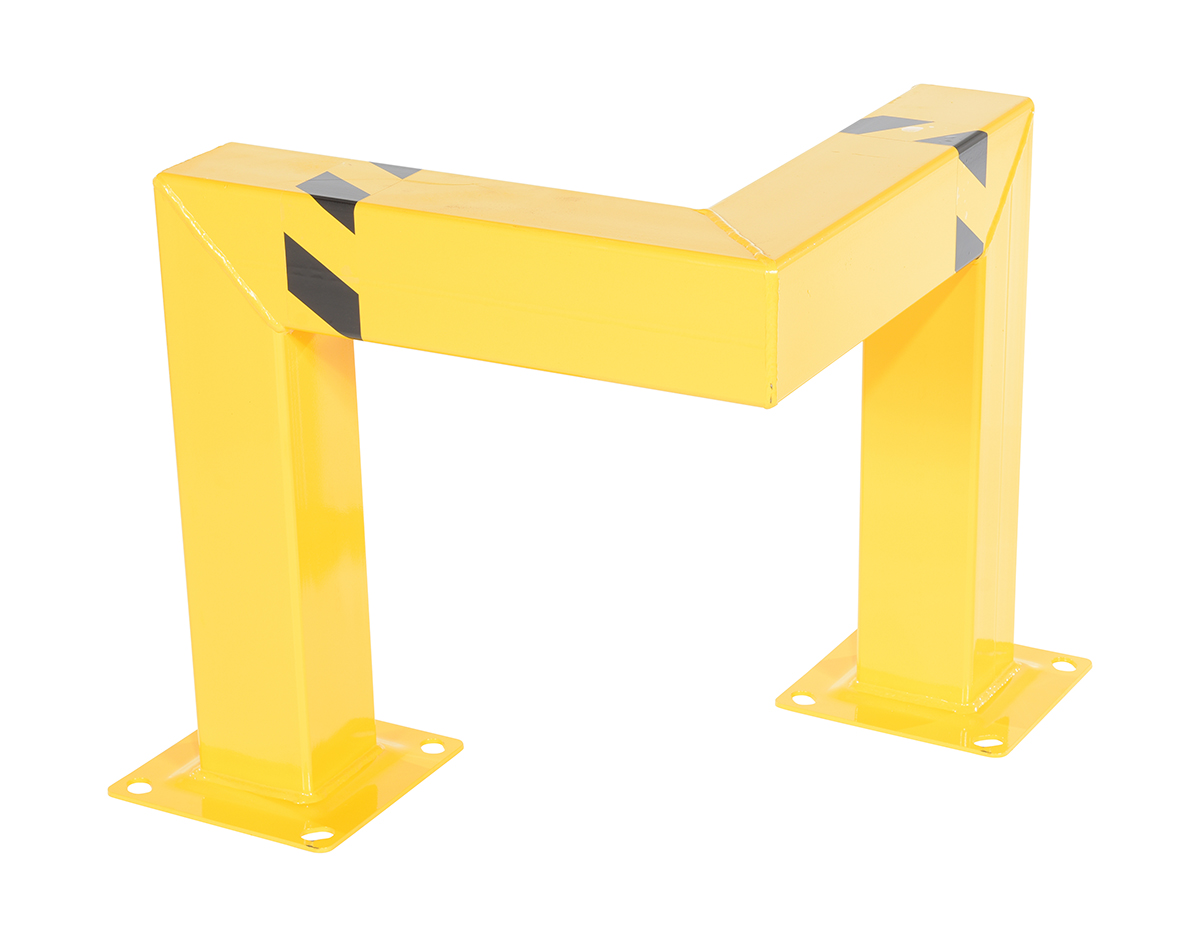

Triple Elbow Guards with Center Support

Triple Elbow Guards with Center Support

90 Degree Triple Elbow Guards

90 Degree Triple Elbow Guards

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Triple Elbow Guards
Model Image PDF's Description Length Height Outside
Diameter
Wt. (lbs)

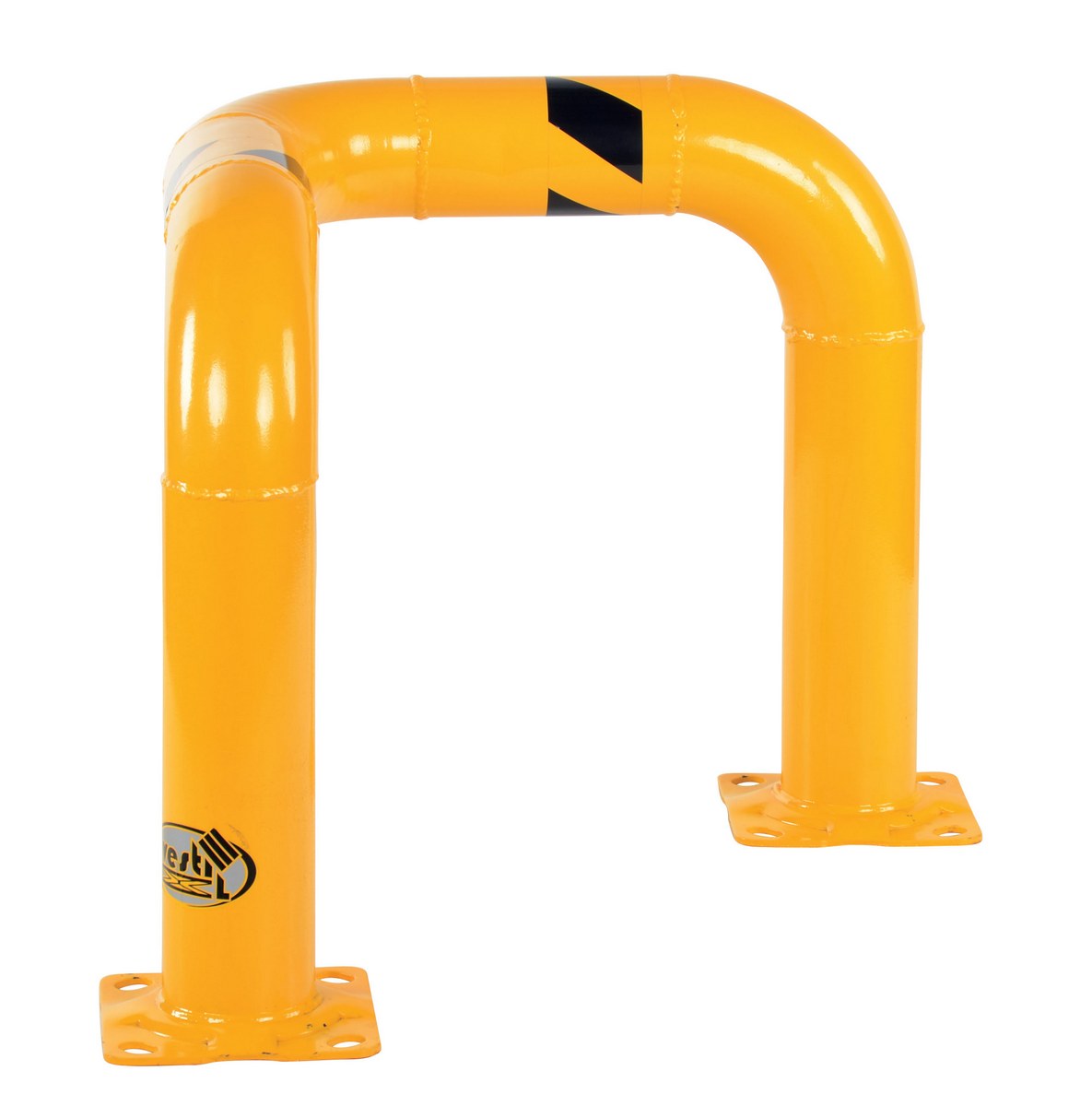

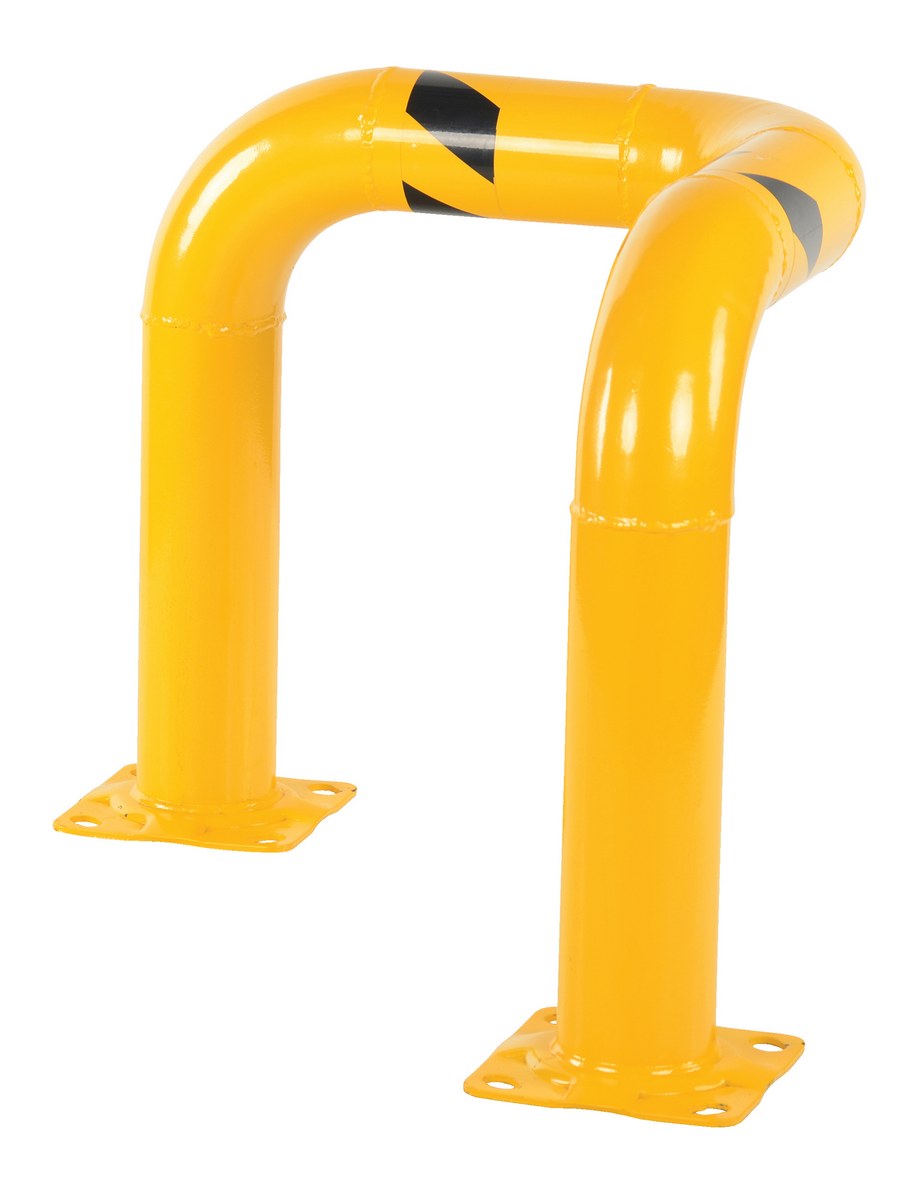

TEG-24-24-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 24-5/8" 24-9/16" 4-1/2" 96

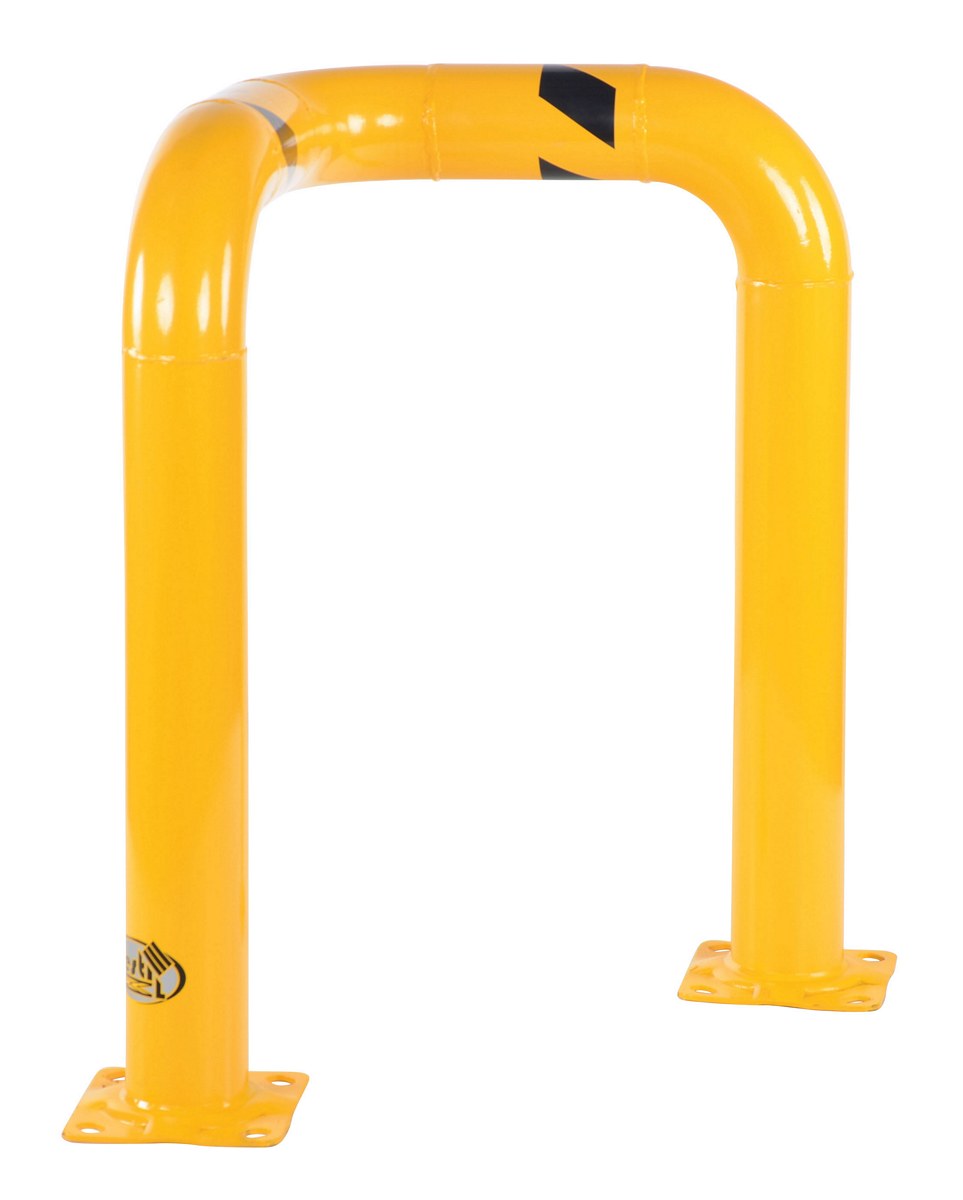

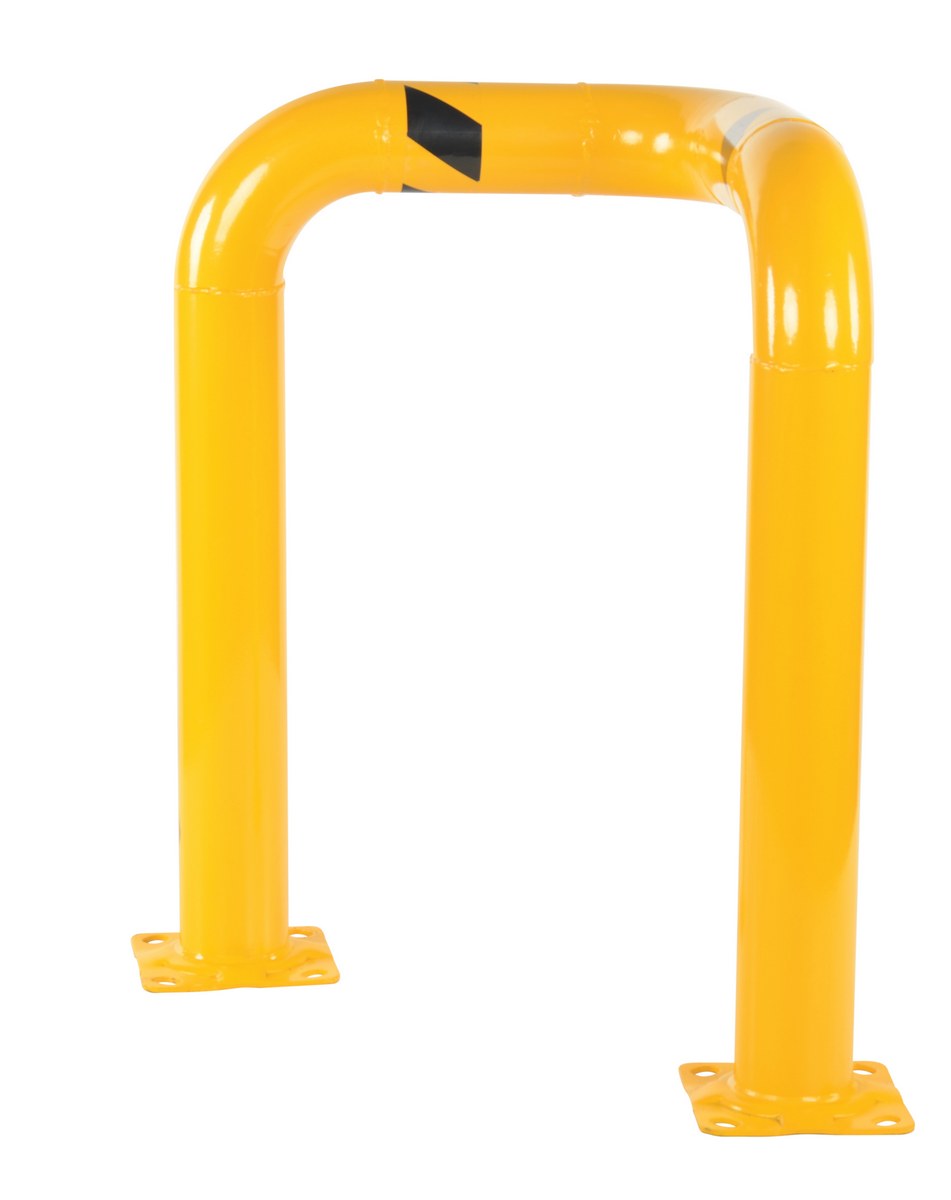

TEG-24-36-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 24-5/8" 36-9/16" 4-1/2" 108

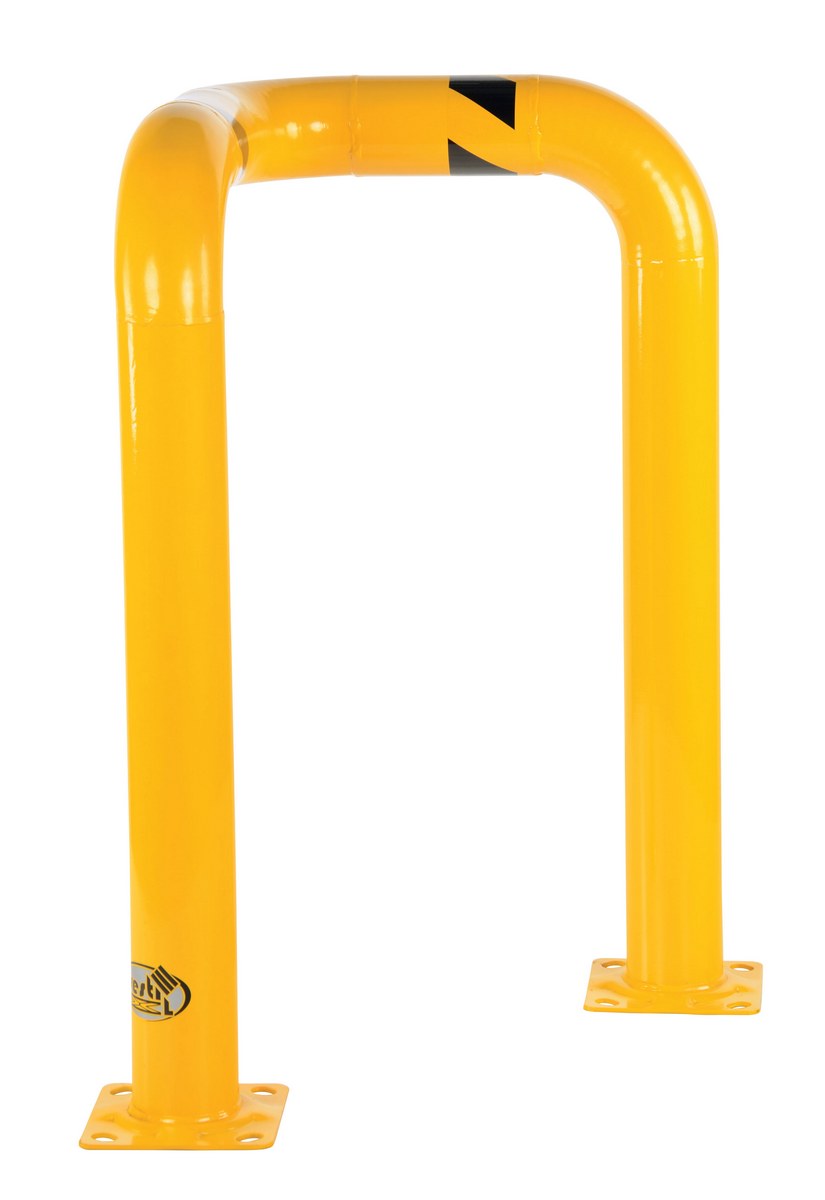

TEG-24-42-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 24-5/8" 42-9/16" 4-1/2" 116
TEG-30-24-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 30-5/8" 24-9/16" 4-1/2" 108
TEG-30-36-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 30-5/8" 36-9/16" 4-1/2" 114

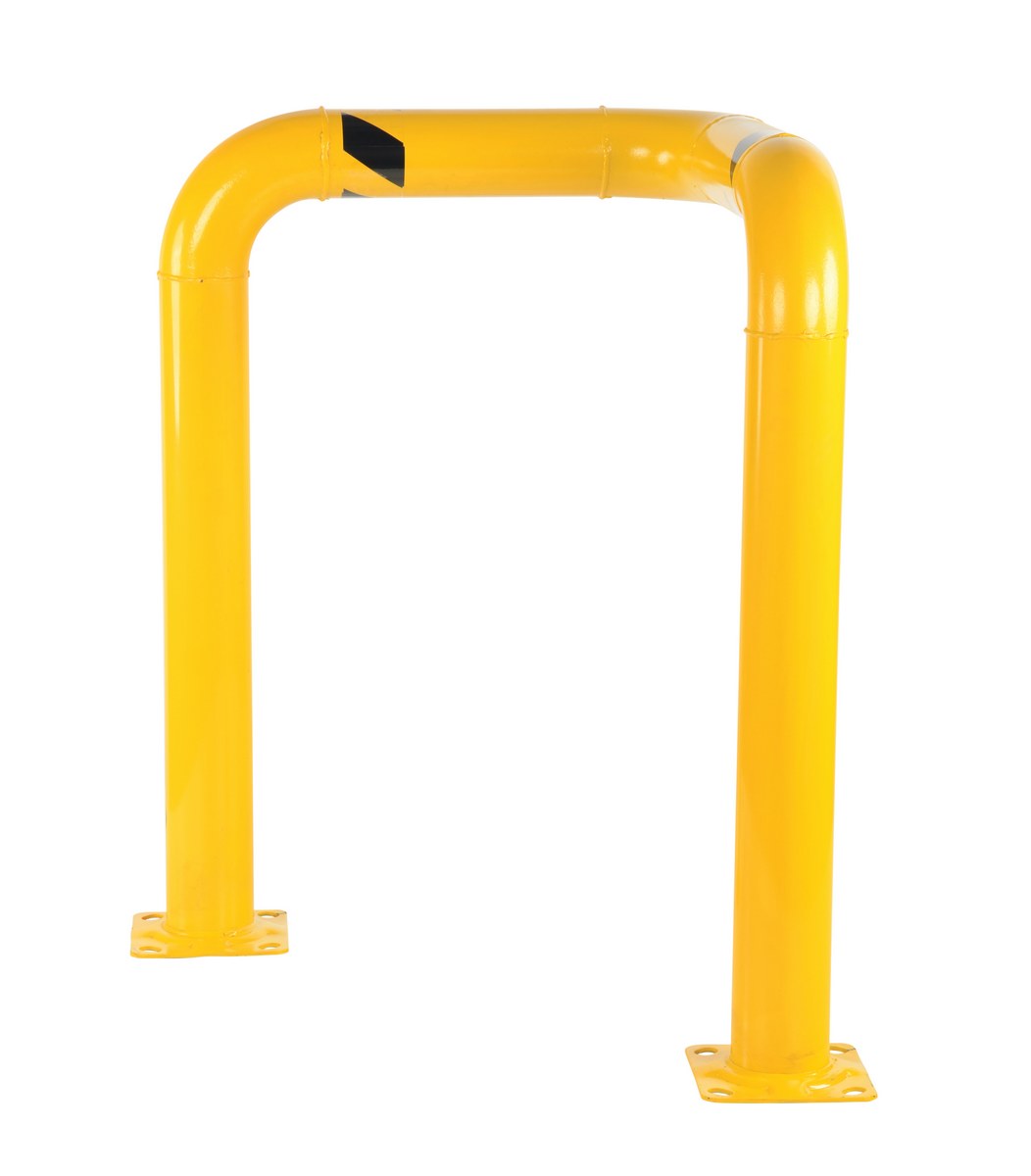

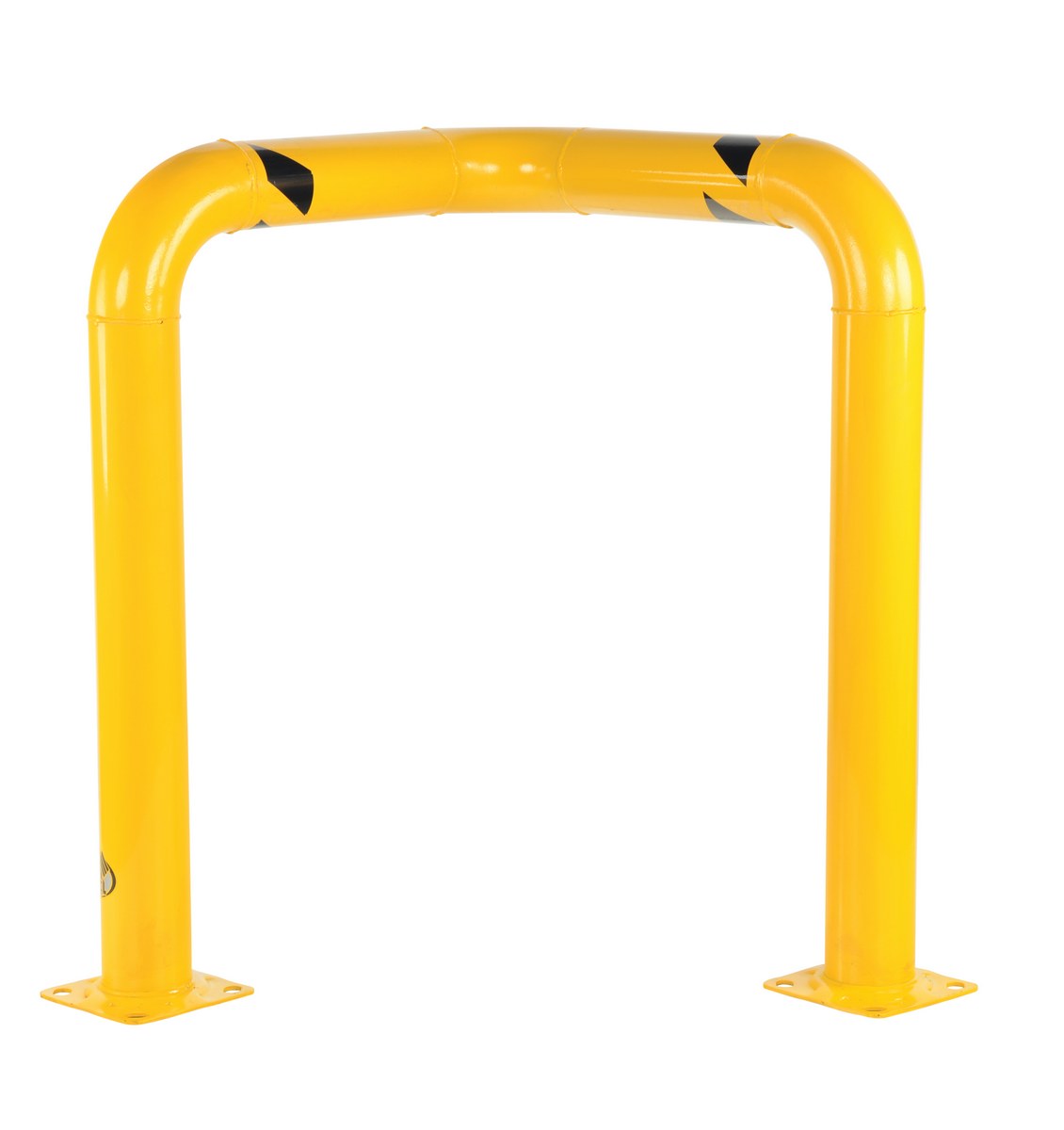

TEG-30-42-4 icon_approvaldrawings.jpgWarranty PDF Yellow 90 Degree Guard 30-5/8" 42-9/16" 4-1/2" 120

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options for Triple Elbow Guards
Model PDF's Description Wt. (lbs)
AS-344-4PK - Anchor Bolts for Concrete (4) 3/4" x 4" 4
AS-344 icon_approvaldrawings.jpg Anchor Bolts for Concrete (1) 3/4" x 4" 1

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

TEG-24-24-4

TEG-24-24-4

TEG-24-36-4

TEG-24-36-4

TEG-24-42-4

TEG-24-42-4

TEG-30-24-4

TEG-30-24-4

TEG-30-36-4

TEG-30-36-4

TEG-30-42-4

TEG-30-42-4






90 Degree Triple Elbow Guards PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

TEG-24-24-4
TEG-24-36-4
TEG-24-42-4
TEG-30-24-4
TEG-30-36-4
TEG-30-42-4

Testing Certificates

TEG-30-42-4
TEG-24-42-4
TEG-30-36-4
TEG-30-24-4
TEG-24-36-4
TEG-24-24-4

Other PDF's

No "Other PDFs" For This Product...
