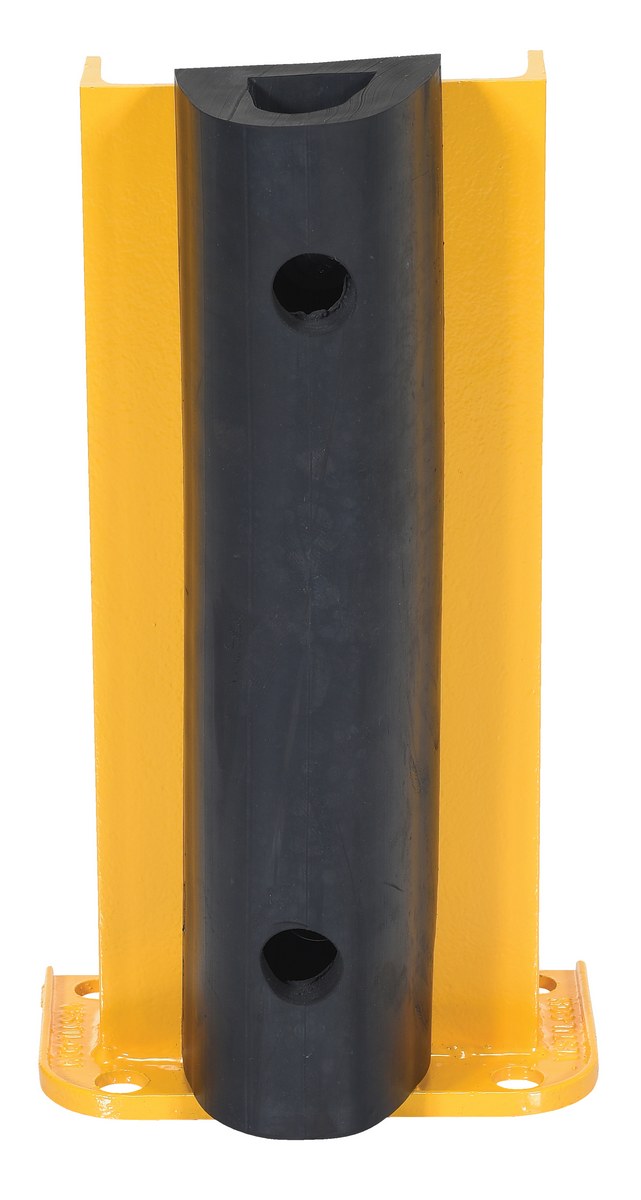

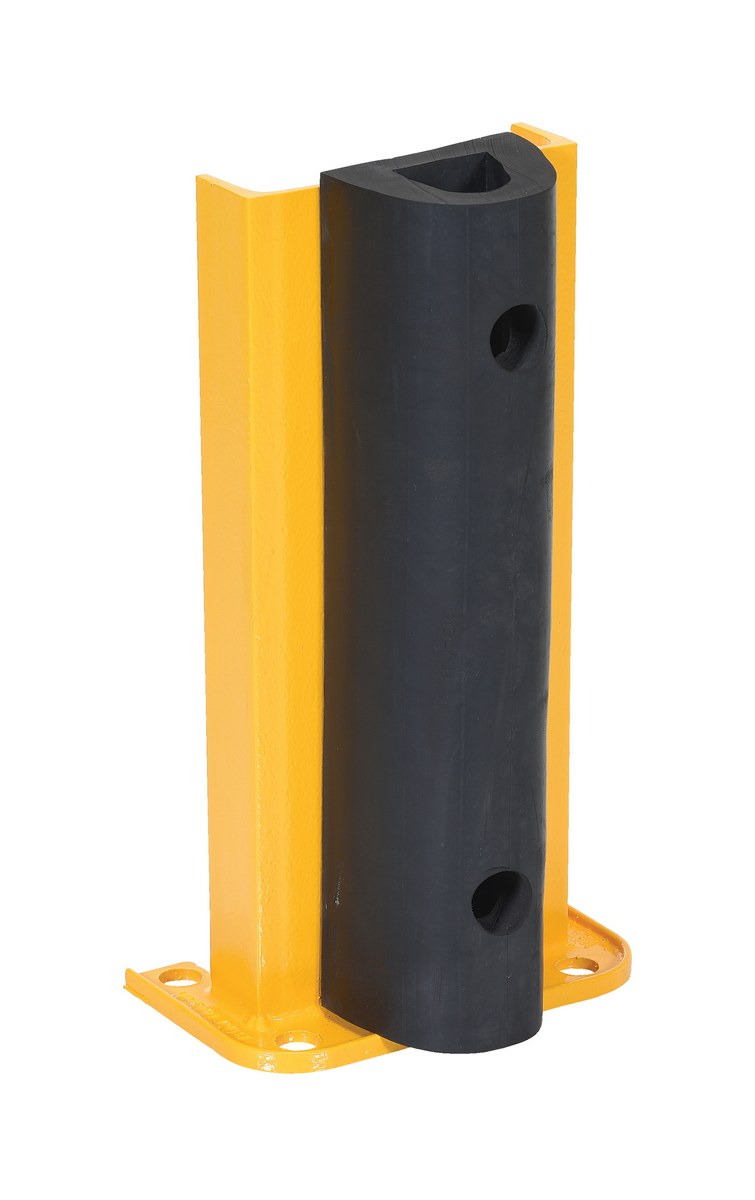

model: G8-18-B


Structural Rack Guards
SERIES: G6,G8

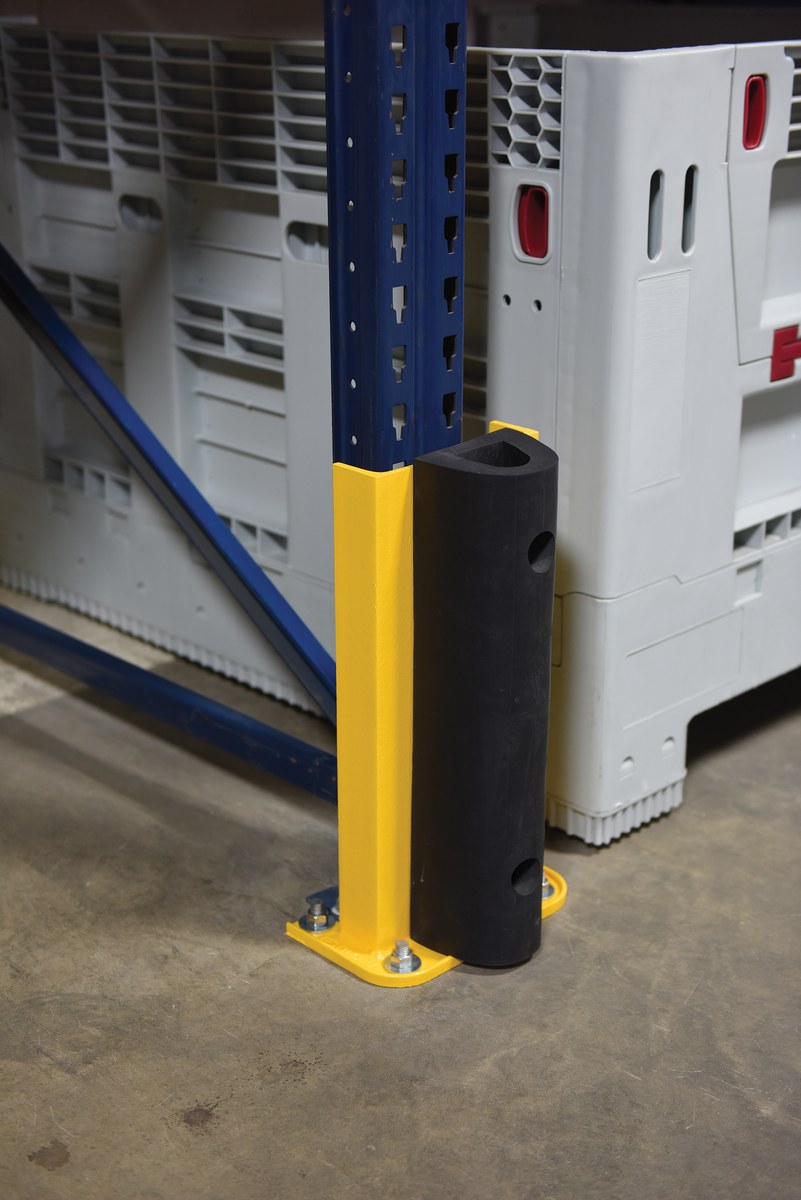

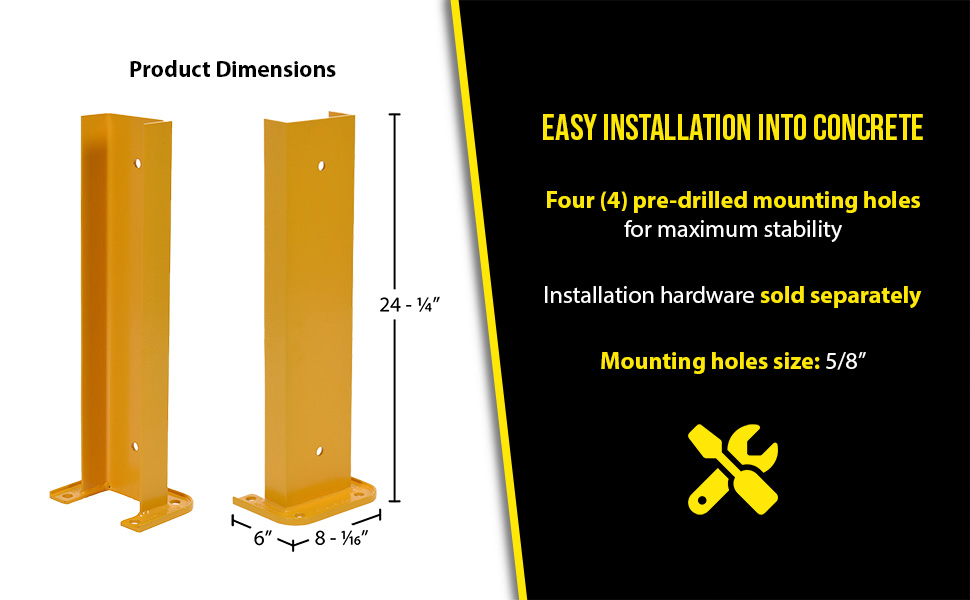

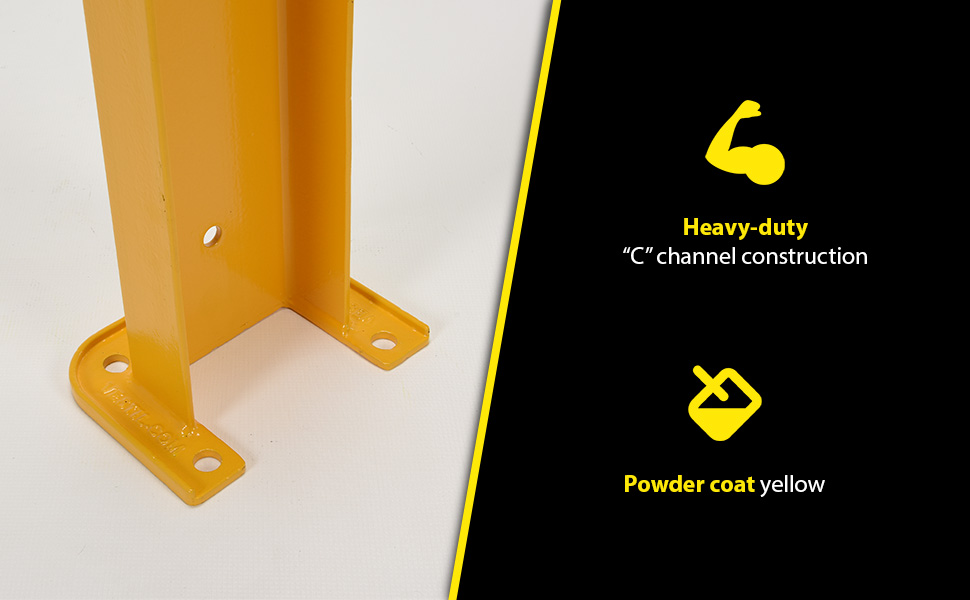

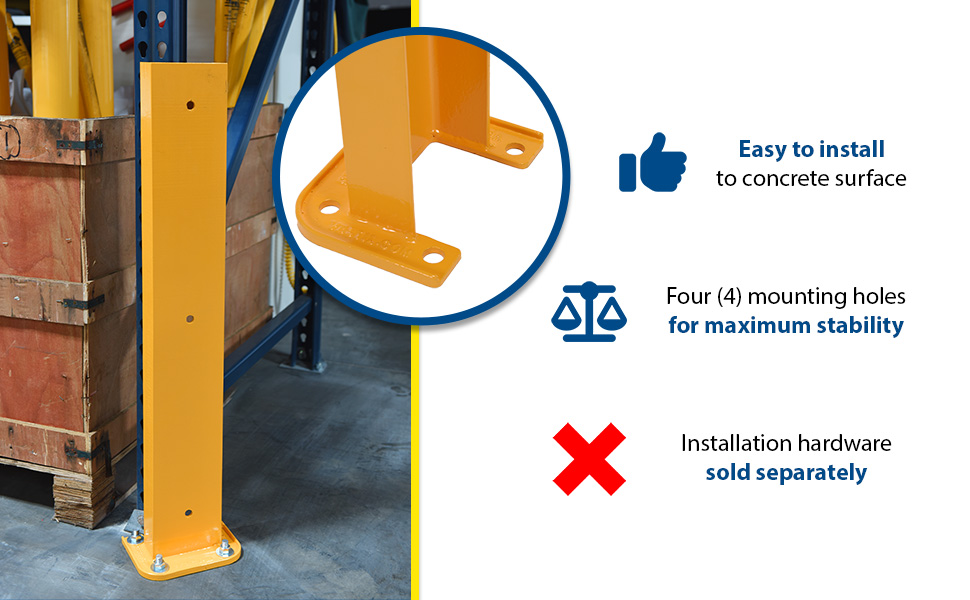

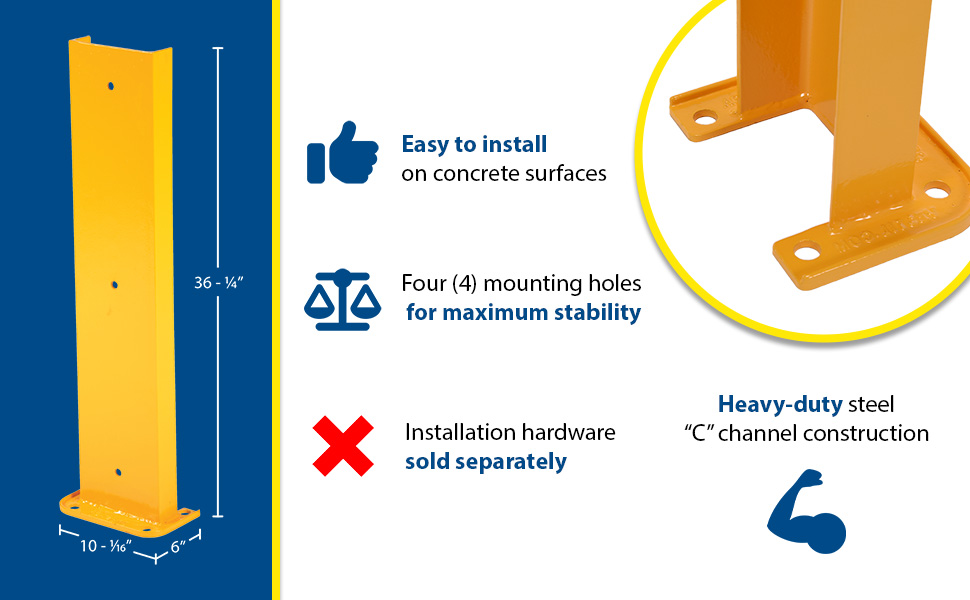

Economical way to protect against damage to pallet racking and wall corners. Constructed of 6" or 8" steel "C" channel for durability. Available with or without a rubber bumper. Easy to install to concrete surface. Four mounting holes for maximum stability. Safety yellow Baked-in powder-coated toughness. Models G6 require 1/2" anchor bolts. Models G8 require 3/4" anchor bolts. Installation hardware sold separately.

Economical way to protect against damage to pallet racking and wall corners. Constructed of 6" or 8" steel "C" channel for durability. Available with or without a rubber bumper. Easy to install to concrete surface. Four mounting holes for maximum stability. Safety yellow Baked-in powder-coated toughness. Models G6 require 1/2" anchor bolts. Models G8 require 3/4" anchor bolts. Installation hardware sold separately.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

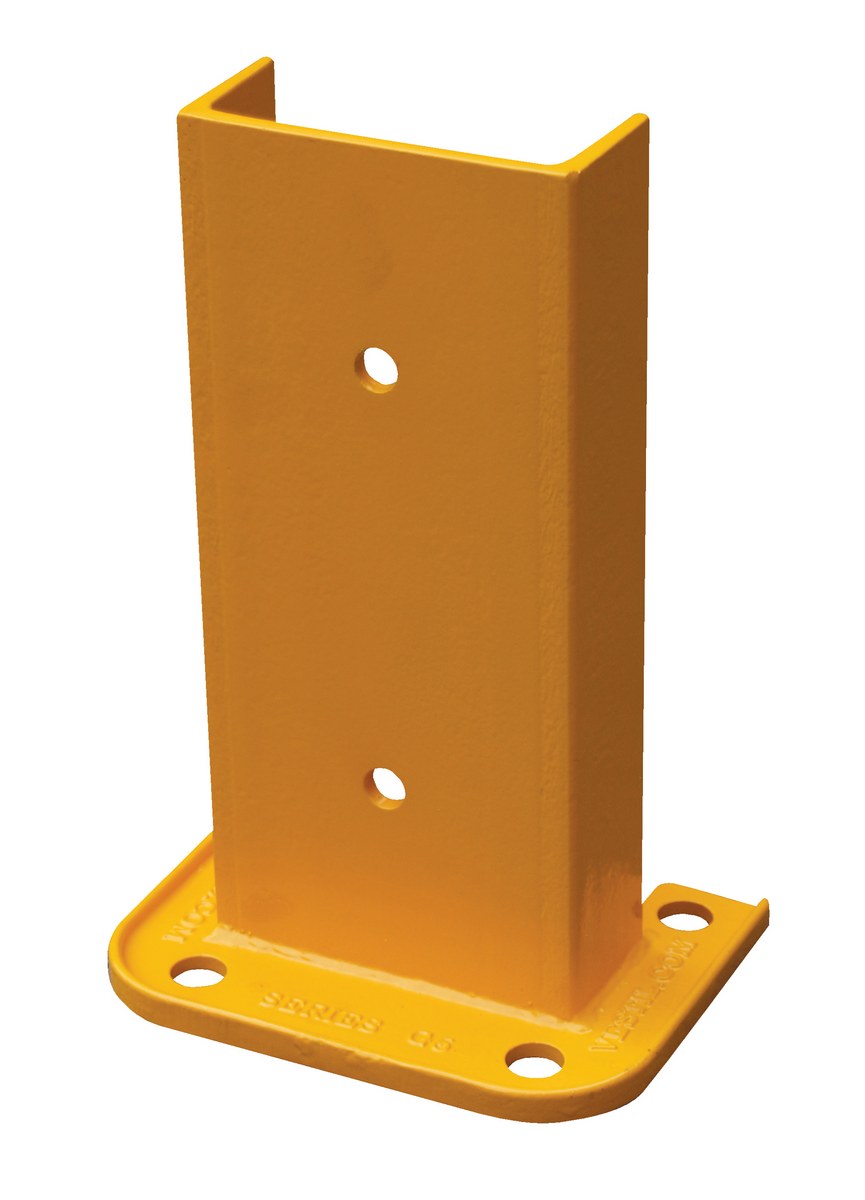

G6-12 30 Days Limited WarrantySTRUCTURAL RACK GUARD 6 IN C CHANNEL 12HConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
12

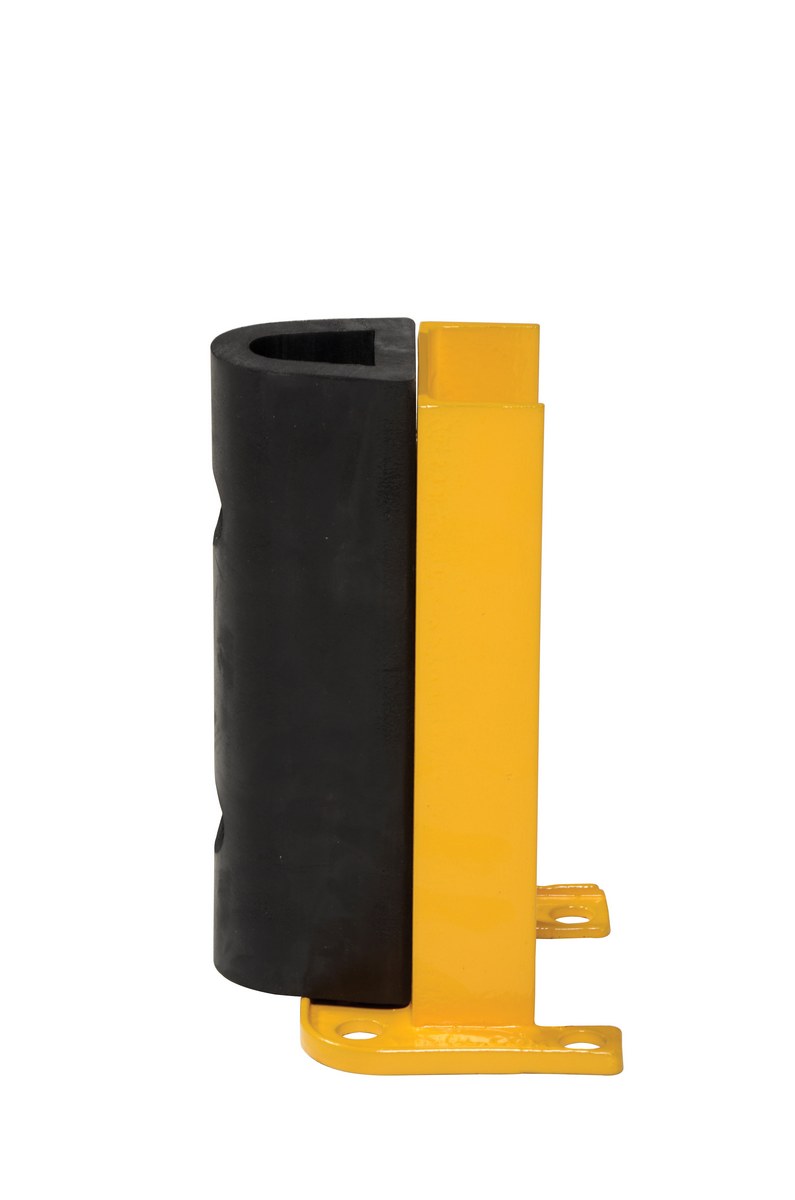

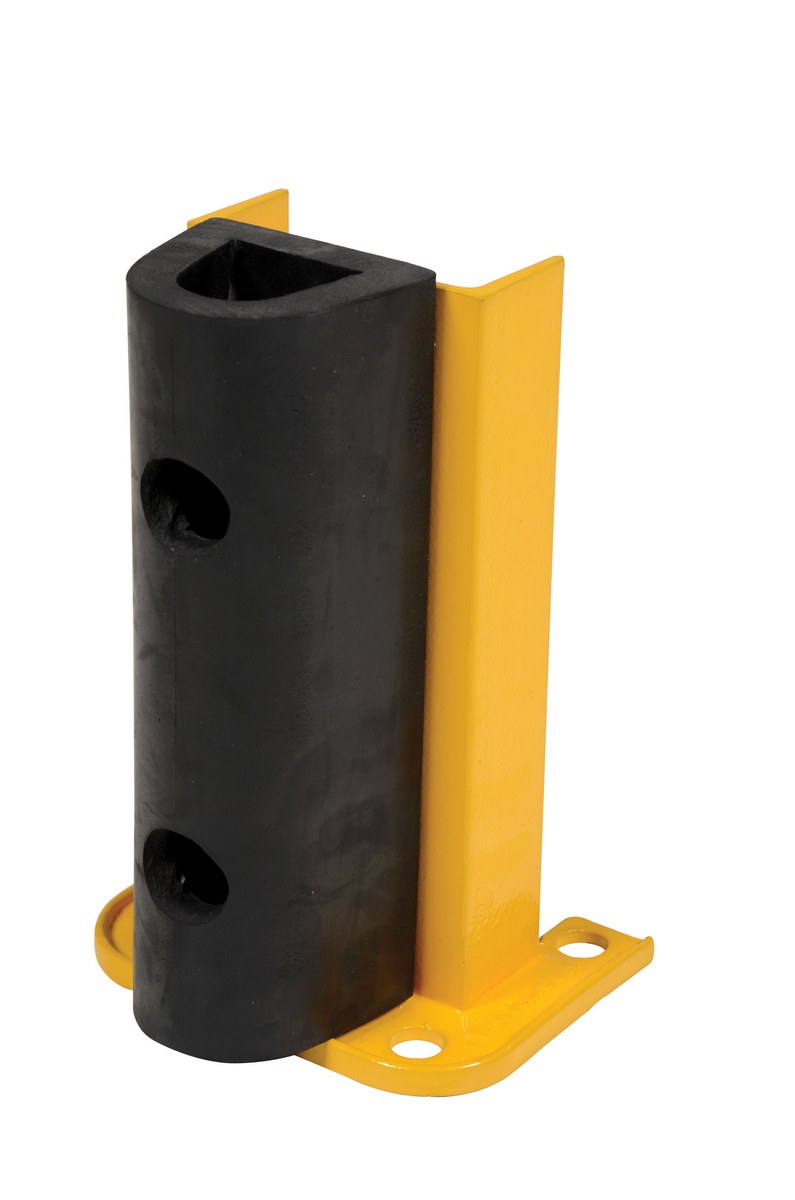

G6-12-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 12 HEIGHTConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
19

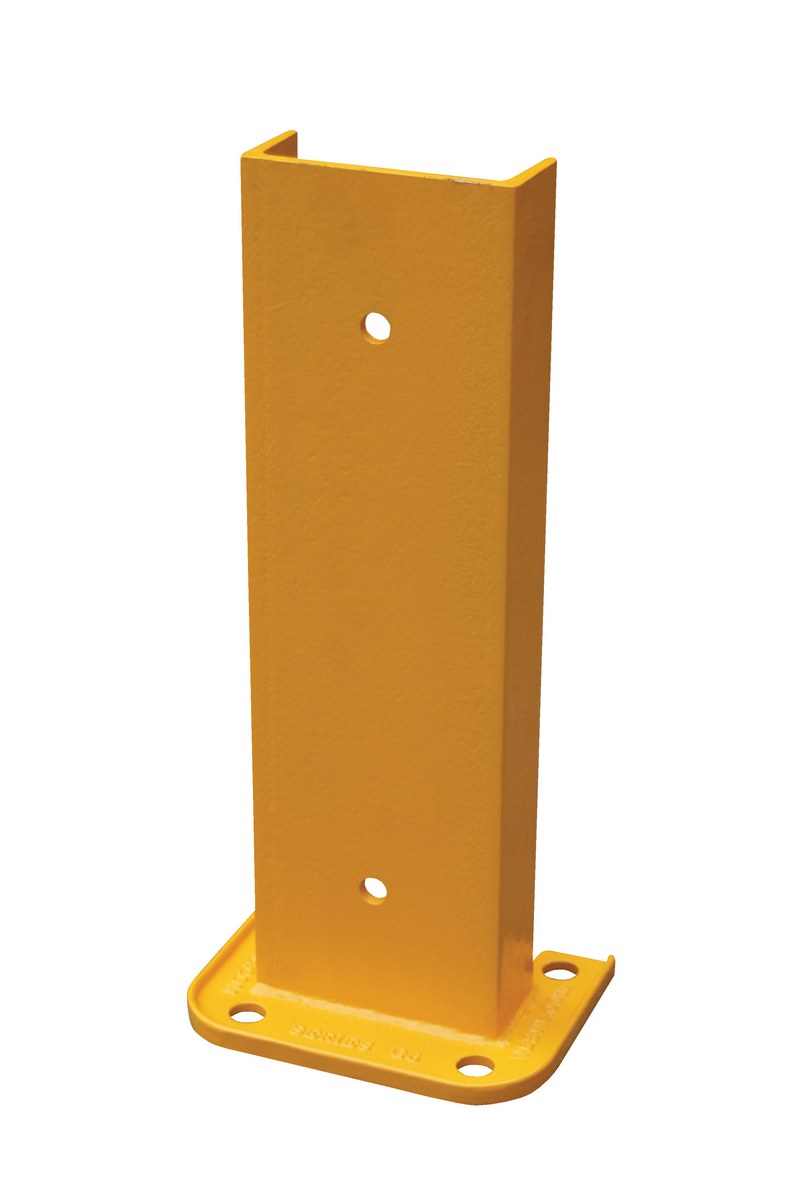

G6-18 30 Days Limited WarrantySTRUCTURAL RACK GUARD 6 IN C CHANNEL 18HConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
16

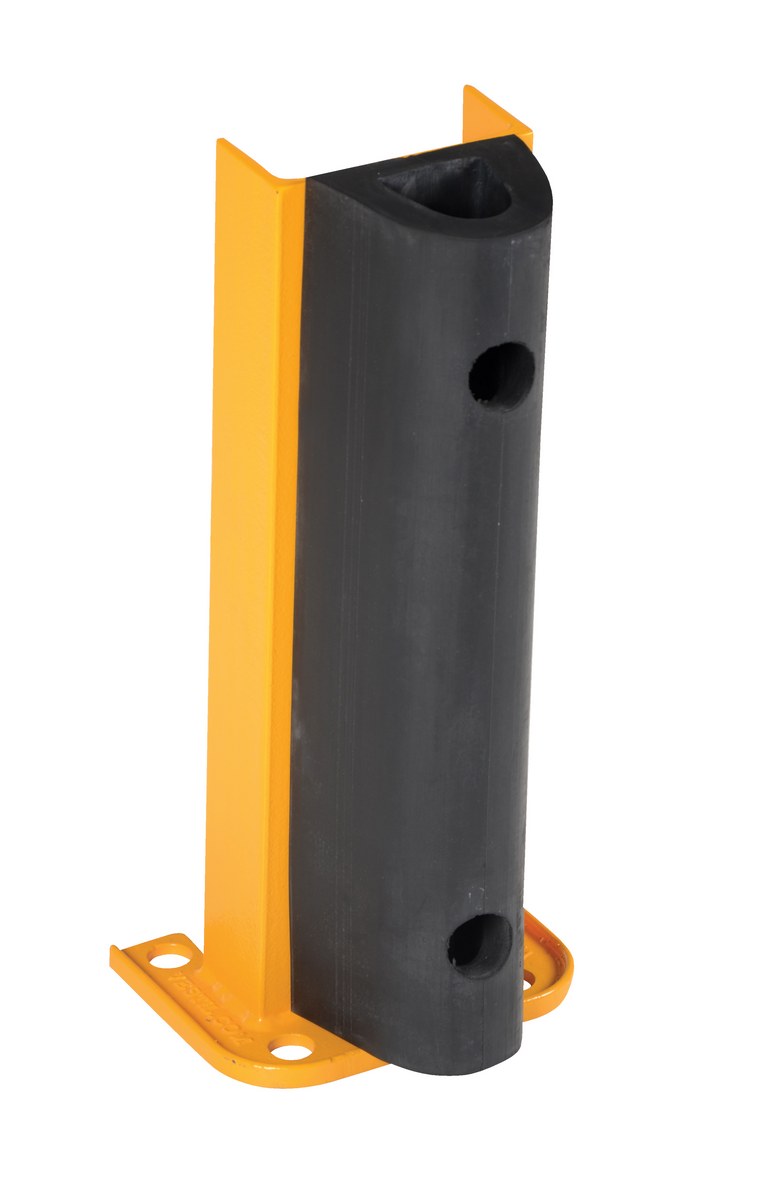

G6-18-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 18 HEIGHTConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
25

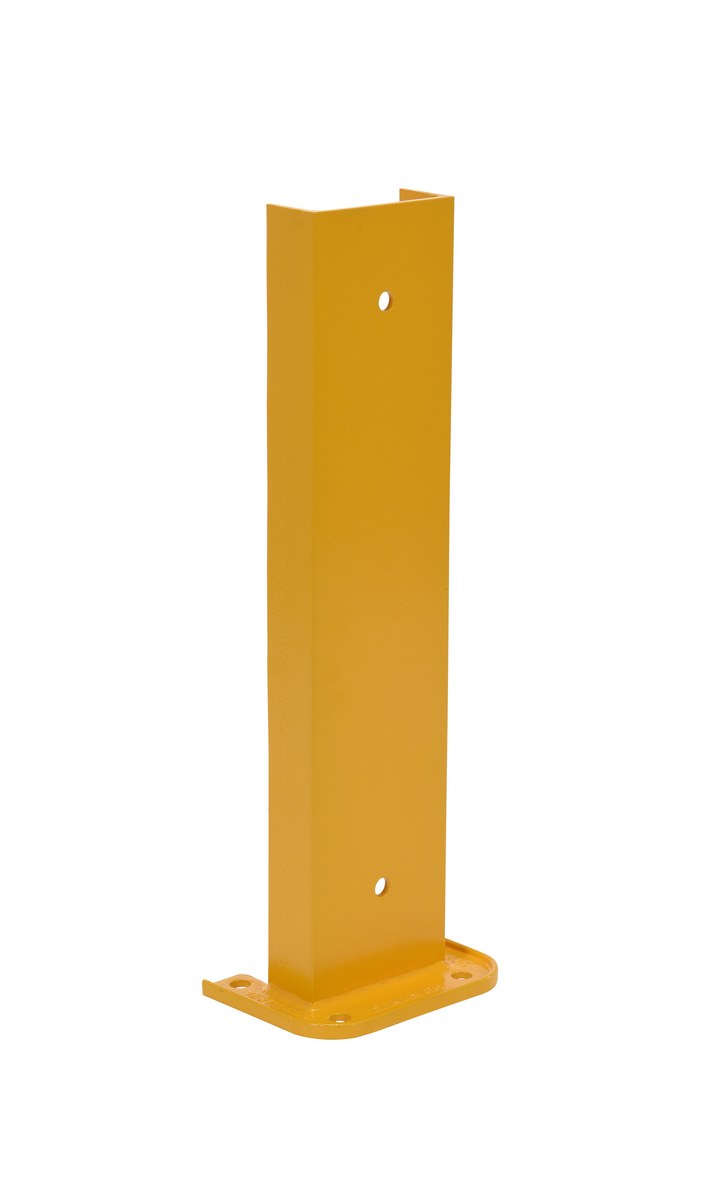

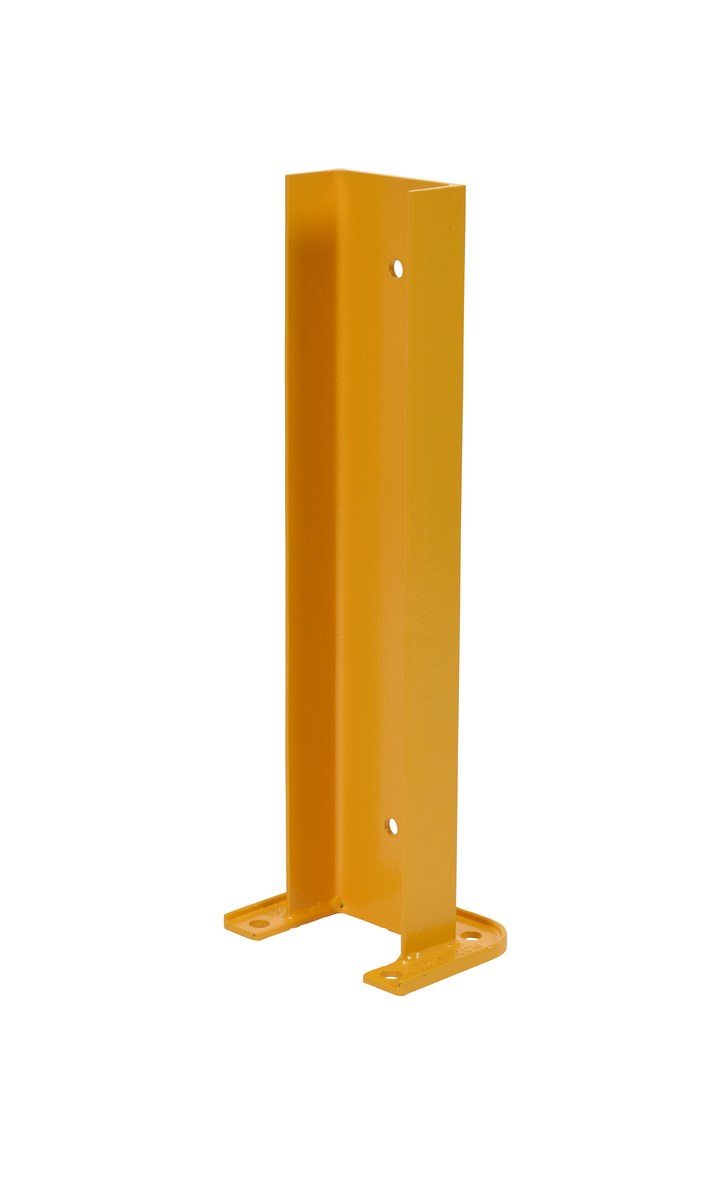

G6-24 30 Days Limited WarrantySTRUCTURAL RACK GUARD 6 IN C CHANNEL 24HConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
22

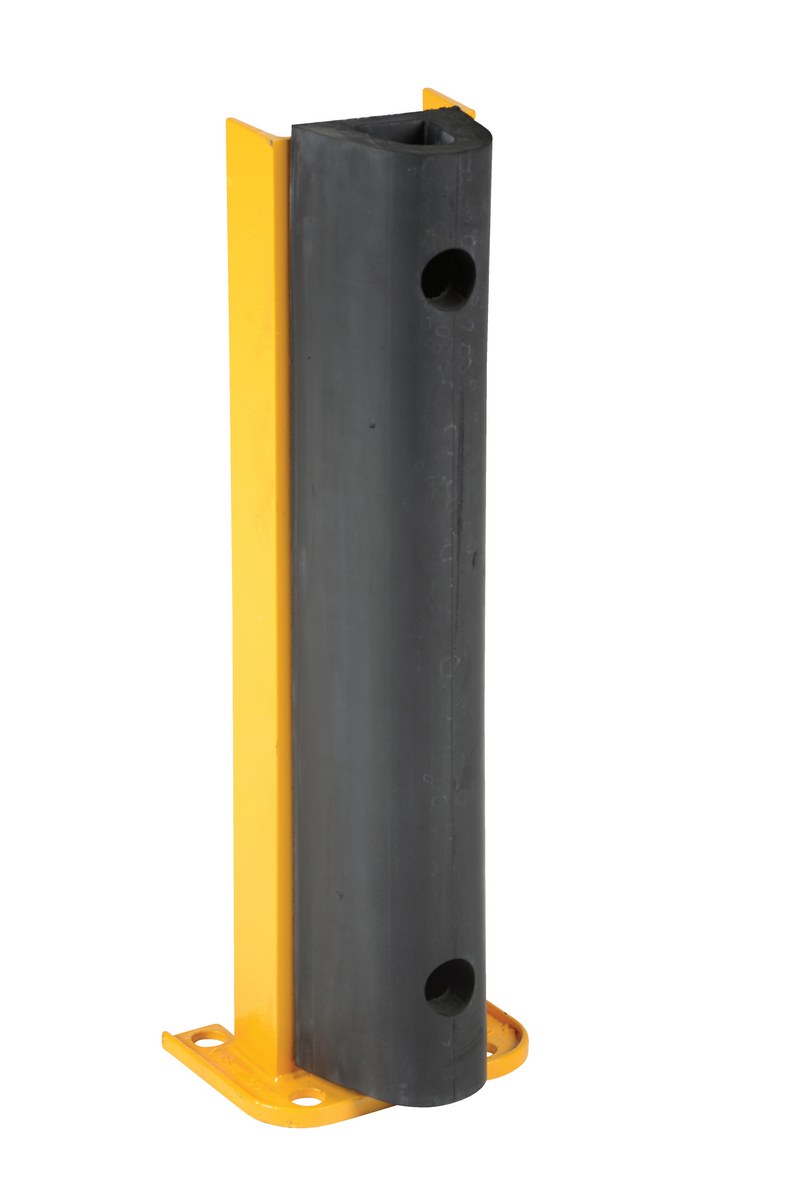

G6-24-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 24 HEIGHTConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
42

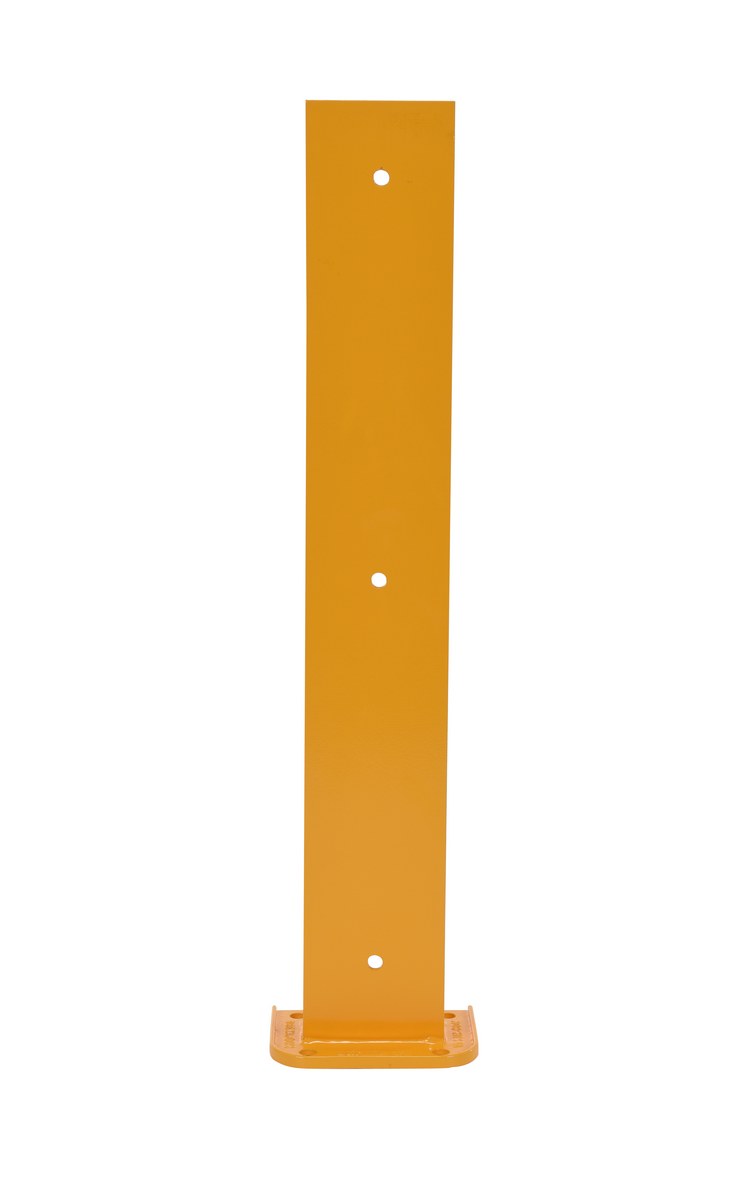

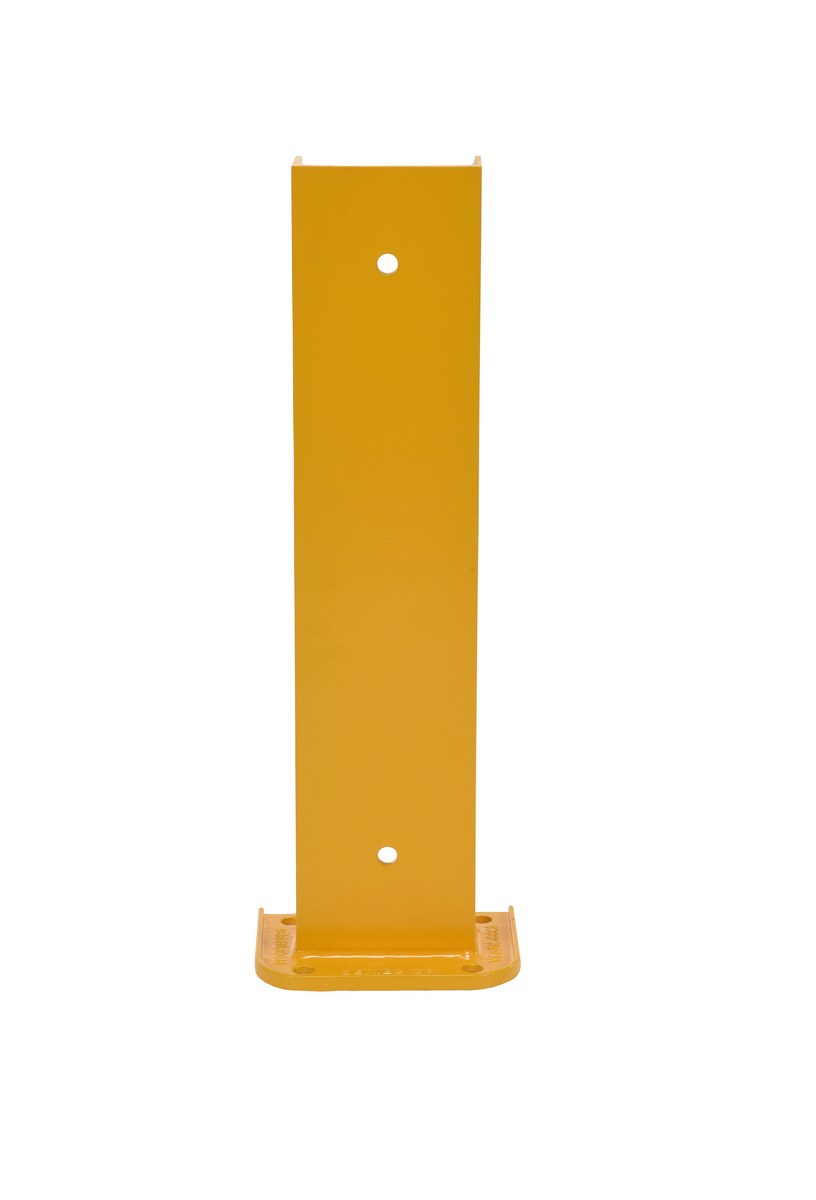

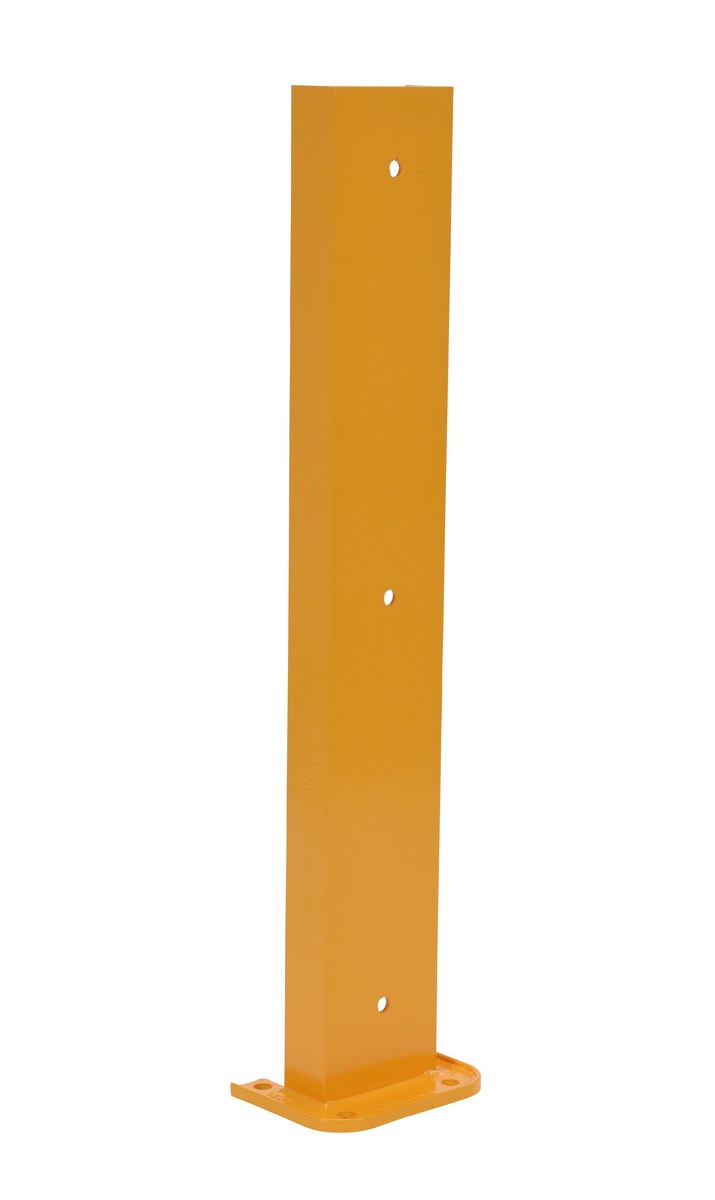

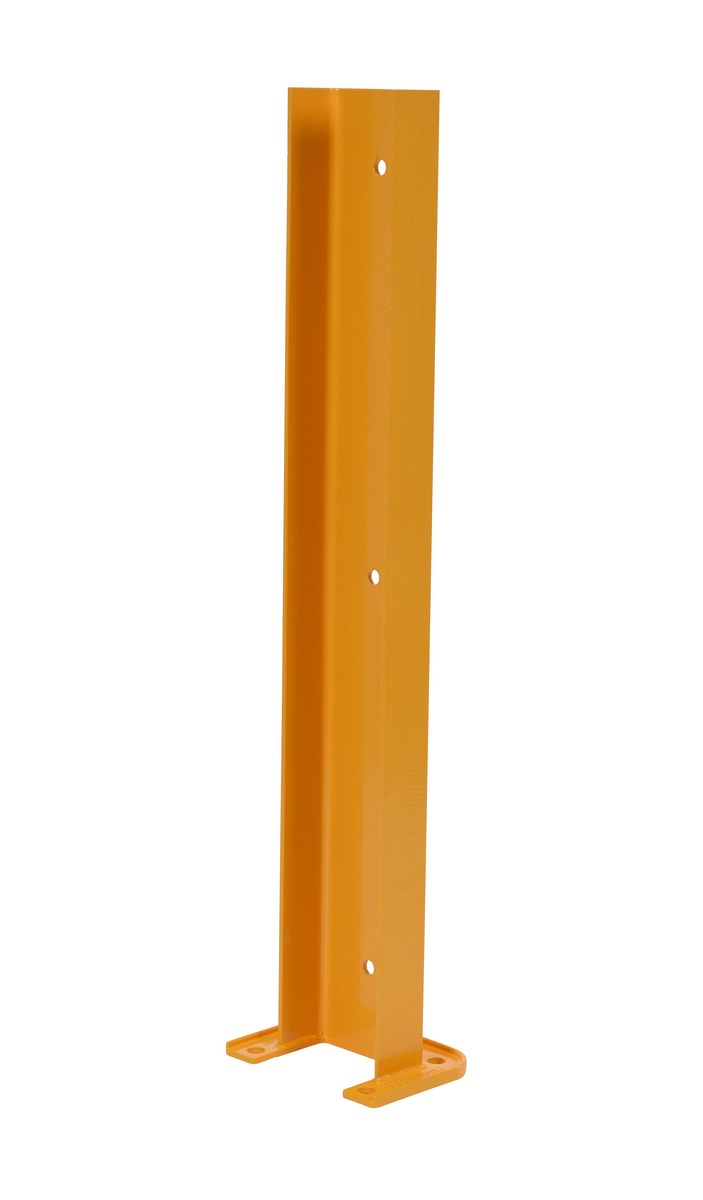

G6-36 30 Days Limited WarrantySTRUCTURAL RACK GUARD 6 IN C CHANNEL 36HConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
31

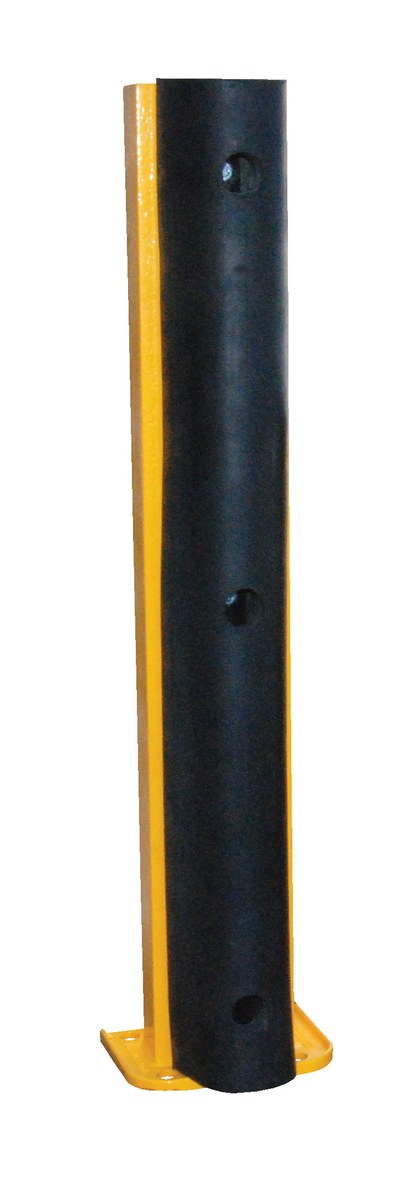

G6-36-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 36 HEIGHTConstruction Steel "C" Channel (in.) : 6
"C" Channel Thickness (in.): 0.20
44

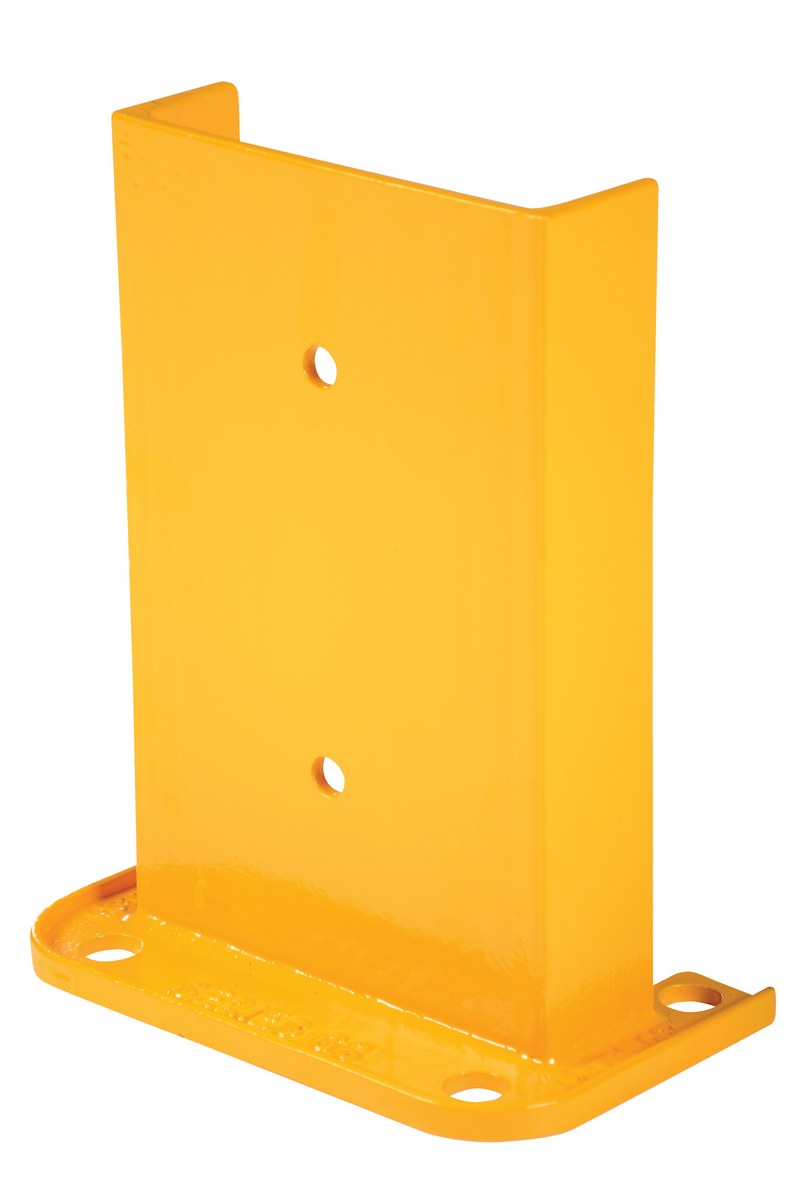

G8-12 30 Days Limited WarrantySTRUCTURAL RACK GUARD 8 IN C CHANNEL 12HConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
13

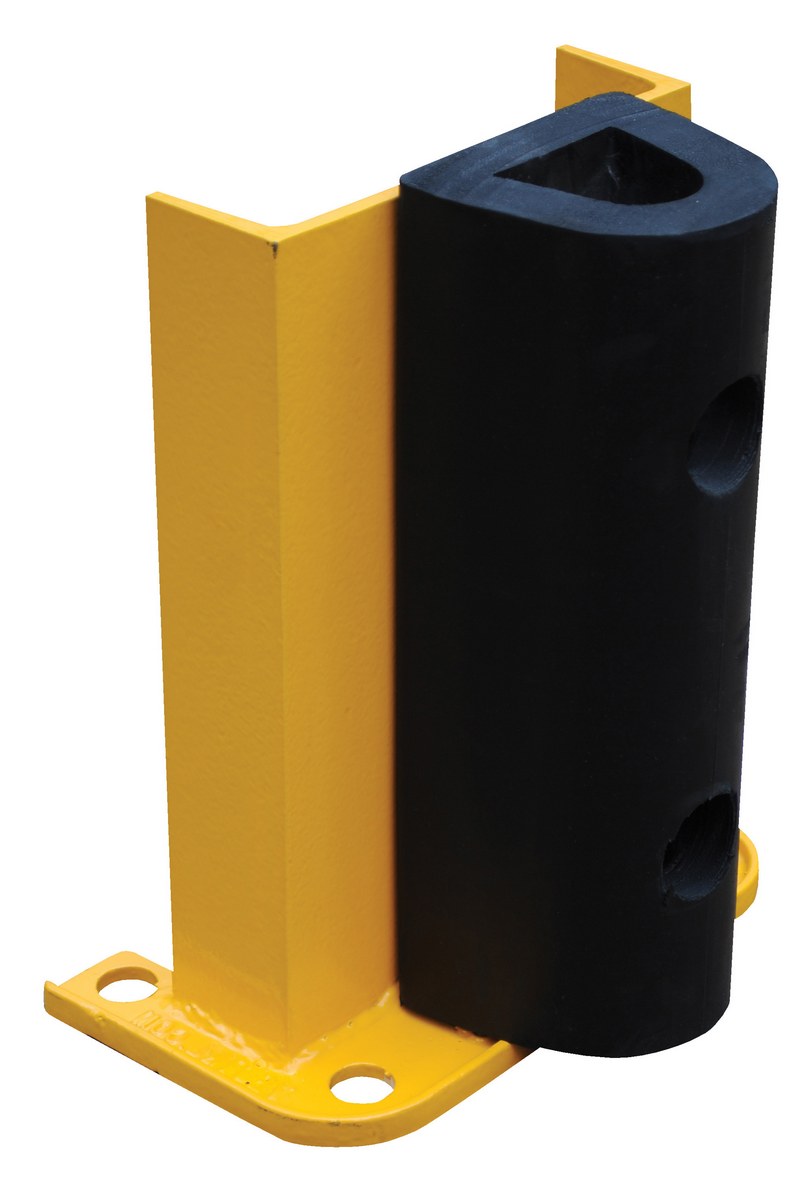

G8-12-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 12 HEIGHTConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
23

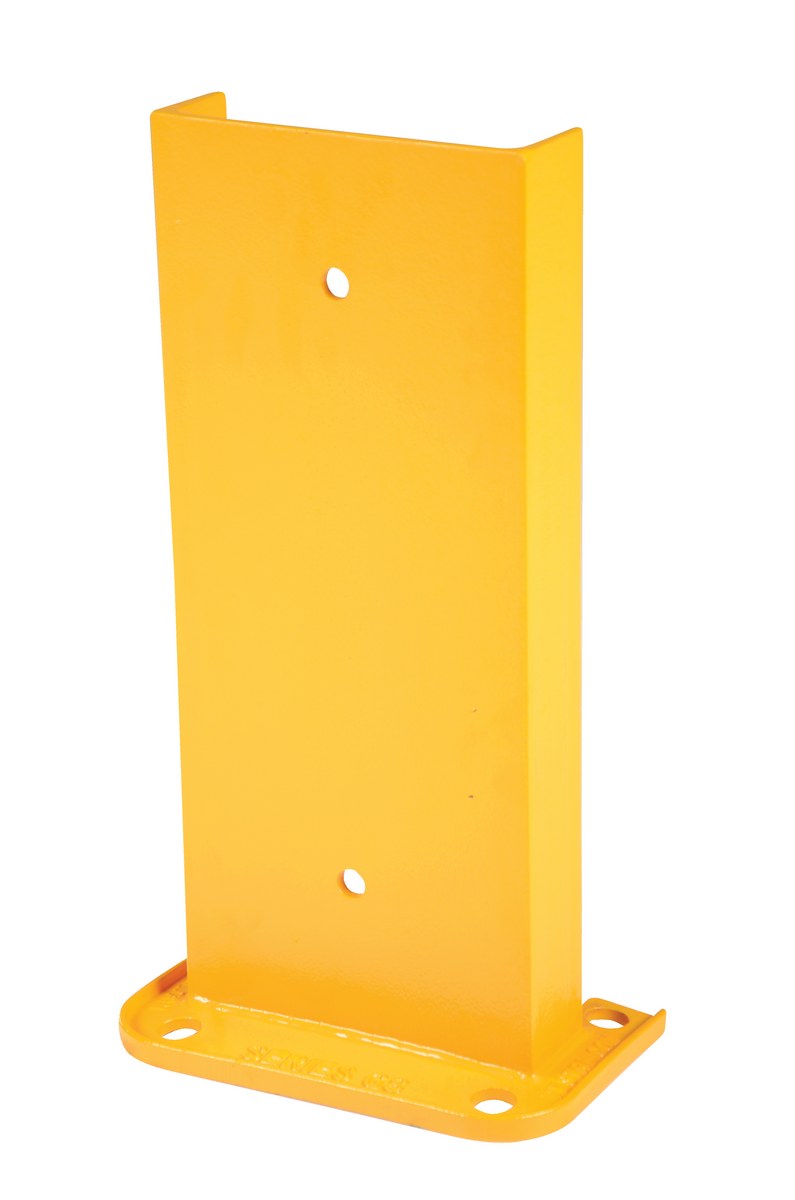

G8-18 30 Days Limited WarrantySTRUCTURAL RACK GUARD 8 IN C CHANNEL 18HConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
21

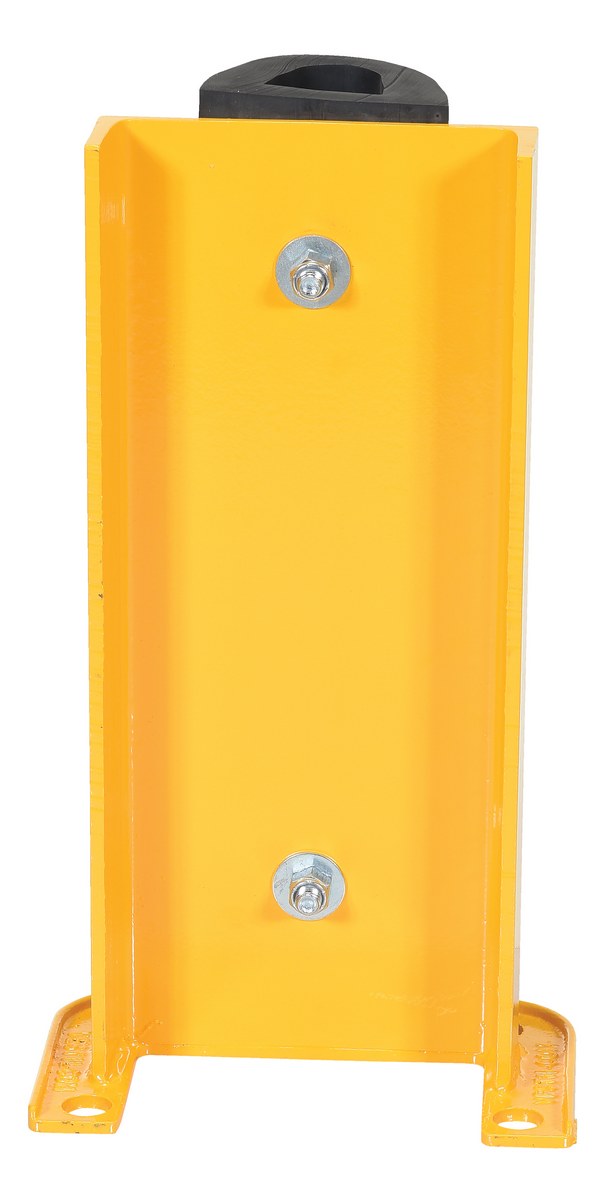

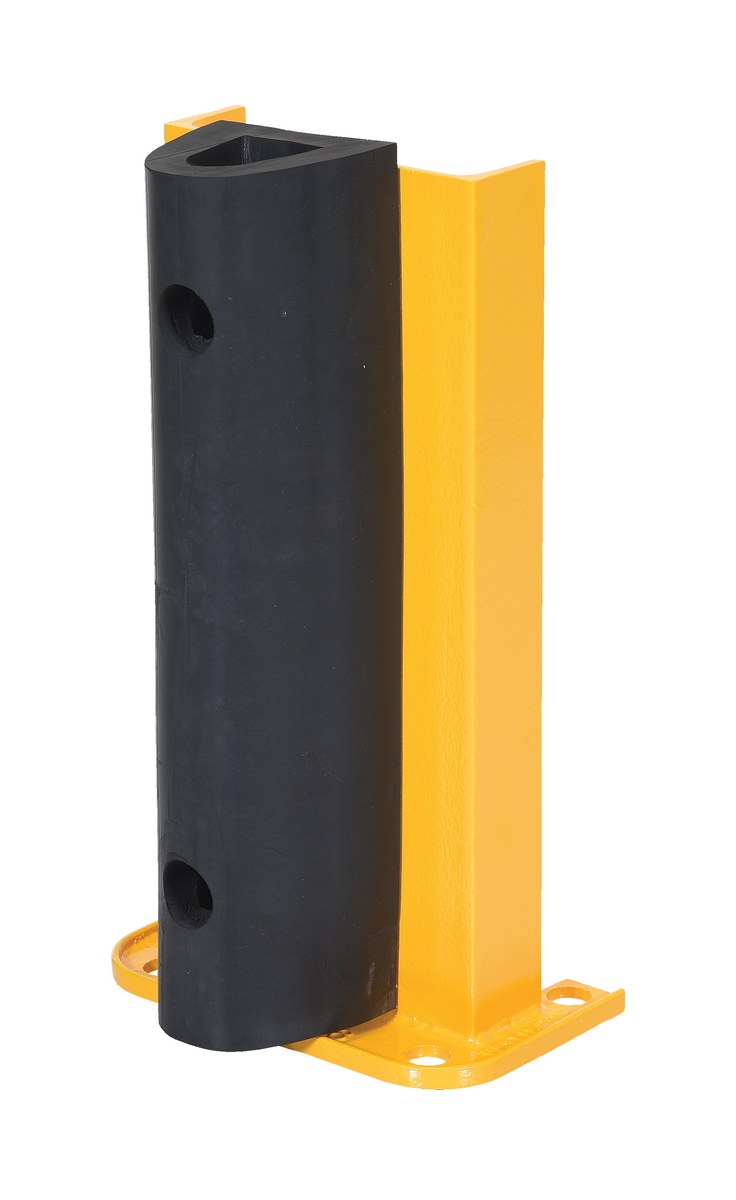

G8-18-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 18 HEIGHTConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
38

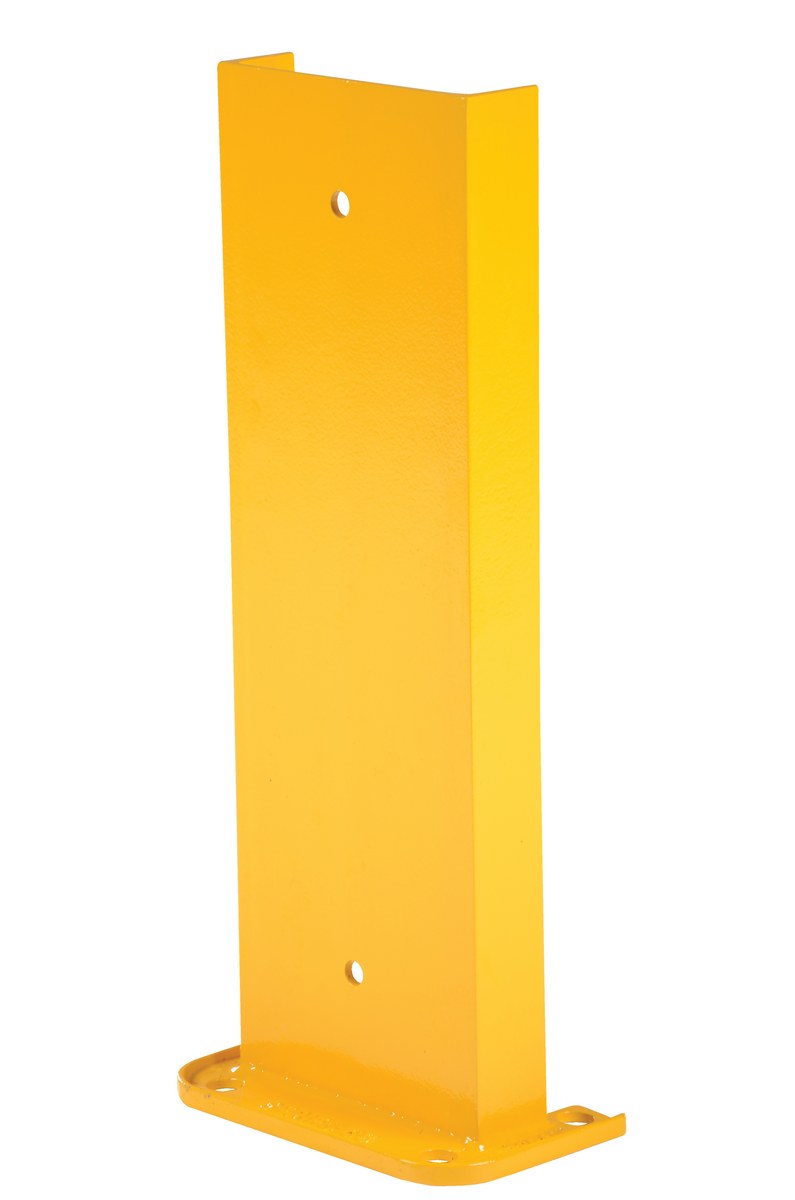

G8-24 30 Days Limited WarrantySTRUCTURAL RACK GUARD 8 IN C CHANNEL 24HConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
28

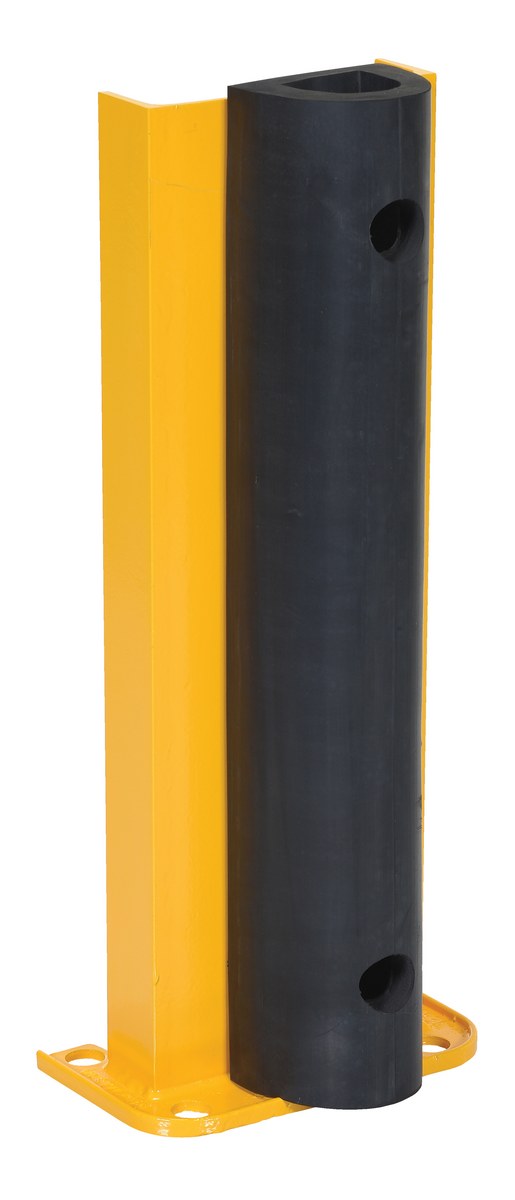

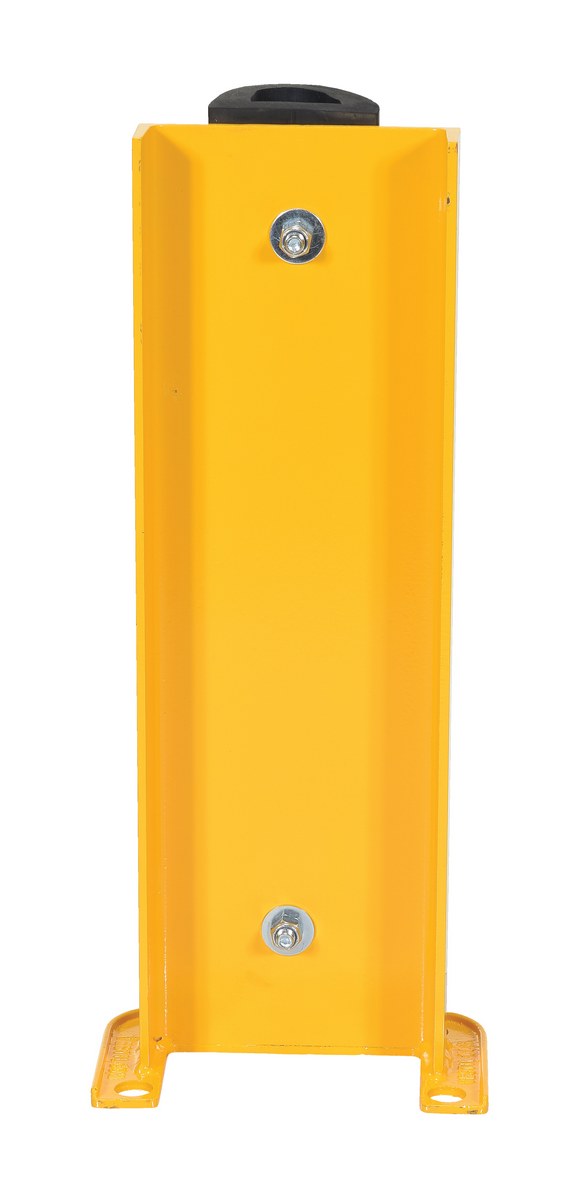

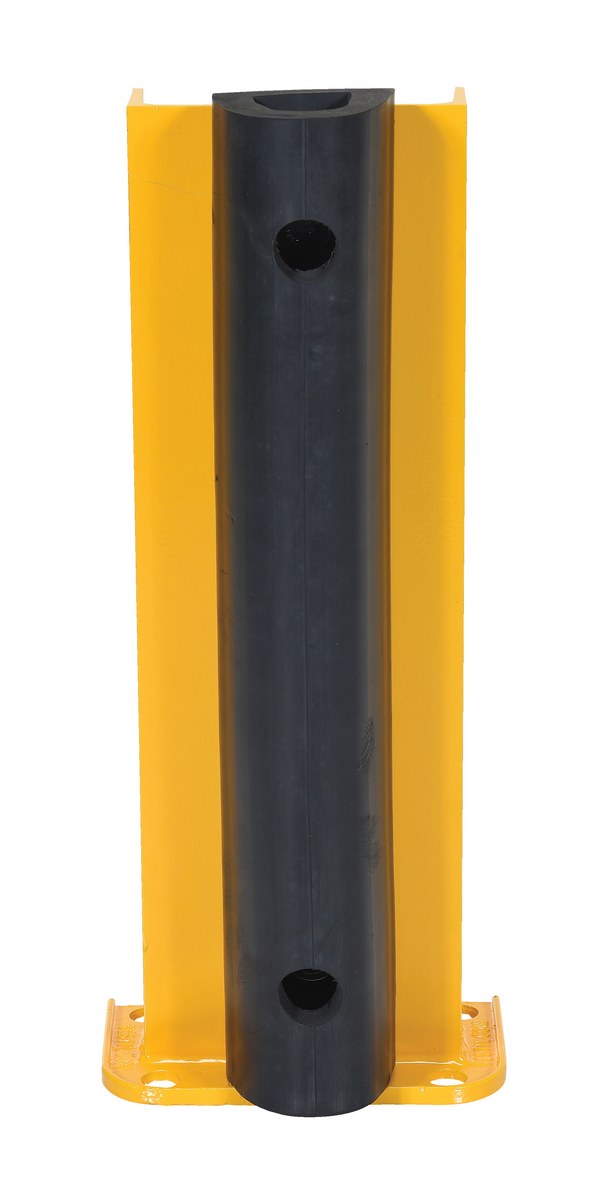

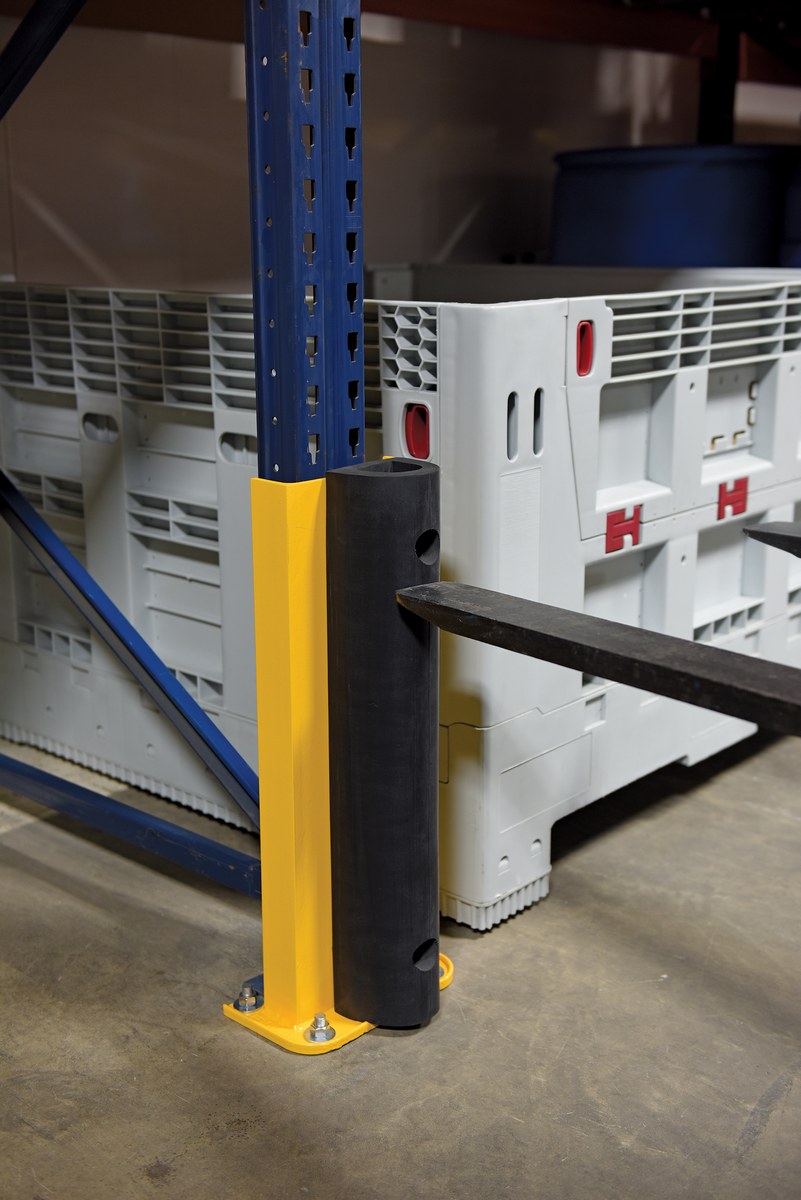

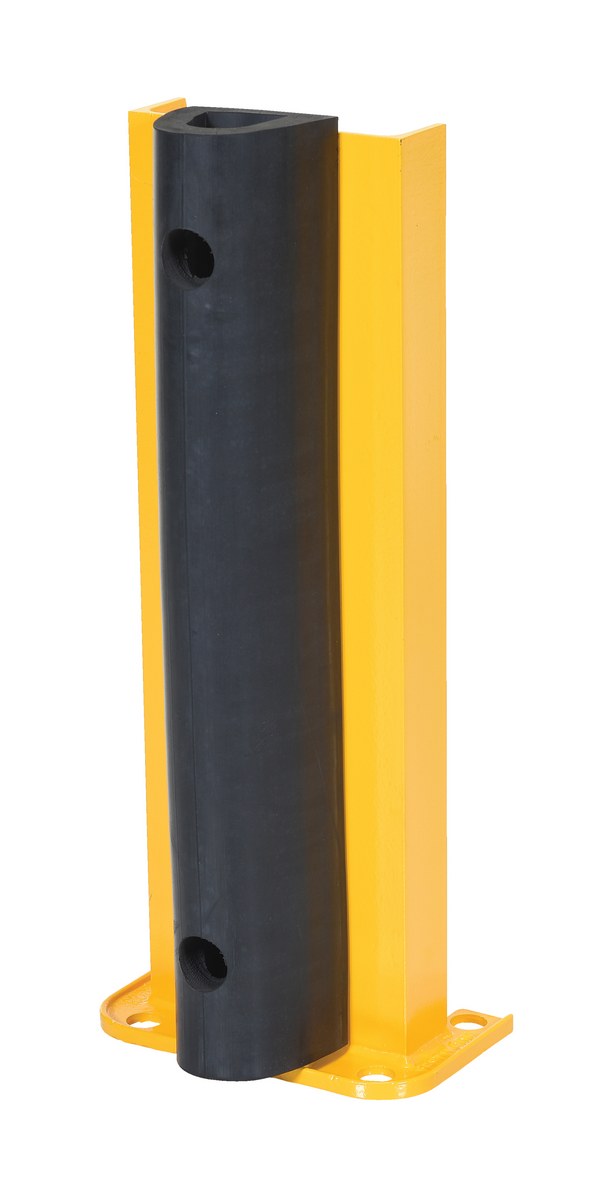

G8-24-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 24 HEIGHTConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
51

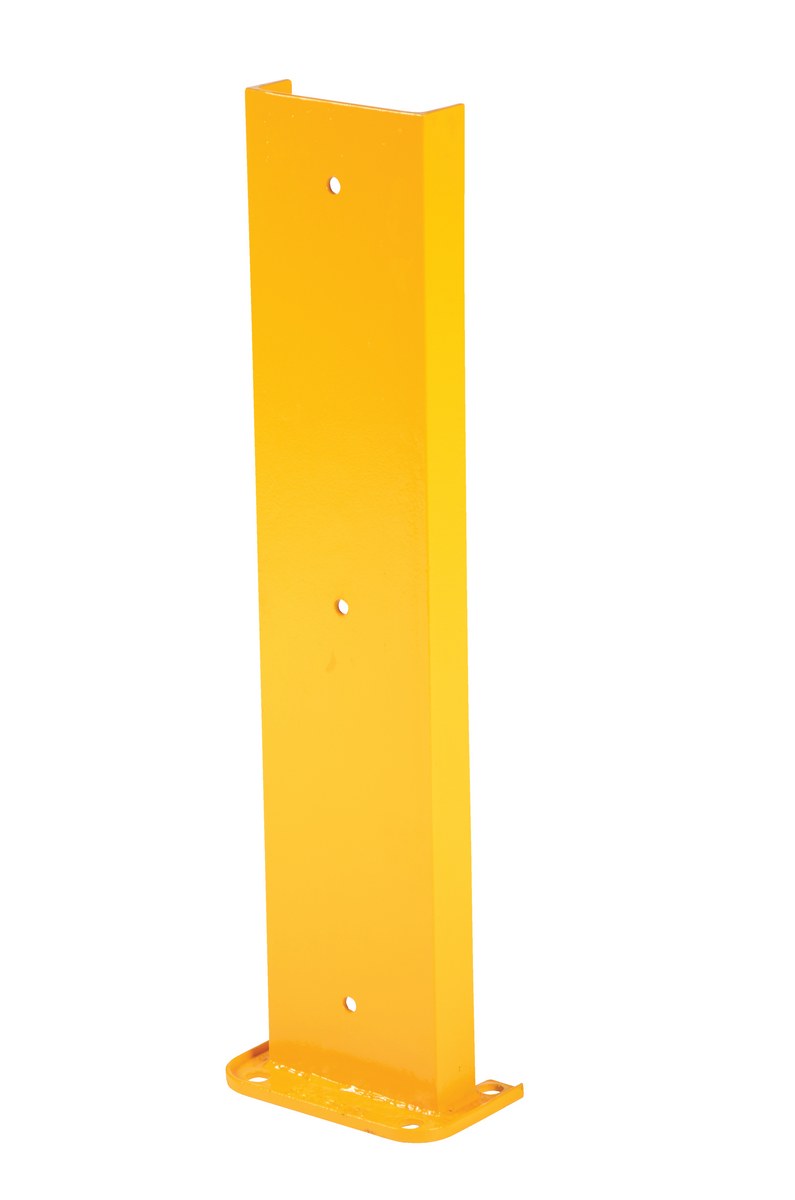

G8-36 30 Days Limited WarrantySTRUCTURAL RACK GUARD 8 IN C CHANNEL 36HConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
37

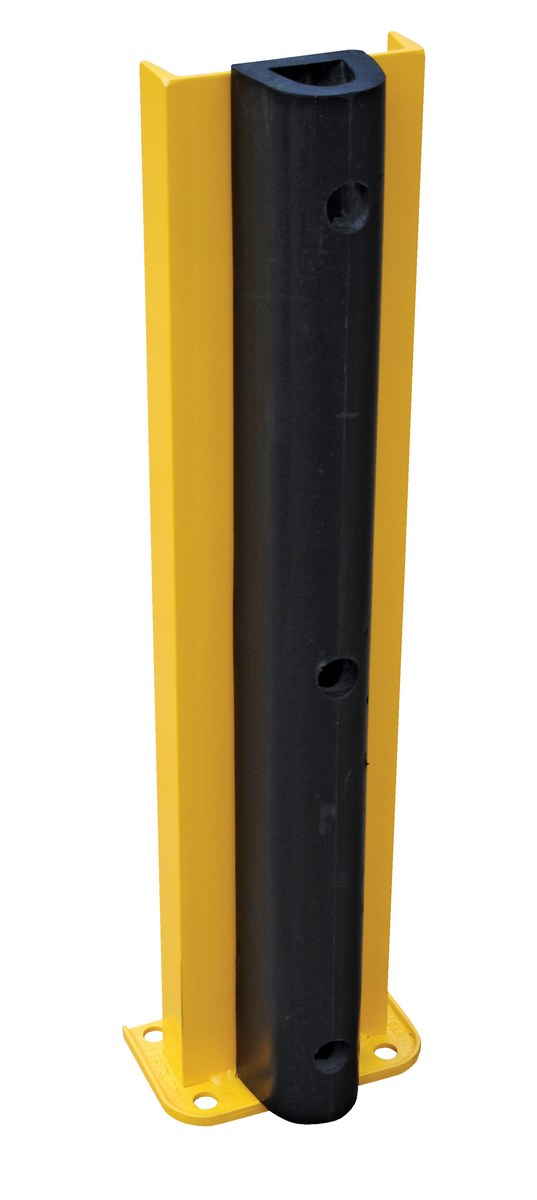

G8-36-B 30 Days Limited WarrantySTRUCTURAL RACK GUARD W/BUMPER 36 HEIGHTConstruction Steel "C" Channel (in.) : 8
"C" Channel Thickness (in.): 0.220
53

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Model Image Description Wt (lbs.)
AS-125-4PK Concrete Anchor Bolts (4) 1/2" x 5" (to be used with G6 series) 4
AS-344-4PK Concrete Anchor Bolts (4) 3/4" x 4" (to be used with G8 series) 4

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Structural Rack Guards PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Structural Rack Guards




Economical way to protect against damage to pallet racking and wall corners. Constructed of 6" or 8" steel "C" channel for durability. Available with or without a rubber bumper. Easy to install to concrete surface. Four mounting holes for maximum stability. Safety yellow Baked-in powder-coated toughness. Models G6 require 1/2" anchor bolts. Models G8 require 3/4" anchor bolts. Installation hardware sold separately.


Structural Rack Guards
Model Image PDFs Overall
Height
Usable
Opening (WxD)
Overall Base
(WxD)
Wt.
(lbs)
G6-12 icon_approvaldrawings.jpgWarranty PDF 12-1/4" 4-9/16" x 3-11/16" 8-1/16"x6" 12
G6-18 icon_approvaldrawings.jpgWarranty PDF 18-1/4" 4-9/16" x 3-11/16" 8-1/16"x6" 16
G6-24 icon_approvaldrawings.jpgWarranty PDF 24-1/4" 4-9/16" x 3-11/16" 8-1/16"x6" 22
G6-36 icon_approvaldrawings.jpgWarranty PDF 36-1/4" 4-9/16" x 3-11/16" 8-1/16"x6" 31
G8-12 icon_approvaldrawings.jpgWarranty PDF 12-1/4" 6-9/16" x 3-11/16" 10-1/16"x6" 13
G8-18 icon_approvaldrawings.jpgWarranty PDF 18-1/4" 6-9/16" x 3-11/16" 10-1/16"x6" 21
G8-24 icon_approvaldrawings.jpgWarranty PDF 24-1/4" 6-9/16" x 3-11/16" 10-/16"x6" 28
G8-36 icon_approvaldrawings.jpgWarranty PDF 36-1/4" 6-9/16" x 3-11/16" 10-1/16"x6" 37

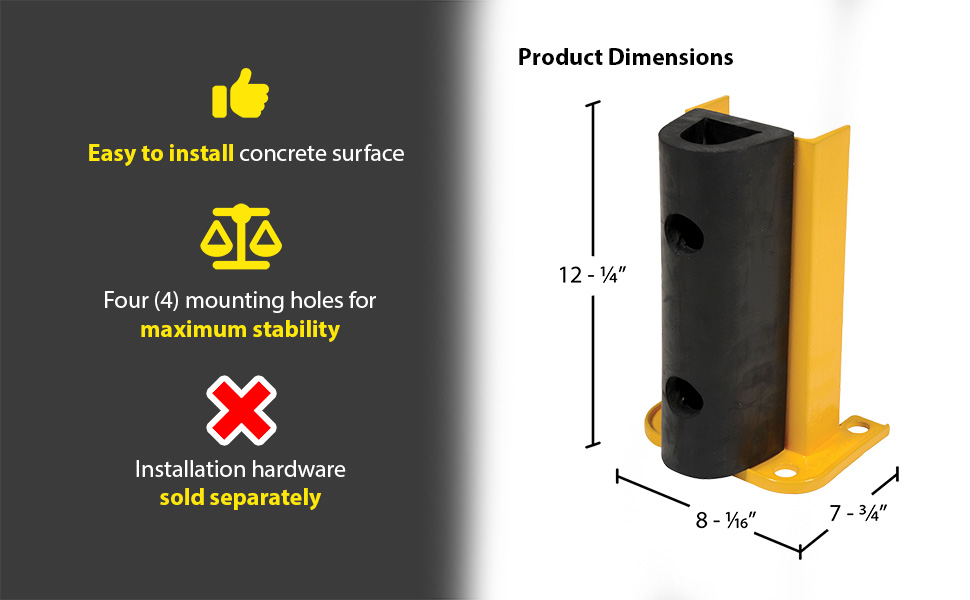

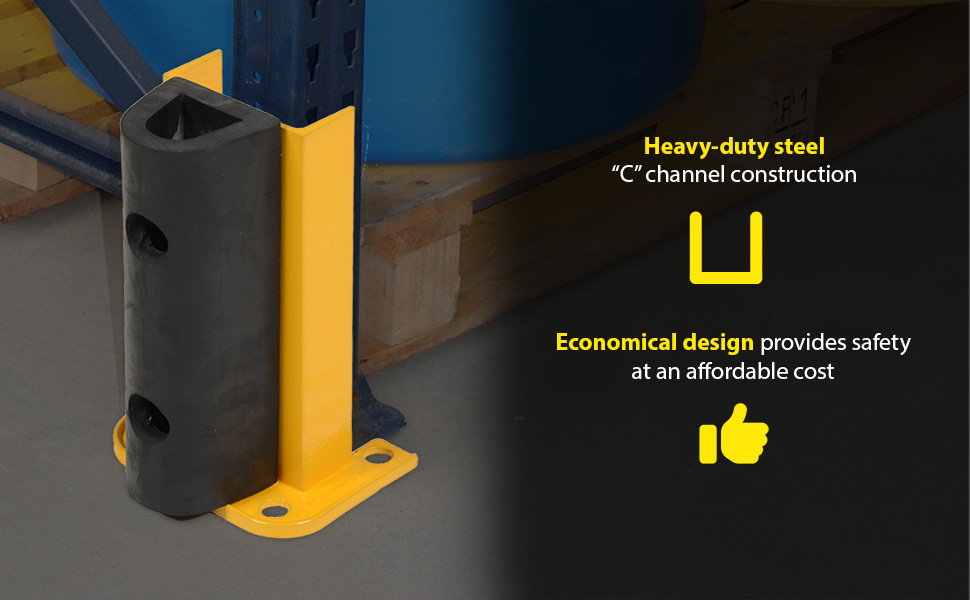

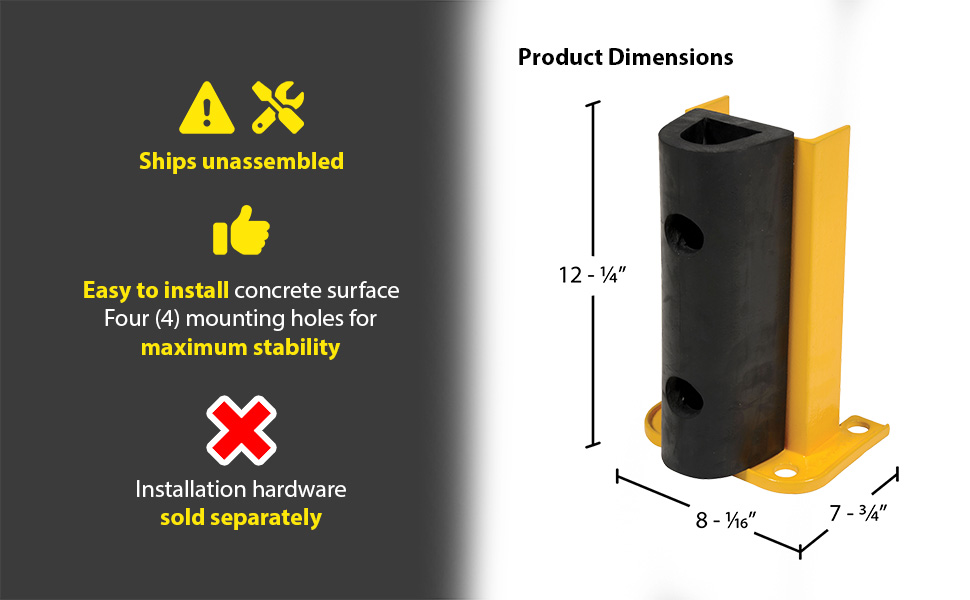

Structural Rack Guards with Rubber Bumpers
Model Image PDFs Overall
Height
Usable
Opening (WxD)
Overall Base
(WxD)
Wt.
(lbs)
G6-12-B icon_approvaldrawings.jpgWarranty PDF 12-1/4" 4-9/16" x 3" 8-1/16"x7-3/4" 19
G6-18-B icon_approvaldrawings.jpgWarranty PDF 18-1/4" 4-9/16" x 3" 8-1/16"x7-3/4" 25
G6-24-B icon_approvaldrawings.jpgWarranty PDF 24-1/4" 4-9/16" x 3" 8-1/16"x7-3/4" 42
G6-36-B icon_approvaldrawings.jpgWarranty PDF 36-1/4" 4-9/16" x 3" 8-1/16"x7-3/4" 44
G8-12-B icon_approvaldrawings.jpgWarranty PDF 12-1/2" 6-9/16"x 2-3/4" 10-1/16"x7-13/16" 23
G8-18-B icon_approvaldrawings.jpgWarranty PDF 18-1/2" 6-9/16" x 2-3/4" 10-1/16"x7-13/16" 38
G8-24-B icon_approvaldrawings.jpgWarranty PDF 24-1/2" 6-9/16" x 2-3/4" 10-1/16"x7-13/16" 51
G8-36-B icon_approvaldrawings.jpgWarranty PDF 36-1/2" 6-9/16" x 2-3/4" 10-1/16"x6" 53

Options


Model Image Description Wt (lbs.)
AS-125-4PK Concrete Anchor Bolts (4) 1/2" x 5" (to be used with G6 series) 4
AS-344-4PK Concrete Anchor Bolts (4) 3/4" x 4" (to be used with G8 series) 4
