Mobile Gasoline Powered Drum Crusher

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
HDC-900-GPT_A.jpg HDC-900-GPT_1.jpg HDC-900-GPT_2.jpg
Mobile Gasoline Powered Drum Crusher

model: HDC-900-GPT



Featured Drum Handling Equipment


Hydraulic Pail Crusher
Wall Mounted Cylinder Brackets
Drum Storage Hard Top Containers
Drum Bung Sockets
Drum Crushers/ Compactors
Intermediate Bulk Container Tilting Cart
Economy Drum Positioner
Pneumatic Trash (55 Gallon Drum) Compactor
Round Metal Cans with Lids
model chart

Product Family Overview

Print Friendly

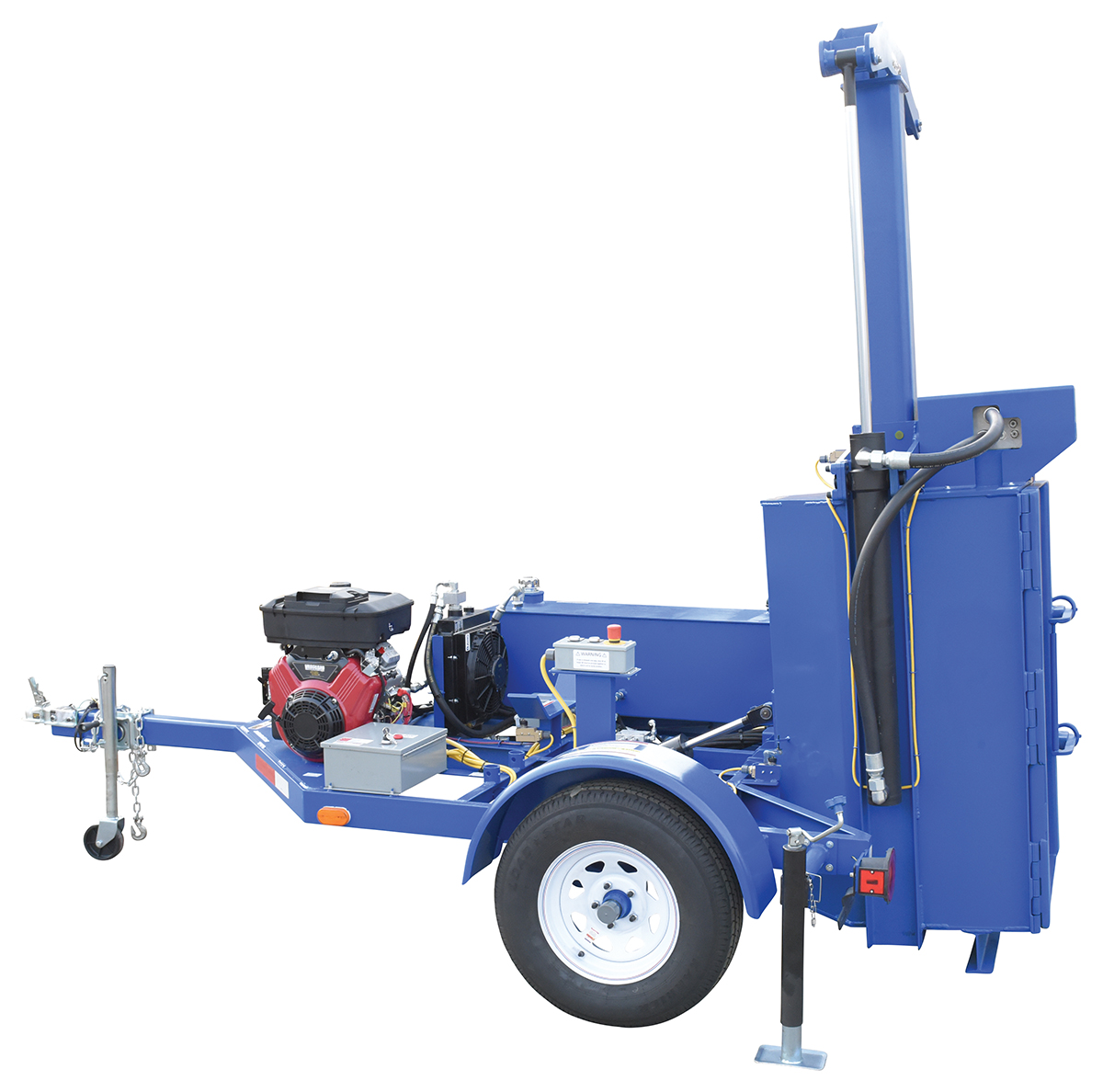

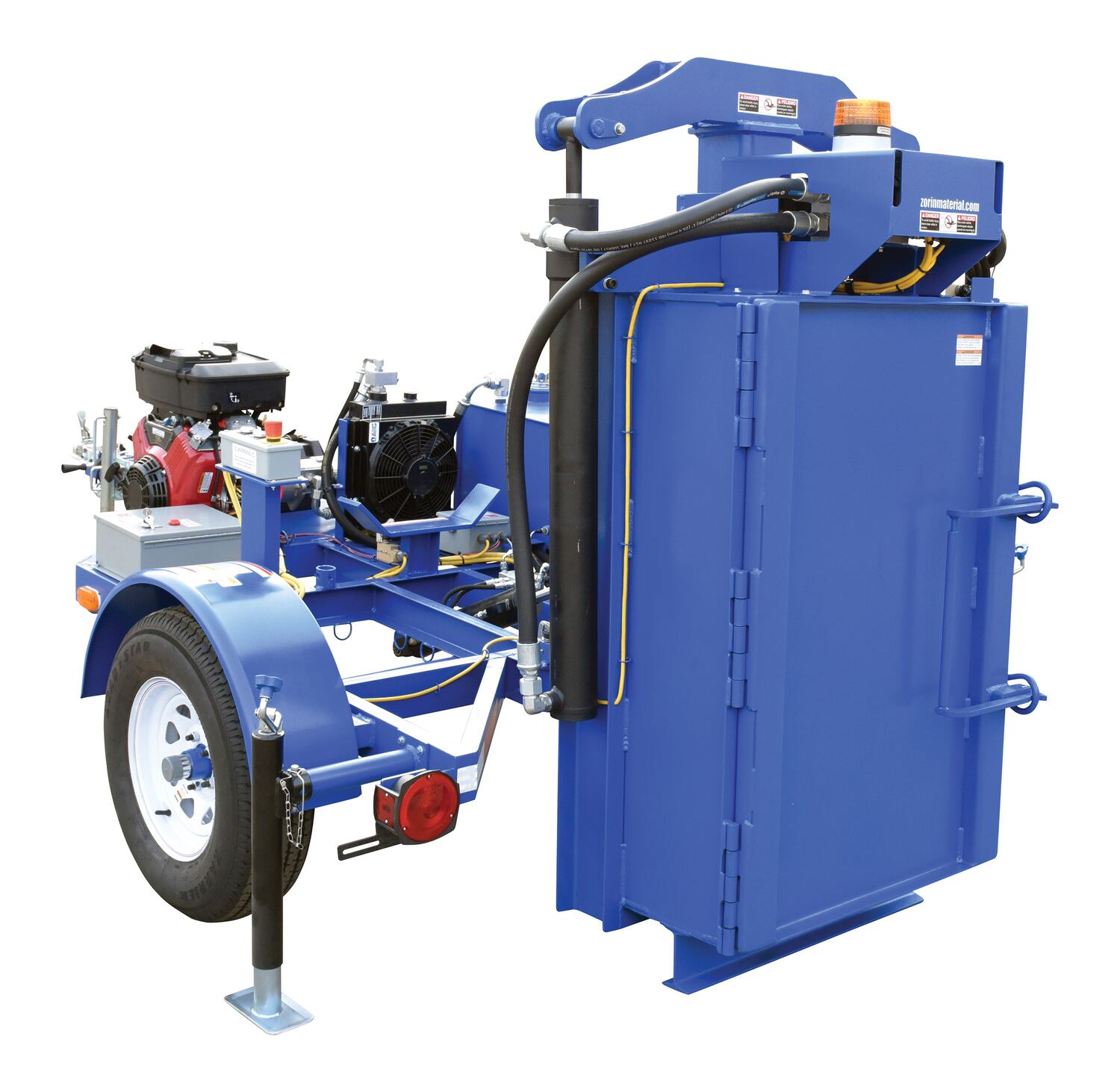

Mobile Gasoline Powered Drum Crusher
SERIES: HDC-900

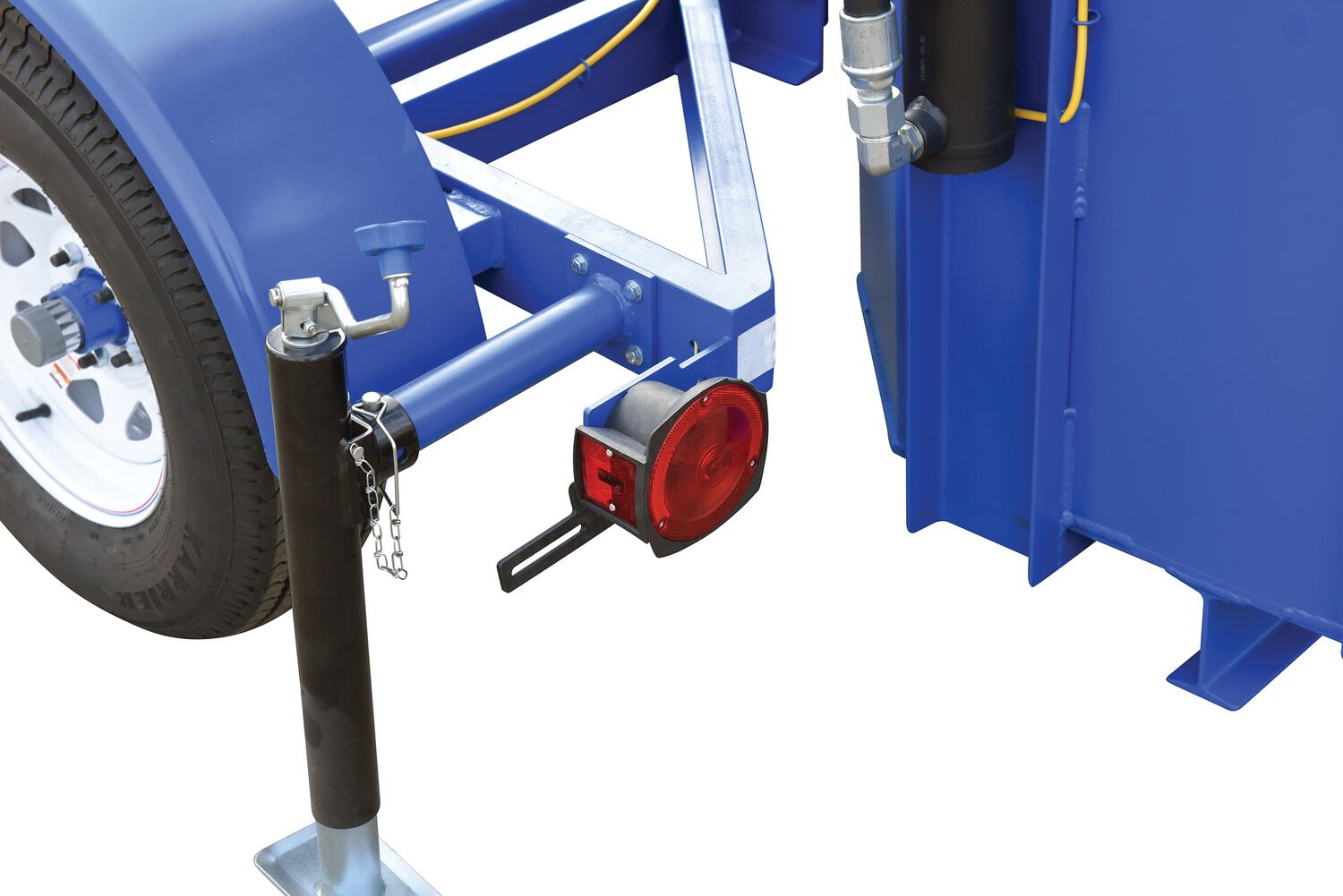

Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

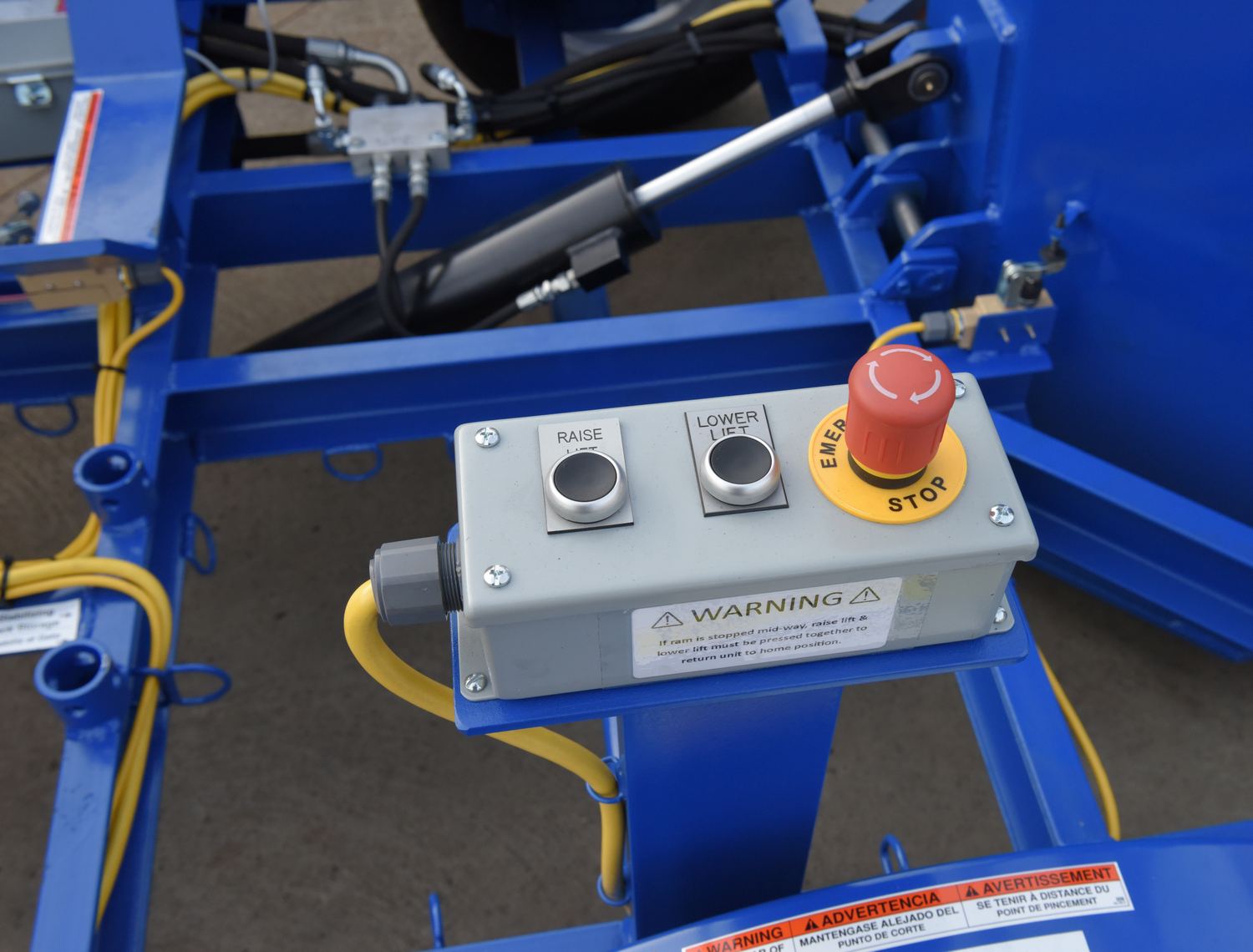

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage

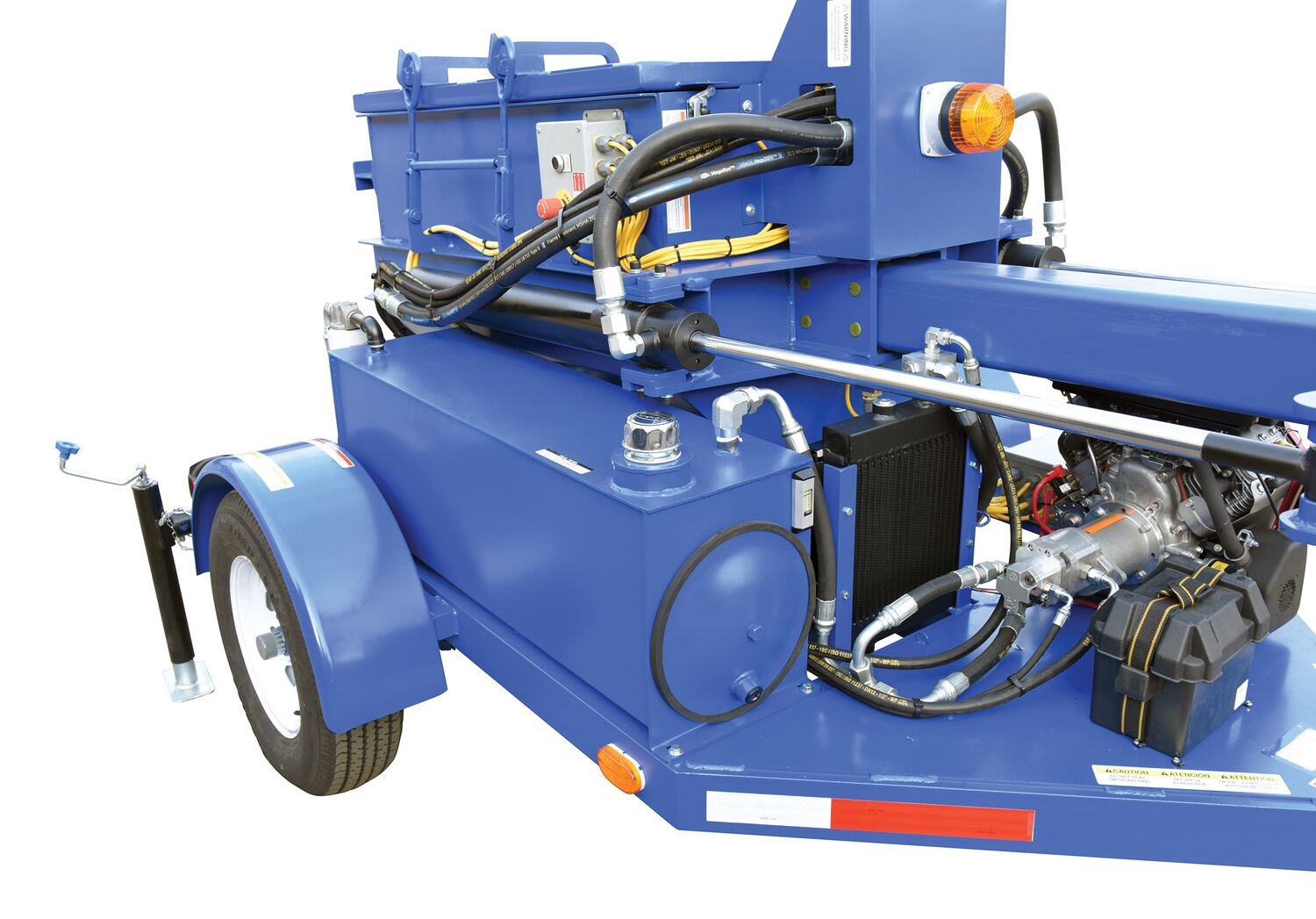

  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.


Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage
  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.


Other Drum Crushers/Compactors

 Aerosol Can Crusher Pneumatic Trash (55 Gallon Drum) Compactor Mobile Gasoline Powered Drum Crusher Hydraulic Drum Crusher/Compactors

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDC-900-GPT
HDC-900-GPT1 Year Limited WarrantySteel Mobile Gasoline Powered Drum Crusher 138-3/8 In. x 83-1/4 In. x 105-5/8 In. BlueHydraulic Reservoir Capacity (gal.): 30
Engine: 570cc		3376

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDC-900-GPT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
Hydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
For More Details of the Option Click the Red Model Button
Model PDFs Description Wt (lbs.)
HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan 4
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit -
HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Mobile Gasoline Powered Drum Crusher PDF's will open in a new window when clicked.

Manuals


HDC-900-GP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


HDC-900-GPT

Testing Certificates


HDC-900-GPT

SDS Sheets


Valve Regulated Lead-Acid Battery SDS Sheet for: HDC-900-GPT
Hydraulic Oil SDS Sheet for: HDC-900-GPT

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Is there a high cycle option for the HDC-900-GPT?

A: The standard unit comes as a high cycle unit from the factory.

Q: What is the noise level of HDC-905 drum crusher?

A: The noise level is 75 dB at 3' from the power unit.




Related or Similar Products:

Hydraulic Drum Crusher/Compactors
Product

Hydraulic Drum Crusher/Compactors

Mechanical Trash Compactors
Product

Mechanical Trash Compactors

Polyethylene Drum Racks
Product

Polyethylene Drum Racks

Stackable Drum Racks
Product

Stackable Drum Racks

Horizontal Drum Storage Racks
Product

Horizontal Drum Storage Racks

Pallet Rack Drum Cradles
Product

Pallet Rack Drum Cradles

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mobile Gasoline Powered Drum C...




Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage
  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.



Model # Description Attributes Net Wt.
(lbs)
HDC-900-GPT HDC-900-GPTSteel Mobile Gasoline Powered Drum Crusher 138-3/8 In. x 83-1/4 In. x 105-5/8 In. BlueHydraulic Reservoir Capacity (gal.): 30
Engine: 570cc		3376

Options


Model PDFs Description Wt (lbs.)
HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan 4
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit -
HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure -
