Click Image to Enlarge

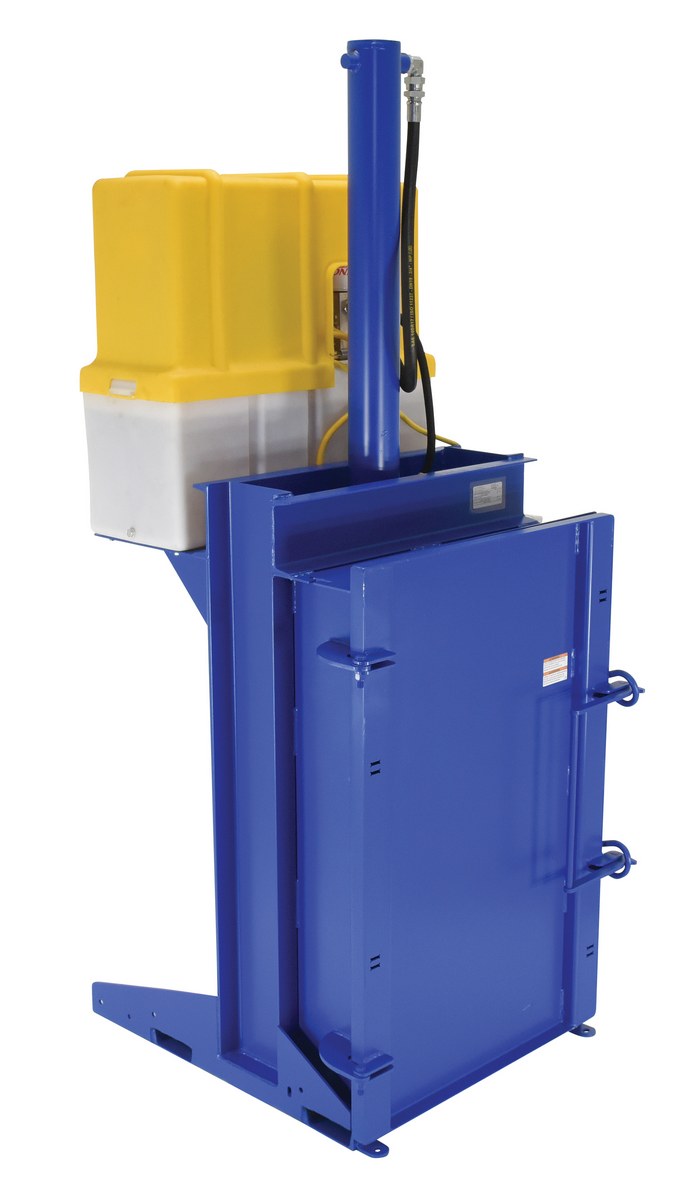

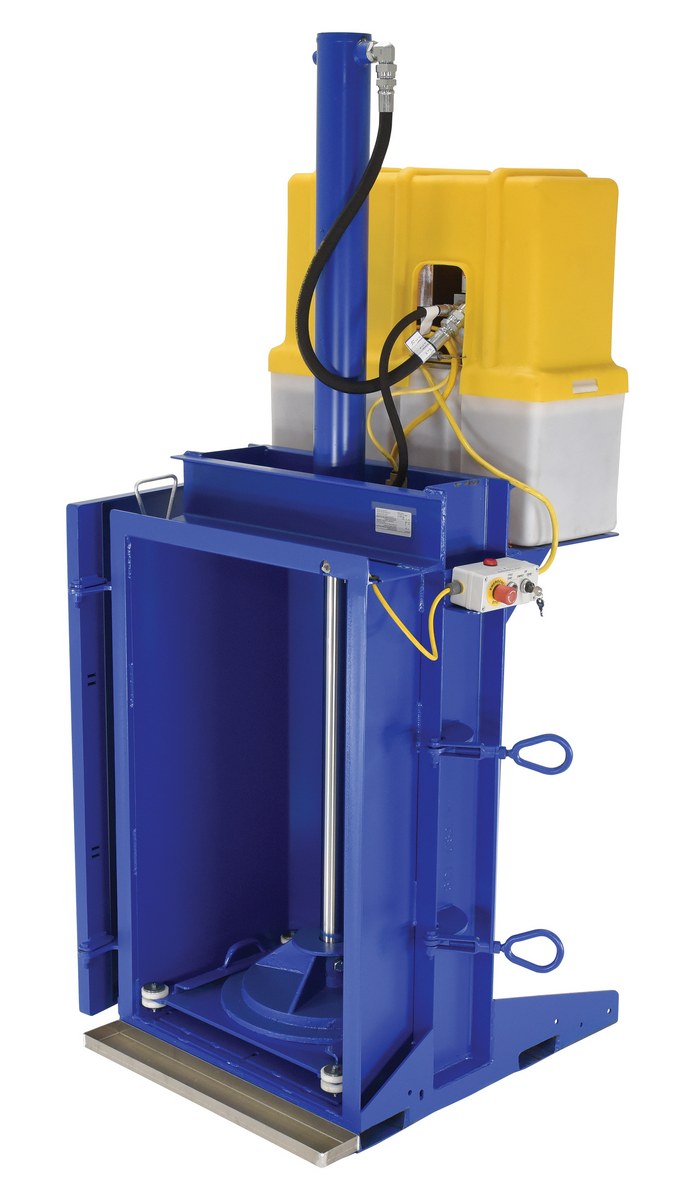

model: HDC-905-IDC-208V


Hydraulic Drum Crusher/Compactors
SERIES: HDC

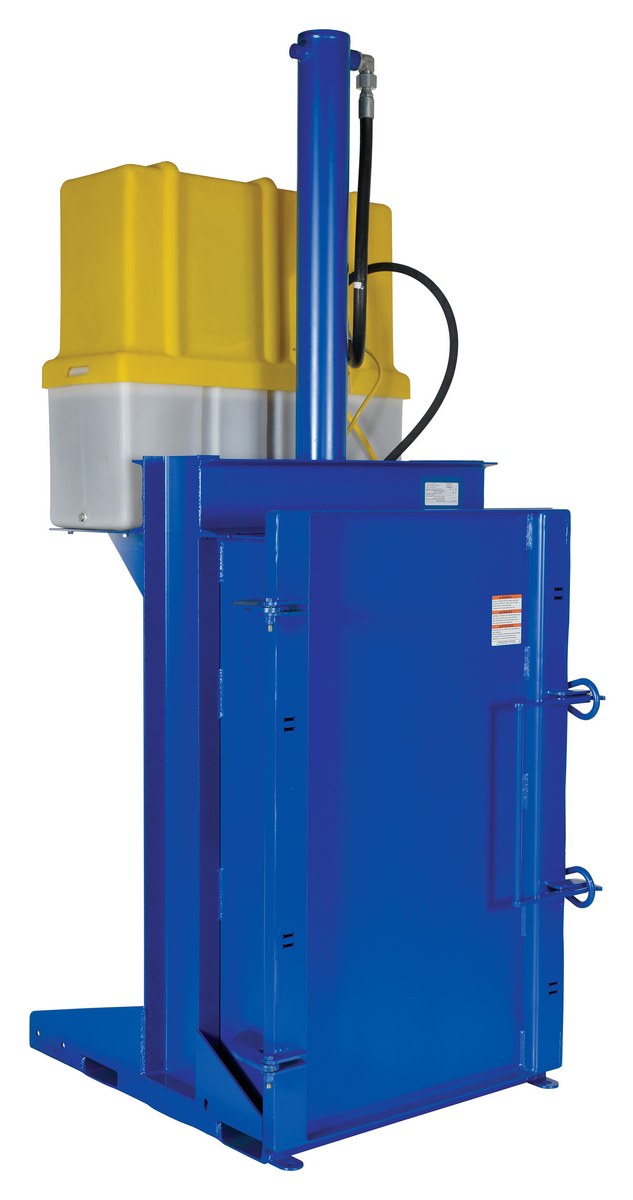

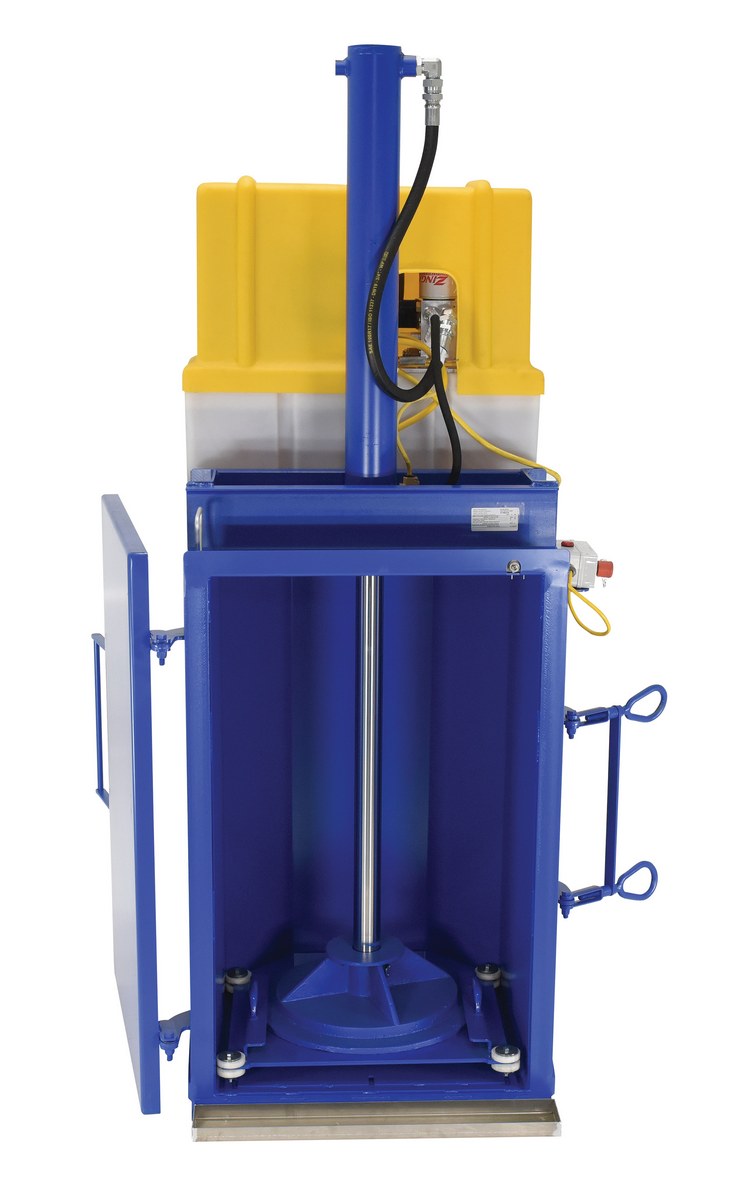

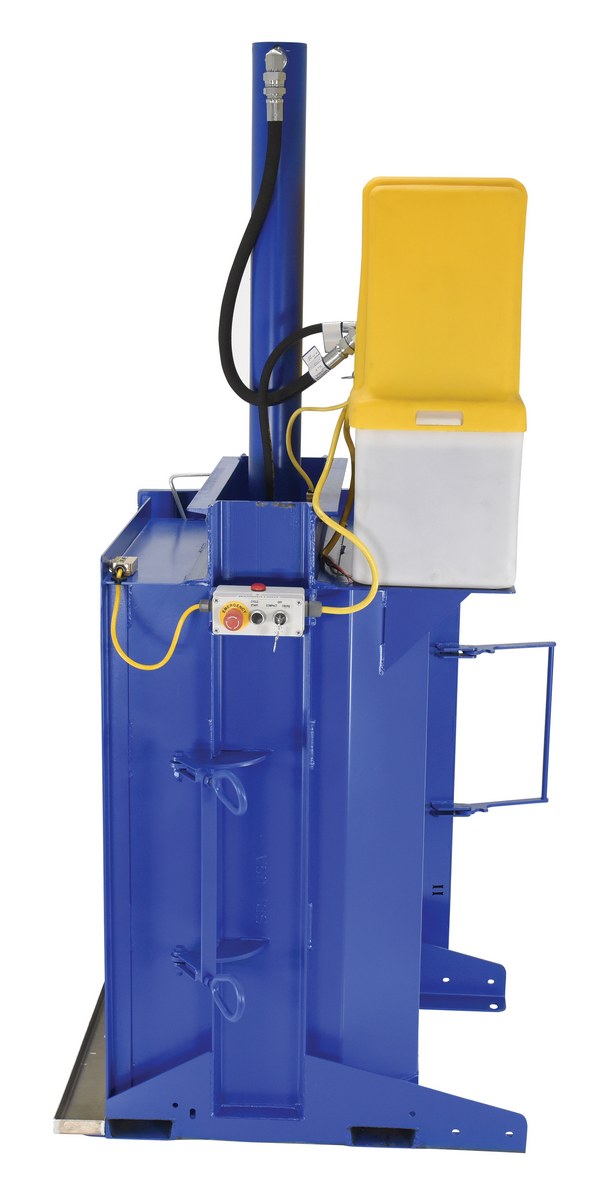

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.

HDC-905-HC-230V

model HDC-905-HC-230V

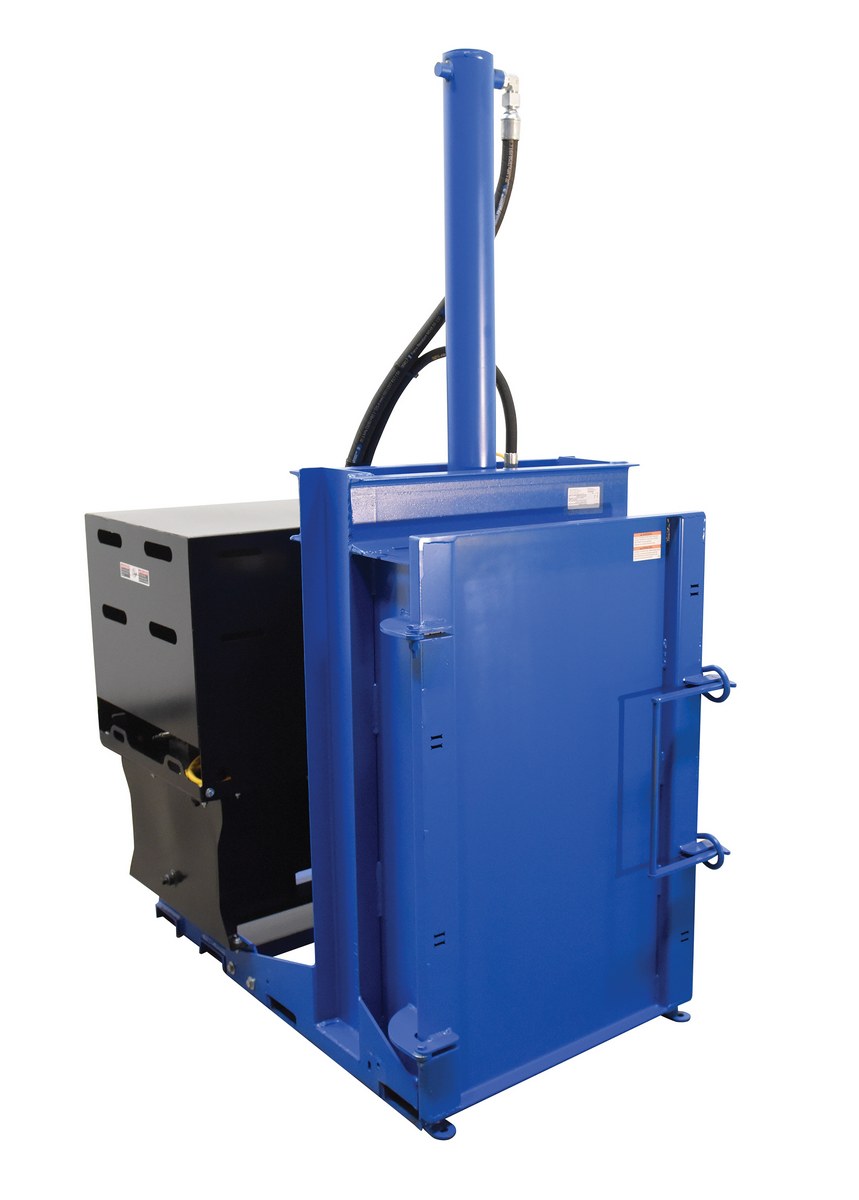

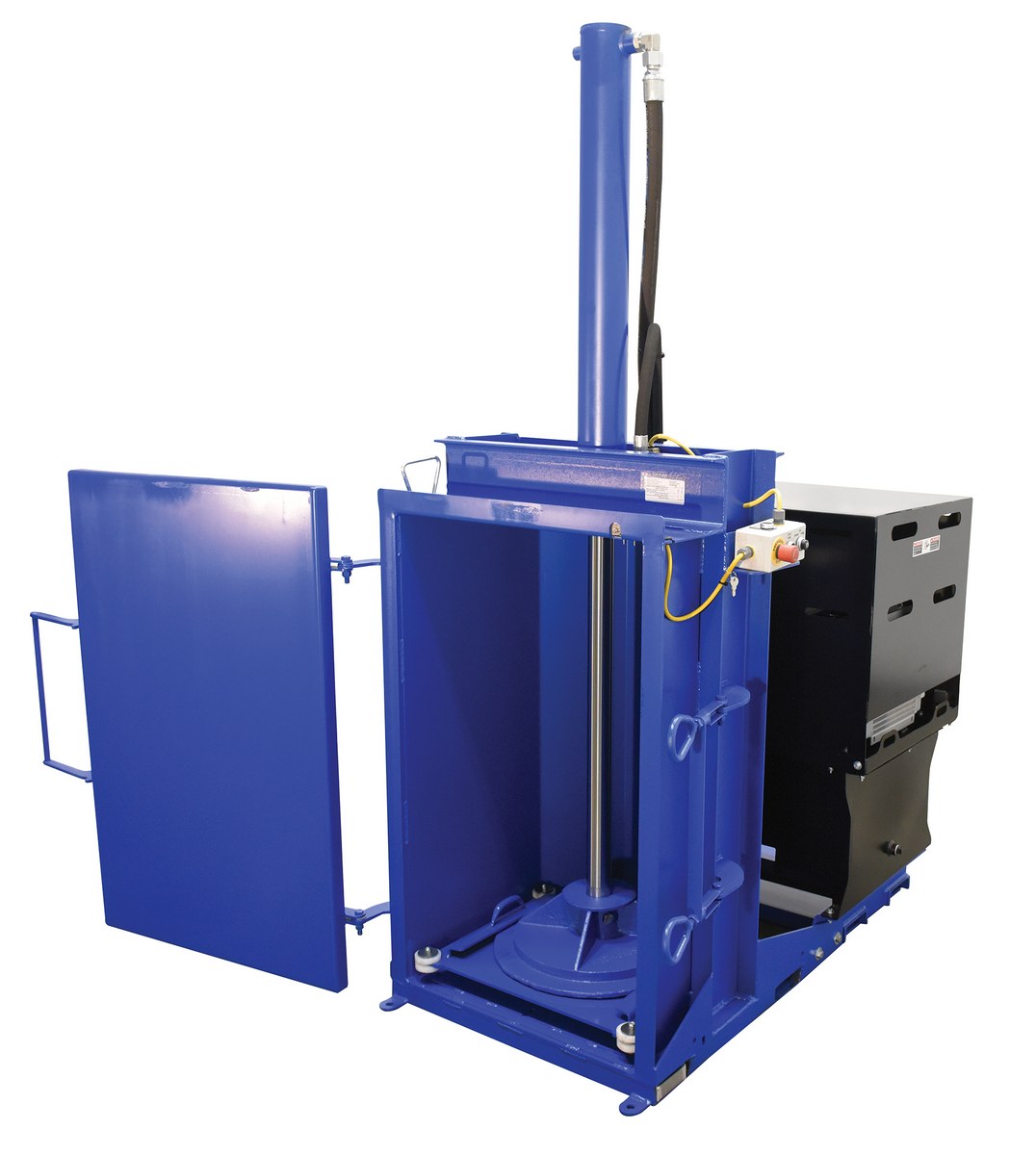

HDC-905-HC-460V

model HDC-905-HC-460V




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
HDC-905-HC/208V 1 Year Limited WarrantyCRUSHER/COMPACTOR 208V HIGH CYCLE PKGApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
2148
HDC-905-HC/230V 1 Year Limited WarrantyCRUSHER/COMPACTOR 230V HIGH CYCLE PKGApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
2148
HDC-905-HC/460V 1 Year Limited WarrantyCRUSHER/COMPACTOR 460V HIGH CYCLE PKGApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
2148
HDC-905-IDC/208V 1 Year Limited WarrantyCRUSHER/COMPACTOR 208V Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1570
HDC-905-IDC/230V 1 Year Limited WarrantyCRUSHER/COMPACTOR 230V Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1570
HDC-905-IDC/460V 1 Year Limited WarrantyCRUSHER/COMPACTOR 460V Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1570

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Drum Crusher/Compactor Options
Model PDFs Description

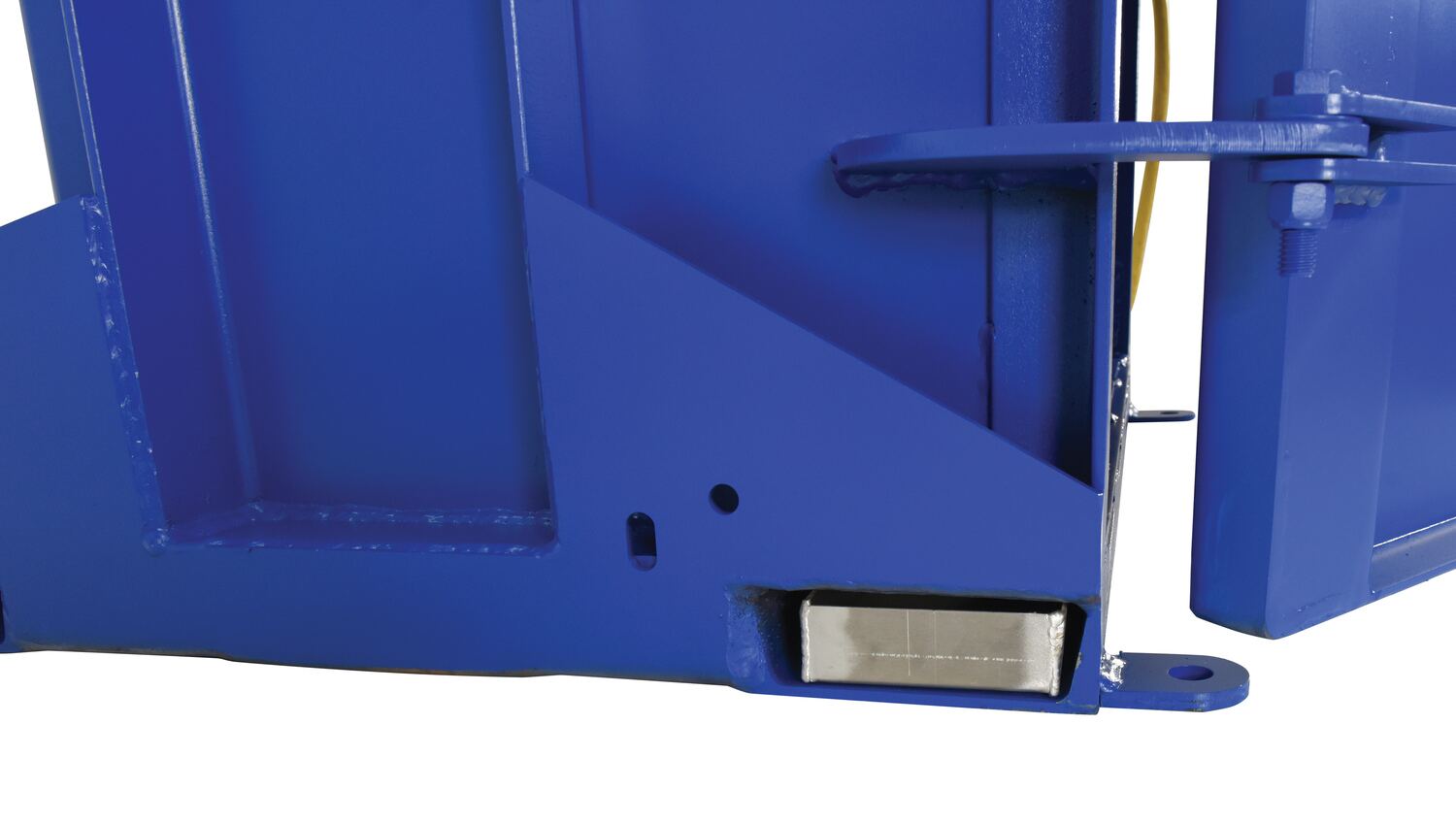

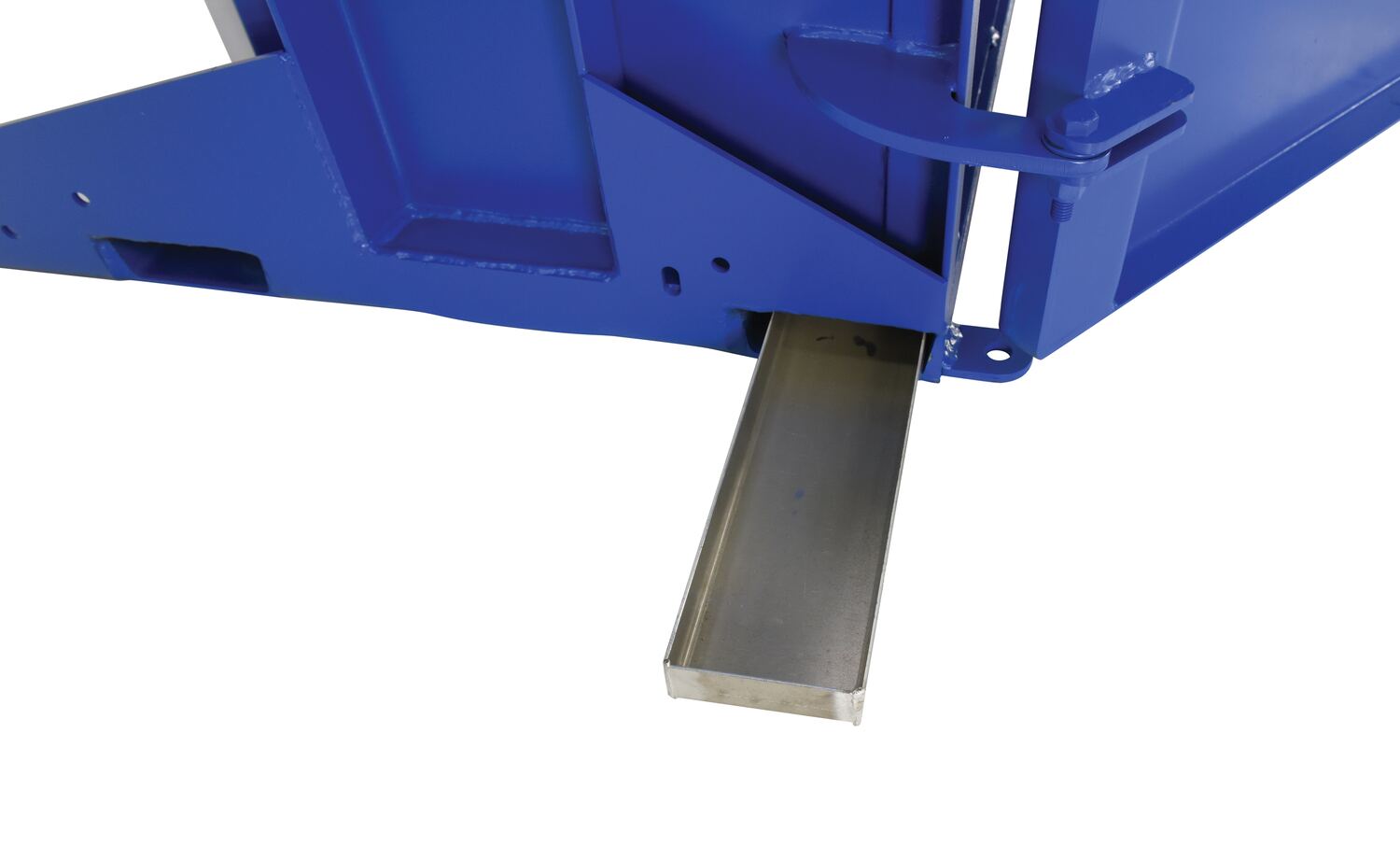

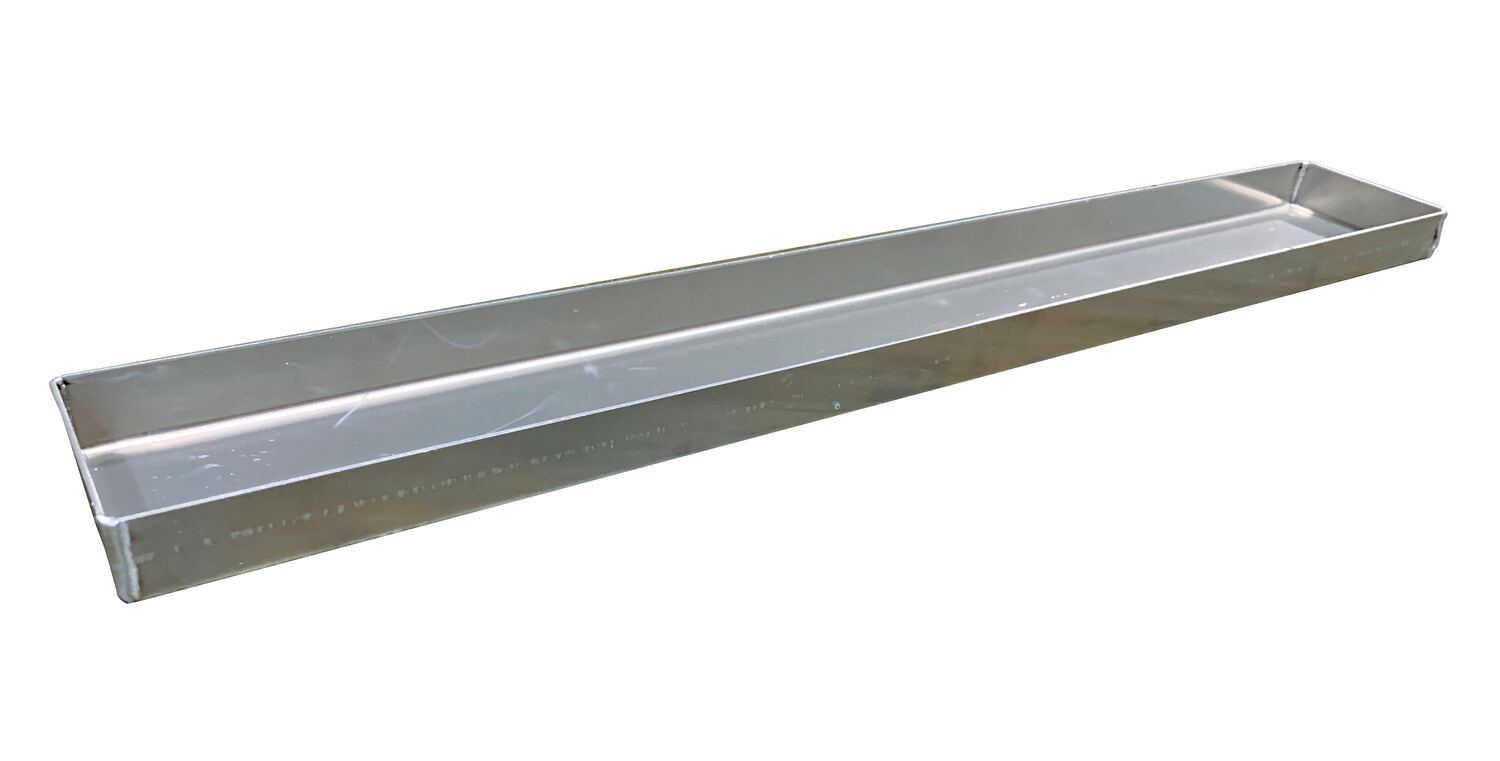

HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit

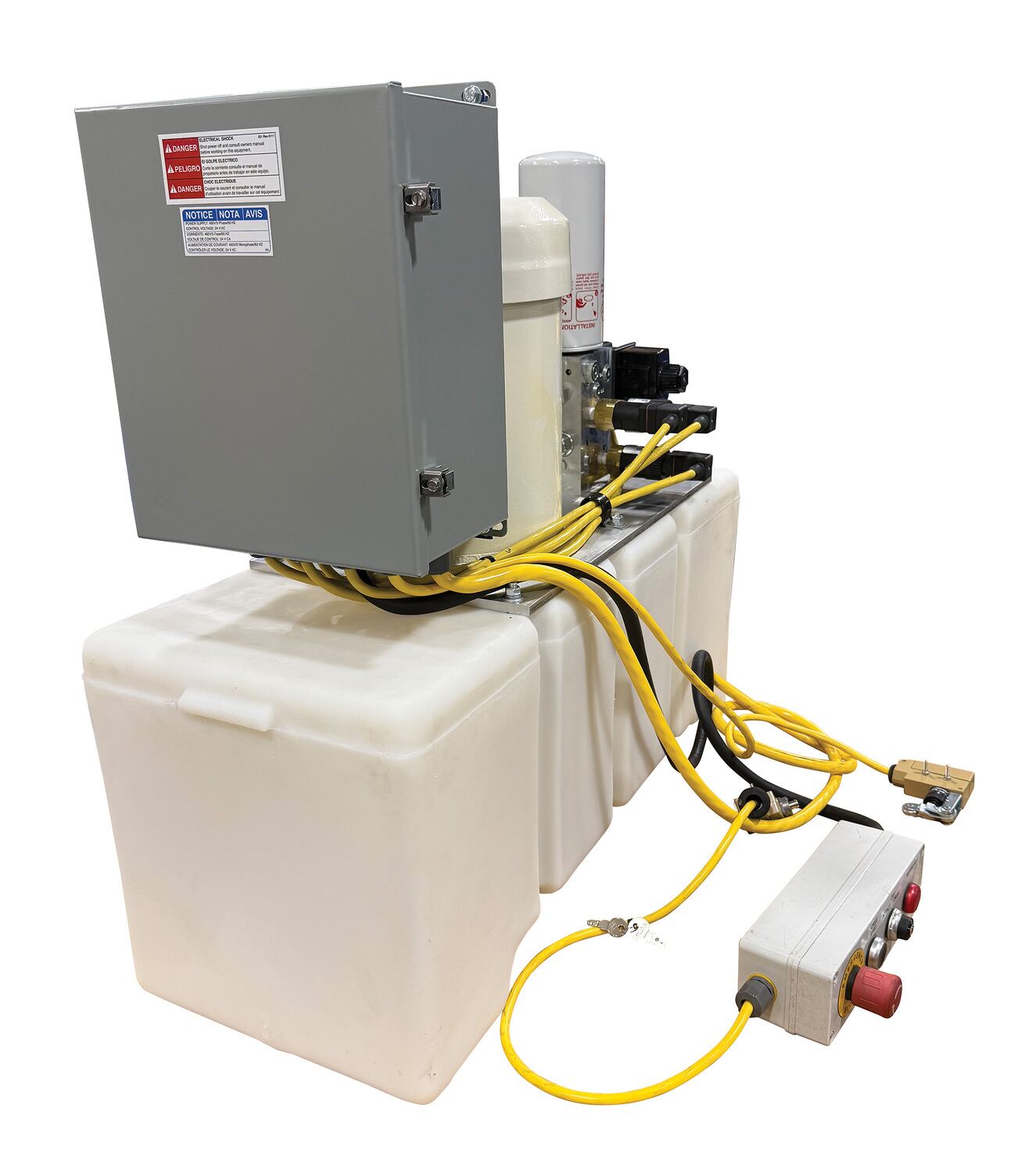

HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Hydraulic Drum Crusher/Compactors PDF's will open in a new window when clicked.

Survey Sheets


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products



Q: Can you increase the crushing force of the drum crushers to more than 38,000 lbs.?

A: The HDC-905 units have a maximum crushing force of 38,000 lbs.


Q: Do you have to hold the button the entire cycle or can you press it and walk away?

A: This is hydraulic unit has a latching circuit that has an automatic operation after a single depression of the hand-held pendant. At the end of the cycle, the unit resets to the start position. To interrupt operation, depress the E-Stop button.


Q: Is the drum crusher spark resistant?

A: No, the HDC units are not spark resistant.


Q: Is the drum crusher explosive proof?

A: No, the HDC units are not explosive proof.


Q: Is this designed to operate without being bolted down?

A: Yes the drum crusher can be used without being bolted down. There are fork pockets so the drum crusher can be moved. Please see the owners manual for additional information.


Q: What is the difference between the standard (IDC) and the high cycle (HC)?

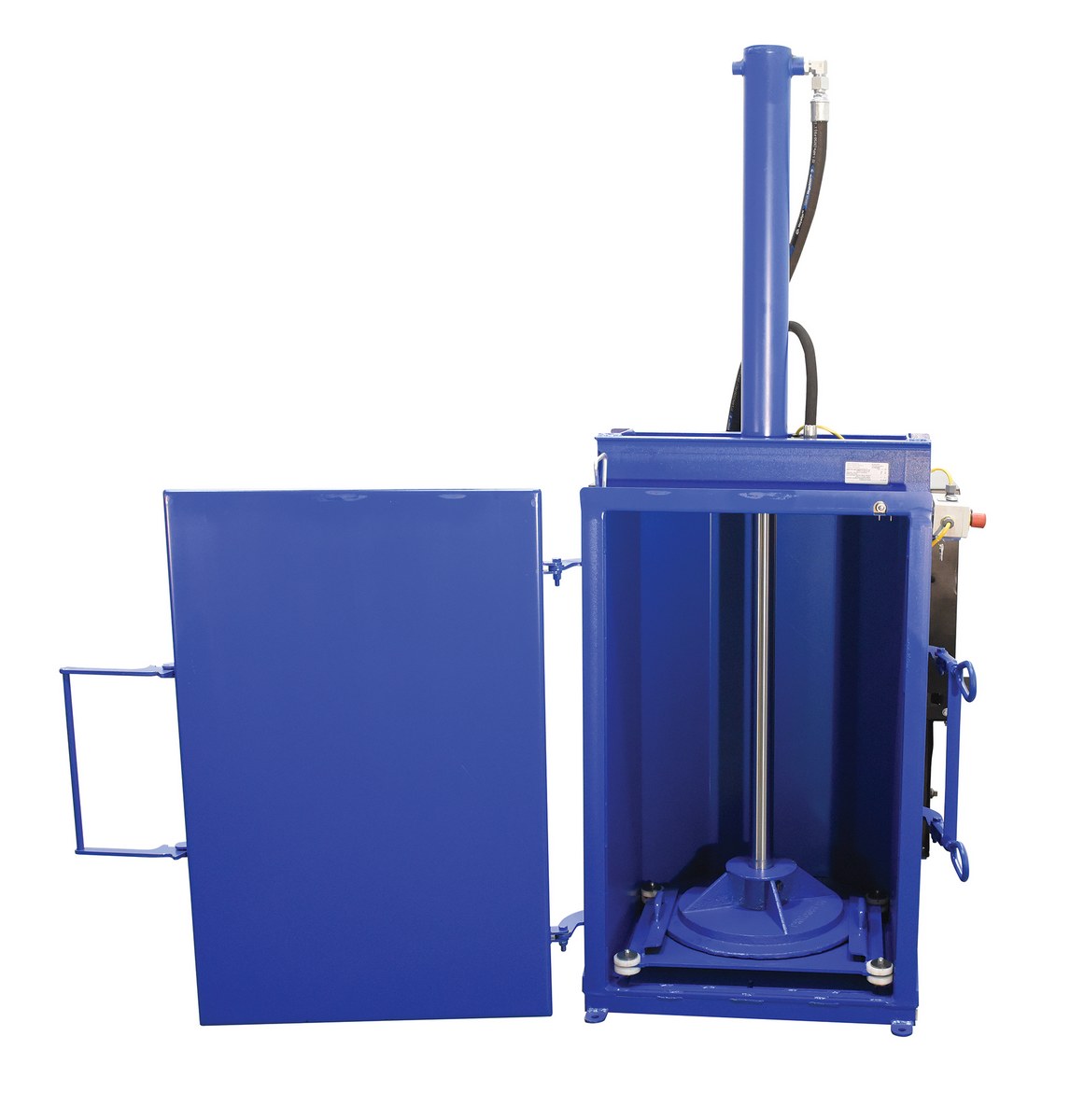

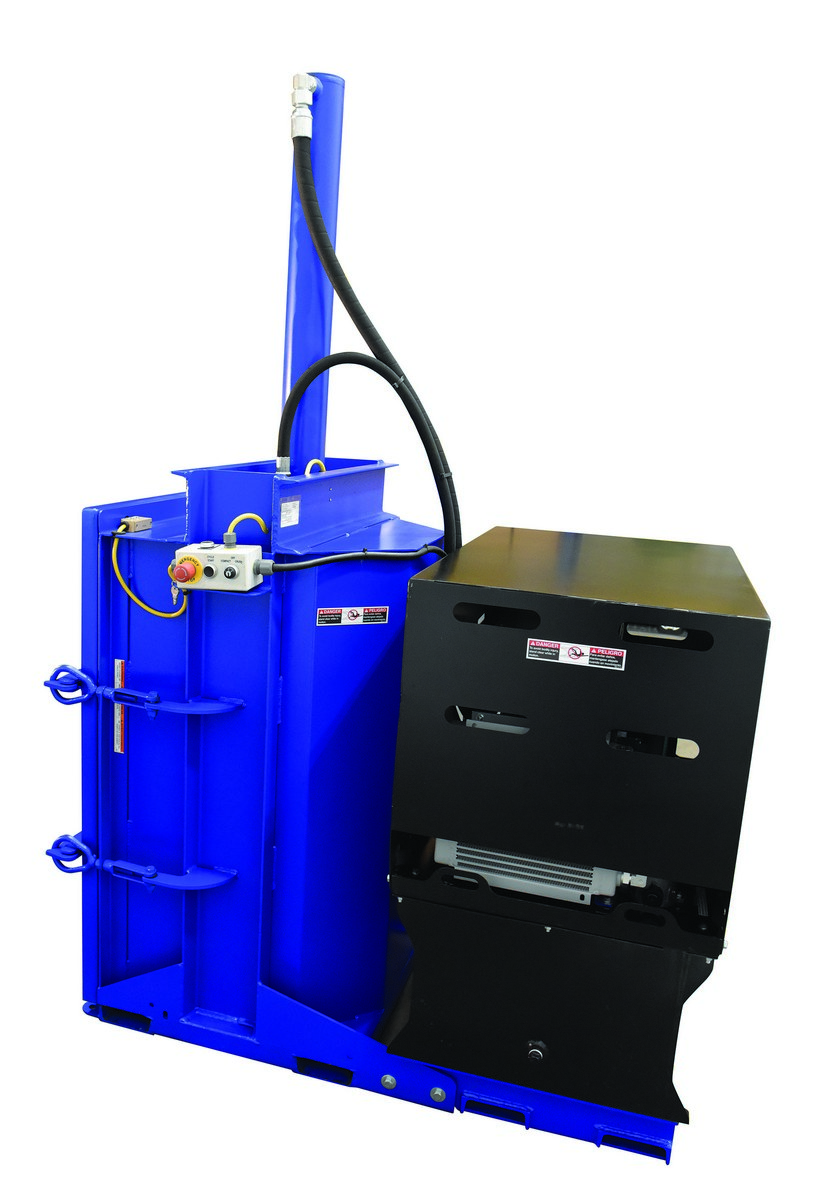

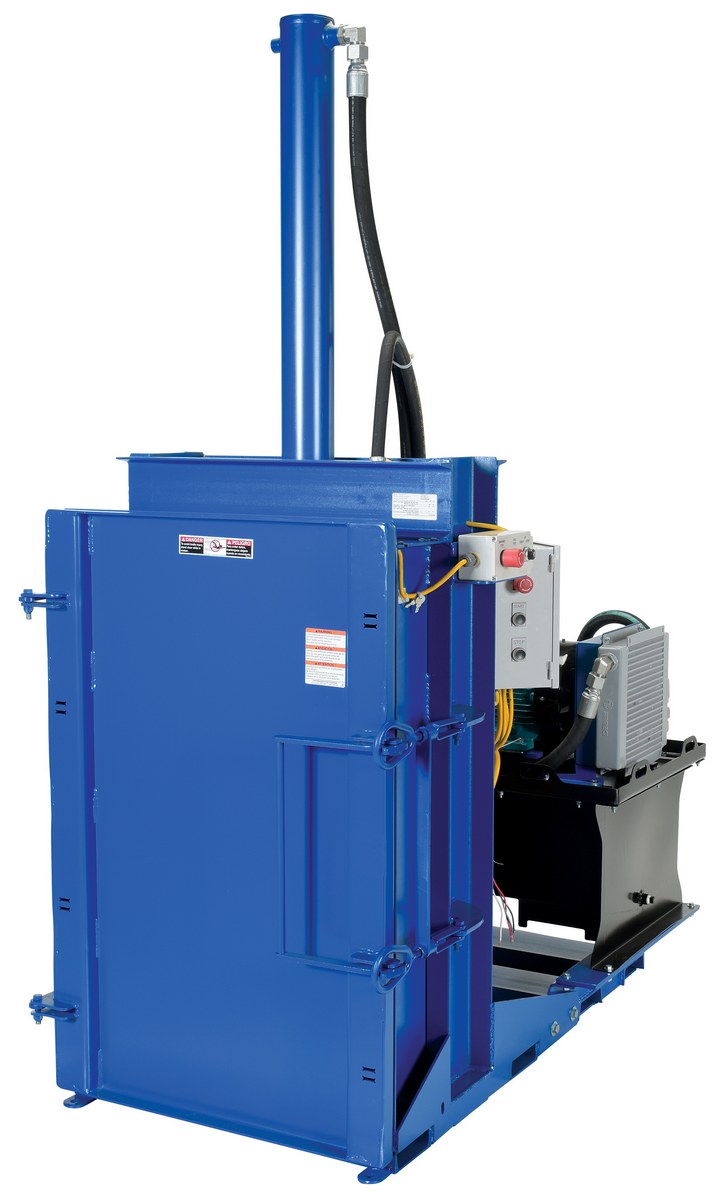

A: HDC-905-HC is high cycle version. It has a heavy duty continuous run (with timer) power unit and will basically do unlimited number of cycles. Standard unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hydraulic Drum Crusher/Compactors




The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.


Hydraulic Drum Crusher/Compactor
Model Image PDFs Description Wt. (lbs)
HDC-905-IDC/460V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (460V, 3 Phase) 1570
HDC-905-HC/460V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (460V, 3 Phase,w/ High Cycle Package) 2148
HDC-905-IDC/230V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (230V, 3 Phase) 1570
HDC-905-HC/230V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (230V, 3 Phase, w/ High Cycle Package) 2148
HDC-905-IDC/208V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (208V, 3 Phase) 1570
HDC-905-HC/208V icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Crusher/Compactor (208V, 3 Phase, w/ High Cycle Package) 2148

Options


Drum Crusher/Compactor Options
Model PDFs Description
HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit
HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure
