Click Image to Enlarge

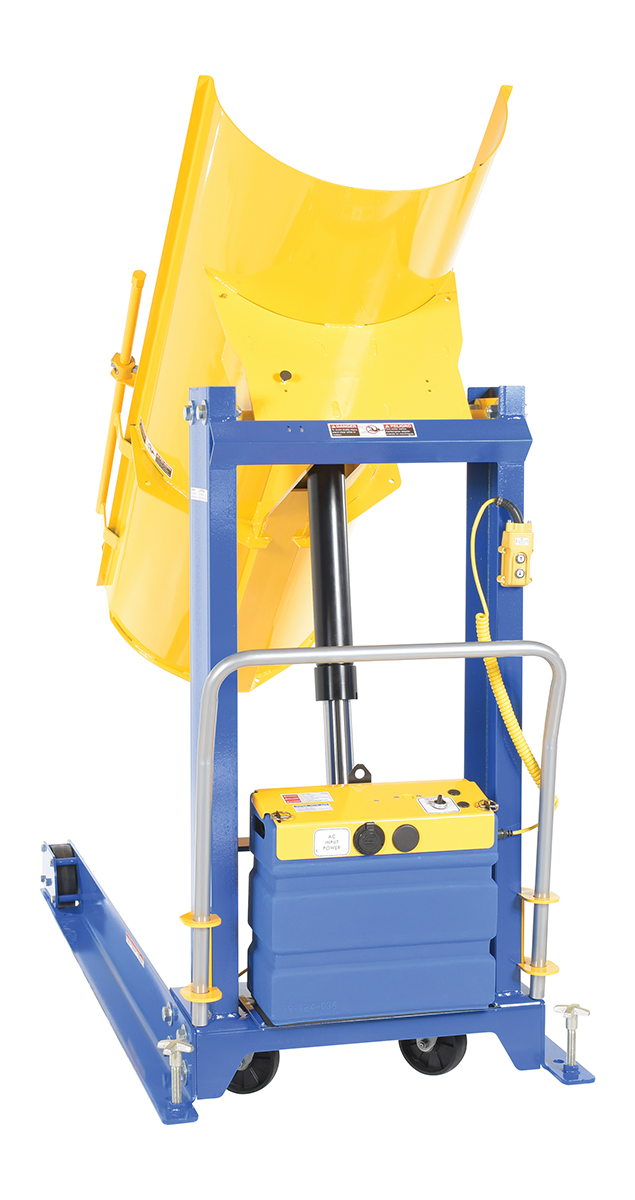

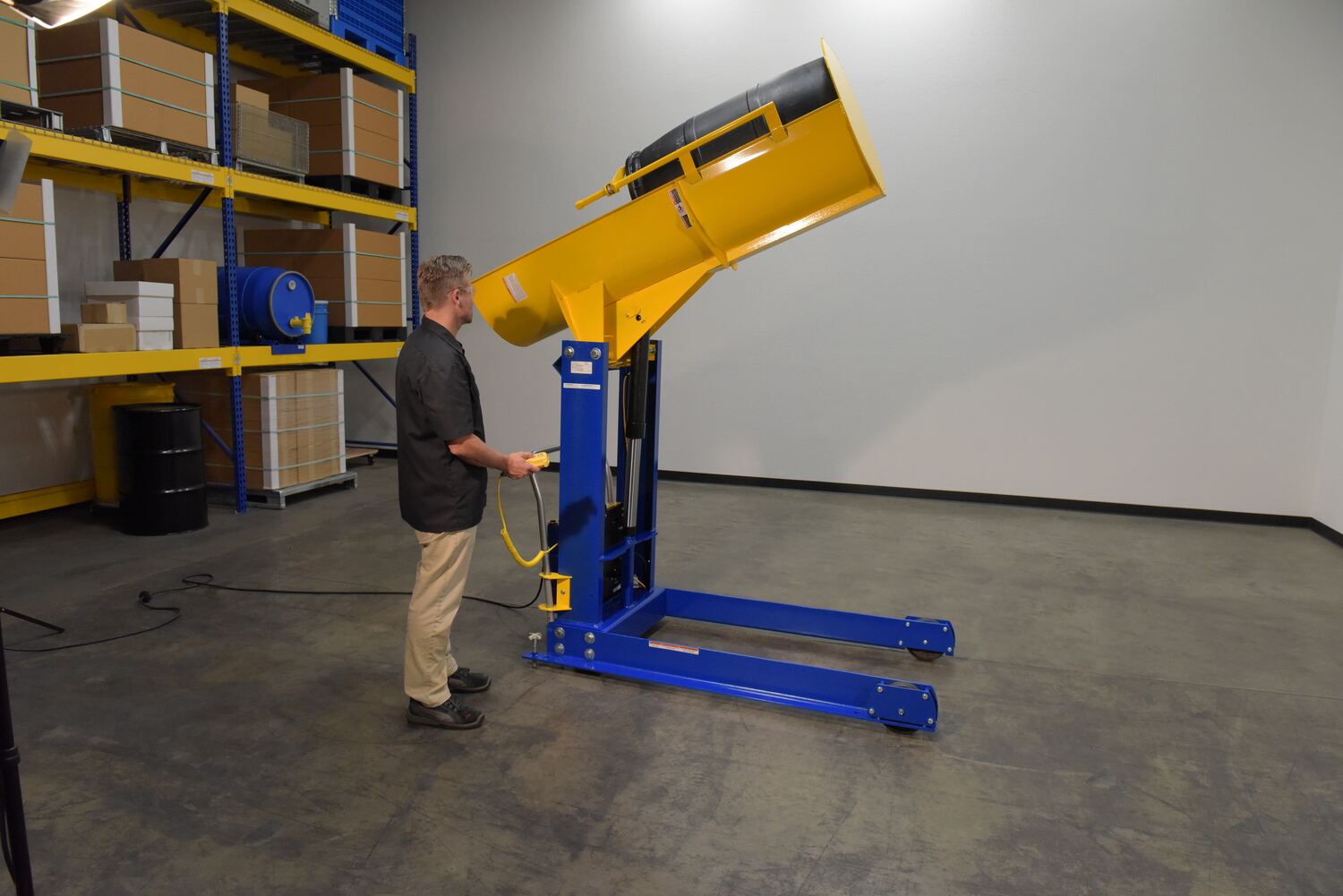

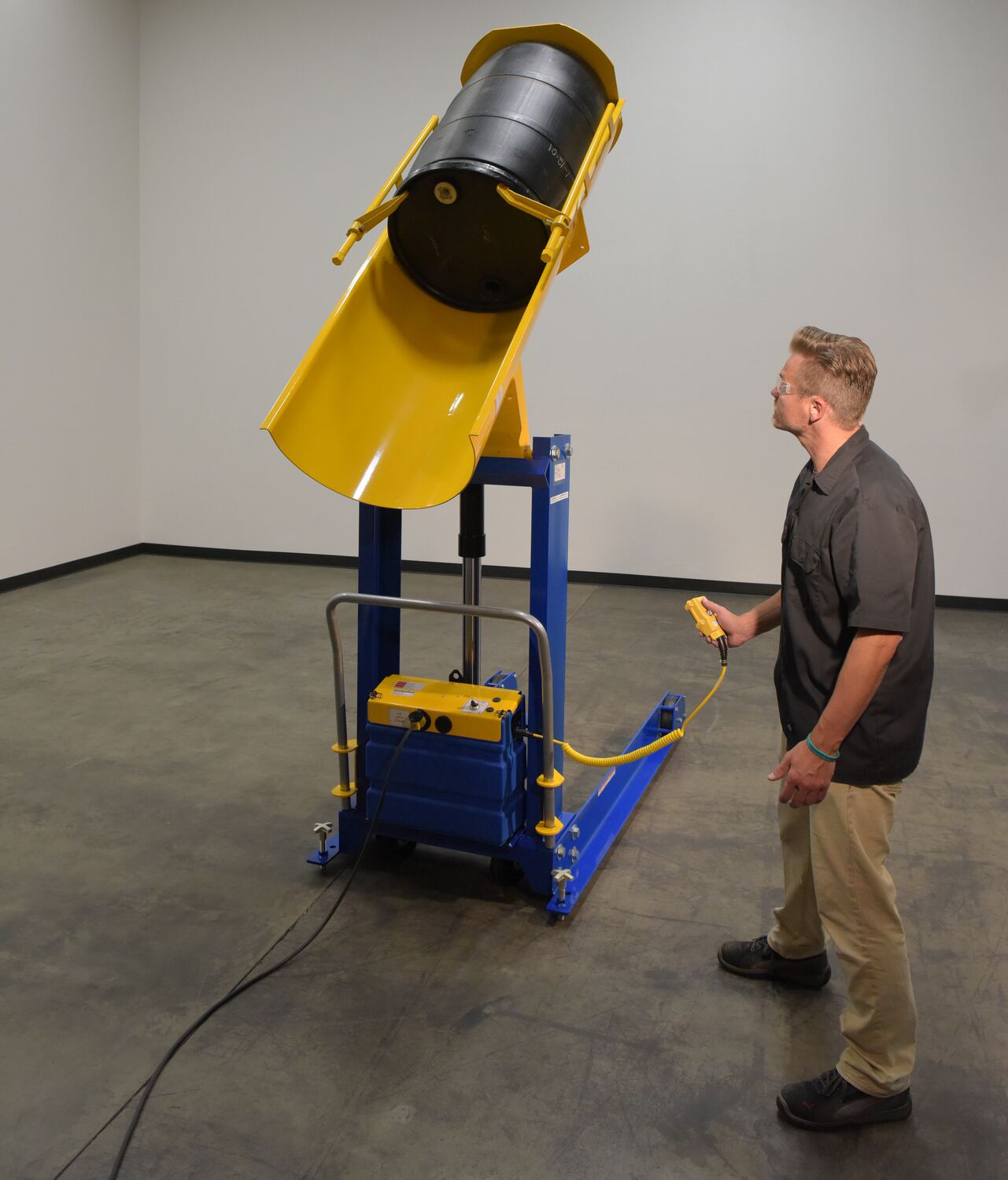

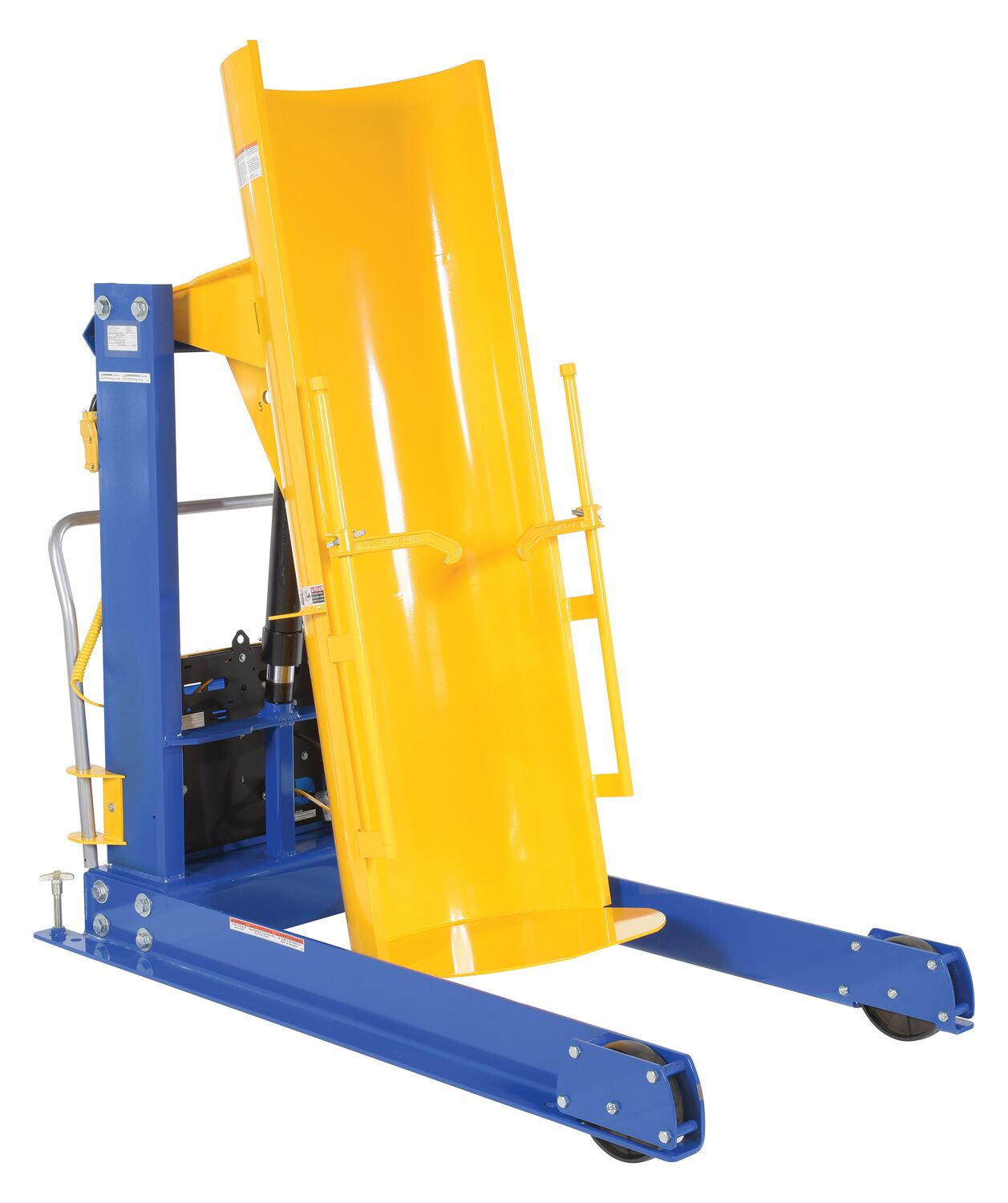

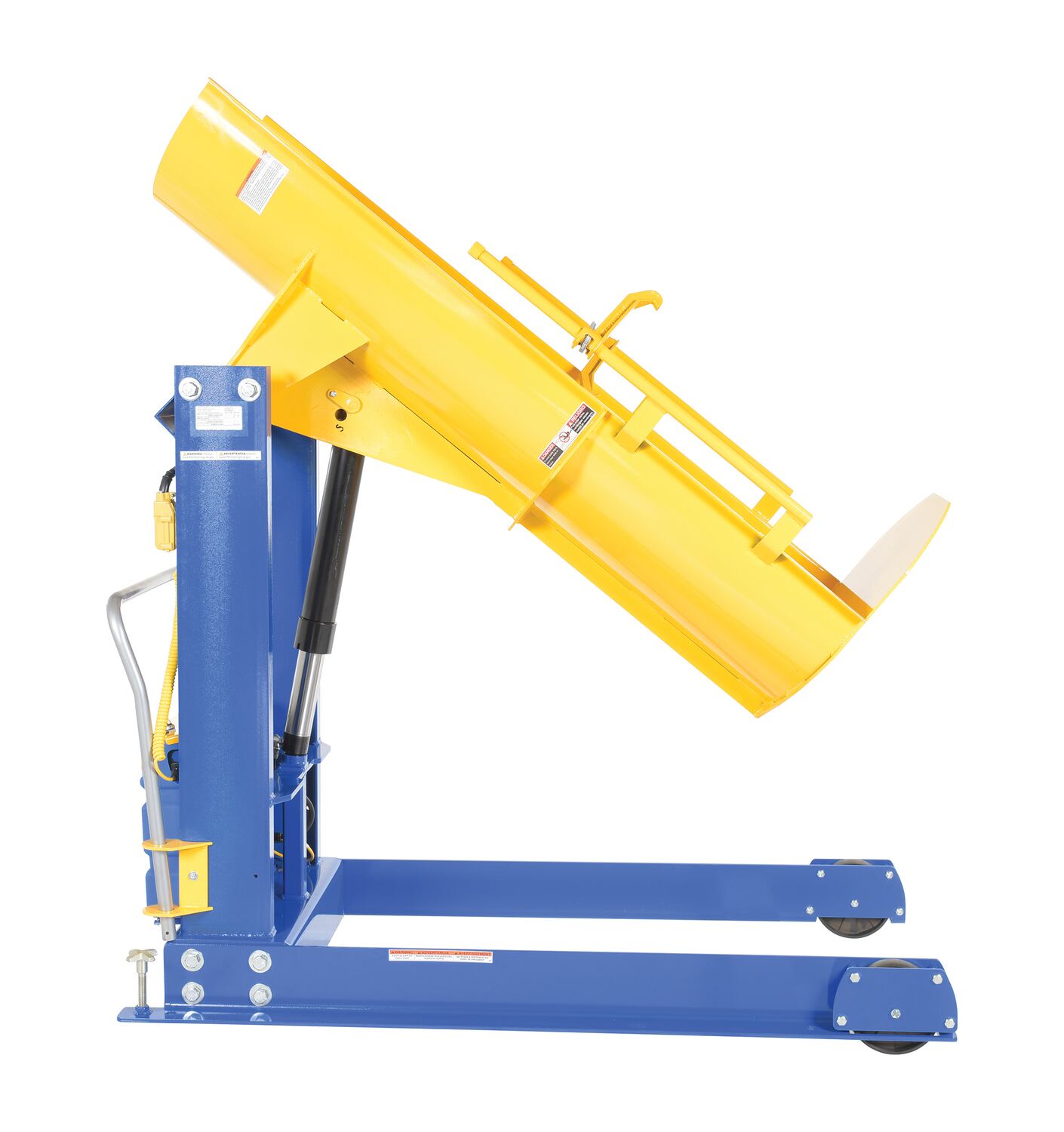

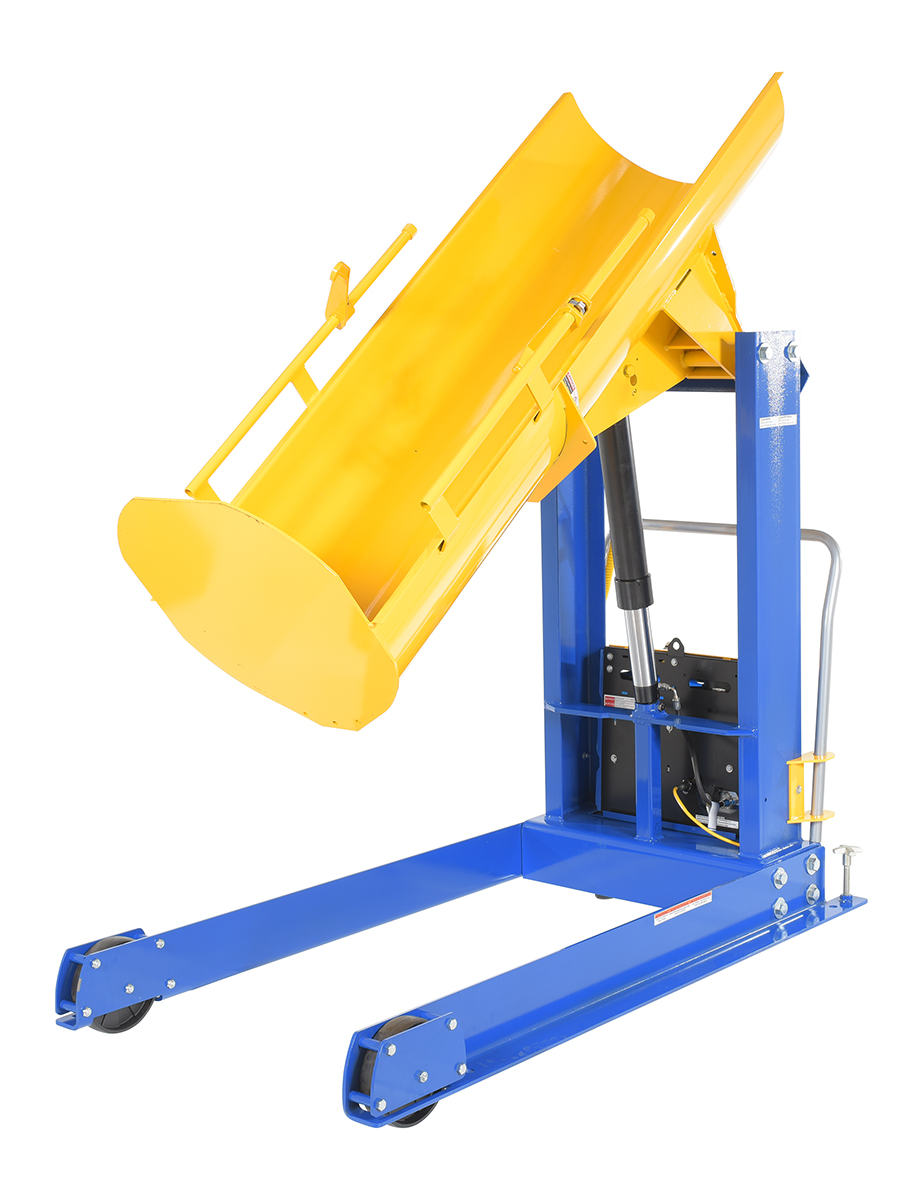

model: HDD-48-10-P


Hydraulic Drum Dumpers
SERIES: HDD

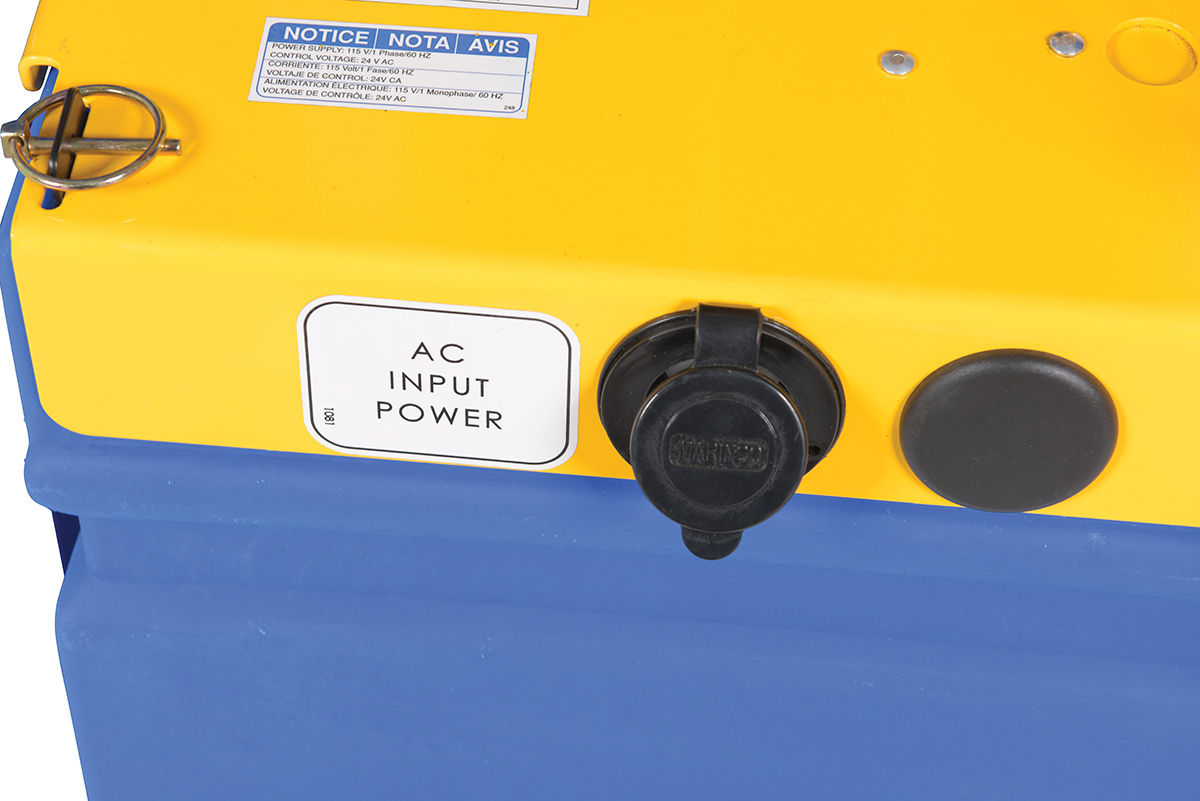

115V 1-PHASE STANDARD

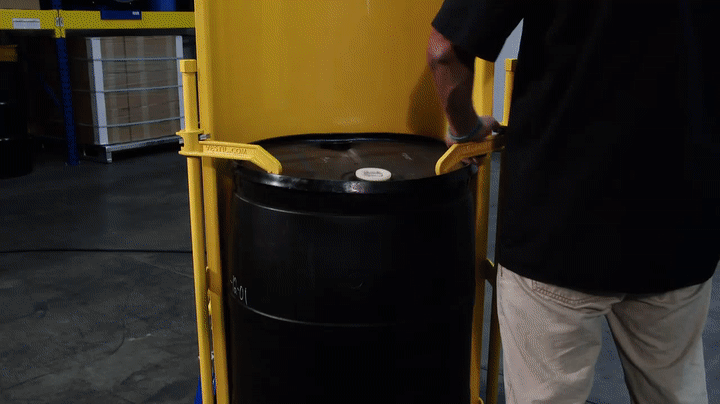

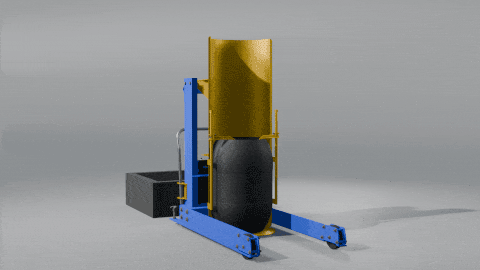

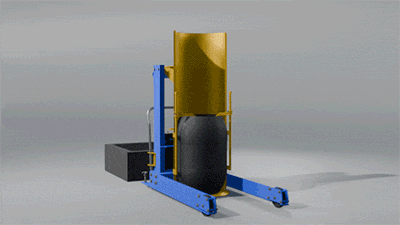

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness

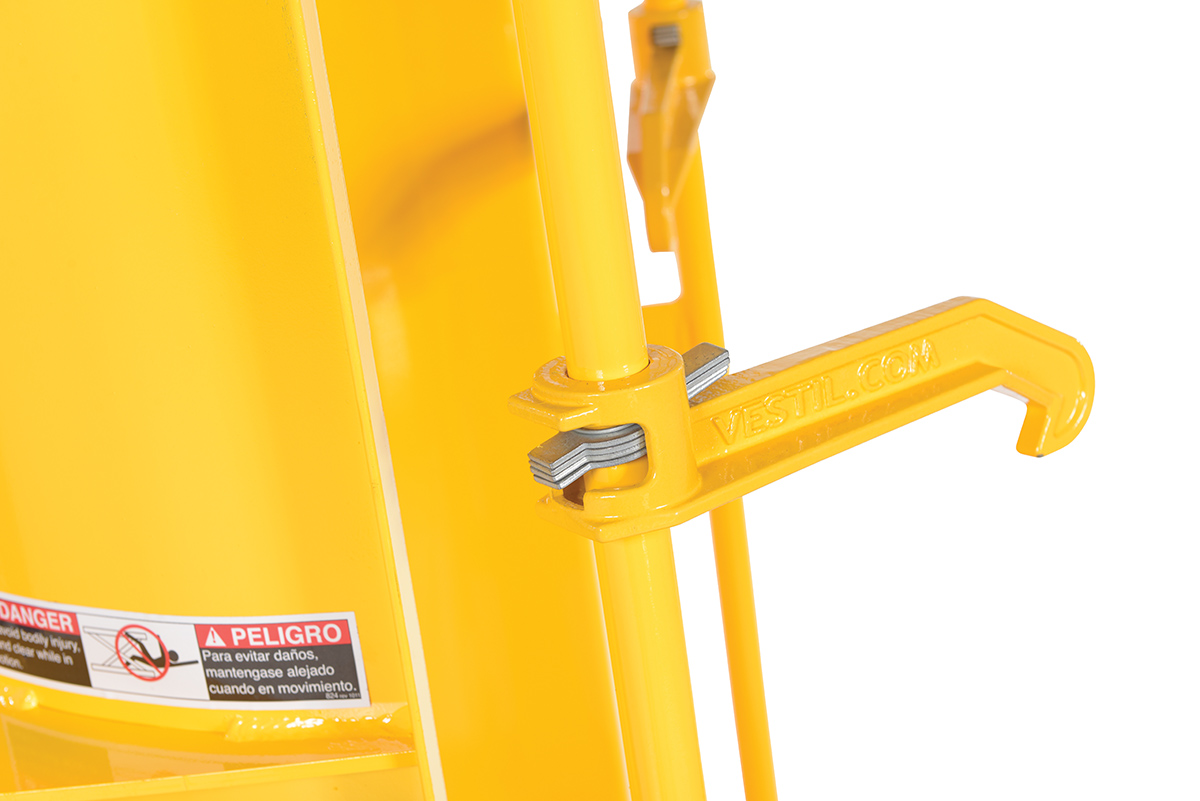

  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact

115V 1-PHASE STANDARD

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness
  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact

Share This Page




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
HDD-36-7-P 1 Year Limited WarrantyPORTABLE HYDDRUM DUMPER 0.75K 36 INUniform Capacity (lb.): 750788
HDD-36-7-P-SSC 1 Year Limited WarrantyPORTABLE HYDDRUM DUMPER SSC 0.75K 36 INUniform Capacity (lb.): 750788
HDD-36-7-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 0.75K 36 INUniform Capacity (lb.): 750709
HDD-36-7-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC .75K 36INUniform Capacity (lb.): 750709
HDD-36-10-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1K 36 INUniform Capacity (lb.): 1,000763
HDD-36-10-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC1K 36 INUniform Capacity (lb.): 1,000763
HDD-36-10-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1K 36 INUniform Capacity (lb.): 1,000707
HDD-36-10-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1K 36 INUniform Capacity (lb.): 1,000707
HDD-36-15-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1.5K 36 INUniform Capacity (lb.): 1,500776
HDD-36-15-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1.5K 36 INUniform Capacity (lb.): 1,500776
HDD-36-15-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1.5K 36 INUniform Capacity (lb.): 1,500966
HDD-36-15-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1.5K 36INUniform Capacity (lb.): 1,500966
HDD-48-7-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 0.75K 48 INUniform Capacity (lb.): 750864
HDD-48-7-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 0.75K 48 INUniform Capacity (lb.): 750864
HDD-48-7-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 0.75K 48 INUniform Capacity (lb.): 750800
HDD-48-7-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC .75K48 INUniform Capacity (lb.): 750800
HDD-48-10-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1K 48 INUniform Capacity (lb.): 1,000862
HDD-48-10-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1K 48 INUniform Capacity (lb.): 1,000862
HDD-48-10-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1K 48 INUniform Capacity (lb.): 1,000792
HDD-48-10-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1K 48 INUniform Capacity (lb.): 1,000792
HDD-48-15-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1.5K 48 INUniform Capacity (lb.): 1,500880
HDD-48-15-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1.5K 48 INUniform Capacity (lb.): 1,500880
HDD-48-15-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1.5K 48 INUniform Capacity (lb.): 1,500814
HDD-48-15-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1.5K 48INUniform Capacity (lb.): 1,500814
HDD-60-7-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 0.75 60 INUniform Capacity (lb.): 7501019
HDD-60-7-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 0.75 60 INUniform Capacity (lb.): 7501019
HDD-60-7-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 0.75K 60 INUniform Capacity (lb.): 750938
HDD-60-7-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC .75K 60INUniform Capacity (lb.): 750988
HDD-60-10-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1K 60 INUniform Capacity (lb.): 1,0001042
HDD-60-10-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1K 60 INUniform Capacity (lb.): 1,0001042
HDD-60-10-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1K 60 INUniform Capacity (lb.): 1,000957
HDD-60-10-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1K 60 INUniform Capacity (lb.): 1,000957
HDD-60-15-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1.5K 60 INUniform Capacity (lb.): 1,5001026
HDD-60-15-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1.5K 60 INUniform Capacity (lb.): 1,5001026
HDD-60-15-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1.5K 60 INUniform Capacity (lb.): 1,500937
HDD-60-15-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1.5K 60INUniform Capacity (lb.): 1,500937
HDD-72-7-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 0.75K 72 INUniform Capacity (lb.): 7501034
HDD-72-7-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 0.75K 72 INUniform Capacity (lb.): 7501034
HDD-72-7-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 0.75K 72 INUniform Capacity (lb.): 7501013
HDD-72-7-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC .75K 72INUniform Capacity (lb.): 7501013
HDD-72-10-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1K 72 INUniform Capacity (lb.): 1,0001100
HDD-72-10-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1K 72 INUniform Capacity (lb.): 1,0001100
HDD-72-10-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1K 72 INUniform Capacity (lb.): 1,0001055
HDD-72-10-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1K 72 INUniform Capacity (lb.): 1,0001055
HDD-72-15-P 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER 1.5K 72 INUniform Capacity (lb.): 1,5001115
HDD-72-15-P-SSC 1 Year Limited WarrantyPORTABLE HYD DRUM DUMPER SSC 1.5K 72 INUniform Capacity (lb.): 1,5001115
HDD-72-15-S 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER 1.5K 72 INUniform Capacity (lb.): 1,5001036
HDD-72-15-S-SSC 1 Year Limited WarrantySTATIONARY HYD DRUM DUMPER SSC 1.5K 72INUniform Capacity (lb.): 1,5001036

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Hydraulic Drum Dumper Options
Model PDFs Description Wt.
(lbs)
VCC-12VDC - Optional 12VDC system w/ 115V On-board Charger -

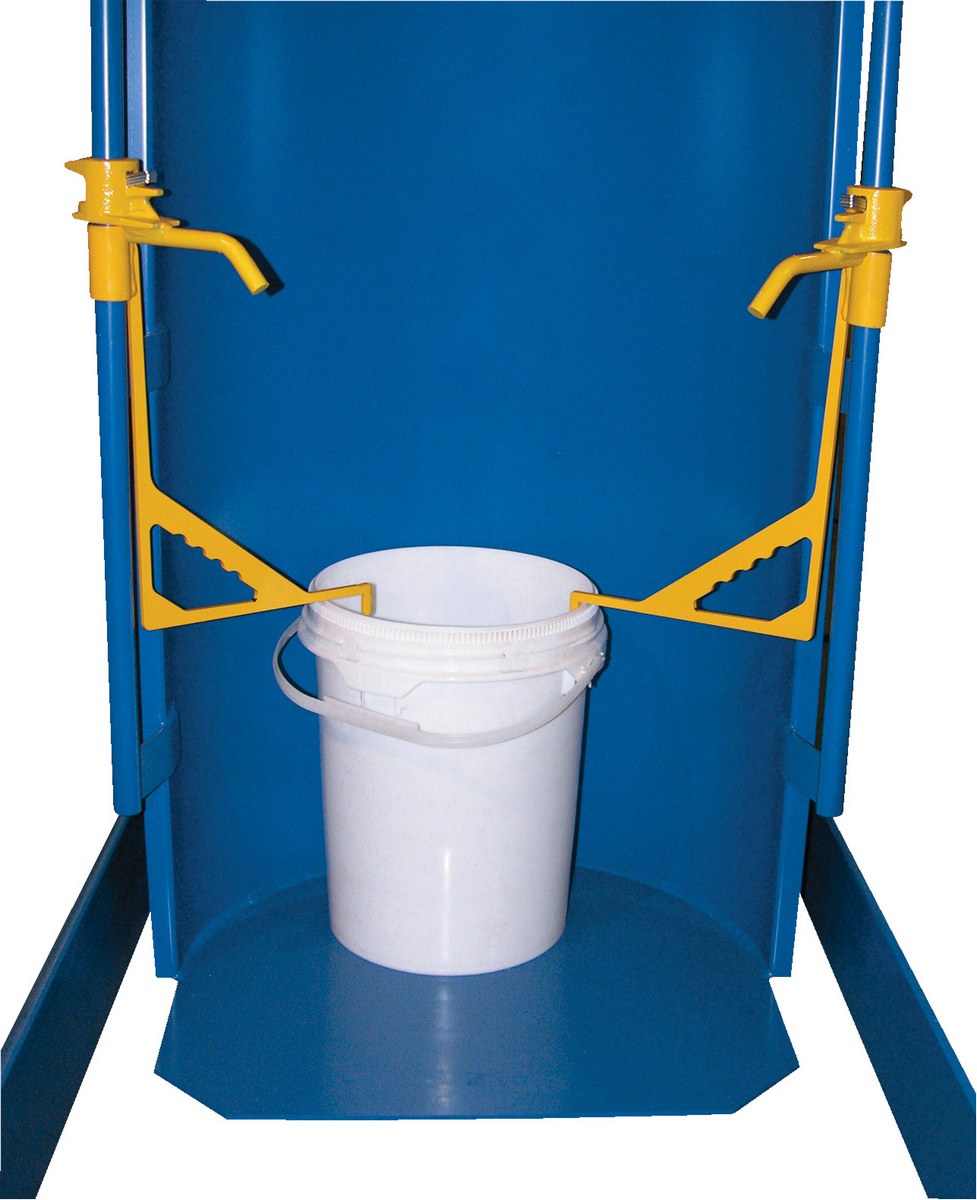

HDD-5G-ADP - Optional 5 Gallon pail adaptor fingers -
RRC-2PB - Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit 1

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Hydraulic Drum Dumpers




115V 1-PHASE STANDARD

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction. Standard features include: 56 frame, 3/4 HP motor, 115V single phase, 60Hz. Upper travel limit switch, emergency safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a standard 8 ft. long coil cord. For toughness the frame and chute are powder coated blue and yellow, respectively. The frame is powder coated blue, while the chute powdered coated yellow for added toughness.

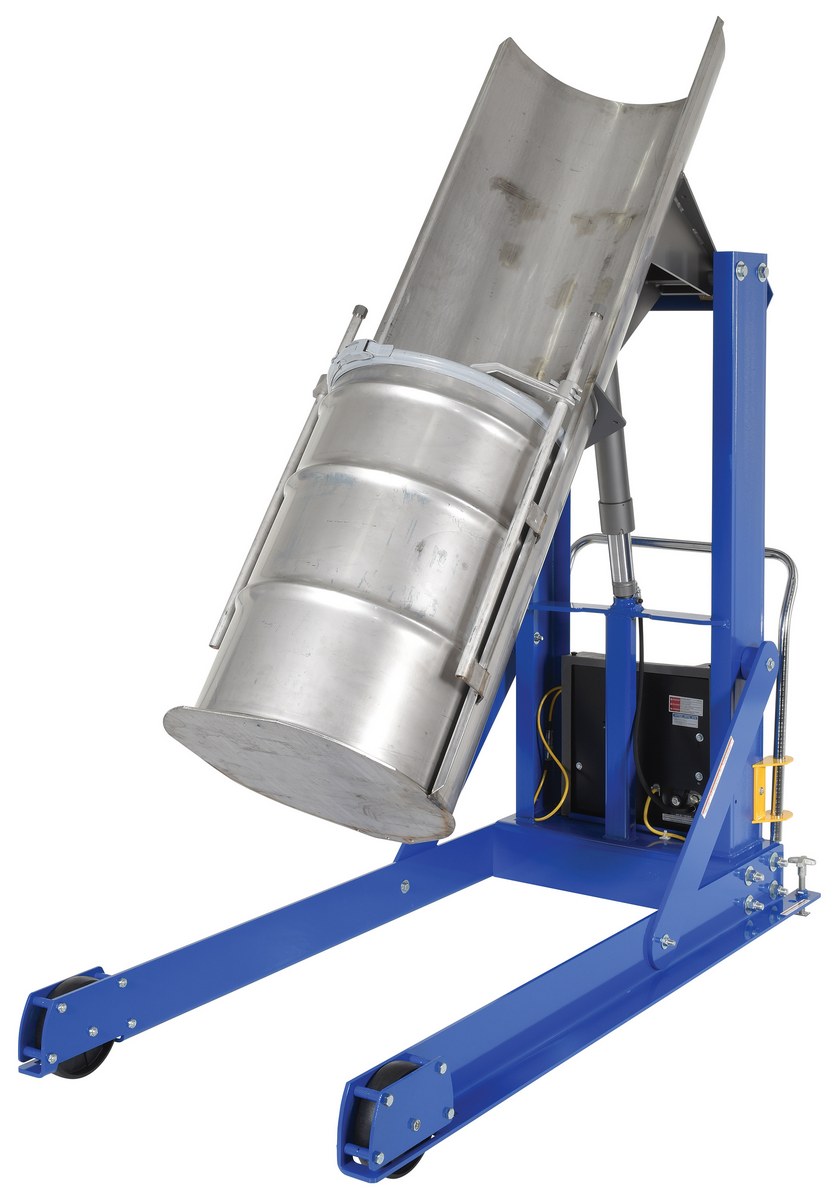

SSC Model Include

  • 304 Stainless Steel chute in Mill Finish
  • Chute includes Steel-It coating standard on any mild steel welded to back of chute
  • Steel frame, blue baked-in powder coated toughness
  • Adjustable height clamps are stainless steel
  • Can quote different grades of stainless polishing on chutes
  • Optional FDA white powder coat is acceptable for incidental contact

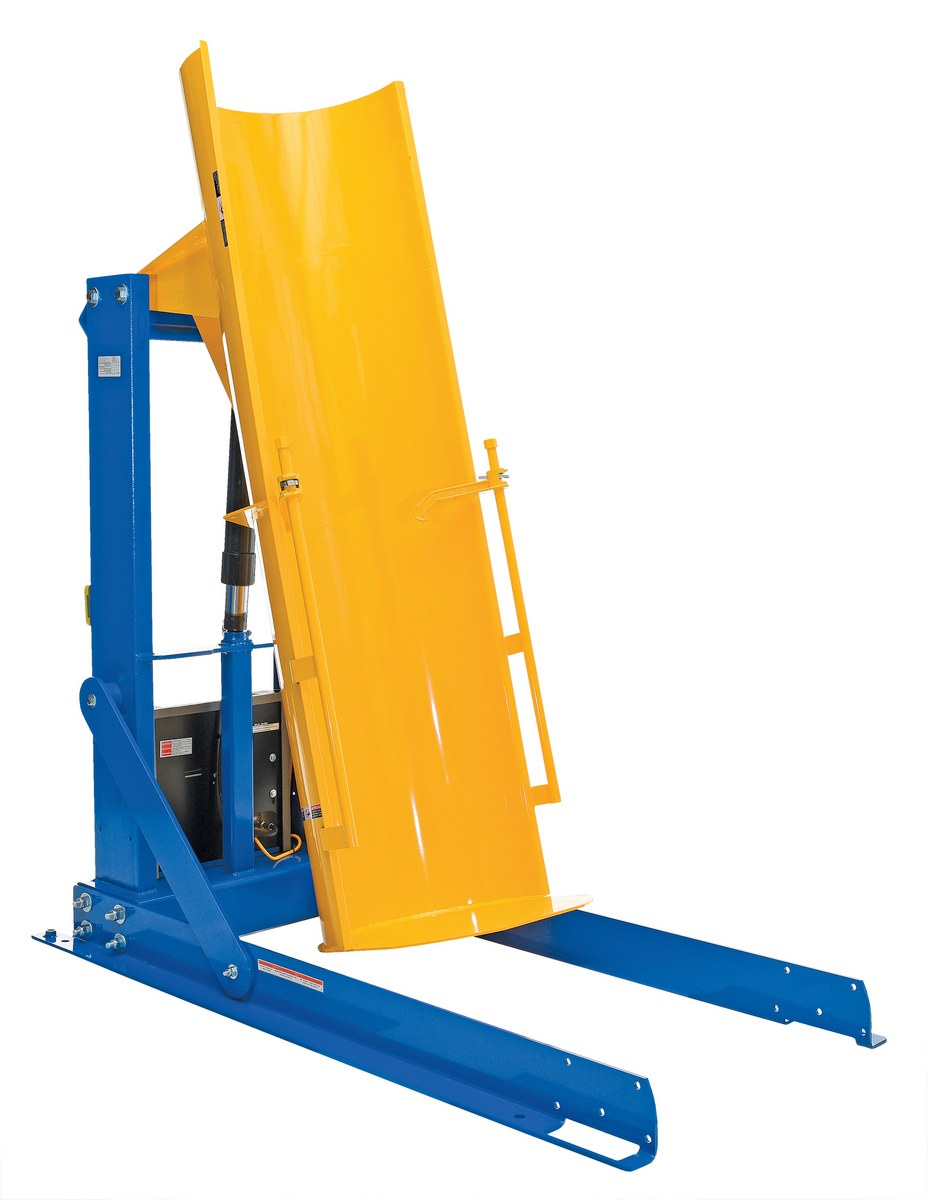

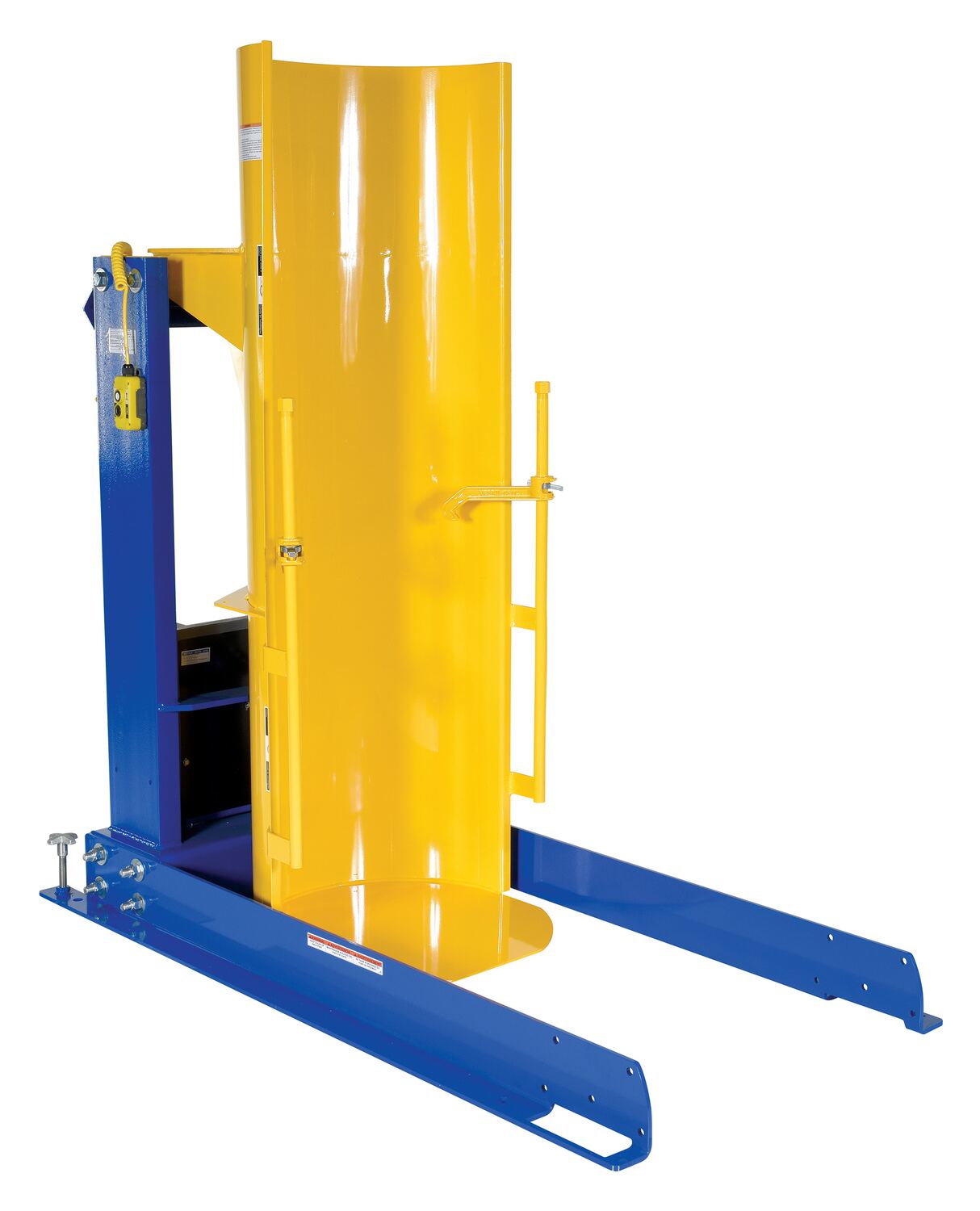

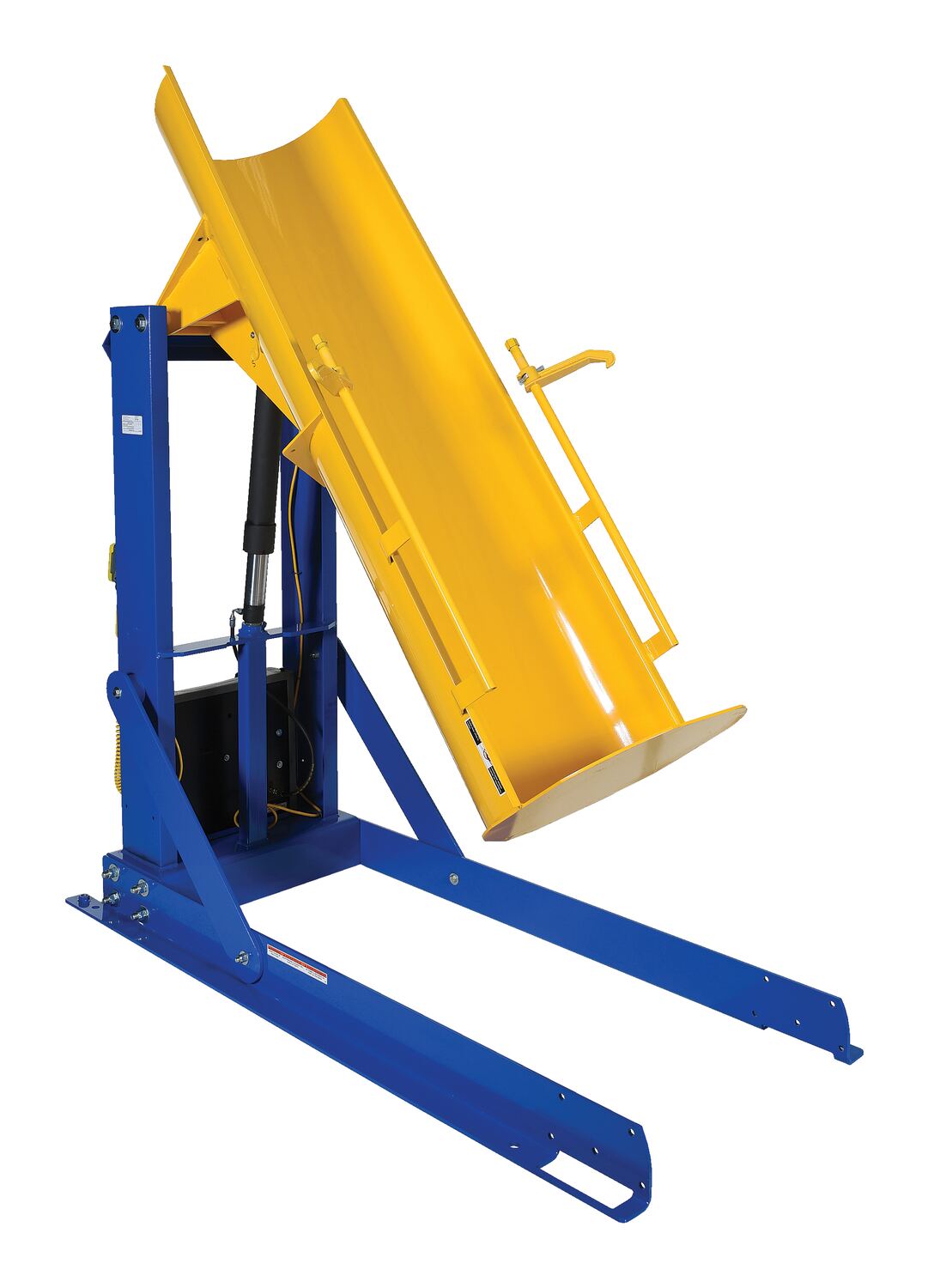

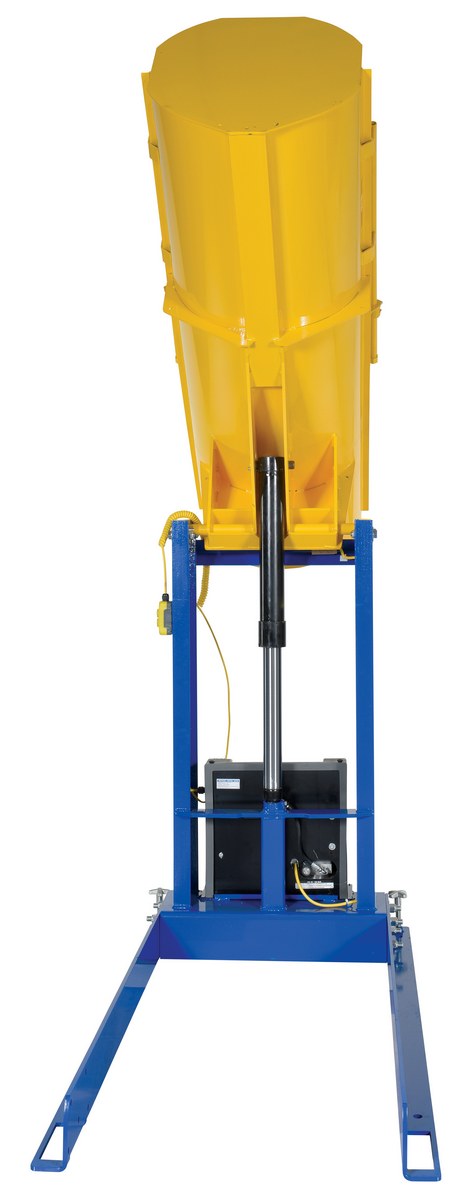

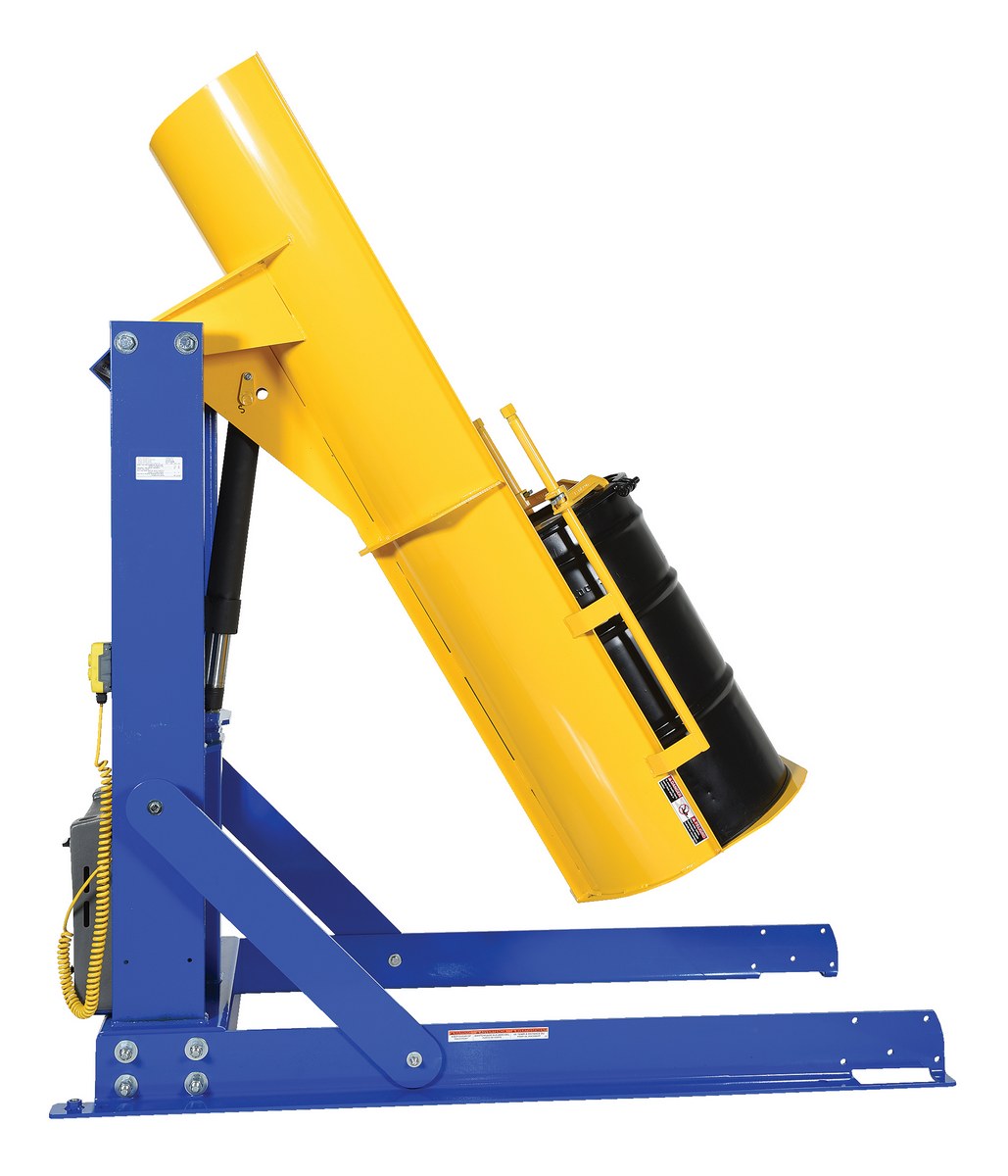

Stationary Hydraulic Drum Dumpers
Model Image PDF's Dump
Height
Rotated
Height
Level
Height
Capacity
(lbs)
Wt.
(lbs)
HDD-36-7-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 95-3/4" 60" 750 709
HDD-48-7-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116" 72" 750 800
HDD-60-7-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 136-3/4" 84" 750 988
HDD-72-7-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/4" 95-1/4" 750 1113
HDD-36-10-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 95-3/4" 60" 1,000 727
HDD-48-10-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116" 72" 1,000 792
HDD-60-10-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 136-3/4" 84" 1,000 942
HDD-72-10-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/4" 95-1/4" 1,000 1055
HDD-36-15-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 95-3/4" 60" 1,500 786
HDD-48-15-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116" 72" 1,500 814
HDD-60-15-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 136-3/4" 84" 1,500 937
HDD-72-15-S icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/4" 95-1/2" 1,500 1036

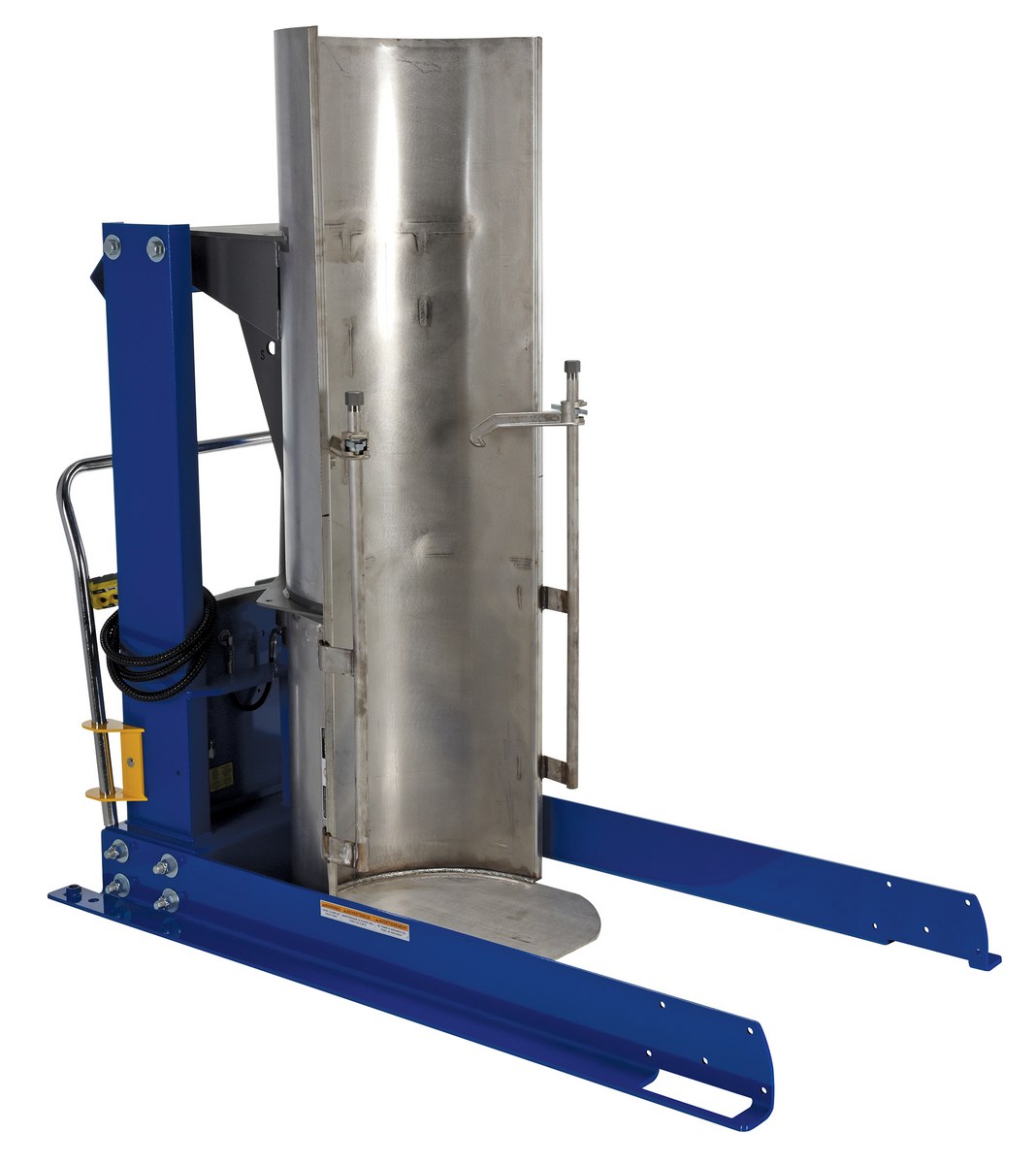

Stationary Hydraulic Drum Dumpers w/Stainless Steel Chutes
Model Image PDF's Dump
Height
Rotated
Height
Level
Height
Capacity
(lbs)
Wt.
(lbs)
HDD-36-7-S-SSC Warranty PDF 36" 95-3/4" 60" 750 709
HDD-48-7-S-SSC Warranty PDF 48" 116" 72" 750 800
HDD-60-7-S-SSC Warranty PDF 60" 136-3/4" 84" 750 988
HDD-72-7-S-SSC Warranty PDF 72" 157-1/4" 95-1/4" 750 1113
HDD-36-10-S-SSC Warranty PDF 36" 95-3/4" 60" 1,000 727
HDD-48-10-S-SSC Warranty PDF 48" 116" 72" 1,000 792
HDD-60-10-S-SSC Warranty PDF 60" 136-3/4" 84" 1,000 942
HDD-72-10-S-SSC Warranty PDF 72" 157-1/4" 95-1/4" 1,000 1055
HDD-36-15-S-SSC Warranty PDF 36" 95-3/4" 60" 1,500 786
HDD-48-15-S-SSC Warranty PDF 48" 116" 72" 1,500 814
HDD-60-15-S-SSC Warranty PDF 60" 136-3/4" 84" 1,500 937
HDD-72-15-S-SSC Warranty PDF 72" 157-1/4" 95-1/2" 1,500 1036

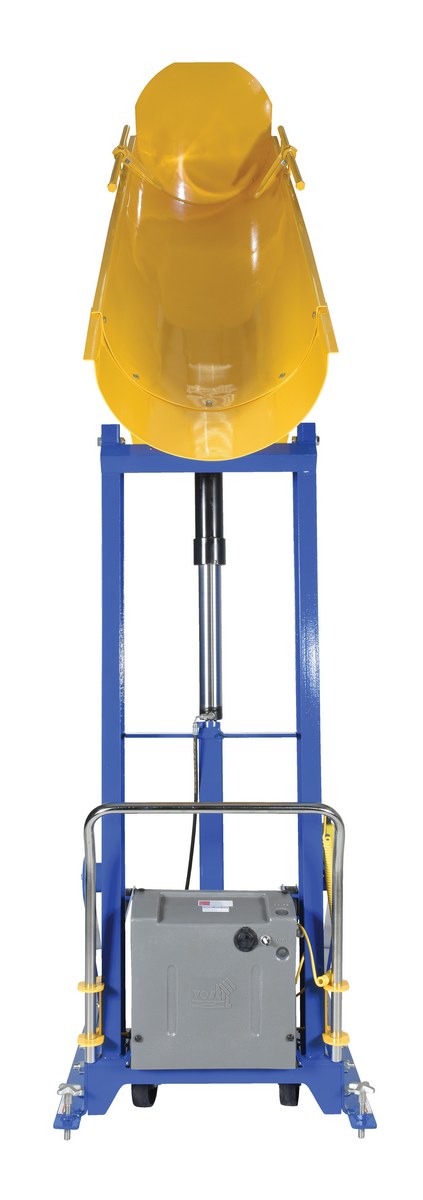

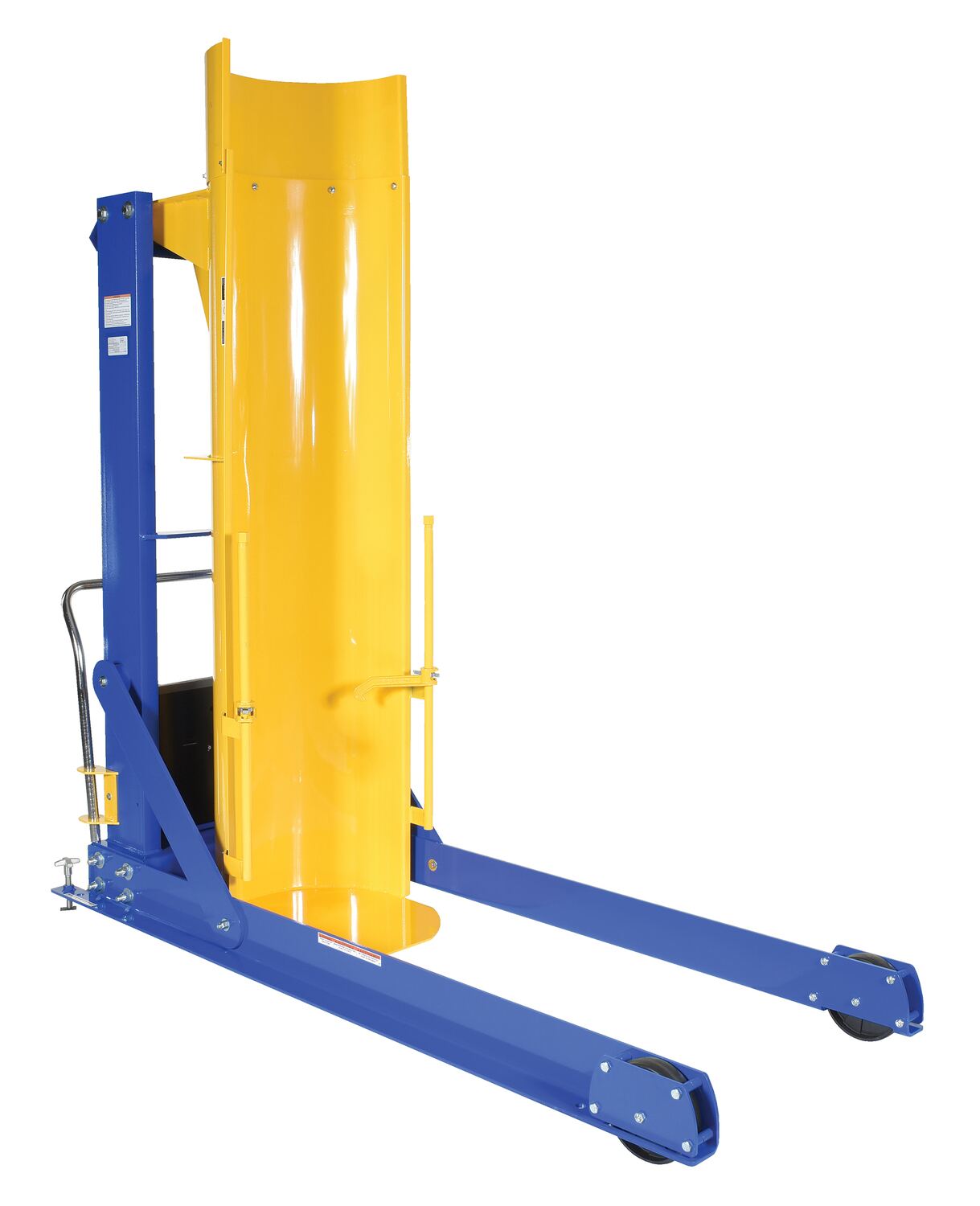

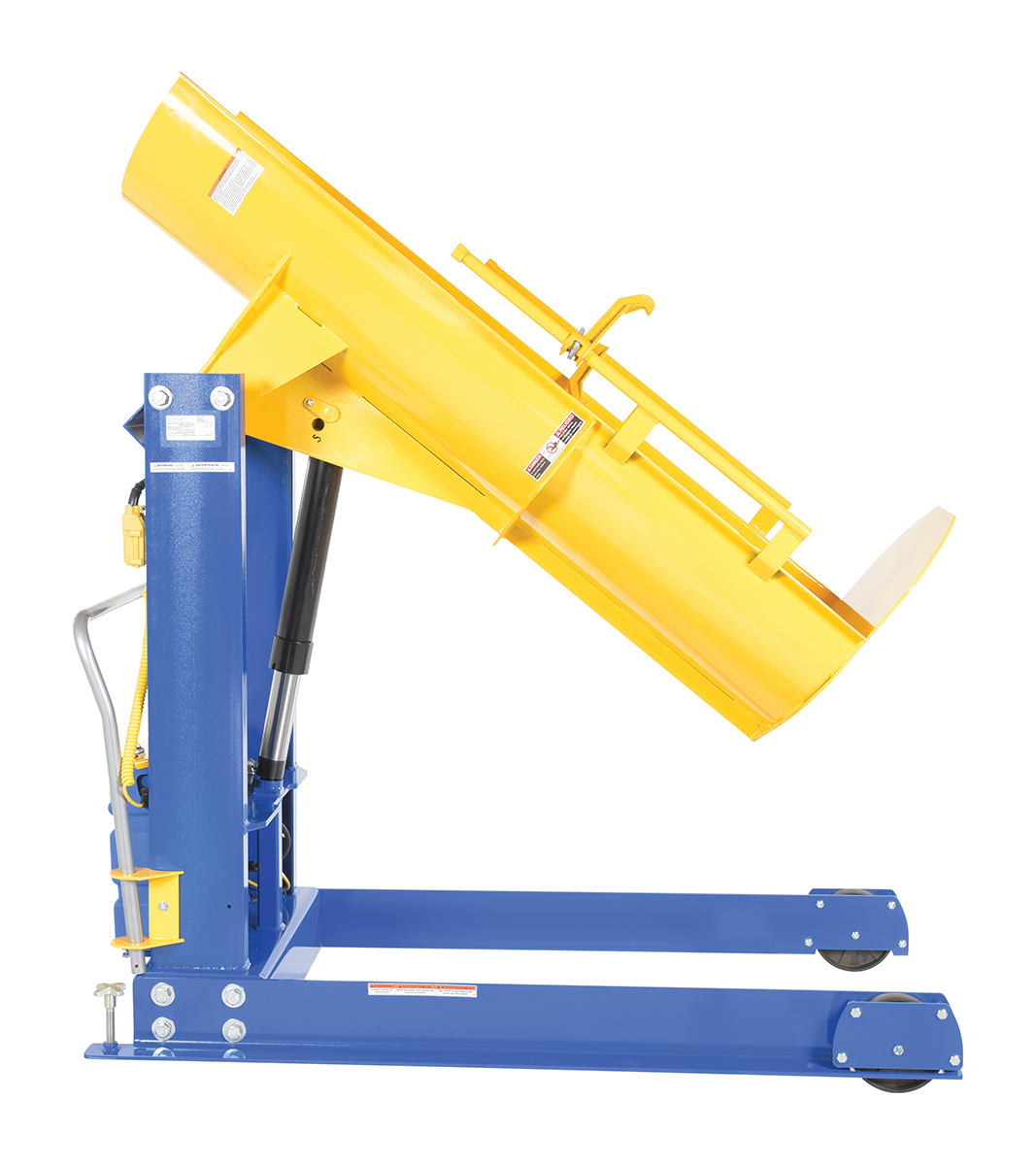

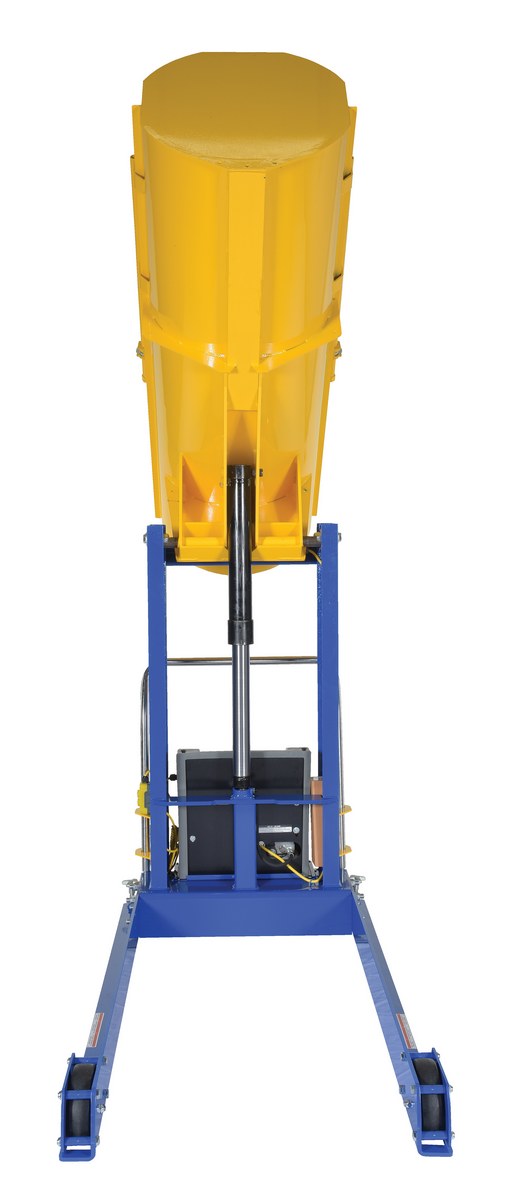

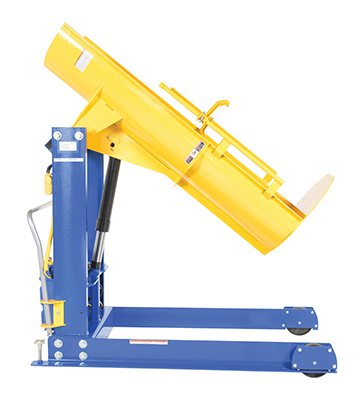

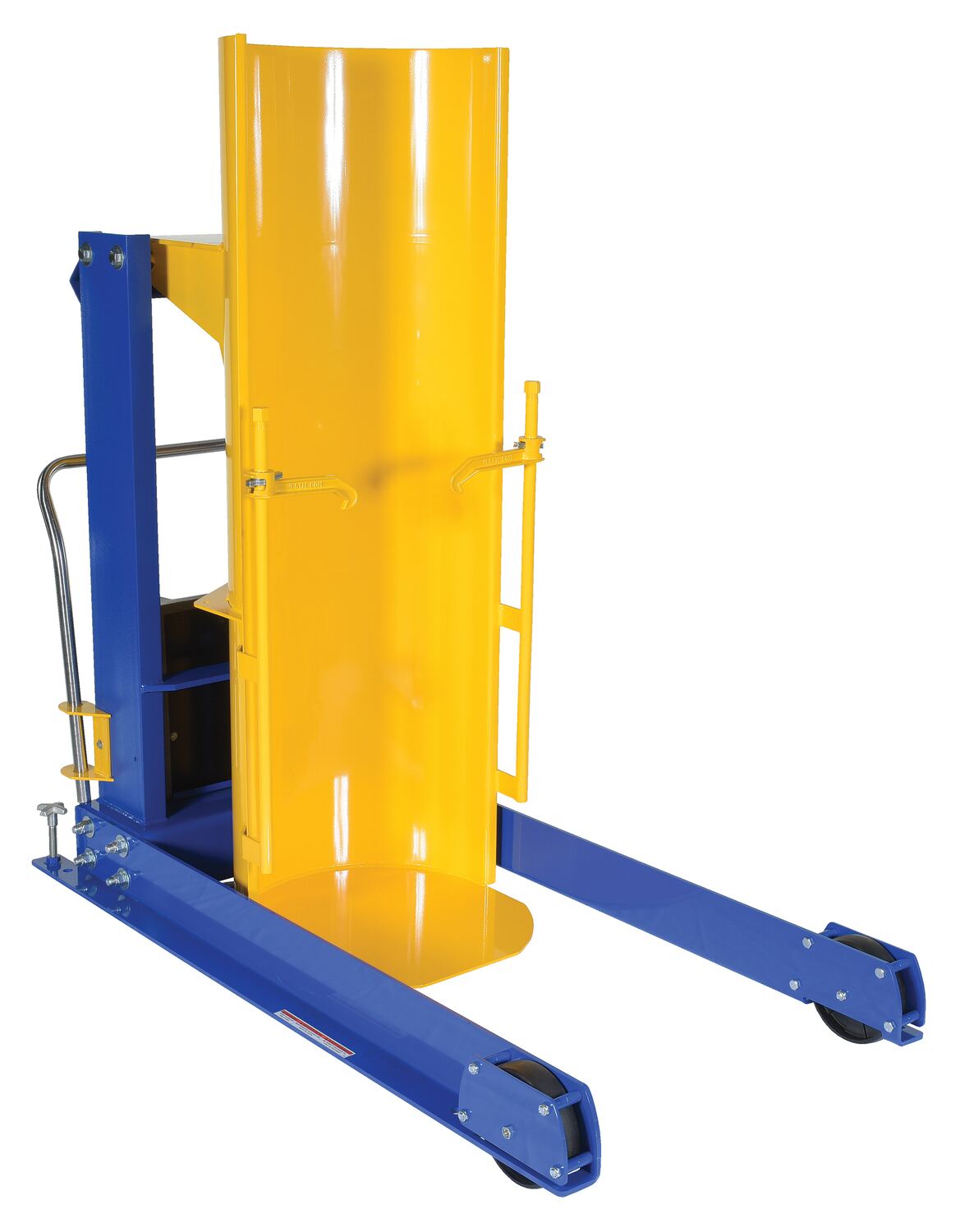

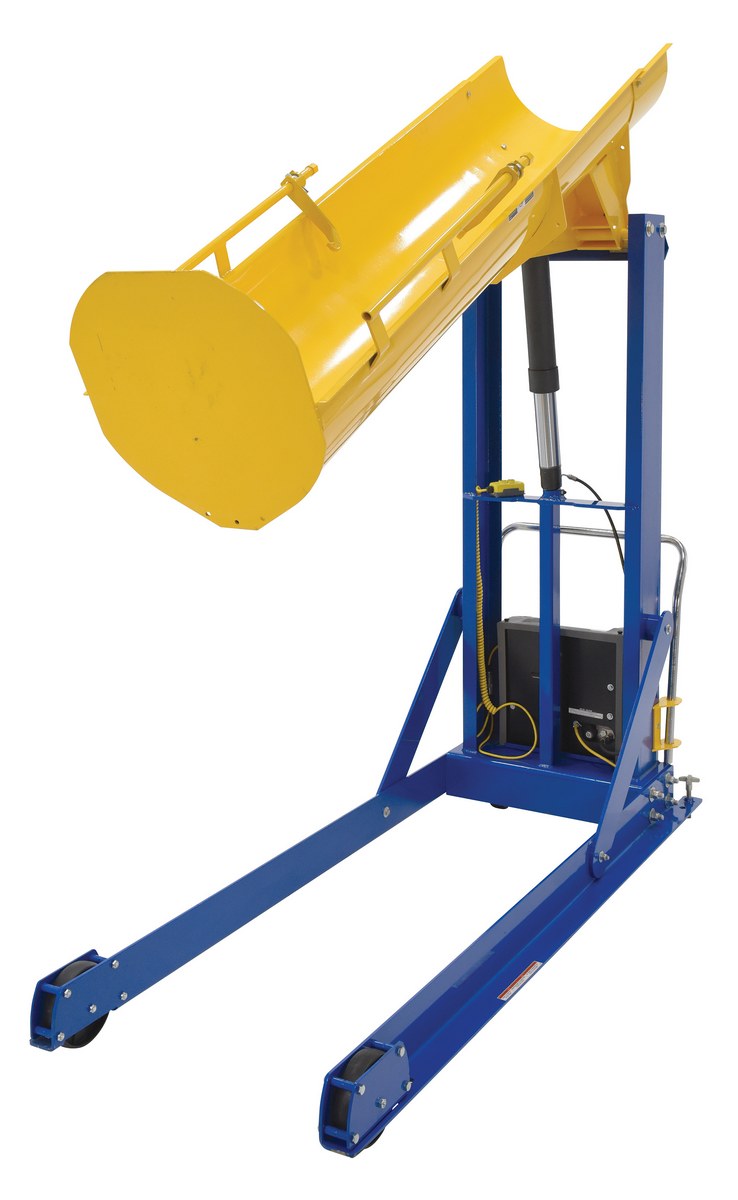

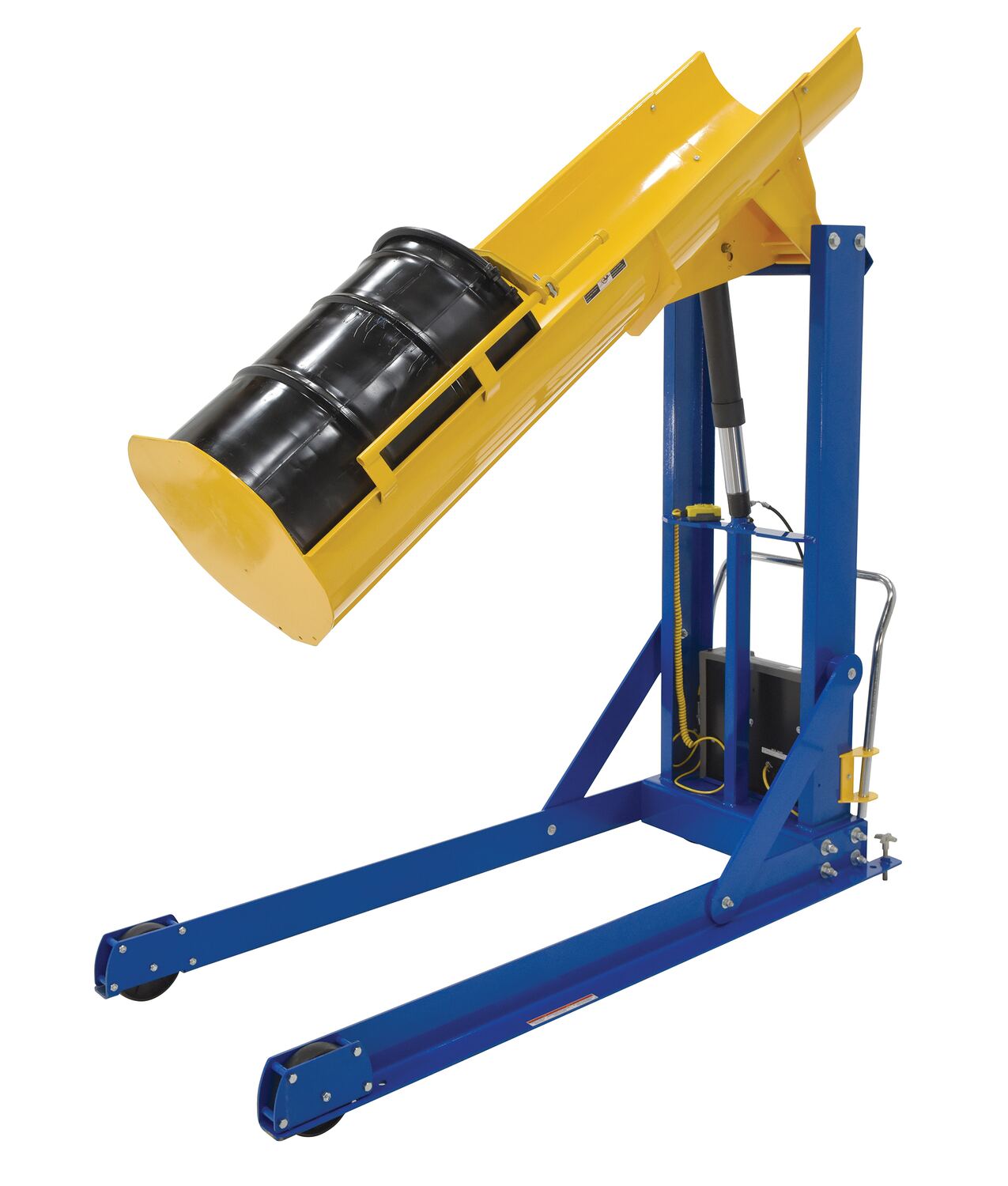

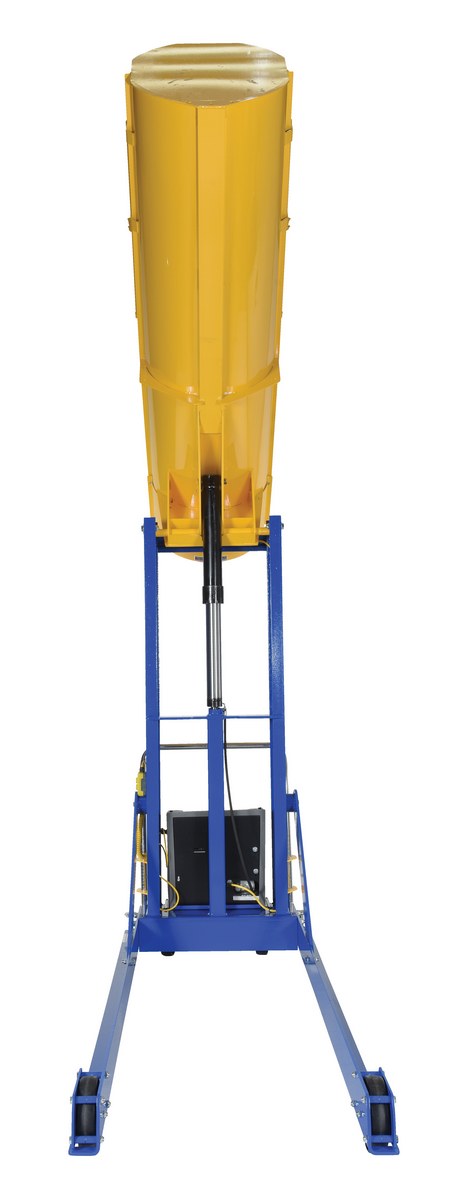

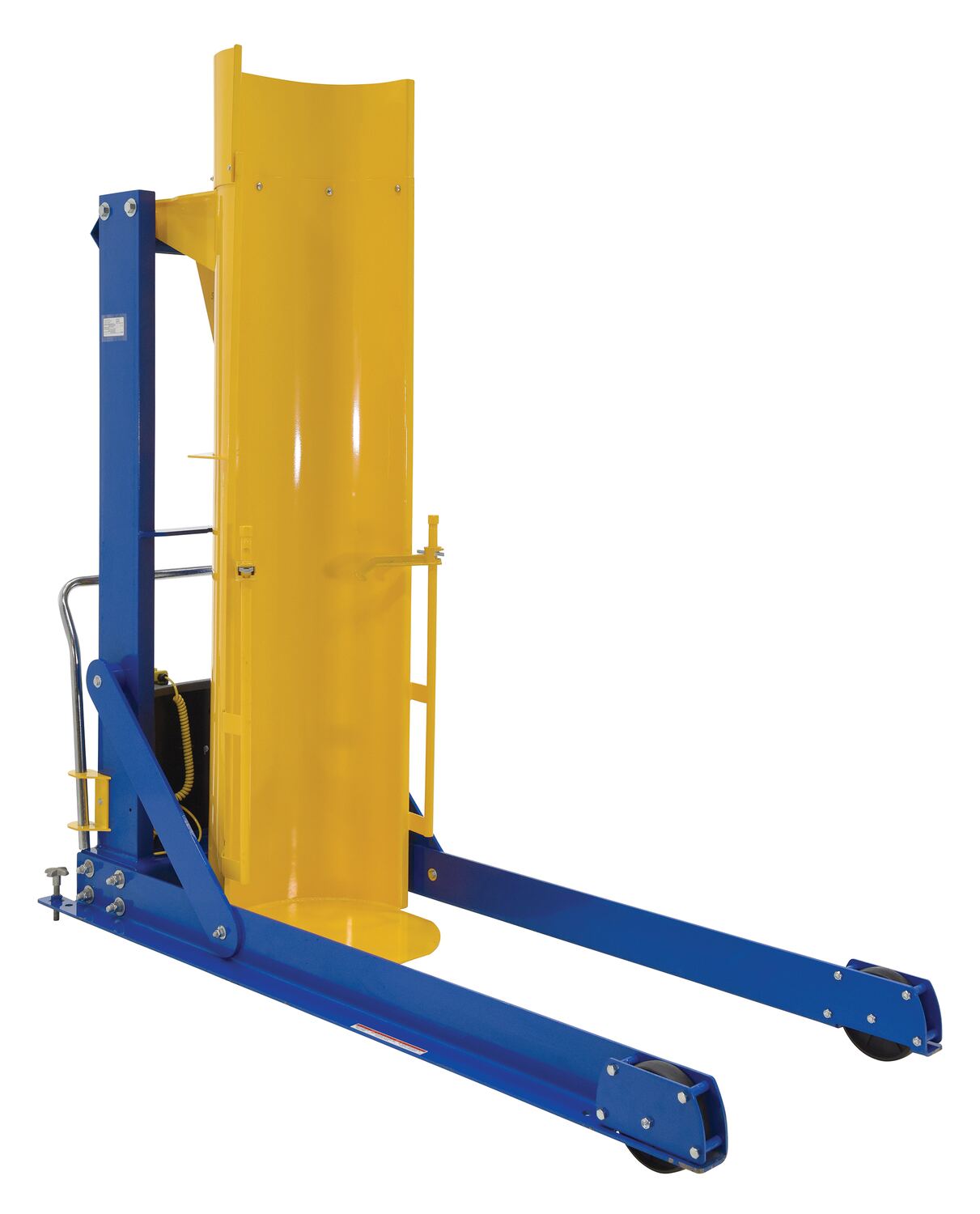

Portable Hydraulic Drum Dumpers
Model Image PDF's Dump
Height
Rotated
Height
Level
Height
Capacity
(lbs)
Wt.
(lbs)
HDD-36-7-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 96" 63-3/4" 750 788
HDD-48-7-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116-3/4" 72-1/2" 750 864
HDD-60-7-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 137-1/4" 84-1/2" 750 1019
HDD-72-7-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/2" 96" 750 1034
HDD-36-10-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 96" 63-3/4" 1,000 763
HDD-48-10-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116-3/4" 72-1/2" 1,000 862
HDD-60-10-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 137-1/4" 84-1/2" 1,000 1042
HDD-72-10-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/2" 96" 1,000 1100
HDD-36-15-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 36" 96" 63-3/4" 1,500 776
HDD-48-15-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 116-3/4" 72-1/2" 1,500 880
HDD-60-15-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 137-1/4" 84-1/2" 1,500 1026
HDD-72-15-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 157-1/2" 96" 1,500 1115

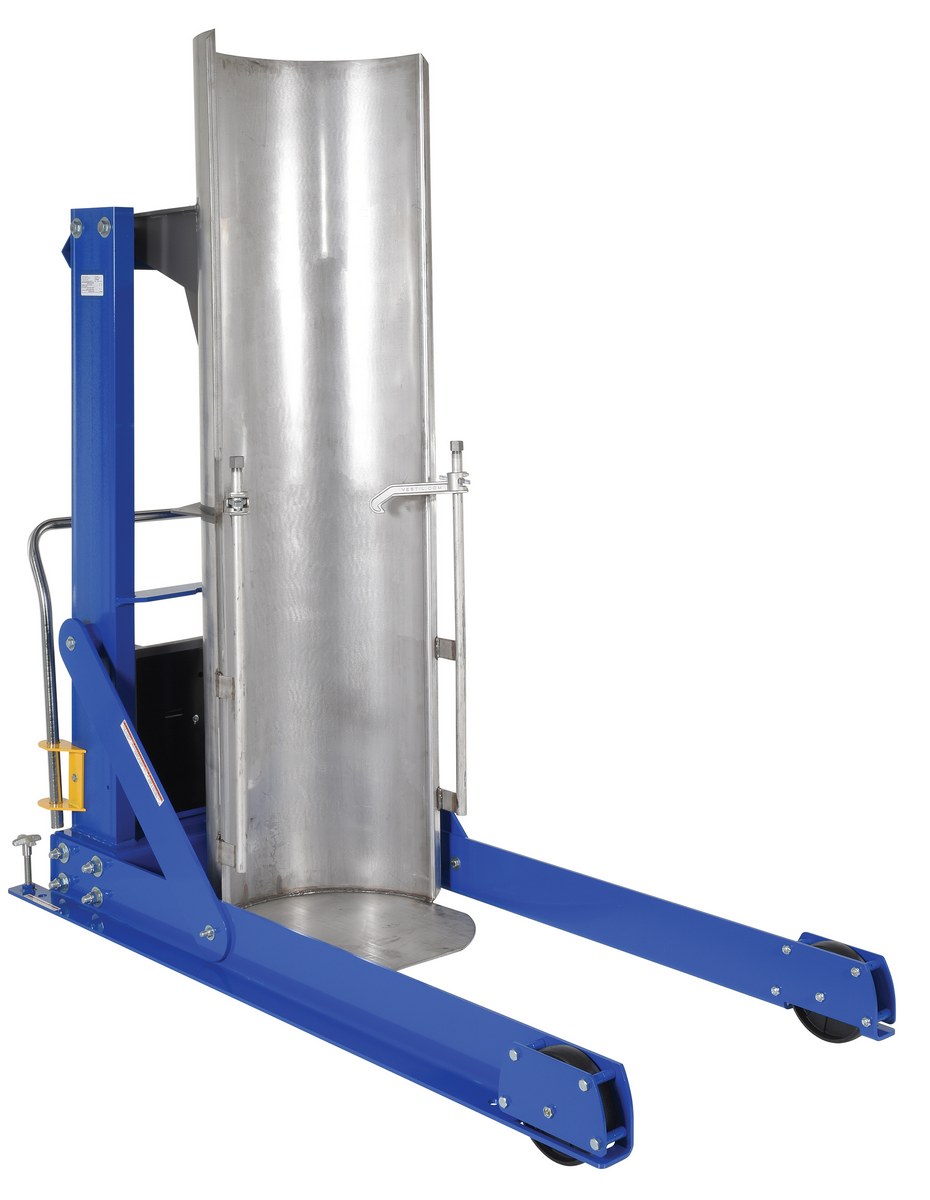

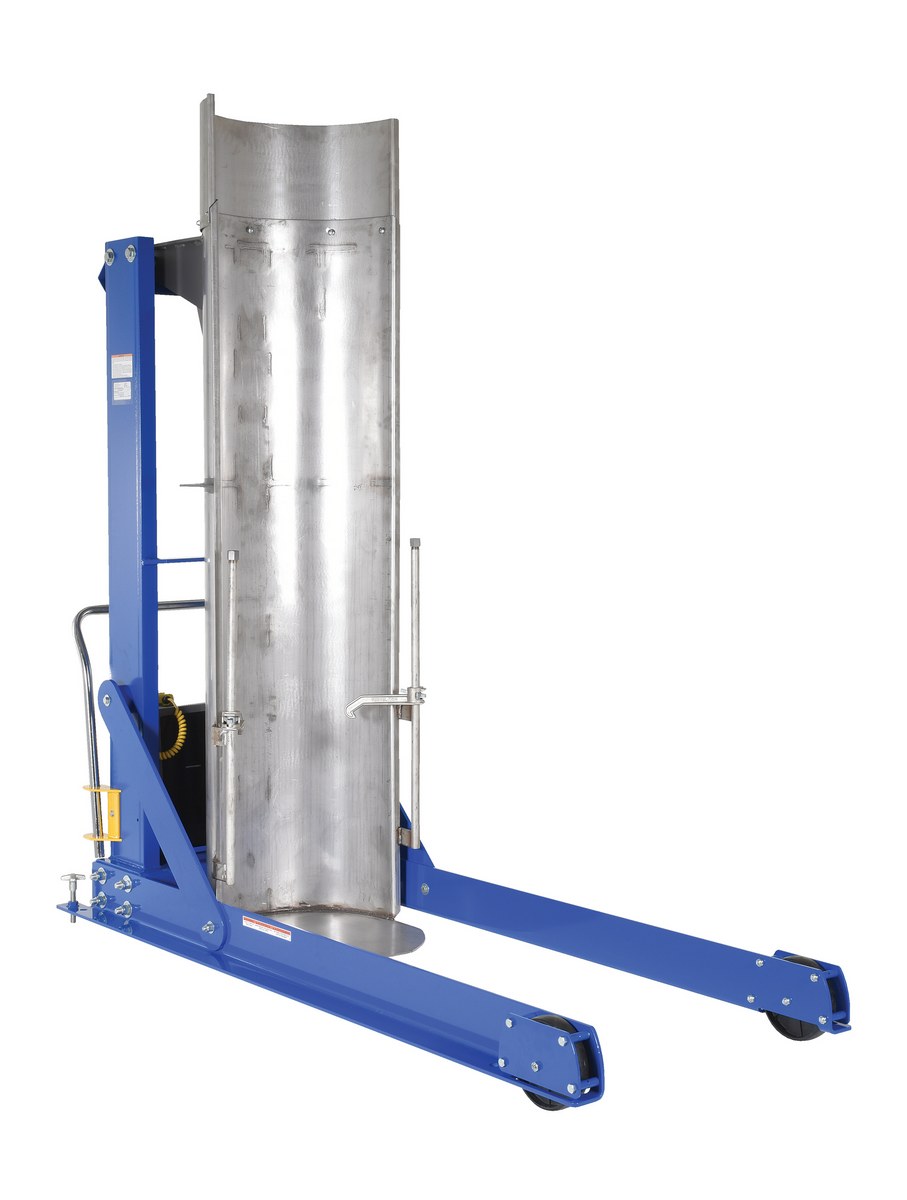

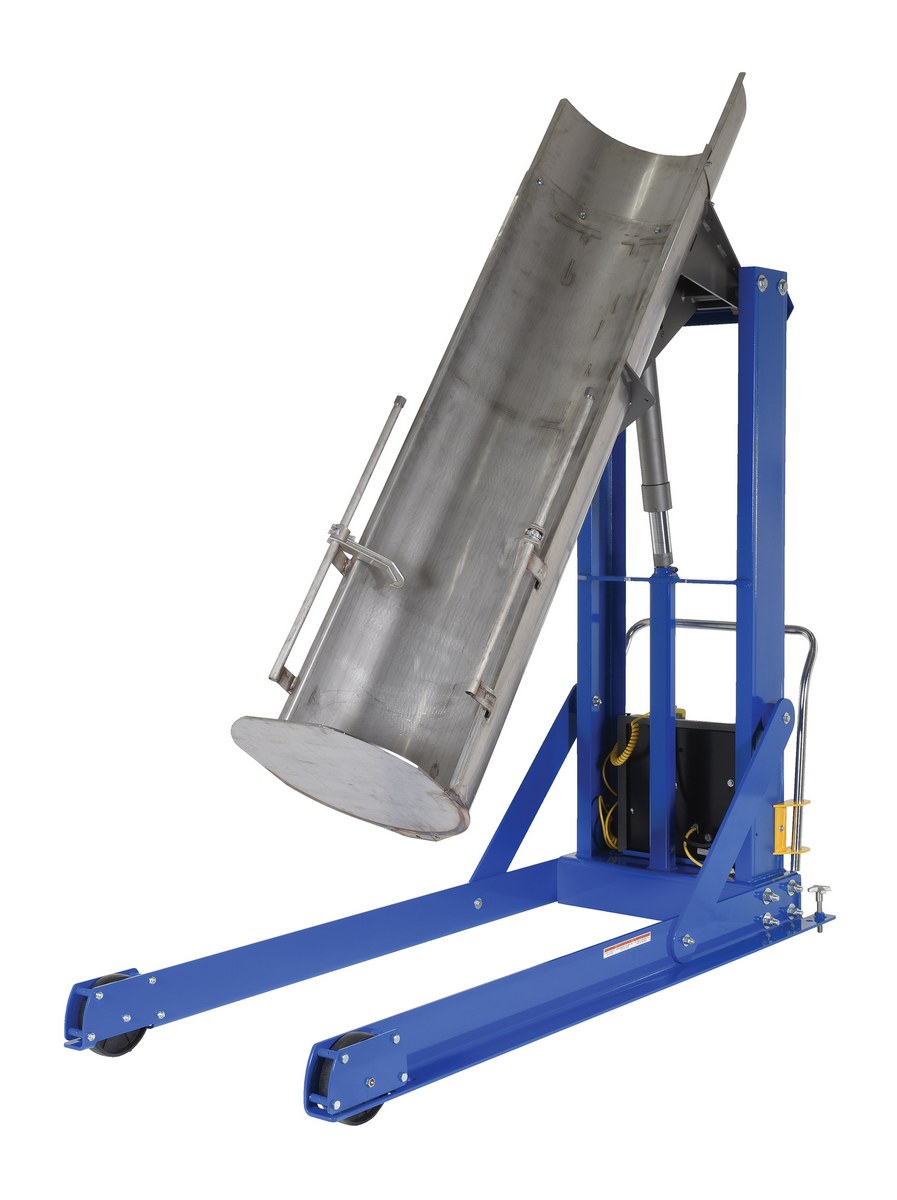

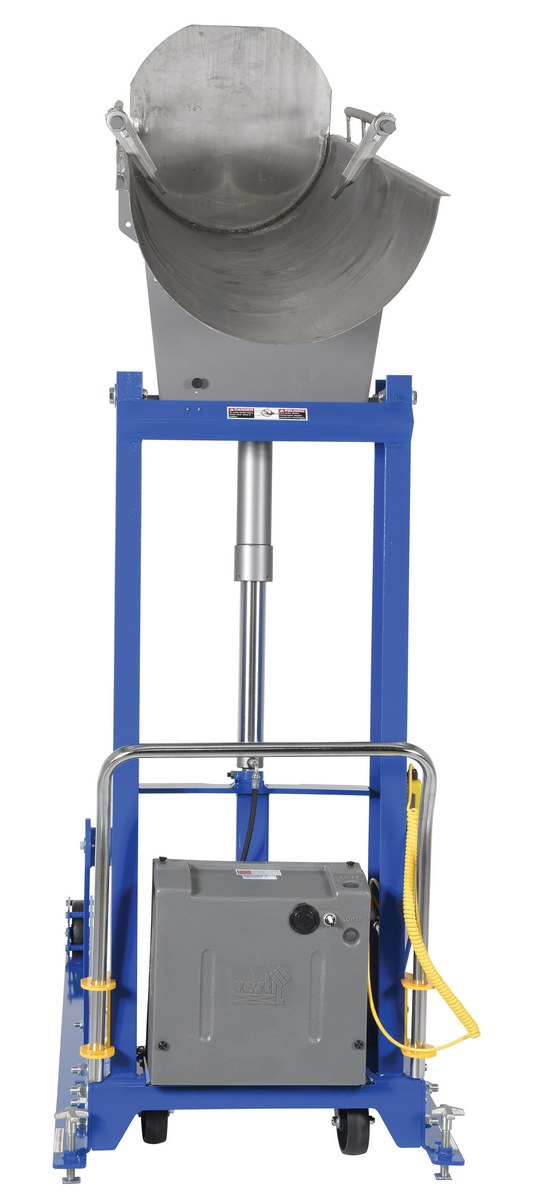

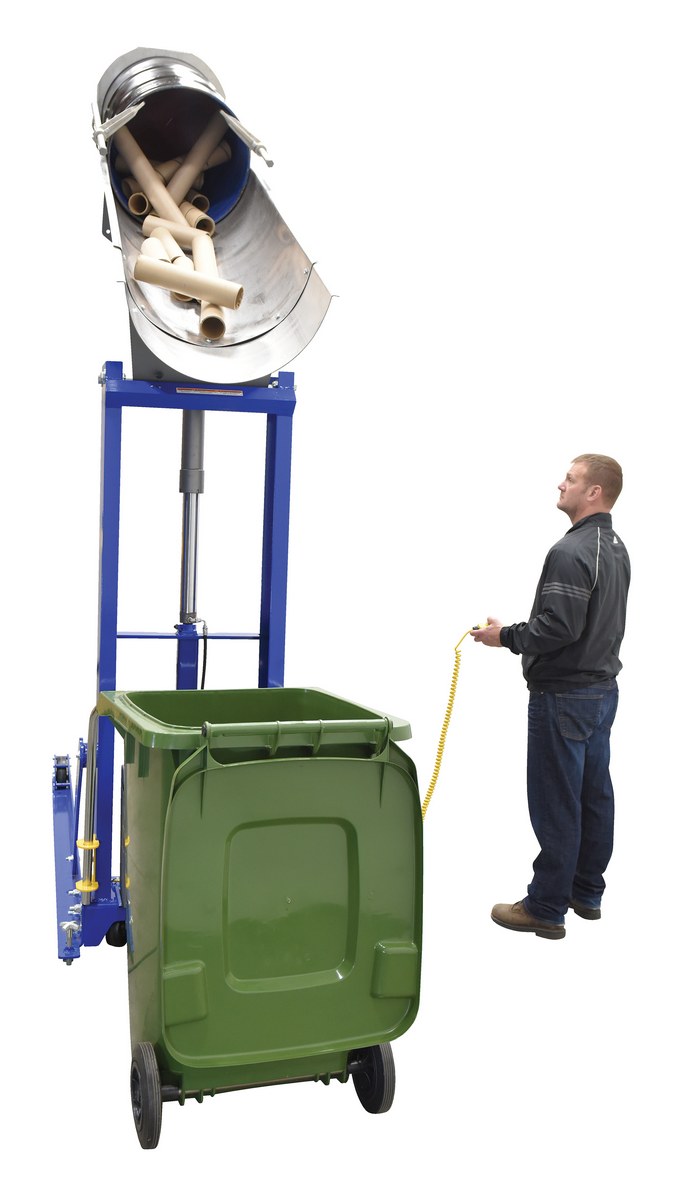

Portable Hydraulic Drum Dumpers w/Stainless Steel Chutes
Model Image PDF's Dump
Height
Rotated
Height
Level
Height
Capacity
(lbs)
Wt.
(lbs)
HDD-36-7-P-SSC Warranty PDF 36" 96" 63-3/4" 750 788
HDD-48-7-P-SSC Warranty PDF 48" 116-3/4" 72-1/2" 750 864
HDD-60-7-P-SSC Warranty PDF 60" 137-1/4" 84-1/2" 750 1019
HDD-72-7-P-SSC Warranty PDF 72" 157-1/2" 96" 750 1034
HDD-36-10-P-SSC Warranty PDF 36" 96" 63-3/4" 1,000 763
HDD-48-10-P-SSC Warranty PDF 48" 116-3/4" 72-1/2" 1,000 862
HDD-60-10-P-SSC Warranty PDF 60" 137-1/4" 84-1/2" 1,000 1042
HDD-72-10-P-SSC Warranty PDF 72" 157-1/2" 96" 1,000 1100
HDD-36-15-P-SSC Warranty PDF 36" 96" 63-3/4" 1,500 776
HDD-48-15-P-SSC Warranty PDF 48" 116-3/4" 72-1/2" 1,500 880
HDD-60-15-P-SSC Warranty PDF 60" 137-1/4" 84-1/2" 1,500 1026
HDD-72-15-P-SSC Warranty PDF 72" 157-1/2" 96" 1,500 1115

Options


Hydraulic Drum Dumper Options
Model PDFs Description Wt.
(lbs)
VCC-12VDC - Optional 12VDC system w/ 115V On-board Charger -
HDD-5G-ADP - Optional 5 Gallon pail adaptor fingers -
RRC-2PB - Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit 1
