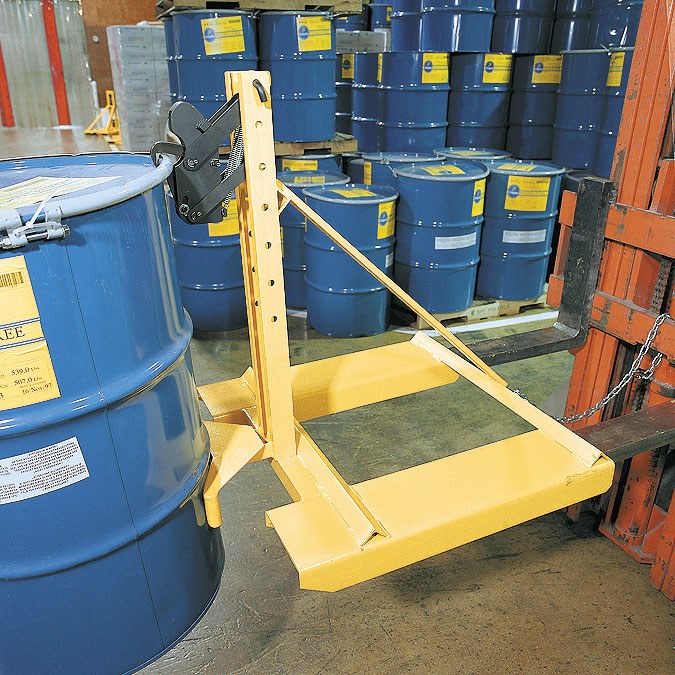

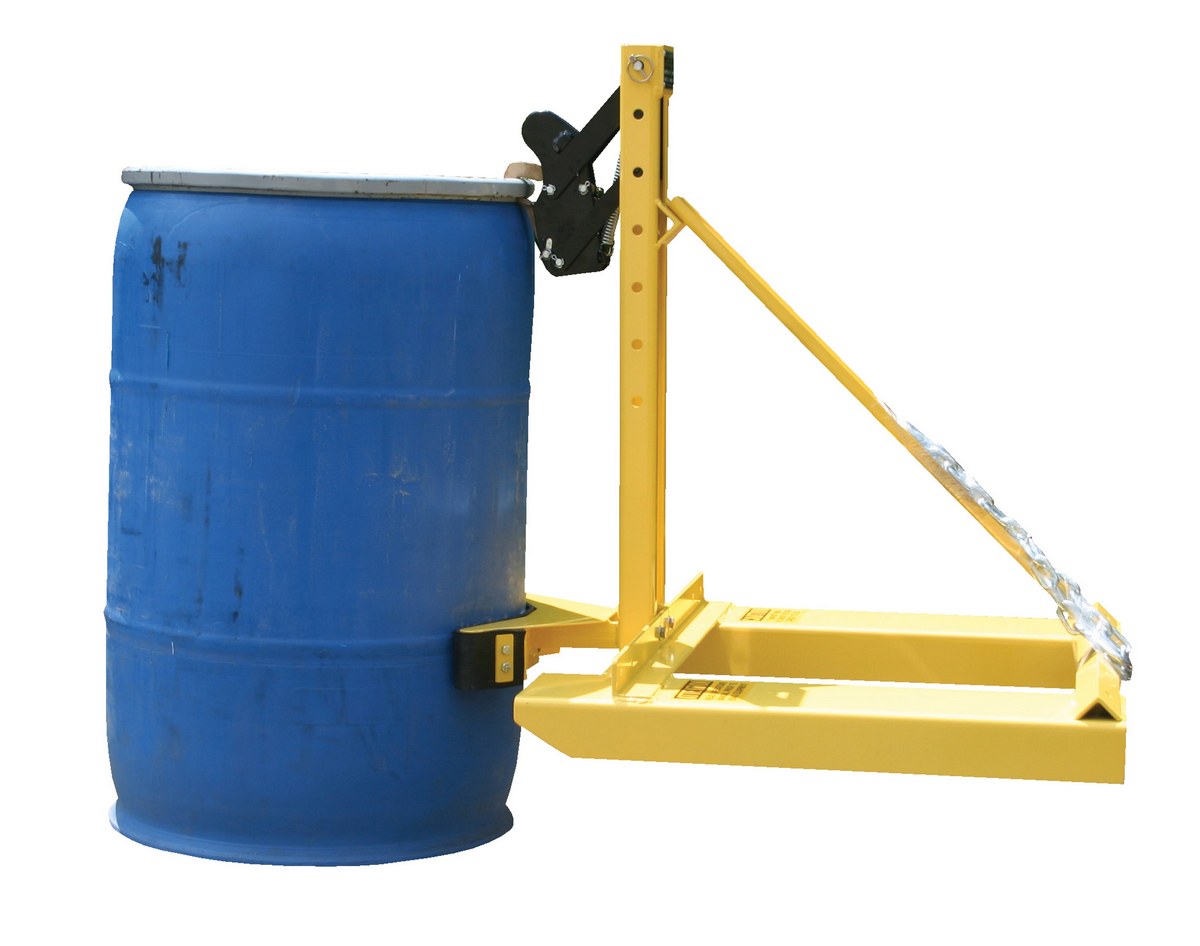

model FMDL-850
SERIES: FMDL

Fork Mounted Drum Lifters

Fork truck attachments utilize a light duty single automatic clamping mechanism for handling any size steel or plastic chimed drum.

Model FMDL-850 is a knockdown unit that bolts together. Fork pockets and safety chain provide quick and easy installation.

Model FMDDL-1700 is fork mounted, with fork pockets and safety chain. The following are fork mounted drum lifters that enable fork truck operators to install or remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the fork truck. FMDL-1500 & FMDDL-3000 - Fork truck attachments utilize a heavy duty single automatic clamping mechanism for handling steel, fiber and plastic chimed drums in high volume applications.

Models FMDL-2000 & FMDDL-4000 feature heavy-duty double articulating clamping mechanisms for handling any steel, plastic or fiber chimed drums in high volume applications. Each drum is gripped with two upper and lower jaws in heads that are spaced about 6 inches apart.

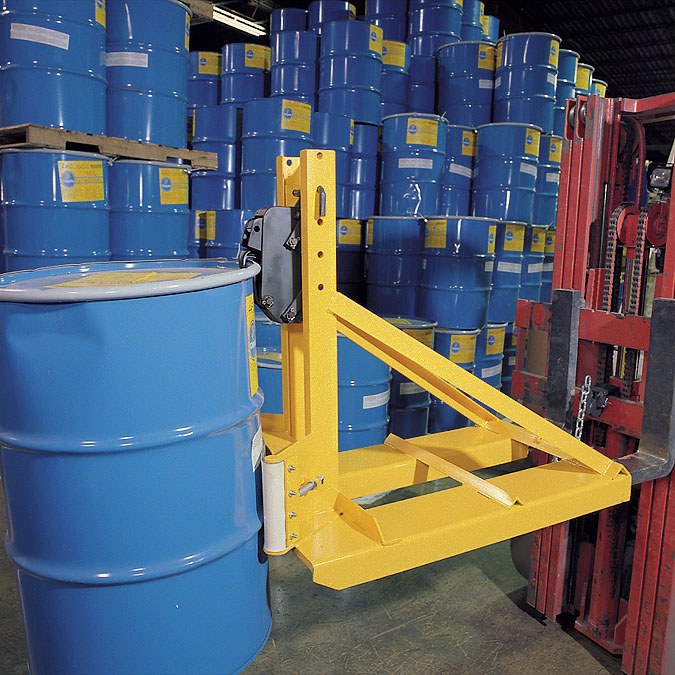

FMDL-1500

model FMDL-1500

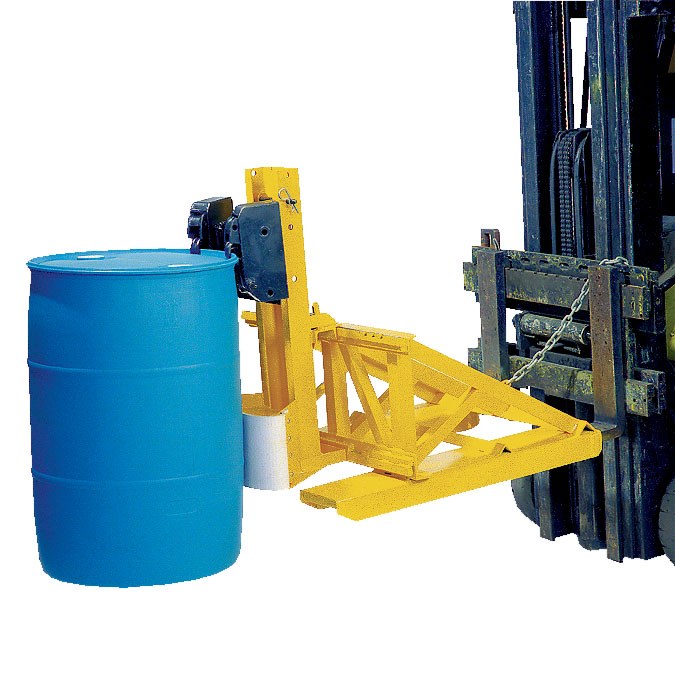

FMDL-2000

model FMDL-2000

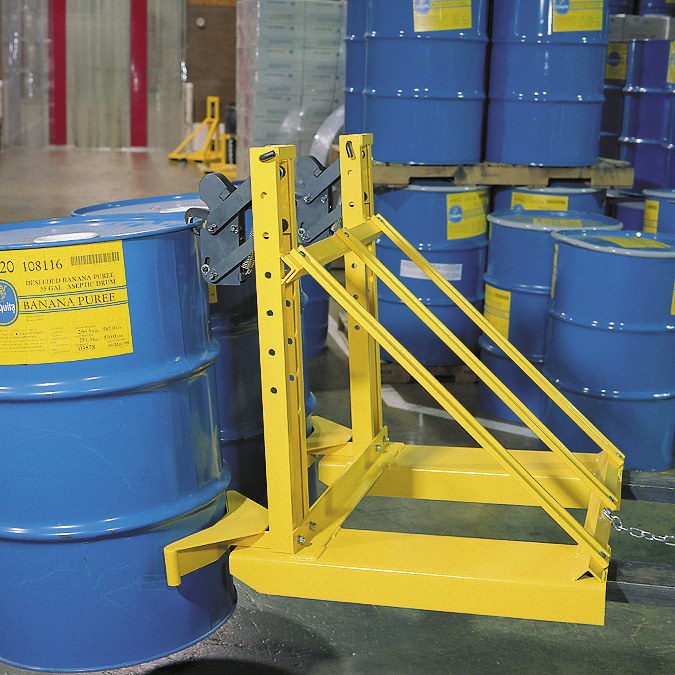

FMDDL-1700

model FMDDL-1700

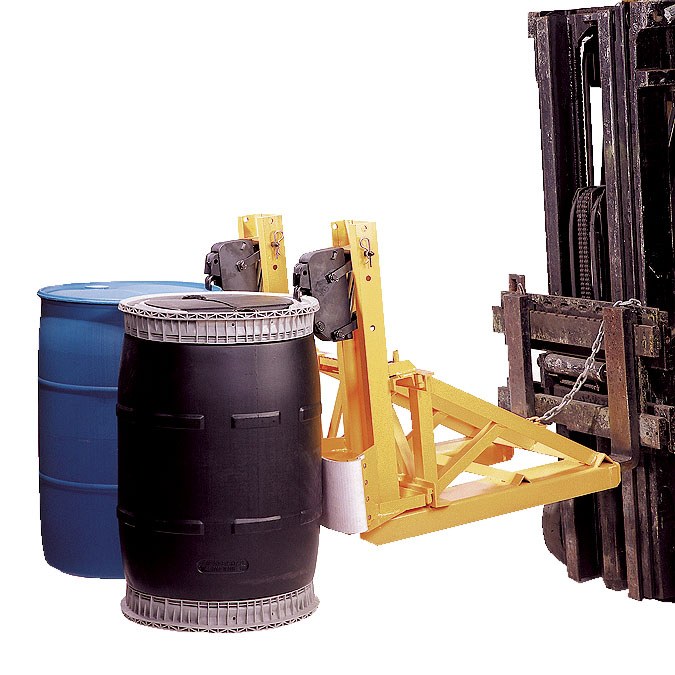

FMDDL-3000

model FMDDL-3000

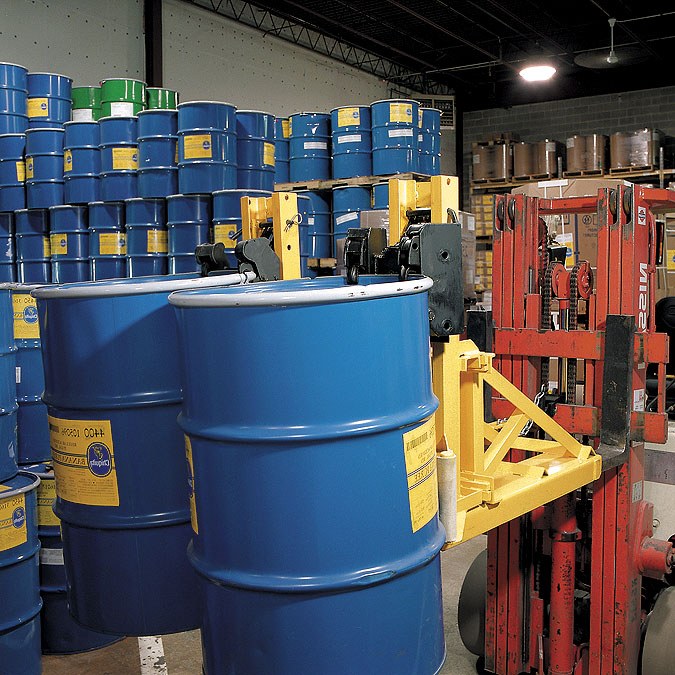

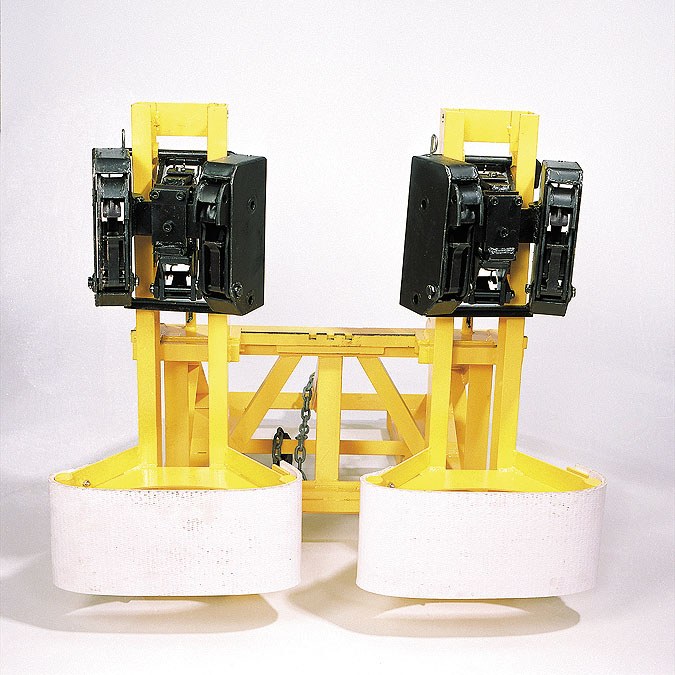

FMDDL-4000

model FMDDL-4000


Click a tab for more information. + Indicates items available under that tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Fork Mounted Drum Lifters
Model PDF Acceptable
Drum Types
Capacity
(lbs)
Overall Size
(WxLxH)
Wt.
(lbs)
FMDL-850 Warranty PDFCompliance Certificate (1) Steel, Poly or Fiber 750 31"x34"x35" 120
FMDL-1500 Warranty PDFCompliance Certificate (1) Steel, Poly or Fiber 1,500 33"x47"x37" 290
FMDL-2000 Warranty PDFCompliance Certificate (1) Steel, Poly or Fiber 2,000 33"x47"x37" 316
FMDDL-1700 Warranty PDFCompliance Certificate (2) Steel, Poly or Fiber 1,500 38"x34"x35" 190
FMDDL-3000 Warranty PDFCompliance Certificate (2) Steel, Poly or Fiber 3,000 33"x47"x37" 380
FMDDL-4000 Warranty PDFCompliance Certificate (2) Steel, Poly or Fiber 4,000 33"x47"x37" 432

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Literature PDF's

Owner's Manuals


Survey Sheets

No Survey Sheets for this product.


Other PDF's

...


Directory Of Available PDF's For All Products

Image Gallery

Image Gallery is being redesigned. Check back soon for all the latest Fork Mounted Drum Lifters images!

Video Gallery

No Videos for this product at this time. Please Check back.









Options

DLH-CL2-1 icon_approvaldrawings.jpg Fork Mounted Drum Lifter Carraige Option
