Click Image to Enlarge

model: DR-1-UT


Ultra-Spill Pallets & Decks
SERIES: DR

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

DR-2-UT

model DR-2-UT

DR-3-UT

model DR-3-UT

DR-4-UT

model DR-4-UT

VLPUT-2448

model VLPUT-2448

VLPUT-4848

model VLPUT-4848

VLPUT-BF

model VLPUT-BF




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
DR-4-UT 1 Year Limited WarrantyULTRA SPILL PALLET FOUR DRUM WITH DRAINUniform Capacity (lb.): 6,00090
DR-1-UT 1 Year Limited WarrantyULTRA SPILL PALLET ONE DRUM NO DRAINUniform Capacity (lb.): 80051
DR-2-UT 1 Year Limited WarrantyULTRA SPILL PALLET TWO DRUM NO DRAINUniform Capacity (lb.): 3,00063
DR-3-UT 1 Year Limited WarrantyULTRA-INLINE SPILL DECK THREE DRUMUniform Capacity (lb.): 4,50021
VLPUT-2448 1 Year Limited WarrantyULTRA SPILL DECK TWO DRUM FLEXIBLEUniform Capacity (lb.): 3,00022
VLPUT-4848 1 Year Limited WarrantyULTRA SPILL DECK FOUR DRUM FLEXIBLEUniform Capacity (lb.): 6,00044

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options
Model Image PDFs Description Wt (lbs.)

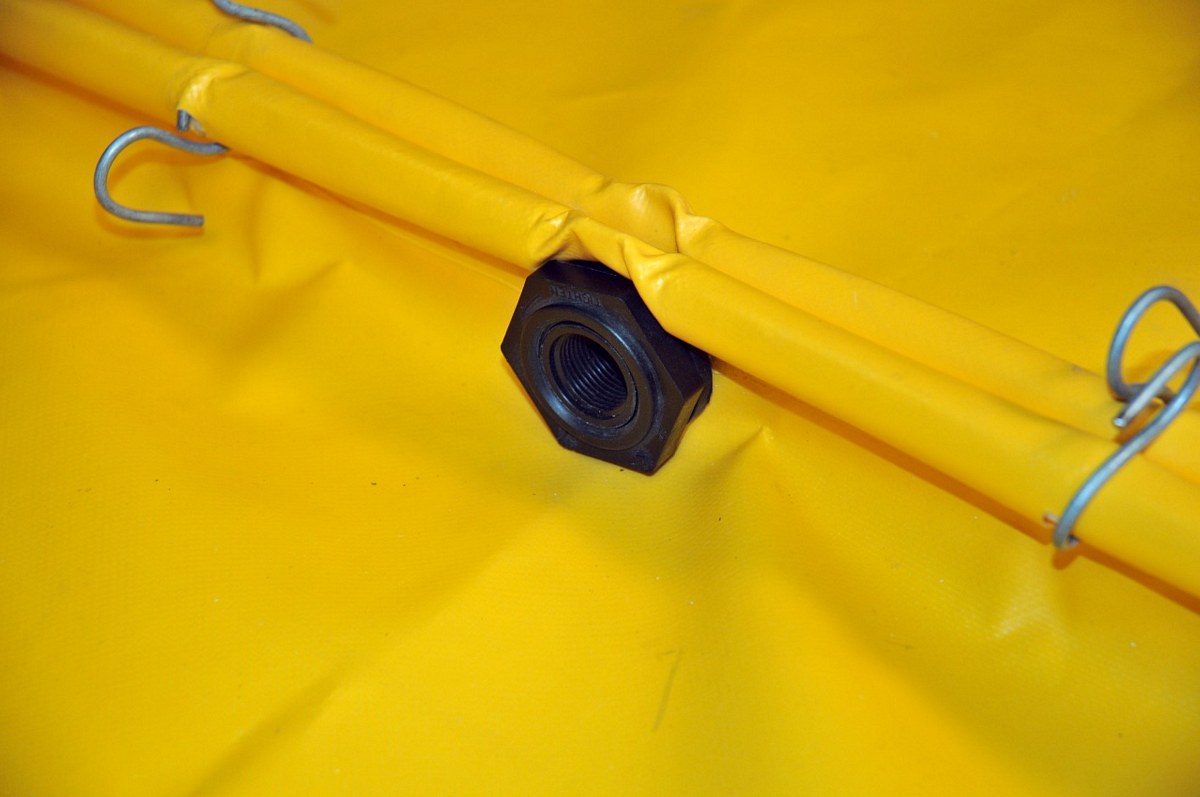

VLPUT-BF Warranty PDF Bulkhead fitting for VLPUT decks 1

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Ultra-Spill Pallets & Decks PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ultra-Spill Pallets & Decks




Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.


Plastic Pallets & Drum Spill Containers
Model Image PDFs Drums Accepted Overall Size (WxLxH) Sump
Capacity
Fork Pocket
(W x H)
Capacity
(lbs)
Fork Pocket Center Wt.
(lbs)

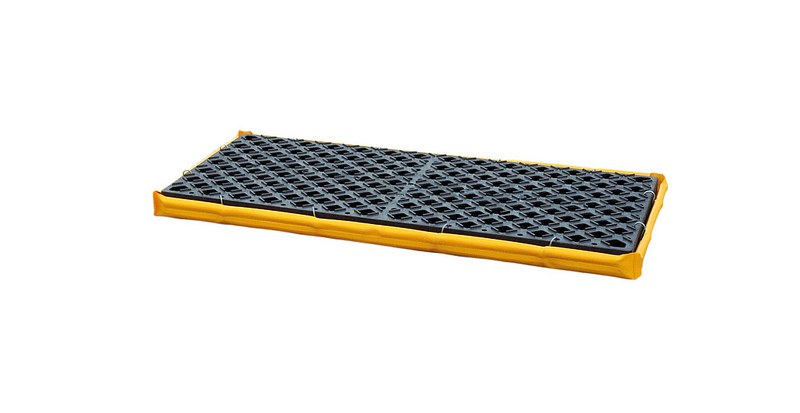

VLPUT-2448 Warranty PDF 2 24"x48"x2-1/2" 11 gal. N/A 3,000 N/A 22

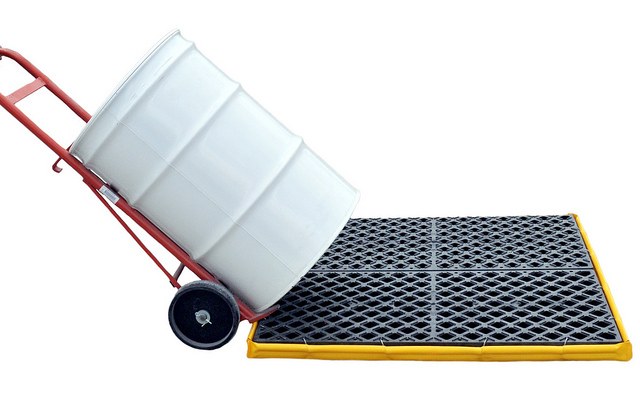

VLPUT-4848 Warranty PDF 4 48"x48"x2-1/2" 22 gal. N/A 6,000 N/A 44

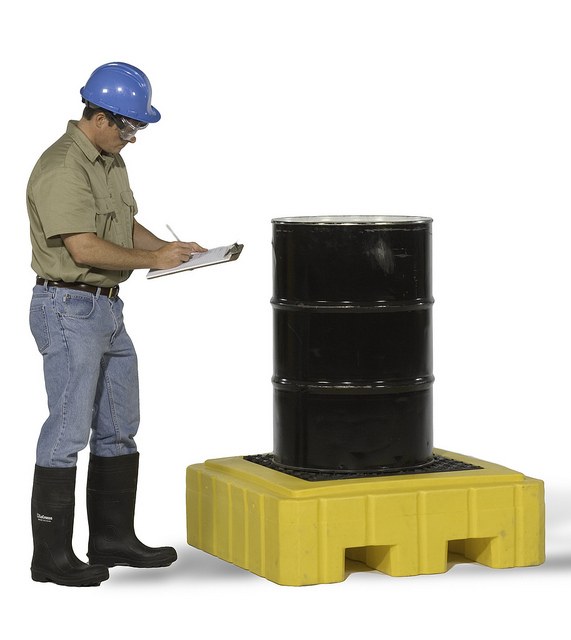

DR-1-UT Warranty PDF 1 40"x40"x12" 62 gal. 7" x 4-1/2" 800 15" 51

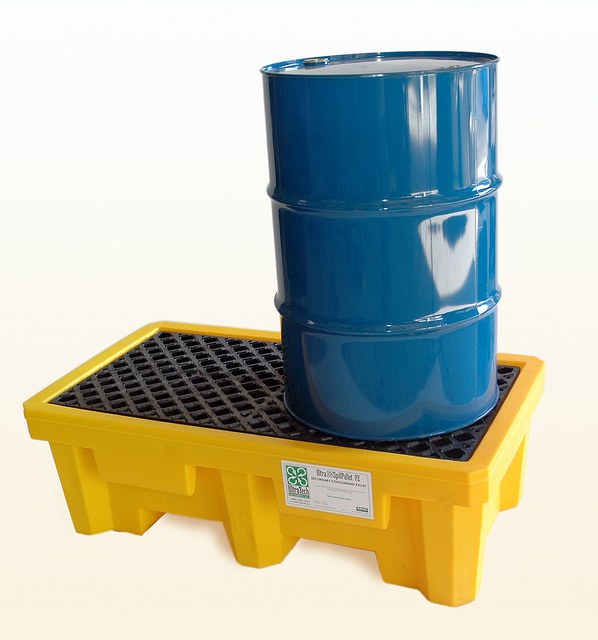

DR-2-UT Warranty PDF 2 53"x29"x16 1/2" 66 gal. 10-1/2" x 4-1/2" 3,000 17-1/2" 63

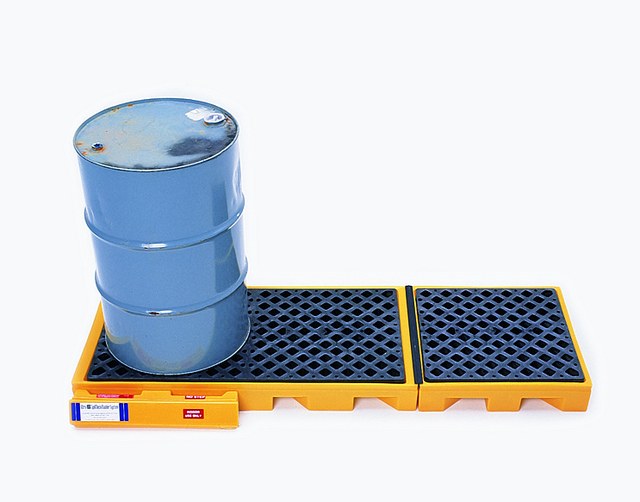

DR-3-UT Warranty PDF 3 77 7/8"x28 7/8"x5 3/4" 99 gal. N/A 4,500 N/A 67

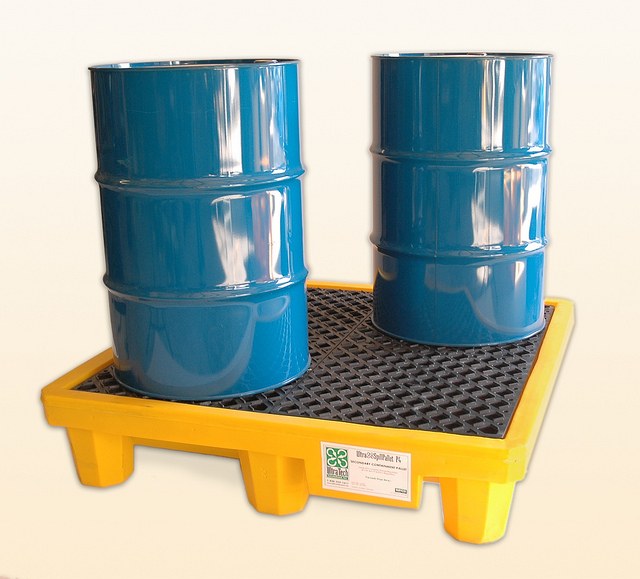

DR-4-UT icon_approvaldrawings.jpgWarranty PDF 4 53"x53"x11 3/4" 66 gal. 14-1/2" x 4" 6,000 21-1/2" 90

Options


Options
Model Image PDFs Description Wt (lbs.)
VLPUT-BF Warranty PDF Bulkhead fitting for VLPUT decks 1
