Click Image to Enlarge

model: CM-2


Oil Filter Crushers, CrushMasters
SERIES: CM

208-230V, 1-PHASE STANDARD

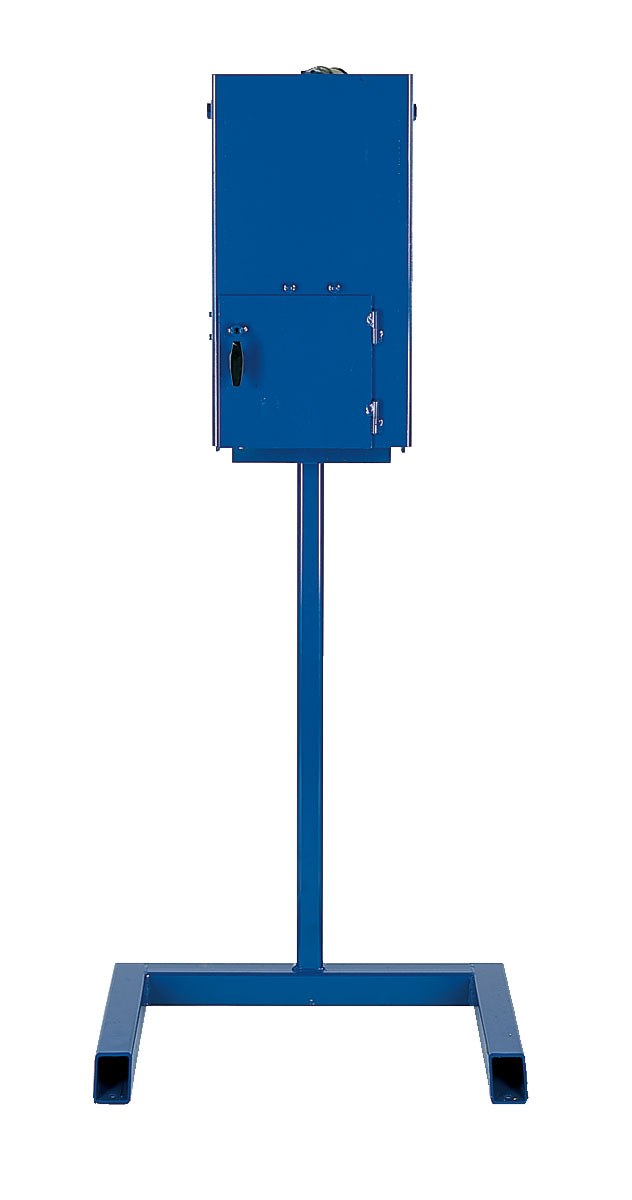

Recycle used filters and oil quickly, safely and easily. The CrushMaster 1 oil filter crusher operates on normal shop air, delivers over 13,000 lbs. of crushing force at 120 PSI, accommodates all standard oil filters, up to 8" high and was designed for high-volume use. Solid steel-plate construction and built-in safety features assure years of safe maintenance free operation. Will crush up to four automotive spin-on filters at one time. Crushing chamber door is prevented from opening if the ram is in any position other than fully raised. Can be connected to a variety of waste oil containers.

The CrushMaster 2 is designed for heavy-duty use, and will accommodate both standard size filters and heavy-duty truck filters up to 16" high. Built-in operator convenience and safety features include waste oil drain connections, easily located on/off switch for safe operation and heavy-duty totally enclosed fan cooled 4HP motor delivering 37,500 pounds of crushing force. Electric-hydraulic operation.

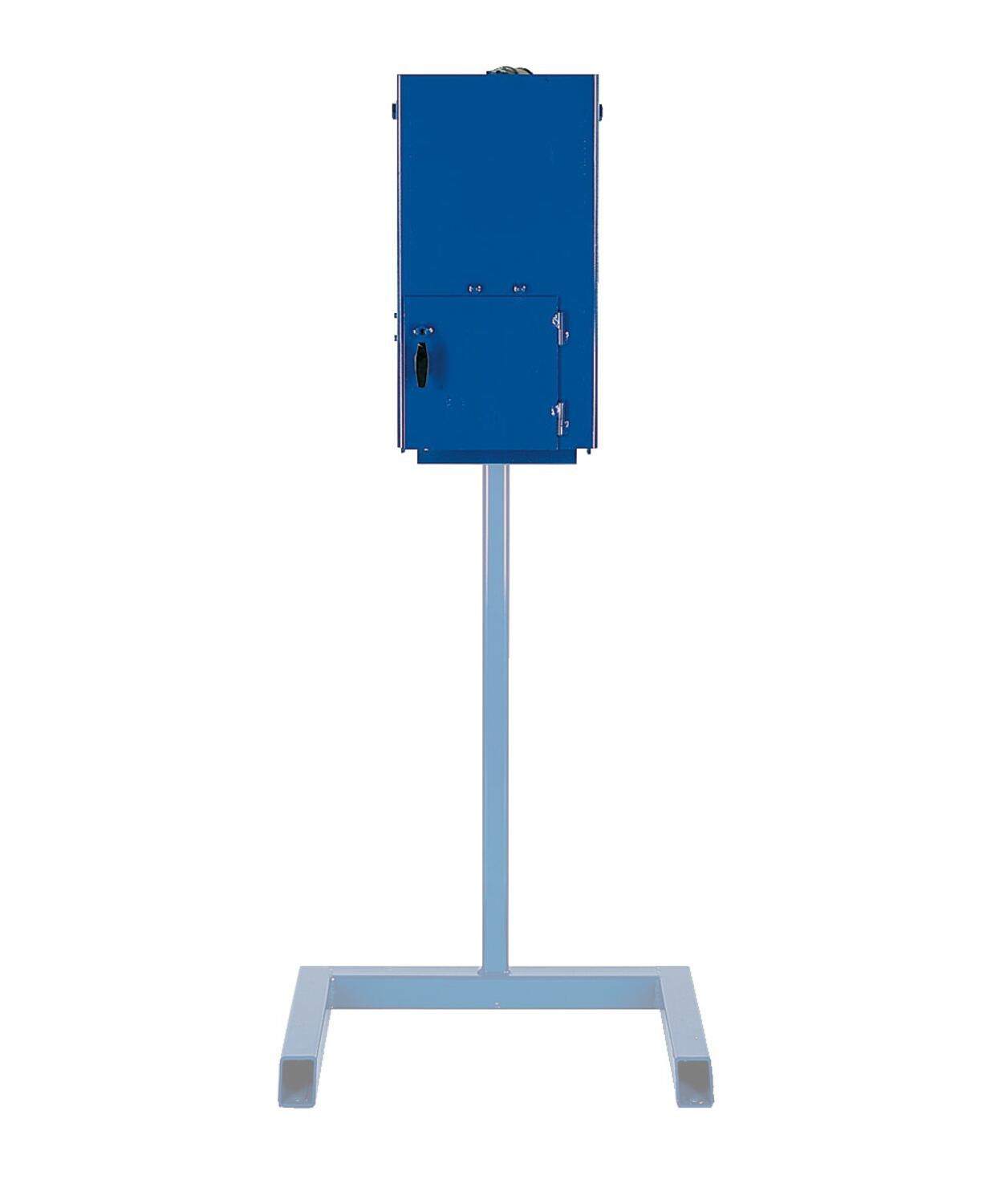

Order optional stands for complete package. The Tubular Stand accommodates model CM-1. Requires 29"W x 221/2" of floor space.

The Deluxe Stand accommodates both the CM-1 and CM-2. It is designed with a heavy duty grated top for drainage of filters before crushing. The floor space required is 30"W x 26"D. Also allows for placement of 55-gallon drum, sold separately, under crusher to contain oil.

208-230V, 1-PHASE STANDARD

Recycle used filters and oil quickly, safely and easily. The CrushMaster 1 oil filter crusher operates on normal shop air, delivers over 13,000 lbs. of crushing force at 120 PSI, accommodates all standard oil filters, up to 8" high and was designed for high-volume use. Solid steel-plate construction and built-in safety features assure years of safe maintenance free operation. Will crush up to four automotive spin-on filters at one time. Crushing chamber door is prevented from opening if the ram is in any position other than fully raised. Can be connected to a variety of waste oil containers.

The CrushMaster 2 is designed for heavy-duty use, and will accommodate both standard size filters and heavy-duty truck filters up to 16" high. Built-in operator convenience and safety features include waste oil drain connections, easily located on/off switch for safe operation and heavy-duty totally enclosed fan cooled 4HP motor delivering 37,500 pounds of crushing force. Electric-hydraulic operation.

Order optional stands for complete package. The Tubular Stand accommodates model CM-1. Requires 29"W x 221/2" of floor space.

The Deluxe Stand accommodates both the CM-1 and CM-2. It is designed with a heavy duty grated top for drainage of filters before crushing. The floor space required is 30"W x 26"D. Also allows for placement of 55-gallon drum, sold separately, under crusher to contain oil.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
CM-1 1 Year Limited WarrantyOIL FILTER CRUSHER - AIR OPERATEDAir Requirements (psi.): 100 to 180
Cycle Time (seconds): 11 to 20
340
CM-2 1 Year Limited WarrantyOIL FILTER CRUSHER - ELEXTRIC/HYDRAULICMotor (volts): 208 to 230
Cycle Time (seconds): 12
500
CM-D 1 Year Limited WarrantyOIL FILTER CRUSHER - DELUXE STANDFloor Space Width (in.): 30
Floor Space Length (in.): 26
140
CM-T 1 Year Limited WarrantyOIL FILTER CRUSHER - TUBULAR STANDFloor Space Width (in.): 29
Floor Space Length (in.): 22-1/2
120

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Oil Filter Crushers, CrushMasters PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Oil Filter Crushers, CrushMasters




208-230V, 1-PHASE STANDARD

Recycle used filters and oil quickly, safely and easily. The CrushMaster 1 oil filter crusher operates on normal shop air, delivers over 13,000 lbs. of crushing force at 120 PSI, accommodates all standard oil filters, up to 8" high and was designed for high-volume use. Solid steel-plate construction and built-in safety features assure years of safe maintenance free operation. Will crush up to four automotive spin-on filters at one time. Crushing chamber door is prevented from opening if the ram is in any position other than fully raised. Can be connected to a variety of waste oil containers.

The CrushMaster 2 is designed for heavy-duty use, and will accommodate both standard size filters and heavy-duty truck filters up to 16" high. Built-in operator convenience and safety features include waste oil drain connections, easily located on/off switch for safe operation and heavy-duty totally enclosed fan cooled 4HP motor delivering 37,500 pounds of crushing force. Electric-hydraulic operation.

Order optional stands for complete package. The Tubular Stand accommodates model CM-1. Requires 29"W x 221/2" of floor space.

The Deluxe Stand accommodates both the CM-1 and CM-2. It is designed with a heavy duty grated top for drainage of filters before crushing. The floor space required is 30"W x 26"D. Also allows for placement of 55-gallon drum, sold separately, under crusher to contain oil.


Oil Filter Crusher
Model Image PDFs Description Overall Size
(WxDxH)
Cycle Time
(Seconds)
Wt.
(lbs)
CM-1 Warranty PDFCompliance Certificate Air Operated, 100-180 PSI 13-3/4"x18"x27" 11-20 255
CM-2 Warranty PDFCompliance Certificate Electric-Hydraulic, 208-230V, 1PH 25"x27"x41-1/2" 12 400
CM-T Warranty PDFCompliance Certificate Tubular Stand 41" High -- 183
CM-D Warranty PDFCompliance Certificate Deluxe Stand 44" High -- 405
