SERIES: IBC


Intermediate Bulk Containers

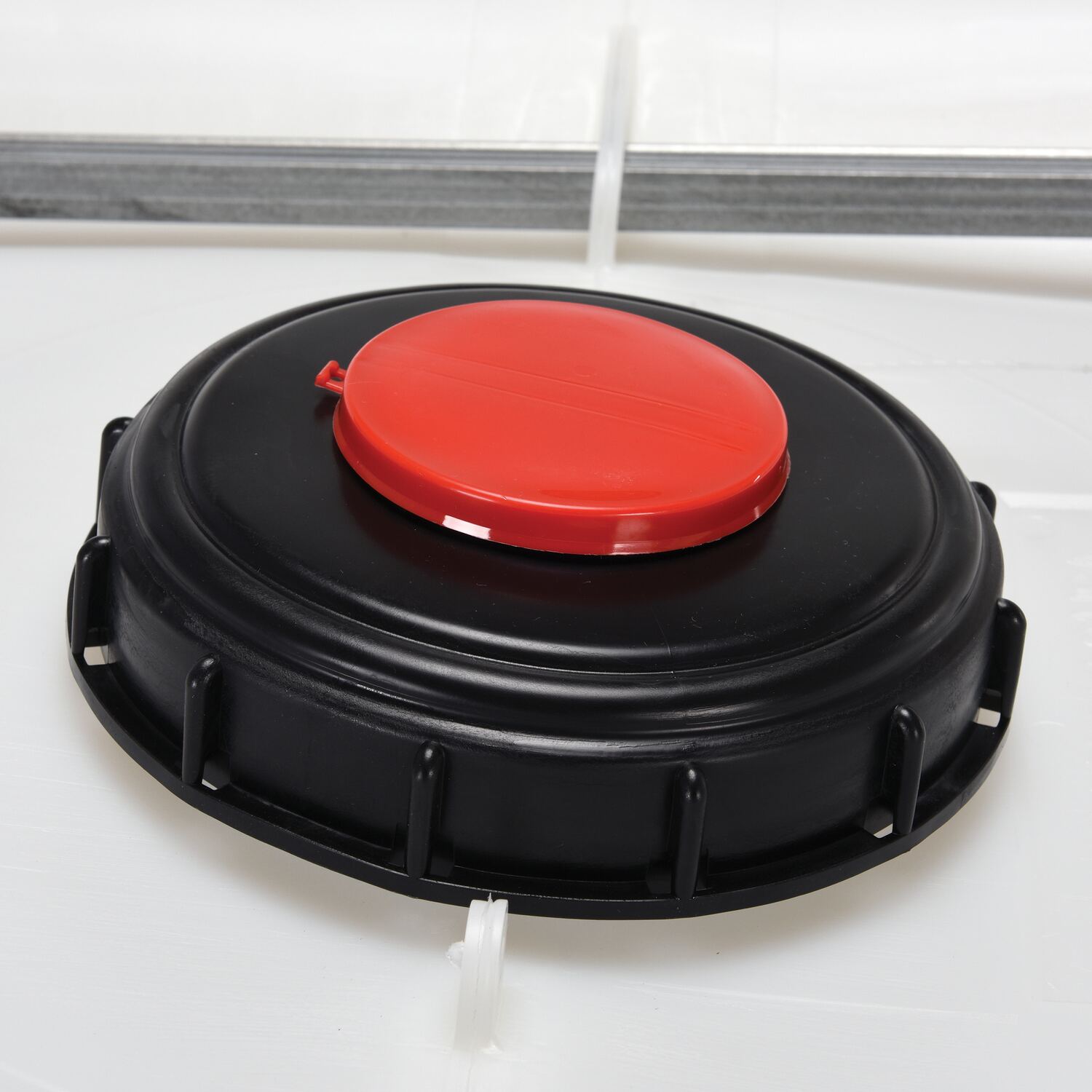

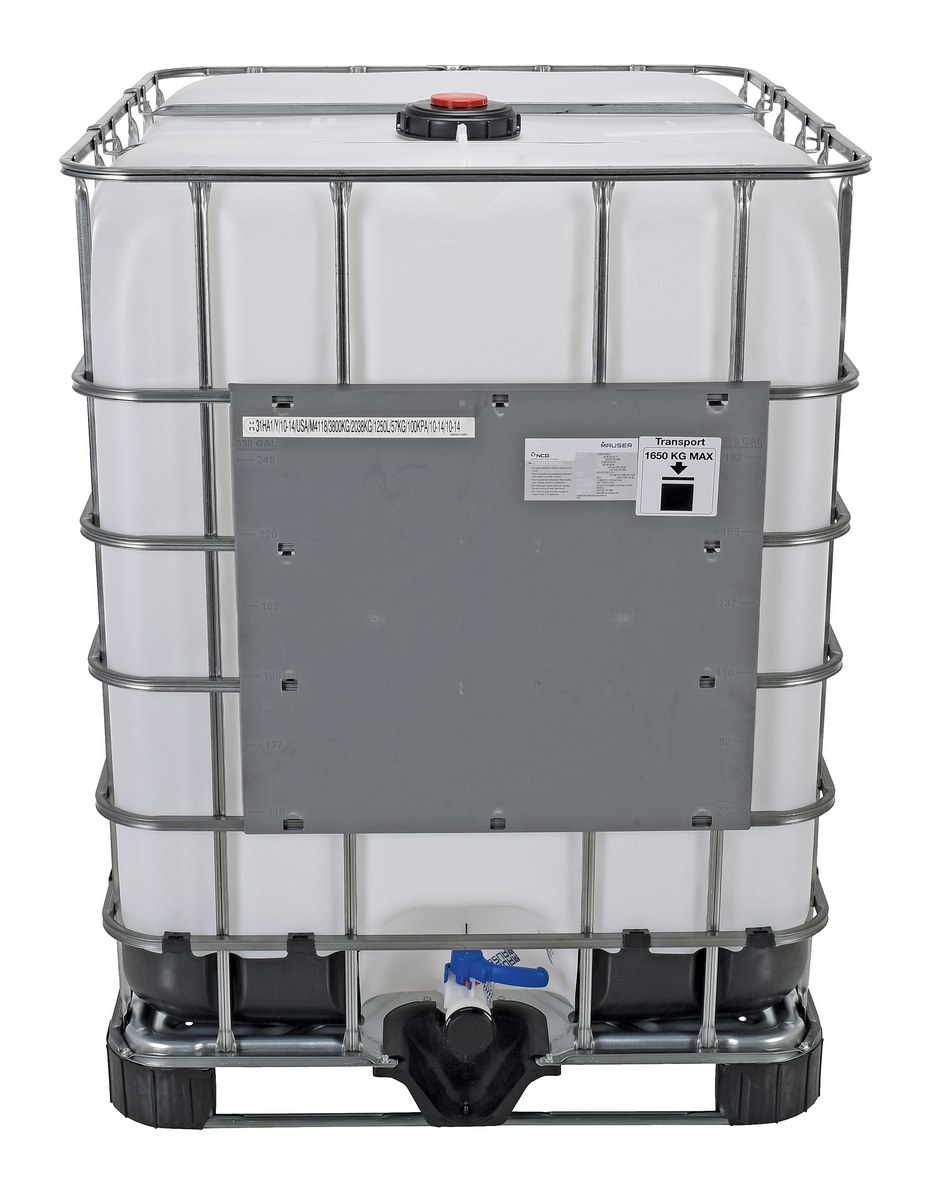

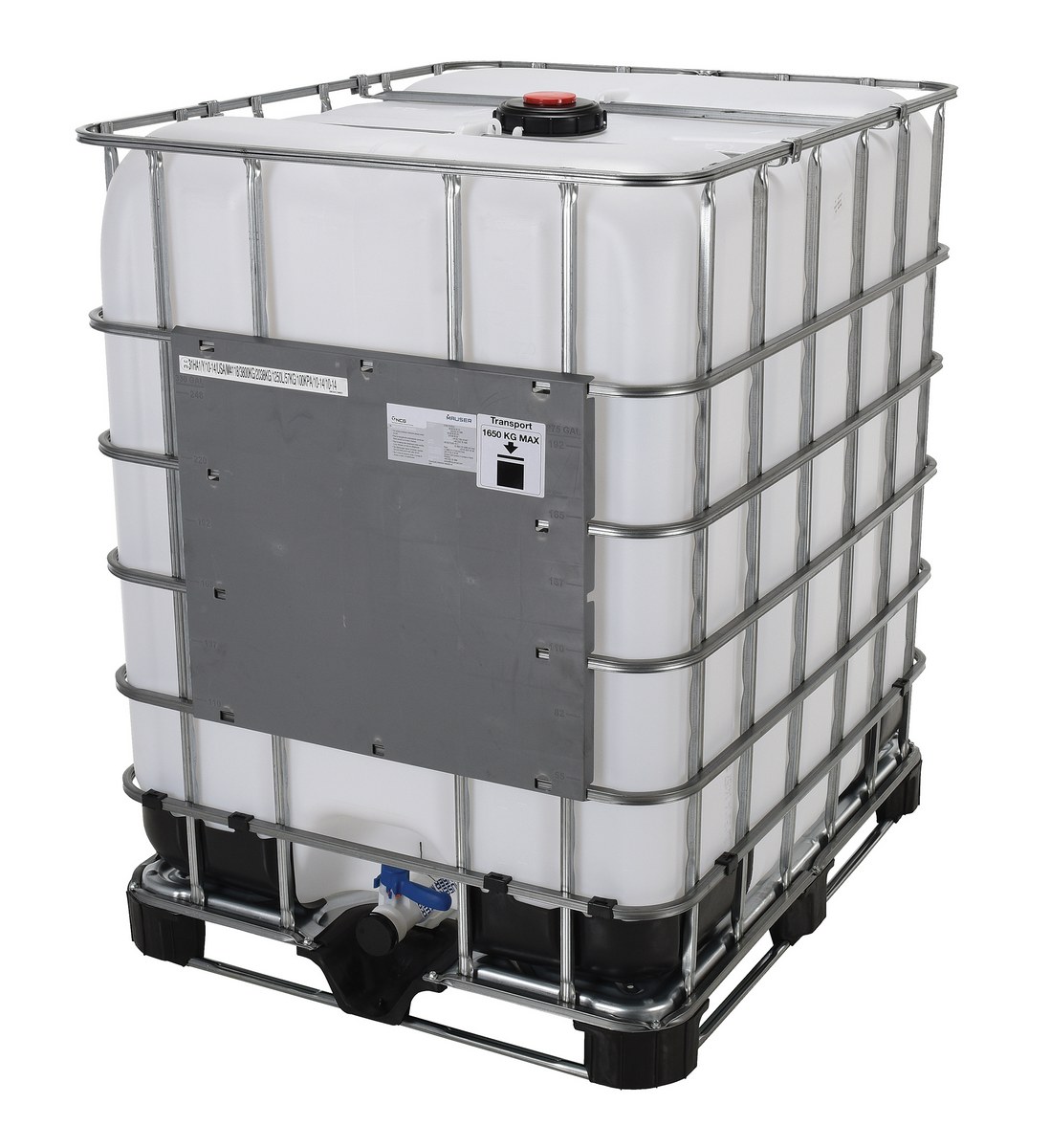

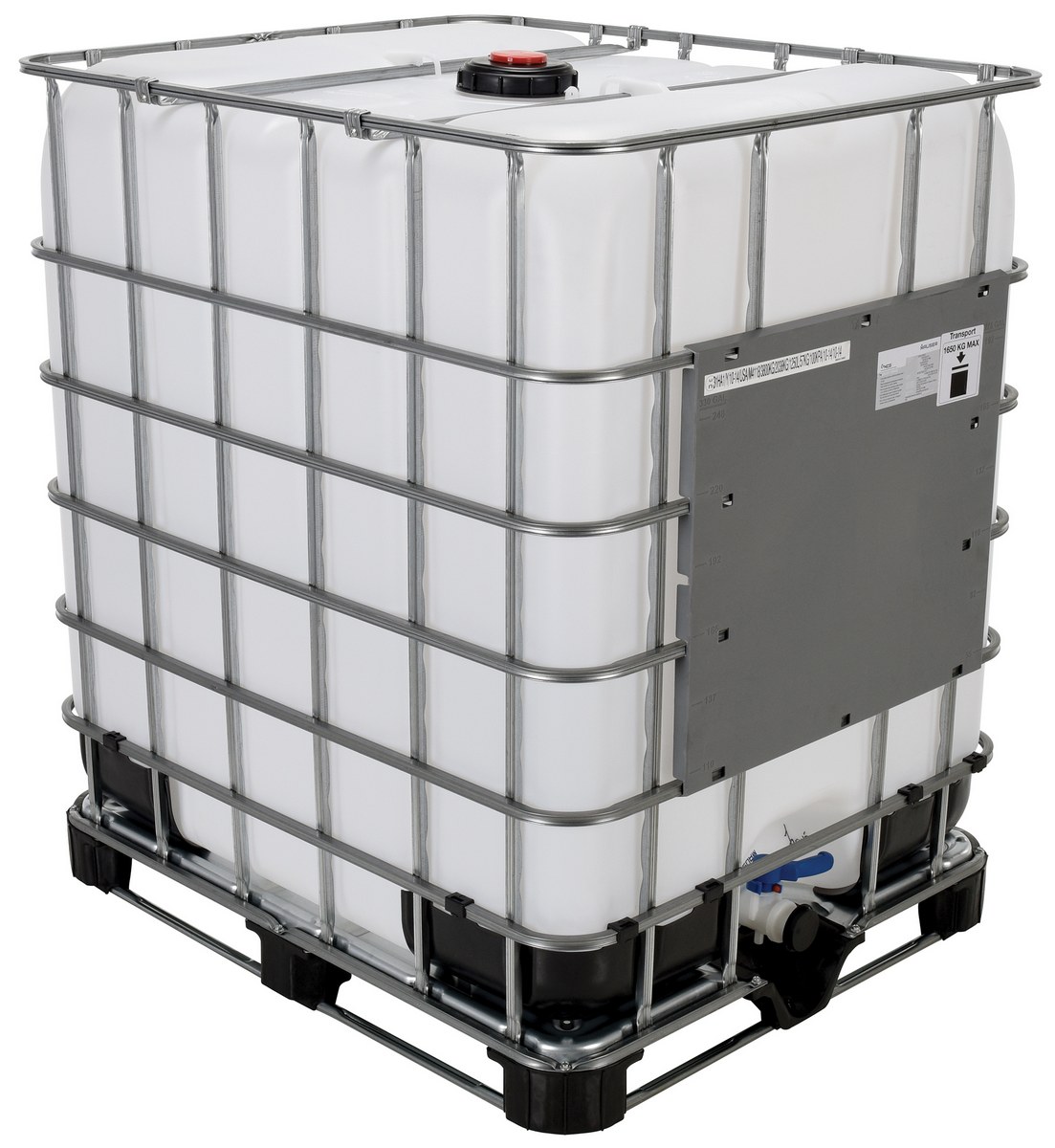

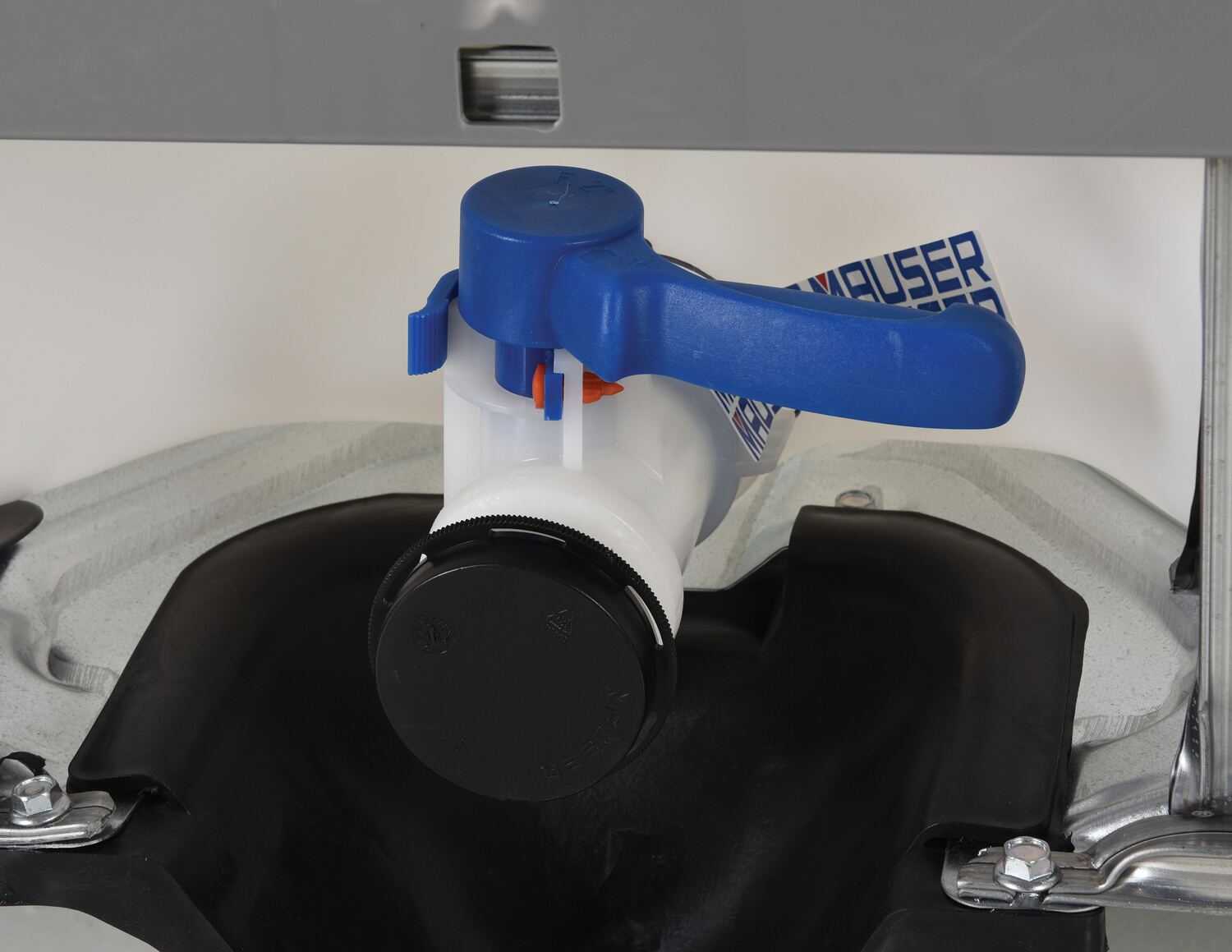

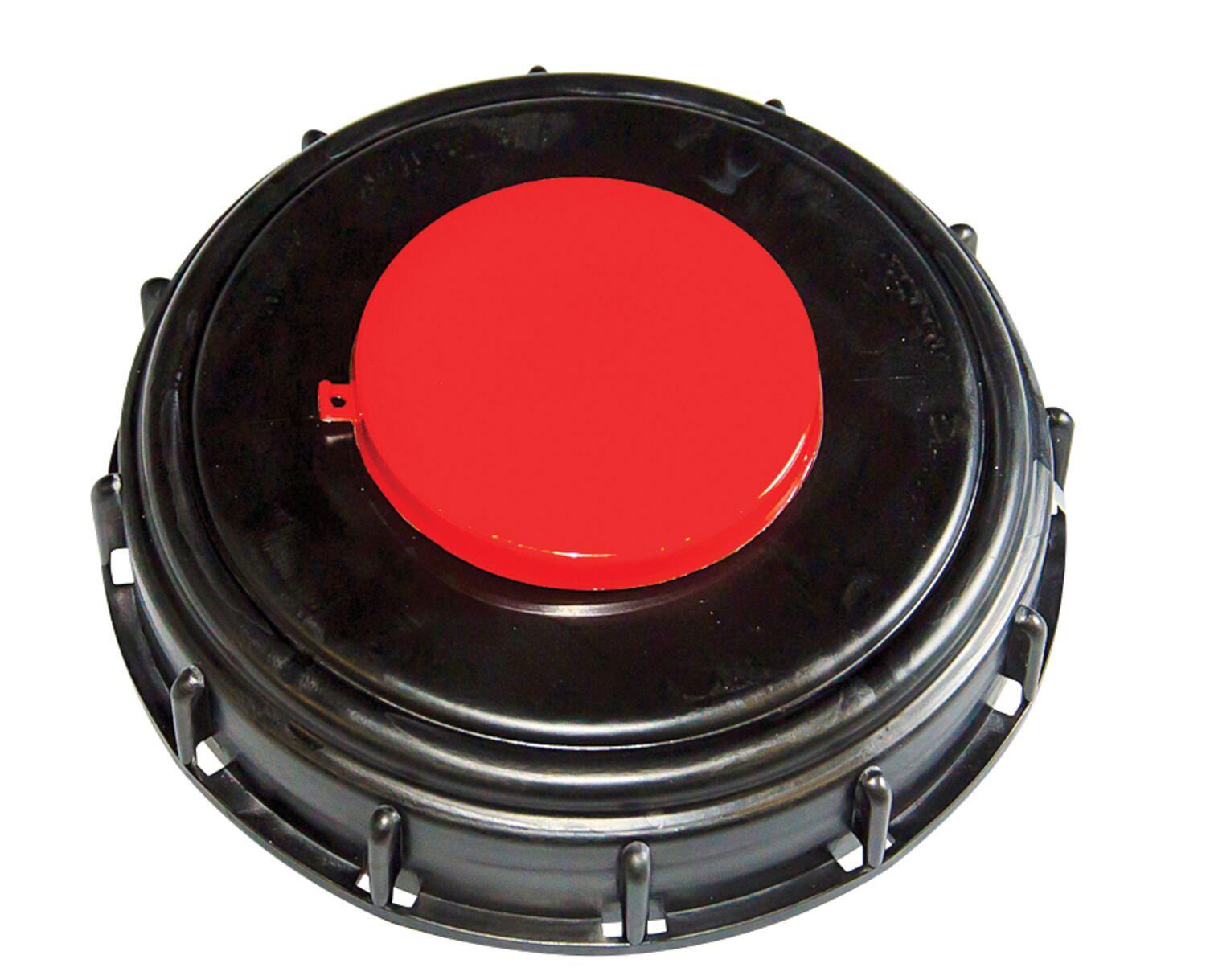

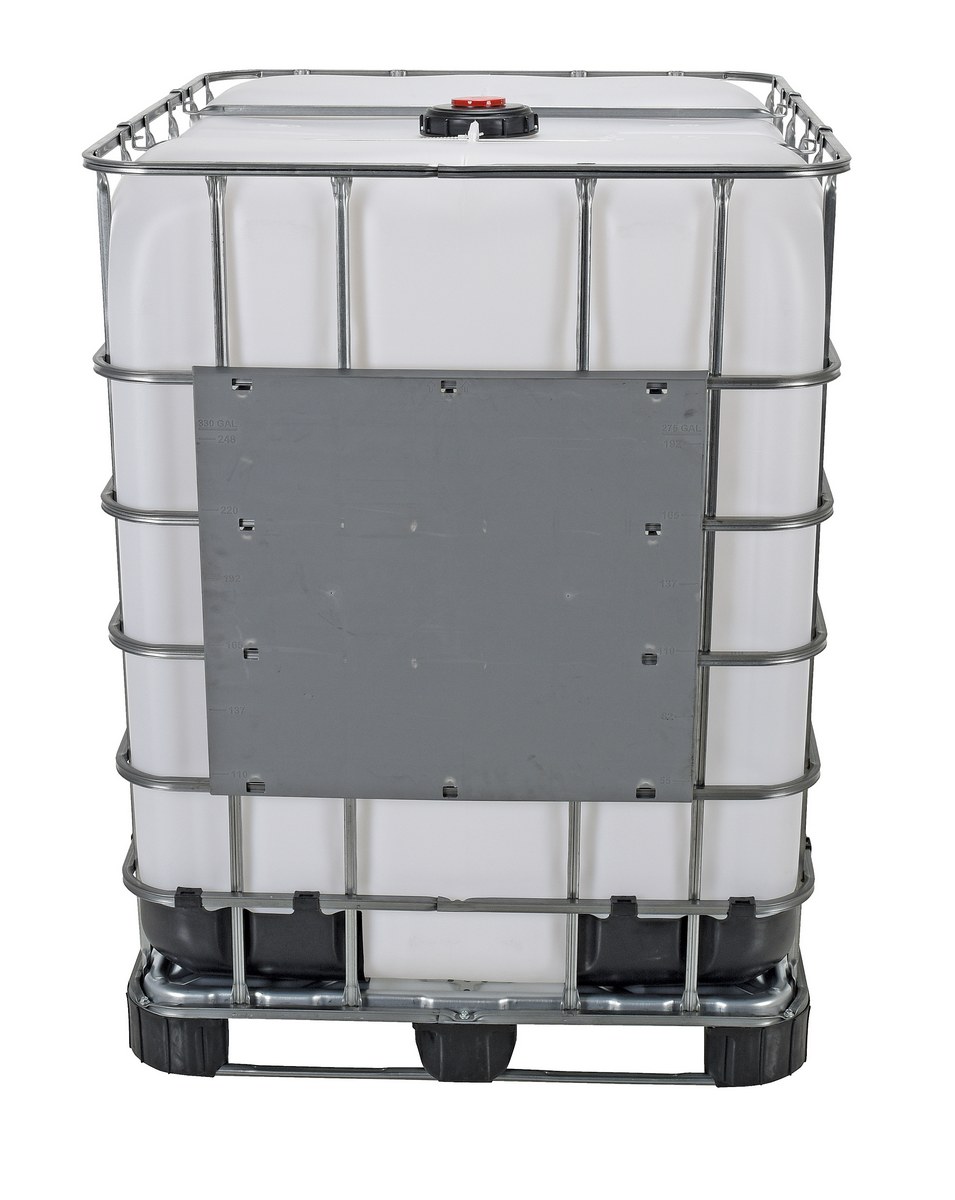

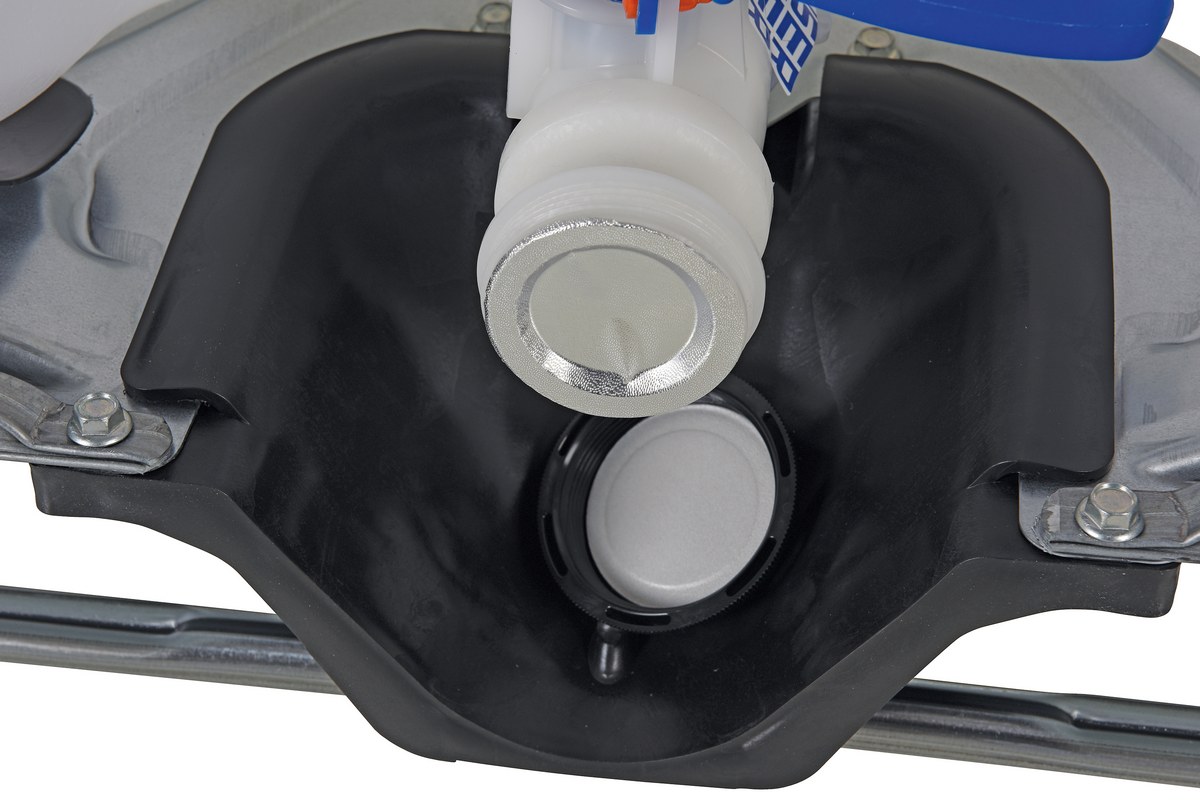

Space-savings storage containers are great for multi-trip applications. Designed for storage of both hazardous and nonhazardous contents (not to be used with flammable material such as gasoline). Easy to fill, stack and load. Hot-dipped galvanized steel cage is consistent with Food Code requirements for use in non-direct food contact environments. FDA compliant steel cage is hot-dipped galvanized. Pallet base is made from both steel and plastic. Includes inner storage tank made from white plastic with UV-blocking additive. Includes 2" butterfly valve with a durable, synthetic fluorocarbon rubber gasket. Top fill cap is 6" diameter with 2" bung. Complete unit is UN approved. UN 31HA1/Y. Both units are DOT certified.

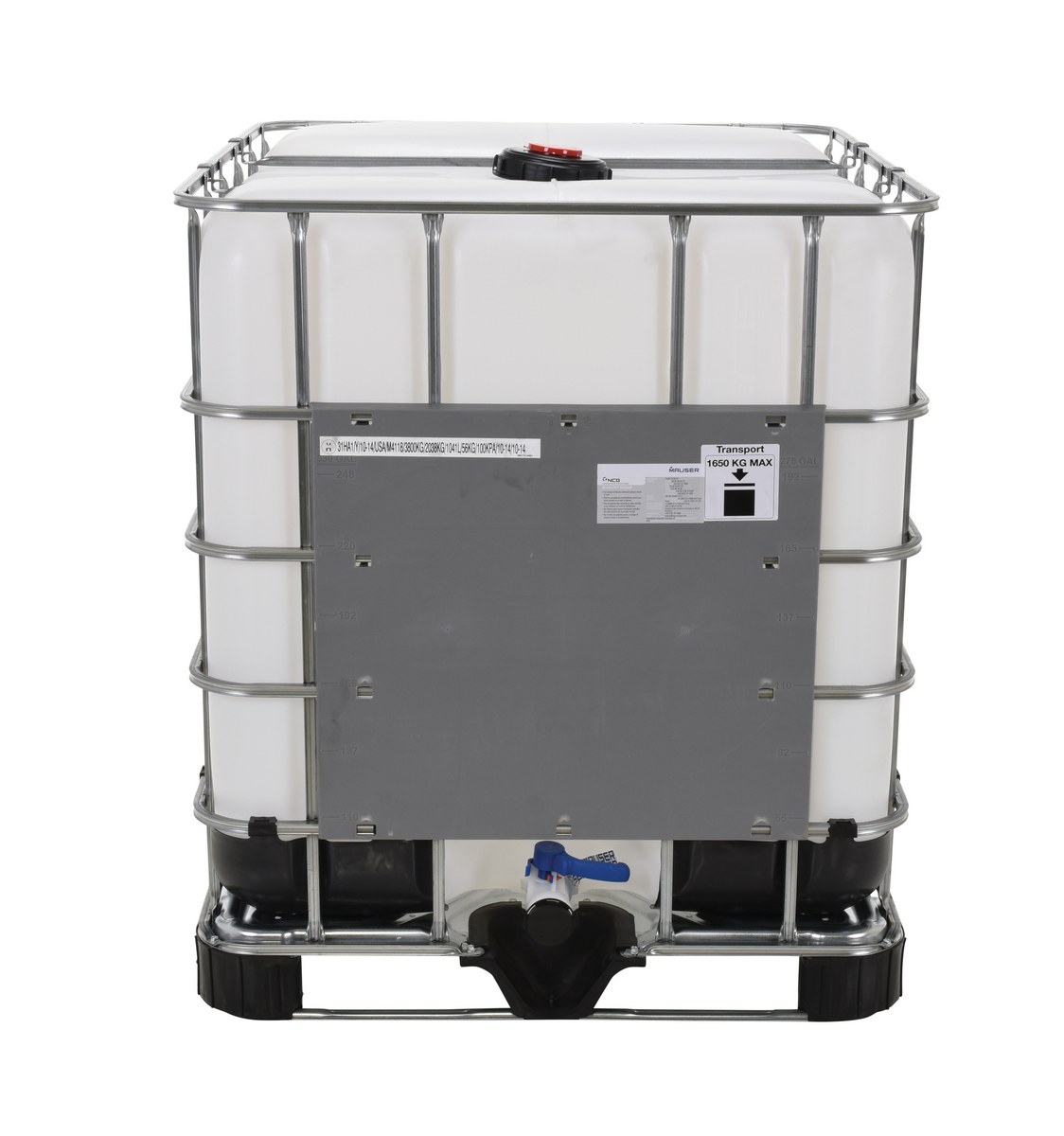

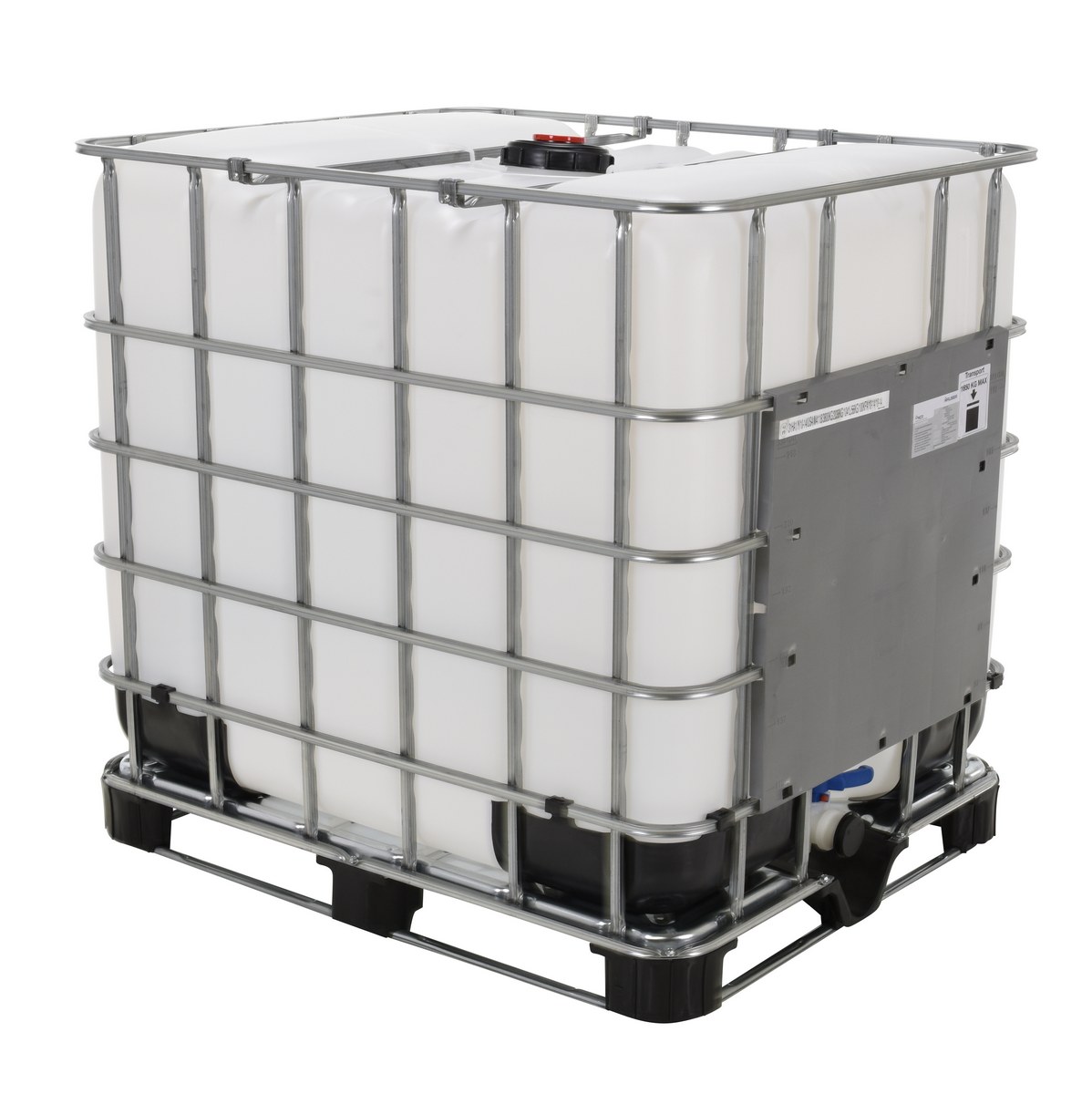

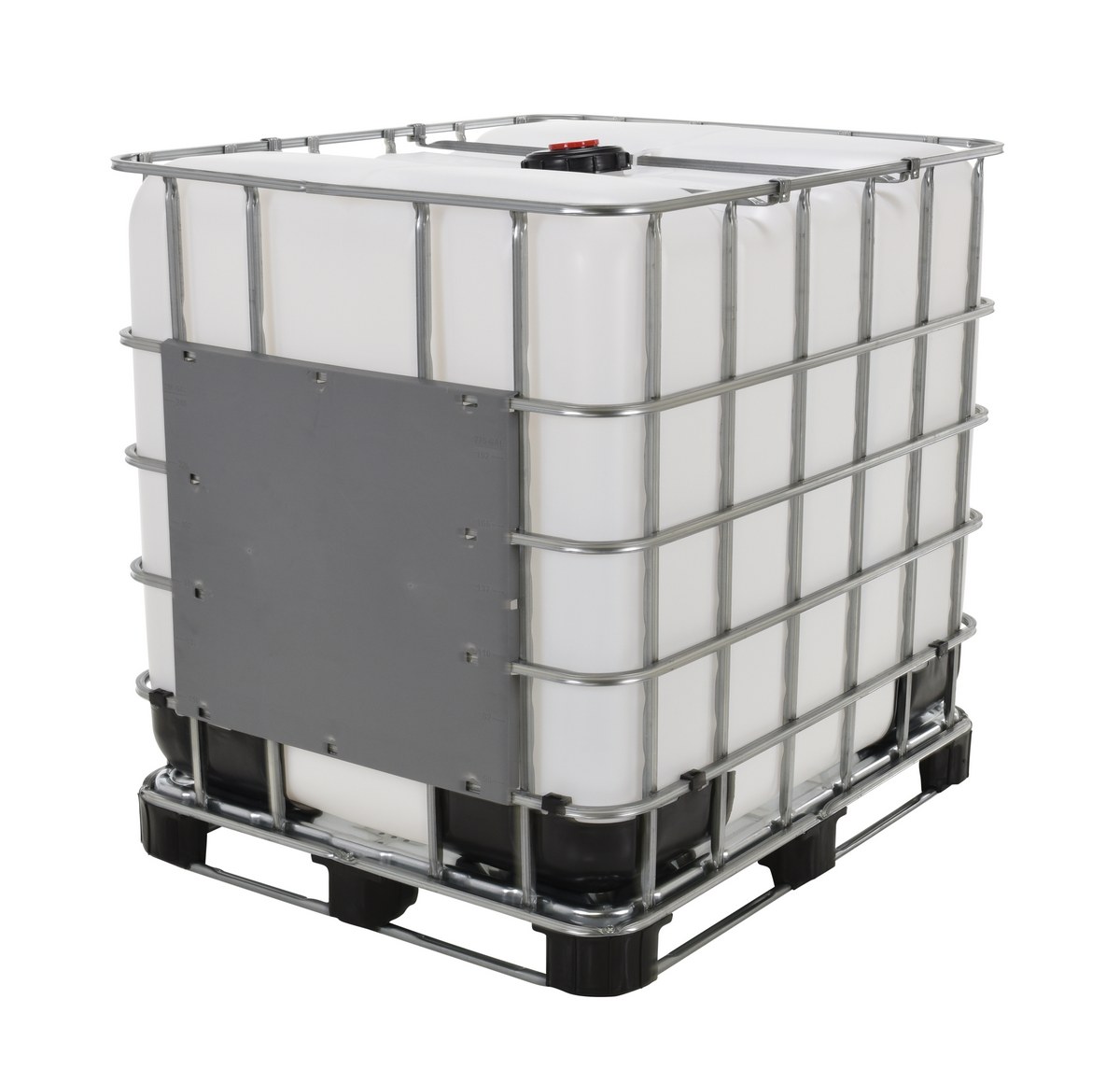

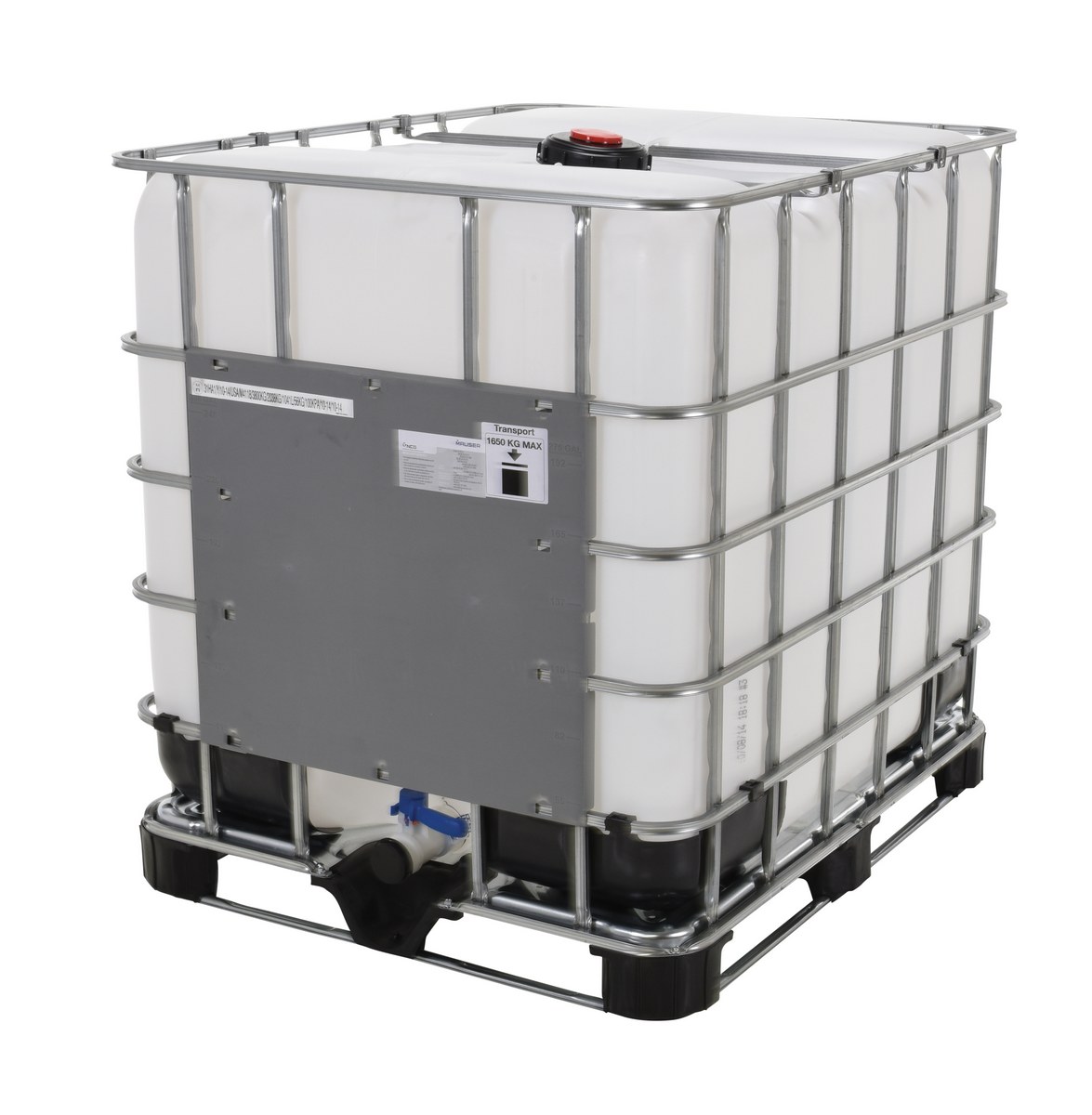

IBC-275

model IBC-275

ISCP-1

model ISCP-1

ISCP-2

model ISCP-2

ISCP-DP

model ISCP-DP

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Intermediate Bulk Crate

Model

PDFs Overall Size
(WxLxH)
Uniform
Capacity
(lbs)
Uniform Volume
Capacity
Wt.
(lbs.)
IBC-275 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 40"x48"x46-1/2" 2,500 275-Gallon 130

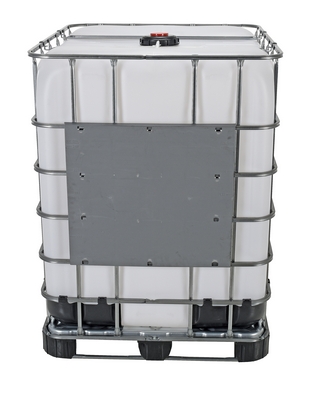

IBC-330 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 40"x48"x53" 3,000 330- Gallon 140
Intermediate Bulk Crate Spill Containment Pallets

Model

PDFs Description

Dimensions
(W x L x H)

Containment
Capacity
Uniformly
Distributed
Load
Fork
Pockets
(W x H)
Wt.
(lbs.)

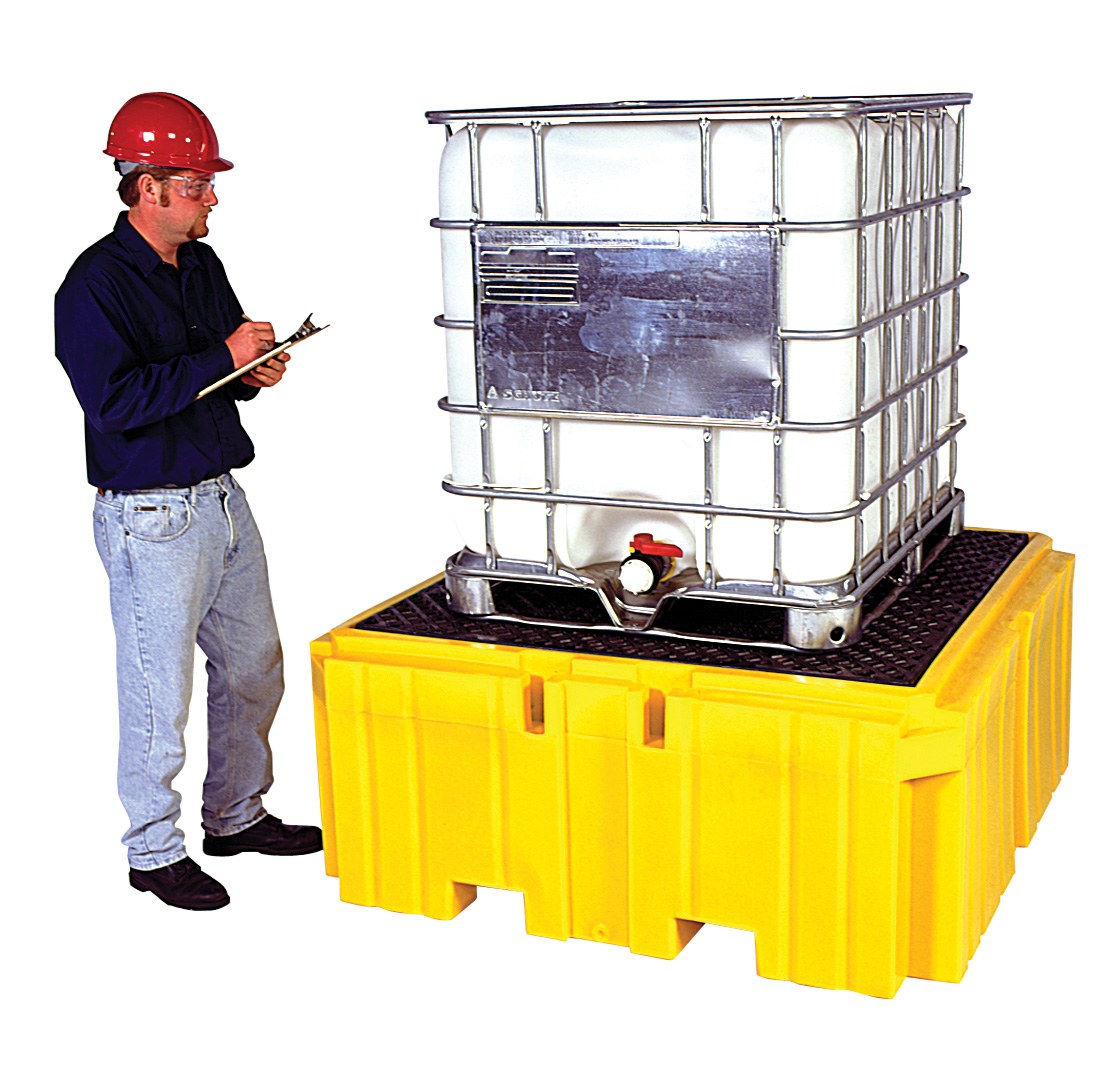

ISCP-1 Warranty PDFCompliance Certificate 1 IBC Containment Pallet w/ Drain 62" x 62"x 28" 360 Gal 8,500 lbs 7-1/4"W x 4"H, 324
ISCP-2 Warranty PDFCompliance Certificate 2 IBC Containment Pallet w/ Drain 62"x 124-1/2" x 22" 535 Gal 8,000 lbs 7-1/4"W x 4-3/4"H 452

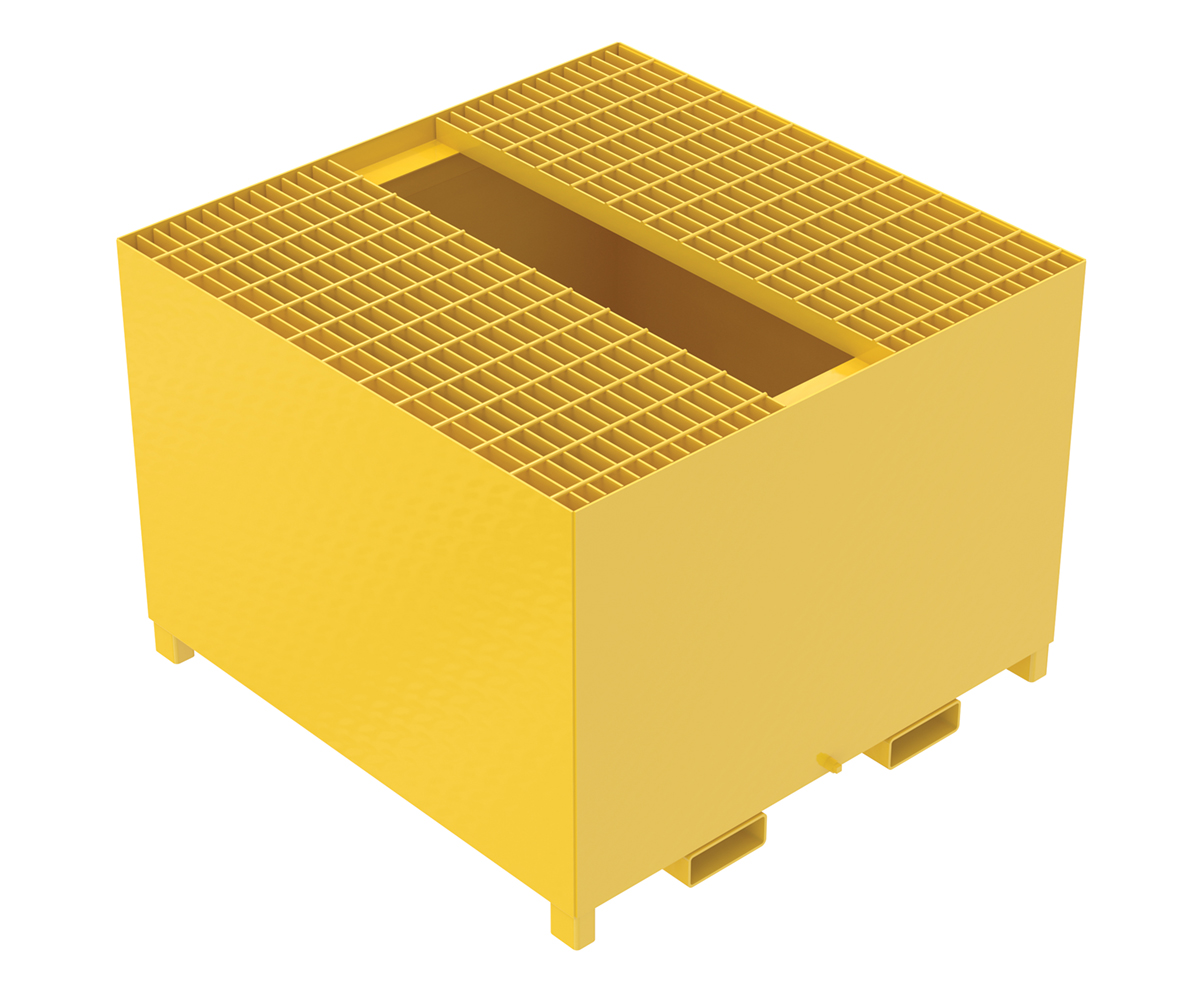

ISCS-1* Warranty PDF IBC Steel Spill Container 50-7/8"x53"x37-1/4" 400 Gal 2,500 lbs 7-1/2"x2-1/2" 1018

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Options Tab.

Click A Model Number Below To Show Details



PDF's will open in a new window when clicked.

Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

IBC-275
IBC-330
ISCS-1

Testing Certificates

ISCS-1

Other PDF's


Directory Links Of Available PDF's For All Products

Image Gallery

We are hoping to continue adding new product pictures to each gallery. Check back soon.

Video Gallery

No Videos for this product at this time. Please Check back.









Options

ISCP-DP Warranty PDFCompliance Certificate Optional Drip Pan (19-1/2"Wx16"Lx14-1/2"H) 12

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Specifications Tab.

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below
