Click Image to Enlarge

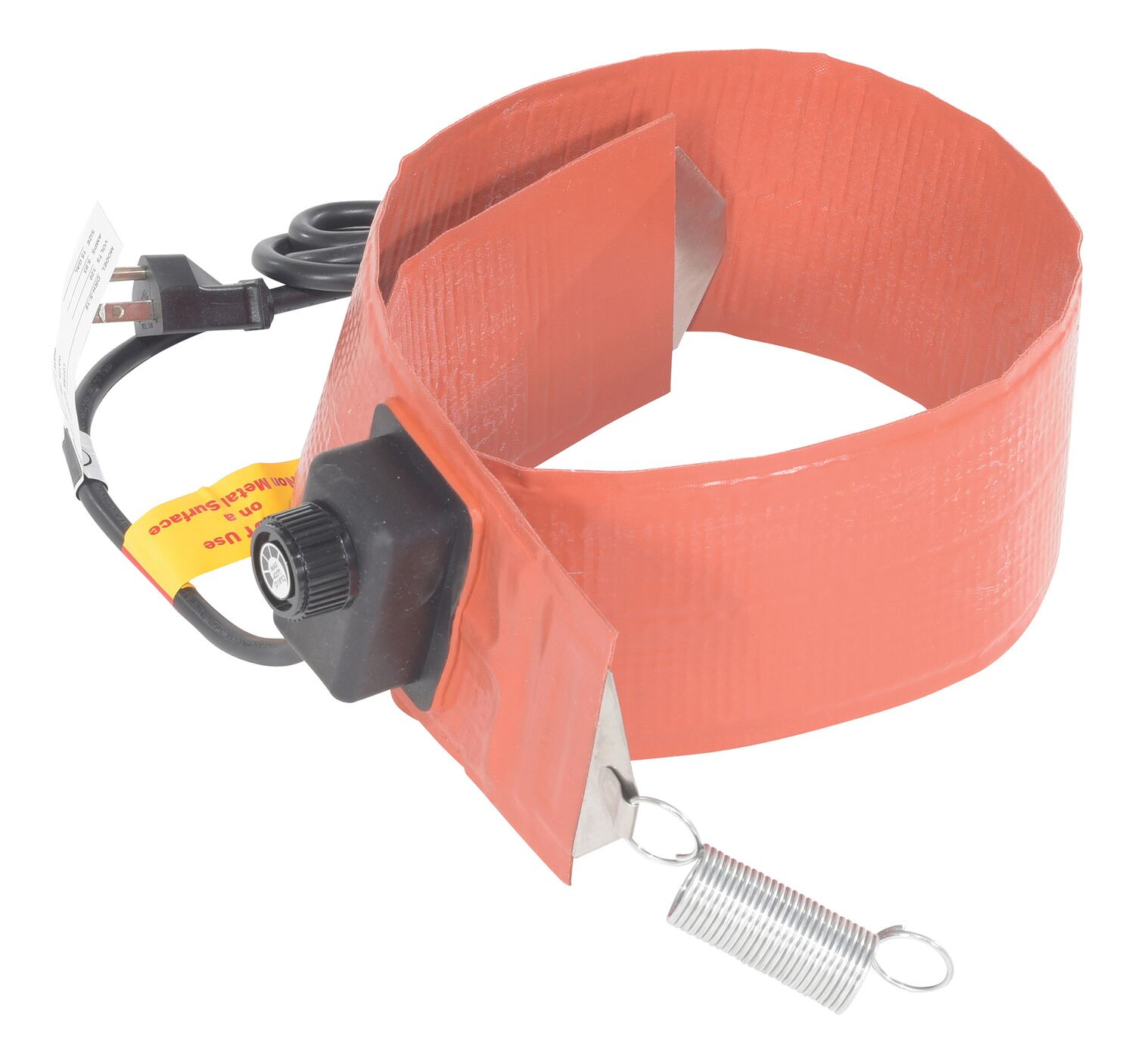

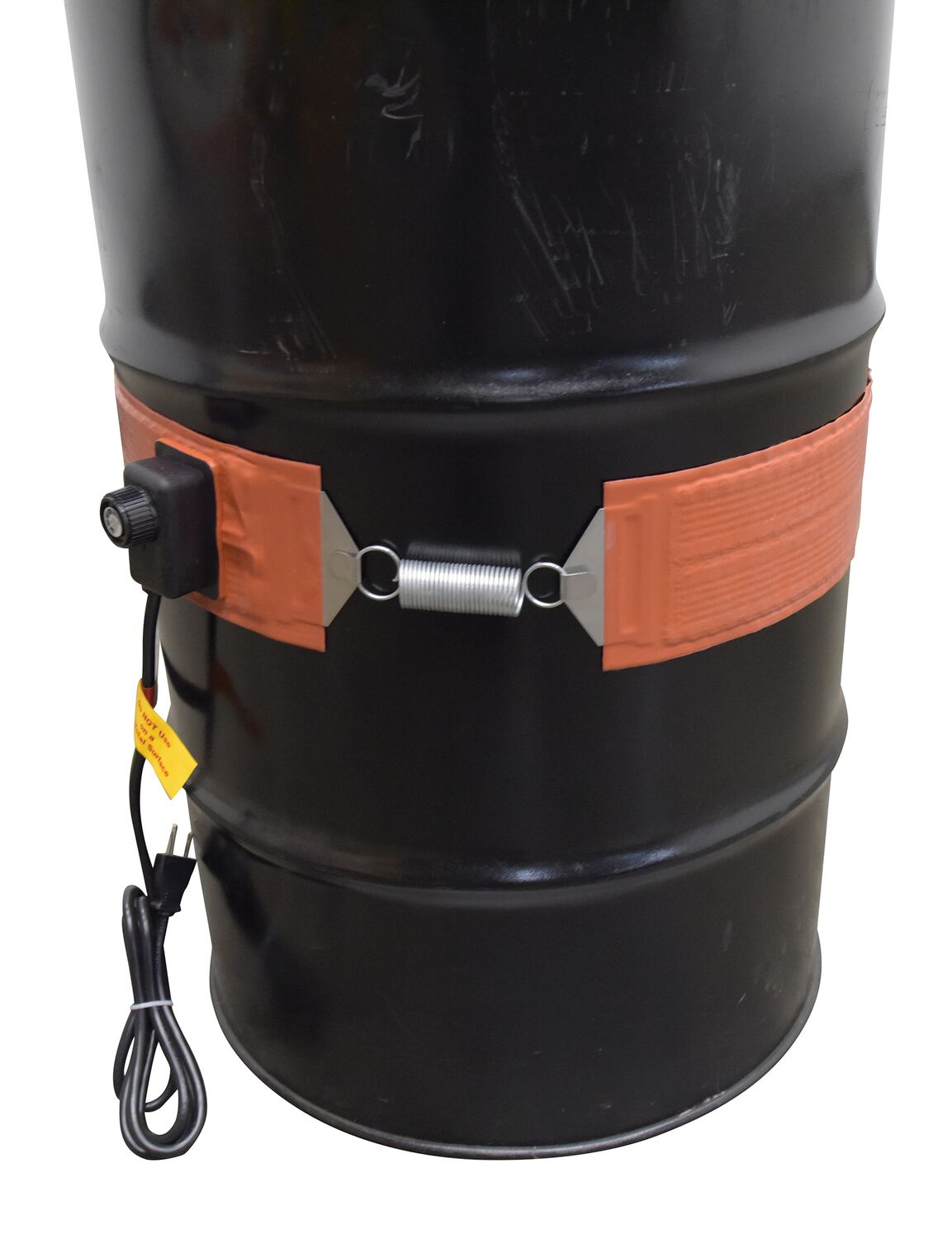

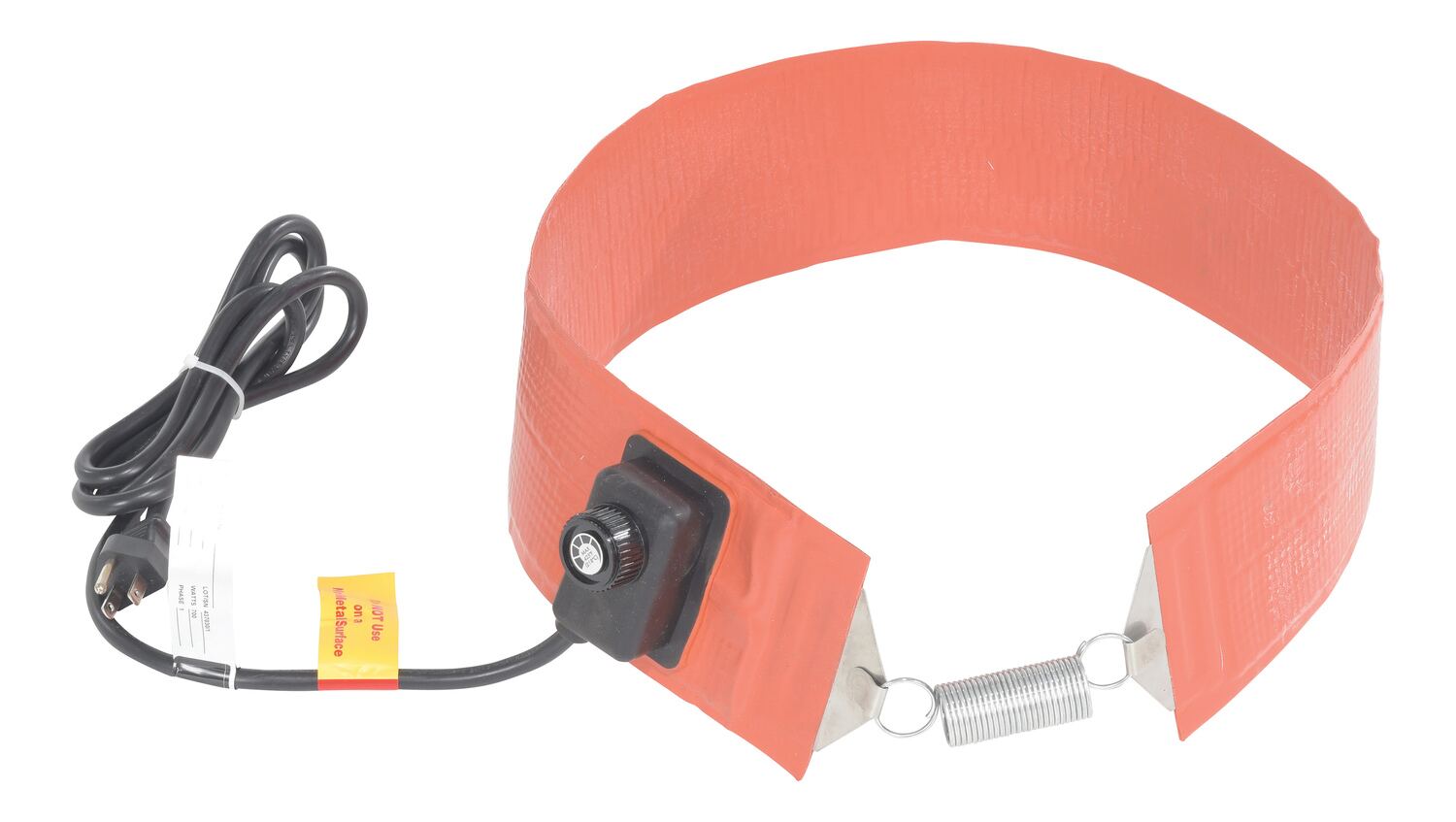

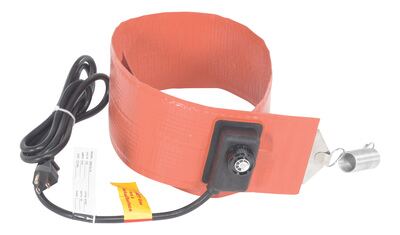

model: DRH-S-15


Drum Heaters
SERIES: DRH

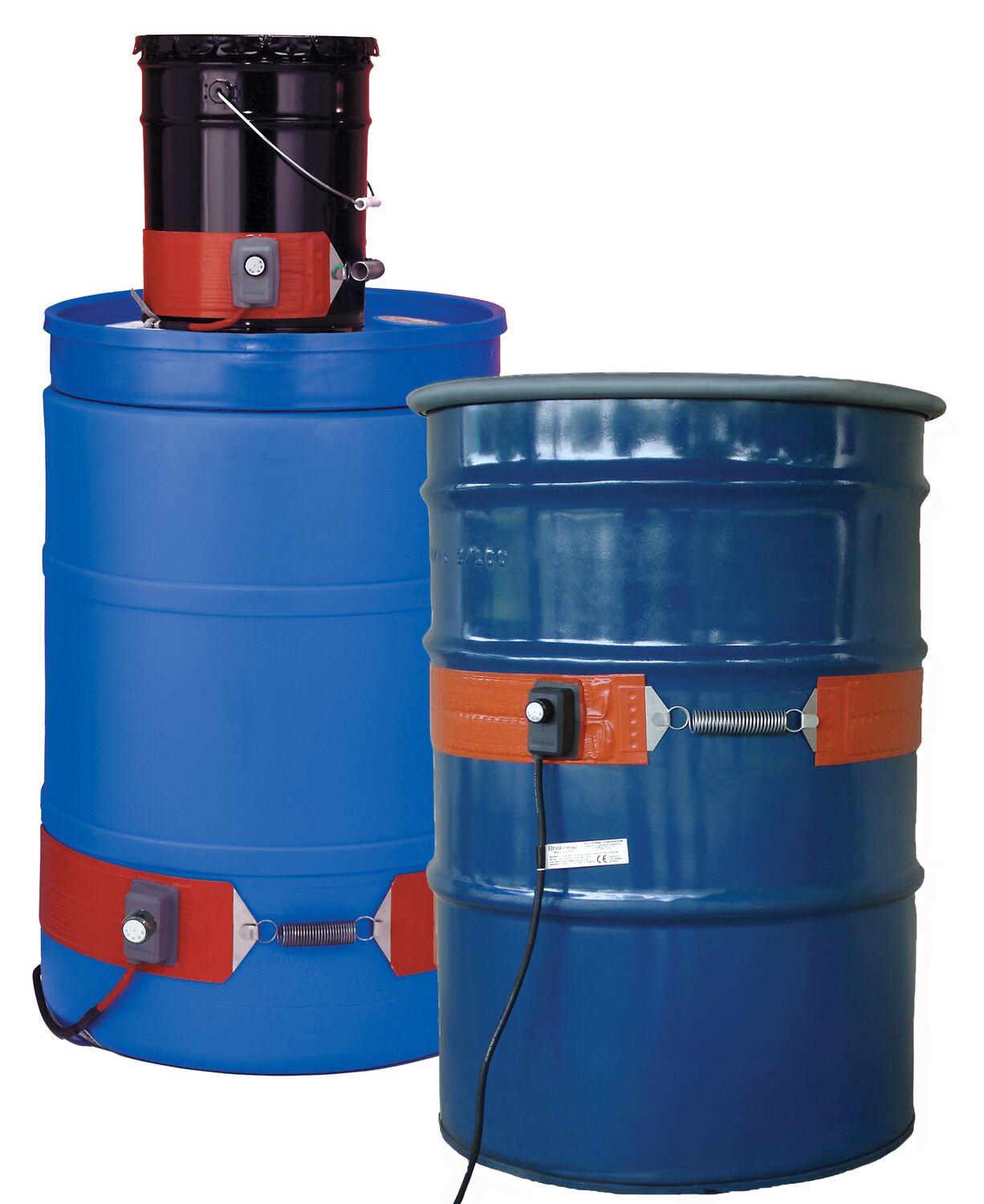

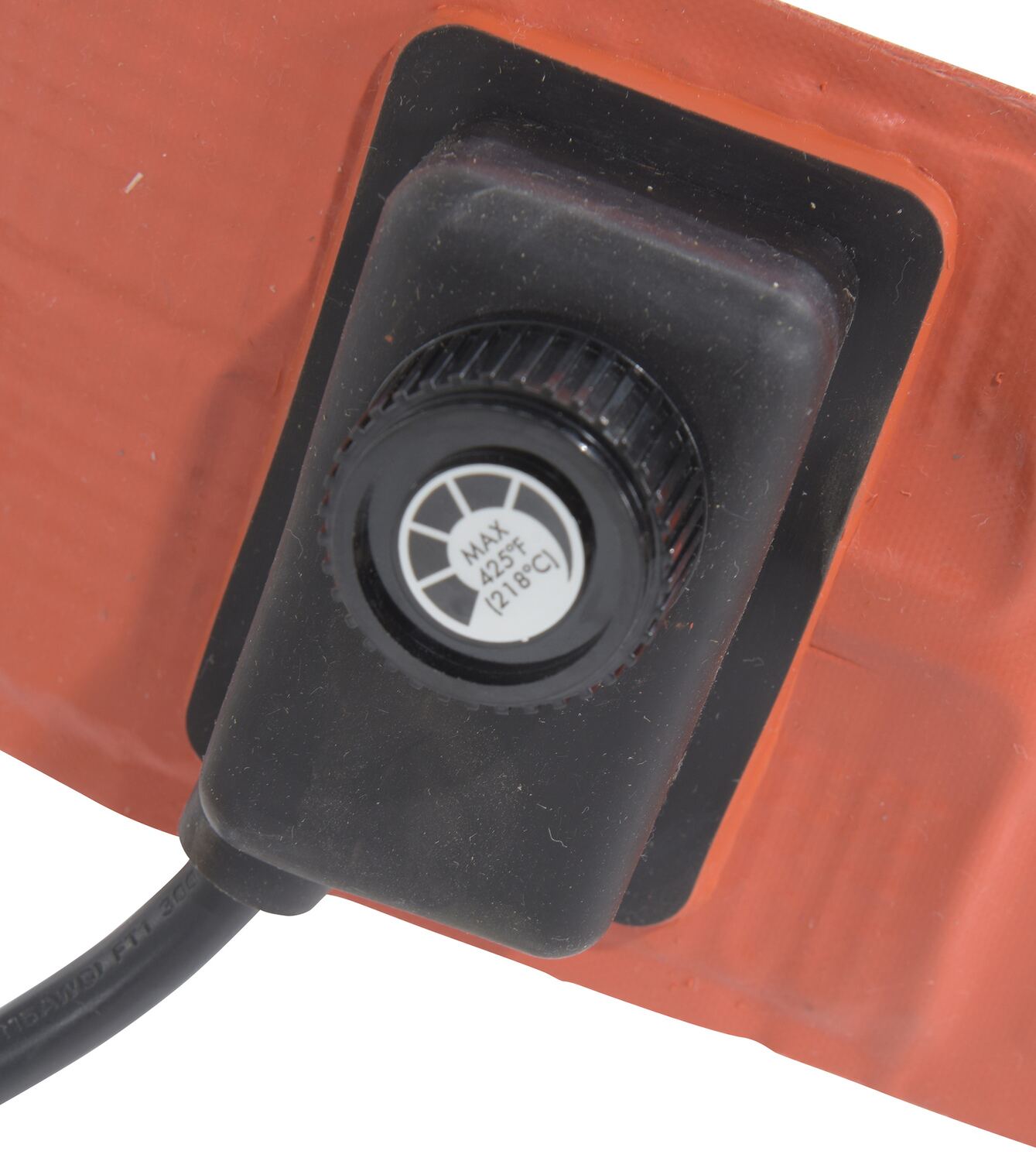

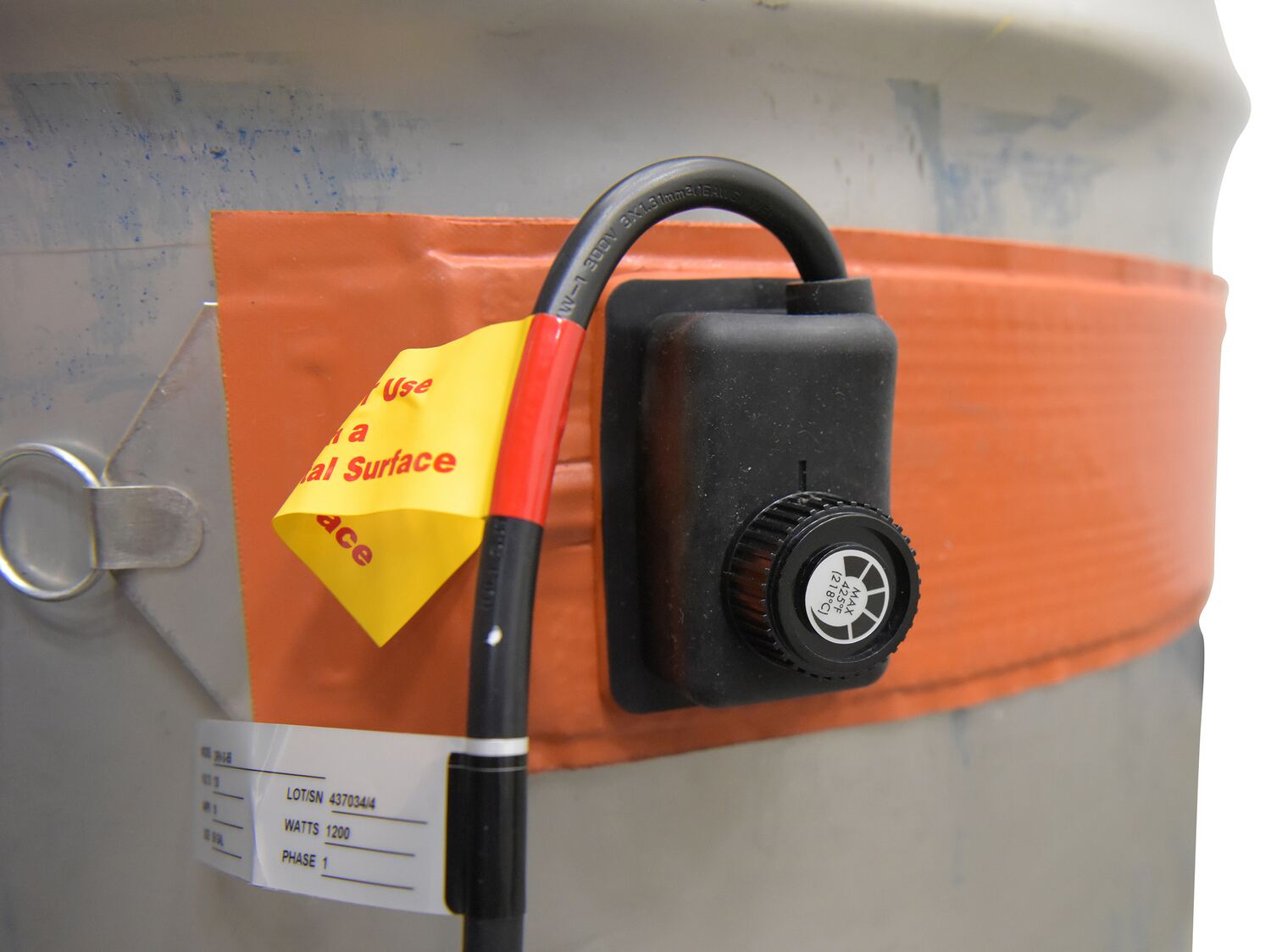

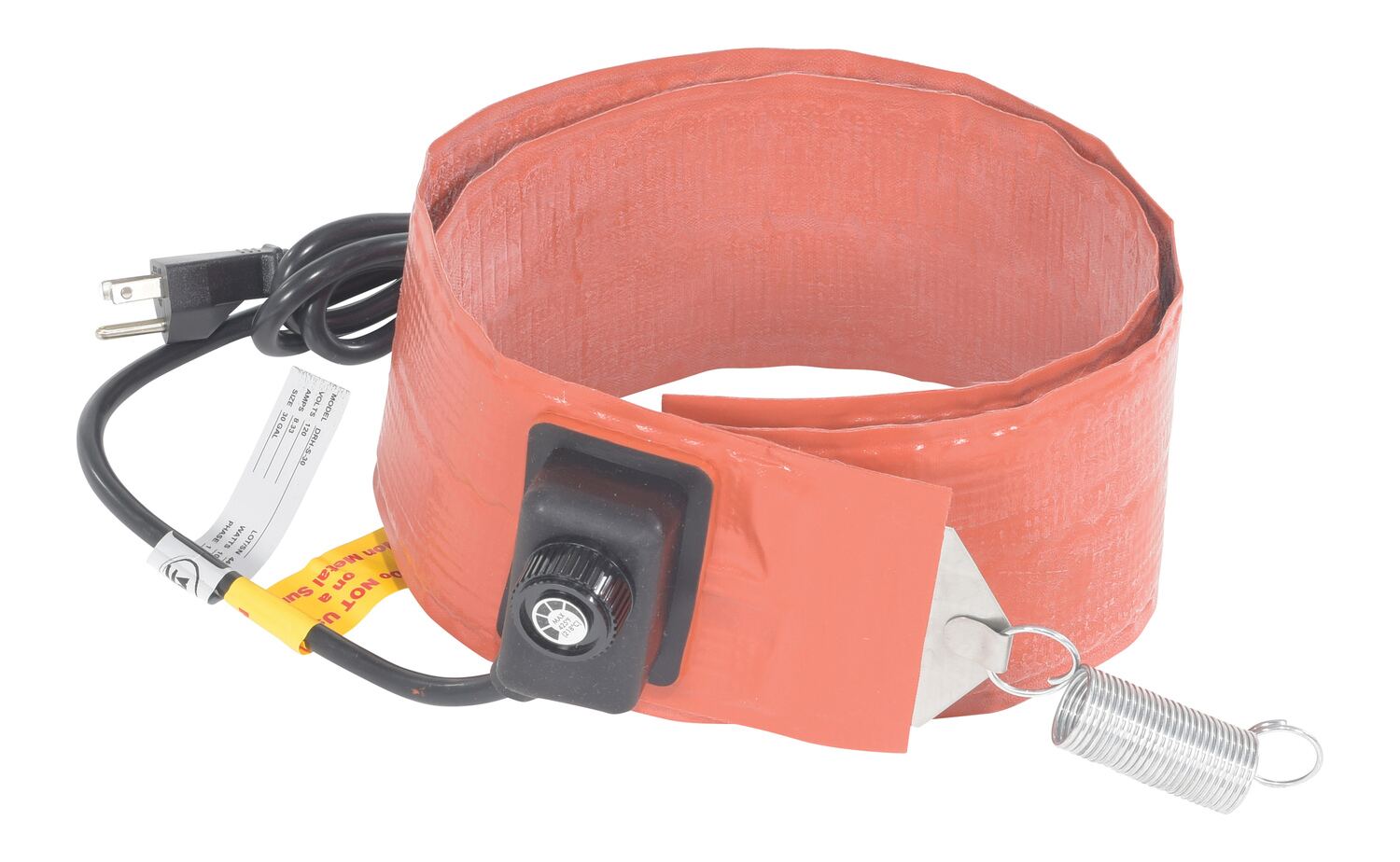

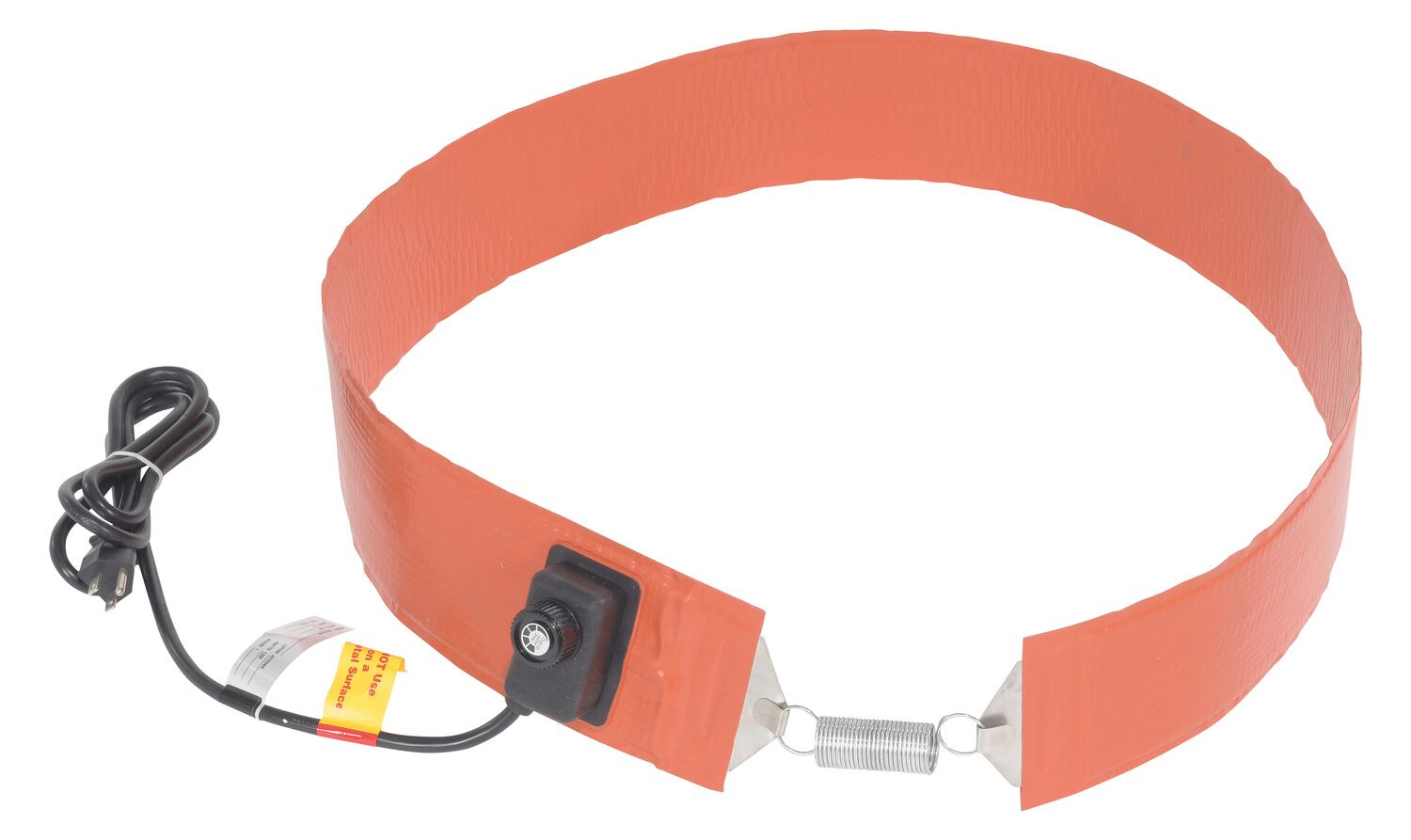

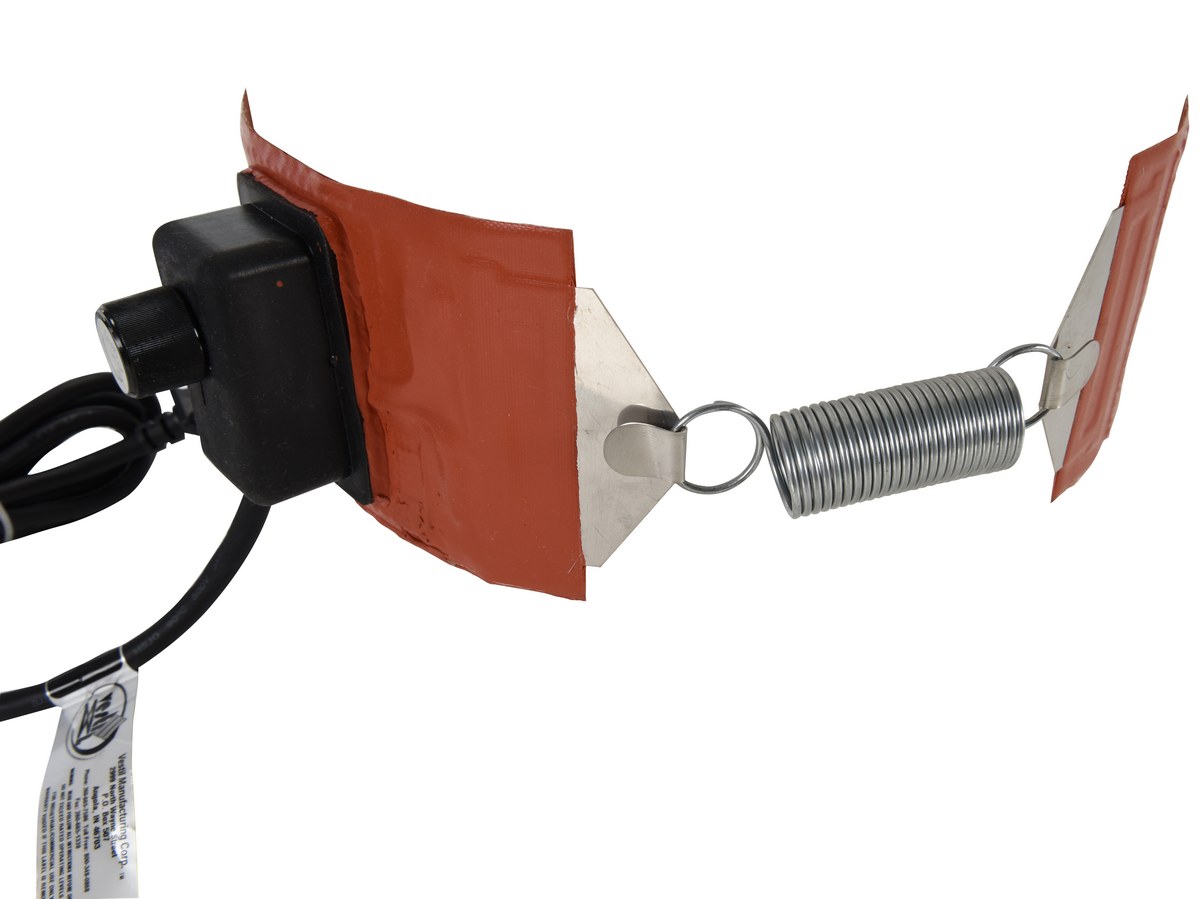

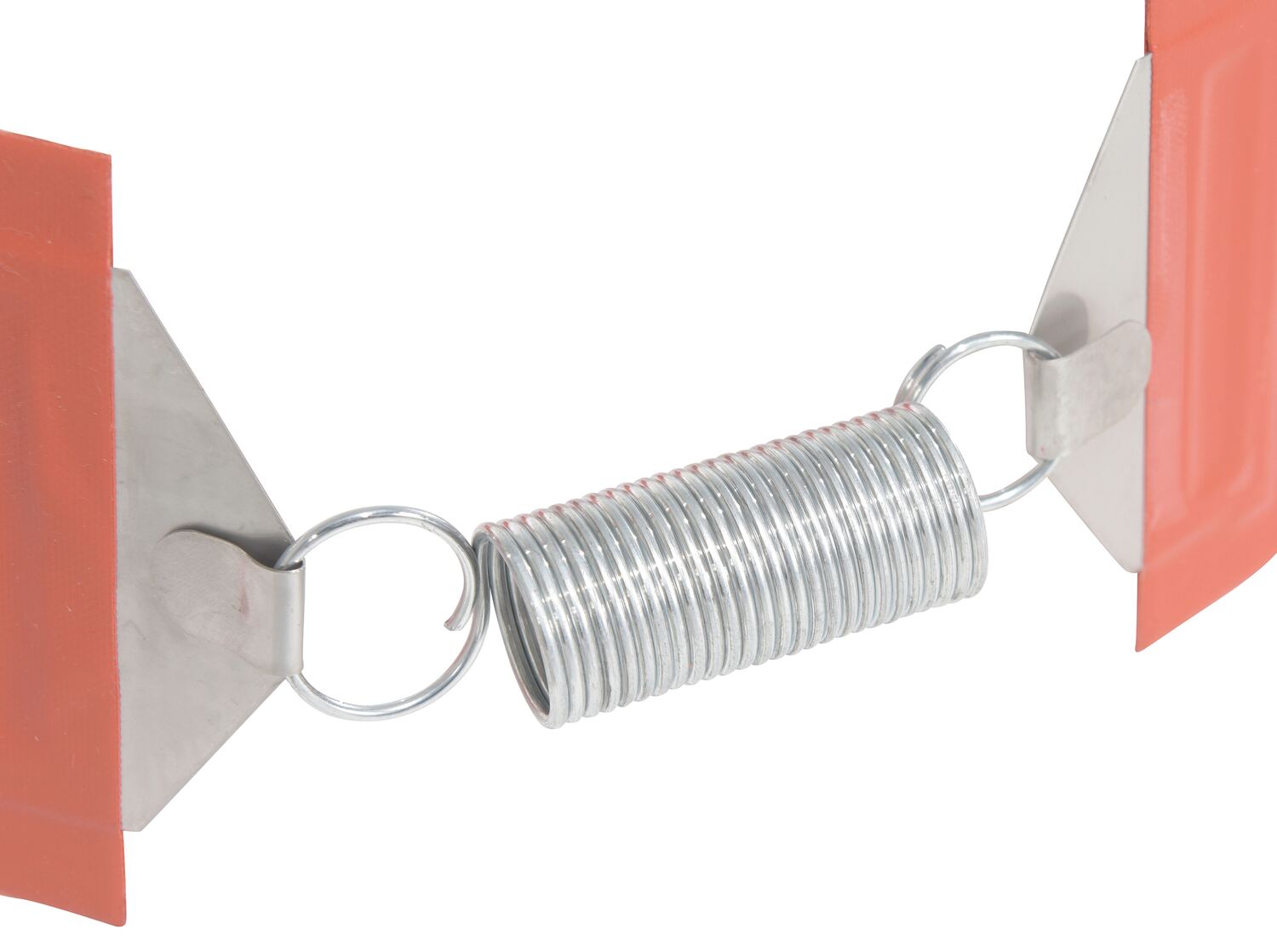

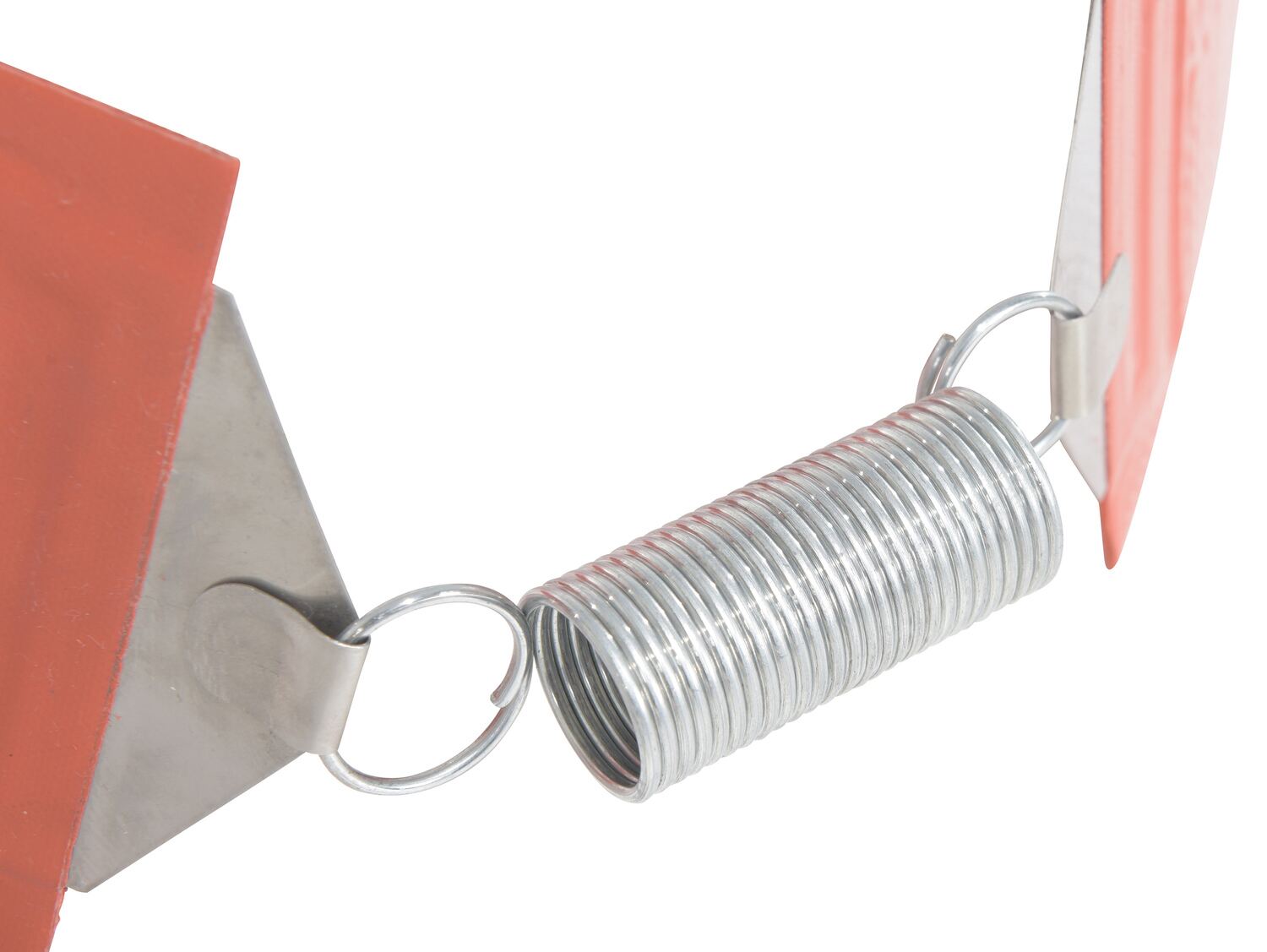

Quickly and efficiently heat-up your steel drums or pails. Easily adjust thermostat set-point: 50 to 425 degrees Fahenheit for steel drums and 50 to 160 degrees Fahrenheit on poly drums. This extra-wide 4" silicone rubber band heater is moisture and chemical resistant. Multi-stranded grounded heating element provides uniform heat and a long service life. Spring closure can be expanded 3". Unit comes with a 6-foot-long power cord, grounded 3-prong. The -CA suffix indicates models that are CSA approved for use in Canada only. Feature a 6 foot long power cord with no plug. The use of multiple heaters may reduce heat stratification of the material being heated.

Quickly and efficiently heat-up your steel drums or pails. Easily adjust thermostat set-point: 50 to 425 degrees Fahenheit for steel drums and 50 to 160 degrees Fahrenheit on poly drums. This extra-wide 4" silicone rubber band heater is moisture and chemical resistant. Multi-stranded grounded heating element provides uniform heat and a long service life. Spring closure can be expanded 3". Unit comes with a 6-foot-long power cord, grounded 3-prong. The -CA suffix indicates models that are CSA approved for use in Canada only. Feature a 6 foot long power cord with no plug. The use of multiple heaters may reduce heat stratification of the material being heated.

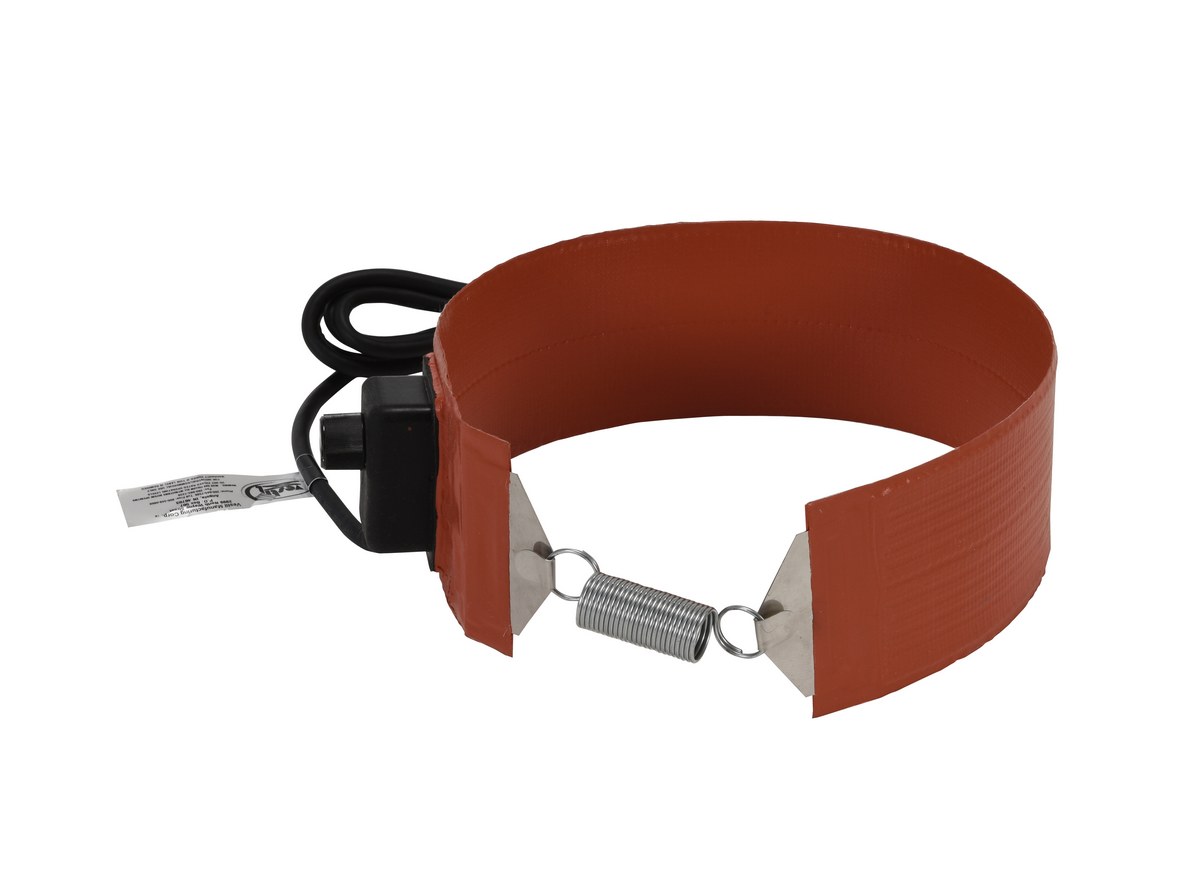

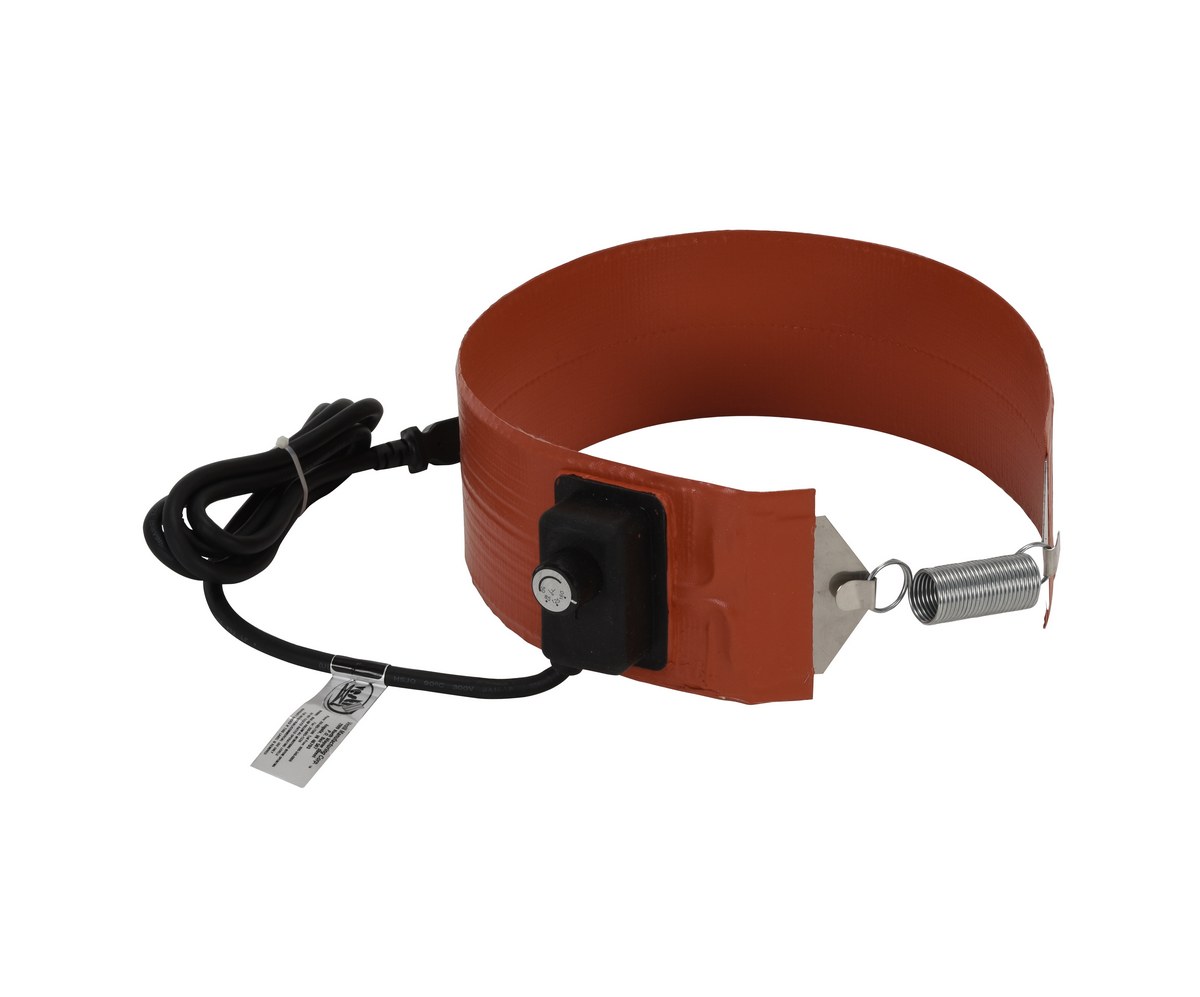

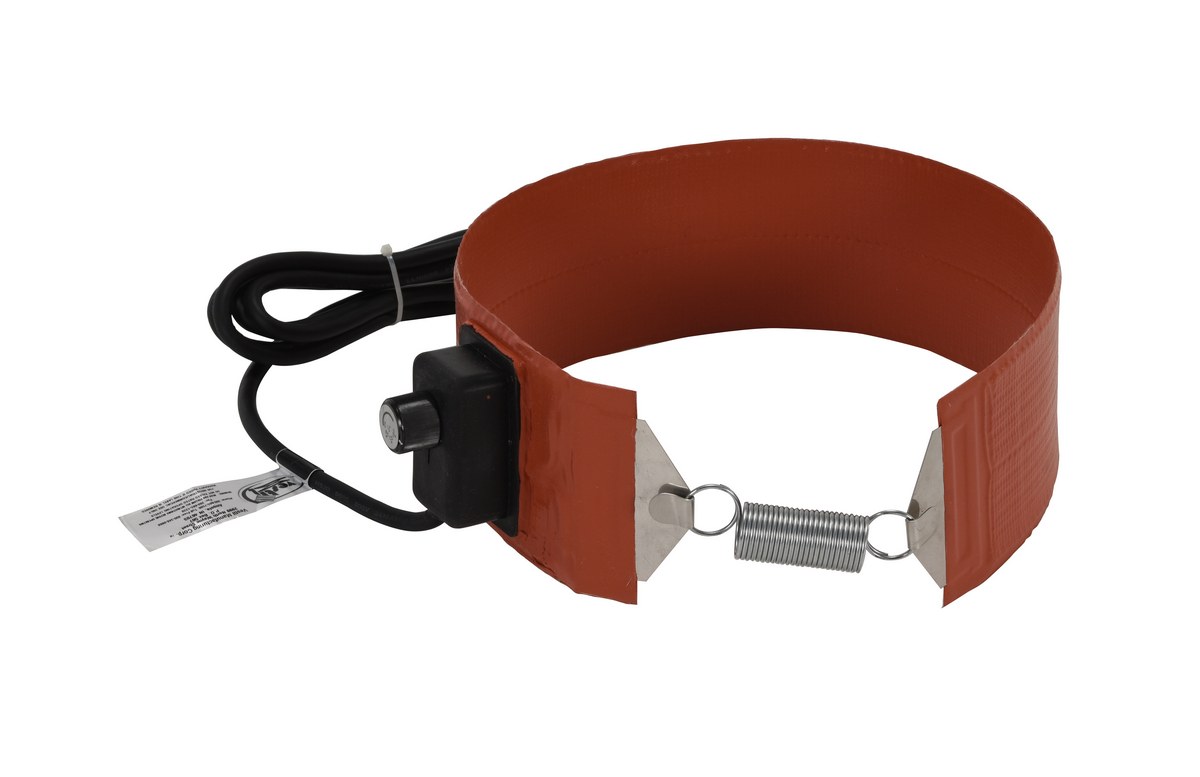

DRH-P-5

model DRH-P-5

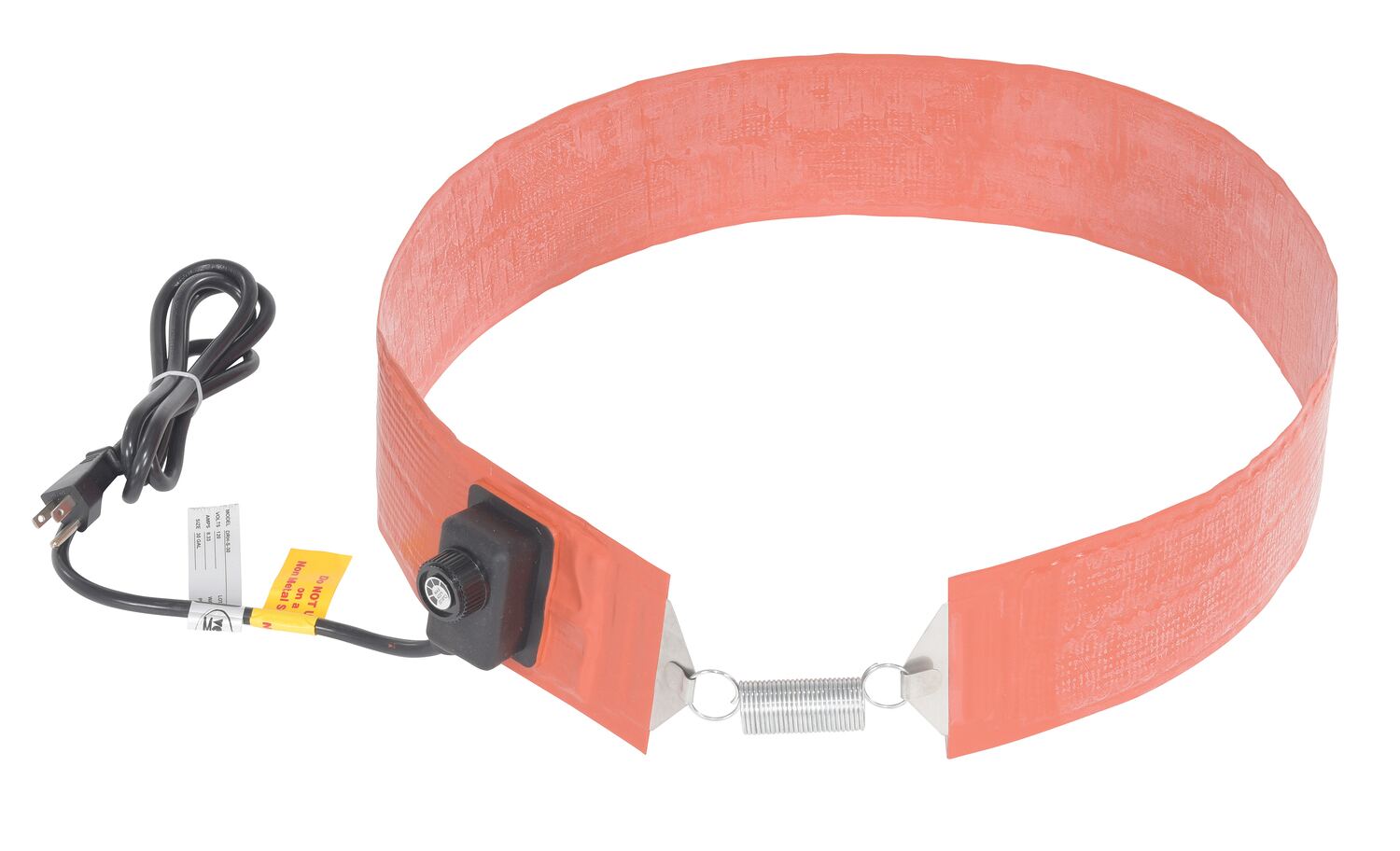

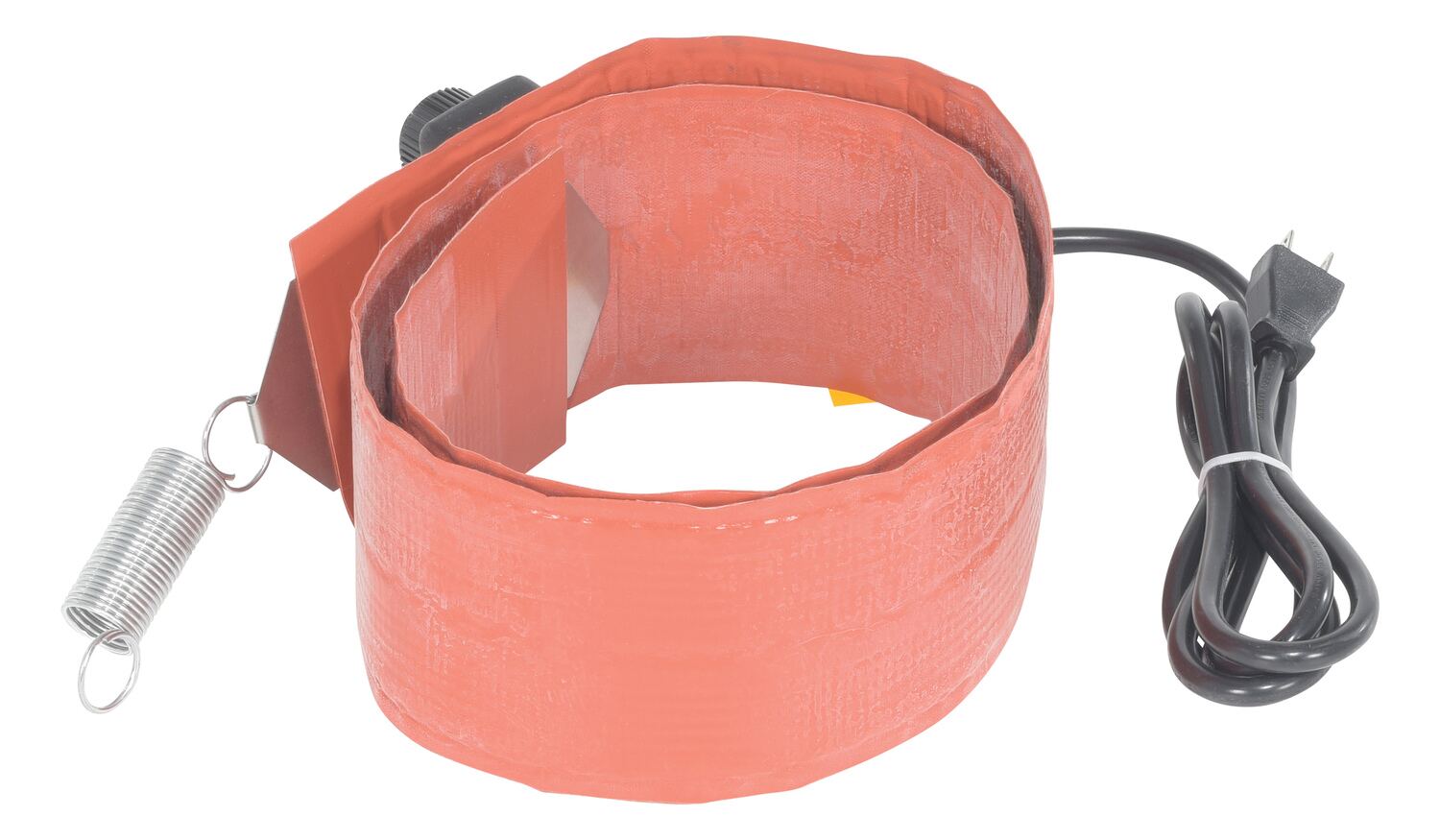

DRH-S-30

model DRH-S-30

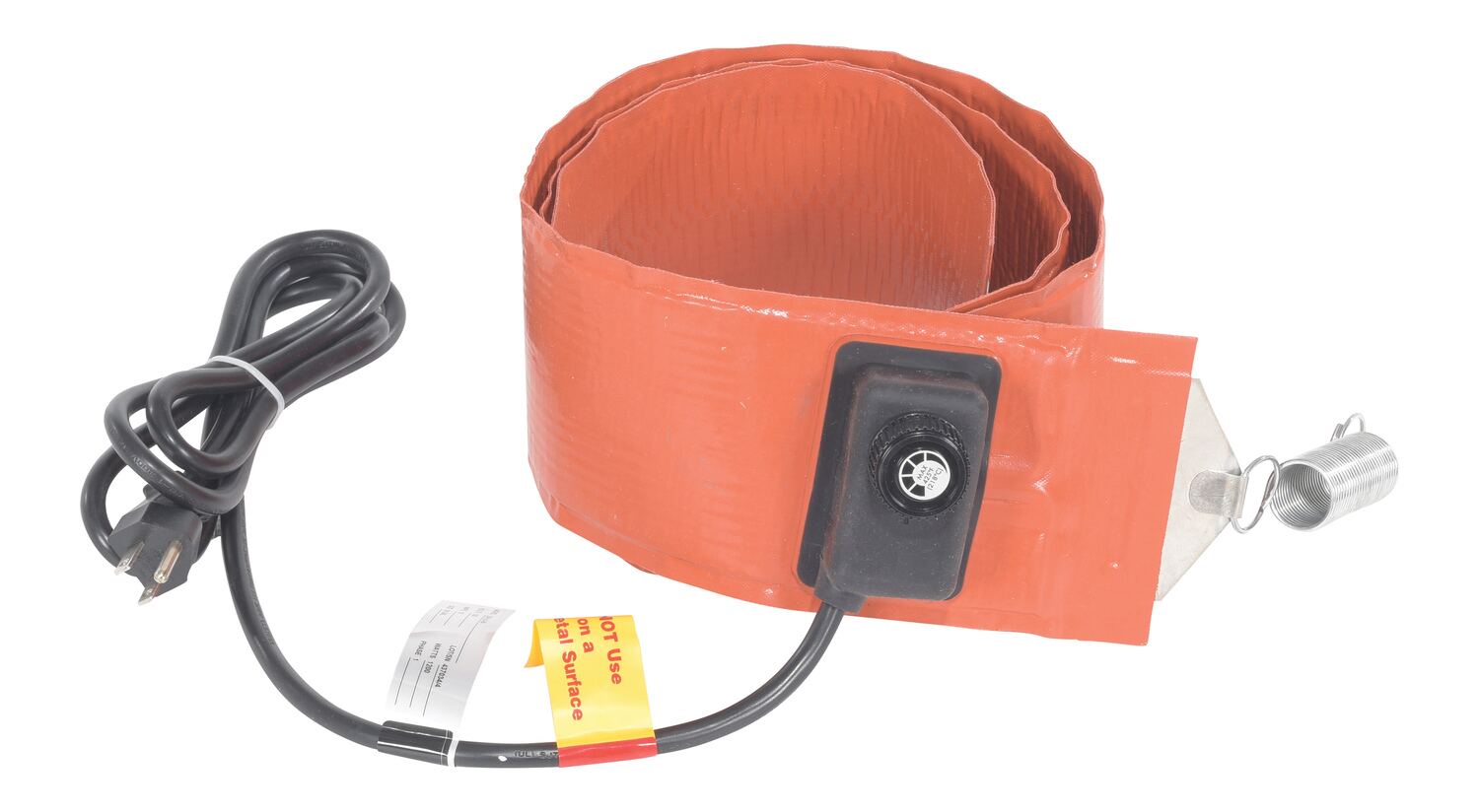

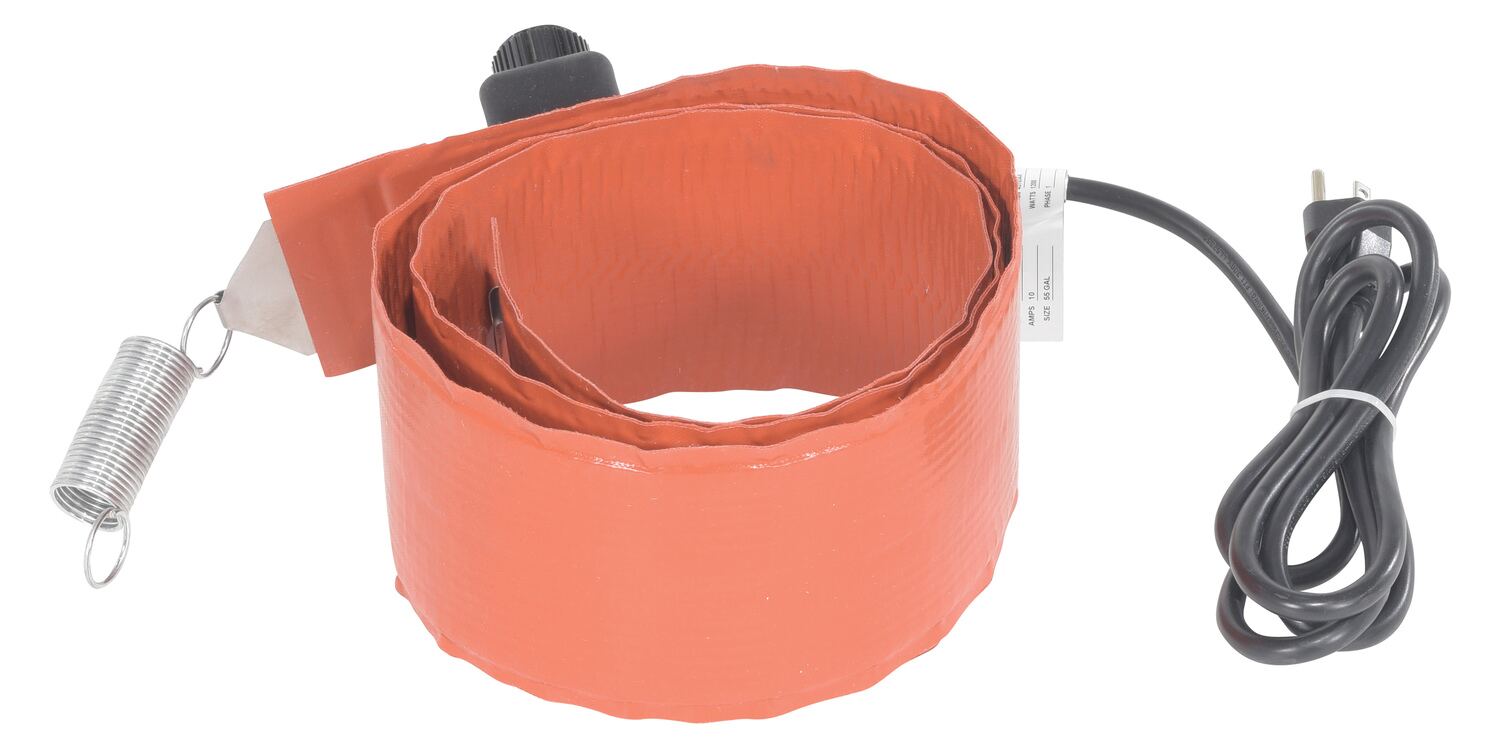

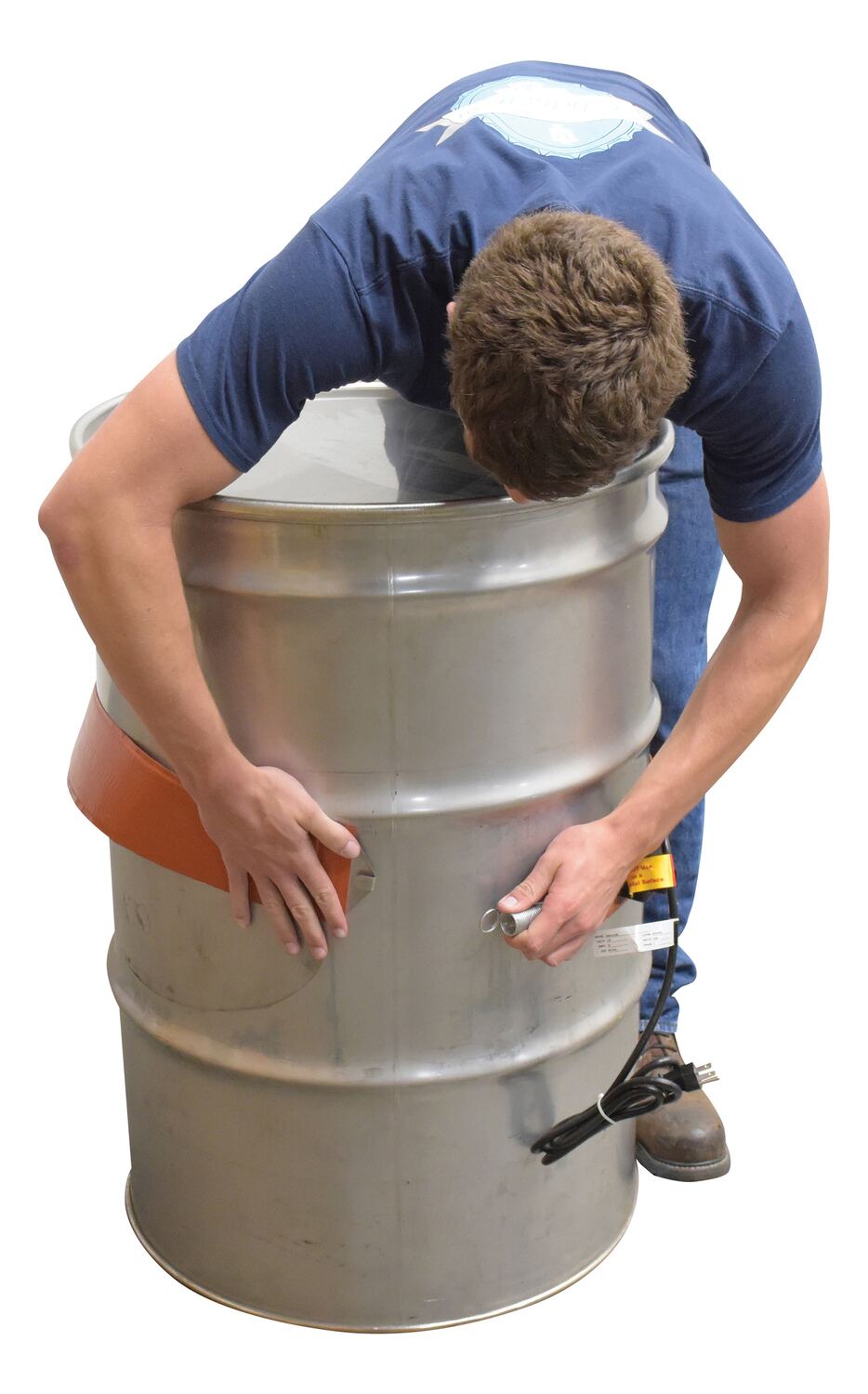

DRH-S-55

model DRH-S-55




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
DRH-S-55 1 Year Limited WarrantySteel Drum Heater For 55 Gallon RedAccommodates Drum Size: 55
Volts: 120
4
DRH-P-5 1 Year Limited WarrantyPoly Drum Heater For 5 Gallon RedAccommodates Drum Size: 5
Volts: 120
3
DRH-P-5-CA 1 Year Limited WarrantyPoly Drum Heater For 5 Gallon CSA Approved RedAccommodates Drum Size: 5
Volts: 120
3
DRH-P-55 1 Year Limited WarrantyPoly Drum Heater For 55 Gallon RedAccommodates Drum Size: 55
Volts: 120
5
DRH-P-55-CA 1 Year Limited WarrantyPoly Drum Heater For 55 Gallon CSA Approved RedAccommodates Drum Size: 55
Volts: 120
5
DRH-S-15 1 Year Limited WarrantySteel Drum Heater For 15 Gallon RedAccommodates Drum Size: 15
Volts: 120
4
DRH-S-15-CA 1 Year Limited WarrantySteel Drum Heater For 15 Gallon CSA Approved RedAccommodates Drum Size: 15
Volts: 120
4
DRH-S-30 1 Year Limited WarrantySteel Drum Heater For 30 Gallon RedAccommodates Drum Size: 30
Volts: 120
4
DRH-S-30-CA 1 Year Limited WarrantySteel Drum Heater For 30 Gallon CSA Approved RedAccommodates Drum Size: 30
Volts: 120
4
DRH-S-5 1 Year Limited WarrantySteel Drum Heater For 5 Gallon RedAccommodates Drum Size: 5
Volts: 120
4
DRH-S-5-CA 1 Year Limited WarrantySteel Drum Heater For 5 Gallon CSA Approved RedAccommodates Drum Size: 5
Volts: 120
3
DRH-S-55-240 1 Year Limited WarrantySteel Drum Heater 240V For 55 Gallon RedAccommodates Drum Size: 55
Volts: 240
5
DRH-S-55-240-CA 1 Year Limited WarrantySteel Drum Heater 240V CSA Approved 55 Gallon CSA Approved RedAccommodates Drum Size: 55
Volts: 240
5
DRH-S-55-CA 1 Year Limited WarrantySteel Drum Heater For 55 Gallon CSA Approved RedAccommodates Drum Size: 55
Volts: 120
5

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Steel Drum Heater For 55 Gallon Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 120
Accommodates Drum Size: 55
Volts: 120

Poly Drum Heater For 5 Gallon Red


Unit: EACH
Size: 11W x 0.0625L x 4H
Weight: 3
1 Year Limited Warranty
Accommodates Drum Size: 5
Volts: 120
Accommodates Drum Size: 5
Volts: 120

Poly Drum Heater For 5 Gallon CSA Approved Red


Unit: EACH
Size: 11W x 0.0625L x 4H
Weight: 3
1 Year Limited Warranty
Accommodates Drum Size: 5
Volts: 120
Accommodates Drum Size: 5
Volts: 120

Poly Drum Heater For 55 Gallon Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 5
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 120
Accommodates Drum Size: 55
Volts: 120

Poly Drum Heater For 55 Gallon CSA Approved Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 5
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 120
Accommodates Drum Size: 55
Volts: 120

Steel Drum Heater For 15 Gallon Red


Unit: EACH
Size: 14W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 15
Volts: 120
Accommodates Drum Size: 15
Volts: 120

Steel Drum Heater For 15 Gallon CSA Approved Red


Unit: EACH
Size: 14W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 15
Volts: 120
Accommodates Drum Size: 15
Volts: 120

Steel Drum Heater For 30 Gallon Red


Unit: EACH
Size: 18.5W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 30
Volts: 120
Accommodates Drum Size: 30
Volts: 120

Steel Drum Heater For 30 Gallon CSA Approved Red


Unit: EACH
Size: 18.5W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 30
Volts: 120
Accommodates Drum Size: 30
Volts: 120

Steel Drum Heater For 5 Gallon Red


Unit: EACH
Size: 11W x 0.0625L x 4H
Weight: 4
1 Year Limited Warranty
Accommodates Drum Size: 5
Volts: 120
Accommodates Drum Size: 5
Volts: 120

Steel Drum Heater For 5 Gallon CSA Approved Red


Unit: EACH
Size: 11W x 0.0625L x 4H
Weight: 3
1 Year Limited Warranty
Accommodates Drum Size: 5
Volts: 120
Accommodates Drum Size: 5
Volts: 120

Steel Drum Heater 240V For 55 Gallon Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 5
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 240
Accommodates Drum Size: 55
Volts: 240

Steel Drum Heater 240V CSA Approved 55 Gallon CSA Approved Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 5
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 240
Accommodates Drum Size: 55
Volts: 240

Steel Drum Heater For 55 Gallon CSA Approved Red


Unit: EACH
Size: 22.33W x 0.0625L x 4H
Weight: 5
1 Year Limited Warranty
Accommodates Drum Size: 55
Volts: 120
Accommodates Drum Size: 55
Volts: 120



Drum Heaters PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Drum Heaters




Quickly and efficiently heat-up your steel drums or pails. Easily adjust thermostat set-point: 50 to 425 degrees Fahenheit for steel drums and 50 to 160 degrees Fahrenheit on poly drums. This extra-wide 4" silicone rubber band heater is moisture and chemical resistant. Multi-stranded grounded heating element provides uniform heat and a long service life. Spring closure can be expanded 3". Unit comes with a 6-foot-long power cord, grounded 3-prong. The -CA suffix indicates models that are CSA approved for use in Canada only. Feature a 6 foot long power cord with no plug. The use of multiple heaters may reduce heat stratification of the material being heated.


Steel Drum Heaters
Model Image PDFs Drum
Capacity
Drum
Type
Volts Watts Strap
Size
Amps Wt. (lbs)
DRH-S-5 Warranty PDF 5 Gallon Steel Pail 120 550 4" 4.5 3
DRH-S-15 Warranty PDF 15 Gallon Steel Drum 120 700 4" 4.5 3
DRH-S-30 Warranty PDF 30 Gallon Steel Drum 120 1000 4" 4.5 4
DRH-S-55 icon_approvaldrawings.jpgWarranty PDF 55 Gallon Steel Drum 120 1200 4" 4.5 5

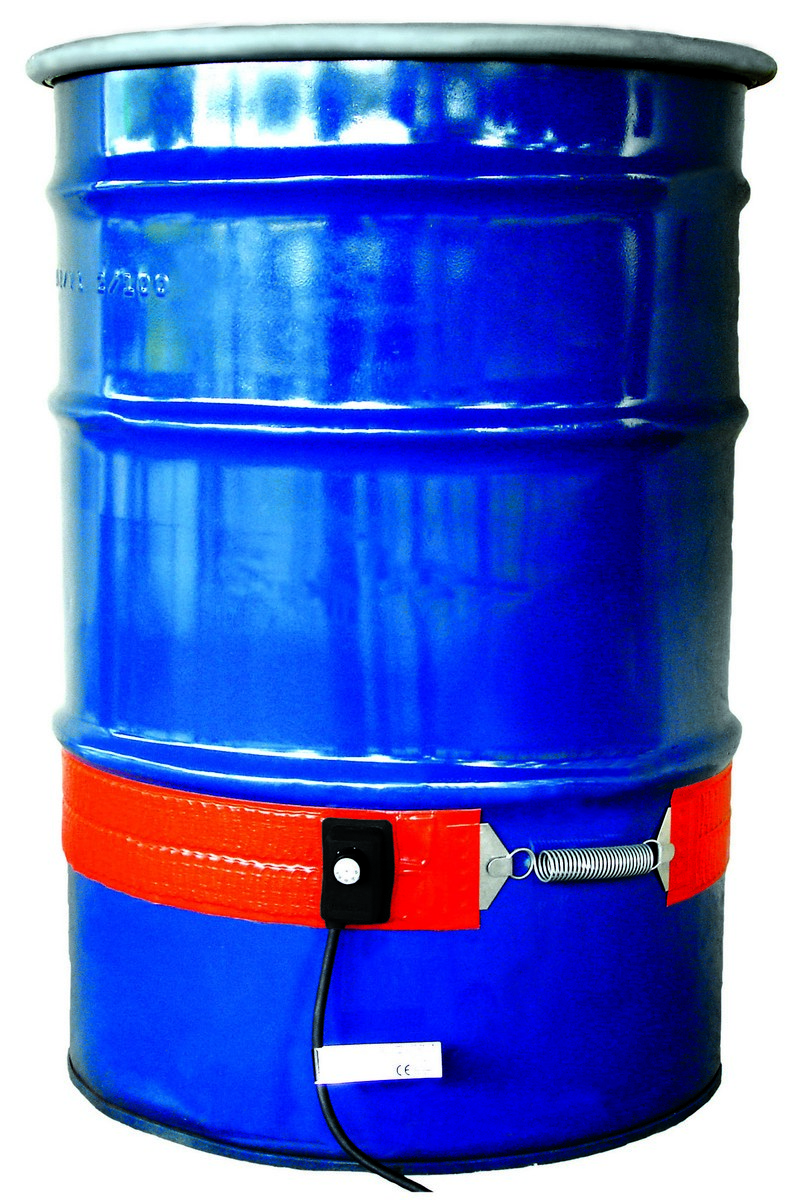

DRH-S-55-240 Warranty PDF 55 Gallon Steel Drum 240 (no Plug) 1200 4" 2.3 5
Model Image PDFs Drum Capacity Drum Type Volts Watts Strap Size Amps Wt (lbs.)
DRH-S-5-CA Warranty PDF 5 Gallon Steel Pails 120 550 4" 4.5 3
DRH-S-15-CA Warranty PDF 15 Gallon Steel Drum 120 700 4" 4.5 3
DRH-S-30-CA Warranty PDF 30 Gallon Steel Drum 120 1000 4" 4.5 4
DRH-S-55-CA Warranty PDF 55 Gallon Steel Drum 120 1200 4" 4.5 5
DRH-S-55-240-CA Warranty PDF 55 Gallon Steel Drum 240 1200 4" 2.3 5

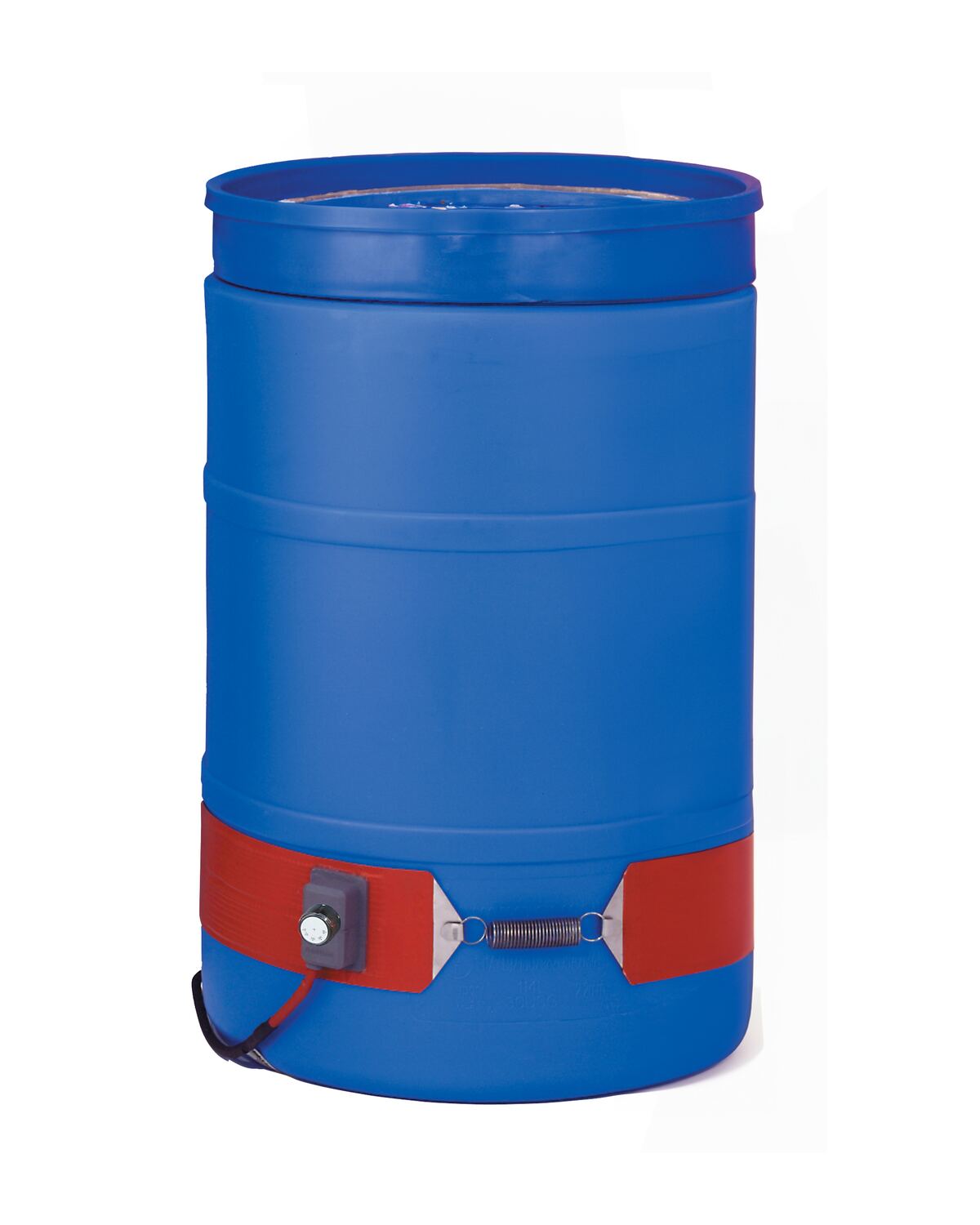

Poly Drum Heaters
Model Image PDFs Drum
Capacity
Drum
Type
Volts Watts Strap
Size
Amps Wt. (lbs)
DRH-P-5 Warranty PDF 5 Gallon Poly Pails 120 150 4" 4.5 3
DRH-P-55 Warranty PDF 55 Gallon Poly Drum 120 300 4" 4.5 5
Model Image PDFs Drum Capacity Drum Type Volts Watts Strap Size Amps Wt (lbs.)
DRH-P-5-CA Warranty PDF 5 Gallon Poly Pails 120 150 4" 4.5 3
DRH-P-55-CA Warranty PDF 55 Gallon Poly Drum 120 300 4" 4.5 5
