model HPC-405
SERIES: HPC

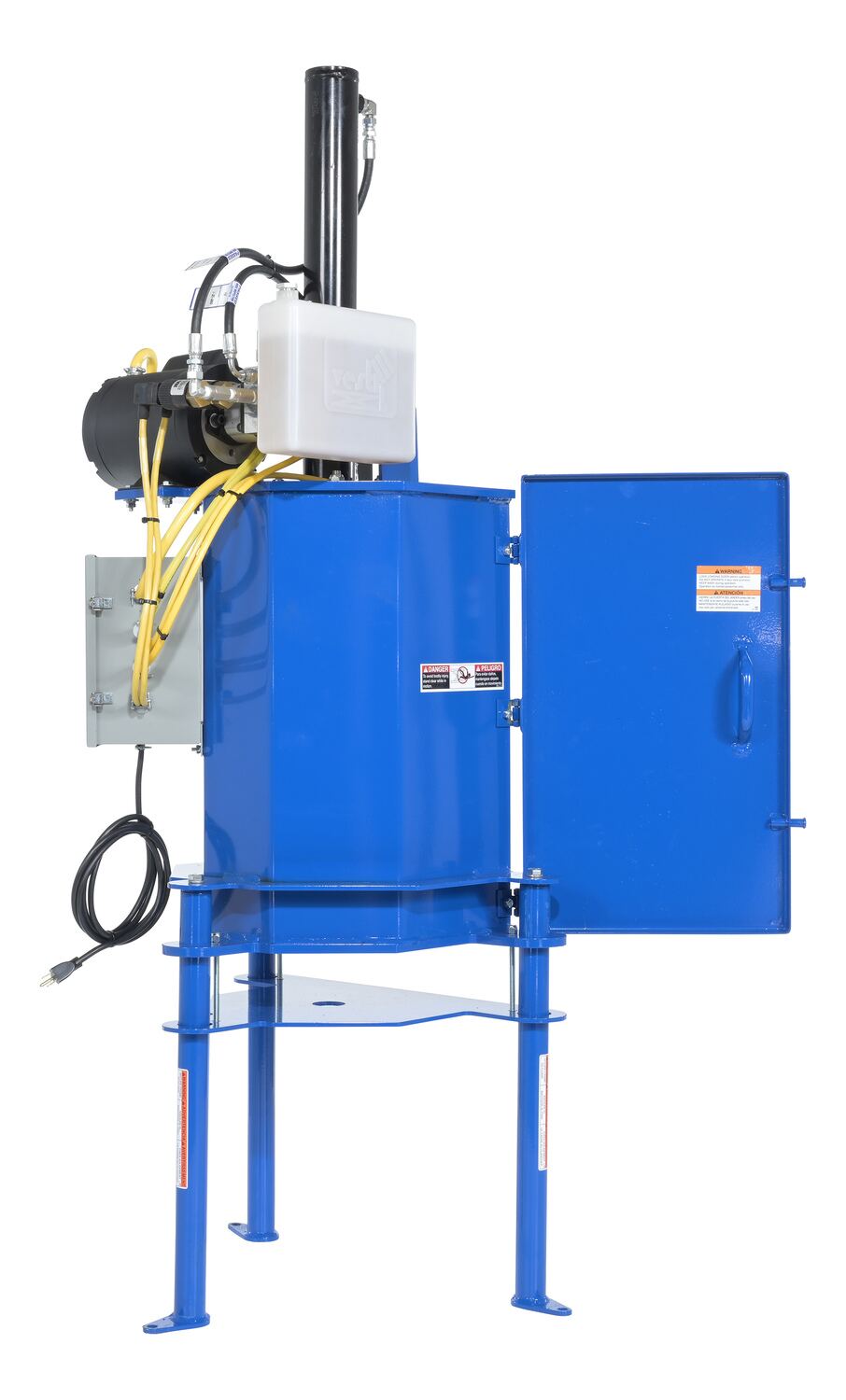

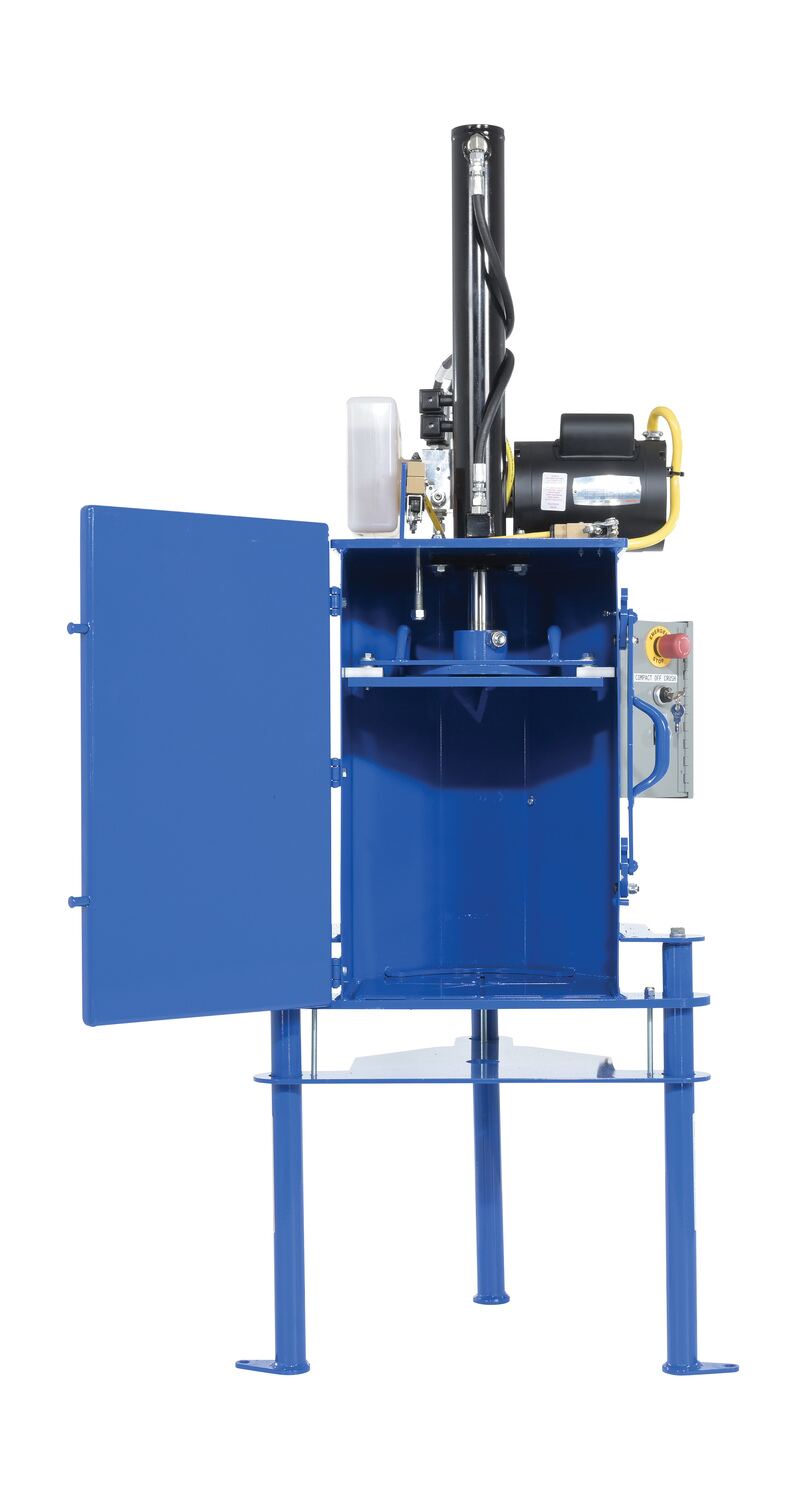

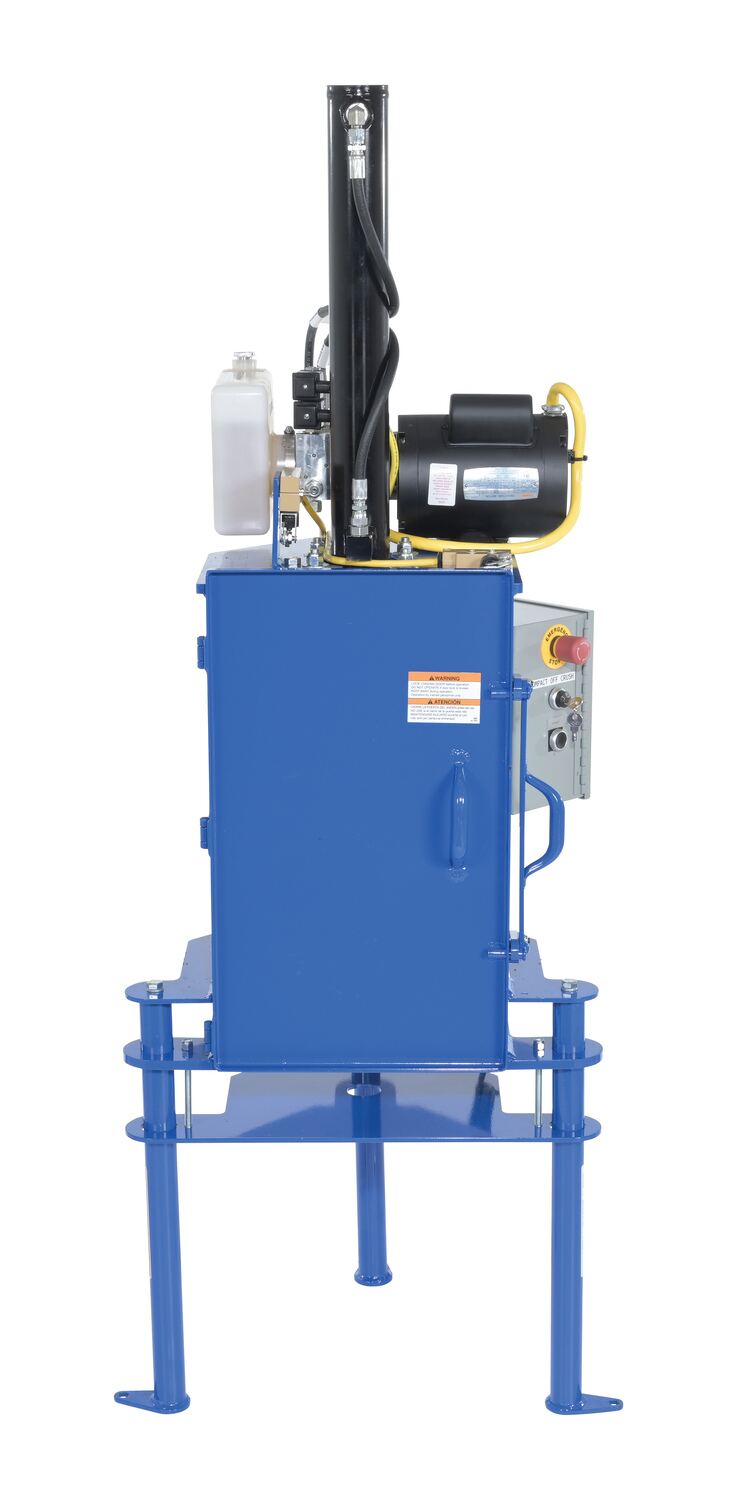

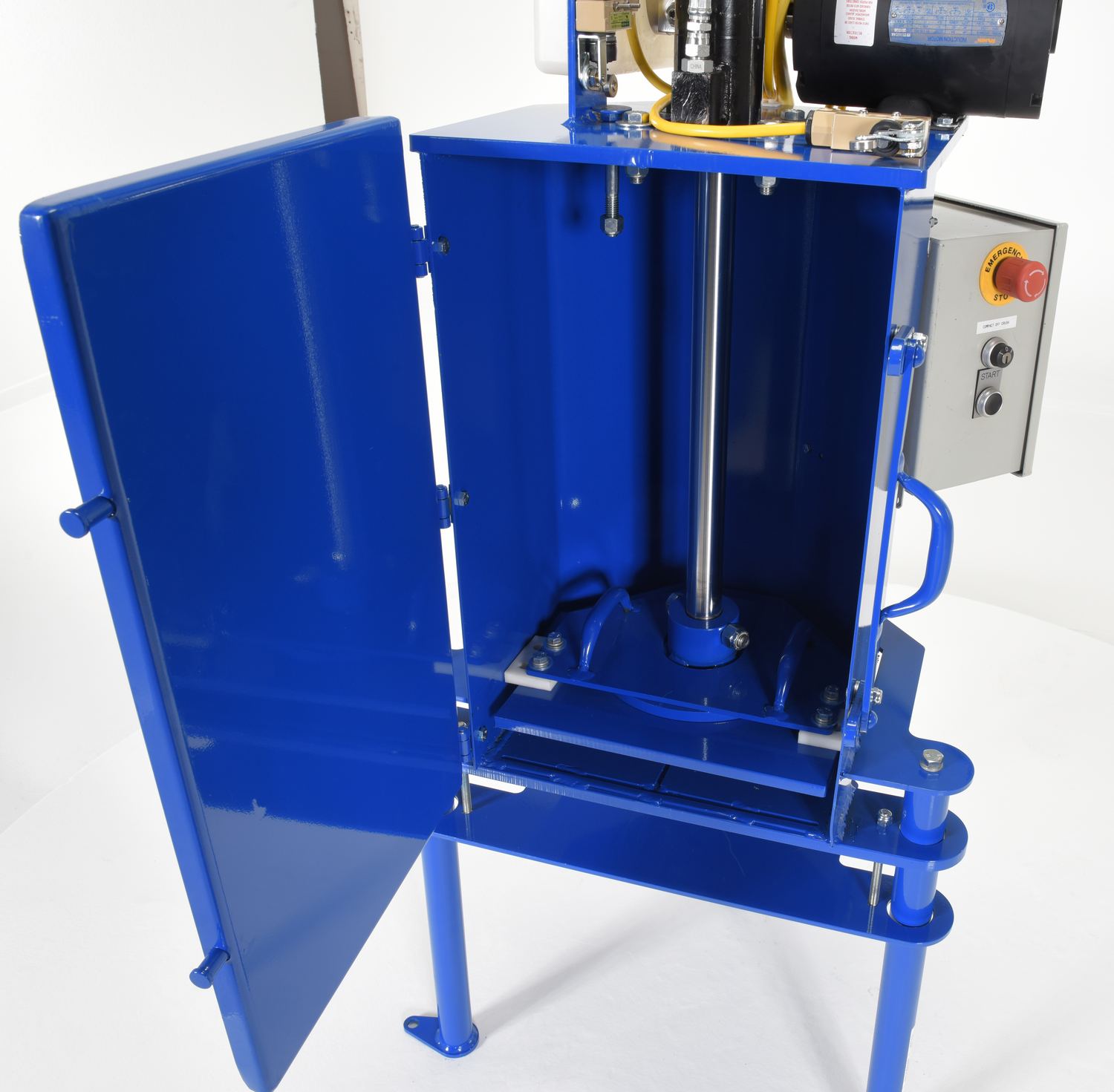

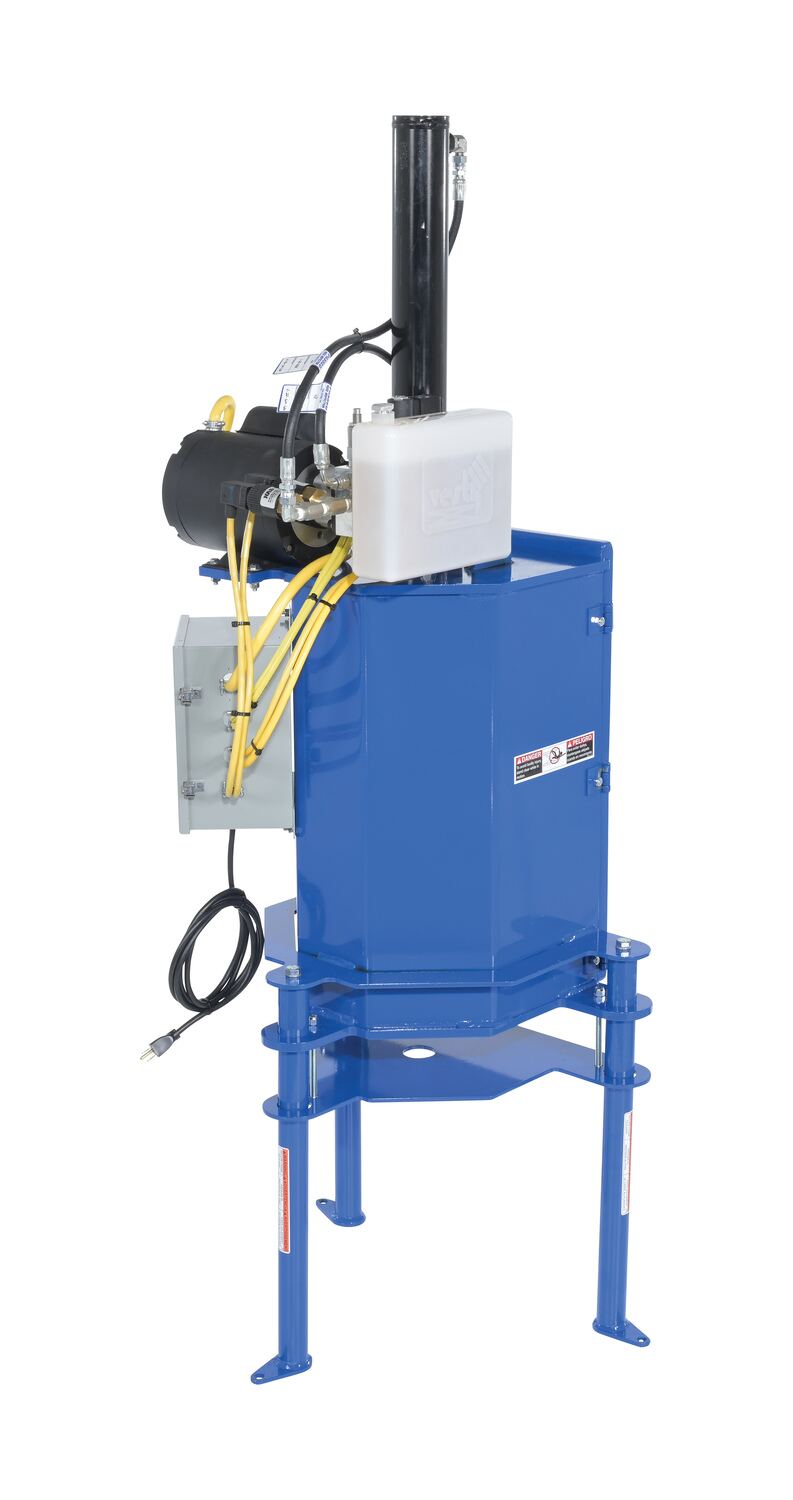

Hydraulic Pail Crusher

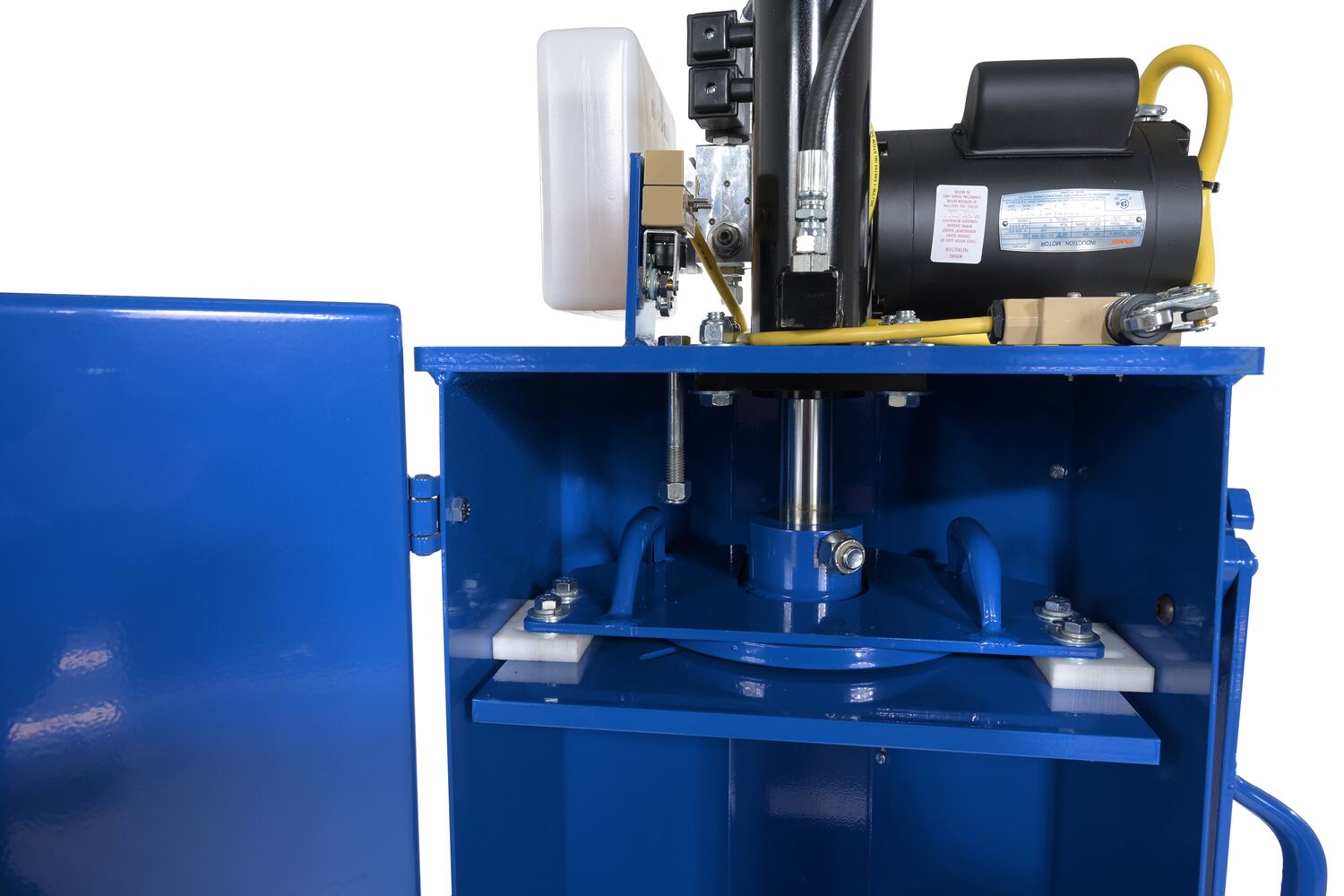

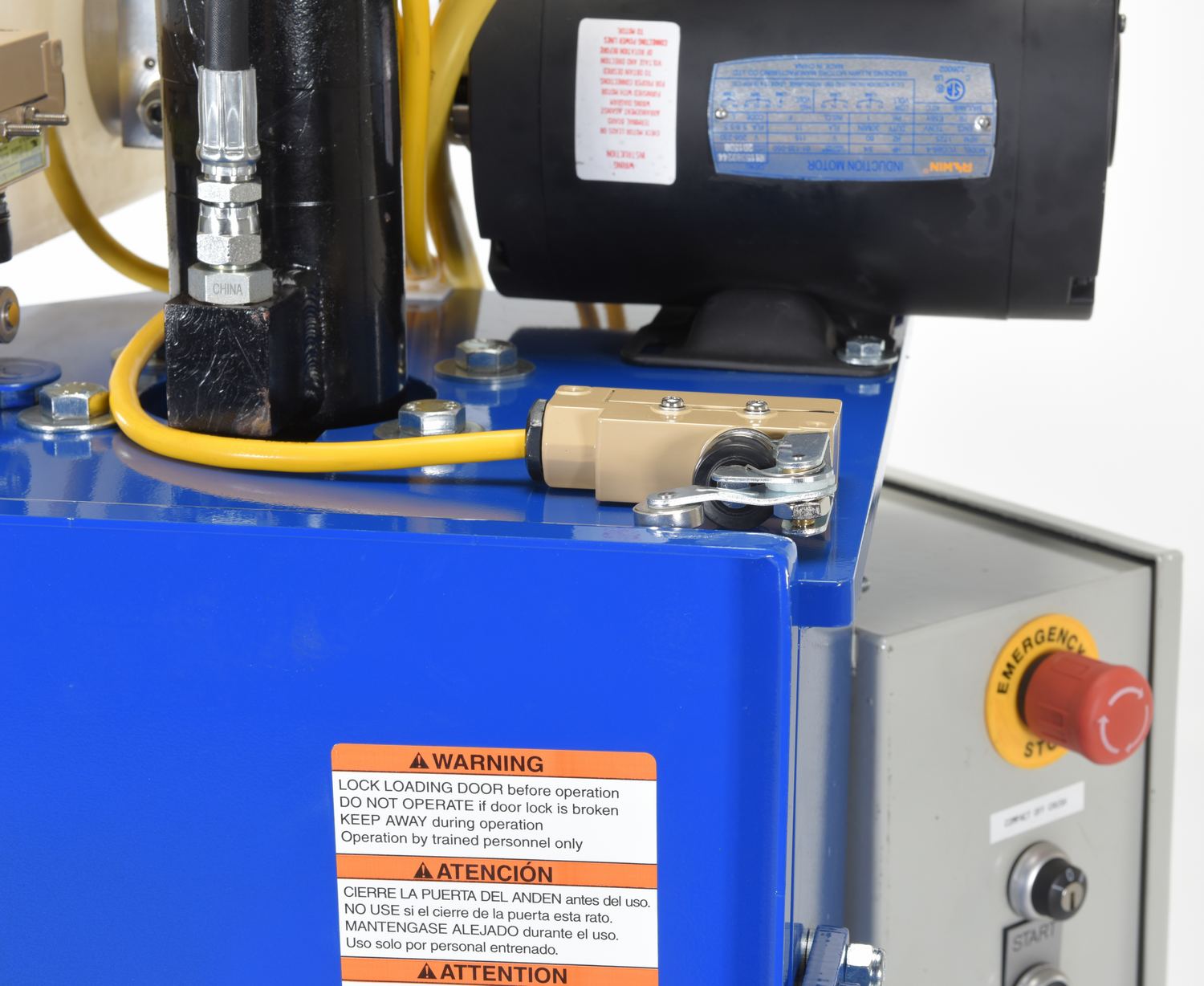

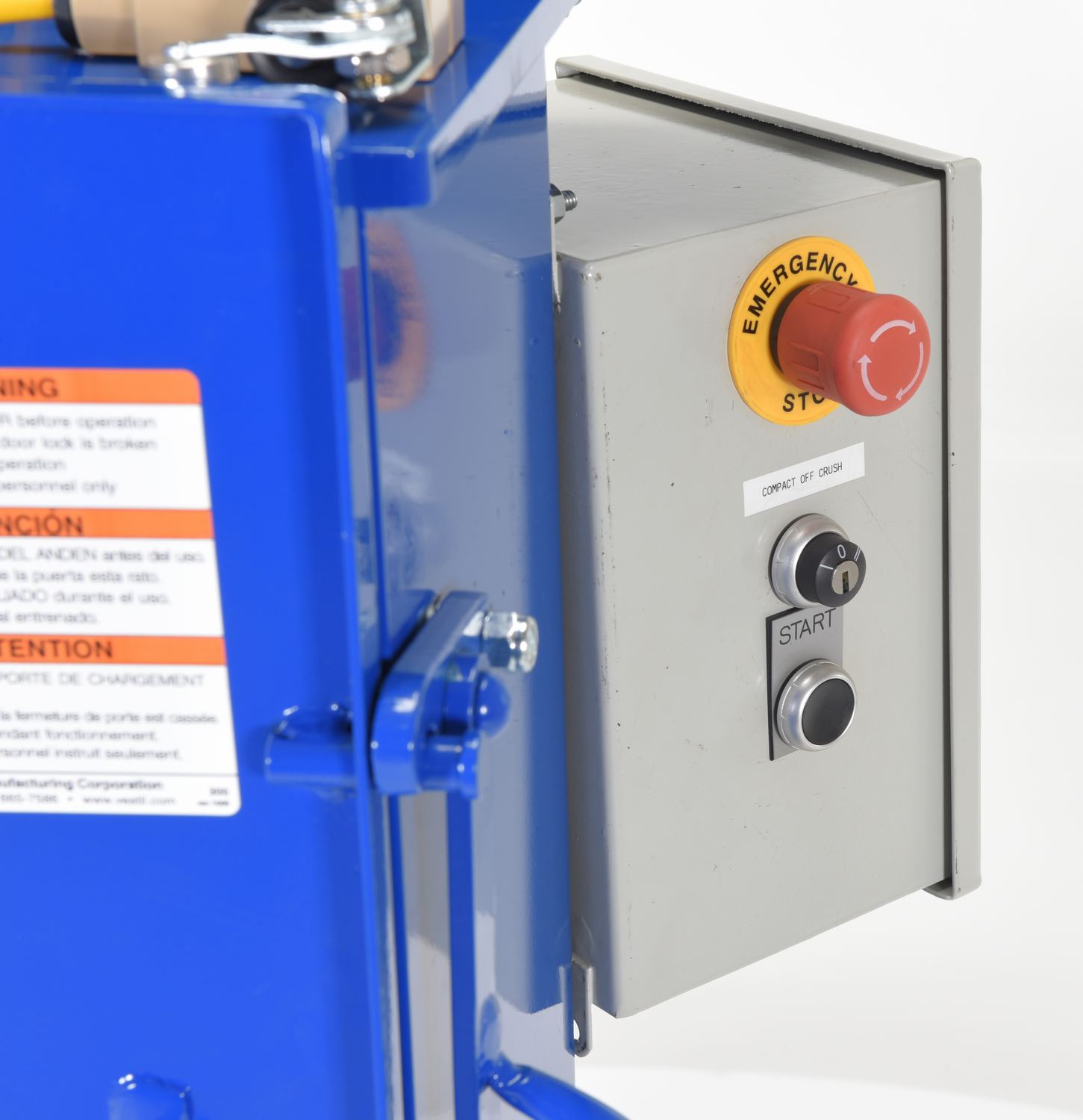

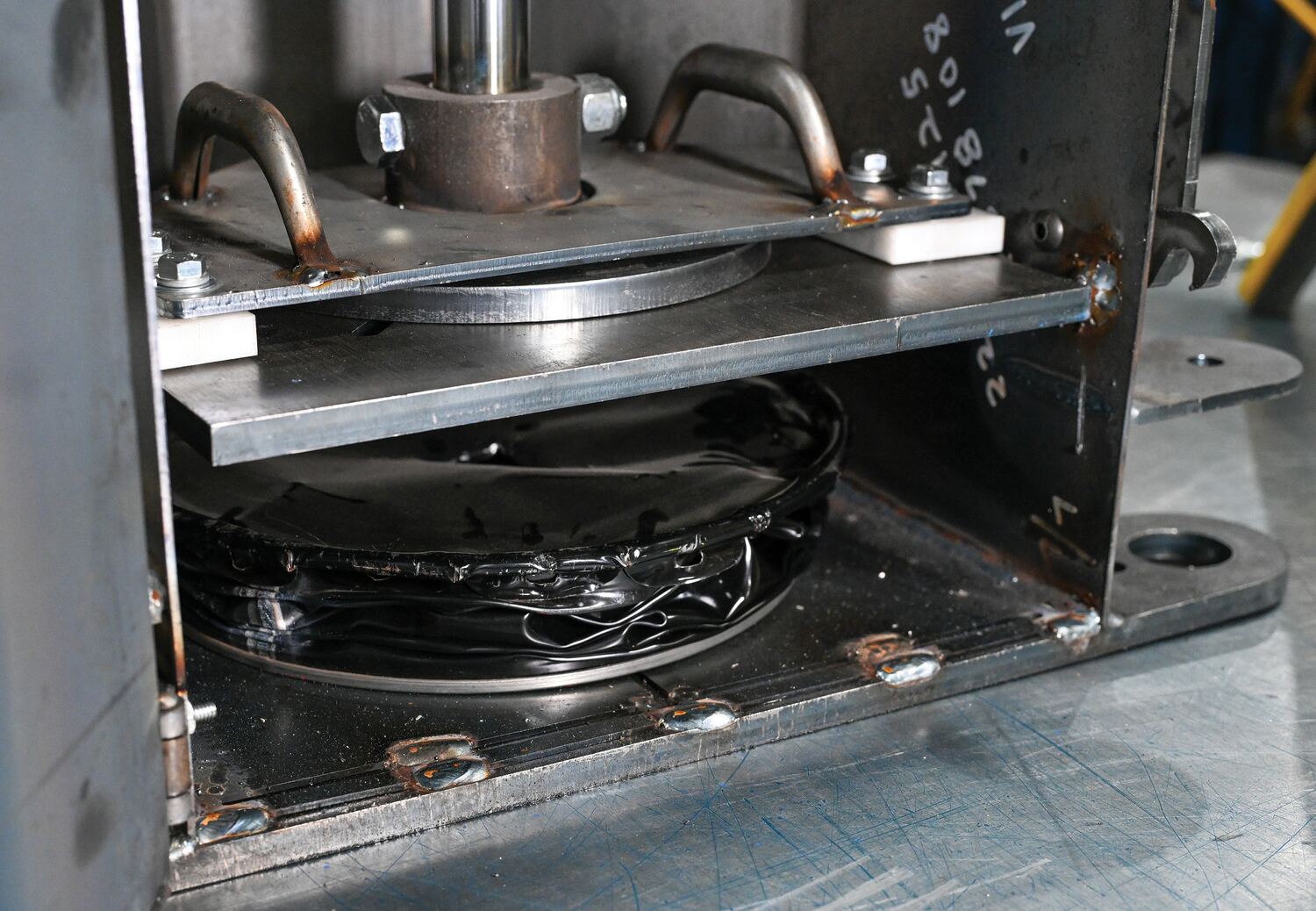

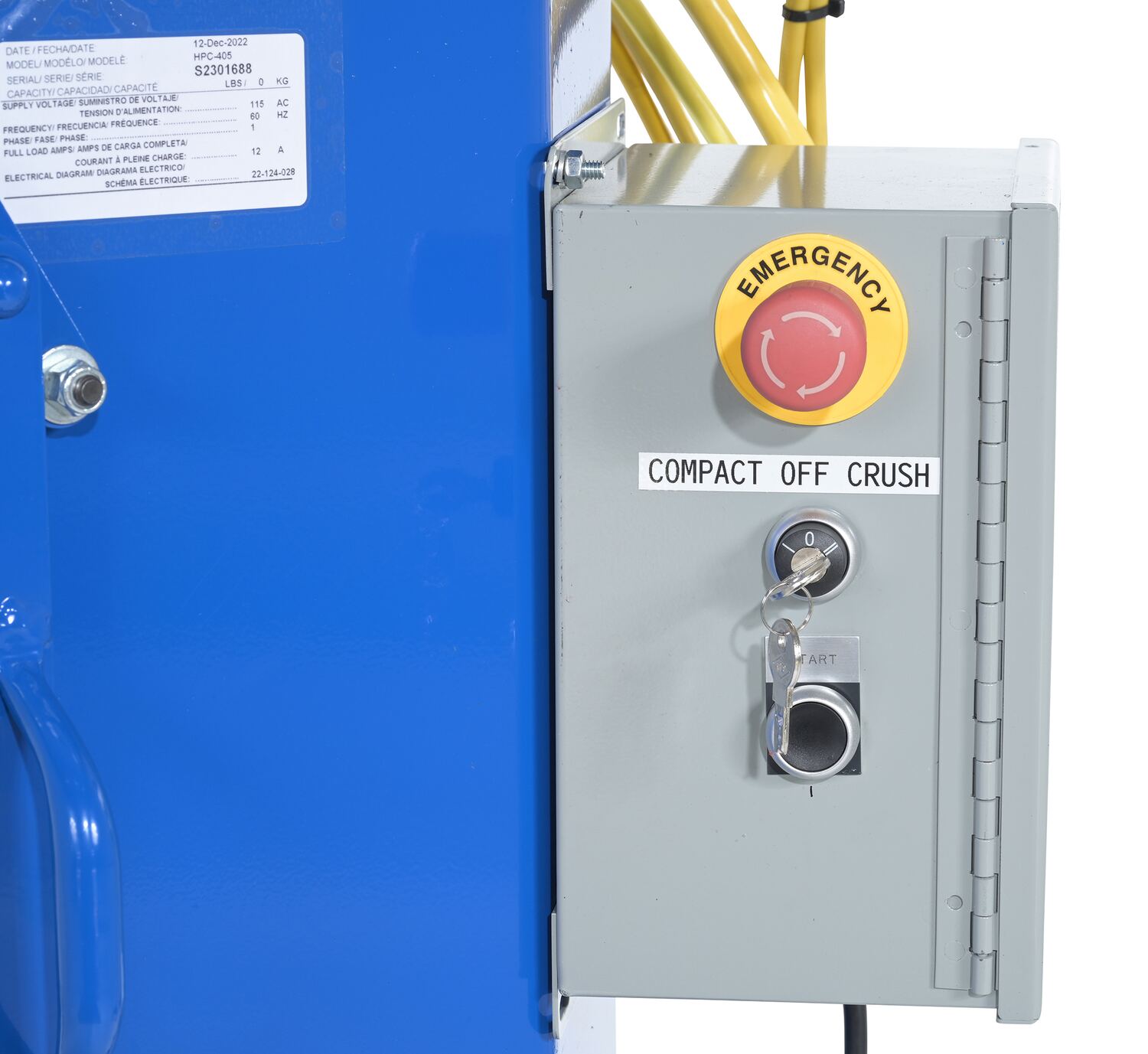

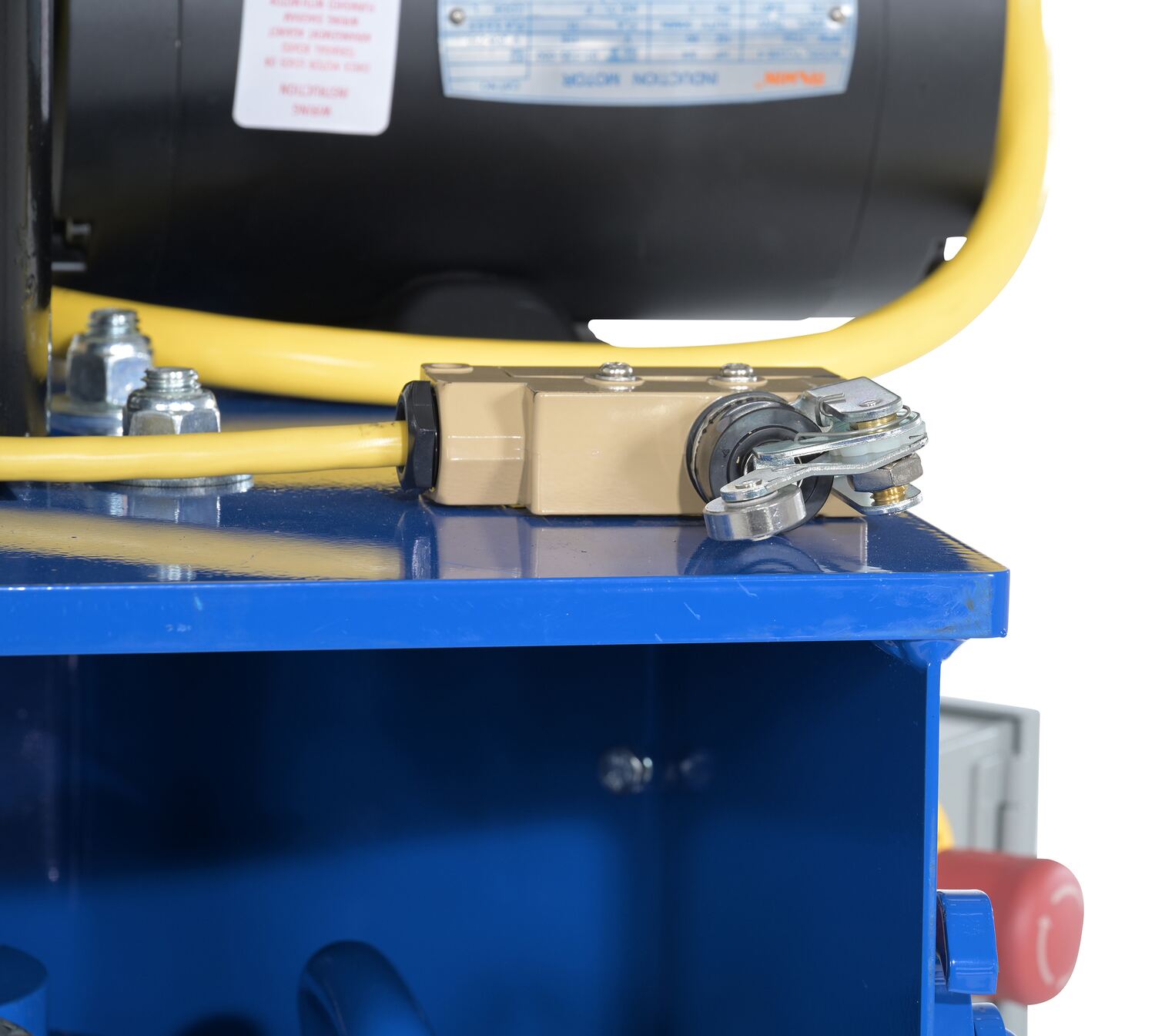

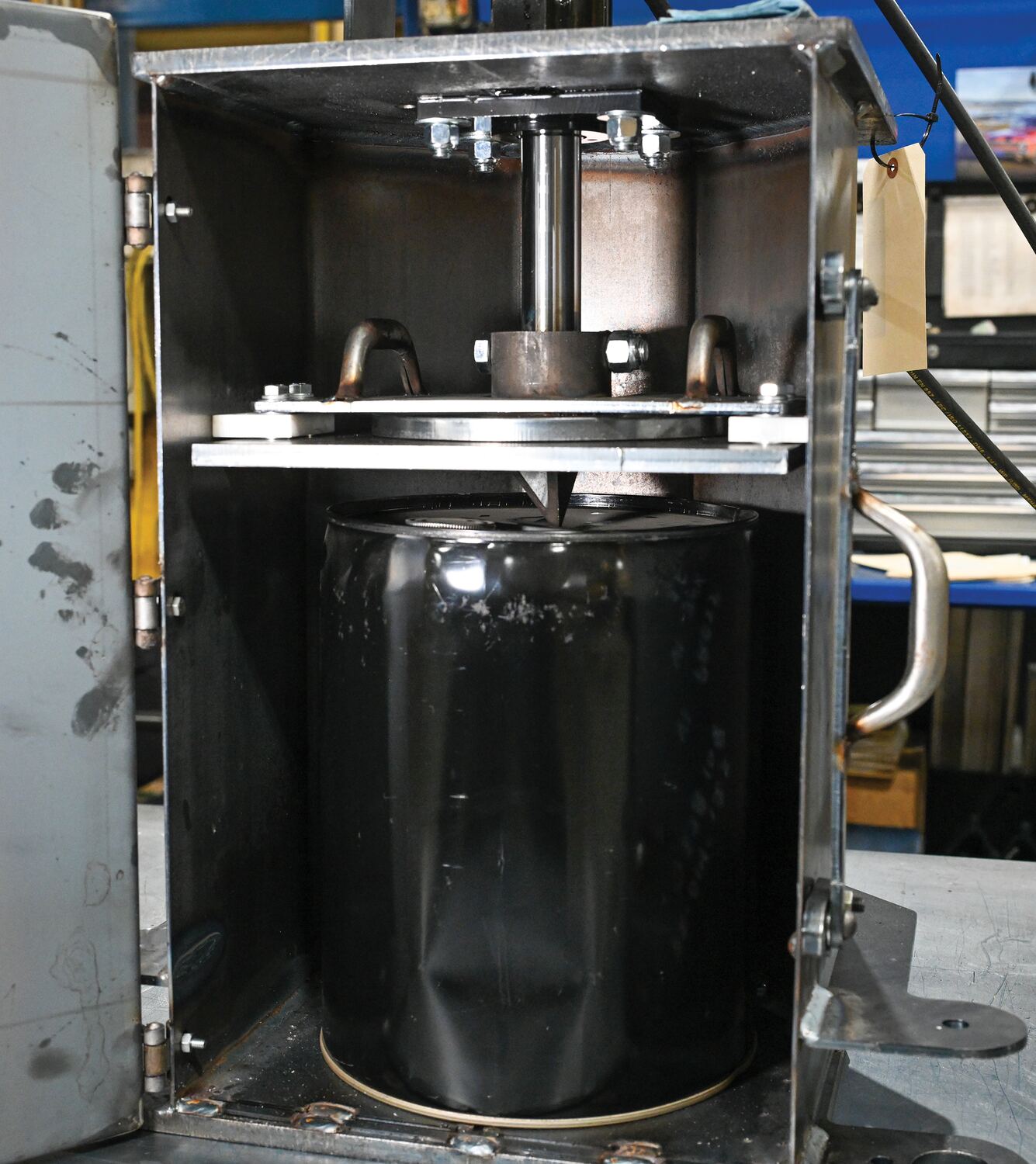

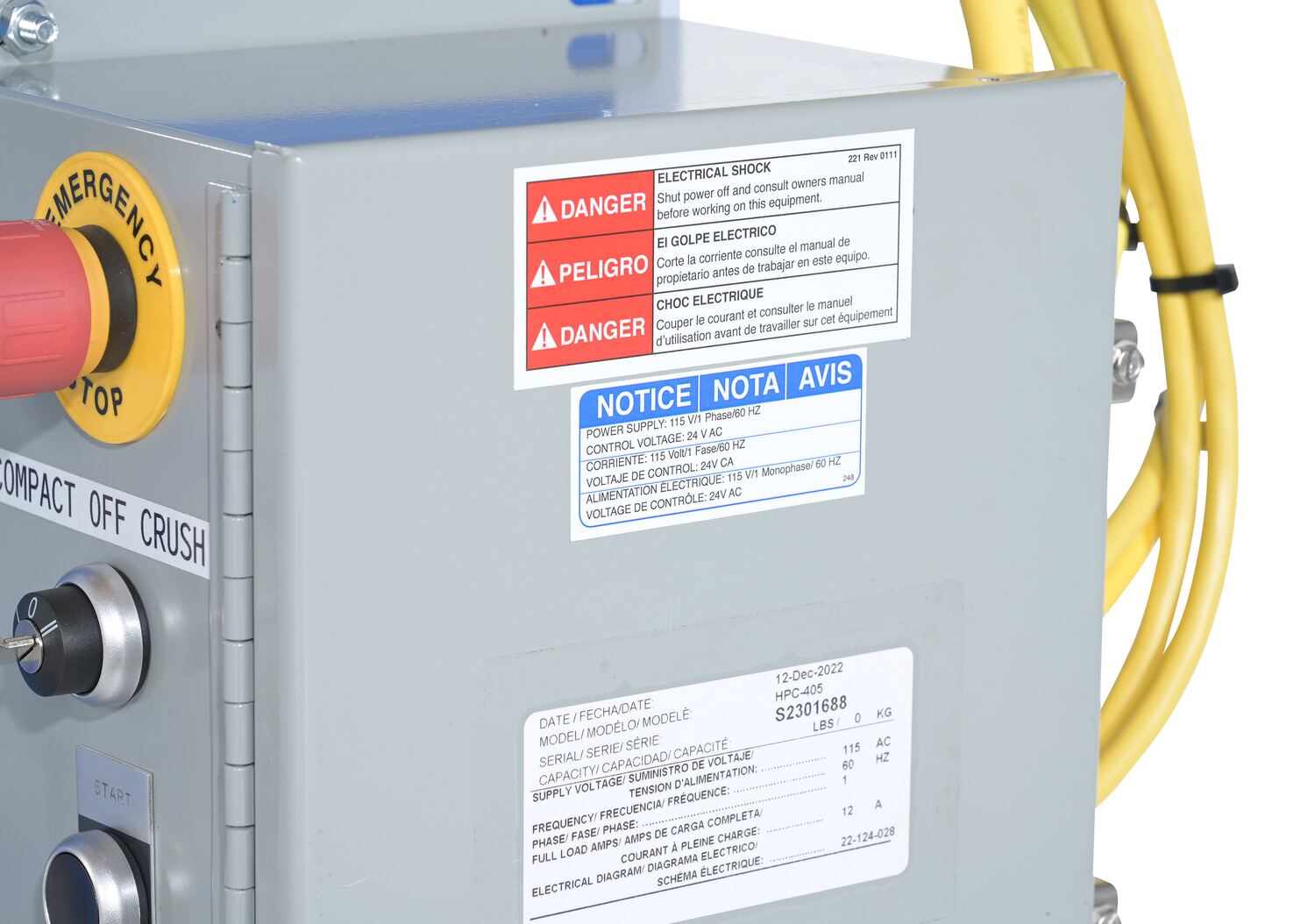

Crush 5 gallon steel pails quickly and easily. Crushes steel pails to approximately 2" high and resets automatically to crush another pail. Reduce storage space and disposal costs. Safety features include: pressure relief valve to prevent overload, door interlock system to prevent the motor from running if the door is unlatched, and mushroom head emergency stop button. Other features include a hydraulic pump that provides 70 second cycle time, 10,000 pounds of crushing force, removable legs for bench top mounting, and 115 volt single phase for "plug in operation". Meets OSHA and JIC standards. Aluminum drip pan, model HPC-DPN, is available for catching any excess liquid that may be expelled during the crushing operation.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Hydraulic Pail Crusher
Model PDF'S Description Overall Size
(WxDxH)
Wt.
(lbs)
HPC-405 Compliance CertificateWarranty PDFicon_approvaldrawings.jpg Steel Pail Crusher 27" x 22-3/16"x 67-9/16" 360

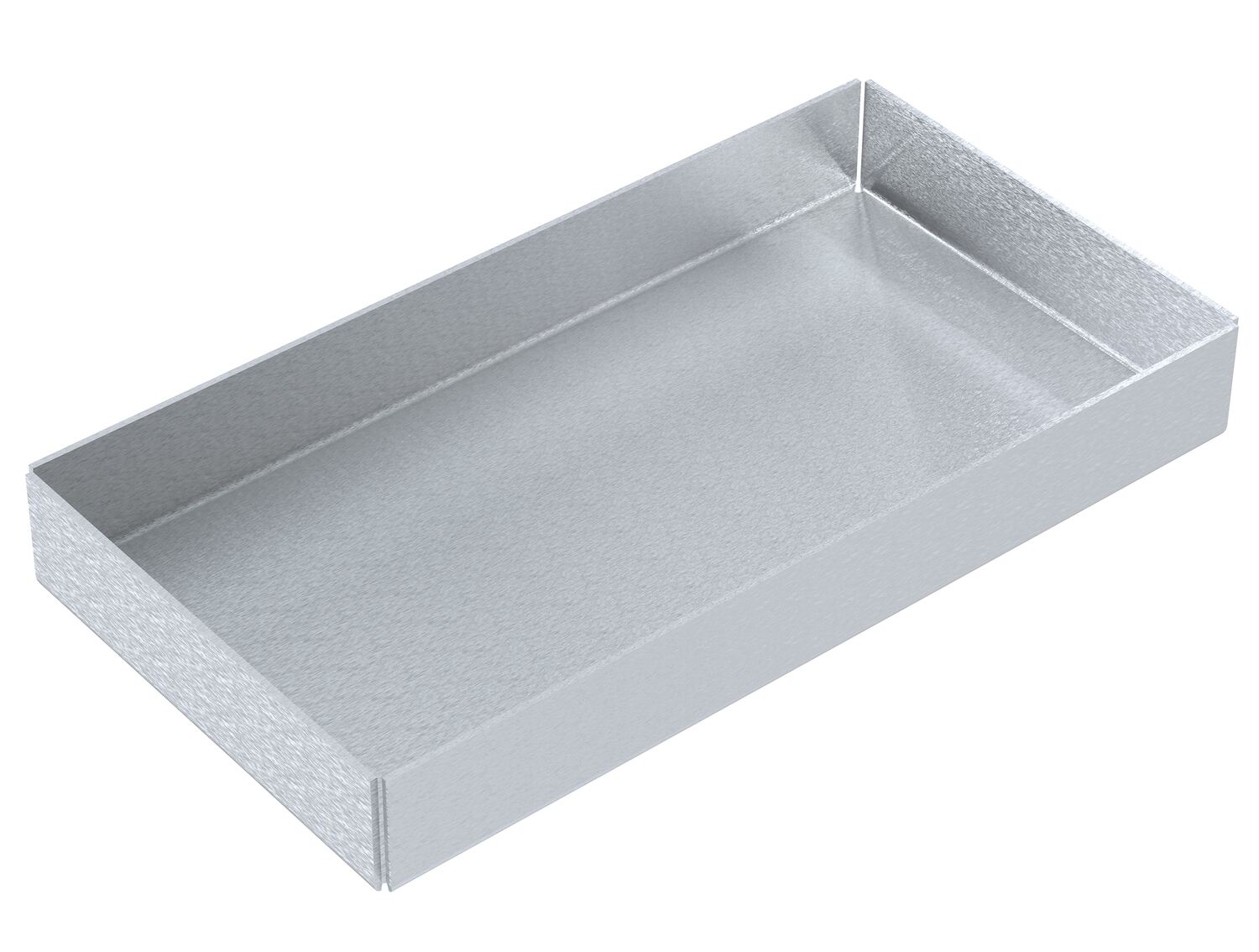

HPC-DPN Compliance Certificate Aluminum Drip Pan 17"x9"x2-1/4" 10

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



Owner's Manuals


Survey Sheets


Approval Drawings

HPC-405

Testing Certificates

HPC-405
HPC-DPN

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

HPC-DPN Compliance Certificate Aluminum Drip Pan 17"x9"x2-1/4" 10
