Heavy-Duty Plate/Slab Dollies

SERIES: PLDL-HD

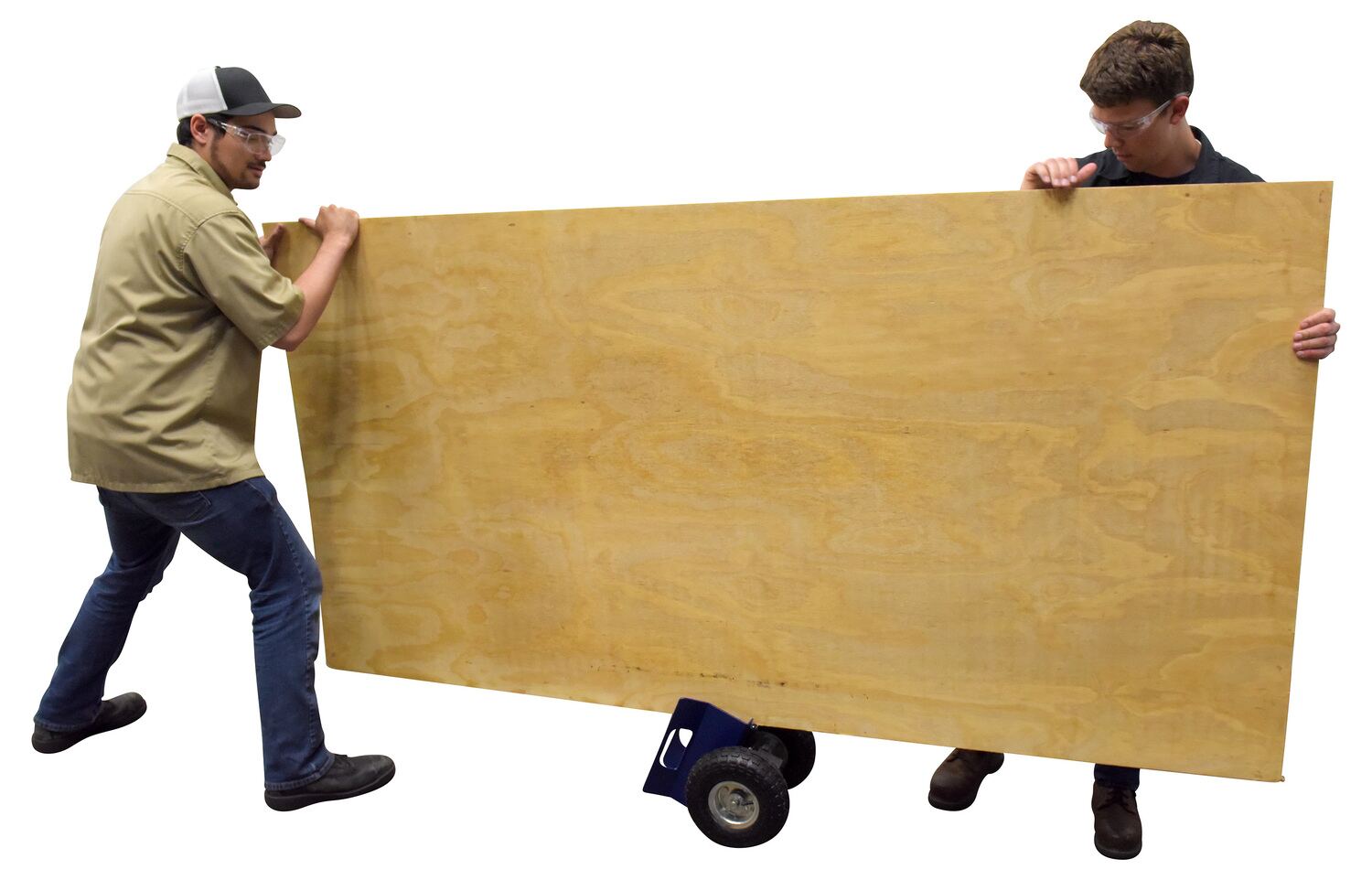

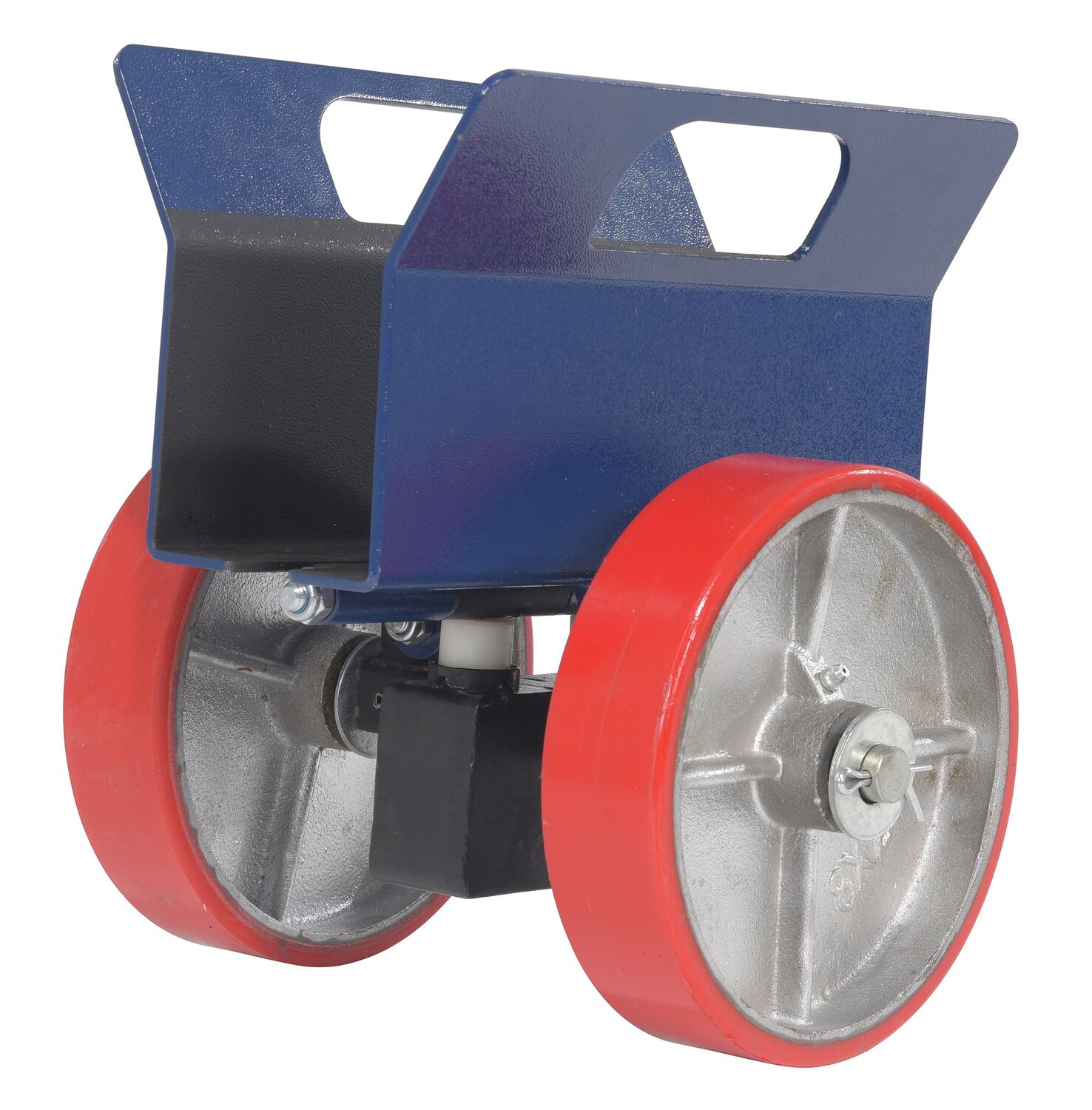

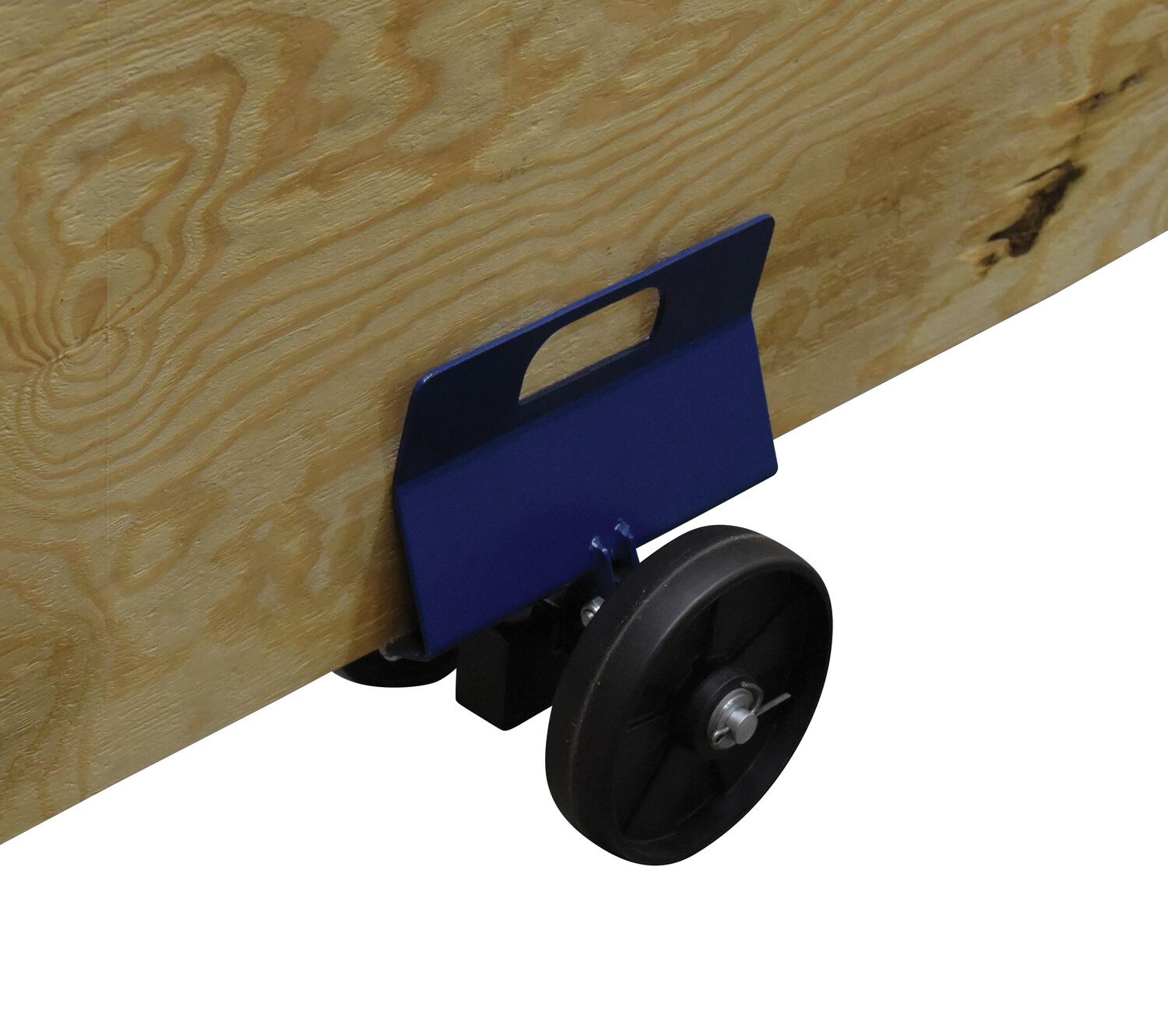

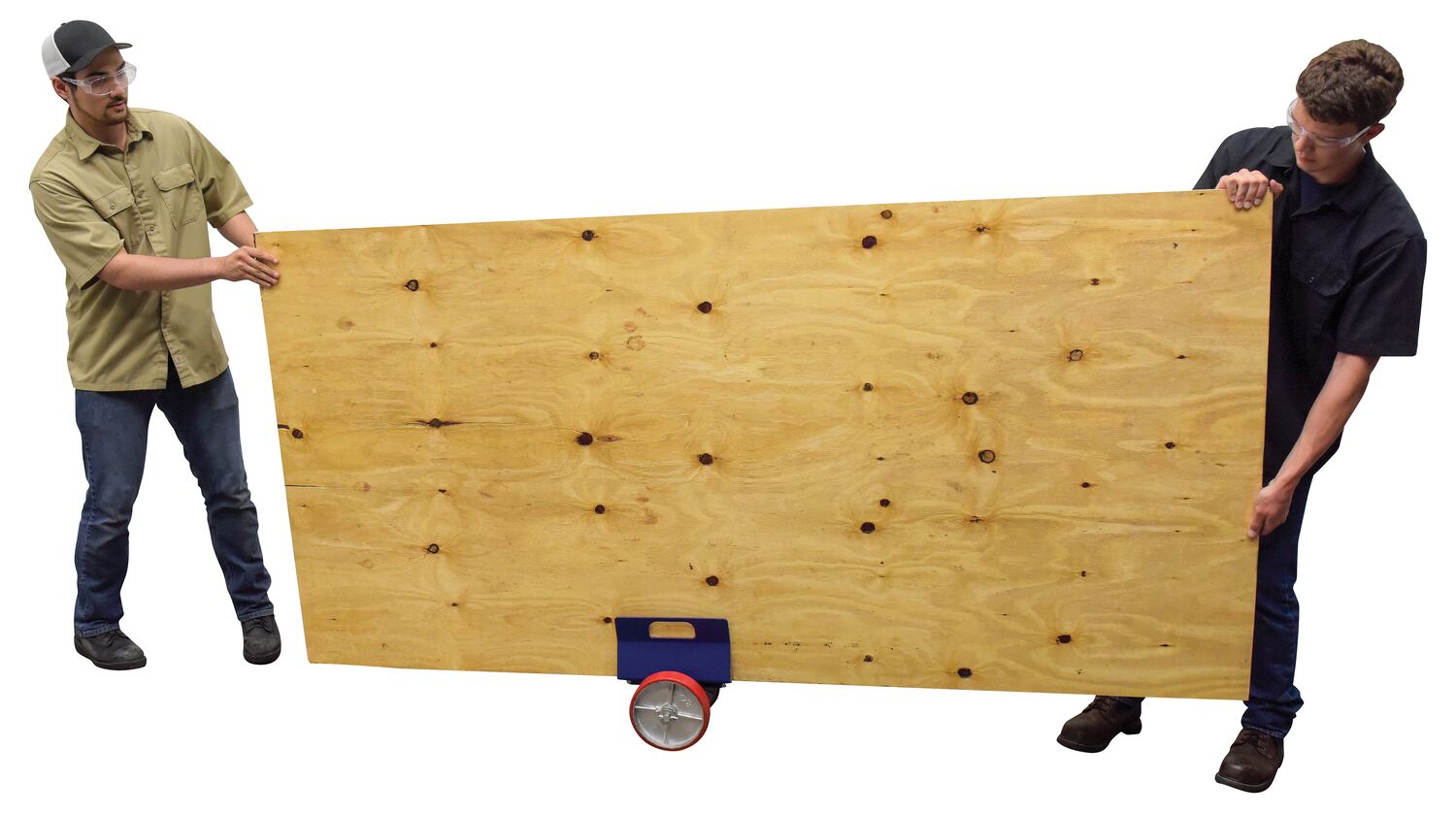

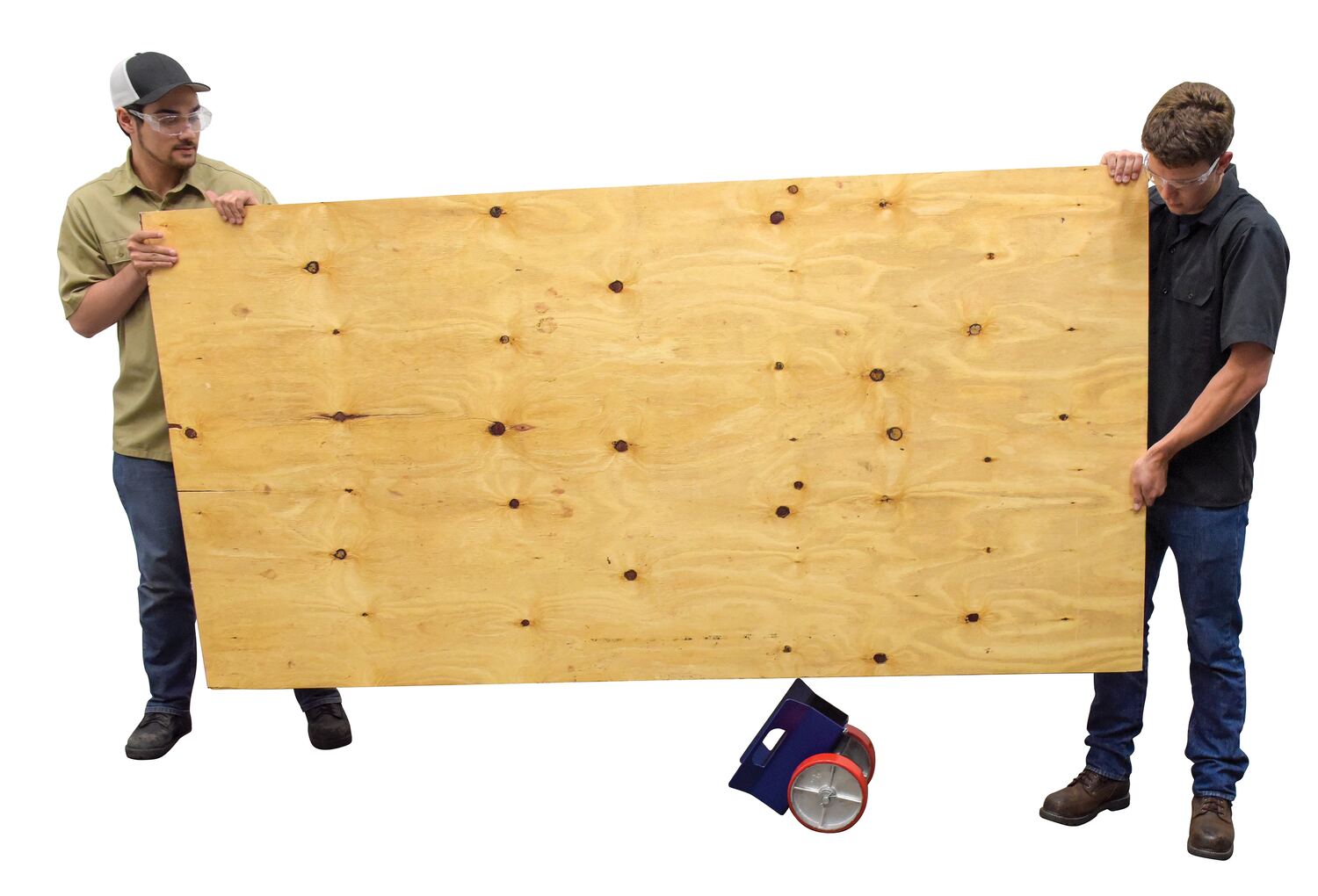

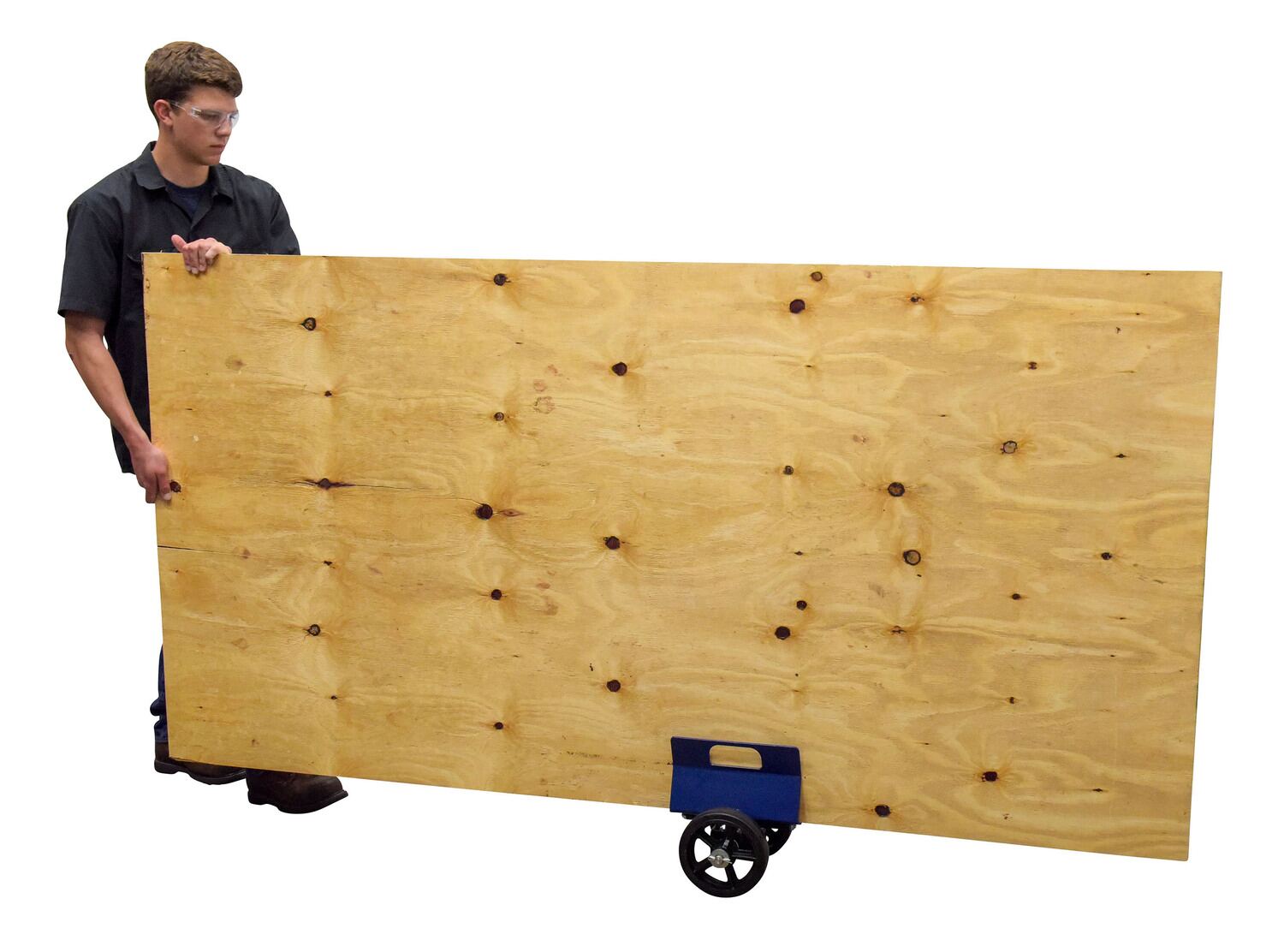

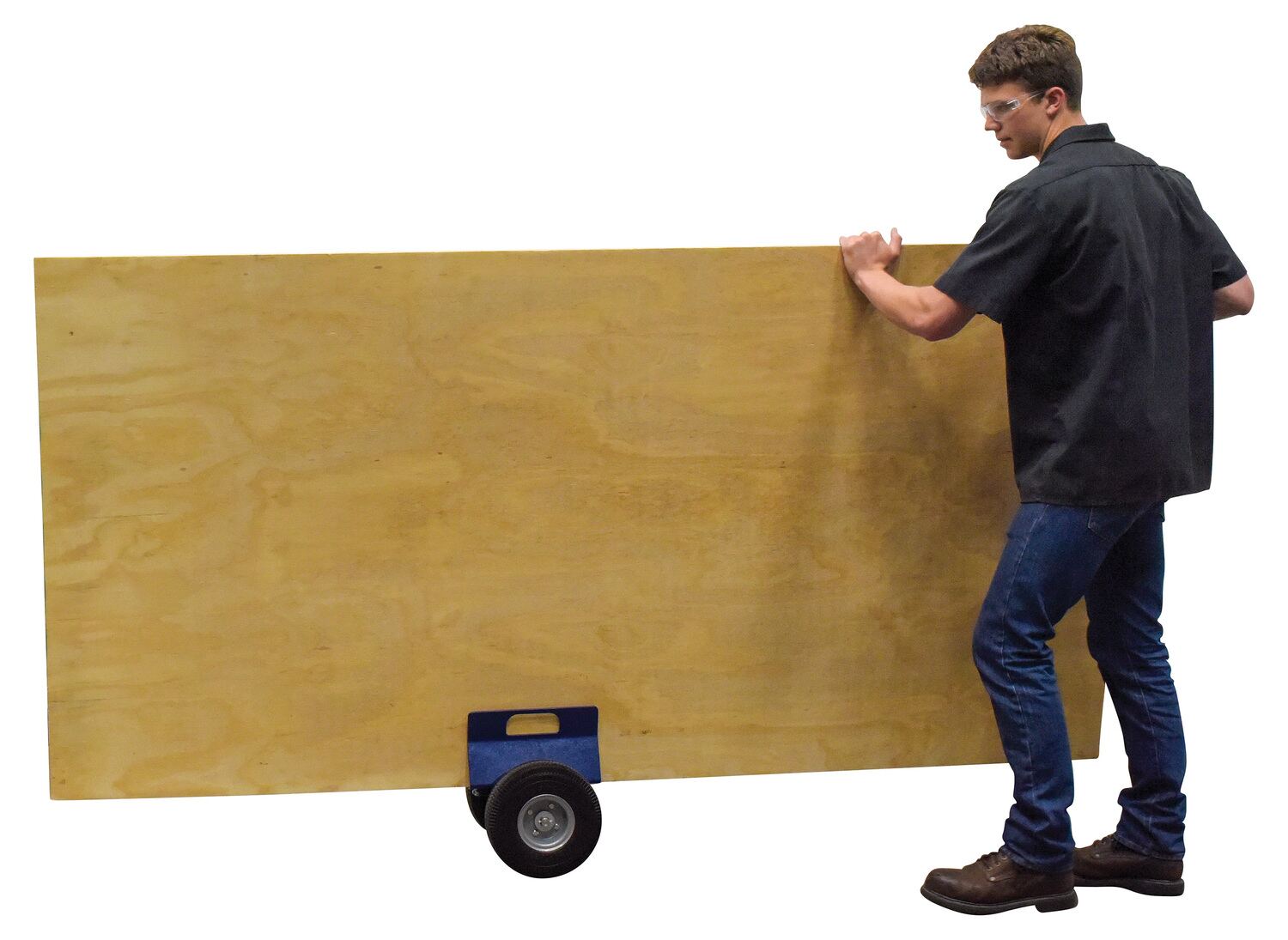

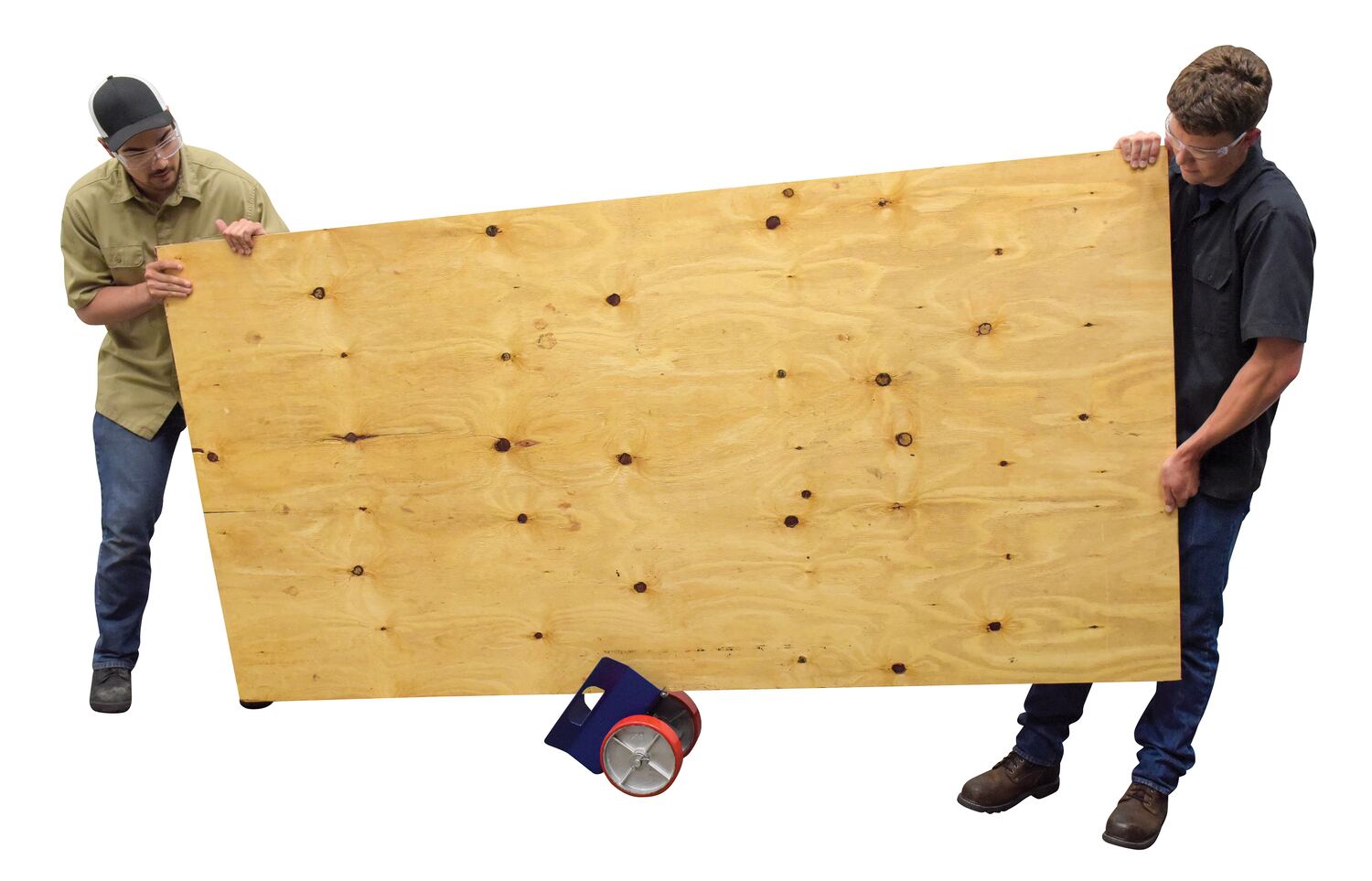

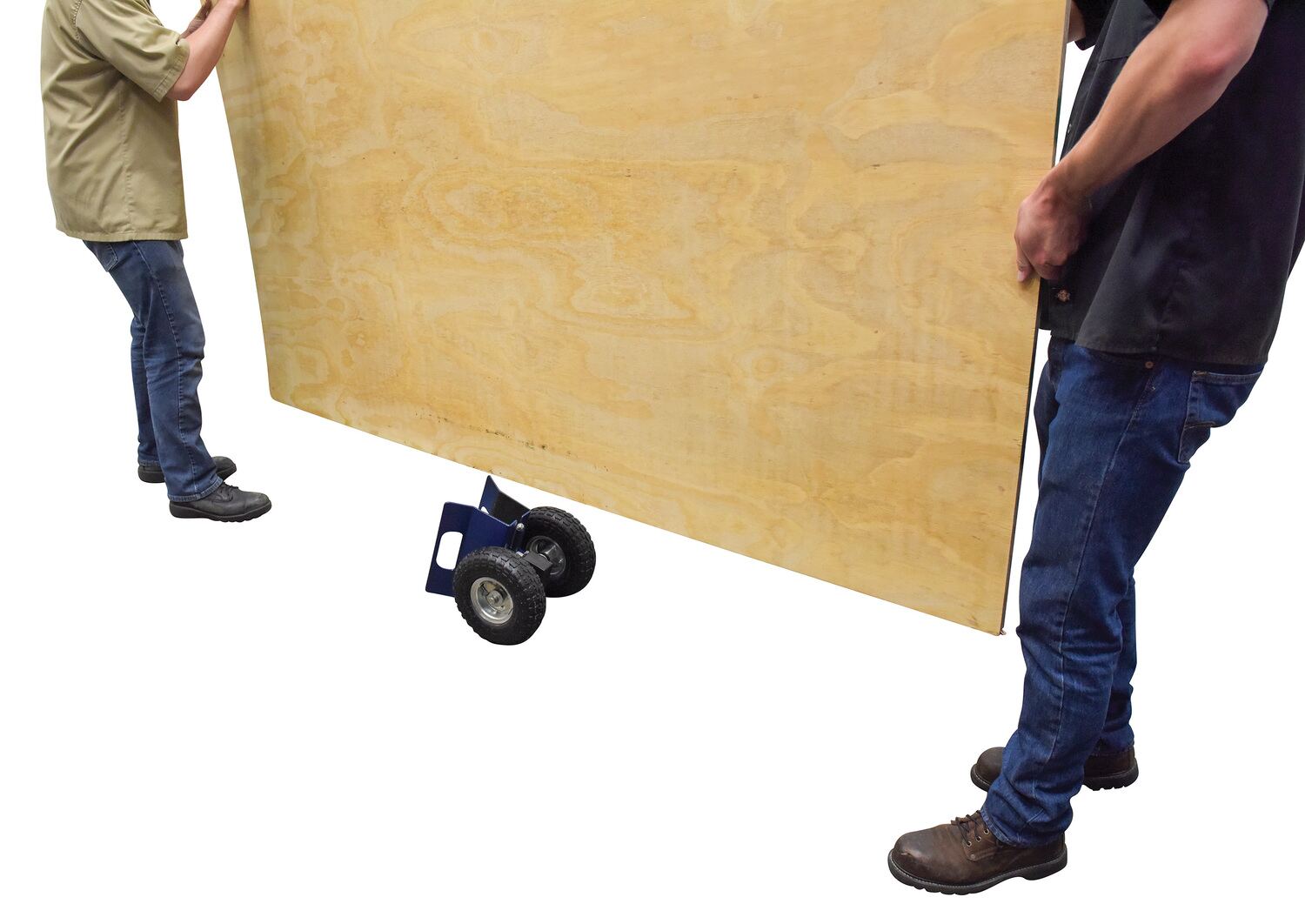

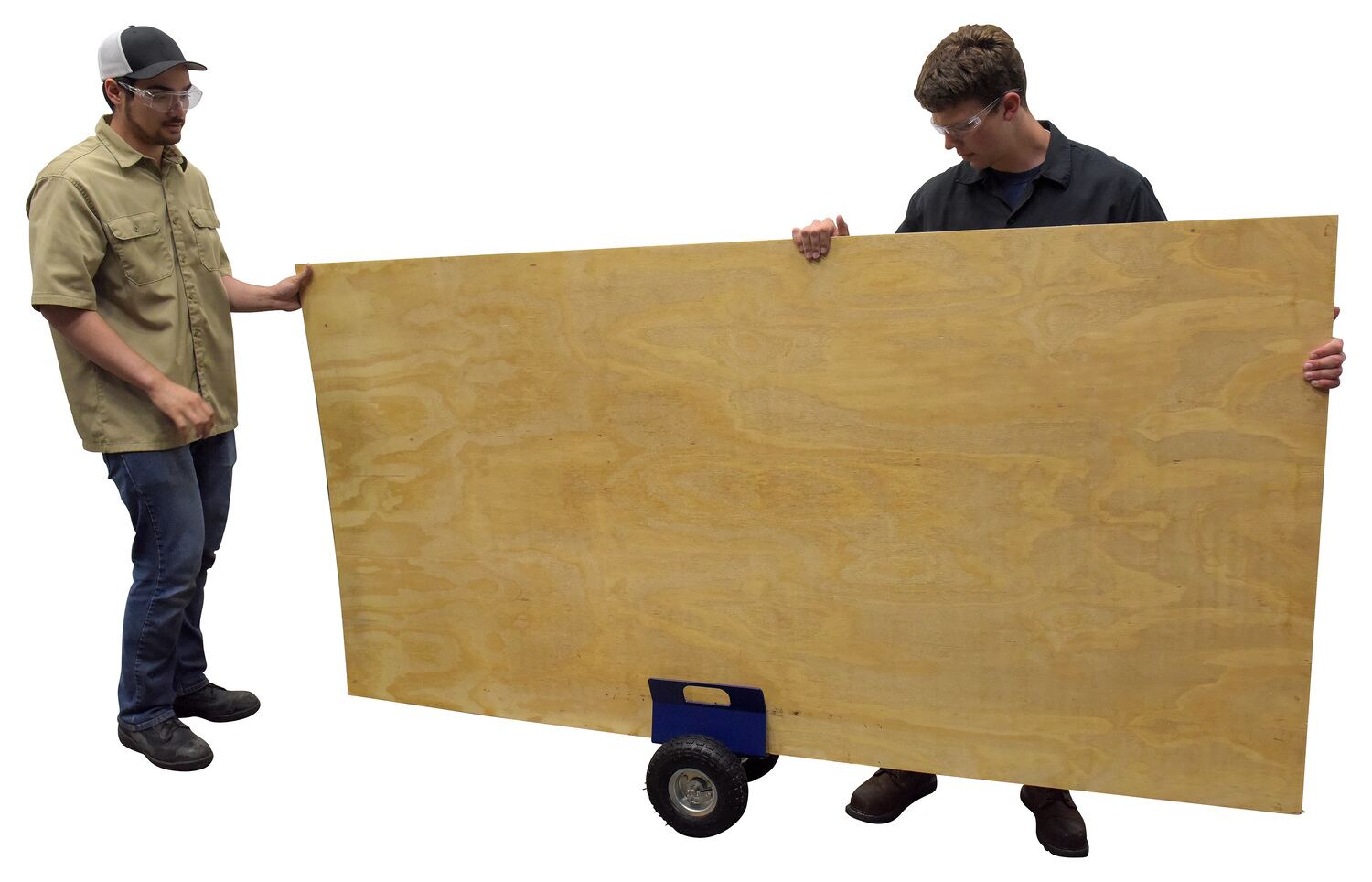

Heavy-duty plate/slab dolly with auto-clamp feature. Unique design grips plate/slab when weight is added. Opening for use with maximum 4" thick plate/slab. Hand holds are great for carrying. Strap (not included) can also be hooked to hand holds. Several different caster types to choose from.Steel construction with padded inside.

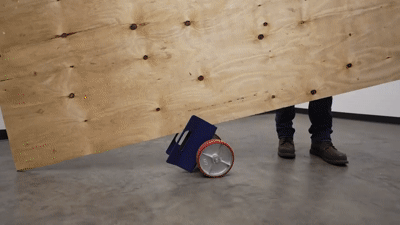

Unique design grips when weight is added
Auto clamp design provides added security
Heavy duty design easily lifts the heaviest loads
Caster diameter makes maneuvering simple

Unique design grips when weight is added
Auto clamp design provides added security
Heavy duty design easily lifts the heaviest loads
Caster diameter makes maneuvering simple

Other Panel Dollies

Lightweight Door & Panel Dolly

Heavy-Duty Plate/Slab Dollies

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model PLDL-HD-4-8GFN

model PLDL-HD-4-8MR

model PLDL-HD-4-8PS

model PLDL-HD-4-10FF

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)

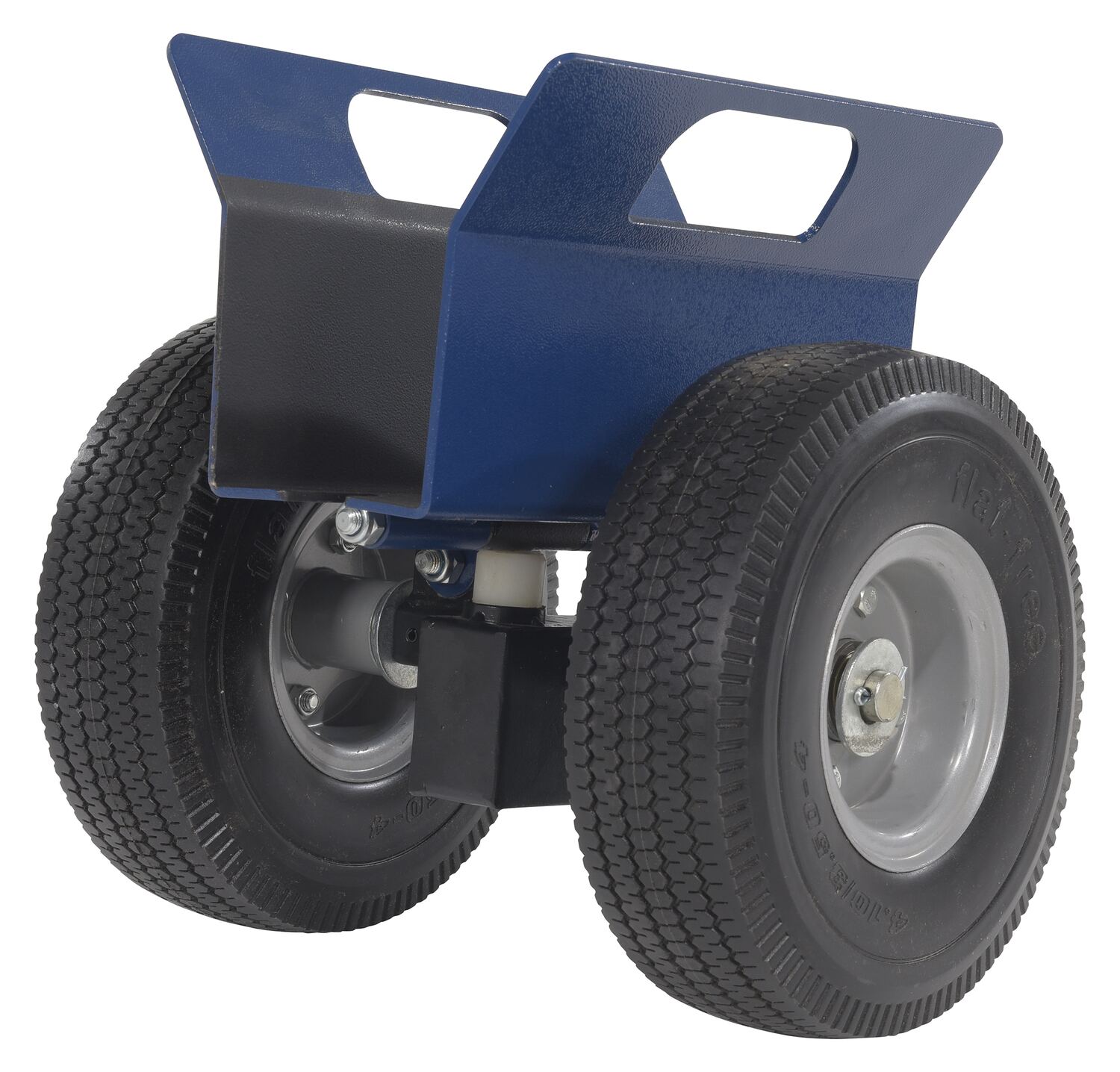

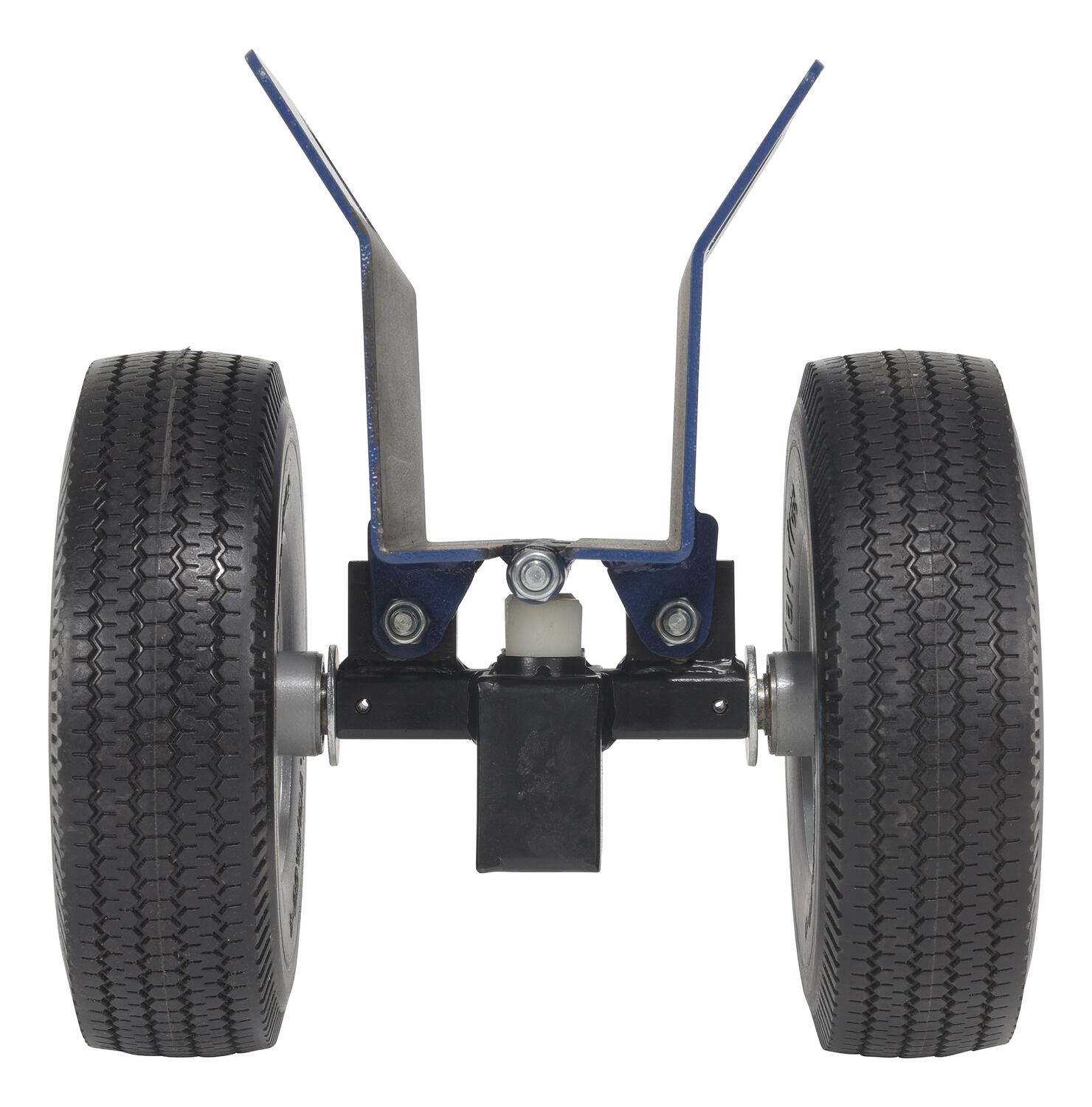

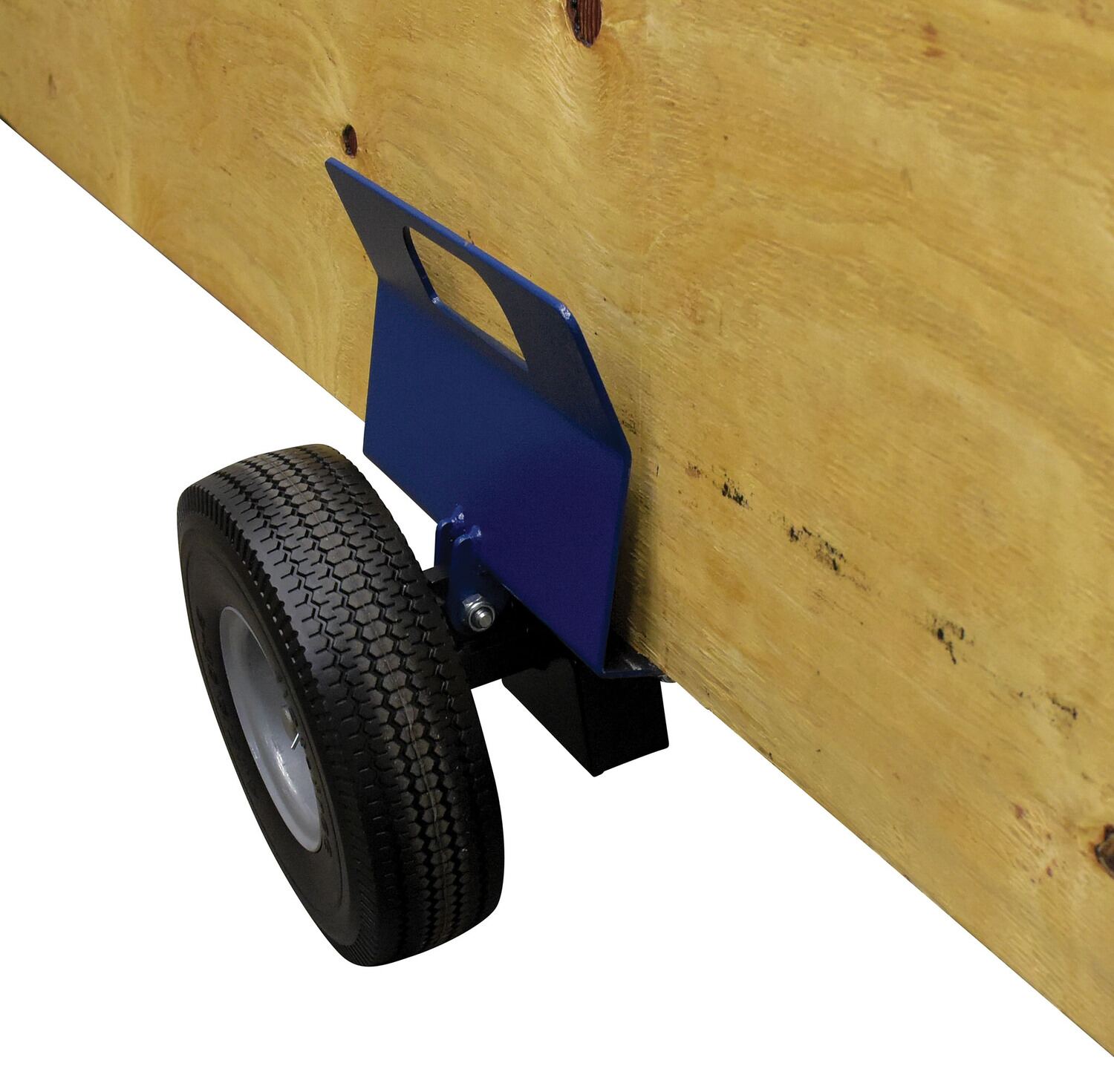

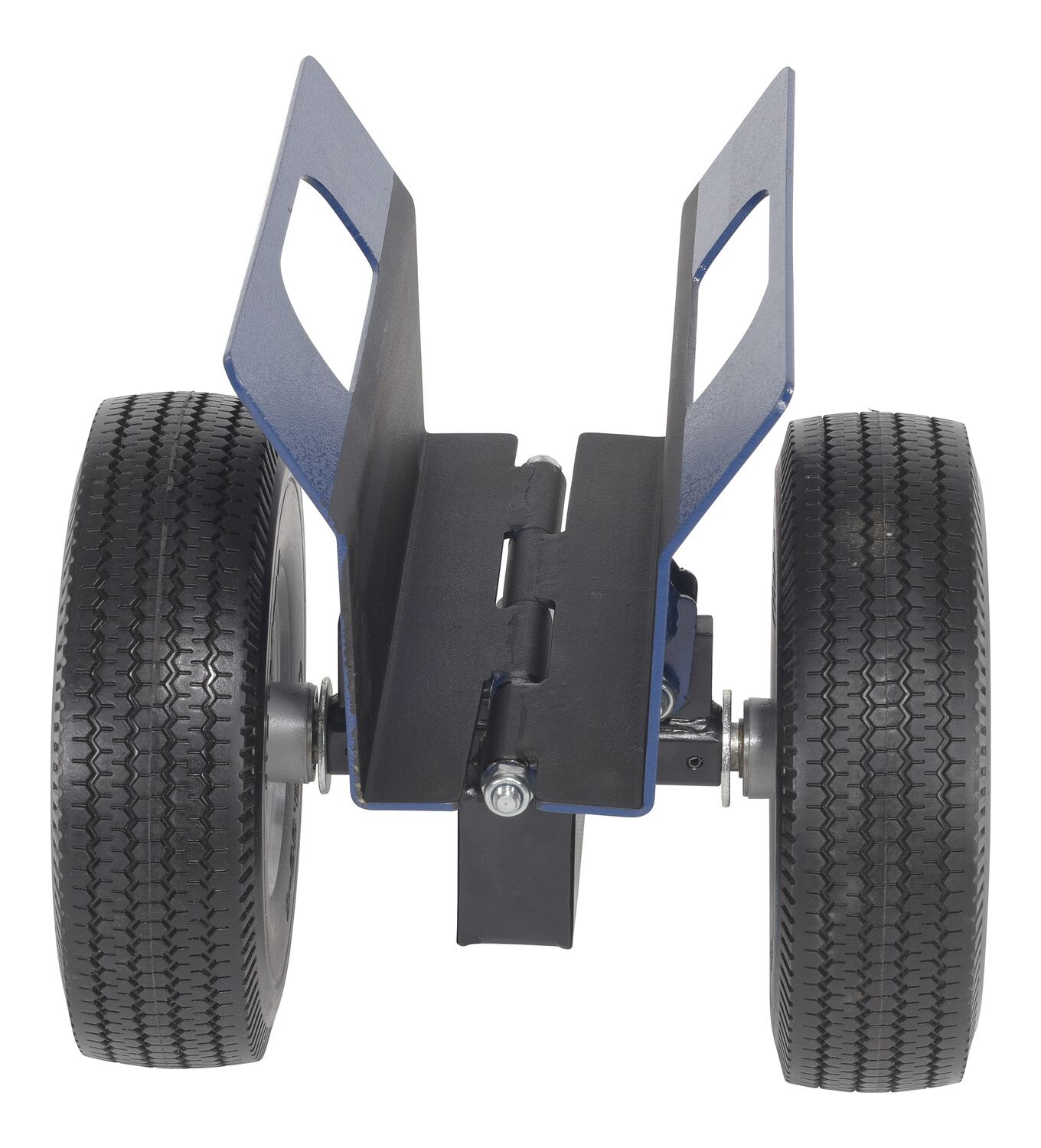

PLDL-HD-4-10FF	30 Days Limited Warranty	Steel Heavy Duty Adjustable Panel Dolly With Foam Filled Wheels 12 In x 12-13/16 In x 13-1/4 In 500 Lb. Capacity Blue	Uniform Static Capacity (lb.): 500 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2	23

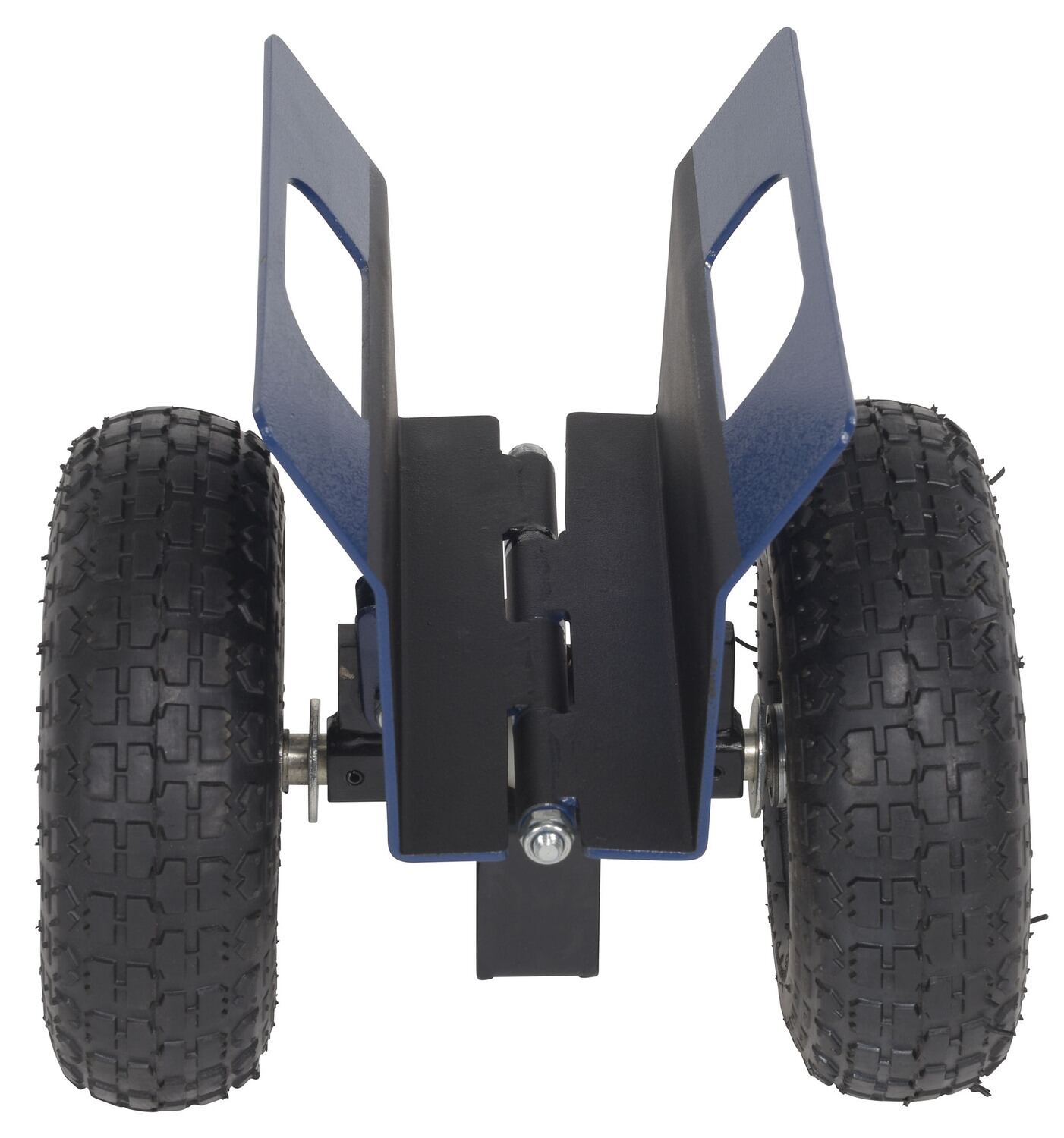

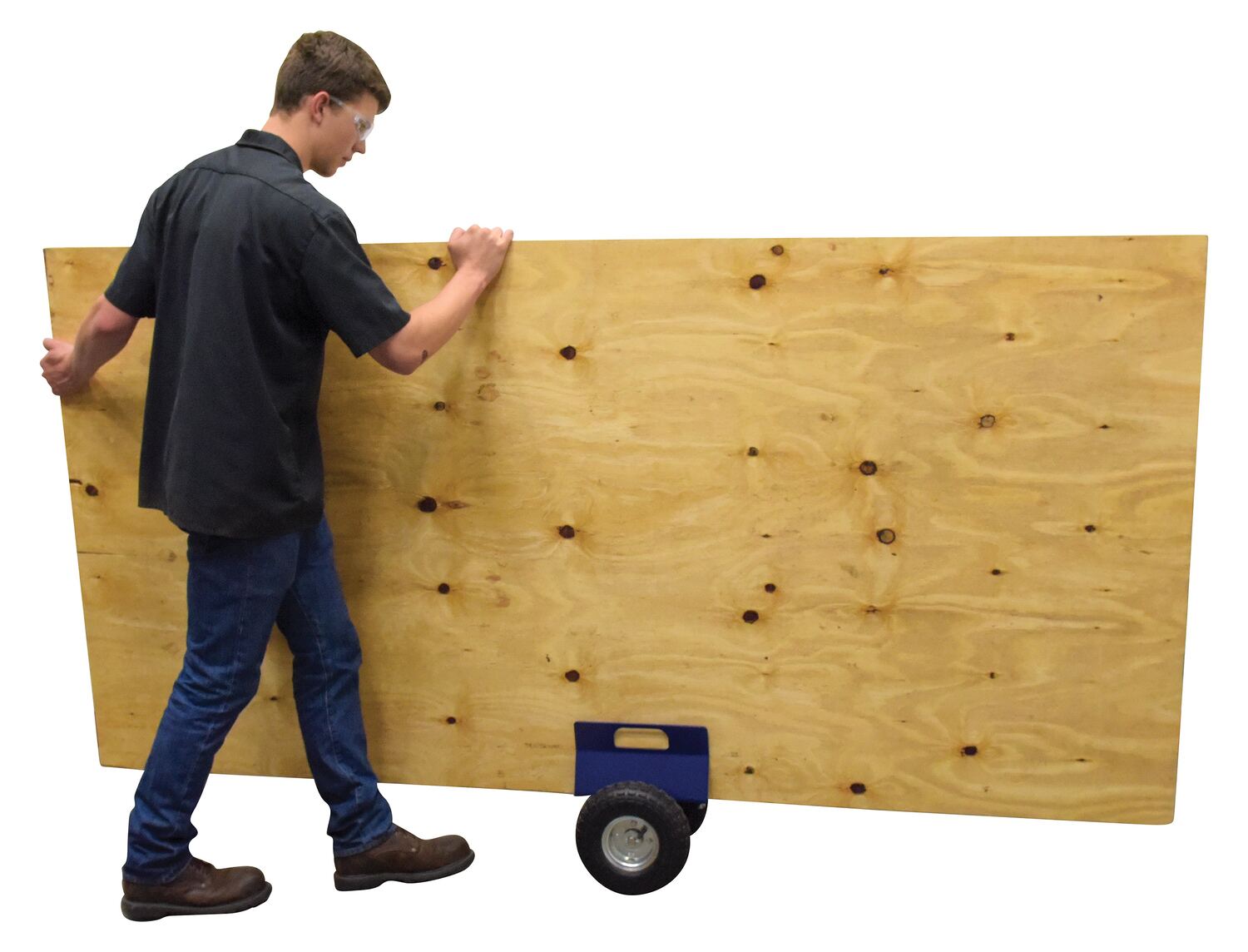

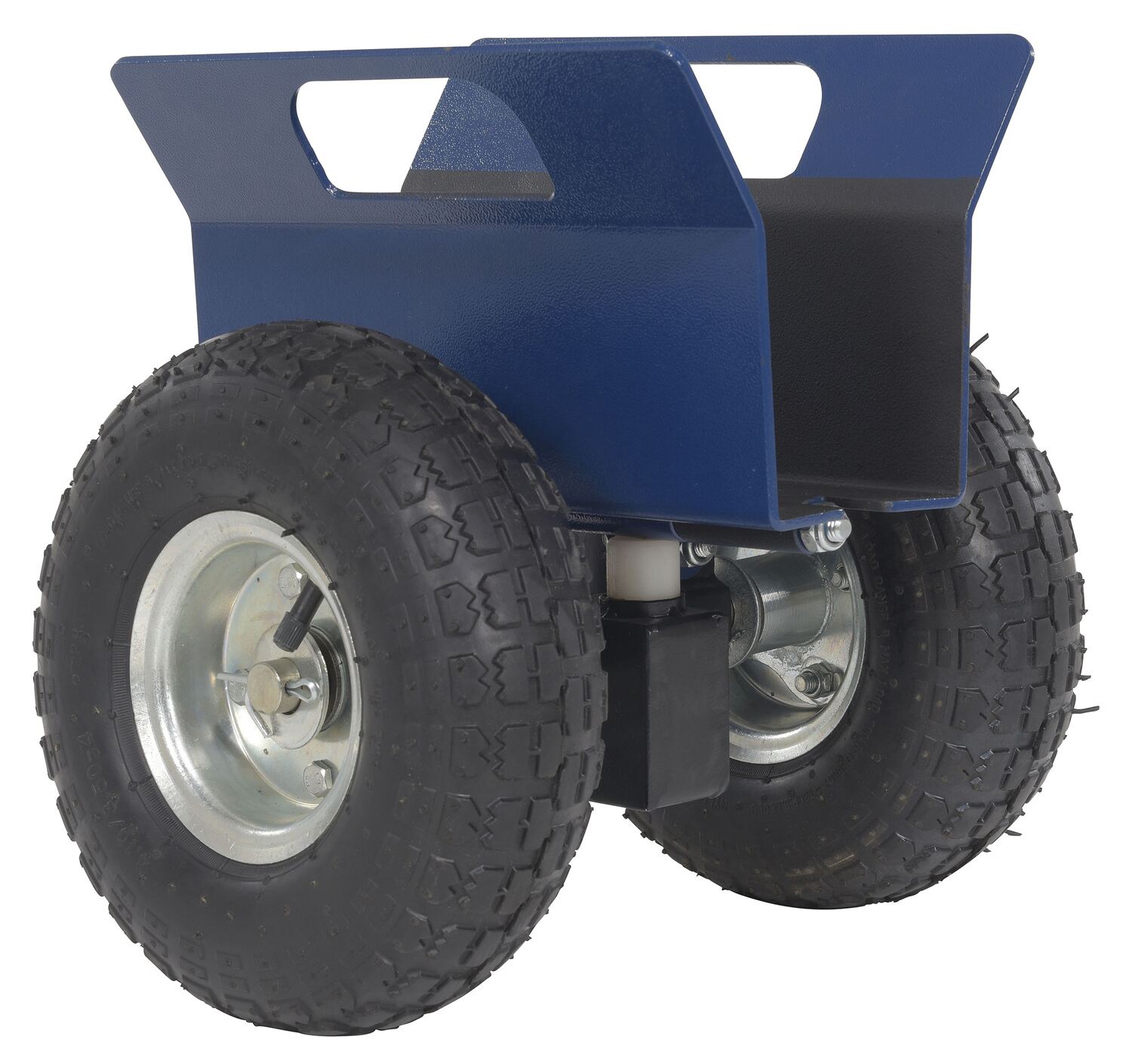

PLDL-HD-4-10PN	30 Days Limited Warranty	Steel Heavy Duty Adjustable Panel Dolly Pneumatic Wheels 12 In x 12-15/16 In x 13-1/4 In 750 Lb. Capacity Blue	Uniform Static Capacity (lb.): 750 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2	24

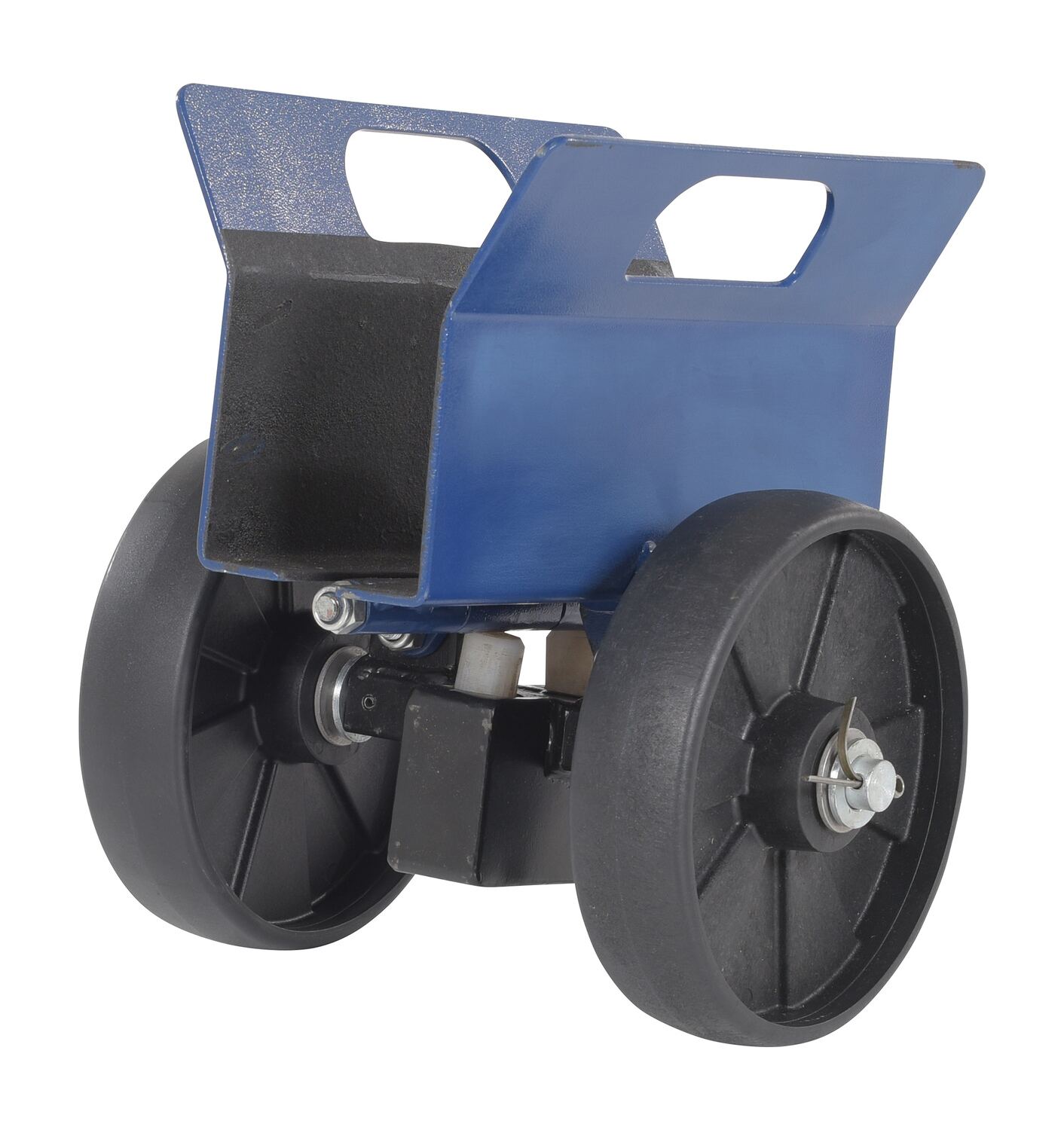

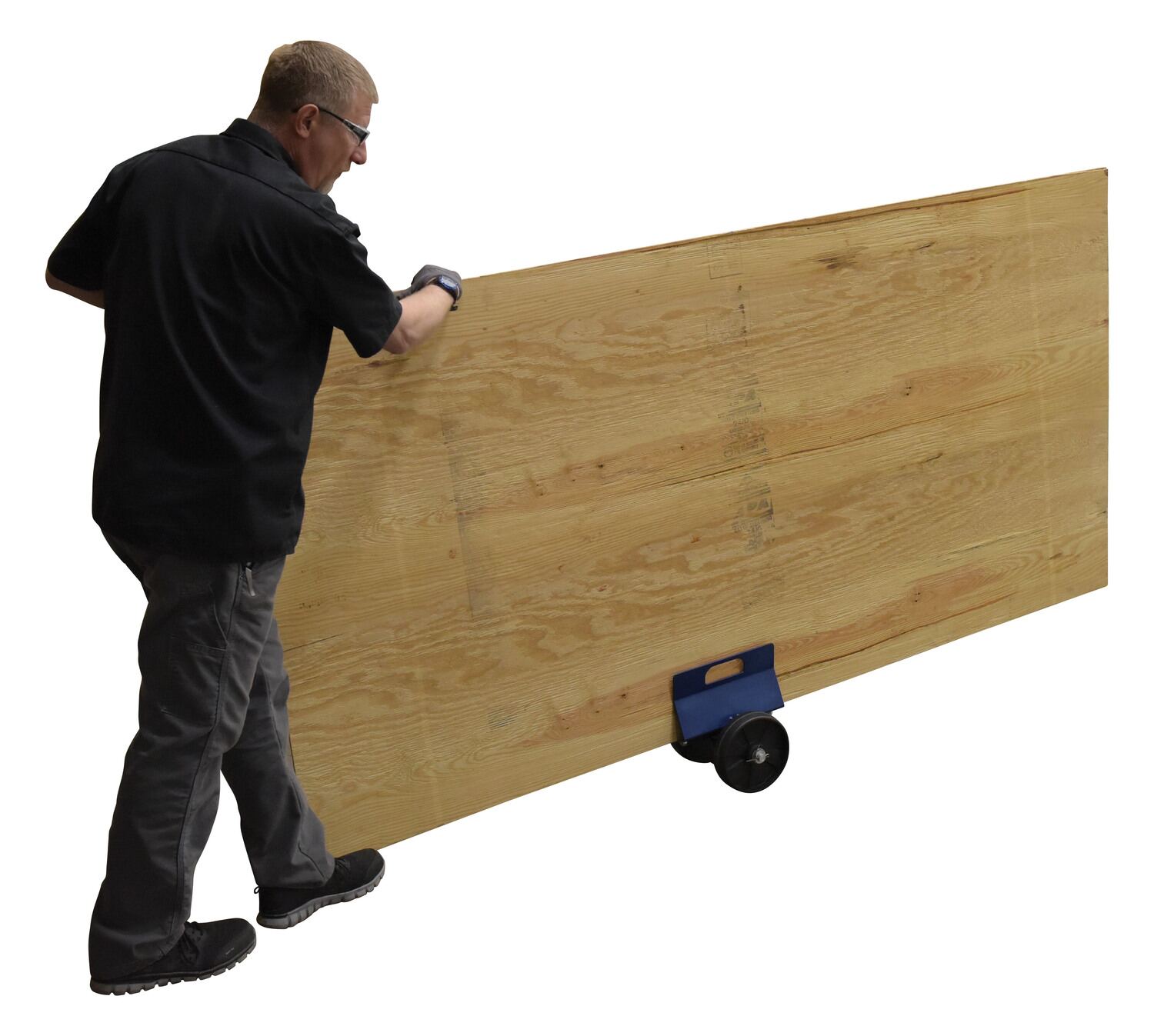

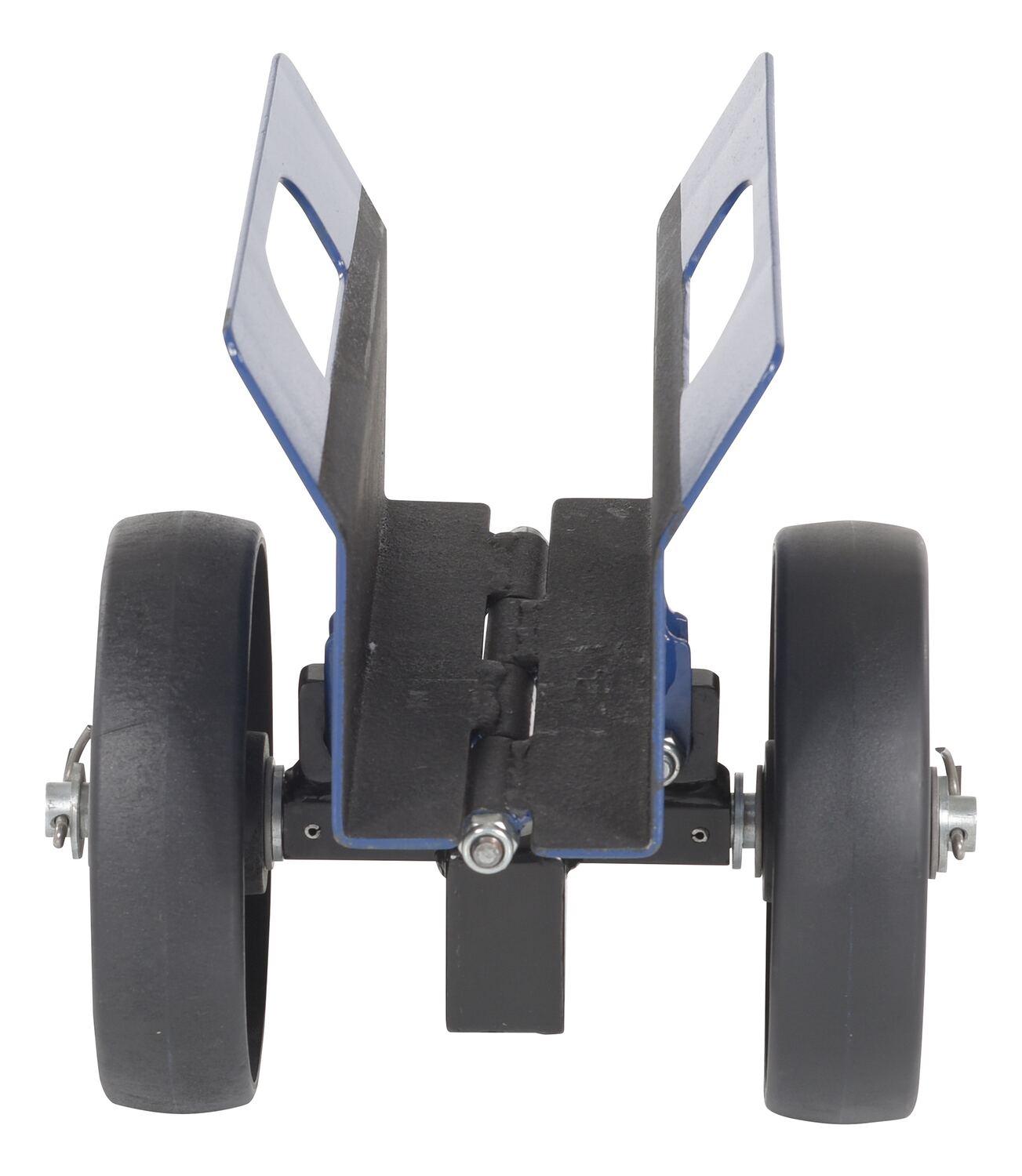

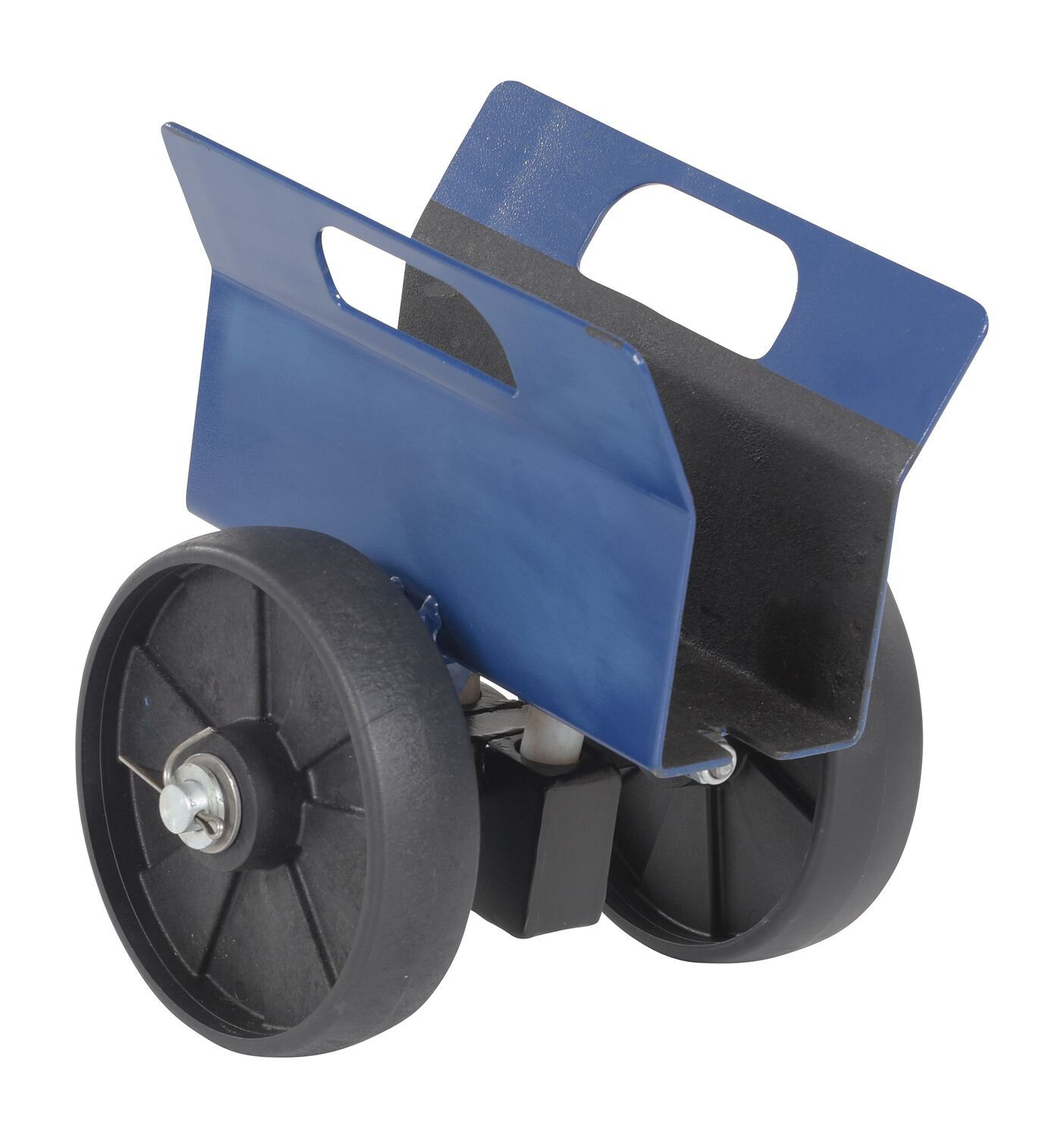

PLDL-HD-4-8GFN	30 Days Limited Warranty	Steel Heavy Duty Adjustable Panel Dolly With Glass Filled Nylon Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,500 Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2	24

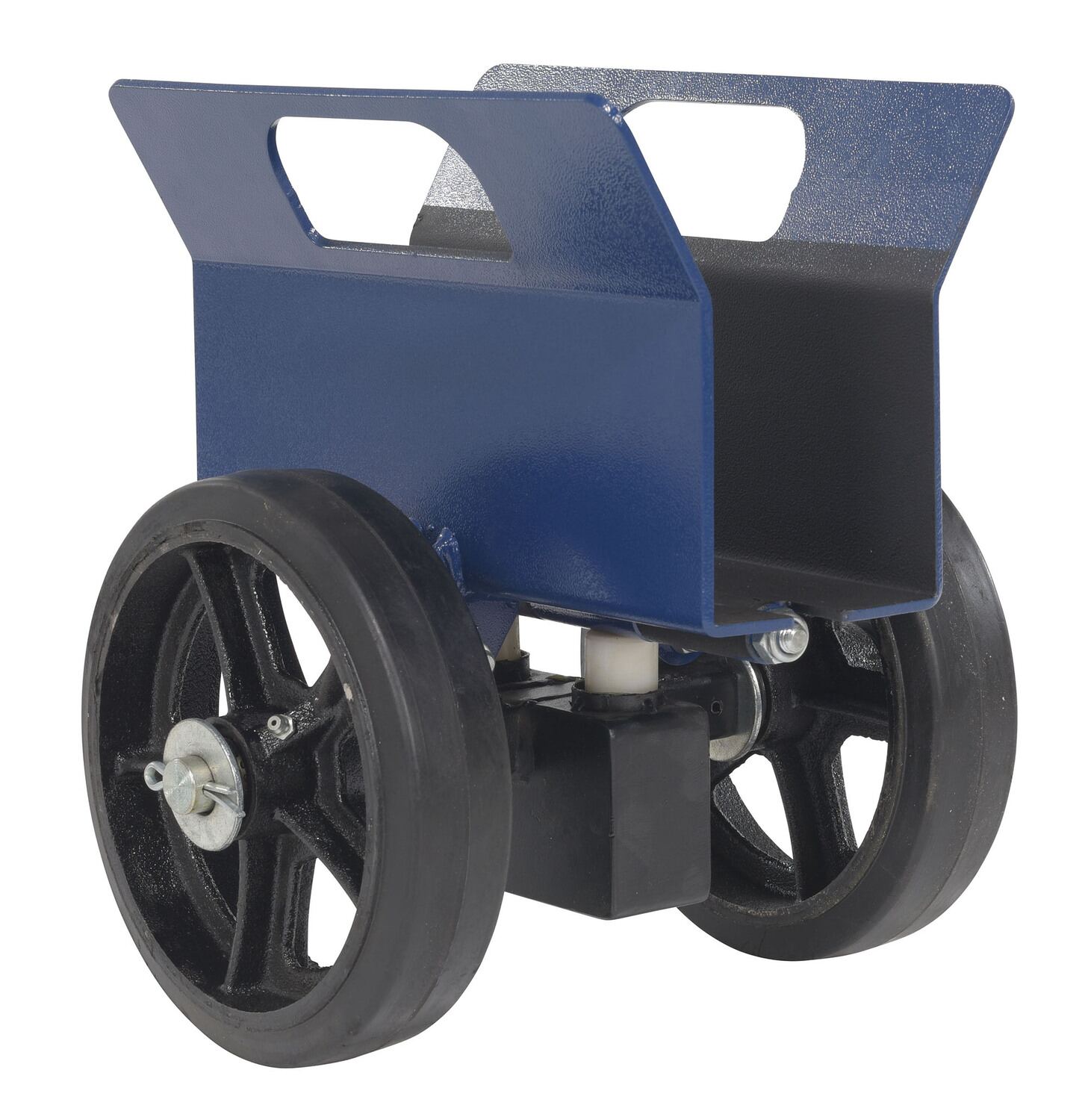

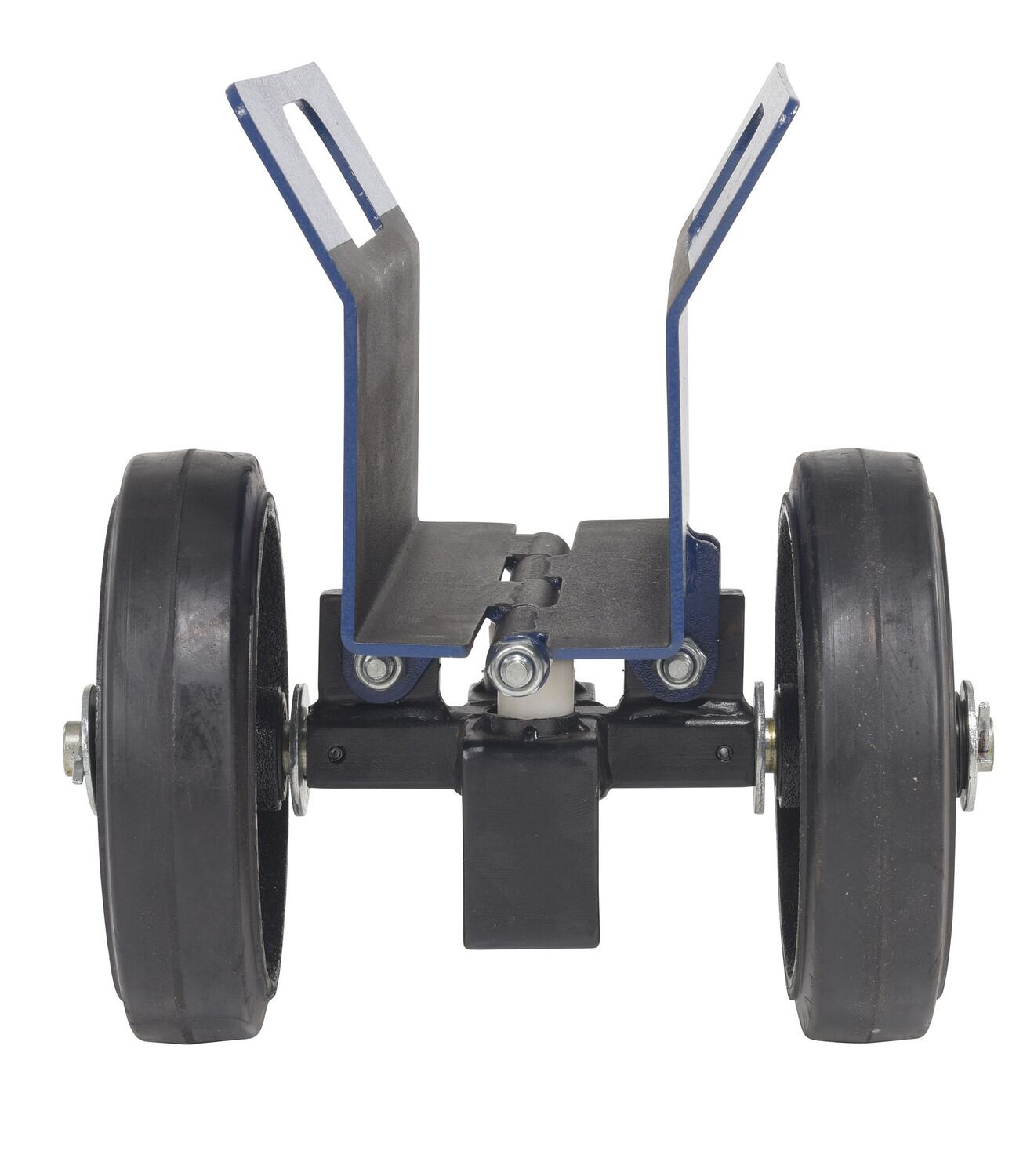

PLDL-HD-4-8MR	30 Days Limited Warranty	Steel Heavy Duty Adjustable Panel Dolly With Mold On Rubber Casters 12 In x 12-1/4 In x 12-1/4 In 1200 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,200 Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2	28

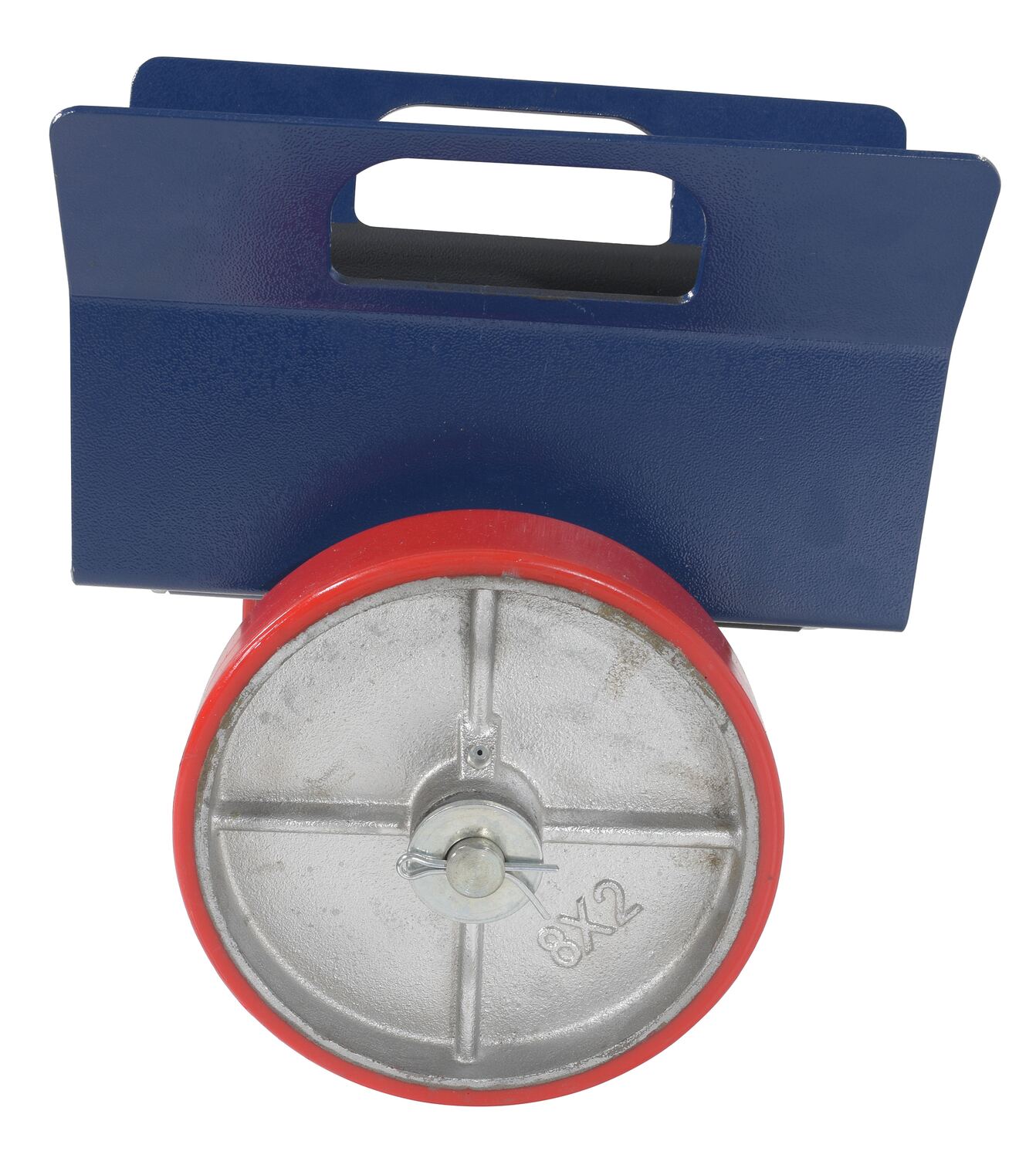

PLDL-HD-4-8PS	30 Days Limited Warranty	Steel Heavy Duty Adjustable Panel Dolly With Poly-On-Steel Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity Blue	Uniform Static Capacity (lb.): 1,500 Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2	28

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PLDL-HD-4-10FF

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2

PLDL-HD-4-10PN

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2

PLDL-HD-4-8GFN

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2

PLDL-HD-4-8MR

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
Uniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2

PLDL-HD-4-8PS

Heavy-Duty Plate/Slab Dollies PDF's will open in a new window when clicked.

Manuals

PLDL
Owners Manual

PLDL-HD-4
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

PLDL-HD-4-10FF

PLDL-HD-4-10PN

PLDL-HD-4-8GFN

PLDL-HD-4-8MR

PLDL-HD-4-8PS

Testing Certificates

PLDL-HD-4-10FF

PLDL-HD-4-10PN

PLDL-HD-4-8GFN

PLDL-HD-4-8MR

PLDL-HD-4-8PS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

Q: What is the maximum material width this unit can accept?

A: Maximum usable width is 3 3/4"
