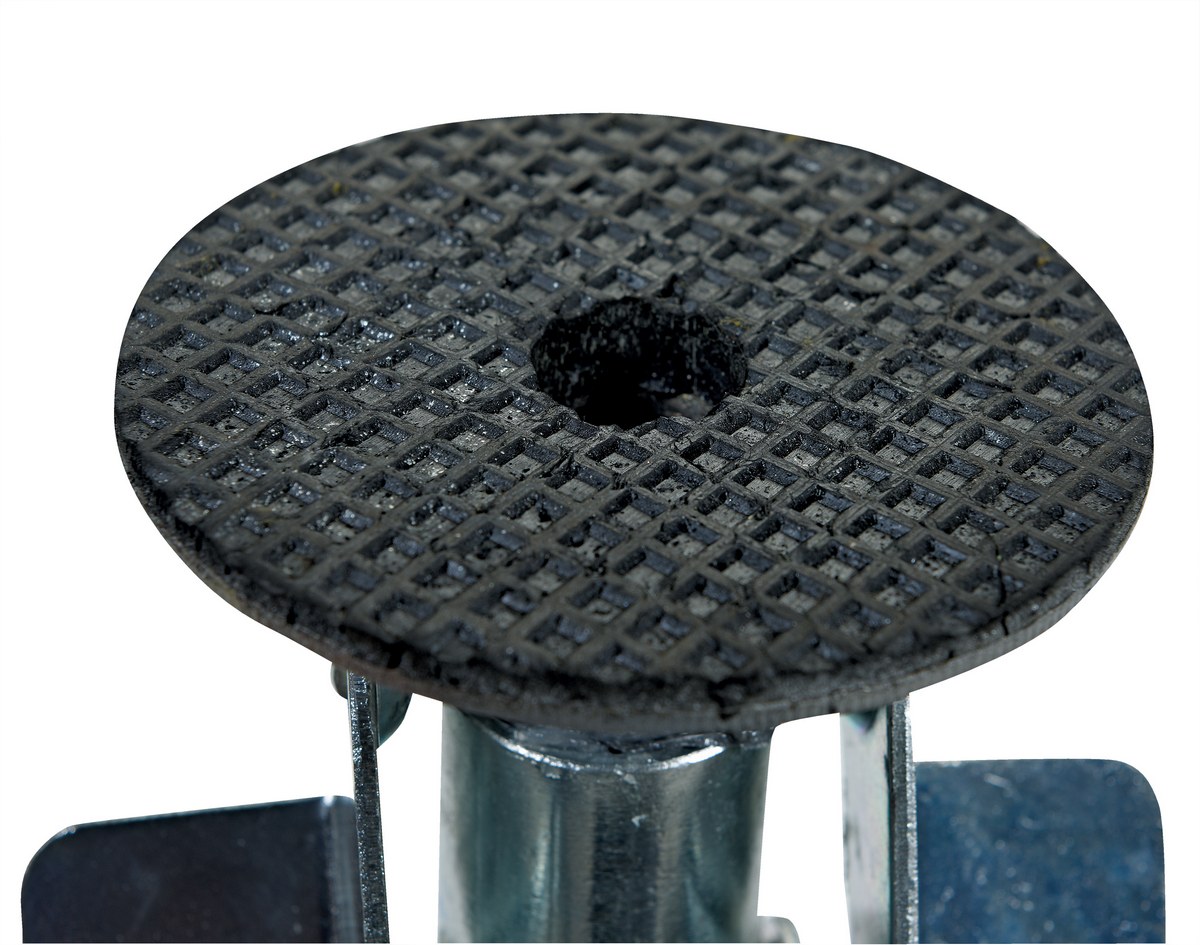

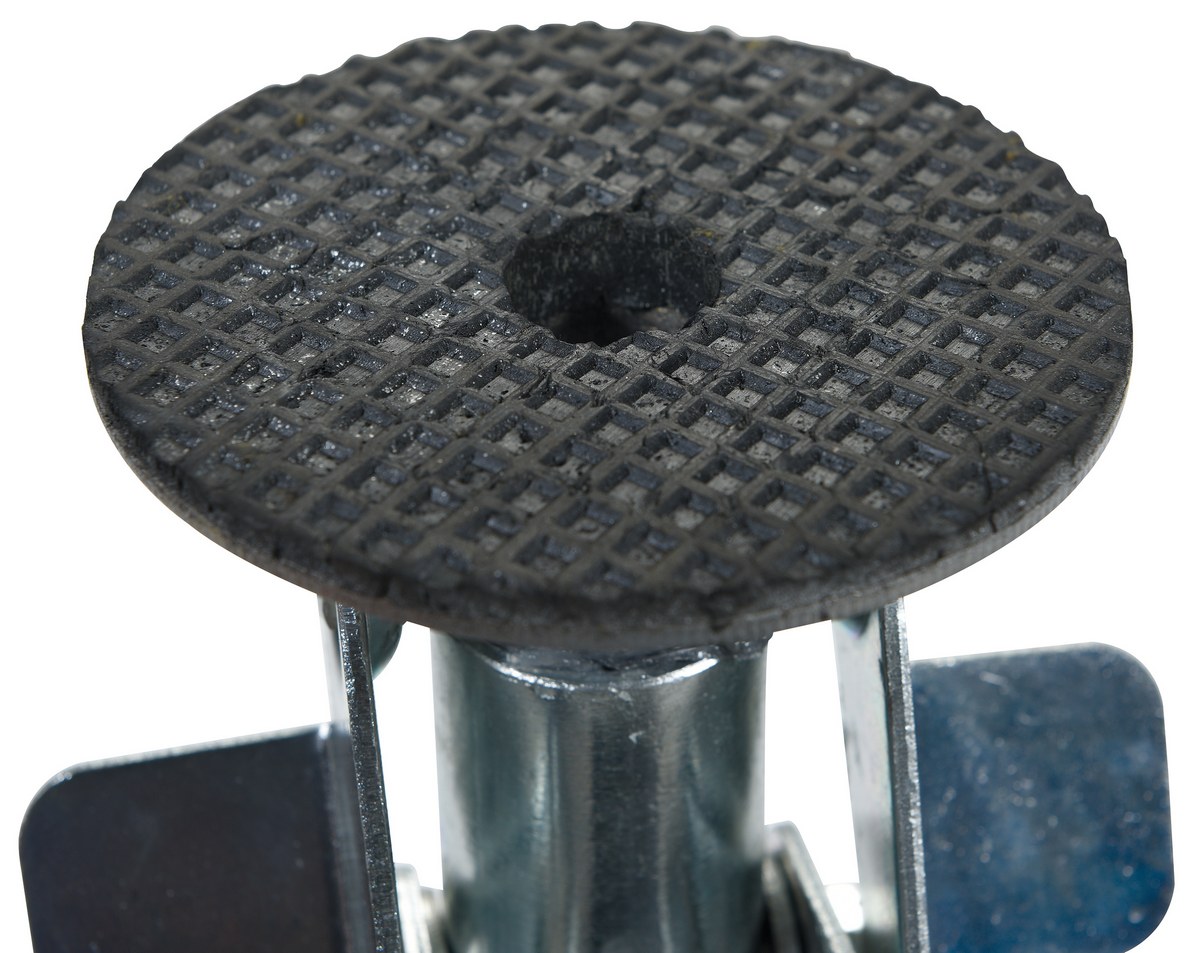

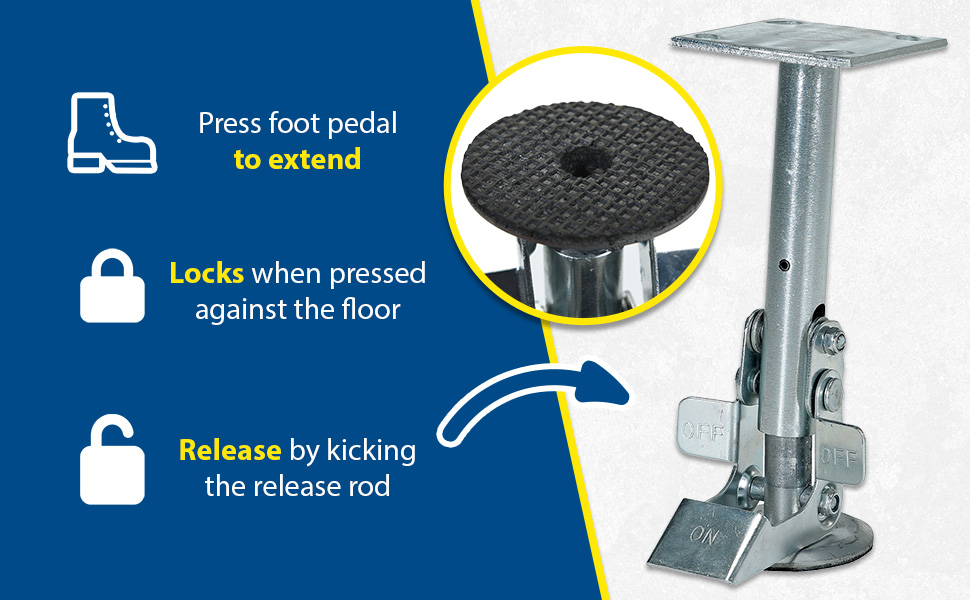

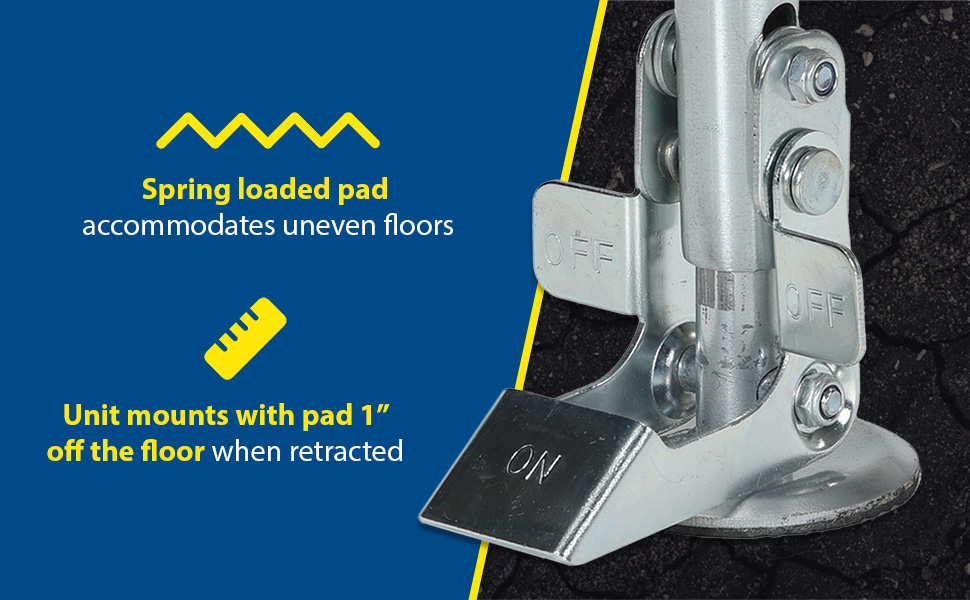

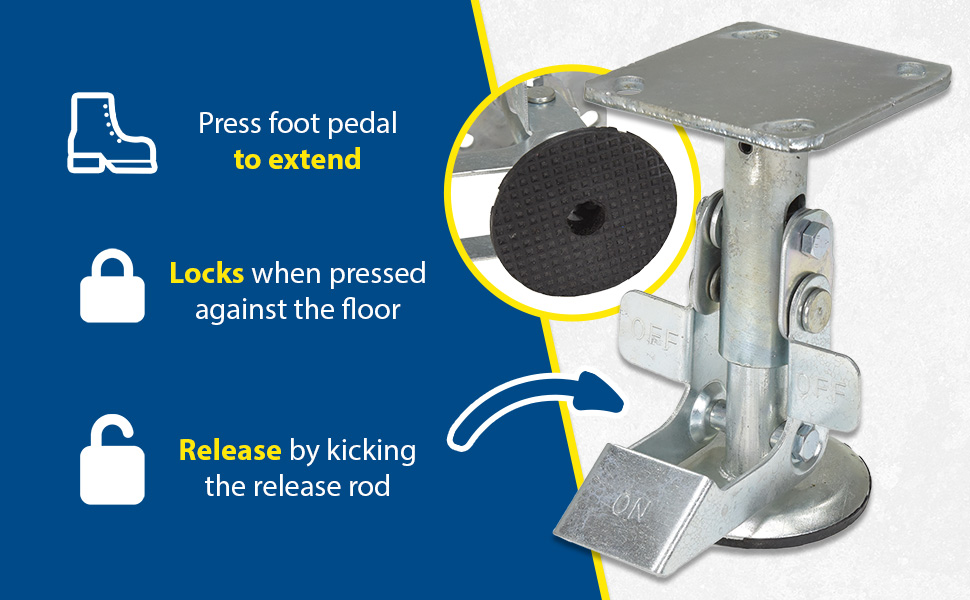

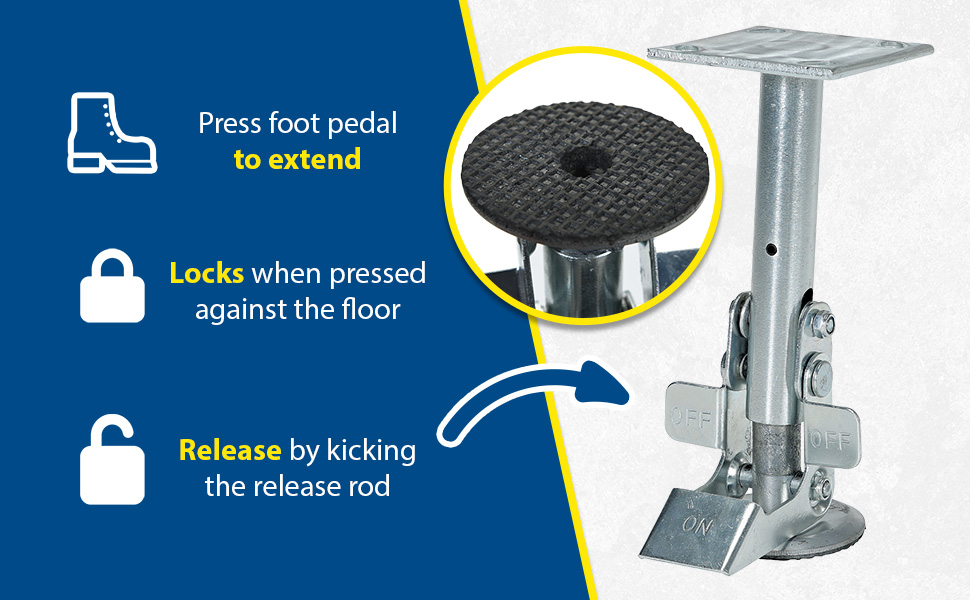

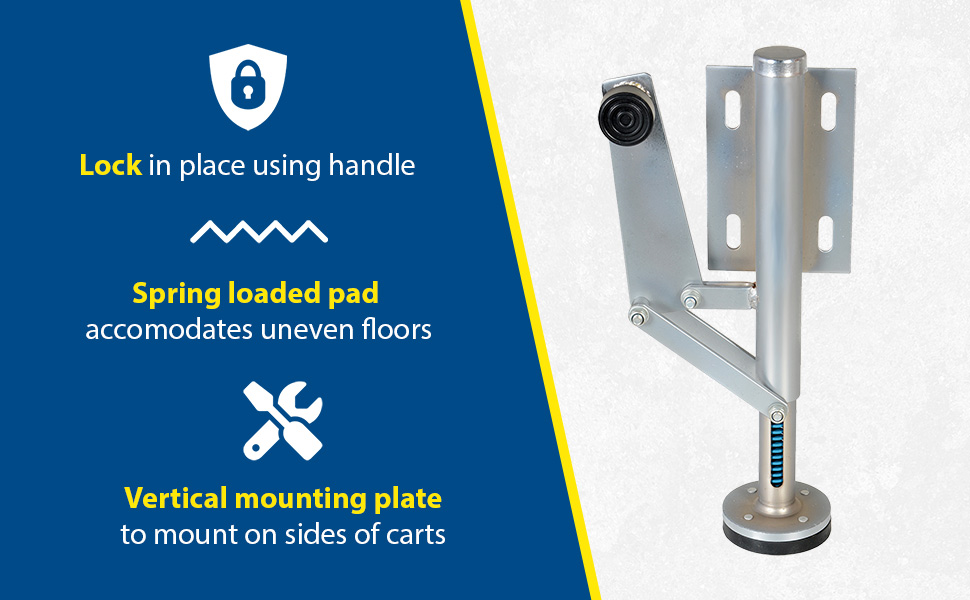

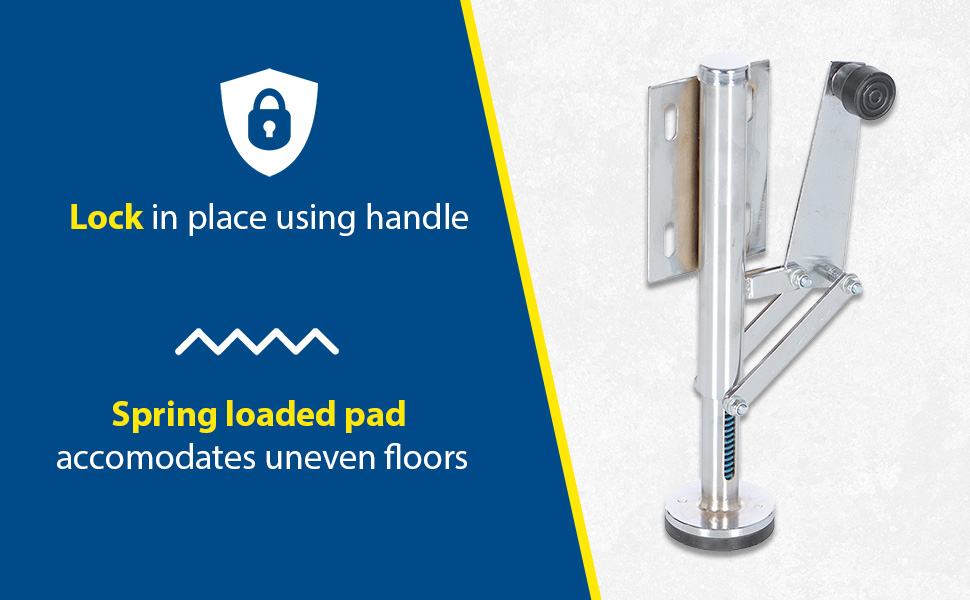

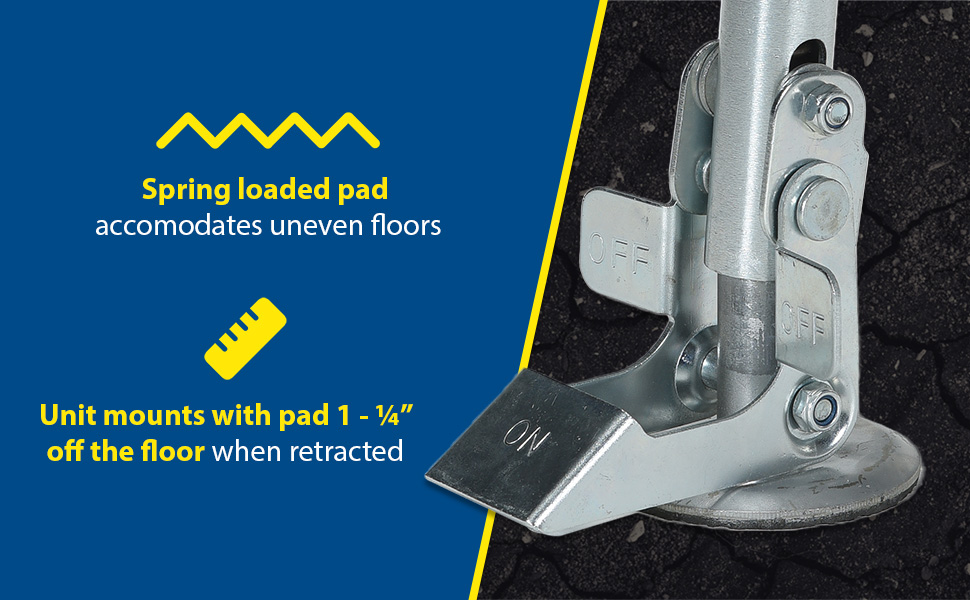

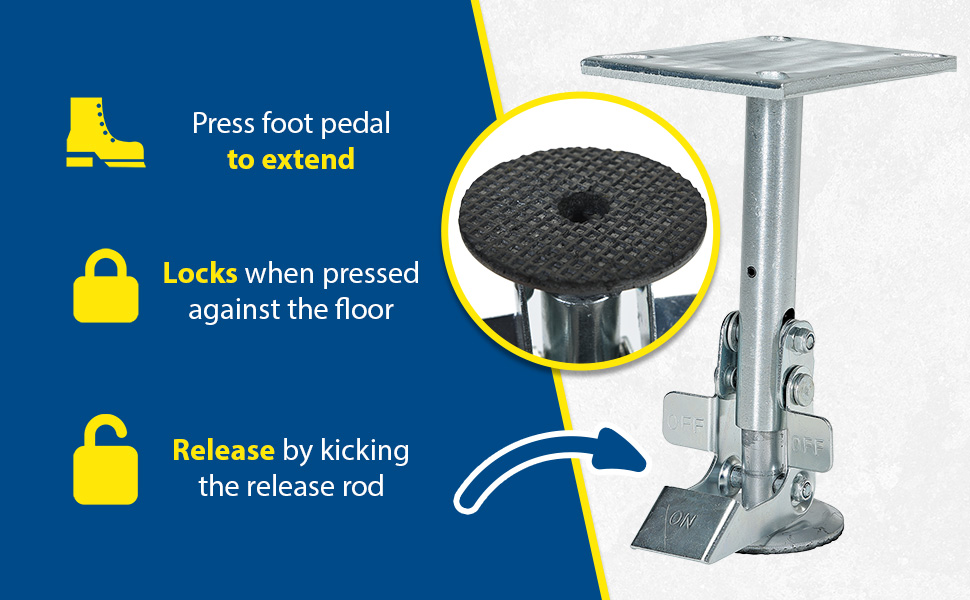

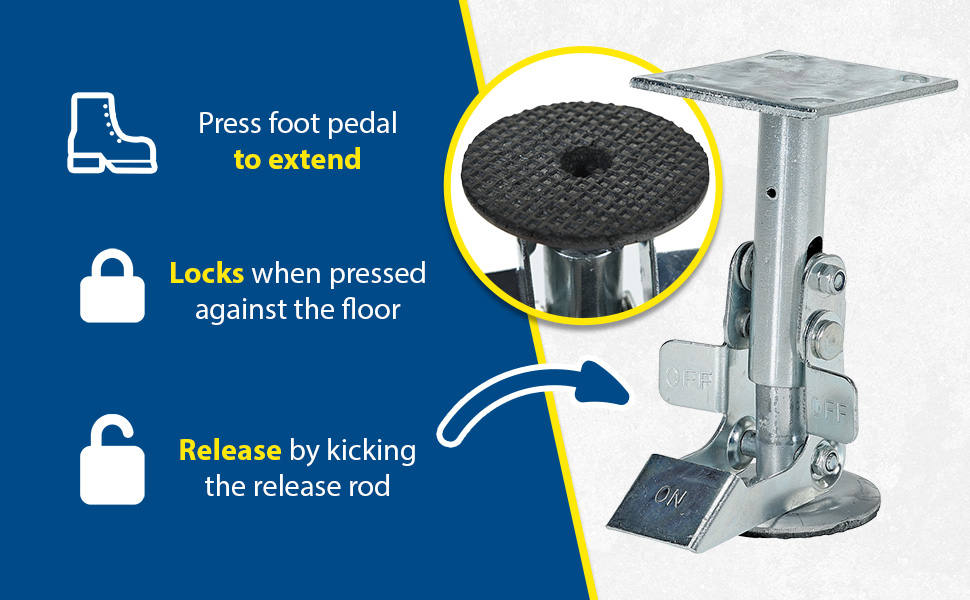

Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.
Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.
Model # | Description | Attributes | Net Wt. (lbs) |
||||
---|---|---|---|---|---|---|---|

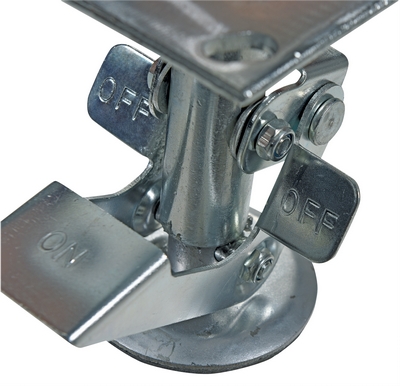

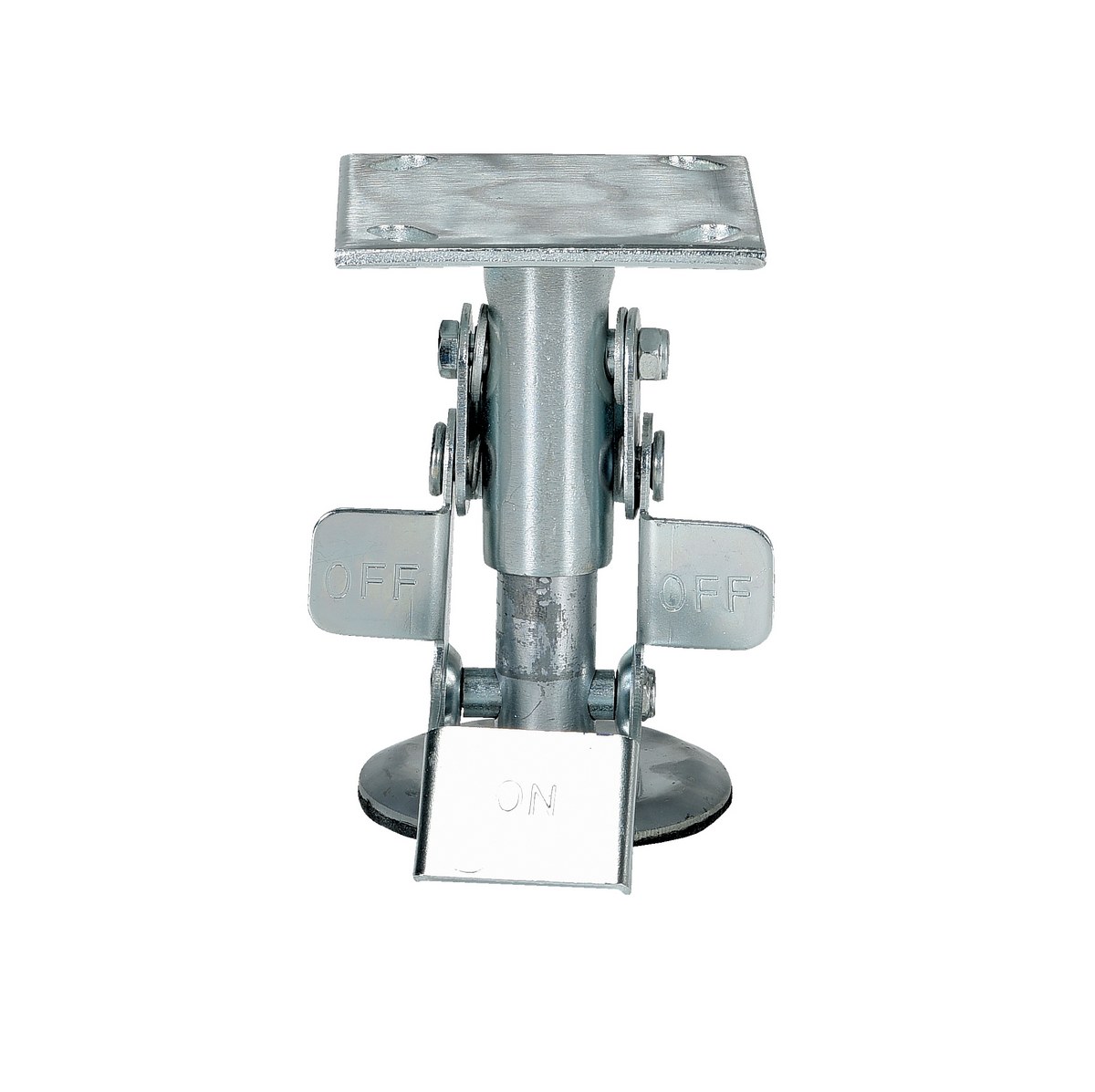

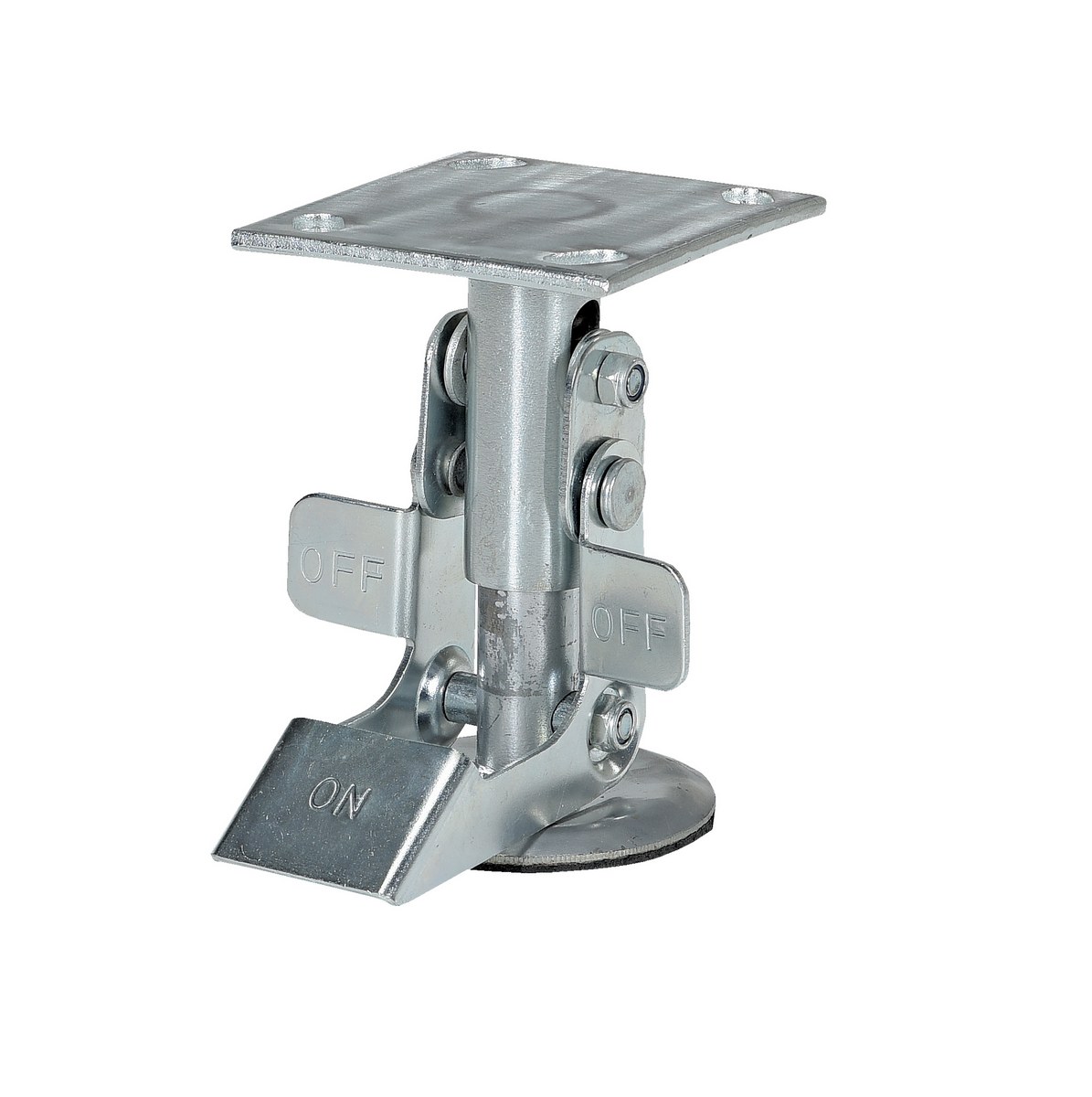

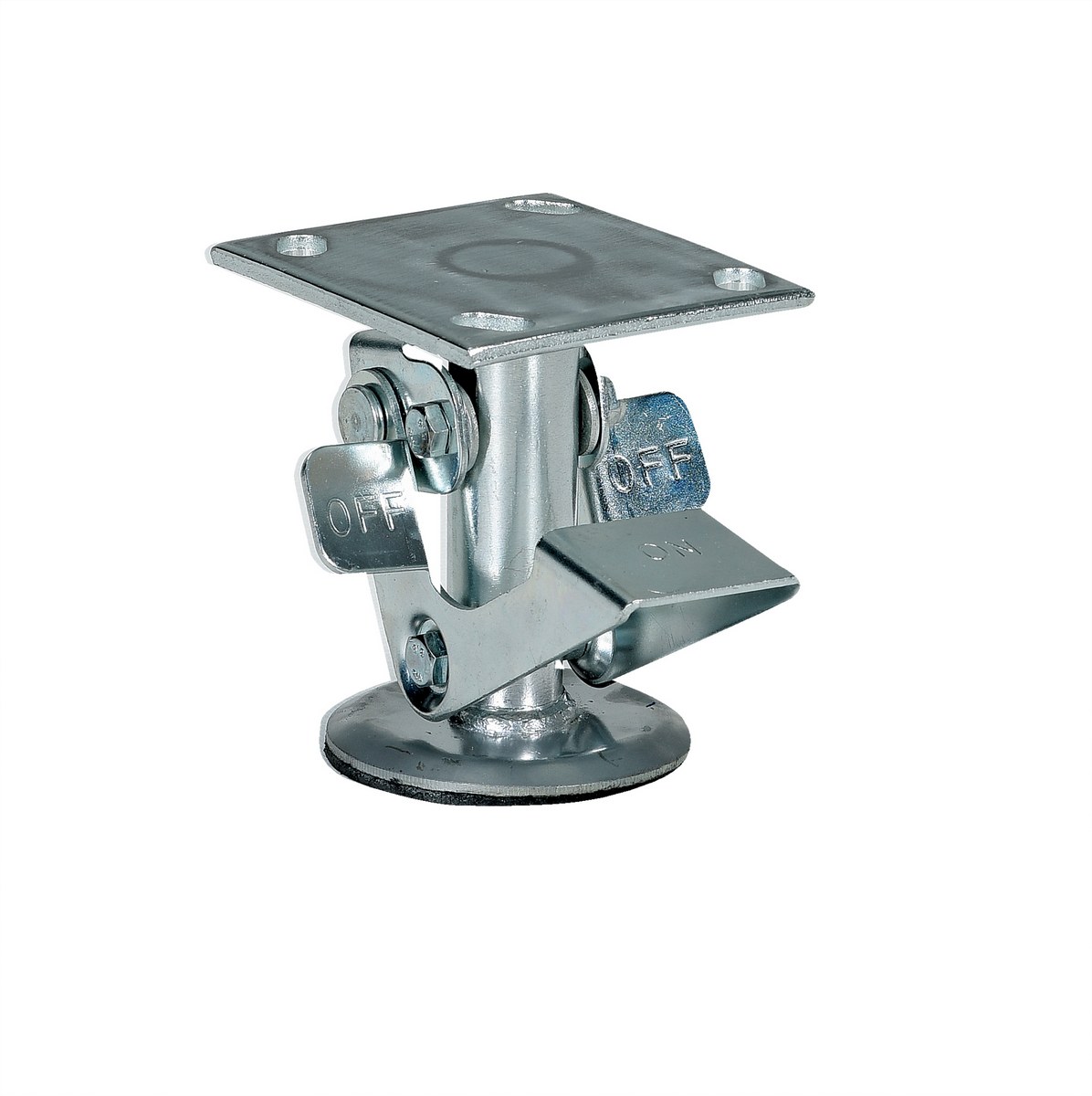

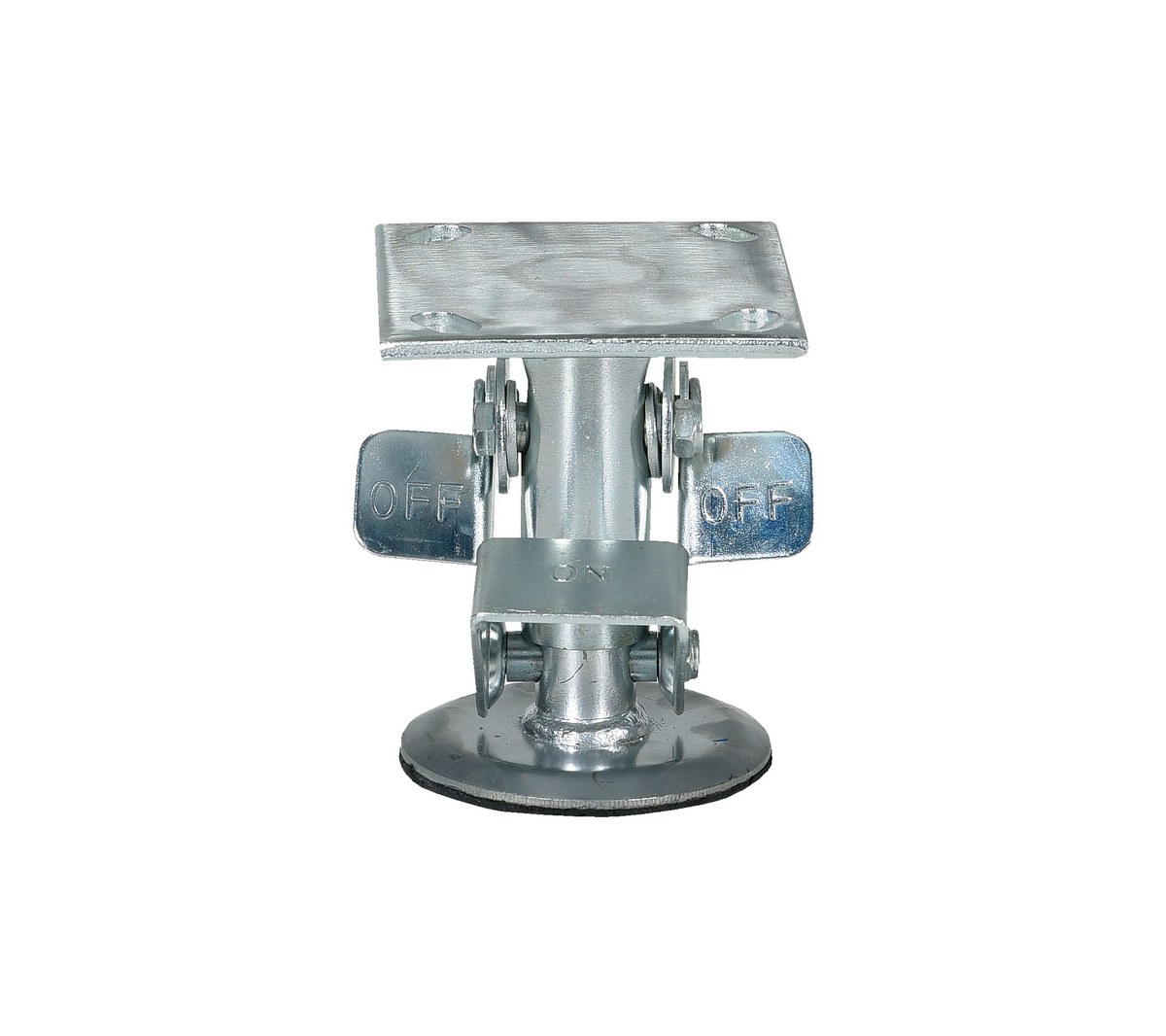

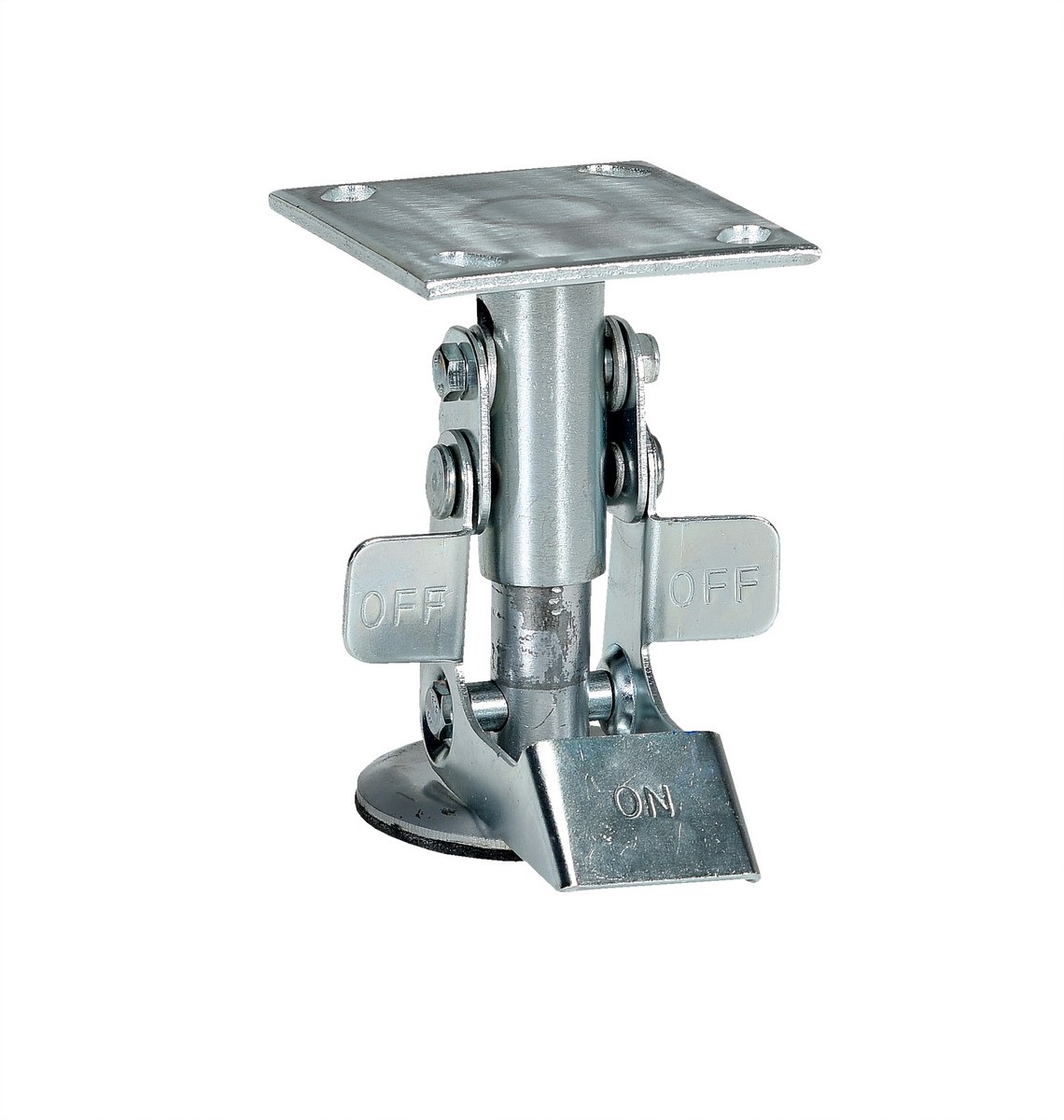

FL-LK-4E |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-7/8 to 5-5/8 In. Height Silver | Caster Diameter (in.): 4 Mount Height (in.): 5-5/8 | 4 | ||

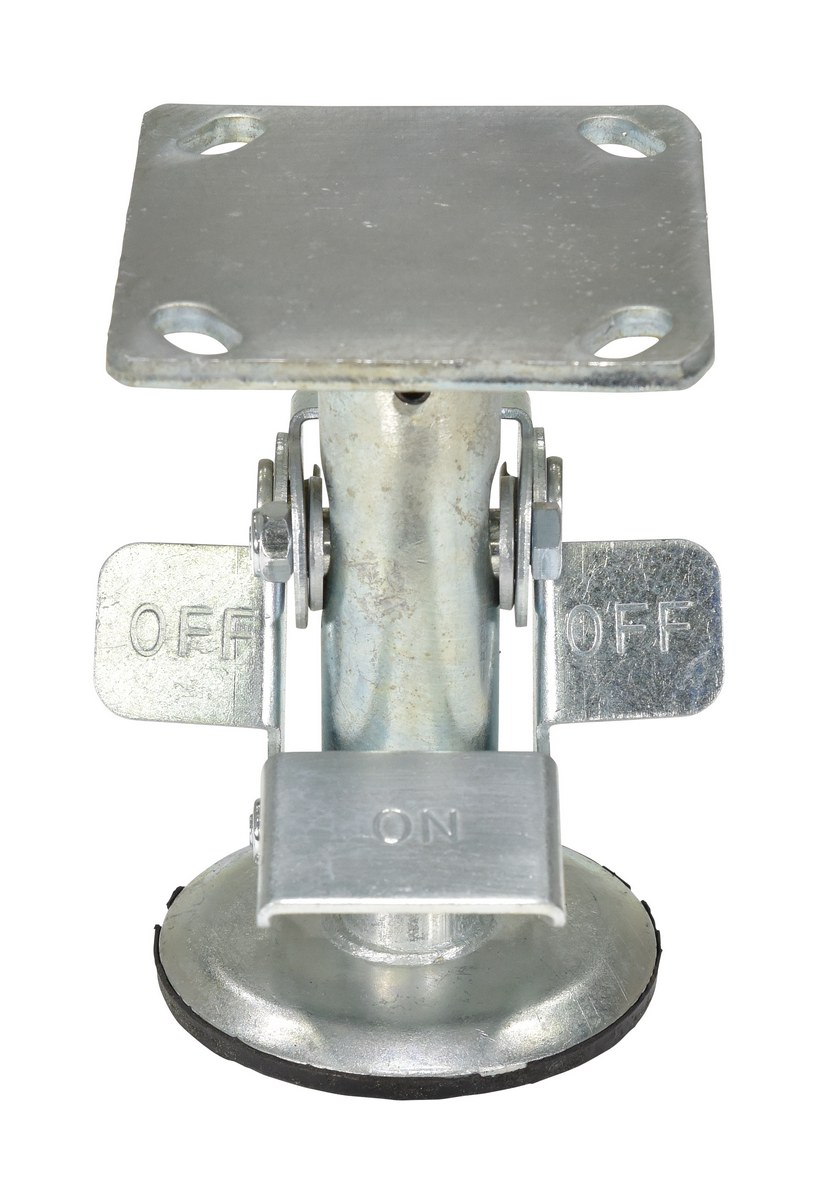

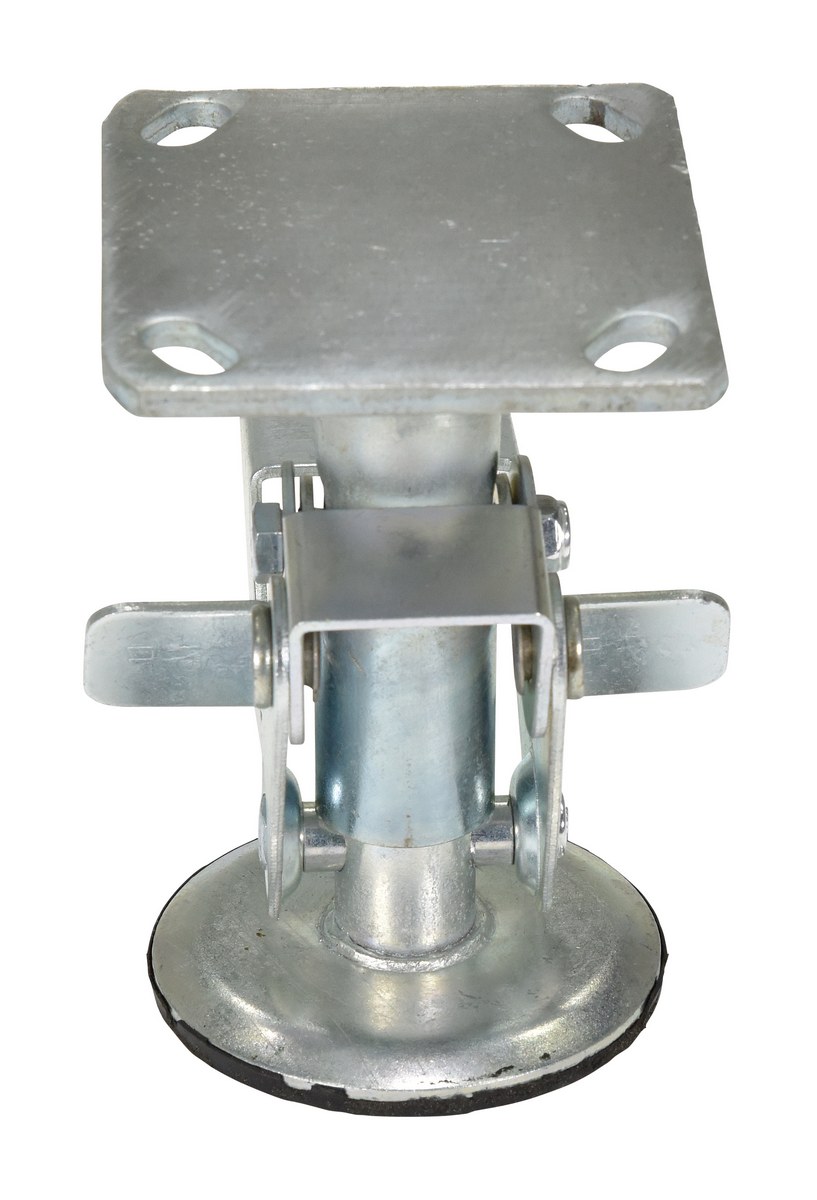

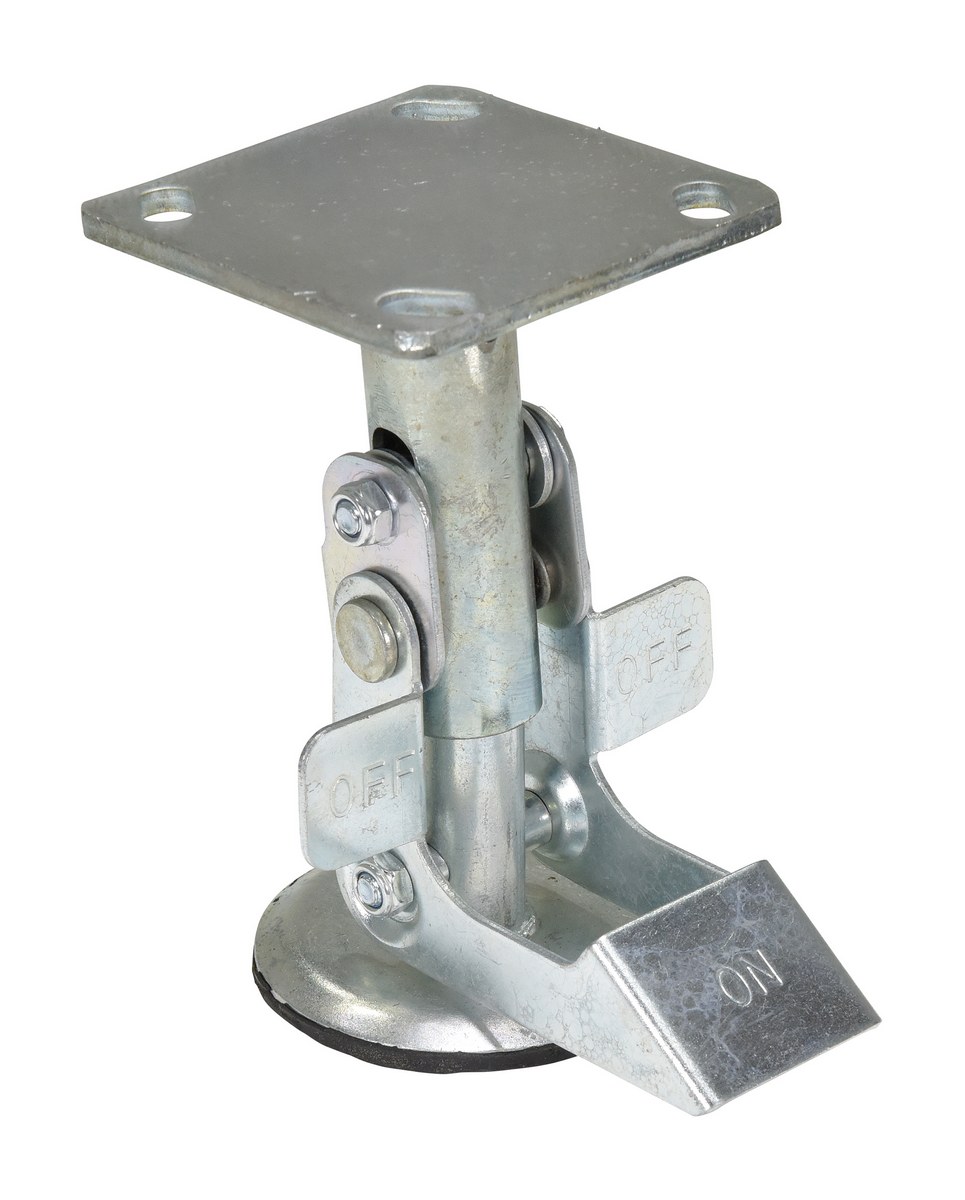

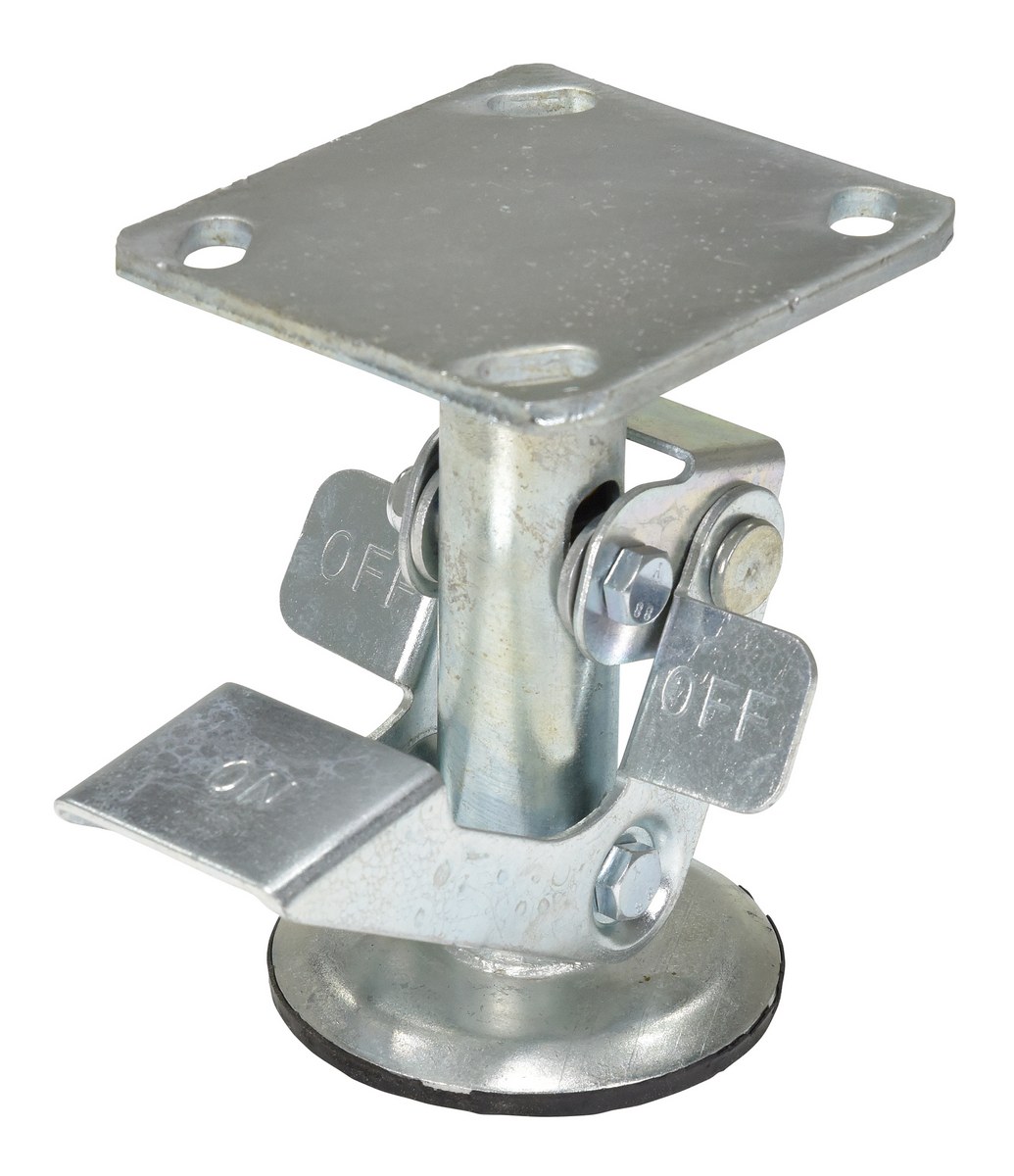

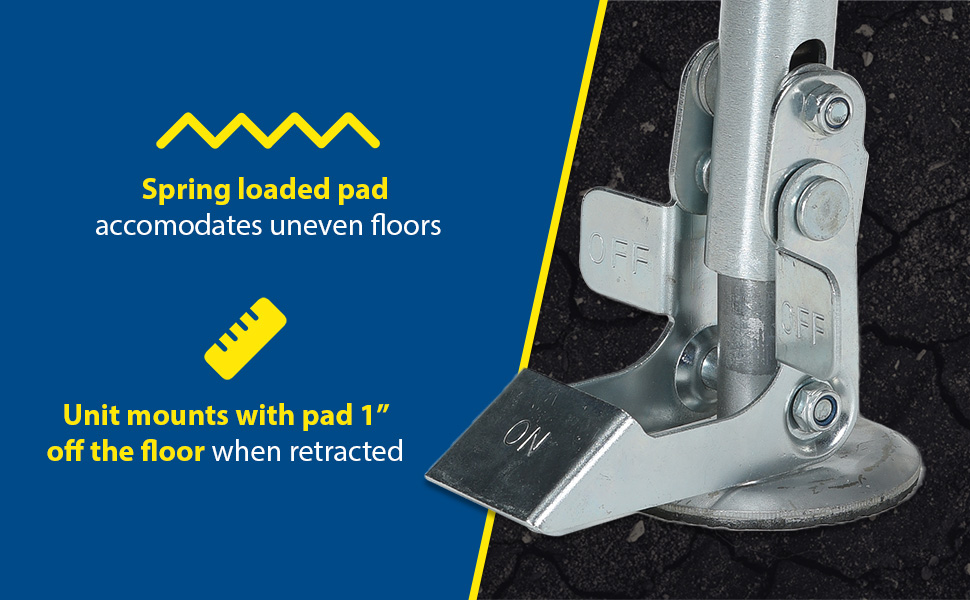

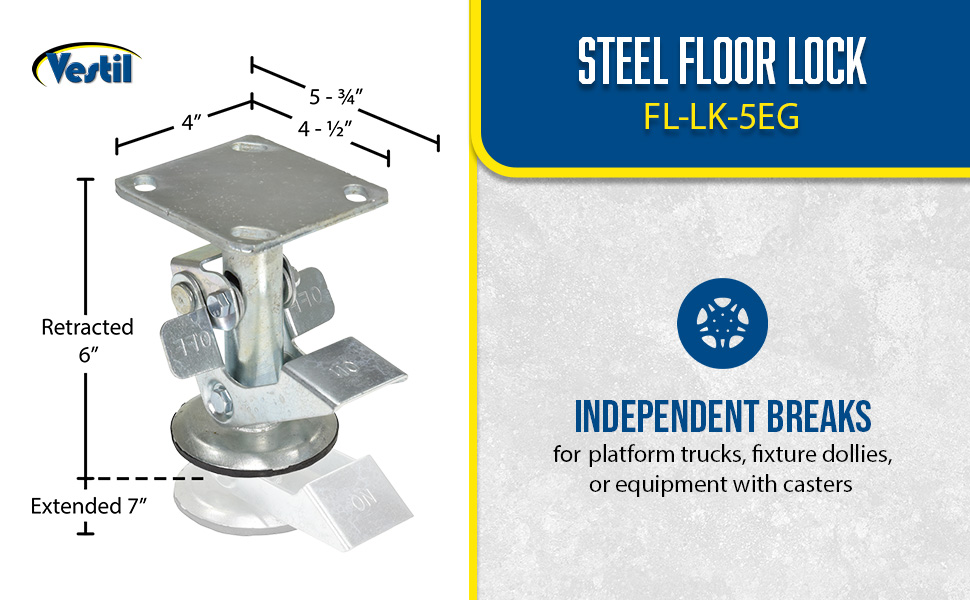

FL-LK-5EG |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6 to 7 In. Height Silver | Mounting Height (in.): 7 Height Retracted (in.): 6 | 5 | ||

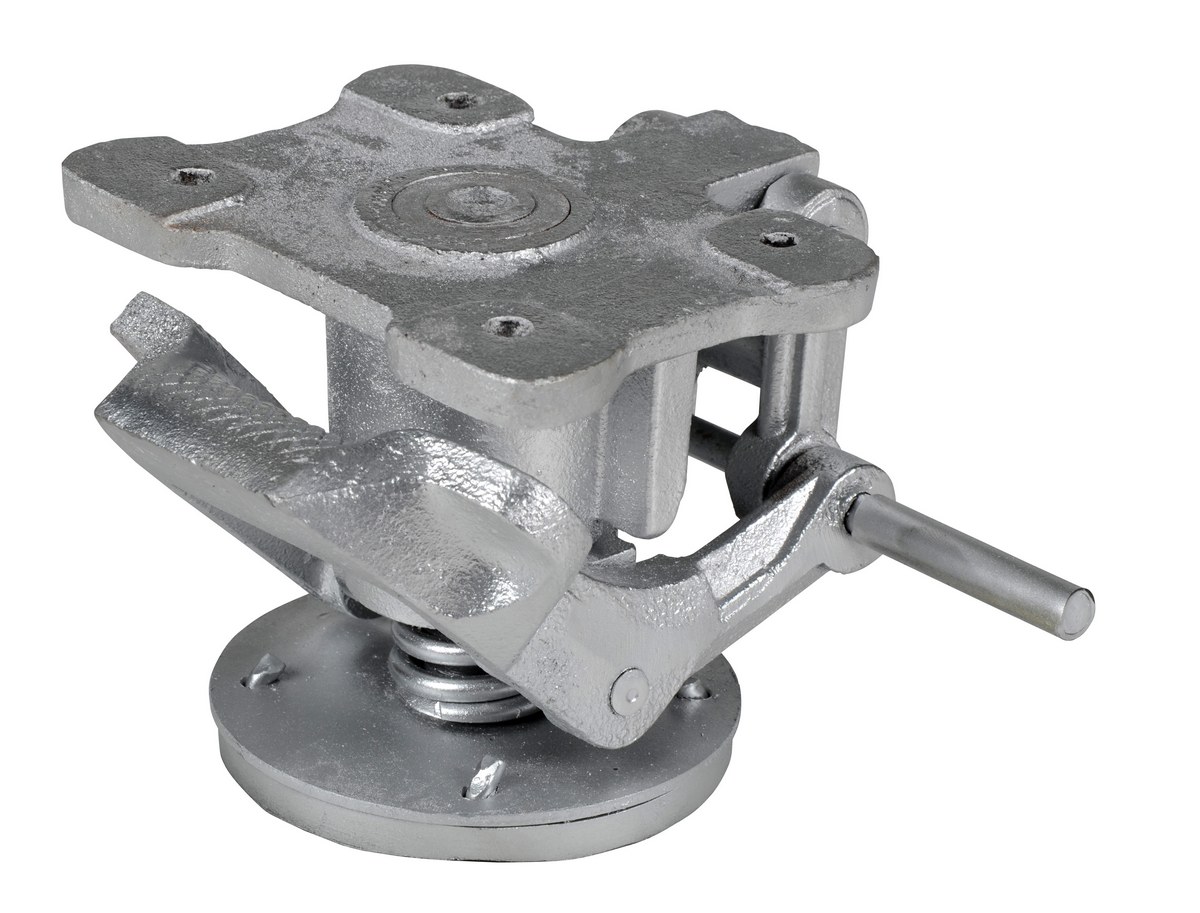

FL-LK-5X |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver | Mounting Height (in.): 5-5/8 Retracted Height (in.): 4-1/2 | 9 | ||

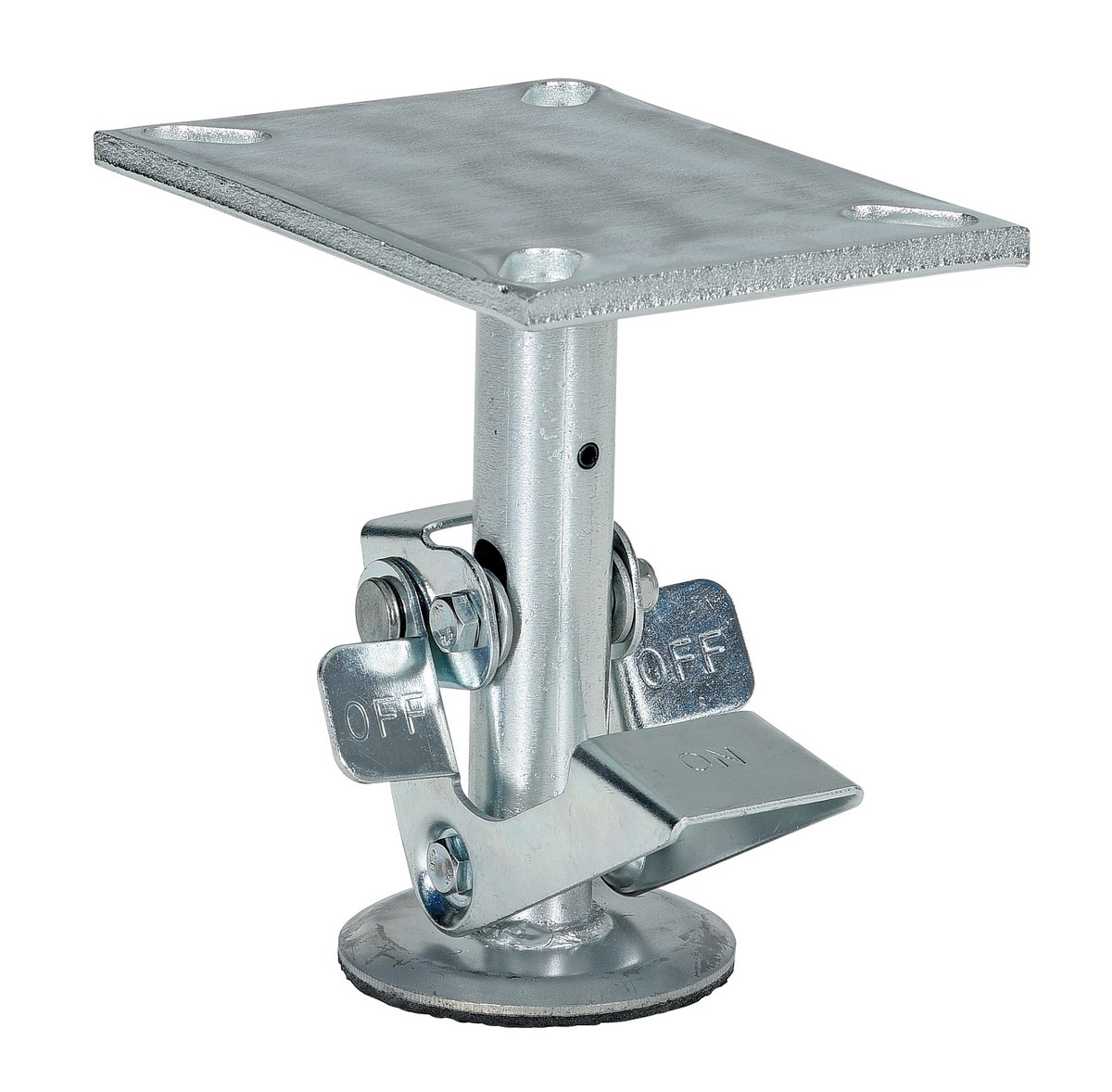

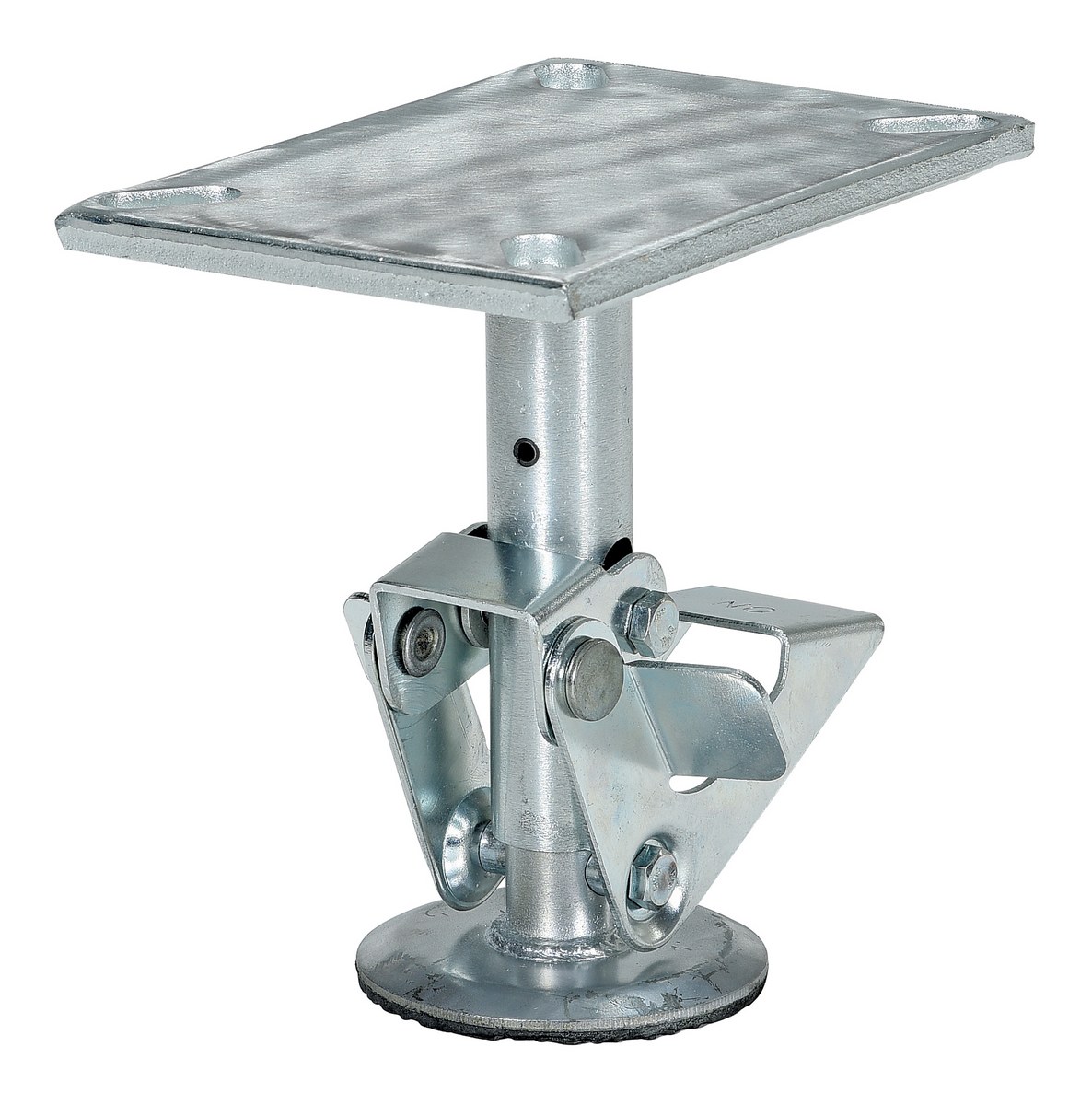

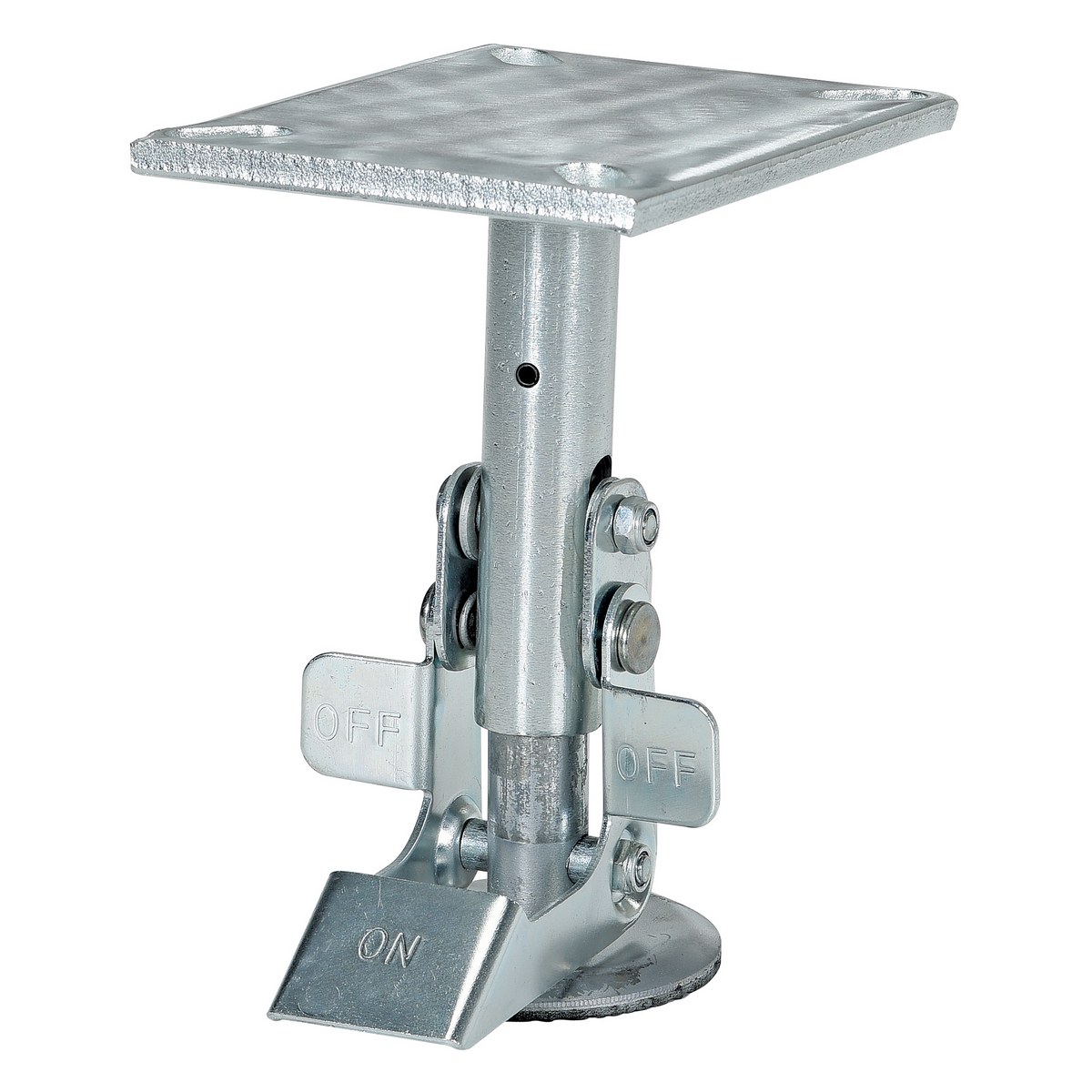

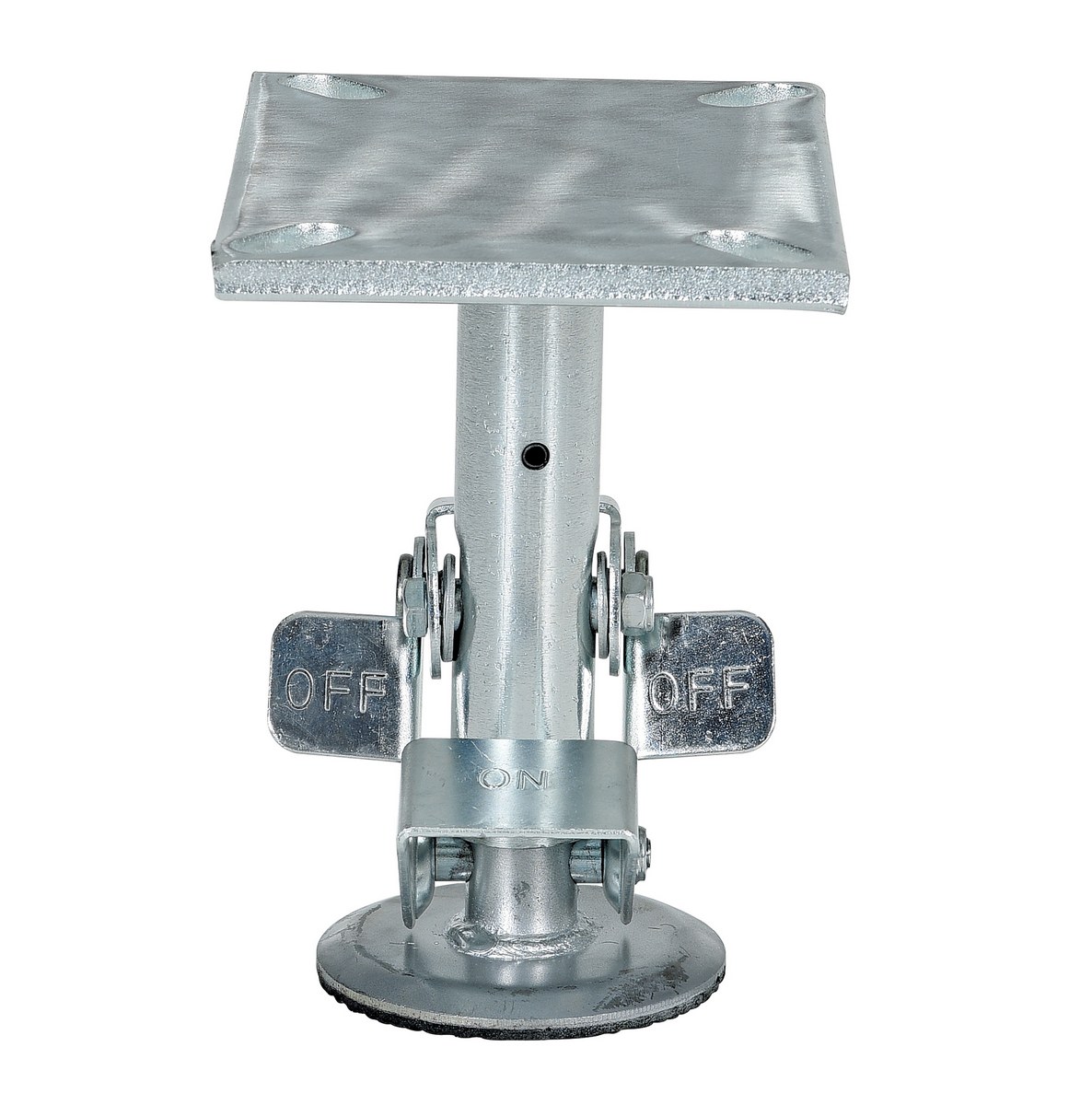

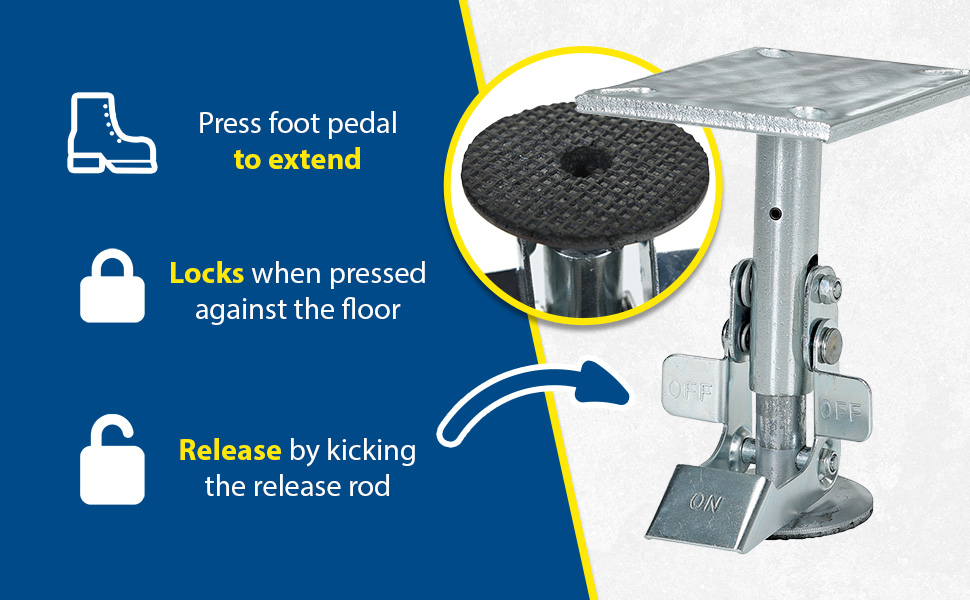

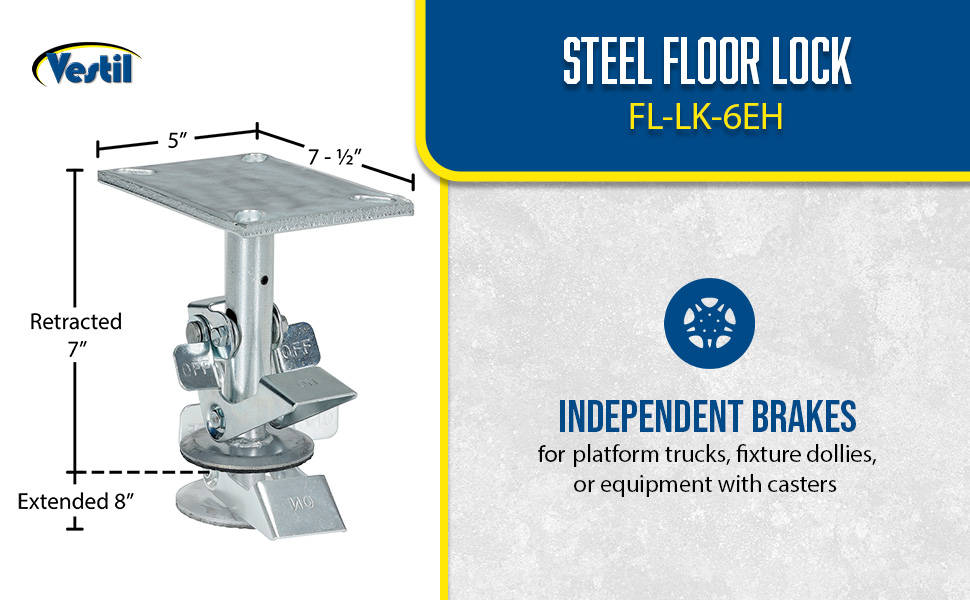

FL-LK-6EH |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 7 to 8 In. Height Silver | Mounting Height (in.): 8 Retracted Height (in.): 7 | 7 | ||

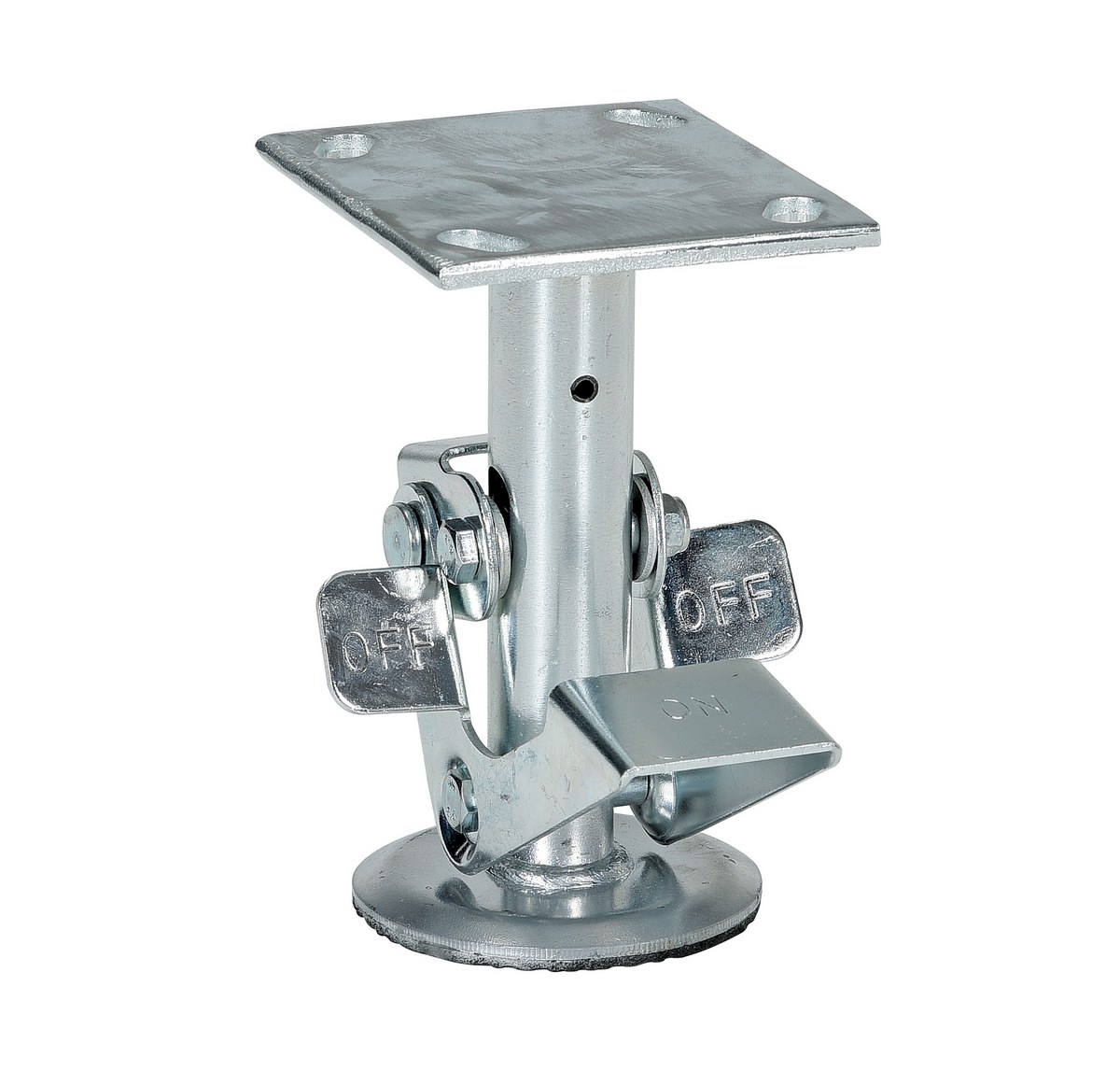

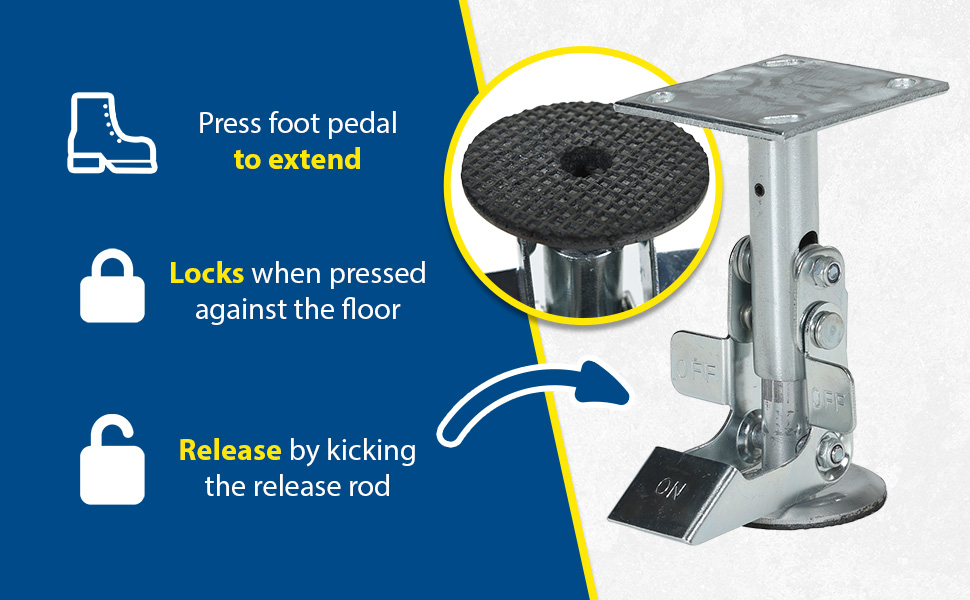

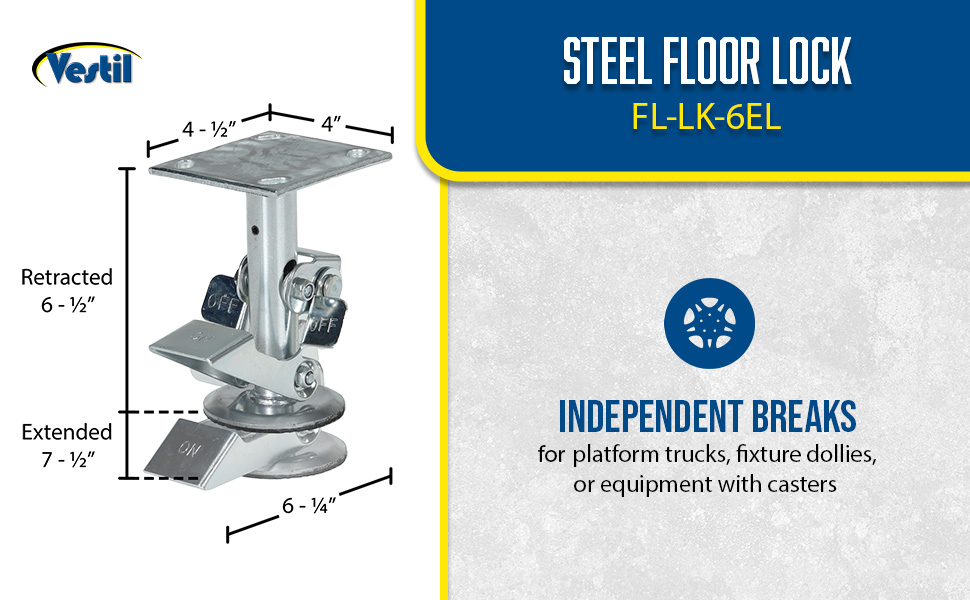

FL-LK-6EL |
![]() | 30 Days Limited Warranty | Galvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height Gray | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/2 | 4 | ||

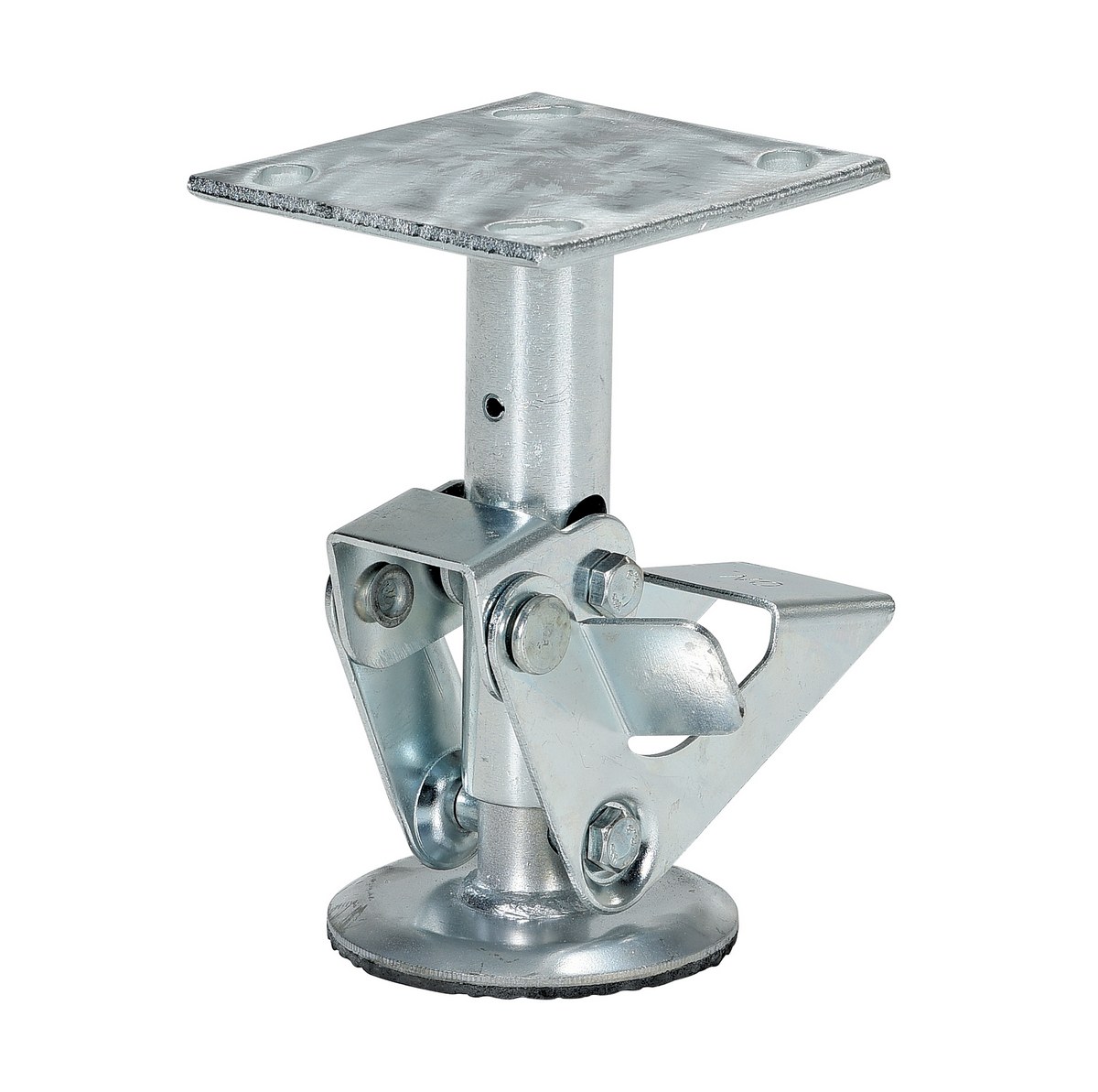

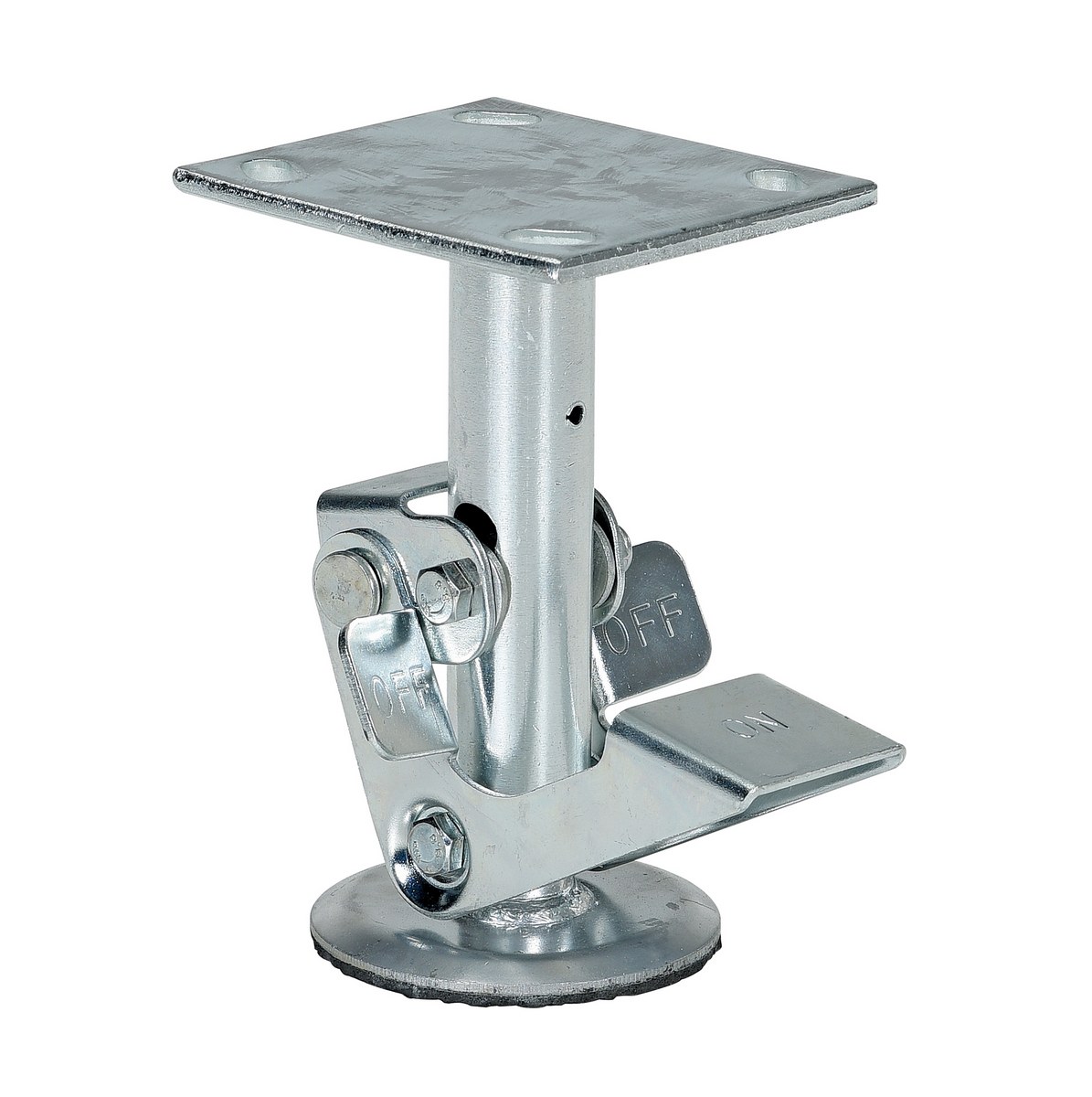

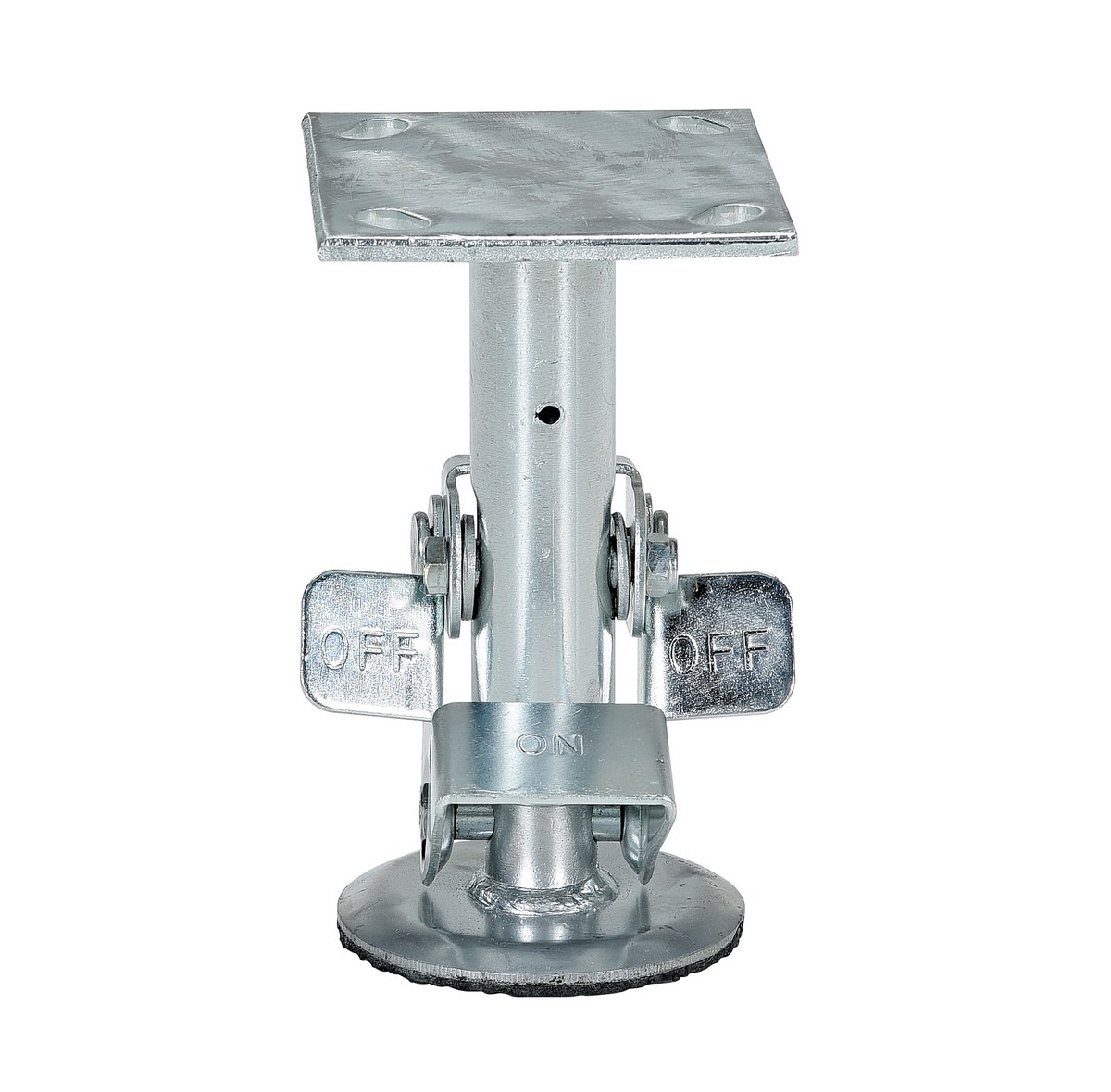

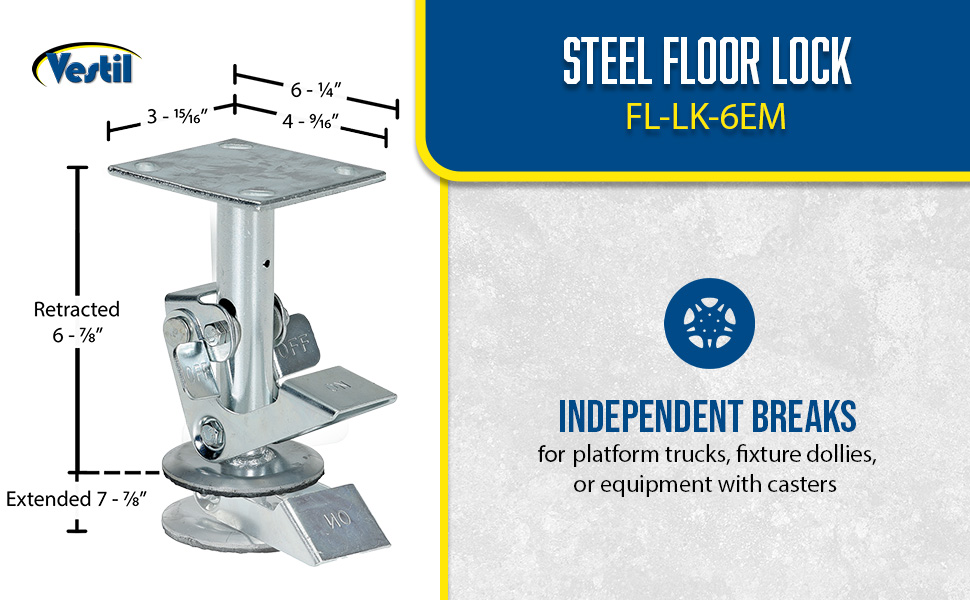

FL-LK-6EM |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-7/8 to 7-1/2 In. Height Silver | Mounting Height (in.): 7-1/2 Retracted Height (in.): 6-7/8 | 4 | ||

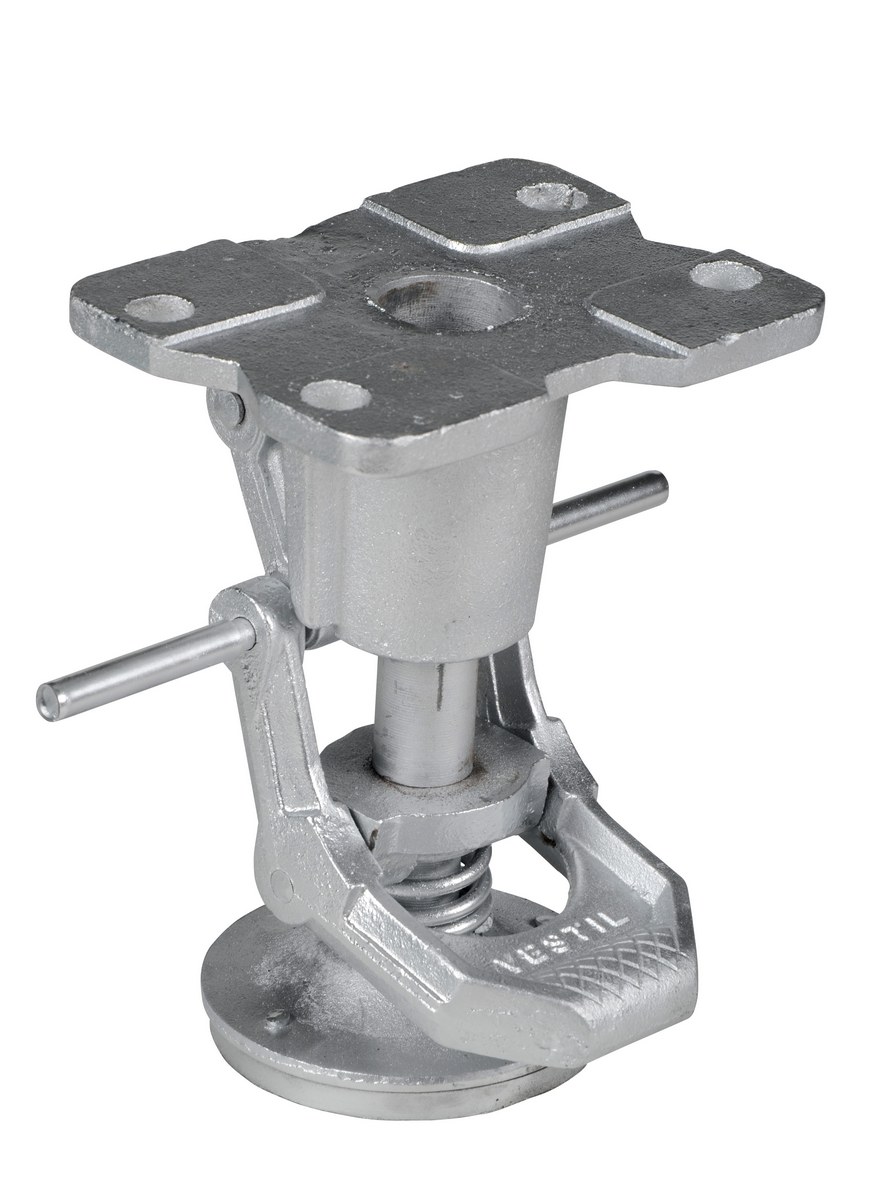

FL-LK-7G |
![]() | 30 Days Limited Warranty | Steel Top Mount Floor Lock 6-1/4 to 7-3/4 In. Height Silver | Mounting Height (in.): 7-3/4 Retracted Height (in.): 6-1/4 | 11 | ||

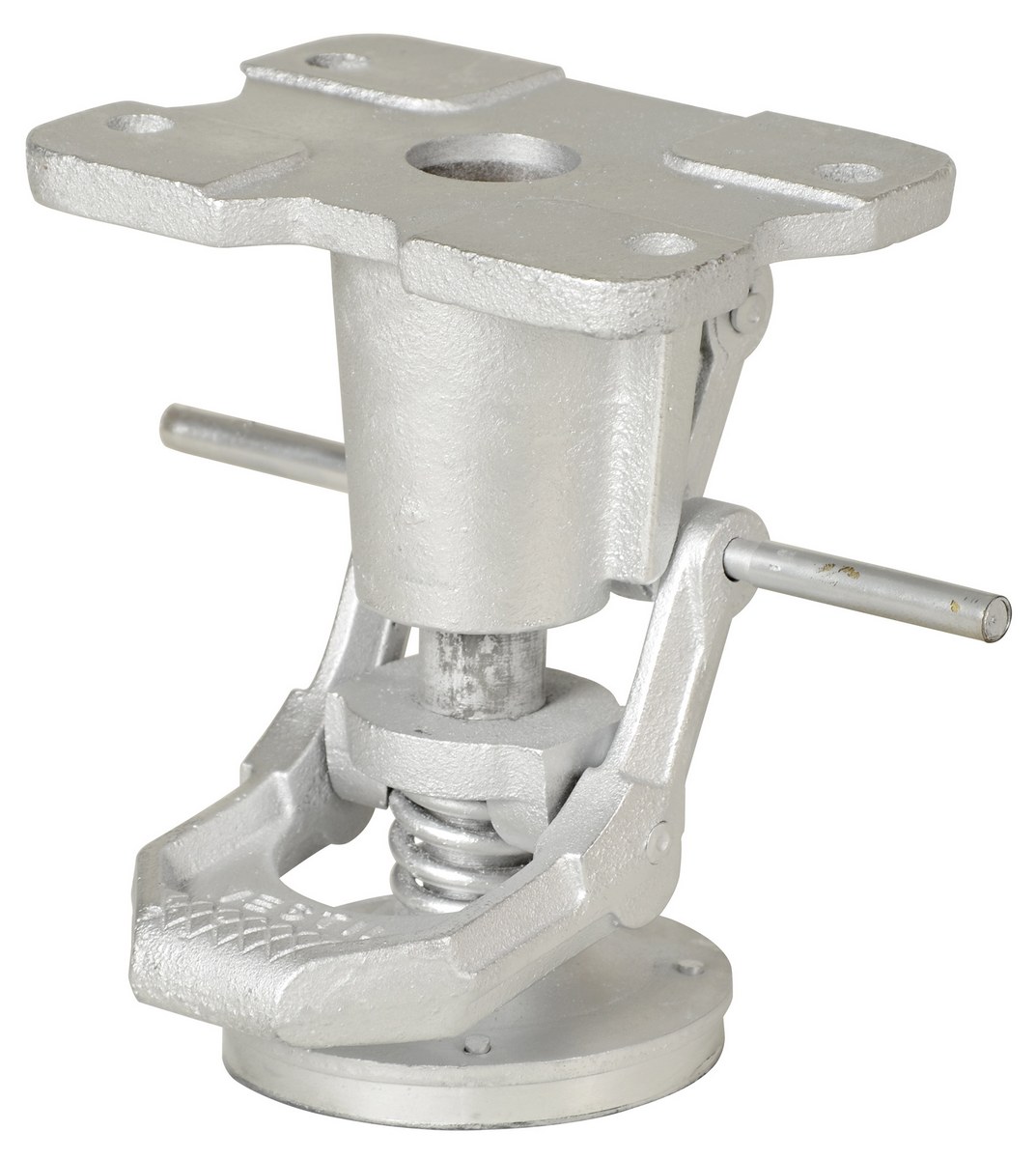

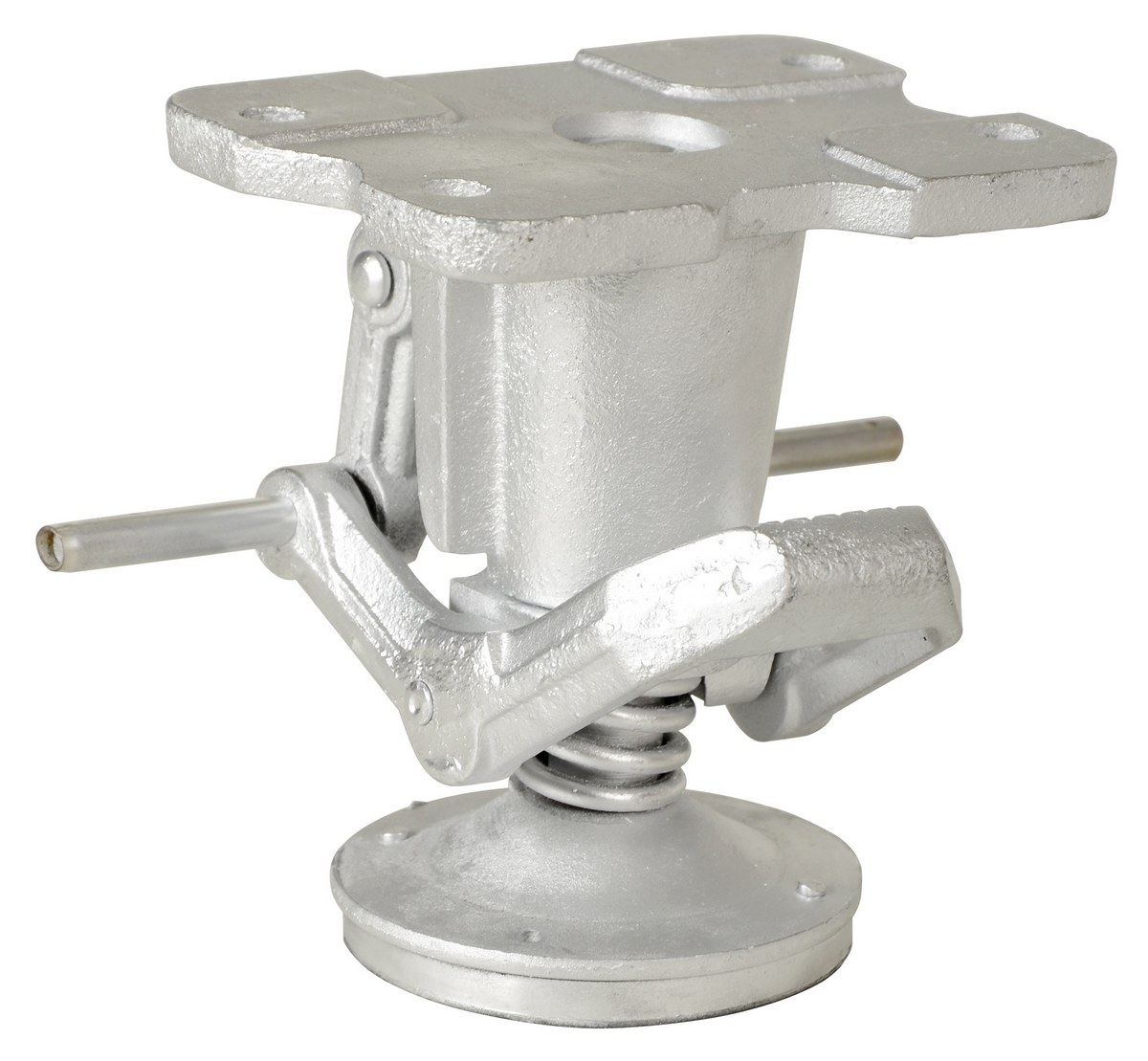

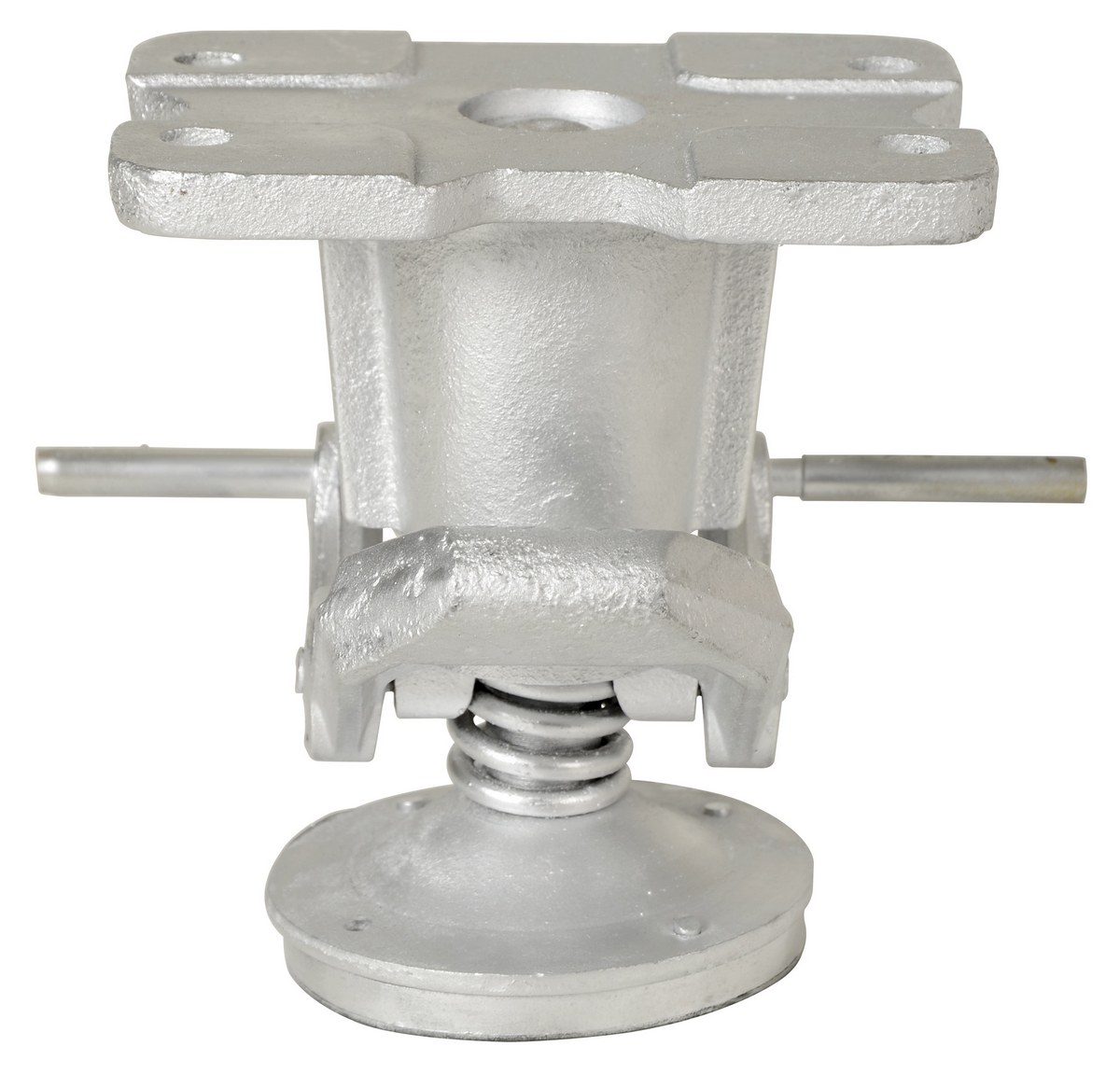

FL-LK-7X |
![]() | 30 Days Limited Warranty | Steel Floor Lock 6-1/4 to 7-1/4 In. Height Silver | Mounting Height (in.): 7-1/4 Retracted Height (in.): 6-1/4 | 11 | ||

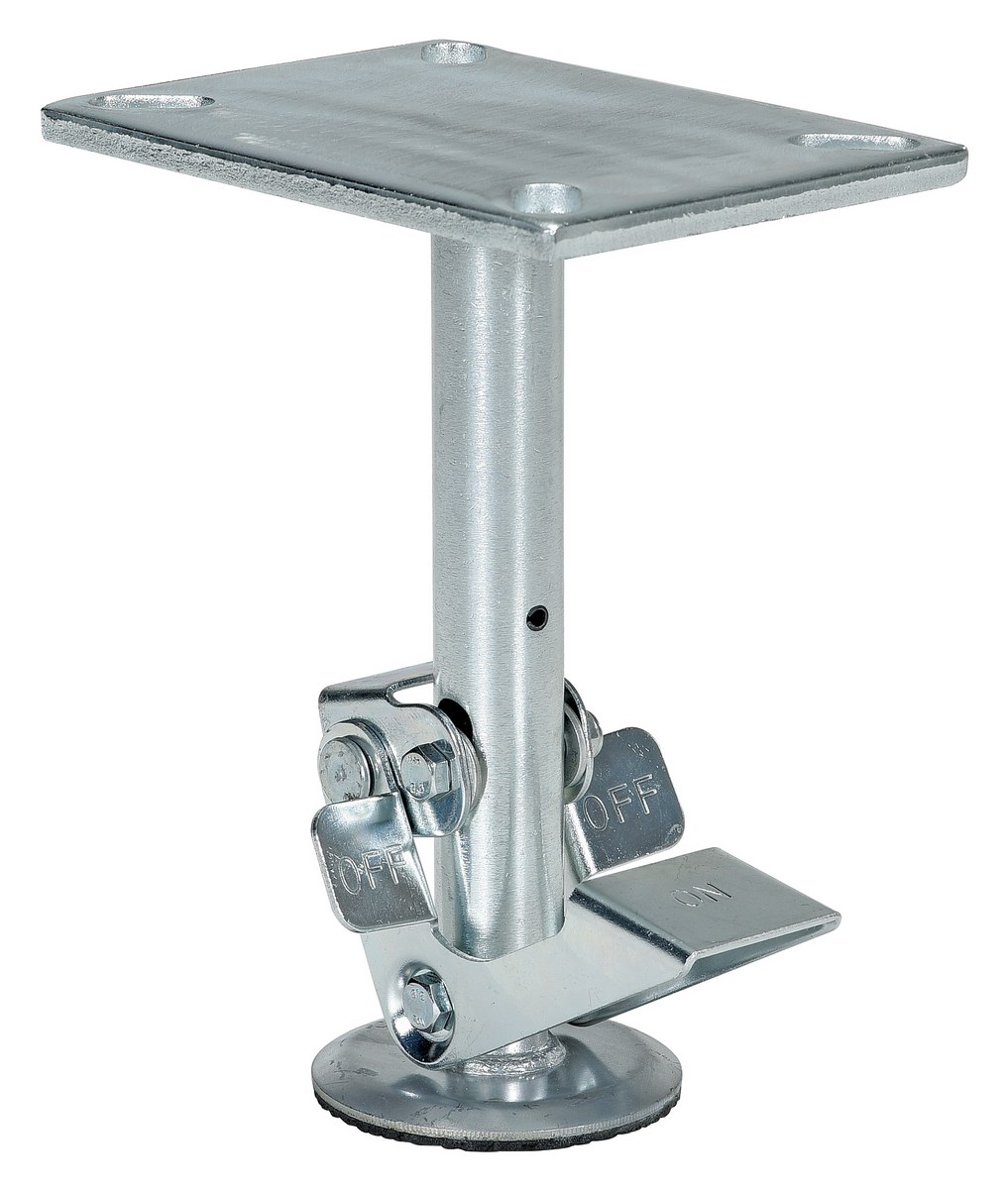

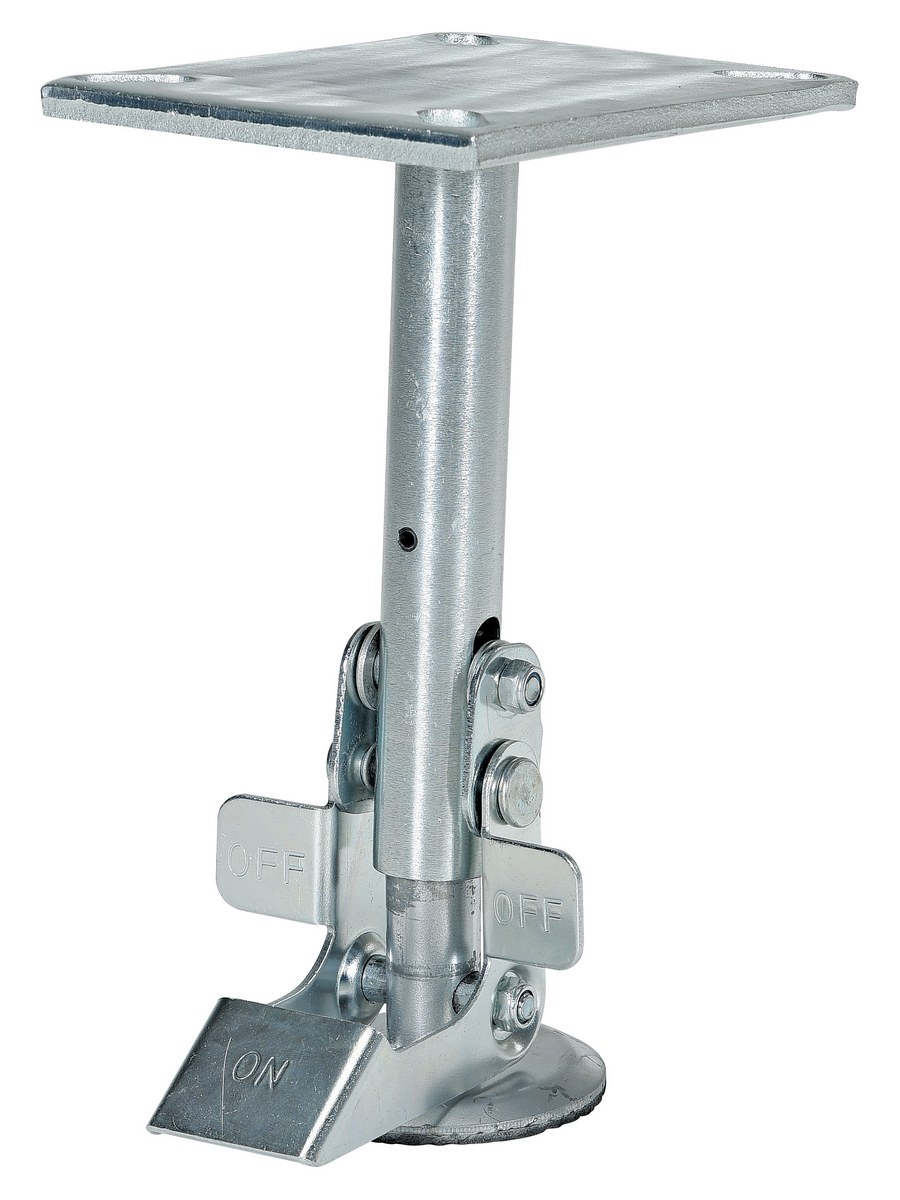

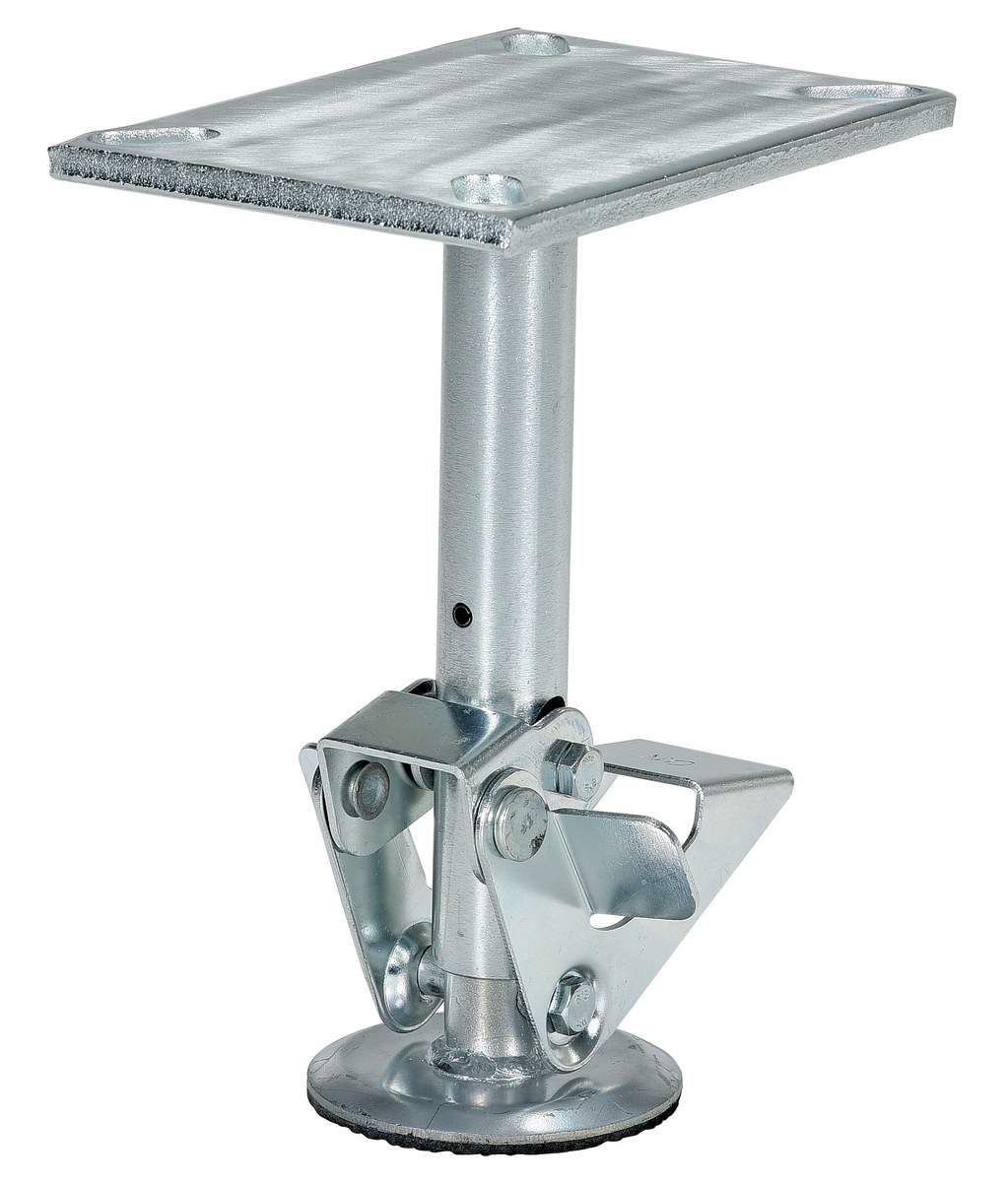

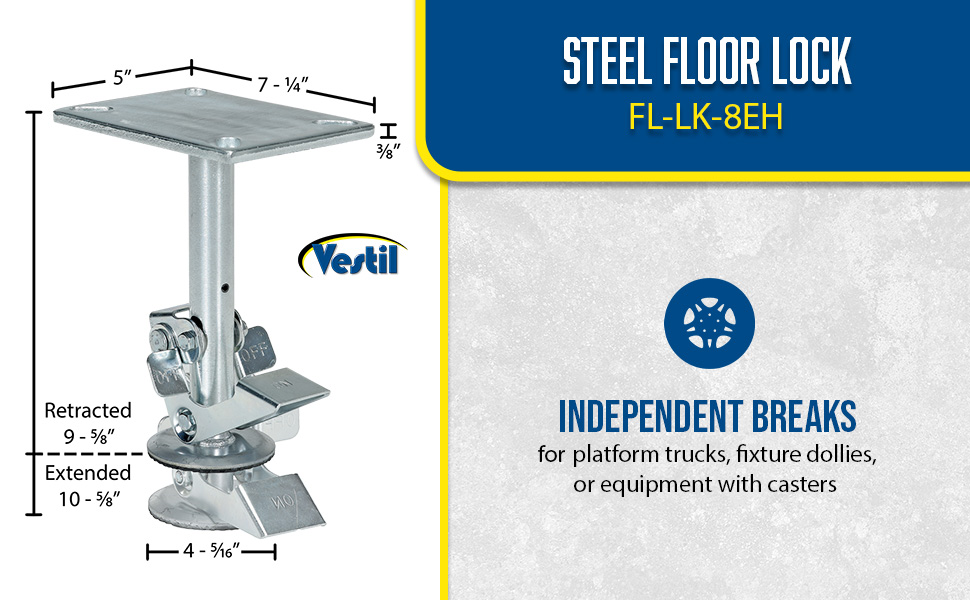

FL-LK-8EH |
![]() | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/2 Retracted Height (in.): 9-5/8 | 7 | ||

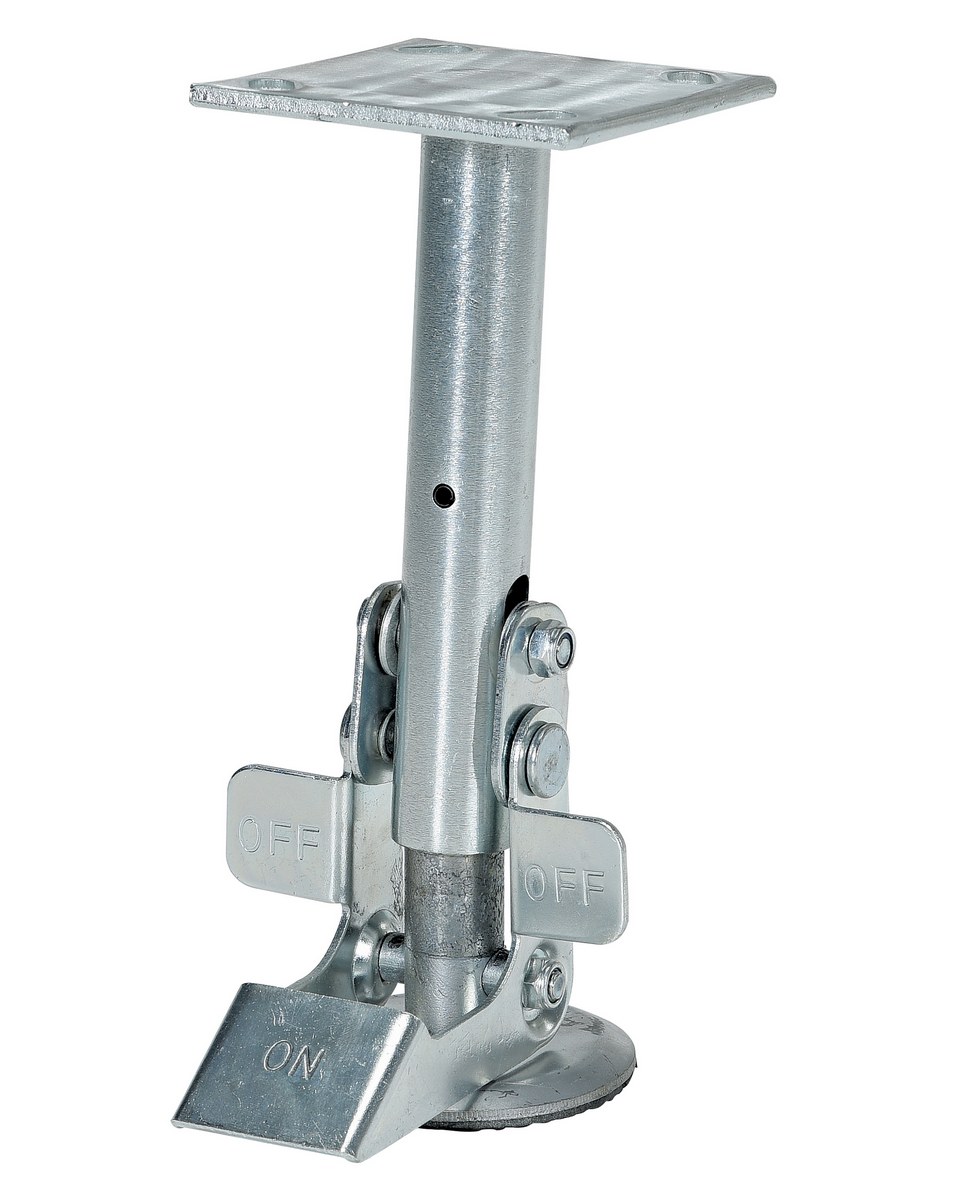

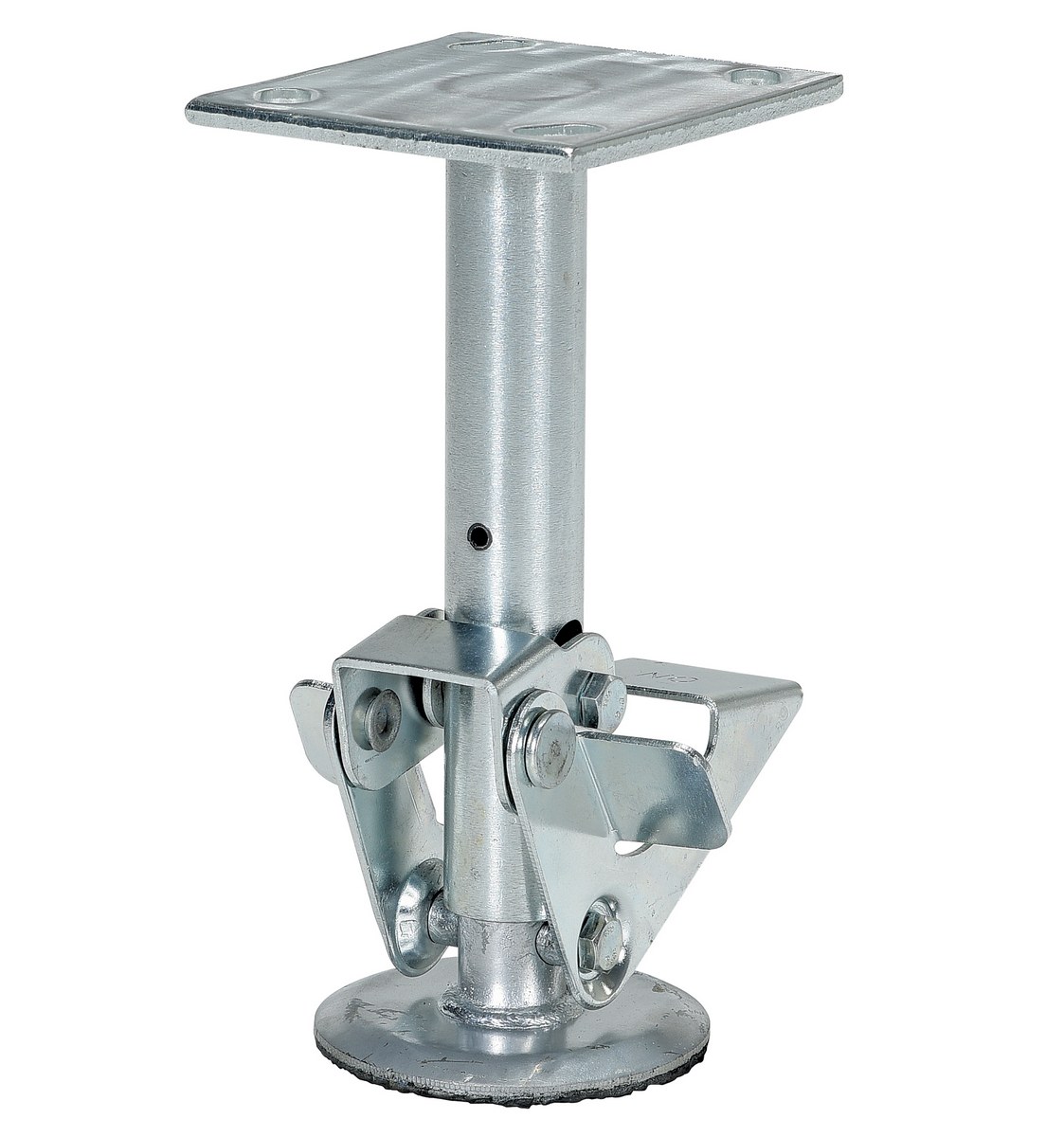

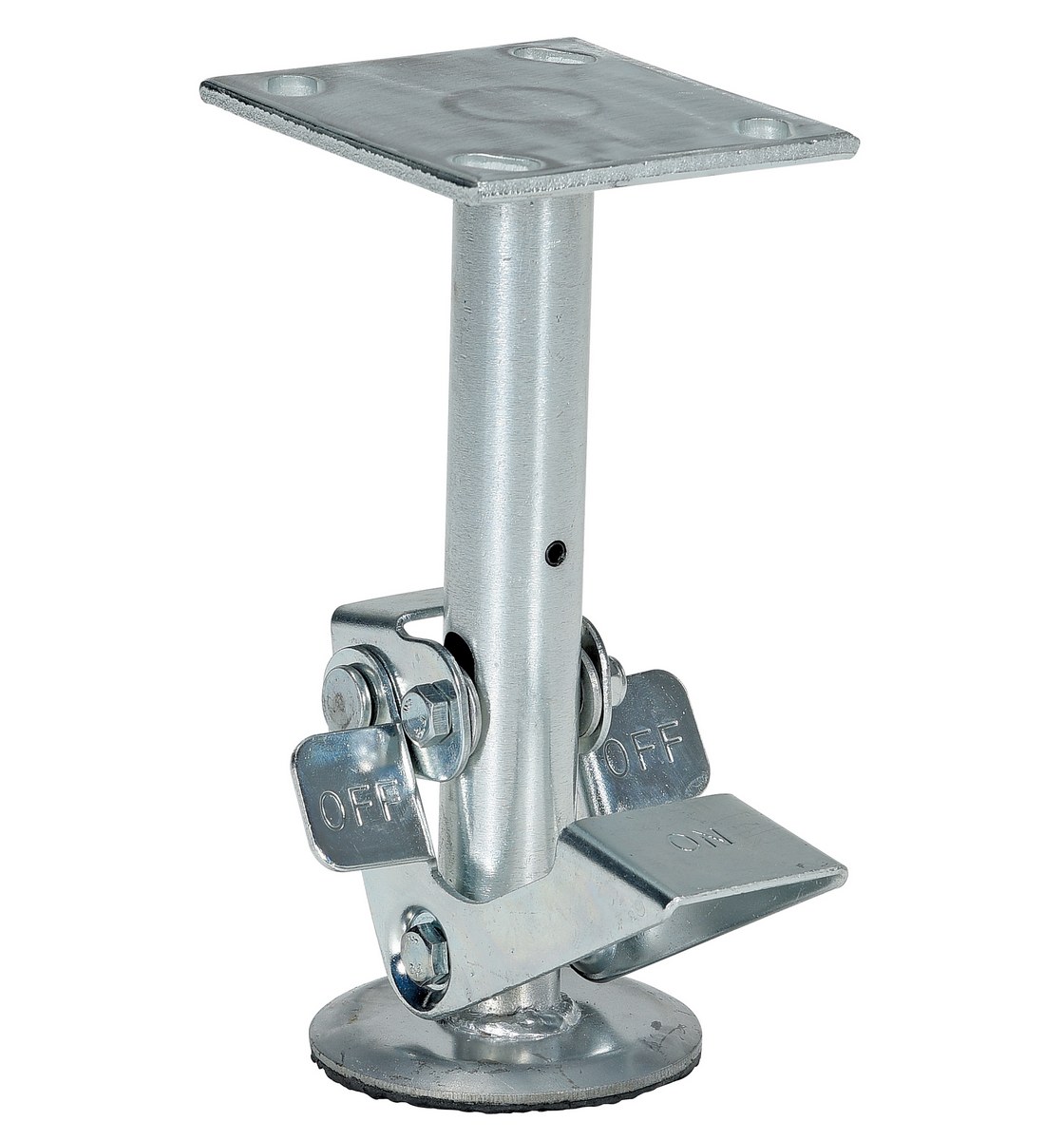

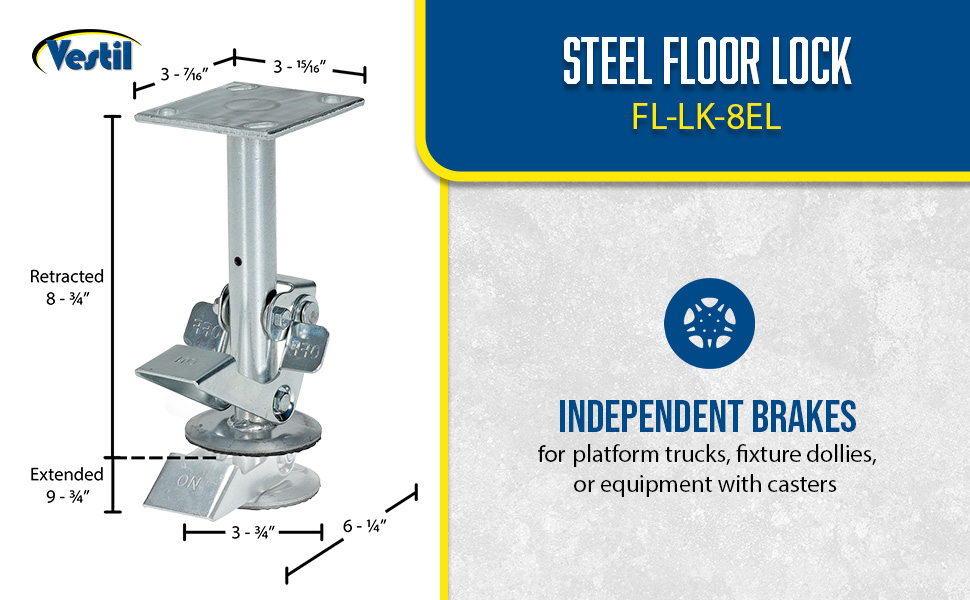

FL-LK-8EL |
![]() | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 8-3/4 In. Height Silver | Mounting Height (in.): 9-1/2 Retracted Height (in.): 8-3/4 | 4 | ||

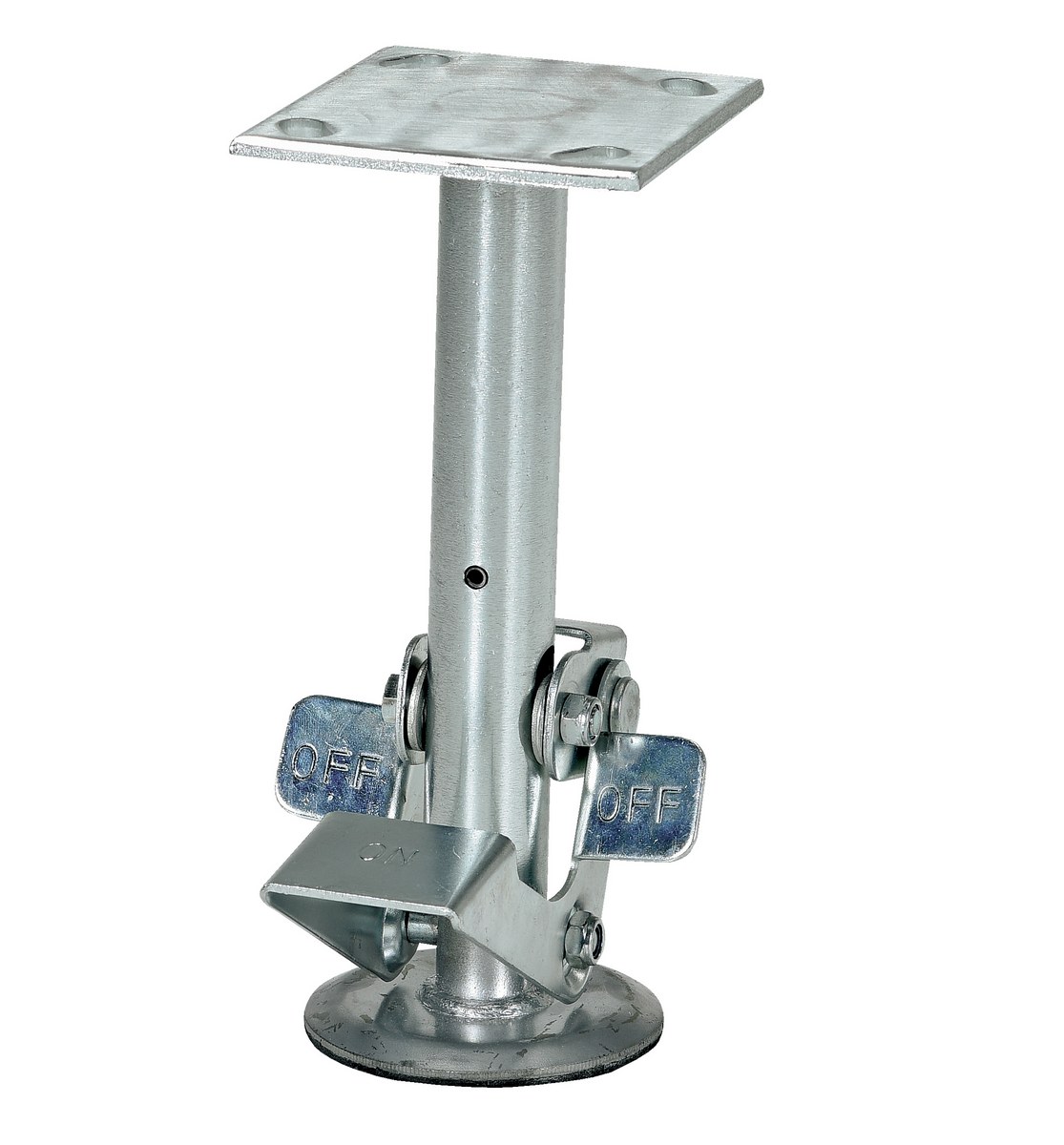

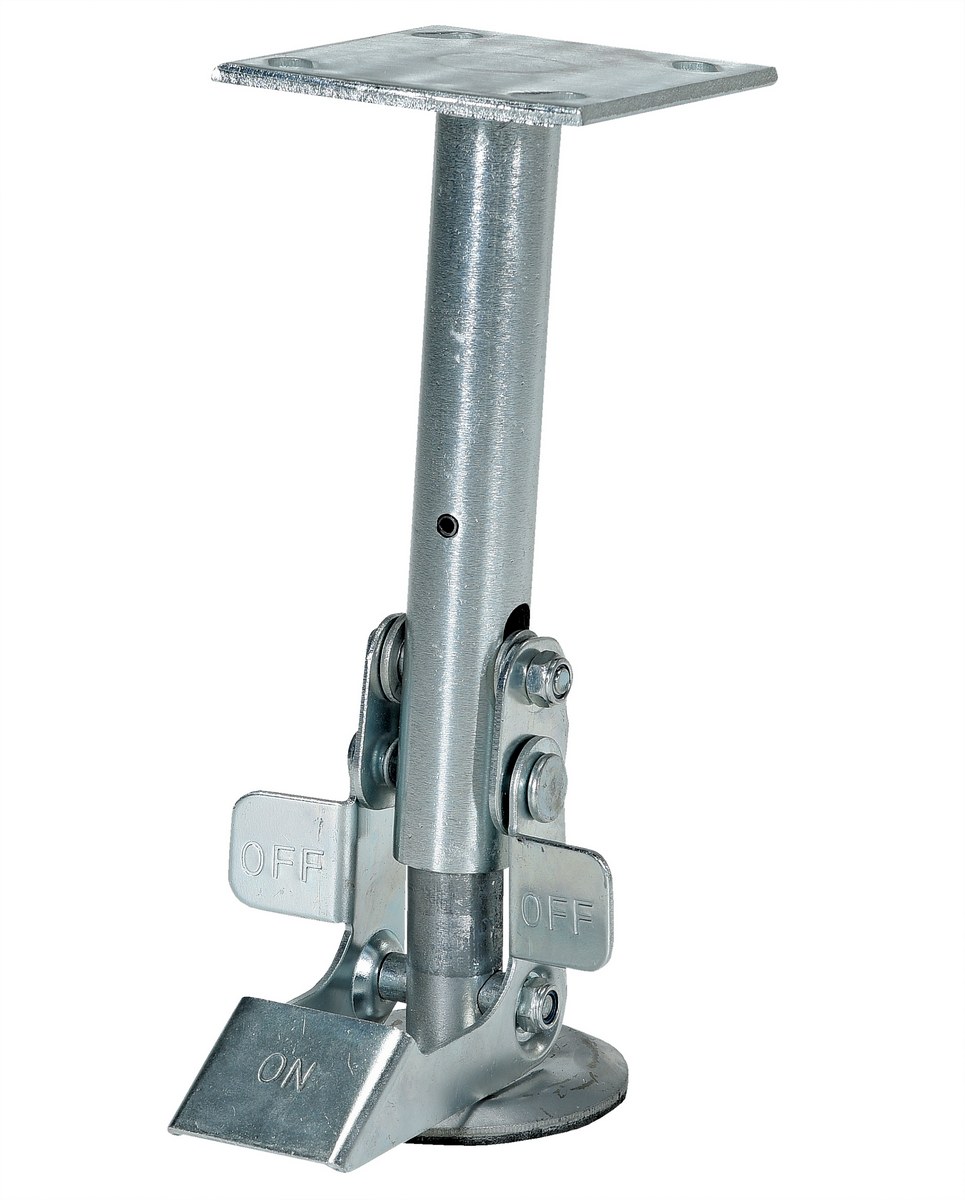

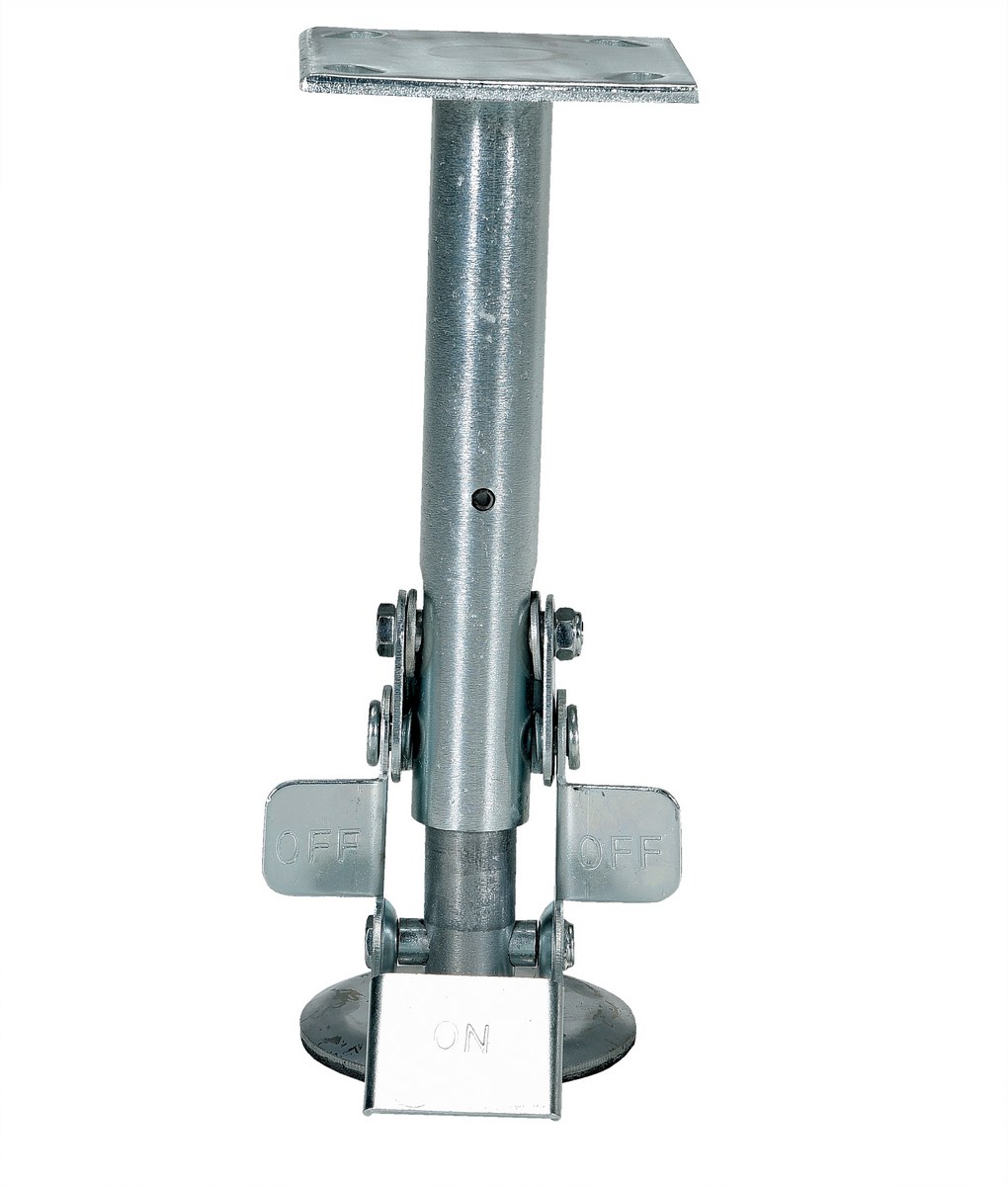

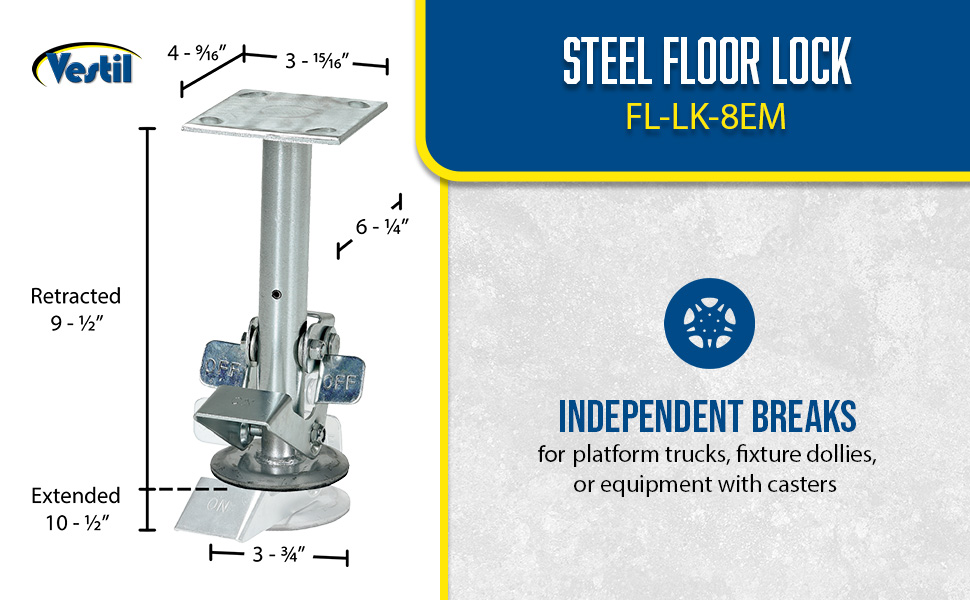

FL-LK-8EM |
![]() | 30 Days Limited Warranty | Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver | Mounting Height (in.): 10-1/8 Retracted Height (in.): 9-1/2 | 5 | ||

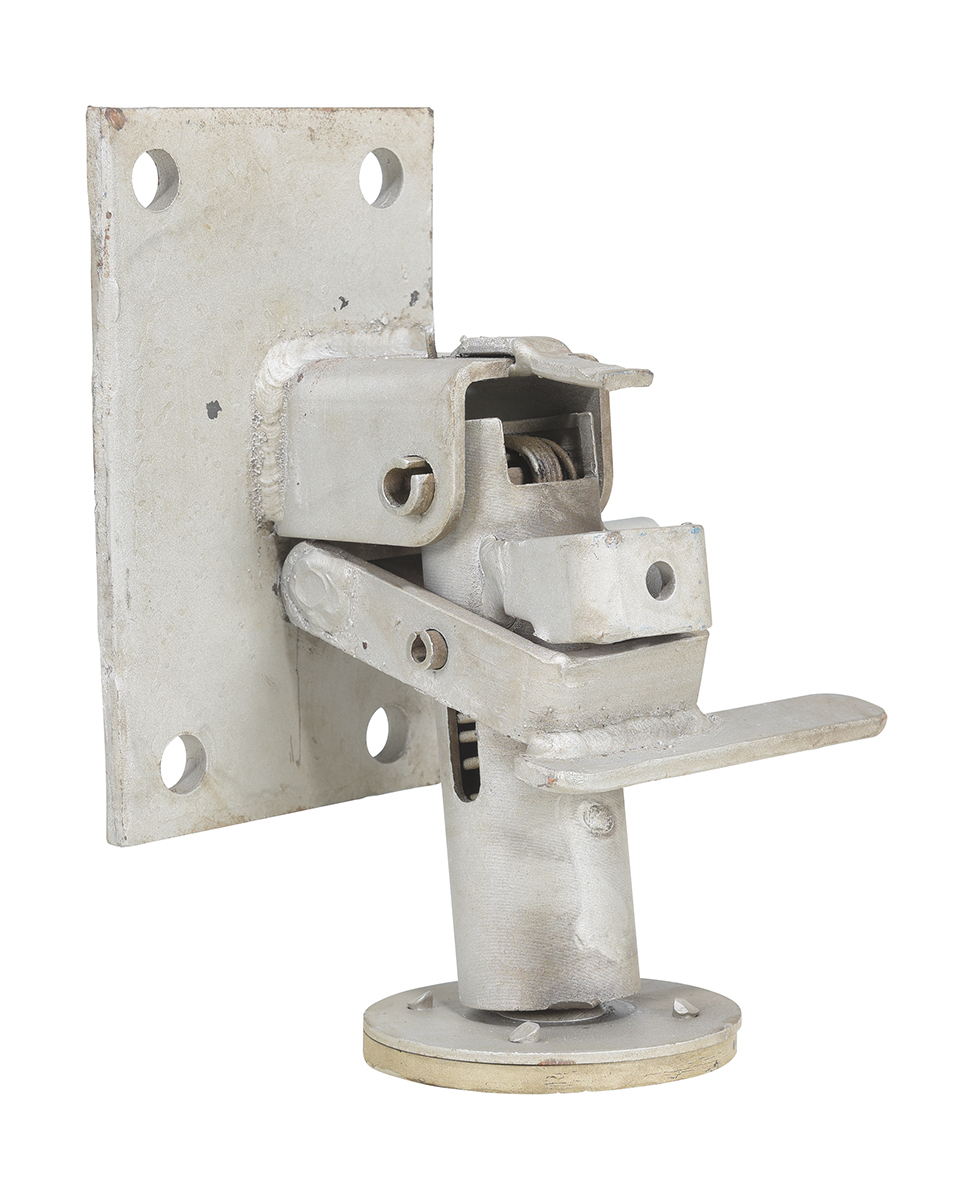

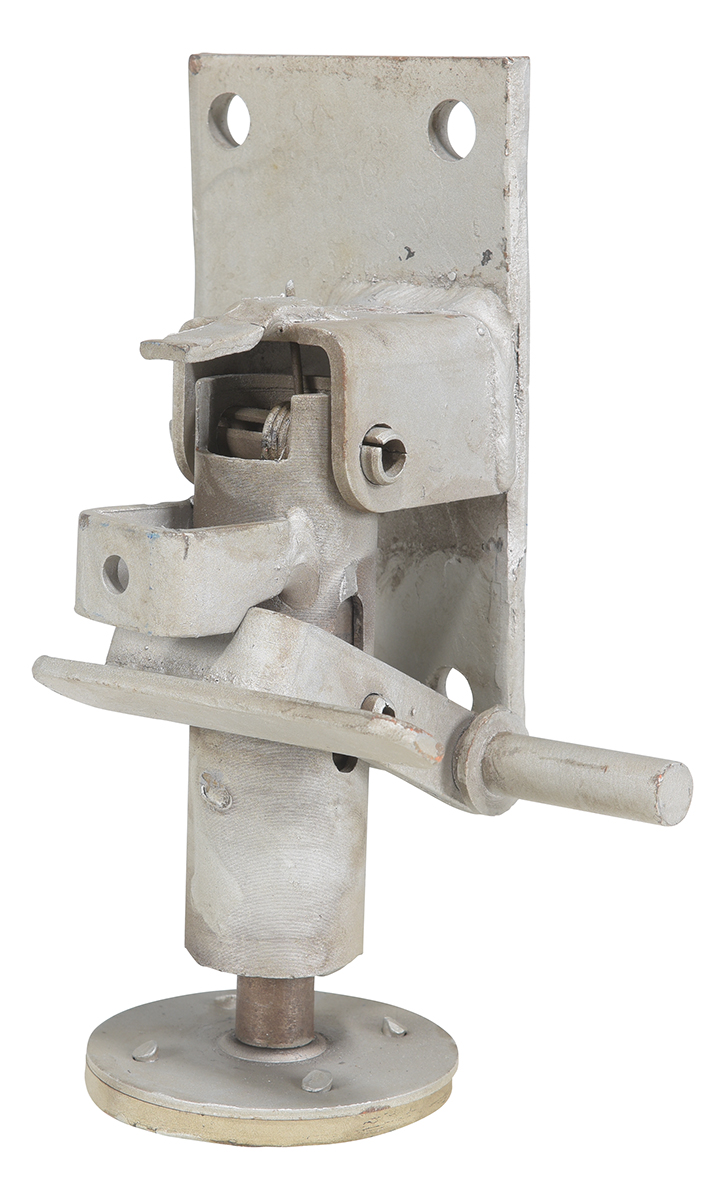

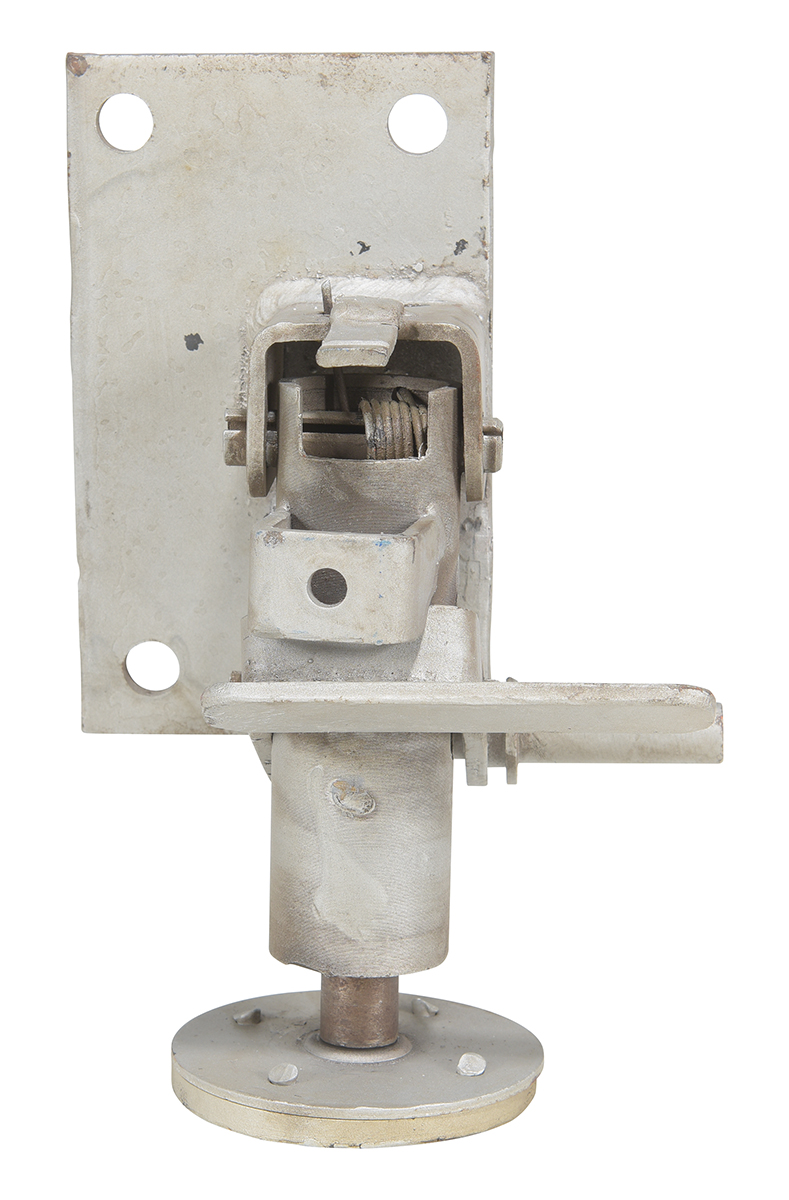

FL-LK-S |
![]() | 30 Days Limited Warranty | Steel Floor Lock 7 In. to 8-3/16 In. Height Silver | Mounting Height (in.): 8-3/16 Retracted Height (in.): 7 | 6 | ||

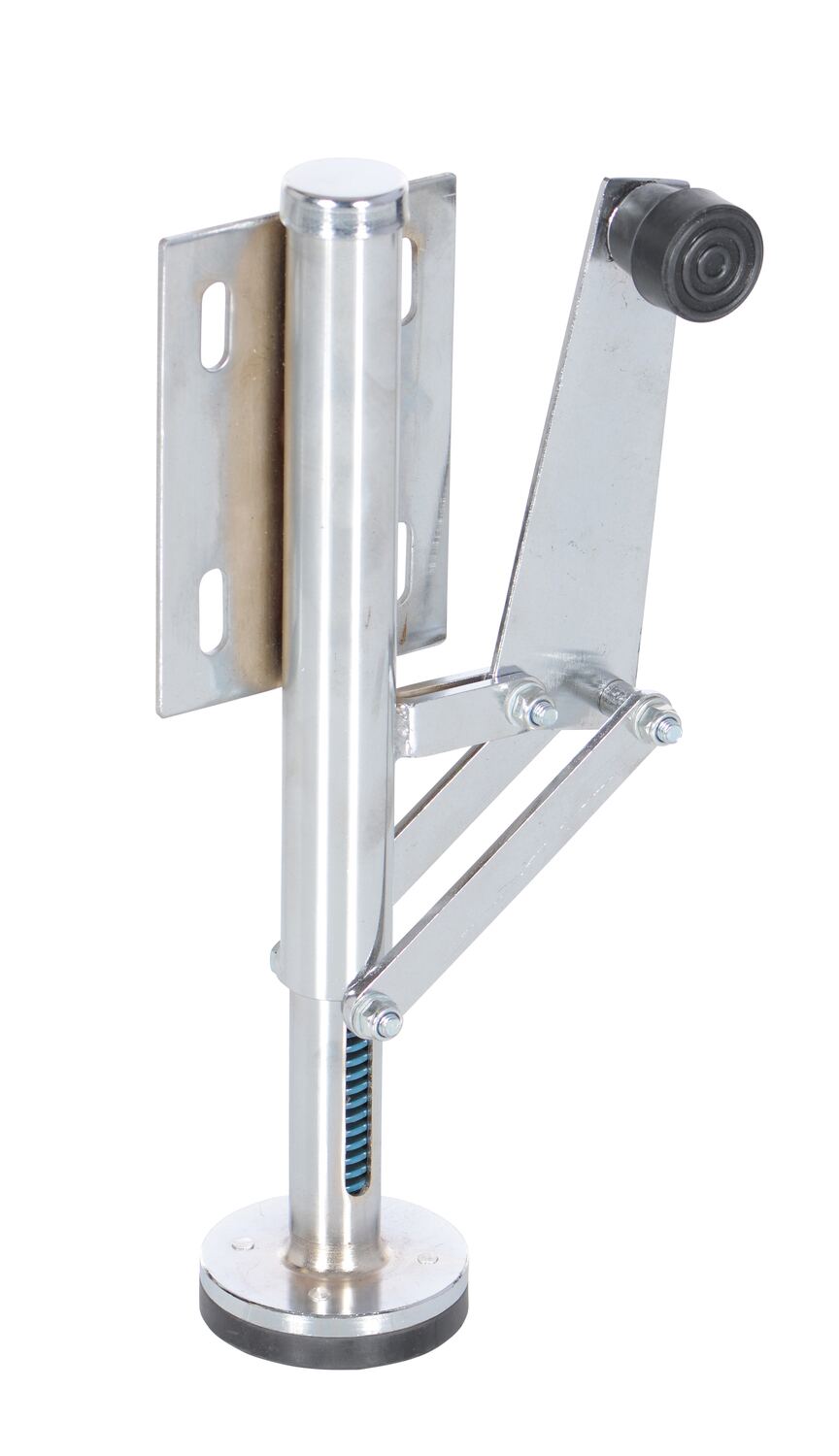

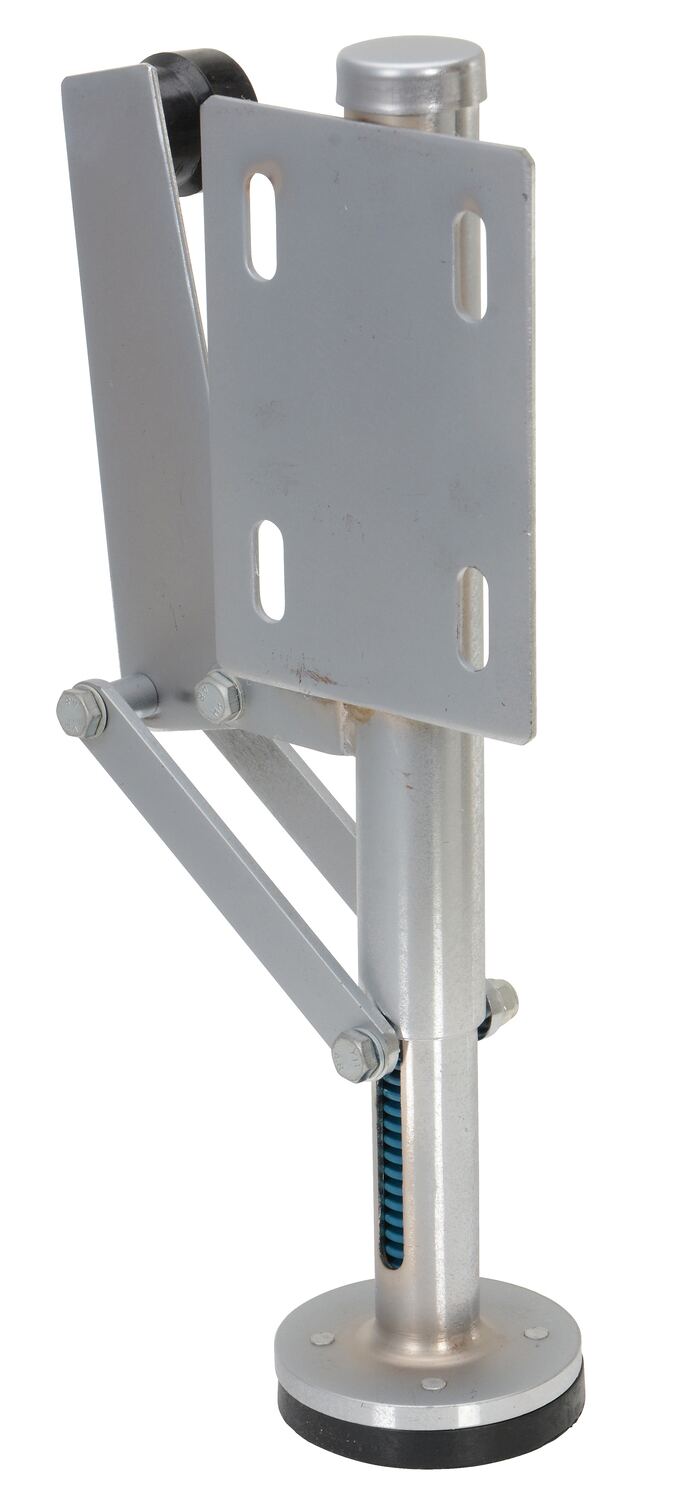

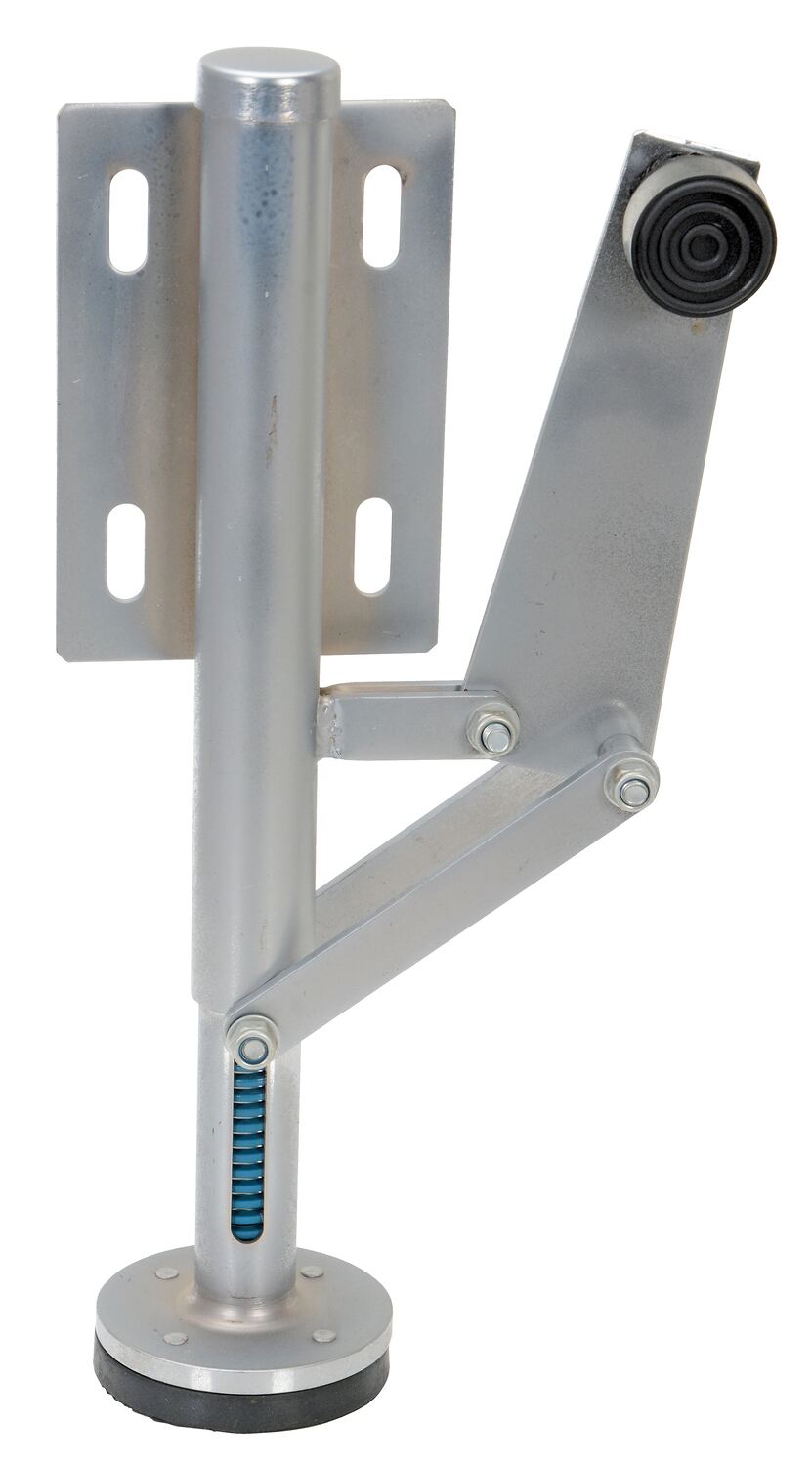

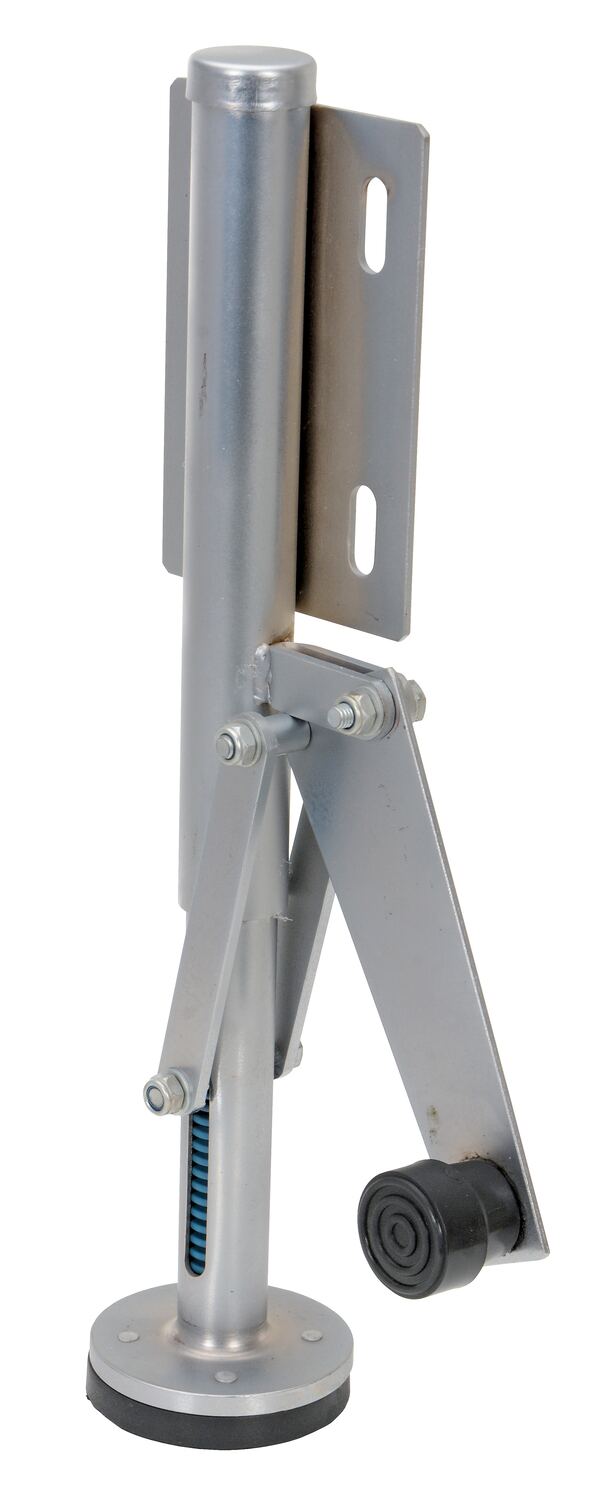

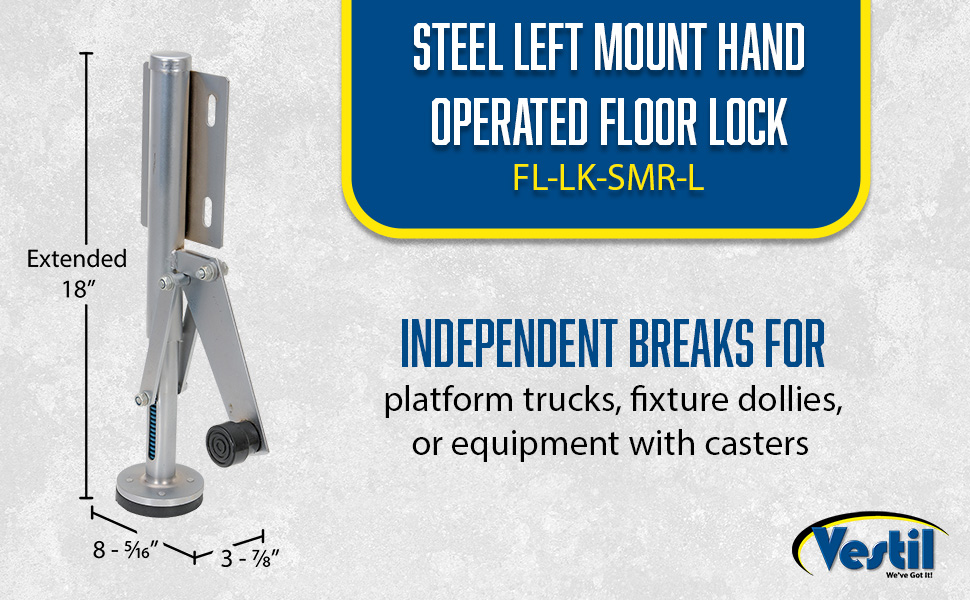

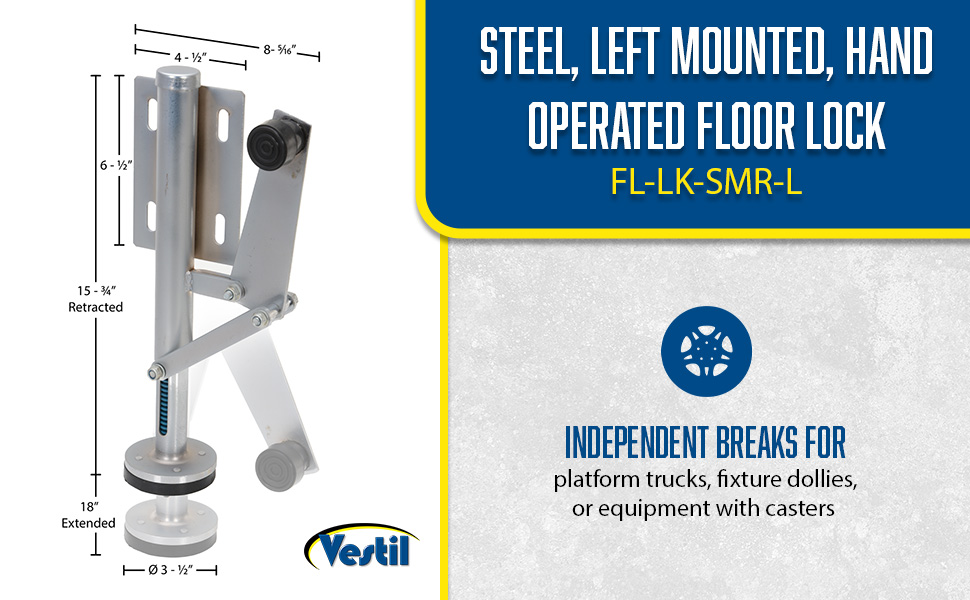

FL-LK-SMR-L |
![]() | 30 Days Limited Warranty | Steel Left Mount Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

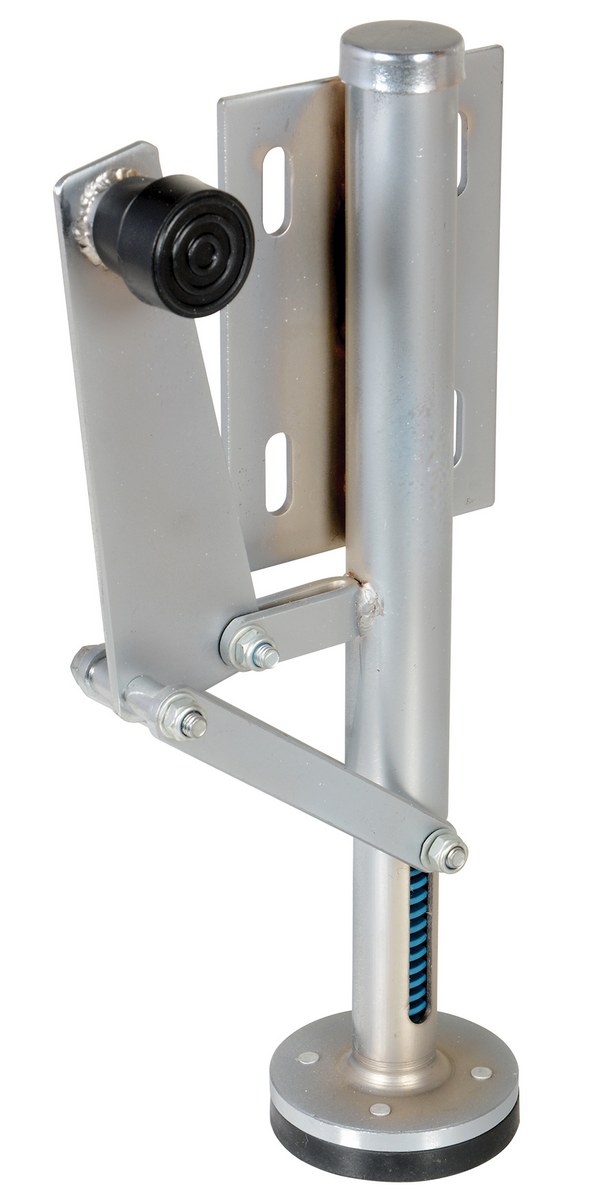

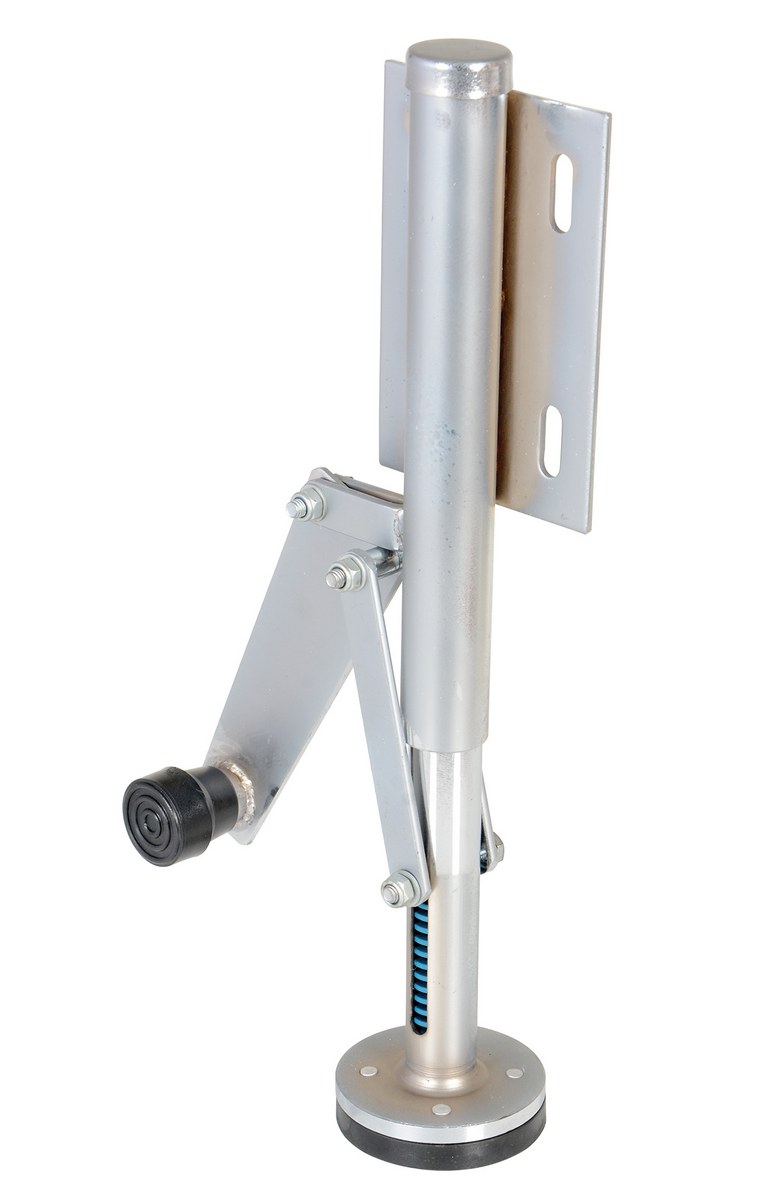

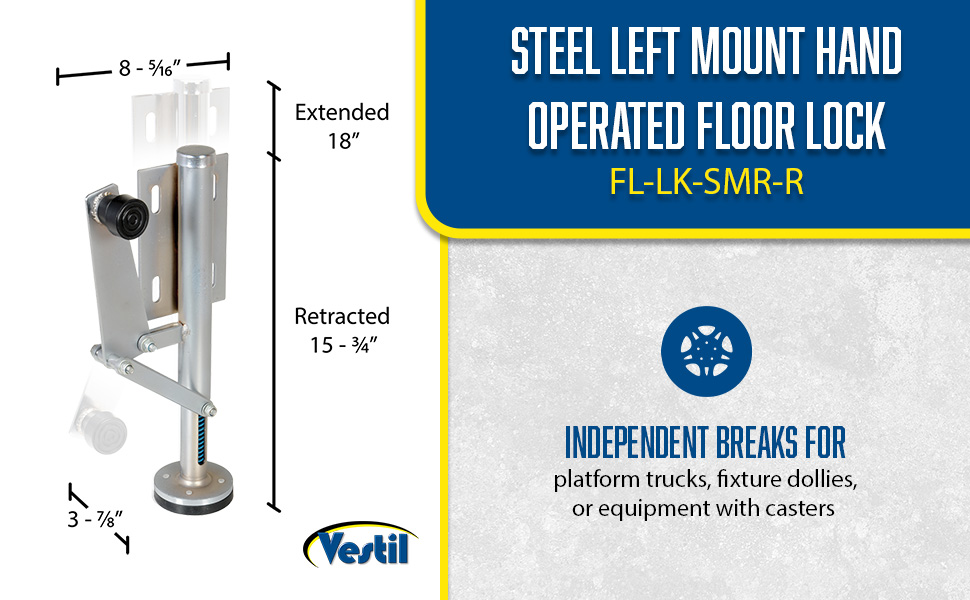

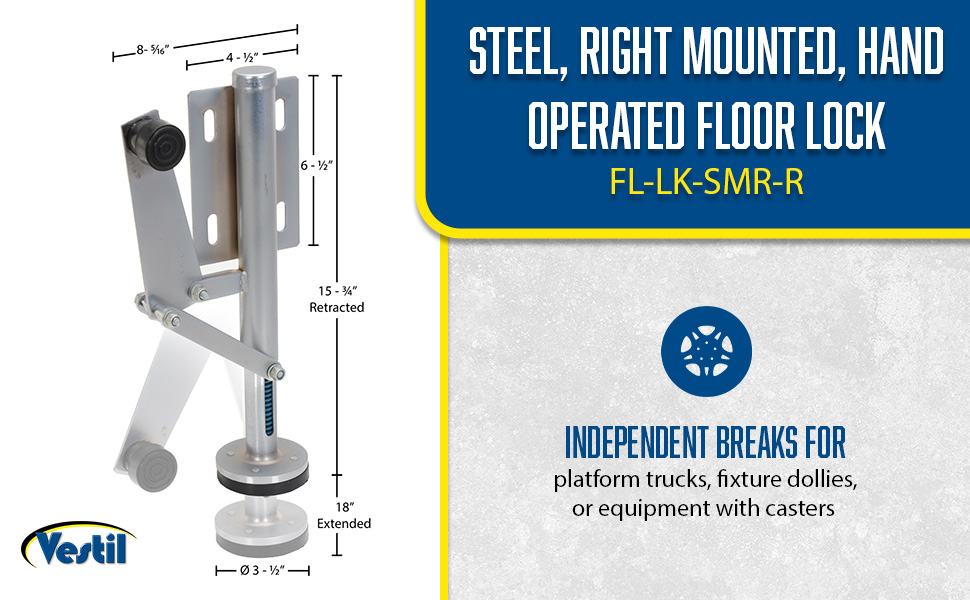

FL-LK-SMR-R |
![]() | 30 Days Limited Warranty | Steel Right Mount Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

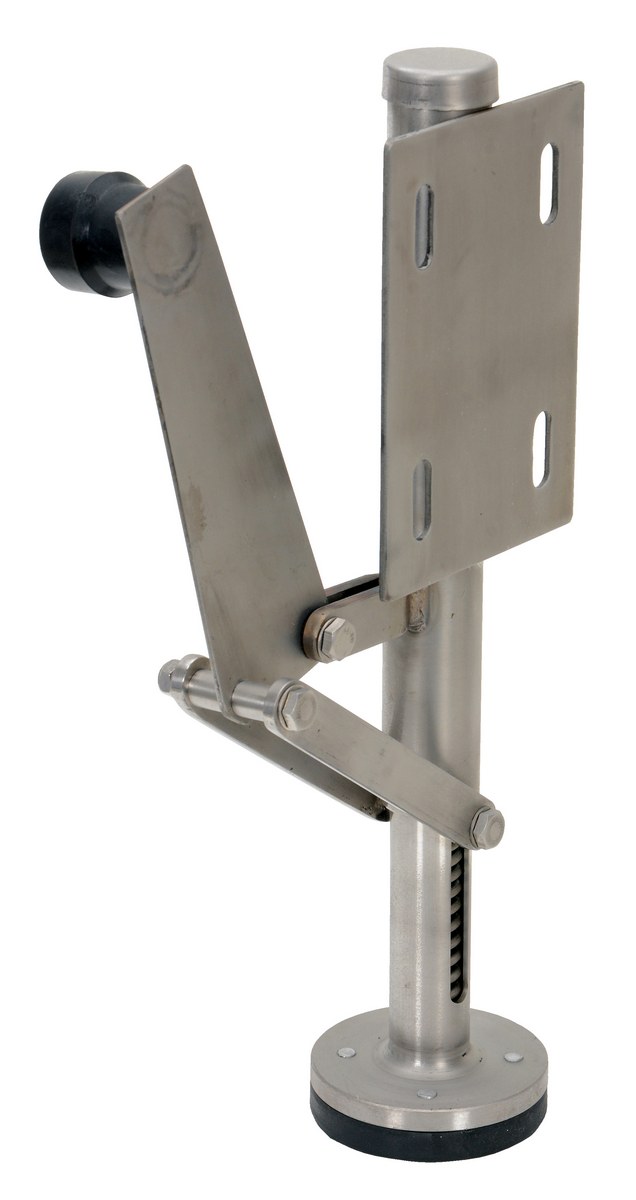

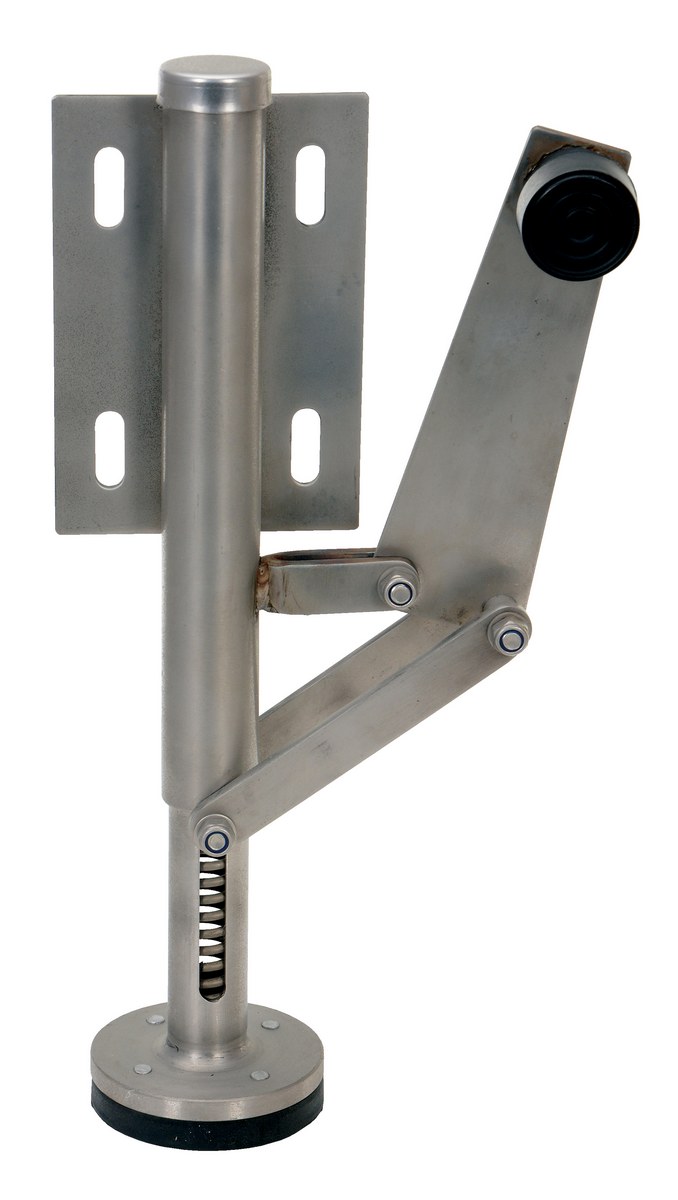

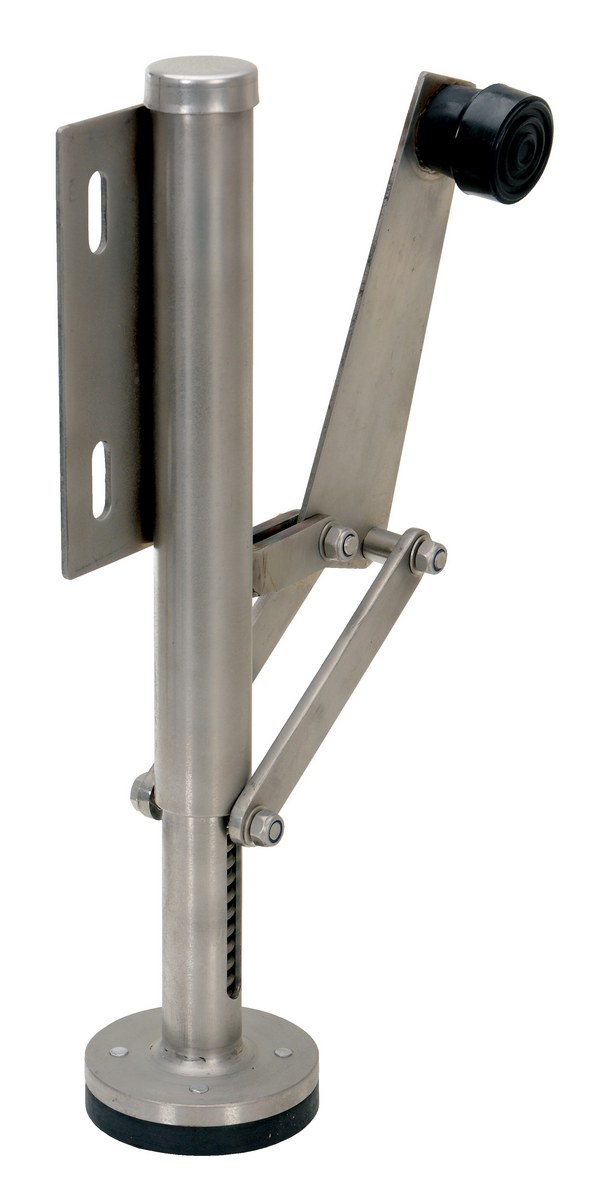

FL-LK-SMR-SS-L |
![]() | 30 Days Limited Warranty | Stainless Steel Left Mount Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 | ||

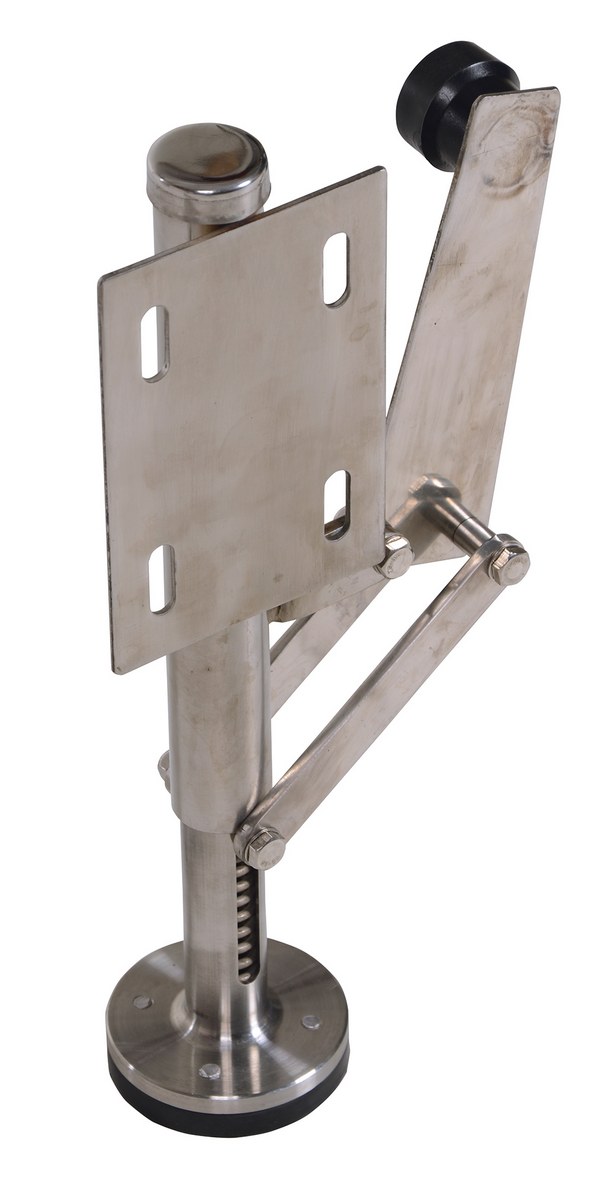

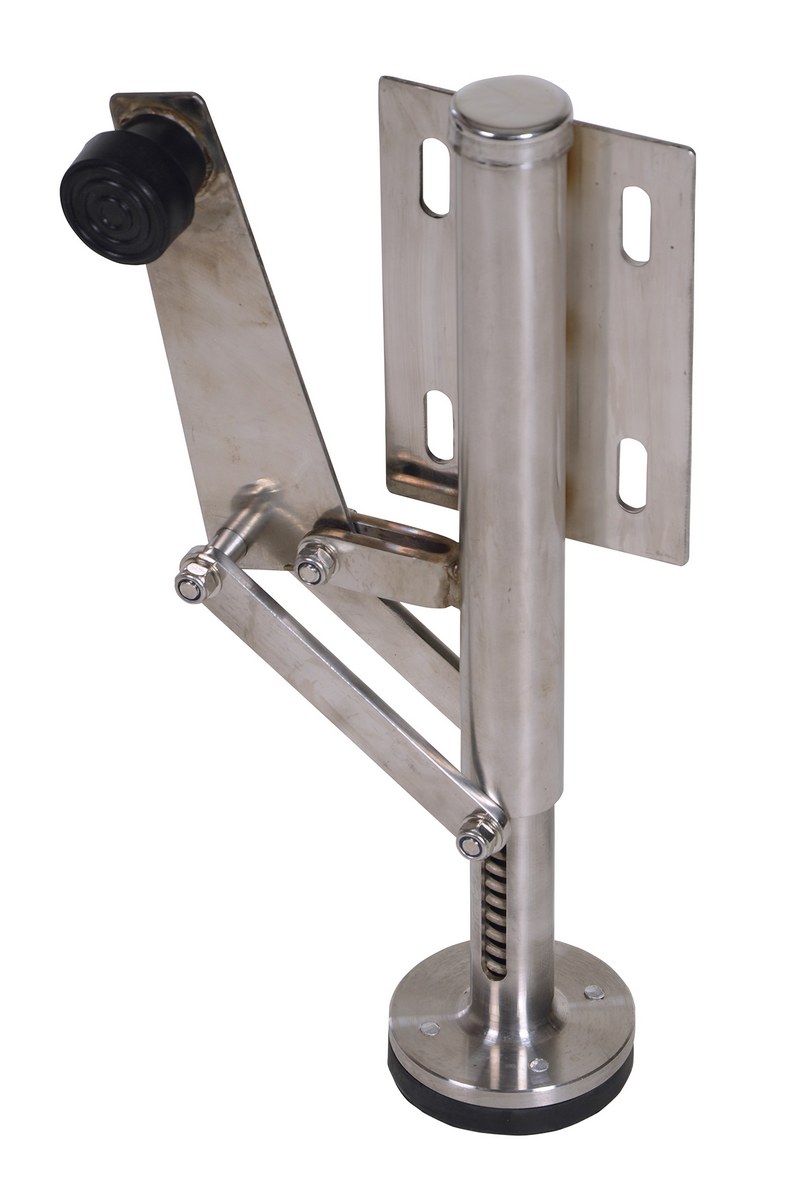

FL-LK-SMR-SS-R |
![]() | 30 Days Limited Warranty | Stainless Steel Right Mount Floor Lock 10 to 12 In. Height Silver | Mounting Height (in.): 10 to 13-7/8 Retracted Height on Bottom Mounting Hole (in.): 10 | 9 |
KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The FL-LK-4E has a capacity of 1200 lbs.
A: Locking capacity is 1,200 lbs. Force required to engage the brake: 20 - 30 lbs.
A: The locking capacity is 2,000 lbs.
