Product Family Overview


Basement Floor Jacks
SERIES: FJB

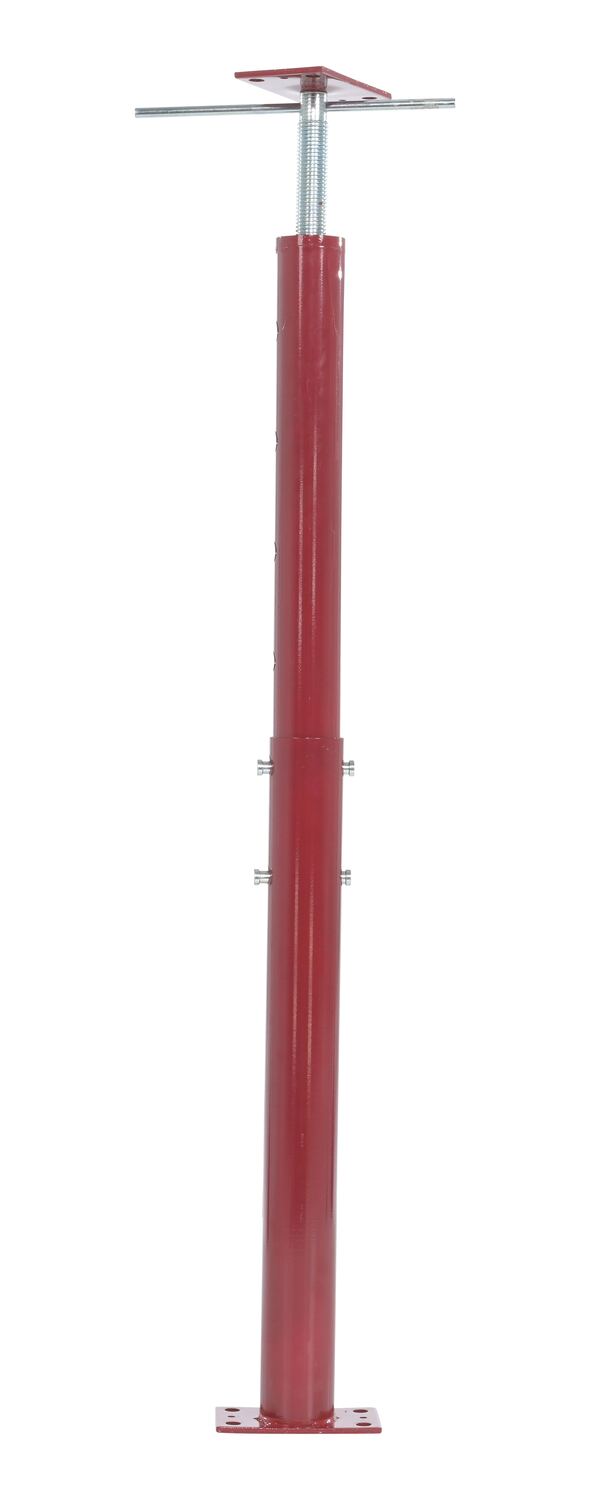

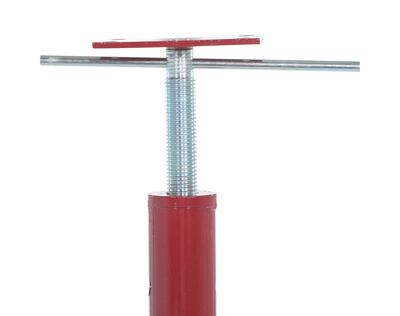

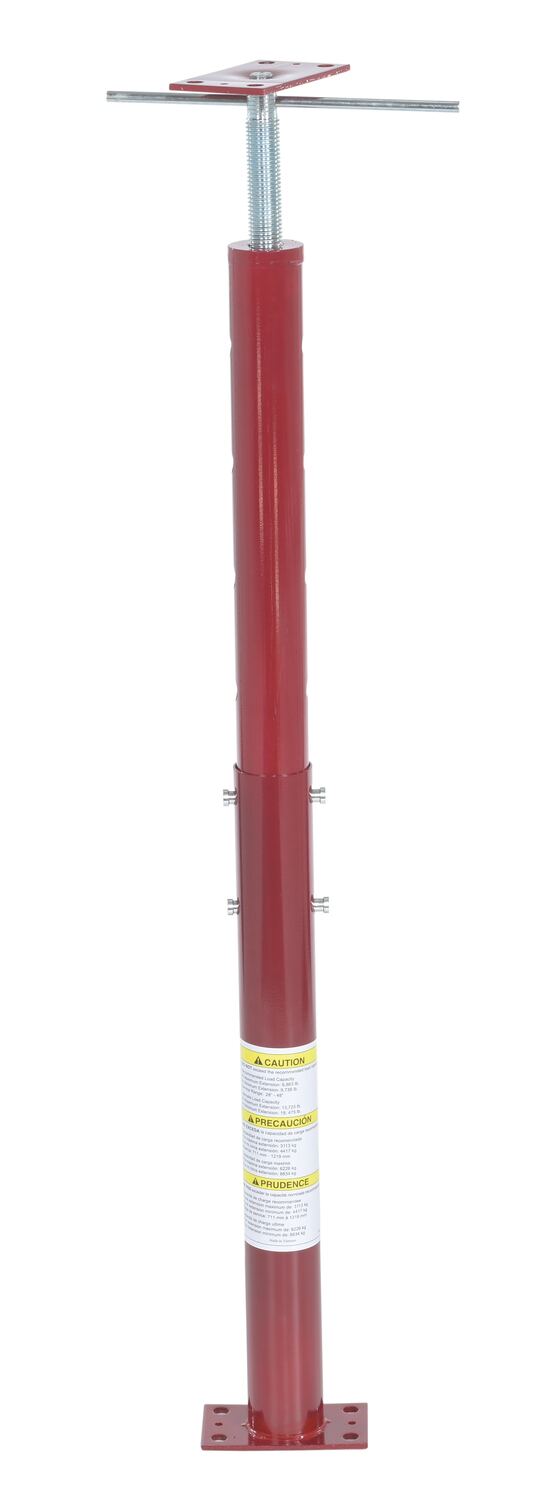

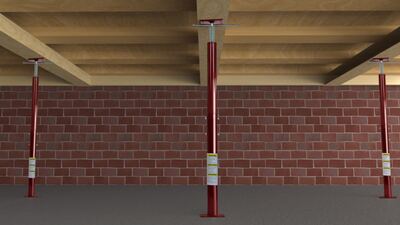

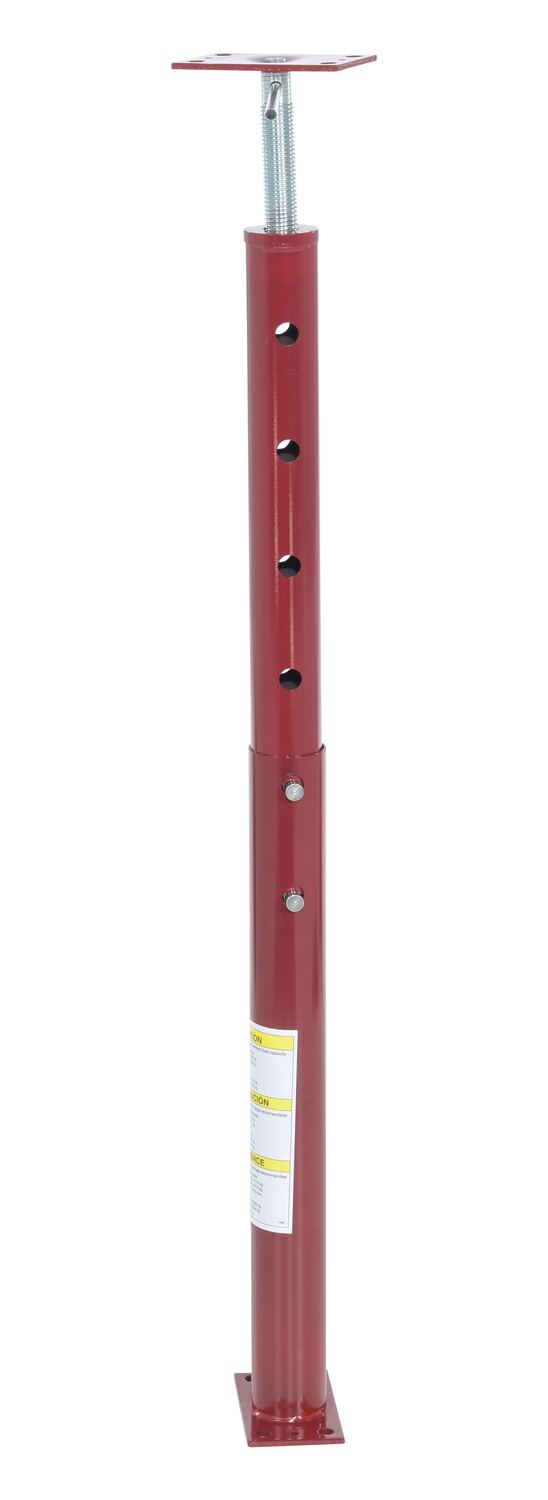

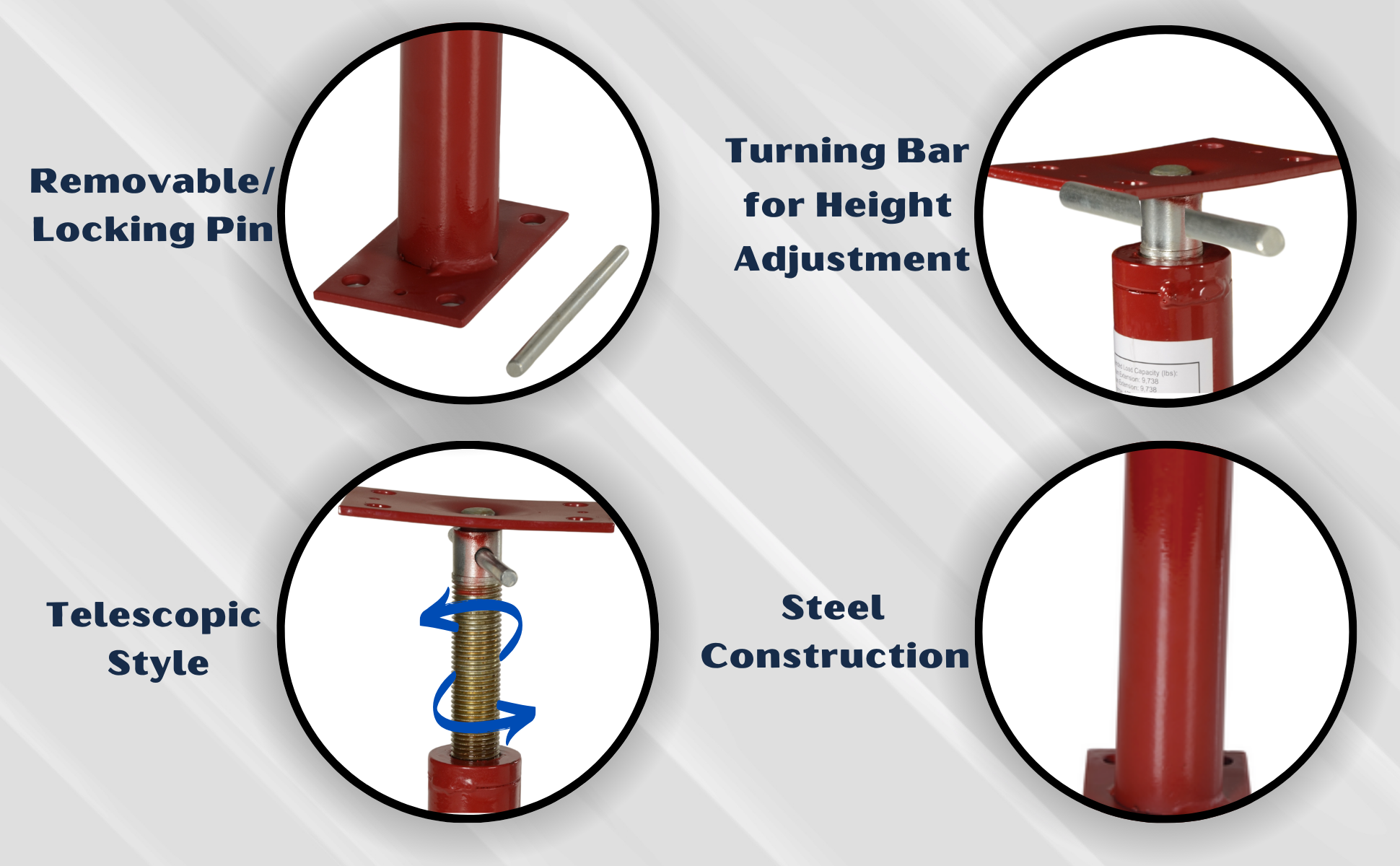

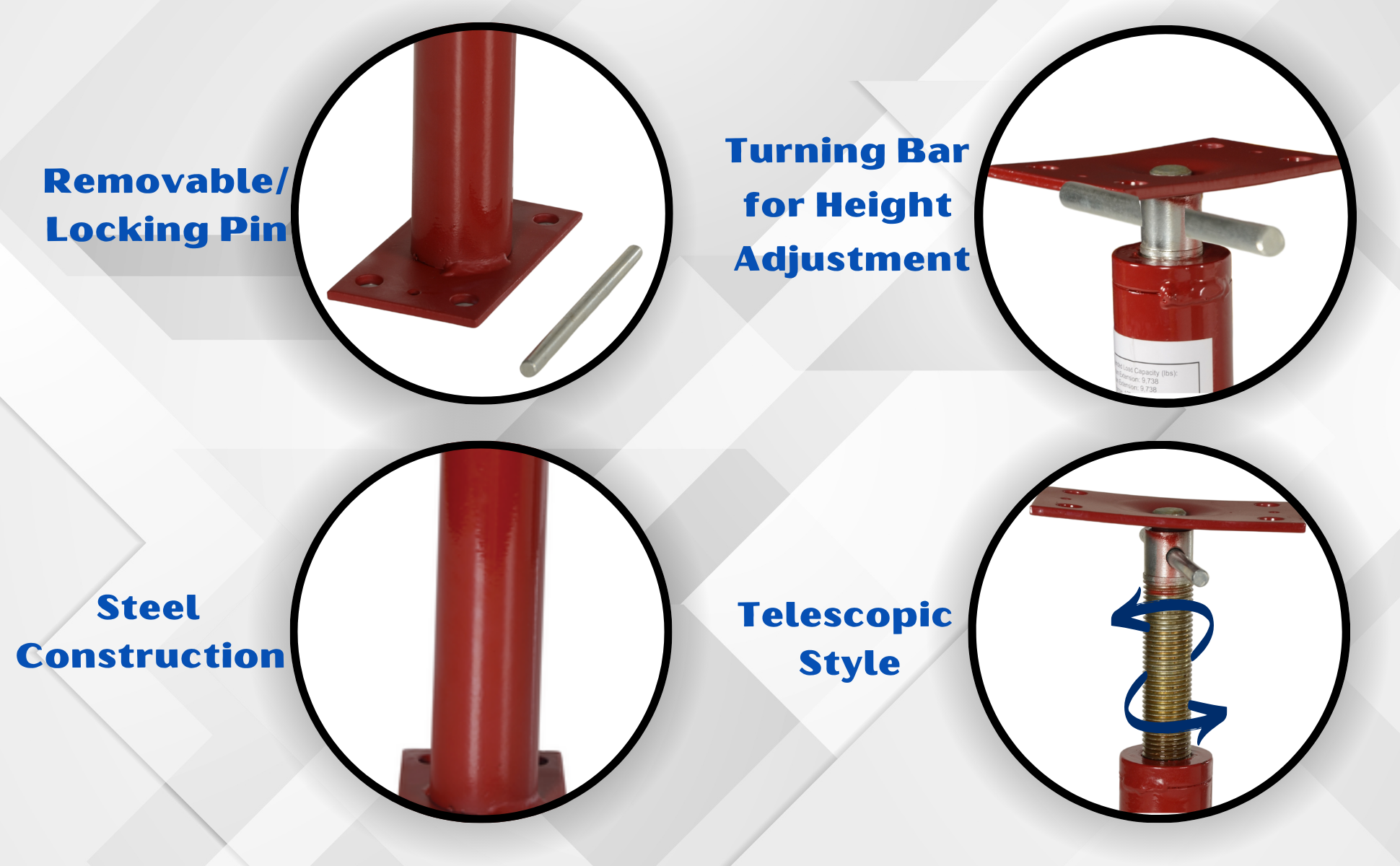

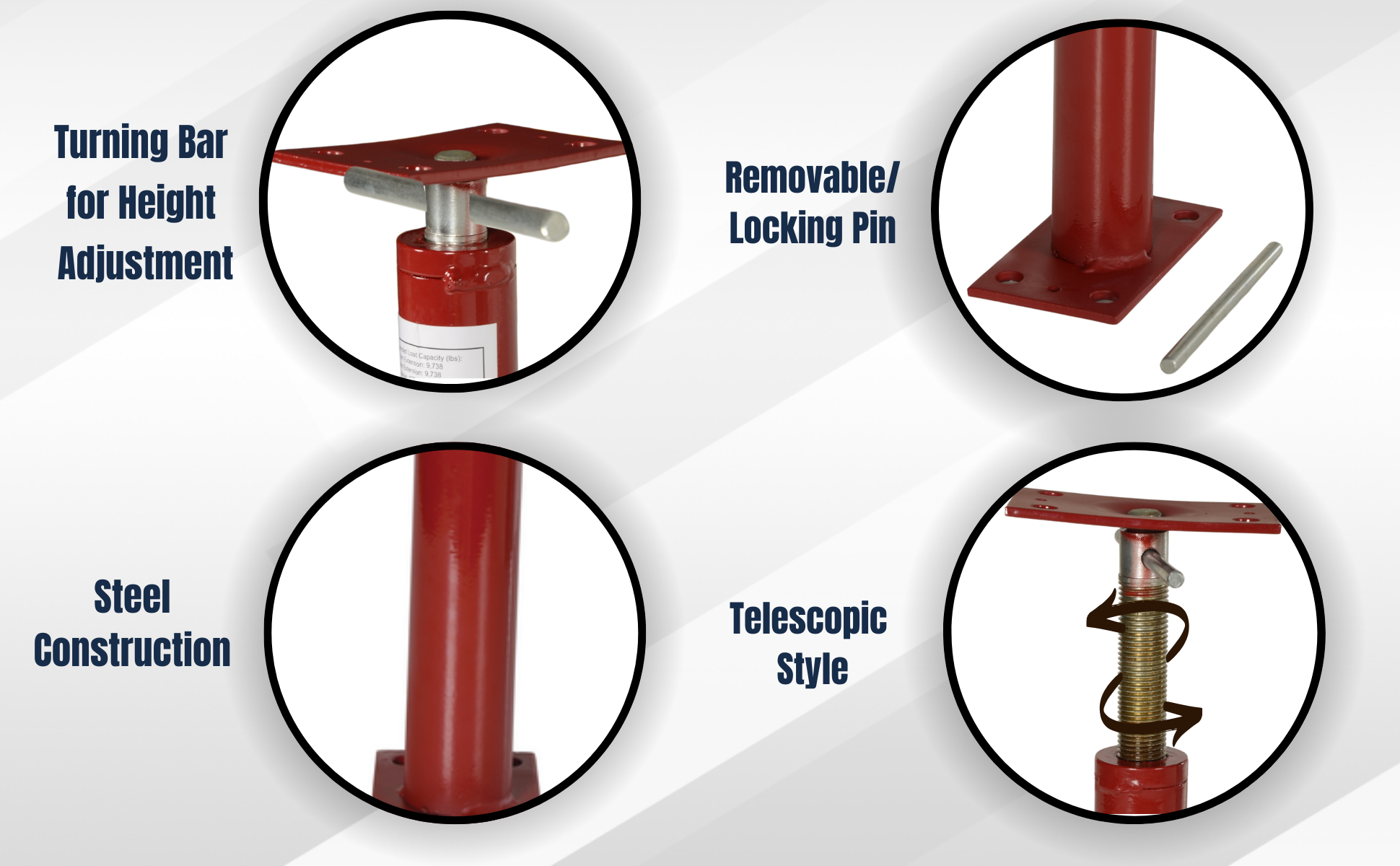

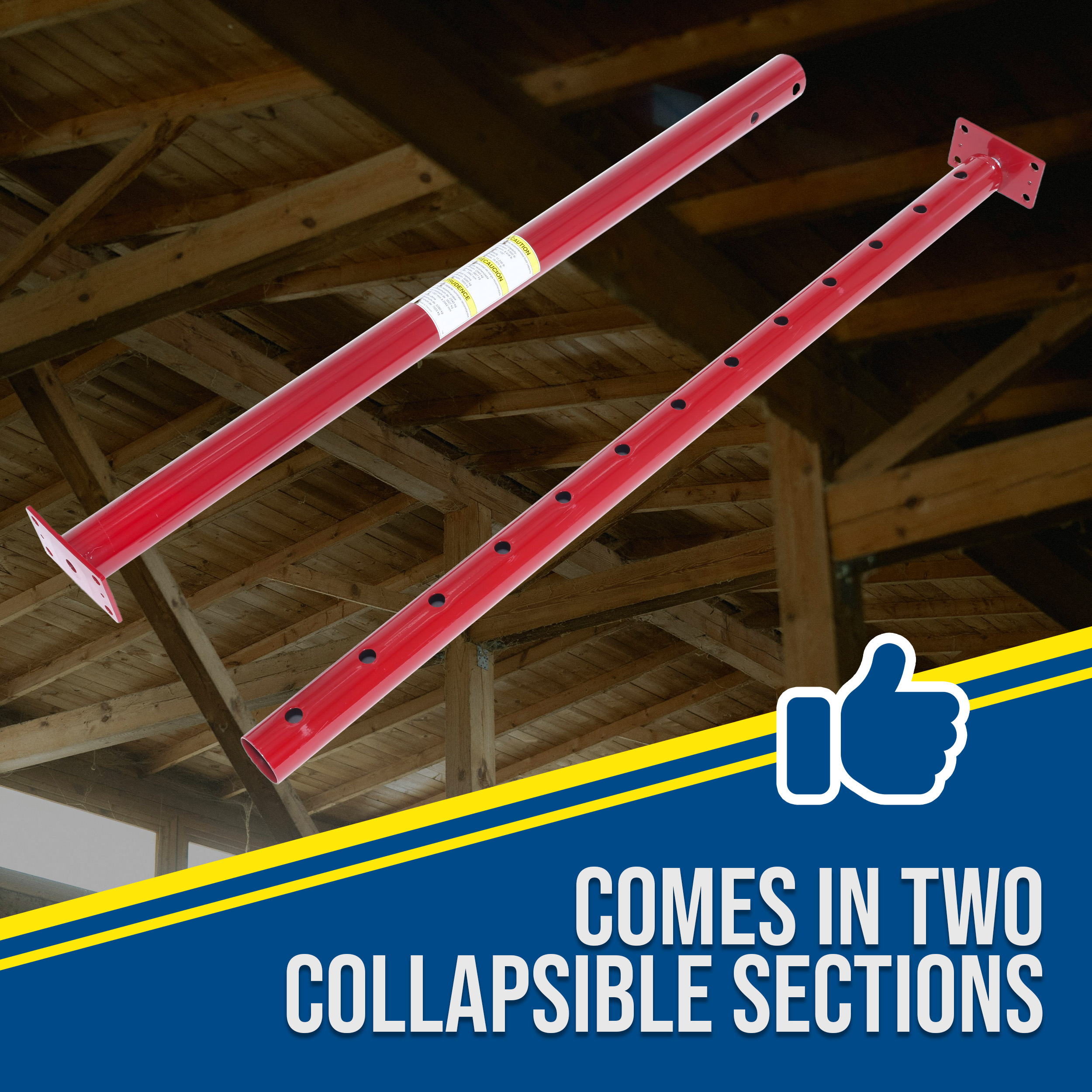

FJB-48Provide extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

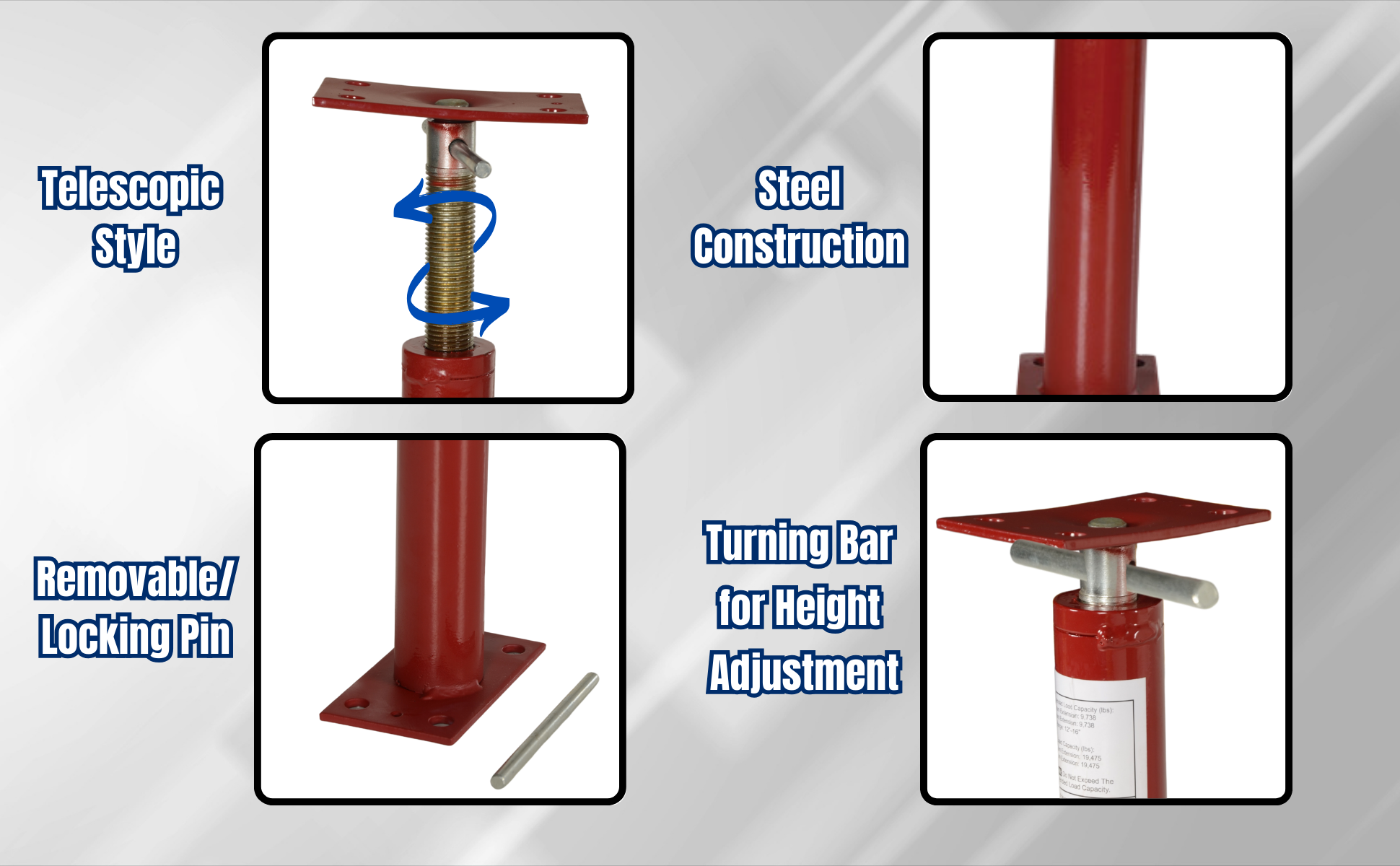

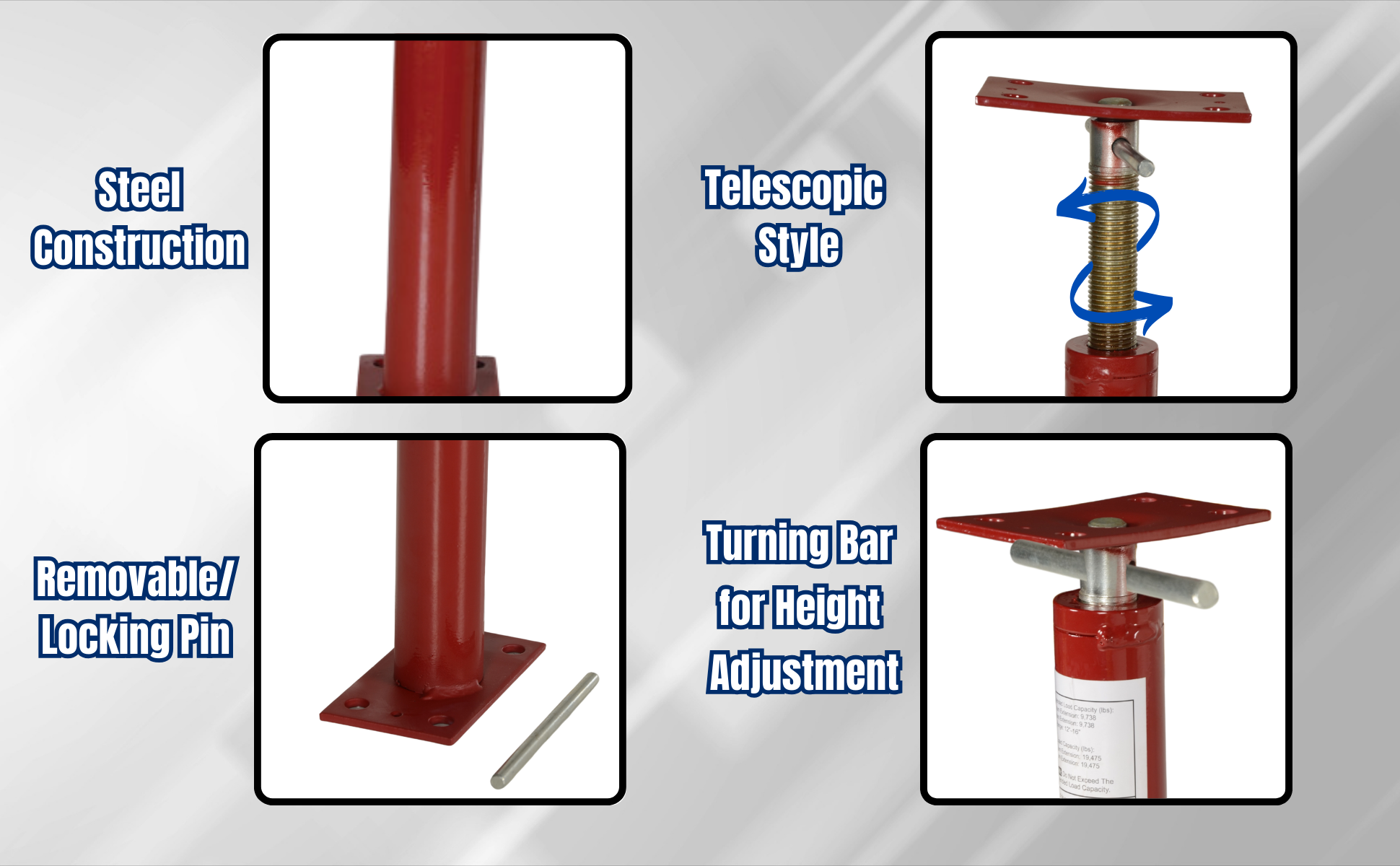

  • Jack provides support for leveling and stabilizing floor beams

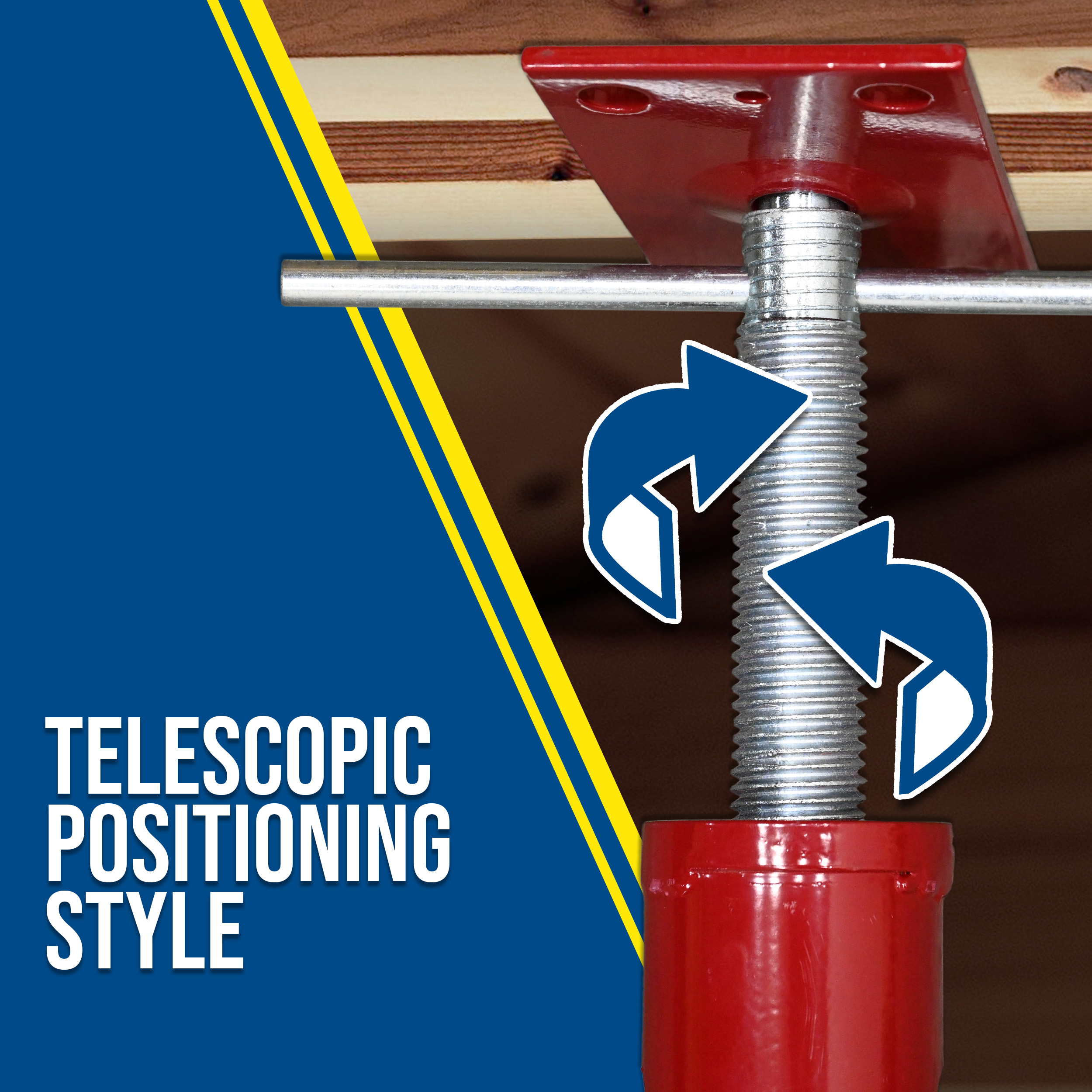

  • The telescopic style positions the brace for better leveling

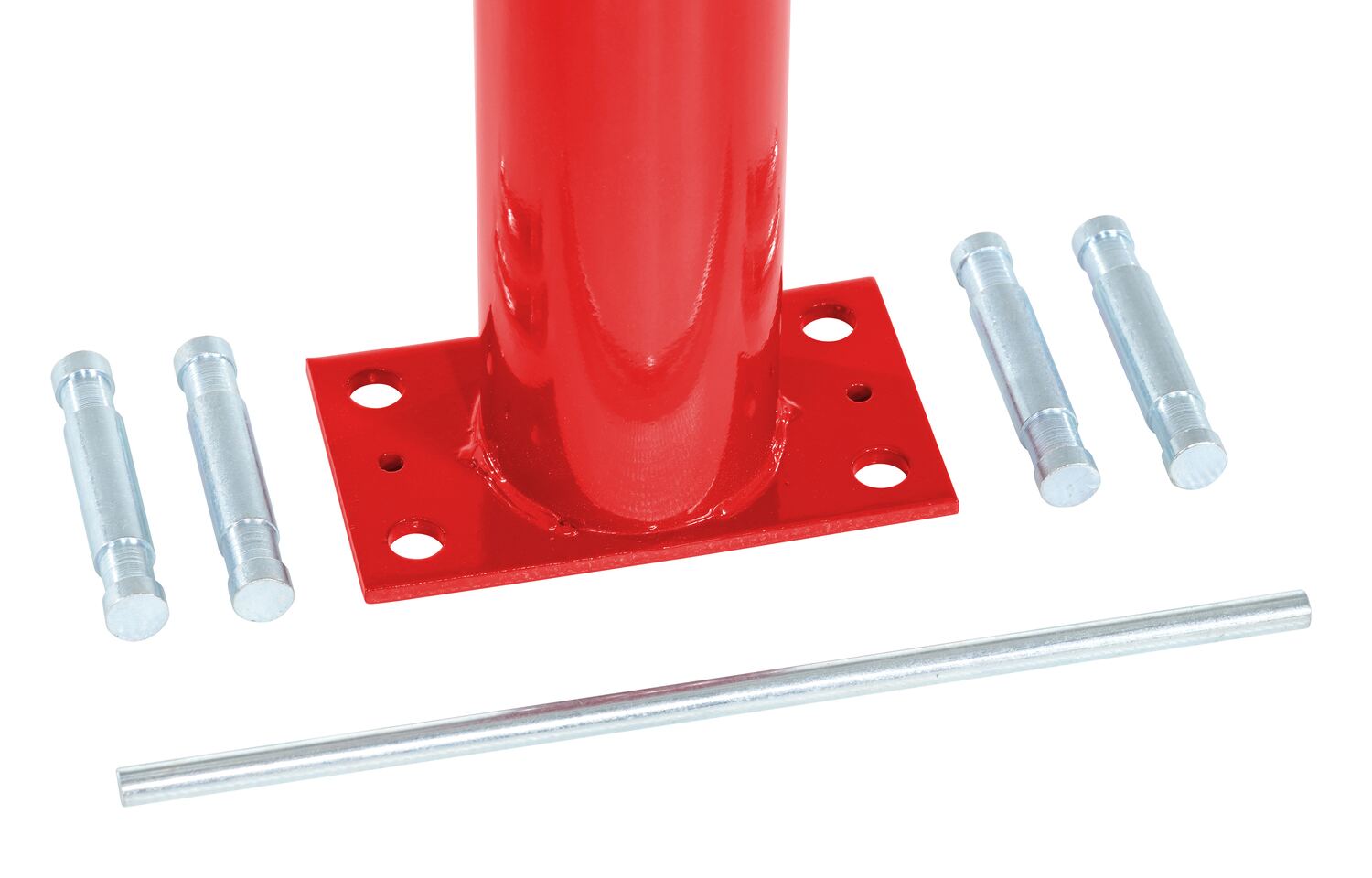

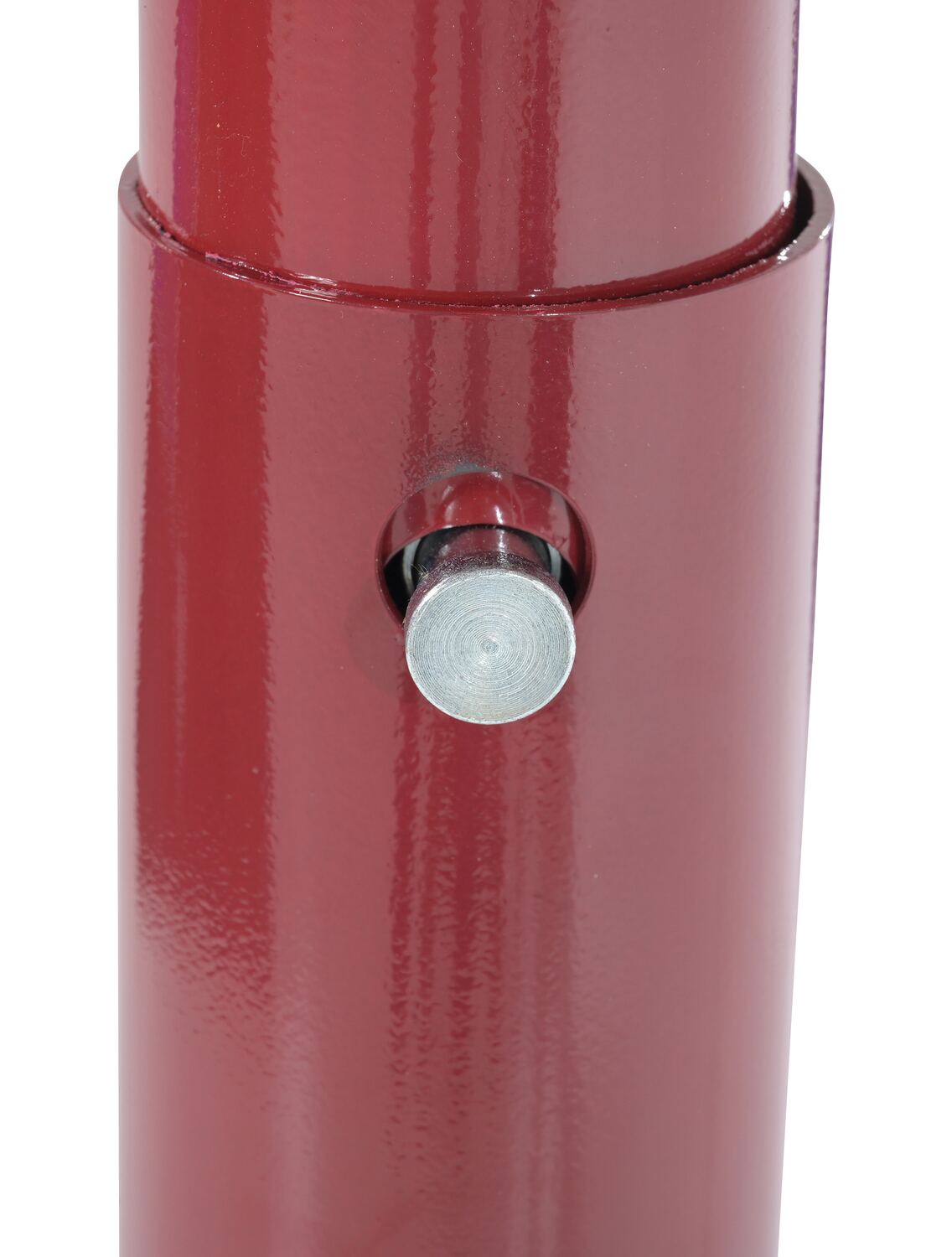

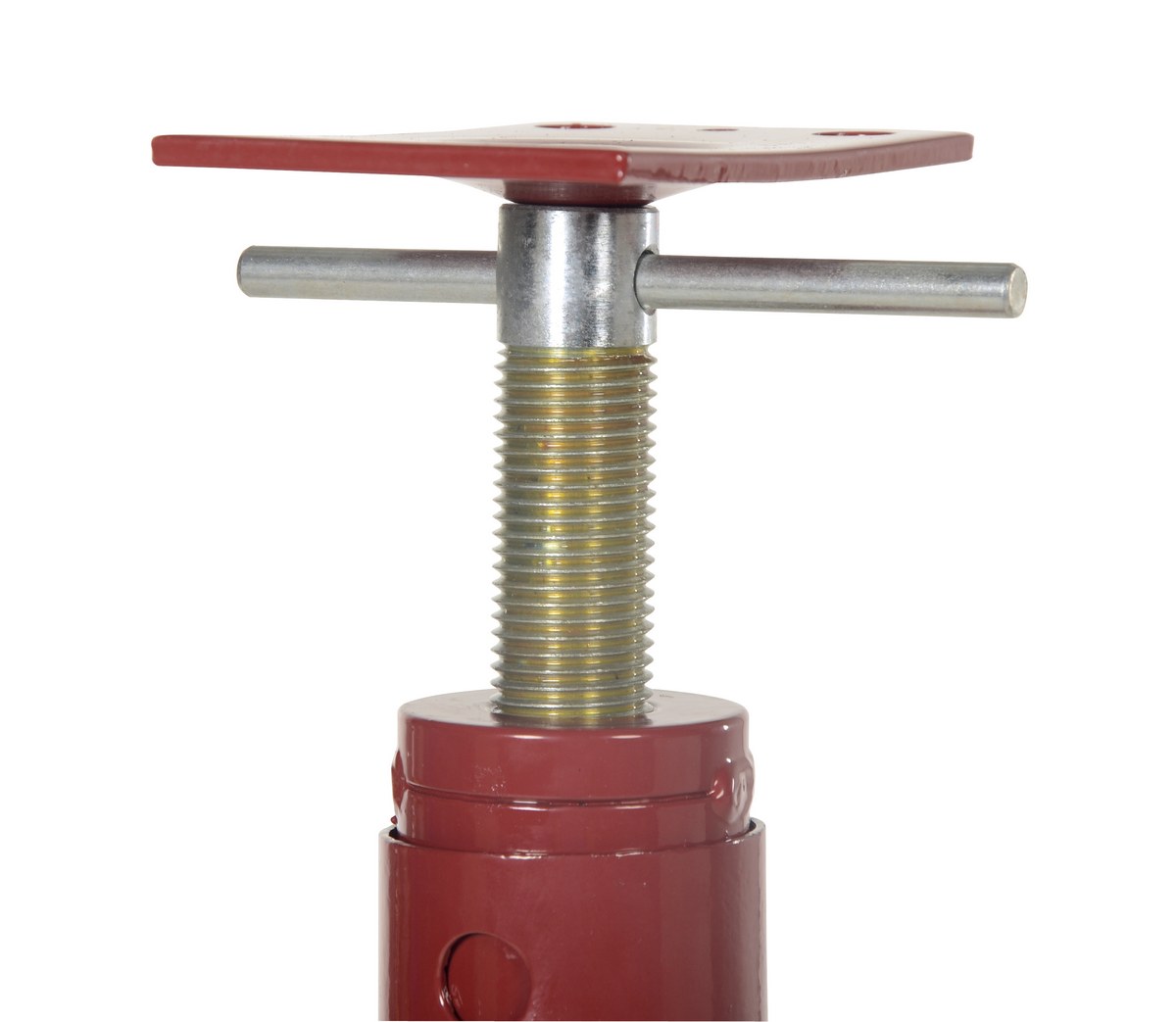

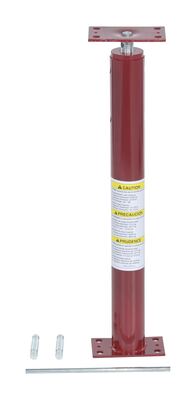

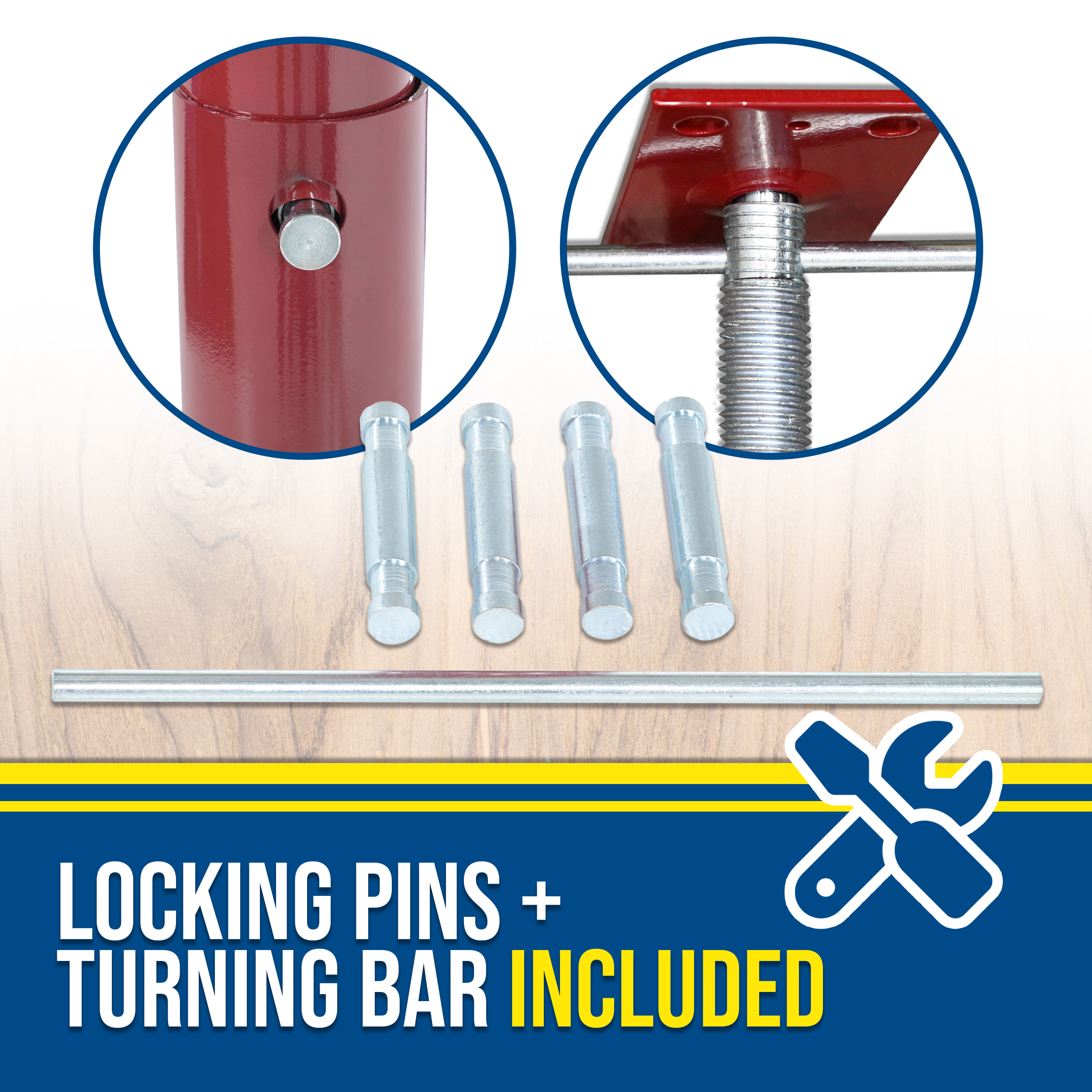

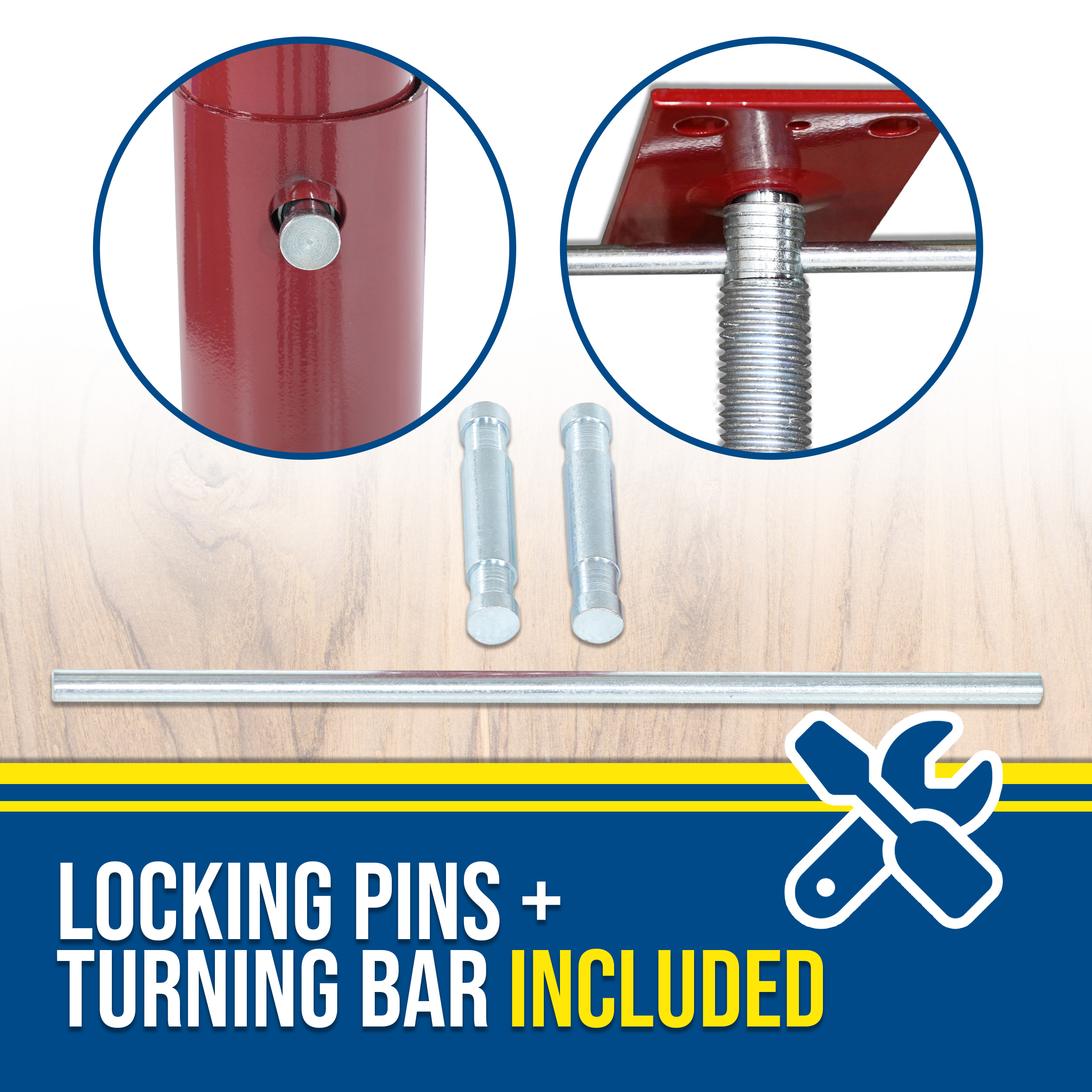

  • Includes locking pins and turning bar for easy height adjustment

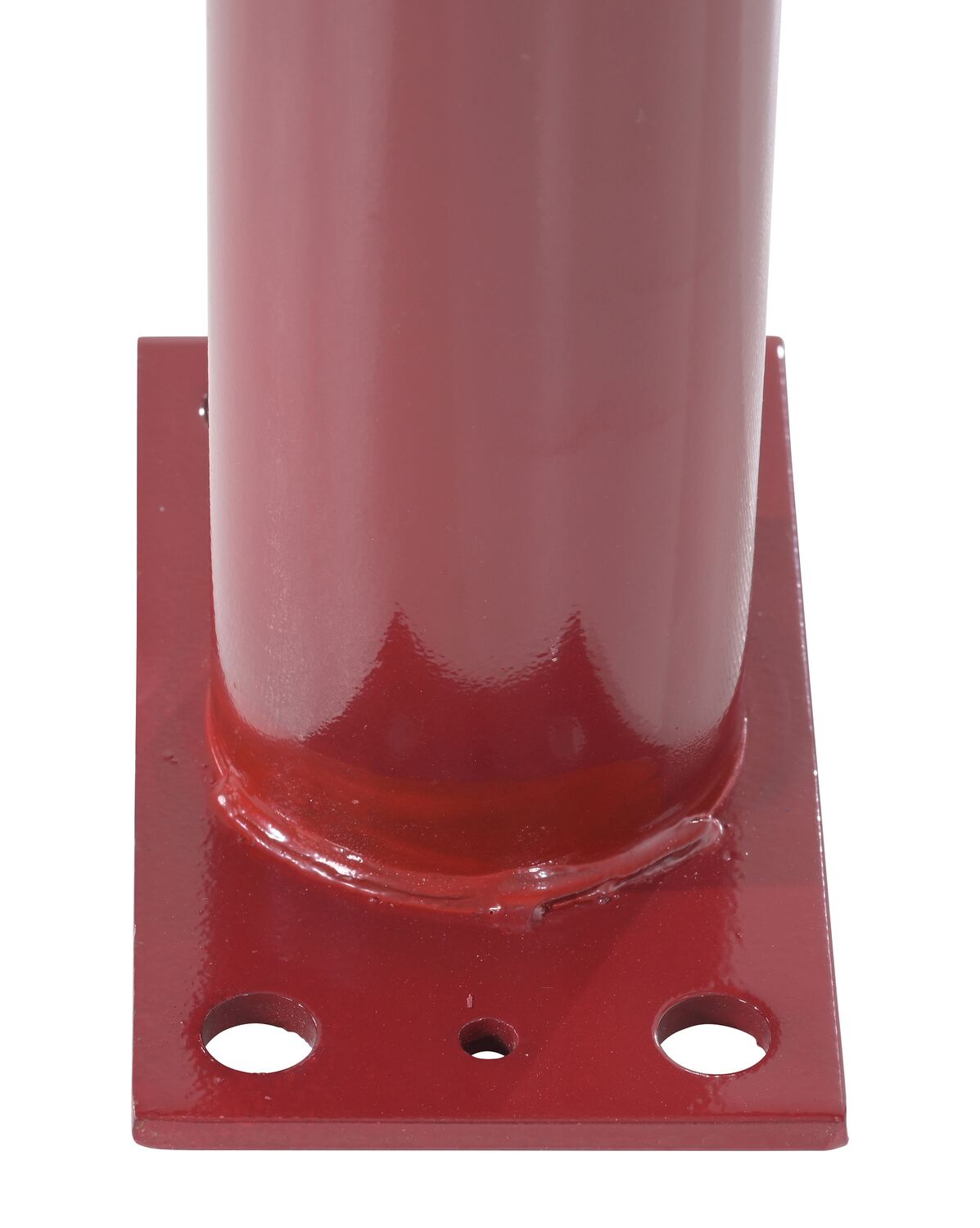

  • Steel construction with red oxide finish for optimal durability

FJB-48Provide extra support for leveling and stabilizing floor beams and joists during construction and repairs. Telescopic style with removable pins lets you properly position the brace for better leveling. Includes turning bar for easy height adjustment. Rugged all welded steel construction. Red oxide finish.

  • Jack provides support for leveling and stabilizing floor beams
  • The telescopic style positions the brace for better leveling
  • Includes locking pins and turning bar for easy height adjustment
  • Steel construction with red oxide finish for optimal durability

Additional Models In This Family

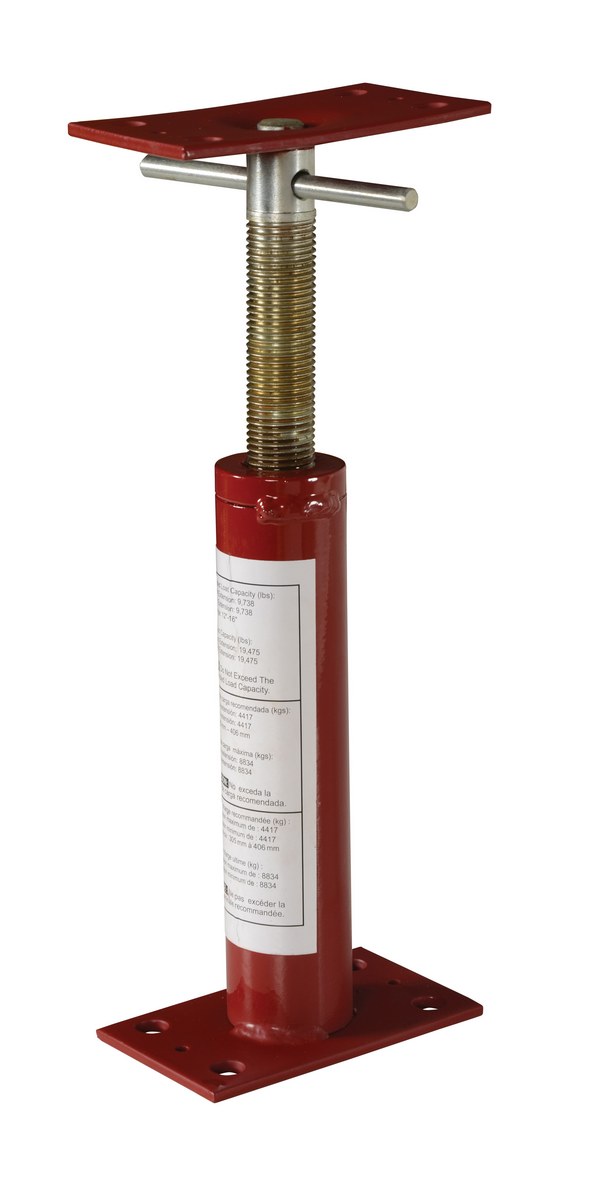

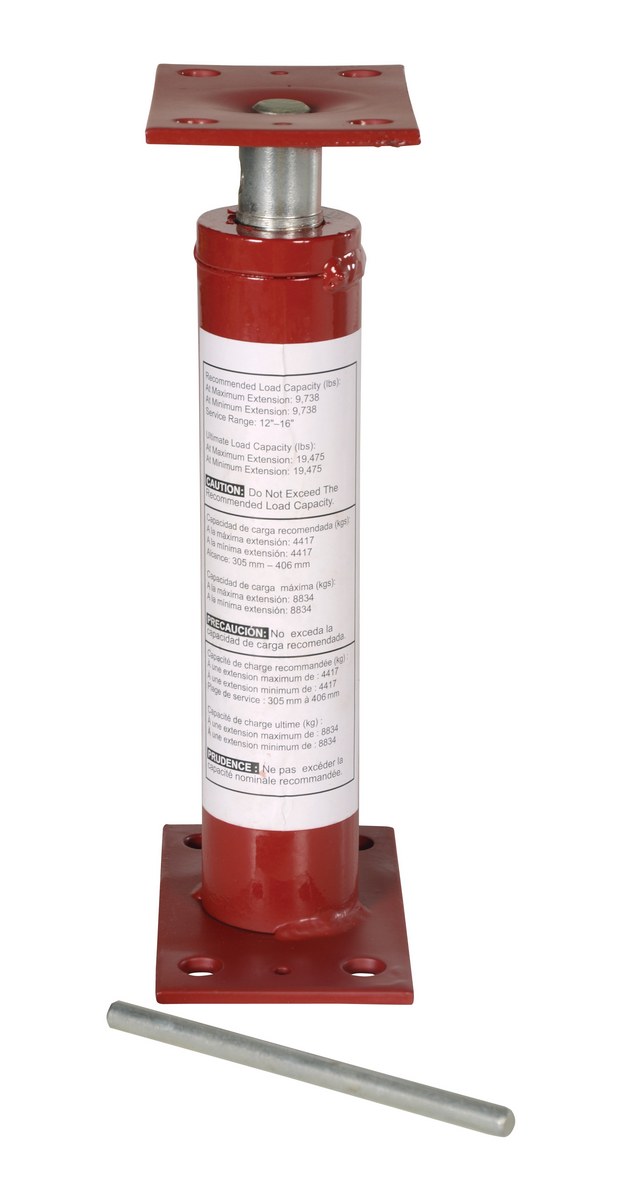

FJB-16

model FJB-16

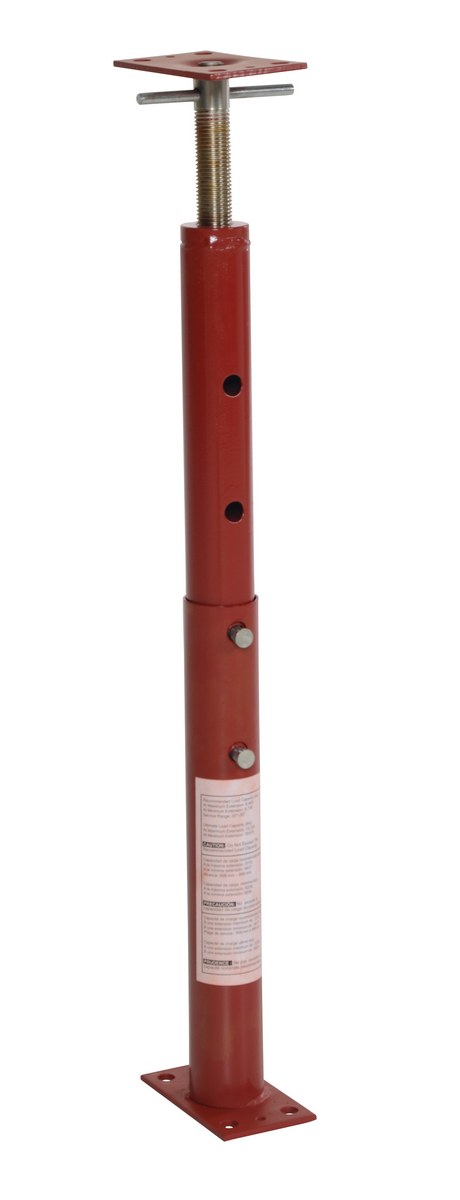

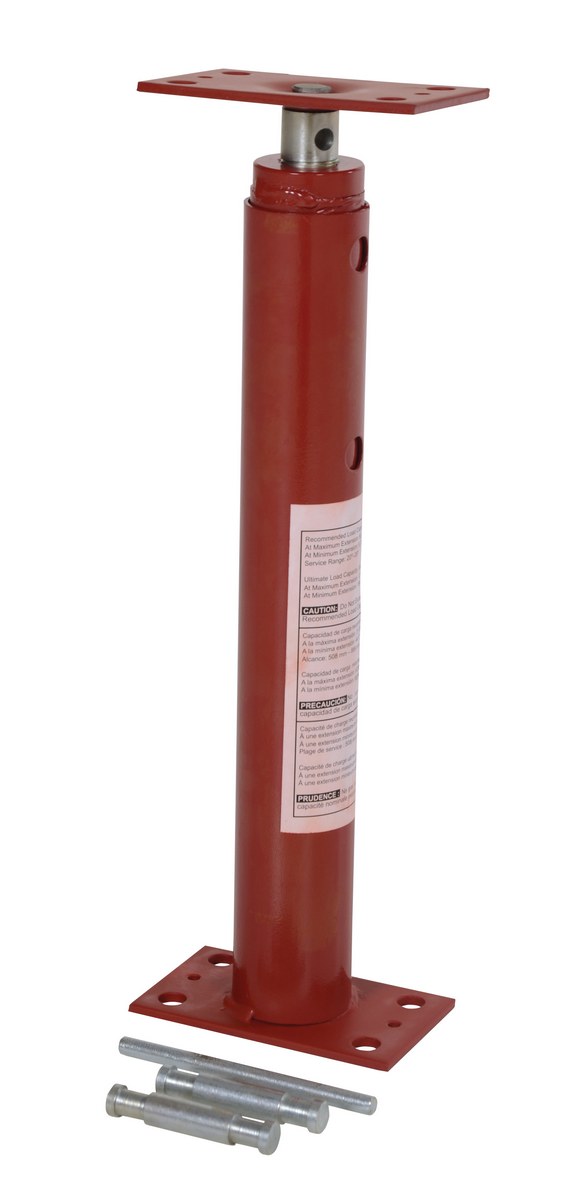

FJB-36

model FJB-36

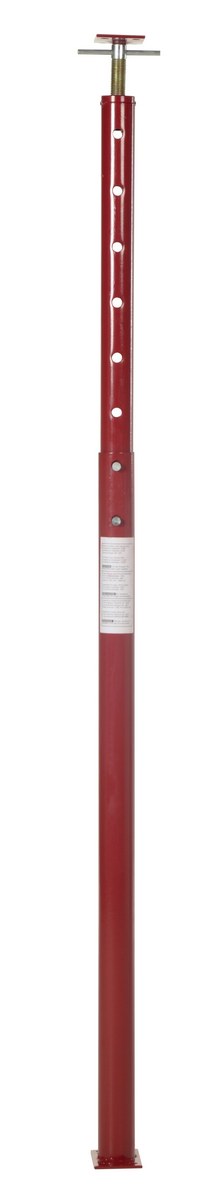

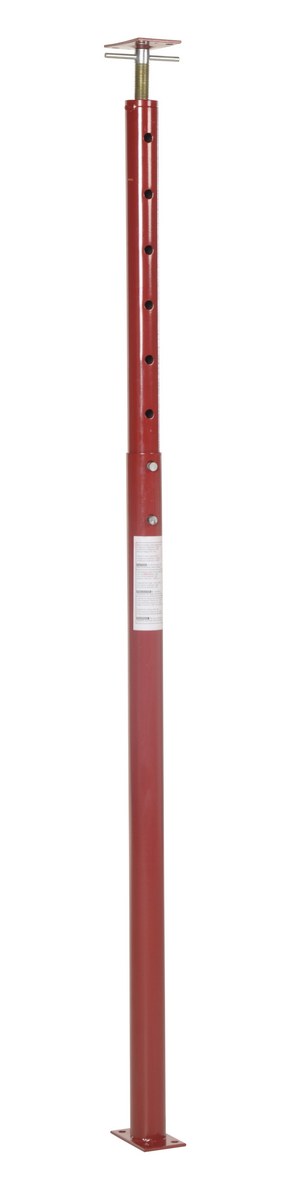

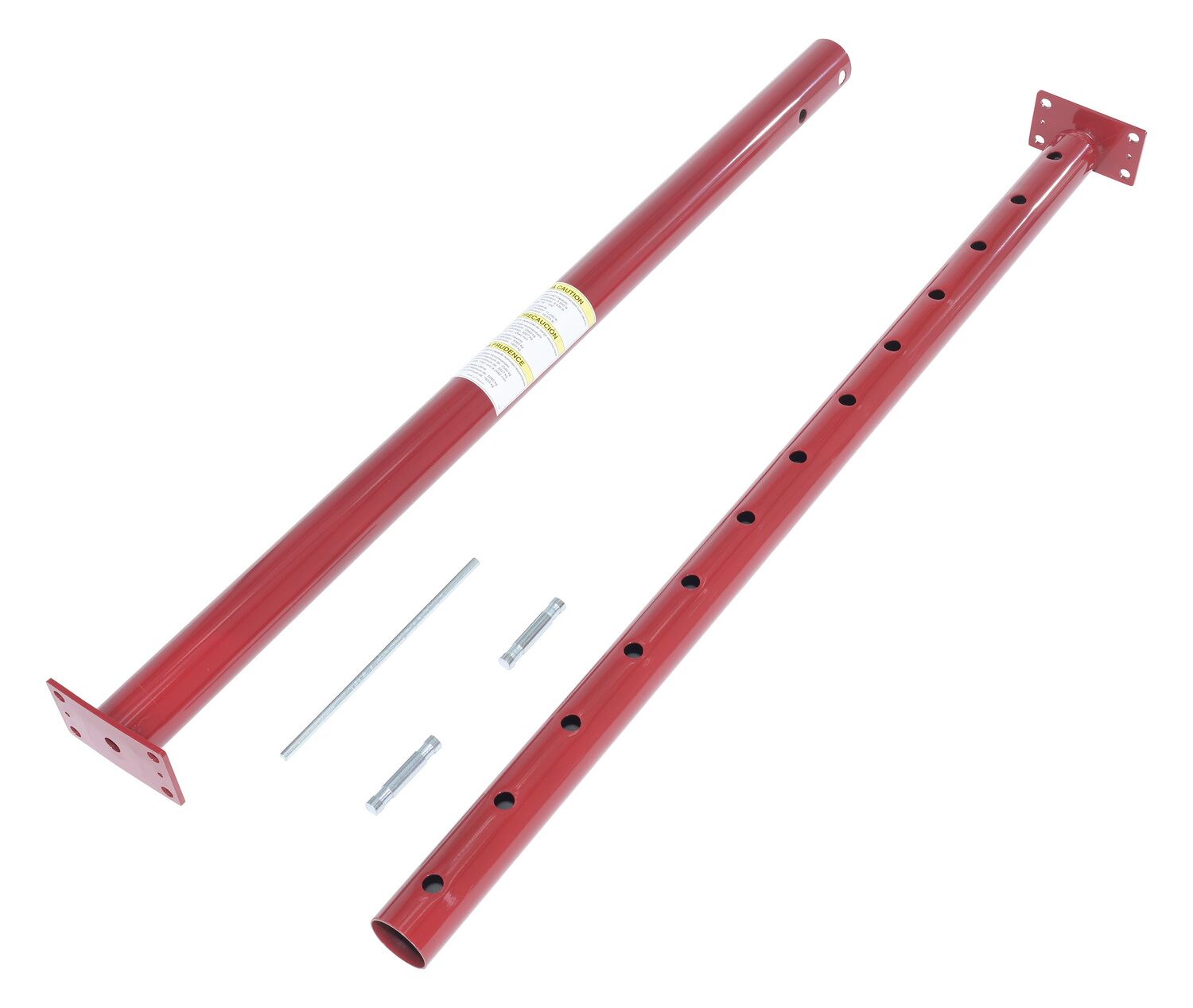

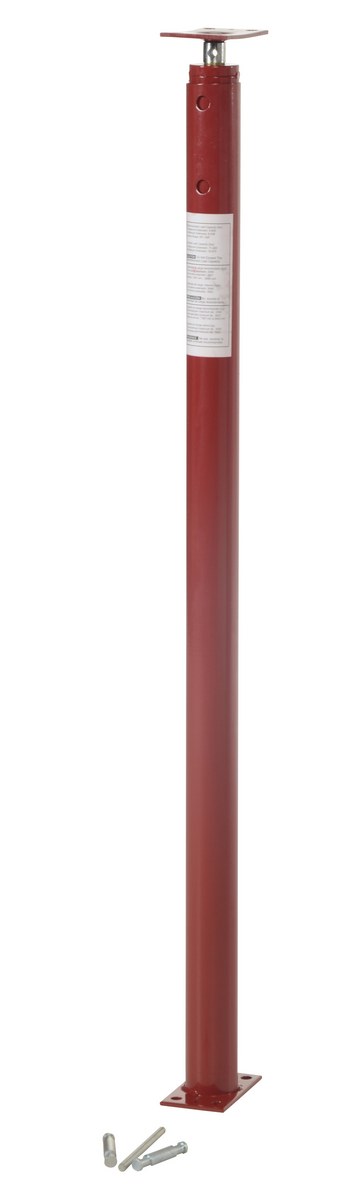

FJB-100

model FJB-100

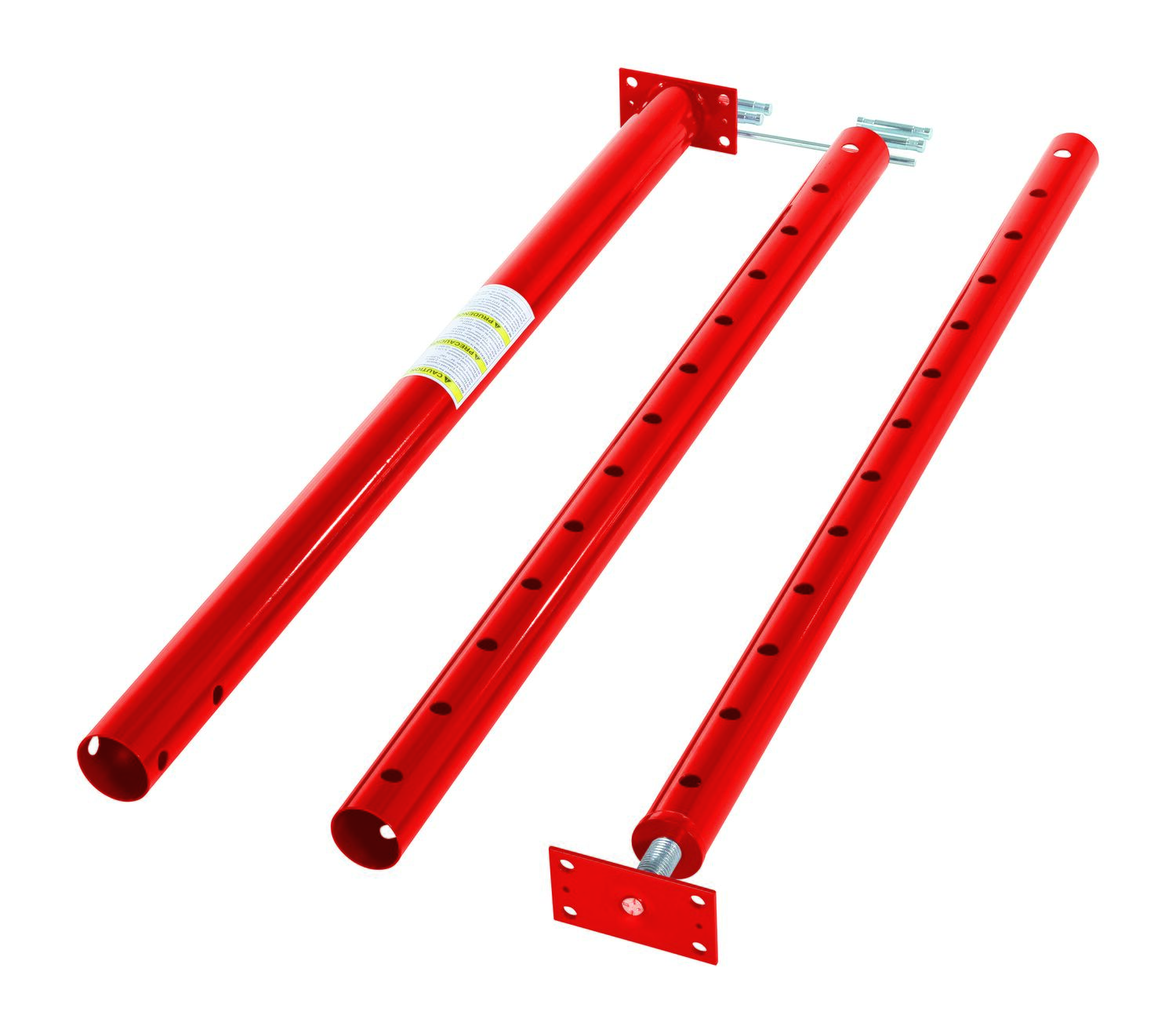

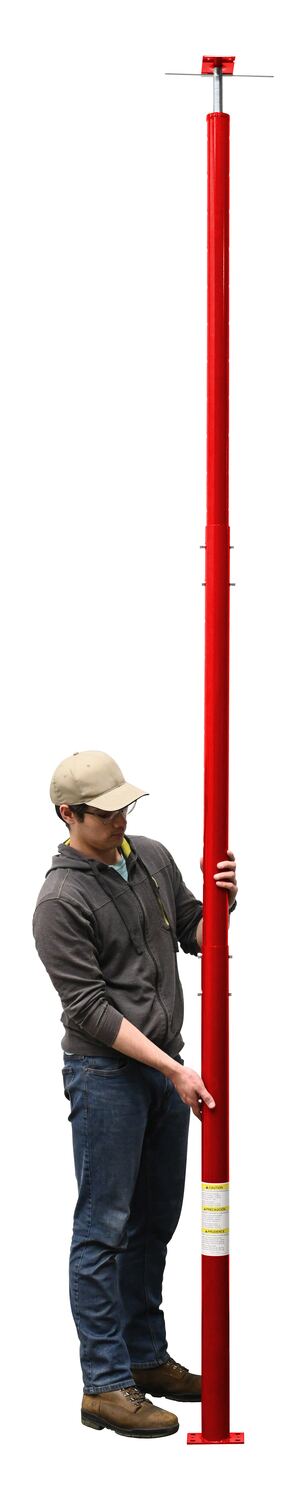

FJB-150

model FJB-150

Applications



Construction Projects

Municipalities

Hotels

Do It Yourself

Farming and Agriculture

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

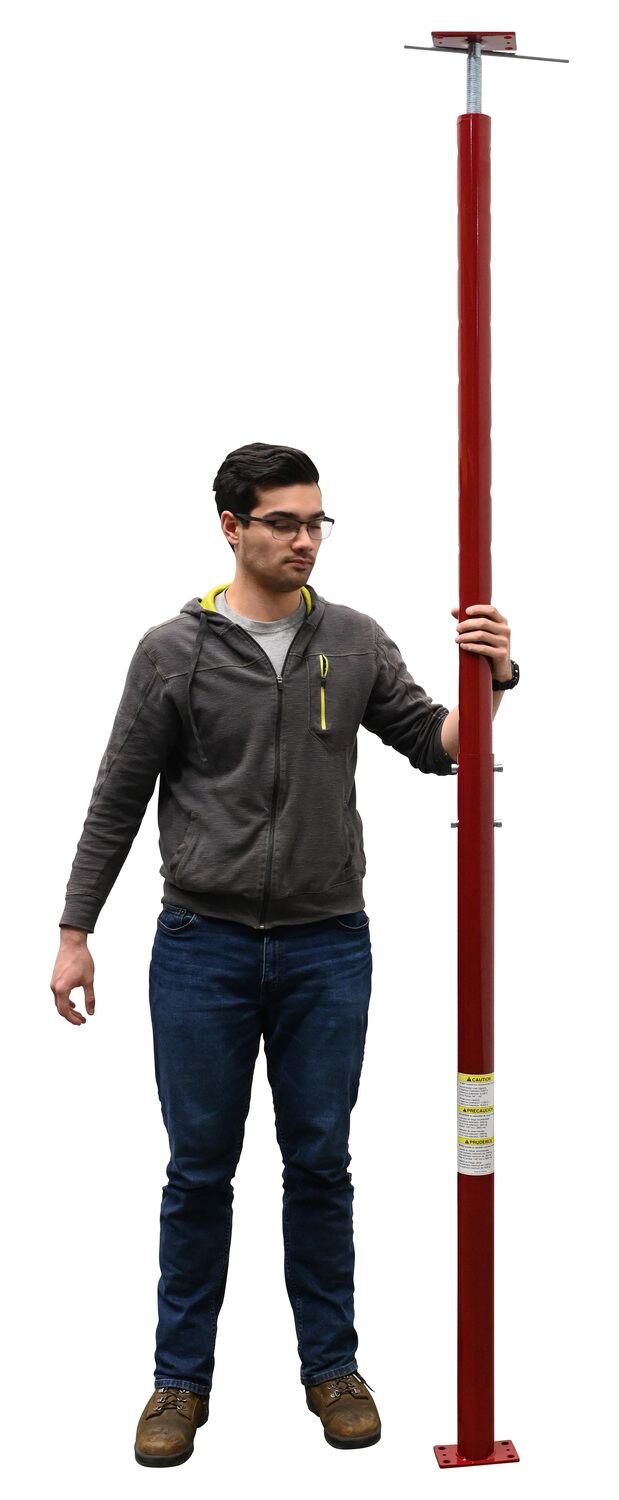

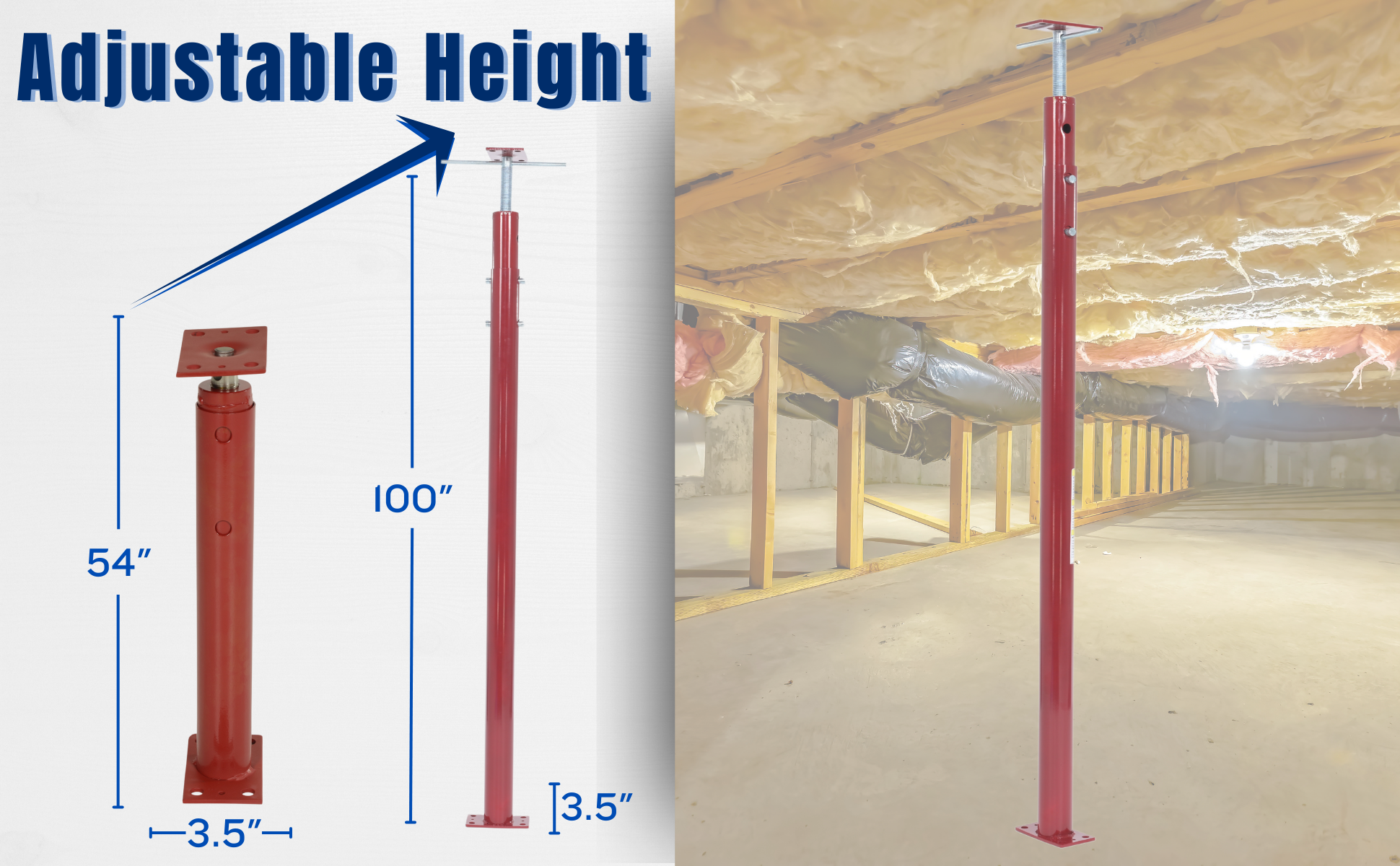

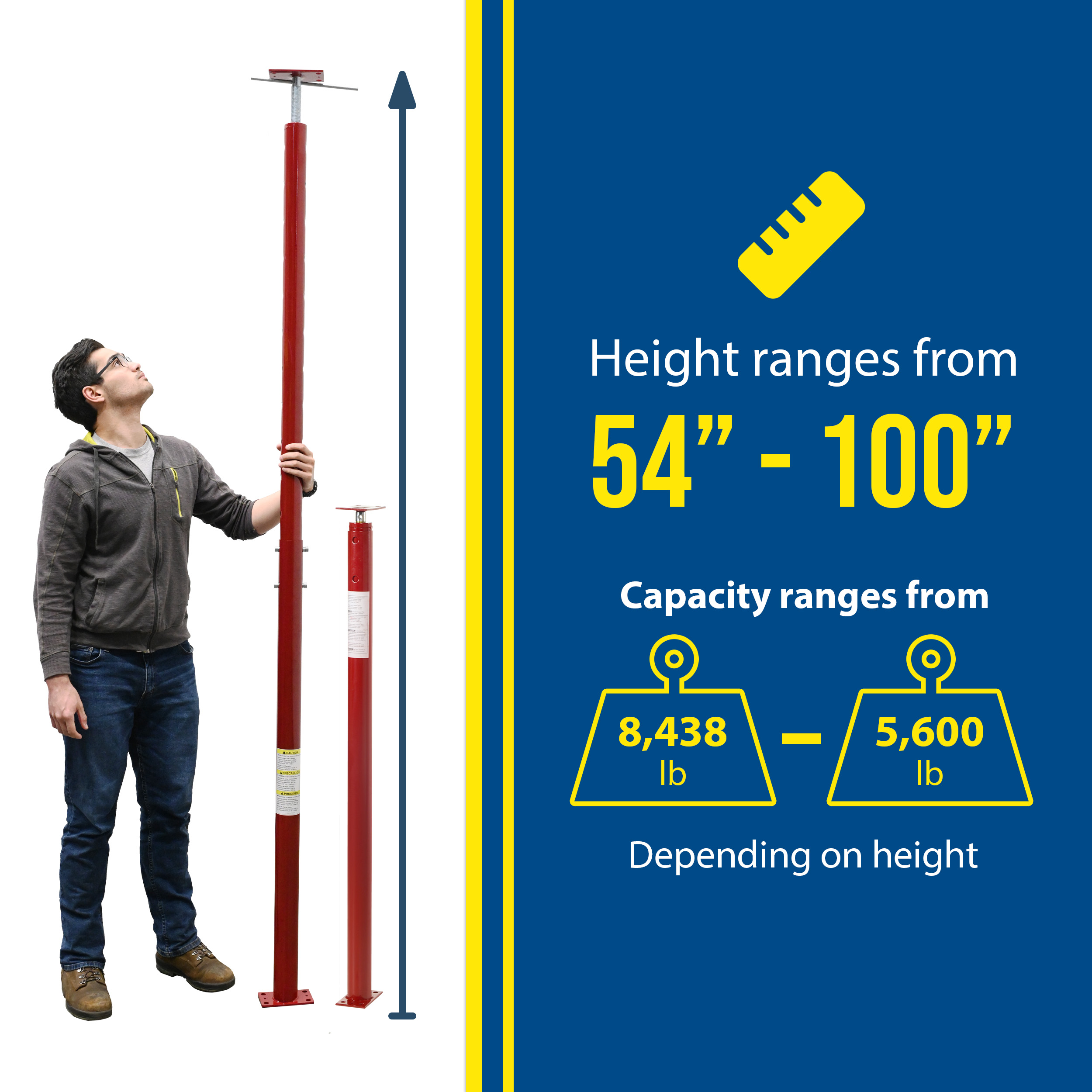

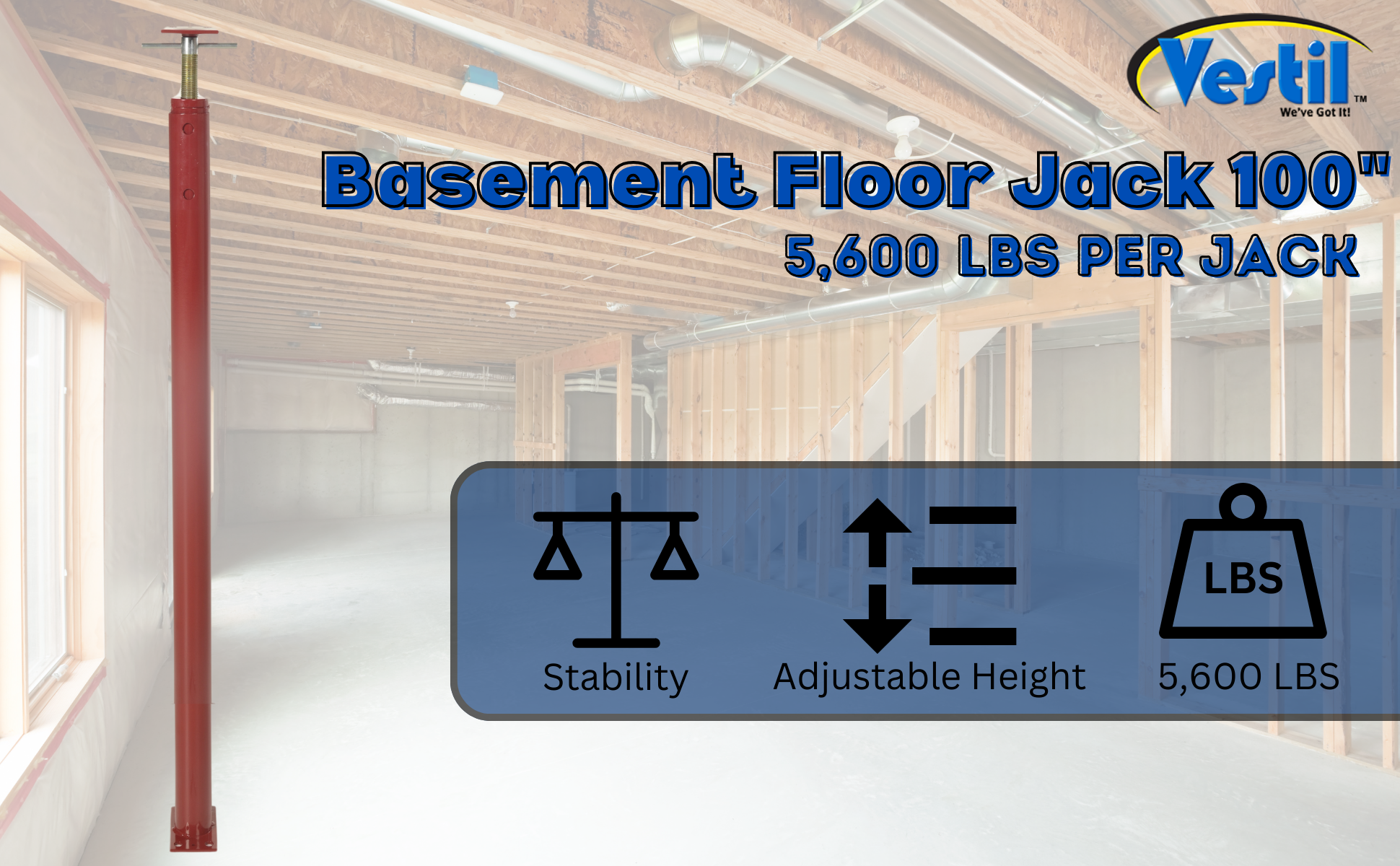

FJB-100 FJB-10090 Days Limited WarrantyBasement Floor Jack 100 In. Maximum Height 5,600 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438
26

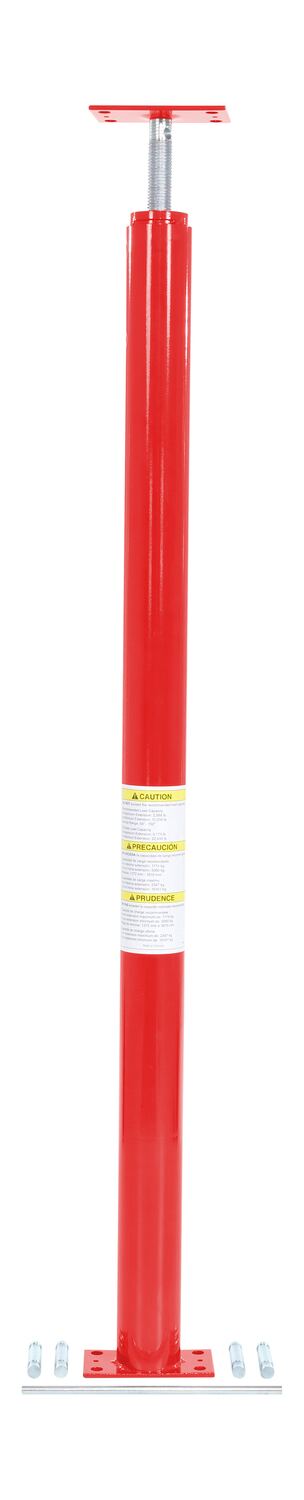

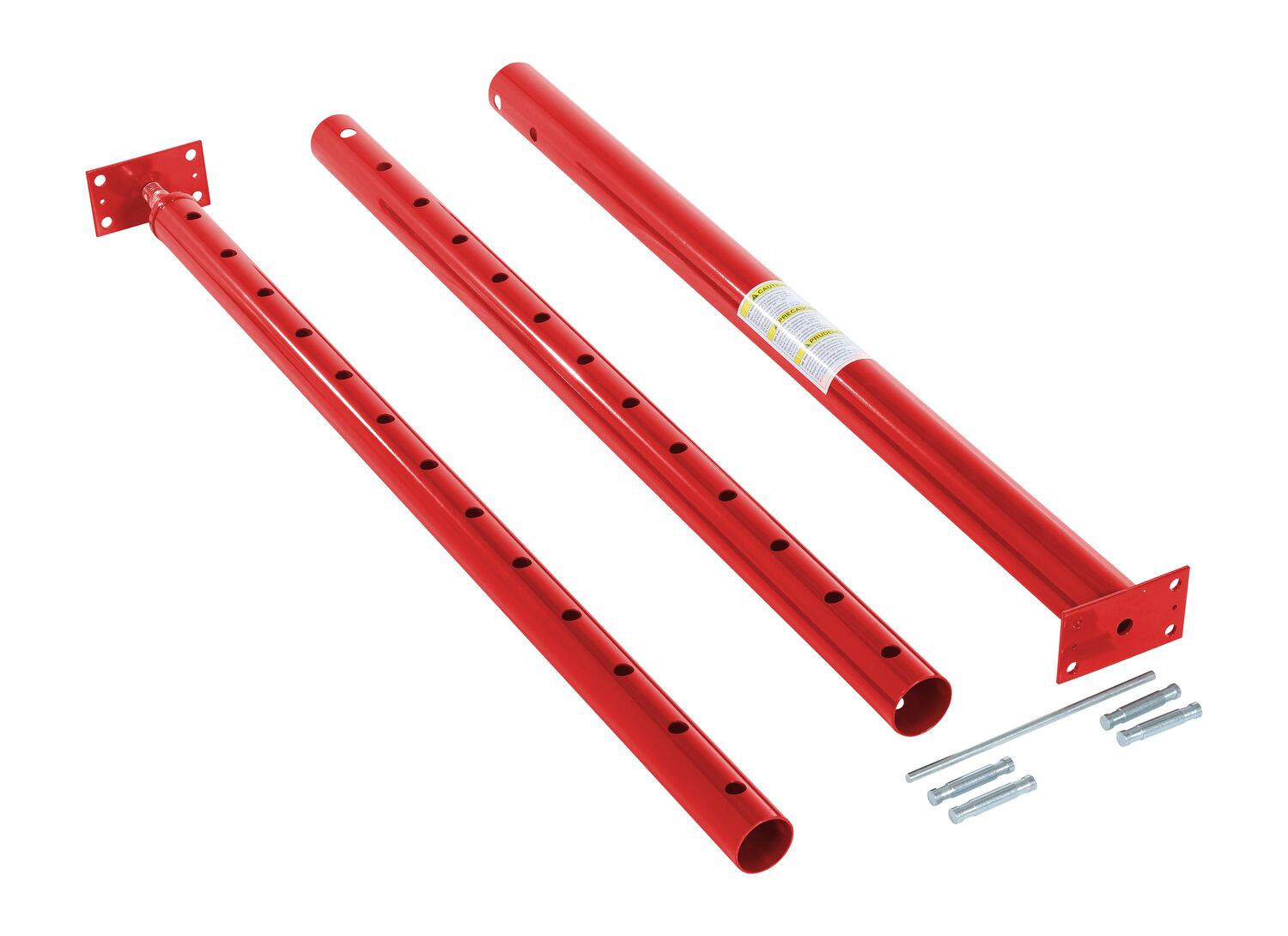

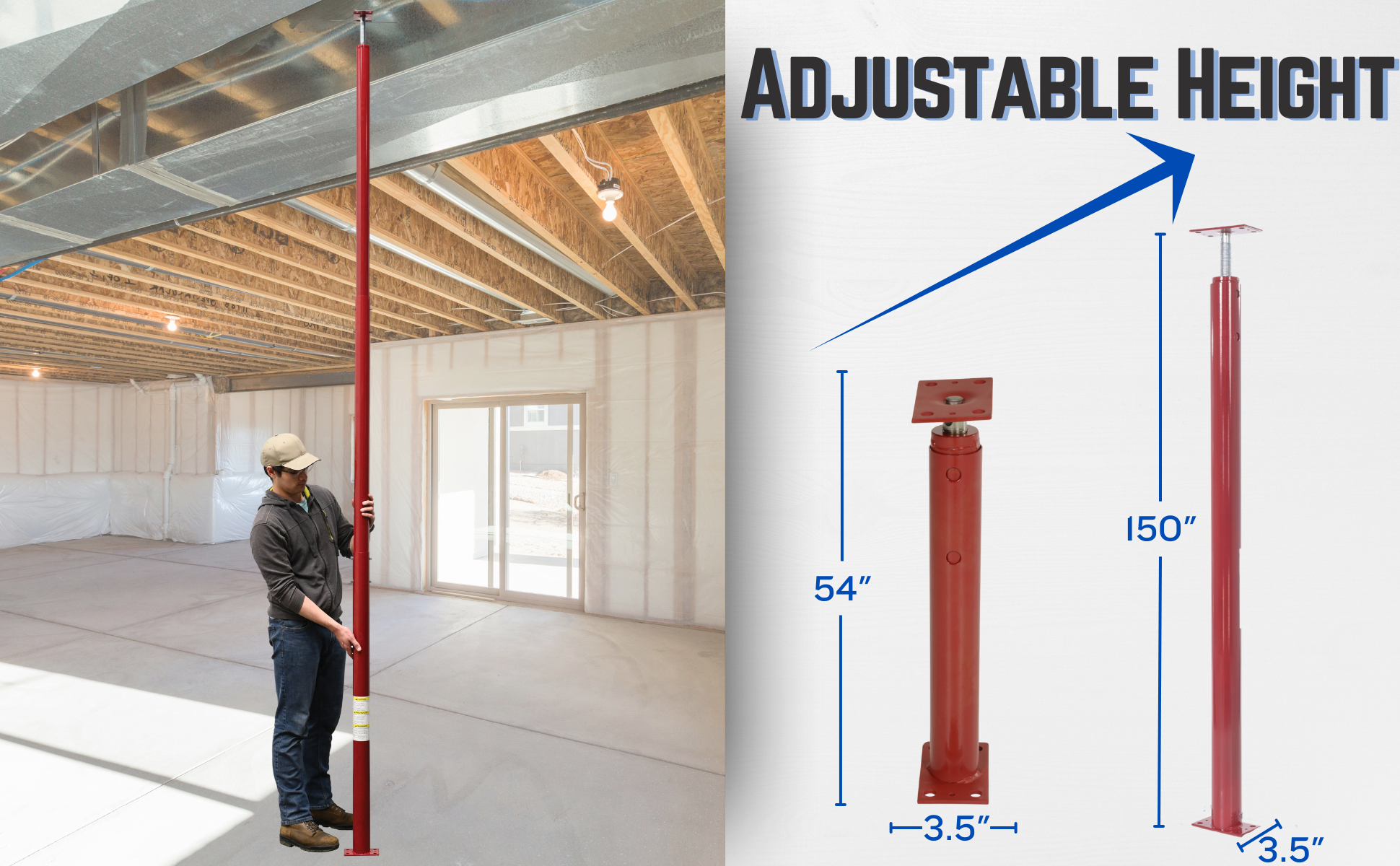

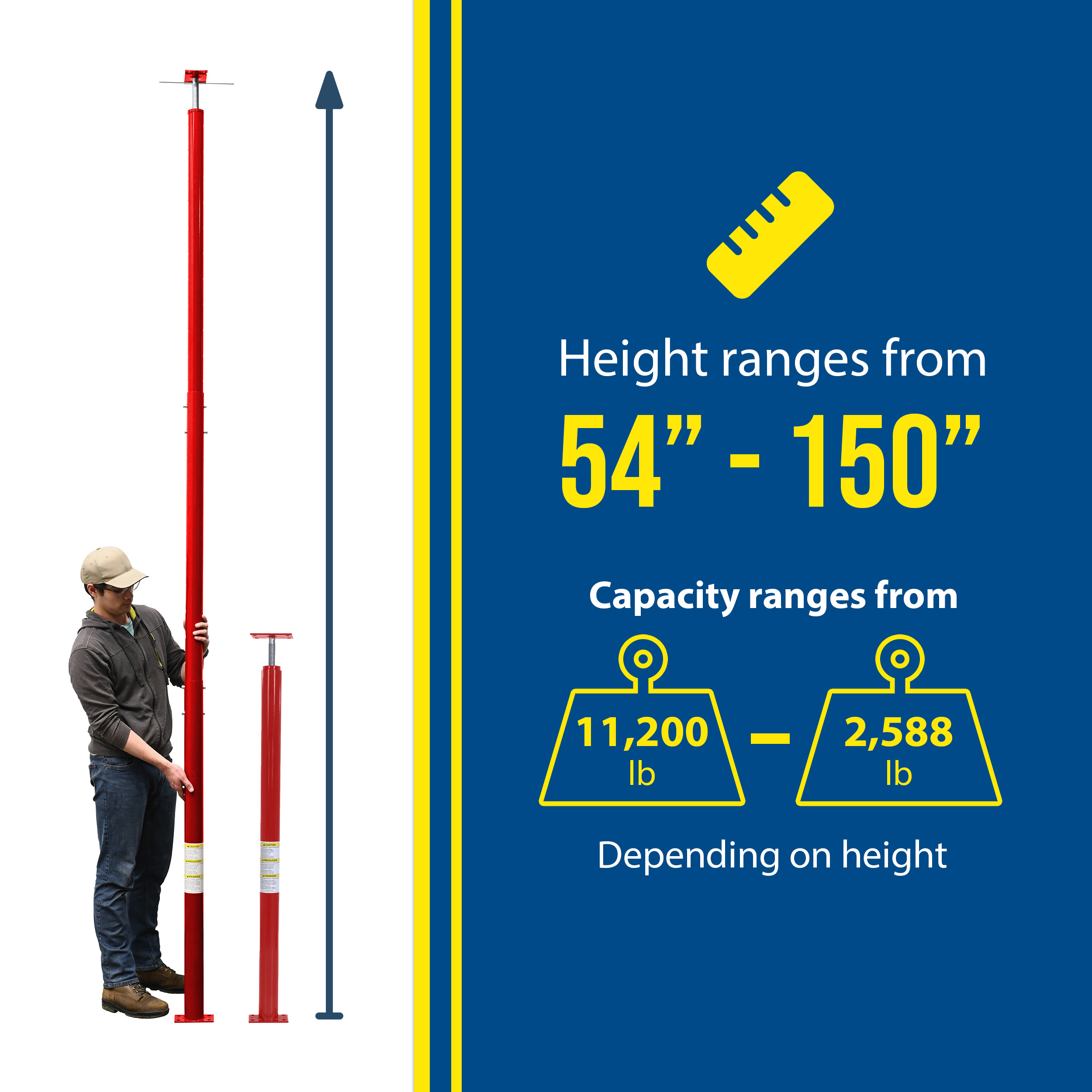

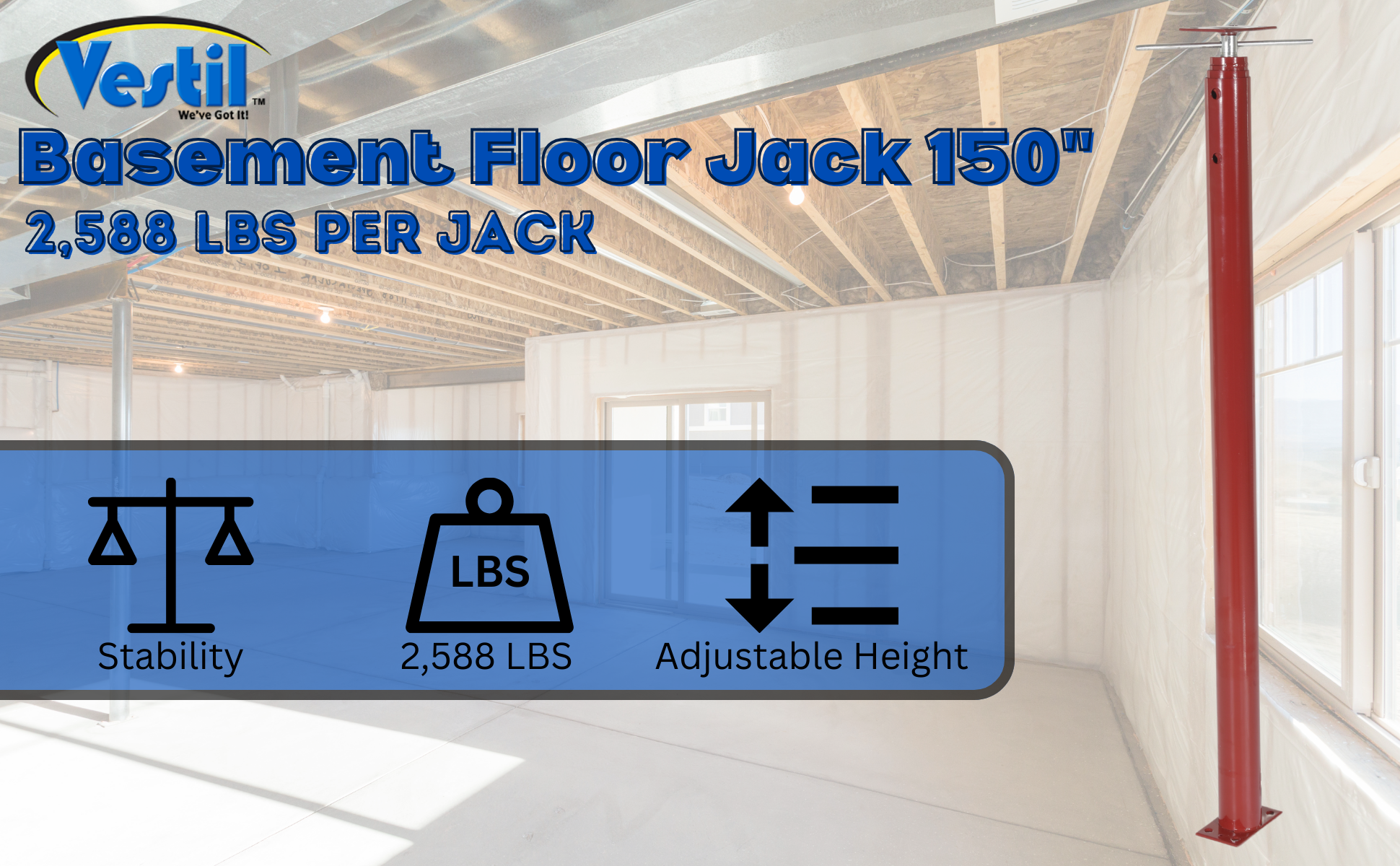

FJB-150 FJB-15090 Days Limited WarrantyBasement Floor Jack 150 In. Maximum Height 2,588 Lb. Capacity RedHeight Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200
39

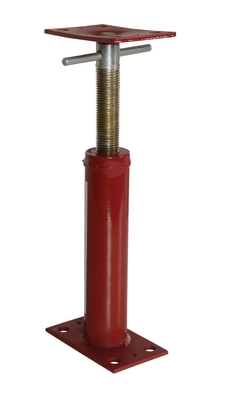

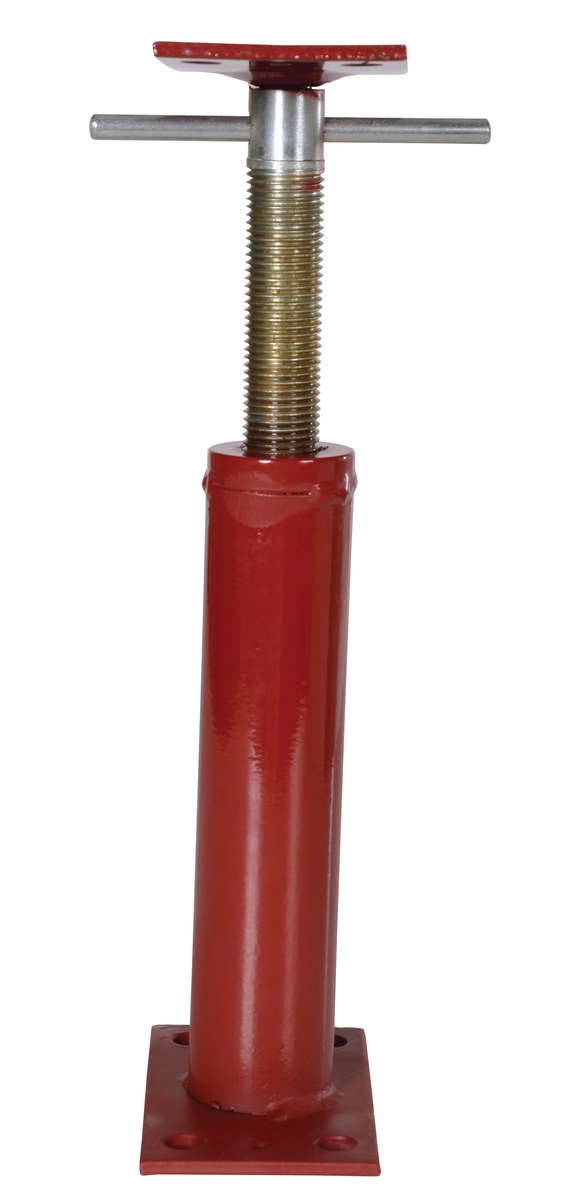

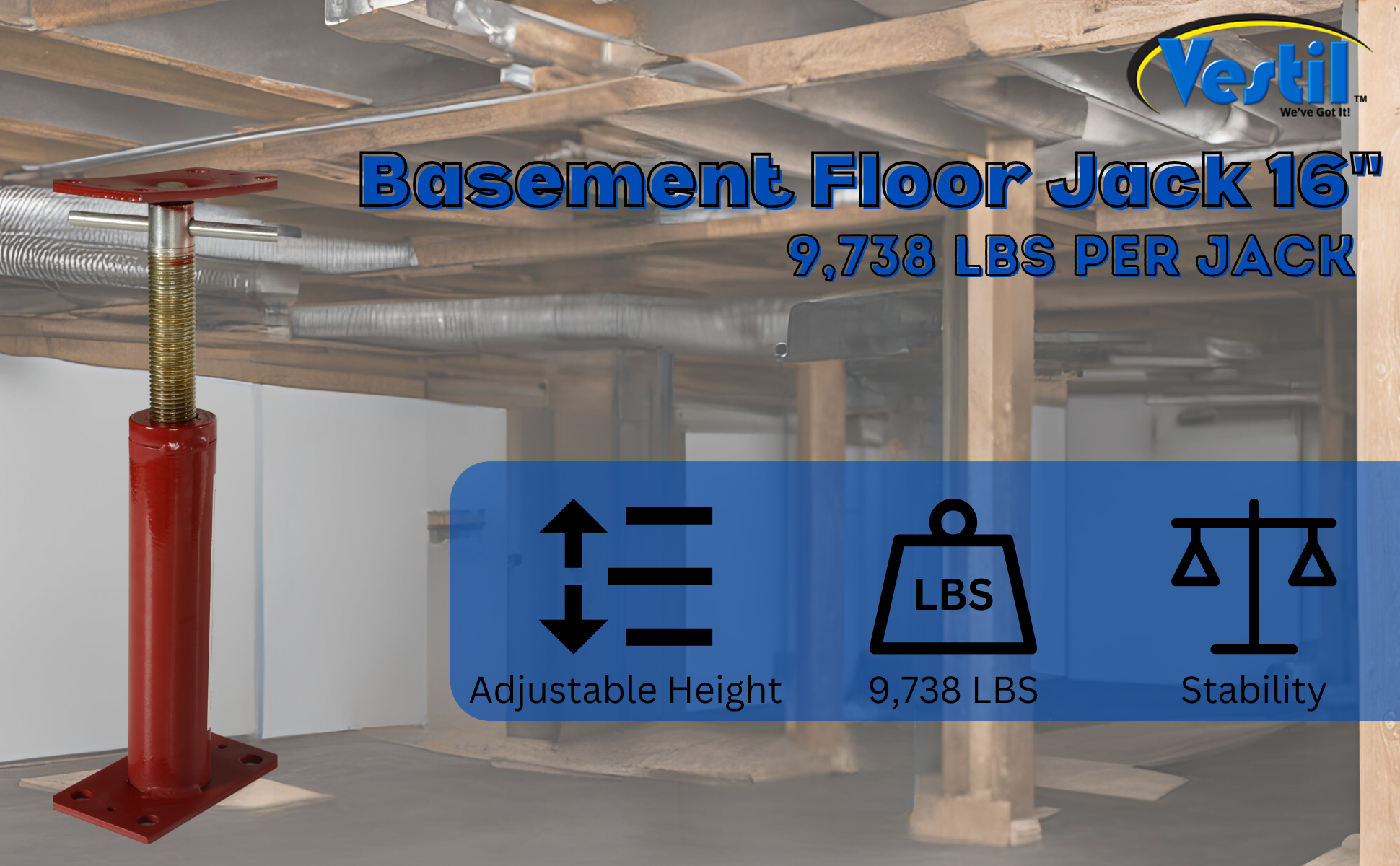

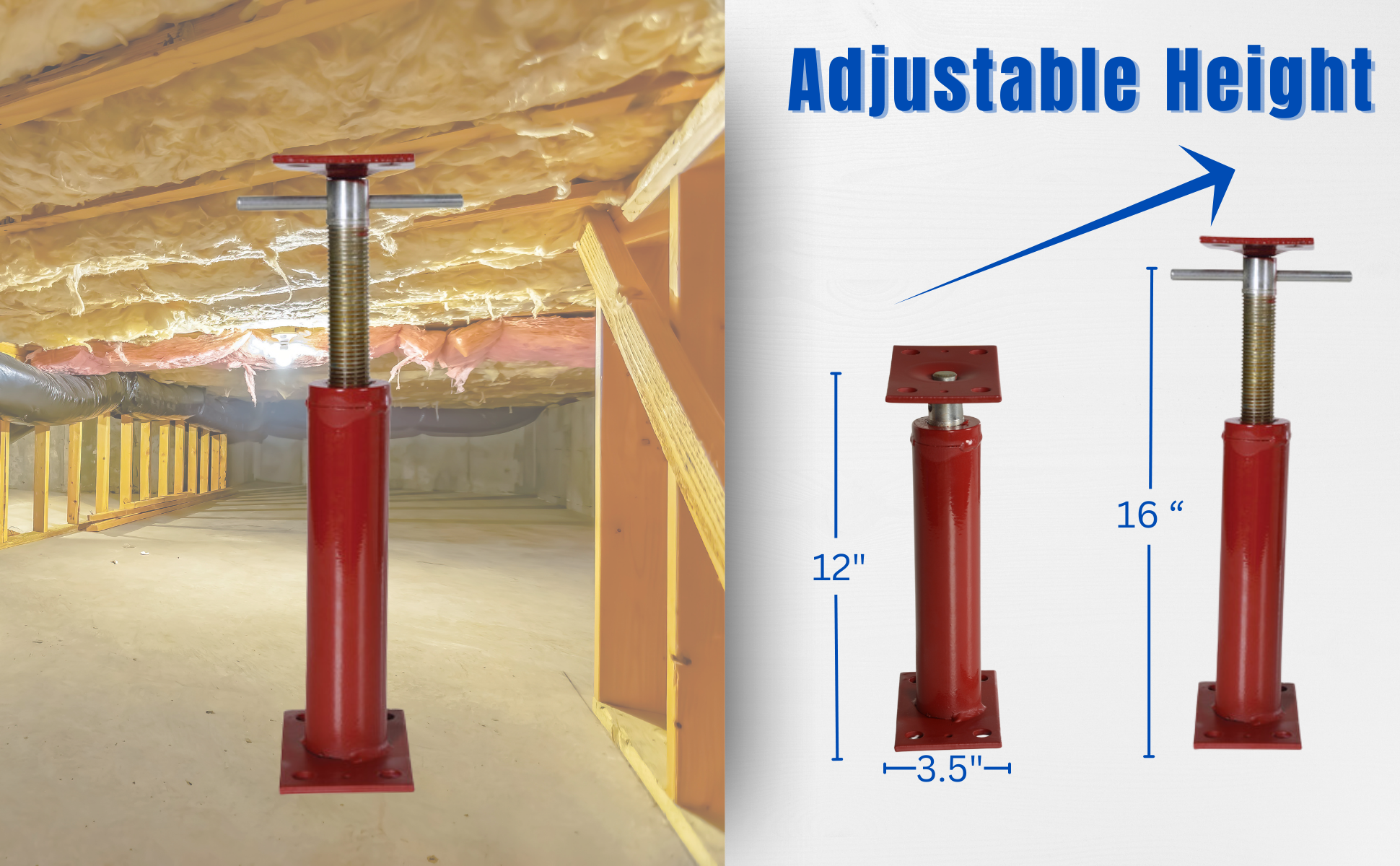

FJB-16 FJB-1690 Days Limited WarrantyBasement Floor Jack 16 In. Maximum Height 9,738 Lb. Capacity RedHeight Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738
9

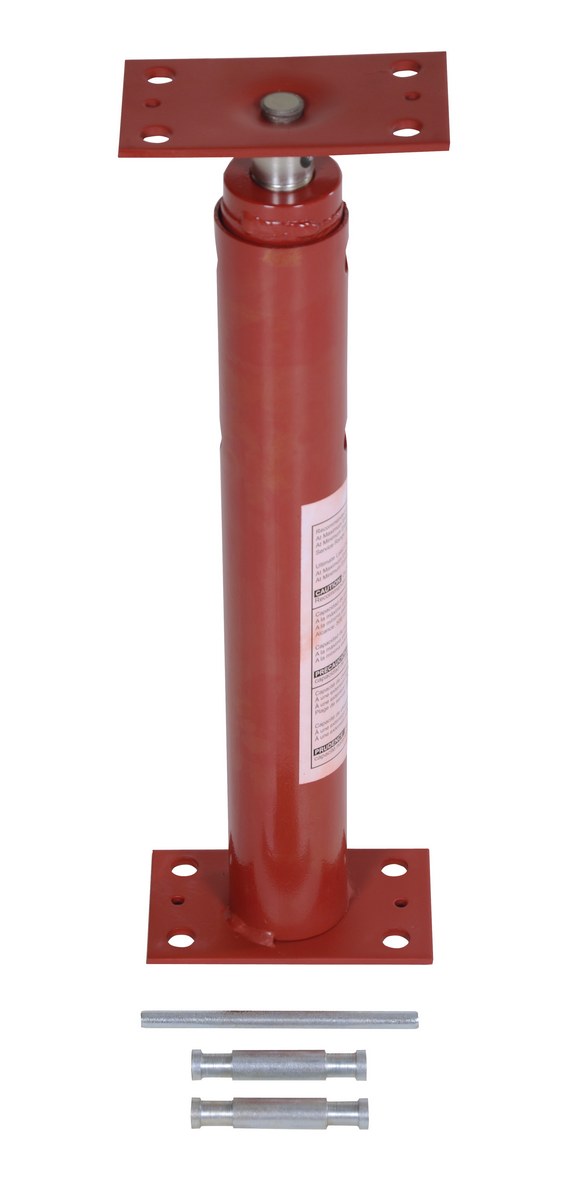

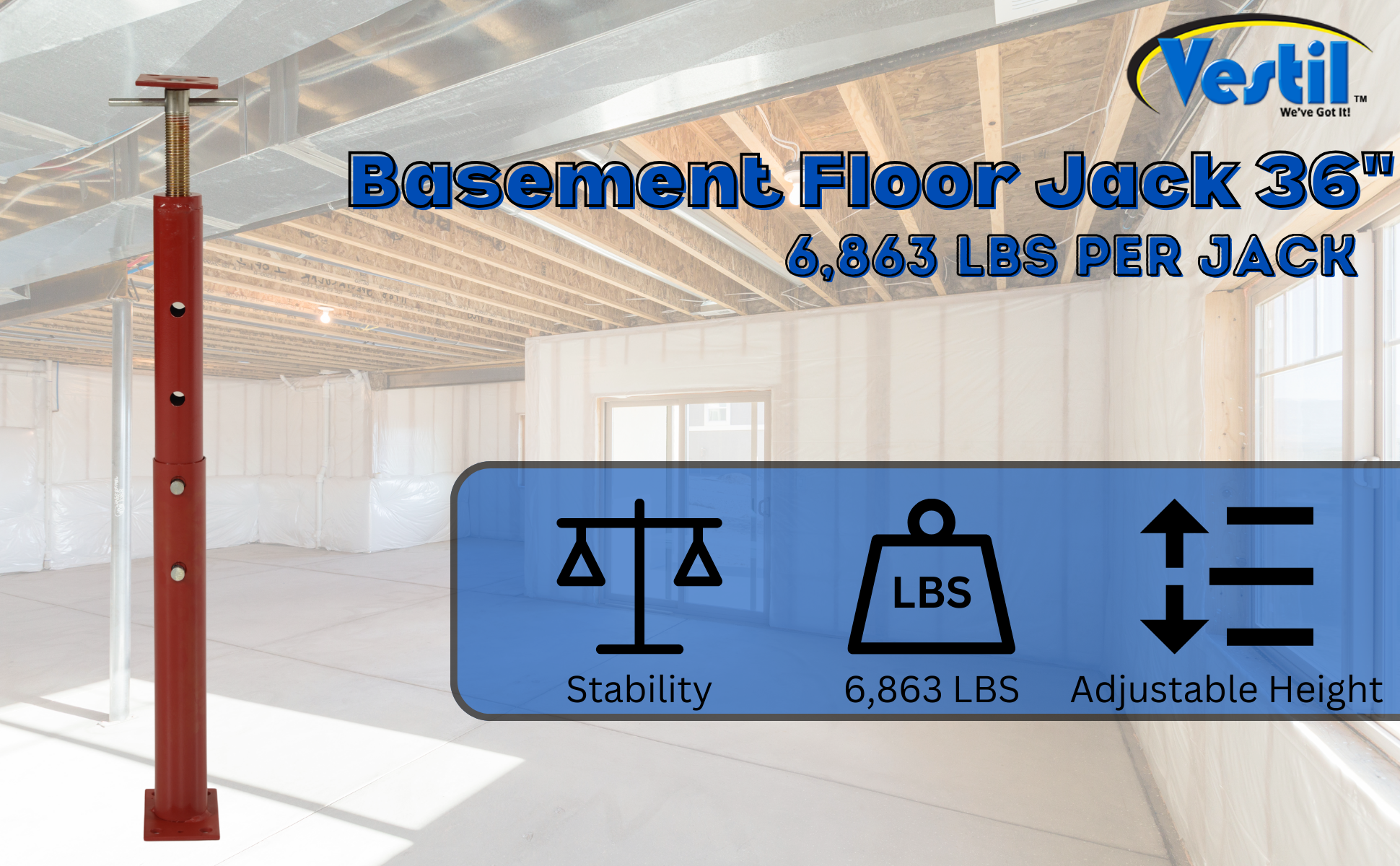

FJB-36 FJB-3690 Days Limited WarrantyBasement Floor Jack 36 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738
13

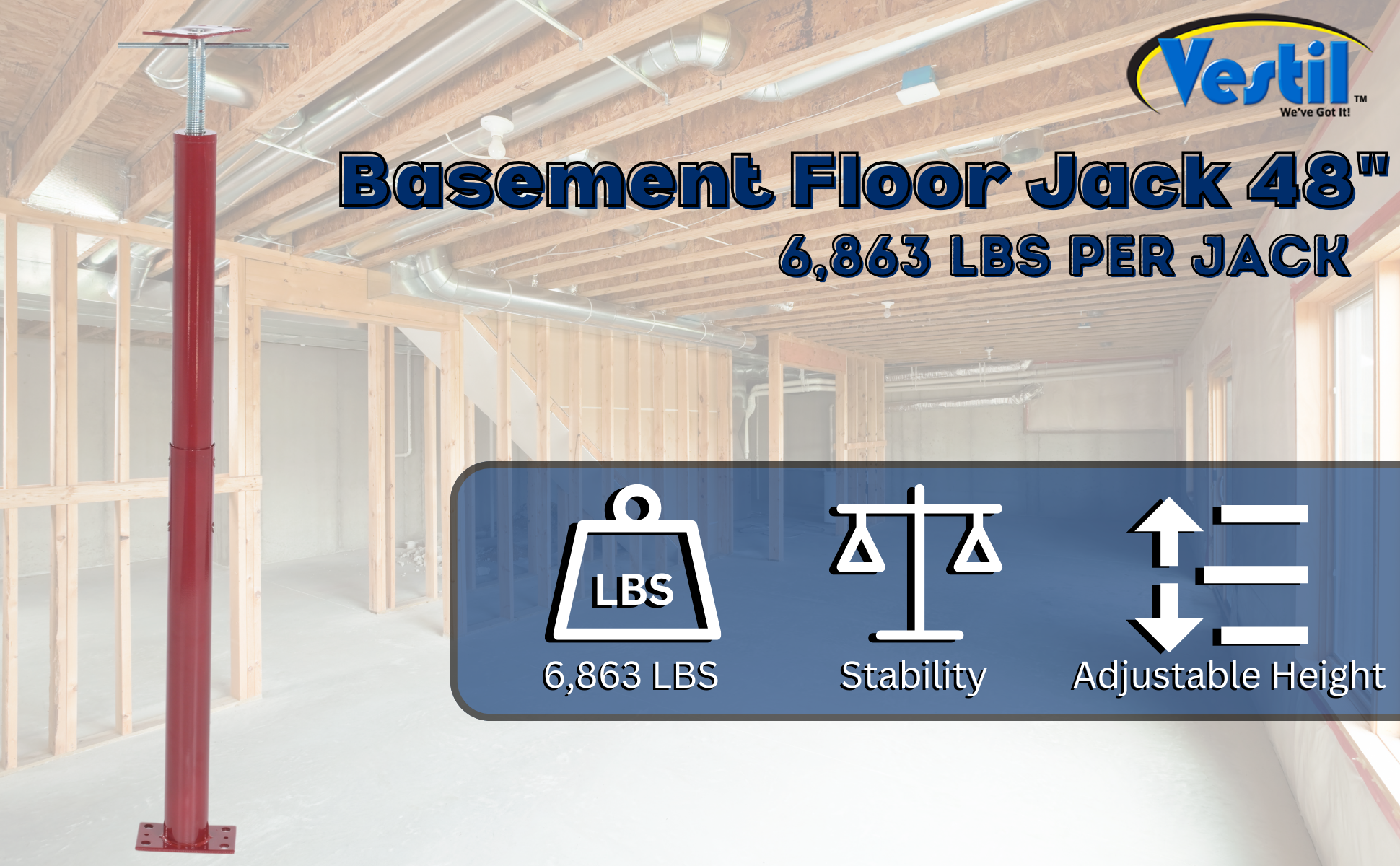

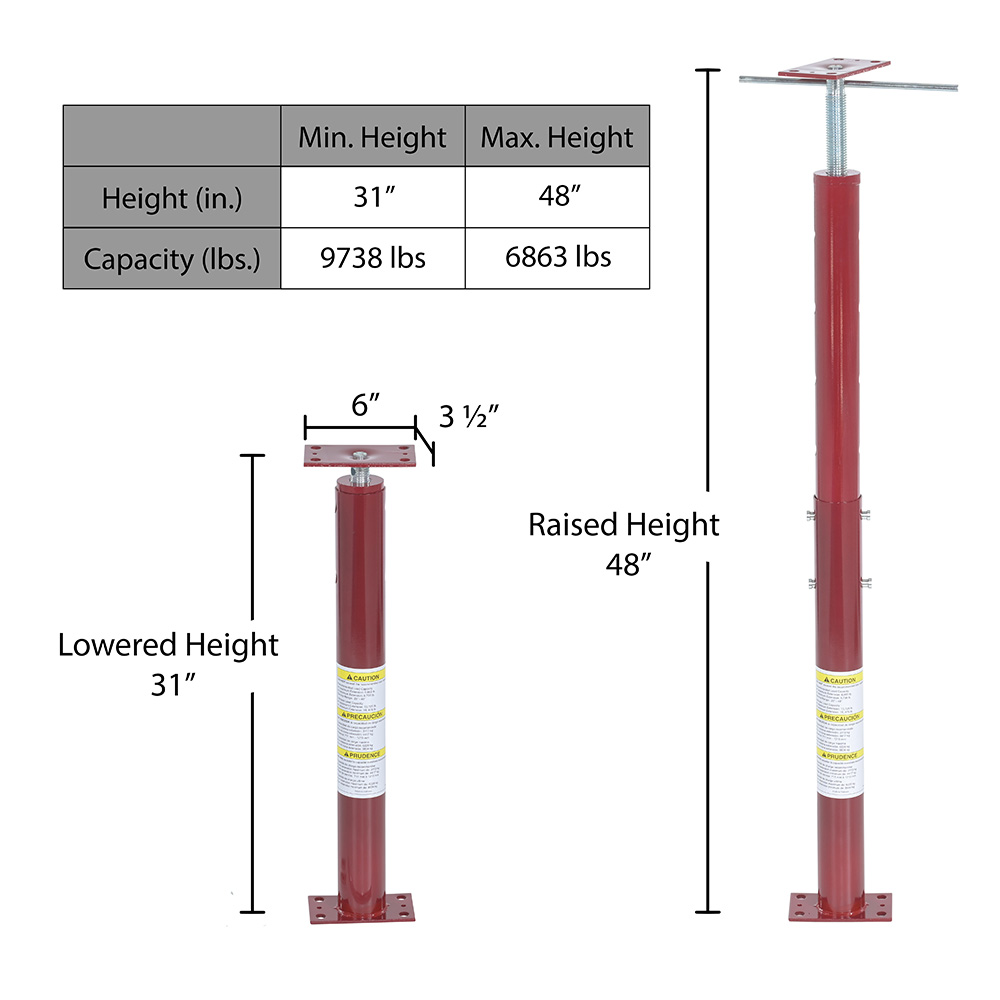

FJB-48 NEW FJB-4890 Days Limited WarrantySteel Basement Floor Jack 48 In. Maximum Height 6,863 Lb. Capacity RedHeight Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738
16

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FJB-100
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438
Height Minimum/Maximum (in.): 54 to 100
Minimum Height Capacity (lb.): 8438

FJB-150
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200
Height Minimum/Maximum (in.): 54 to 150
Minimum Height Capacity (lb.): 11200

FJB-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Height Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 12 to 16
Minimum Height Capacity (lb.): 9738

FJB-36
Unit:
Size: W x L x H
Weight:
Limited Warranty

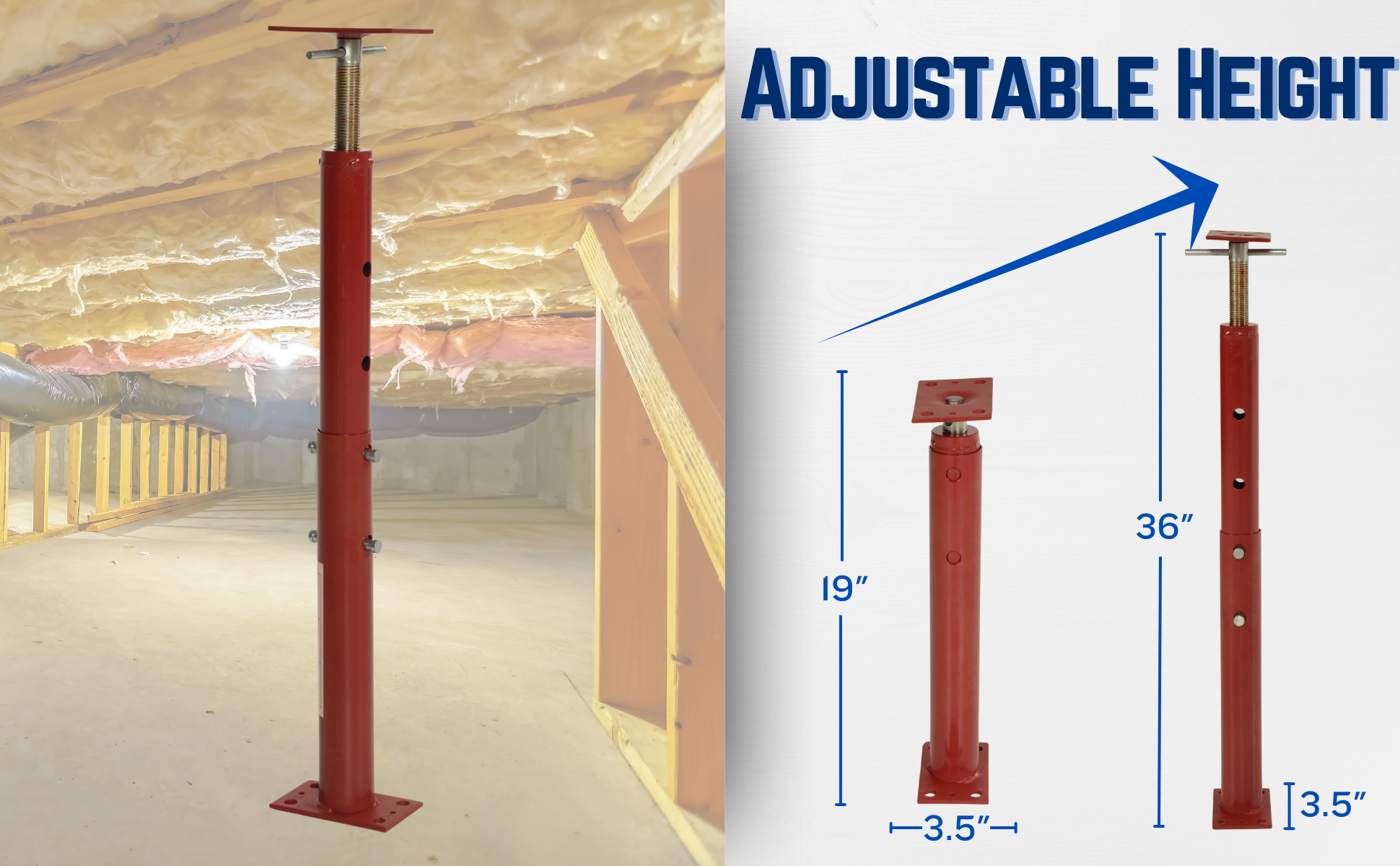

Height Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 19 to 36
Minimum Height Capacity (lb.): 9738

FJB-48
Unit:
Size: W x L x H
Weight:
Limited Warranty

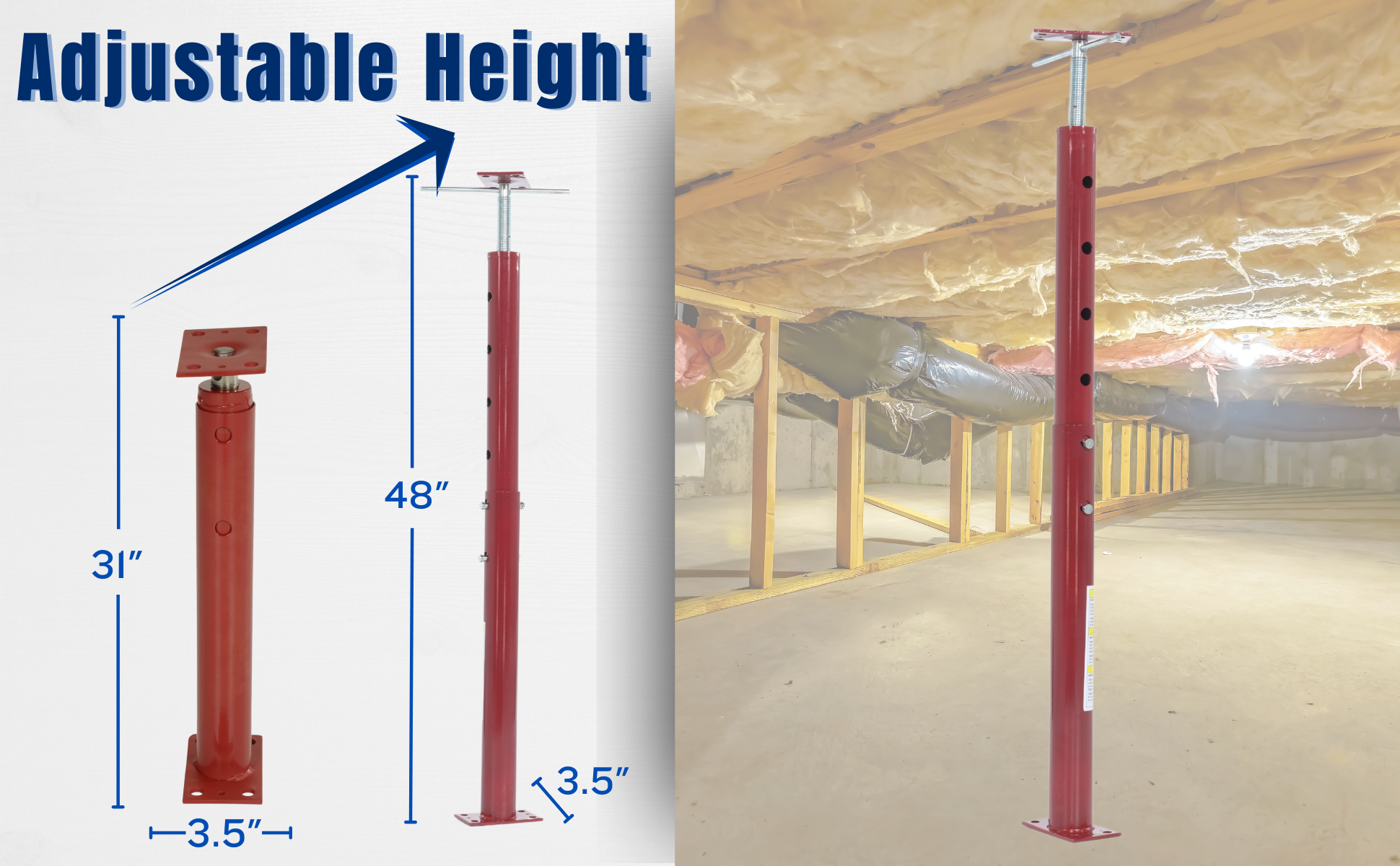

Height Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738
Height Minimum/Maximum (in.): 31 to 48
Minimum Height Capacity (lb.): 9738

Basement Floor Jacks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FJB-100

FJB-150

FJB-16

FJB-36

FJB-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Is this jack used to support a space after it has been lifted?

A: These jacks are not meant to be used to lift. Only to hold the load in place.

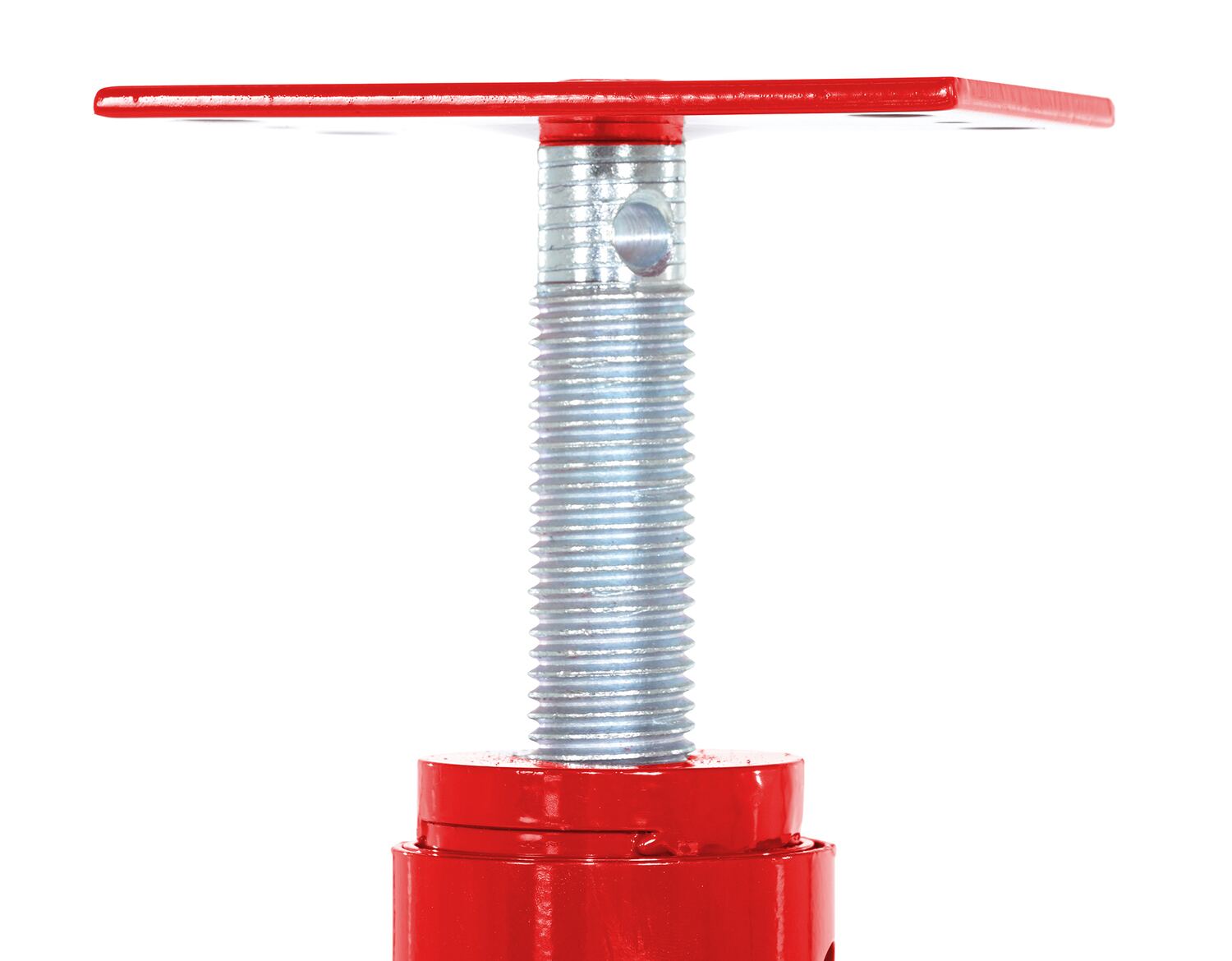

Q: What are the dimensions of the top plate?

A: The top plate is 3.5" x 6".


Q: What is the spacing between the holes on the top plate?

A: The holes are 2.25" and 4.75" apart with a diameter of .5".
