Product Family Overview


Leveling Jacks
SERIES: LJ

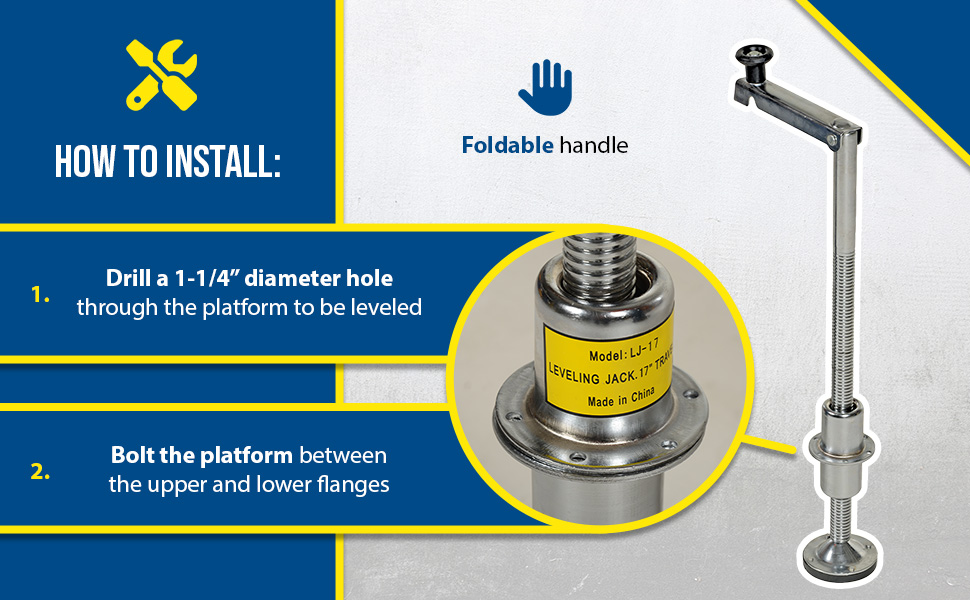

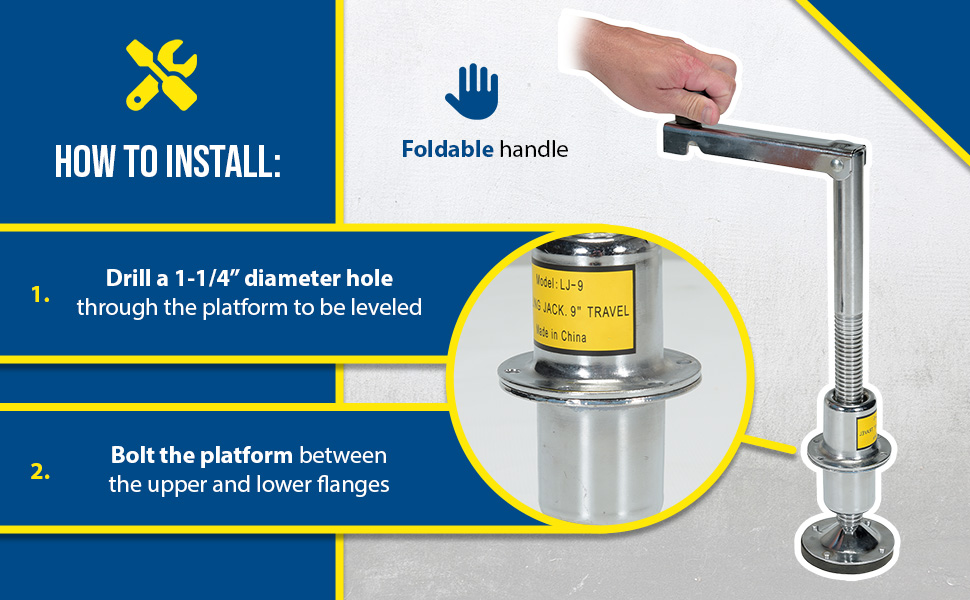

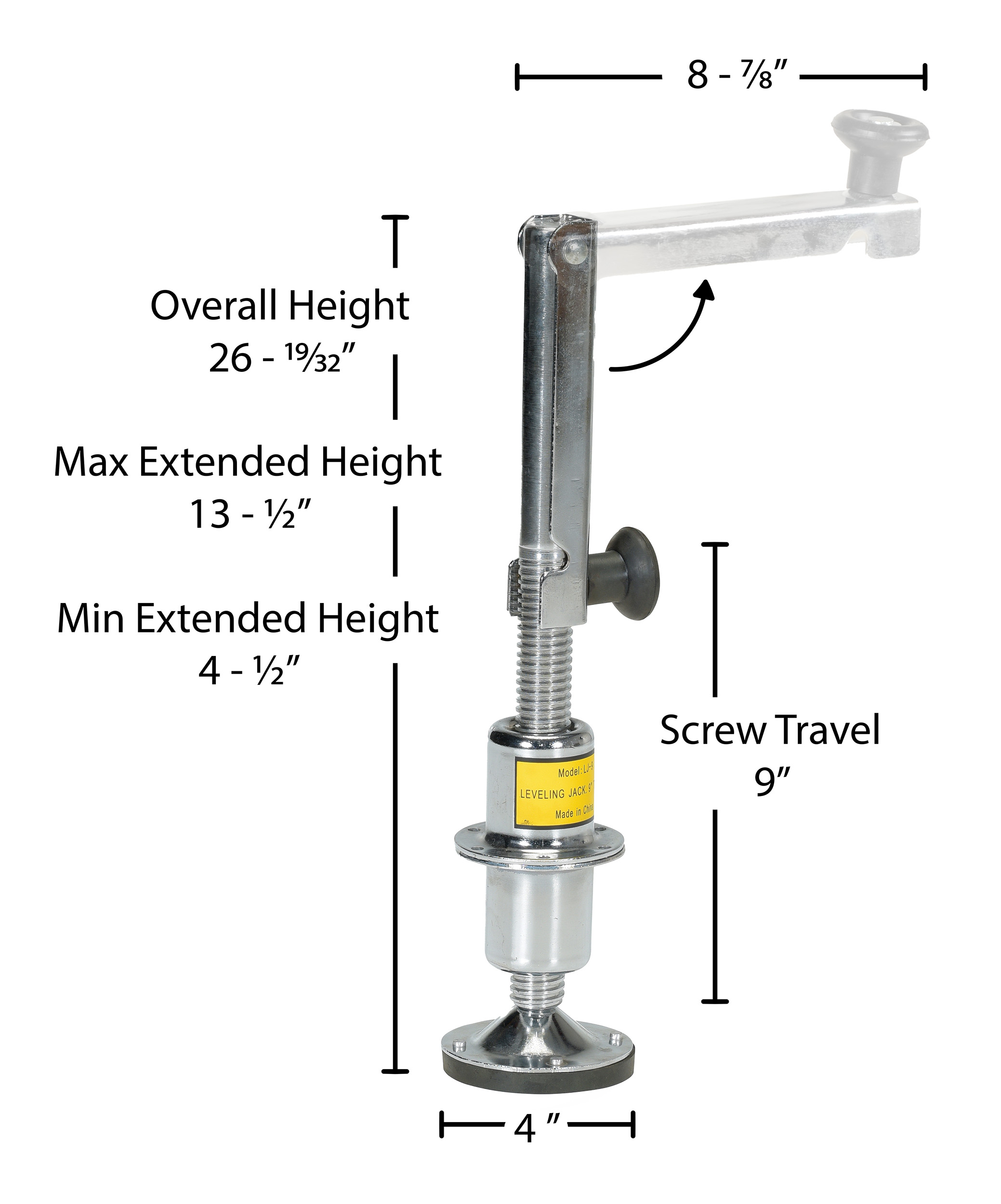

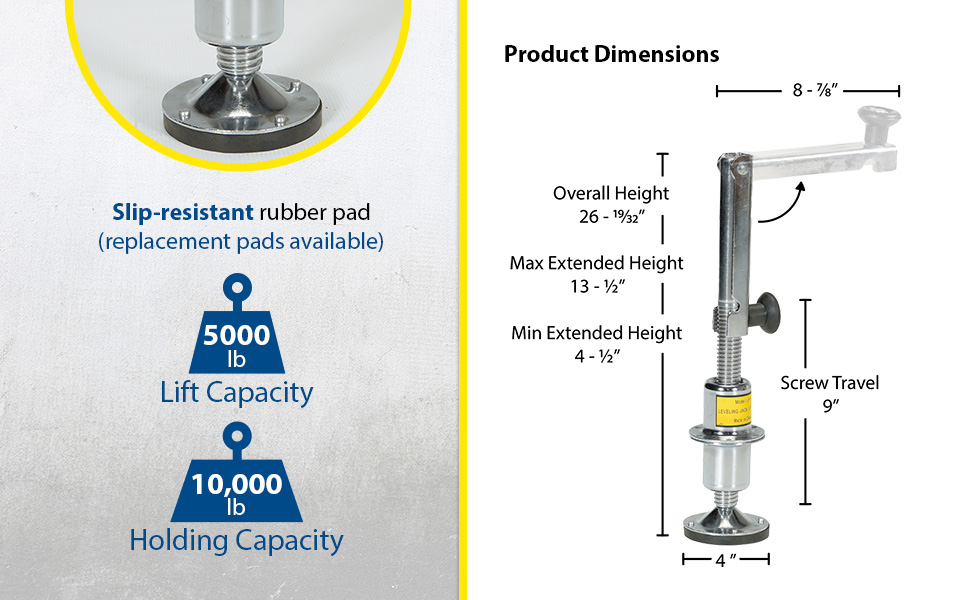

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

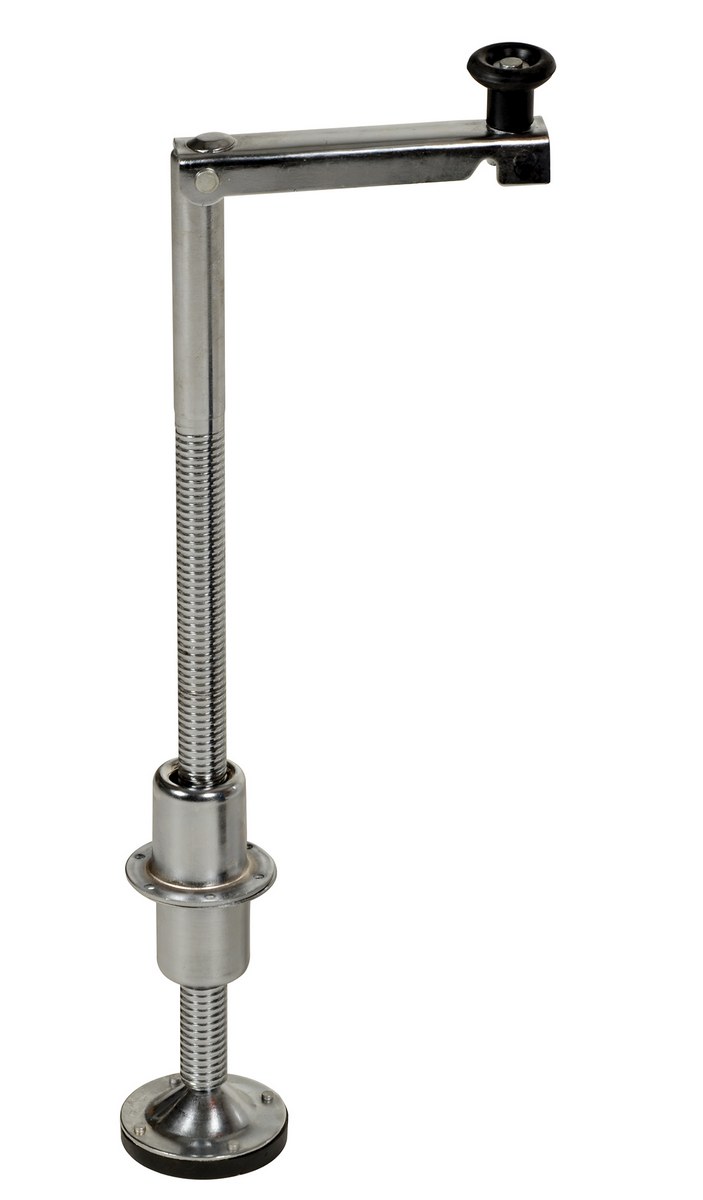

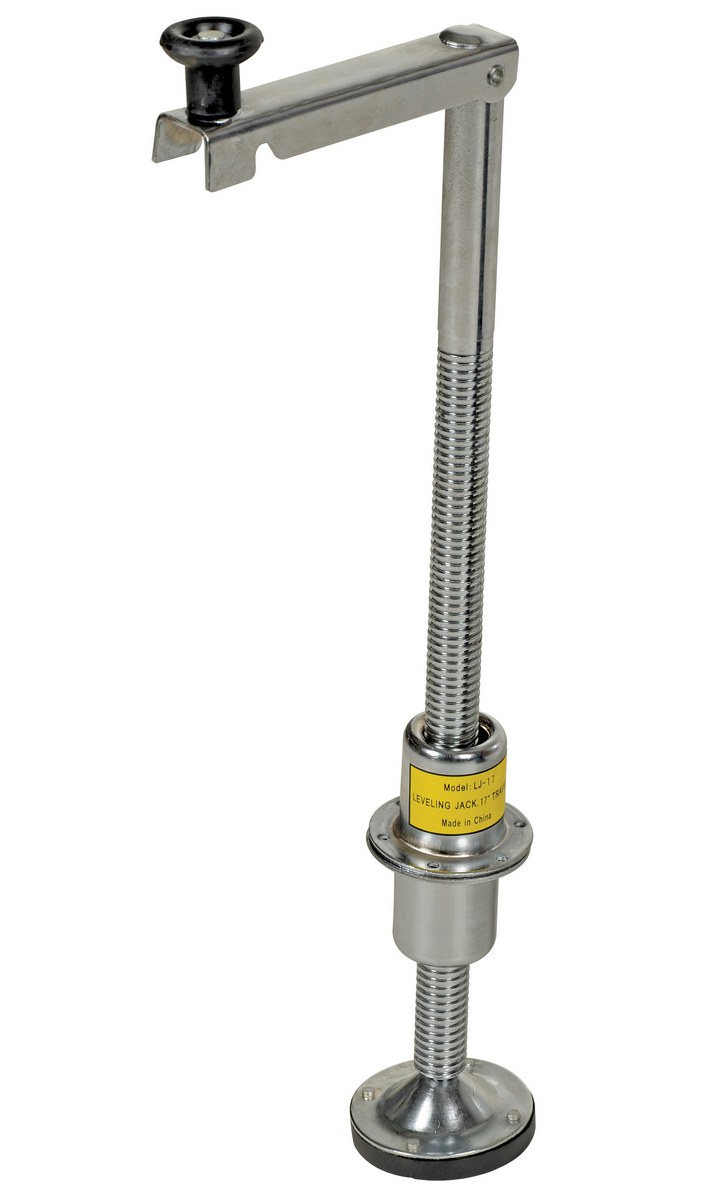

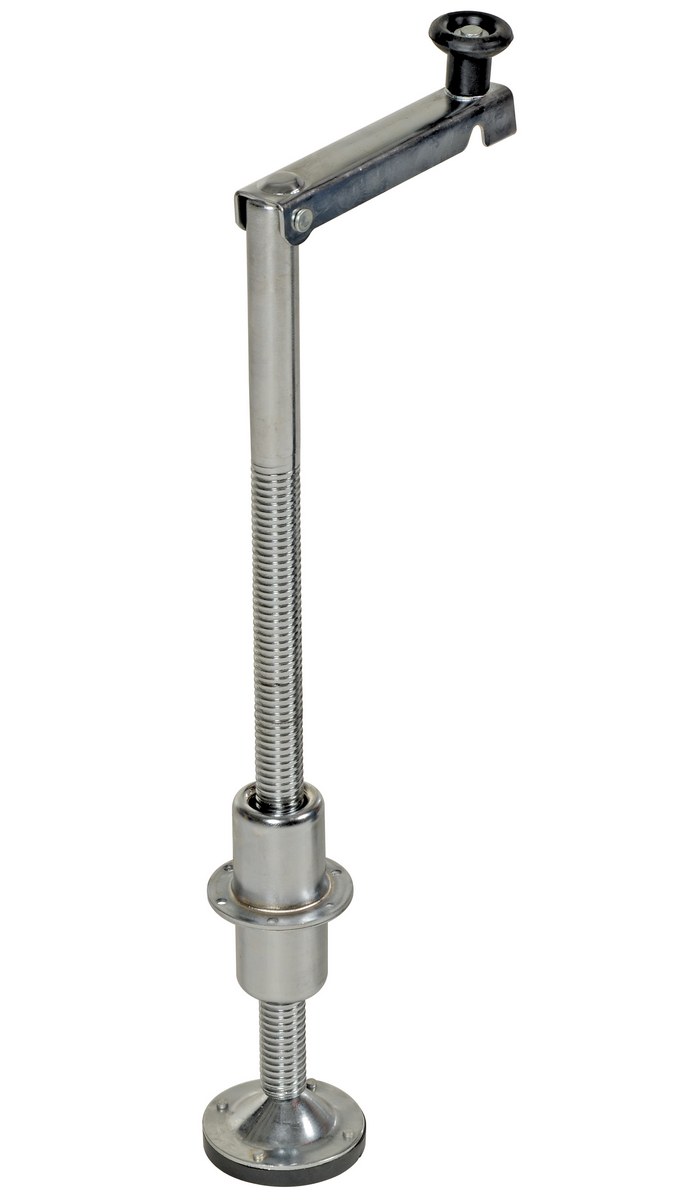

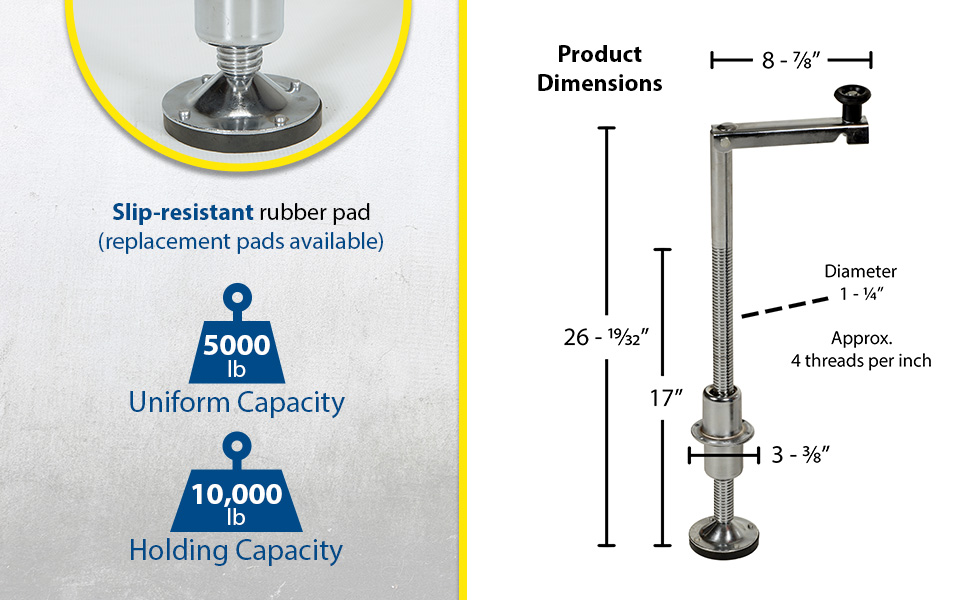

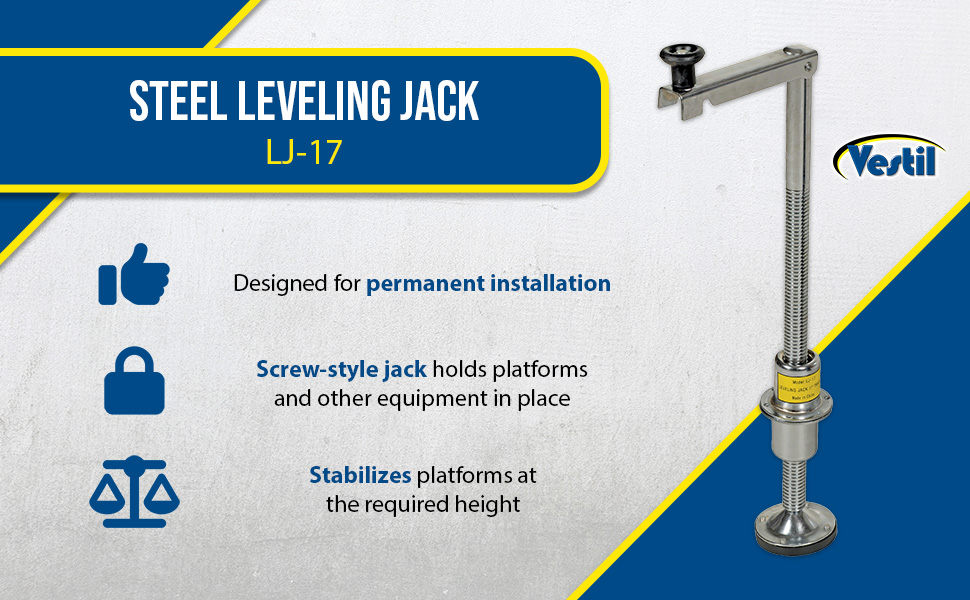

LJ-17 LJ-1730 Days Limited WarrantySteel Leveling Jack 26 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
13

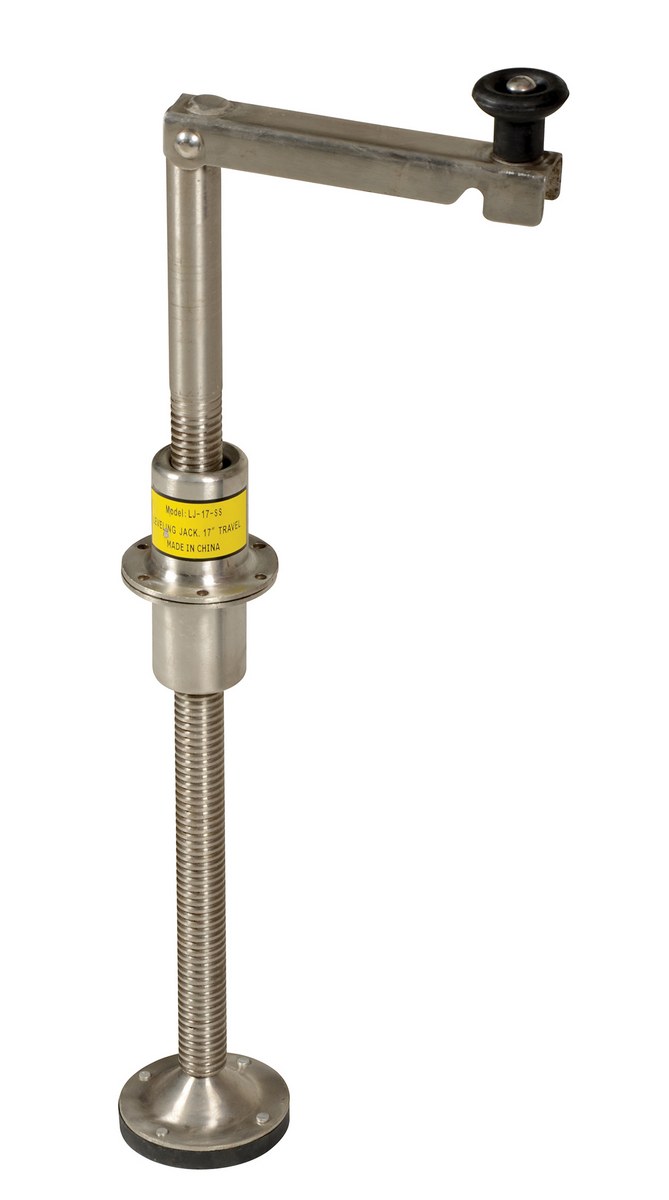

LJ-17-SS LJ-17-SS30 Days Limited WarrantyStainless Steel Leveling Jack 26 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
13

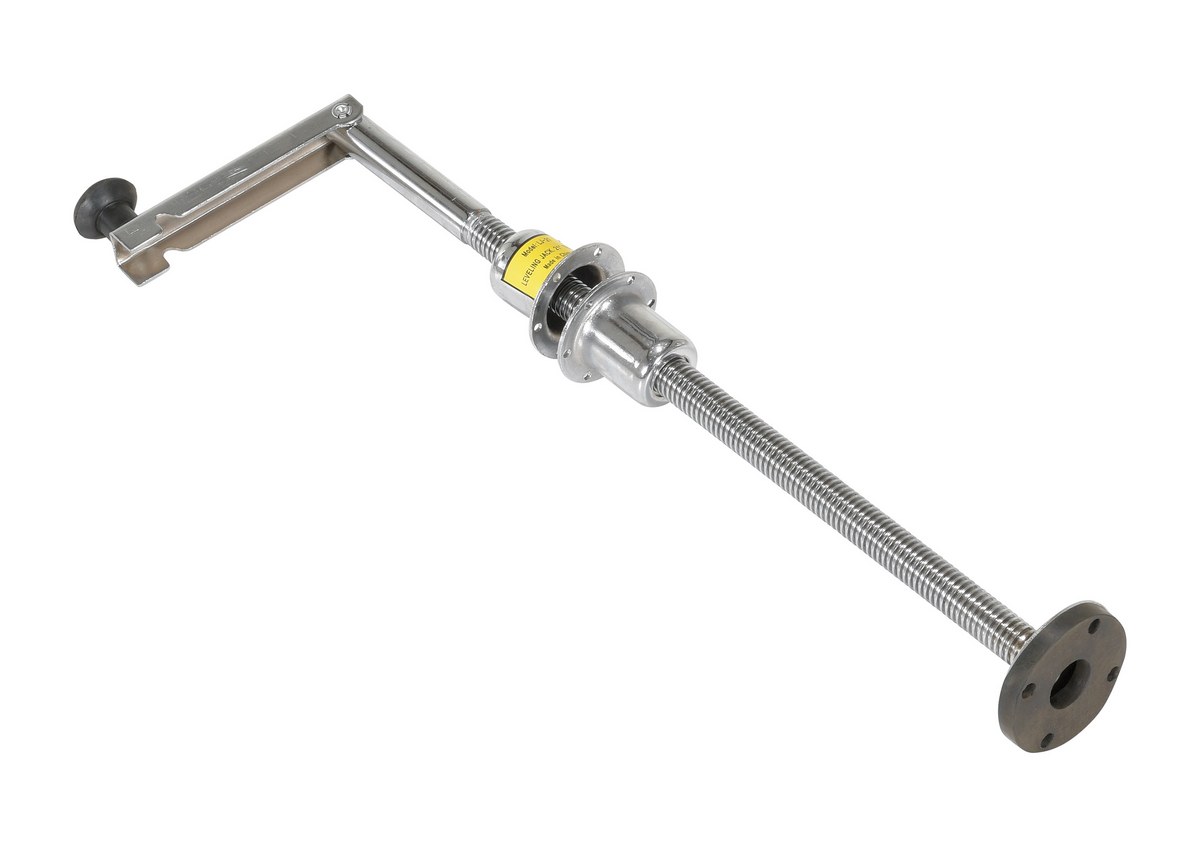

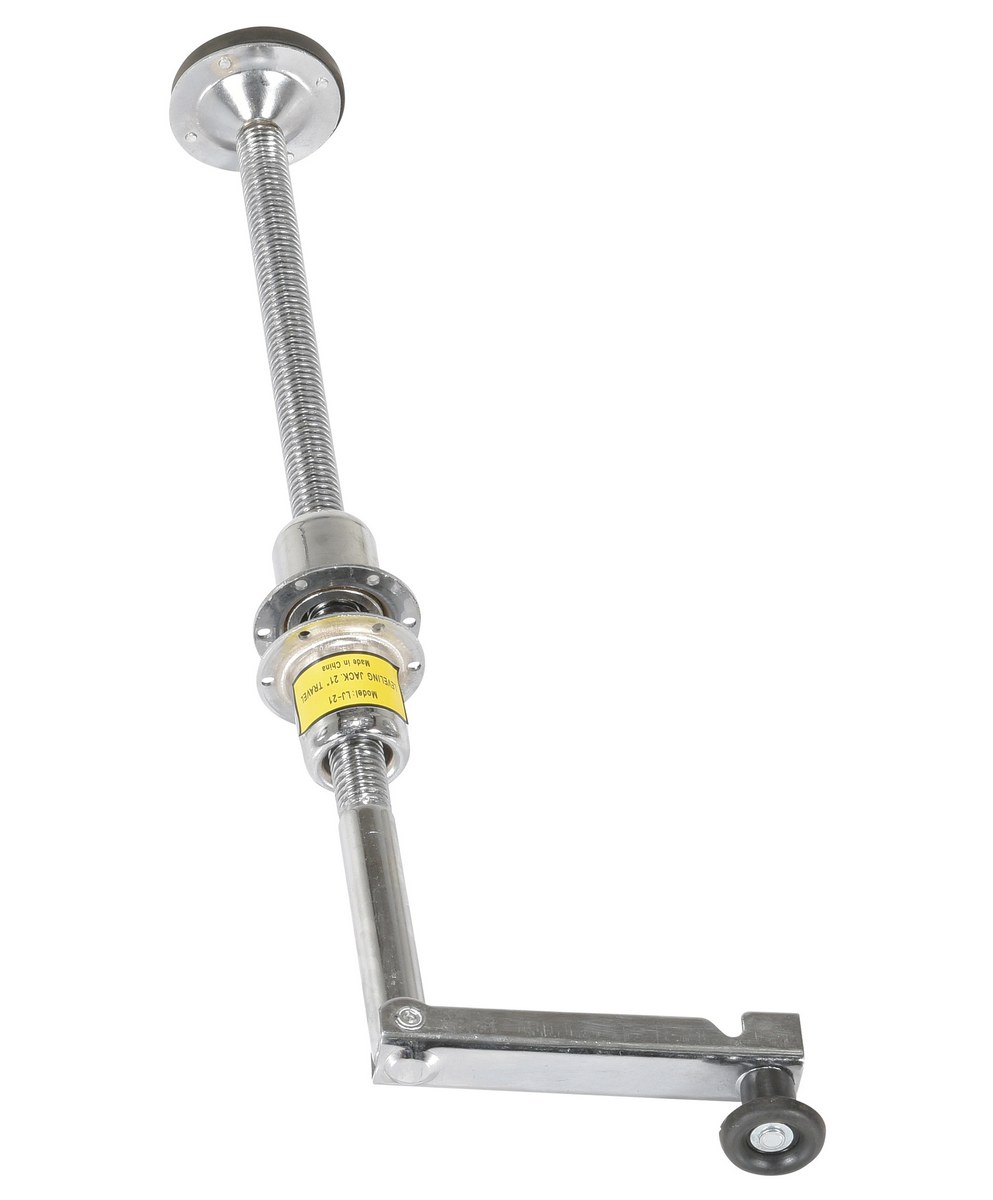

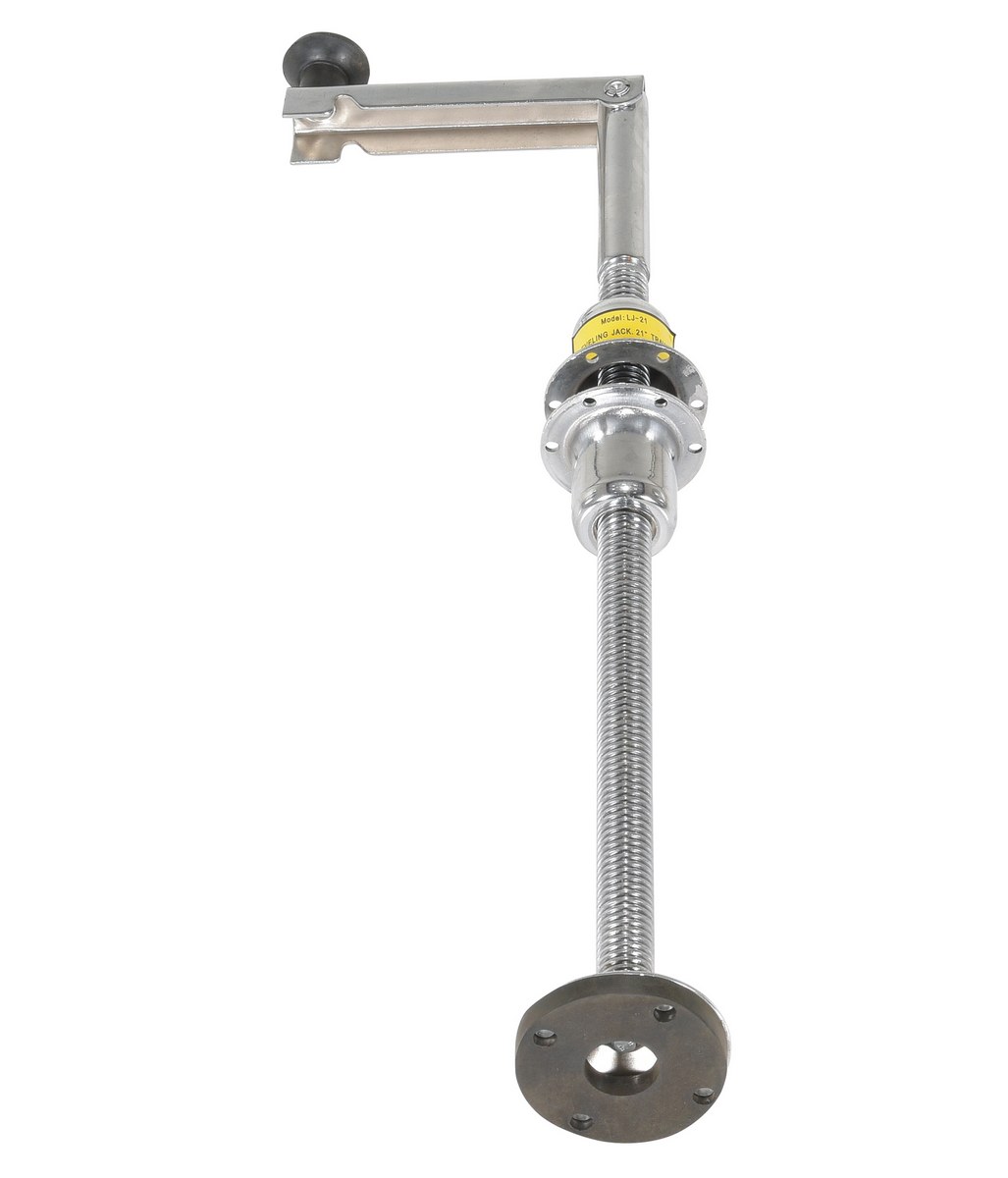

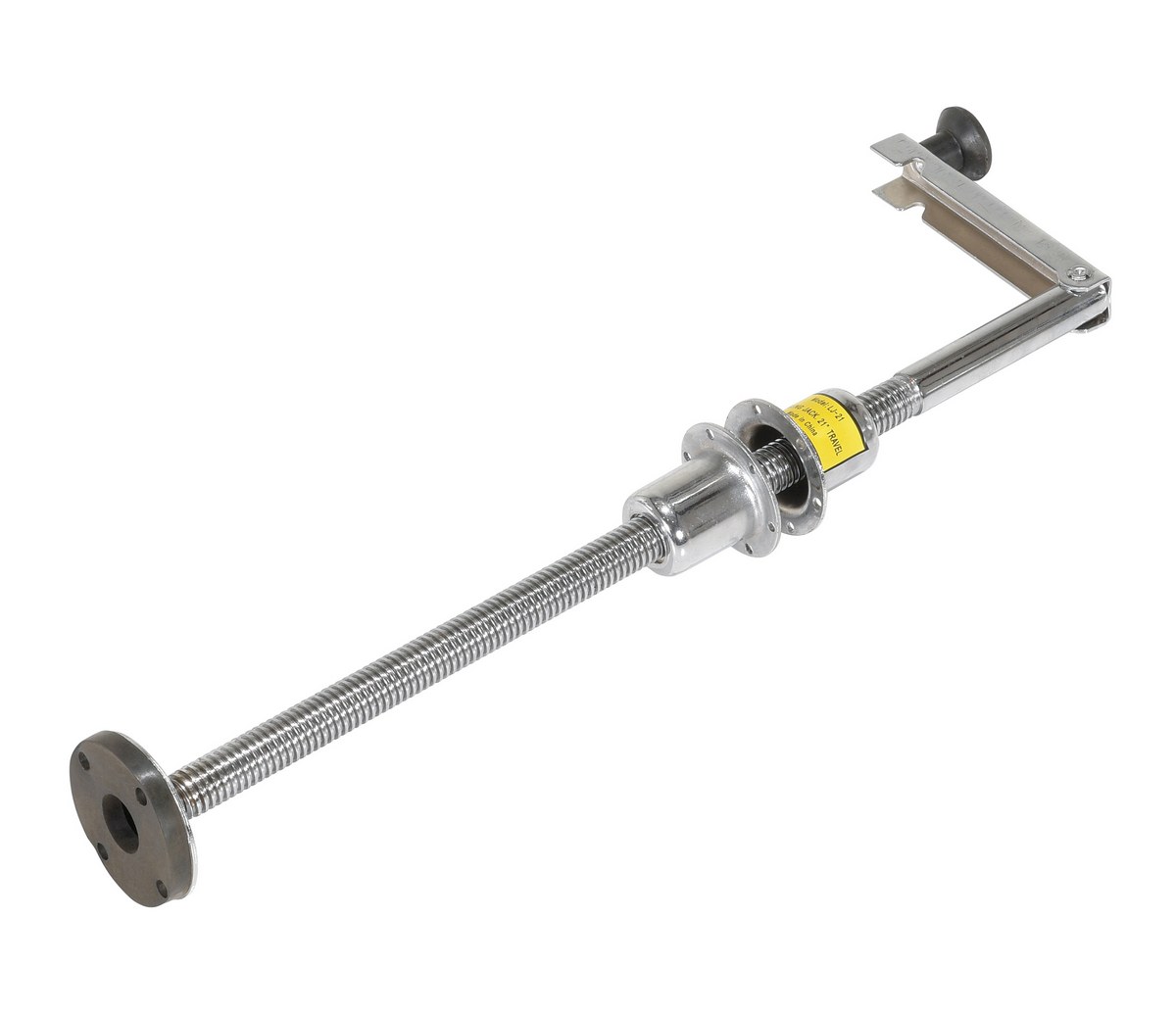

LJ-21 LJ-2130 Days Limited WarrantySteel Leveling Jack 30 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
14

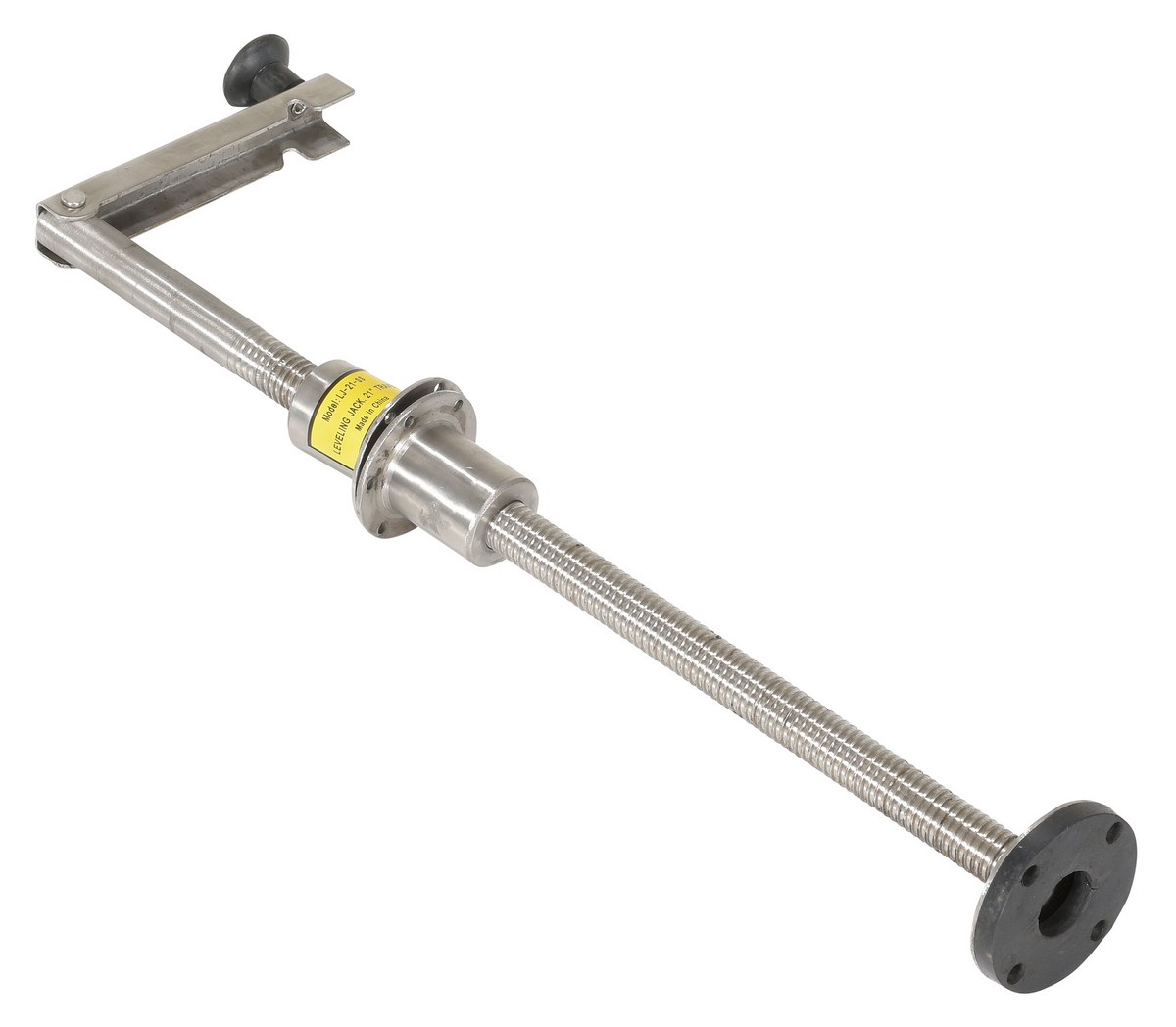

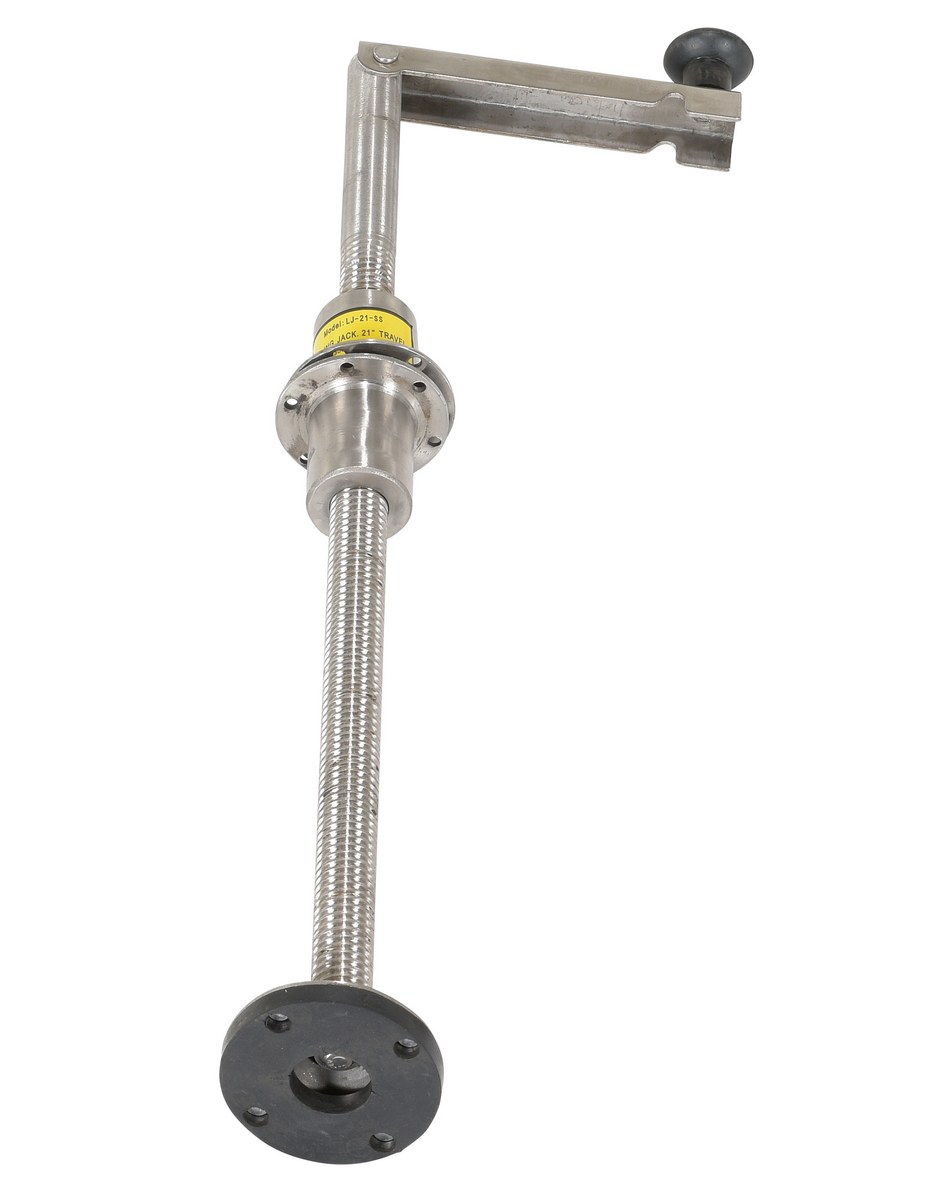

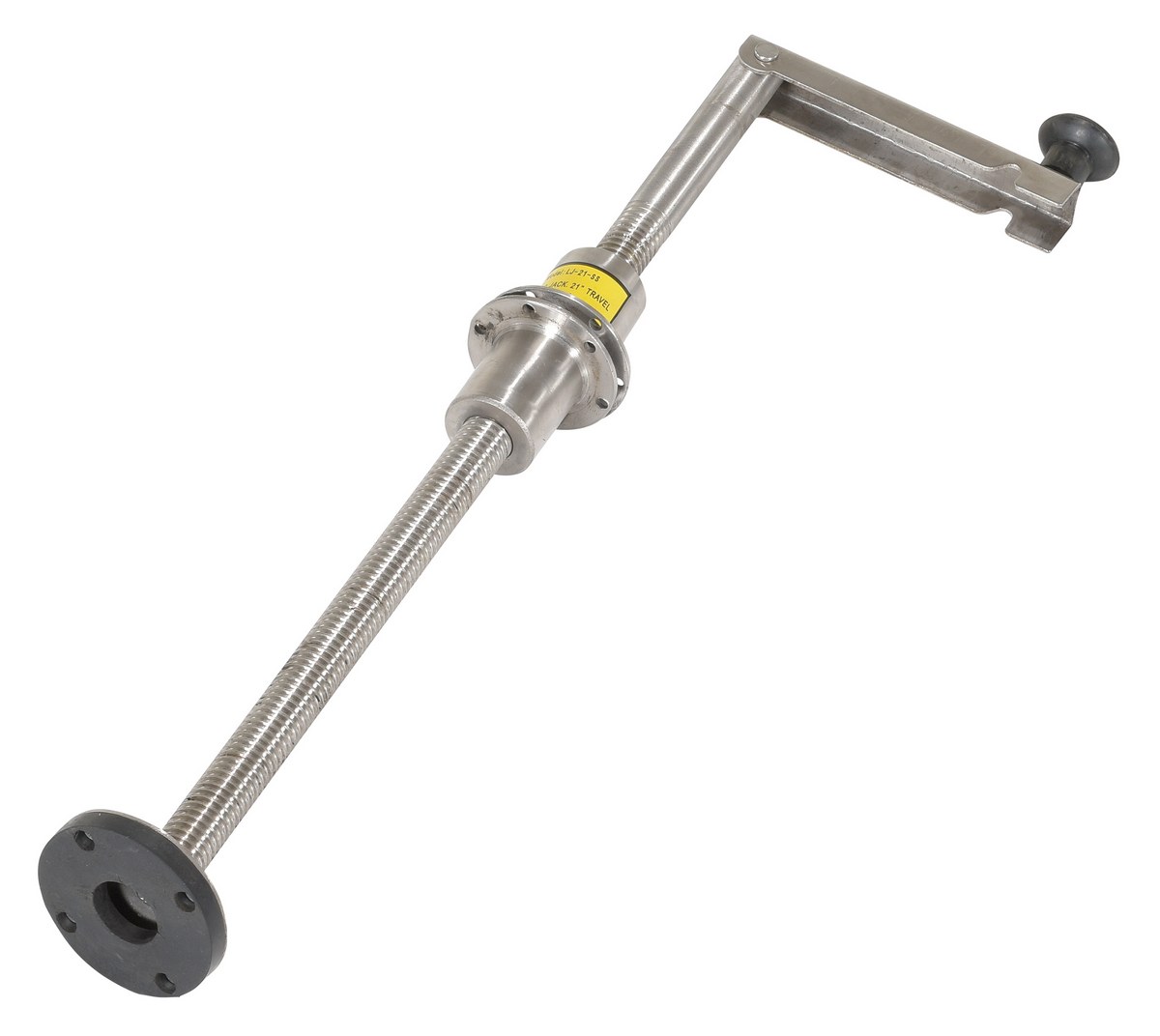

LJ-21-SS LJ-21-SS30 Days Limited WarrantyStainless Steel Leveling Jack 30 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
14

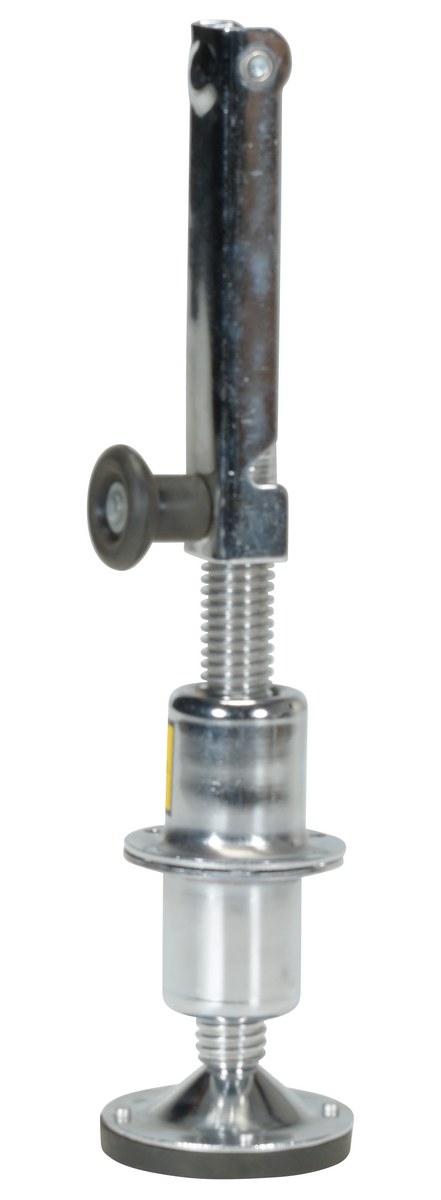

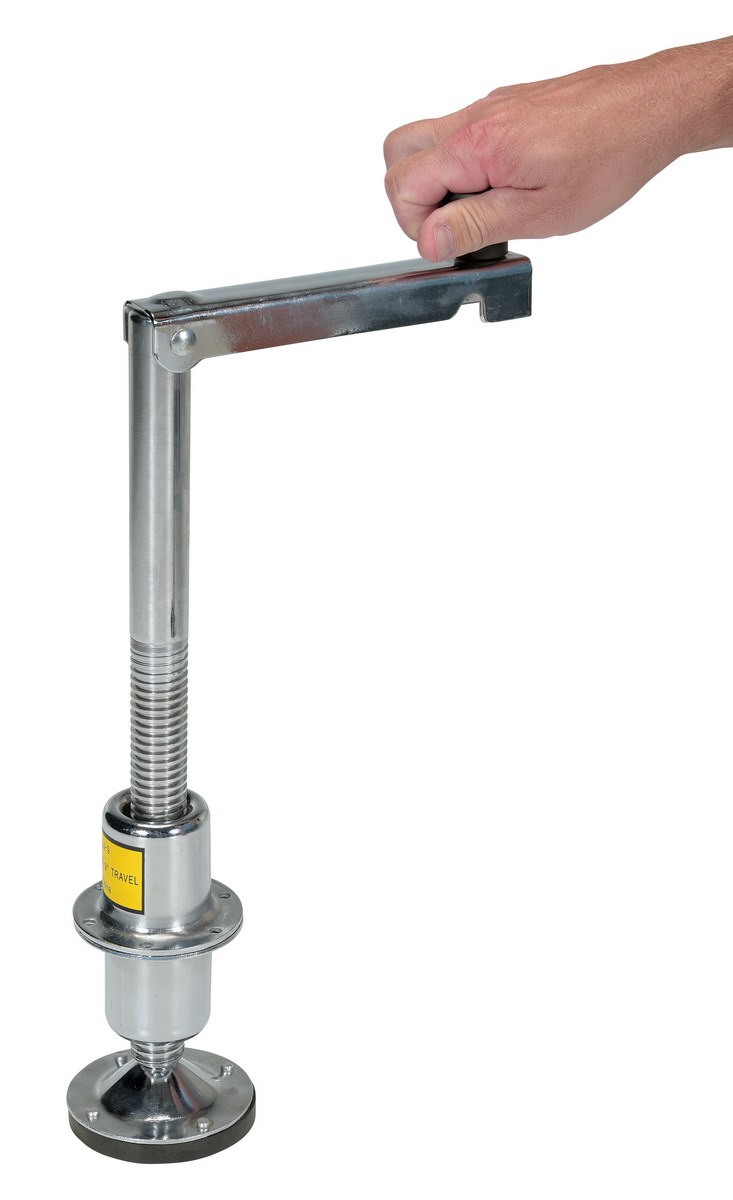

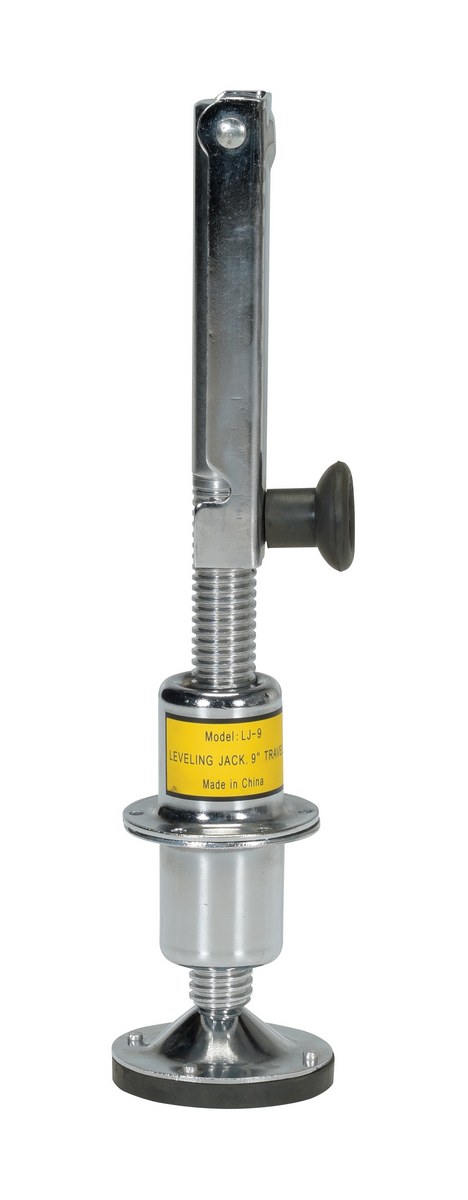

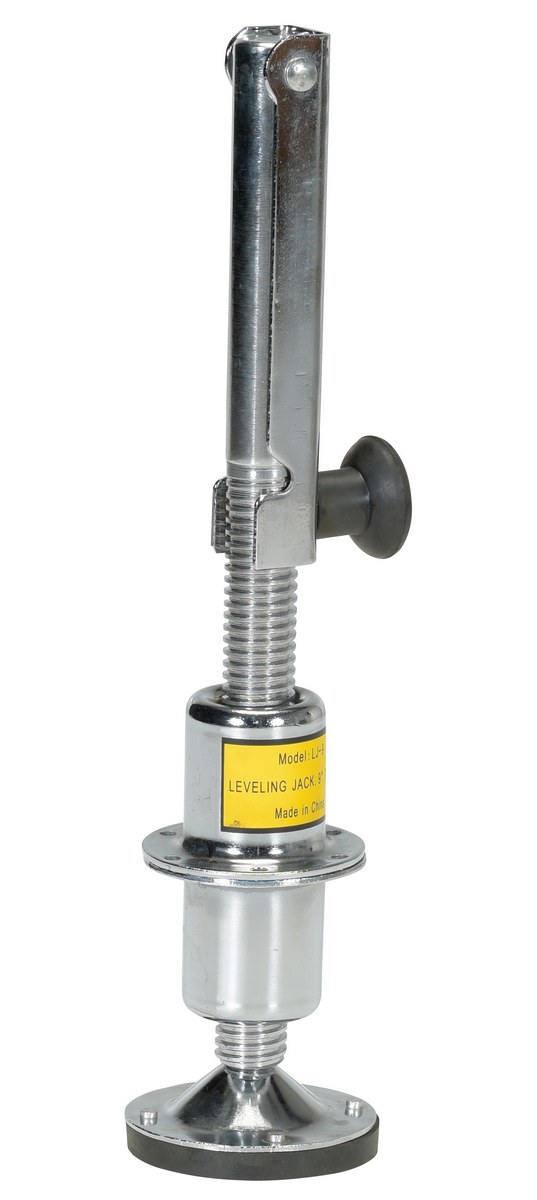

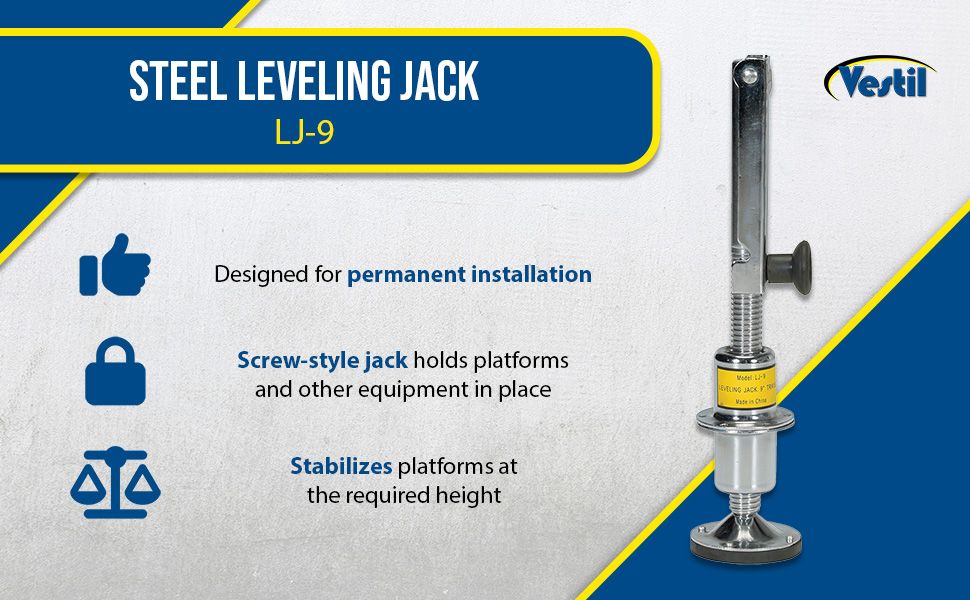

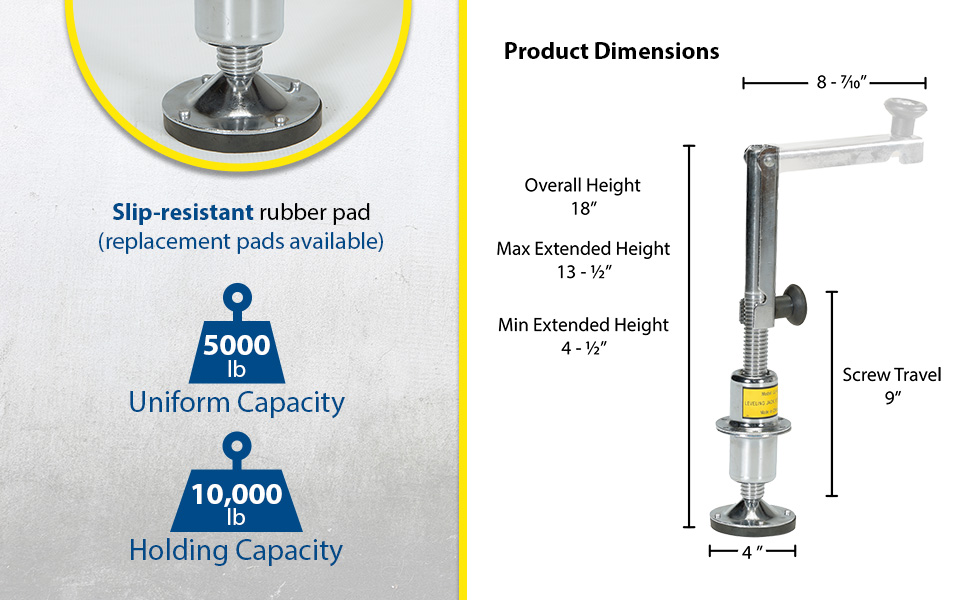

LJ-9 LJ-930 Days Limited WarrantySteel Leveling Jack 18 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
11

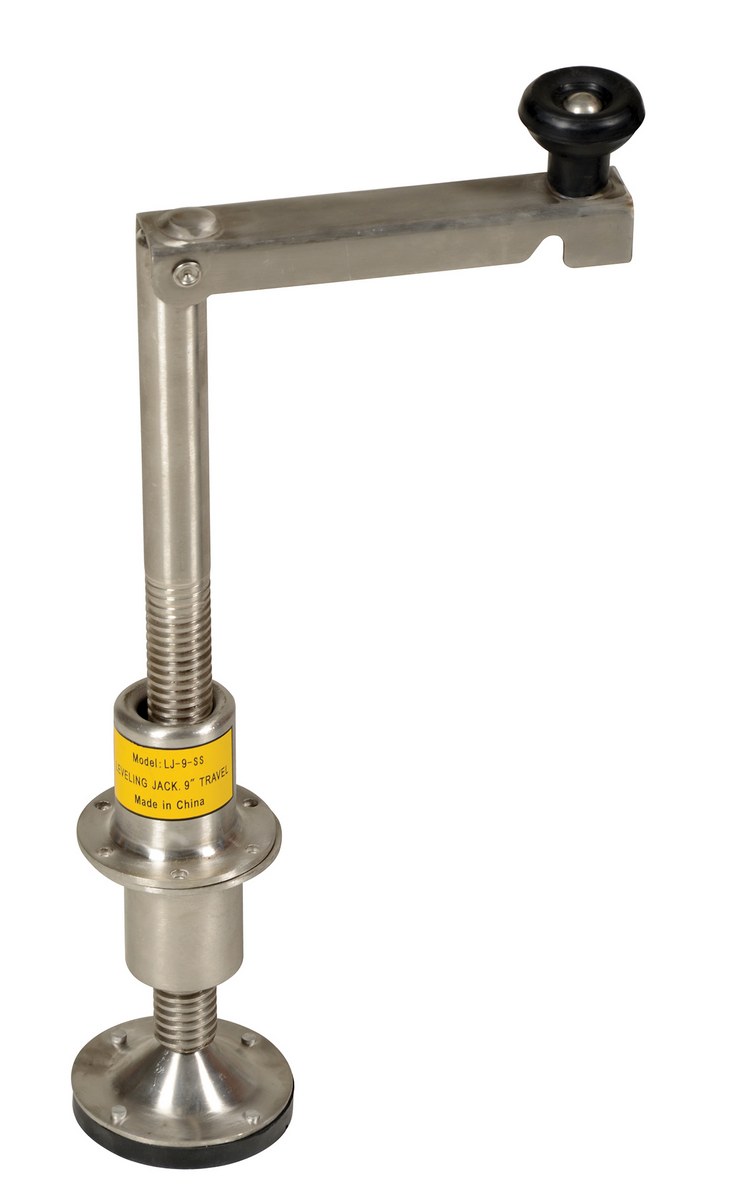

LJ-9-SS LJ-9-SS30 Days Limited WarrantyStainless Steel Leveling Jack 18 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
11

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LJ-17
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2

LJ-17-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2

LJ-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2

LJ-21-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2

LJ-9
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2

LJ-9-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
Uniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
For More Details of the Option Click the Red Model Button

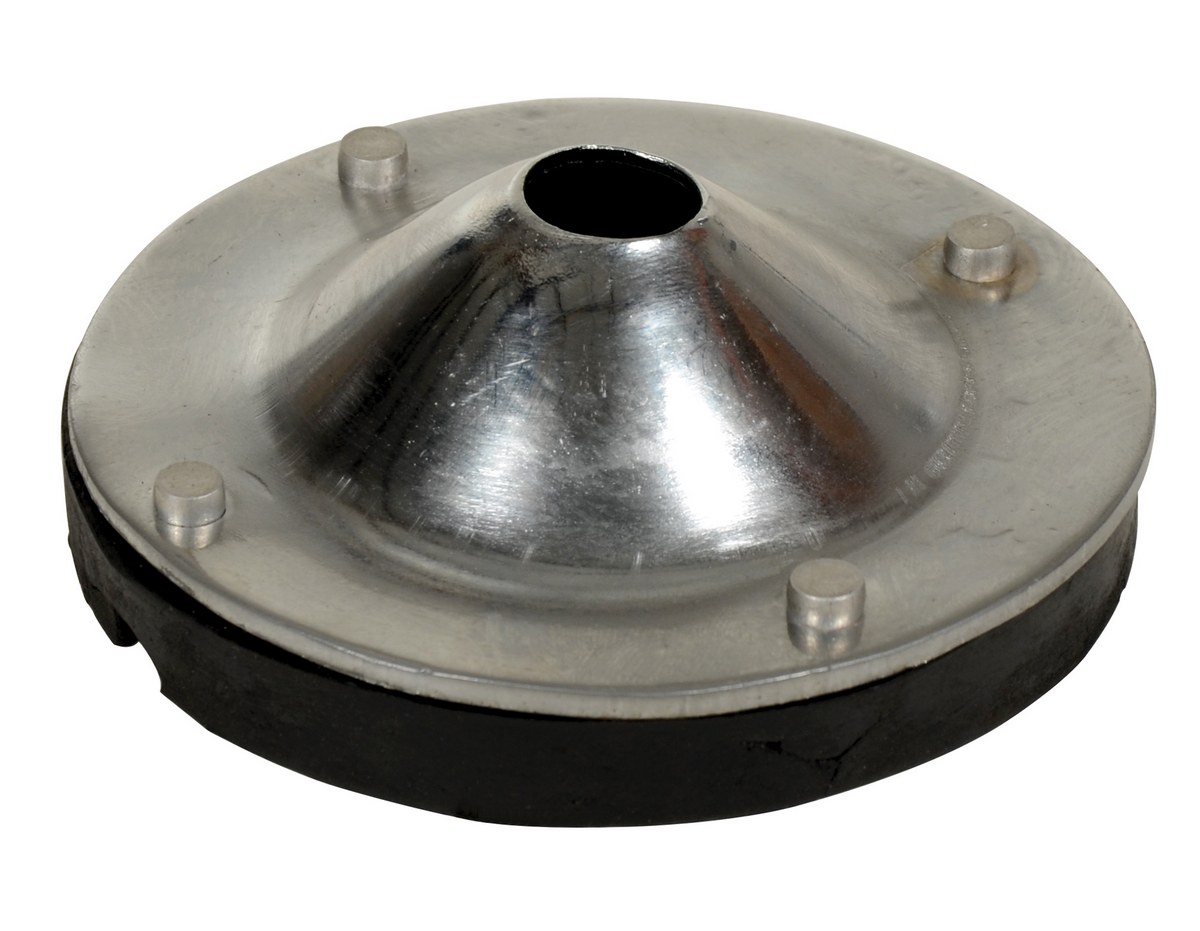

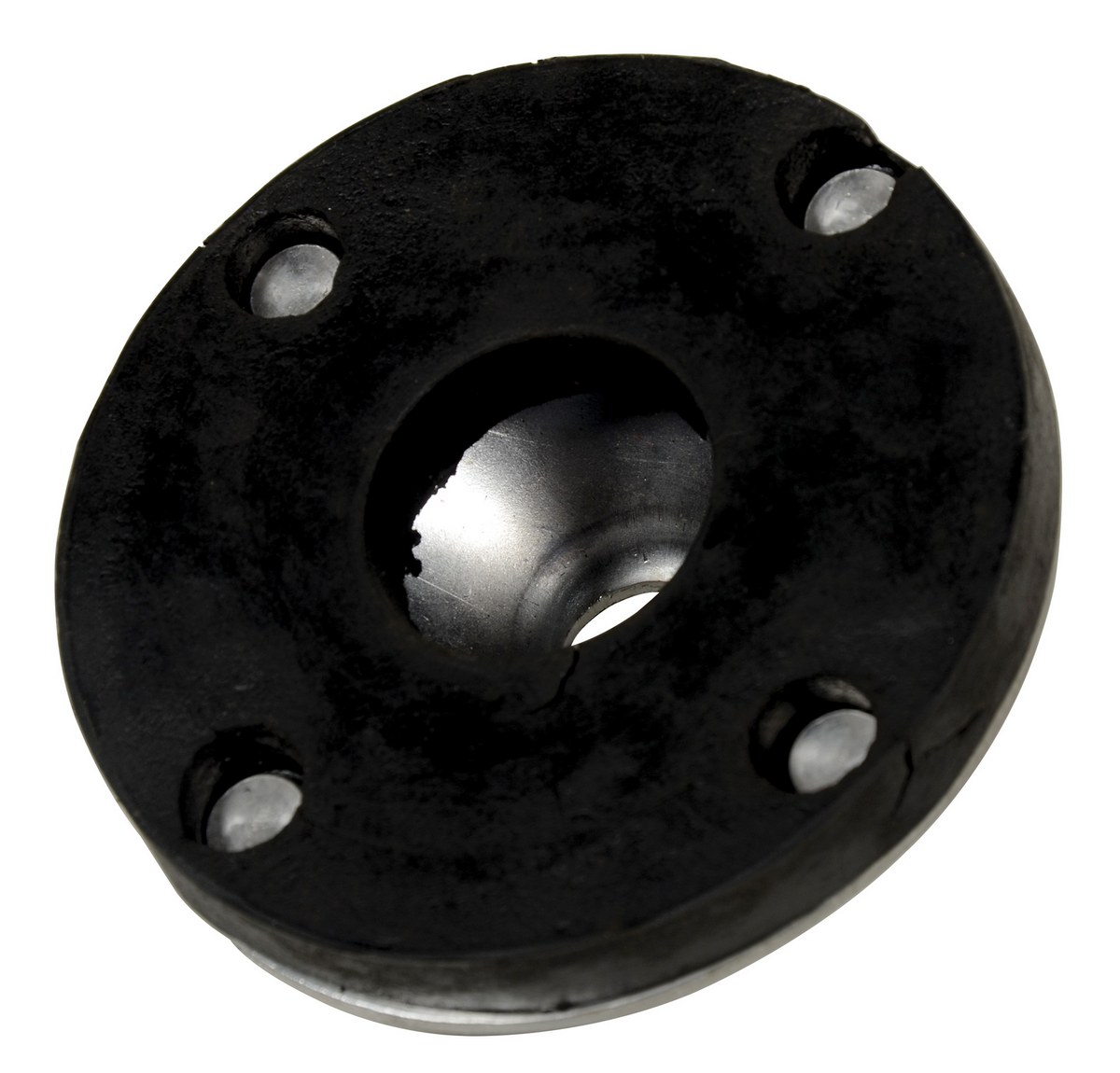

LJ-PAD LJ-PAD30 Days Limited WarrantyLeveling Jack Replacement Pads for LJ SeriesPackage Contents: (1) Leveling Jack Replacement Pad
4

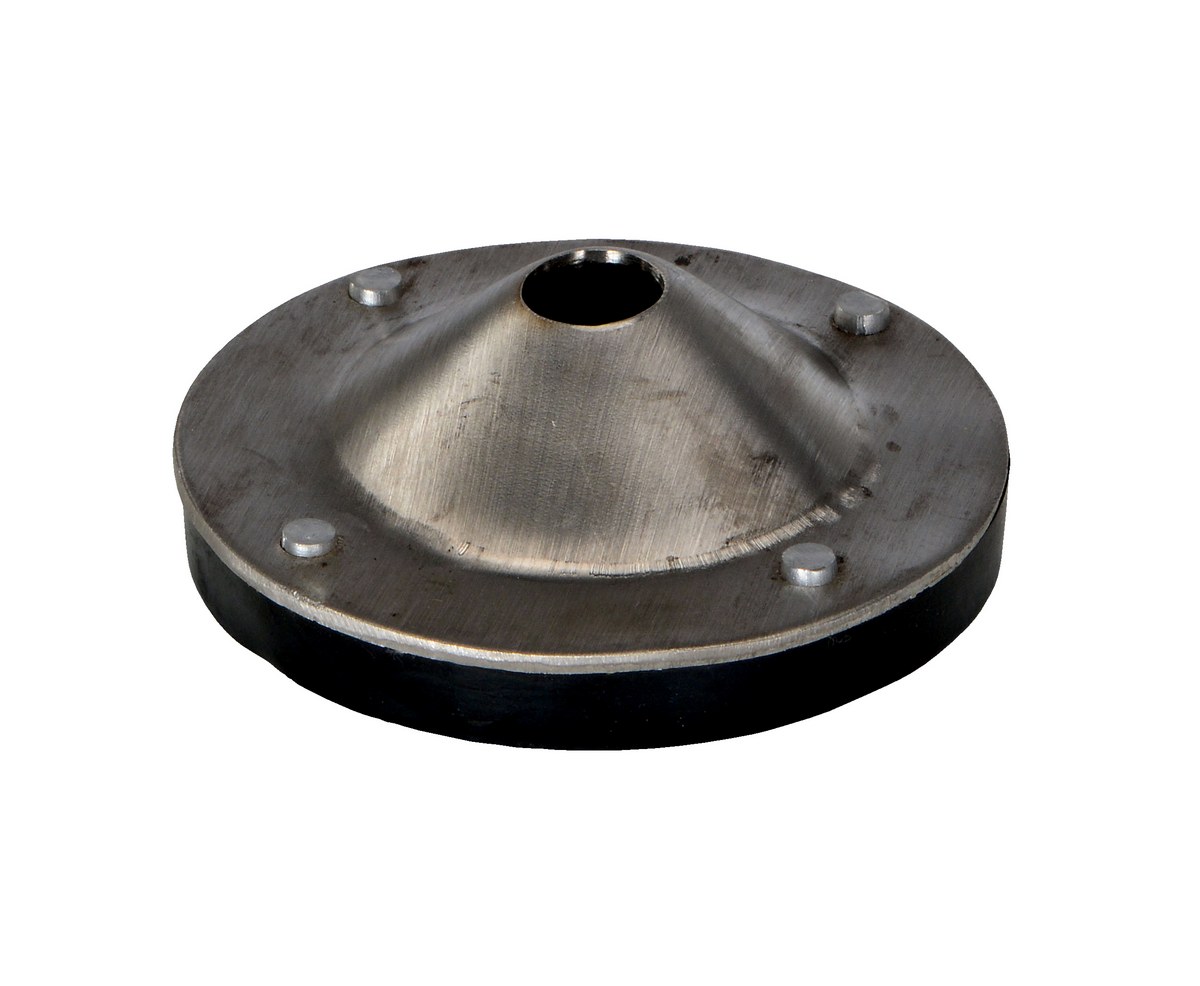

LJ-PAD-SS LJ-PAD-SS30 Days Limited WarrantyLeveling Jack Replacement Pads for LJ-SS SeriesPackage Contents: (1) Leveling Jack Replacement Pad
4

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Leveling Jacks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LJ-17

LJ-17-SS

LJ-21

LJ-21-SS

LJ-9

LJ-9-SS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What temperature range can the leveling jacks handle?

A: 30 to 120 degrees Fahrenheit






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Leveling Jacks




Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.



Model # Description Attributes Net Wt.
(lbs)
LJ-17 LJ-17Steel Leveling Jack 26 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
13
LJ-17-SS LJ-17-SSStainless Steel Leveling Jack 26 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
13
LJ-21 LJ-21Steel Leveling Jack 30 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
14
LJ-21-SS LJ-21-SSStainless Steel Leveling Jack 30 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
14
LJ-9 LJ-9Steel Leveling Jack 18 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
11
LJ-9-SS LJ-9-SSStainless Steel Leveling Jack 18 In. 5000 Lb. Capacity SilverUniform Capacity (lb.): 5,000
Handle Length (in.): 8-1/2
11
