Galvanized Cantilever Rack Kits

- - - -

Description
Model Chart
PDF's
Image Gallery

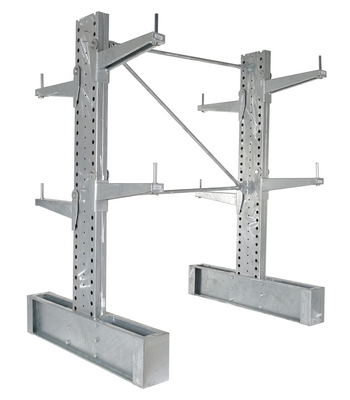

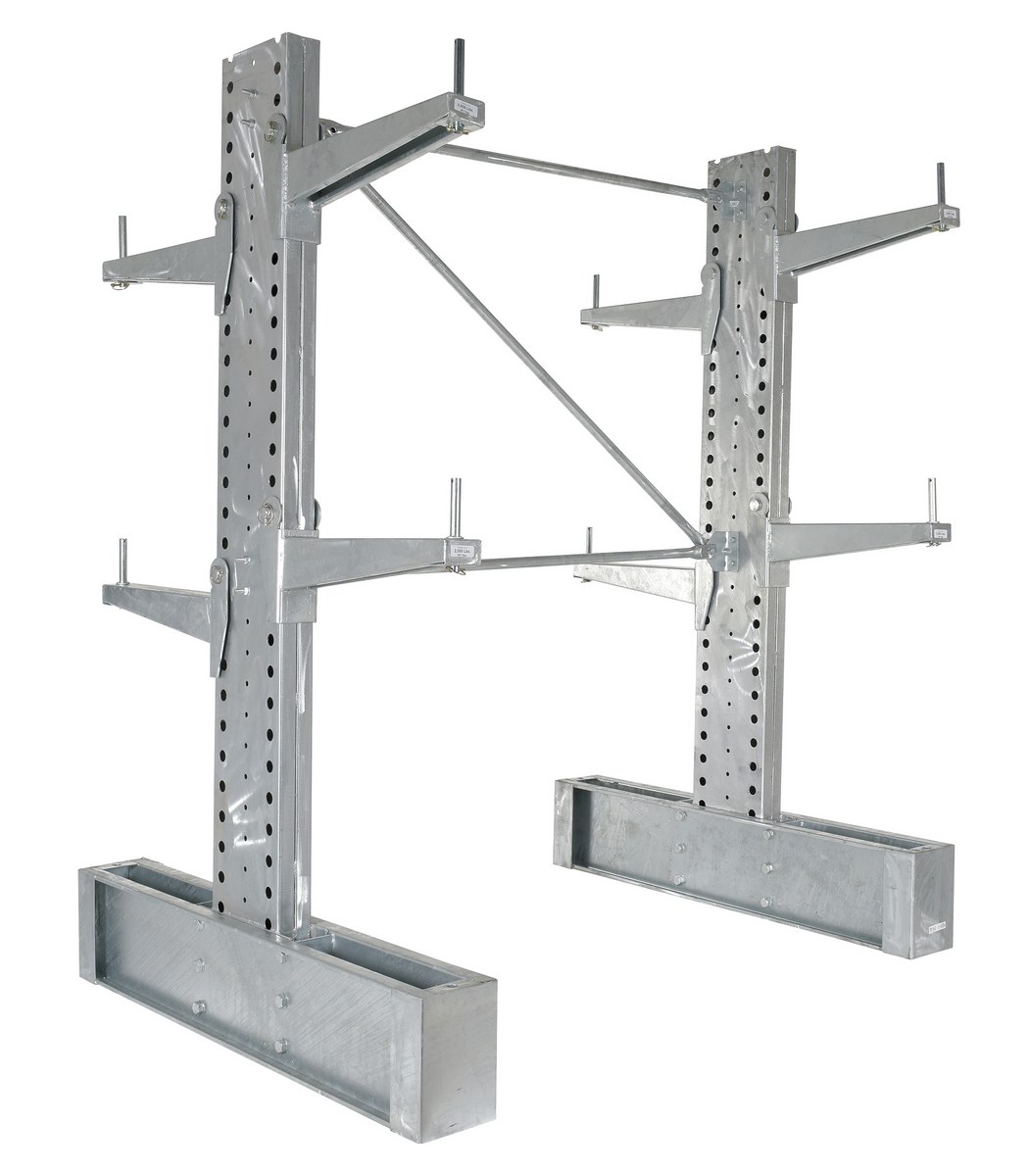

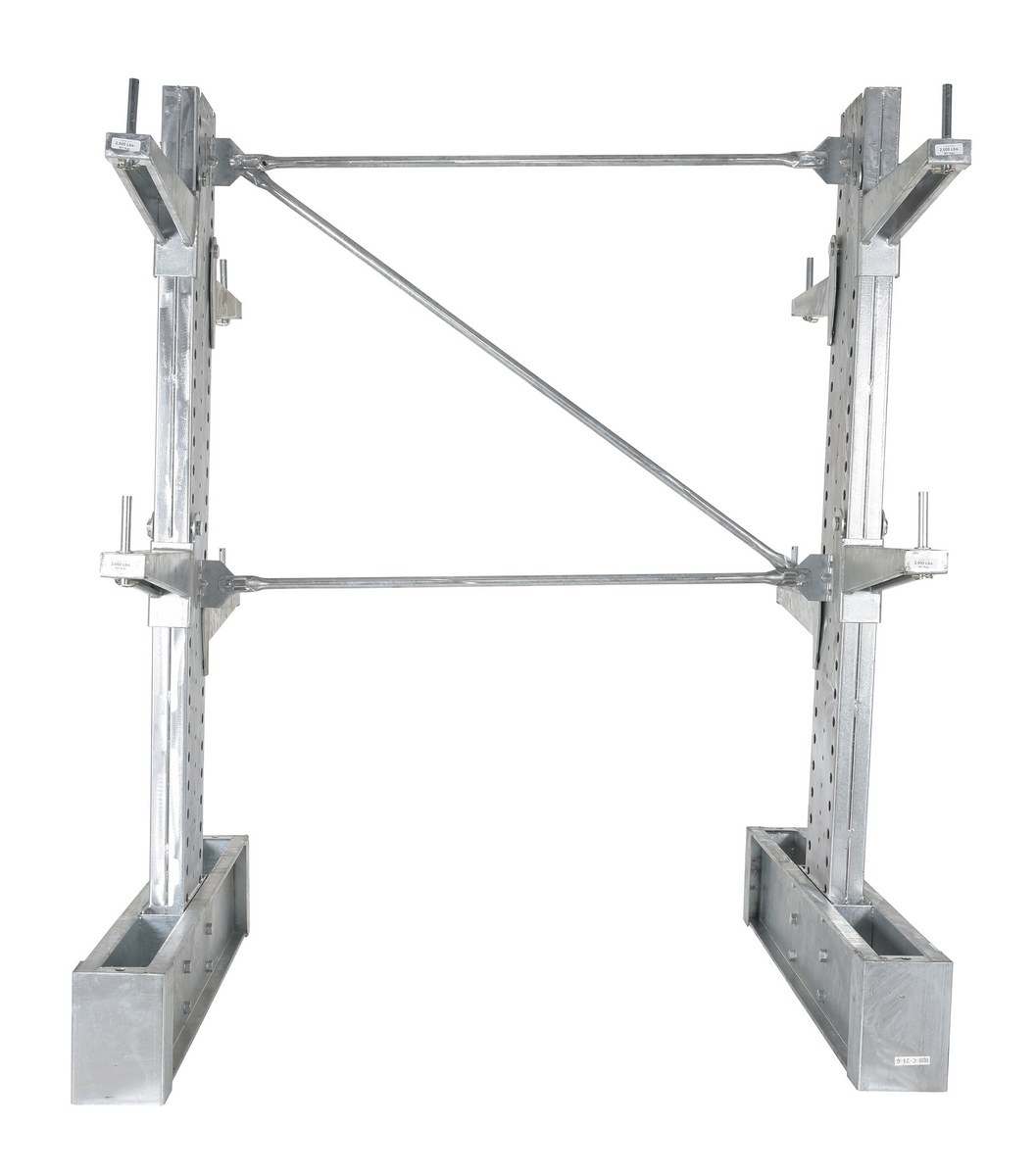

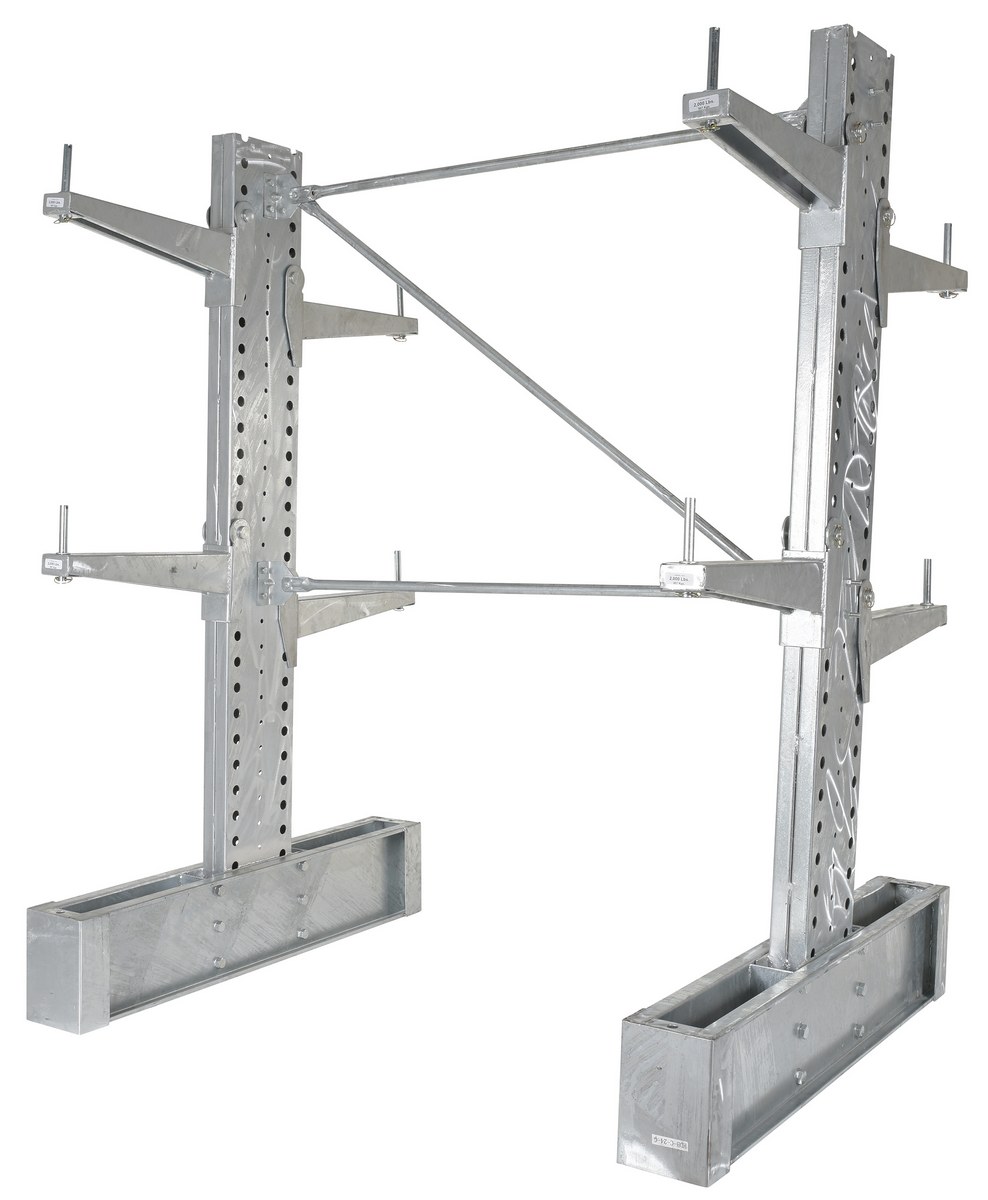

HDU-C-8-24-G-SET_A.jpg HDU-C-8-24-G-SET_B.jpg HDU-C-8-24-G-SET_C.jpg
Galvanized Cantilever Rack Kits

model: HDU-C-8-24-G-SET



Featured Storage Solutions


Stainless Steel Shelving
Various Racking
Quilted Moving Pads
Dunnage Racks
Open Area Rack Decking
Storage Buildings
Aluminum Tread Plate Portable Tool Boxes
Multi-Duty Storage Buildings
Pallet Rack Back Guards
model chart

Product Family Overview

Print Friendly
Galvanized Cantilever Rack Kits
SERIES: SU,MU,HDU

The Galvanized Cantilever Rack systems are ideal for distributing and industrial settings. The galvanized steel design minimizes rust while providing a strong construction. The adjustable rack arms can be adapted to a customized position allowing the unit to fit the needs of individual circumstances. Capacity is per level.

The Galvanized Cantilever Rack systems are ideal for distributing and industrial settings. The galvanized steel design minimizes rust while providing a strong construction. The adjustable rack arms can be adapted to a customized position allowing the unit to fit the needs of individual circumstances. Capacity is per level.

Other Various Racking

 Horizontal Sheet Rack Slab Transport Rack Heavy Duty Roll-Out Shelving Structural Cantilever Racking

Additional Models In This Family
view entire Image Gallery

MDU-C-6-36-G-SET

MDU-C-6-36-G-SET

SDU-C-6-36-G-SET

SDU-C-6-36-G-SET

SDU-C-6-36-G-SET

SDU-C-6-36-G-SET

MDU-C-6-24-G-SET

MDU-C-6-24-G-SET

MDU-C-6-24-G-SET

MDU-C-6-24-G-SET

HU-C-8-36-G-SET

HU-C-8-36-G-SET

MDU-C-6-36-G-SET

MDU-C-6-36-G-SET

HDU-C-8-36-G-SET

HDU-C-8-36-G-SET

SDU-C-6-36-G-SET

SDU-C-6-36-G-SET

SU-C-6-24-G-SET

SU-C-6-24-G-SET

MDU-C-6-24-G-SET

MDU-C-6-24-G-SET

SDU-C-6-36-G-SET

SDU-C-6-36-G-SET

MDU-C-6-36-G-SET

MDU-C-6-36-G-SET

SDU-C-6-24-G-SET

SDU-C-6-24-G-SET

SU-C-8-24-G-SET

SU-C-8-24-G-SET

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDU-C-8-24-G-SET HDU-C-8-24-G-SET1 Year Limited WarrantySteel Heavy Duty Cantilever Rack Kit with 24 In. Arm Set 86,000 Lb. Capacity SilverUniform Upright Capacity (lb.): 86000
Uniform Level Capacity (lb.): 8,000		890
HDU-C-8-36-G-SET HDU-C-8-36-G-SET1 Year Limited WarrantySteel Heavy Duty Cantilever Rack Kit with 36 In. Arm Set 64,000 Lb. Capacity SilverUniform Upright Capacity (lb.): 64000
Uniform Level Capacity (lb.): 4,800		1016

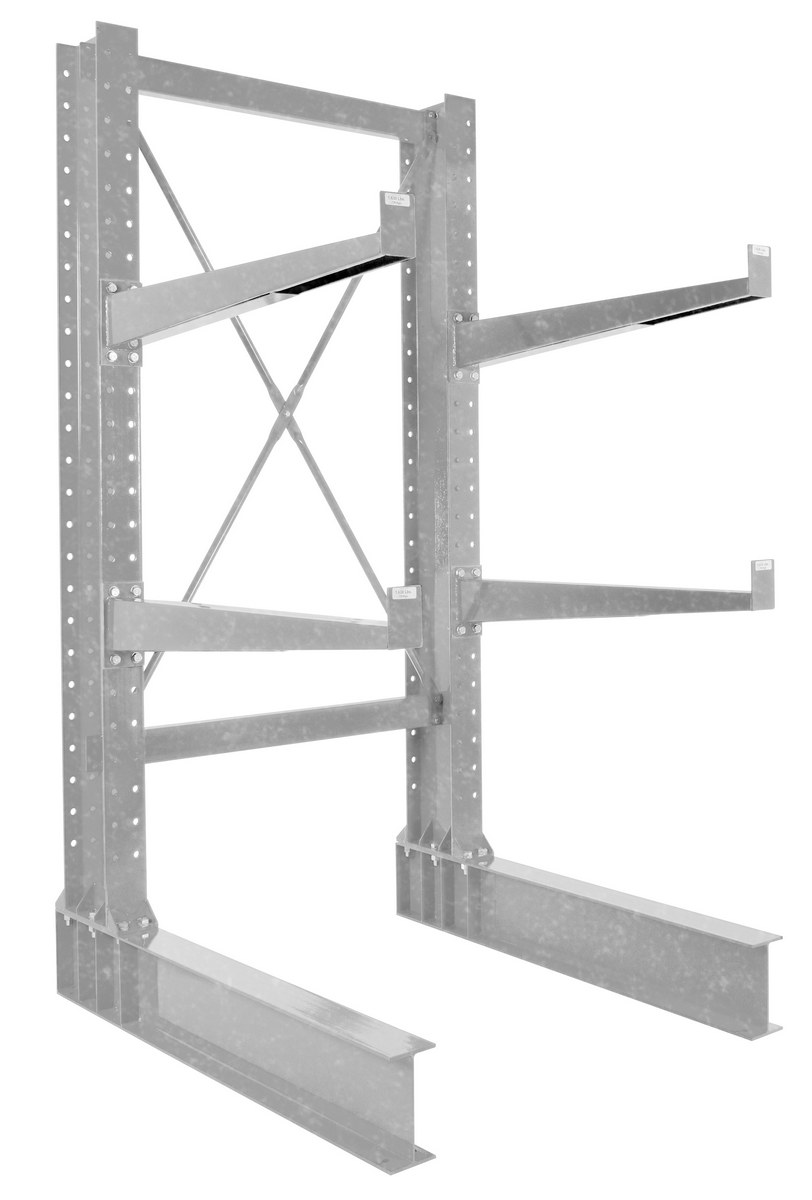

HU-C-8-36-G-SET HU-C-8-36-G-SET1 Year Limited WarrantySteel Heavy Duty Cantilever Rack Kit with 36 In. Arms 8 Ft. Set 32,000 Lb. Capacity SilverUniform Upright Capacity (lb.): 32,000
Uniform Level Capacity (lb.): 2,400		810

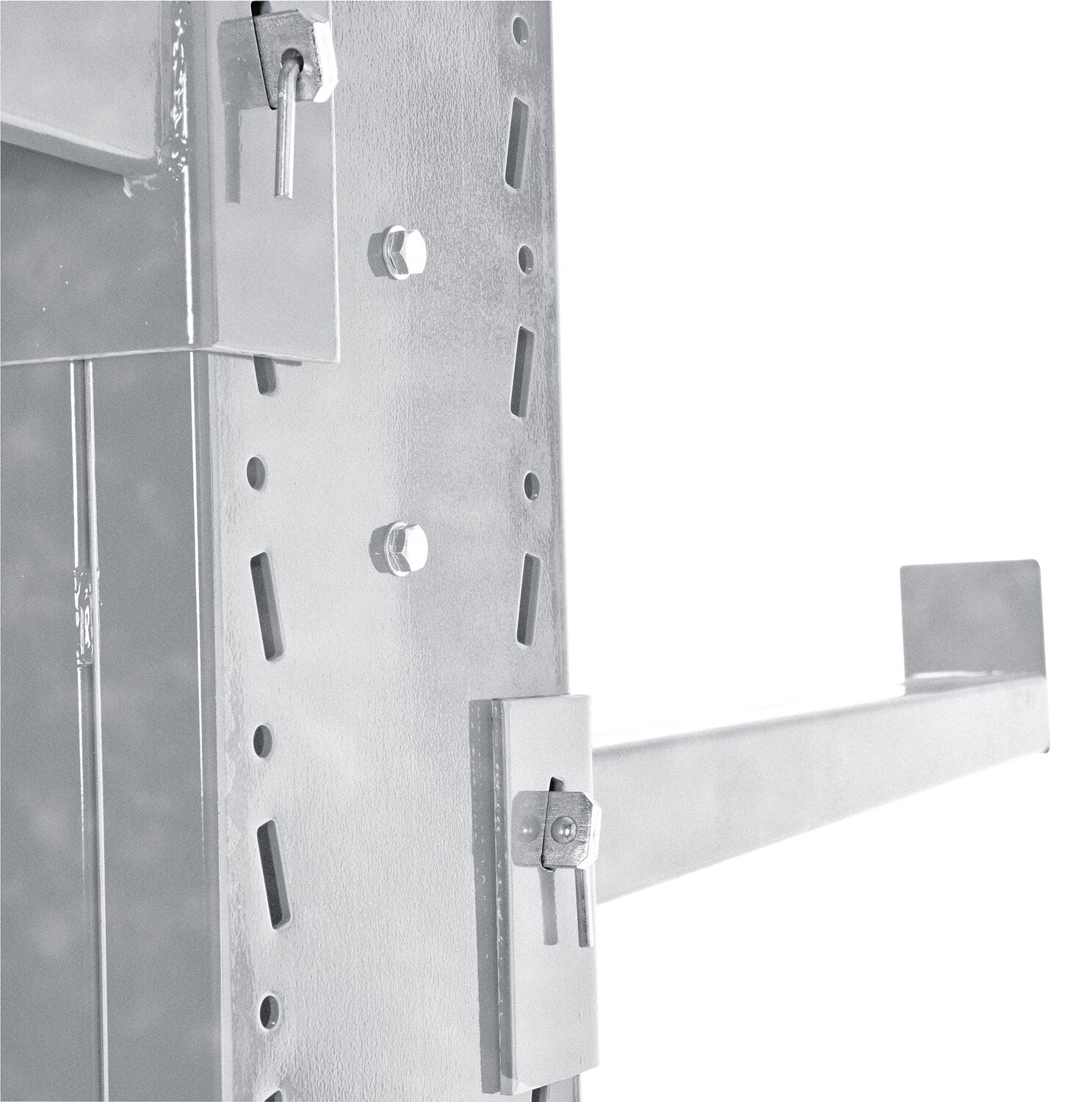

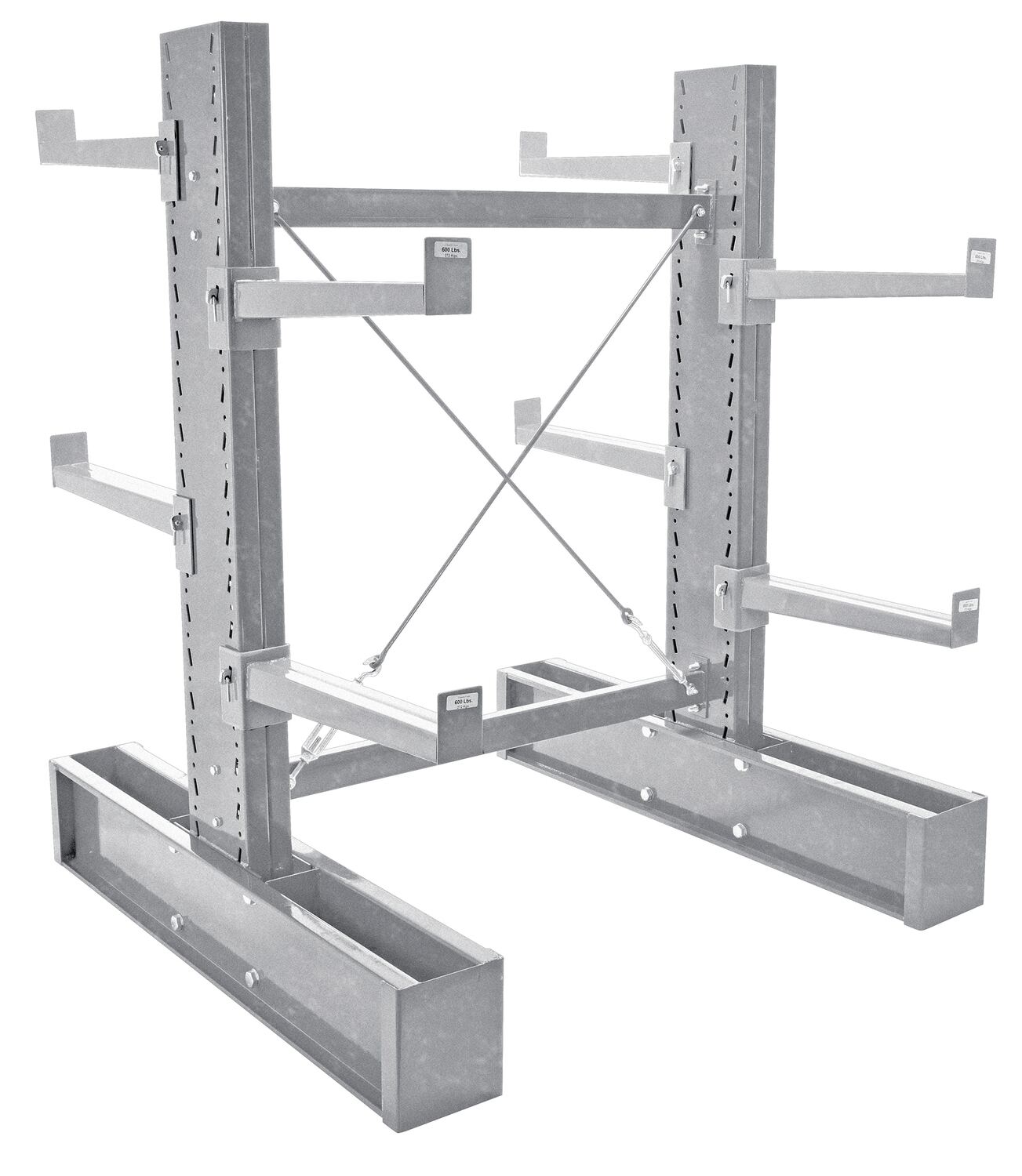

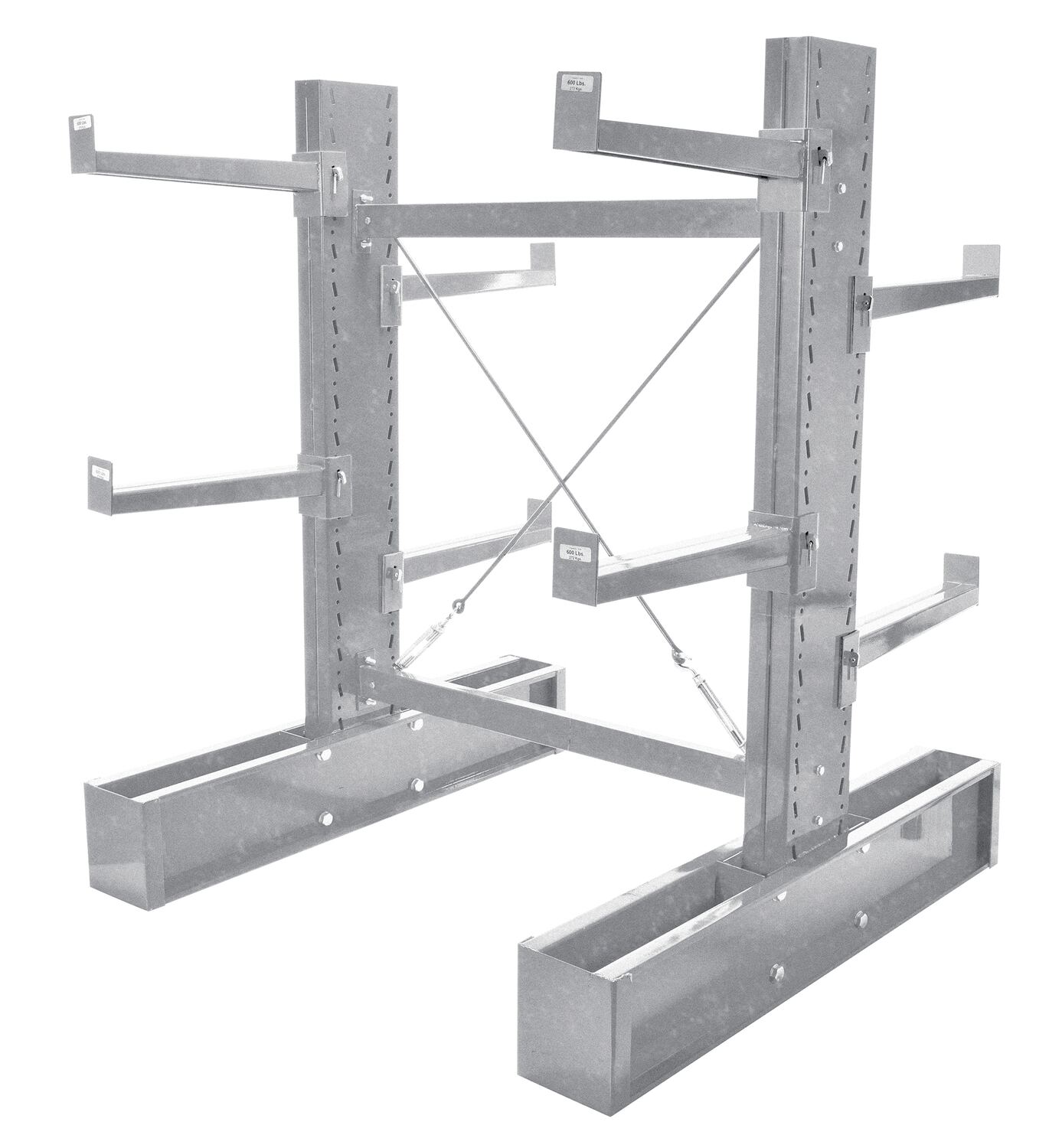

MDU-C-6-24-G-SET MDU-C-6-24-G-SET1 Year Limited WarrantyGalvanized Medium Duty Double Sided Cantilever Rack Kit 24 In. Arms 22,000 Lb. Capacity SilverUniform Upright Capacity (lb.): 22,000
Uniform Level Capacity (lb.): 2,400		618
MDU-C-6-36-G-SET MDU-C-6-36-G-SET1 Year Limited WarrantyGalvanized Medium Duty Double Sided Cantilever Rack Set 36 In. Arms 16,400 Lb. Capacity SilverUniform Upright Capacity (lb.): 16,400
Uniform Level Capacity (lb.): 1,600		656
MU-C-6-24-G-SET MU-C-6-24-G-SET1 Year Limited WarrantyGalvanized Medium-Duty Single Sided Cantilever Rack Kit 24 In. Arm Set 6 Ft. 11,000 Lb. Capacity SilverUniform Capacity Per Upright (lb.): 11,000
Uniform Level Capacity (lb.): 1,200		482

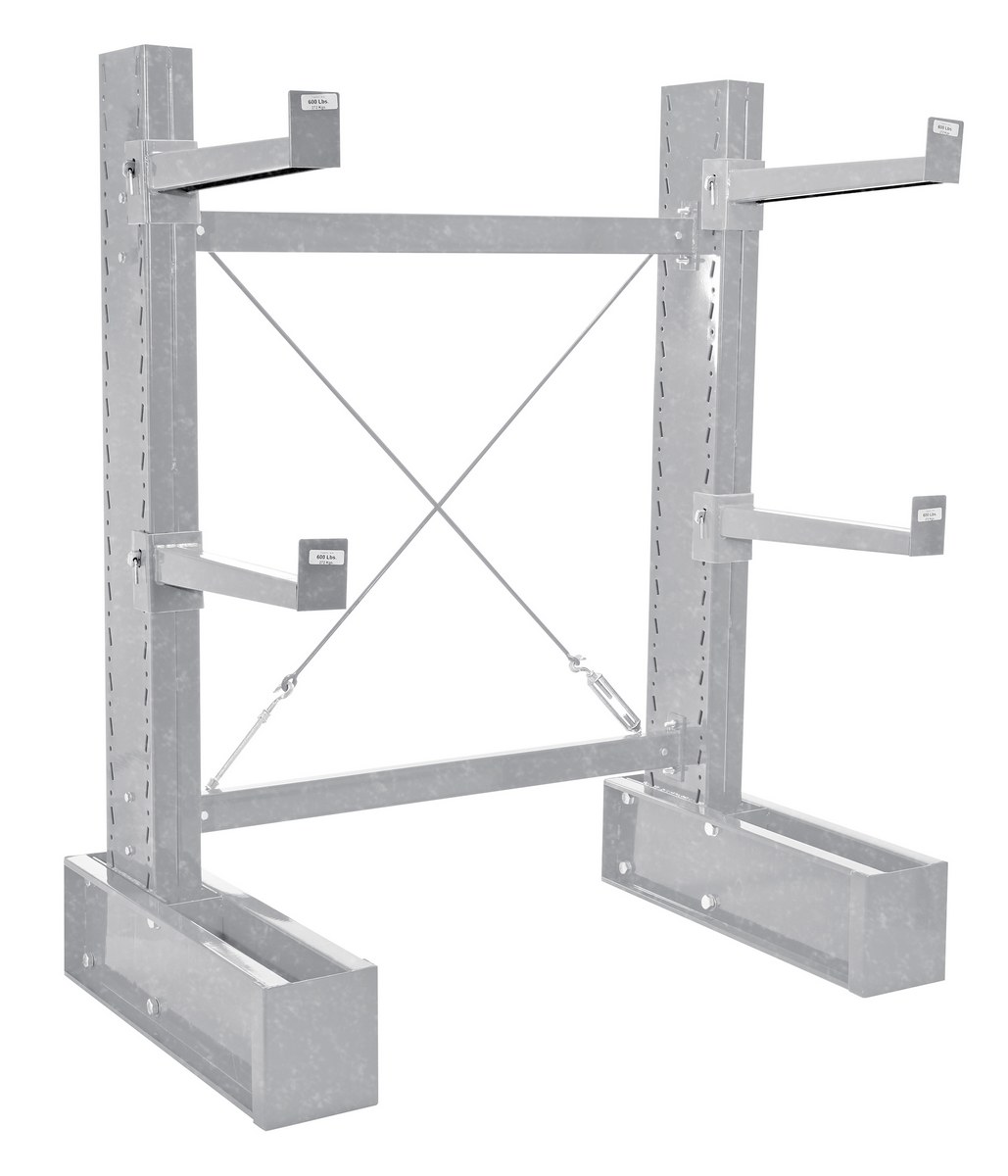

MU-C-8-24-G-SET MU-C-8-24-G-SET1 Year Limited WarrantyGalvanized Medium-Duty Single Sided 24 In. Arm Set 10,600 Lb. Capacity SilverUniform Capacity Per Upright (lb.): 10,600
Uniform Level Capacity (lb.): 1,200		522

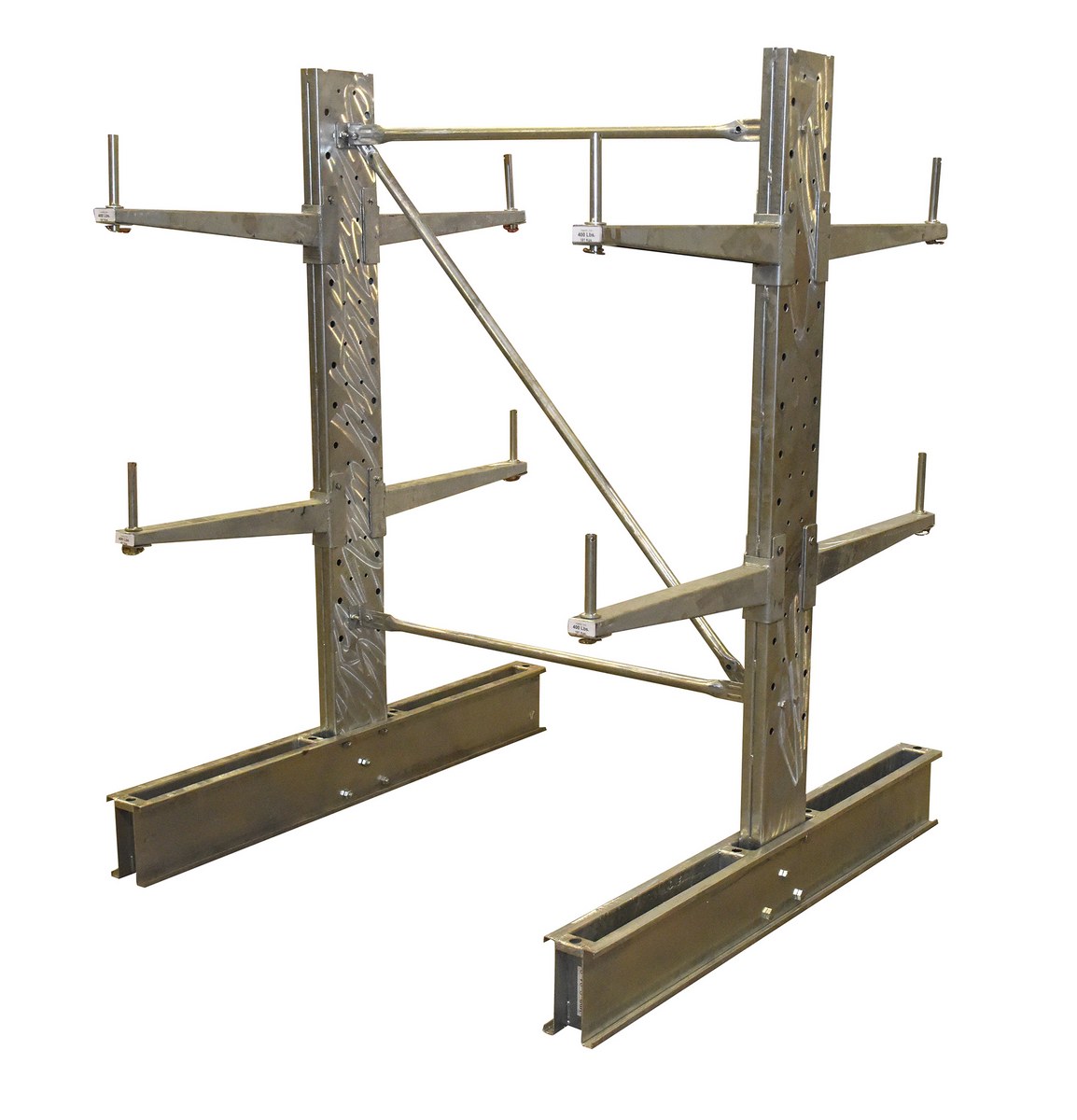

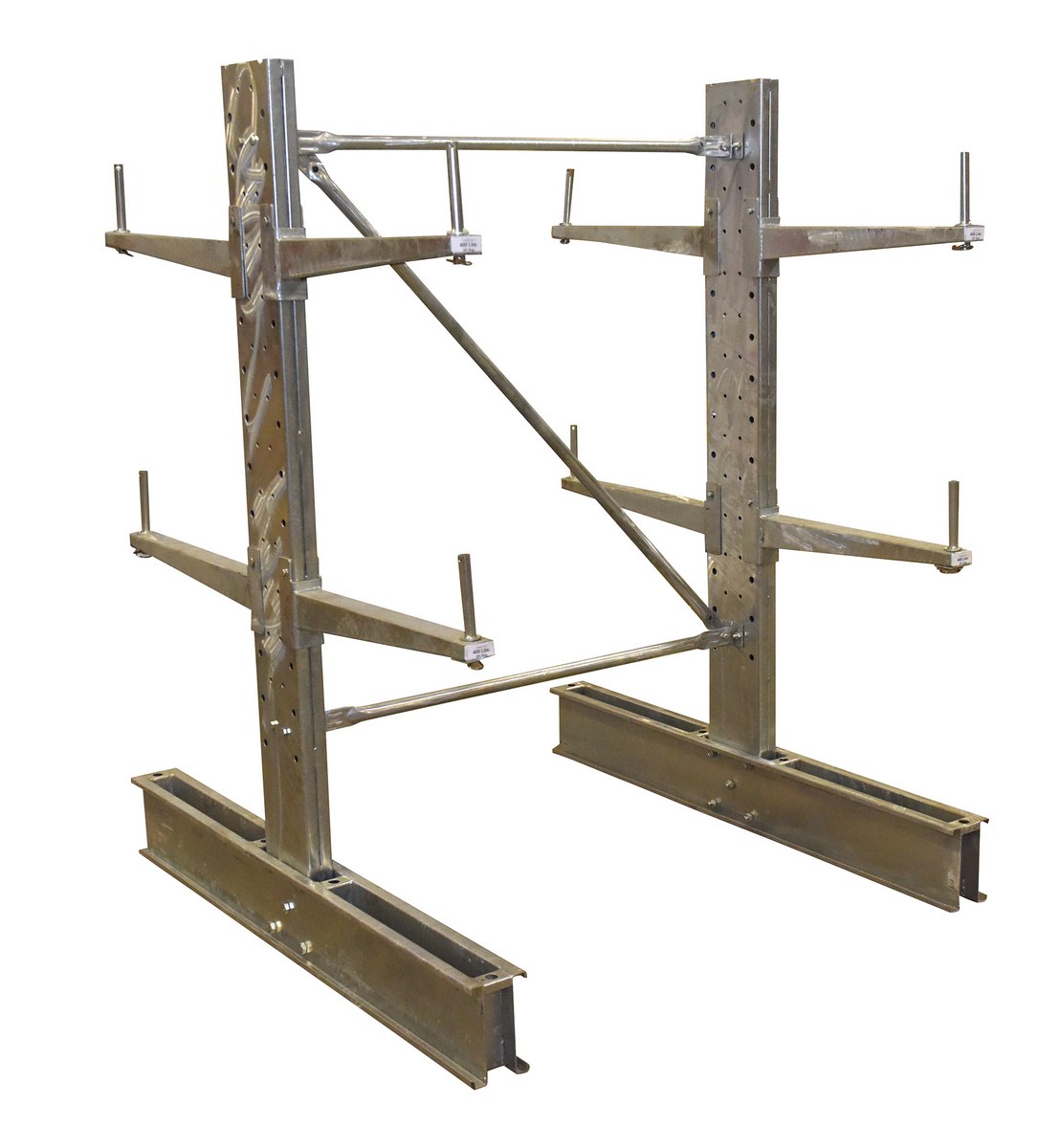

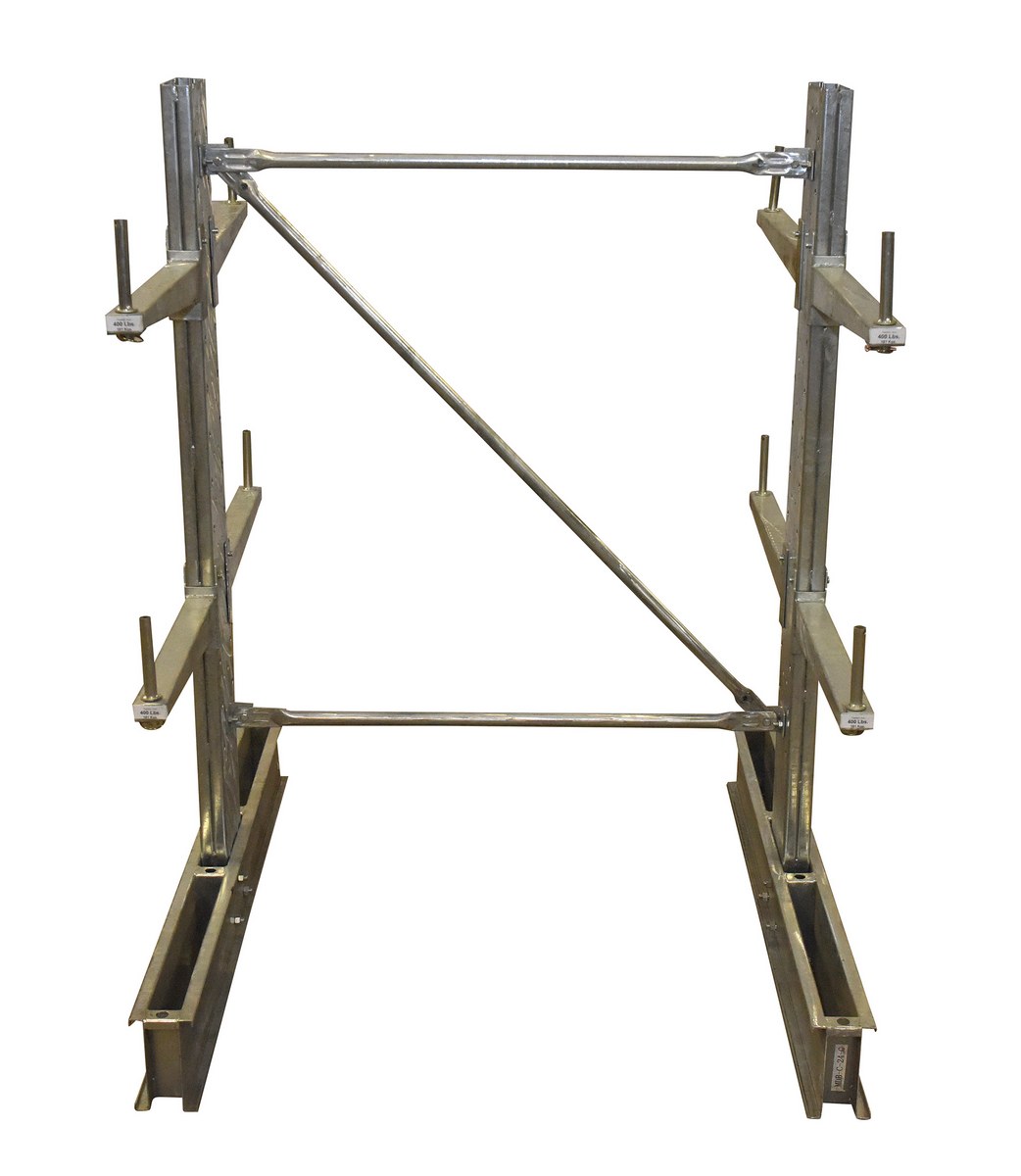

SDU-C-6-24-G-SET SDU-C-6-24-G-SET1 YEAR Limited WarrantyGalvanized Steel Standard Cantilever Double Upright 6 Ft. Height 24 In. Arm Use Length Set 15,400 Lb. Capacity GrayUniform Upright Capacity (lb.): 15,400
Uniform Level Capacity (lb.): 1,600		516

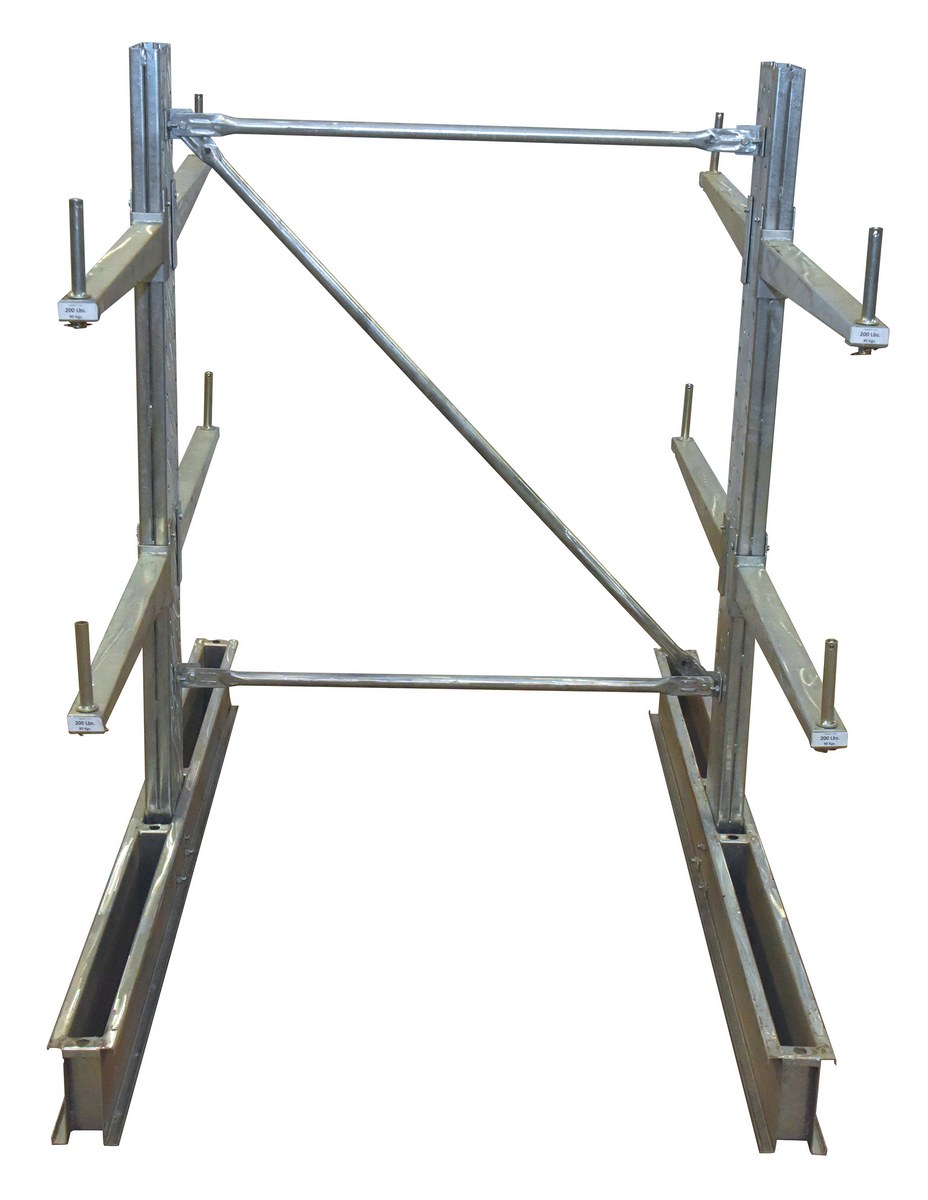

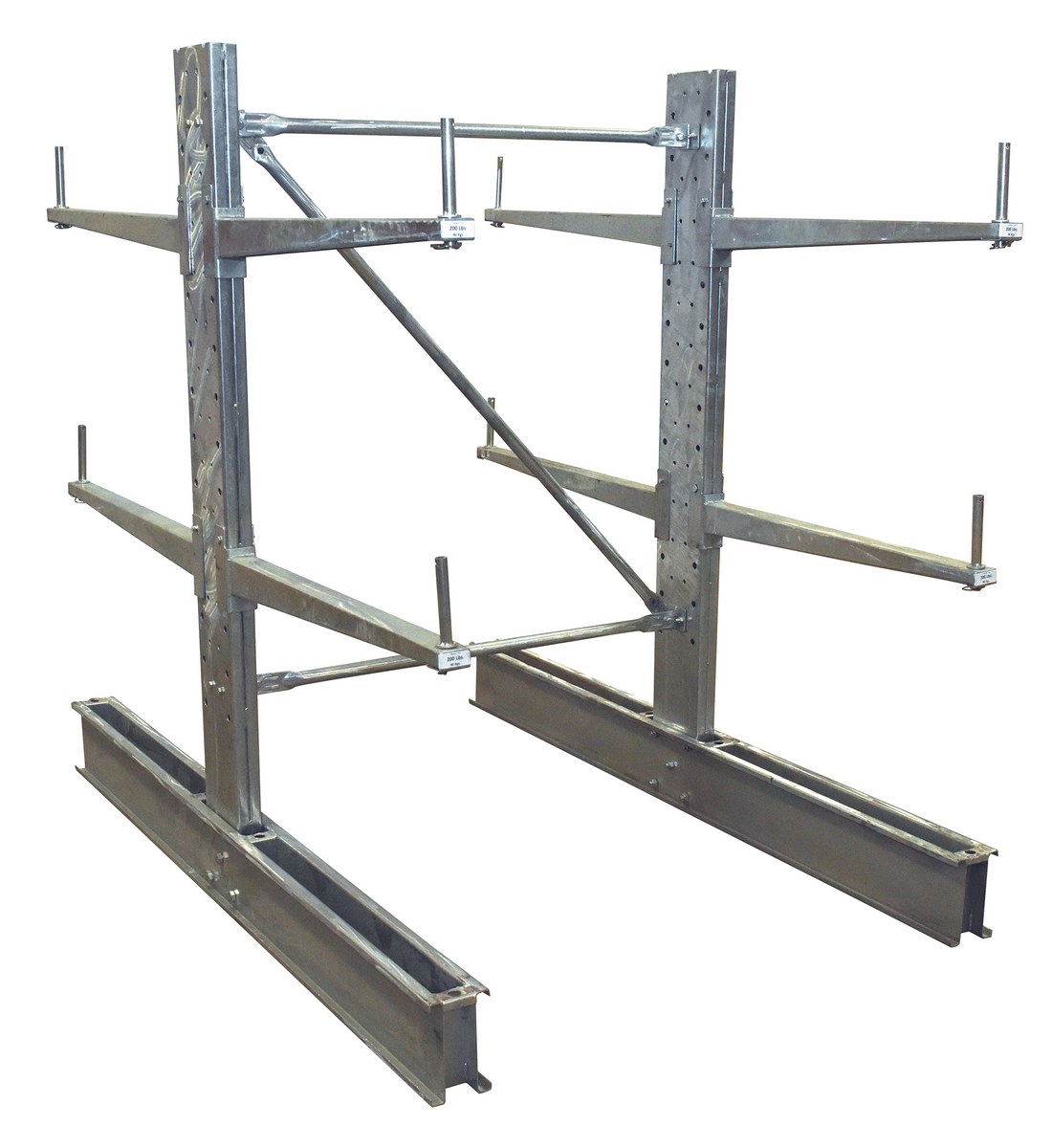

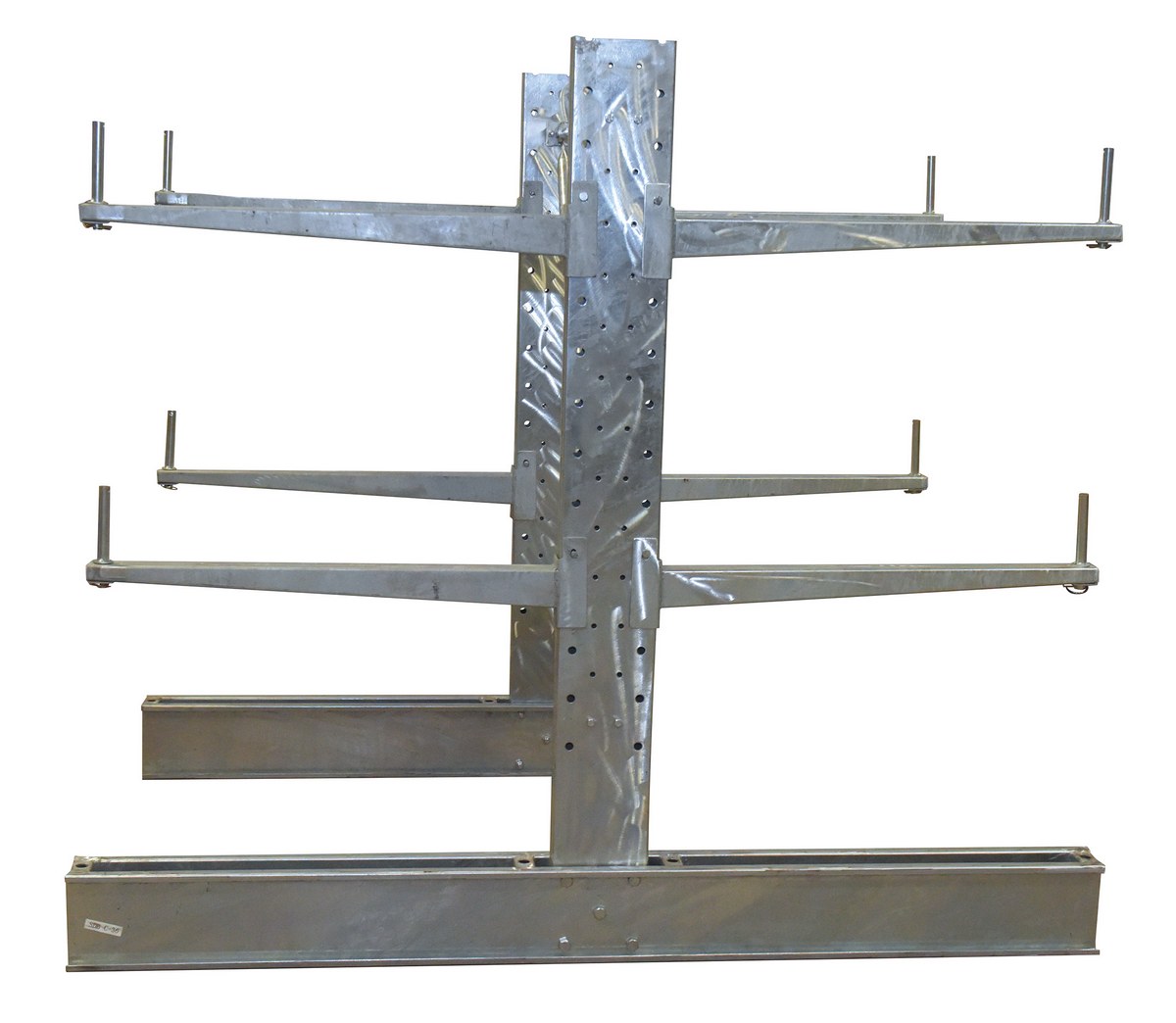

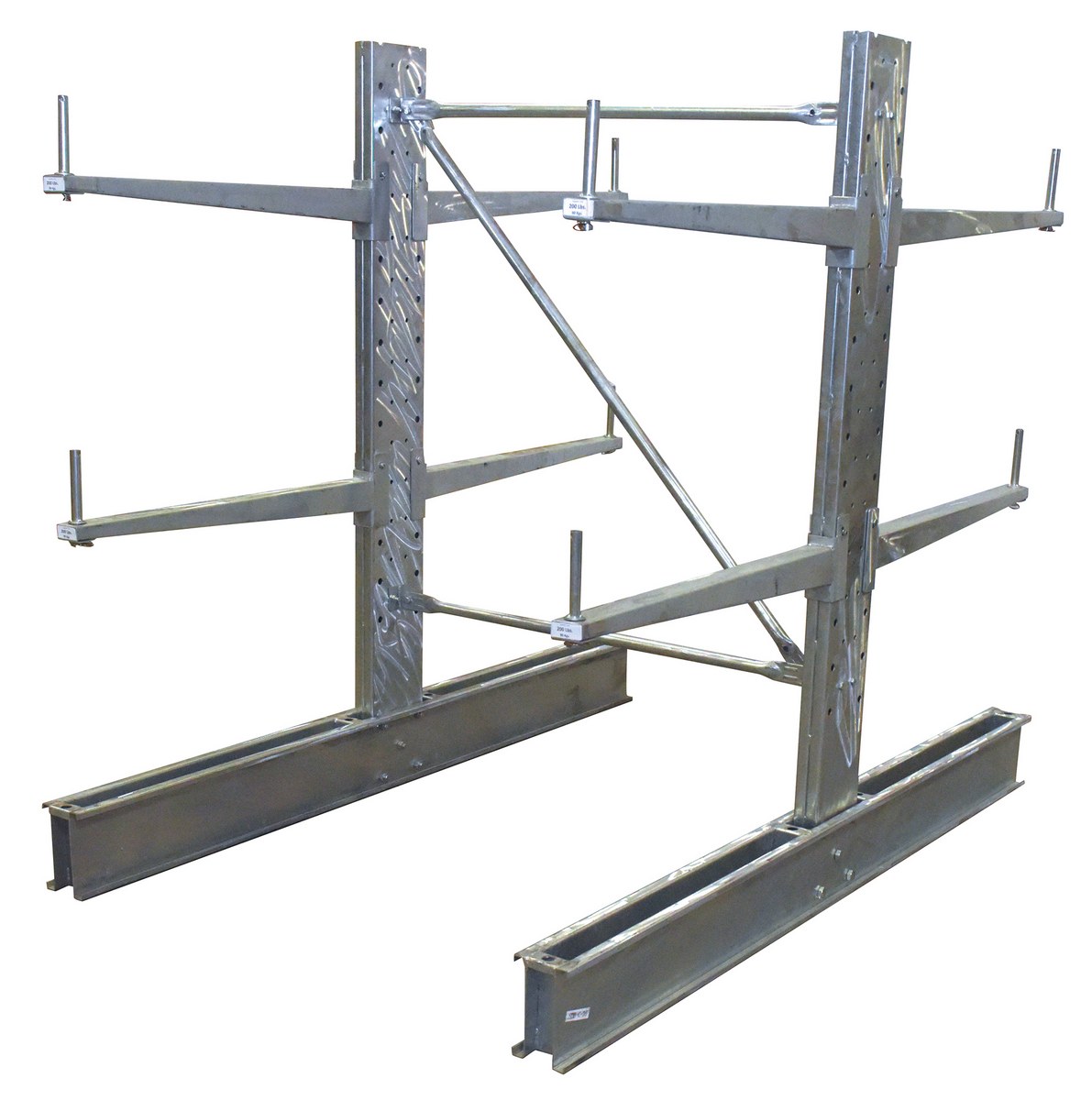

SDU-C-6-36-G-SET SDU-C-6-36-G-SET1 Year Limited WarrantyGalvanized Steel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 10,400 Lb. Capacity GrayUniform Upright Capacity (lb.): 10,400
Uniform Level Capacity (lb.): 800		556

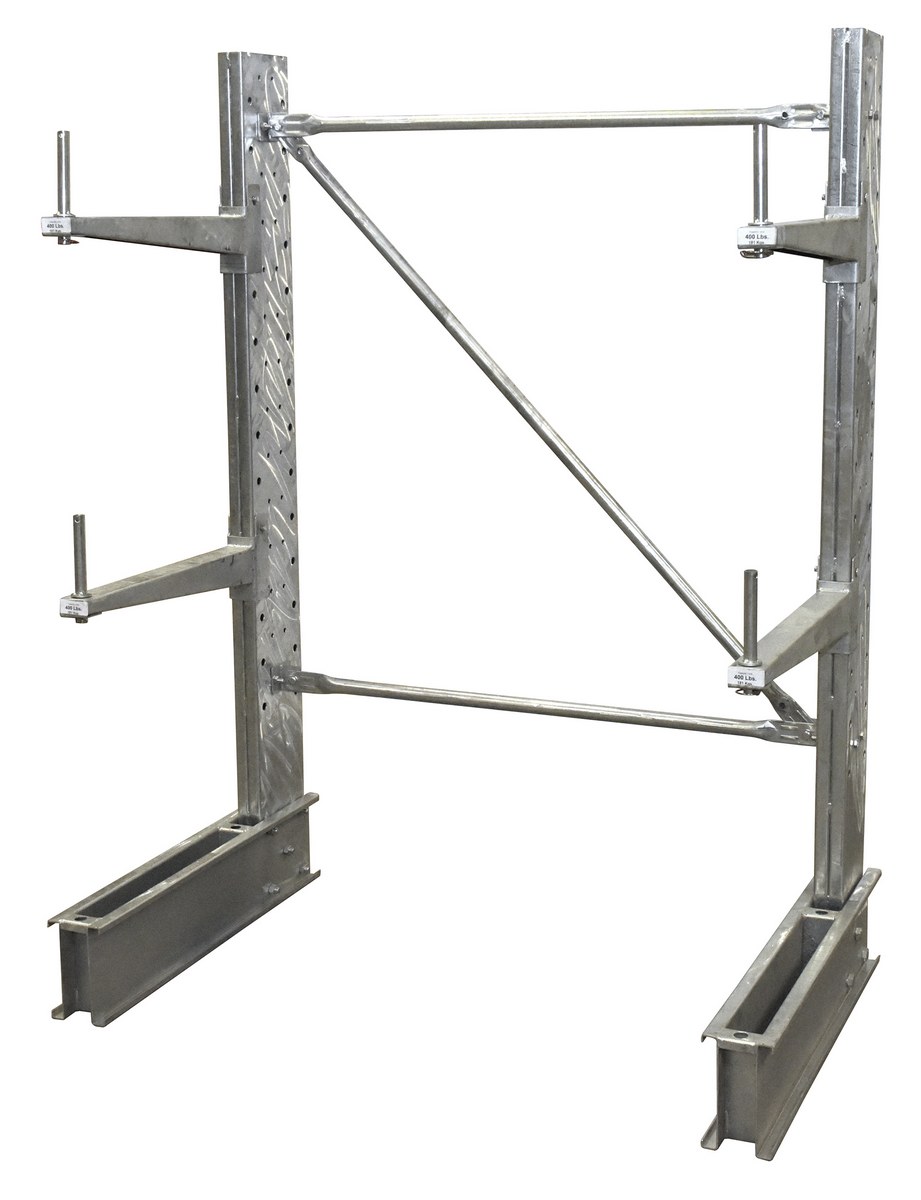

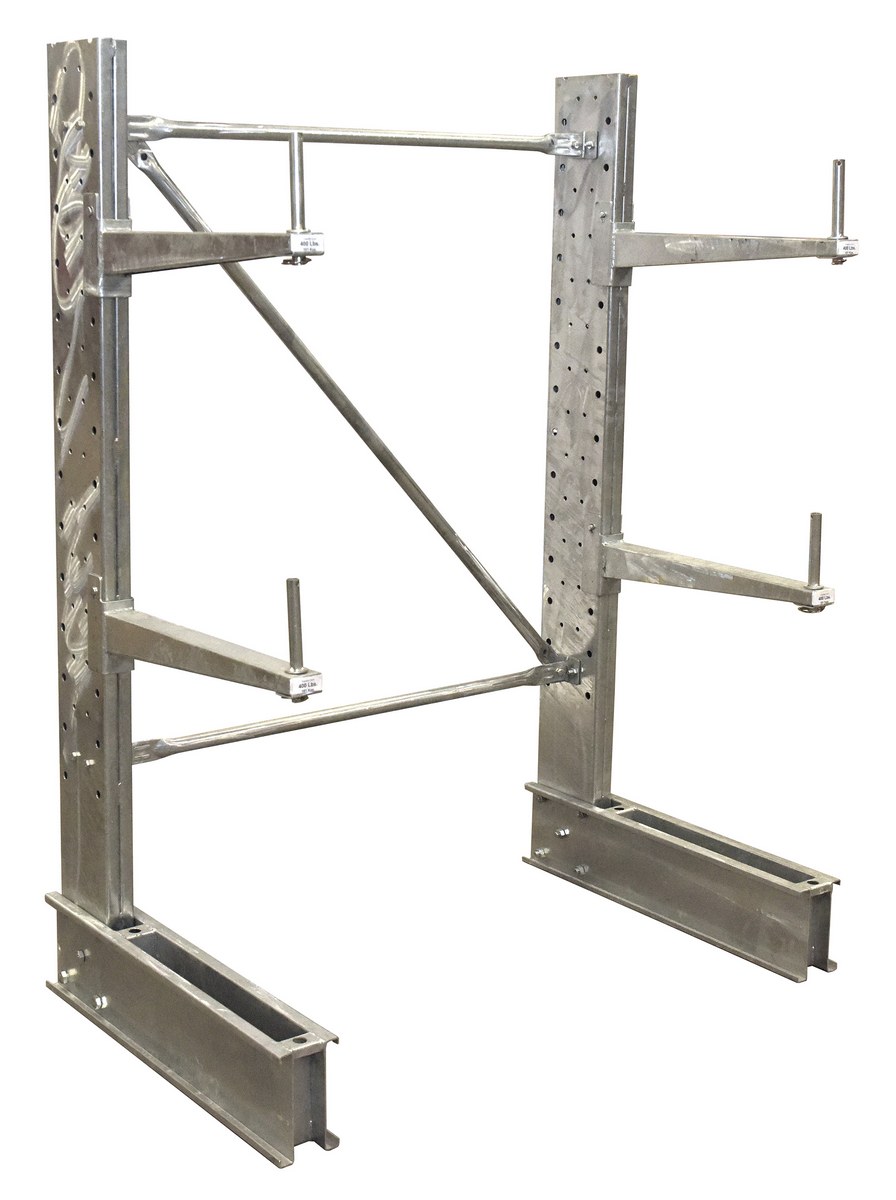

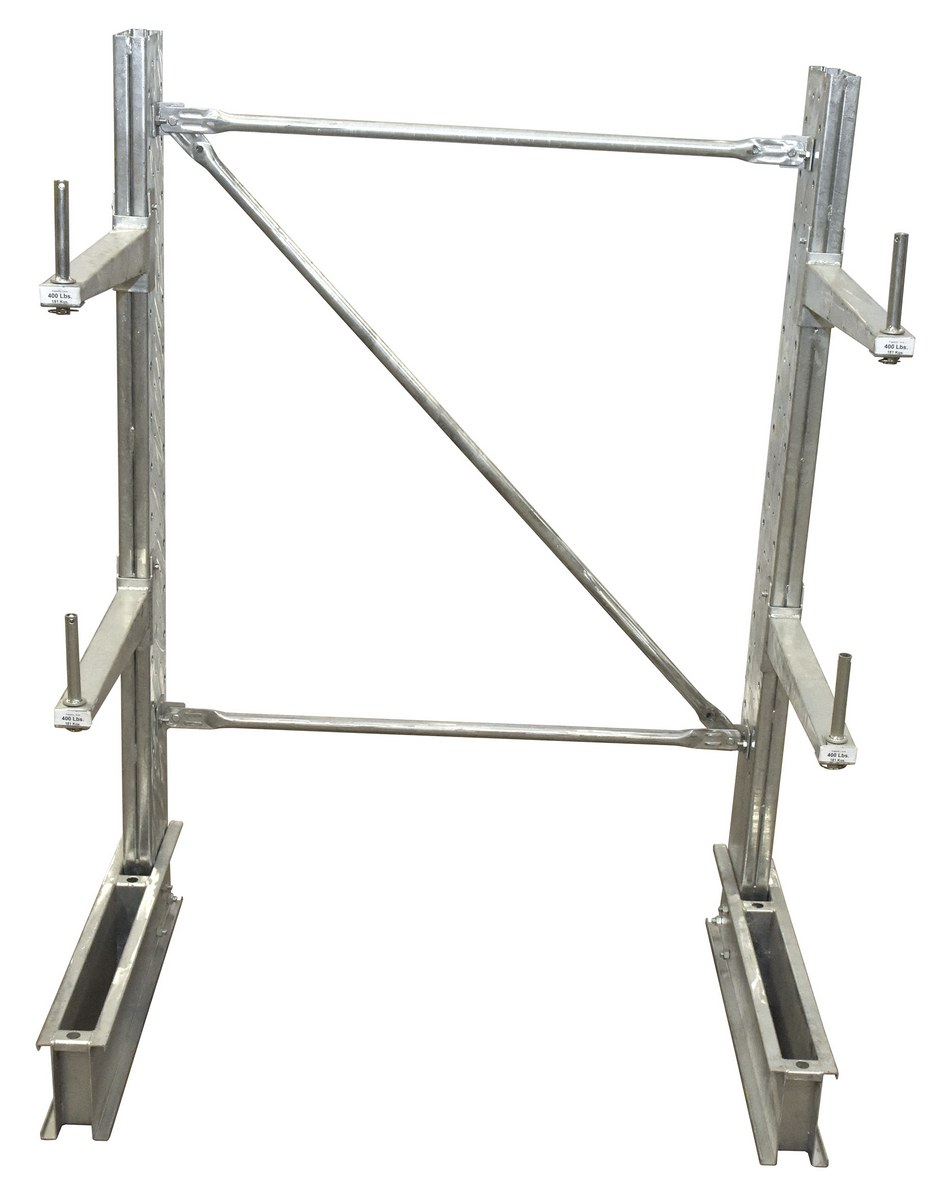

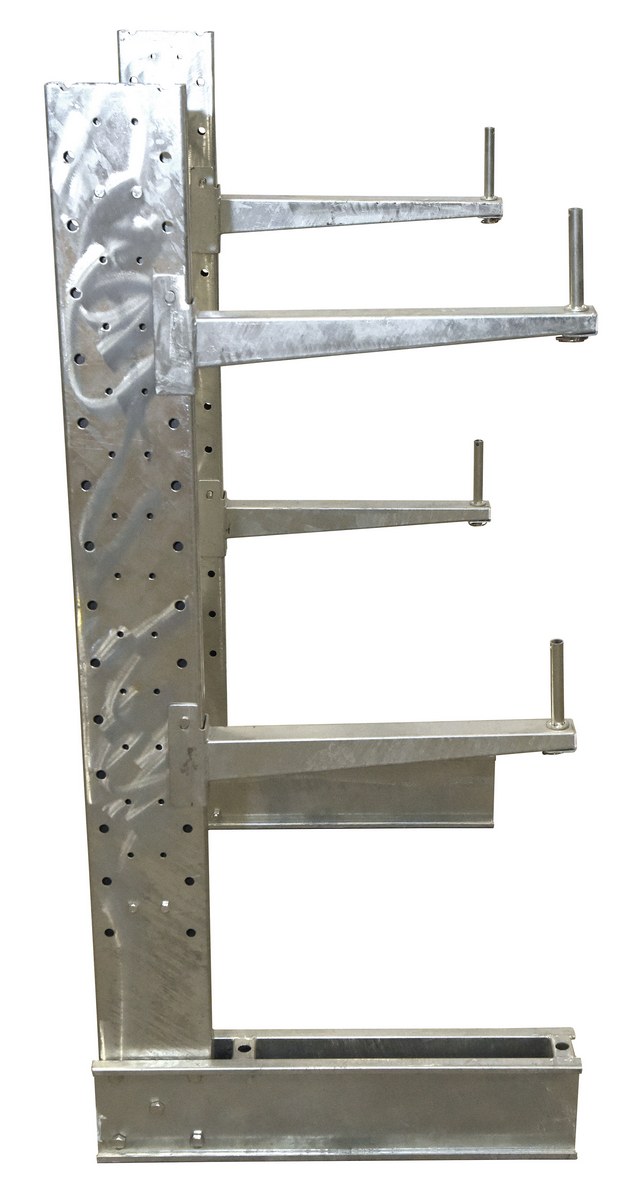

SU-C-6-24-G-SET SU-C-6-24-G-SET1 Year Limited WarrantyGalvanized Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 24 In. Arm Gray SetUniform Upright Capacity (lb.): 7,600
Uniform Level Capacity (lb.): 800		382

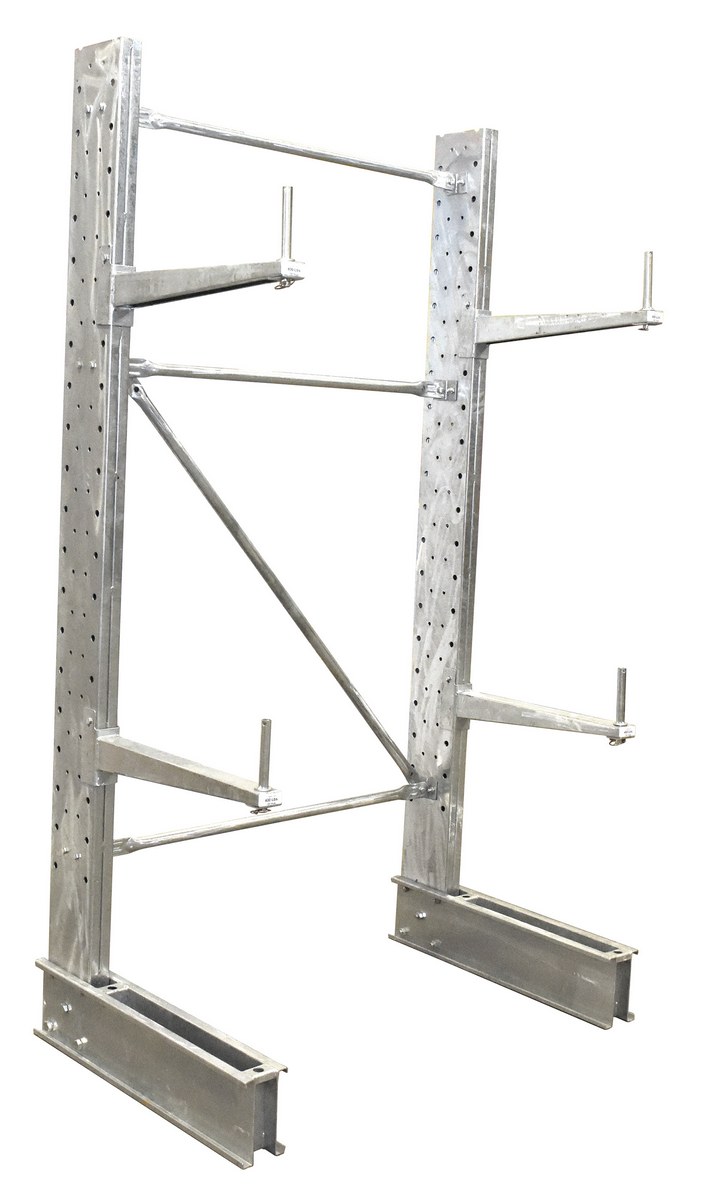

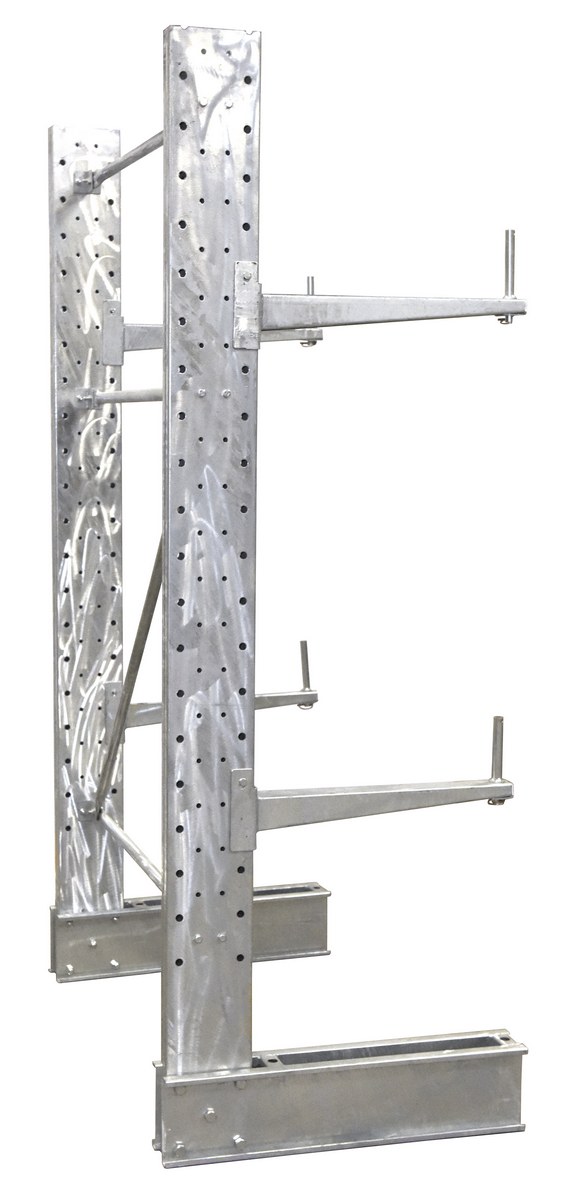

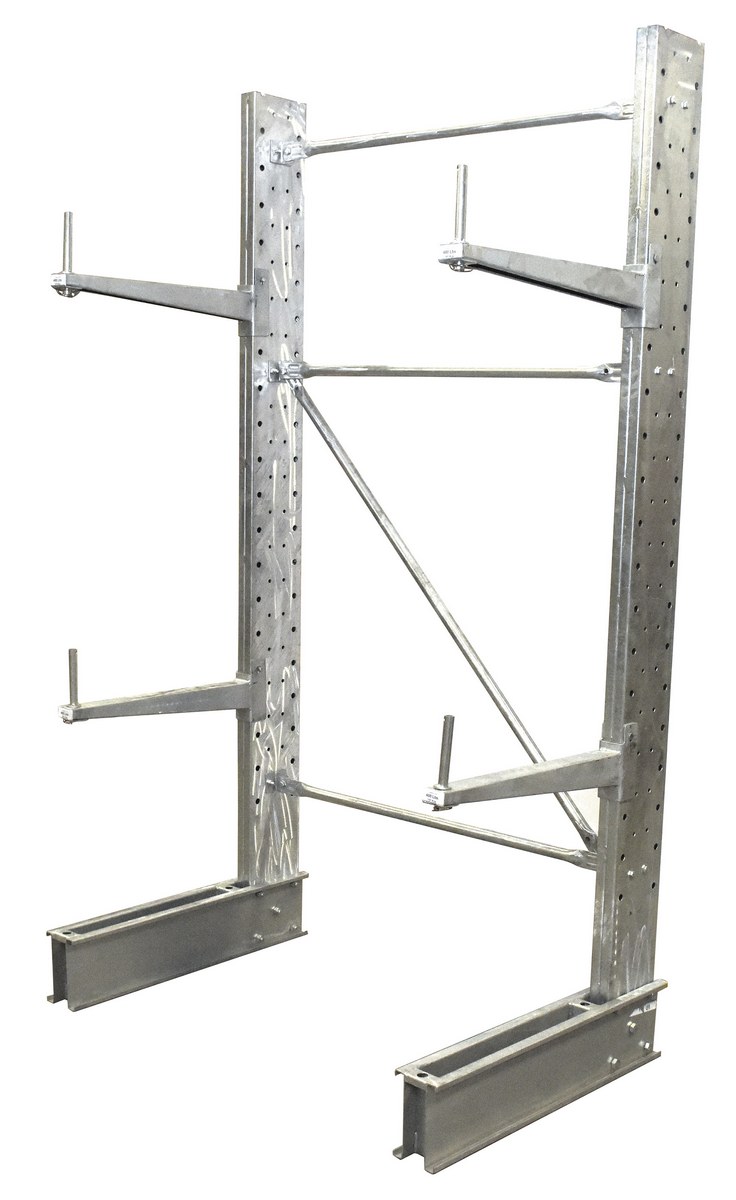

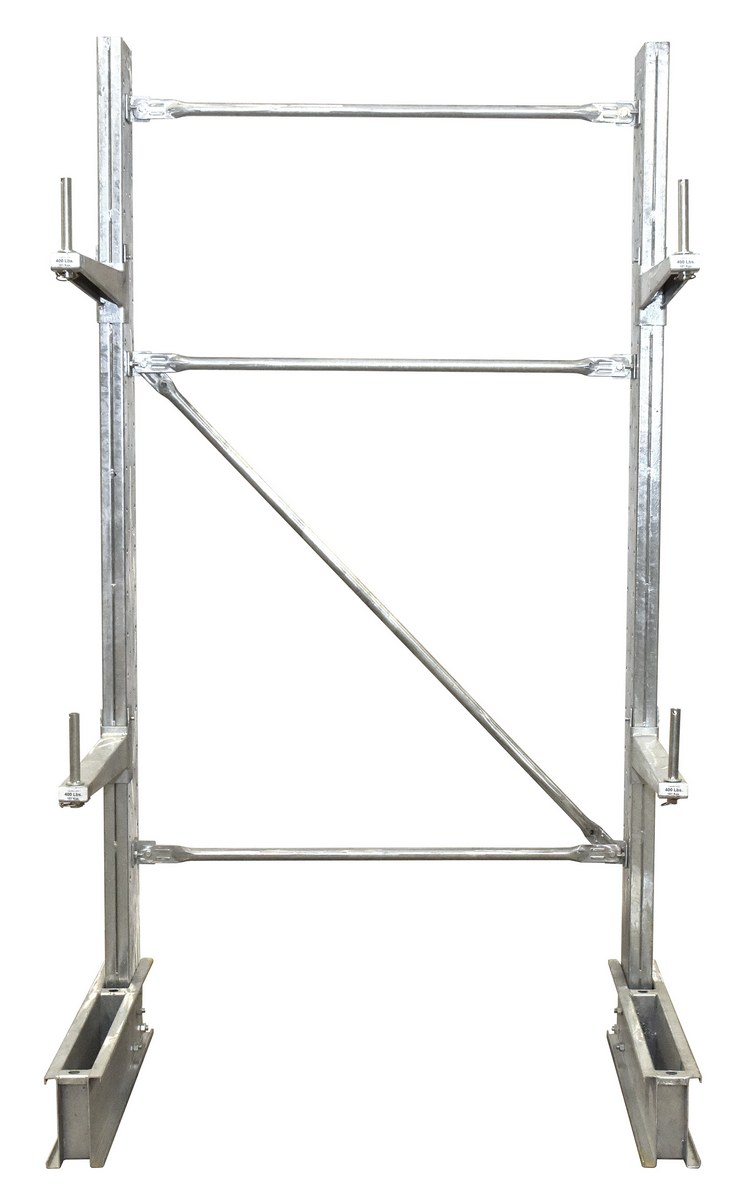

SU-C-8-24-G-SET SU-C-8-24-G-SET1 Year Limited WarrantyGalvanized Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 30 In. To 36 In. Arm Gray SetUniform Upright Capacity (lb.): 7,000
Uniform Level Capacity (lb.): 800		422

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HDU-C-8-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 86000
Uniform Level Capacity (lb.): 8,000
Uniform Upright Capacity (lb.): 86000
Uniform Level Capacity (lb.): 8,000

HDU-C-8-36-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 64000
Uniform Level Capacity (lb.): 4,800
Uniform Upright Capacity (lb.): 64000
Uniform Level Capacity (lb.): 4,800

HU-C-8-36-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 32,000
Uniform Level Capacity (lb.): 2,400
Uniform Upright Capacity (lb.): 32,000
Uniform Level Capacity (lb.): 2,400

MDU-C-6-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 22,000
Uniform Level Capacity (lb.): 2,400
Uniform Upright Capacity (lb.): 22,000
Uniform Level Capacity (lb.): 2,400

MDU-C-6-36-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 16,400
Uniform Level Capacity (lb.): 1,600
Uniform Upright Capacity (lb.): 16,400
Uniform Level Capacity (lb.): 1,600

MU-C-6-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 11,000
Uniform Level Capacity (lb.): 1,200
Uniform Capacity Per Upright (lb.): 11,000
Uniform Level Capacity (lb.): 1,200

MU-C-8-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Upright (lb.): 10,600
Uniform Level Capacity (lb.): 1,200
Uniform Capacity Per Upright (lb.): 10,600
Uniform Level Capacity (lb.): 1,200

SDU-C-6-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 15,400
Uniform Level Capacity (lb.): 1,600
Uniform Upright Capacity (lb.): 15,400
Uniform Level Capacity (lb.): 1,600

SDU-C-6-36-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 10,400
Uniform Level Capacity (lb.): 800
Uniform Upright Capacity (lb.): 10,400
Uniform Level Capacity (lb.): 800

SU-C-6-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 7,600
Uniform Level Capacity (lb.): 800
Uniform Upright Capacity (lb.): 7,600
Uniform Level Capacity (lb.): 800

SU-C-8-24-G-SET
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Upright Capacity (lb.): 7,000
Uniform Level Capacity (lb.): 800
Uniform Upright Capacity (lb.): 7,000
Uniform Level Capacity (lb.): 800
Galvanized Cantilever Rack Kits PDF's will open in a new window when clicked.

Manuals


MDU
Owners Manual

MU-C
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


HDU-C-8-24-G-SET

HDU-C-8-36-G-SET

HU-C-8-36-G-SET

MDU-C-6-24-G-SET

MDU-C-6-36-G-SET

MU-C-6-24-G-SET

MU-C-8-24-G-SET

SDU-C-6-24-G-SET

SDU-C-6-36-G-SET

SU-C-6-24-G-SET

SU-C-8-24-G-SET

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the weight capacity or each arm for HU-C-8-36-G-SET?

A: Maximum arm capacity - 2400 lbs.
