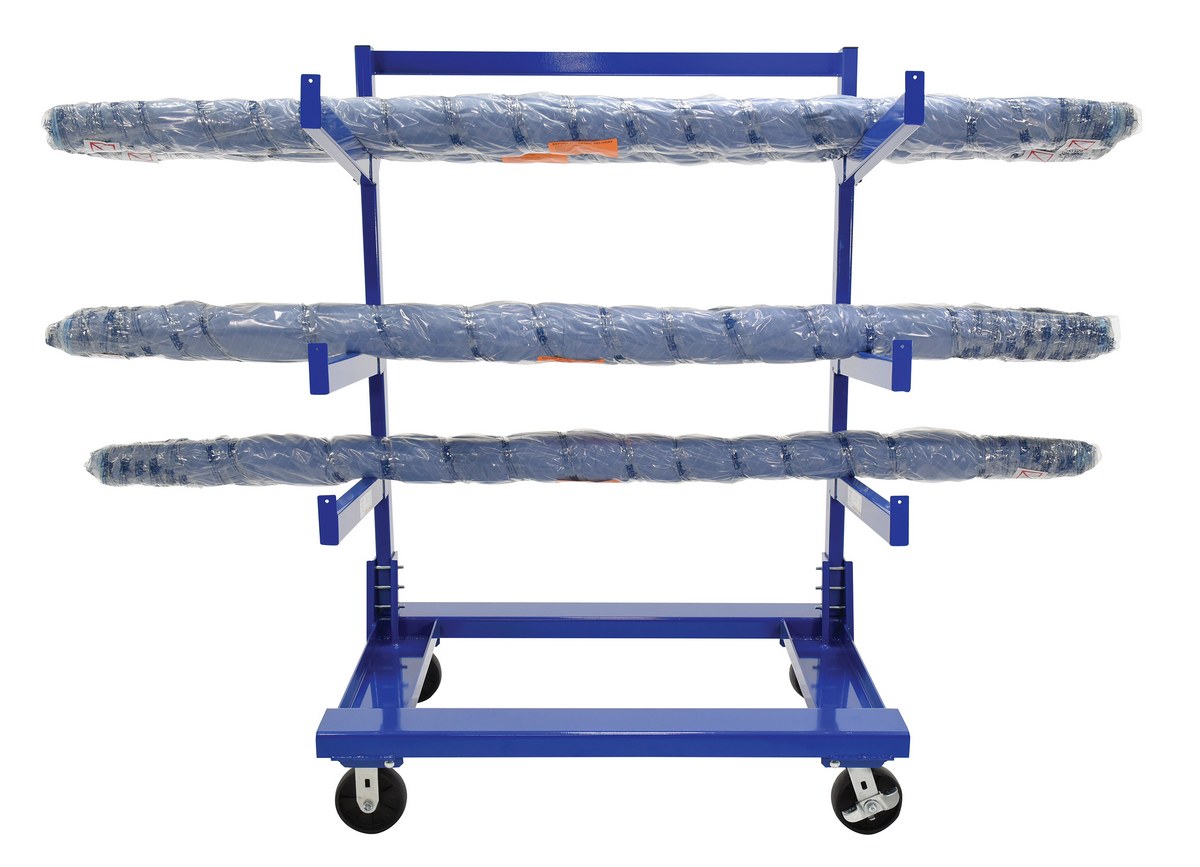

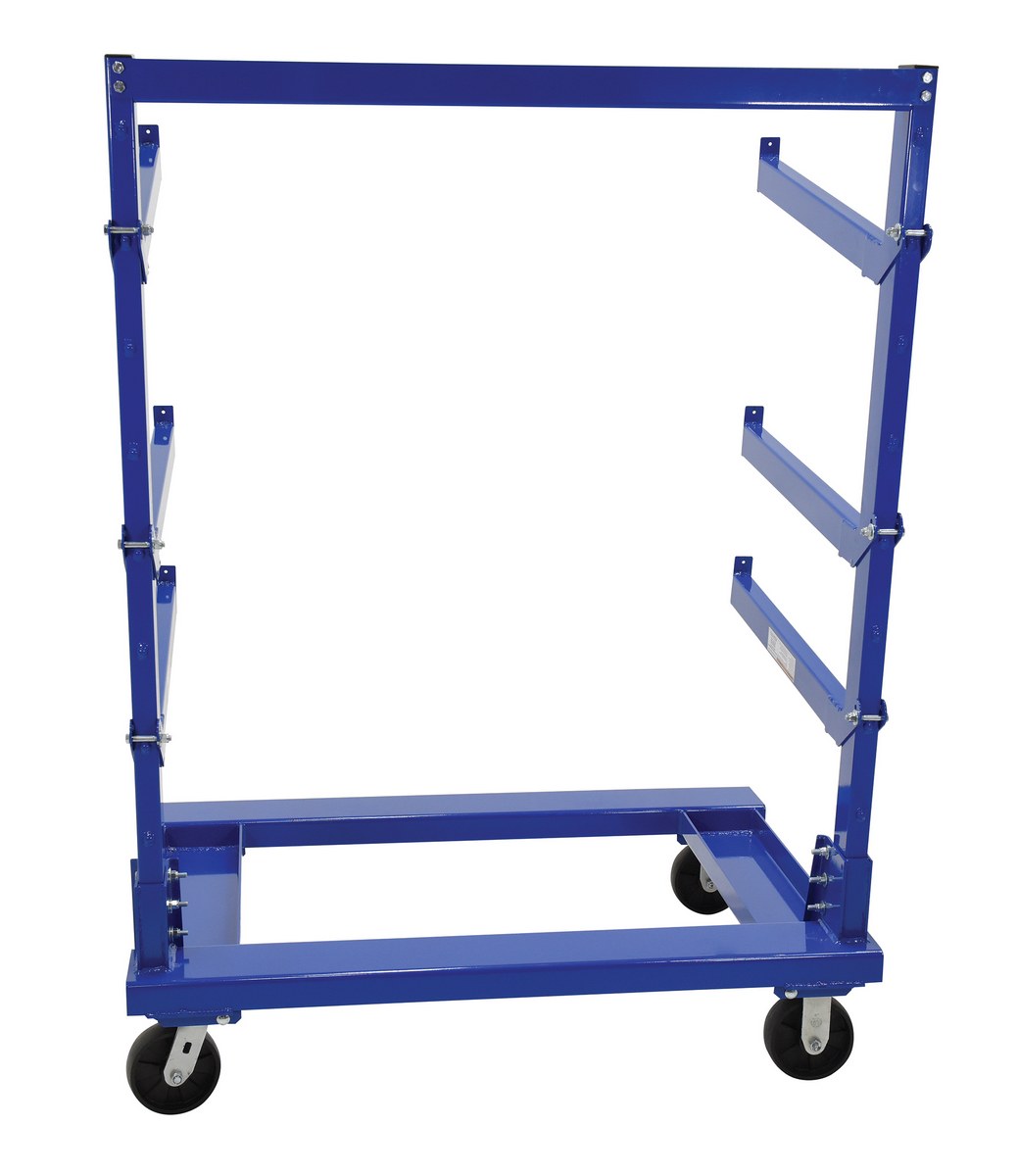

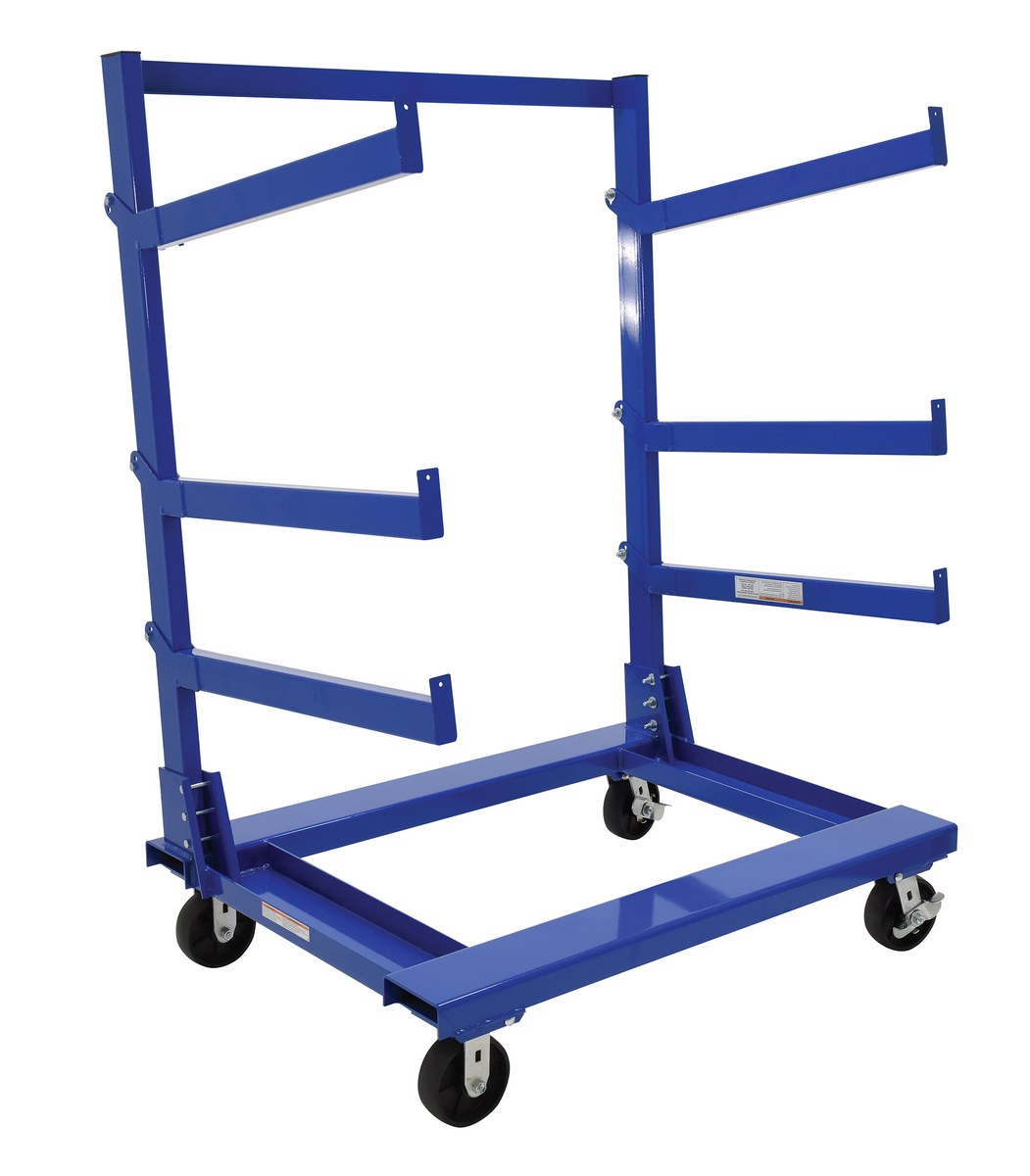

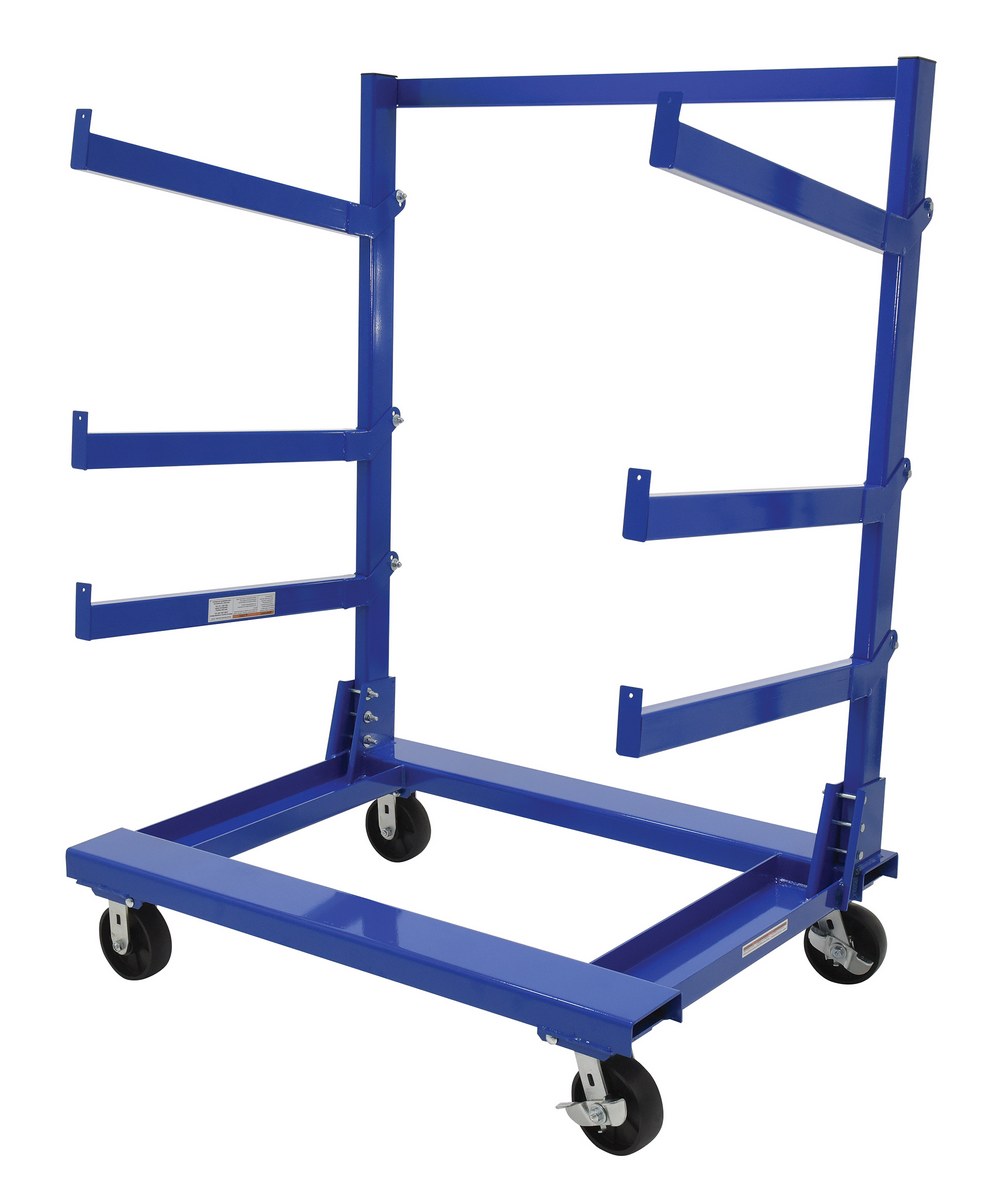

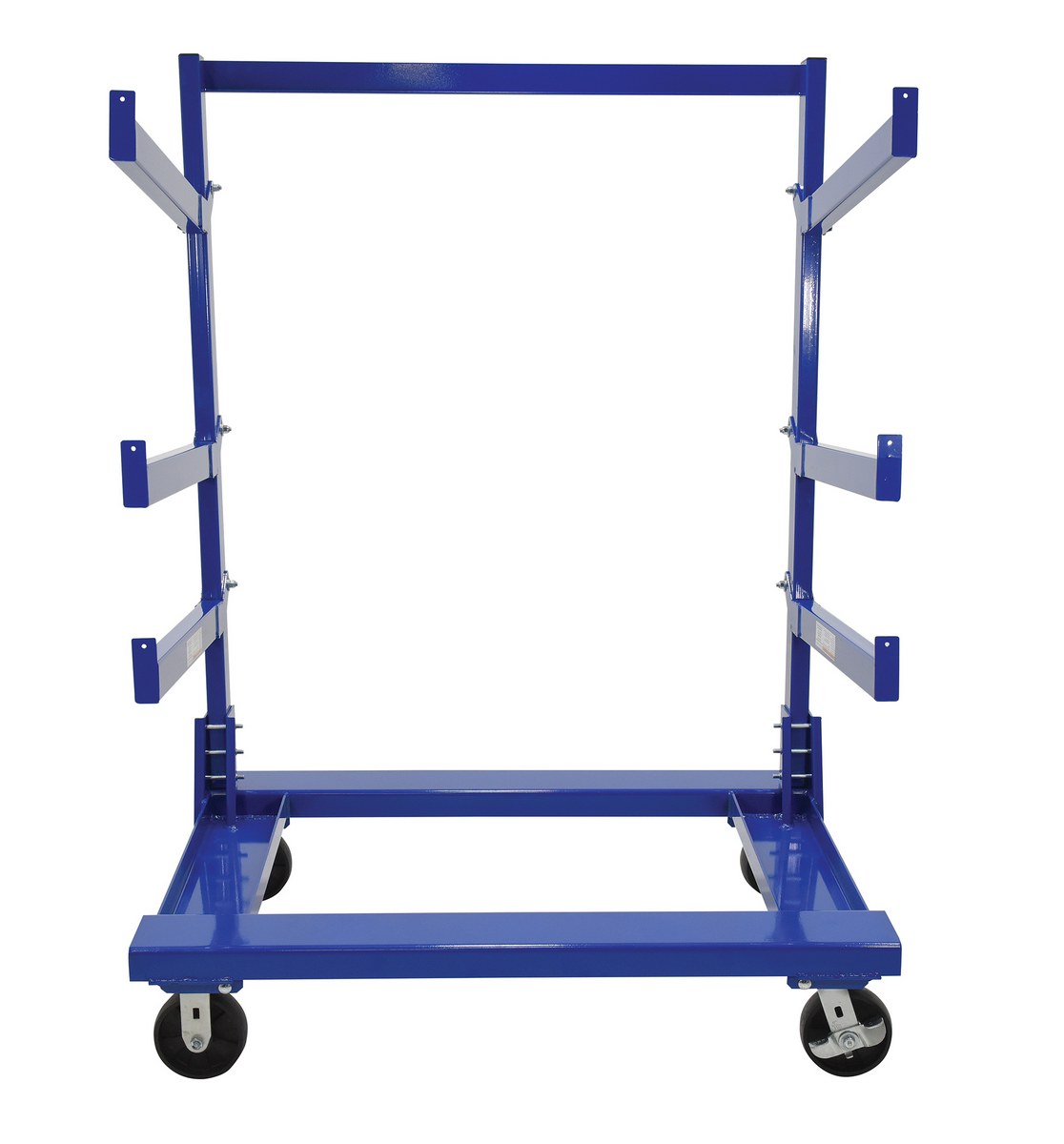

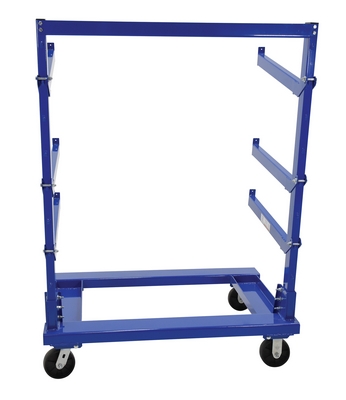

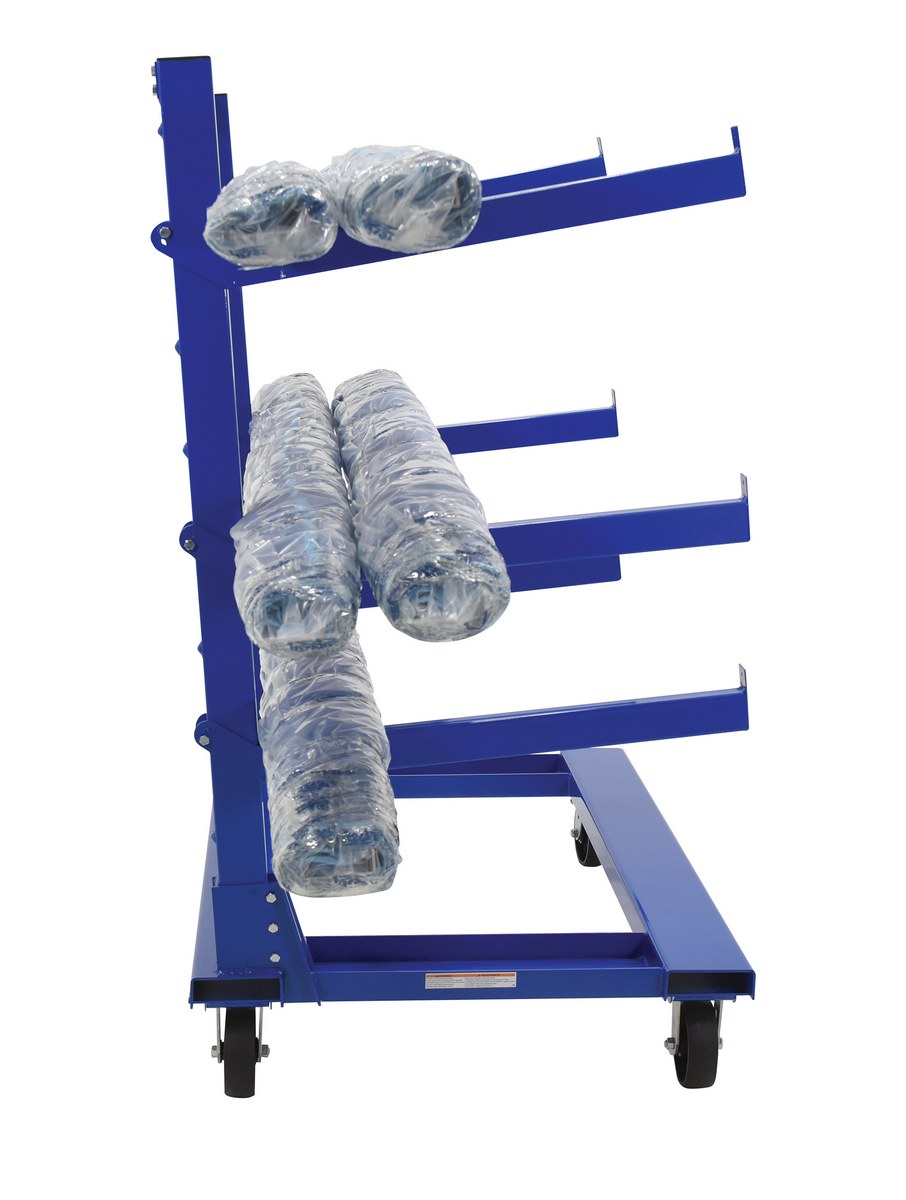

CANT-3648_E.jpg CANT-3648_F.jpg CANT-3648_A.jpg CANT-3648_B.jpg
CANT-3648_C.jpg CANT-3648_D.jpg
Cantilever Carts

model: CANT-3648



Featured Storage Solutions:


Pallet Rack Security Gates
Racking Place Card Labels
Pallet Support Bars
Pallet Rack Wire Decking
Pallet Rack Gravity Flow Shelves
Storage Lockers
Pallet Rack Back Guards
Various Racking
Foam Edge Guards
model chart

Product Family Overview

Print Friendly
Cantilever Carts
SERIES: CANT

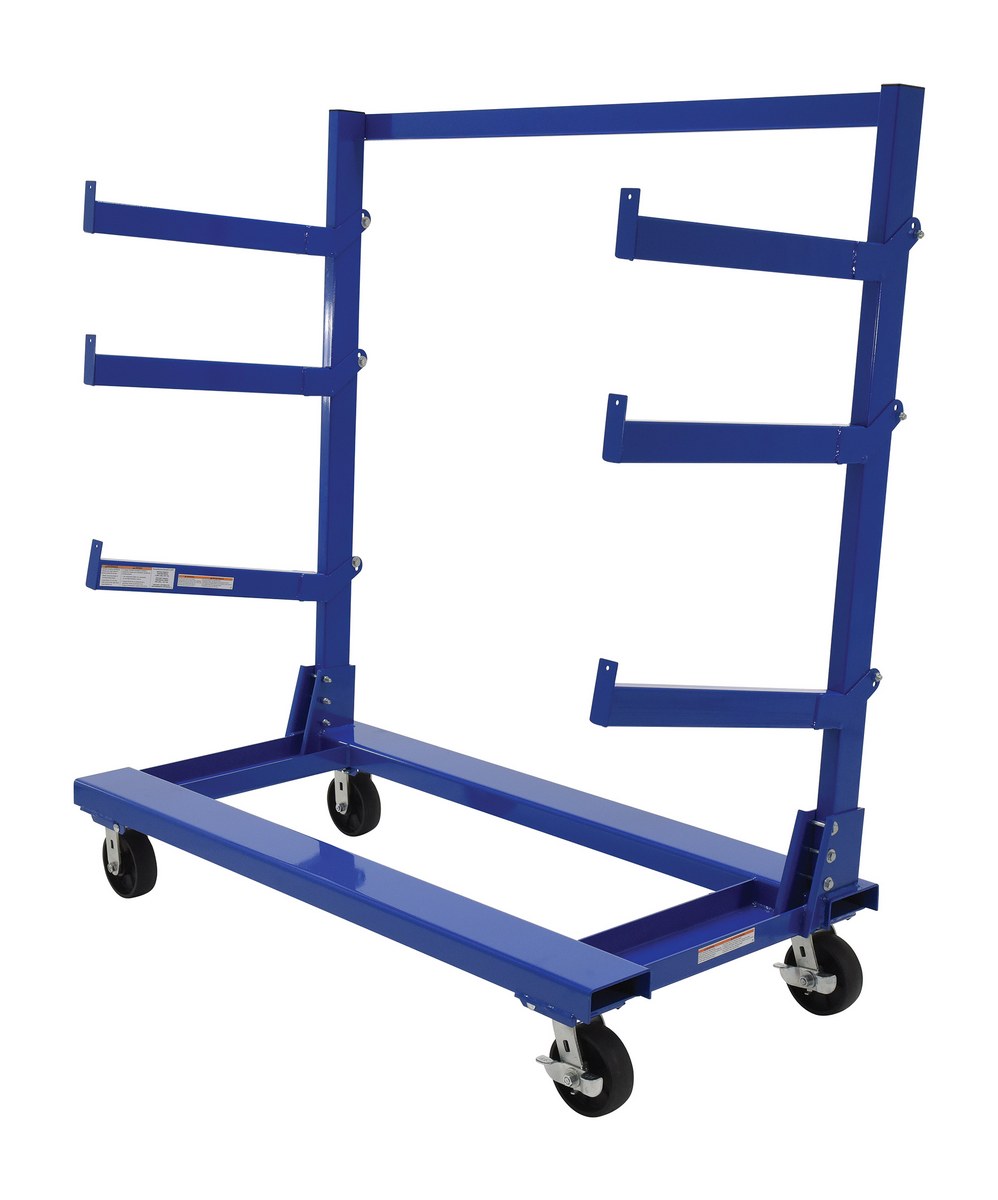

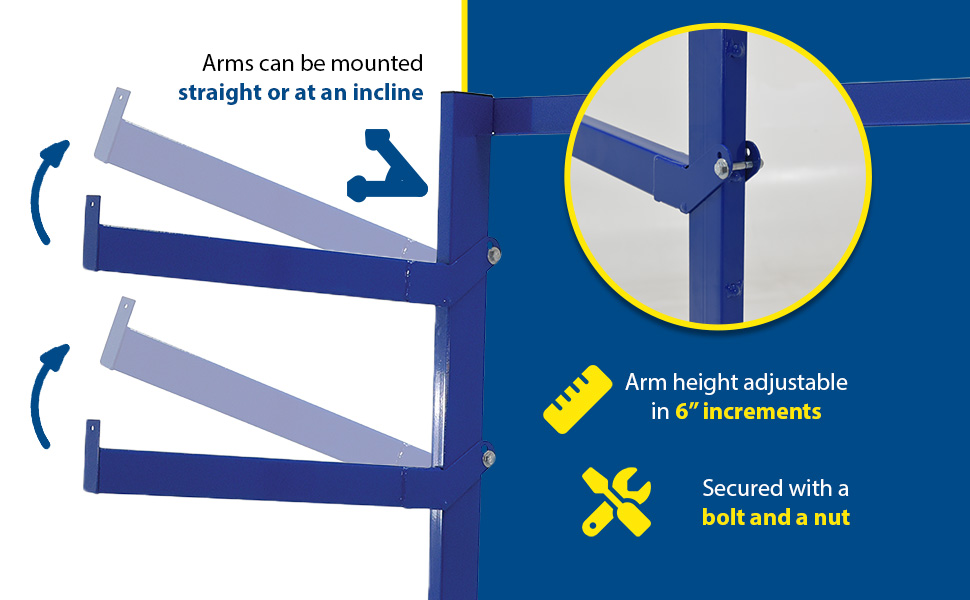

Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.

  • Ideal for storage of bar stock type items
  • Includes three pairs of arms, secured with a bolt and nut
  • Adjustable arm height in six inch increments
  • Base includes built in fork pockets for easy transportation

Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.

  • Ideal for storage of bar stock type items
  • Includes three pairs of arms, secured with a bolt and nut
  • Adjustable arm height in six inch increments
  • Base includes built in fork pockets for easy transportation

Other Various Racking

 Vertical Bar Storage Racks Internestable Stackable Racks Carton Flow Racks Economical Material Racks

Additional Models In This Family
view entire Image Gallery

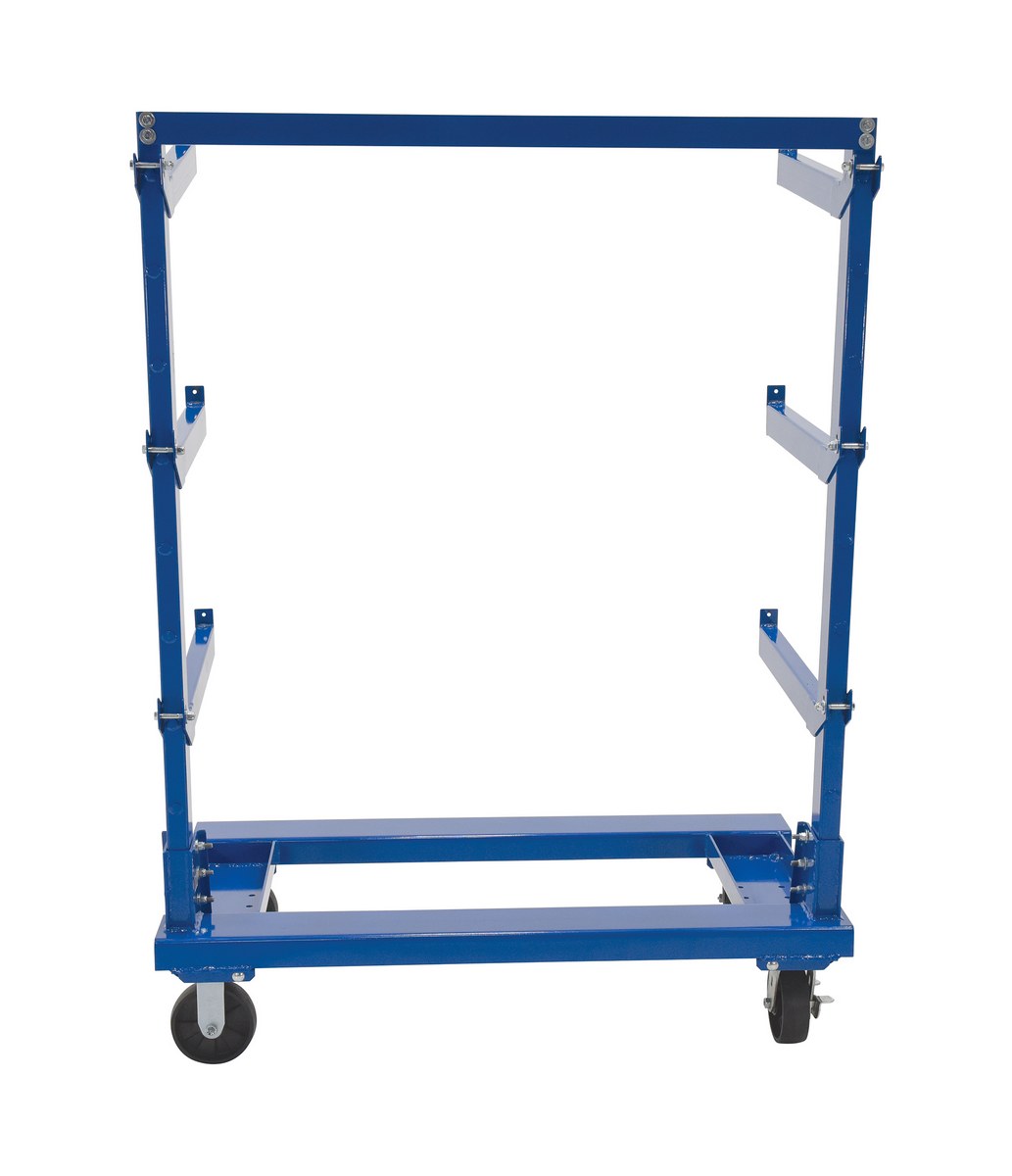

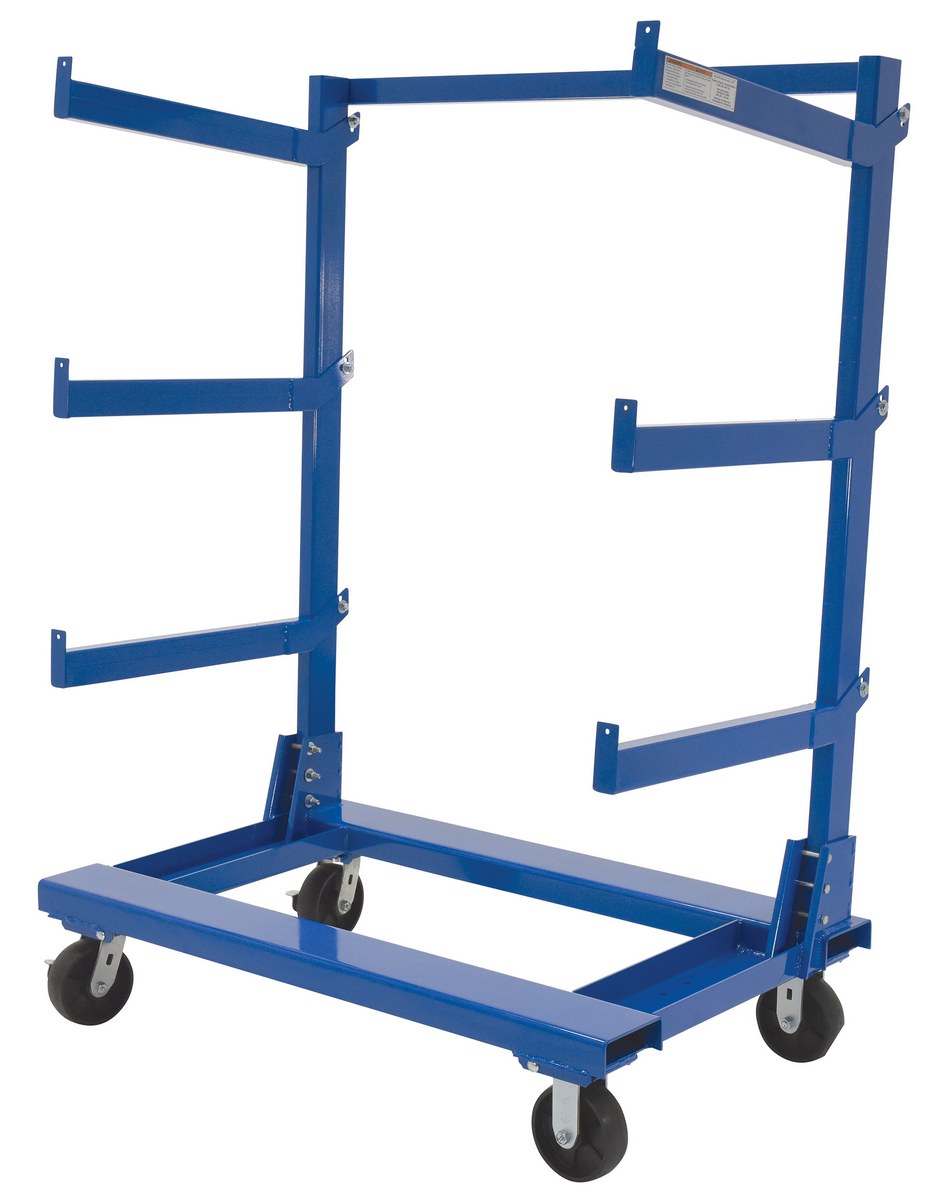

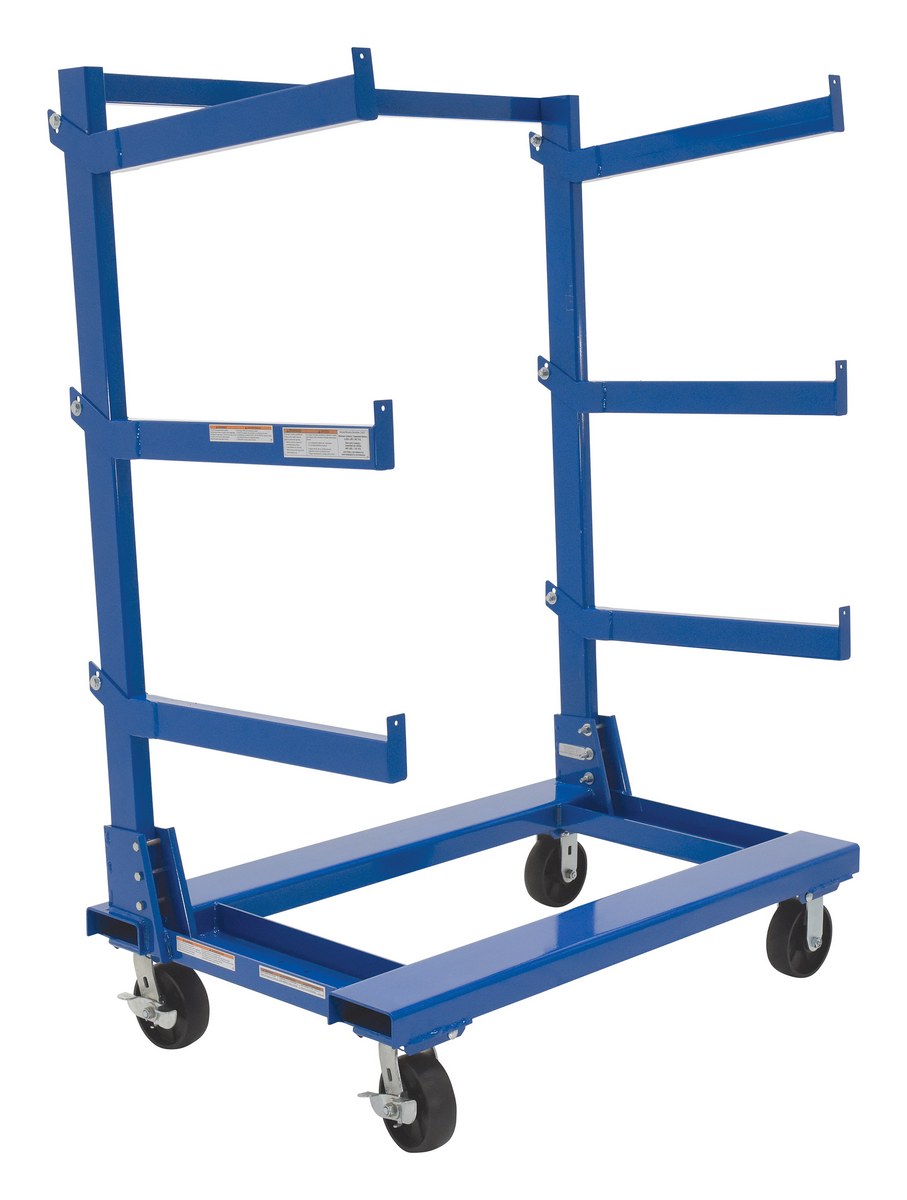

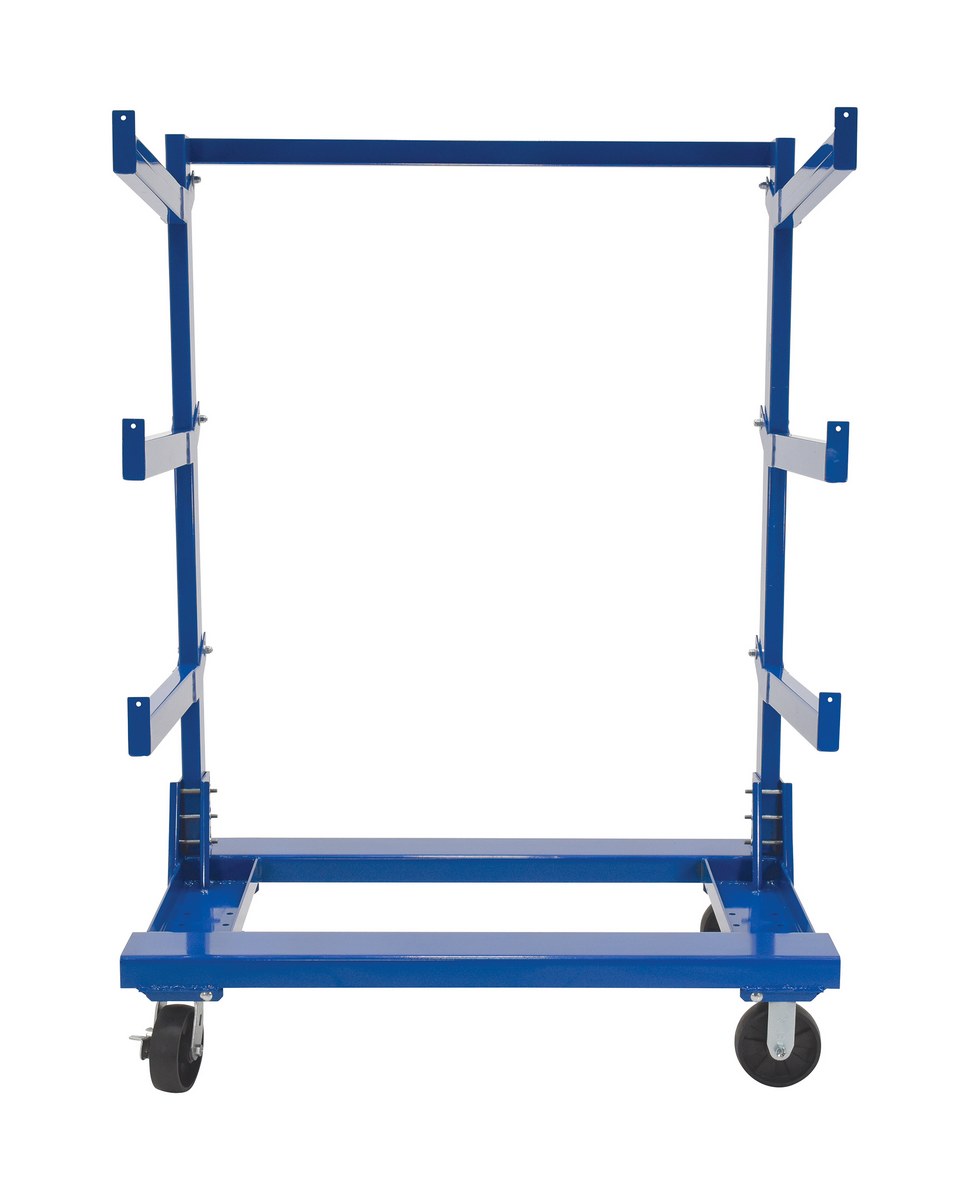

CANT-3048

model CANT-3048

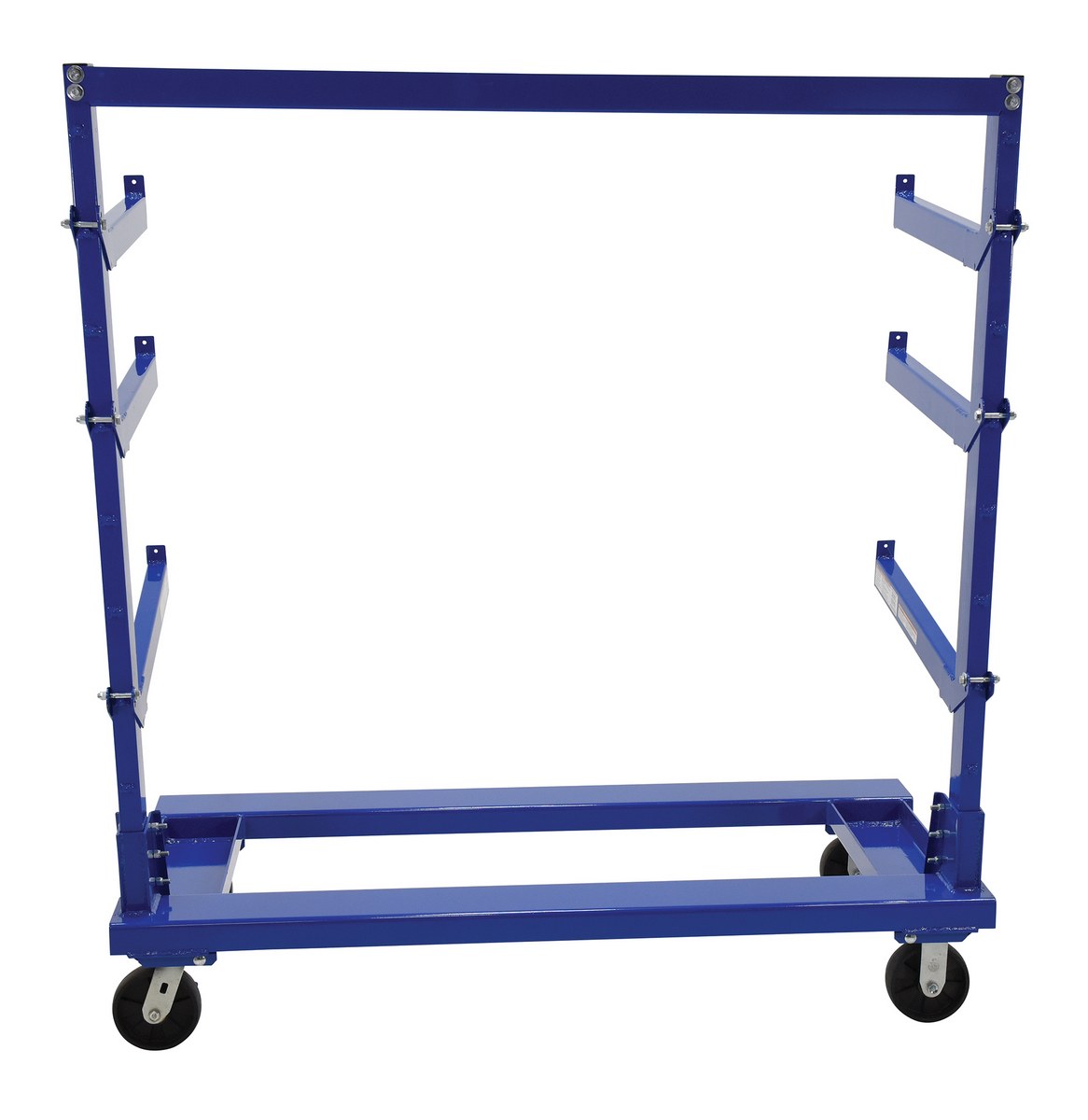

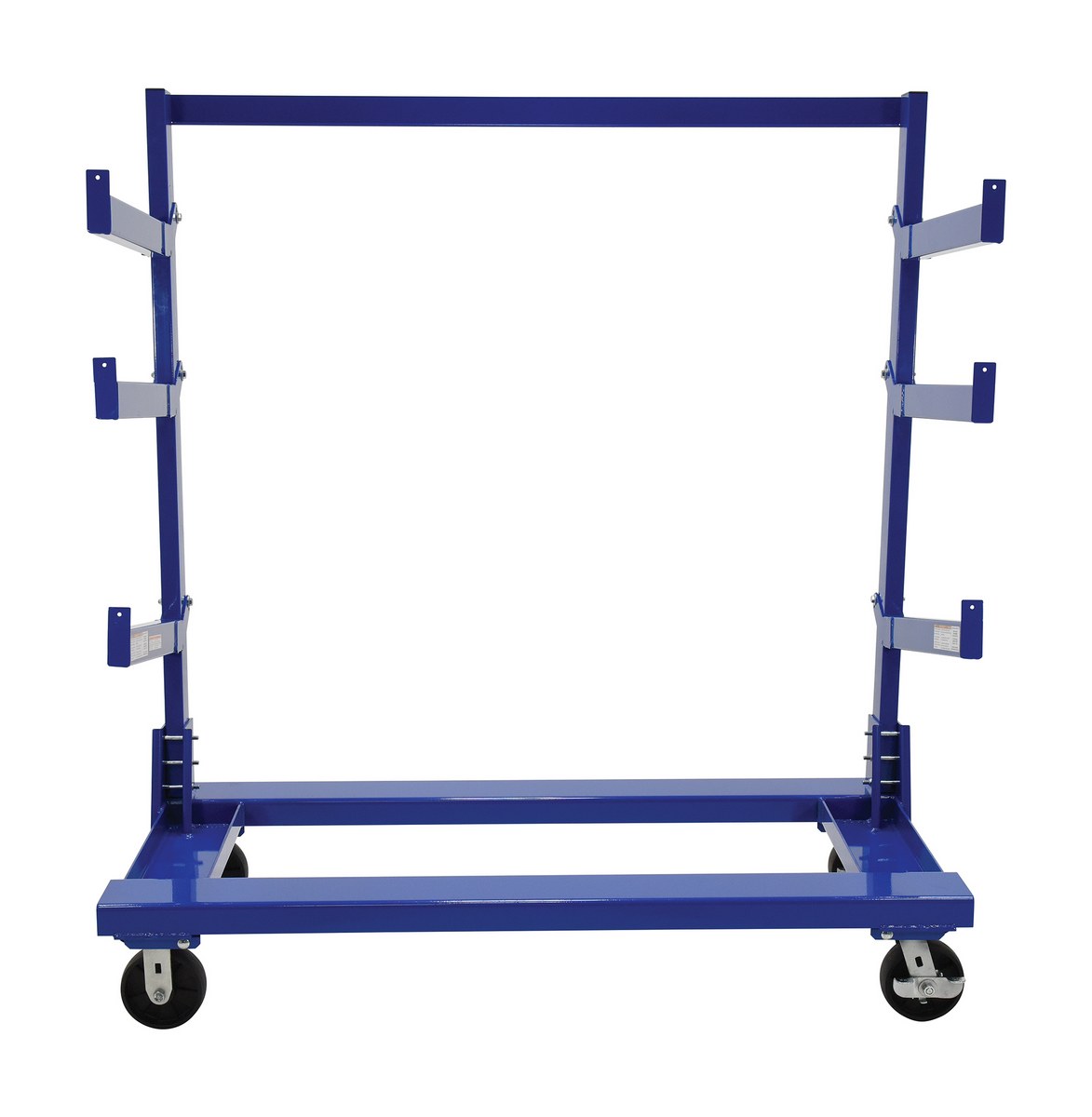

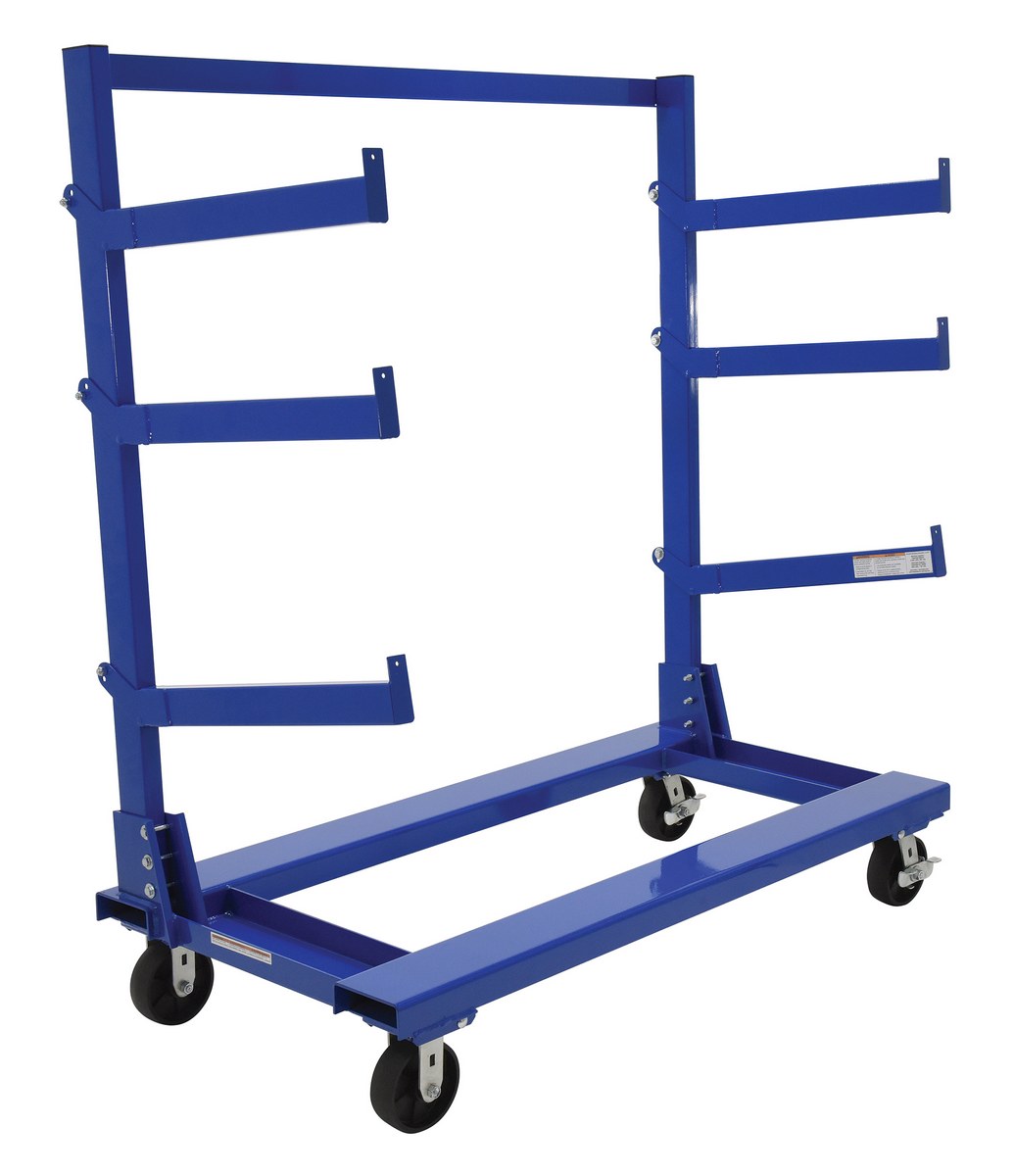

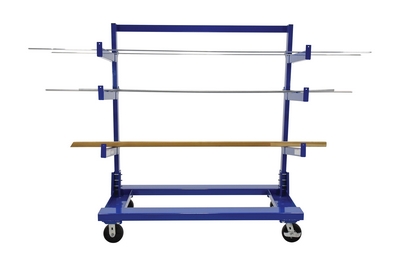

CANT-3060

model CANT-3060

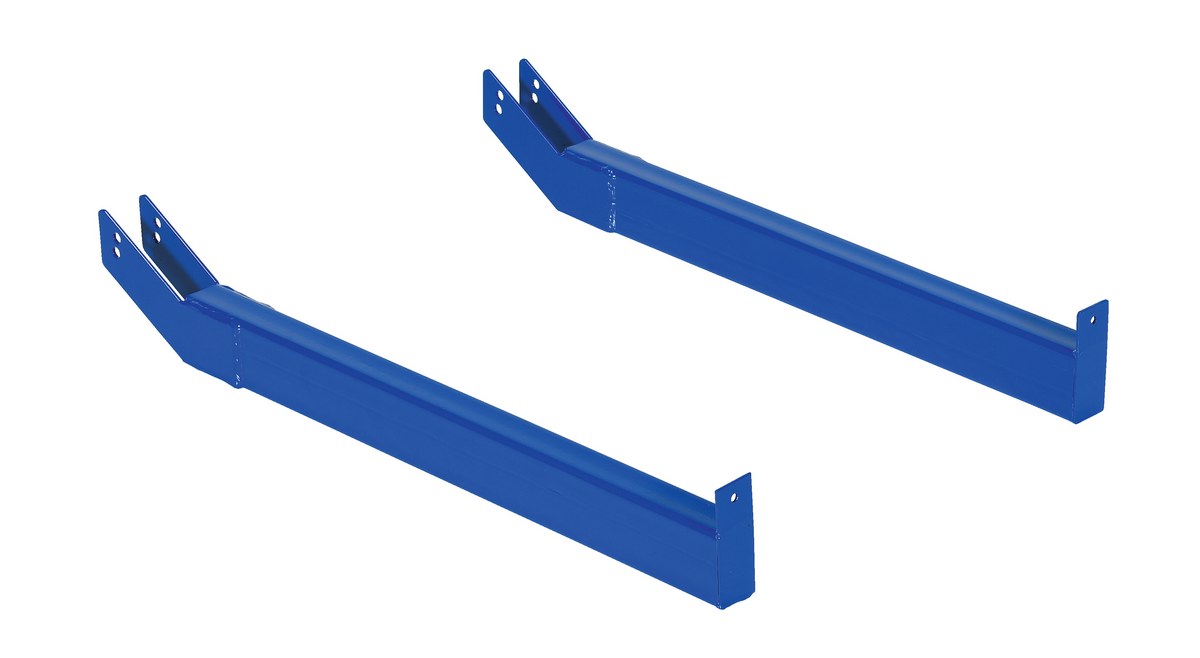

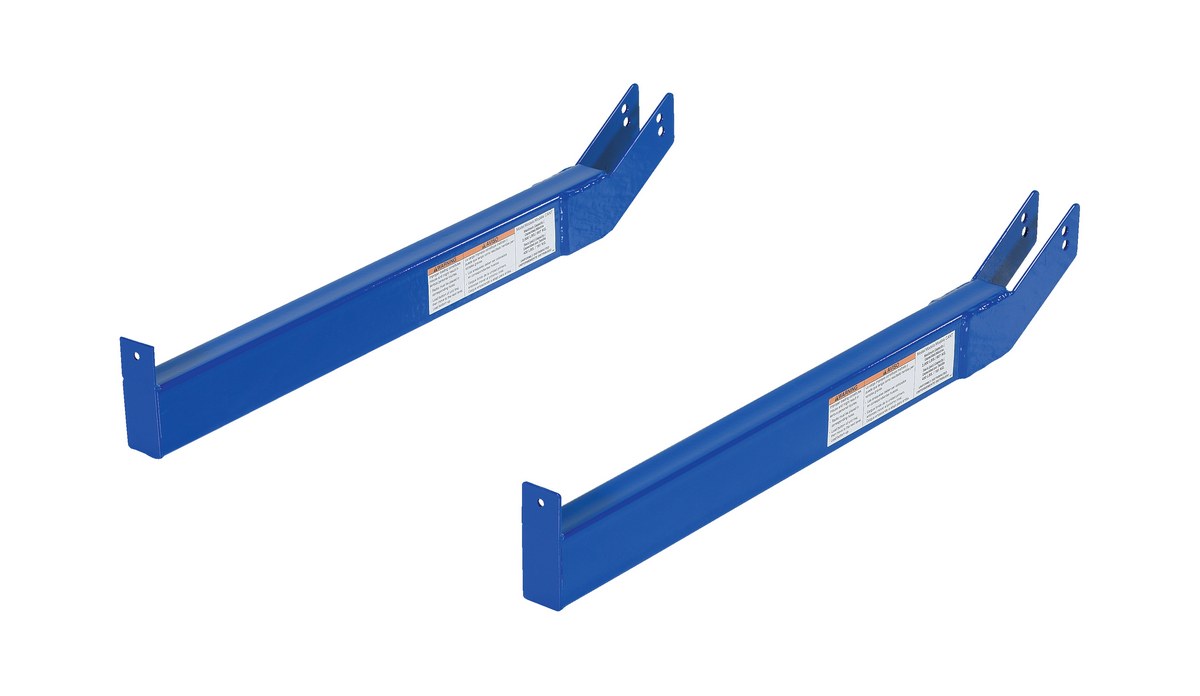

CANT-A30

model CANT-A30

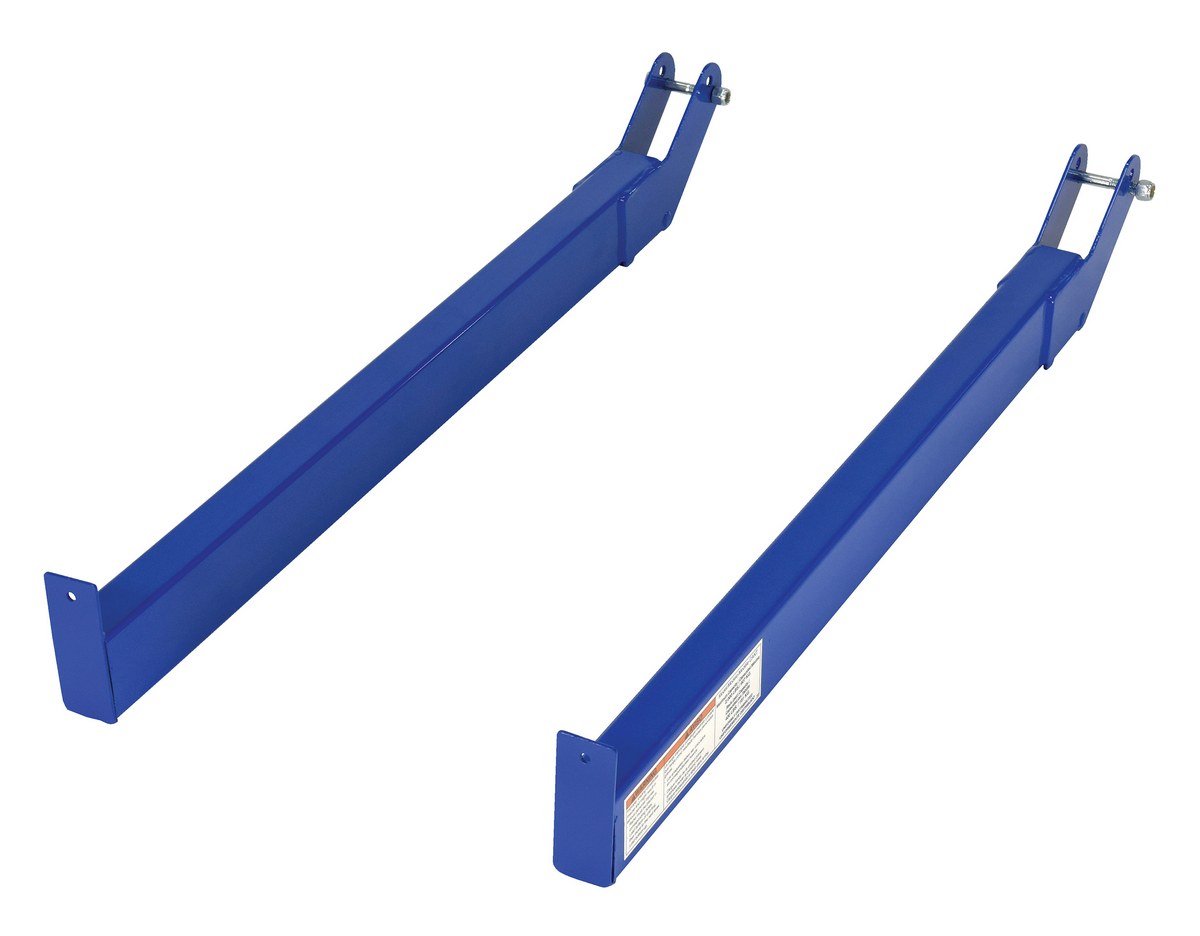

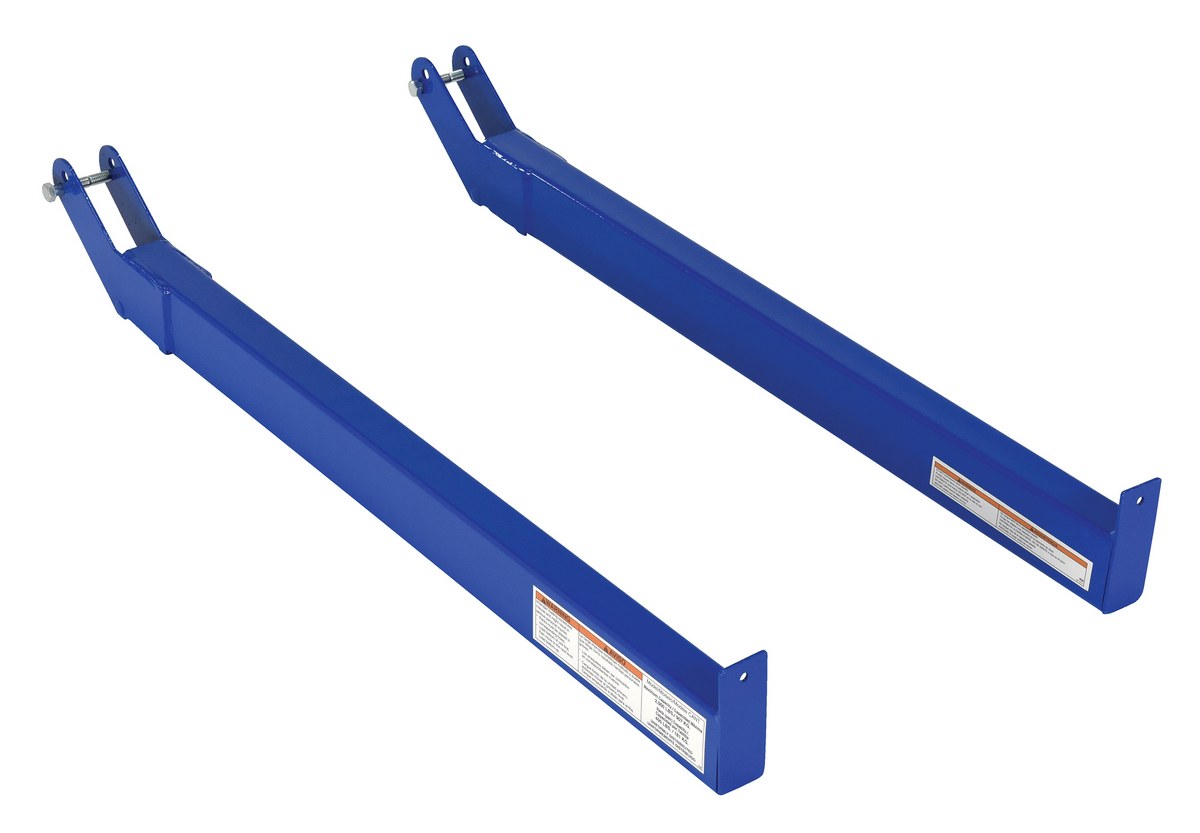

CANT-A36

model CANT-A36

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

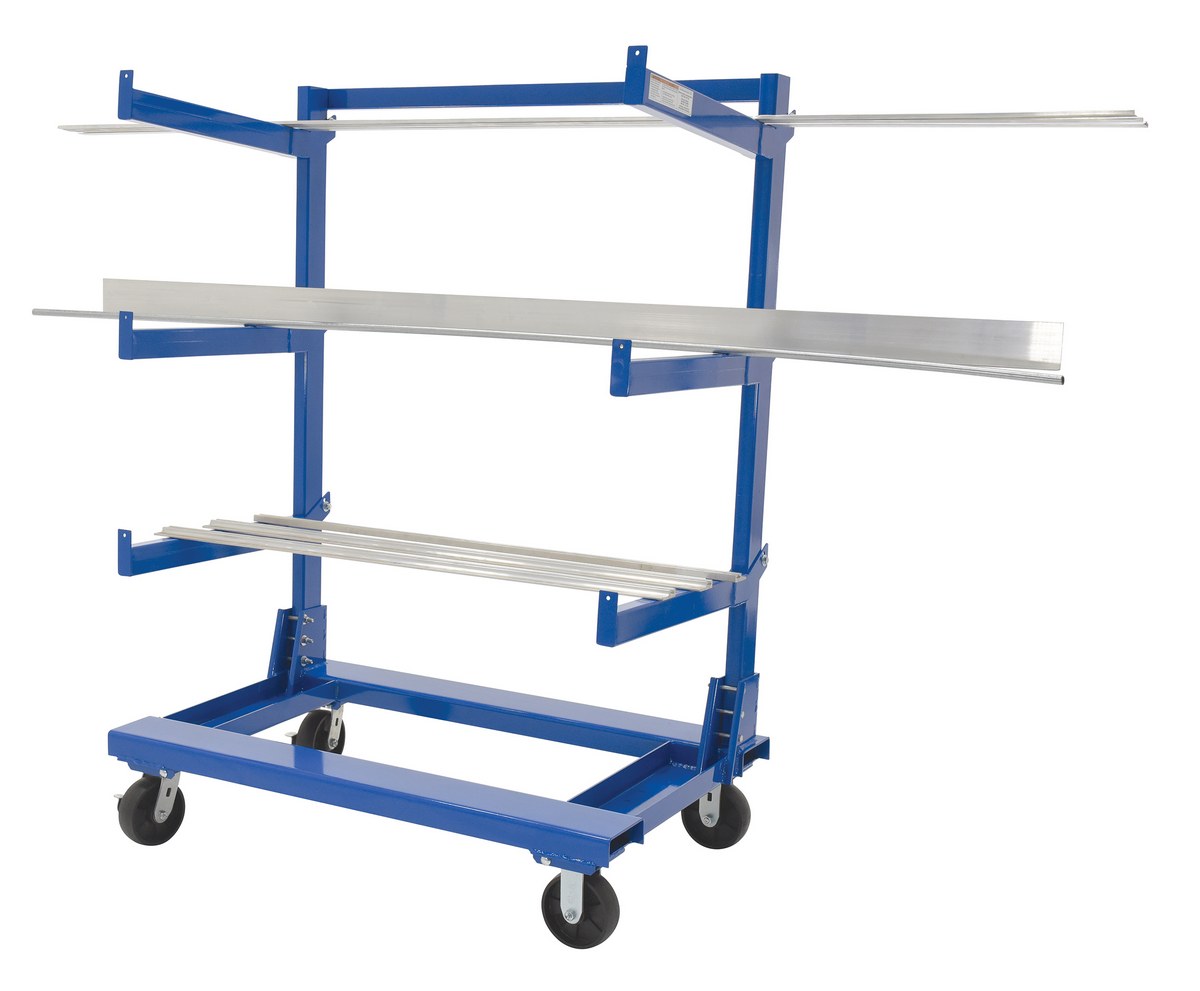

CANT-3048 CANT-304890 Days Limited WarrantySteel Portable Cantilever Cart 30 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		212

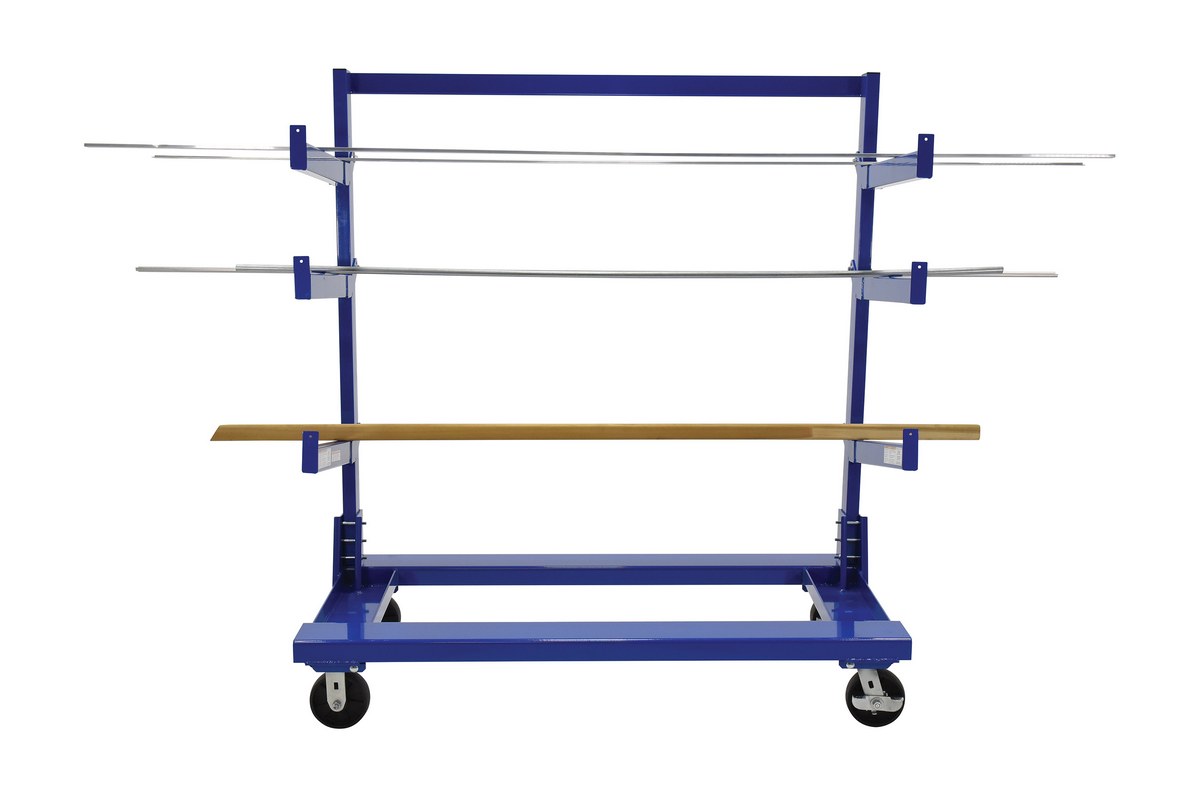

CANT-3060 CANT-306090 Days Limited WarrantySteel Portable Cantilever Cart 30 In. x 60 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		225
CANT-3648 CANT-364890 Days Limited WarrantySteel Portable Cantilever Cart 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		226

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

CANT-3048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400

CANT-3060
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400

CANT-3648
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
Uniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400
For More Details of the Option Click the Red Model Button

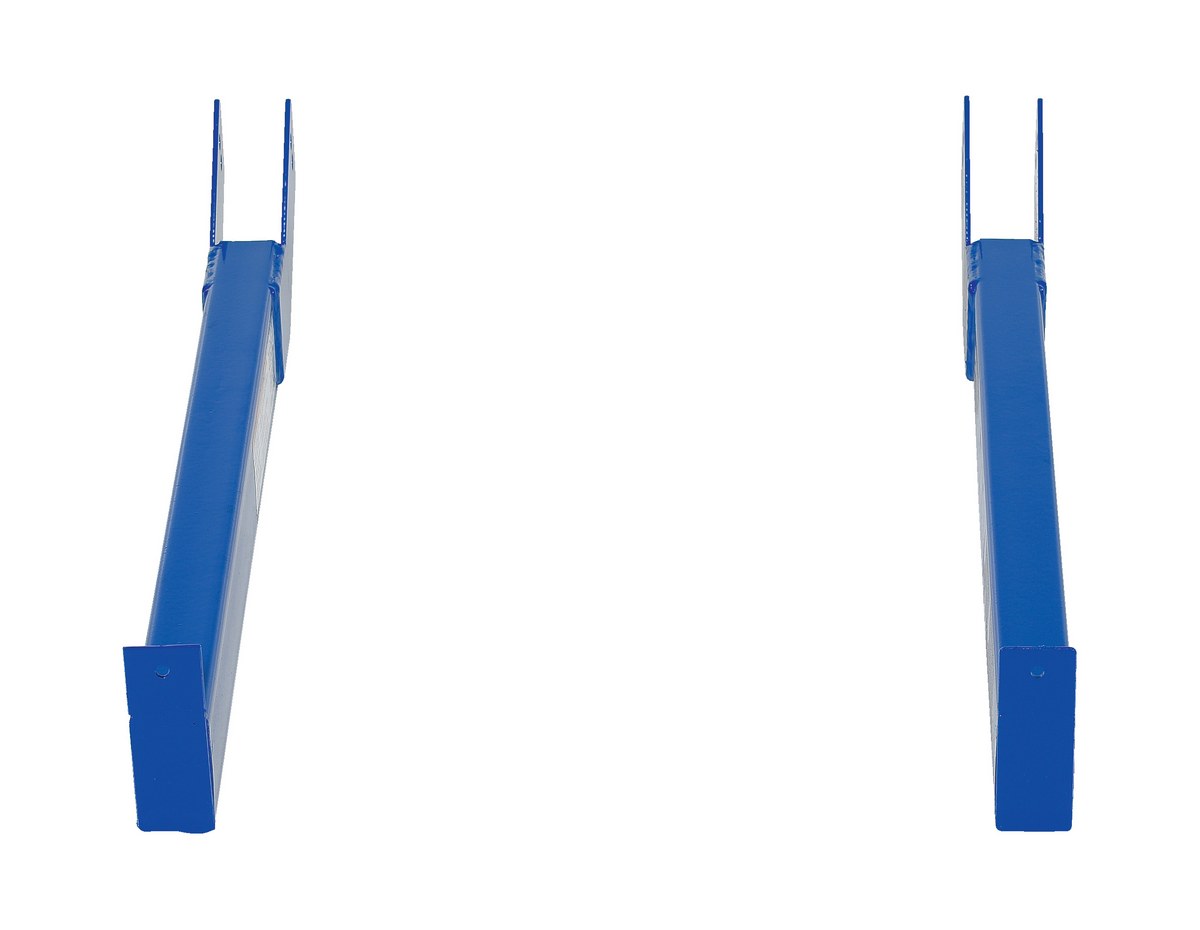

CANT-A30 CANT-A3090 Days Limited WarrantySteel Portable Cantilever Cart Arms 24 In. BlueUniform Capacity (lb.): 400
Component: Arms		12

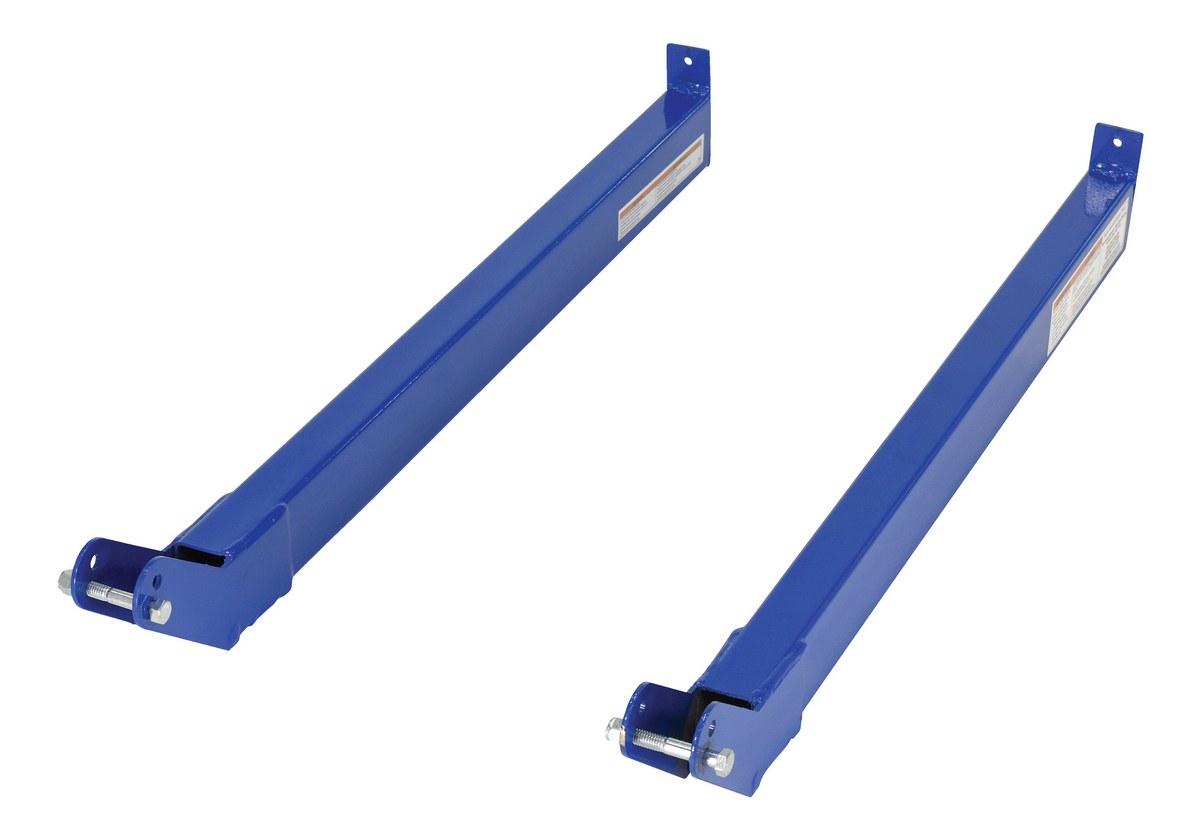

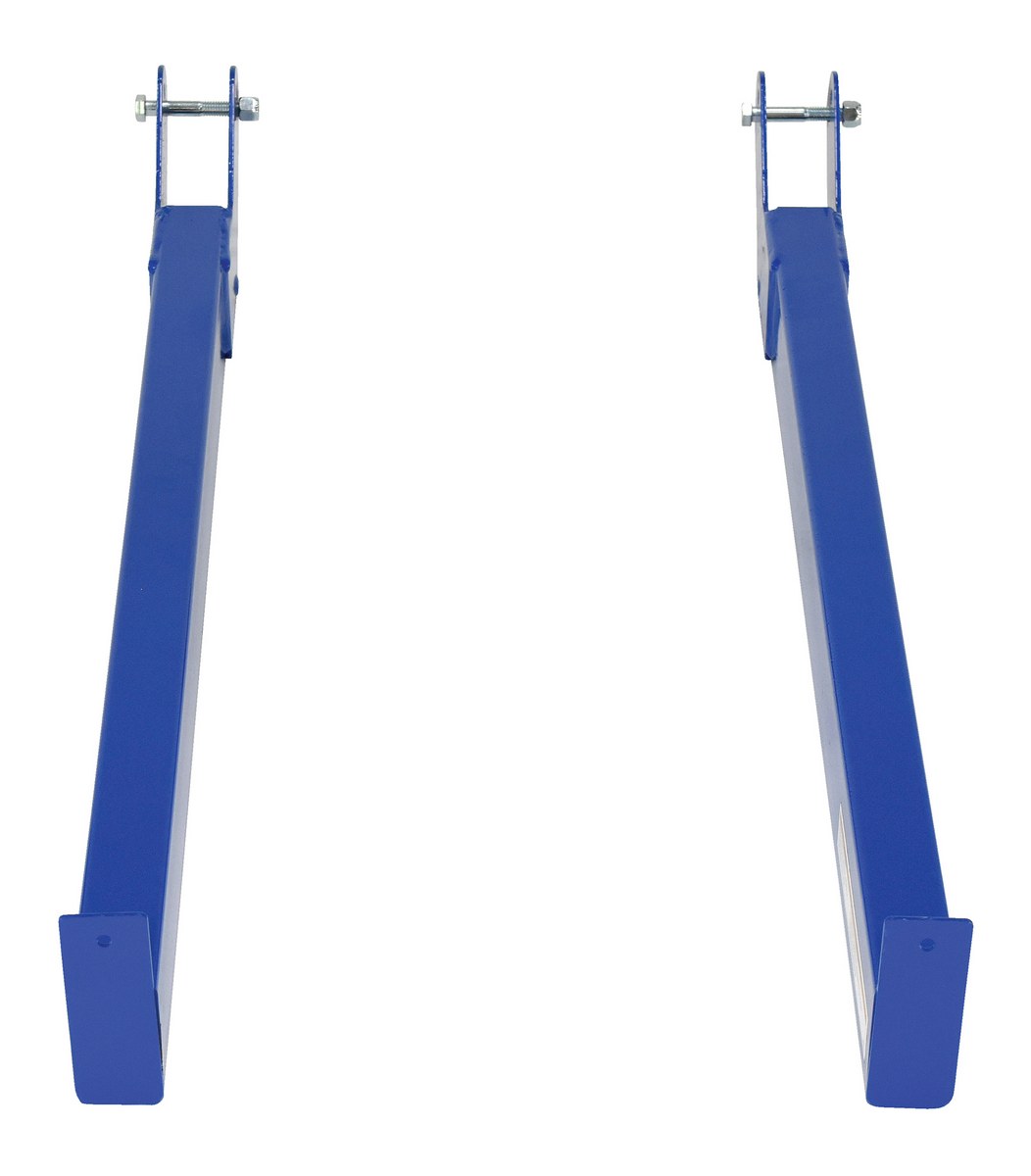

CANT-A36 CANT-A3690 Days Limited WarrantySteel Portable Cantilever Cart Arms 36 In. BlueUniform Capacity (lb.): 400
Component: Arms		14
Model Image PDFs Description Wt. (lbs.)
SCSC-SL5-RF icon_approvaldrawings.jpgWarranty PDF Works with CANT series carts! Auto-Hite Cart Stationary Option (2000 lbs. per set of 4) 80
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Cantilever Carts PDF's will open in a new window when clicked.

Manuals


CANT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CANT-3048

CANT-3060

CANT-3648

Testing Certificates


CANT-3048

CANT-3060

CANT-3648

CANT-A30

CANT-A36

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Carton Flow Racks
Product

Carton Flow Racks

Heavy Duty Roll-Out Shelving
Product

Heavy Duty Roll-Out Shelving

Single/Dual Sided Bar Stock Trees
Product

Single/Dual Sided Bar Stock Trees

Double Sided Horizontal Bar Rack
Product

Double Sided Horizontal Bar Rack

Vertical Storage Racks
Product

Vertical Storage Racks

Vertical Bar Rack
Product

Vertical Bar Rack

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Cantilever Carts




Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments. Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.

  • Ideal for storage of bar stock type items
  • Includes three pairs of arms, secured with a bolt and nut
  • Adjustable arm height in six inch increments
  • Base includes built in fork pockets for easy transportation

Model # Description Attributes Net Wt.
(lbs)
CANT-3048 CANT-3048Steel Portable Cantilever Cart 30 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		212
CANT-3060 CANT-3060Steel Portable Cantilever Cart 30 In. x 60 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		225
CANT-3648 CANT-3648Steel Portable Cantilever Cart 36 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Uniform Capacity per Level (lb.): 400		226

Options


Model Image PDFs Description Wt. (lbs.)
SCSC-SL5-RF icon_approvaldrawings.jpgWarranty PDF Works with CANT series carts! Auto-Hite Cart Stationary Option (2000 lbs. per set of 4) 80
