Product Family Overview


Standard-Duty Cantilever Racking
SERIES: SU,SDU

Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.

  • Maneuverable to accommodate users needs
  • Quick fitting and easily removable for instantaneous use
  • Steel structure for utmost strength
  • Provides the option of more surface area for merchandise

Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.

  • Maneuverable to accommodate users needs
  • Quick fitting and easily removable for instantaneous use
  • Steel structure for utmost strength
  • Provides the option of more surface area for merchandise

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

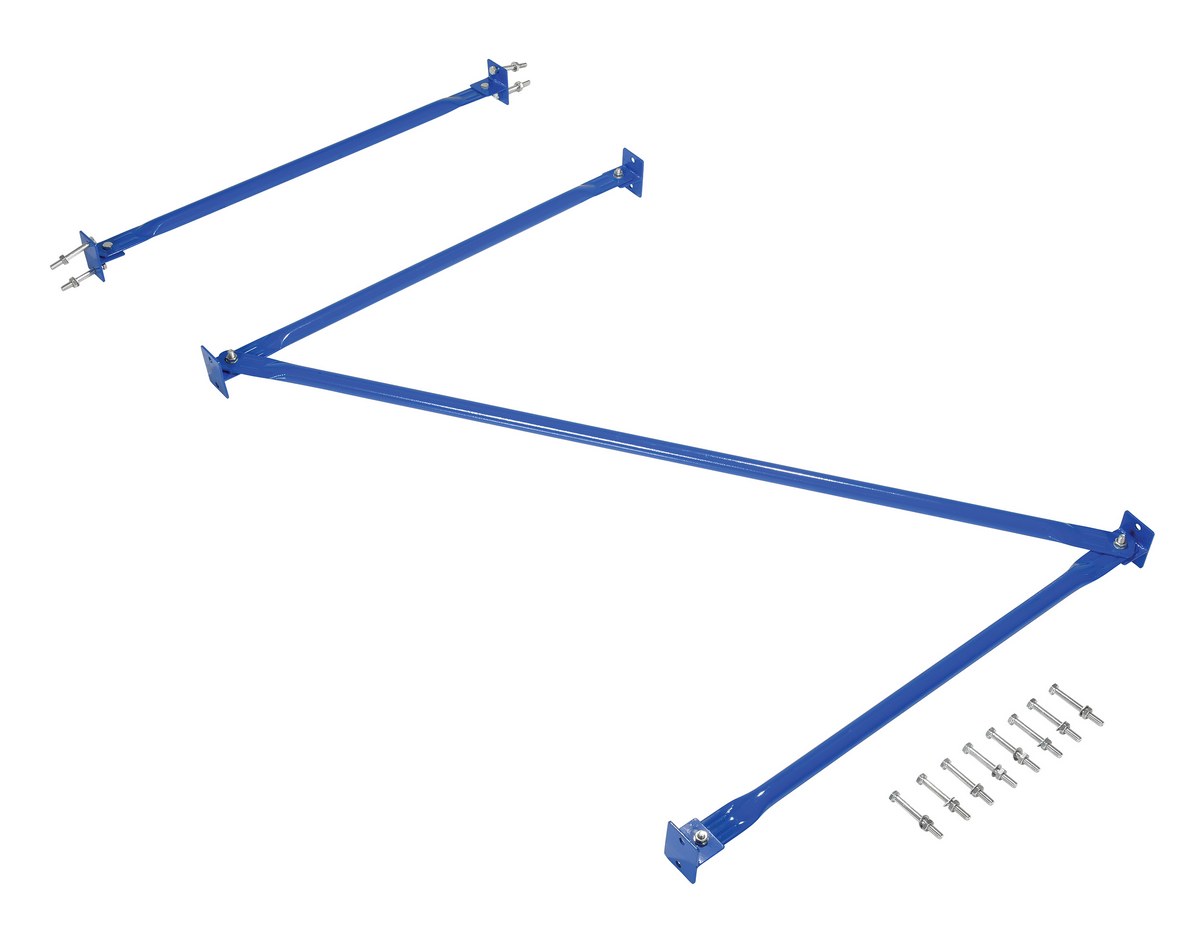

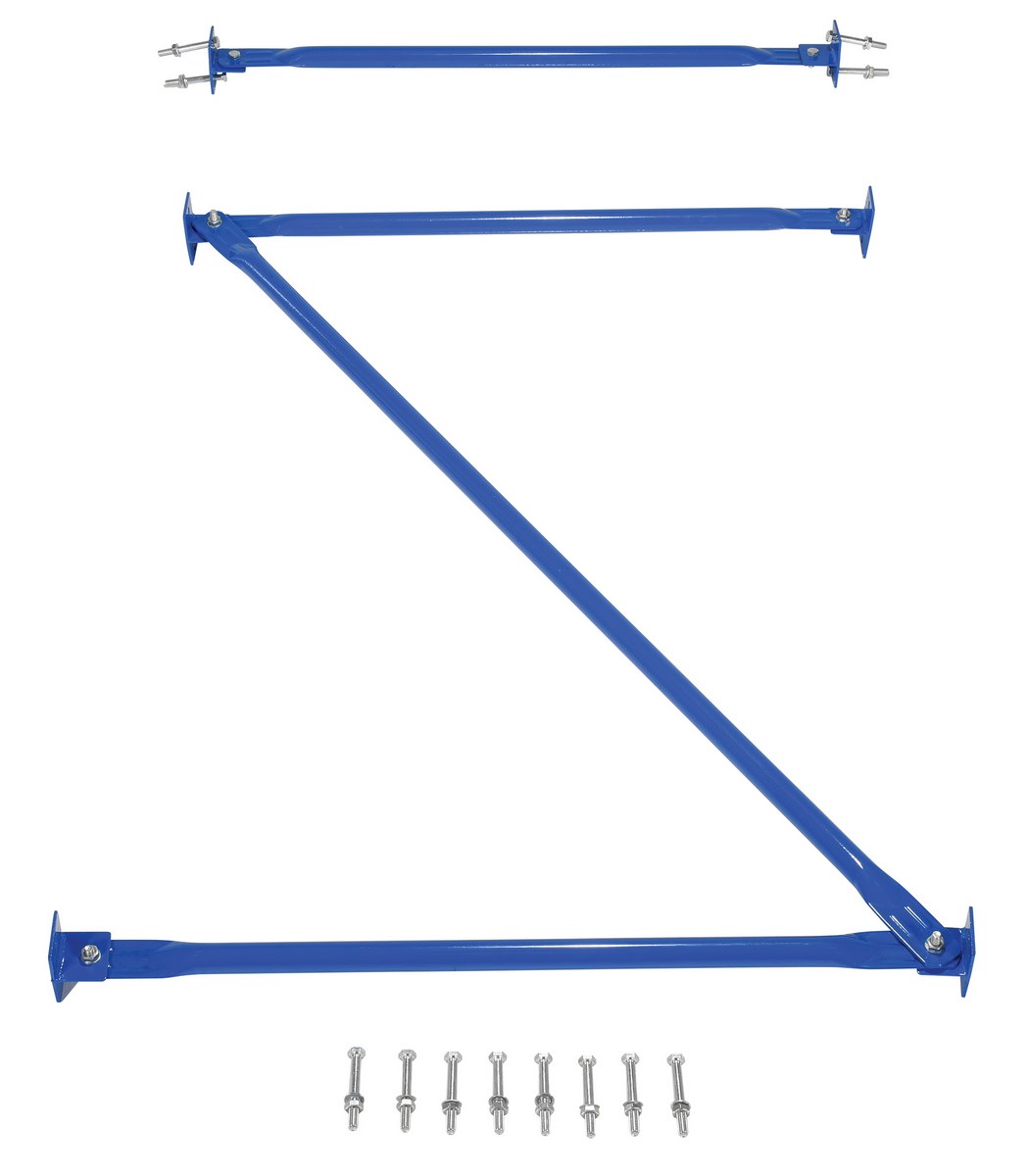

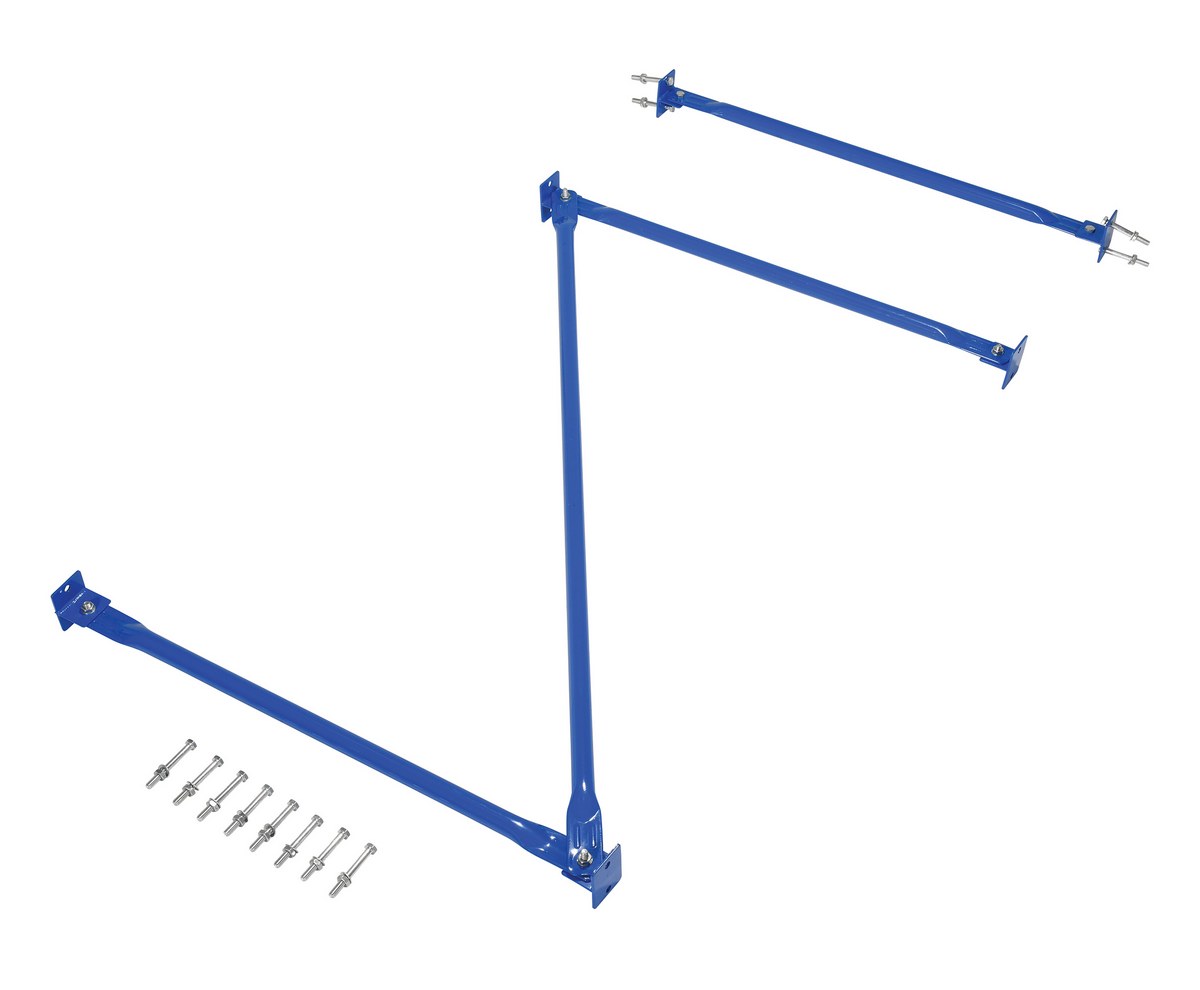

SB-C-10-36 SB-C-10-361 Year Limited WarrantySteel Standard Cantilever Brace Set 120 In. x 36 In. BlueHardware Included: Yes
30
SB-C-10-48 SB-C-10-481 Year Limited WarrantySteel Standard Cantilever Brace Set 120 In. x 48 In. BlueHardware Included: Yes
44
SB-C-10-60 SB-C-10-601 Year Limited WarrantySteel Standard Cantilever Brace Set 120 In. x 60 In. BlueHardware Included: Yes
50
SB-C-10-72 SB-C-10-721 Year Limited WarrantySteel Standard Cantilever Brace Set 120 In. x 72 In. BlueHardware Included: Yes
54
SB-C-10-96 SB-C-10-961 Year Limited WarrantySteel Standard Cantilever Brace Set 120 In. x 96 In. BlueHardware Included: Yes
90

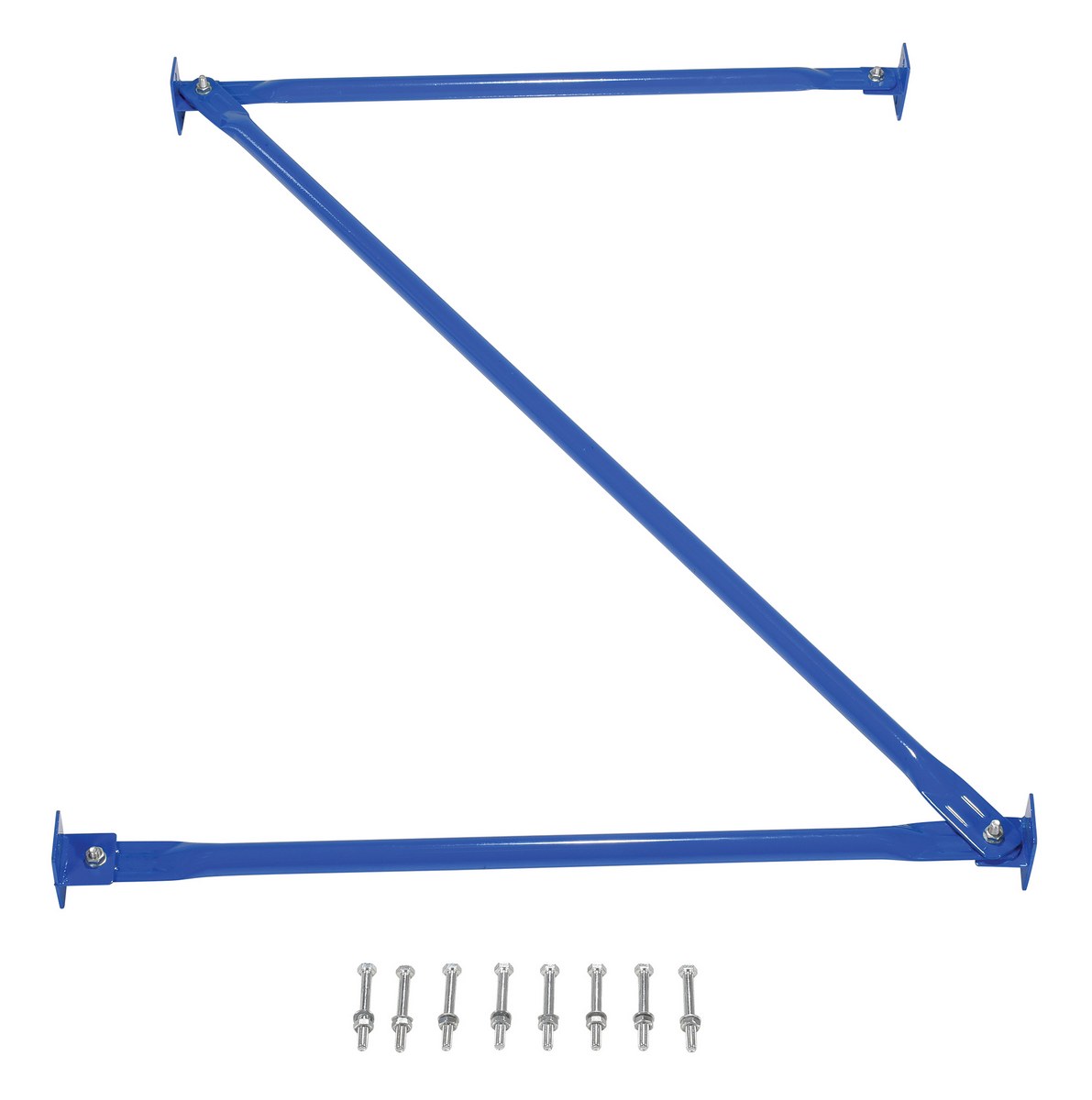

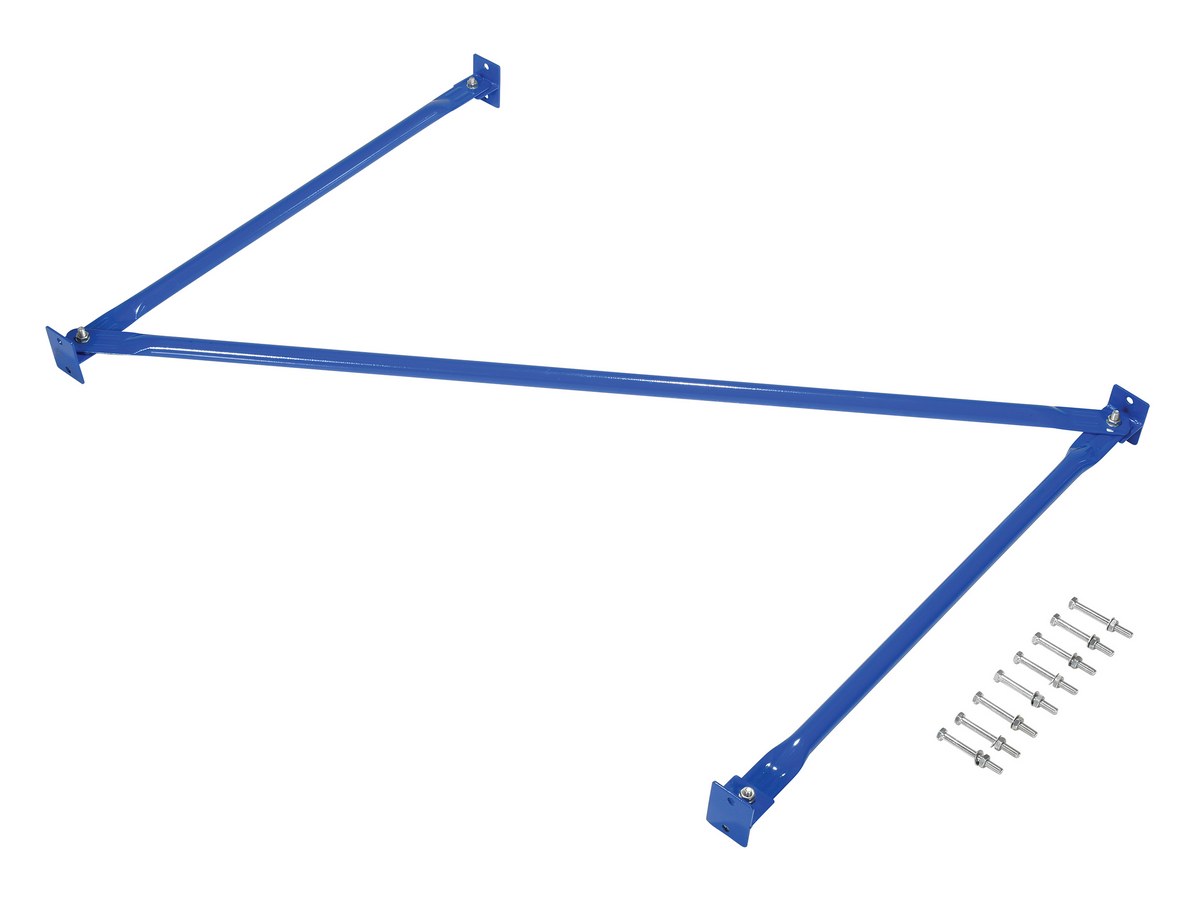

SB-C-6-36 SB-C-6-361 Year Limited WarrantySteel Standard Cantilever Brace Set 72 In. x 36 In. BlueHardware Included: Yes
26
SB-C-6-48 SB-C-6-481 Year Limited WarrantySteel Standard Cantilever Brace Set 72 In. x 48 In. BlueHardware Included: Yes
38
SB-C-6-60 SB-C-6-601 Year Limited WarrantySteel Standard Cantilever Brace Set 72 In. x 60 In. BlueHardware Included: Yes
44
SB-C-6-72 SB-C-6-721 Year Limited WarrantySteel Standard Cantilever Brace Set 72 In. x 72 In. BlueHardware Included: Yes
50
SB-C-6-96 SB-C-6-961 Year Limited WarrantySteel Standard Cantilever Brace Set 72 In. x 96 In. BlueHardware Included: Yes
64

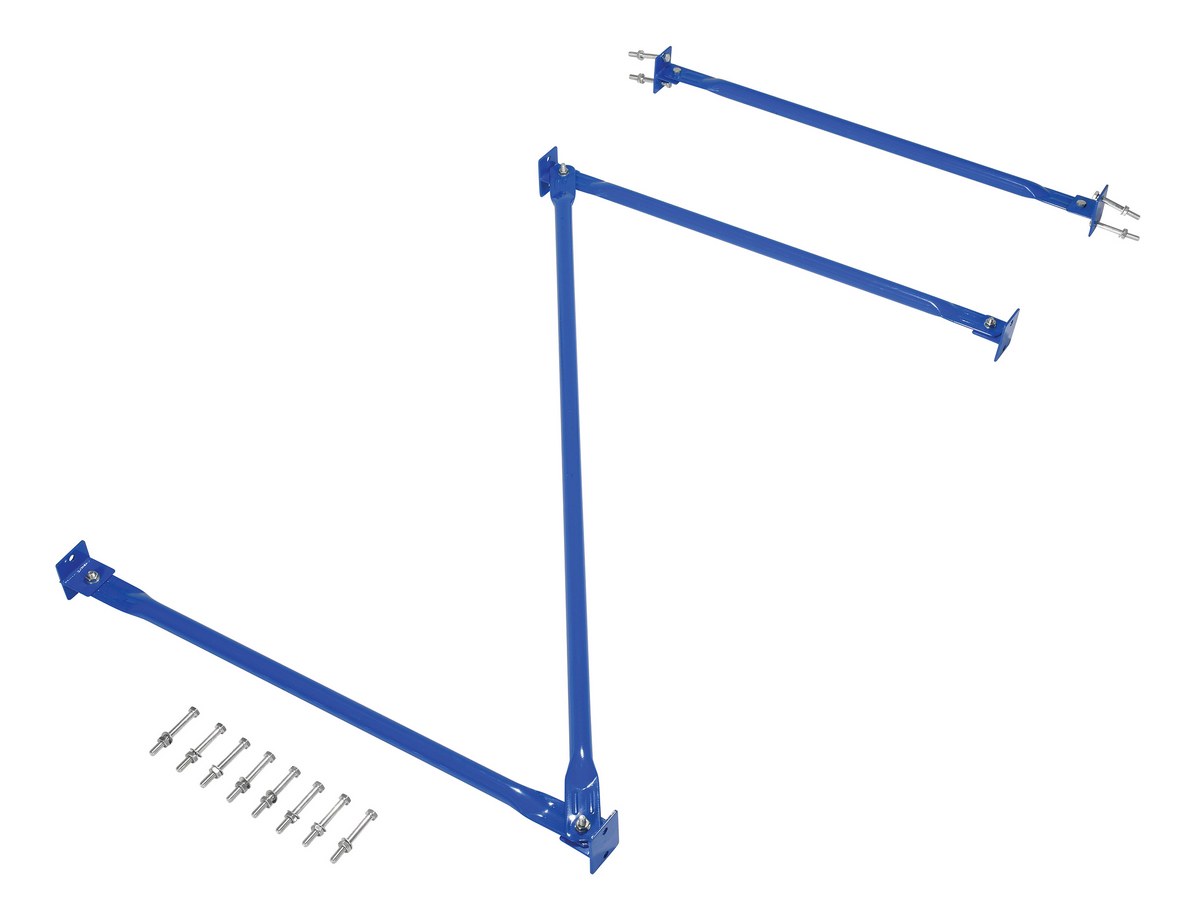

SB-C-8-36 SB-C-8-361 Year Limited WarrantySteel Standard Cantilever Brace Set 96 In. x 36 In. BlueHardware Included: Yes
28
SB-C-8-48 SB-C-8-481 Year Limited WarrantySteel Standard Cantilever Brace Set 96 In. x 48 In. BlueHardware Included: Yes
42

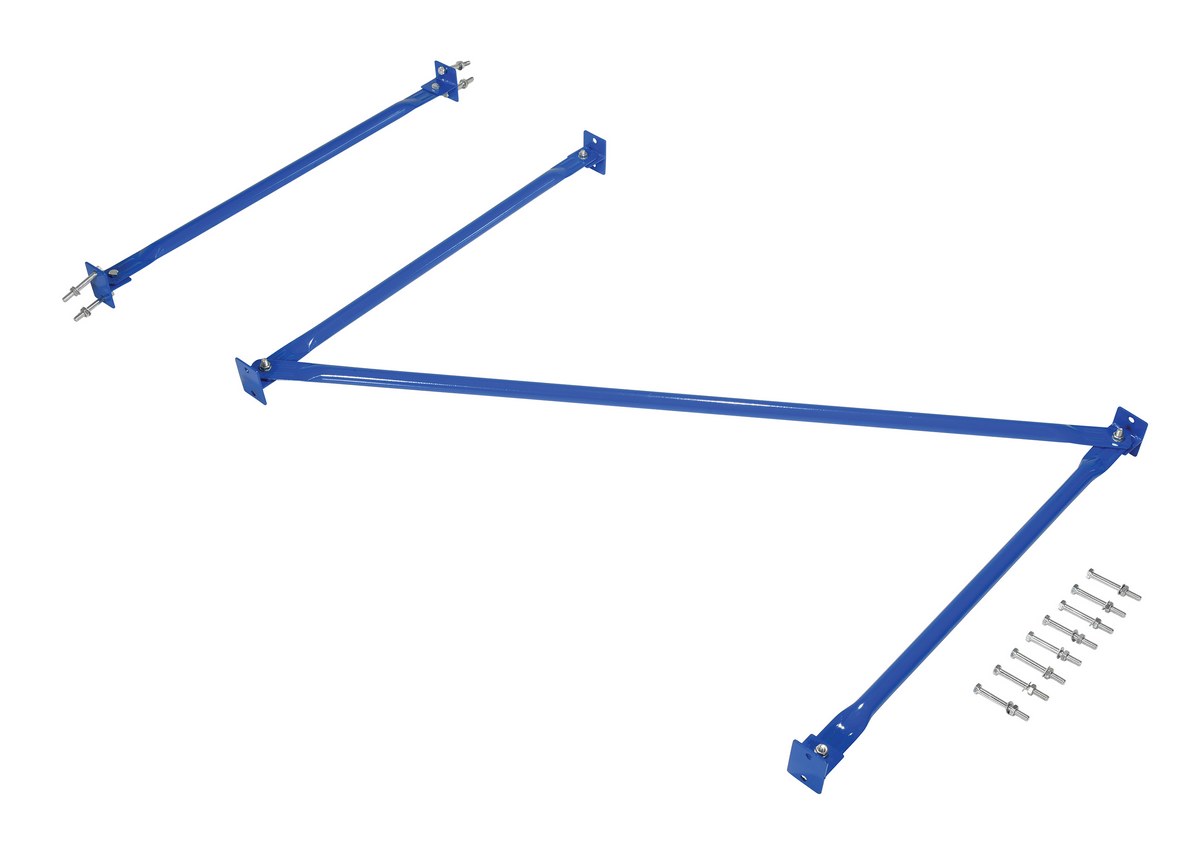

SB-C-8-60 SB-C-8-601 Year Limited WarrantySteel Standard Cantilever Brace Set 96 In. x 60 In. BlueHardware Included: Yes
48
SB-C-8-72 SB-C-8-721 Year Limited WarrantySteel Standard Cantilever Brace Set 96 In. x 72 In. BlueHardware Included: Yes
52
SB-C-8-96 SB-C-8-961 Year Limited WarrantySteel Standard Cantilever Brace Set 96 In. x 96 In. BlueHardware Included: Yes
66

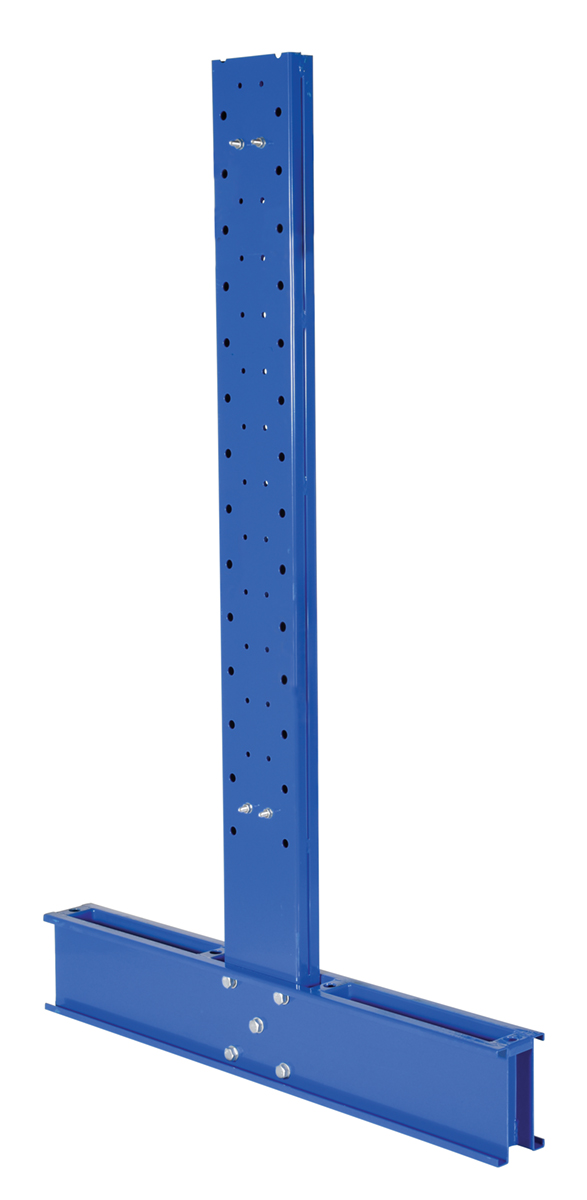

SDU-C-10-12 SDU-C-10-121 Year Limited WarrantySteel Standard Cantilever Double Upright 10 Ft. Height 12 In. Arm Use Length 9,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12
225
SDU-C-10-18 SDU-C-10-181 Year Limited WarrantySteel Standard Cantilever Double Upright 10 Ft. Height 18 In. Arm Use Length 7,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18
236
SDU-C-10-24 SDU-C-10-241 Year Limited WarrantySteel Standard Cantilever Double Upright 10 Ft. Height 24 In. Arm Use Length 6,500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24
249
SDU-C-10-36 SDU-C-10-361 Year Limited WarrantySteel Standard Cantilever Double Upright 10 Ft. Height 36 In. Arm Use Length 5,000 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36
270
SDU-C-6-12 SDU-C-6-121 Year Limited WarrantySteel Standard Cantilever Double Upright 6 Ft. Height 12 In. Arm Use Length 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12
183
SDU-C-6-18 SDU-C-6-181 Year Limited WarrantySteel Standard Cantilever Double Upright 6 Ft. Height 18 In. Arm Use Length 8,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18
183
SDU-C-6-24 SDU-C-6-241 Year Limited WarrantySteel Standard Cantilever Double Upright 6 Ft. Height 24 In. Arm Use Length Set 7,700 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24
195
SDU-C-6-36 SDU-C-6-361 Year Limited WarrantySteel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 6,000 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36
215
SDU-C-8-12 SDU-C-8-121 Year Limited WarrantySteel Standard Cantilever Double Upright 8 Ft. Height 12 In. Arm Use Length 10,100 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12
197
SDU-C-8-18 SDU-C-8-181 Year Limited WarrantySteel Standard Cantilever Double Upright 8 Ft. Height 18 In. Arm Use Length 8,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18
208

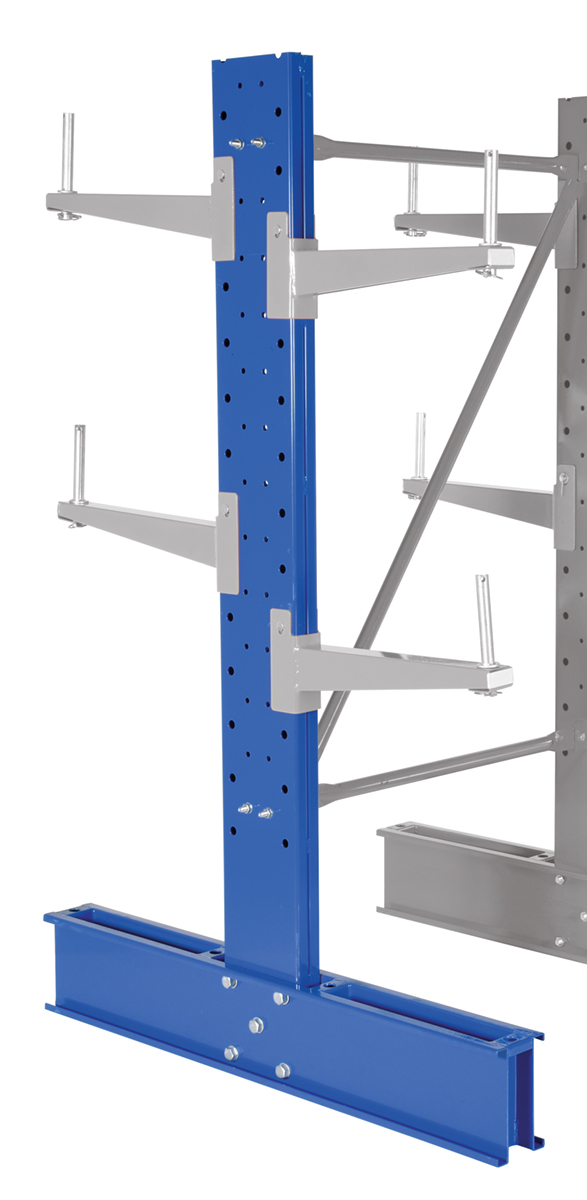

SDU-C-8-24 SDU-C-8-241 Year Limited WarrantySteel Standard Cantilever Double Upright 8 Ft. Height 24 In. Arm Use Length 7,100 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24
219
SDU-C-8-36 SDU-C-8-361 Year Limited WarrantySteel Standard Cantilever Double Upright 8 Ft. Height 36 In. Arm Use Length 5,500 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36
242
SIA-C-12 SIA-C-121 Year Limited WarrantySteel Standard Cantilever 10 Degree Incline Arm 12 In. Length 800 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm
10

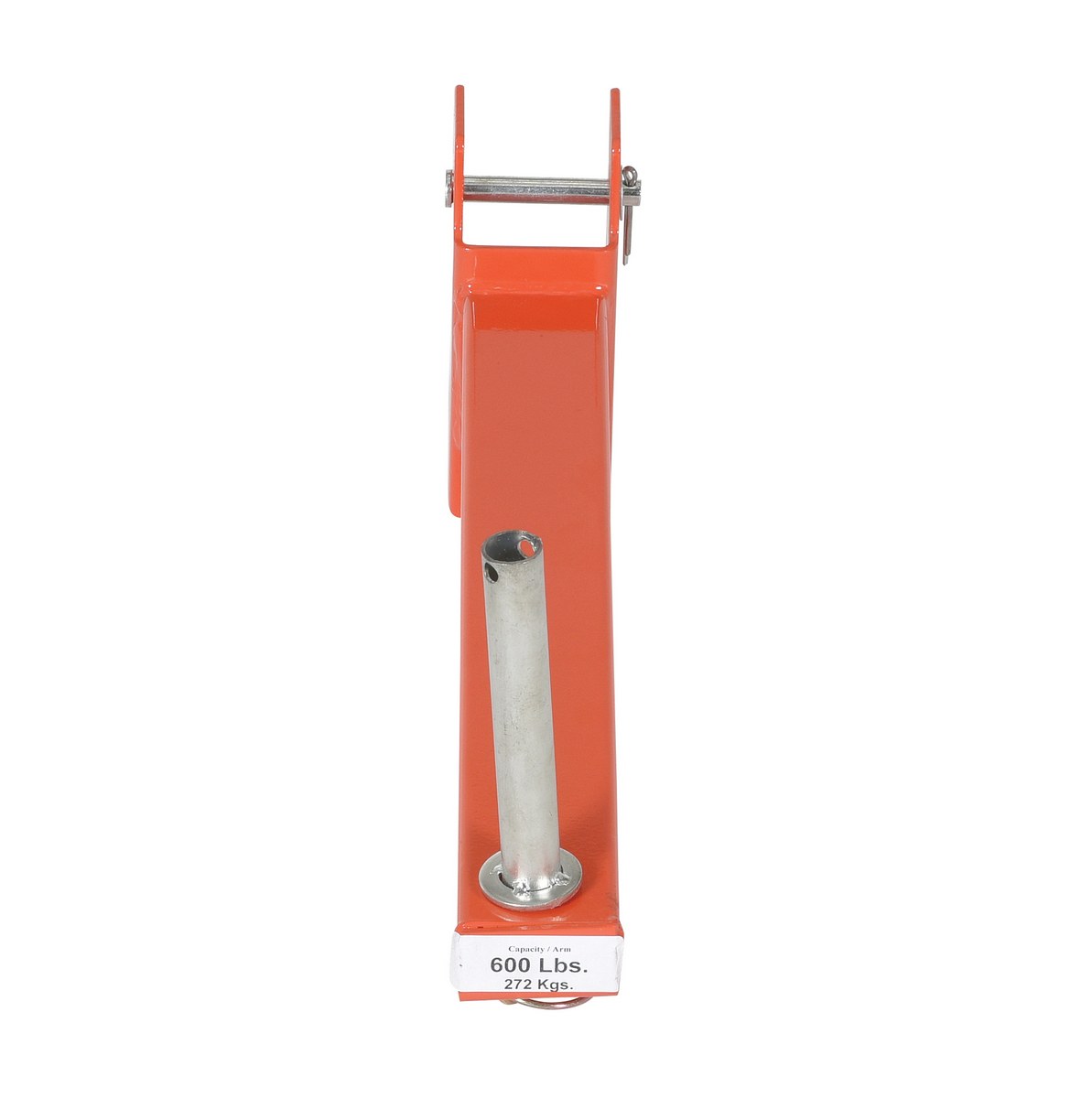

SIA-C-18 SIA-C-181 Year Limited WarrantySteel Standard Cantilever 10 Degree Incline Arm 18 In. Length 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm
12
SIA-C-24 SIA-C-241 Year Limited WarrantySteel Standard Cantilever 10 Degree Incline Arm 24 In. Length 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm
15
SIA-C-30 SIA-C-301 Year Limited WarrantySteel Standard Cantilever 10 Degree Incline Arm 30 In. Length 300 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm
17
SIA-C-36 SIA-C-361 Year Limited WarrantySteel Standard Cantilever 10 Degree Incline Arm 36 In. Length 200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm
21
SSA-C-12 SSA-C-121 Year Limited WarrantySteel Standard Cantilever Racking Straight Arm 12 In. Length 800 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 800
Component: Straight Arm
10

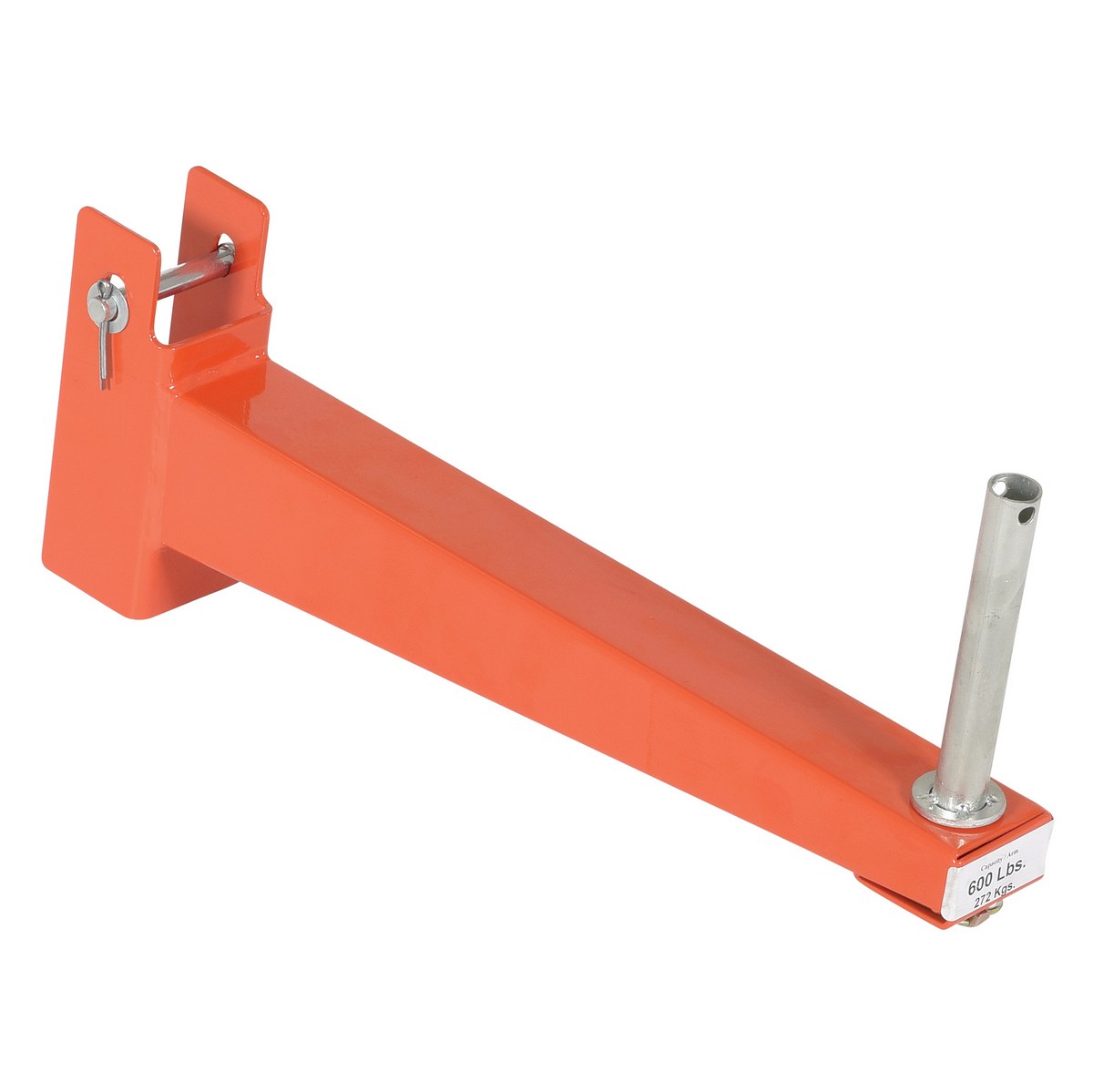

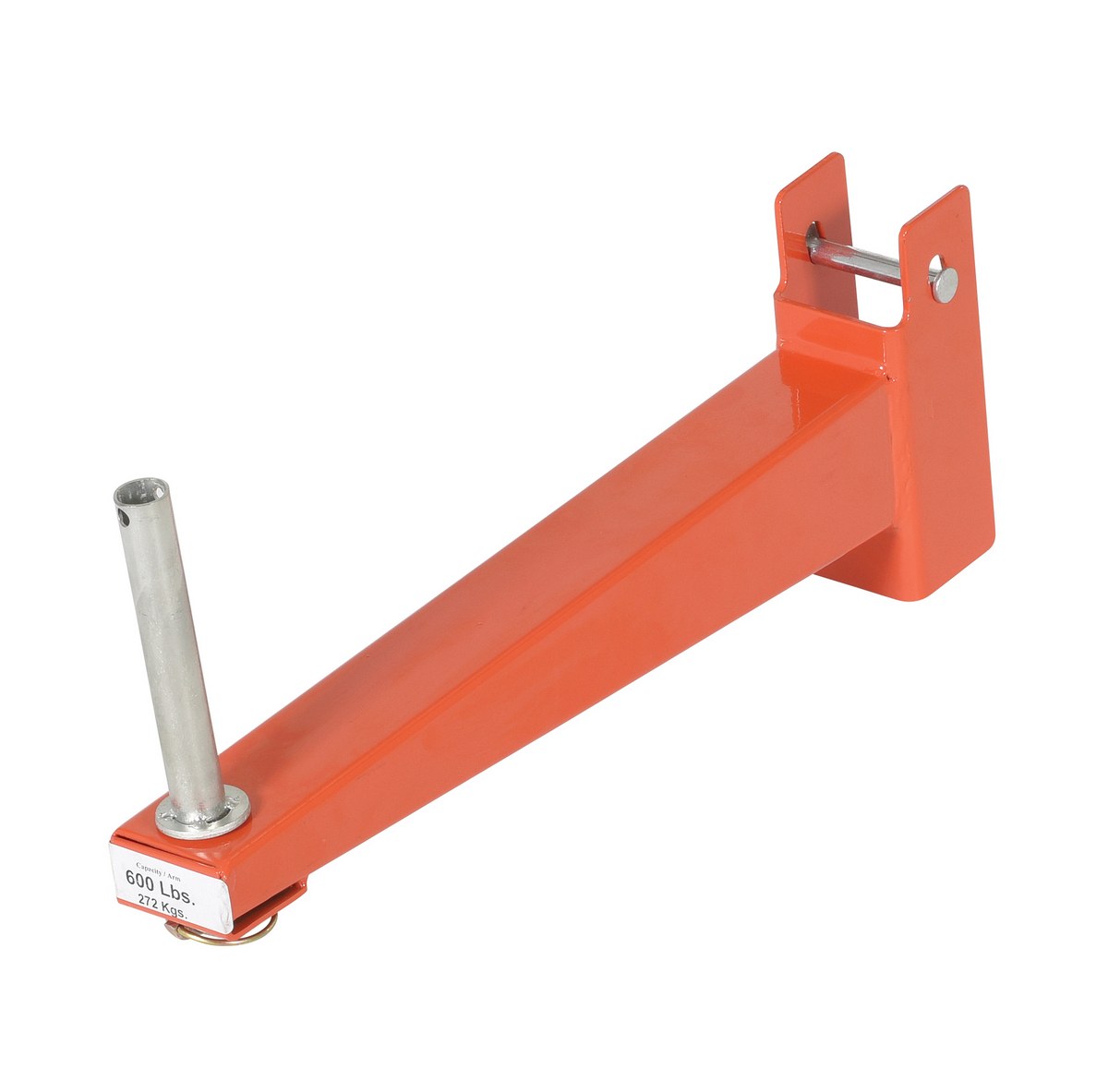

SSA-C-18 SSA-C-181 Year Limited WarrantySteel Standard Cantilever Racking Straight Arm 18 In. Length 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Straight Arm
12

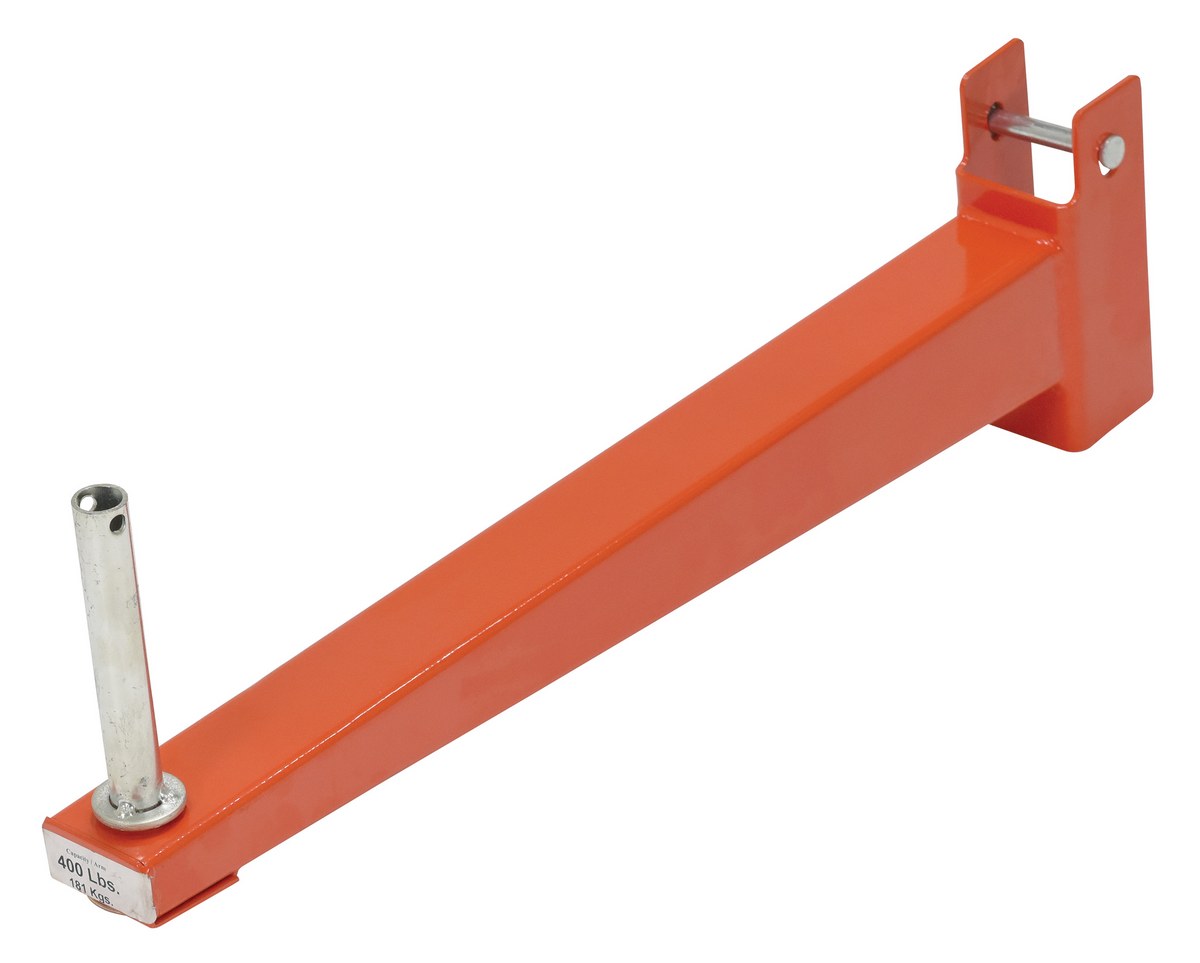

SSA-C-24 SSA-C-241 Year Limited WarrantySteel Standard Cantilever Racking Straight Arm 24 In. Length 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm
15
SSA-C-30 SSA-C-301 Year Limited WarrantySteel Standard Cantilever Racking Straight Arm 30 In. Length 300 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 300
Component: Straight Arm
17
SSA-C-36 SSA-C-361 Year Limited WarrantySteel Standard Cantilever Racking Straight Arm 36 In. Length 200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 200
Component: Straight Arm
21

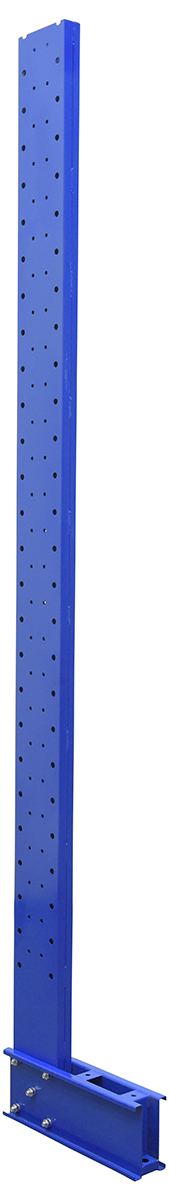

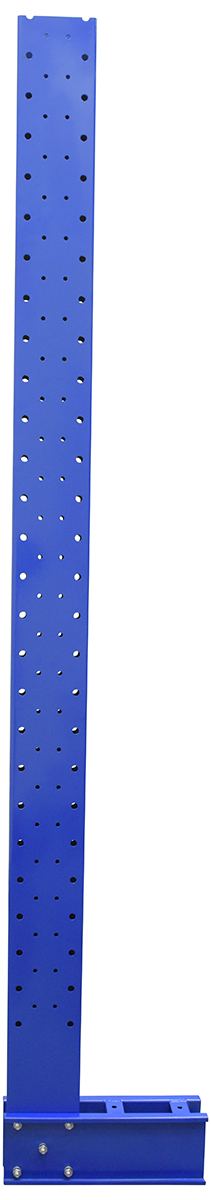

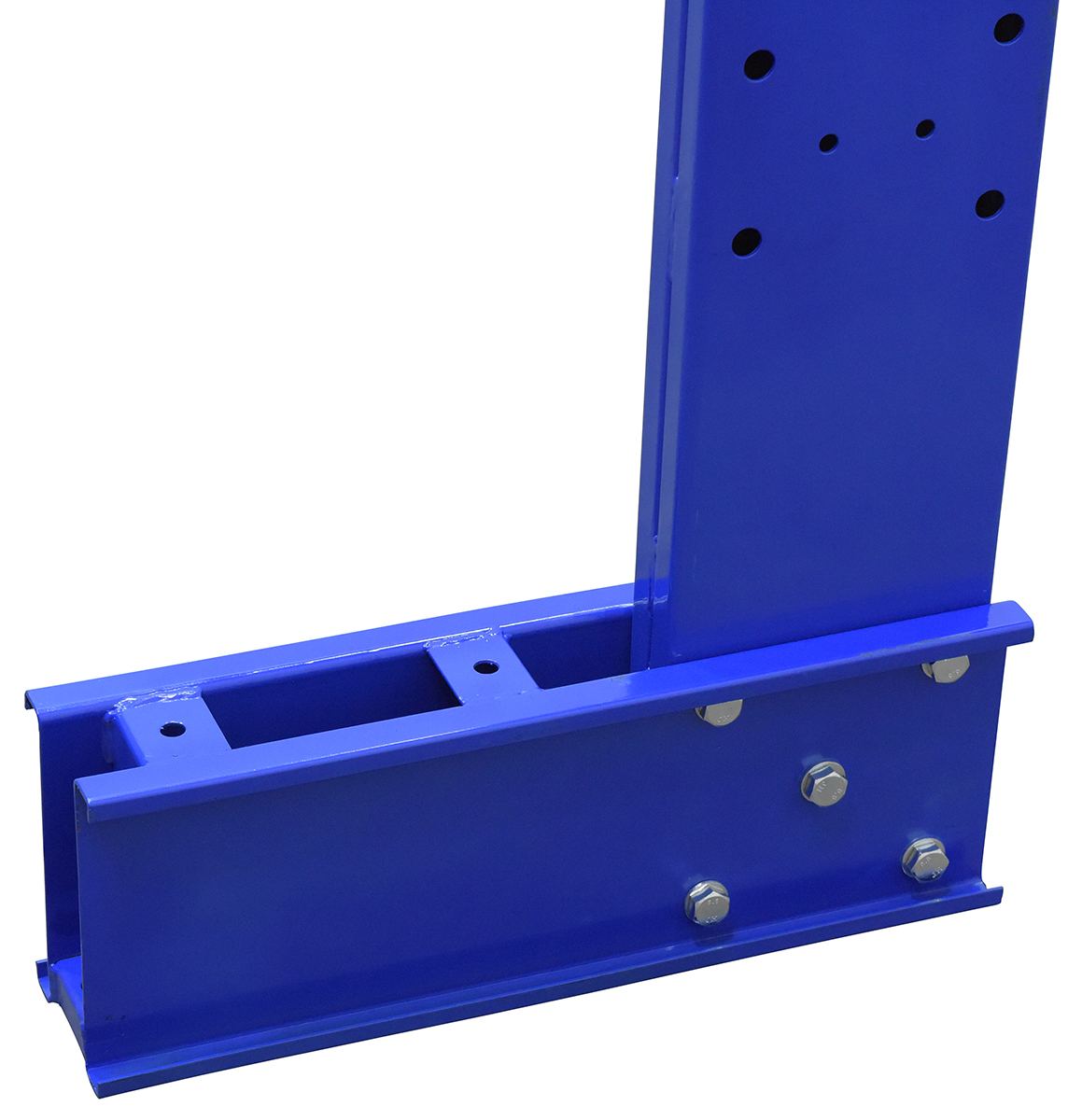

SU-C-10-12 SU-C-10-121 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 10 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12
214

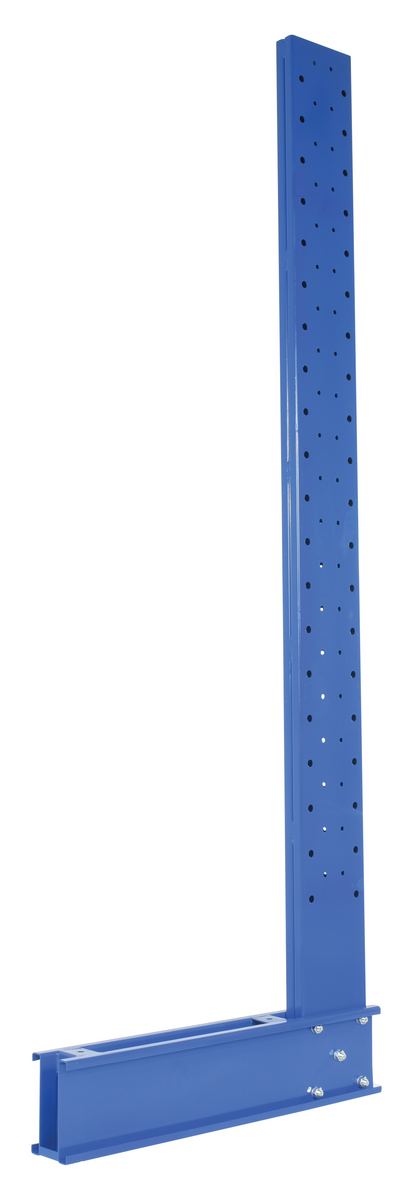

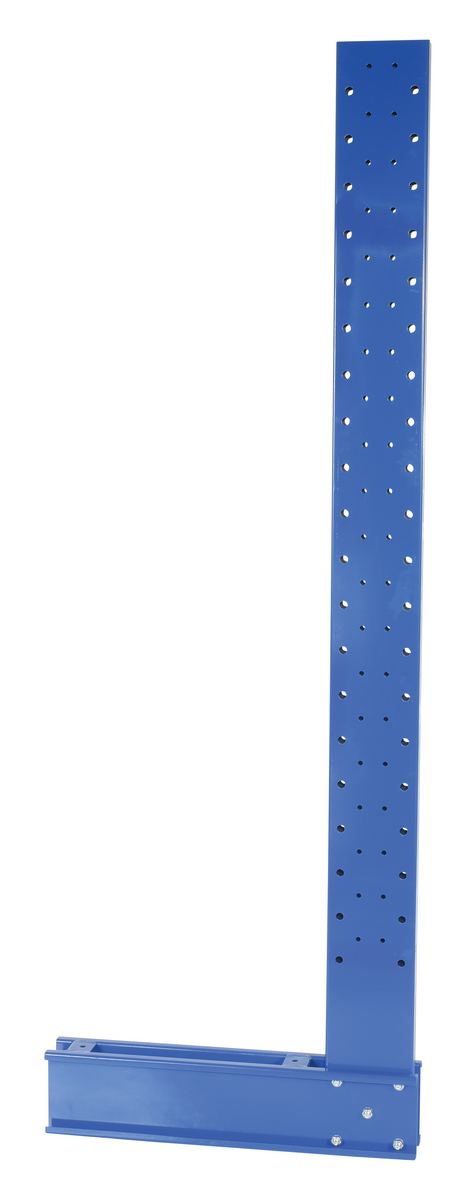

SU-C-10-18 SU-C-10-181 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 10 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18
219

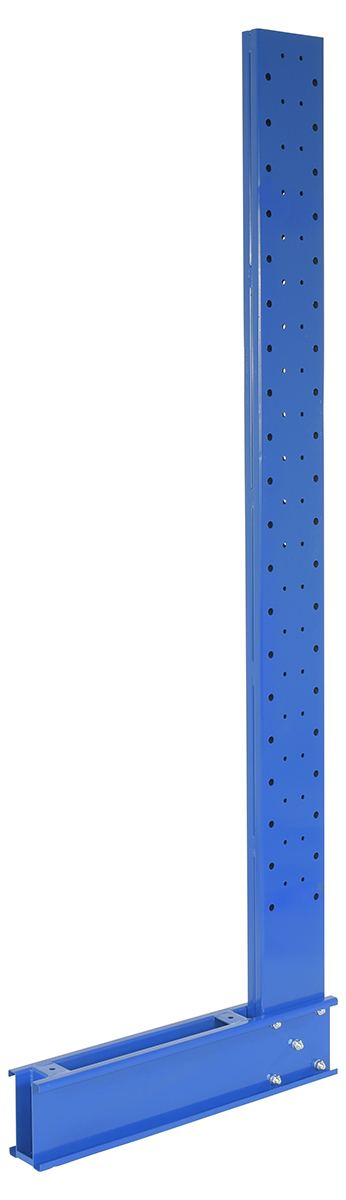

SU-C-10-24 SU-C-10-241 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 10 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24
225

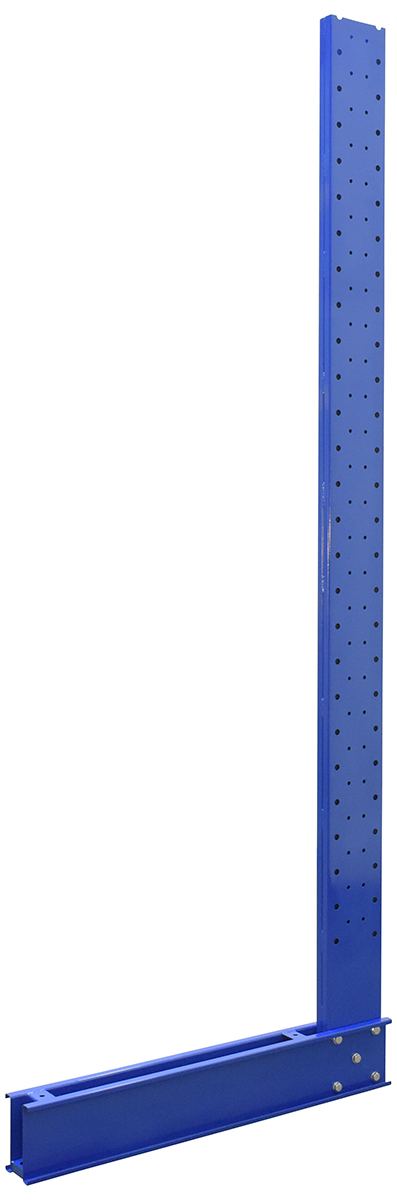

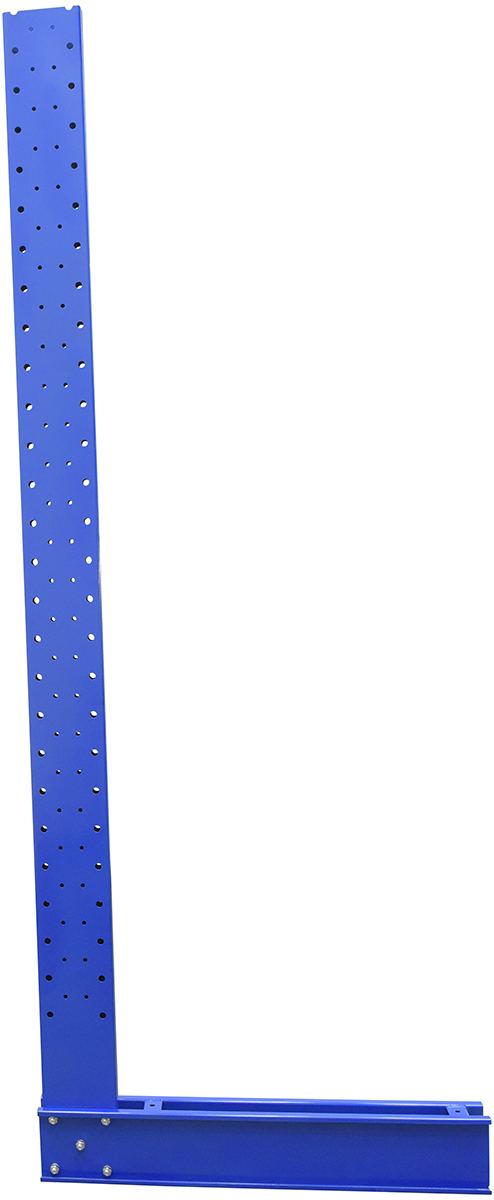

SU-C-10-36 SU-C-10-361 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 10 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36
237

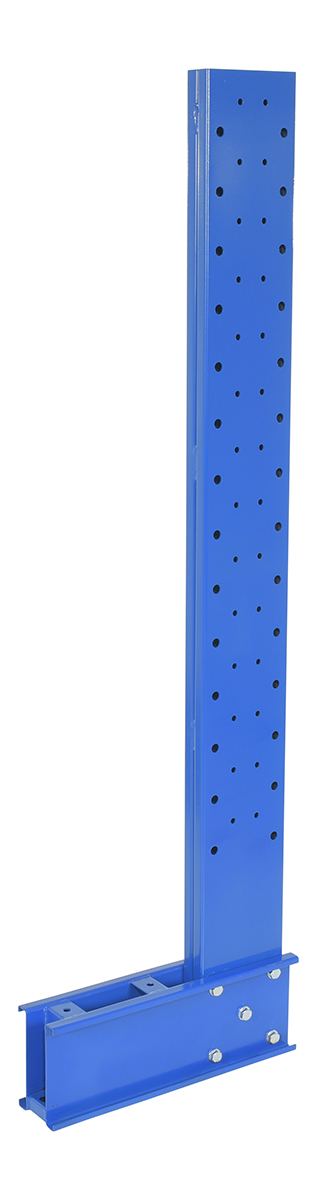

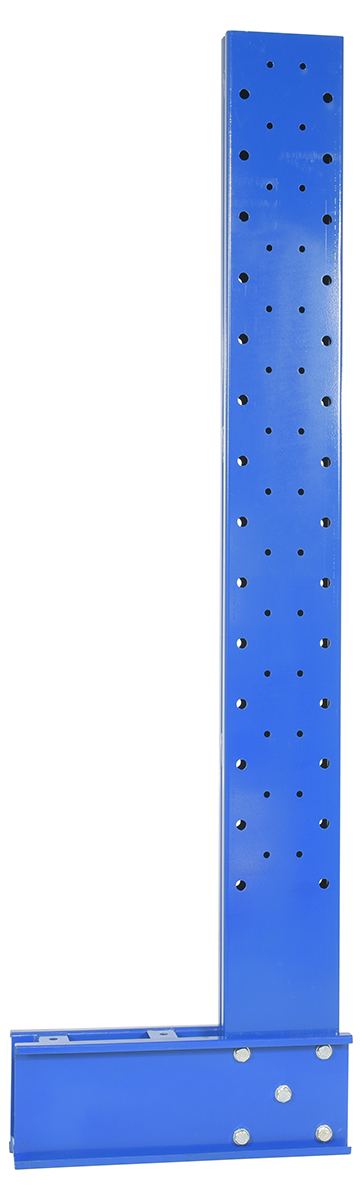

SU-C-6-12 SU-C-6-121 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 6 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12
172

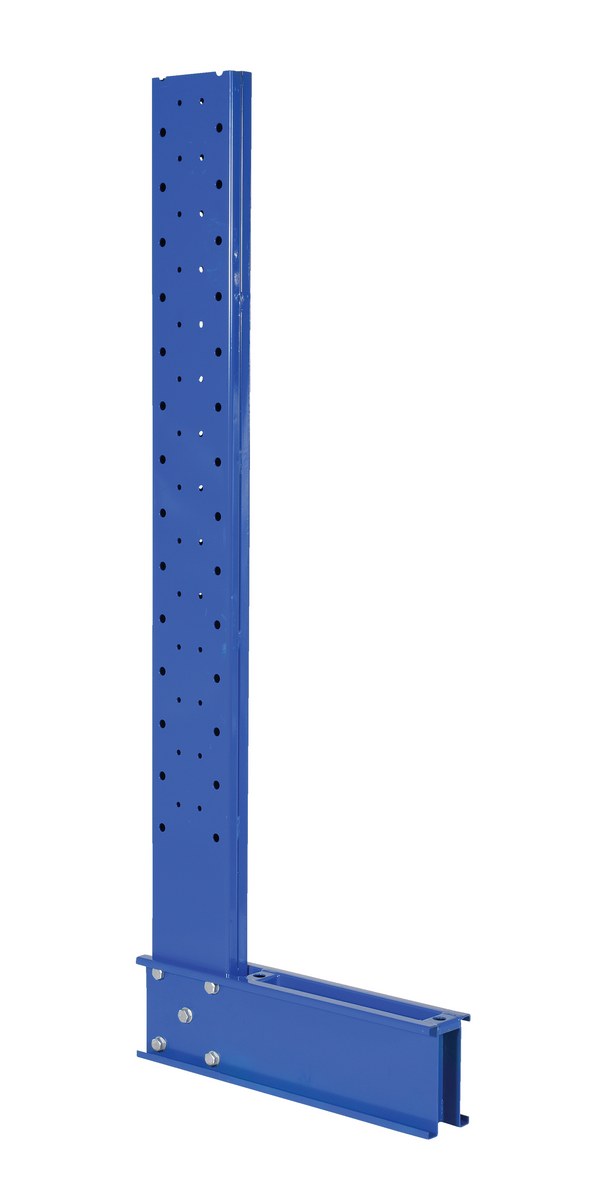

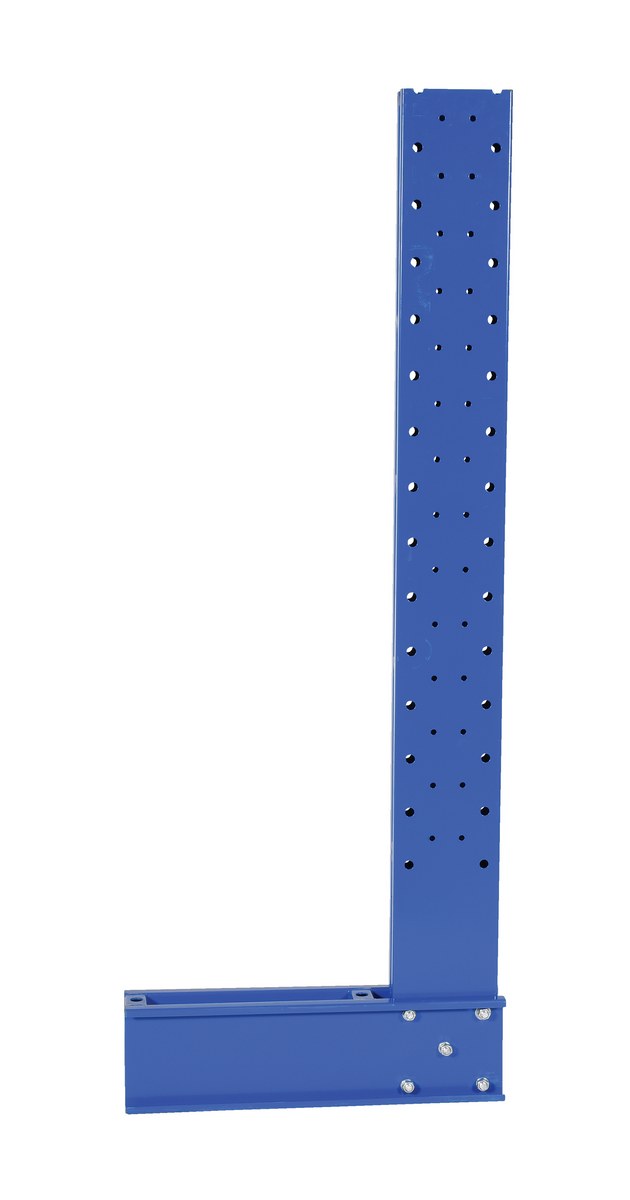

SU-C-6-18 SU-C-6-181 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 6 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18
182

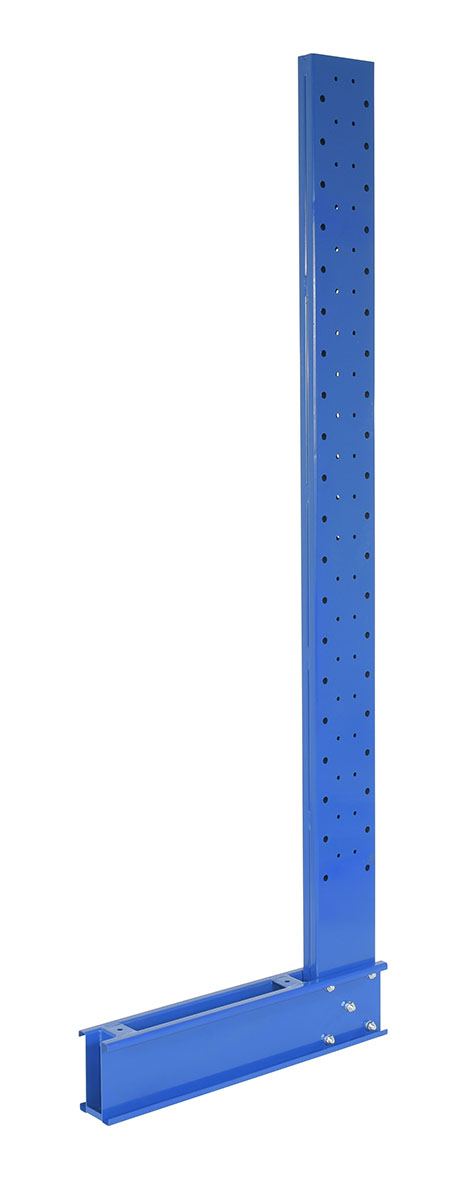

SU-C-6-24 SU-C-6-241 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 6 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24
195

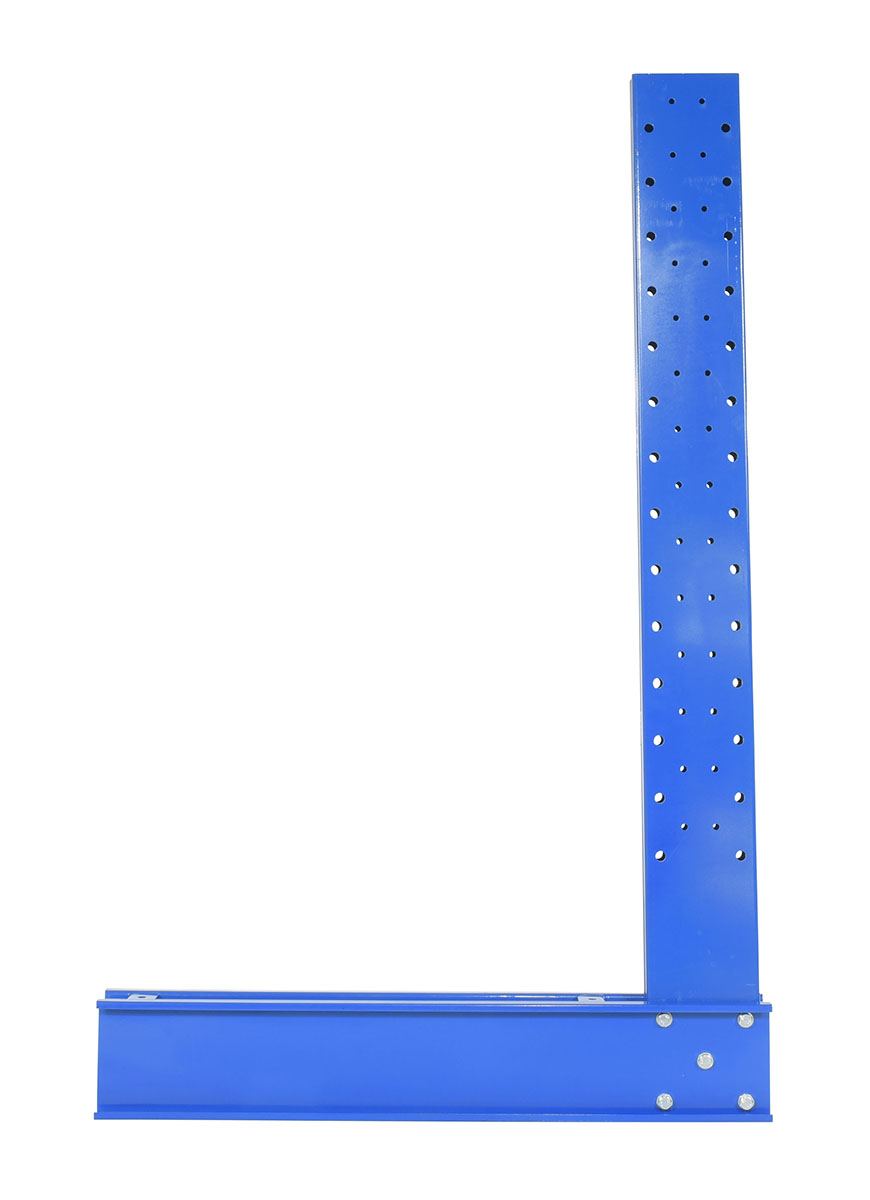

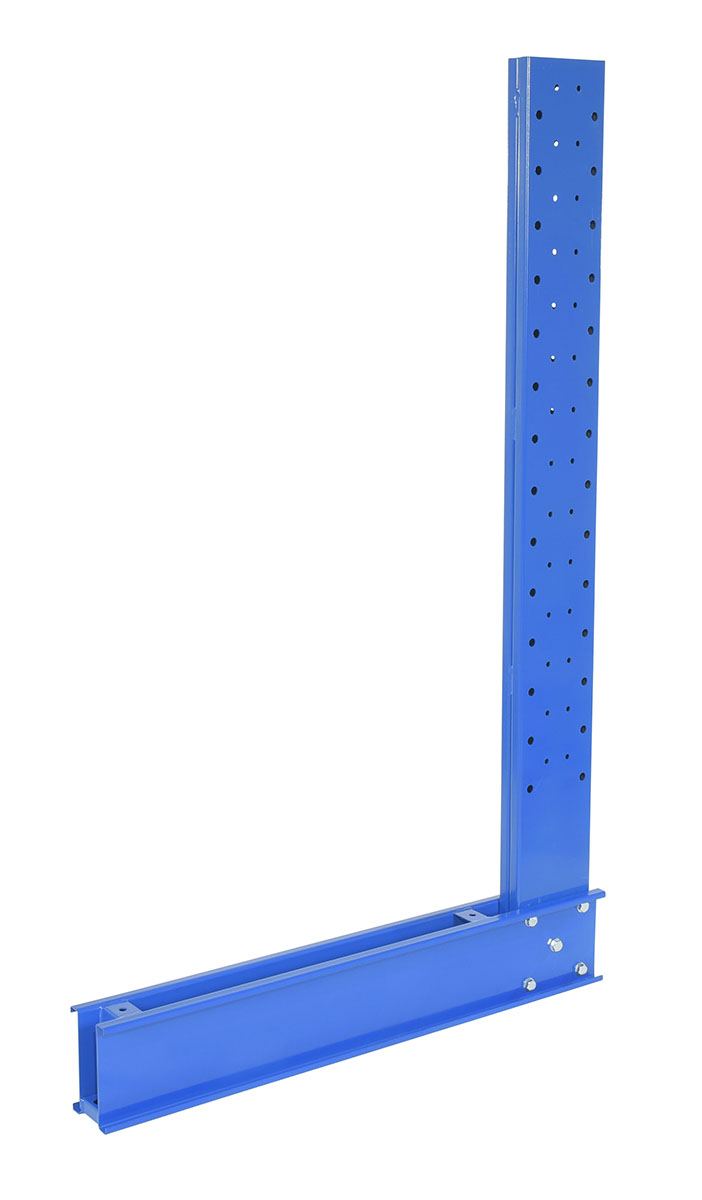

SU-C-6-36 SU-C-6-361 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 6 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36
198

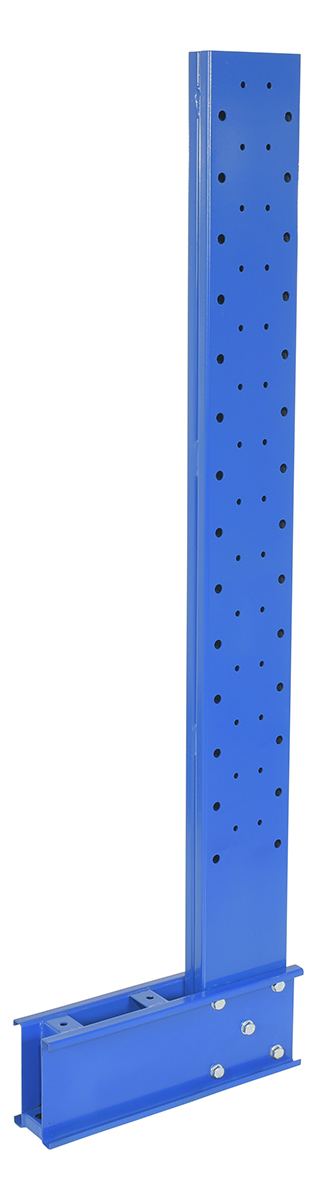

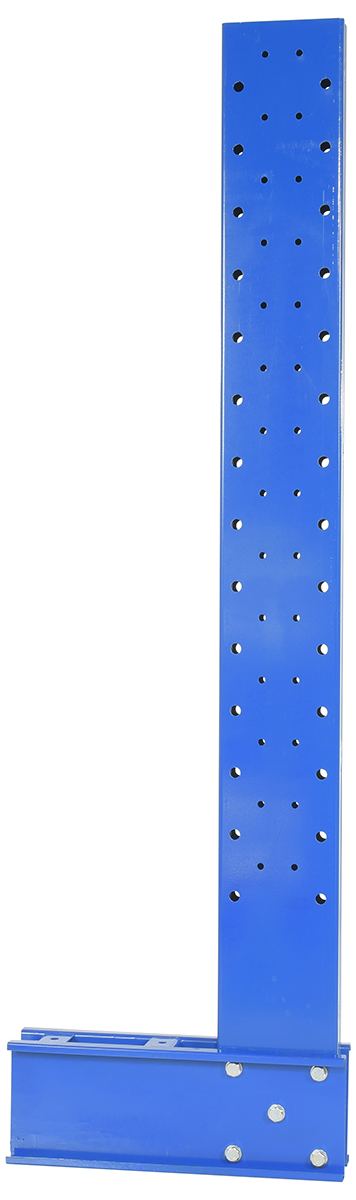

SU-C-8-12 SU-C-8-121 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 8 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12
186

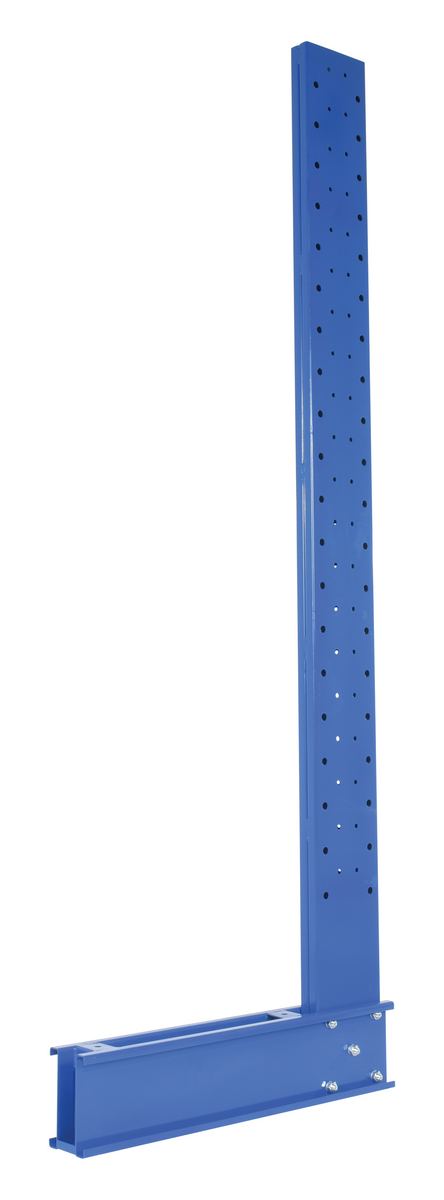

SU-C-8-18 SU-C-8-181 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 8 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18
191
SU-C-8-24 SU-C-8-241 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 8 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24
197

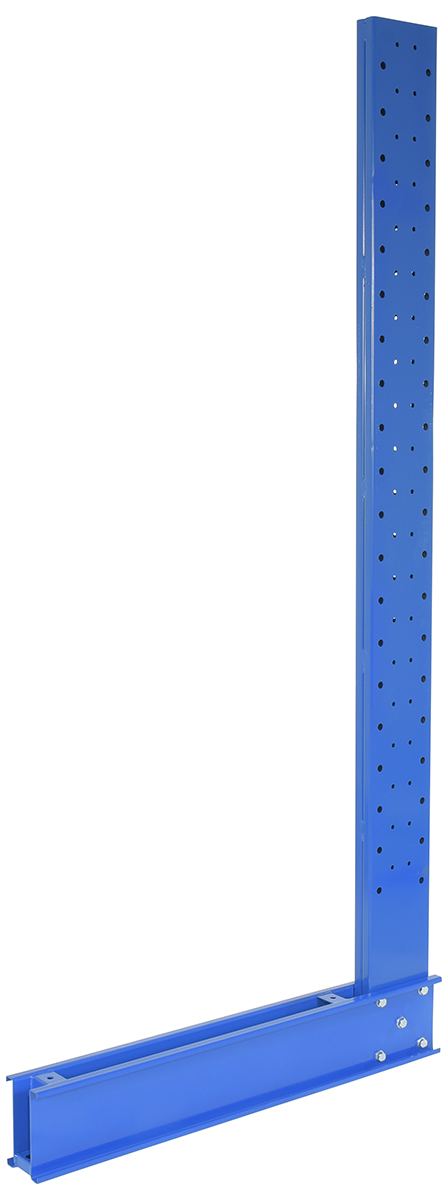

SU-C-8-36 SU-C-8-361 Year Limited WarrantySteel Standard Duty Cantilever Single Sided Upright 8 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36
208

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SB-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-10-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-10-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-10-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-10-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-6-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-6-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-6-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-6-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-8-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-8-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-8-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SB-C-8-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Included: Yes

Hardware Included: Yes

SDU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12

SDU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18

SDU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24

SDU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36

SDU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12

SDU-C-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18

SDU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24

SDU-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36

SDU-C-8-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12

SDU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18

SDU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24

SDU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36

SIA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm

SIA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm

SIA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm

SIA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm

SIA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm
Uniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm

SSA-C-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 800
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 800
Component: Straight Arm

SSA-C-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 600
Component: Straight Arm

SSA-C-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 400
Component: Straight Arm

SSA-C-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 300
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 300
Component: Straight Arm

SSA-C-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Arm (lb.): 200
Component: Straight Arm
Uniform Capacity Per Arm (lb.): 200
Component: Straight Arm

SU-C-10-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12

SU-C-10-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18

SU-C-10-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24

SU-C-10-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36

SU-C-6-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12

SU-C-6-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18

SU-C-6-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24

SU-C-6-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36

SU-C-8-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12
Uniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12

SU-C-8-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18
Uniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18

SU-C-8-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24
Uniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24

SU-C-8-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36
Uniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36

Standard-Duty Cantilever Racking PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


SB-C-10-36

SB-C-10-48

SB-C-10-60

SB-C-10-72

SB-C-10-96

SB-C-6-36

SB-C-6-48

SB-C-6-60

SB-C-6-72

SB-C-6-96

SB-C-8-36

SB-C-8-48

SB-C-8-60

SB-C-8-72

SB-C-8-96

SDU-C-10-12

SDU-C-10-18

SDU-C-10-24

SDU-C-10-36

SDU-C-6-12

SDU-C-6-18

SDU-C-6-24

SDU-C-6-36

SDU-C-8-12

SDU-C-8-24

SDU-C-8-36

SIA-C-12

SIA-C-18

SIA-C-24

SIA-C-30

SIA-C-36

SSA-C-12

SSA-C-18

SSA-C-24

SSA-C-30

SSA-C-36

SU-C-10-12

SU-C-10-18

SU-C-10-24

SU-C-10-36

SU-C-6-12

SU-C-6-18

SU-C-6-24

SU-C-6-36

SU-C-8-12

SU-C-8-18

SU-C-8-24

SU-C-8-36

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What type of paint is used on the racking? We'd like to use it outdoors.

A: The powder used for the cantilever racking is not suitable for outdoor use.


Q: Is the hardware for the cantilever racking metric?

A: Yes, the hardware for the cantilever racking is metric.


Q: What are the dimensions of the arm where they attached to the upright for SSA-C-18?

A: The arm bracket is 7-1/4" wide and the opening is 2-1/4" where it attaches to the upright.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Standard-Duty Cantilever Racking




Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities. The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.

  • Maneuverable to accommodate users needs
  • Quick fitting and easily removable for instantaneous use
  • Steel structure for utmost strength
  • Provides the option of more surface area for merchandise


Model # Description Attributes Net Wt.
(lbs)
SB-C-10-36 SB-C-10-36Steel Standard Cantilever Brace Set 120 In. x 36 In. BlueHardware Included: Yes
30
SB-C-10-48 SB-C-10-48Steel Standard Cantilever Brace Set 120 In. x 48 In. BlueHardware Included: Yes
44
SB-C-10-60 SB-C-10-60Steel Standard Cantilever Brace Set 120 In. x 60 In. BlueHardware Included: Yes
50
SB-C-10-72 SB-C-10-72Steel Standard Cantilever Brace Set 120 In. x 72 In. BlueHardware Included: Yes
54
SB-C-10-96 SB-C-10-96Steel Standard Cantilever Brace Set 120 In. x 96 In. BlueHardware Included: Yes
90
SB-C-6-36 SB-C-6-36Steel Standard Cantilever Brace Set 72 In. x 36 In. BlueHardware Included: Yes
26
SB-C-6-48 SB-C-6-48Steel Standard Cantilever Brace Set 72 In. x 48 In. BlueHardware Included: Yes
38
SB-C-6-60 SB-C-6-60Steel Standard Cantilever Brace Set 72 In. x 60 In. BlueHardware Included: Yes
44
SB-C-6-72 SB-C-6-72Steel Standard Cantilever Brace Set 72 In. x 72 In. BlueHardware Included: Yes
50
SB-C-6-96 SB-C-6-96Steel Standard Cantilever Brace Set 72 In. x 96 In. BlueHardware Included: Yes
64
SB-C-8-36 SB-C-8-36Steel Standard Cantilever Brace Set 96 In. x 36 In. BlueHardware Included: Yes
28
SB-C-8-48 SB-C-8-48Steel Standard Cantilever Brace Set 96 In. x 48 In. BlueHardware Included: Yes
42
SB-C-8-60 SB-C-8-60Steel Standard Cantilever Brace Set 96 In. x 60 In. BlueHardware Included: Yes
48
SB-C-8-72 SB-C-8-72Steel Standard Cantilever Brace Set 96 In. x 72 In. BlueHardware Included: Yes
52
SB-C-8-96 SB-C-8-96Steel Standard Cantilever Brace Set 96 In. x 96 In. BlueHardware Included: Yes
66
SDU-C-10-12 SDU-C-10-12Steel Standard Cantilever Double Upright 10 Ft. Height 12 In. Arm Use Length 9,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 9,300
Arm(s) to Use Length (in.): 12
225
SDU-C-10-18 SDU-C-10-18Steel Standard Cantilever Double Upright 10 Ft. Height 18 In. Arm Use Length 7,300 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,300
Arm(s) to Use Length (in.): 18
236
SDU-C-10-24 SDU-C-10-24Steel Standard Cantilever Double Upright 10 Ft. Height 24 In. Arm Use Length 6,500 Lb. Capacity BlueUniform Capacity per Upright (lb.): 6,500
Arm(s) to Use Length (in.): 24
249
SDU-C-10-36 SDU-C-10-36Steel Standard Cantilever Double Upright 10 Ft. Height 36 In. Arm Use Length 5,000 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 5,000 / 4,300
Arm(s) to Use Length (in.): 30 / 36
270
SDU-C-6-12 SDU-C-6-12Steel Standard Cantilever Double Upright 6 Ft. Height 12 In. Arm Use Length 11,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 11,000
Arm(s) to Use Length (in.): 12
183
SDU-C-6-18 SDU-C-6-18Steel Standard Cantilever Double Upright 6 Ft. Height 18 In. Arm Use Length 8,600 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,600
Arm(s) to Use Length (in.): 18
183
SDU-C-6-24 SDU-C-6-24Steel Standard Cantilever Double Upright 6 Ft. Height 24 In. Arm Use Length Set 7,700 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,700
Arm(s) to Use Length (in.): 24
195
SDU-C-6-36 SDU-C-6-36Steel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 6,000 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 6,000 / 5,200
Arm(s) to Use Length (in.): 30 / 36
215
SDU-C-8-12 SDU-C-8-12Steel Standard Cantilever Double Upright 8 Ft. Height 12 In. Arm Use Length 10,100 Lb. Capacity BlueUniform Capacity per Upright (lb.): 10,100
Arm(s) to Use Length (in.): 12
197
SDU-C-8-18 SDU-C-8-18Steel Standard Cantilever Double Upright 8 Ft. Height 18 In. Arm Use Length 8,000 Lb. Capacity BlueUniform Capacity per Upright (lb.): 8,000
Arm(s) to Use Length (in.): 18
208
SDU-C-8-24 SDU-C-8-24Steel Standard Cantilever Double Upright 8 Ft. Height 24 In. Arm Use Length 7,100 Lb. Capacity BlueUniform Capacity per Upright (lb.): 7,100
Arm(s) to Use Length (in.): 24
219
SDU-C-8-36 SDU-C-8-36Steel Standard Cantilever Double Upright 8 Ft. Height 36 In. Arm Use Length 5,500 Lb. Capacity BlueUniform Capacity per Upright 30" / 36" Arm (lb.): 5,500 / 4,800
Arm(s) to Use Length (in.): 30 / 36
242
SIA-C-12 SIA-C-12Steel Standard Cantilever 10 Degree Incline Arm 12 In. Length 800 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 800
Component: 10 Degree Inclined Arm
10
SIA-C-18 SIA-C-18Steel Standard Cantilever 10 Degree Incline Arm 18 In. Length 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: 10 Degree Inclined Arm
12
SIA-C-24 SIA-C-24Steel Standard Cantilever 10 Degree Incline Arm 24 In. Length 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: 10 Degree Inclined Arm
15
SIA-C-30 SIA-C-30Steel Standard Cantilever 10 Degree Incline Arm 30 In. Length 300 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 300
Component: 10 Degree Inclined Arm
17
SIA-C-36 SIA-C-36Steel Standard Cantilever 10 Degree Incline Arm 36 In. Length 200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 200
Component: 10 Degree Inclined Arm
21
SSA-C-12 SSA-C-12Steel Standard Cantilever Racking Straight Arm 12 In. Length 800 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 800
Component: Straight Arm
10
SSA-C-18 SSA-C-18Steel Standard Cantilever Racking Straight Arm 18 In. Length 600 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 600
Component: Straight Arm
12
SSA-C-24 SSA-C-24Steel Standard Cantilever Racking Straight Arm 24 In. Length 400 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 400
Component: Straight Arm
15
SSA-C-30 SSA-C-30Steel Standard Cantilever Racking Straight Arm 30 In. Length 300 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 300
Component: Straight Arm
17
SSA-C-36 SSA-C-36Steel Standard Cantilever Racking Straight Arm 36 In. Length 200 Lb. Capacity OrangeUniform Capacity Per Arm (lb.): 200
Component: Straight Arm
21
SU-C-10-12 SU-C-10-12Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 4,600
Arm(s) to Use Length (in.): 12
214
SU-C-10-18 SU-C-10-18Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 3,600
Arm(s) to Use Length (in.): 18
219
SU-C-10-24 SU-C-10-24Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3,200
Arm(s) to Use Length (in.): 24
225
SU-C-10-36 SU-C-10-36Steel Standard Duty Cantilever Single Sided Upright 10 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 2,500 / 2,100
Arm(s) to Use Length (in.): 30 / 36
237
SU-C-6-12 SU-C-6-12Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 5,500
Arm(s) to Use Length (in.): 12
172
SU-C-6-18 SU-C-6-18Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 4,300
Arm(s) to Use Length (in.): 18
182
SU-C-6-24 SU-C-6-24Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3,800
Arm(s) to Use Length (in.): 24
195
SU-C-6-36 SU-C-6-36Steel Standard Duty Cantilever Single Sided Upright 6 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 3,000 / 2,600
Arm(s) to Use Length (in.): 30 / 36
198
SU-C-8-12 SU-C-8-12Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 12 In. Arm BlueUniform Capacity per Upright (lb.): 5000
Arm(s) to Use Length (in.): 12
186
SU-C-8-18 SU-C-8-18Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 18 In. Arm BlueUniform Capacity per Upright (lb.): 4000
Arm(s) to Use Length (in.): 18
191
SU-C-8-24 SU-C-8-24Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 24 In. Arm BlueUniform Capacity per Upright (lb.): 3500
Arm(s) to Use Length (in.): 24
197
SU-C-8-36 SU-C-8-36Steel Standard Duty Cantilever Single Sided Upright 8 Ft x 30 In. To 36 In. Arm BlueUniform Capacity per Upright 30"/36" Arm (lb.): 2700 / 2400
Arm(s) to Use Length (in.): 30 / 36
208


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
