Heavy Duty Roll-Out Shelving

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

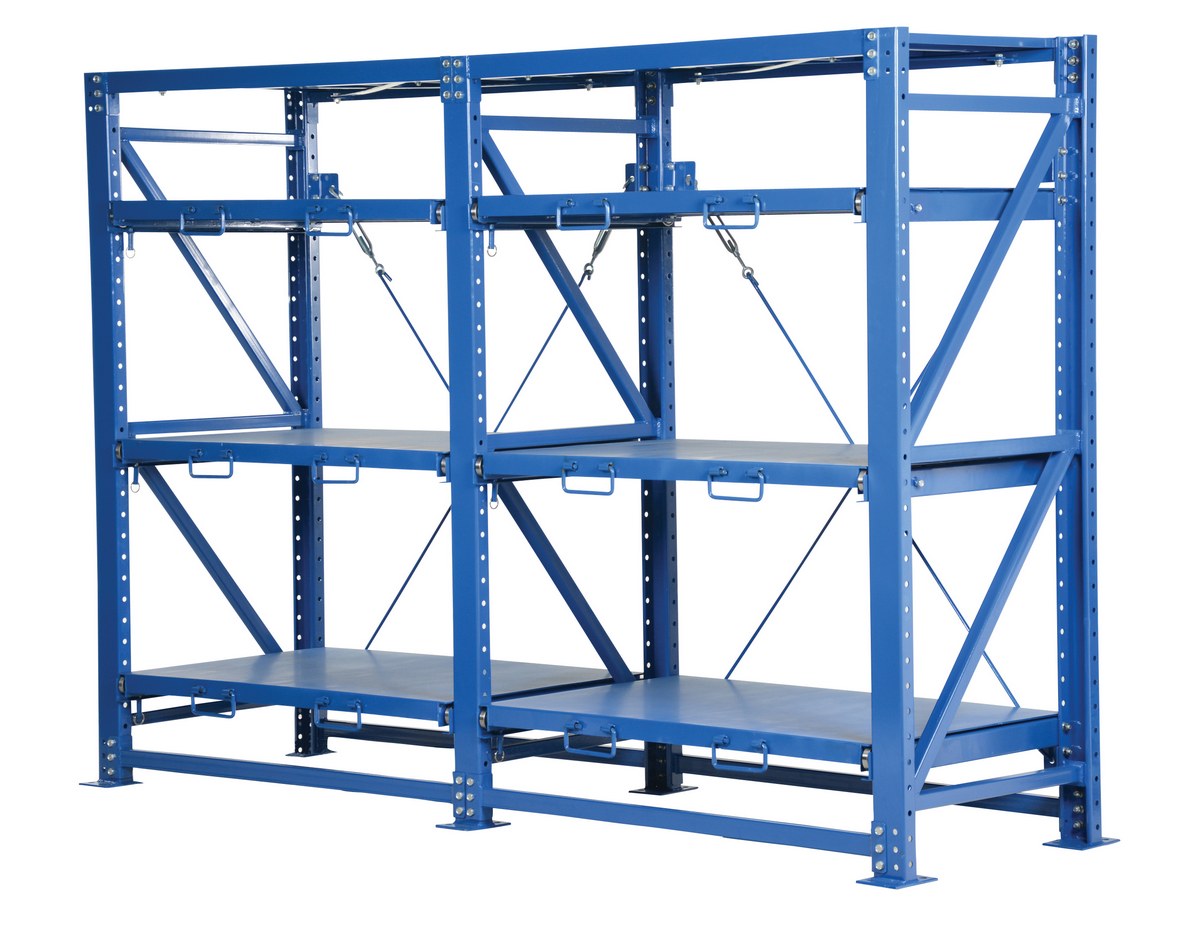

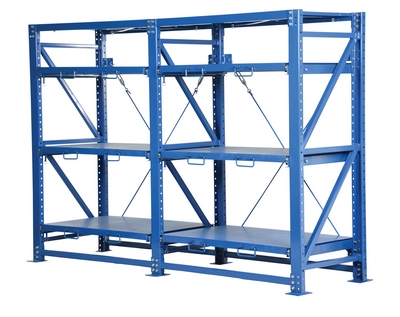

VRSOR-114_A.jpg VRSOR-114_B.jpg
Heavy Duty Roll-Out Shelving

model: VRSOR-114



Featured Storage Solutions


Pallet Rack Back Guards
Foam Edge Guards
Aluminum Tread Plate Portable Tool Boxes
Standard-Duty Cantilever Racking
Racking Place Card Labels
Pallet Support Bars
Utility Boxes
Expandable Vertical Bar Racks
Gravity Flow Inserts
model chart

Product Family Overview

Print Friendly
Heavy Duty Roll-Out Shelving
SERIES: VRSOR

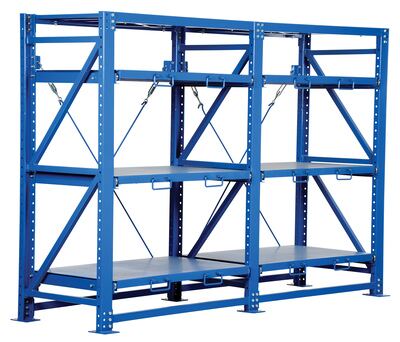

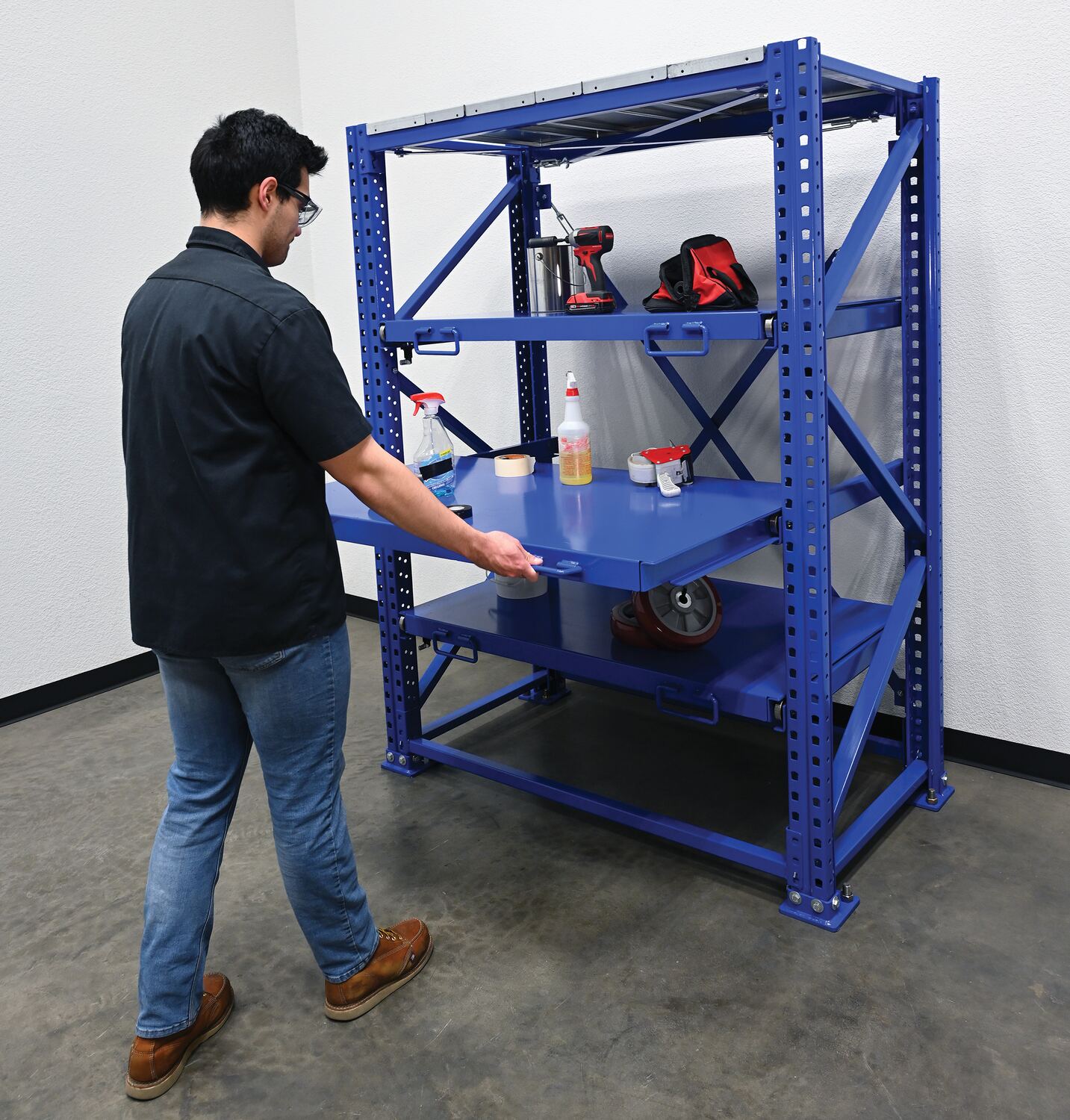

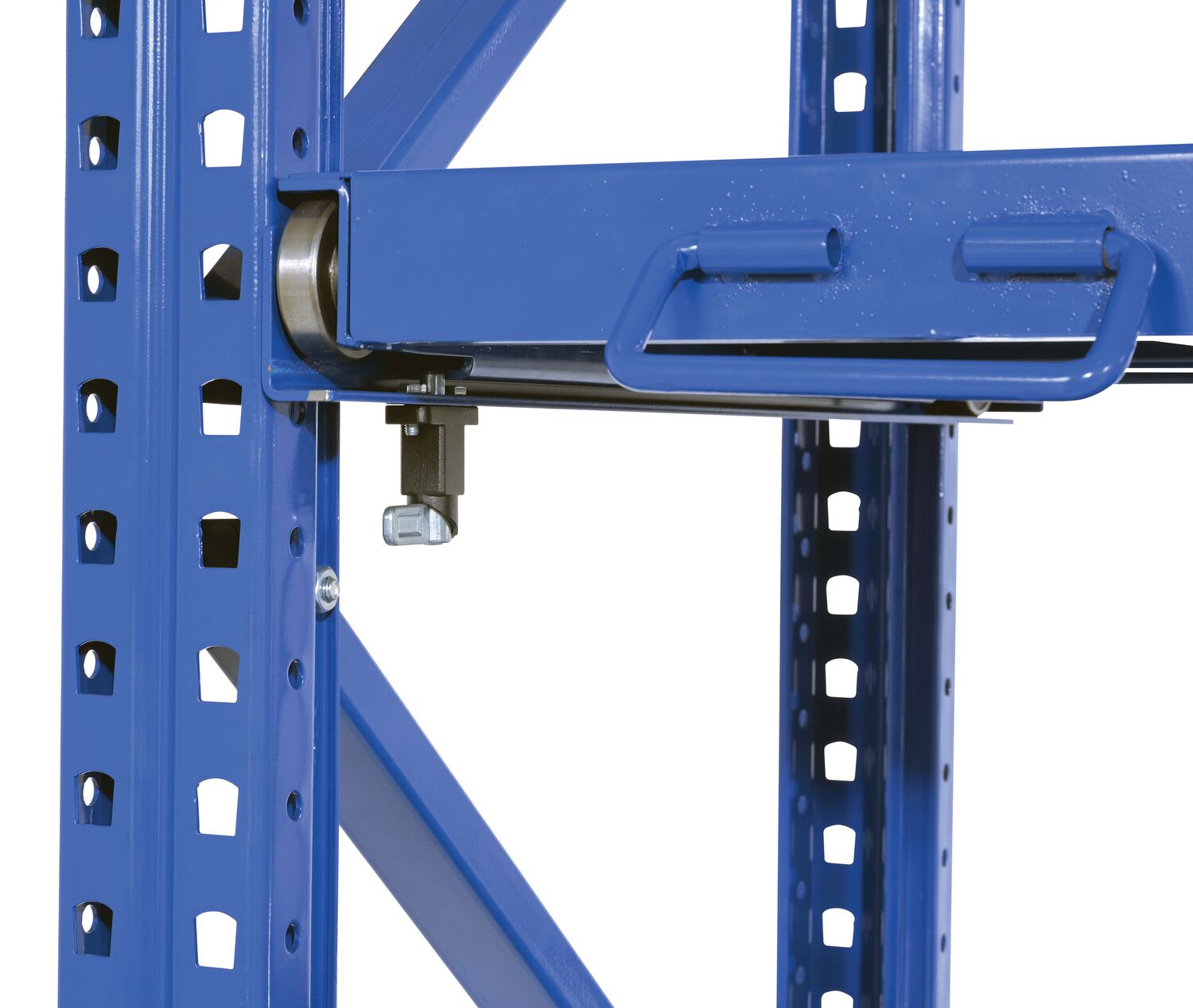

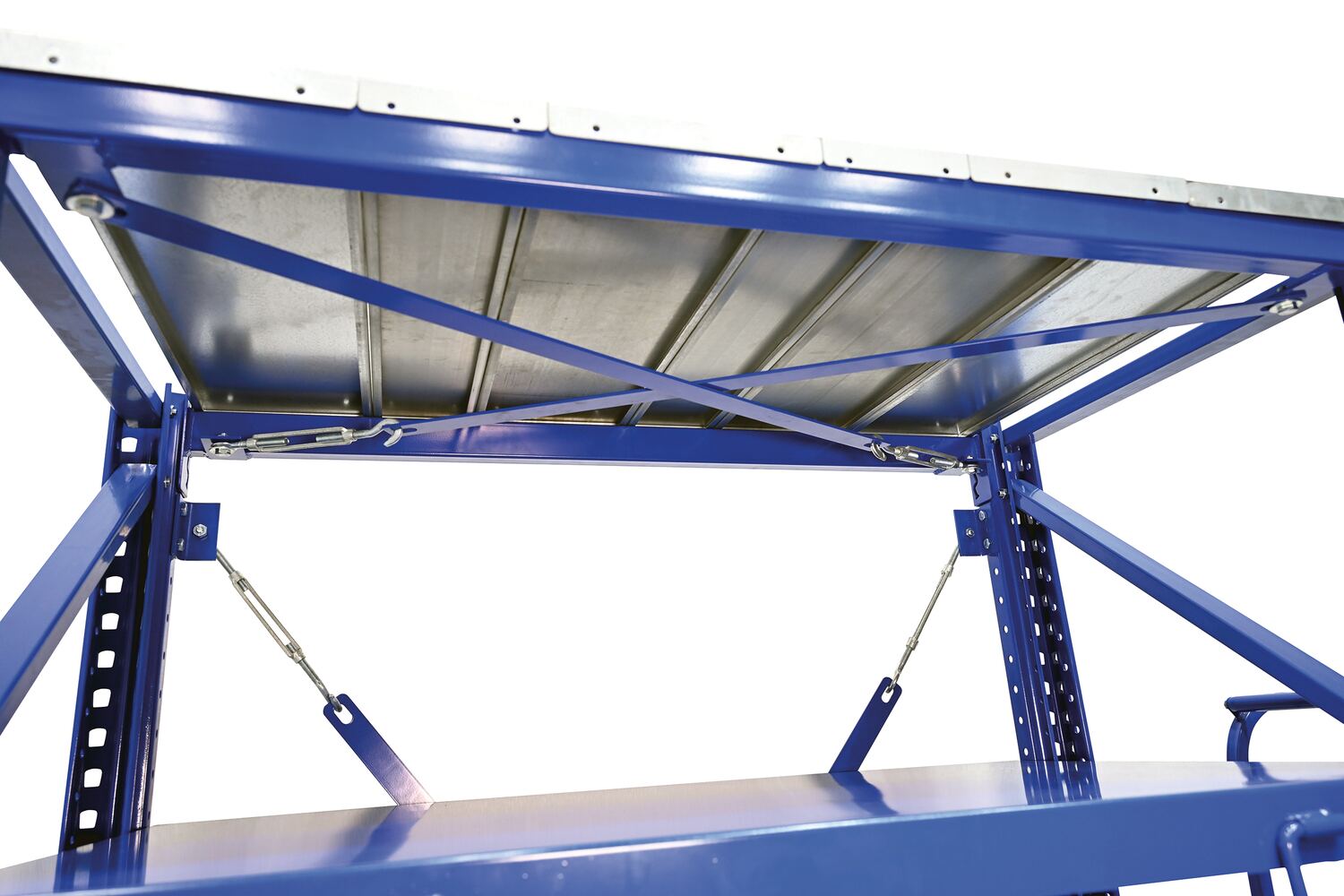

Roll-out shelving rack stores heavy dies, fixtures and machinery. Capacity per shelf is 1,500 lbs. with a total uniform capacity of 6,000 lbs. Shelves roll out for convenient loading and retrieving. Can be easily loaded and unloaded with a crane, overhead hoist, forklift or stacker. Individual shelf height are adjustable on 2-3/8" centers. Features 10 gauge steel shelves that can be extended out 20", one at a time, and locked in the extended position for maximum safety. Top shelves are fixed, non adjustable. Add on units are available. All steel construction with powder coat finish. Ships unassembled. Three (3) slide out shelves per side of the VRSOR-114.

Roll-out shelving rack stores heavy dies, fixtures and machinery. Capacity per shelf is 1,500 lbs. with a total uniform capacity of 6,000 lbs. Shelves roll out for convenient loading and retrieving. Can be easily loaded and unloaded with a crane, overhead hoist, forklift or stacker. Individual shelf height are adjustable on 2-3/8" centers. Features 10 gauge steel shelves that can be extended out 20", one at a time, and locked in the extended position for maximum safety. Top shelves are fixed, non adjustable. Add on units are available. All steel construction with powder coat finish. Ships unassembled. Three (3) slide out shelves per side of the VRSOR-114.

Other Various Racking

 Carton Flow Racks Slab Transport Rack Dunnage Racks Cantilever Carts

Additional Models In This Family
view entire Image Gallery

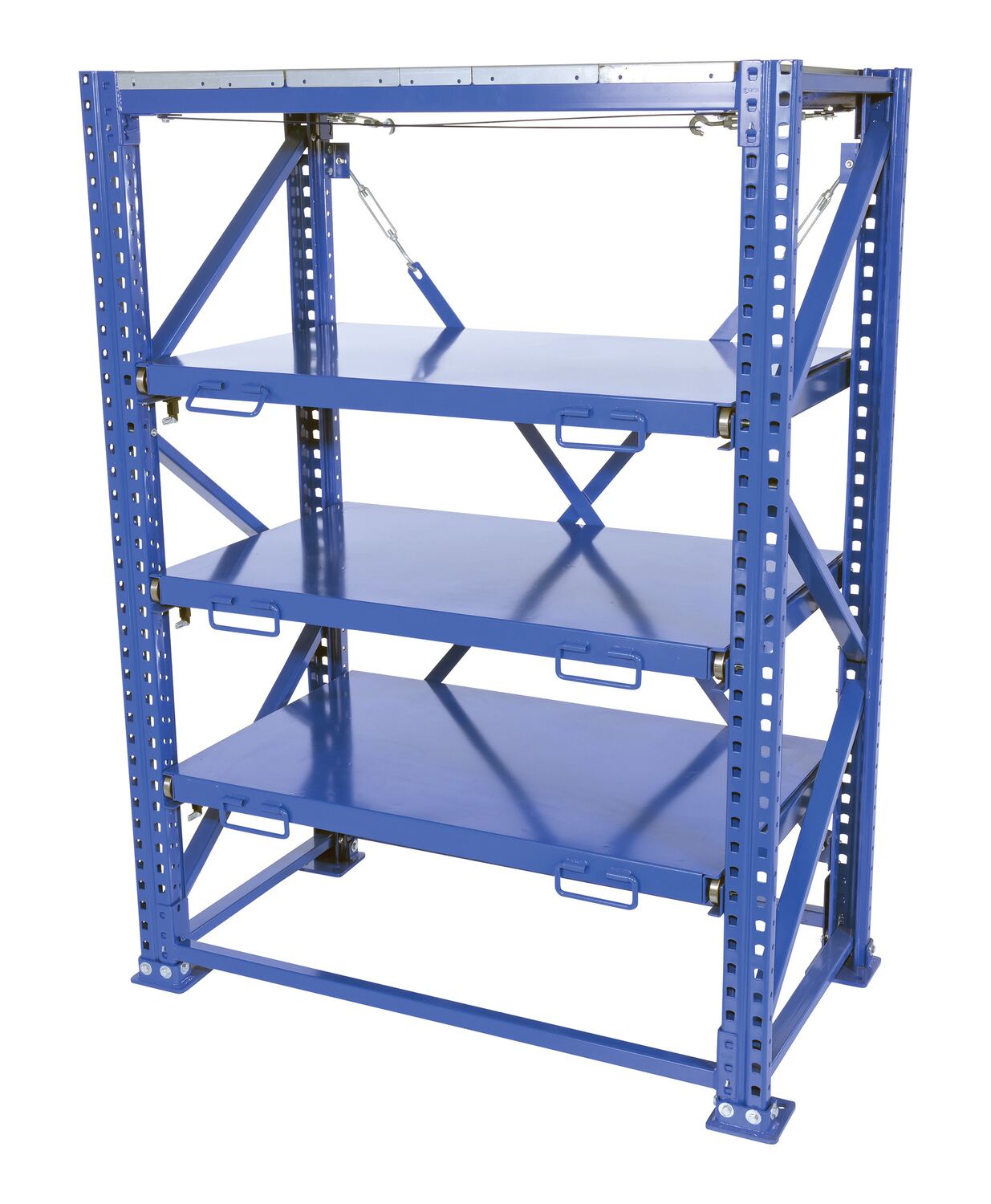

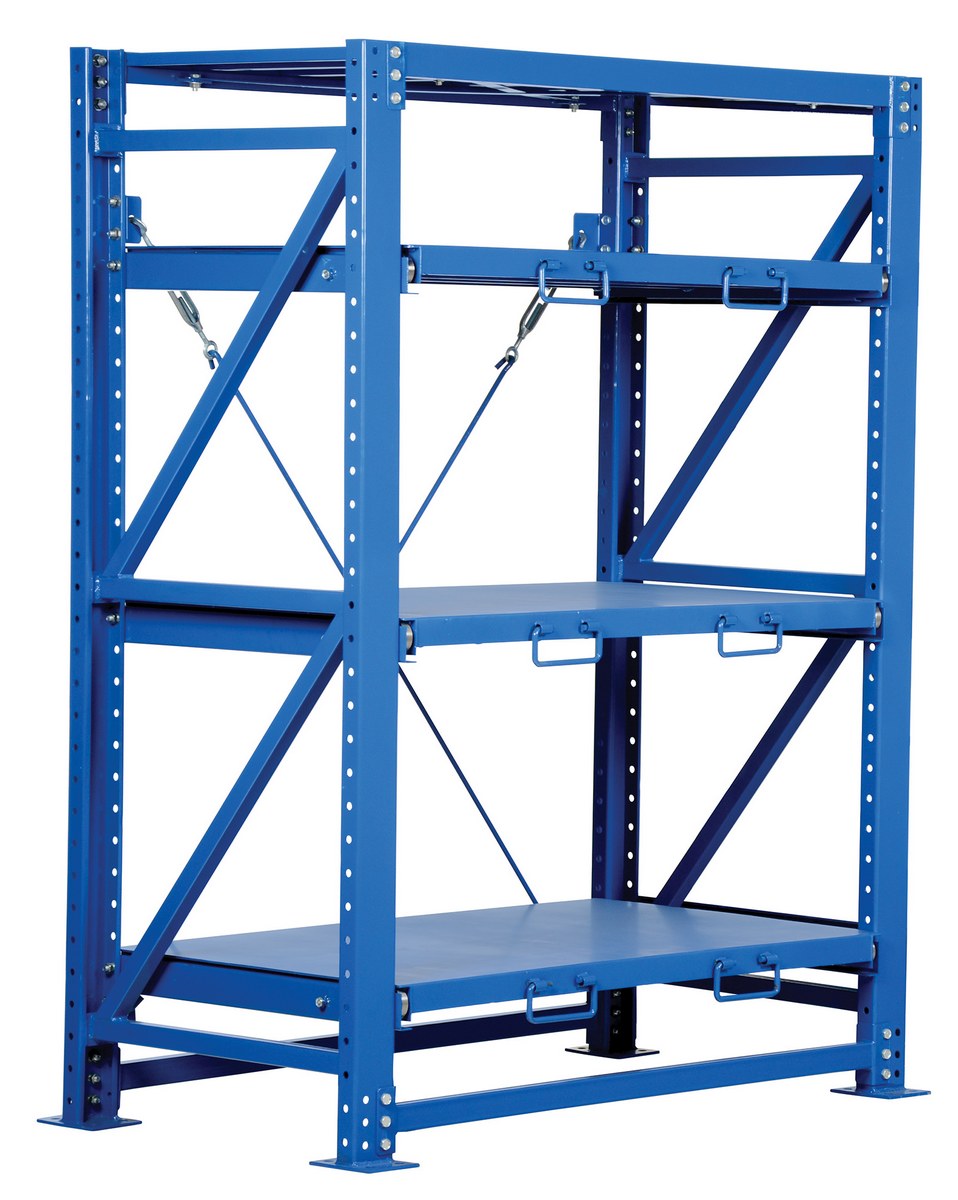

VRSOR-54

model VRSOR-54

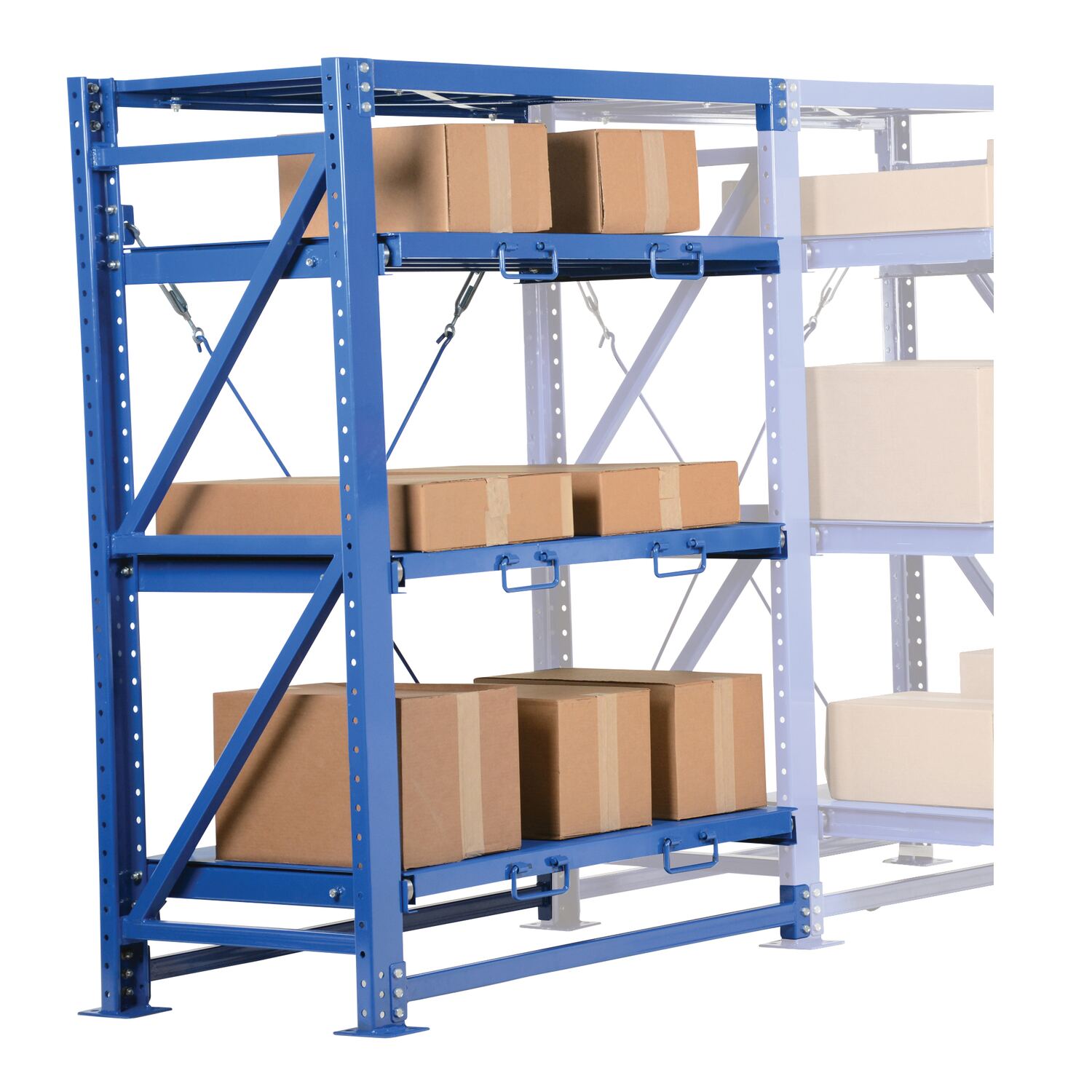

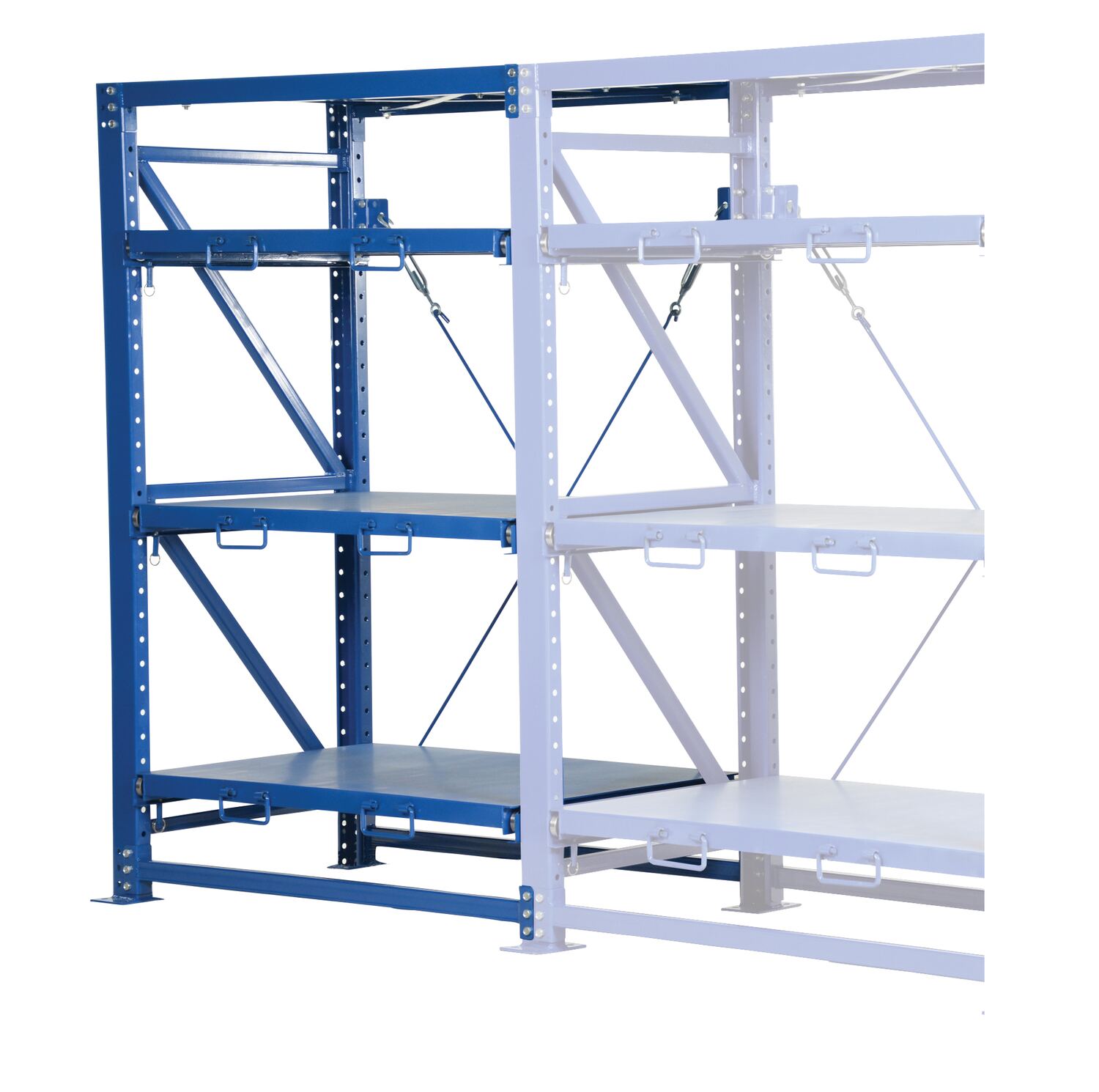

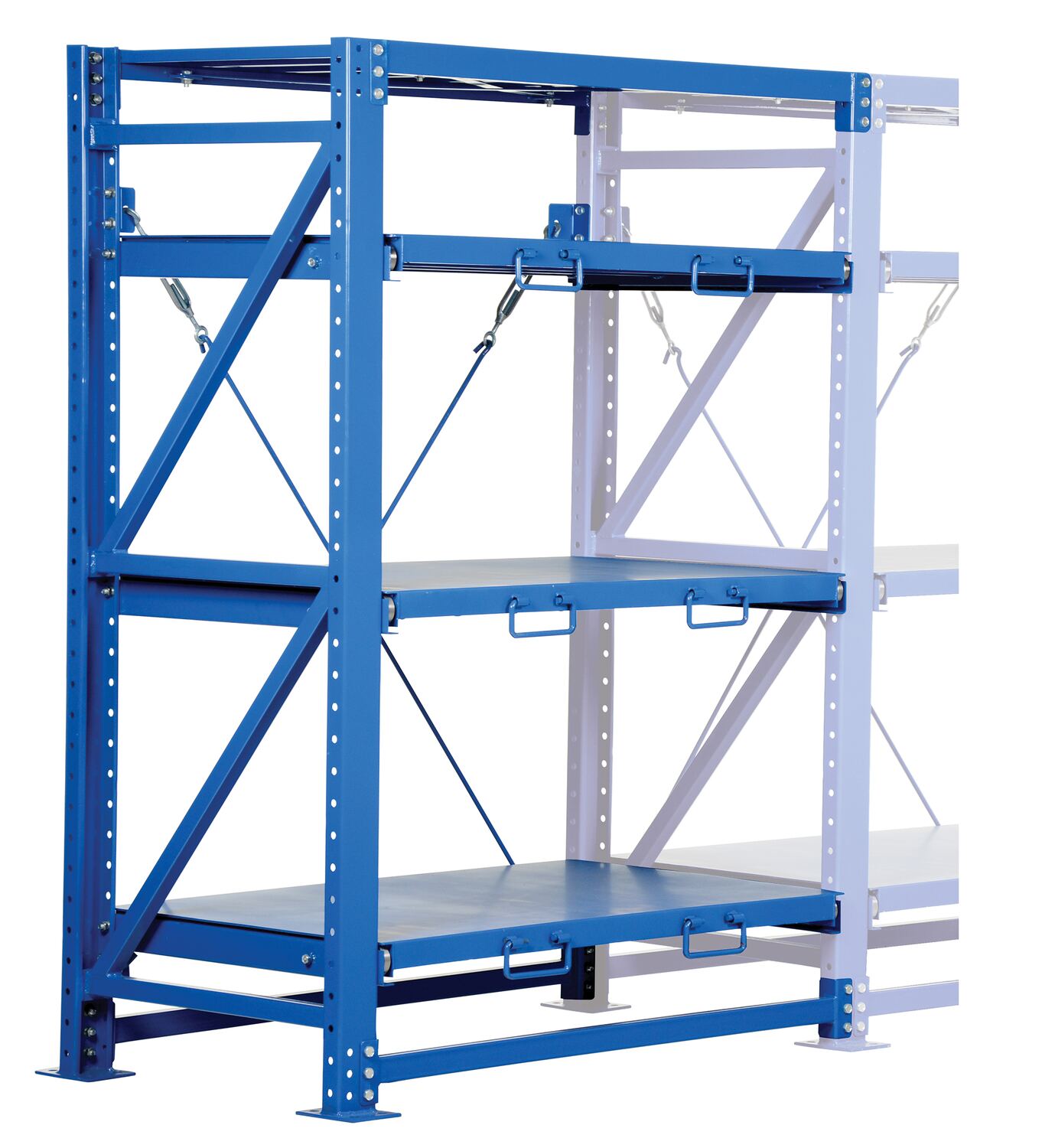

VRSOR-A-114

model VRSOR-A-114

VRSOR-SLF

model VRSOR-SLF

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VRSOR-114 VRSOR-11490 Days Limited WarrantySteel Heavy-Duty Roll Out Shelving 32 In. x 114 In. x 80 In. 12,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500		830
VRSOR-54 VRSOR-5490 Days Limited WarrantySteel Heavy-Duty Roll Out Shelving 32 In. x 57 In. x 80 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500		485
VRSOR-A-114 VRSOR-A-11490 Days Limited WarrantySteel Roll Out Shelving-Add On Unit 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500		395

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VRSOR-114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500

VRSOR-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500

VRSOR-A-114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500
Uniform Capacity (lb.): 6,000
Uniform Capacity per Shelf (lb.): 1,500
For More Details of the Option Click the Red Model Button

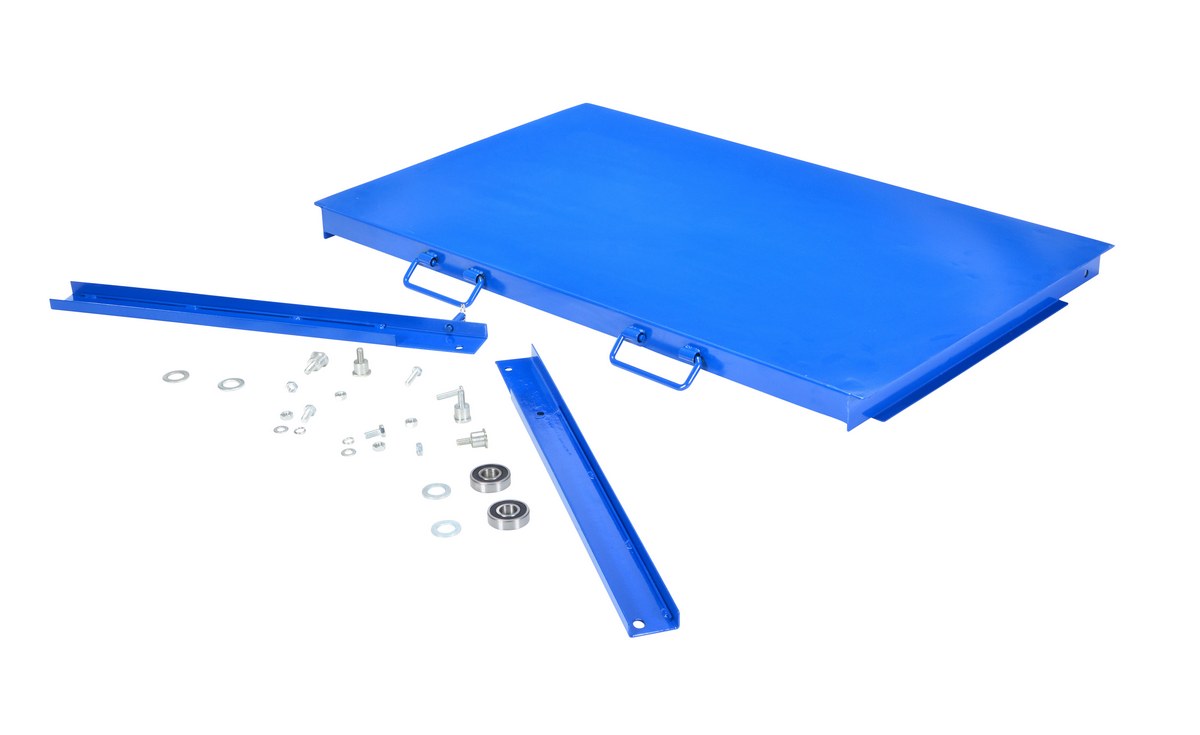

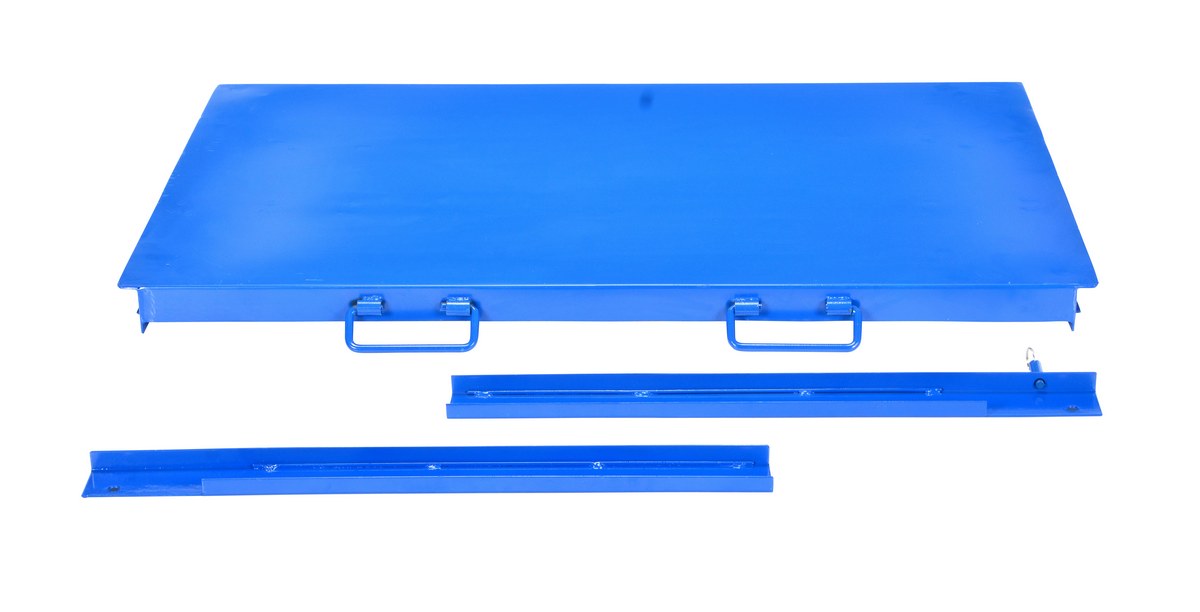

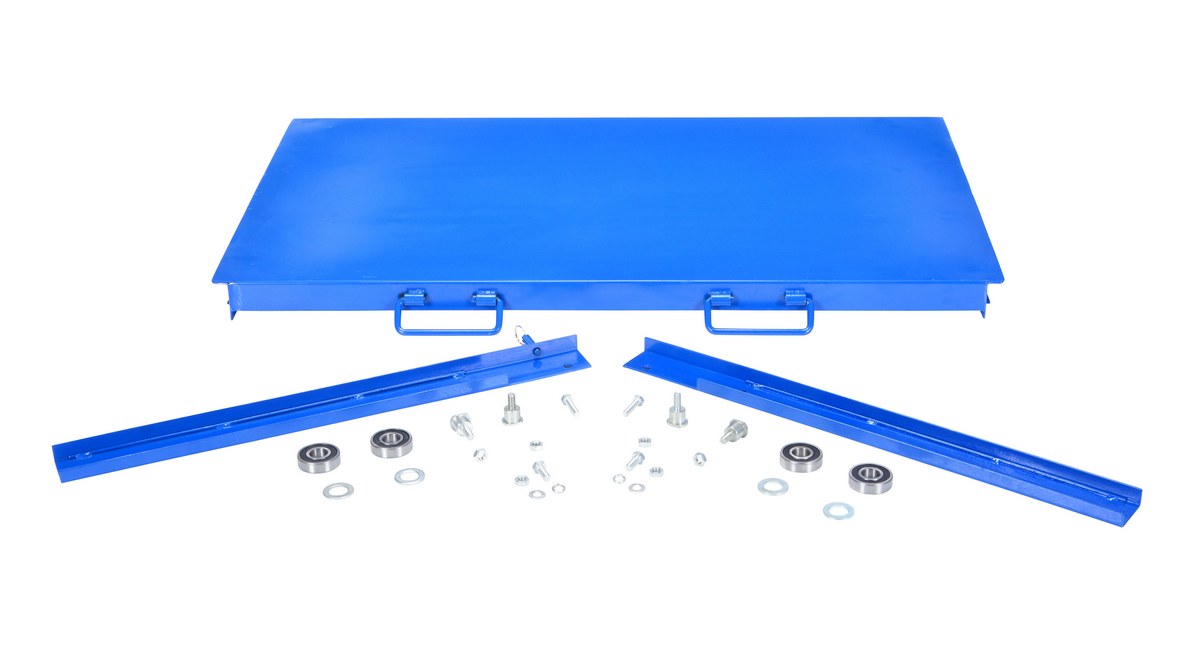

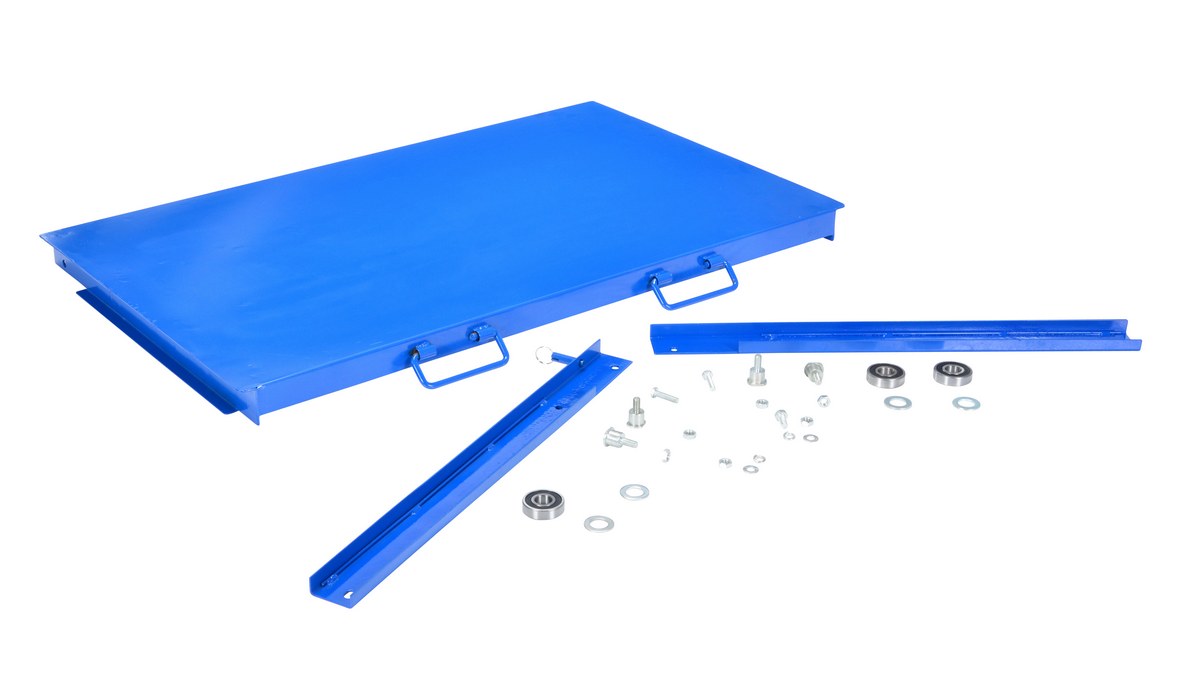

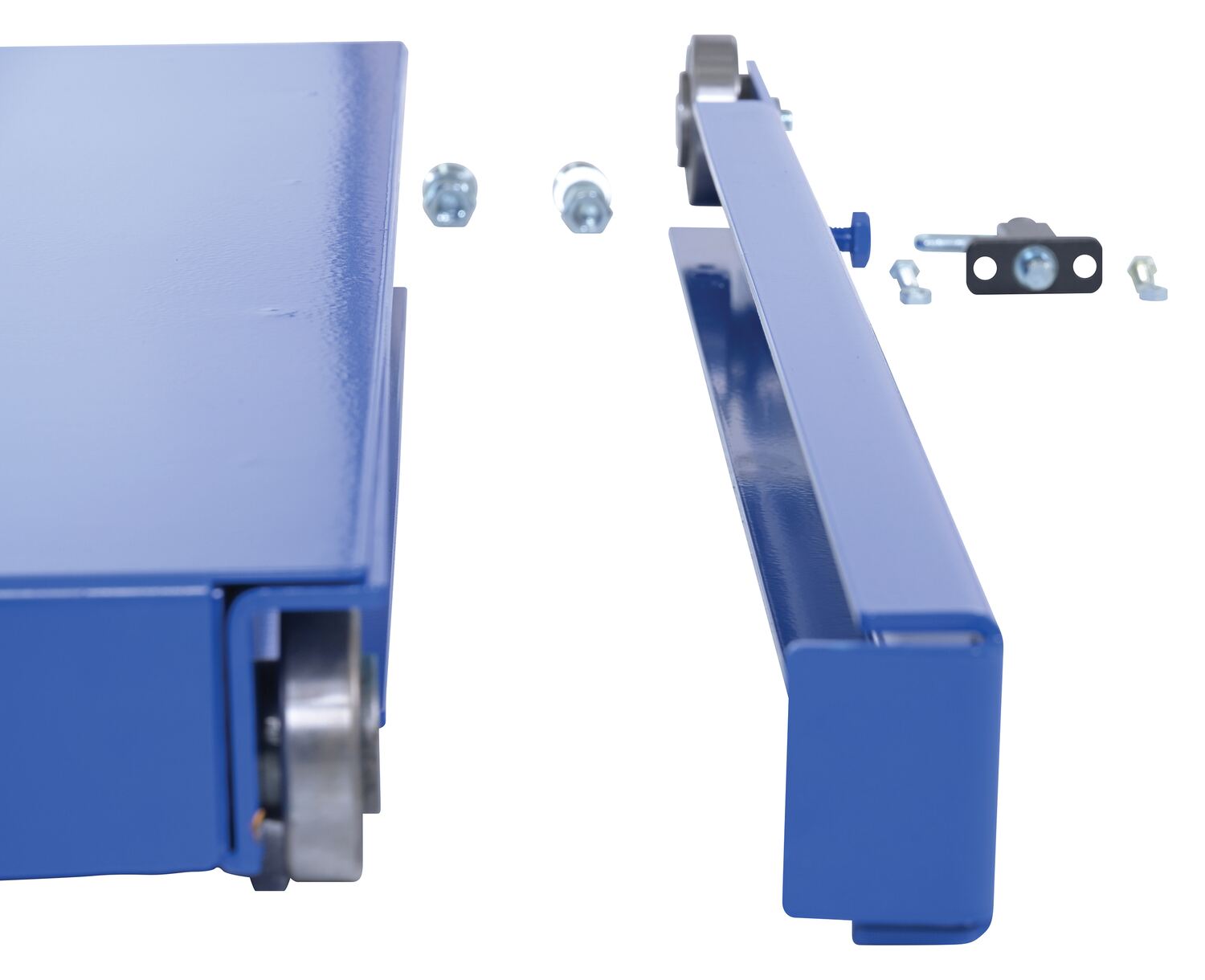

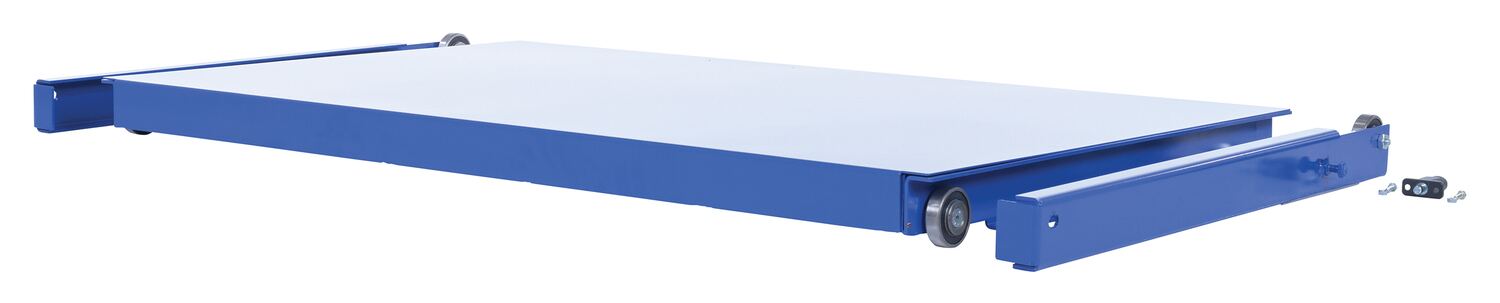

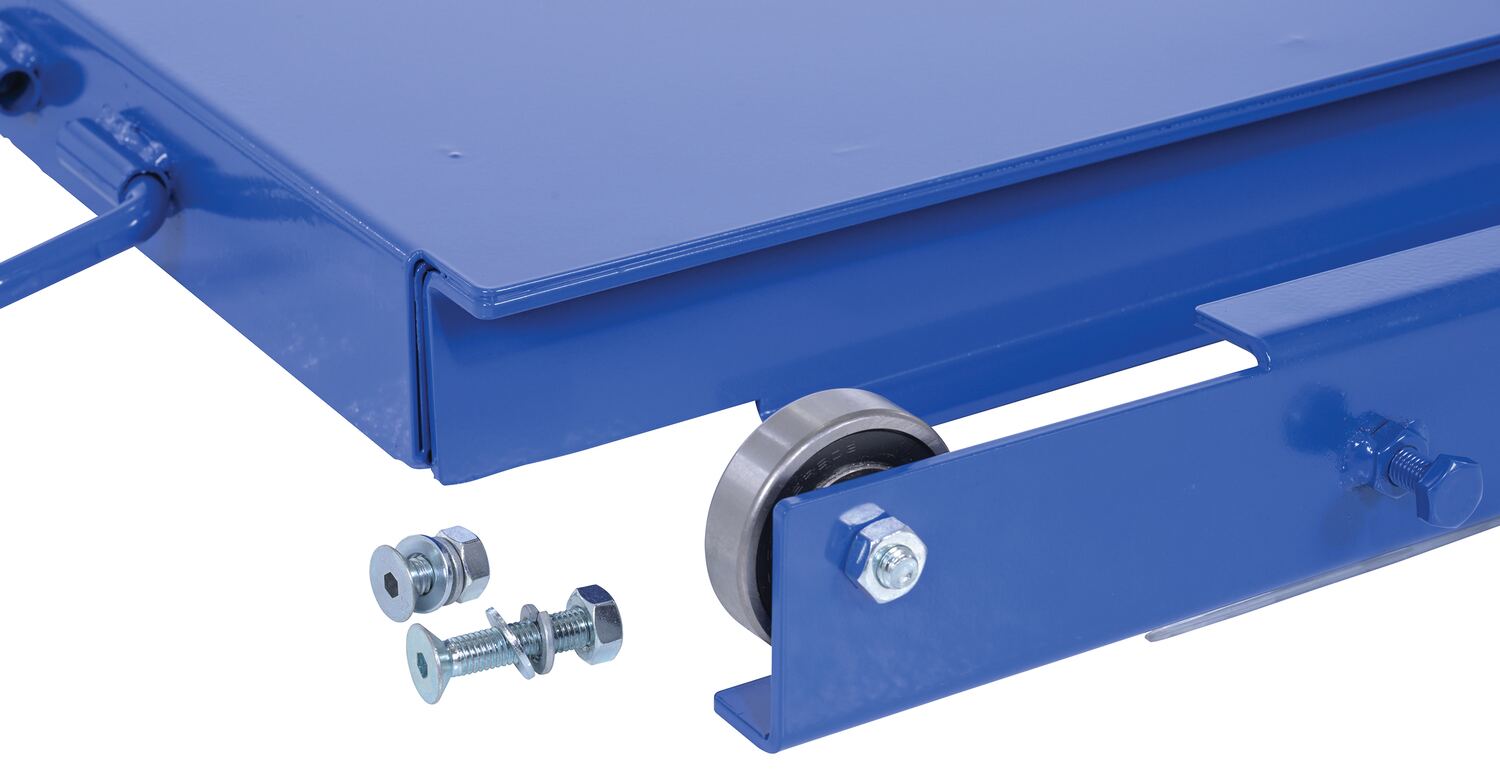

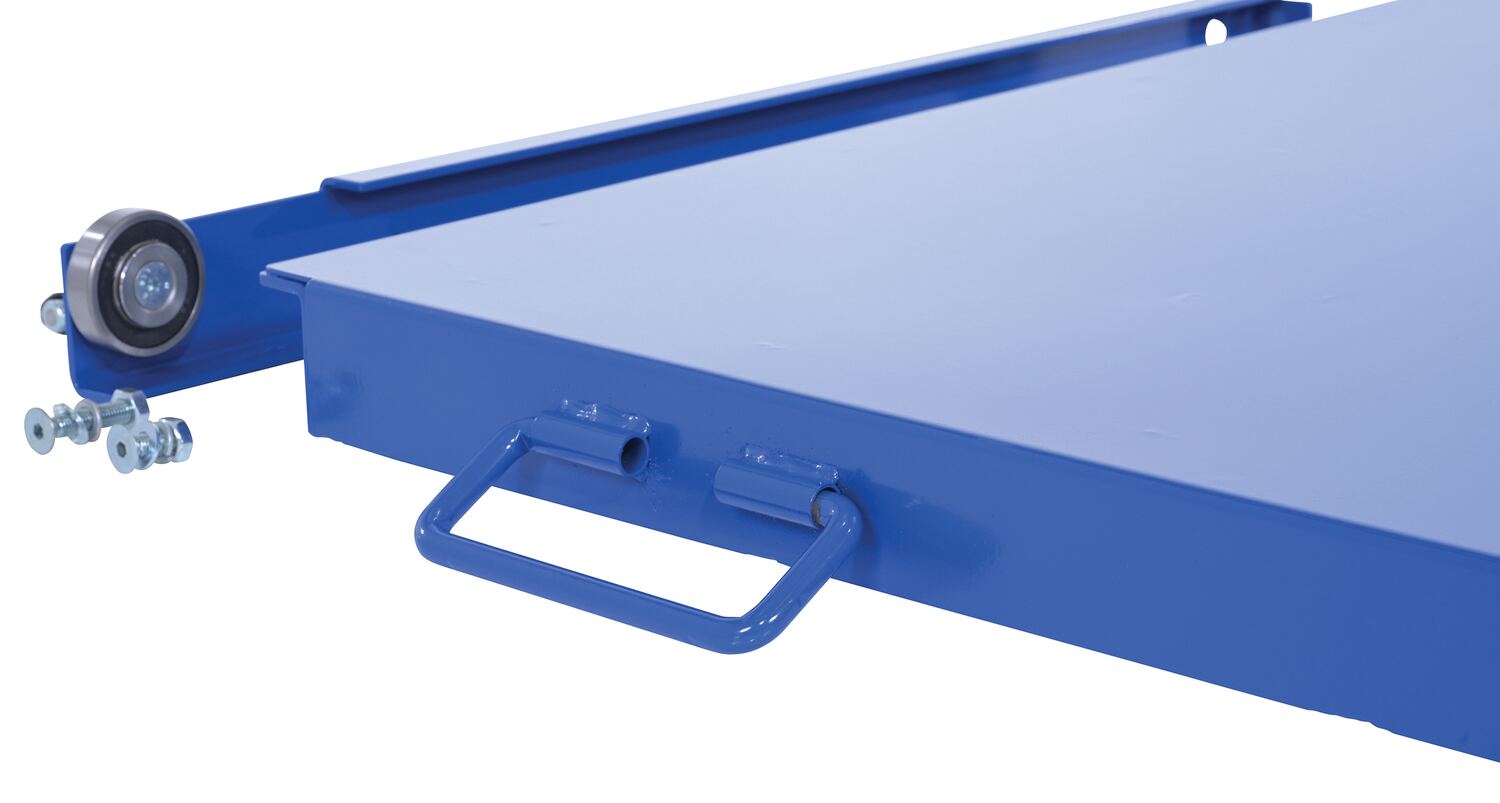

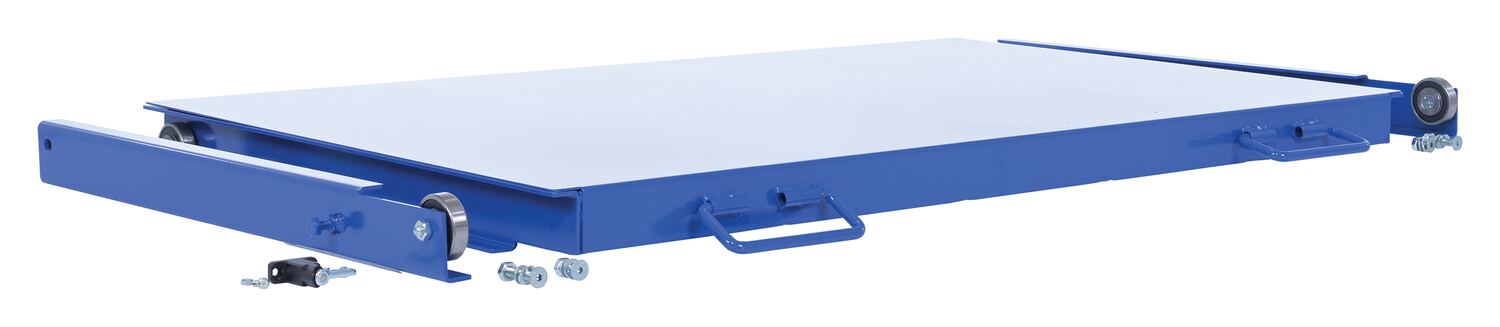

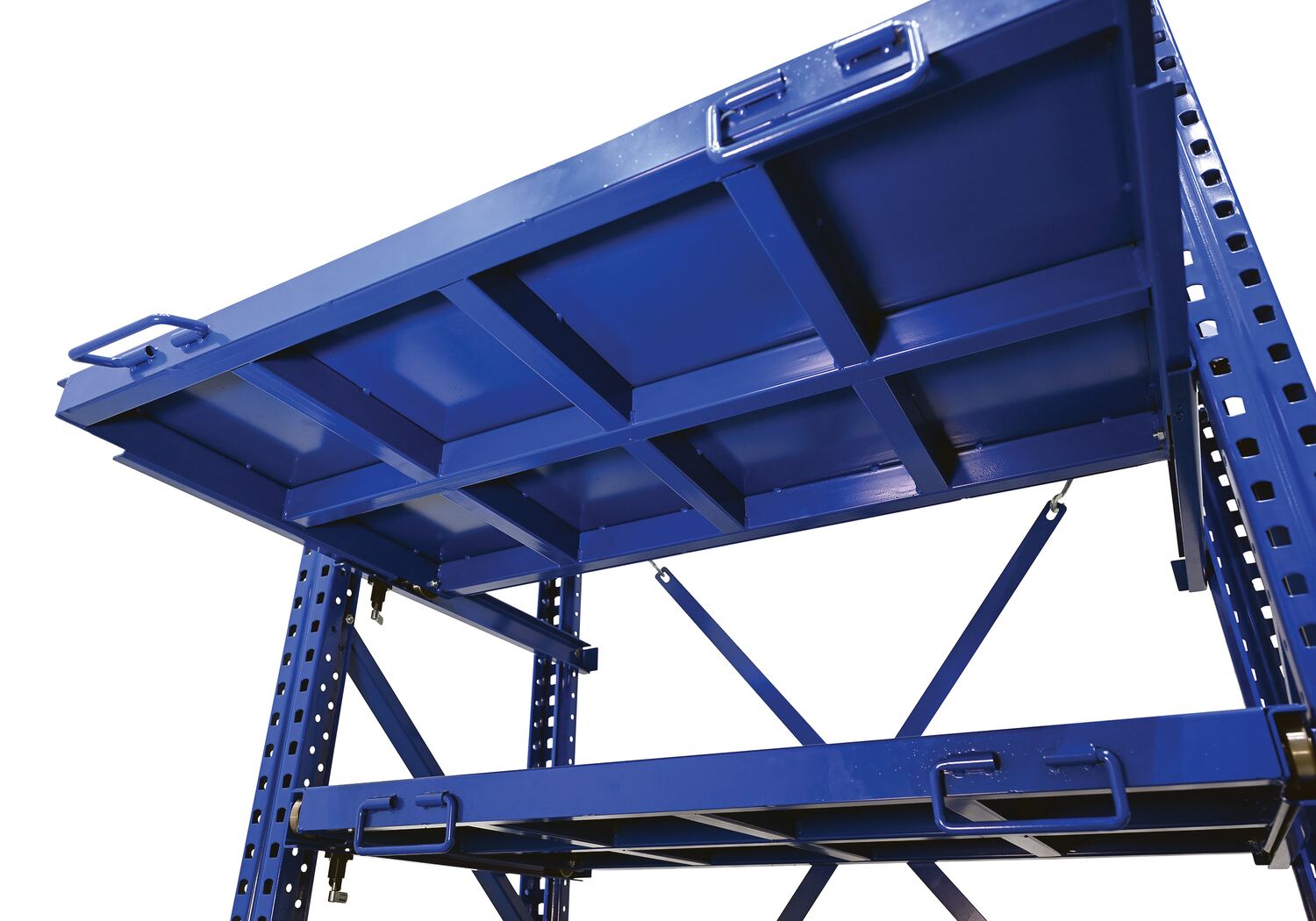

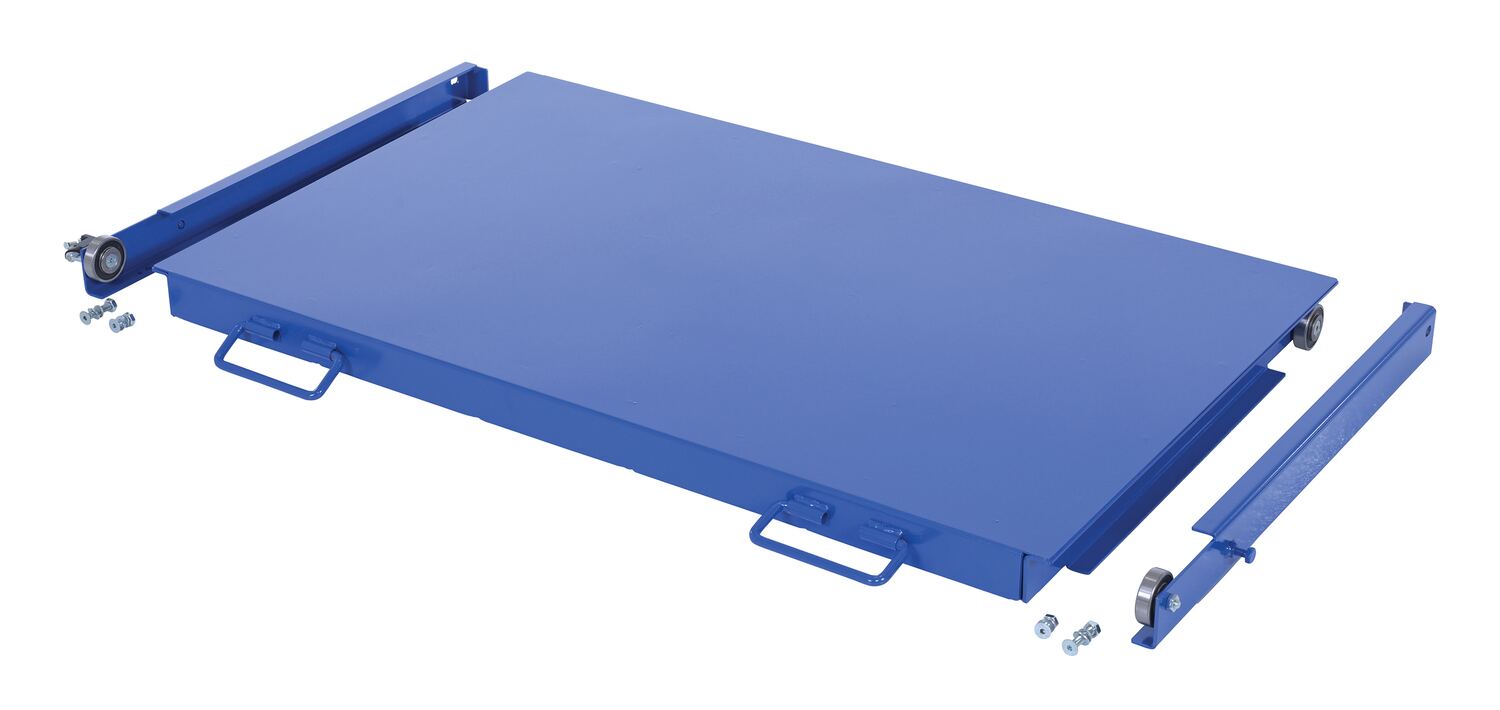

VRSOR-SLF VRSOR-SLF90 Days Limited WarrantySteel Additional Shelf 32 In. Length 1,500 Lb. Capacity For VRSOR Models BlueUniform Capacity per Shelf (lb.): 1500
Shelf Steel (gauge): 10		110

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy Duty Roll-Out Shelving PDF's will open in a new window when clicked.

Manuals


VRSOR-114
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


VRSOR-114

Testing Certificates


VRSOR-114

VRSOR-54

VRSOR-A-114

VRSOR-SLF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can I add a shelf to this racking?

A: Yes, the (VRSOR-SLF) shelf can be added to the VRSOR-114 or the VRSOR-57.

Q: What is the maximum number of shelves can be added for VRSOR-54?

A: The unit has 67 in useable space with mounting holes 2-1/4 in apart. Each shelf needs approximately 6 in to function properly. Capacity is 6,000 per set and 1,500 per shelf.
