Product Family Overview


Polyurethane Casters (Red Tread)
SERIES: CST-PU

Polyurethane on cast iron caster wheels are composed of a non-marking polyurethane tread that has been hand-painted and then cast upon an cast iron core. These wheels boast high weight capacities while maintaining superior, smooth rolling and floor protection. Reduced friction allows for a longer lifespan of these wheels. Polyurethane on cast iron caster wheels are most commonly found in both outdoor and indoor applications.

  • Non-marking for good floor preservation
  • Temperature rating of -45 degrees F to 180 degrees F
  • Anti-corrosive & rust resistant Zinc Plated finish
  • Roller bearing

Polyurethane on cast iron caster wheels are composed of a non-marking polyurethane tread that has been hand-painted and then cast upon an cast iron core. These wheels boast high weight capacities while maintaining superior, smooth rolling and floor protection. Reduced friction allows for a longer lifespan of these wheels. Polyurethane on cast iron caster wheels are most commonly found in both outdoor and indoor applications.

  • Non-marking for good floor preservation
  • Temperature rating of -45 degrees F to 180 degrees F
  • Anti-corrosive & rust resistant Zinc Plated finish
  • Roller bearing

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

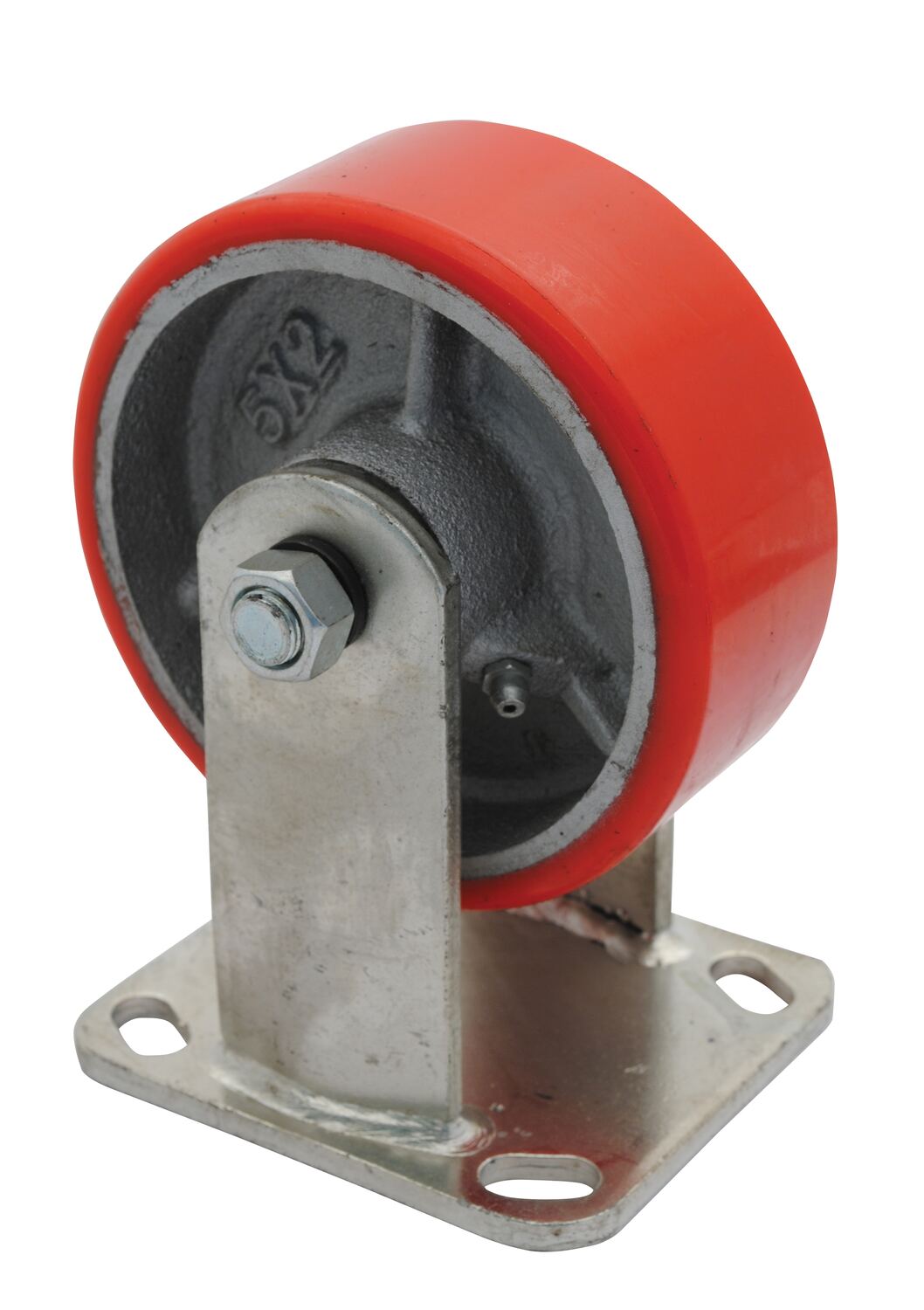

CST-PU-5X2-R CST-PU-5X2-R1 Year Limited Warranty5 x 2RIGID661

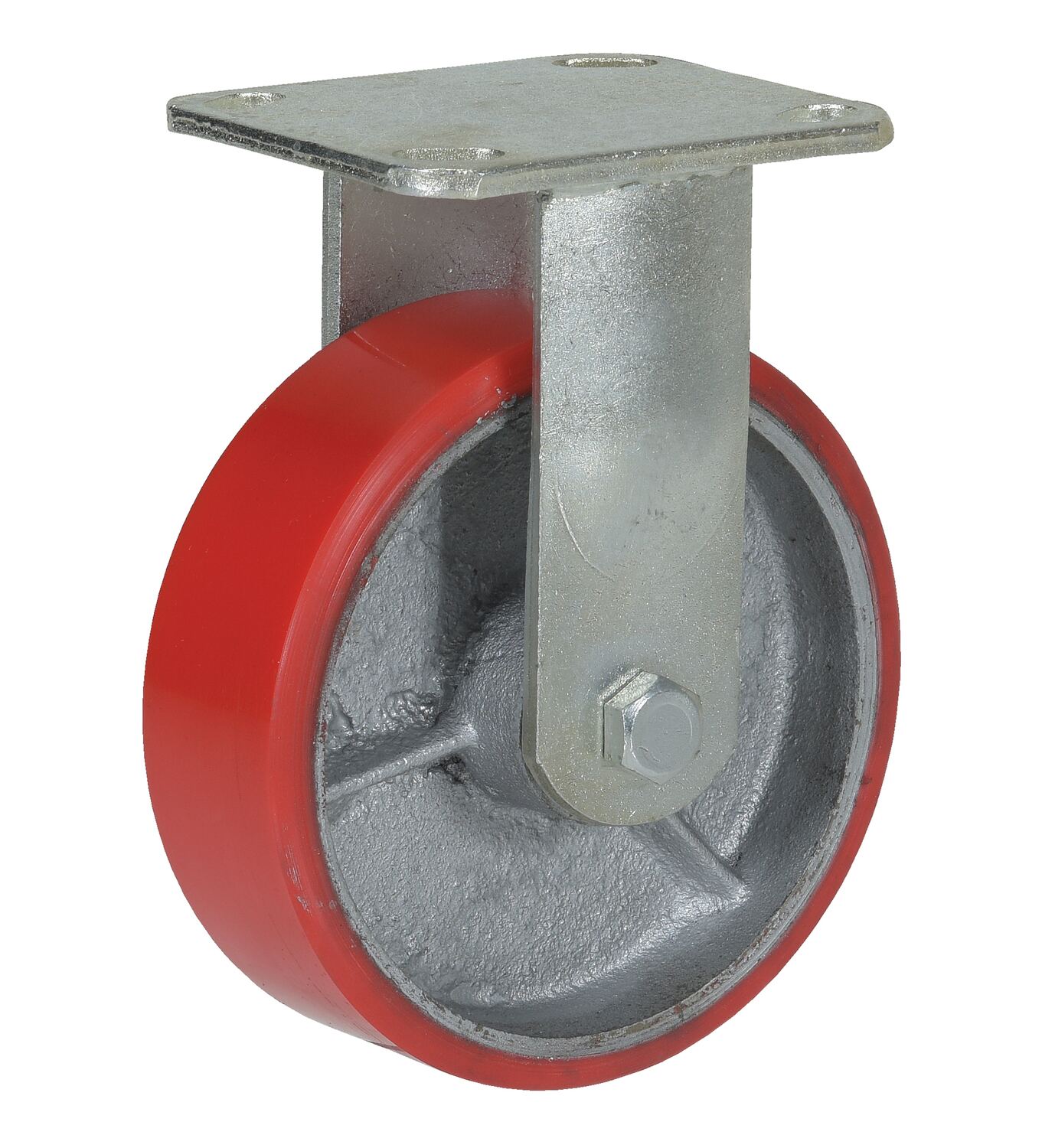

CST-PU-6X2-R CST-PU-6X2-R1 Year Limited Warranty6 x 2RIGID7727-1/2 4 x 4-1/27

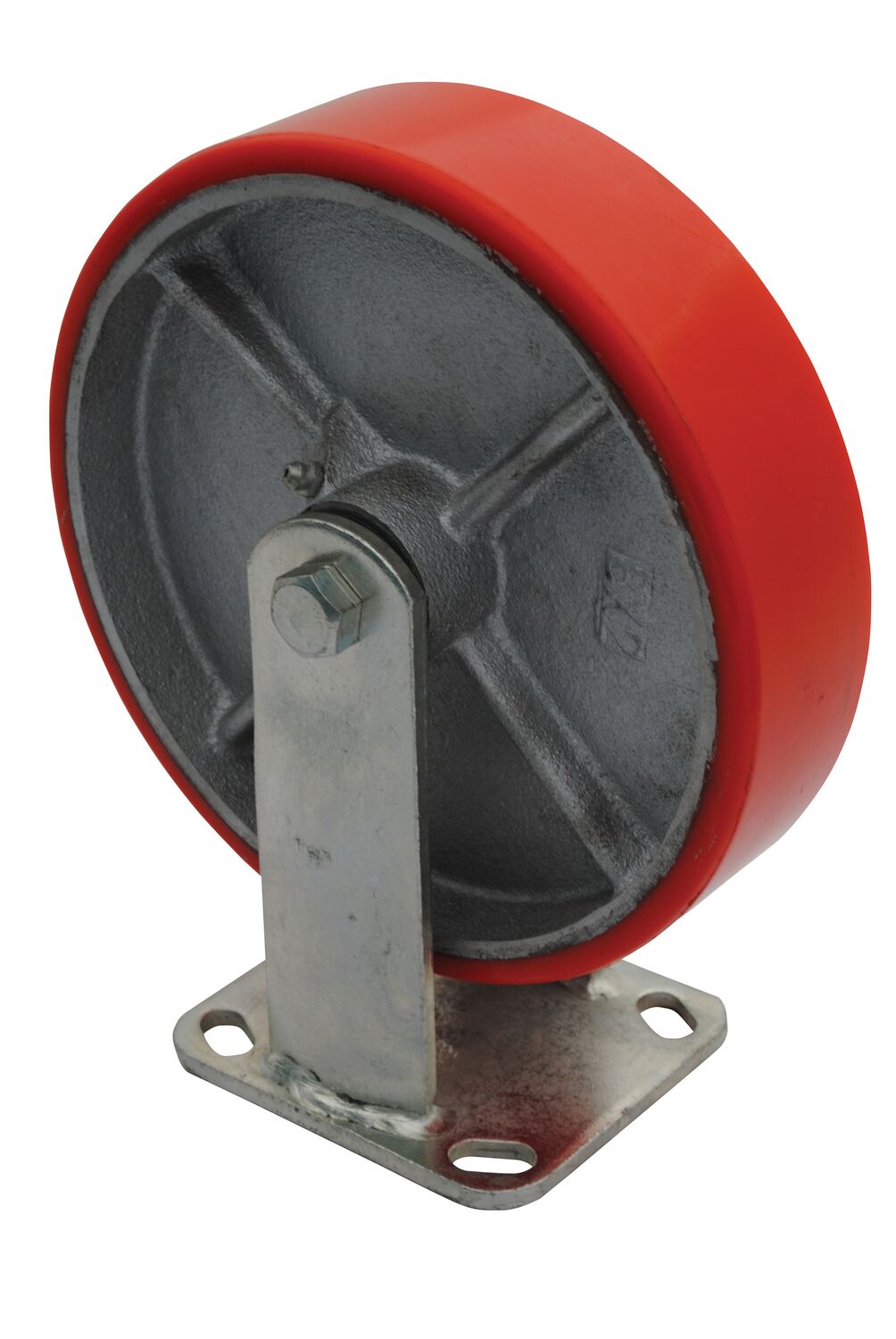

CST-PU-8X2-R CST-PU-8X2-R Limited Warranty8 x 2RIGID882

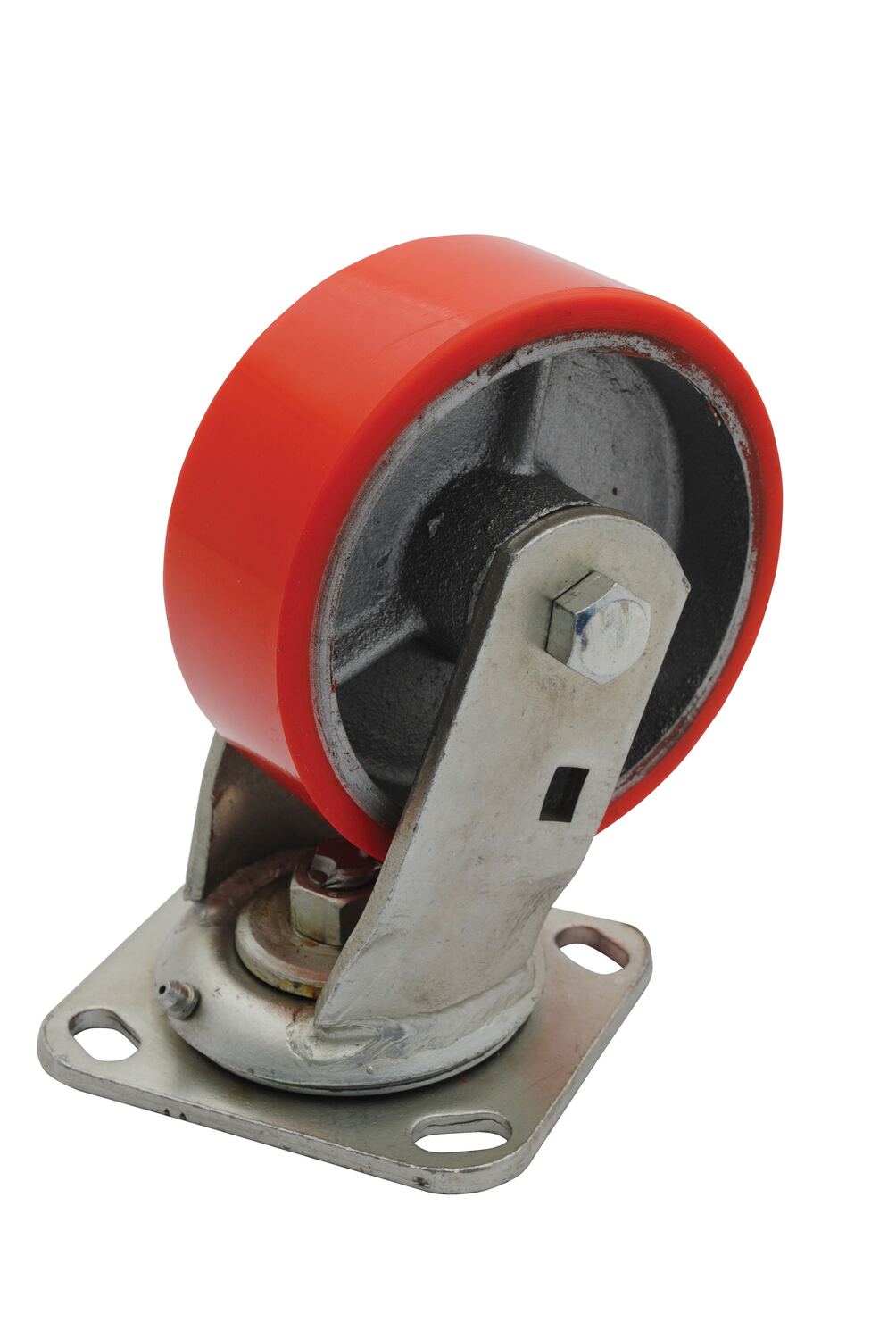

CST-PU-5X2-S CST-PU-5X2-S1 Year Limited Warranty5 x 2SWIVEL661

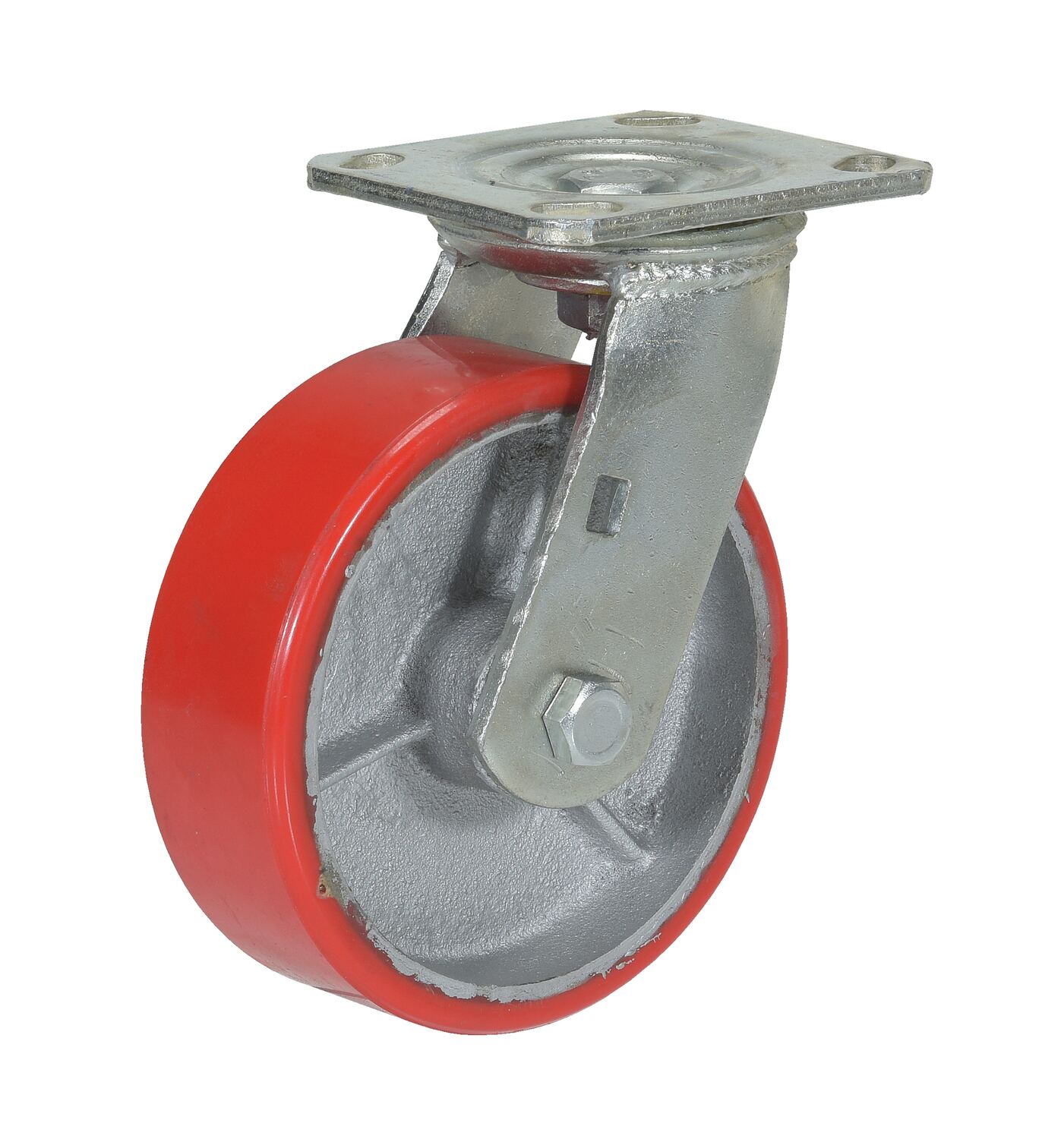

CST-PU-6X2-S CST-PU-6X2-S Limited Warranty6 x 2SWIVEL7727-1/2 4 x 4-1/27

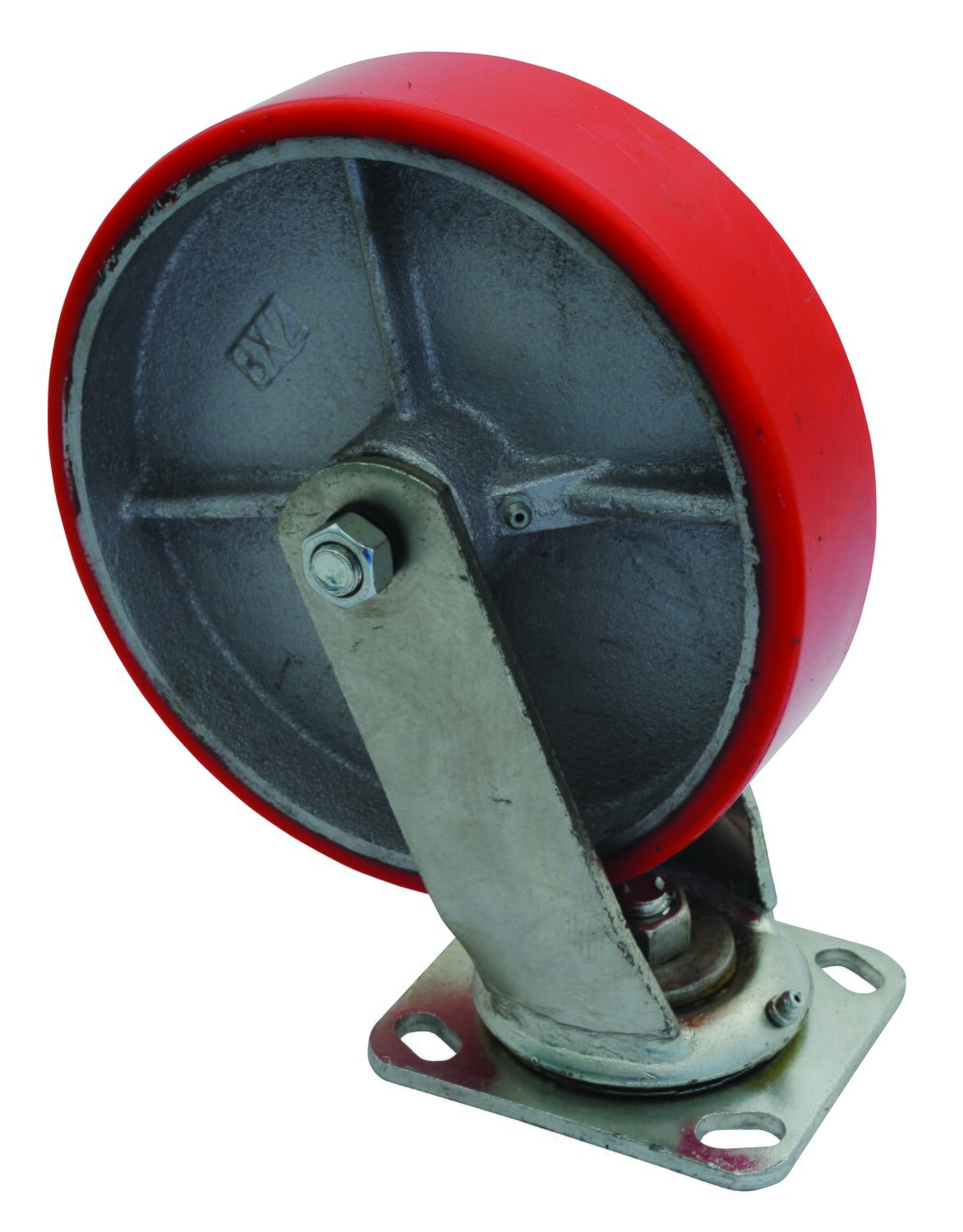

CST-PU-8X2-S CST-PU-8X2-S1 Year Limited Warranty8 x 2SWIVEL882

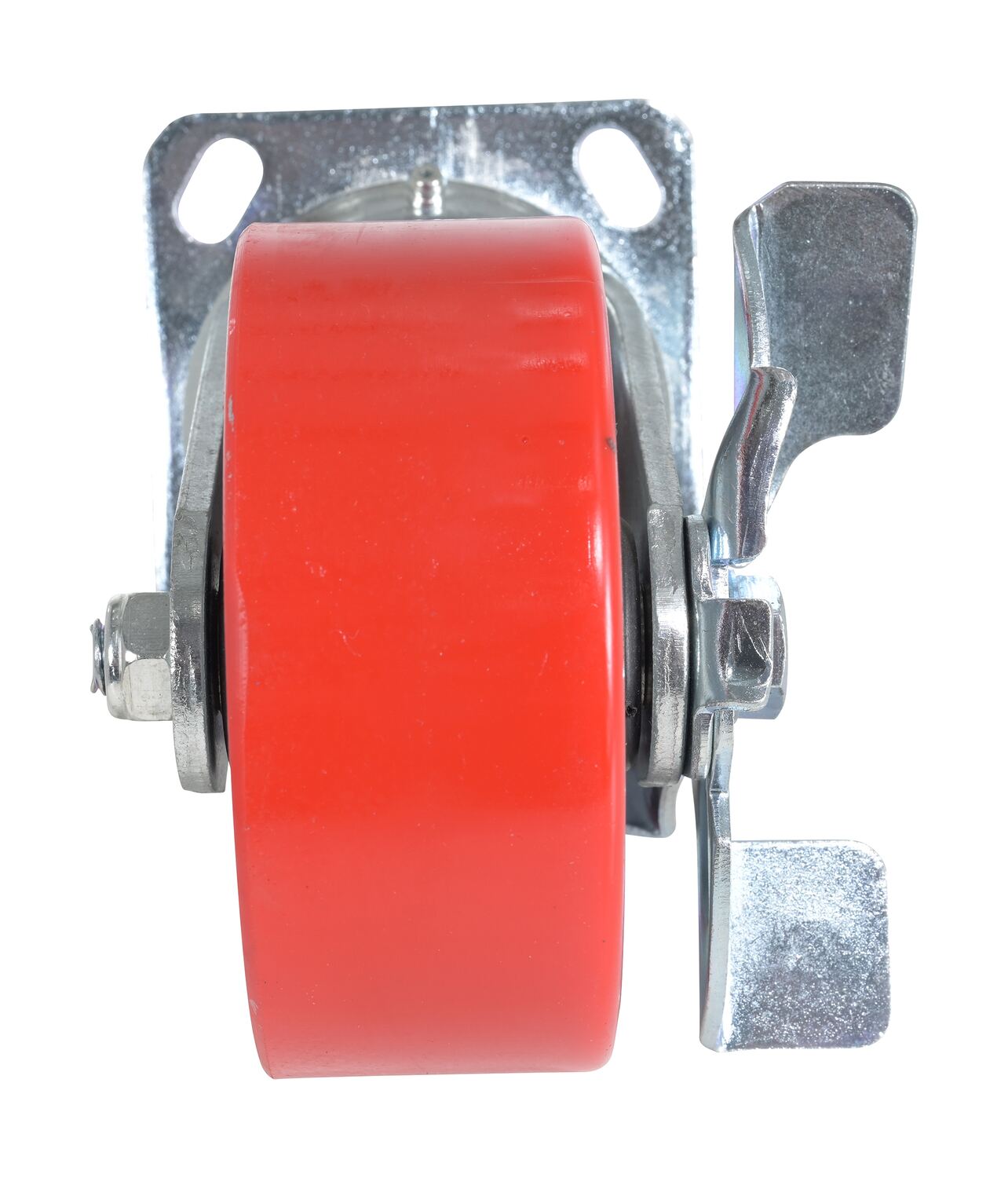

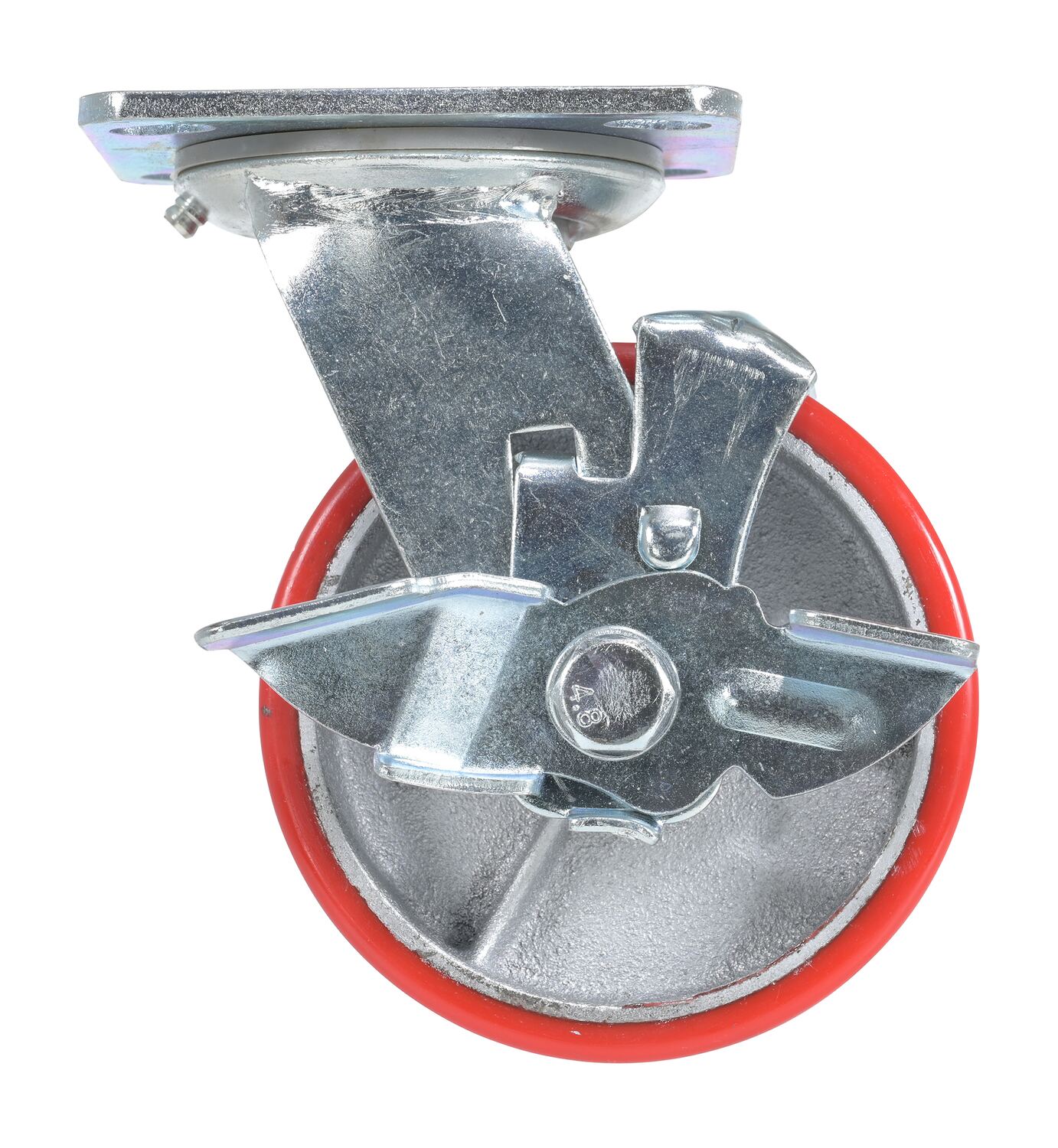

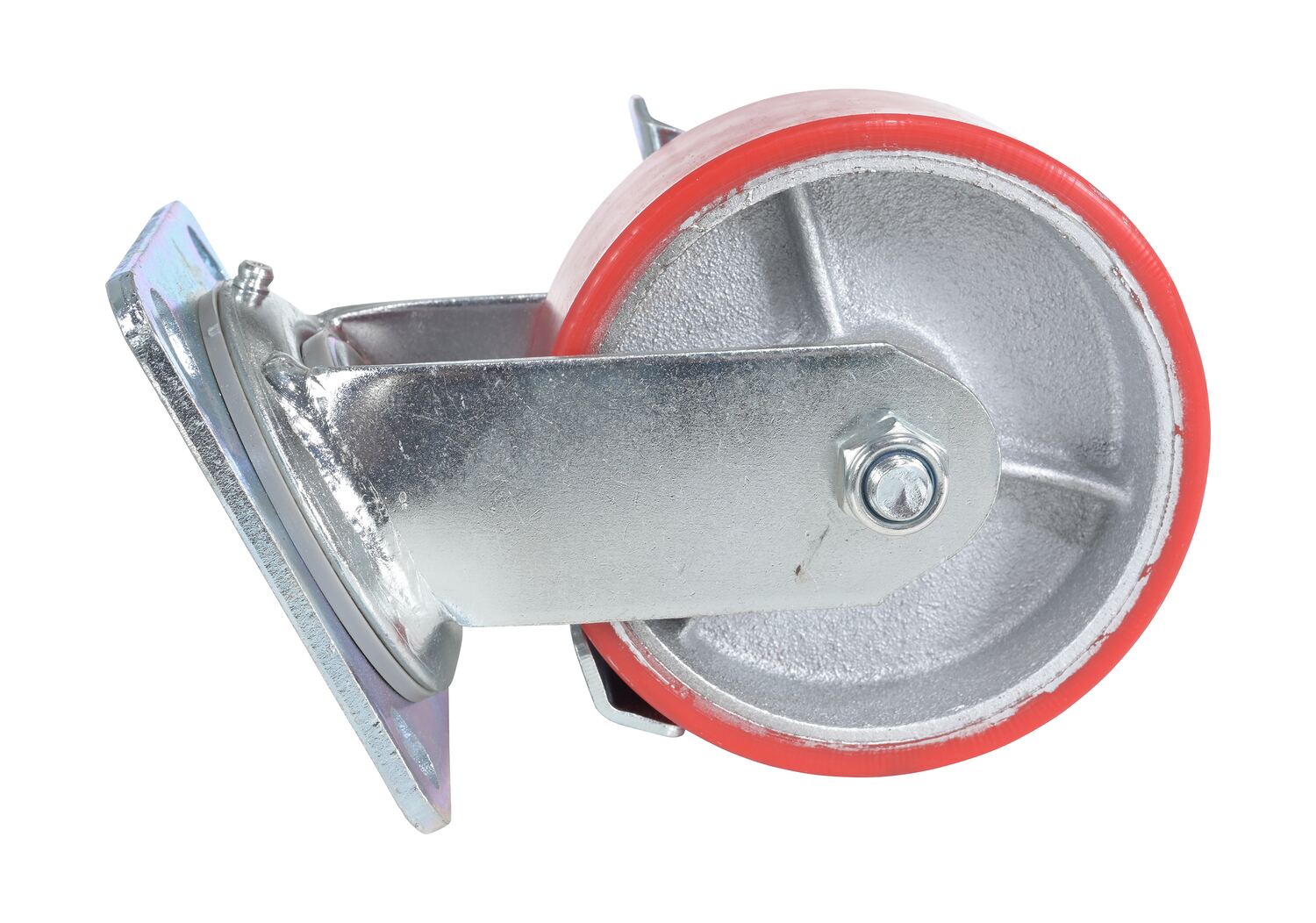

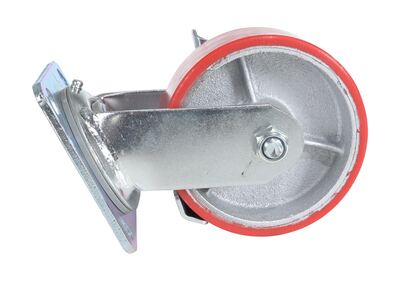

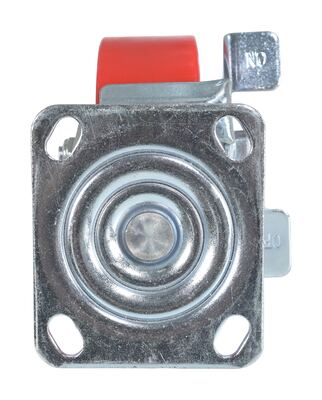

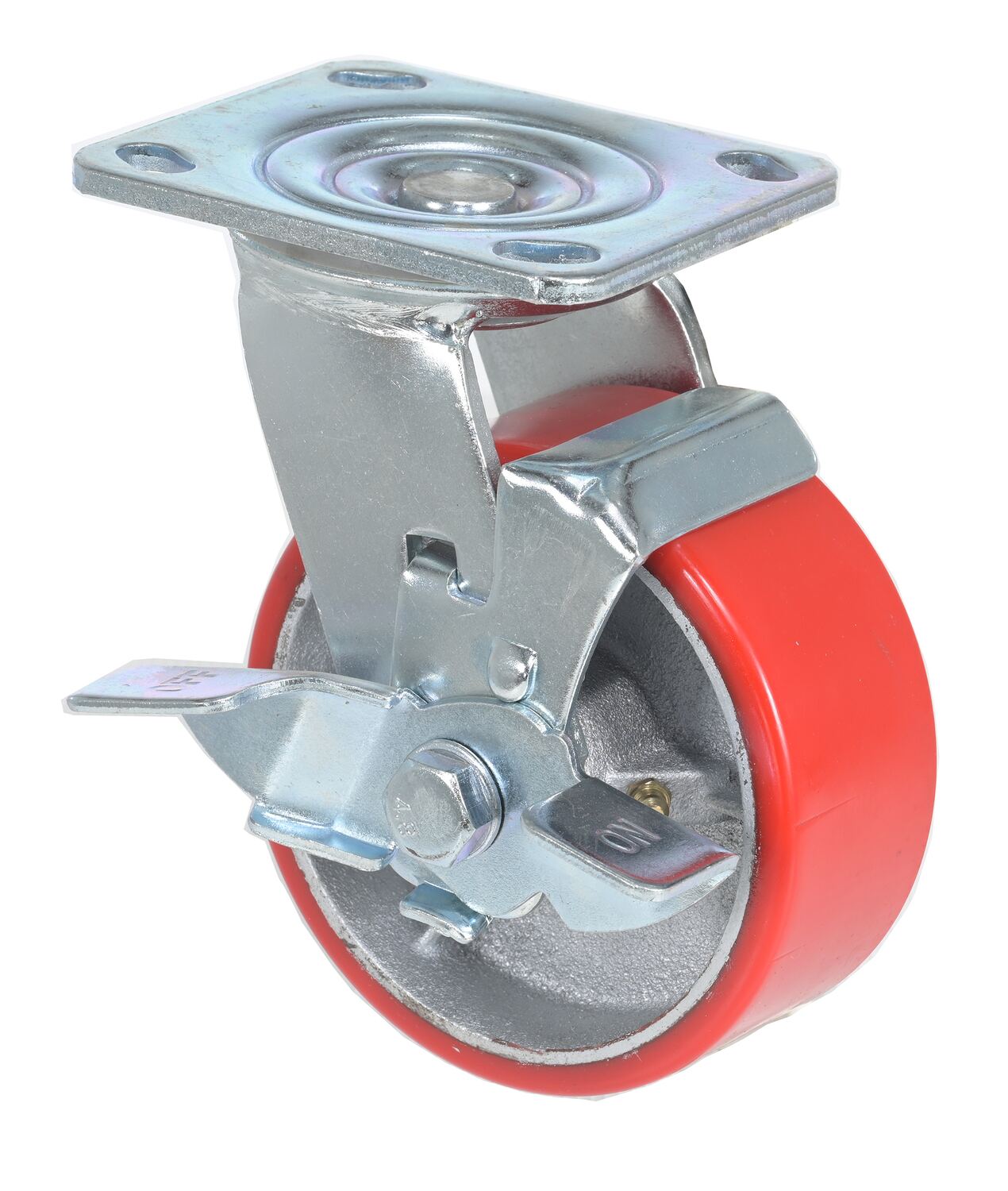

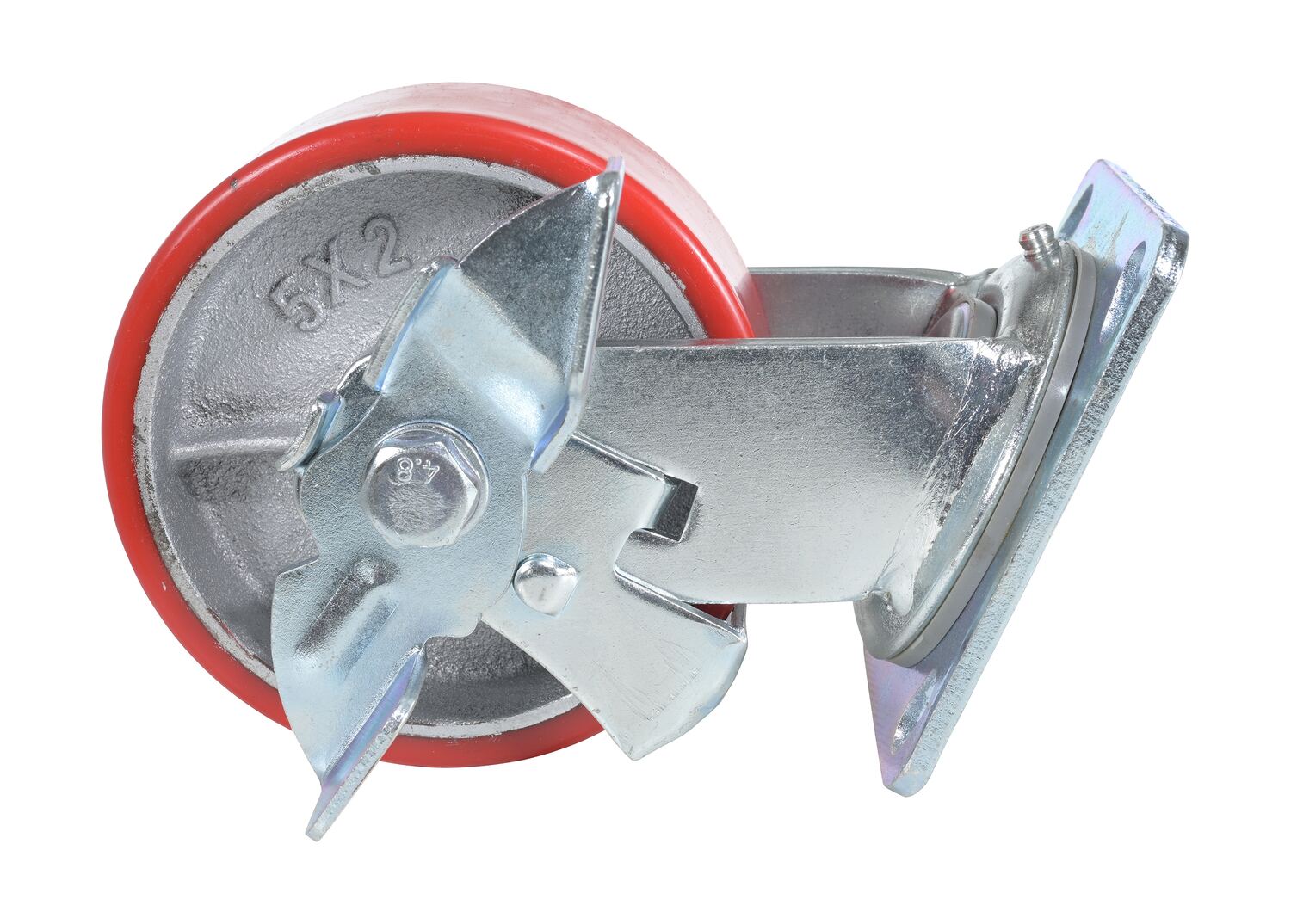

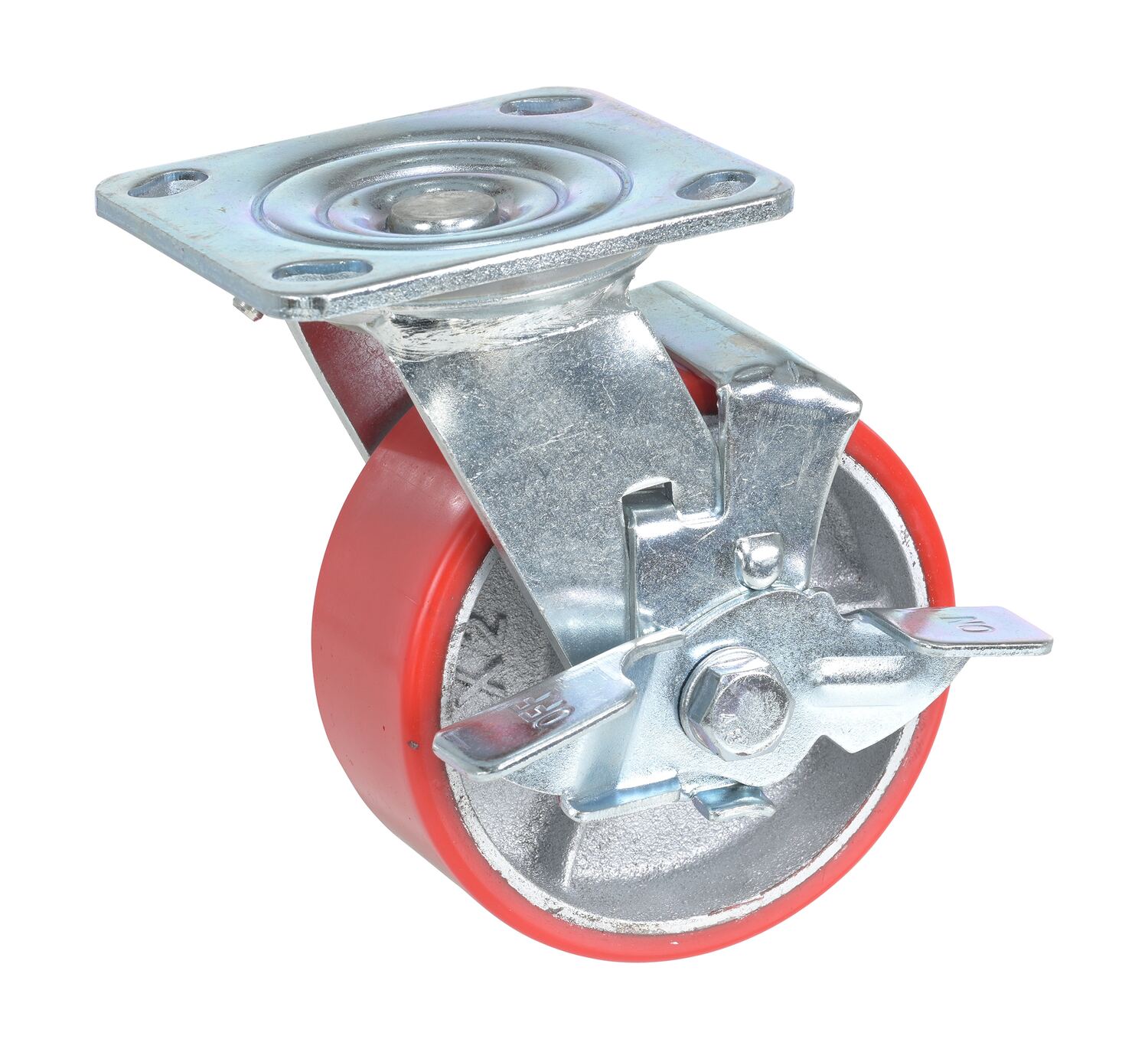

CST-PU-5X2-S-BR CST-PU-5X2-S-BR Limited Warranty5 x 2SWIVEL W/SIDE BRAKE661

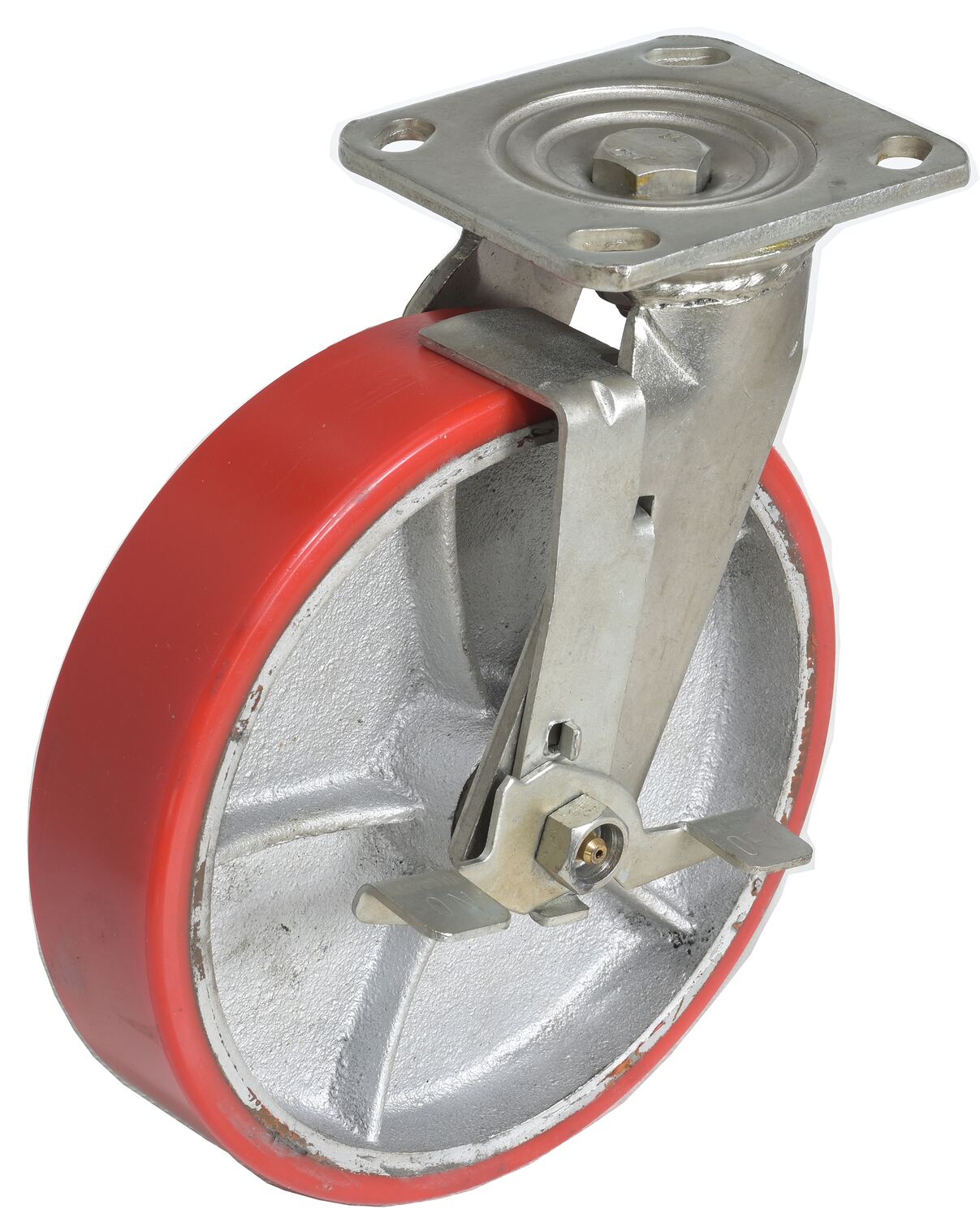

CST-PU-8X2-S-BR CST-PU-8X2-S-BR Limited Warranty8 x 2SWIVEL W/SIDE BRAKE882

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Polyurethane Casters (Red Tread) PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-PU-5X2-R

CST-PU-5X2-S

CST-PU-5X2-S-BR

CST-PU-6X2-R

CST-PU-6X2-S

CST-PU-8X2-R

CST-PU-8X2-S

CST-PU-8X2-S-BR

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Polyurethane Casters (Red Tread)




Polyurethane on cast iron caster wheels are composed of a non-marking polyurethane tread that has been hand-painted and then cast upon an cast iron core. These wheels boast high weight capacities while maintaining superior, smooth rolling and floor protection. Reduced friction allows for a longer lifespan of these wheels. Polyurethane on cast iron caster wheels are most commonly found in both outdoor and indoor applications.

  • Non-marking for good floor preservation
  • Temperature rating of -45 degrees F to 180 degrees F
  • Anti-corrosive & rust resistant Zinc Plated finish
  • Roller bearing


No Model Numbers Associated To This Product Page
Model # Description Attributes Net Wt.
(lbs)
