model: FTDC-6-4400


Forklift Tie-Down Clamps
SERIES: FTDC

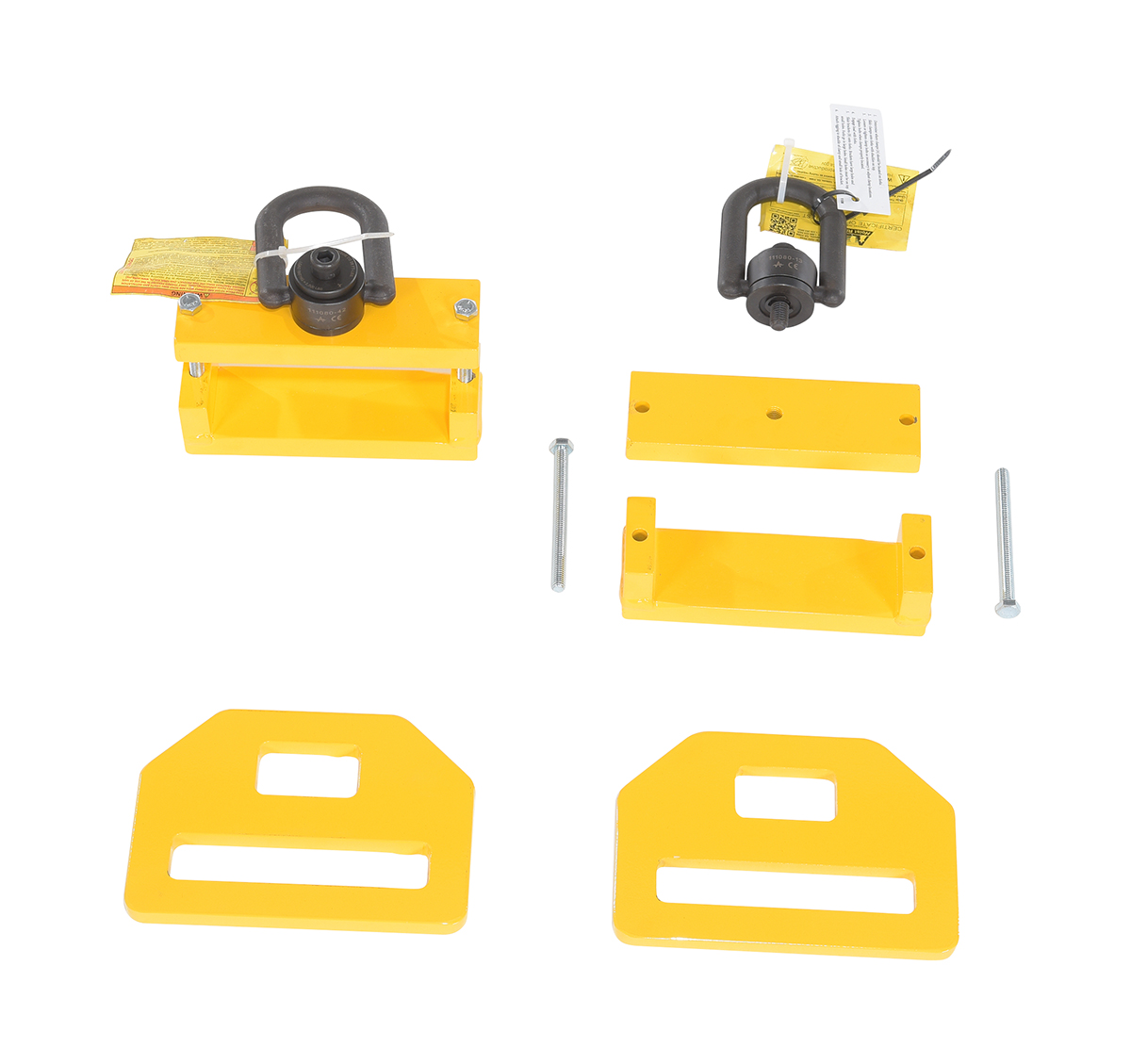

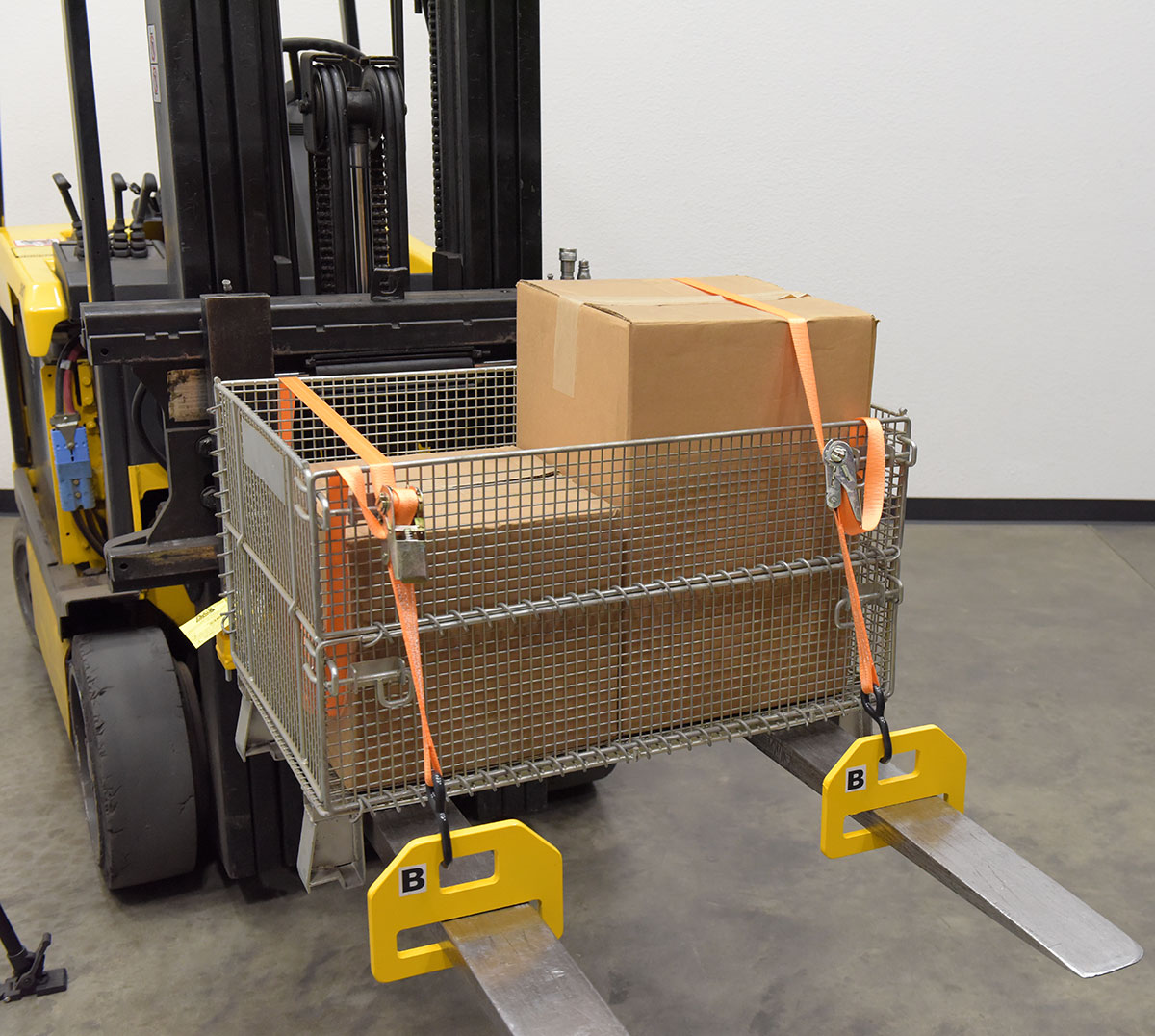

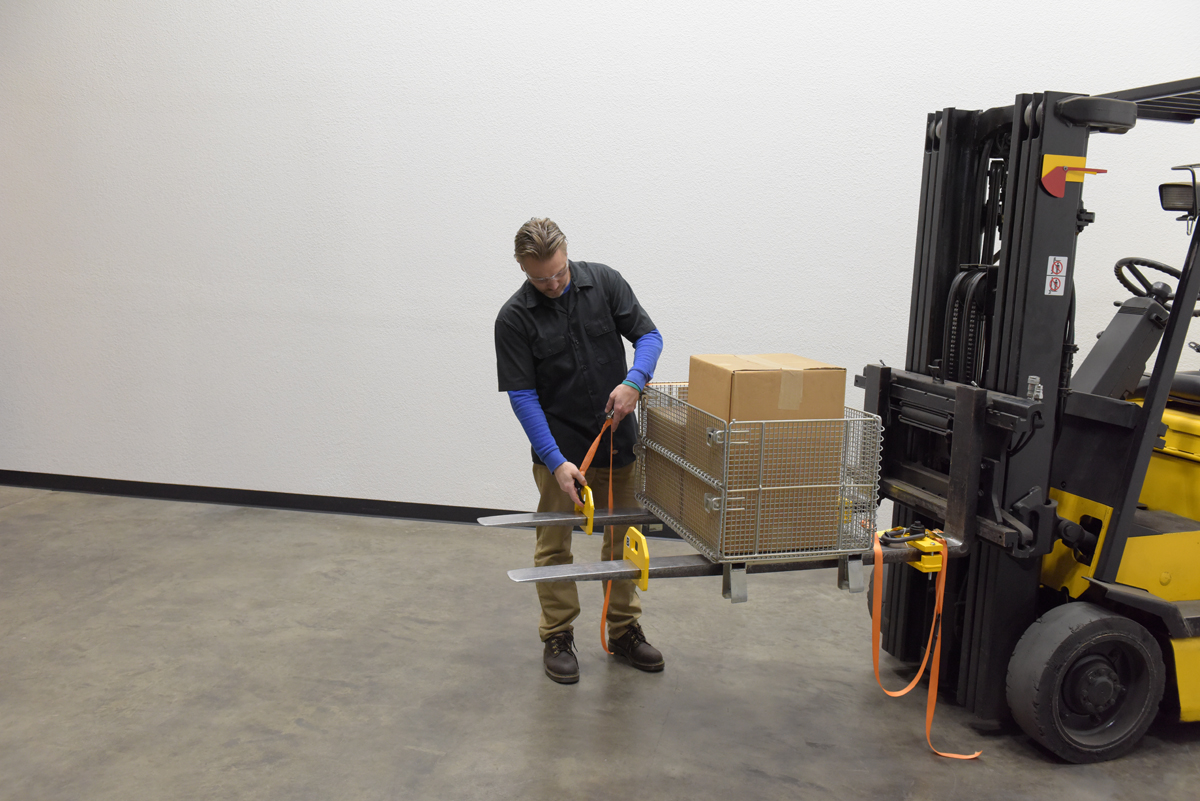

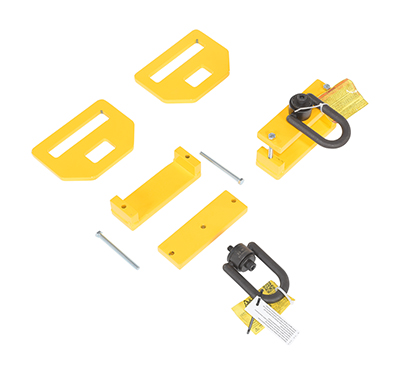

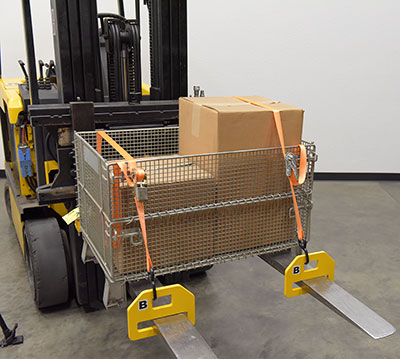

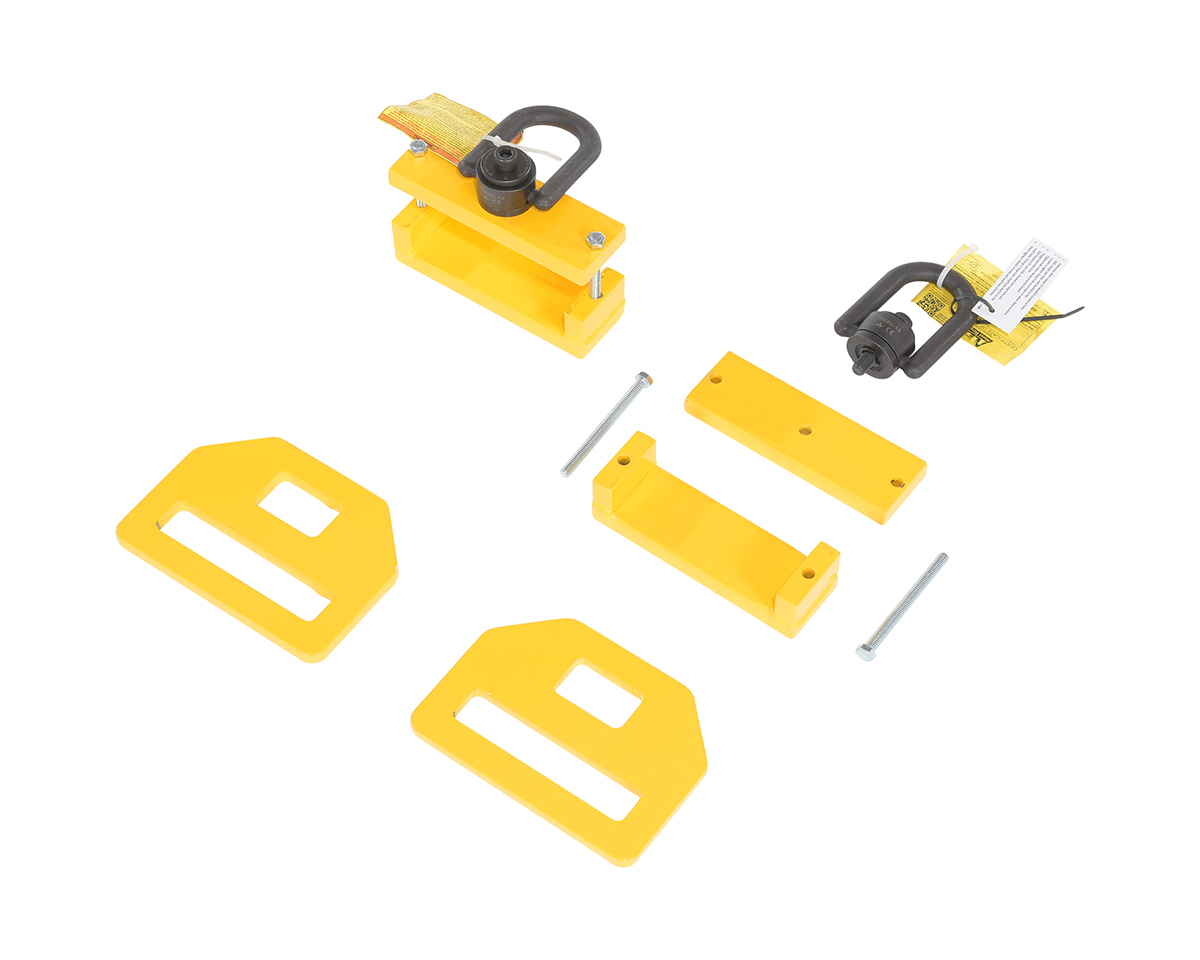

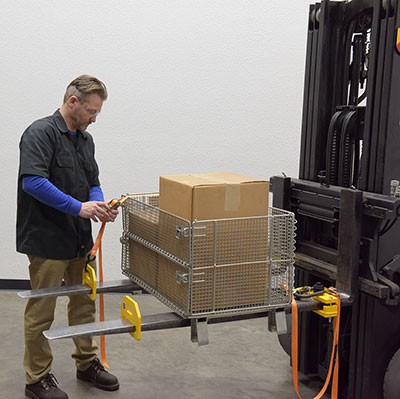

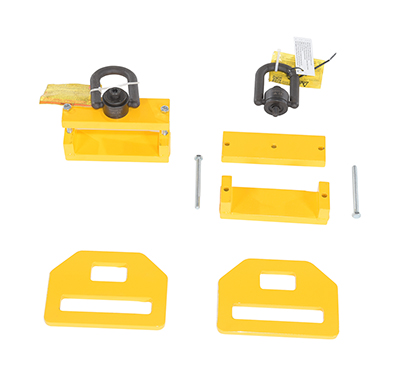

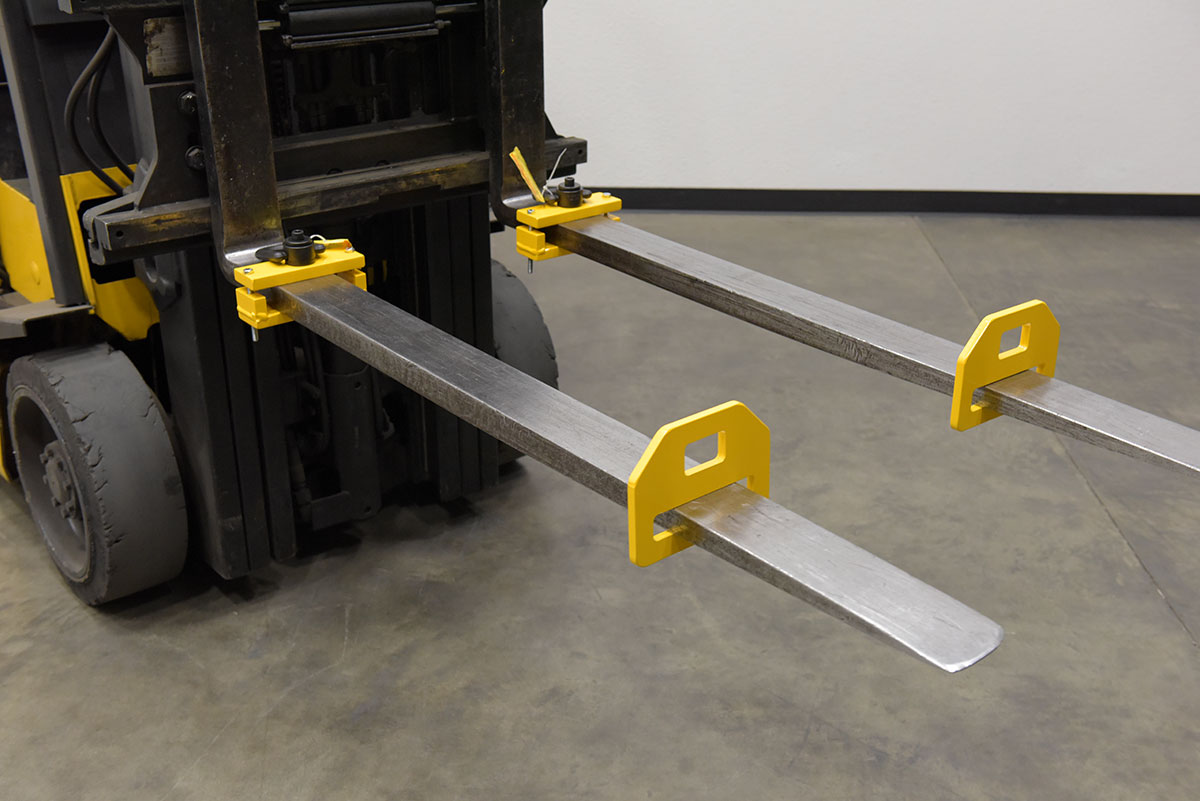

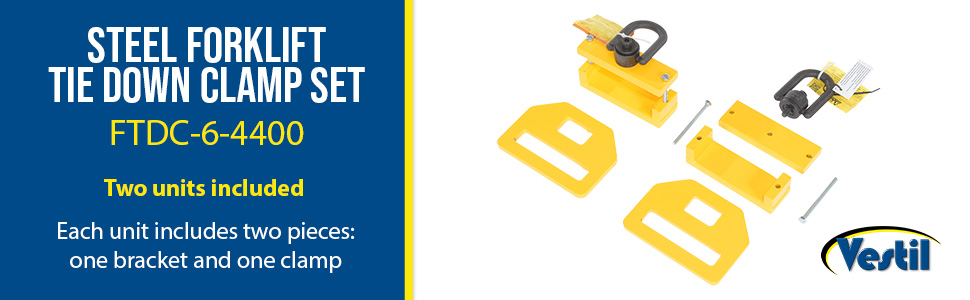

Forklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).

PRODUCT DETAILS

  • Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
  • Clamps To Fit Forks: 6"W x 2-3/4"H
  • Steel Construction
  • Tough Baked In Powder Coated Yellow Finish

EYE BRACKET FEATURES

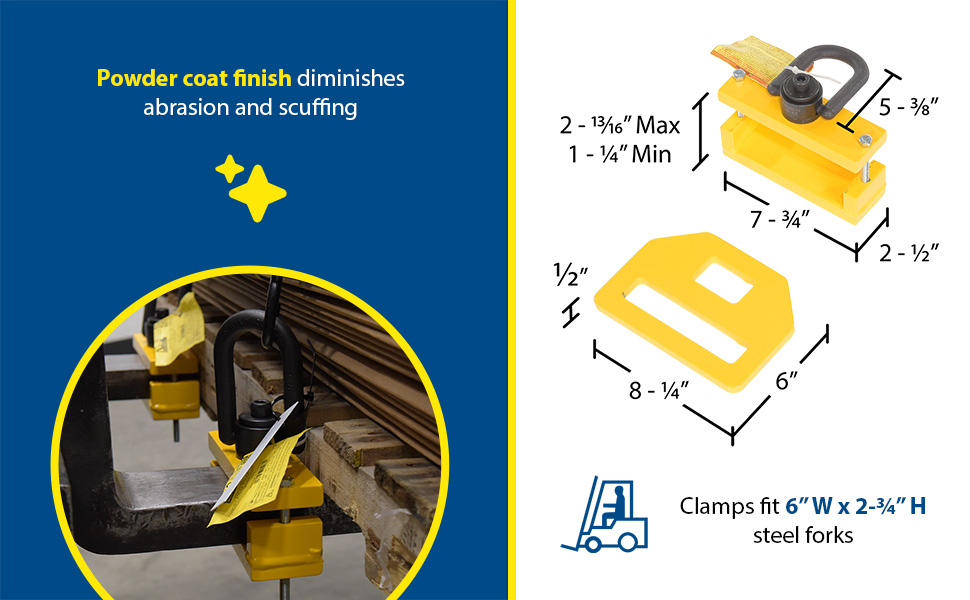

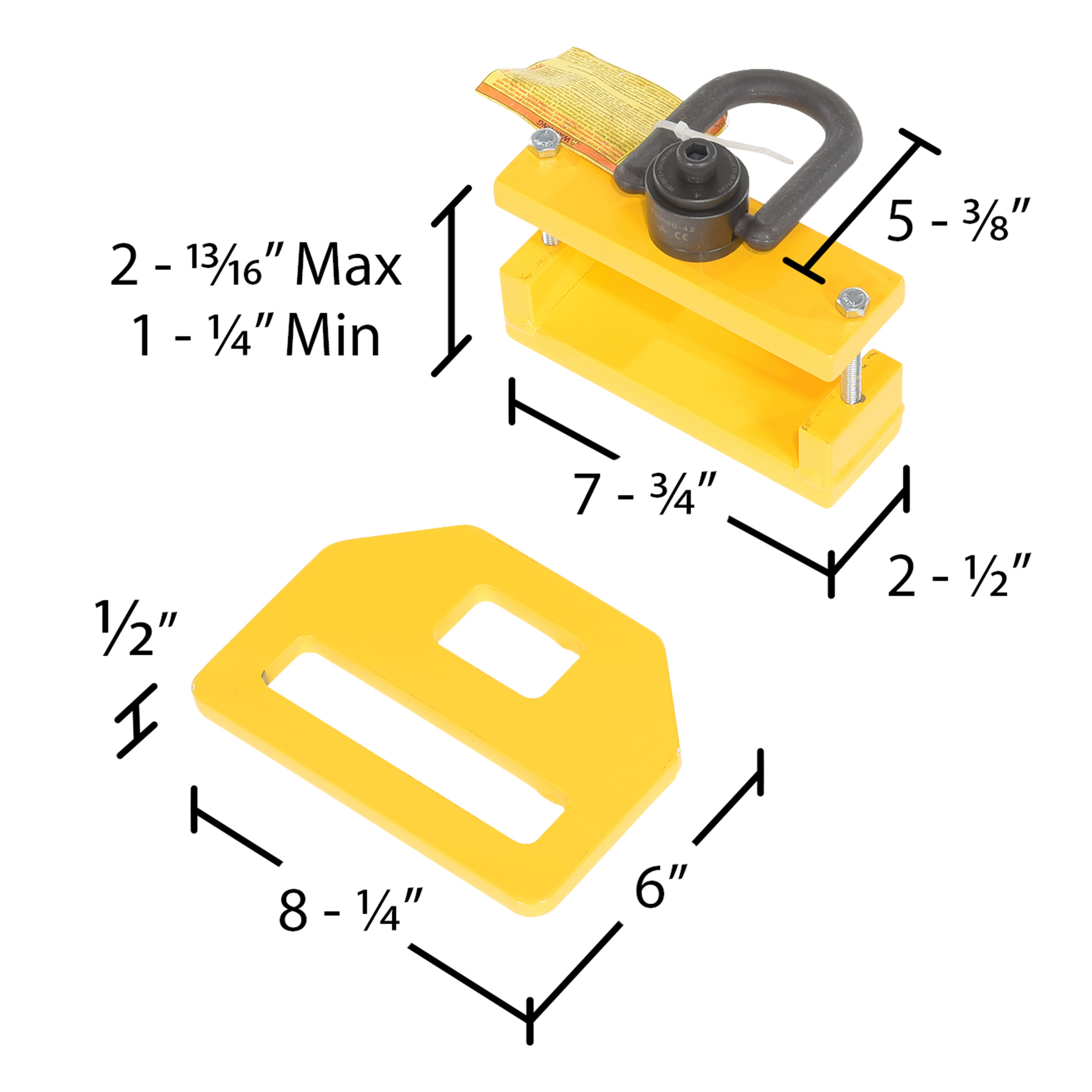

  • OVERALL EYE BRACKET WIDTH: 8 1/4"
  • OVERALL EYE BRACKET HEIGHT: 6"
  • EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
  • EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
  • EYE BRACKET THICKNESS: 1/2"

SCREW CLAMP WITH SWIVEL EYE FEATURES

  • OVERALL SCREW CLAMP WIDTH: 7 3/4"
  • OVERALL SCREW CLAMP DEPTH: 2 1/2"
  • MAX. USABLE HEIGHT: 2 13/16"
  • MIN. USABLE HEIGHT: 1 1/4"
  • EACH CLAMP INCLUDES SWIVEL EYE

Forklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).

PRODUCT DETAILS

  • Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
  • Clamps To Fit Forks: 6"W x 2-3/4"H
  • Steel Construction
  • Tough Baked In Powder Coated Yellow Finish

EYE BRACKET FEATURES

  • OVERALL EYE BRACKET WIDTH: 8 1/4"
  • OVERALL EYE BRACKET HEIGHT: 6"
  • EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
  • EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
  • EYE BRACKET THICKNESS: 1/2"

SCREW CLAMP WITH SWIVEL EYE FEATURES

  • OVERALL SCREW CLAMP WIDTH: 7 3/4"
  • OVERALL SCREW CLAMP DEPTH: 2 1/2"
  • MAX. USABLE HEIGHT: 2 13/16"
  • MIN. USABLE HEIGHT: 1 1/4"
  • EACH CLAMP INCLUDES SWIVEL EYE

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
High-Strength Fork Extensions
Model Image PDFs Accommodates
Forks (WxH)
Overall Screw
Clamp (WxD)
Usable Height
Range
Uniform
Capacity (lbs)
Wt.
(lbs.)
FTDC-6-4400
(sold in pairs)
icon_approvaldrawings.jpgWarranty PDF 6"x2-3/4" 7-3/4"x2-1/2" 1-1/4" to 2-13/16" 4,400 35

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
FTDC-6-4400 download.gif1 Year WarrantyFORKLIFT TIE-DOWN CLAMPSUniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)35



Forklift Tie-Down Clamps PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

FTDC-6-4400

Testing Certificates

FTDC-6-4400

Other PDF's


Directory Links Of Available PDF's For All Products
