Product Family Overview

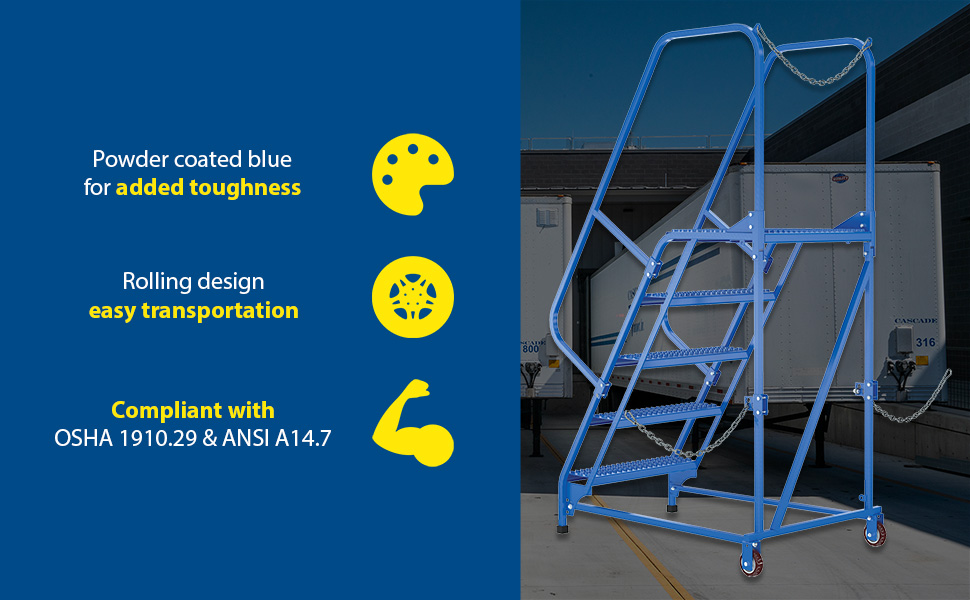

SEMI-TRAILER ACCESS LADDER
SERIES: LAD-STAL

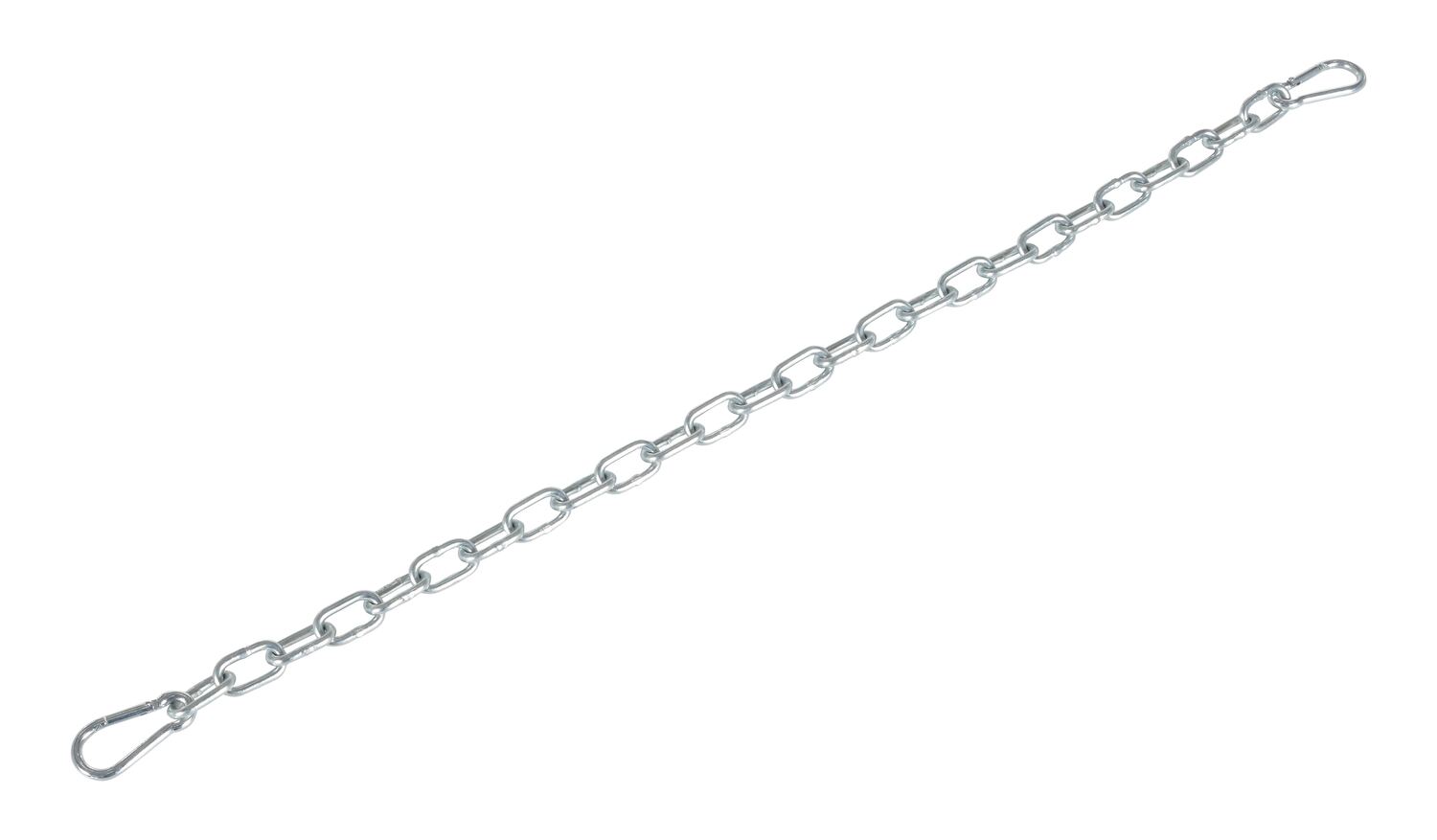

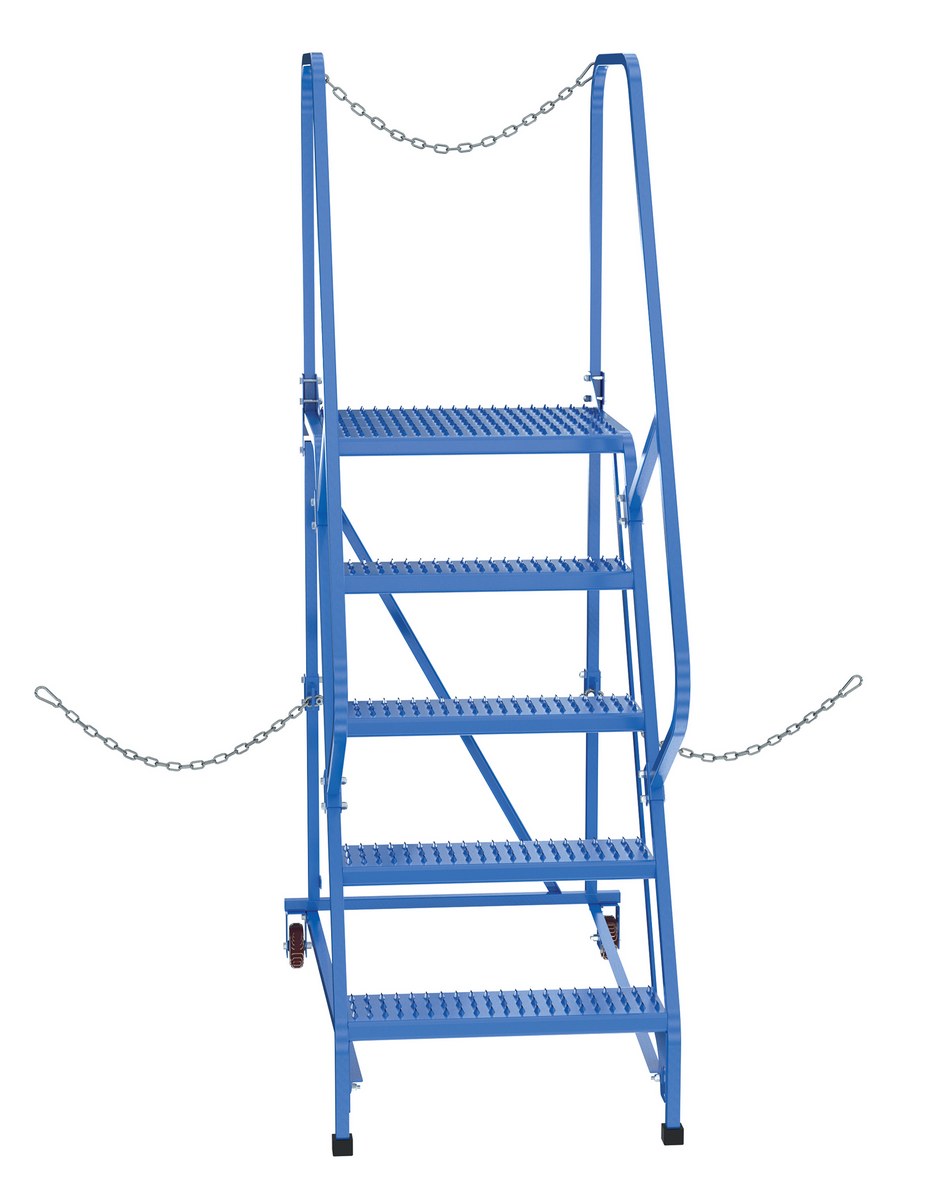

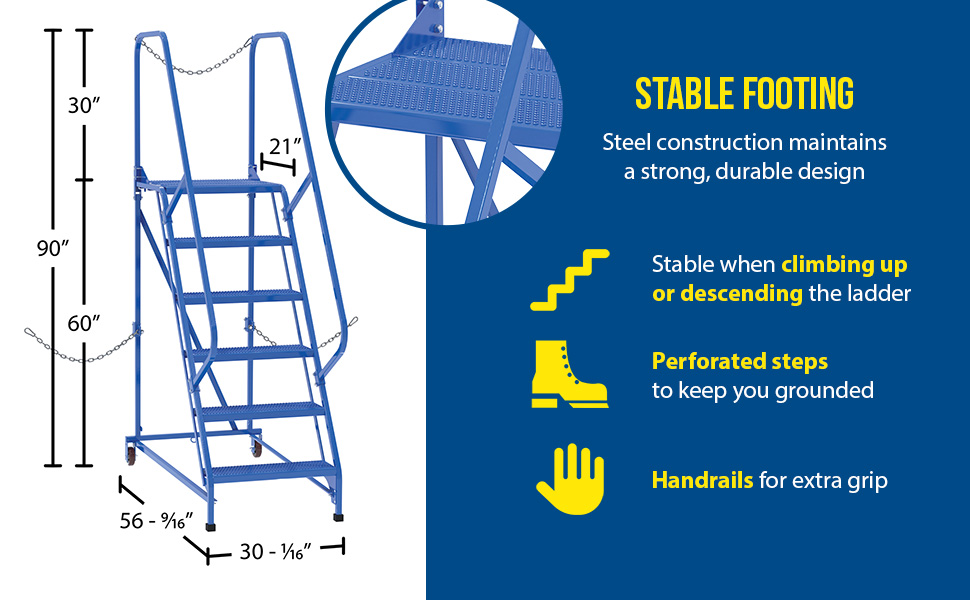

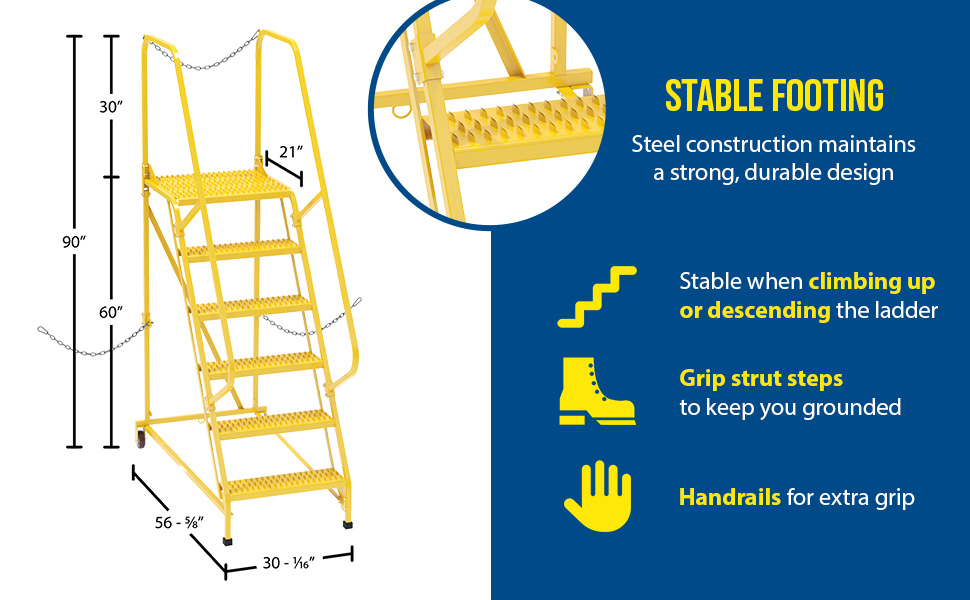

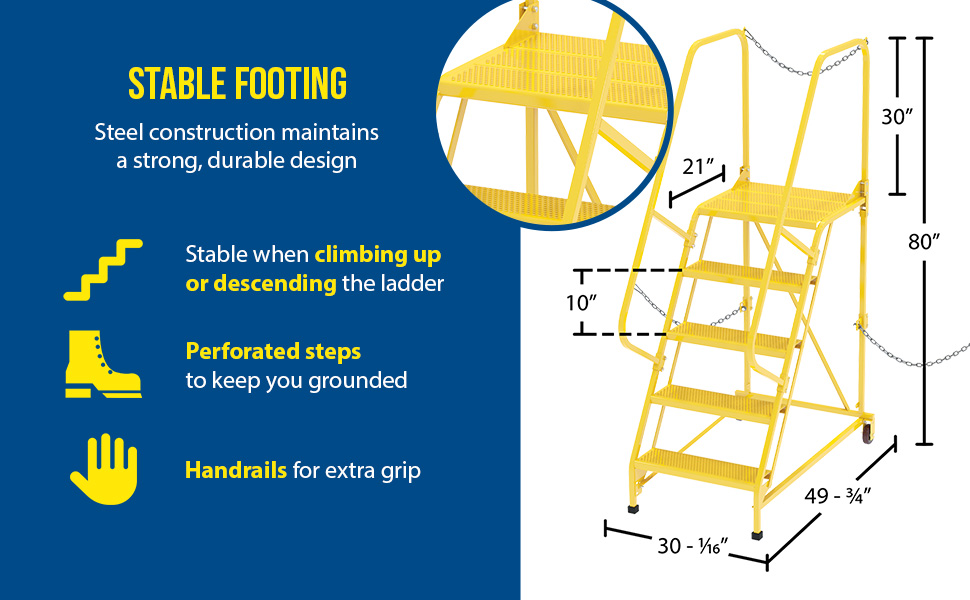

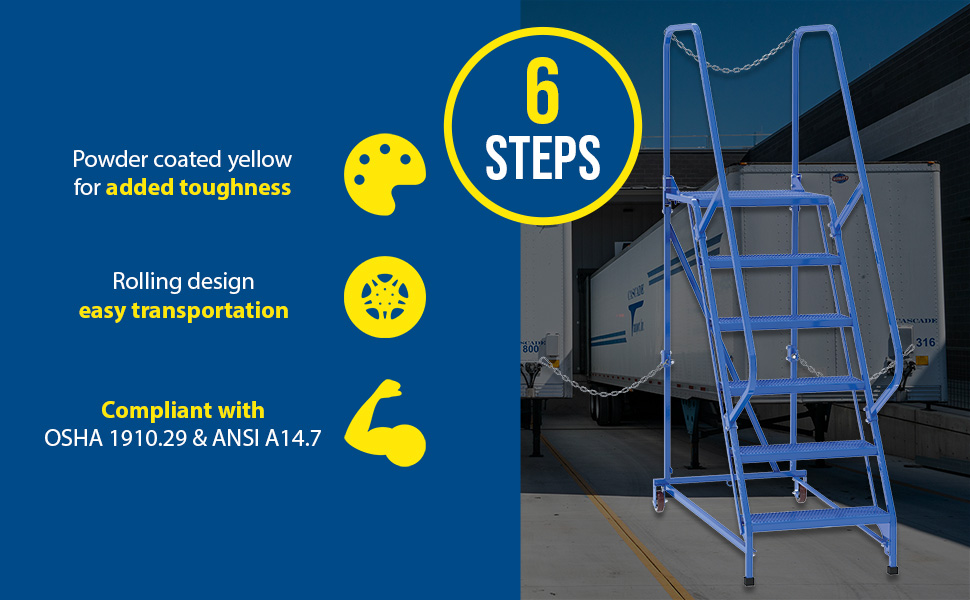

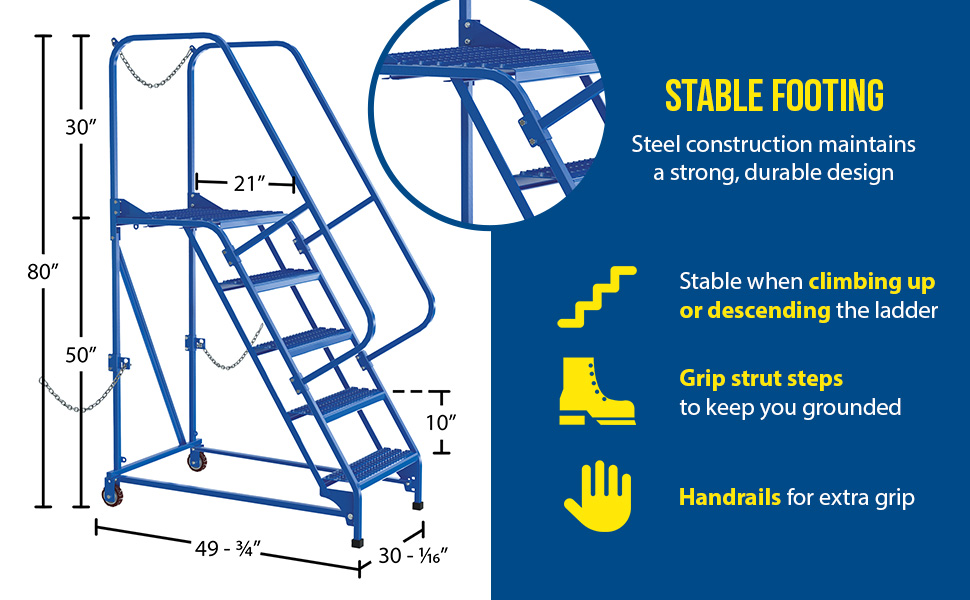

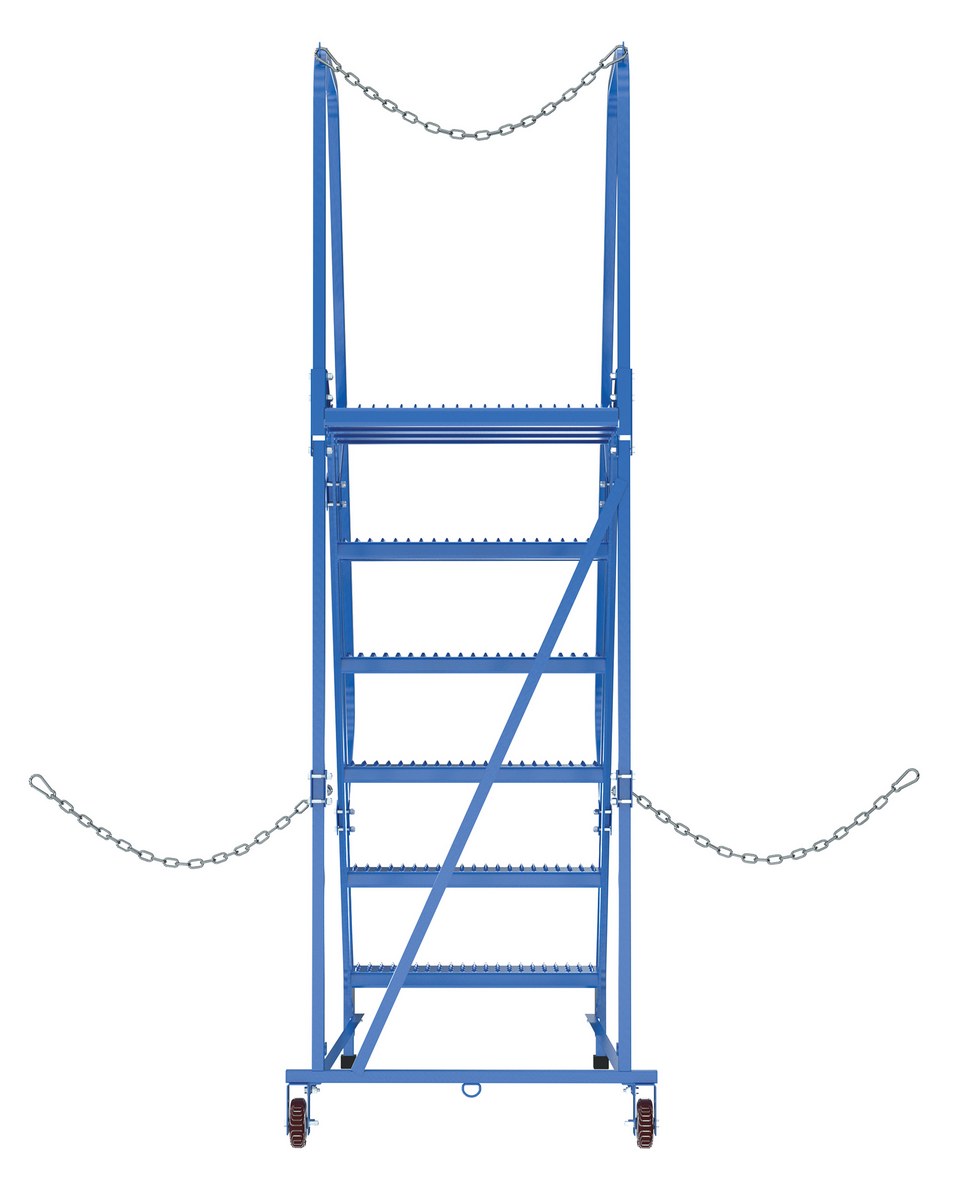

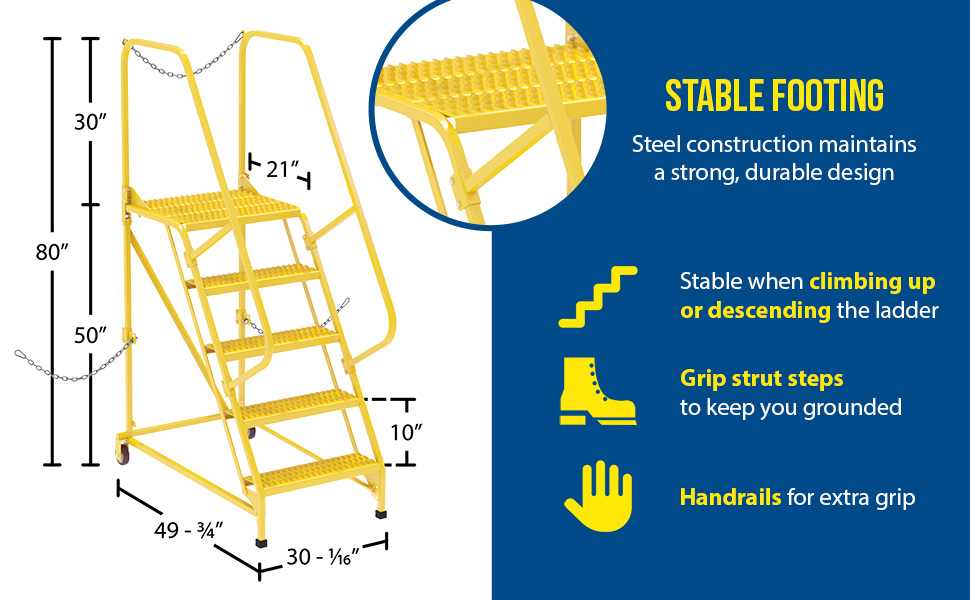

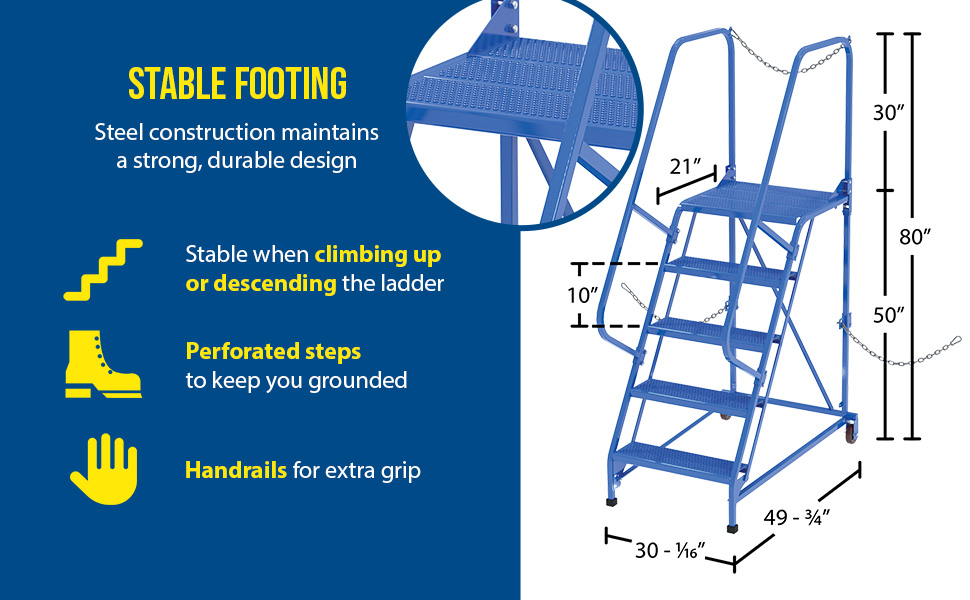

Semi-Trailer Access Ladders are for use getting into Semi-Trailers. Tilt the unit to allow for portability. Units roll on 4" poly-on-poly wheels. Constructed of square tubing framework which handles uniform capacities up to 350 lbs. Features 30" high removable hand railing, access chain, 21" deep top platform, and an industrial baked-in blue powder coat finish for toughness. Each step measures 24" wide by 7" deep and is spaced 10" apart. Climb Angle is 58 degrees.

Semi-Trailer Access Ladders are for use getting into Semi-Trailers. Tilt the unit to allow for portability. Units roll on 4" poly-on-poly wheels. Constructed of square tubing framework which handles uniform capacities up to 350 lbs. Features 30" high removable hand railing, access chain, 21" deep top platform, and an industrial baked-in blue powder coat finish for toughness. Each step measures 24" wide by 7" deep and is spaced 10" apart. Climb Angle is 58 degrees.

Additional Models In This Family

LAD-STAL-6-G

model LAD-STAL-6-G

LAD-STAL-5-G-YL

model LAD-STAL-5-G-YL

LAD-STAL-5-P-YL

model LAD-STAL-5-P-YL

LAD-STAL-6-G-YL

model LAD-STAL-6-G-YL

LAD-STAL-6-P-YL

model LAD-STAL-6-P-YL

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

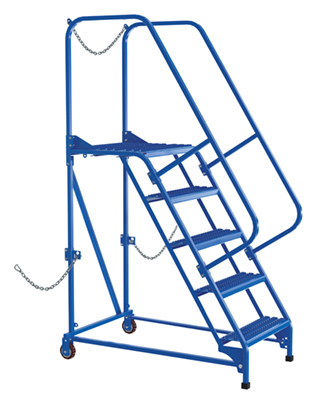

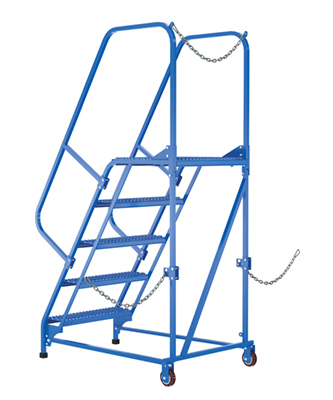

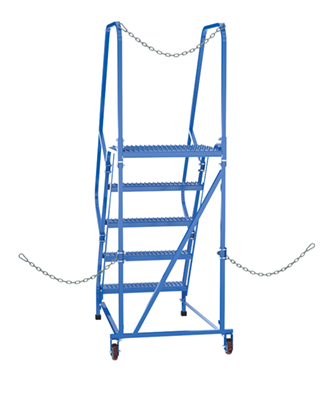

LAD-STAL-5-G LAD-STAL-5-G1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 5 Grip Strut 24 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Number of Steps: 5
210

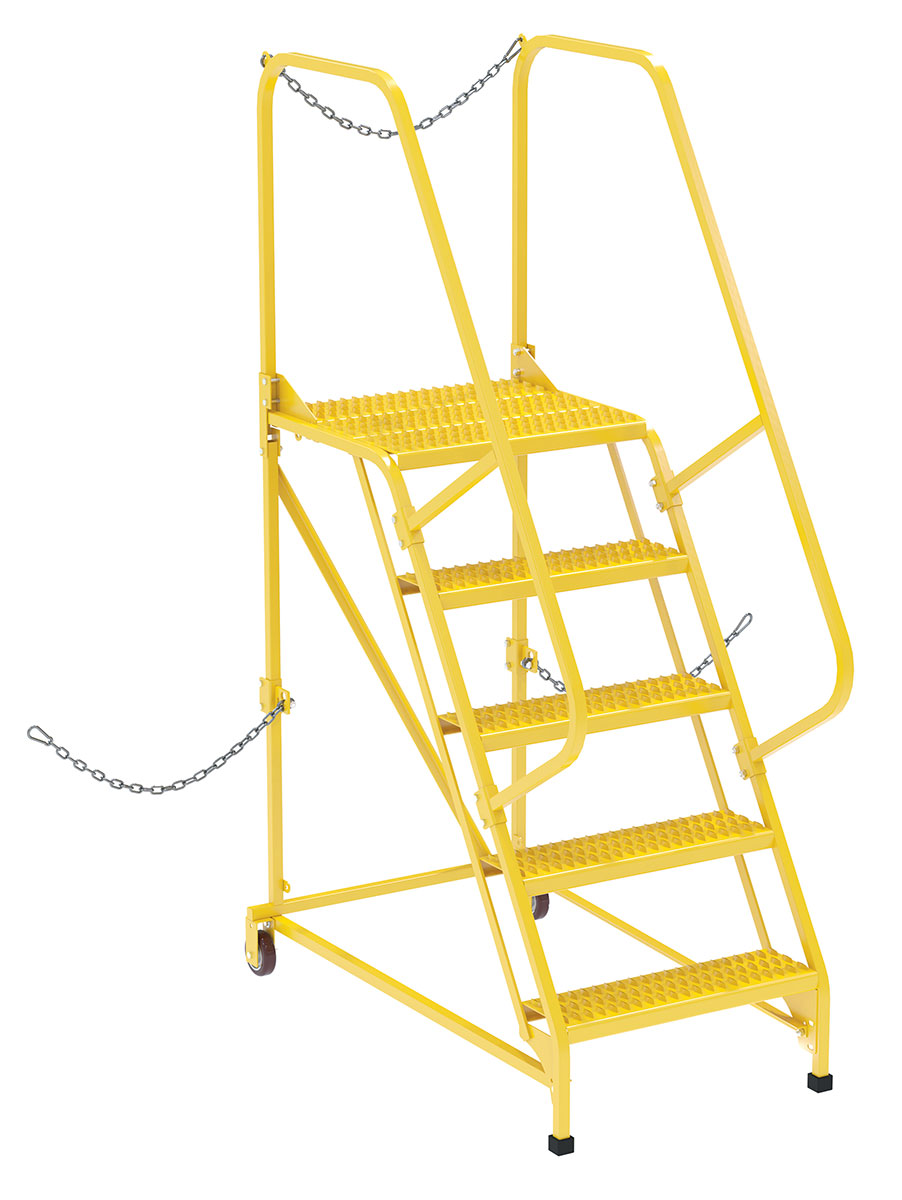

LAD-STAL-5-G-YL LAD-STAL-5-G-YL1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 5 Grip Strut 24 In. Step Width 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 5
180

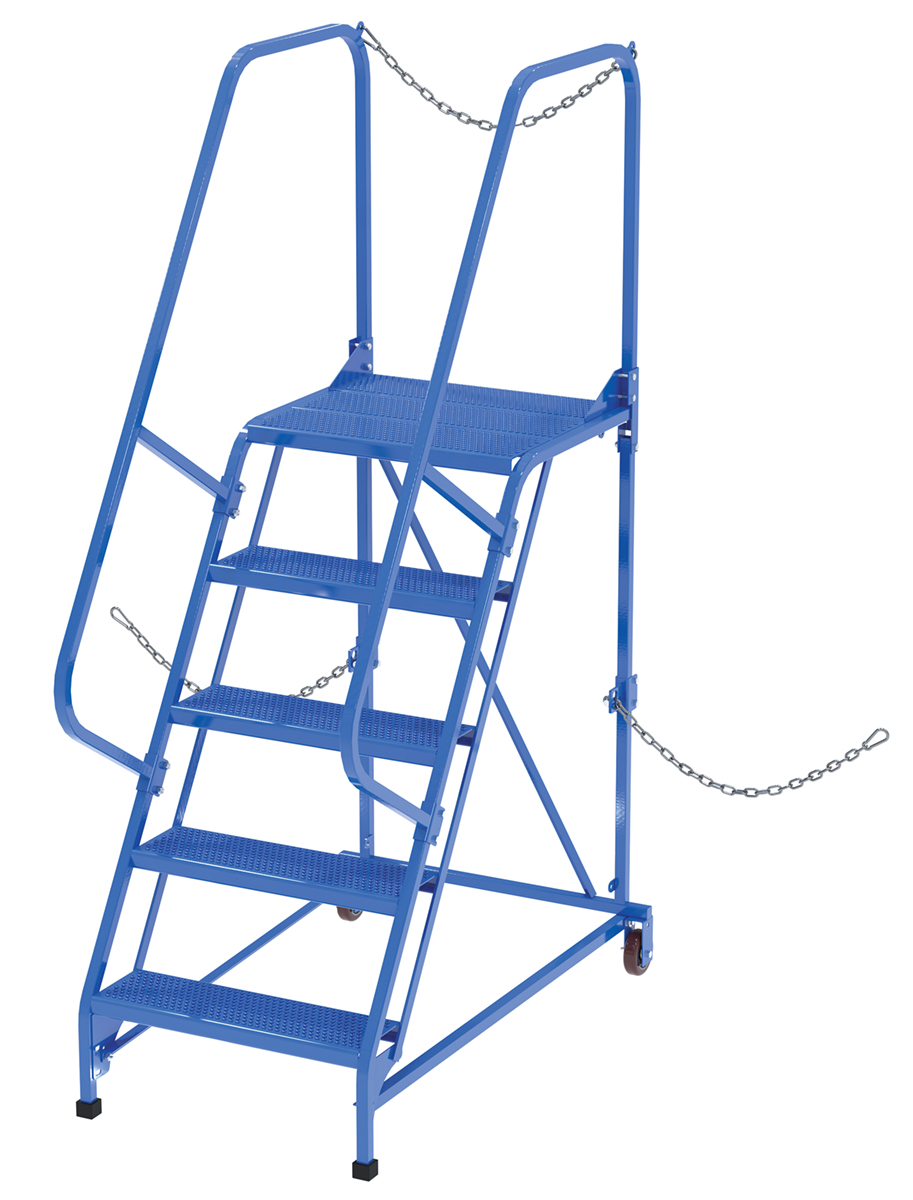

LAD-STAL-5-P LAD-STAL-5-P1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 5 Perforated 24 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Number of Steps: 5
210

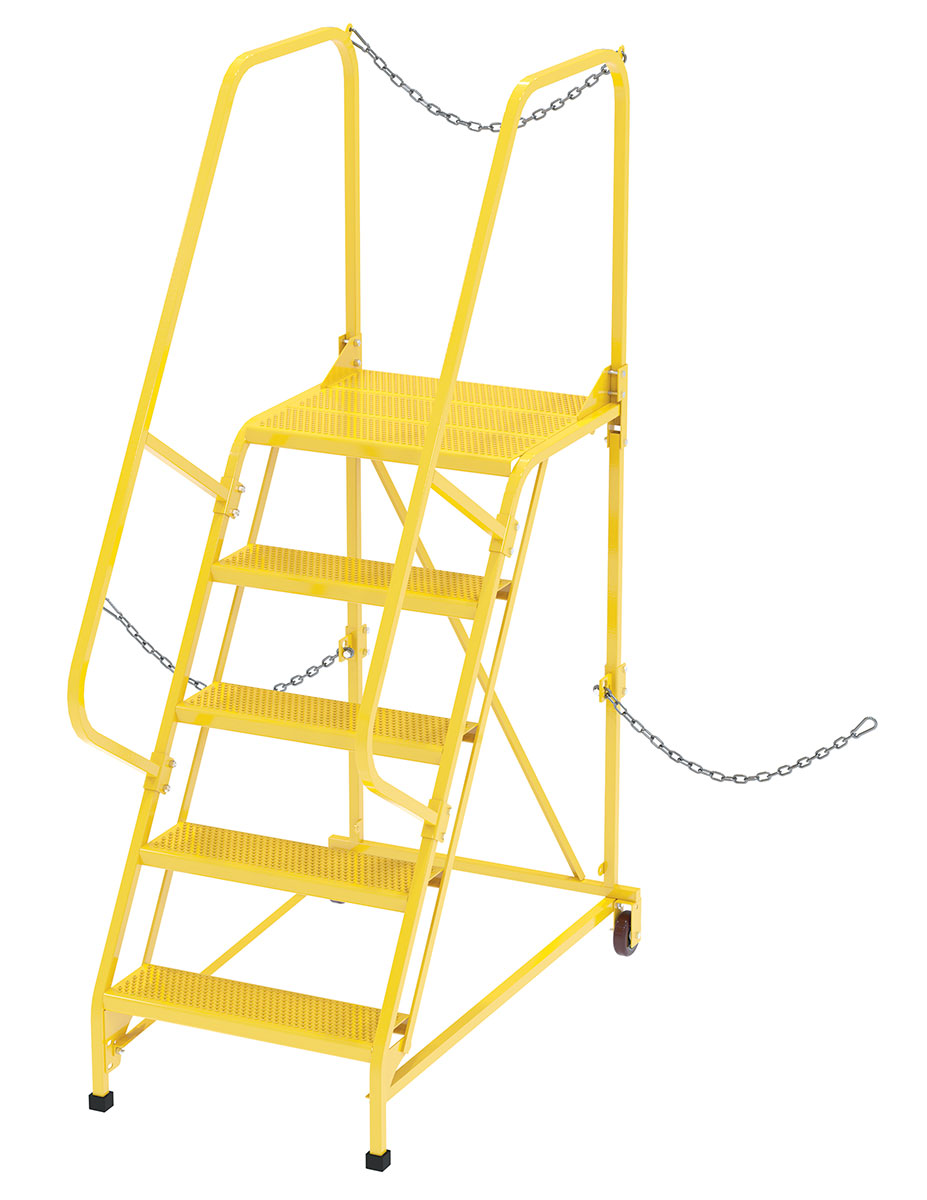

LAD-STAL-5-P-YL LAD-STAL-5-P-YL1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 5 Perforated 24 In. Step Width 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 5
180

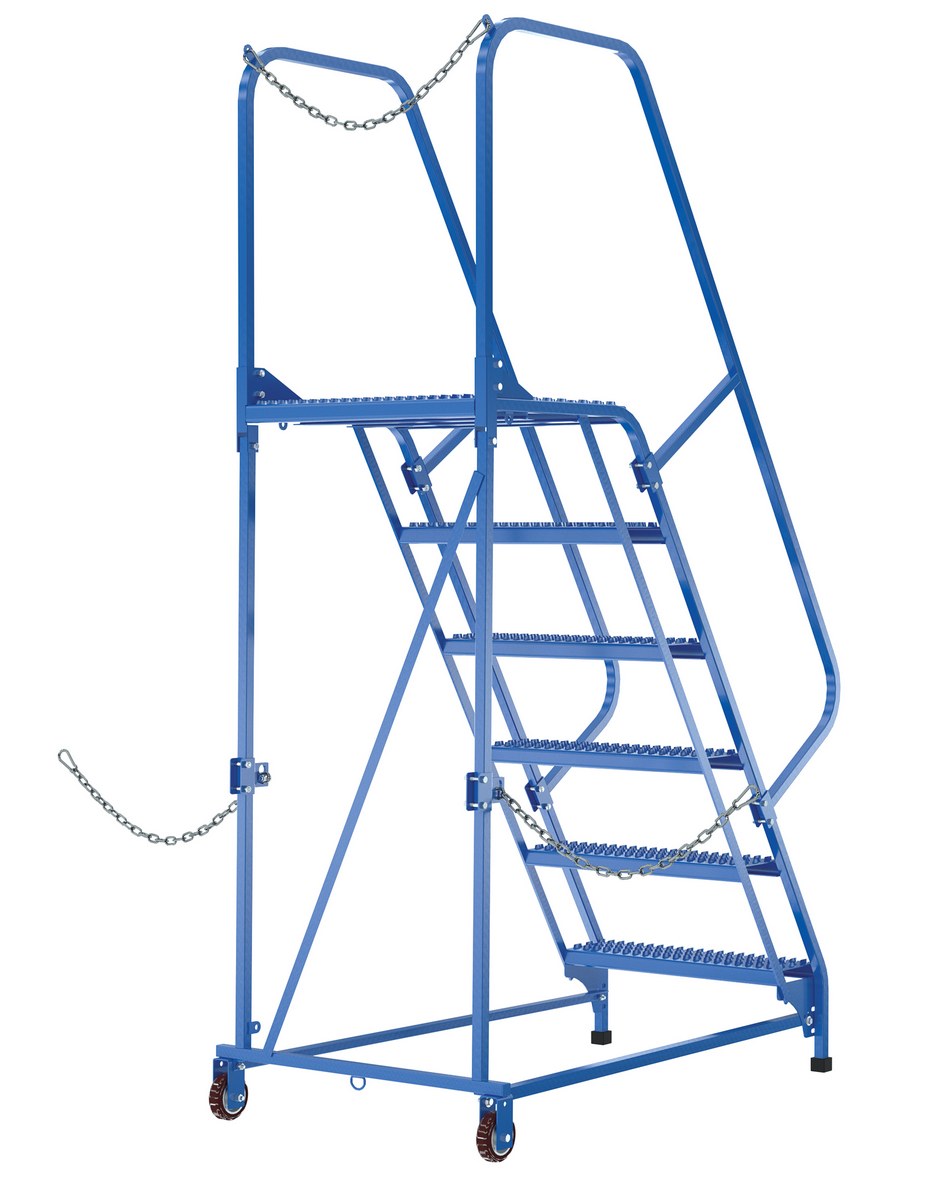

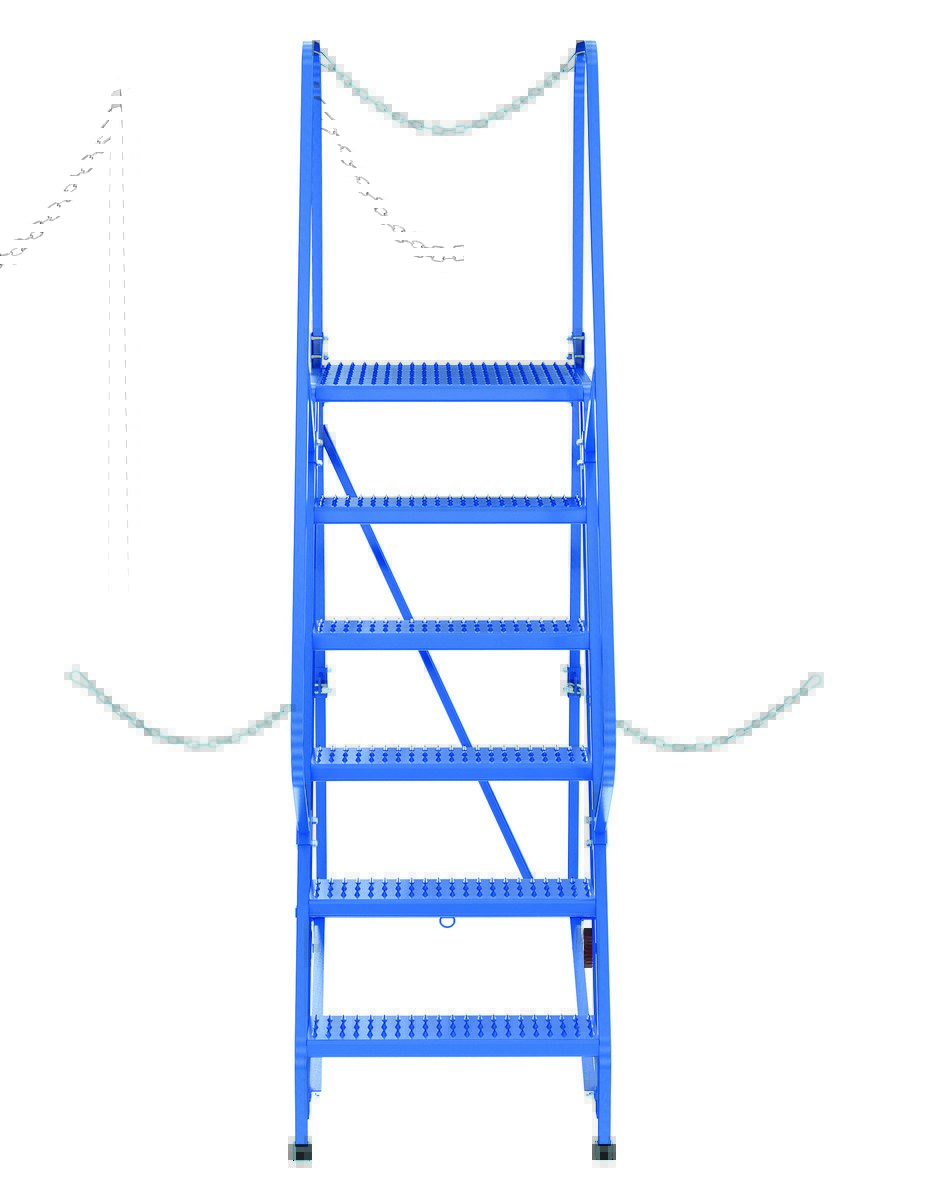

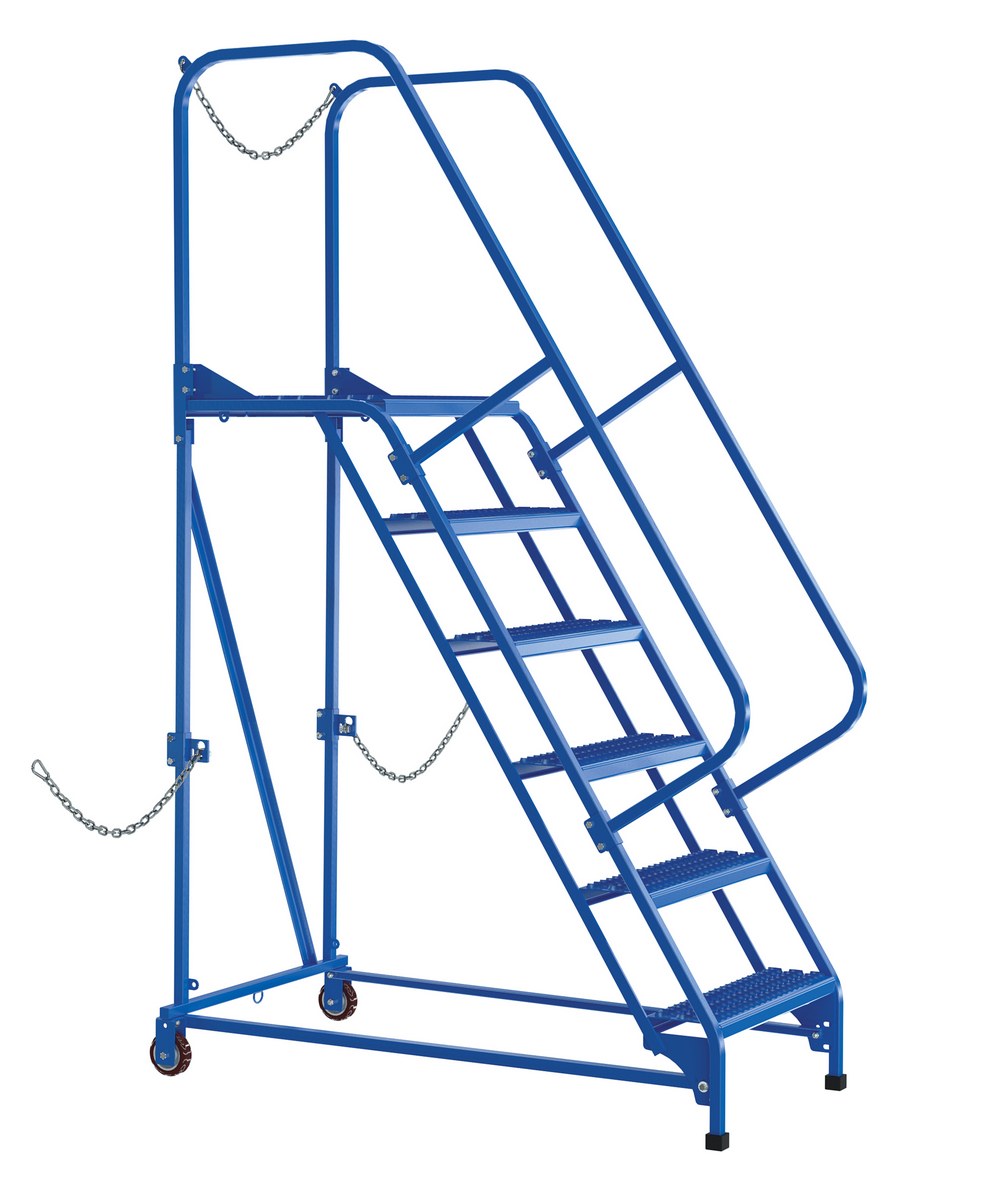

LAD-STAL-6-G LAD-STAL-6-G1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 6 Grip Strut 24 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Number of Steps: 6
220

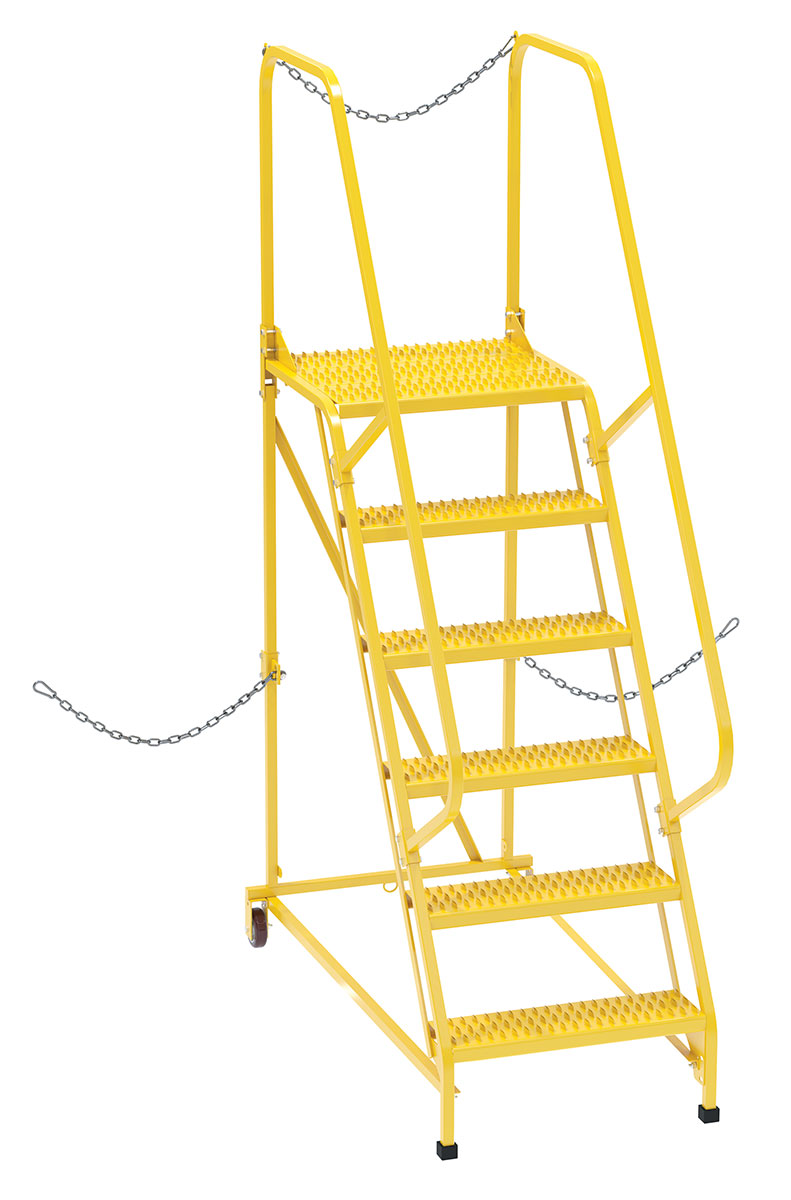

LAD-STAL-6-G-YL LAD-STAL-6-G-YL1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 6 Grip Strut 24 In. Step Width 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 6
210

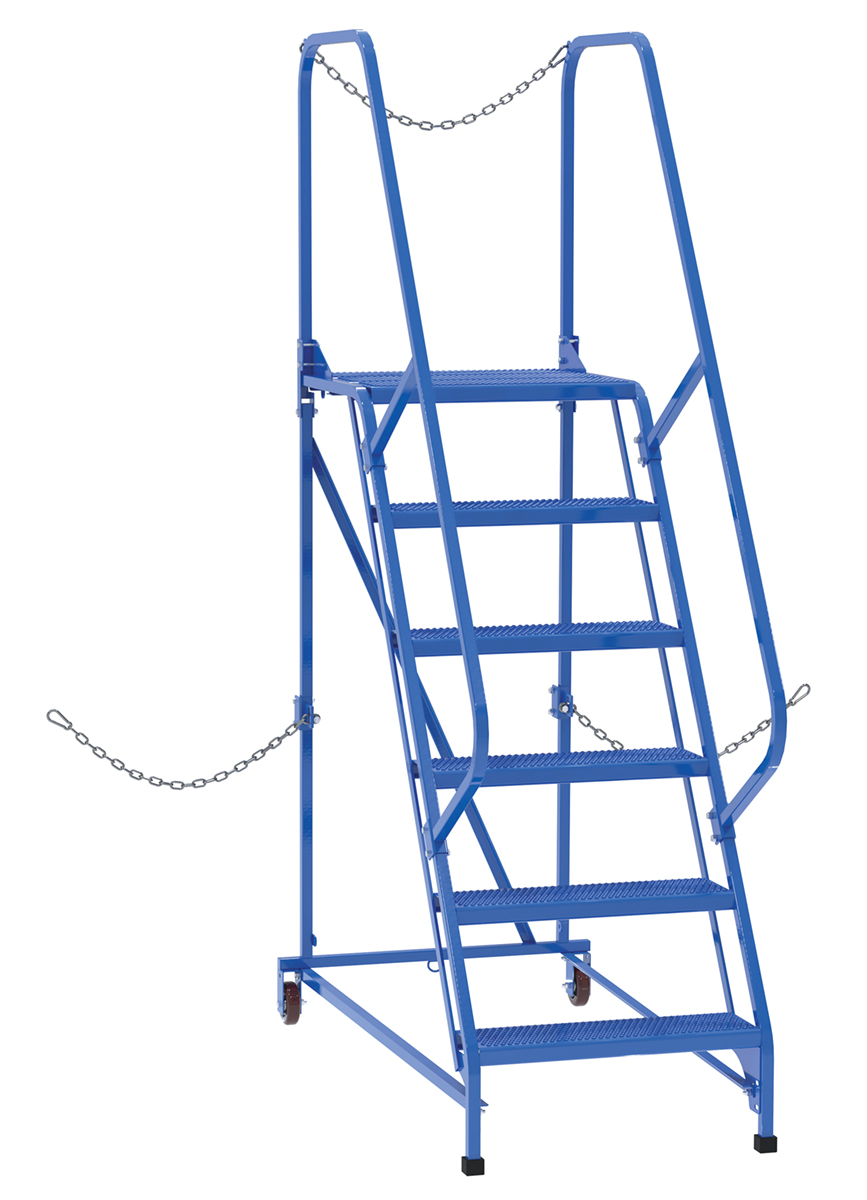

LAD-STAL-6-P LAD-STAL-6-P1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 6 Perforated 24 In. Step Width 350 Lb. Capacity BlueUniform Capacity (lb.): 350
Number of Steps: 6
220

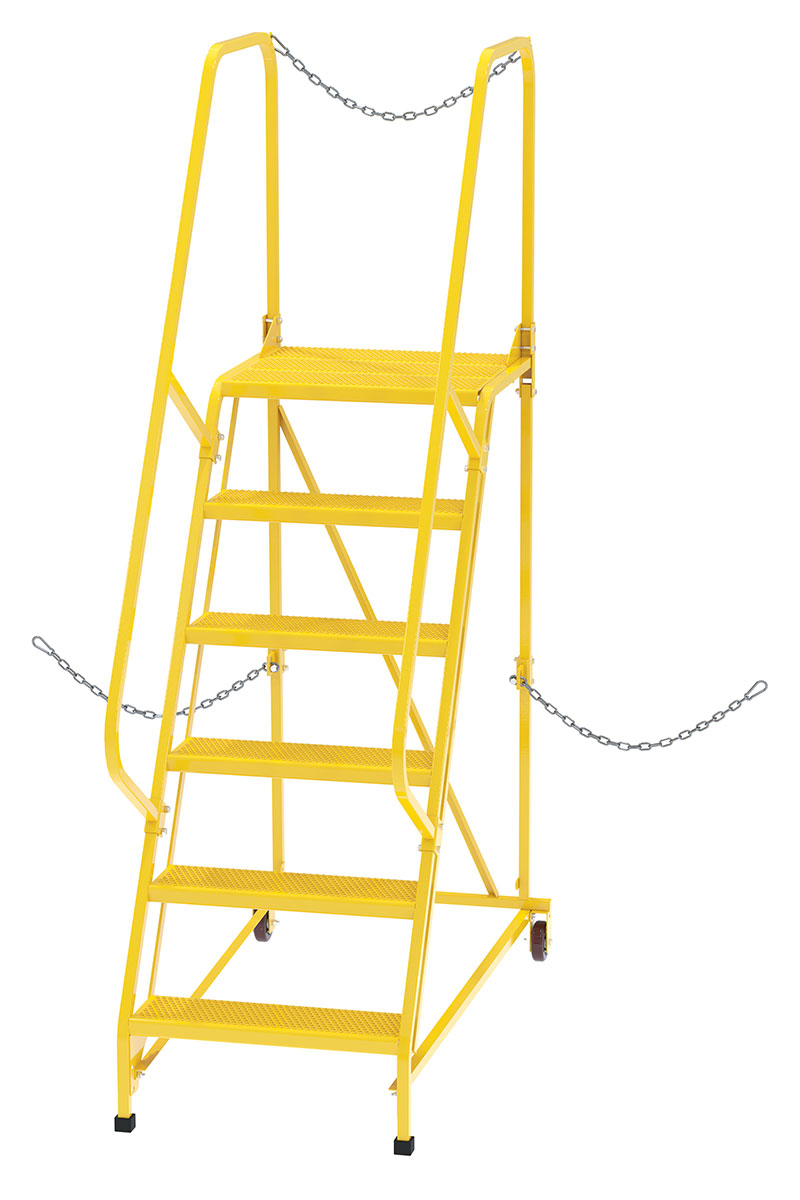

LAD-STAL-6-P-YL LAD-STAL-6-P-YL1 Year Limited WarrantySteel Semi-Trailer Access Ladder 58 Degree 6 Perforated 24 In. Step Width 350 Lb. Capacity YellowUniform Capacity (lb.): 350
Number of Steps: 6
210

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

LAD-STAL-5-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 5
Uniform Capacity (lb.): 350
Number of Steps: 5

LAD-STAL-5-G-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 5
Uniform Capacity (lb.): 350
Number of Steps: 5

LAD-STAL-5-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 5
Uniform Capacity (lb.): 350
Number of Steps: 5

LAD-STAL-5-P-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 5
Uniform Capacity (lb.): 350
Number of Steps: 5

LAD-STAL-6-G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 6
Uniform Capacity (lb.): 350
Number of Steps: 6

LAD-STAL-6-G-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 6
Uniform Capacity (lb.): 350
Number of Steps: 6

LAD-STAL-6-P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 6
Uniform Capacity (lb.): 350
Number of Steps: 6

LAD-STAL-6-P-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 350
Number of Steps: 6
Uniform Capacity (lb.): 350
Number of Steps: 6


SEMI-TRAILER ACCESS LADDER PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LAD-STAL-5-G

LAD-STAL-5-G-YL

LAD-STAL-5-P

LAD-STAL-5-P-YL

LAD-STAL-6-G

LAD-STAL-6-G-YL

LAD-STAL-6-P

LAD-STAL-6-P-YL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





SEMI-TRAILER ACCESS LADDER




Semi-Trailer Access Ladders are for use getting into Semi-Trailers. Tilt the unit to allow for portability. Units roll on 4" poly-on-poly wheels. Constructed of square tubing framework which handles uniform capacities up to 350 lbs. Features 30" high removable hand railing, access chain, 21" deep top platform, and an industrial baked-in blue powder coat finish for toughness. Each step measures 24" wide by 7" deep and is spaced 10" apart. Climb Angle is 58 degrees.


Maintenance Ladders

Model Number

Image PDF's

Steps

Overall
(WxDxH)
Top Step
Height
Step
Type
Wt.
(lbs.)

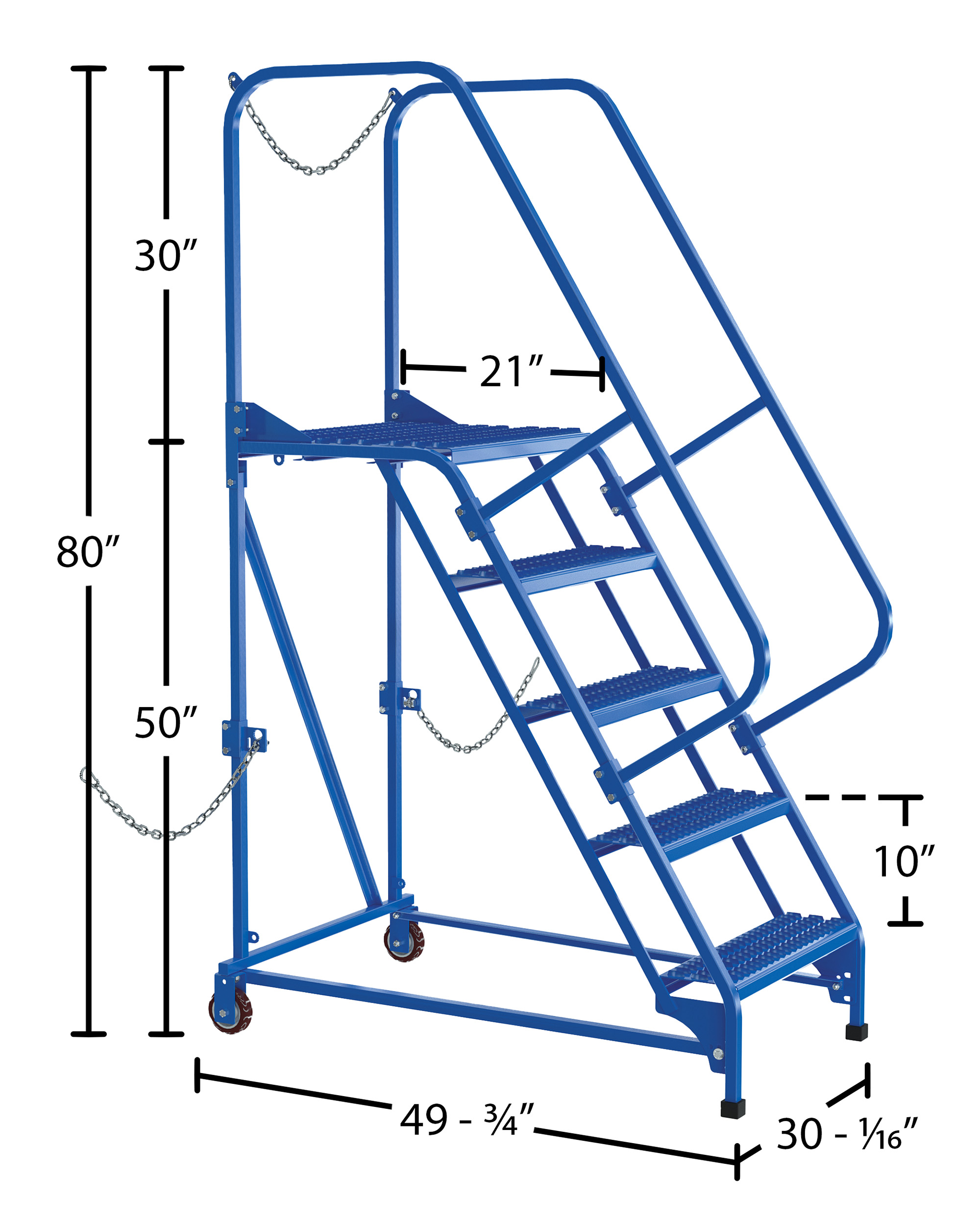

LAD-STAL-5-G icon_approvaldrawings.jpgWarranty PDF 5 30-1/16"x49-3/4"x80" 50" Grip Strut 132
LAD-STAL-6-G icon_approvaldrawings.jpgWarranty PDF 6 30-1/16"x 56-5/8"x 90" 60" Grip Strut 148
LAD-STAL-5-P icon_approvaldrawings.jpgWarranty PDF 5 30-1/16"x49-3/4"x80" 50" Perforated 132
LAD-STAL-6-P icon_approvaldrawings.jpgWarranty PDF 6 30-1/16"x 56-5/8"x 90" 60" Perforated 148
LAD-STAL-5-G-YL Warranty PDF 5 30-1/16"x49-3/4"x80" 50" Grip Strut 132
LAD-STAL-6-G-YL Warranty PDF 6 30-1/16"x 56-5/8"x 90" 60" Grip Strut 148
LAD-STAL-5-P-YL Warranty PDF 5 30-1/16"x49-3/4"x80" 50" Perforated 132
LAD-STAL-6-P-YL Warranty PDF 6 30-1/16"x 56-5/8"x 90" 60" Perforated 148
