SERIES: LAD

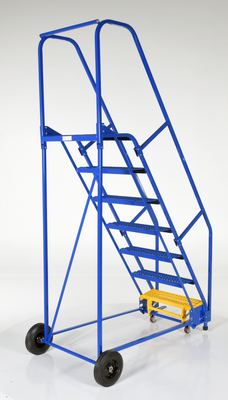

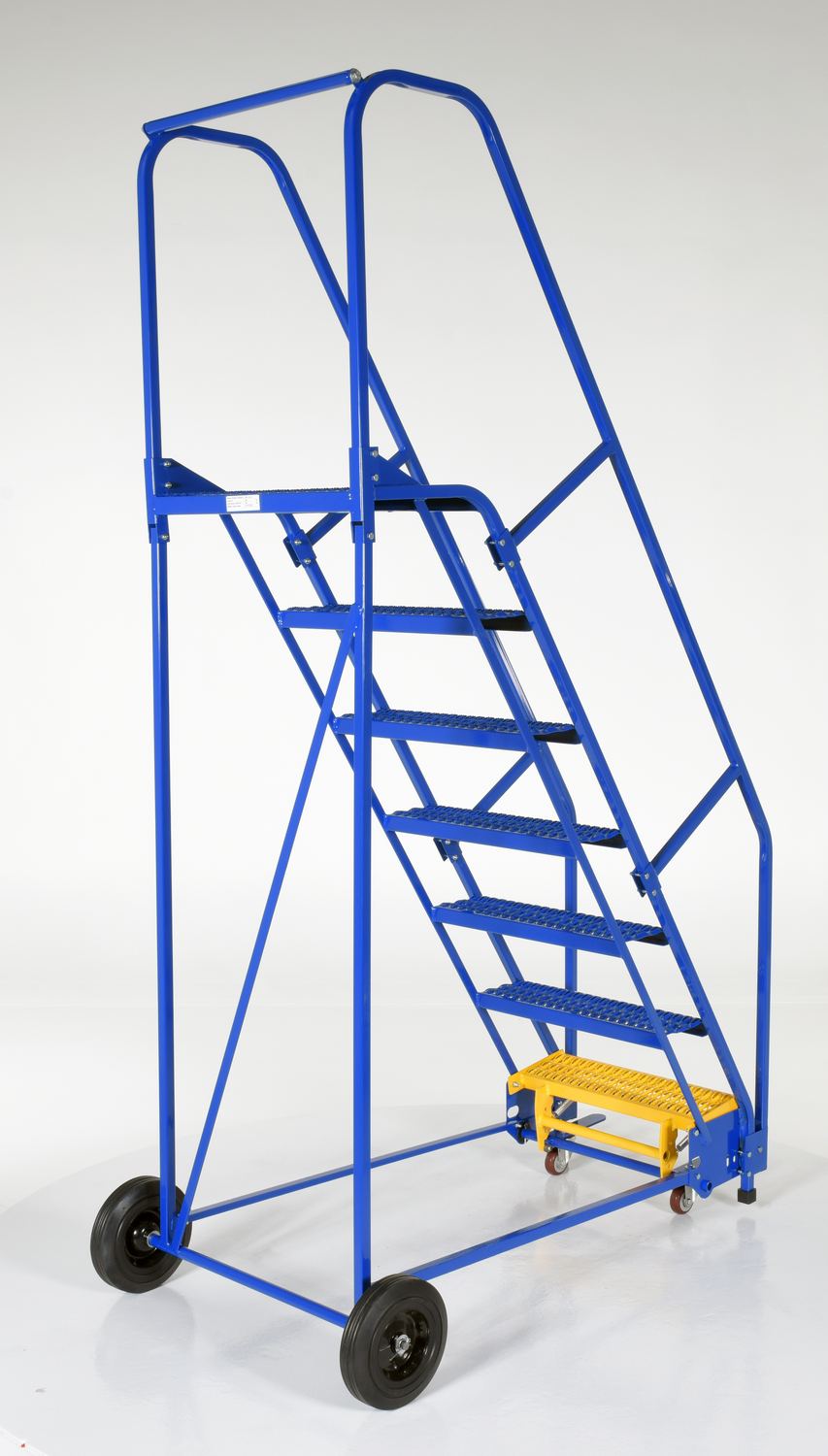

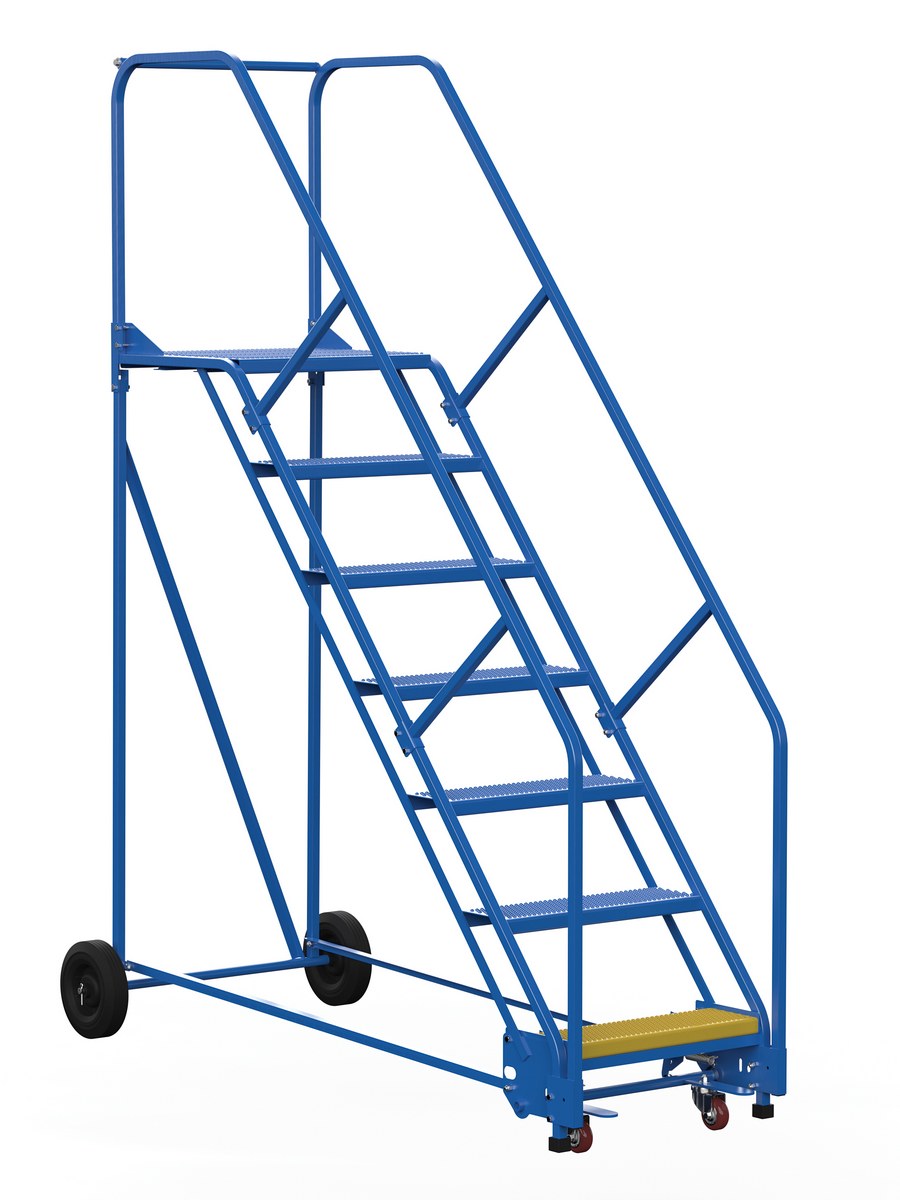

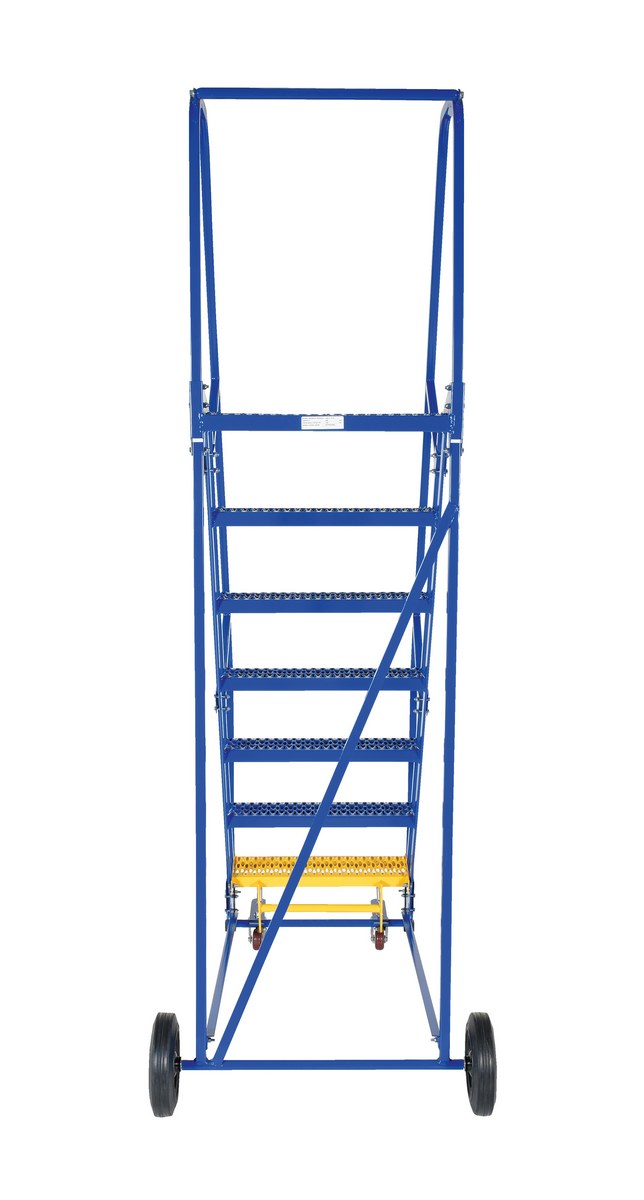

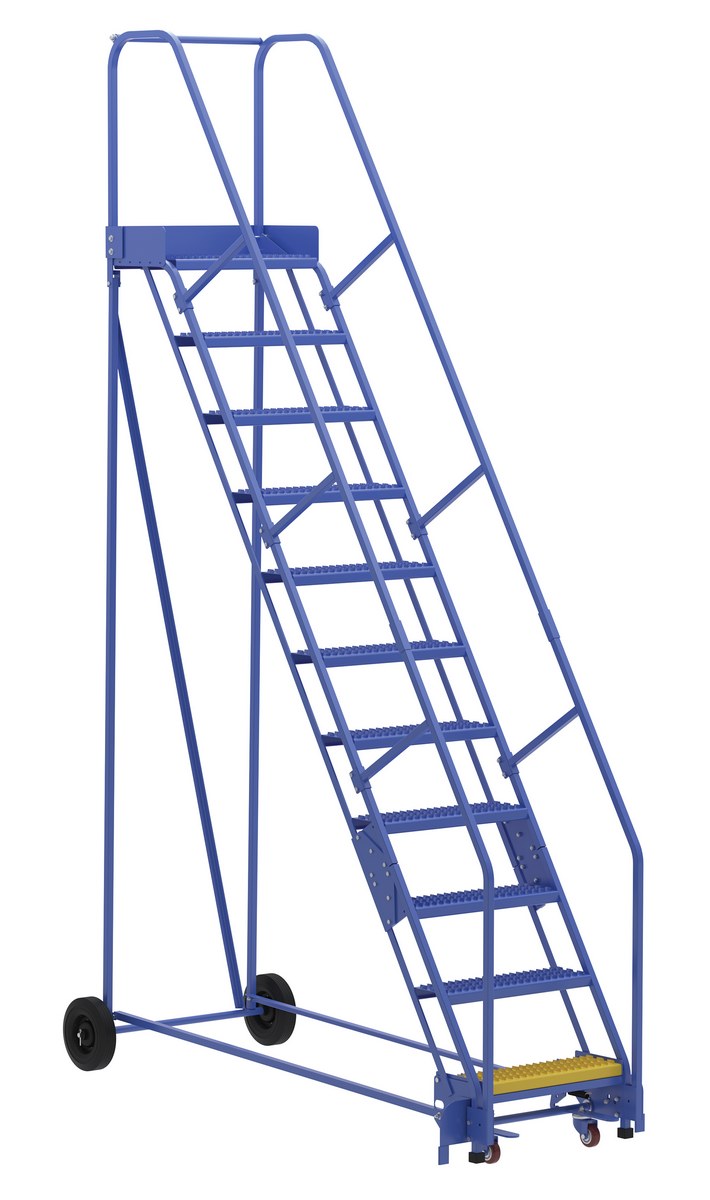

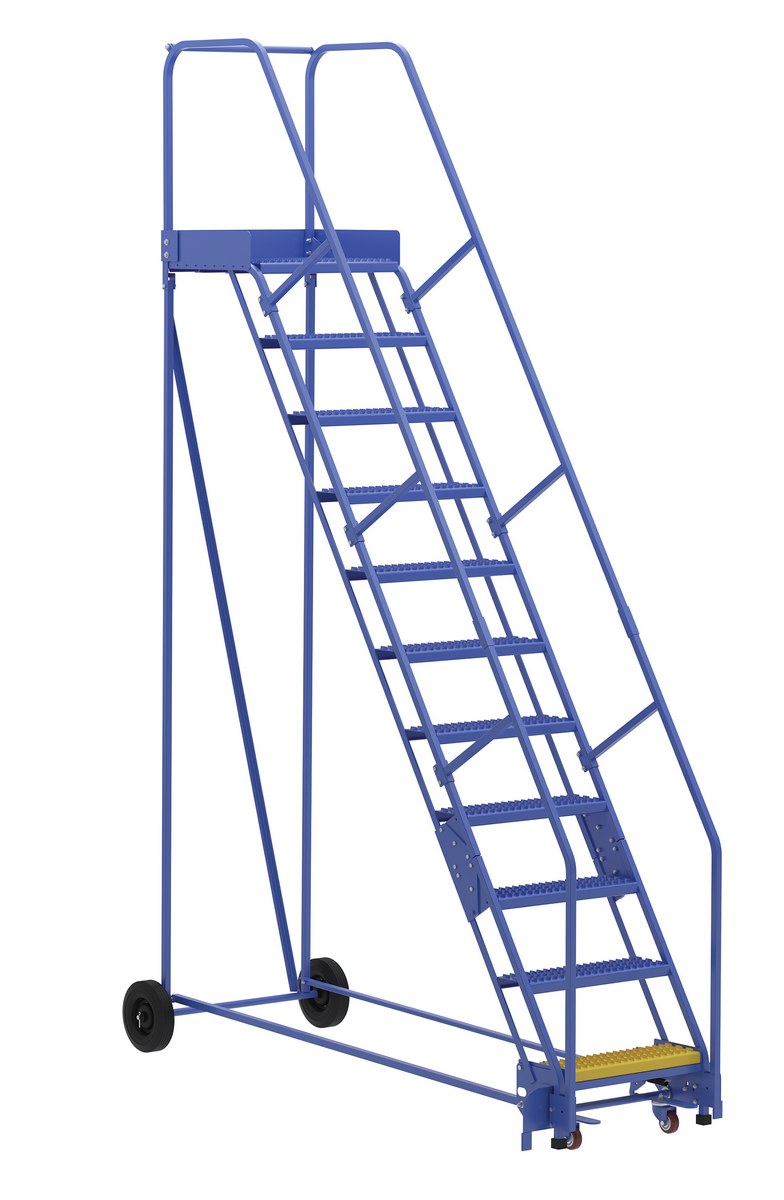

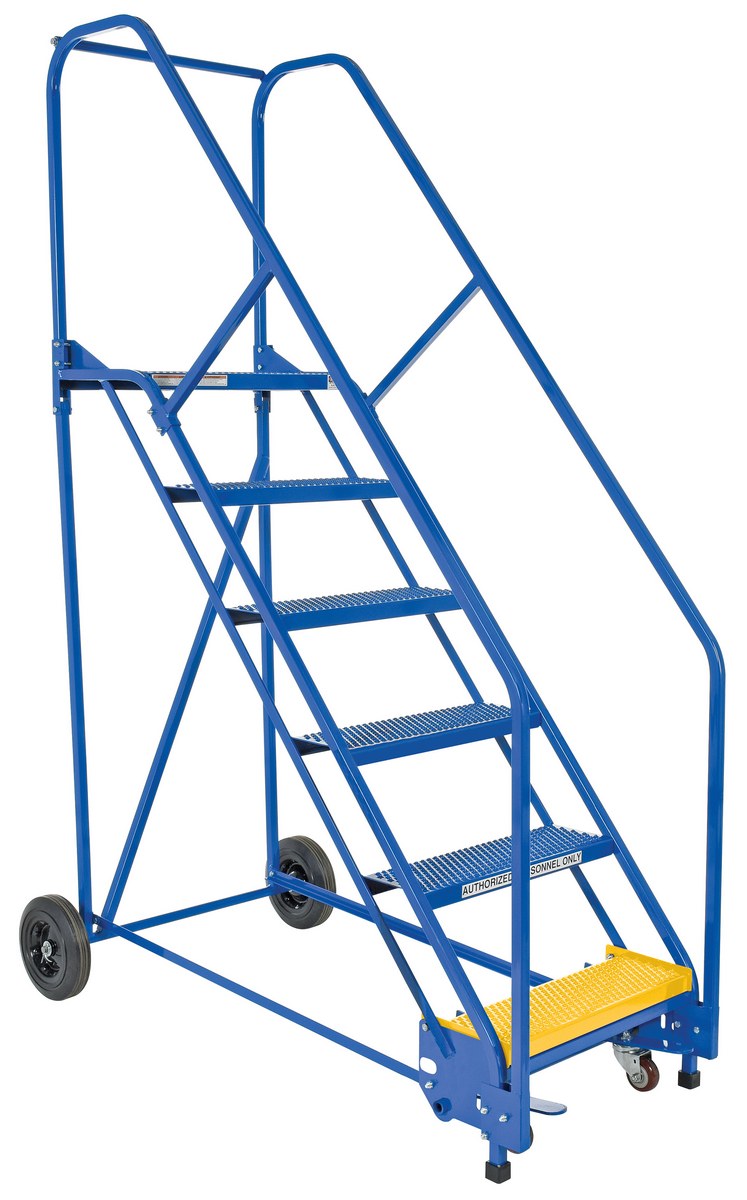

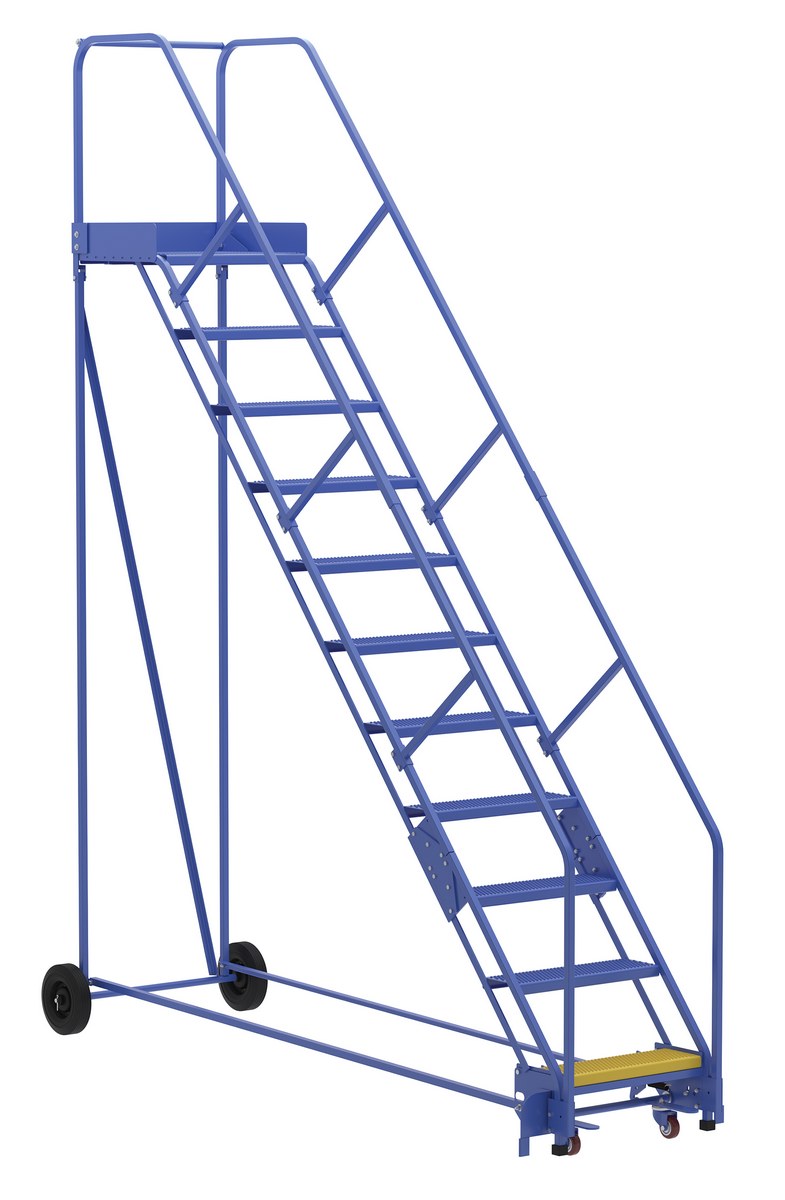

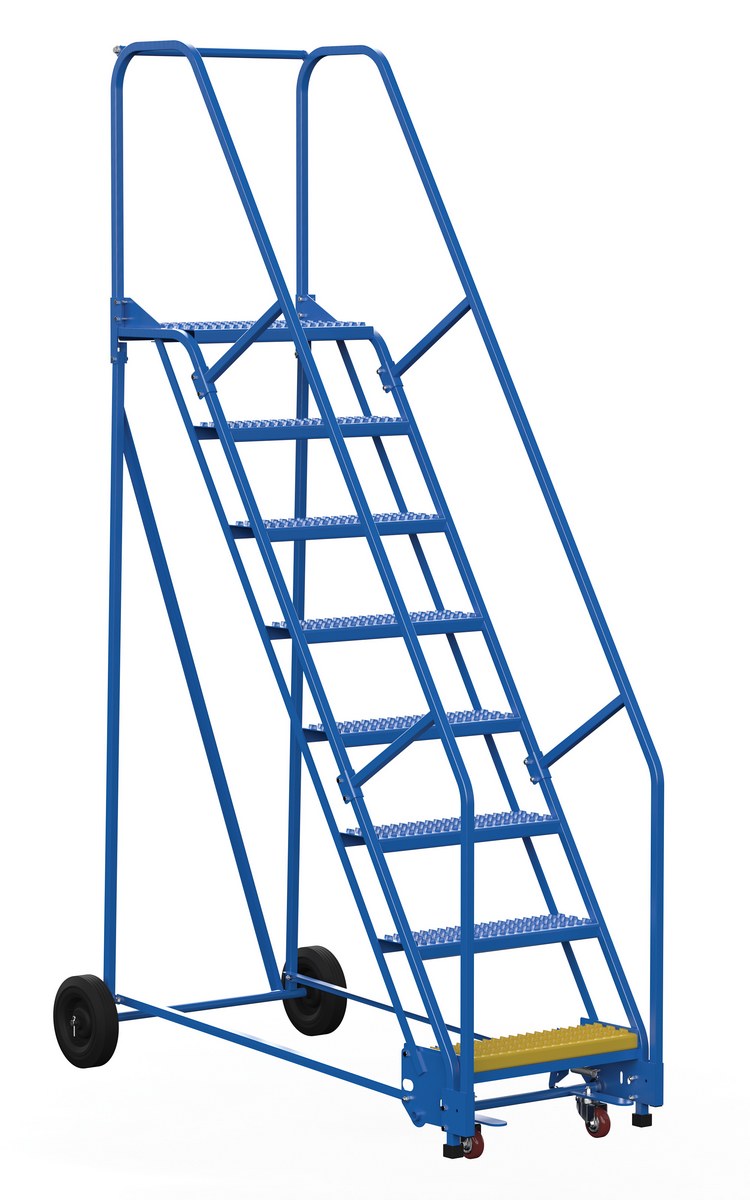

Rolling Warehouse Ladders (6-11 Step)

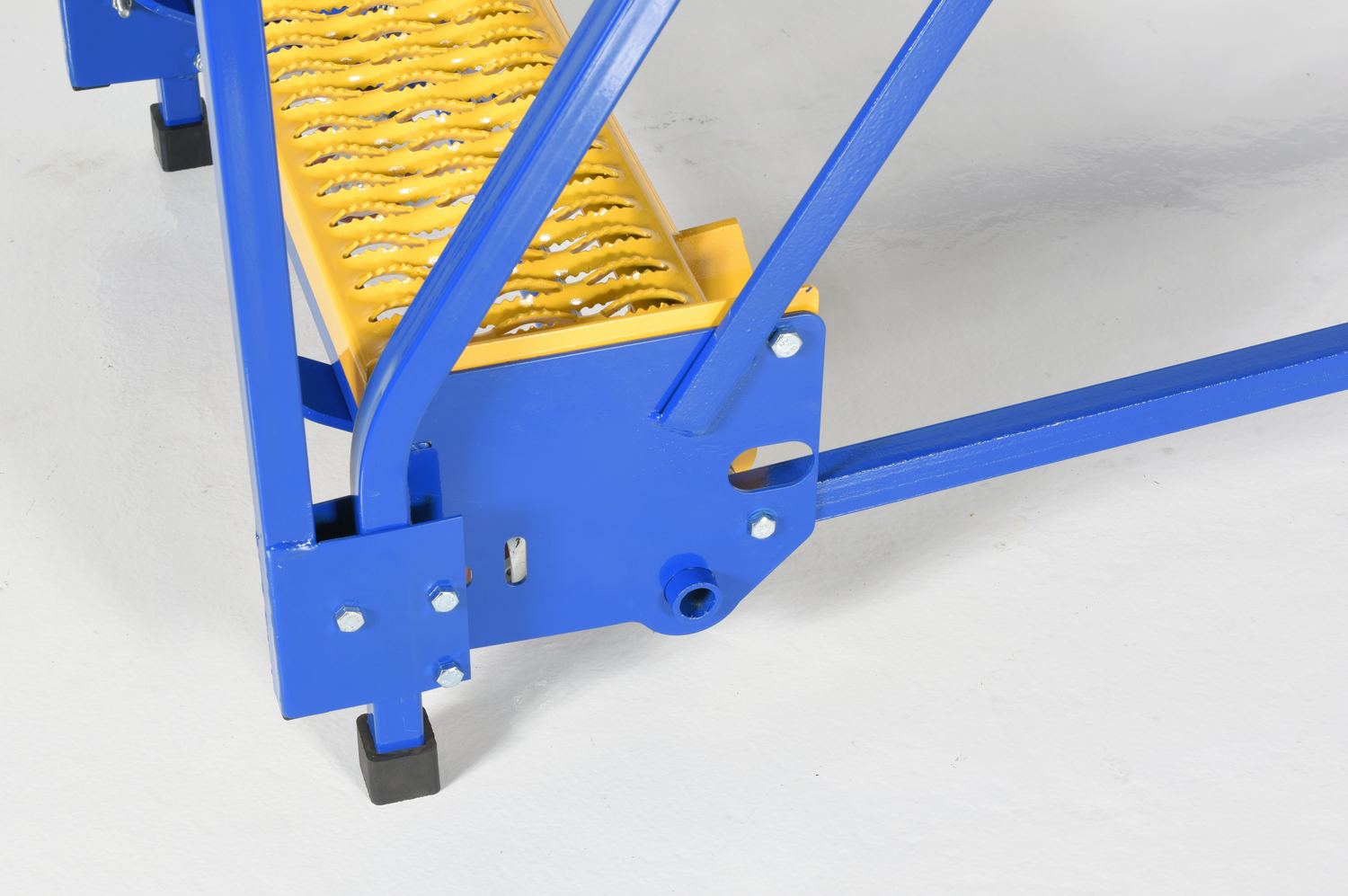

Finally an easy and safe solution for reaching products on high shelves. Constructed of square tubing framework, which handles uniform capacities up to 350 lbs. Units feature a 58 degree climb angle and EZ models feature a 50 degree climb angle. The handrail height is 30". Each step is 24"wide by 7" deep. Choose either grip strut style or perforated style steps. Front wheels are10" diameter. Unique design allows ladder to separate for shipping and storage. Welded steel construction with powder coat finish. Manufactured in compliance with OSHA 1910.29 and ANSI A14.7 standards. Units are shipped knockdown, some assembly required.

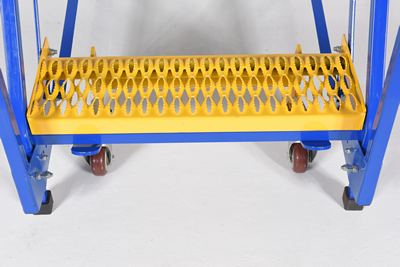

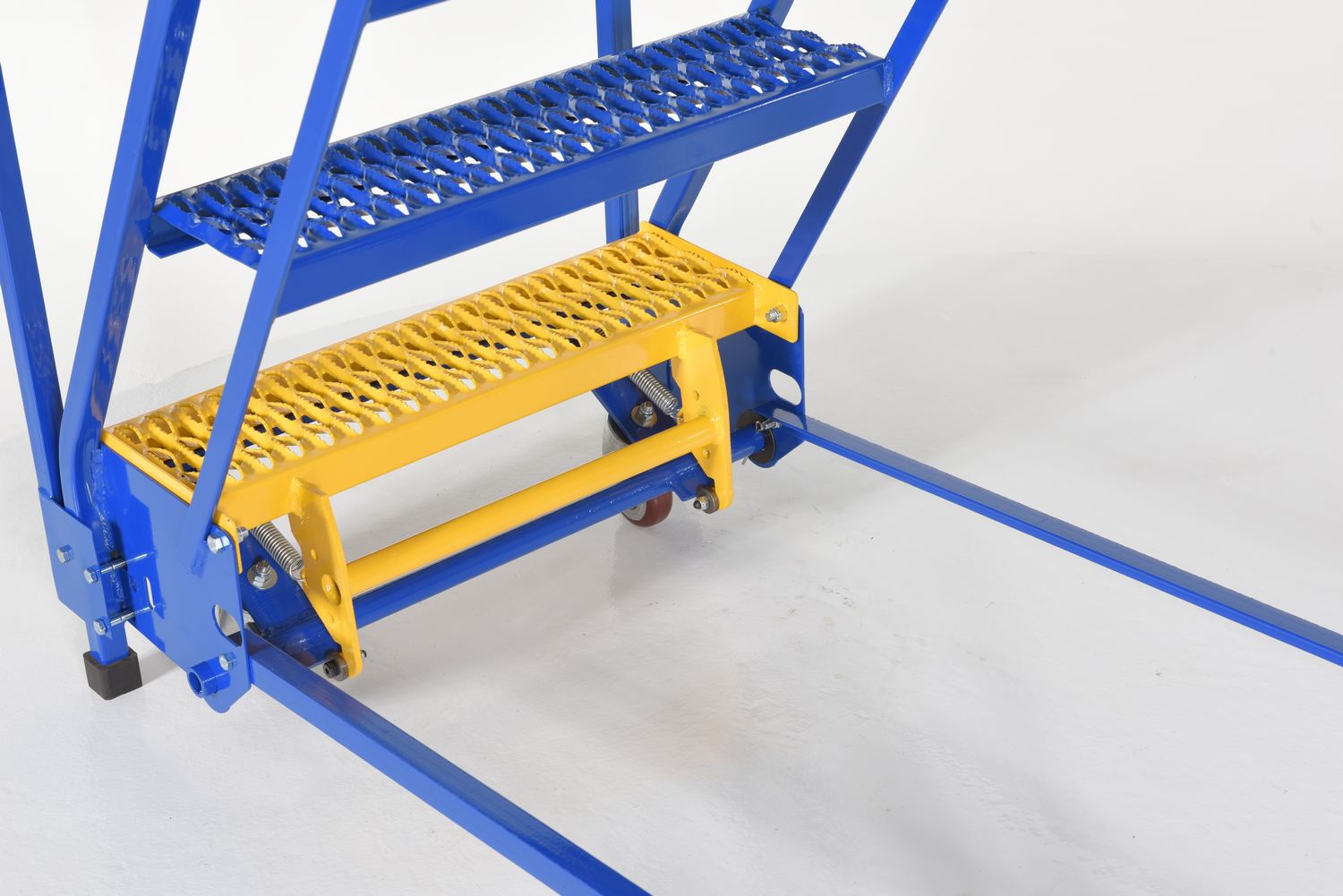

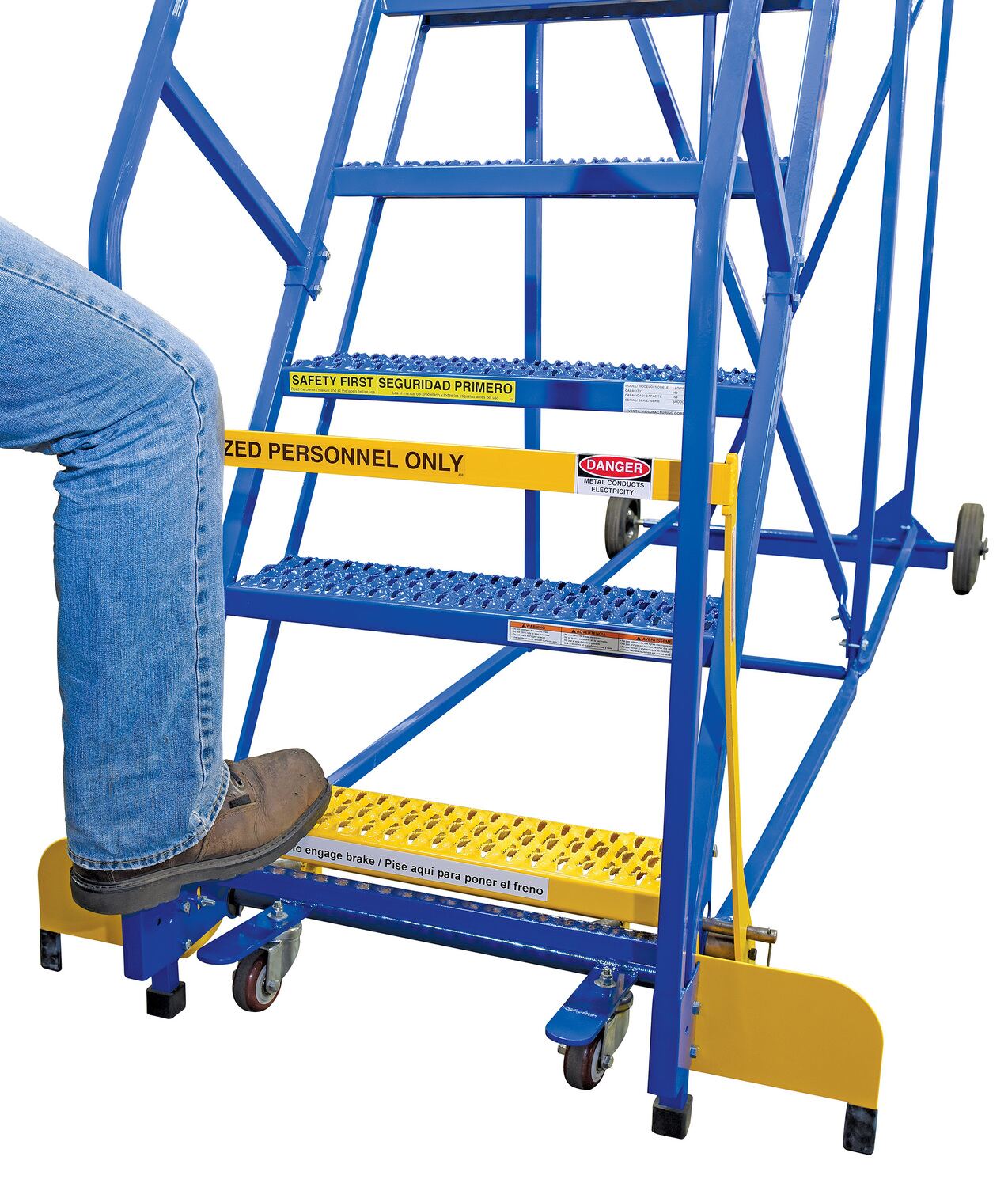

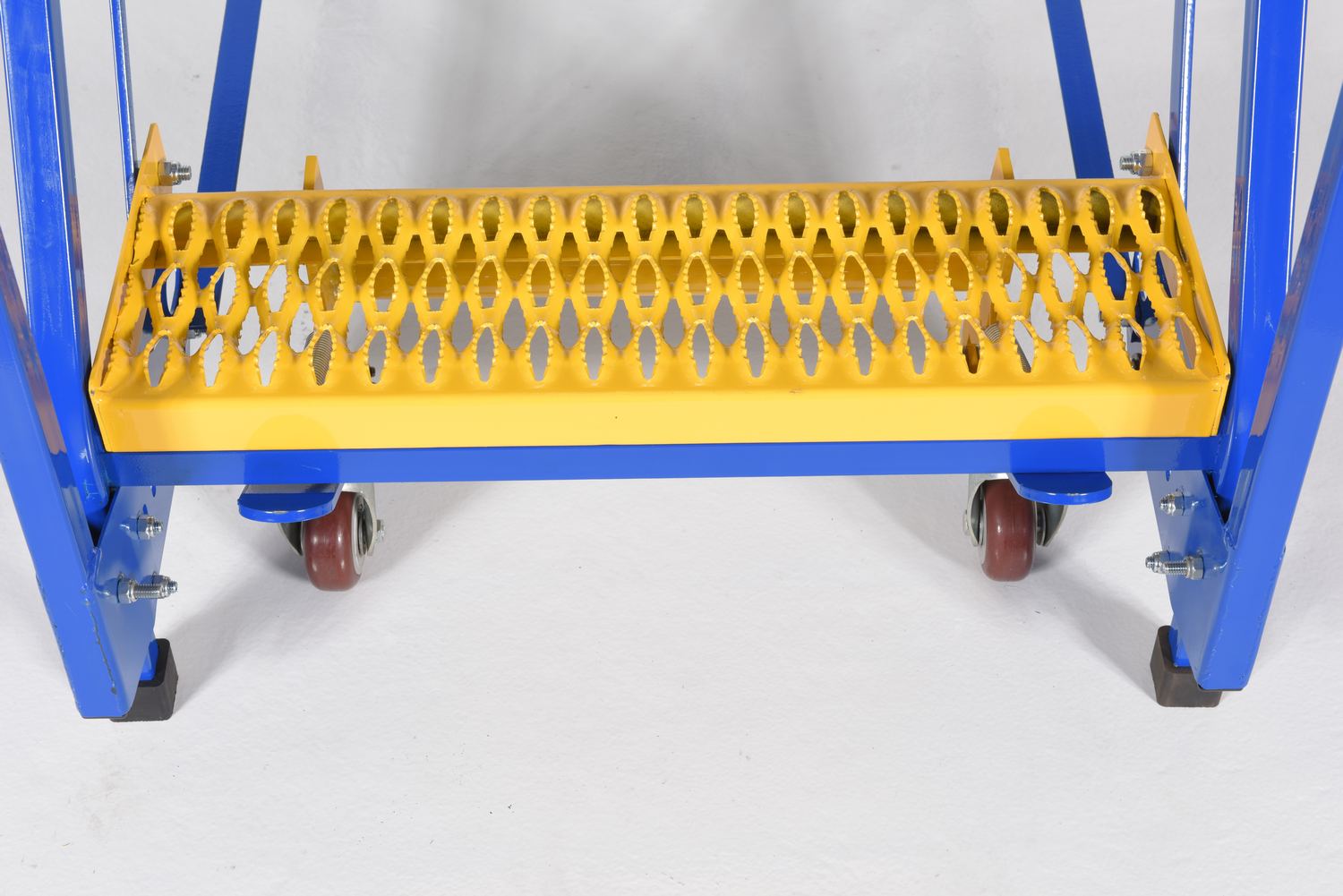

Optional safety gate sold separately to help keep children and unauthorized personnel off the ladder. Activating the caster foot lever will lift the gate into an upright position and engage the casters on the floor. This deters access to the ladder and allows the ladder to be moved. Pushing the gate forward will disengage the casters from the floor and allow for safe access to the ladder





KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Steel Rolling Warehouse Ladders (6-11 Step)

Model

Image PDF

# of
Steps

Top Step Height

Overall|
Height

Base Size
(WxD)

Top Step Depth

Weight (lbs.)

Grip Strut Steps - 58 degrees

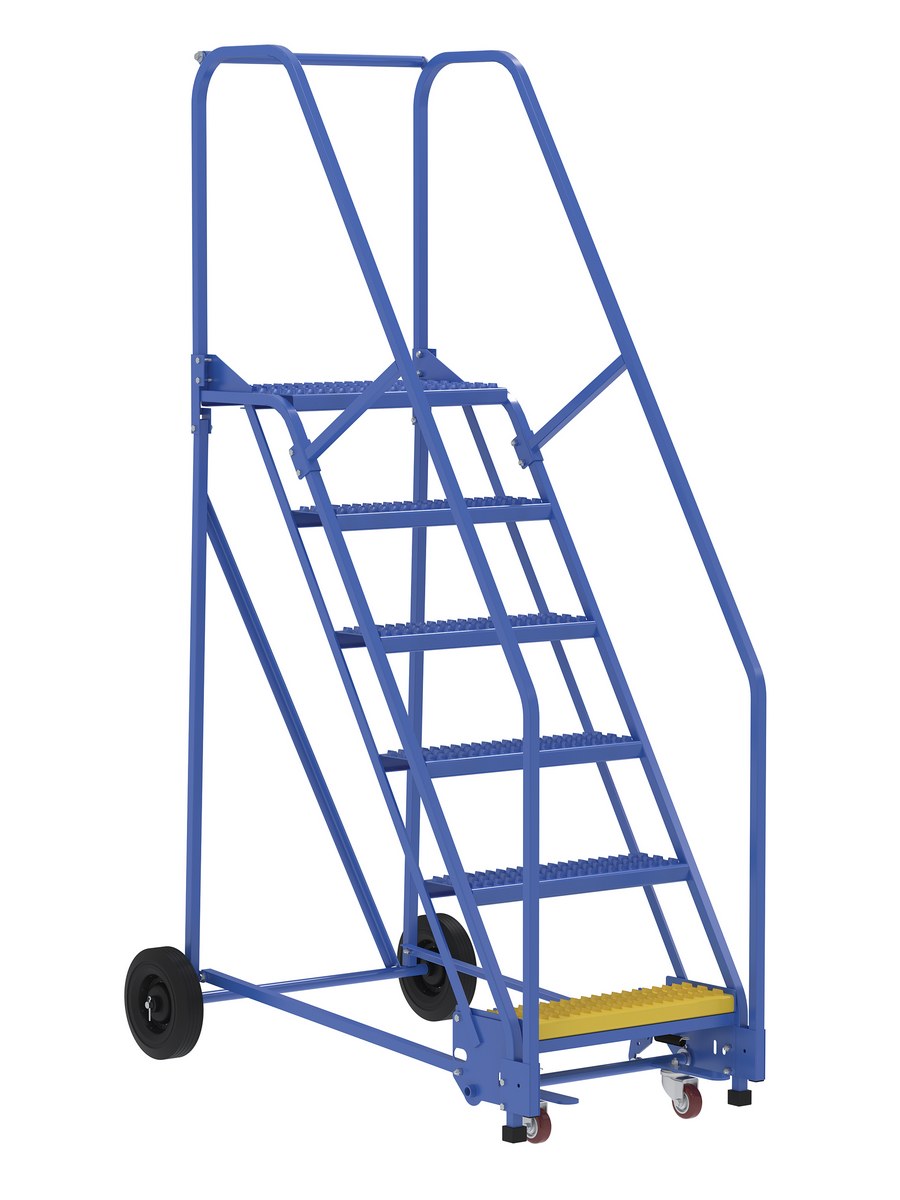

LAD-6-14-G icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x53-15/16" 14" 249

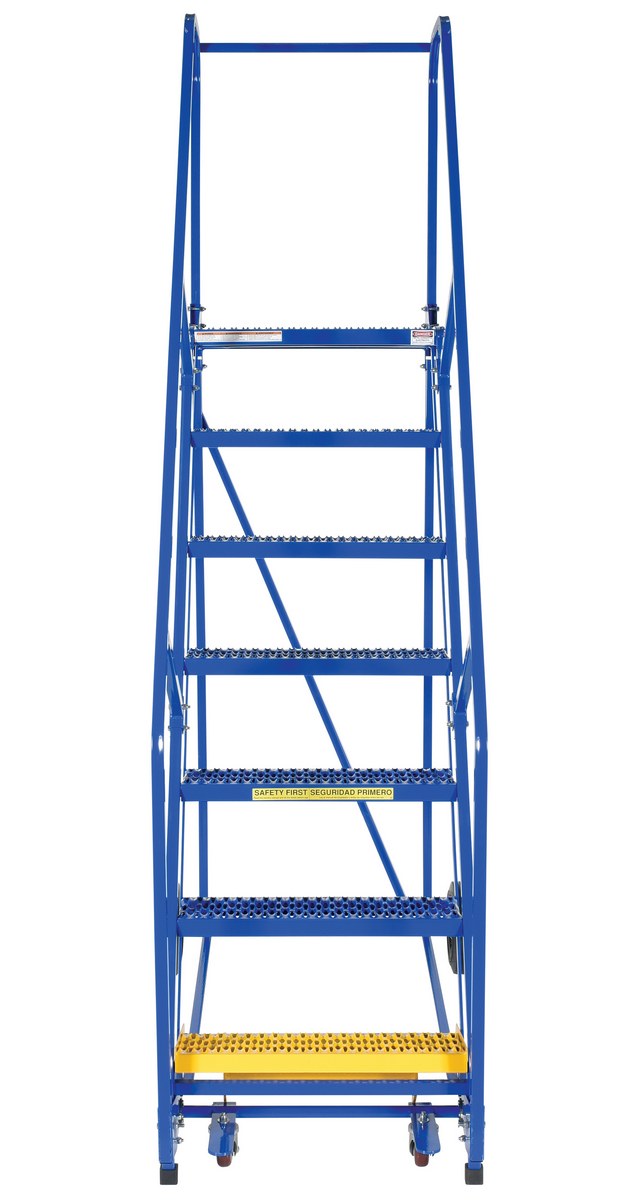

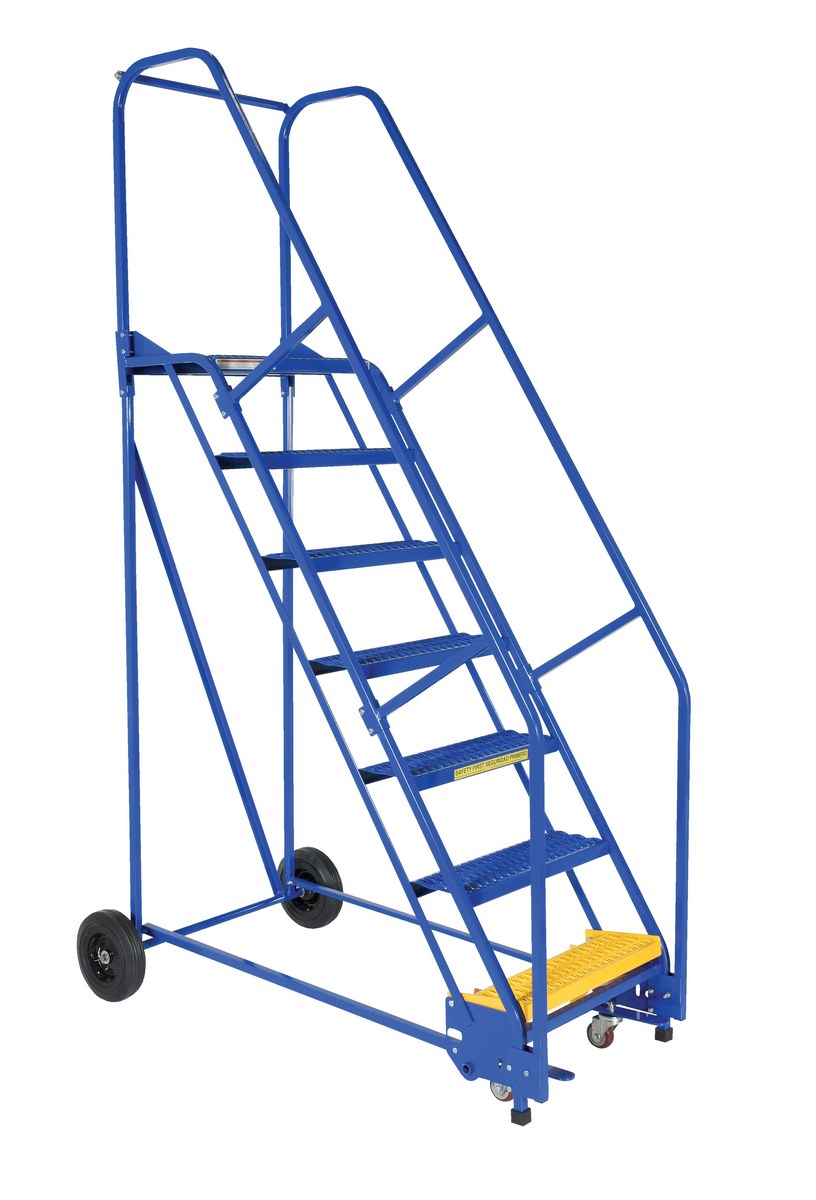

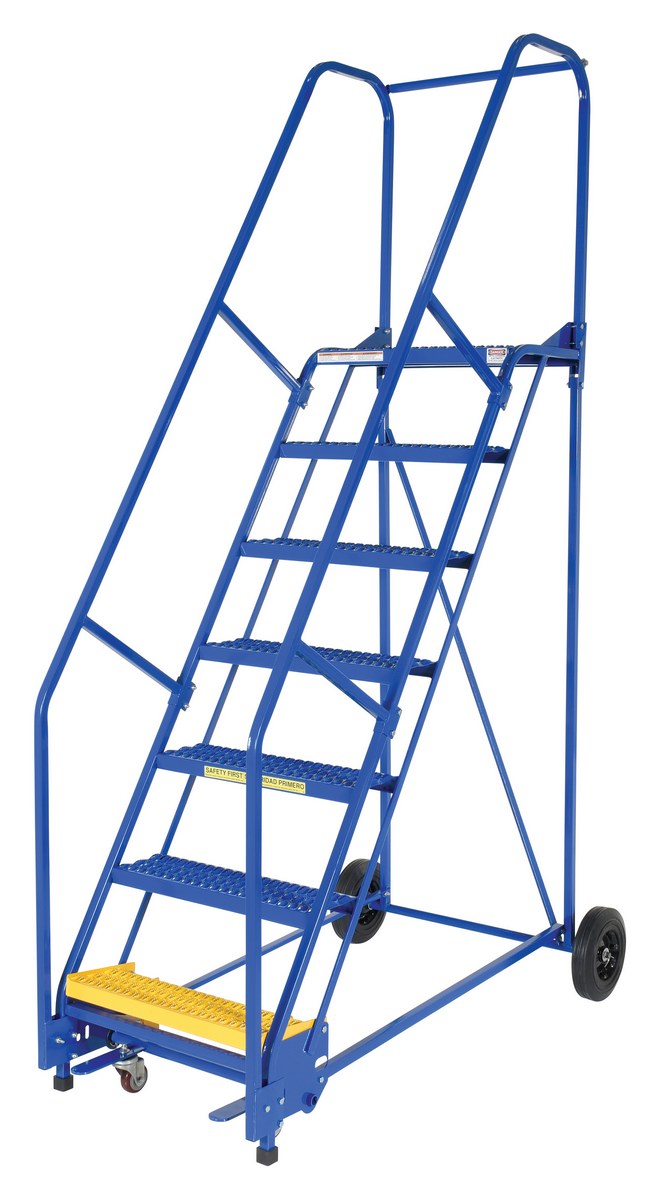

LAD-7-14-G icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x 60-1/16" 14" 286
LAD-8-14-G icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 66-15/16" 14" 288

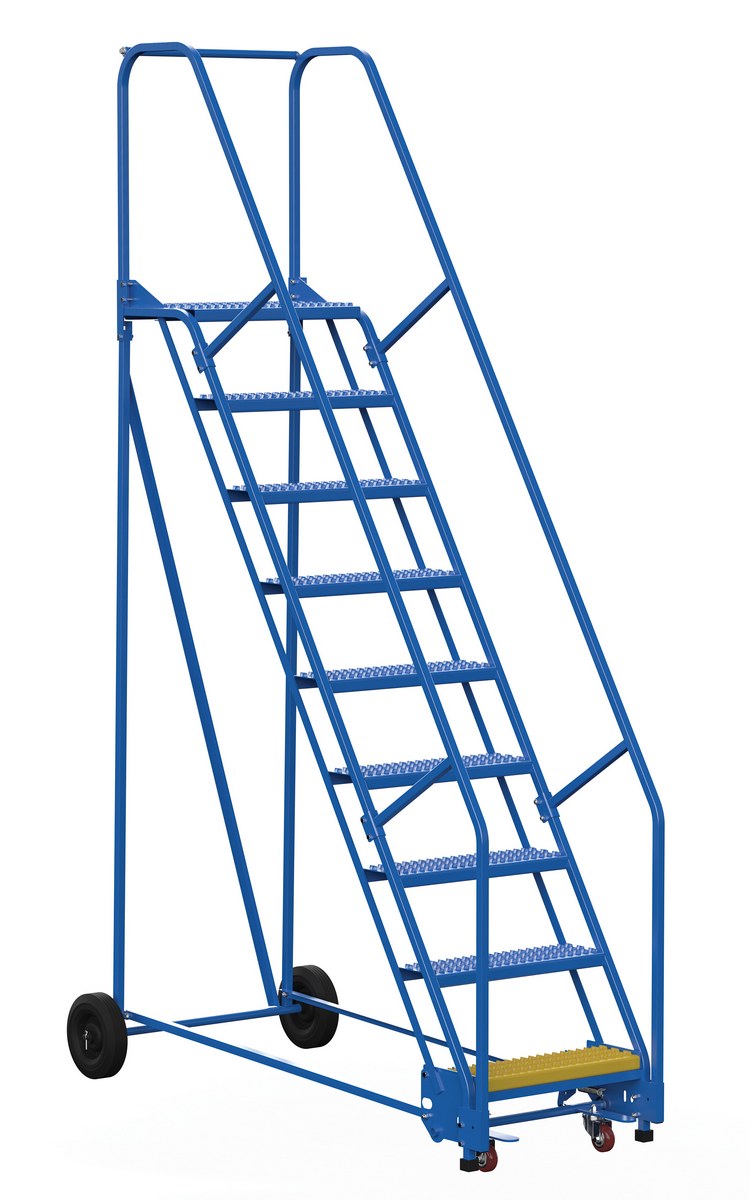

LAD-9-14-G icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x 72-11/16" 14" 322

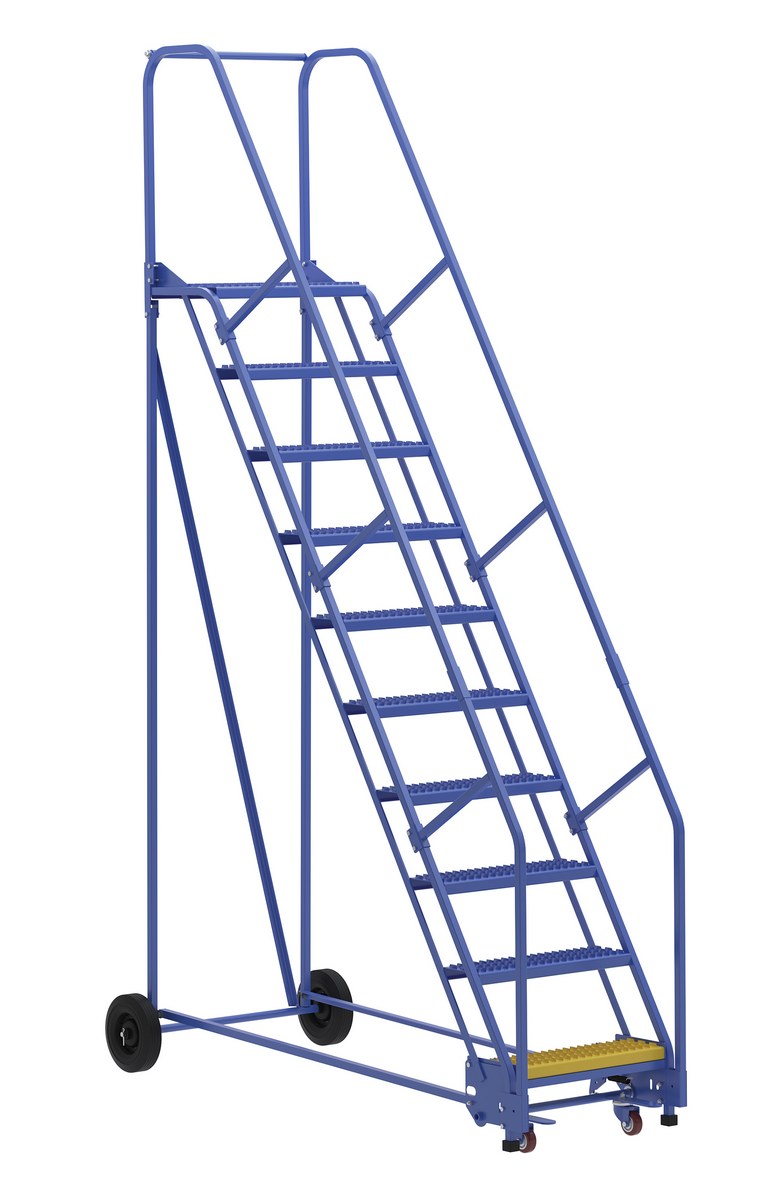

LAD-10-14-G icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x78-15/16" 14" 336
LAD-11-14-G icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x 85-1/16" 14" 367

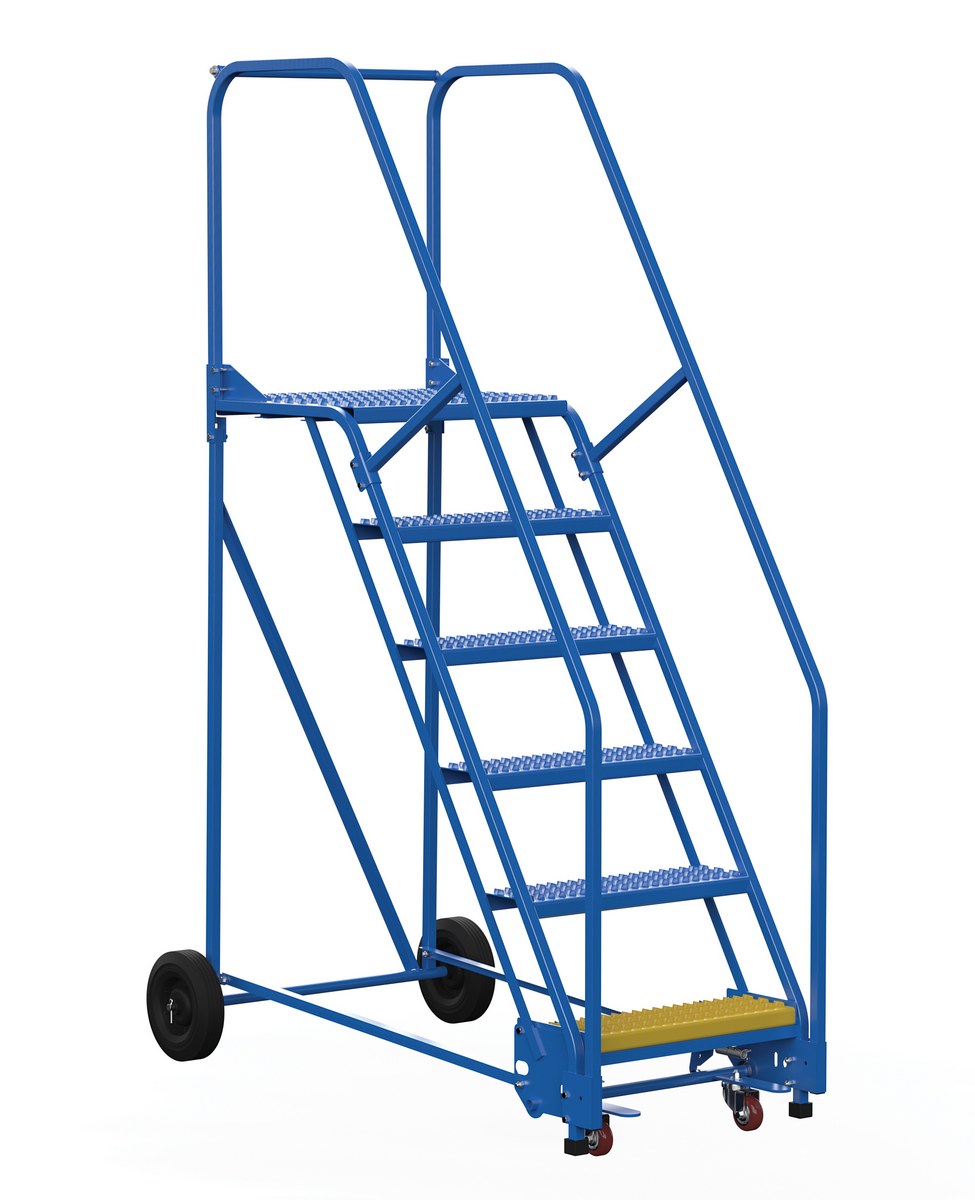

LAD-6-21-G icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x 60" 21" 252

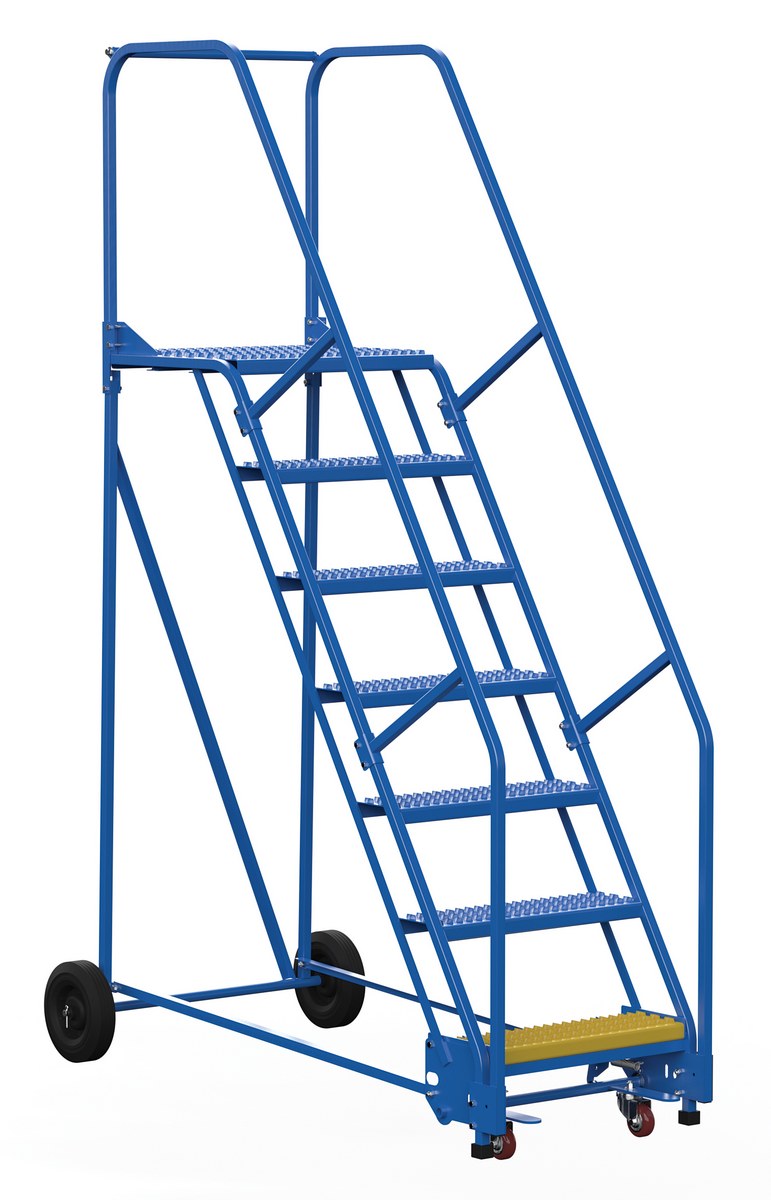

LAD-7-21-G icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x66-15/16" 21" 302

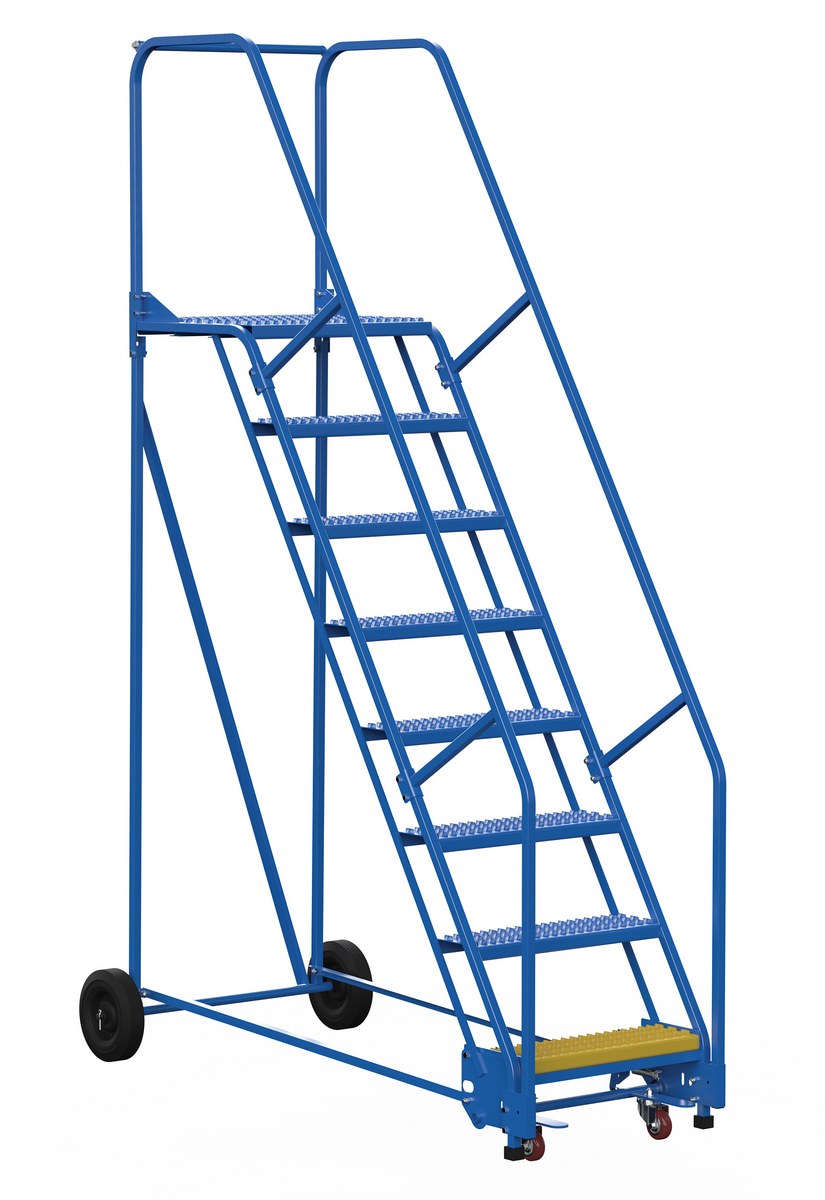

LAD-8-21-G icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 72-5/8" 21" 312

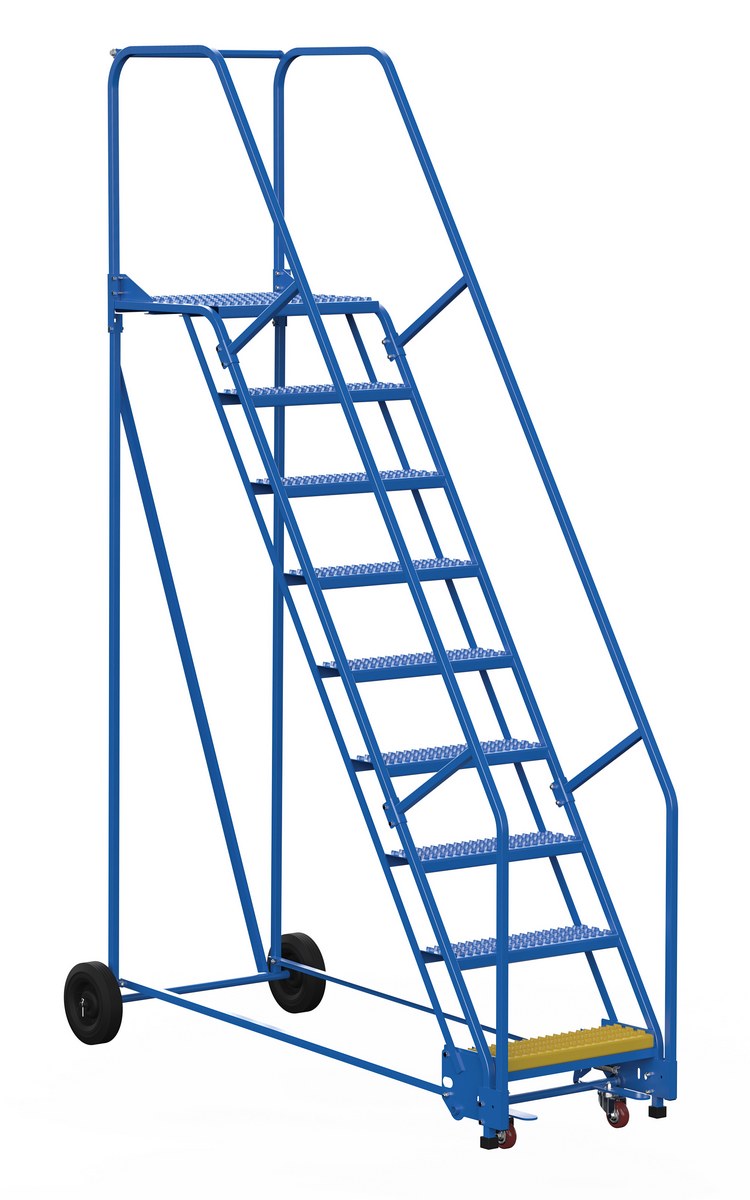

LAD-9-21-G icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x78-15/16" 21" 342

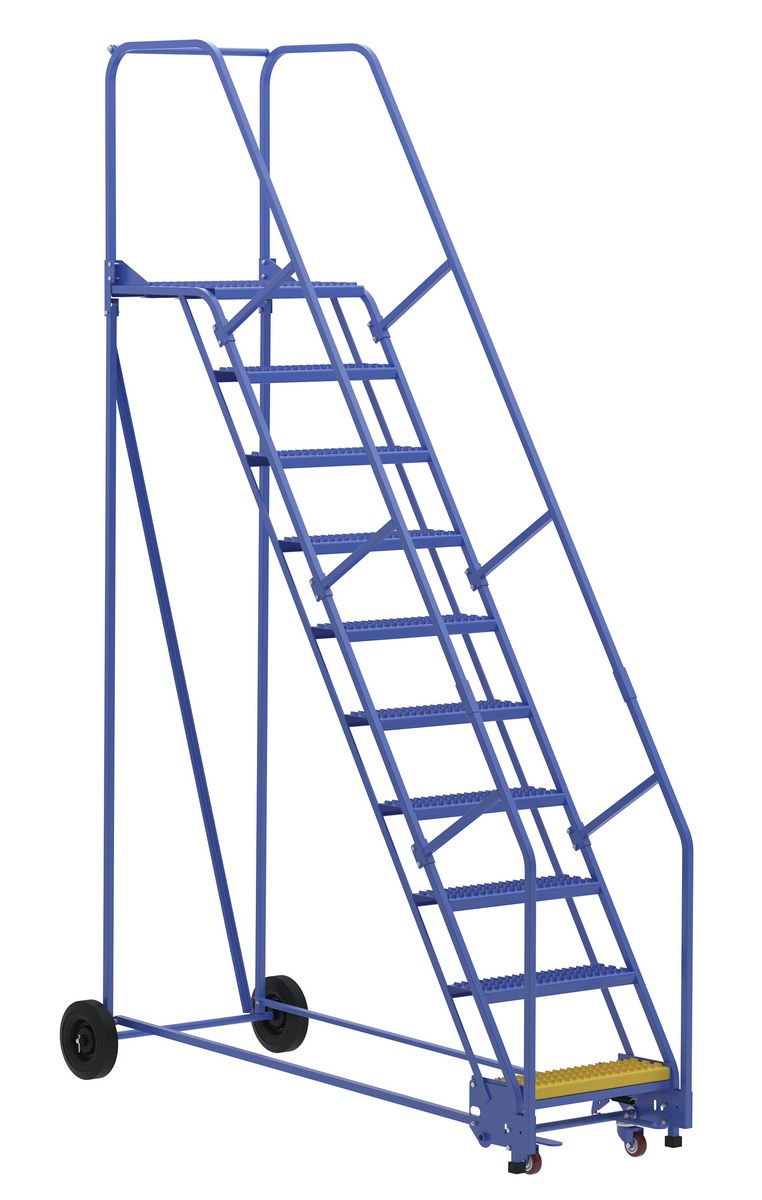

LAD-10-21-G icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4x85-3/16" 21" 354
LAD-11-21-G icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x 91-1/4" 21" 396

Perforated Steps - 58 degrees

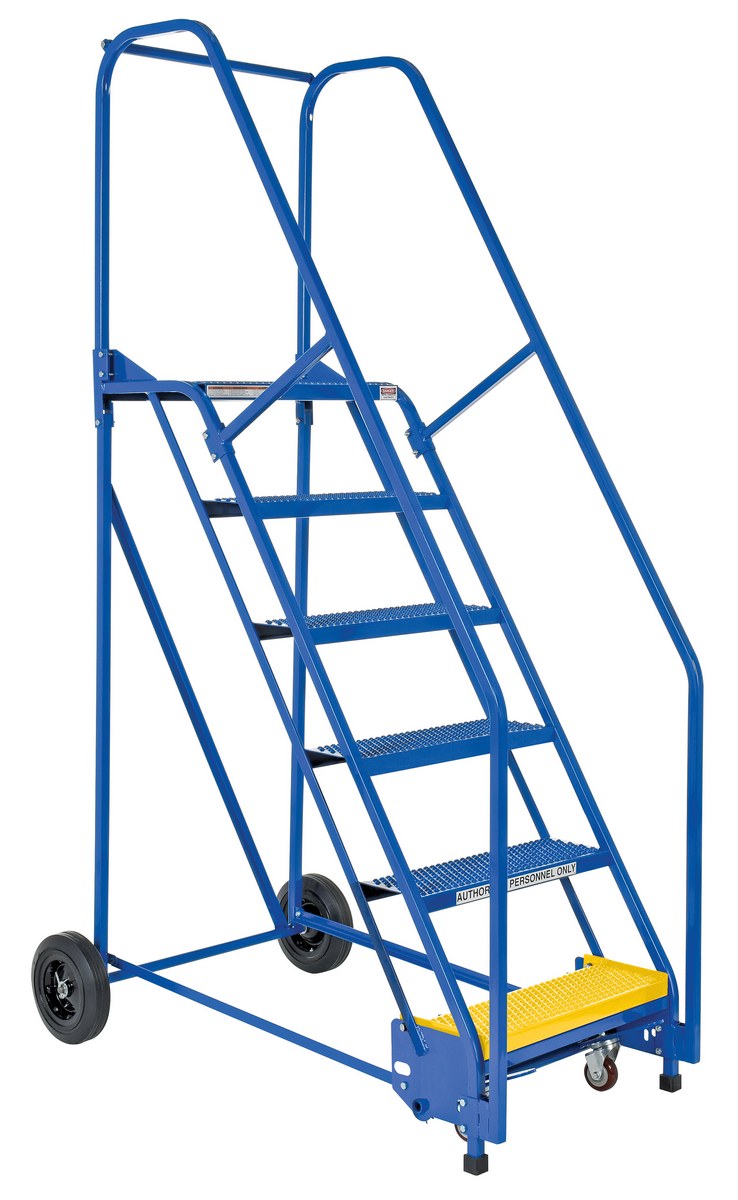

LAD-6-14-P icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x 53-15/16" 14" 252

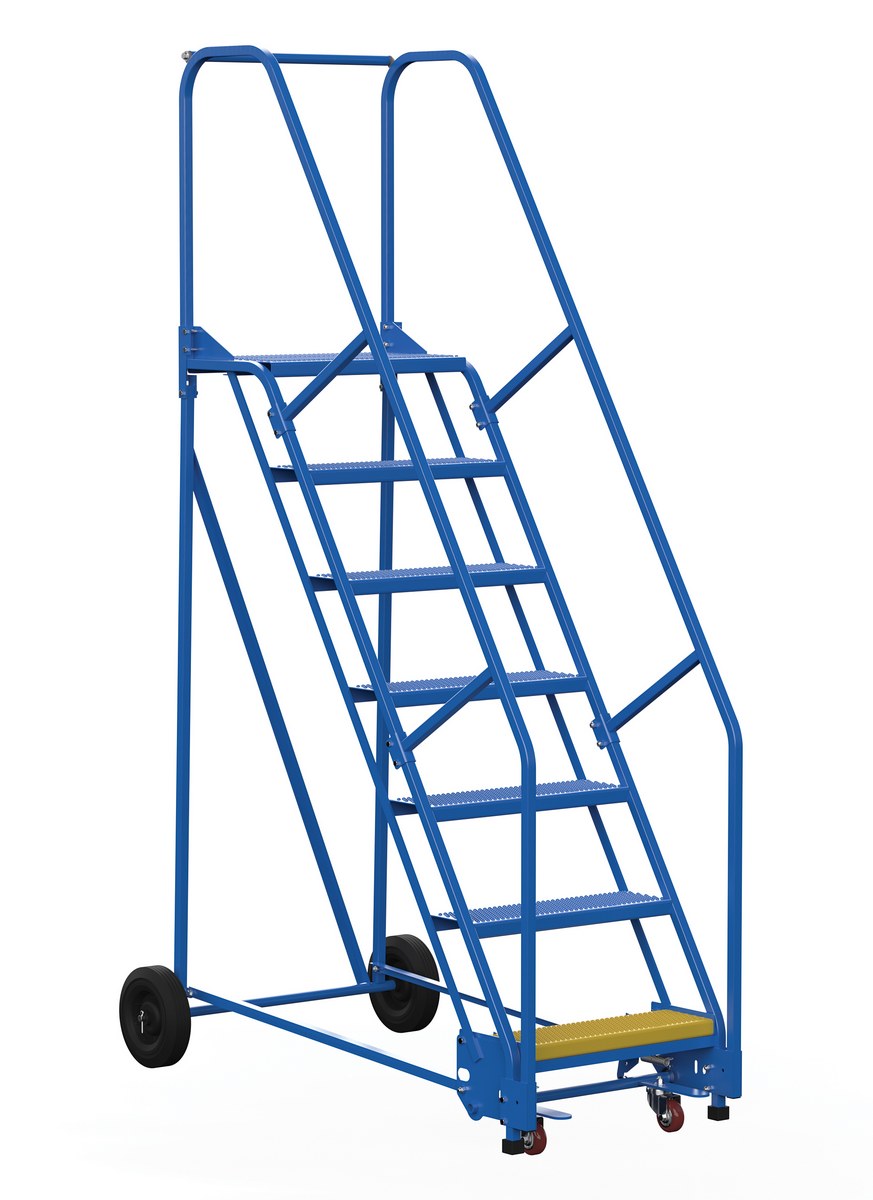

LAD-7-14-P icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x 60-1/16" 14" 266

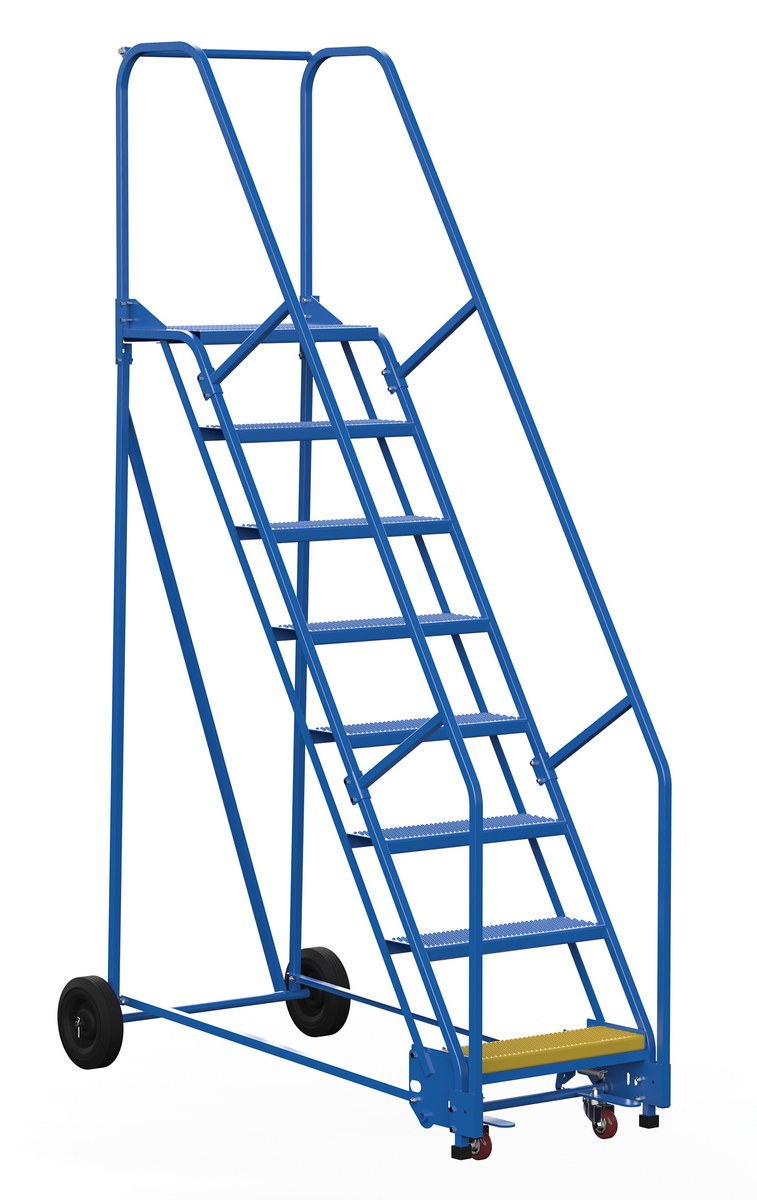

LAD-8-14-P icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 66-15/16" 14" 292
LAD-9-14-P icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x 72-11/16" 14" 318

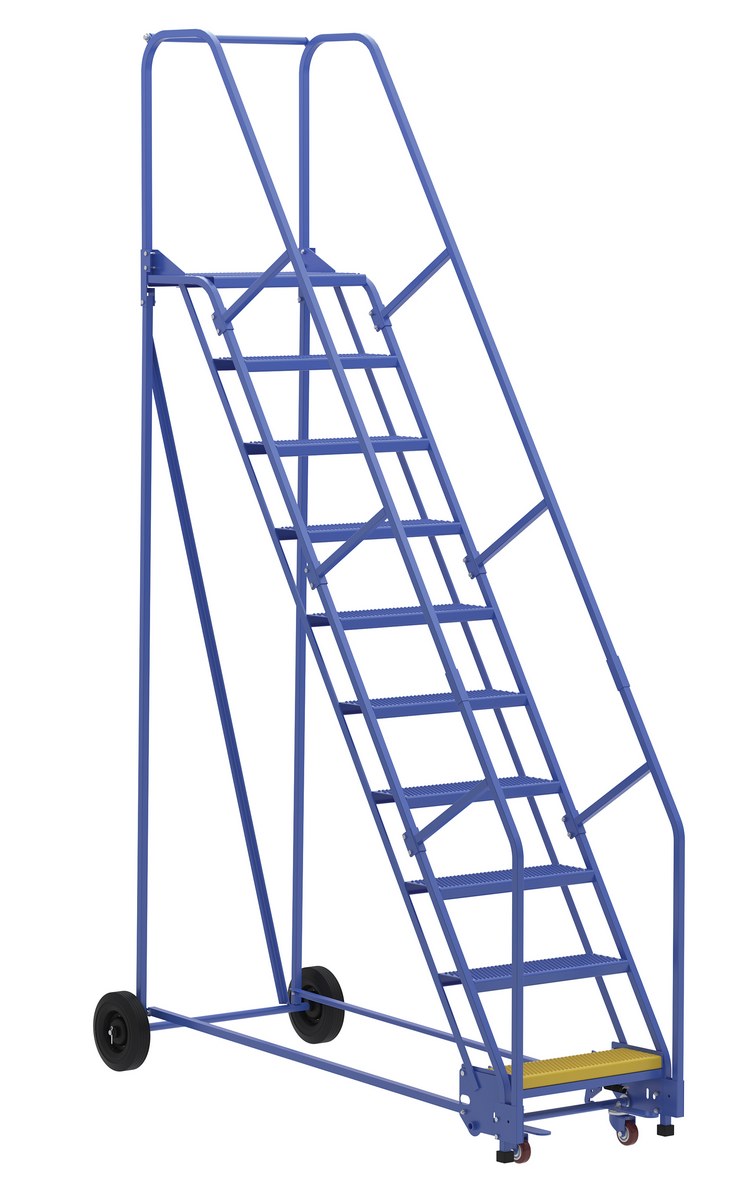

LAD-10-14-P icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x78-15/16" 14" 341

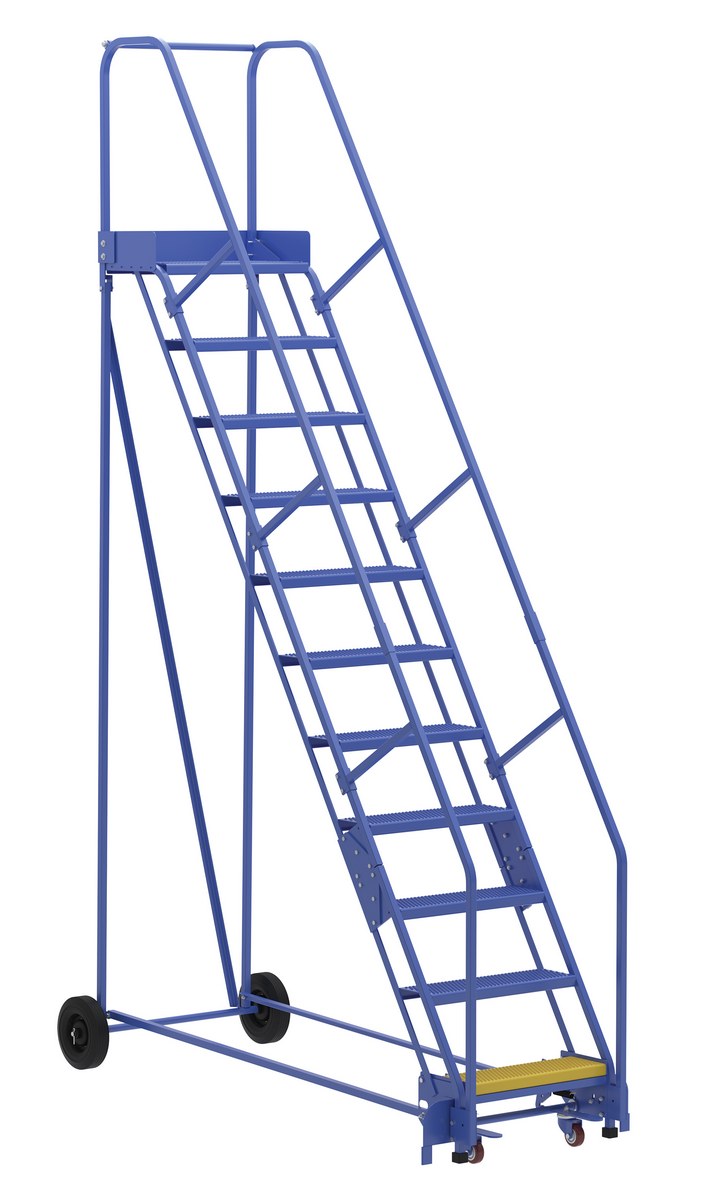

LAD-11-14-P icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x85-1/16" 14" 371

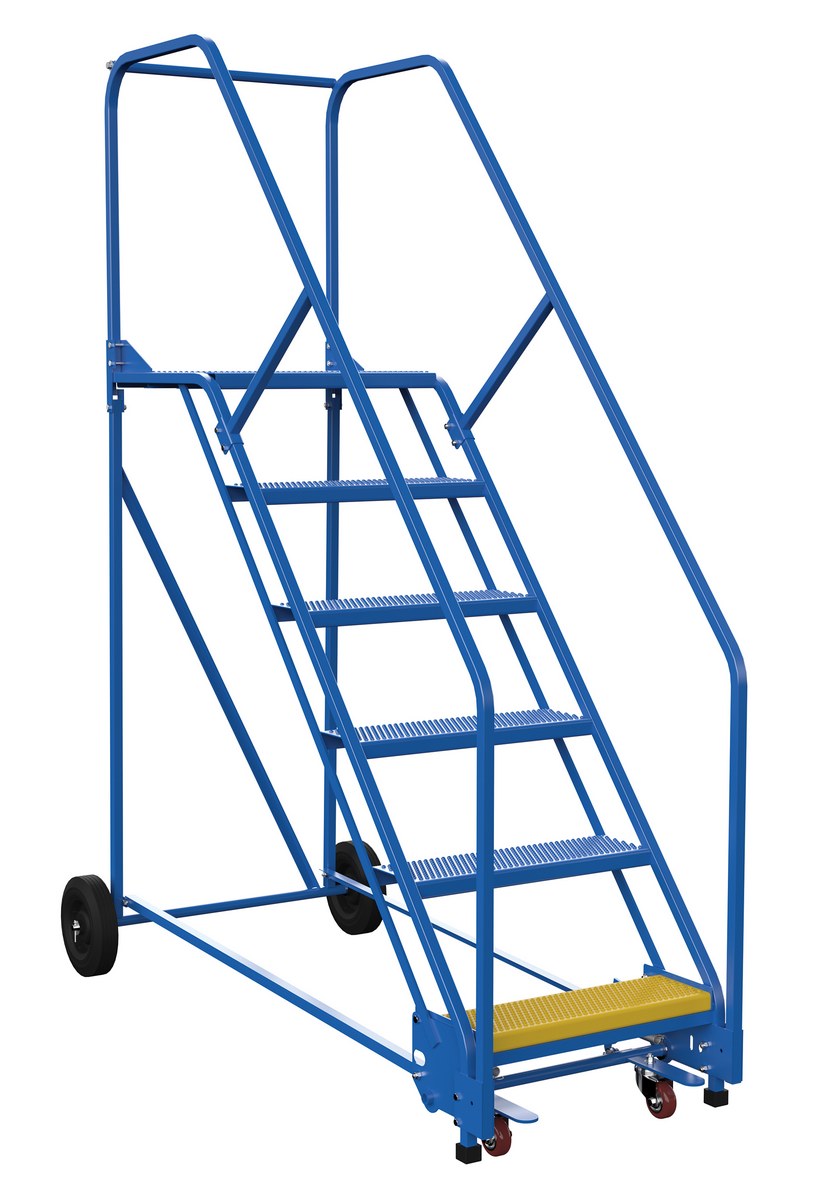

LAD-6-21-P icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x 60" 21" 276

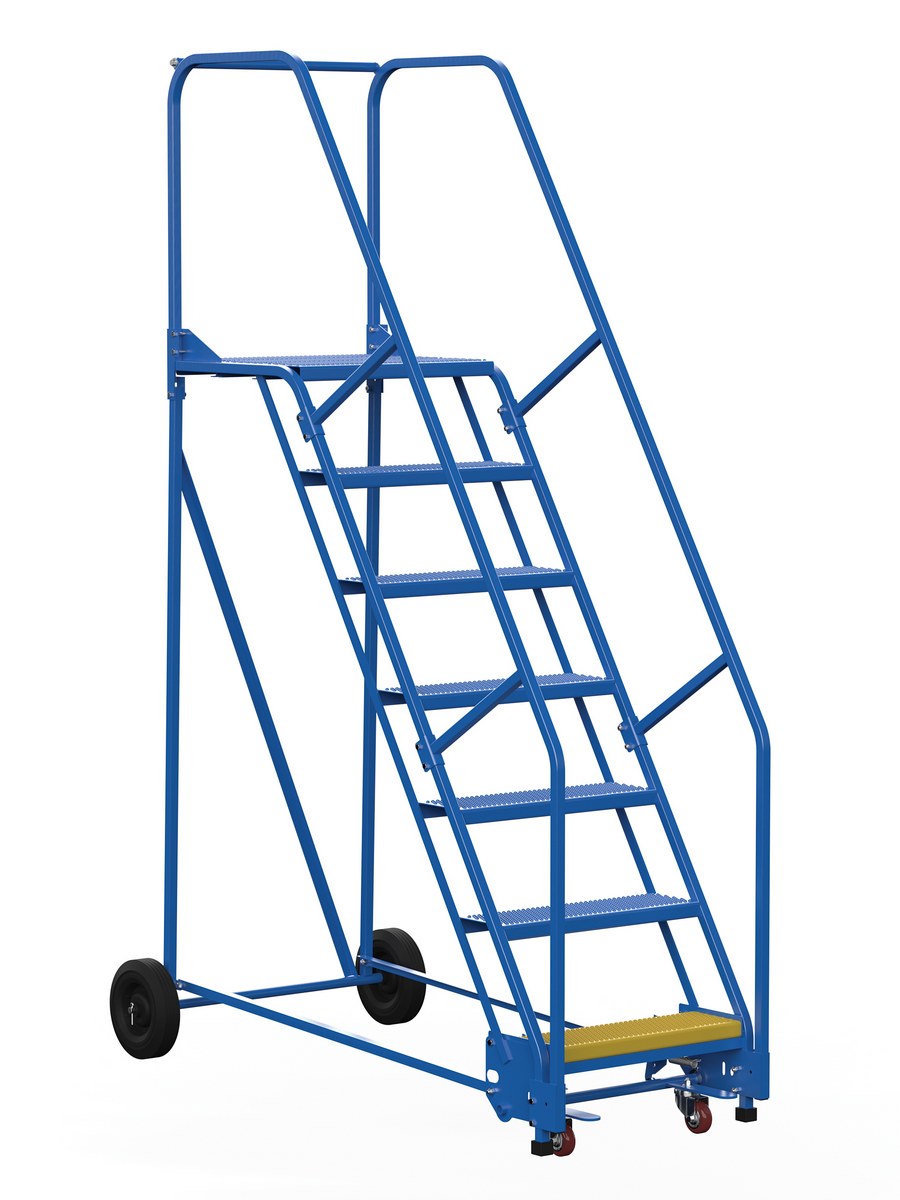

LAD-7-21-P icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x66-15/16" 21" 293

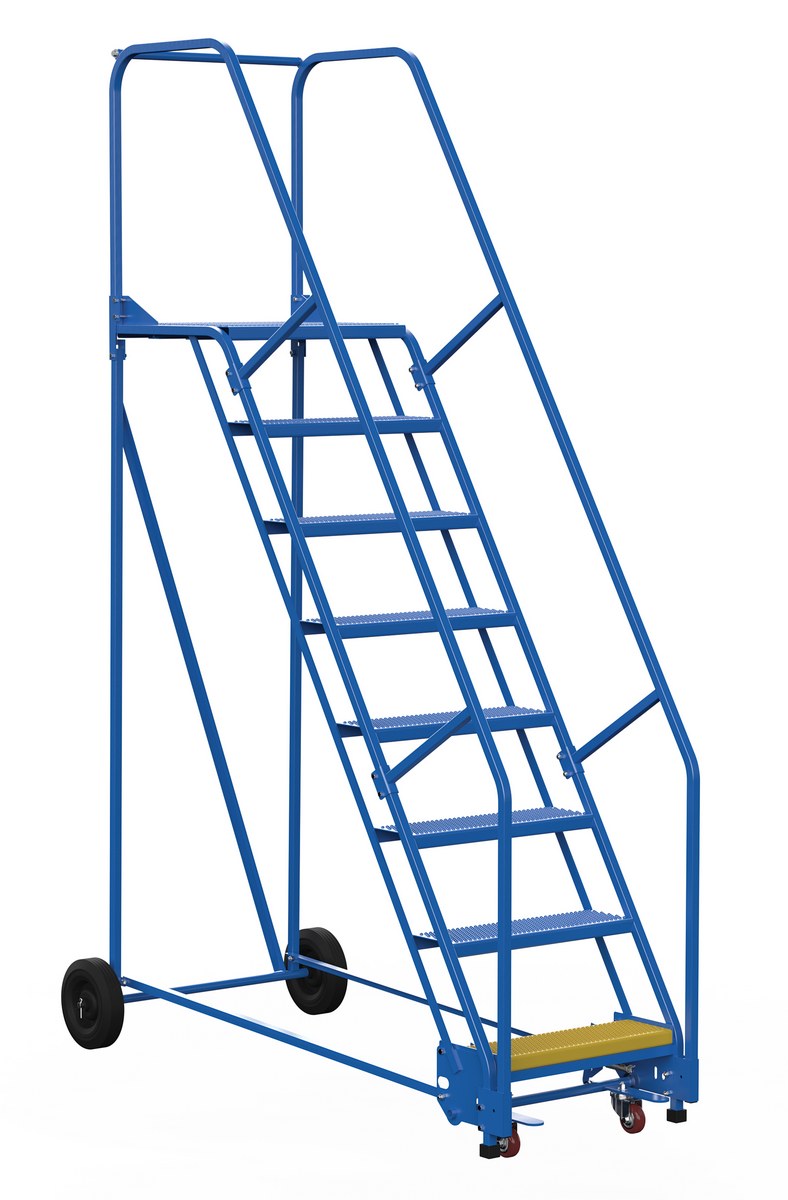

LAD-8-21-P icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 72-5/8" 21" 332

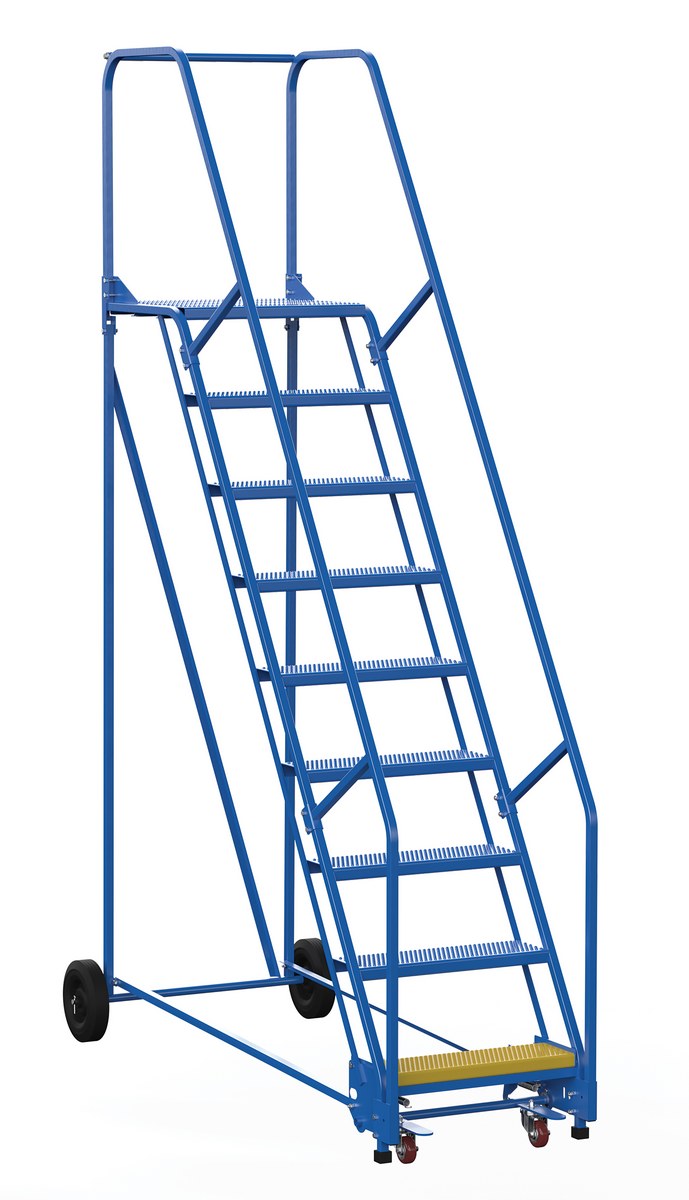

LAD-9-21-P icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x78-15/16" 21" 350

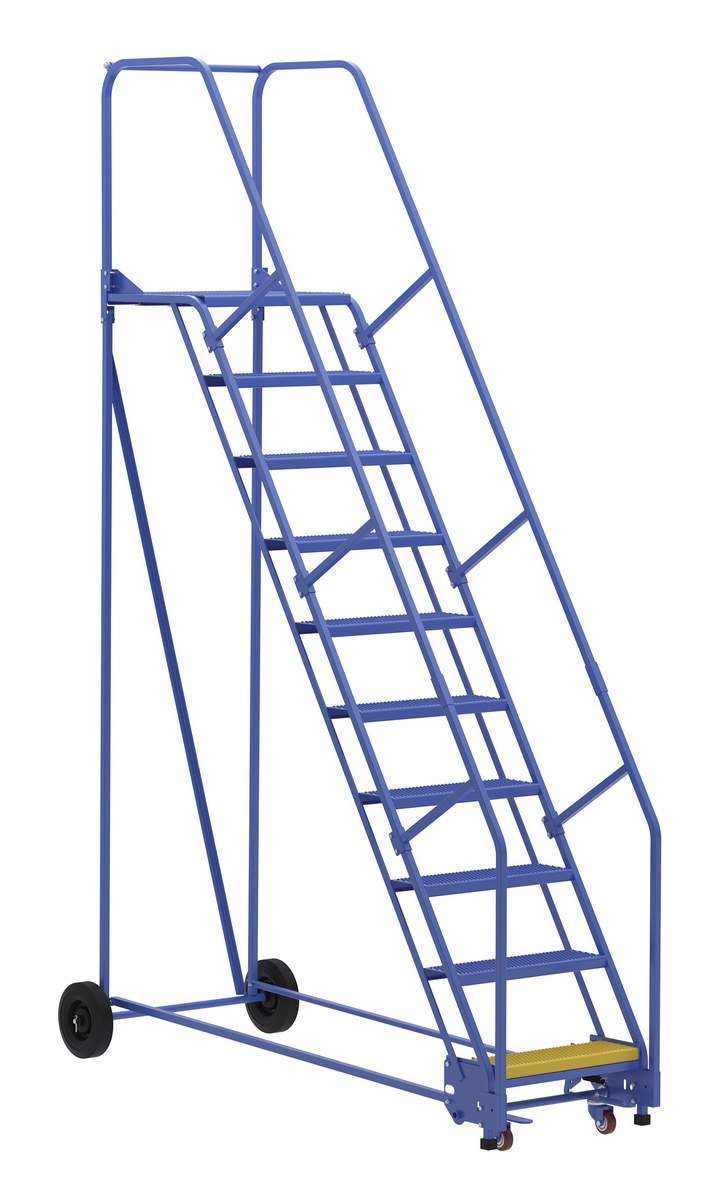

LAD-10-21-P icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x85-3/16" 21" 360

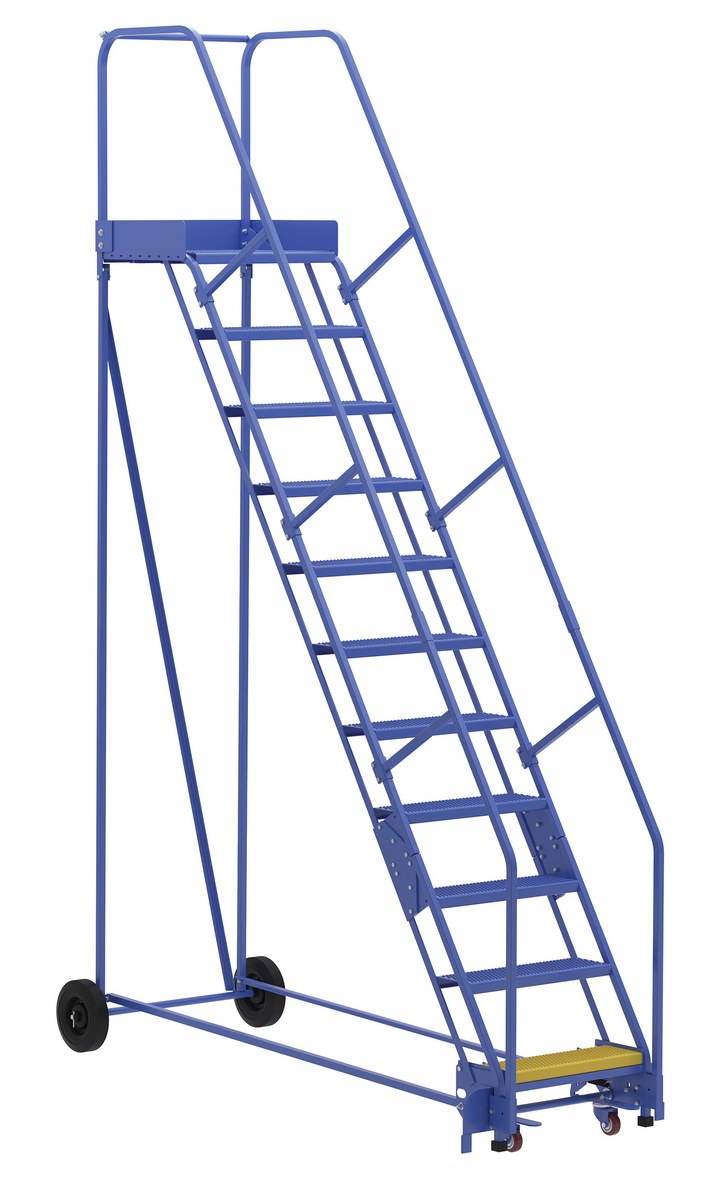

LAD-11-21-P icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x91-1/4" 21" 392

Grip Strut Steps - 50 degrees

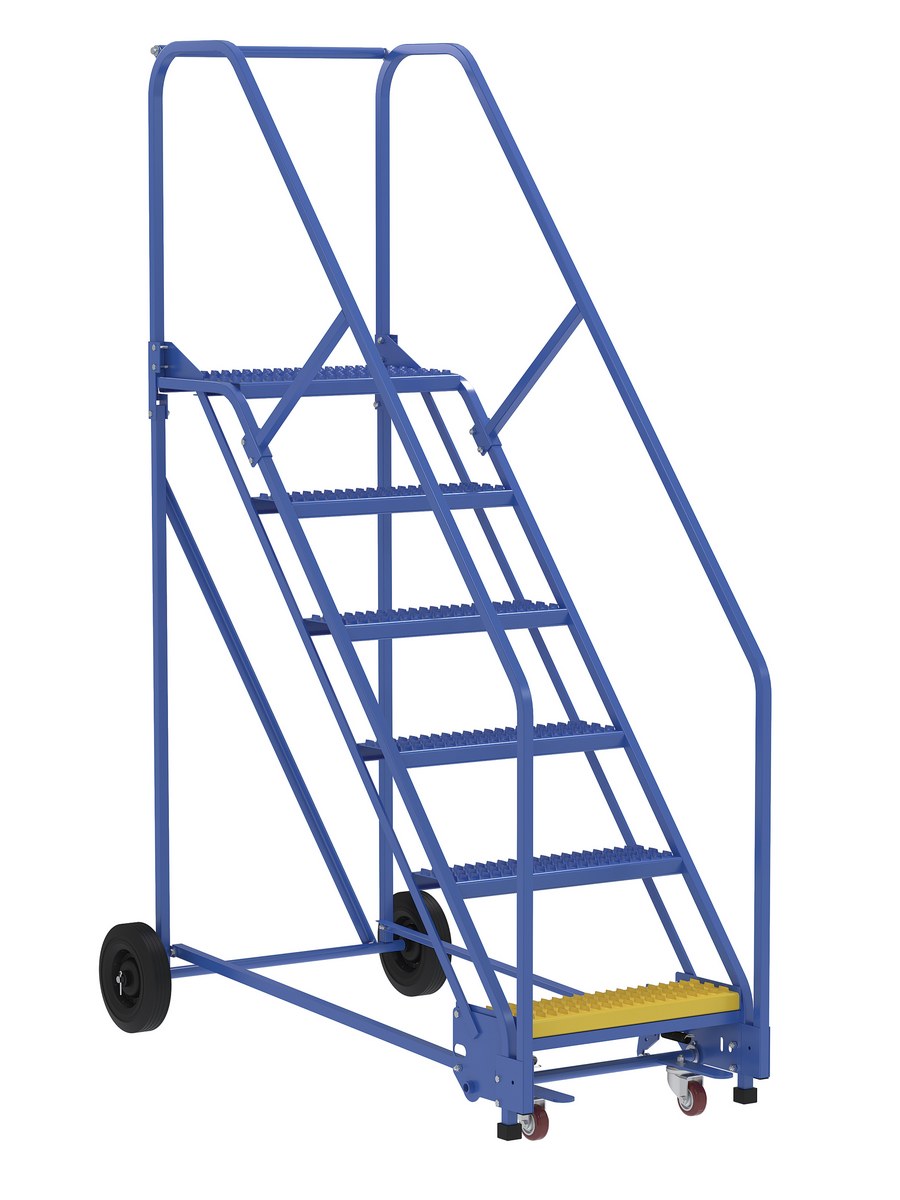

LAD-6-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x62-3/8" 14" 212

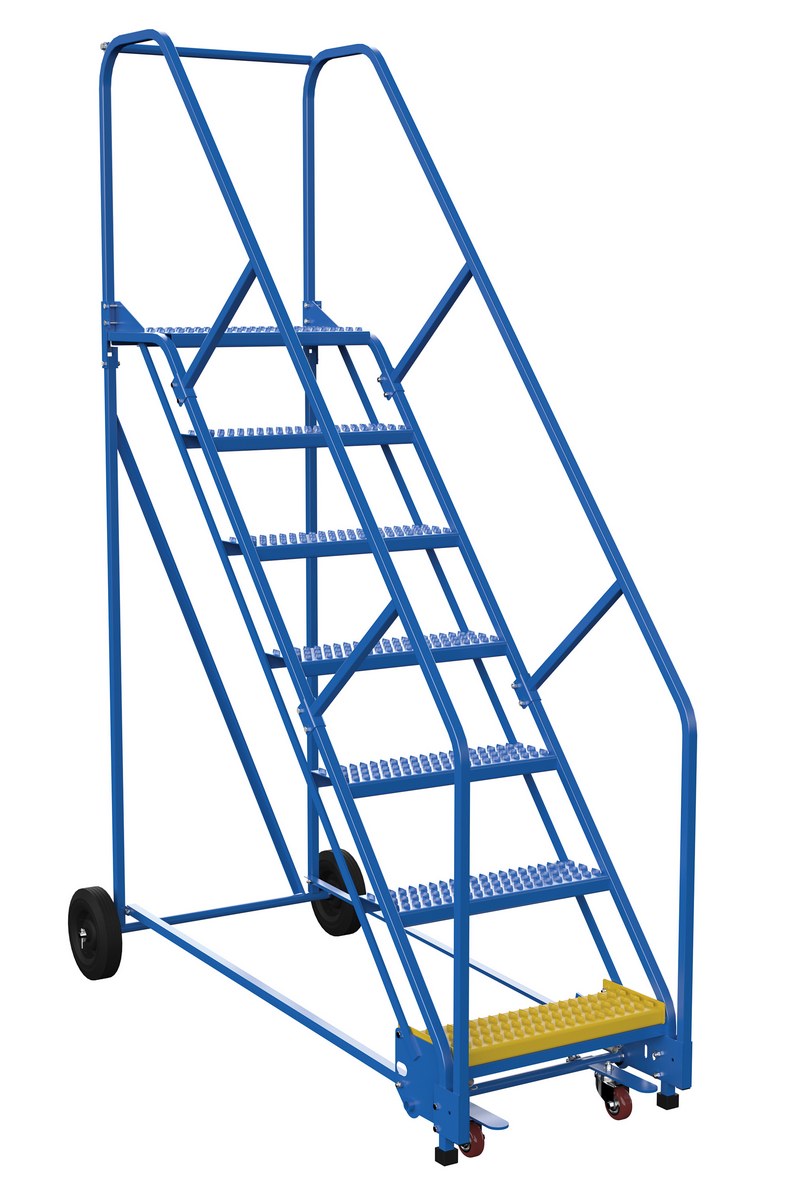

LAD-7-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x70--7/8" 14" 237

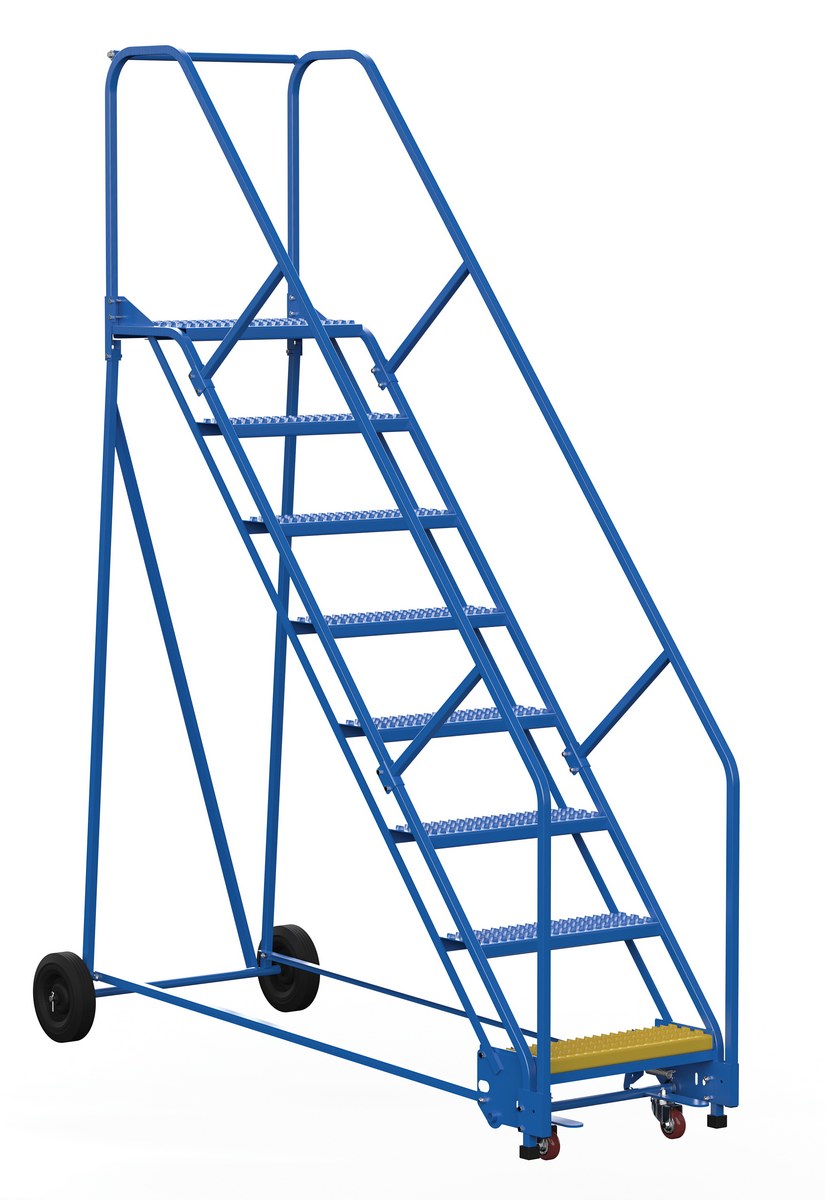

LAD-8-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 85-5/16" 14" 260

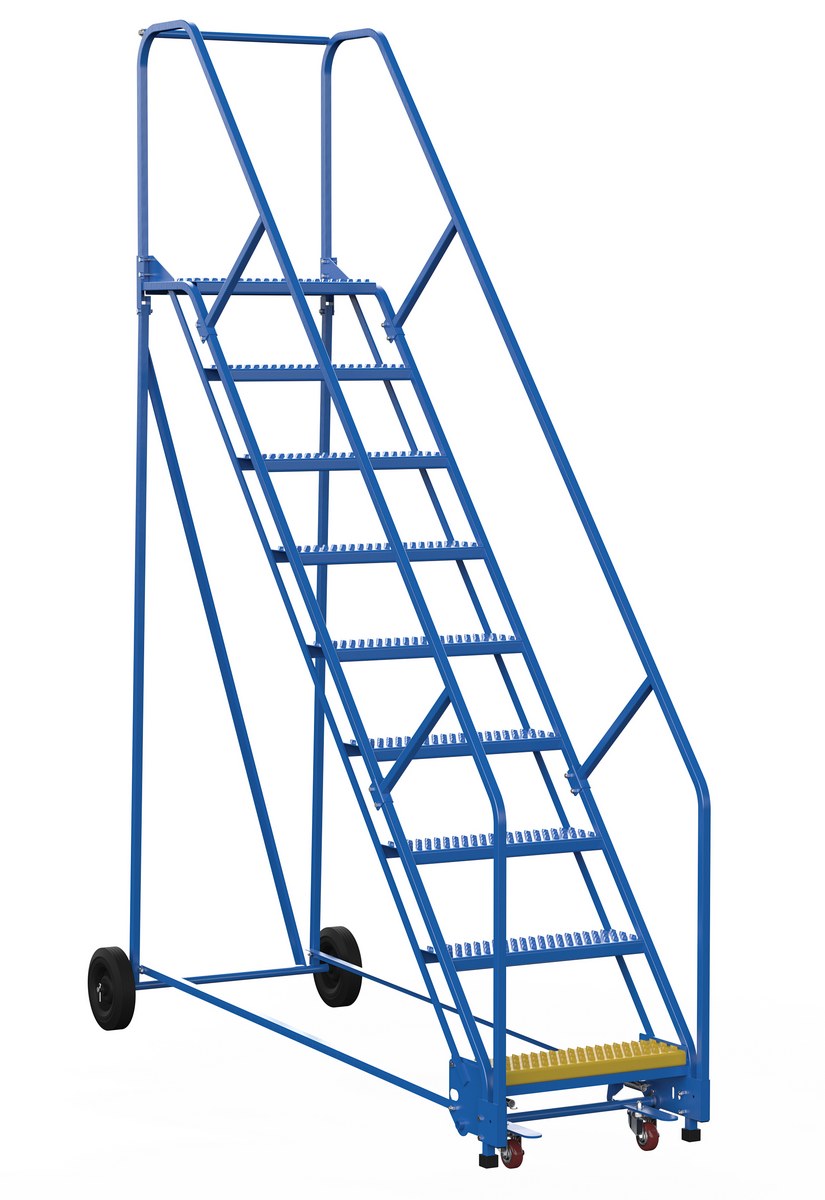

LAD-9-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x 91-1/2" 14" 326

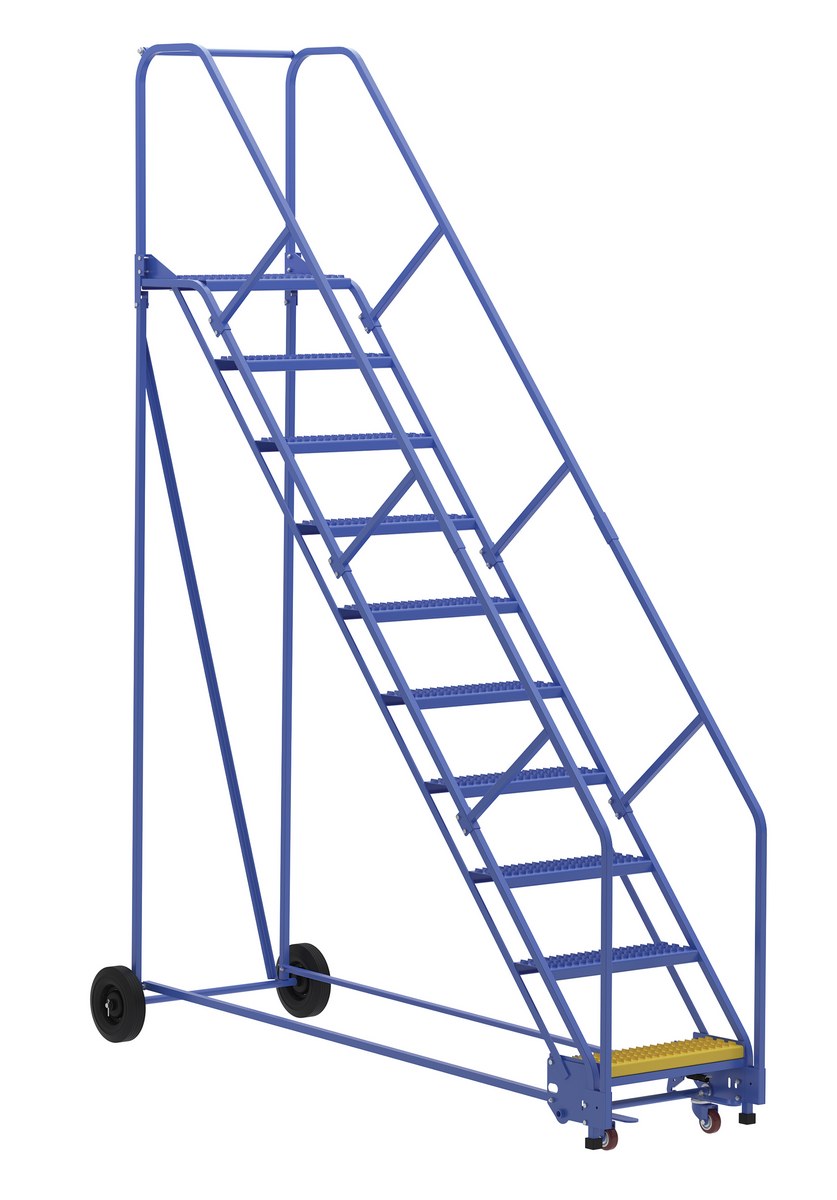

LAD-10-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x97-11/16" 14" 344

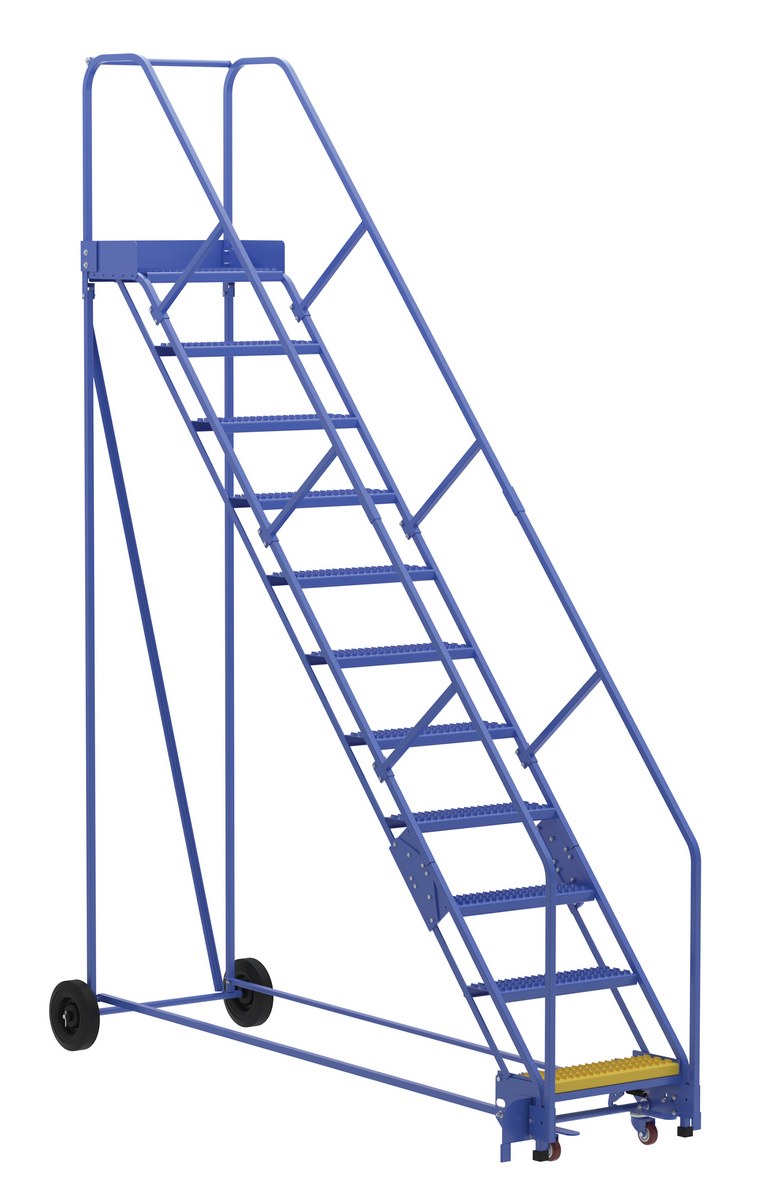

LAD-11-14-G-EZ icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x103-7/8" 14" 376

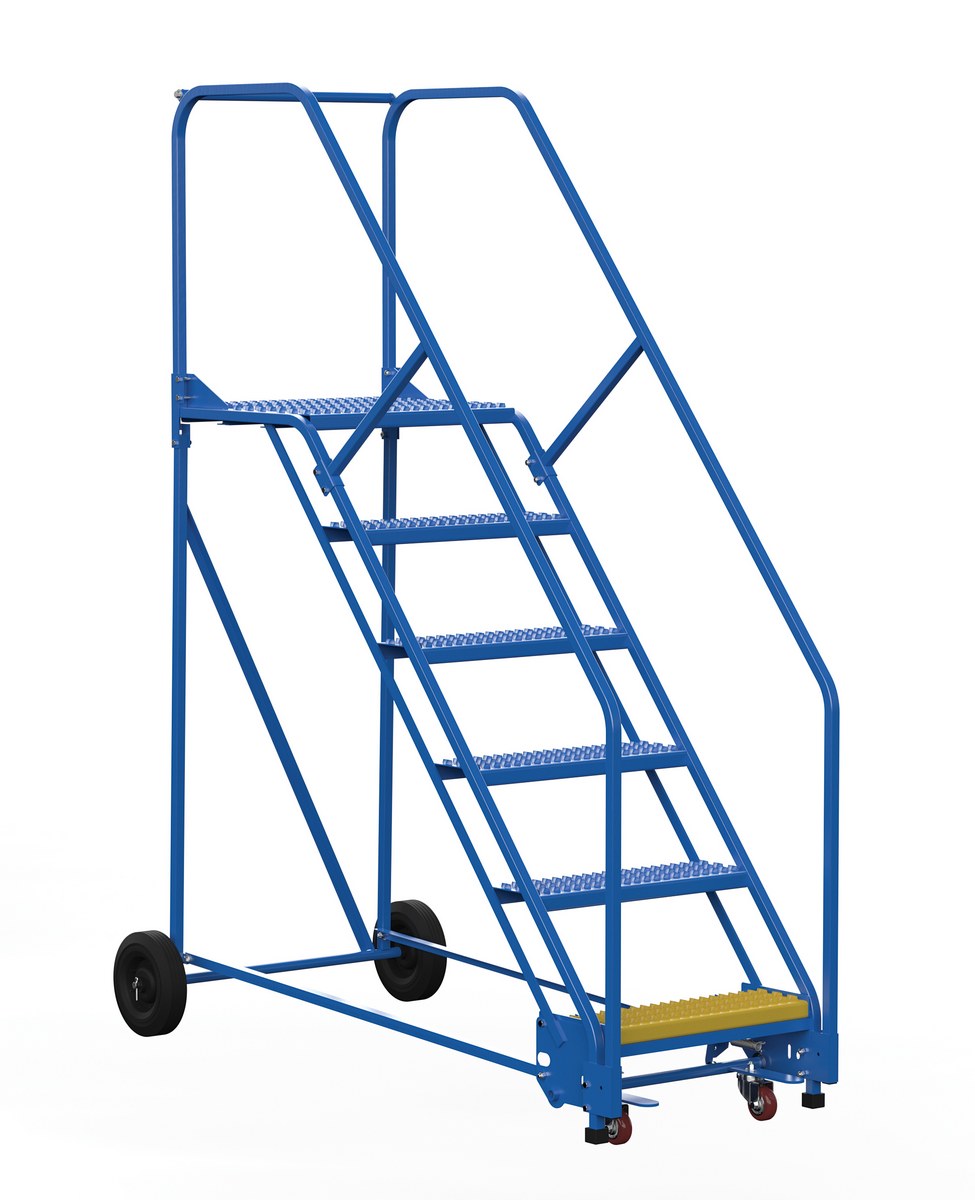

LAD-6-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x70-15/16" 21" 223

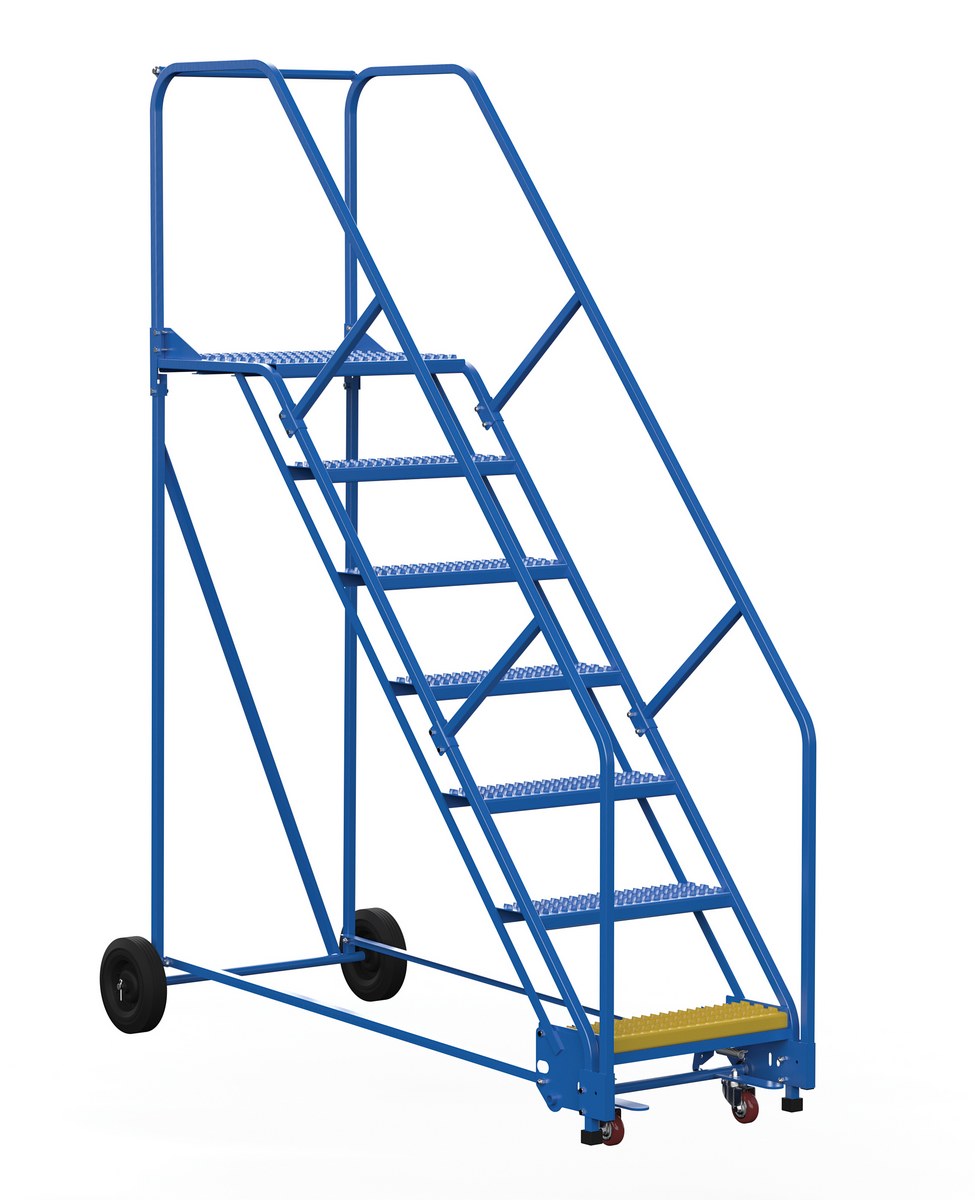

LAD-7-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x78-15/16" 21" 248

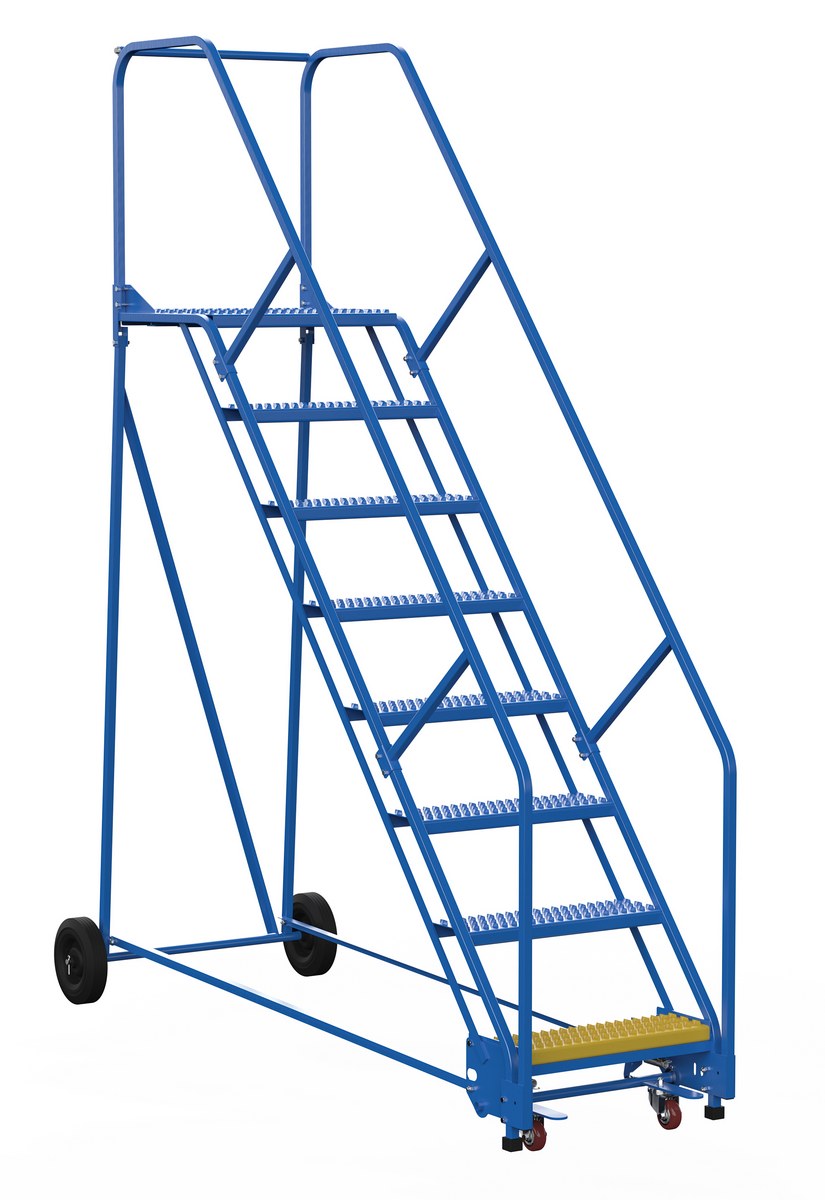

LAD-8-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x91-9/16" 21" 271

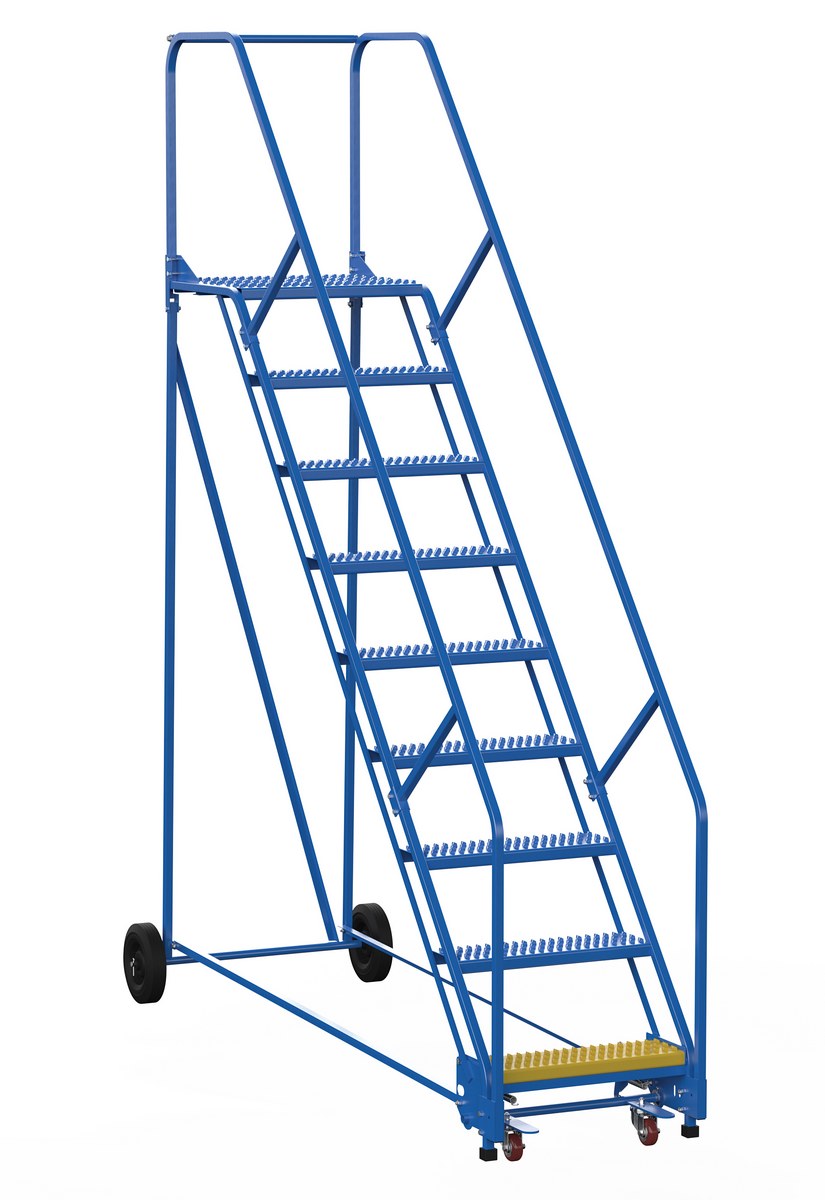

LAD-9-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x97-3/4" 21" 348

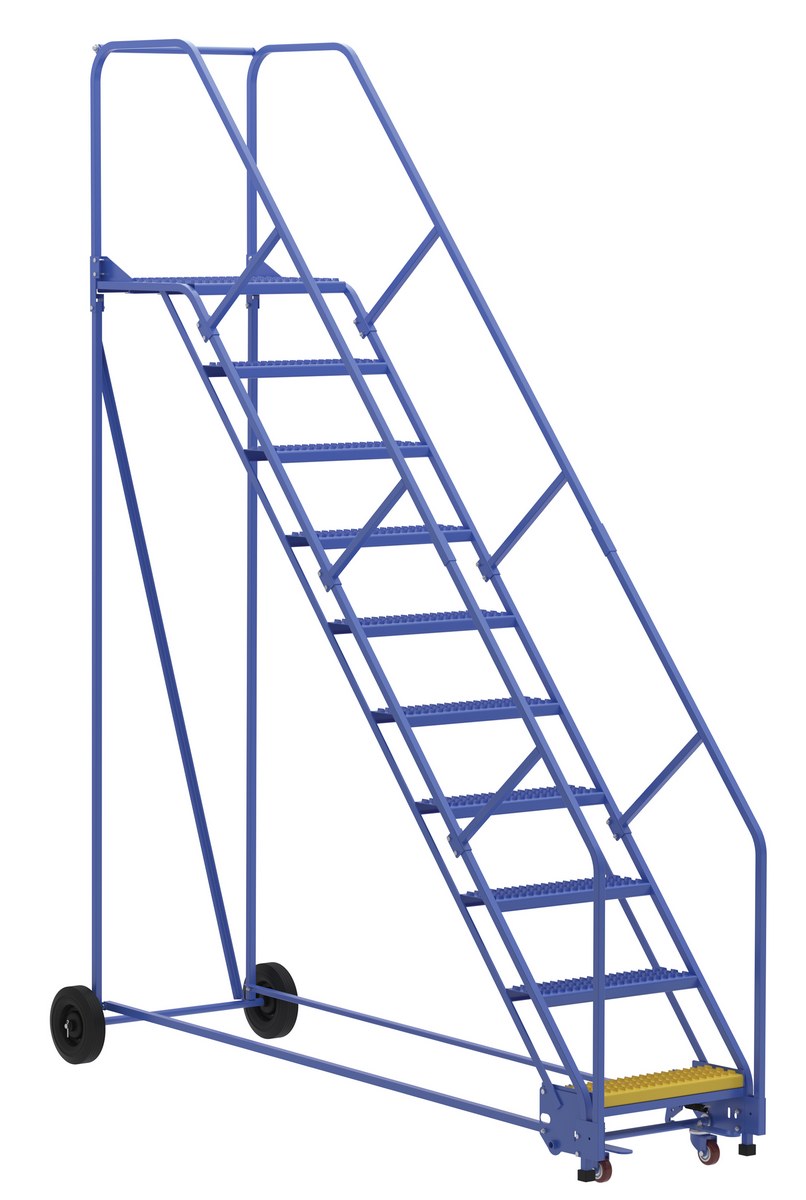

LAD-10-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x103-15/16" 21" 378

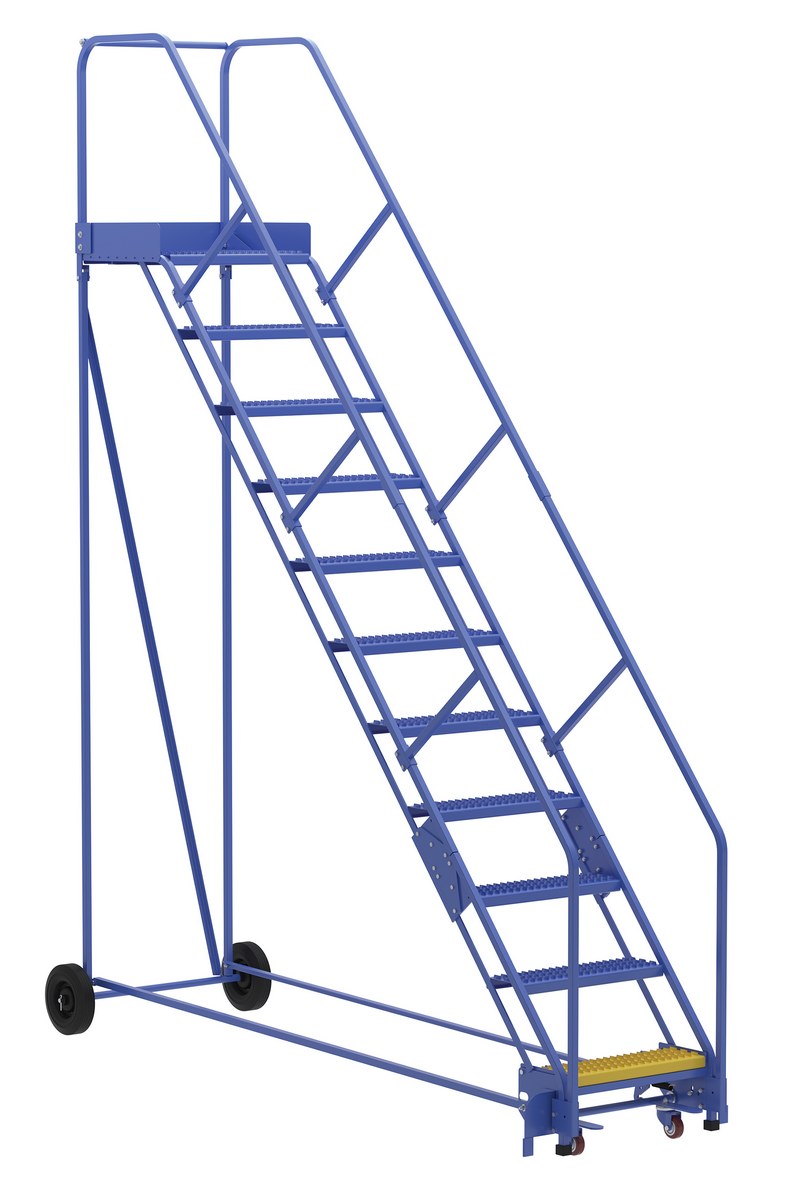

LAD-11-21-G-EZ icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x110-7/8" 21" 434

Perforated Steps - 50 degrees

LAD-6-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x62-3/8" 14" 210

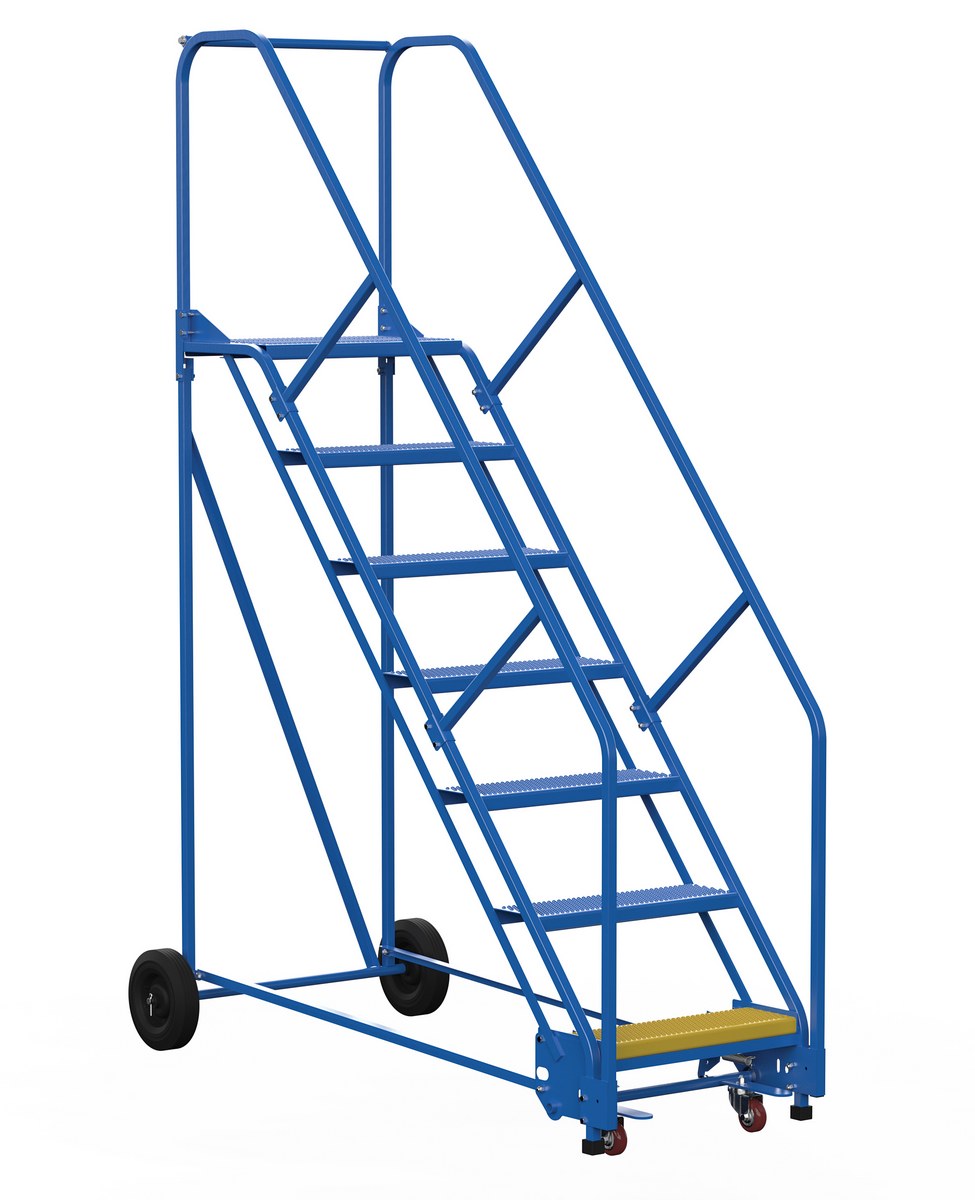

LAD-7-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x 70-7/8" 14" 235

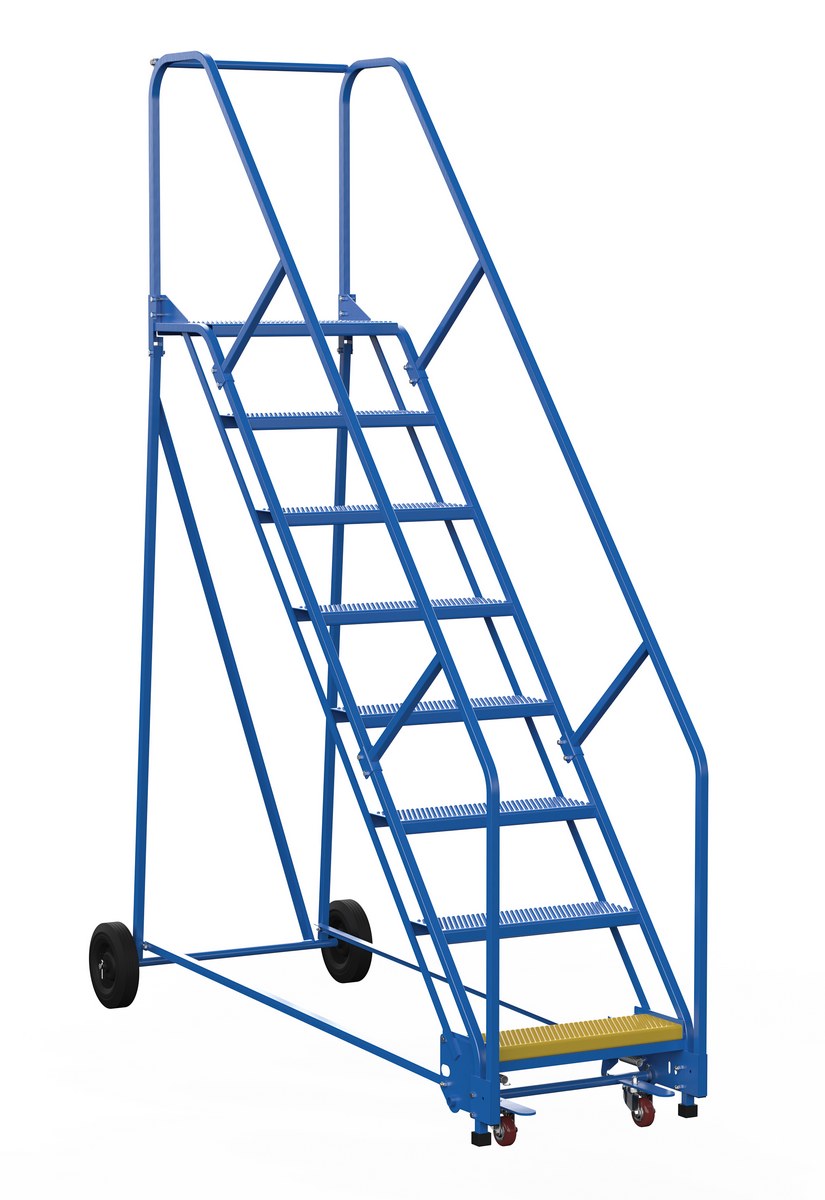

LAD-8-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 85-5/16" 14" 312

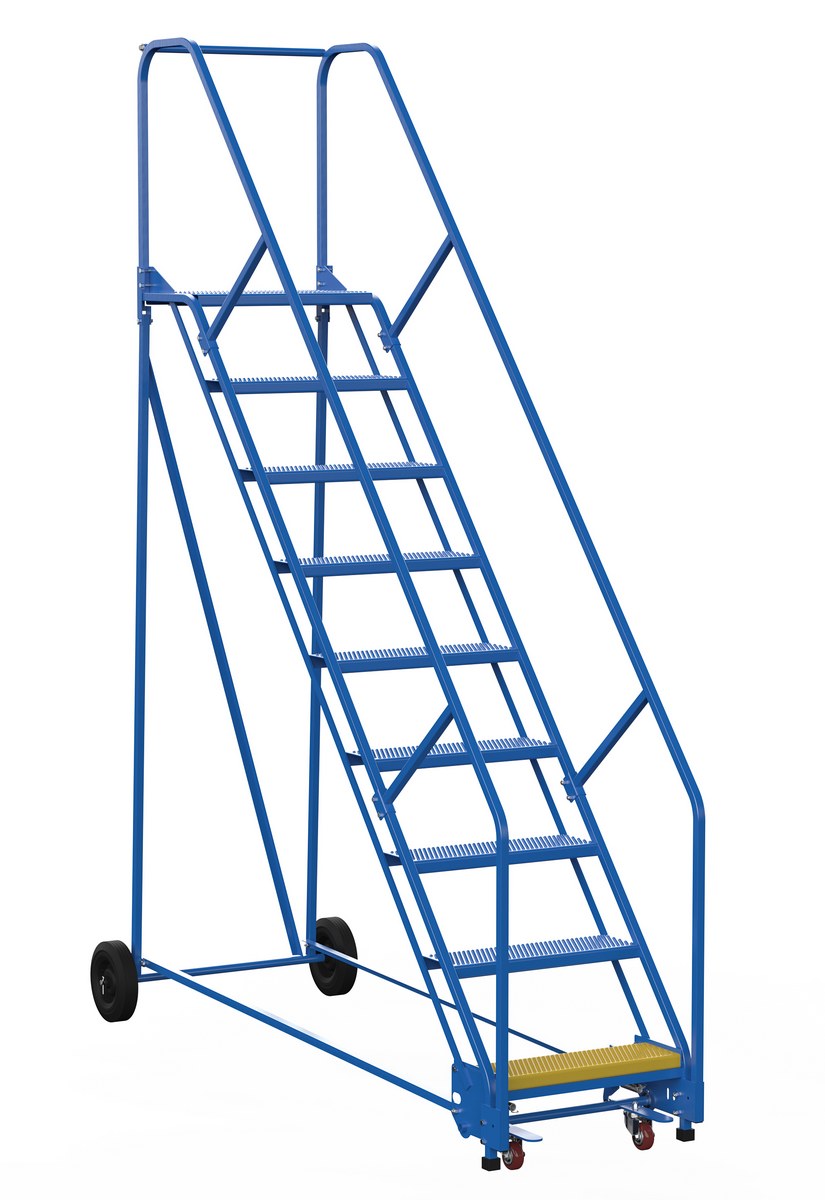

LAD-9-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x 91-1/2" 14" 332
LAD-10-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x97-11/16" 14" 364

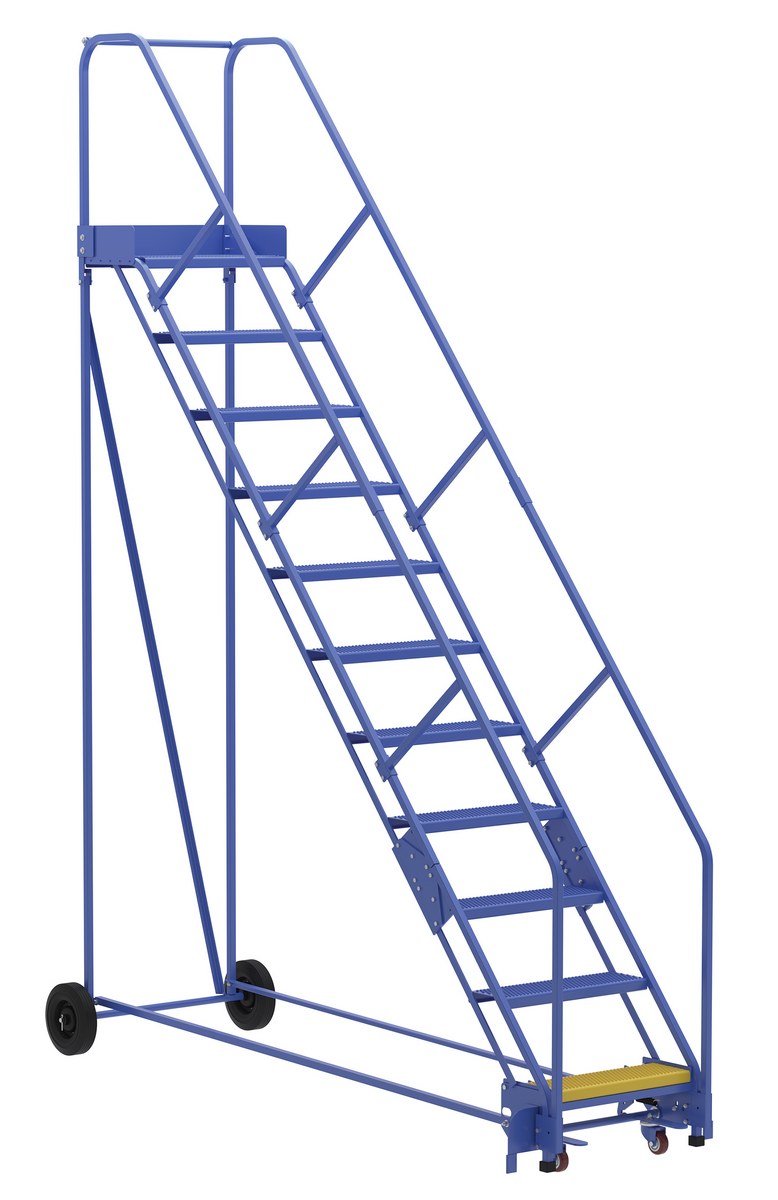

LAD-11-14-P-EZ icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x103-7/8" 14" 387

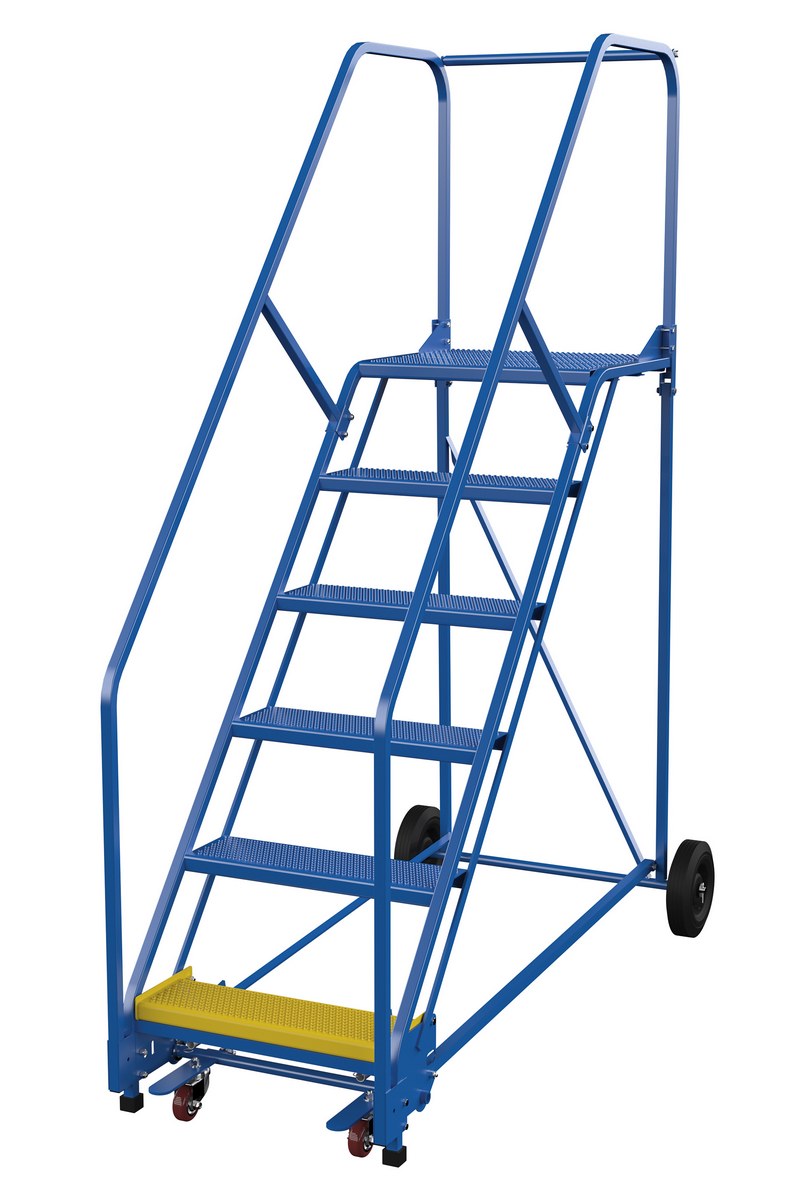

LAD-6-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 6 60" 90" 34-1/4"x 70-15/16" 21" 276
LAD-7-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 7 70" 100" 34-1/4"x78-15/16" 21" 291

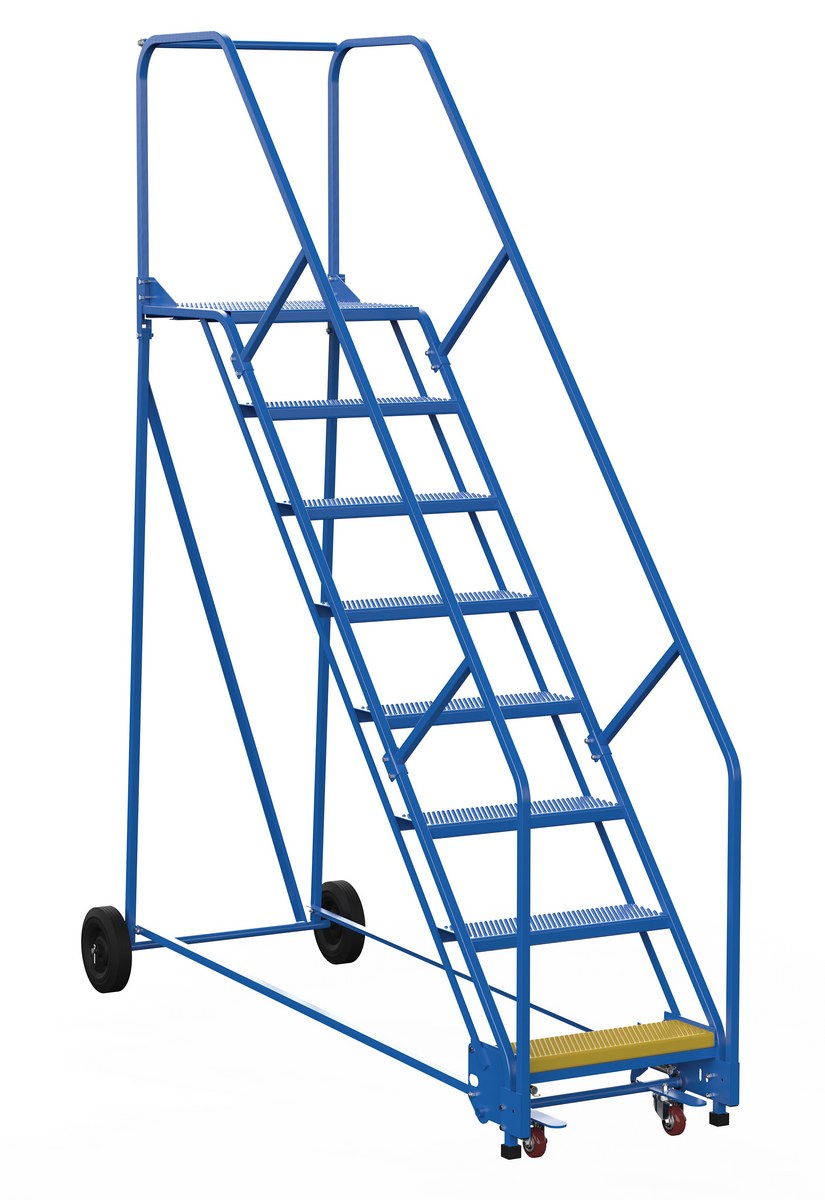

LAD-8-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 8 80" 110" 34-1/4"x 91-9/16" 21" 311

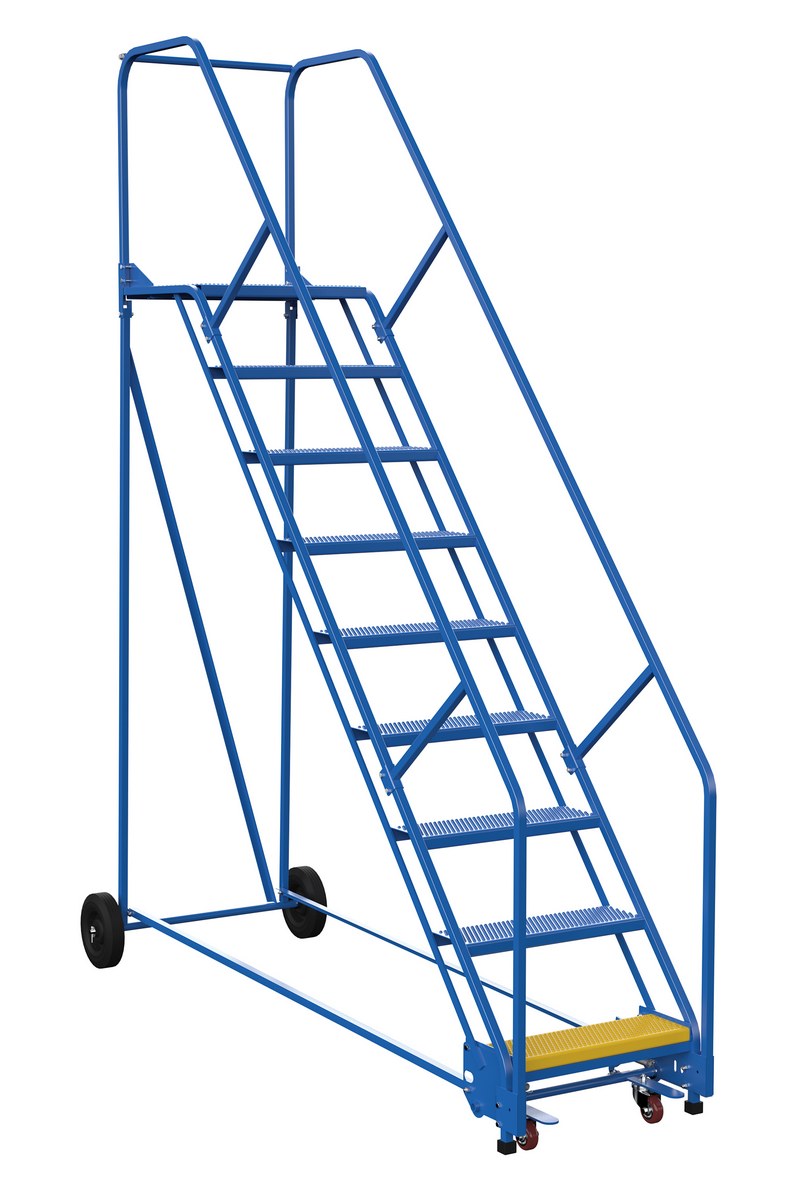

LAD-9-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 9 90" 120" 34-1/4"x97-3/4" 21" 348

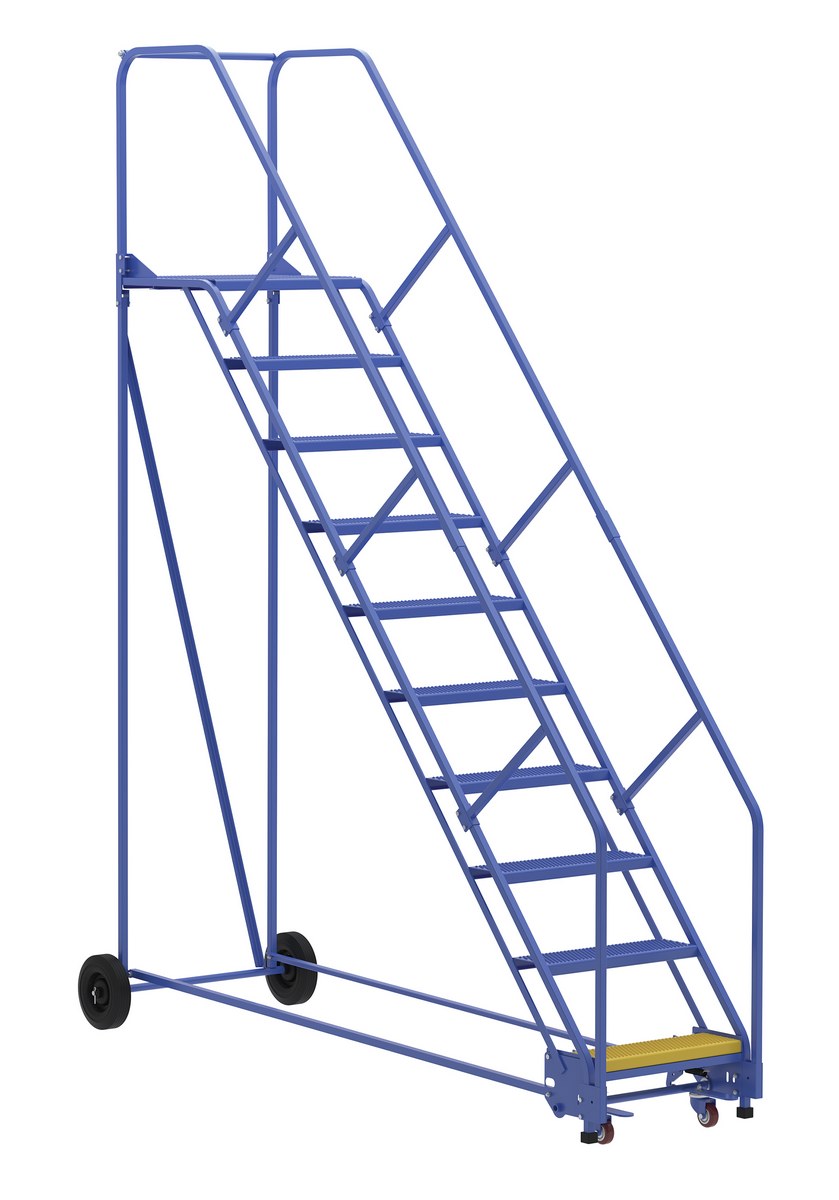

LAD-10-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 10 100" 130" 34-1/4"x103-15/16" 21" 356
LAD-11-21-P-EZ icon_approvaldrawings.jpgWarranty PDF 11 110" 140" 34-1/4"x110-7/8" 21" 387

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options
LAD-GATE-58 icon_approvaldrawings.jpg

FOOT ACTIVATED SAFETY GATE 58 degrees

14

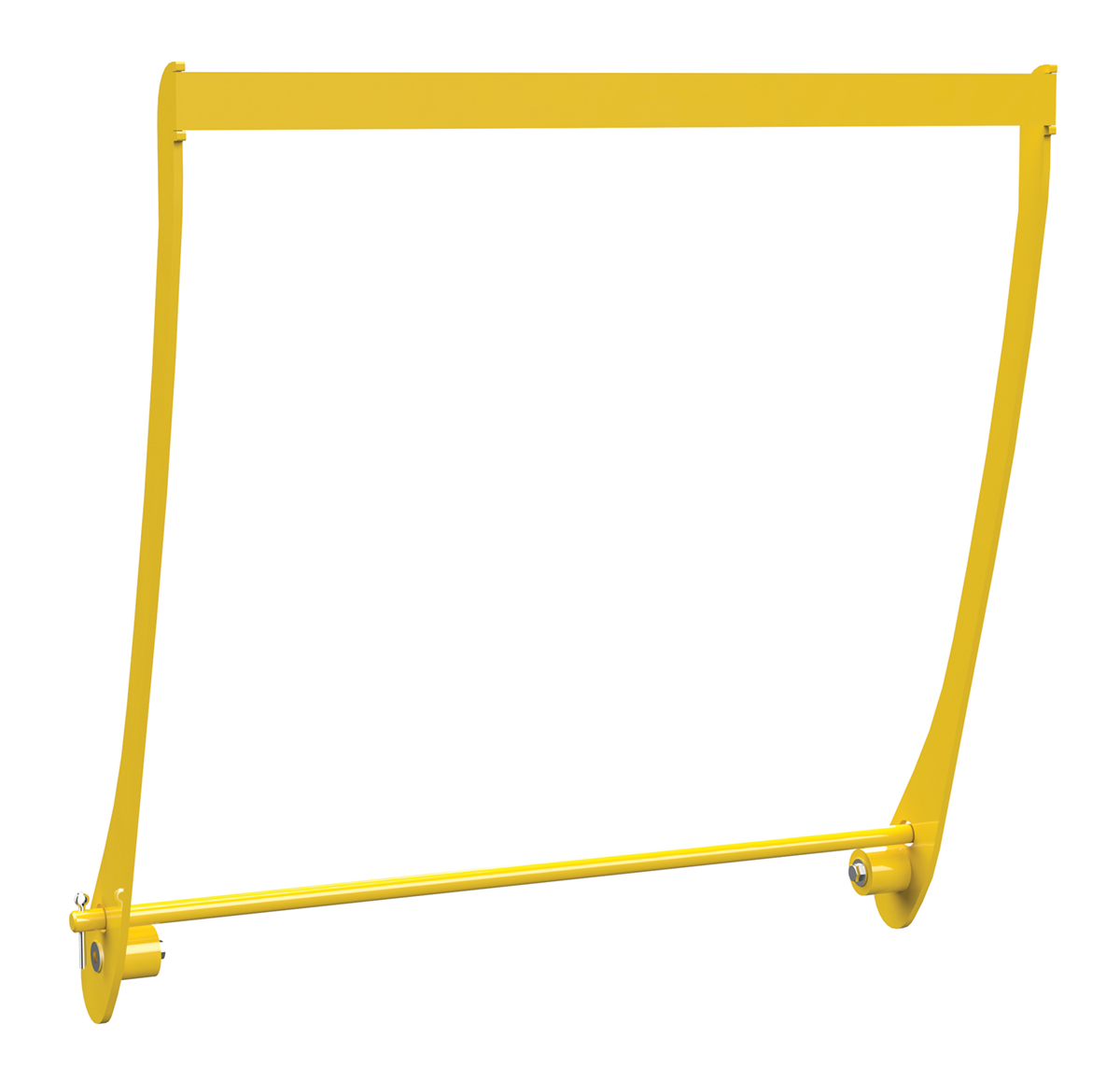

LAD-GATE-50-EZ icon_approvaldrawings.jpg

FOOT ACTIVATED SAFETY GATE 50 degrees - EZ

45
LAD-TT-B Warranty PDF Tool Tray 14

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
