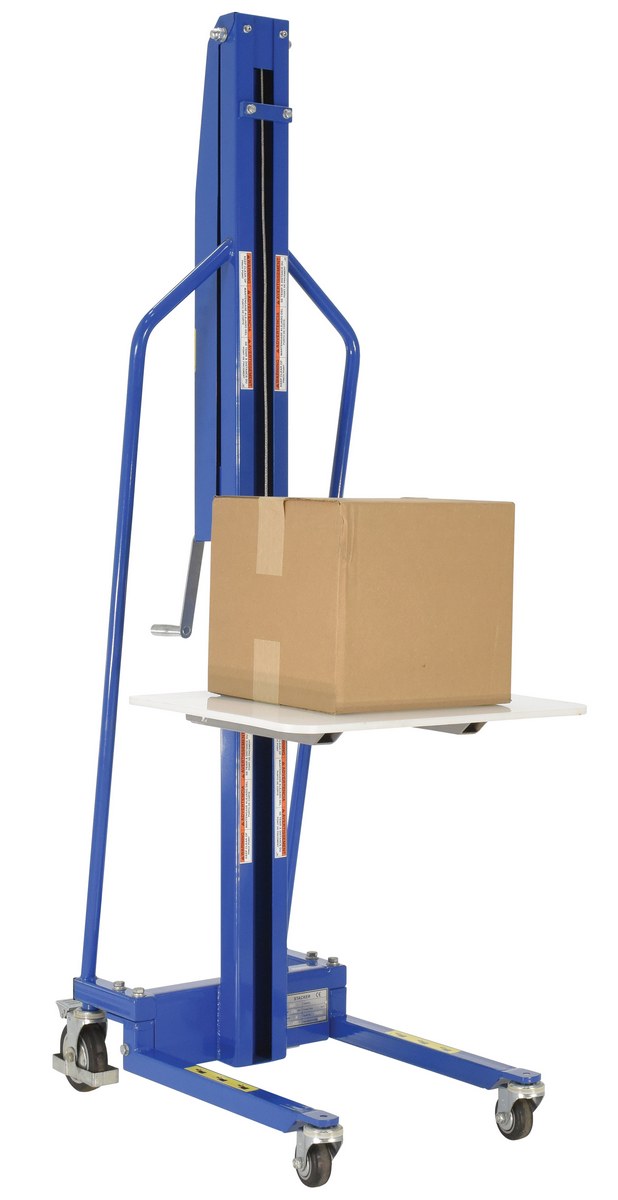

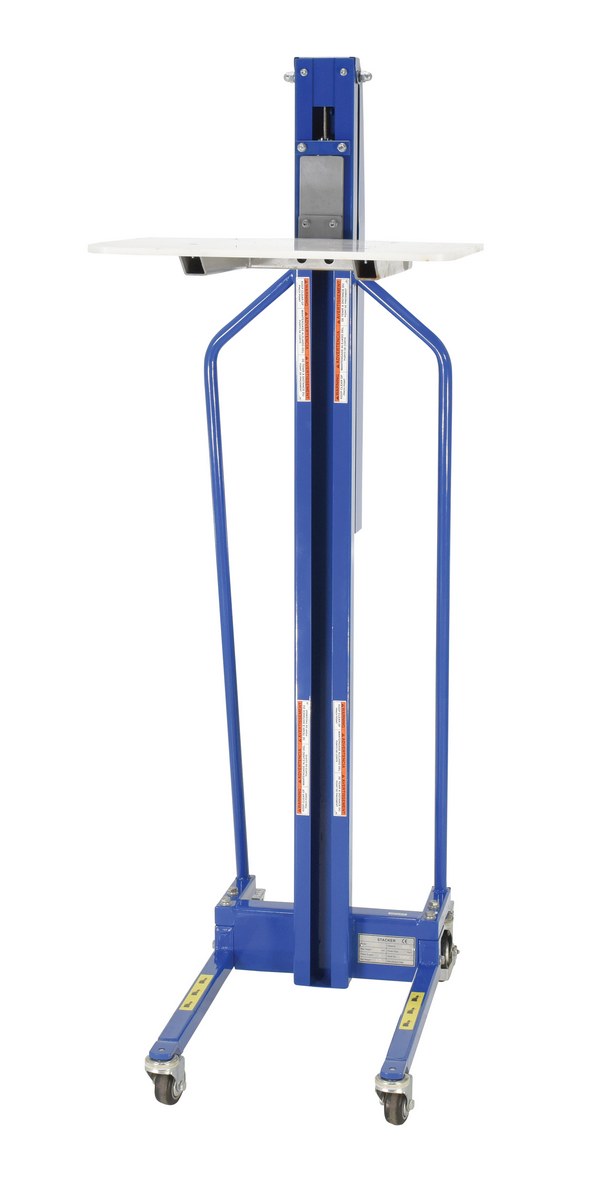

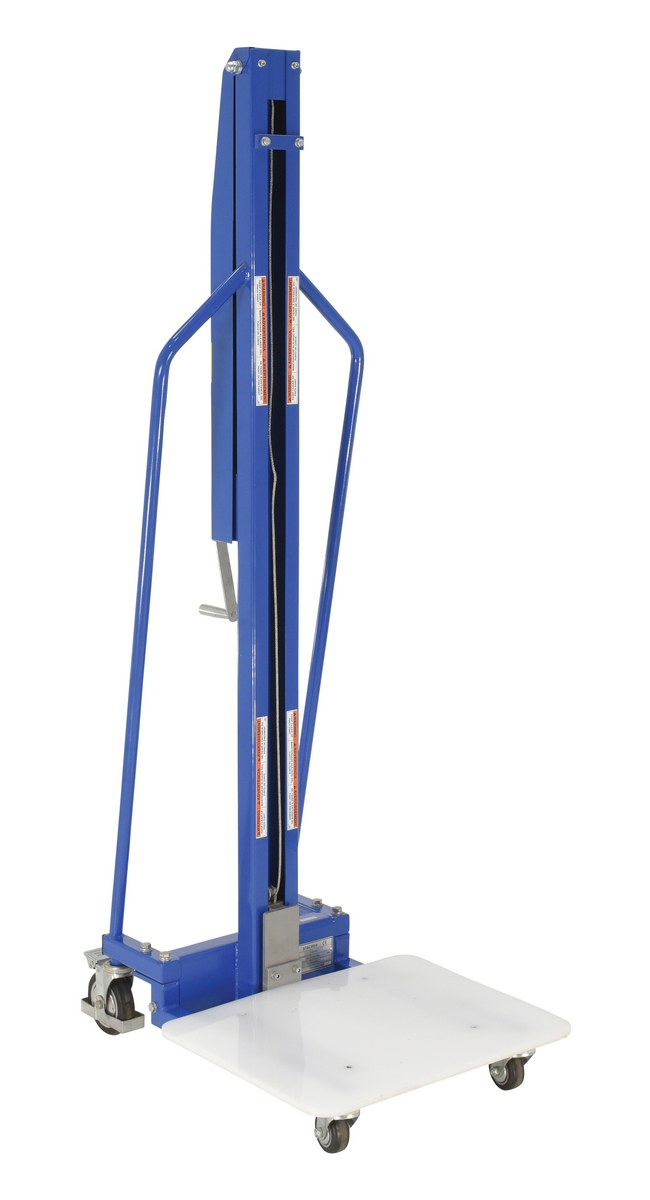

MWP-220-M_F.jpg MWP-220-M_A.jpg MWP-220-M_B.jpg MWP-220-M_C.jpg
MWP-220-M_D.jpg MWP-220-M_E.jpg
Manual & DC Work Positioners

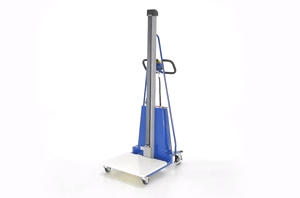

model: MWP-220-M



Manual & DC Work Positioners

model: MWP-220-M

Featured Ergonomic Solutions


Scissor Carts with Built-In Scale
Manual & Electric Stackers (Pramac)
Linear Actuated Adjustable-Height Work Bench
Hydraulic Work Positioner
Portable Scissor Lift Tables
Ground Lift & Tilt Tables
Gravity Roller Conveyor System
Electric Stackers (Pramac)
Electric Powered Stacker
model chart

Product Family Overview

Print Friendly
Manual & DC Work Positioners
SERIES: MWP

The Vestil work positioner takes the strain out of any lightweight lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. DC powered lift and hand winch models are both available, making it simple to get to that perfect height. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available

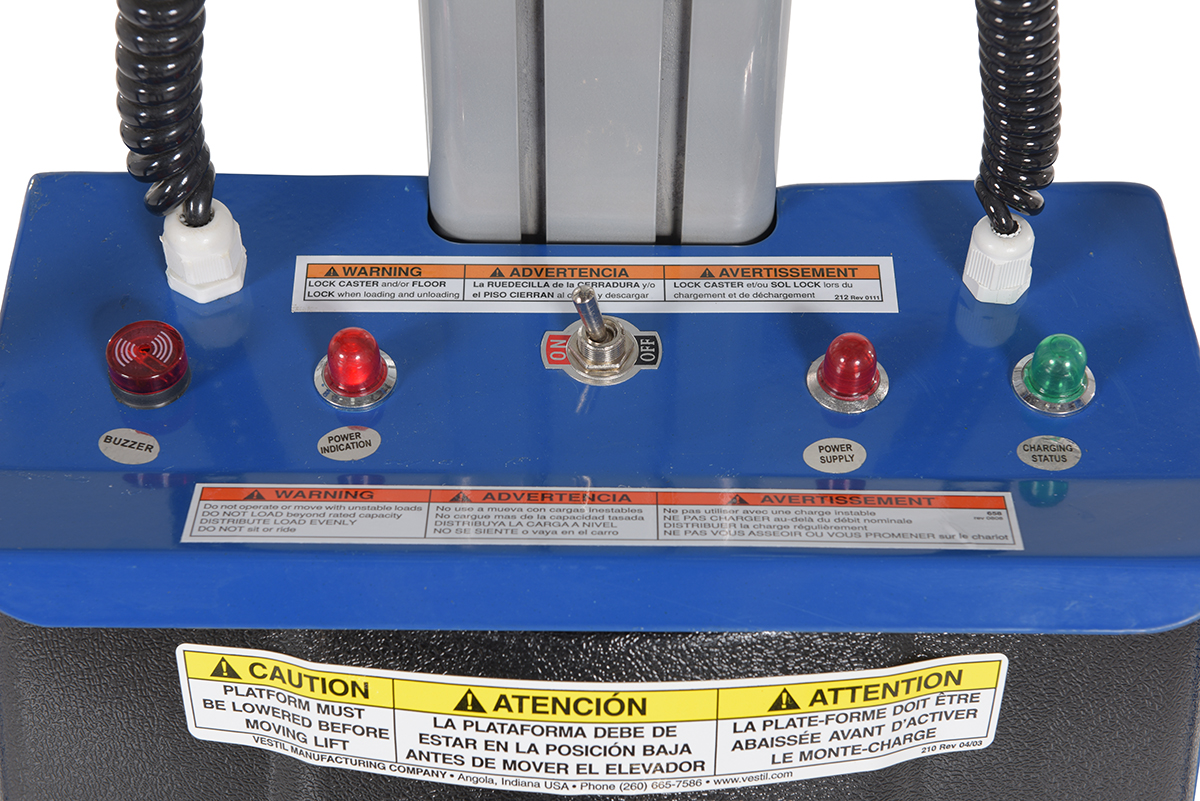

The DC powered models include two (2) 12V AGM batteries with an integral battery charger. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel.

  • Large open sided platform for handling an array of items
  • Auto brake system for controlled lowering
  • Manually maneuvered for precise positioning
  • Smooth surface to limit product abrasion

The Vestil work positioner takes the strain out of any lightweight lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. DC powered lift and hand winch models are both available, making it simple to get to that perfect height. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Quick change attachments available

The DC powered models include two (2) 12V AGM batteries with an integral battery charger. Quick change attachments available. Model MWP-330-DC-SS is constructed of 304 stainless steel.

  • Large open sided platform for handling an array of items
  • Auto brake system for controlled lowering
  • Manually maneuvered for precise positioning
  • Smooth surface to limit product abrasion

Other Portable Load Lifters

 Manual & DC Work Positioners Portable Worksite Lift Hand Winch Lift Trucks DC Powered Hefti-Lifts

Additional Models In This Family
view entire Image Gallery

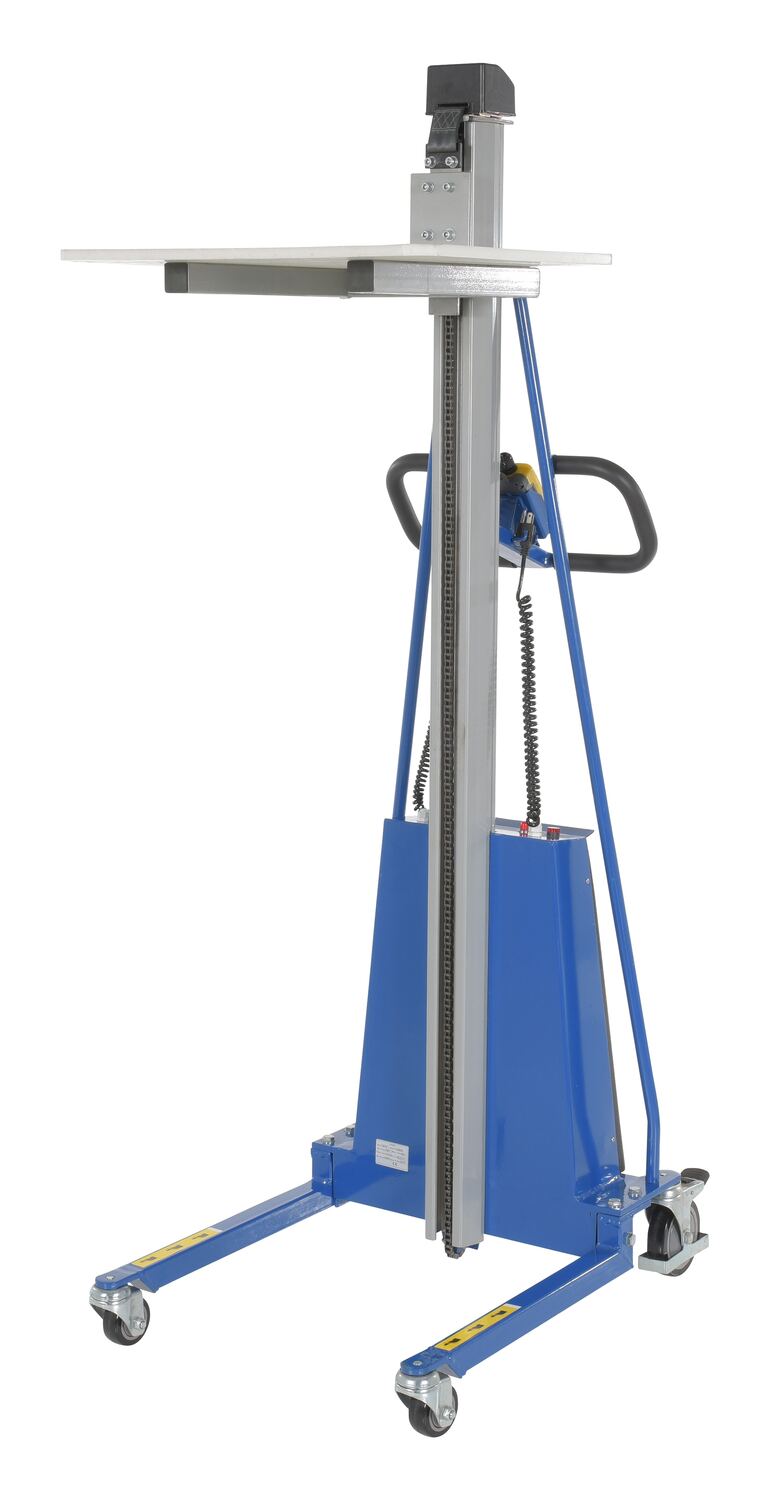

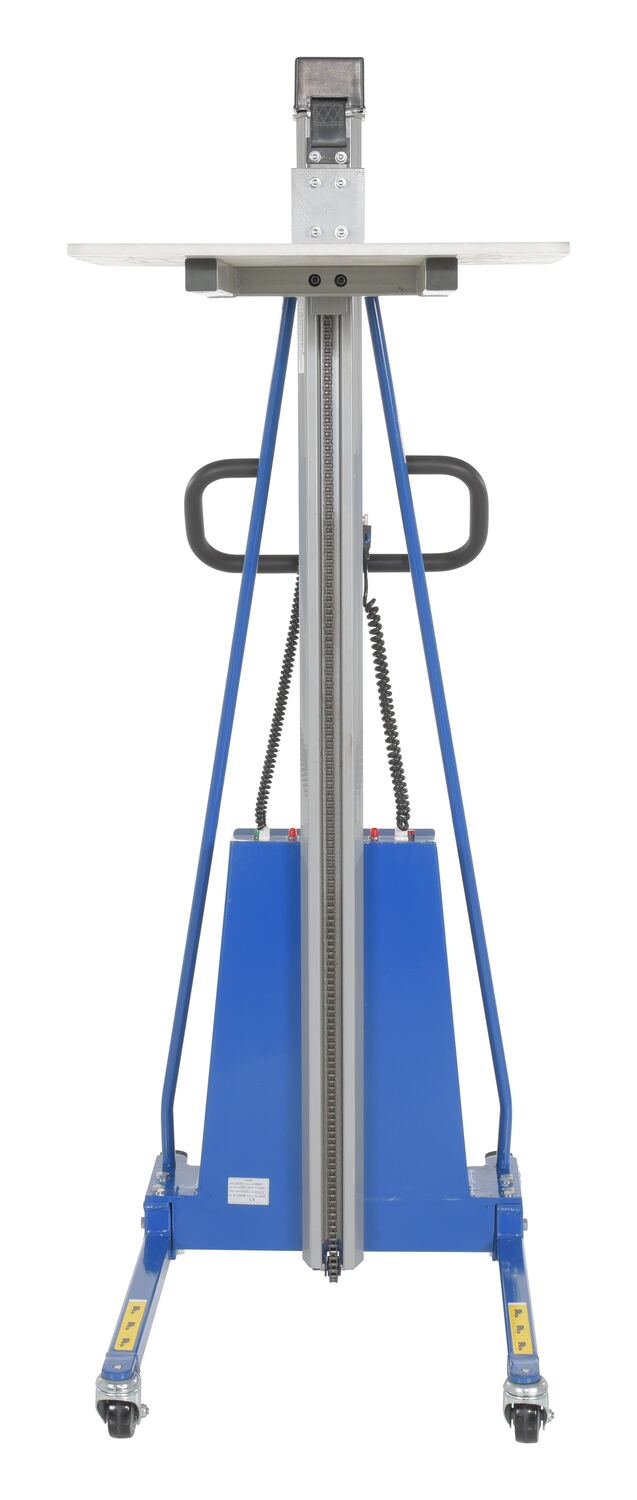

MWP-550-DC

MWP-550-DC

MWP-330-DC

MWP-330-DC

MWP-550-DC

MWP-550-DC

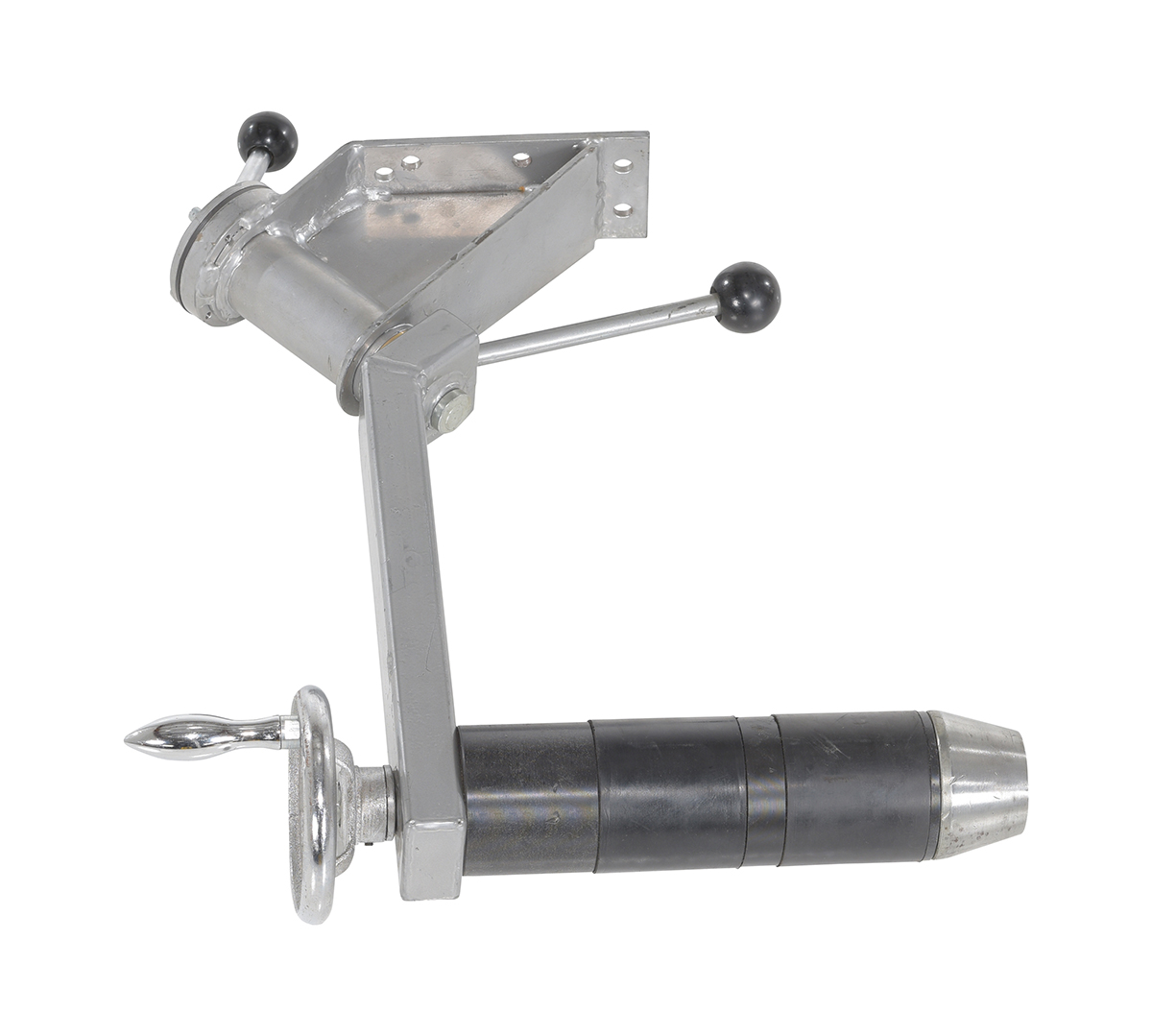

MWP-RR

MWP-RR

MWP-RR

MWP-RR

MWP-220-M

MWP-220-M

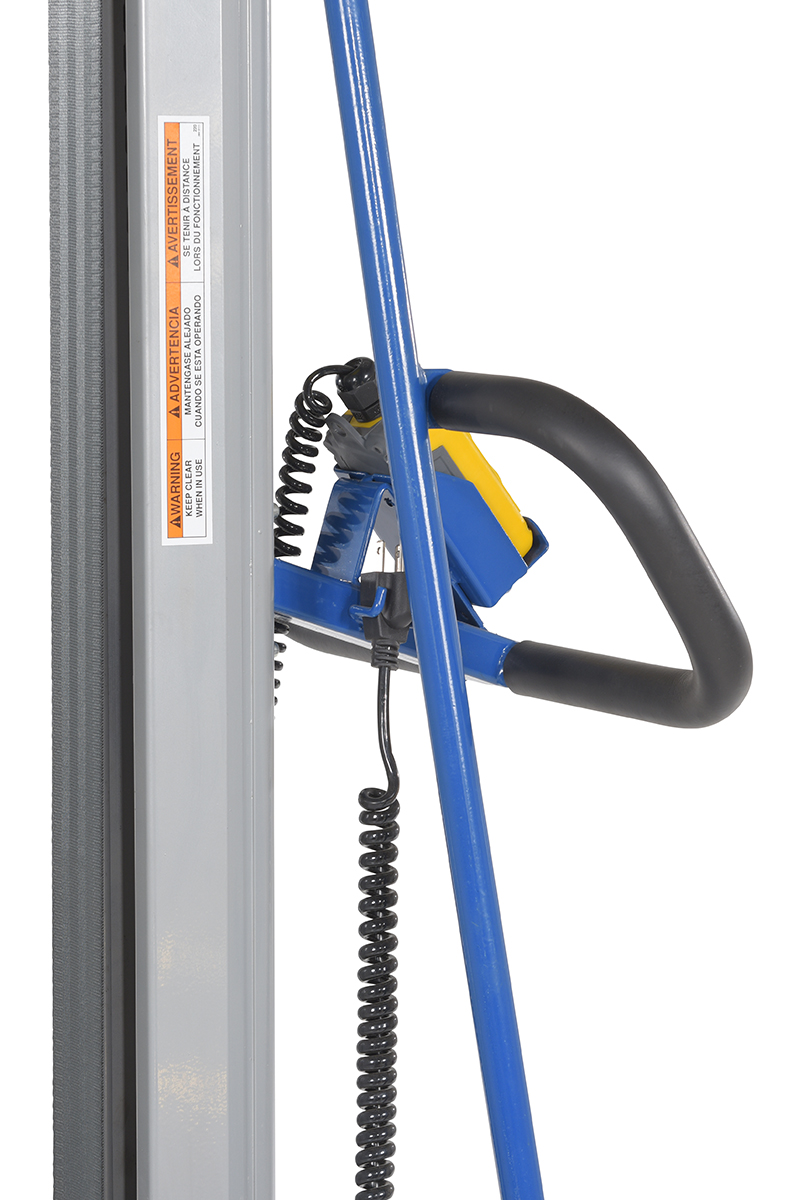

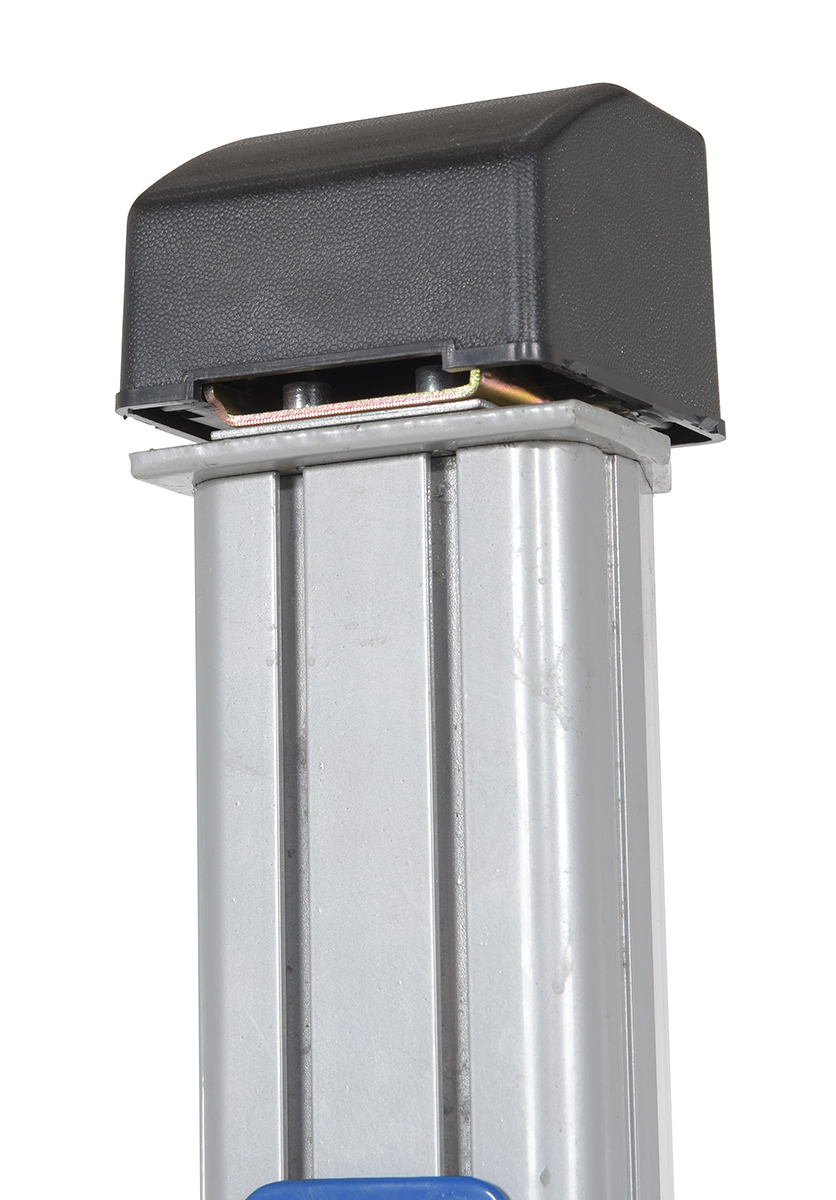

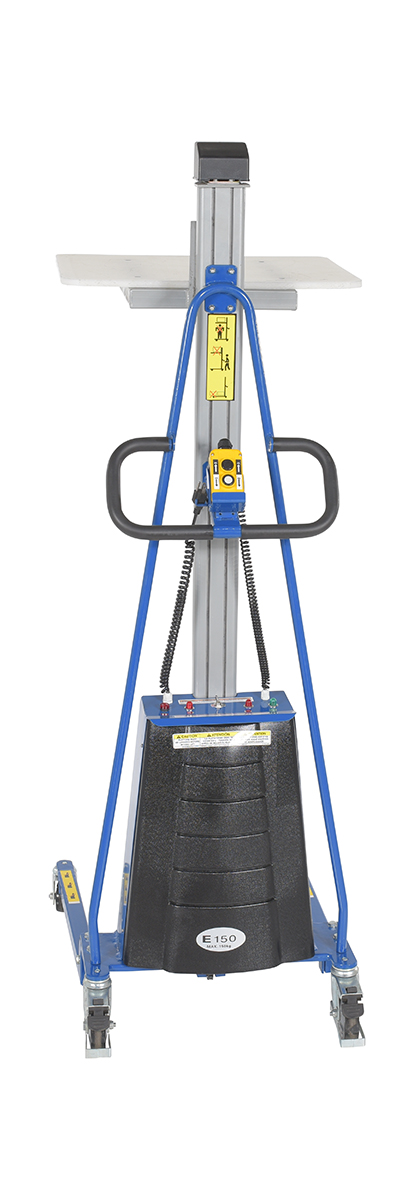

MWP-330-DC

MWP-330-DC

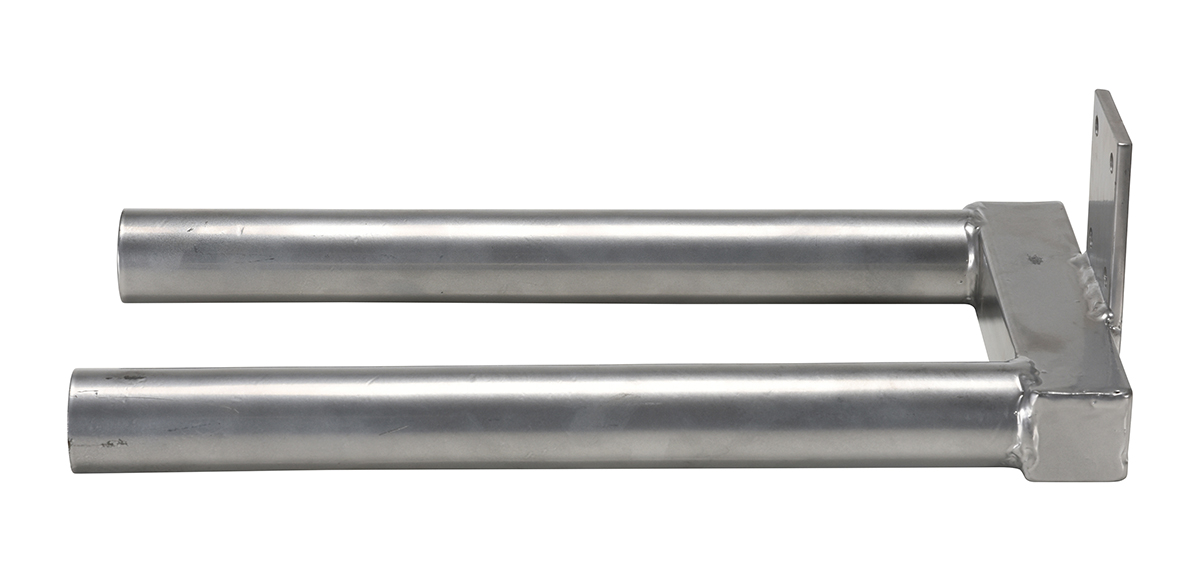

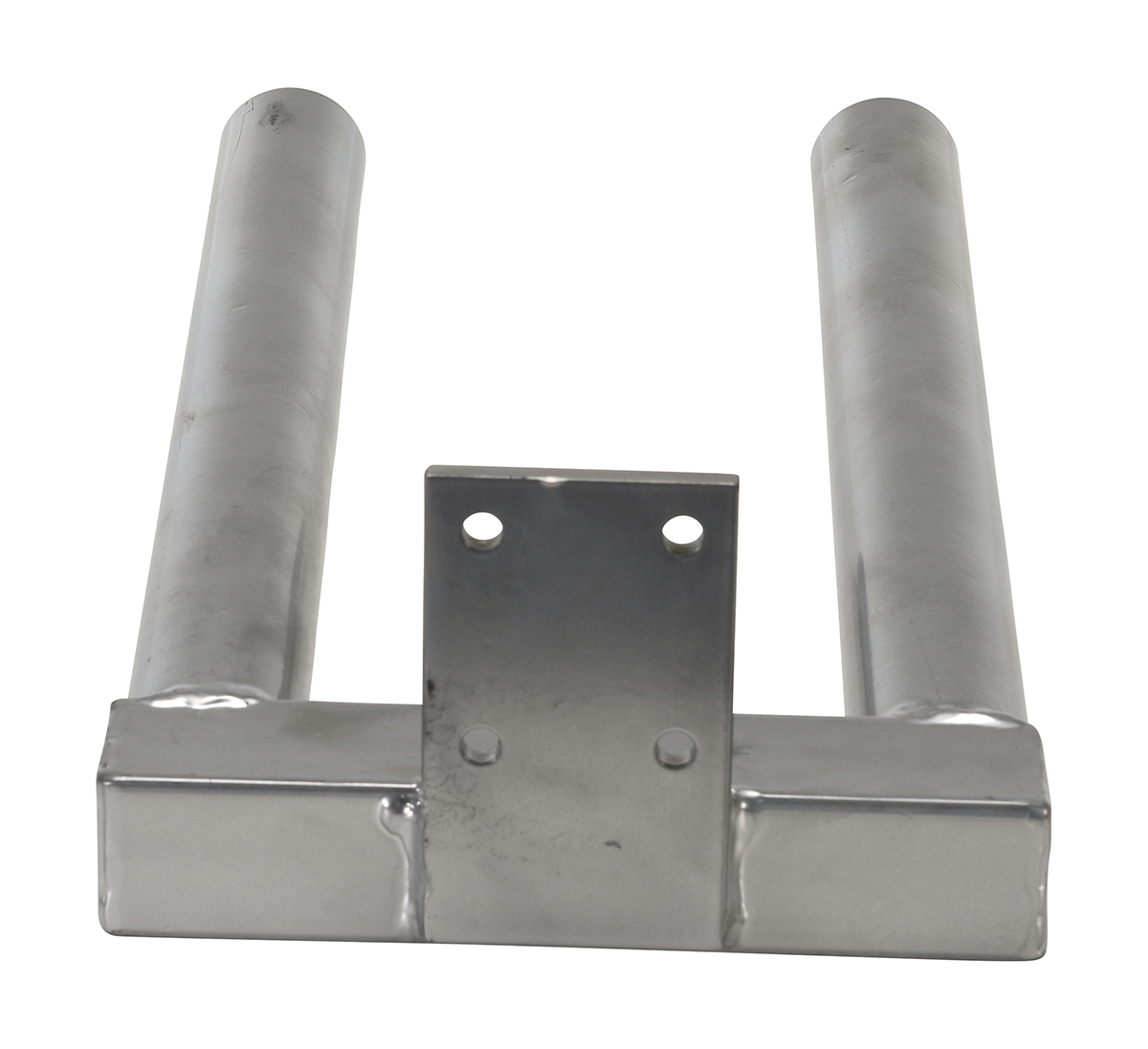

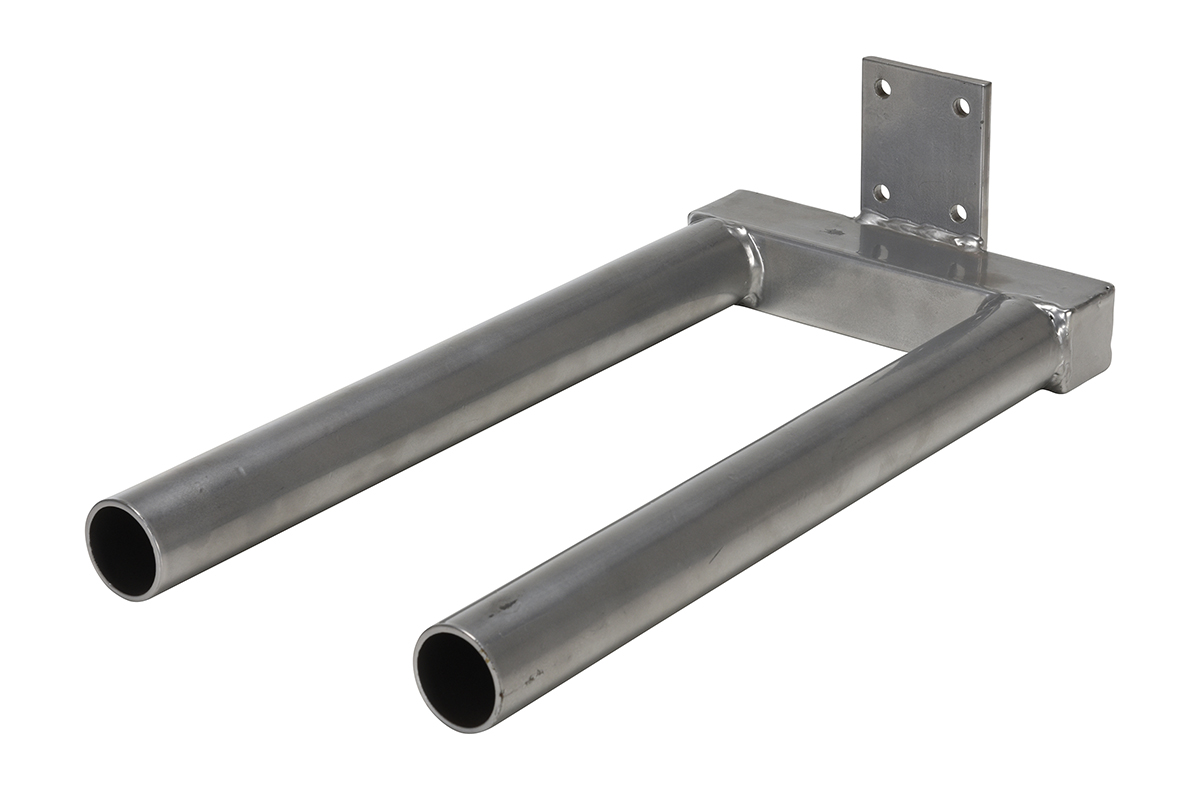

MWP-DSPIN

MWP-DSPIN

MWP-RR

MWP-RR

MWP-330-DC

MWP-330-DC

MWP-550-DC

MWP-550-DC

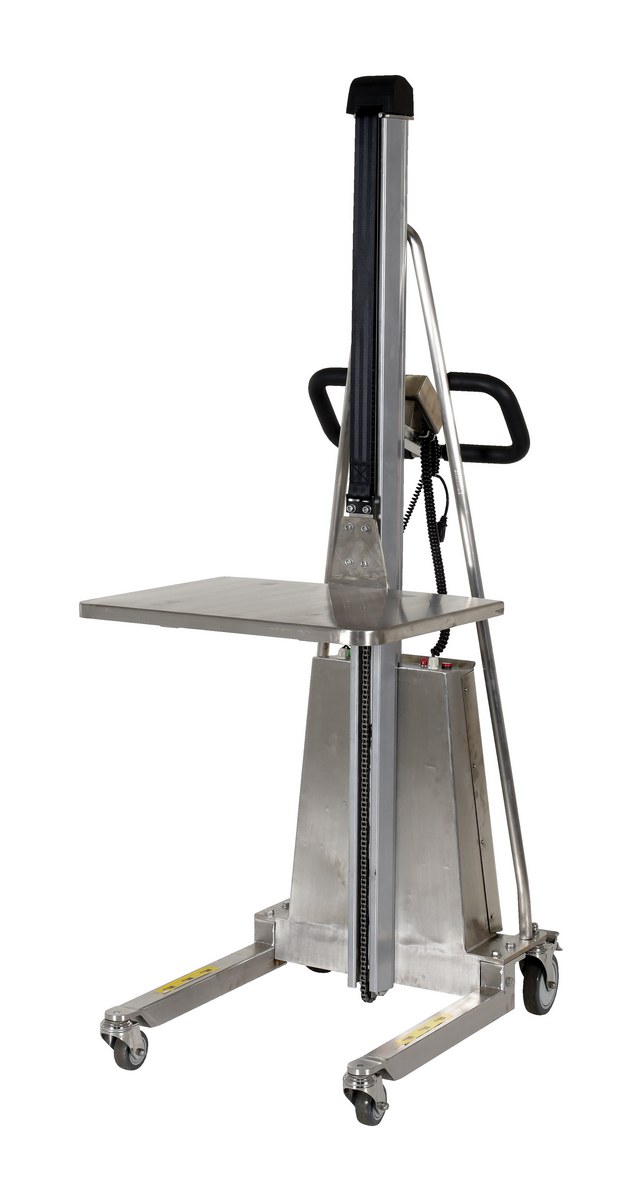

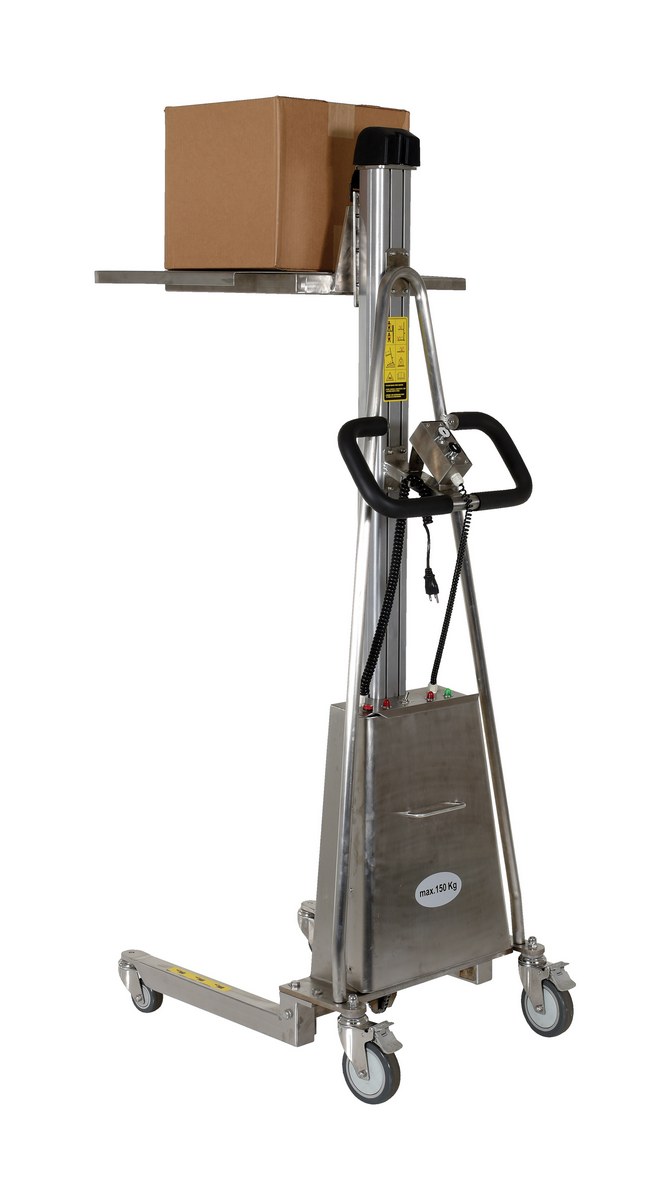

MWP-330-DC-SS

MWP-330-DC-SS

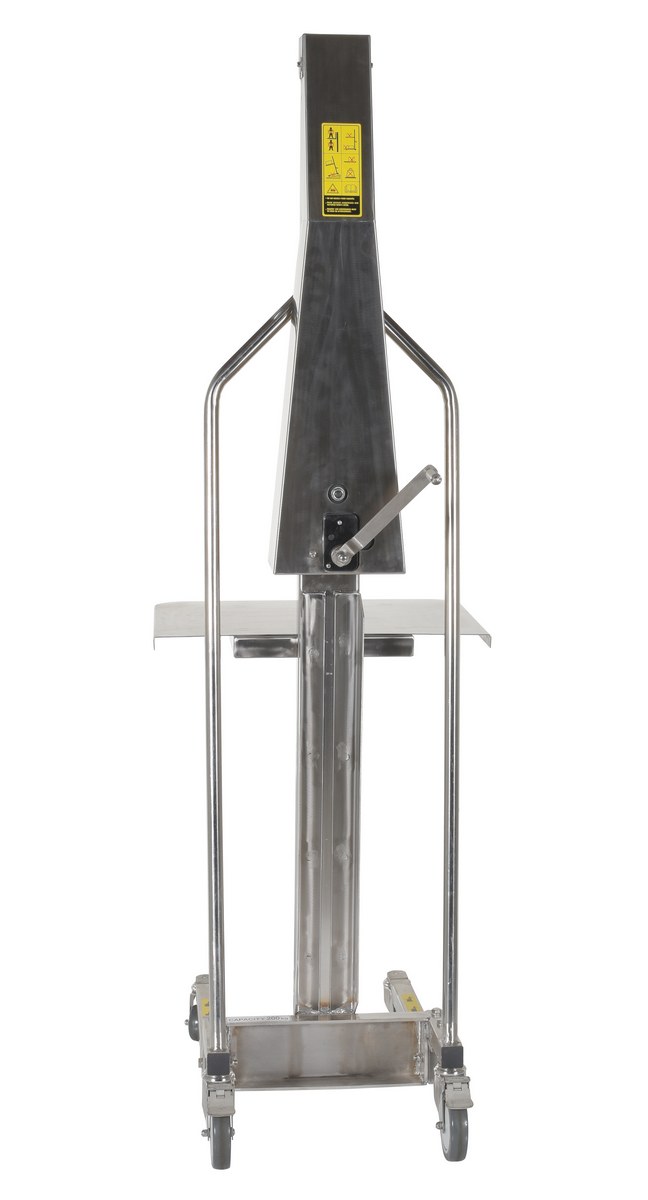

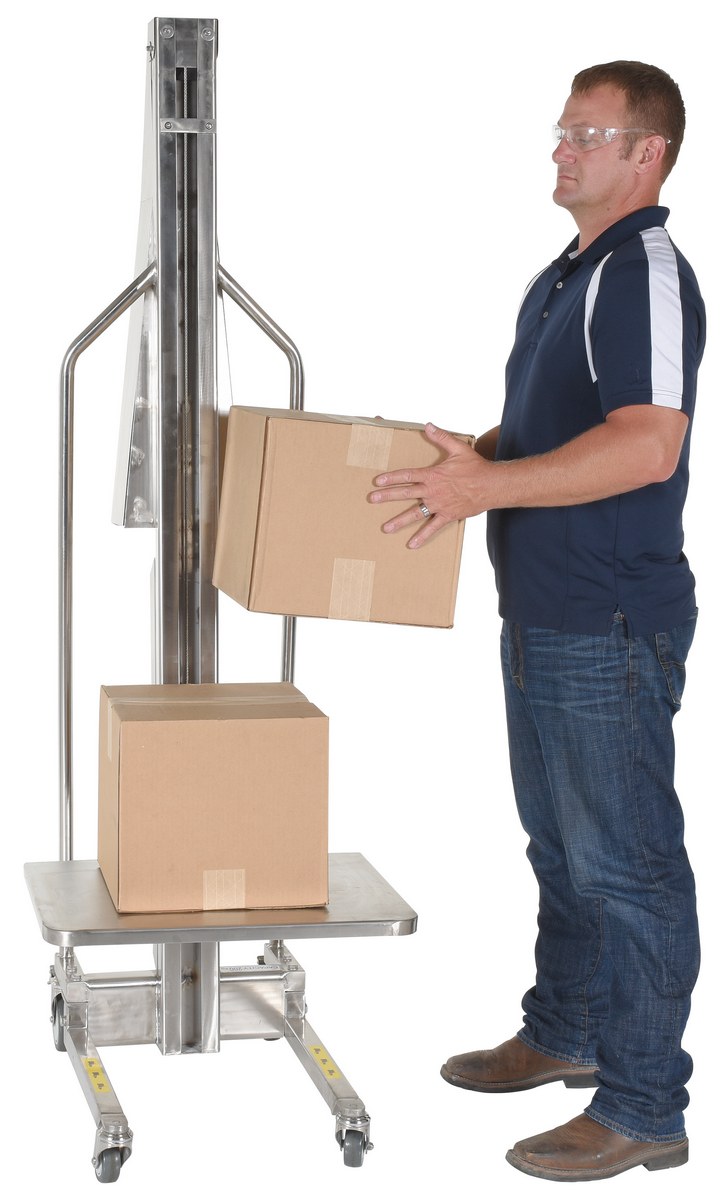

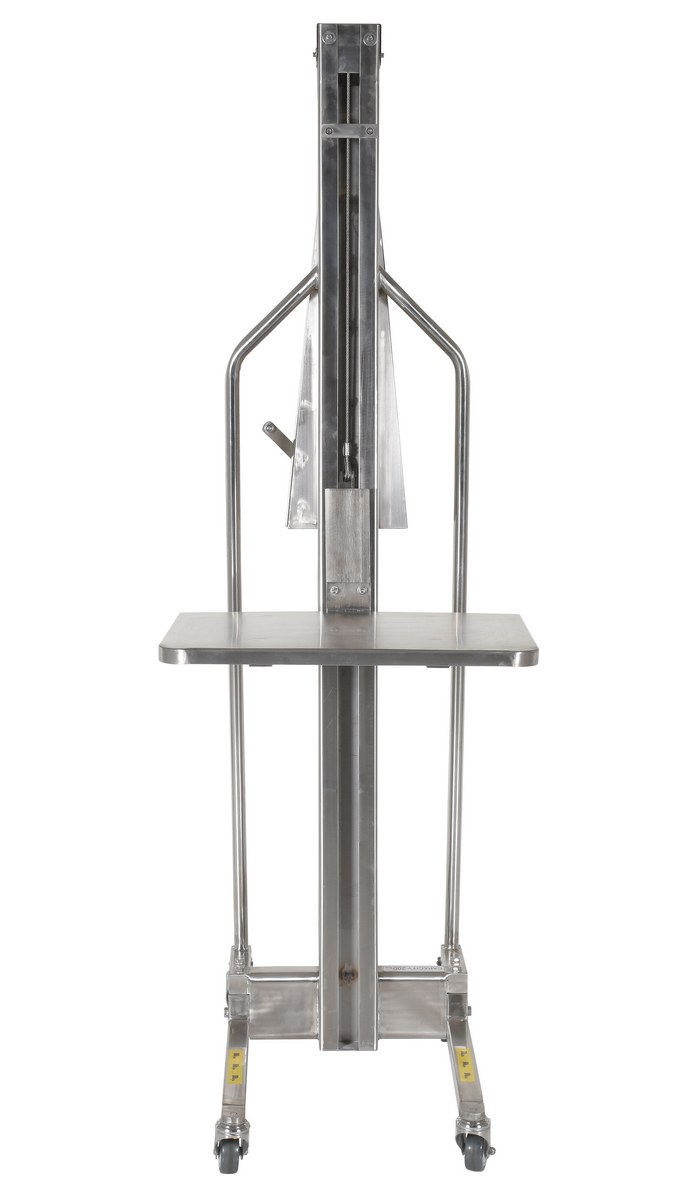

MWP-440-M-SS

MWP-440-M-SS

MWP-330-DC-SS

MWP-330-DC-SS

MWP-330-DC

MWP-330-DC

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

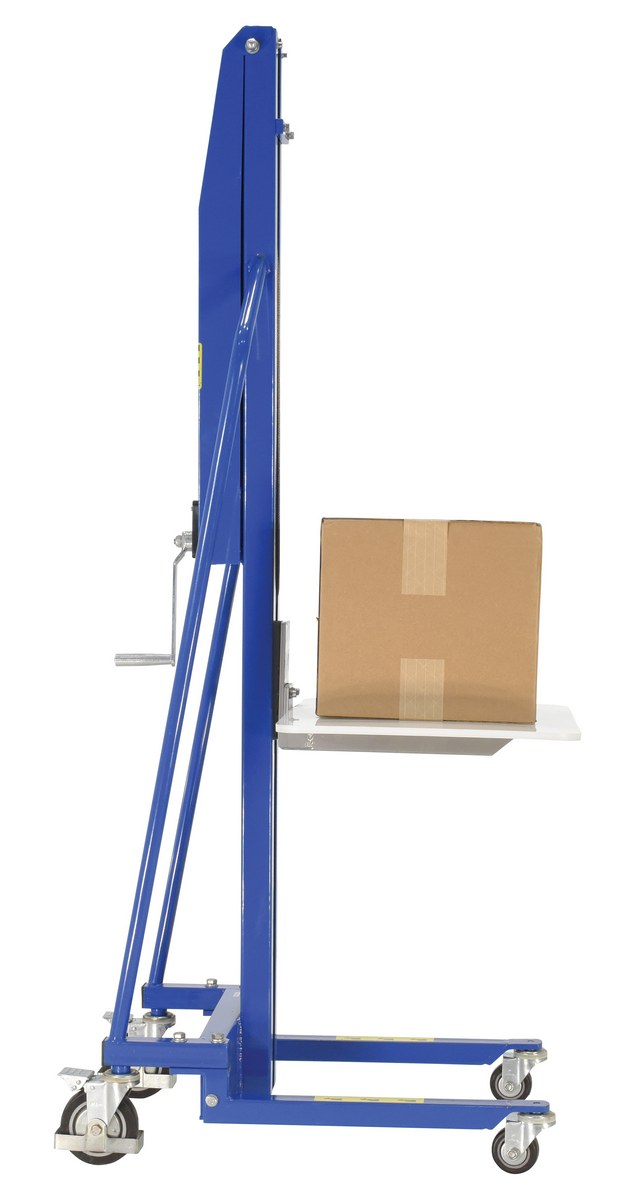

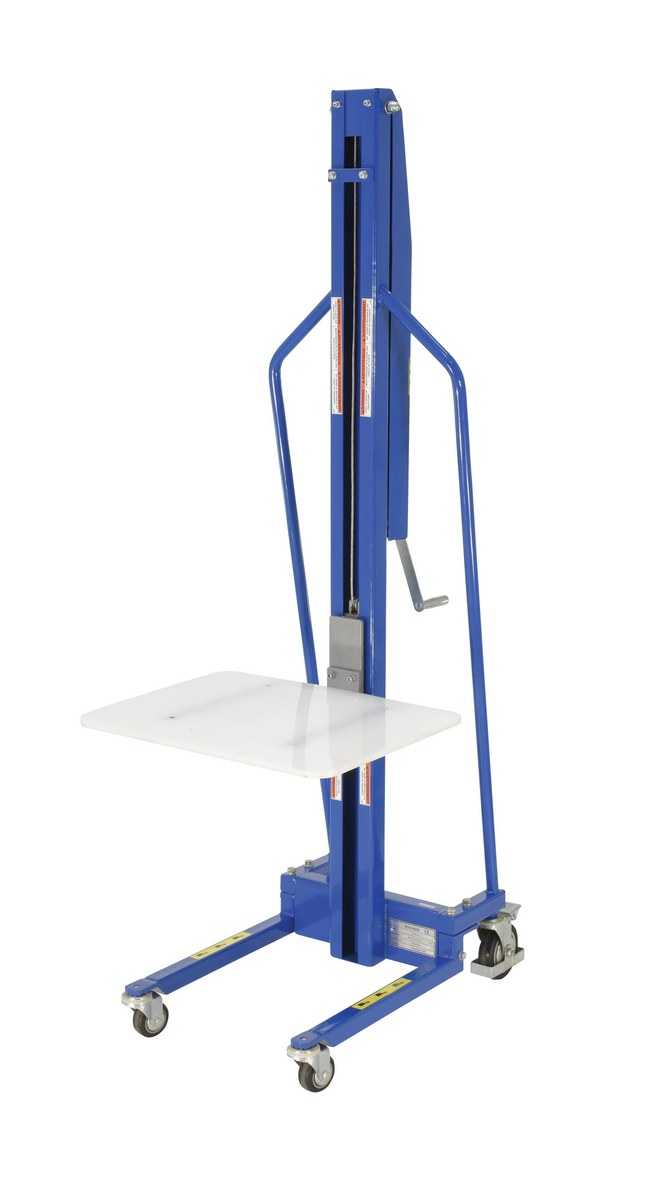

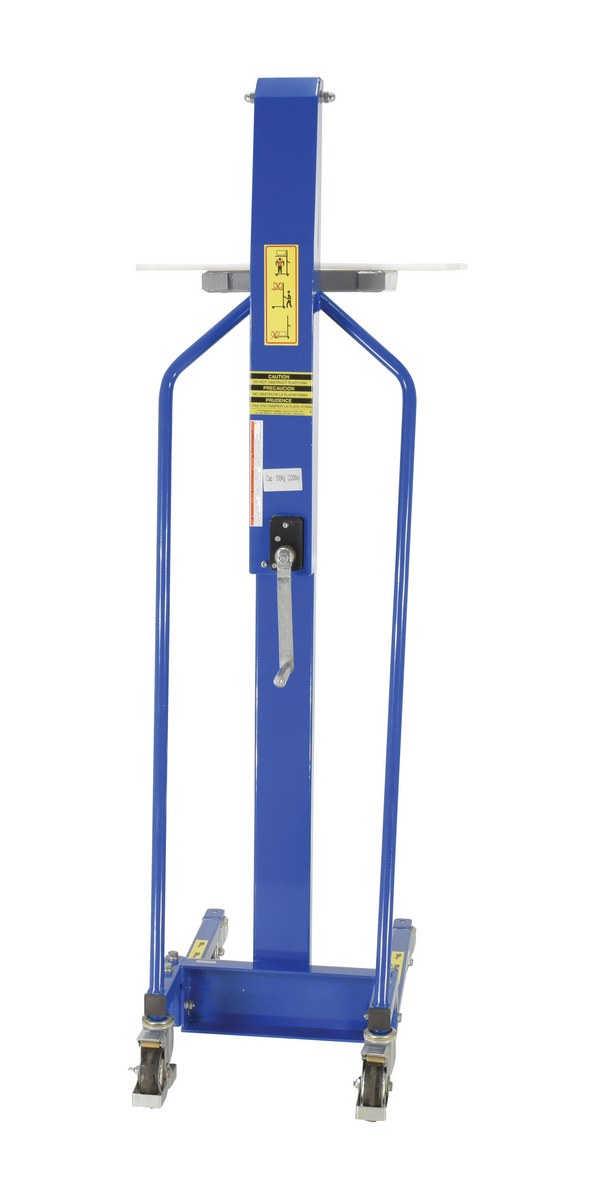

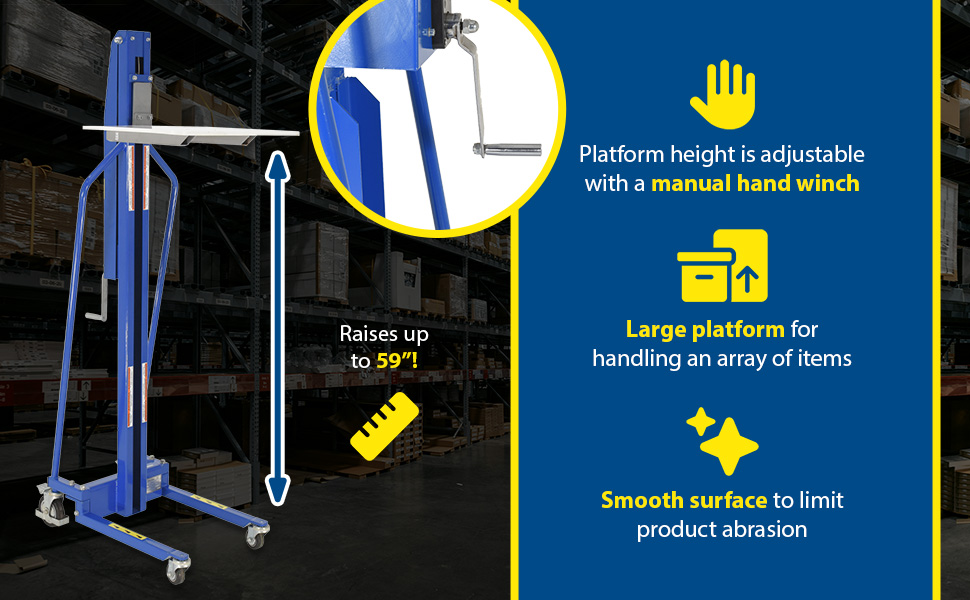

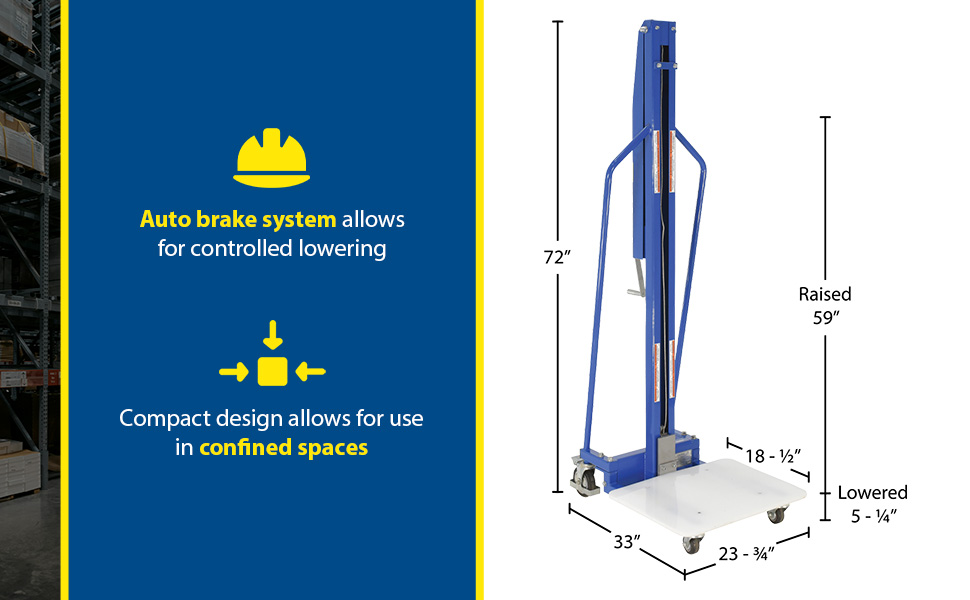

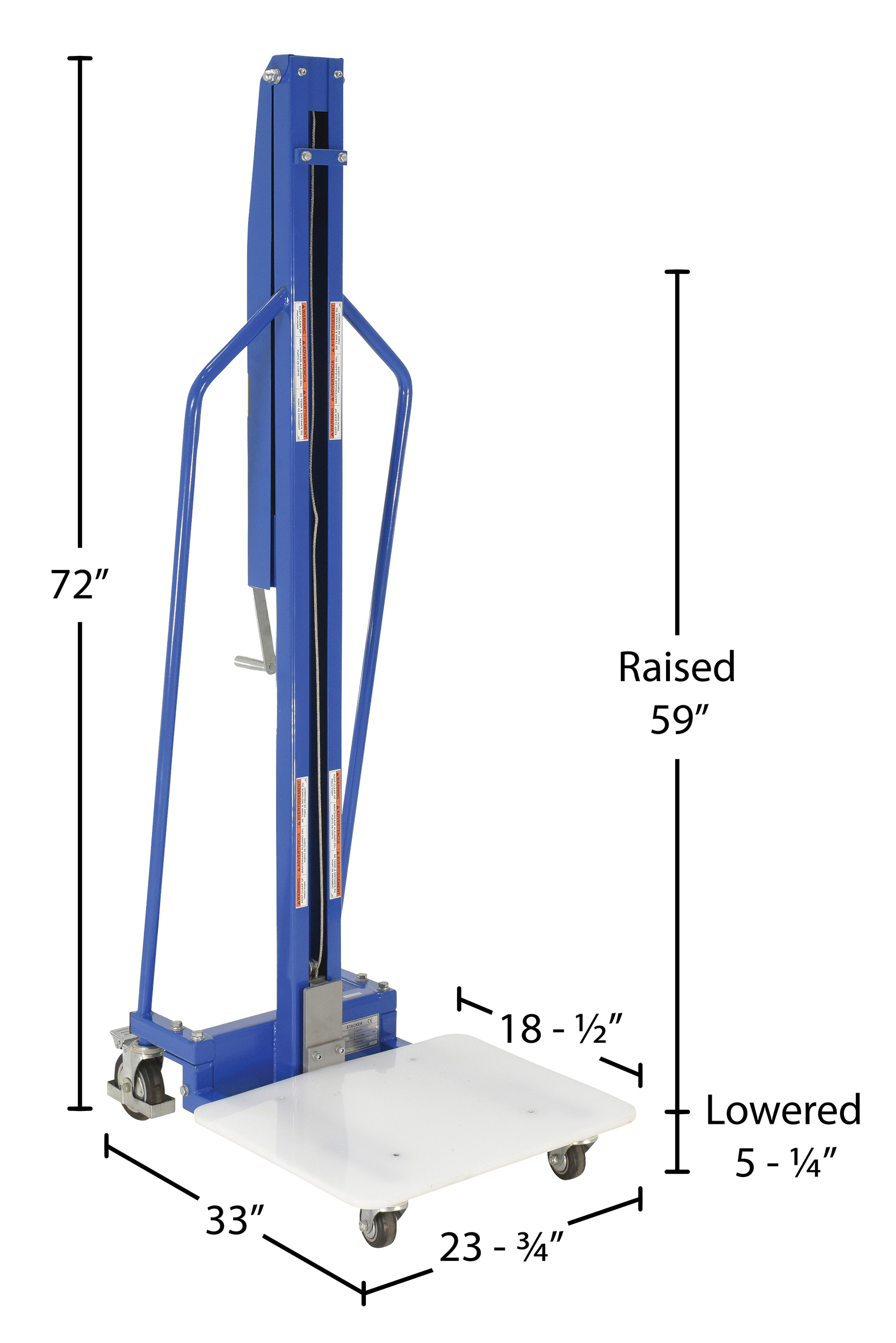

MWP-220-M MWP-220-M90 Days Limited WarrantySteel Manual Work Positioner 33 In. x 23-3/4 In. x 72 In. 220 Lb. Capacity BlueUniform Capacity (lb.): 220
Platform Width (in.): 23-3/4		129

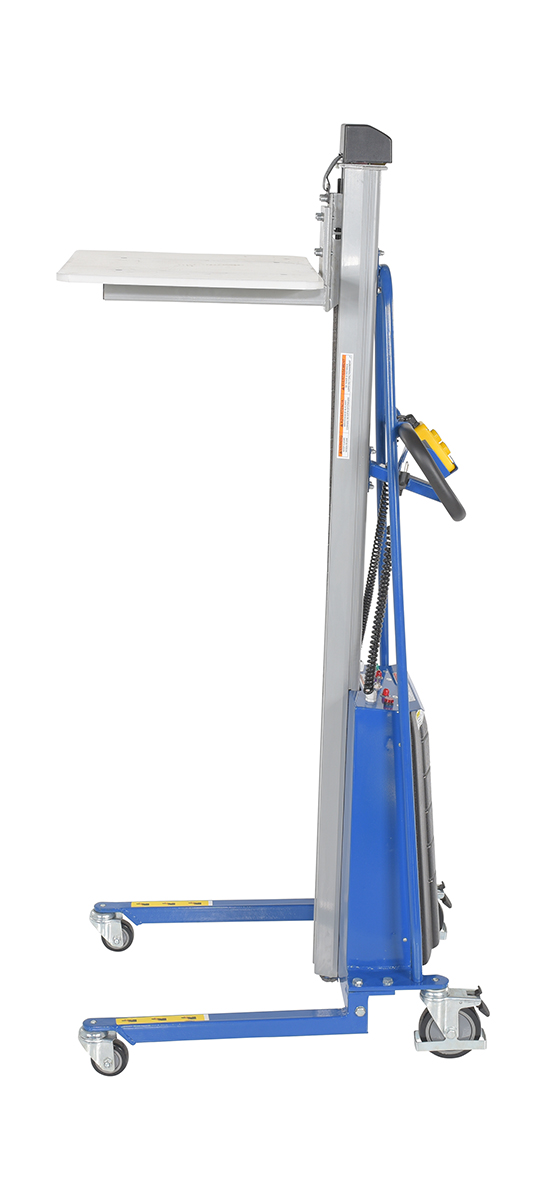

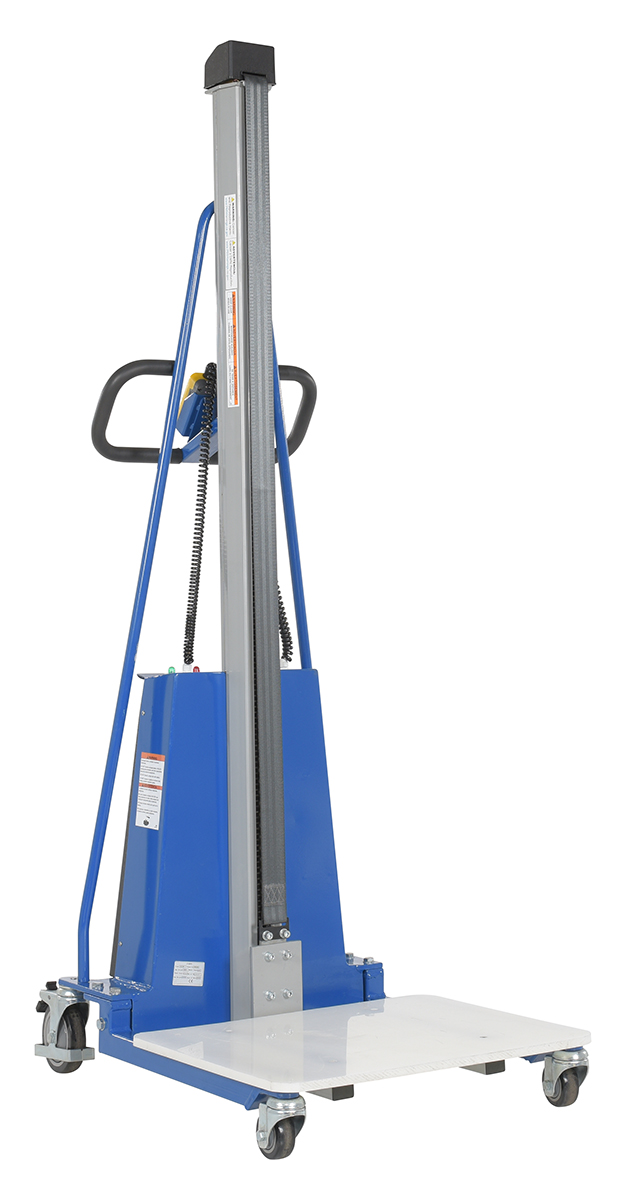

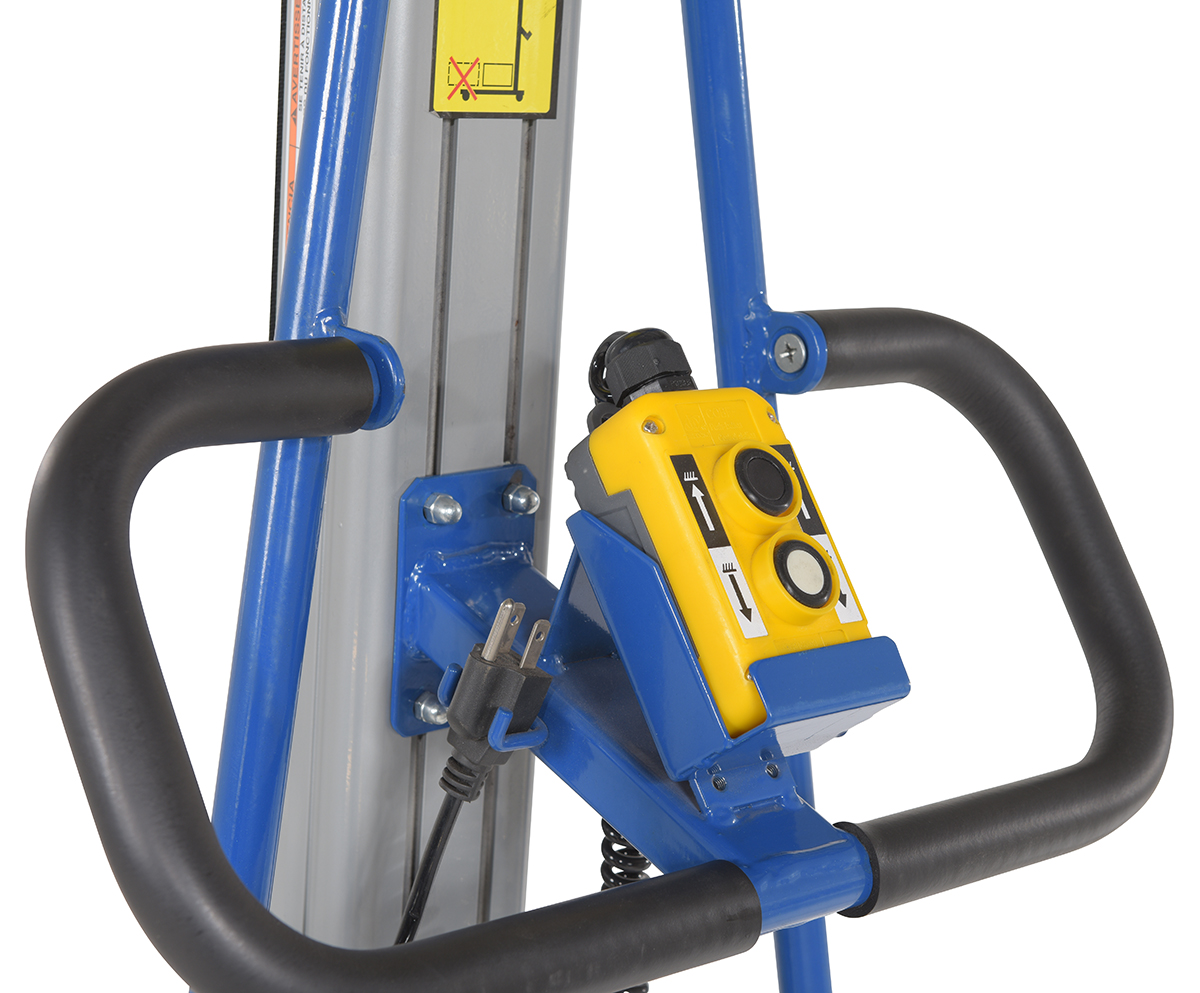

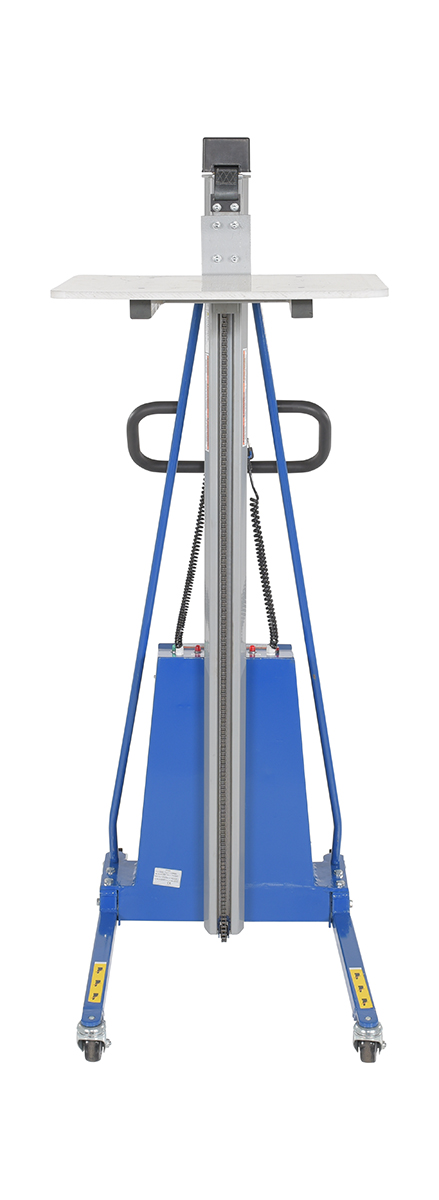

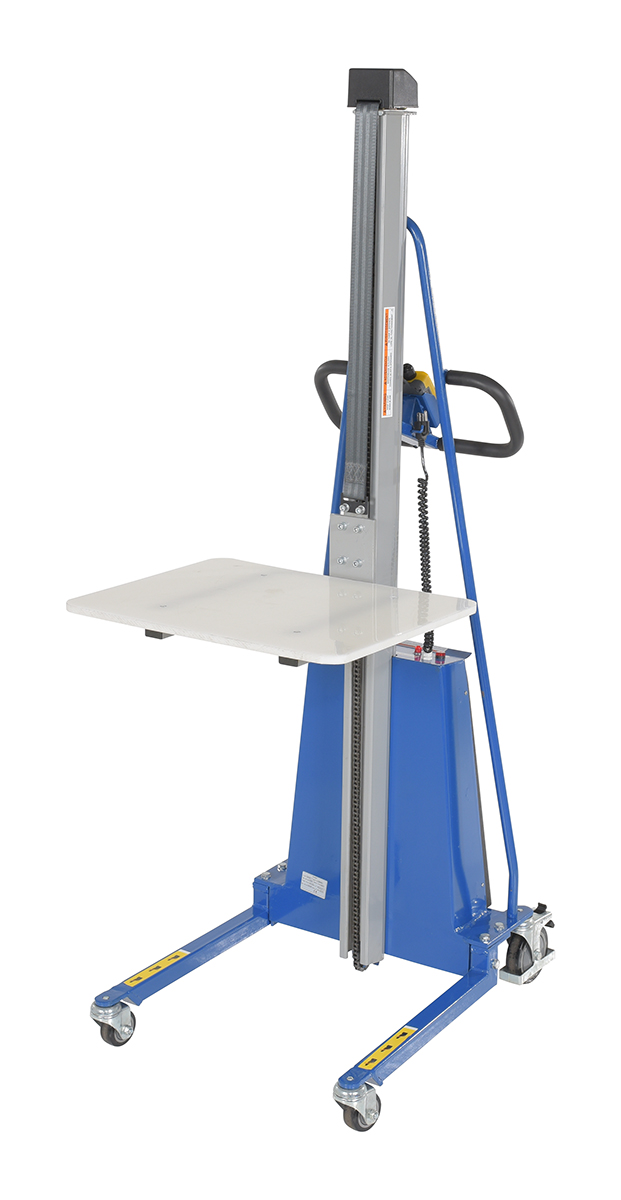

MWP-330-DC MWP-330-DC90 Days Limited WarrantySteel DC Powered Work Positioner 34-1/4 In. x 23-5/8 In. x 70-1/2 In. 330 Lb. Capacity BlueUniform Capacity (lb.): 330
Platform Width (in.): 23-5/8		186
MWP-330-DC-SS

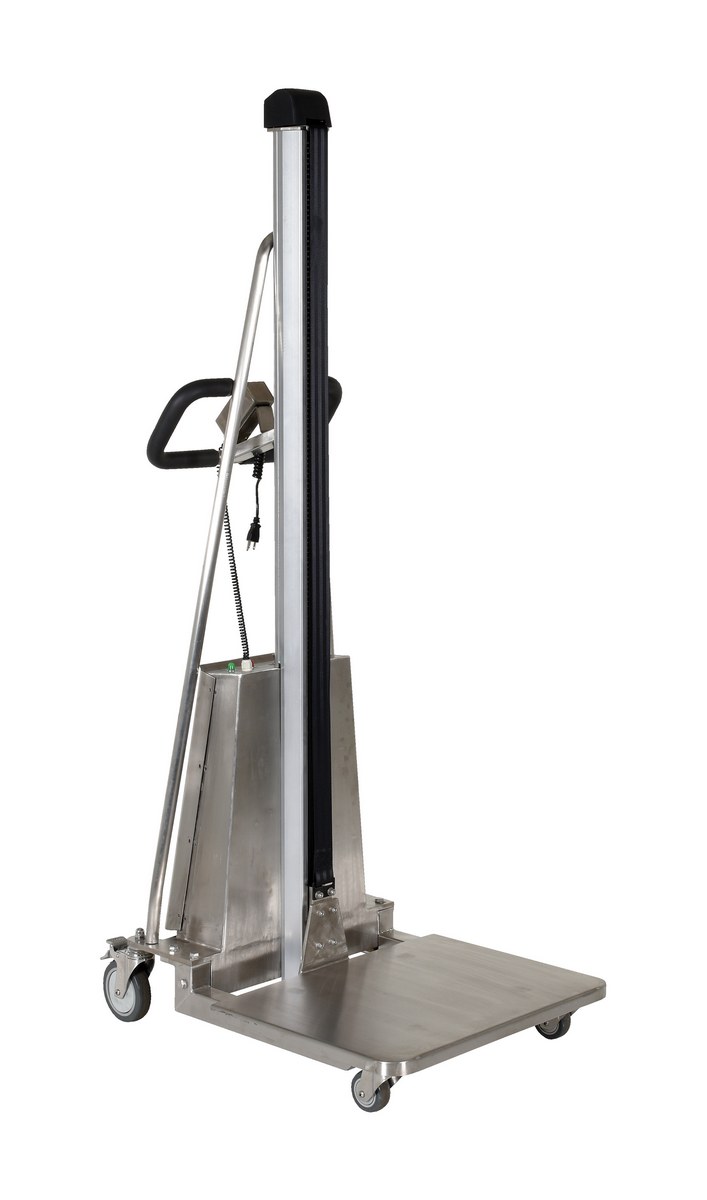

MWP-330-DC-SS90 Days Limited WarrantyStainless Steel DC Powered Work Positioner 34 In. x 24-1/2 In. x 71 In. 330 Lb. Capacity SilverUniform Capacity (lb.): 330
Platform Width (in.): 24-1/2		180

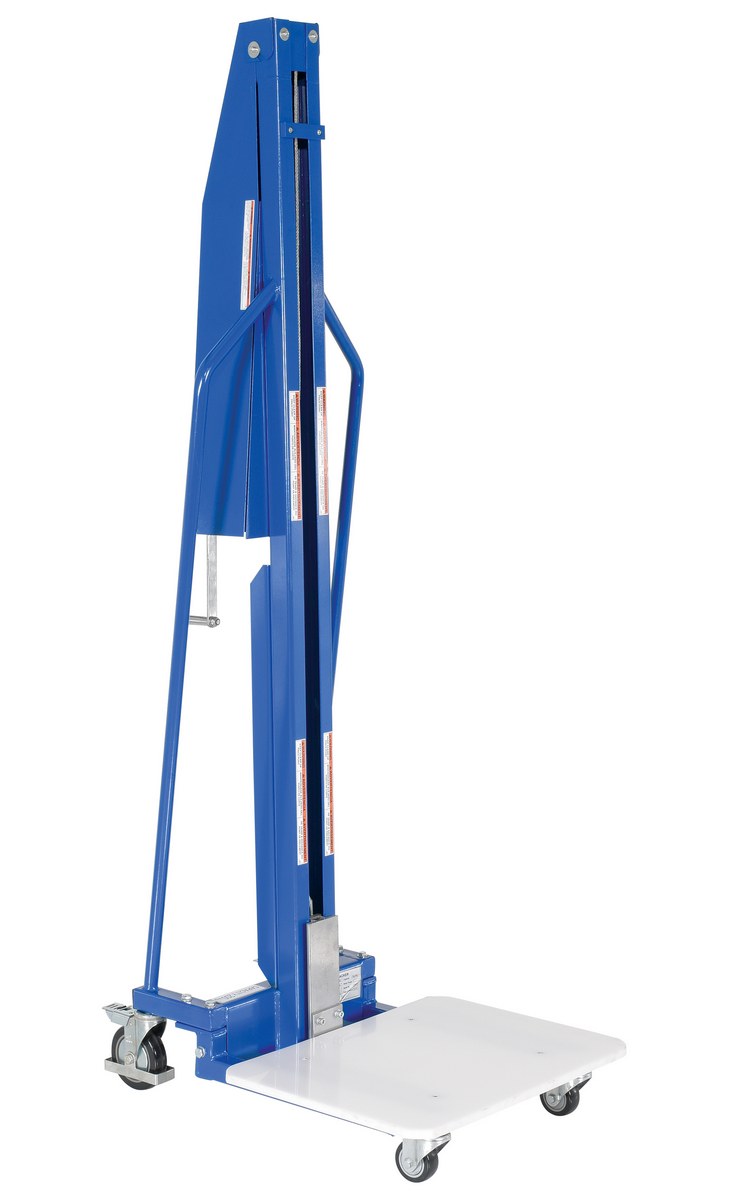

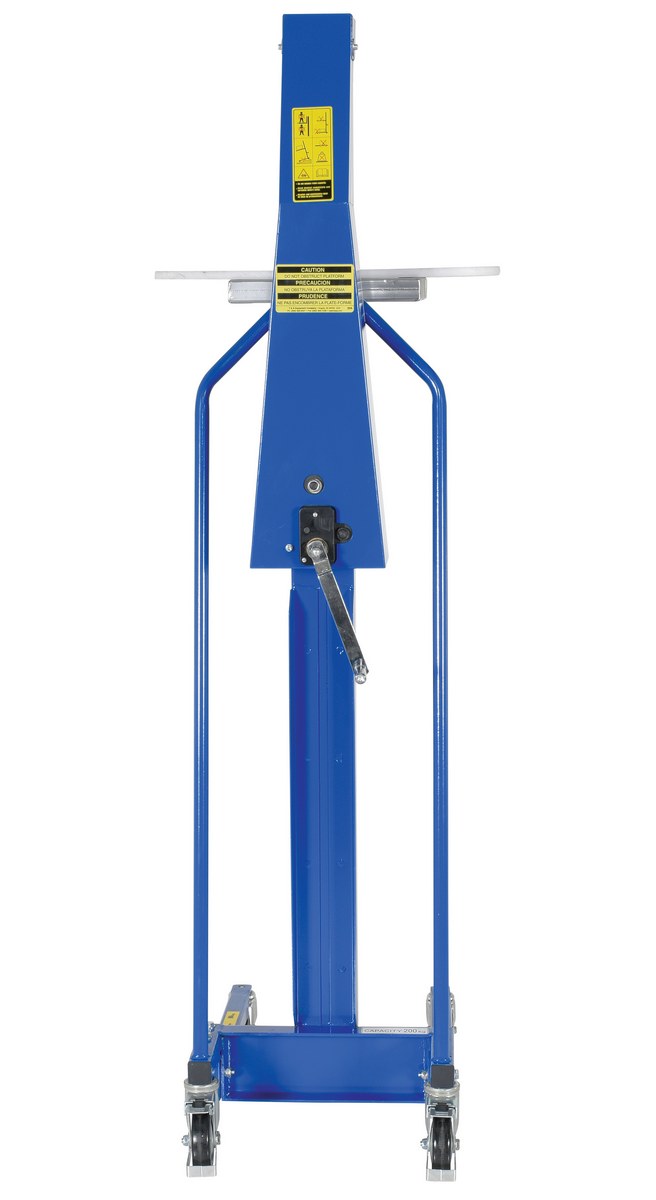

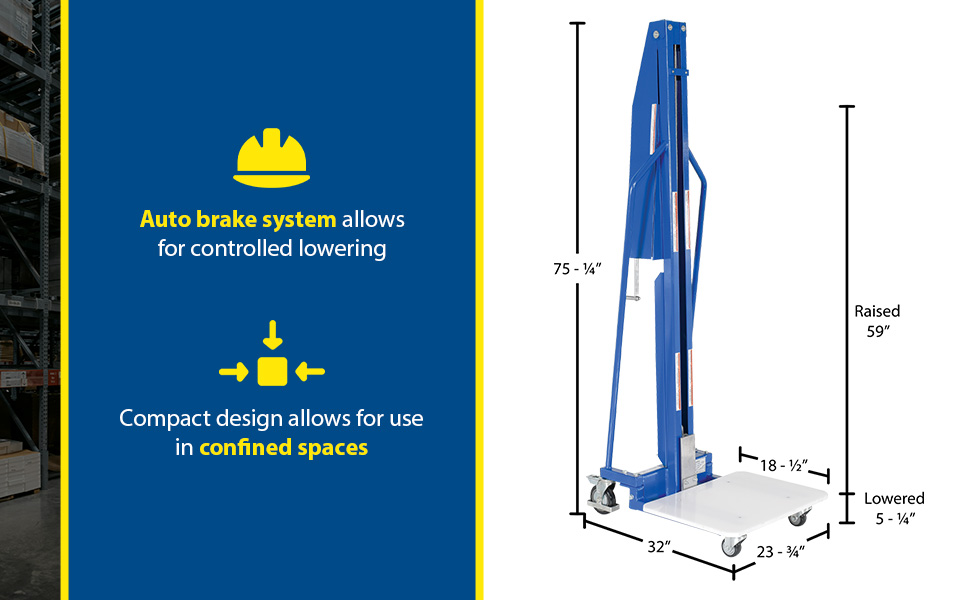

MWP-440-M MWP-440-M90 Days Limited WarrantySteel Manual Work Positioner 32 In. x 23-3/4 In. x 75-1/4 In. 440 Lb. Capacity BlueUniform Capacity (lb.): 440
Platform Width (in.): 23-3/4		186

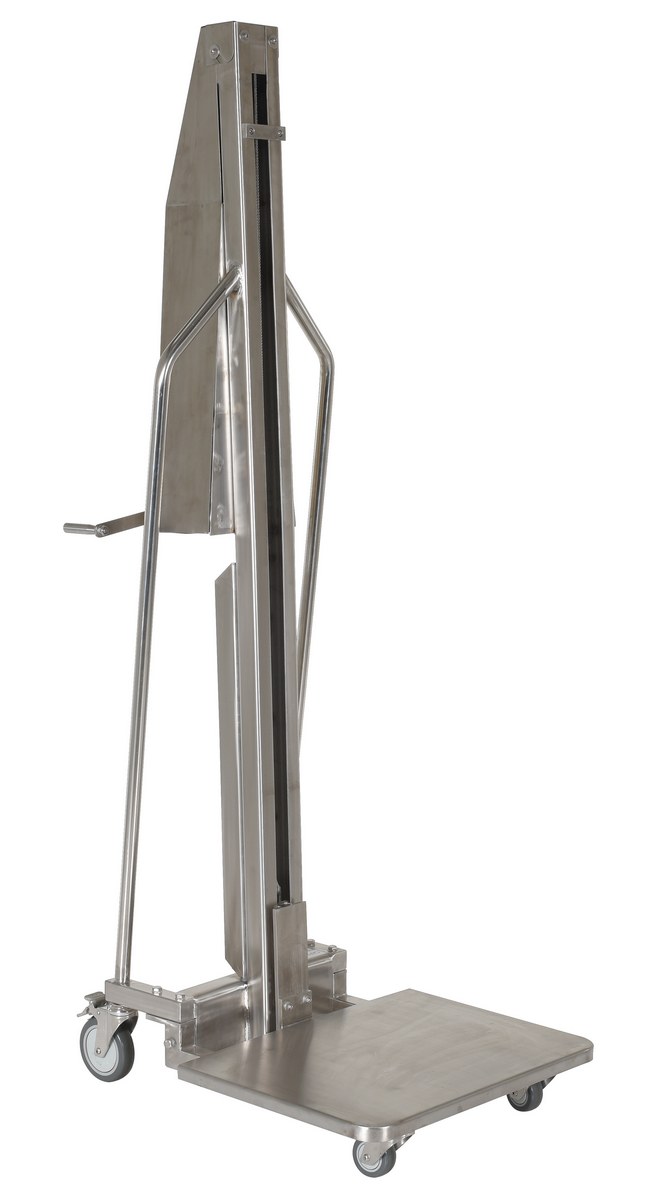

MWP-440-M-SS

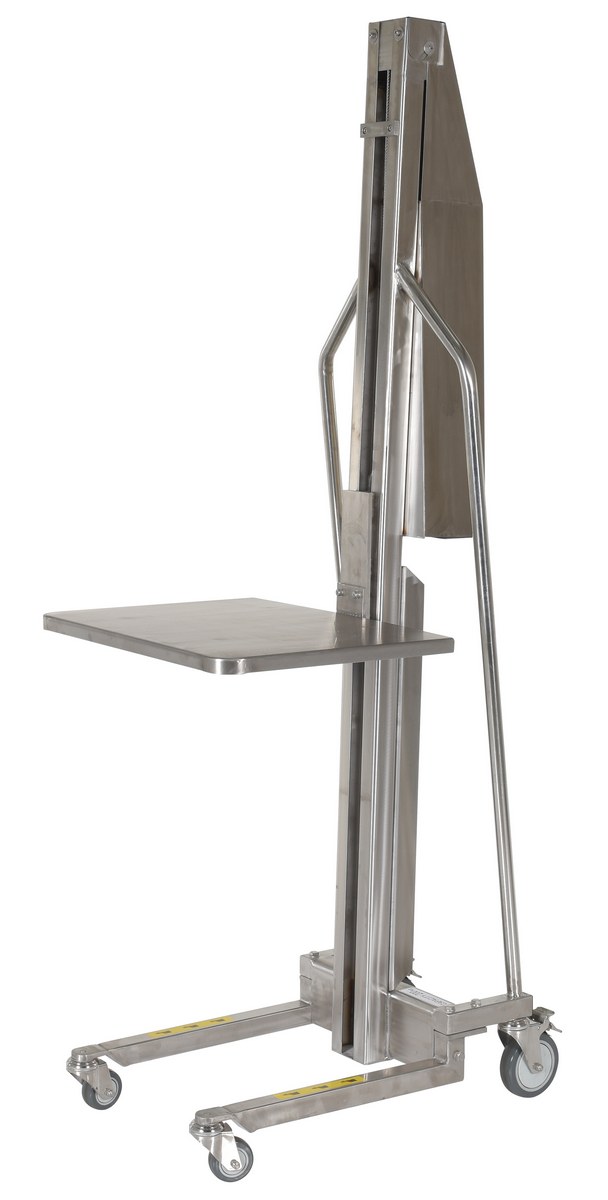

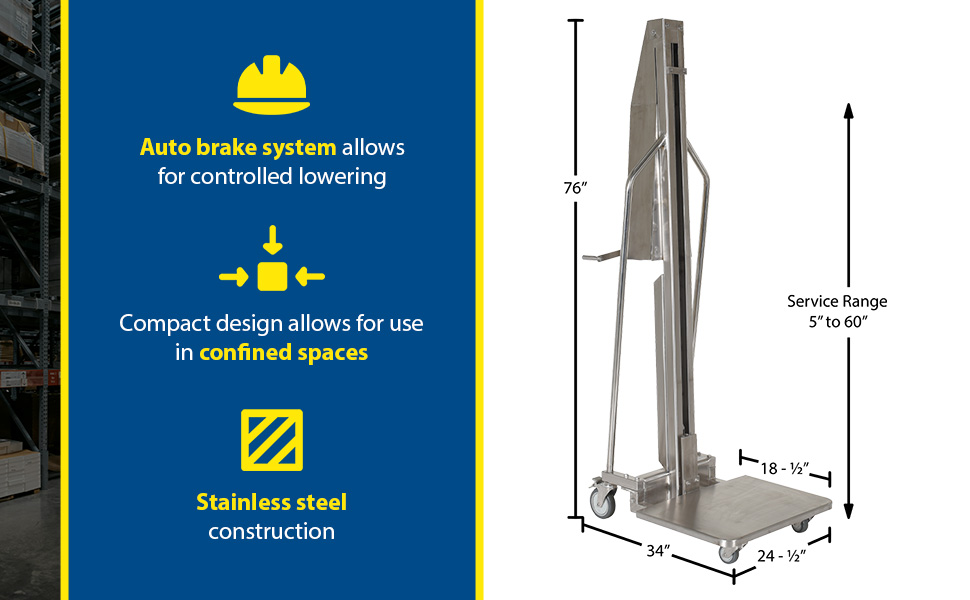

MWP-440-M-SS90 Days Limited WarrantyStainless Steel Manual Work Positioner 34 In. x 24-1/2 In. x 76 In. 440 Lb. Capacity SilverUniform Capacity (lb.): 440
Platform Width (in.): 24-1/2		165

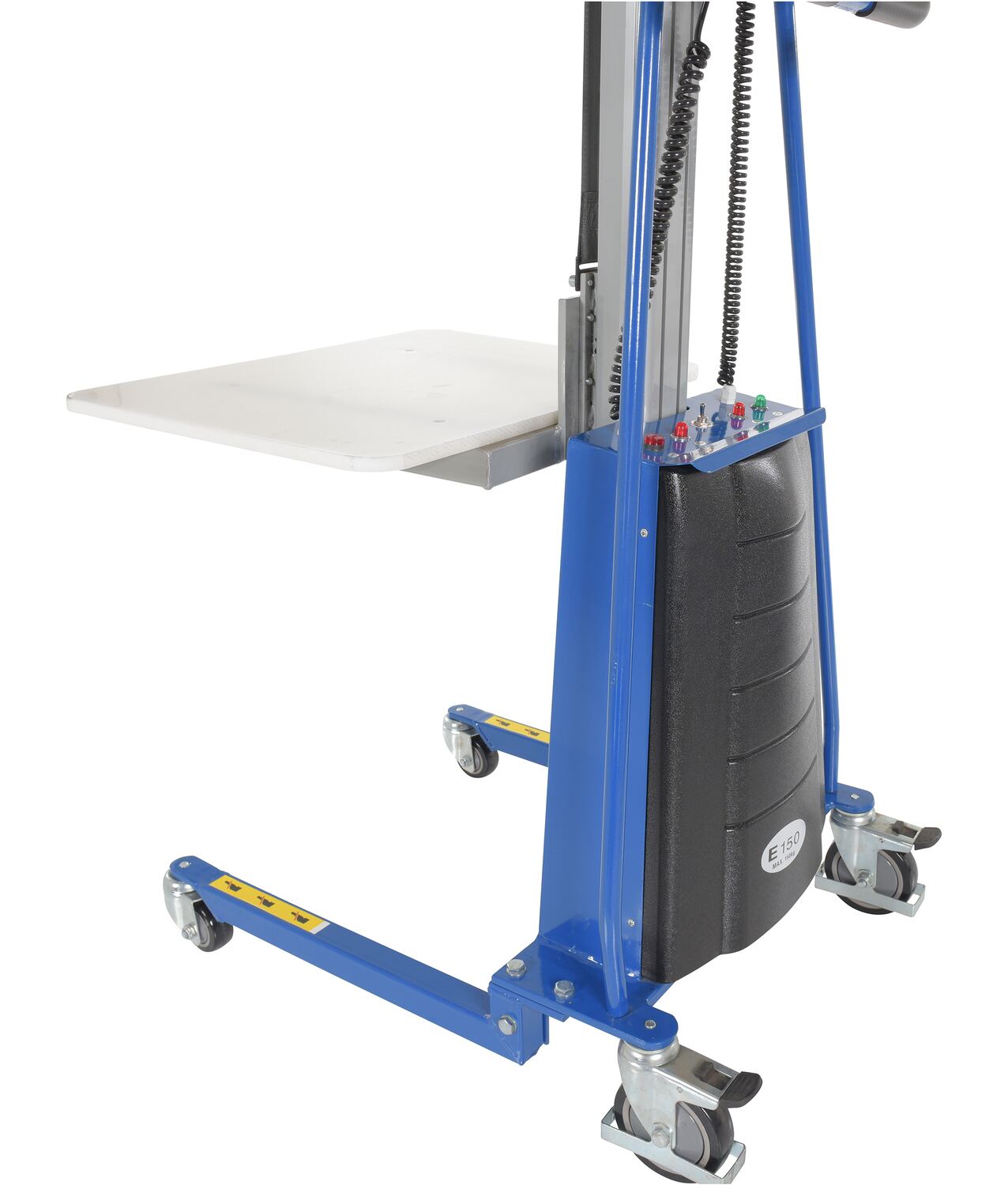

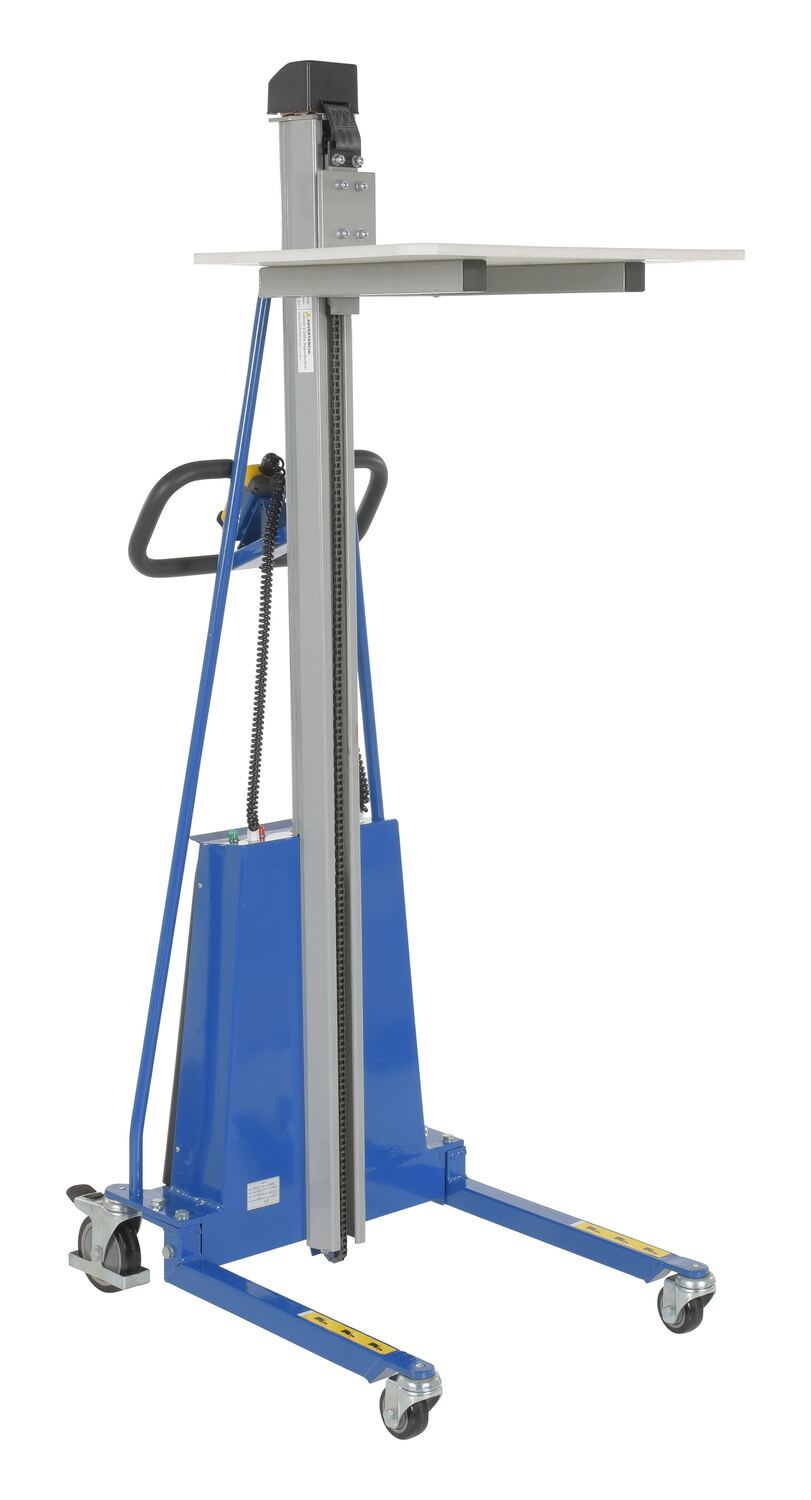

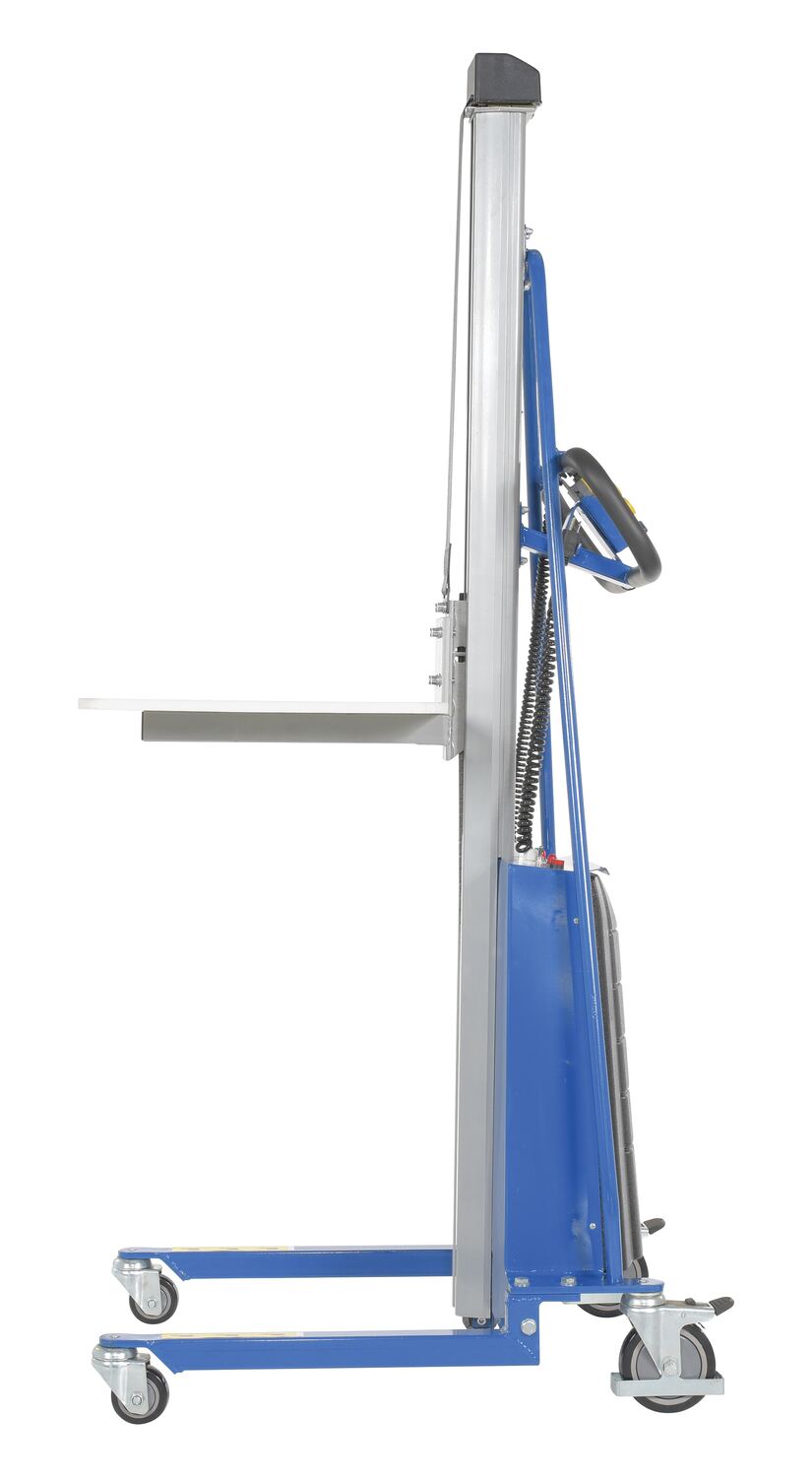

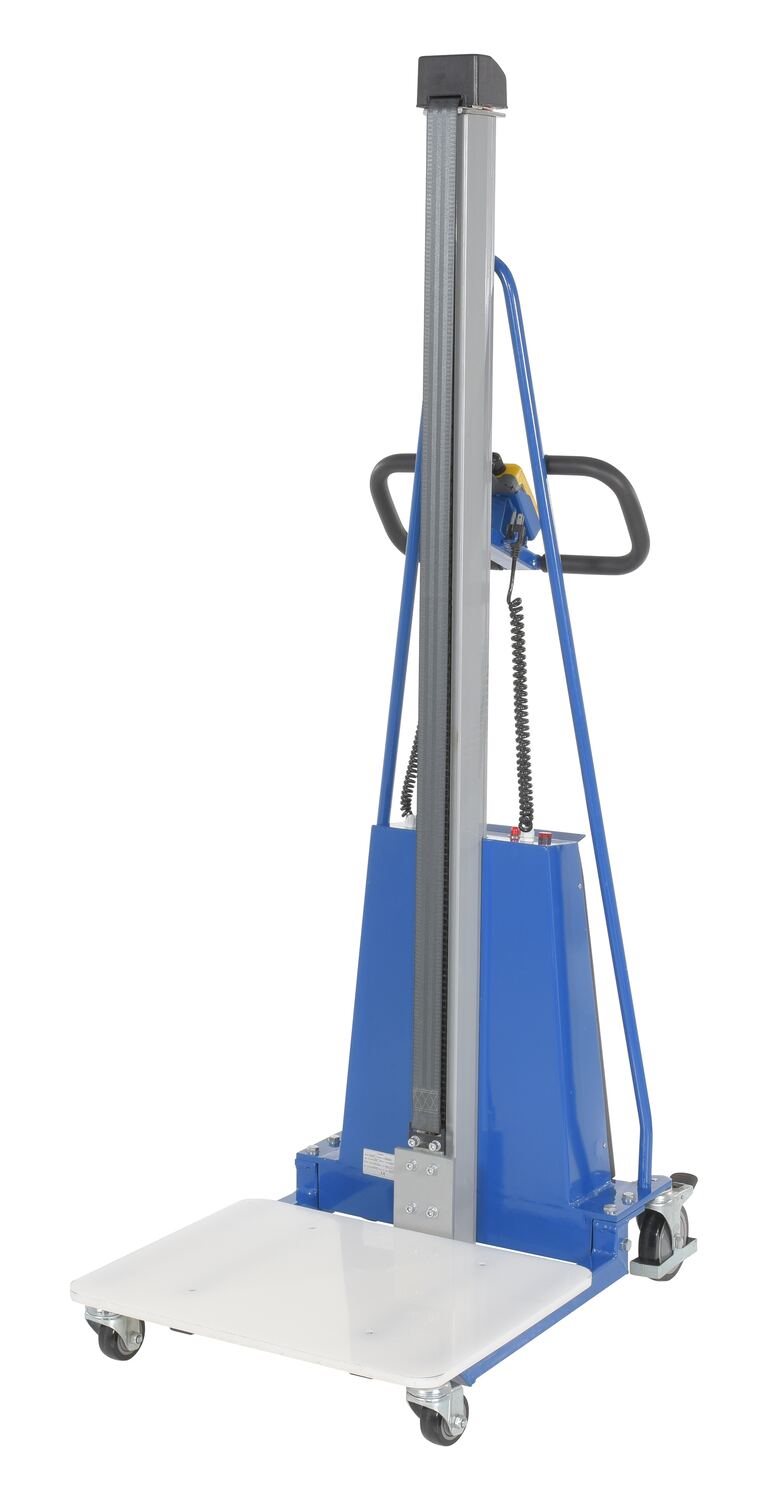

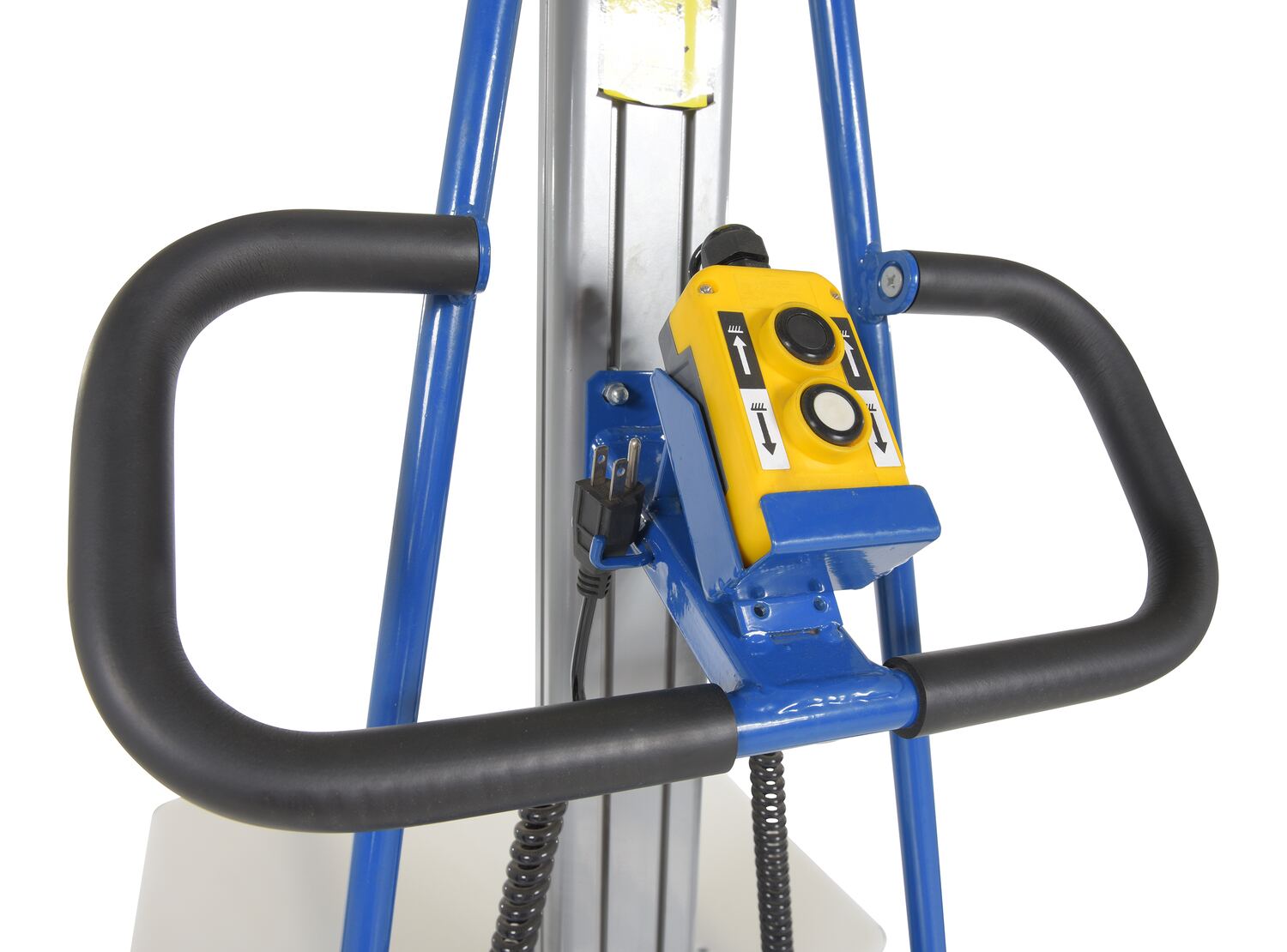

MWP-550-DC POPULAR MWP-550-DC90 Days Limited WarrantySteel DC Powered Work Positioner 35-1/2 In. x 23-5/8 In. x 79-1/2 In. 550 Lb. Capacity BlueUniform Capacity (lb.): 550
Platform Width (in.): 23-5/8		254

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MWP-220-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 220
Platform Width (in.): 23-3/4
Uniform Capacity (lb.): 220
Platform Width (in.): 23-3/4

MWP-330-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 330
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 330
Platform Width (in.): 23-5/8

MWP-330-DC-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 330
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 330
Platform Width (in.): 24-1/2

MWP-440-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 440
Platform Width (in.): 23-3/4
Uniform Capacity (lb.): 440
Platform Width (in.): 23-3/4

MWP-440-M-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 440
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 440
Platform Width (in.): 24-1/2

MWP-550-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 550
Platform Width (in.): 23-5/8
For More Details of the Option Click the Red Model Button

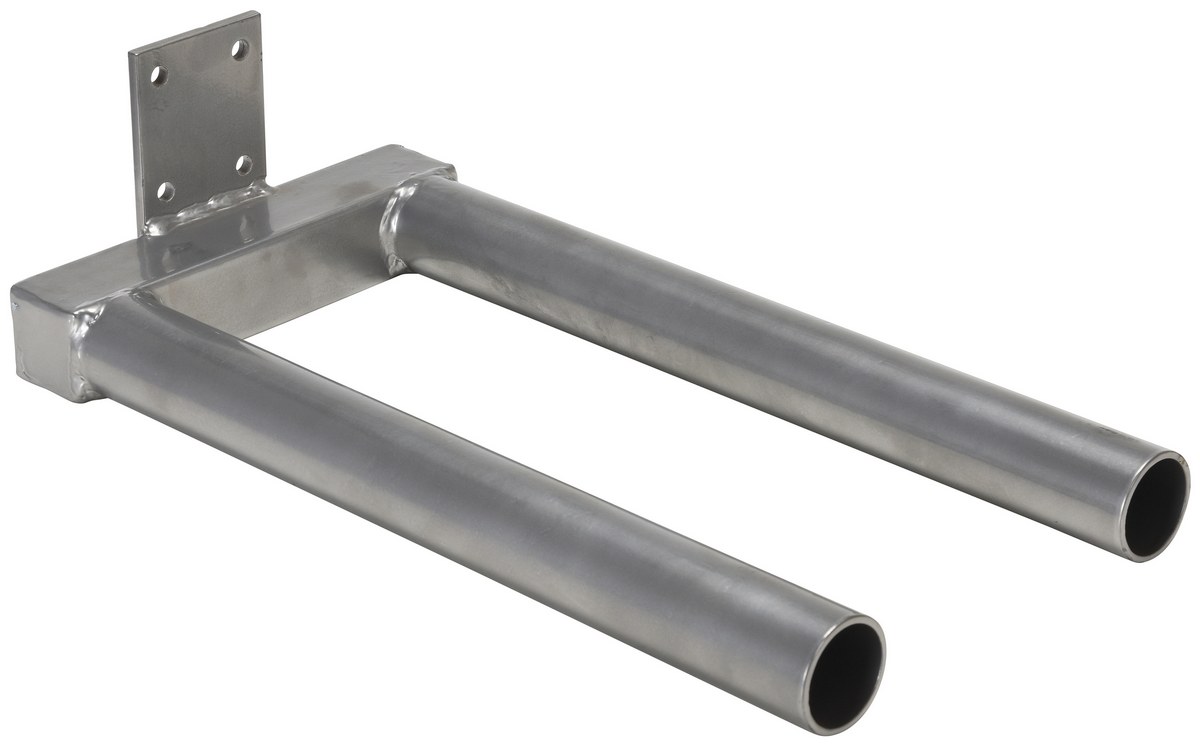

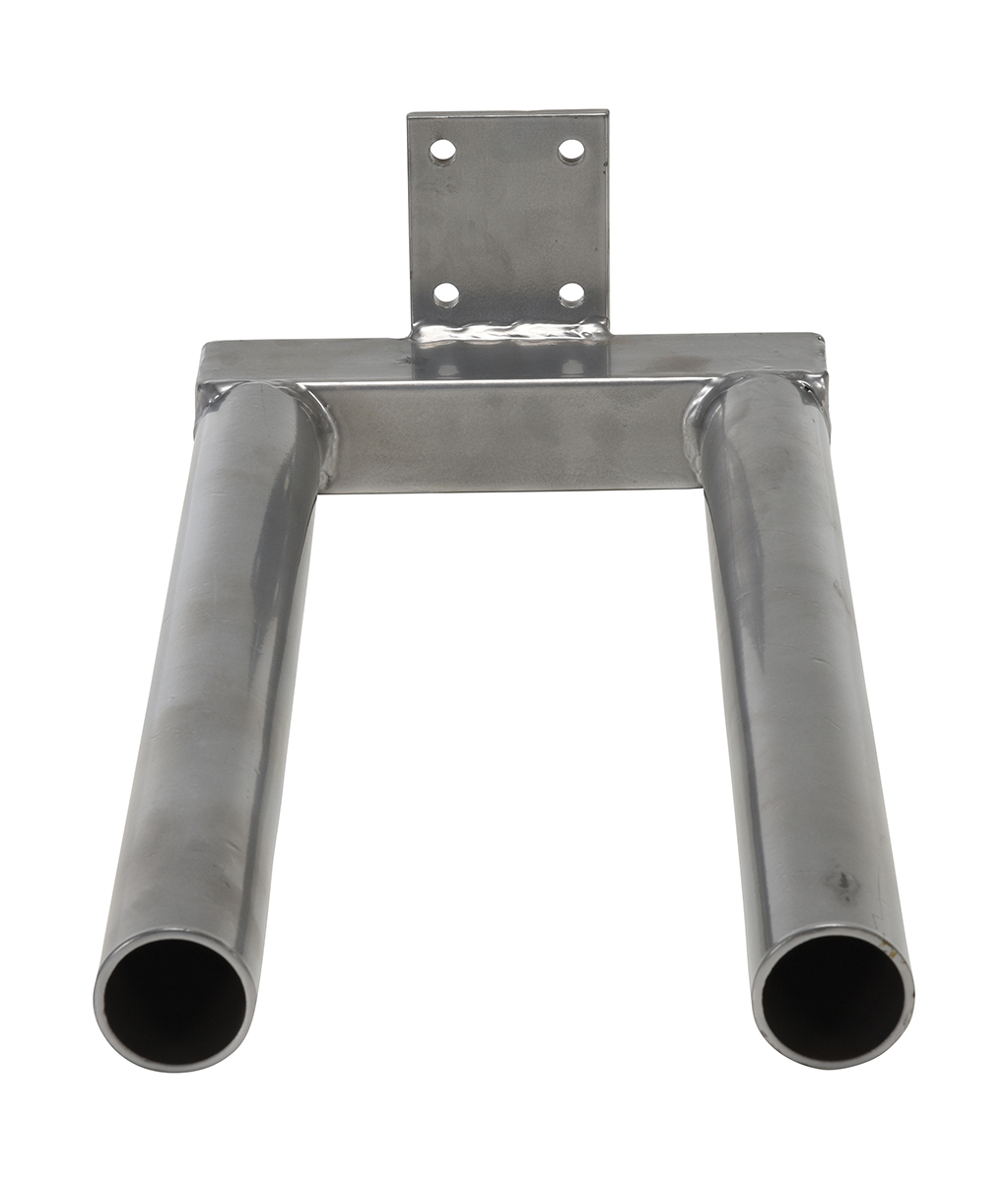

MWP-DSPIN MWP-DSPIN90 Days Limited WarrantySteel Double Spindle Manual Work Positioner Attachment 5-1/2 In. x 9-3/4 In. x 20 In. SilverSpindle Diameter (in.): 2
Spindle Length (in.): 17-1/2		15

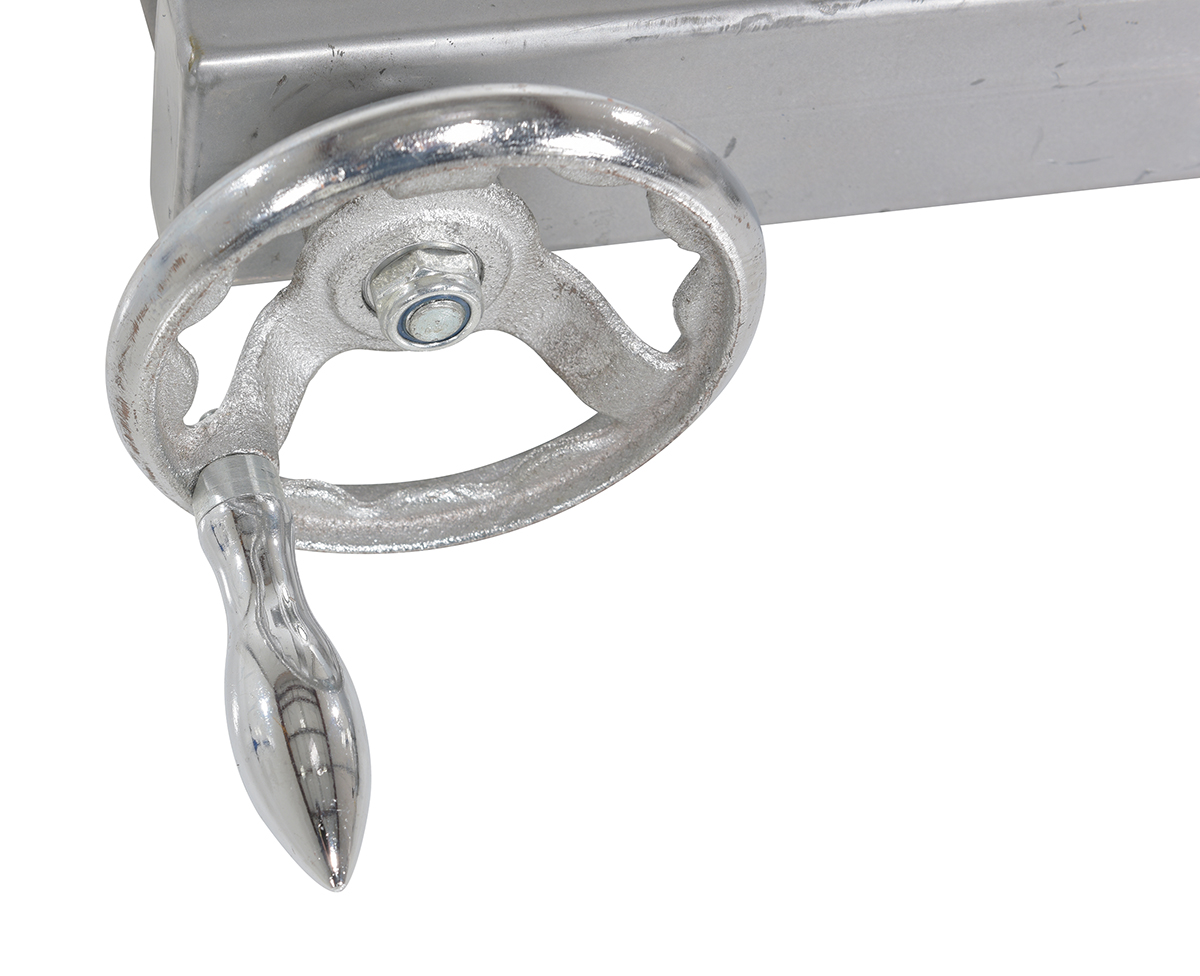

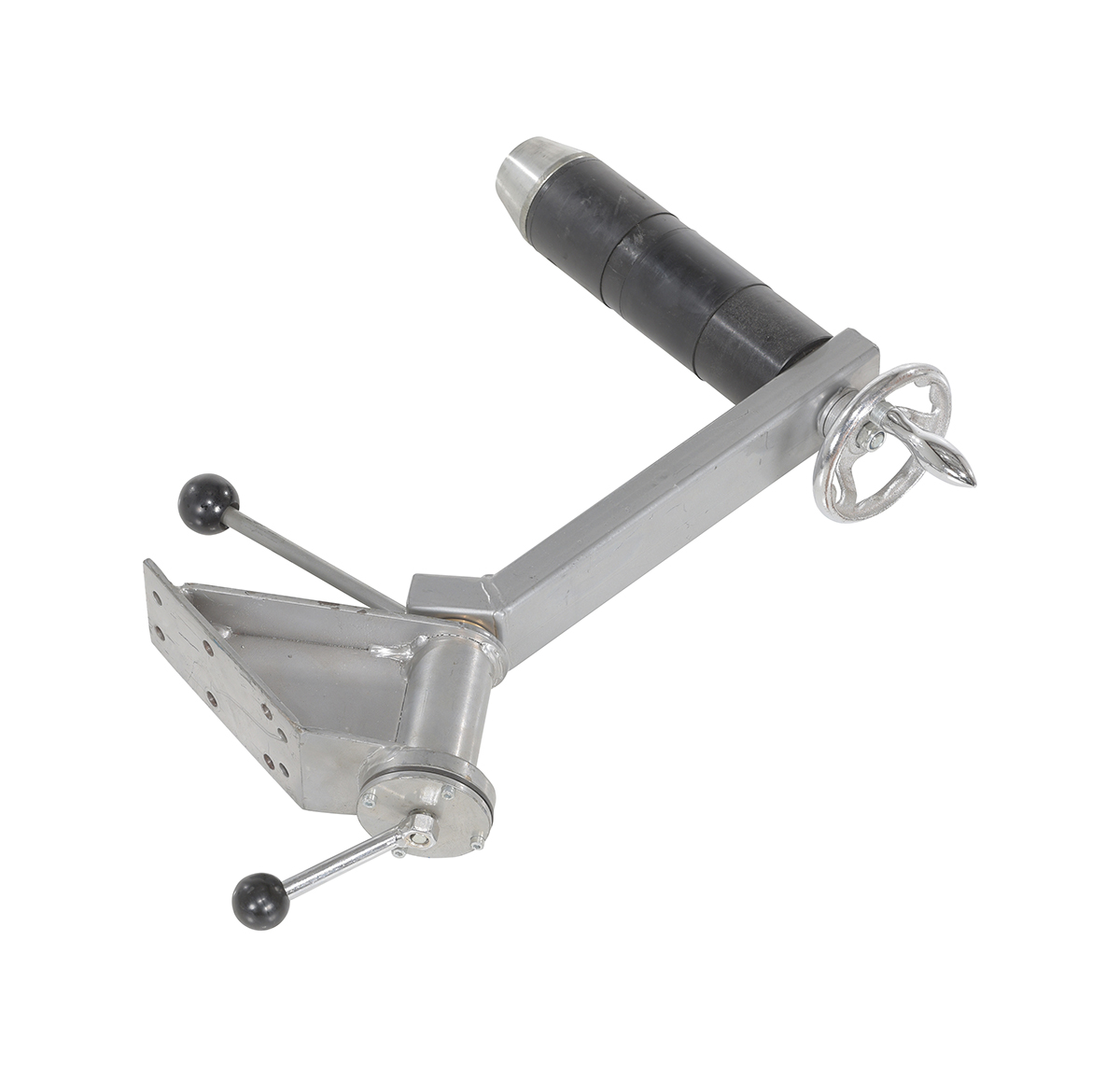

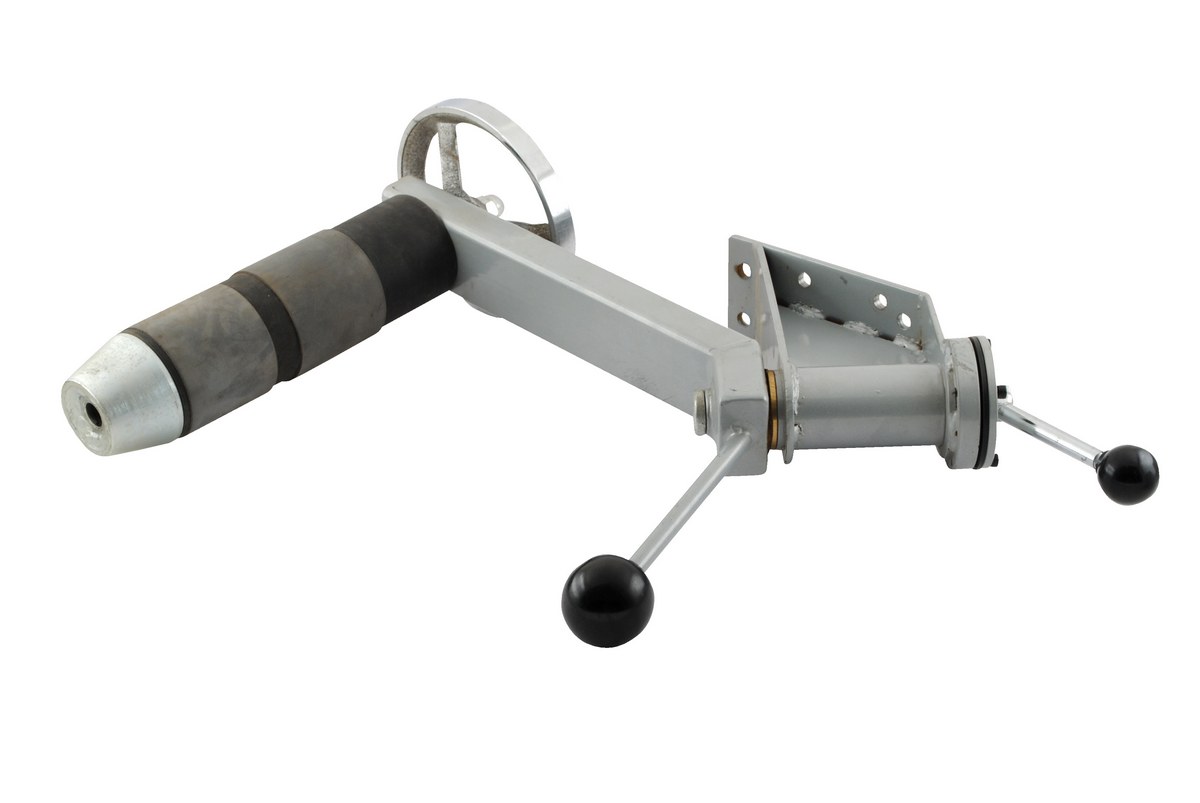

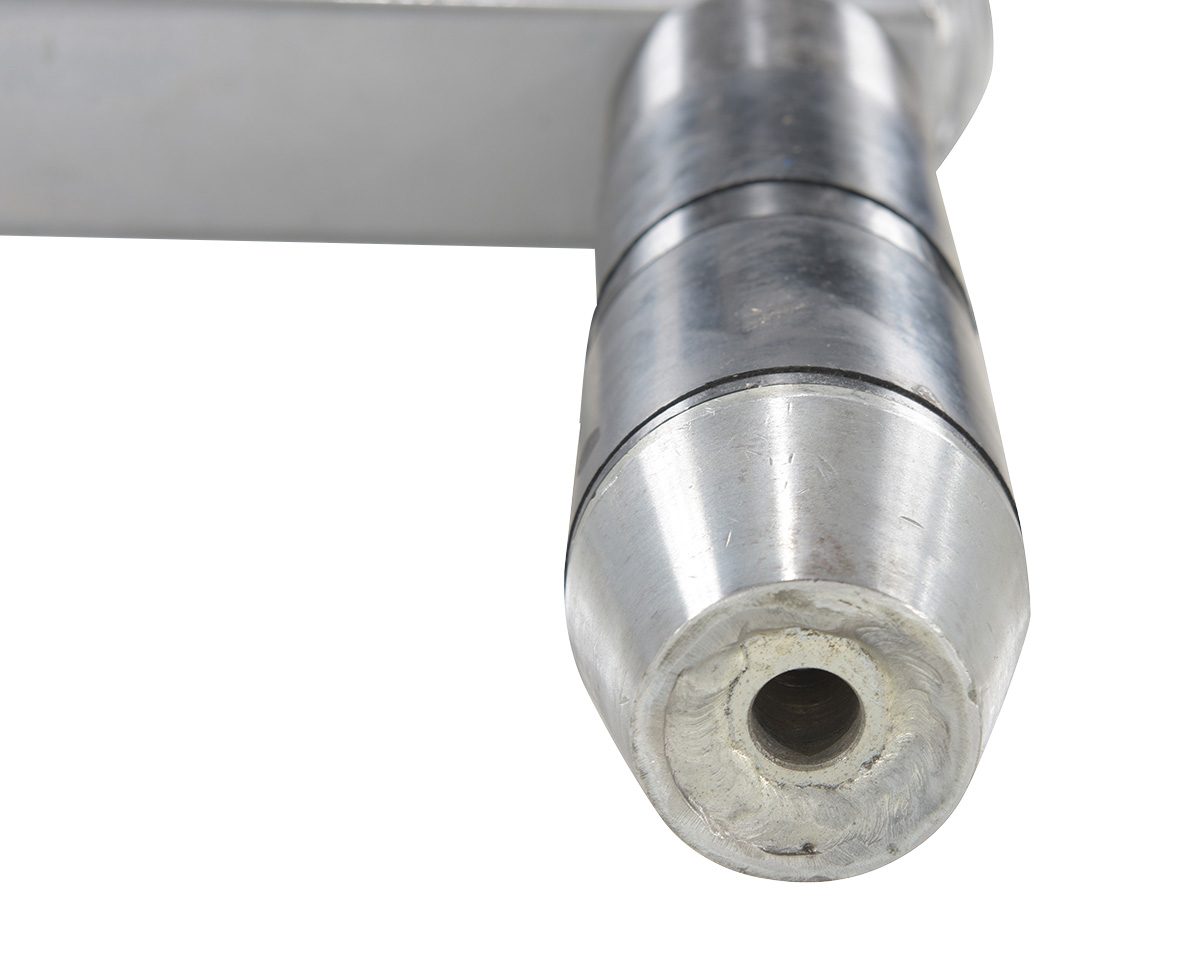

MWP-RR MWP-RR90 Days Limited WarrantySteel Reel Rotator Manual Work Positioner Attachment 16-7/16 In. x 7-1/2 In. x 20-5/8 In. GrayArbor Diameter (in.): 2-15/16
Usable Arbor Length (in.): 9		33

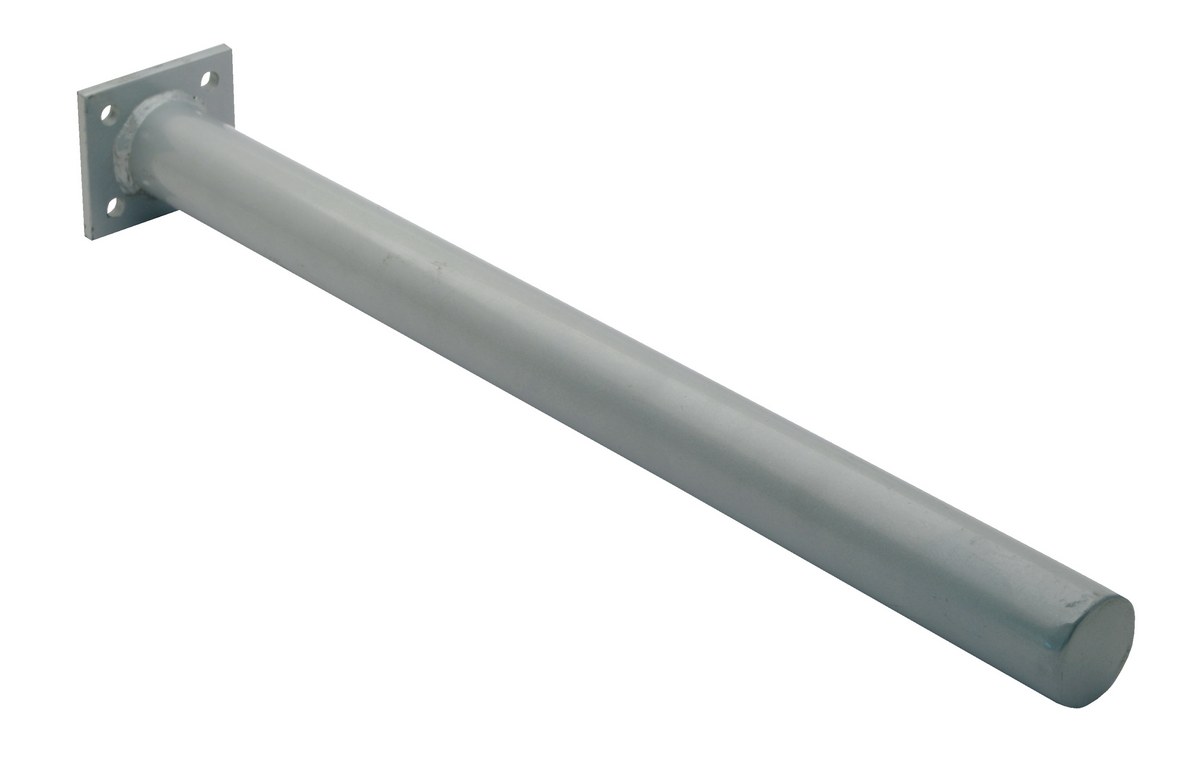

MWP-SPIN MWP-SPIN90 Days Limited WarrantySteel Single Spindle Manual Work Positioner Attachment 23-3/4 In. x 3 In. x 3-1/2 In. SilverSpindle Diameter (in.): 2
Spindle Length (in.): 23-1/2		6

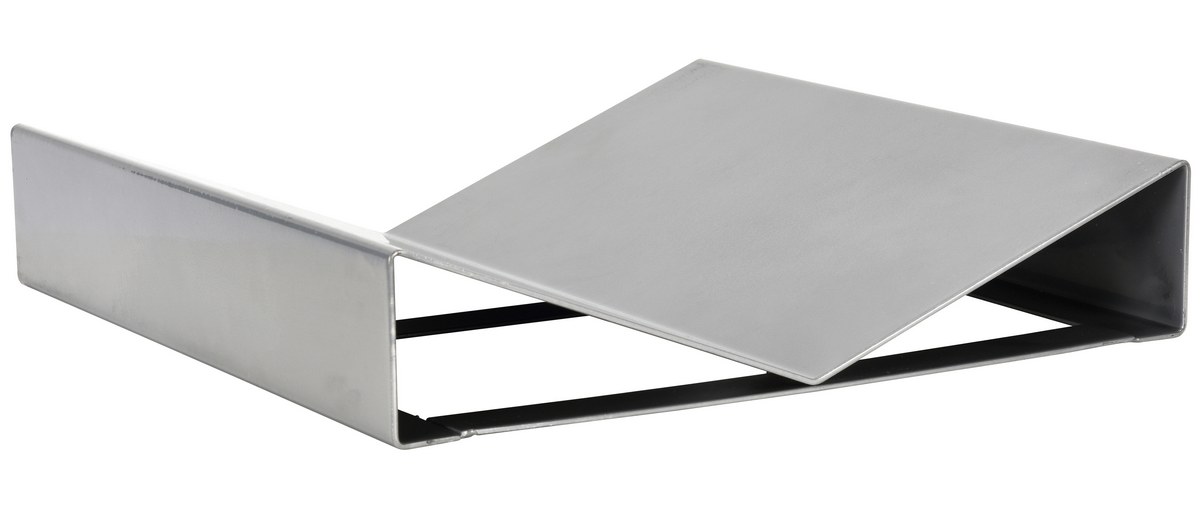

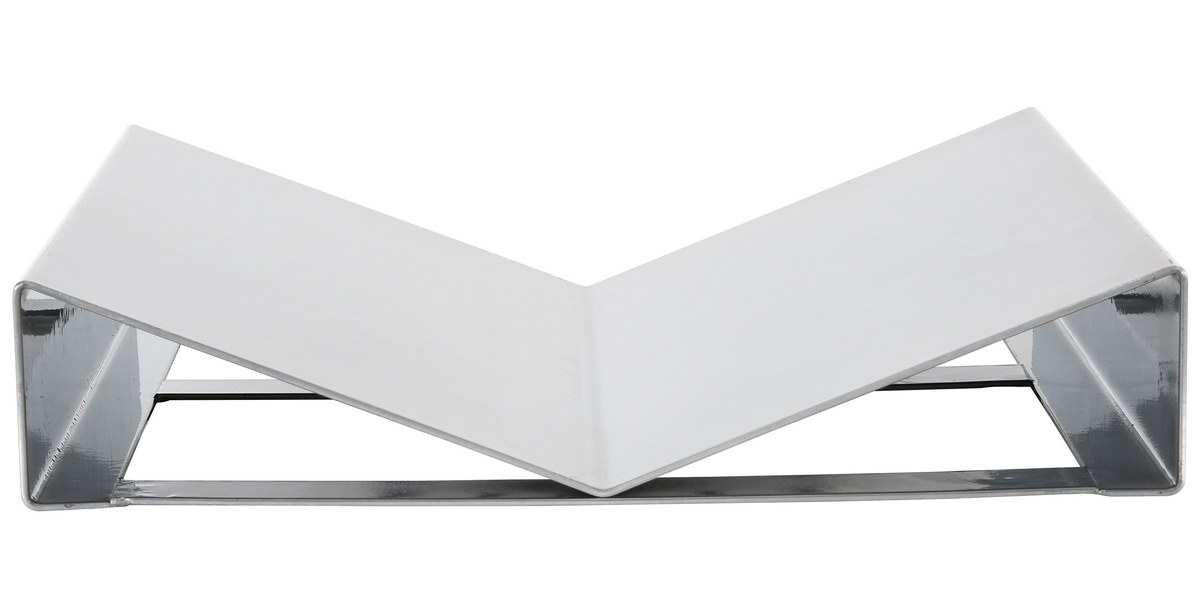

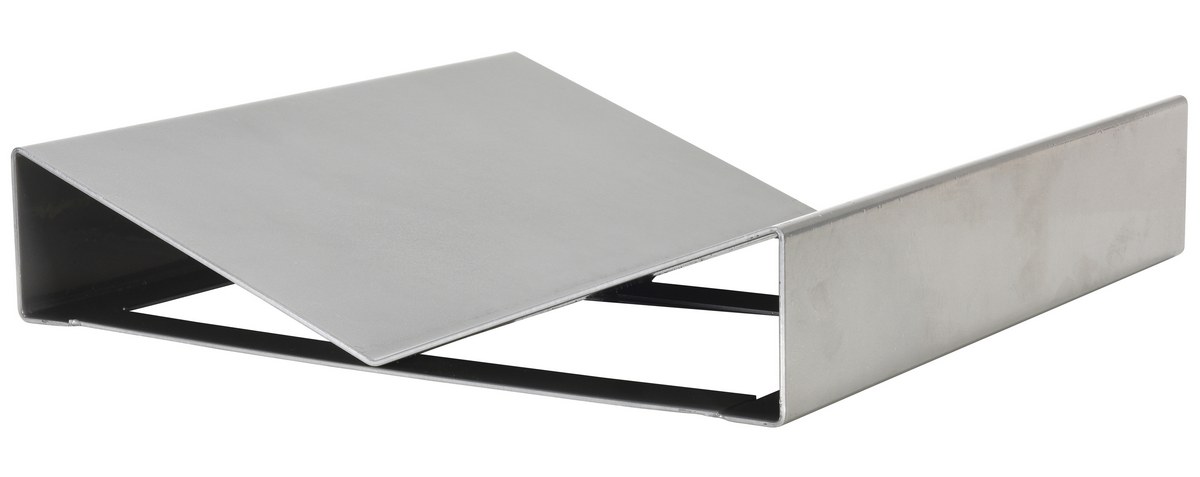

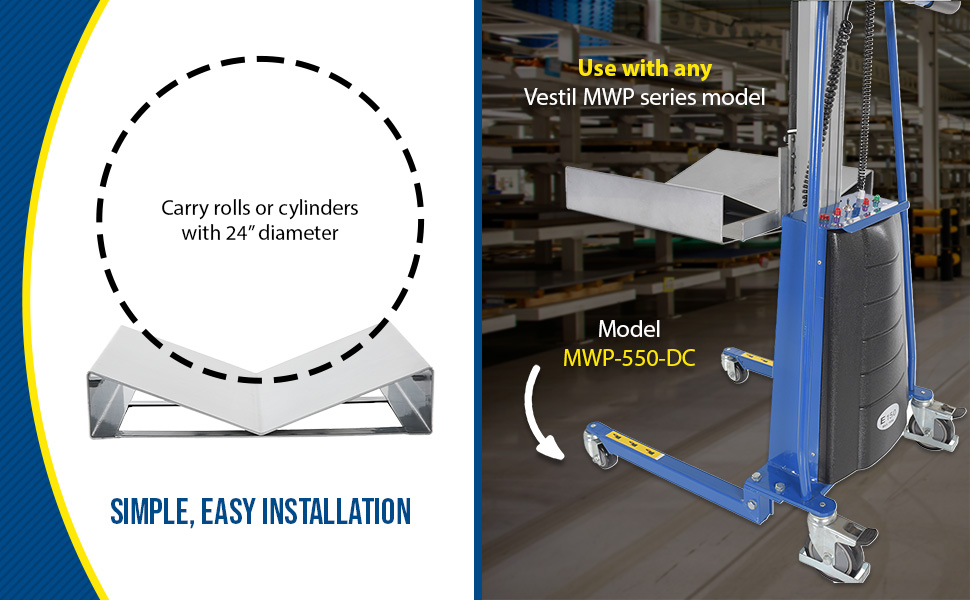

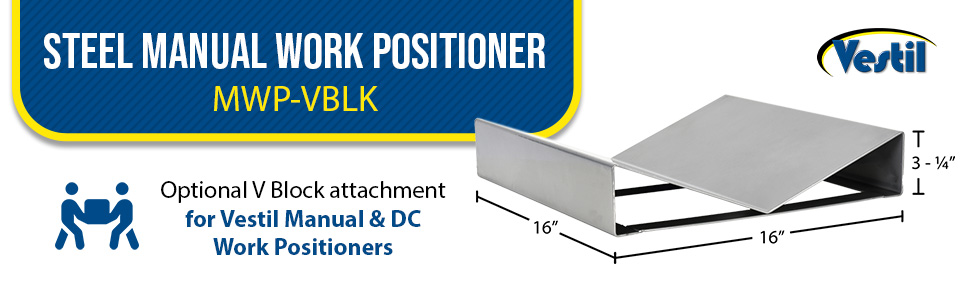

MWP-VBLK MWP-VBLK90 Days Limited WarrantySteel V Block Manual Work Positioner Attachment 16 In. x 16 In. x 3-1/4 In. SilverMaximum Roll Diameter (in.): 24
15

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Manual & DC Work Positioners PDF's will open in a new window when clicked.

Manuals


MWP-550-DC
Owners Manual

MWP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MWP-330-DC

MWP-330-DC-SS

MWP-440-M-SS

MWP-550-DC

MWP-RR

MWP-SPIN

Testing Certificates


MWP-220-M

MWP-330-DC

MWP-330-DC-SS

MWP-440

MWP-440-M

MWP-440-M-SS

MWP-550-DC

MWP-DSPIN

MWP-RR

MWP-SPIN

MWP-VBLK

SDS Sheets


Valve Regulated Lead Acid Battery SDS Sheet for: MWP-330-DC
Hydraulic Oil SDS Sheet for: MWP-330-DC
Hydraulic Oil SDS Sheet for: MWP-330-DC-SS

Valve Regulated Lead Acid Battery SDS Sheet for: MWP-550-DC
Hydraulic Oil SDS Sheet for: MWP-550-DC

Other PDF's


Stainless Steel Electric Work Positioner Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

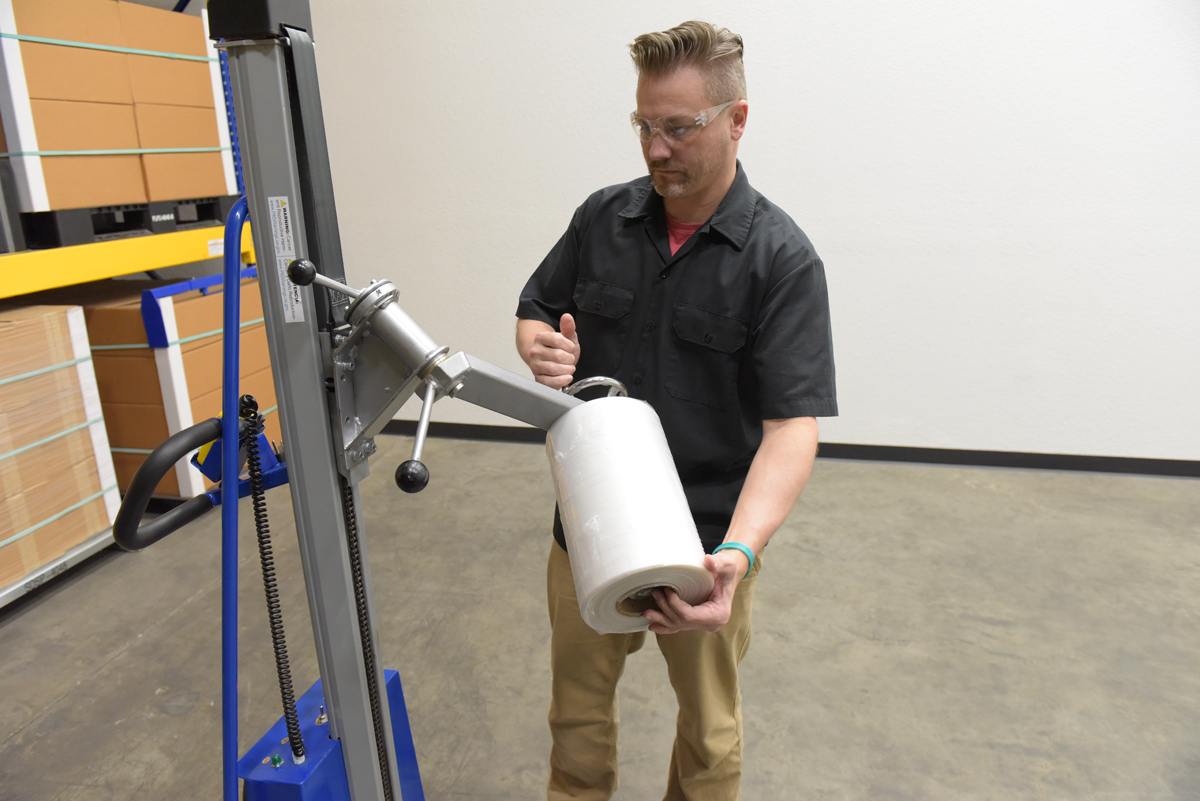

Q: How large a reel (outside diameter) will work with the MWP-RR?

A: The MWP-RR can accommodate a reel with a maximum exterior measurement of 9-13/16".

Q: What is the capacity of the reel rotator?

A: The MWP-RR reel rotator has a capacity of 200 lbs.

Q: How fast does the platform raise and lower?

A: The MWP-30-DC has a lift speed of 30 seconds and 29 seconds to lower the platform.

Q: Will the MWP-SPIN work with the MWP-550?

A: Yes, the MWP-550-DC & MWP-SPIN will work together.

Q: What is the raise time on the MWP-500-DC?

A: The raised time is 38 seconds.

Q: Do you have a reel rotator with a 6" arbor?

A: The MWP-RR can accommodate a reel with a 3" core.

Q: What is the distance between the two feet?

A: The distance between the two feet is 14.5"

Q: IS the MWP-330-DC-SS CSA compliant?

A: No, it is not but we do have the option to add a CSA compliant battery charger. Please contact a sales associate for details.

Q: What is the battery life of the MWP-500-DC?

A: Continuous use would be approximately 10-12 hours. Battery lift could be impacted by weight lifted in addition to other factors.
