SERIES: SST

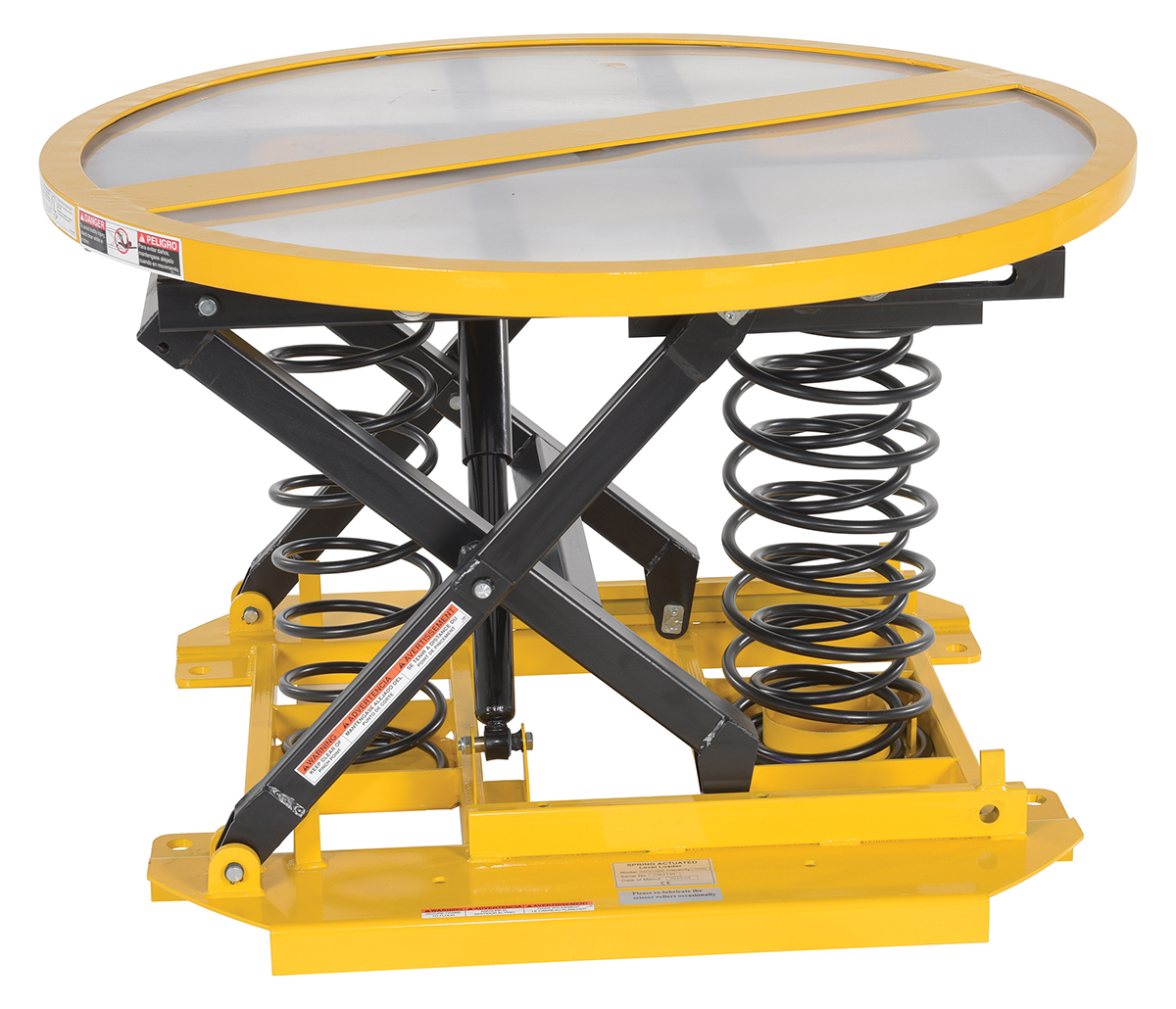

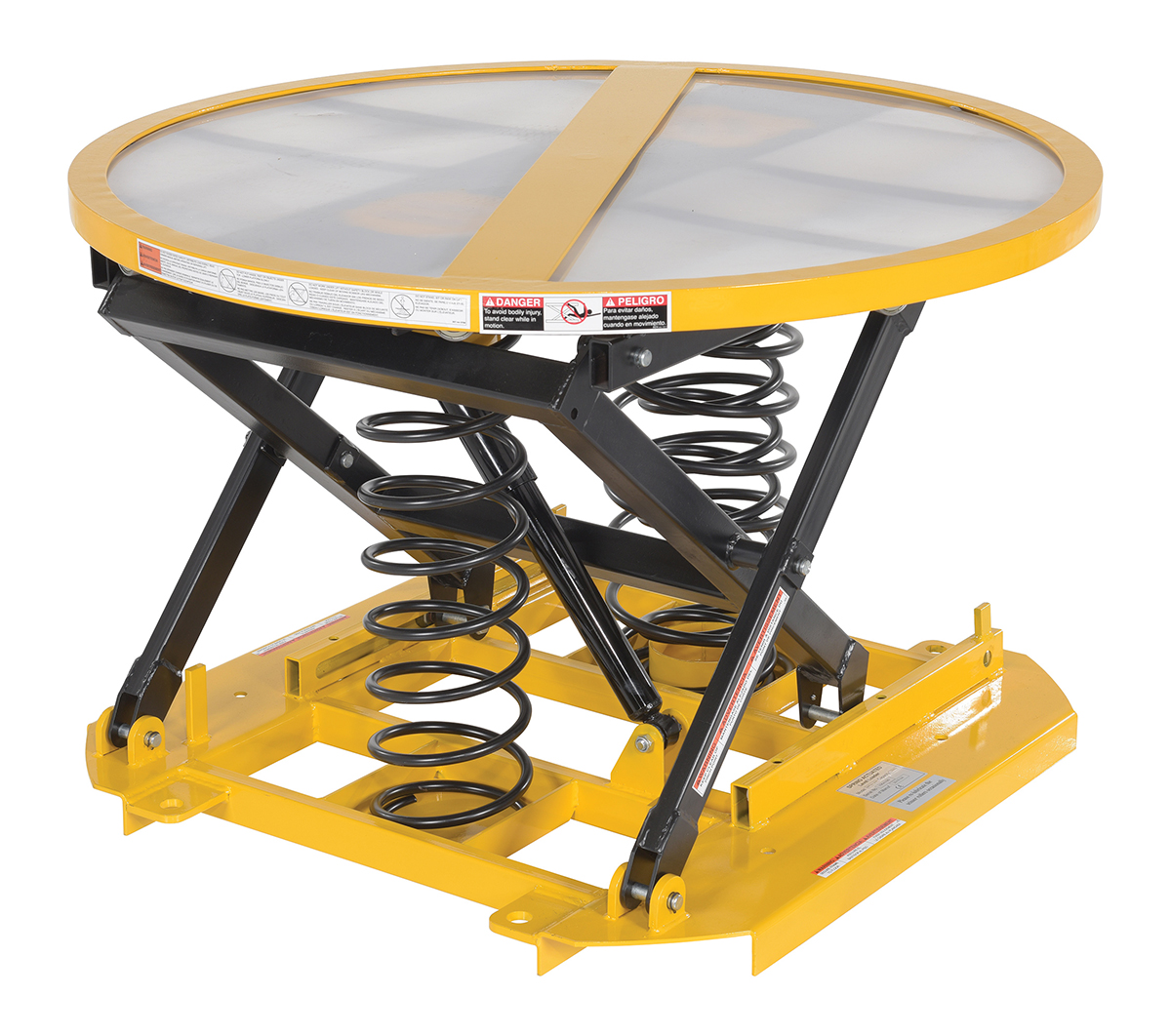

Spring Scissor Tables

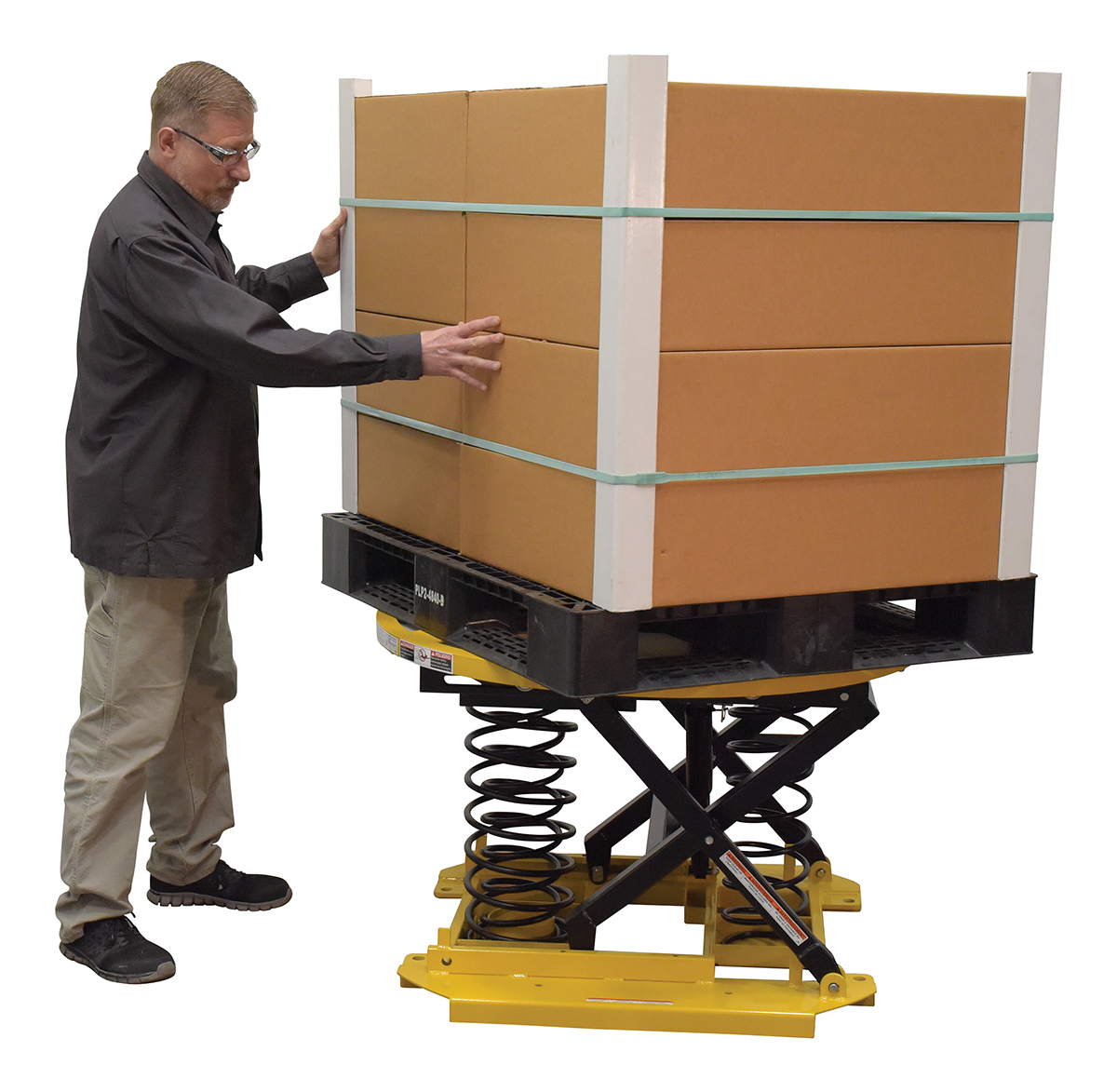

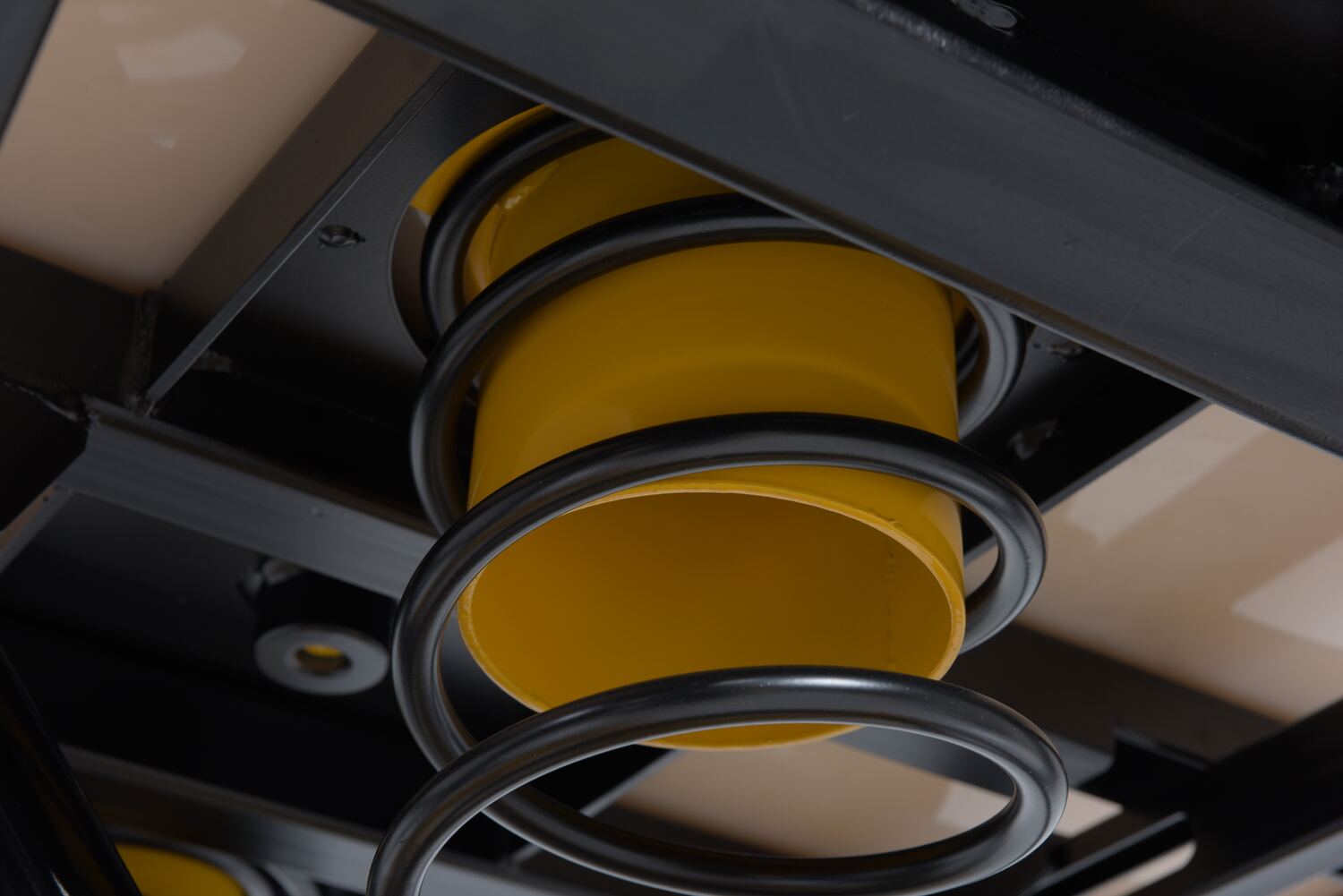

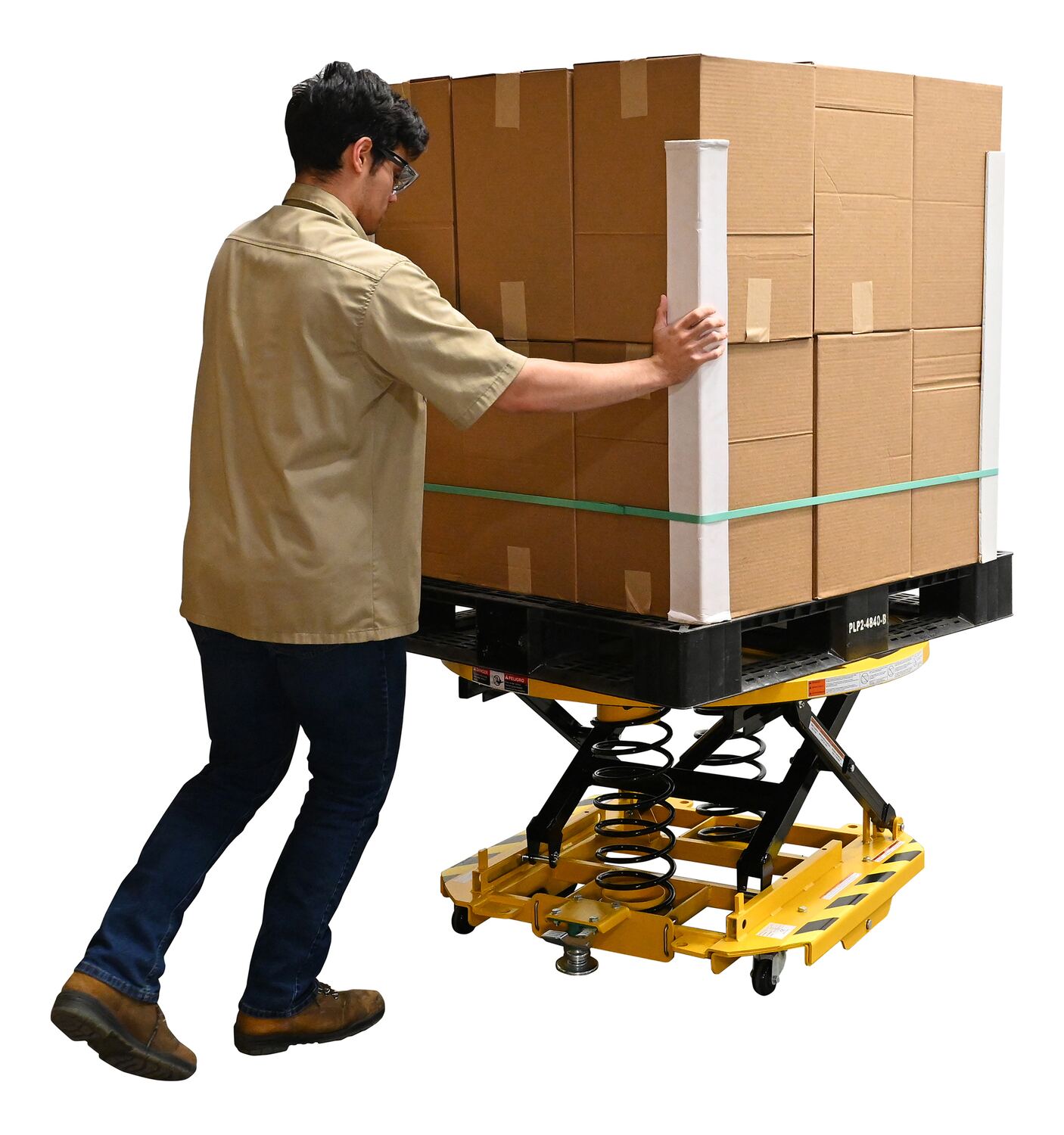

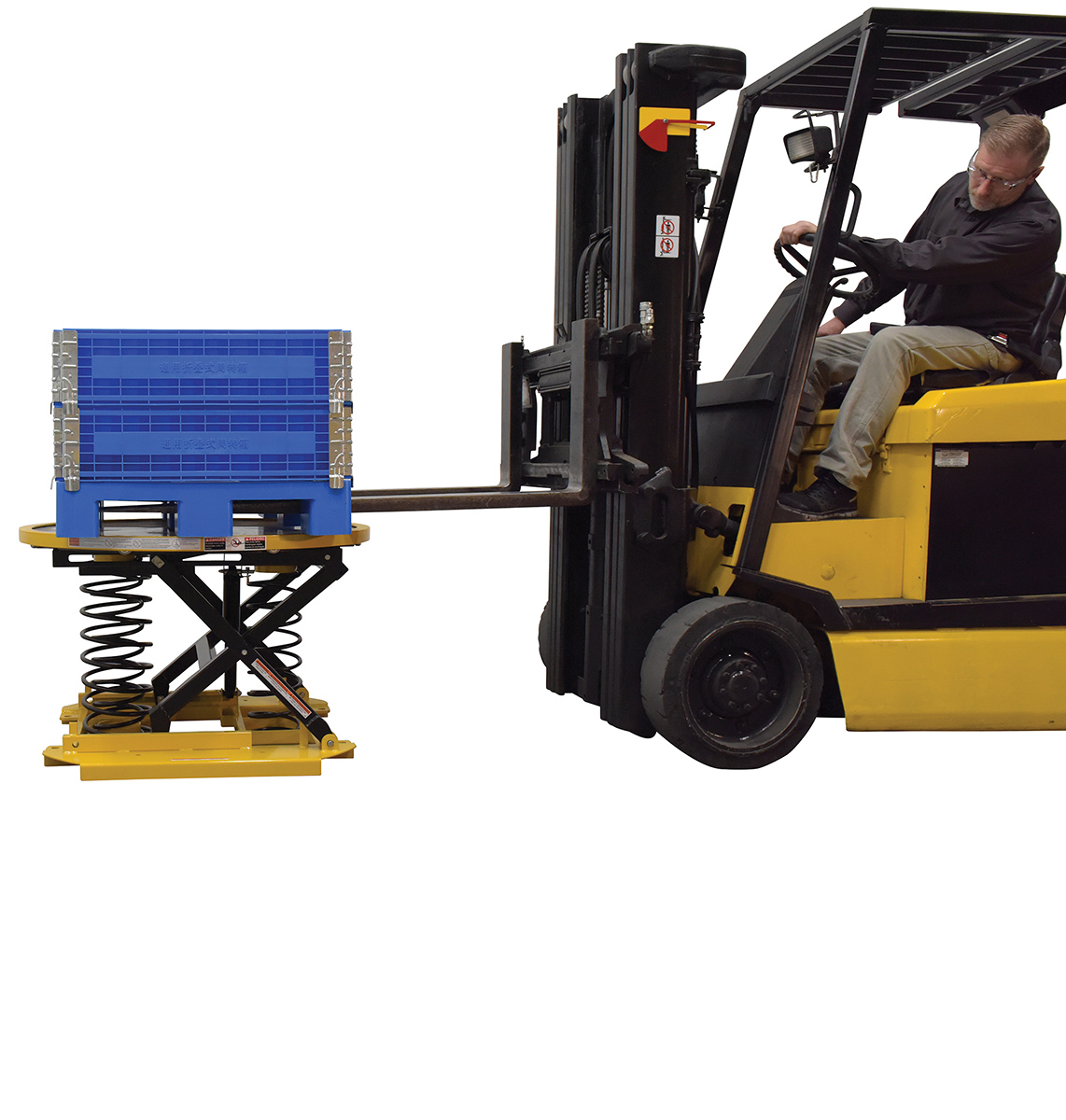

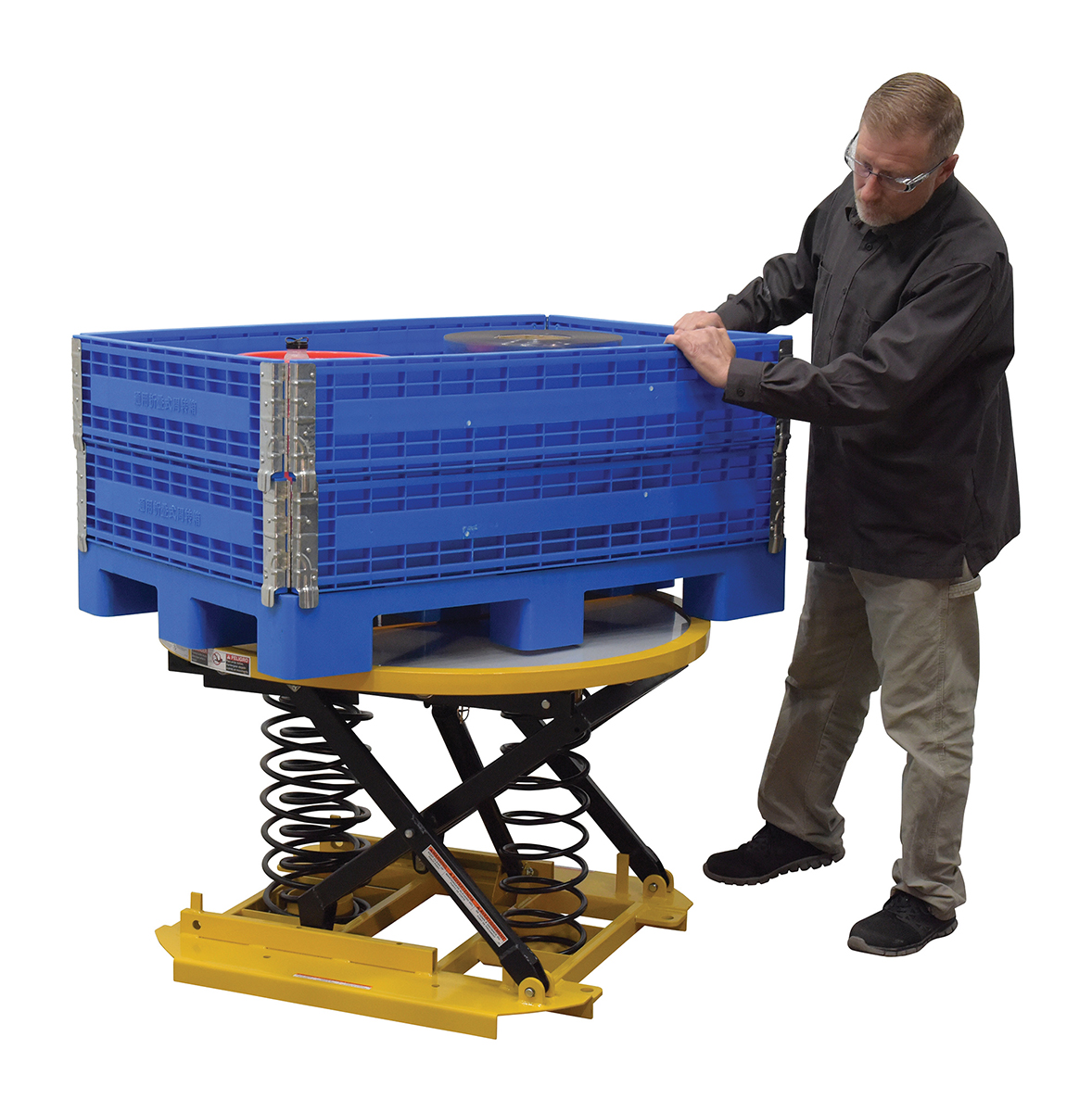

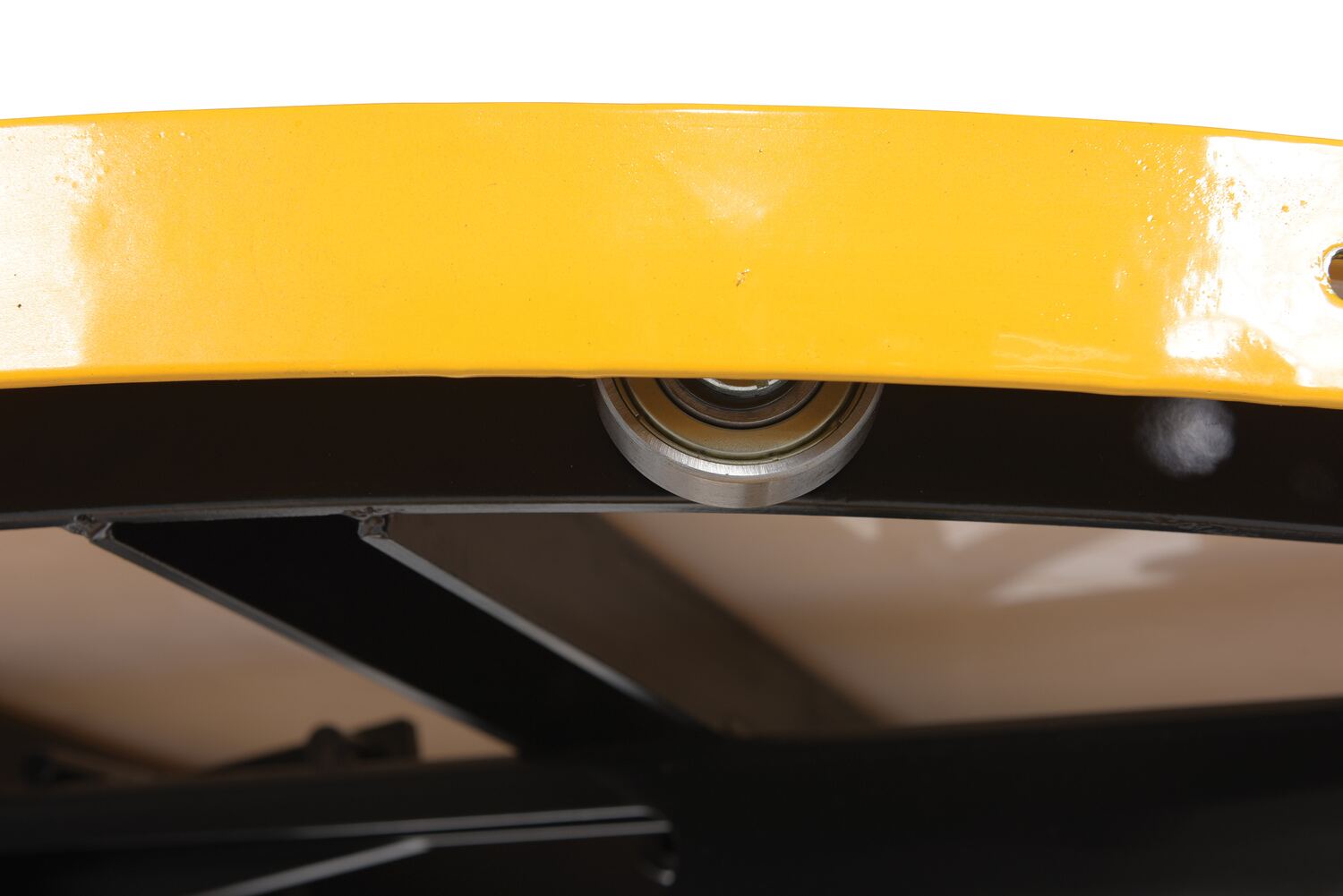

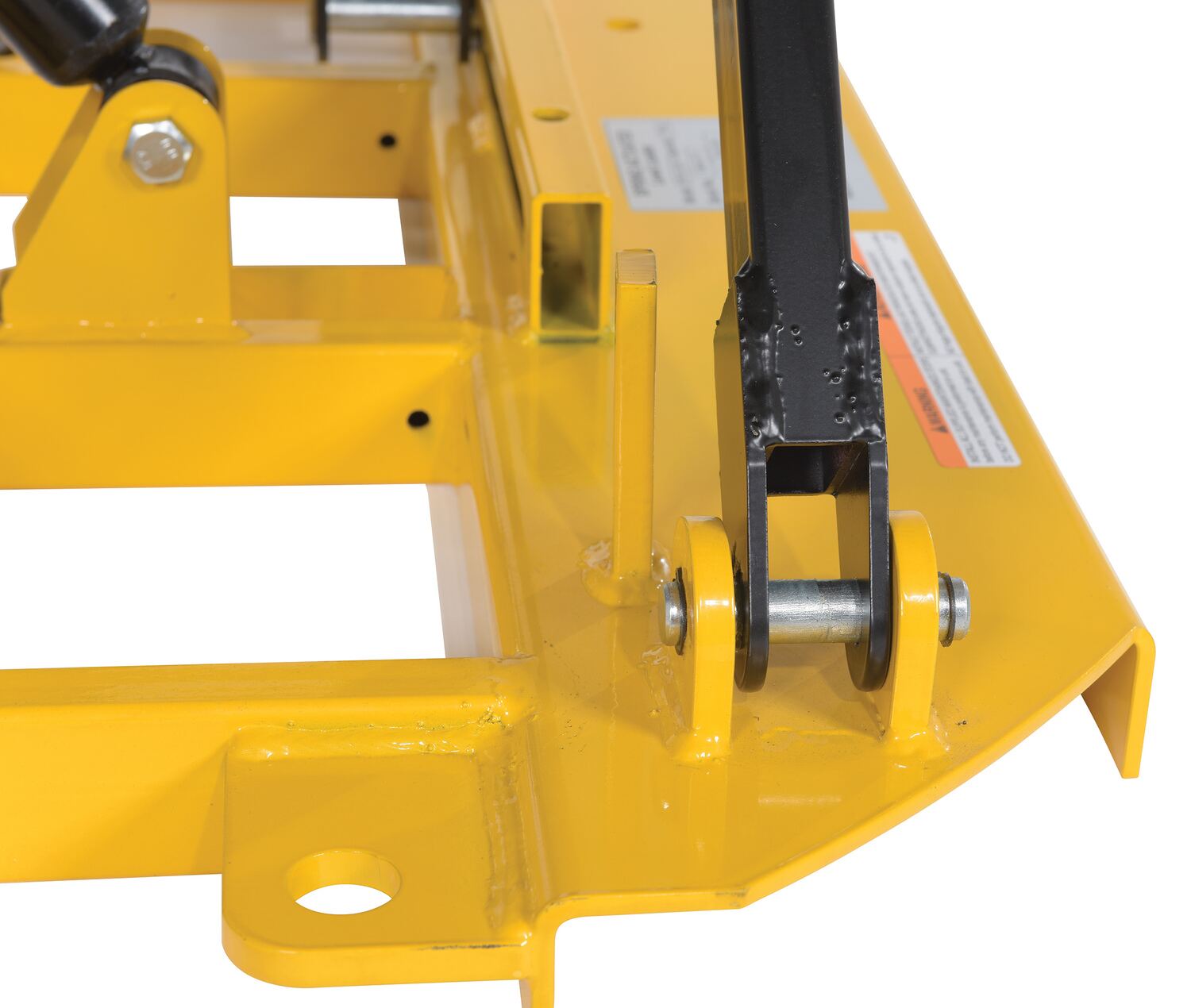

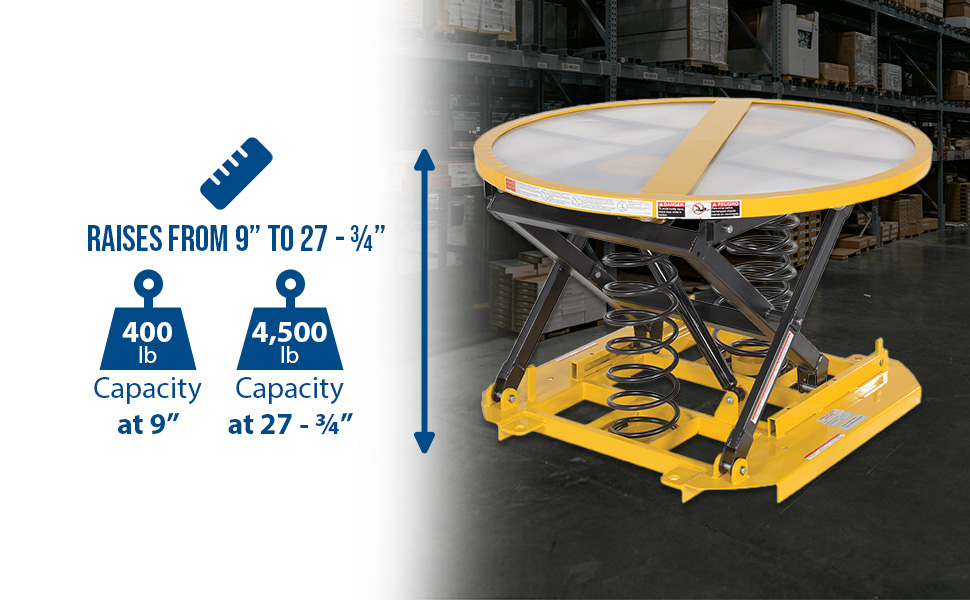

The Spring Scissor Table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. Uniform capacity is 400 to 4,500 pounds. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. Service range is 9" to 27-3/4". The 43-5/8" diameter top can be manually rotated 360 degrees for improved packaging and handling capabilities. Base size measures 36"W x 36-3/4"L with 6-3/4"W x 1-1/2"H fork pockets.

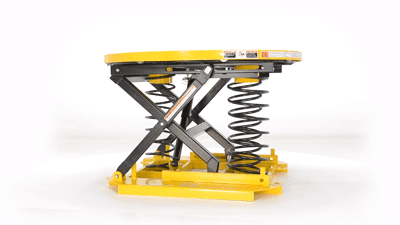

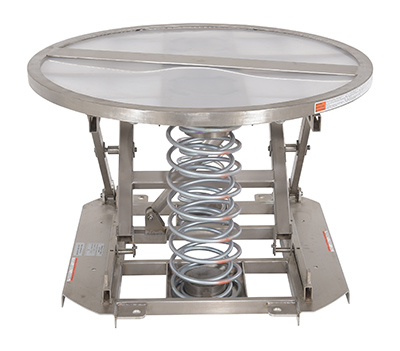

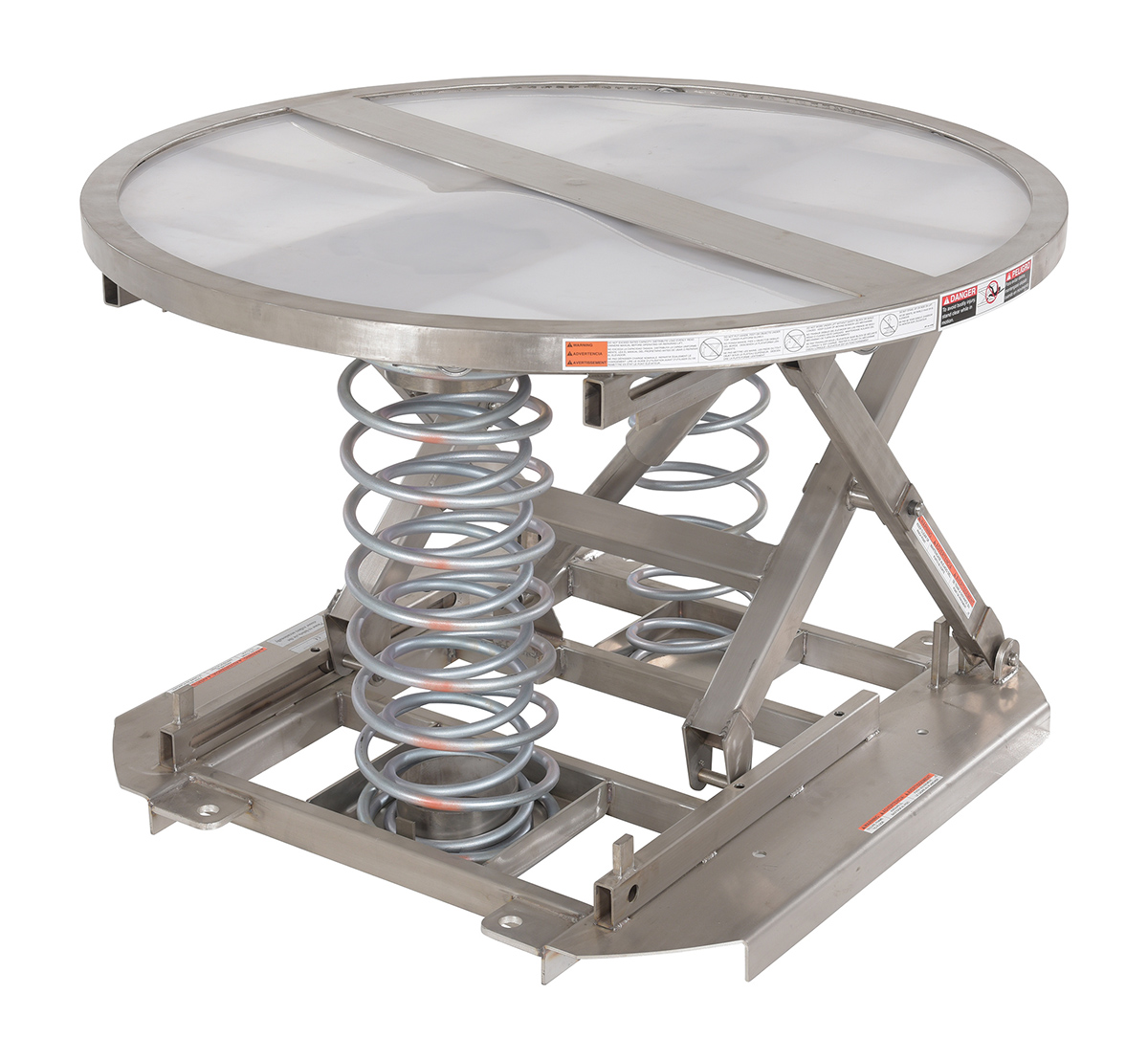

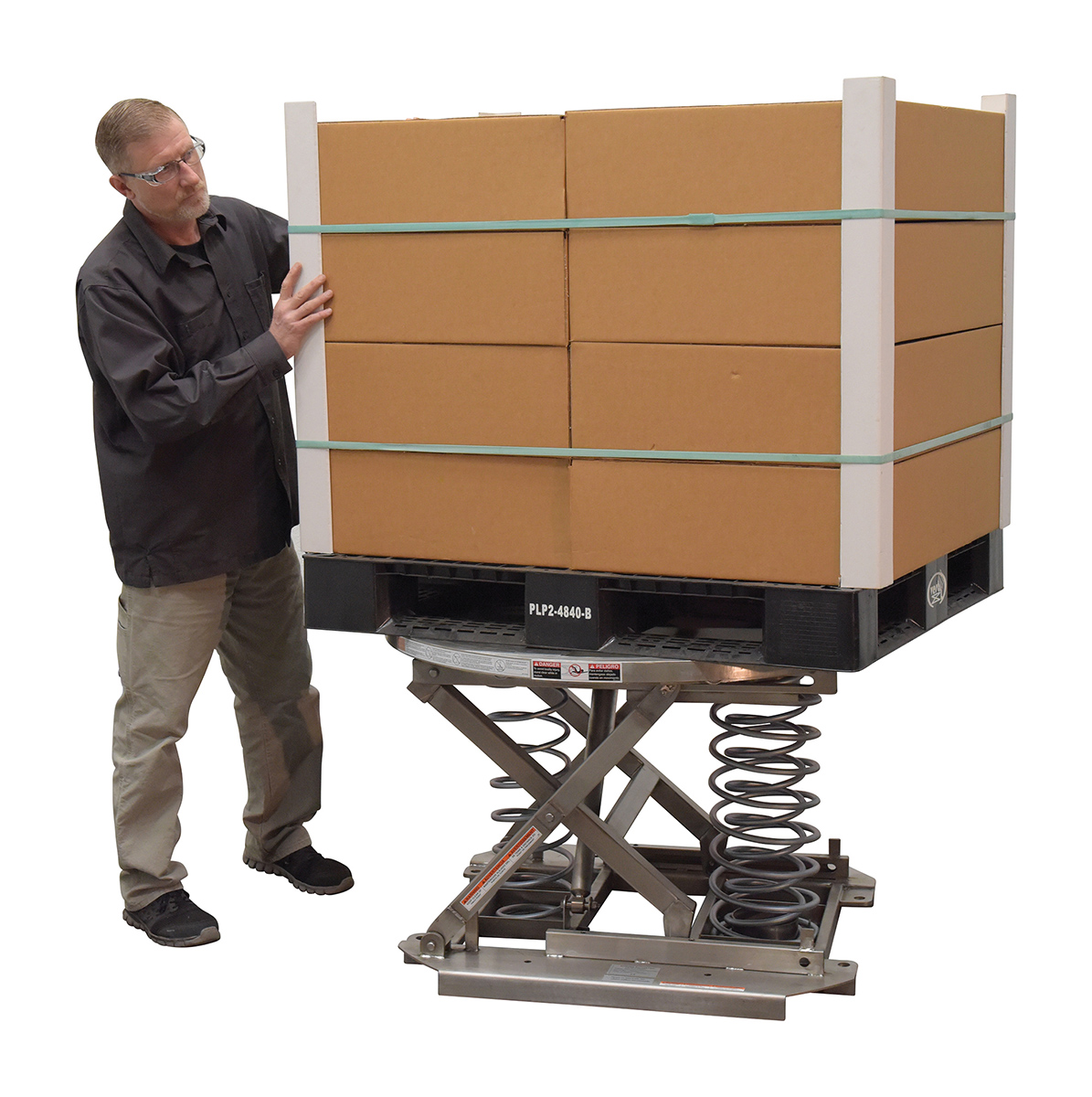

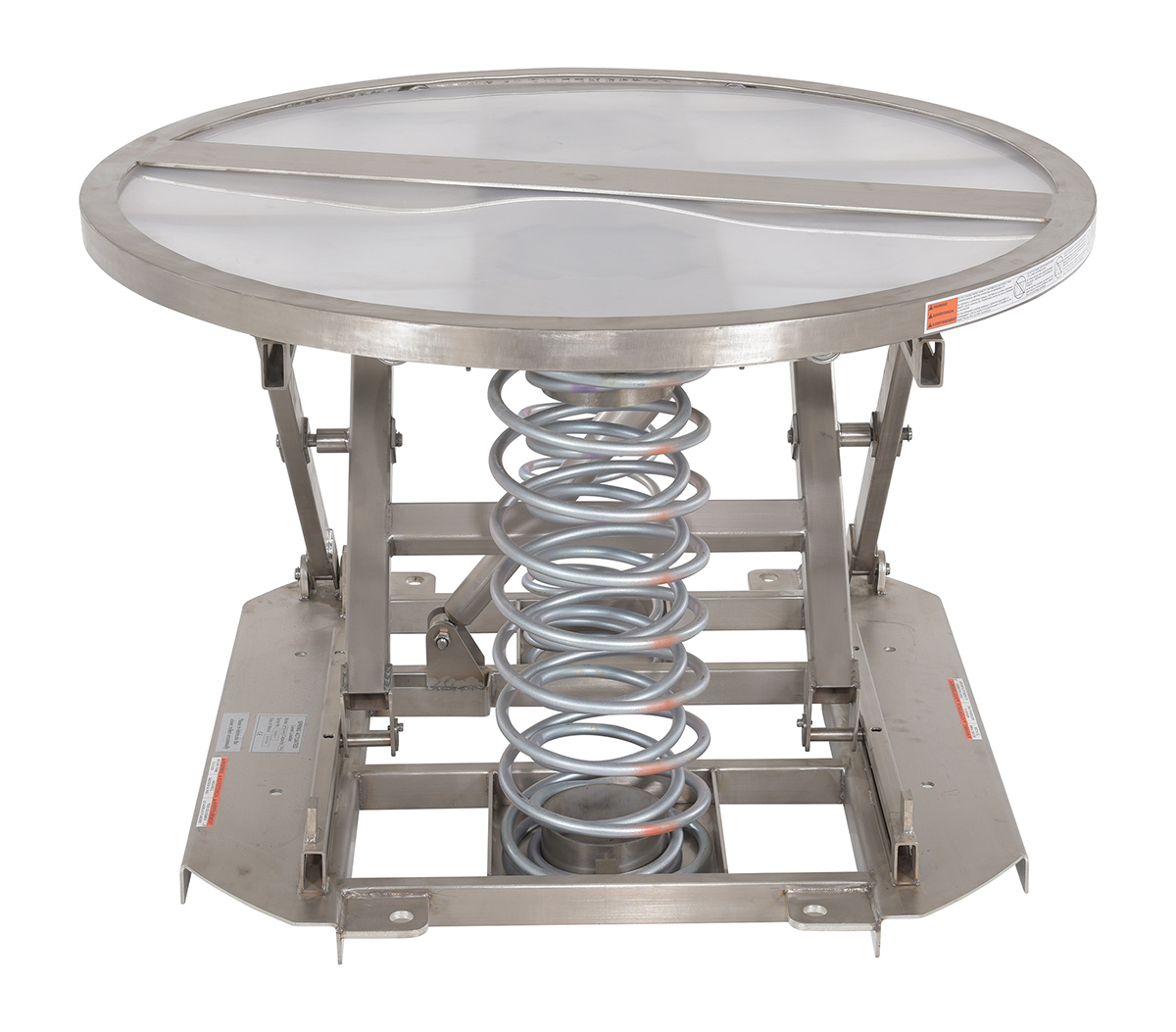

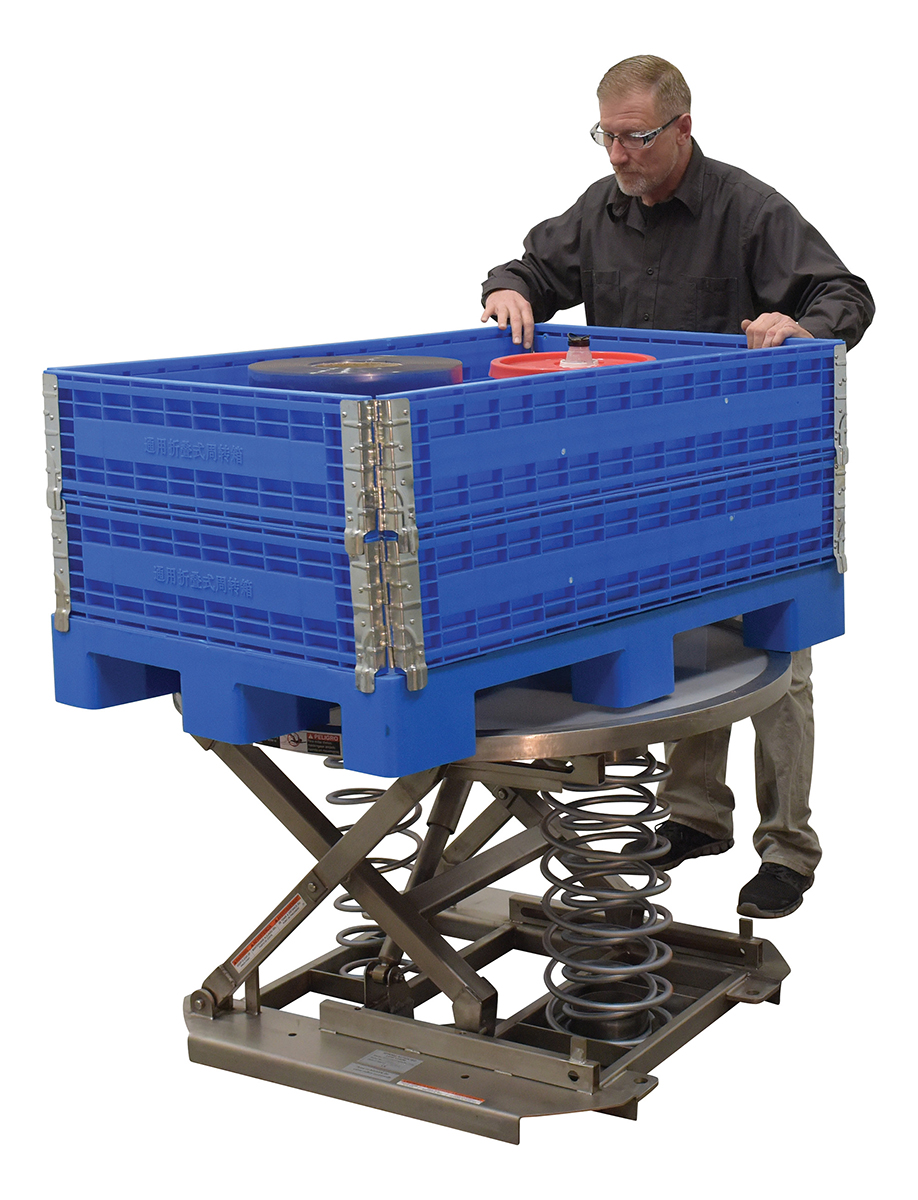

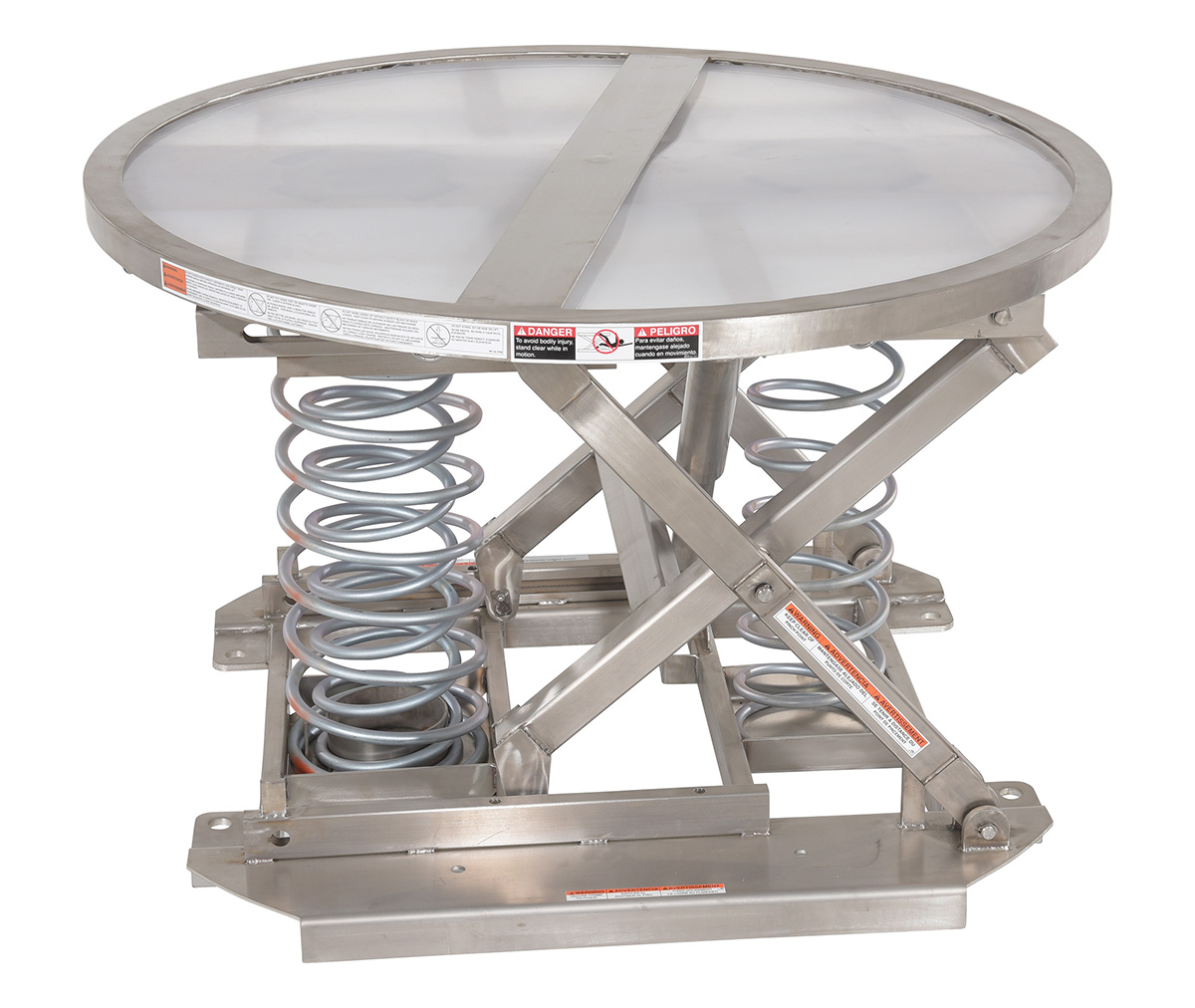

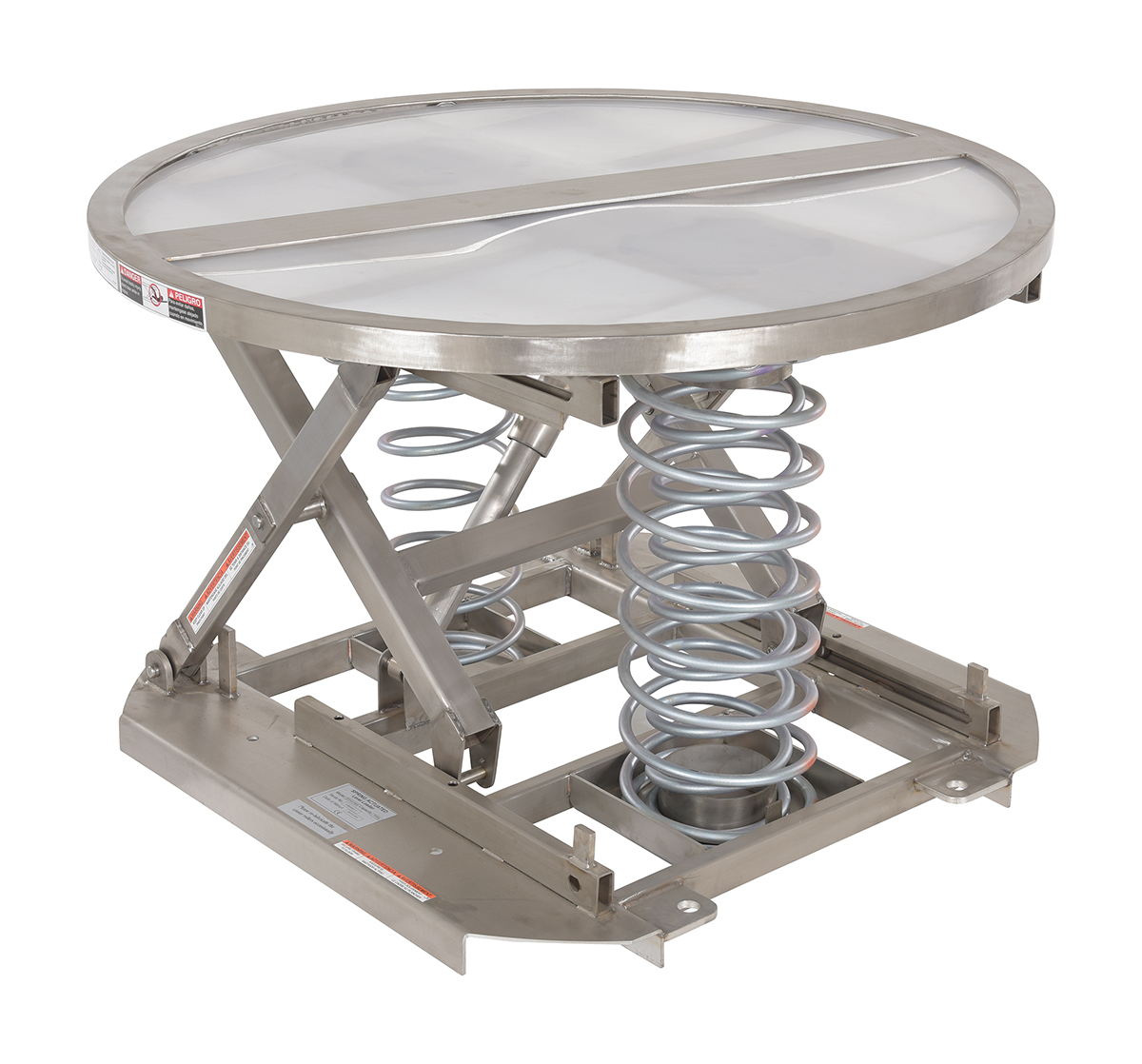

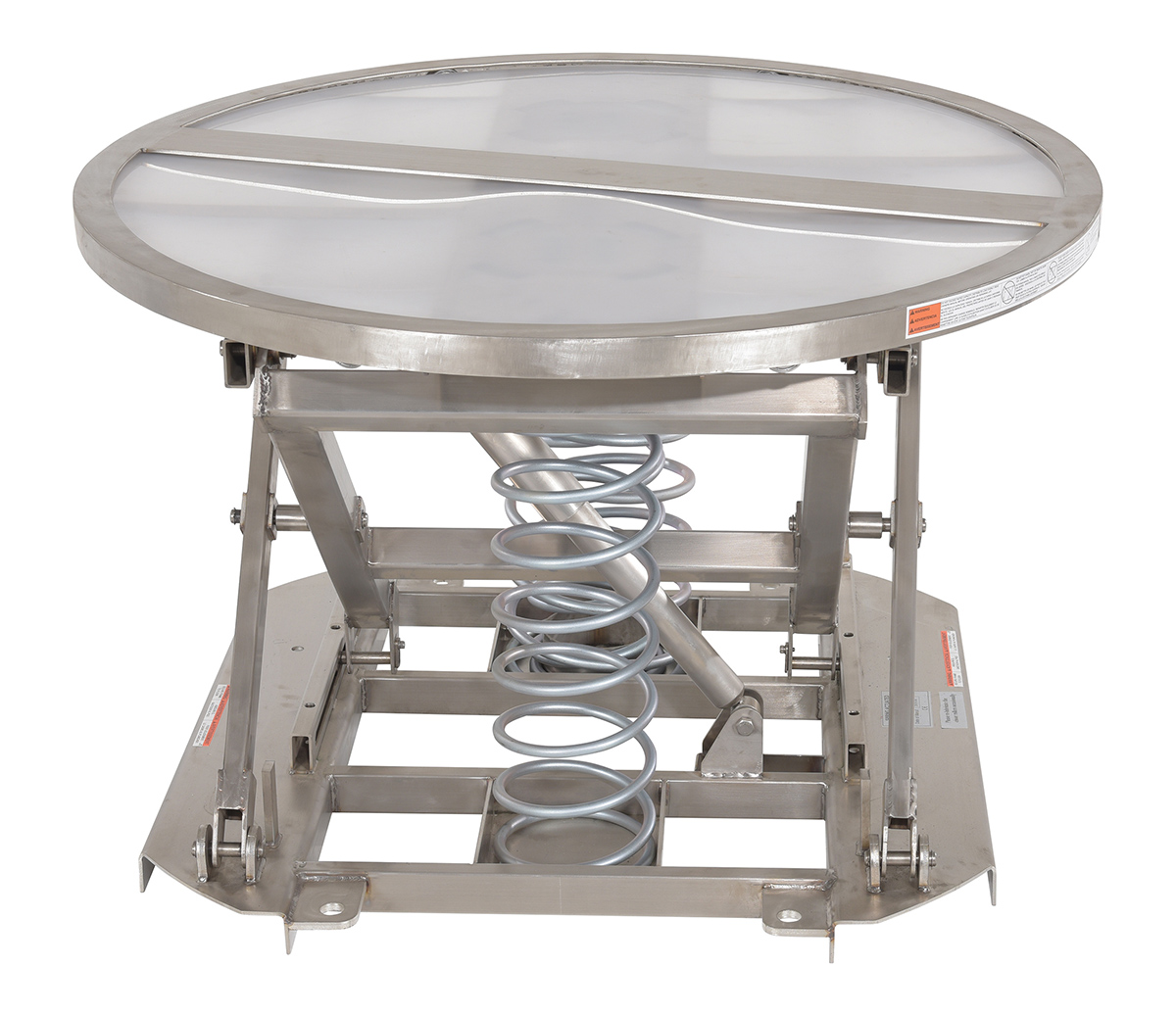

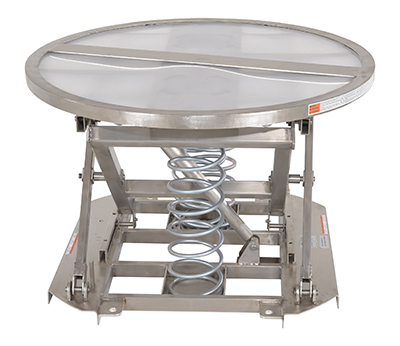

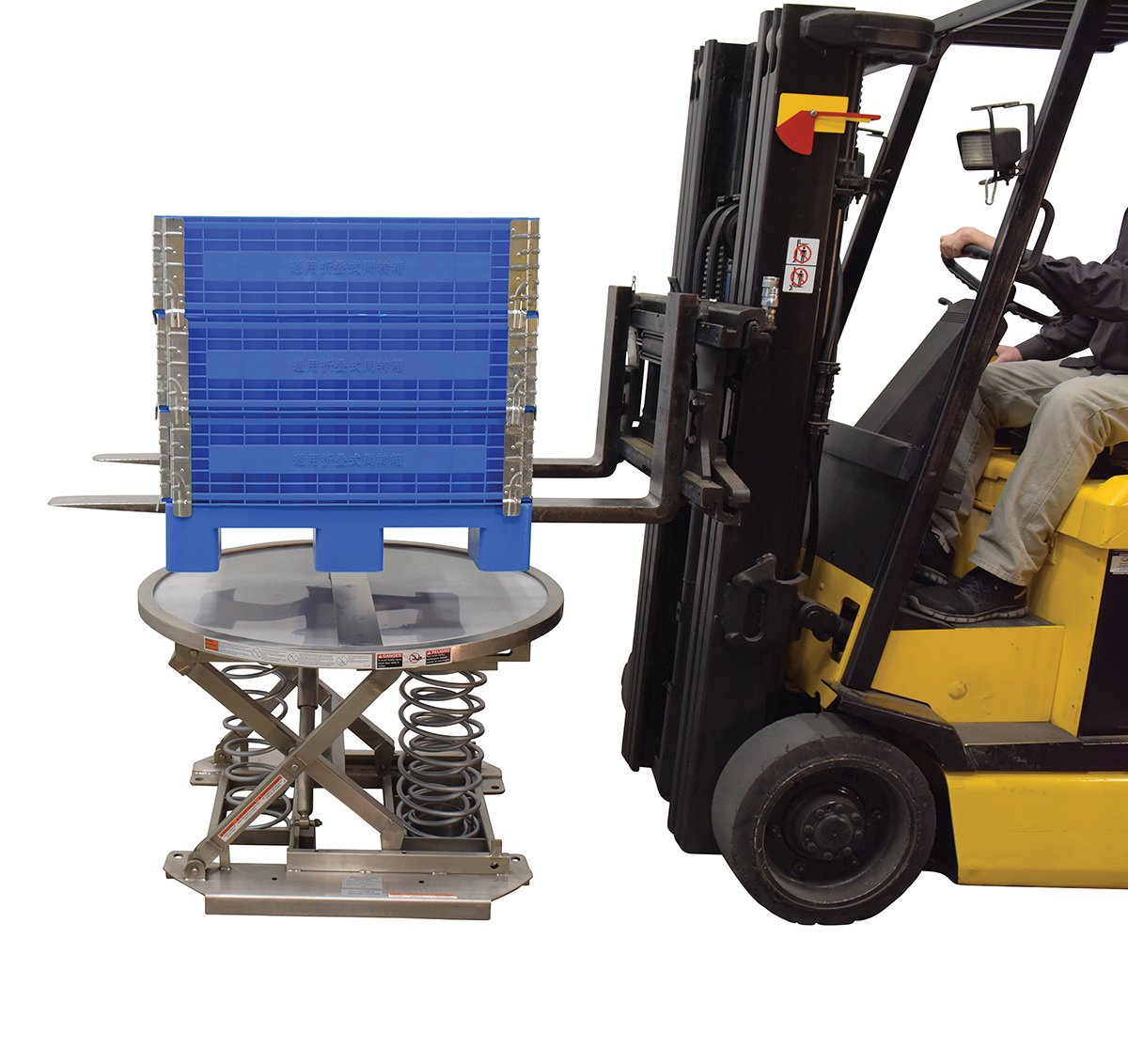

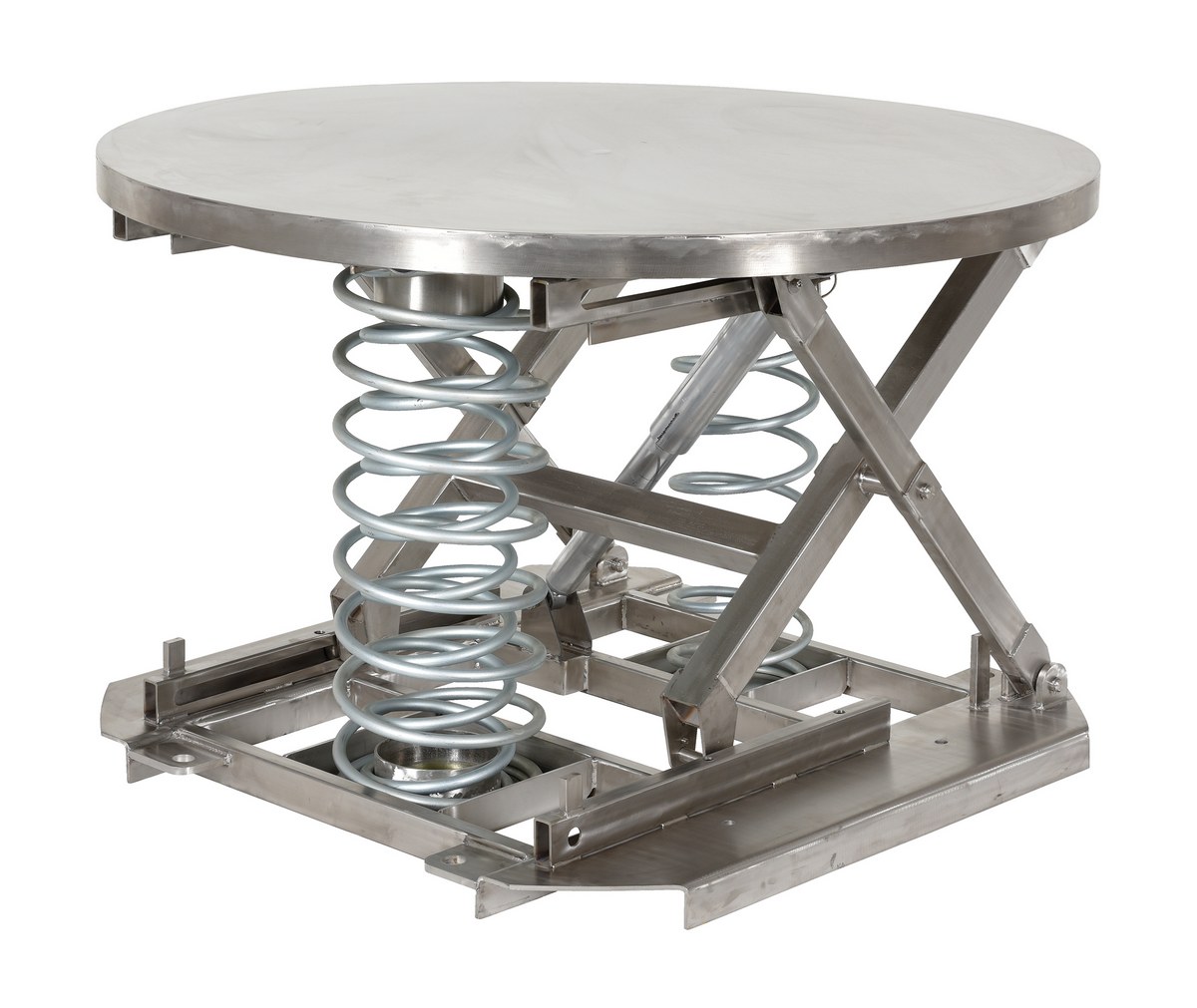

Model SST-45-PSS is constructed of a partially stainless steel base frame, spring, legs. Model SST-45-PSS-ST is constructed of a partially stainless steel as the model above however a solid top.

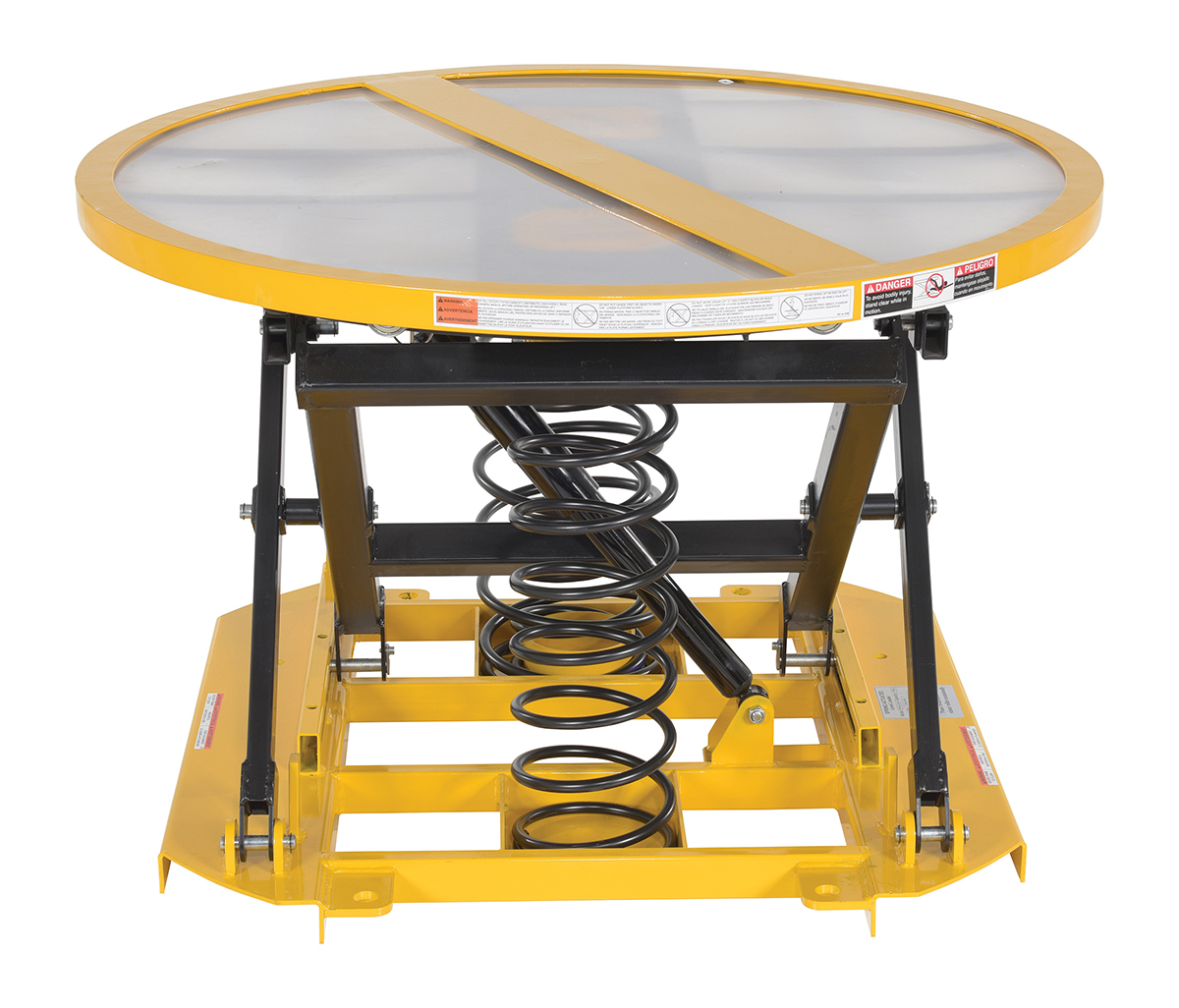

SST-45

model SST-45

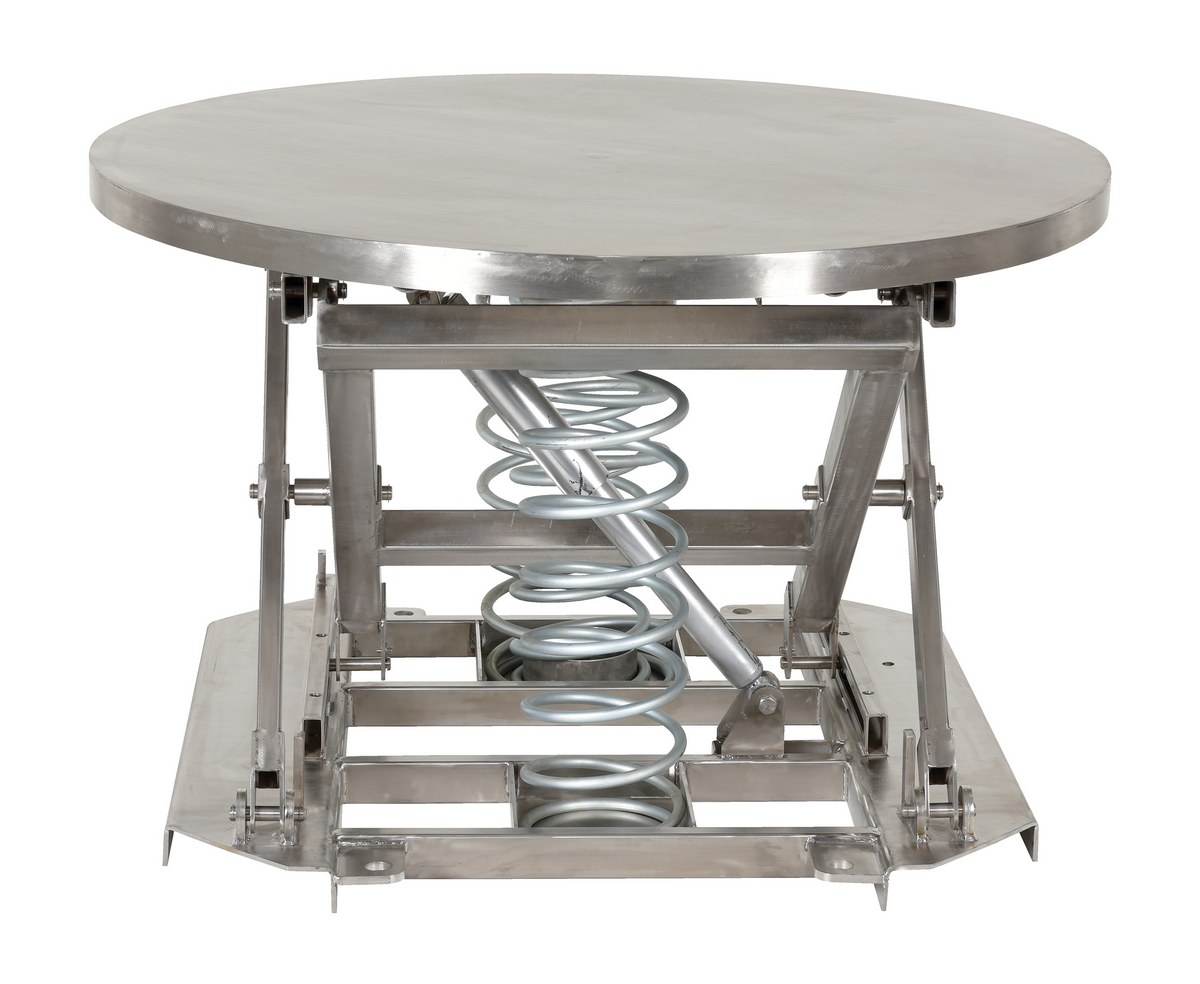

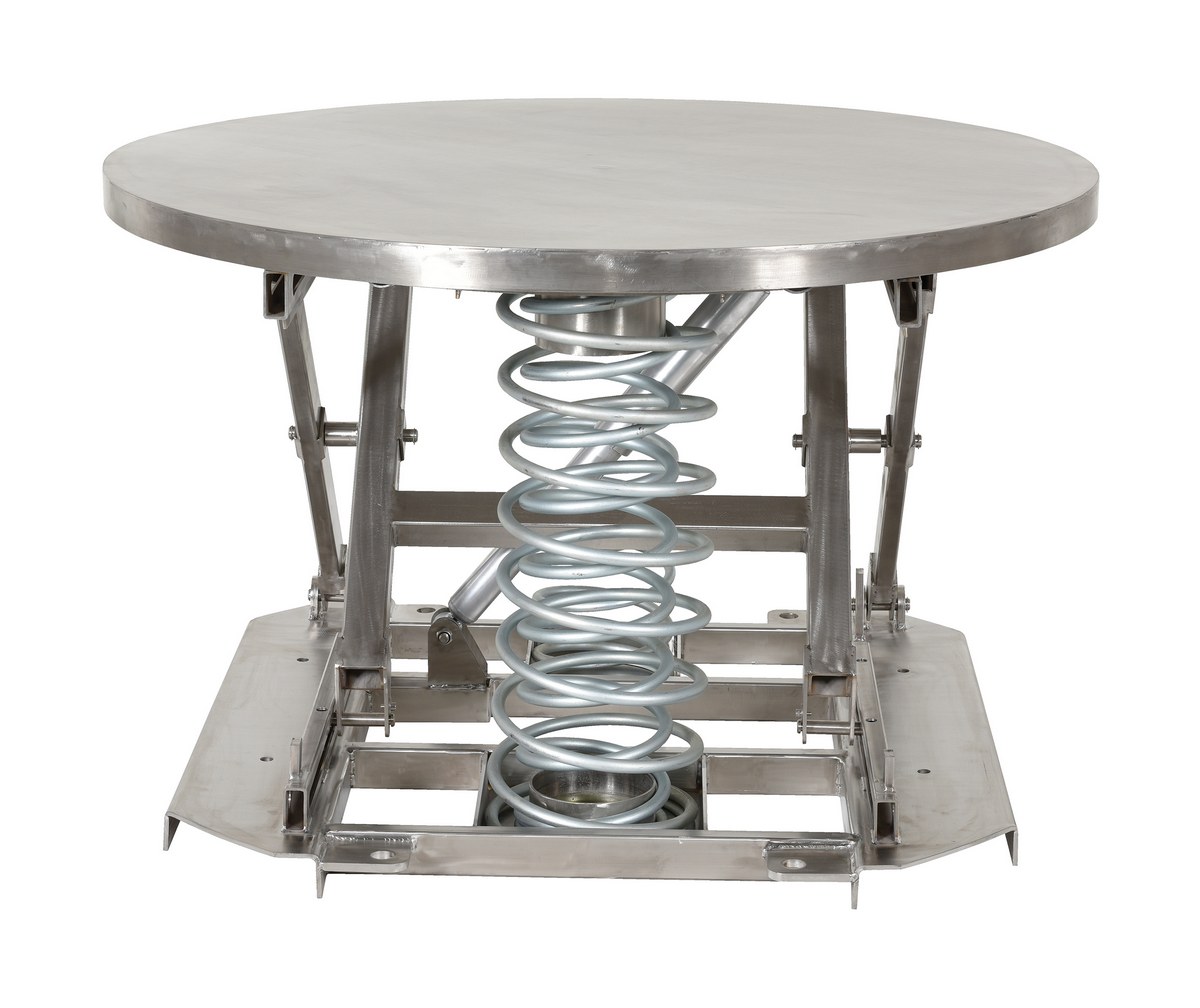

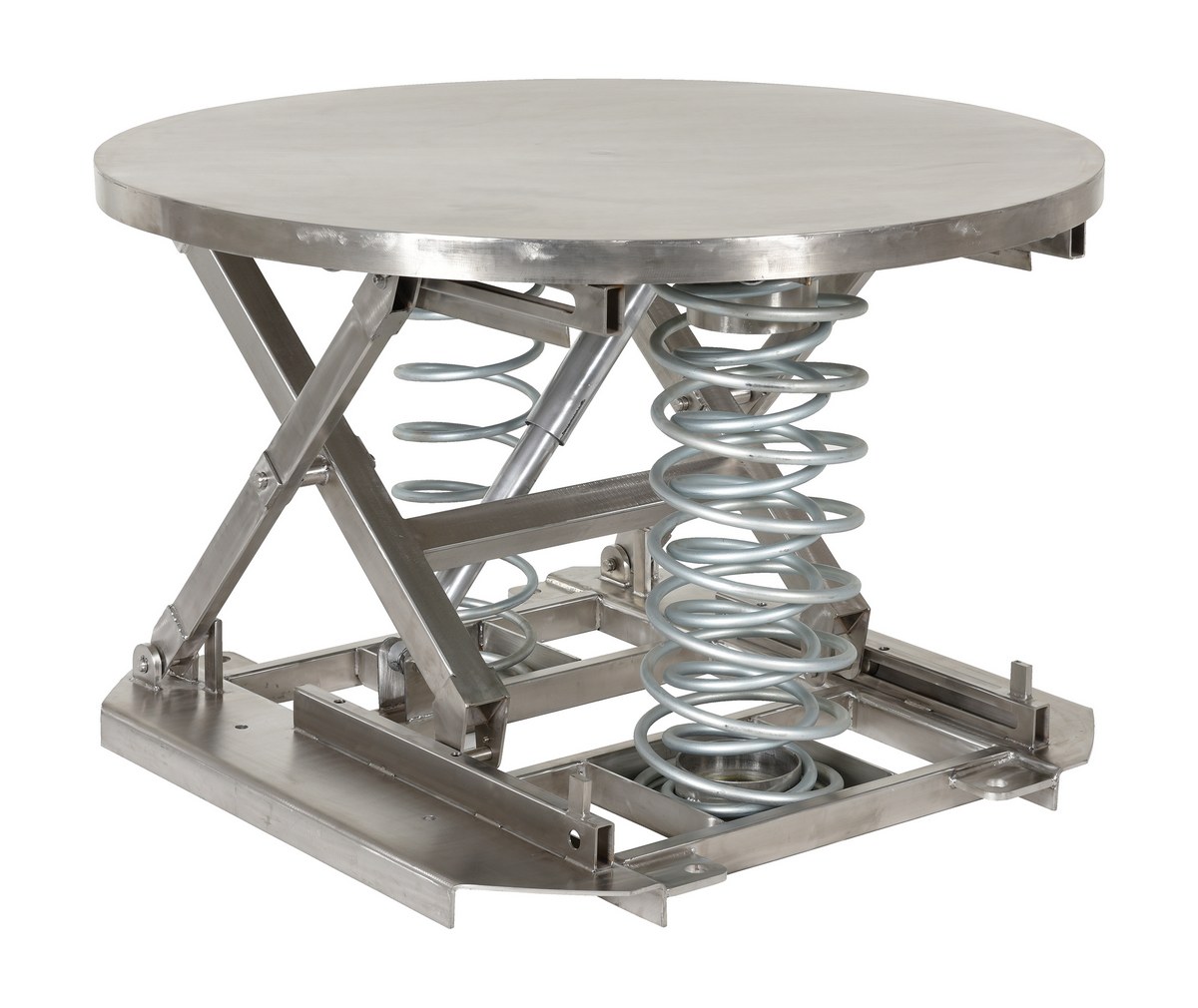

SST-45-PSS-ST

model SST-45-PSS-ST

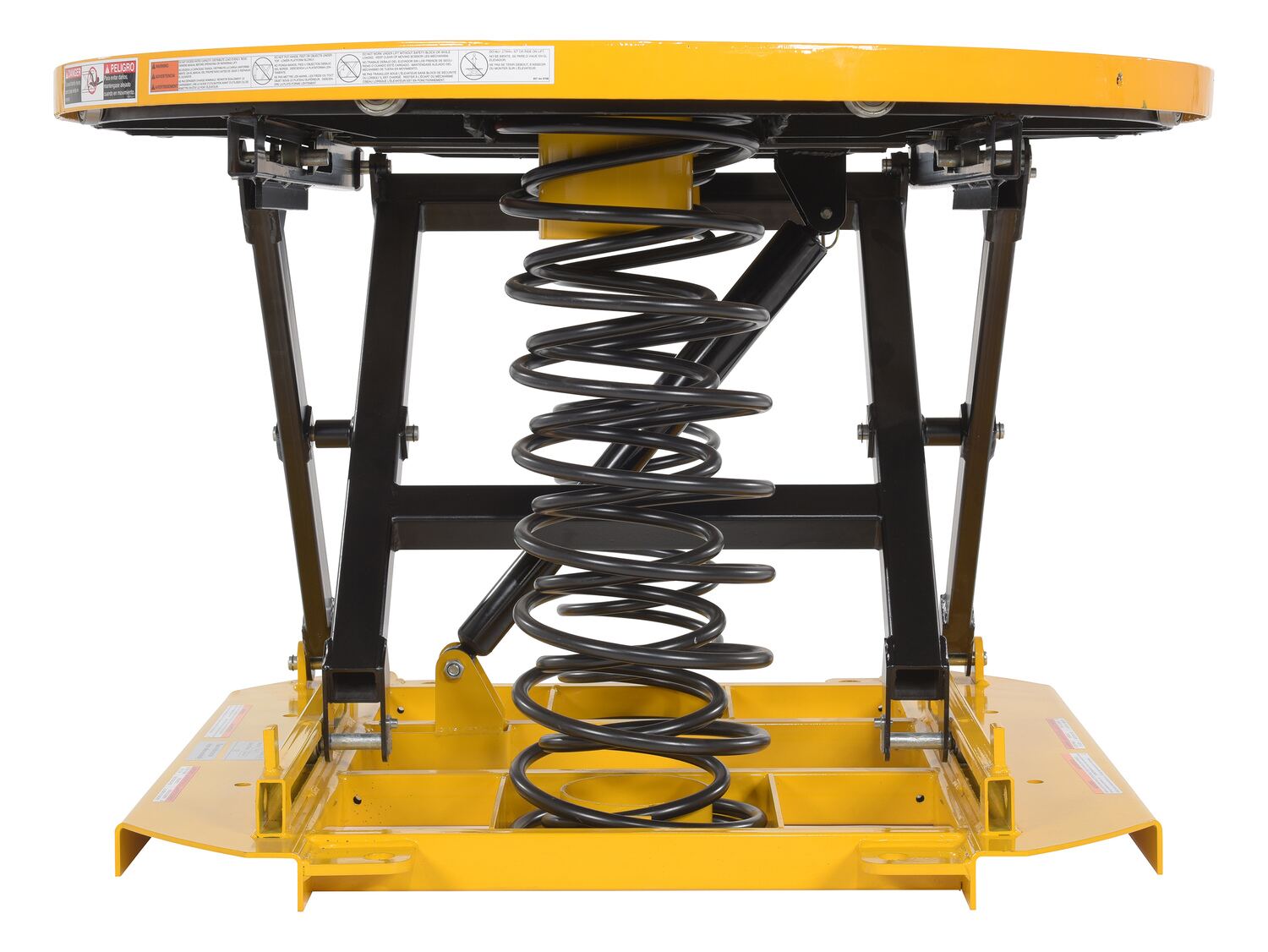

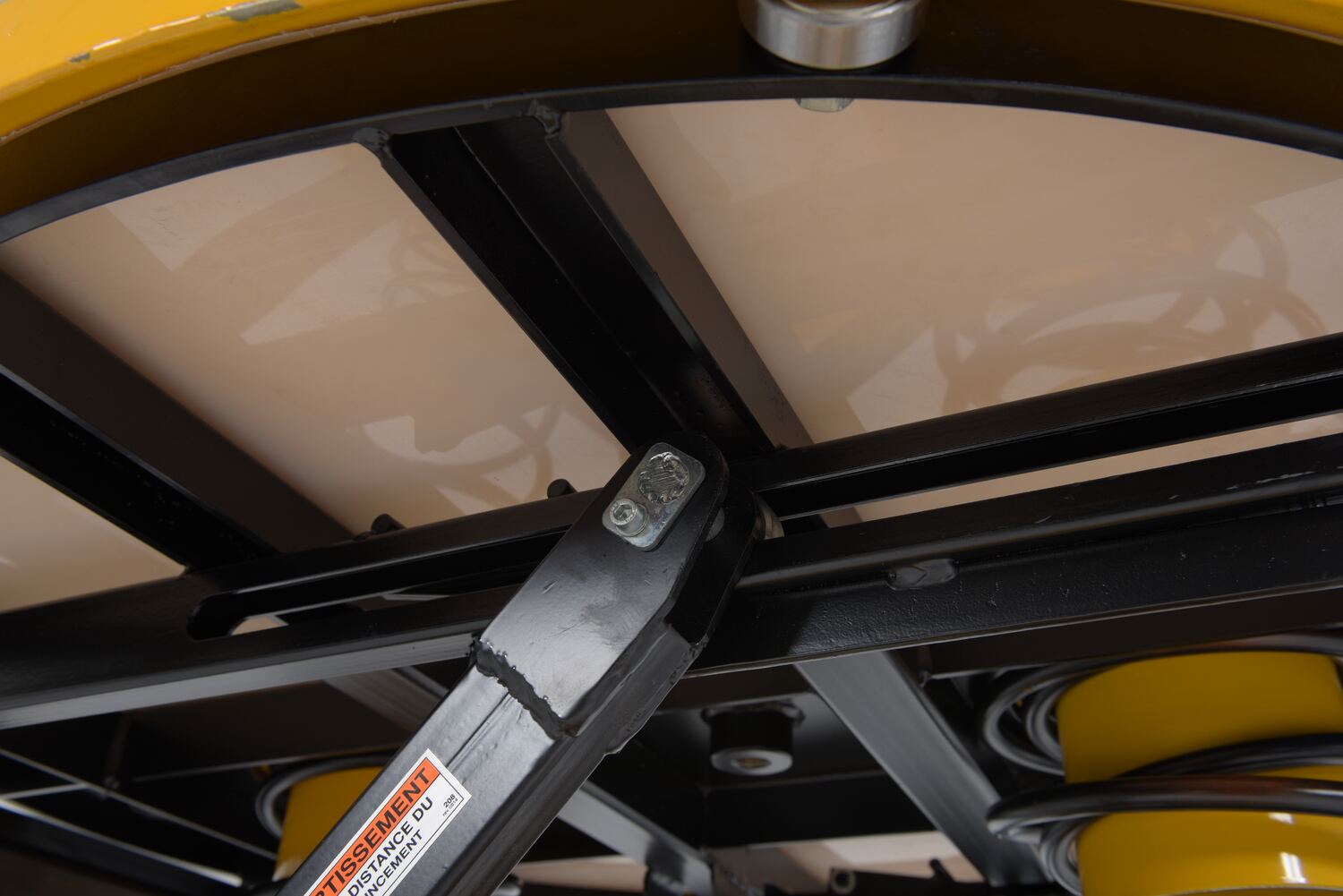

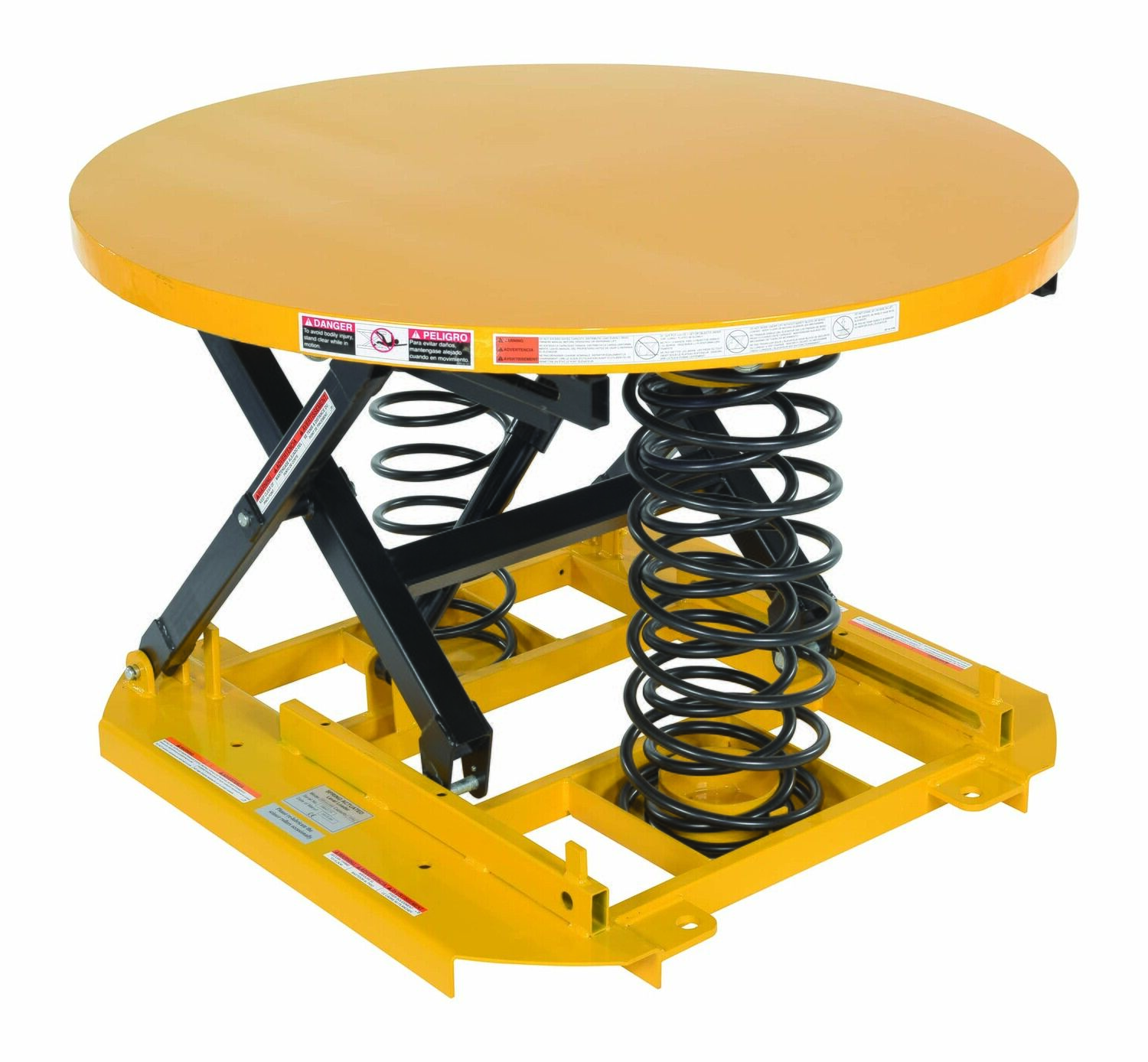

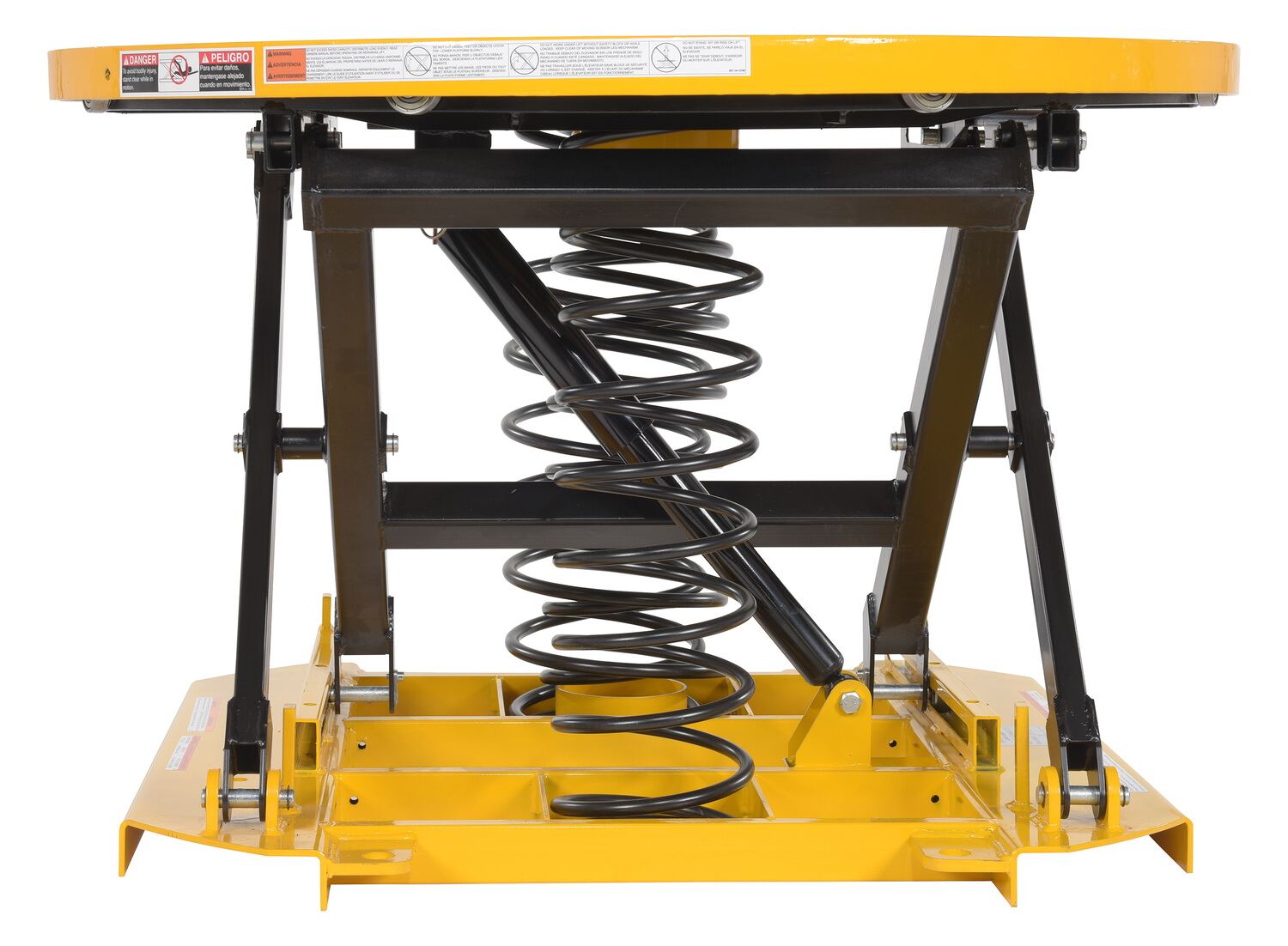

SST-45-ST

model SST-45-ST


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Spring Scissor Table
Model Number PDFs Description Wt.
(lbs)
SST-45 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Steel Construction, Open Top 432
SST-45-ST Warranty PDF Steel Construction, Solid Steel Top 432
SST-45-PSS Warranty PDFCompliance Certificate Partially Stainless Steel, Open Top 432
SST-45-PSS-ST Warranty PDFCompliance Certificate Partially Stainless Steel, Solid Top 432

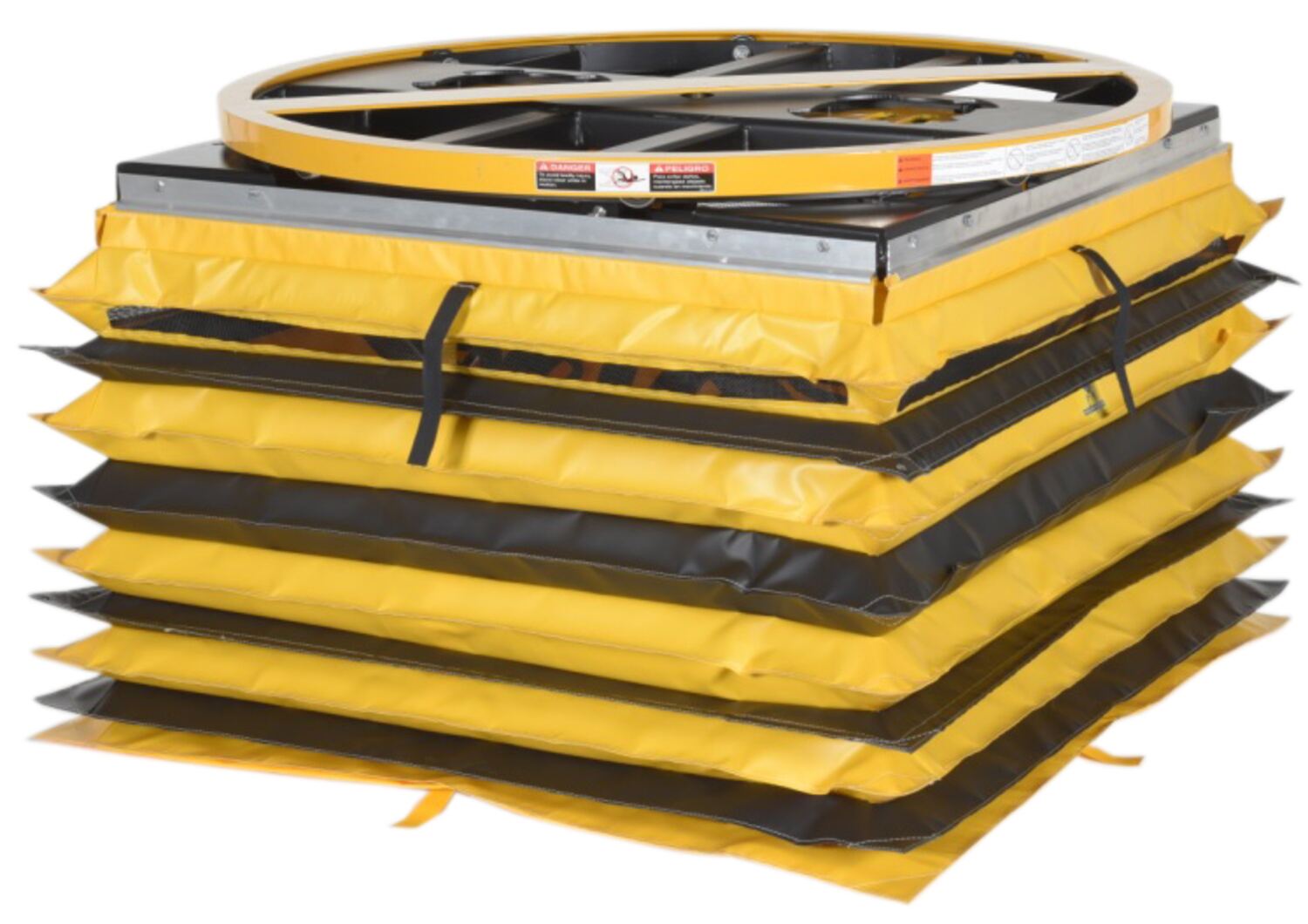

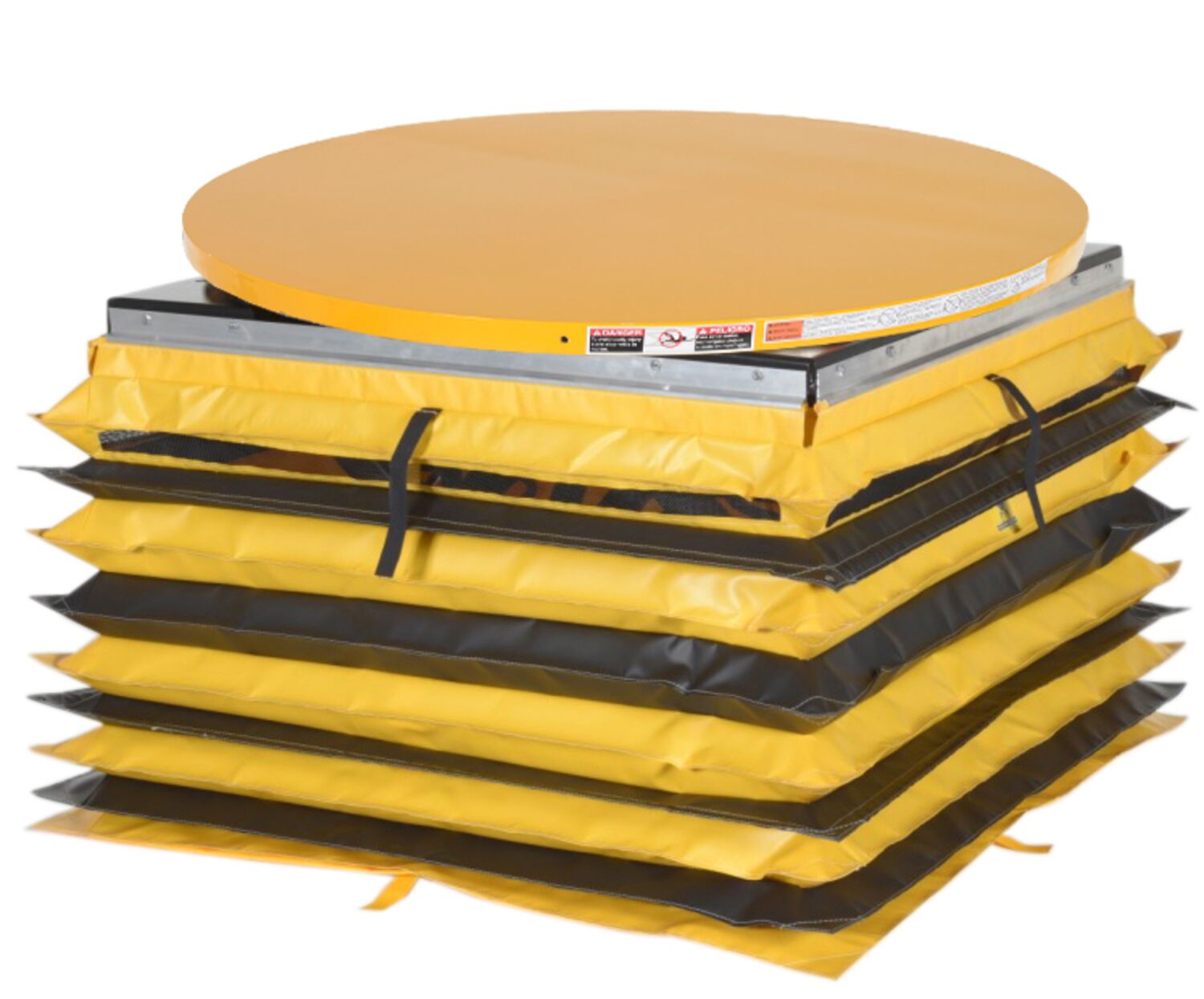

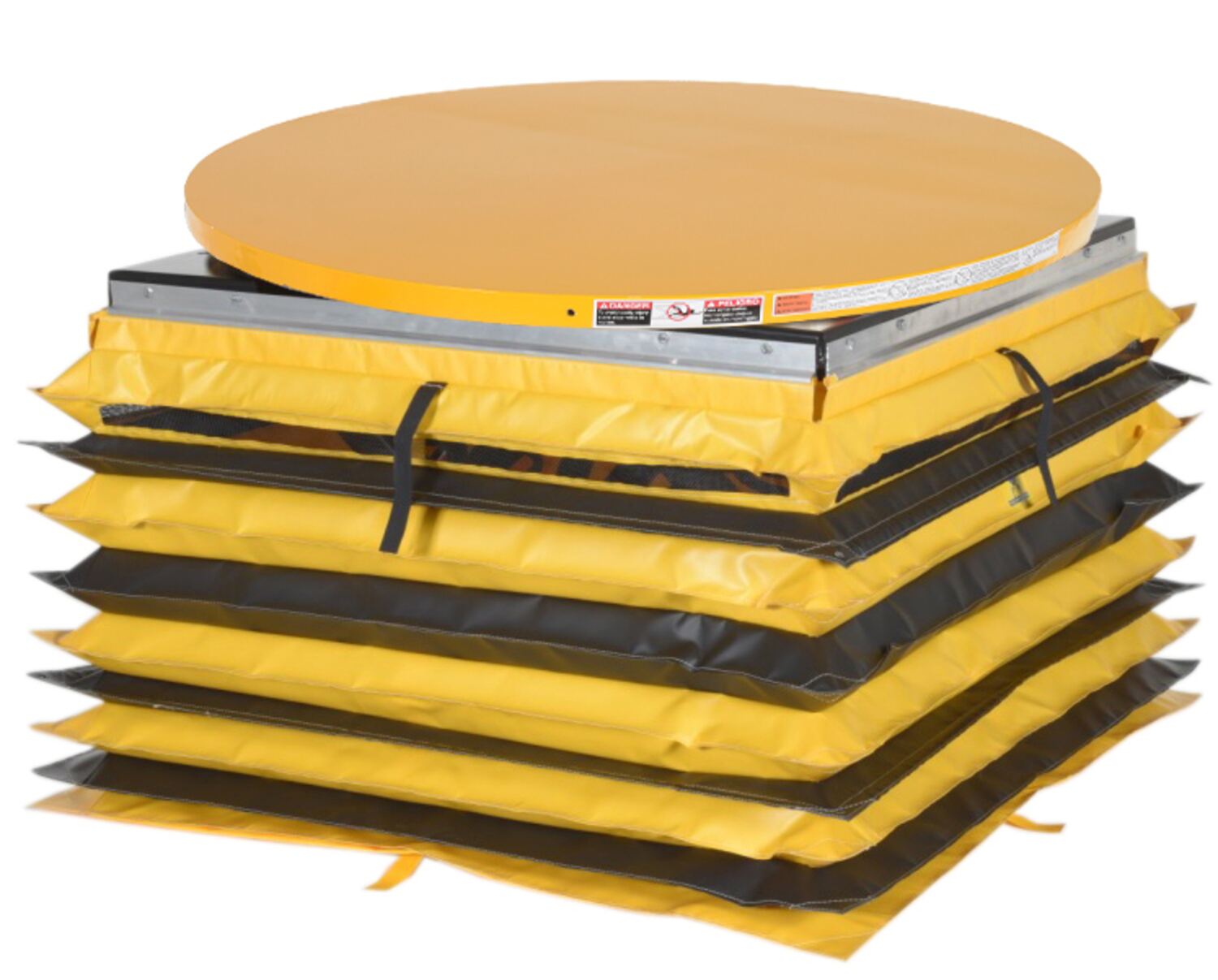

Model SST-45 With ACCORDION SKIRT
SST-45-ACC-4-CI icon_approvaldrawings.jpgWarranty PDFCompliance Certificate CUSTOMER INSTALLED SKIRT ON MODEL SST-45 474
SST-45-ACC-4-FI icon_approvaldrawings.jpgWarranty PDFCompliance Certificate FACTORY INSTALLED SKIRT ON MODEL SST-45 474

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

SST-45

SST-45

SST-45-ACC-4-CI

SST-45-ACC-4-CI

SST-45-ACC-4-FI

SST-45-ACC-4-FI

SST-45-ACC-4-RF

SST-45-ACC-4-RF

SST-45-PSS

SST-45-PSS

SST-45-PSS-ST

SST-45-PSS-ST

SST-45-ST

SST-45-ST






PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

SST-45
SST-45-ACC-4-CI
SST-45-ACC-4-FI

Testing Certificates

SST-45
SST-45-ACC-4-CI
SST-45-ACC-4-FI
SST-45-ACC-4-RF
SST-45-PSS
SST-45-PSS-ST

Other PDF's

* No "Other PDFs" For This Product...
