Click Image to Enlarge

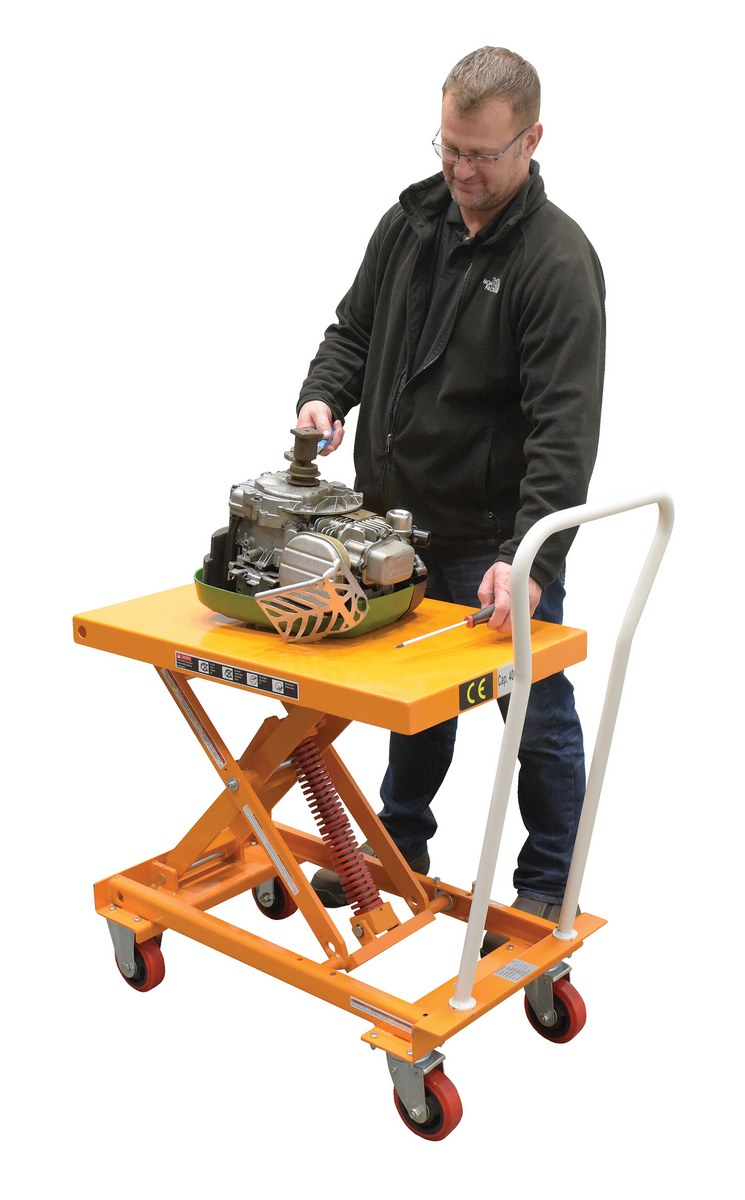

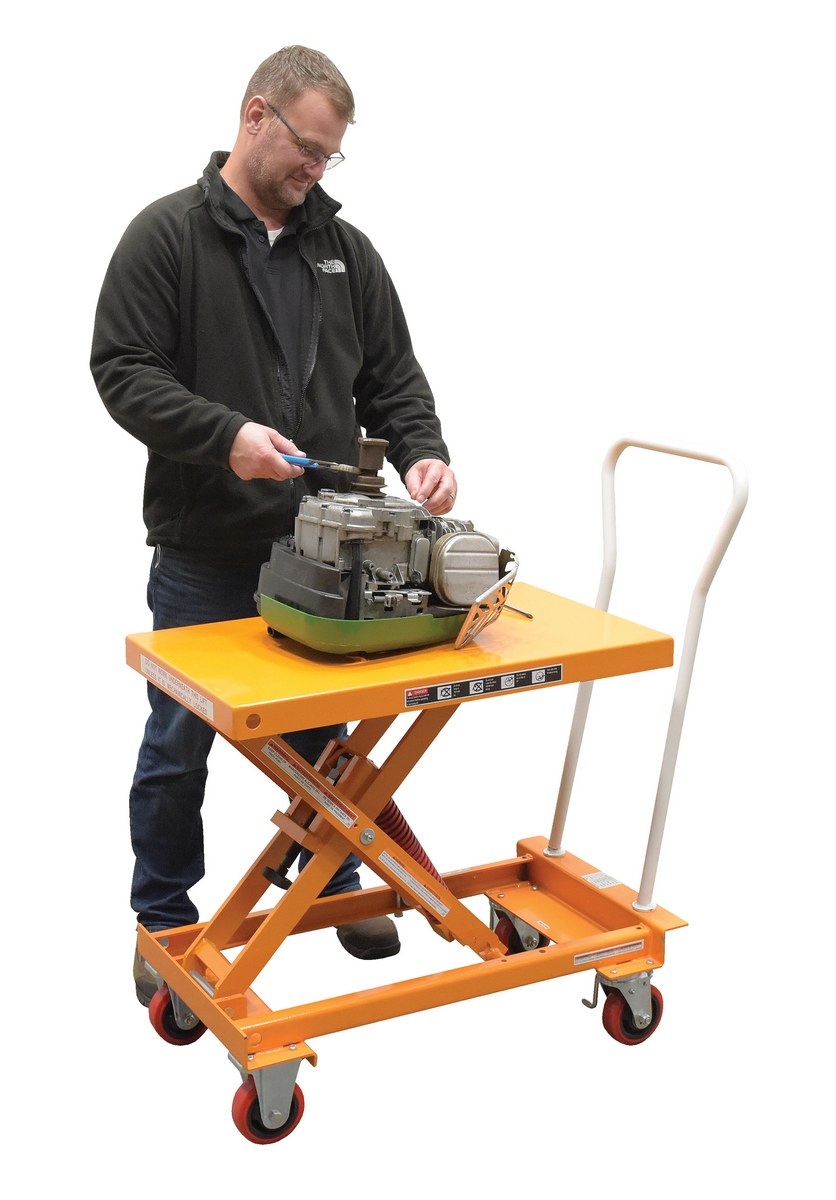

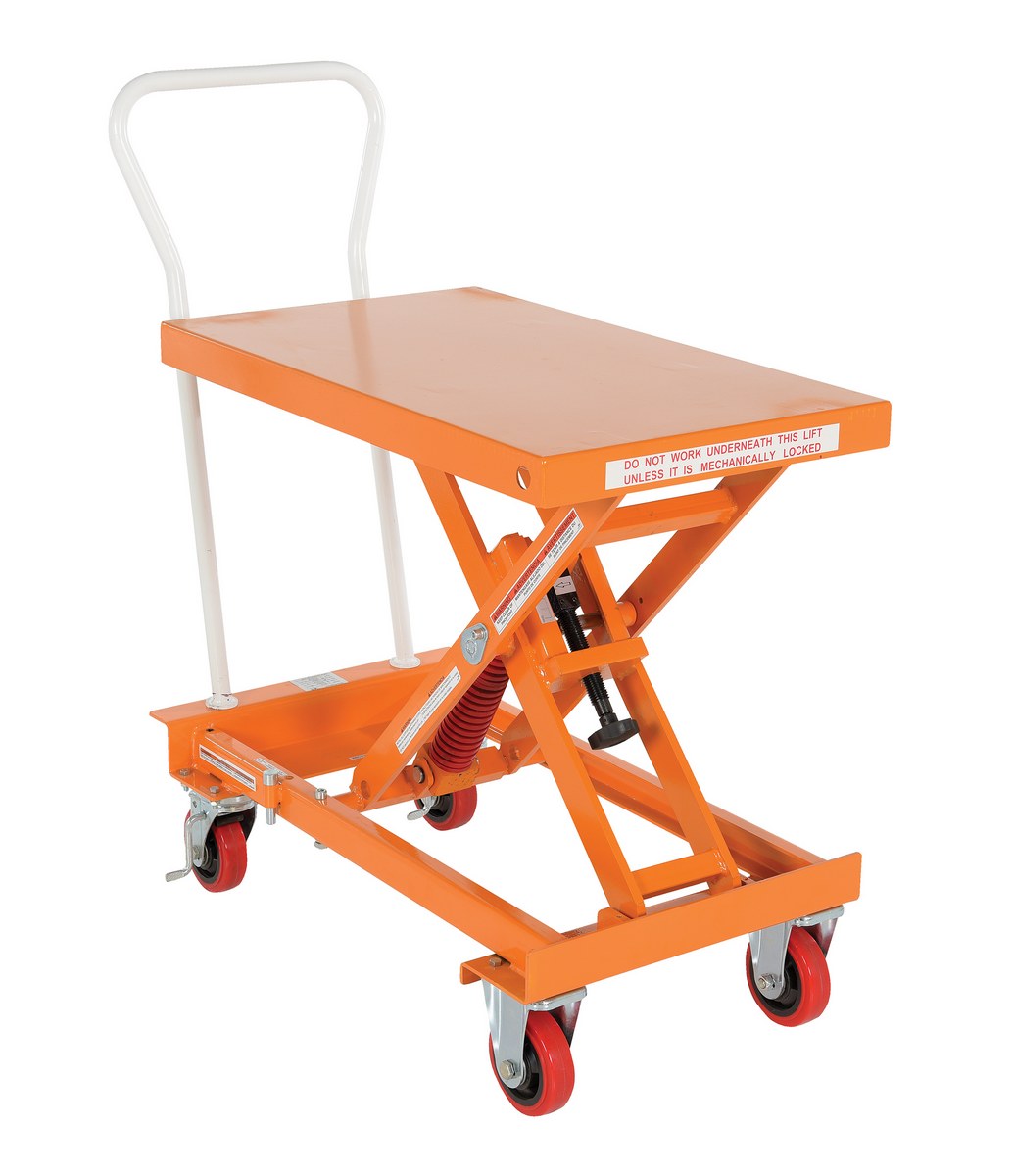

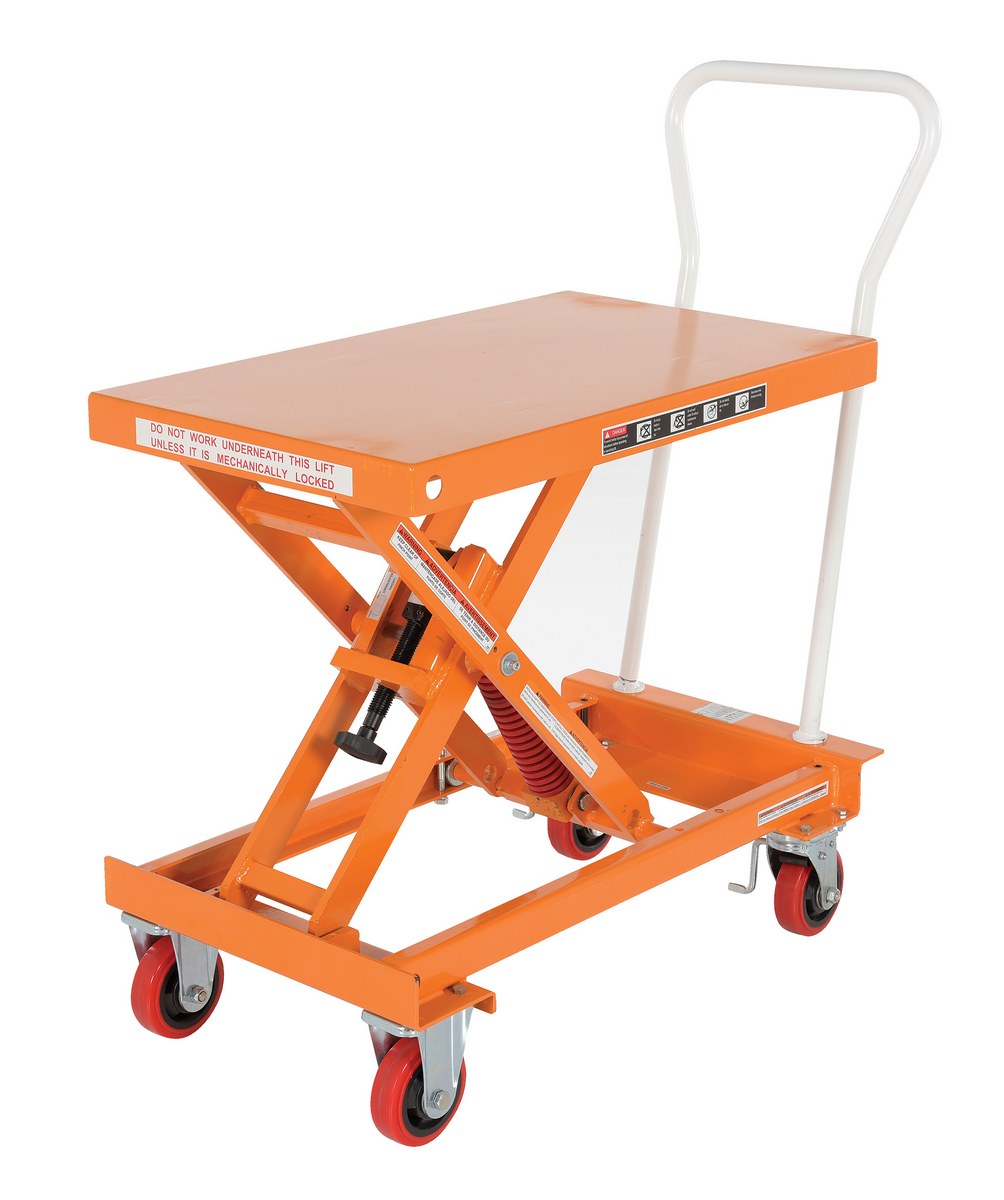

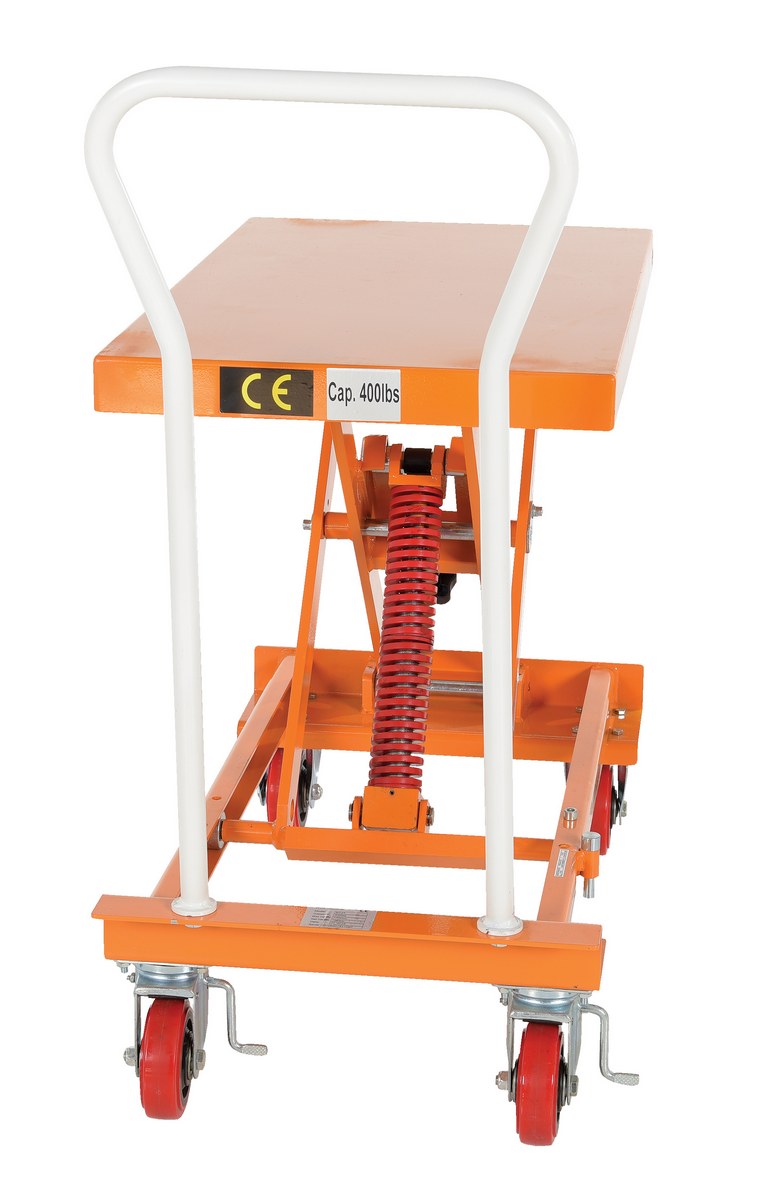

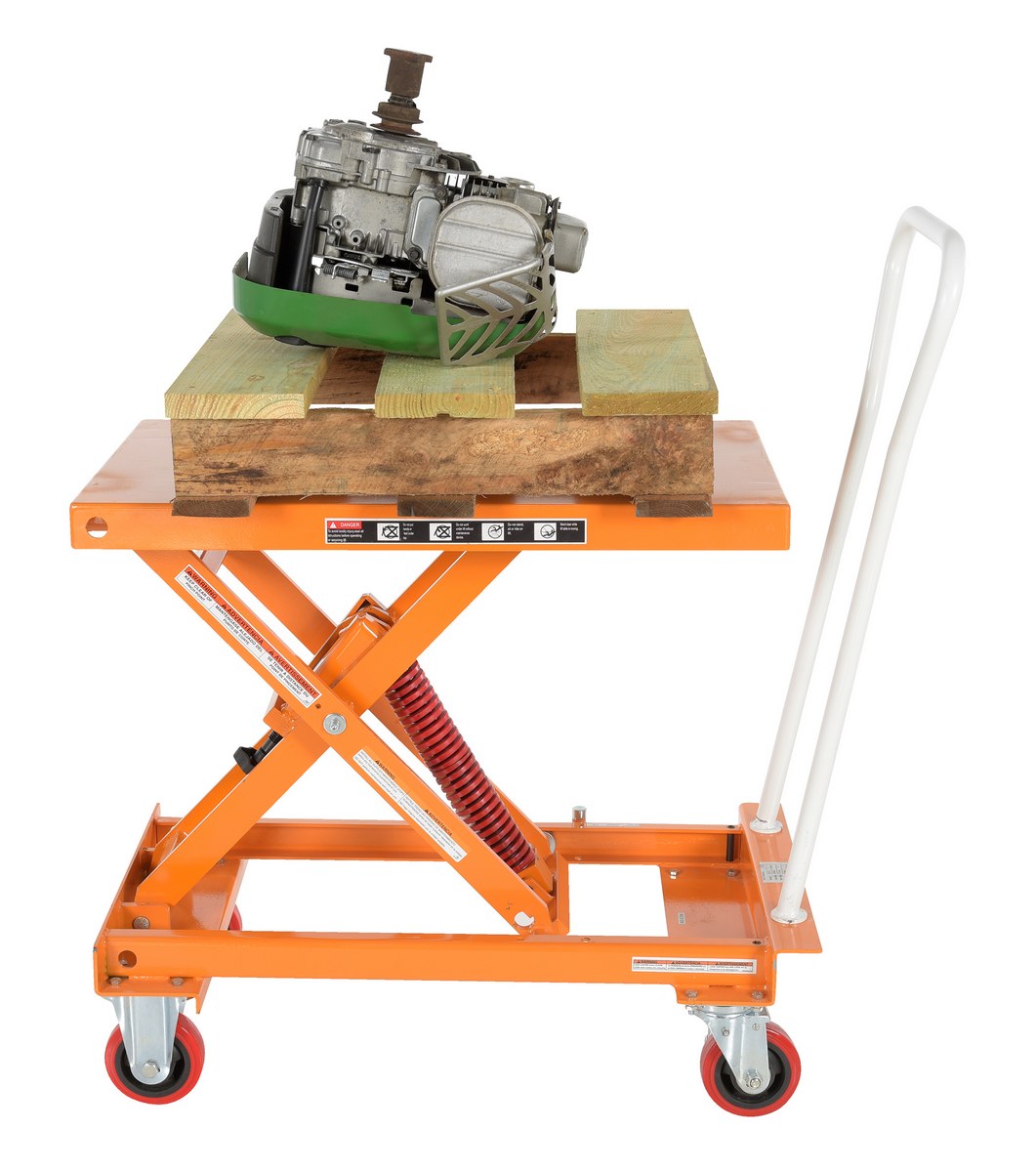

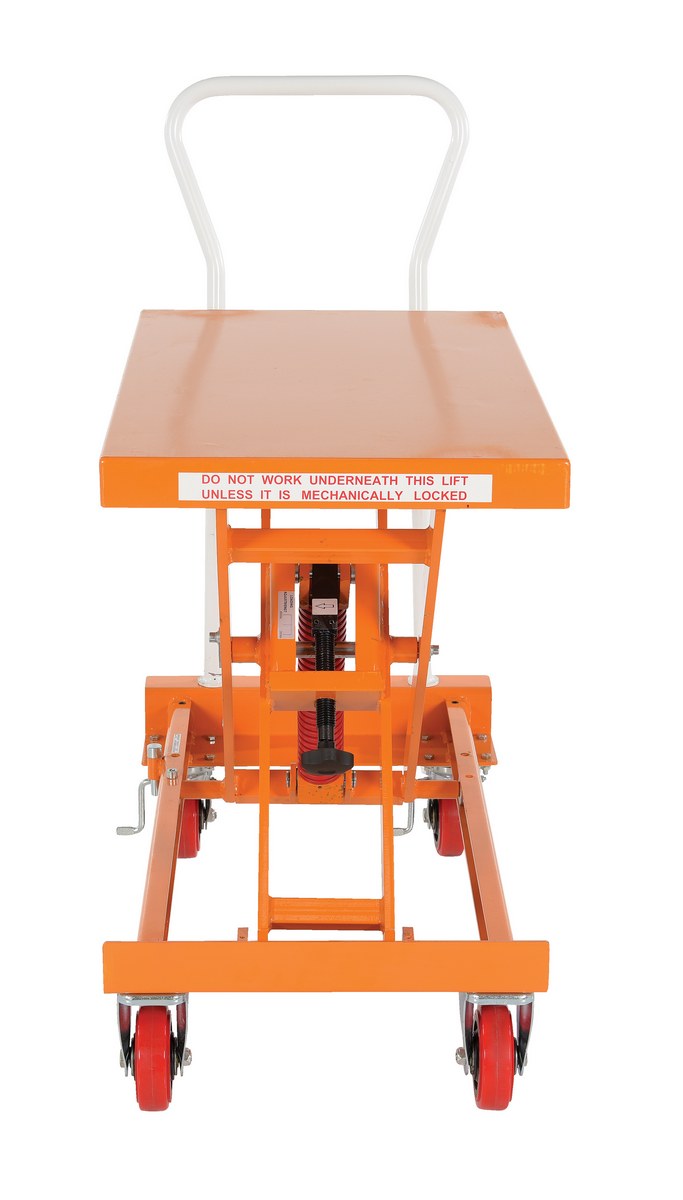

model: SCSC-400-2032


SERIES: SCSC
Self-Elevating Lift Carts

These carts raise and lower as materials are removed or added to the platform. Automatic height adjustment provides ergonomic work positioning to increase productivity and decrease work related repetitive motion injuries. Heavy duty steel construction with removable bolt-on handle. 5" x 1" poly-on-poly, 2 rigid and 2 swivel casters with brake standard.

These carts raise and lower as materials are removed or added to the platform. Automatic height adjustment provides ergonomic work positioning to increase productivity and decrease work related repetitive motion injuries. Heavy duty steel construction with removable bolt-on handle. 5" x 1" poly-on-poly, 2 rigid and 2 swivel casters with brake standard.

Other Self-Elevating Tables

Auto-Hite Carts

Auto-Hite Carts

Self-Elevating Lift Carts

Self-Elevating Lift Carts

Self-Elevating Spring Tables

Self-Elevating Spring Tables

Share This Page

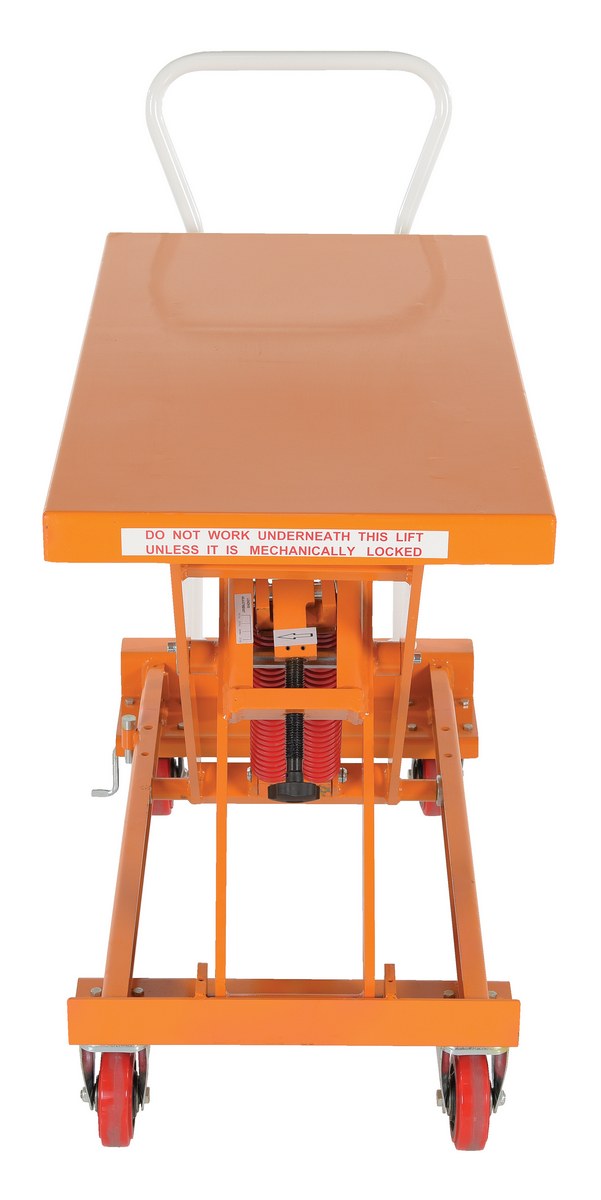

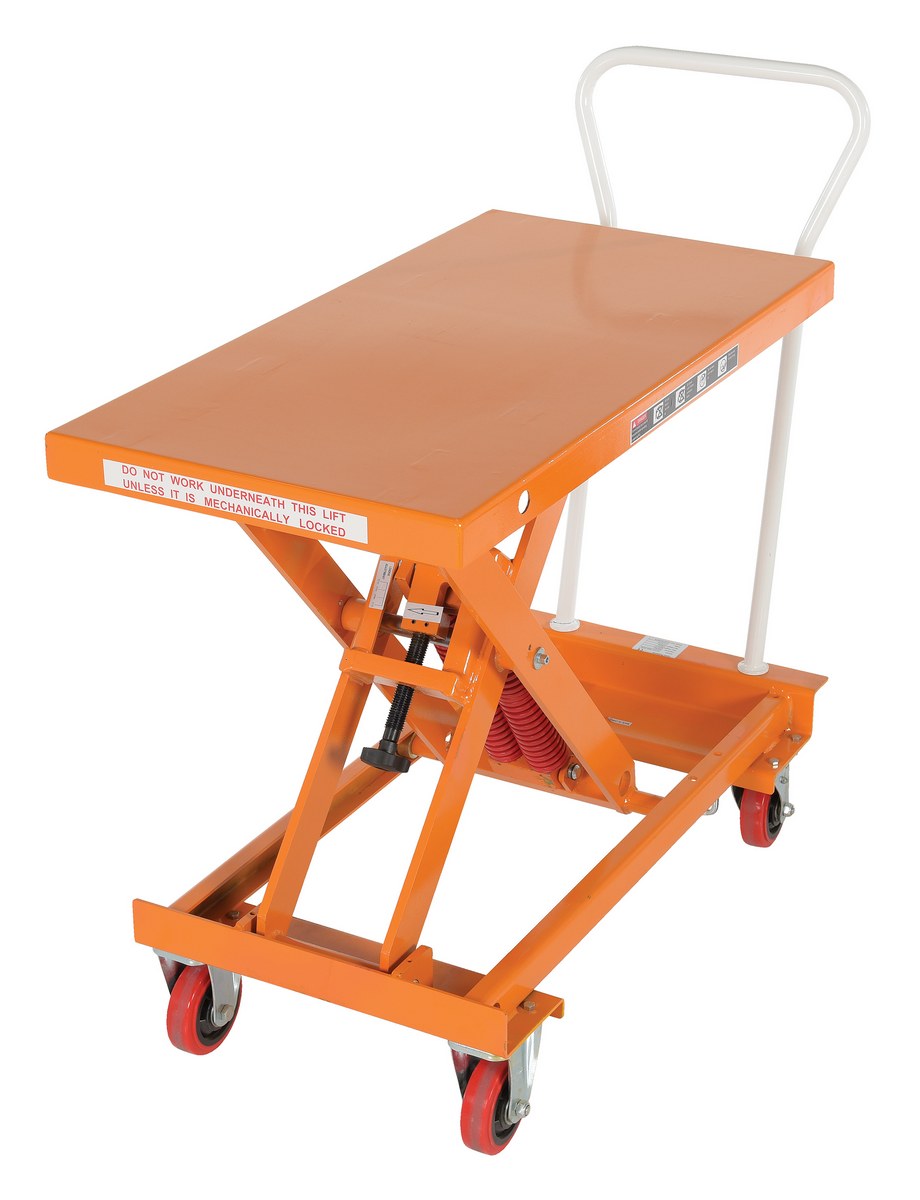

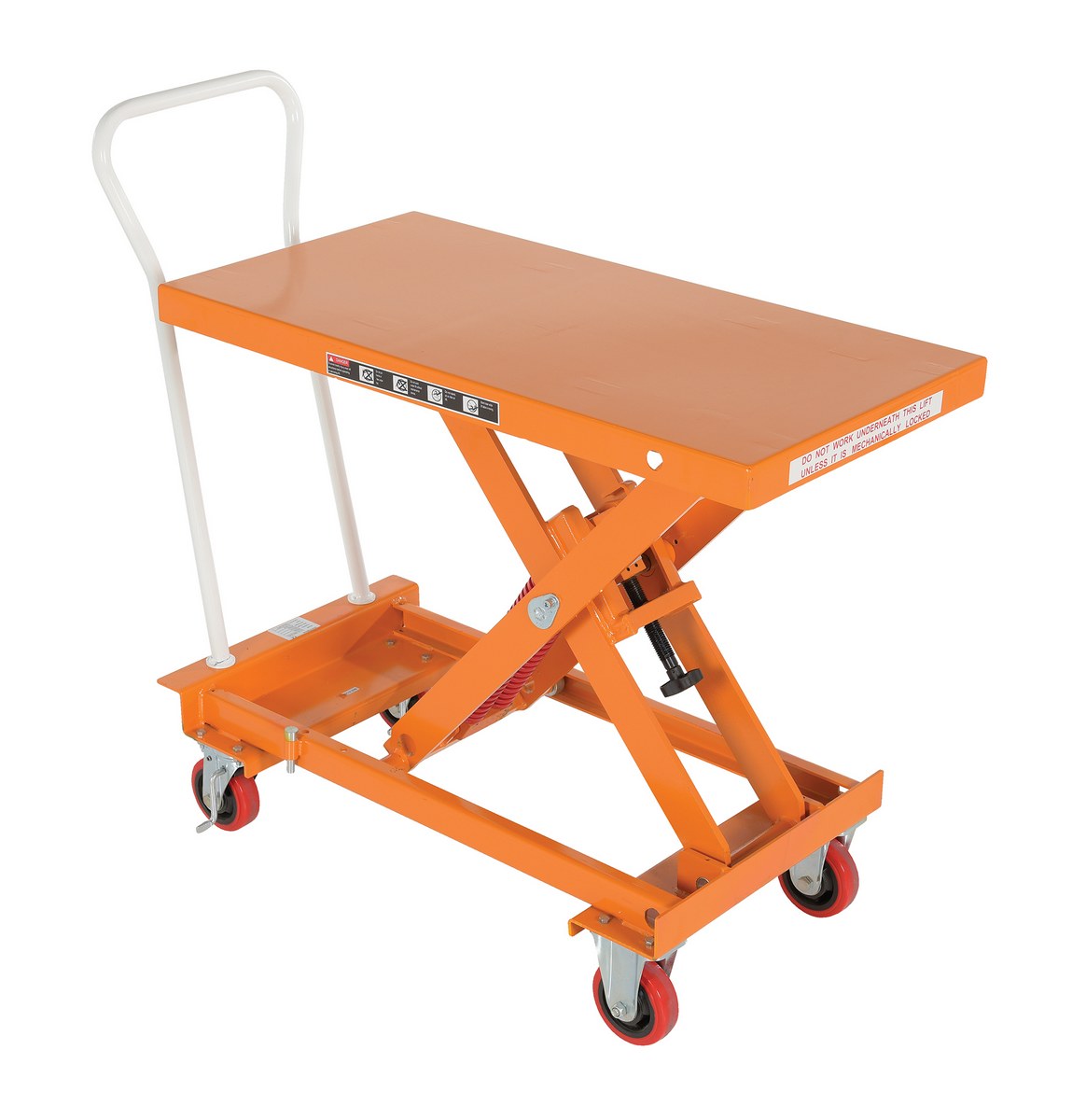

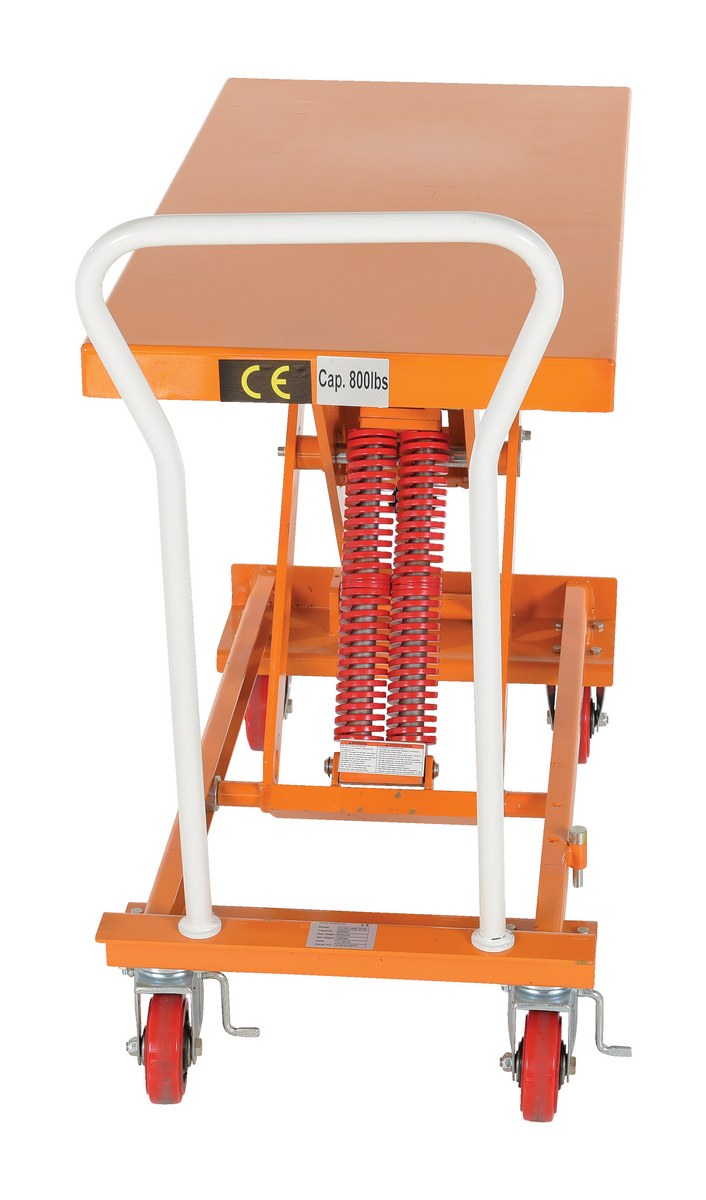

SCSC-800-2040

model SCSC-800-2040




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Self-Elevating Lift Carts
Model PDF's Platform Size (WxL) Capacity
(lbs)
Service
Range
Overall Size
(WxLxH)
Wt. (lbs)
SCSC-400-2032 Warranty PDFCompliance Certificate 20"x32" 400 13-3/4"to30-3/8" 19-3/4"x40"x30-1/2" 213
SCSC-800-2040 Warranty PDFCompliance Certificate 20"x40" 800 14-1/2"to31-1/8" 20-1/2"x48-1/2"x35-1/2" 288

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

SCSC-400-2032

SCSC-400-2032

SCSC-800-2040

SCSC-800-2040






Self-Elevating Lift Carts PDF's will open in a new window when clicked.
No Owners Manuals For This Product.
