SERIES: ETS


Self-Elevating Spring Tables

The Self-Elevating Tables, series ETS, is designed to automatically raise or lower as materials are removed or added to the platform. Keeping material at an ergonomic work height, Self-Elevating Tables increase efficiency while reducing potentially harmful bending and twisting motions. The ETS Series tables utilize internal counterbalance springs which may be easily added or removed to adjust the rate of movement. This feature allows the user to conveniently set the table to fit each particular application. The ETS-230/460 has poly-on-poly casters, while the ETS-840/1120 rolls smoothly on mold-on rubber casters.

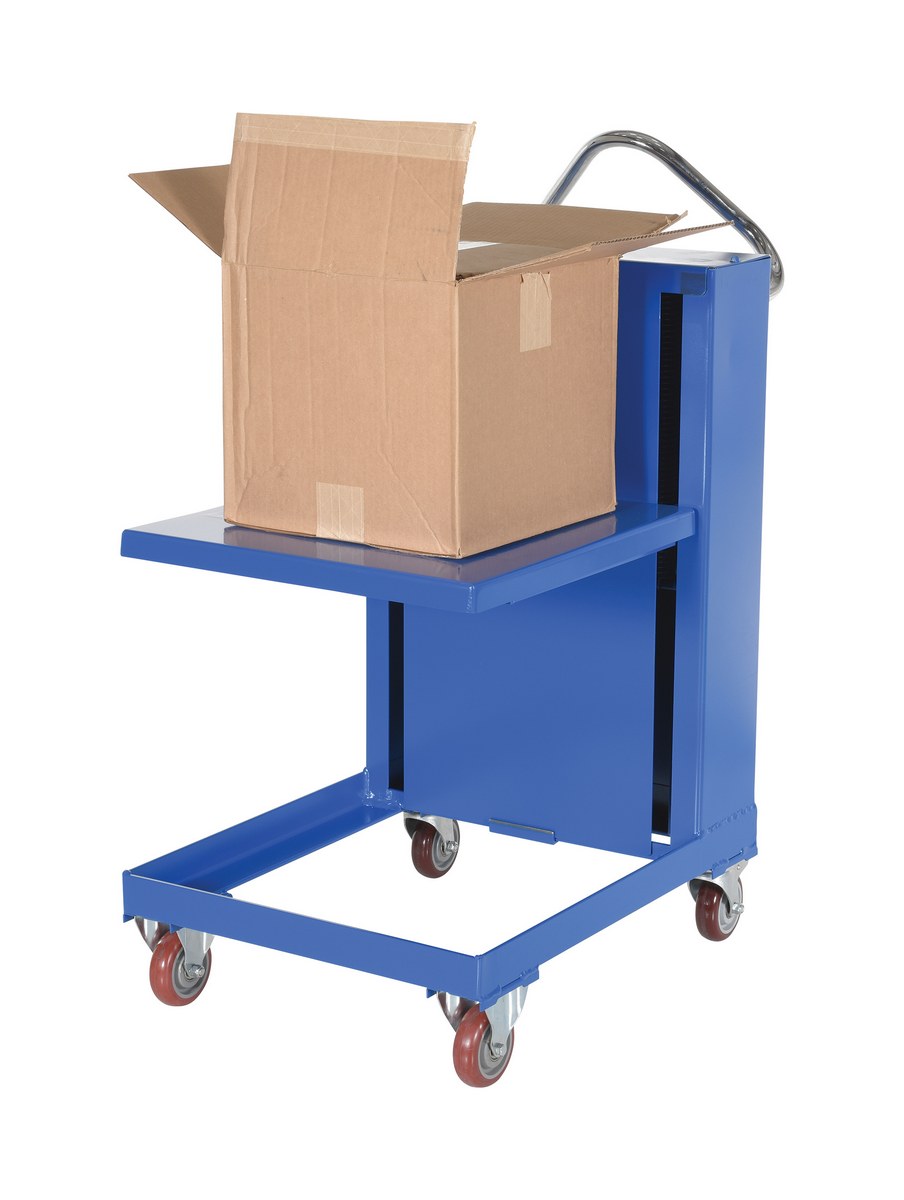

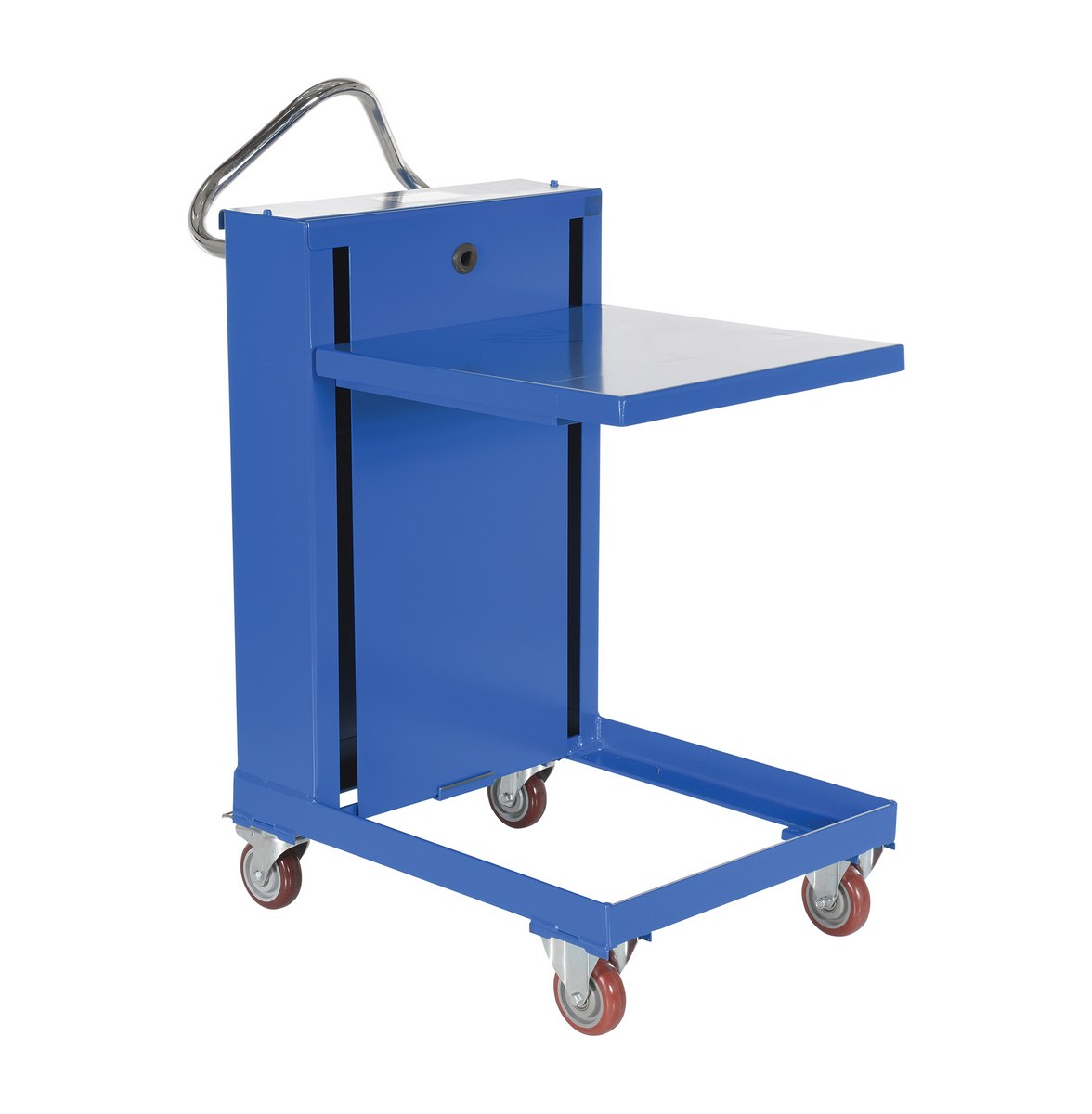

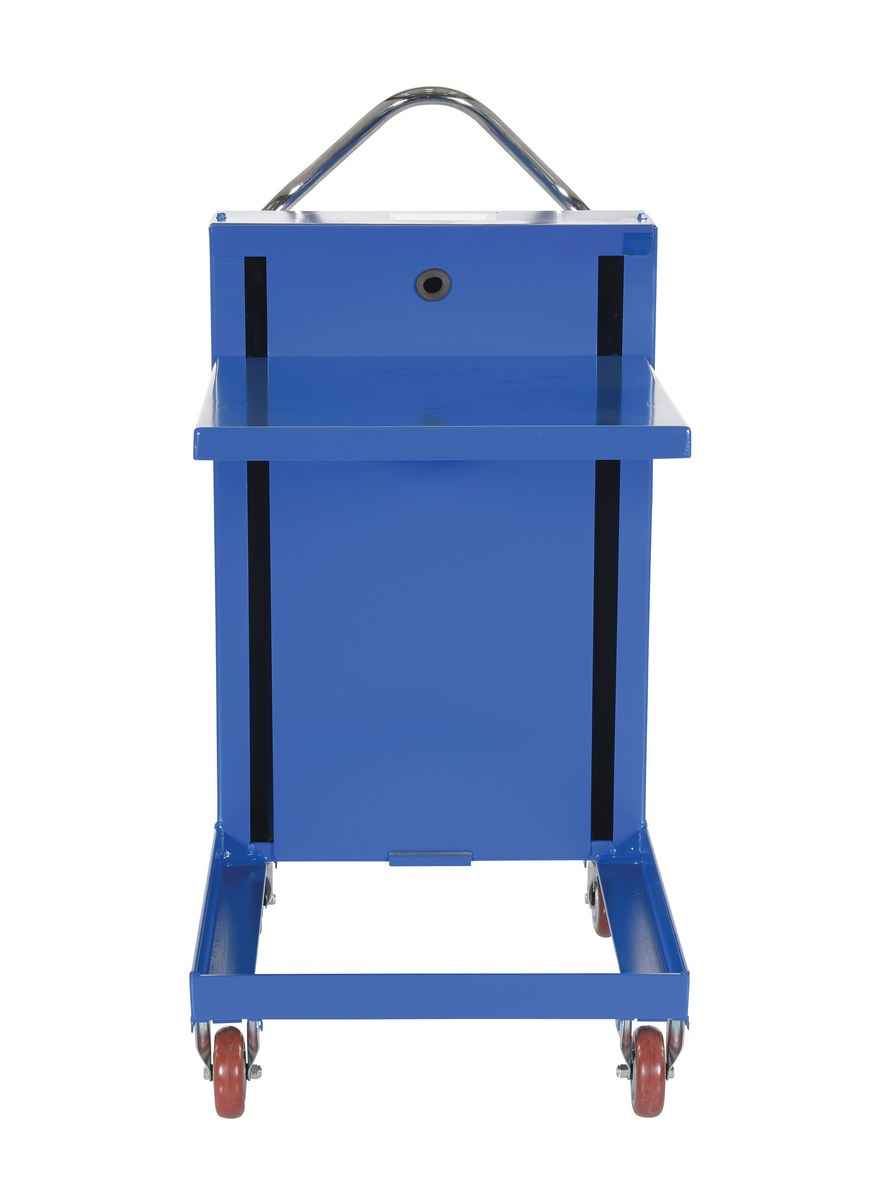

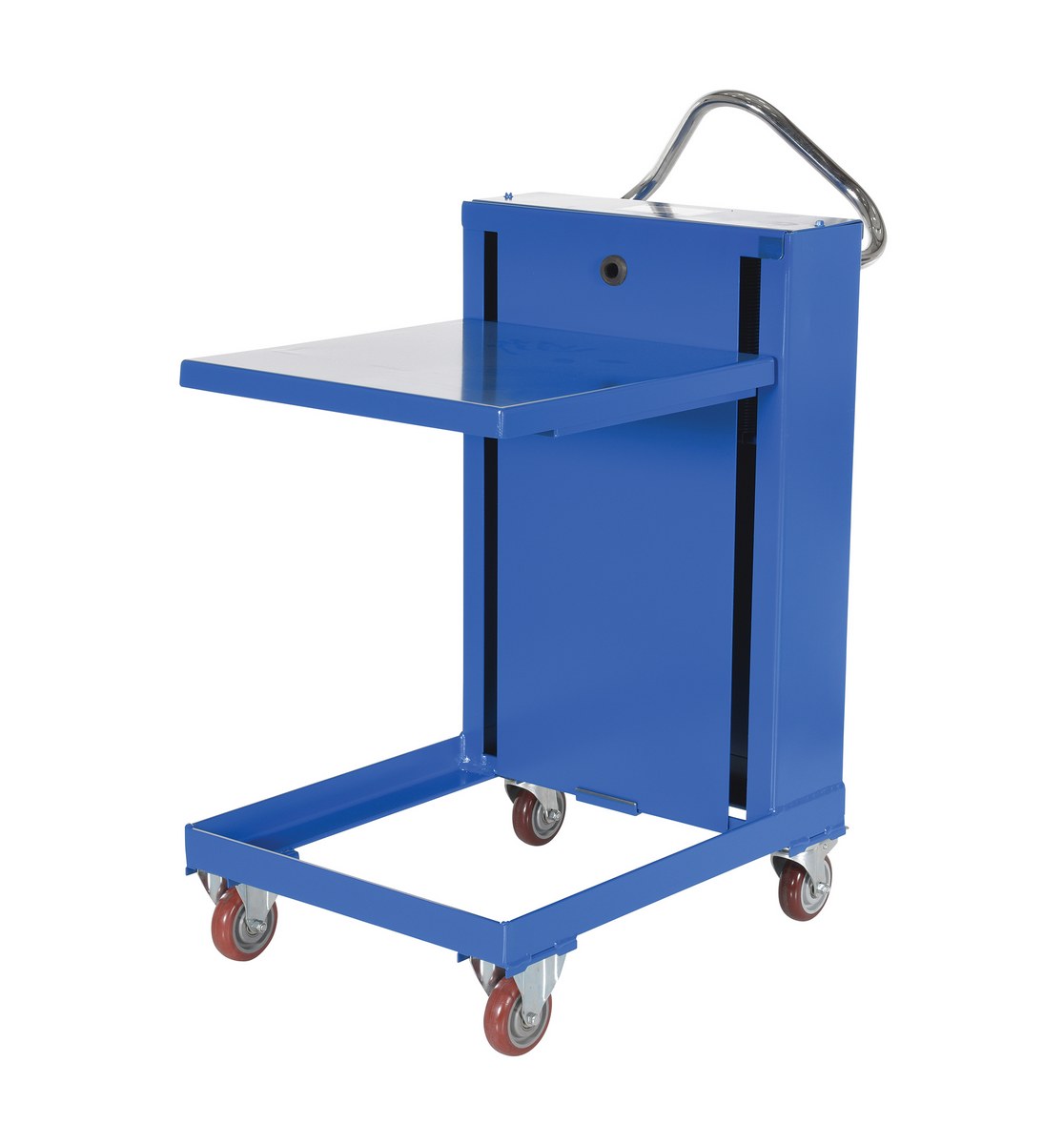

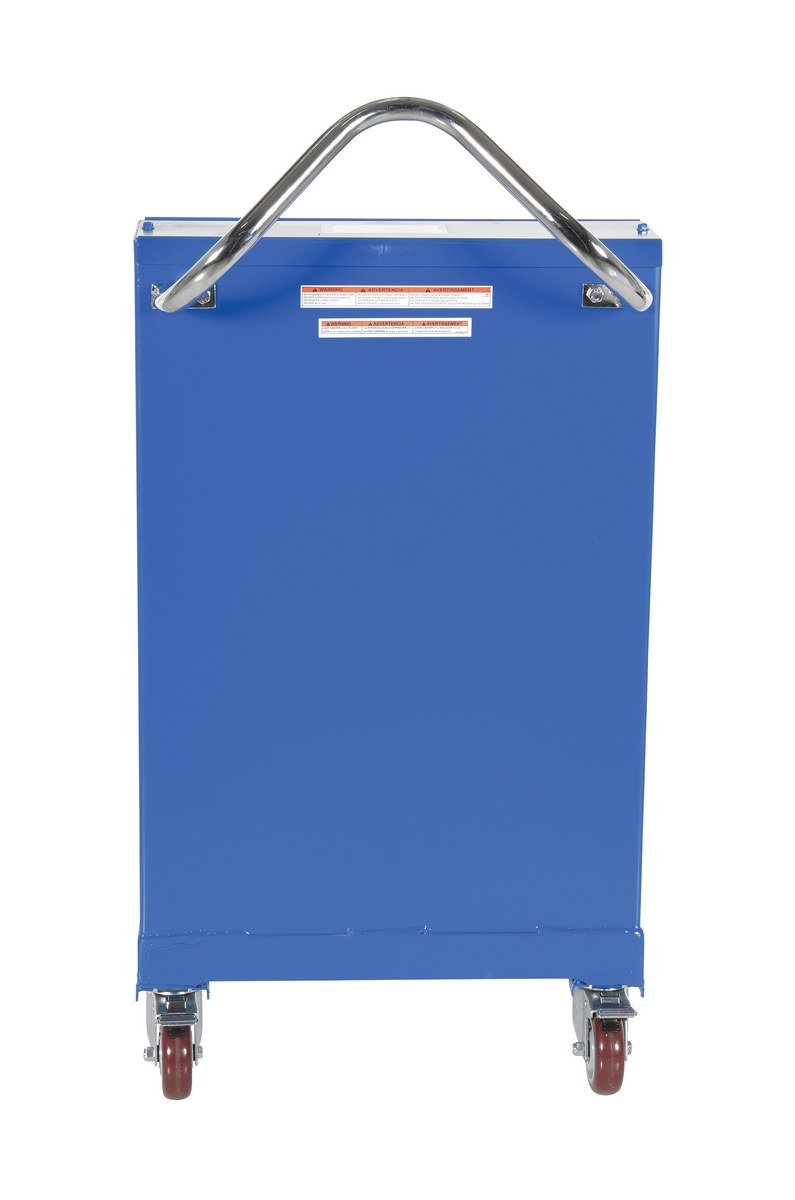

ETS-230

model ETS-230

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Spring Self-Elevating Table
Model PDFs Platform
(WxL)
Capacity
(lbs)
Caster
Size
Service
Range
Overall Dim.
(WxLxH)
Wt.
(lbs)
ETS-230 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 230 4" x 1-1/4" 11" to 33" 21"x 32-3/8"x 37-3/4" 168
ETS-460 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 20"x20" 460 4" x 1-1/4" 11" to 33" 21"x 32-3/8"x 37-3/4" 184

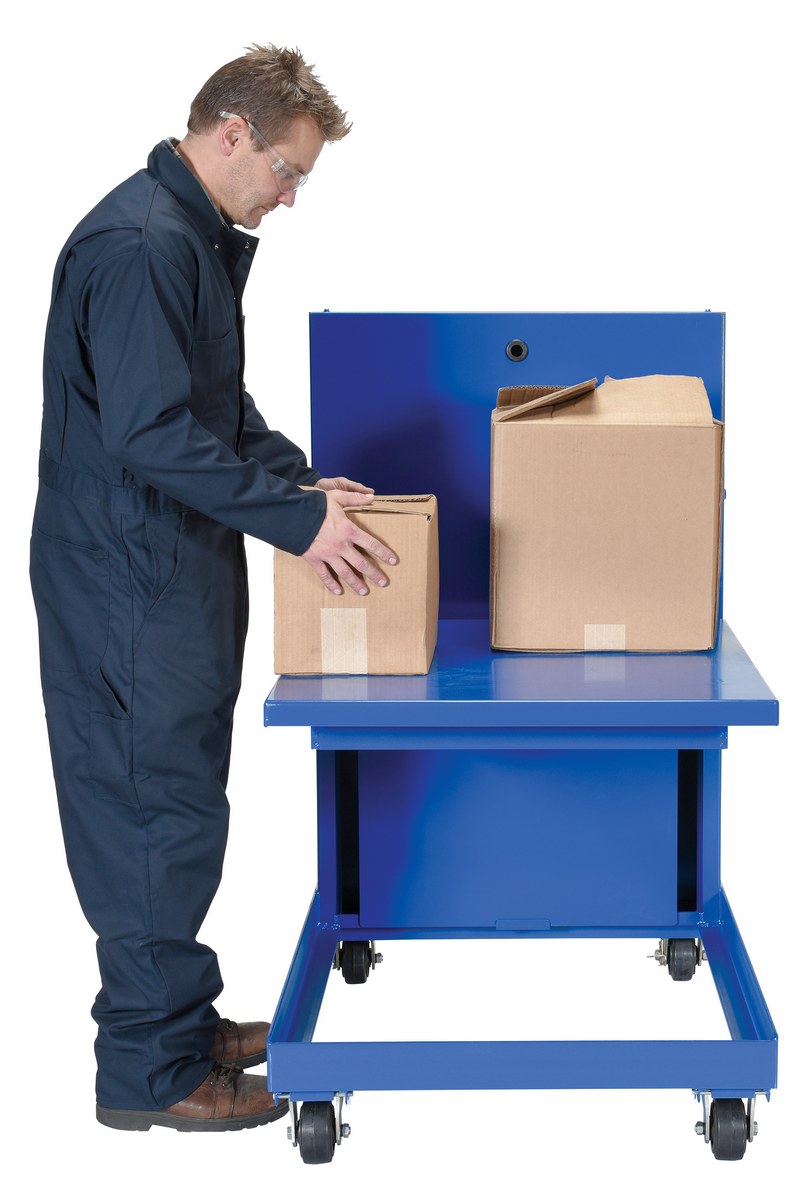

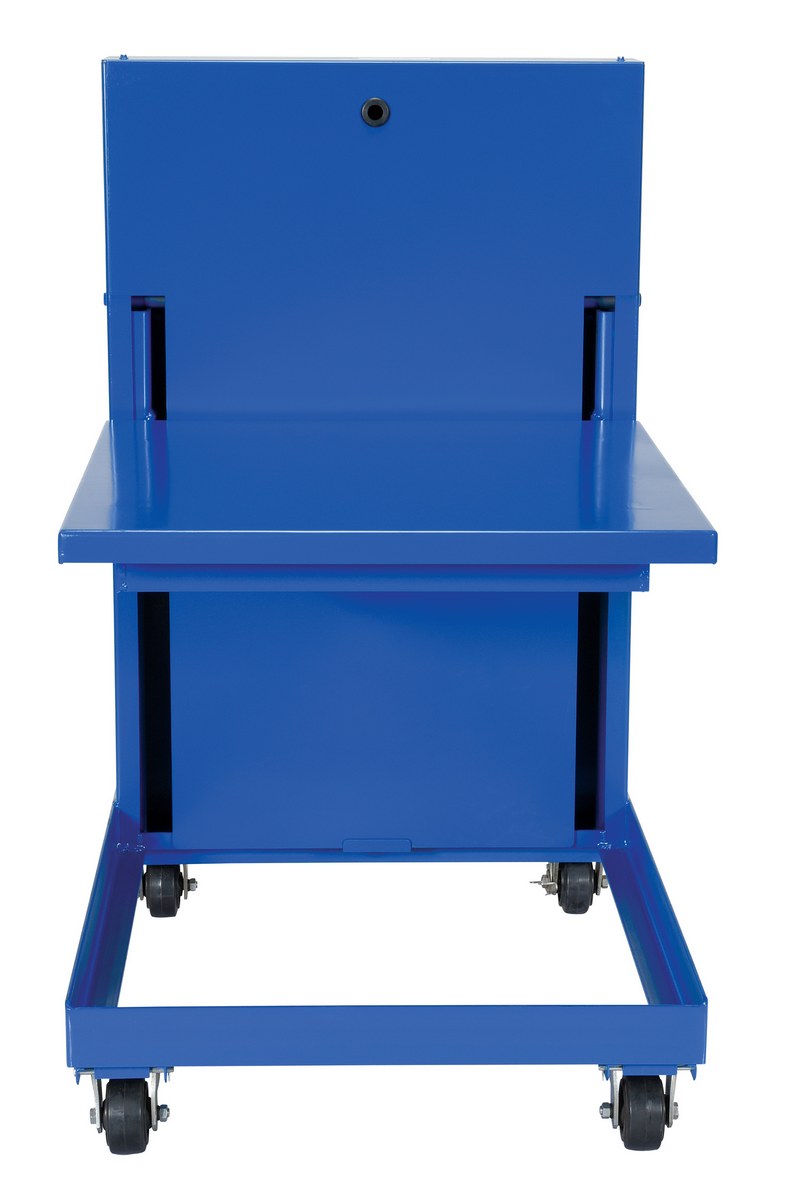

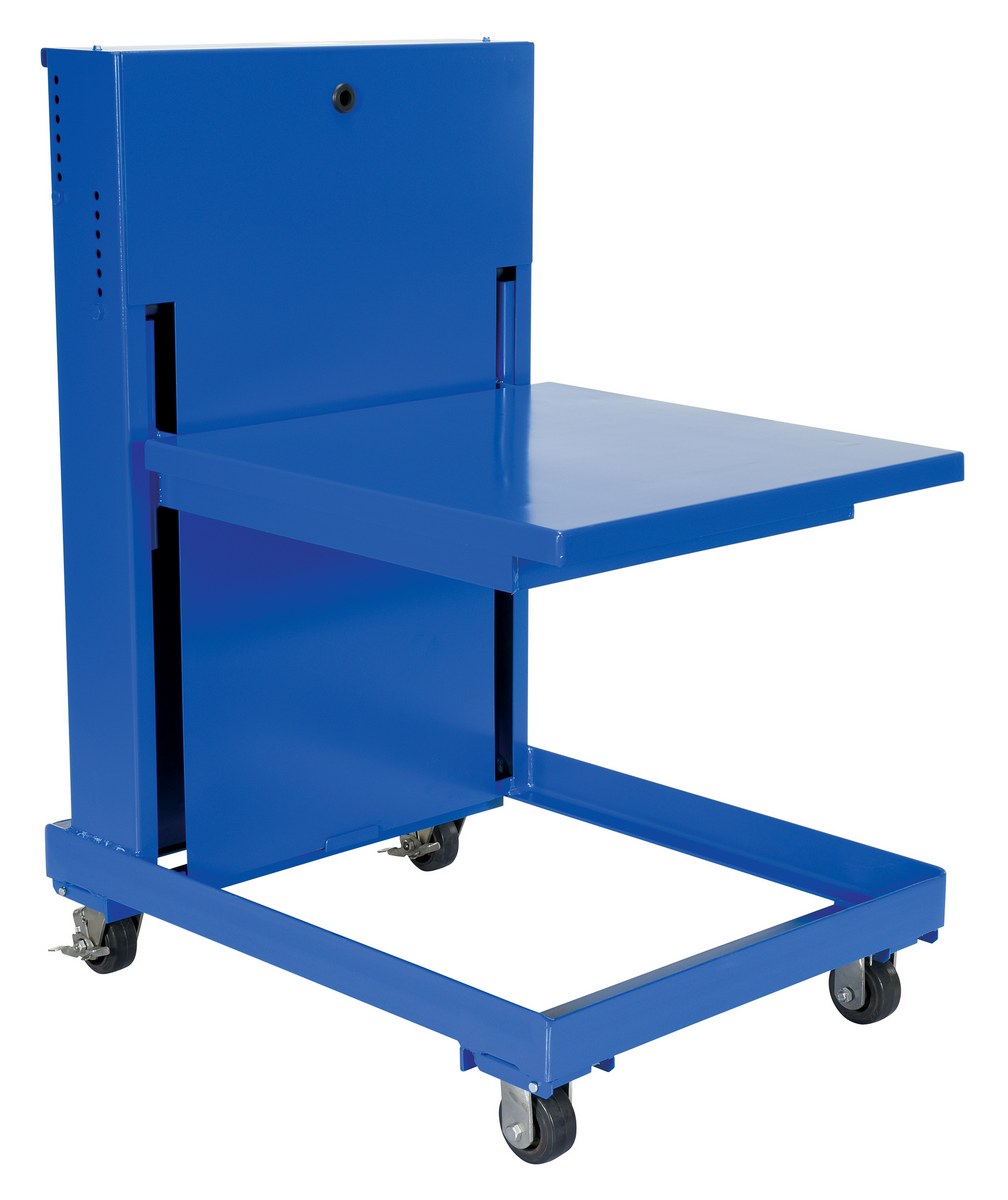

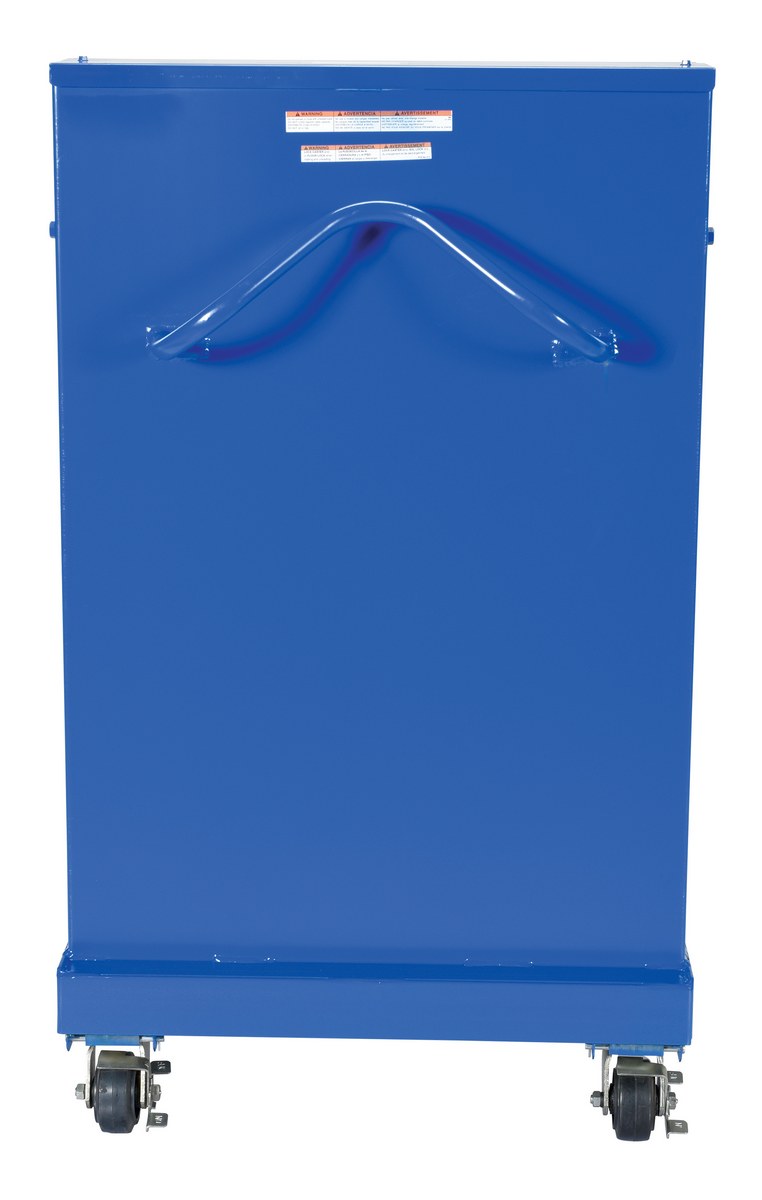

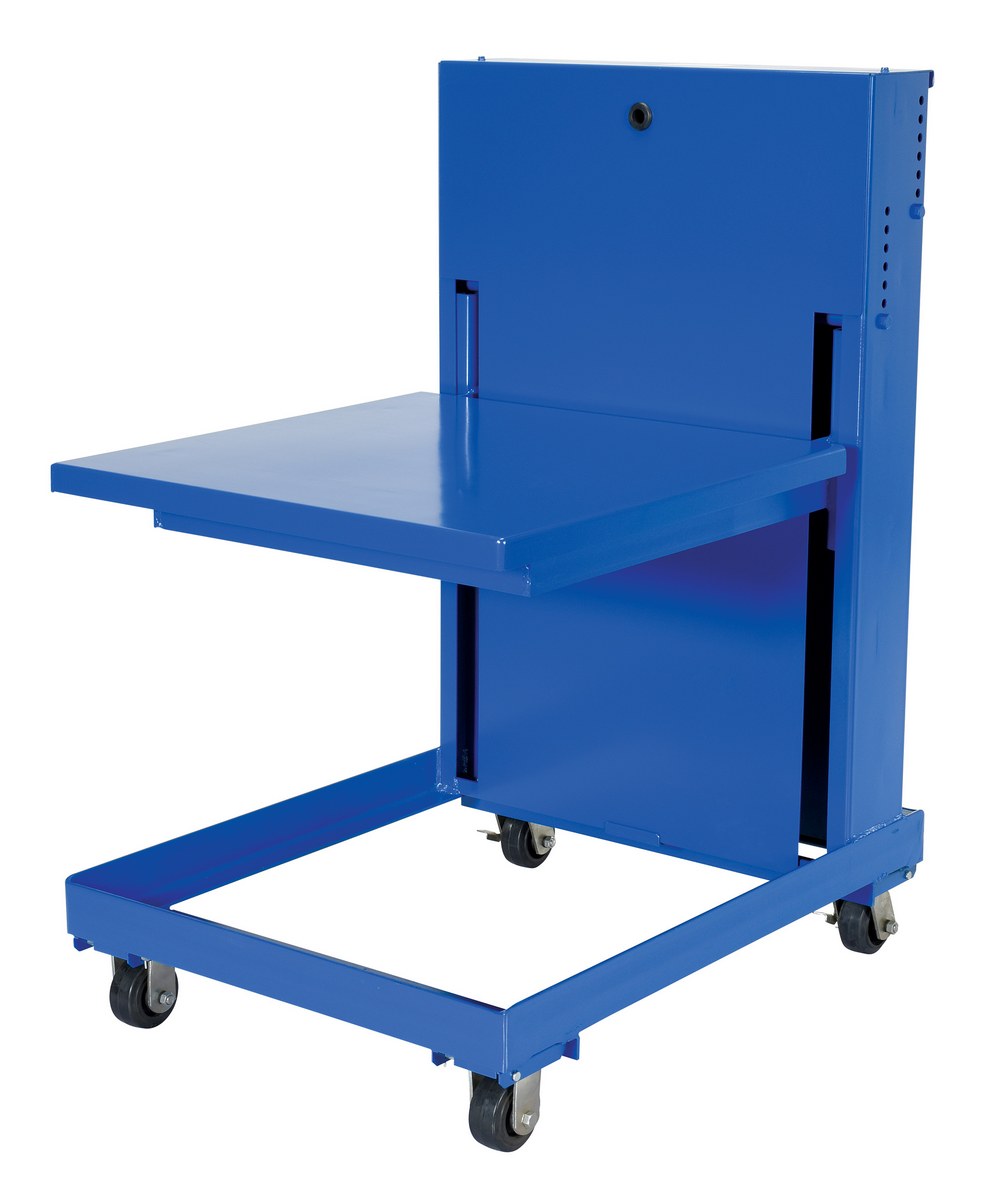

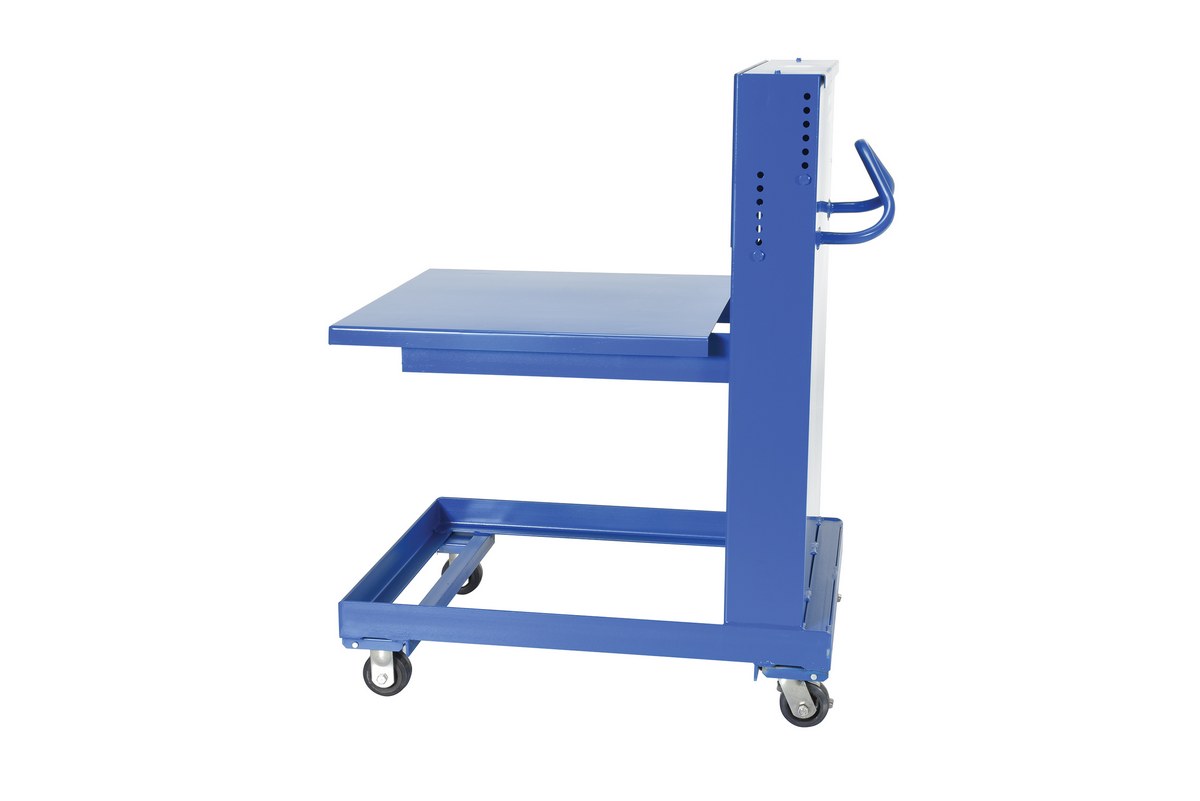

ETS-840-30 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30"x30" 840 4" x 2" 15" to 38" 30-3/8"x43-5/16x51-1/2" 448

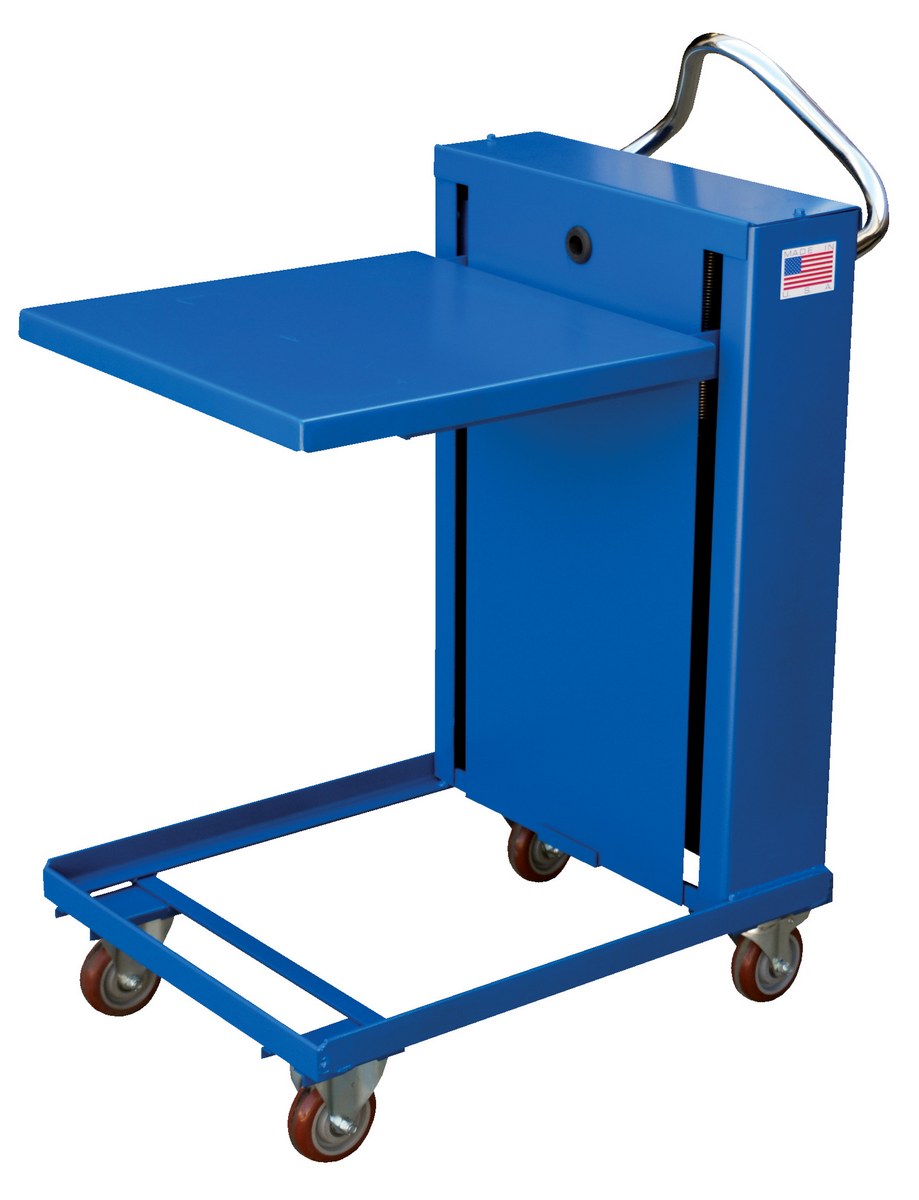

ETS-1120-24 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x24" 1,120 4" x 2" 15" to 38" 24-3/8"x37-7/16"x51-1/2" 332
