Product Family Overview

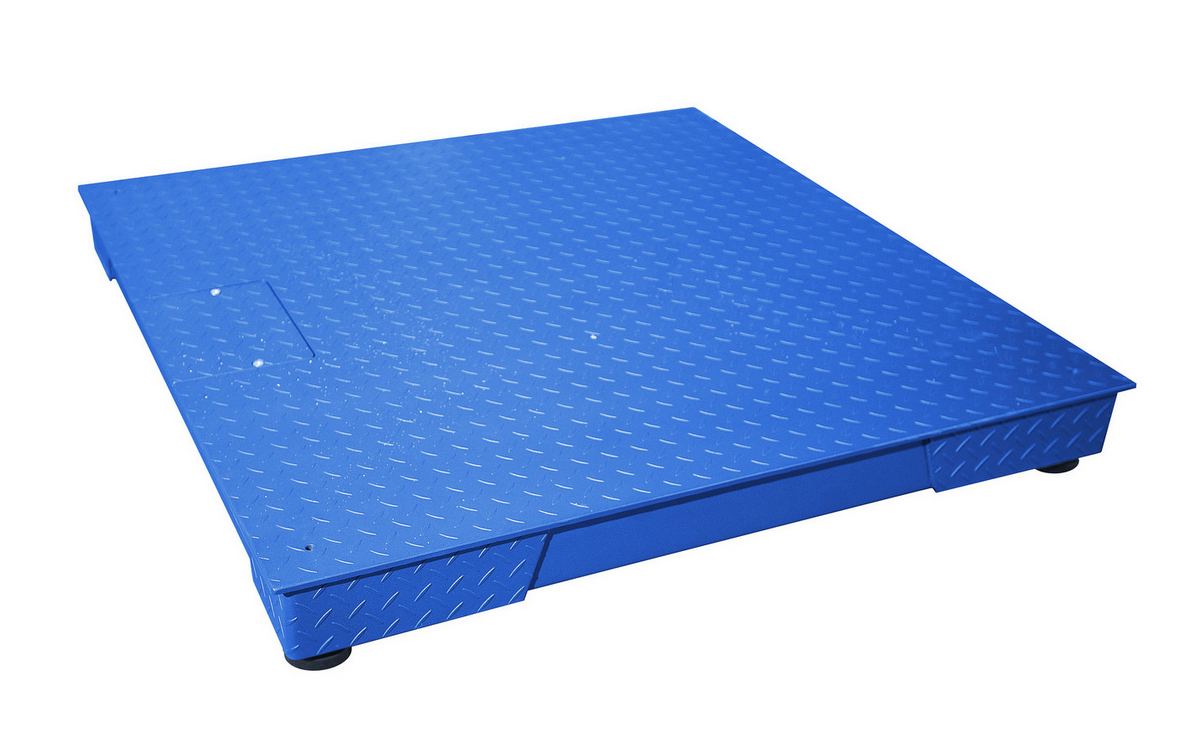

Heavy-Duty Domestic Floor Scales
SERIES: SCALE

Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE.

20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells. SCALE-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter, while the SCALE-SC20-55-20K uses 8" @ 20# per foot channel understructure and perimeter. These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display is powered by 115V, 1 phase AC power, cord included.

  • Attachable to optional ramps for simpler weighing
  • Extended height scale for easy reading
  • Scale is AC powered for constant power supply
  • Large platform for weighing oversized loads

Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE.

20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells. SCALE-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter, while the SCALE-SC20-55-20K uses 8" @ 20# per foot channel understructure and perimeter. These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display is powered by 115V, 1 phase AC power, cord included.

  • Attachable to optional ramps for simpler weighing
  • Extended height scale for easy reading
  • Scale is AC powered for constant power supply
  • Large platform for weighing oversized loads

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SCALE-SC20-44-20K SCALE-SC20-44-20K1 Year Limited WarrantySteel Premium Heavy Duty Floor Scale 48 In. x 48 In. x 5-1/2 In. 20,000 Lb. CapacityUniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
654
SCALE-SC20-55-20K SCALE-SC20-55-20K1 Year Limited WarrantySteel Premium Heavy Duty Floor Scale 60 In. x 60 In. x 5-1/2 In. 20,000 Lb. CapacityUniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
1183

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty

SCALE-SC20-44-20K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
Uniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2

SCALE-SC20-55-20K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
Uniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2

Heavy-Duty Domestic Floor Scales PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty Domestic Floor Scales




Heavy-duty, 10,000 pound capacity bases utilize a strong 2" channel perimeter and 7" @ 9.8# per foot channel understructure. Plate features up to 3/8" tread and the load cells are 5K-LE.

20,000 lb. capacity bases utilize 1/2" thick diamond plate with 10K-LE load cells. SCALE-SC20-44-20K utilizes 7" @ 9.8# per foot channel under structure and the same perimeter, while the SCALE-SC20-55-20K uses 8" @ 20# per foot channel understructure and perimeter. These are the ultimate, all around heavy bases! Contact factory for ramp options. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display is powered by 115V, 1 phase AC power, cord included.

  • Attachable to optional ramps for simpler weighing
  • Extended height scale for easy reading
  • Scale is AC powered for constant power supply
  • Large platform for weighing oversized loads


Model # Description Attributes Net Wt.
(lbs)
SCALE-SC20-44-20K SCALE-SC20-44-20KSteel Premium Heavy Duty Floor Scale 48 In. x 48 In. x 5-1/2 In. 20,000 Lb. CapacityUniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
654
SCALE-SC20-55-20K SCALE-SC20-55-20KSteel Premium Heavy Duty Floor Scale 60 In. x 60 In. x 5-1/2 In. 20,000 Lb. CapacityUniform Capacity (lb.): 20000
Diamond Plate Thickness (in.): 1/2
1183
