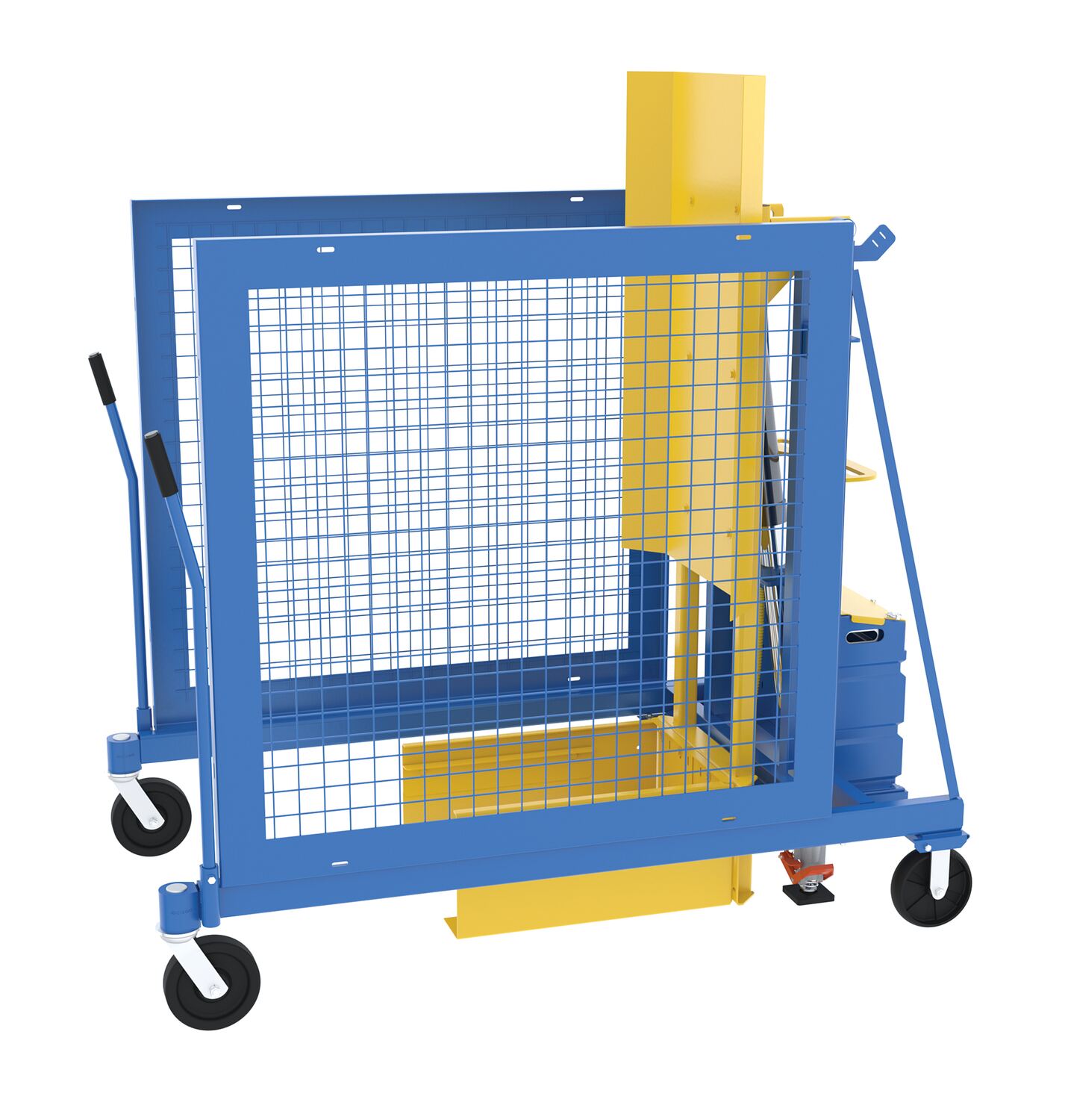

SERIES: TCD-M


Electric Hydraulic Trash Can Dumpers

Trash Can Dumpers are designed so one person can easily dump contents of trash cans. Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8" x 2" glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.

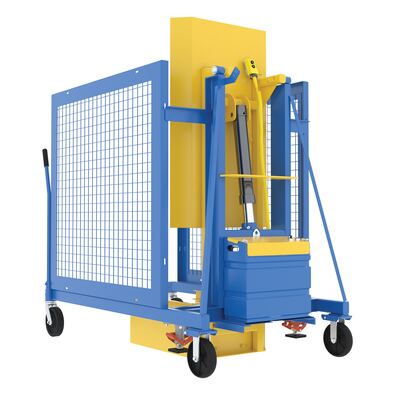

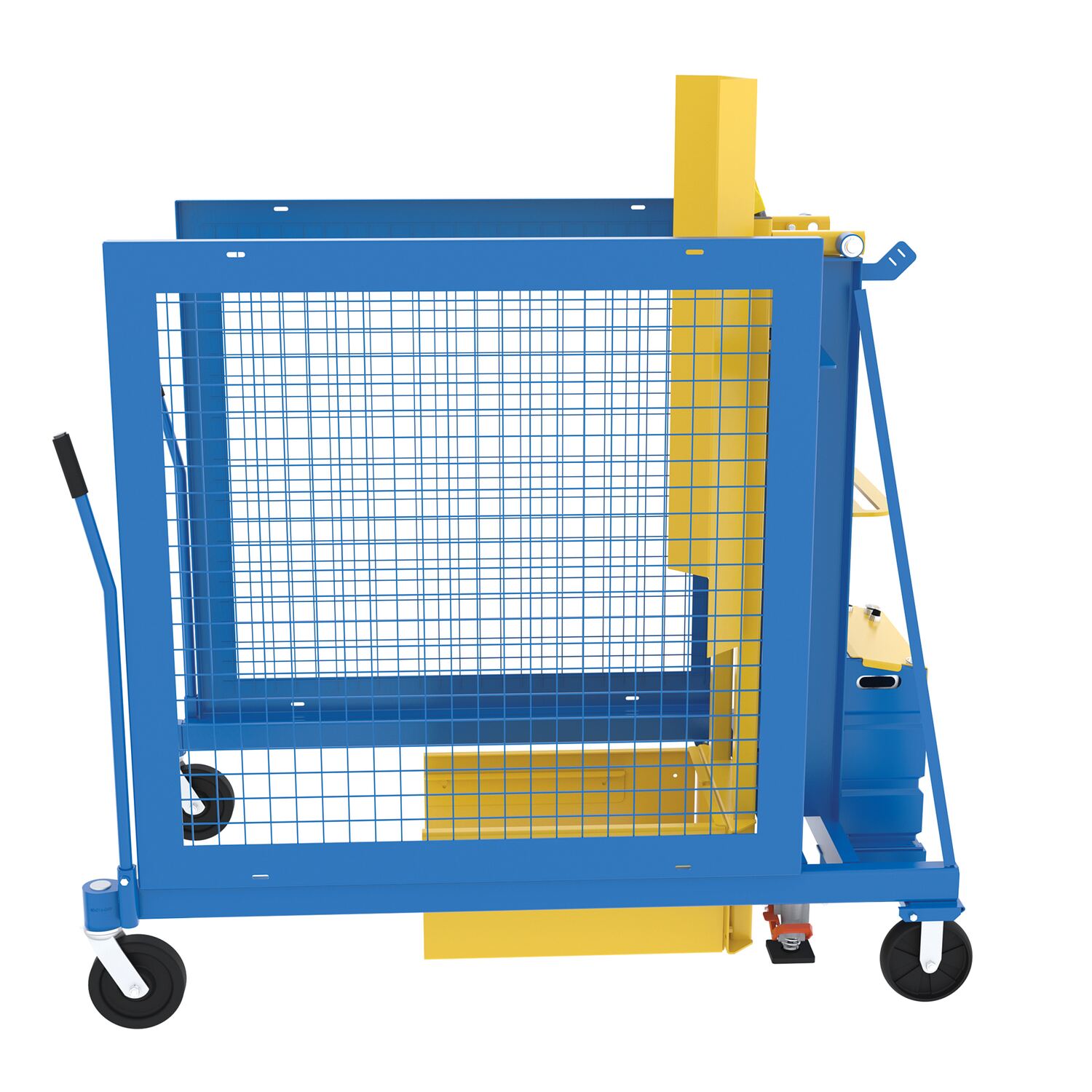

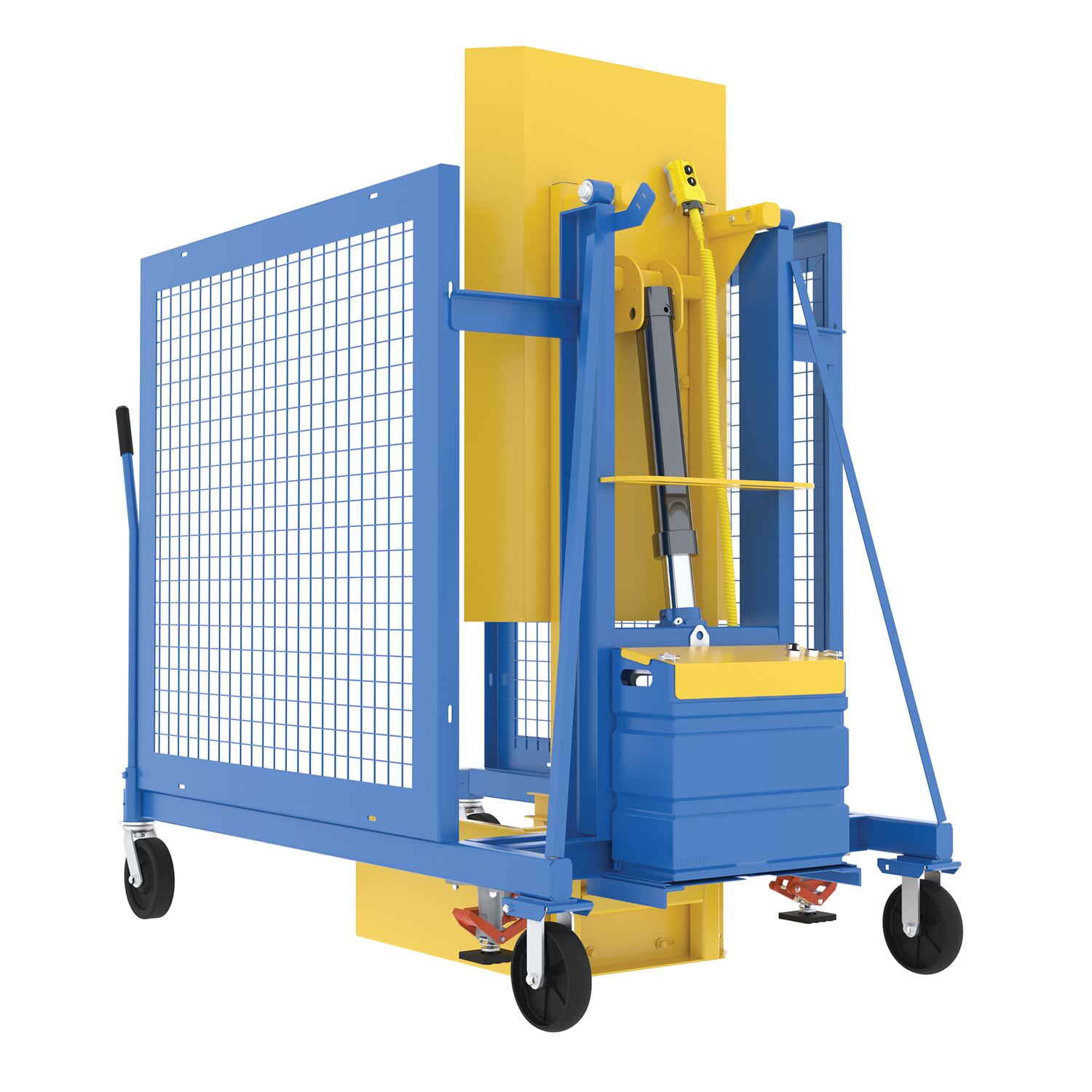

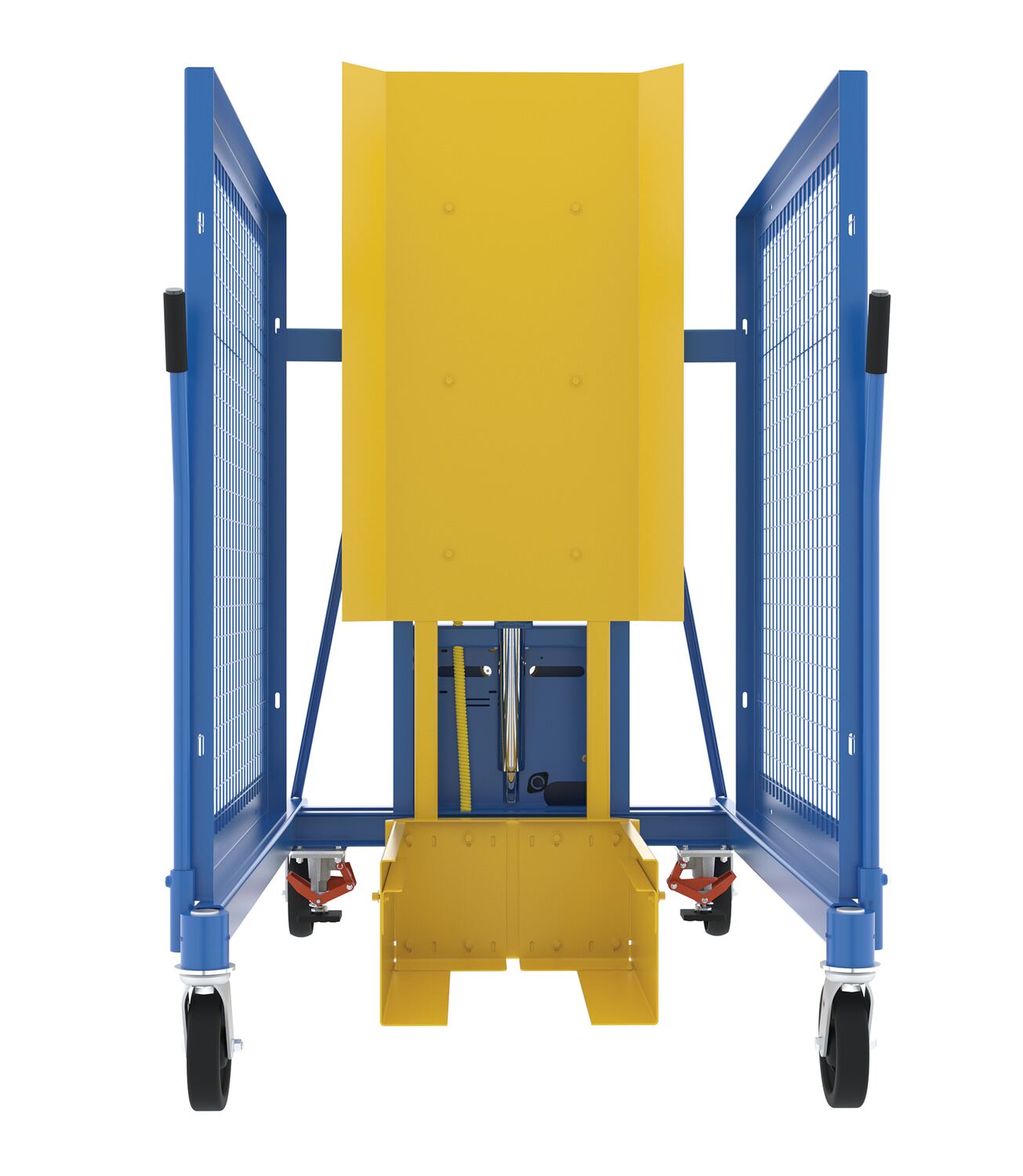

TCD-M-60-AC

model TCD-M-60-AC

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Trash Can Dumpers
Model PDF's Operation Max. Dump Angle Max. Dump Height Capacity (lbs.) Wt.
(lbs.)
TCD-M-48-AC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 115V / 1 Phase AC Powered 135 degrees 48-3/4" 400 703

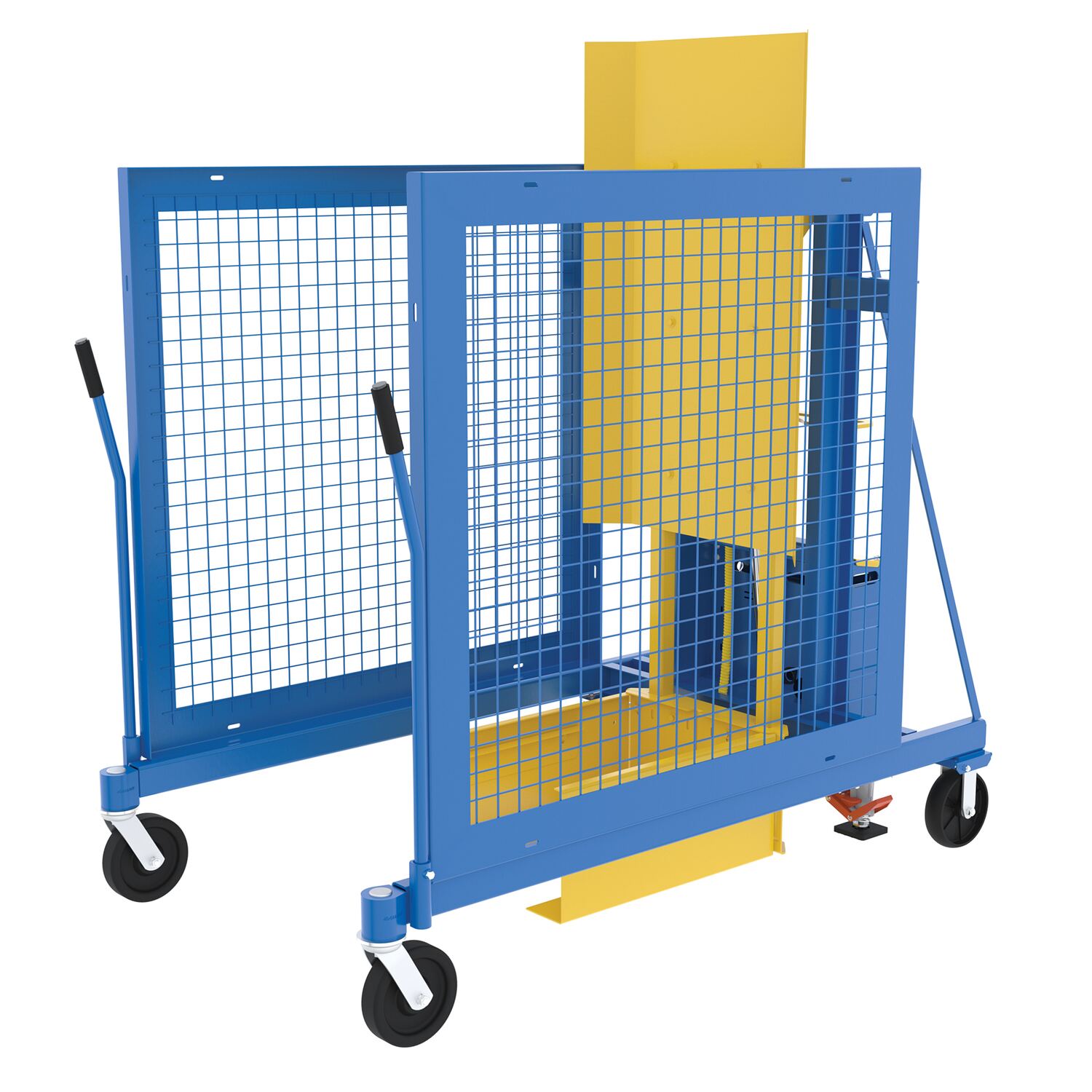

TCD-M-48-DC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12V DC Powered 135 degrees 48-3/4" 400 753
TCD-M-60-AC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 115V / 1 Phase AC Powered 135 degrees 60-3/8" 400 755

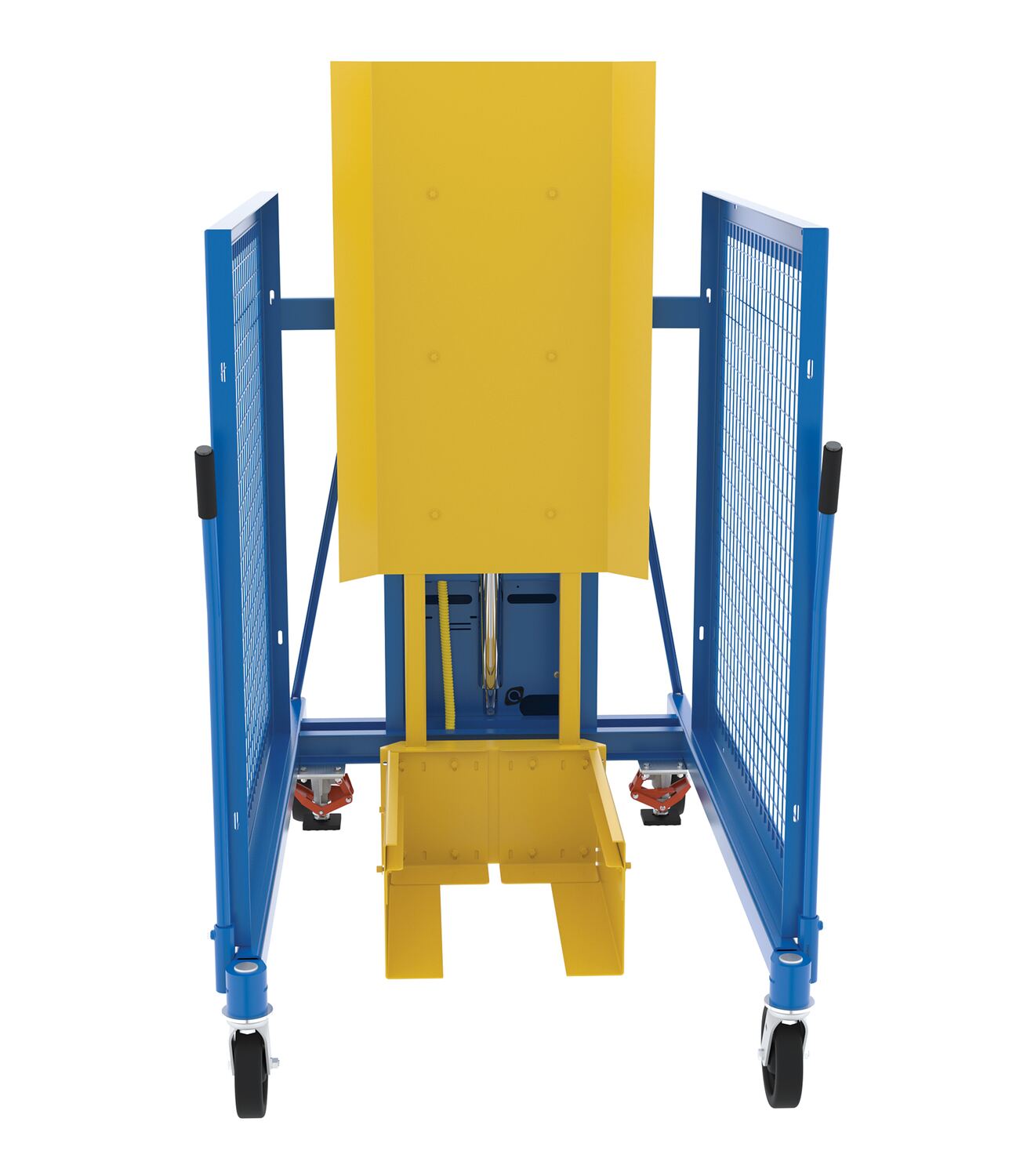

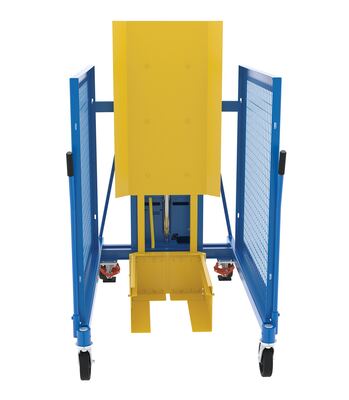

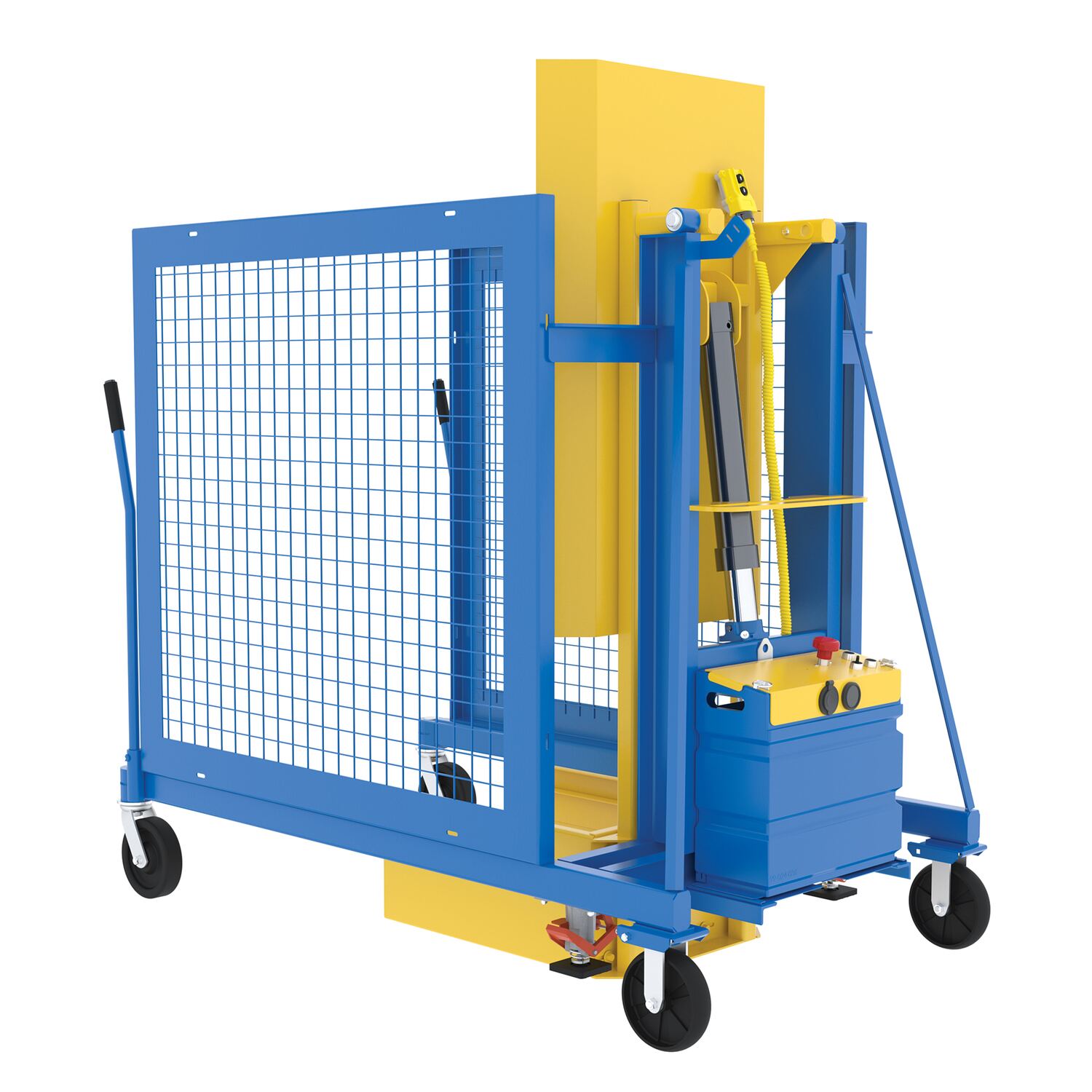

TCD-M-60-DC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12V DC Powered 135 degrees 60-3/8" 400 815

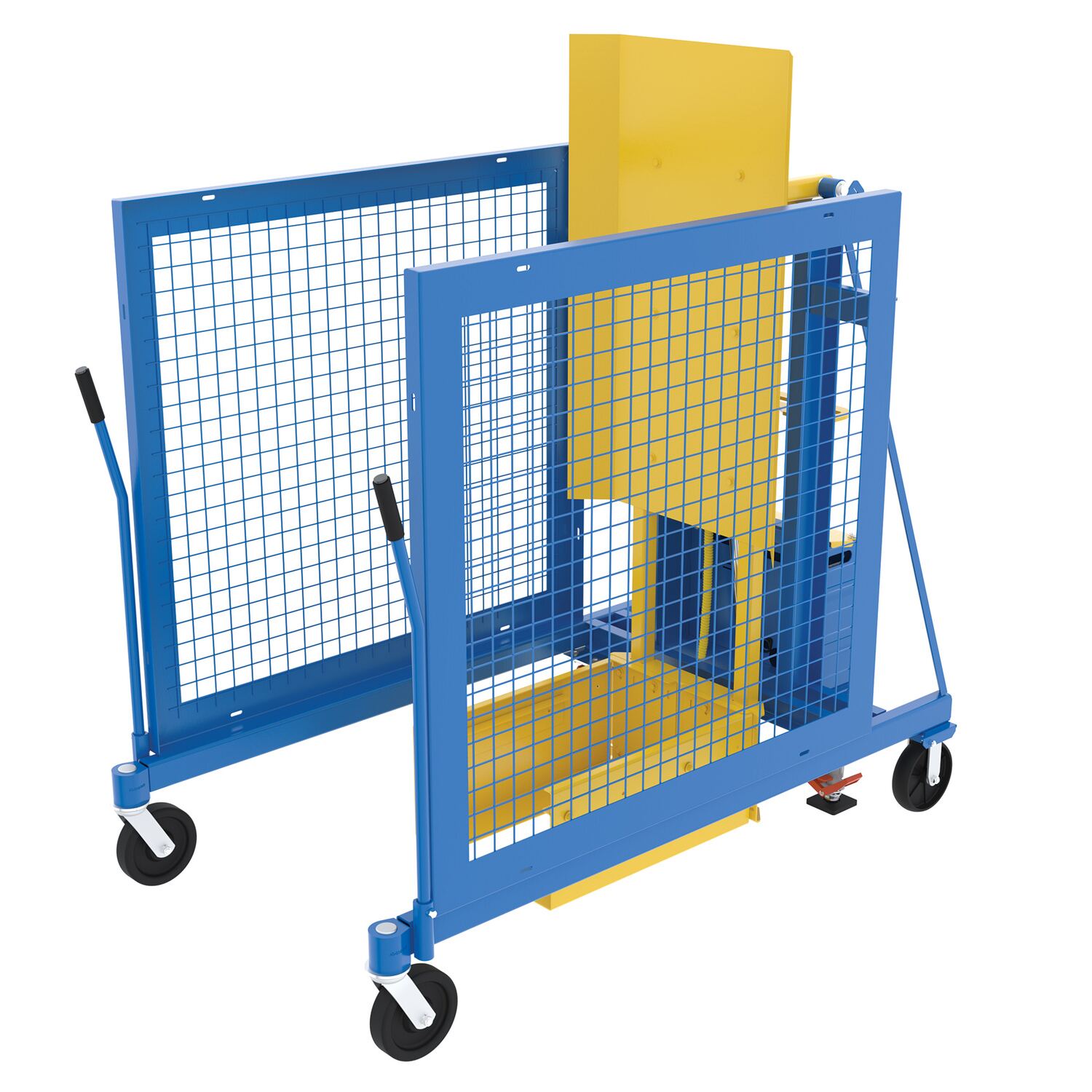

TCD-M-72-AC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 115V/ 1 phase AC Powered 135 degrees 72-3/8" 400 766
TCD-M-72-DC icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12V DC Powered 135 degrees 72-3/8" 400 826

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

PDF's will open in a new window when clicked.

Owner's Manuals


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

TCD-M-48-AC
TCD-M-48-DC
TCD-M-60-AC
TCD-M-72-AC
TCD-M-72-DC

Testing Certificates

TCD-M-72-AC
TCD-M-60-AC
TCD-M-48-AC
TCD-M-48-DC
TCD-M-72-DC
TCD-M-60-DC

Other PDF's

* No "Other PDFs" For This Product...
