Click Image to Enlarge

model: JMD-1000-72


SERIES: JMD

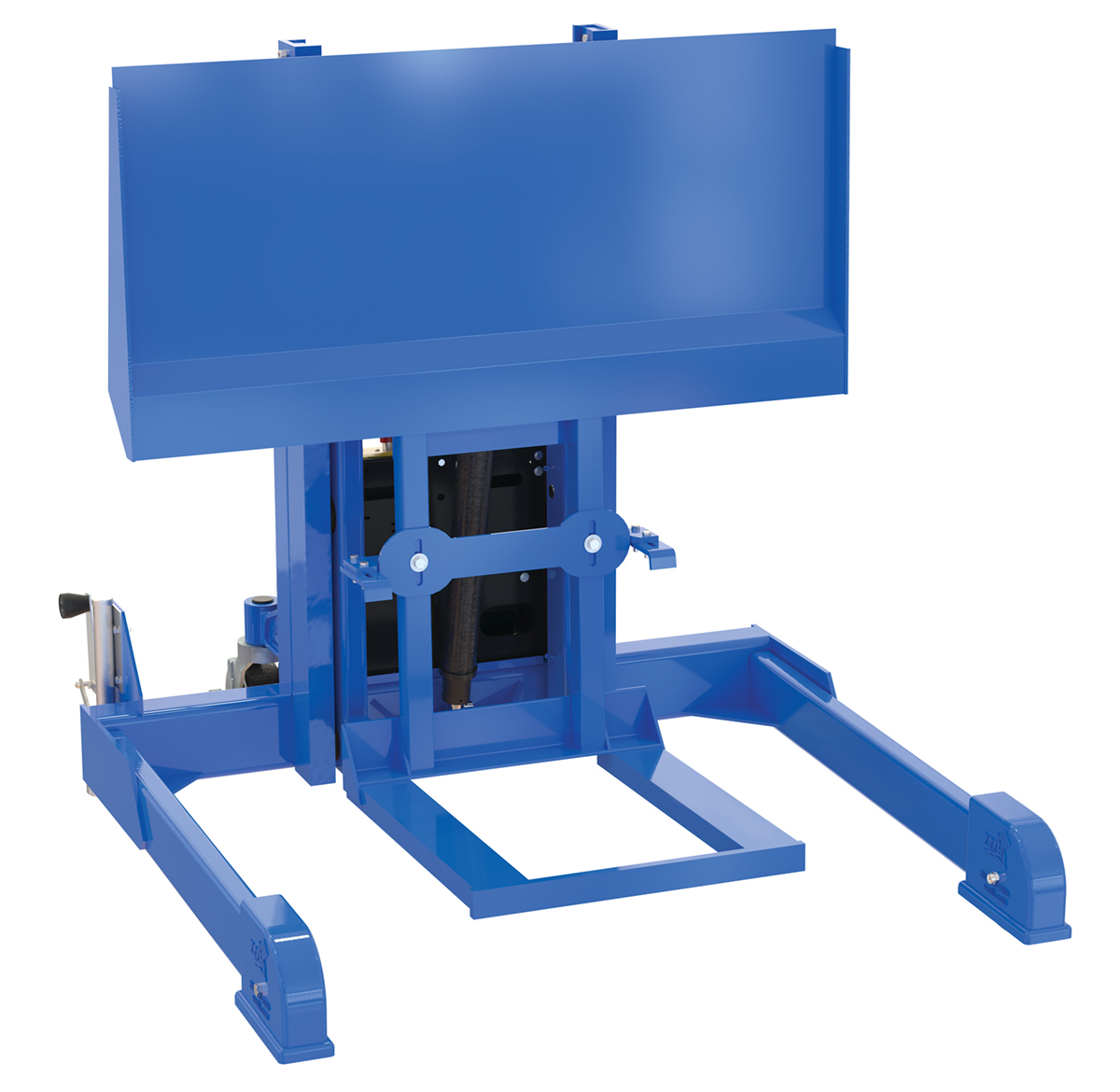

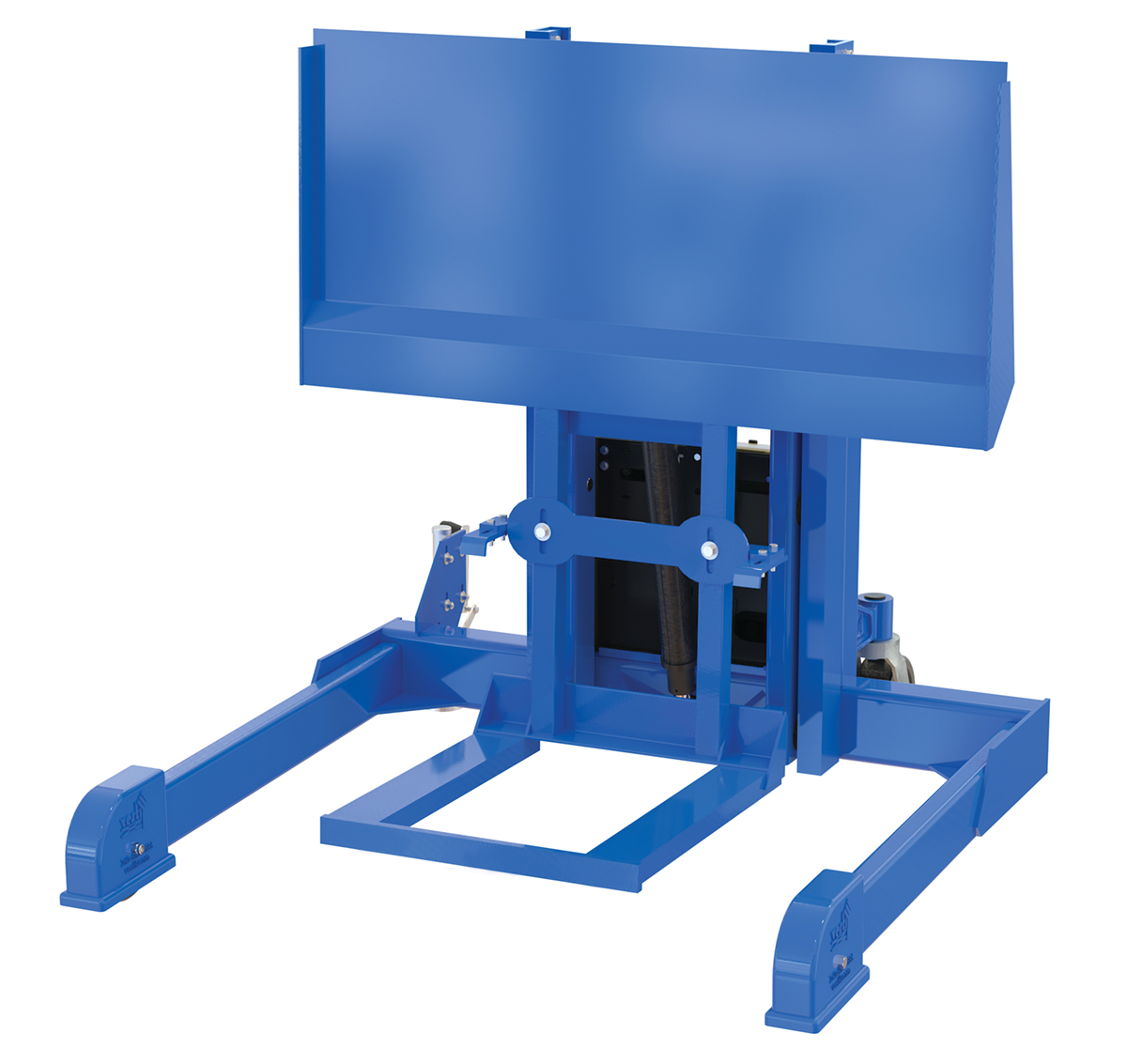

Multi-Purpose Tote Dumpers

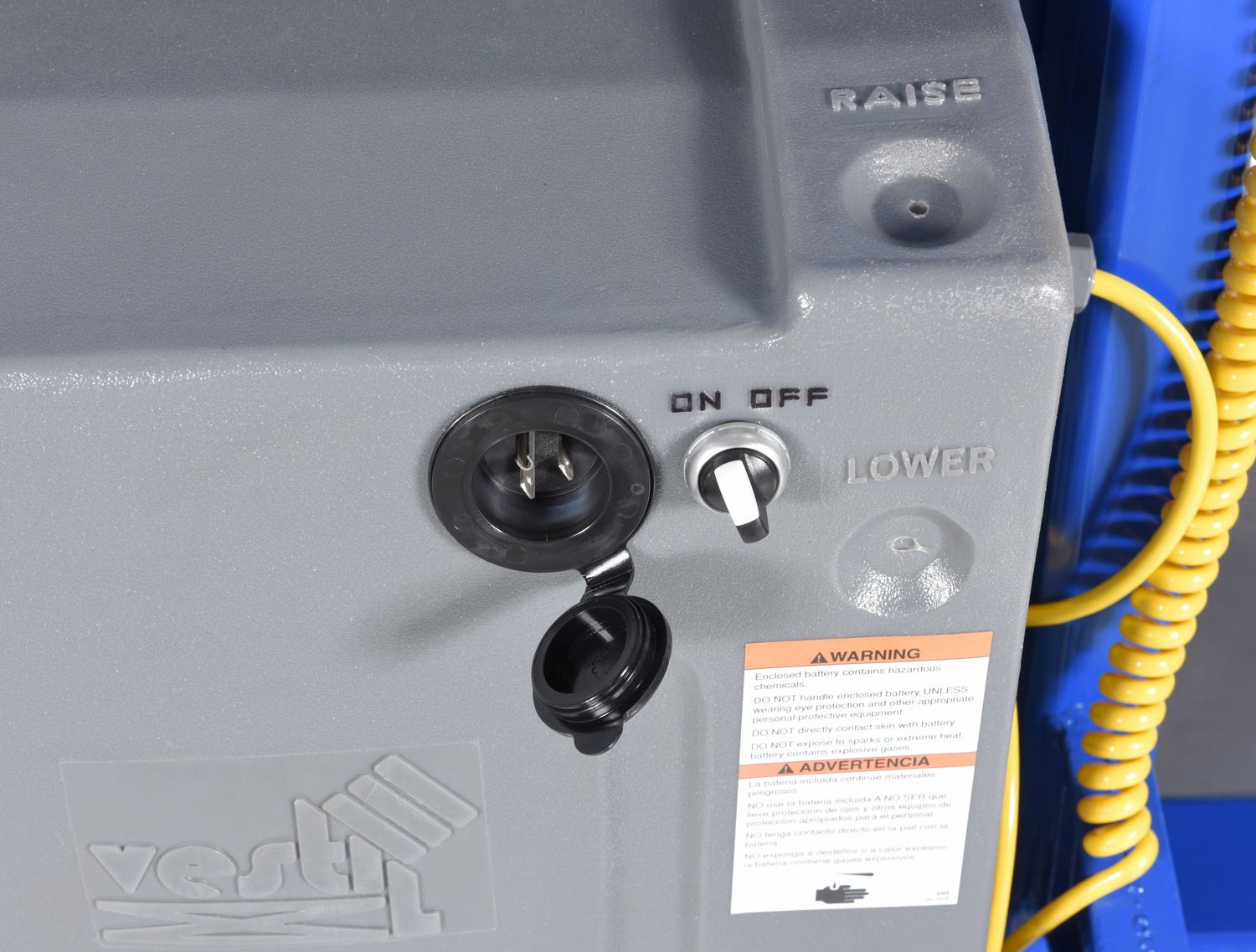

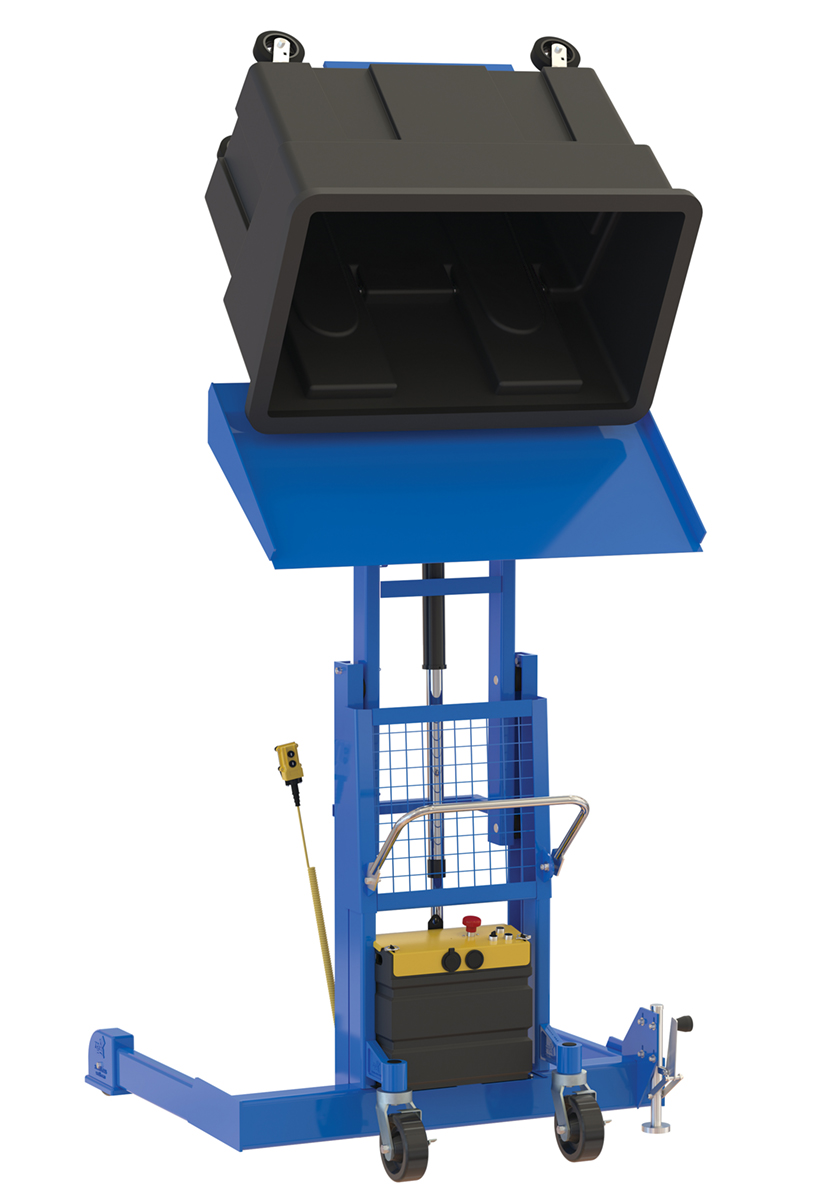

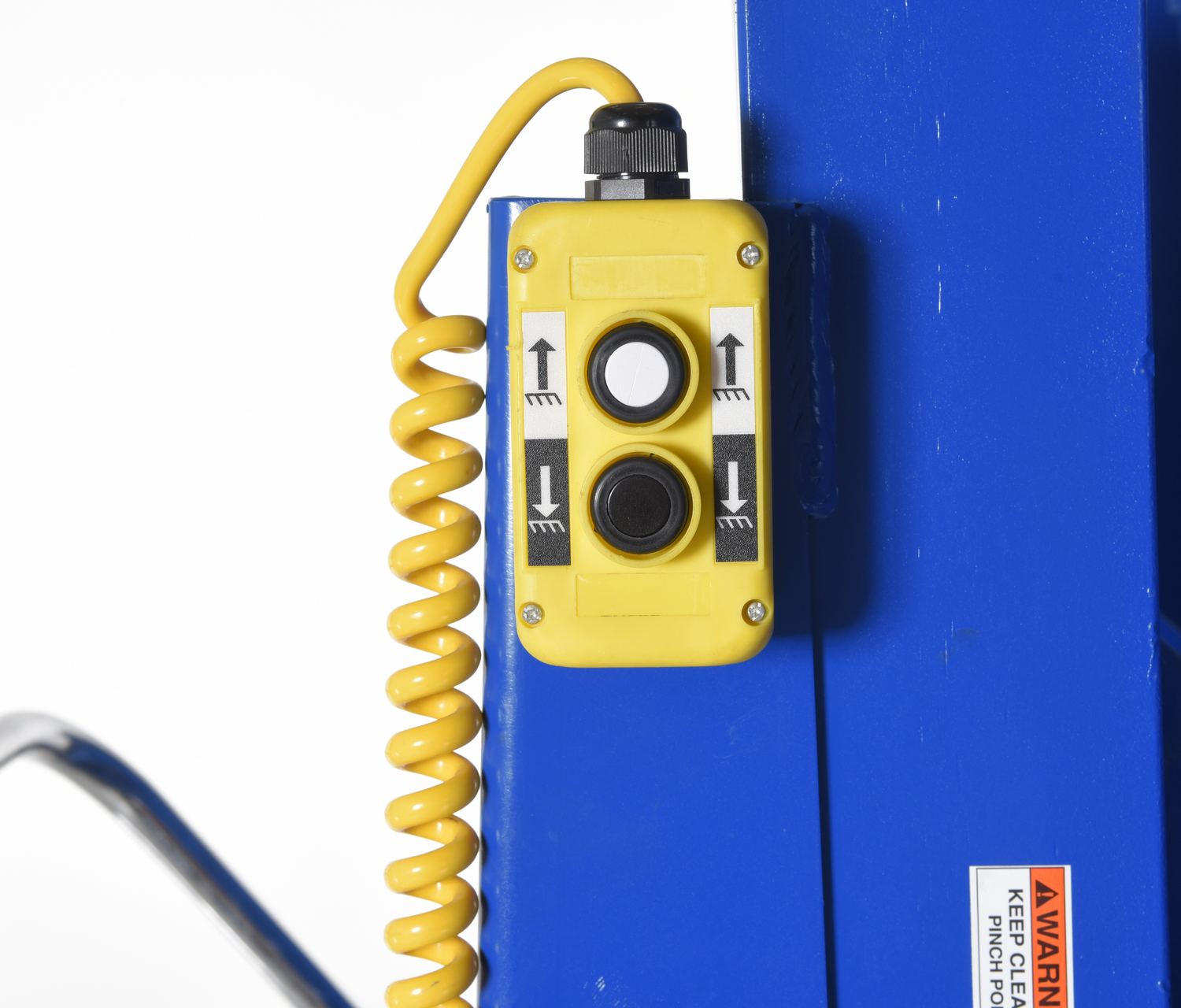

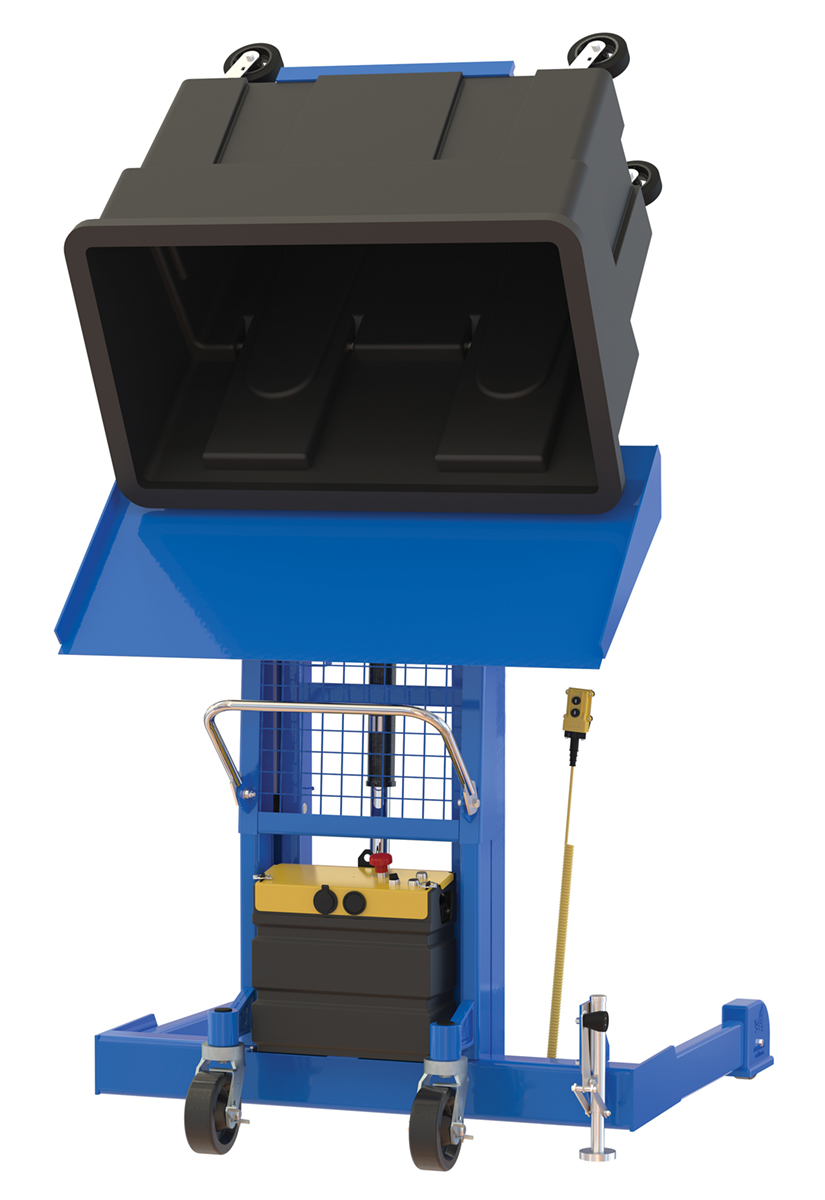

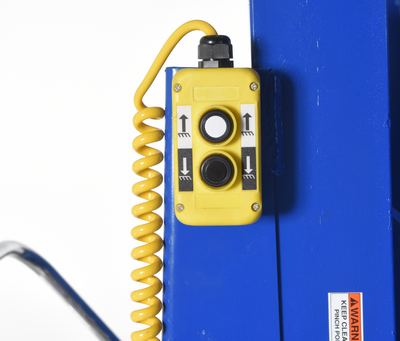

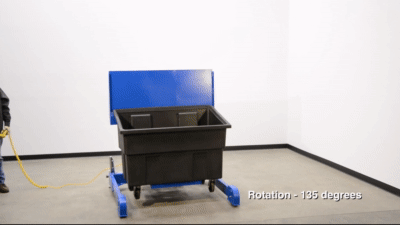

Collect, transport, and dump materials while saving time and reducing work related injuries. Ideal for schools, hospitals, commercial, and industrial applications. One person can easily and safely empty loads weighing up to 600 pounds. To use, roll the tote into dumper, secure tote in place, and depress the 24V hand control. The tote will rotate over 135 degrees to dump contents. Dump time is approximately 25 seconds. Standard features: Two (2) 8" x 2" glass filled nylon front wheels, Two (2) 8" x 3" phenolic rear casters, floor lock, one (1) 12V DC power, hand pendant control on 8 foot coil cord and one (1) MPT-2 polyethylene tote.

Collect, transport, and dump materials while saving time and reducing work related injuries. Ideal for schools, hospitals, commercial, and industrial applications. One person can easily and safely empty loads weighing up to 600 pounds. To use, roll the tote into dumper, secure tote in place, and depress the 24V hand control. The tote will rotate over 135 degrees to dump contents. Dump time is approximately 25 seconds. Standard features: Two (2) 8" x 2" glass filled nylon front wheels, Two (2) 8" x 3" phenolic rear casters, floor lock, one (1) 12V DC power, hand pendant control on 8 foot coil cord and one (1) MPT-2 polyethylene tote.

Other Dumpers

Electric/Hydraulic Box Dumpers

Electric/Hydraulic Box Dumpers

Electric Hydraulic Trash Can Dumpers

Electric Hydraulic Trash Can Dumpers

Universal Trash Can Dumpers

Universal Trash Can Dumpers

Trash Can Carts

Trash Can Carts

Trash Cans

Trash Cans

Share This Page

JMD-1000-48

model JMD-1000-48

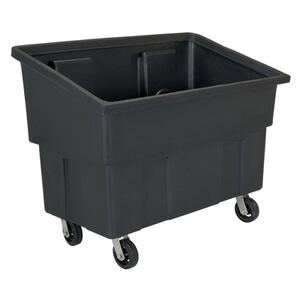

MPT-1

model MPT-1

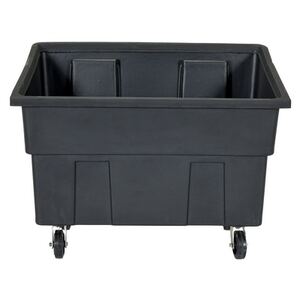

MPT-2

model MPT-2




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Multipurpose Tote Dumpers
Model PDF's Dump
Height
Rotated
Height
Capacity
(lbs)
Overall
(WxL)
Wt.
(lbs)

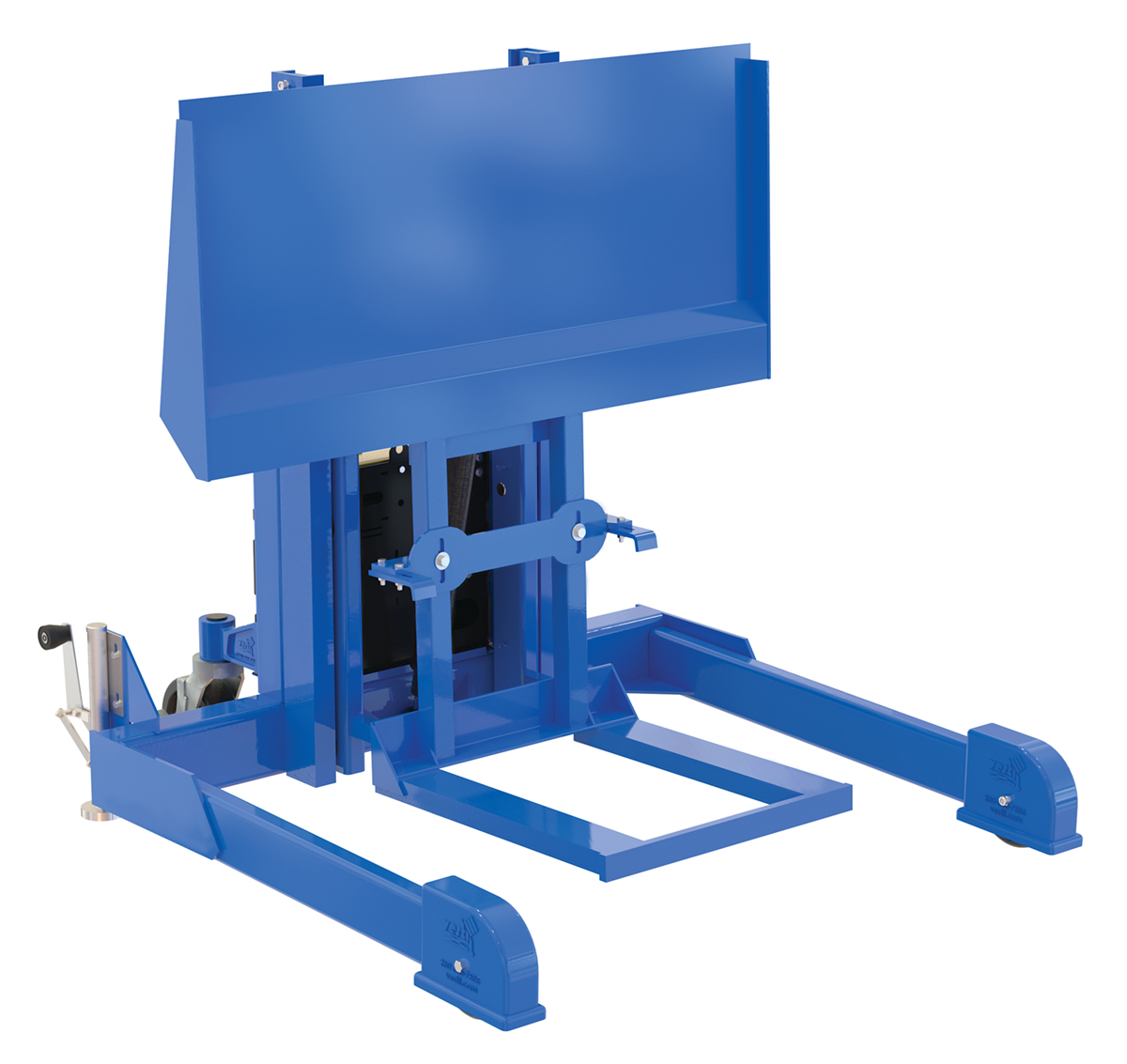

JMD-1000-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48" 105-3/4" 600 57-1/4"x65-1/8" 1061
JMD-1000-60 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60" 117-3/4" 600 57-1/4"x65-1/8" 1075
JMD-1000-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 72" 129-3/4" 600 57-1/4"x65-1/8" 1099

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


OPTIONAL TOTES
Model PDF's Description Wt.
(lbs)

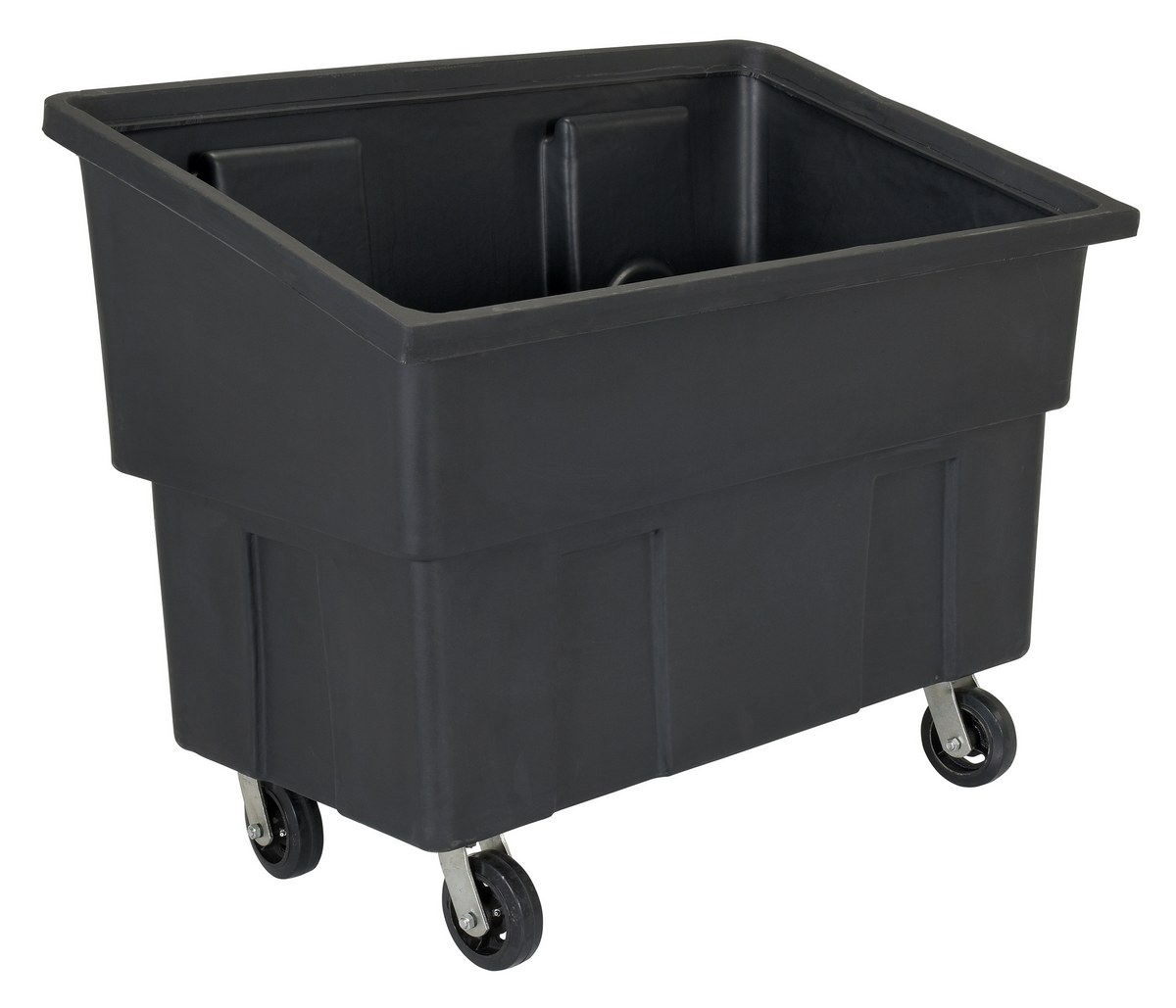

MPT-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 CUBIC YARD POLYETHYLENE TOTE
CAPACITY 200 LB. - OVERALL SIZE: 52-1/2"W x 30-3/4"D x 41-13/16"H
128

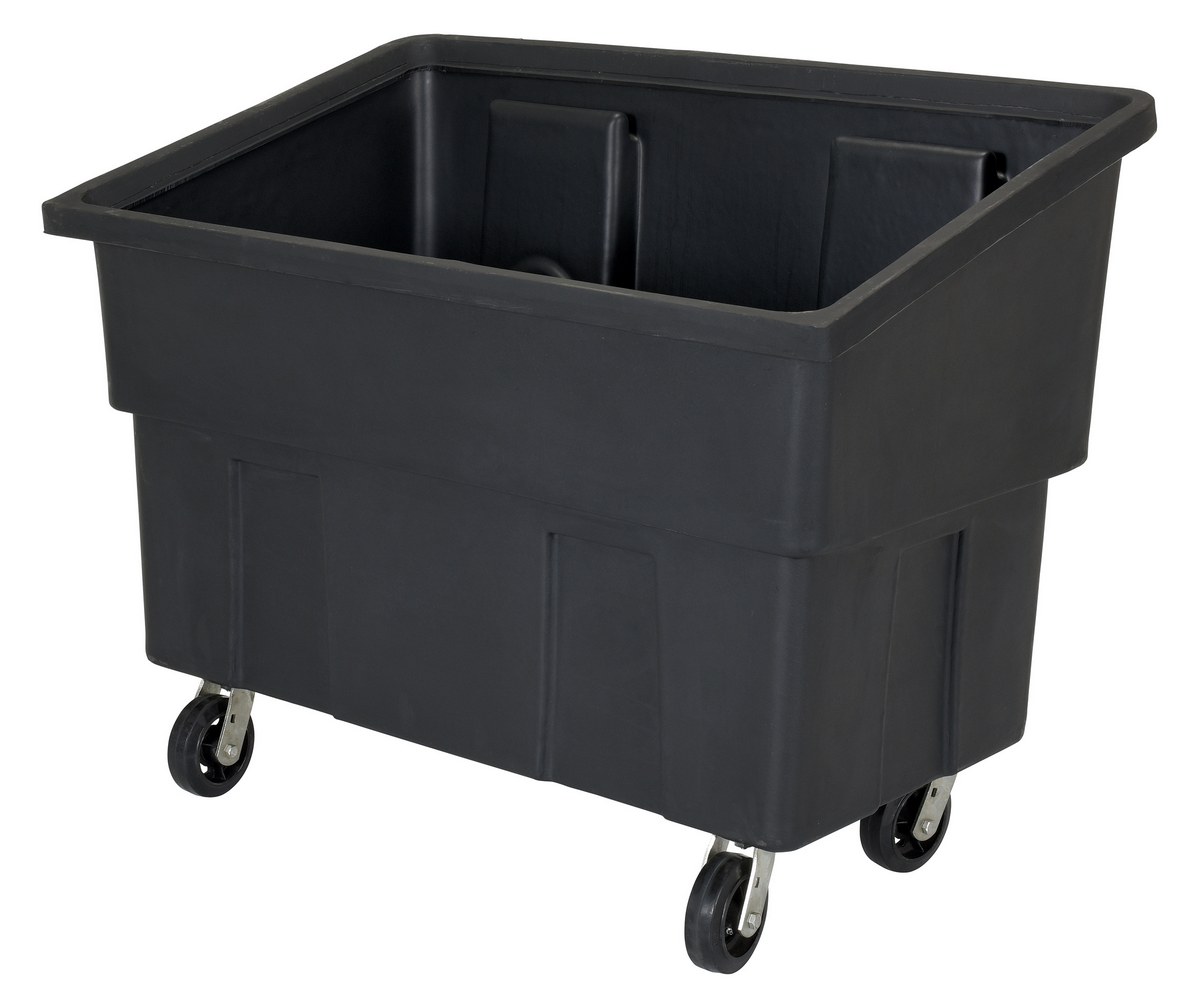

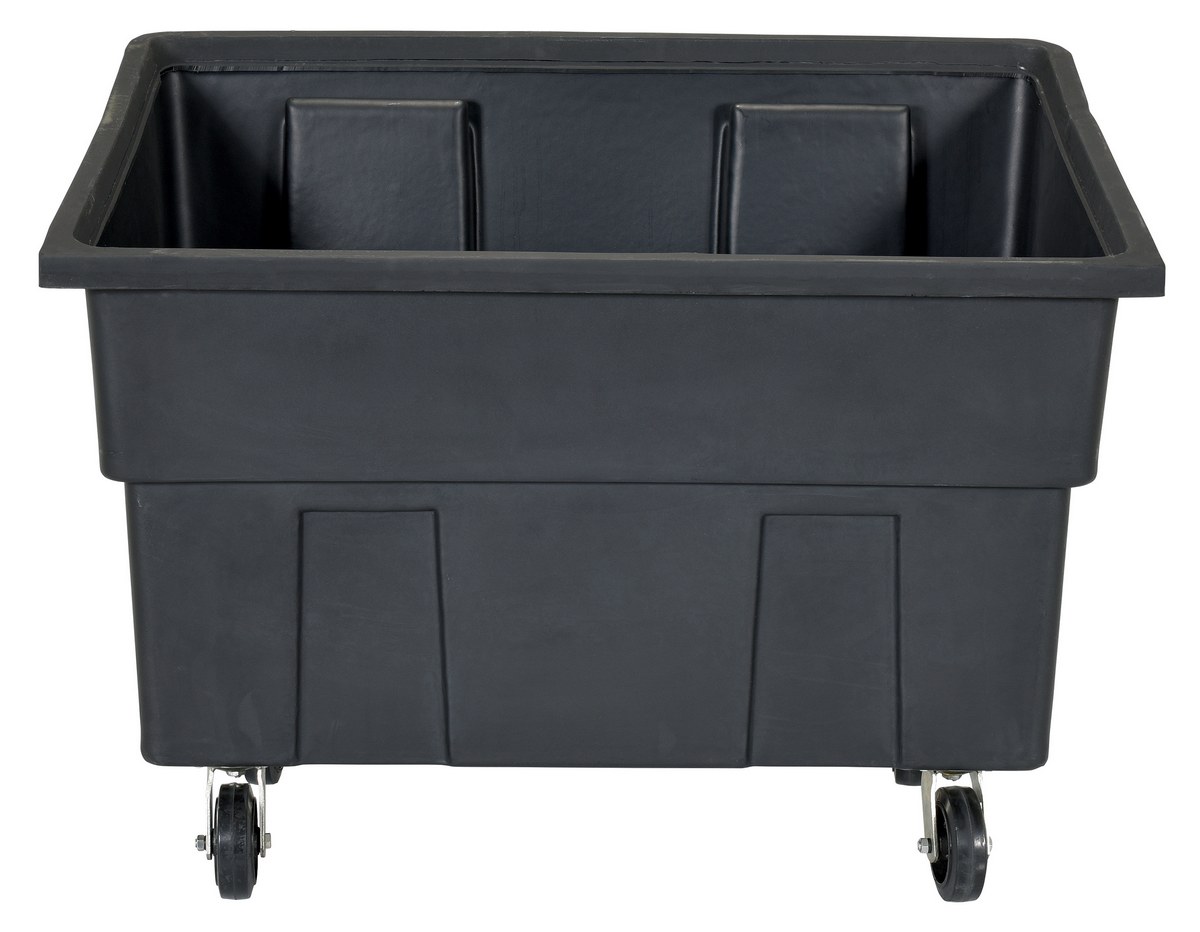

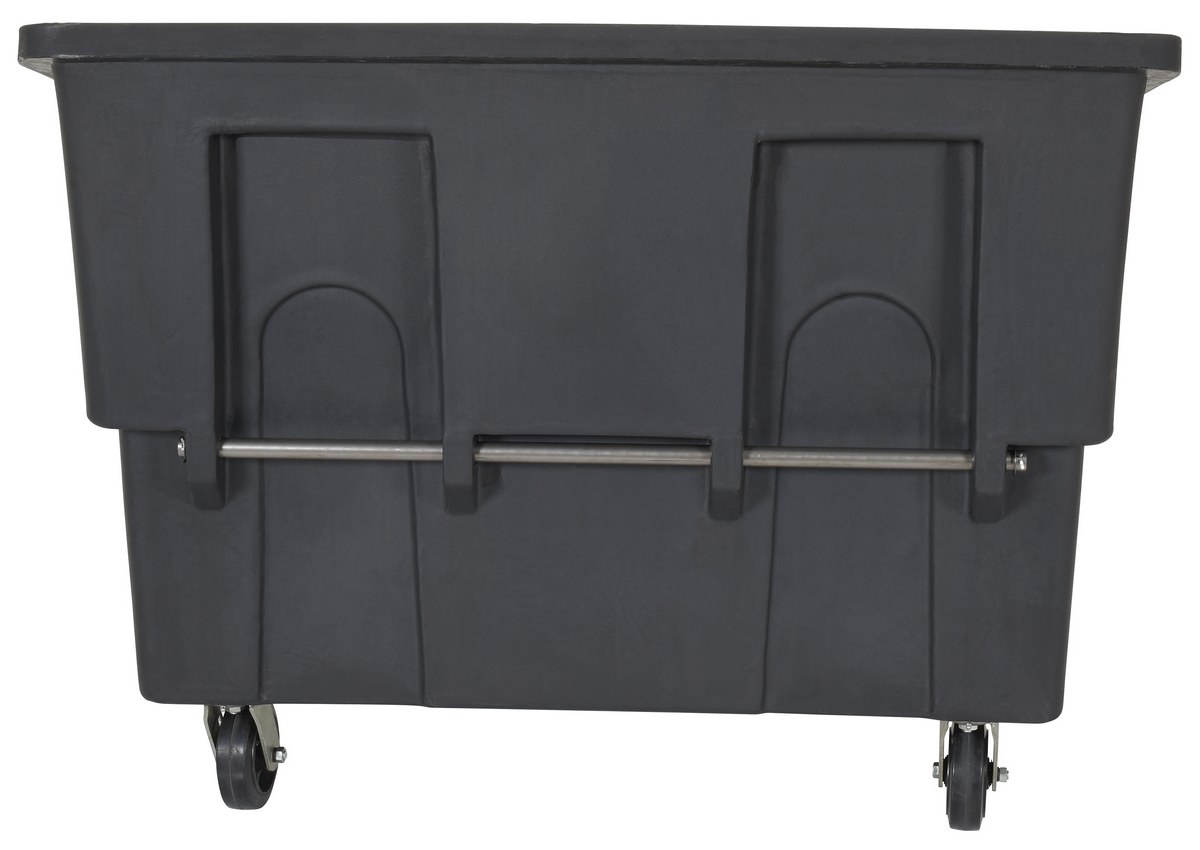

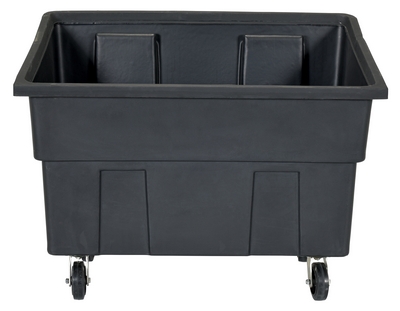

MPT-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate ADDITIONAL1/2 CUBIC YARD POLYETHYLENE TOTE
CAPACITY 600 LB. - OVERALL SIZE: 52-1/2"W x 30-3/4"D x 42-5/16"H
200

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

JMD-1000-48

JMD-1000-48

JMD-1000-60

JMD-1000-60

JMD-1000-72

JMD-1000-72

MPT-1

MPT-1

MPT-2

MPT-2






Multi-Purpose Tote Dumpers PDF's will open in a new window when clicked.
