SERIES: D

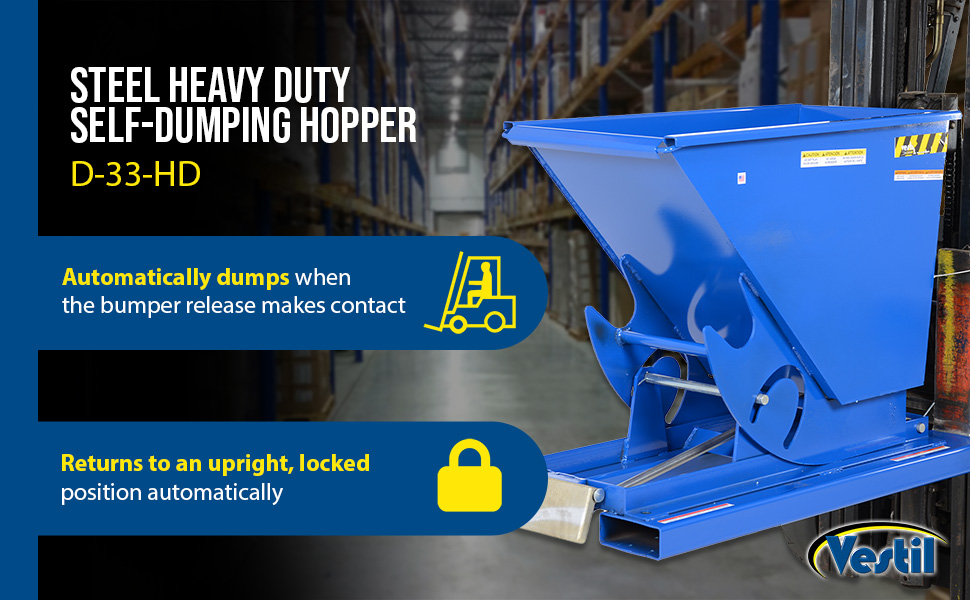

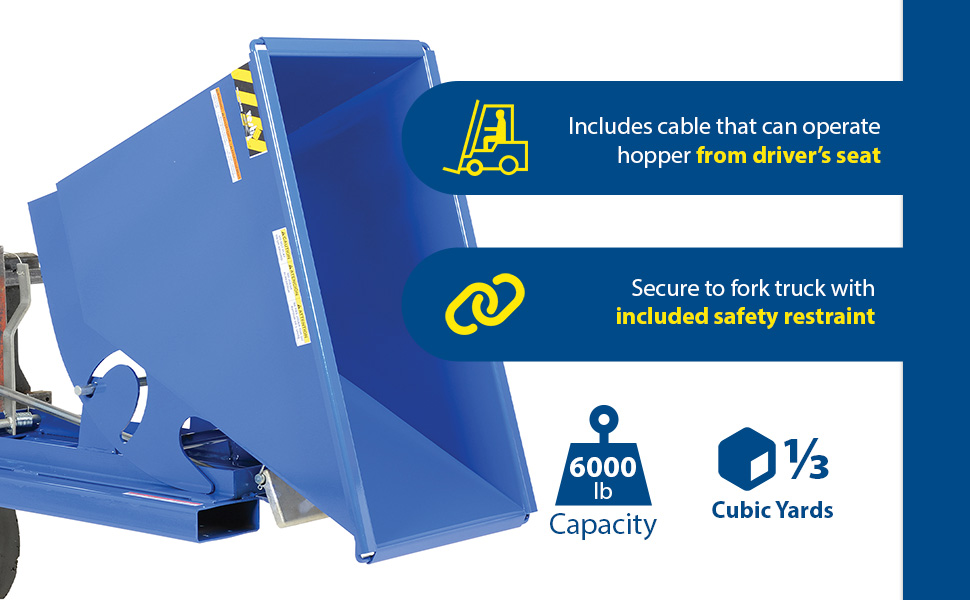

D Style - Self-Dumping Steel Hoppers with Bumper Release

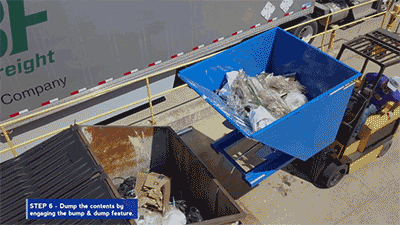

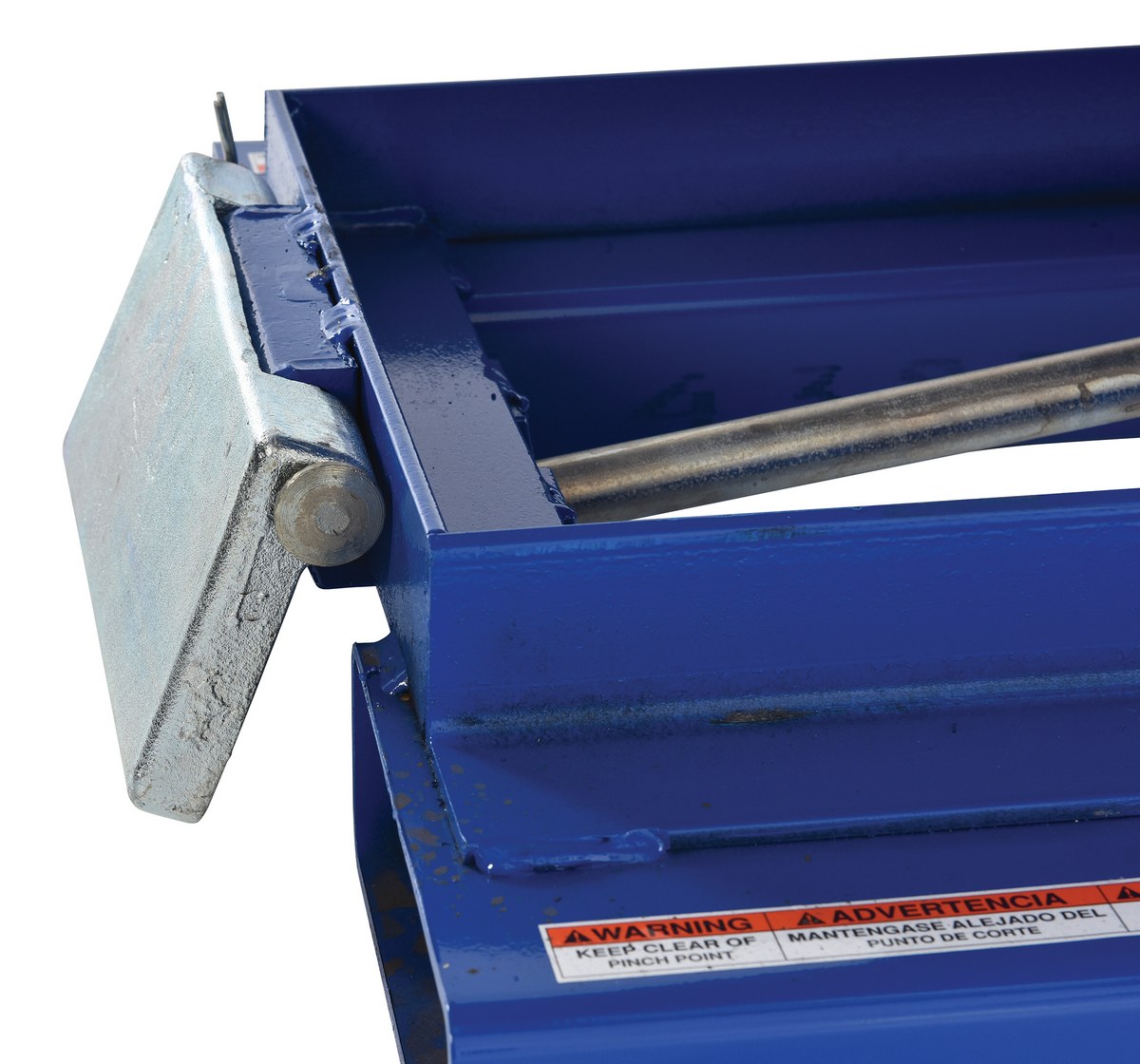

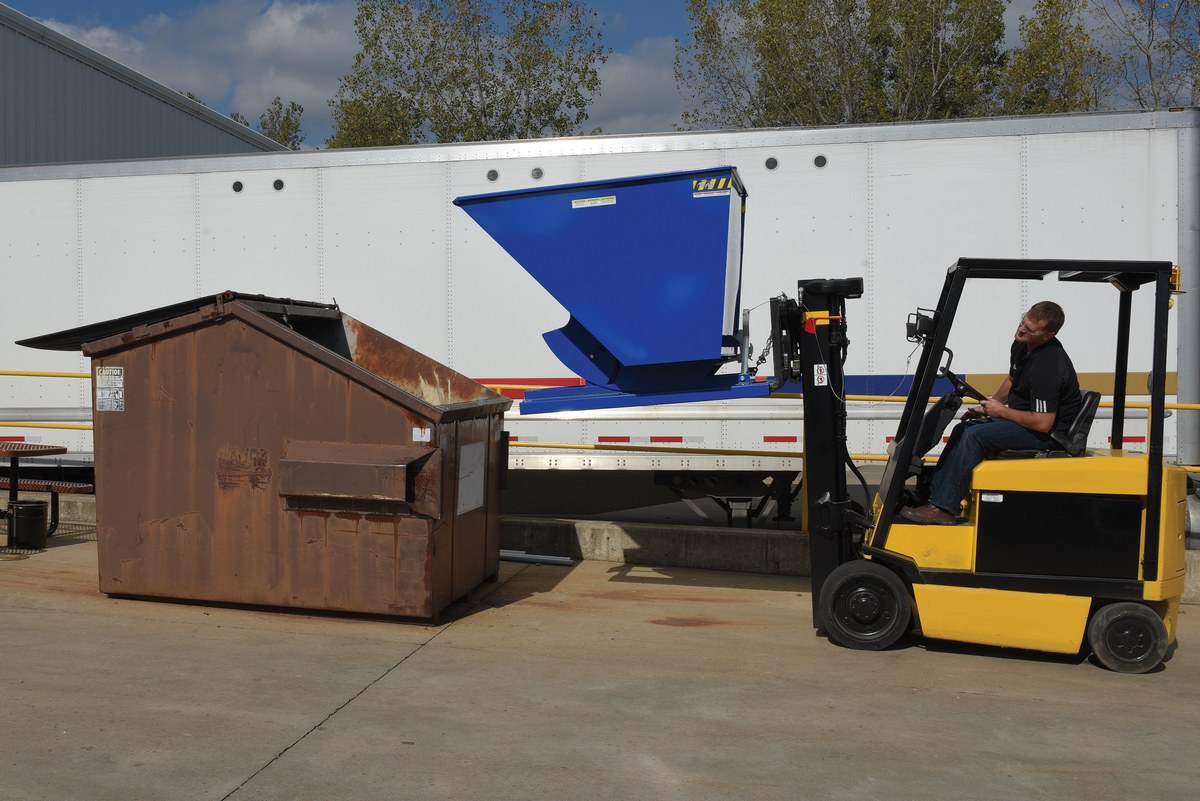

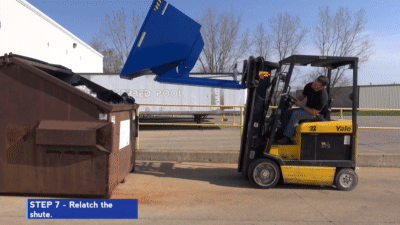

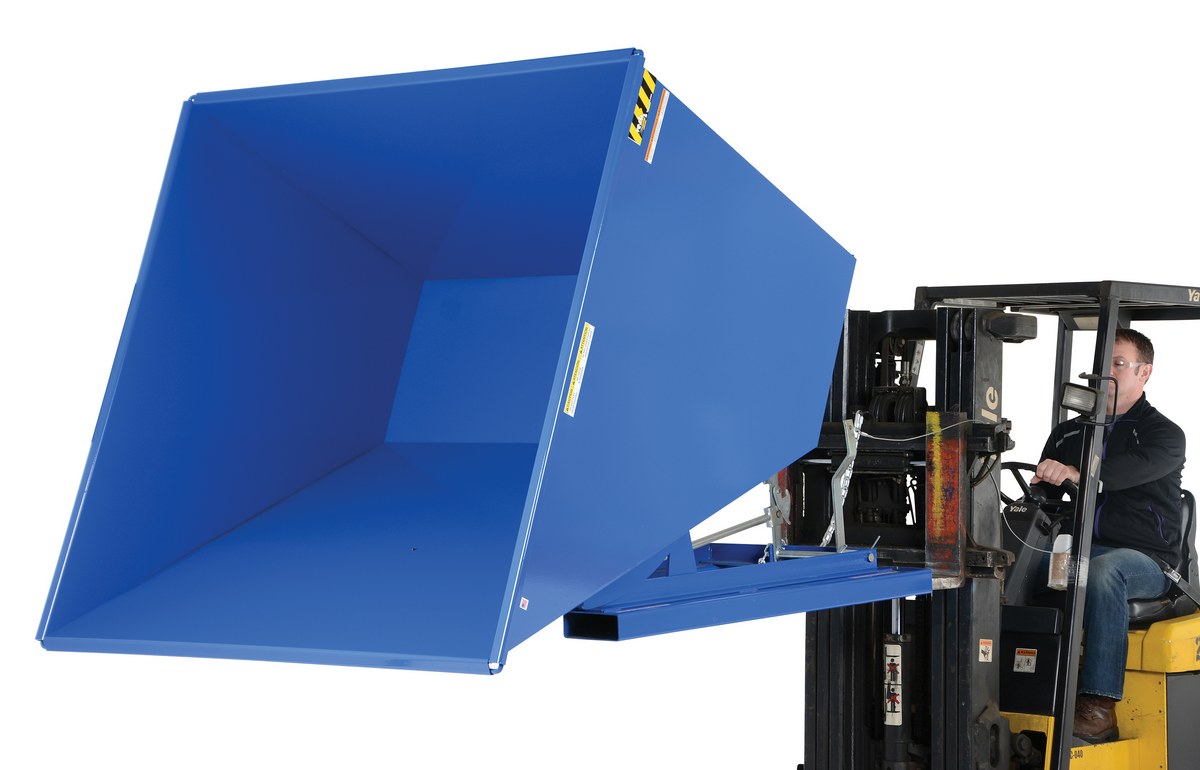

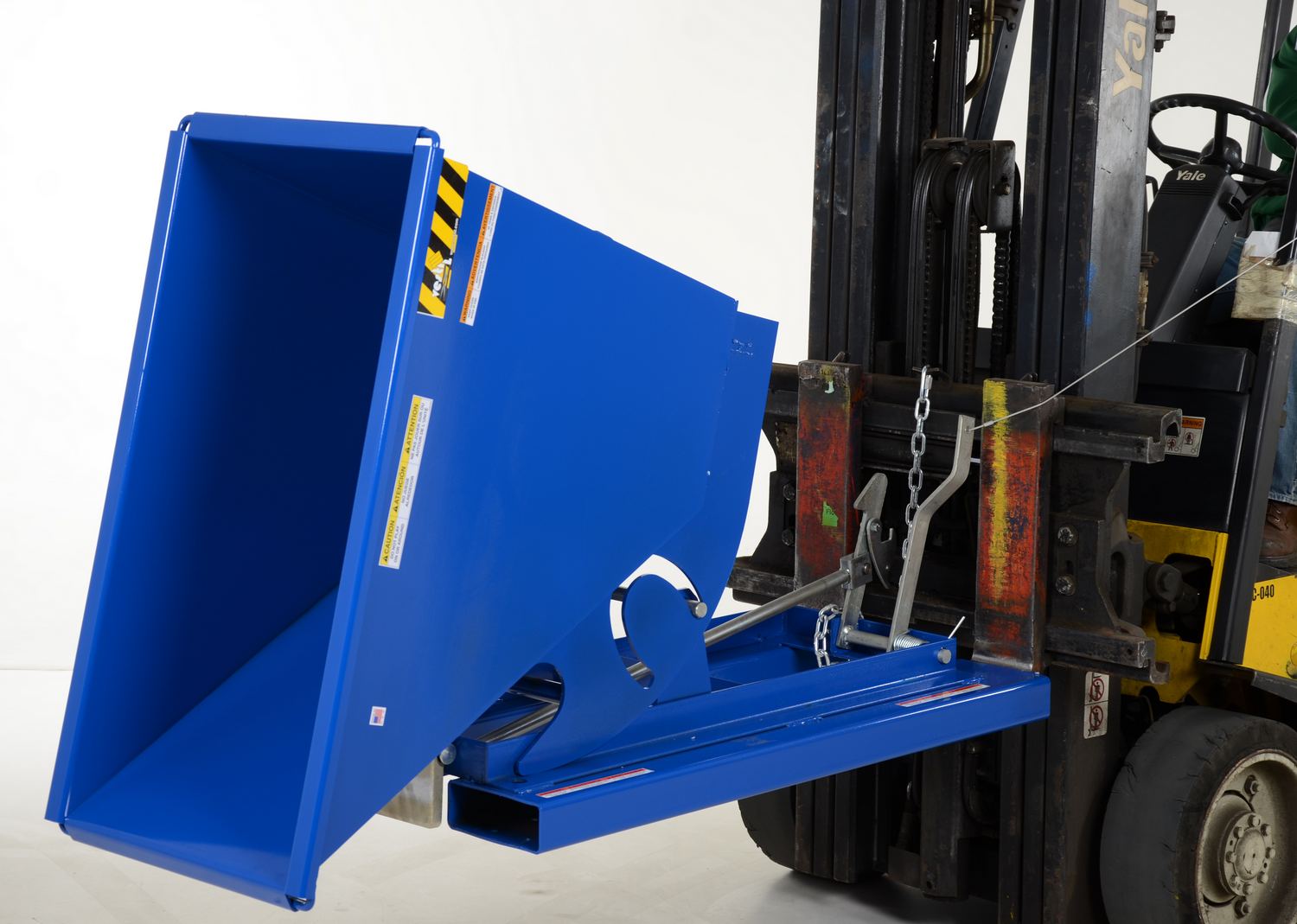

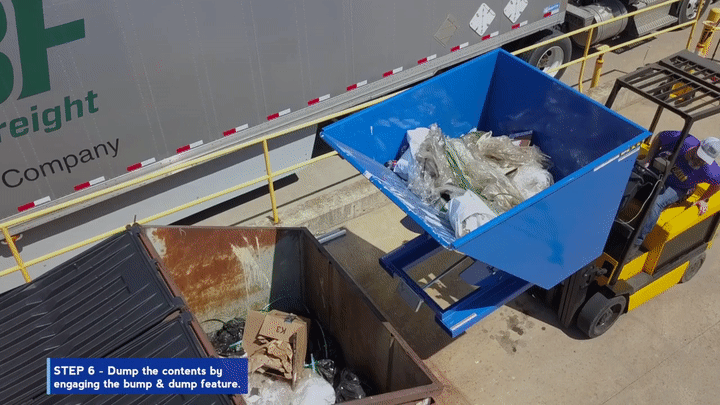

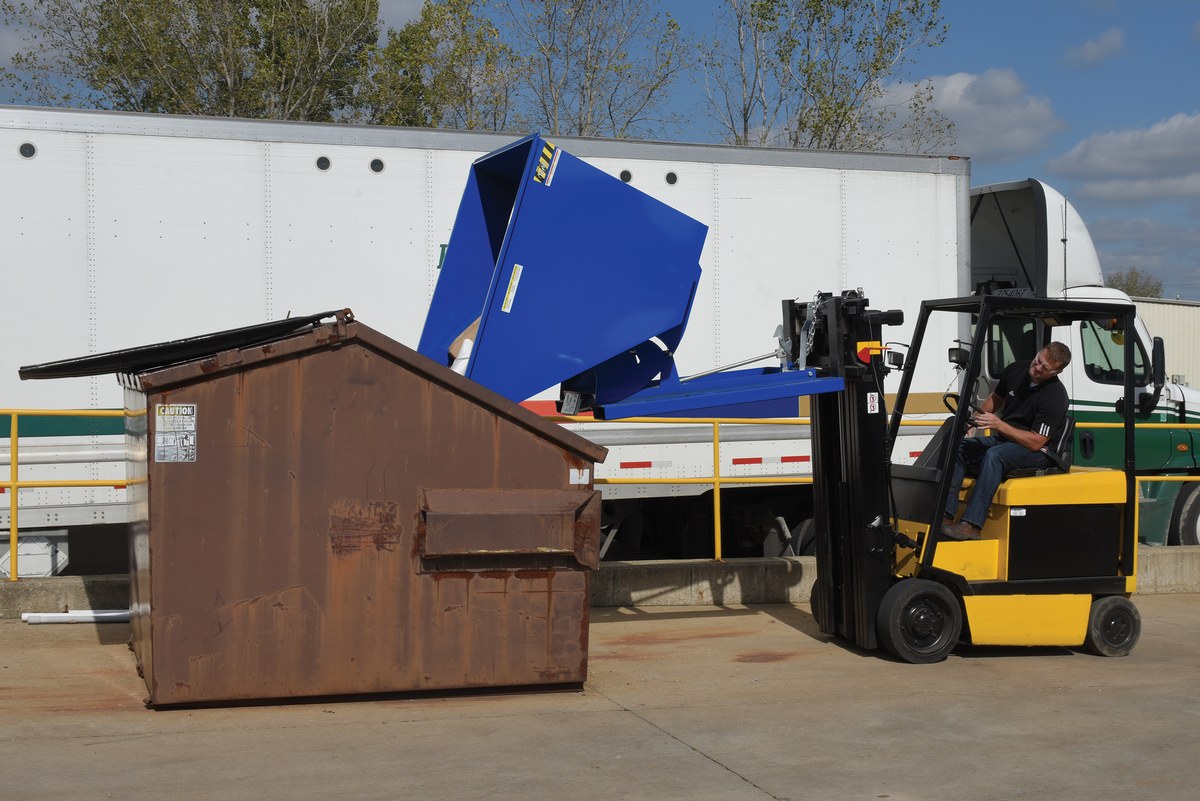

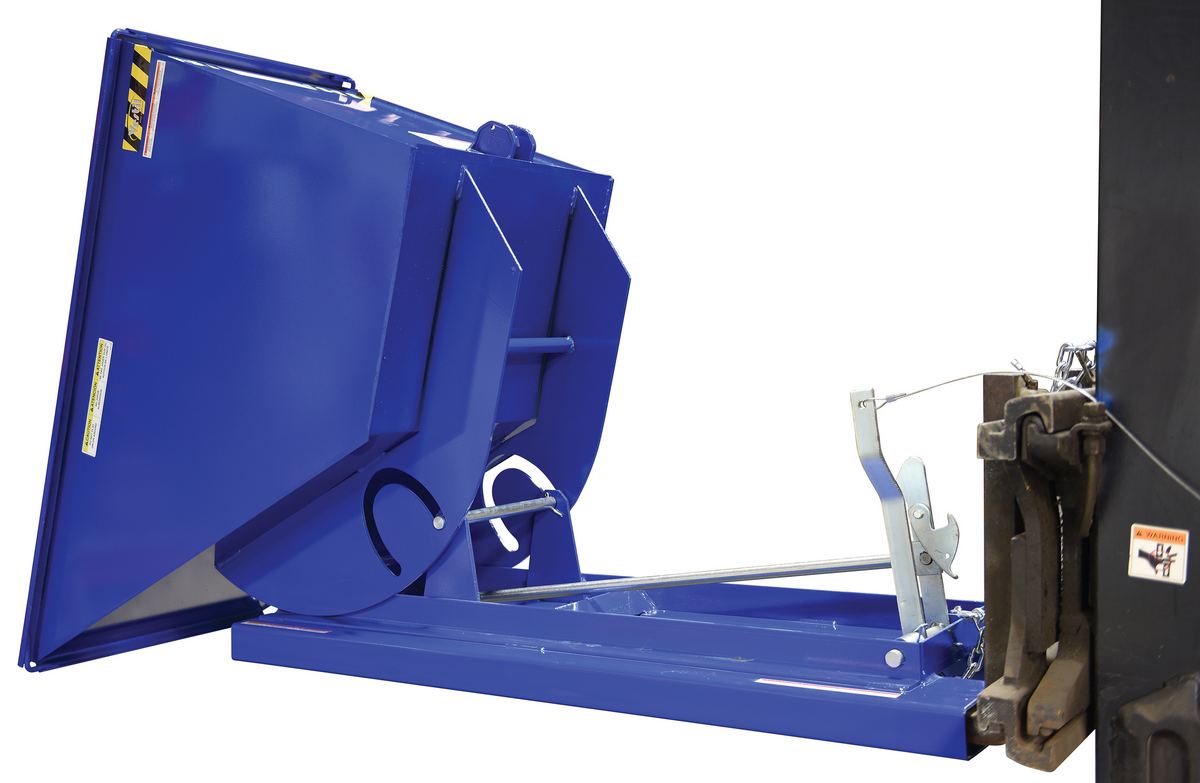

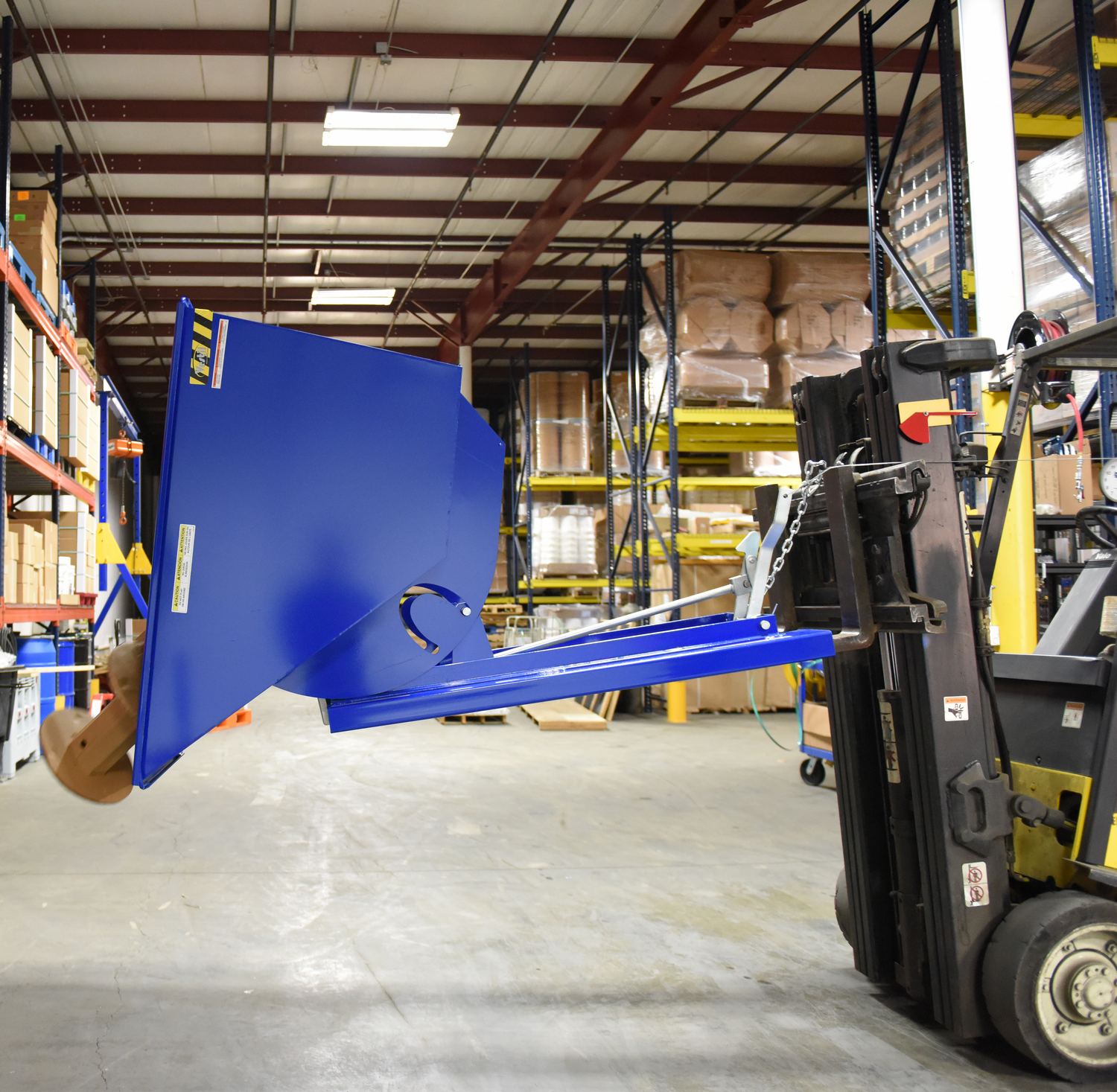

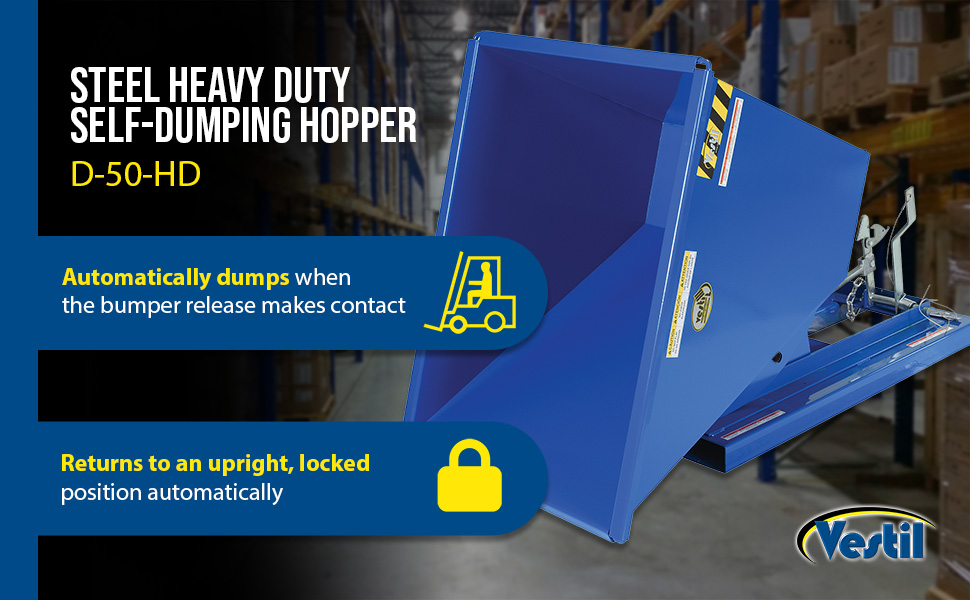

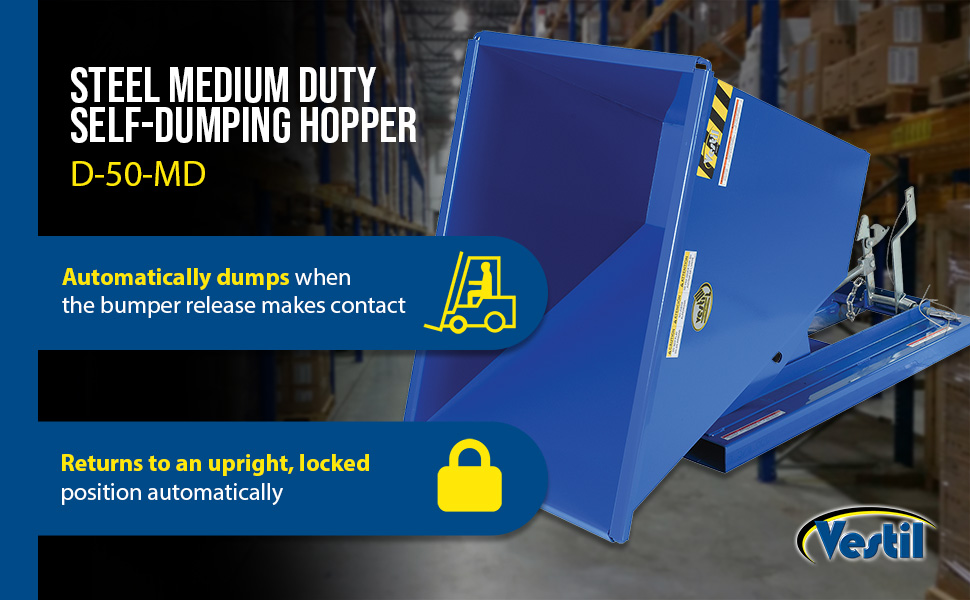

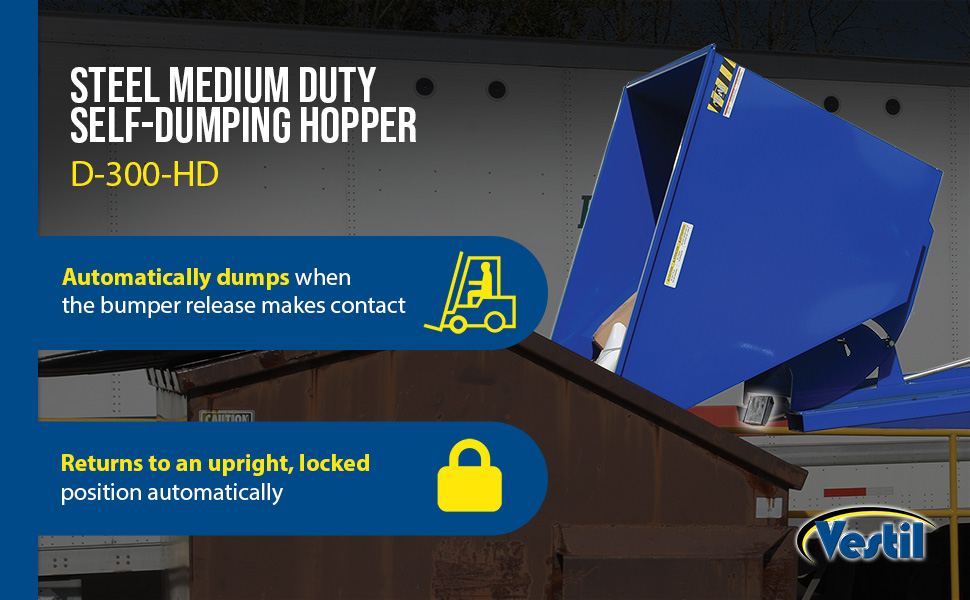

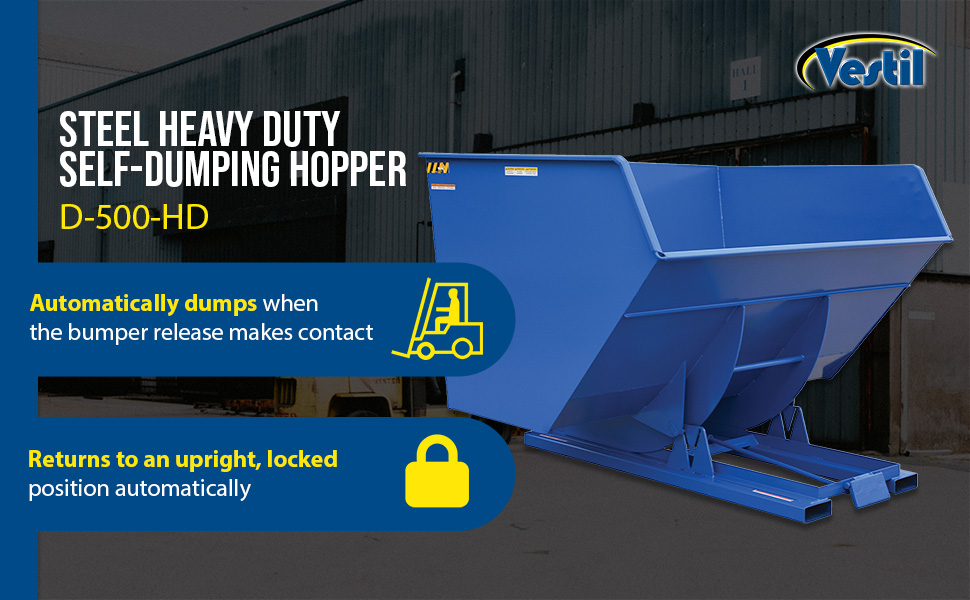

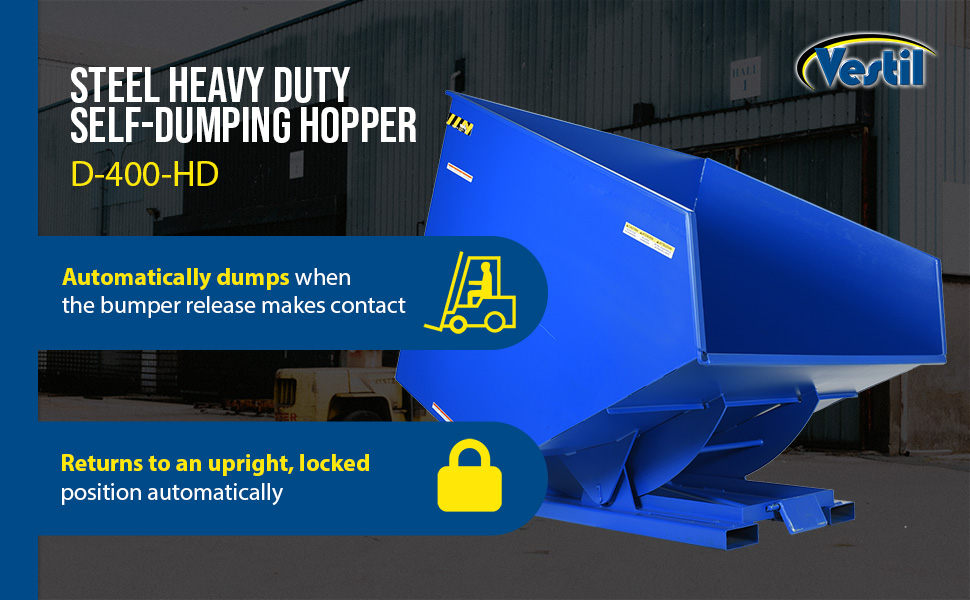

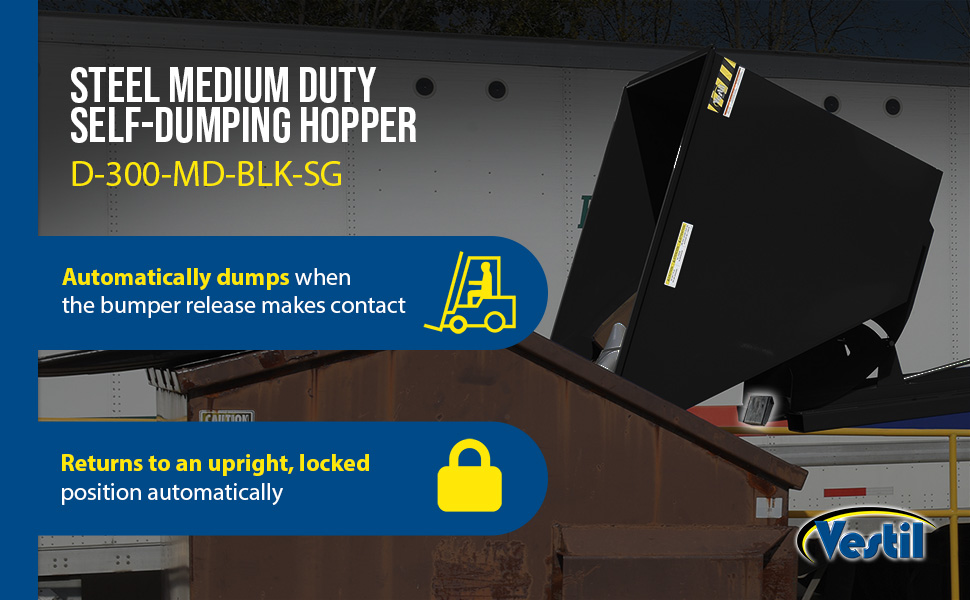

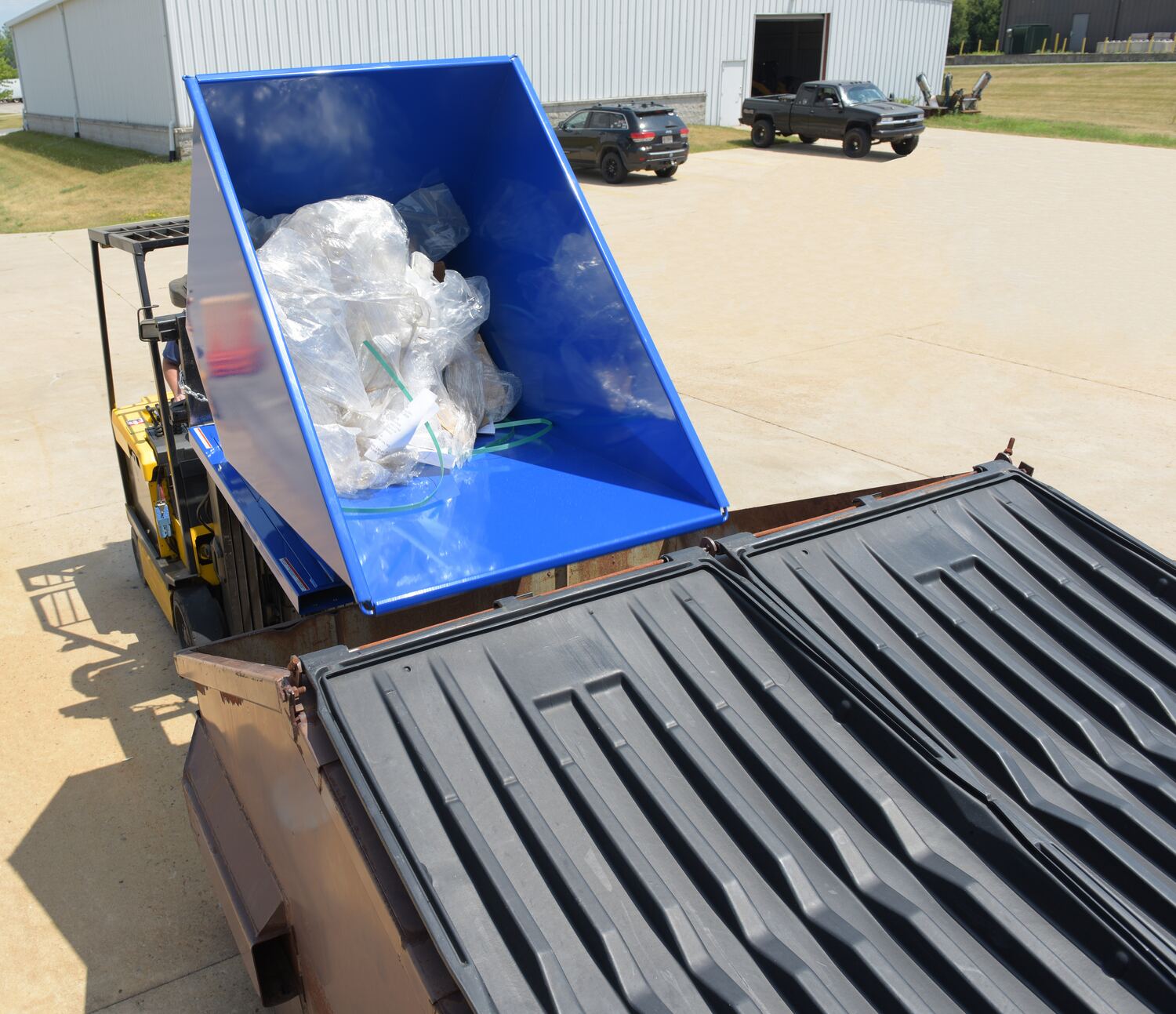

Hopper automatically dumps when bumper release contacts the front of the dumpster. Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2"H. Optional leak proof design sold separately. D-25, D-33, D-50, D-75, and D-100 are stackable if you stack the top hopper turned 90 degrees from the bottom. Blue baked-in powder-coated toughness standard with exception of models D-300-HD-NA, D-350-HD, D-400-HD & D-500-HD. Must be attached to fork truck when dumping.

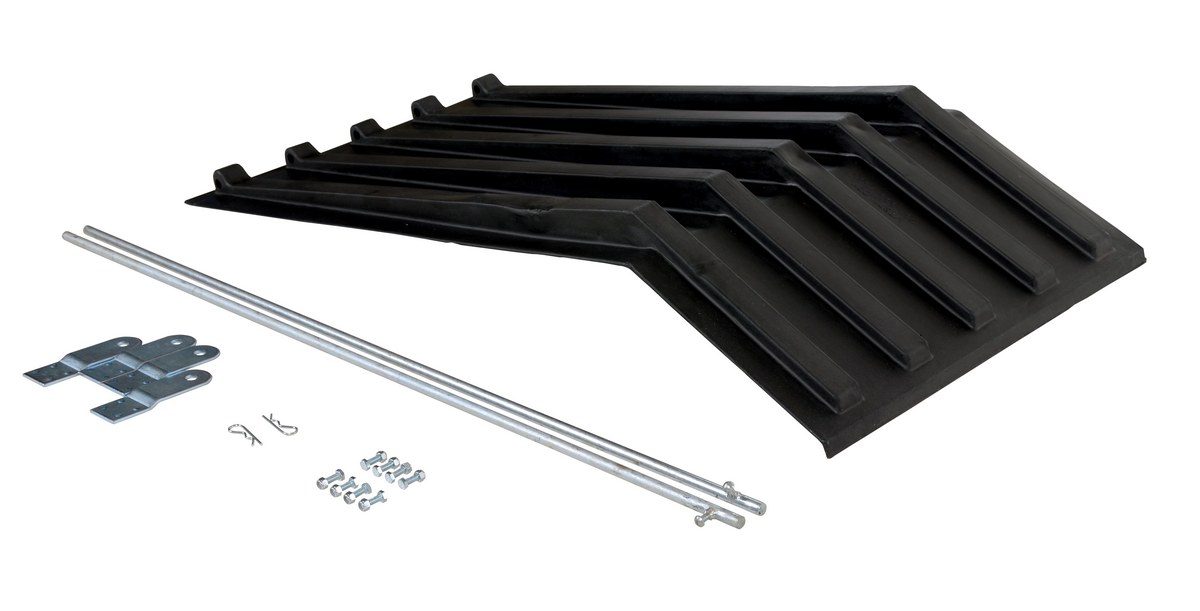

Caster Options | Optional Lids | Optional Colors Available

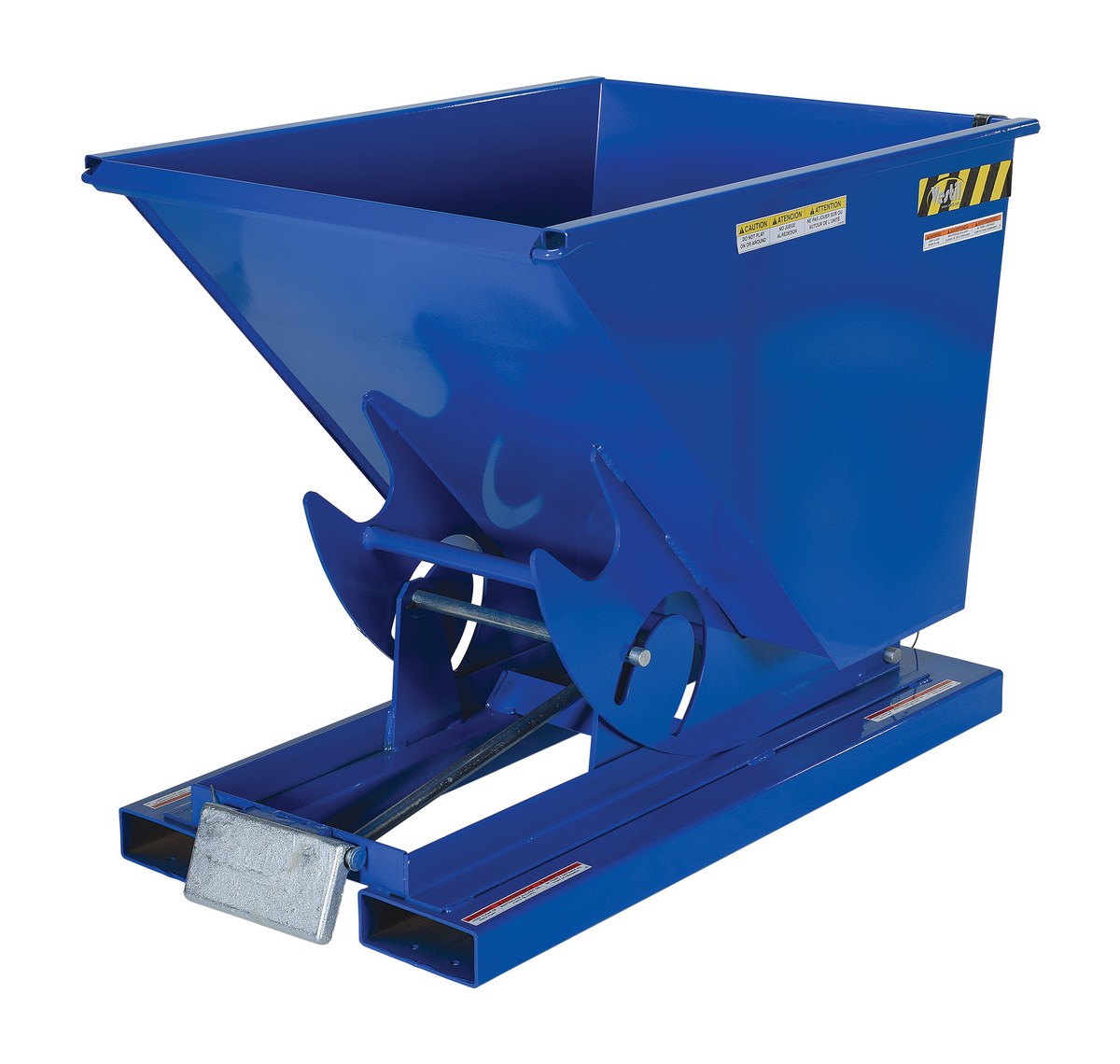

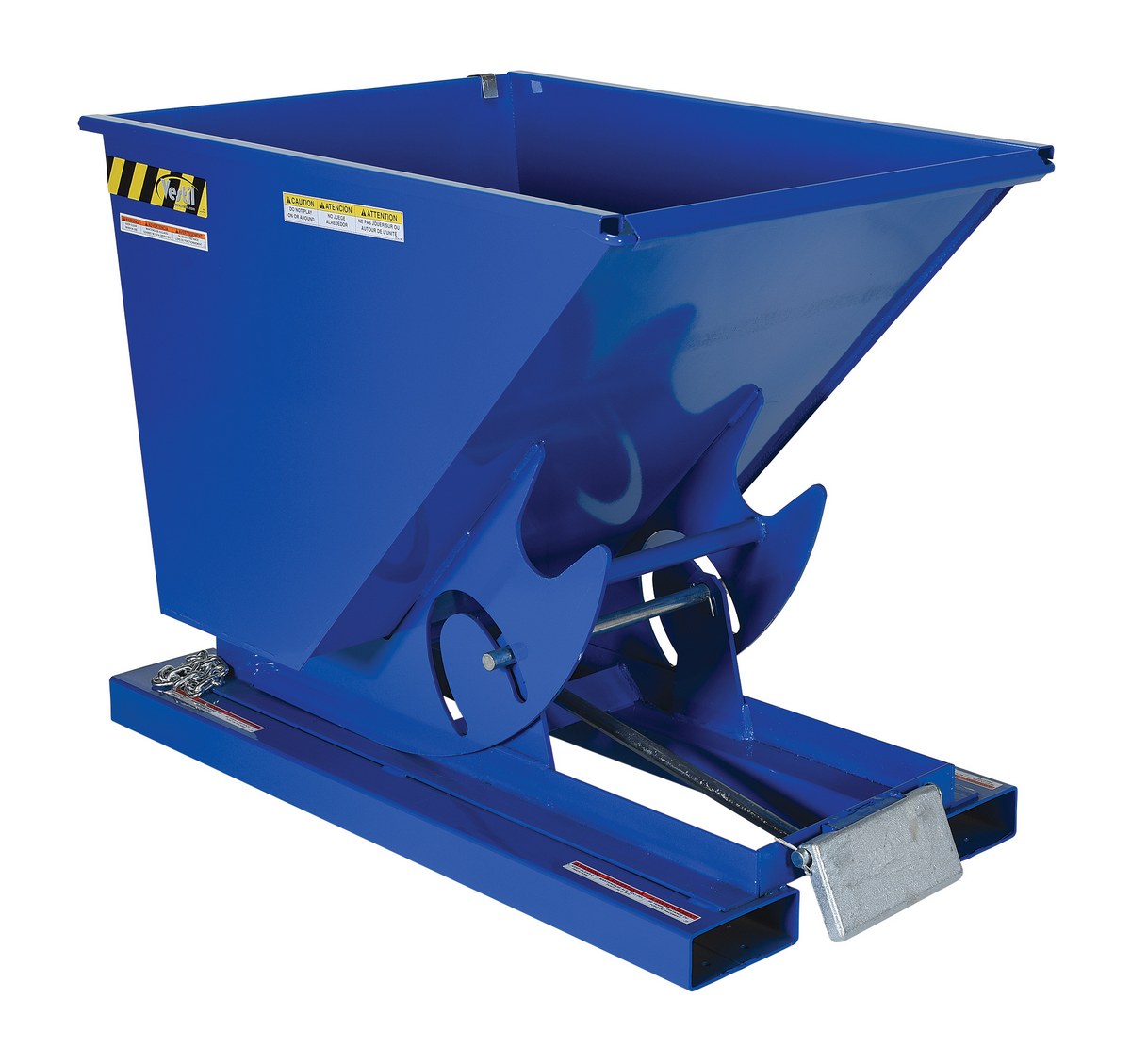

D-50-LD

model D-50-LD

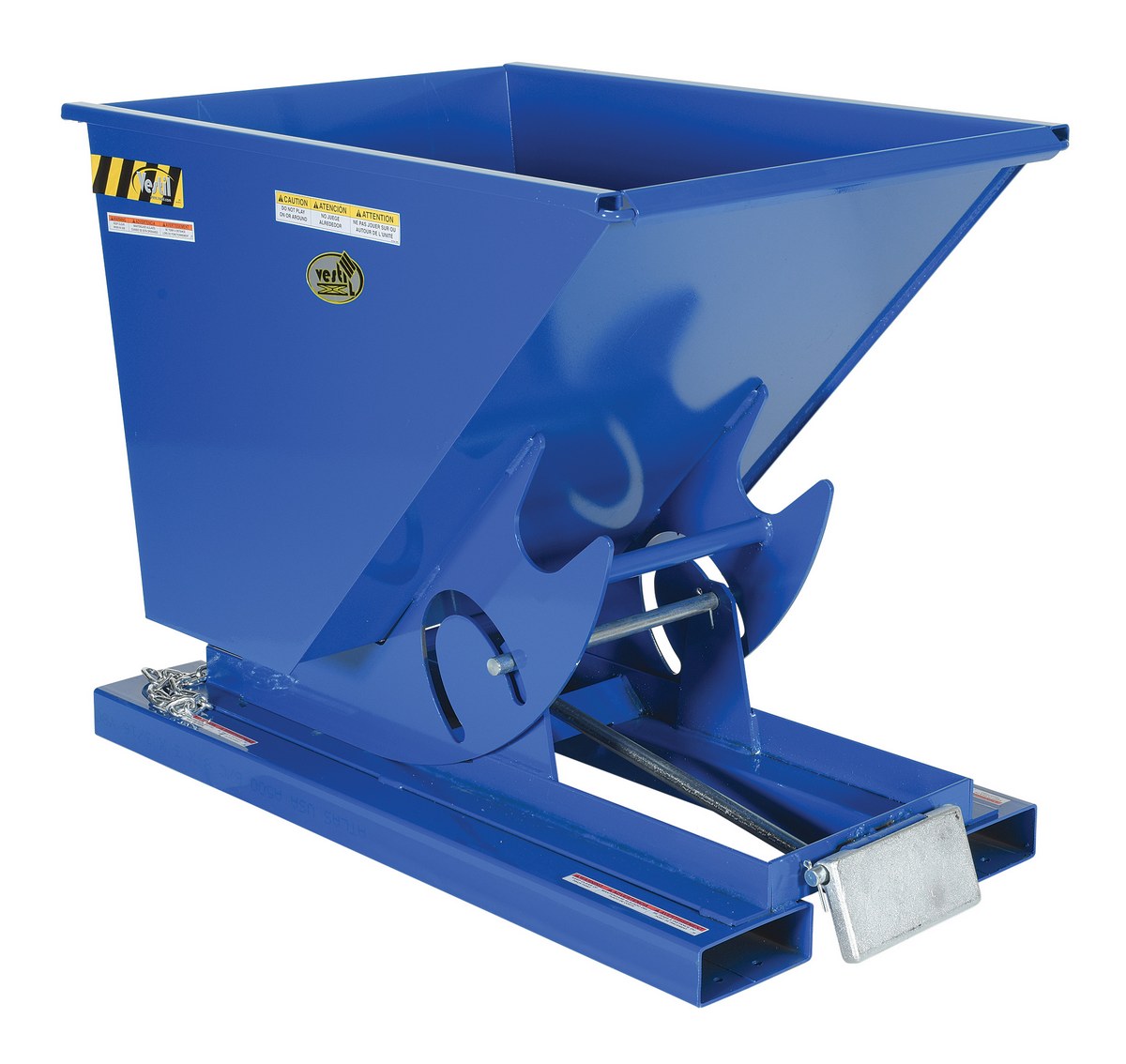

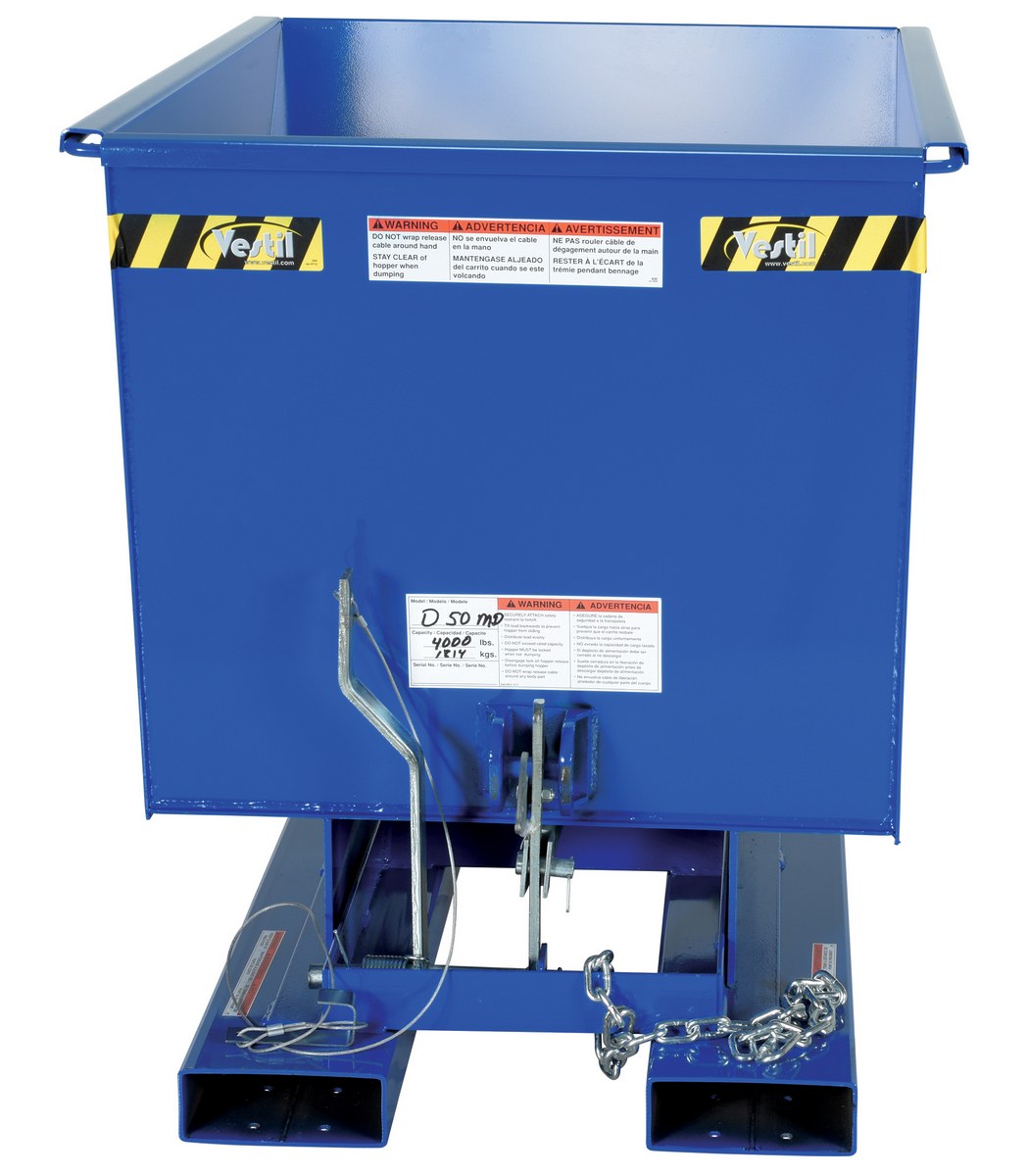

D-50-MD

model D-50-MD

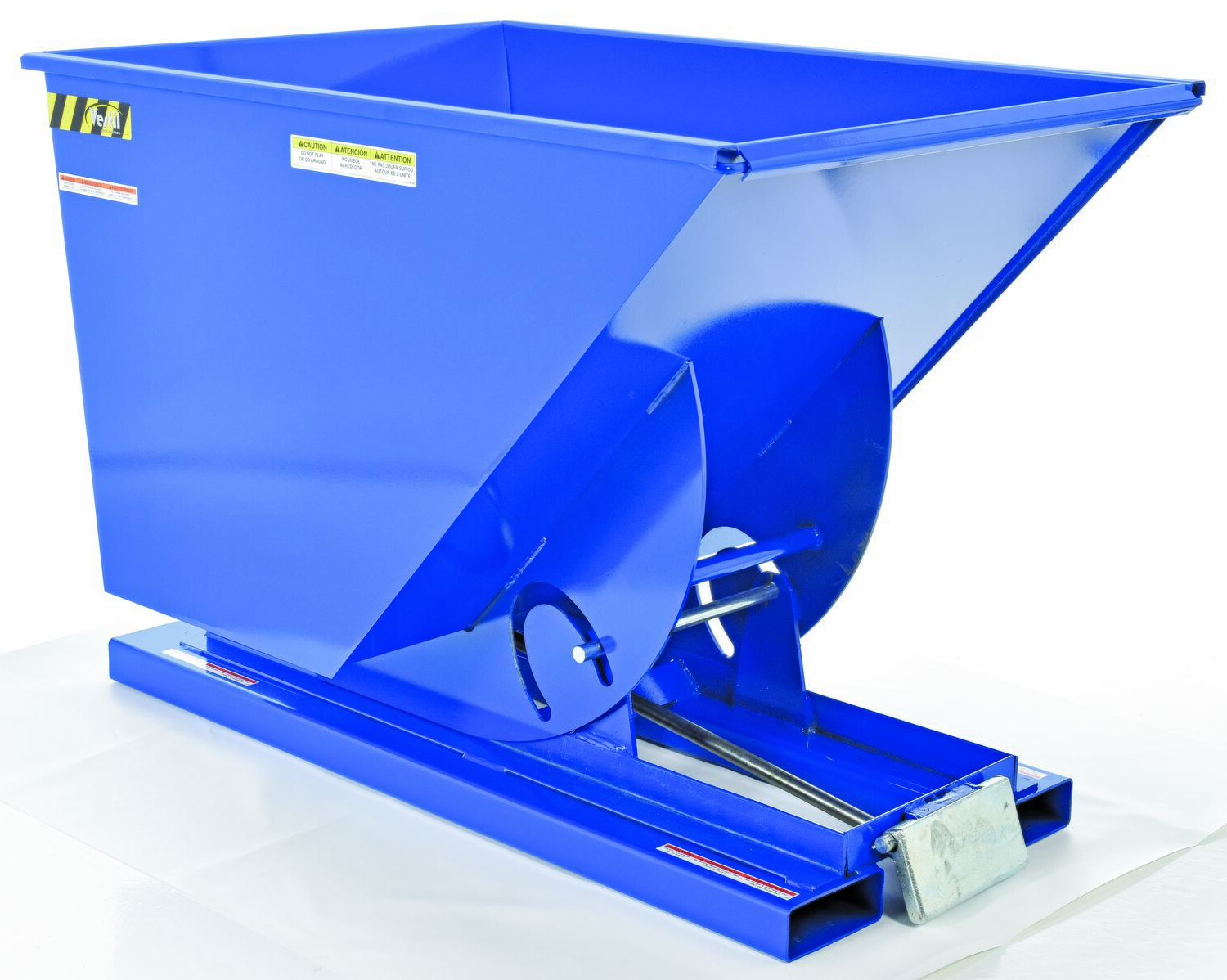

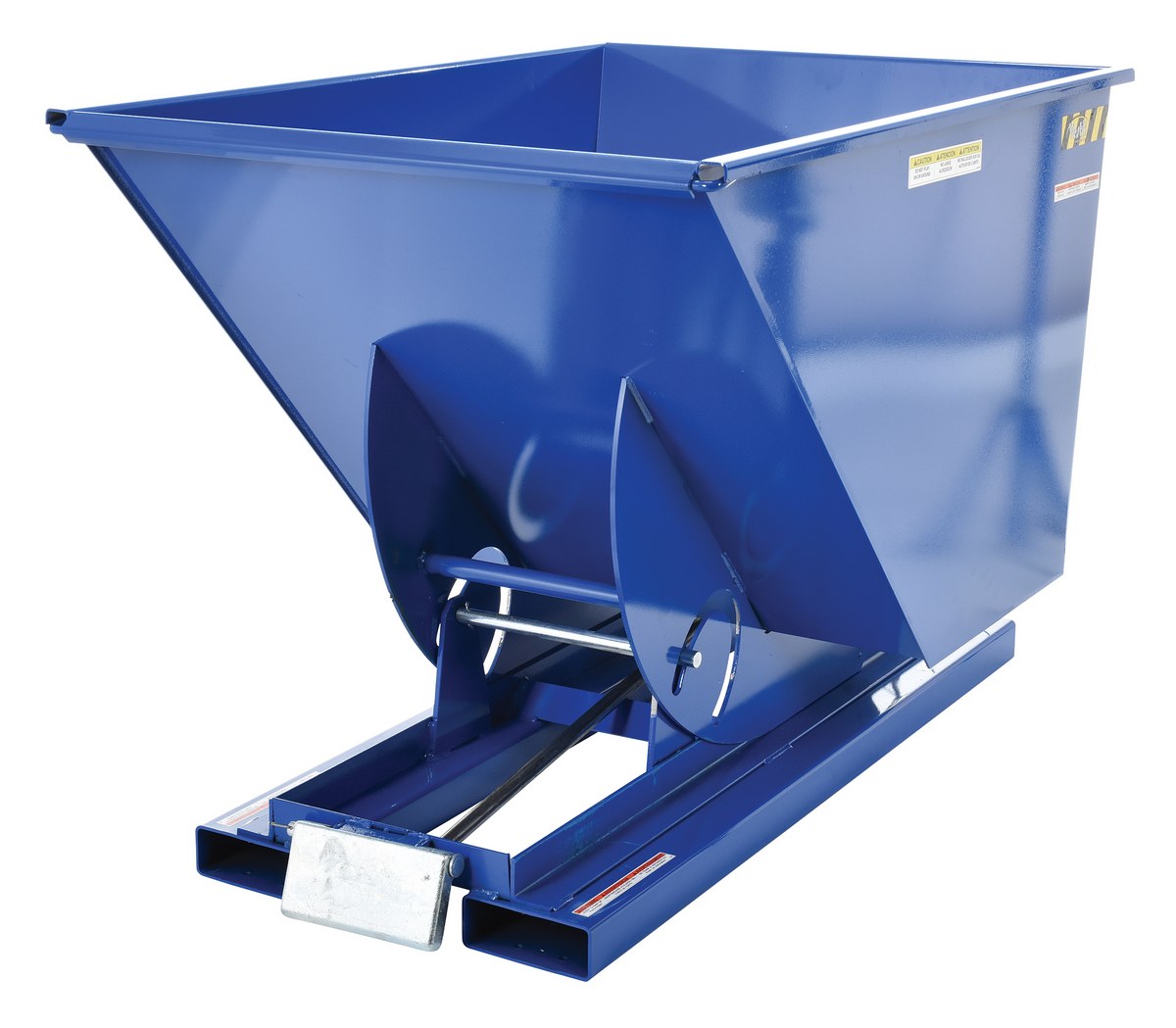

D-100-HD

model D-100-HD

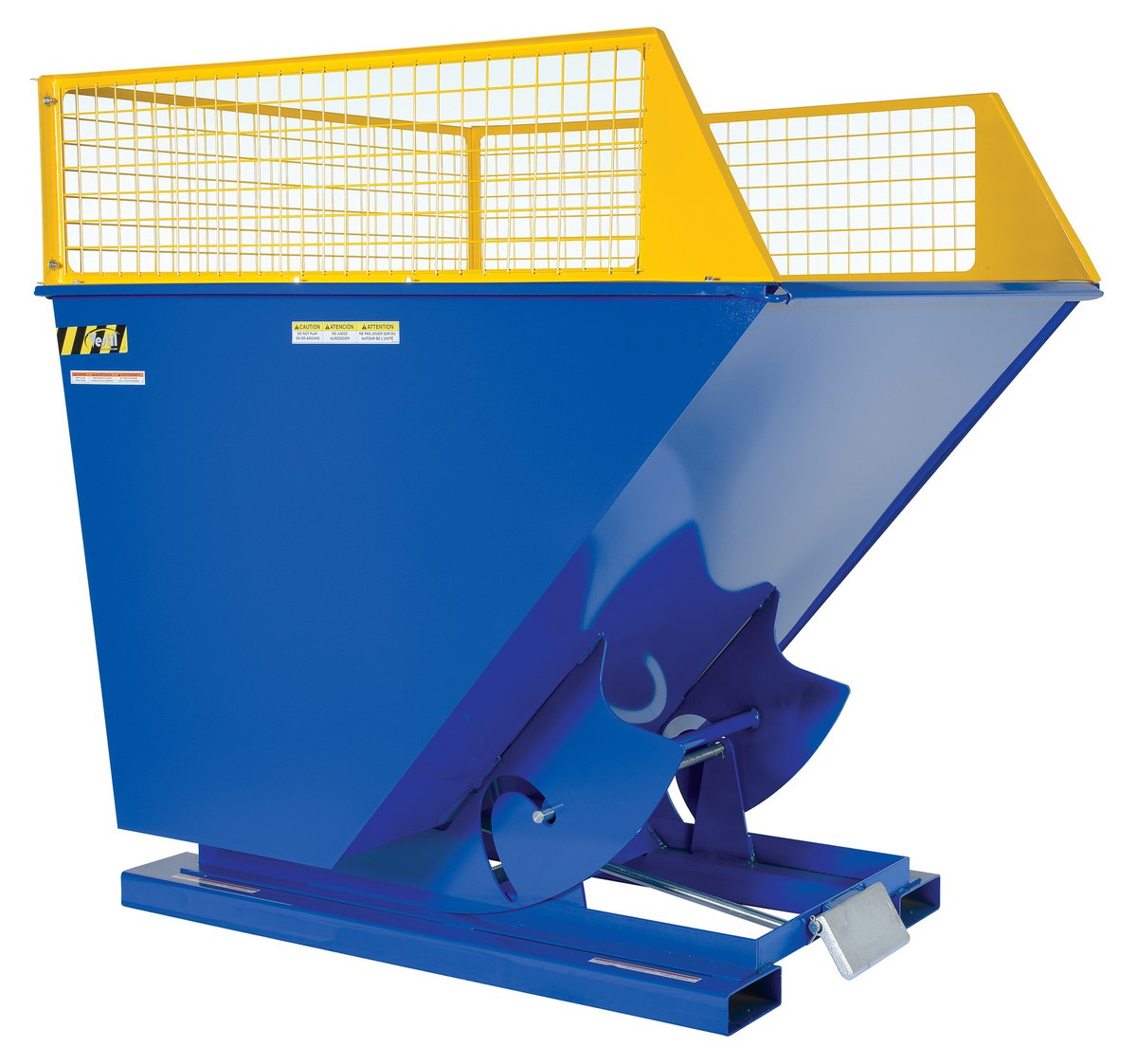

D-200-LD

model D-200-LD

D-33-HD

model D-33-HD

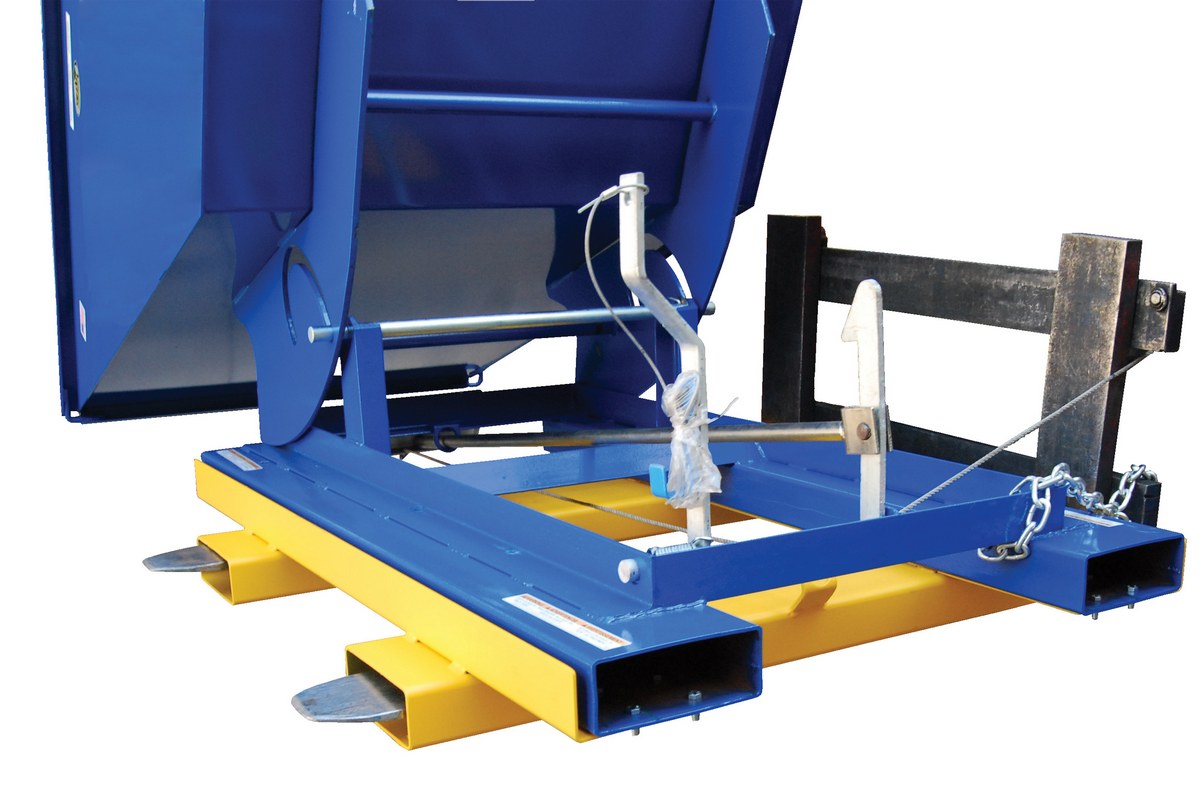

D-TILT

model D-TILT

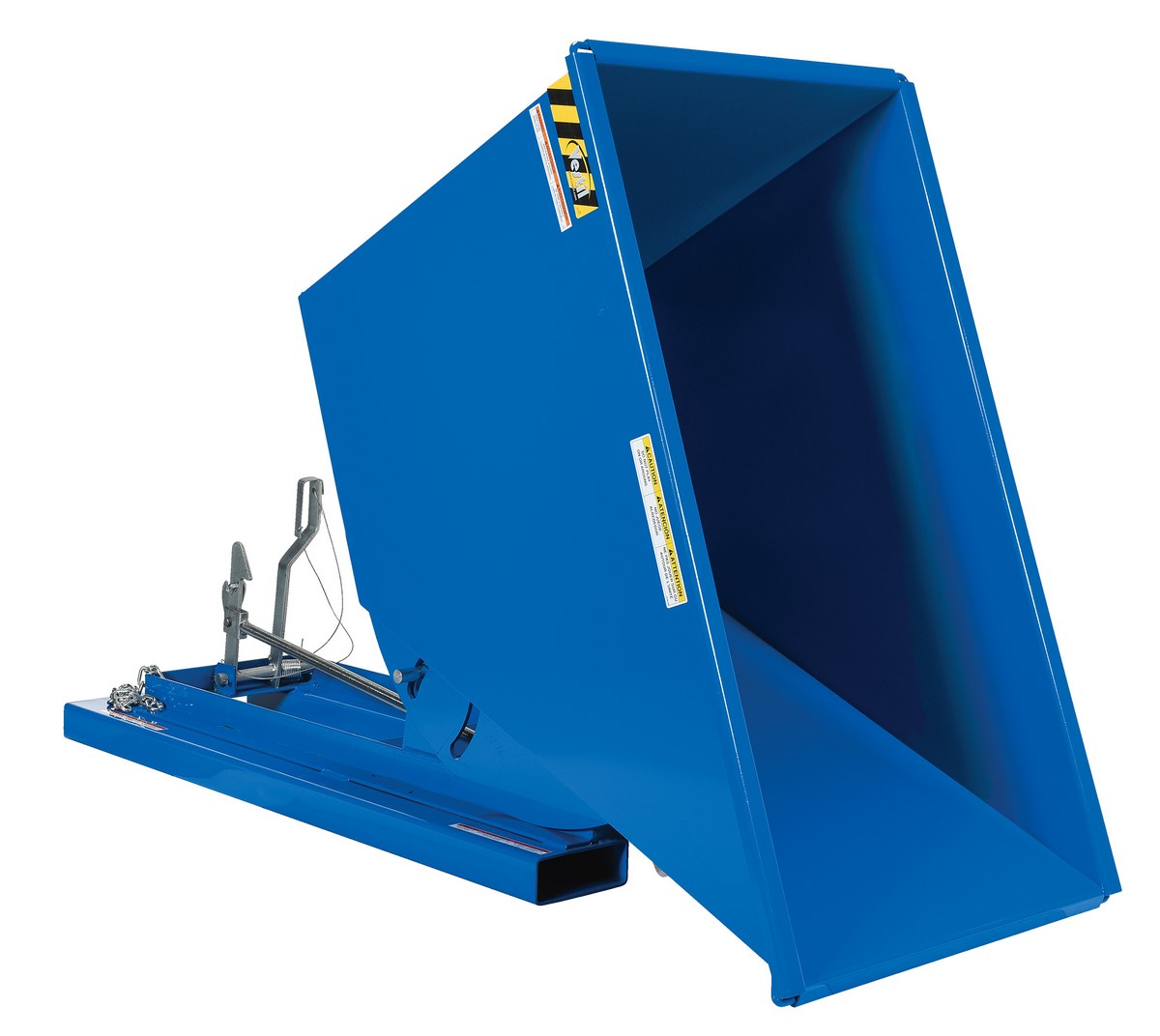

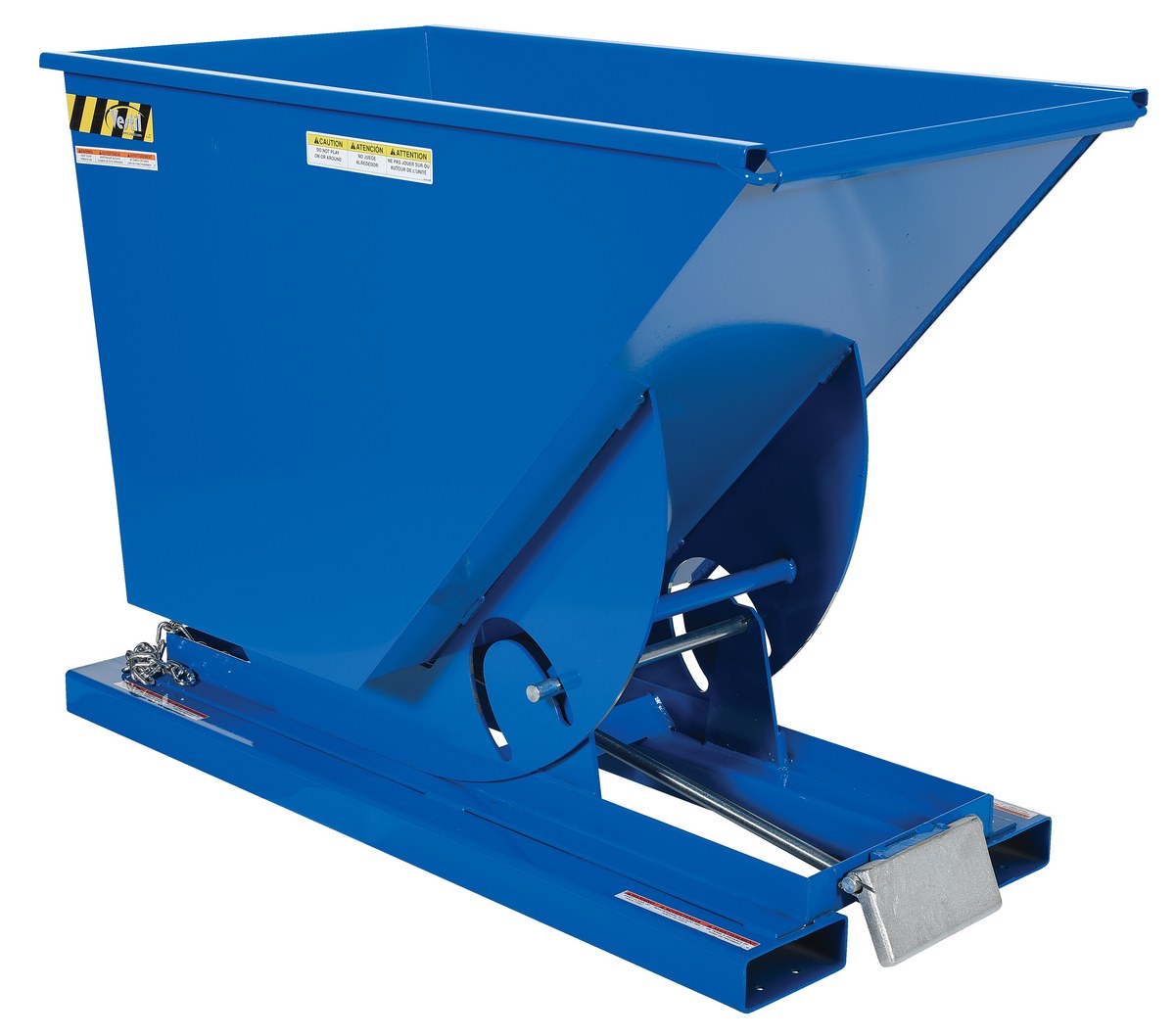

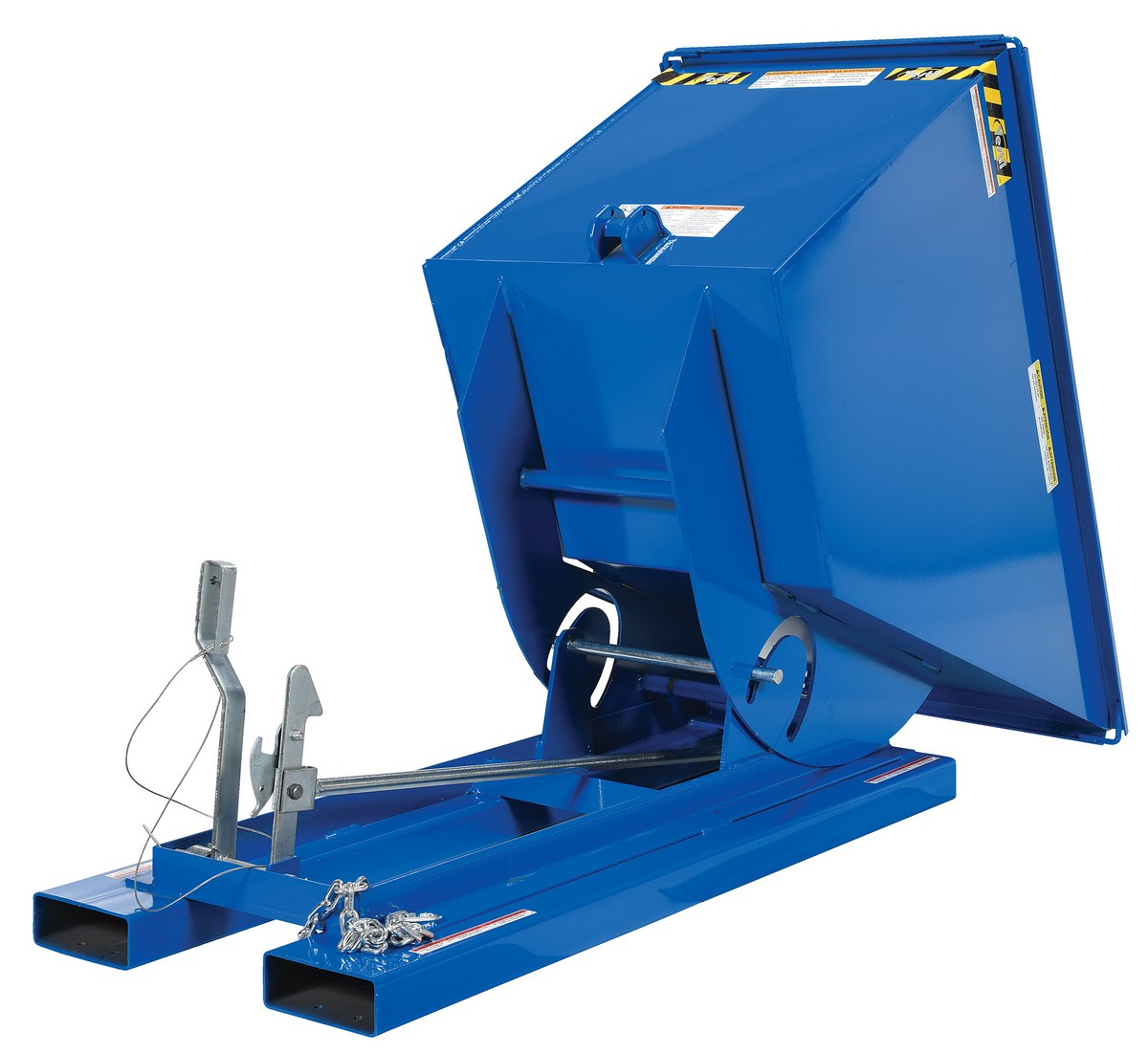

D-75-HD

model D-75-HD

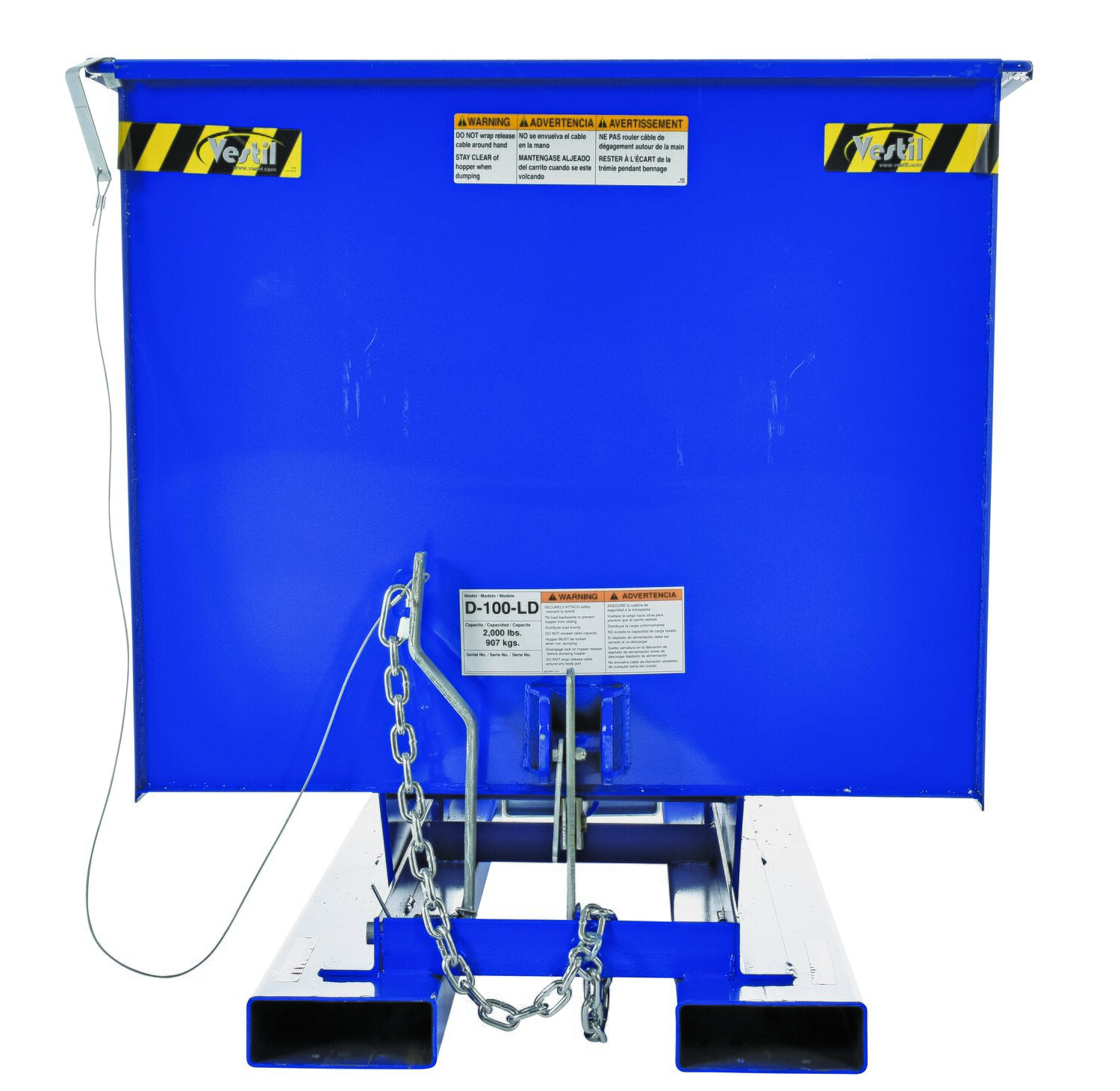

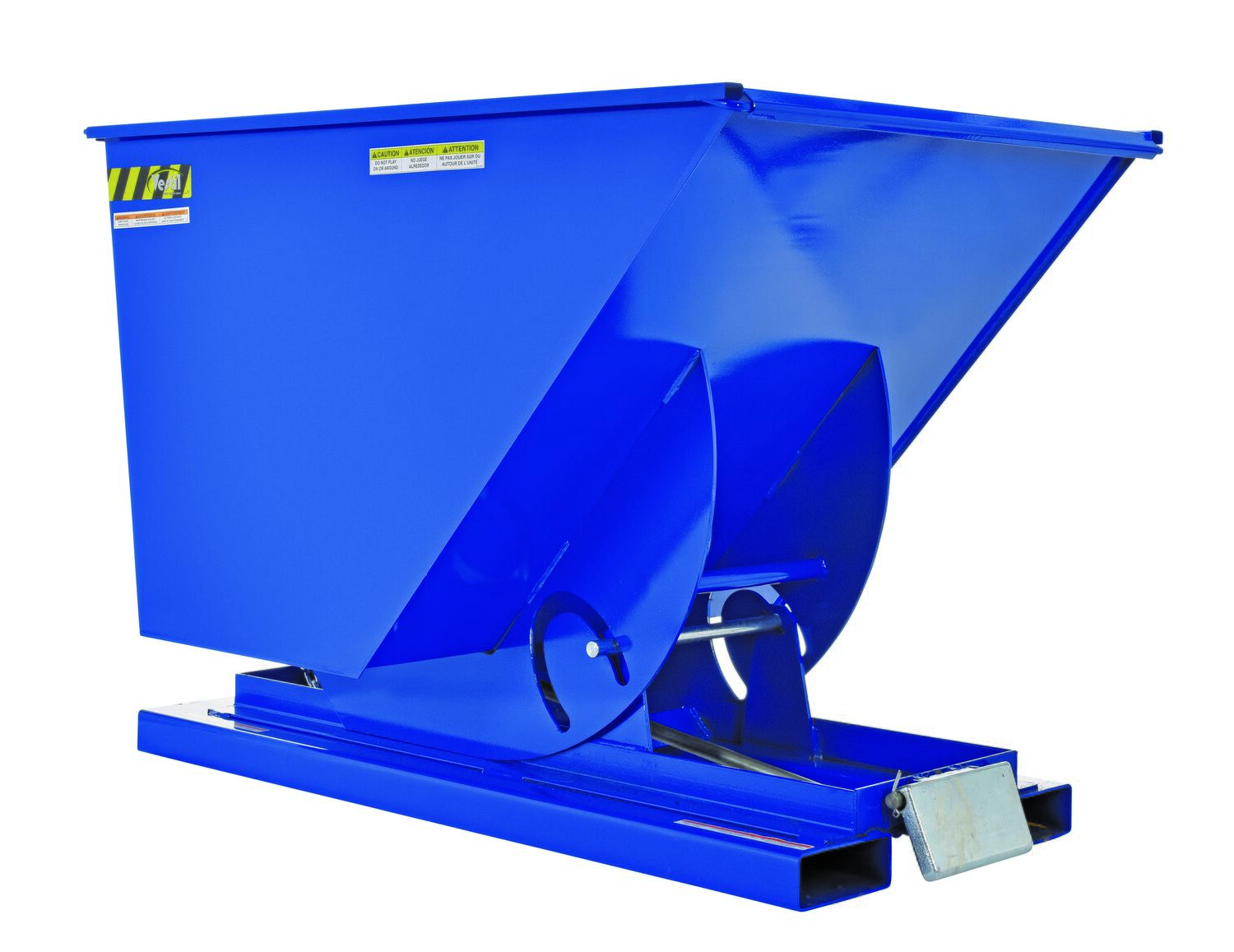

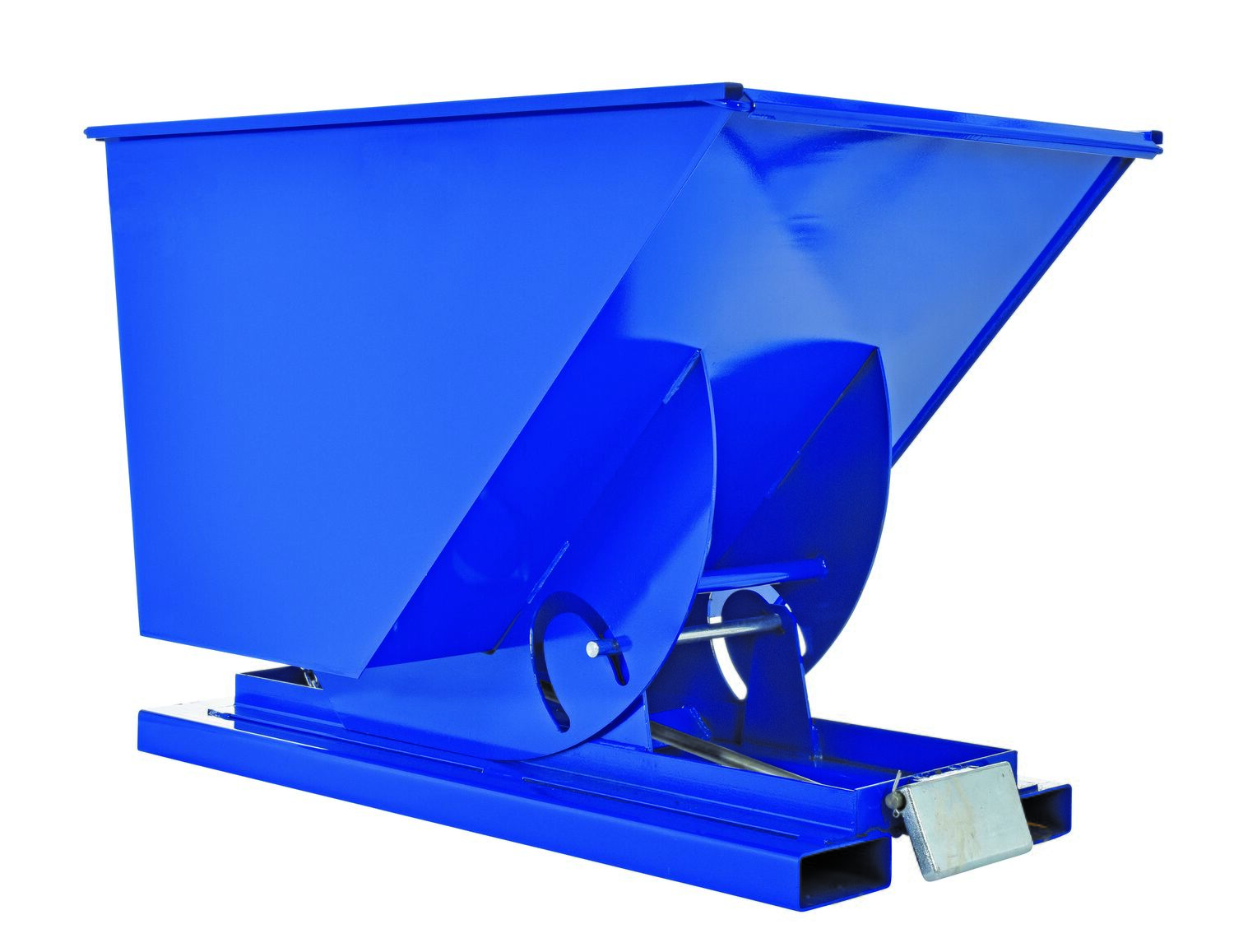

D-100-LD

model D-100-LD

D-150-HD

model D-150-HD

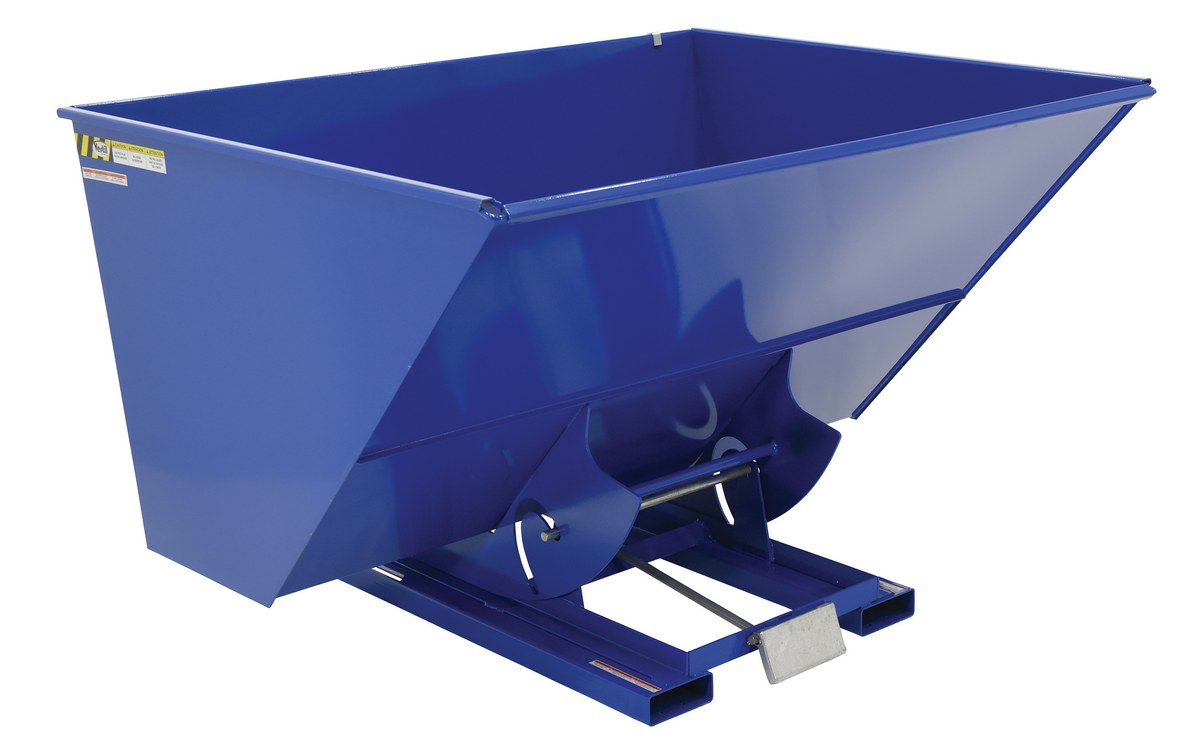

D-300-HD

model D-300-HD

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Self Dumping Hoppers with Bumper Release
Model Number PDF's Volume
Cubic Yards
Capacity
(lbs)
Overall
(WxLxH)
Fork
Pocket Centers
Wt.
(lbs)

Light Duty-12 Gauge Steel

D-25-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 2,000 26"x48-7/8"x38" 18" 335
D-33-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/3 2,000 26"x51-7/8"x38" 18" 340
D-50-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 2,000 33-11/16"x51-3/4"x38" 18" 365

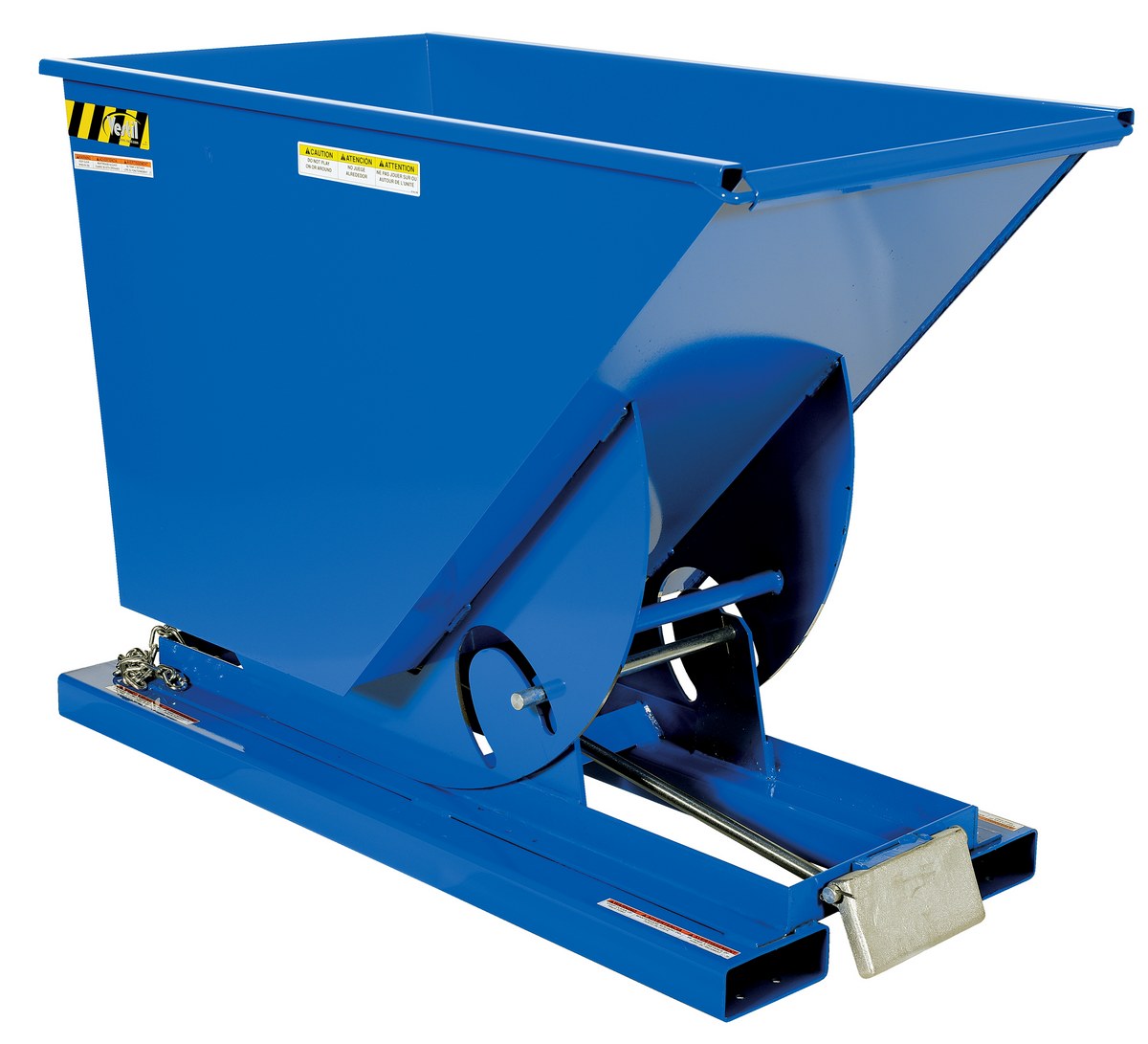

D-75-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3/4 2,000 31-11/16"x 61-1/8x 42-11/16" 18" 449
D-100-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 2,000 41-11/16"x 61-1/8"x 42-11/16" 18" 479
D-150-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 2,000 43-11/16"x 68-5/16"x 51-13/16" 28" 565
D-200-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 2,000 56-11/16"x 68-5/16"x 51-13/16" 28" 613
D-250-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/2 2,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863

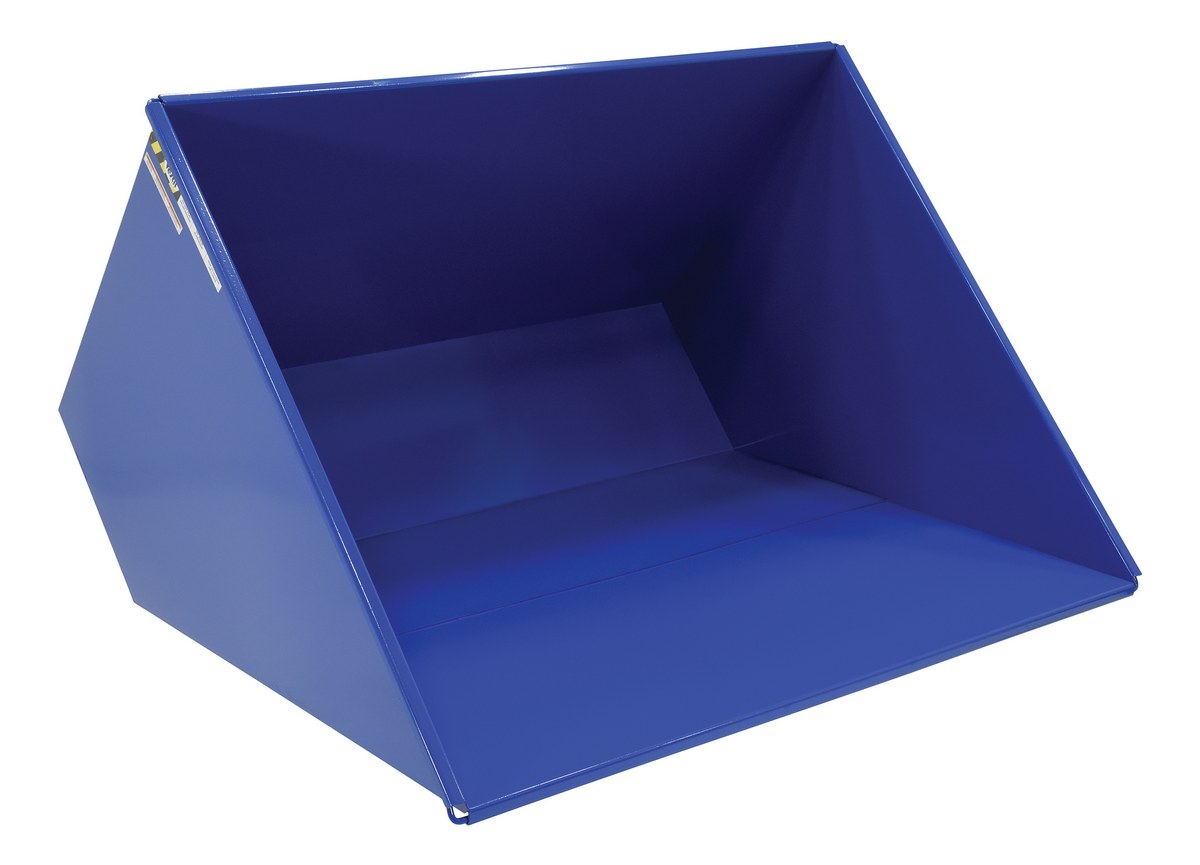

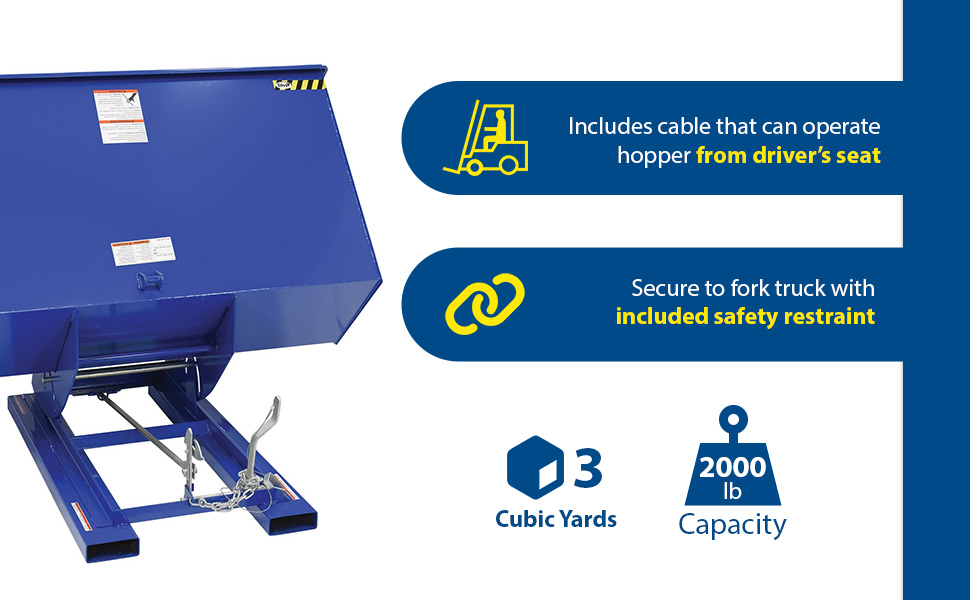

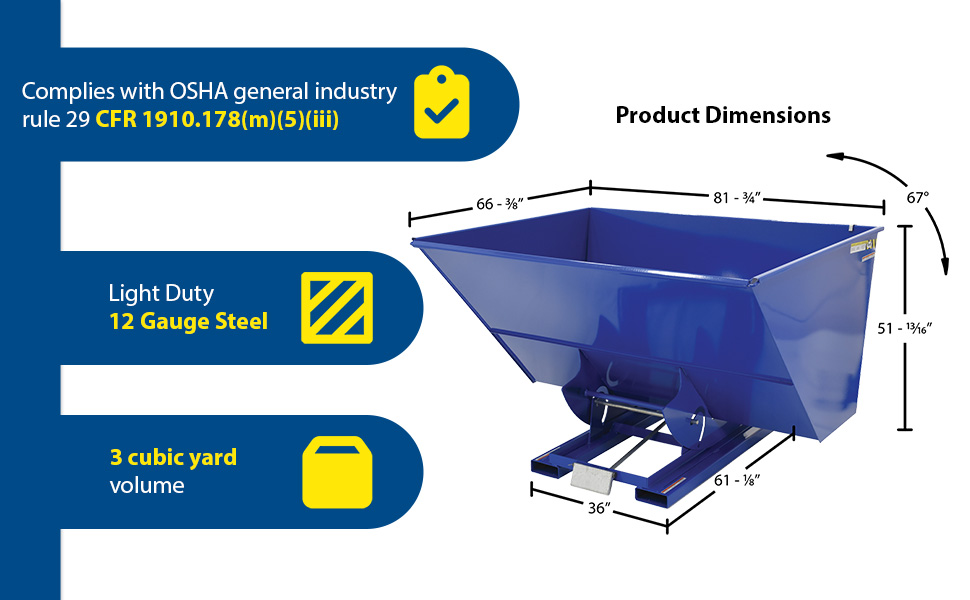

D-300-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 2,000 81-3/4"x 68-5/8" x 51-13/16" 28" 940

Medium Duty-10 Gauge Steel

D-25-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 4,000 26"x48-7/8"x38-1/16" 18" 397
D-33-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/3 4,000 26"x 51-7/8"x 38-1/16" 18" 397

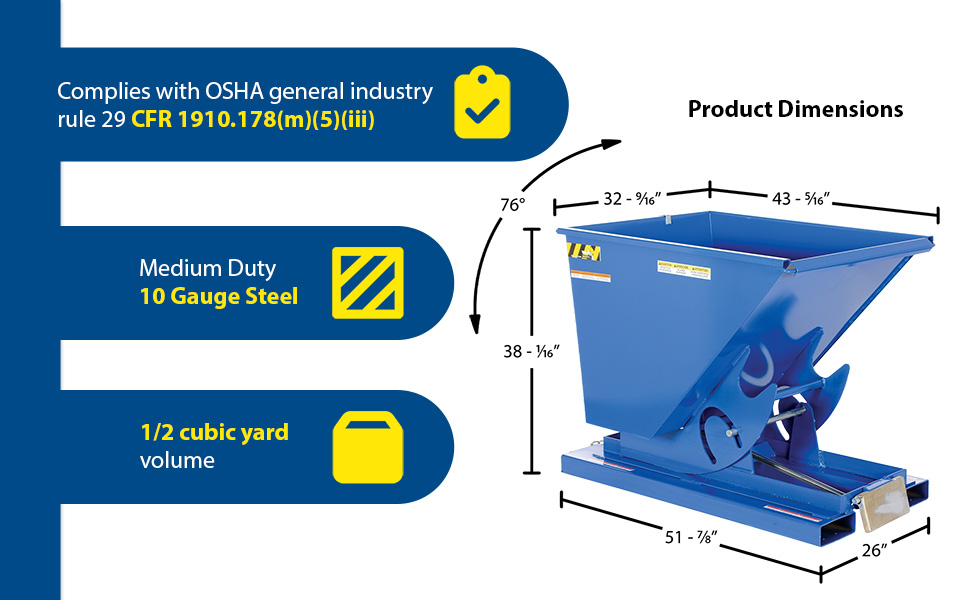

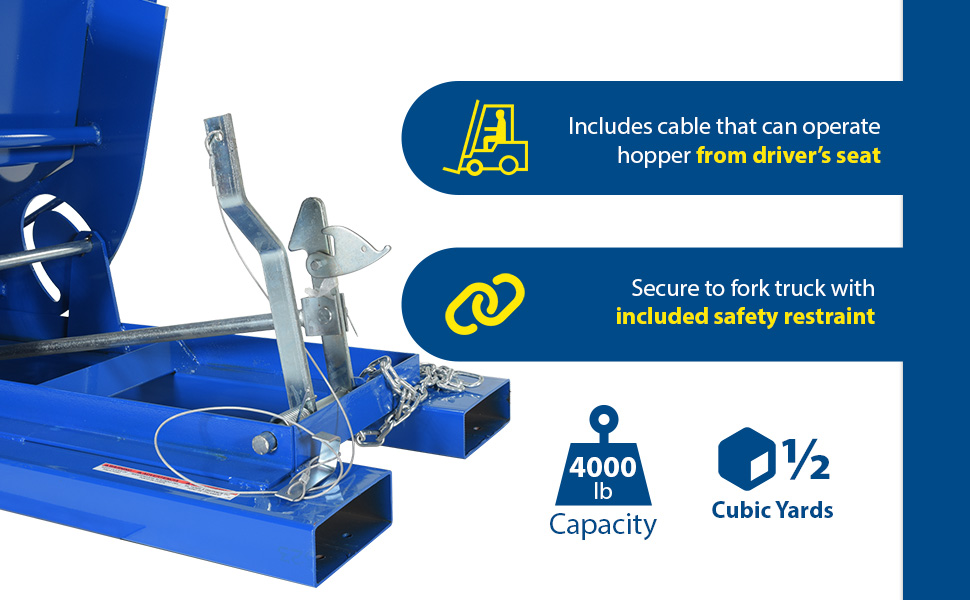

D-50-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 4,000 33-9/16"x51-7/8"x38-1/16" 18" 435

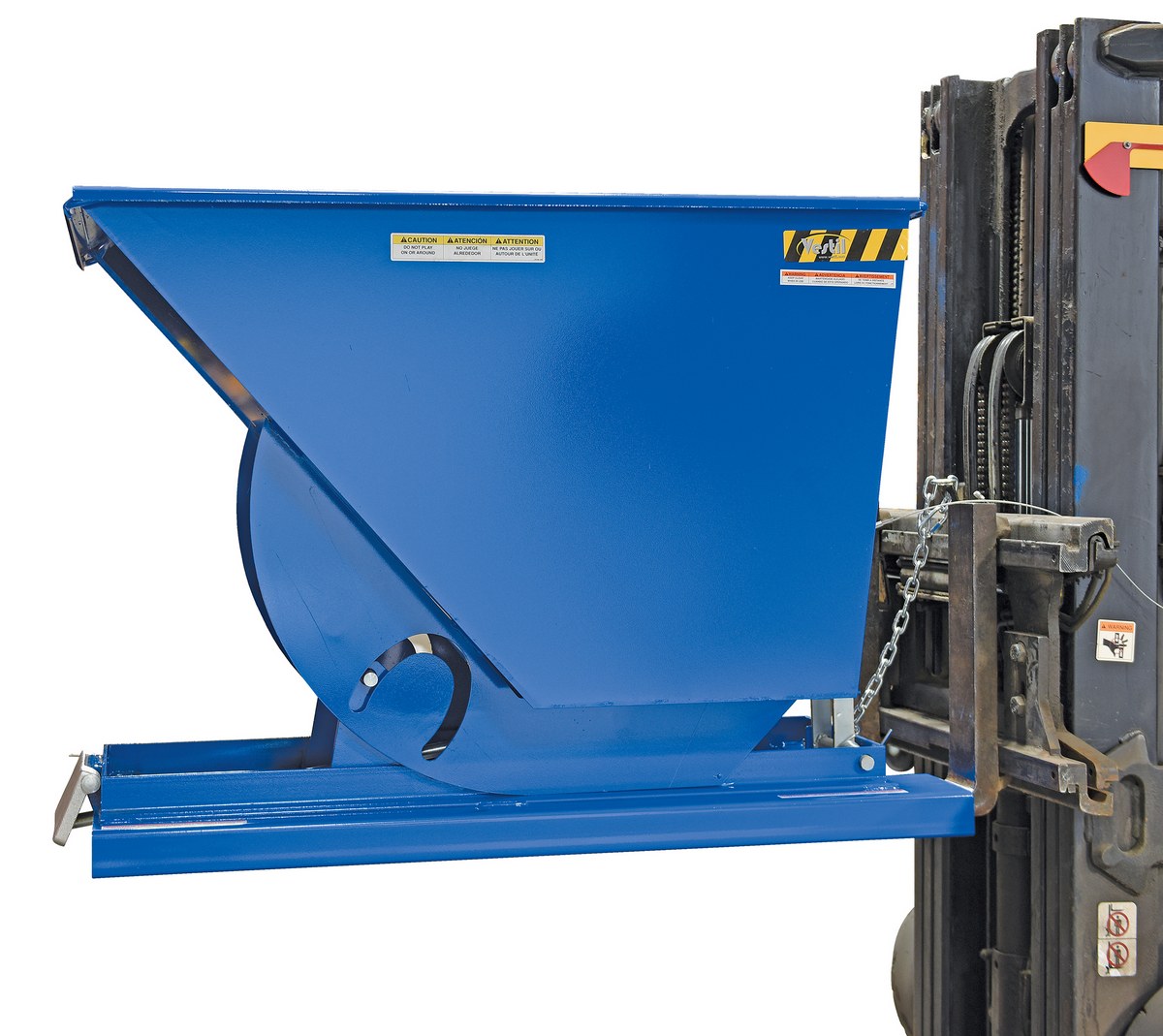

D-75-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3/4 4,000 31-9/16"x 61-1/8"x 42-3/4" 18" 543
D-100-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 4,000 41-1/2"x 61-1/8"x42-11/16" 18" 534

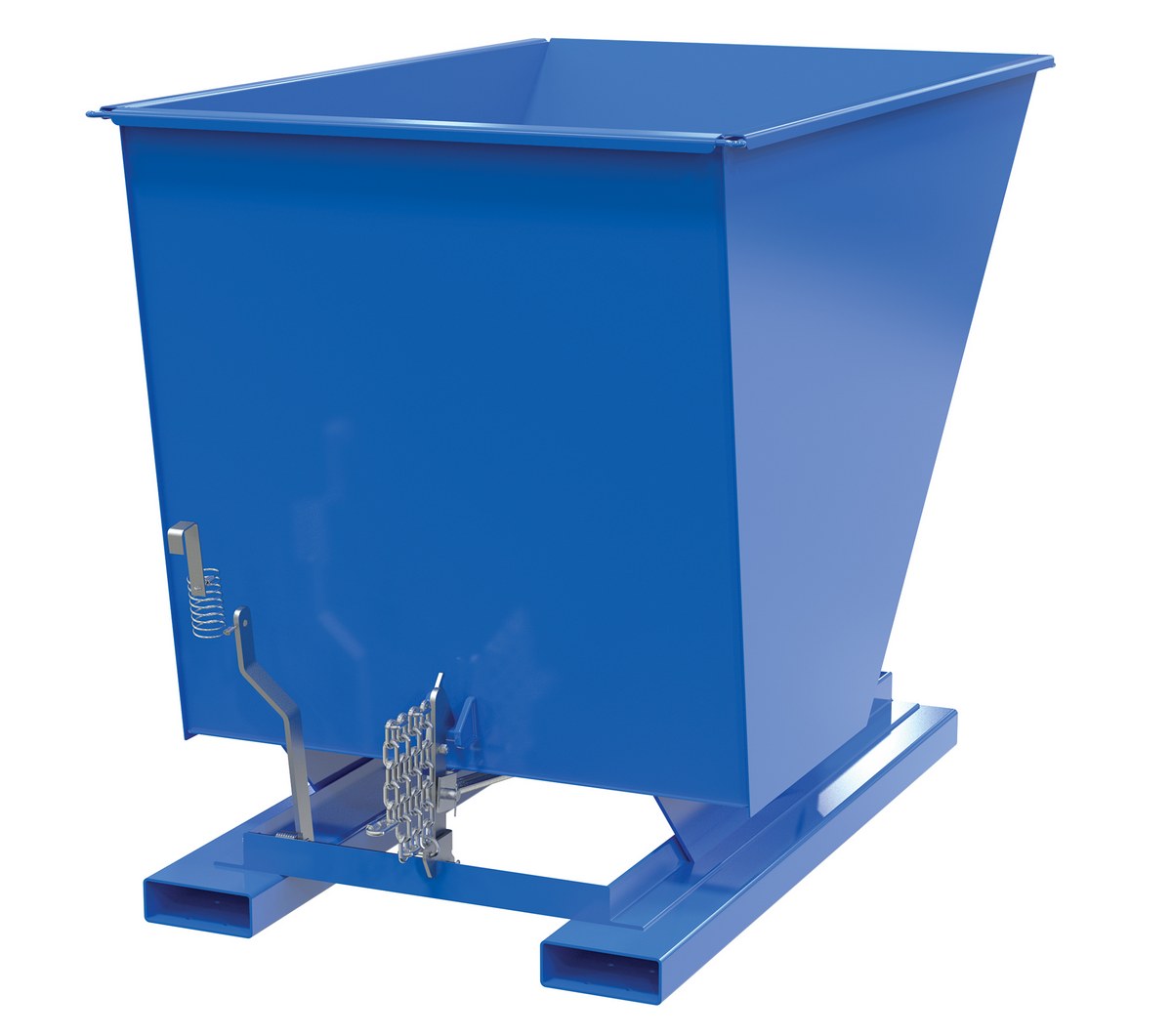

D-150-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 4,000 43-9/16"x 68-3/8"x51-13/16" 28" 714

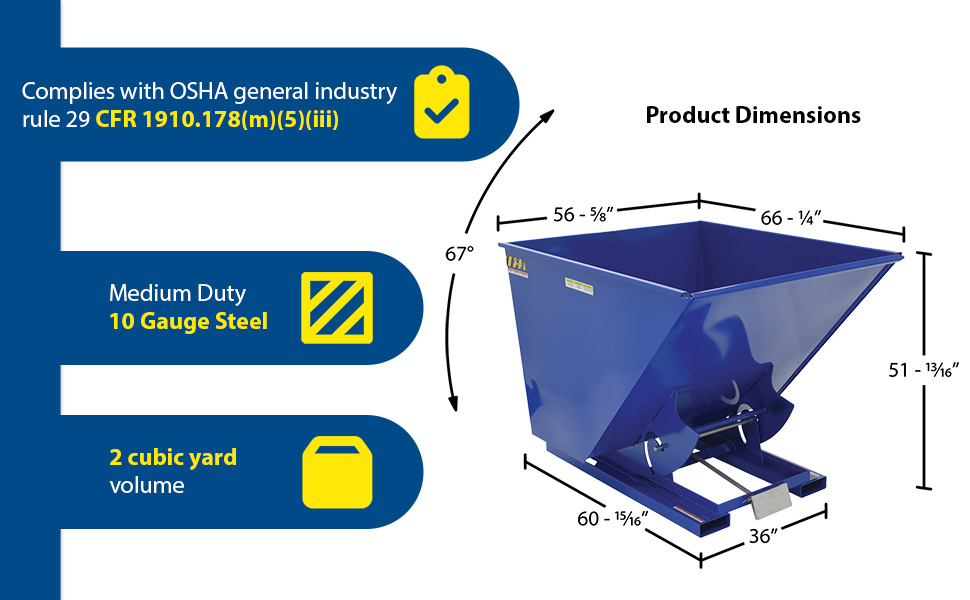

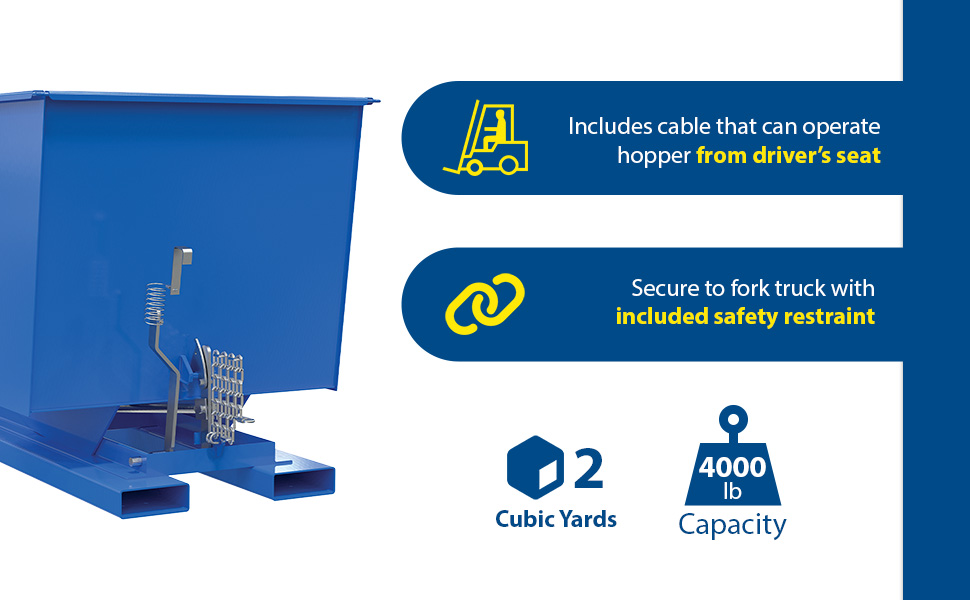

D-200-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 4,000 56-5/8"x 68-5/16"x51-13/16" 28" 701
D-250-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/2 4,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863

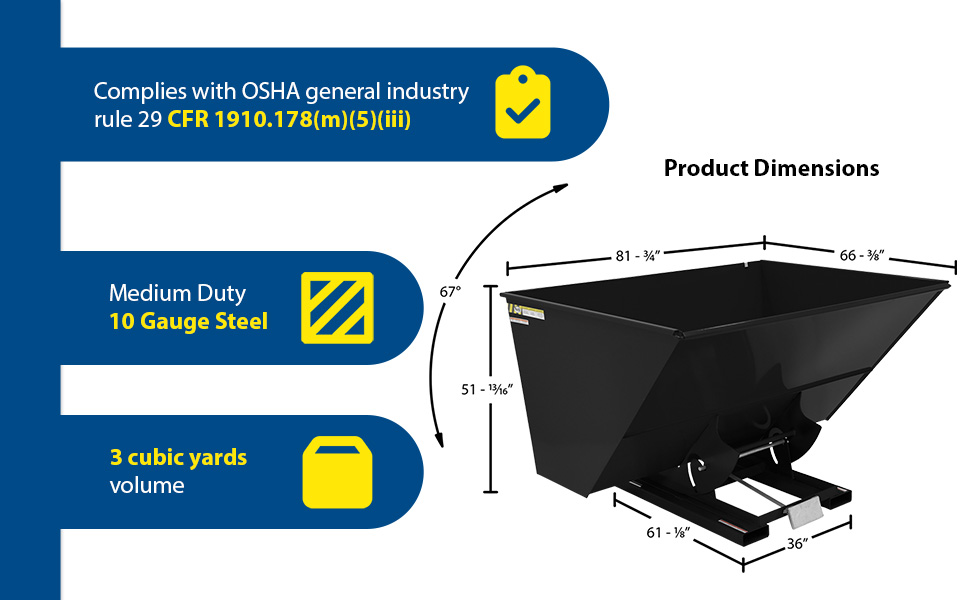

D-300-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 4,000 81-3/4"x 68-5/8"x 51-13/16" 28" 940

Heavy Duty-8 Gauge Steel

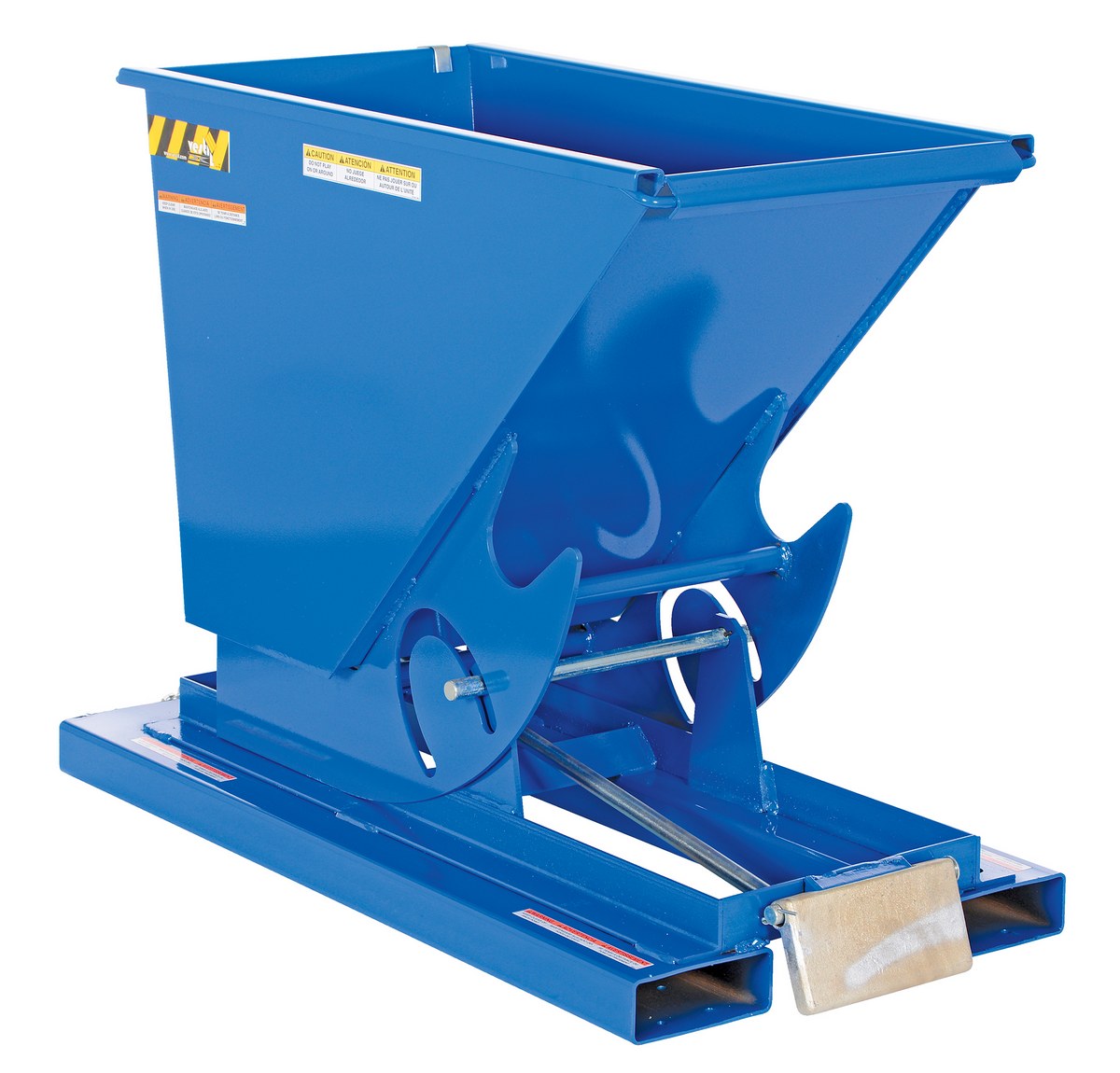

D-25-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 6,000 26"x48-7/8"x38-1/16" 18" 397

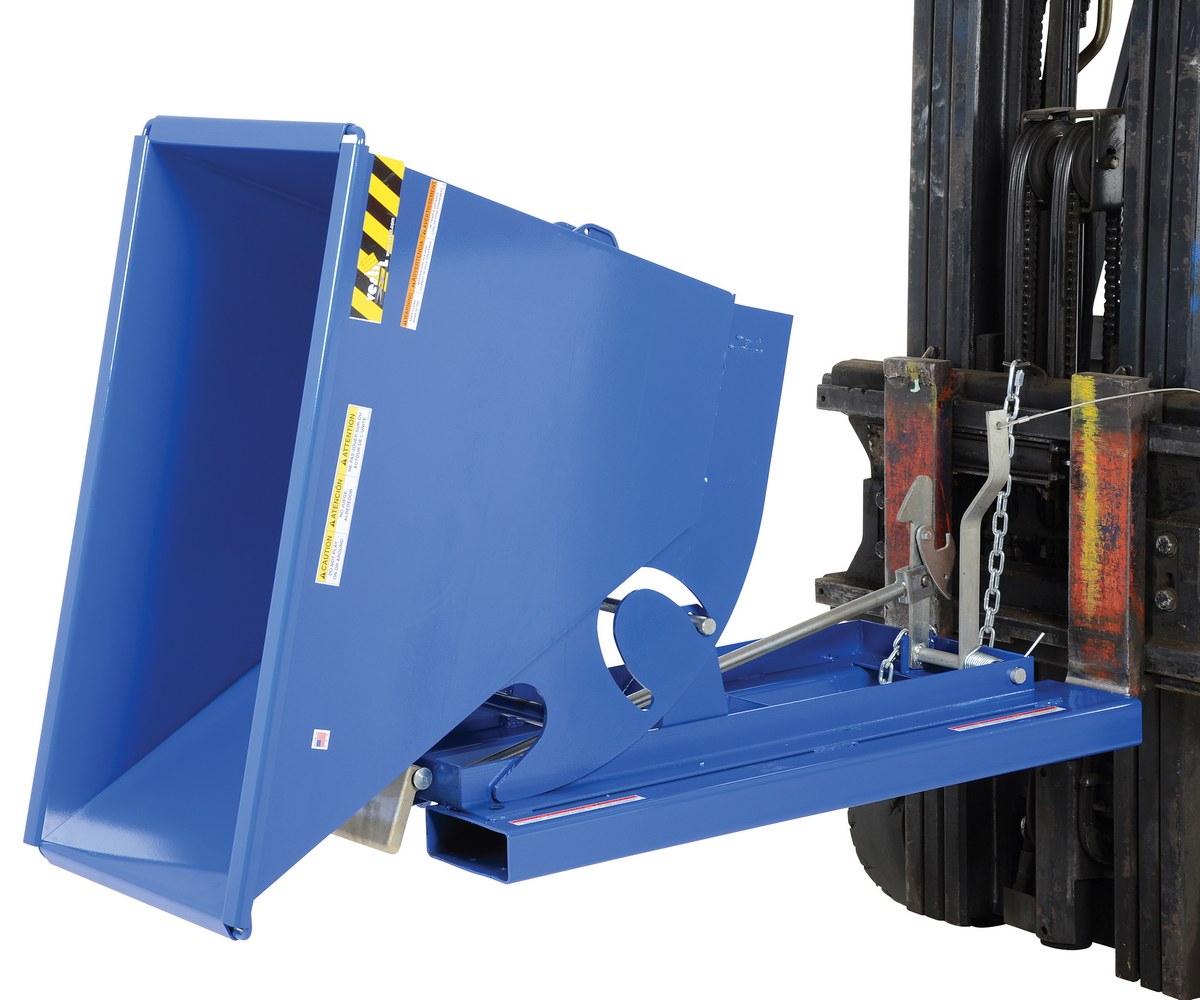

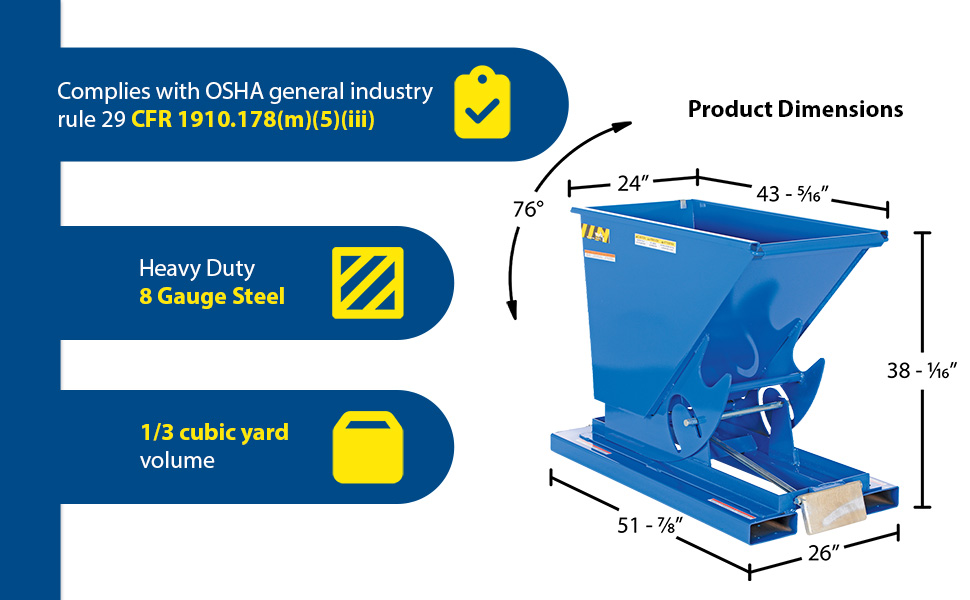

D-33-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/3 6,000 26"x51-7/8"x 38-1/16" 18" 397

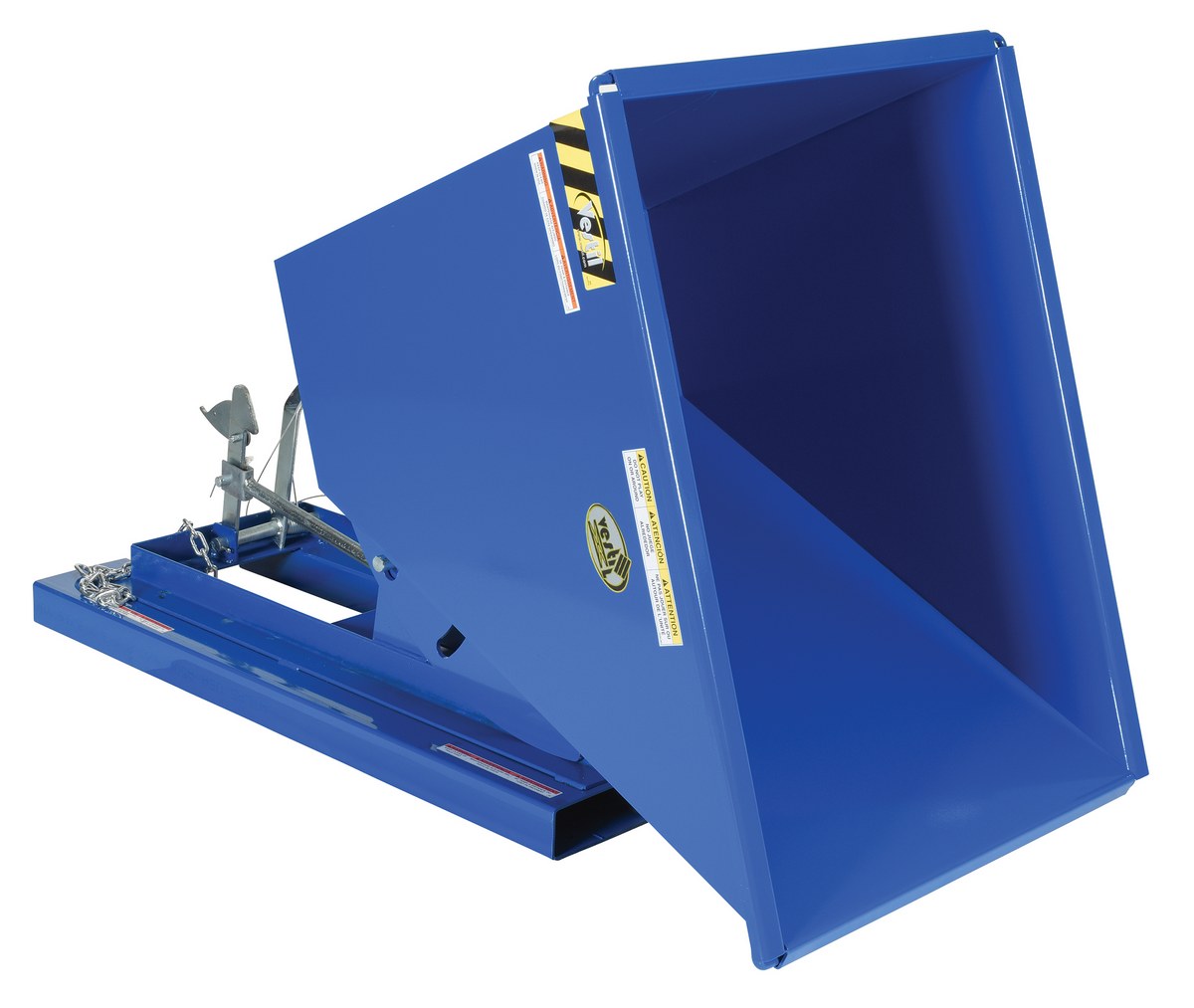

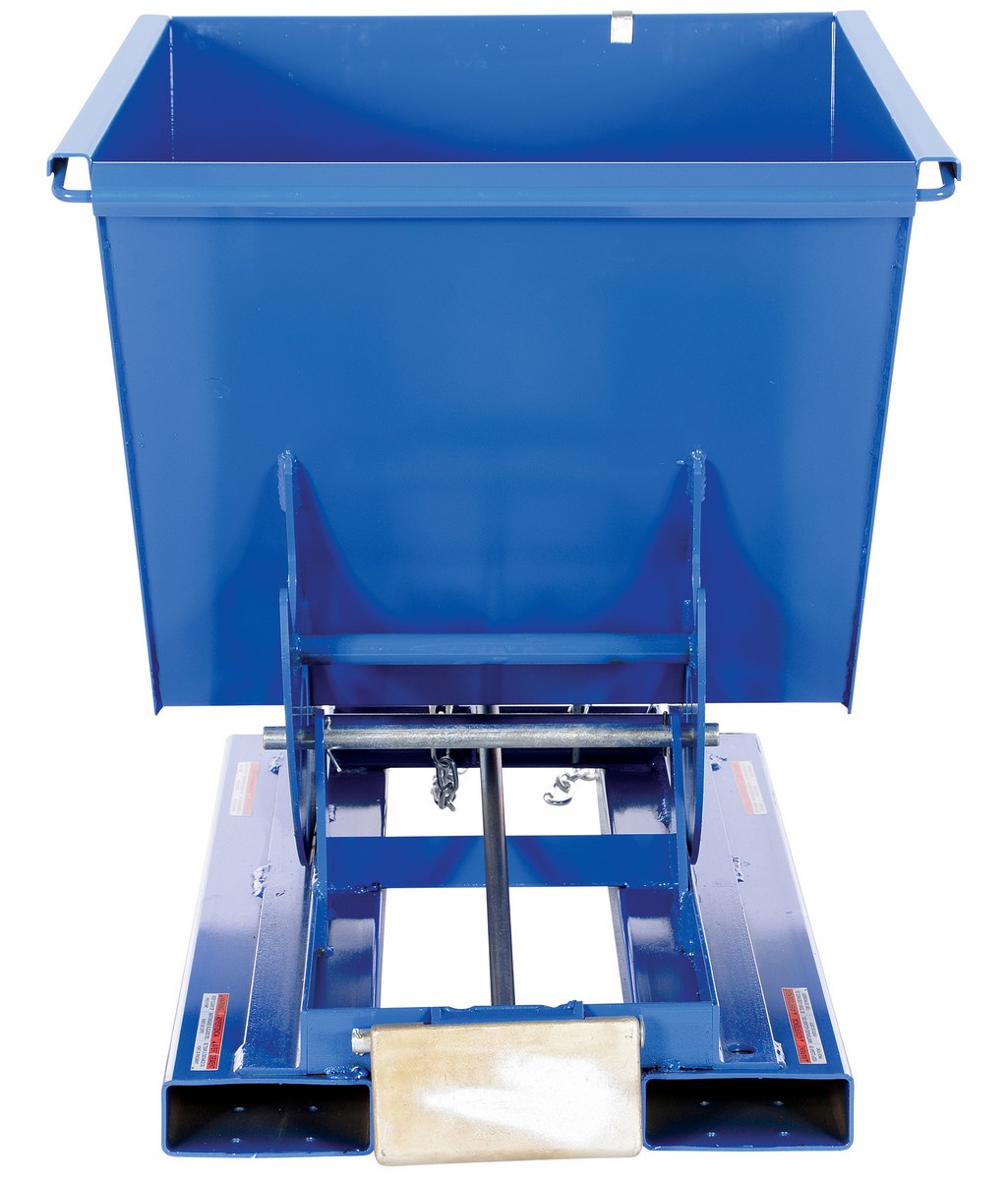

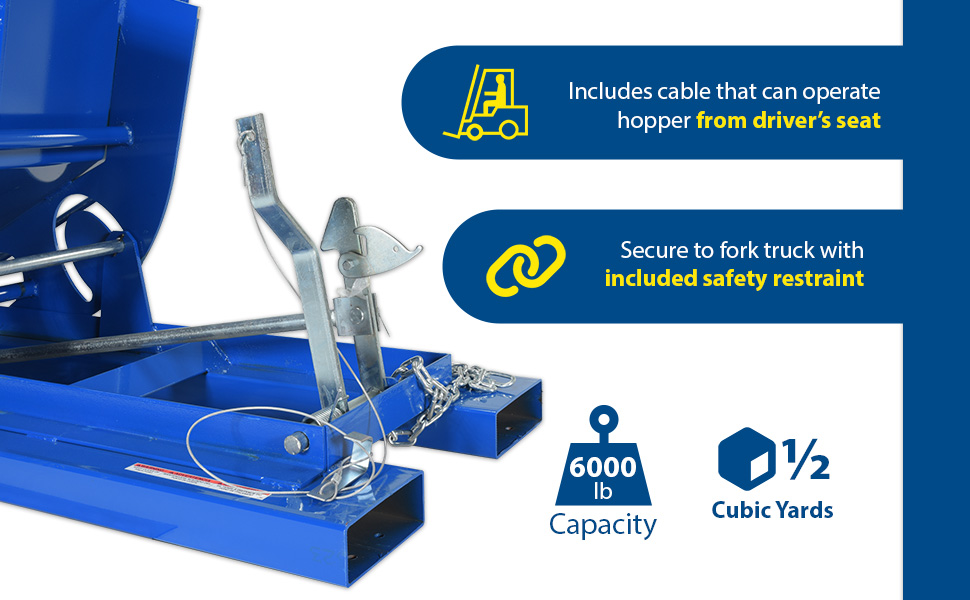

D-50-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 6,000 33-9/16"x 51-7/8"x 38-1/16" 18" 435

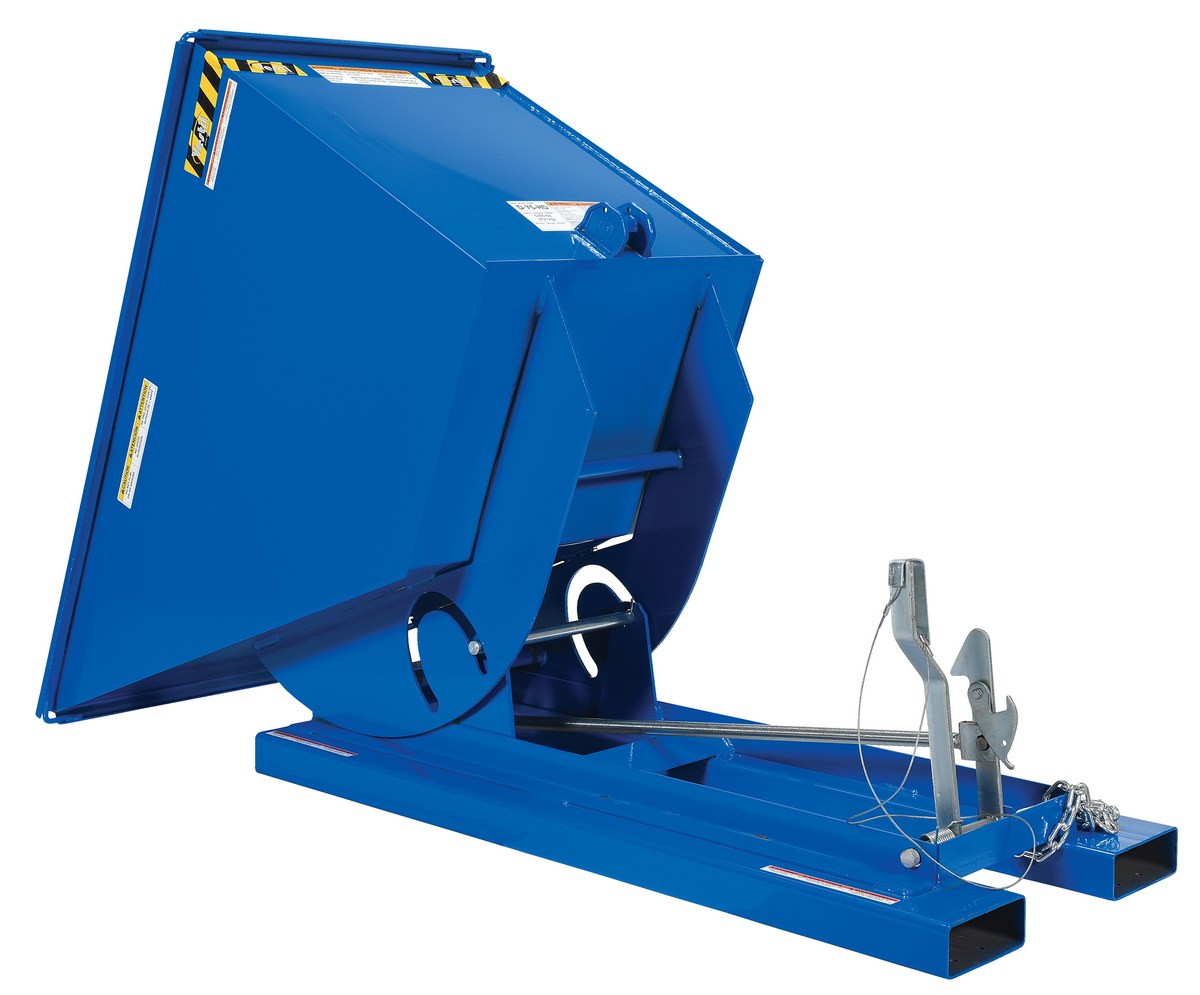

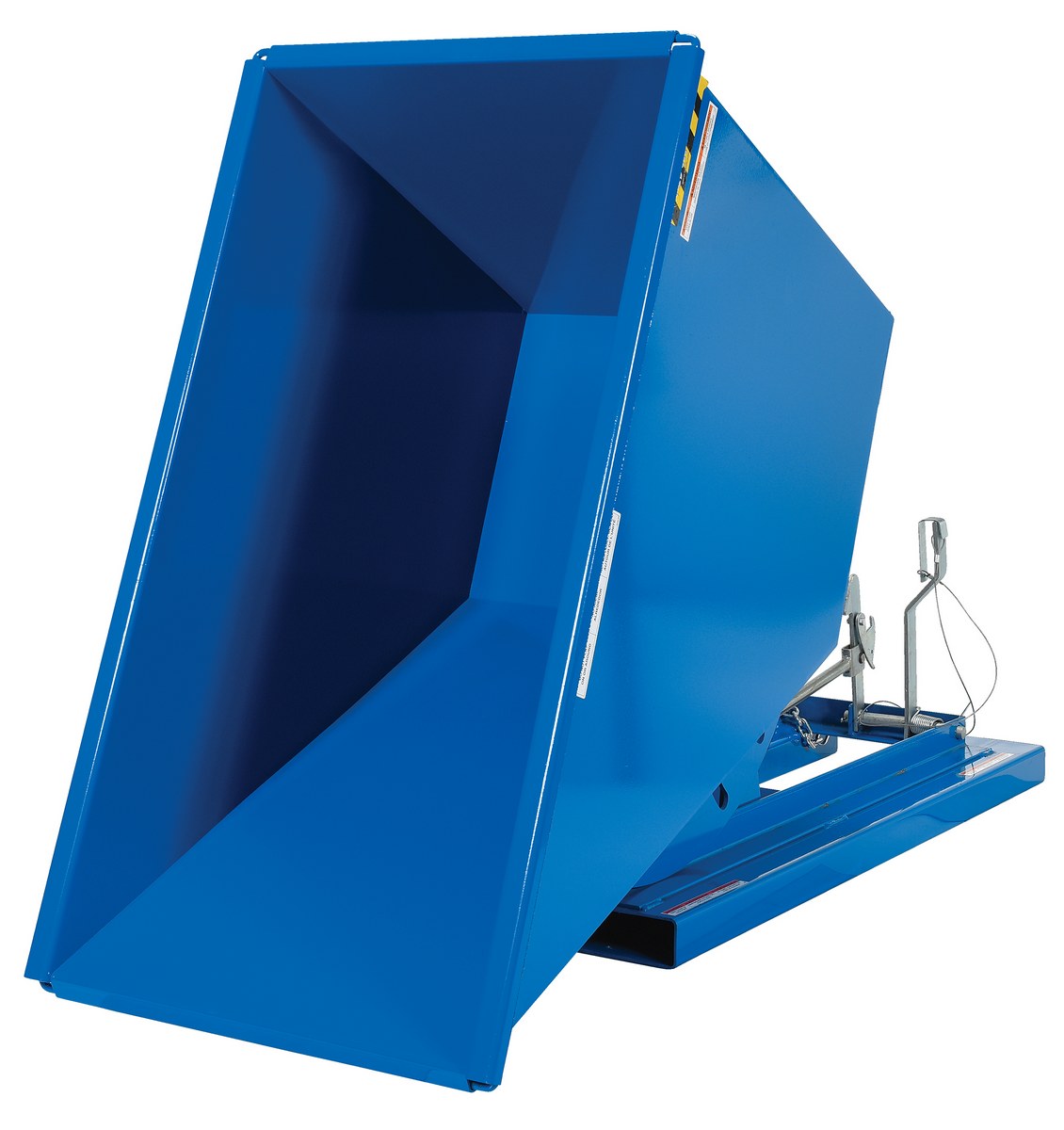

D-75-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3/4 6,000 31-9/16"x 61-1/8"x 42-3/4" 18" 543

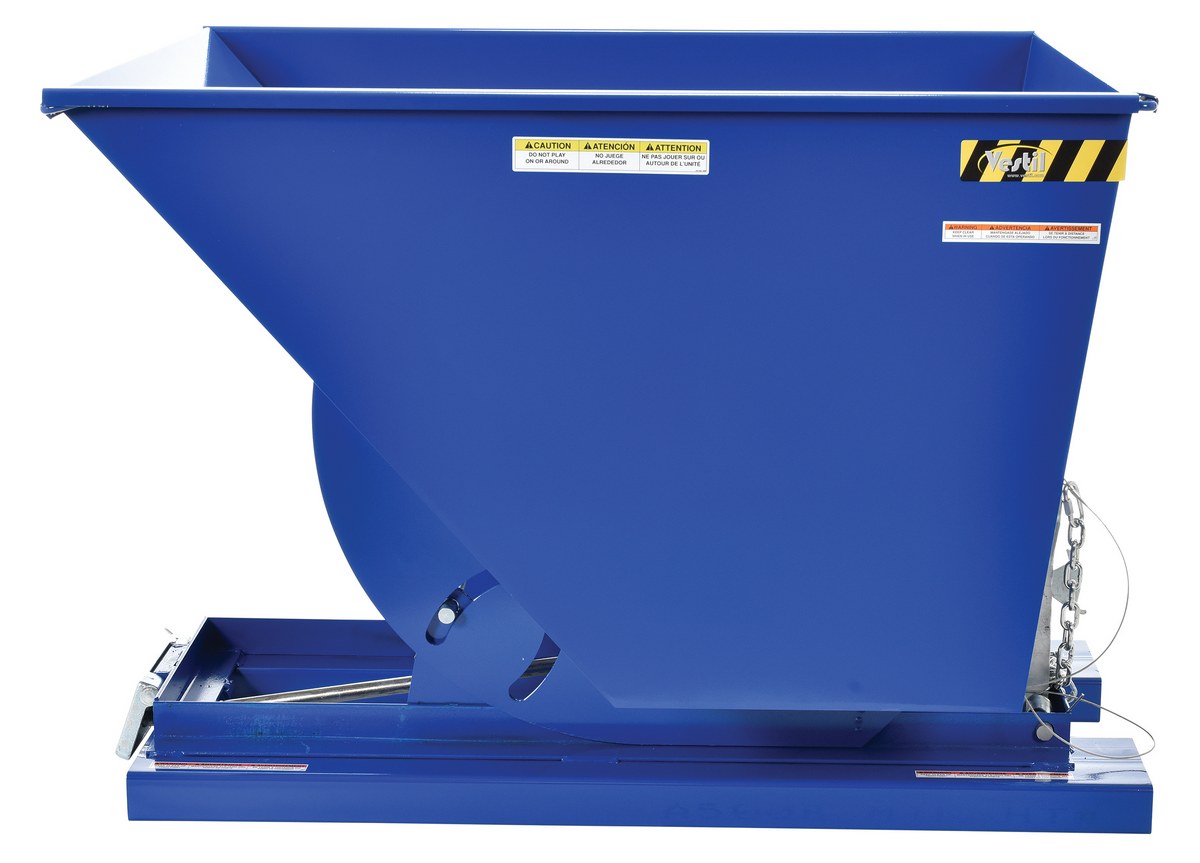

D-100-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 6,000 41-9/16"x 61-1/8"x 42-3/4" 18" 572

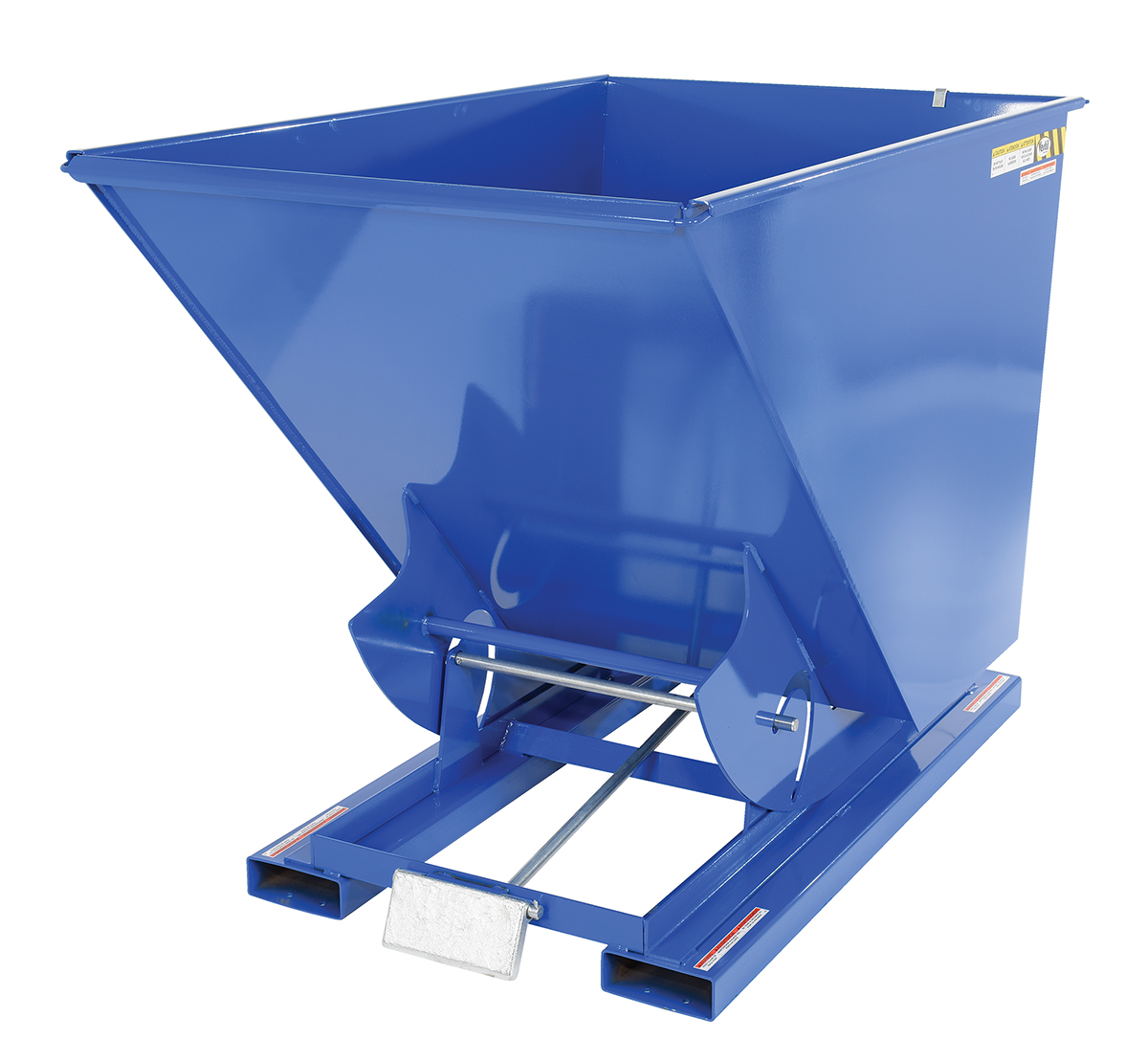

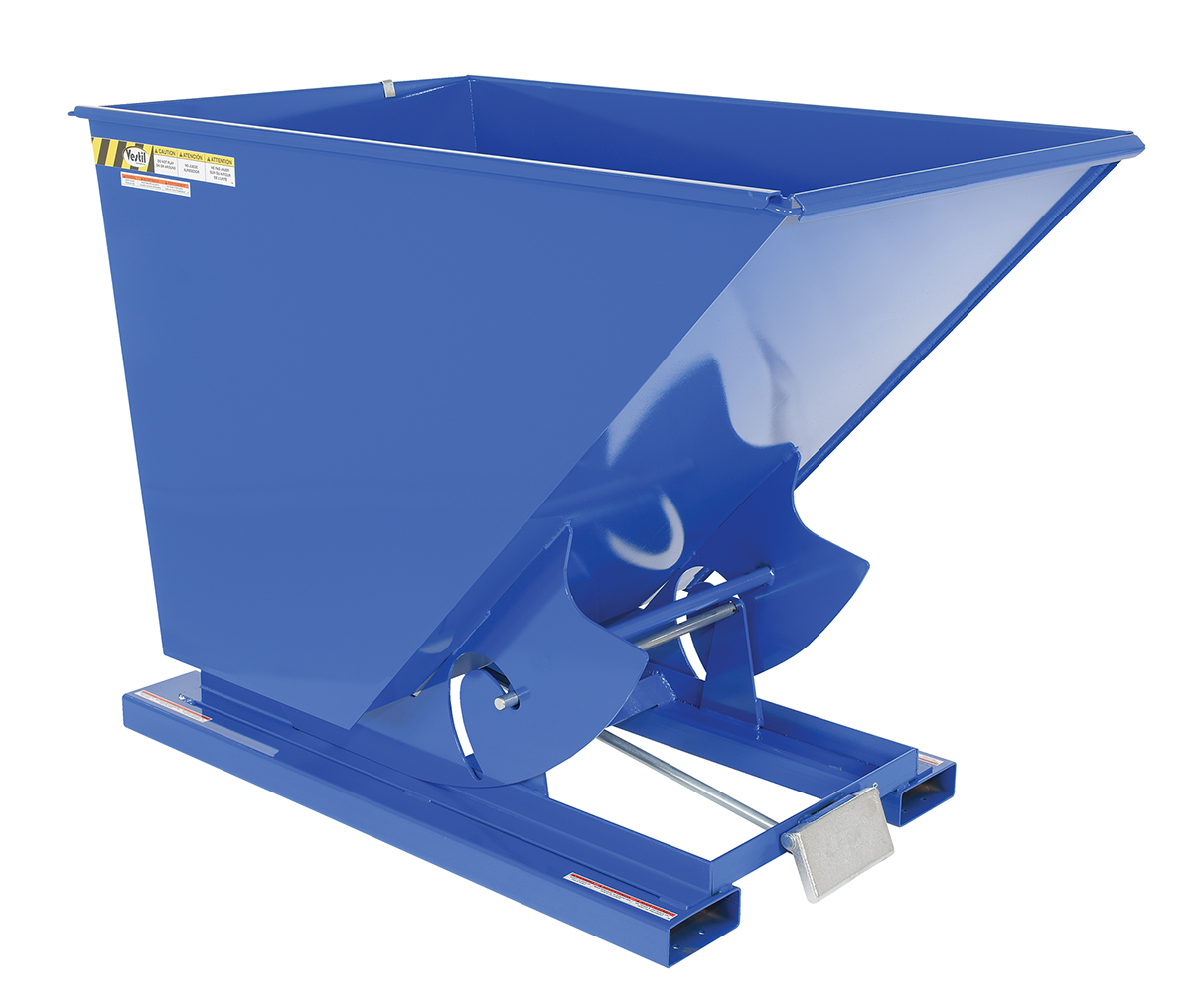

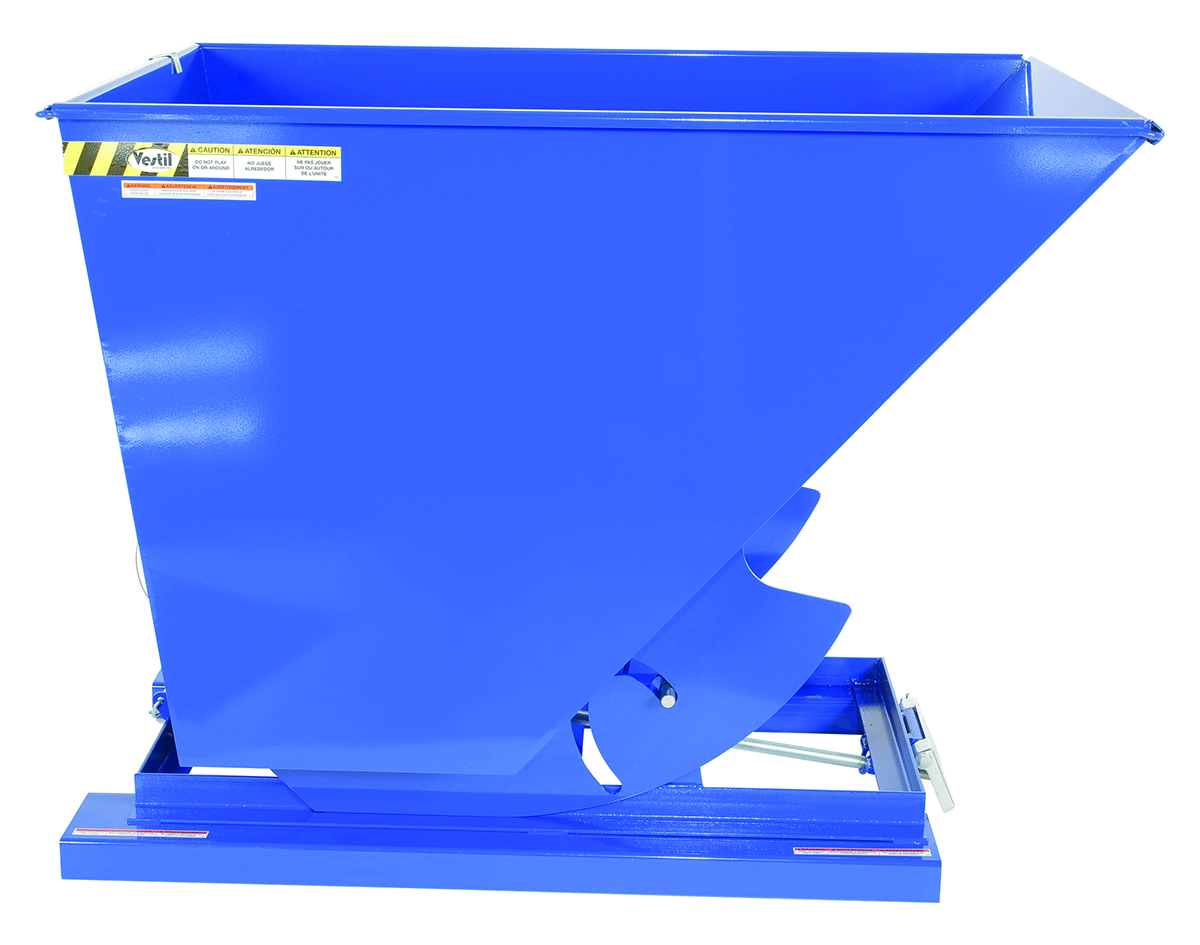

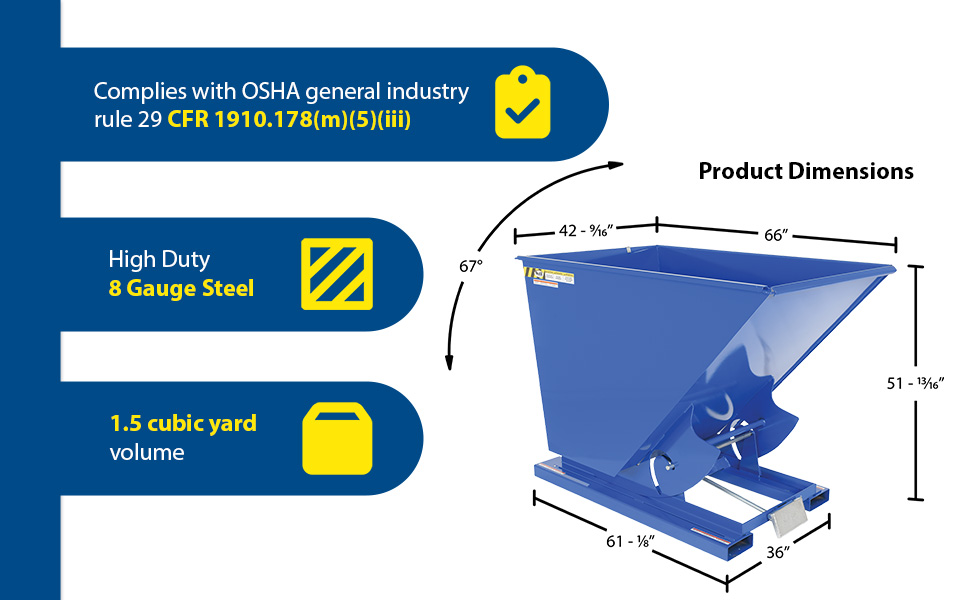

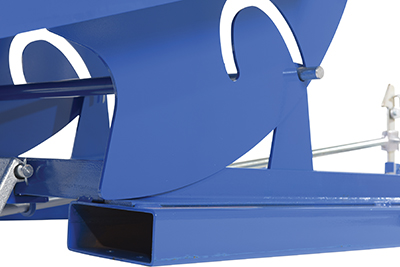

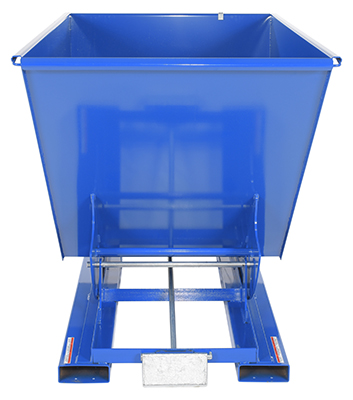

D-150-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 6,000 43-9/16"x 68-3/8"x 51-13/16" 28" 714

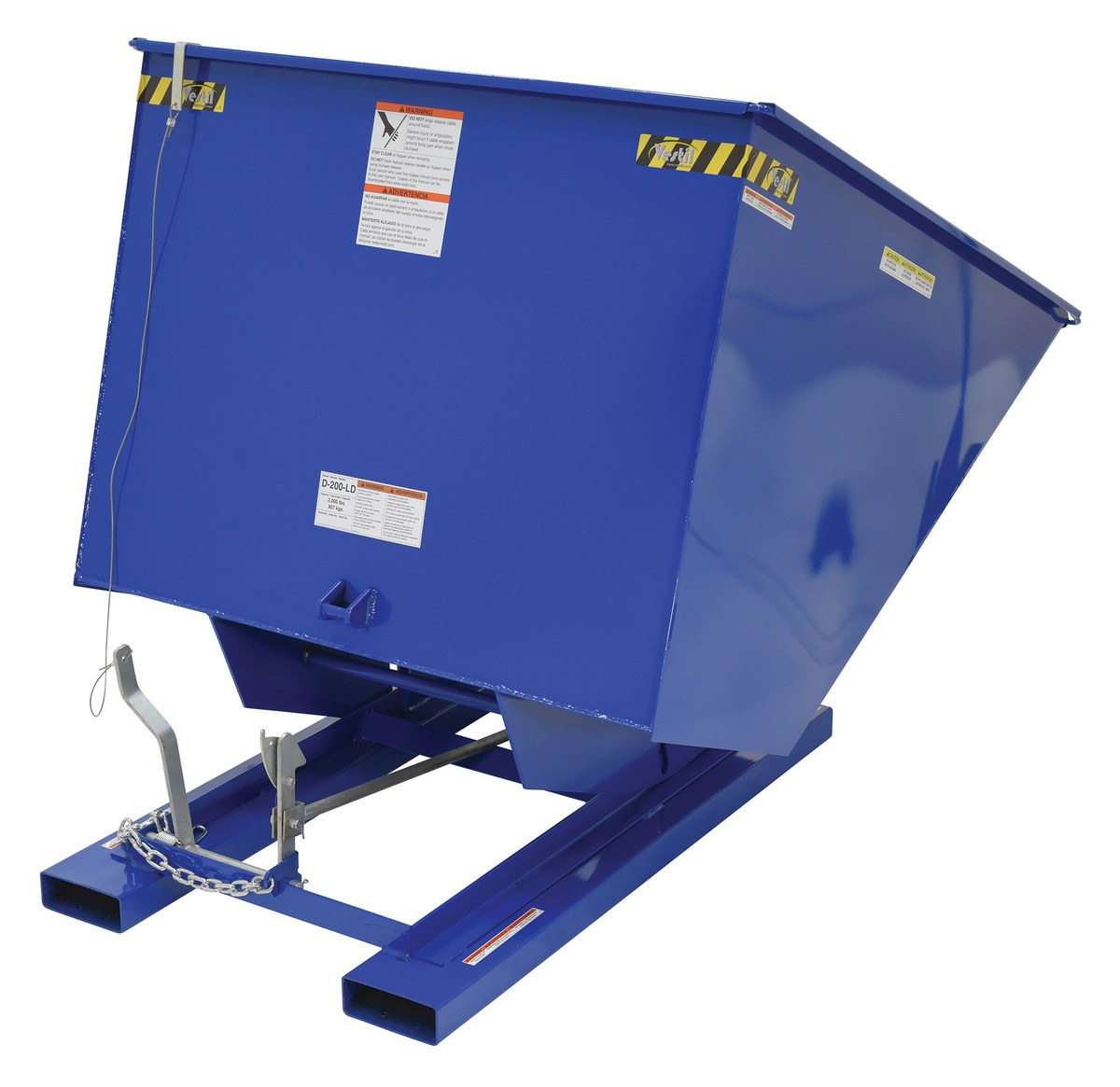

D-200-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2 6,000 56-9/16"x 68-5/16"x 51-13/16" 28" 767

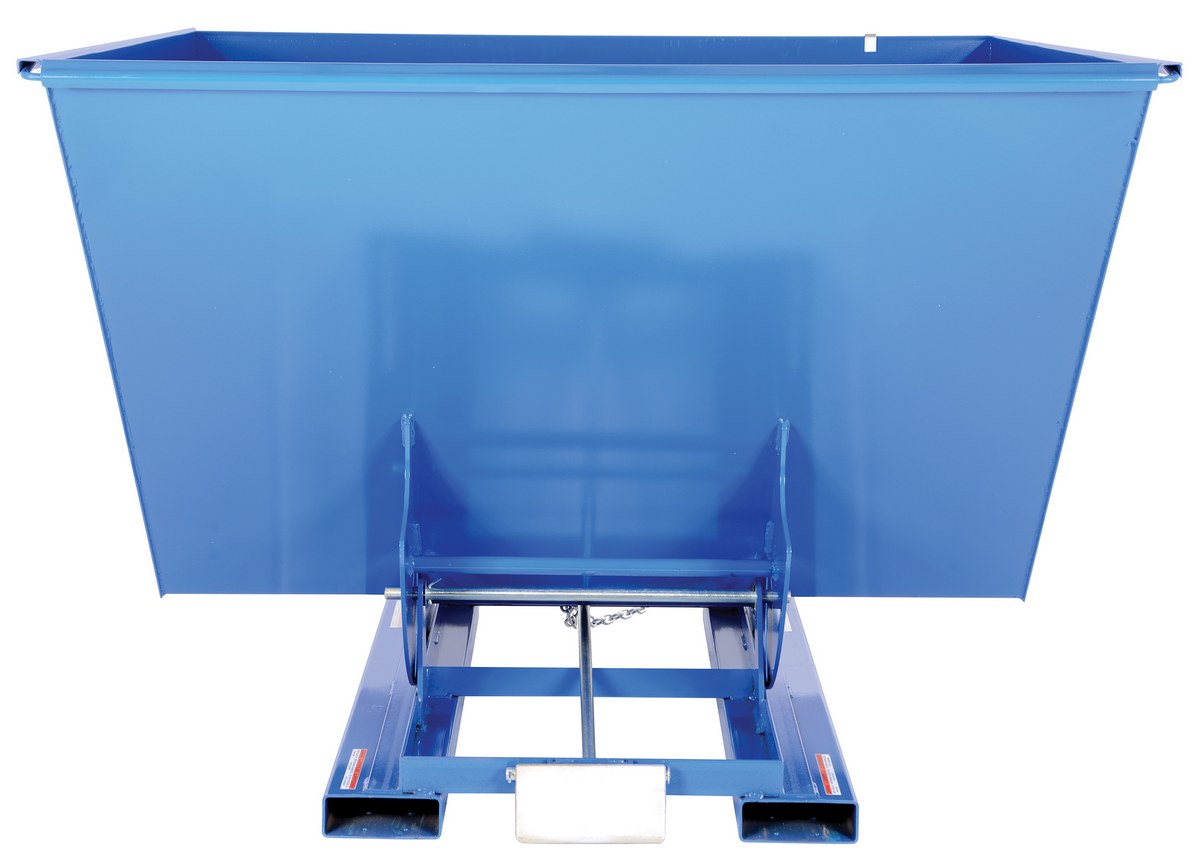

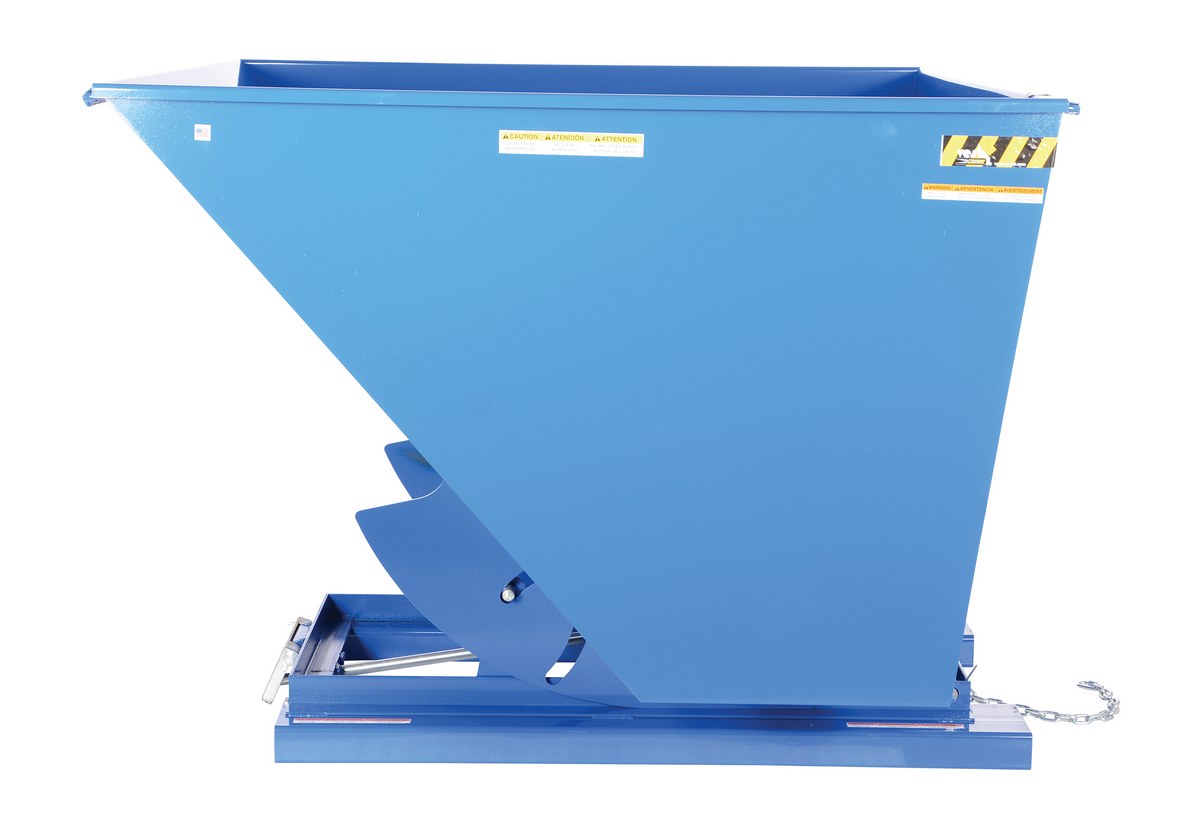

D-250-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/2 6,000 69-9/16"x 68-3/8"x 51-3/4" 28" 863

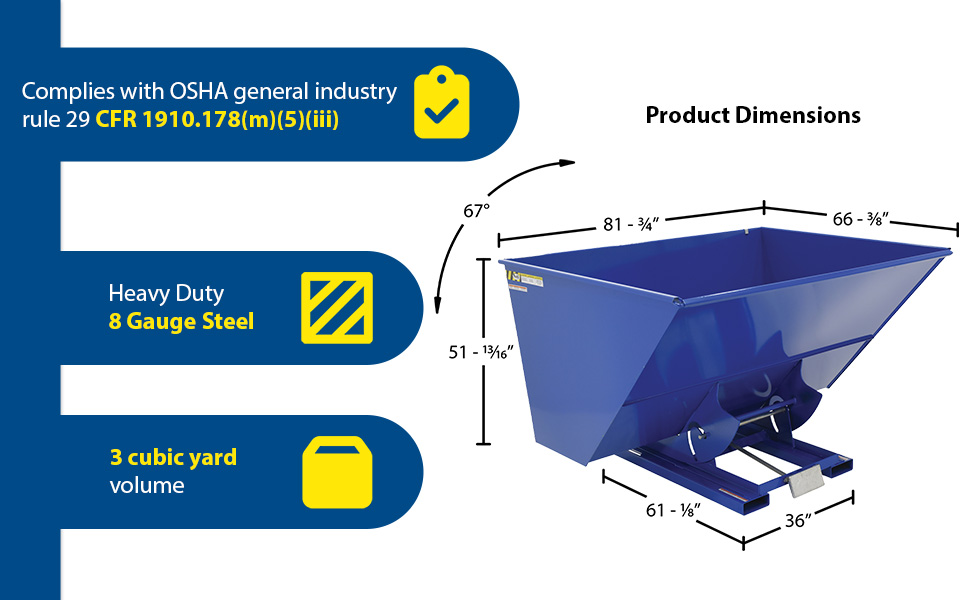

D-300-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 6,000 81-3/4"x 68-5/8"x 51-13/16" 28" 940

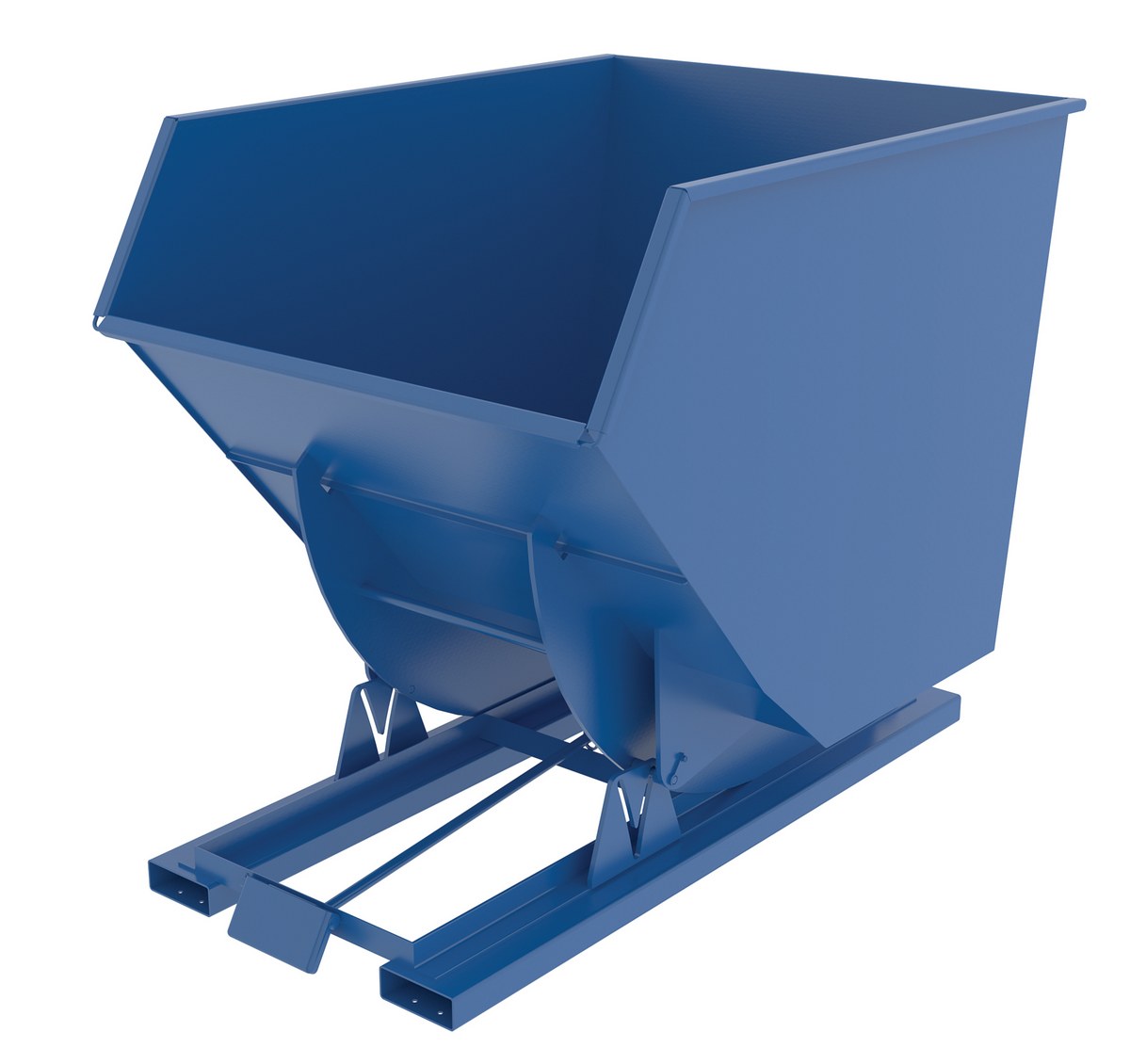

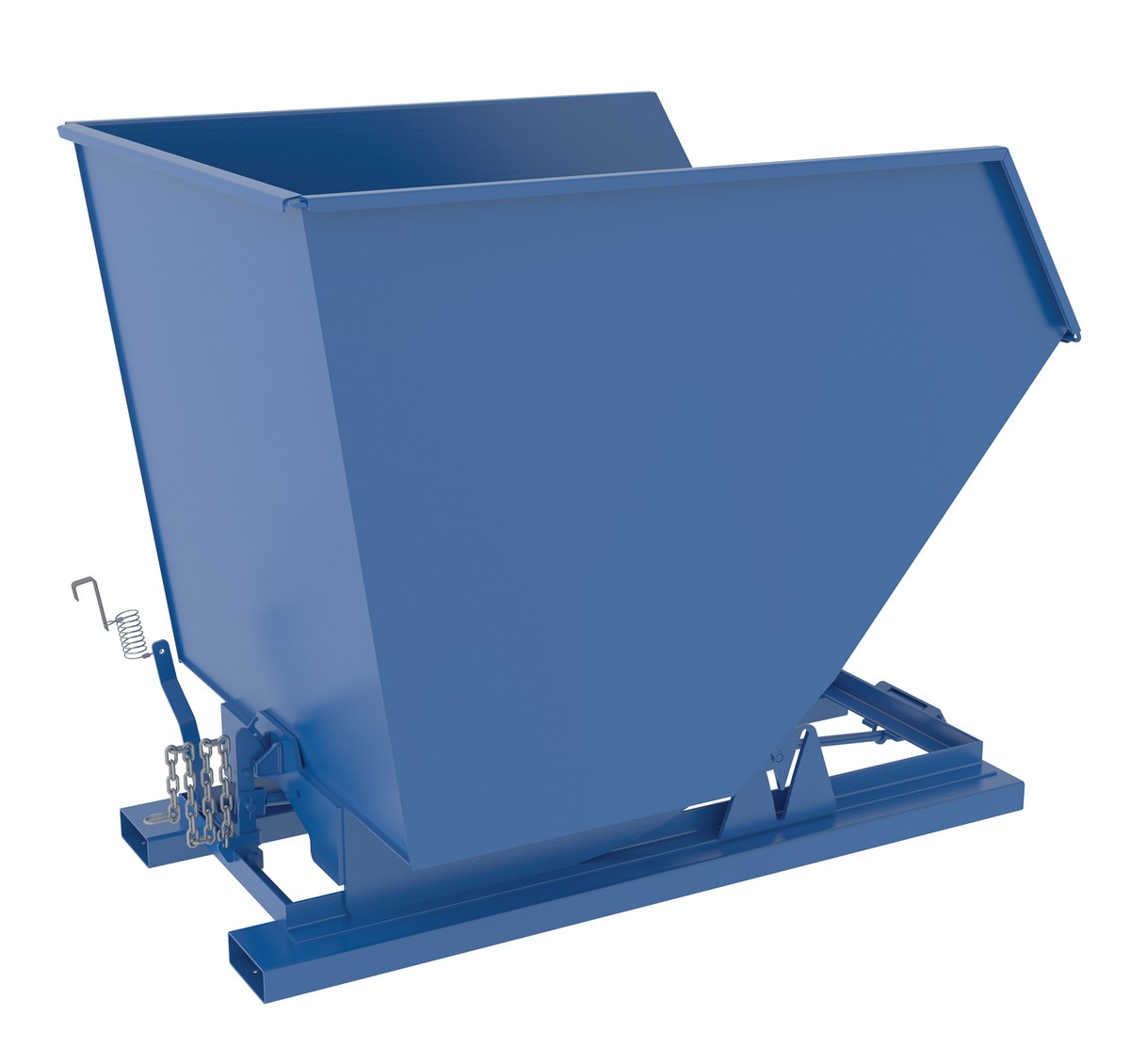

D-300-HD-NA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3 6,000 55-9/16"x 79-3/8"x 64-3/8" 28" 1107

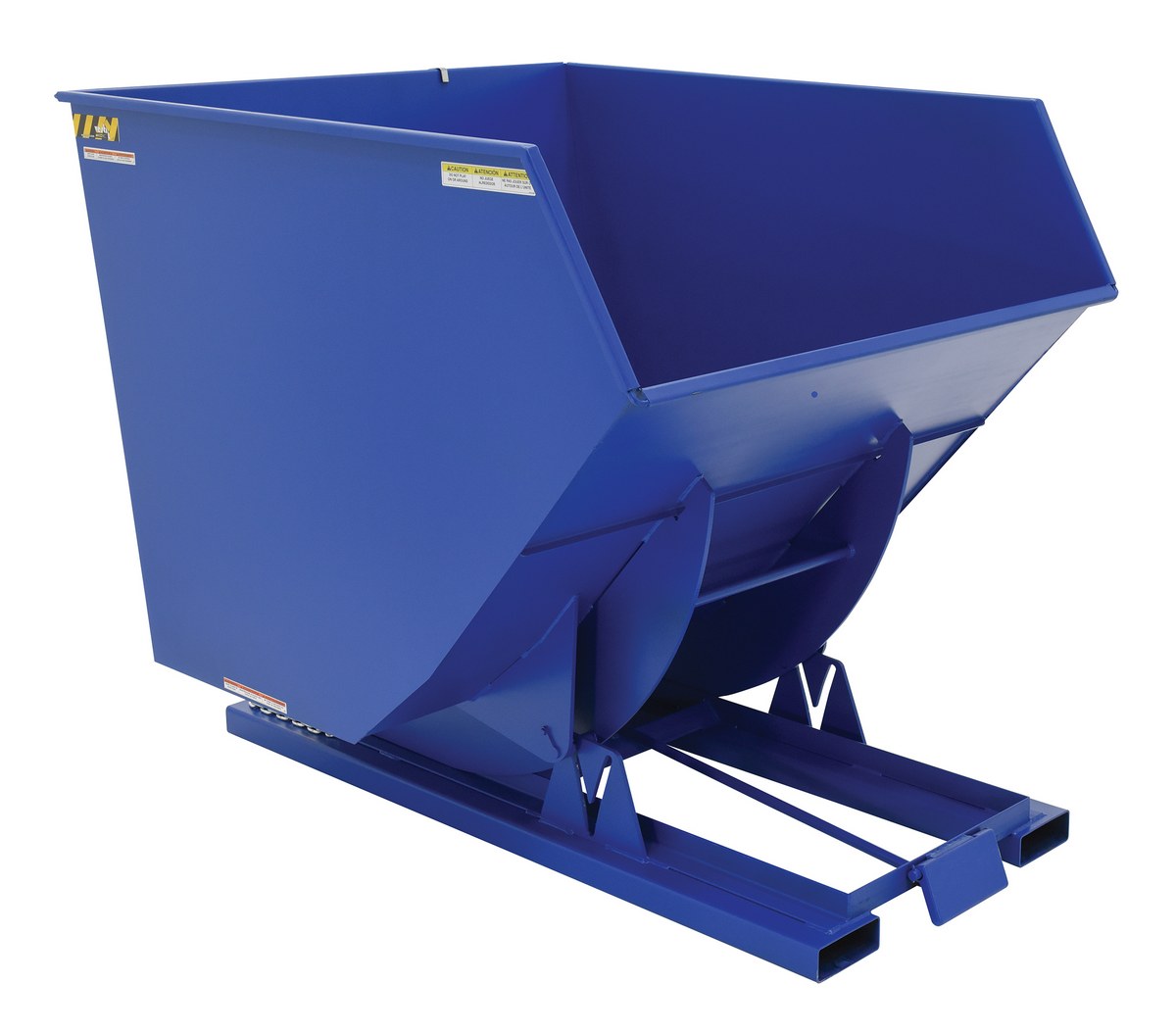

D-350-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3-1/2 6,000 64-1/4"x 79-3/8"x 64-3/8" 28" 1128

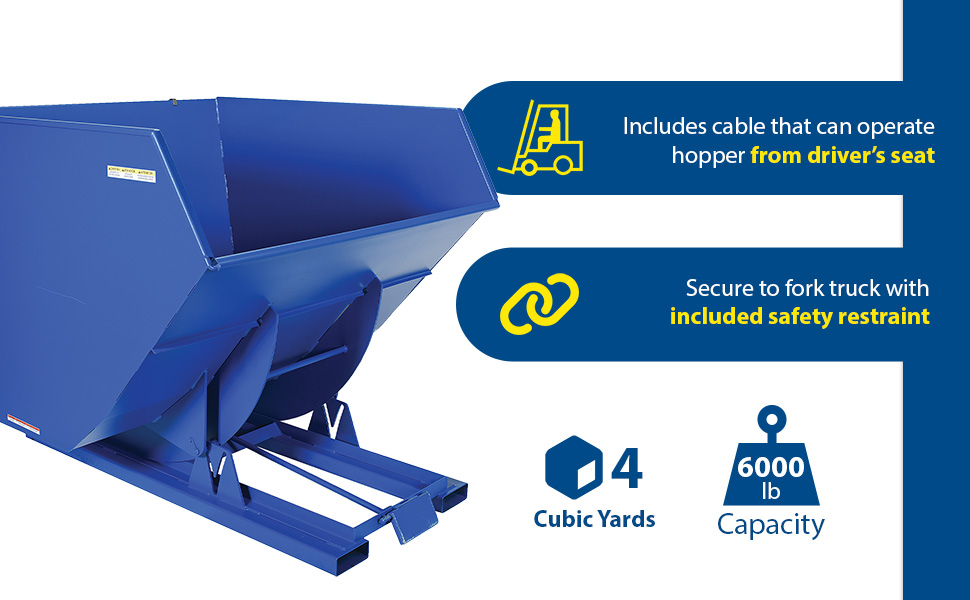

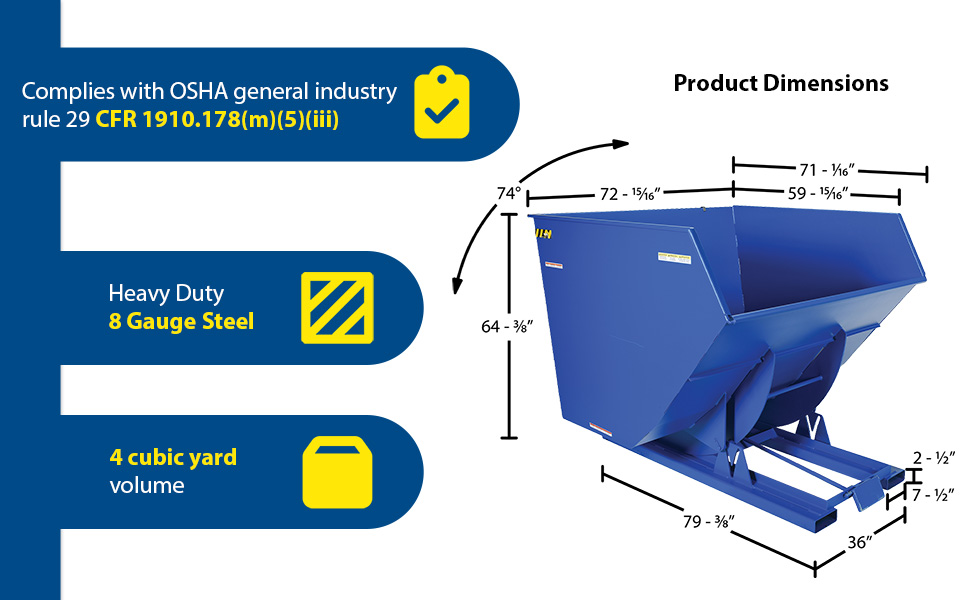

D-400-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4 6,000 72-15/16"x 79-3/8"x 64-3/8" 28" 1445

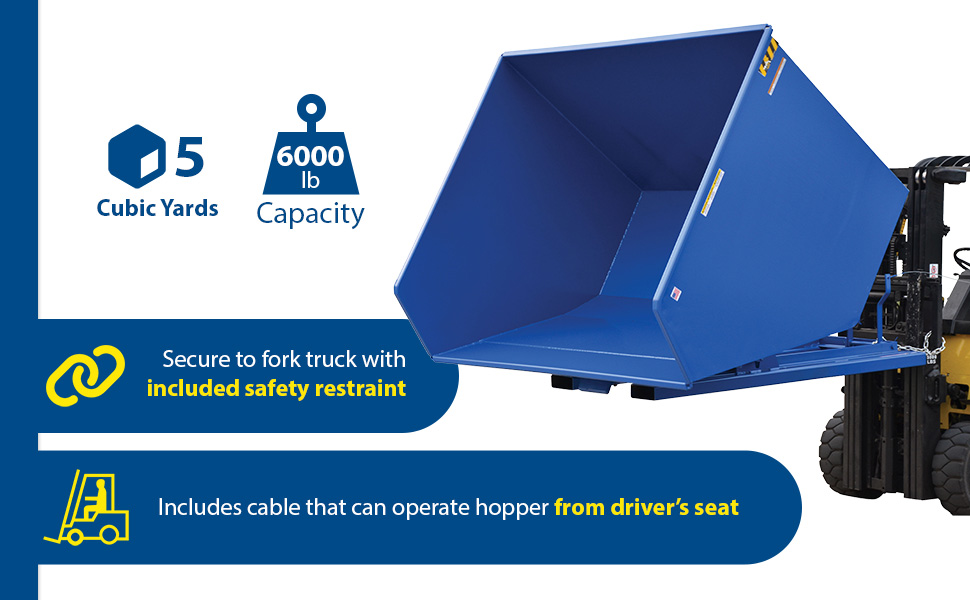

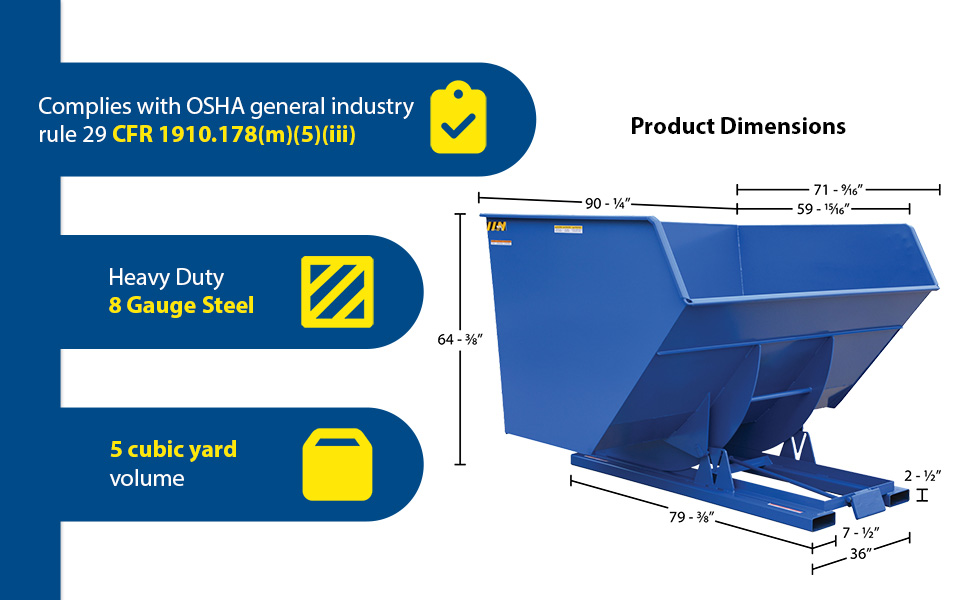

D-500-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5 6,000 90-1/4"x79-3/8"x 64-3/8" 28" 1554

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

D-25-HD
D-25-LD
D-25-MD
D-33-HD
D-33-LD
D-33-MD
D-50-HD
D-50-LD
D-50-MD
D-75-HD
D-75-LD
D-75-MD

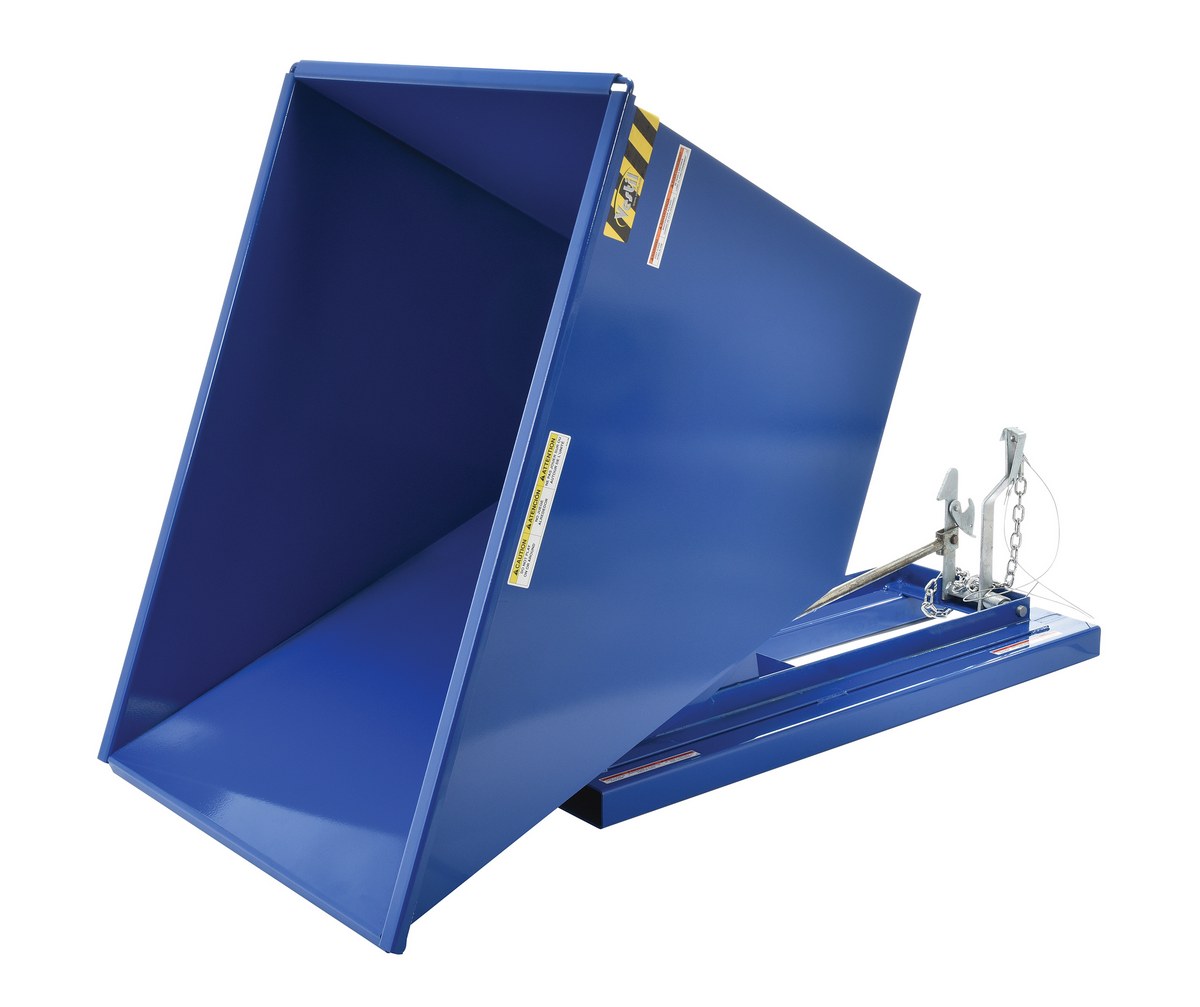

D-100-HD
D-100-HD-GAL
D-100-LD
D-100-MD
D-150-HD
D-150-LD
D-150-MD

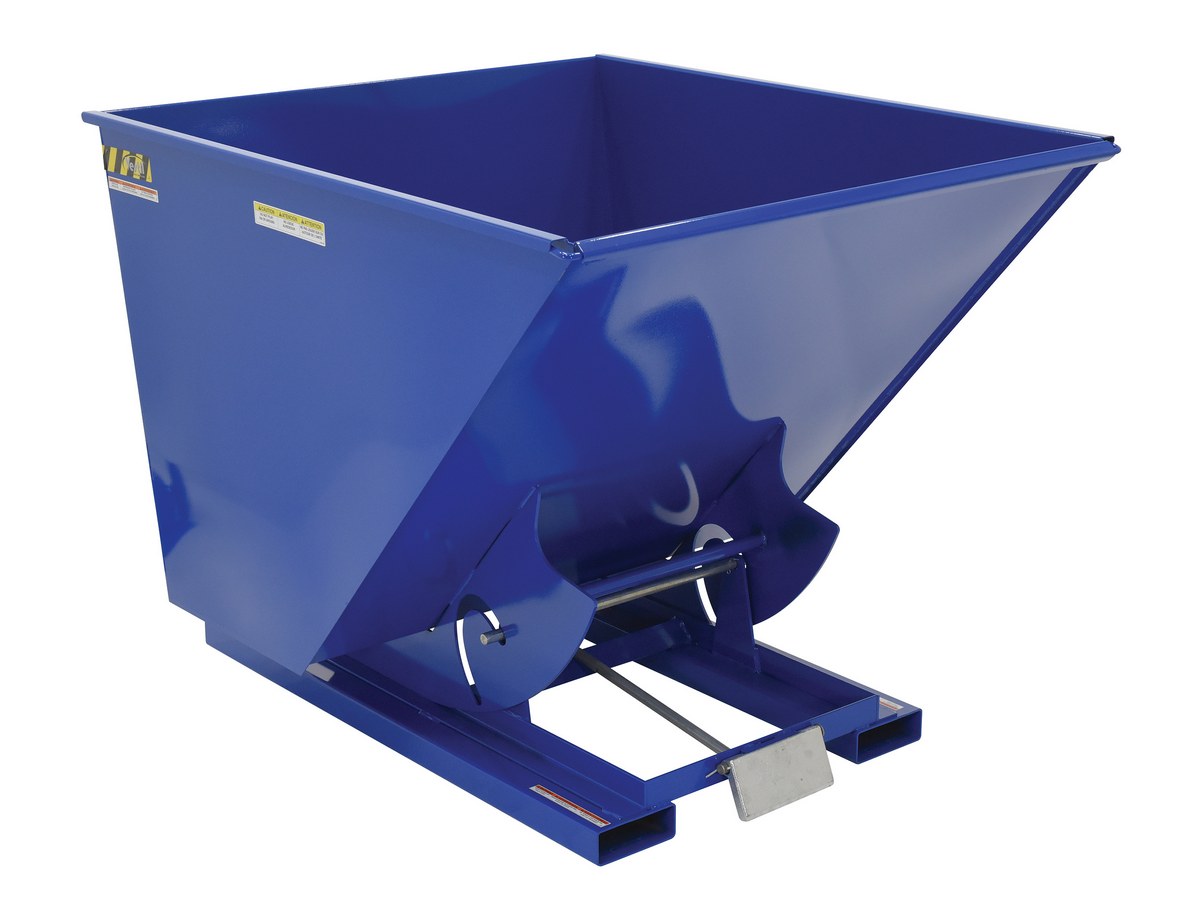

D-200-HD
D-200-LD
D-200-MD

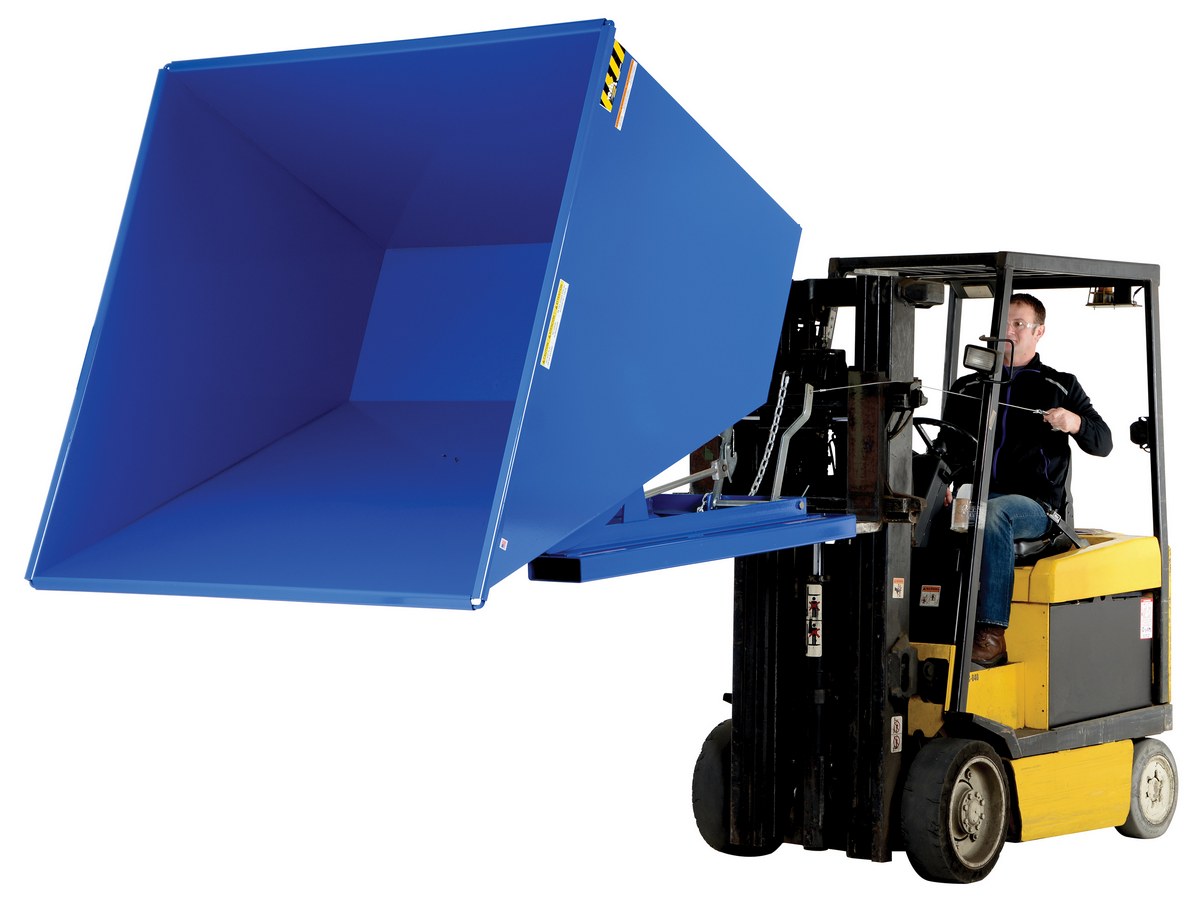

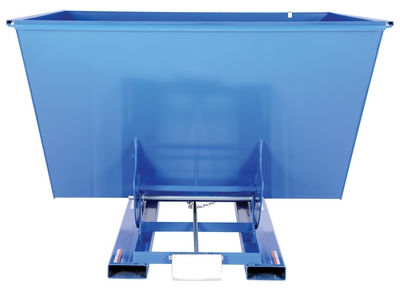

D-250-HD
D-250-LD
D-250-MD
D-300-HD
D-300-HD-NA
D-300-LD
D-300-MD

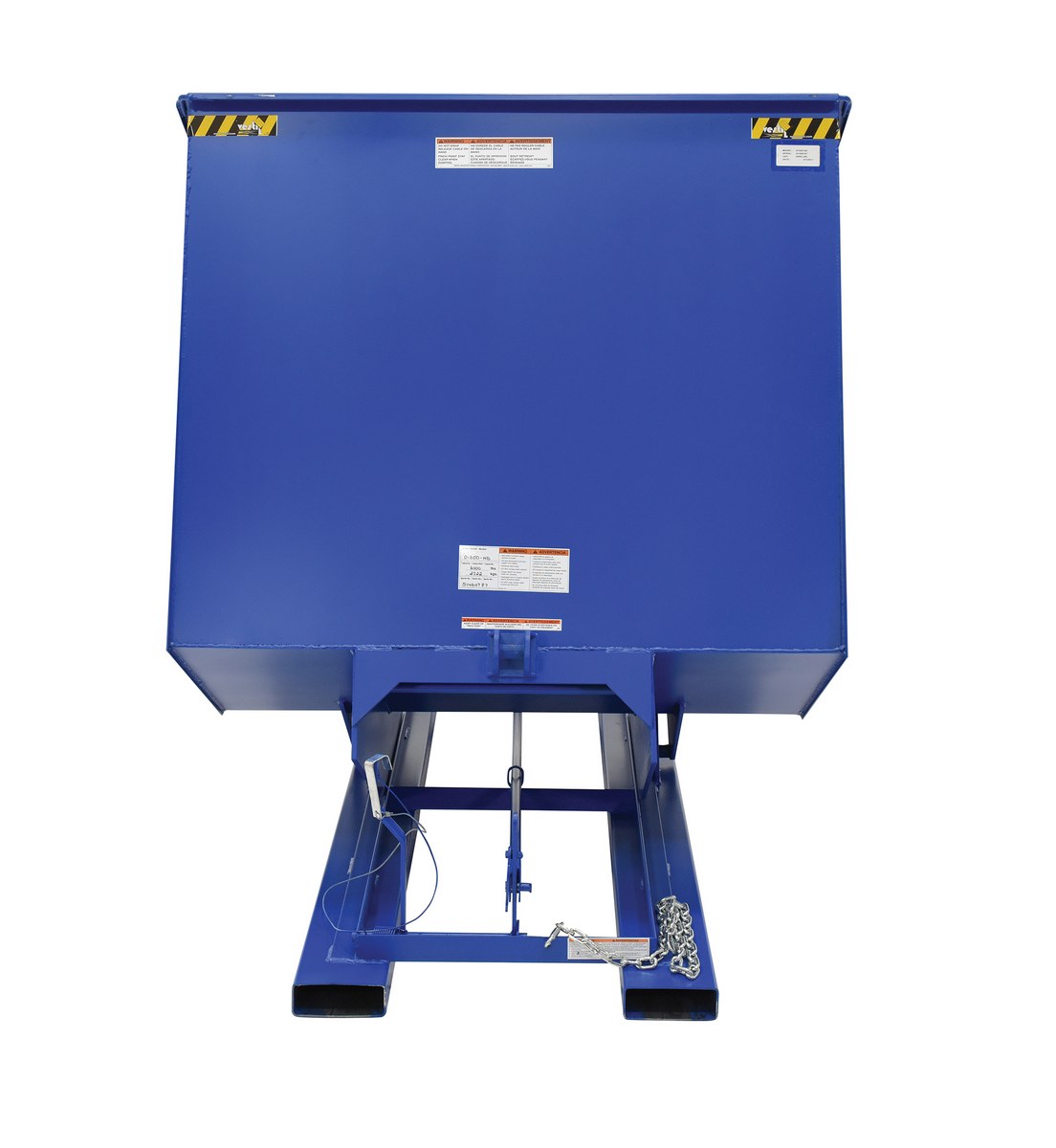

D-350-HD
D-400-HD
D-500-HD

Testing Certificates

D-25-HD
D-25-LD
D-25-MD
D-33-HD
D-33-LD
D-33-MD
D-50-HD
D-50-LD
D-50-MD
D-75-HD
D-75-LD
D-75-MD
D-100-HD
D-100-HD-GAL
D-100-LD
D-100-MD
D-150-HD
D-150-LD
D-150-MD
D-200-HD
D-200-LD
D-200-MD
D-250-HD
D-250-LD
D-250-MD
D-300-HD
D-300-HD-NA
D-300-LD
D-300-MD
D-350-HD
D-400-HD
D-400-HD
D-500-HD
D-500-HD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Image Gallery

D-25-HD
D-25-HD
D-25-LD
D-25-LD
D-25-MD
D-25-MD

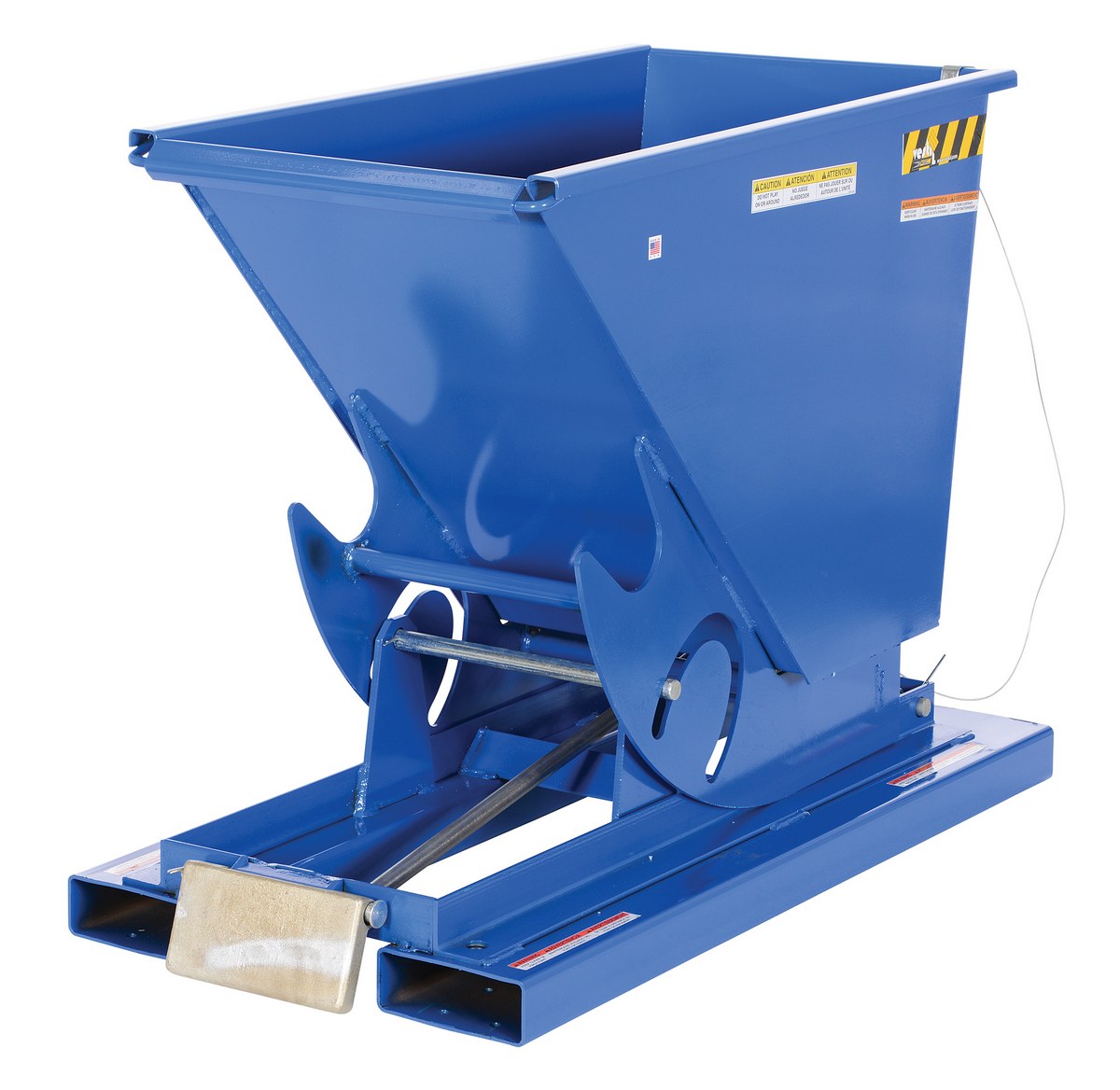

D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-HD
D-33-LD
D-33-LD
D-33-MD
D-33-MD

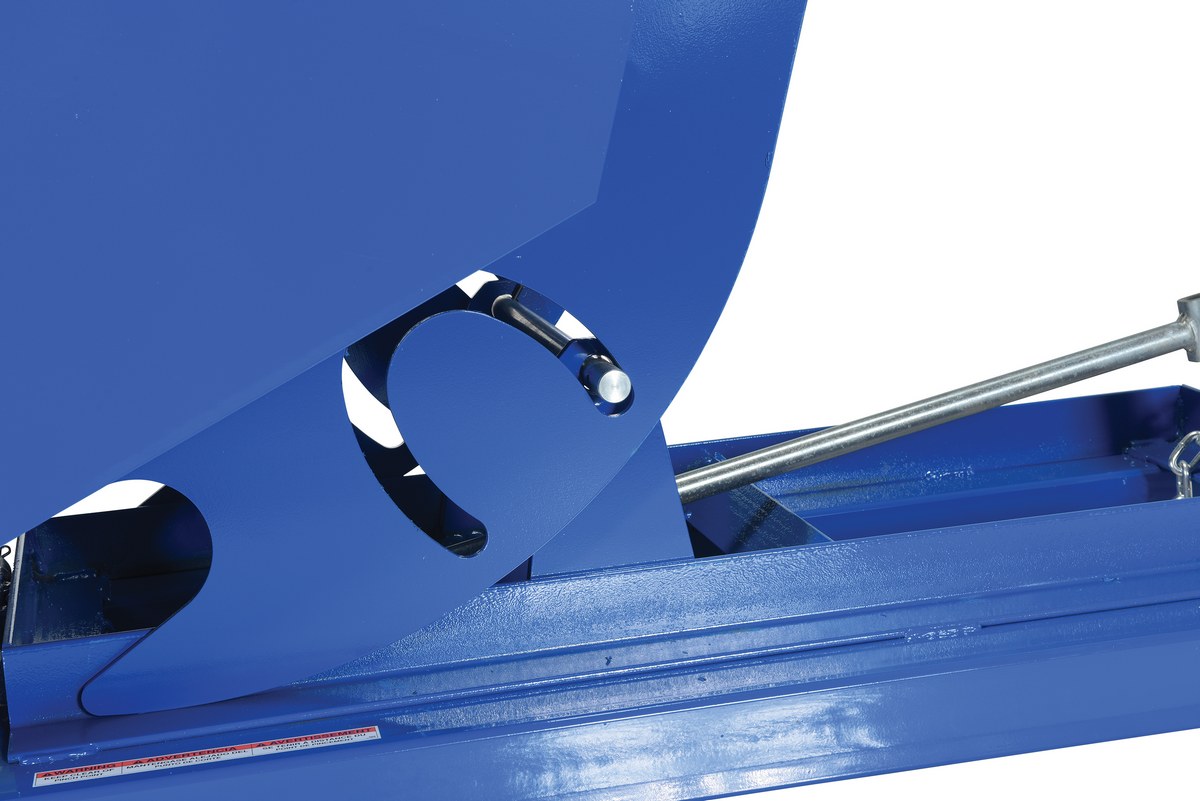

D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-HD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-LD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-50-MD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-HD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD
D-75-LD

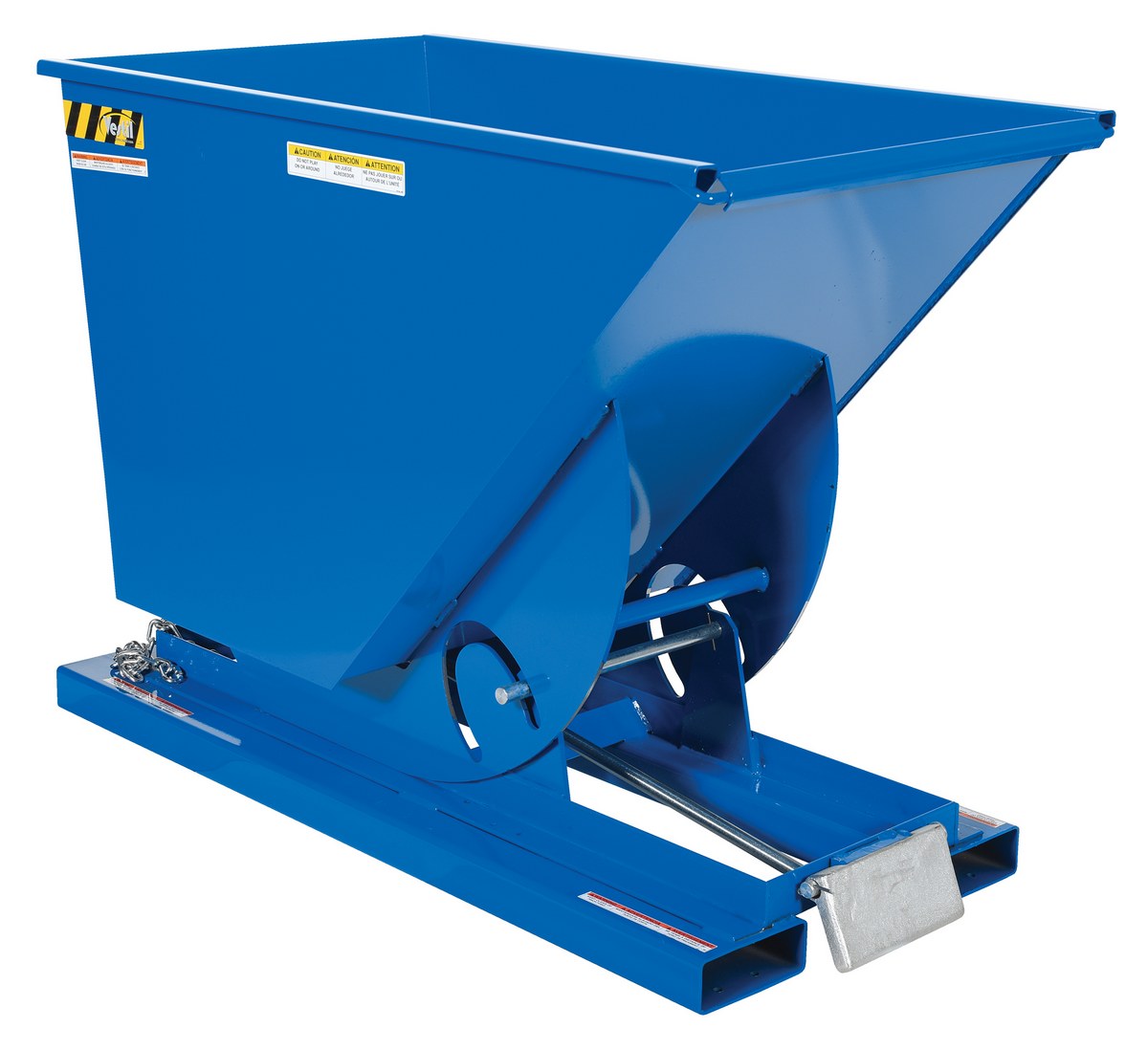

D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD
D-75-MD

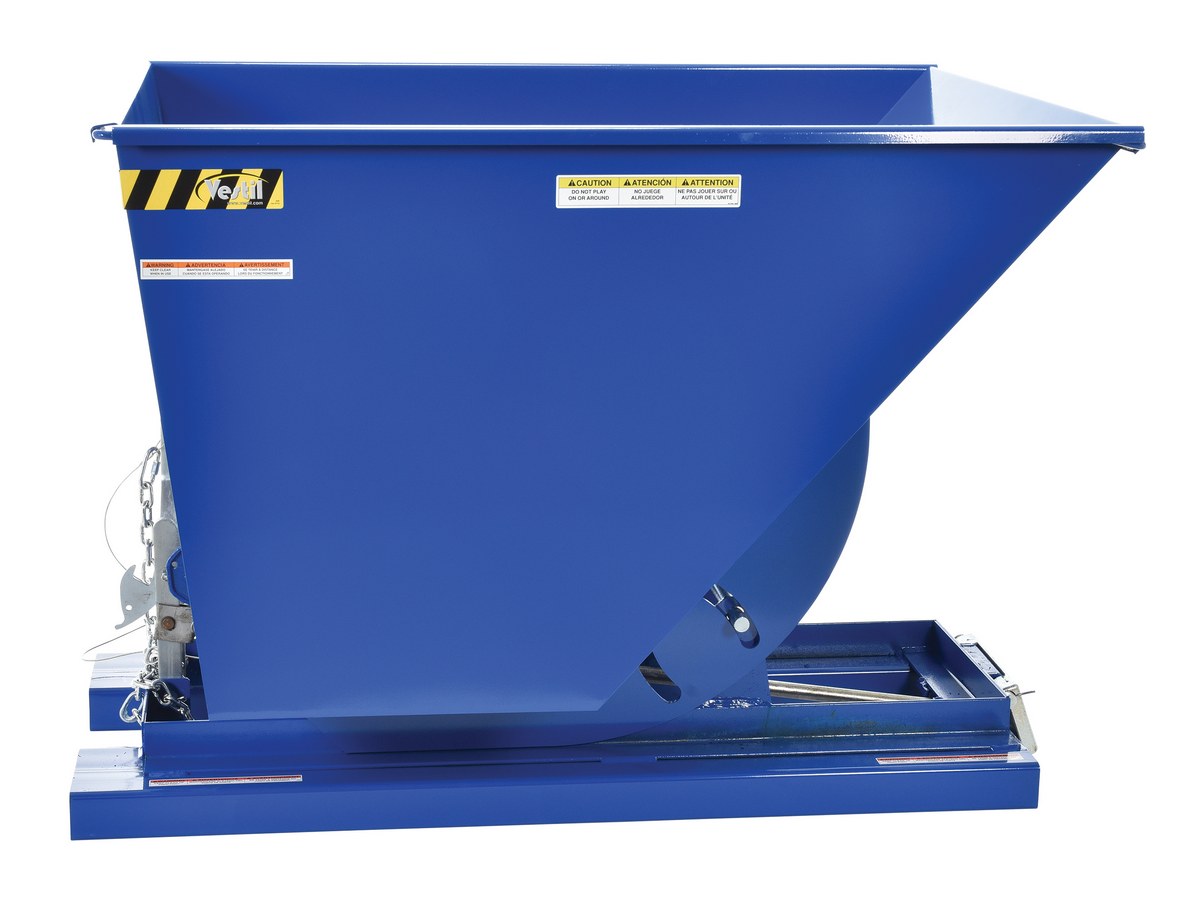

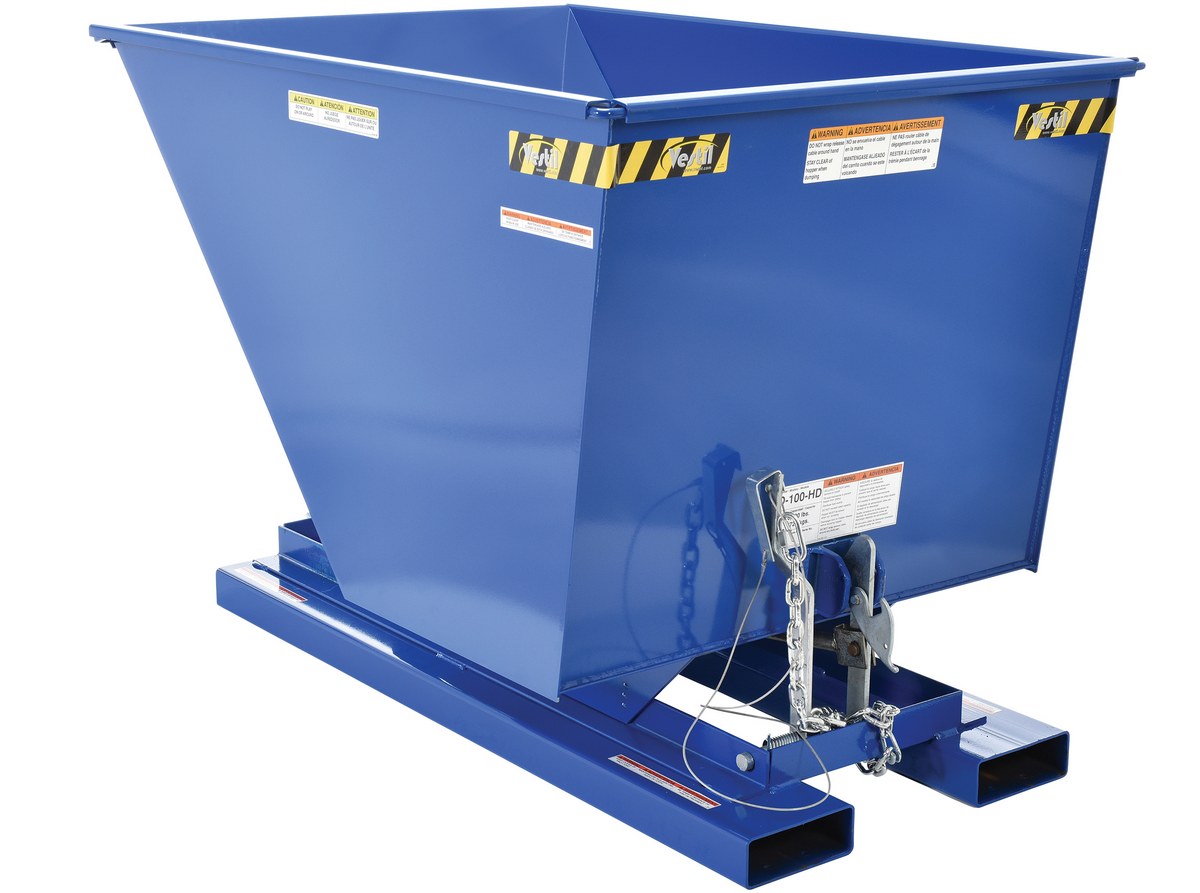

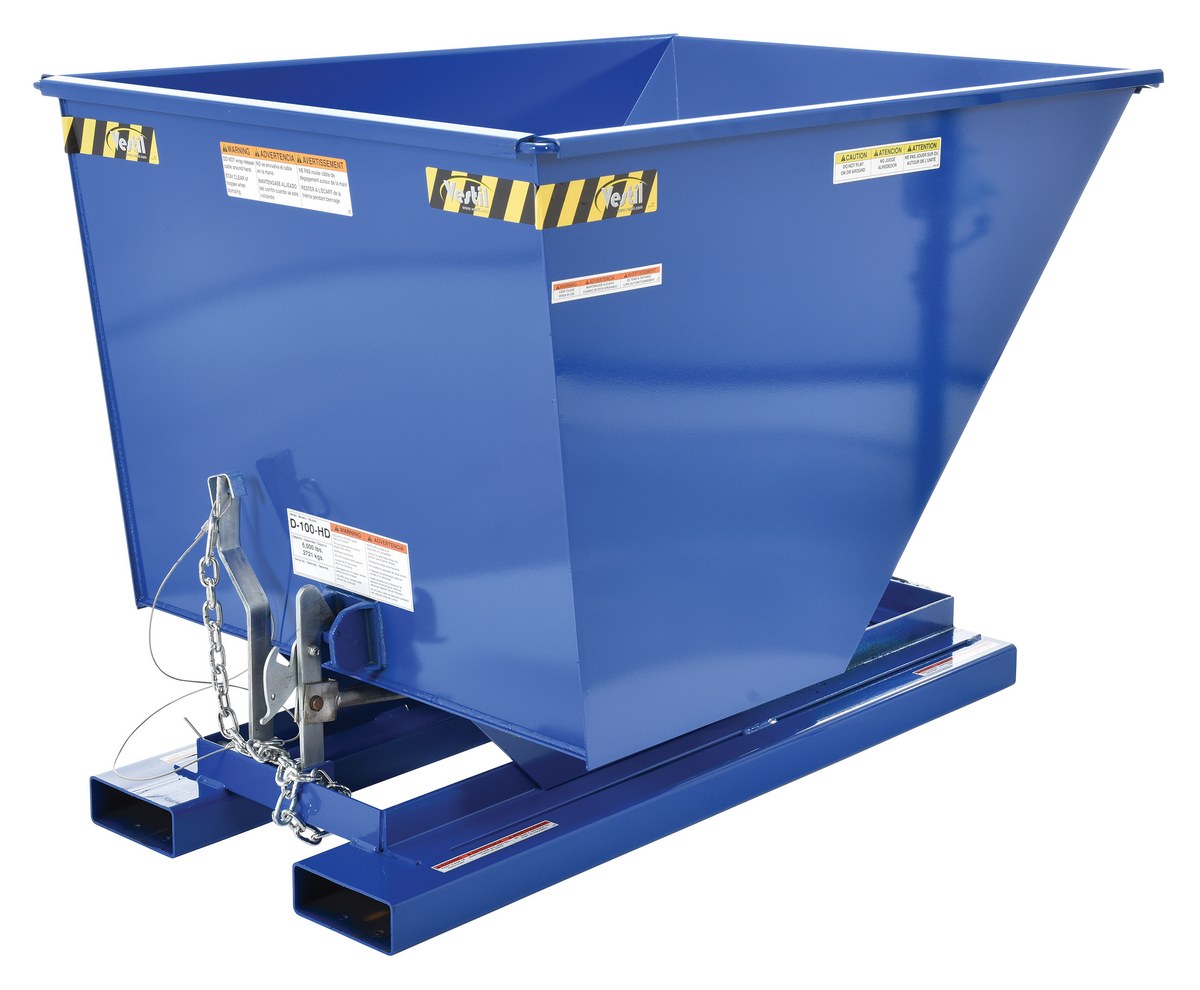

D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-HD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-100-LD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD
D-150-HD

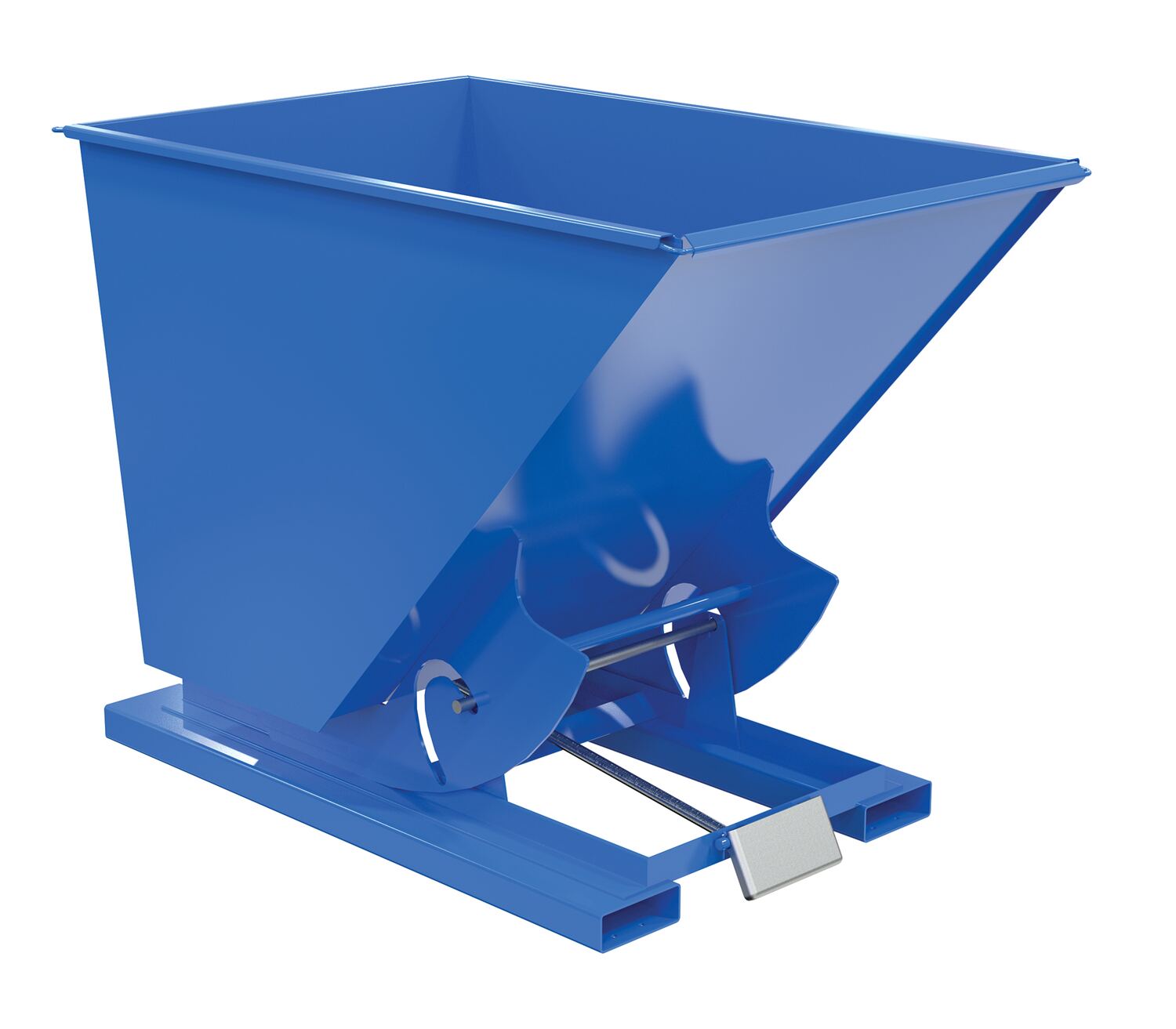

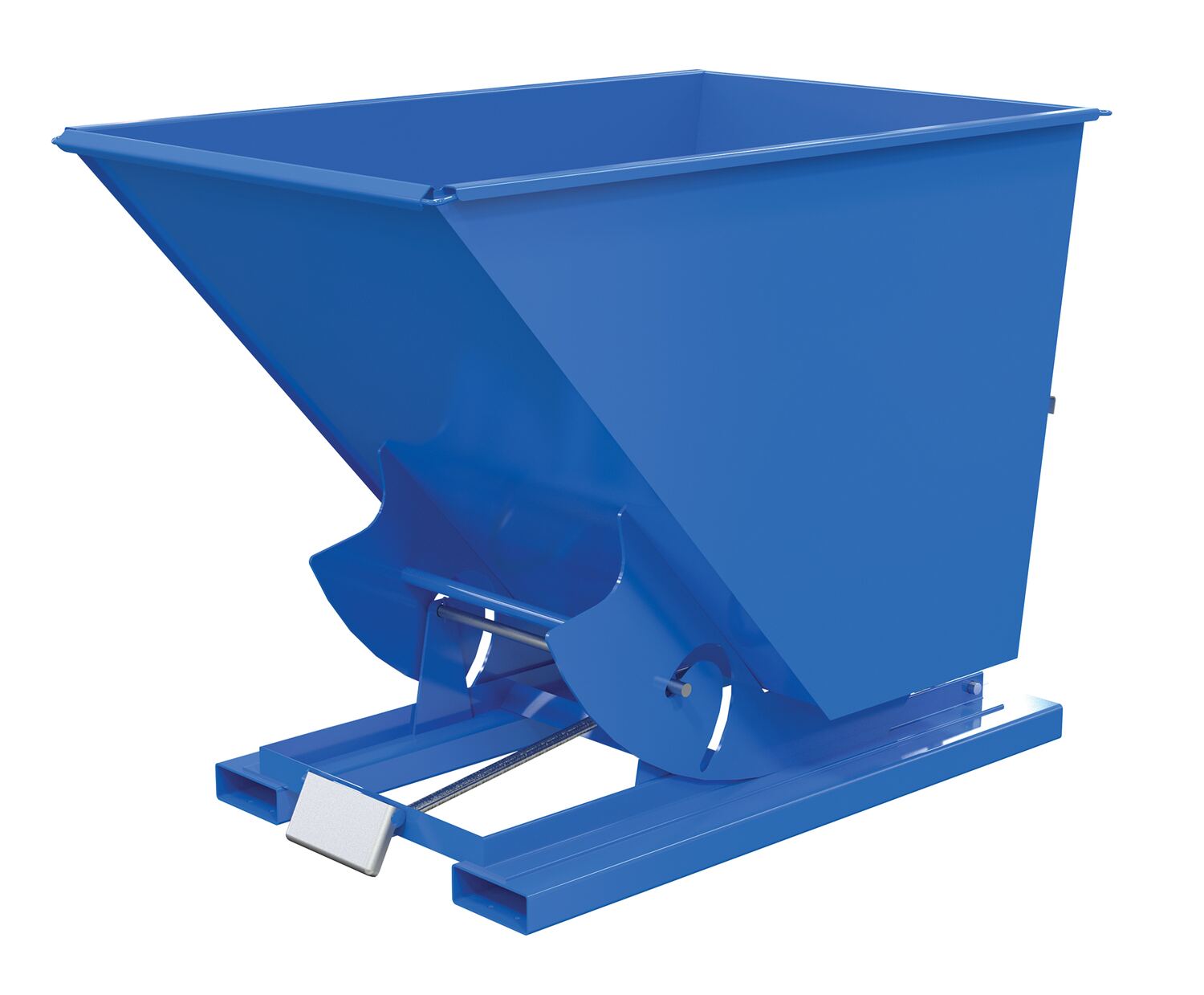

D-150-MD
D-150-MD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD
D-200-HD

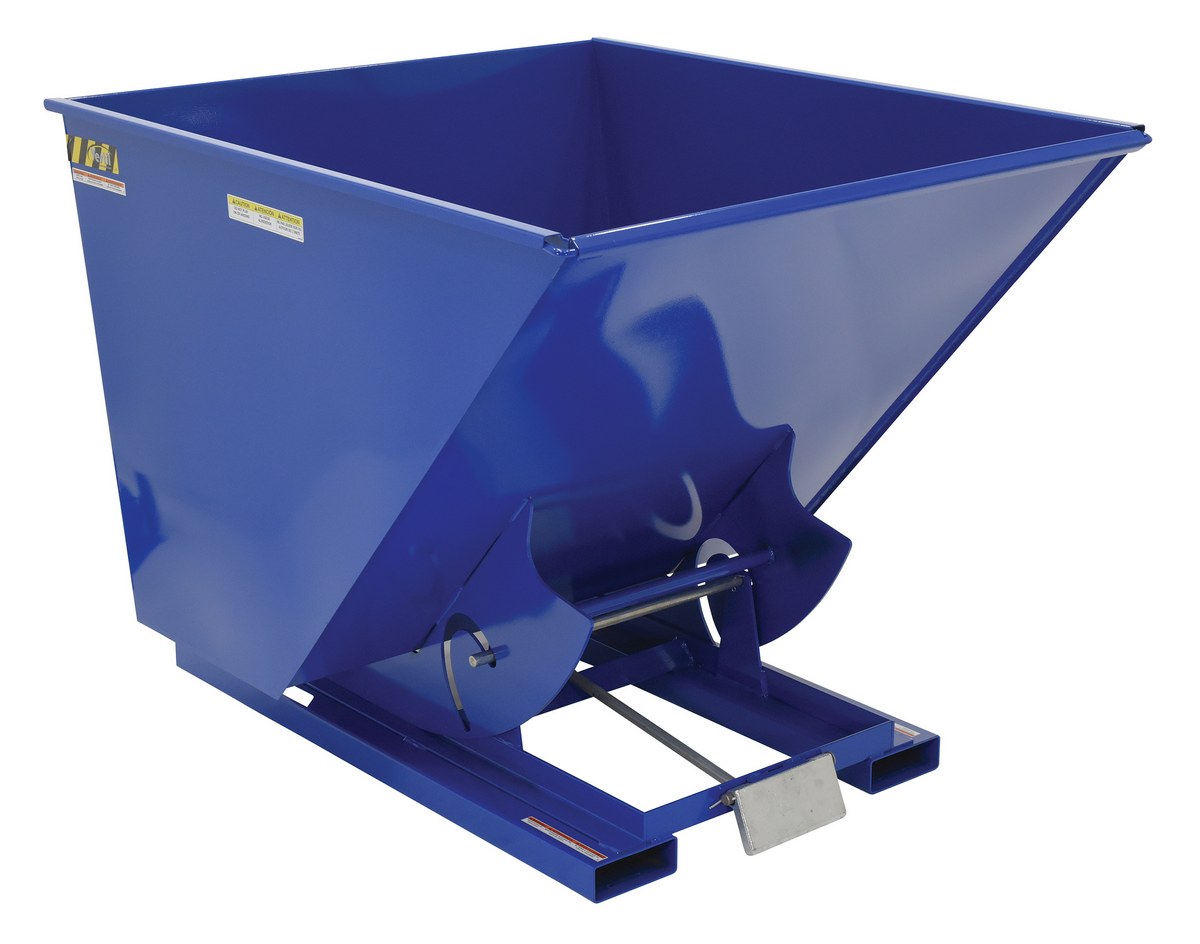

D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-LD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD
D-200-MD

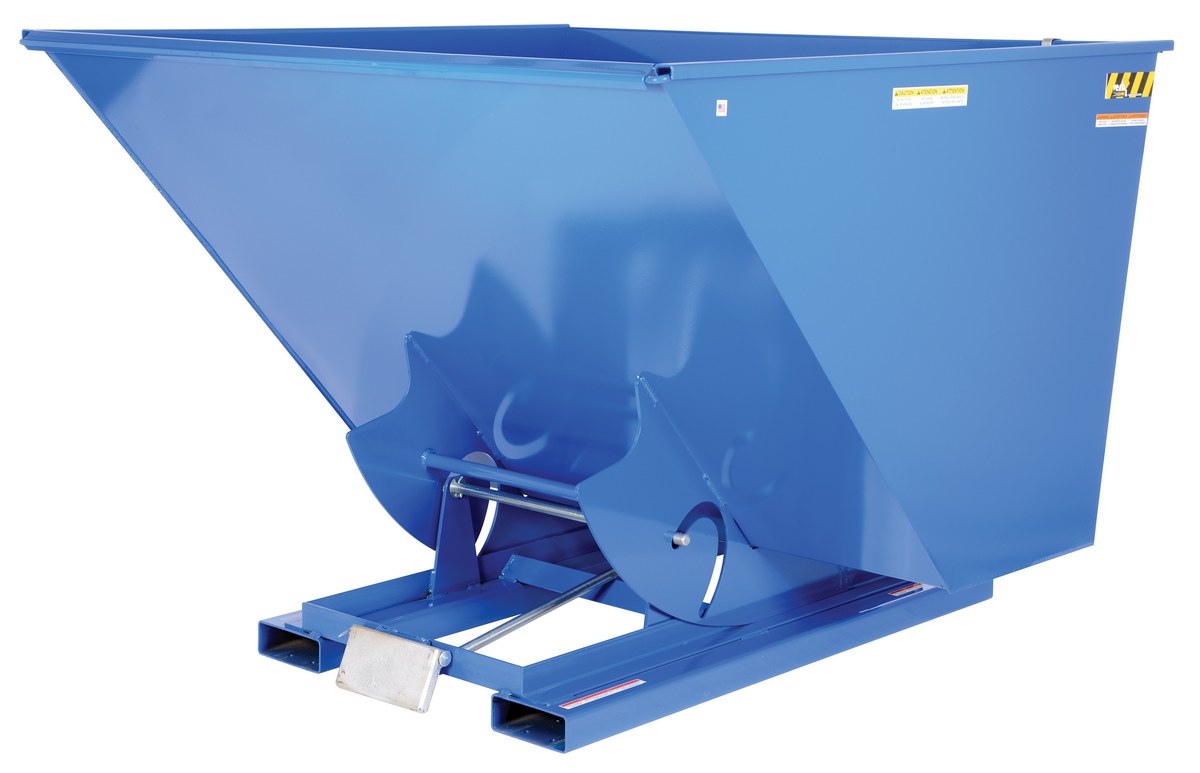

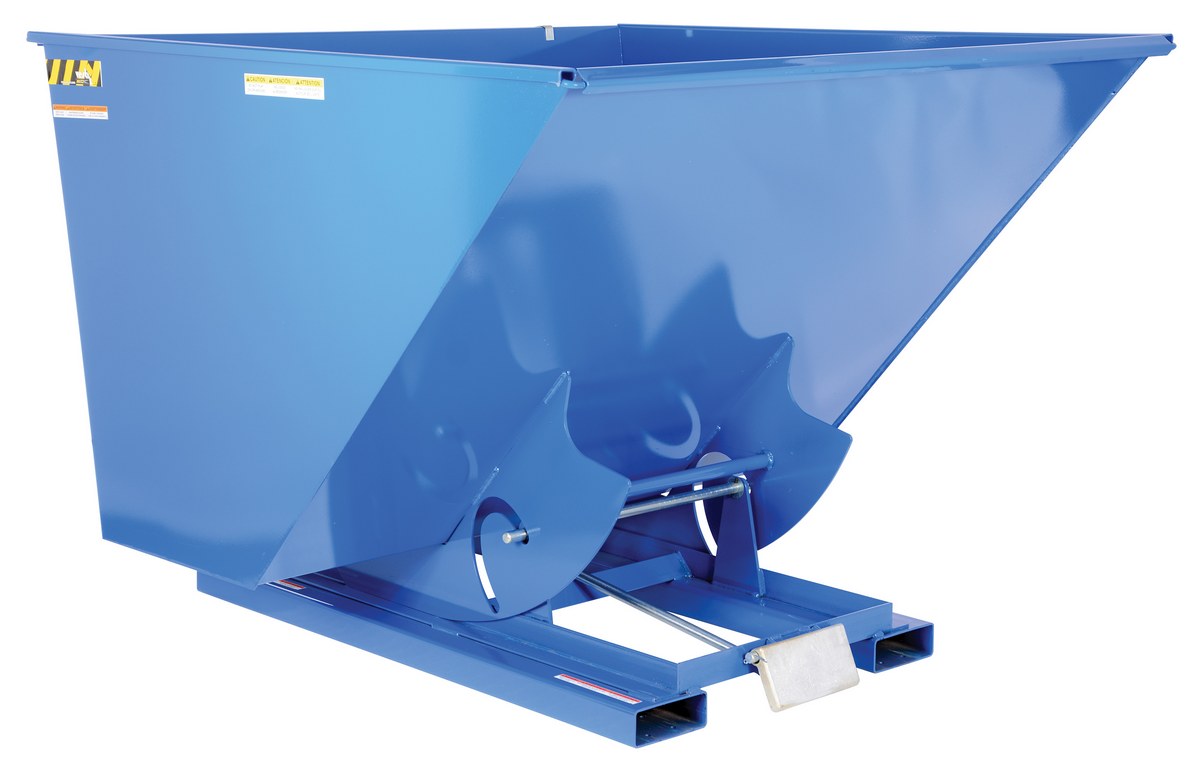

D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-HD
D-250-LD
D-250-LD
D-250-MD
D-250-MD

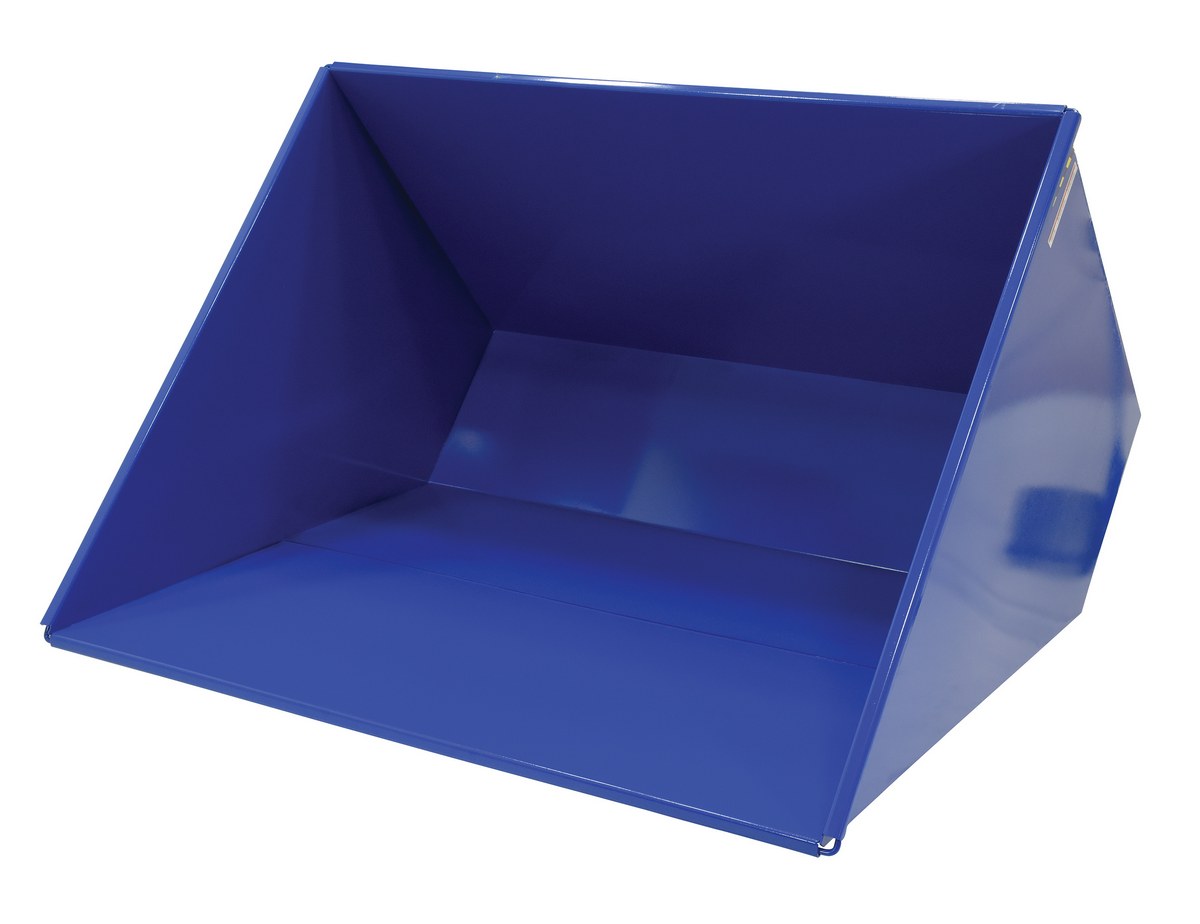

D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA
D-300-HD-NA

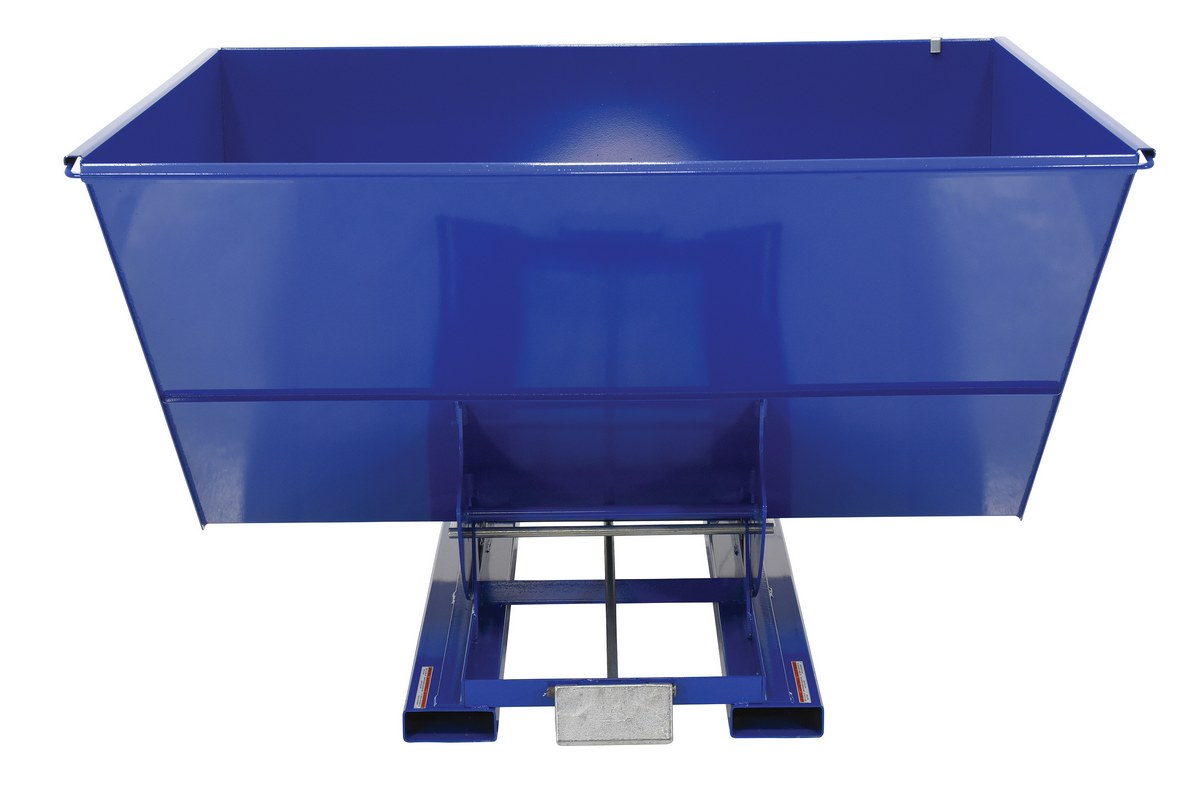

D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD
D-300-LD

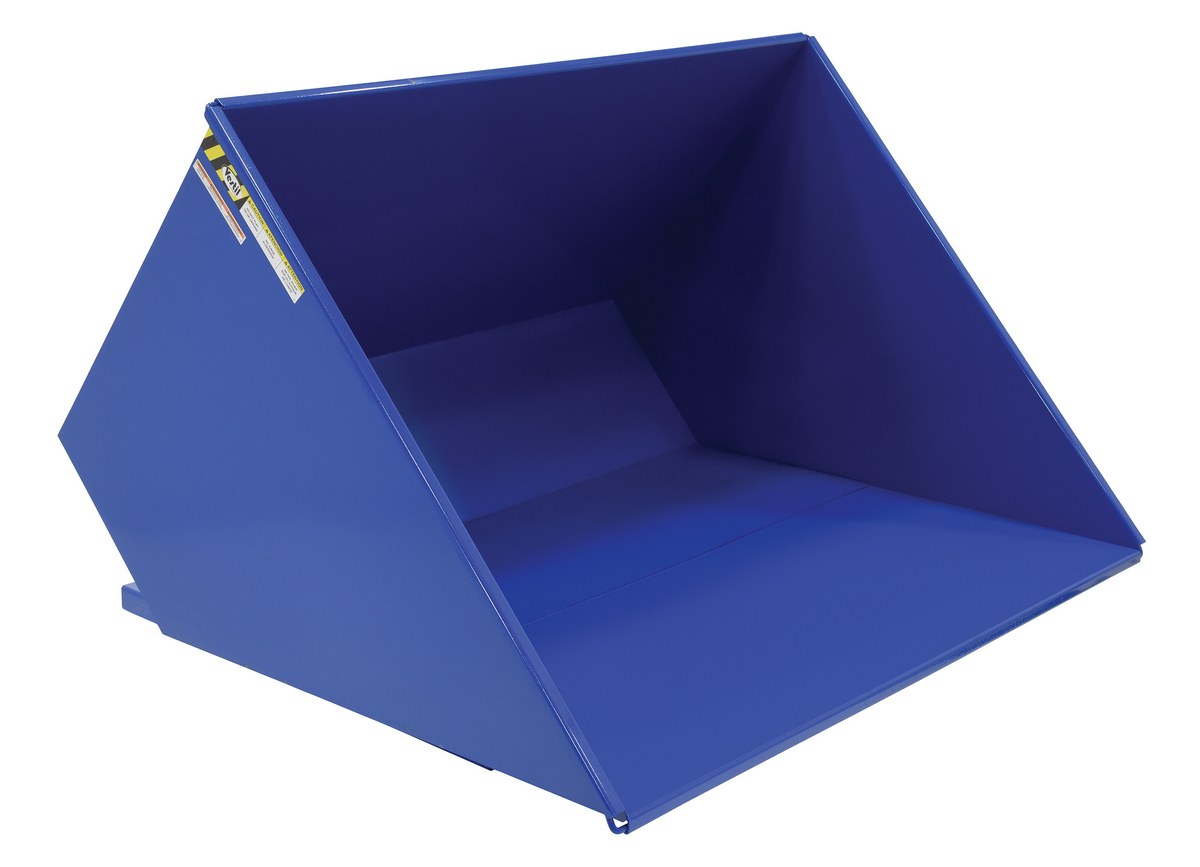

D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-300-MD
D-350-HD
D-350-HD
D-350-HD
D-350-HD
D-350-HD
D-350-HD
D-350-HD
D-350-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD
D-400-HD

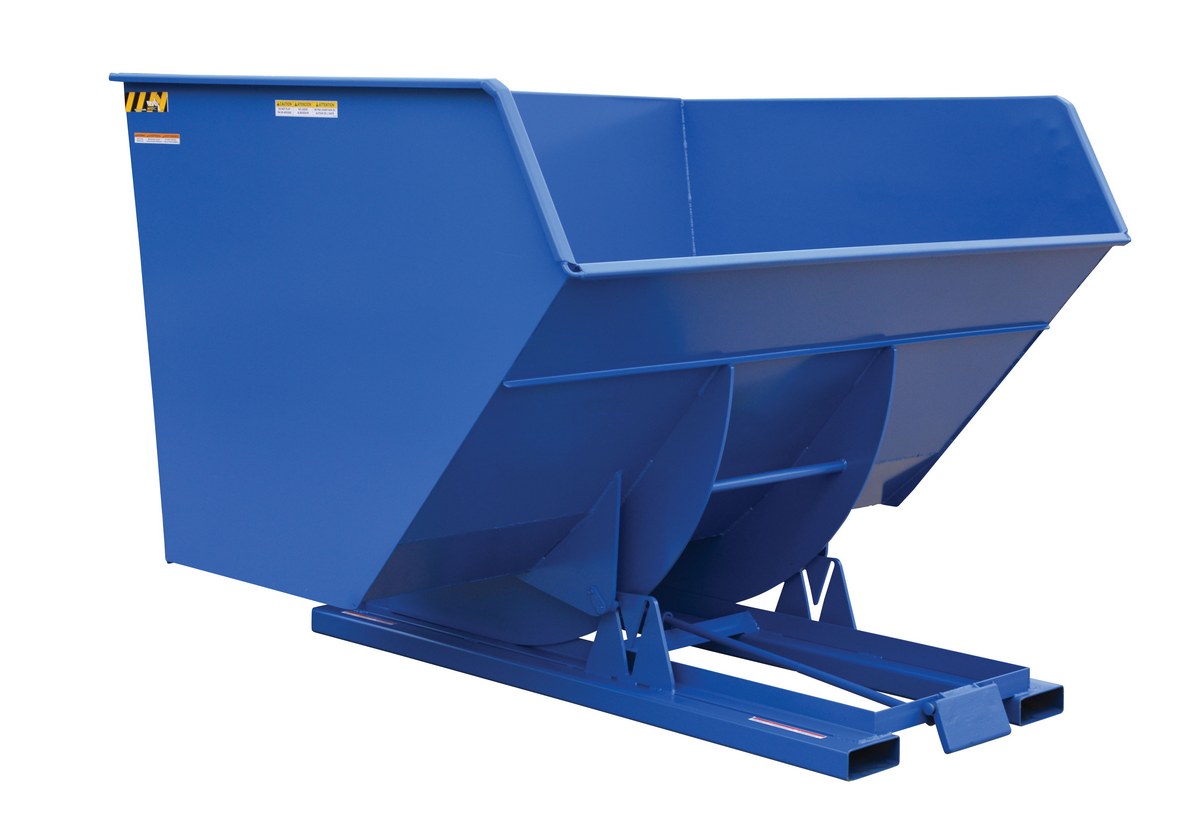

D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-100-MD
D-100-MD
D-100-MD
D-100-MD
D-100-MD
D-100-MD
D-150-LD
D-150-LD
D-150-LD
D-150-LD
D-150-LD
D-150-LD
D-150-MD
D-150-MD
D-150-MD
D-150-MD
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL
D-100-HD-GAL

Options

"D" Style Hoppers Options
Model Number Description Wt. (lbs.)

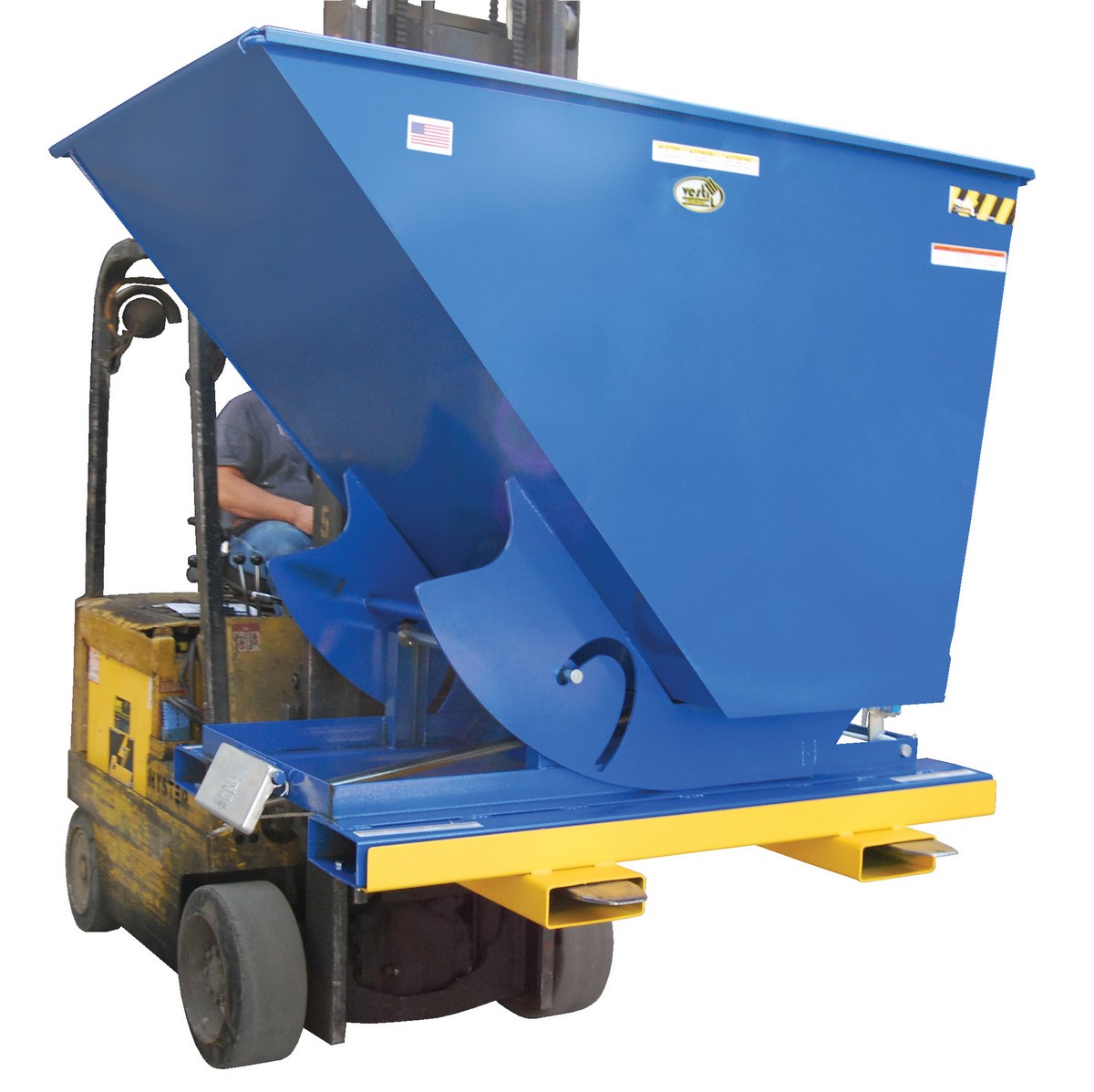

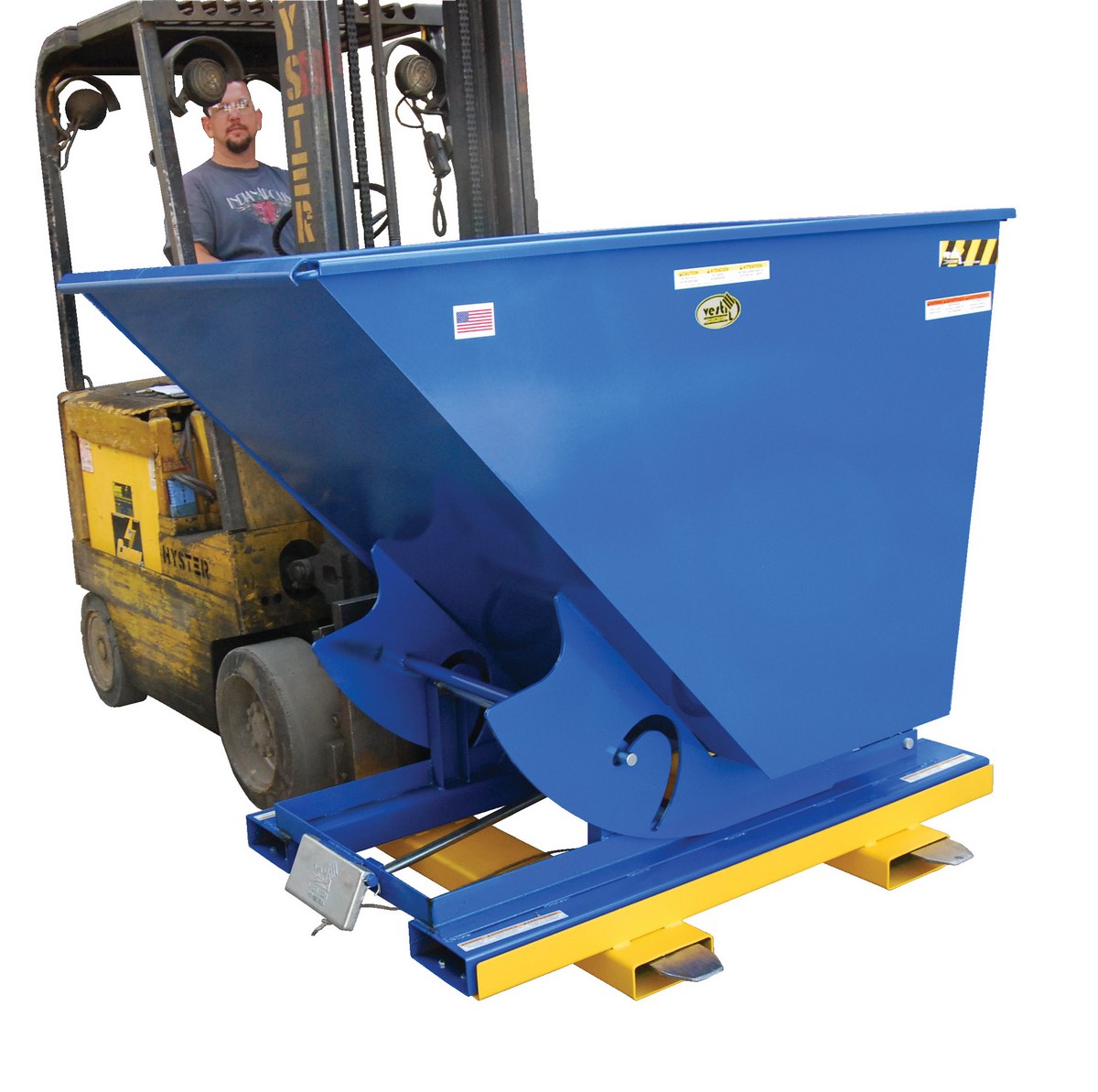

D-TILT Sideways Tilt Option (only available for models D-75-LD & D-100-LD) 130
LEKP Welded leak proof Option 5
D-DPLG-75* 0.75" Threaded Drain, Located in Left Corner 2

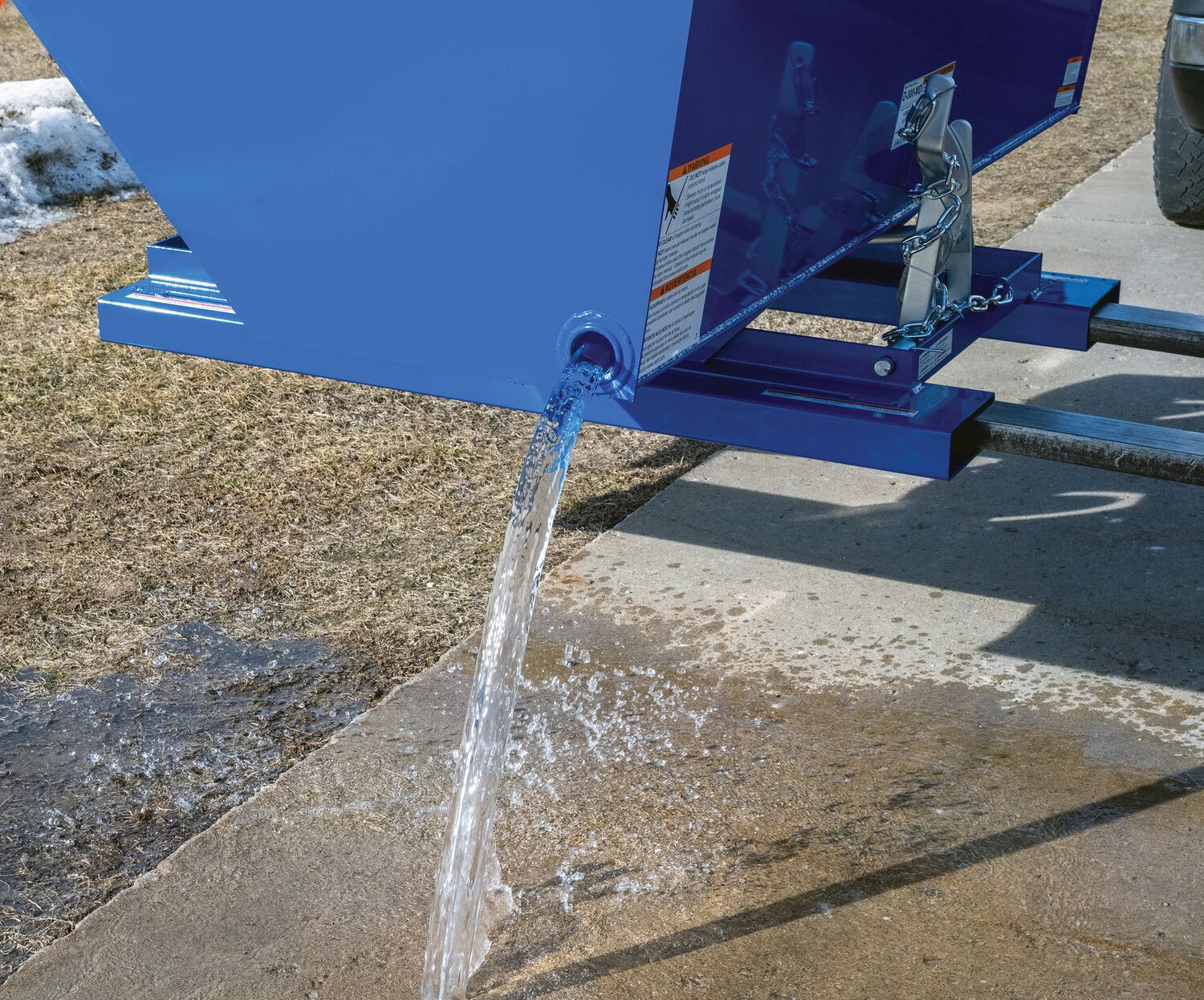

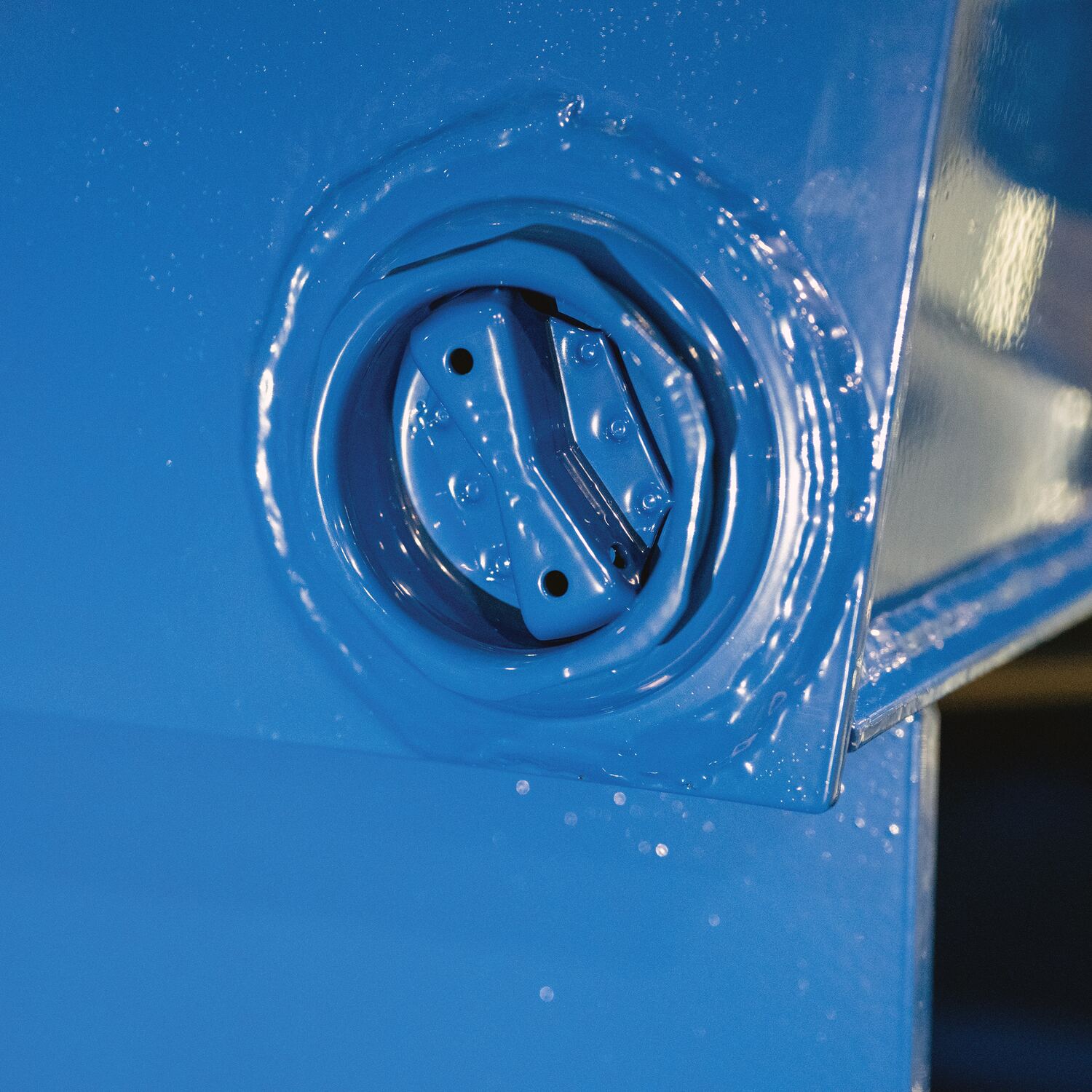

D-DPLG-2* 2" Threaded Drain, Located in Left Corner 2
LUG (4) Lifting Lugs (Welded) One on Each Corner 23

*D-DPLG option includes leak proof chute welds

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

Q: I'm looking at the self dumping hopper . Does it come with casters?

A: Casters are available for the D- Style Self-Dumping Hopper. Please see the hopper home page for multiple options.
