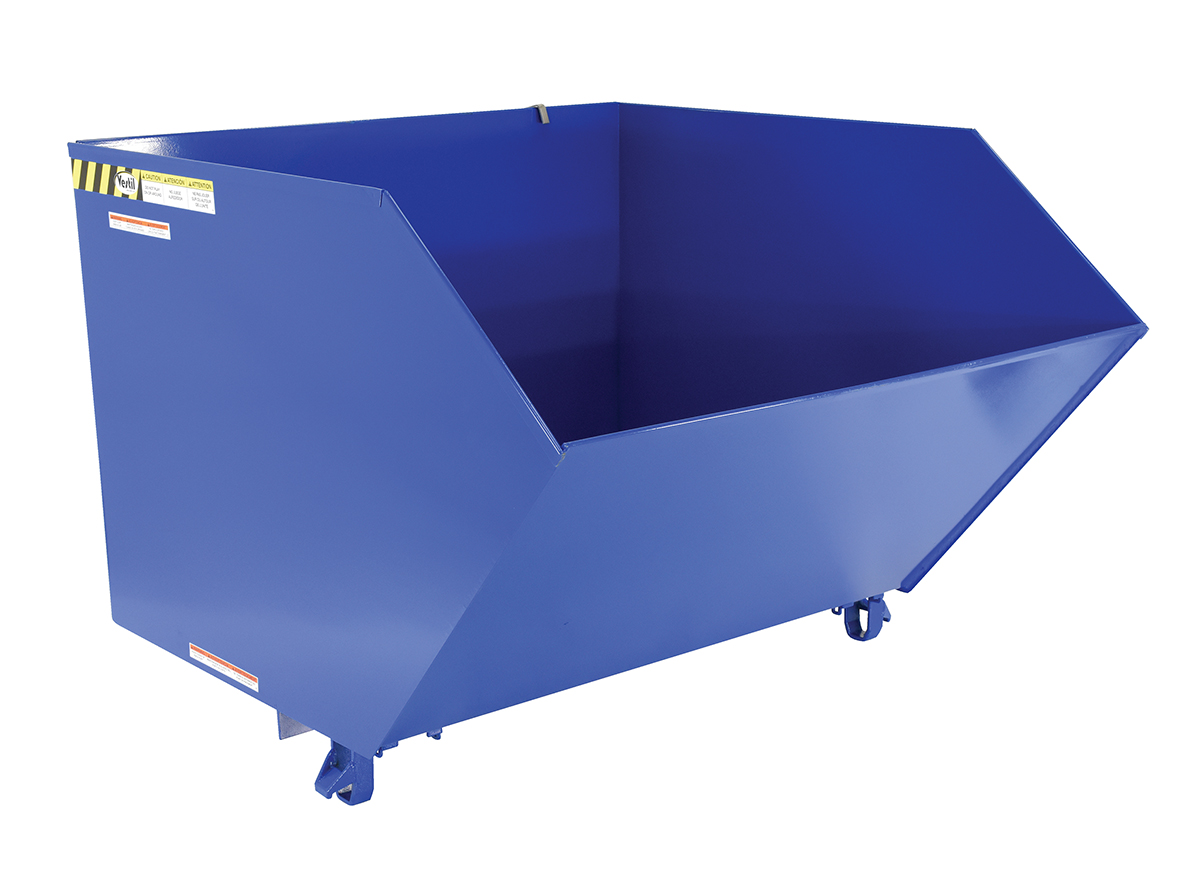

model: H-150-HD

SERIES: H
H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

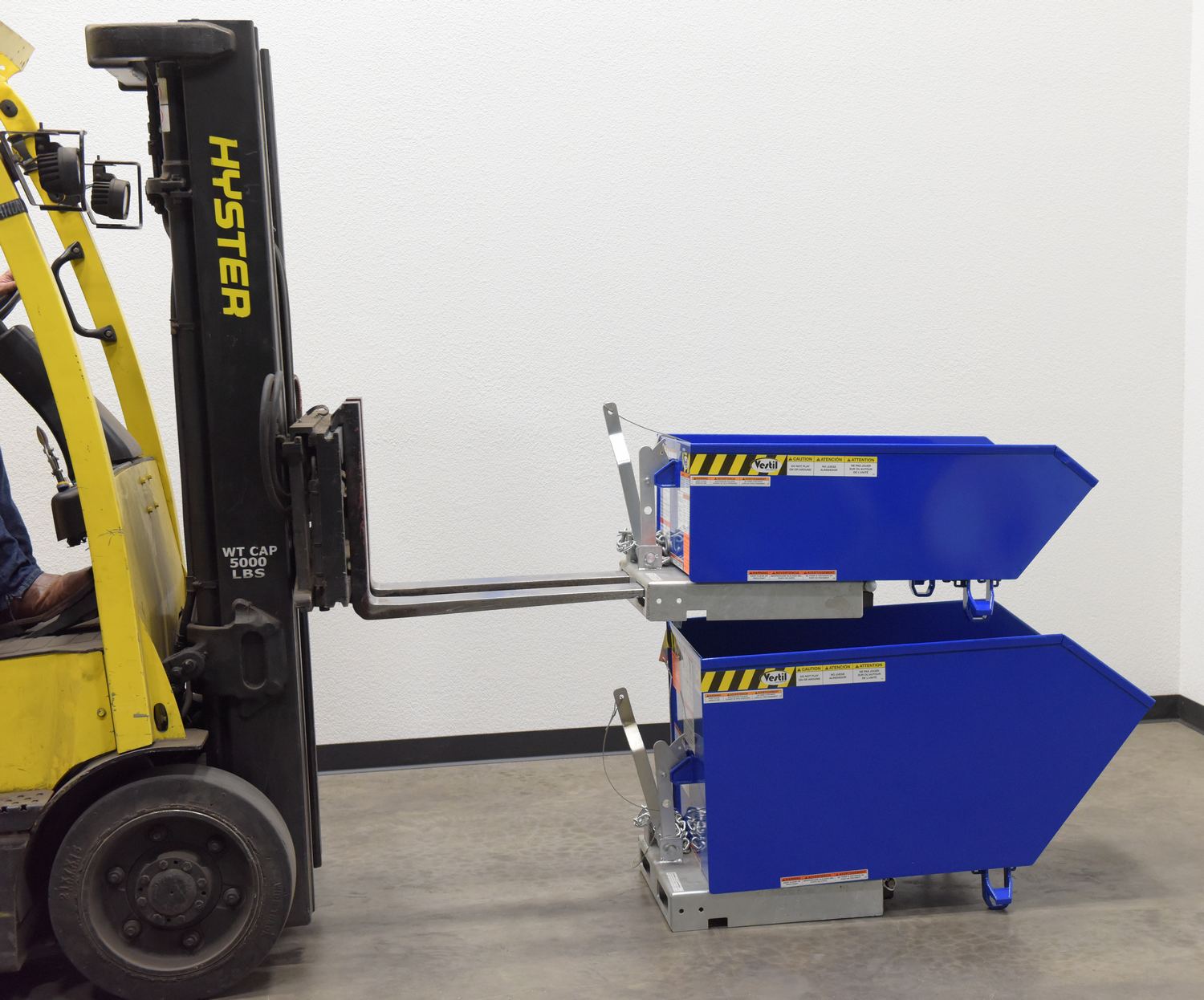

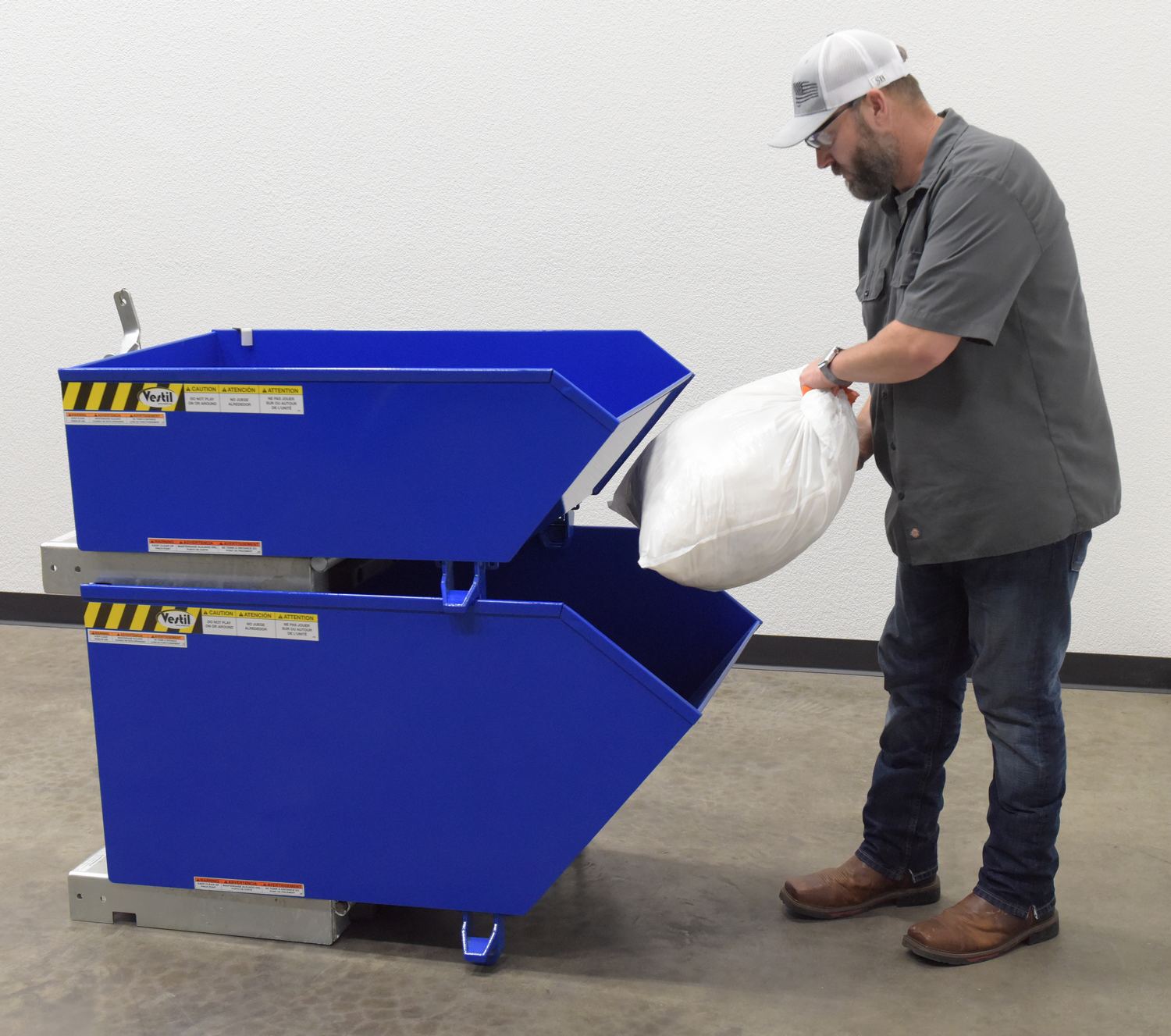

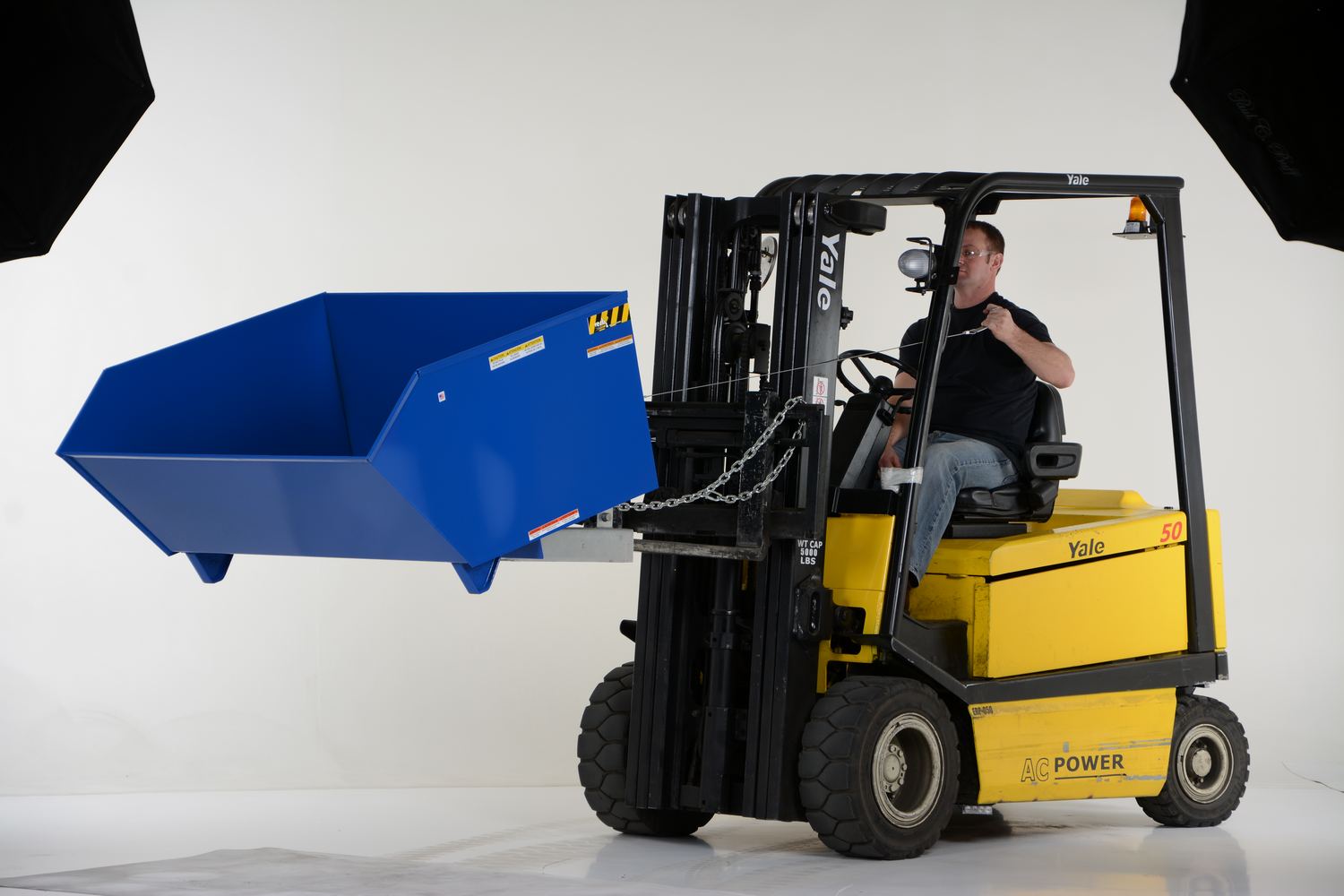

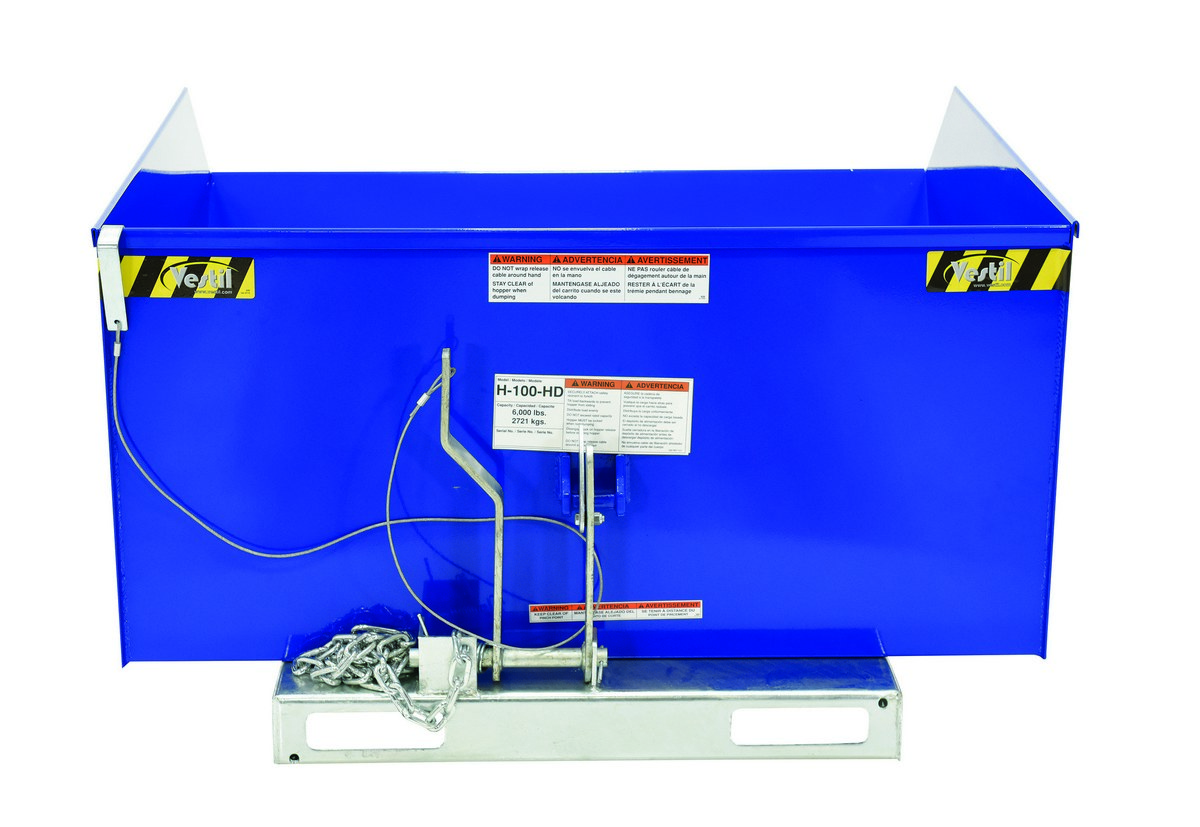

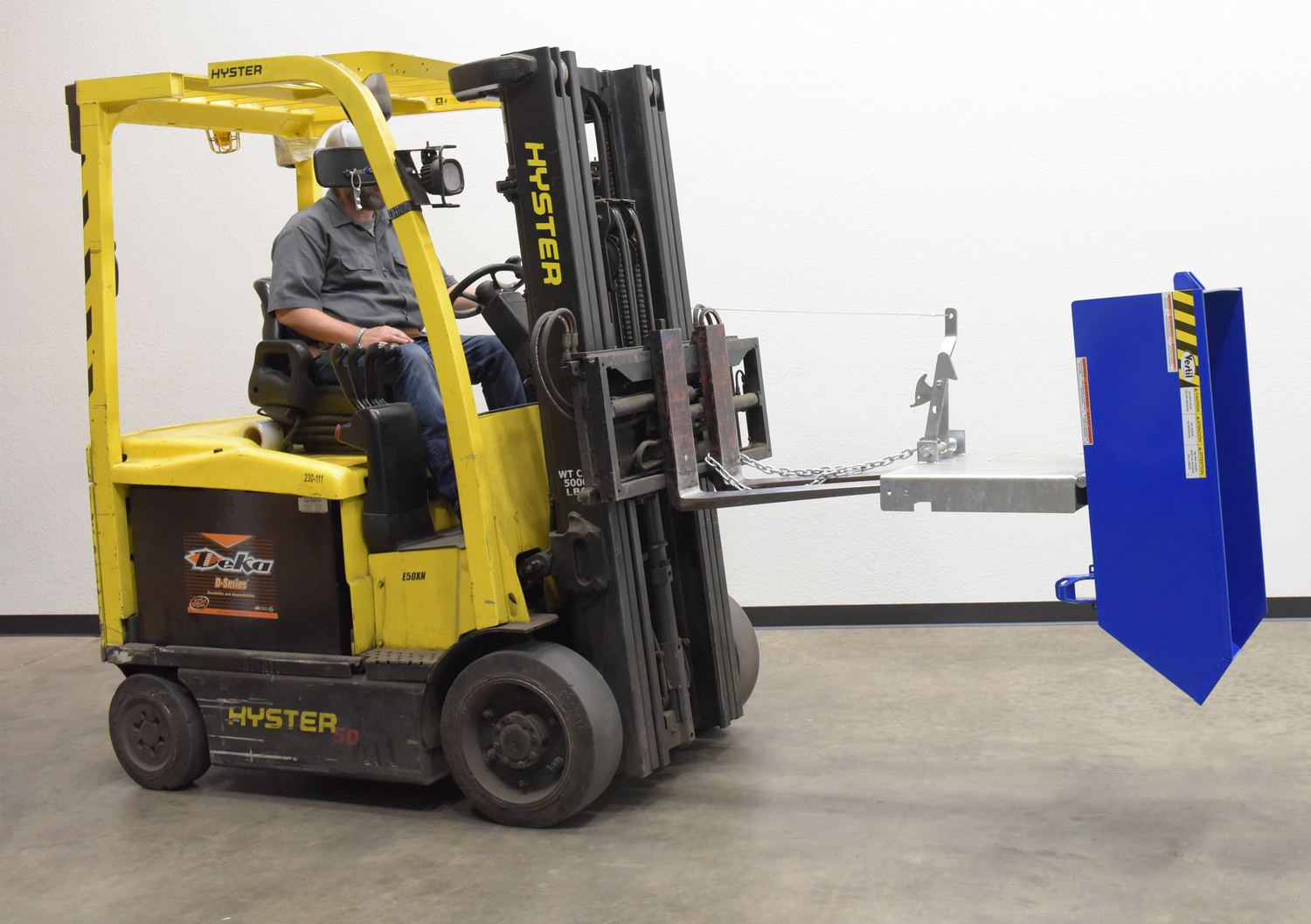

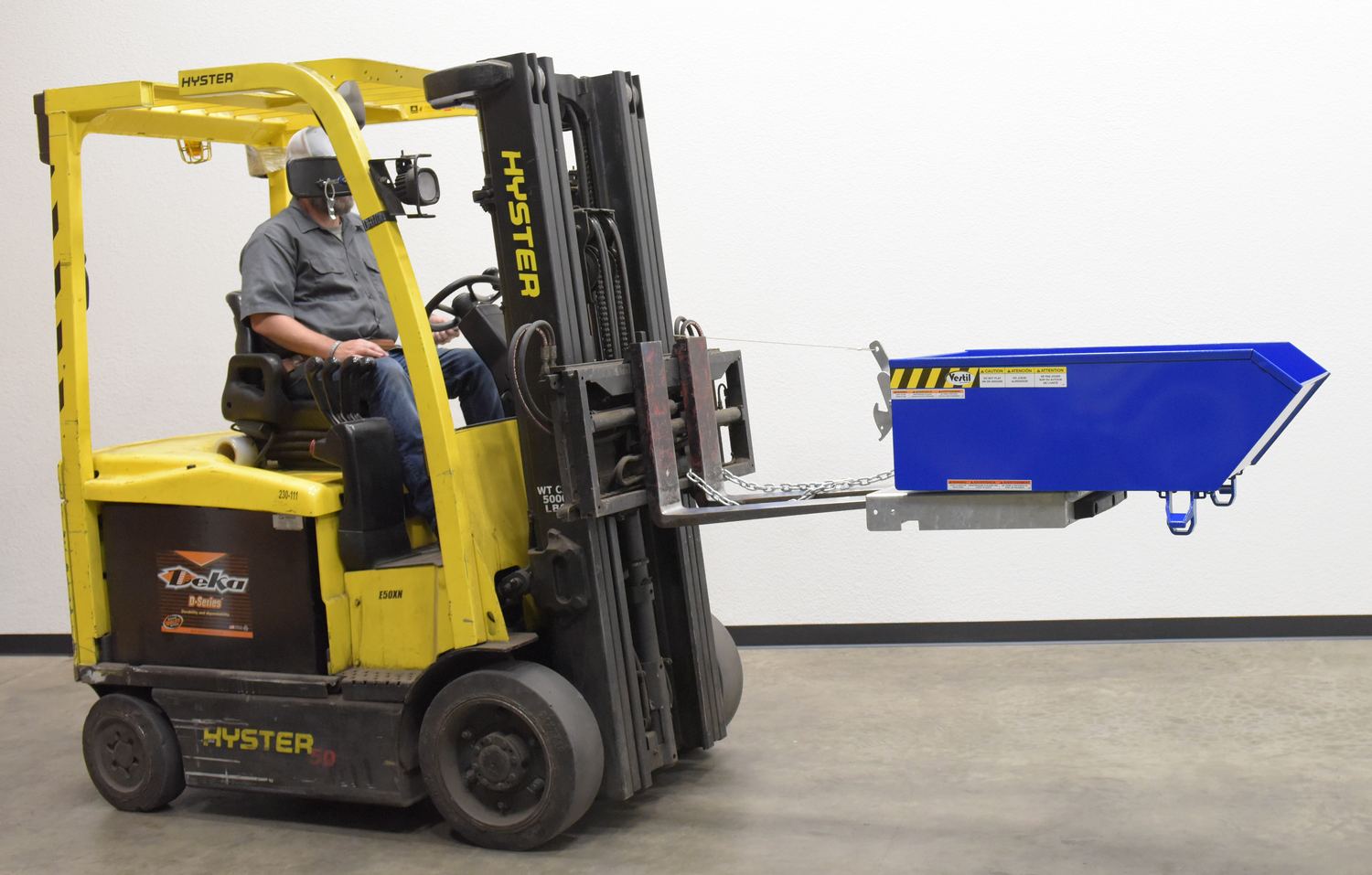

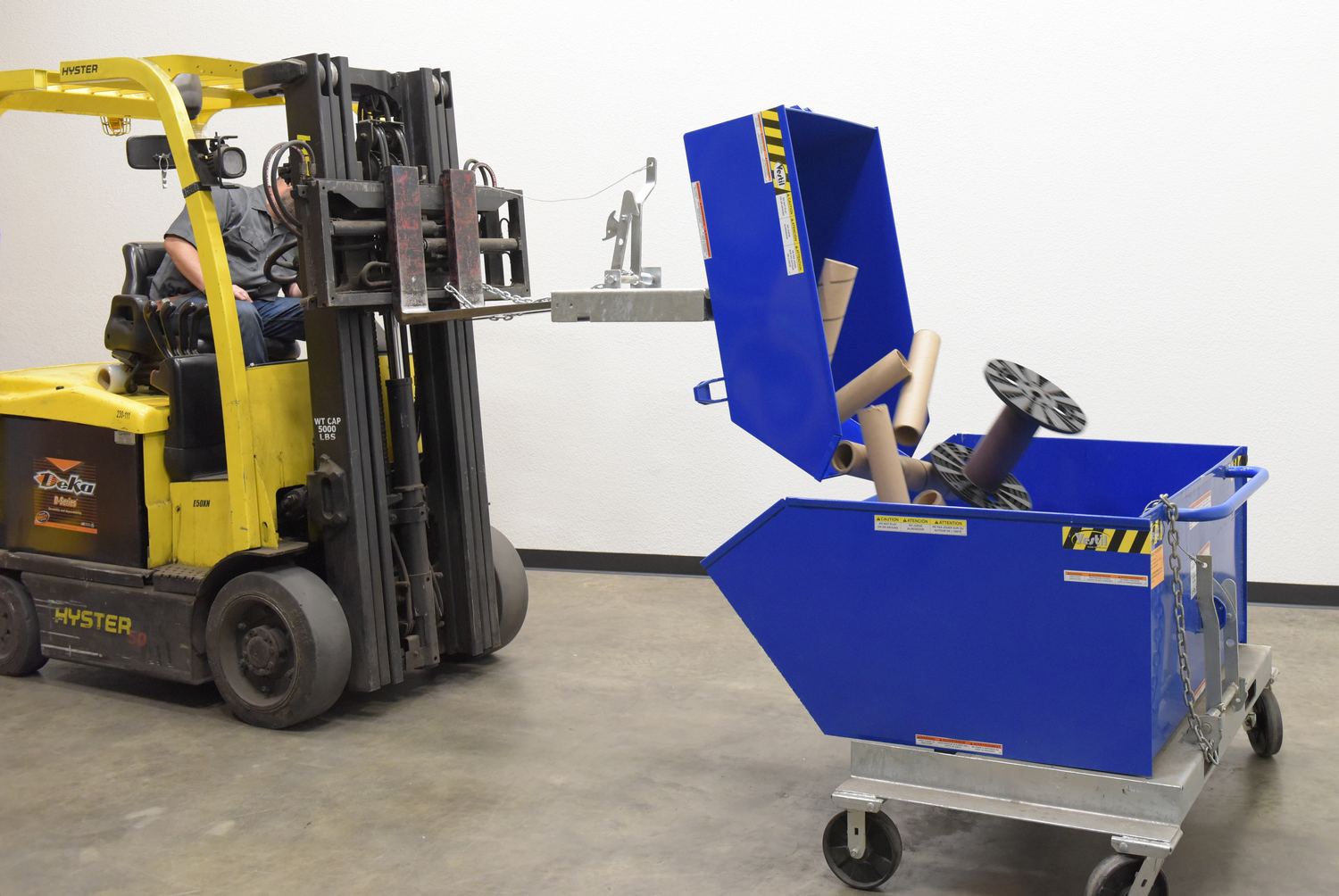

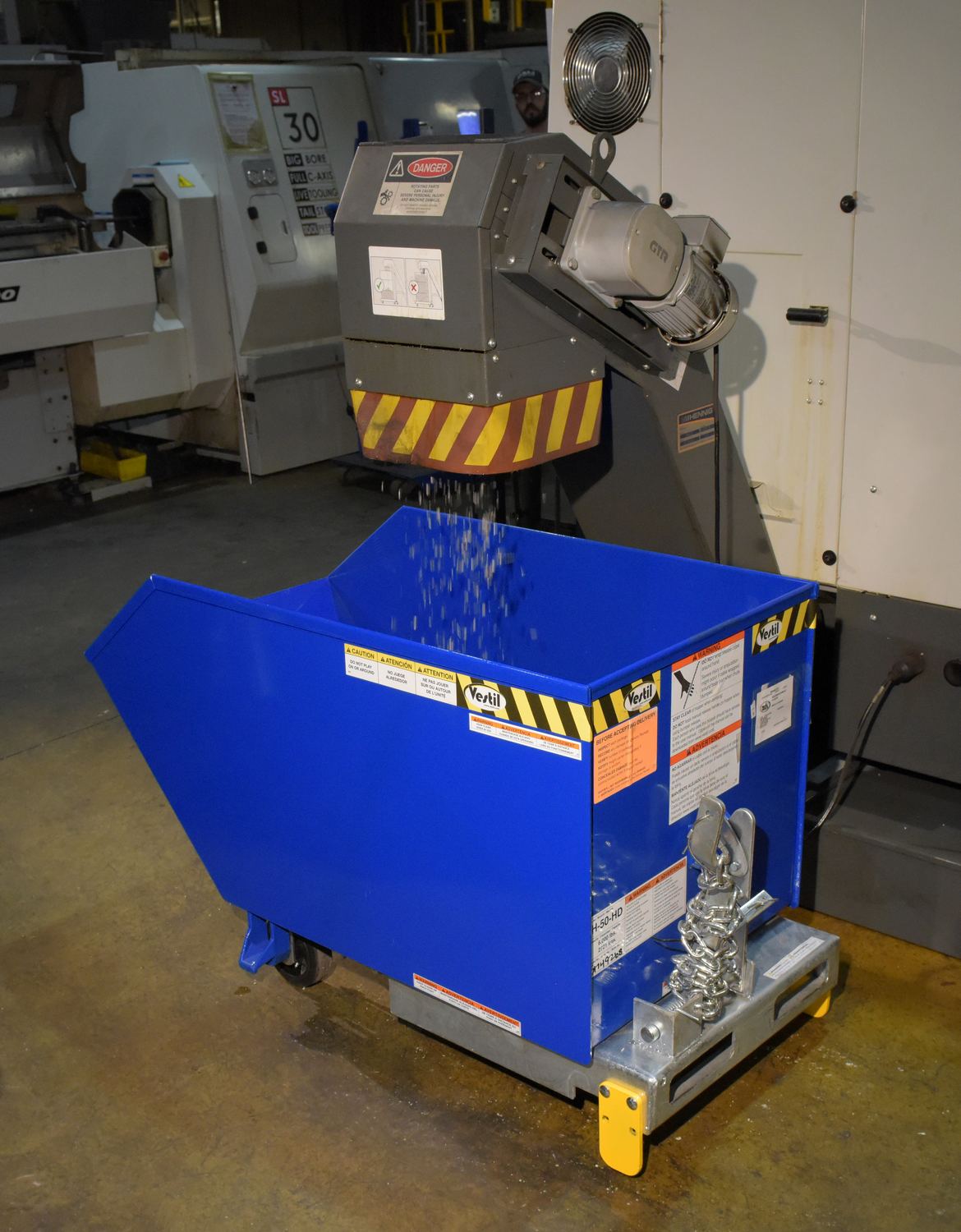

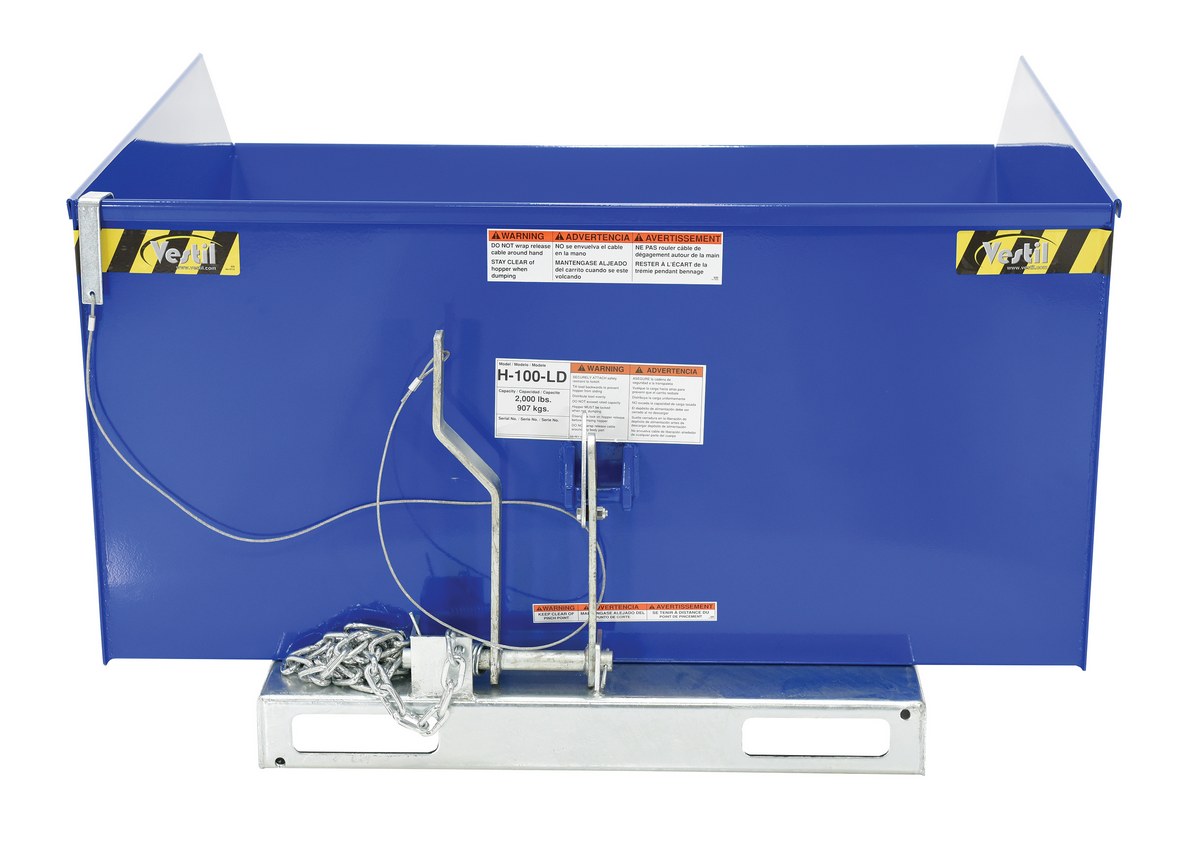

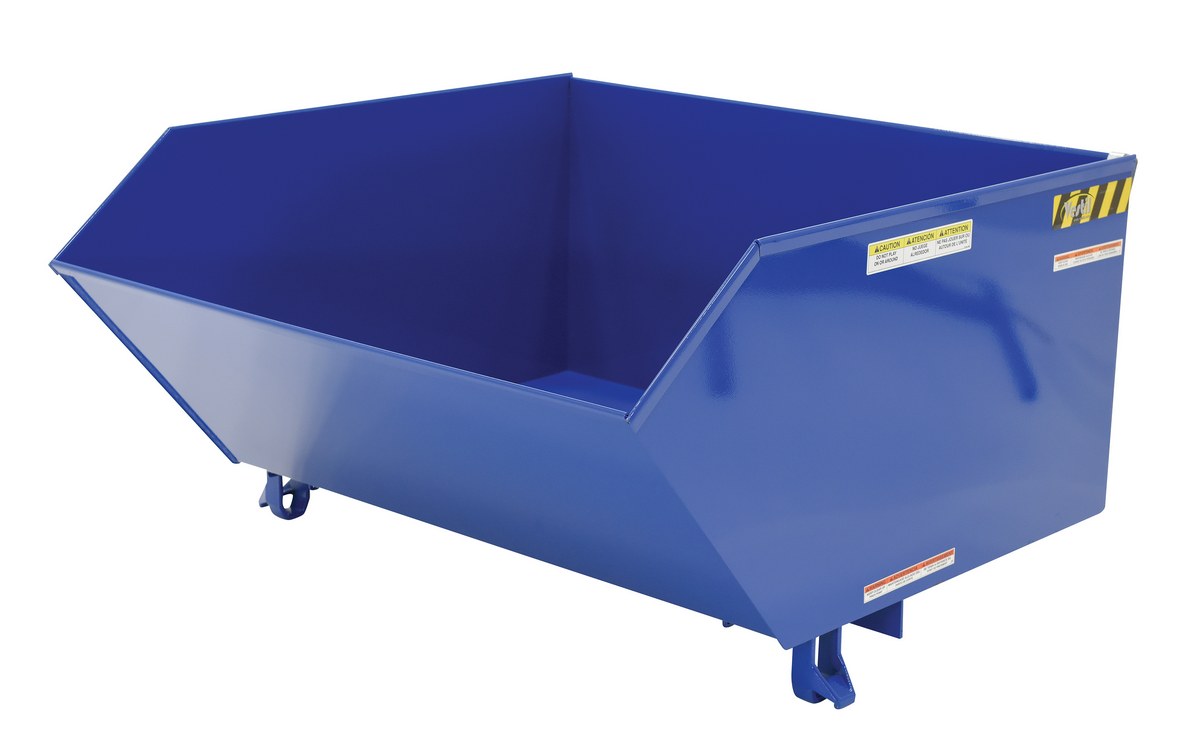

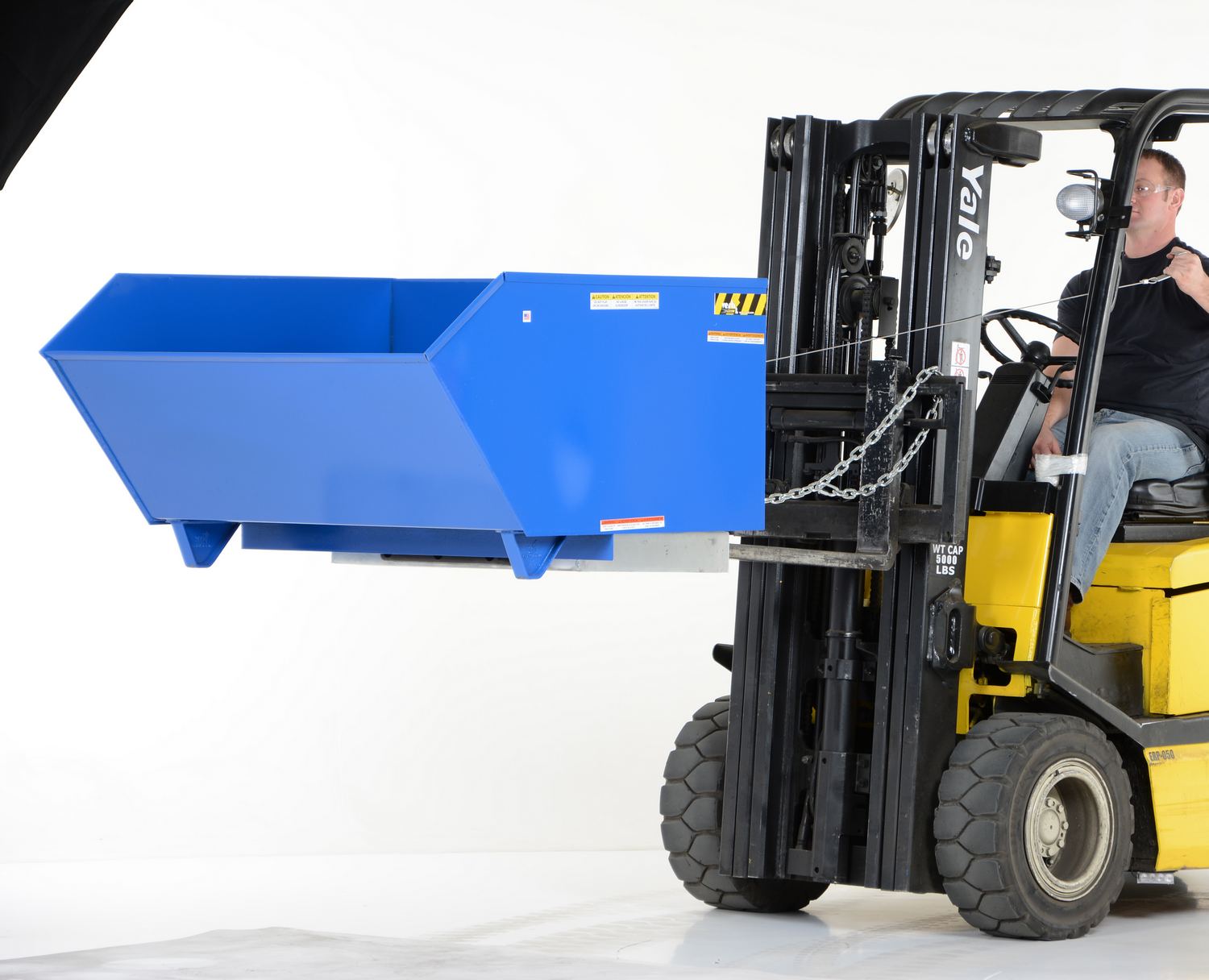

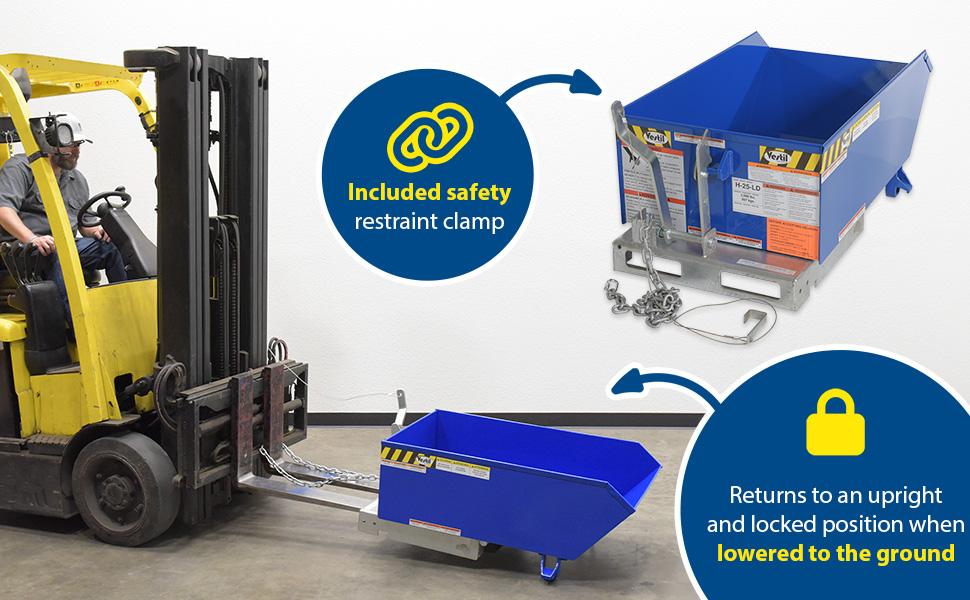

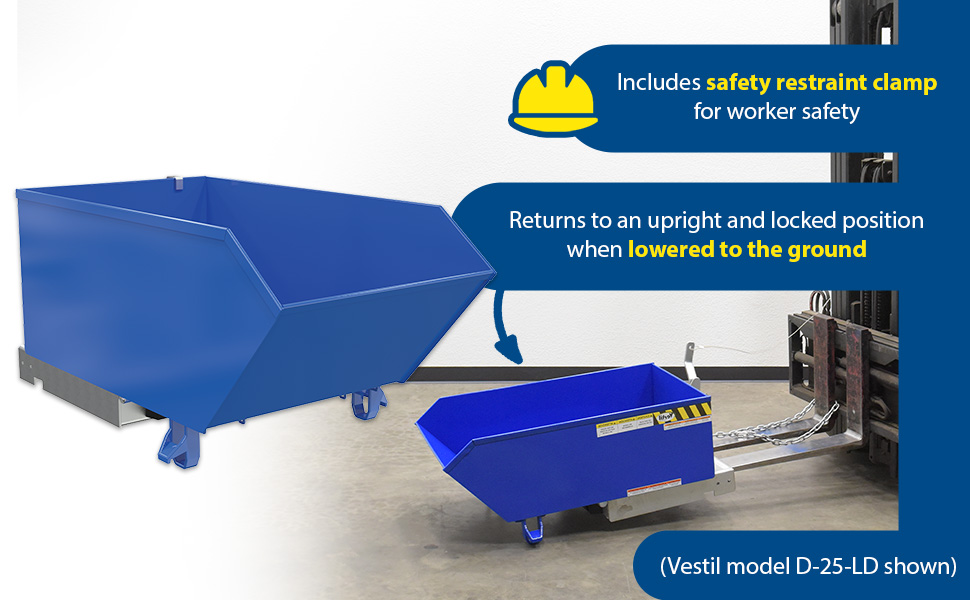

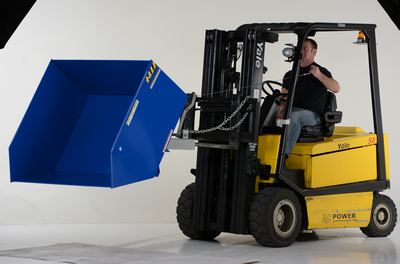

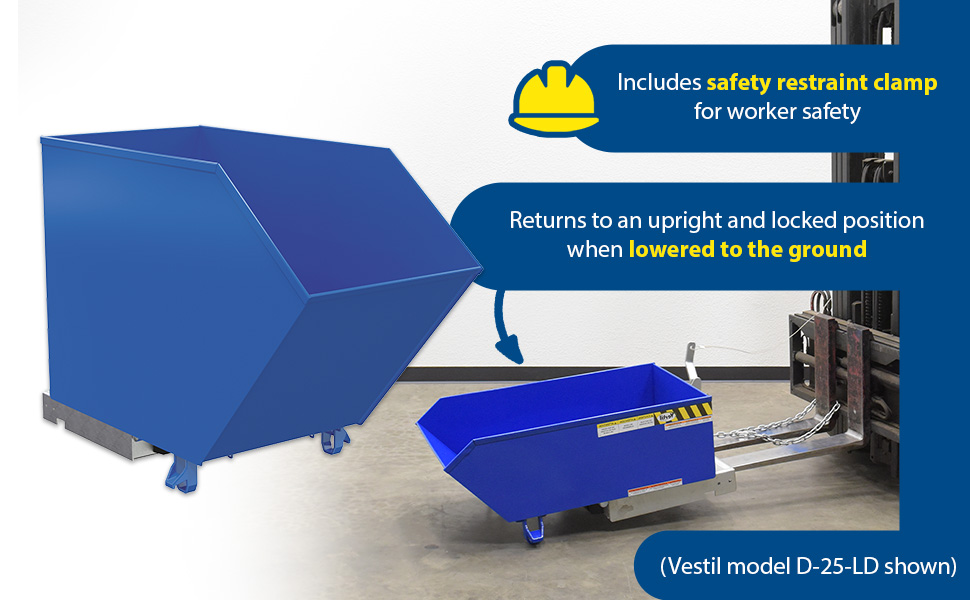

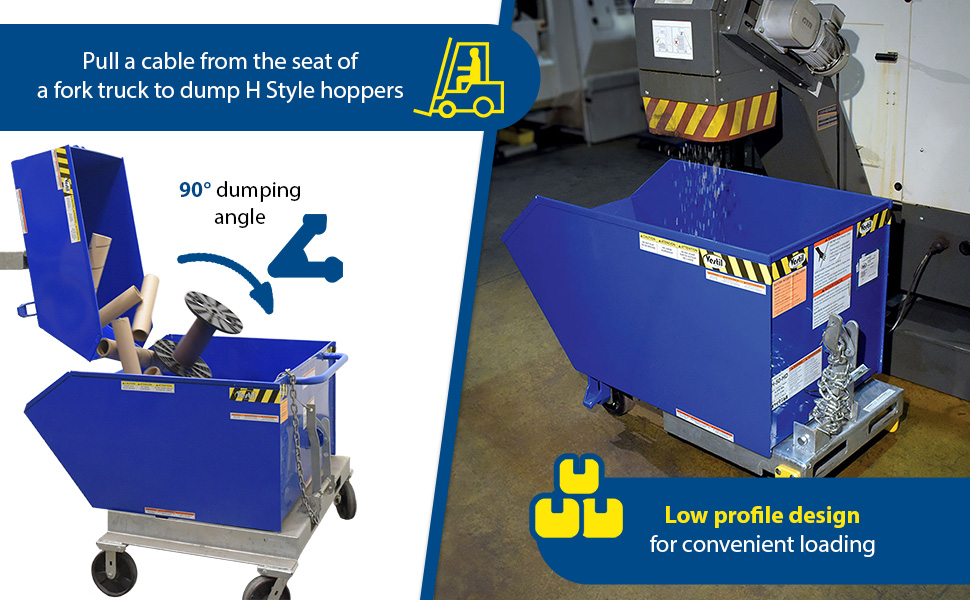

Units feature a full 90 degrees dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. The included safety restraint/chain must be securely attached to the lift truck without slack. 22" L usable fork pockets measure 7"W x 2"H. Formed base thickness is 1/4". Blue baked-in powder-coated toughness with a galvanized base. Models H-25 may be stacked with H-50 models,while, the H-100 can be stacked with the H-150 models. The H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping.

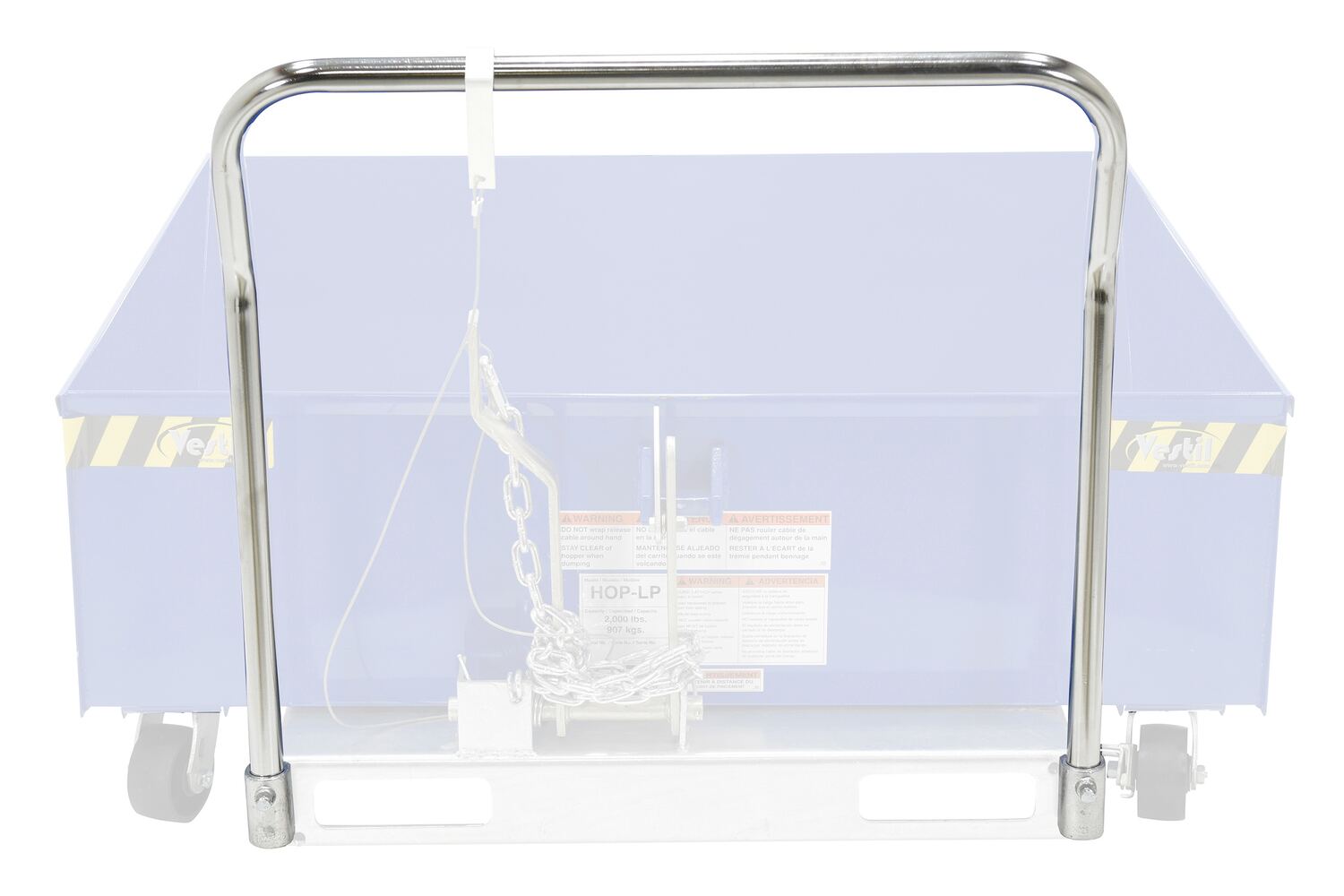

Caster Options | Optional Lids | Optional Colors Available

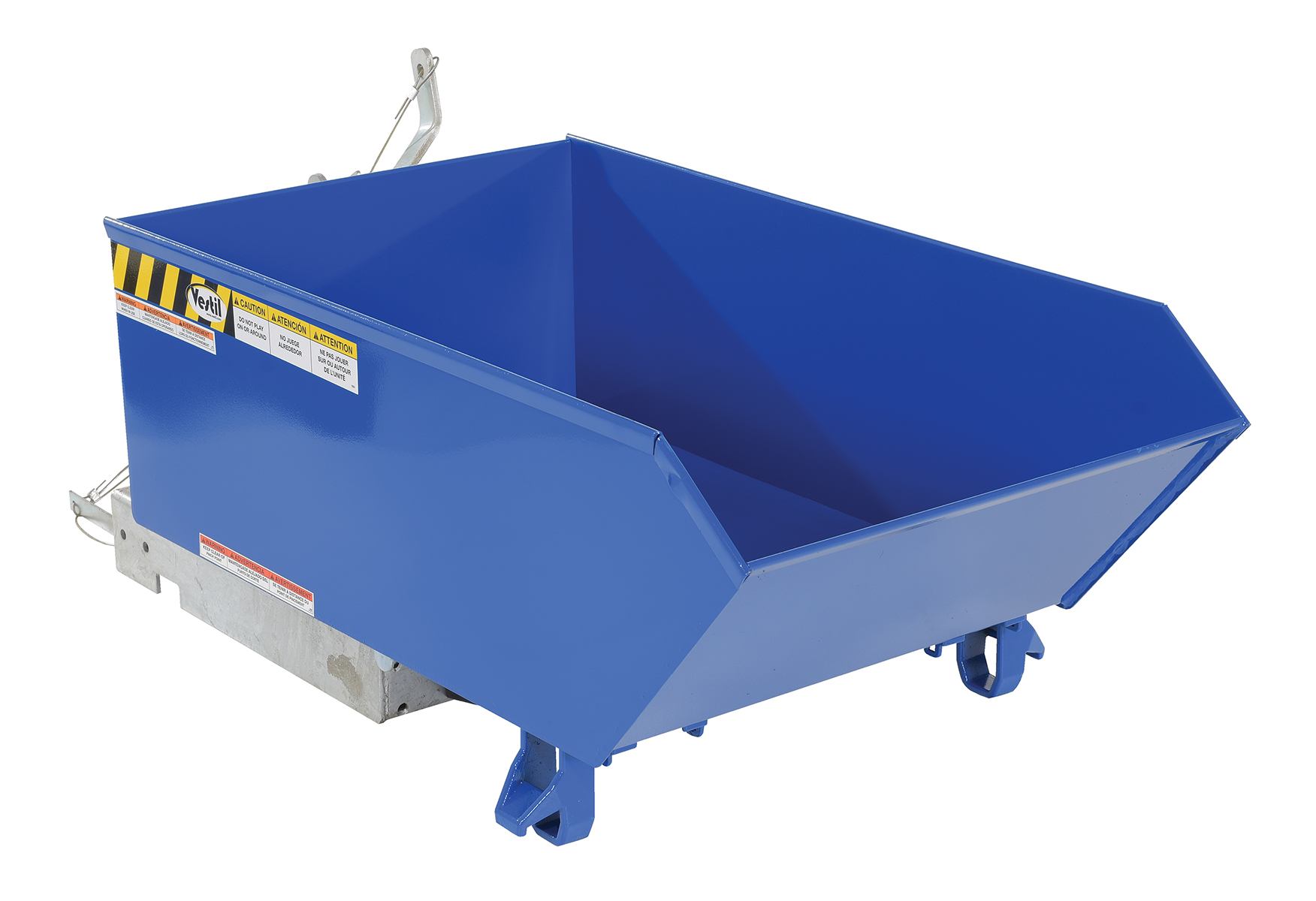

H-25-HD

model H-25-HD

H-50-MD

model H-50-MD

H-100-LD

model H-100-LD

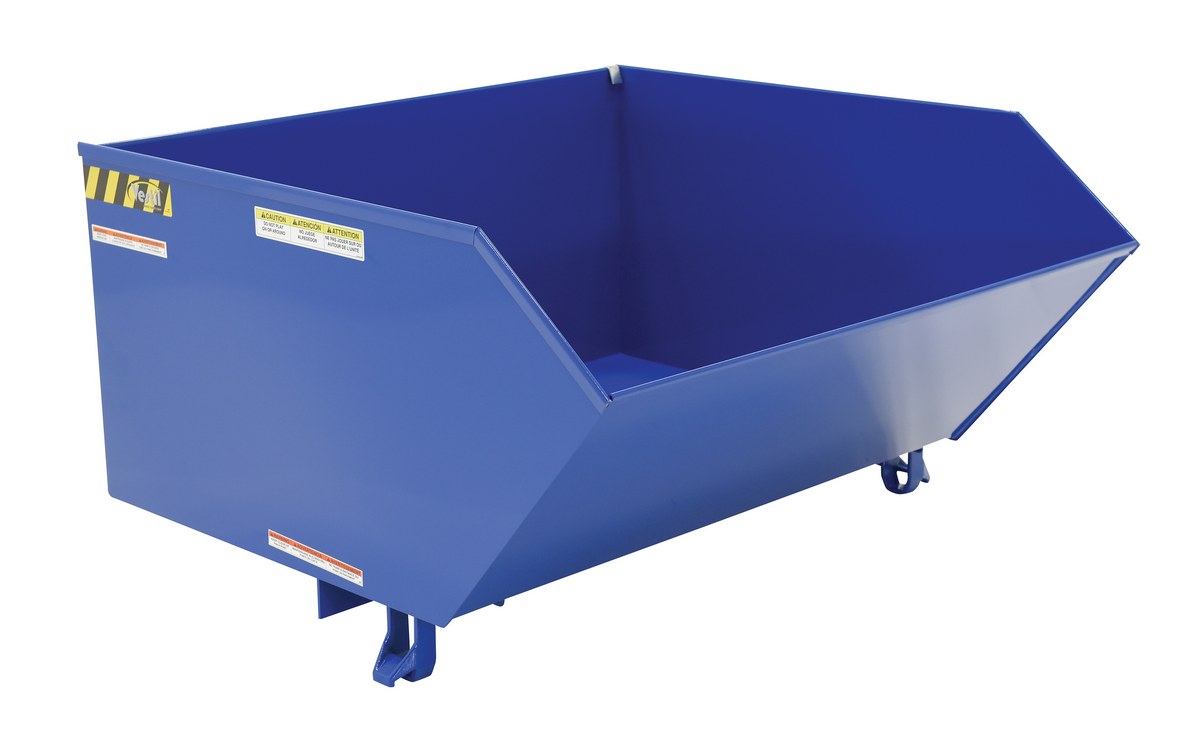

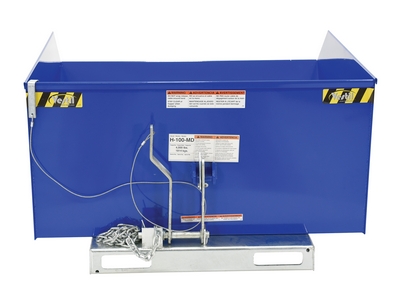

H-100-MD

model H-100-MD

H-100-HD

model H-100-HD

Check Out All Of Our Specialty Colors Available!

SODA RED


SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE


WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY


BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN


TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)


BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW


YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE


ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

HOT DIPPED GALVANIZED


HOT DIPPED GALVANIZED
Suggested Use: Wet Environment
Model Suffix: -GAL

EARTH BROWN


EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN


KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE


SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK


BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS


BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS


BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN


HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING


SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE


SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY


MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG


Notice These swatches are a representation of the colors available, and may not be exact.


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Low Profile 90 degrees Self-Dumping Hoppers
Model Image PDF's Volume
Cubic Yards
Capacity
(lbs.)
Overall
(WxLxH)
Fork
Pocket Centers
Wt.
(lbs)
Light Duty - 12 Gauge Steel
H-25-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 2,000 27"x 46-1/8"x21-3/8" 11-5/8" 179

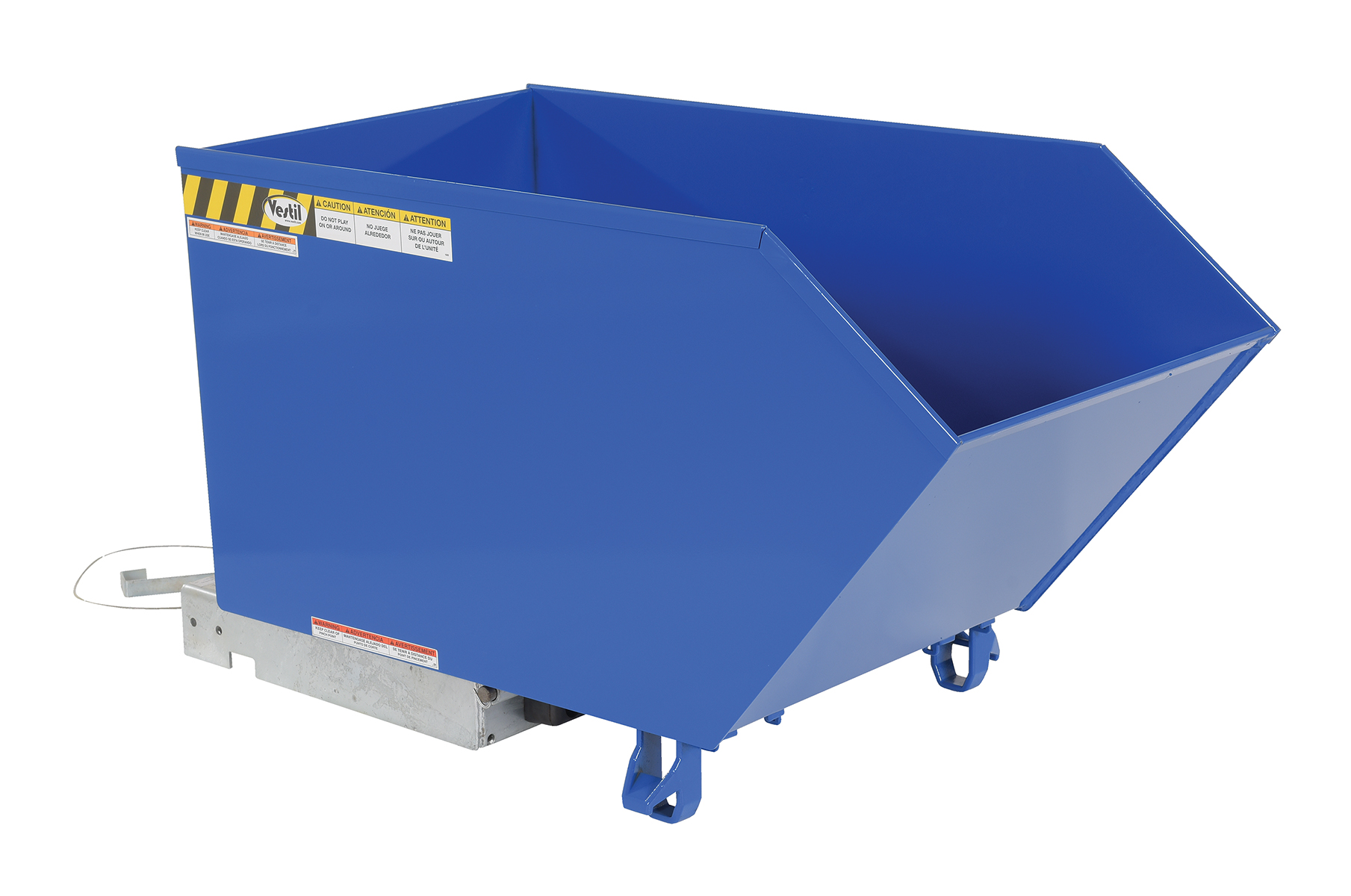

H-50-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 2,000 27" x 51-3/16"x 28-1/8" 11-5/8" 210
H-100-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 2,000 51"x 51-3/16"x 28-1/8" 21-5/8" 311

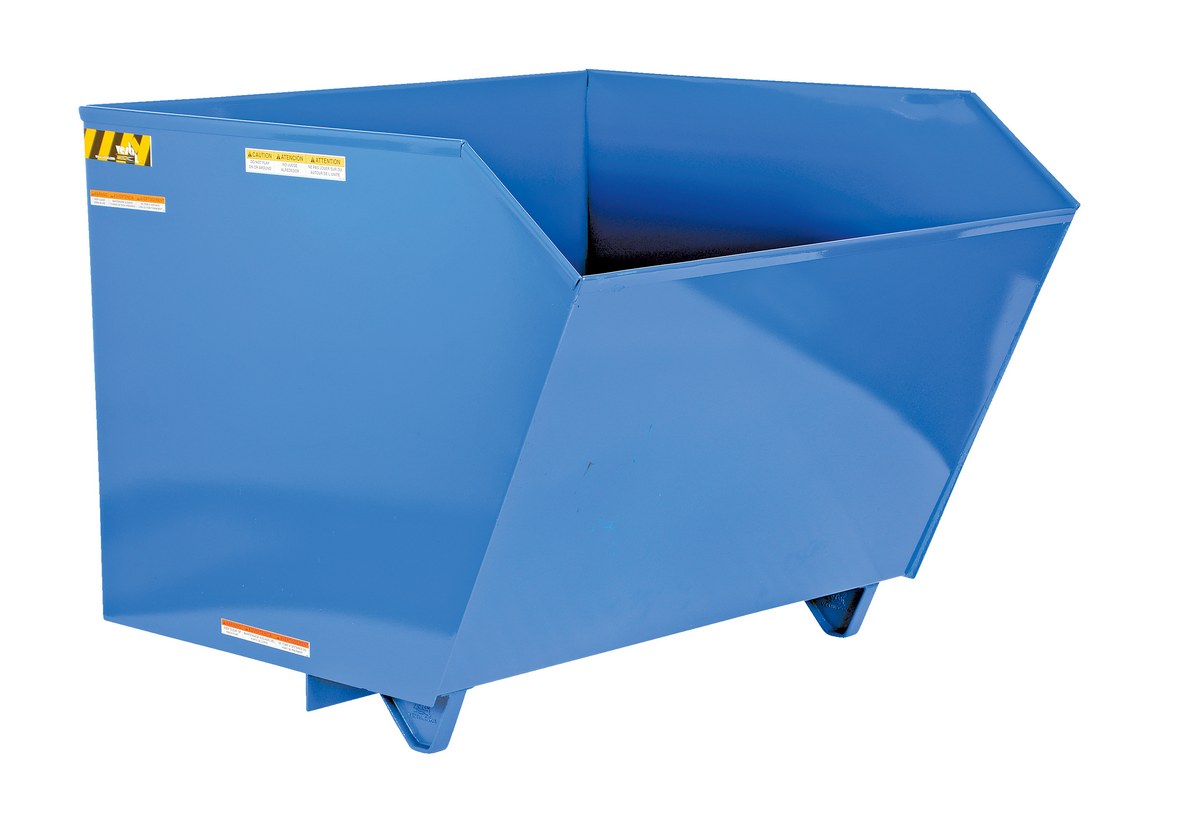

H-150-LD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 2,000 51"x 56-1/2"x 38-5/8" 21-5/8" 360
Medium Duty - 10 Gauge Steel
H-25-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 4,000 27"x 46-1/8"x 21-3/8" 11-5/8" 207
H-50-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 4,000 27" x 51-3/16"x 28-3/16" 11-5/8" 243
H-100-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 4,000 51" x 51-3/16"x 28-1/8" 21-5/8" 362
H-150-MD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 4,000 51" x 56-9/16"x 38-5/8" 21-5/8" 435
Heavy Duty - 8 Gauge Steel
H-25-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/4 6,000 27"x 46-3/16"x 21-3/8" 11-5/8" 207
H-50-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 6,000 27"x 51-1/4"x 28-3/16" 11-5/8" 262
H-100-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1 6,000 51"x 51-1/4"x 28-3/16" 21-5/8" 398
H-150-HD icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1-1/2 6,000 51"x 56-1/2" x 38-11/16" 21-5/8" 472
H-200-HD - icon_approvaldrawings.jpgWarranty PDF 2 6,000 67"x56-9/16"x38-11/16" 21-5/8" 575

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


LINK- Caster Options | LINK- Optional Lids | LINK - Optional Colors Available


Options for Low Profile 90 degrees Self-Dumping Hoppers

Model PDF Description Wt. (lbs.)

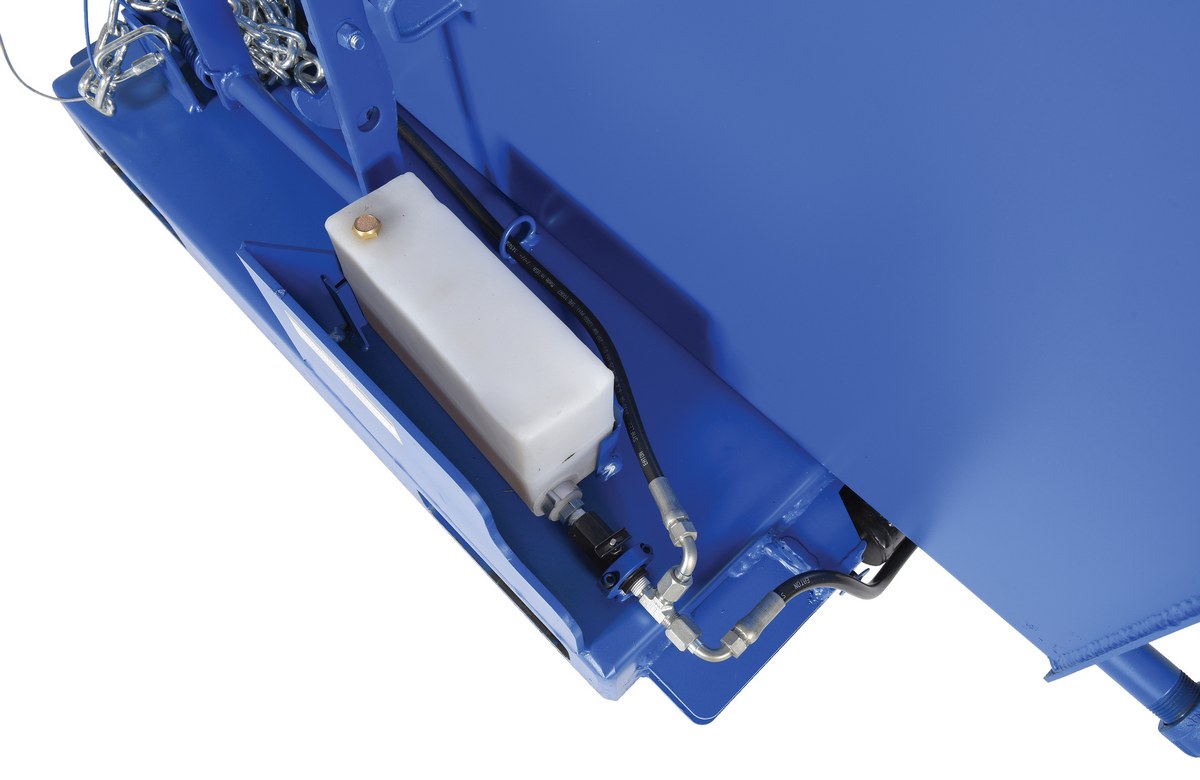

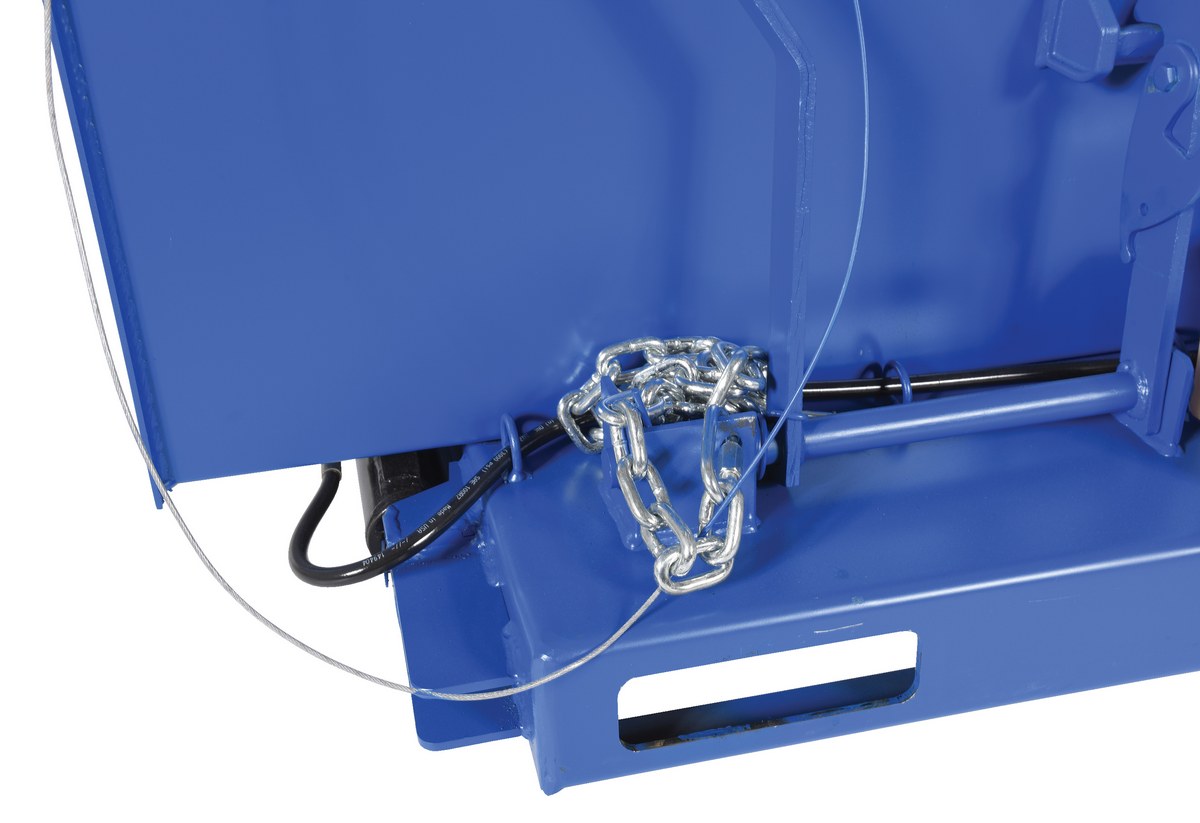

H-DAMP-4 Warranty PDF More controlled dumping process. (4,000 lb. units) 30
H-DAMP-6 Warranty PDF More controlled dumping process. (6,000 lb. units) 40
LEKP Warranty PDF Welded leak proof option for H style hoppers 5

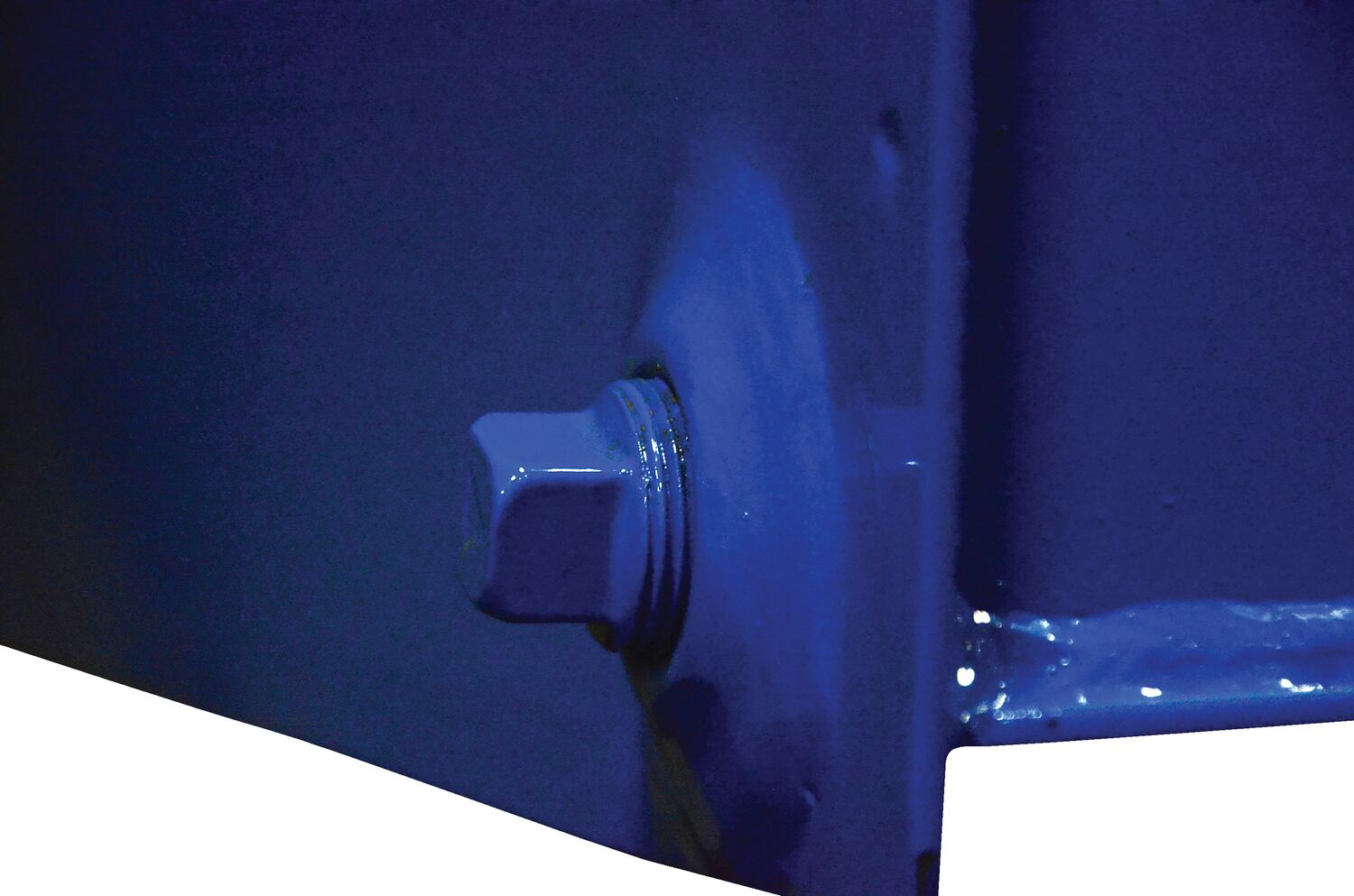

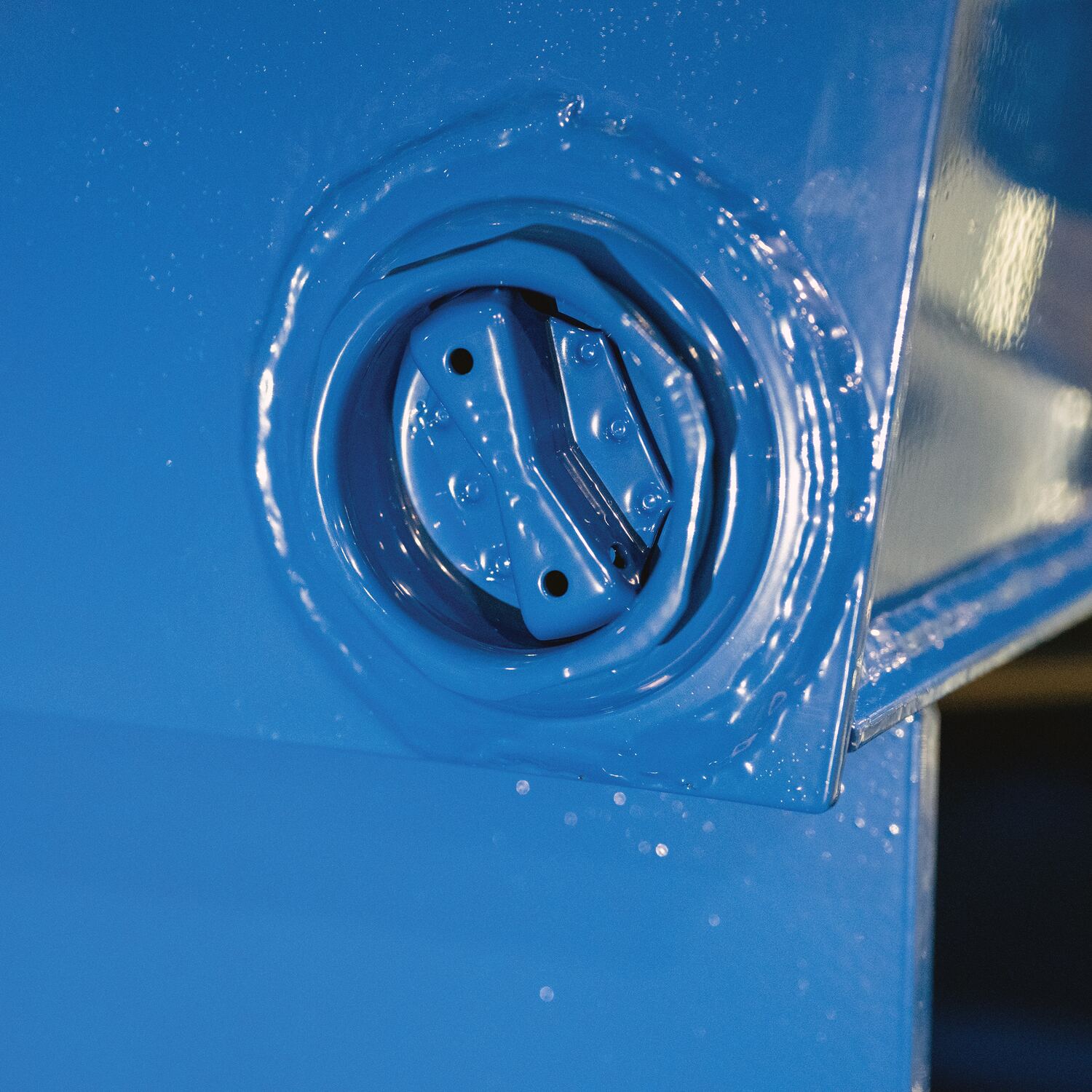

H-DPLG-75* Warranty PDF 3/4" threaded drain plug, located in left corner 2

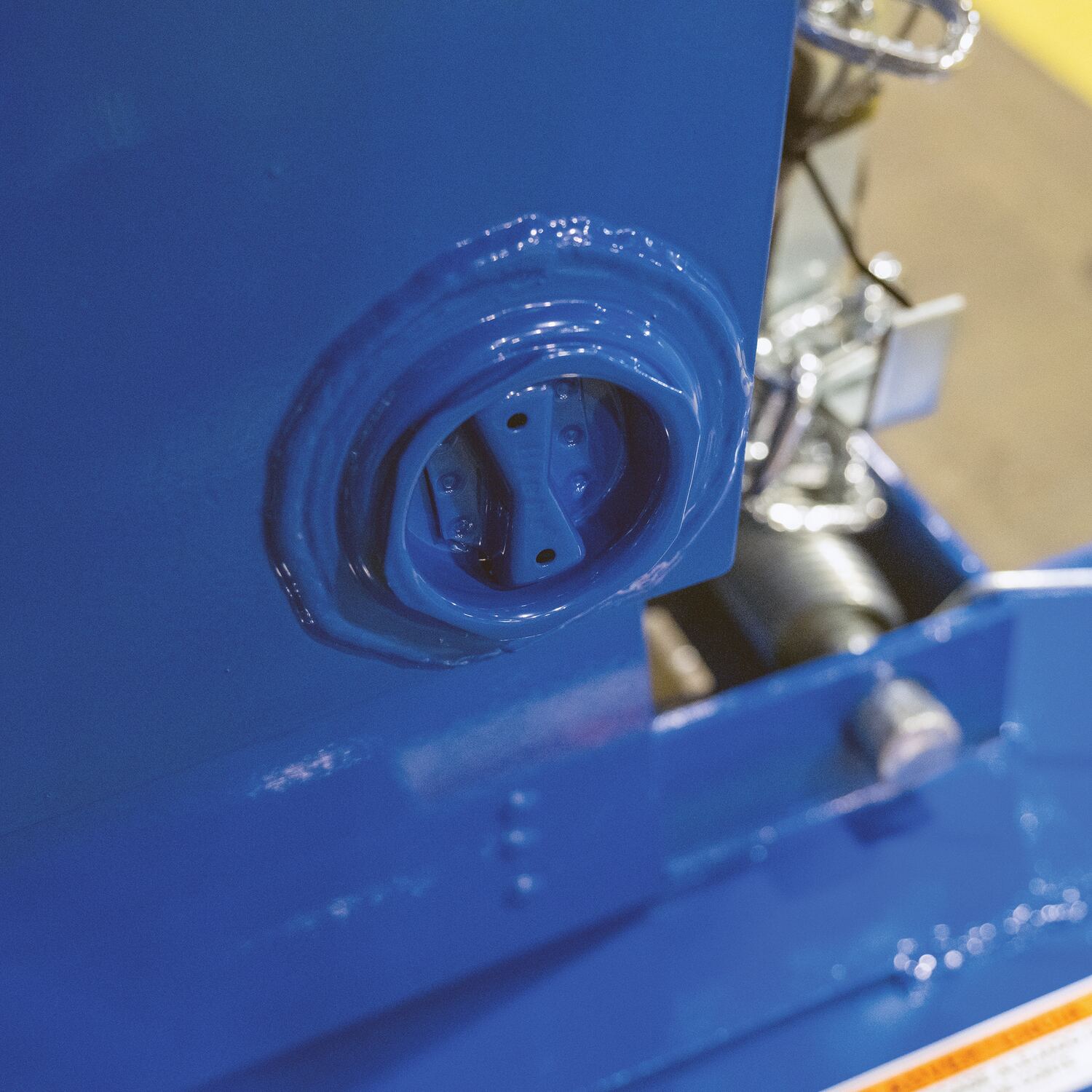

H-DPLG-2* Warranty PDF 2" threaded drain plug, located in left corner 2

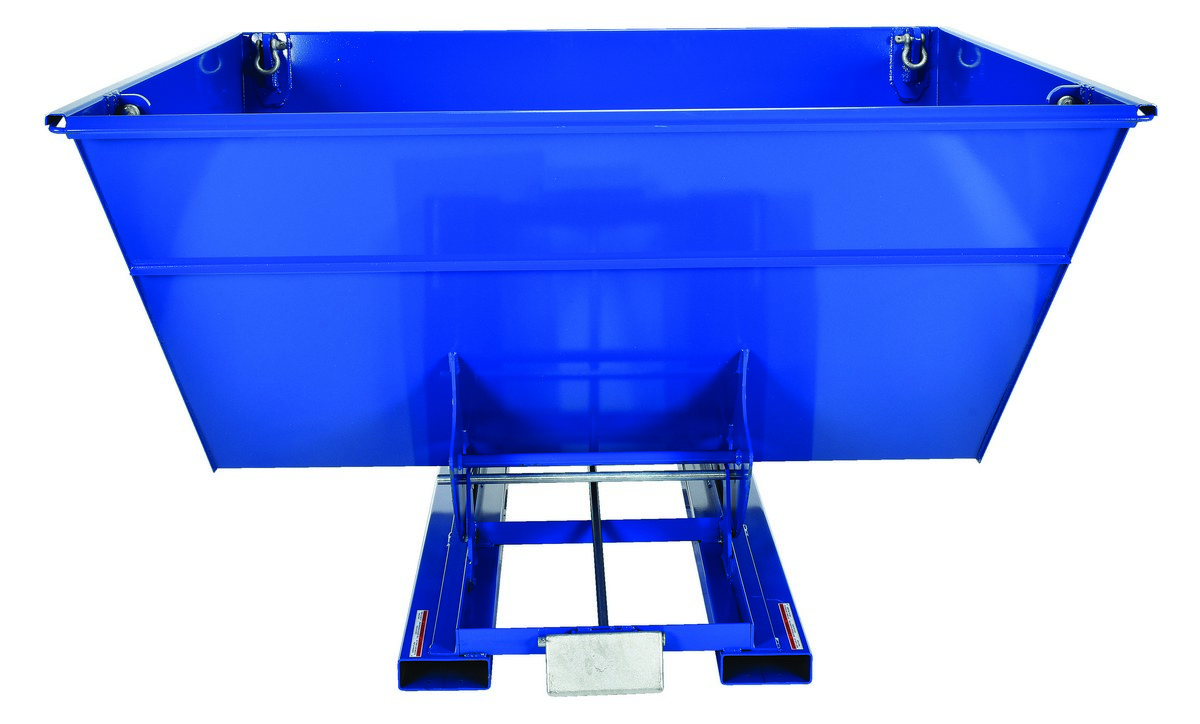

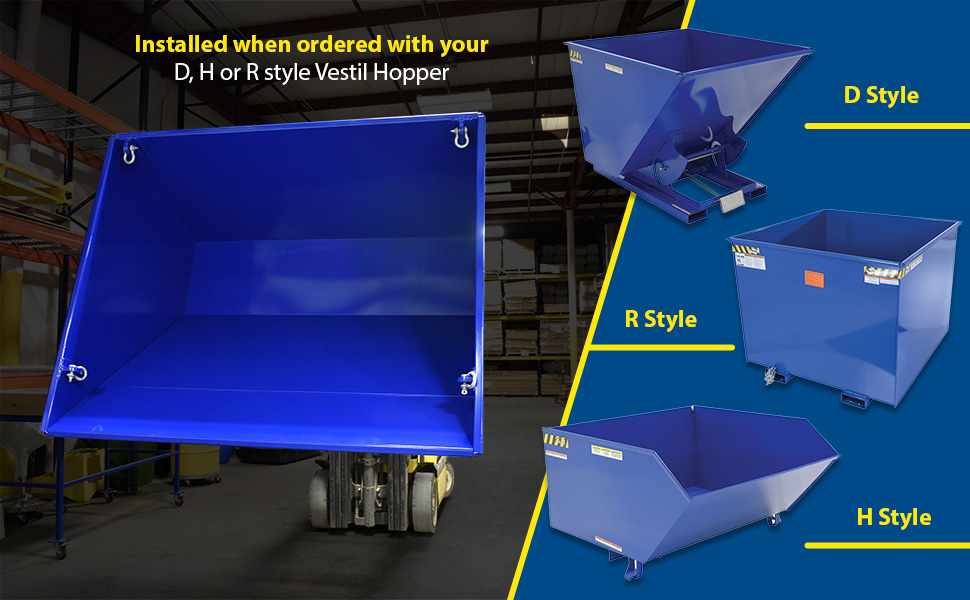

LUG Warranty PDF (4) lifting lugs (welded) one on each corner 23
* H-DPLG Option includes leak proof chute welds

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

H-100-HD

H-100-HD

H-100-LD

H-100-LD

H-100-MD

H-100-MD

H-150-HD

H-150-HD

H-150-LD

H-150-LD

H-150-MD

H-150-MD

H-200-HD

H-200-HD

H-25-HD

H-25-HD

H-25-LD

H-25-LD

H-25-MD

H-25-MD

H-50-HD

H-50-HD

H-50-LD

H-50-LD

H-50-MD

H-50-MD

H-DAMP-4

H-DAMP-4

H-DAMP-6

H-DAMP-6

H-DPLG-2

H-DPLG-2

H-DPLG-75

H-DPLG-75

LEKP

LEKP

LUG

LUG






H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

H-25-HD
H-25-LD
H-25-MD
H-50-HD
H-50-LD
H-50-MD
H-100-HD
H-100-LD
H-100-MD
H-150-HD
H-150-LD
H-150-MD
H-200-HD

Testing Certificates

H-25-HD
H-25-LD
H-25-MD
H-50-HD
H-50-LD
H-50-MD
H-100-HD
H-100-LD
H-100-MD
H-150-HD
H-150-LD
H-150-MD
H-200-HD
H-DAMP-4
H-DAMP-6
H-DPLG-2
LEKP
LUG

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: I'm looking at the low profile hopper . Does it come with casters?

A: Casters are available for the H- Style Low Profile Hopper. Please see the hopper home page for multiple options.


Q: What does "MD" mean on the hopper?

A: LD (light duty) 12 gauge steel, 2,000 lb. capacity. MD (medium duty) 10 gauge steel, 4,000 lb. capacity. HD (heavy duty) 8 gauge steel, 6,000 lb. capacity.
