Product Family Overview


Low Profile Parts Hoppers
SERIES: HOP-LP

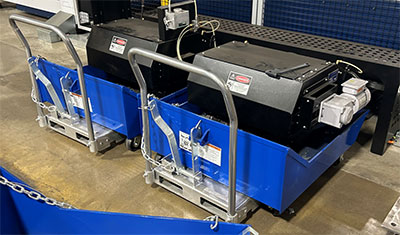

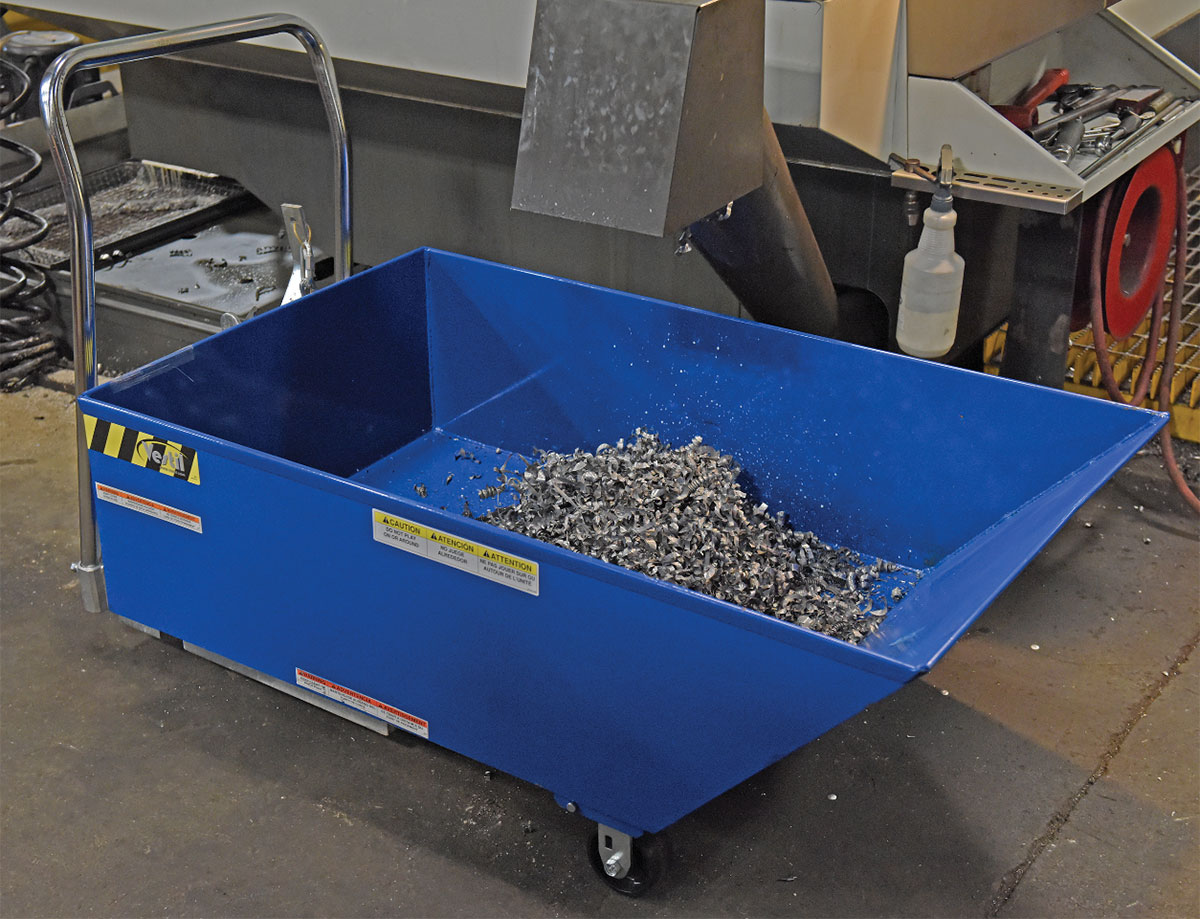

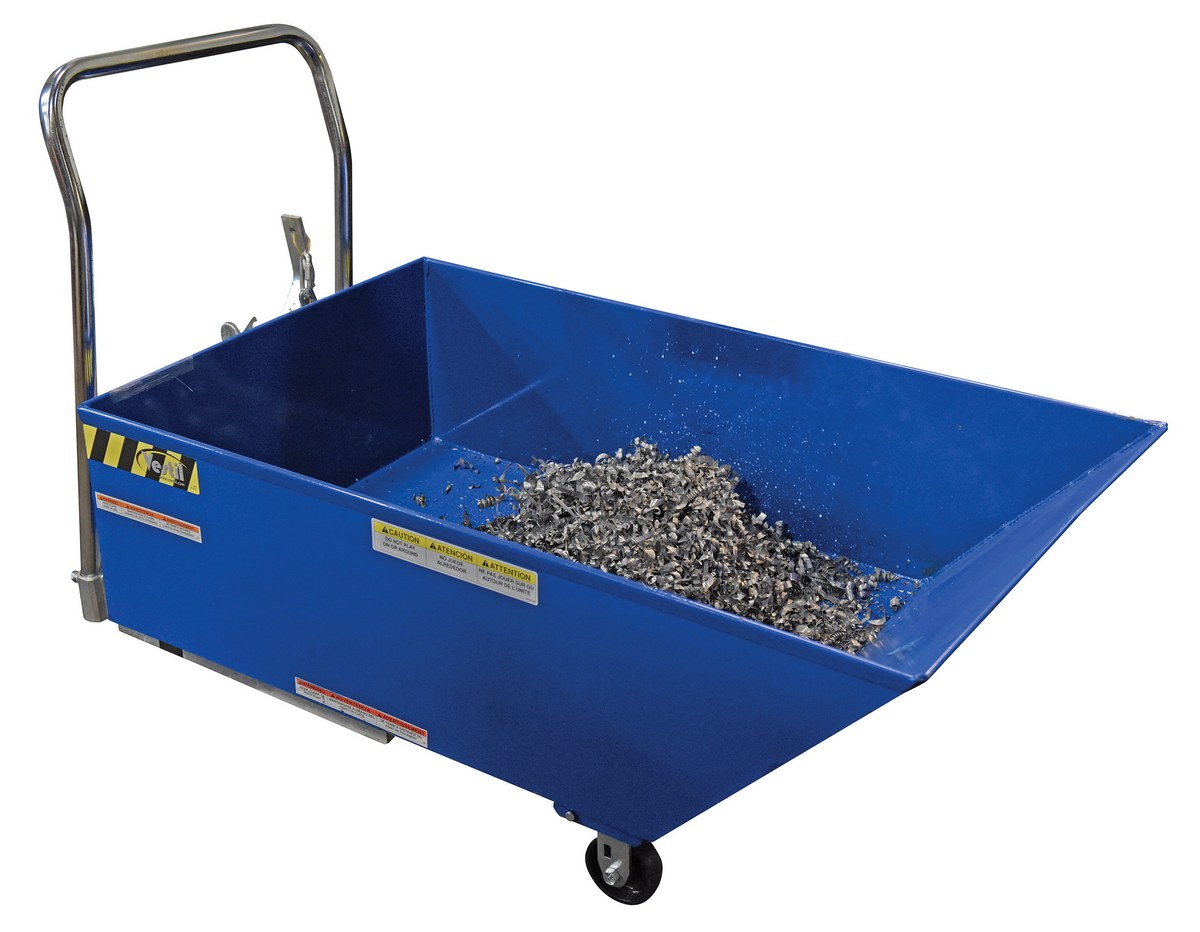

Ideal for use in machine shops for chip and machining recycling!

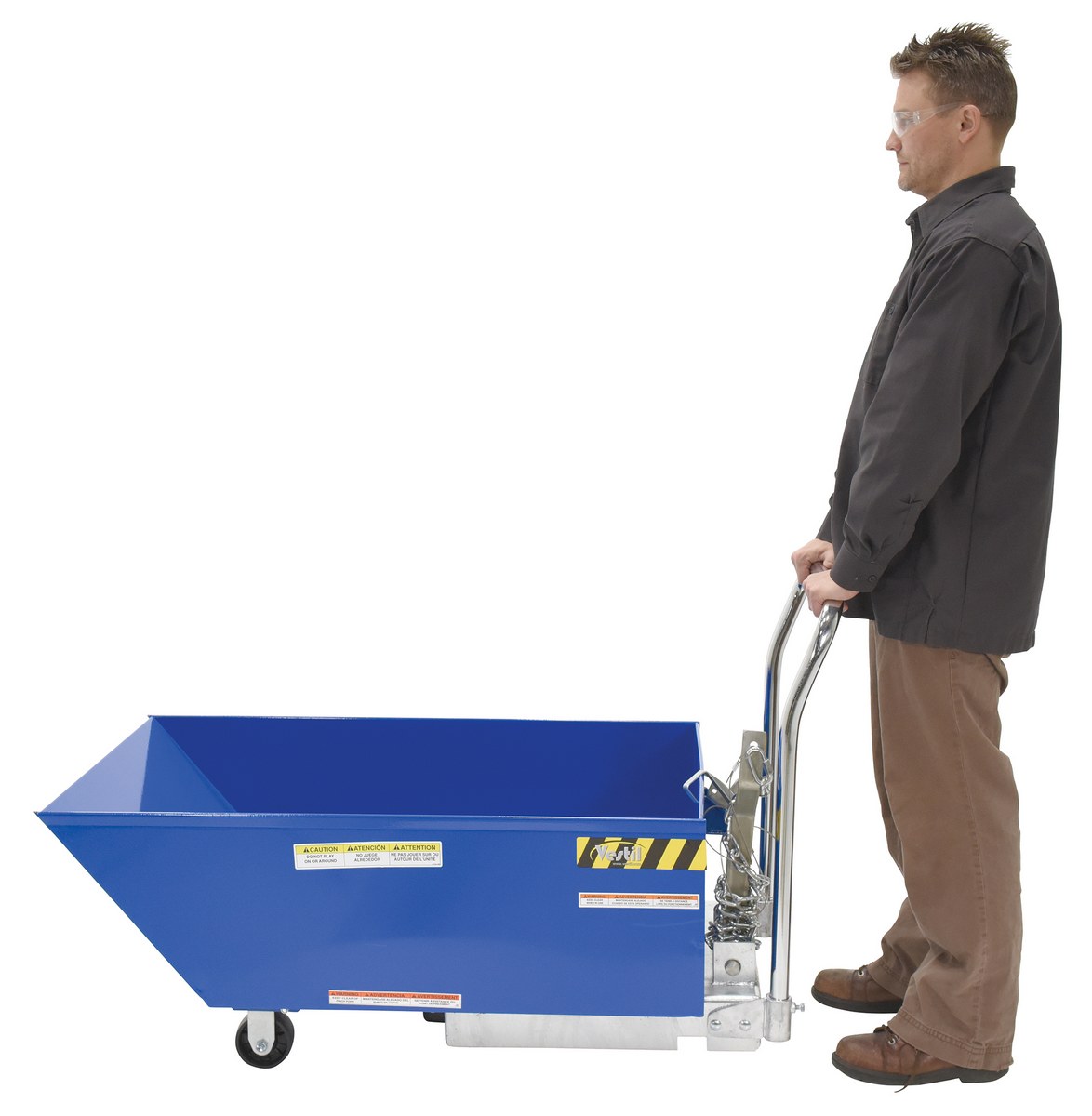

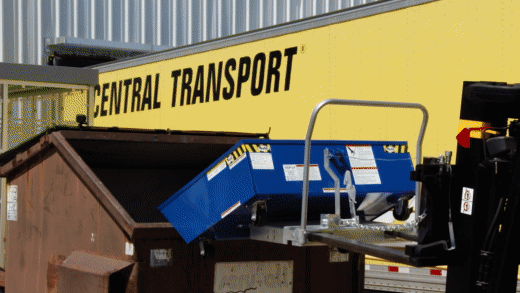

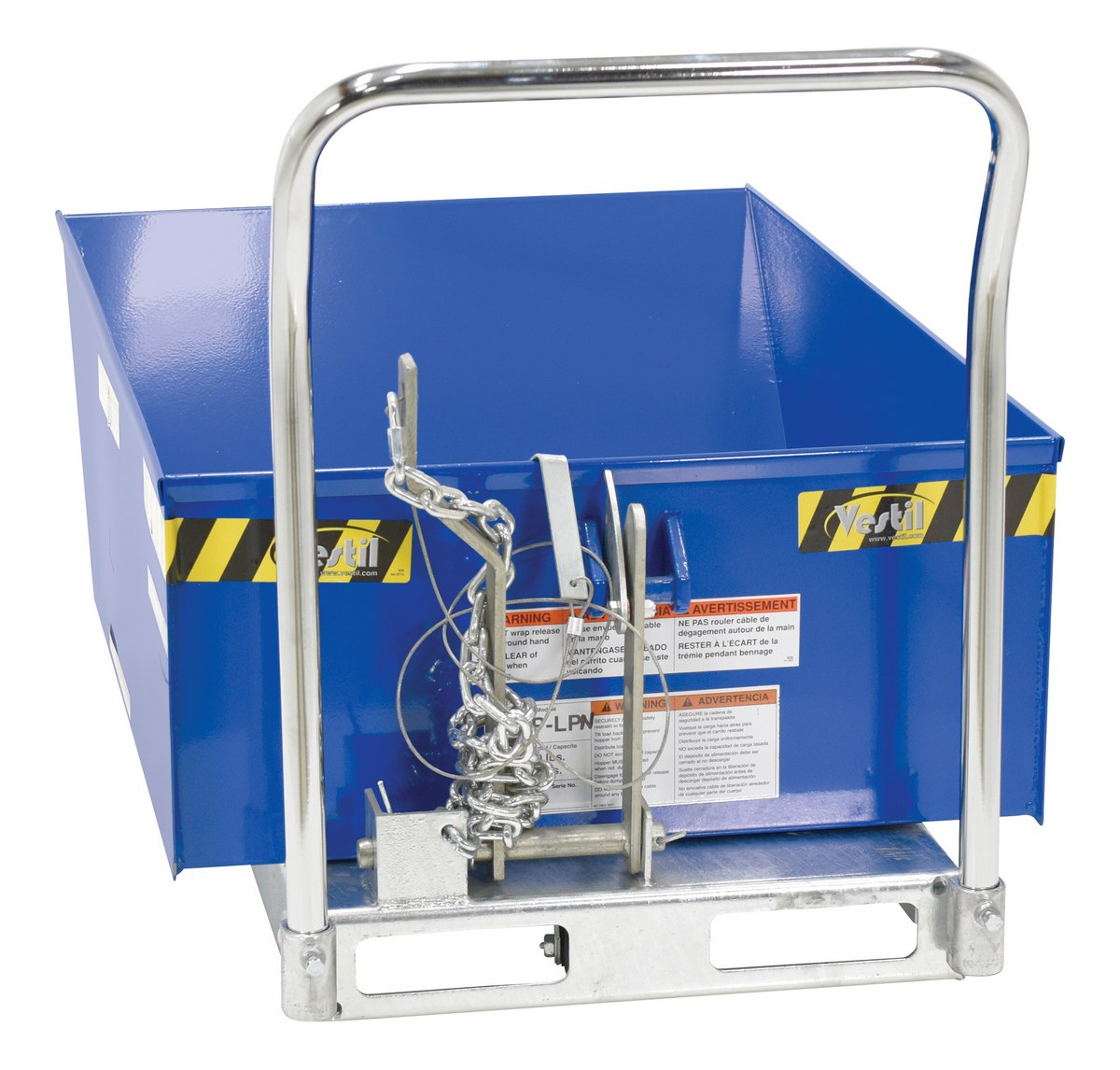

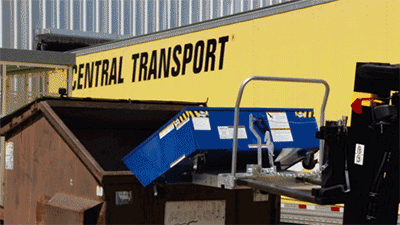

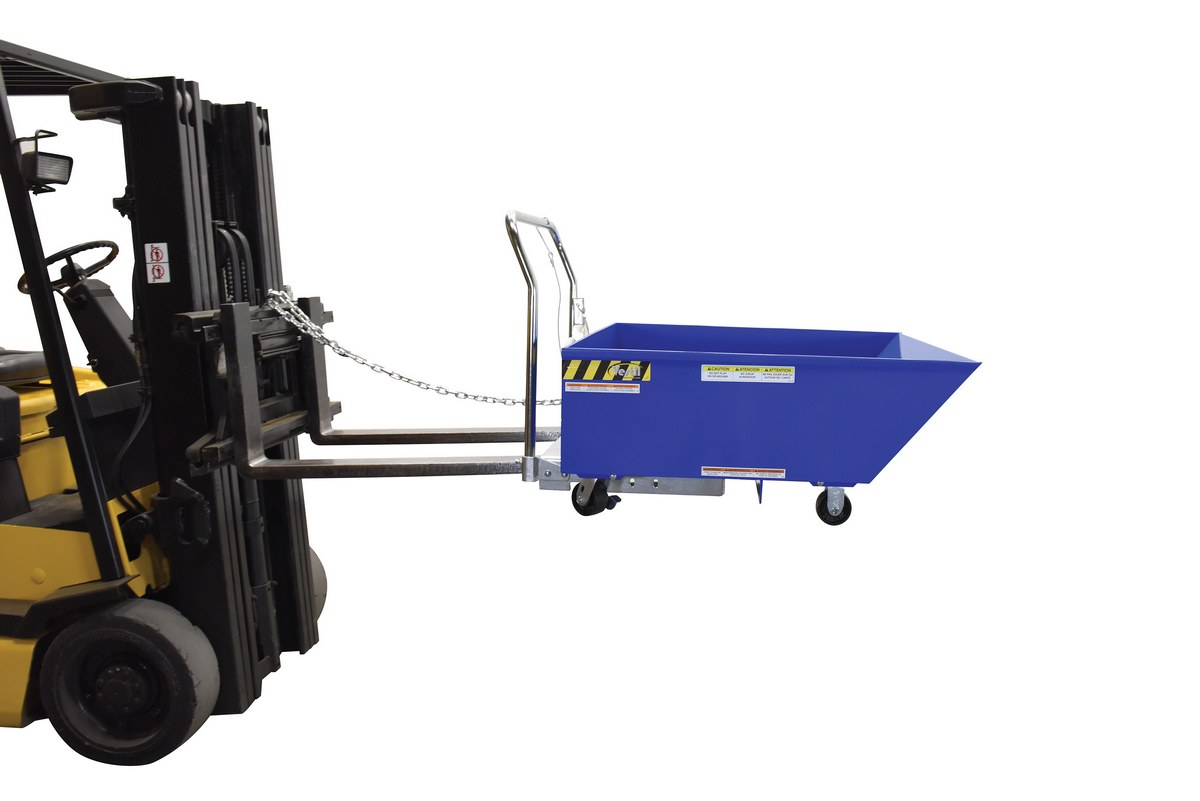

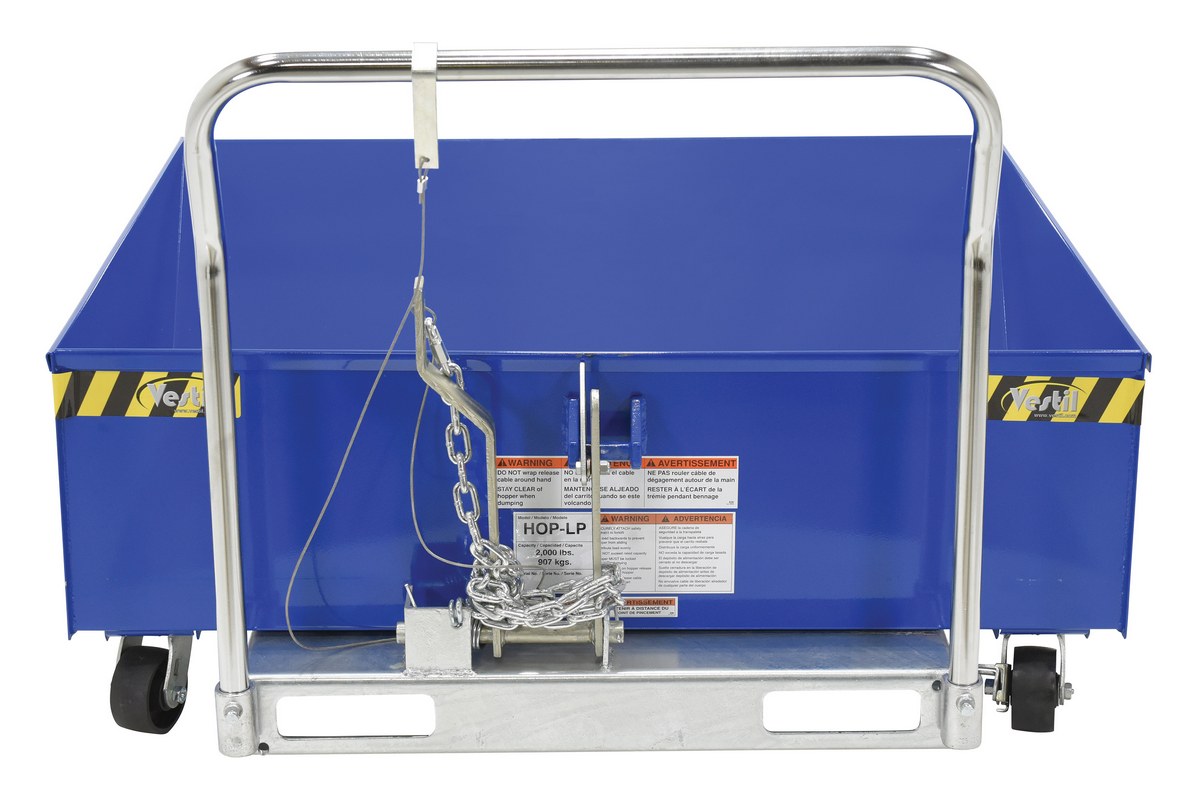

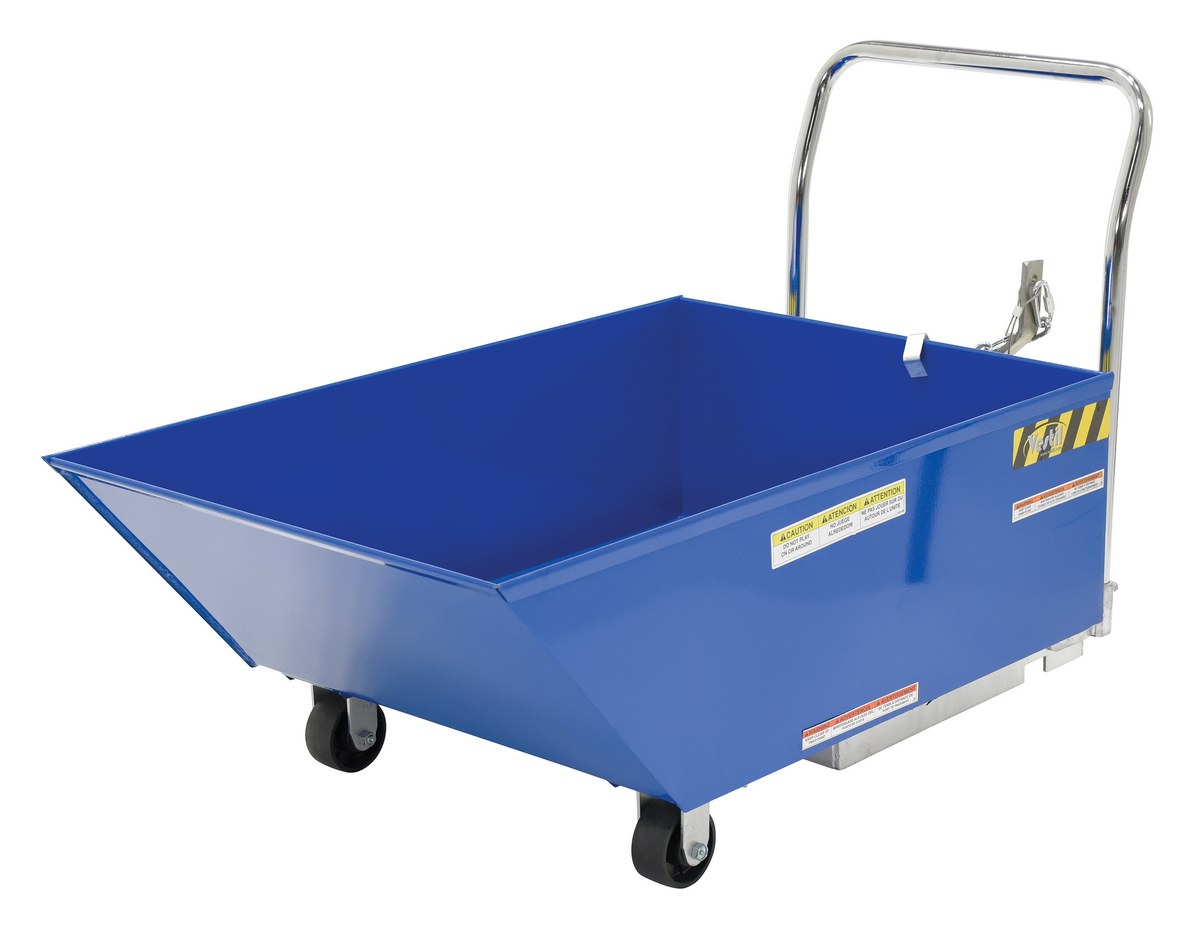

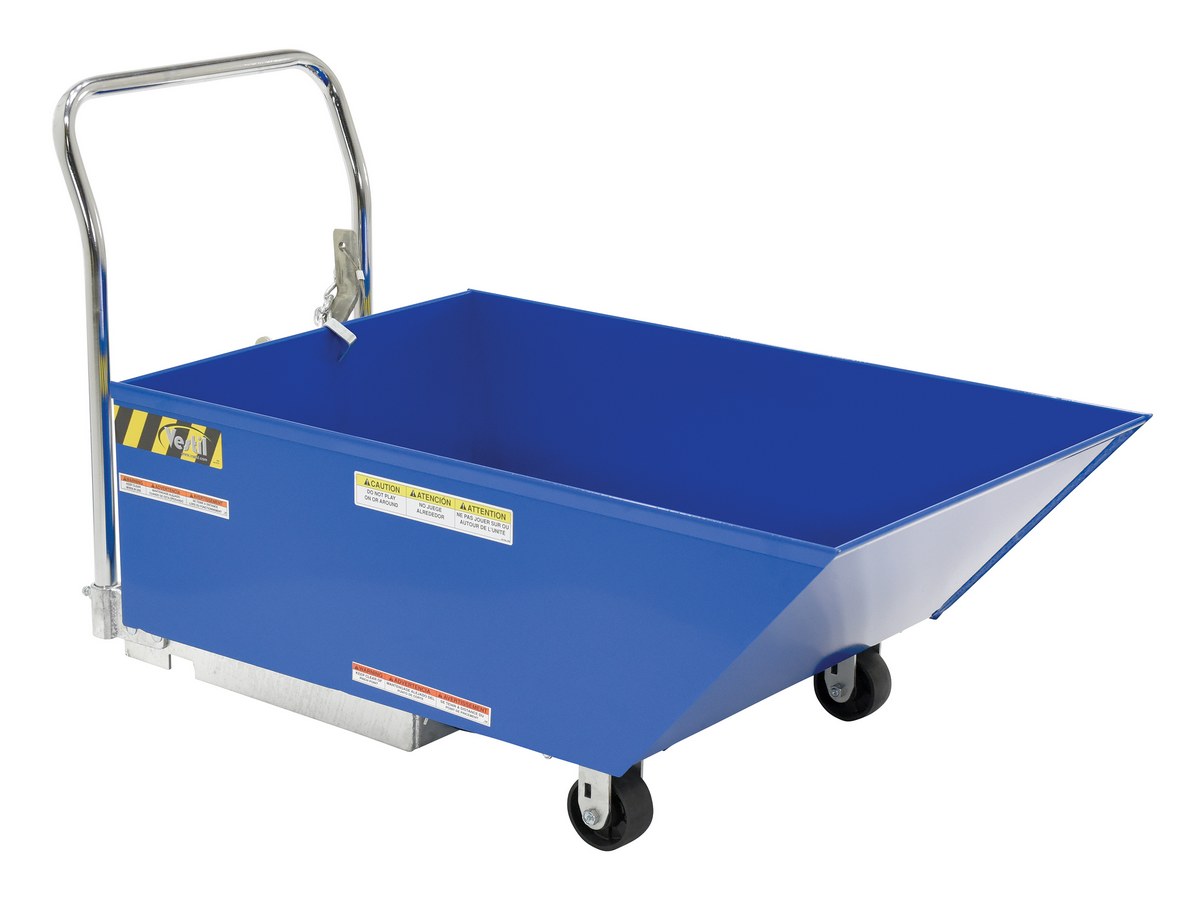

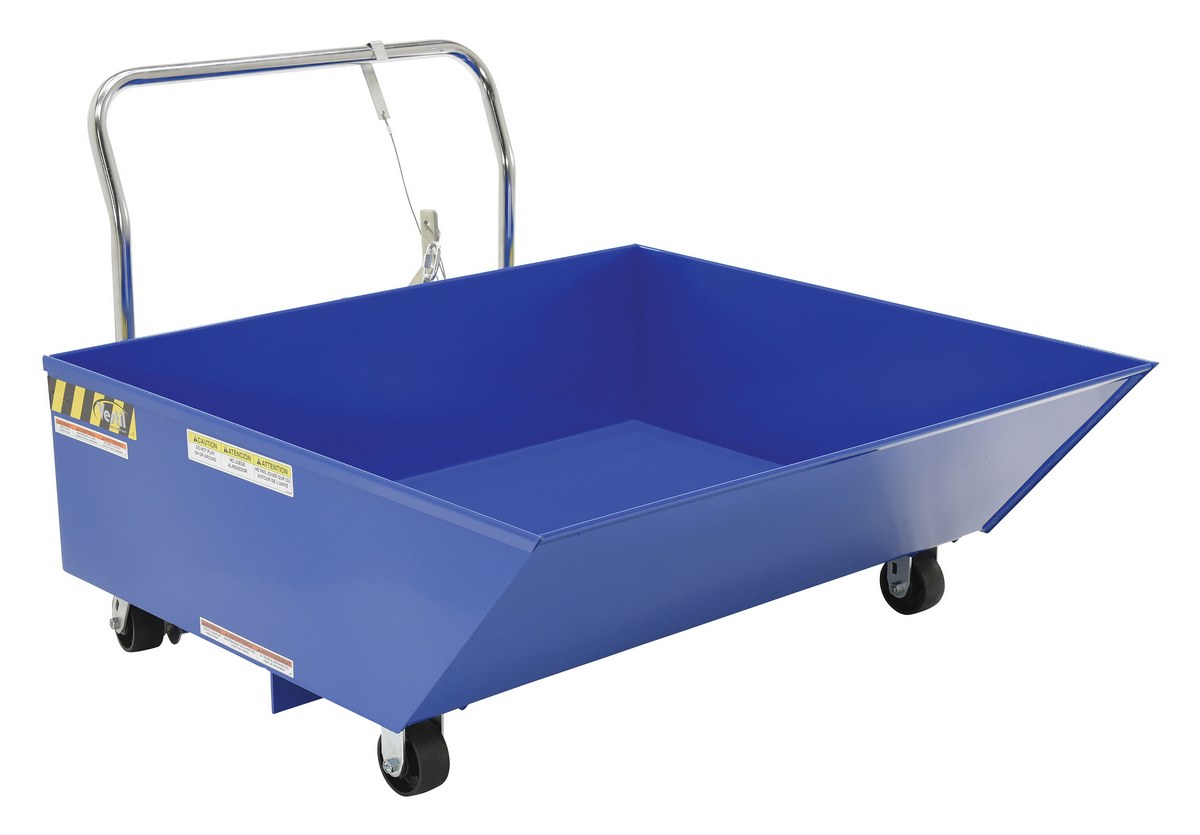

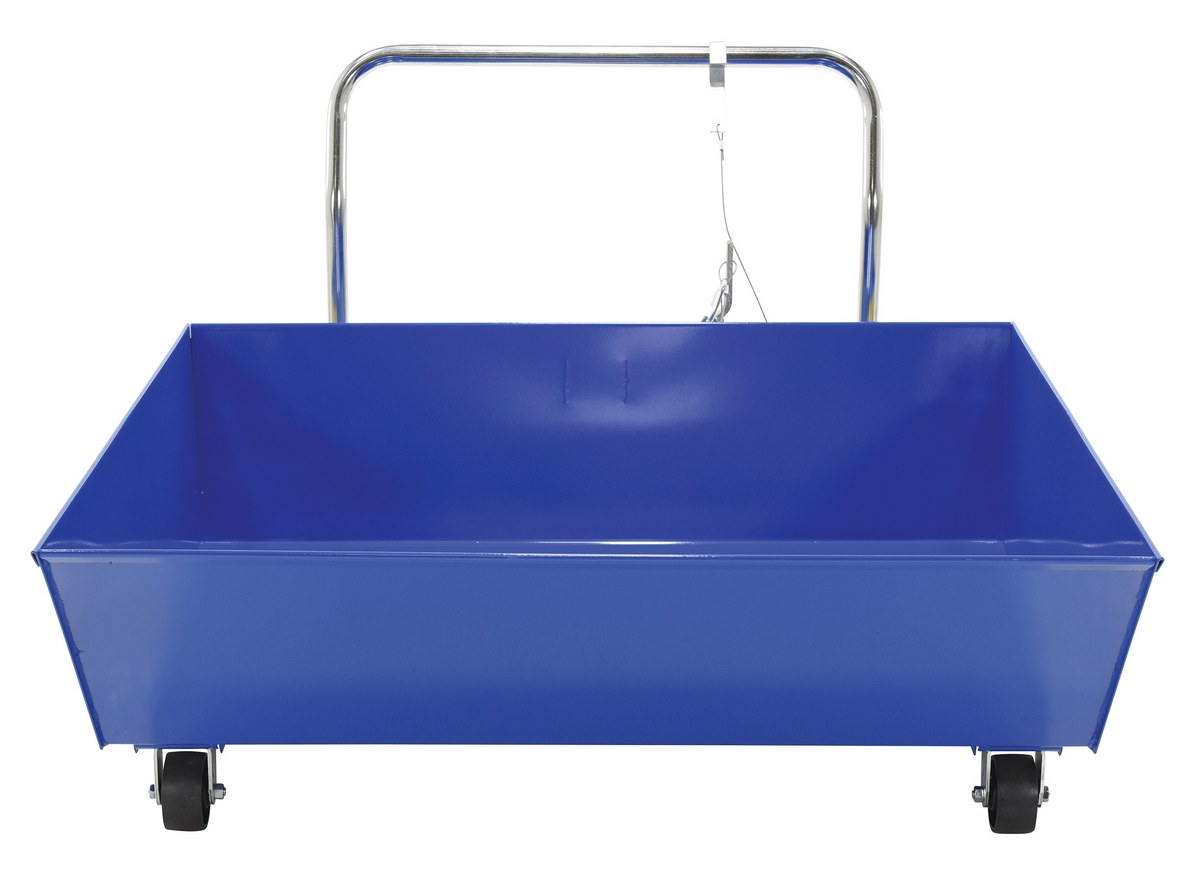

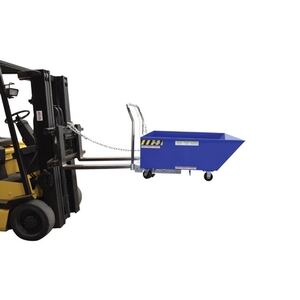

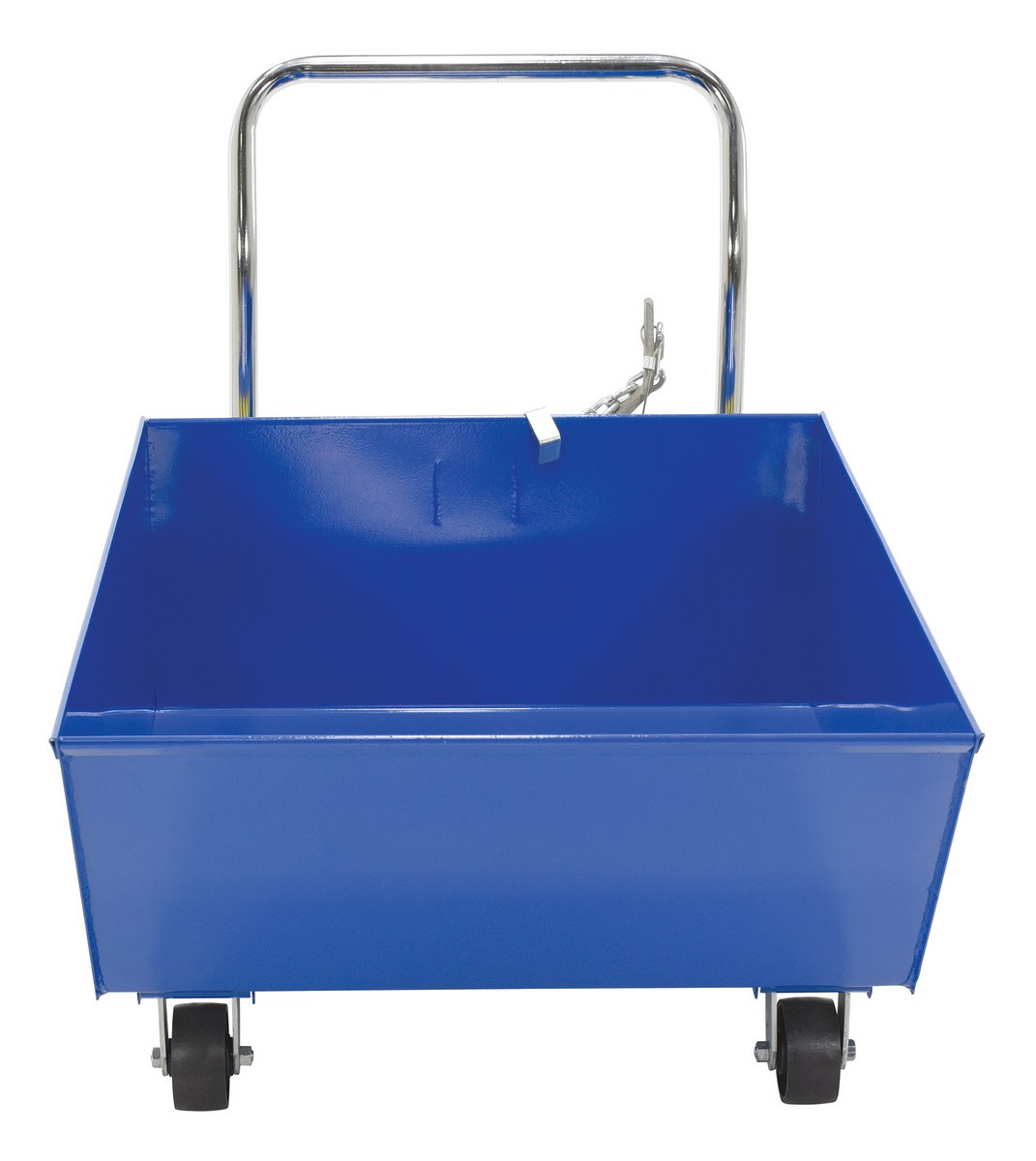

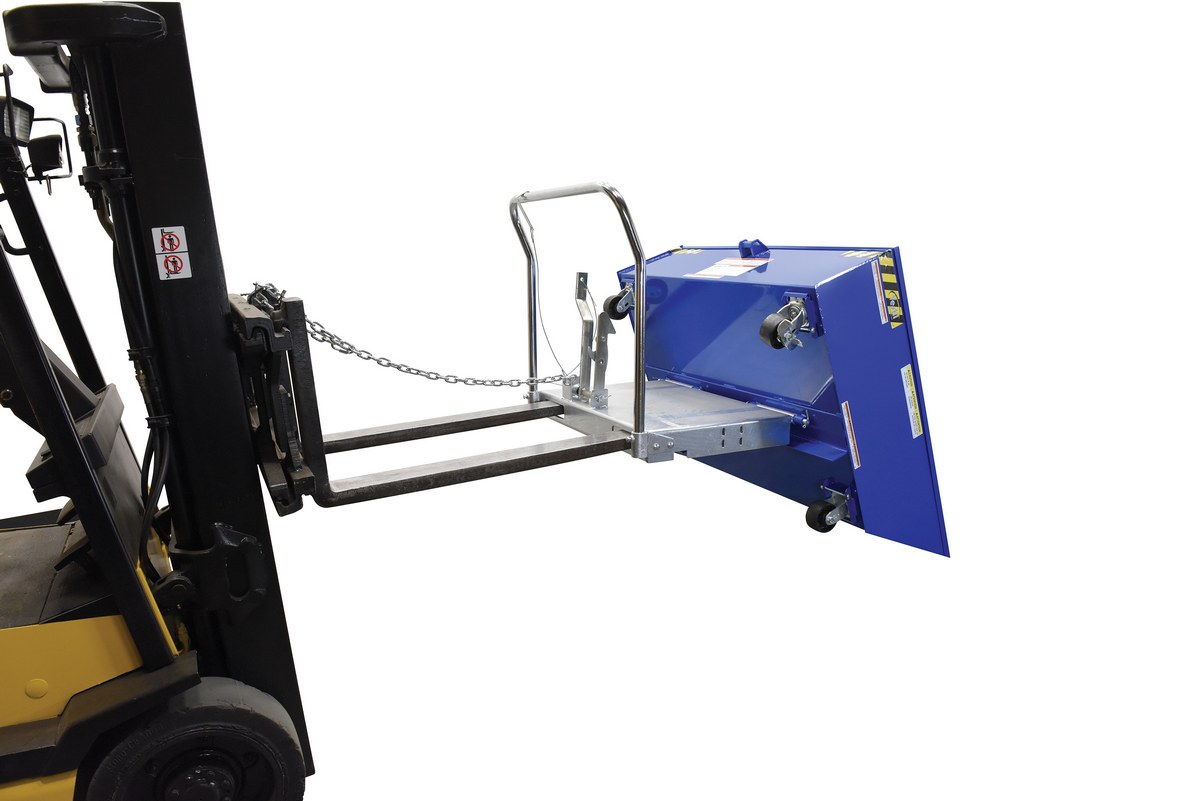

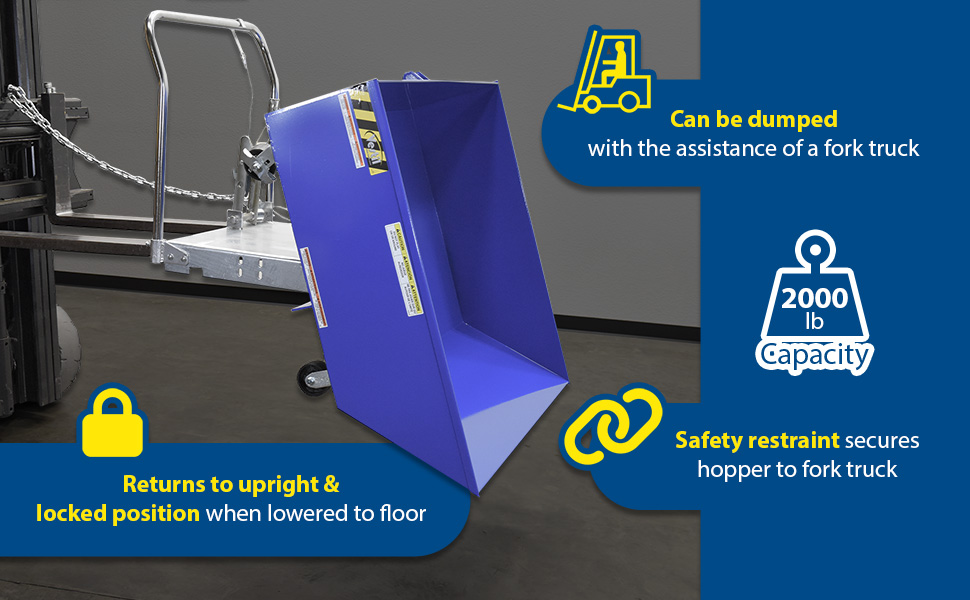

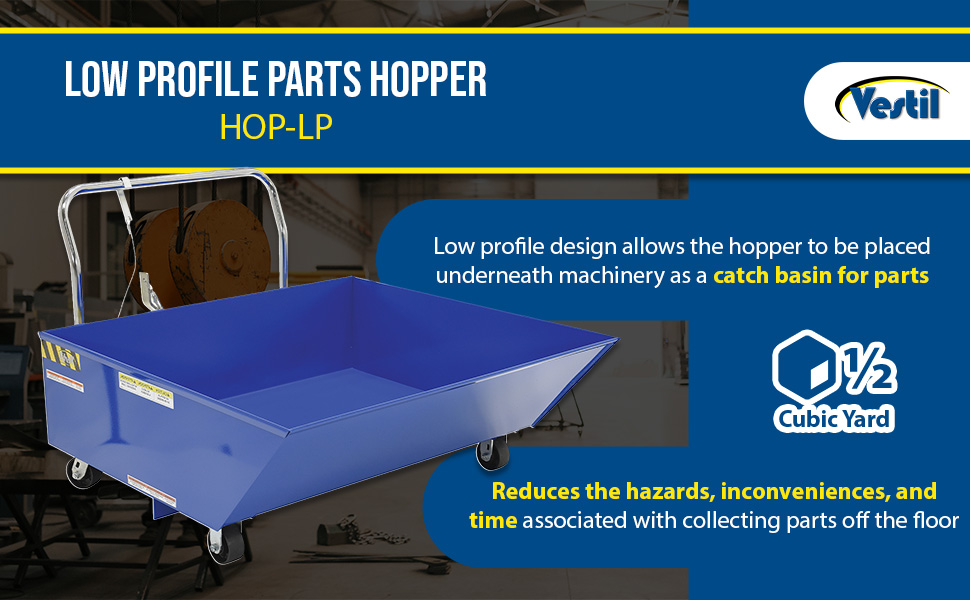

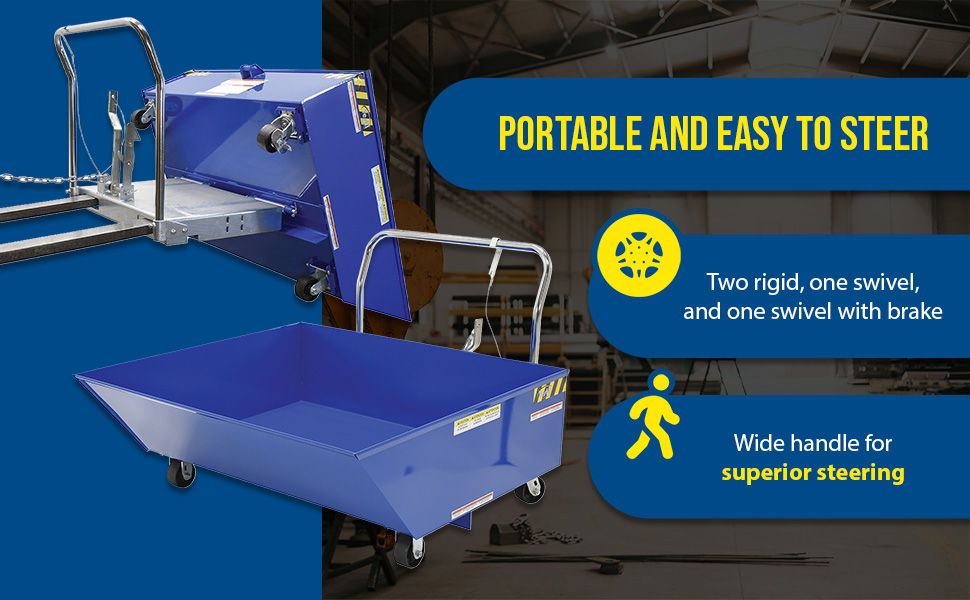

These unique products have been designed to function as parts hoppers that may be dumped with the assistance of a fork truck. The low profile design allows the hoppers to be placed underneath machinery as a catch basin for parts. The hoppers reduce the hazards, inconveniences, and time associated with collecting parts off the floor. Blue baked-in powder-coated toughness. The 10 gauge parts hoppers have 7"W x 2"H usable fork pockets for dumping the hoppers 90 degrees with a fork truck. HOP-LP roll smoothly on four (4) wheels, 4" x 2" glass-filled nylon, two (2) rigid, one (1) swivel and one (1) swivel with brake. Model HOP-LP-N rolls on three (3) wheels, two (2) rigid and one (1) swivel with brake. Includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. Must be attached to fork truck when dumping. Options, including leak proof chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2 leak proof chute welds included with drainage plugs.

Ideal for use in machine shops for chip and machining recycling!

These unique products have been designed to function as parts hoppers that may be dumped with the assistance of a fork truck. The low profile design allows the hoppers to be placed underneath machinery as a catch basin for parts. The hoppers reduce the hazards, inconveniences, and time associated with collecting parts off the floor. Blue baked-in powder-coated toughness. The 10 gauge parts hoppers have 7"W x 2"H usable fork pockets for dumping the hoppers 90 degrees with a fork truck. HOP-LP roll smoothly on four (4) wheels, 4" x 2" glass-filled nylon, two (2) rigid, one (1) swivel and one (1) swivel with brake. Model HOP-LP-N rolls on three (3) wheels, two (2) rigid and one (1) swivel with brake. Includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. Must be attached to fork truck when dumping. Options, including leak proof chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2 leak proof chute welds included with drainage plugs.

Additional Models In This Family

HOP-LP

model HOP-LP

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
HOP-LP HOP-LP90 Days Limited WarrantySteel Low Profile Parts Hopper 1/2 Cubic Yd. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/2
282
HOP-LP-N HOP-LP-N90 Days Limited WarrantySteel Low Profile Parts Hopper 1/3 Cubic Yd 2000 Lb Capacity BlueUniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/3
205

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

HOP-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/2
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/2

HOP-LP-N
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/3
Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/3


Low Profile Parts Hoppers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HOP-LP

HOP-LP-N

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Parts Hoppers




Ideal for use in machine shops for chip and machining recycling!

These unique products have been designed to function as parts hoppers that may be dumped with the assistance of a fork truck. The low profile design allows the hoppers to be placed underneath machinery as a catch basin for parts. The hoppers reduce the hazards, inconveniences, and time associated with collecting parts off the floor. Blue baked-in powder-coated toughness. The 10 gauge parts hoppers have 7"W x 2"H usable fork pockets for dumping the hoppers 90 degrees with a fork truck. HOP-LP roll smoothly on four (4) wheels, 4" x 2" glass-filled nylon, two (2) rigid, one (1) swivel and one (1) swivel with brake. Model HOP-LP-N rolls on three (3) wheels, two (2) rigid and one (1) swivel with brake. Includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. Must be attached to fork truck when dumping. Options, including leak proof chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2 leak proof chute welds included with drainage plugs.


Low Profile Parts Hopper
Model Image PDF's Volume
Cubic
Yards
Capacity
(lbs)
Fork Pocket
Centers
Overall Size
(WxLxH)
Wt.
(lbs)
HOP-LP icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/2 2,000 21-5/8" 48-7/16" x 54-1/16" x 34" 340
HOP-LP-N icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1/3 2,000 11-5/8" 29-13/16" x 54" x 33-5/8" 199
