SERIES: FE

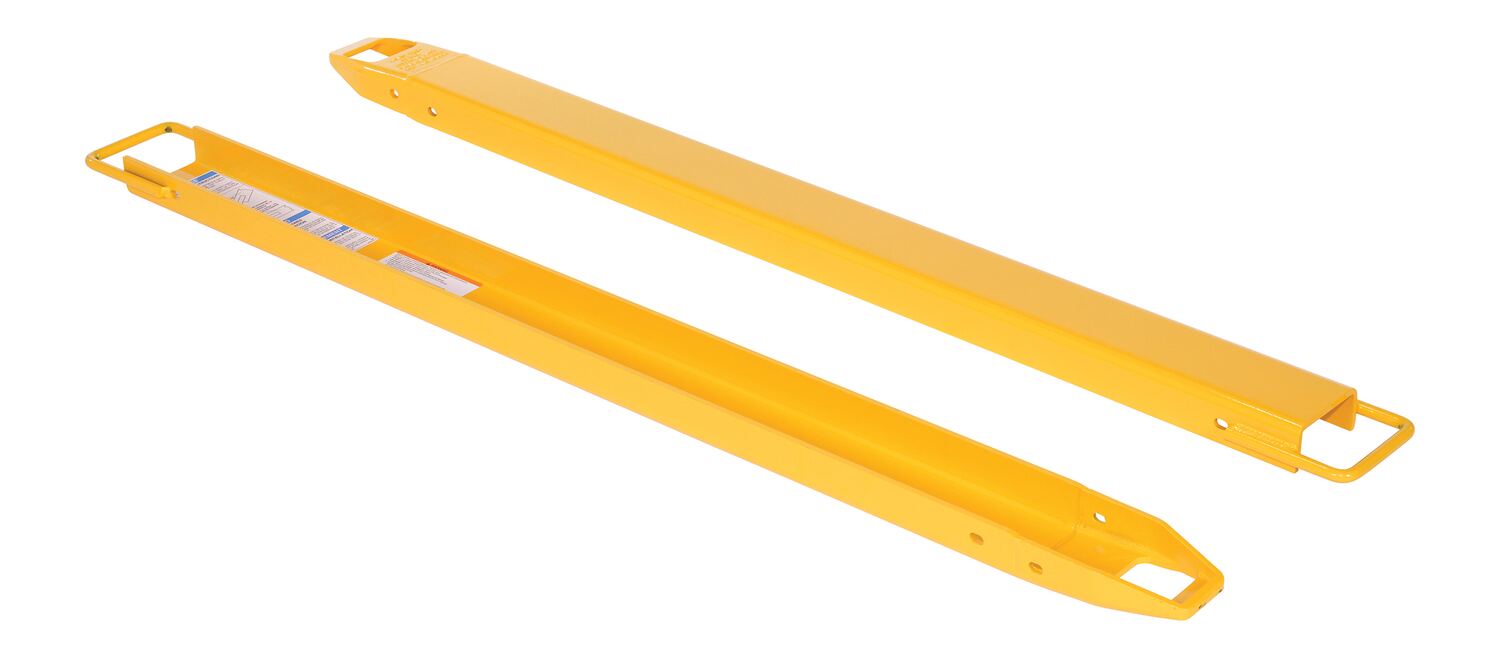

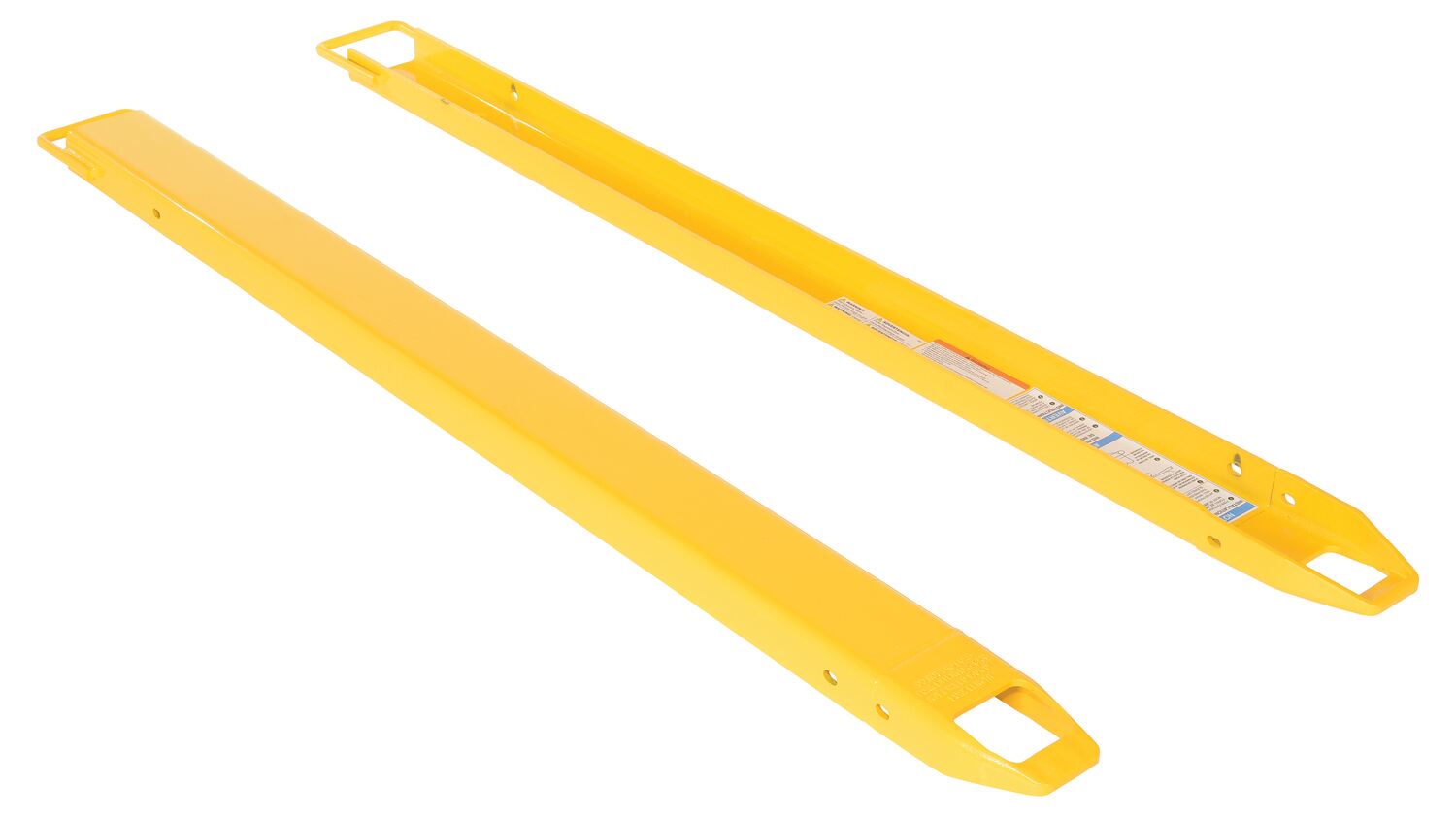

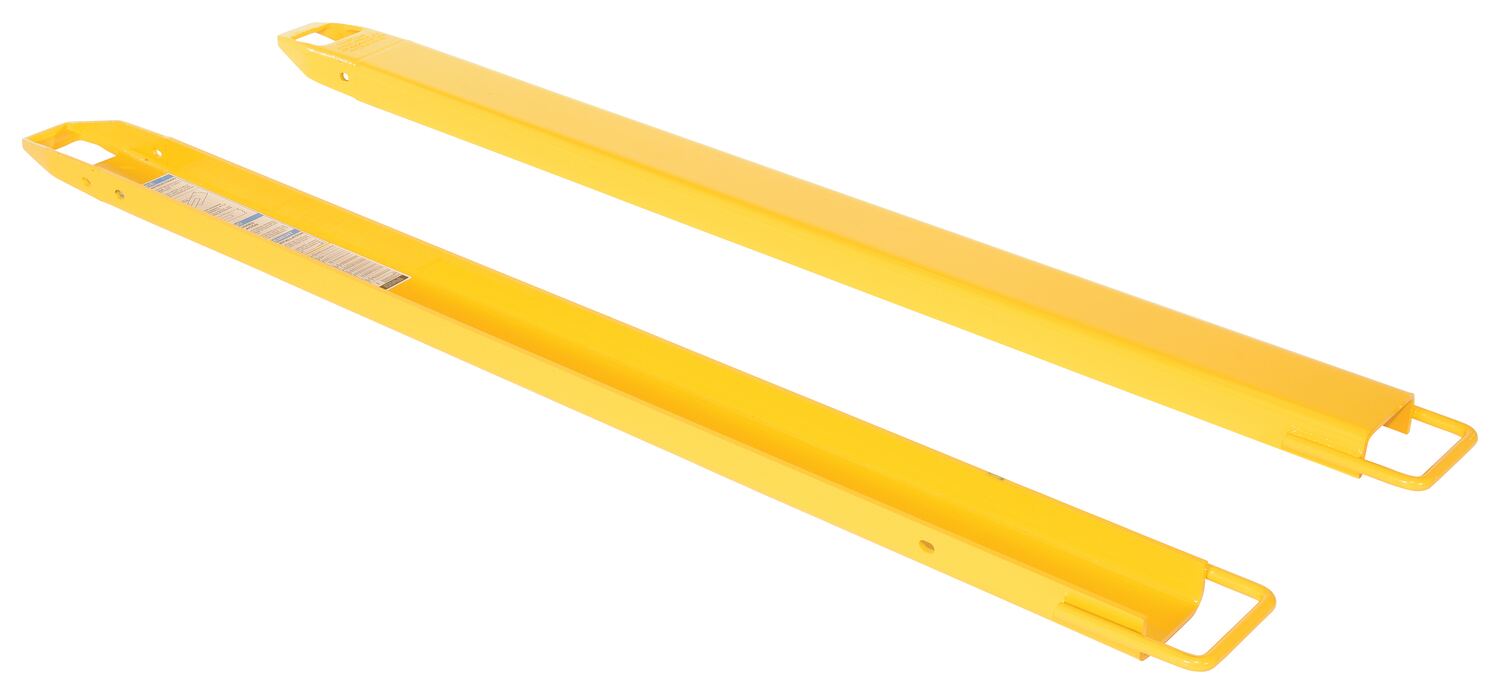

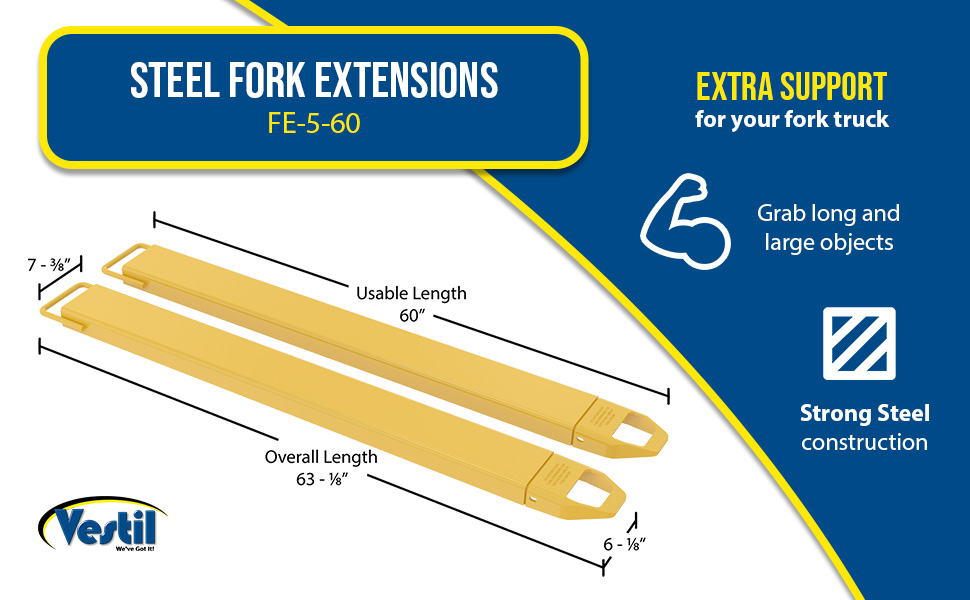

Fork Extensions

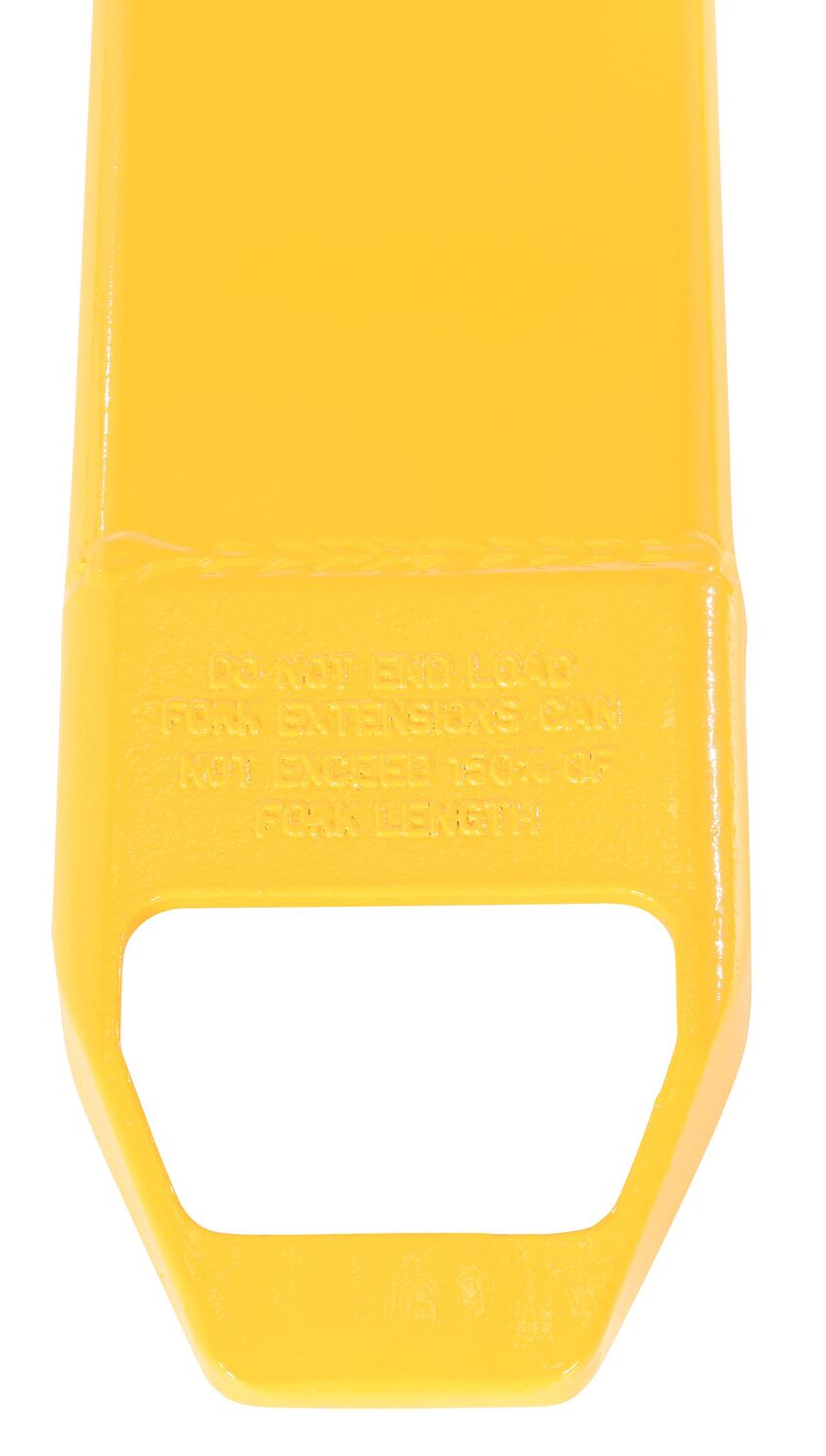

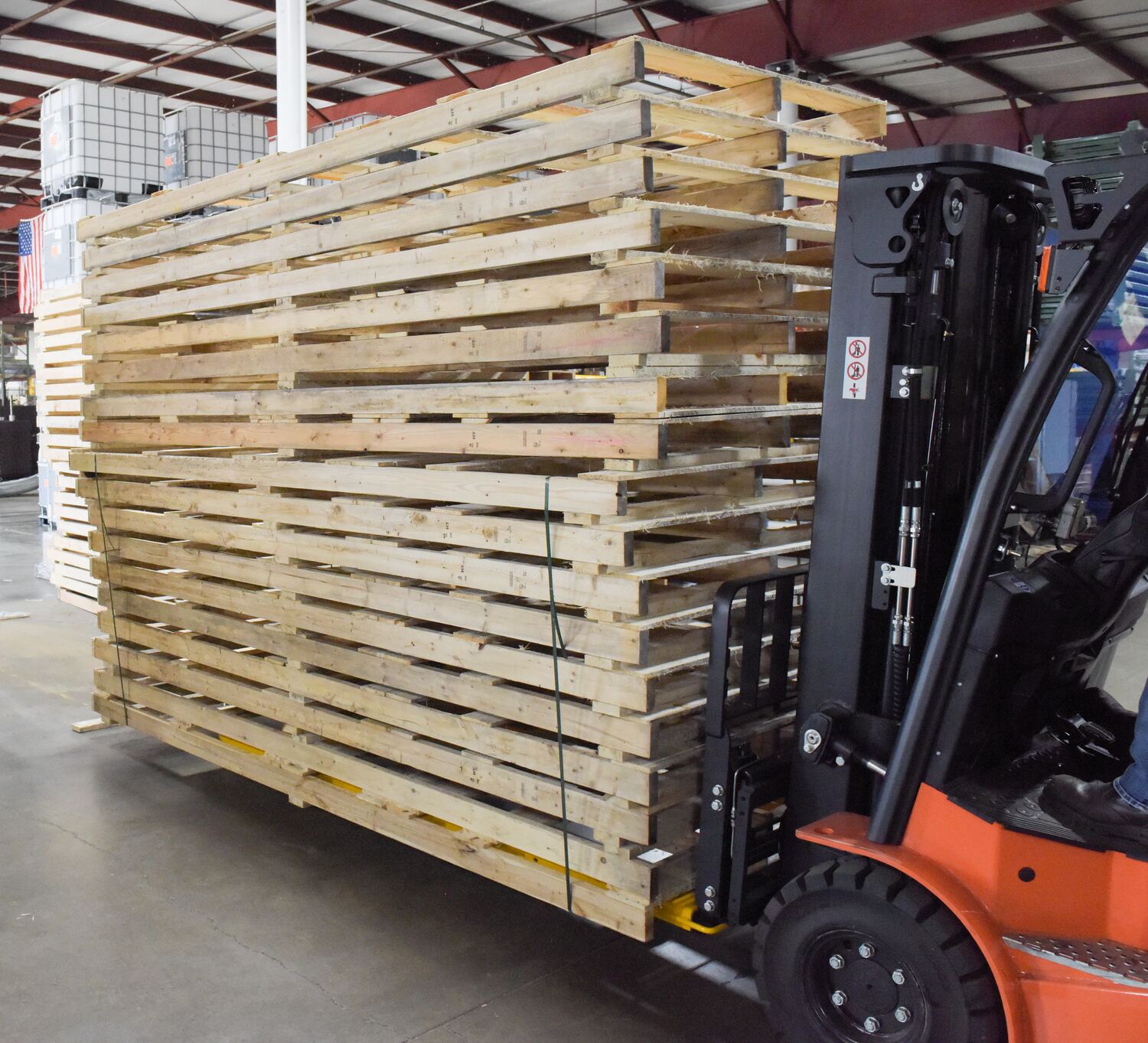

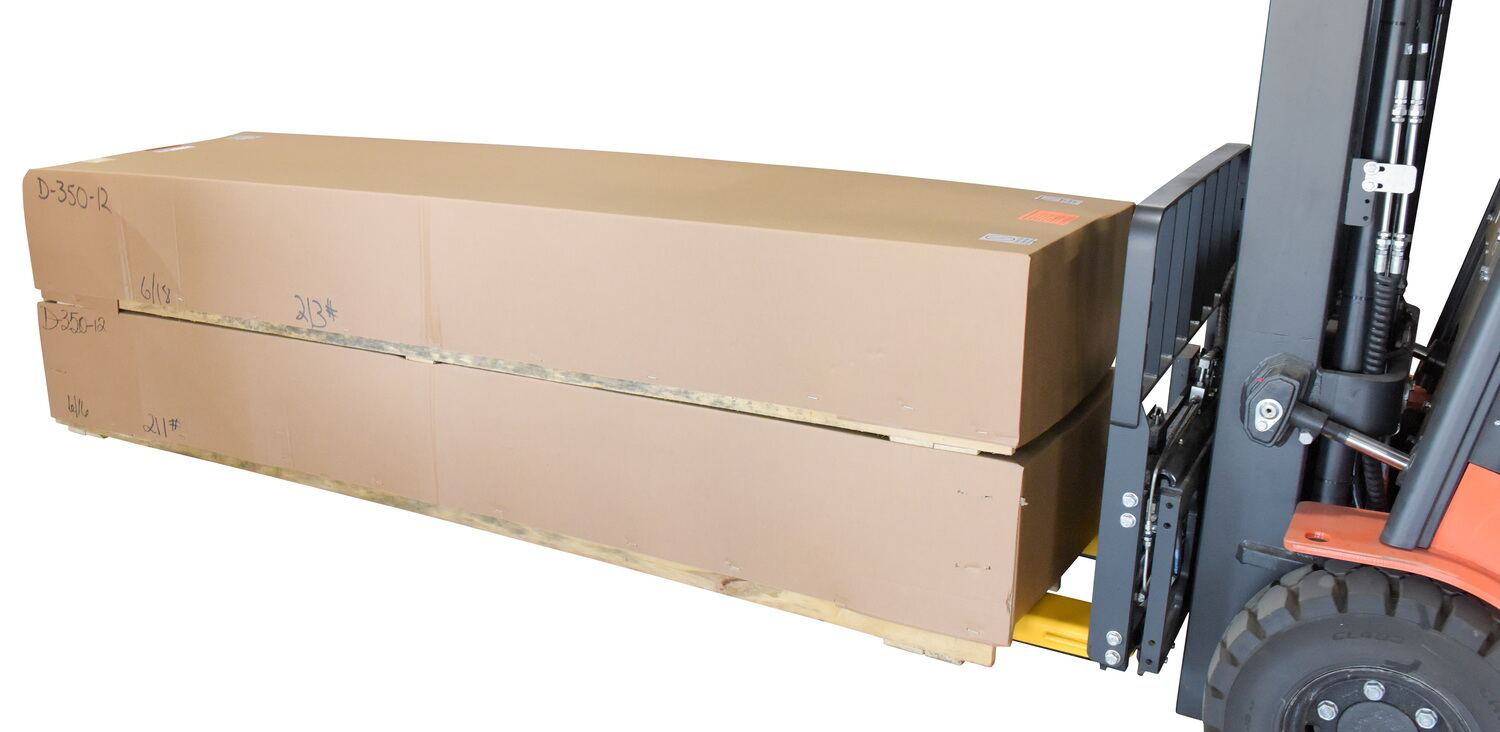

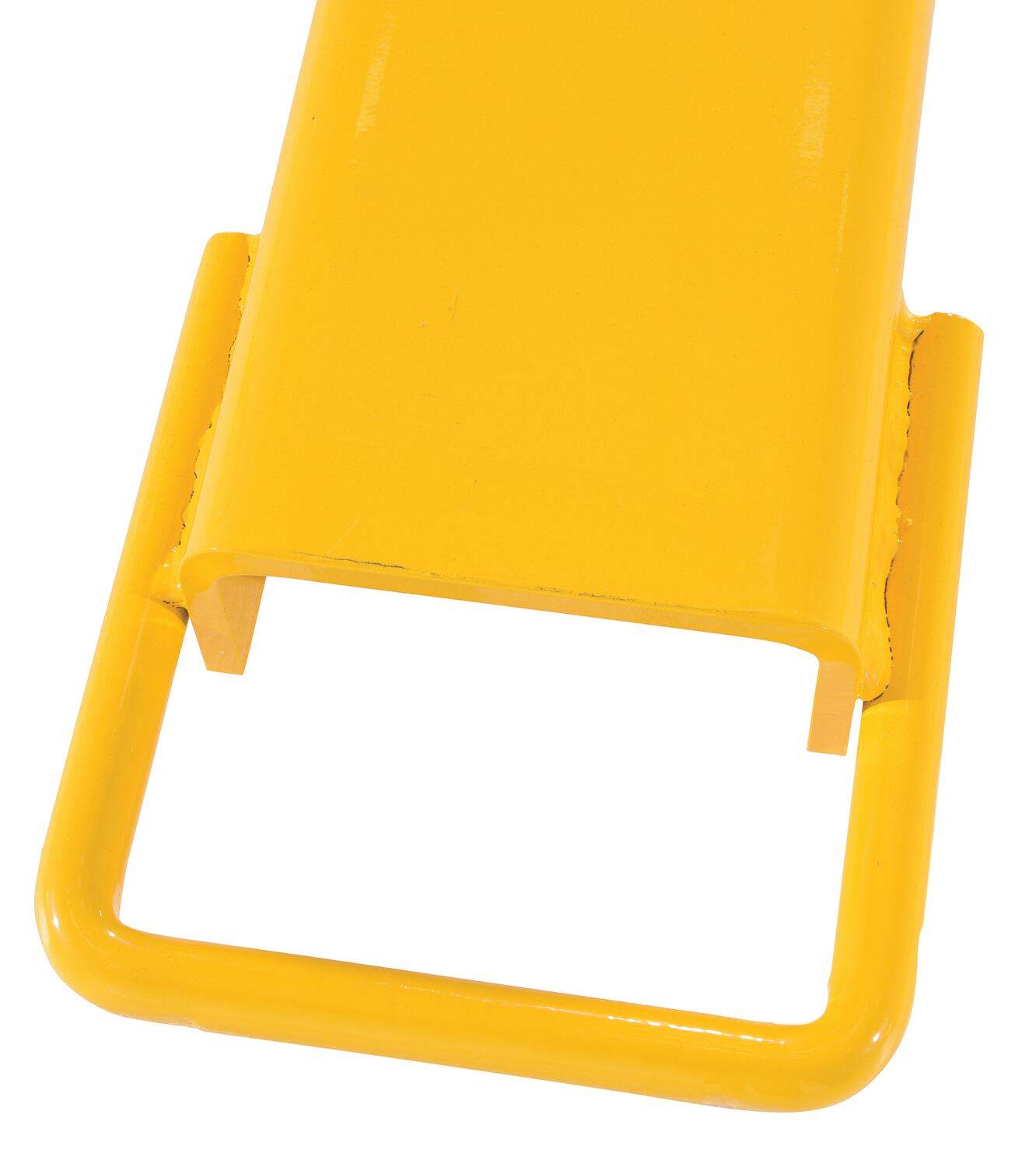

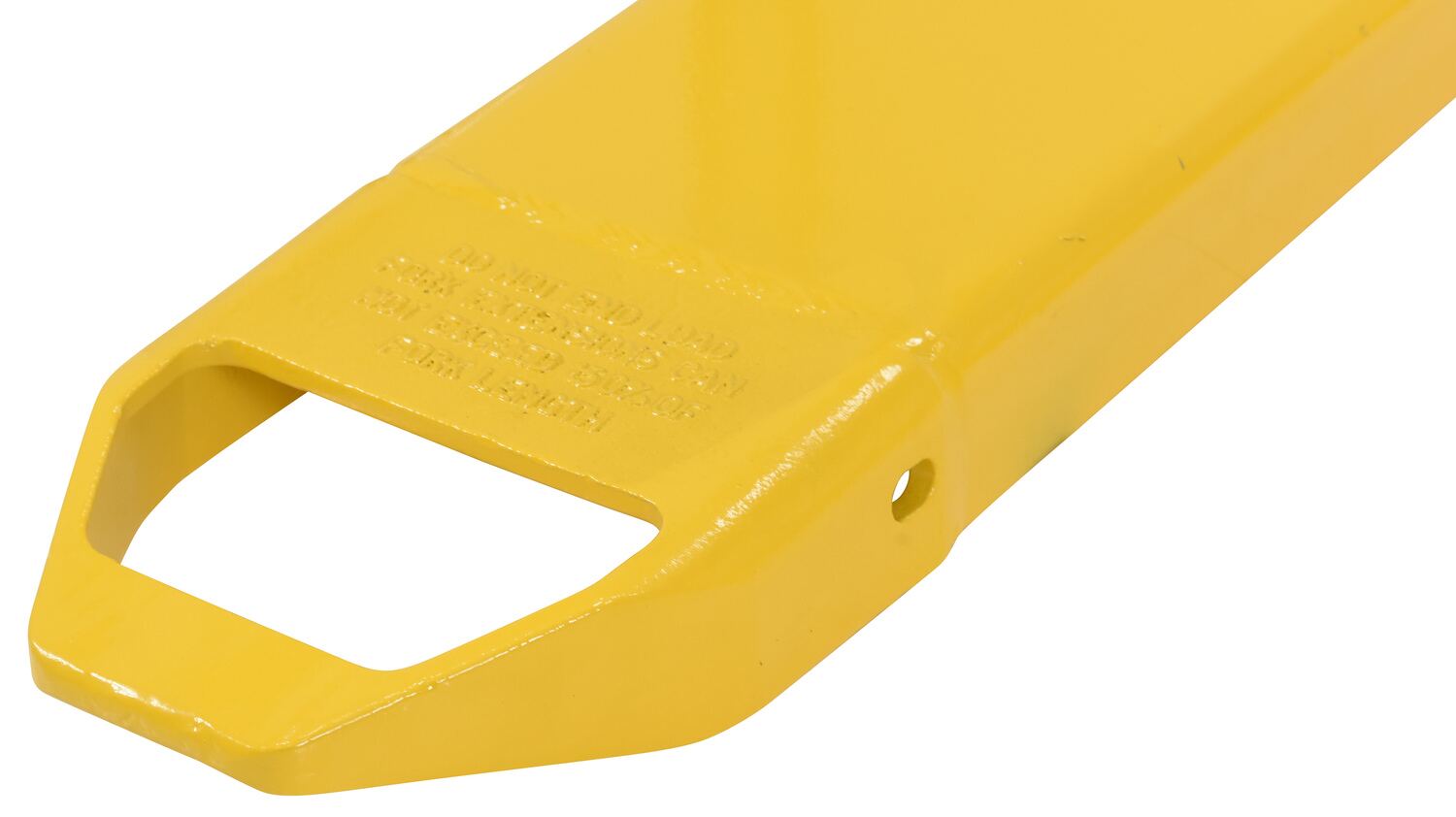

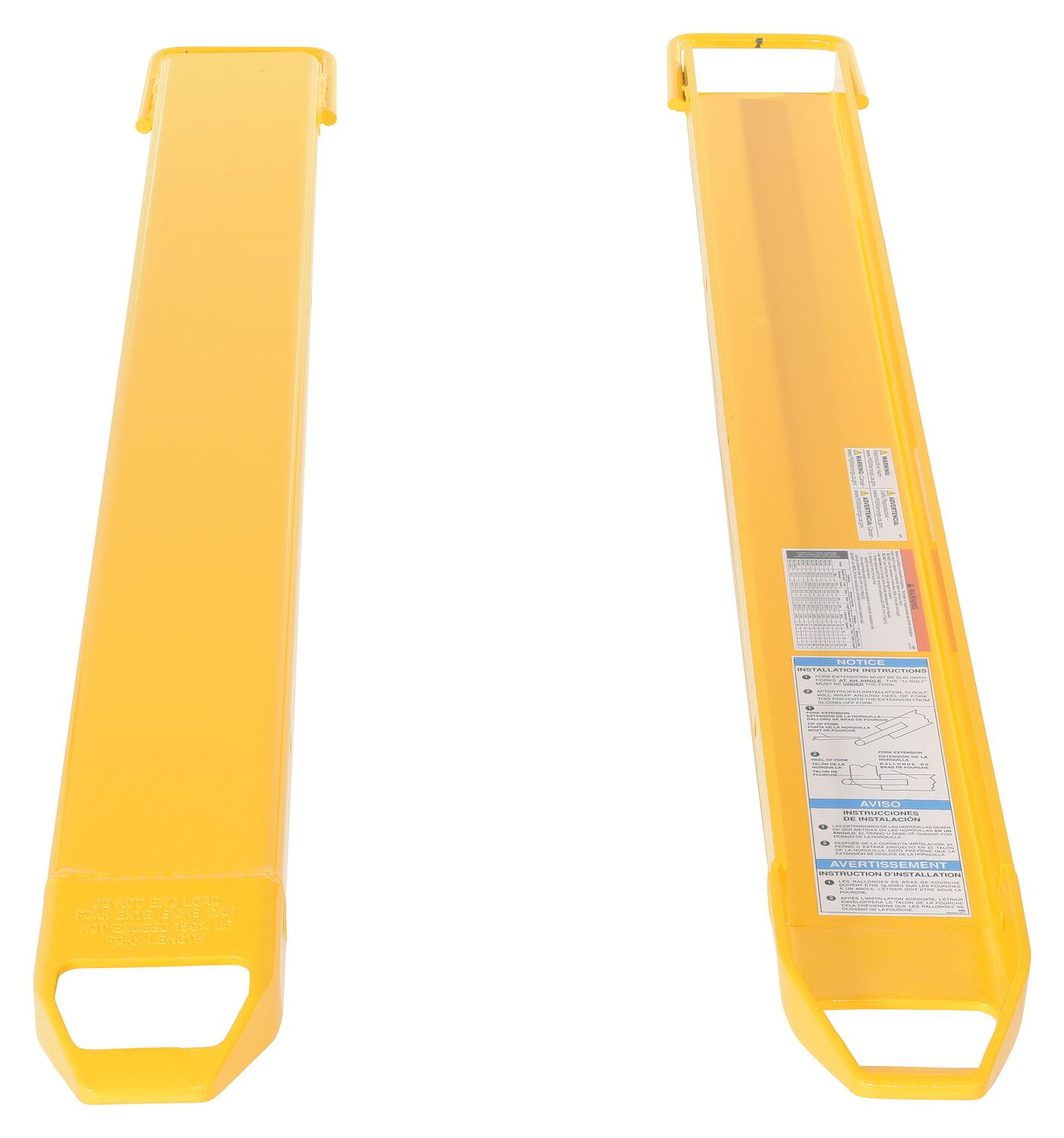

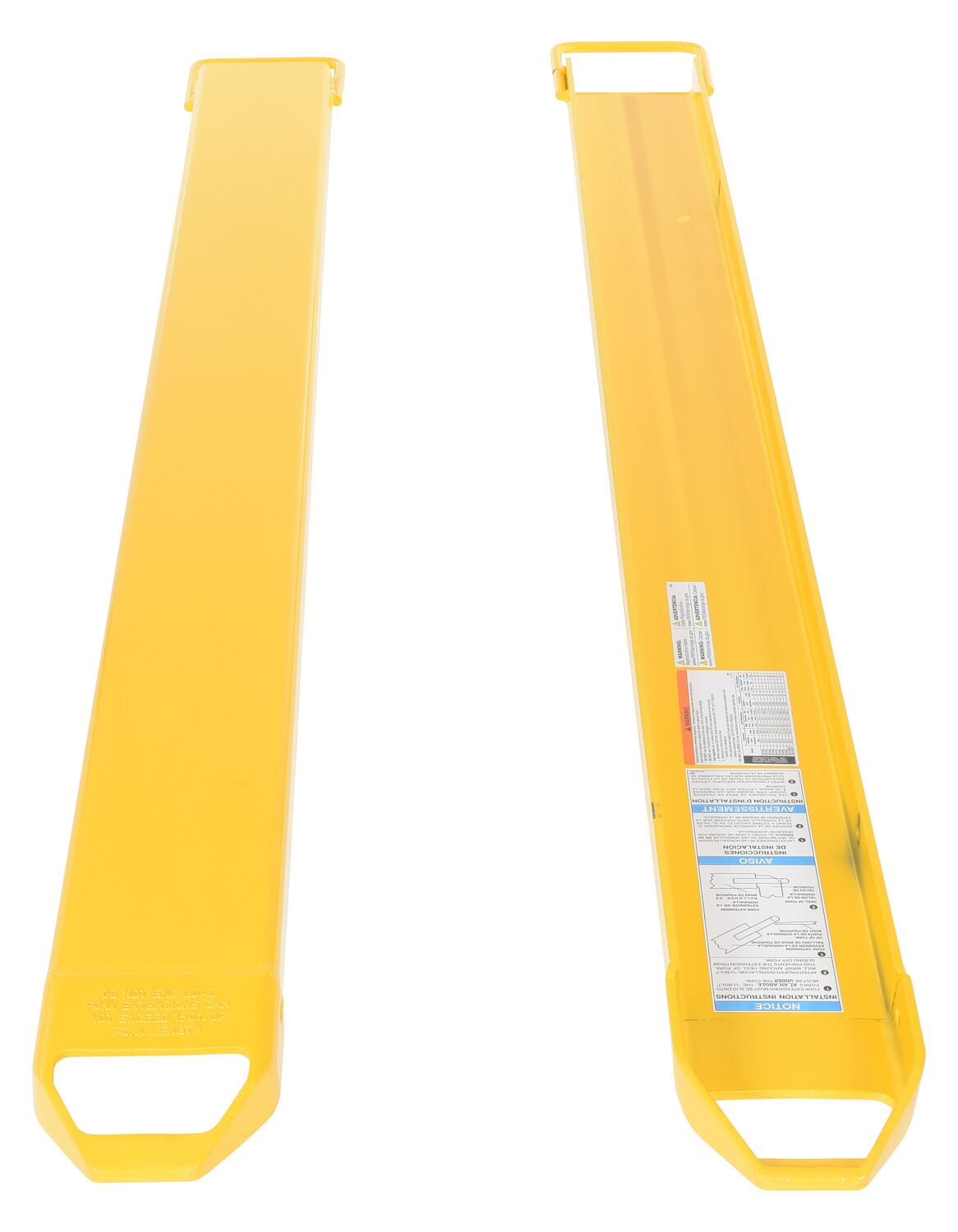

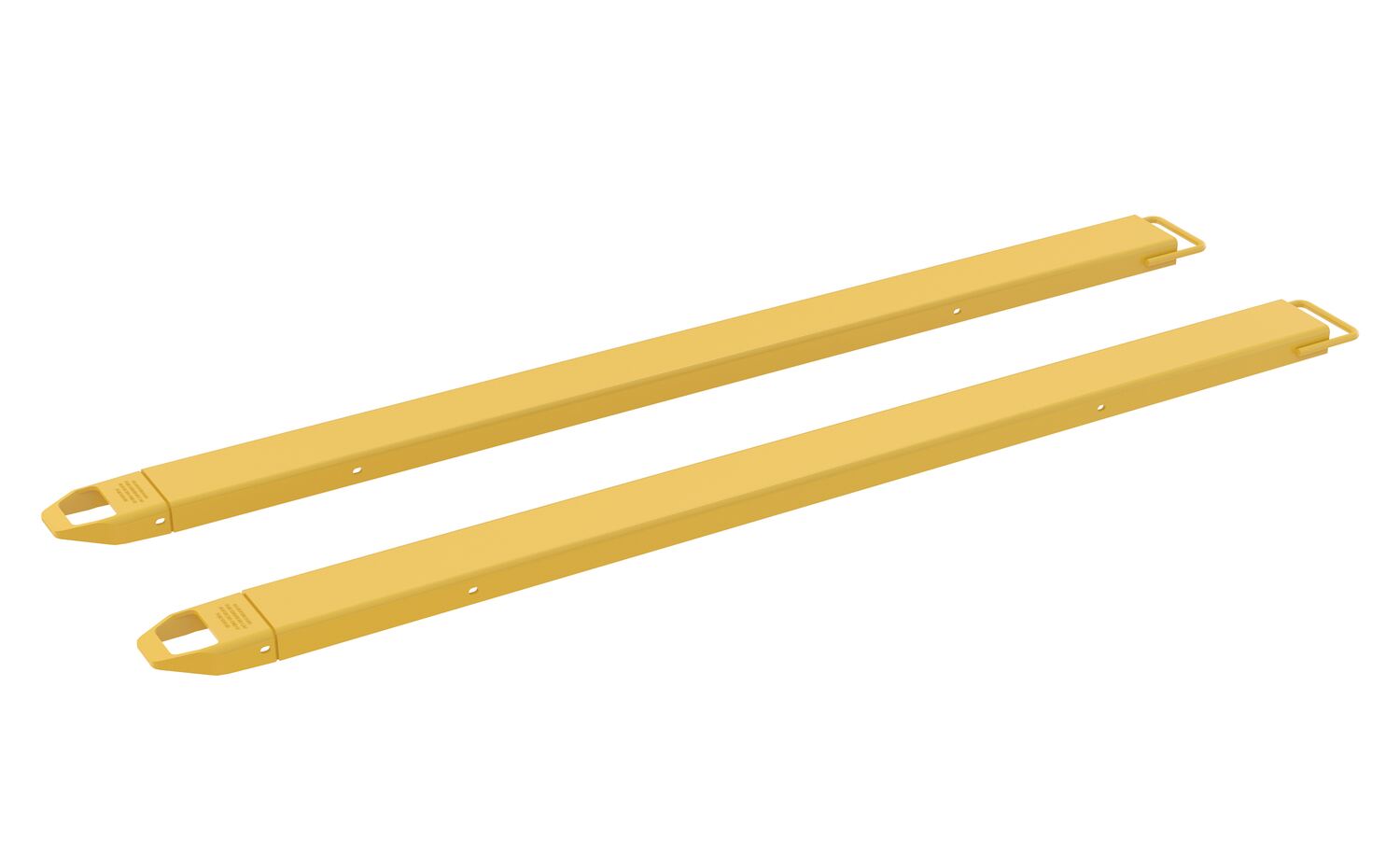

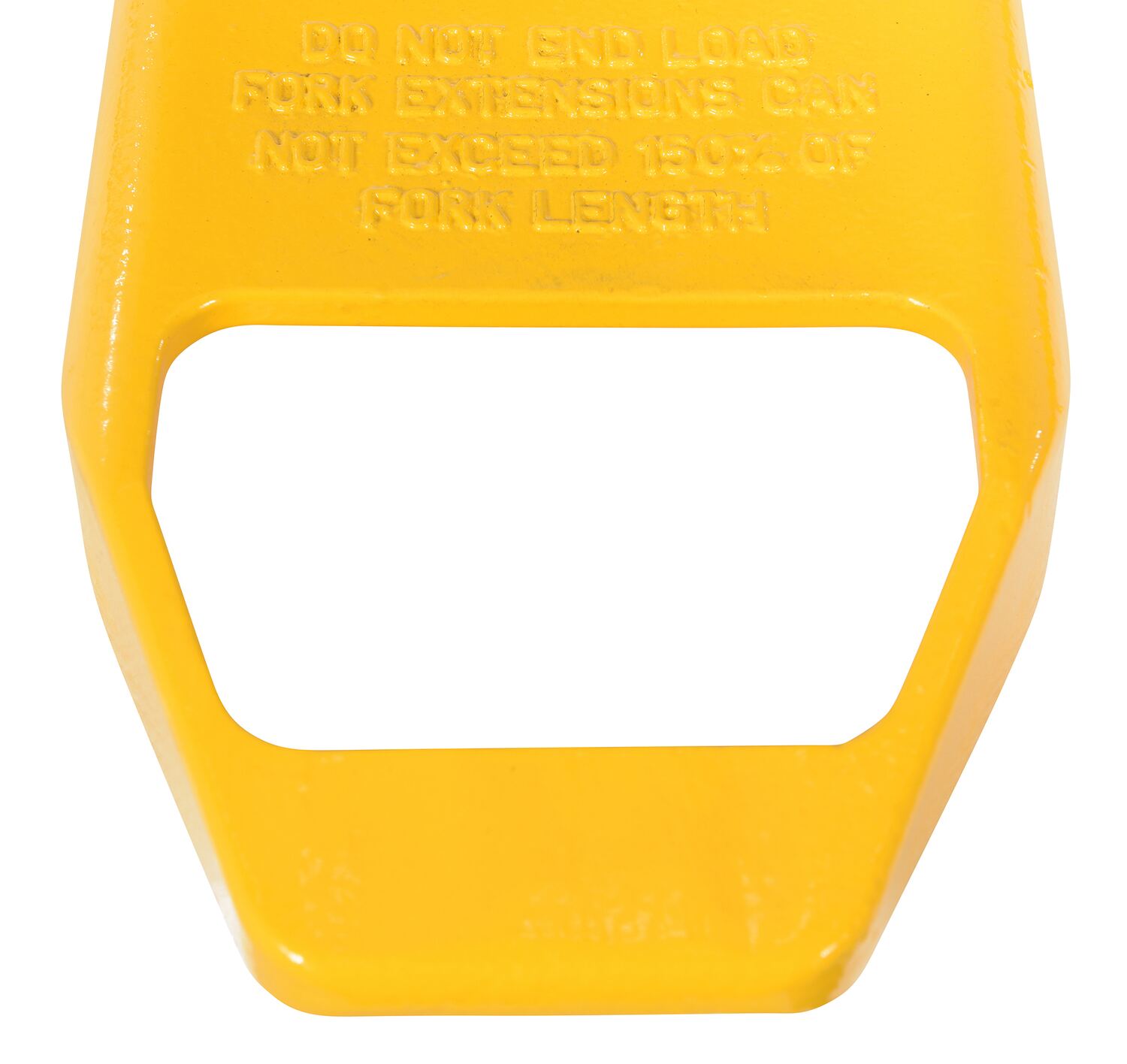

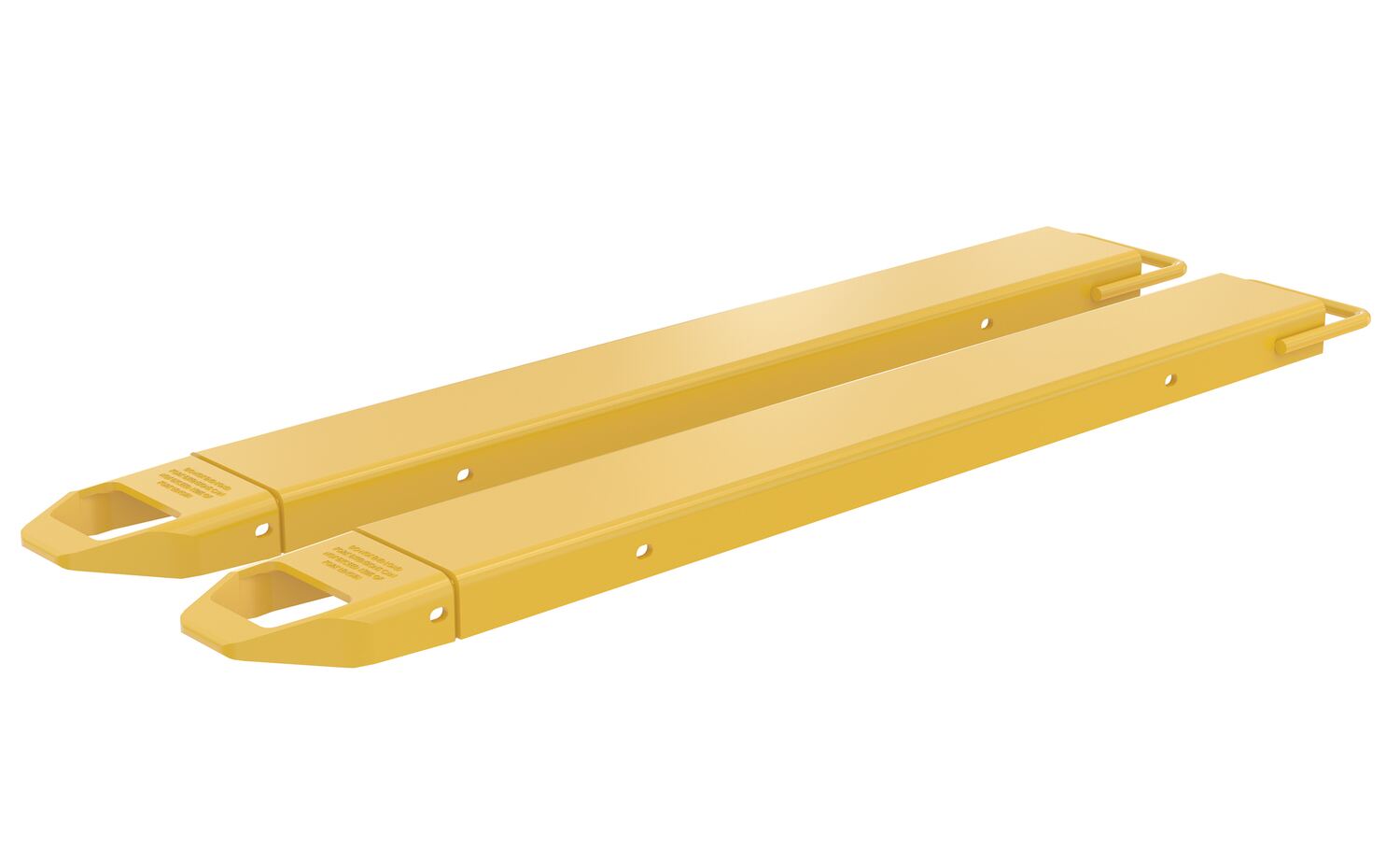

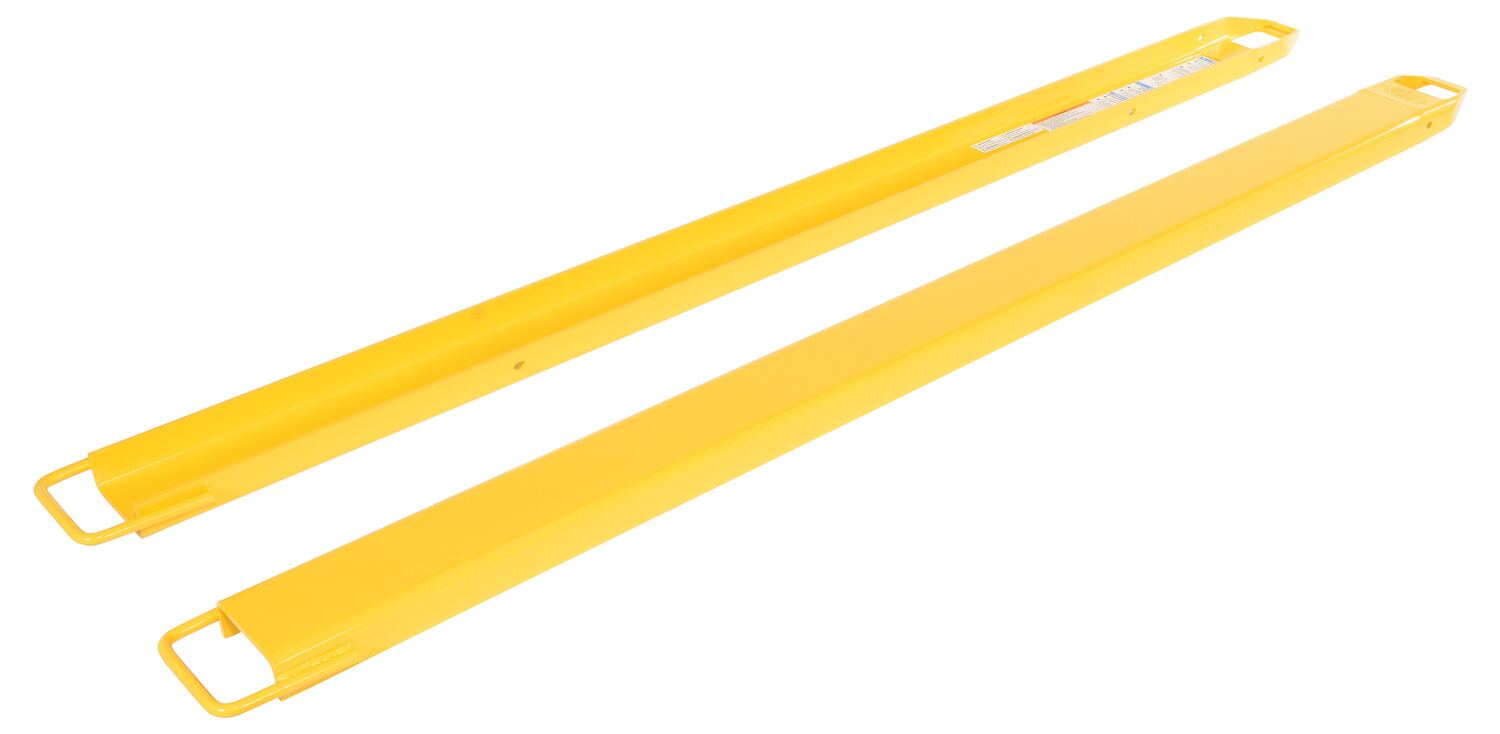

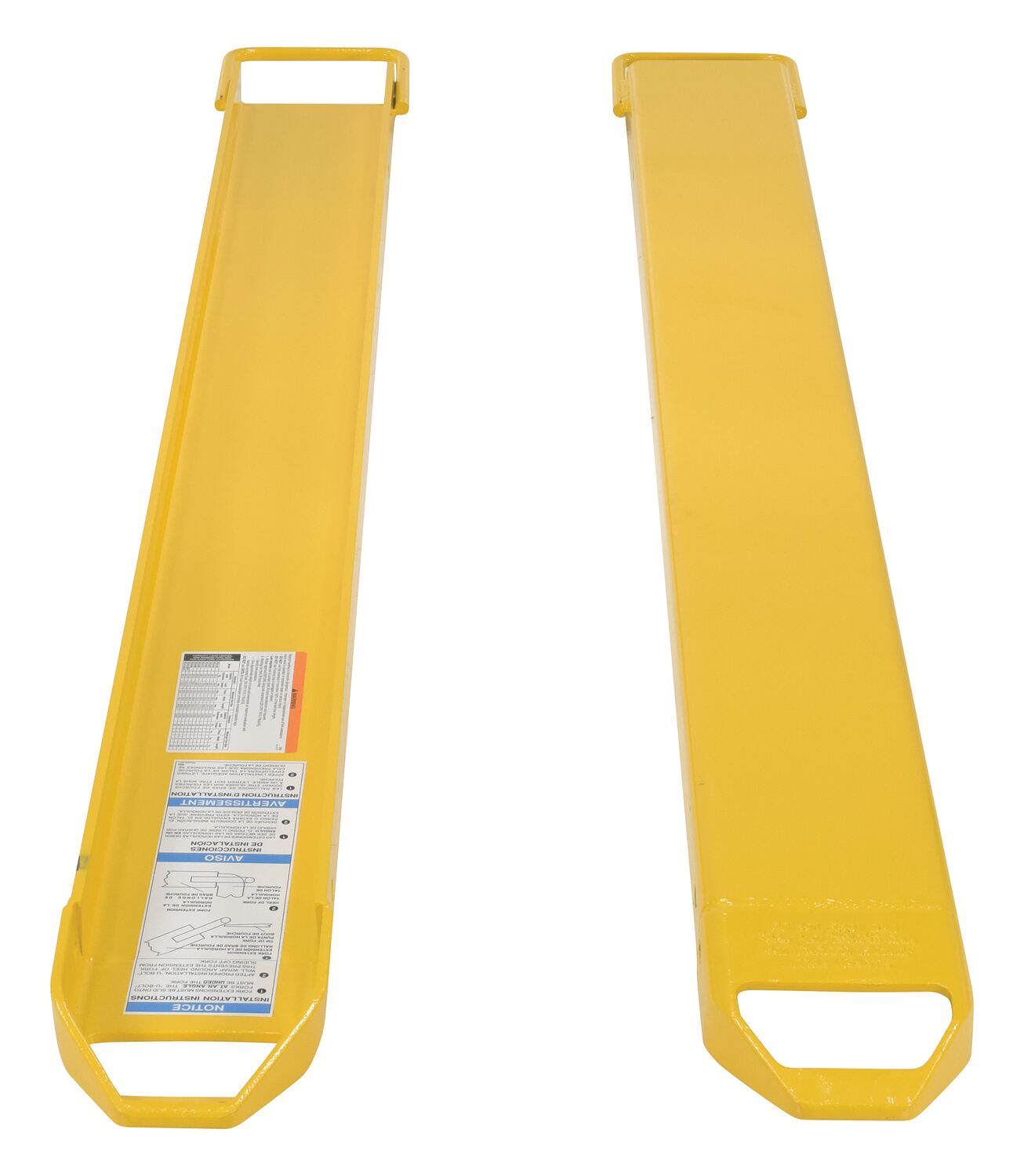

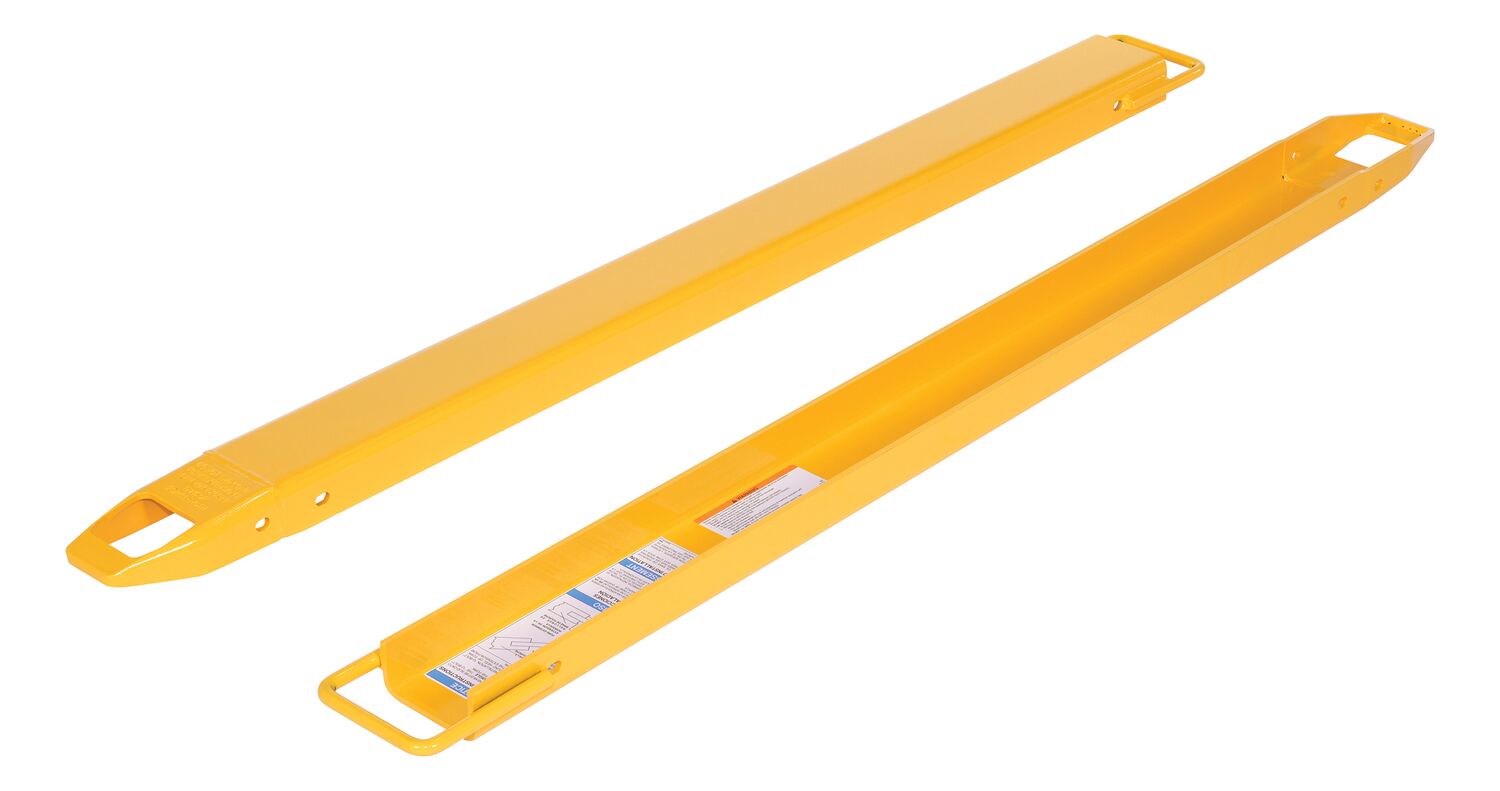

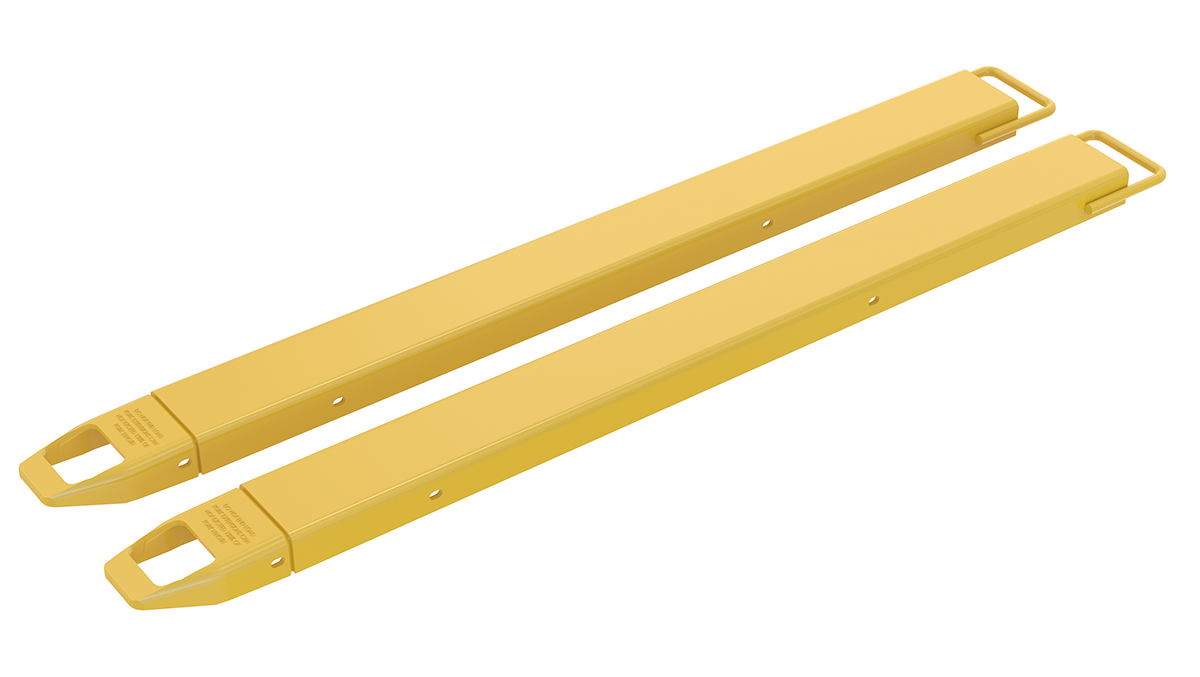

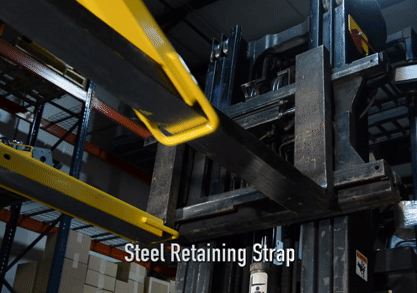

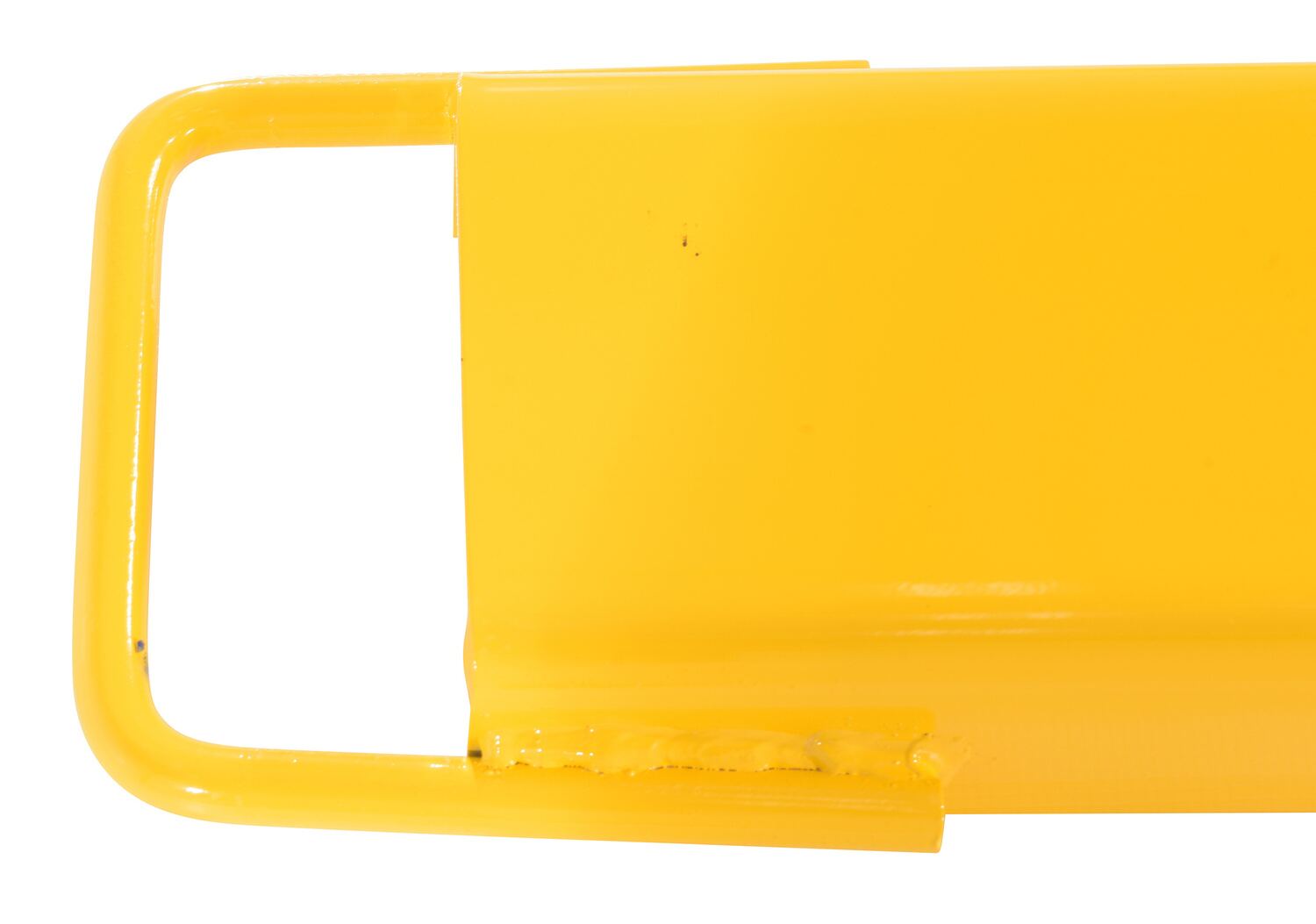

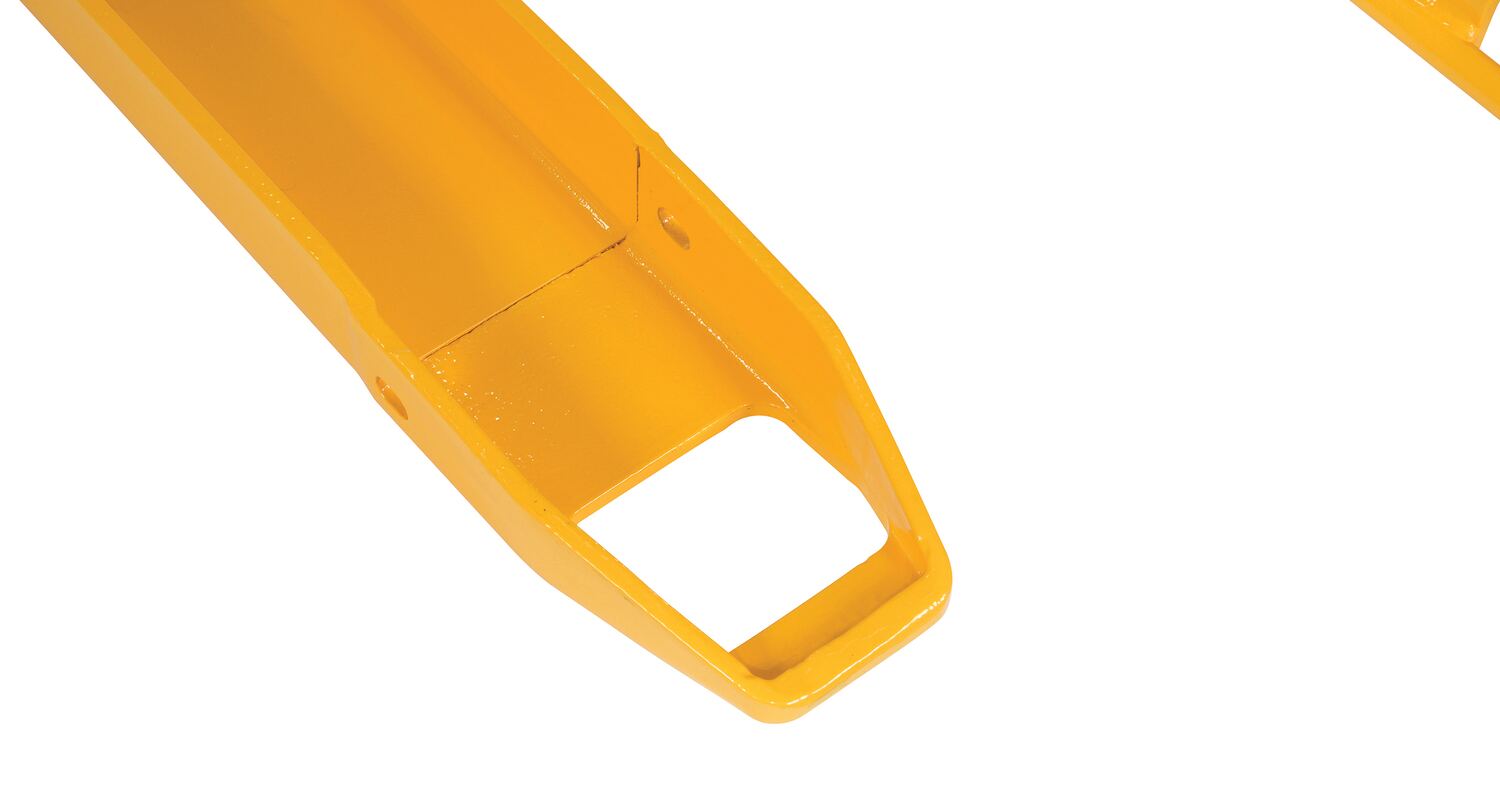

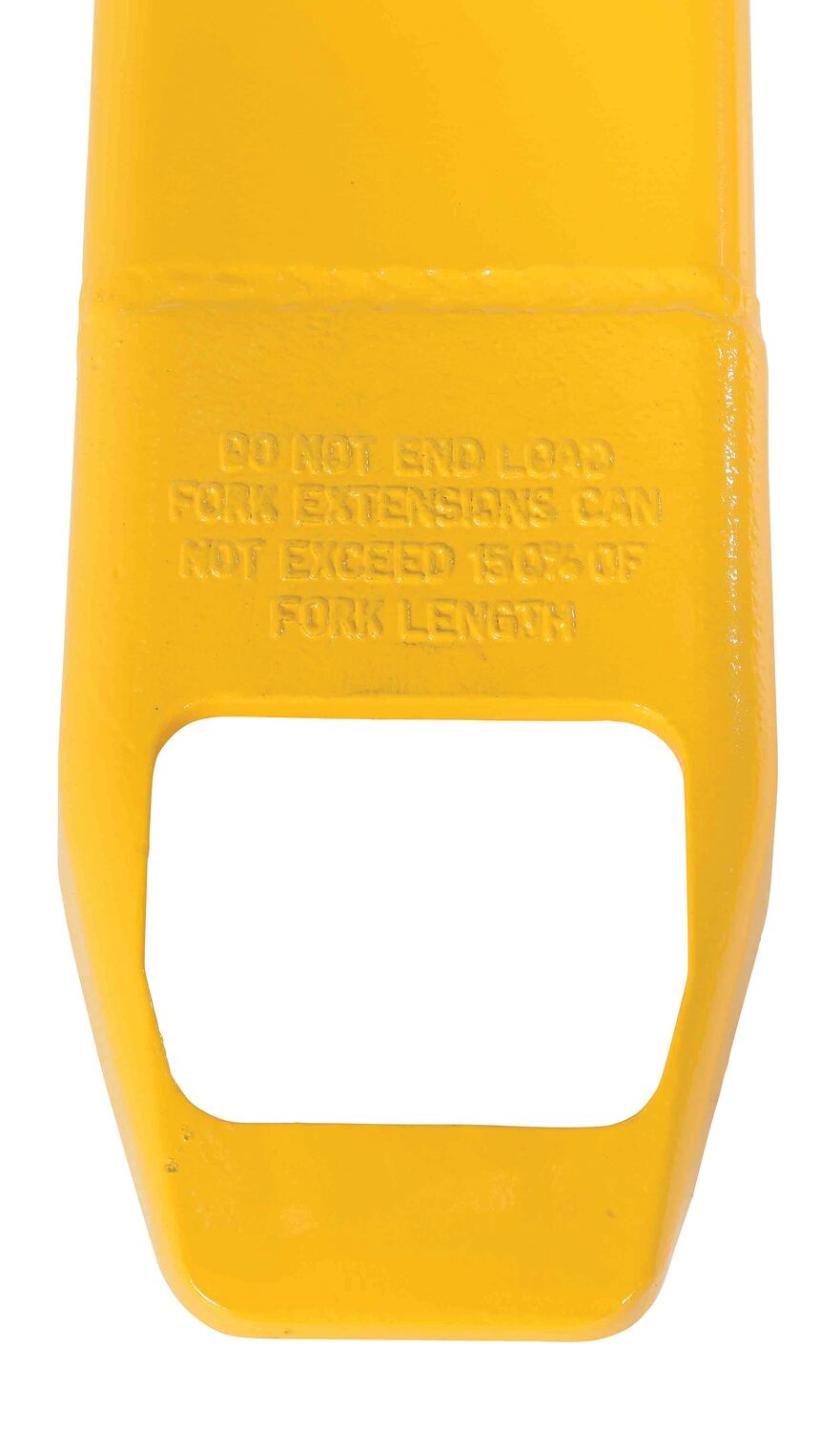

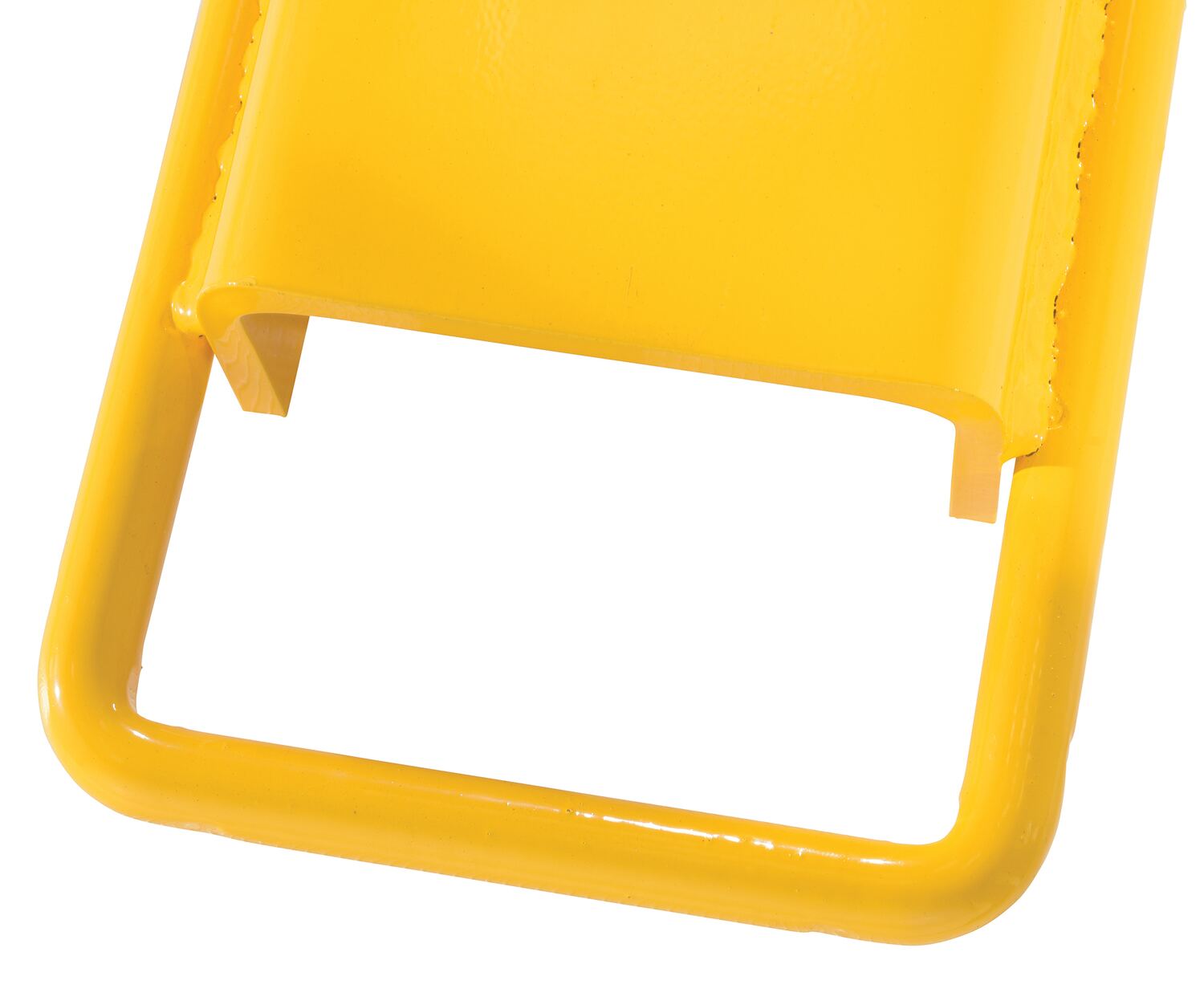

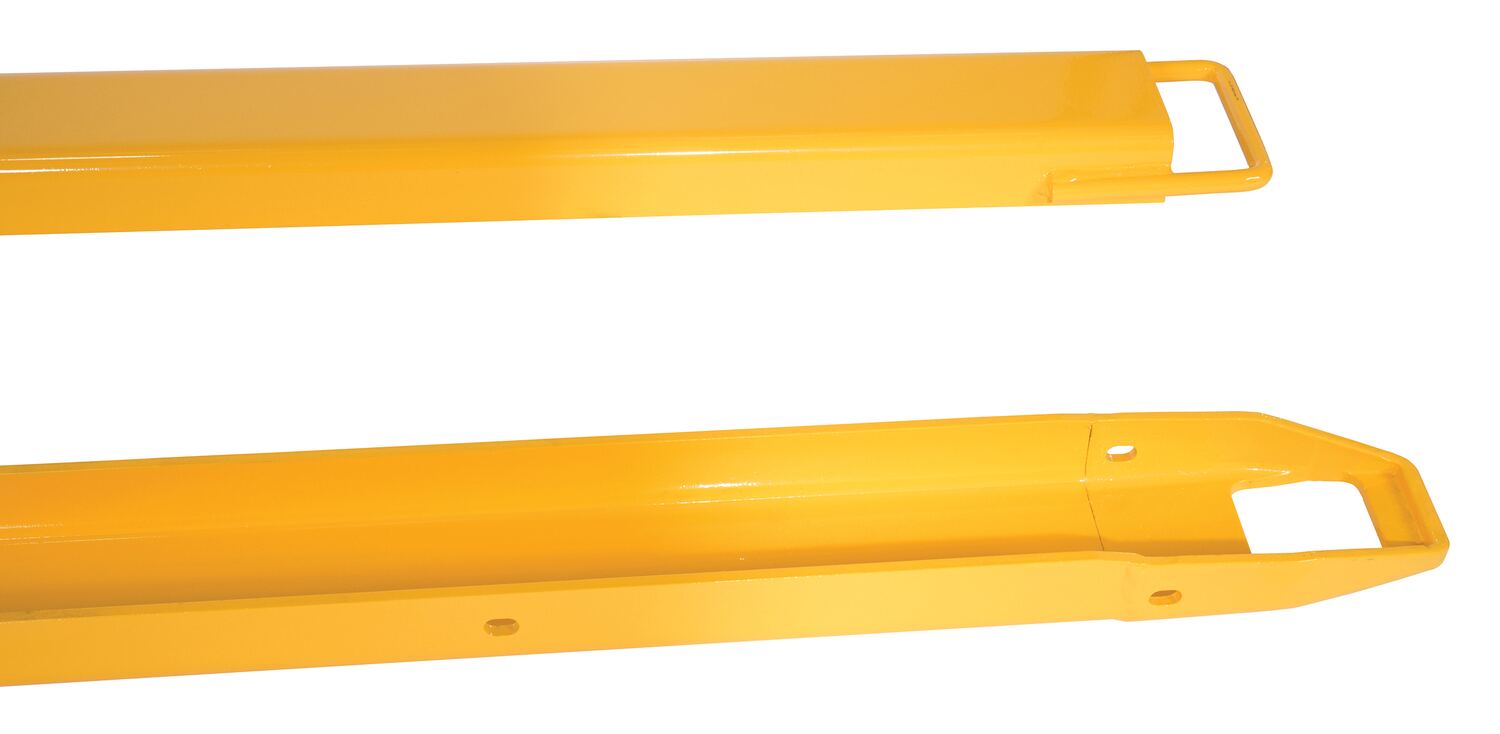

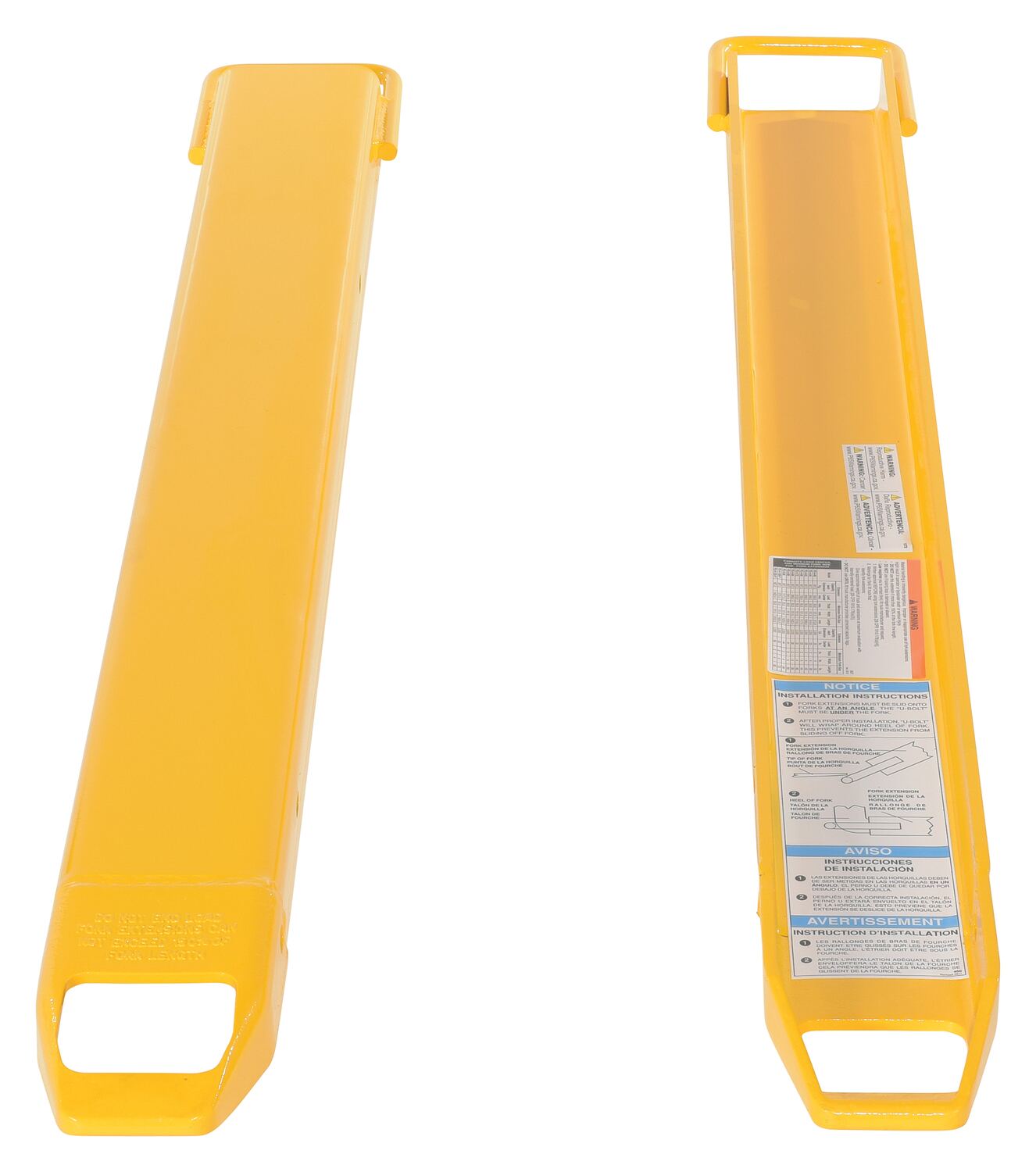

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 and FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Steel retaining strap (loop style*) prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair.

HOW TO USE / INSTALLATION

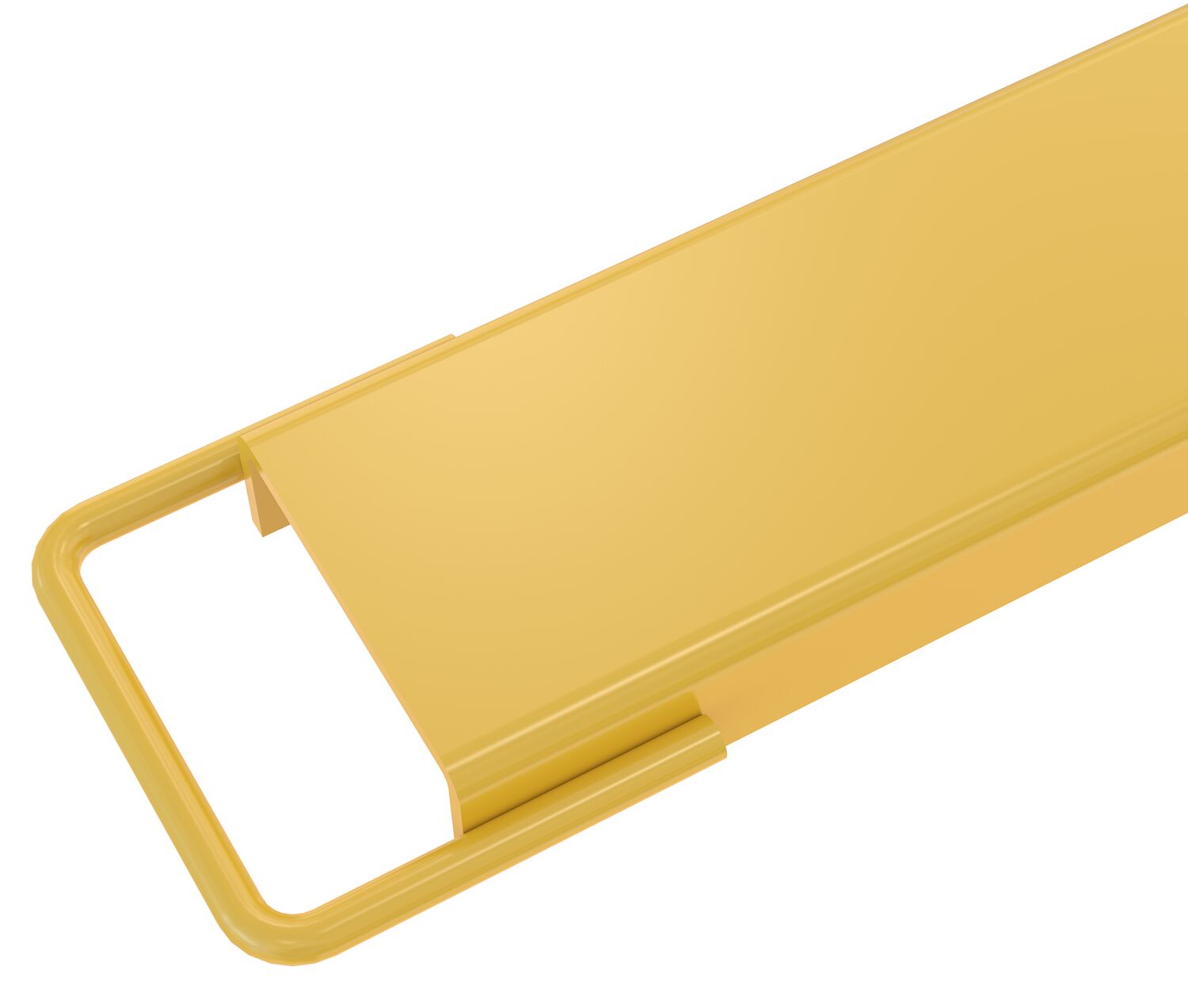

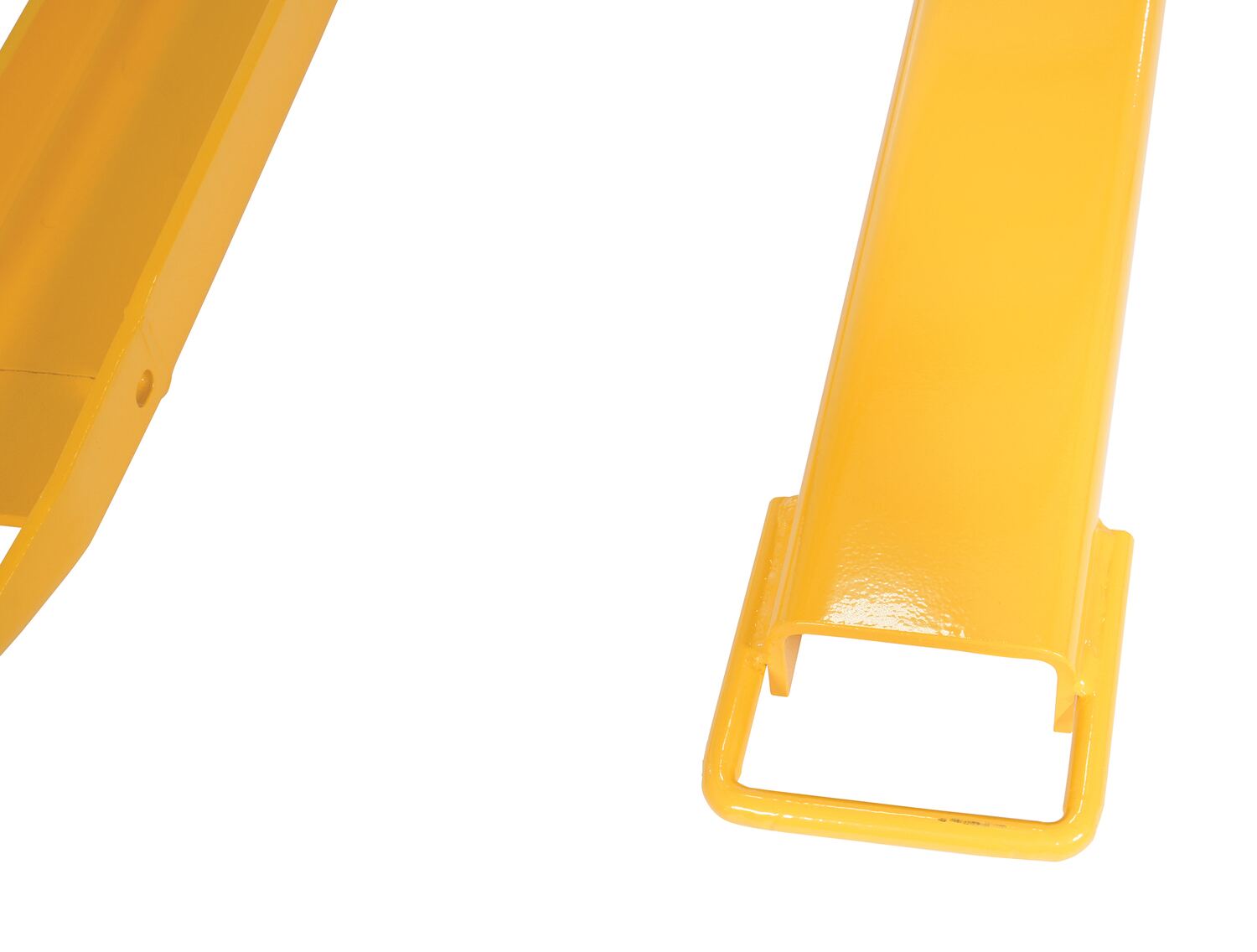

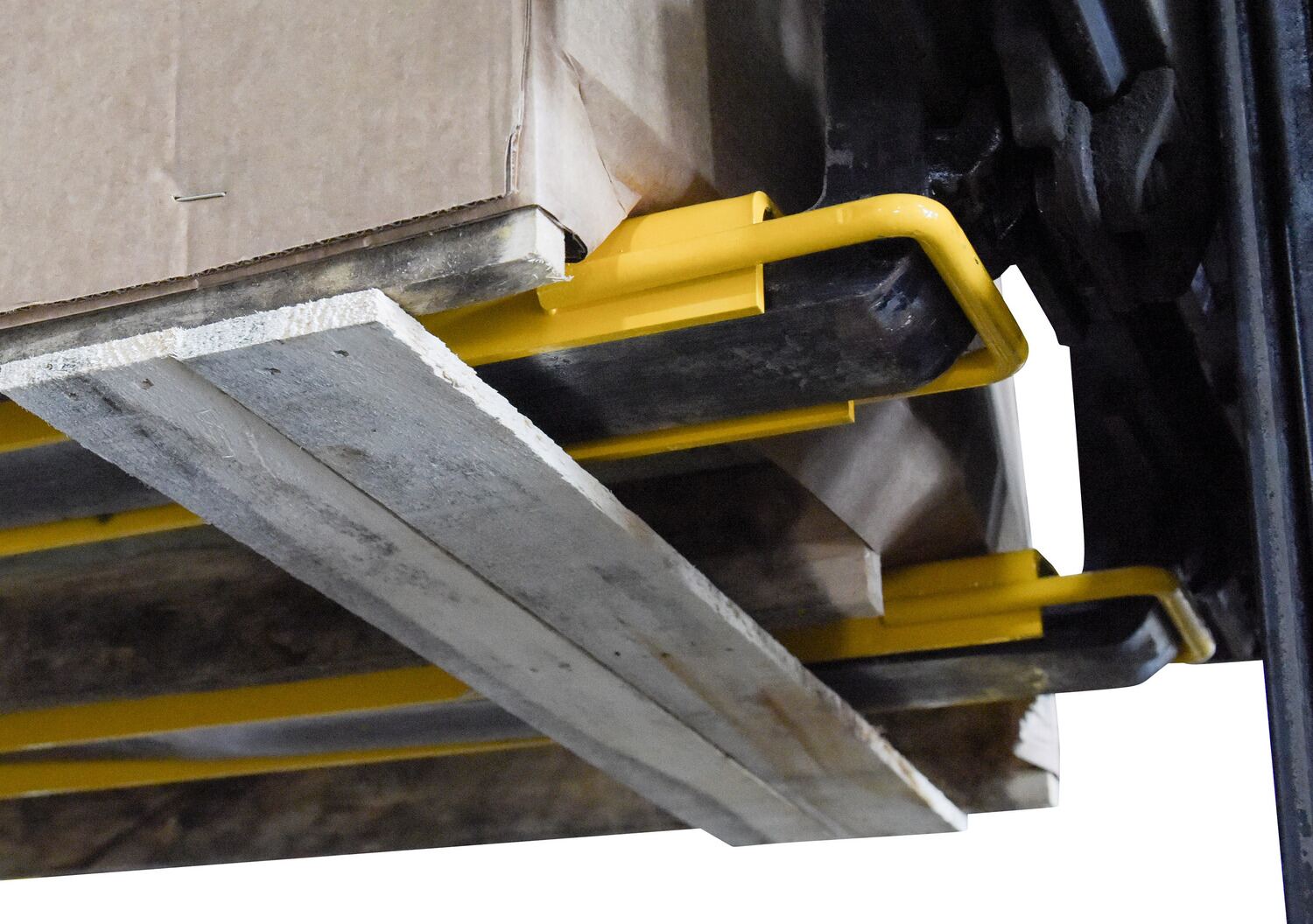

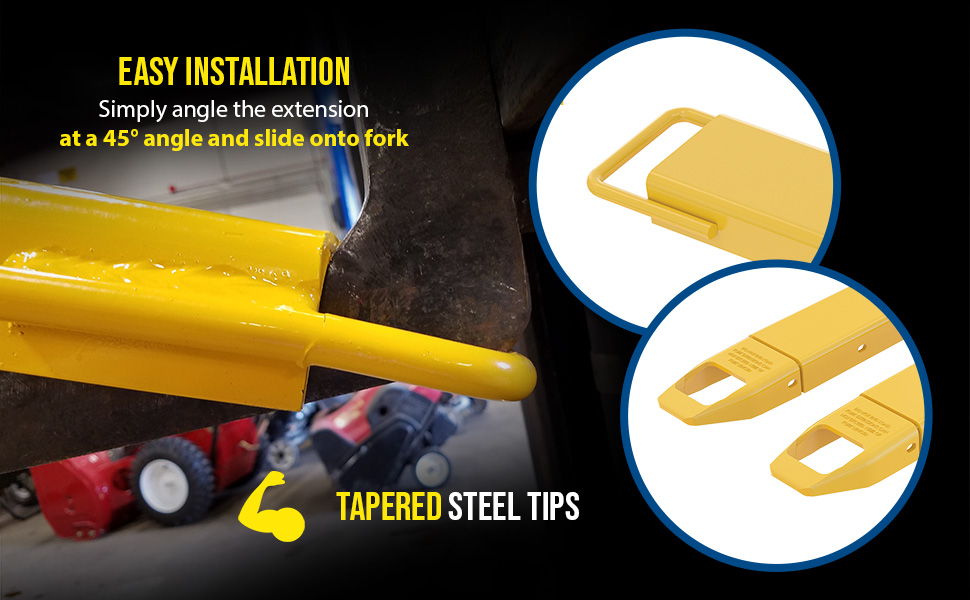

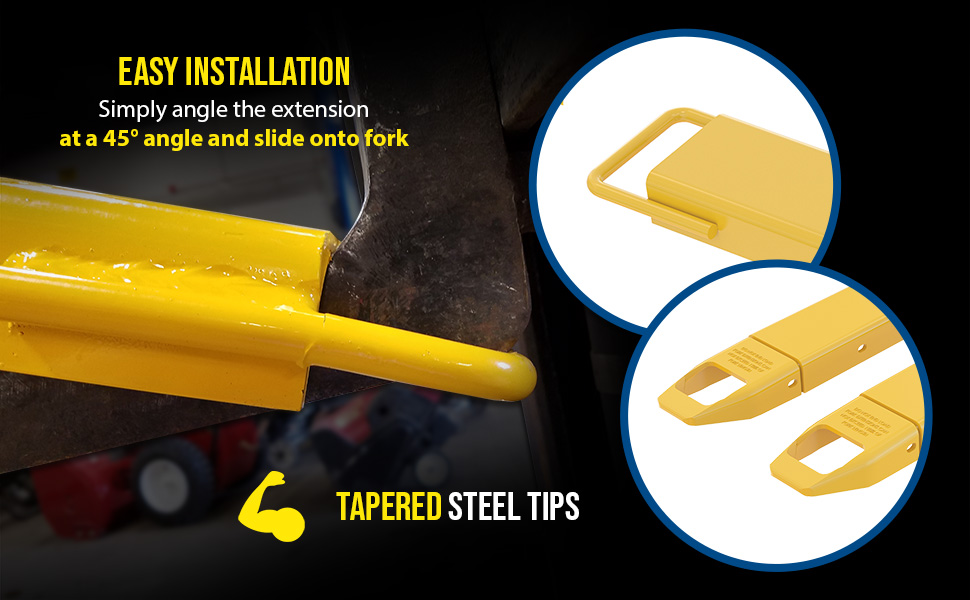

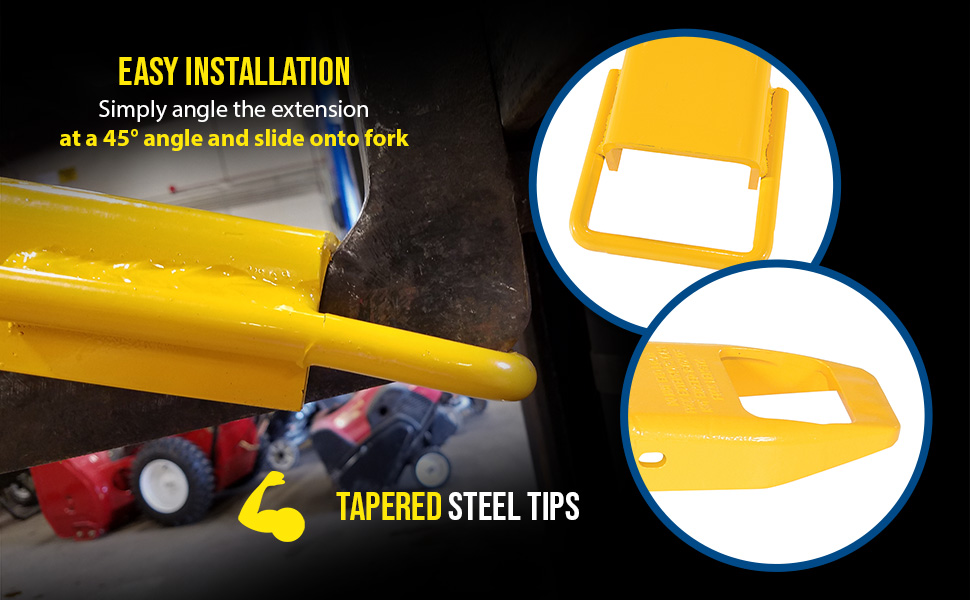

Standard Loop Style: Insert loop at the tip of the fork and slide it up at a 45 degree angle then lay it down over the existing fork.

Pin Style (suffix P): Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension.

Rear Spacer (model: FE-RS): Load pallets into rear of trailer conveniently and easily. Practical for pushing pallets two or three deep into a trailer. This option is factory installed and must be ordered with fork extensions.

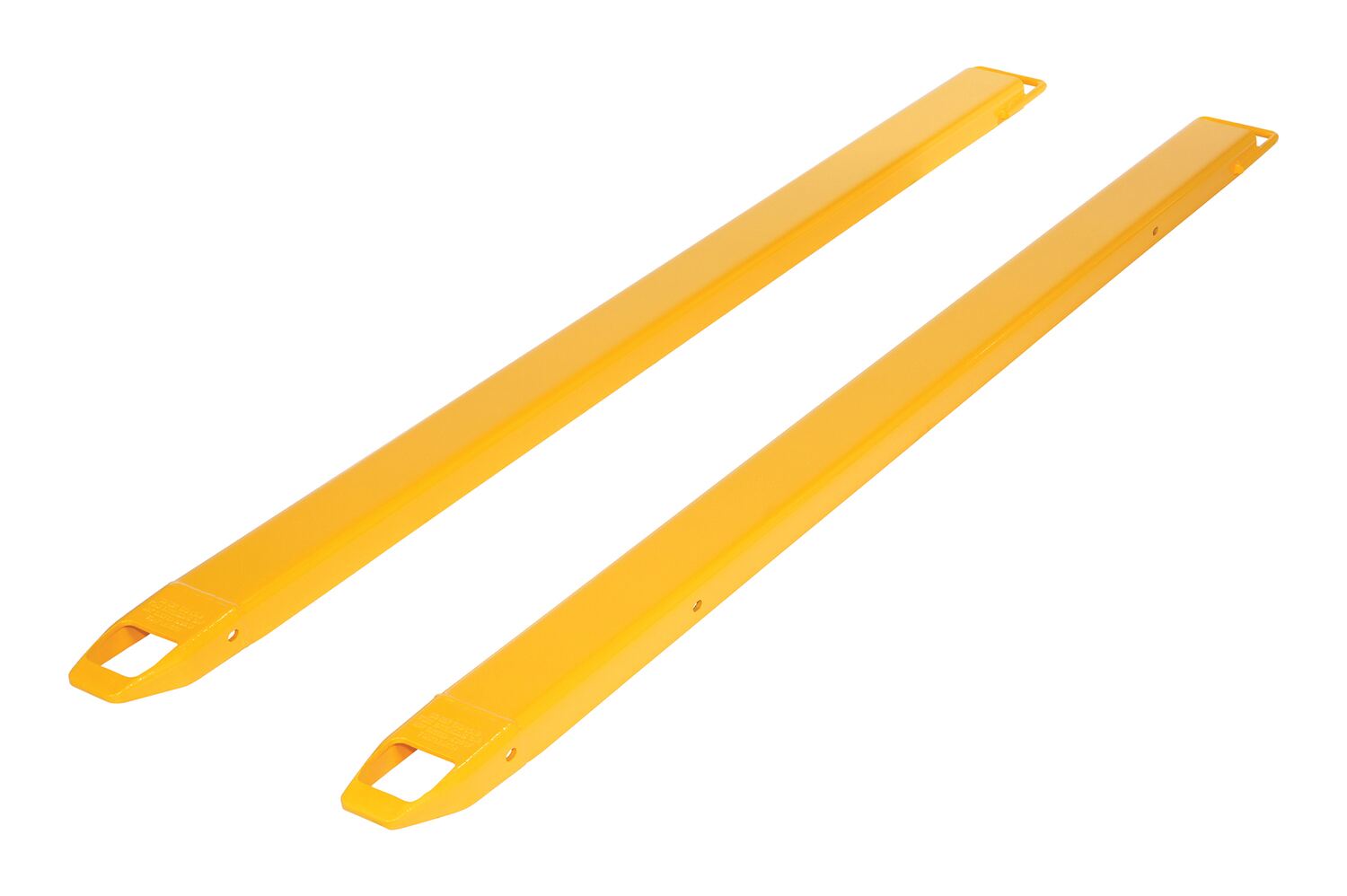

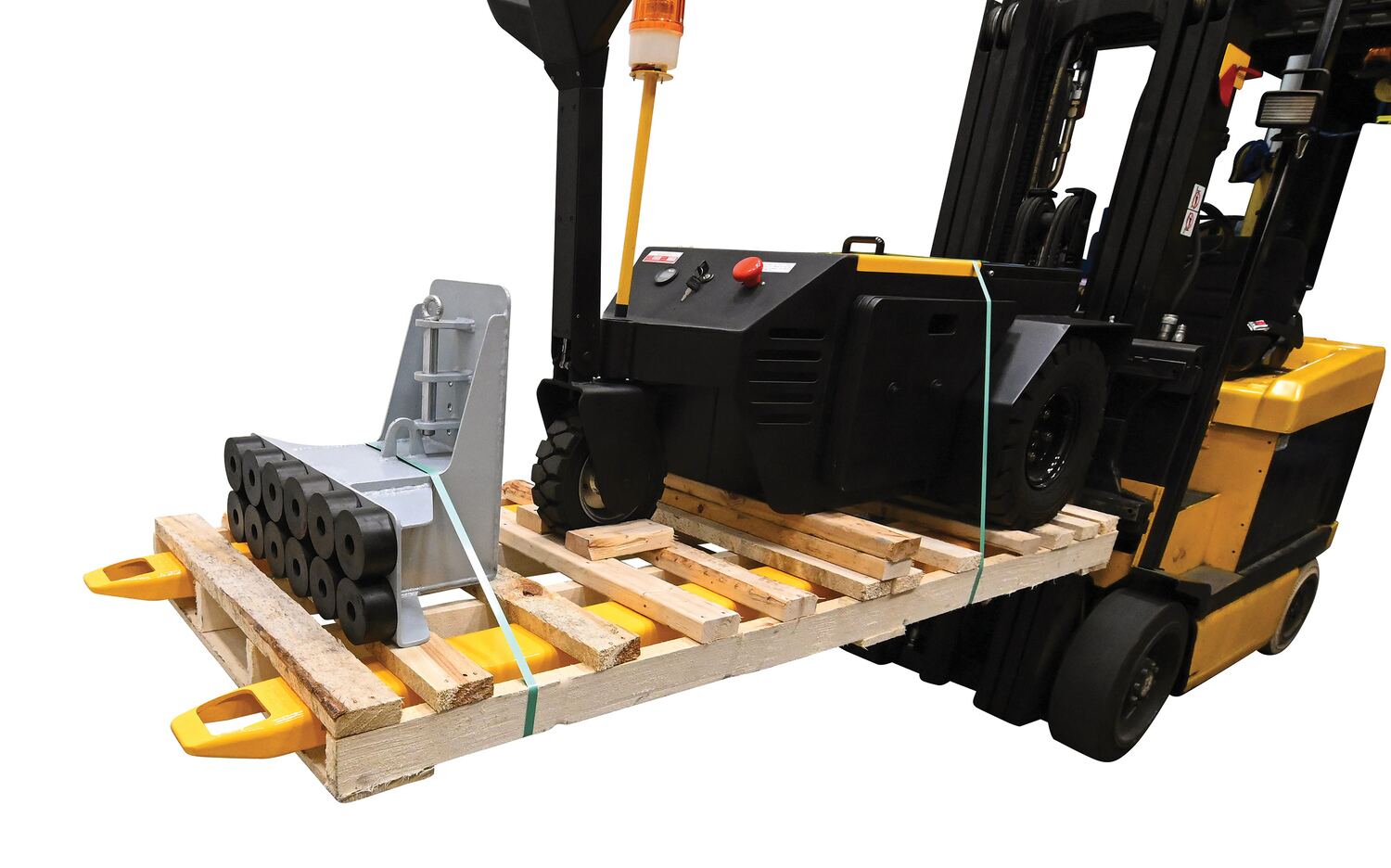

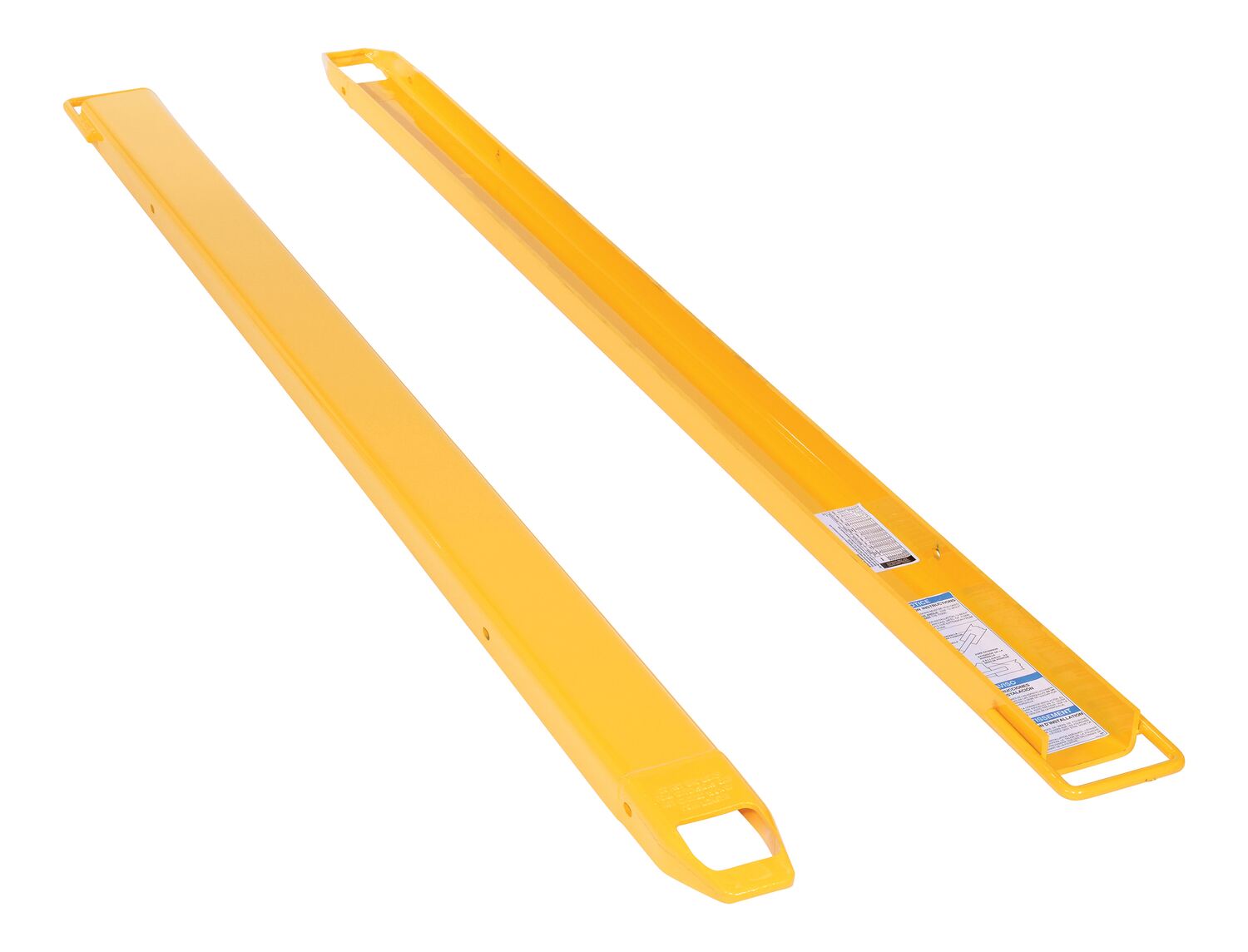

FE-4-90

model FE-4-90

FE-4-63-P

model FE-4-63-P

FE-4-72

model FE-4-72

FE-4-72-BK

model FE-4-72-BK

FE-5-48

model FE-5-48

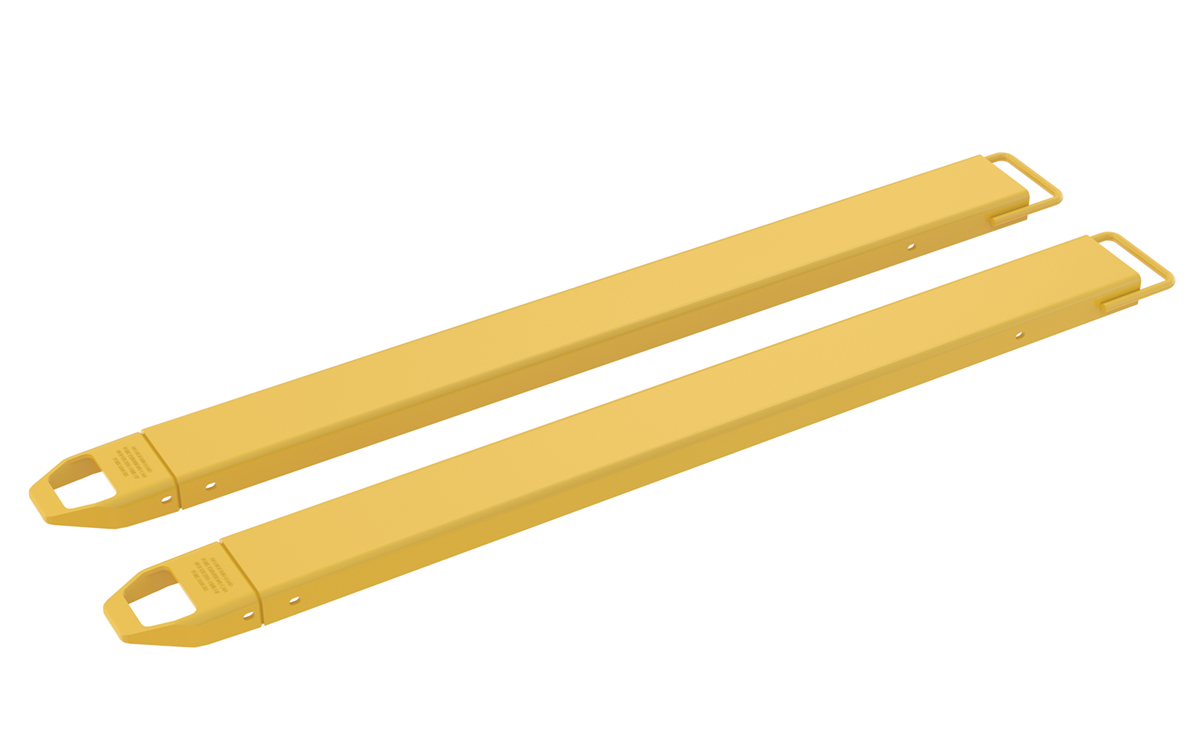

FE-5-72

model FE-5-72

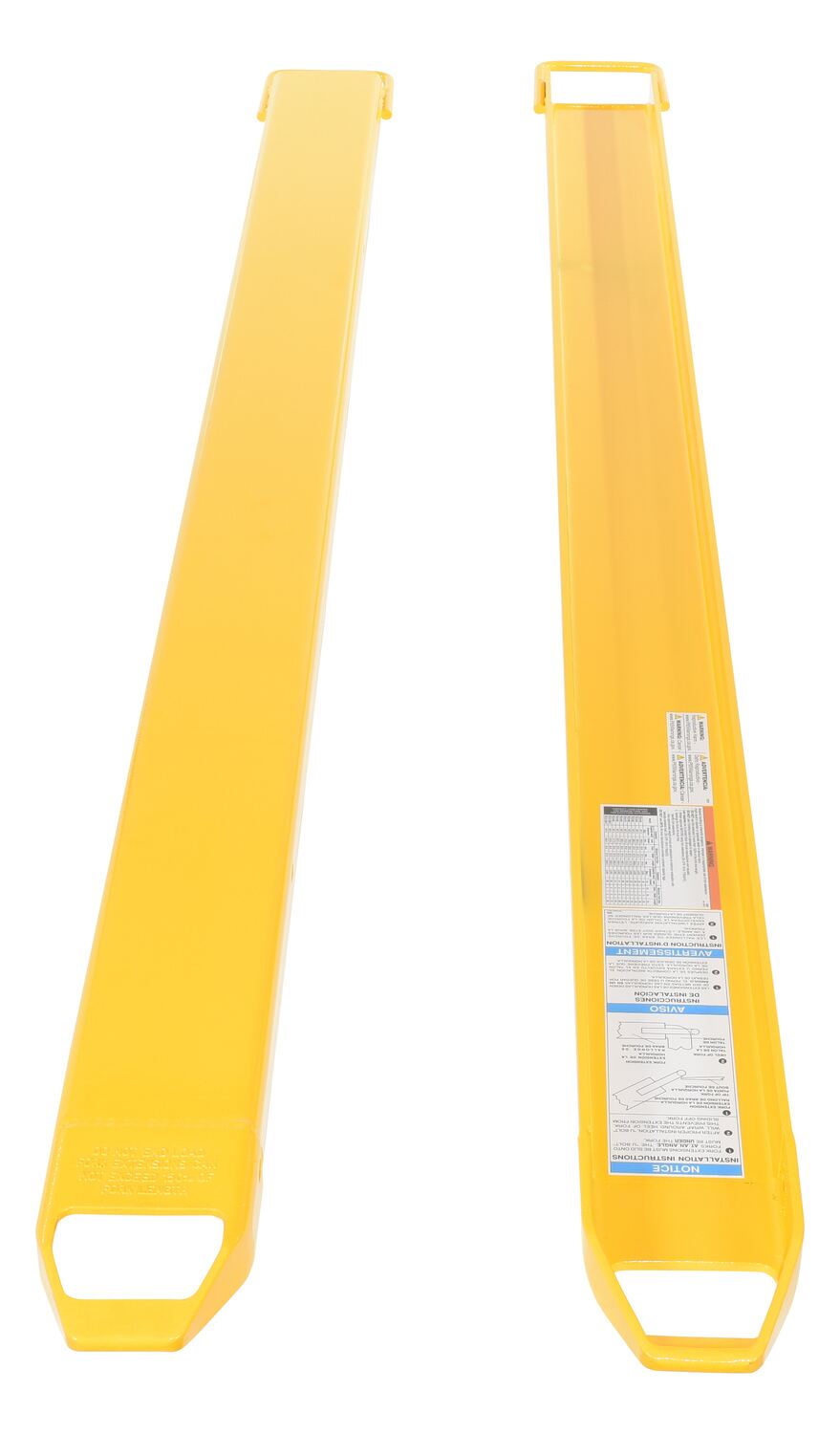

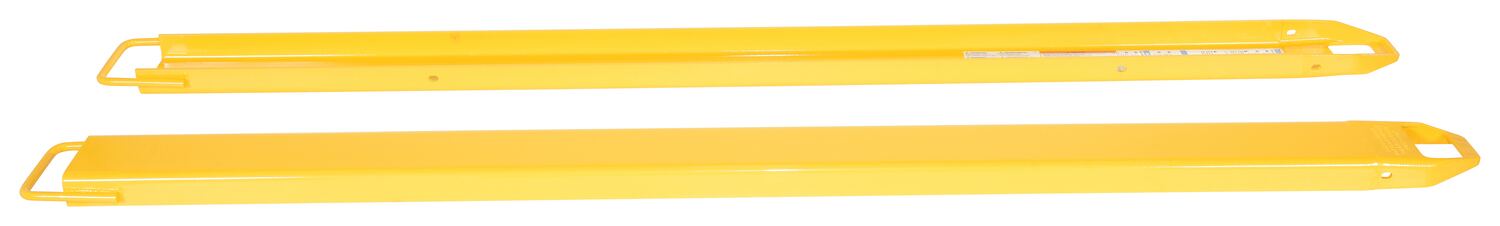

FE-5-96

model FE-5-96

FE-RS

model FE-RS

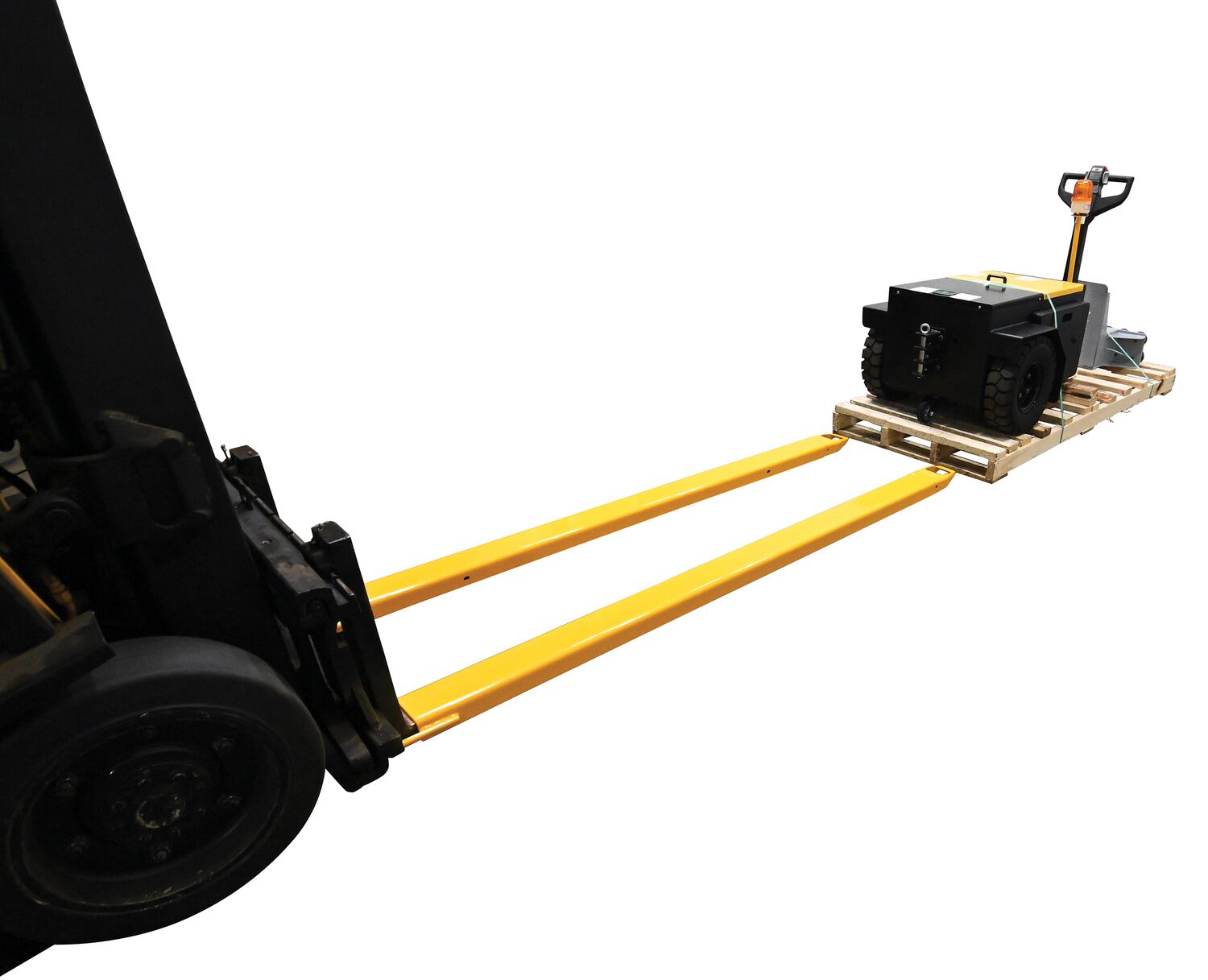

FE-6-90

model FE-6-90

FE-6-120-P

model FE-6-120-P


Click a tab for more information. + Indicates items available under that tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Fork Extensions
Model PDF's Accommodates Fork Width Fork Extension Inside Width Useable Length Max. Fork Thickness Wt. (lbs) Pair

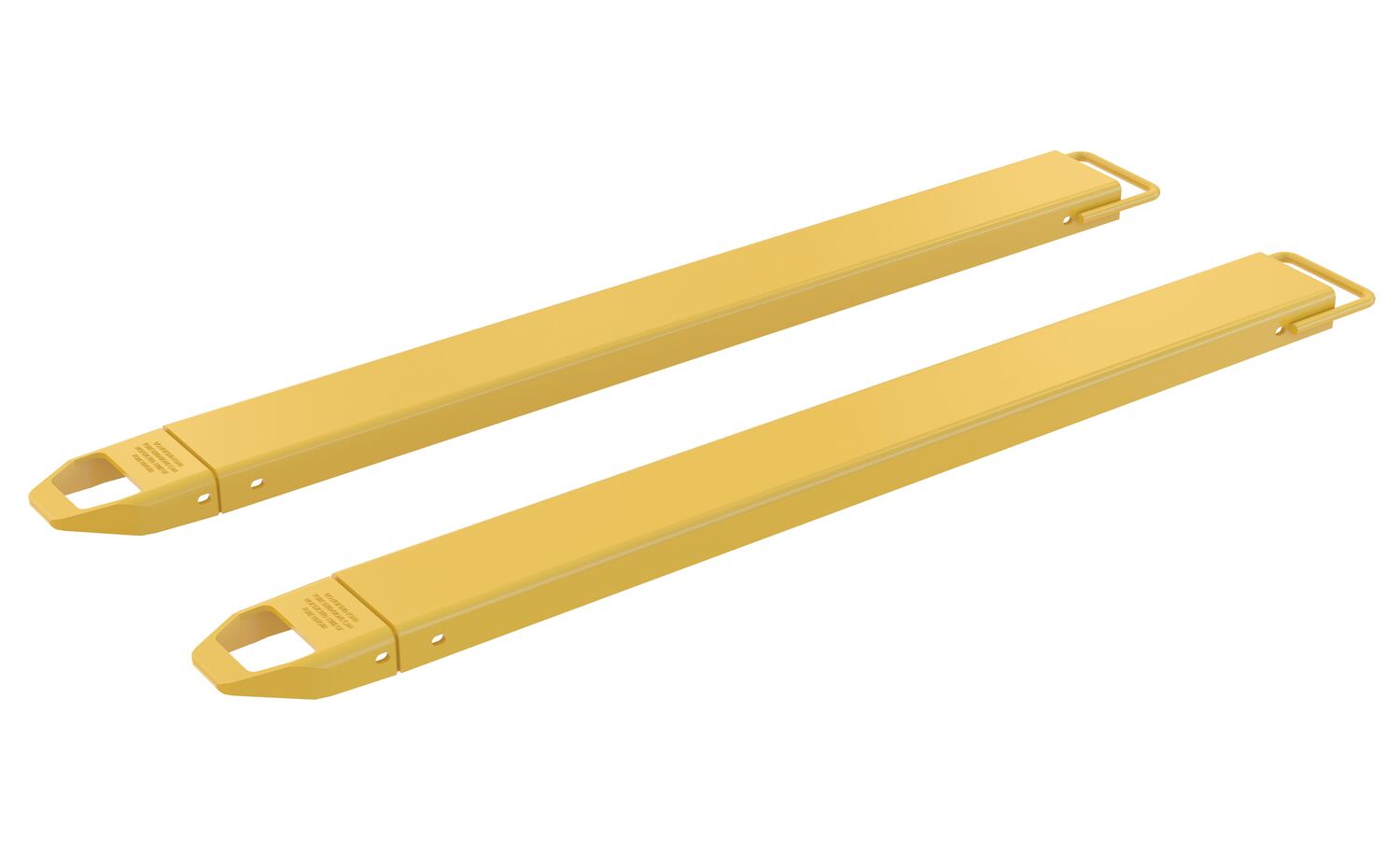

Fork Extensions (Yellow Loop Style)

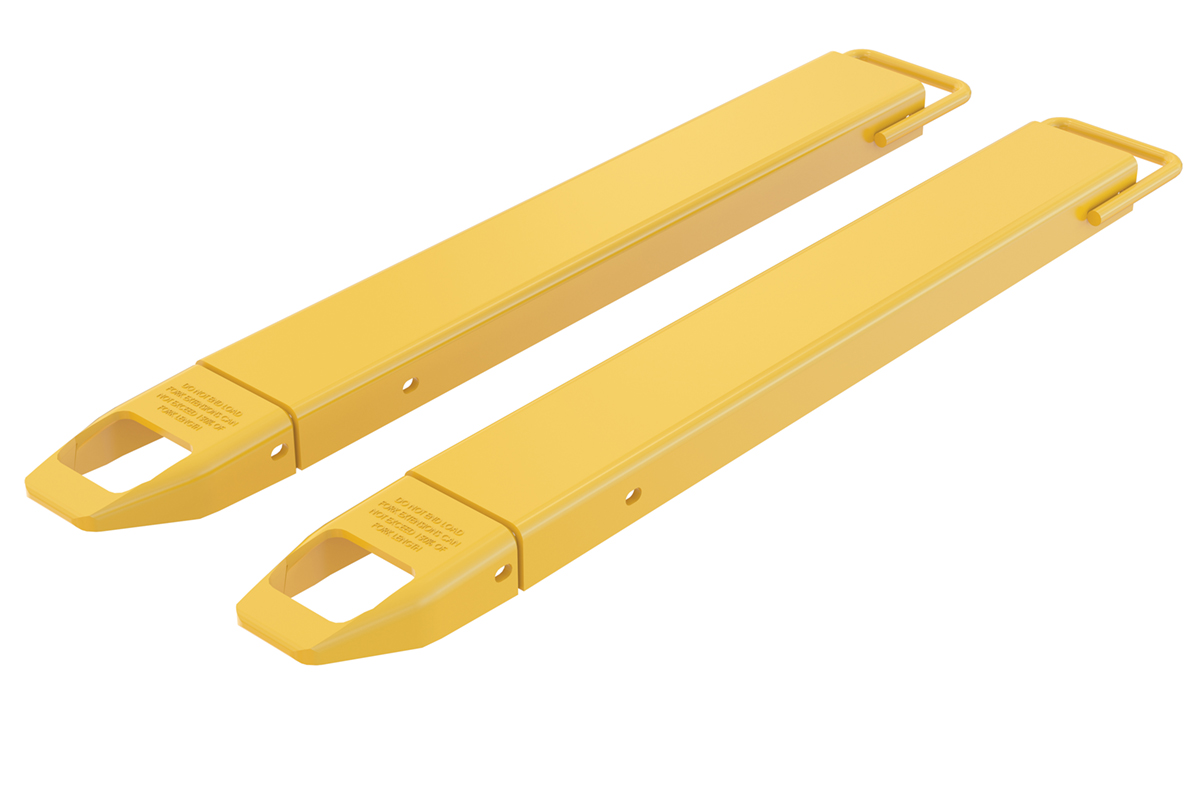

FE-4-42 - 4" 4-1/2" 42" 2" 70

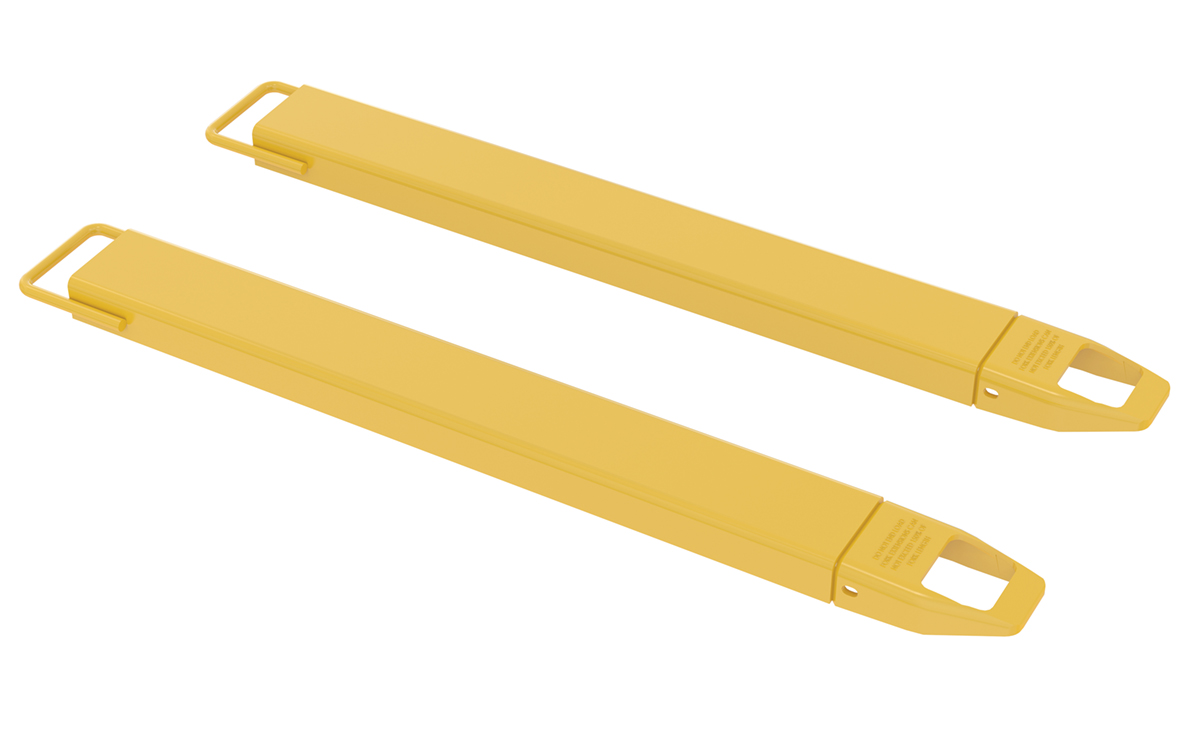

FE-4-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 48" 2" 74
FE-4-54 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 84
FE-4-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 98
FE-4-66 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 66" 2" 100

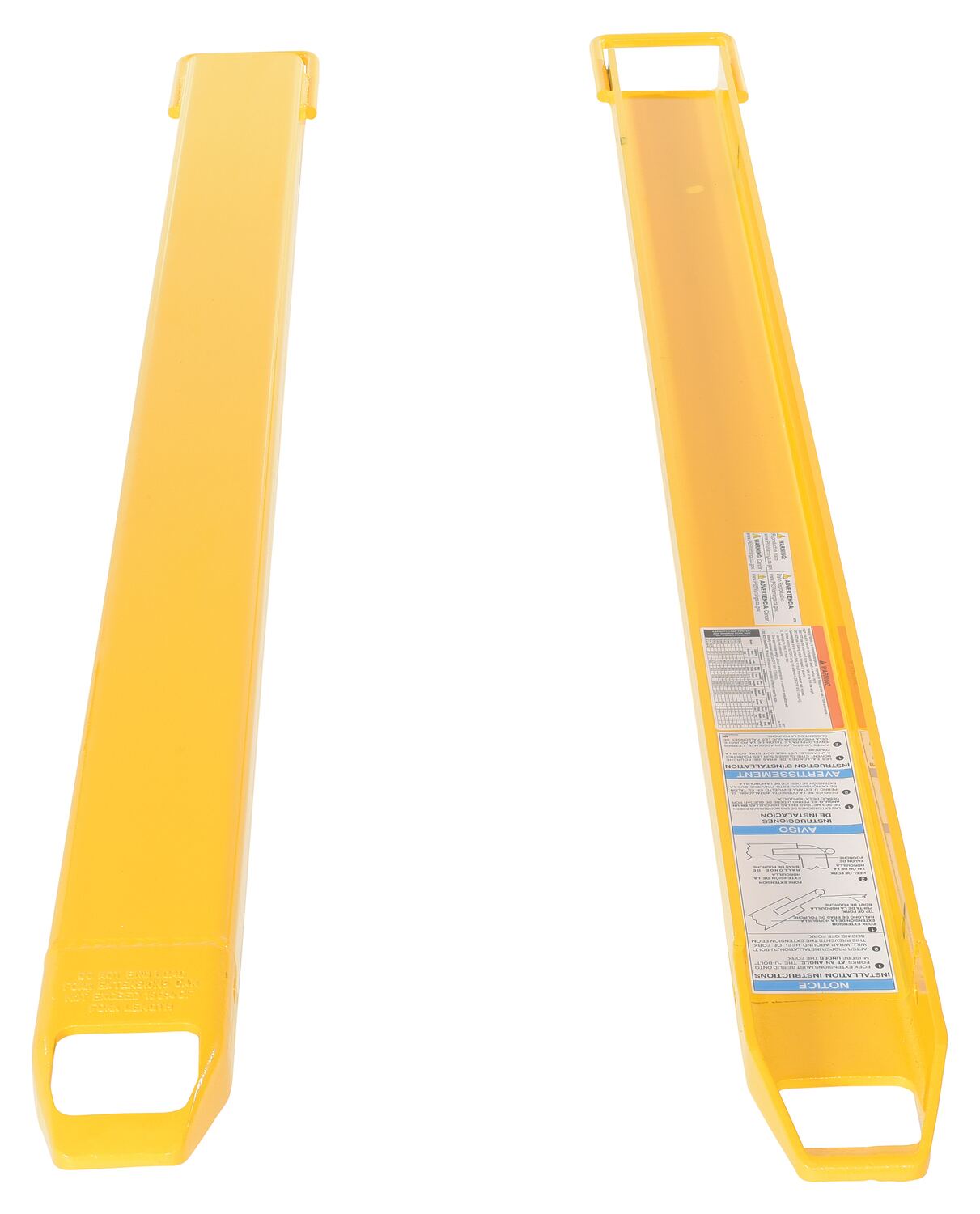

FE-4-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 114
FE-4-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 145
FE-4-90 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 90" 2" 166
FE-4-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 172
FE-5-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 48" 2" 86
FE-5-54 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
FE-5-66 Warranty PDFCompliance Certificate 5" 5-1/2" 66" 2" 116
FE-5-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 128
FE-5-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 160
FE-5-90 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 90" 2" 179
FE-5-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 191

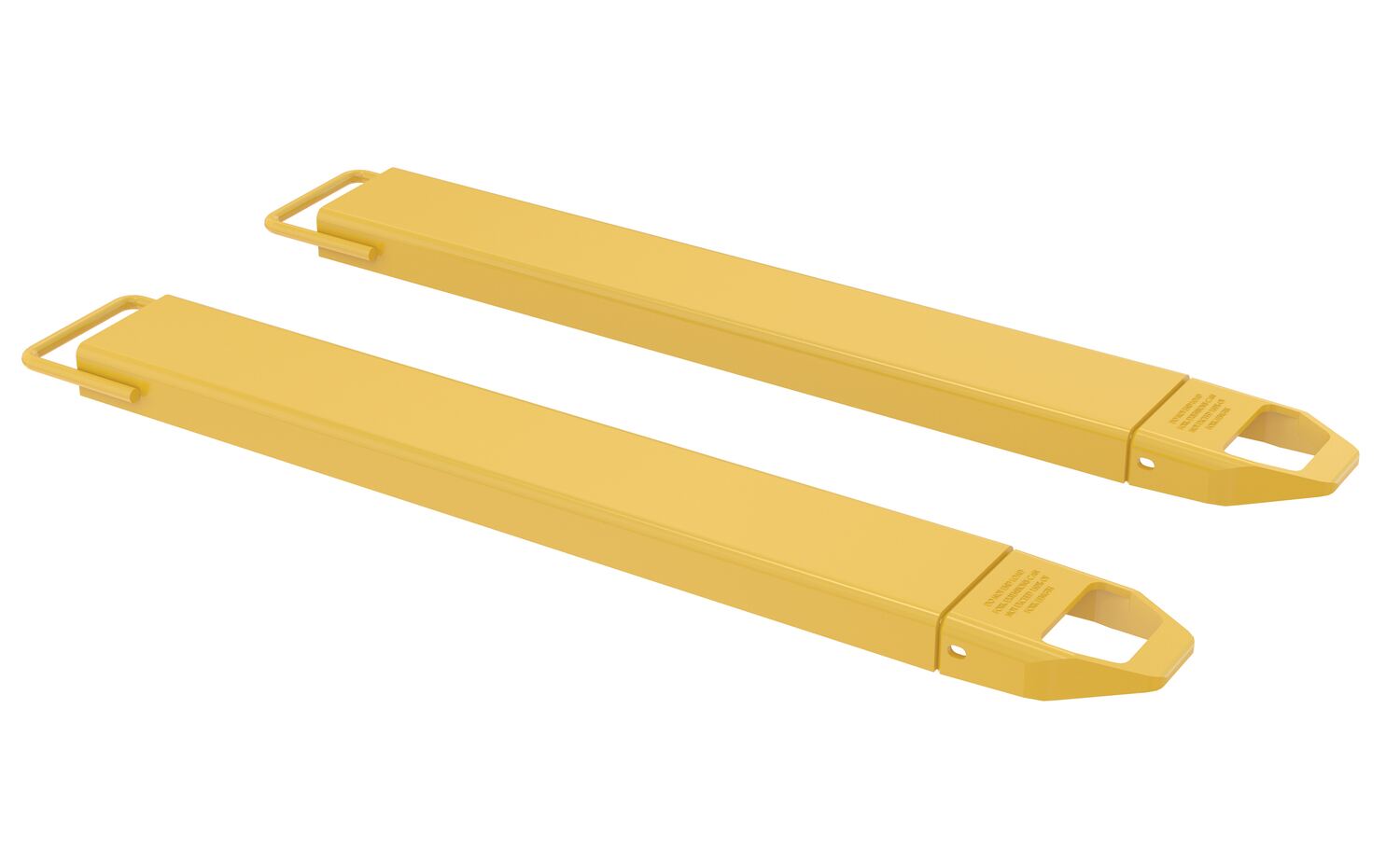

FE-6-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 48" 2-1/2" 94
FE-6-54 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 104
FE-6-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 116
FE-6-66 Warranty PDFCompliance Certificate 6" 6-1/2" 66" 2-1/2" 128
FE-6-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 134
FE-6-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 190

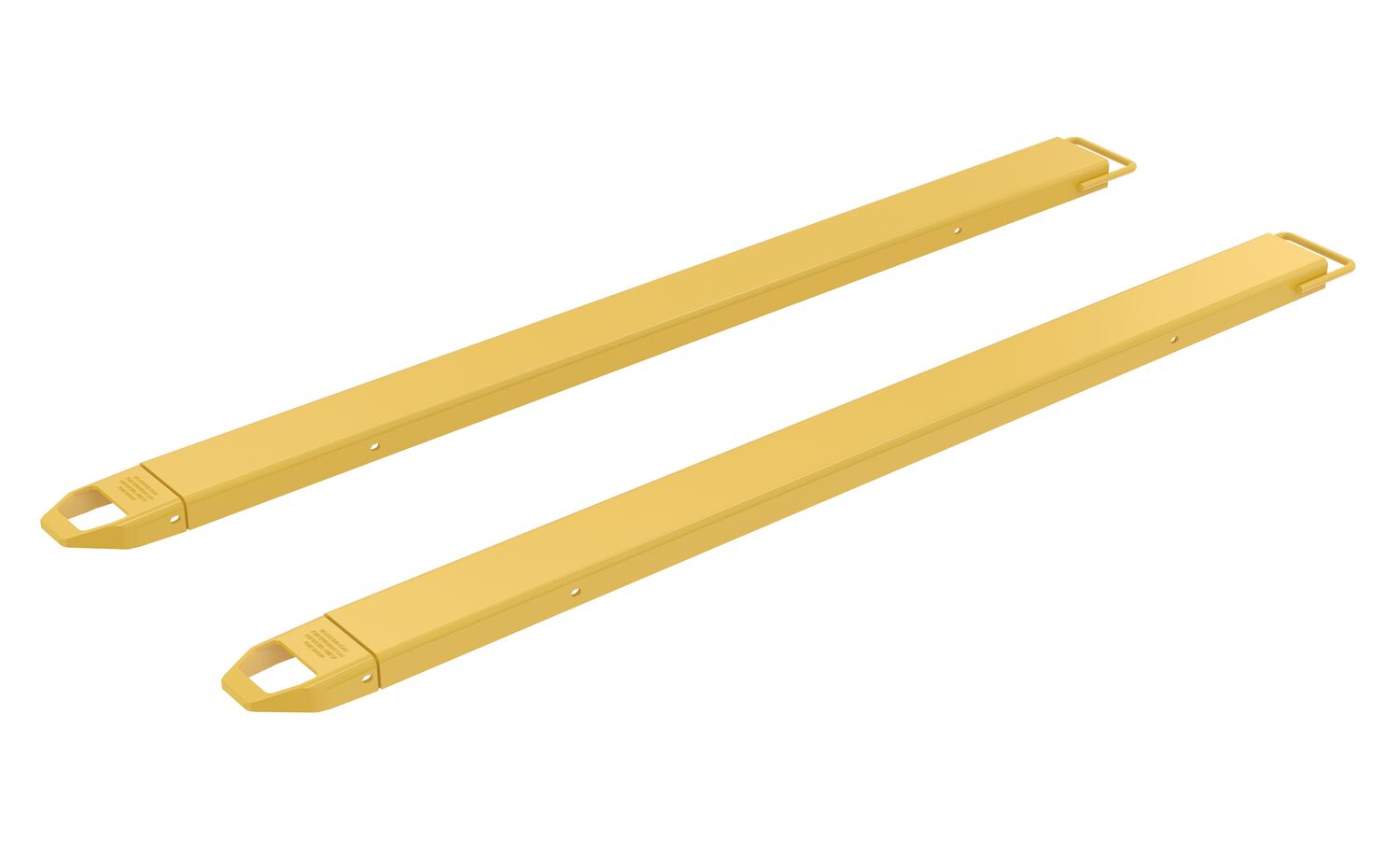

FE-6-90 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 90" 2-1/2" 204
FE-6-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 218

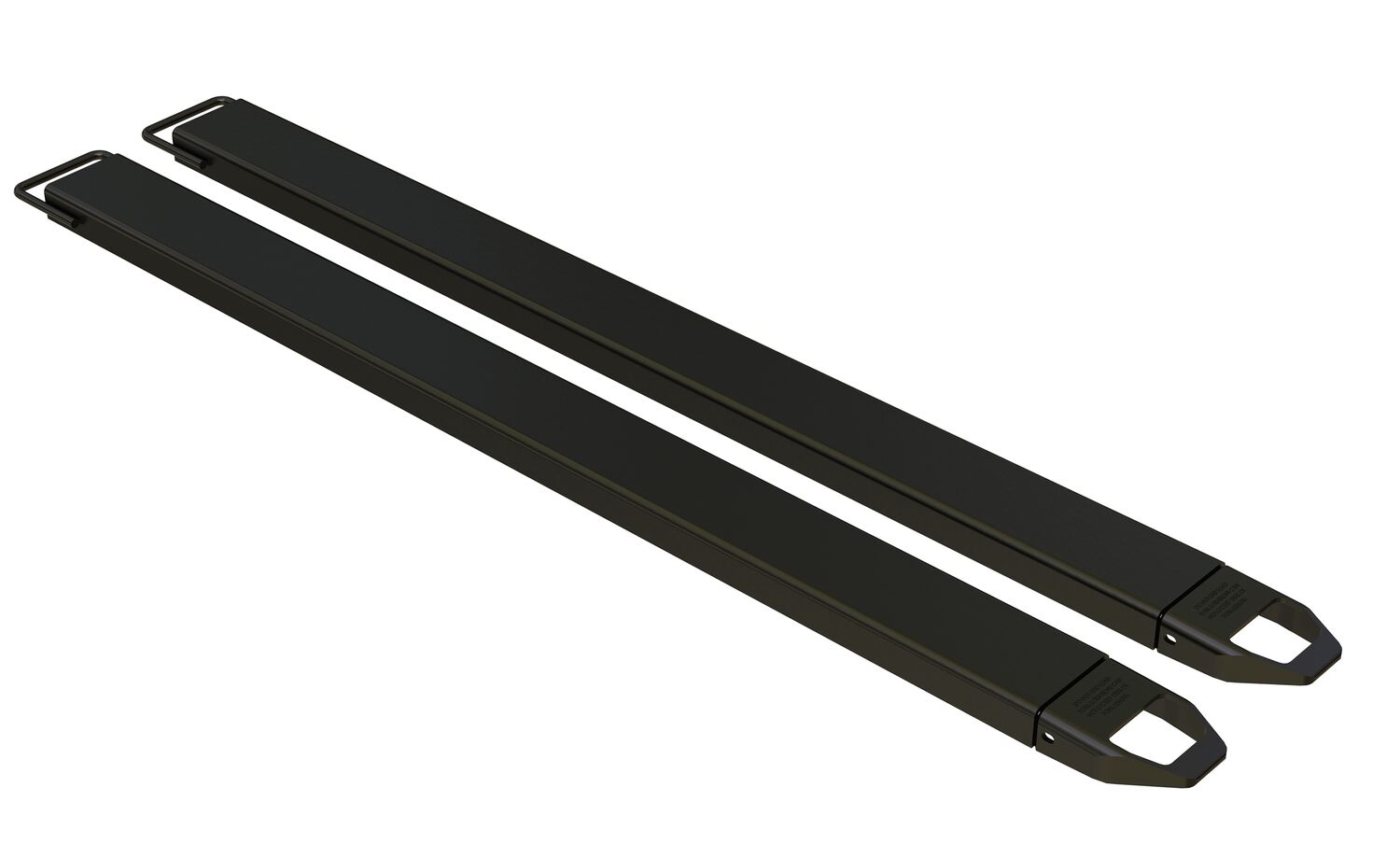

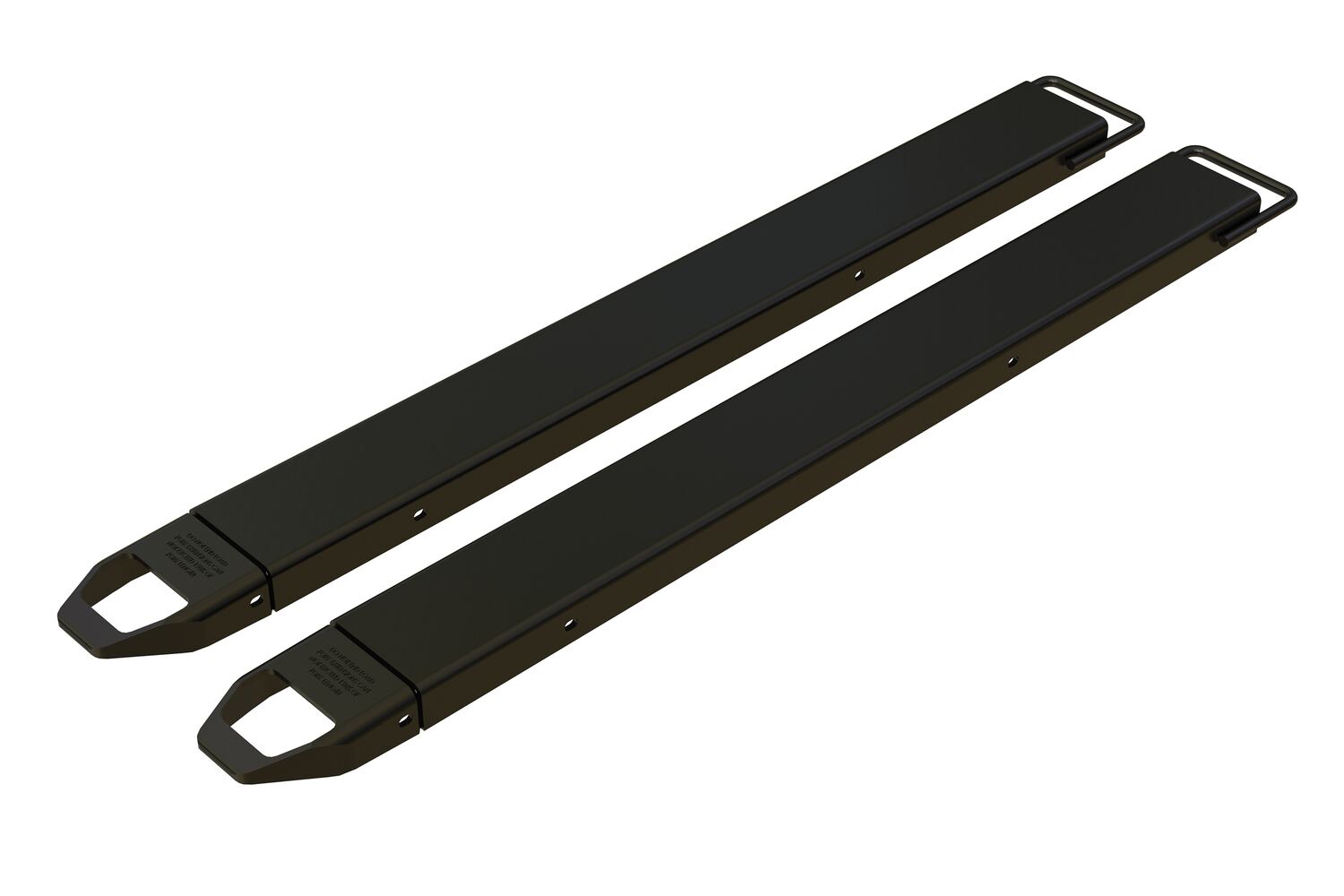

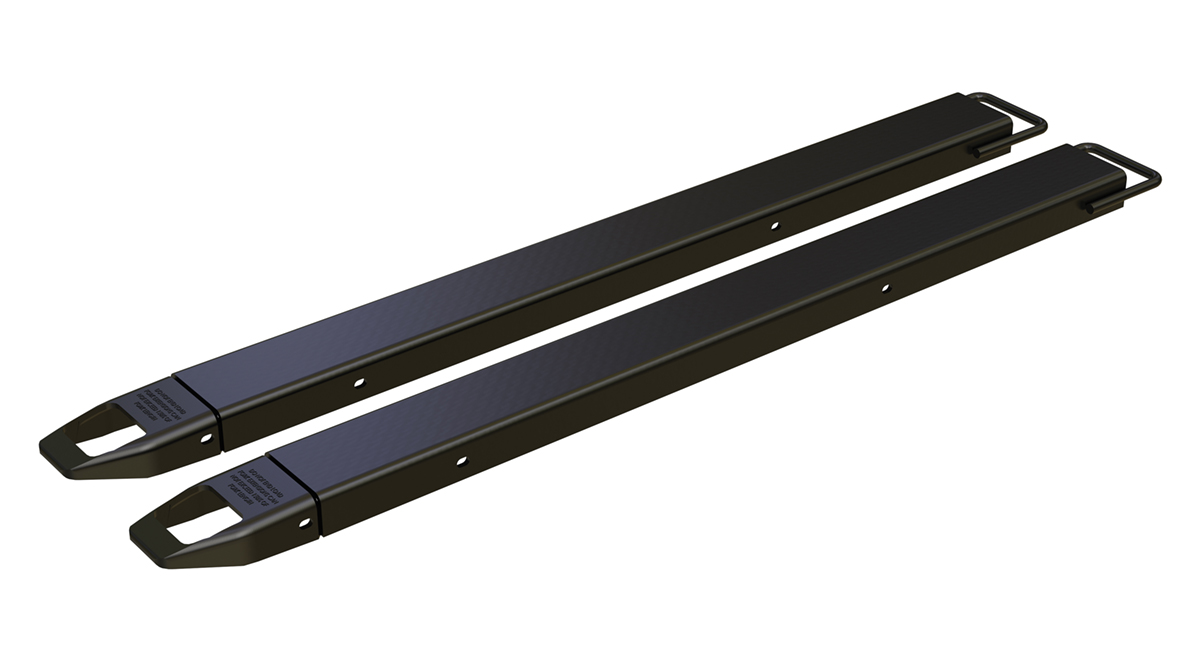

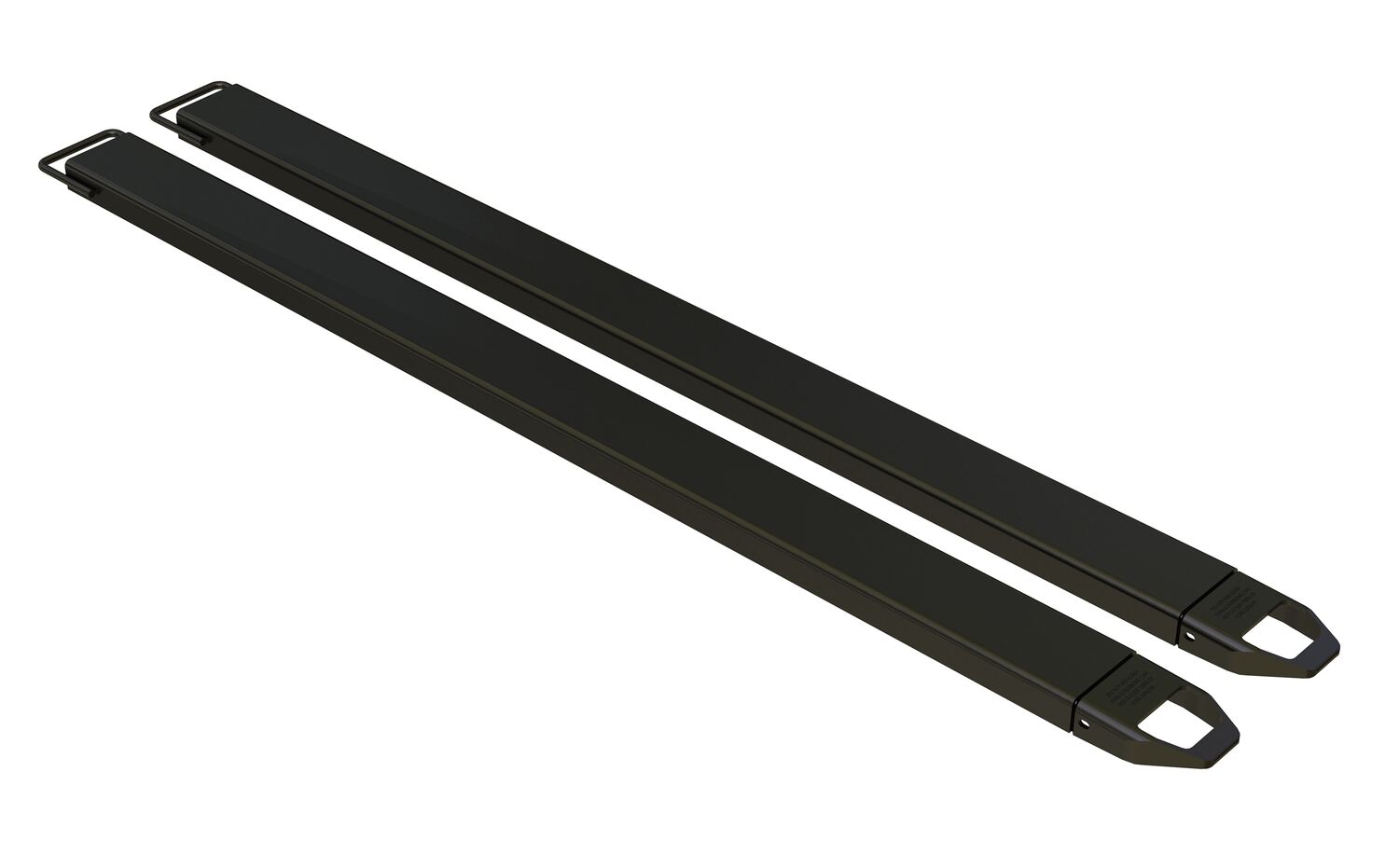

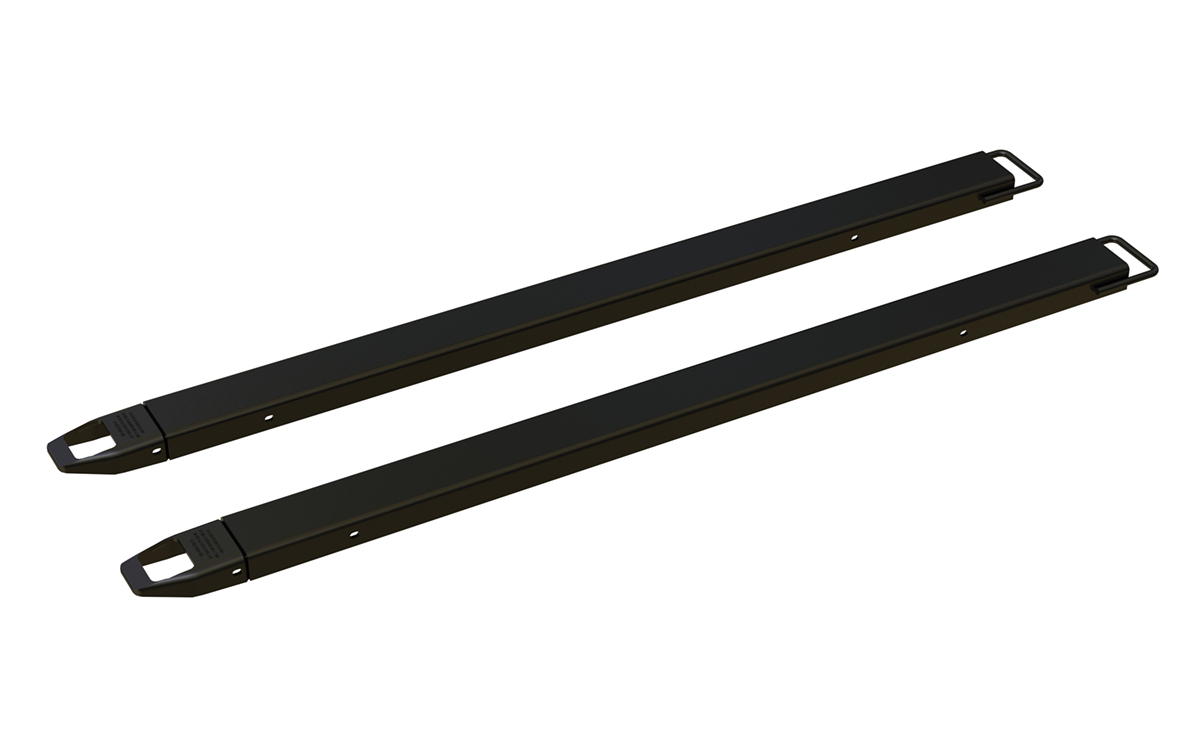

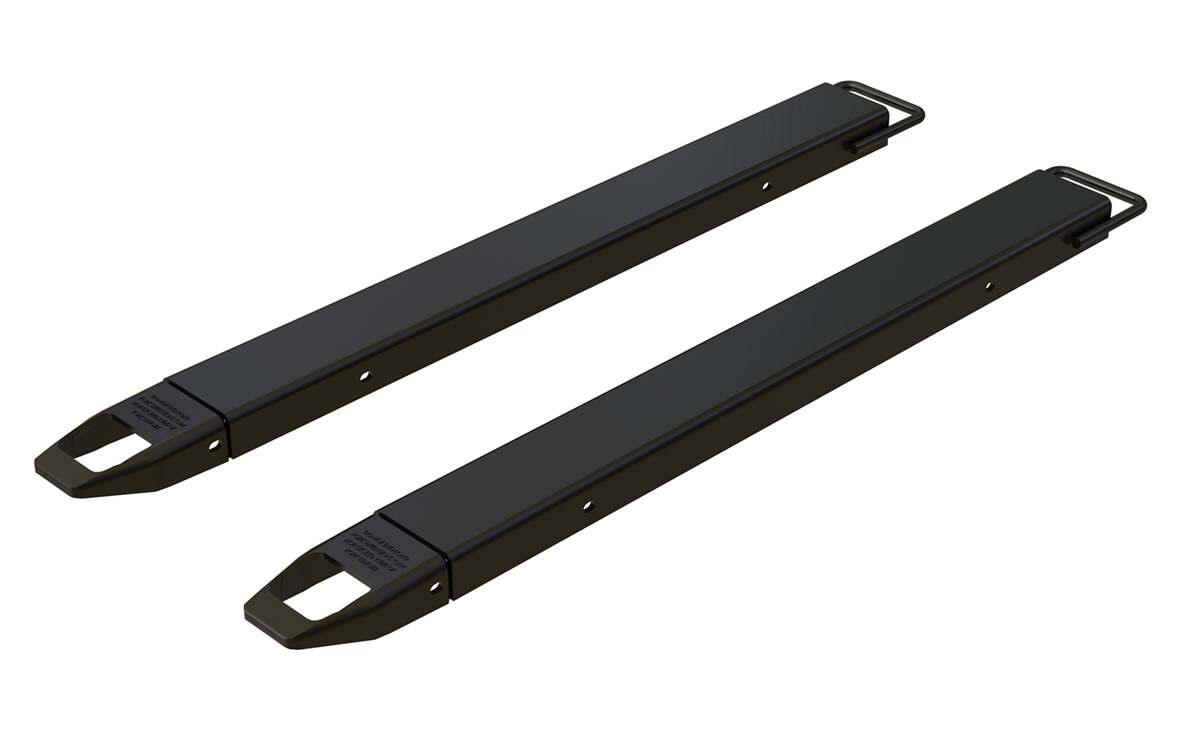

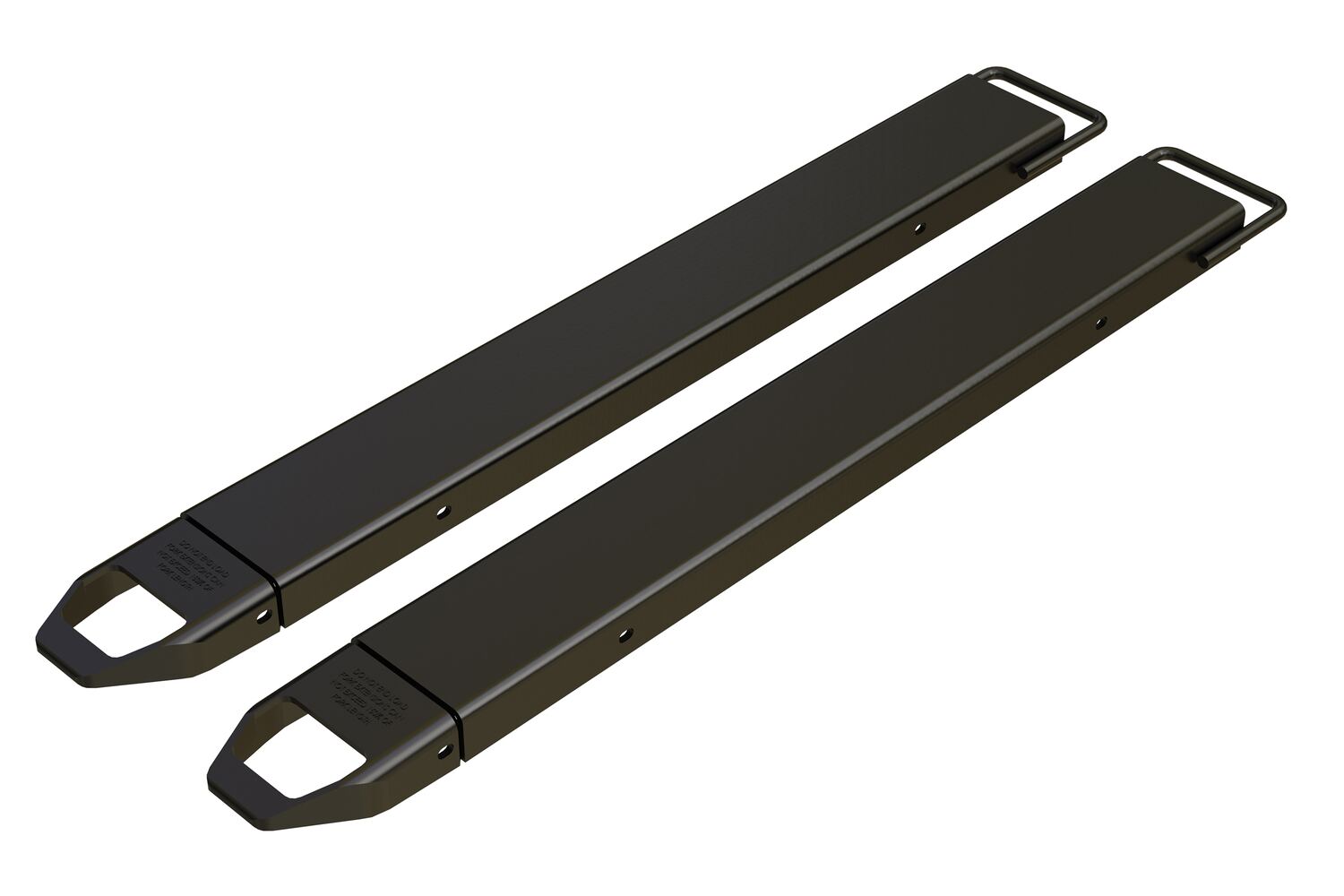

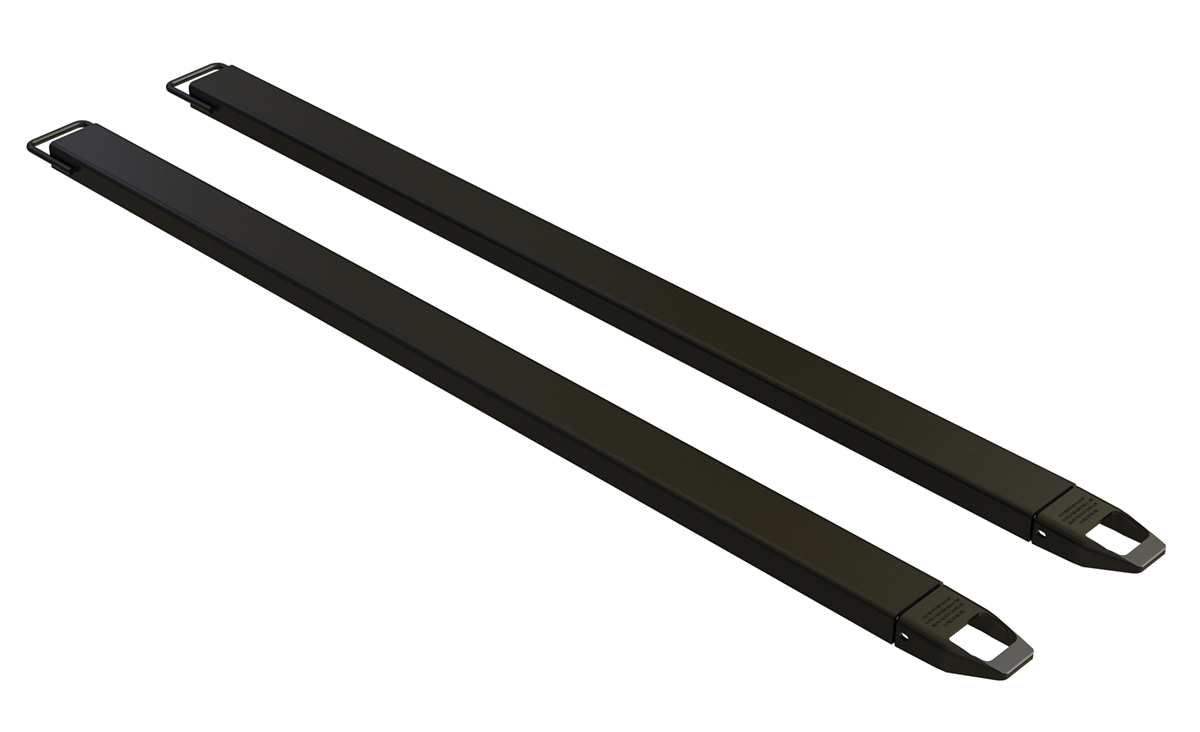

Fork Extensions (Black Loop Style)
FE-4-54-BK Warranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 84
FE-4-63-BK Warranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 98

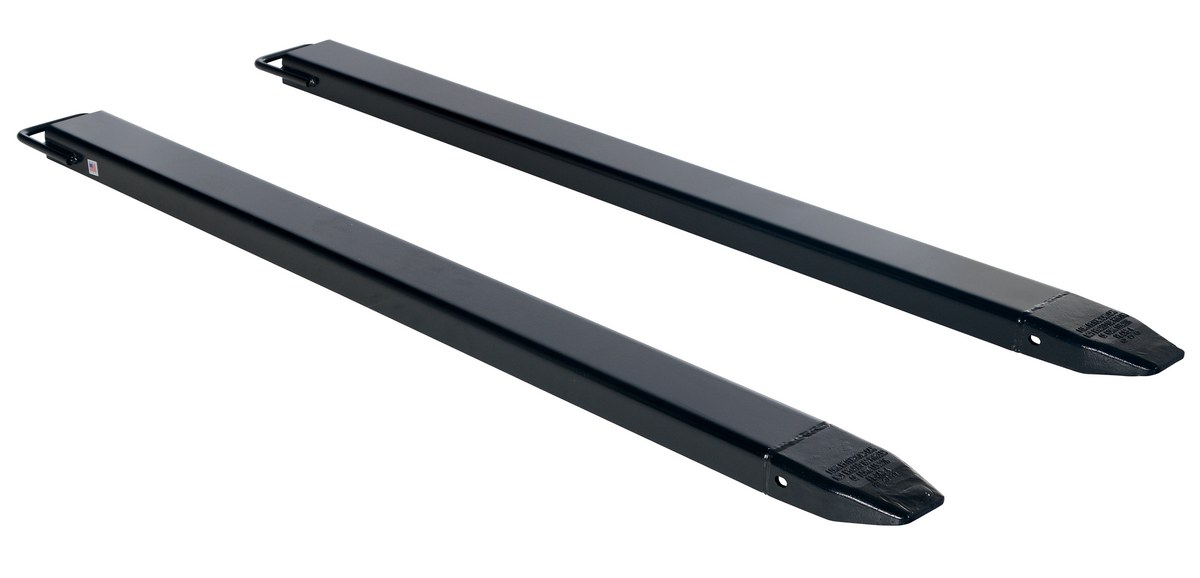

FE-4-72-BK Warranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 114
FE-4-84-BK Warranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 124
FE-4-96-BK Warranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 142
FE-5-54-BK Warranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 96
FE-5-63-BK Warranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 110
FE-5-72-BK Warranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 128
FE-5-84-BK Warranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 129
FE-5-96-BK Warranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 158
FE-6-54-BK Warranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 104
FE-6-63-BK Warranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 116

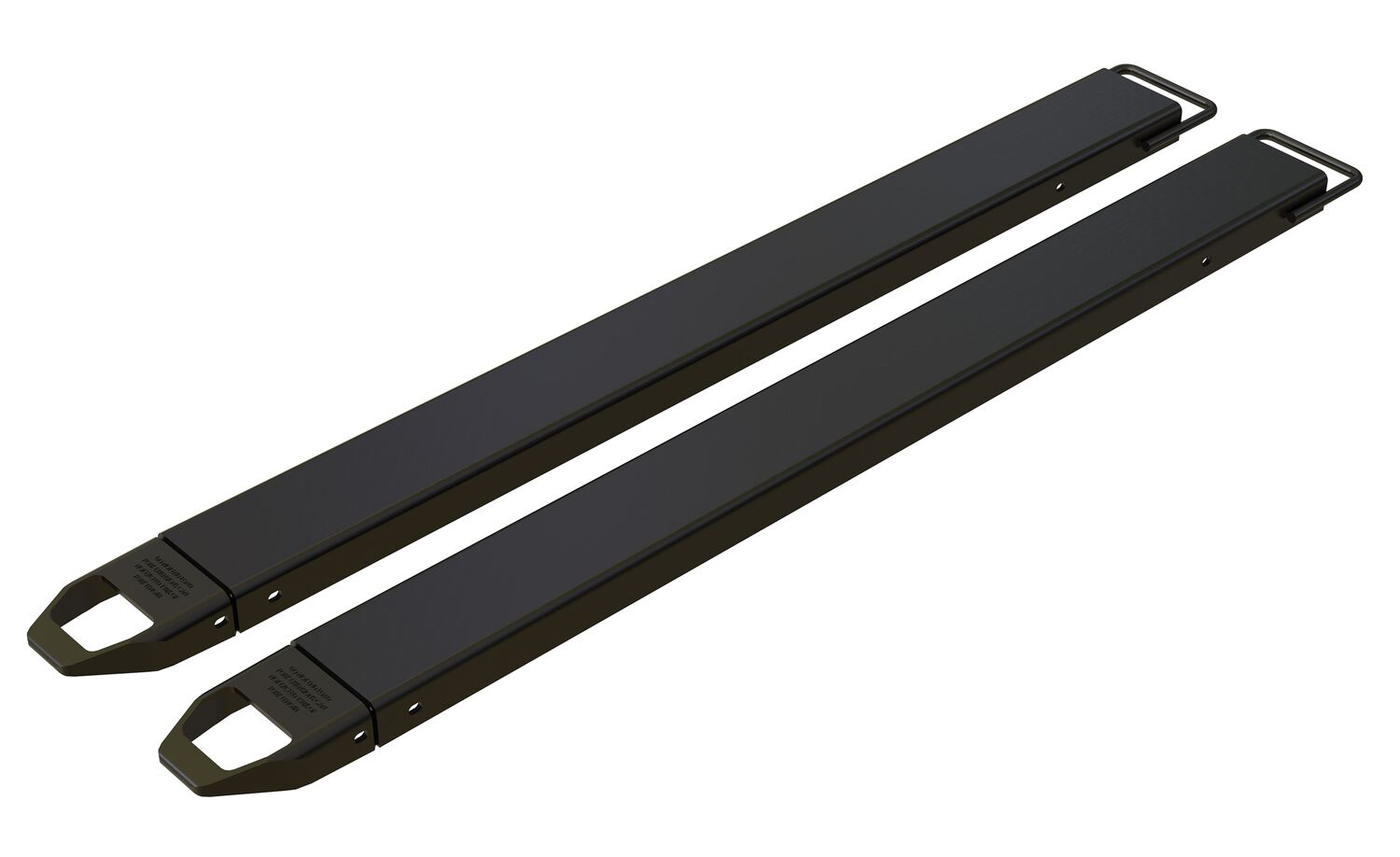

FE-6-72-BK Warranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 134
FE-6-84-BK Warranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 156
FE-6-96-BK Warranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 181
Fork Extensions (Pin Style)
FE-4-48-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 48" 2" 73
FE-4-54-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 54" 2" 83
FE-4-63-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 97
FE-4-66-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 66" 2" 101
FE-4-72-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 113
FE-4-84-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 123
FE-4-90-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 90" 2" 130
FE-4-96-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 141
FE-4-108-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 108" 2" 193
FE-4-120-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 120" 2" 220
FE-5-48-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 48" 2" 85
FE-5-54-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 54" 2" 95
FE-5-63-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 109
FE-5-66-P Warranty PDFCompliance Certificate 5" 5-1/2" 66" 2" 114
FE-5-72-P Warranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 127
FE-5-84-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 161
FE-5-90-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 90" 2" 140
FE-5-96-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 192
FE-5-108-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 108" 2" 216
FE-5-120-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 120" 2" 230
FE-6-48-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 48" 2-1/2" 93
FE-6-54-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 54" 2-1/2" 103
FE-6-63-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 115
FE-6-66-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 66" 2-1/2" 122
FE-6-72-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 133
FE-6-84-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 155
FE-6-90-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 90" 2-1/2" 161
FE-6-96-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 214
FE-6-108-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 108" 2-1/2" 216
FE-6-120-P icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 120" 2-1/2" 230
FE-7-48-P Warranty PDFCompliance Certificate 7" 7-1/2" 48" 2-1/2" 104
FE-7-54-P Warranty PDFCompliance Certificate 7" 7-1/2" 54" 2-1/2" 116
FE-7-63-P Warranty PDFCompliance Certificate 7" 7-1/2" 63" 2-1/2" 134
FE-7-66-P Warranty PDFCompliance Certificate 7" 7-1/2" 66" 2-1/2" 134
FE-7-72-P Warranty PDFCompliance Certificate 7" 7-1/2" 72" 2-1/2" 152
FE-7-84-P Warranty PDFCompliance Certificate 7" 7-1/2" 84" 2-1/2" 192
FE-7-90-P Warranty PDFCompliance Certificate 7" 7-1/2" 90" 2-1/2" 192
FE-7-96-P Warranty PDFCompliance Certificate 7" 7-1/2" 96" 2-1/2" 192
FE-7-108-P Warranty PDFCompliance Certificate 7" 7-1/2" 108" 2-1/2" 202
FE-7-120-P Warranty PDFCompliance Certificate 7" 7-1/2" 120" 2-1/2" 212
FE-8-48-P Warranty PDFCompliance Certificate 8" 8-1/2" 48" 2-1/2" 104
FE-8-54-P Warranty PDFCompliance Certificate 8" 8-1/2" 54" 2-1/2" 116
FE-8-63-P Warranty PDFCompliance Certificate 8" 8-1/2" 63" 2-1/2" 134
FE-8-66-P Warranty PDFCompliance Certificate 8" 8-1/2" 66" 2-1/2" 134
FE-8-72-P Warranty PDFCompliance Certificate 8" 8-1/2" 72" 2-1/2" 152
FE-8-84-P Warranty PDFCompliance Certificate 8" 8-1/2" 84" 2-1/2" 192
FE-8-90-P Warranty PDFCompliance Certificate 8" 8-1/2" 90" 2-1/2" 192
FE-8-96-P Warranty PDFCompliance Certificate 8" 8-1/2" 96" 2-1/2" 192
FE-8-108-P Warranty PDFCompliance Certificate 8" 8-1/2" 108" 2-1/2" 202
FE-8-120-P Warranty PDFCompliance Certificate 8" 8-1/2" 120" 2-1/2" 202
