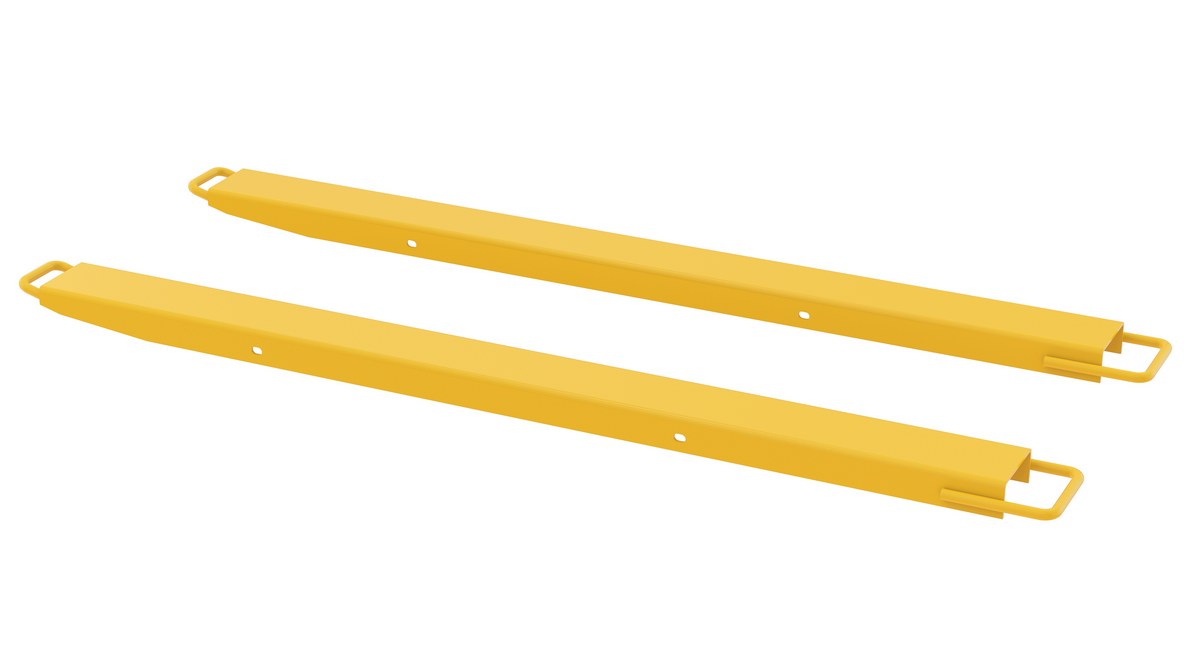

model: FE-HS-4-63

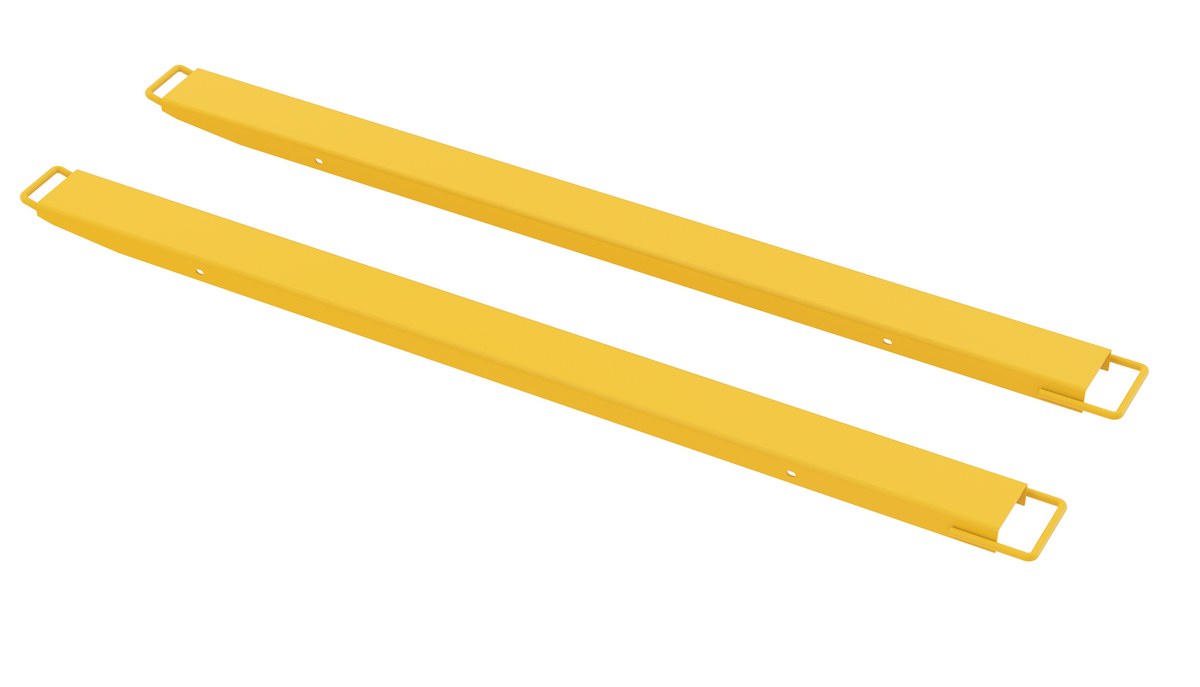

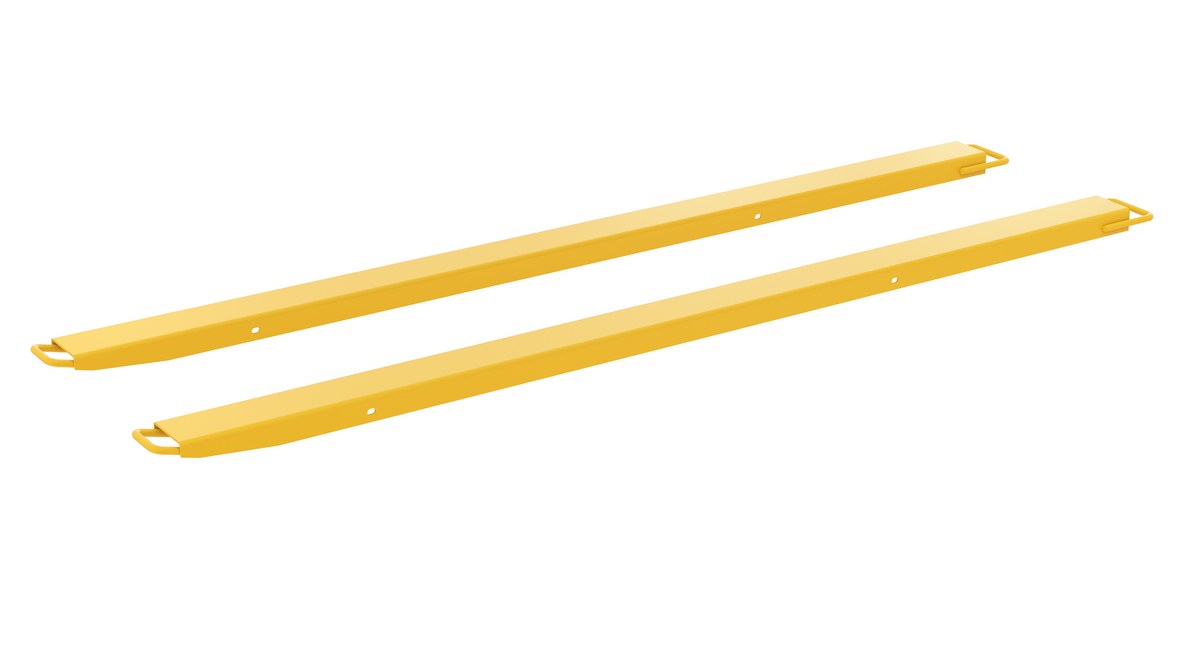

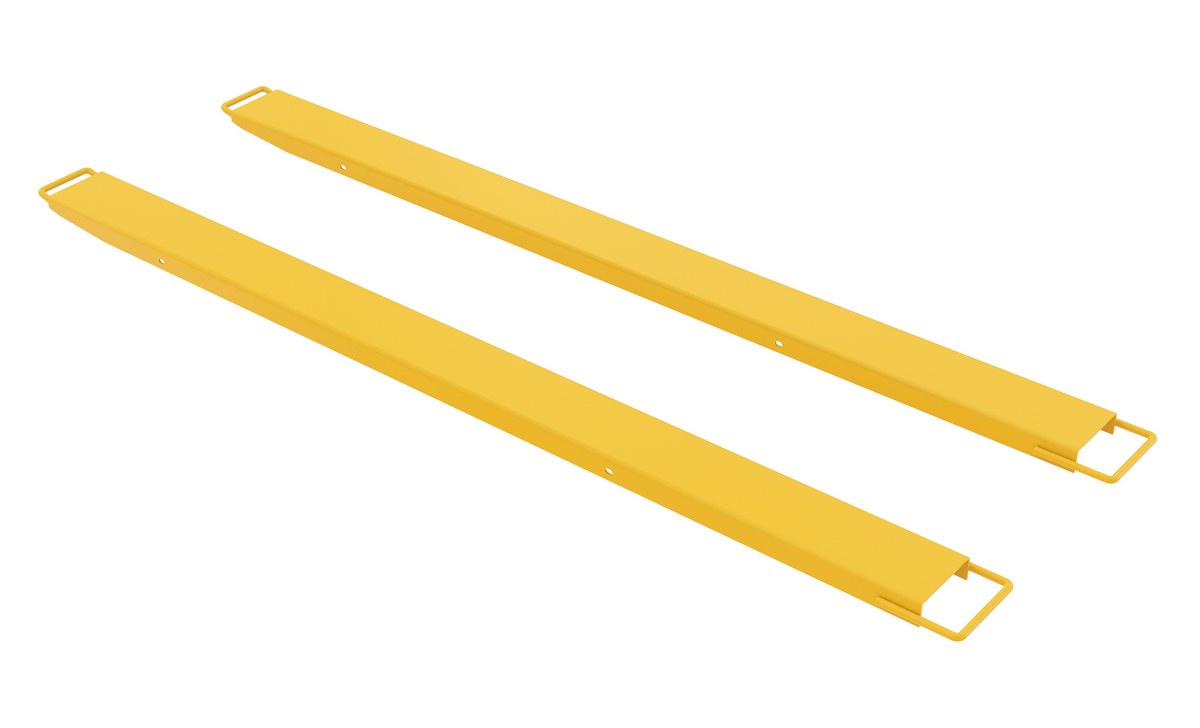

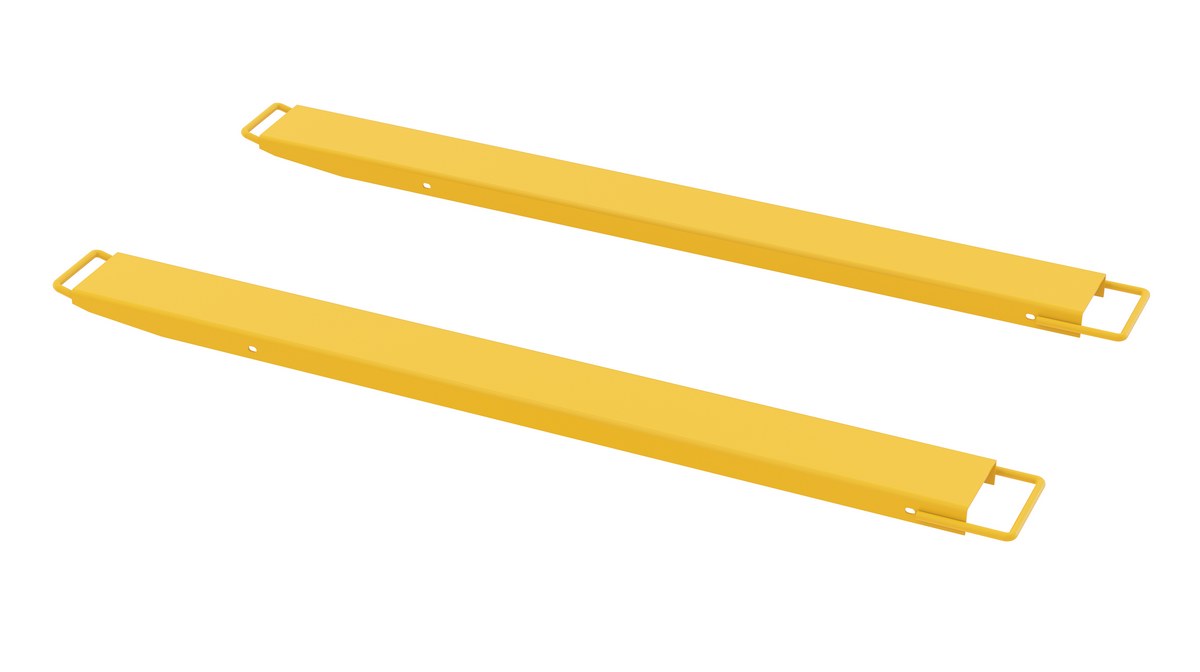

High Strength Fork Extensions
SERIES: FE-HS

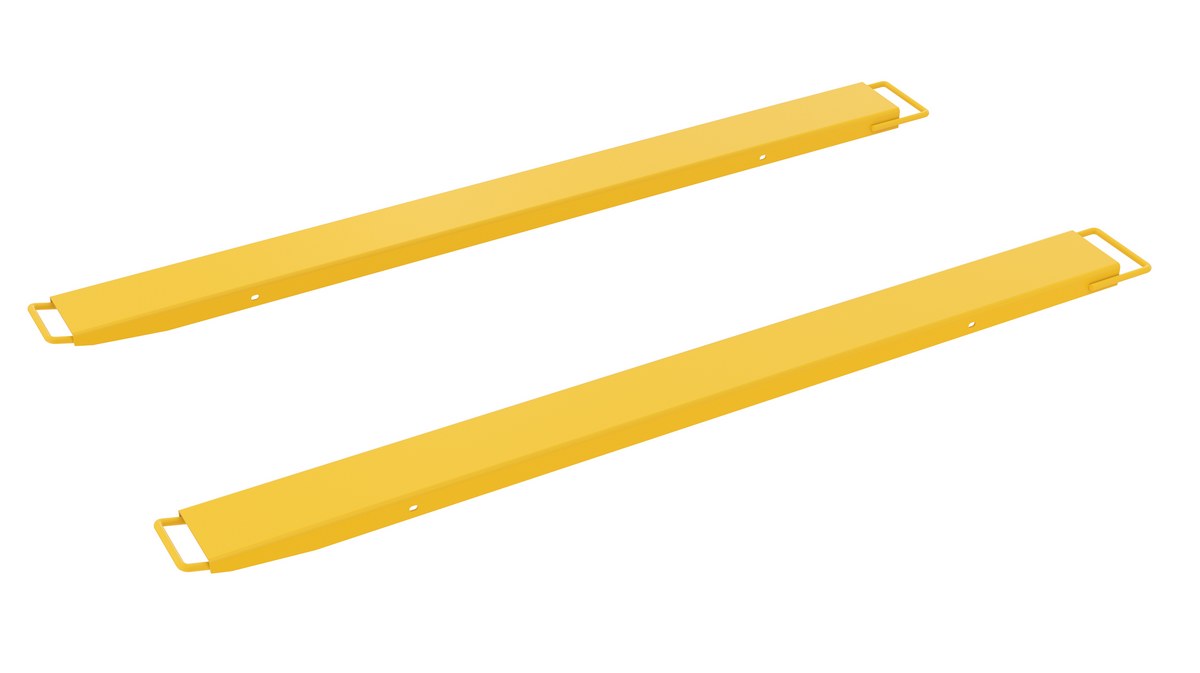

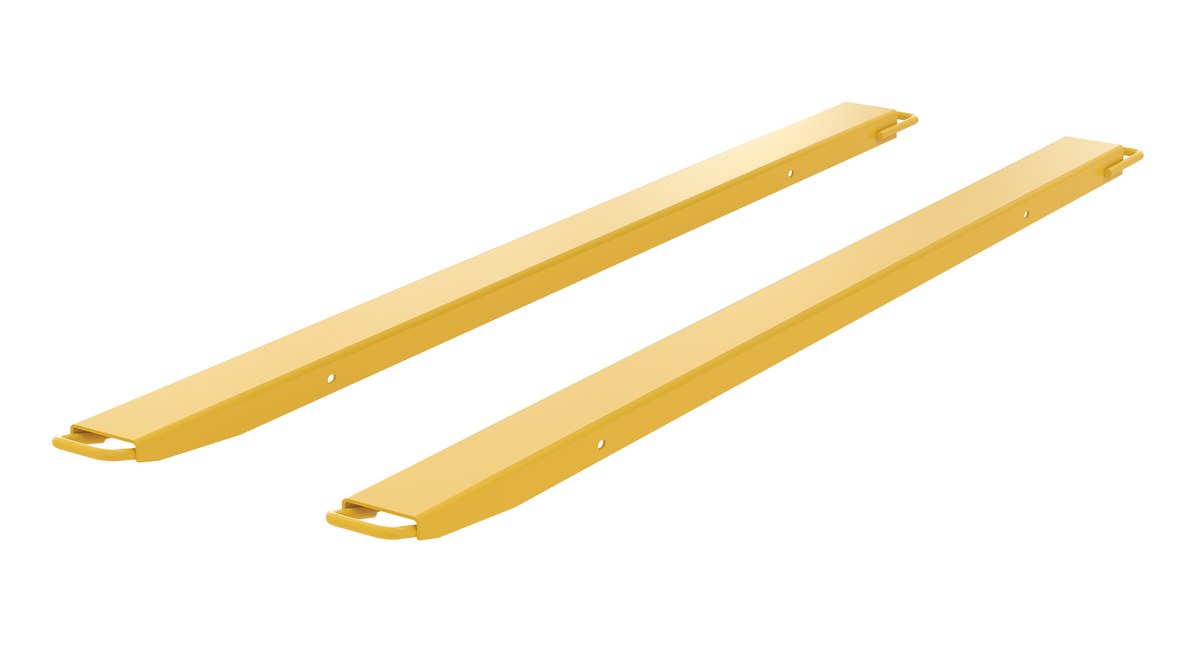

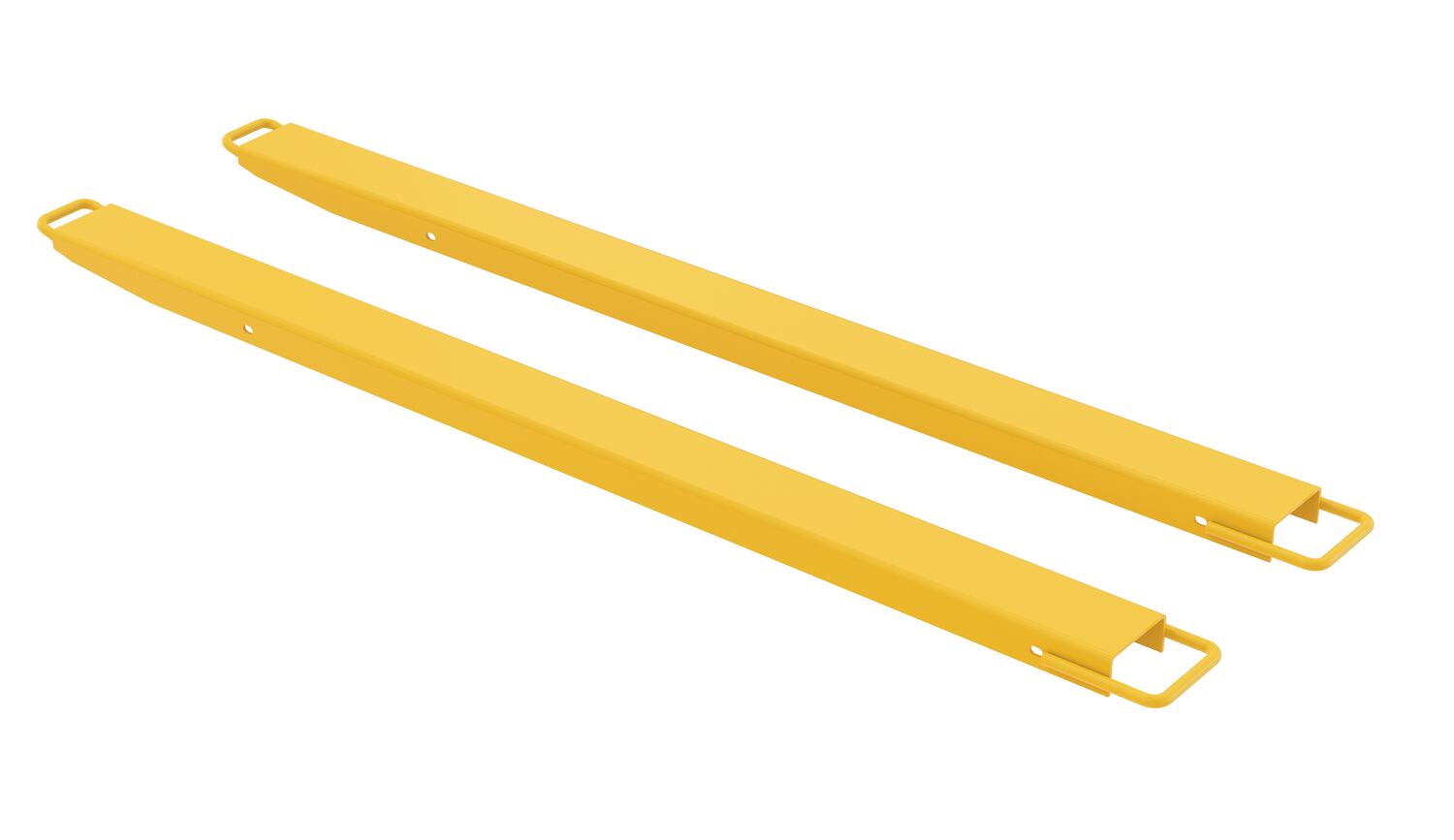

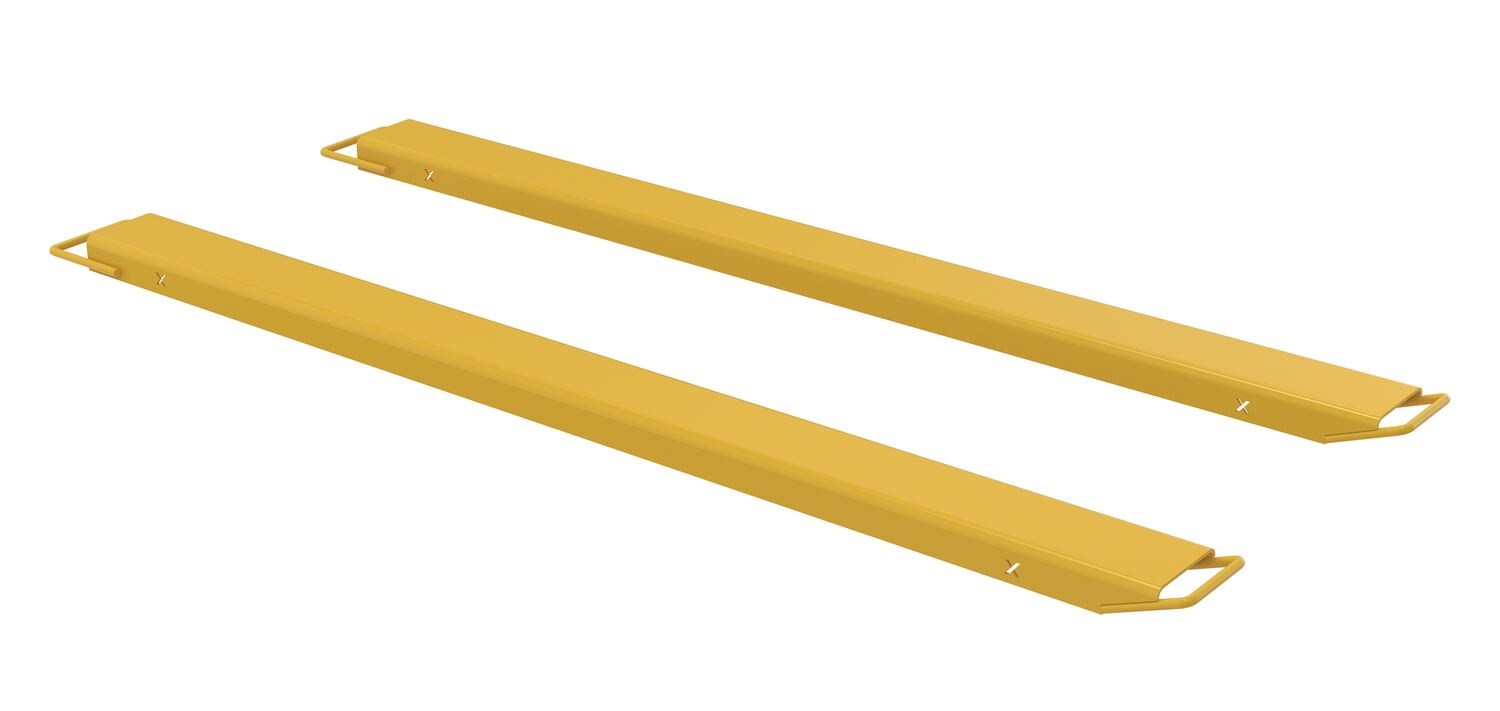

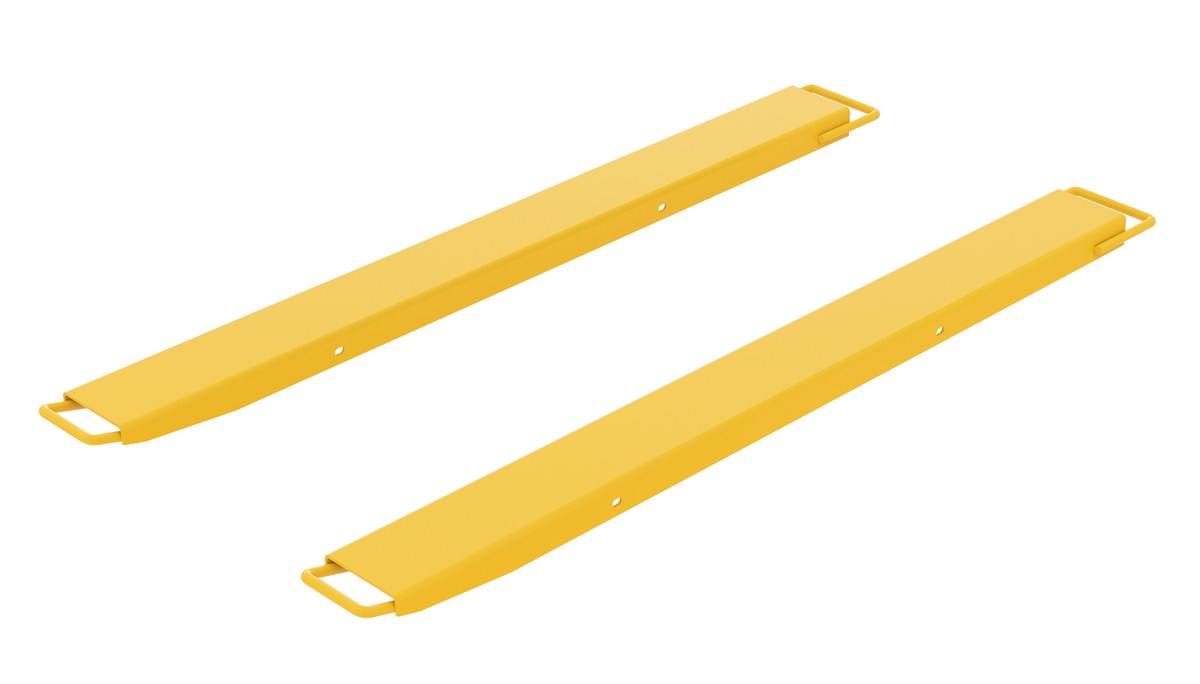

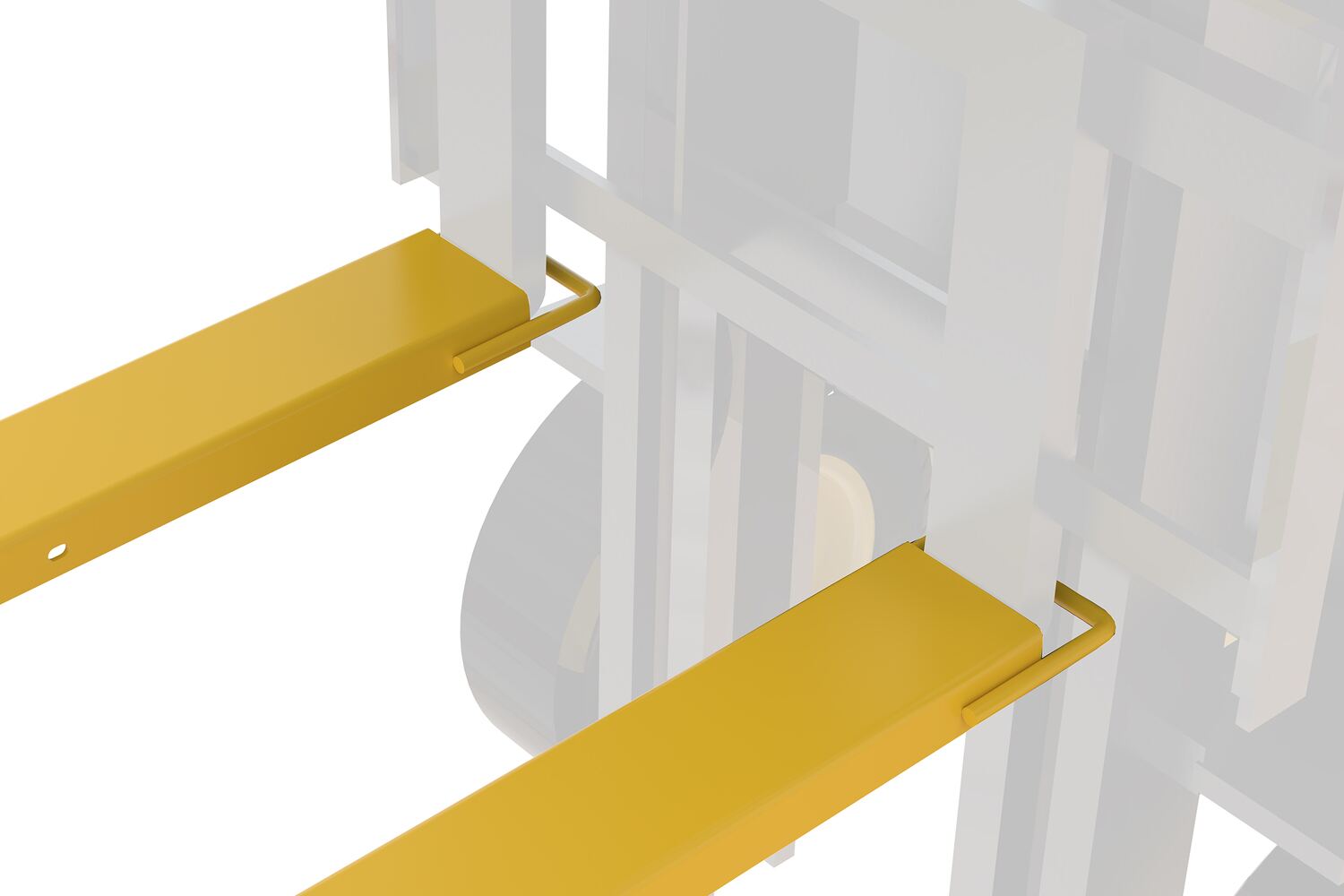

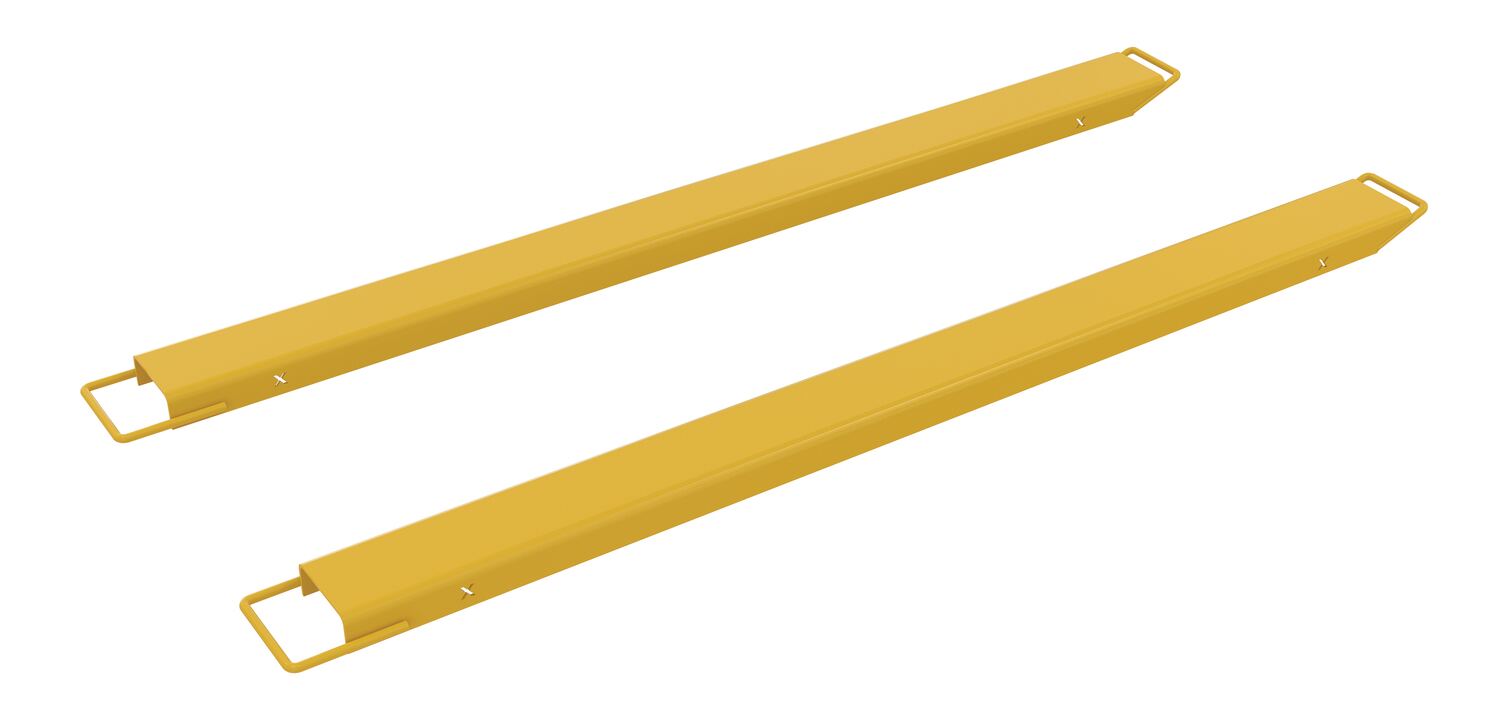

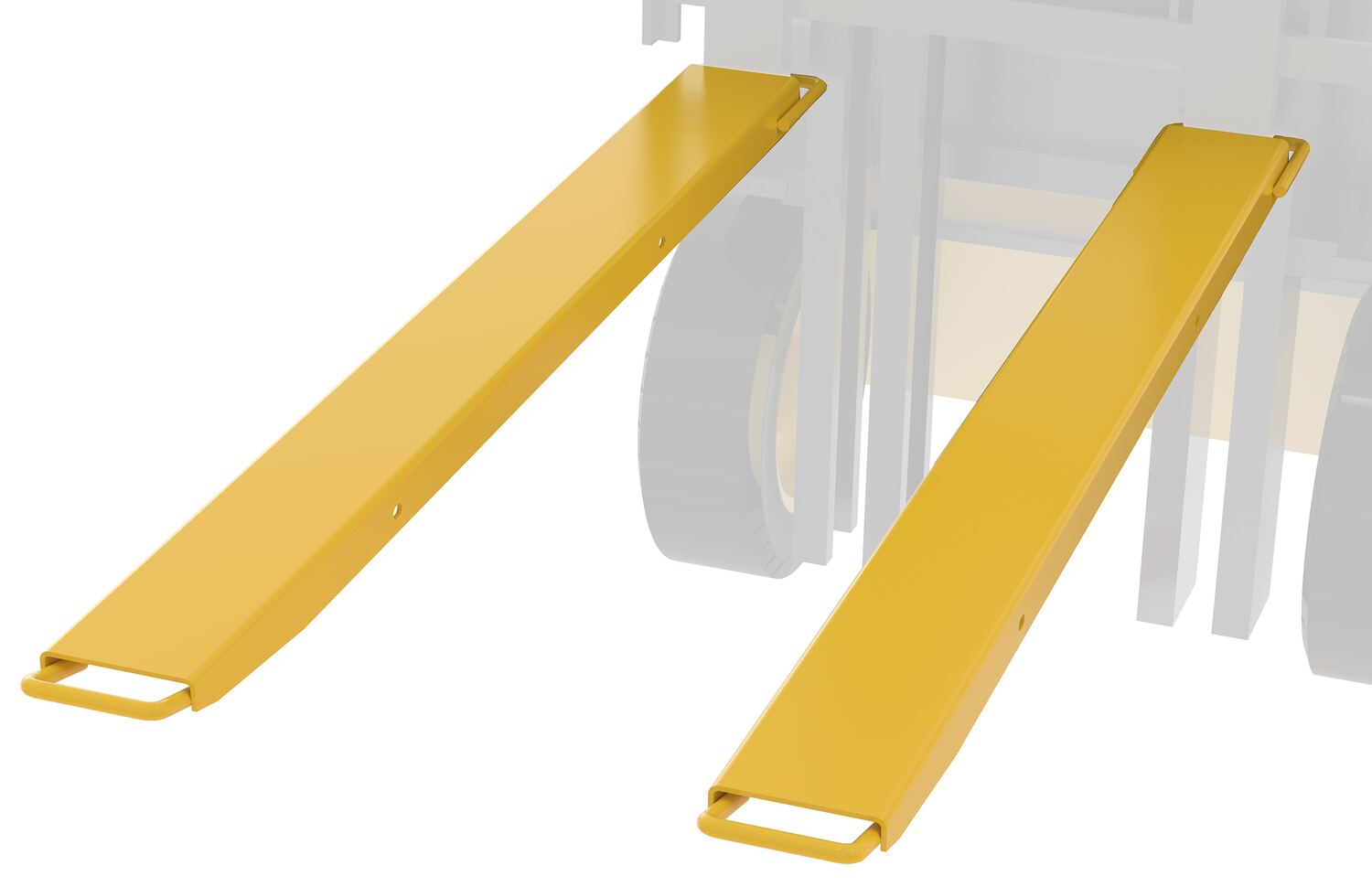

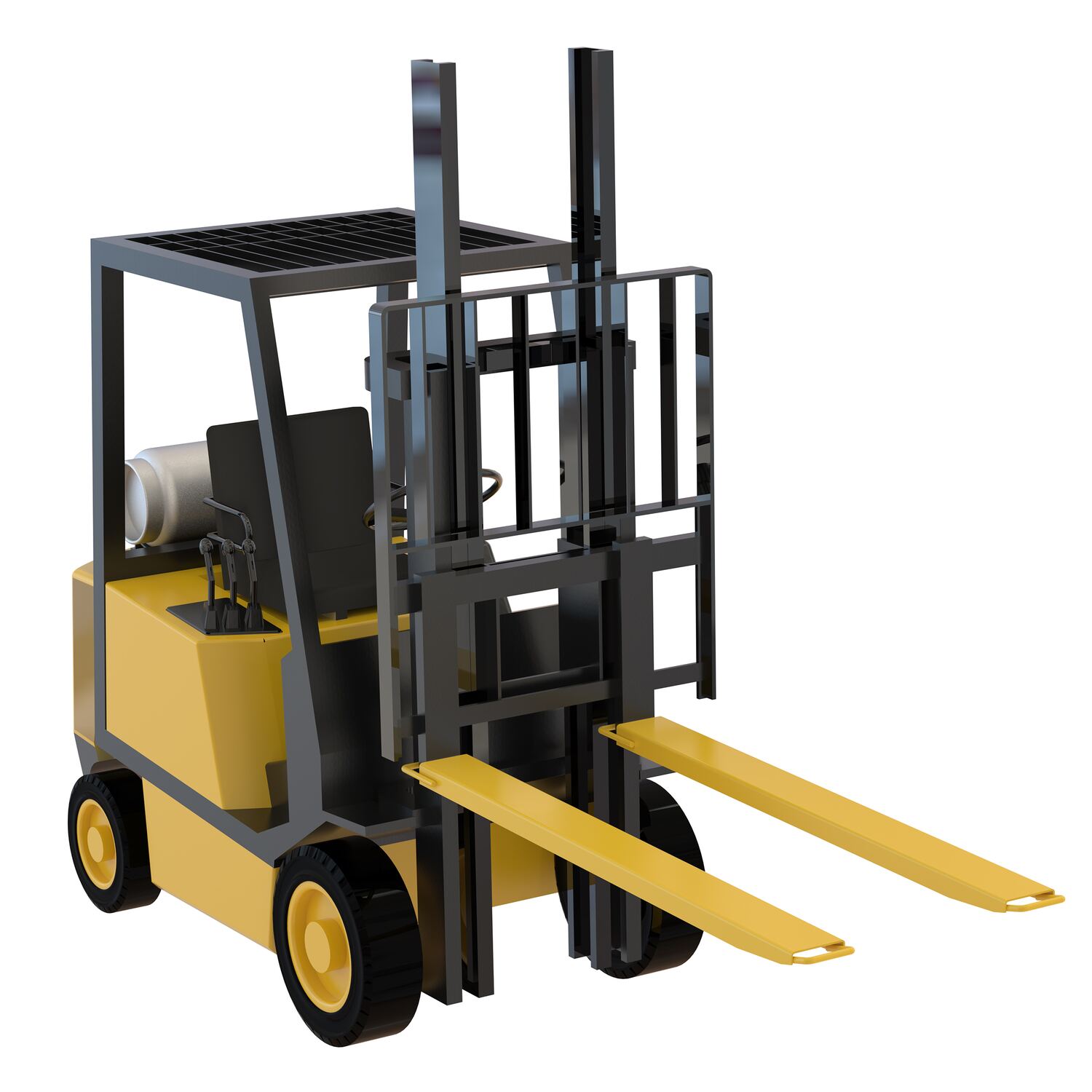

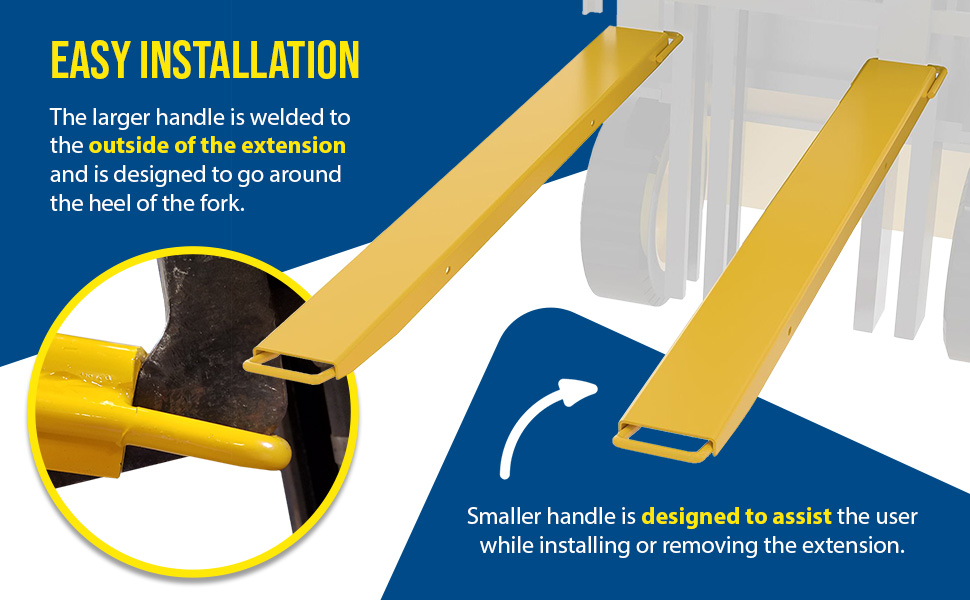

High Strength Fork Extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. A 3/16" thickness and included lifting handle for simple placement of the extension onto the lifting fork. These models are almost 40% lighter than standard fork extensions. 4,000 pound capacity is evenly distributed per pair. A powder coat finish is included to diminish scraps and minimize abrasion during use. Baked-in powder coat finish for added toughness.

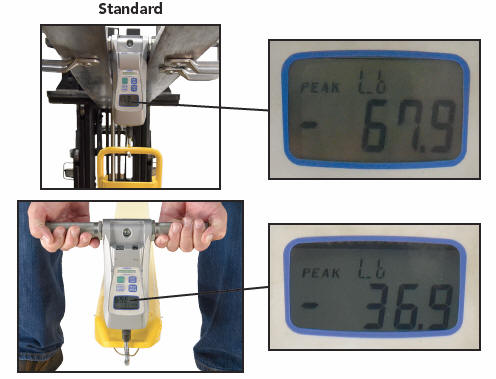

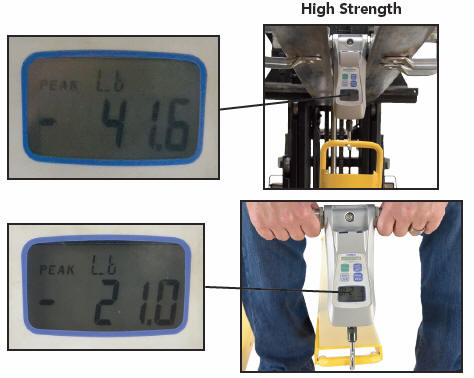

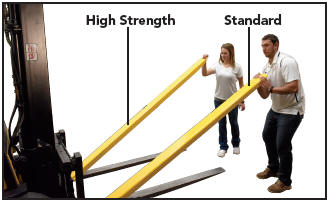

Over 40% Lighter Than Standard Extensions!


High Strength Fork Extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. A 3/16" thickness and included lifting handle for simple placement of the extension onto the lifting fork. These models are almost 40% lighter than standard fork extensions. 4,000 pound capacity is evenly distributed per pair. A powder coat finish is included to diminish scraps and minimize abrasion during use. Baked-in powder coat finish for added toughness.

Over 40% Lighter Than Standard Extensions!


Share This Page





KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
High-Strength Fork Extensions

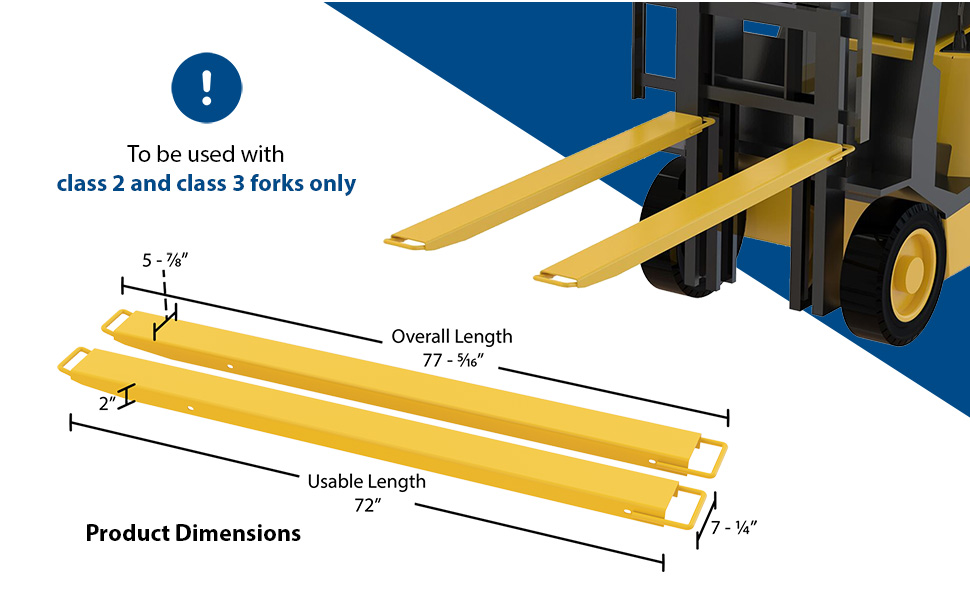

Model Image PDF Accommodates
Fork Width
Inside
Width
Usable Length Maximum
Fork Thickness
Installation
Wt. (lbs)
Wt.
(lbs.) Pair
Wt.
(lbs.) Shipping
FE-HS-4-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 63" 2" 14 64 64
FE-HS-4-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 72" 2" 17 72 72
FE-HS-4-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 84" 2" 26 84 102

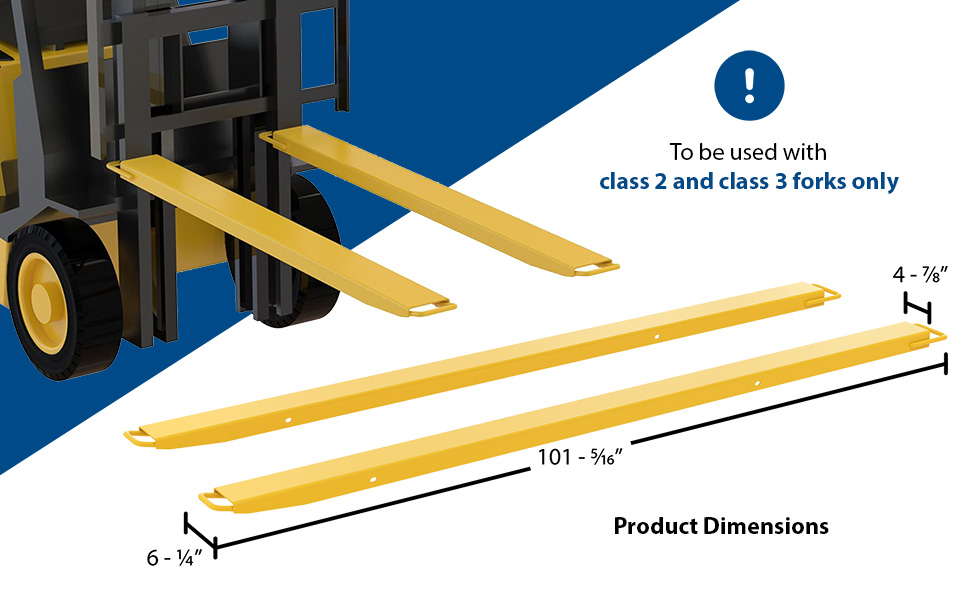

FE-HS-4-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" 4-1/2" 96" 2" 29 94 116

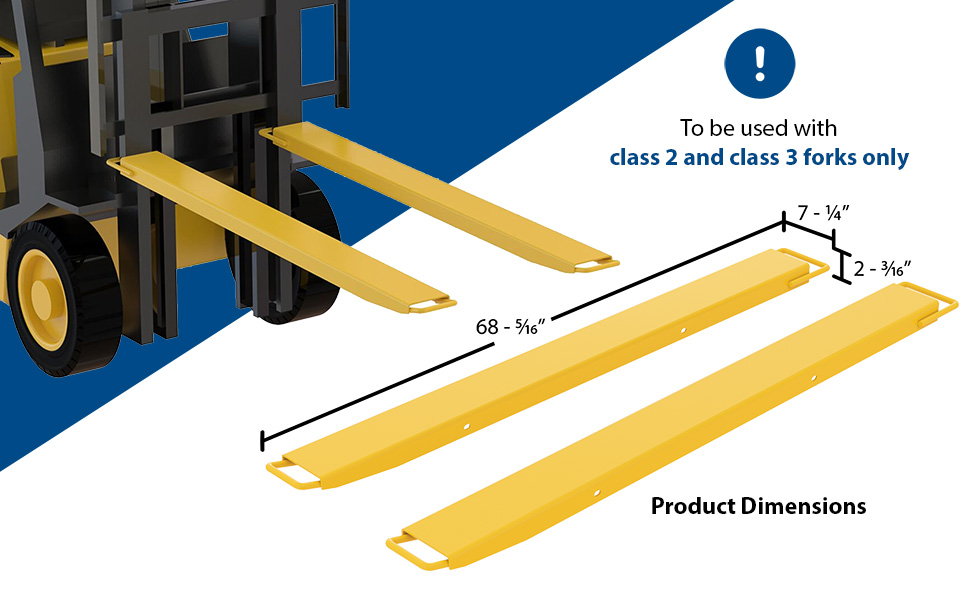

FE-HS-5-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 63" 2" 16 72 72

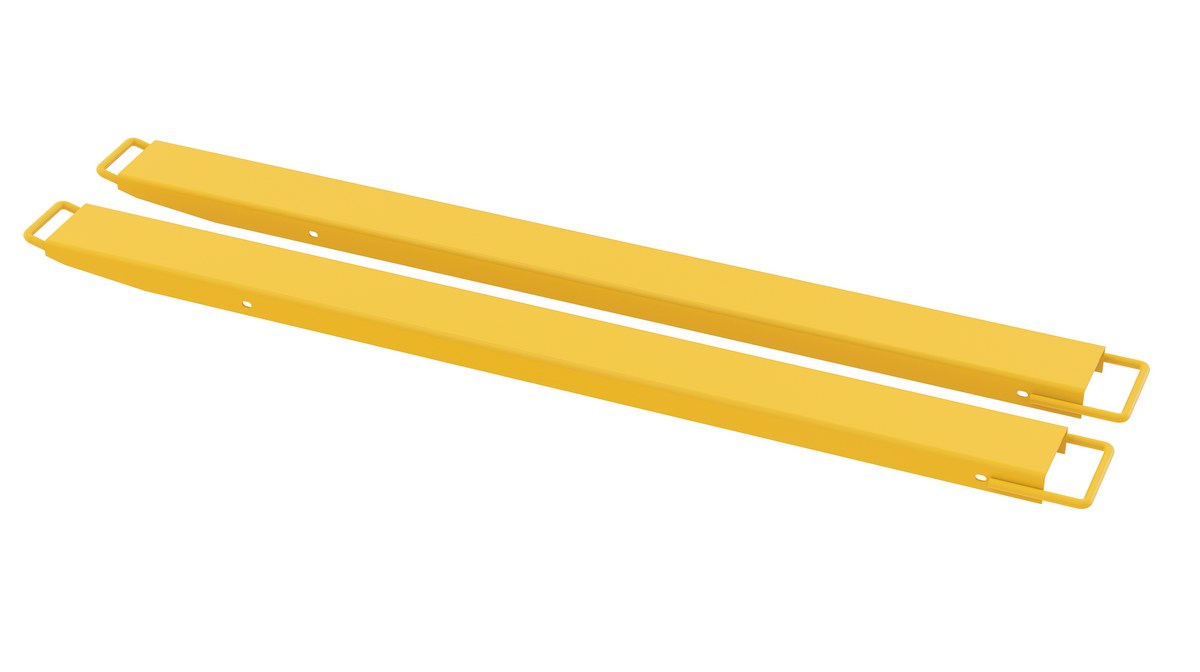

FE-HS-5-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 72" 2" 19 80 80
FE-HS-5-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 84" 2" 29 94 112
FE-HS-5-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 5" 5-1/2" 96" 2" 32 106 128
FE-HS-6-63 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 63" 2-1/2" 17 78 78
FE-HS-6-72 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 72" 2-1/2" 21 90 90
FE-HS-6-84 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 84" 2-1/2" 32 120 120
FE-HS-6-96 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6" 6-1/2" 96" 2-1/2" 34 116 138

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
FE-HS-4-63 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 63L X 4W INUniform Capacity Per Pair (lb.): 4,00032
FE-HS-4-72 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 72L X 4W INUniform Capacity Per Pair (lb.): 4,00036
FE-HS-4-84 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 84L X 4W INUniform Capacity Per Pair (lb.): 4,000102
FE-HS-4-96 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 96L X 4W INUniform Capacity Per Pair (lb.): 4,000116
FE-HS-5-63 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 63L X 5W INUniform Capacity Per Pair (lb.): 4,00036
FE-HS-5-72 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 72L X 5W INUniform Capacity Per Pair (lb.): 4,00040
FE-HS-5-84 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 84L X 5W INUniform Capacity Per Pair (lb.): 4,000112
FE-HS-5-96 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 96L X 5W INUniform Capacity Per Pair (lb.): 4,000128
FE-HS-6-63 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 63L X 6W INUniform Capacity Per Pair (lb.): 4,00039
FE-HS-6-72 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 72L X 6W INUniform Capacity Per Pair (lb.): 4,00045
FE-HS-6-84 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 84L X 6W INUniform Capacity Per Pair (lb.): 4,000120
FE-HS-6-96 download.gif90 Days Limited WarrantyFORK EXTENSION HIGH STRENGTH 96L X 6W INUniform Capacity Per Pair (lb.): 4,000138



High Strength Fork Extensions PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

FE-HS-4-63
FE-HS-4-72
FE-HS-4-84
FE-HS-4-96

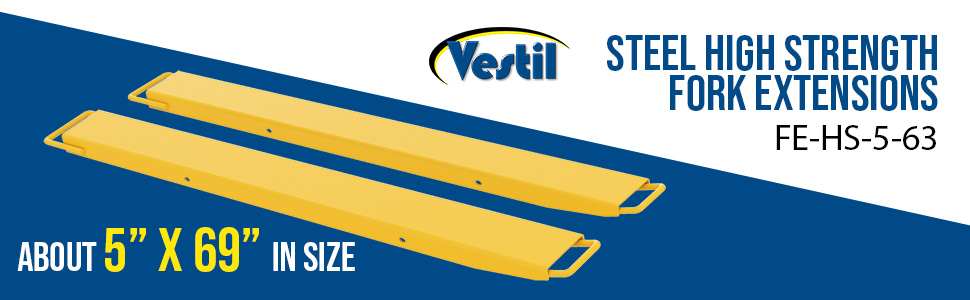

FE-HS-5-63

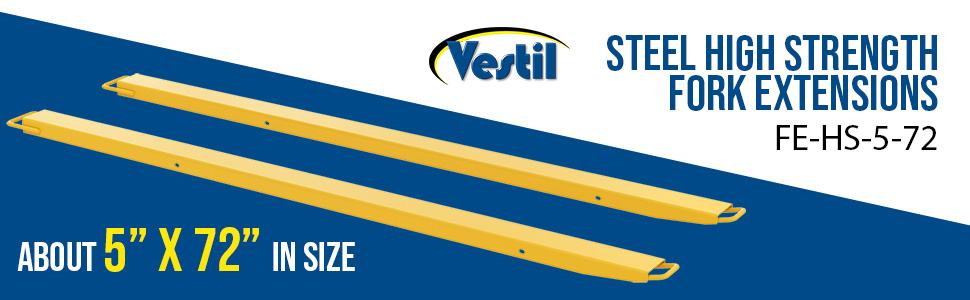

FE-HS-5-72
FE-HS-5-84
FE-HS-5-96
FE-HS-6-63
FE-HS-6-72
FE-HS-6-84
FE-HS-6-96

Other PDF's


Directory Links Of Available PDF's For All Products




Q: Are the fork extensions sold in a pair?

A: Yes, the fork extensions are sold in pairs.
