SERIES: ELH

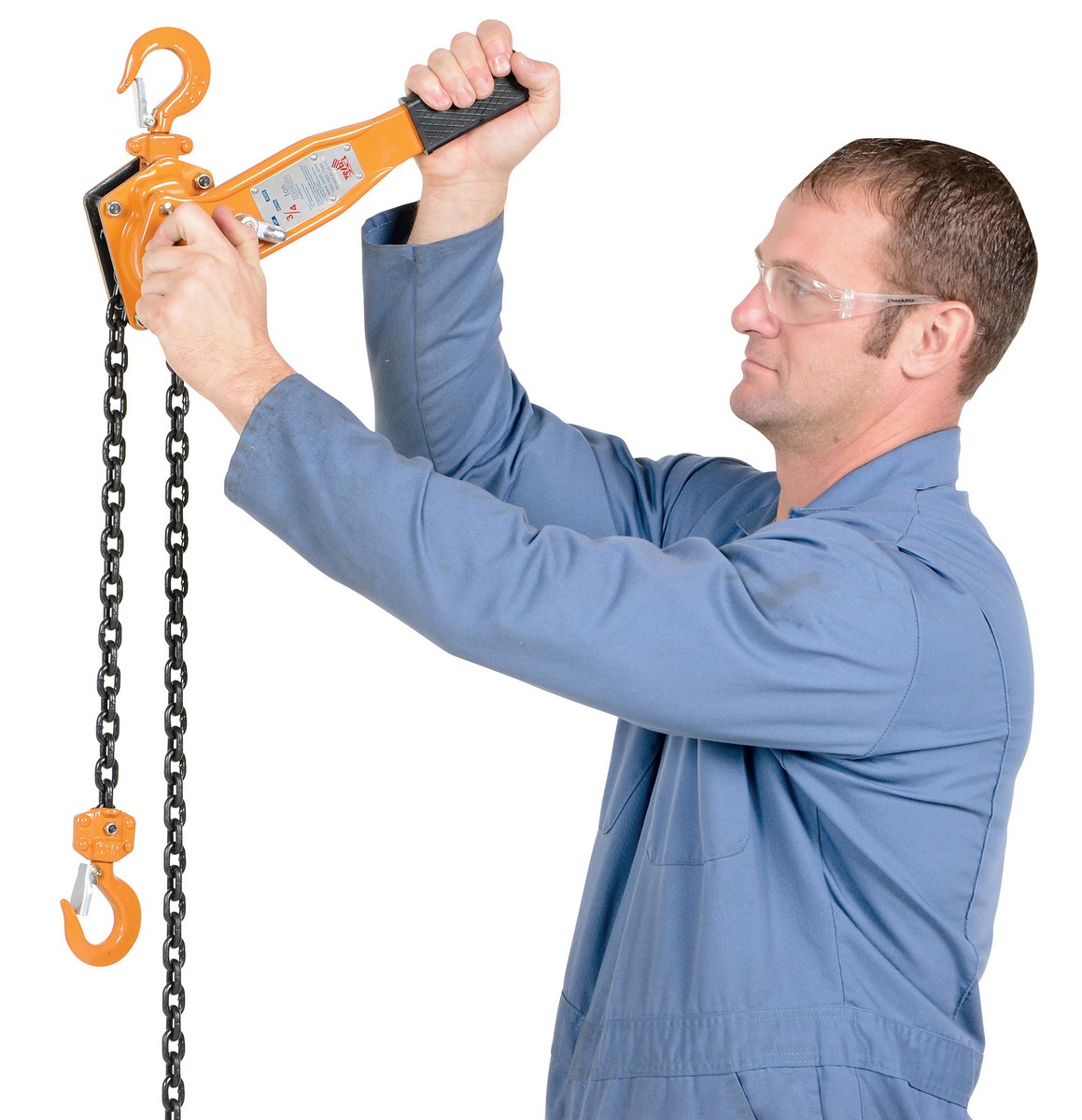

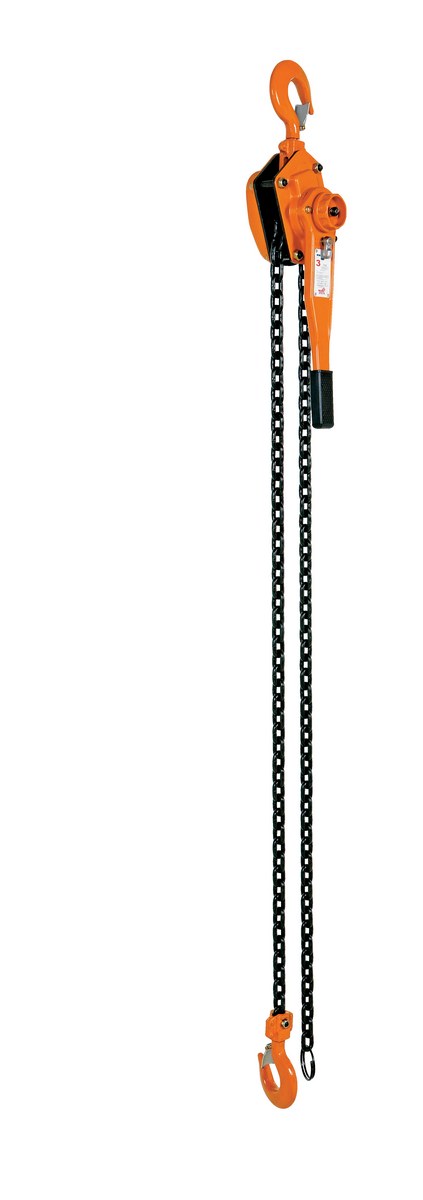

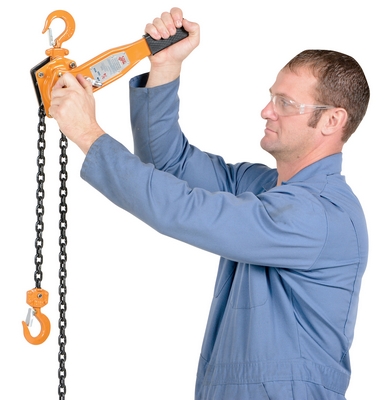

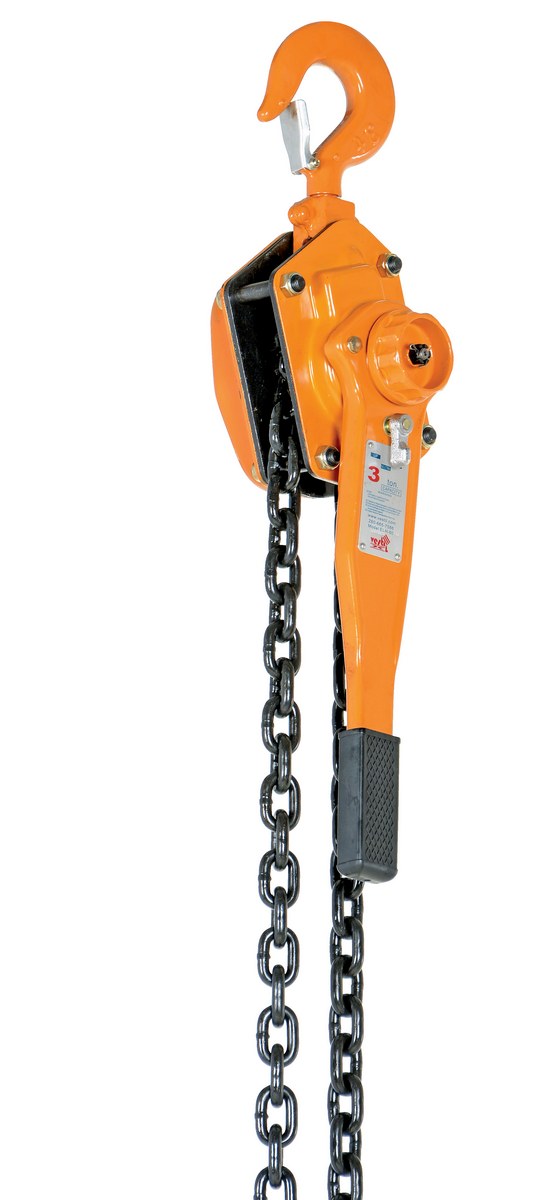

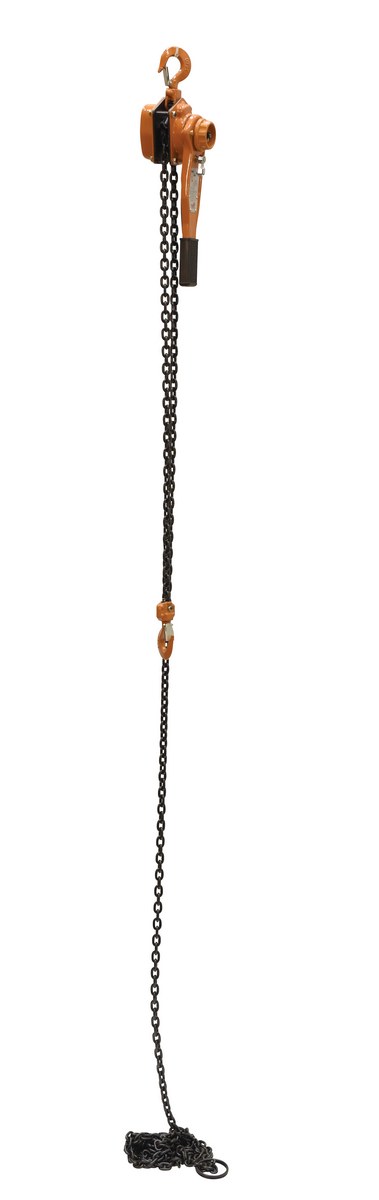

Economy Lever Hoists (disc brake)

Single hand "free chaining" is simple, allowing trouble-free operation in the vertical or horizontal position. Lever handle can rotate in a complete 360 degree circle. Swivel hooks include deformation indicators. Each hoist is tested to 150% of rated capacity and issued with an individual test certificate.

* Units with capacity under 6,000 lbs. come standard with rigged storage bag,*

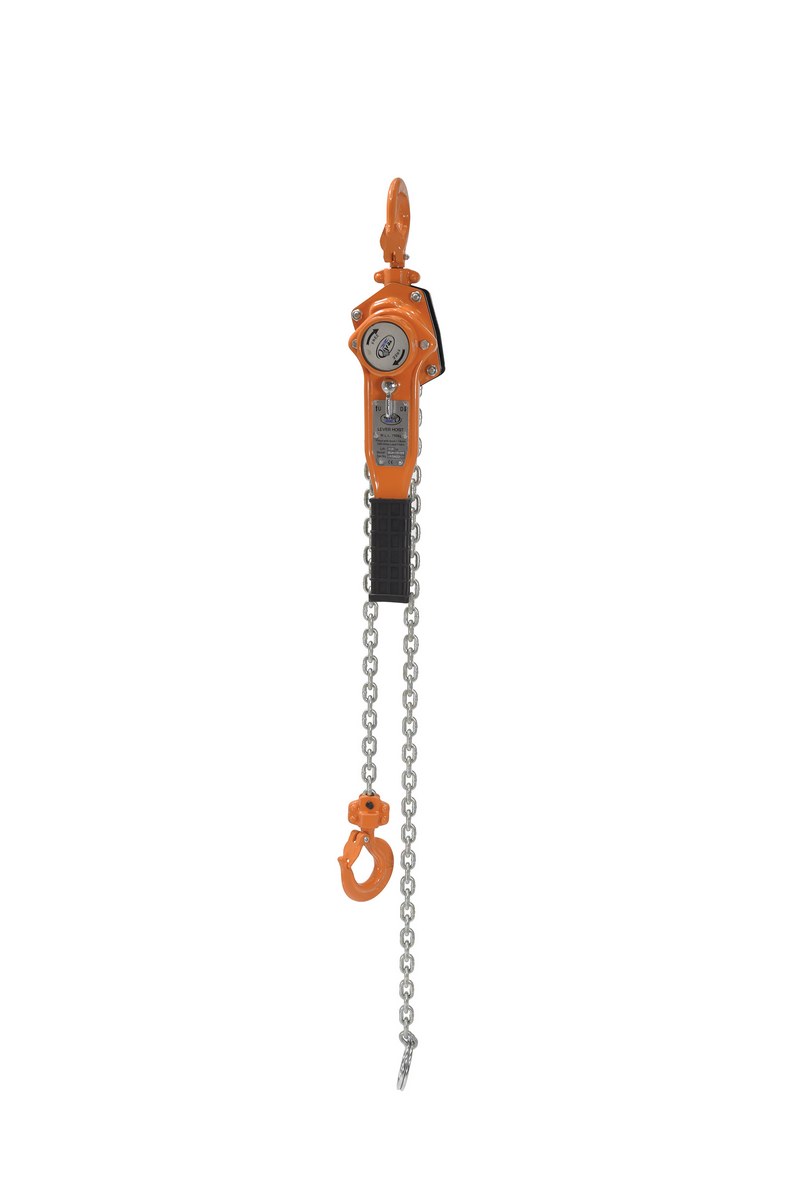

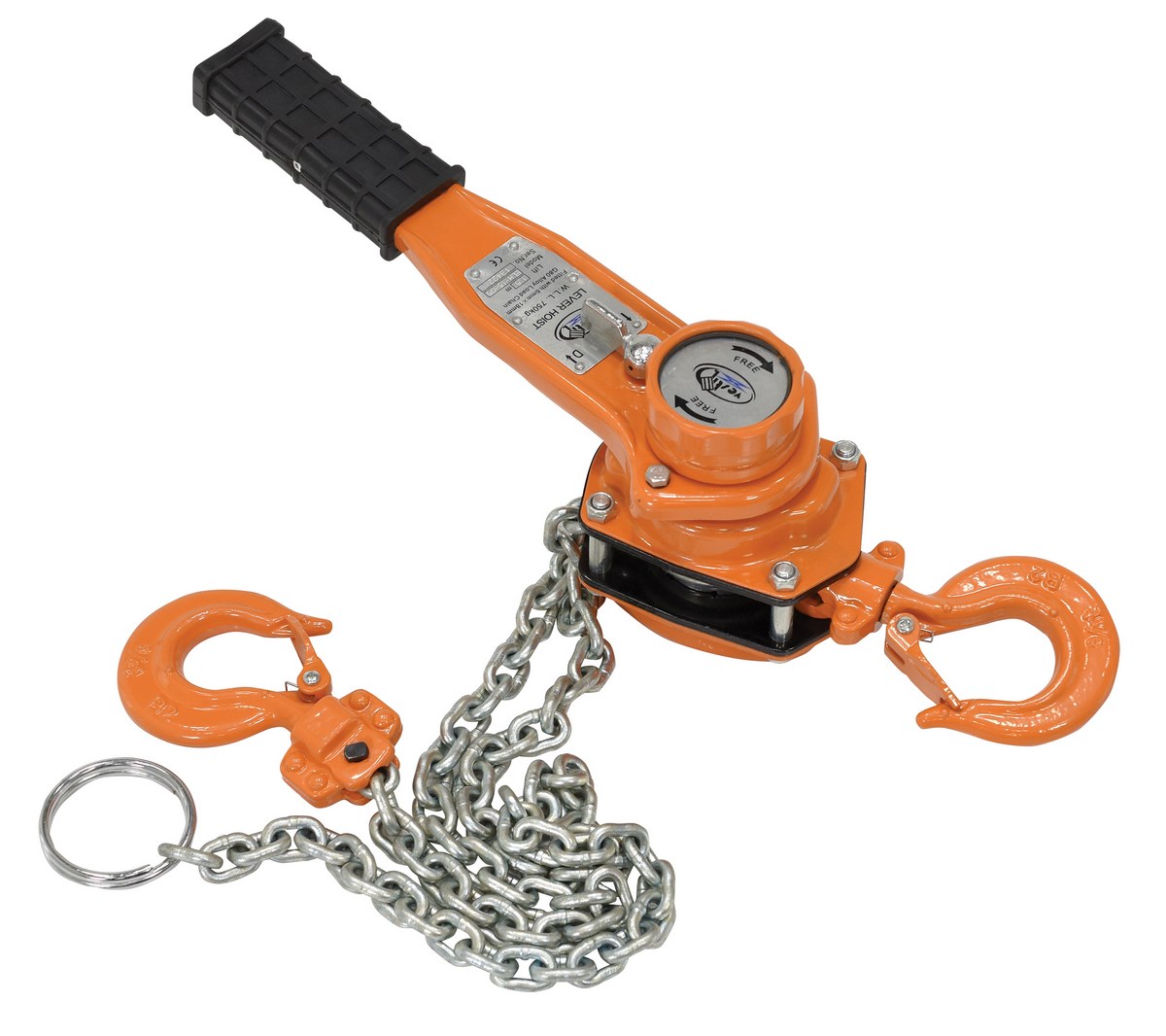

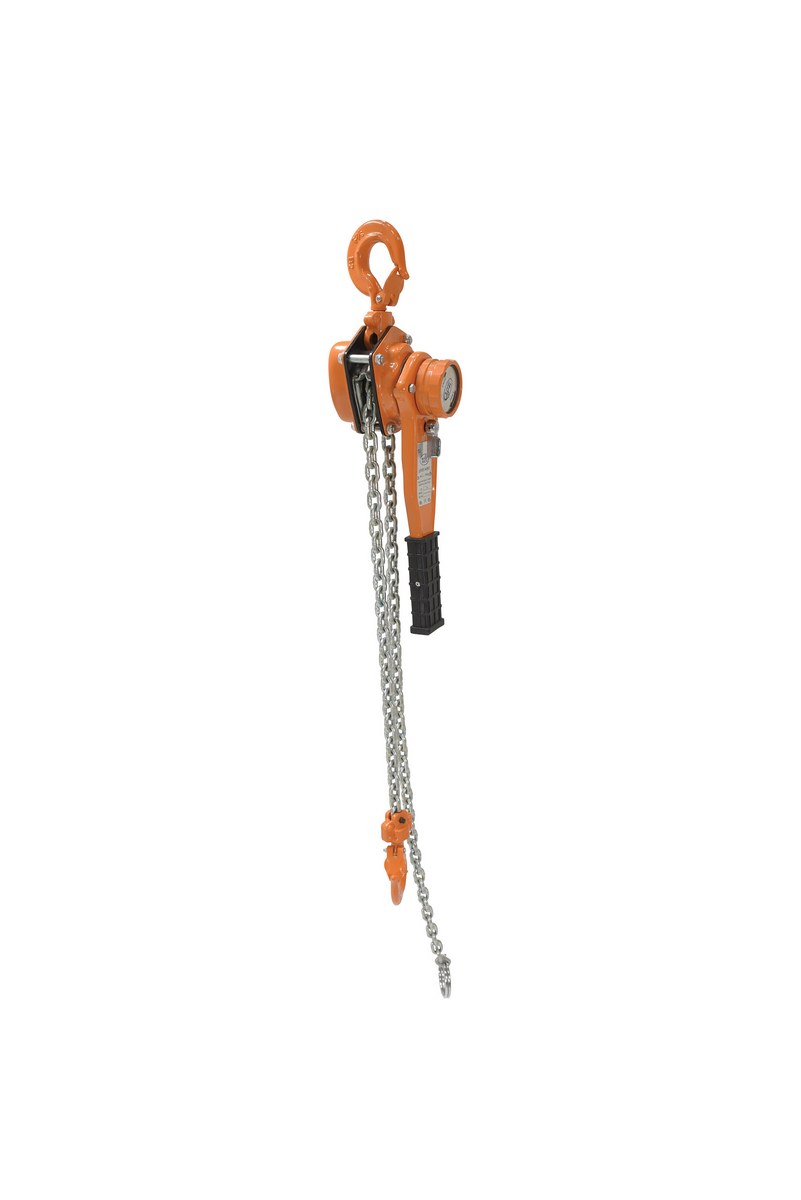

ELH-15-5

model ELH-15-5

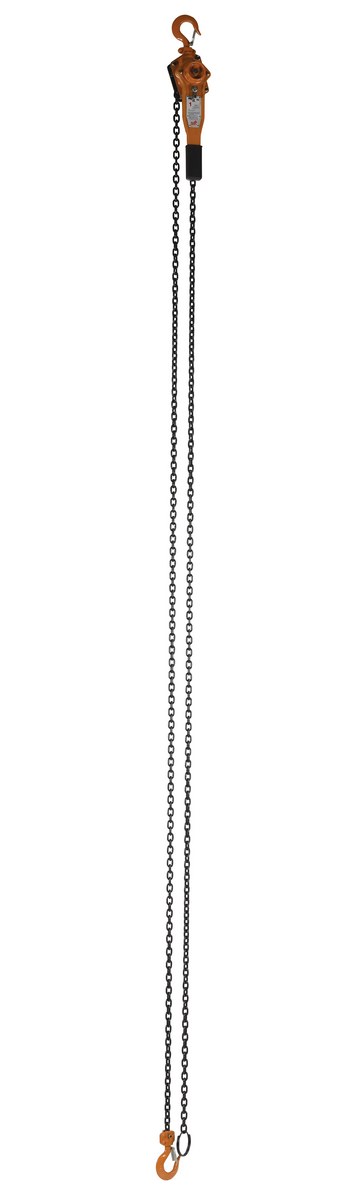

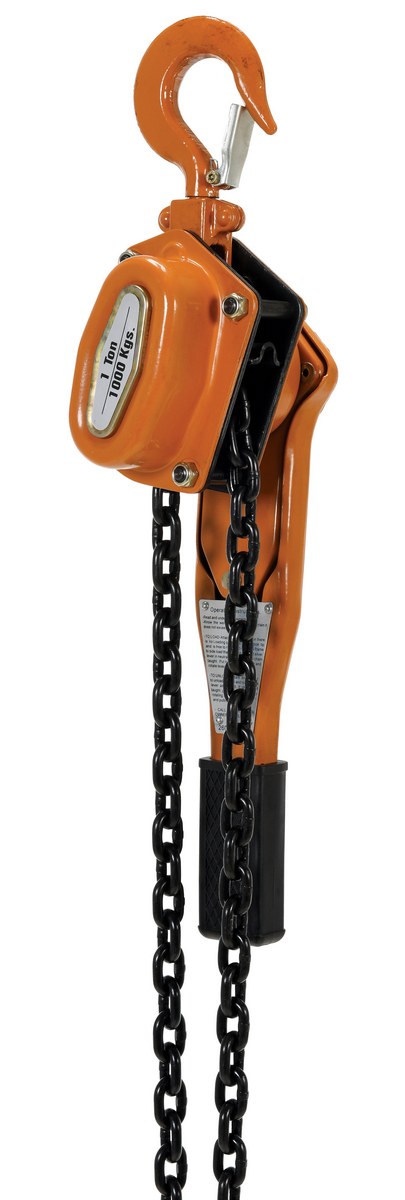

ELH-20-20

model ELH-20-20

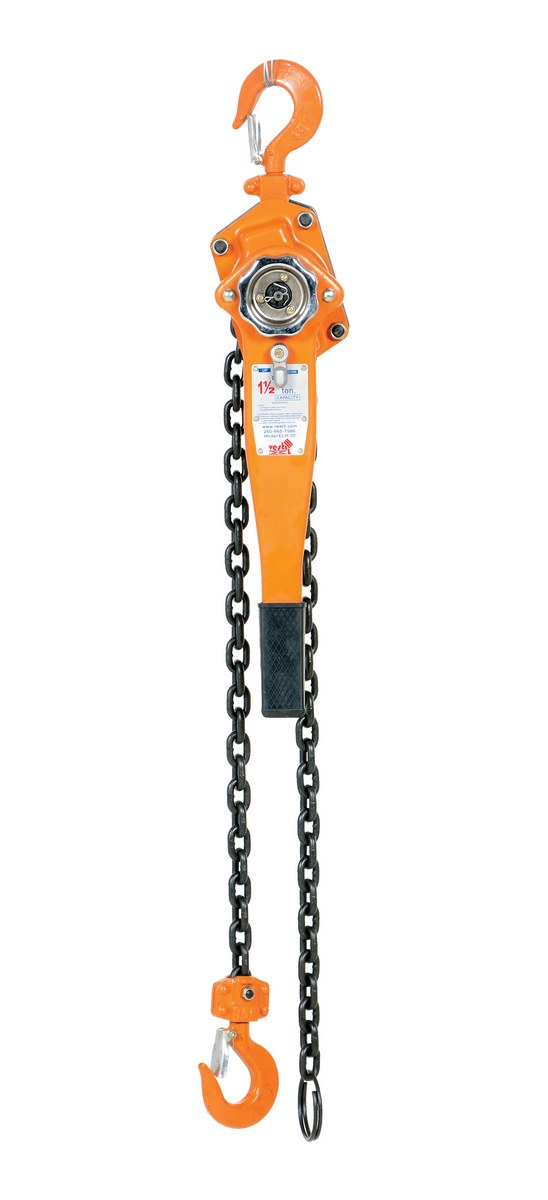

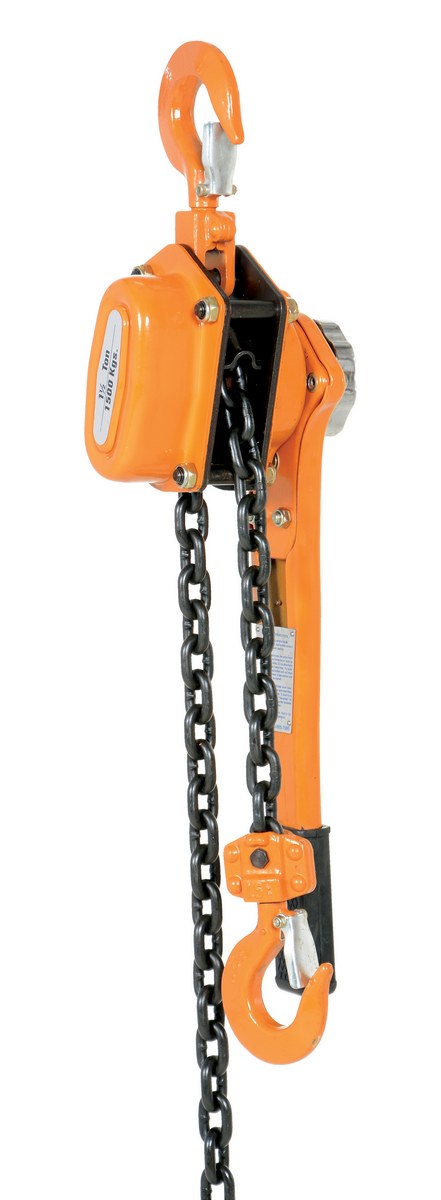

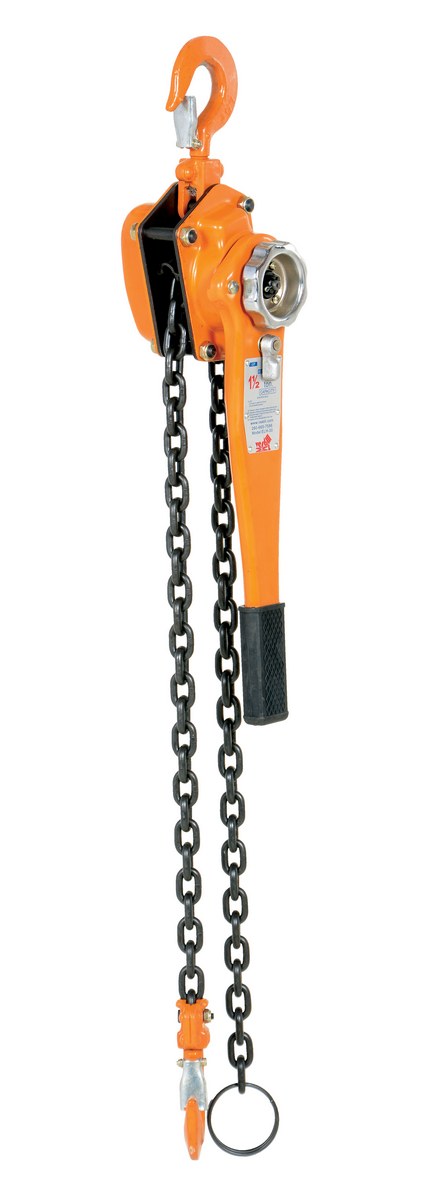

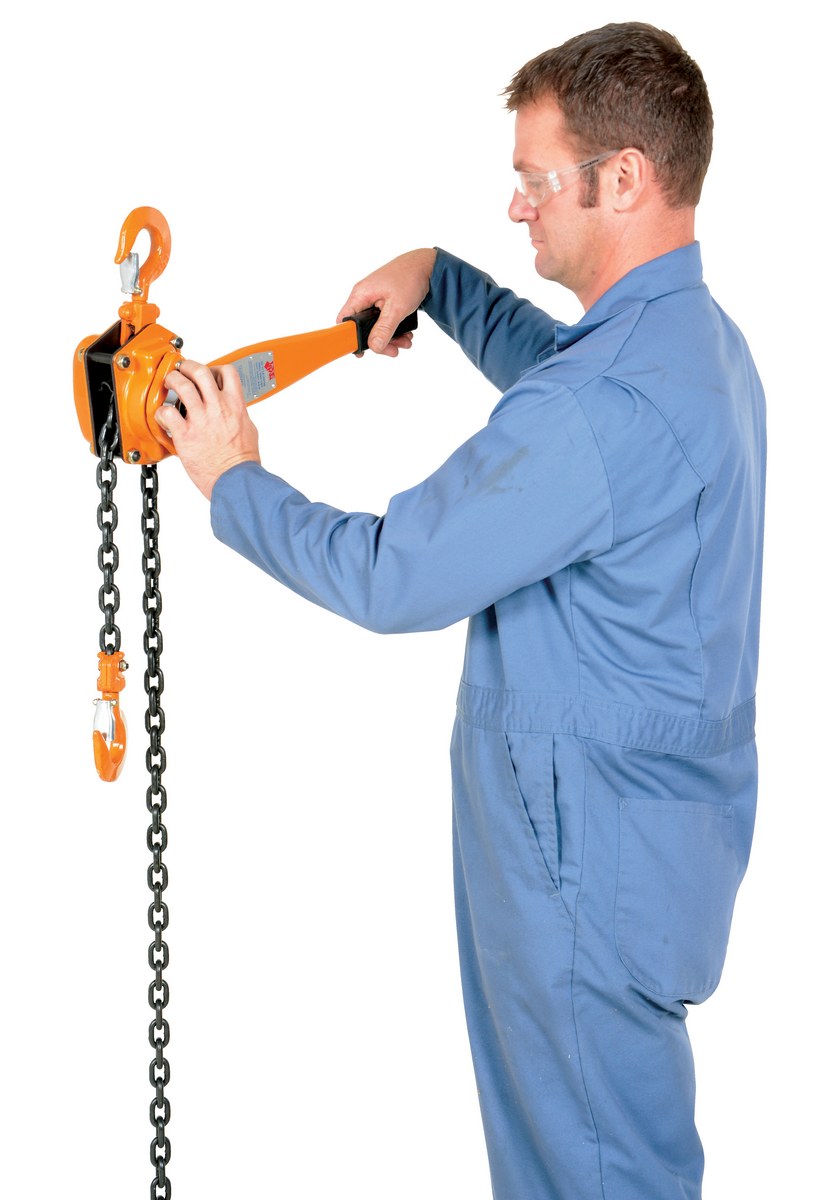

ELH-30-5

model ELH-30-5

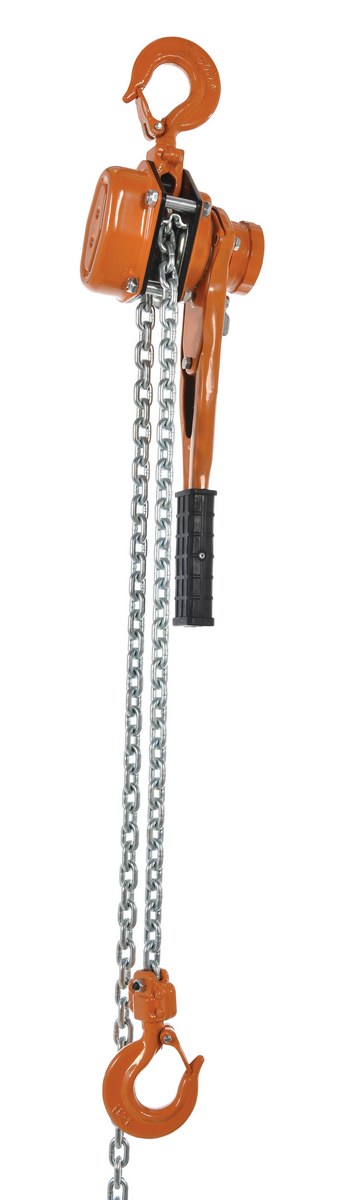

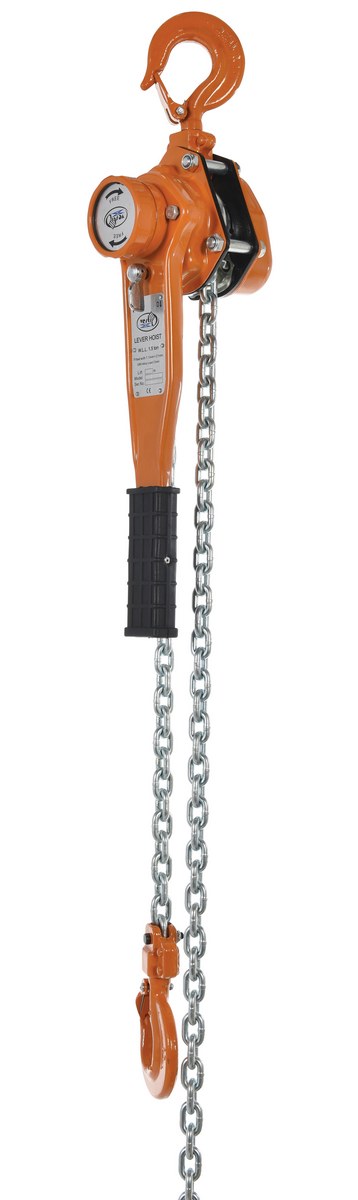

ELH-30-20

model ELH-30-20




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Economy Lever Hoists (disc brake)

Model Image PDFs Uniform
Capacity
(lbs)
Standard
Lift
(Feet)
Min. DIstance
Between
Hooks
Handle
Length
Wt.
(lbs)
ELH-15-5 Warranty PDFCompliance Certificate 1,500 5 12-7/8" 11" 15

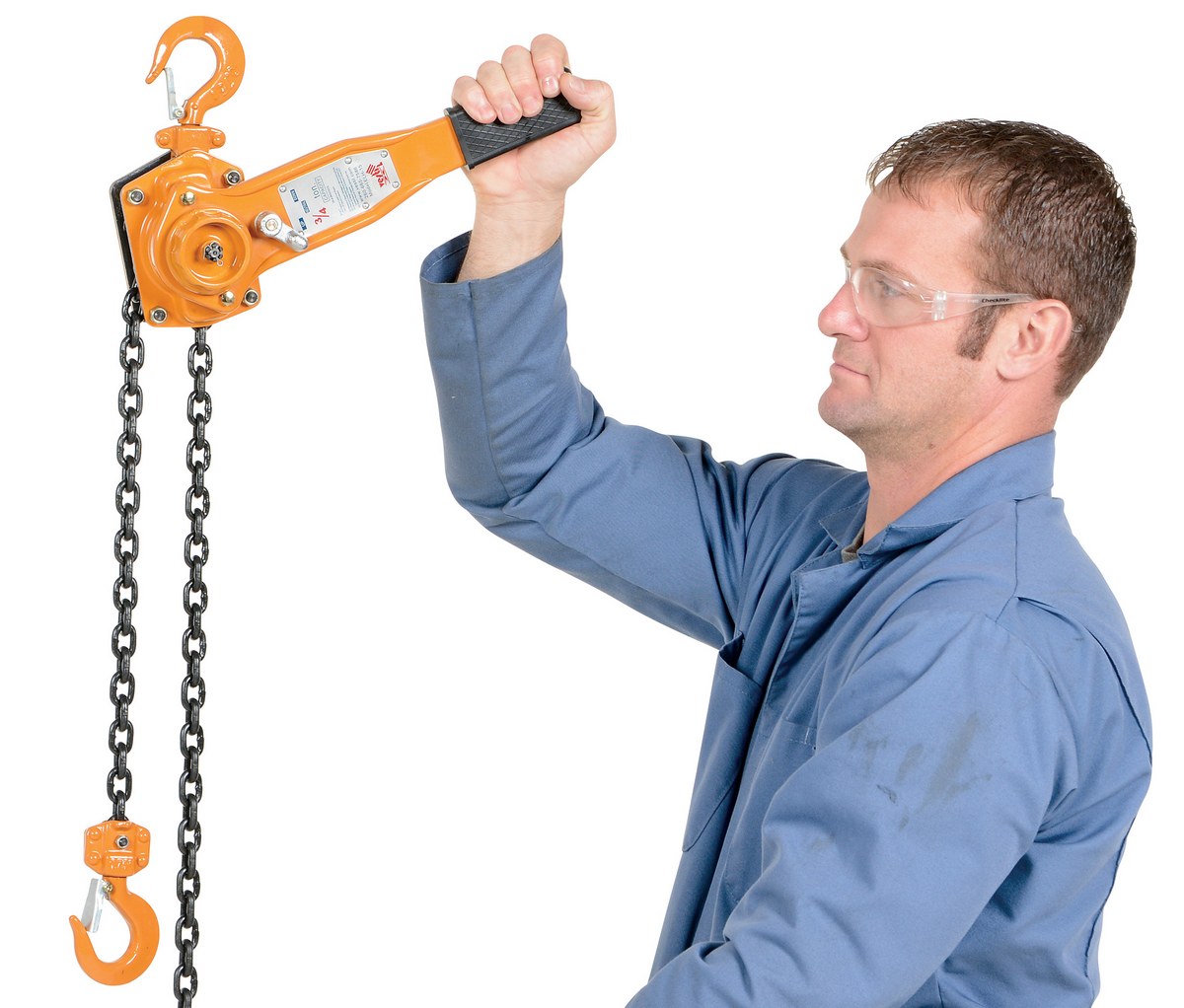

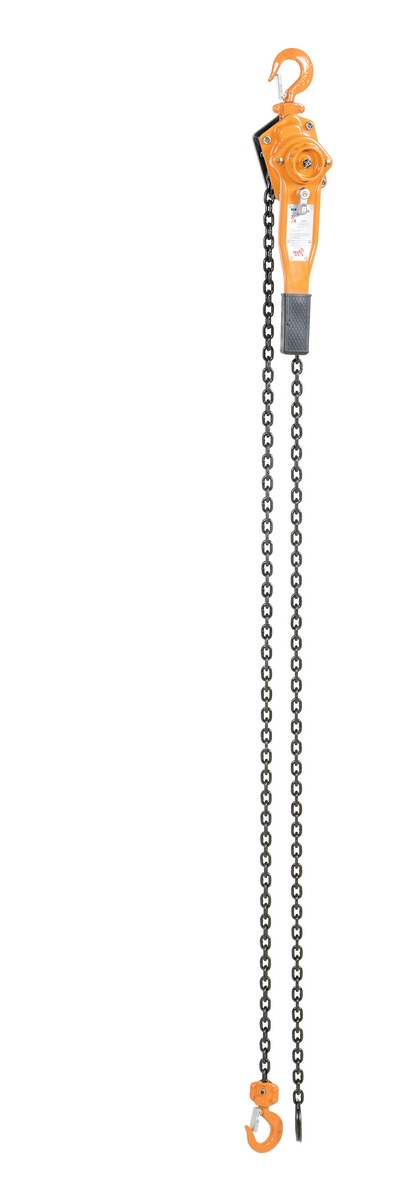

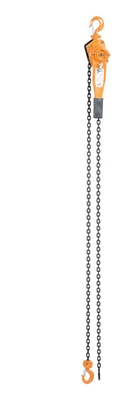

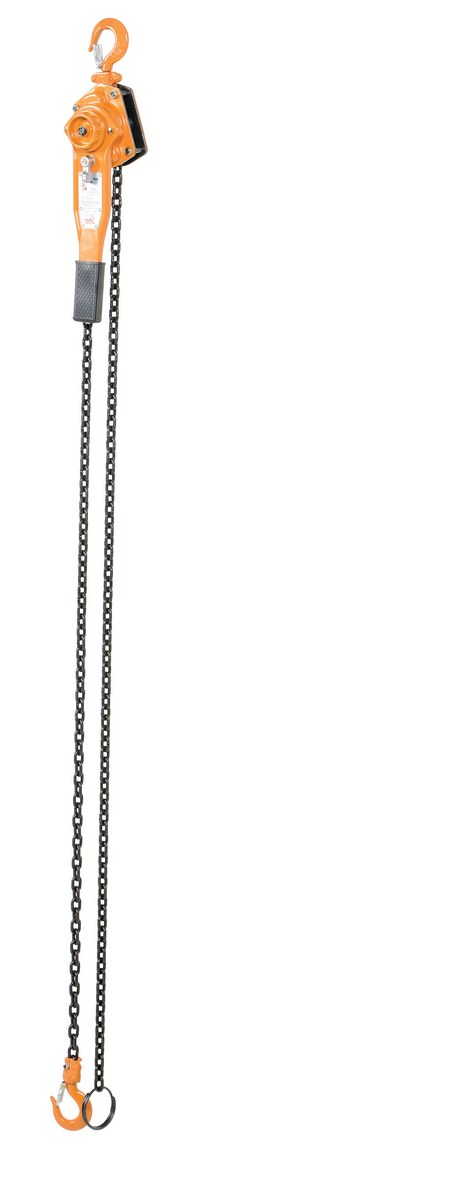

ELH-15-10 Warranty PDFCompliance Certificate 1,500 10 12-7/8" 11" 22
ELH-15-20 Warranty PDFCompliance Certificate 1,500 20 12-7/8" 11" 23
ELH-20-5 Warranty PDFCompliance Certificate 2,000 5 12-3/4" 10" 20

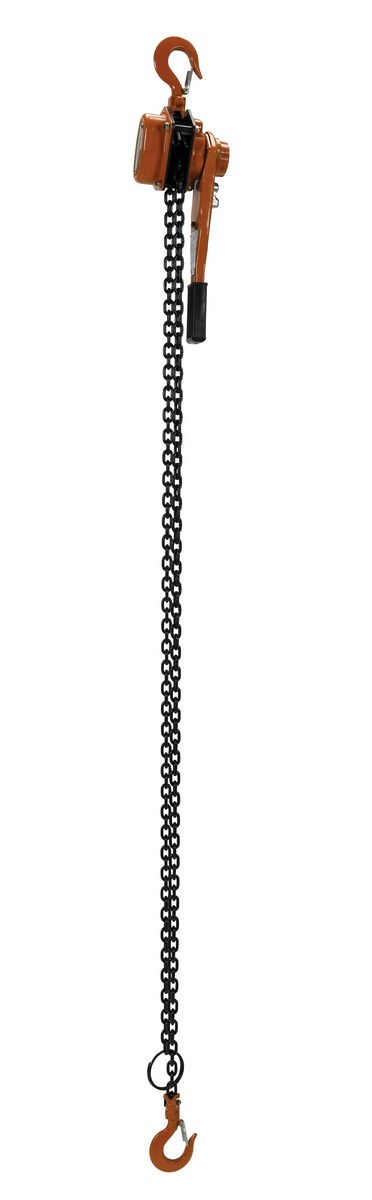

ELH-20-10 Warranty PDFCompliance Certificate 2,000 10 12-3/4" 10" 26
ELH-20-20 Warranty PDFCompliance Certificate 2,000 20 12-3/4" 10" 32
ELH-30-5 Warranty PDFCompliance Certificate 3,000 5 15" 16" 28

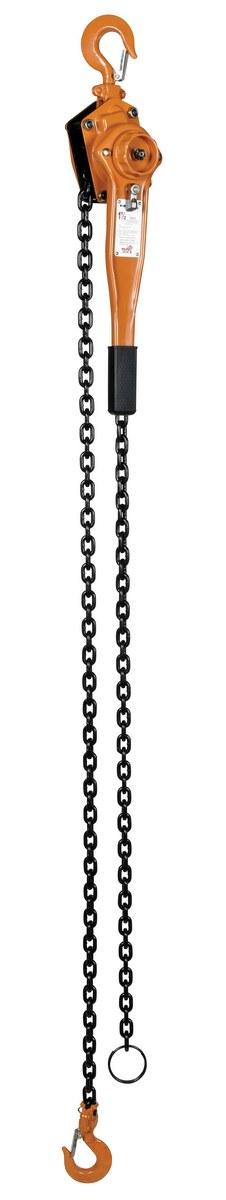

ELH-30-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3,000 10 15" 16" 34
ELH-30-20 Warranty PDFCompliance Certificate 3,000 20 15" 16" 45

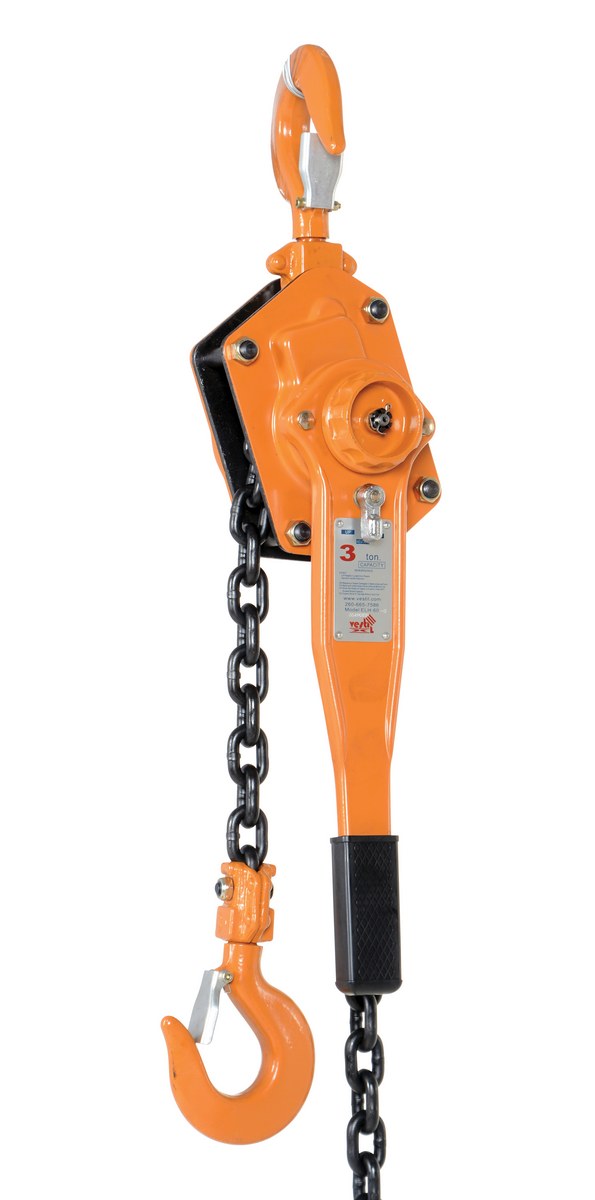

ELH-60-5 Warranty PDFCompliance Certificate 6,000 5 19" 16" 46
ELH-60-10 Compliance CertificateWarranty PDF 6,000 10 19" 16" 50
ELH-60-20 Warranty PDFCompliance Certificate 6,000 20 19" 16" 65

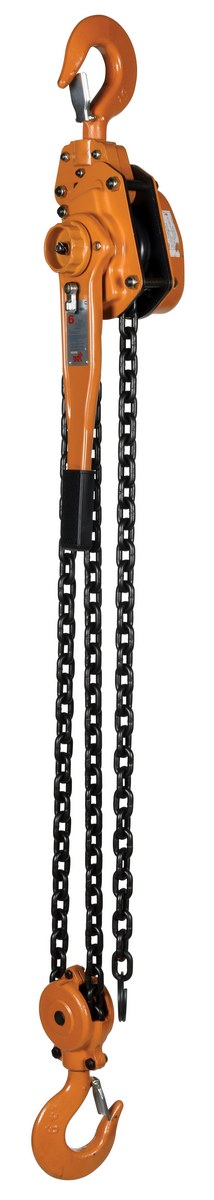

ELH-120-5 Warranty PDFCompliance Certificate 12,000 5 24-7/16" 14" 70

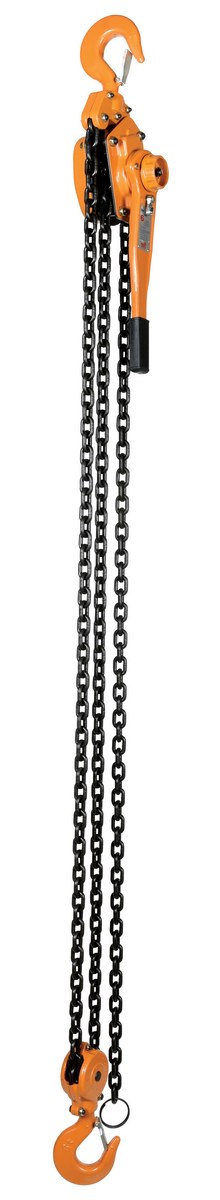

ELH-120-10 Warranty PDFCompliance Certificate 12,000 10 24-7/16" 14" 101
ELH-120-20 Warranty PDFCompliance Certificate 12,000 20 24-7/16" 14" 107

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

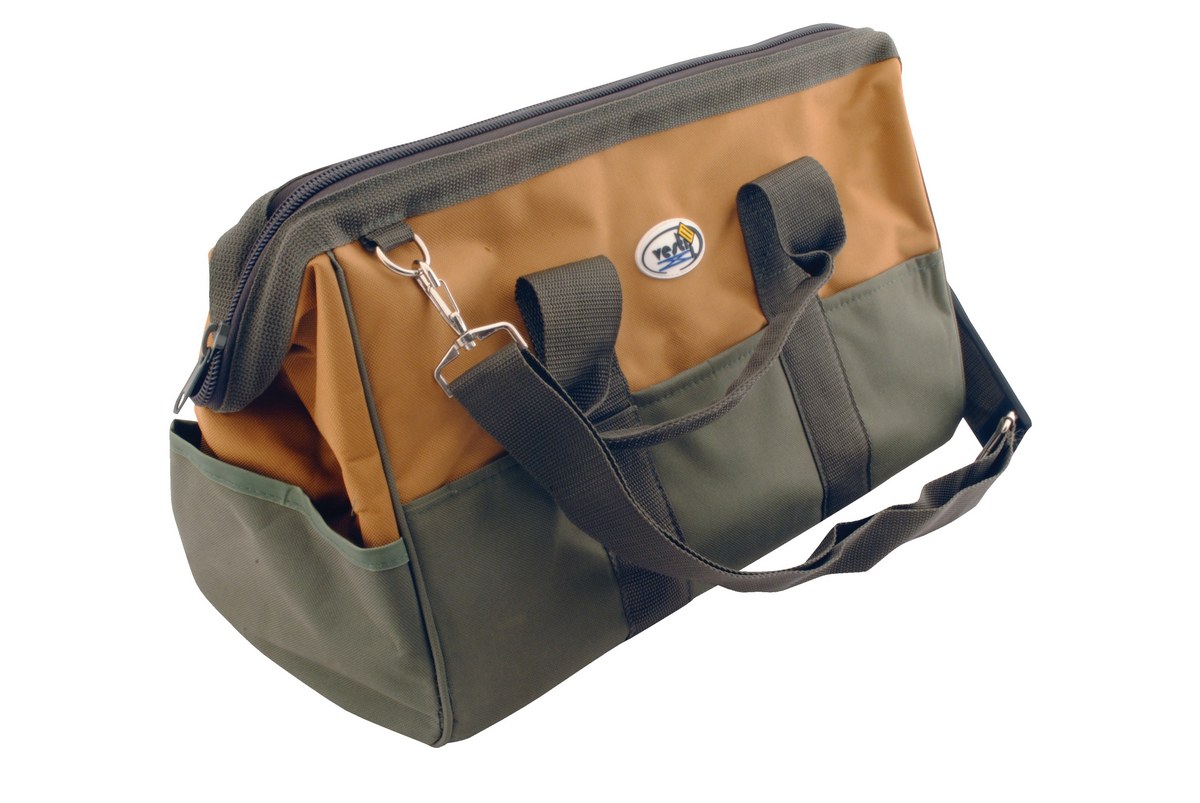

BAG-12 Additional 16 Pocket Tool Storage Bag

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

ELH-120-10

ELH-120-10

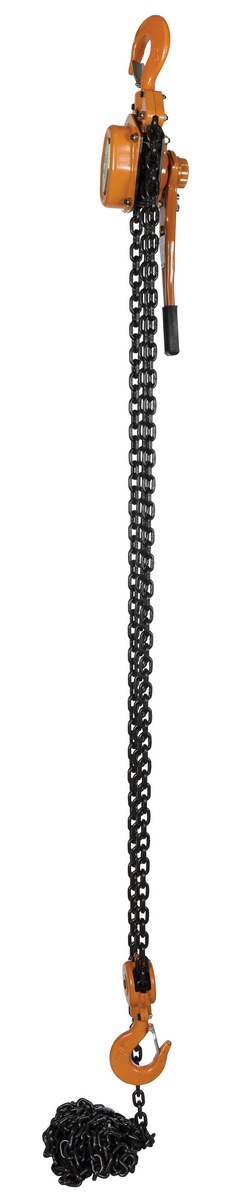

ELH-120-20

ELH-120-20

ELH-120-5

ELH-120-5

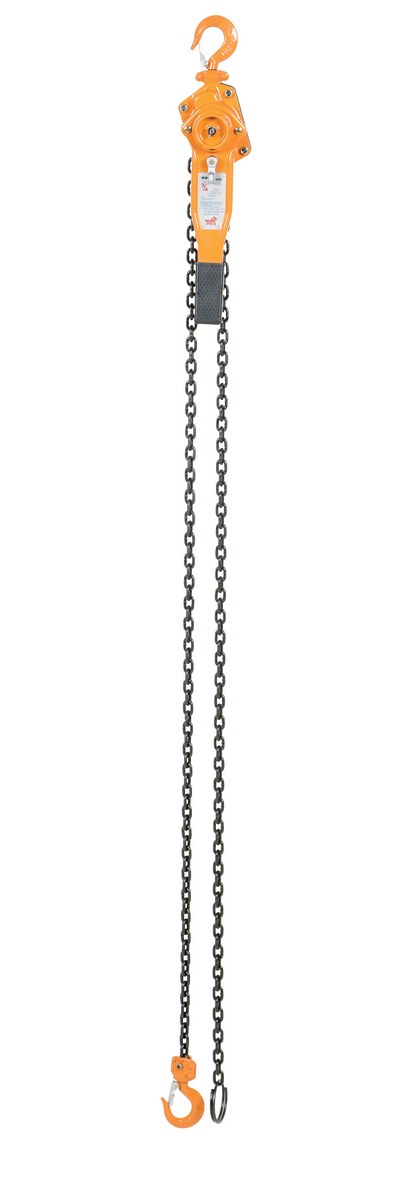

ELH-15-10

ELH-15-10

ELH-15-20

ELH-15-20

ELH-15-5

ELH-15-5

ELH-20-10

ELH-20-10

ELH-20-20

ELH-20-20

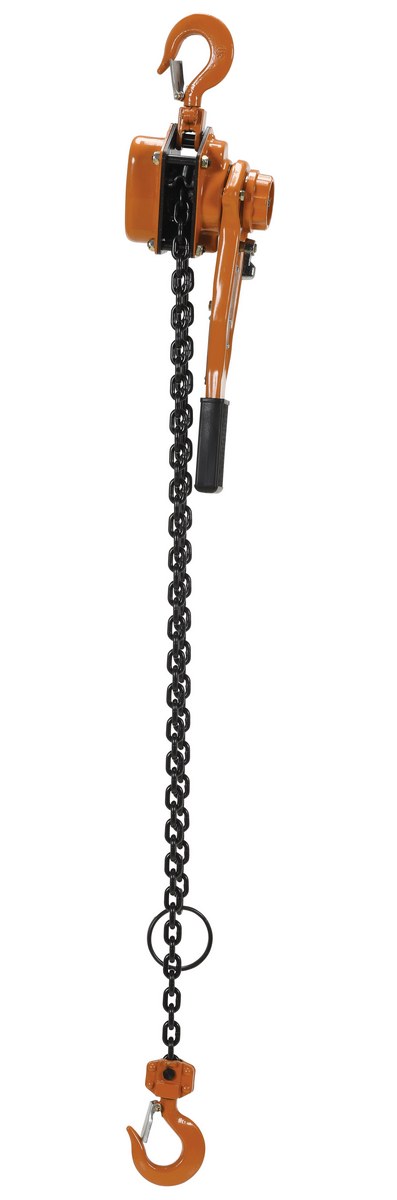

ELH-20-5
