SERIES: HCH

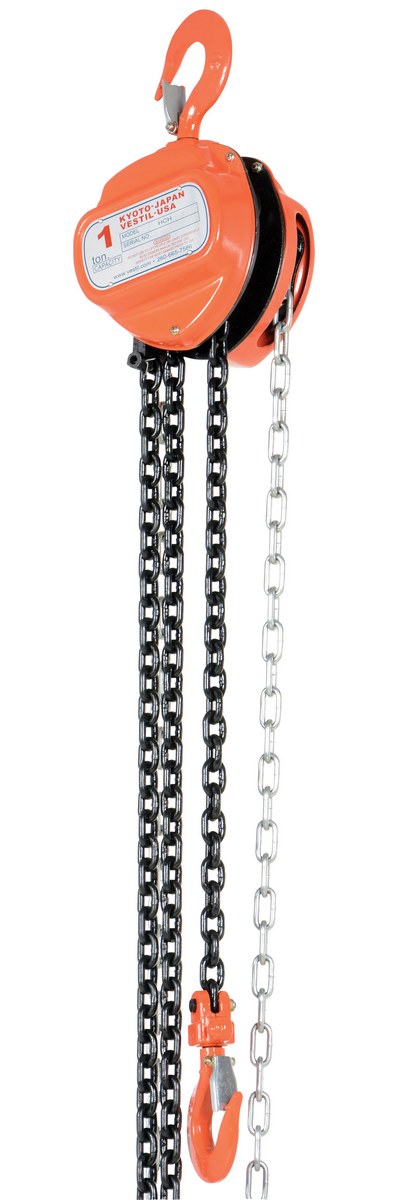

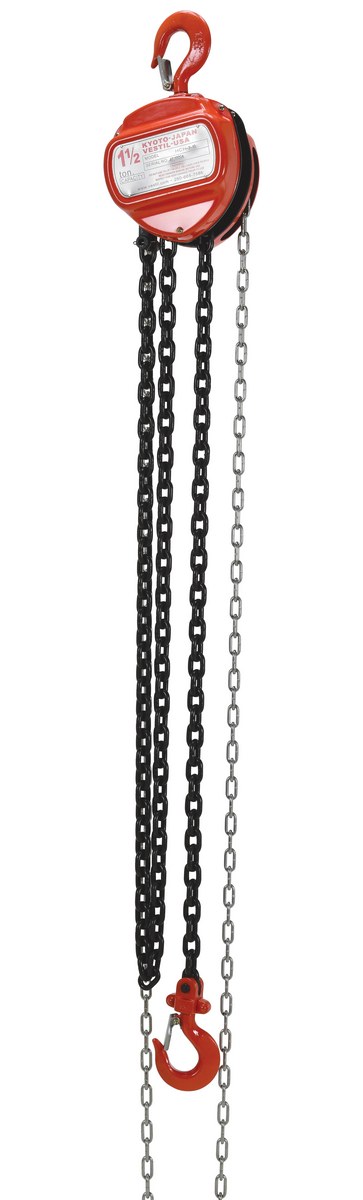

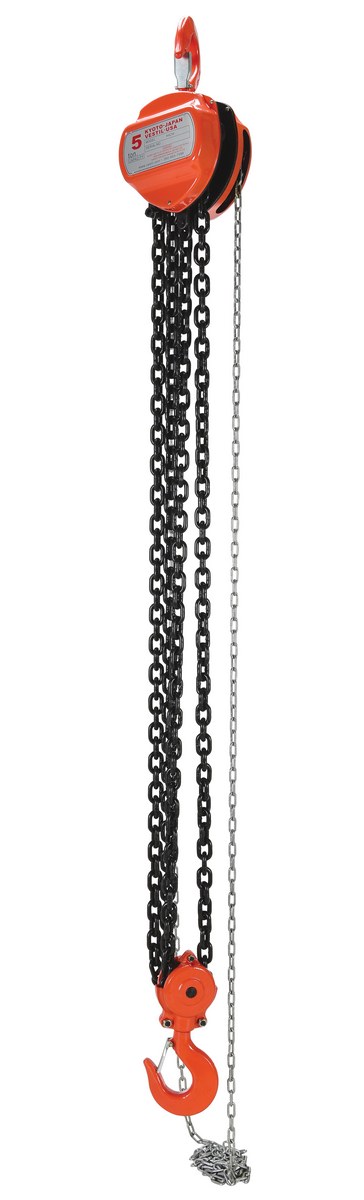

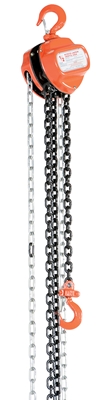

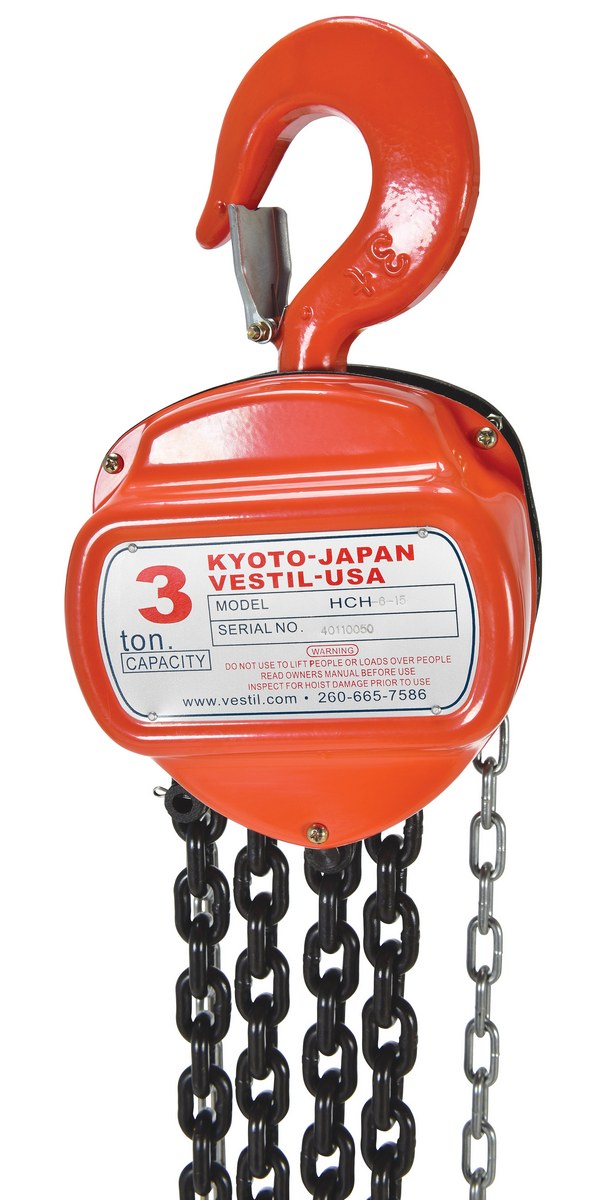

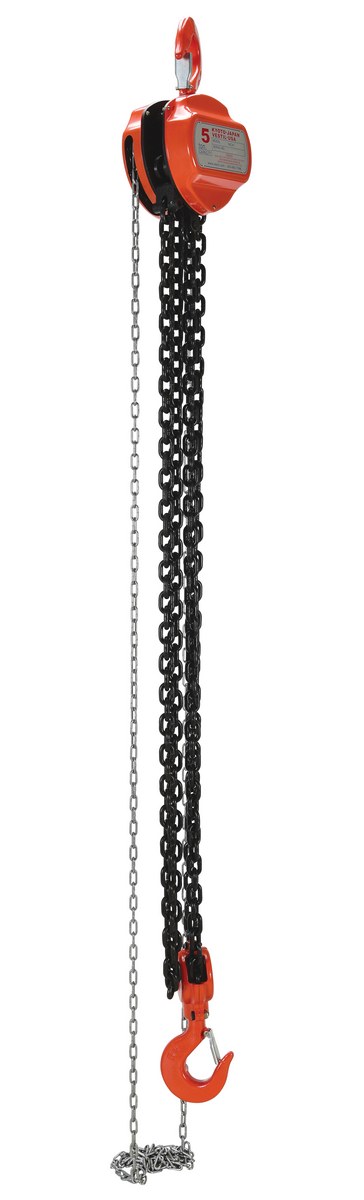

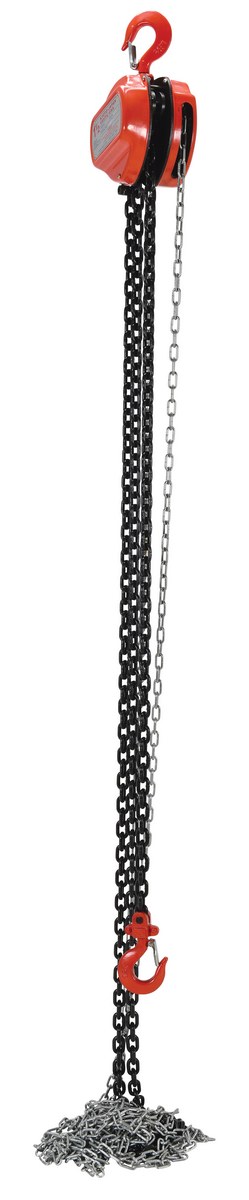

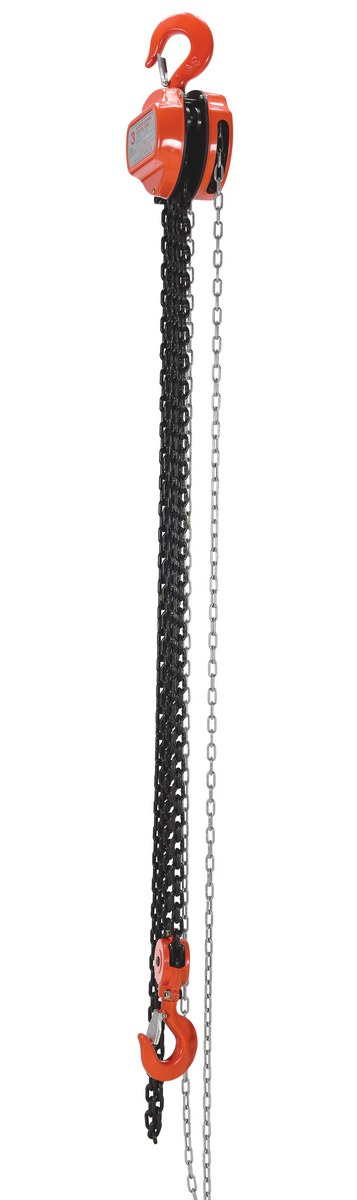

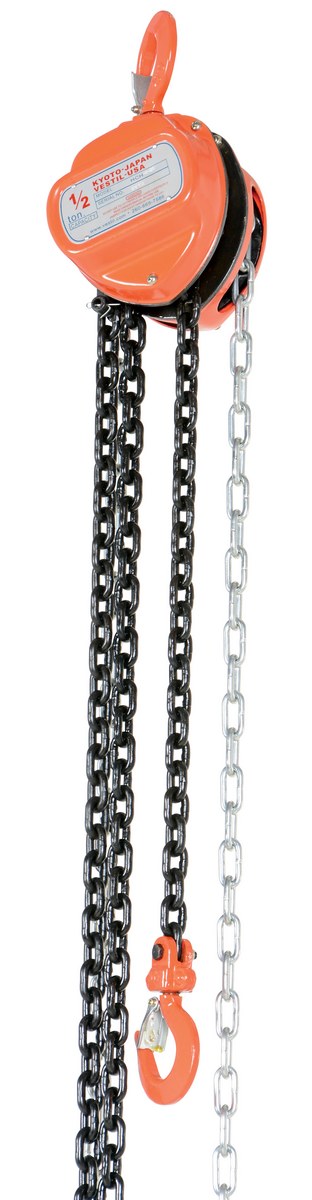

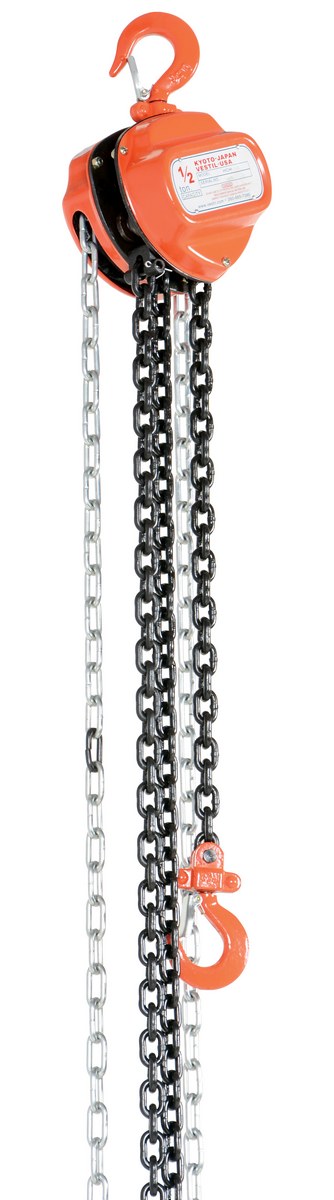

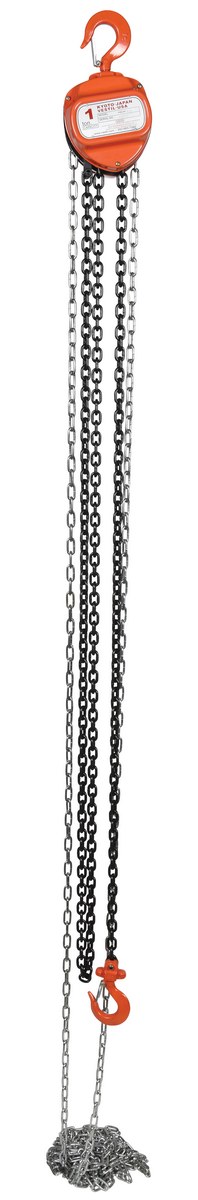

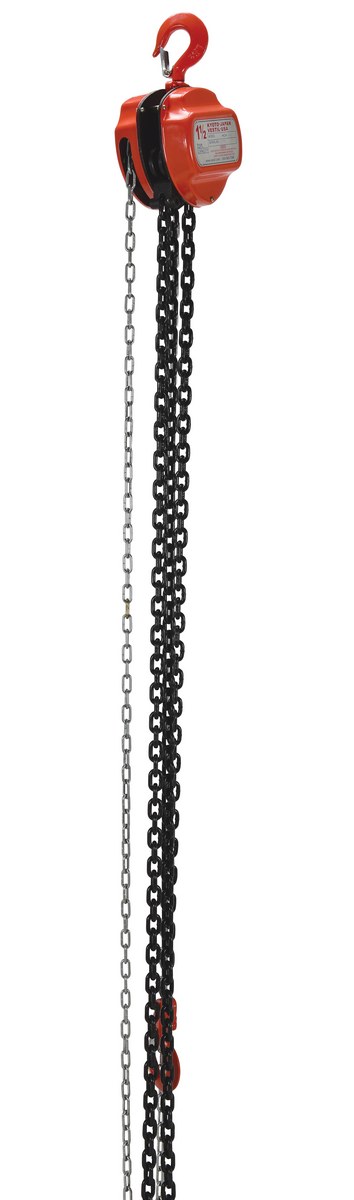

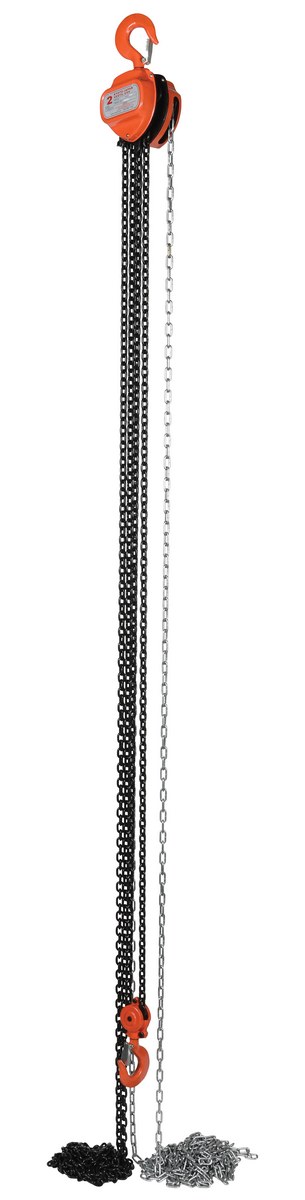

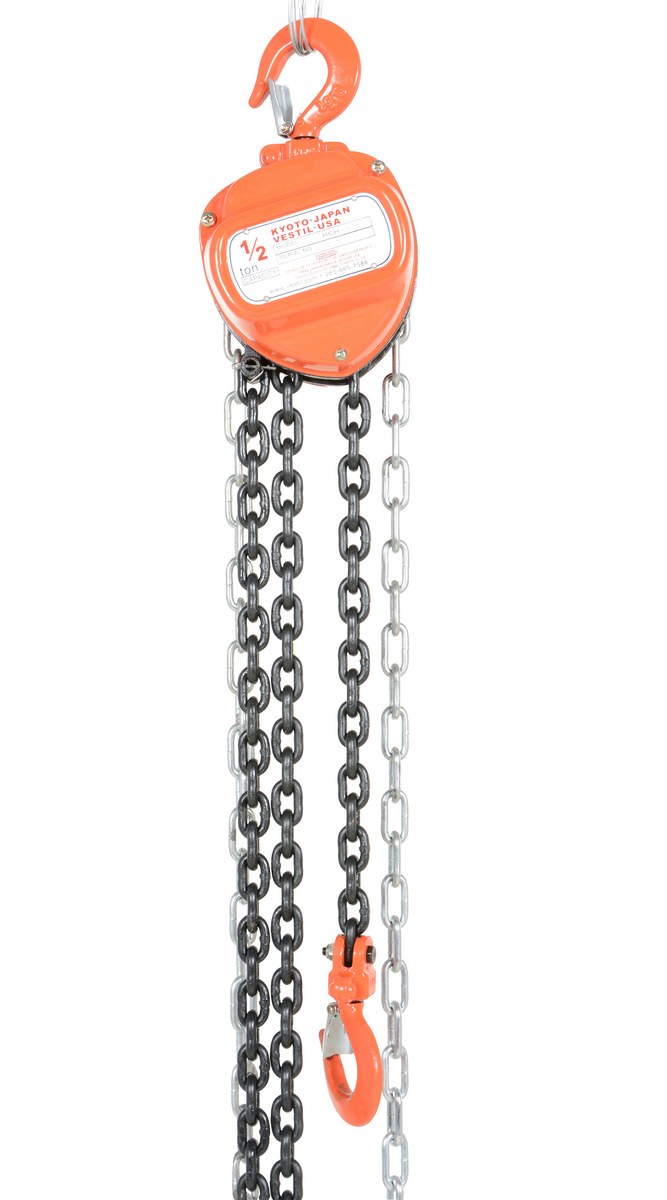

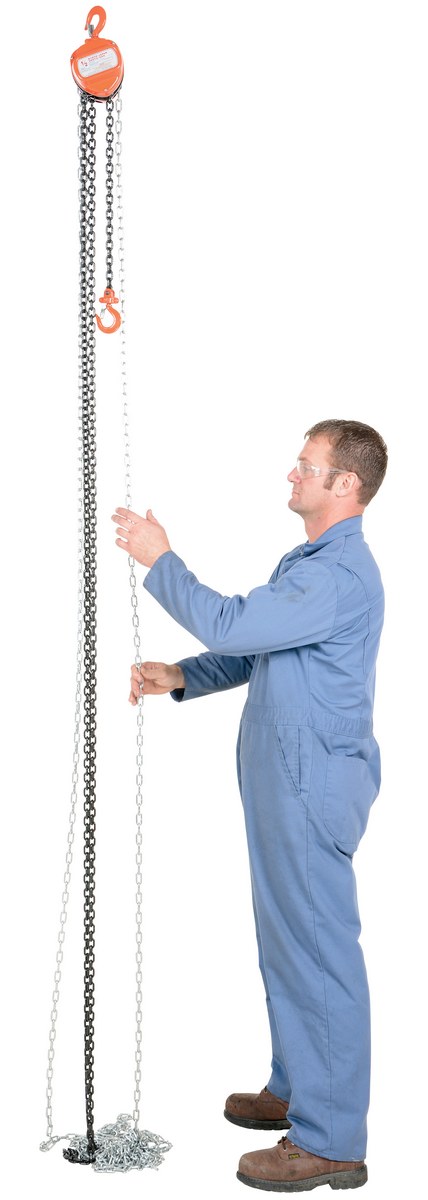

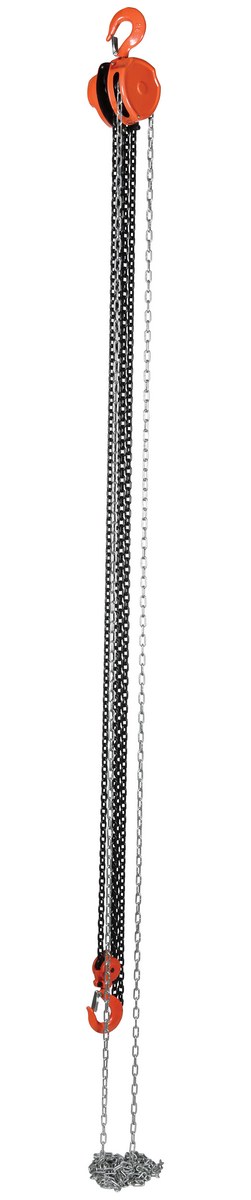

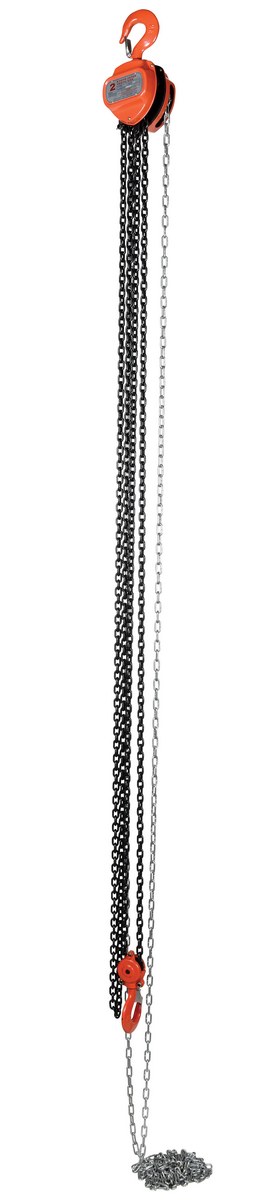

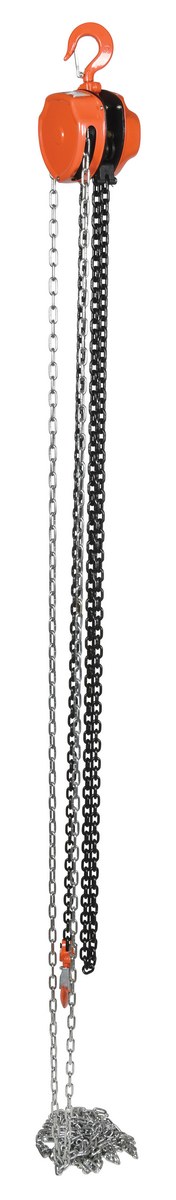

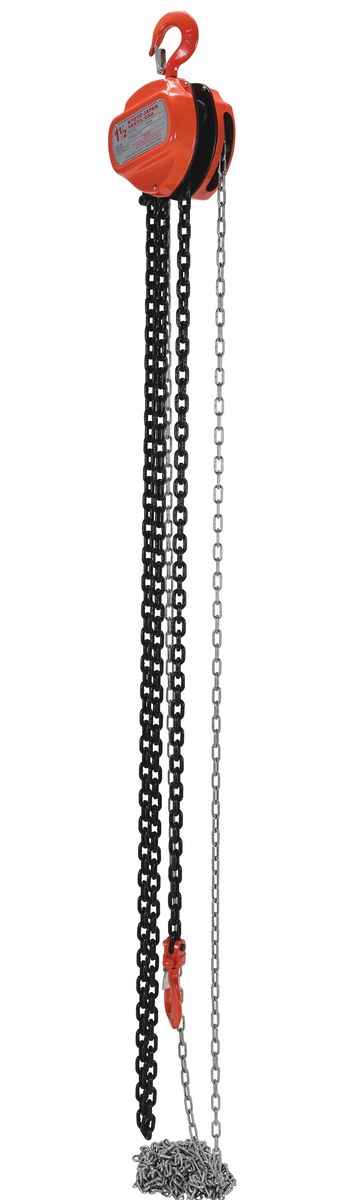

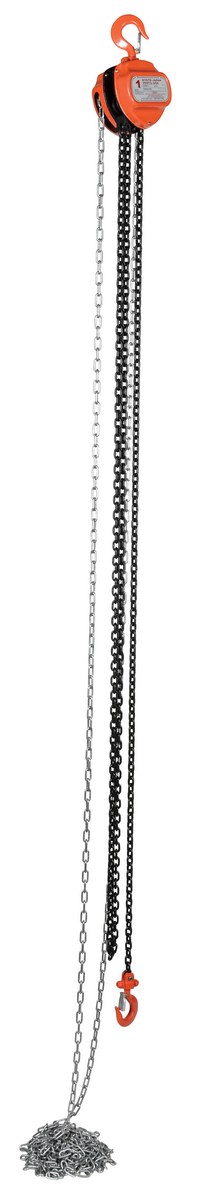

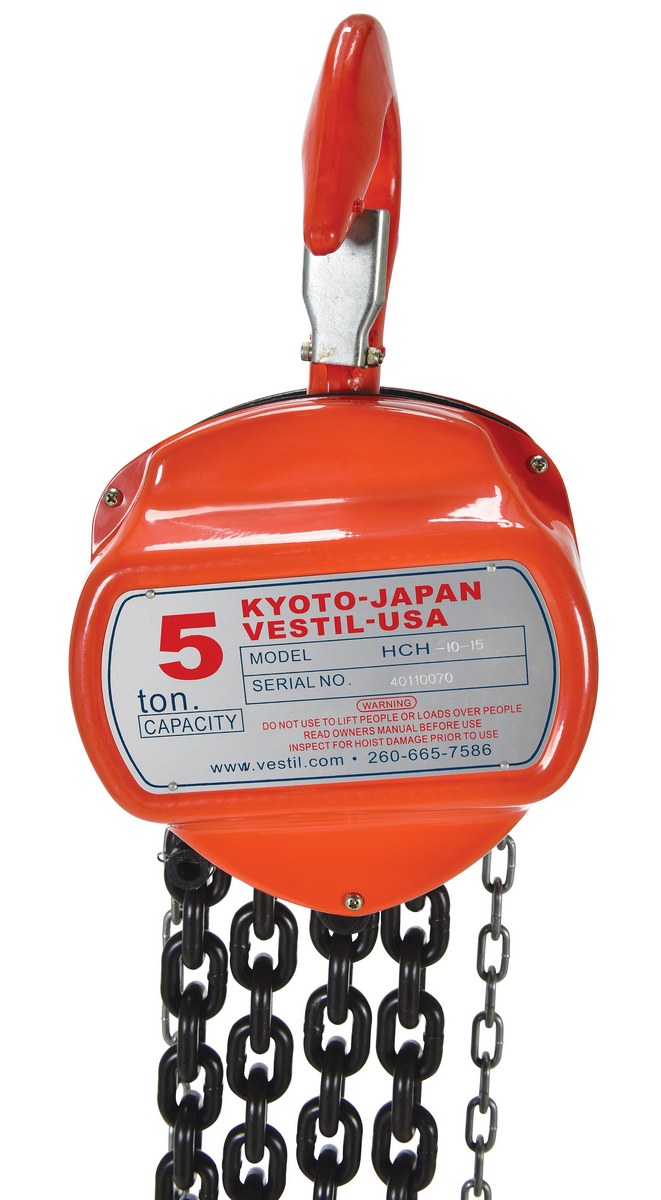

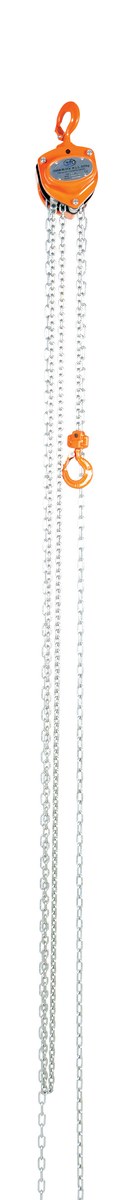

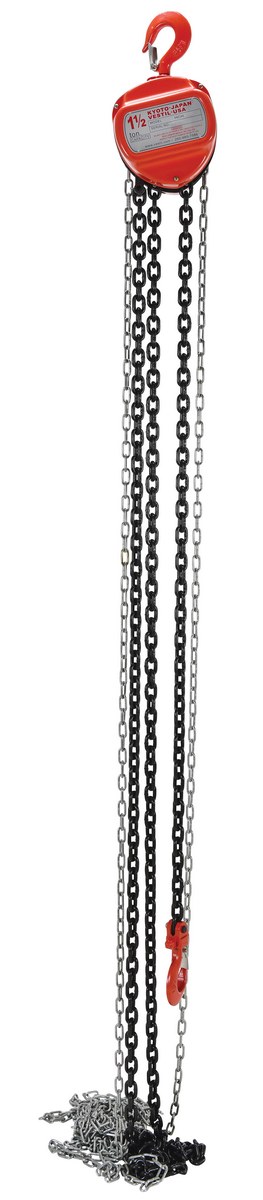

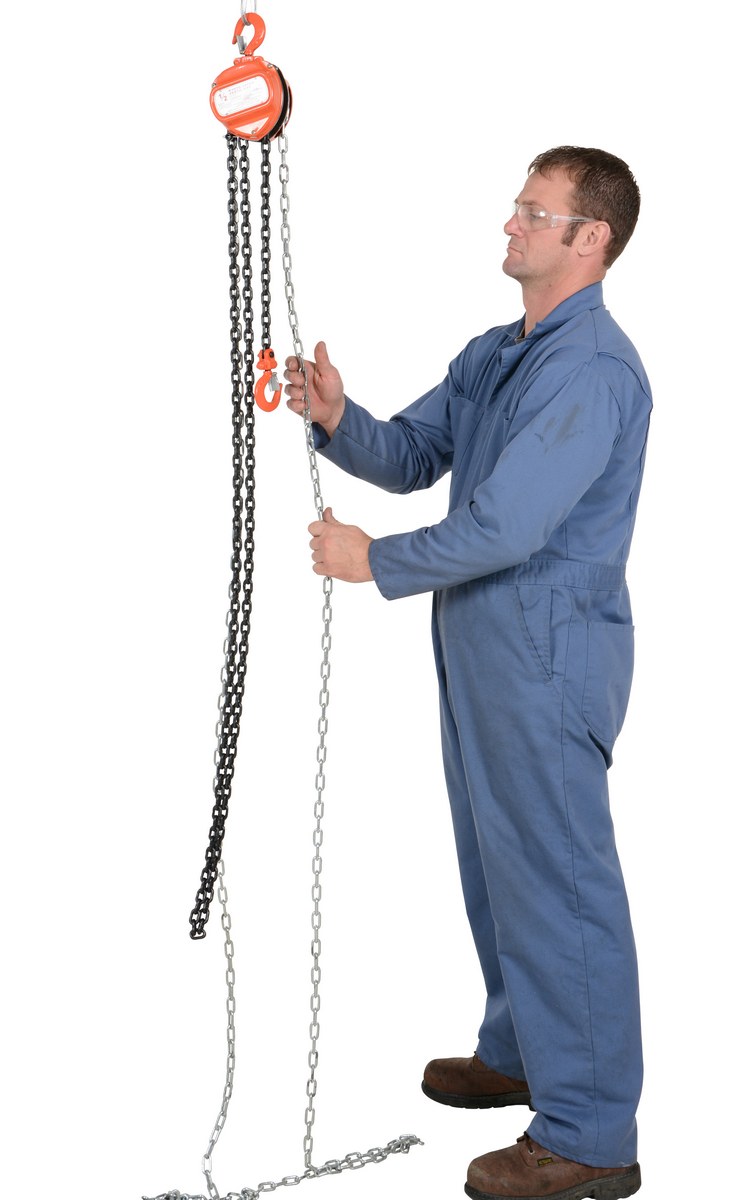

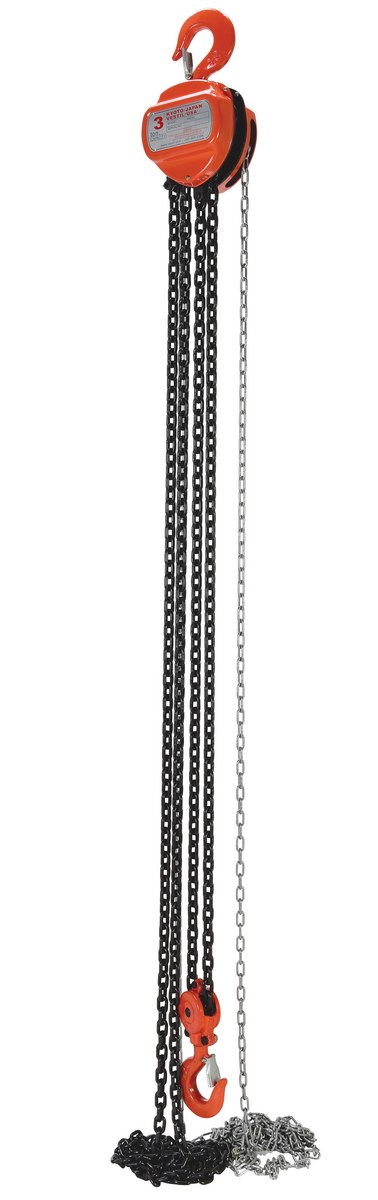

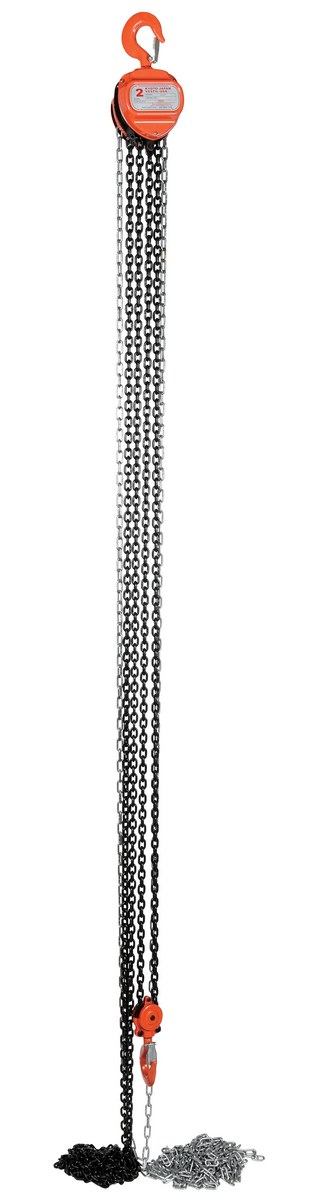

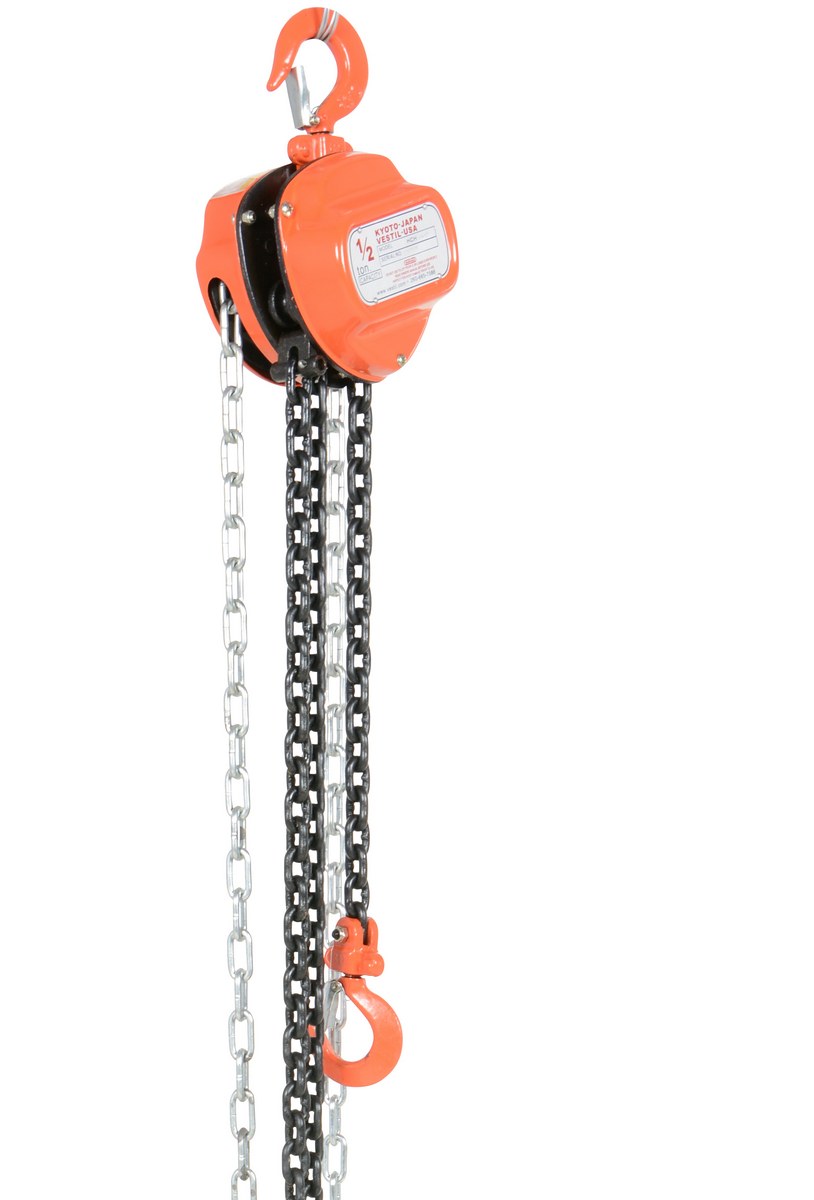

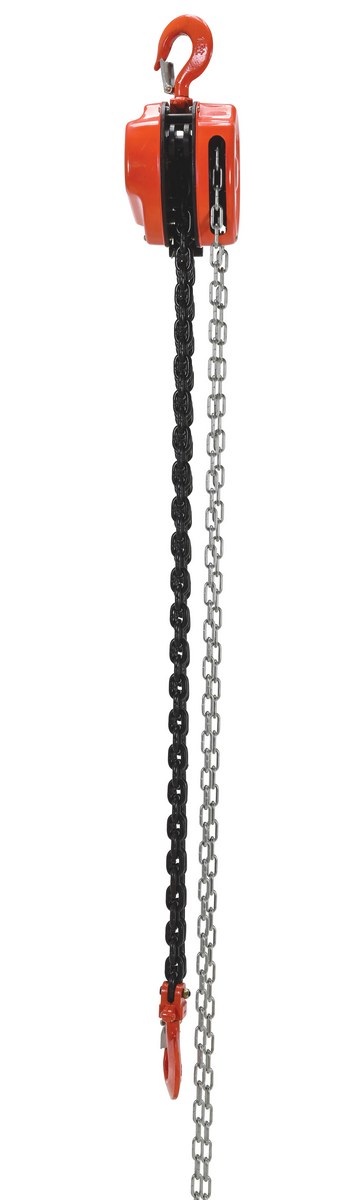

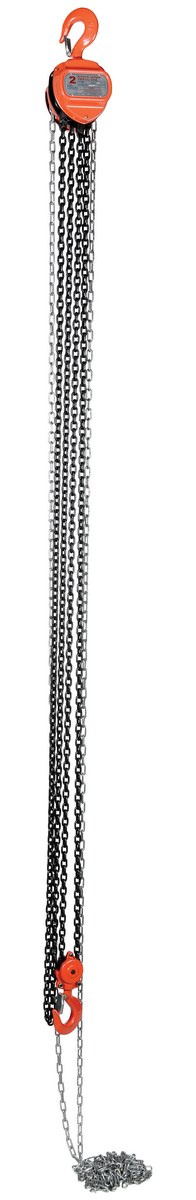

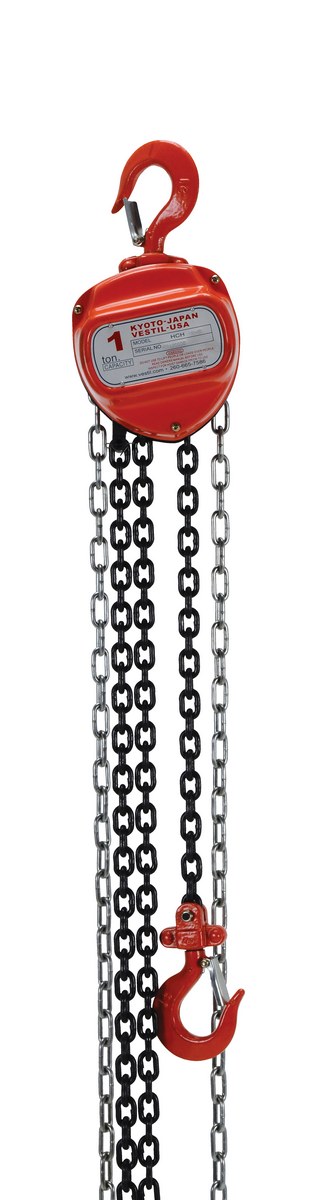

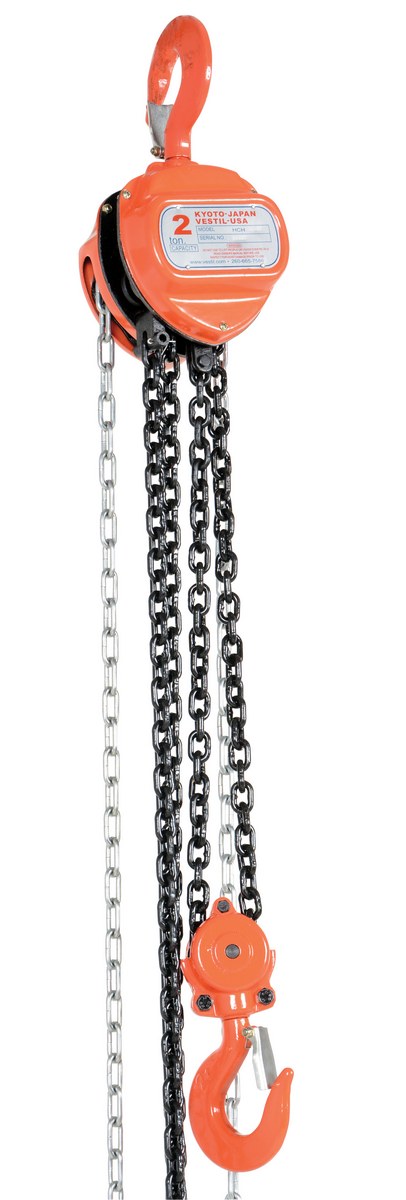

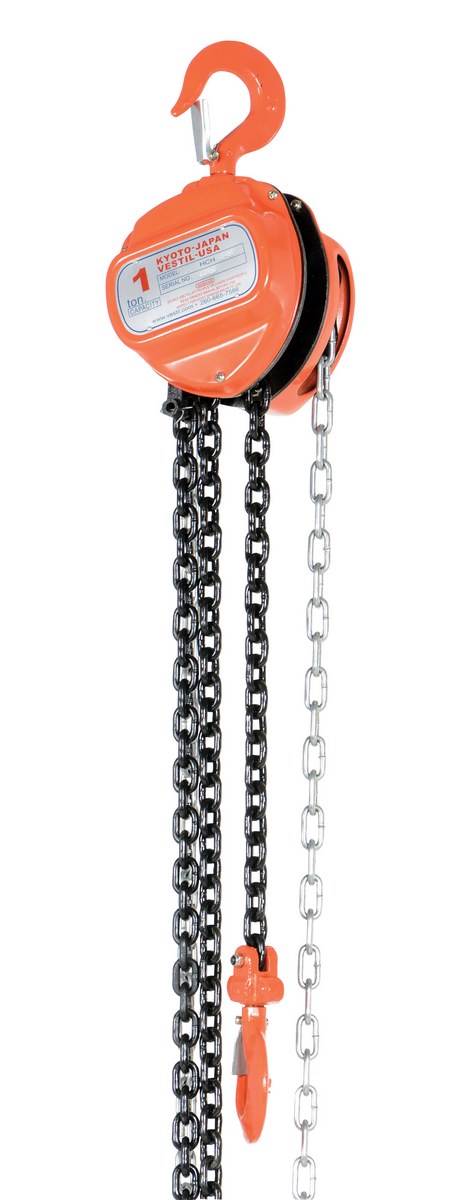

Hand Chain Hoists

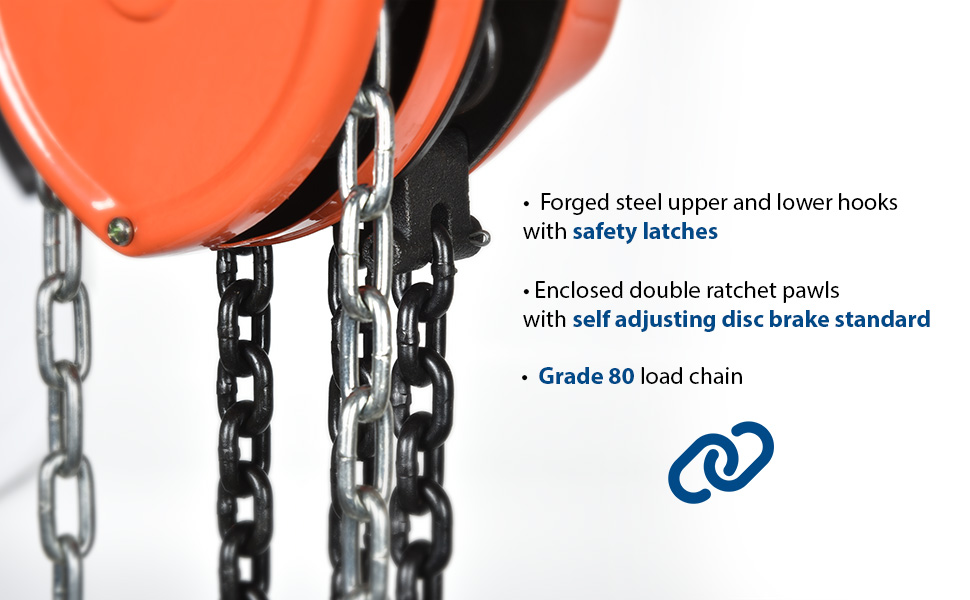

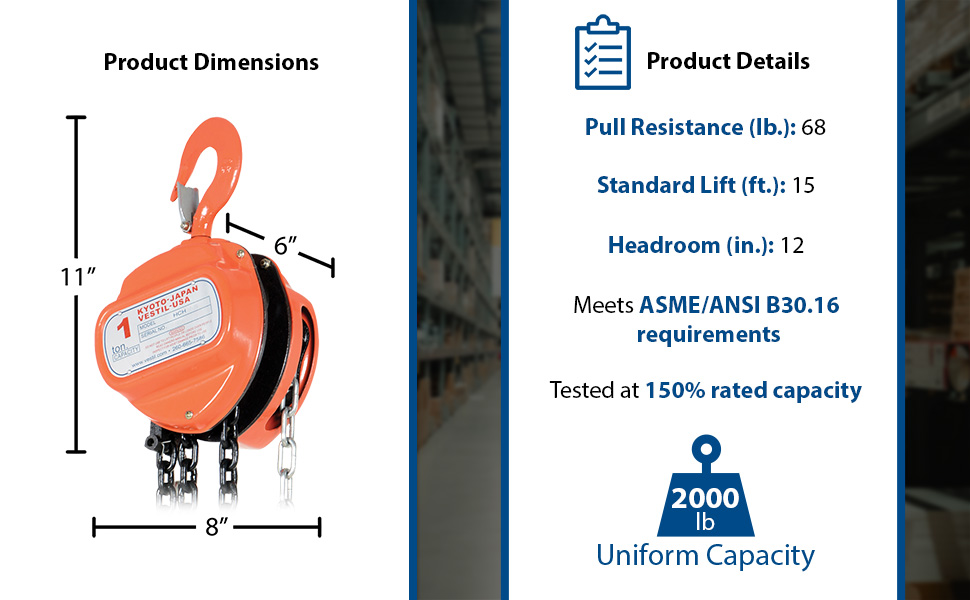

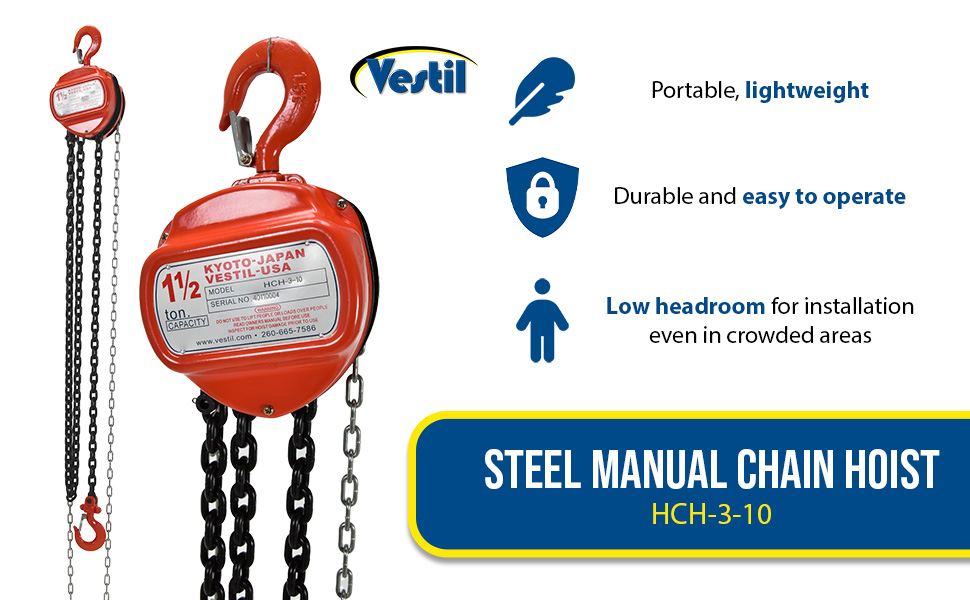

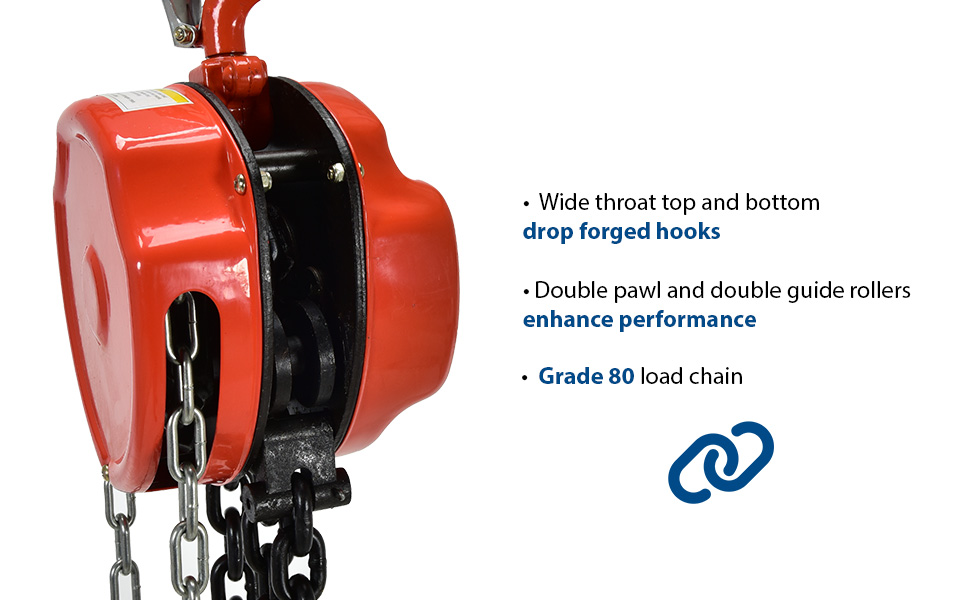

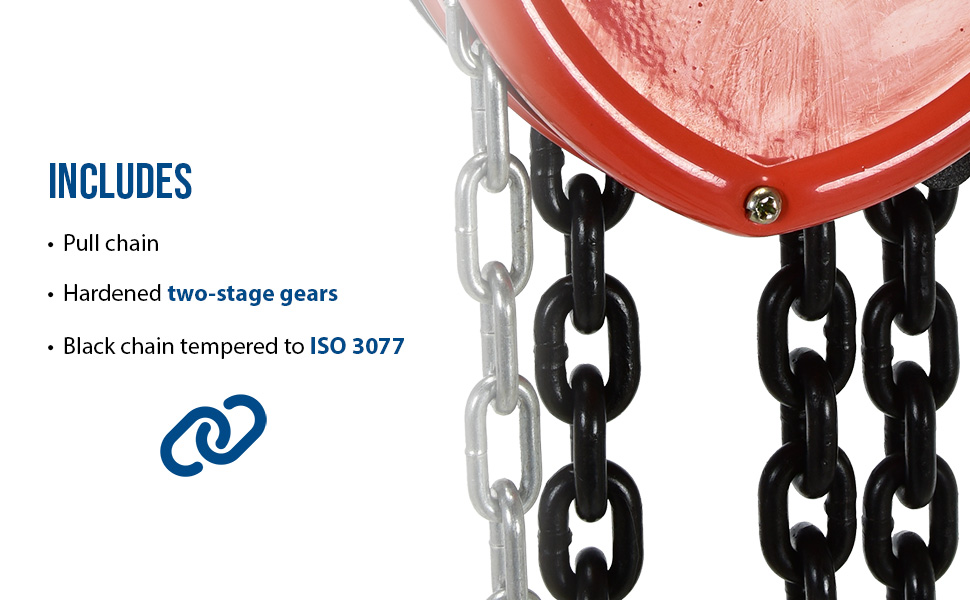

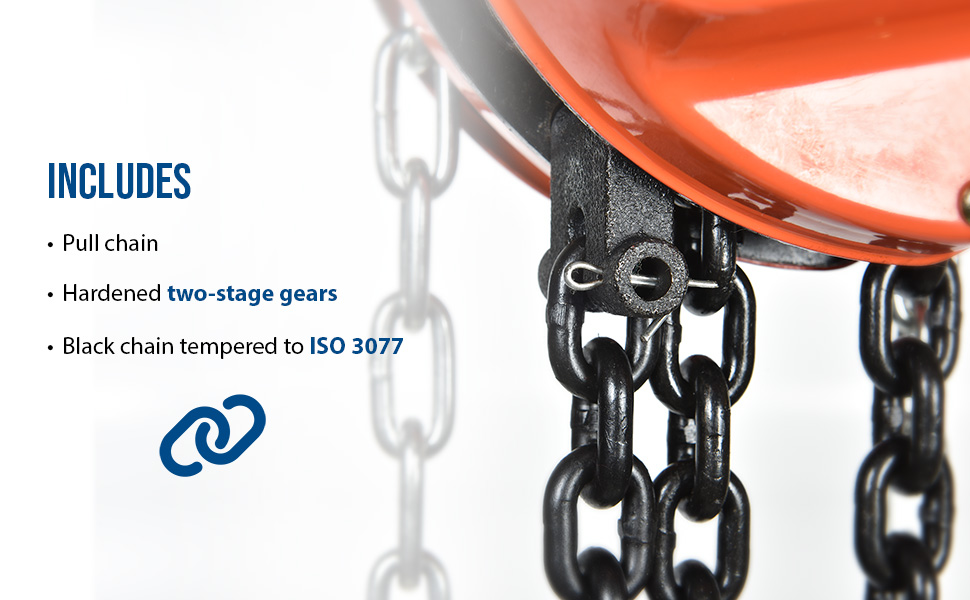

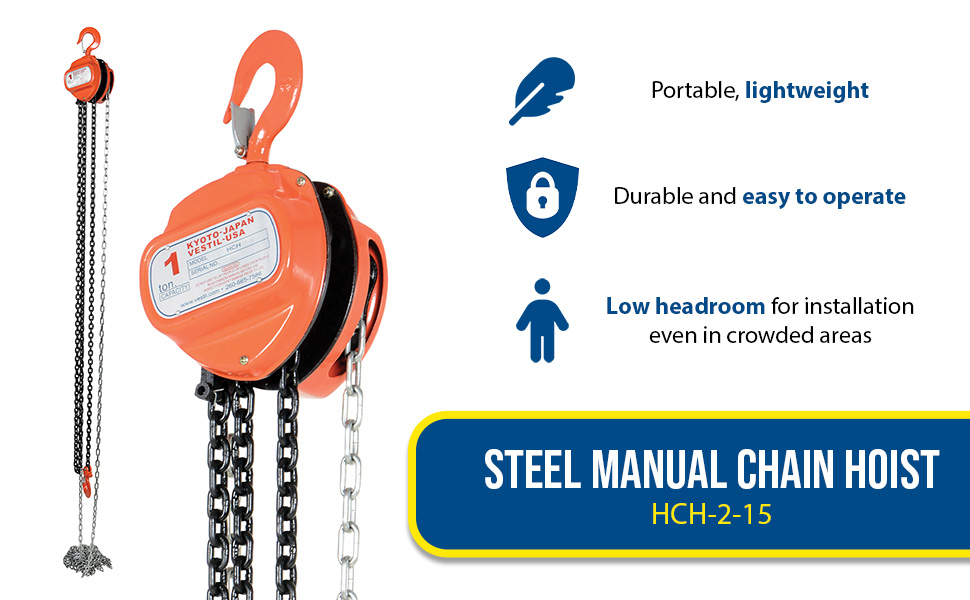

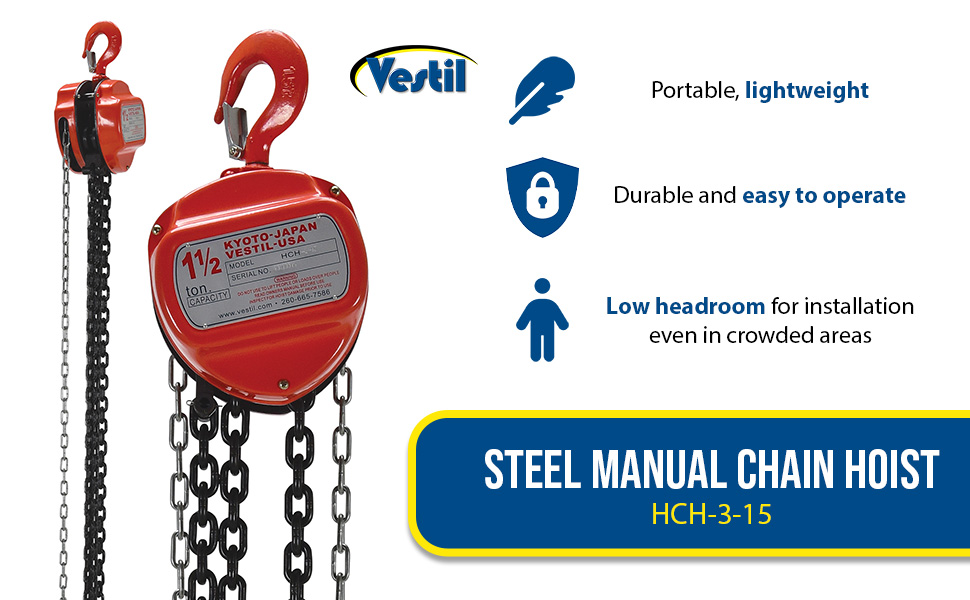

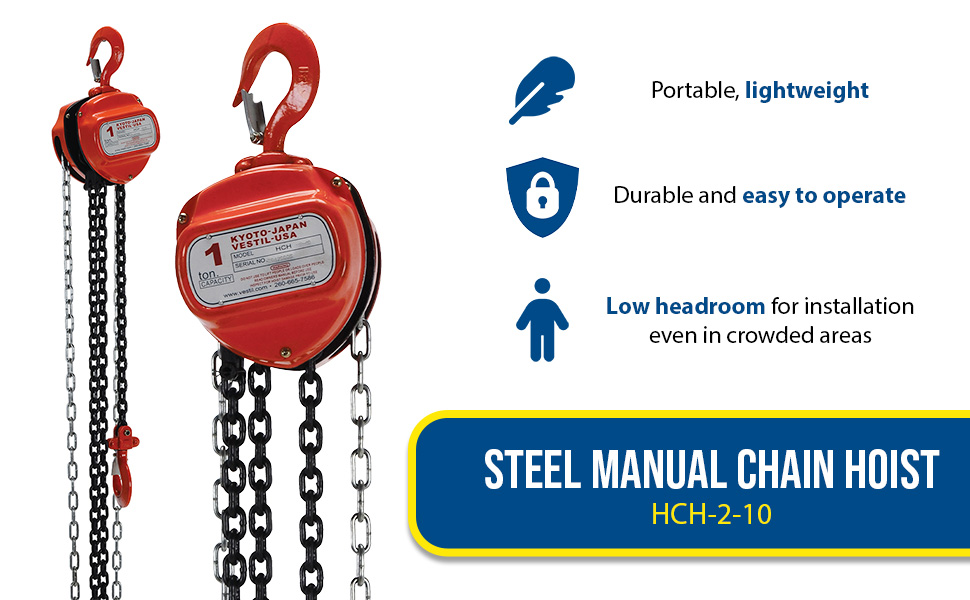

These portable, lightweight hoists are durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory 4 times rated capacity. Individually tested at 150% rated capacity. Features grade 80 black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications. Meets ANSI B30.16-2003 requirements.





KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Hand Chain Hoists
Model Image PDFs Capacity
(lbs)
Lift
(Feet)
Headroom
(Inches)
Wt.
(lbs)
HCH-1-10 Warranty PDFCompliance Certificate 1,000 10 11 24

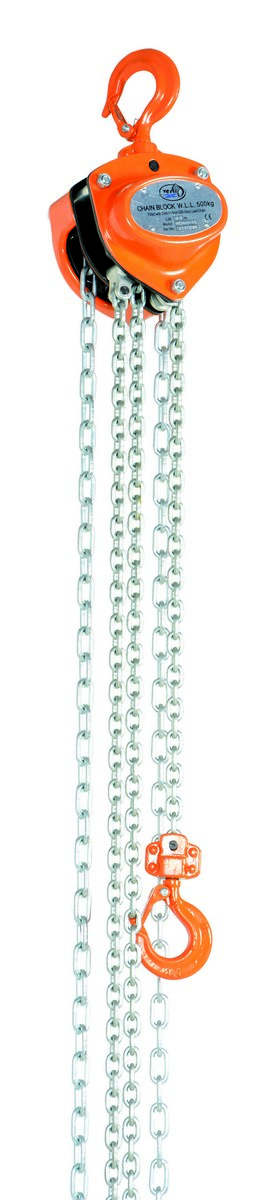

HCH-1-15 Warranty PDFCompliance Certificate 1,000 15 11 28

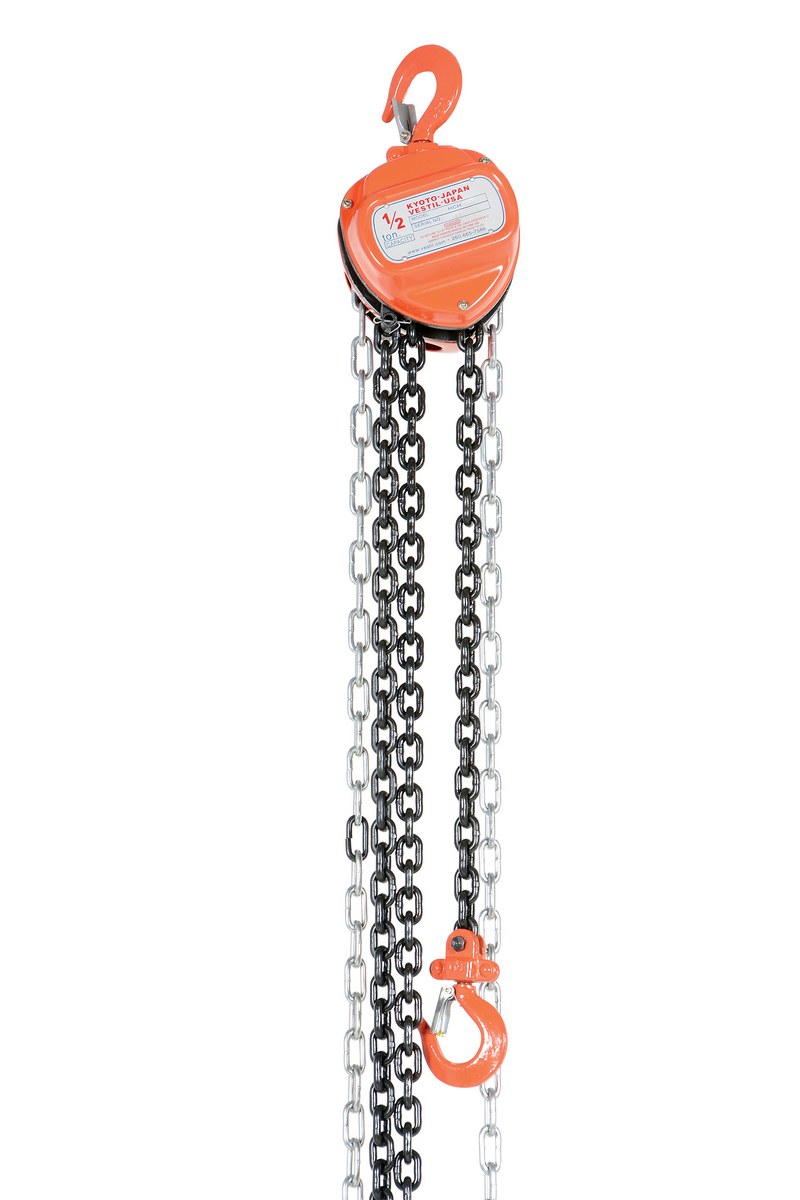

HCH-1-20 Warranty PDFCompliance Certificate 1,000 20 11 32

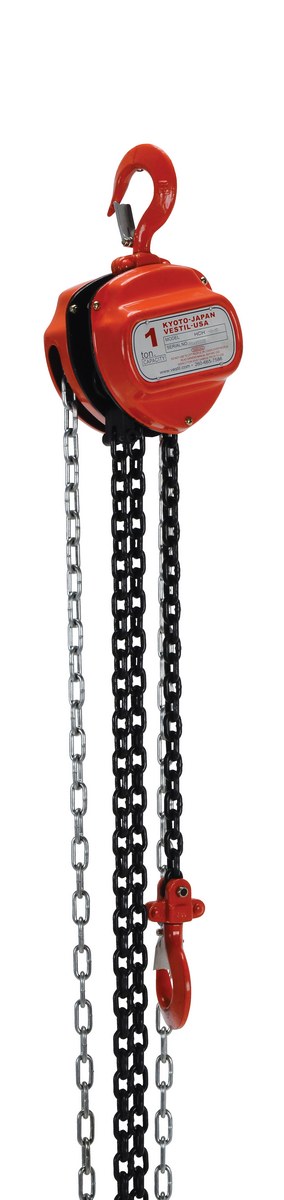

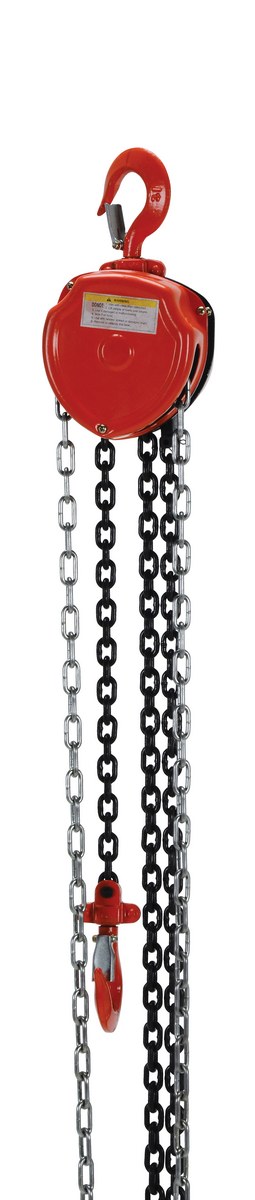

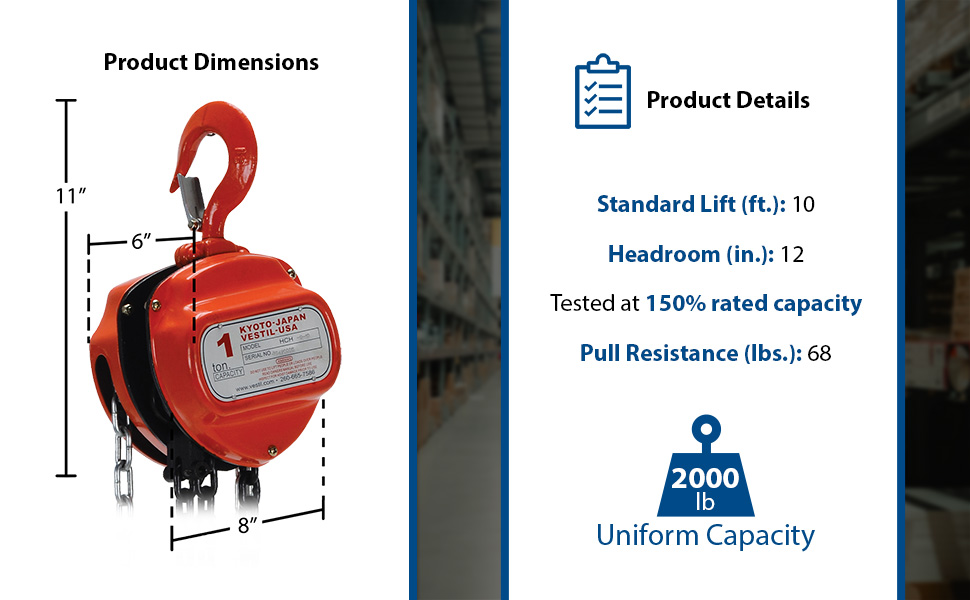

HCH-2-10 Warranty PDFCompliance Certificate 2,000 10 12 26
HCH-2-15 Warranty PDFCompliance Certificate 2,000 15 12 32
HCH-2-20 Warranty PDFCompliance Certificate 2,000 20 12 37

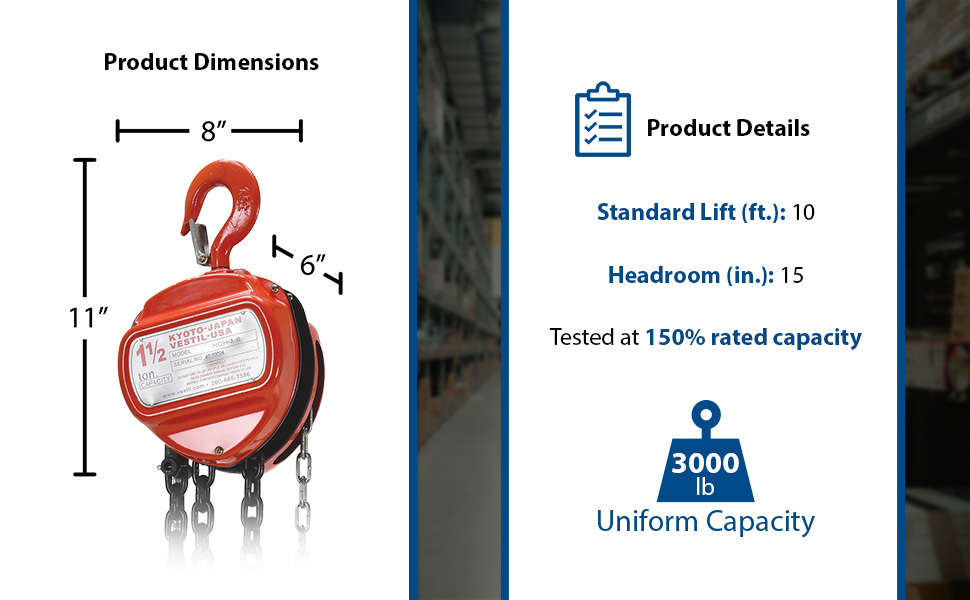

HCH-3-10 Warranty PDFCompliance Certificate 3,000 10 15 43

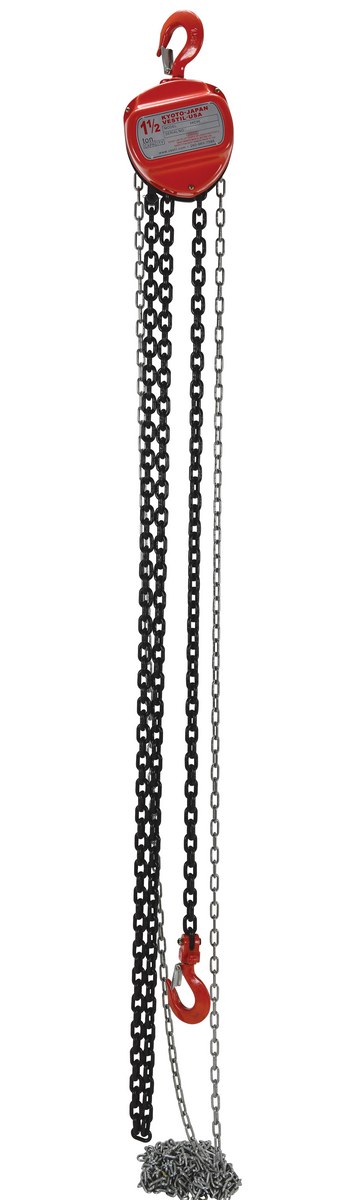

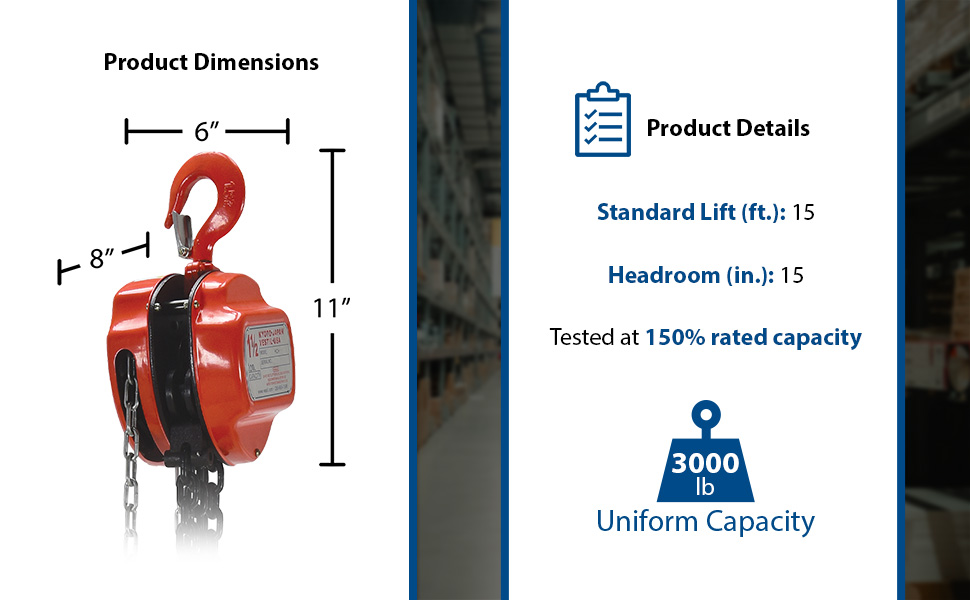

HCH-3-15 Warranty PDFCompliance Certificate 3,000 15 15 49
HCH-3-20 Warranty PDFCompliance Certificate 3,000 20 15 99

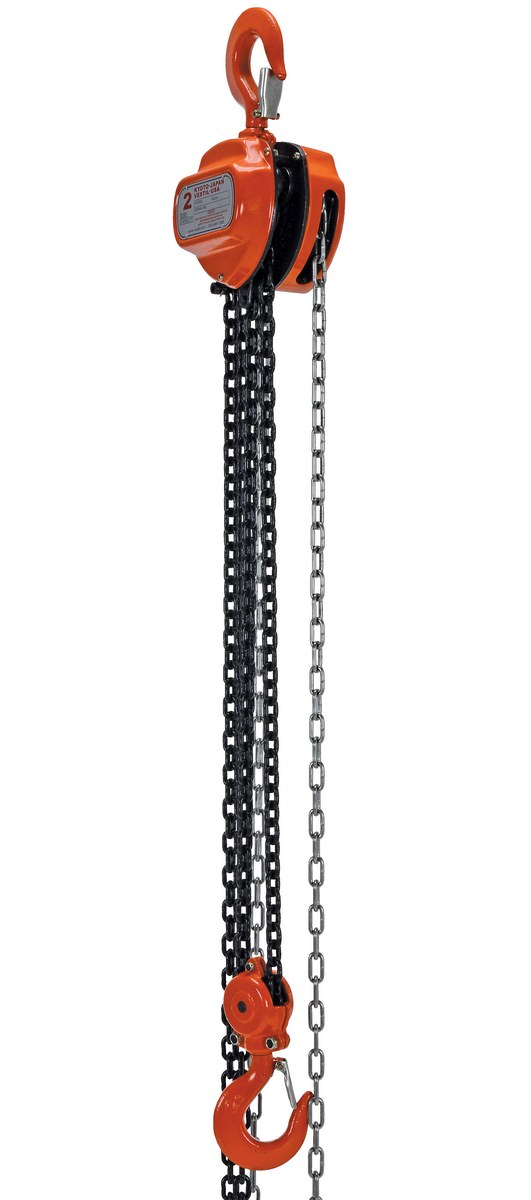

HCH-4-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4,000 10 17-1/2 48
HCH-4-15 Warranty PDFCompliance Certificate 4,000 15 17-1/2 54
HCH-4-20 Warranty PDFCompliance Certificate 4,000 20 17-1/2 117
HCH-6-10 Warranty PDFCompliance Certificate 6,000 10 19 59

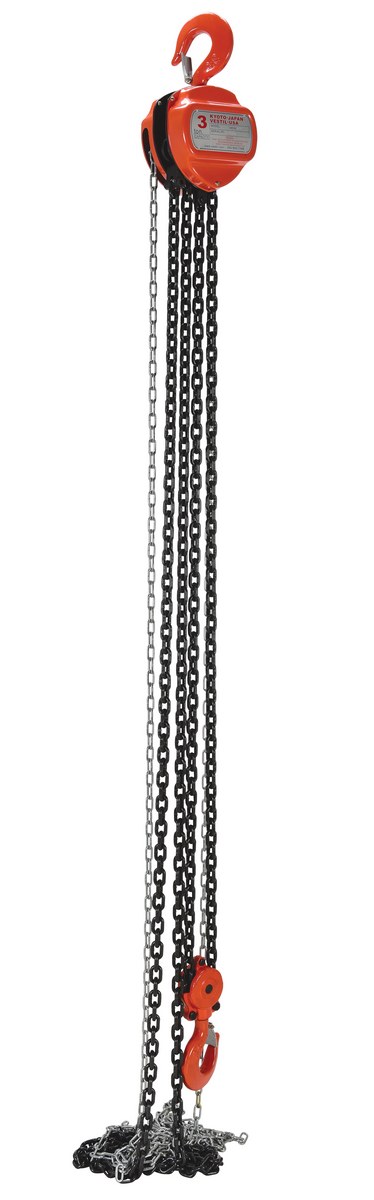

HCH-6-15 Warranty PDFCompliance Certificate 6,000 15 19 64
HCH-6-20 Warranty PDFCompliance Certificate 6,000 20 19 132
HCH-10-10 Warranty PDFCompliance Certificate 10,000 10 24 111

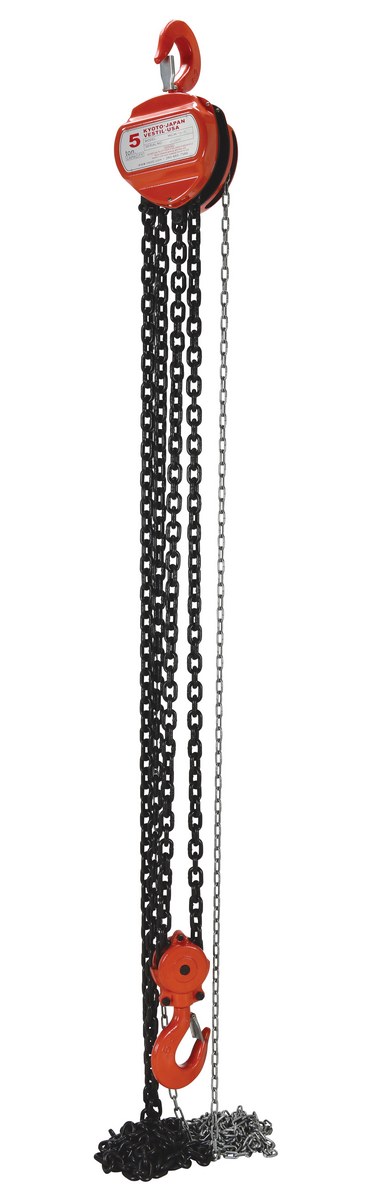

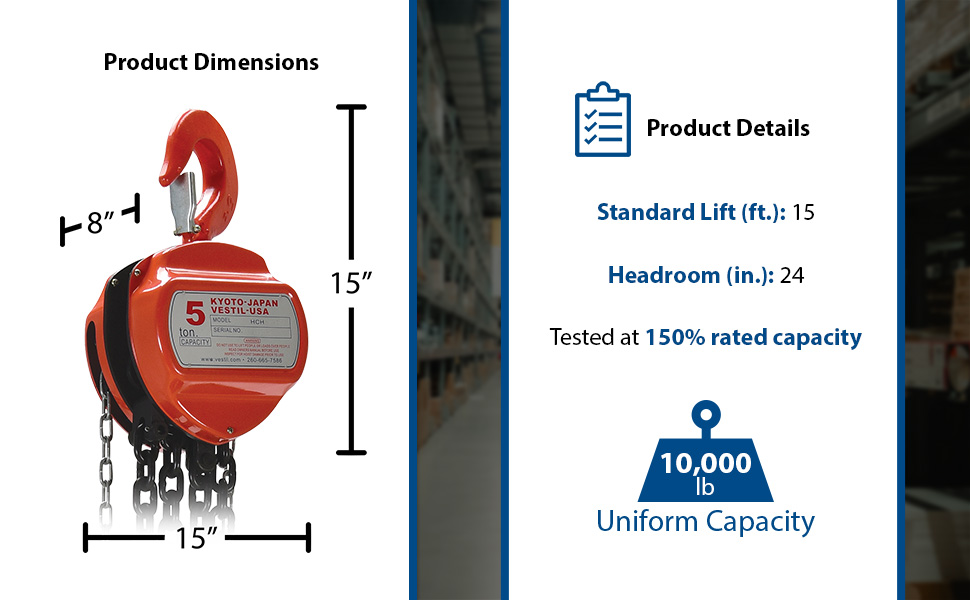

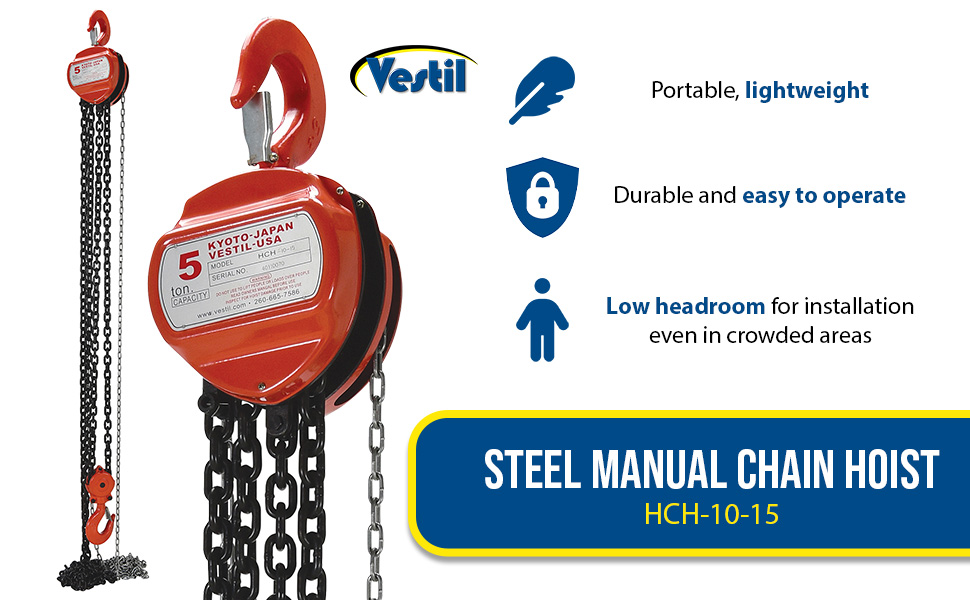

HCH-10-15 Warranty PDFCompliance Certificate 10,000 15 24 117
HCH-10-20 Warranty PDFCompliance Certificate 10,000 20 24 176

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

HCH-1-10

HCH-1-10

HCH-1-15

HCH-1-15

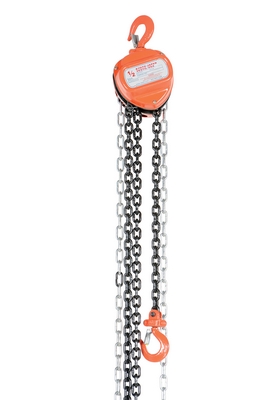

HCH-1-20

HCH-1-20

HCH-10-10

HCH-10-10

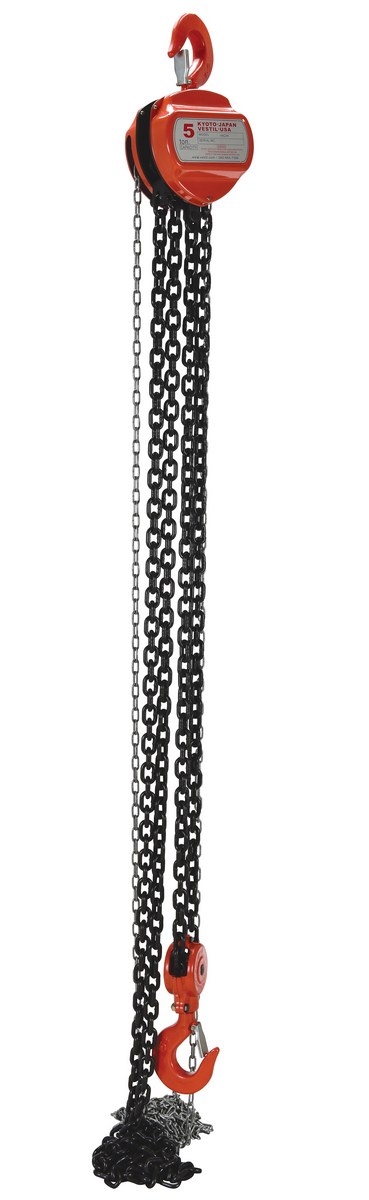

HCH-10-15

HCH-10-15

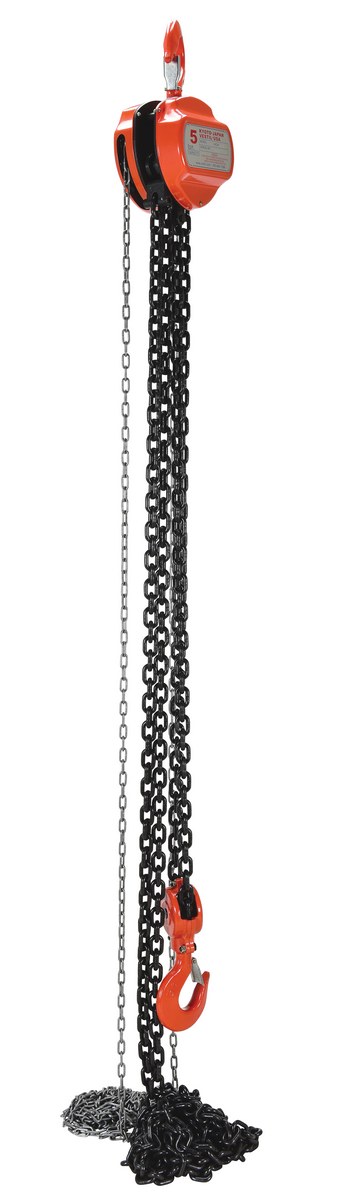

HCH-10-20

HCH-10-20

HCH-2-10

HCH-2-10

HCH-2-15

HCH-2-15

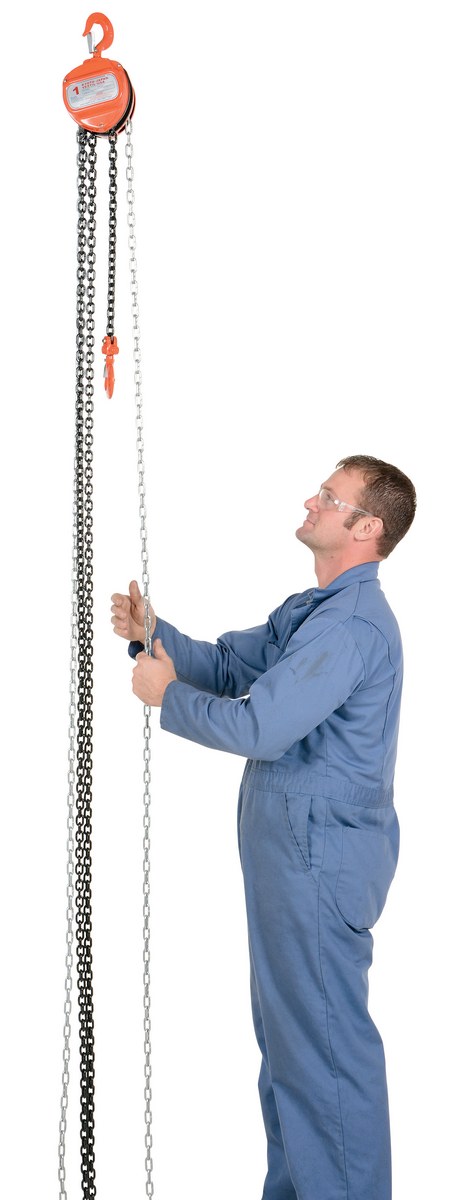

HCH-2-20

HCH-2-20

HCH-3-10

HCH-3-10

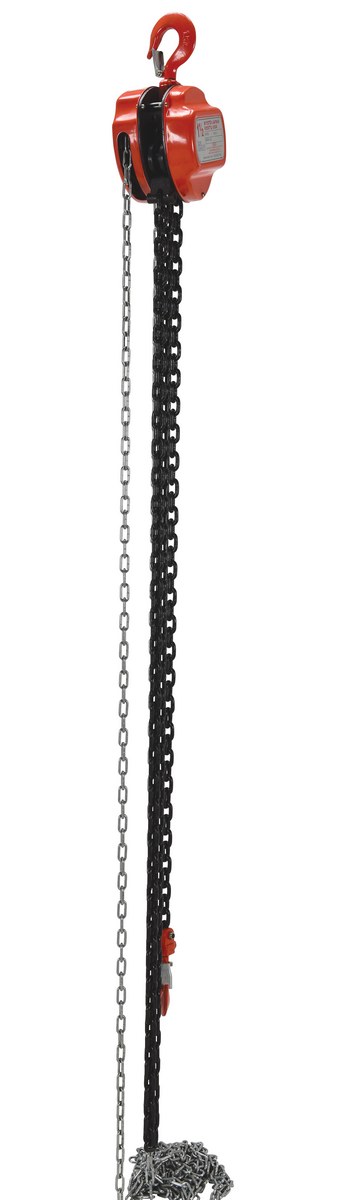

HCH-3-15

HCH-3-15

HCH-3-20

HCH-3-20

HCH-4-10

HCH-4-10

HCH-4-15

HCH-4-15

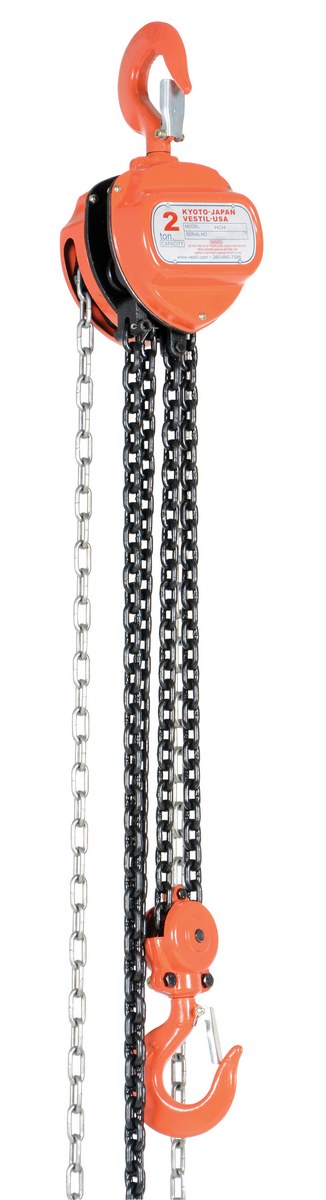

HCH-4-20

HCH-4-20

HCH-6-10

HCH-6-10

HCH-6-15

HCH-6-15

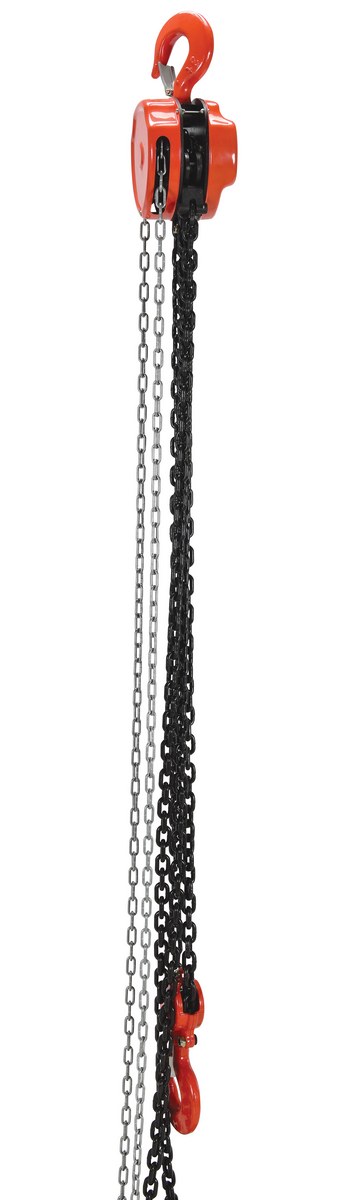

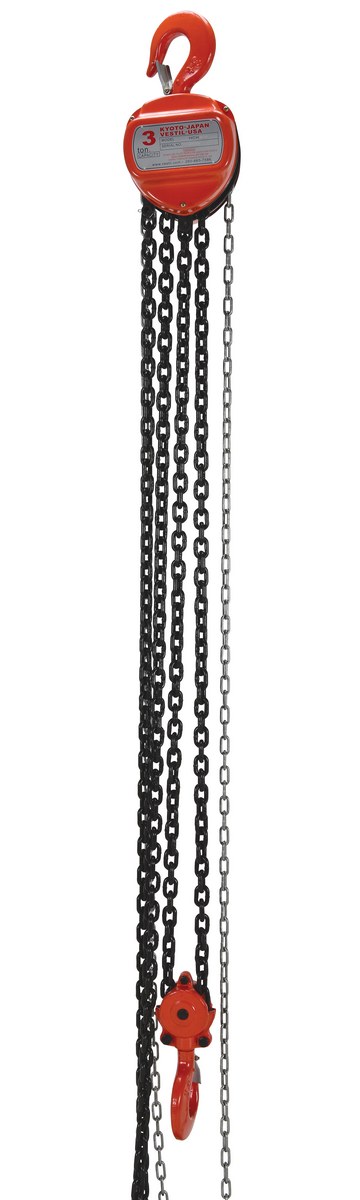

HCH-6-20

HCH-6-20






PDF's will open in a new window when clicked.

Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

HCH-4-10

Testing Certificates

HCH-1-10
HCH-1-15
HCH-1-20
HCH-2-10
HCH-2-15
HCH-2-20
HCH-3-10
HCH-3-15
HCH-3-20
HCH-4-10
HCH-4-15
HCH-4-20
HCH-6-10
HCH-6-15
HCH-6-20
HCH-10-10
HCH-10-15
HCH-10-20

Other PDF's

* No "Other PDFs" For This Product...
