model VKX-10-5
SERIES: VKX

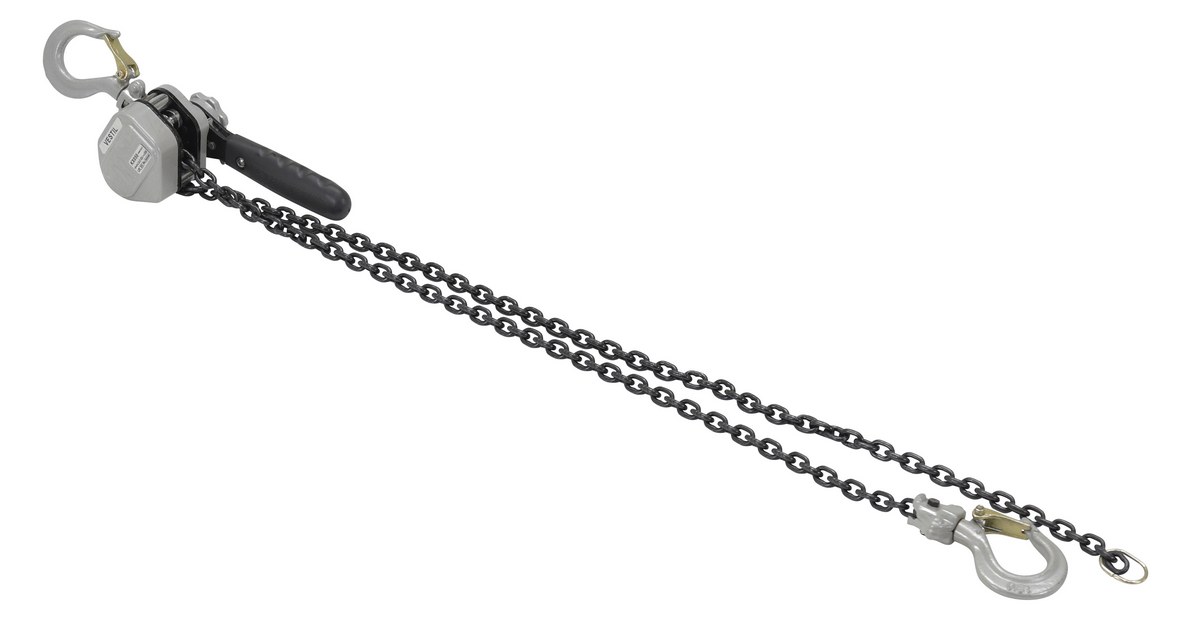

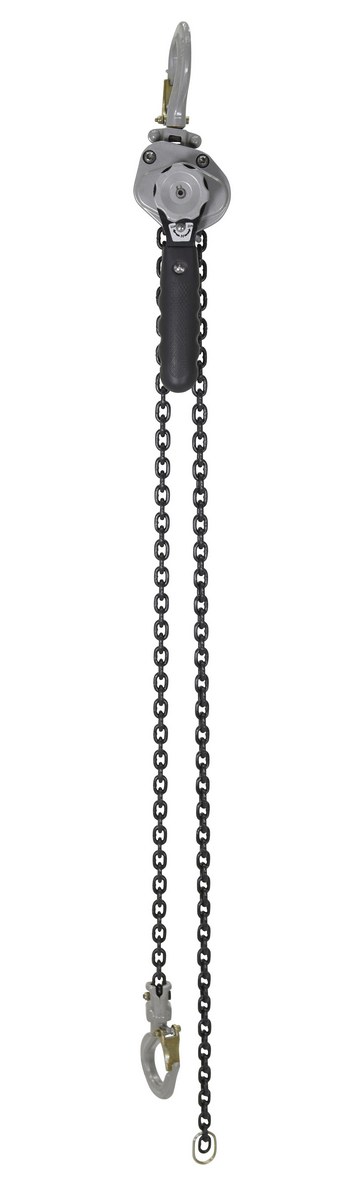

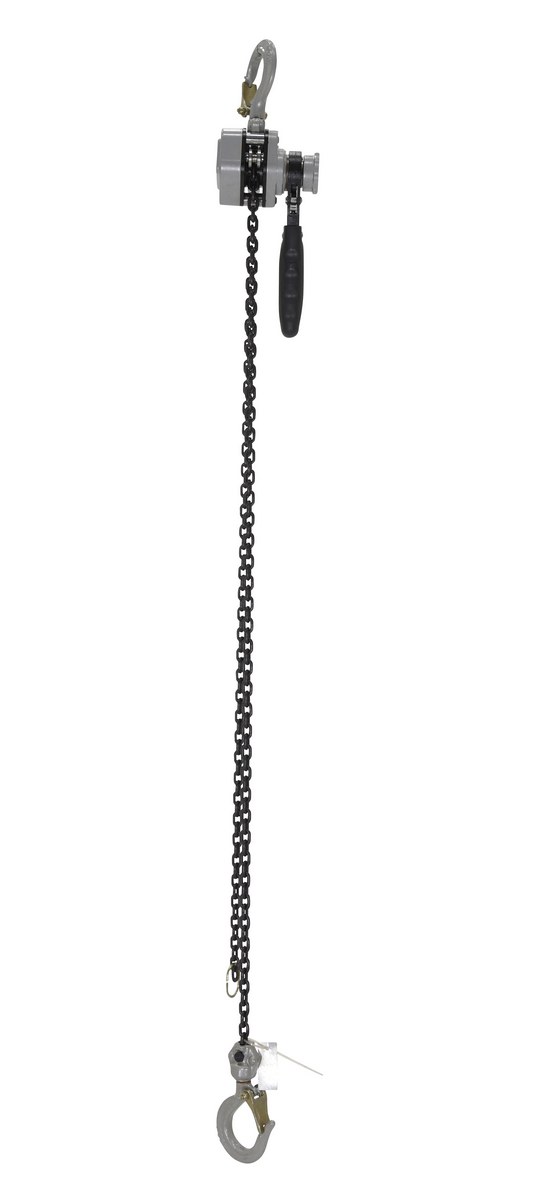

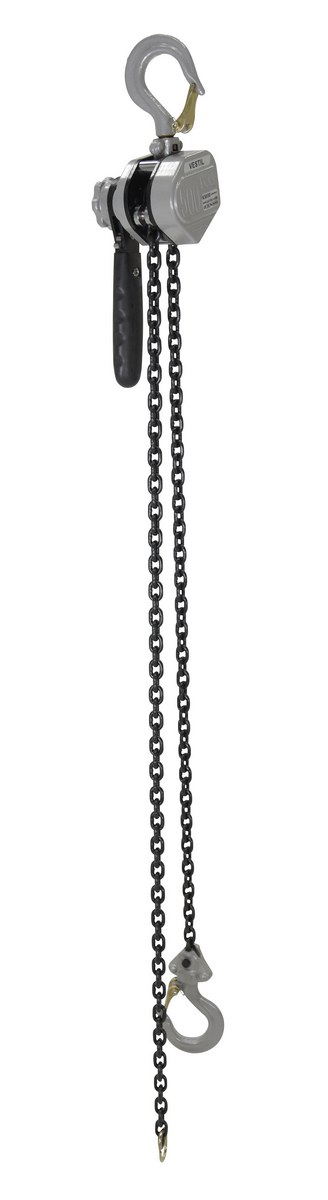

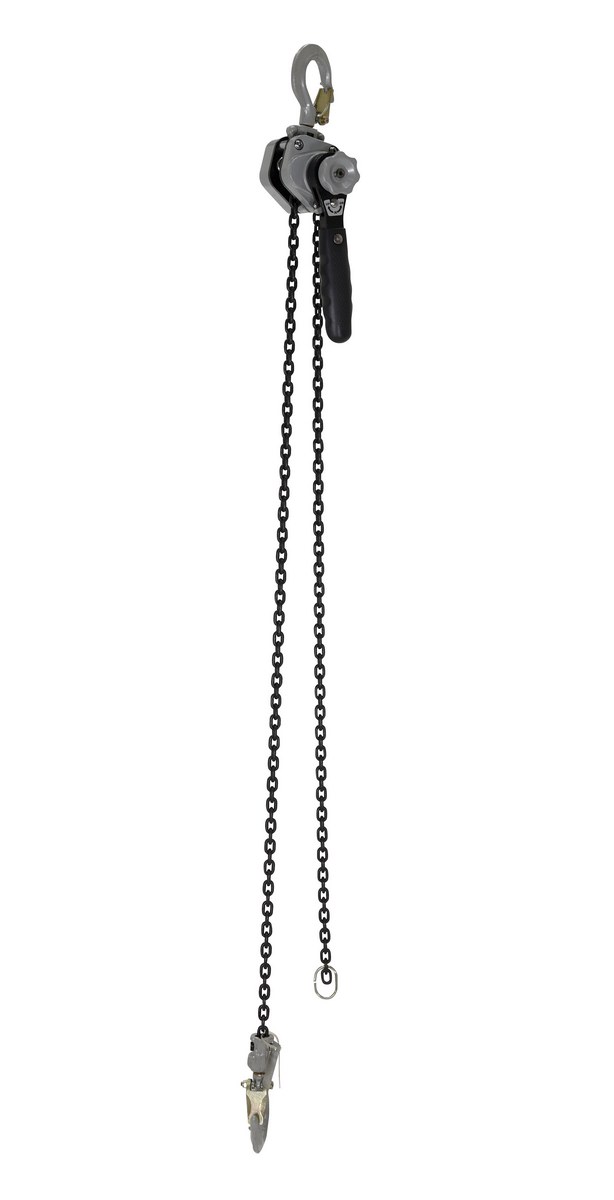

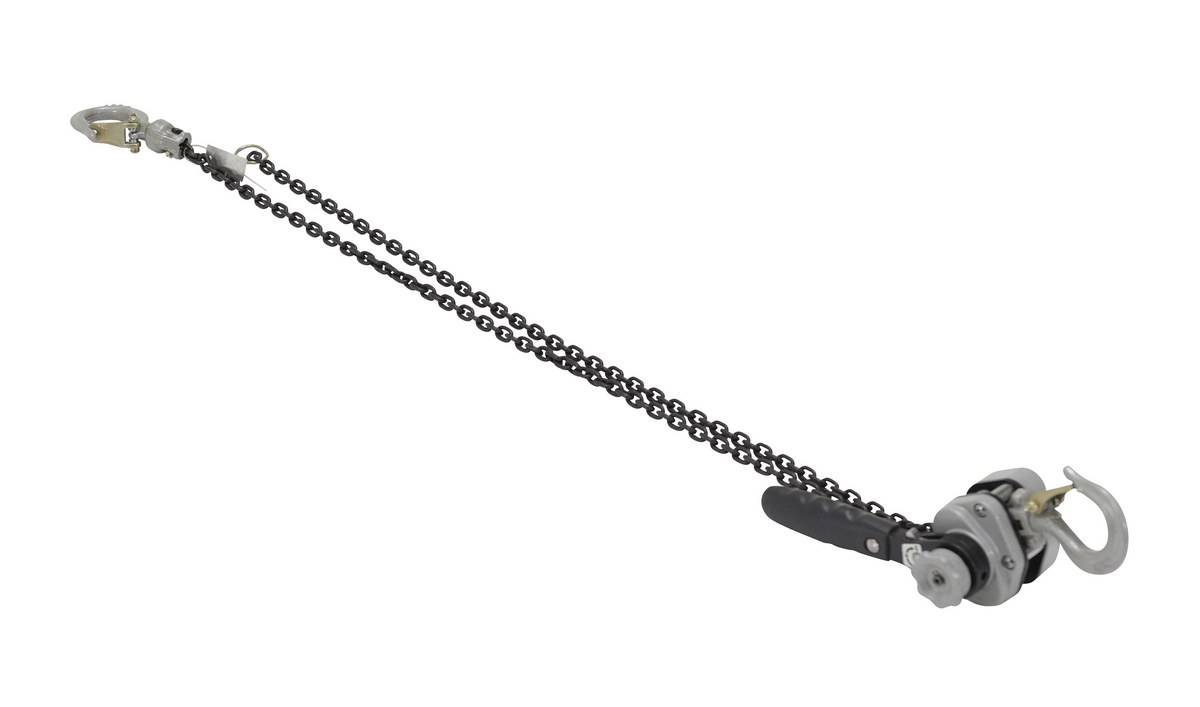

Compact & Lightweight Lever Hoist (disc brake)

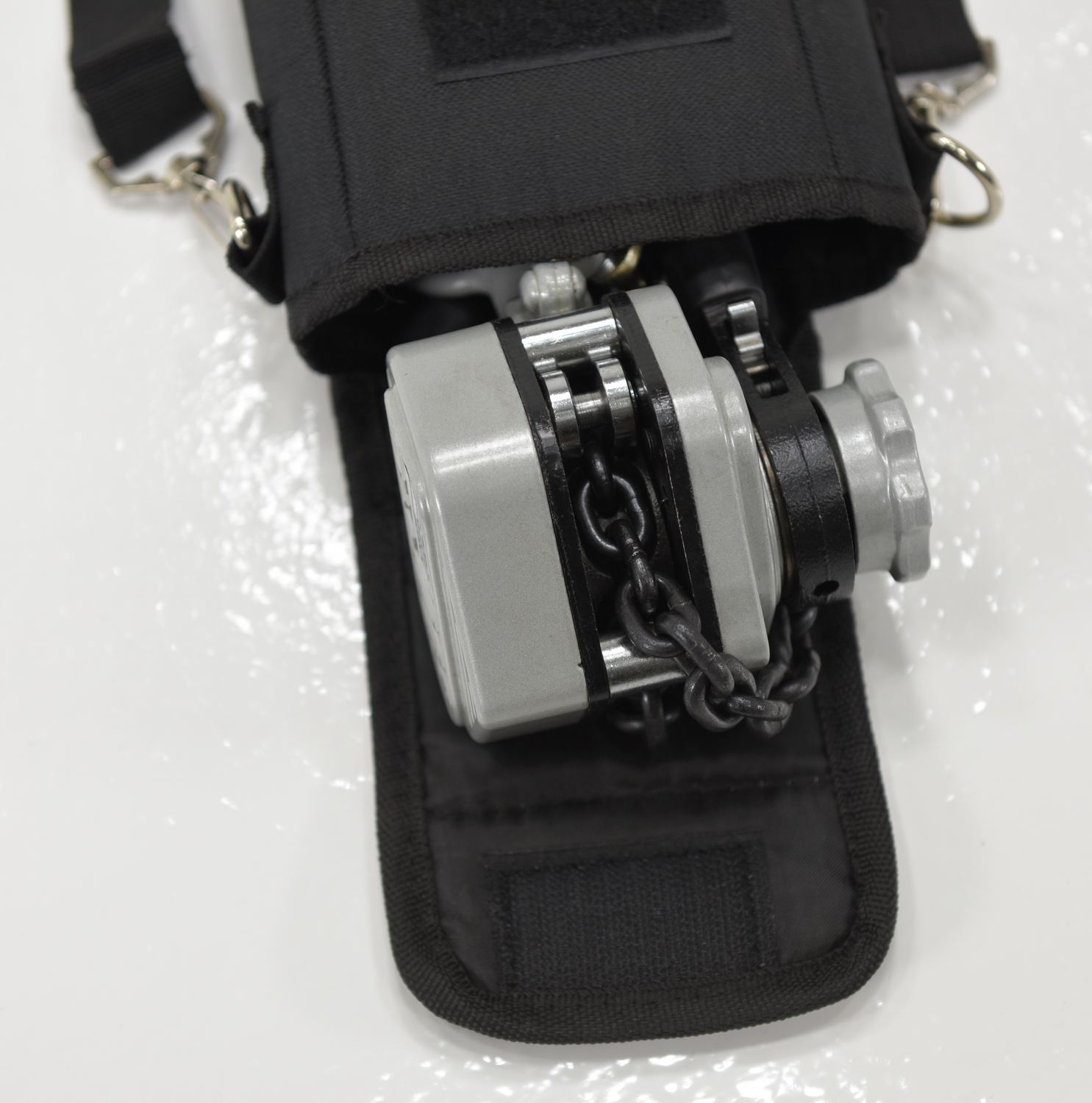

Compact and Lightweight Lever Hoists are ideal for use in confined areas when fastening, fixing or positioning of light load is required. High impact aluminum alloy housing with all the main parts made of heat treated alloy steel (more durable and longer life). Advanced gear reduction system (5 gears in the gear box) enables effortless handling and requires low hand-pull force for highly reliable lifting. Withstand 1500 cycles with 110% of rated capacity. Features lightweight high strength grade 100 chain. Heavy duty storage bag included.


VKX-05-5

model VKX-05-5




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Compact & Lightweight Lever Hoist (disc brake)
Model Image PDF Capacity
(lbs)
Standard
Lift (Feet)
Min. Distance
Between Hooks
Handle
Length
Wt.
(lbs)
VKX-05-5 Warranty PDFCompliance Certificate 500 5 7-7/8" 5-3/4" 6
VKX-10-5 Warranty PDFCompliance Certificate 1,000 5 9-7/8" 6-1/4" 8

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

VKX-05-5

VKX-05-5

VKX-10-5

VKX-10-5






PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

* No Approval Drawings For This Product

Testing Certificates

VKX-05-5
VKX-10-5

Other PDF's

* No "Other PDFs" For This Product...
