Click Image to Enlarge

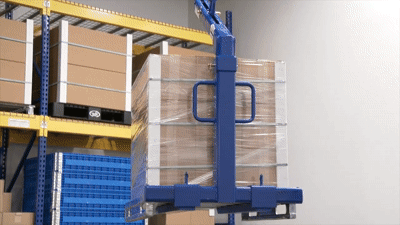

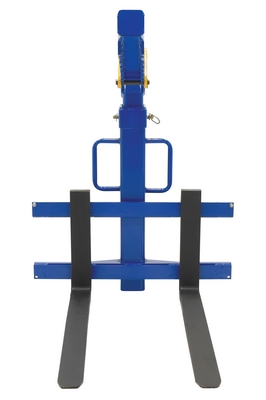

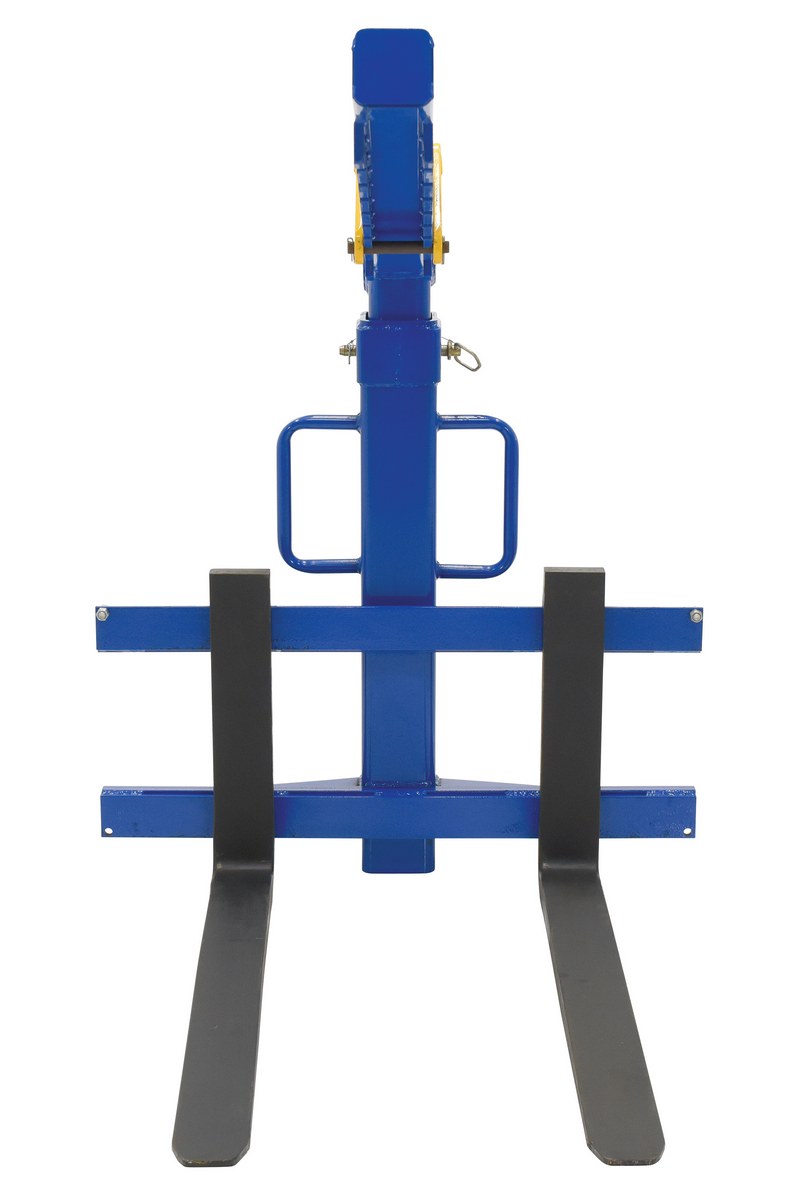

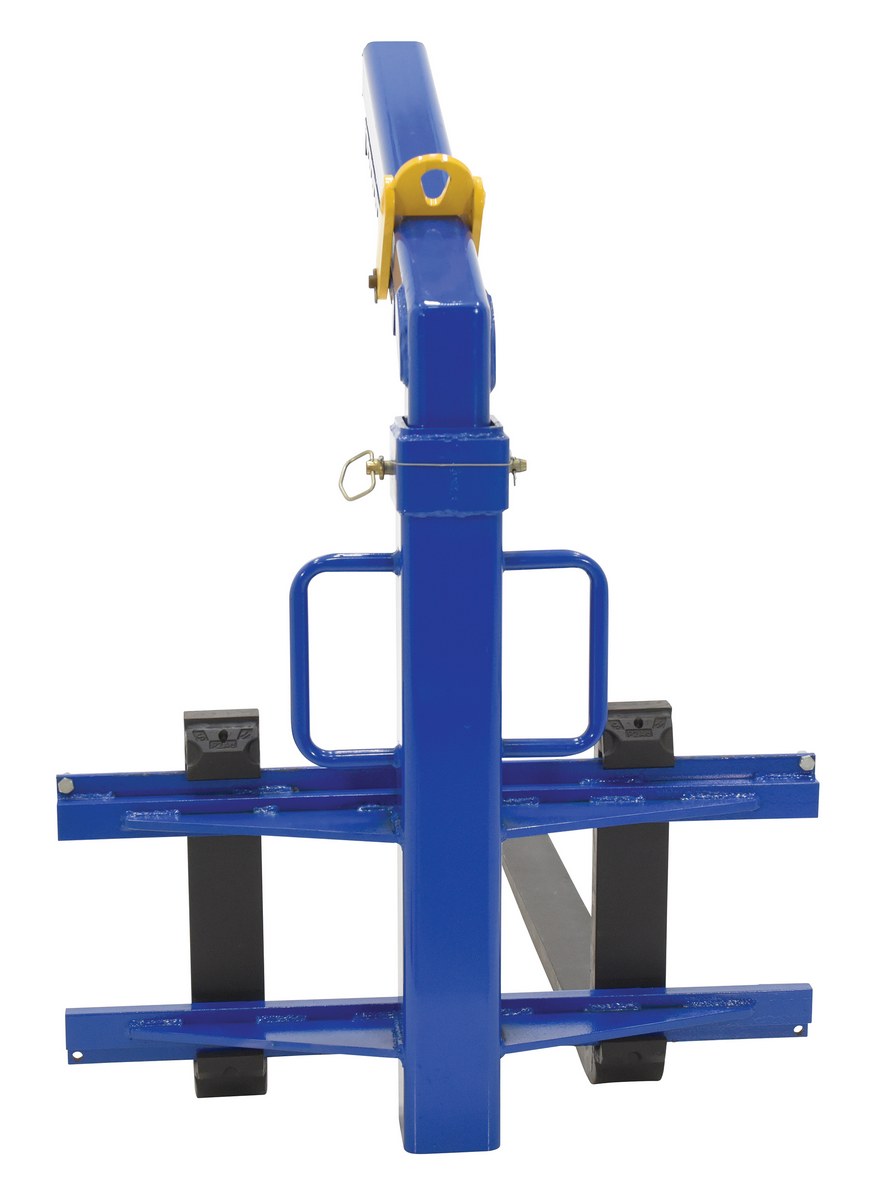

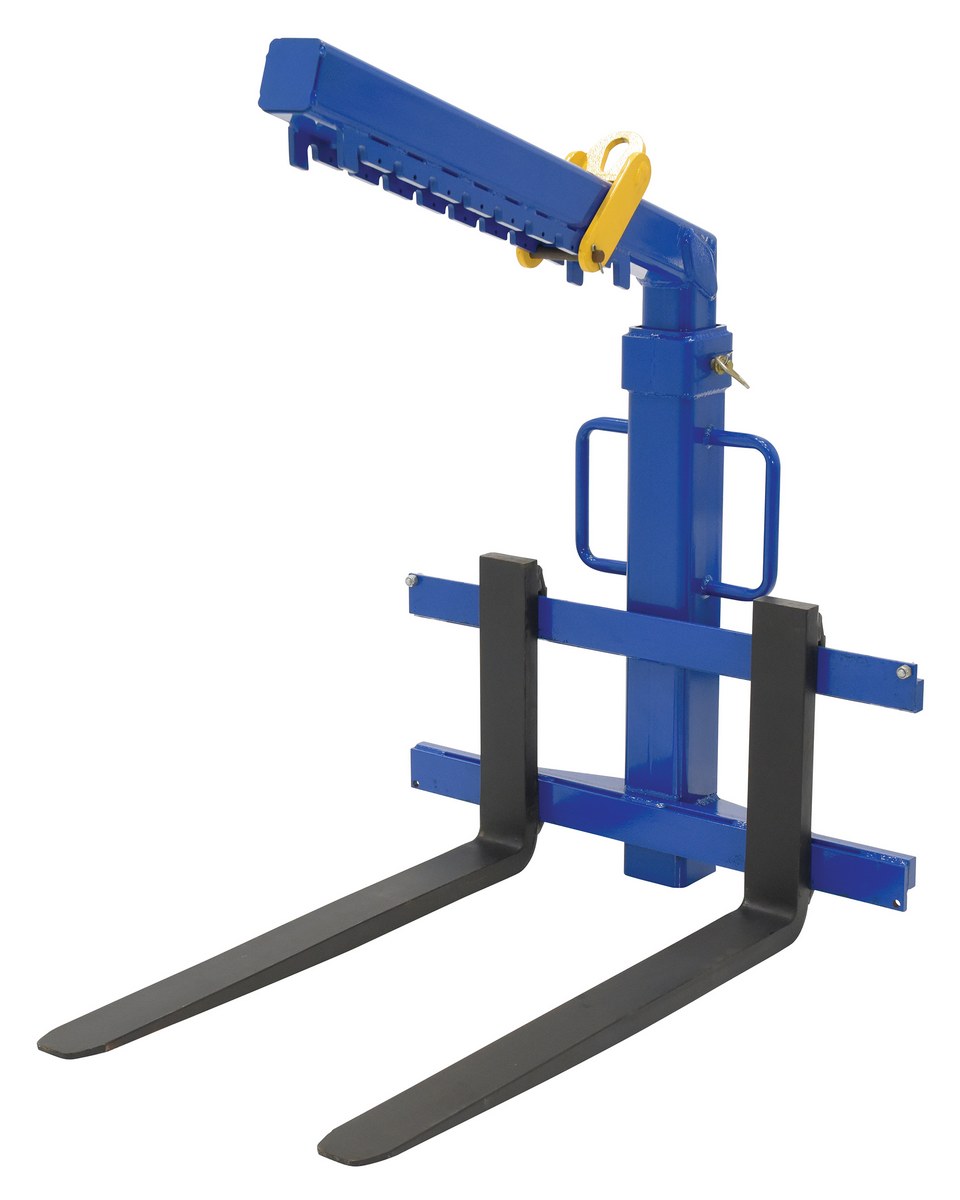

model: OLA-4-42-DLX


Overhead Load Lifters
SERIES: OLA,OLF

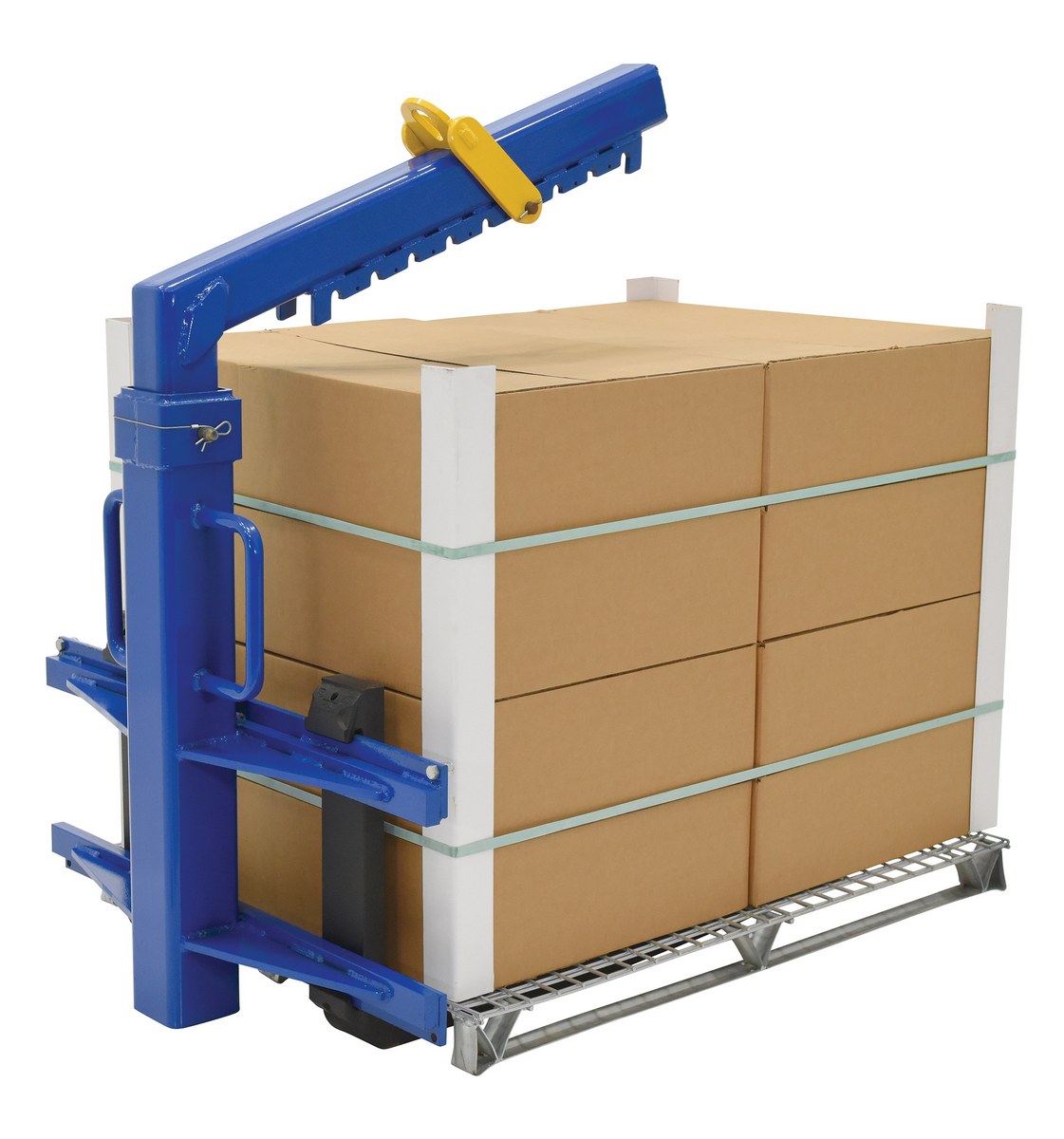

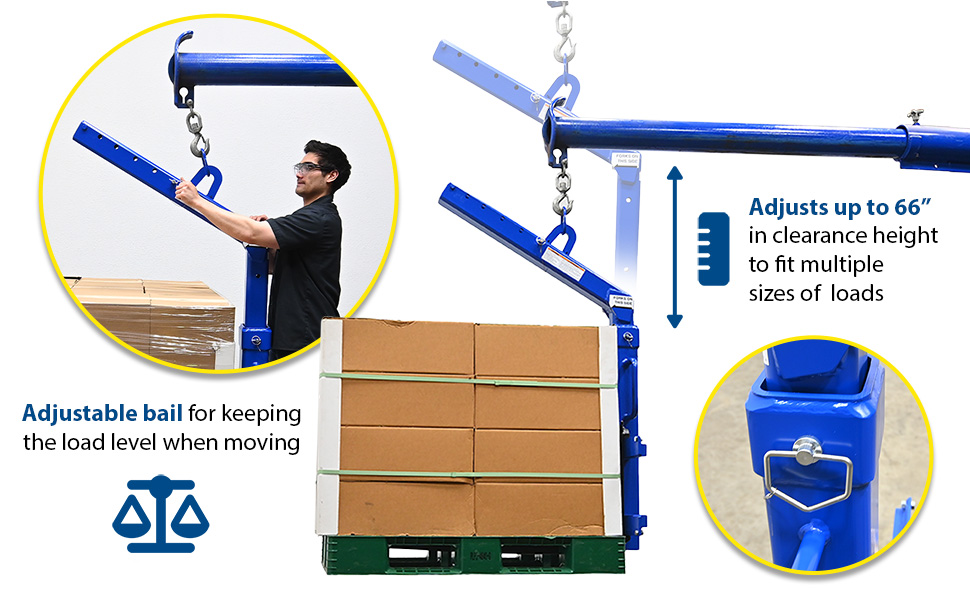

The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes (3) three height positions. Welded steel construction. Painted finish.

The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes (3) three height positions. Welded steel construction. Painted finish.

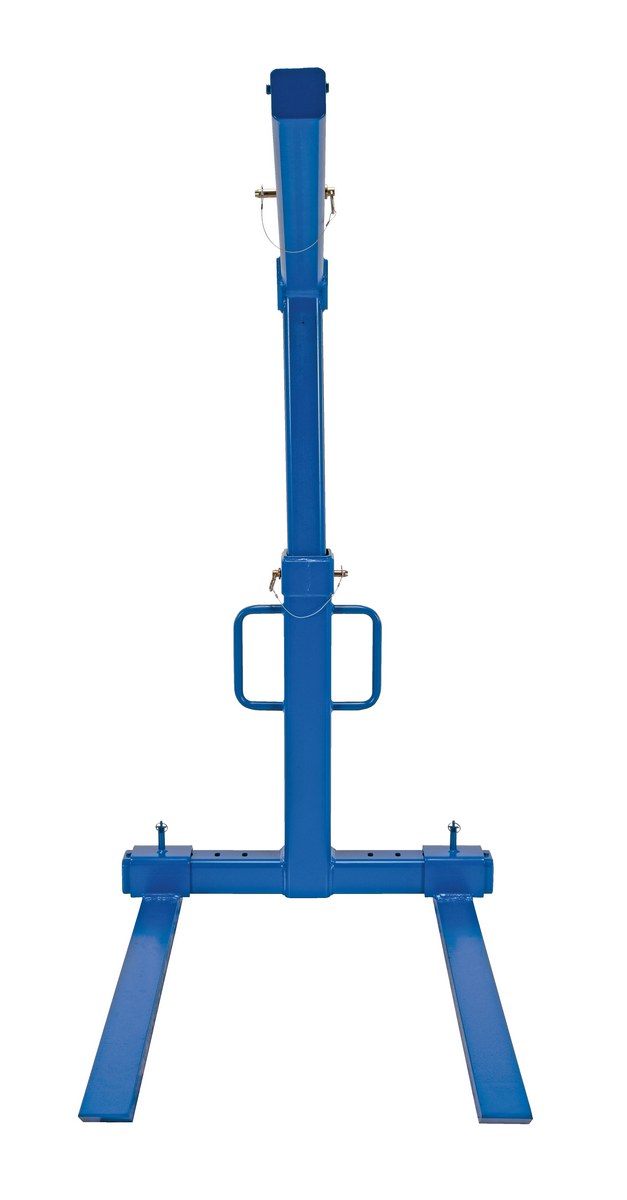

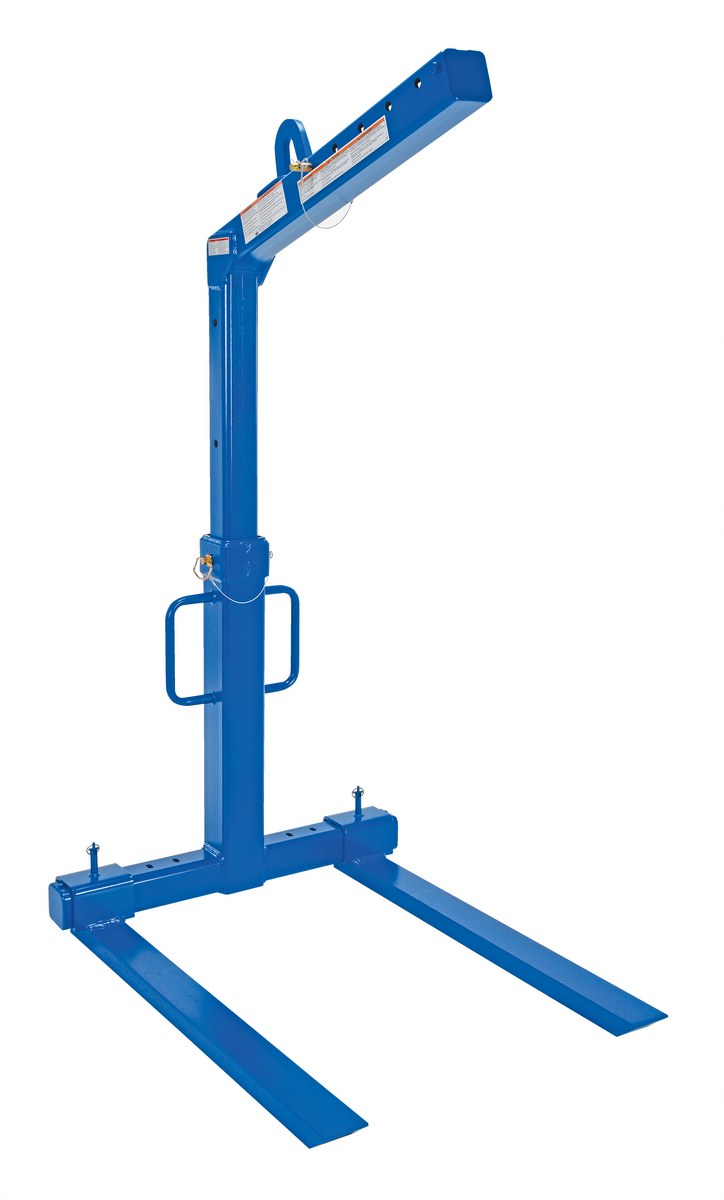

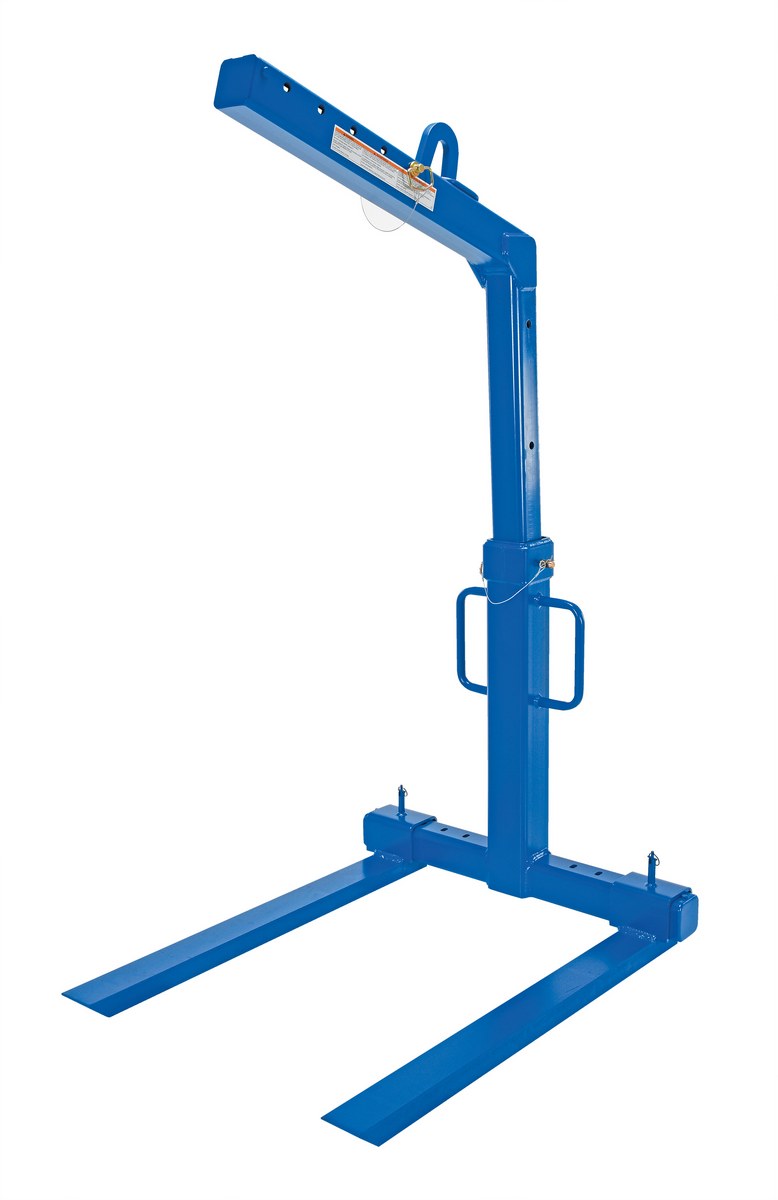

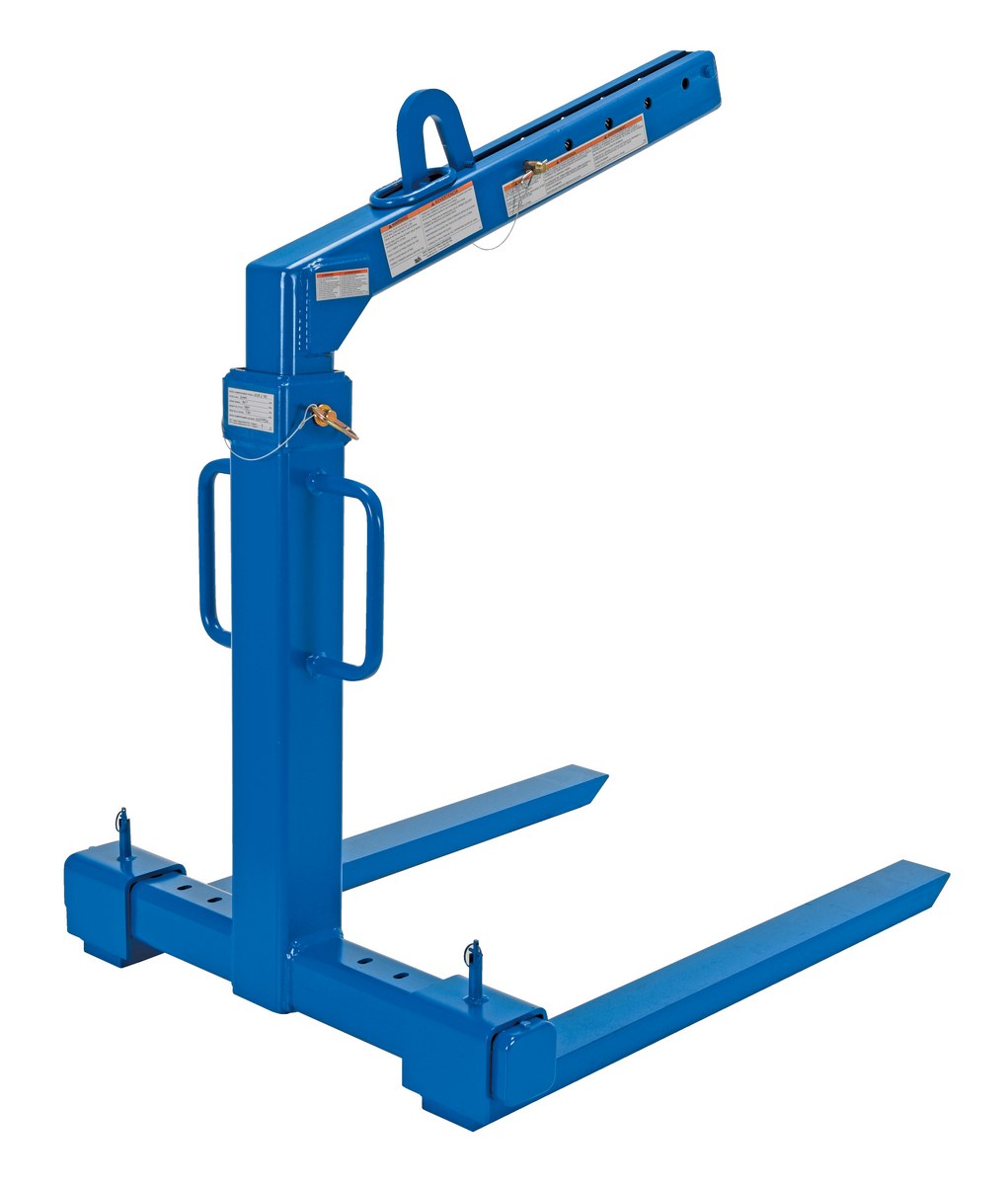

OLA-2-42

model OLA-2-42

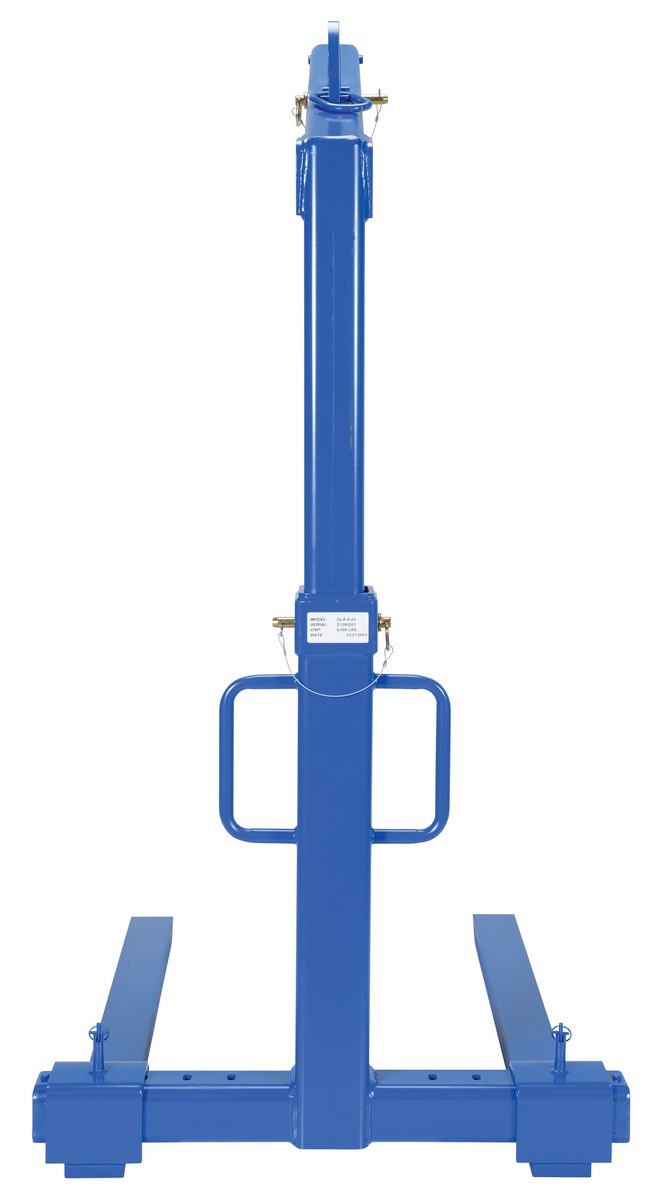

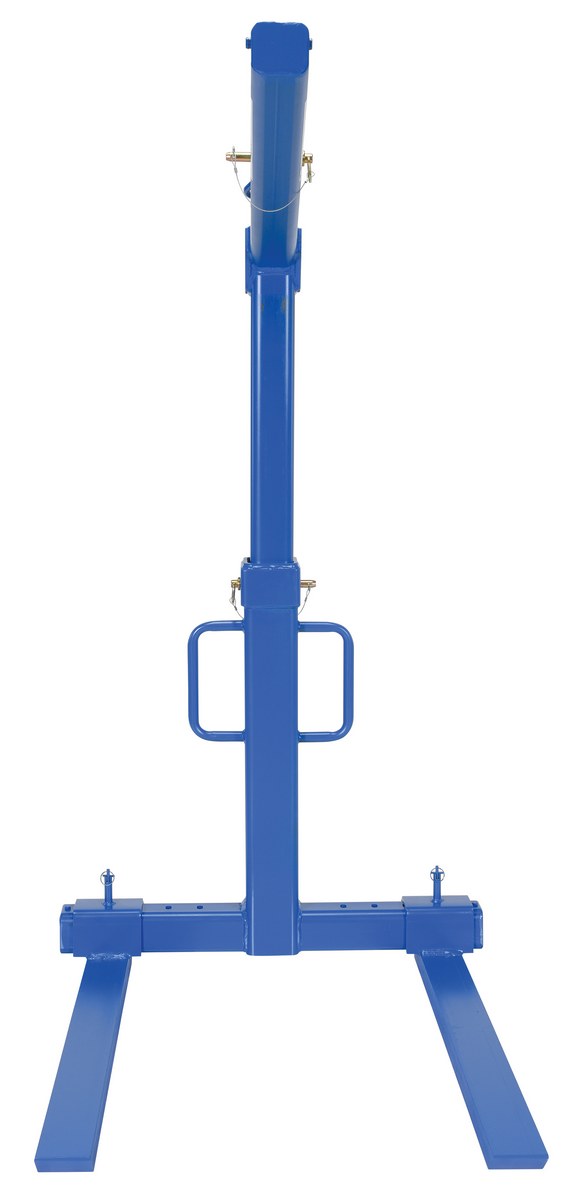

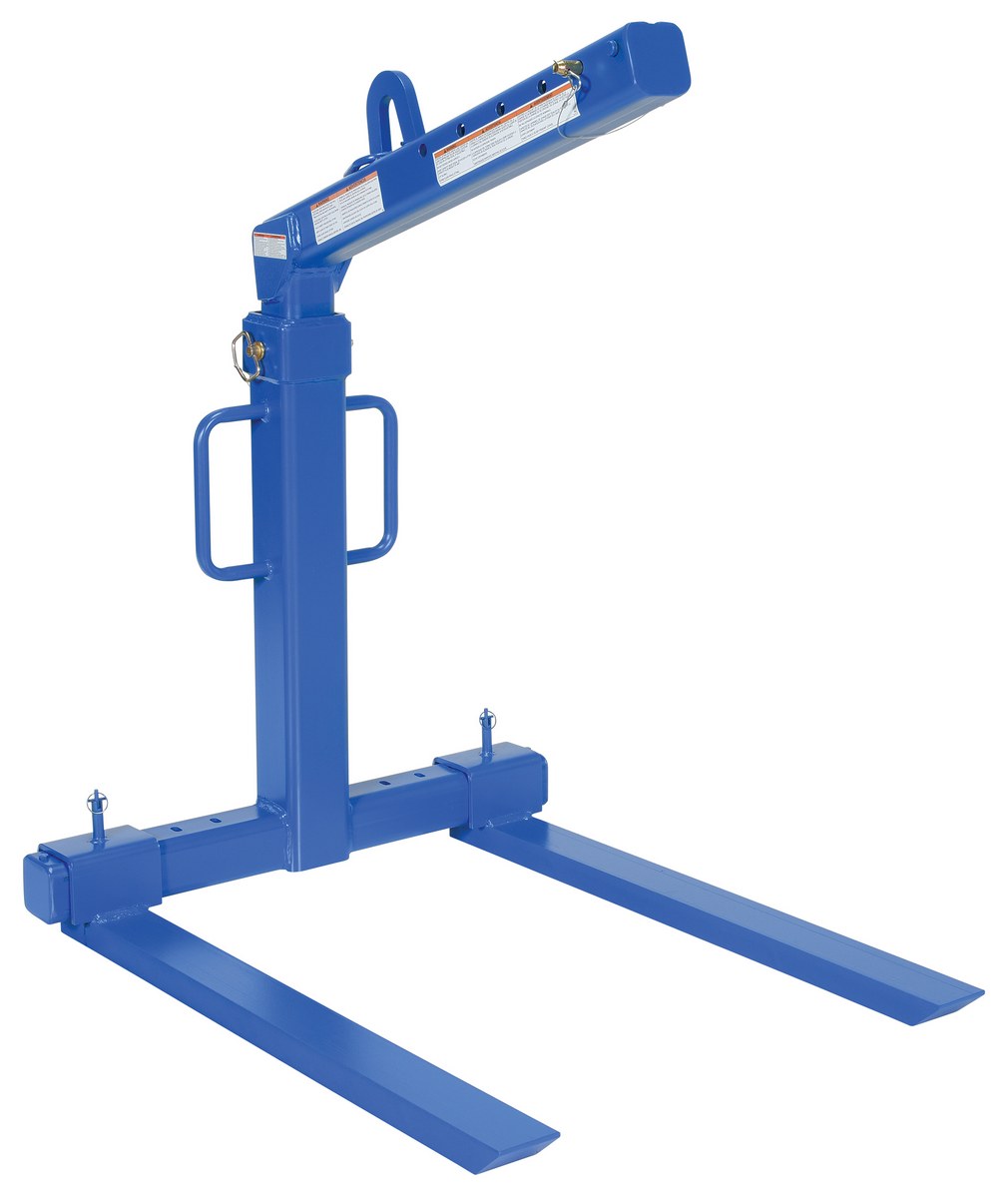

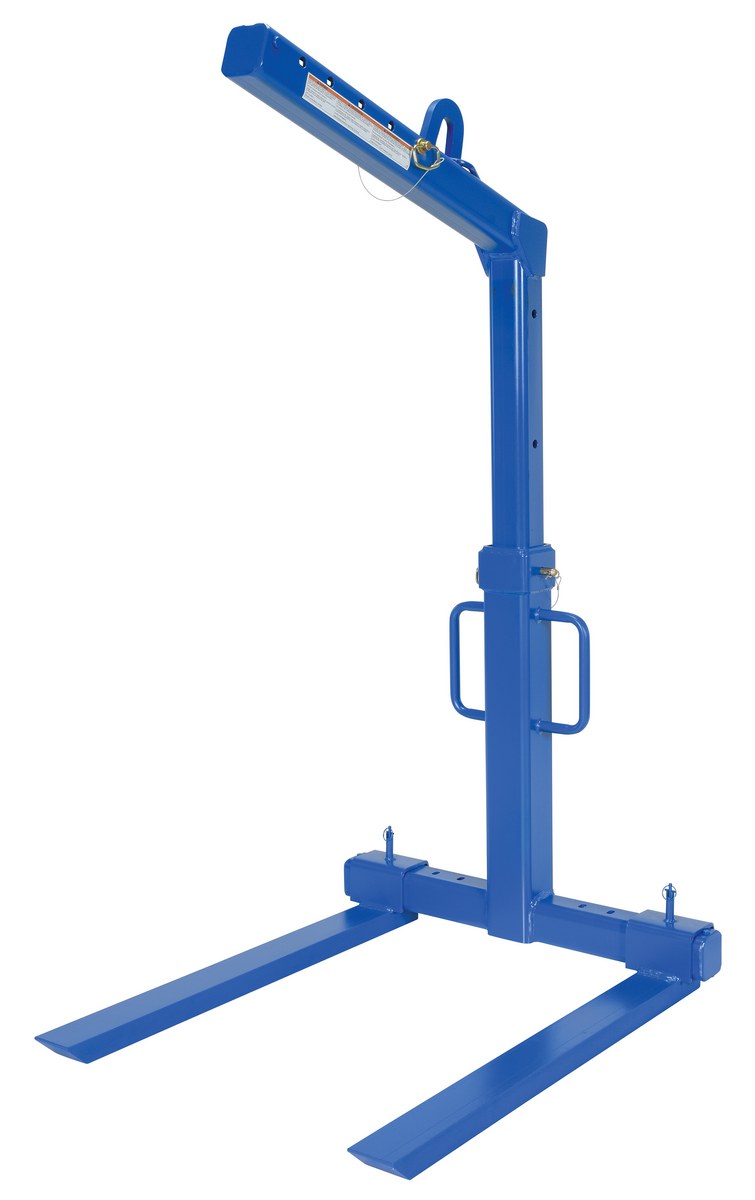

OLA-4-42

model OLA-4-42

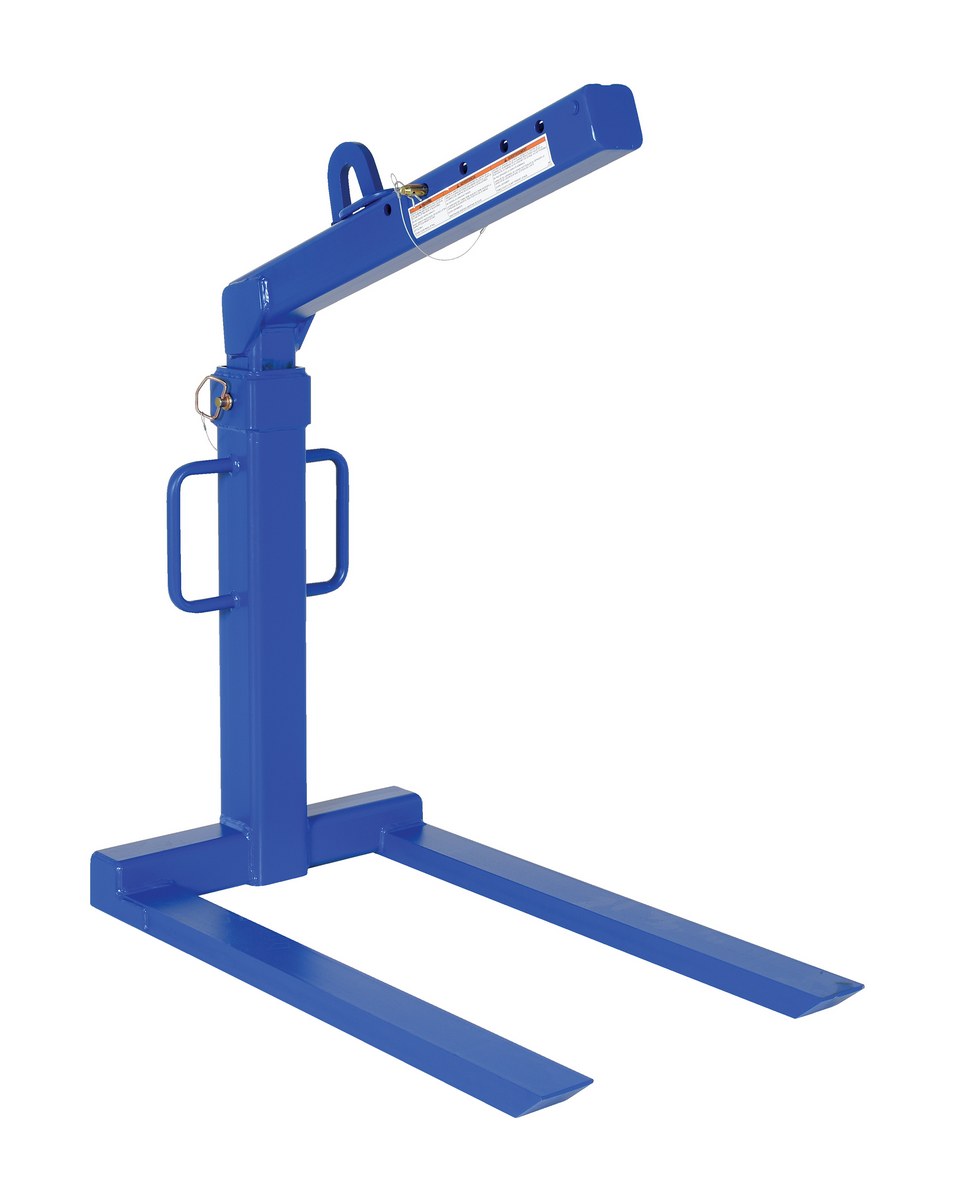

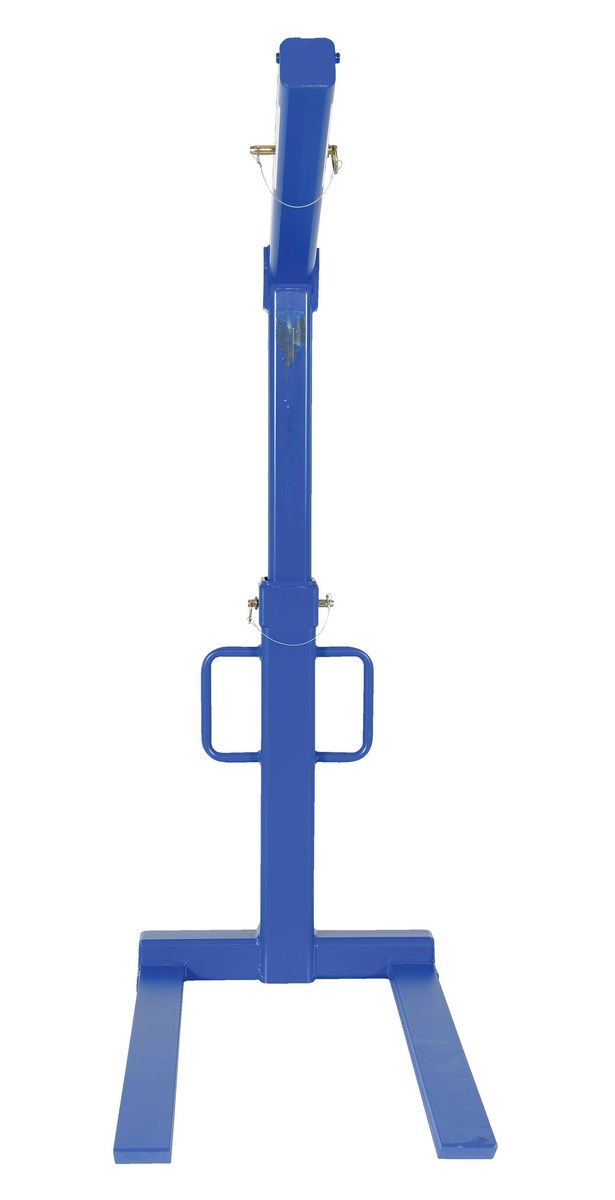

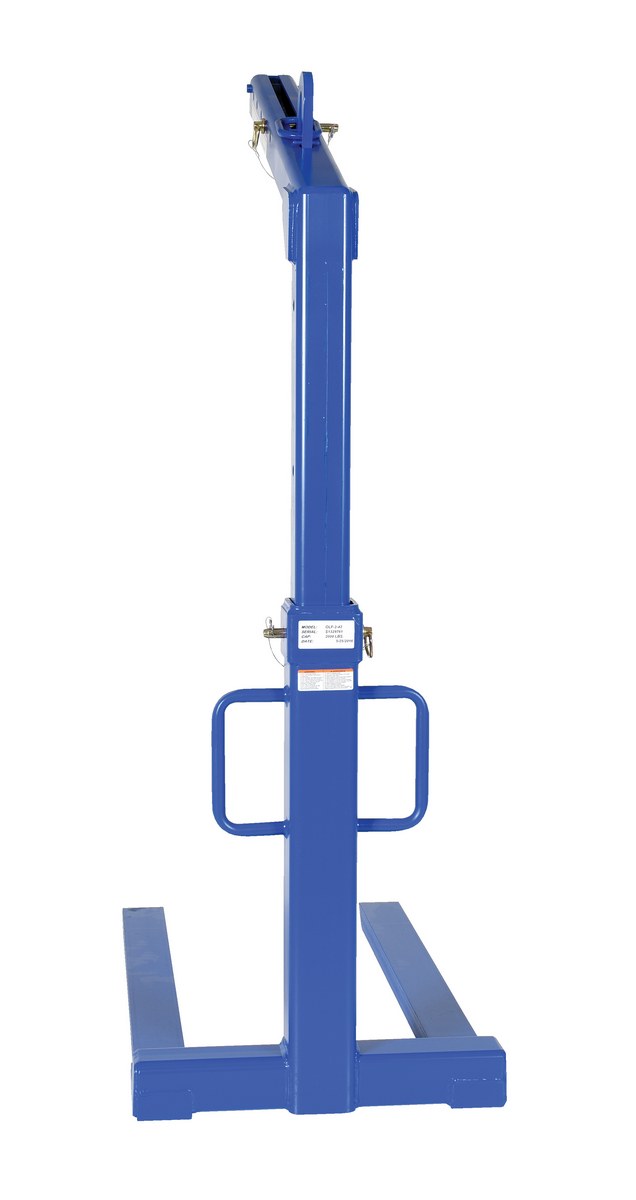

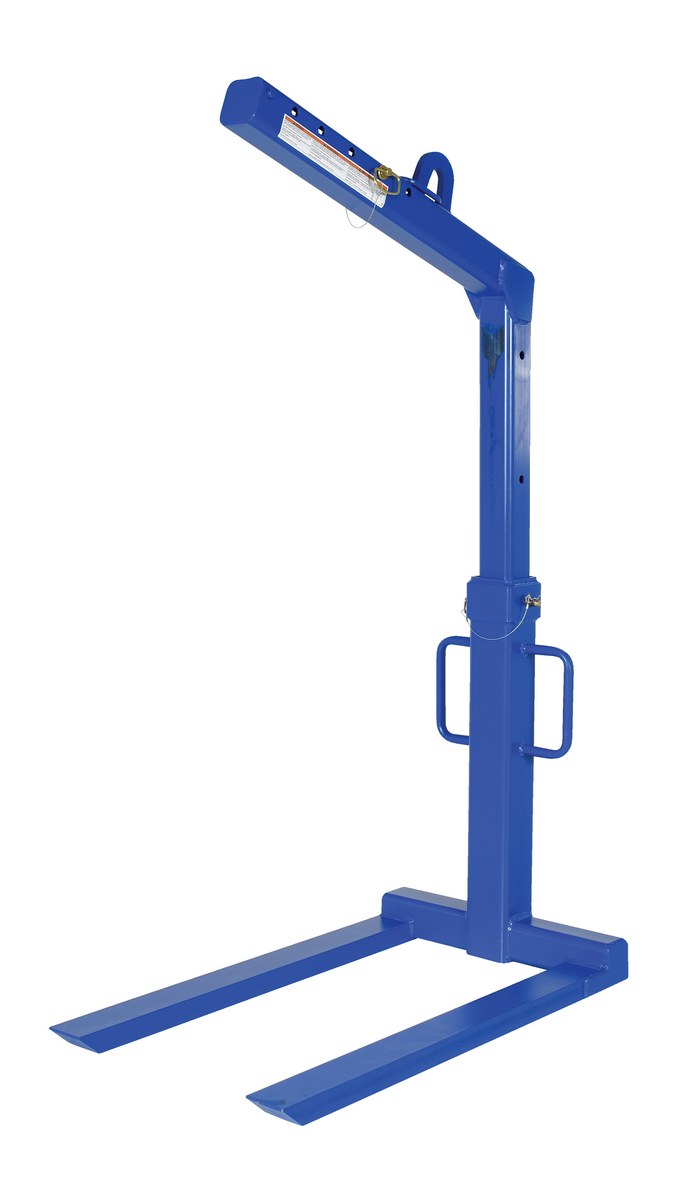

OLF-2-42

model OLF-2-42

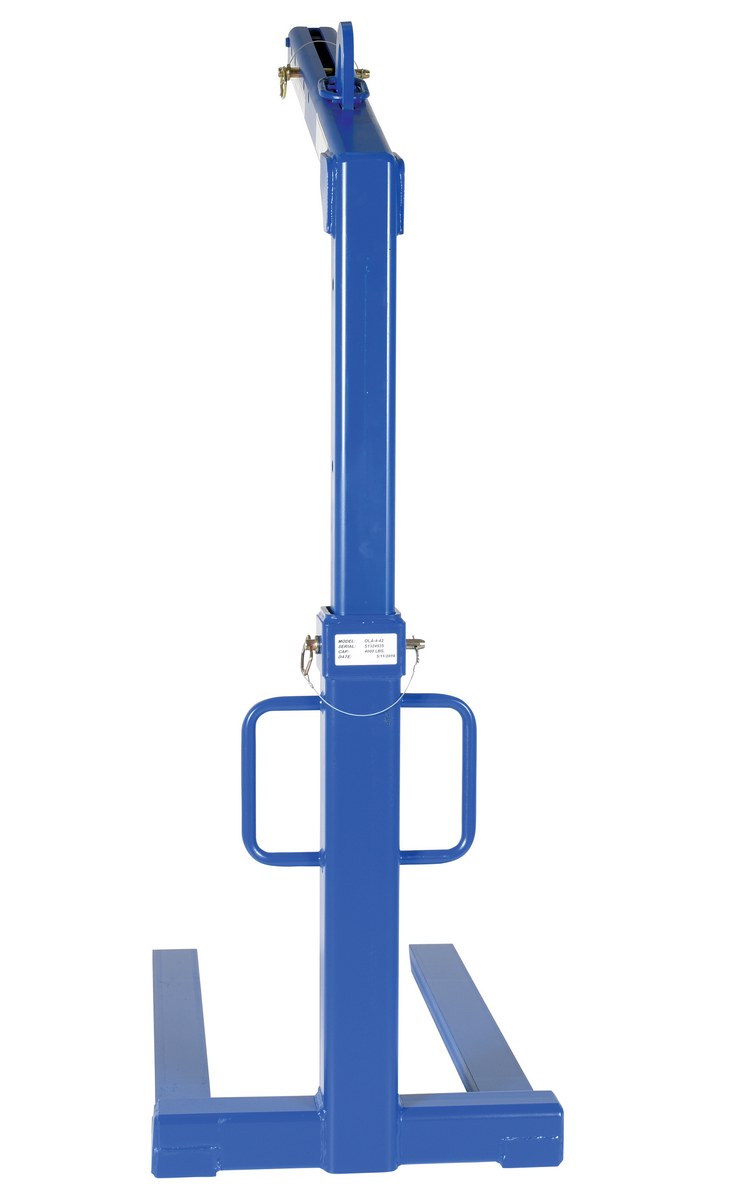

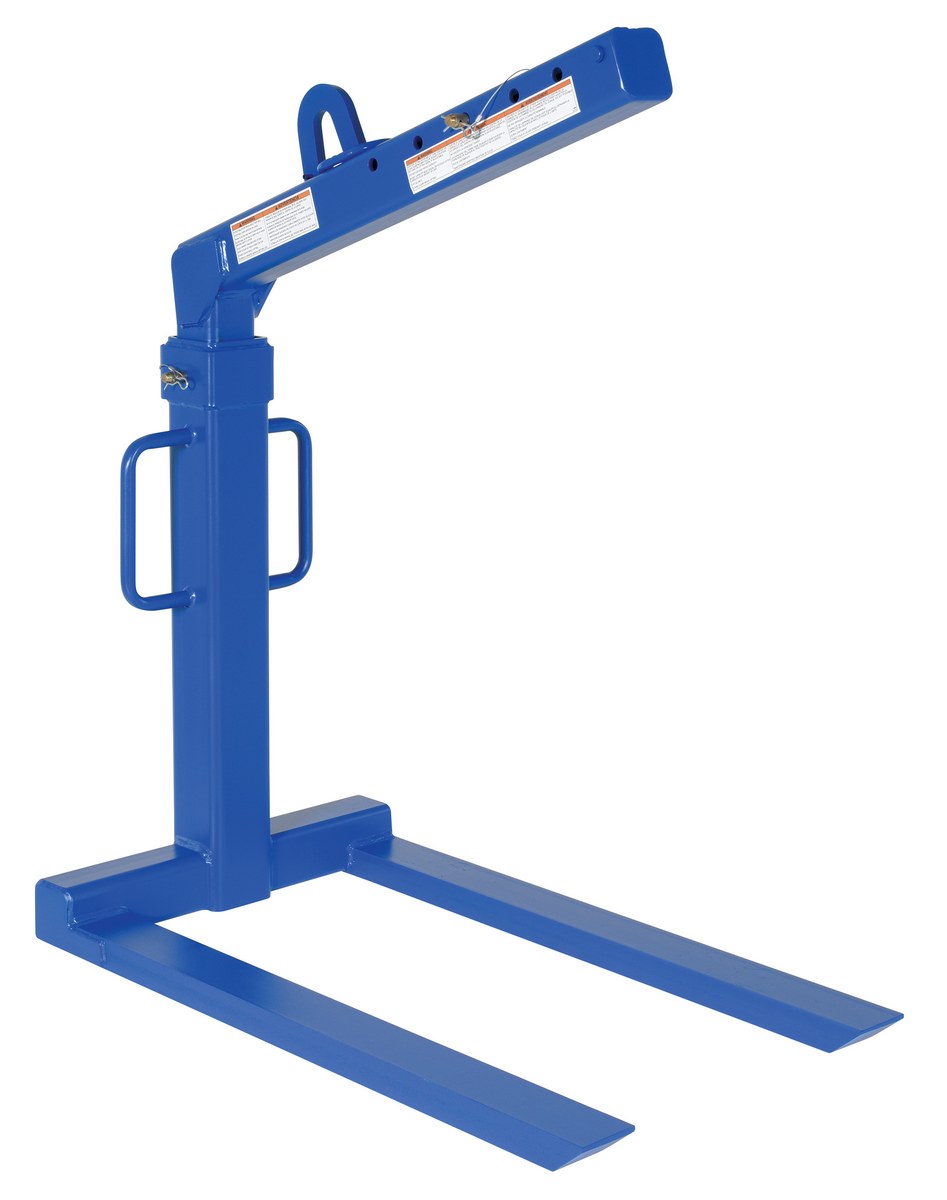

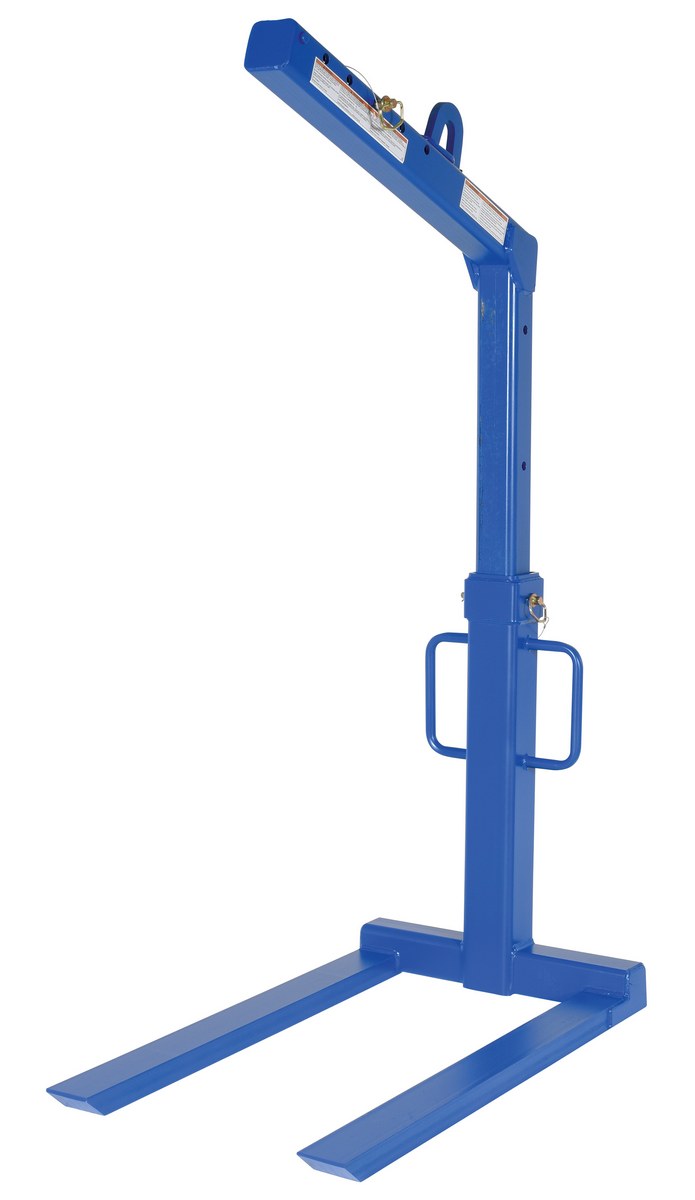

OLF-4-42

model OLF-4-42




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
OLA-2-36-DLX 90 Days Limited WarrantyDELUXE OVERHEAD LOAD LIFTER 36"FORK 2000Uniform Capacity (lb.): 2000
Retracted Height (in.): 65-11/16
527
OLA-2-42 90 Days Limited WarrantyOVERHEAD LOAD LIFTER ADJUT 2K CAPUniform Capacity (lb.): 2000
Retracted Height (in.): 64-3/8
531
OLA-2-42-DLX 90 Days Limited WarrantyDELUXE OVERHEAD LOAD LIFTER 42"FORK 2000Uniform Capacity (lb.): 2000
Retracted Height (in.): 65-11/16
538
OLA-4-36-DLX 90 Days Limited WarrantyDELUXE OVERHEAD LOAD LIFTER 36"FORK 4000Uniform Capacity (lb.): 4000
Retracted Height (in.): 65-11/16
547
OLA-4-42 90 Days Limited WarrantyOVERHEAD LOAD LIFTER ADJUT 4K CAPUniform Capacity (lb.): 4000
Retracted Height (in.): 64-3/8
537
OLA-4-42-DLX 90 Days Limited WarrantyDELUXE OVERHEAD LOAD LIFTER 42"FORK 4000Uniform Capacity (lb.): 4000
Retracted Height (in.): 65-11/16
558
OLF-2-42 90 Days Limited WarrantyOVERHEAD LOAD LIFTER FIXED 2K CAPUniform Capacity (lb.): 2000
Retracted Height (in.): 62-9/16
488
OLF-4-42 90 Days Limited WarrantyOVERHEAD LOAD LIFTER FIXED 4K CAPUniform Capacity (lb.): 4000
Retracted Height (in.): 62-9/16
491

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Overhead Load Lifters PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Overhead Load Lifters




The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates with an overhead lifting crane. Includes an adjustable bail for keeping the load level when moving. Includes (3) three height positions. Welded steel construction. Painted finish.


Overhead Load Lifters
Model Image PDF's Adjustable Clearance Height Overall Height Fork Size (WxL) Capacity
(lbs)
Wt. (lbs)

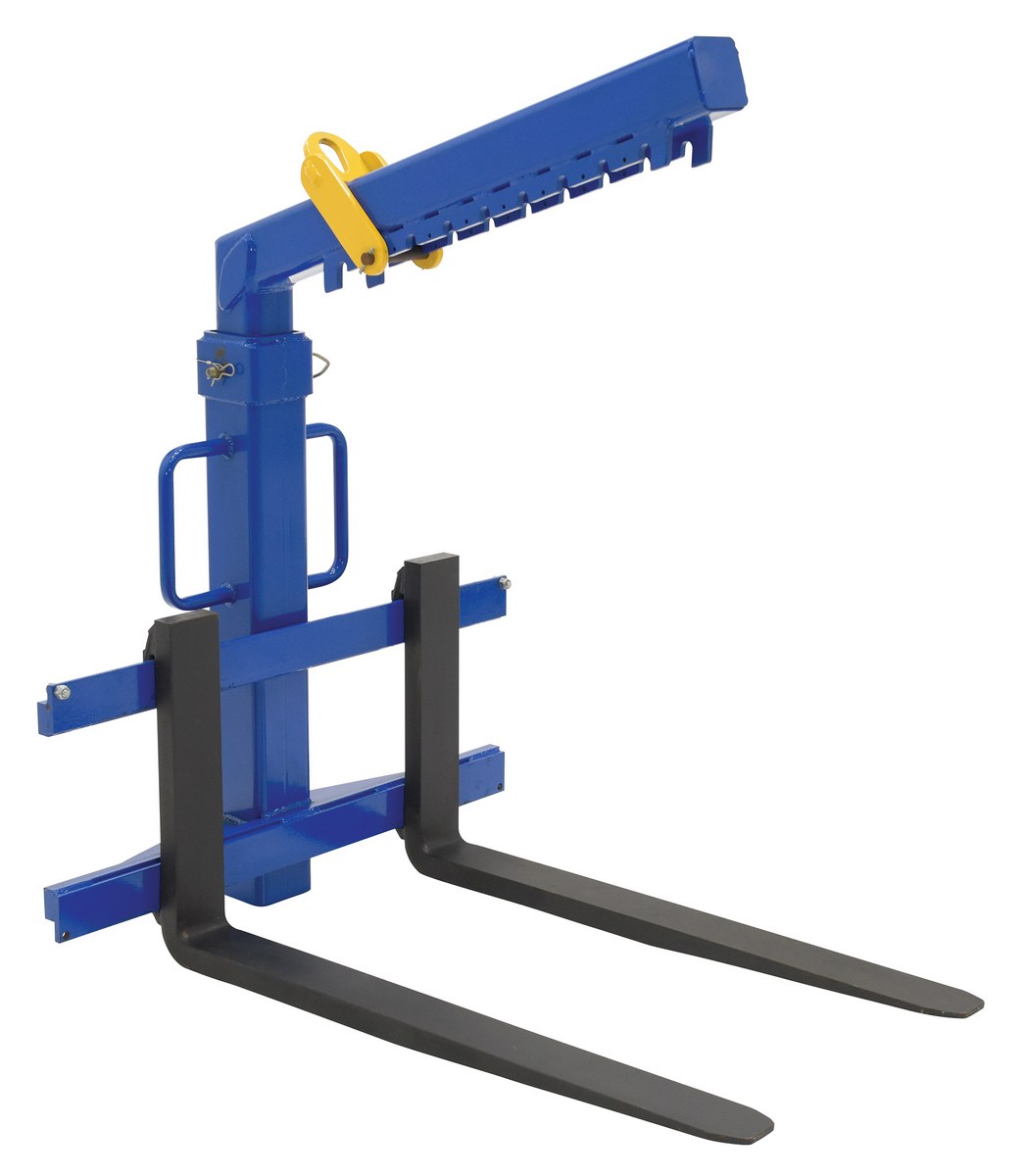

Deluxe with Adjustable Forks 13" To 38" O.D.
OLA-2-36-DLX icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42-1/4", 54", 65-3/4" 65-11/16", 77-7/16", 89-3/16" 4"x36" 2,000 527
OLA-2-42-DLX icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42-1/4", 54", 65-3/4" 65-11/16", 77-7/16", 89-3/16" 4"x42" 2,000 538
OLA-4-36-DLX icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42-1/4", 54", 65-3/4" 65-11/16", 77-7/16", 89-3/16" 4"x36" 4,000 547
OLA-4-42-DLX icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42-1/4", 54", 65-3/4" 65-11/16", 77-7/16", 89-3/16" 4"x42" 4,000 558
Adjustable Fork Width 17-5/8" to 35-5/8"
OLA-2-42 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate360_icon.jpg 40-9/16", 52-5/16", 64-1/16" 64-3/8", 76-1/8", 87-7/8" 4"x43-1/8" 2,000 531
OLA-4-42 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 40-9//16", 52-5/16", 64-1/16" 64-3/8", 76-1/8", 87-7/8" 4"x43-1/8" 4,000 537

Fixed Fork Width at 27-1/2"

OLF-2-42 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 38-3/4", 50-1/2", 62-1/4" 62-9/16", 74-5/16", 86-1/16" 4"x 43-1/8" 2,000 488
OLF-4-42 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 38-3/4", 50-1/2", 62-1/4" 62-9/16", 74-5/16", 86-1/16" 4"x 43-1/8" 4,000 491
