Product Family Overview


Hand Winches
SERIES: WALL

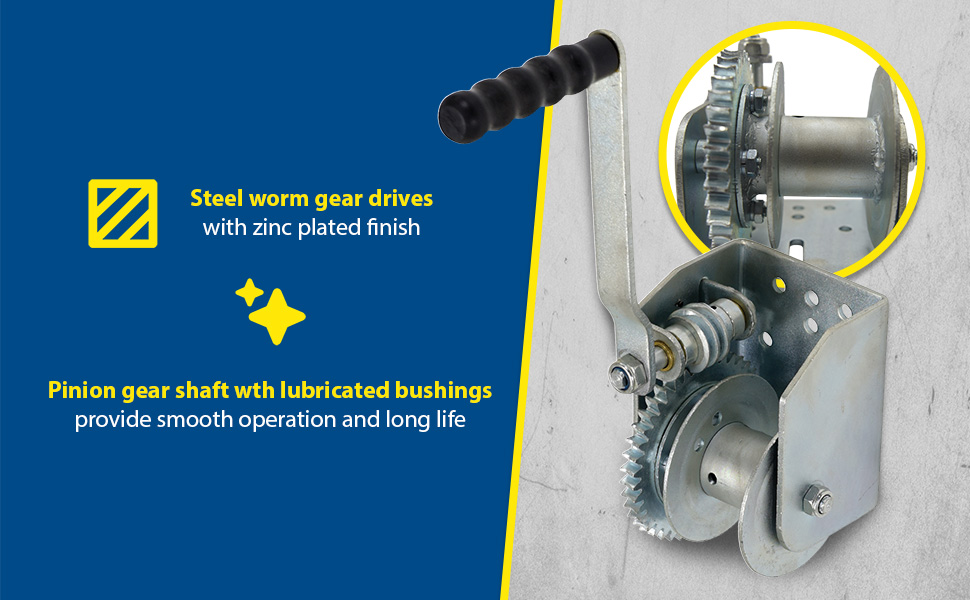

Wall Mounted Hand Winches Pulling devices that use a wire, rope or cable to move heavy loads. Constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life.

Stainless Steel Hand Winches are constructed of 304 stainless steel for corrosion resistance. Machine cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature copper bushings, a drum clamp for easy attachment of wire rope (not included), and an automatic brake for positive load control during lifting and lowering operations. The pulling capacity is in the horizontal position.

Wall Mounted Hand Winches Pulling devices that use a wire, rope or cable to move heavy loads. Constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life.

Stainless Steel Hand Winches are constructed of 304 stainless steel for corrosion resistance. Machine cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature copper bushings, a drum clamp for easy attachment of wire rope (not included), and an automatic brake for positive load control during lifting and lowering operations. The pulling capacity is in the horizontal position.

Additional Models In This Family

WALL-S

model WALL-S

HWSS-1200-NR

model HWSS-1200-NR

HWSS-1800-NR

model HWSS-1800-NR

HWSS-2600-NR

model HWSS-2600-NR

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

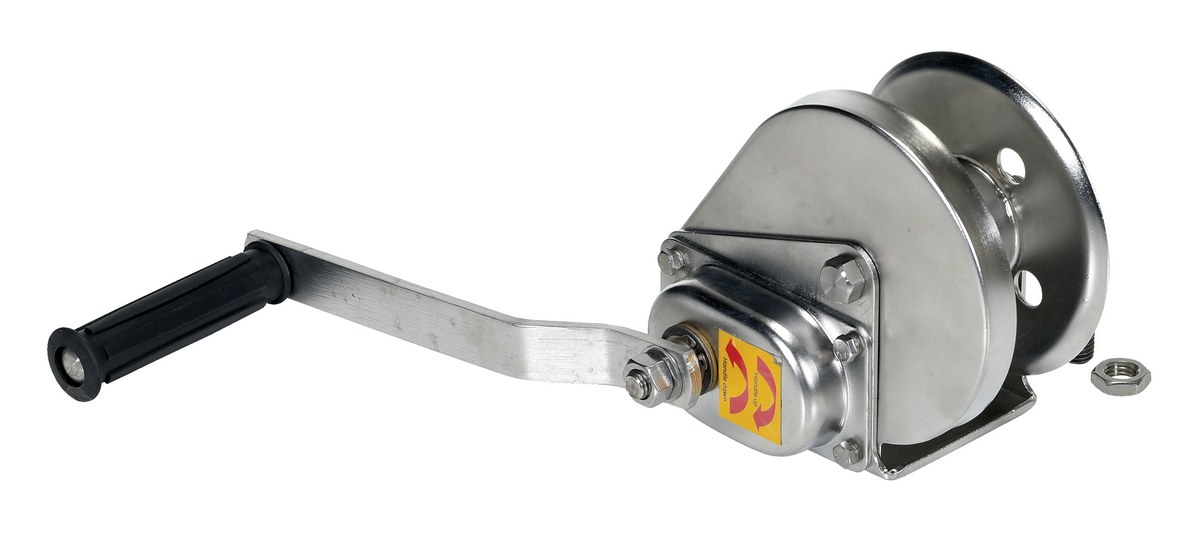

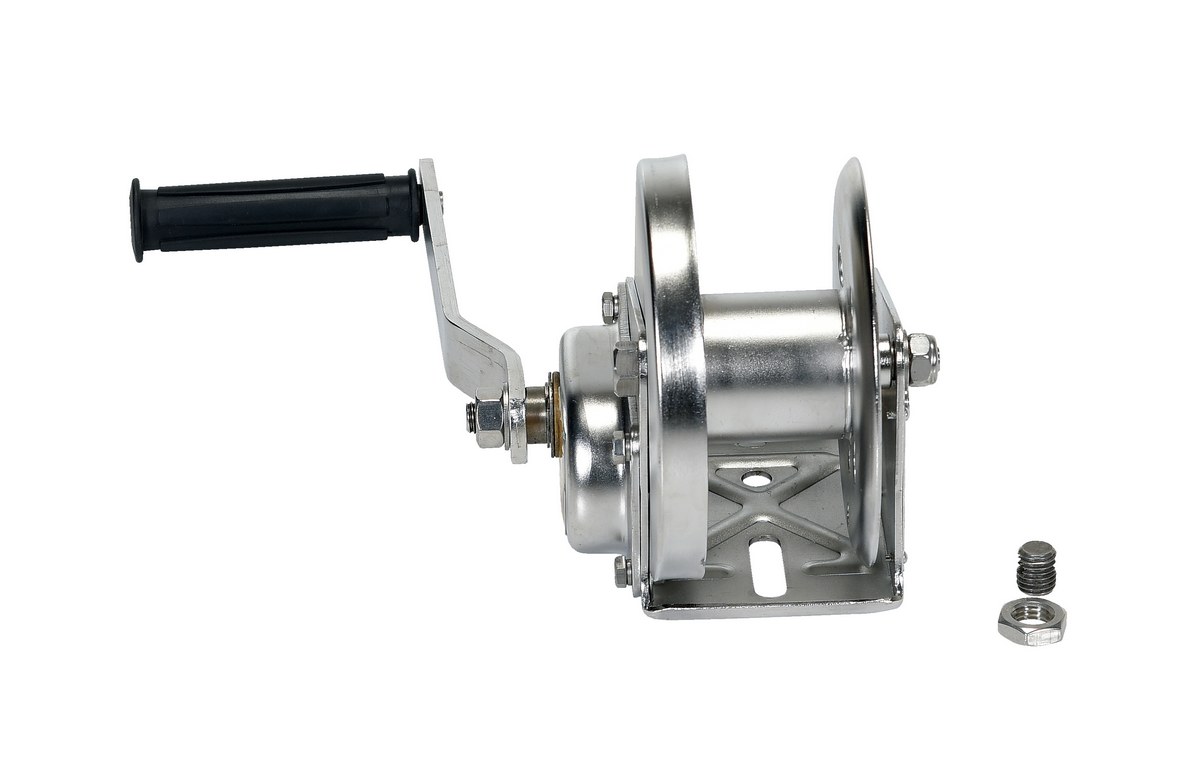

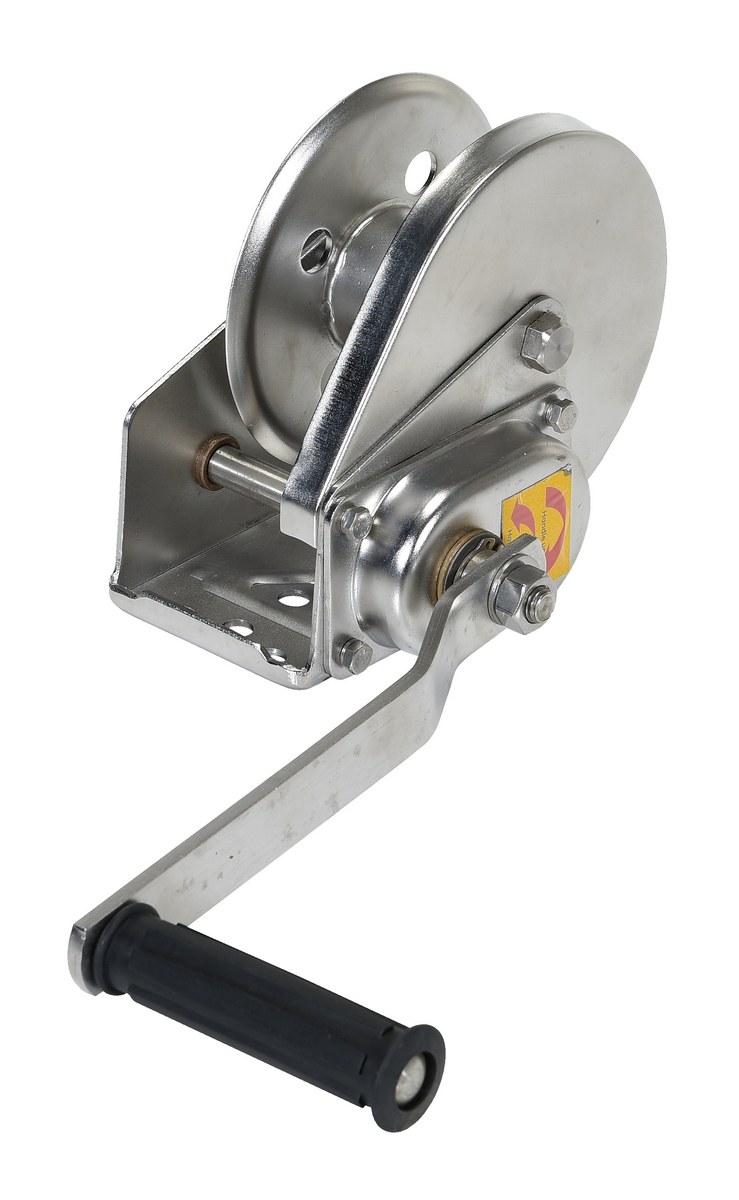

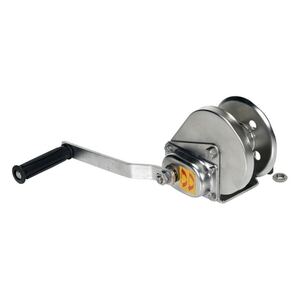

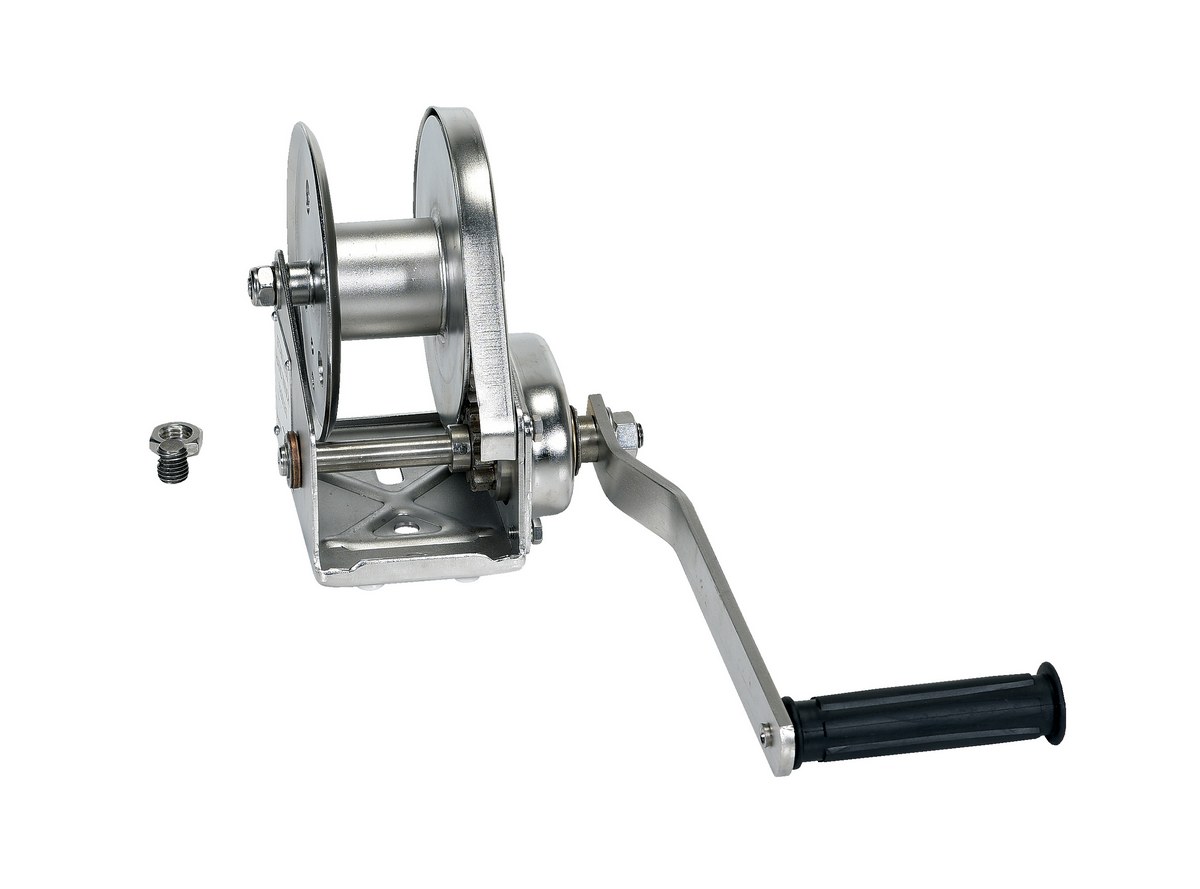

HWSS-1200-NR HWSS-1200-NR30 Days Limited WarrantyStainless Steel Hand Winch 1200 Lb. Capacity SilverUniform Capacity (lb.): 1200
Gear Ratio: 4.2:1
9

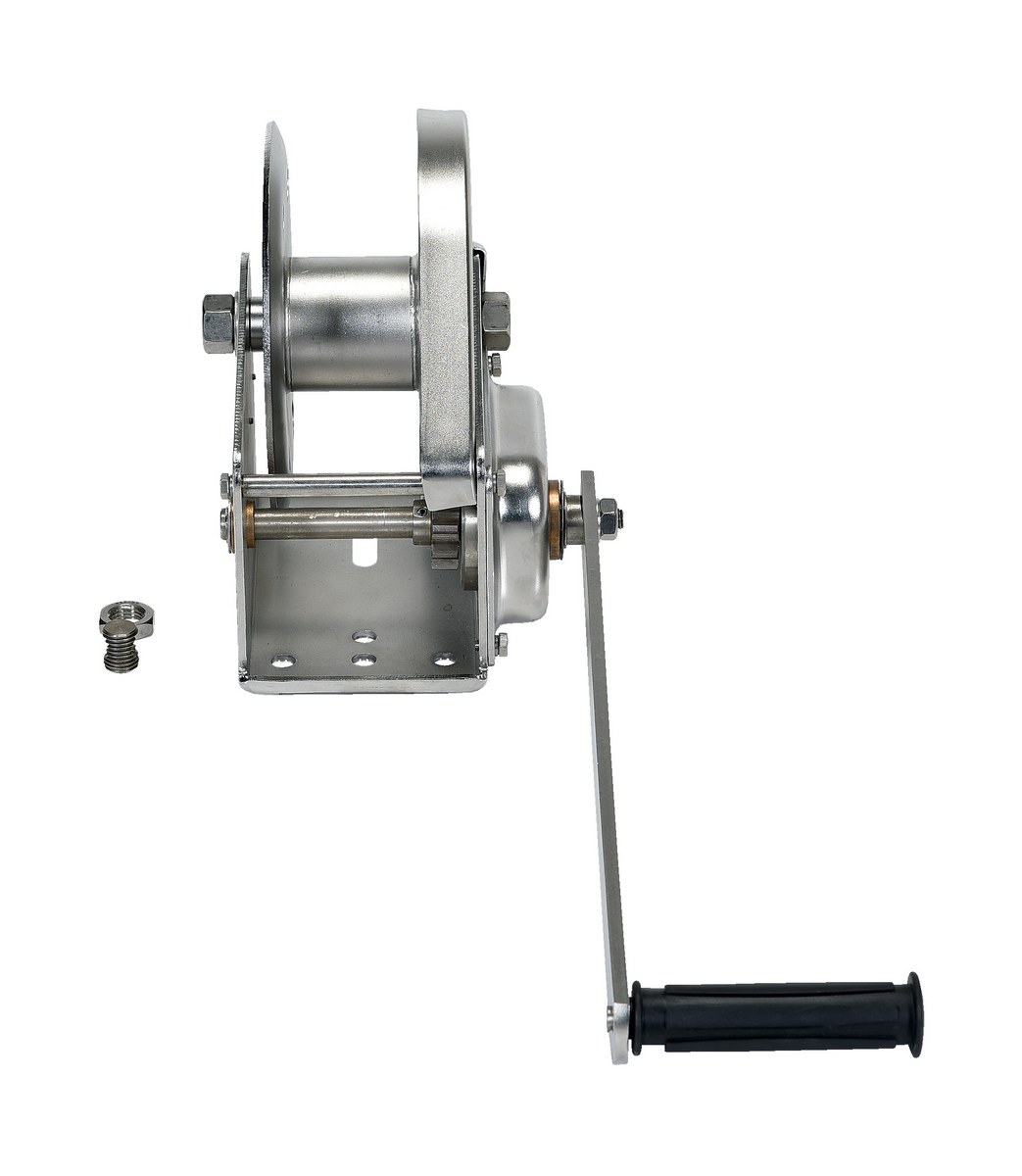

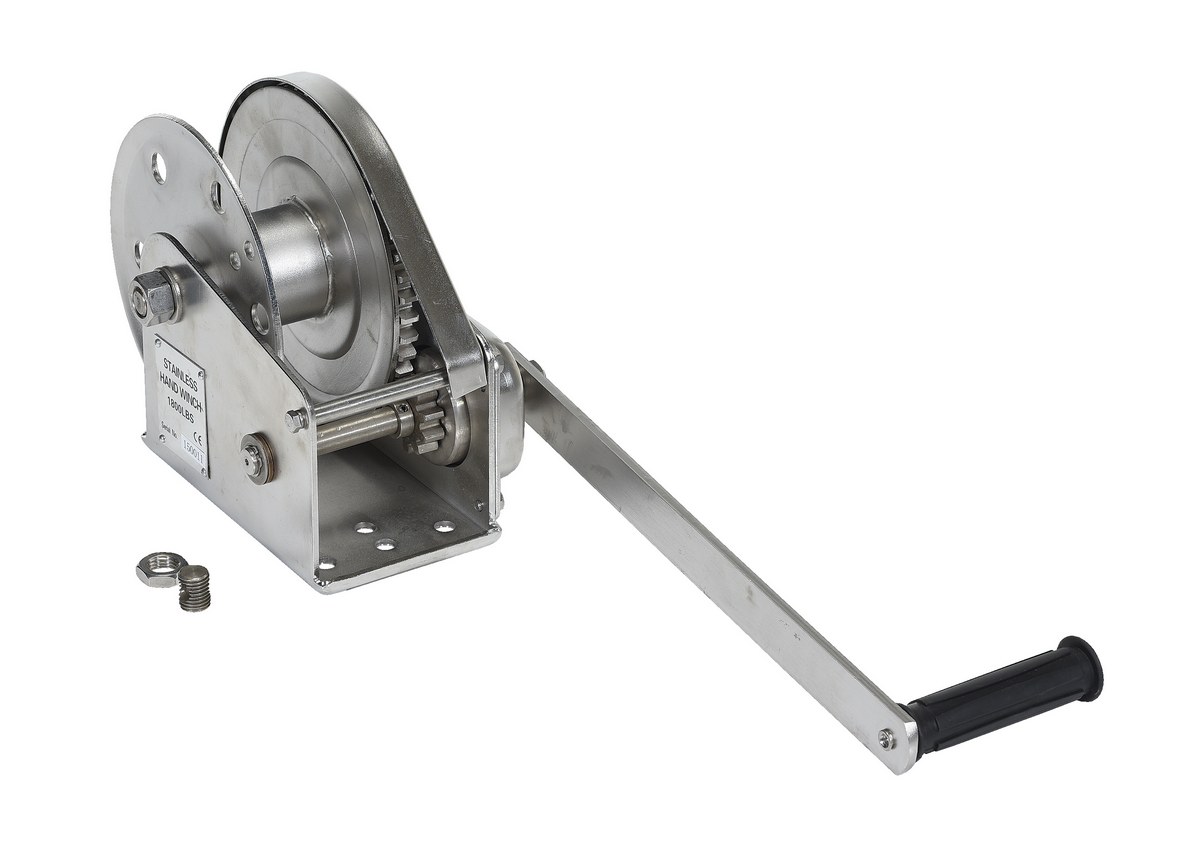

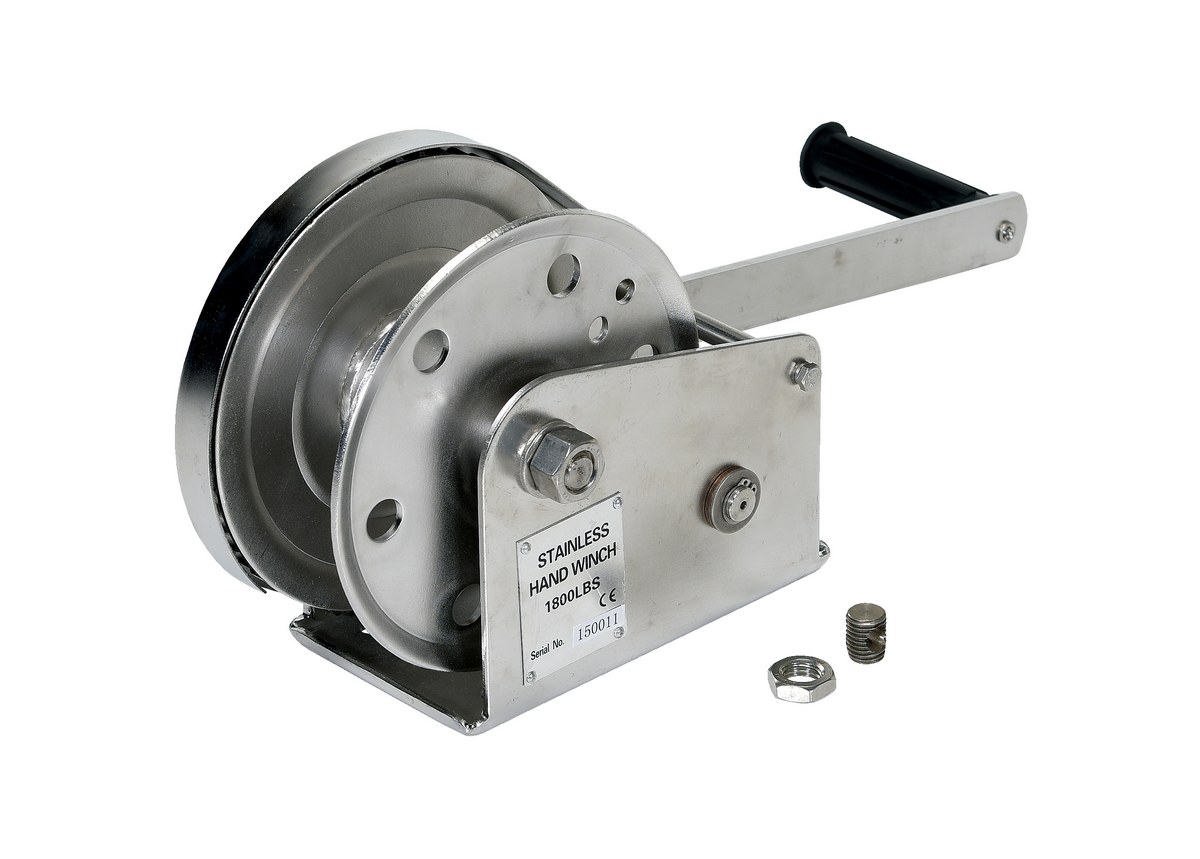

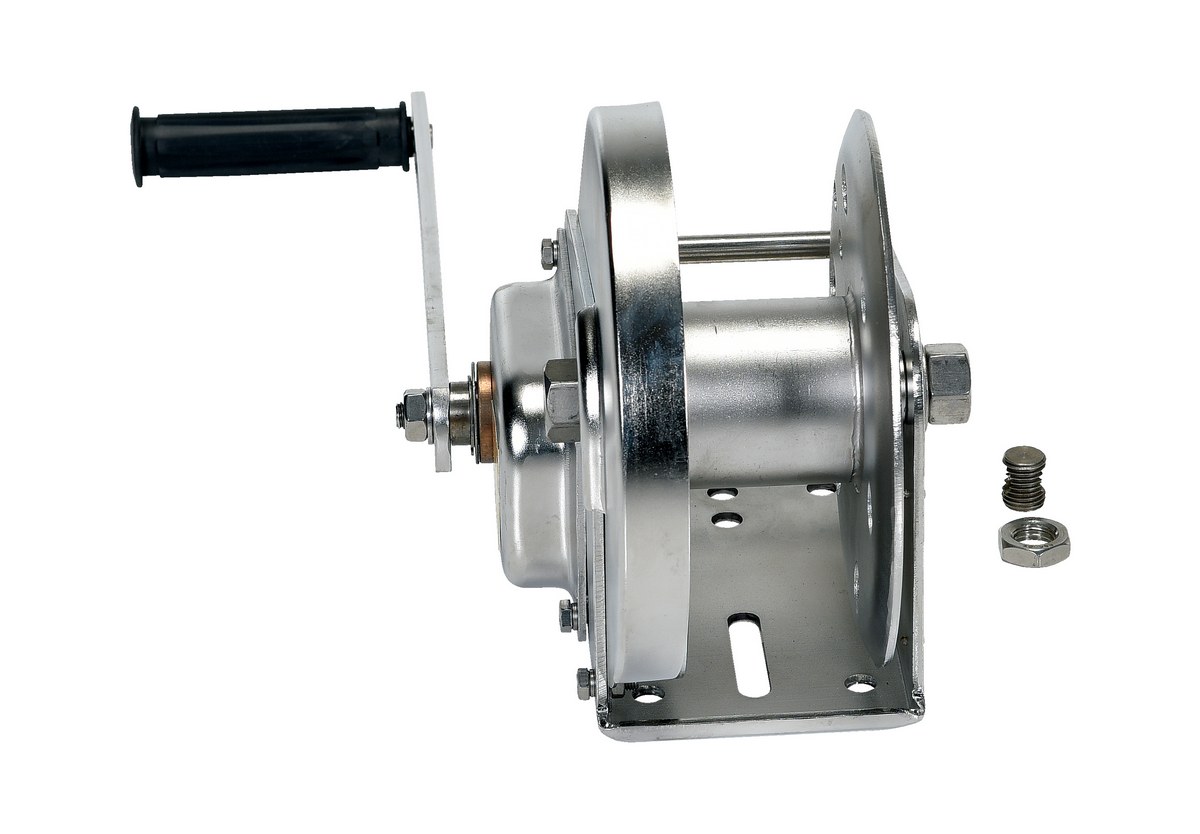

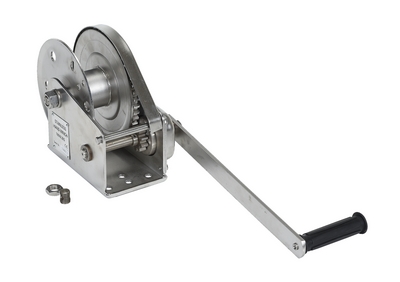

HWSS-1800-NR HWSS-1800-NR30 Days Limited WarrantyStainless Steel Hand Winch 1800 Lb. Capacity SilverUniform Capacity (lb.): 1800
Gear Ratio: 5:1
17

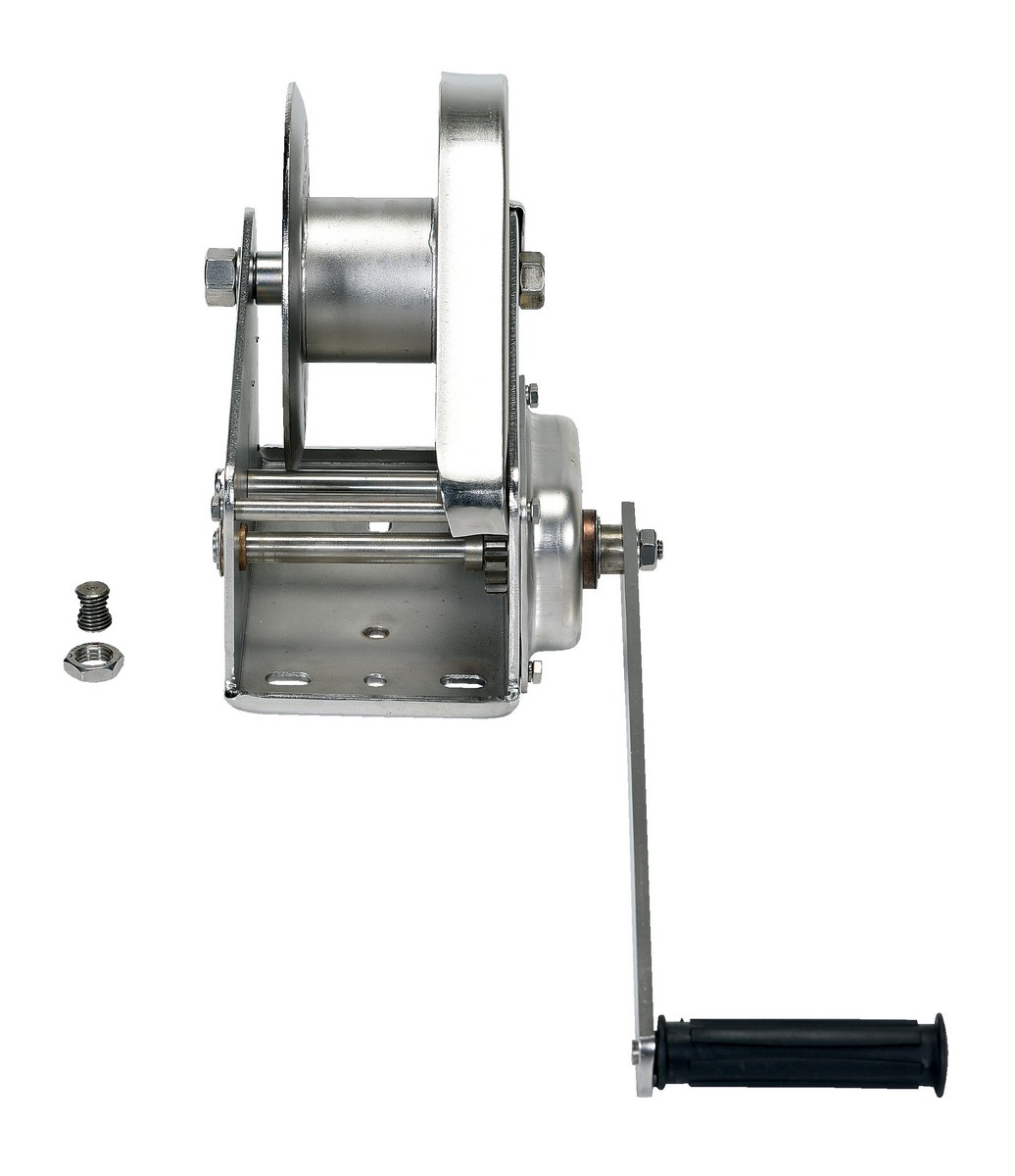

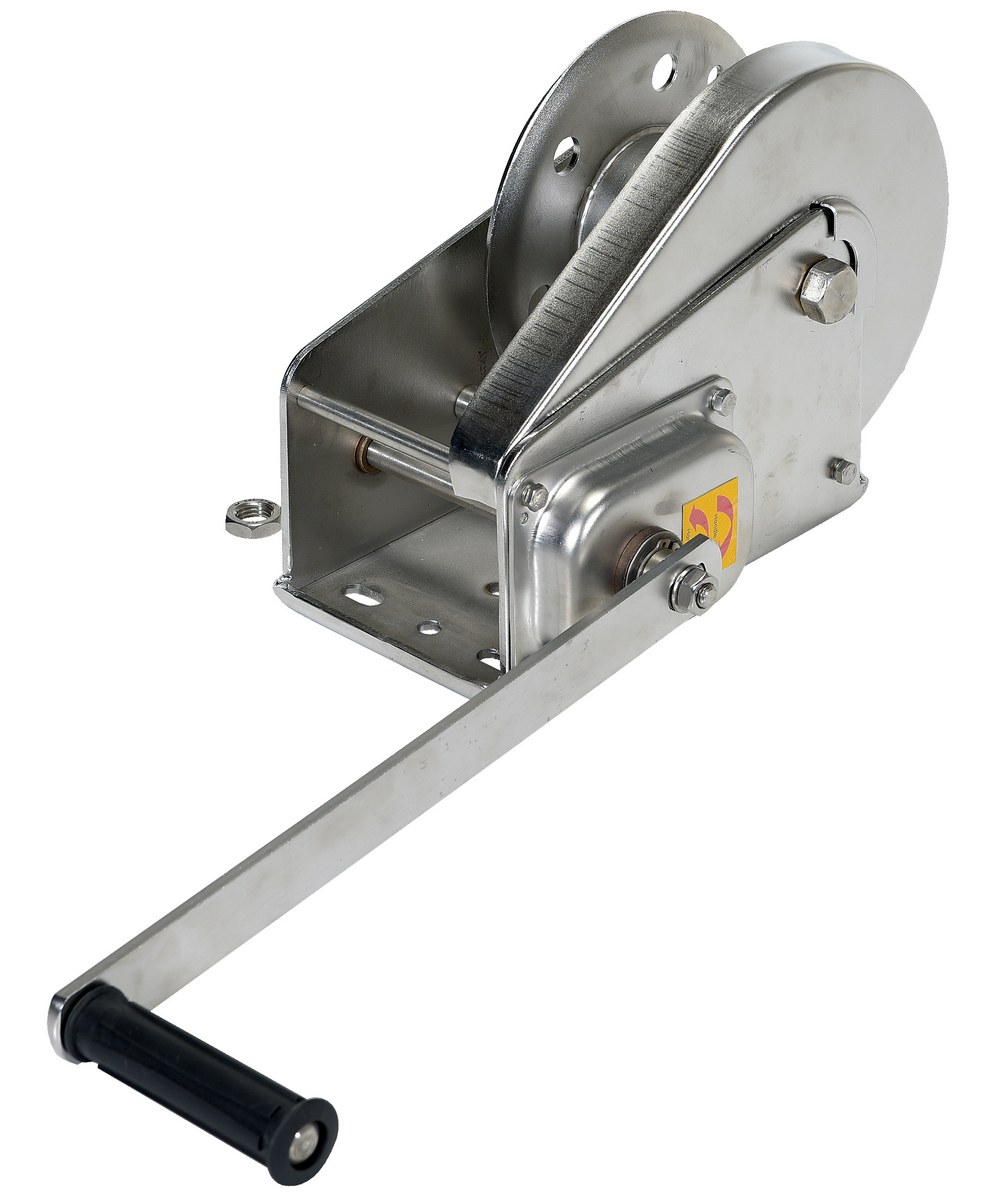

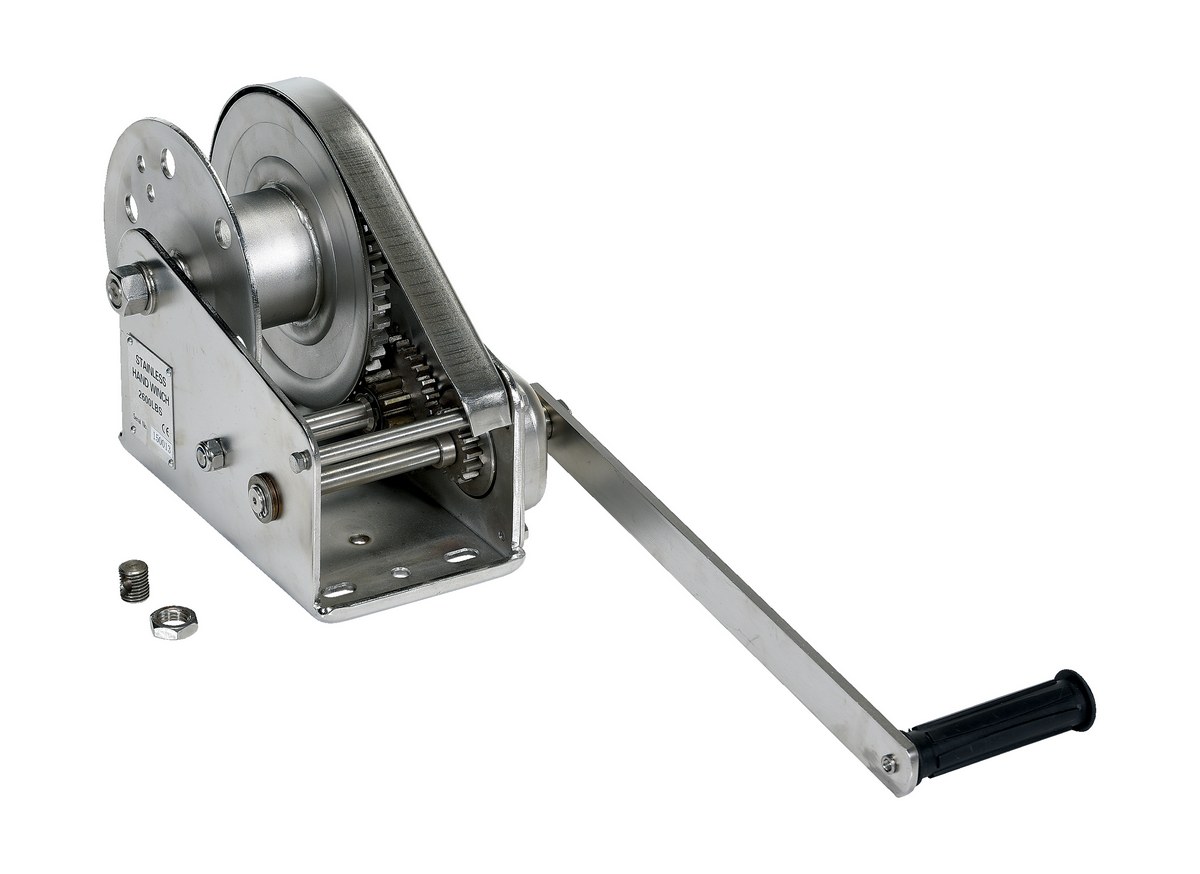

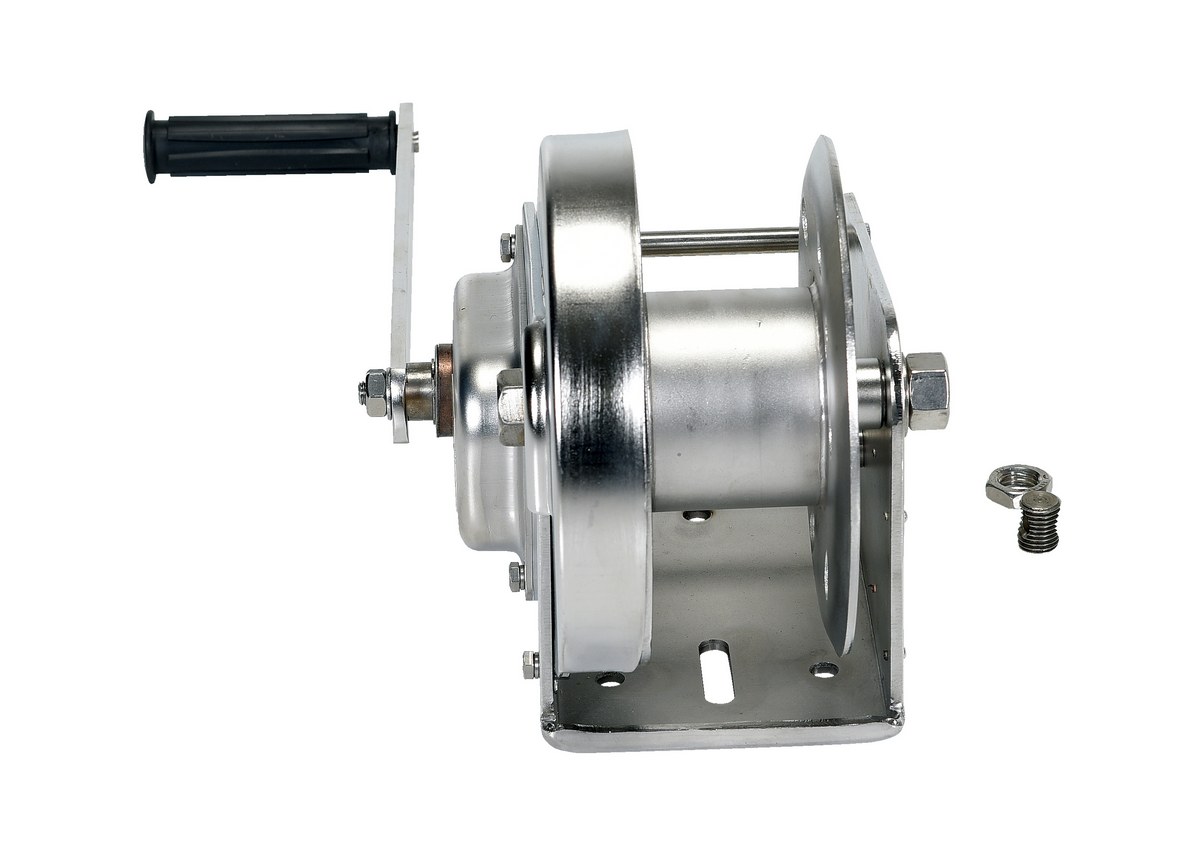

HWSS-2600-NR HWSS-2600-NR30 Days Limited WarrantyStainless Steel Hand Winch 2600 Lb. Capacity SilverUniform Capacity (lb.): 2600
Gear Ratio: 10:1
22

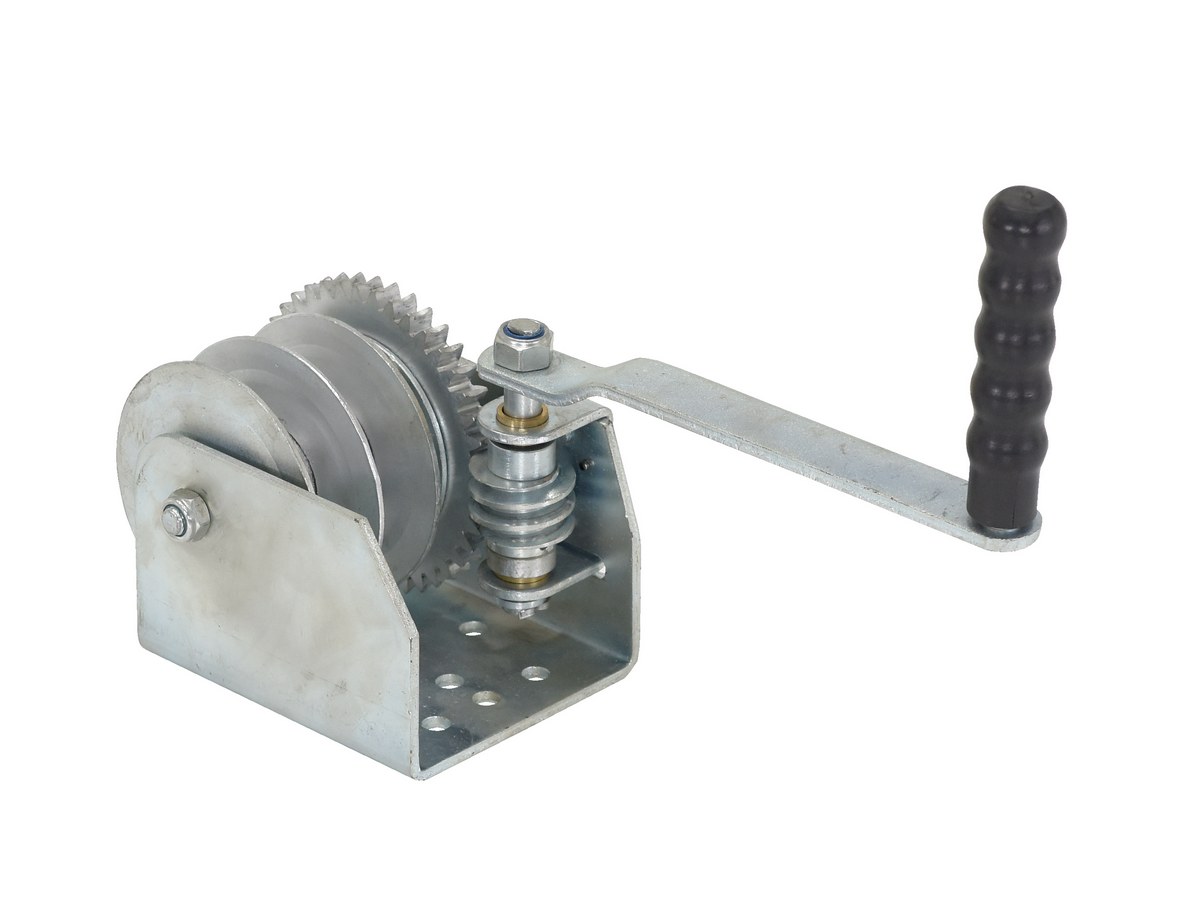

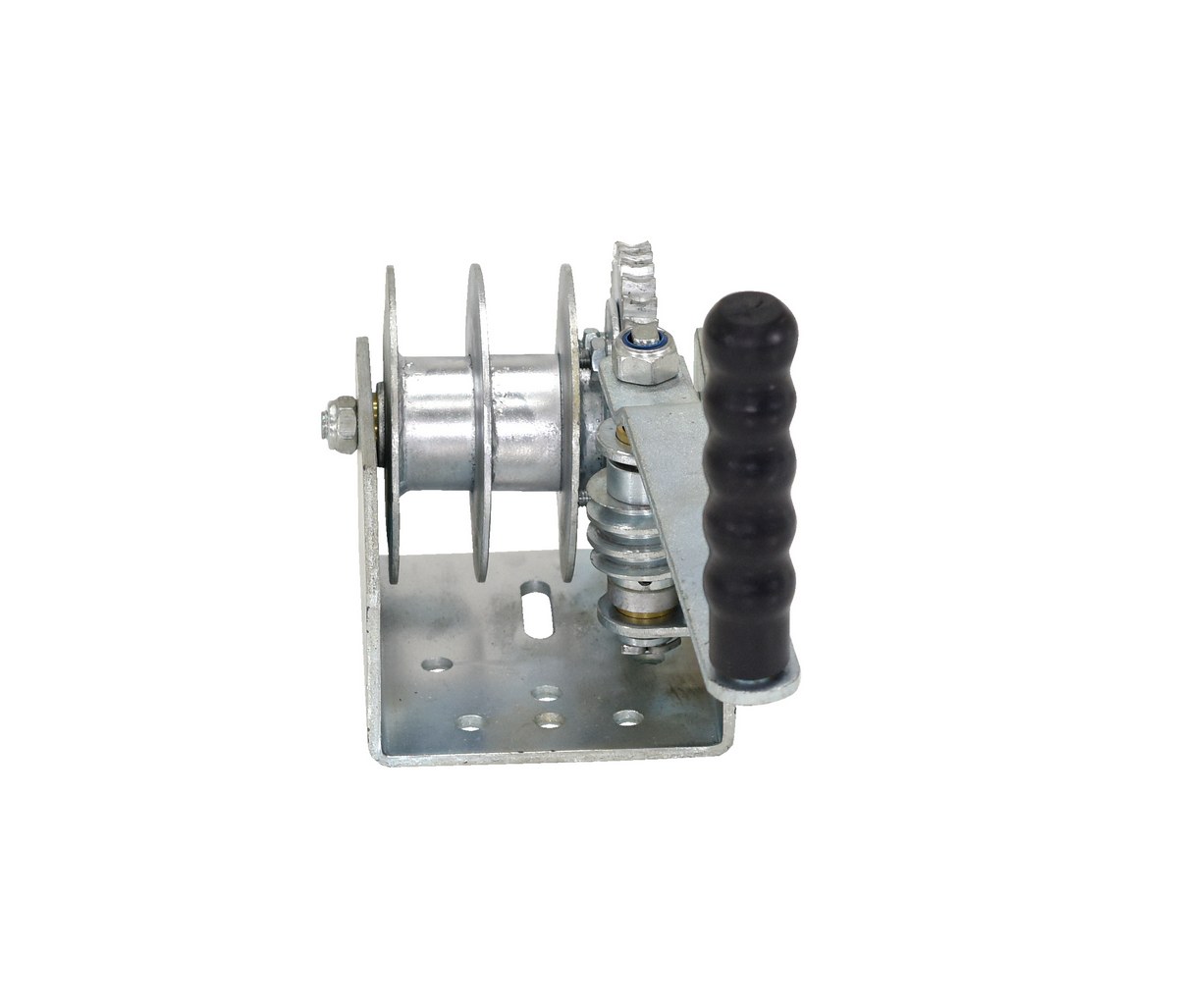

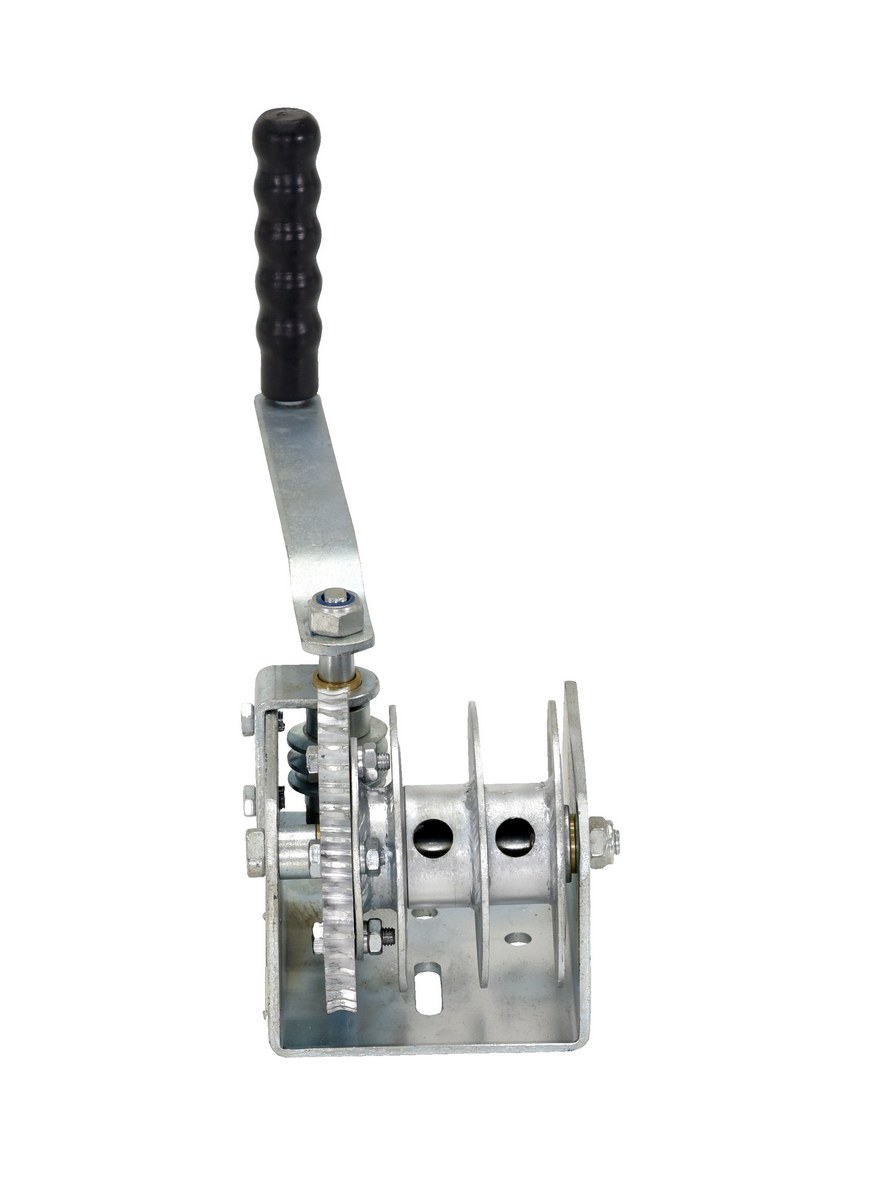

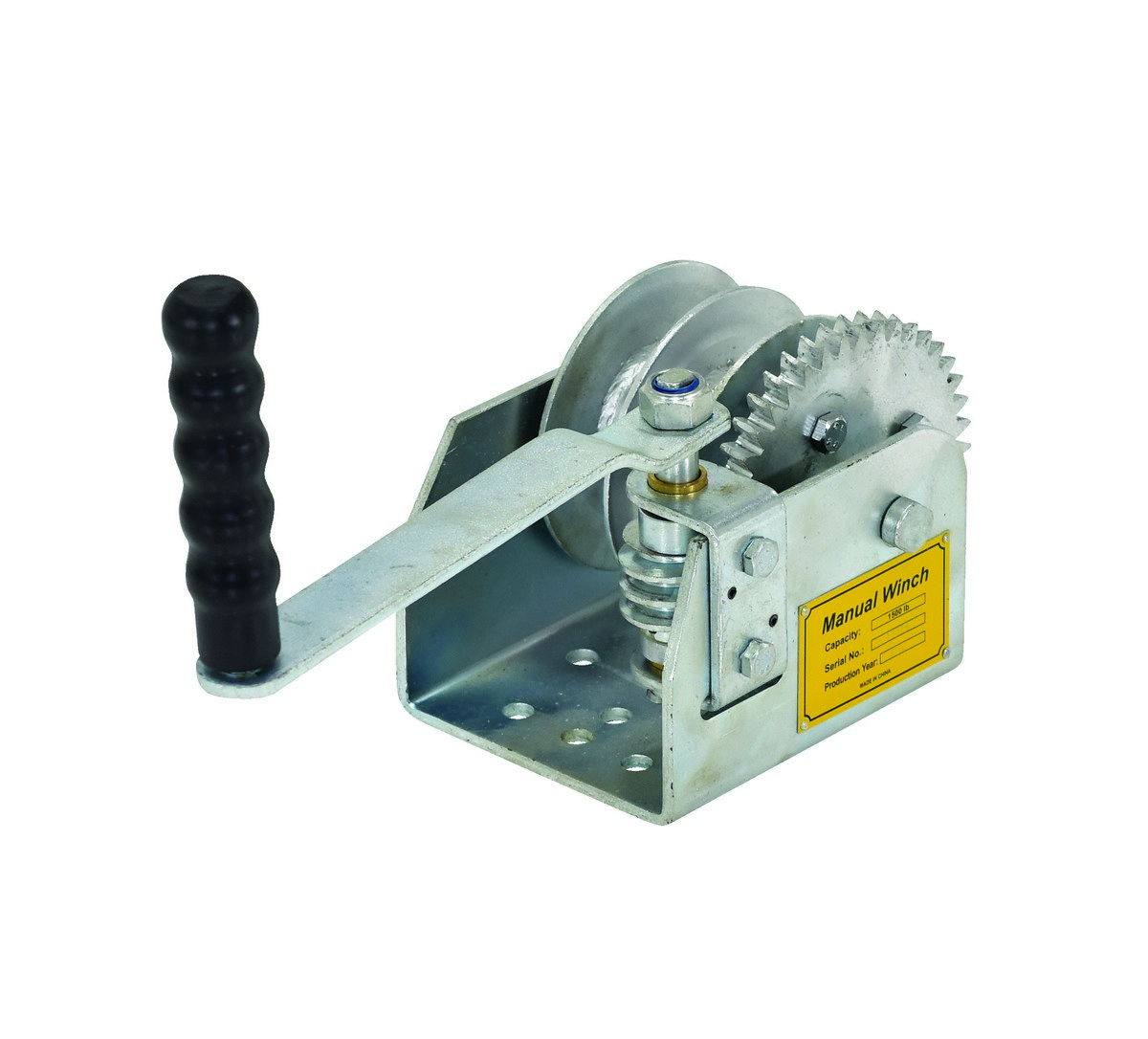

WALL-D WALL-D30 Days Limited WarrantySteel Double Wall Mounted Hand Winch 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Handle Length (in.): 6.6
13

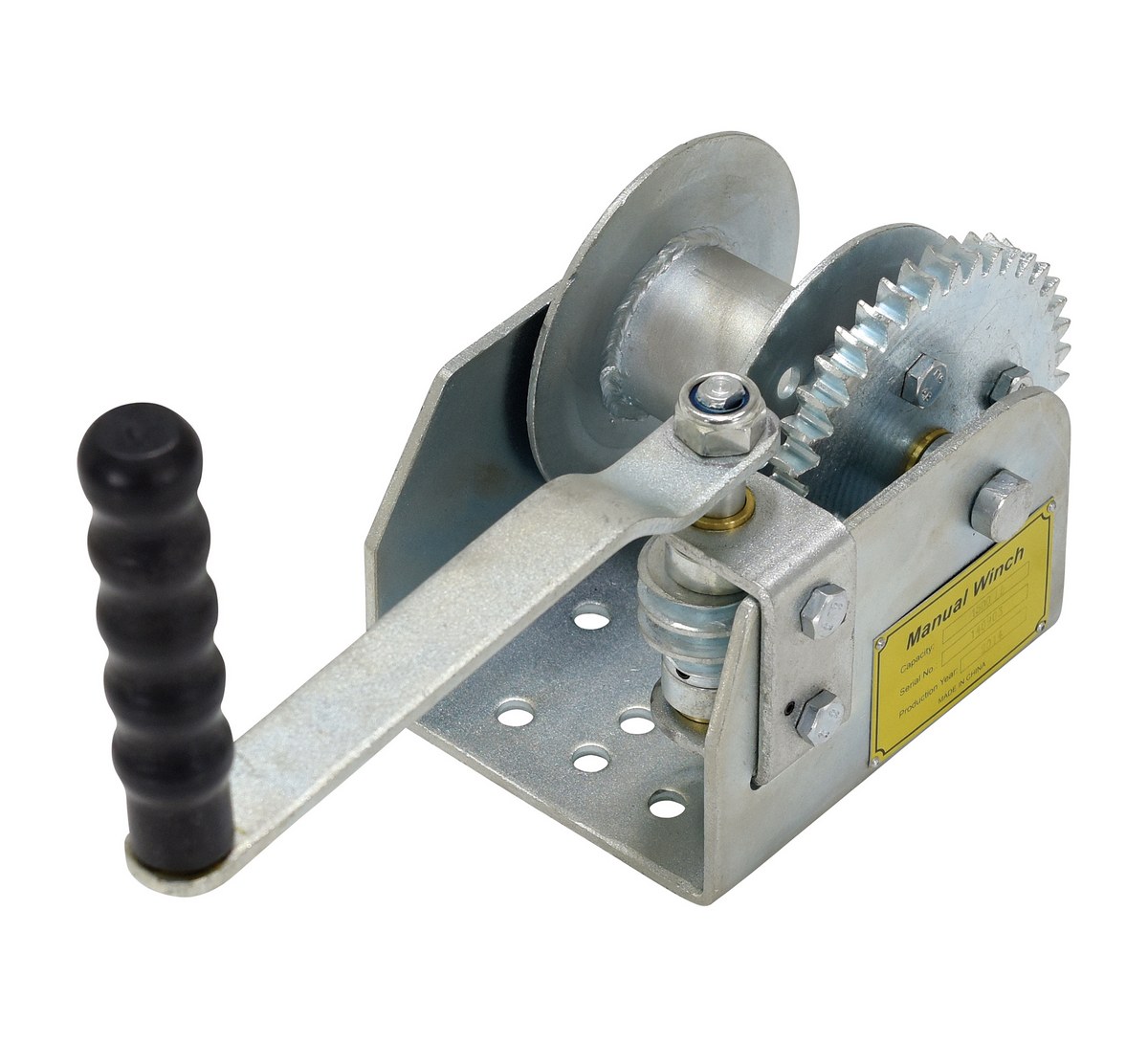

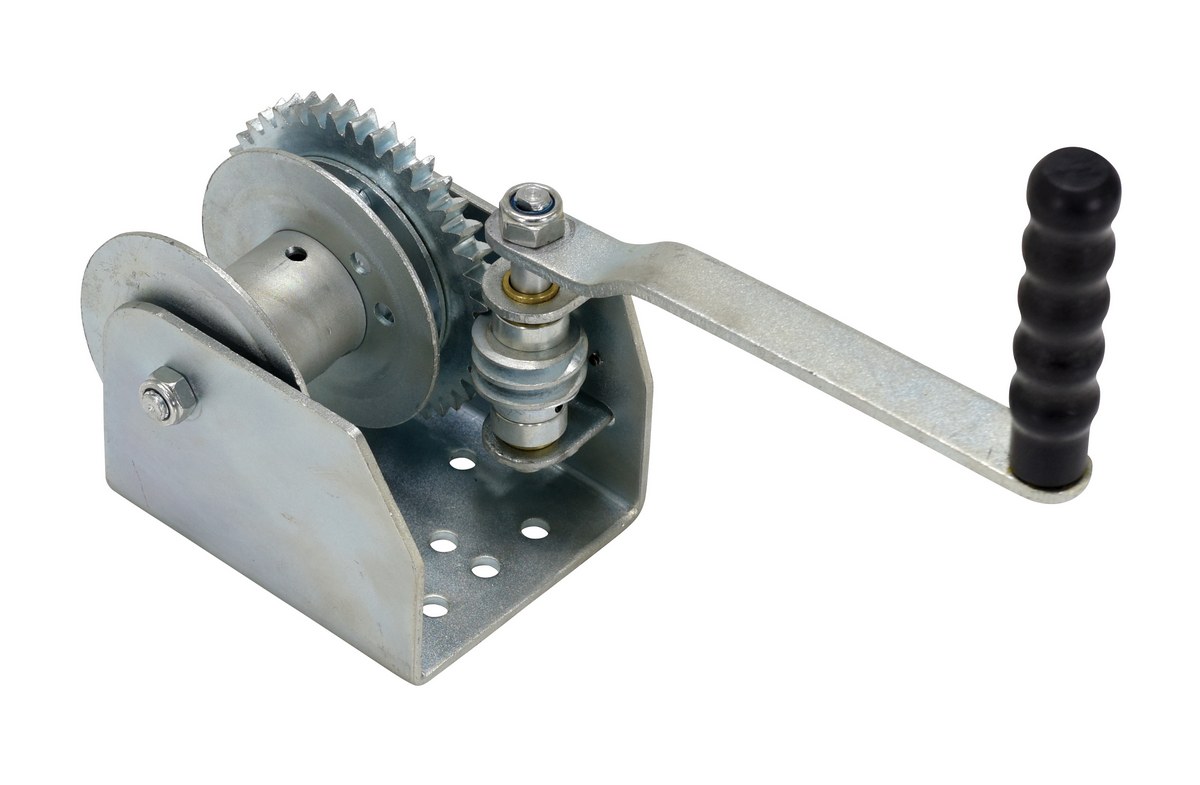

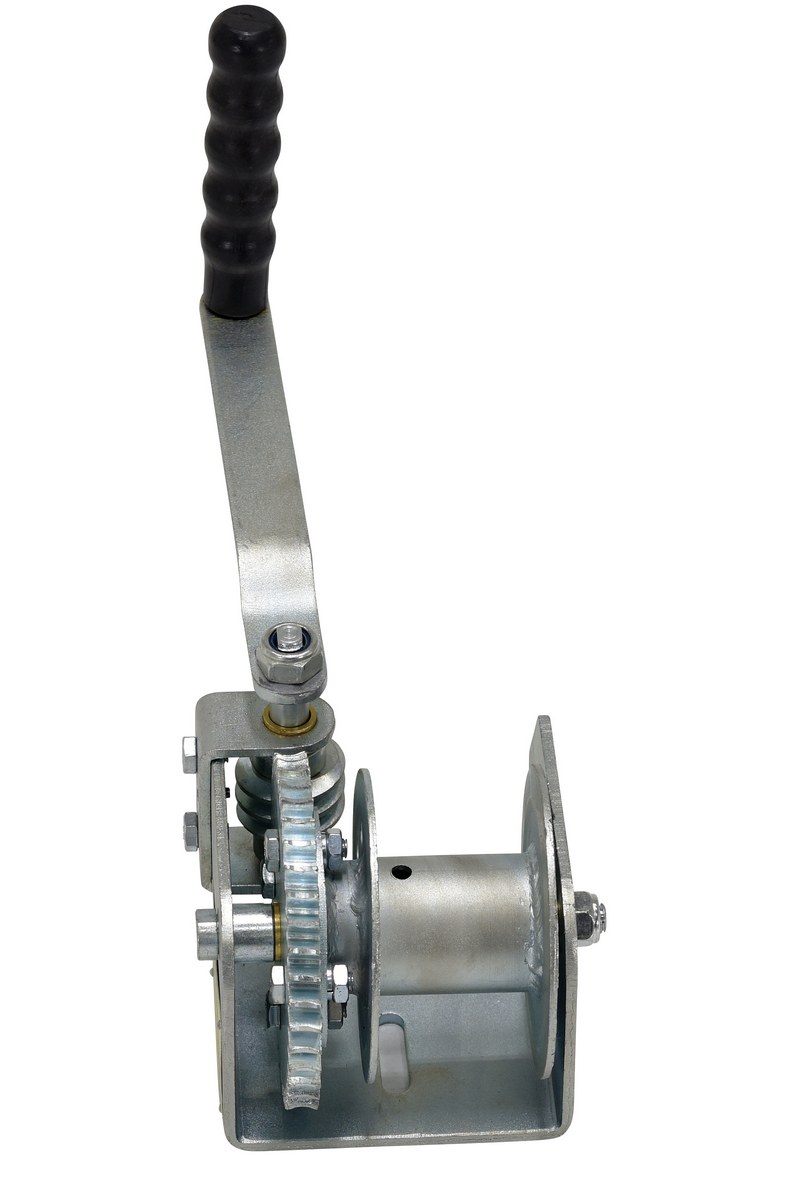

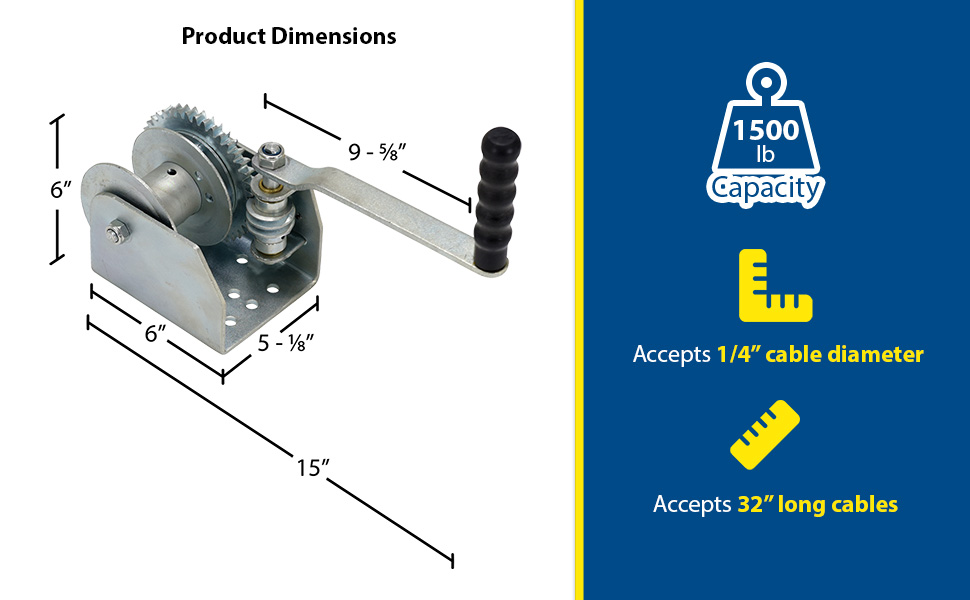

WALL-S WALL-S30 Days Limited WarrantySteel Single Wall Mounted Hand Winch 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Handle Length (in.): 9.6
12

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HWSS-1200-NR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Gear Ratio: 4.2:1
Uniform Capacity (lb.): 1200
Gear Ratio: 4.2:1

HWSS-1800-NR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1800
Gear Ratio: 5:1
Uniform Capacity (lb.): 1800
Gear Ratio: 5:1

HWSS-2600-NR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2600
Gear Ratio: 10:1
Uniform Capacity (lb.): 2600
Gear Ratio: 10:1

WALL-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Handle Length (in.): 6.6
Uniform Capacity (lb.): 1,500
Handle Length (in.): 6.6

WALL-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Handle Length (in.): 9.6
Uniform Capacity (lb.): 1,500
Handle Length (in.): 9.6

Hand Winches PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HWSS-1200-NR

HWSS-1800-NR

HWSS-2600-NR

WALL-D

WALL-S

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the largest diameter the WALL-D can accommodate?

A: The largest diameter the WALL-D can handle is 3/16".


Q: Does this product lock in both directions?

A: The handle is locked in both directions unless it is released.


Q: How much 1/4" rope can I put on the WALL-D winch?

A: The WALL-D can accommodate 32'.


Q: Does this model have or need a brake?

A: WALL-D & WALL-S, they have a friction plate so they do not unwind uncontrollably.


Q: What is the recommended wire rope gauge and max length?

A: On the WALL-D we recommend 1/4 in wire x 26 in long.
