Click Image to Enlarge

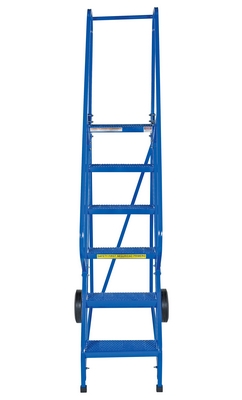

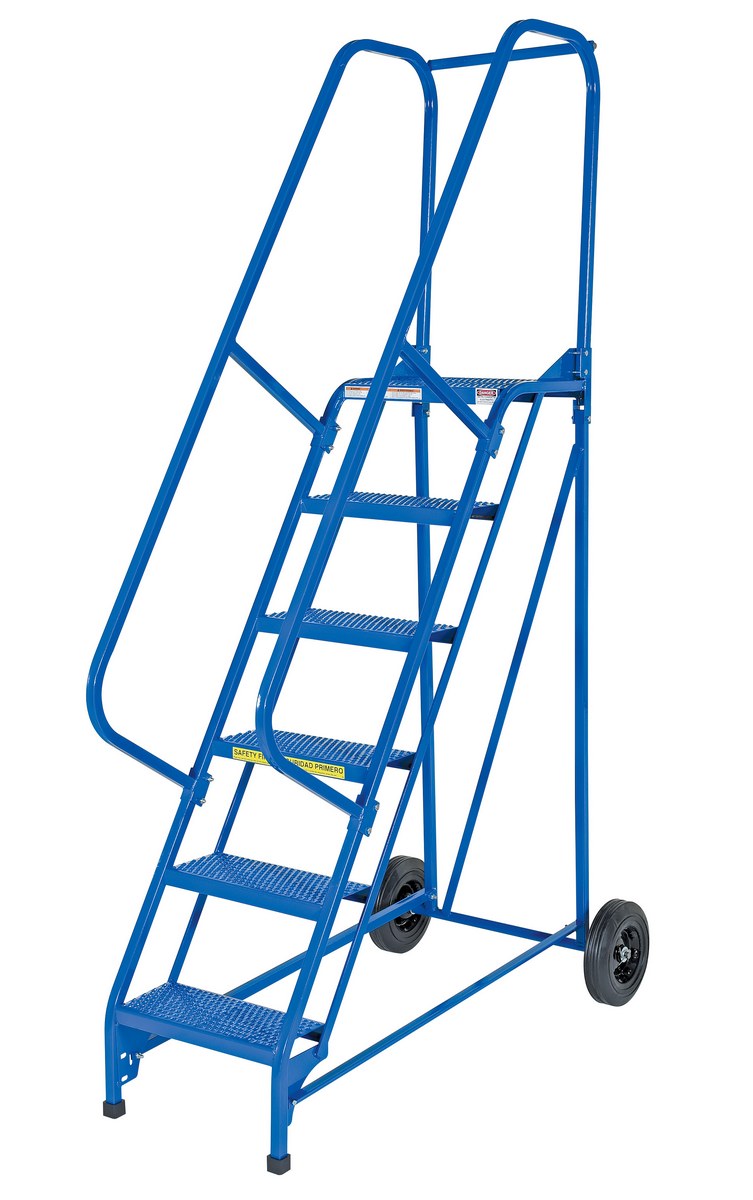

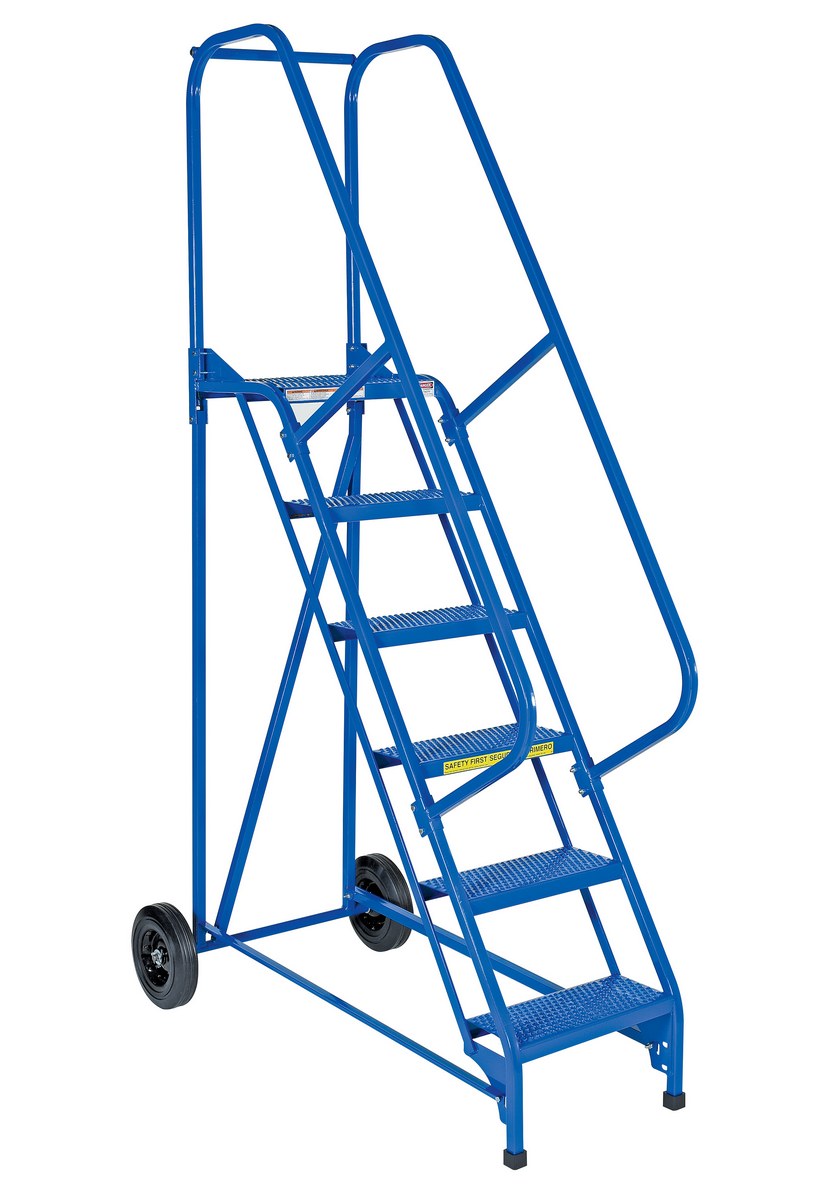

model: LAD-RAF-6-P


Roll-A-Fold Ladders
SERIES: LAD-RAF

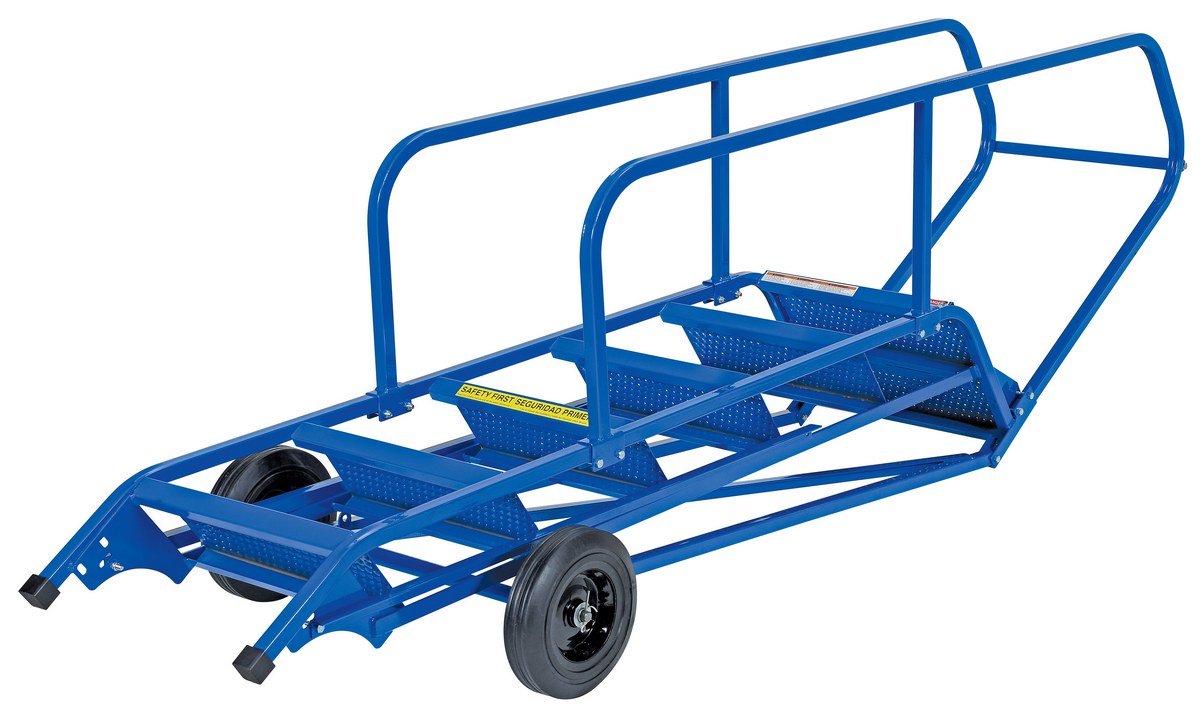

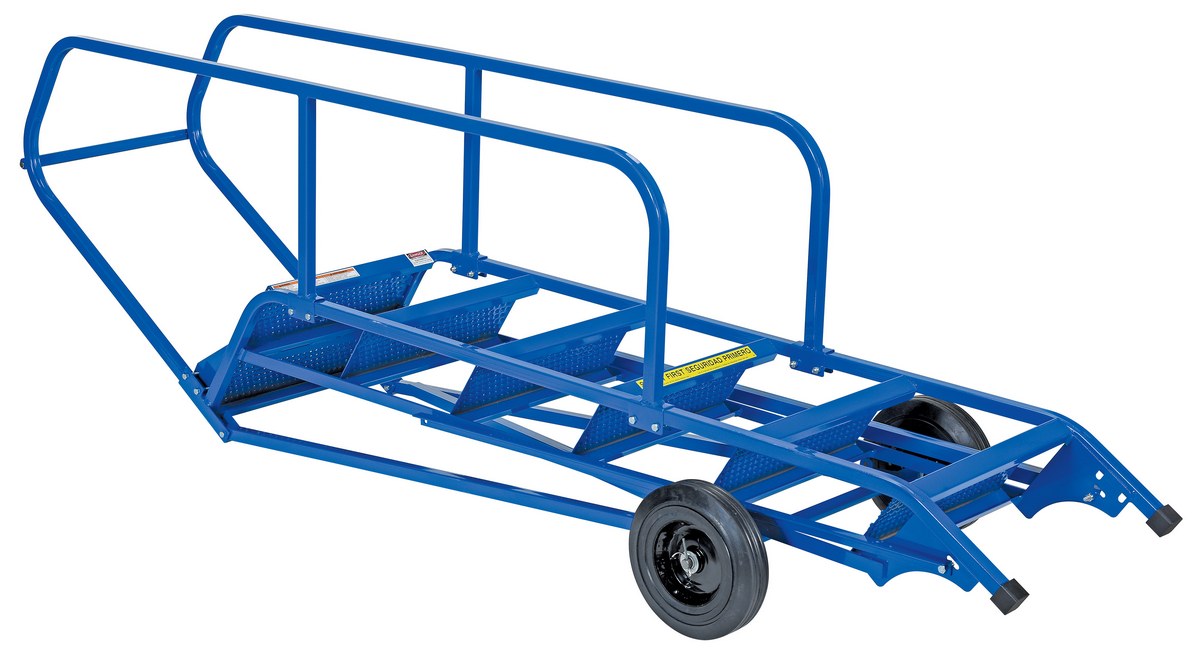

Portable ladders conveniently folds for storage. Constructed of square tubing framework which handles capacities up to 350 lbs. Features 30" high removable hand railing. While 12 step models feature a 36" removable hand railing, 14" deep top platform, and a blue baked-in powder-coated toughness, with 11 and 12 step models, an industrial blue painted finish. Standard model feature a 58 degree climb angle, while models ending with suffix "EZ" have a 50 degree climb angle. Each step measures 16-13/16" wide by 7" deep and is spaced 10" apart. Models with 8 - 12 steps have steps that measure 23-9/16" wide. Unit rolls around on two large 10" x 2-1/2" hard rubber wheels. Units are shipped crated, some assembly required. Complies with ANSI 14.7 and OSHA 1910.29 specifications.

Portable ladders conveniently folds for storage. Constructed of square tubing framework which handles capacities up to 350 lbs. Features 30" high removable hand railing. While 12 step models feature a 36" removable hand railing, 14" deep top platform, and a blue baked-in powder-coated toughness, with 11 and 12 step models, an industrial blue painted finish. Standard model feature a 58 degree climb angle, while models ending with suffix "EZ" have a 50 degree climb angle. Each step measures 16-13/16" wide by 7" deep and is spaced 10" apart. Models with 8 - 12 steps have steps that measure 23-9/16" wide. Unit rolls around on two large 10" x 2-1/2" hard rubber wheels. Units are shipped crated, some assembly required. Complies with ANSI 14.7 and OSHA 1910.29 specifications.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)

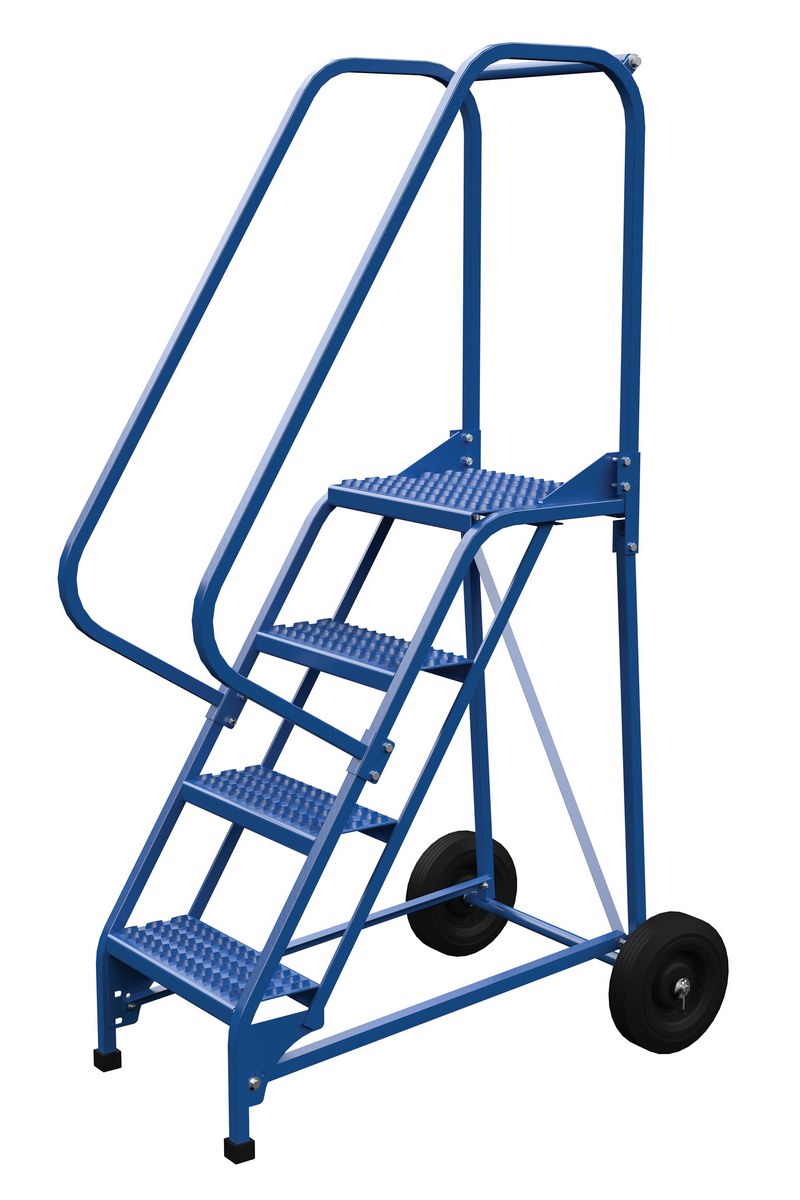

LAD-RAF-4-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 4 STEPUniform Capacity (lb.): 350112
LAD-RAF-4-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 4 STEPUniform Capacity (lb.): 350114

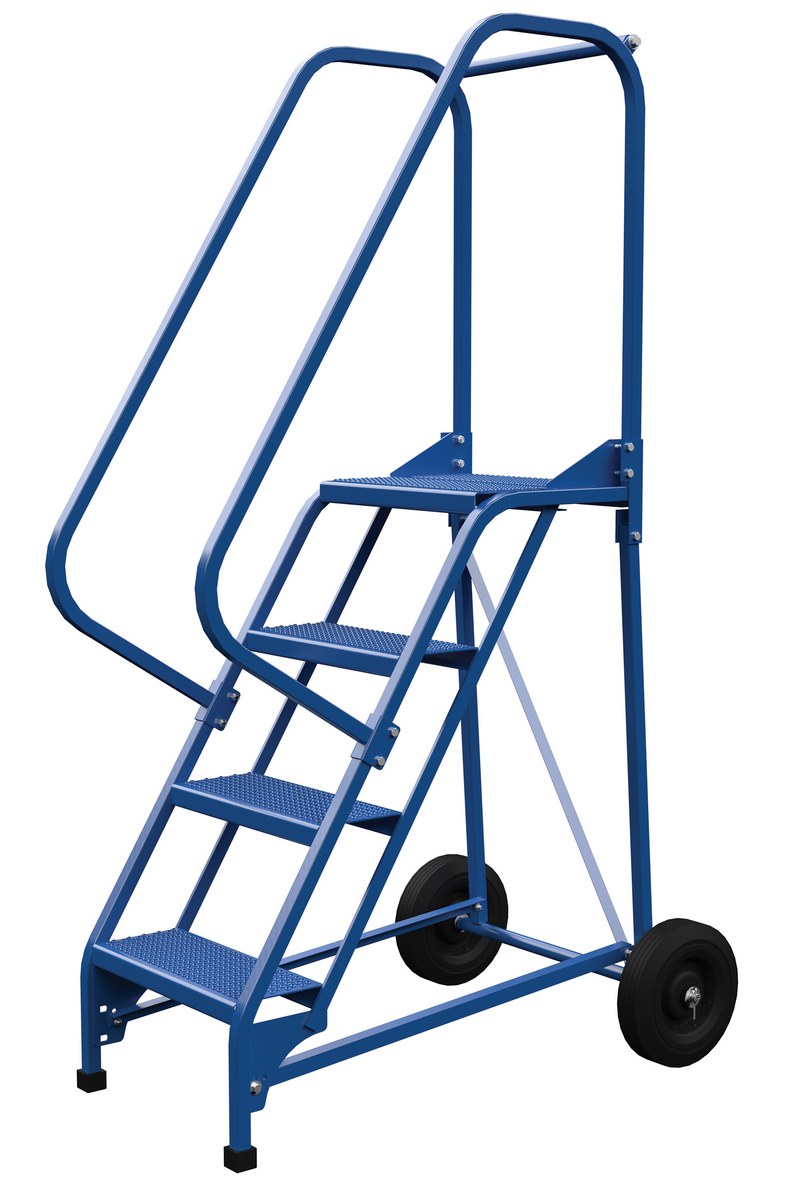

LAD-RAF-4-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 4 STEPUniform Capacity (lb.): 350112
LAD-RAF-4-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 4 STEPUniform Capacity (lb.): 350114
LAD-RAF-5-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 5 STEPUniform Capacity (lb.): 350166

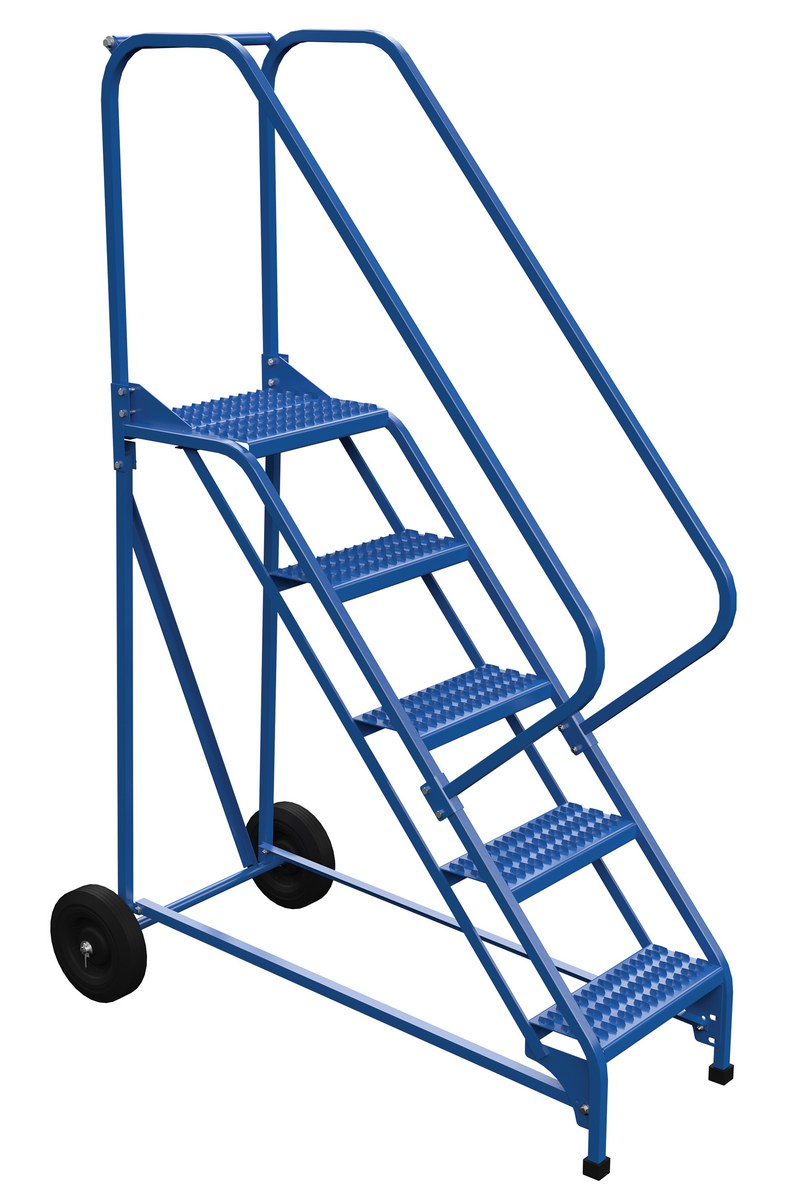

LAD-RAF-5-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 5 STEPUniform Capacity (lb.): 350168

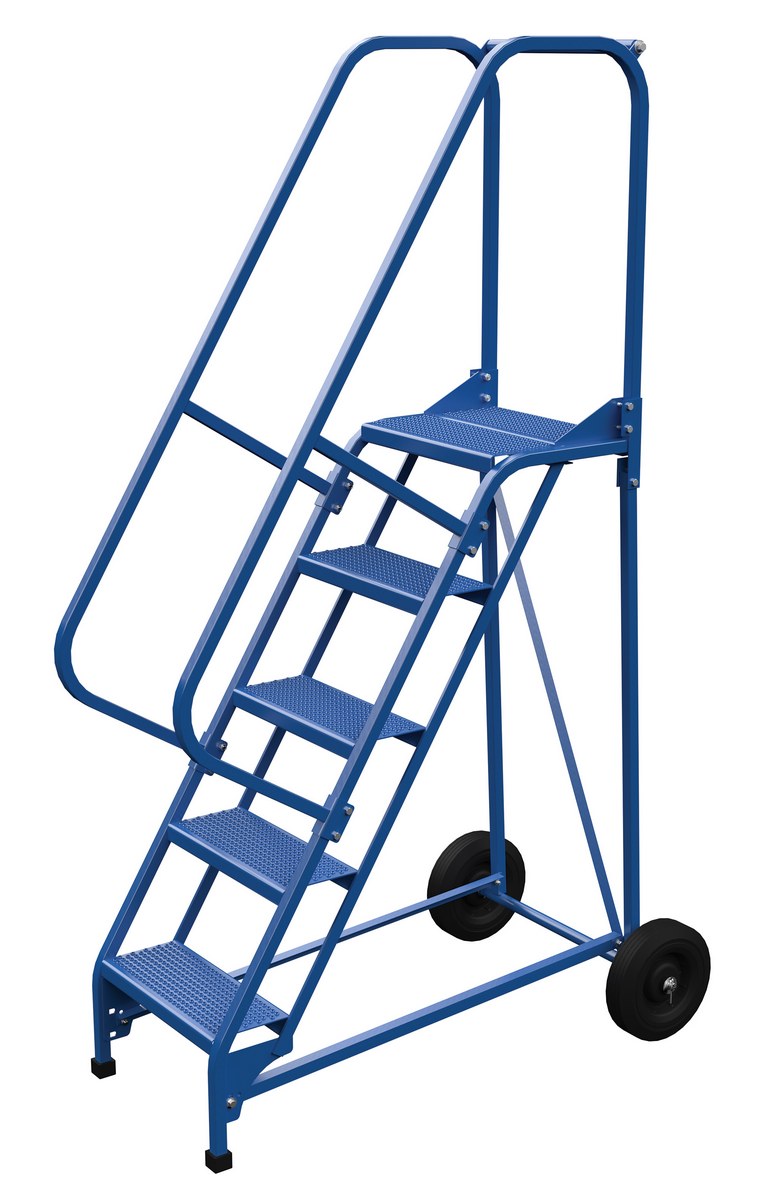

LAD-RAF-5-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 5 STEPUniform Capacity (lb.): 350166
LAD-RAF-5-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 5 STEPUniform Capacity (lb.): 350168

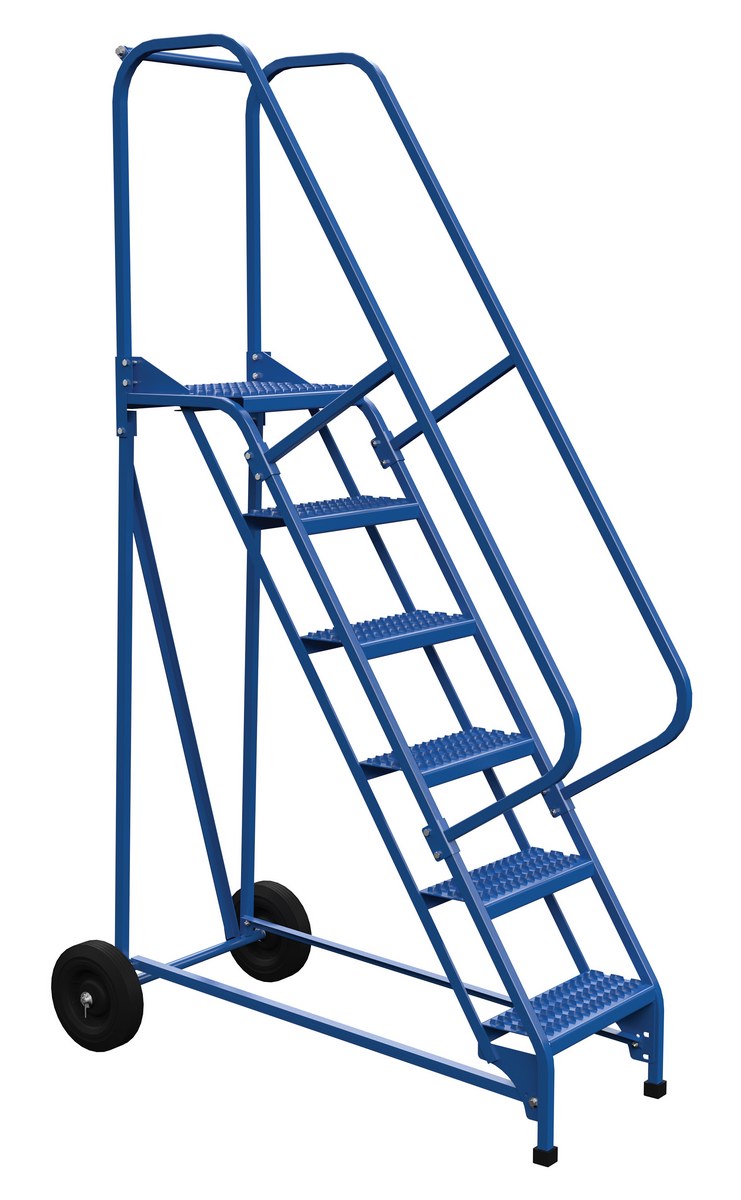

LAD-RAF-6-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 6 STEPUniform Capacity (lb.): 350182

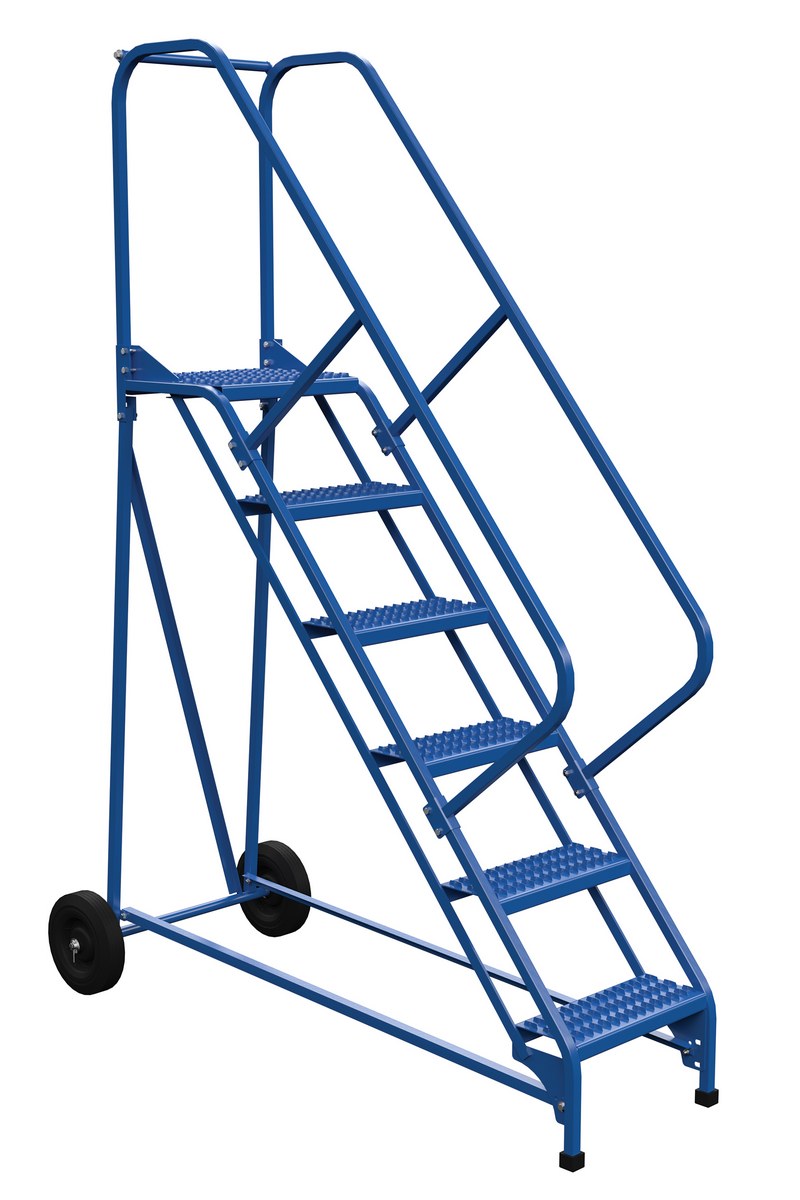

LAD-RAF-6-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 6 STEPUniform Capacity (lb.): 350208
LAD-RAF-6-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 6 STEPUniform Capacity (lb.): 350182
LAD-RAF-6-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 6 STEPUniform Capacity (lb.): 350208
LAD-RAF-7-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 7 STEPUniform Capacity (lb.): 350218

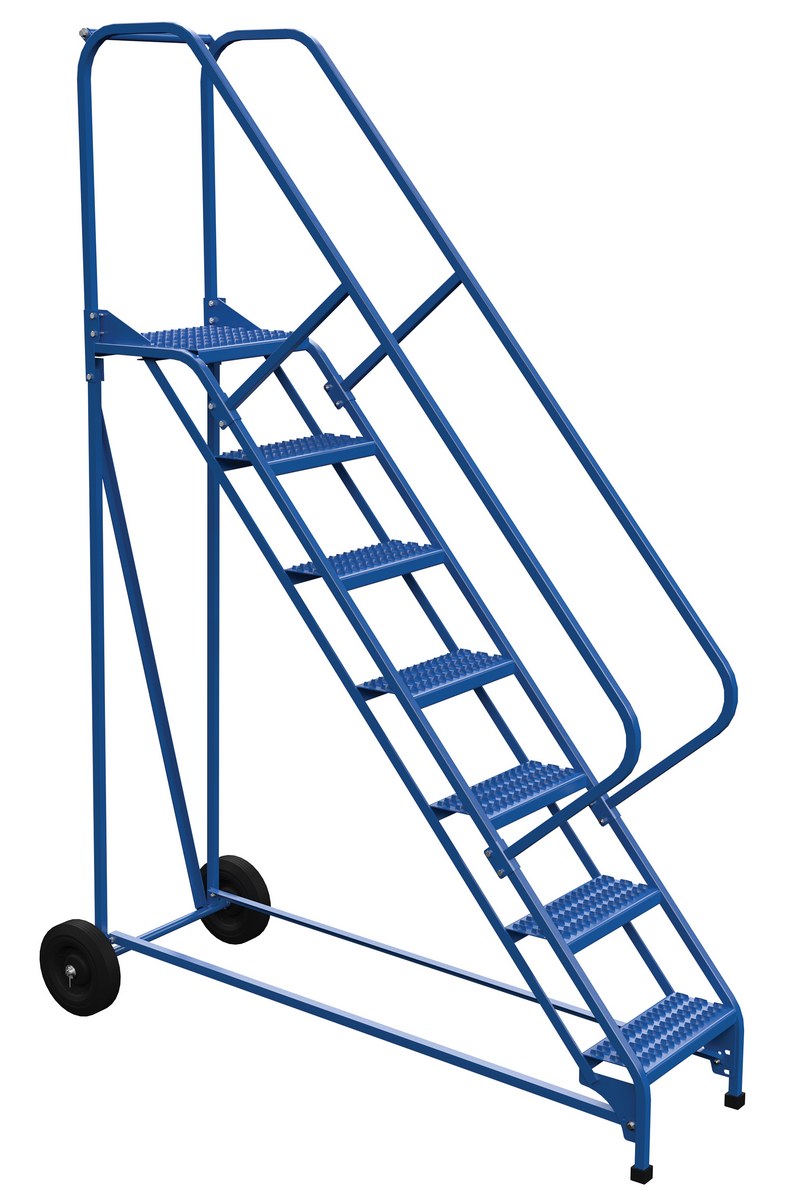

LAD-RAF-7-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 7 STEPUniform Capacity (lb.): 350220
LAD-RAF-7-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 7 STEPUniform Capacity (lb.): 350218

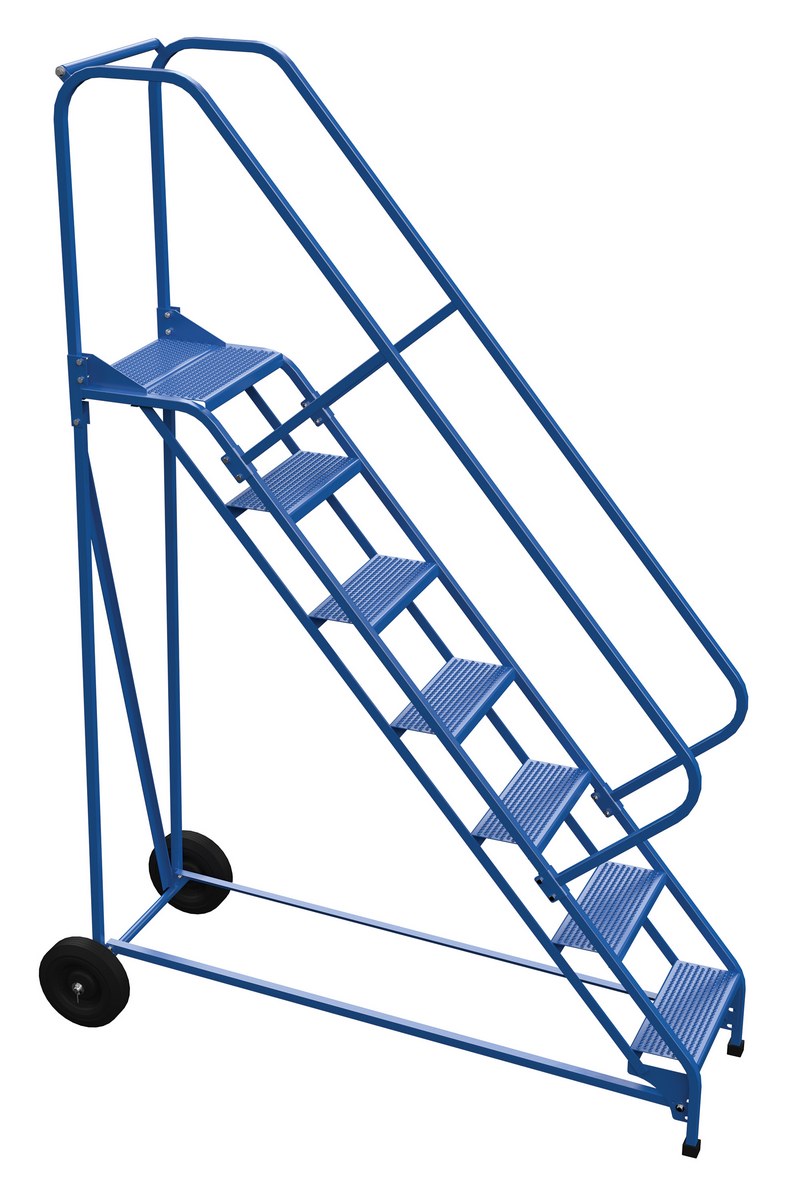

LAD-RAF-7-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 7 STEPUniform Capacity (lb.): 350220
LAD-RAF-8-24-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 8 STEPUniform Capacity (lb.): 350258
LAD-RAF-8-24-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 8 STEPUniform Capacity (lb.): 350256

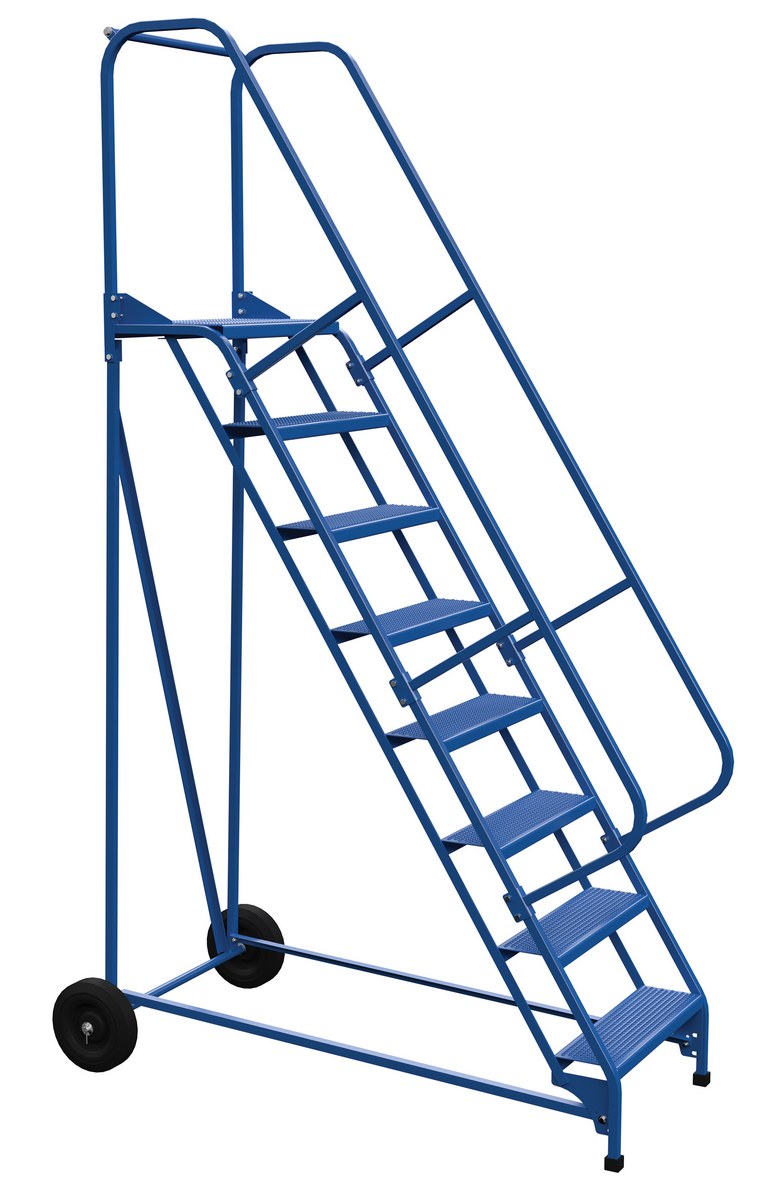

LAD-RAF-8-24-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 8 STEPUniform Capacity (lb.): 350258
LAD-RAF-8-24-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 8 STEPUniform Capacity (lb.): 350256
LAD-RAF-9-24-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 9 STEPUniform Capacity (lb.): 350284
LAD-RAF-9-24-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 9 STEPUniform Capacity (lb.): 350312
LAD-RAF-9-24-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 9 STEPUniform Capacity (lb.): 350284
LAD-RAF-9-24-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 9 STEPUniform Capacity (lb.): 350312
LAD-RAF-10-24-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 10 STPUniform Capacity (lb.): 350375
LAD-RAF-10-24-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 10 STPUniform Capacity (lb.): 350322
LAD-RAF-10-24-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 10 STPUniform Capacity (lb.): 350375
LAD-RAF-10-24-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 10 STPUniform Capacity (lb.): 350322

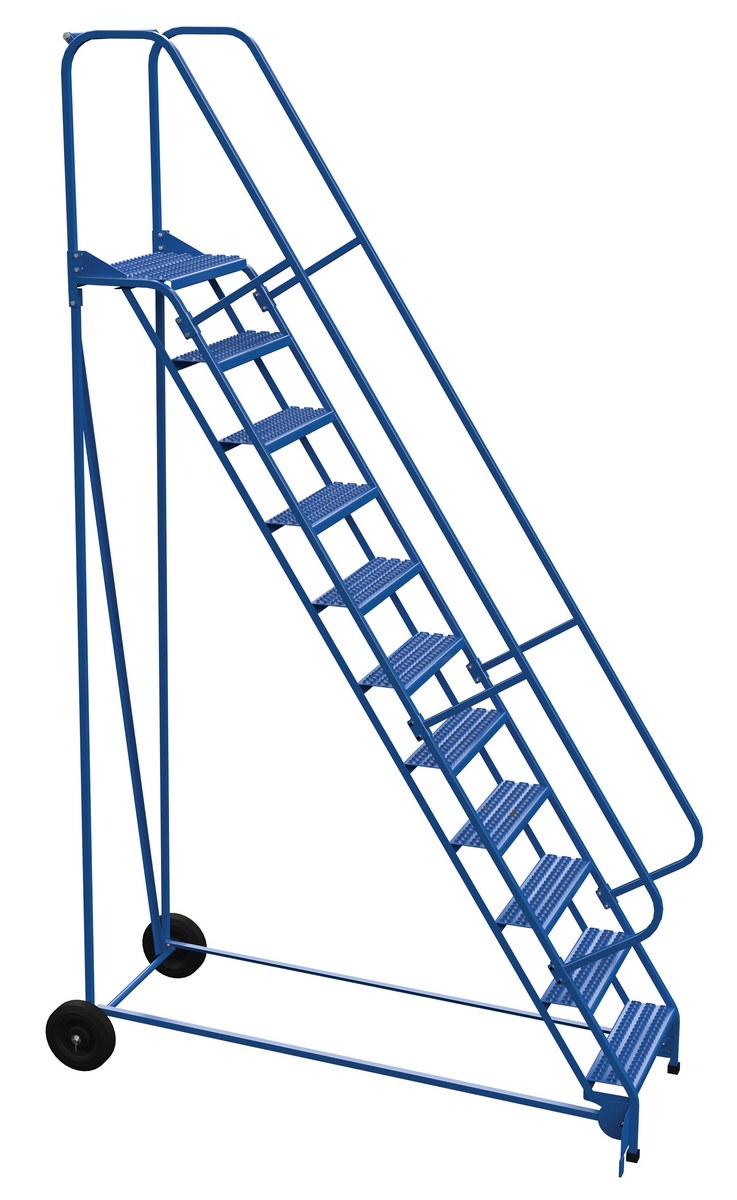

LAD-RAF-11-24-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 11 STPUniform Capacity (lb.): 350376
LAD-RAF-11-24-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 11 STPUniform Capacity (lb.): 350364
LAD-RAF-11-24-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 11 STPUniform Capacity (lb.): 350376

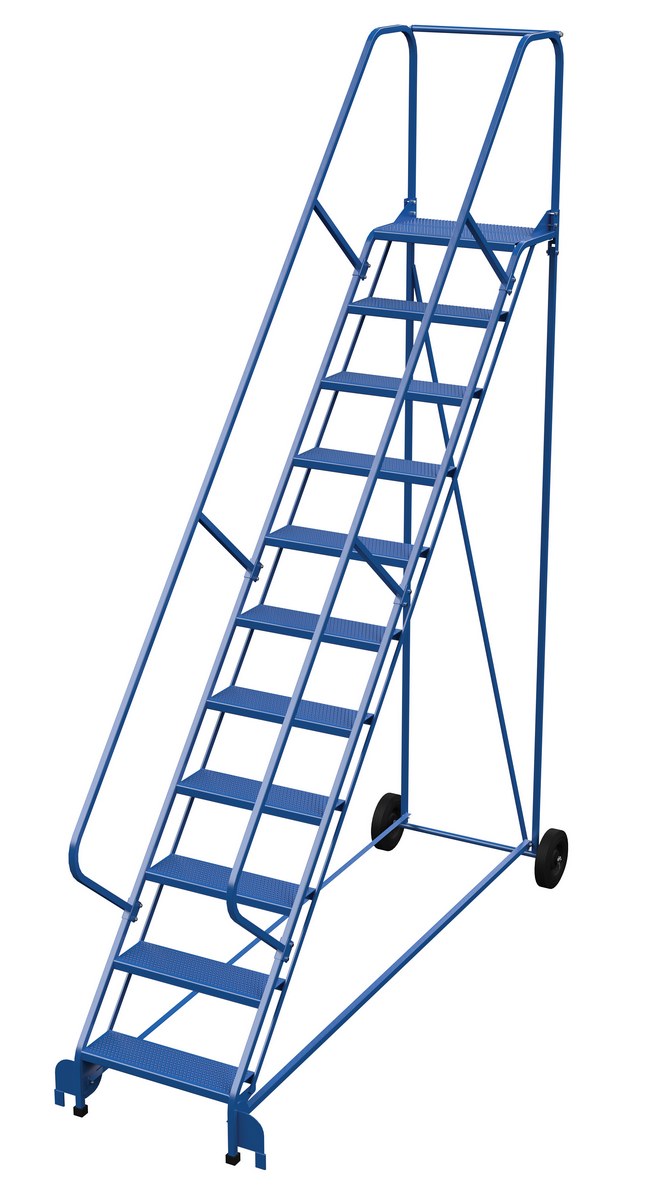

LAD-RAF-11-24-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 11 STPUniform Capacity (lb.): 350364
LAD-RAF-12-24-G 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG GRIP STRUT 12 STPUniform Capacity (lb.): 350378
LAD-RAF-12-24-G-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG GRIP STRUT 12 STPUniform Capacity (lb.): 350384
LAD-RAF-12-24-P 1 Year Limited WarrantyROLL-A-FOLD LAD 58 DEG PERFORATED 12 STPUniform Capacity (lb.): 350378
LAD-RAF-12-24-P-EZ 1 Year Limited WarrantyROLL-A-FOLD LAD 50 DEG PERFORATED 12 STPUniform Capacity (lb.): 350384

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options
Model Image PDFs Description
LAD-TT-A Warranty PDF Tool Tray for LAD-RAF, LAD RAF-EZ (only works with steps 4 to 7)
LAD-TT-B Warranty PDF Tool Tray for LAD-RAF, LAD RAF-EZ (only works with steps 8 to 12)
LAD-RAF-LTO
Warranty PDF

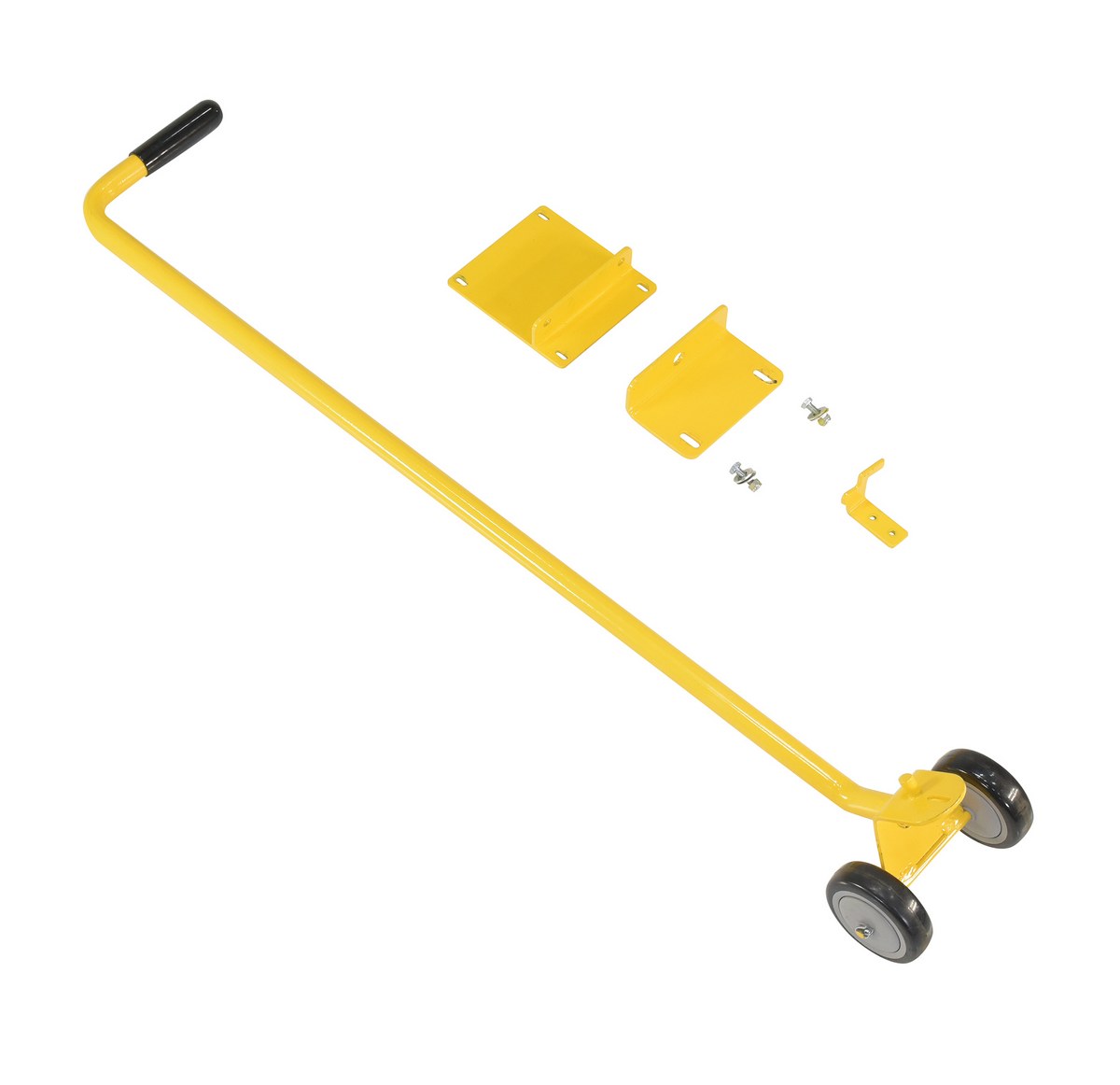

Ladder Transporter for LAD-RAF series

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Roll-A-Fold Ladders




Portable ladders conveniently folds for storage. Constructed of square tubing framework which handles capacities up to 350 lbs. Features 30" high removable hand railing. While 12 step models feature a 36" removable hand railing, 14" deep top platform, and a blue baked-in powder-coated toughness, with 11 and 12 step models, an industrial blue painted finish. Standard model feature a 58 degree climb angle, while models ending with suffix "EZ" have a 50 degree climb angle. Each step measures 16-13/16" wide by 7" deep and is spaced 10" apart. Models with 8 - 12 steps have steps that measure 23-9/16" wide. Unit rolls around on two large 10" x 2-1/2" hard rubber wheels. Units are shipped crated, some assembly required. Complies with ANSI 14.7 and OSHA 1910.29 specifications.


Roll-A-Fold Ladders

Model
Number

Image PDF

Steps

Climb
Angle
Top Step
(WxH)
Step
Type
Wt.
(lbs.)
LAD-RAF-4-P Warranty PDF 4 58 degrees

16-13/16"x40"

Perforated 112
LAD-RAF-5-P Warranty PDF 5 58 degrees

16-13/16"x50"

Perforated 166

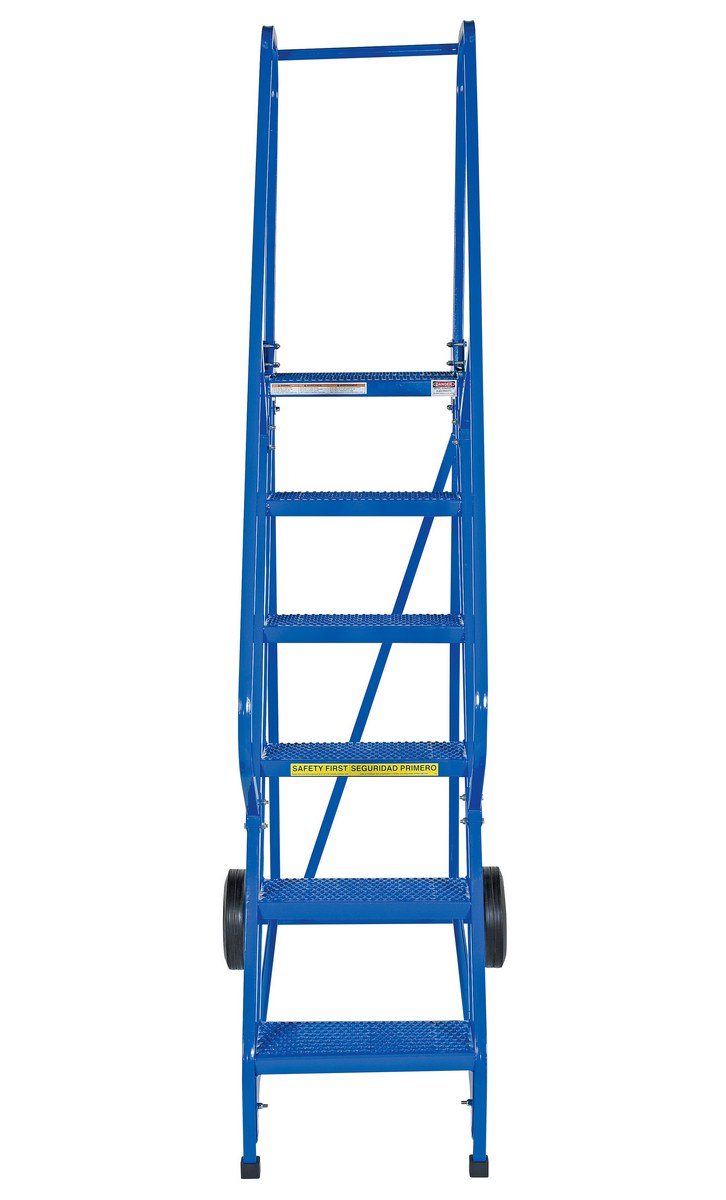

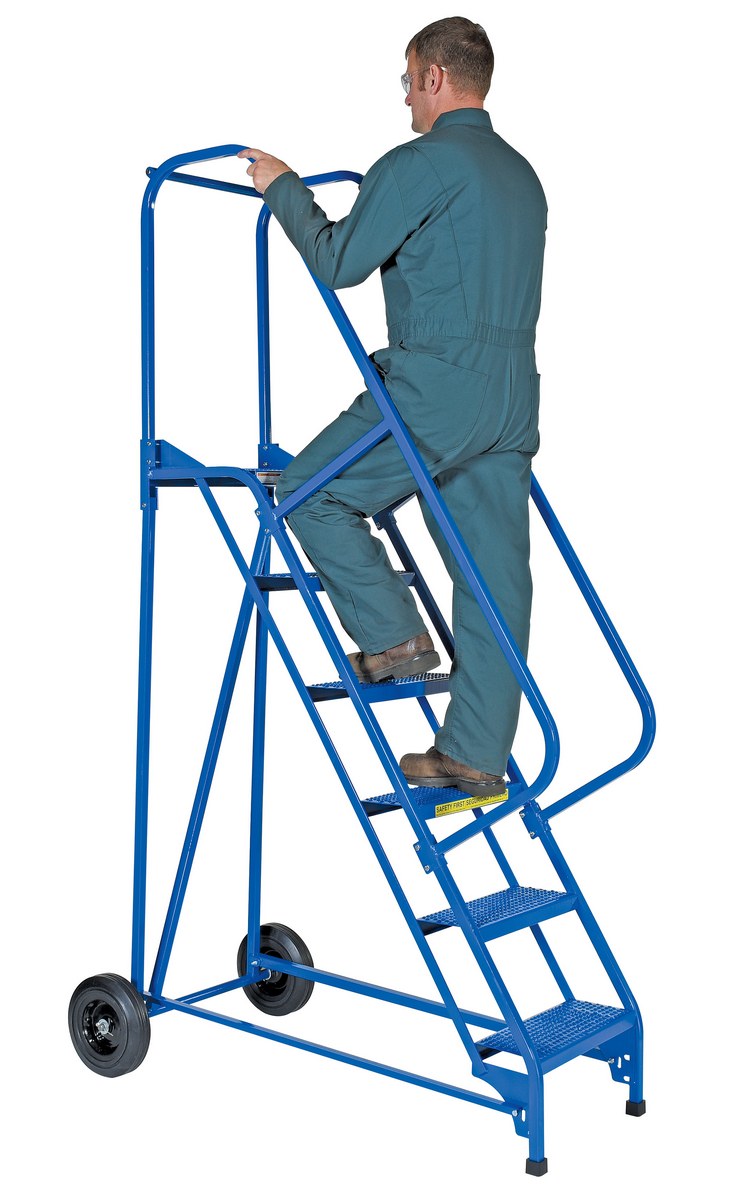

LAD-RAF-6-P Warranty PDF 6 58 degrees 16-13/16"x60" Perforated 182

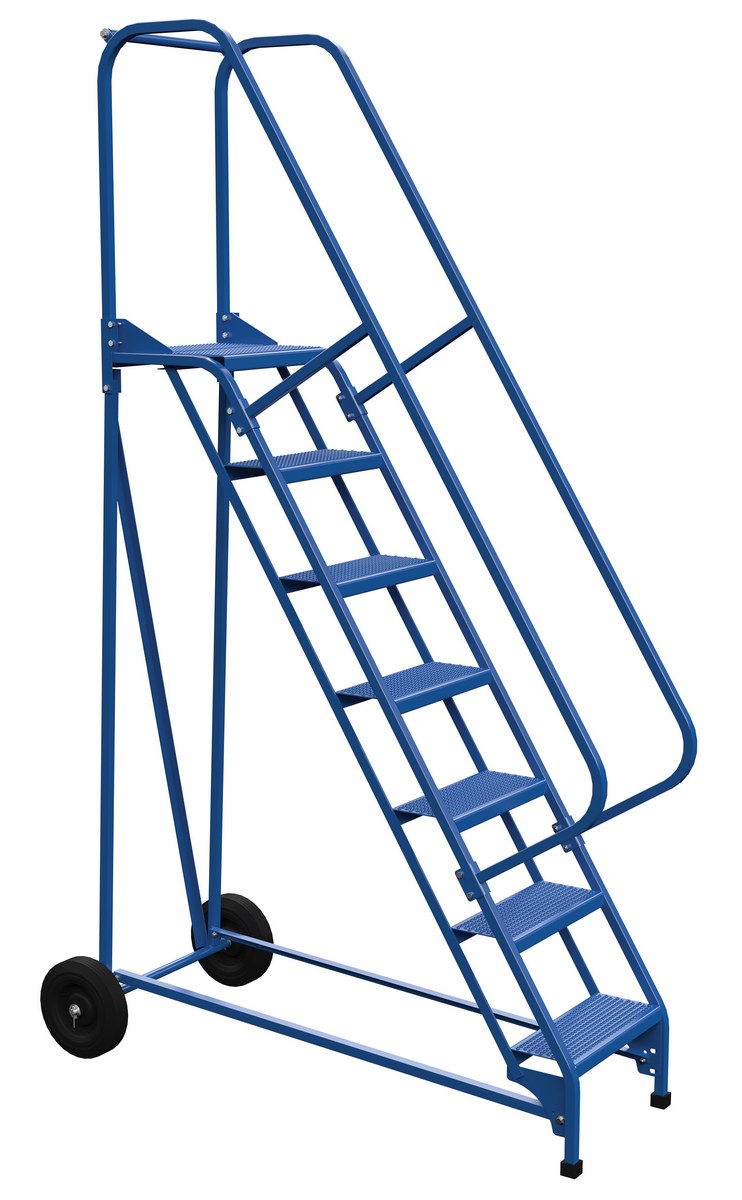

LAD-RAF-7-P Warranty PDF 7 58 degrees 16-13/16"x70" Perforated 218
LAD-RAF-8-24-P Warranty PDF 8 58 degrees

23-9/16"x80"

Perforated 258

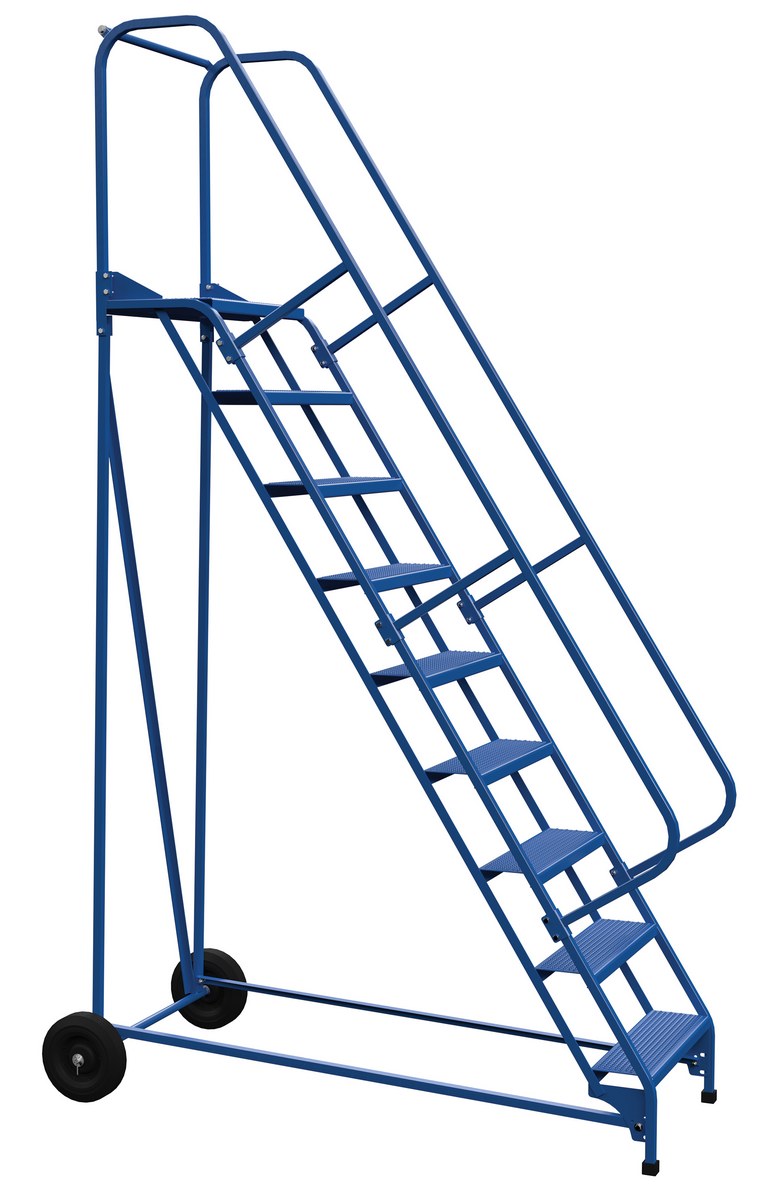

LAD-RAF-9-24-P Warranty PDF 9 58 degrees 23-9/16"x90" Perforated 284

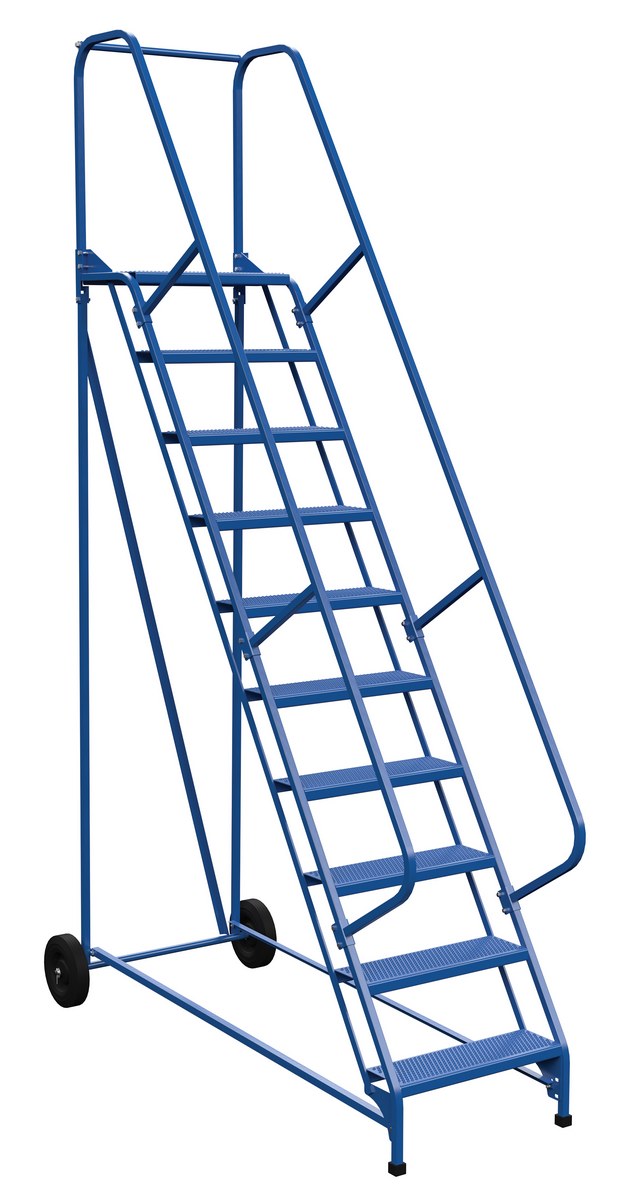

LAD-RAF-10-24-P Warranty PDF 10 58 degrees 23-9/16"x100" Perforated 375

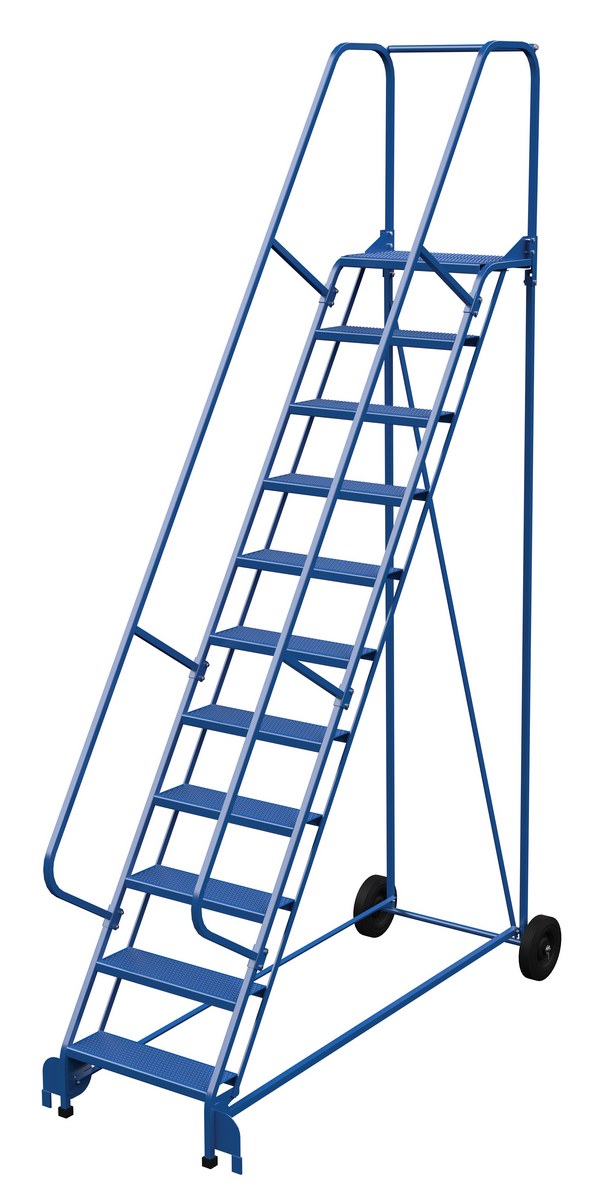

LAD-RAF-11-24-P Warranty PDF 11 58 degrees 23-9/16"x110" Perforated 376

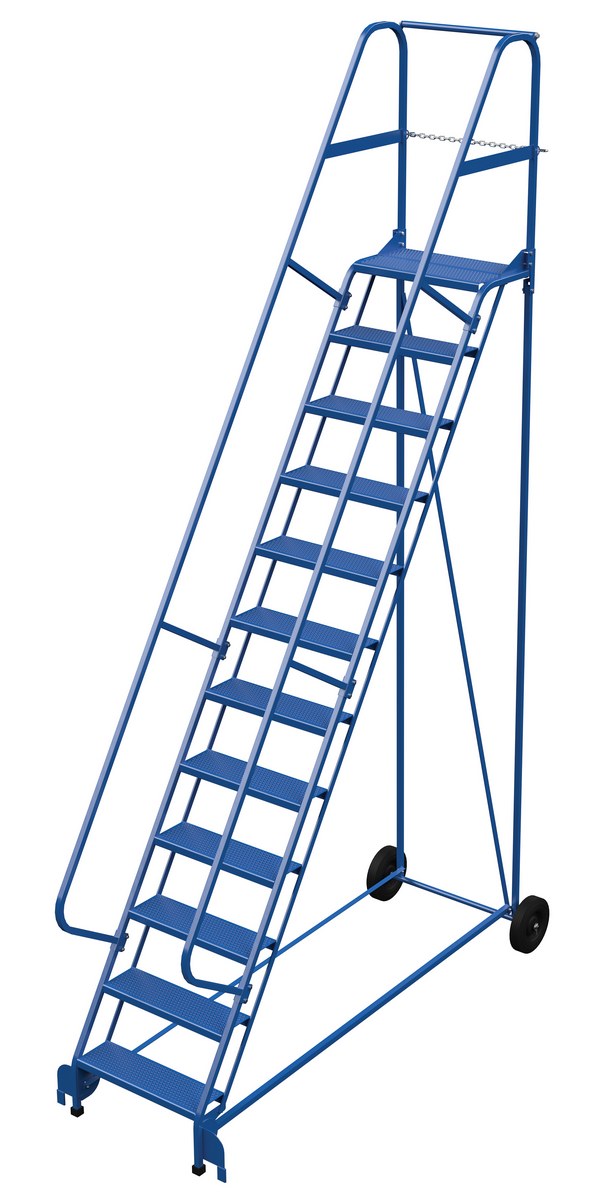

LAD-RAF-12-24-P Warranty PDF 12 58 degrees 23-9/16"x120" Perforated 378
LAD-RAF-4-G Warranty PDF 4 58 degrees

16-13/16"x40"

Grip-Strut 112

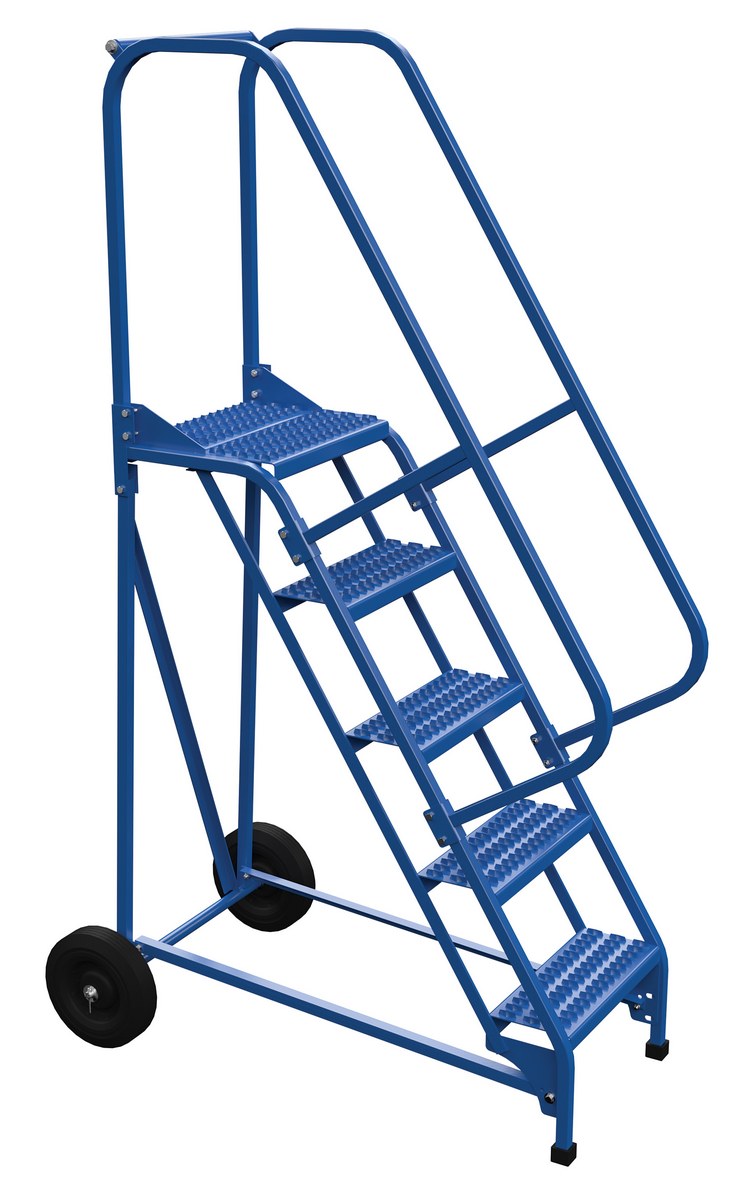

LAD-RAF-5-G Warranty PDF 5 58 degrees

16-13/16"x50"

Grip-Strut 166
LAD-RAF-6-G Warranty PDF 6 58 degrees 16-13/16"x60" Grip-Strut 182

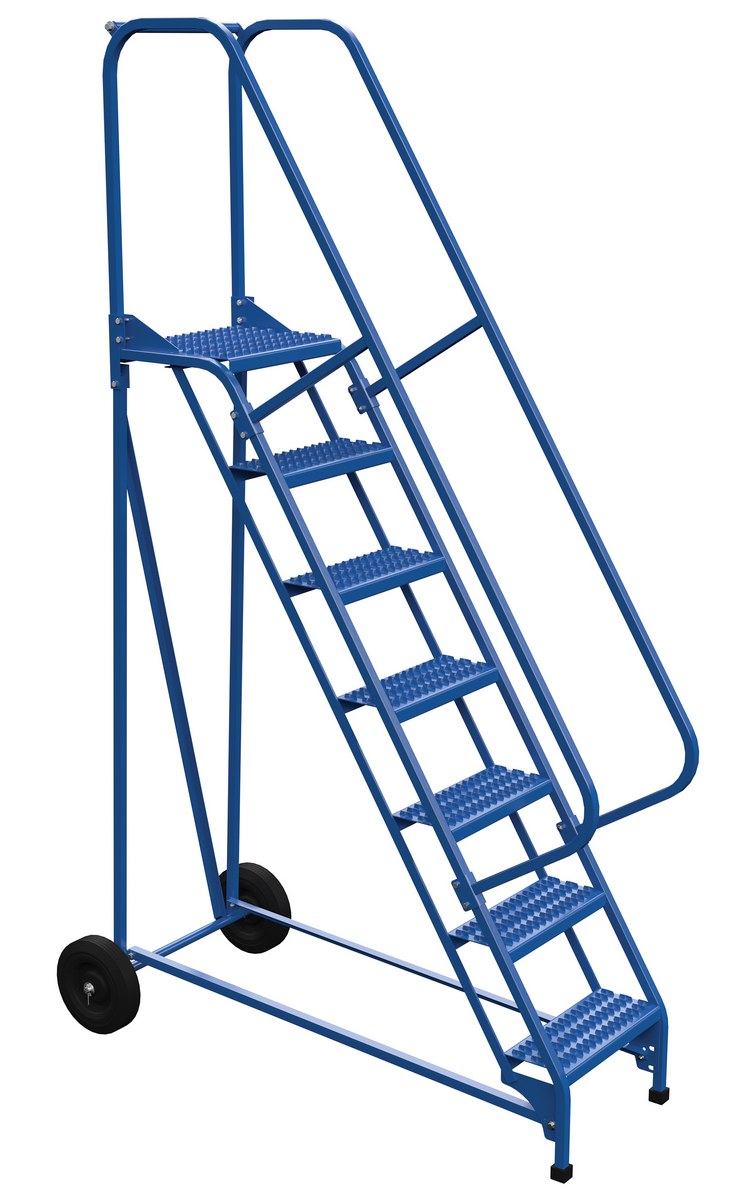

LAD-RAF-7-G Warranty PDF 7 58 degrees 16-13/16"x70" Grip-Strut 218

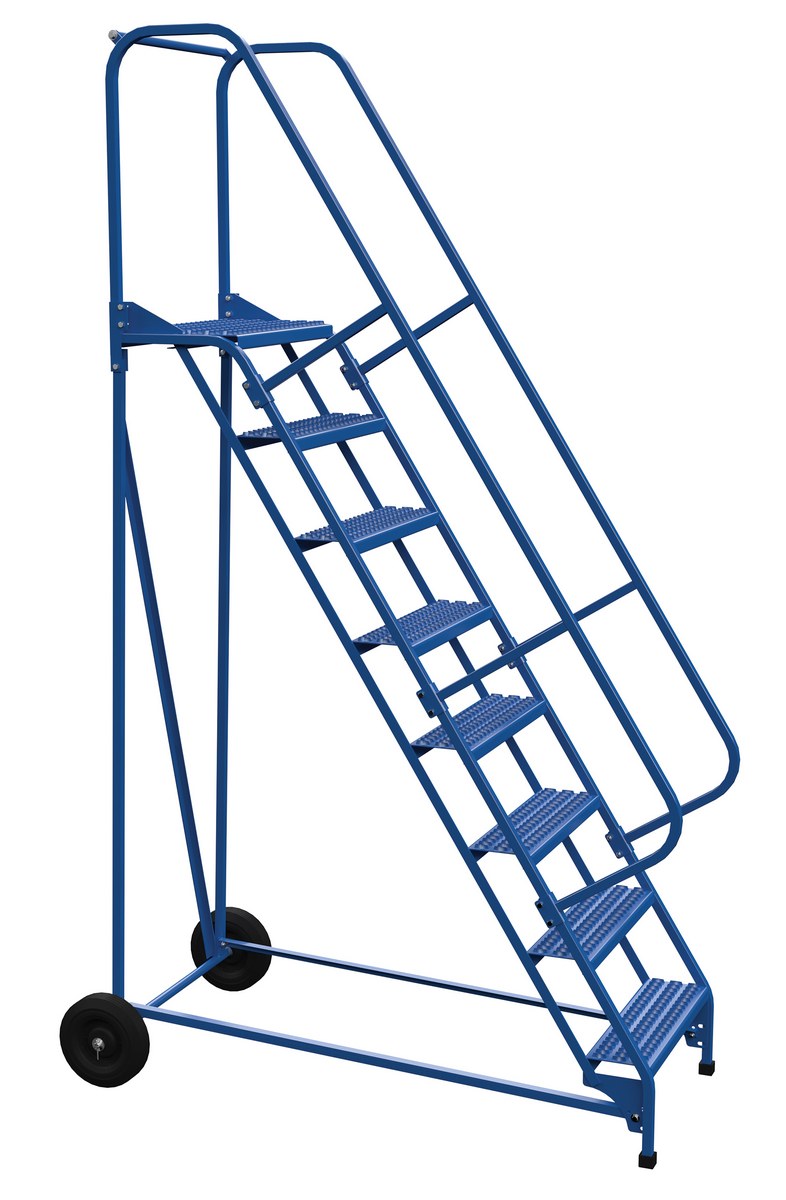

LAD-RAF-8-24-G Warranty PDF 8 58 degrees

23-9/16"x80"

Grip-Strut 258

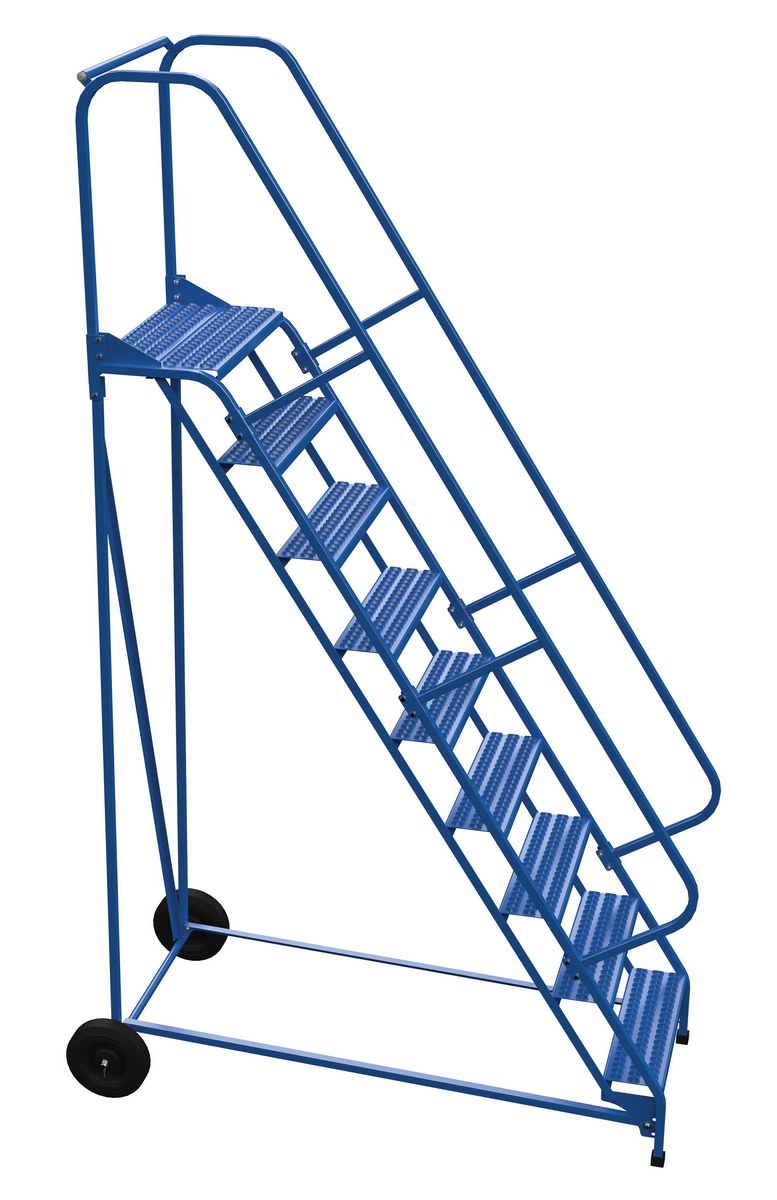

LAD-RAF-9-24-G Warranty PDF 9 58 degrees 23-9/16"x90" Grip-Strut 284

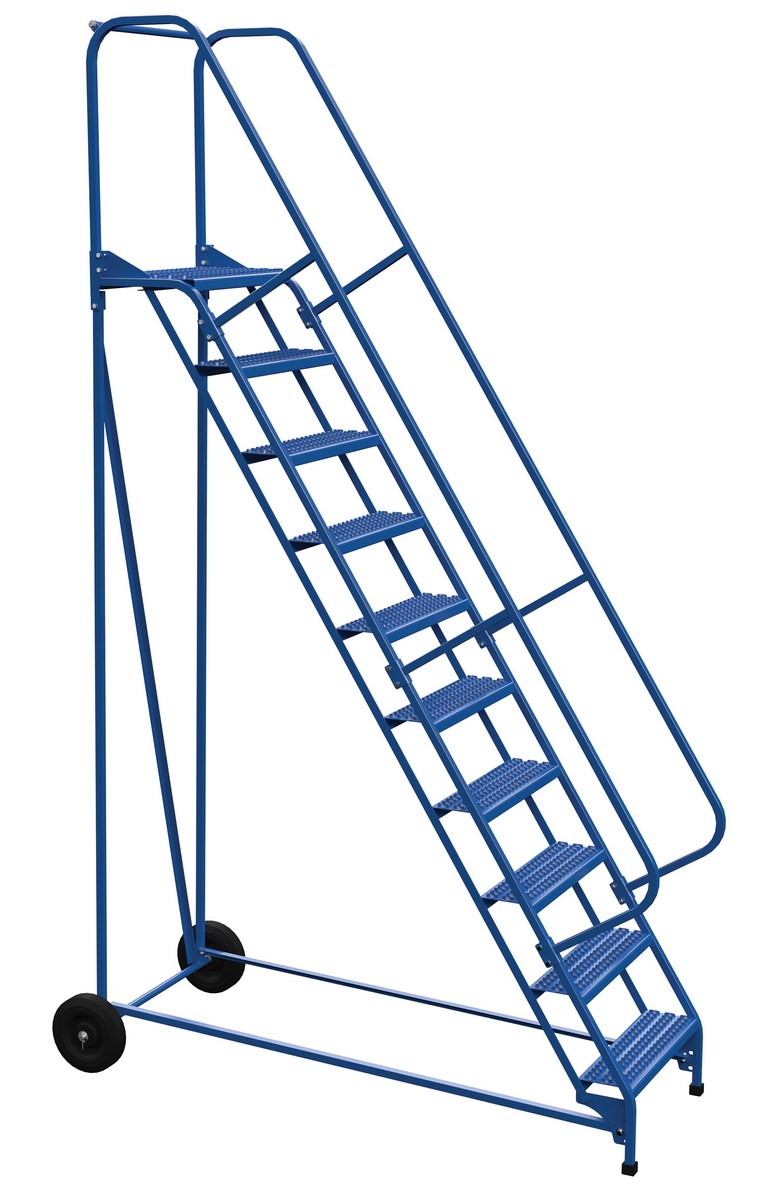

LAD-RAF-10-24-G Warranty PDF 10 58 degrees 23-9/16"x100" Grip-Strut 377
LAD-RAF-11-24-G Warranty PDF 11 58 degrees 23-9/16"x110" Grip-Strut 376

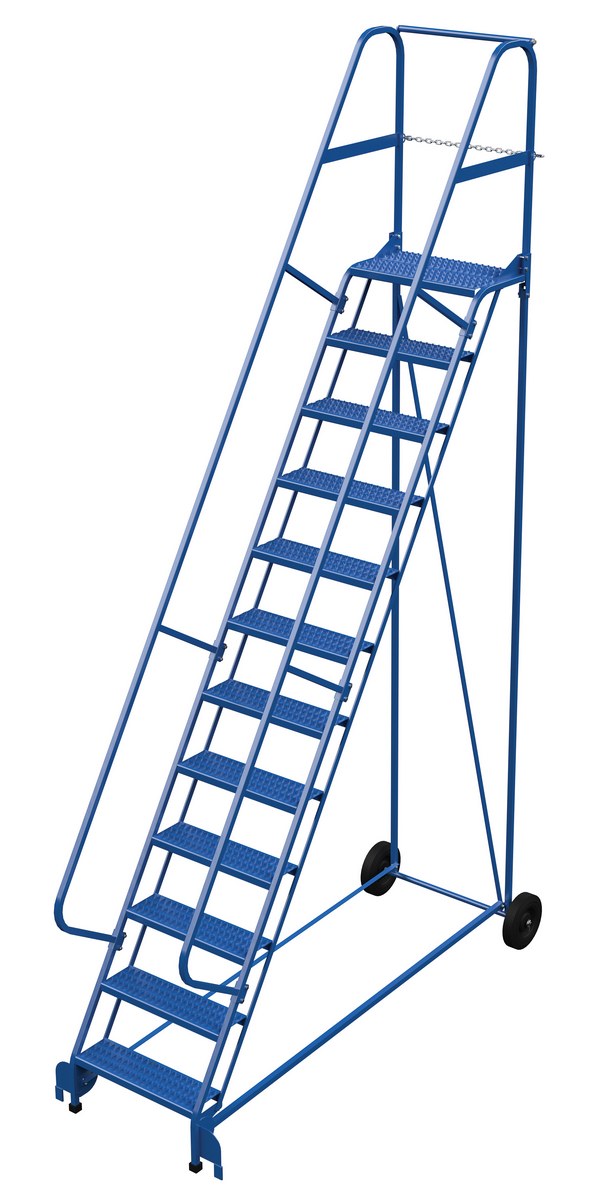

LAD-RAF-12-24-G Warranty PDF 12 58 degrees 23-9/16"x120" Grip-Strut 378

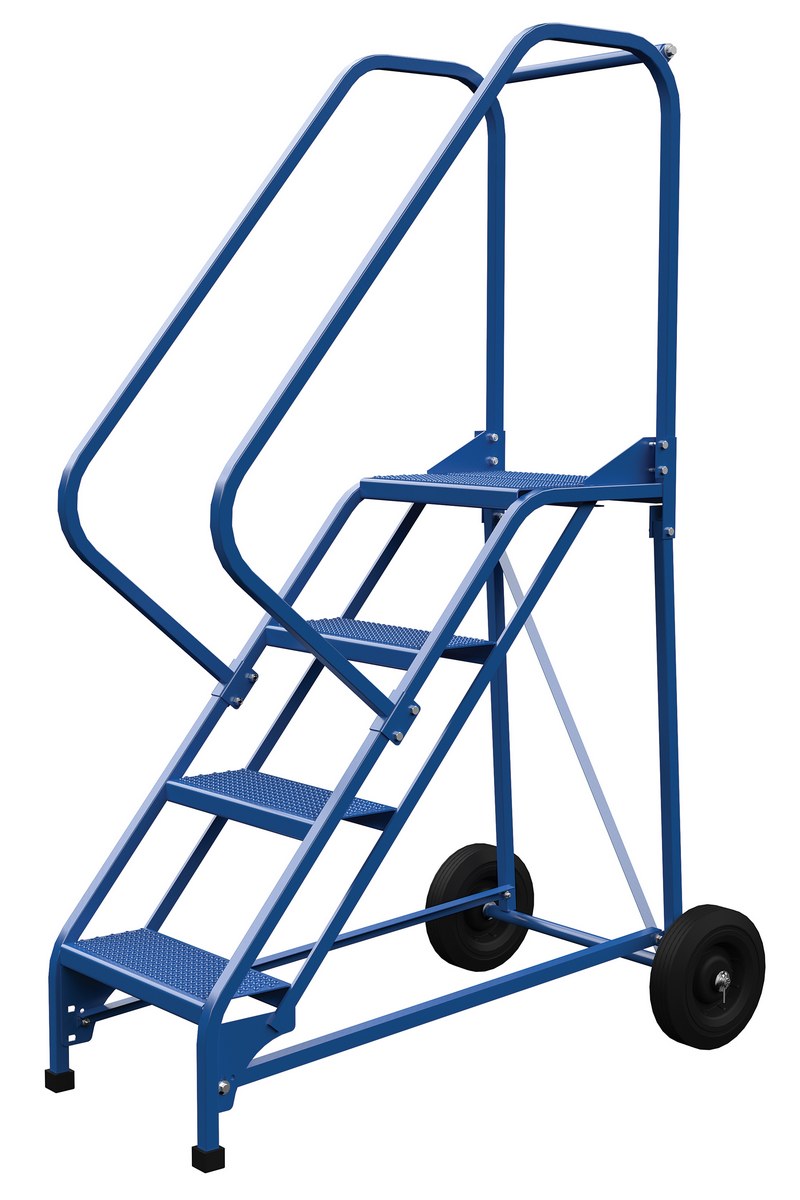

LAD-RAF-4-P-EZ Warranty PDF 4 50 degrees

16-13/16"x40"

Perforated 114

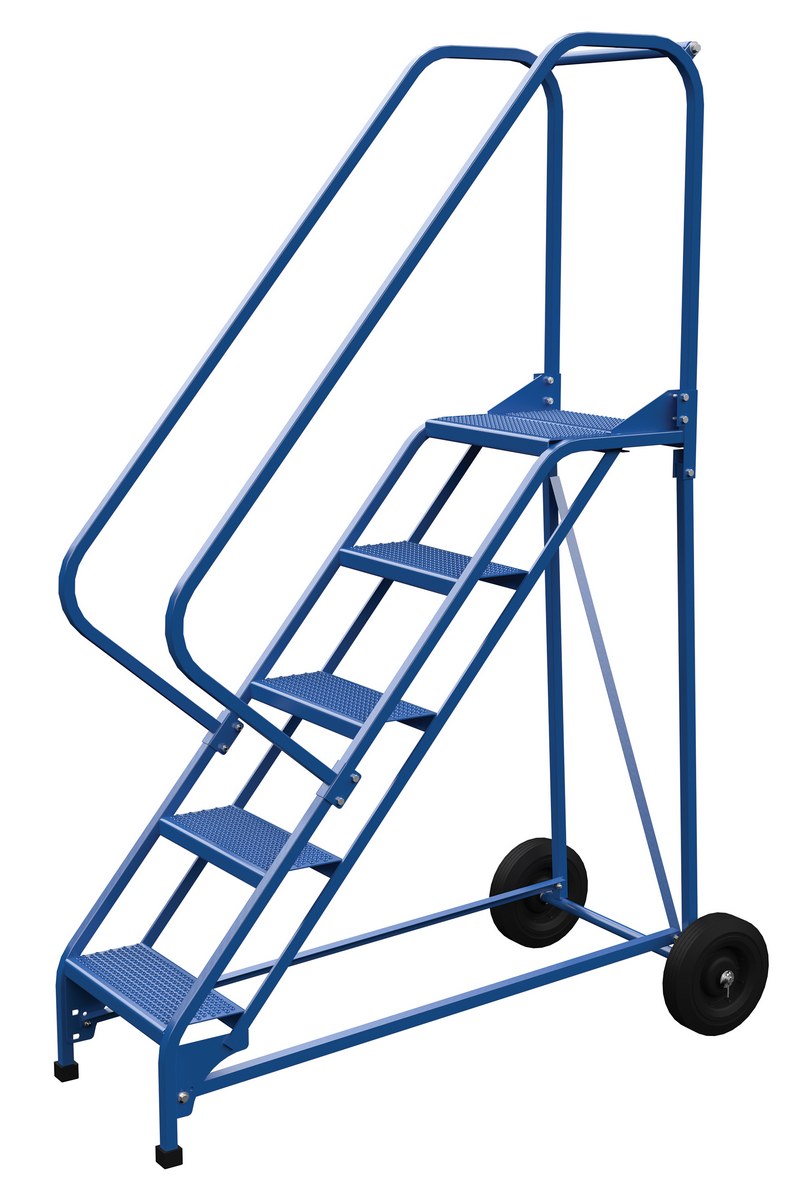

LAD-RAF-5-P-EZ Warranty PDF 5 50 degrees

16-13/16"x50"

Perforated 168

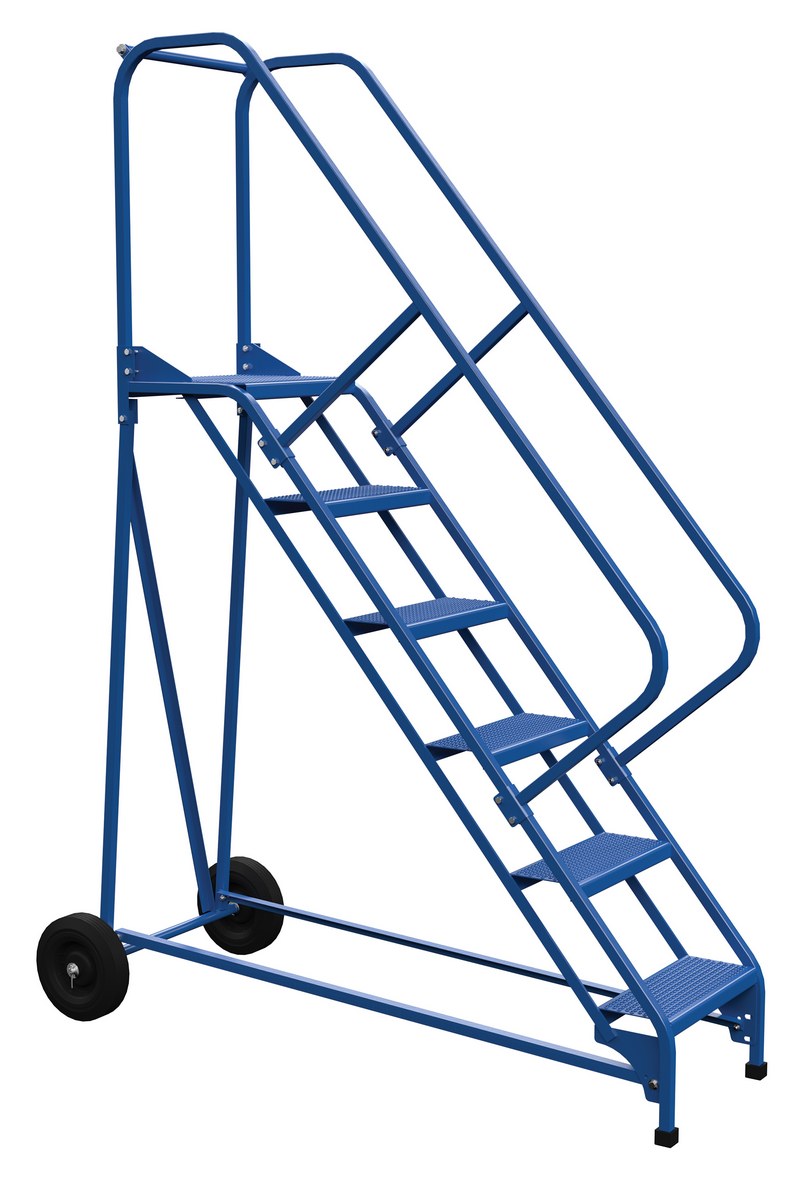

LAD-RAF-6-P-EZ Warranty PDF 6 50 degrees 16-13/16"x60" Perforated 208
LAD-RAF-7-P-EZ Warranty PDF 7 50 degrees 16-13/16"x70" Perforated 220
LAD-RAF-8-24-P-EZ Warranty PDF 8 50 degrees

23-9/16"x80"

Perforated 256

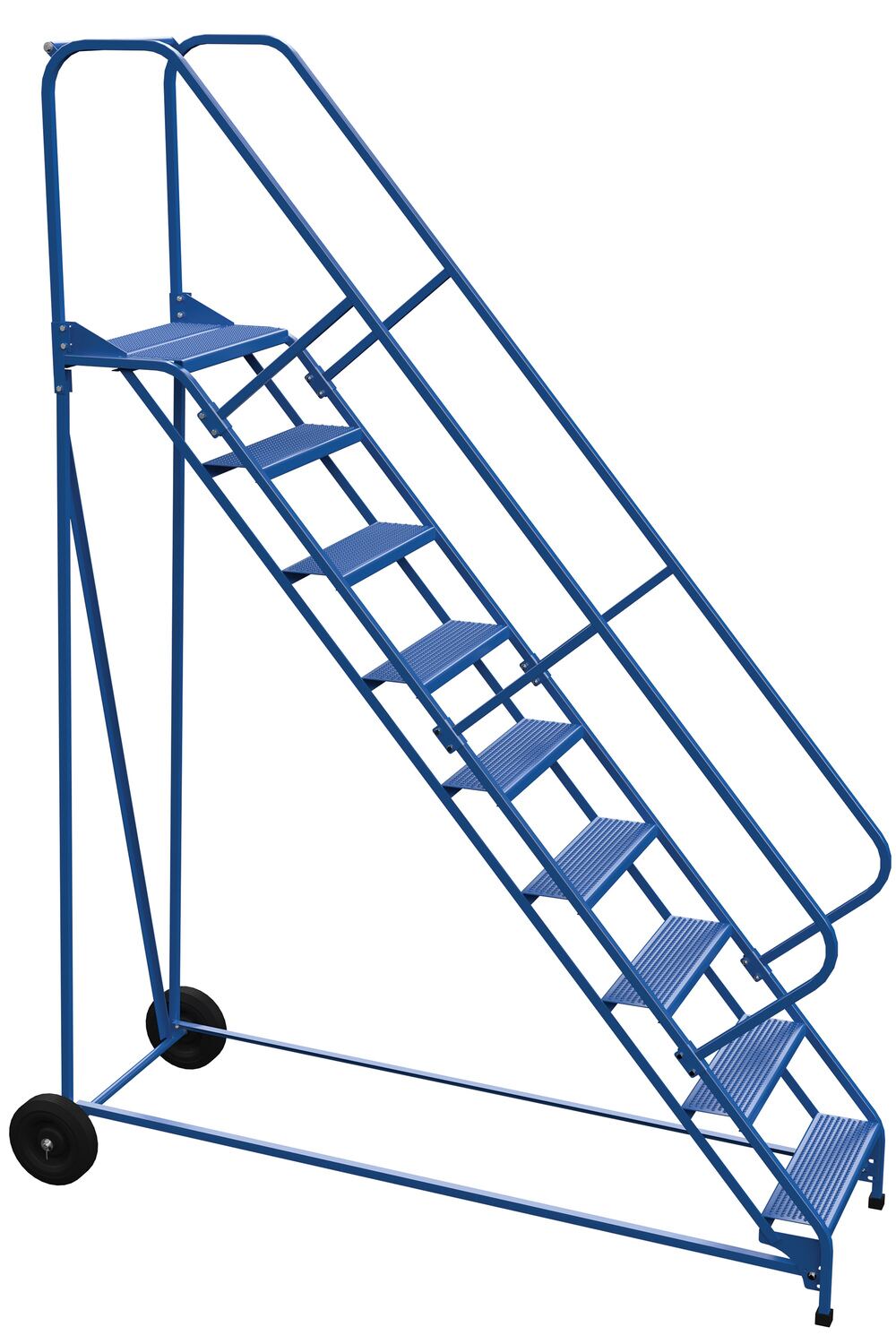

LAD-RAF-9-24-P-EZ - Warranty PDF 9 50 degrees 23-9/16"x90" Perforated 312

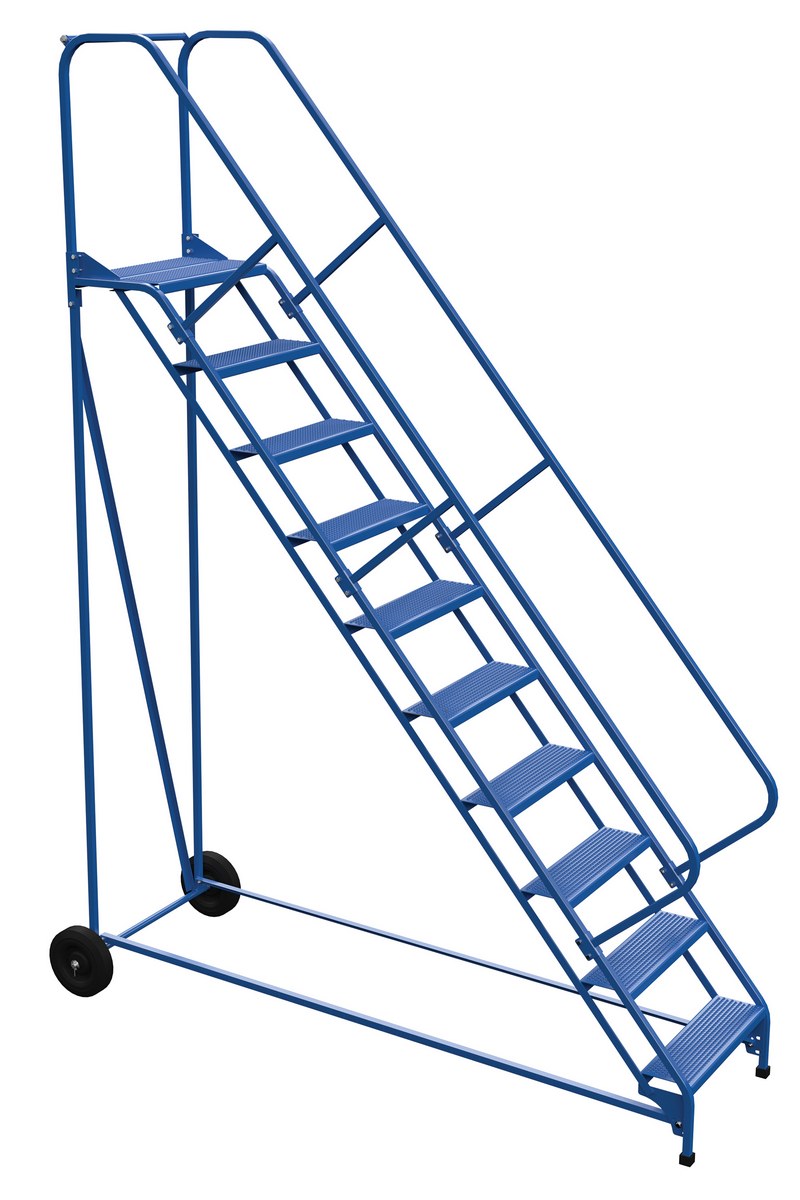

LAD-RAF-10-24-P-EZ Warranty PDF 10 50 degrees 23-9/16"x100" Perforated 322
LAD-RAF-11-24-P-EZ Warranty PDF 11 50 degrees 23-9/16"x110" Perforated 364

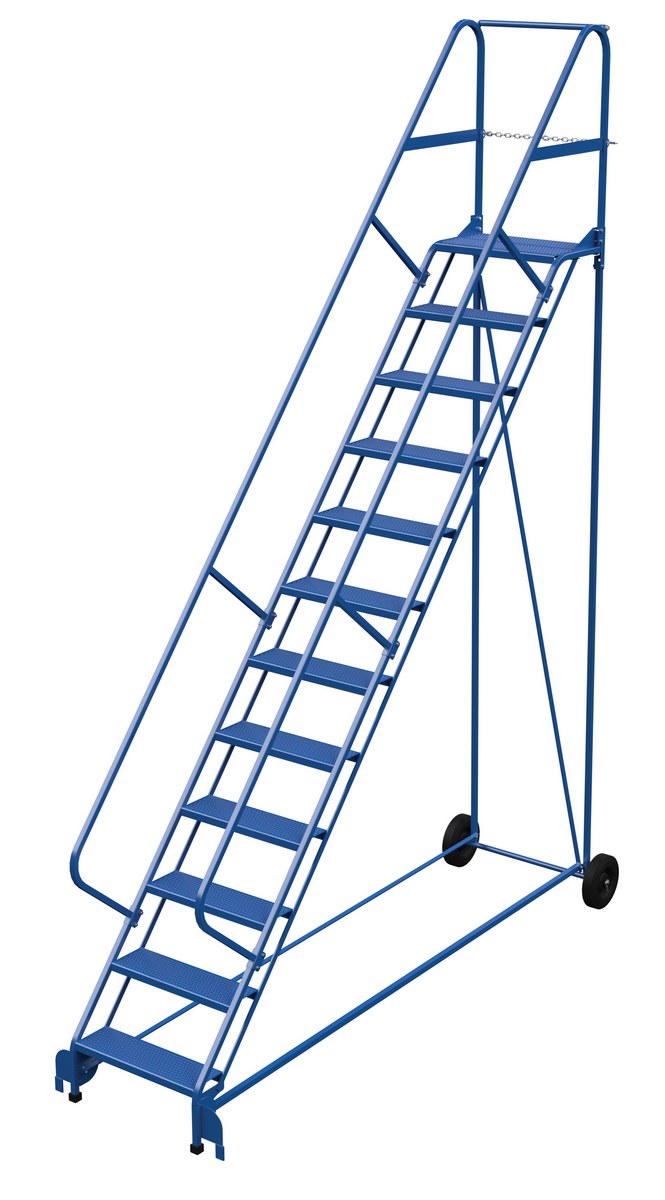

LAD-RAF-12-24-P-EZ Warranty PDF 12 50 degrees 23-9/16"x120" Perforated 384

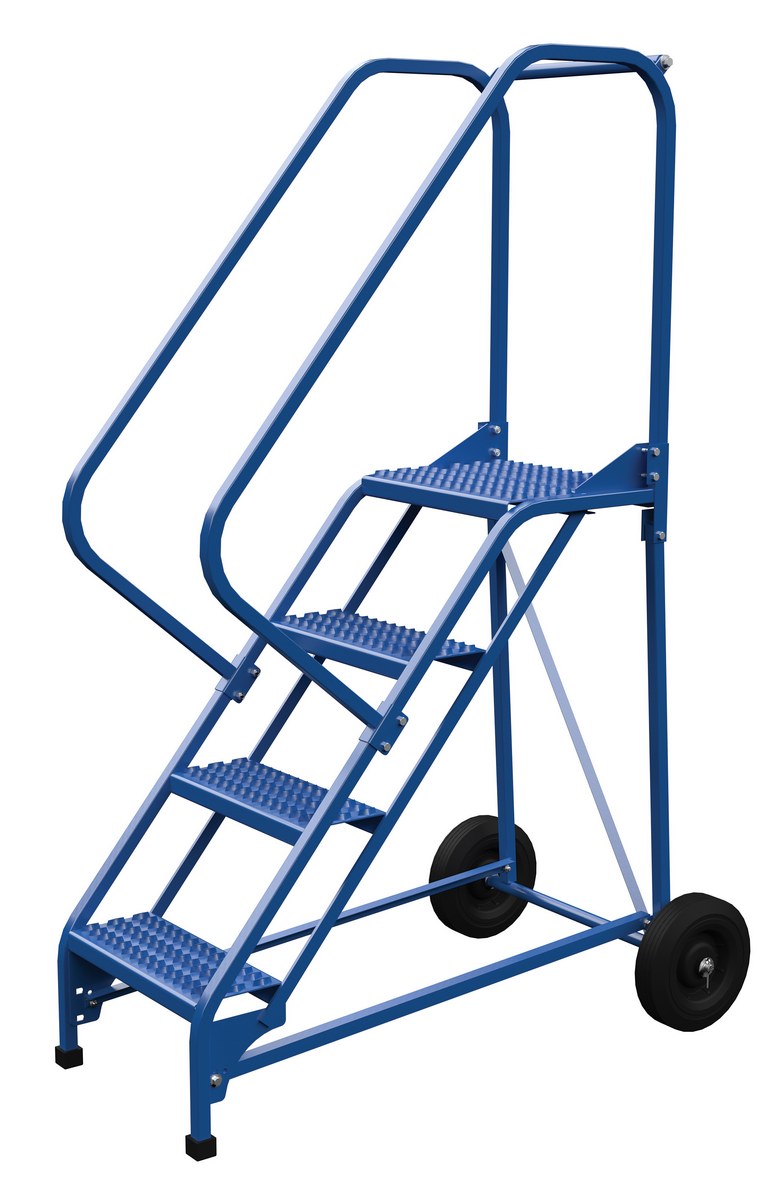

LAD-RAF-4-G-EZ Warranty PDF 4 50 degrees

16-13/16"x40"

Grip-Strut 114
LAD-RAF-5-G-EZ Warranty PDF 5 50 degrees

16-13/16"x50"

Grip-Strut 168
LAD-RAF-6-G-EZ Warranty PDF 6 50 degrees 16-13/16"x60" Grip-Strut 208
LAD-RAF-7-G-EZ Warranty PDF 7 50 degrees 16-13/16"x70" Grip-Strut 220

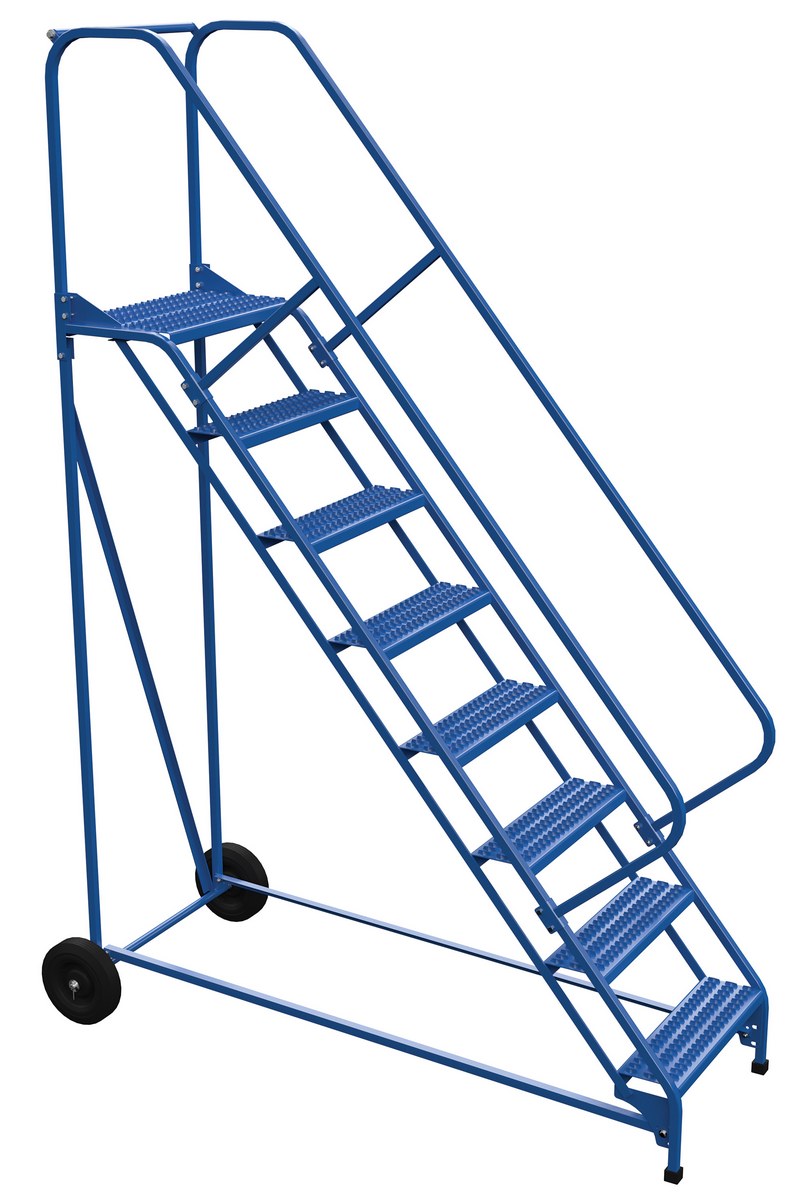

LAD-RAF-8-24-G-EZ Warranty PDF 8 50 degrees

23-9/16"x80"

Grip-Strut 256

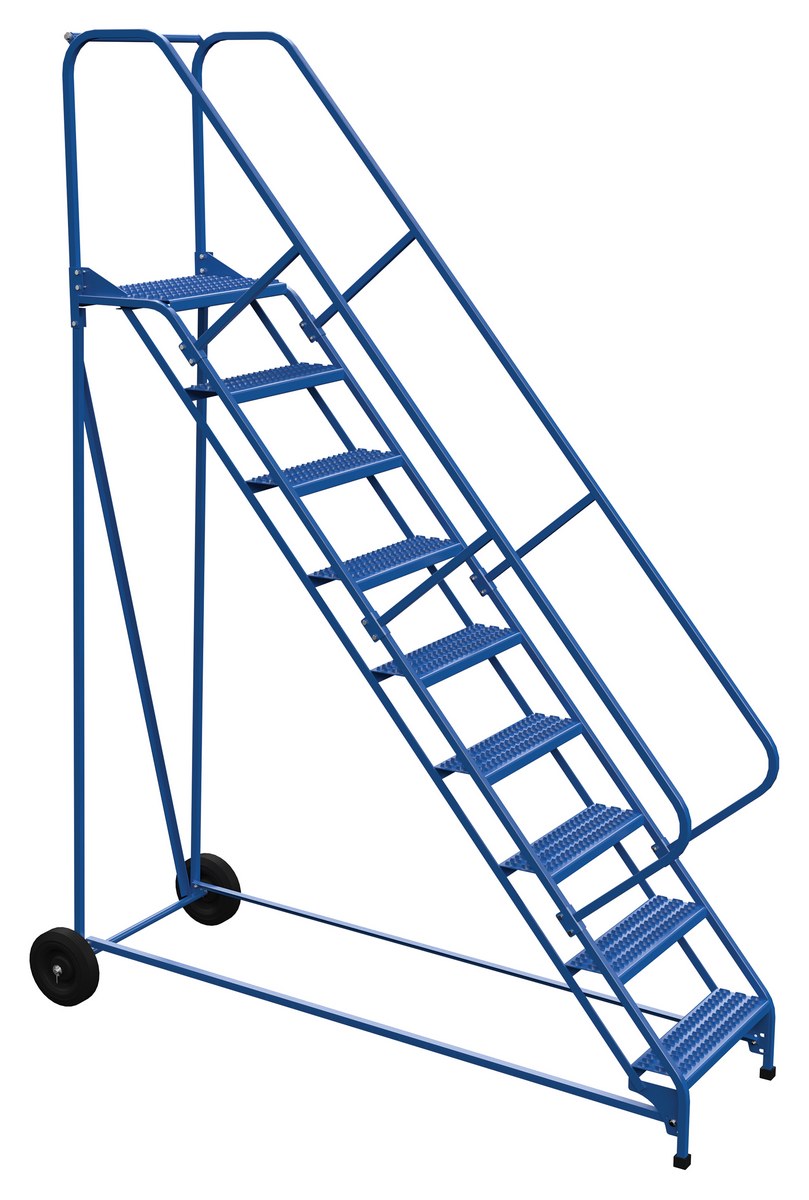

LAD-RAF-9-24-G-EZ Warranty PDF 9 50 degrees 23-9/16"x90" Grip-Strut 312

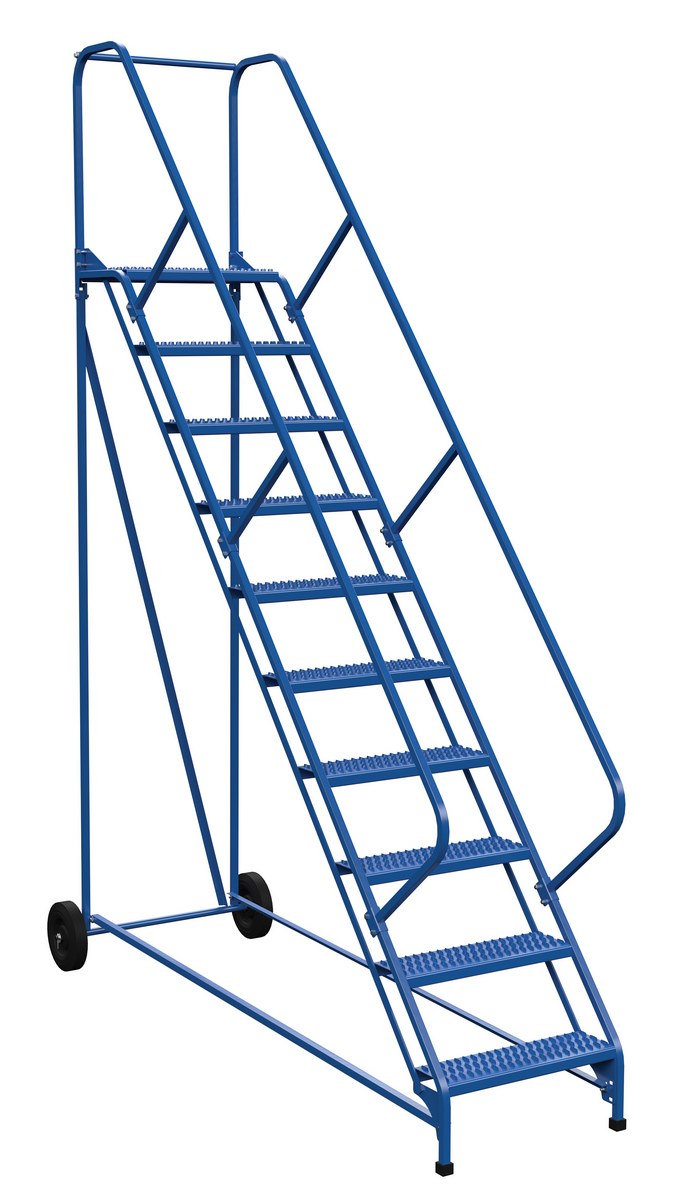

LAD-RAF-10-24-G-EZ Warranty PDF 10 50 degrees 23-9/16"x100" Grip-Strut 322

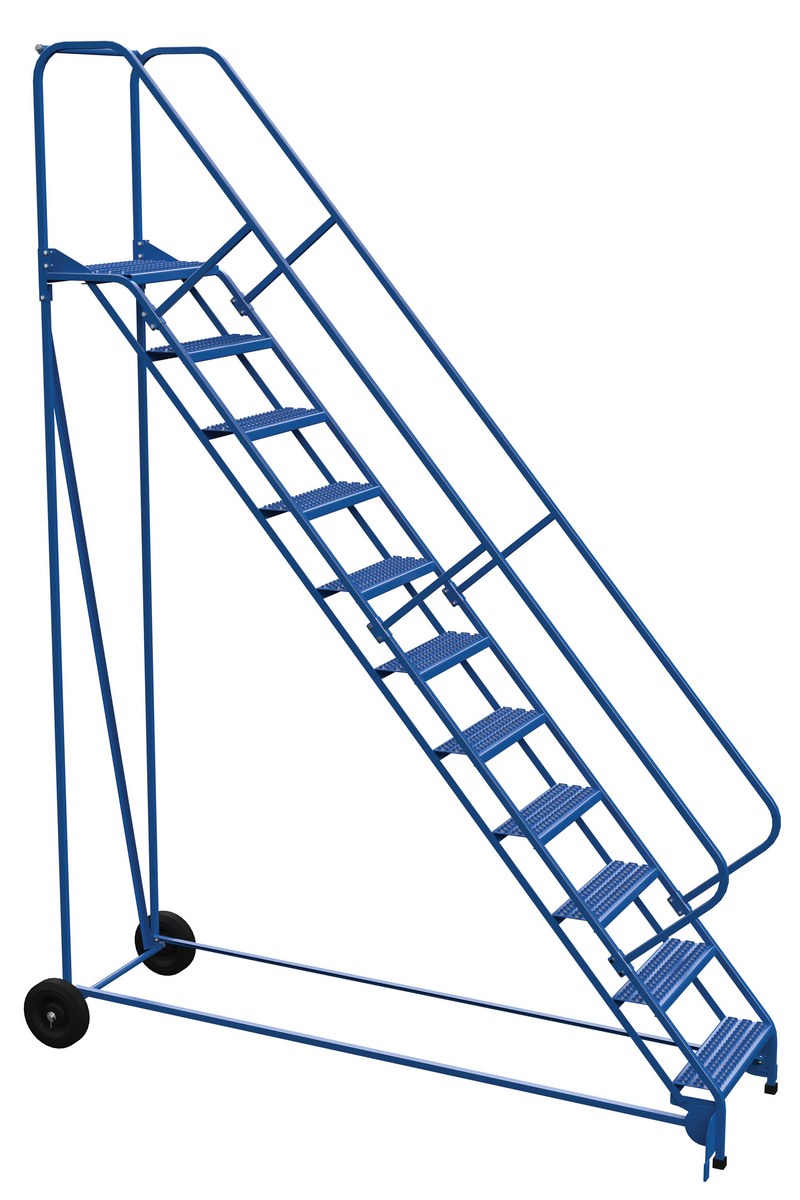

LAD-RAF-11-24-G-EZ Warranty PDF 11 50 degrees 23-9/16"x110" Grip-Strut 364

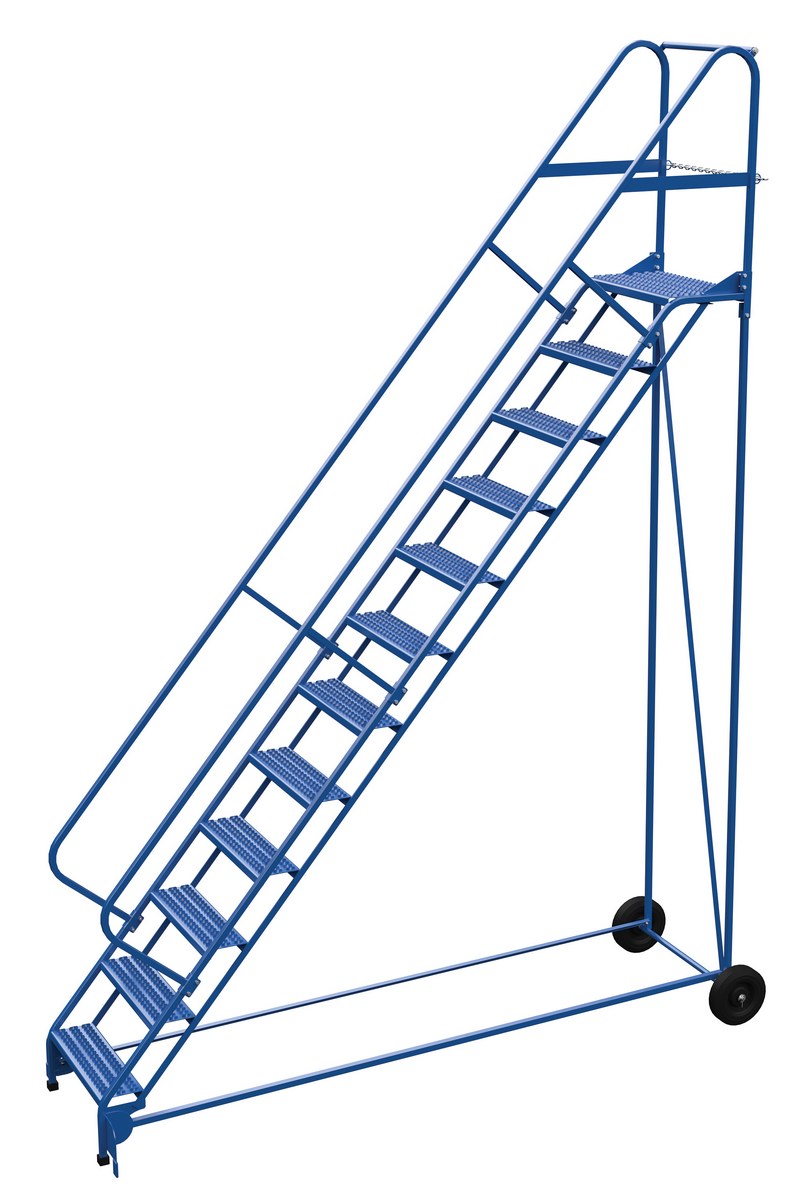

LAD-RAF-12-24-G-EZ Warranty PDF 12 50 degrees 23-9/16"x120" Grip-Strut 384

Options


Options
Model Image PDFs Description
LAD-TT-A Warranty PDF Tool Tray for LAD-RAF, LAD RAF-EZ (only works with steps 4 to 7)
LAD-TT-B Warranty PDF Tool Tray for LAD-RAF, LAD RAF-EZ (only works with steps 8 to 12)
LAD-RAF-LTO
Warranty PDF
Ladder Transporter for LAD-RAF series
