Expand-A-Gates

model: EXGATE-30-C

Featured Protective Barriers:


Overhead Door Warning Barriers
Traffic Cone Cart
Square Safety Handrails
Plastic Barriers
Steel Pipe Safety Bollards
Decorative Bollard Covers
Traffic Cones
Mezzanine Safety Gates
Replaceable Bollard Caps
Print Friendly
Expand-A-Gates
SERIES: EXGATE,PEXGATE,ALEXGATE

Designed to set up quickly and easily wherever and whenever they are needed. Ideal for preventing potential accidents. Lightweight design allows personnel to quickly retrieve the gate and limit access to unsafe areas. Smooth operating scissor action. Interlocking and nestable. Suffix -C features casters. Suffix W features one swivel caster with a wall/rack mounting kit.

Model PEXGATE is constructed of heavy-duty molded yellow and black plastic. One side of gate includes reflectors for better visibility. End pieces are hollow and may be filled with liquid for added weight. Assembly required.

  • For the EXGATE & PEXGATE series', multiple units can be connected end-to-end.

Designed to set up quickly and easily wherever and whenever they are needed. Ideal for preventing potential accidents. Lightweight design allows personnel to quickly retrieve the gate and limit access to unsafe areas. Smooth operating scissor action. Interlocking and nestable. Suffix -C features casters. Suffix W features one swivel caster with a wall/rack mounting kit.

Model PEXGATE is constructed of heavy-duty molded yellow and black plastic. One side of gate includes reflectors for better visibility. End pieces are hollow and may be filled with liquid for added weight. Assembly required.

  • For the EXGATE & PEXGATE series', multiple units can be connected end-to-end.

Other Protective Barriers Miscellaneous

 Plastic Interlocking Barriers Indoor Personnel Guidance Barriers Pipe and Downspout Protector Stackable Poly Barricades

ALEXGATE-30

model ALEXGATE-30

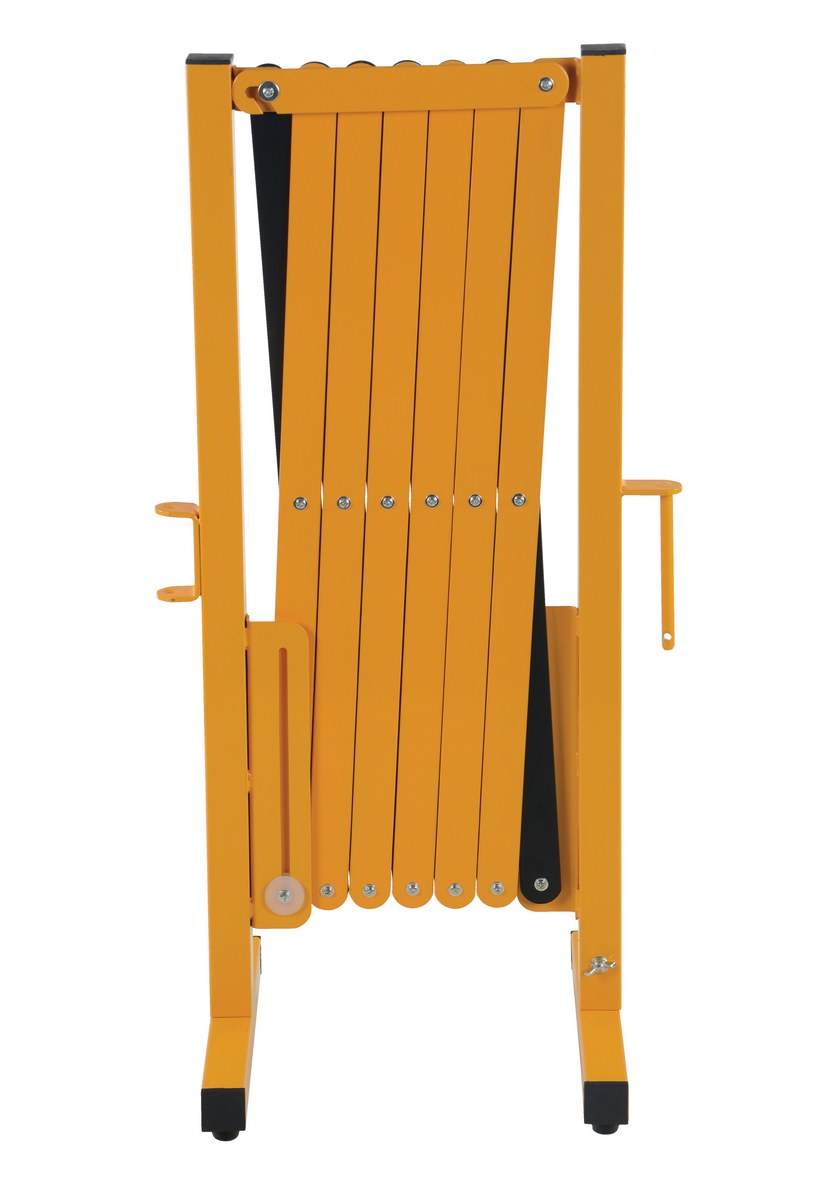

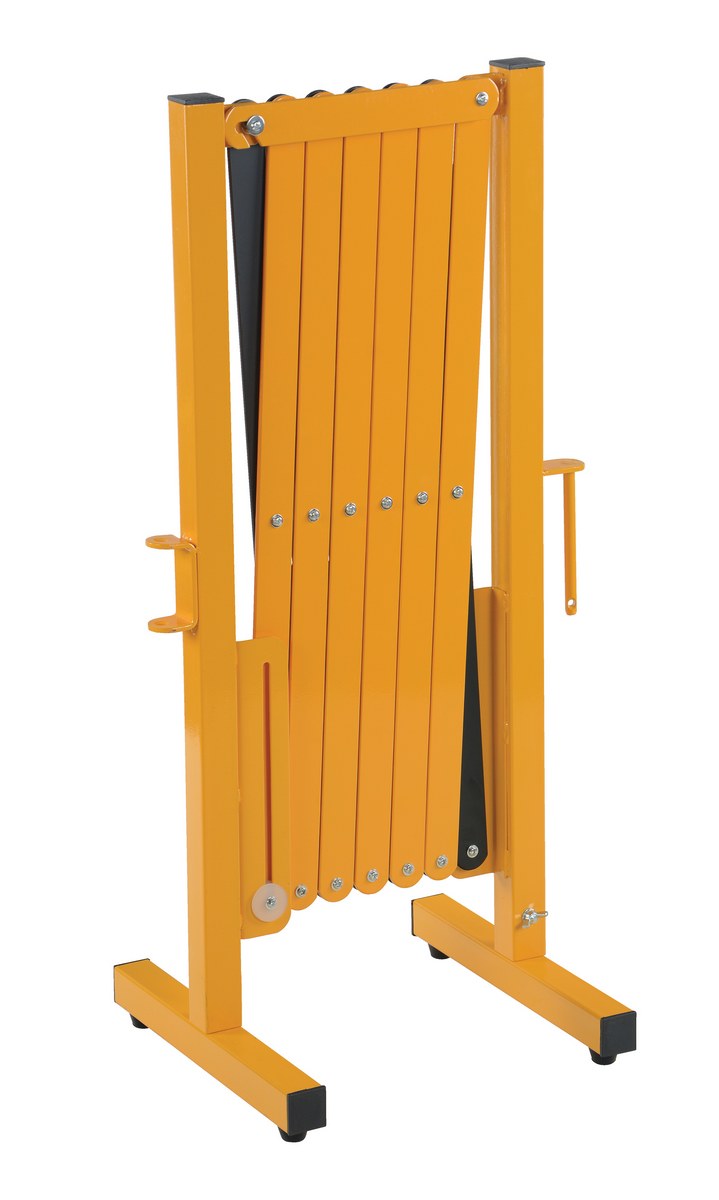

EXGATE-30

model EXGATE-30

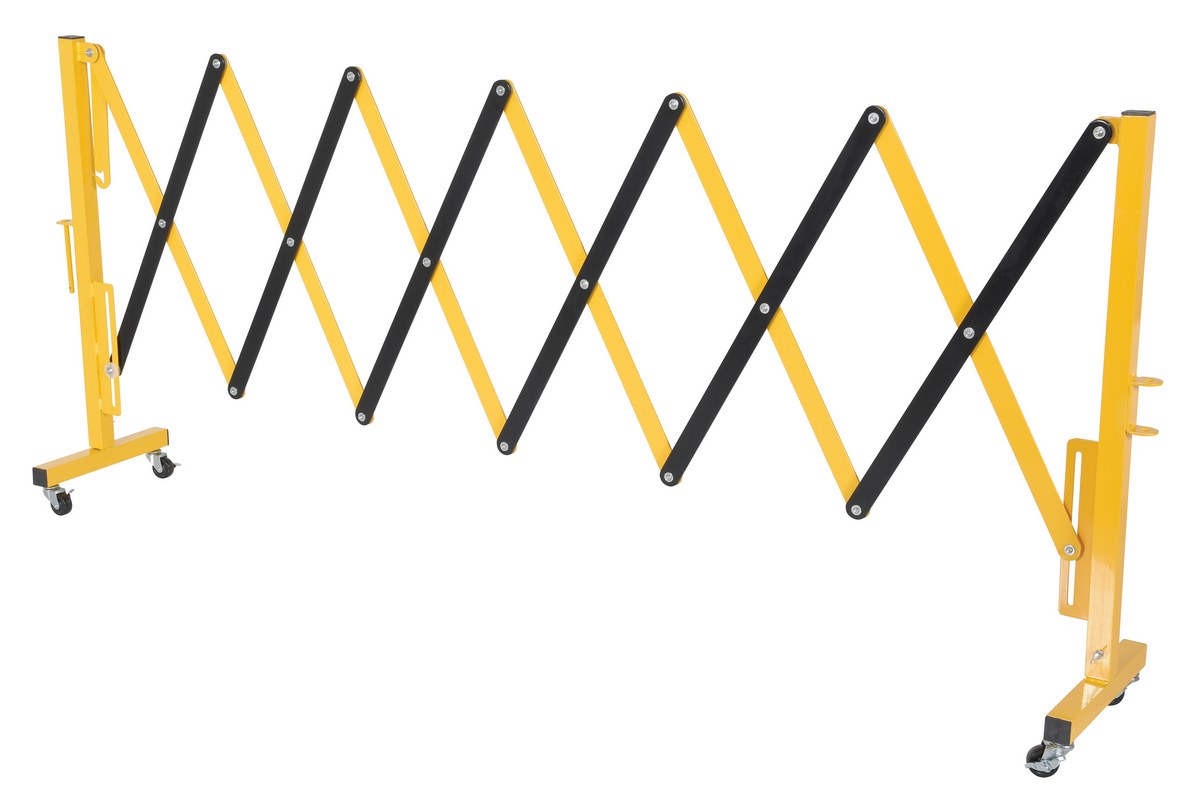

ALEXGATE-30-C

model ALEXGATE-30-C

EXGATE-30-W

model EXGATE-30-W

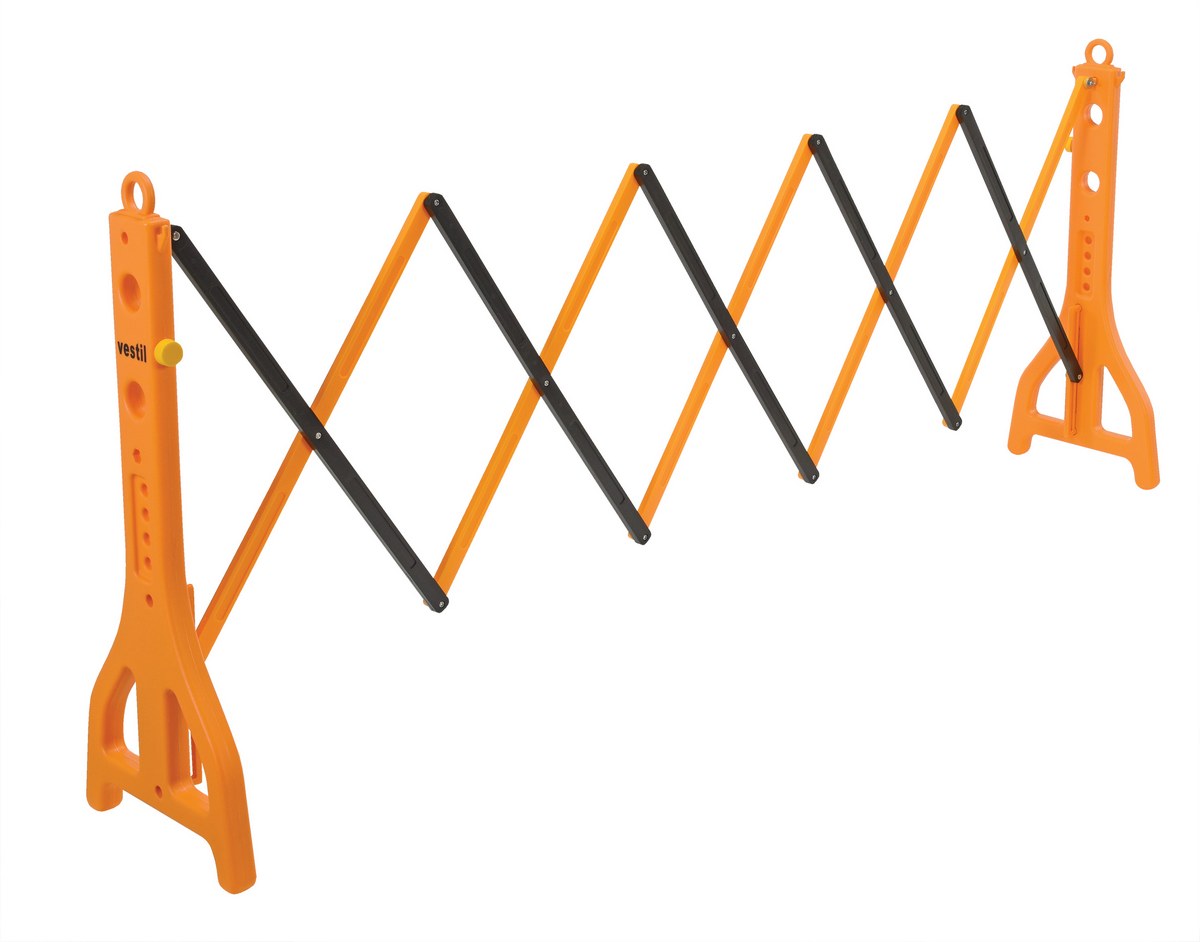

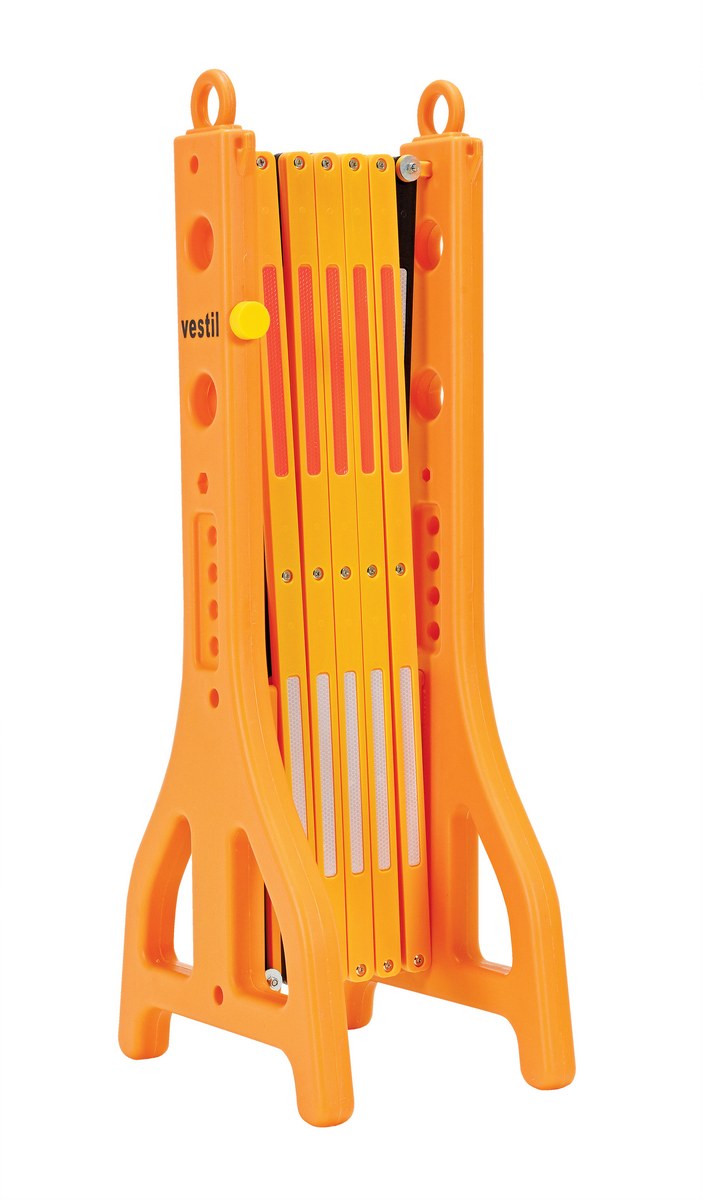

PEXGATE-30

model PEXGATE-30

PEXGATE-30-C

model PEXGATE-30-C

EXGATE-30-192

model EXGATE-30-192

EXGATE-W-KIT

model EXGATE-W-KIT

How To Order
Share:


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

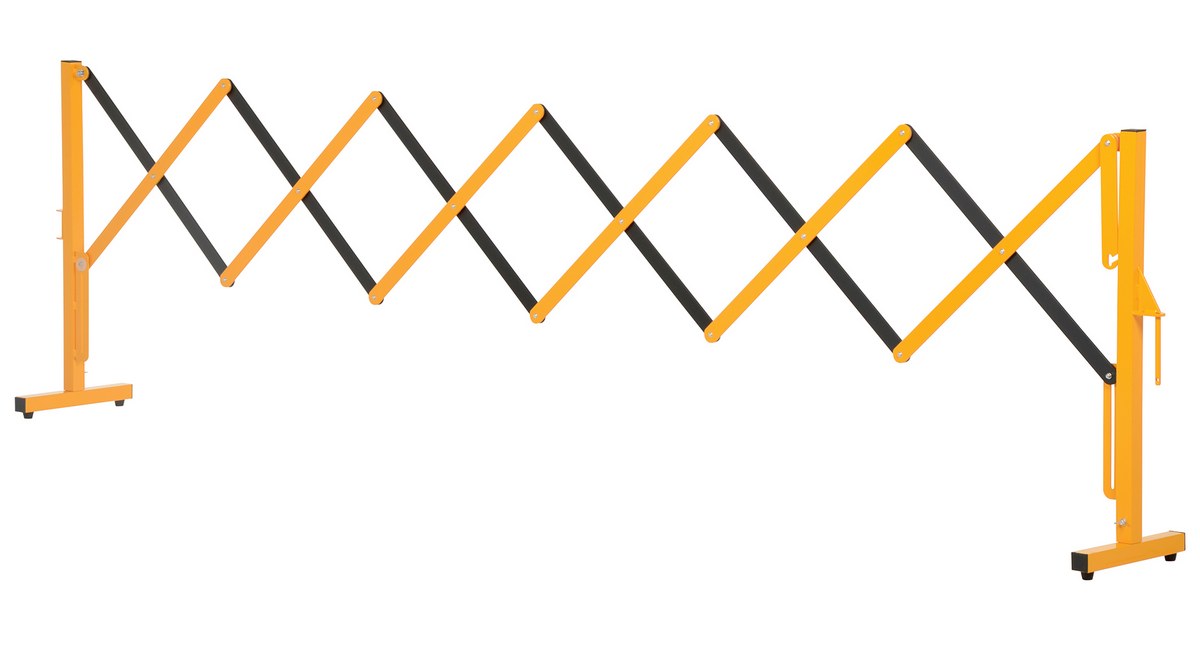

ALEXGATE-30 90 Days Limited WarrantyAluminum Expand-A-Gate 15 In. x 19-3/4 In. x 38 In. YellowOverall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139		25

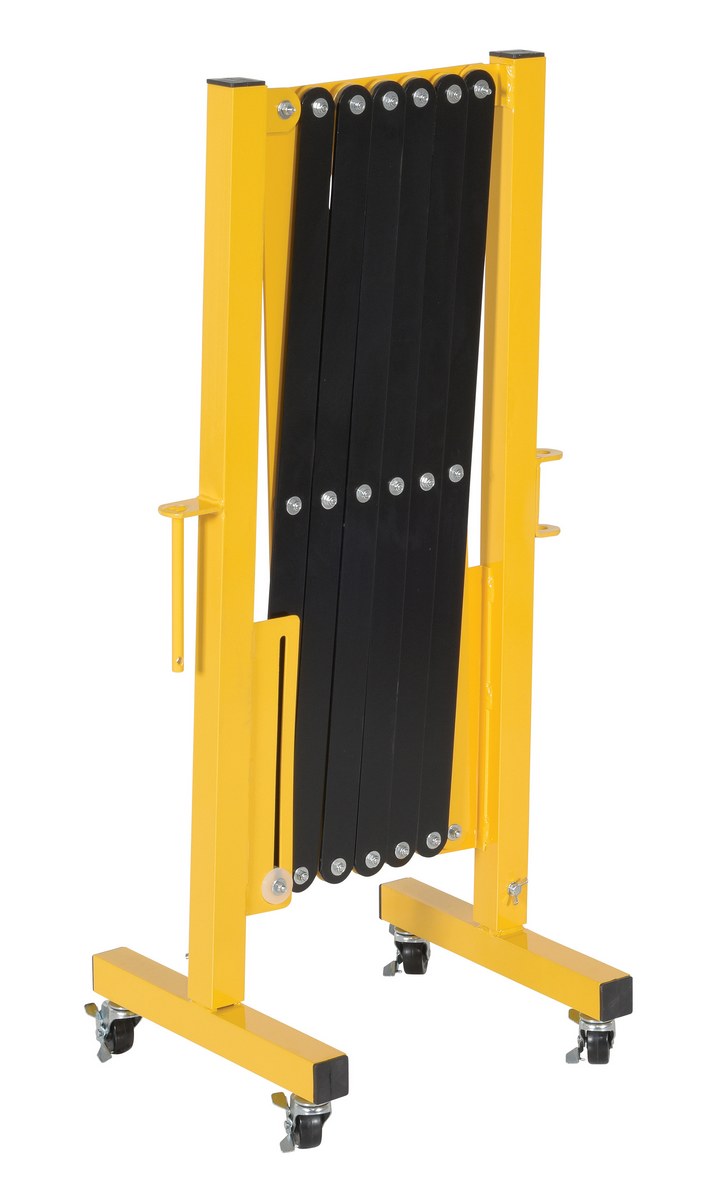

ALEXGATE-30-C 90 Days Limited WarrantyAluminum Expand-A-Gate with Casters 15 In. x 19-3/4 In. x 40-1/8 In. YellowOverall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139		28

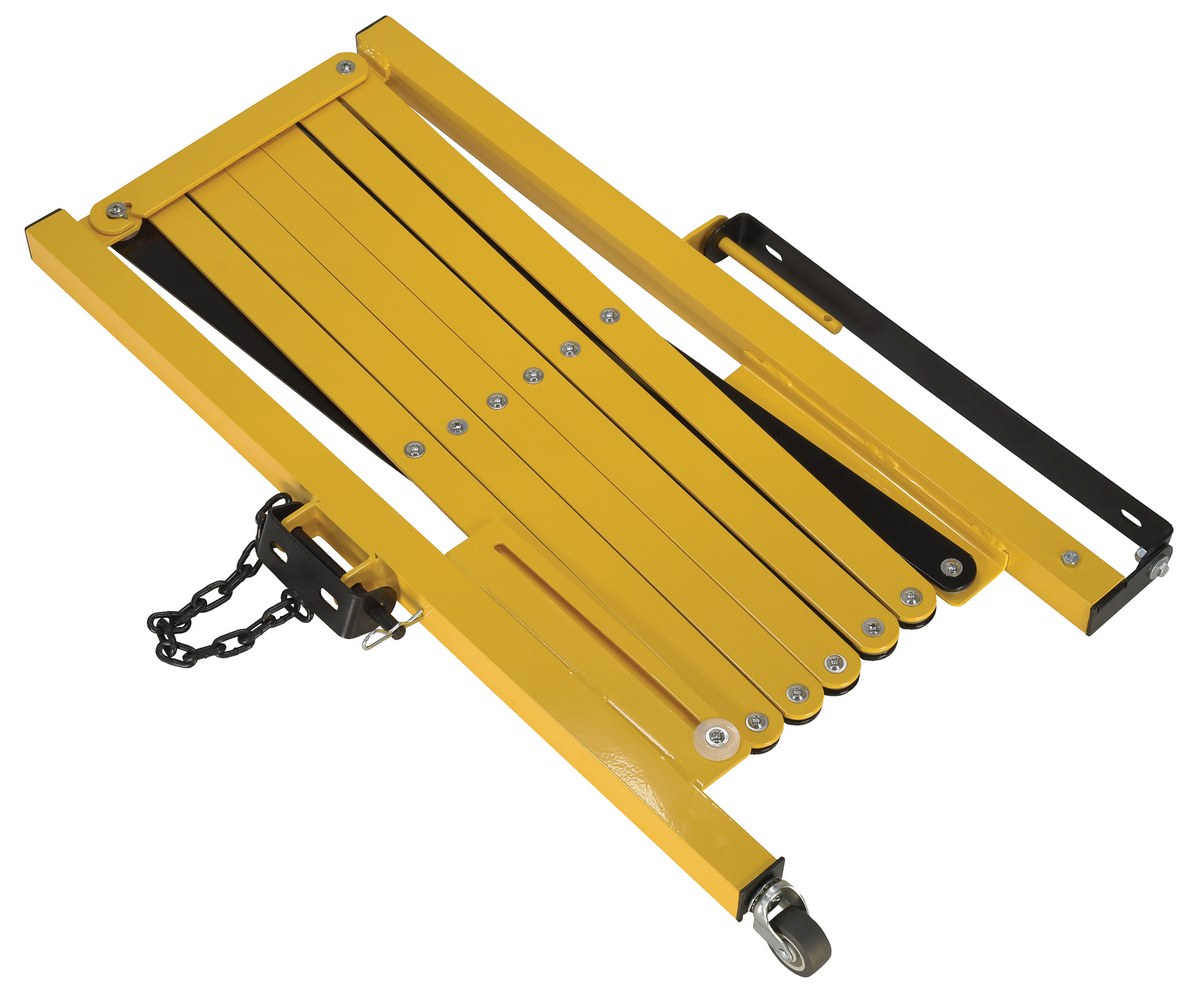

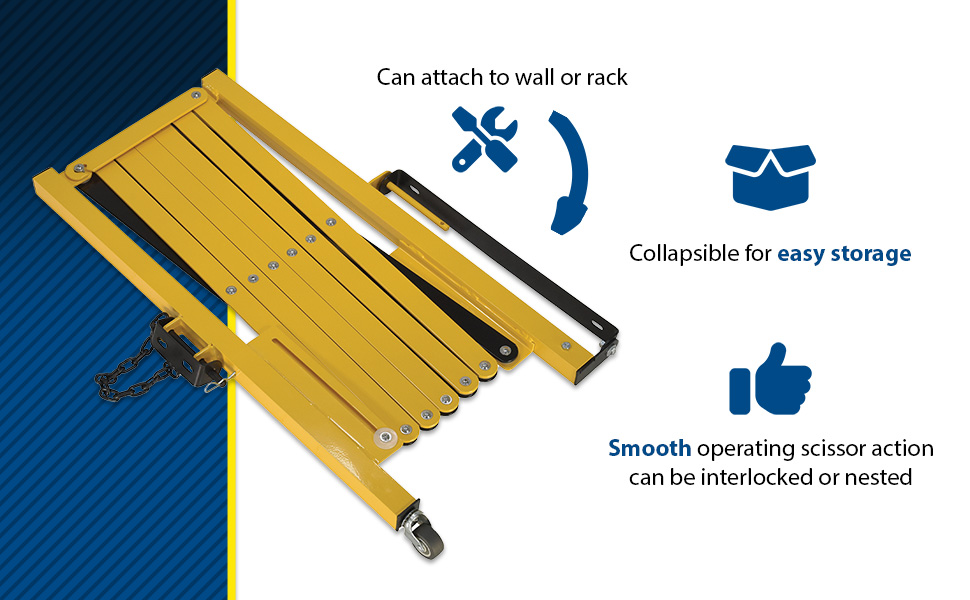

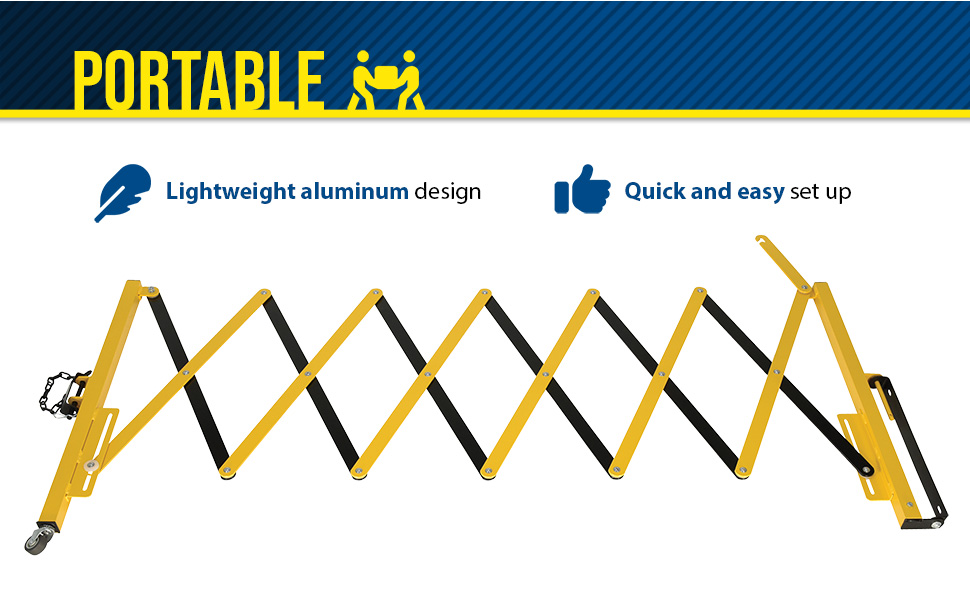

ALEXGATE-30-W 90 Days Limited WarrantyAluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In. YellowOverall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139		35
EXGATE-30 90 Days Limited WarrantySteel Expand-A-Gate 144 In. YellowOverall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139		55

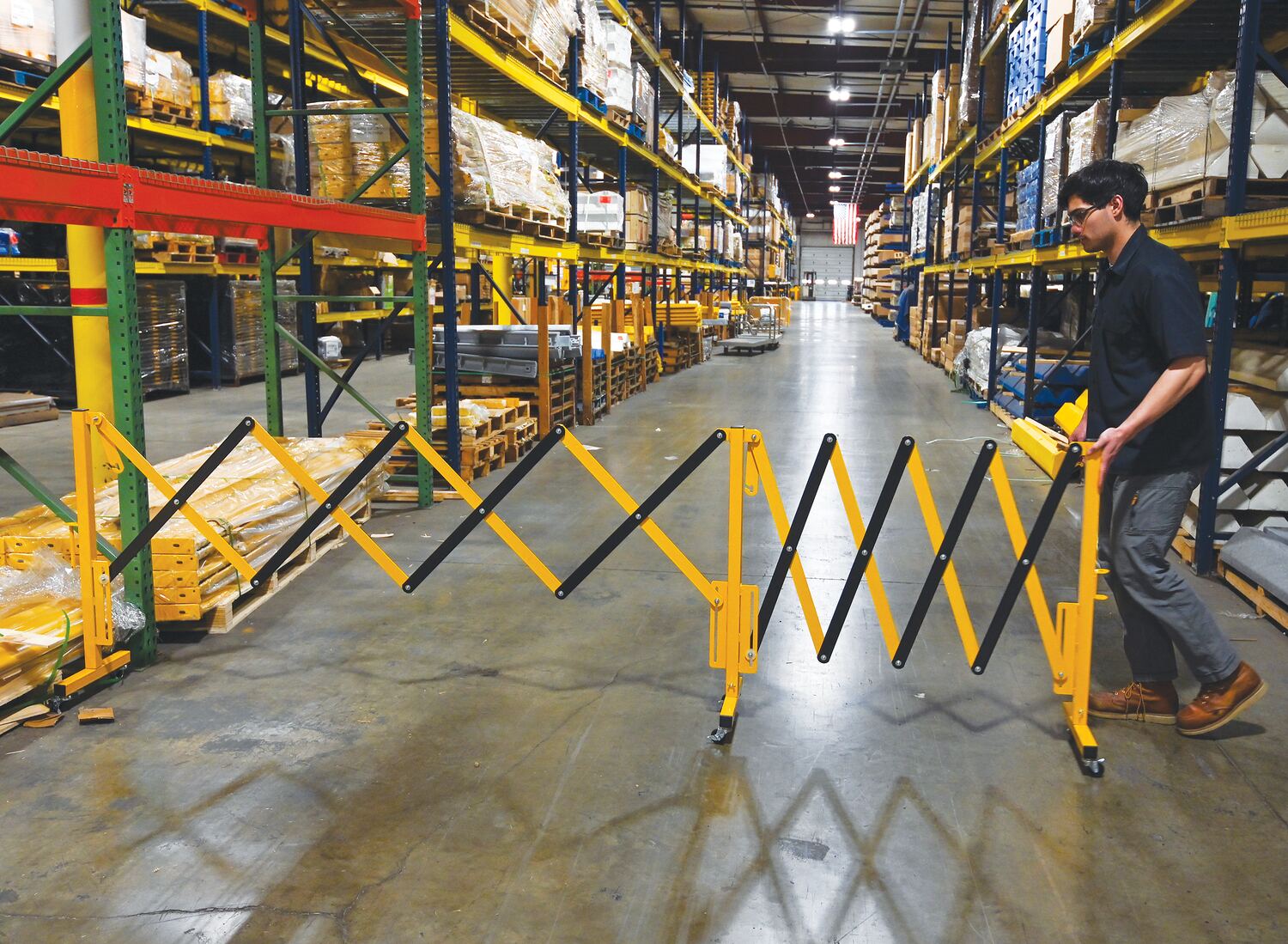

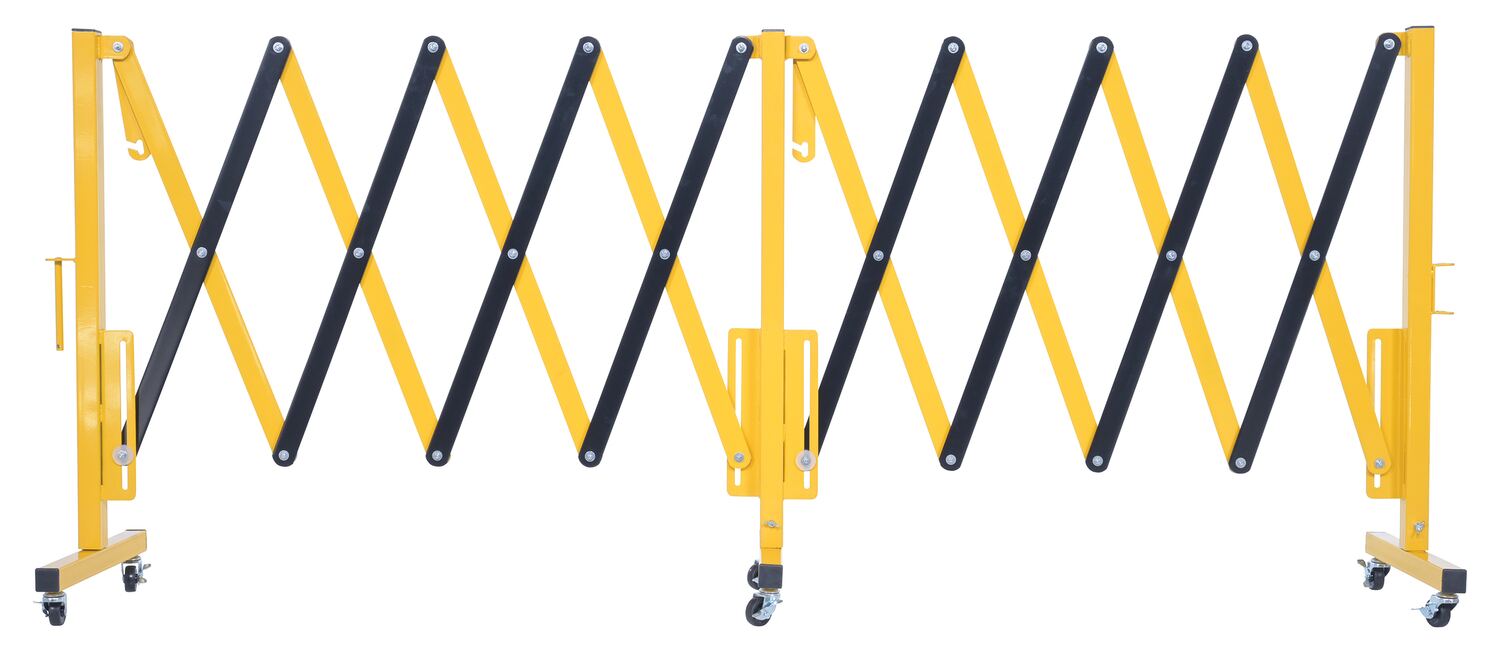

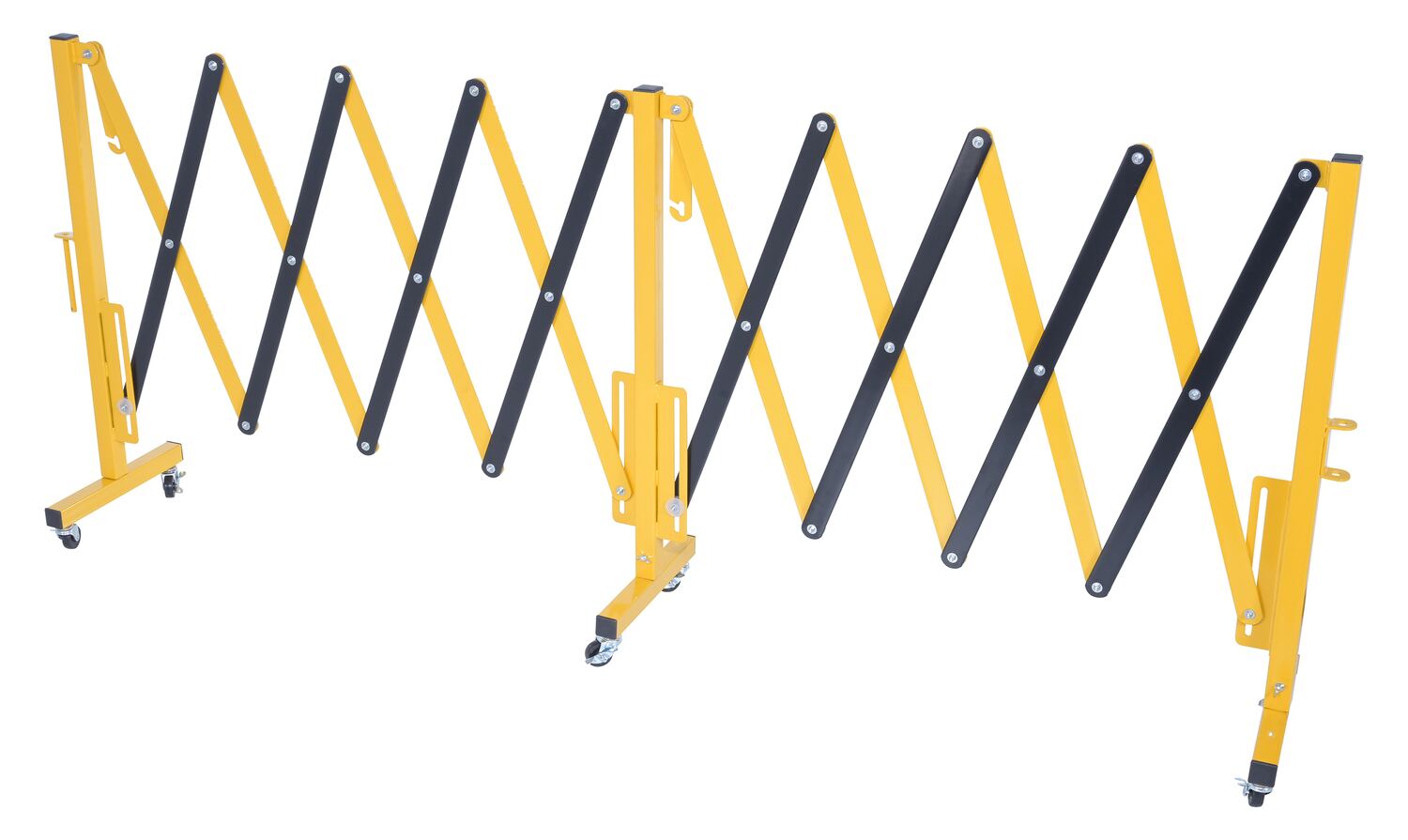

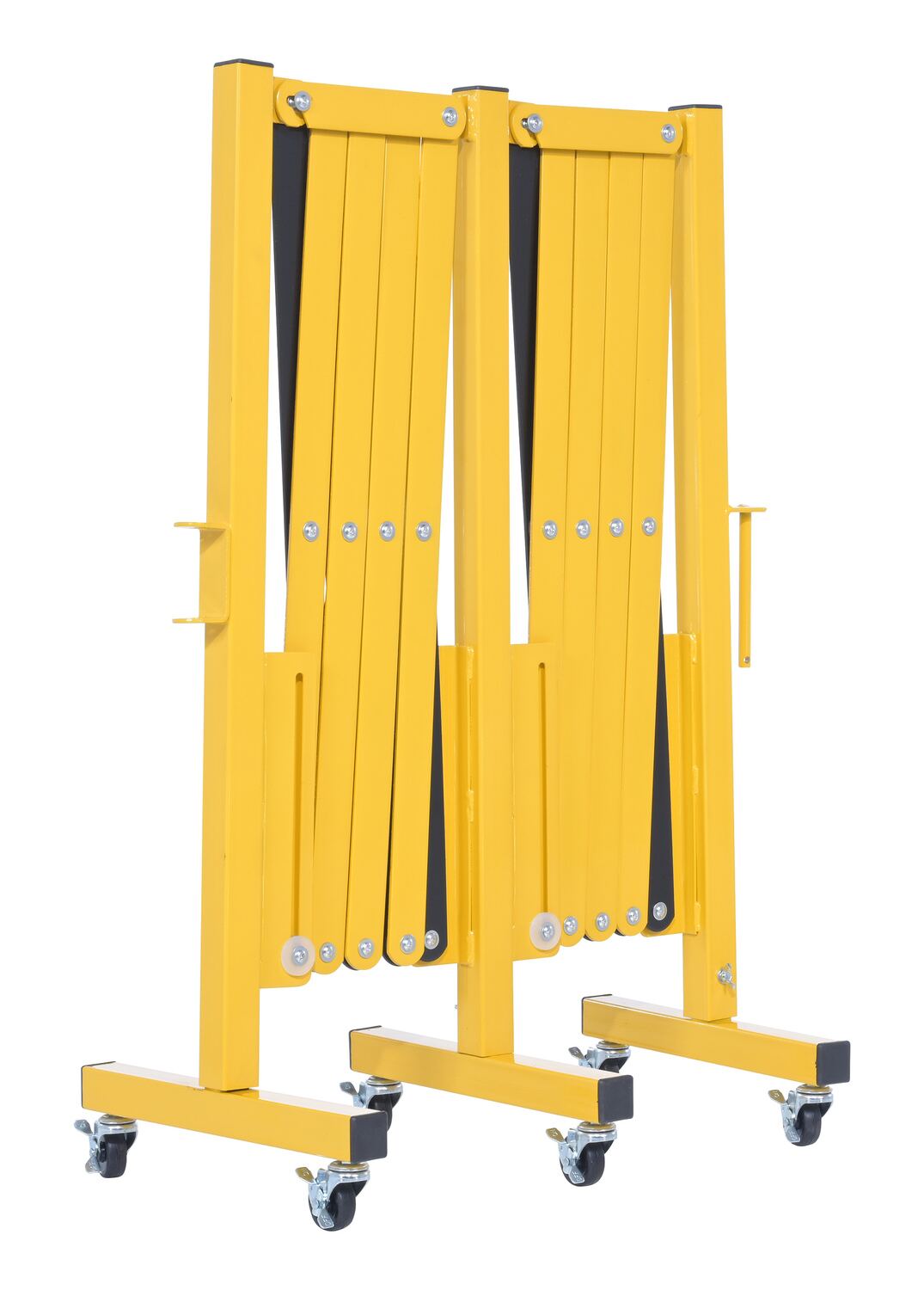

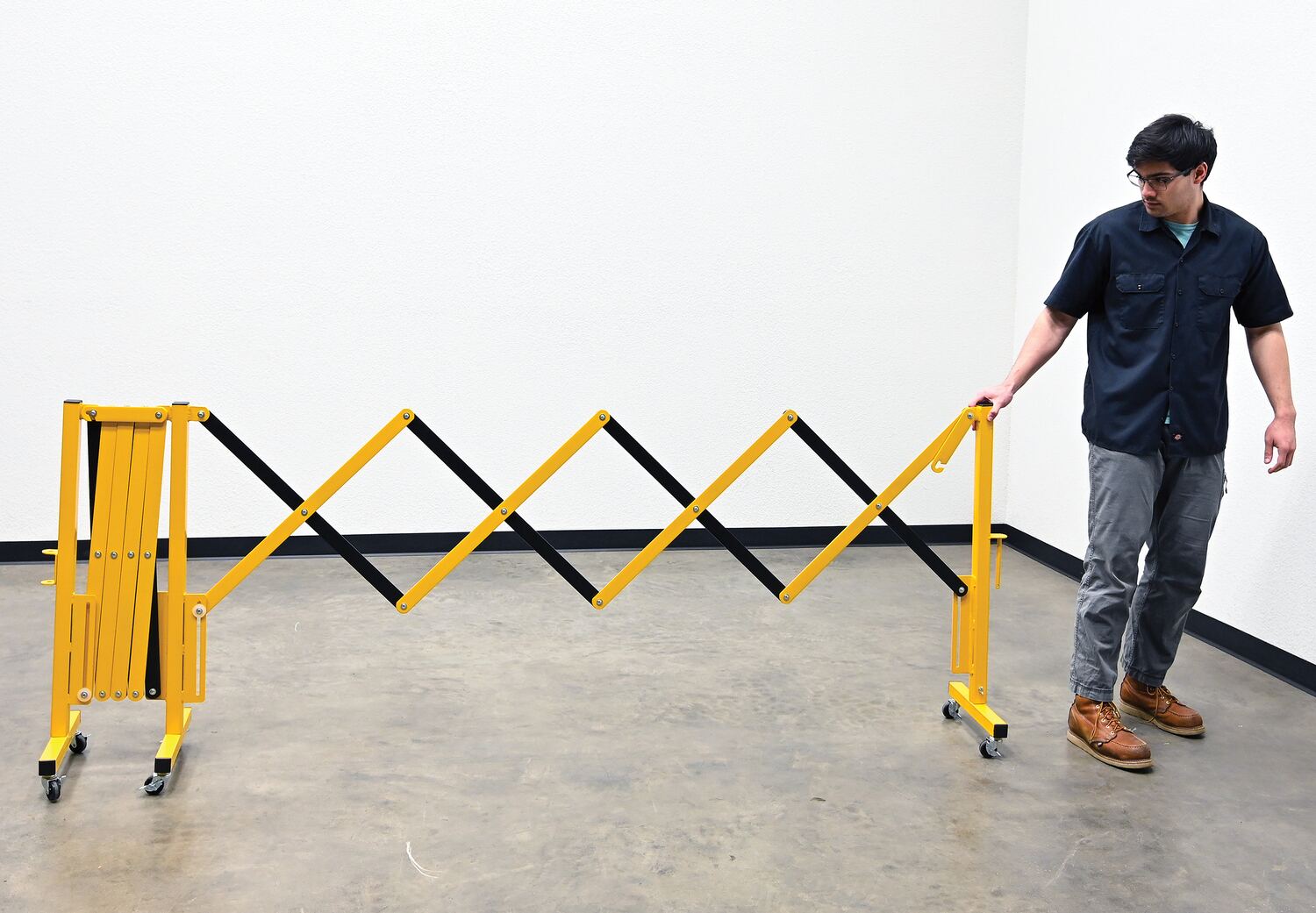

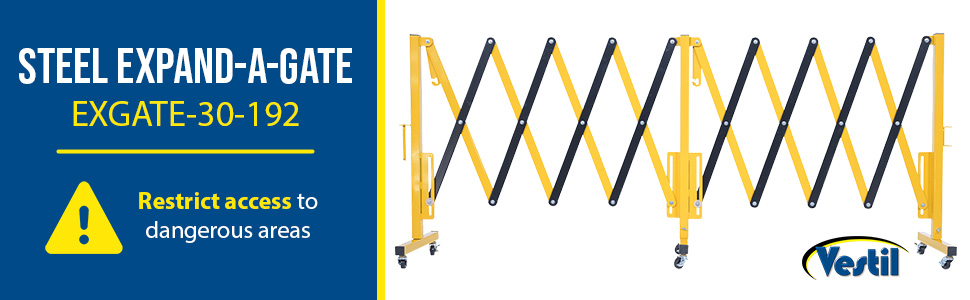

EXGATE-30-192 90 Days Limited WarrantySteel Expand A Gate 192 in Yellow/BlackOverall Expanded Width (in.): 192
105

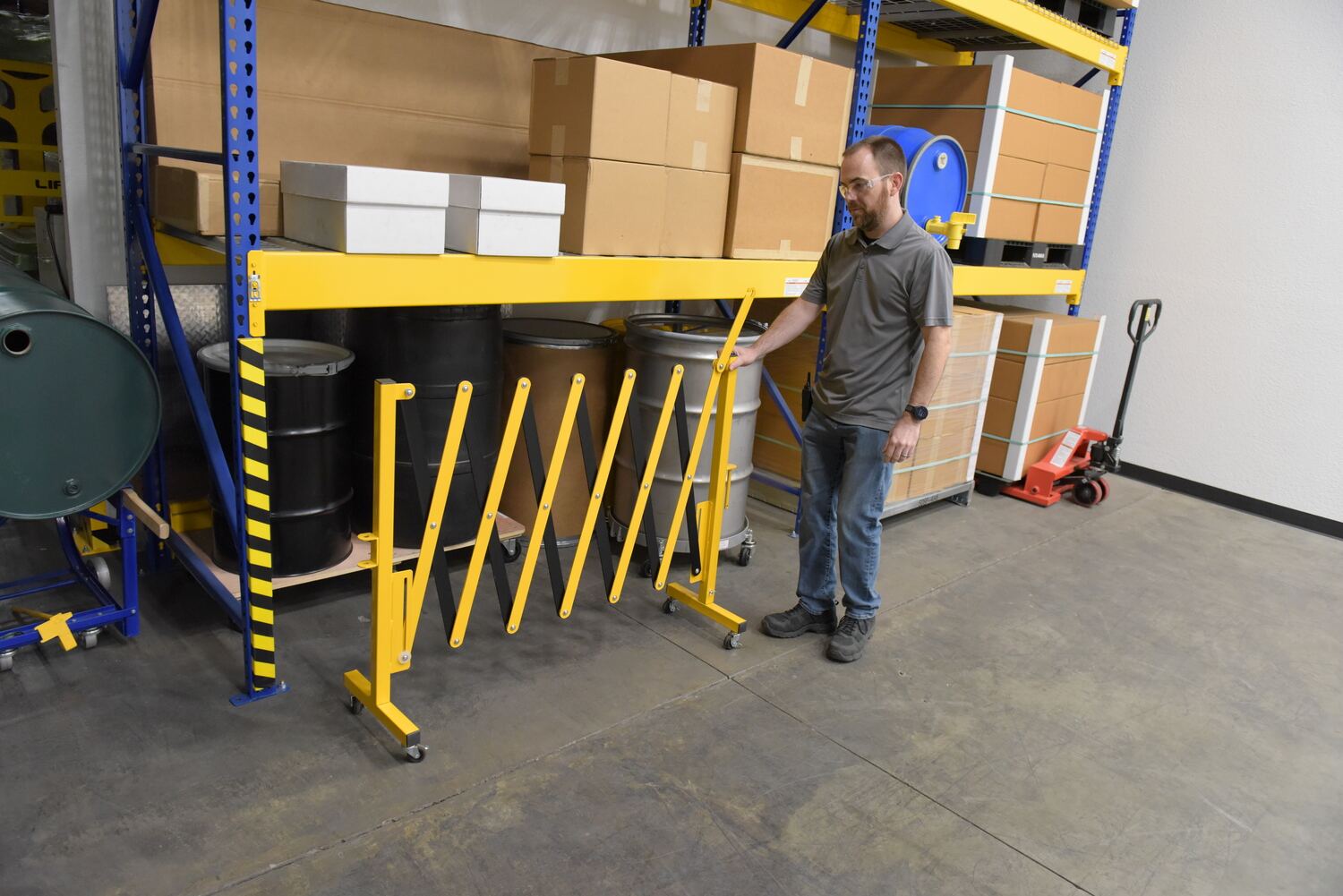

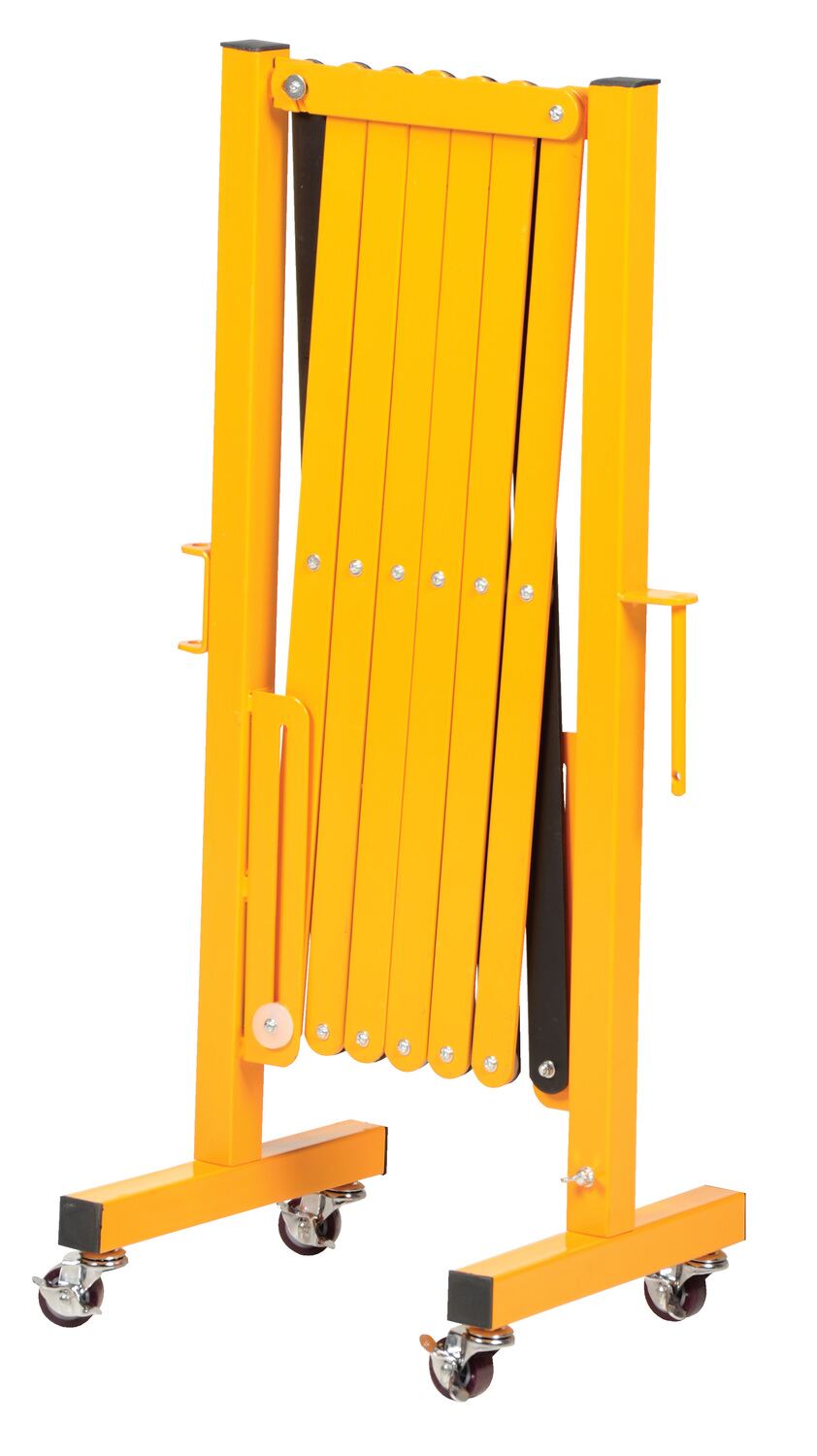

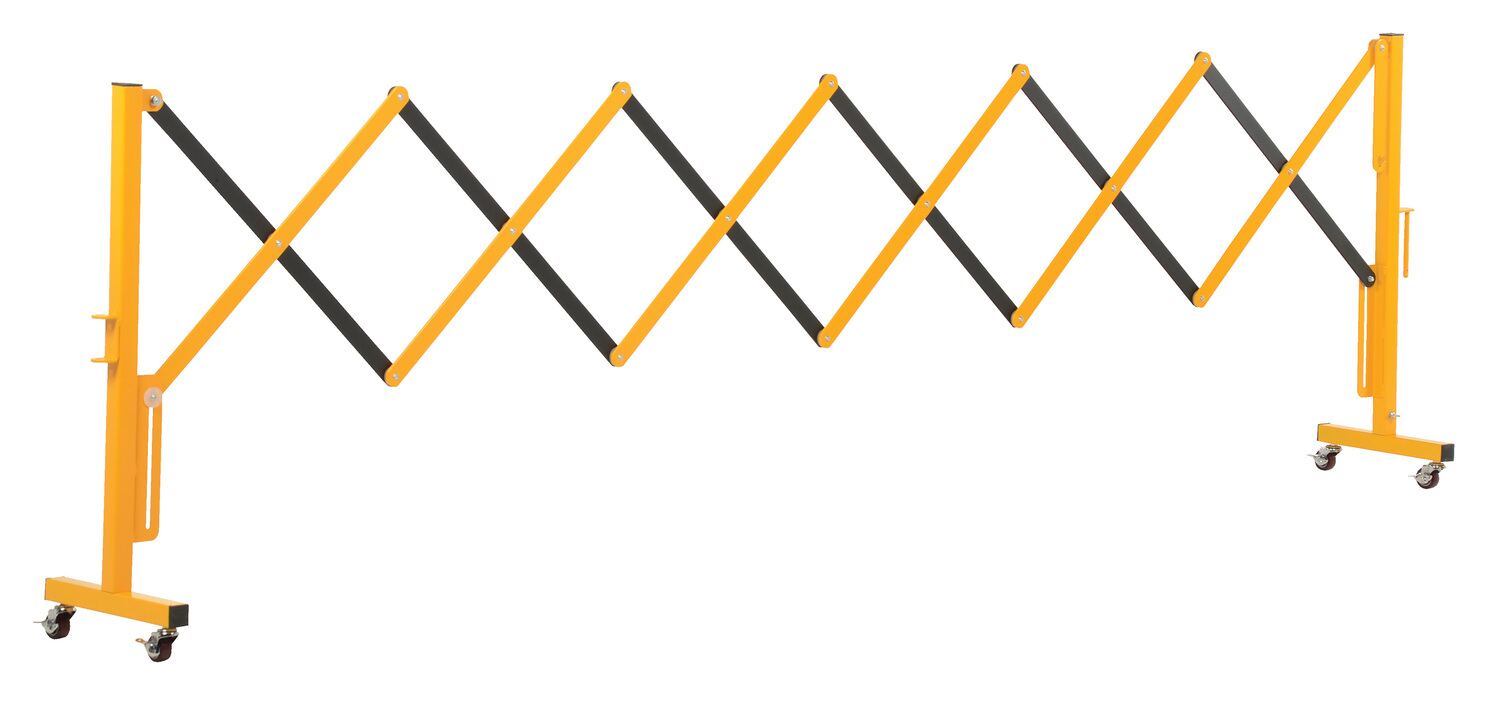

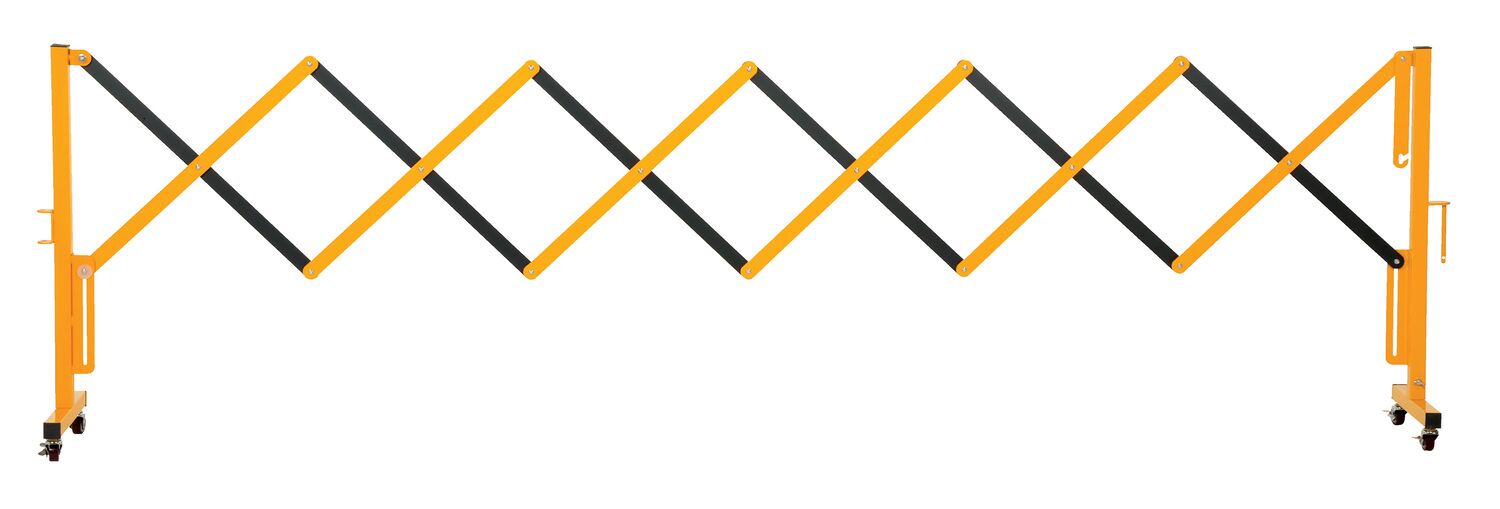

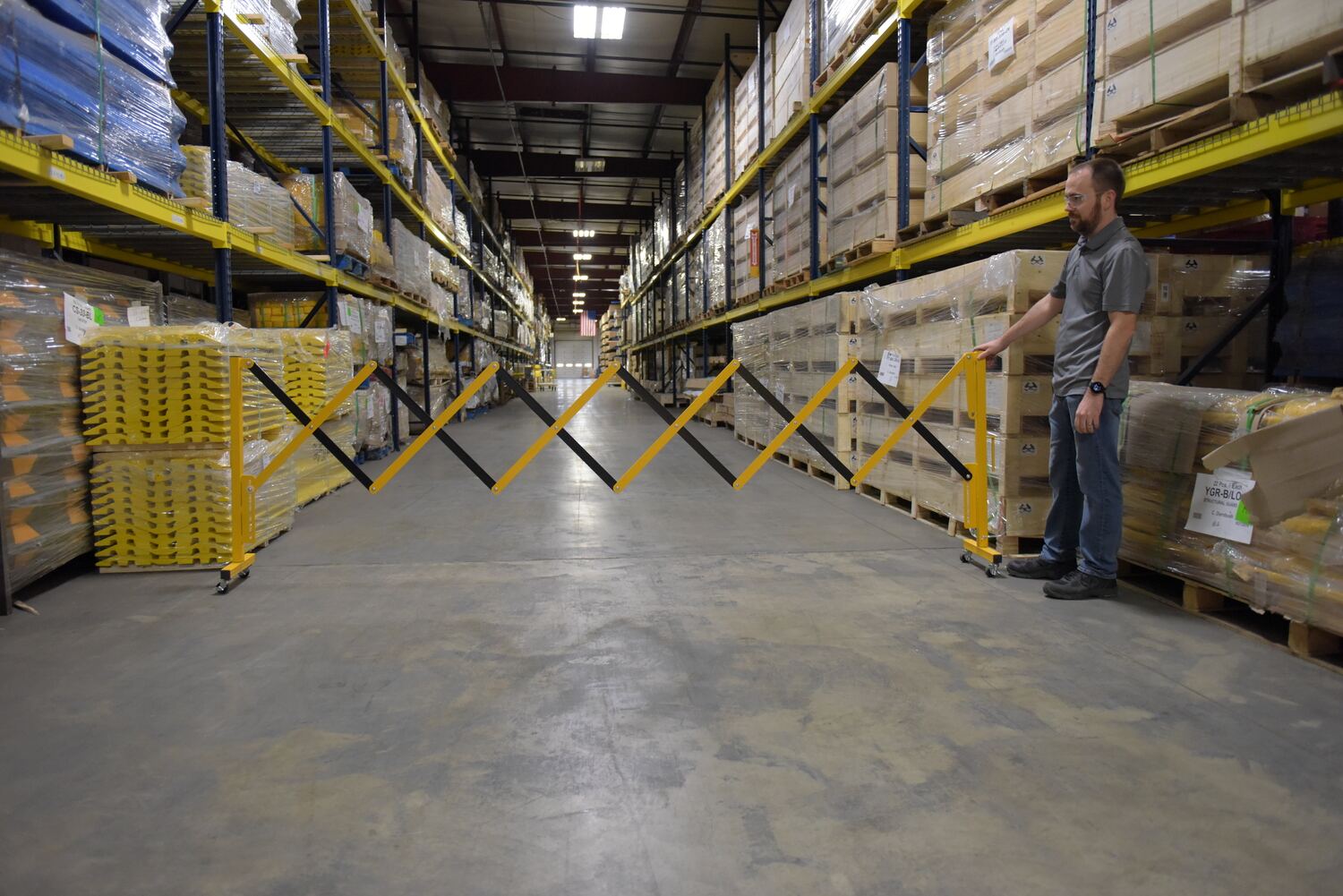

EXGATE-30-C 90 Days Limited WarrantySteel Expand-A-Gate with Casters 45 In. x 45 In. x 39 In. 144 In. YellowOverall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139		58

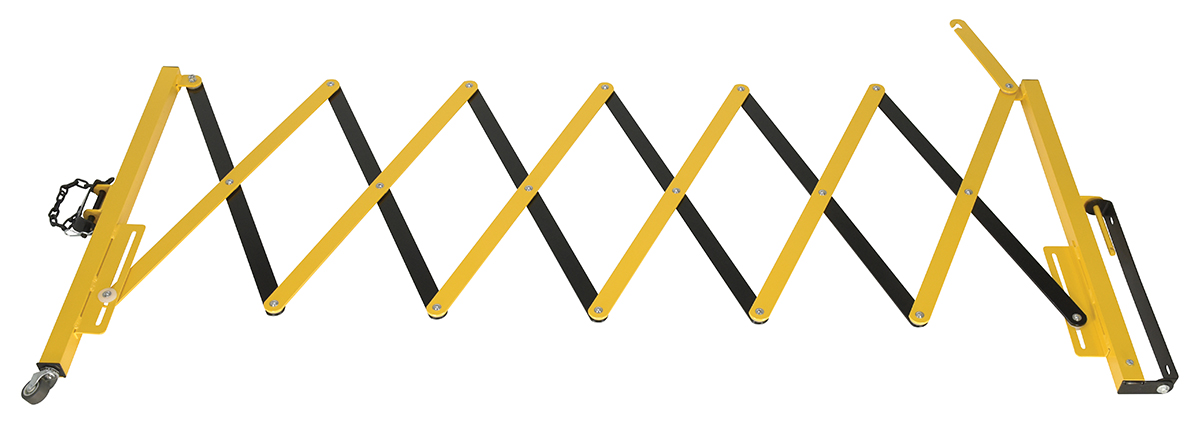

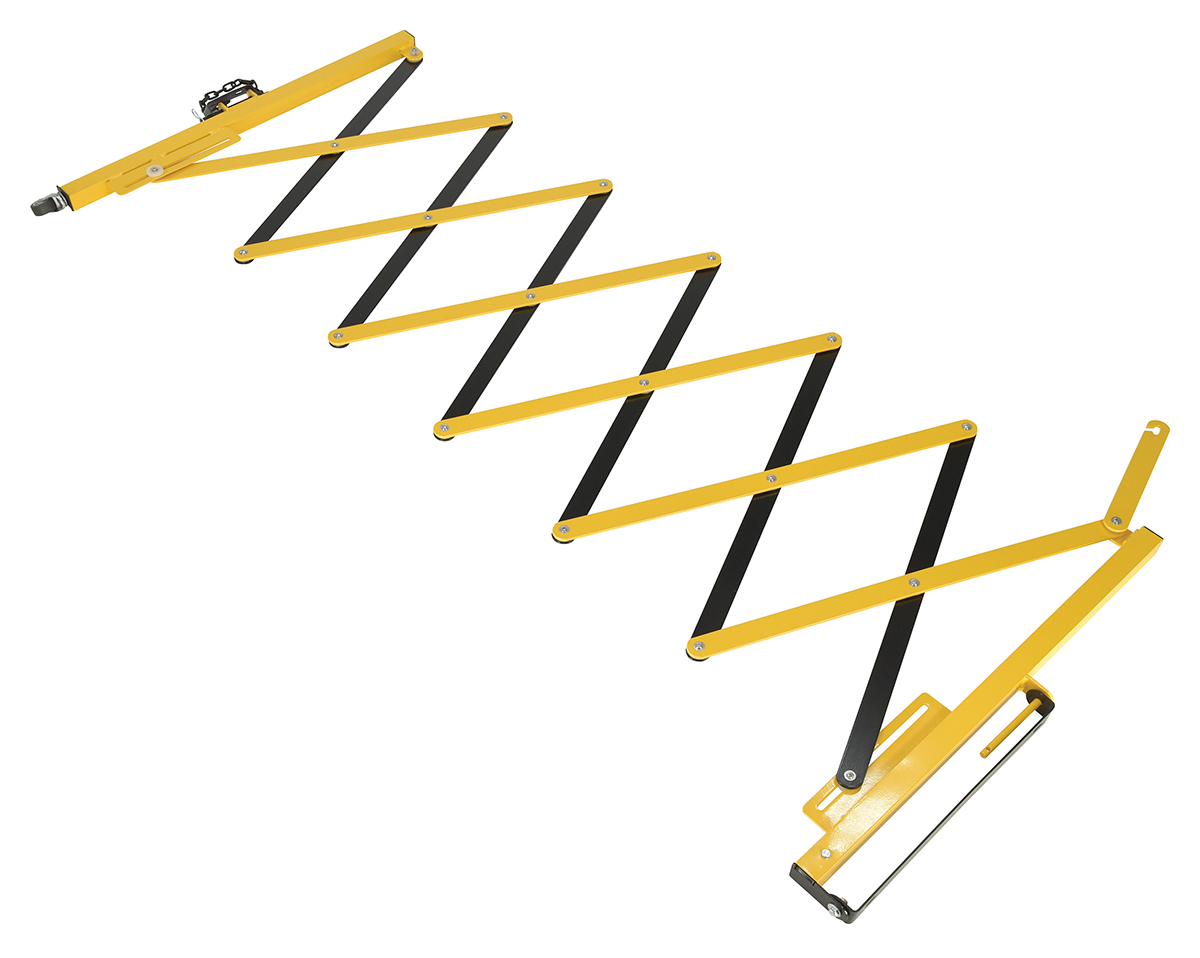

EXGATE-30-W 90 Days Limited WarrantySteel Expand-A-Gate with Wall and Rack Mount 144 In. YellowOverall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139		62

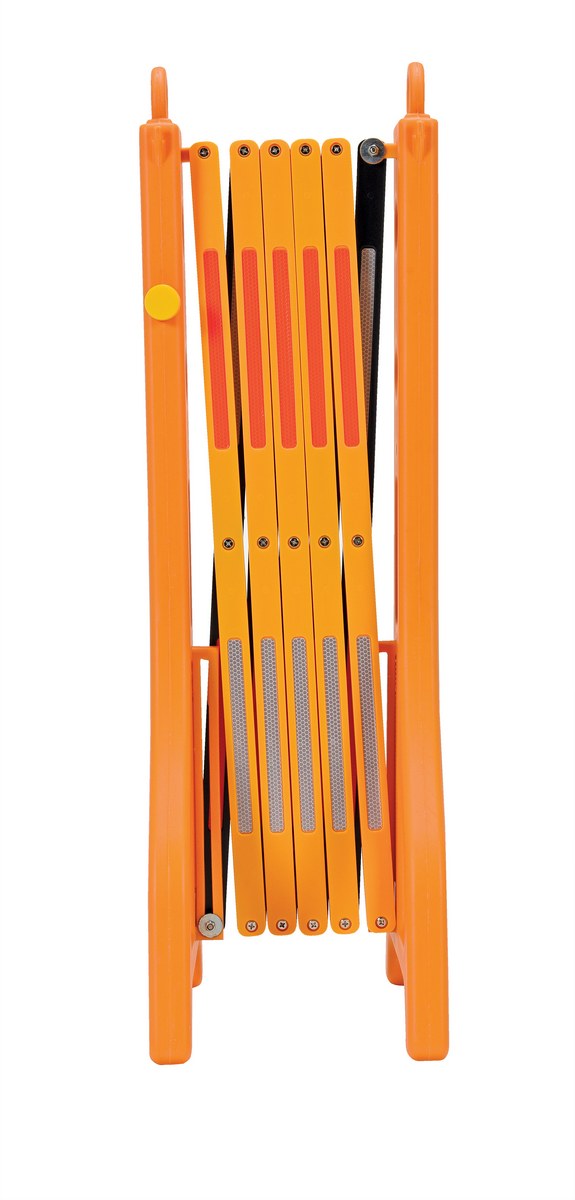

PEXGATE-30 90 Days Limited WarrantyPlastic Expand-A-Gate 15 In. x 11-1/2 In. x 38 In. YellowExpanded Width (in.): 122
Gate Under clearance Extended (in.): 13-1/2		9

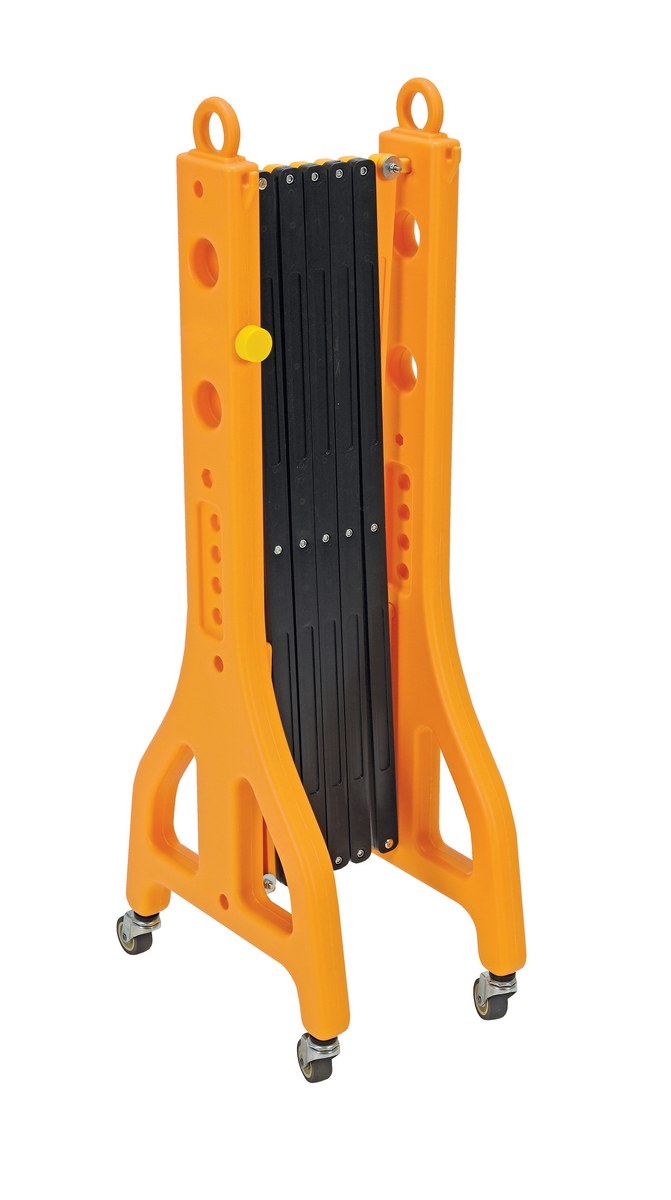

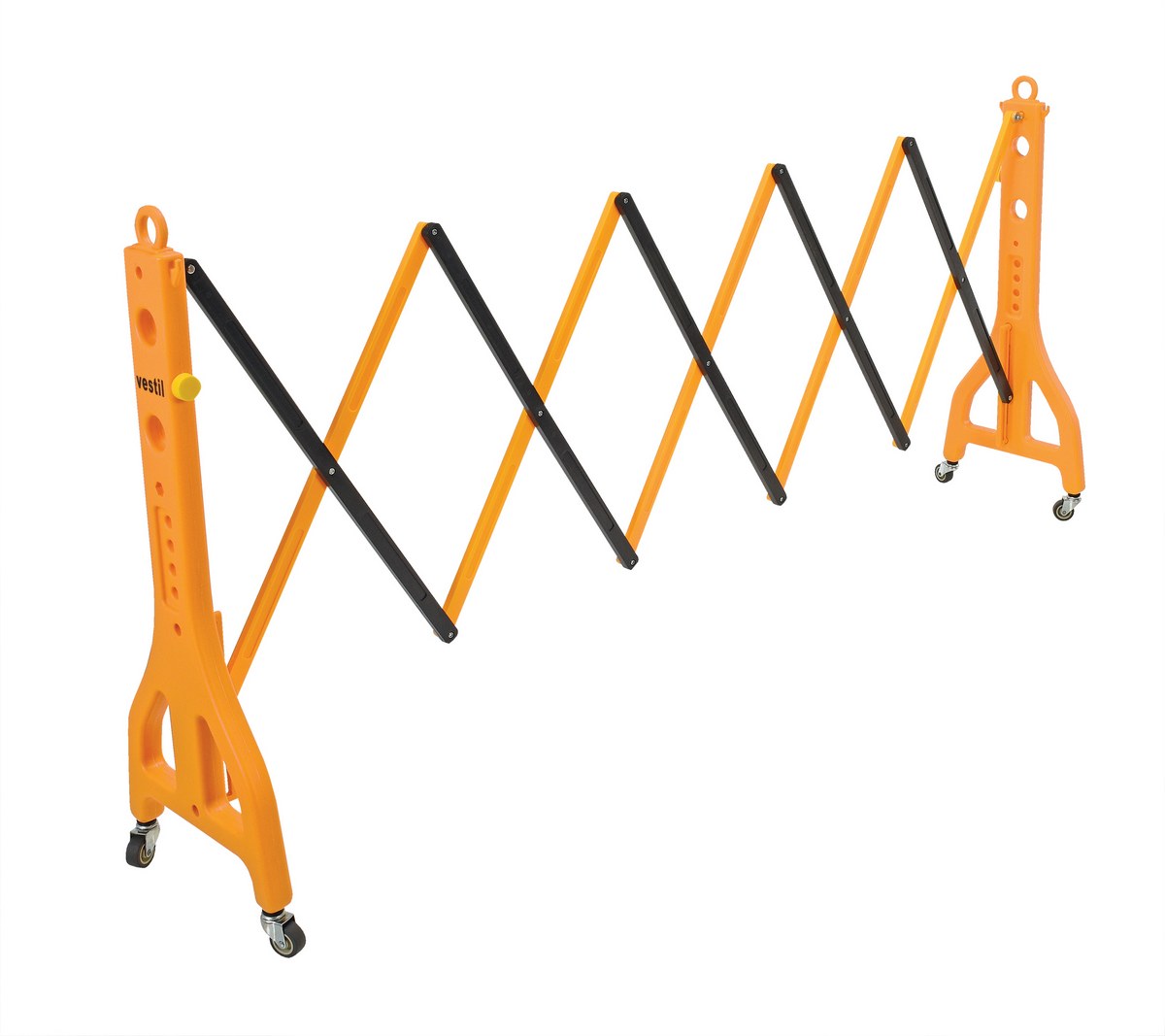

PEXGATE-30-C 90 Days Limited WarrantyPlastic Expand-A-Gate with Casters 15 In. x 11-1/2 In. x 40-3/4 In. YellowExpanded Width (in.): 122
Swivel Caster (qty.): 4		11

KEY: = Click For Expanded Model Details -- = 48hr Quickship item -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

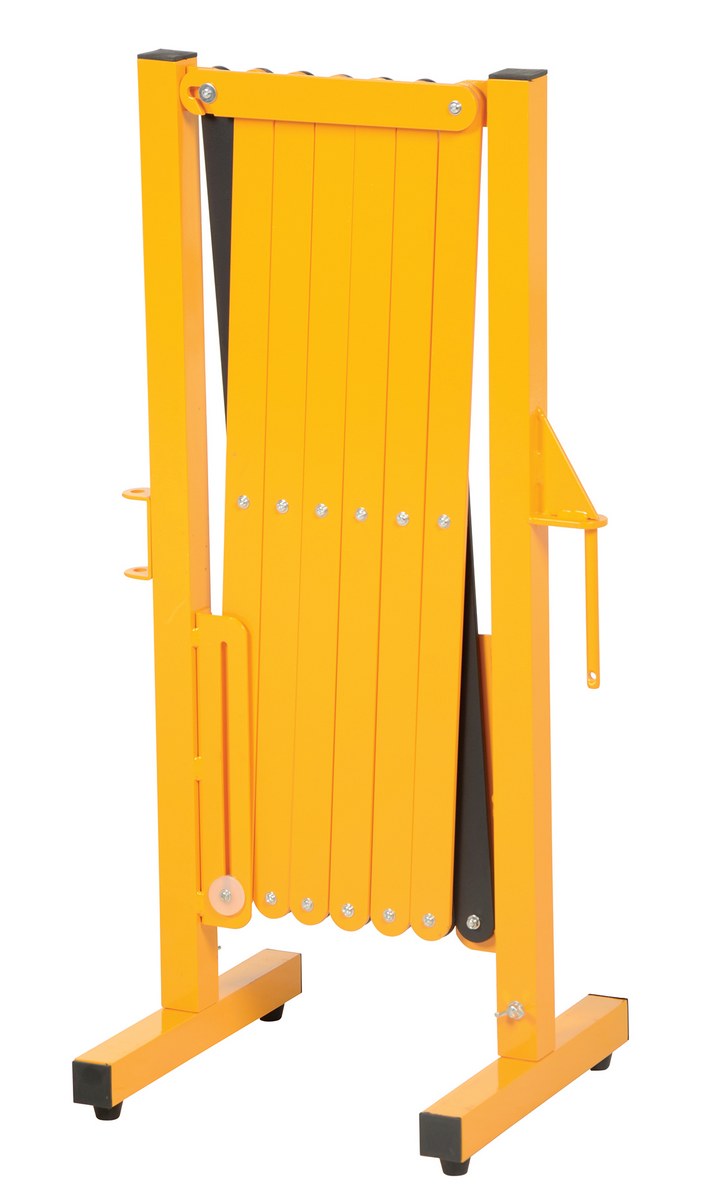

Aluminum Expand-A-Gate 15 In. x 19-3/4 In. x 38 In. Yellow


Unit: EACH
Size: 19.75W x 15L x 38H
Weight: 25
90 Days Limited Warranty
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139

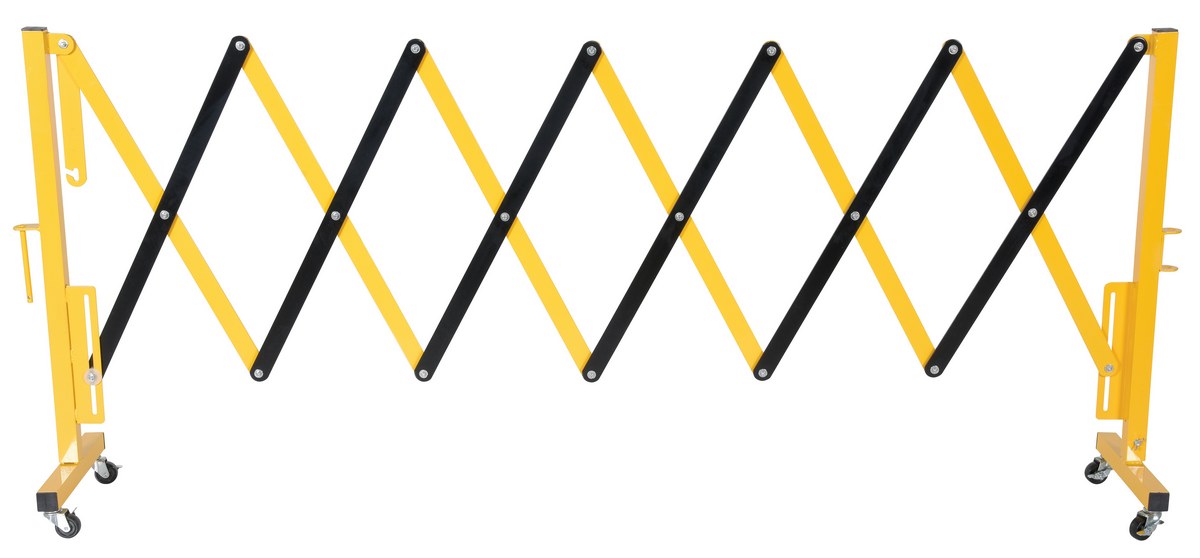

Aluminum Expand-A-Gate with Casters 15 In. x 19-3/4 In. x 40-1/8 In. Yellow


Unit: EACH
Size: 19.75W x 15L x 40.125H
Weight: 28
90 Days Limited Warranty
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139

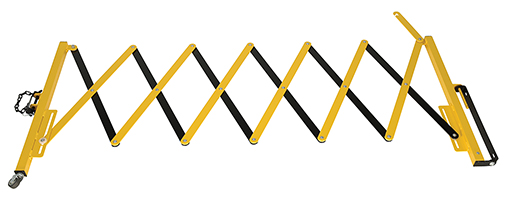

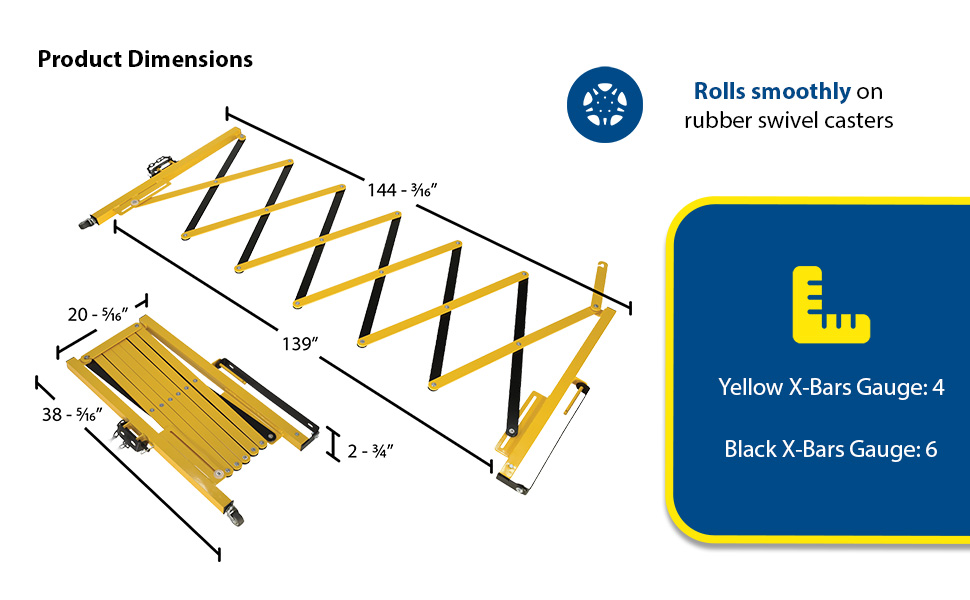

Aluminum Expand-A-Gate Wall Mount 2-3/4 In. x 20-5/16 In. x 38-5/16 In. Yellow


Unit: EACH
Size: 20.3125W x 2.75L x 38.3125H
Weight: 35
90 Days Limited Warranty
Overall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139

Steel Expand-A-Gate 144 In. Yellow


Unit: EACH
Size: 19.75W x 15L x 38H
Weight: 55
90 Days Limited Warranty
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139

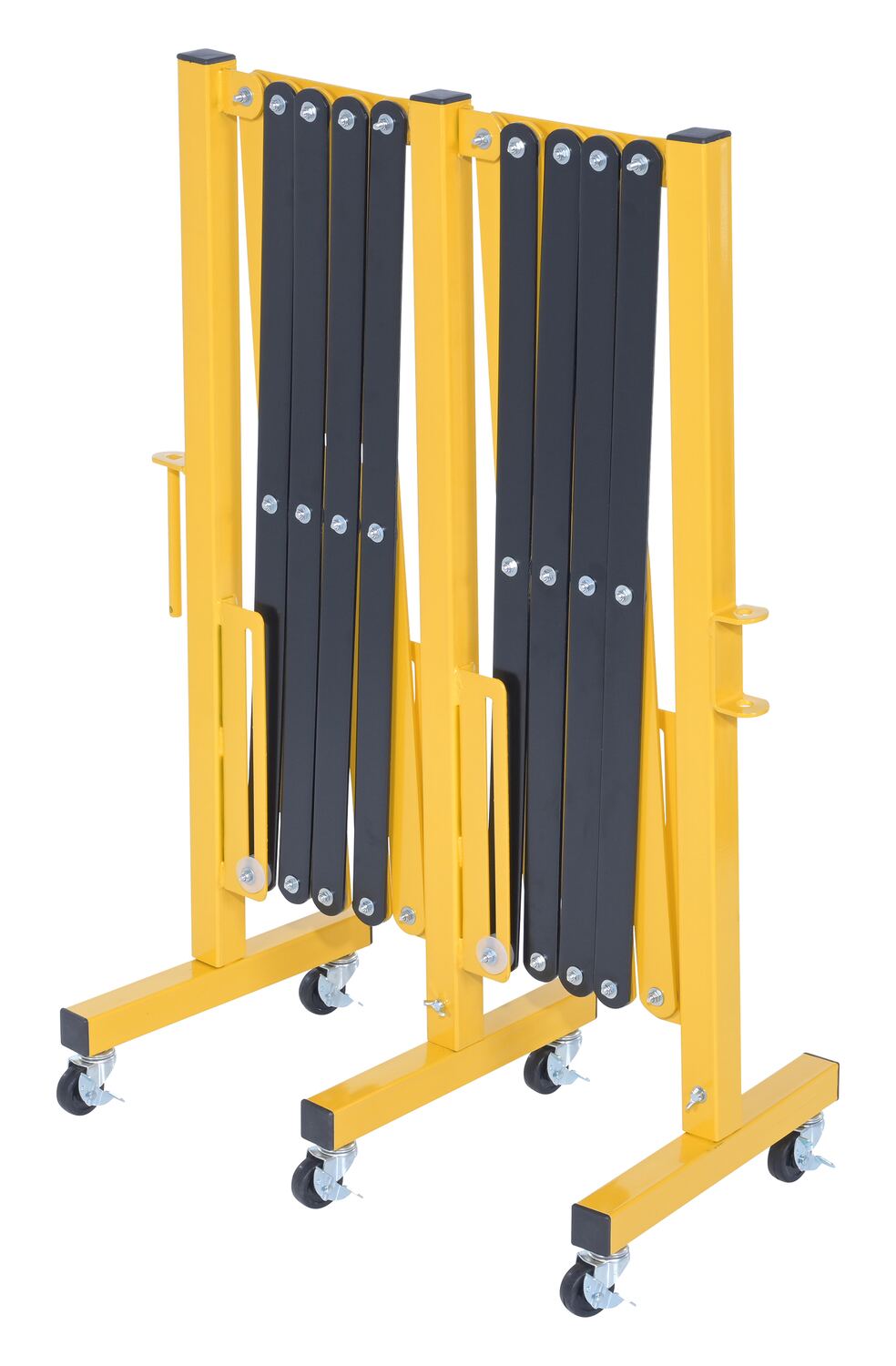

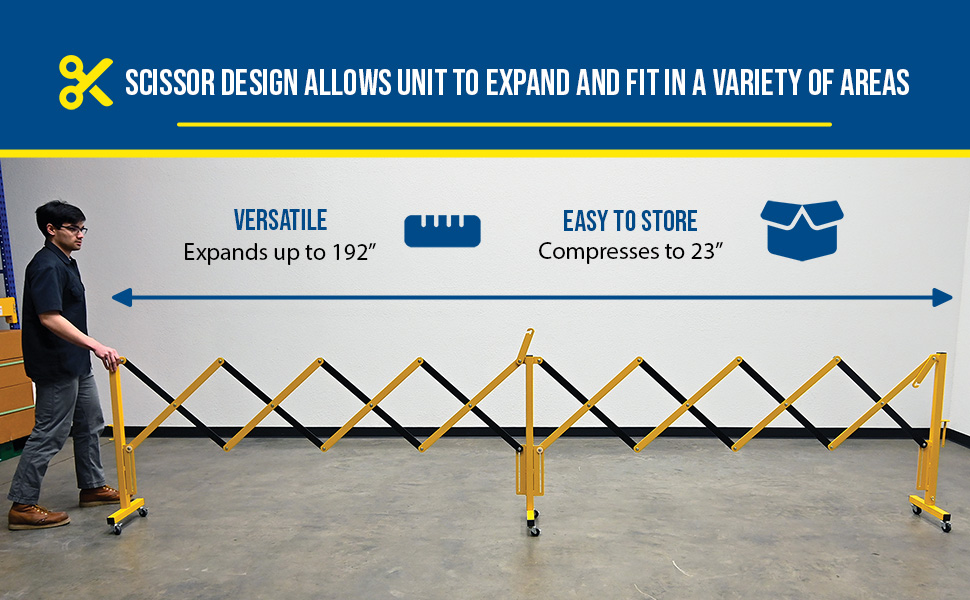

Steel Expand A Gate 192 in Yellow/Black


Unit: EACH
Size: 197W x 14.9375L x 39.75H
Weight: 78
90 Days Limited Warranty
Overall Expanded Width (in.): 192

Overall Expanded Width (in.): 192

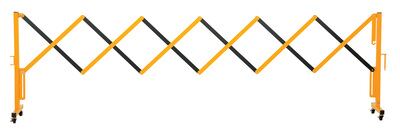

Steel Expand-A-Gate with Casters 45 In. x 45 In. x 39 In. 144 In. Yellow


Unit: EACH
Size: 19.75W x 15L x 40.125H
Weight: 58
90 Days Limited Warranty
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 143-11/16
Expanded Gate Width (in.): 139

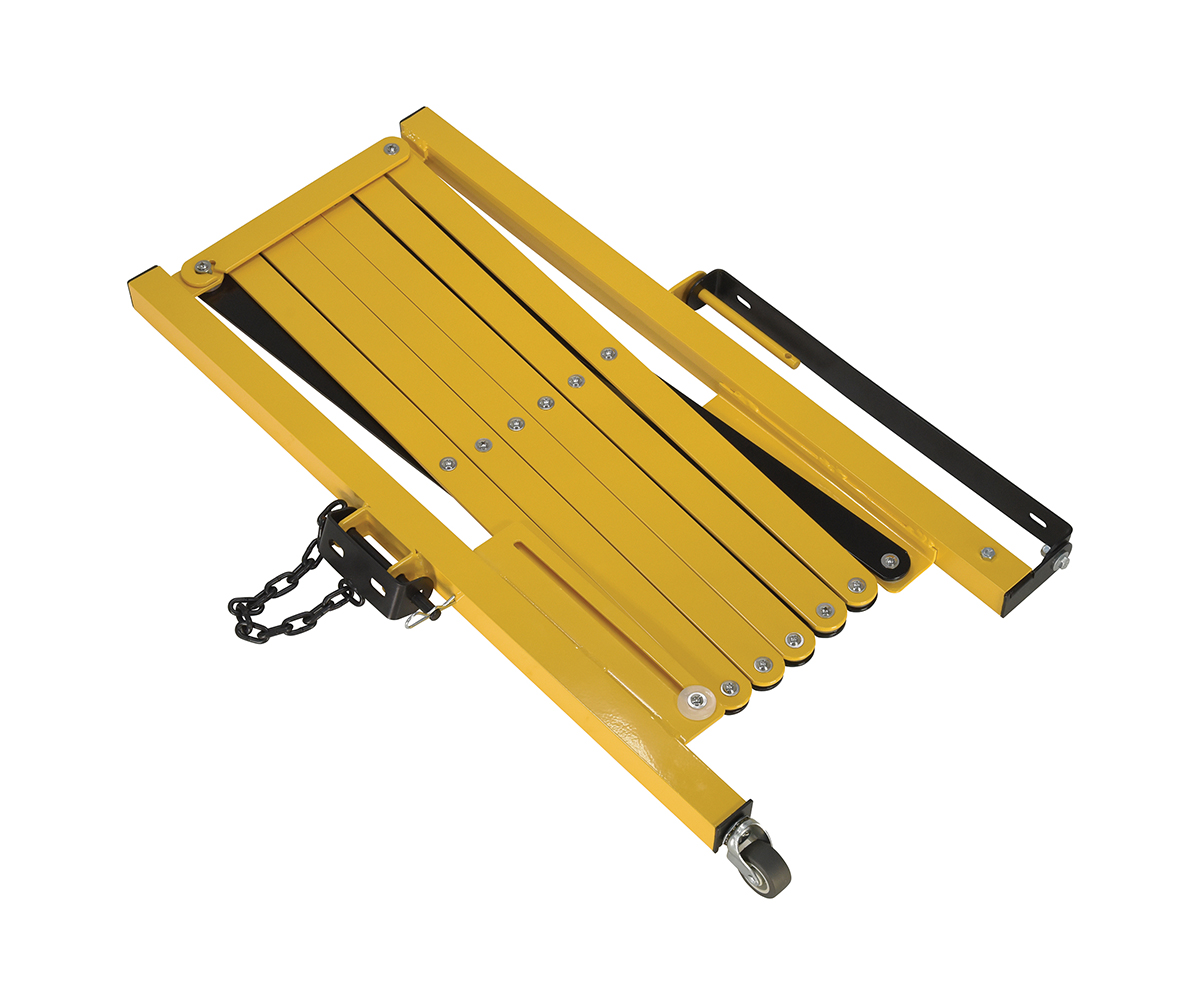

Steel Expand-A-Gate with Wall and Rack Mount 144 In. Yellow


Unit: EACH
Size: 20.3125W x 2.1875L x 38.3125H
Weight: 62
90 Days Limited Warranty
Overall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139
Overall Expanded Width (in.): 144-3/16
Expanded Gate Width (in.): 139

Plastic Expand-A-Gate 15 In. x 11-1/2 In. x 38 In. Yellow


Unit: EACH
Size: 11.5W x 15L x 38H
Weight: 9
90 Days Limited Warranty
Expanded Width (in.): 122
Gate Under clearance Extended (in.): 13-1/2
Expanded Width (in.): 122
Gate Under clearance Extended (in.): 13-1/2

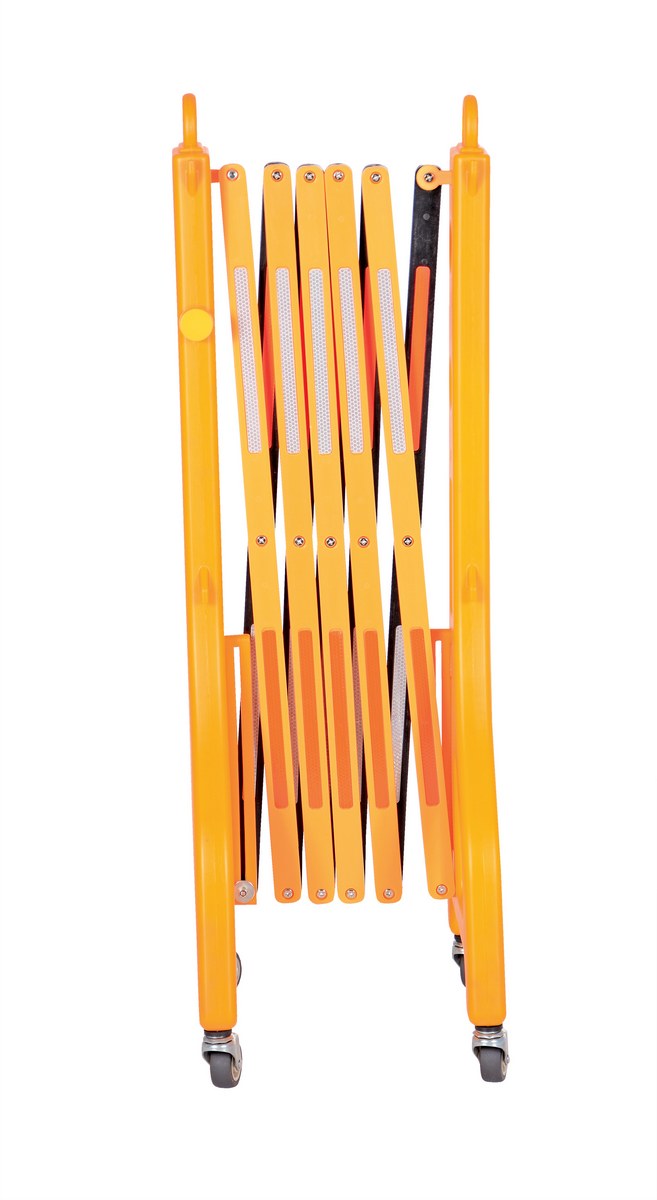

Plastic Expand-A-Gate with Casters 15 In. x 11-1/2 In. x 40-3/4 In. Yellow


Unit: EACH
Size: 11.5W x 15L x 40.75H
Weight: 11
90 Days Limited Warranty
Expanded Width (in.): 122
Swivel Caster (qty.): 4
Expanded Width (in.): 122
Swivel Caster (qty.): 4

Expand-A-Gate Options
Model Image PDF's Overall Collapsed
Width		 Expanded Gate
Width		 Overall
Height		 Wt.
(lbs)

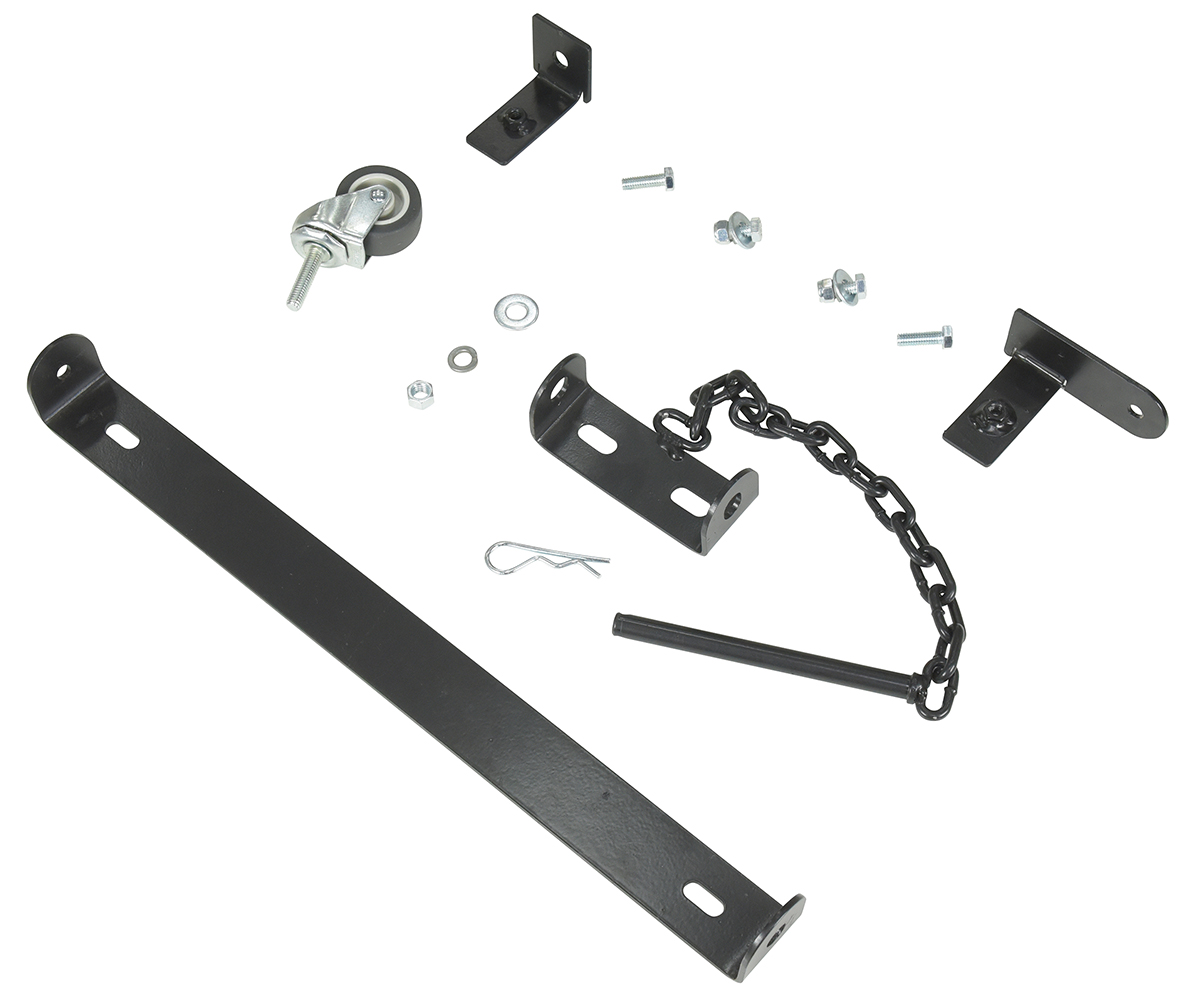

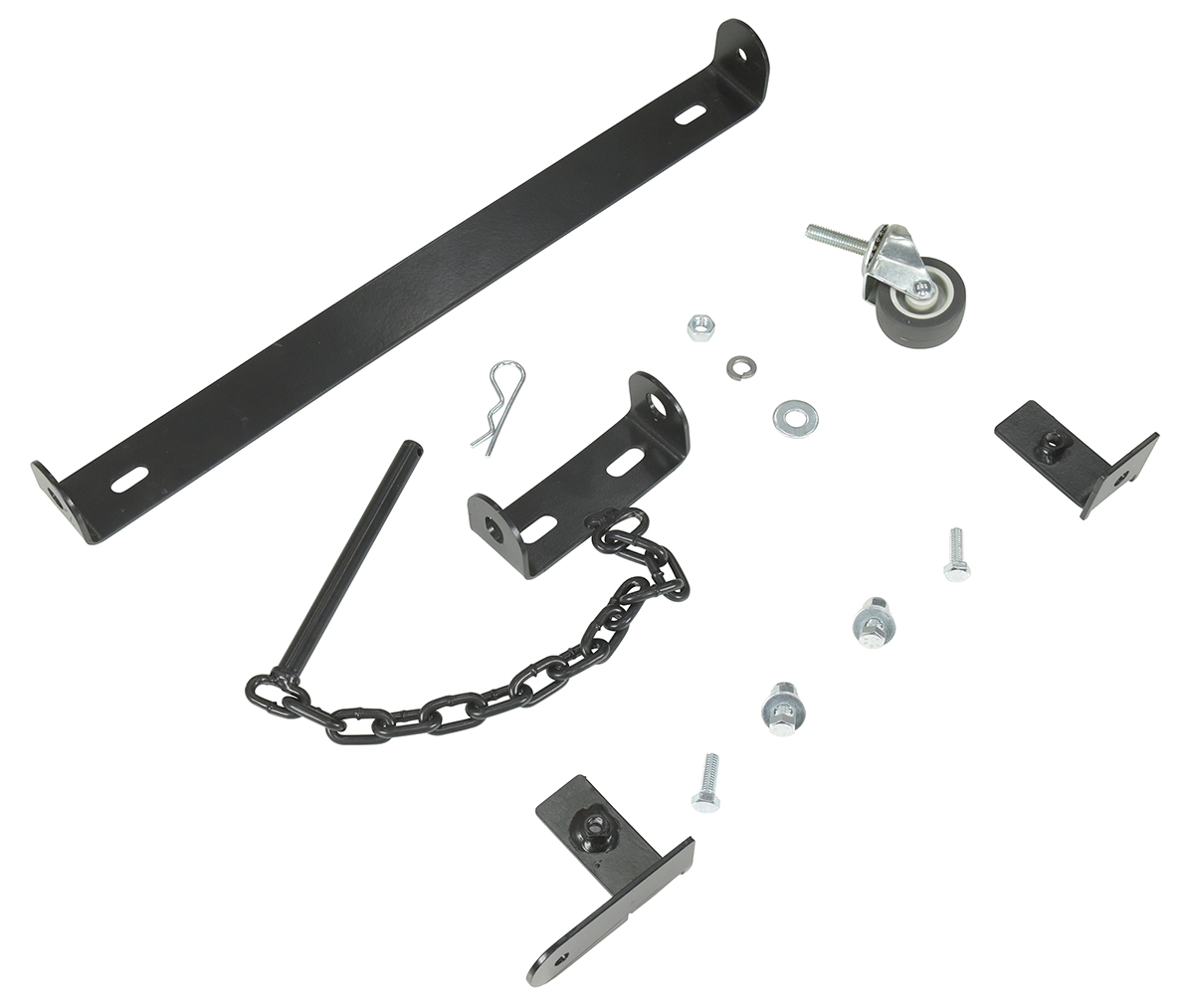

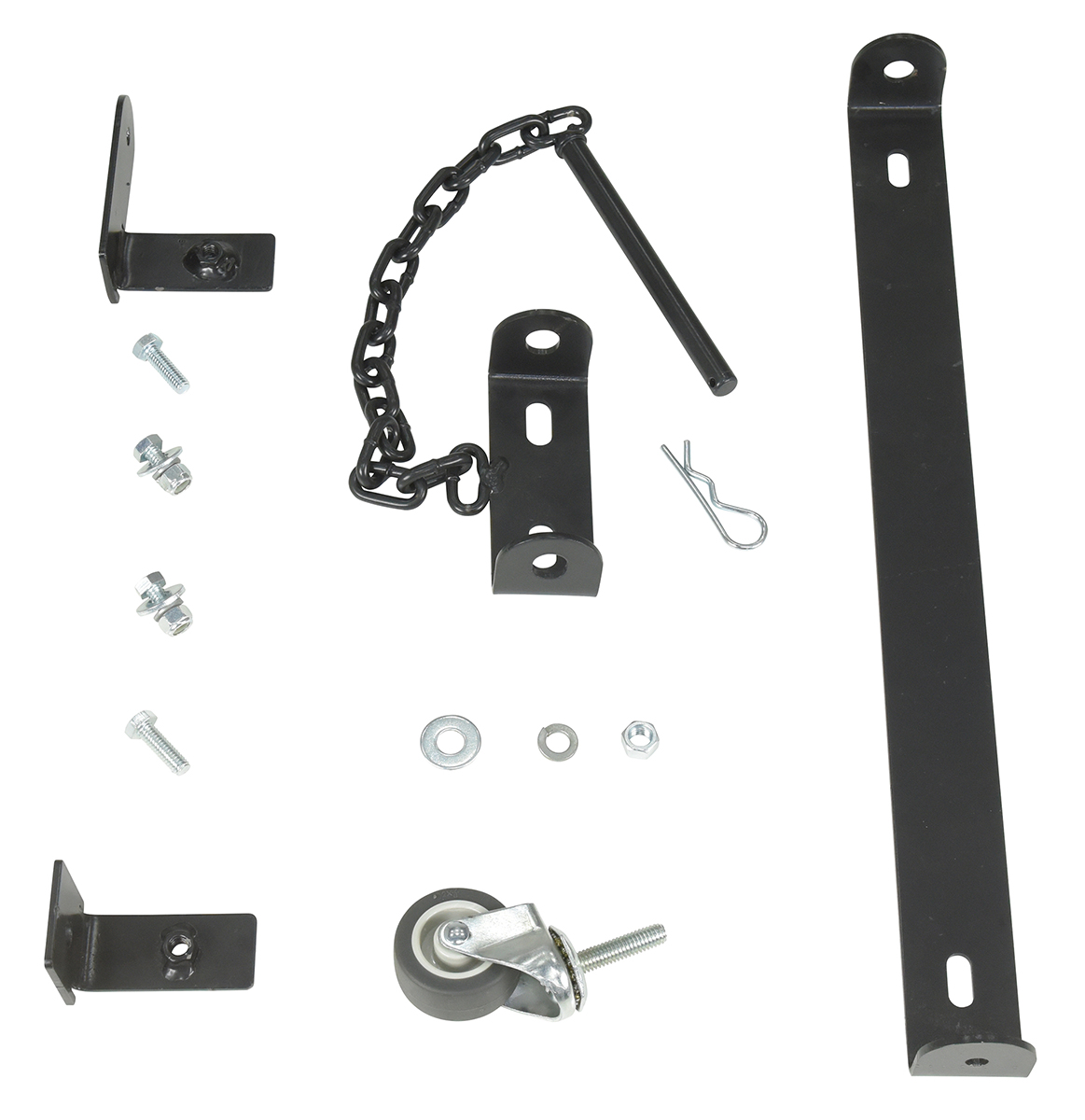

EXGATE-W-KIT - Wall Mount Kit 5

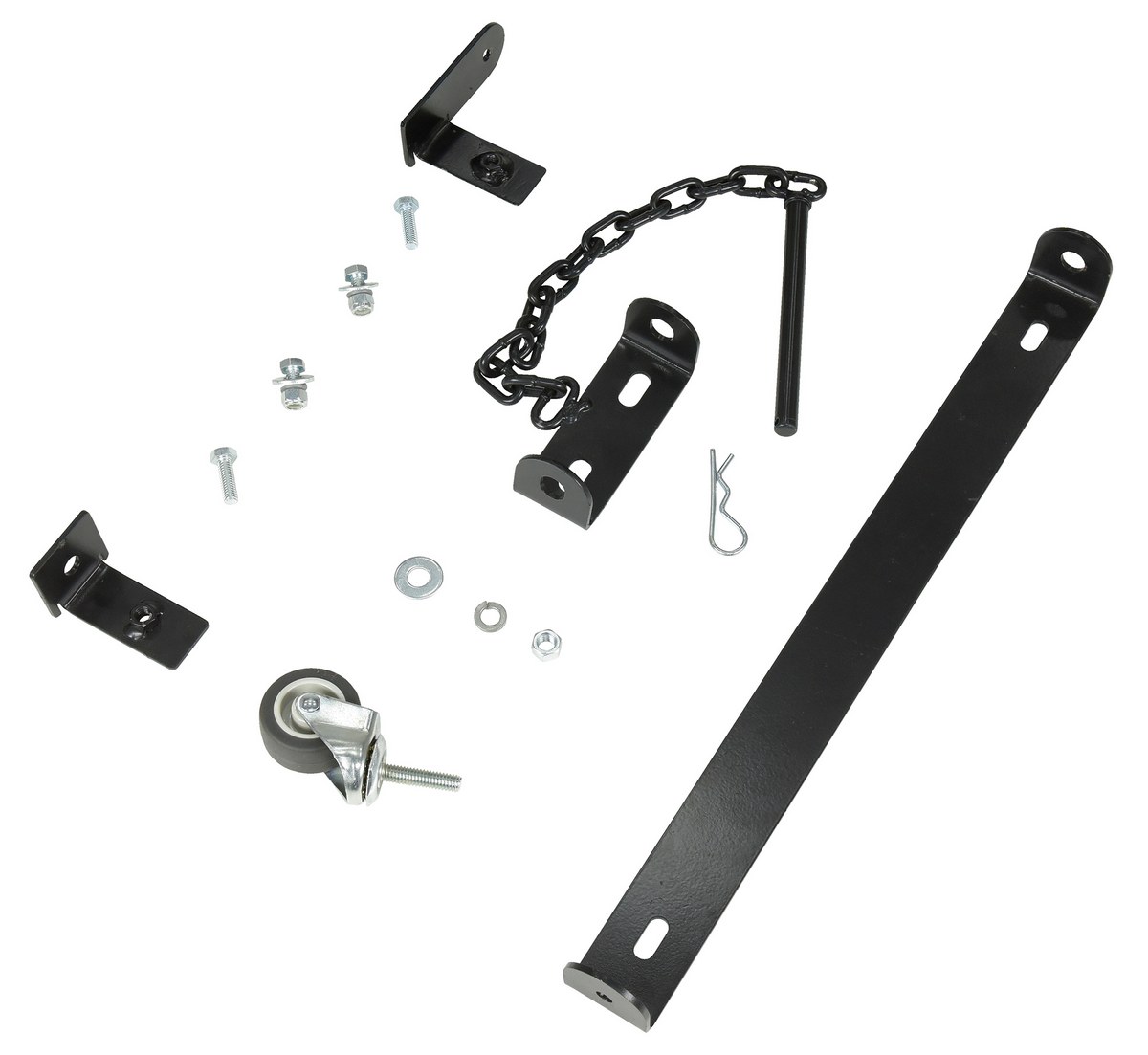

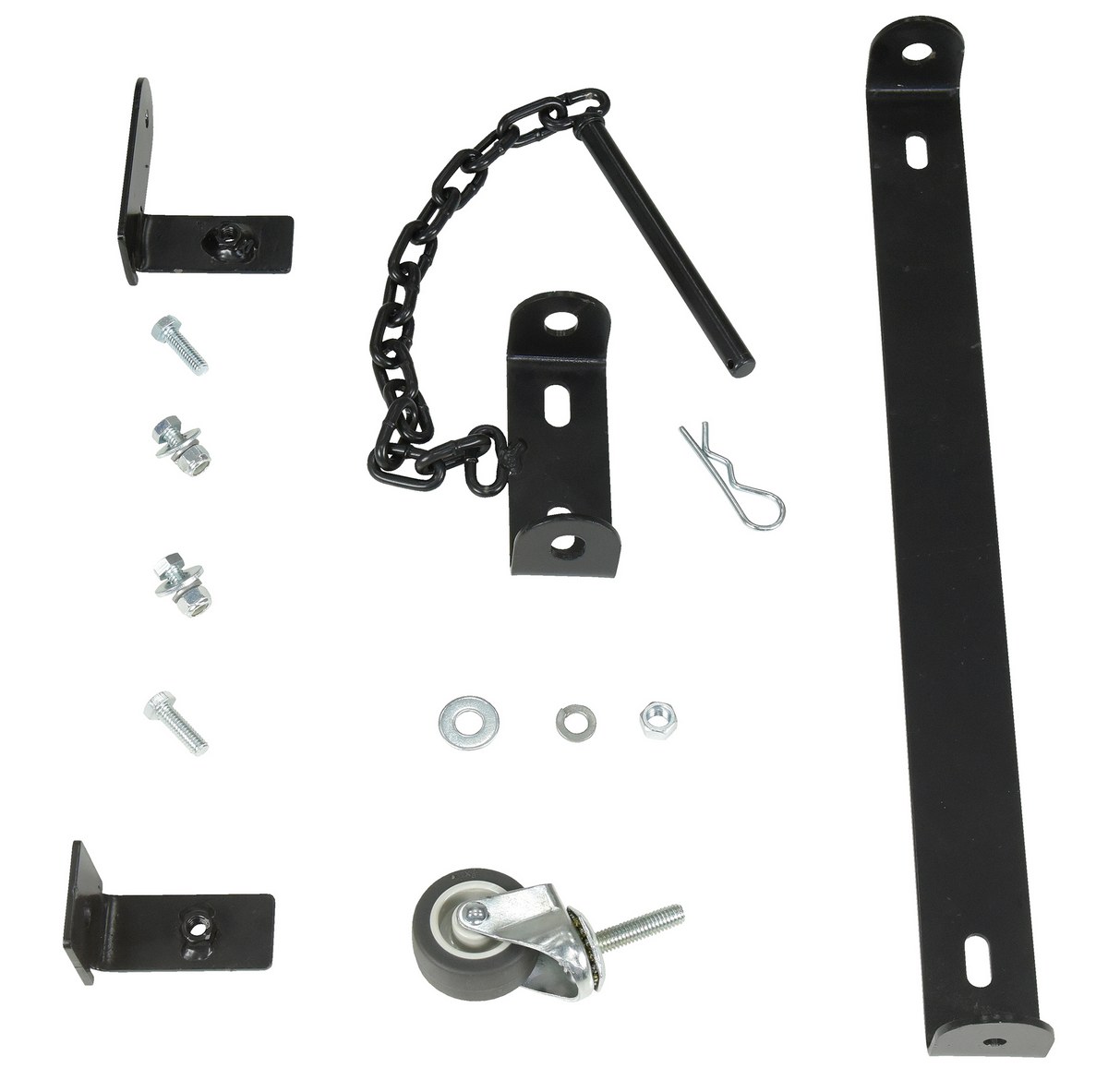

ALEXGATE-W-KIT - Wall Mount Kit 5
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Expand-A-Gates PDF's will open in a new window when clicked.

Manuals


EXGATE-30 & ALEXGATE-30
Owners Manual

EXGATE-30-C & ALEXGATE-30-C
Owners Manual

PEXGATE-30%20&%20PEXGATE-30-C
Owners Manual

PEXGATE
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ALEXGATE-30-C

ALEXGATE-W-KIT

EXGATE-30

EXGATE-30-C

EXGATE-30-W

EXGATE-W-KIT

Testing Certificates


ALEXGATE-30

ALEXGATE-30-C

ALEXGATE-30-W

ALEXGATE-W-KIT

EXGATE-30

EXGATE-30-192

EXGATE-30-C

EXGATE-30-W

EXGATE-W-KIT

PEXGATE-30

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets








Visit Our Youtube Channel For All Available Videos For All Products


ALEXGATE-30-C
 ALEXGATE-30-C ALEXGATE-30-C
 ALEXGATE-30-C ALEXGATE-30-C
 ALEXGATE-30-C ALEXGATE-30-W
 ALEXGATE-30-W ALEXGATE-30-W
 ALEXGATE-30-W ALEXGATE-30-W
 ALEXGATE-30-W ALEXGATE-30
 ALEXGATE-30 ALEXGATE-30
 ALEXGATE-30 ALEXGATE-30
 ALEXGATE-30 ALEXGATE-W-KIT
 ALEXGATE-W-KIT ALEXGATE-W-KIT
 ALEXGATE-W-KIT ALEXGATE-W-KIT
 ALEXGATE-W-KIT EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-192
 EXGATE-30-192 EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-C
 EXGATE-30-C EXGATE-30-W
 EXGATE-30-W EXGATE-30-W
 EXGATE-30-W EXGATE-30-W
 EXGATE-30-W EXGATE-30
 EXGATE-30 EXGATE-30
 EXGATE-30 EXGATE-30
 EXGATE-30 EXGATE-W-KIT
 EXGATE-W-KIT EXGATE-W-KIT
 EXGATE-W-KIT EXGATE-W-KIT
 EXGATE-W-KIT PEXGATE-30-C
 PEXGATE-30-C PEXGATE-30-C
 PEXGATE-30-C PEXGATE-30-C
 PEXGATE-30-C PEXGATE-30-C
 PEXGATE-30-C PEXGATE-30
 PEXGATE-30 PEXGATE-30
 PEXGATE-30 PEXGATE-30
 PEXGATE-30 PEXGATE-30
 PEXGATE-30
We will continue adding new product images to each gallery as they become available. Check back soon.

Q: Can the ALEXGATE be locked?

A: The gate cannot be locked, however there is a optional wall mount bracket.

Q: What is the diameter of the hole on the drop pin?

A: The diameter of the hole is 1/2".




Print Friendly

Related or Similar Products:

Folding Fabric Barrier
Product

Folding Fabric Barrier

Galvanized Construction Barrier Systems
Product

Galvanized Construction Barrier Systems

Multi-Purpose Barricades
Product

Multi-Purpose Barricades

Mobile Safety Barrier
Product

Mobile Safety Barrier

Dock Chain Bollard Barrier Systems
Product

Dock Chain Bollard Barrier Systems

Economical Safety Swing Gate
Product

Economical Safety Swing Gate

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Expand-A-Gates




Designed to set up quickly and easily wherever and whenever they are needed. Ideal for preventing potential accidents. Lightweight design allows personnel to quickly retrieve the gate and limit access to unsafe areas. Smooth operating scissor action. Interlocking and nestable. Suffix -C features casters. Suffix W features one swivel caster with a wall/rack mounting kit.

Model PEXGATE is constructed of heavy-duty molded yellow and black plastic. One side of gate includes reflectors for better visibility. End pieces are hollow and may be filled with liquid for added weight. Assembly required.

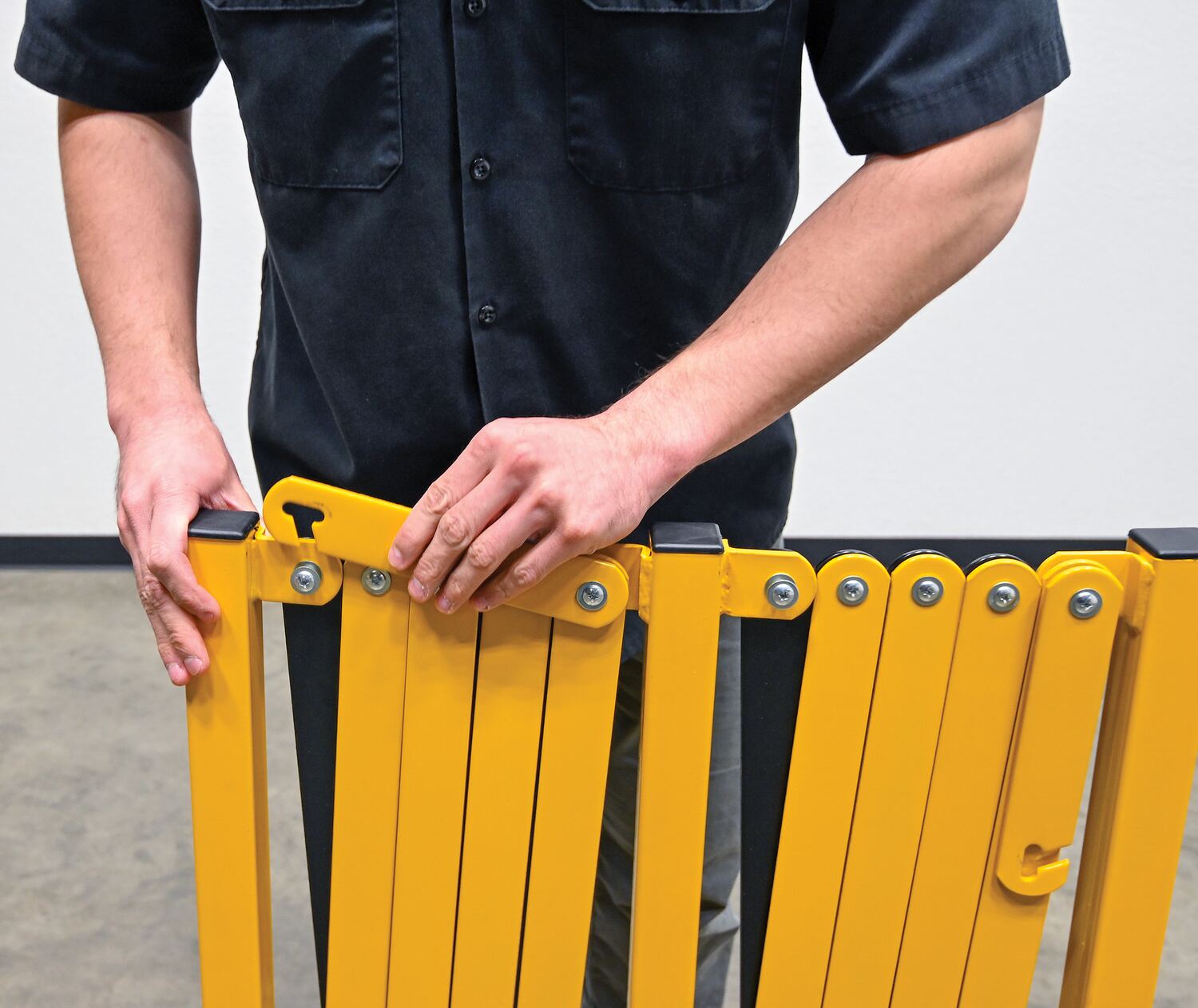

  • For the EXGATE & PEXGATE series', multiple units can be connected end-to-end.


Expand-A-Gate
Model Image PDF's Overall Collapsed
Width		 Expanded Gate
Width		 Overall
Height		 Wt.
(lbs)
Steel Construction
EXGATE-30 Warranty PDF 19-3/4" 139" 38" 56
EXGATE-30-192 Warranty PDF 30" 197" 39-3/4" 78
EXGATE-30-C Warranty PDF 19-3/4" 139" 40-1/8" 57
EXGATE-30-W Warranty PDF 20-5/16" 139" 38-5/16" 61
Aluminum Construction
ALEXGATE-30 Warranty PDF 19-3/4" 139" 38" 25
ALEXGATE-30-C icon_approvaldrawings.jpgWarranty PDF 19-3/4" 139" 40-1/8" 30
ALEXGATE-30-W - 20-5/16 139" 38-5/16" 34
Plastic Construction
PEXGATE-30 Warranty PDF 11-1/2" 122" 38" 12
PEXGATE-30-C Warranty PDF 11-1/2" 122" 40-3/4" 13

Options


Expand-A-Gate Options
Model Image PDF's Overall Collapsed
Width		 Expanded Gate
Width		 Overall
Height		 Wt.
(lbs)
EXGATE-W-KIT - Wall Mount Kit 5

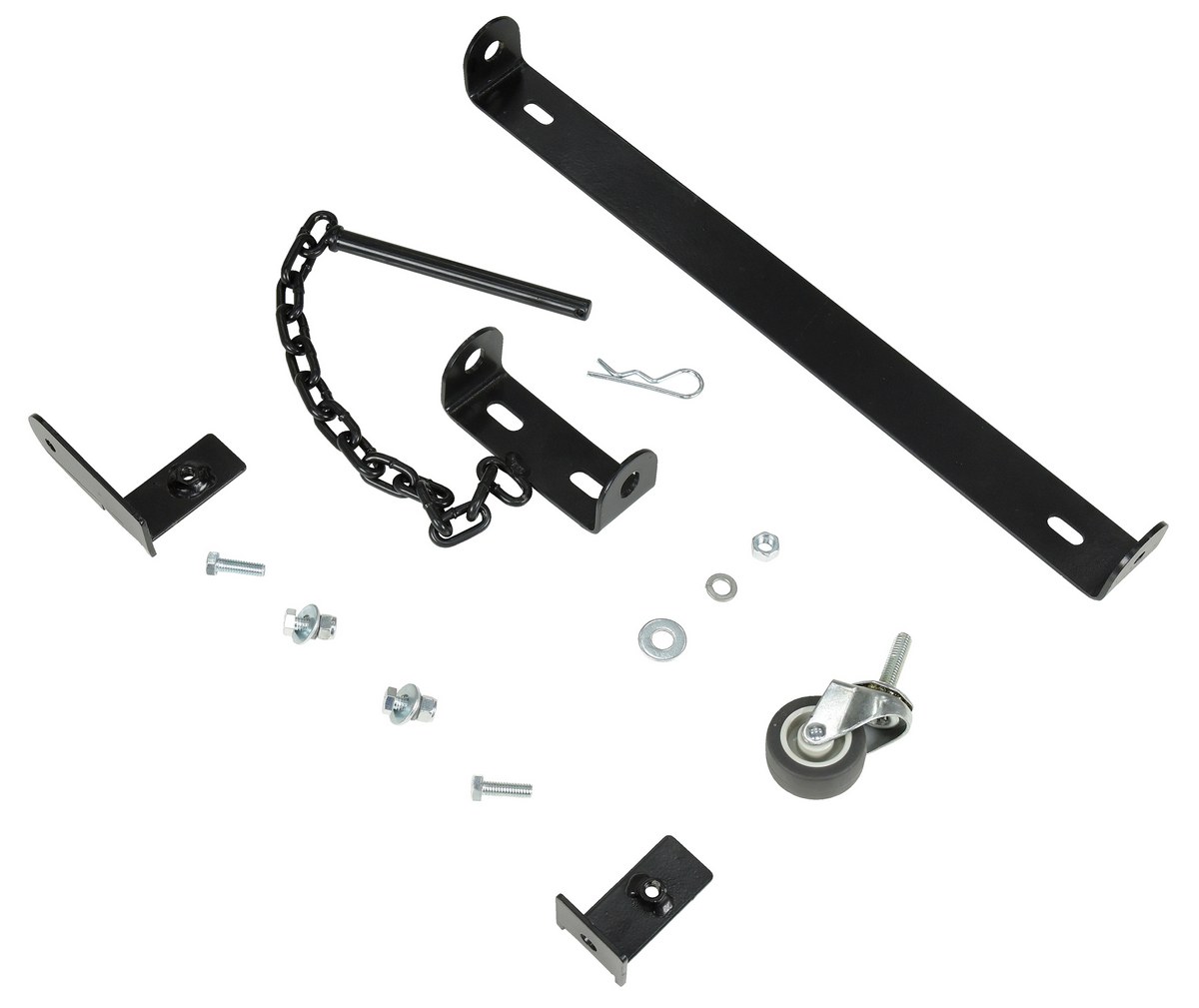

ALEXGATE-W-KIT - Wall Mount Kit 5
