Product Family Overview


Galvanized Construction Barrier Systems
SERIES: HRAIL

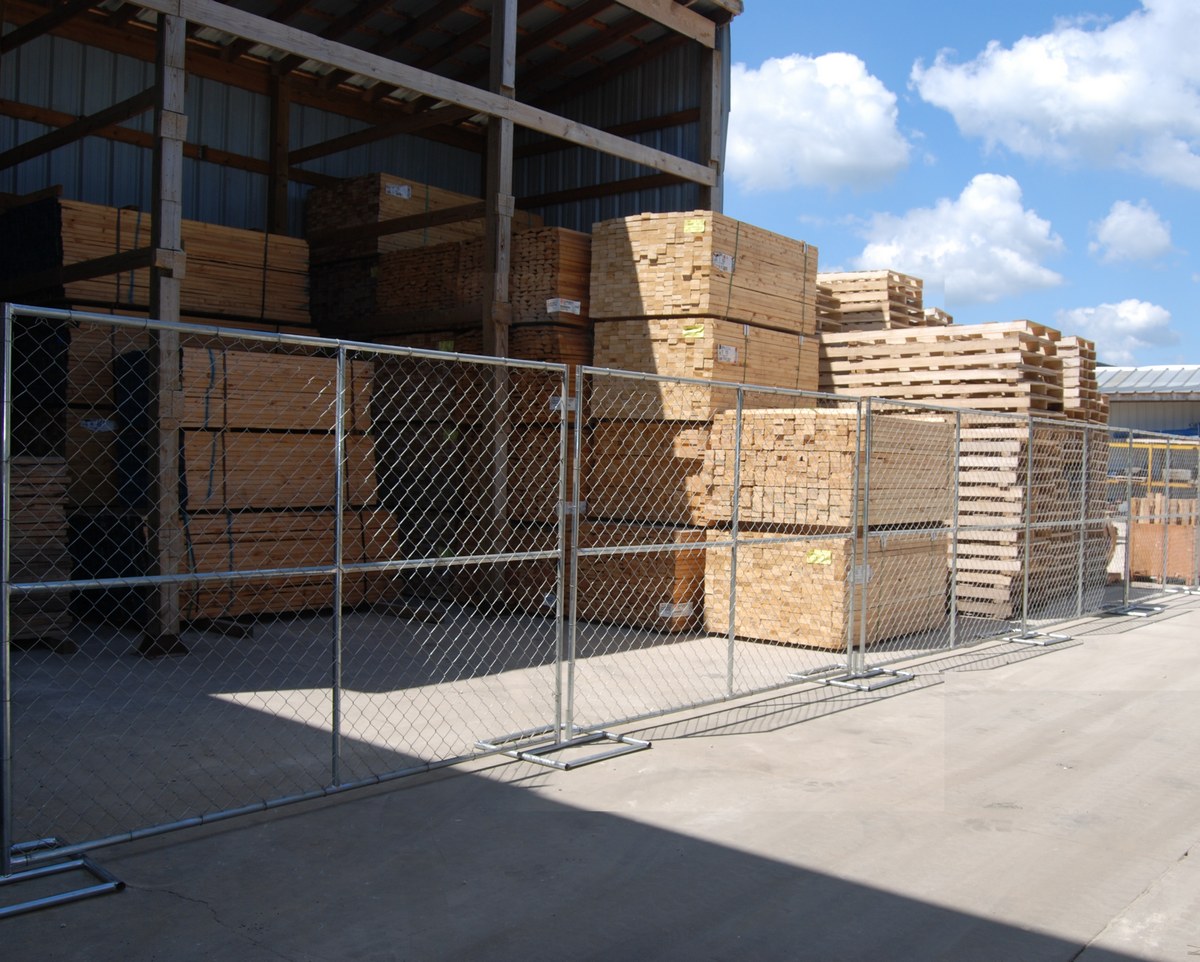

Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.

Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.

Additional Models In This Family

HRAIL-A-9072

model HRAIL-A-9072

HRAIL-9072-SI

model HRAIL-9072-SI

HRAIL-BASE

model HRAIL-BASE

HRAIL-CON

model HRAIL-CON

HRAIL-PNL

model HRAIL-PNL

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

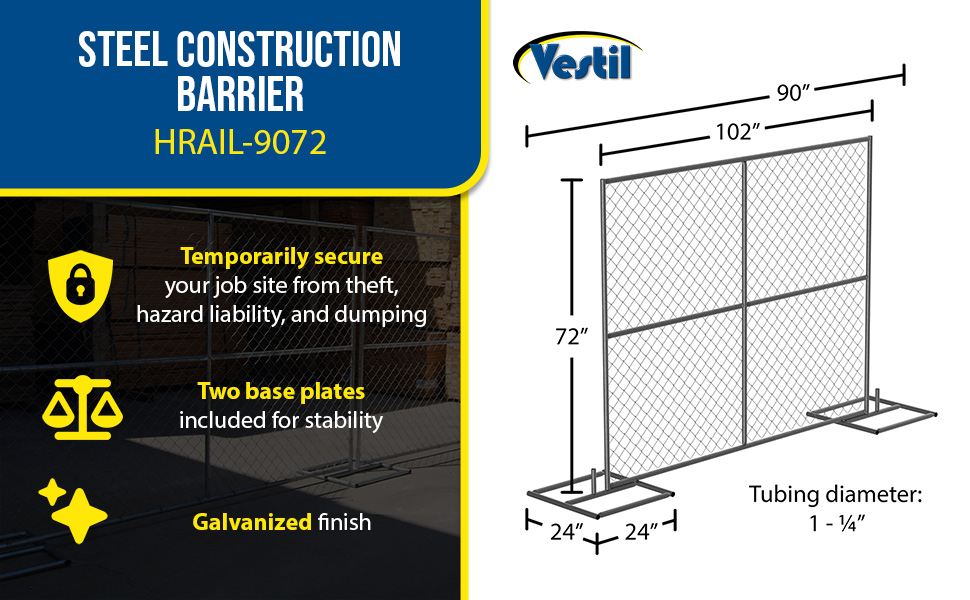

HRAIL-9072 HRAIL-907290 Days Limited WarrantySteel Construction Barrier System SilverPanel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
104

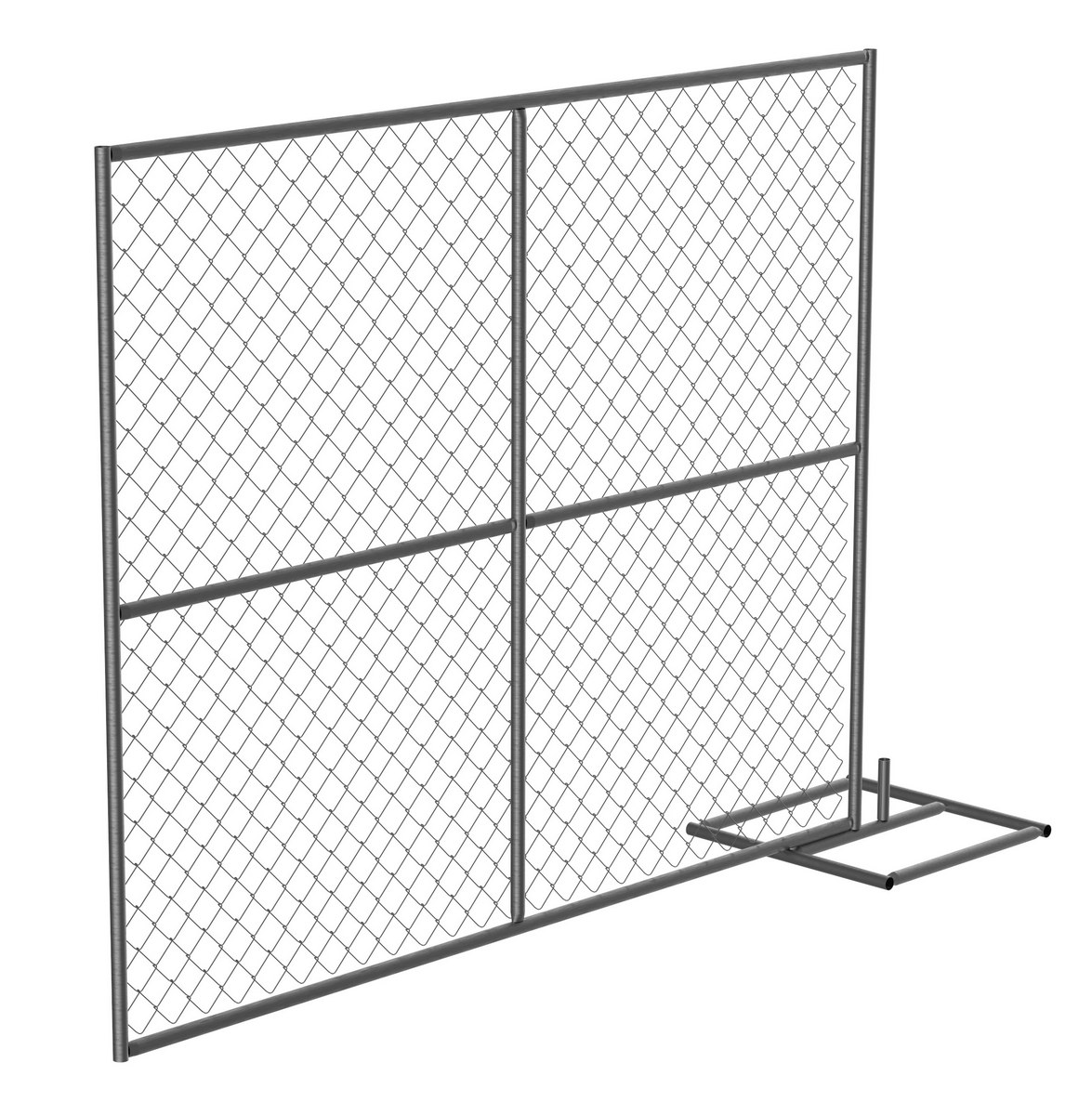

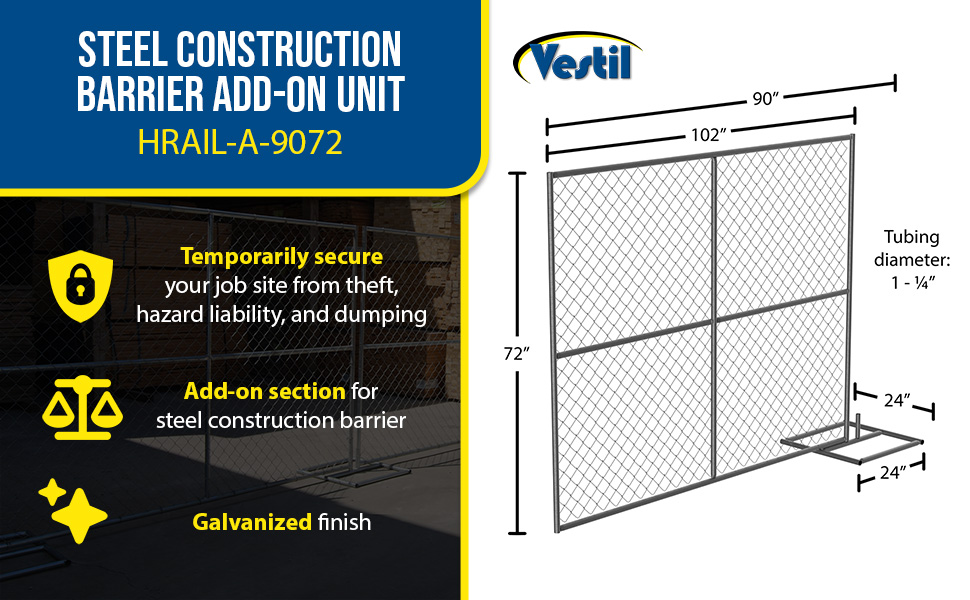

HRAIL-A-9072 HRAIL-A-907290 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
115
HRAIL-BASE HRAIL-BASE90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Base For HRAIL ModelsBase Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
7
HRAIL-CON HRAIL-CON90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Connector For HRAIL Models-
3
HRAIL-PNL HRAIL-PNL90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Panel Unit For HRAIL ModelsPanel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
111

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

HRAIL-9072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10

HRAIL-A-9072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10

HRAIL-BASE
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2

HRAIL-CON
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-

HRAIL-PNL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10


Galvanized Construction Barrier Systems PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products



Q: Is there a temporary gate for this fence?

A: We do not have a gate for this barrier system.


Q: What is the inside diameter of the base tube on the HRAIL-BASE?

A: The inside diameter of the HRAIL-BASE is 15/16". The outside diameter is 1.10".






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Galvanized Construction Barrie...




Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.



Galvanized Construction Barrier Systems

Model Image PDF Description Wt.
(lbs)

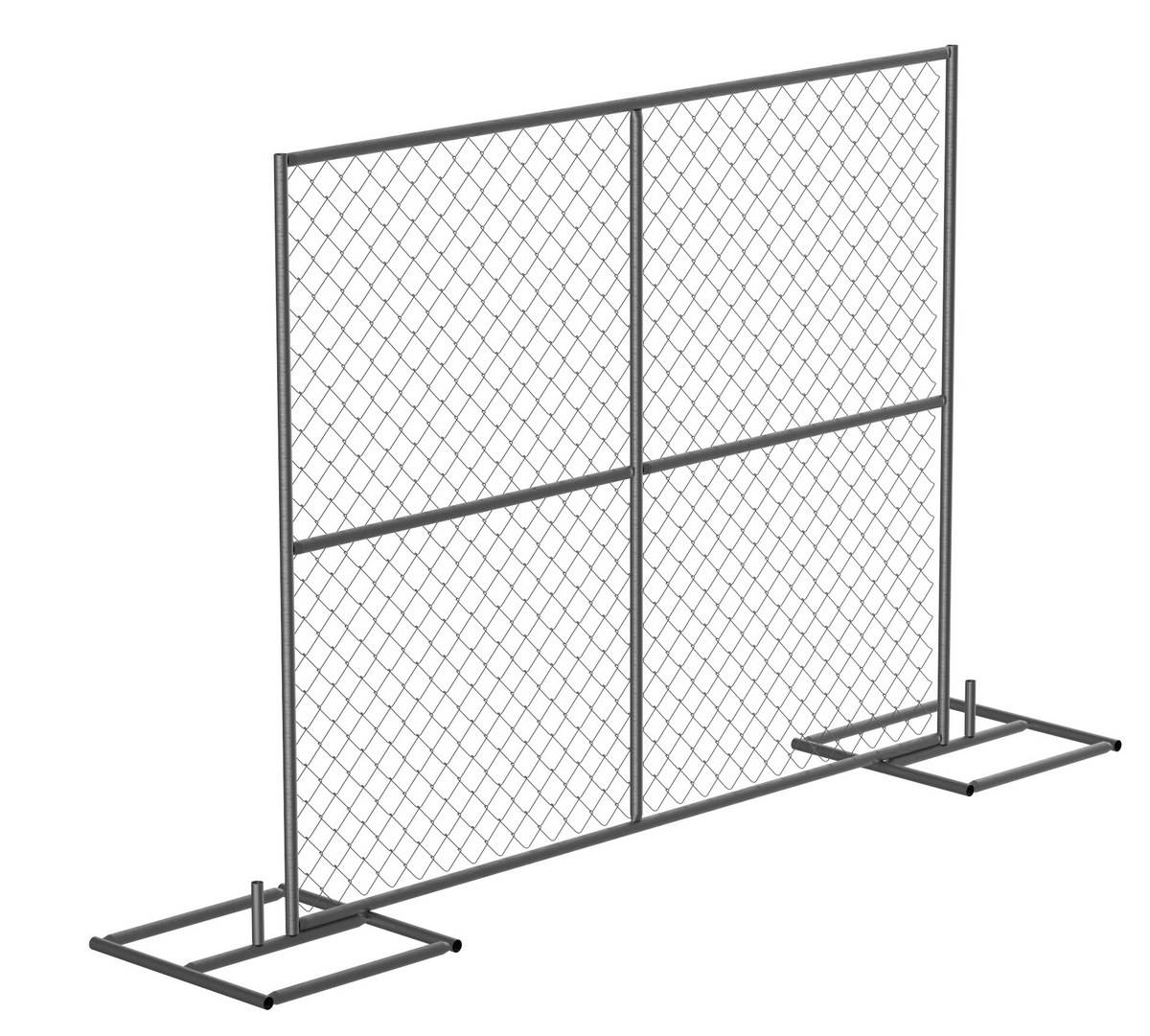

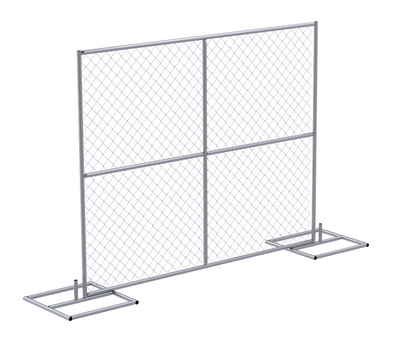

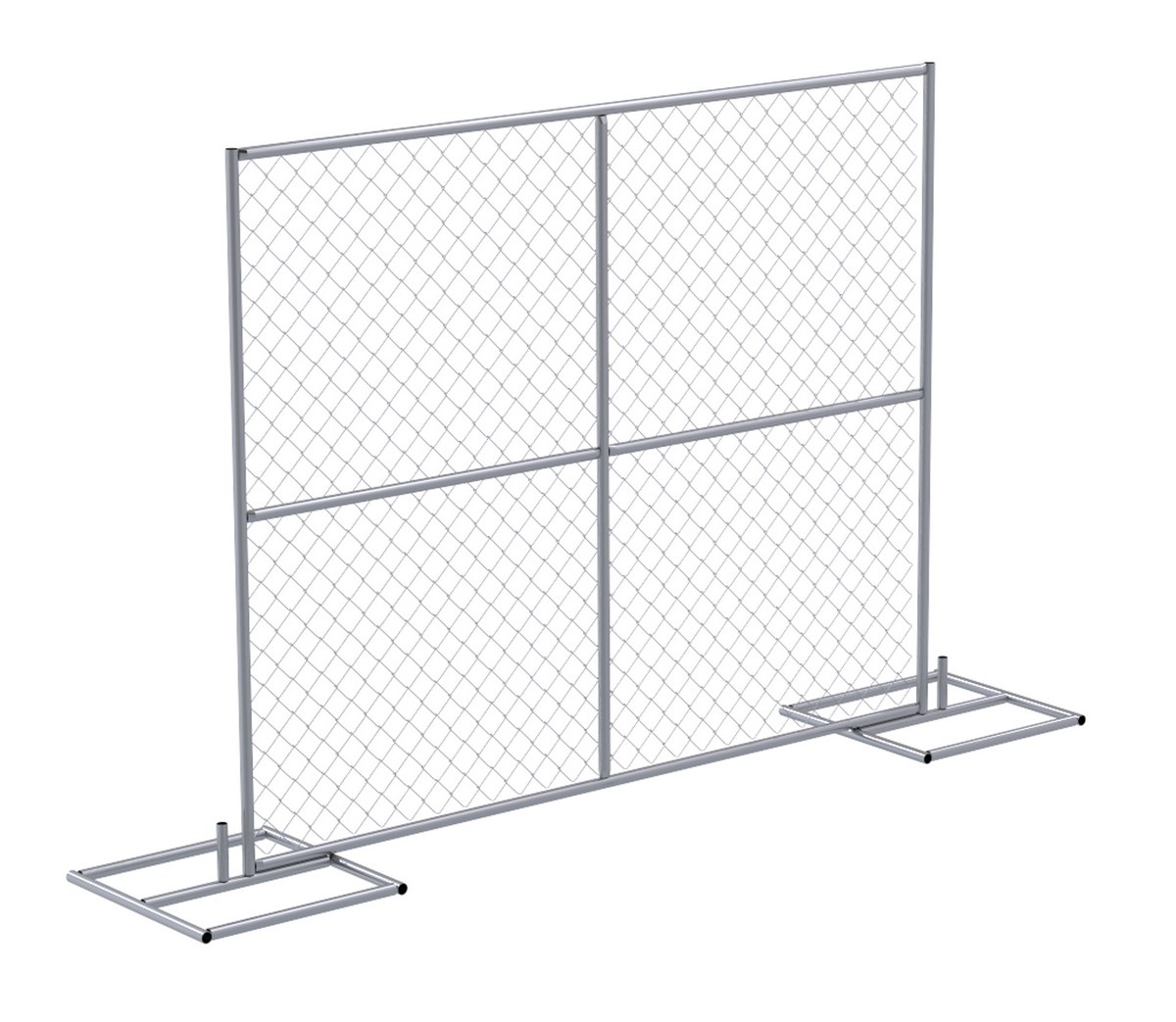

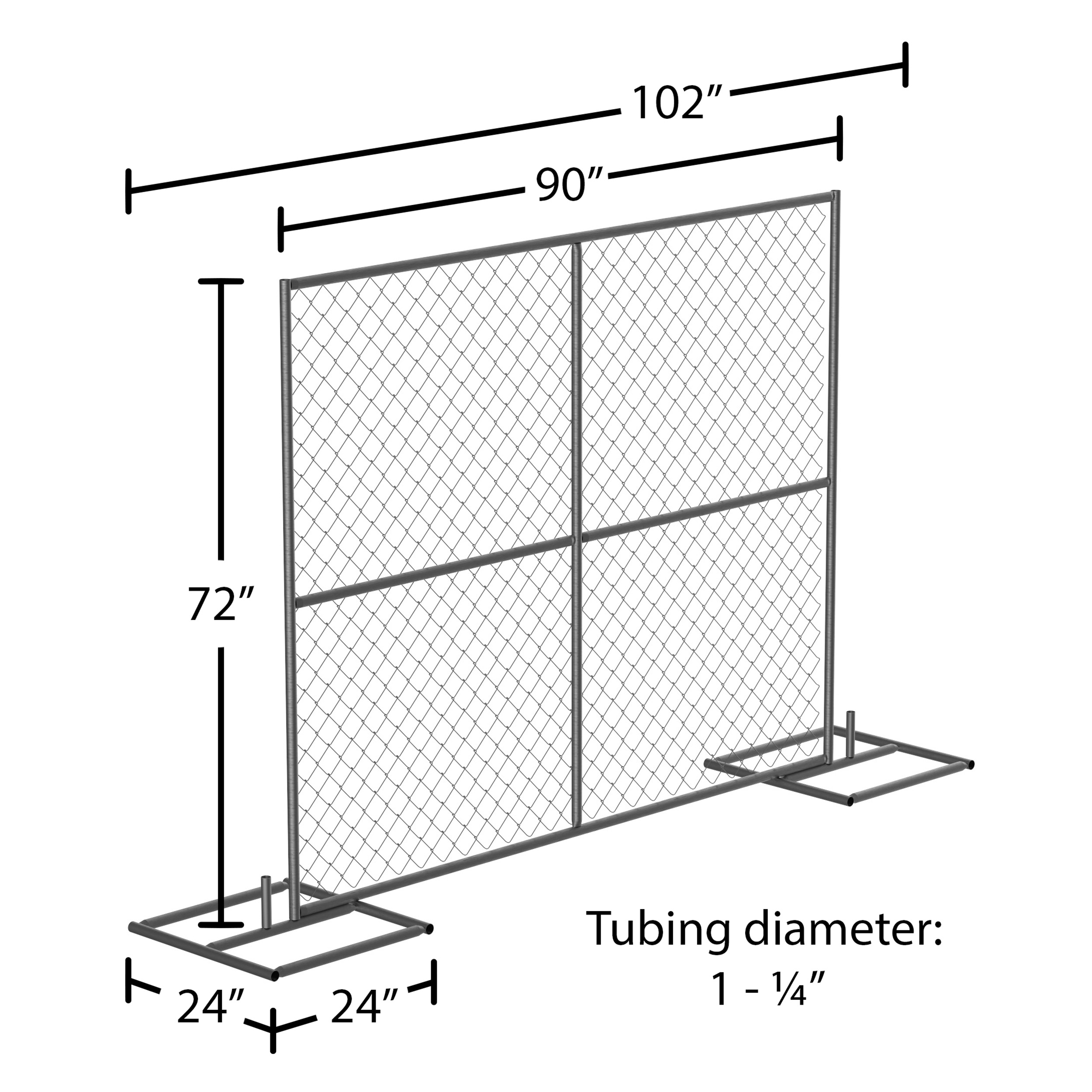

HRAIL-9072 tilt_m4.jpg Starter Unit - includes one panel and two base units 119
HRAIL-A-9072 tilt_m4.jpg Add-on Unit - includes one panel, one base unit and one pair of connectors 115

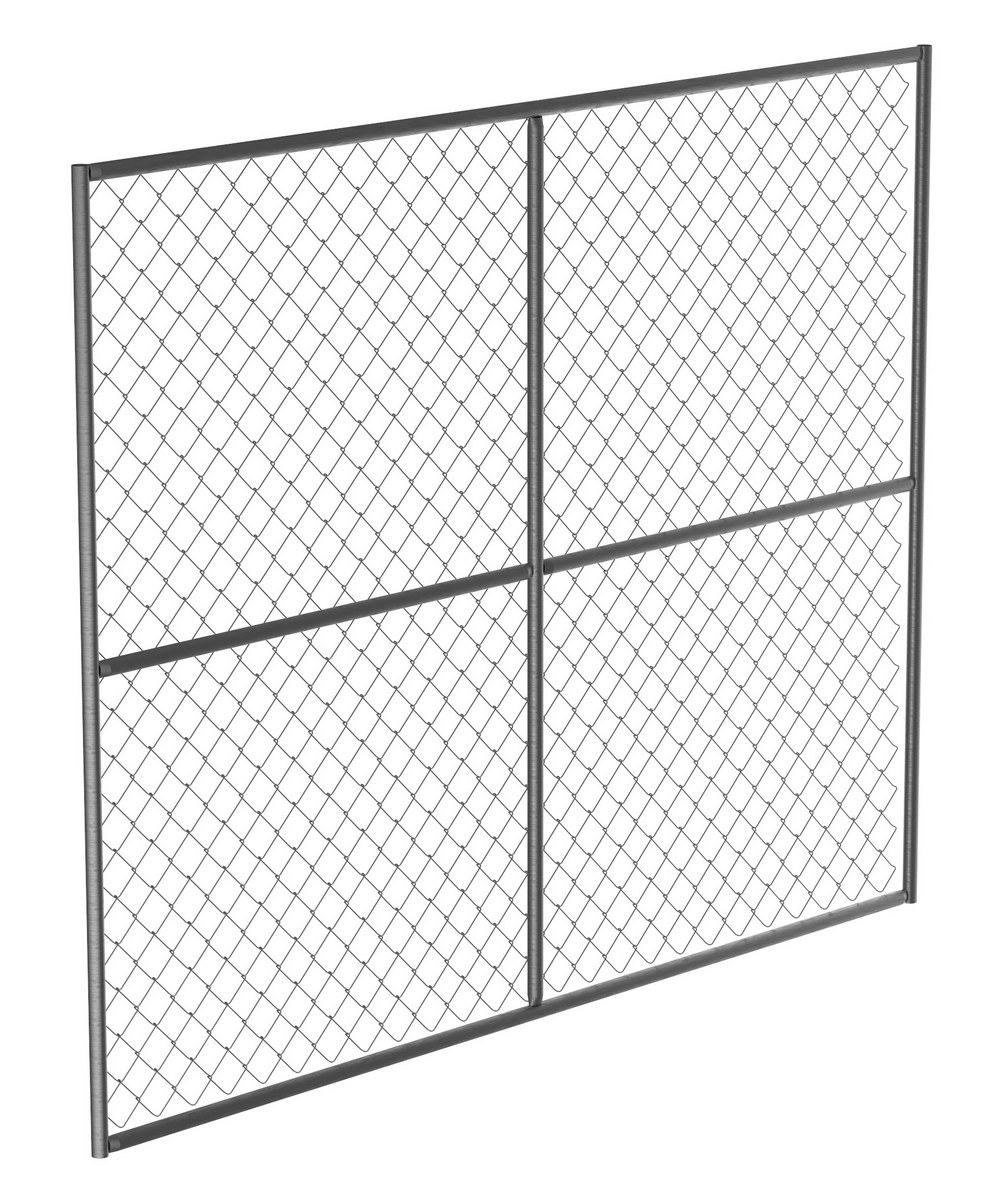

HRAIL-PNL tilt_m4.jpg Barrier panel unit - 90"L x 72'H 111

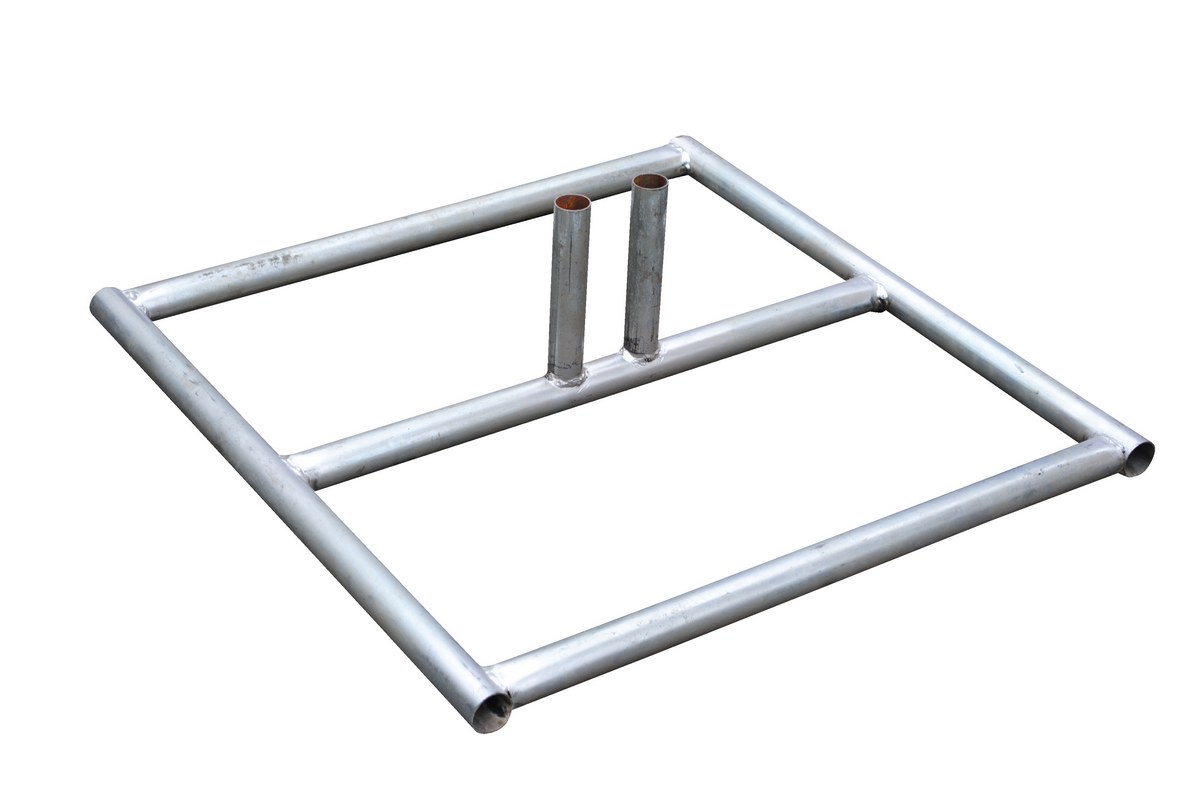

HRAIL-BASE tilt_m4.jpg Barrier base unit - 24"Wx24"Lx7"H 7

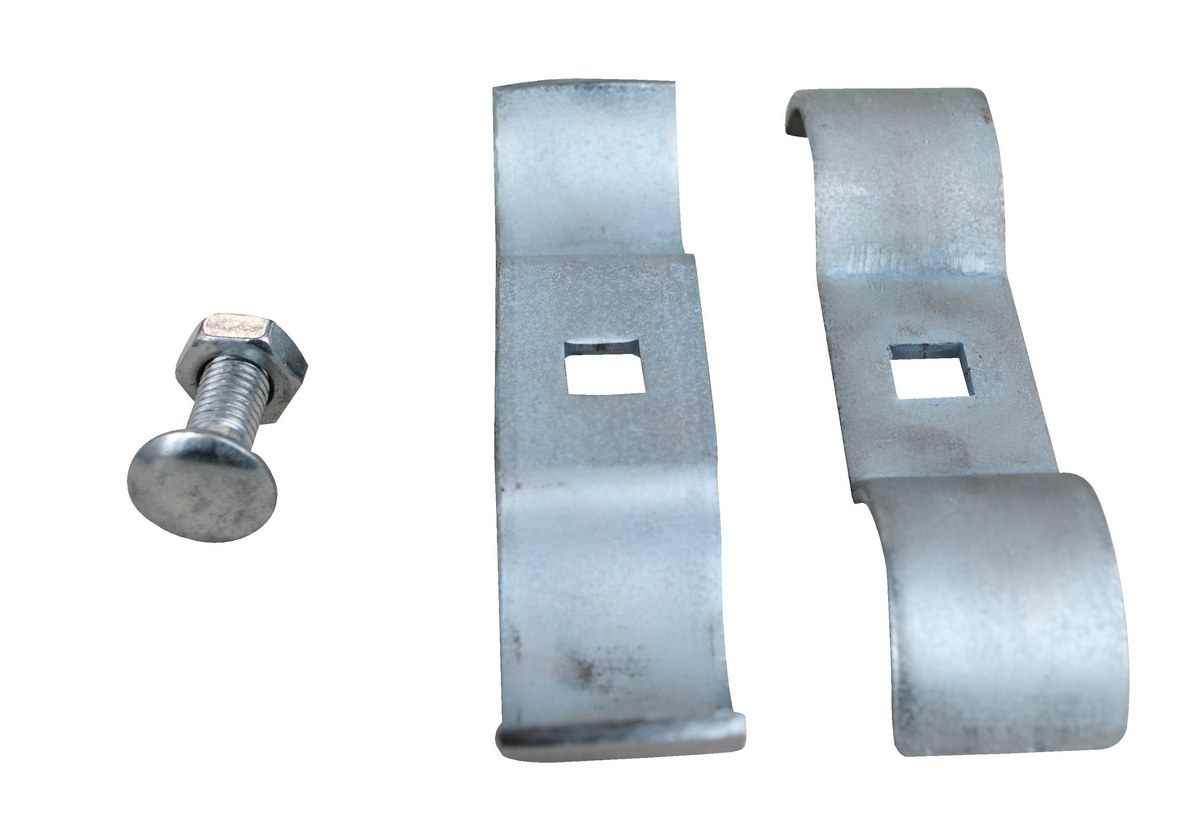

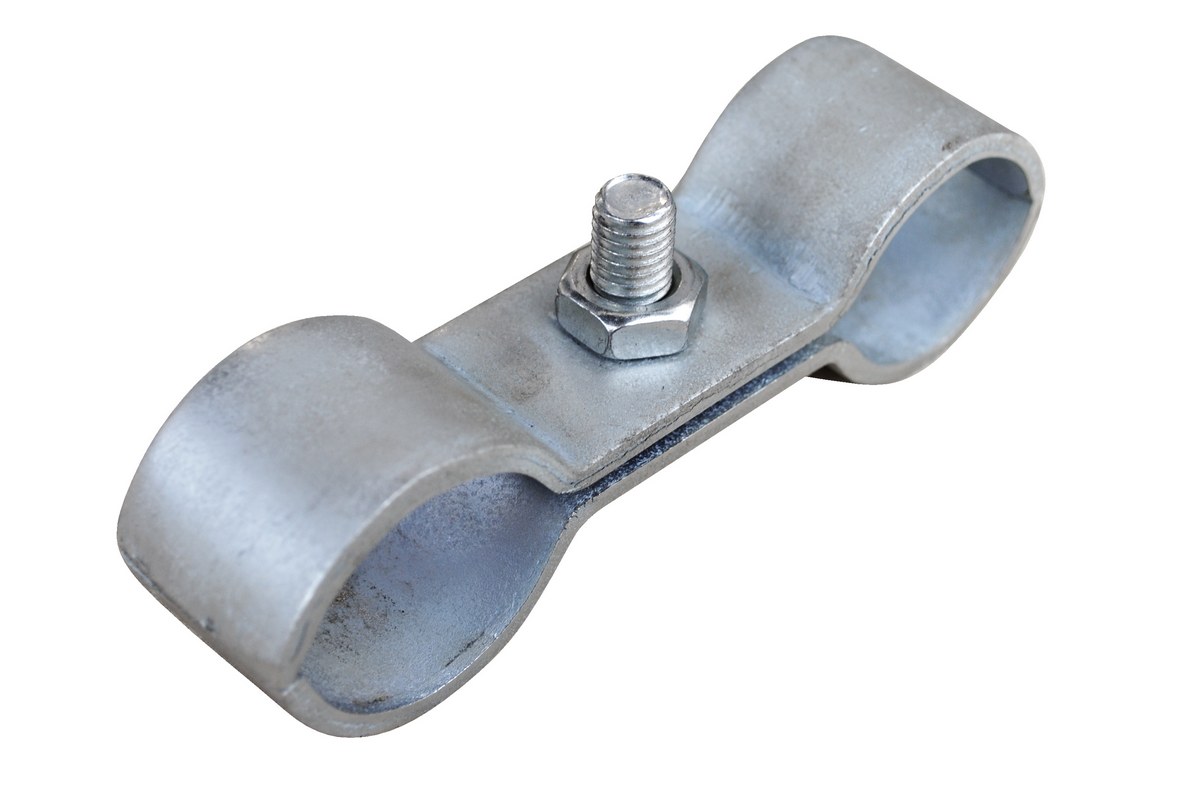

HRAIL-CON tilt_m4.jpg Connectors, one pair, includes hardware 3
