model VPFG-865
SERIES: VPFG,VSSG

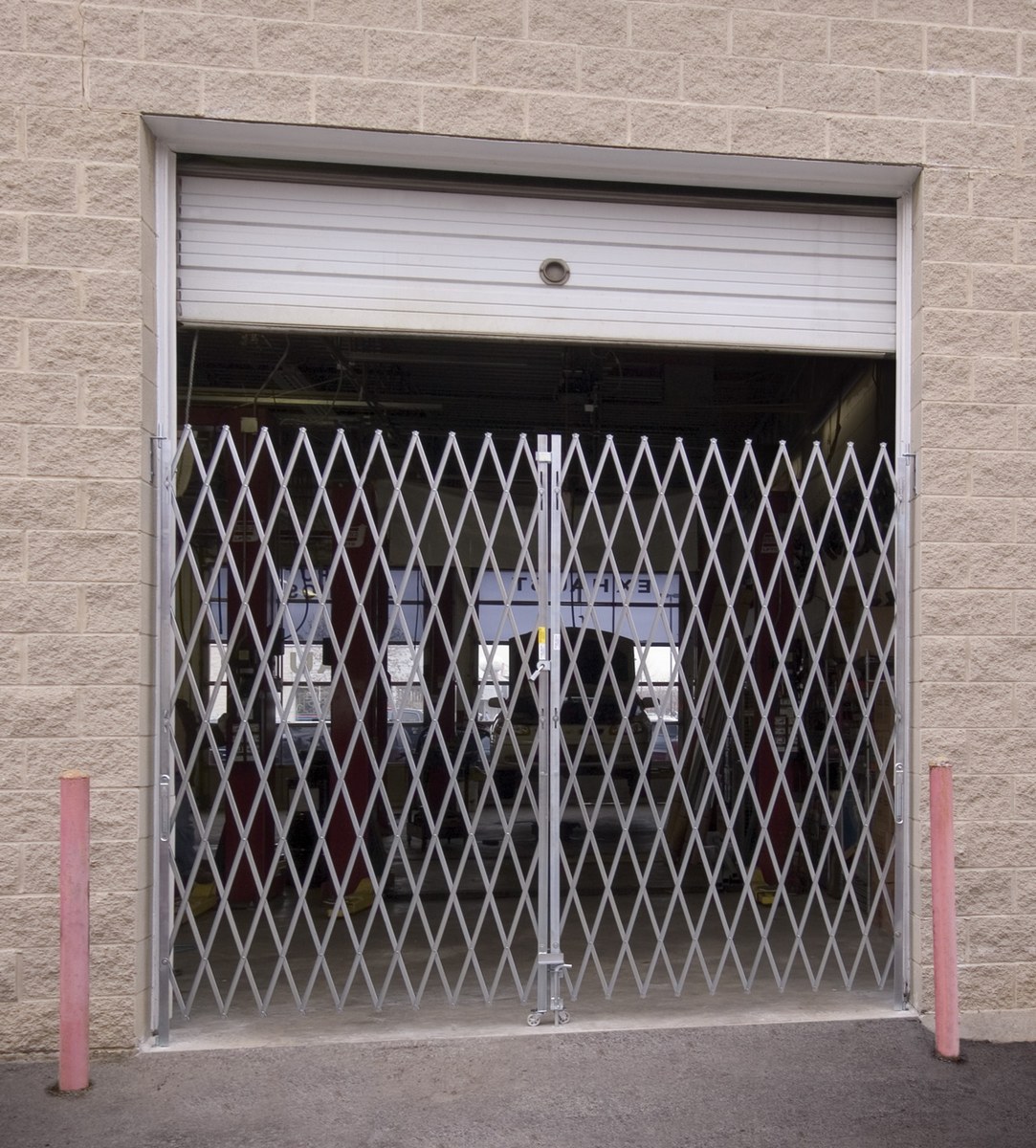

Galvanized Folding Gates

Secure outside access during the day and add security at night with heavy-duty 14 gauge steel folding gates. Durable 2" steel casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates, looking from the outside of the building (lock can be changed to left side, but order needs to be noted of this change). Galvanized for durability. Constructed of steel U-channels riveted back to back using aircraft quality rivets and heavy-duty 1-1/2" x 1-1/2" vertical angles. Contact factory for additional sizes.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

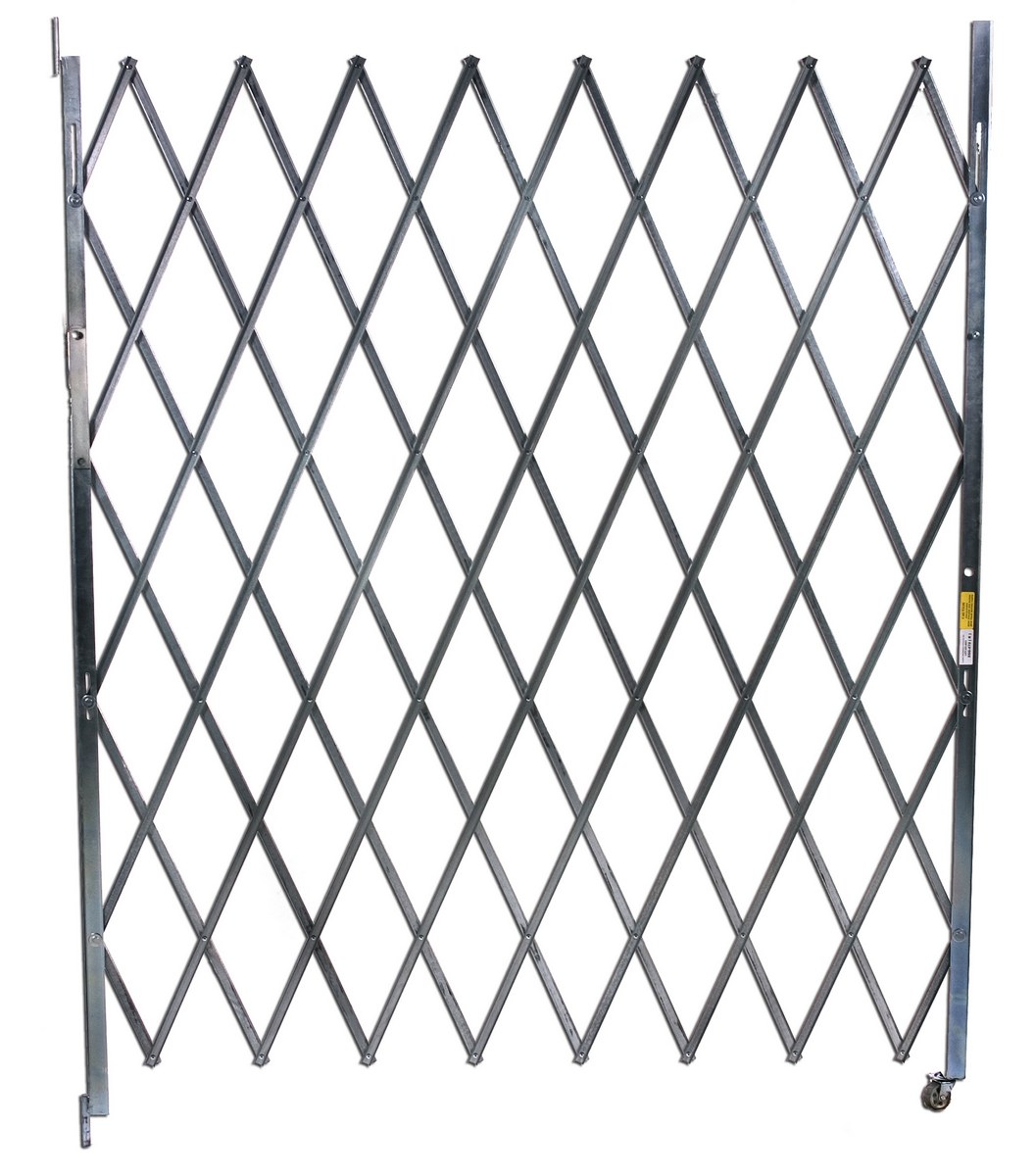

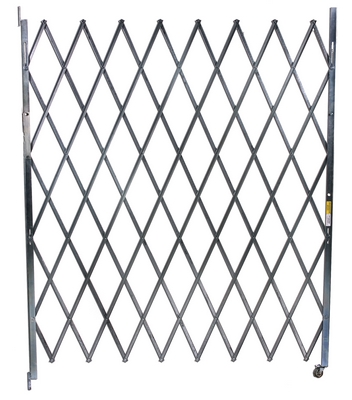

Folding Gates - Single

Model PDFs Width Collapsed
Ht. (FT.)
In Use
Ht. (FT.)
Wt.
(lbs)
VSSG-465 Warranty PDF 3' to 4' 6-1/2 6 69
VSSG-470 Warranty PDF 3' to 4' 7 6-1/2 73
VSSG-475 Warranty PDF 3' to 4' 7-1/2 7 77
VSSG-480 Warranty PDF 3' to 4' 8 7-1/2 88
VSSG-485 Warranty PDF 3' to 4' 8-1/2 8 89
VSSG-565 Warranty PDF 4' to 5' 6-1/2 6 90
VSSG-570 Warranty PDF 4' to 5' 7 6-1/2 91
VSSG-575 Warranty PDF 4' to 5' 7-1/2 7 92
VSSG-580 Warranty PDF 4' to 5' 8 7-1/2 93
VSSG-585 Warranty PDF 4' to 5' 8-1/2 8 94
VSSG-665 Warranty PDF 5' to 6' 6-1/2 6 94
VSSG-670 Warranty PDF 5' to 6' 7 6-1/2 95
VSSG-675 Warranty PDF 5' to 6' 7-1/2 7 96
VSSG-680 Warranty PDF 5' to 6' 8 7-1/2 97
VSSG-685 Warranty PDF 5' to 6' 8-1/2 8 98
VSSG-765 Warranty PDF 6' to 7' 6-1/2 6 100
VSSG-770 Warranty PDF 6' to 7' 7 6-1/2 102
VSSG-775 Warranty PDF 6' to 7' 7-1/2 7 106
VSSG-780 Warranty PDF 6' to 7' 8 7-1/2 107
VSSG-785 Warranty PDF 6' to 7' 8-1/2 8 107
VSSG-865 Warranty PDF 7' to 8' 6-1/2 6 108
VSSG-870 Warranty PDF 7' to 8' 7 6-1/2 110
VSSG-875 Warranty PDF 7' to 8' 7-1/2 7 114
VSSG-880 Warranty PDF 7' to 8' 8 7-1/2 116
VSSG-885 Warranty PDF 7' to 8' 8-1/2 8 118
VSSG-970 Warranty PDF 8' to 9' 7 6-1/2 120
VSSG-975 Warranty PDF 8' to 9' 7-1/2 6 123
VSSG-980 Warranty PDF 8' to 9' 8 7-1/2 135
VSSG-1070 Warranty PDF 9' to 10' 7 6-1/2 137
VSSG-1080 Warranty PDF 9' to 10' 8 7-1/2 139
Double Folding Gates
Model PDFs Overall Usable
Width (FT.)
Collapsed
Ht. (FT.)
In Use
Ht. (FT.)
Wt.
(lbs)
VPFG-865 Warranty PDF 6' to 8' 6-1/2 6 120
VPFG-870 Warranty PDF 6' to 8' 7 6-1/2 121
VPFG-875 Warranty PDF 6' to 8' 7-1/2 7 123
VPFG-880 Warranty PDF 6' to 8' 8 7-1/2 123
VPFG-885 Warranty PDF 6' to 8' 8-1/2 8 124
VPFG-1065 Warranty PDF 8' to 10' 6-1/2 6 125
VPFG-1070 Warranty PDF 8' to 10 7 6-1/2 130
VPFG-1075 Warranty PDF 8' to 10 7-1/2 7 134
VPFG-1080 Warranty PDF 8' to 10 8 7-1/2 137
VPFG-1085 Warranty PDF 8' to 10 8-1/2 8 138
VPFG-1265 Warranty PDF 10' to 12' 6-1/2 6 139
VPFG-1270 Warranty PDF 10' to 12' 7 6-1/2 140
VPFG-1275 Warranty PDF 10' to 12' 7-1/2 7 153
VPFG-1280 Warranty PDF 10' to 12' 8 7-1/2 175
VPFG-1285 Warranty PDF 10' to 12' 8-1/2 8 180
VPFG-1465 Warranty PDF 12' to 14' 6-1/2 6 182
VPFG-1470 Warranty PDF 12' to 14' 7 6-1/2 187
VPFG-1475 Warranty PDF 12' to 14' 7-1/2 7 190
VPFG-1480 Warranty PDF 12' to 14' 8 7-1/2 195
VPFG-1485 Warranty PDF 12' to 14' 8-1/2 8 200
VPFG-1665 Warranty PDF 14' to 16' 6-1/2 6 202
VPFG-1670 Warranty PDF 14' to 16' 7 6-1/2 204
VPFG-1675 Warranty PDF 14' to 16' 7-1/2 7 210
VPFG-1680 Warranty PDF 14' to 16' 8 7-1/2 215
VPFG-1685 Warranty PDF 14' to 16' 8-1/2 8 218
VPFG-1870 Warranty PDF 16' to 18' 7 6-1/2 220
VPFG-1875 Warranty PDF 16' to 18' 7-1/2 7-1/2 224
VPFG-1880 Warranty PDF 16' to 18' 8 7 230
VPFG-2070 Warranty PDF 18' to 20' 7 6-1/2 232
VPFG-2080 Warranty PDF 18' to 20' 8 7-1/2 235

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Options Tab.
PDF's will open in a new window when clicked.

Owner's Manuals


Survey Sheets


Approval Drawings

* No Approval Drawings For This Product

Testing Certificates

EX-BRACKET-9

Other PDF's

* No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Video Gallery

No Videos for this product at this time. Please Check back.









Options

Single And Double Folding Gate Options
Model Description Wt.
(lbs)

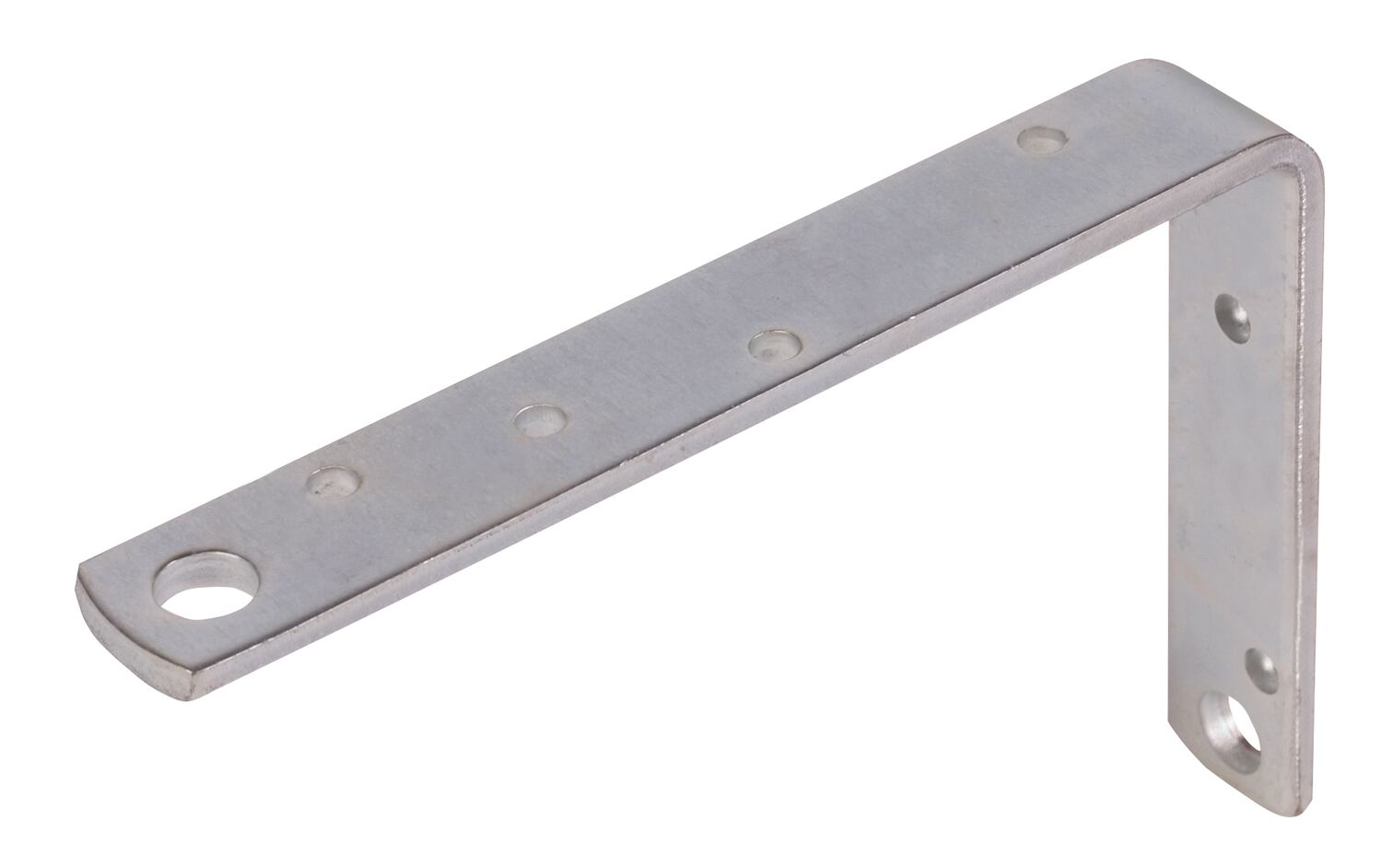

EX-BRACKET-9 6"/9" L-BRACKET 2

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Specifications Tab.

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below
