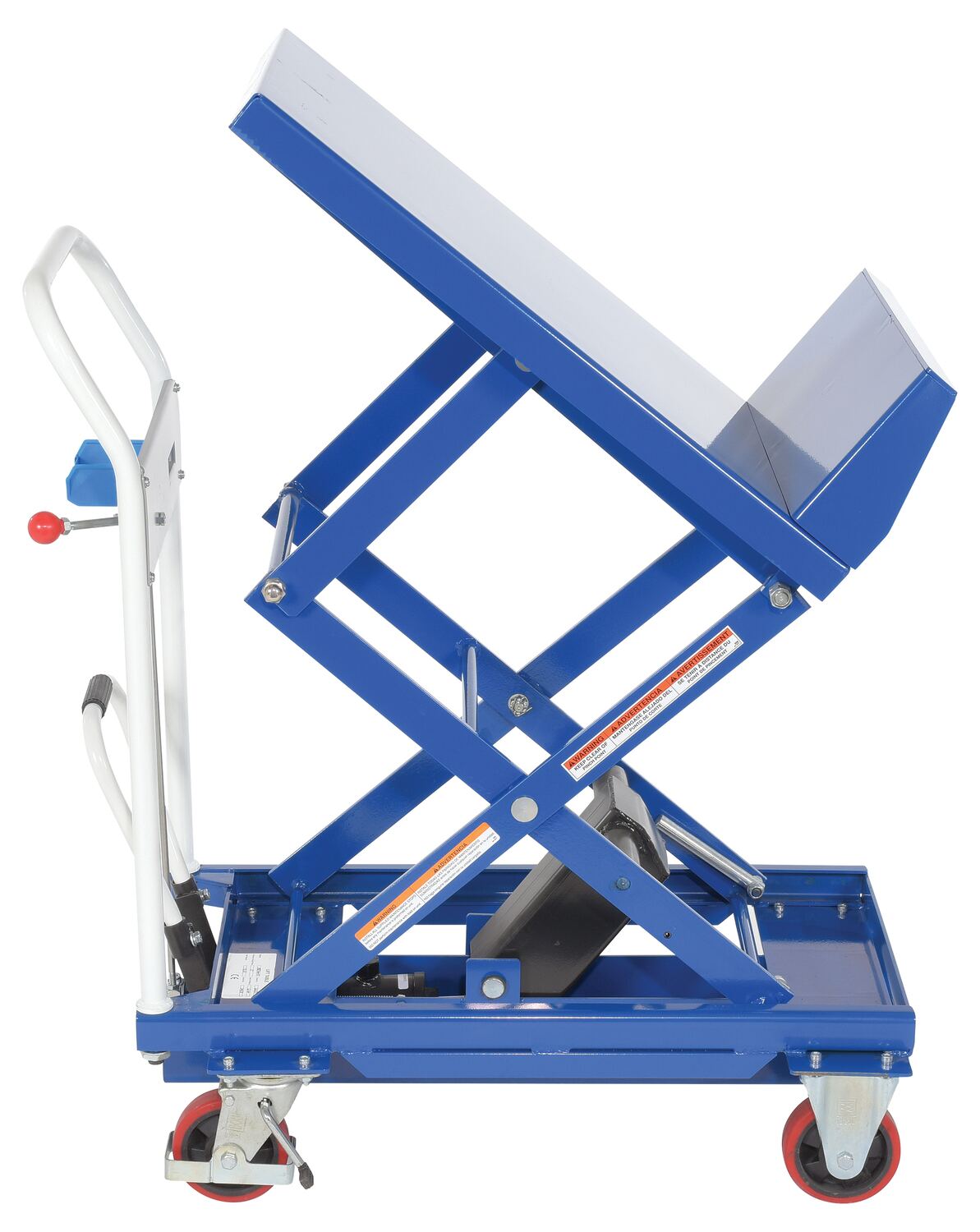

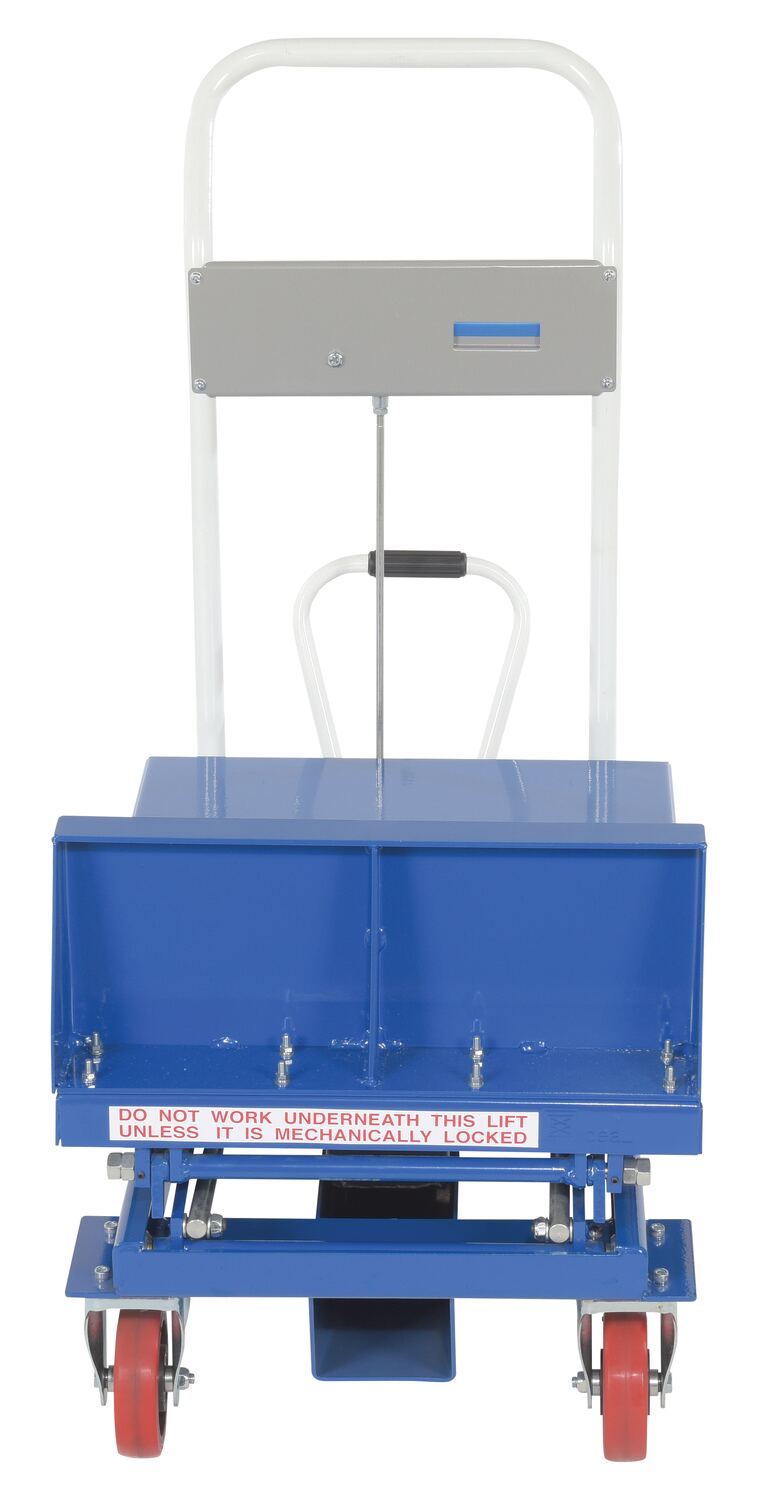

model: CART-400-LT


Lift & Tilt Carts with Sequence Select
SERIES: CART-*-LT

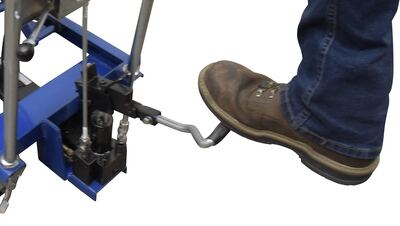

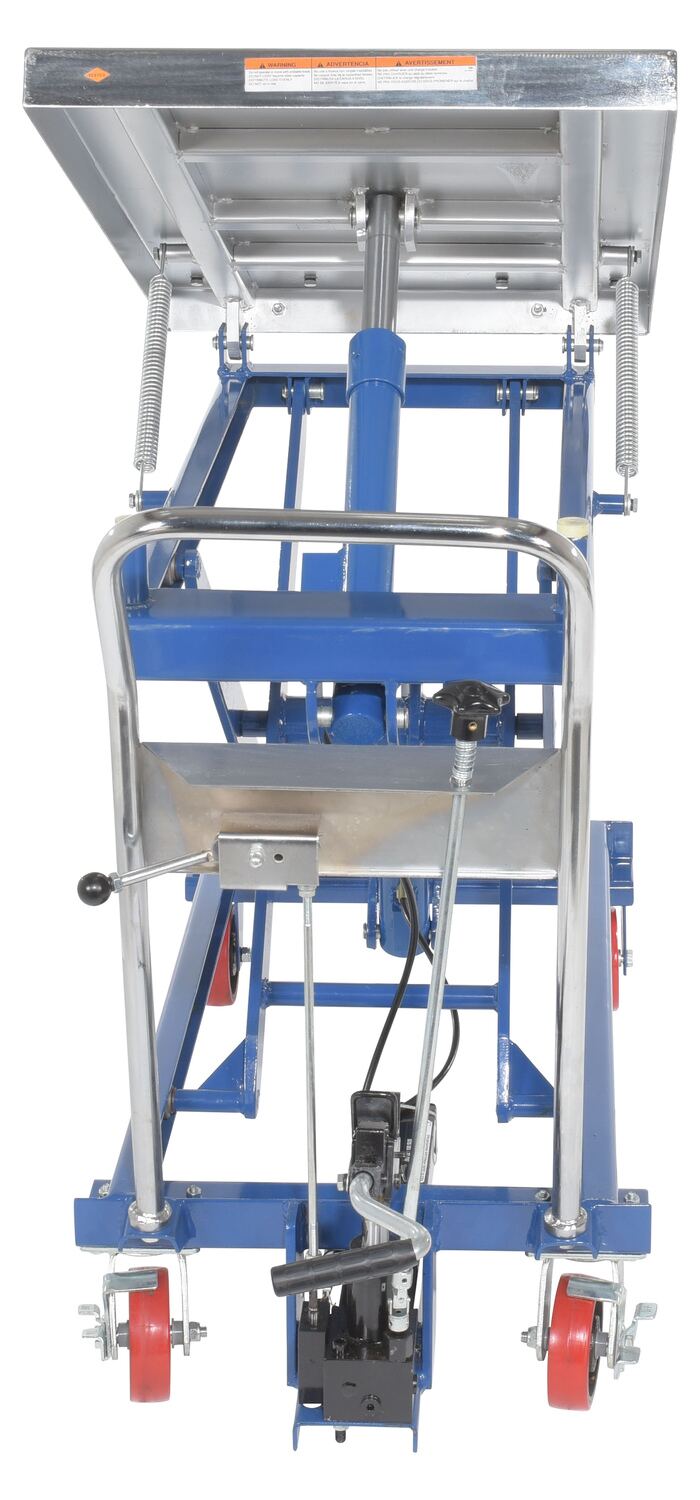

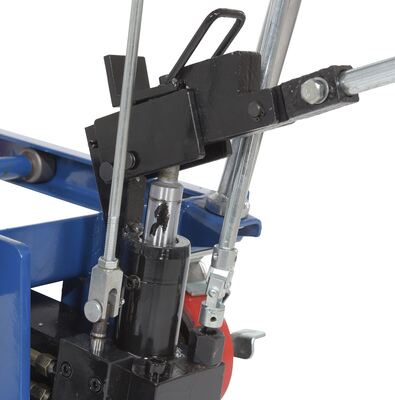

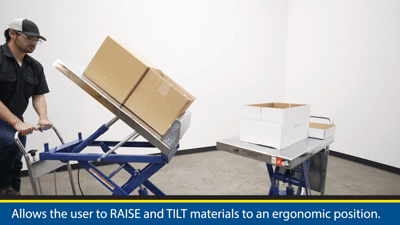

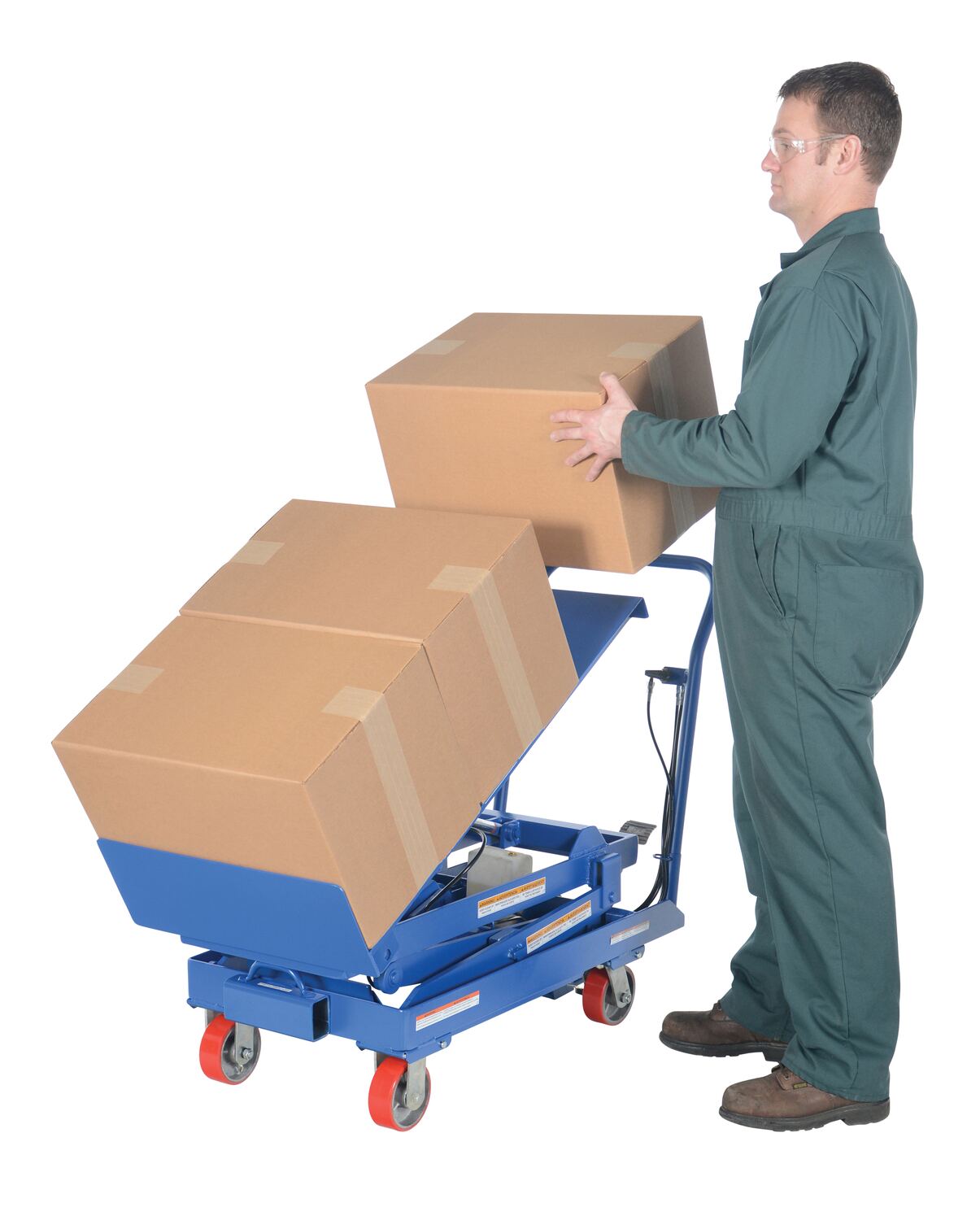

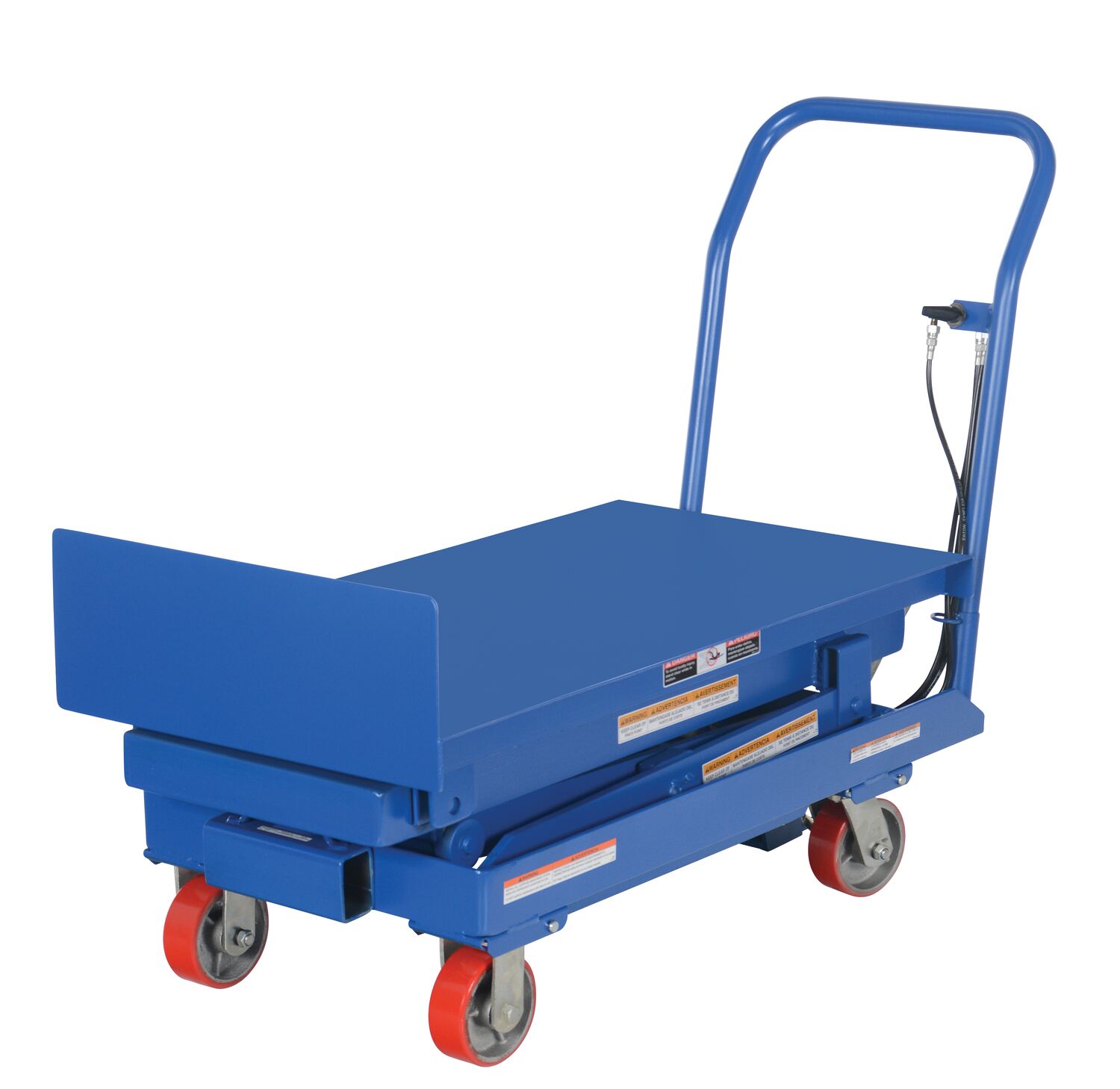

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

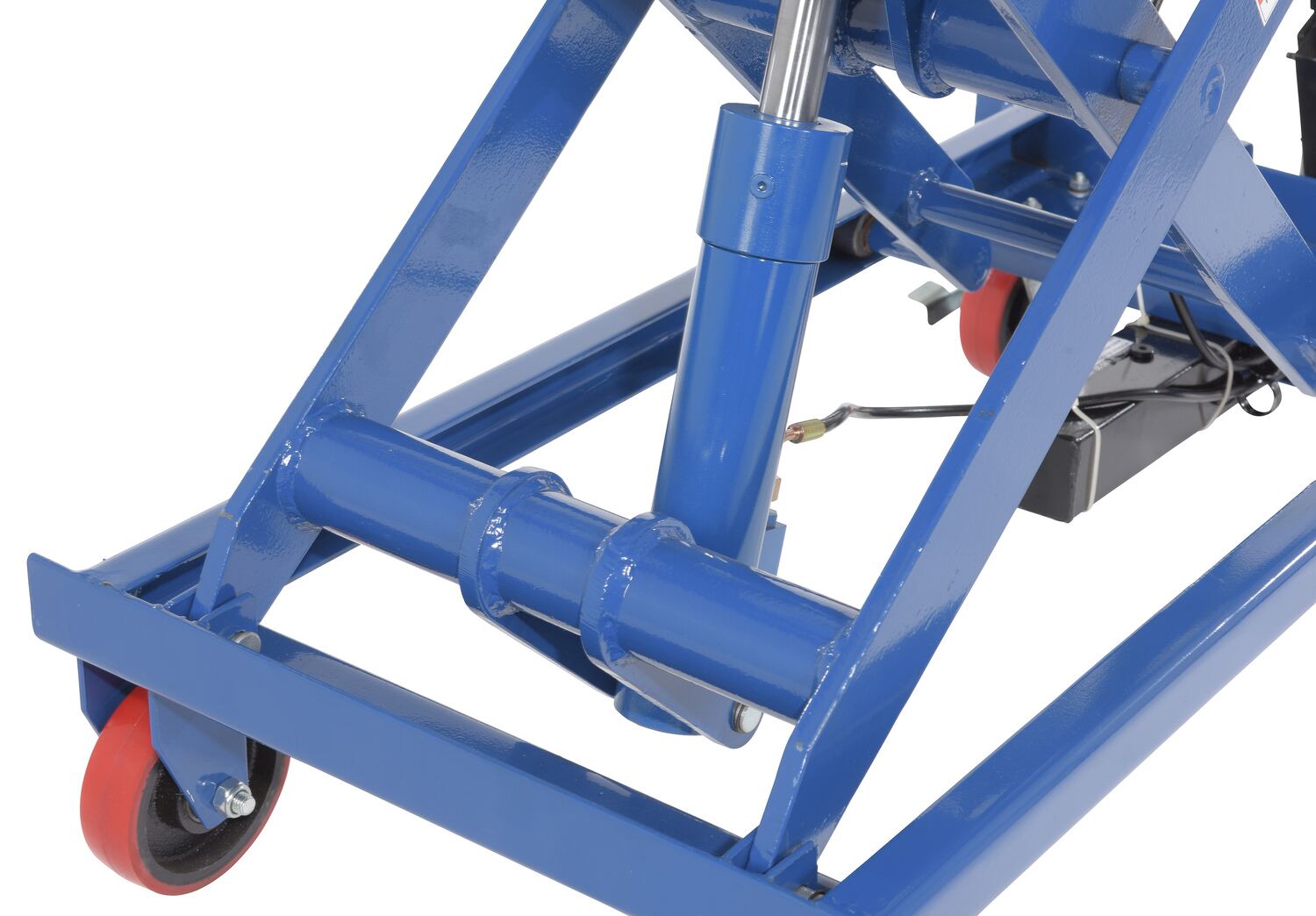

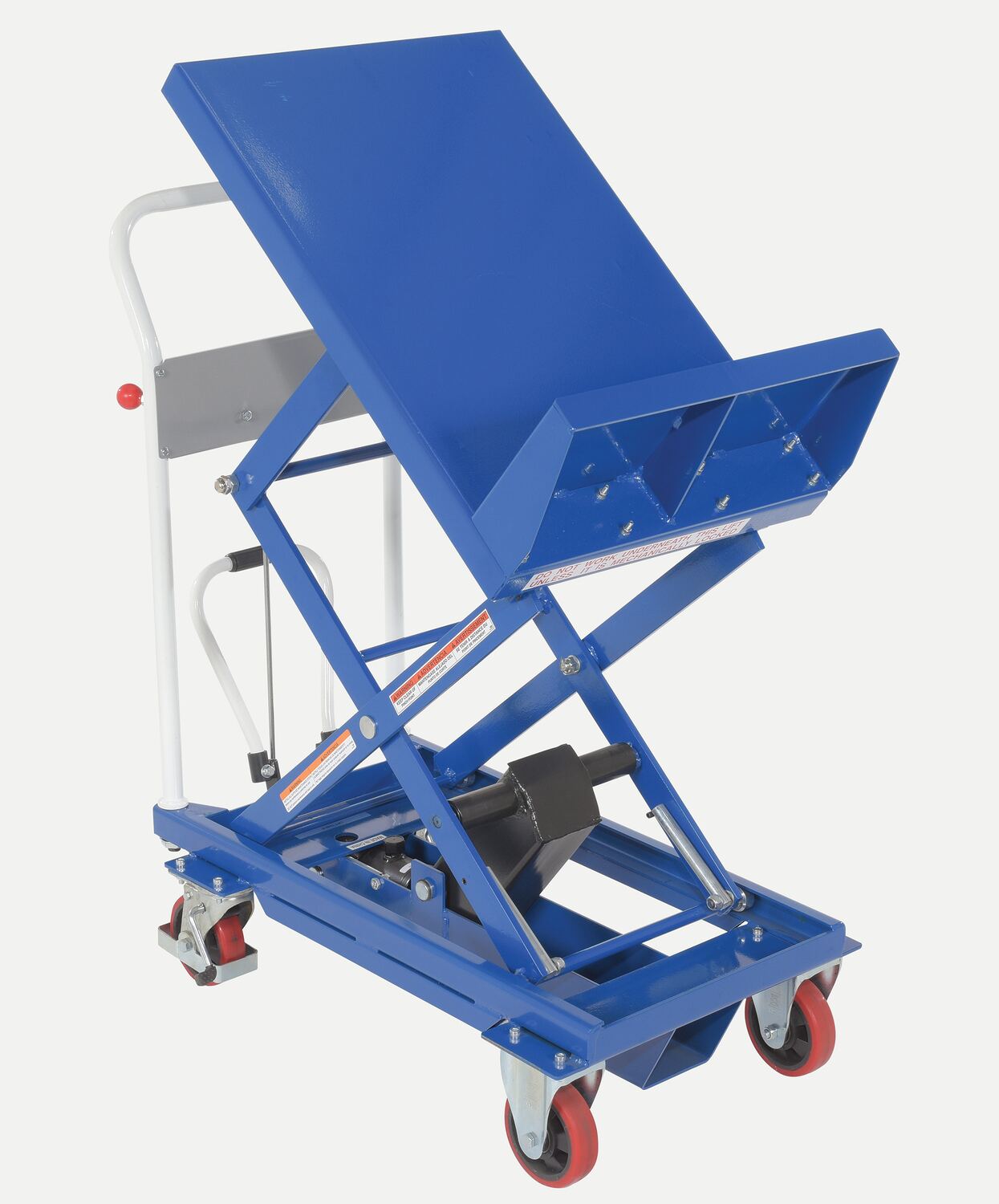

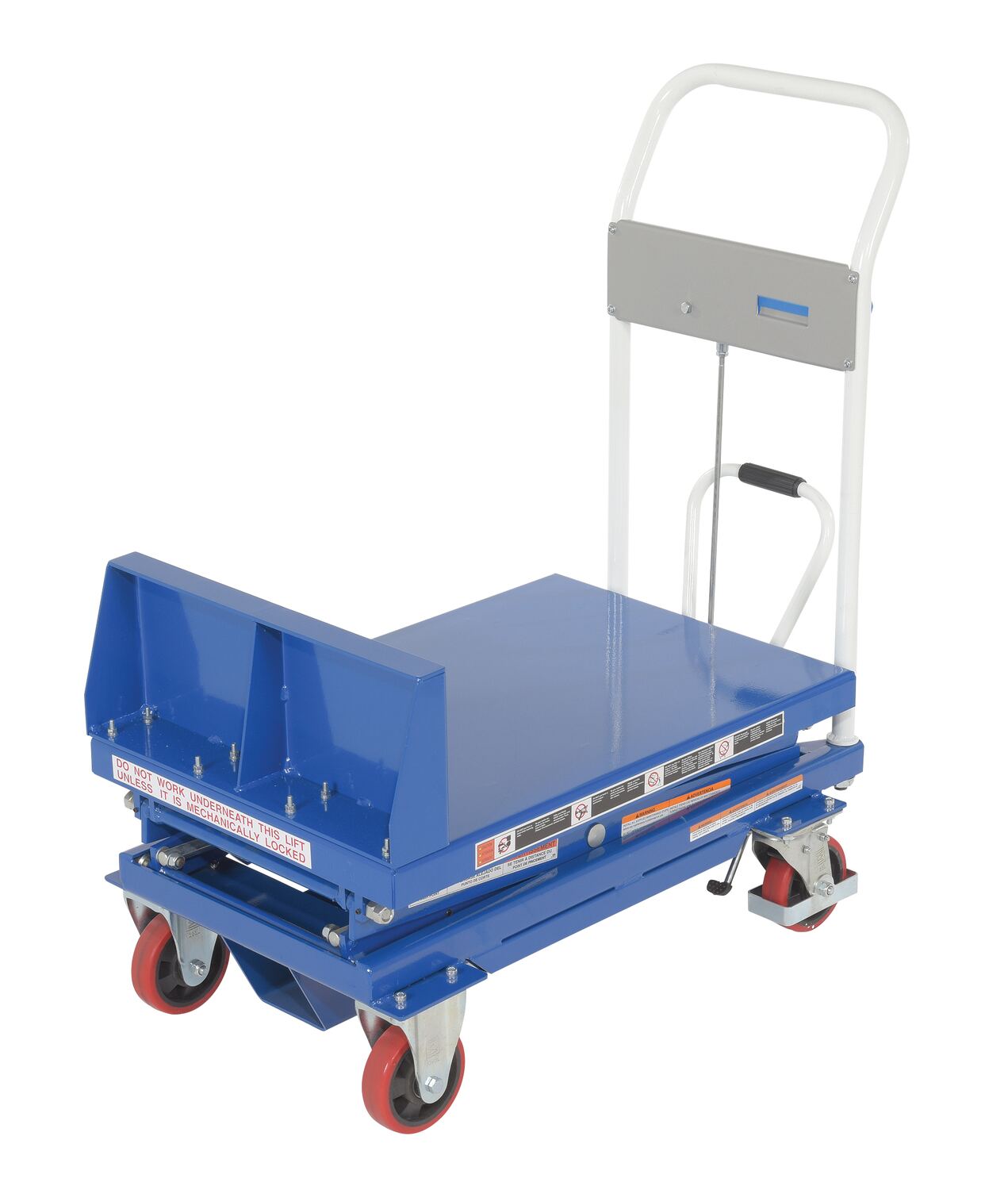

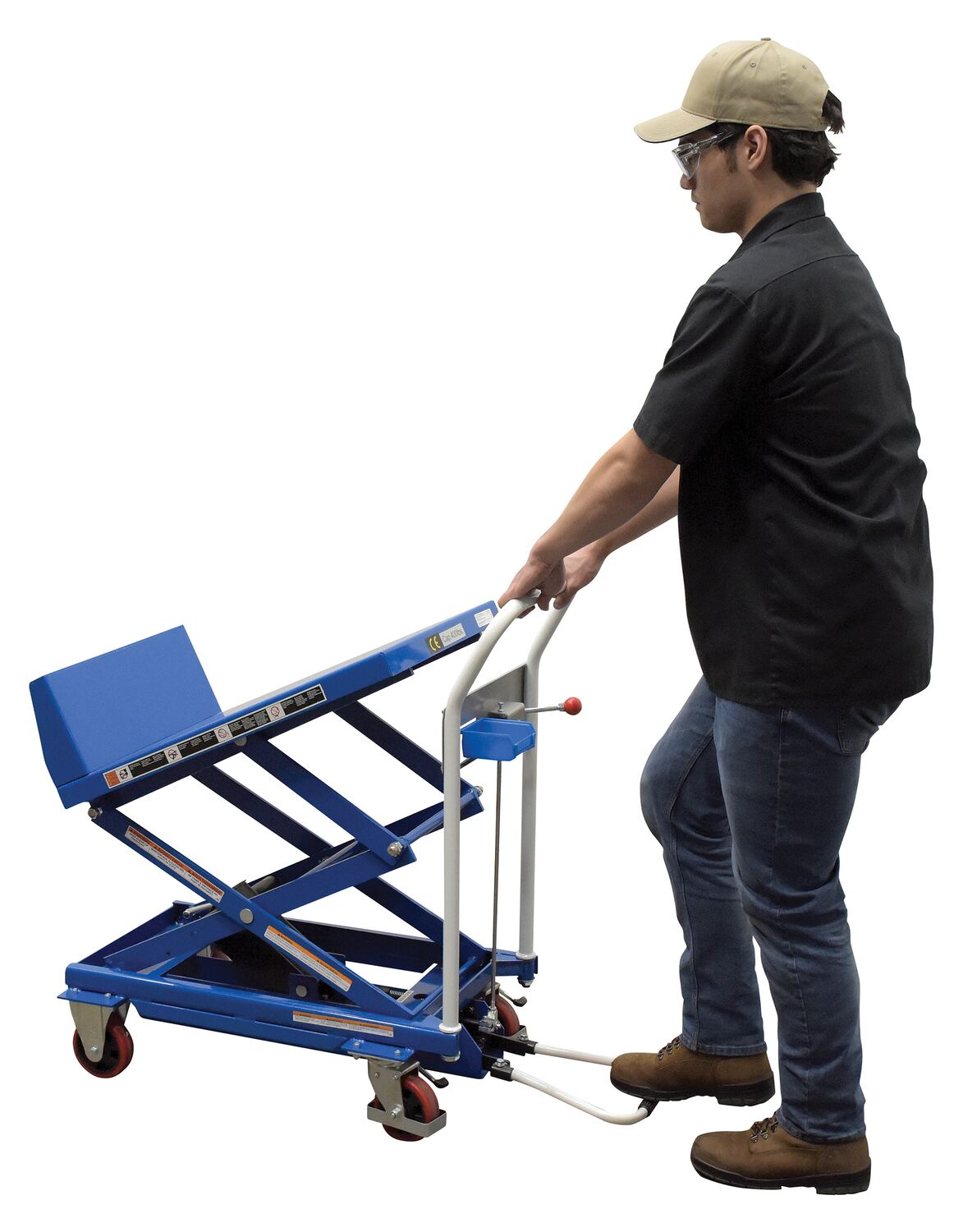

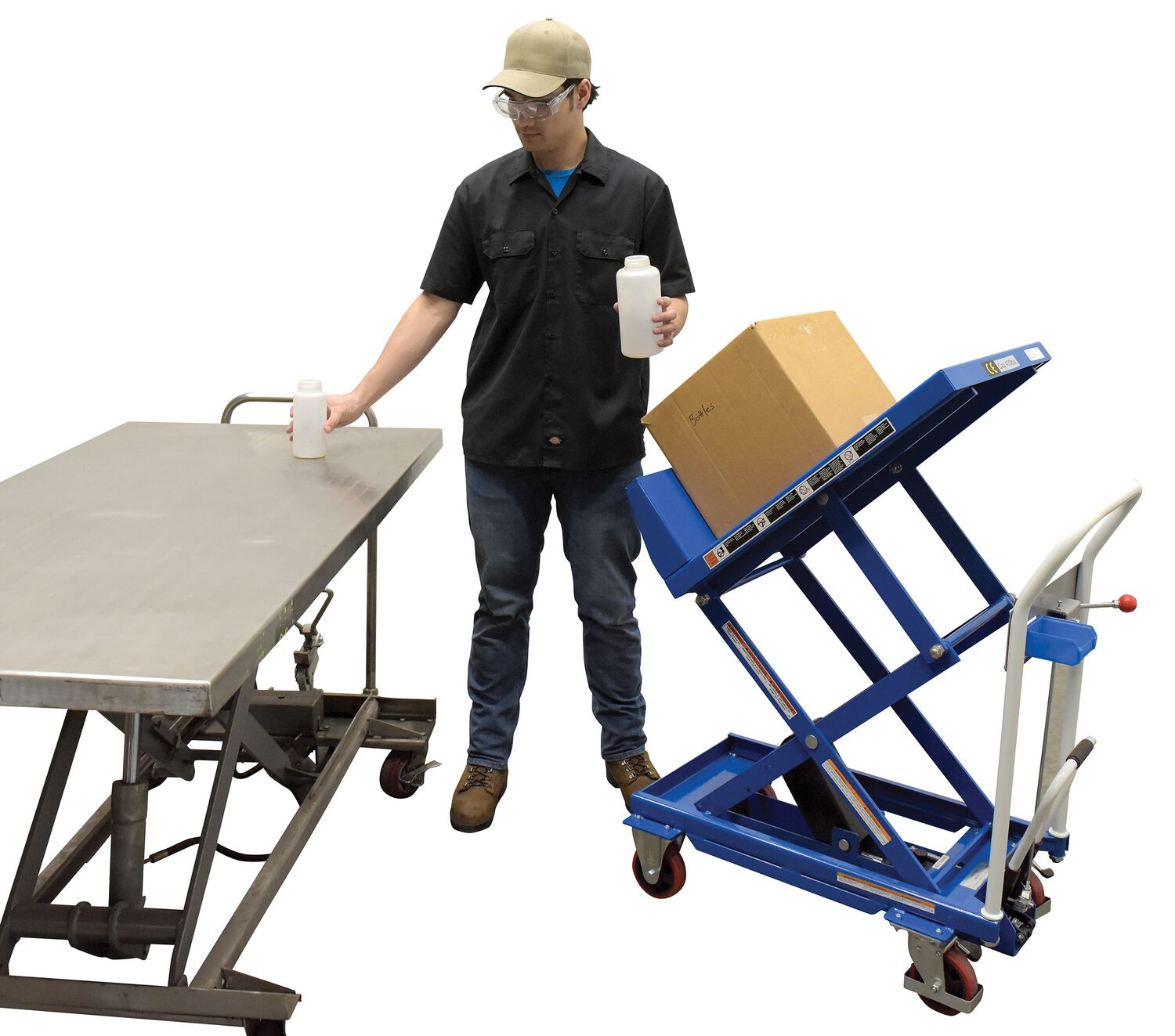

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.

Share This Page

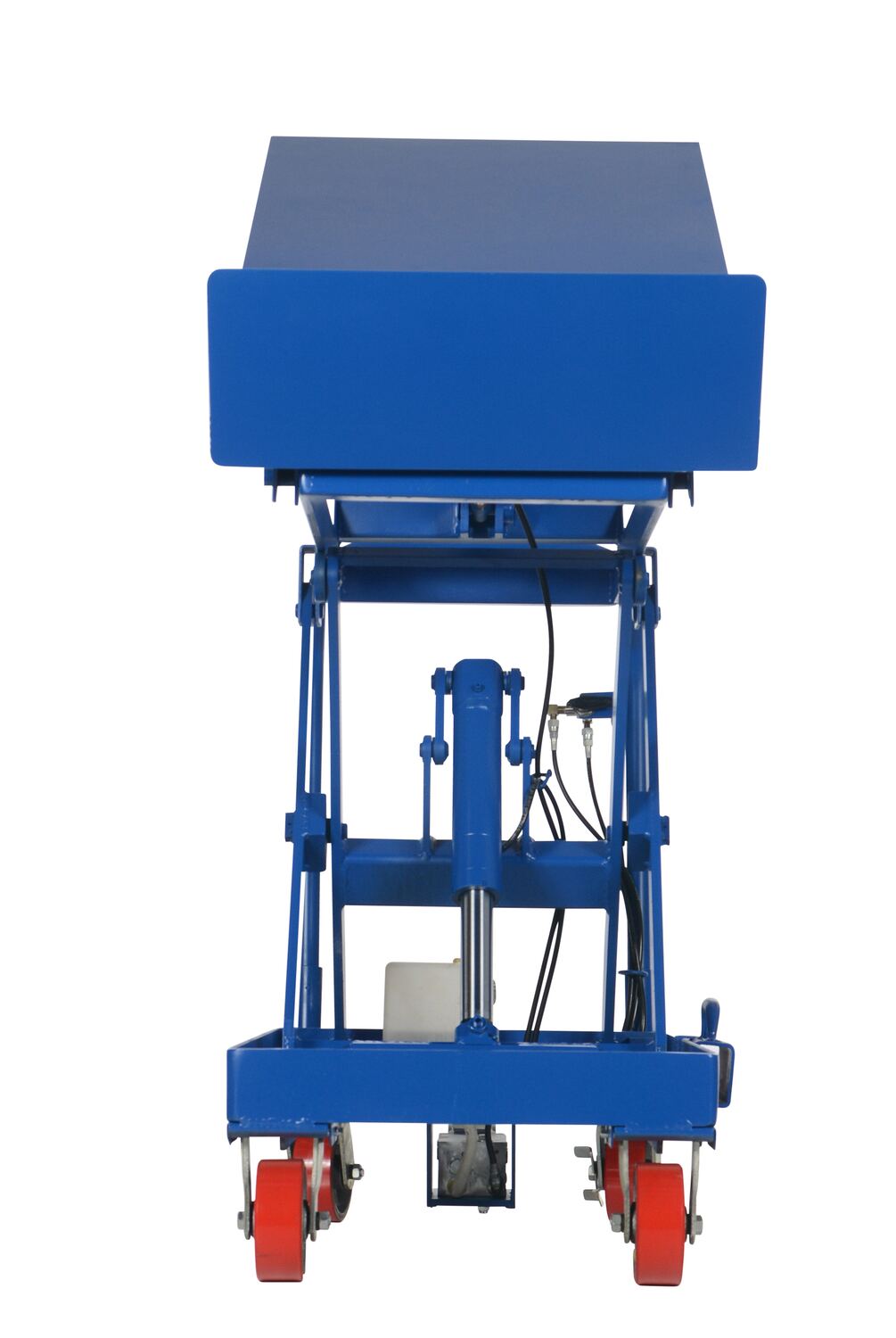

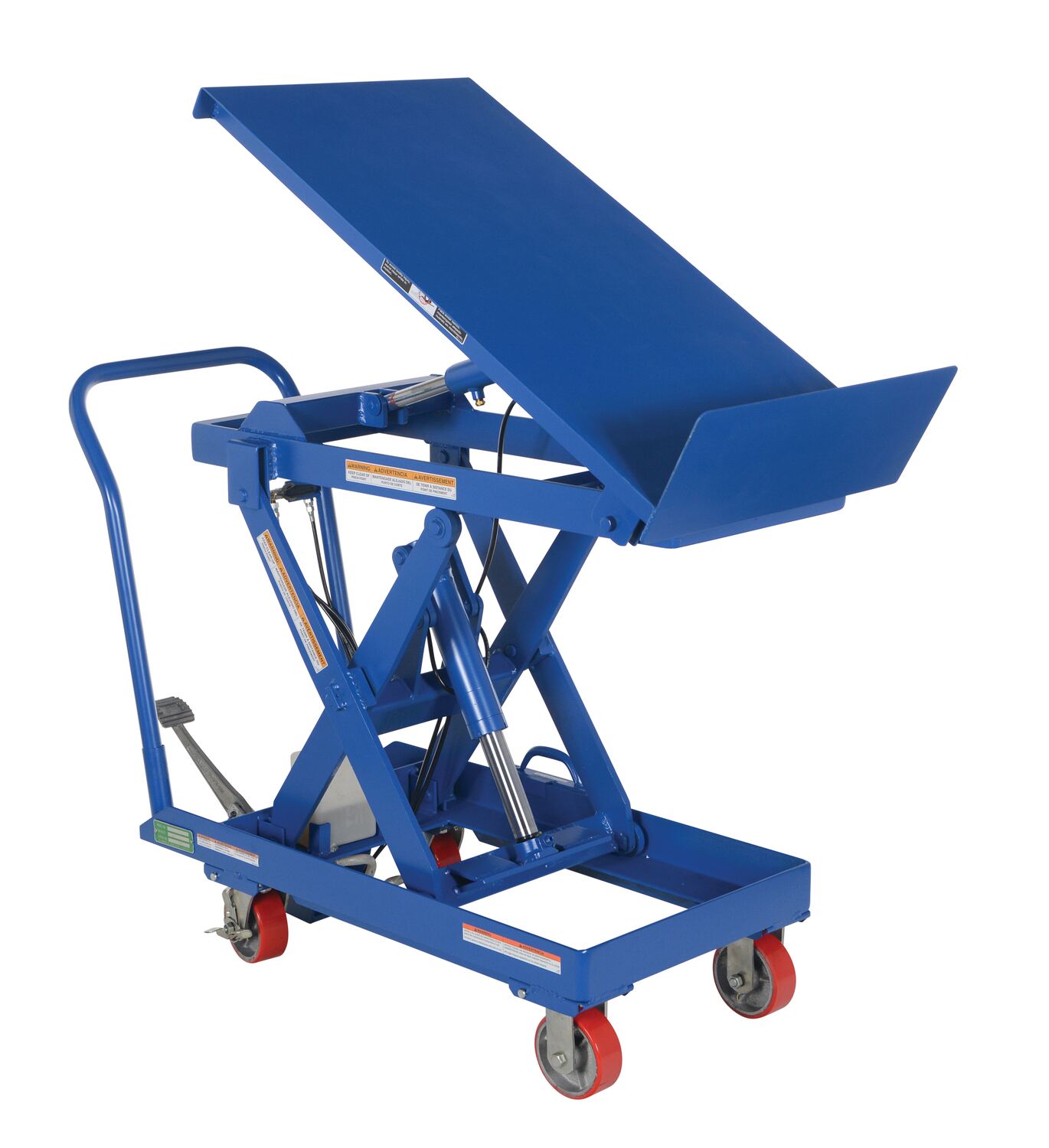

CART-500-LT

model CART-500-LT

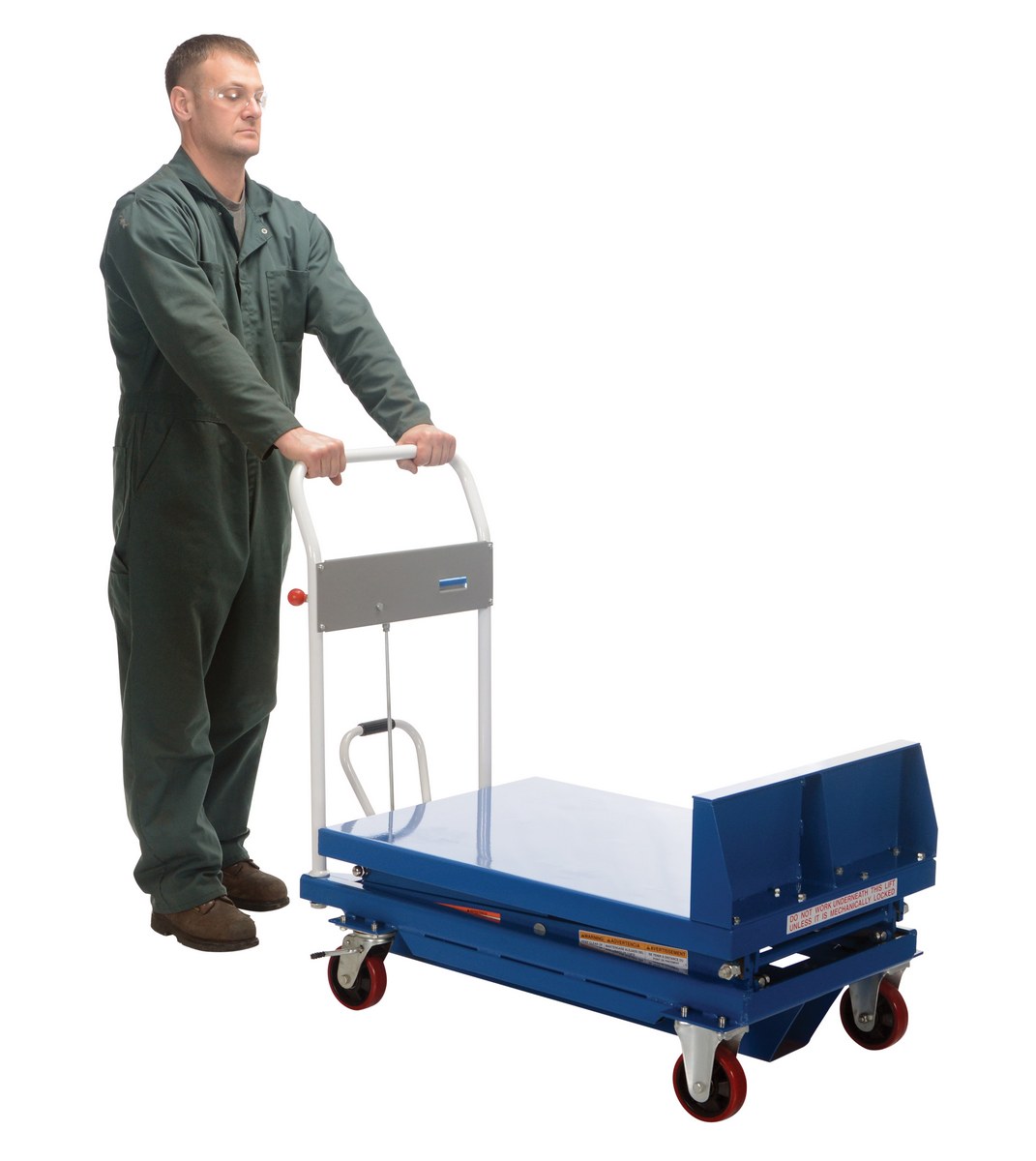

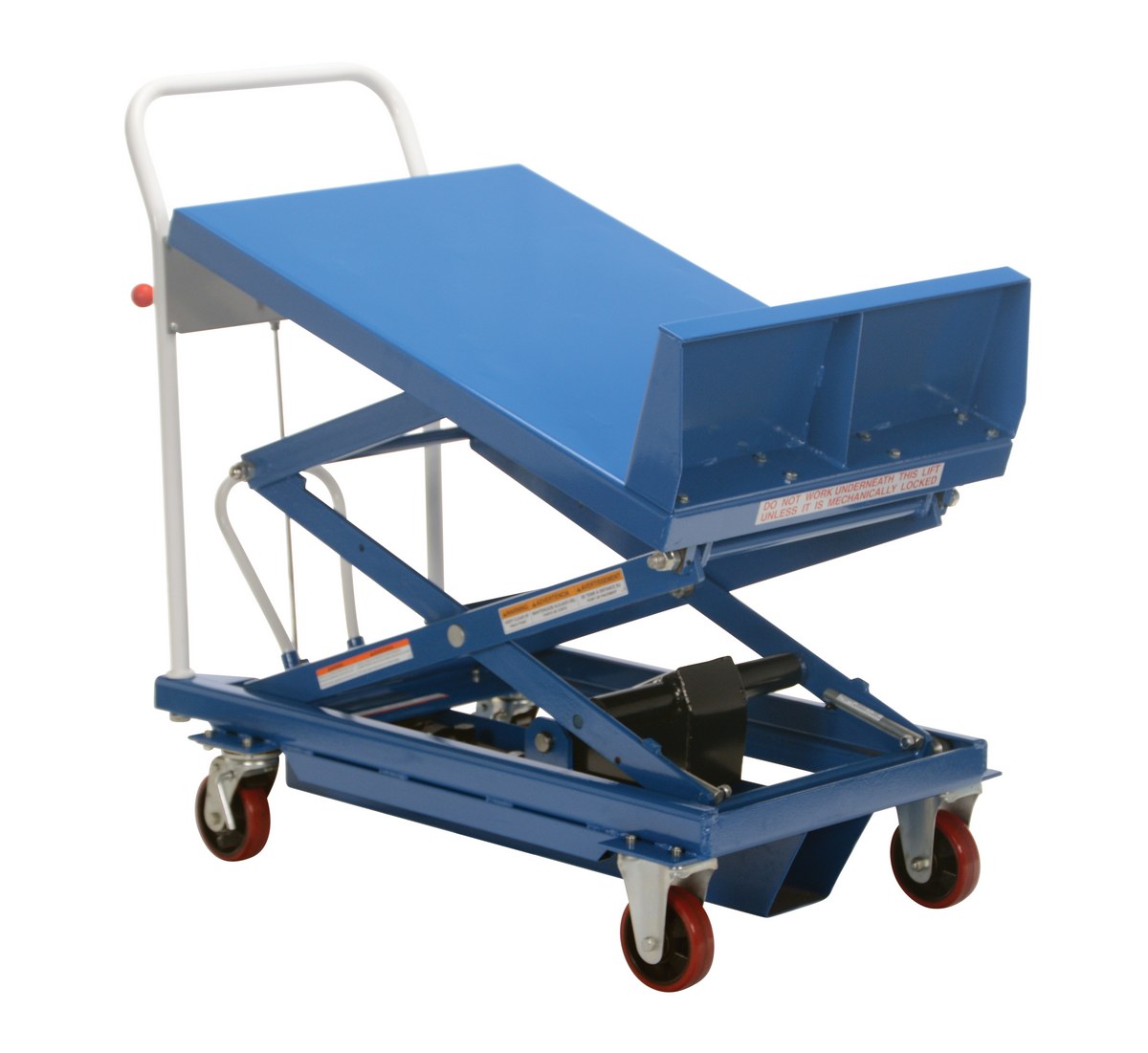

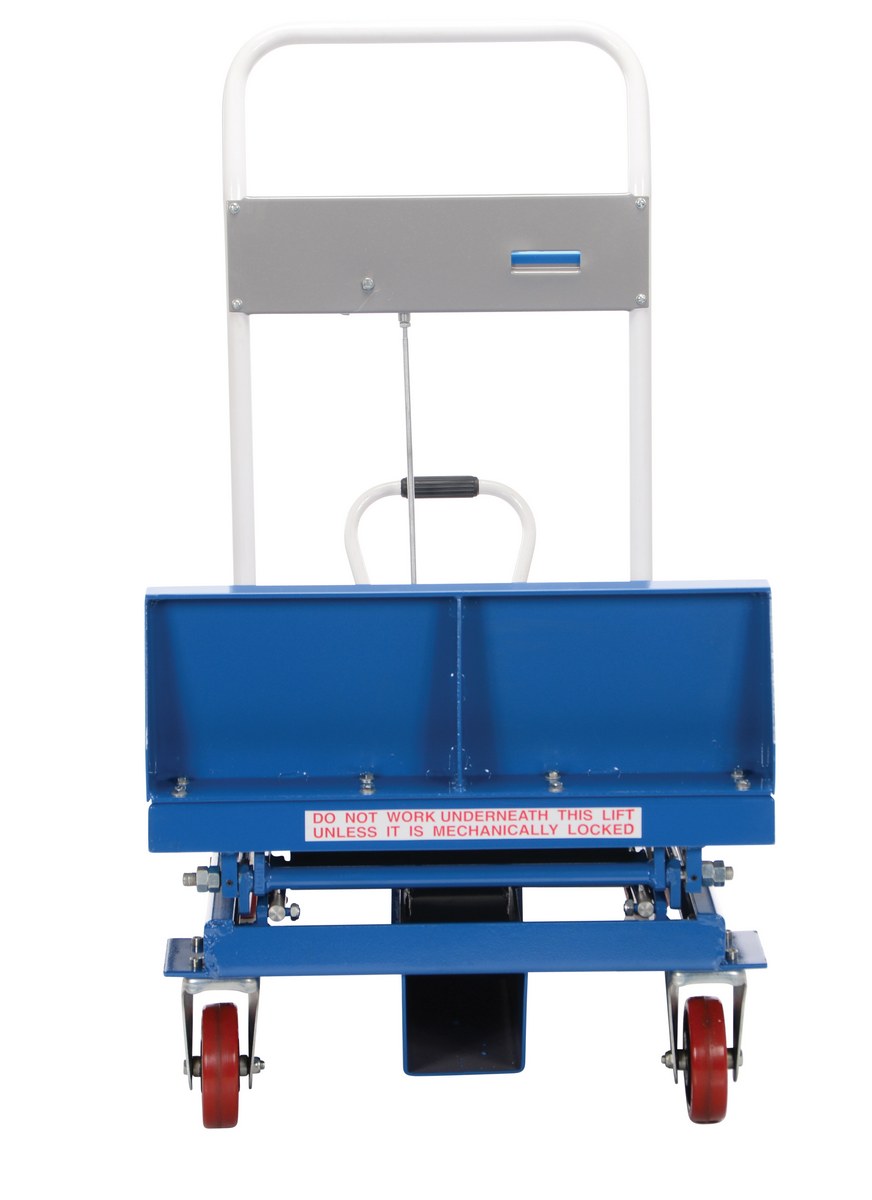

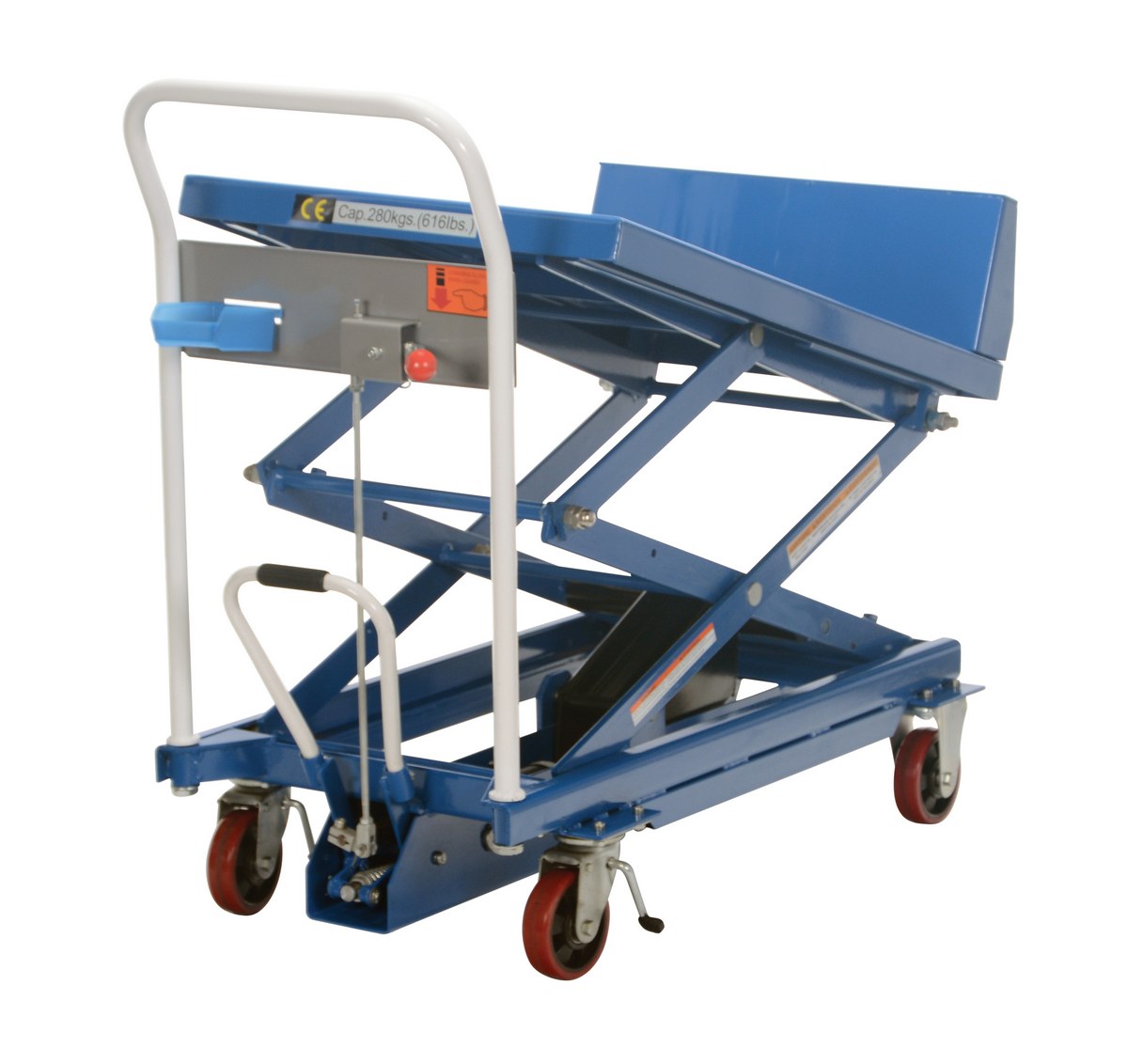

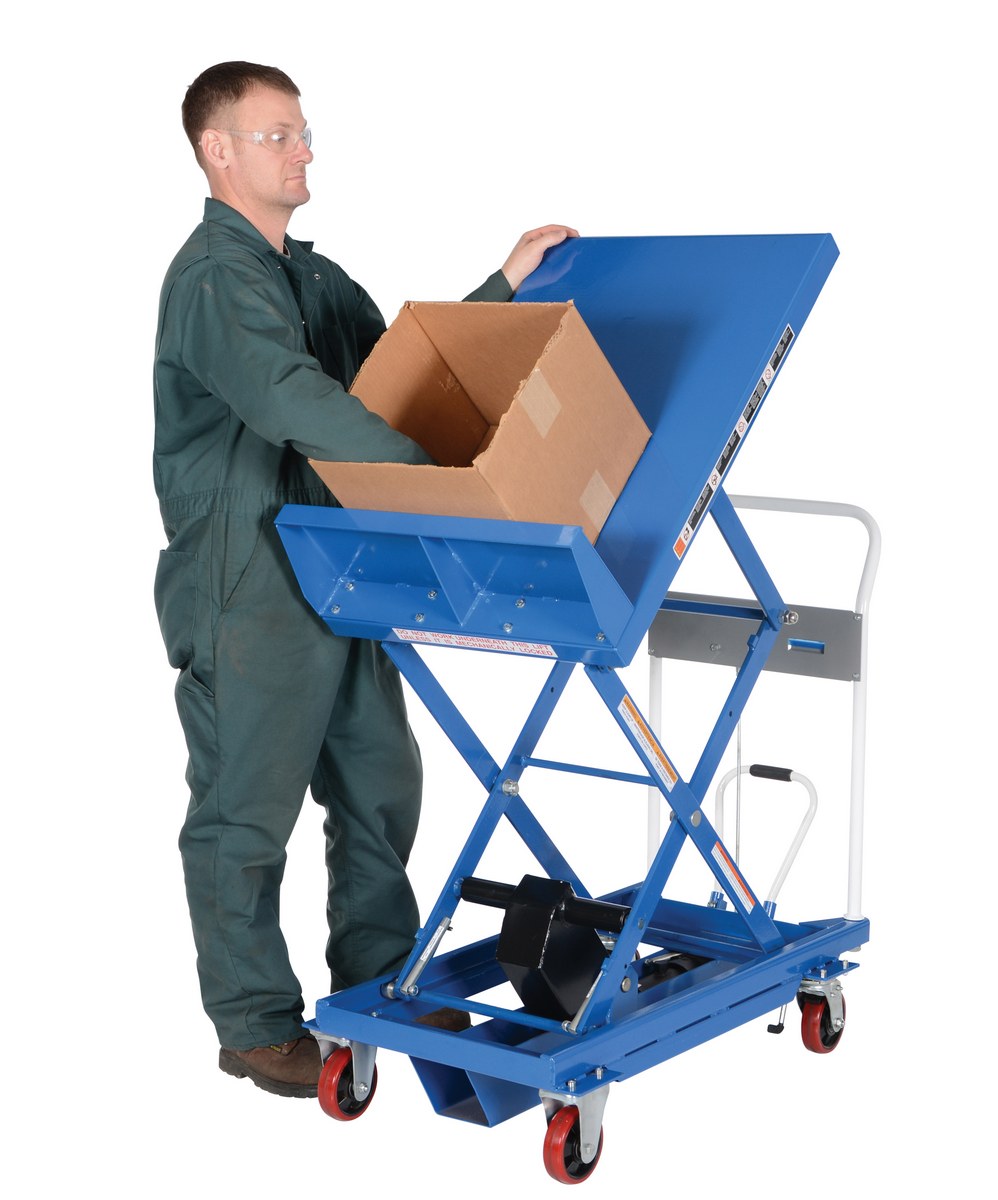

CART-600-LT

model CART-600-LT

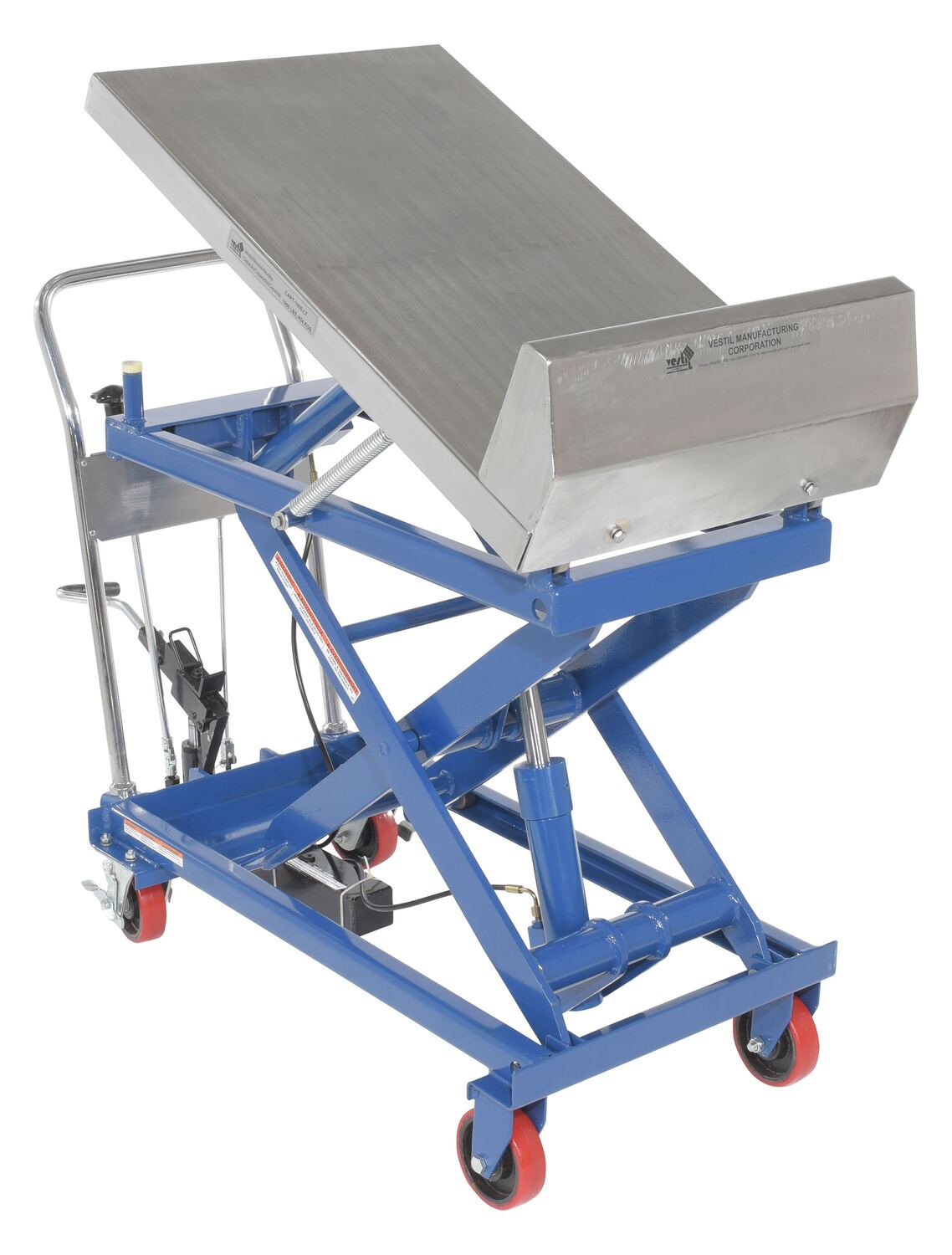

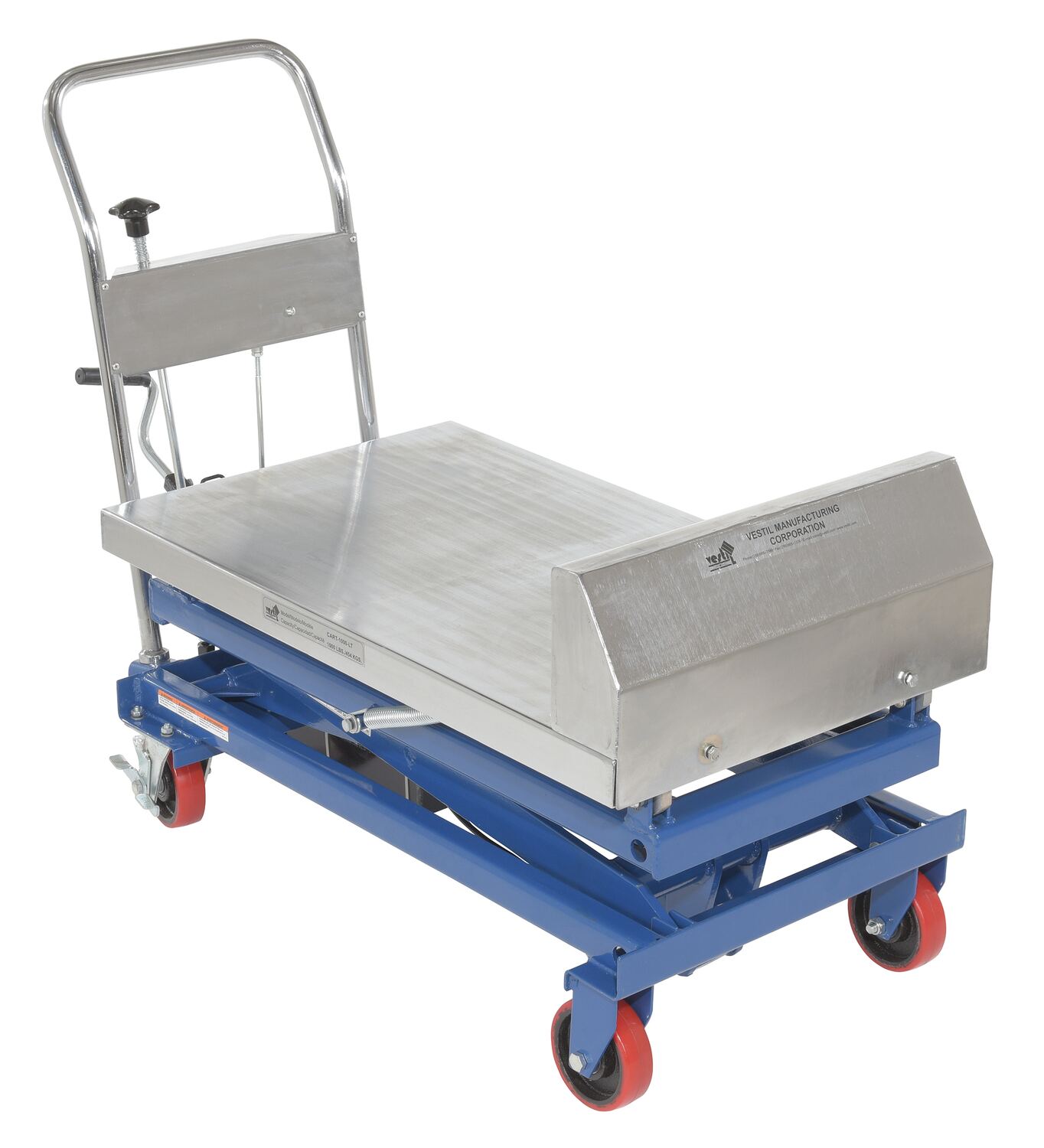

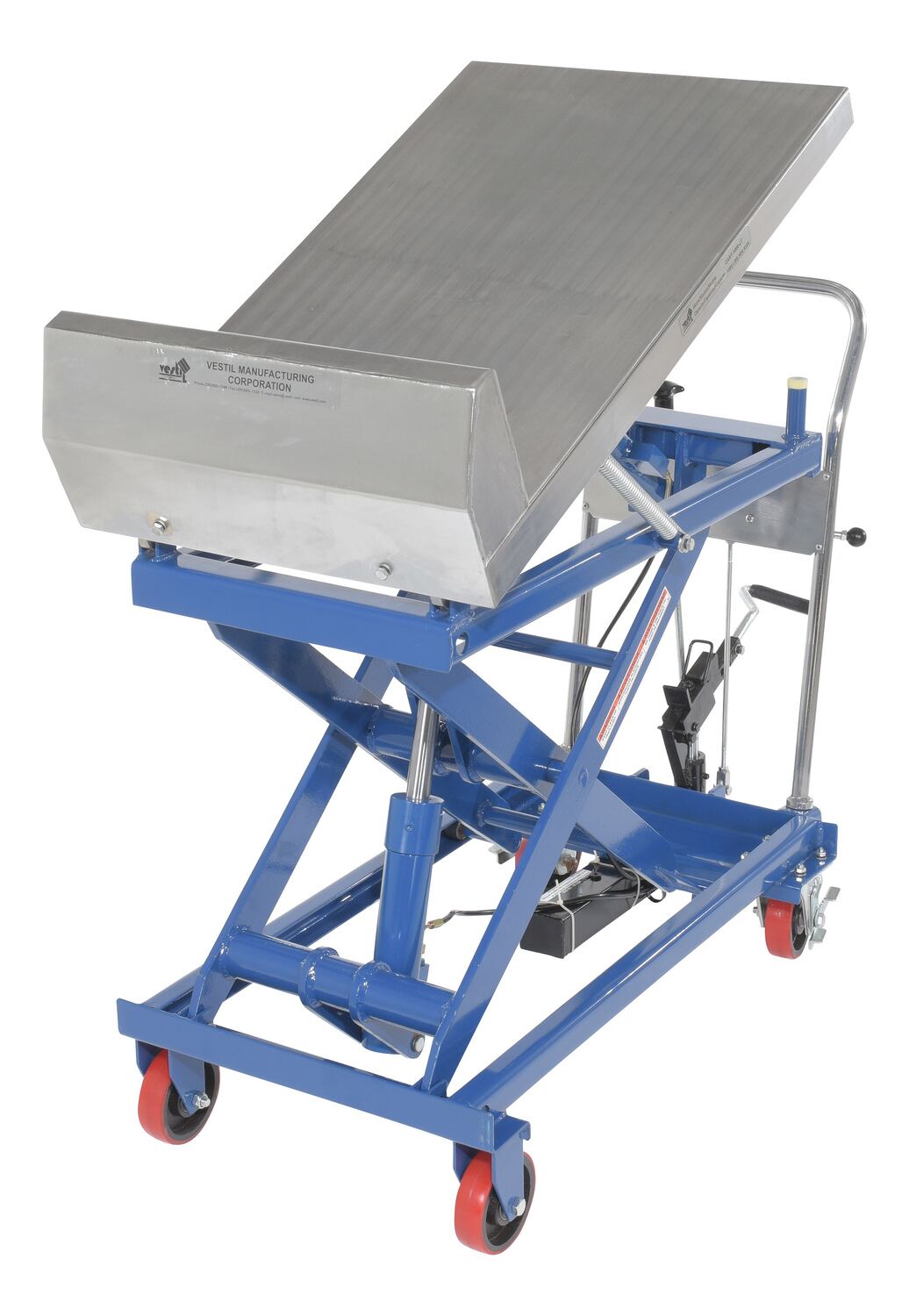

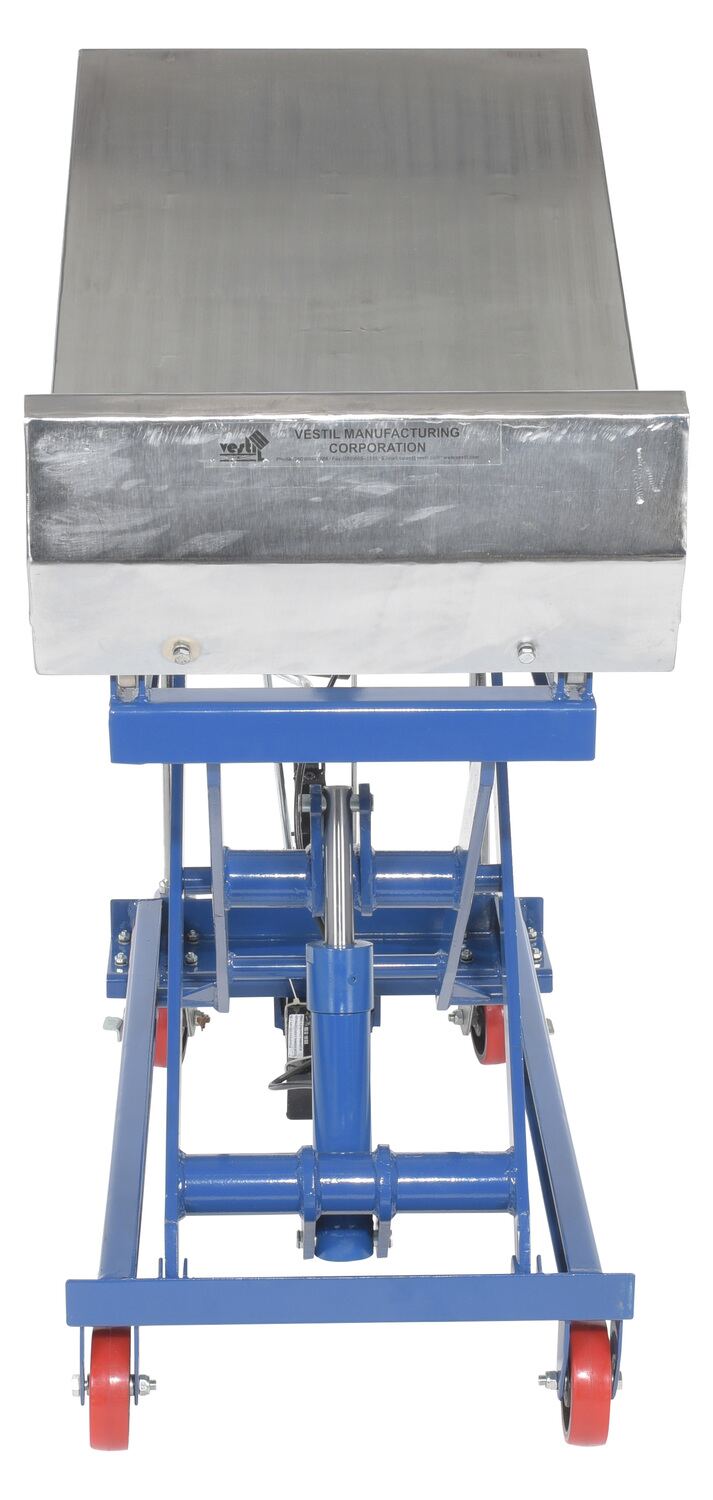

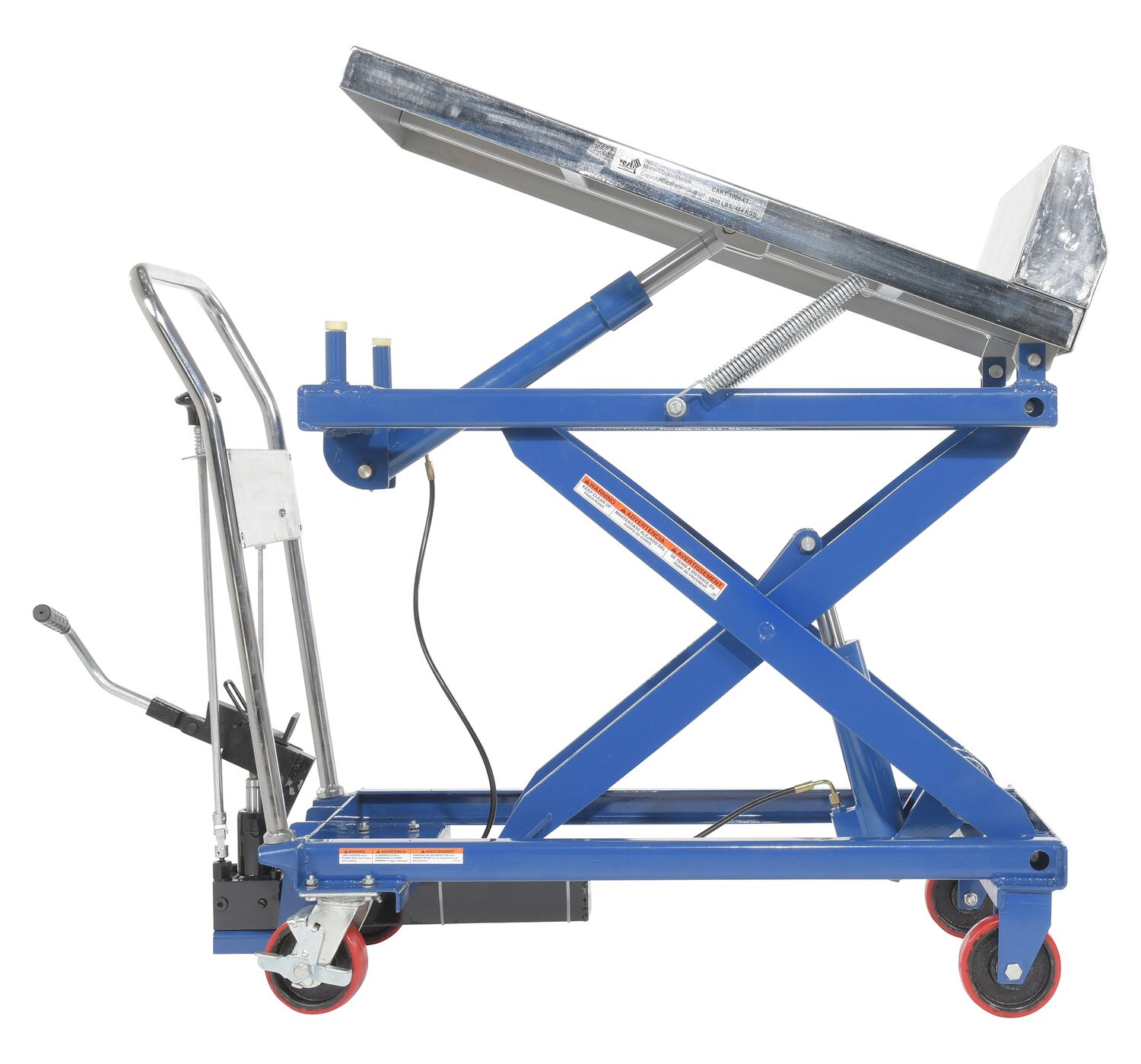

CART-1000-LT

model CART-1000-LT

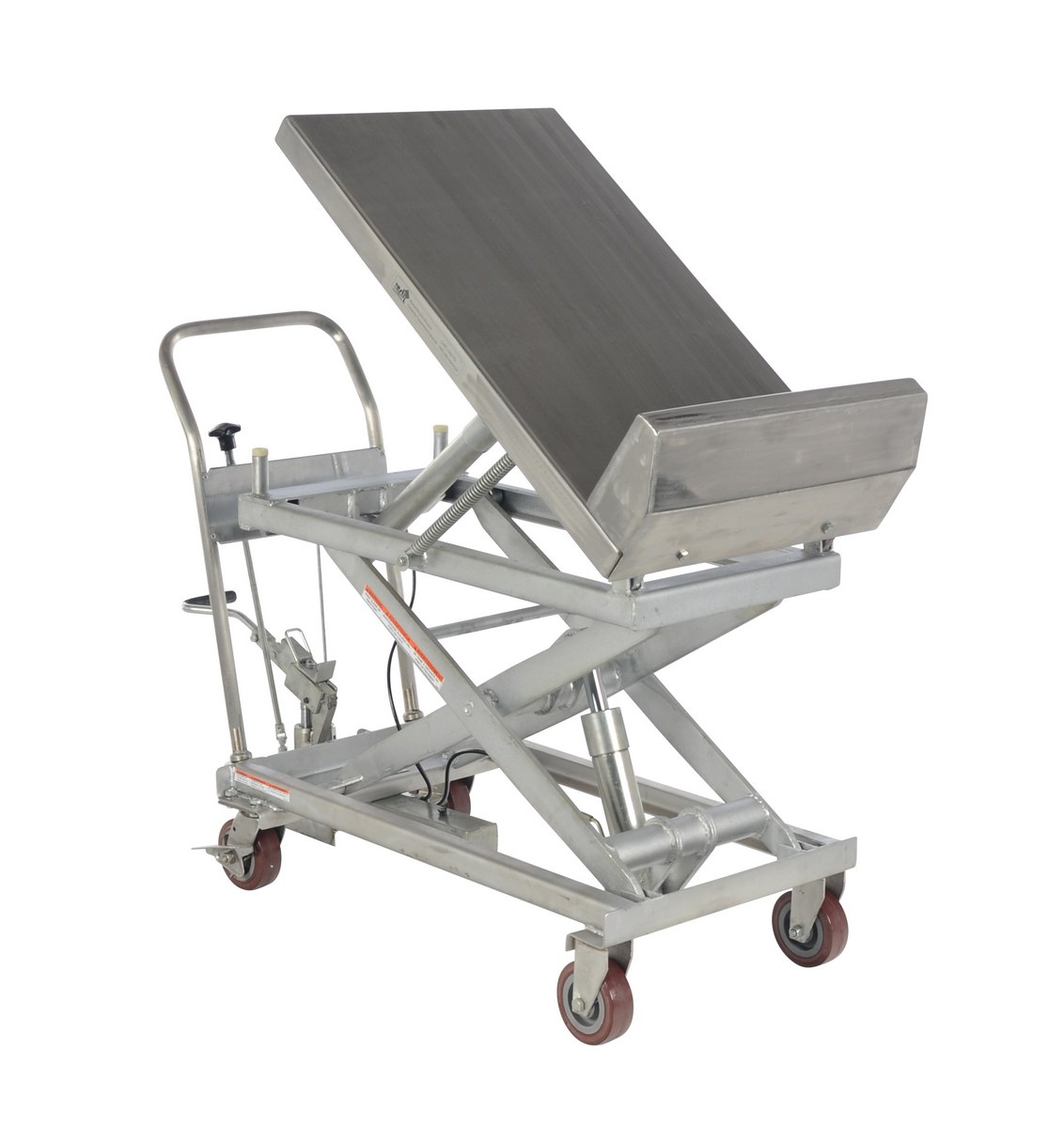

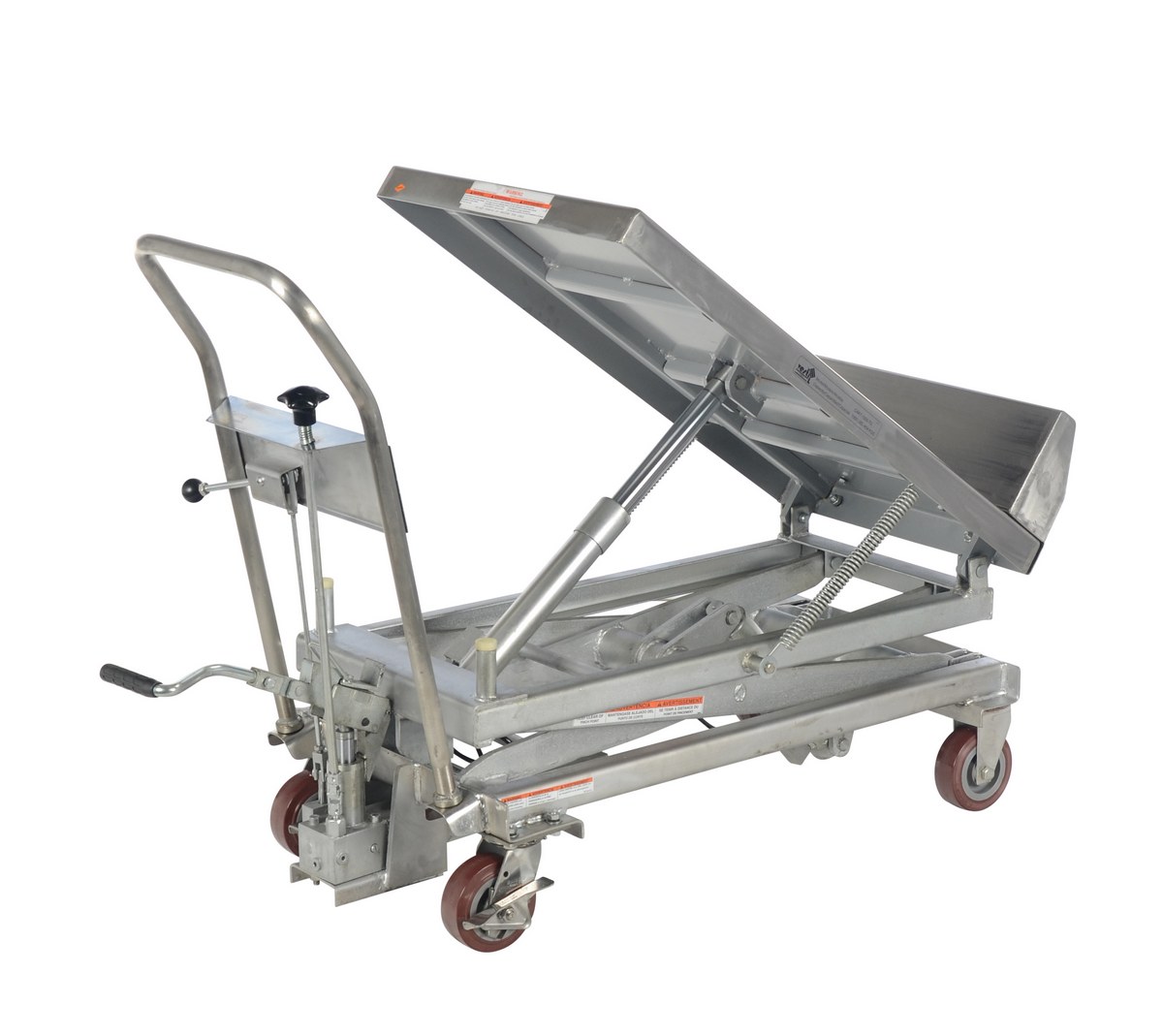

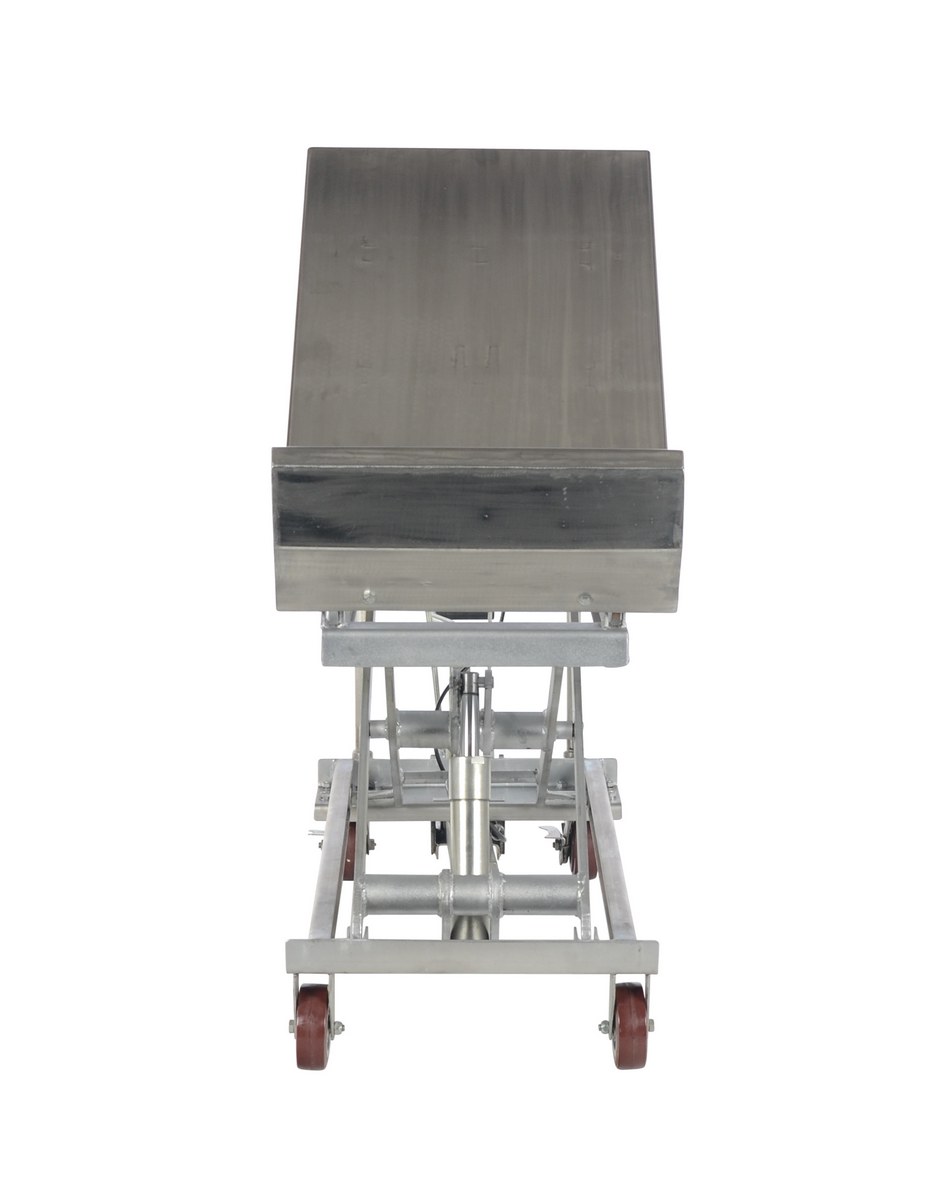

CART-1000-LT-PSS

model CART-1000-LT-PSS




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Lift & Tilt Carts with Sequence Select
Model Image PDFs Platform Size (WxL) Capacity
(lbs)
Maximum
Tilt
*Service
Range
Weight
(lbs)
CART-500-LT icon_approvaldrawings.jpgCompliance Certificate 21-1/2"x40" 500 30 degrees 16-1/2" to 36" 294
CART-400-LT icon_approvaldrawings.jpgCompliance Certificate 19-1/2"x30" 400 45 degrees 13" to 31" 245
CART-1000-LT Compliance Certificate 22"x33-1/2" 1,000 35 degrees 17-5/8" to 34-1/4" 340
CART-600-LT icon_approvaldrawings.jpgCompliance Certificate 24"x36" 600 45 degrees 14" to 35" 355
Partially Stainless Steel Construction
CART-1000-LT-PSS** Compliance Certificate 22" x 33-5/8" 1000 40 degrees 17-1/2" to 35" 323
* Service Range with Platform Level
**Platform, Handle, Caster Brackets & Hardware are all stainless steel. Pump assembly, Scissor Legs, and Foot Pedal are zinc plated.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
CART-400-LT download.gif1 Year WarrantyLIFT & TILT CART W/SEQUENCE SELECT 400LBUniform Capacity (lb.): 400200
CART-500-LT download.gif1 Year WarrantyLIFT & TILT CART W/SEQUENCE SELECT 500LBUniform Capacity (lb.): 500294
CART-600-LT download.gif1 Year WarrantyLIFT & TILT CART W/SEQUENCE SELECT 600LBUniform Capacity (lb.): 600302
CART-1000-LT download.gif1 Year WarrantySEQUENCE LIFT & TILT CART 1K 22 X 33.5Uniform Capacity (lb.): 1000293
CART-1000-LT-PSS 1 Year WarrantyPARTIALLY SS LIFT & TILT CART 1K 22X33.6Uniform Capacity (lb.): 1000286



Lift & Tilt Carts with Sequence Select PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

Testing Certificates

CART-400-LT
CART-500-LT
CART-600-LT
CART-1000-LT
CART-1000-LT-PSS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: What are the dimensions of the caster mounting plate?

A: The caster mounting plate for the CART-400-LT is 4 3/8" x 4 3/8".
