SERIES:


Ergo-Handle Carts

The Ergo-Handle Cart is constructed of heavy-duty steel to handle uniform loads up to 4,000 pounds. The patented ergonomic handle decreases fatigue by allowing the operator to easily maneuver the cart. Rolls on 2 rigid, 2 swivel 8" x 2" casters with roller bearings. Invertible bolt-on chrome ergonomic handle designed for individual height comfort and handling of long loads.

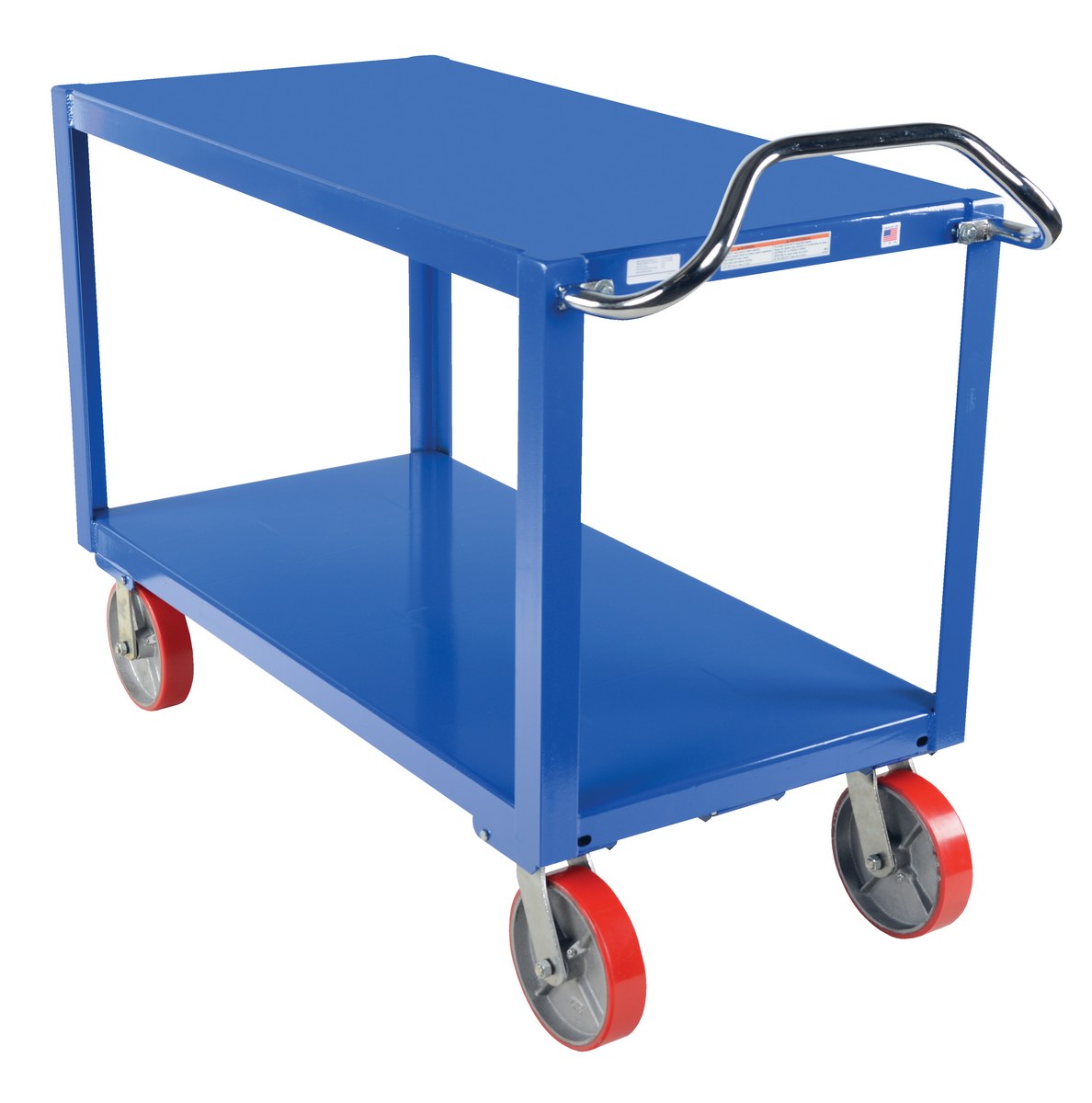

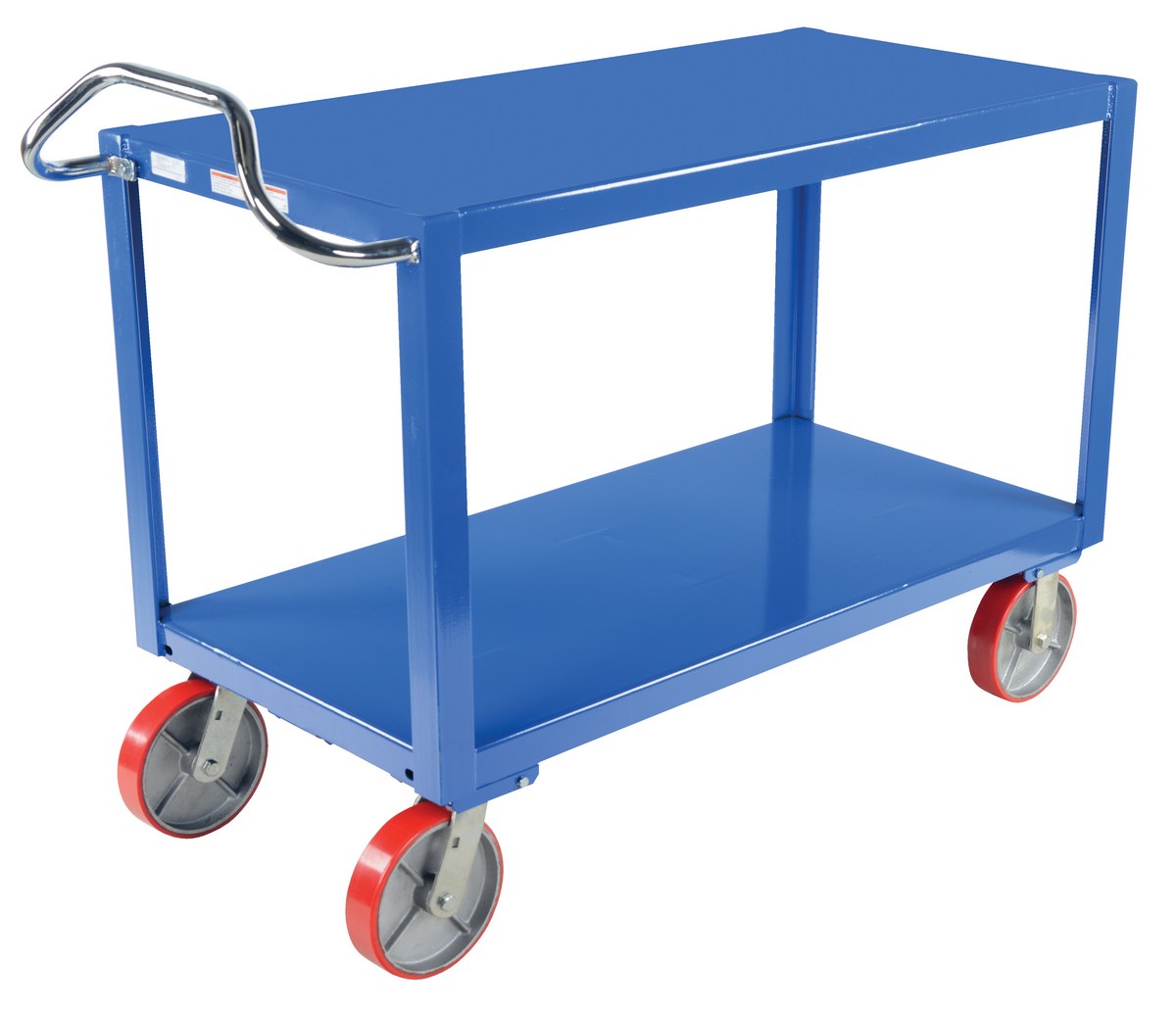

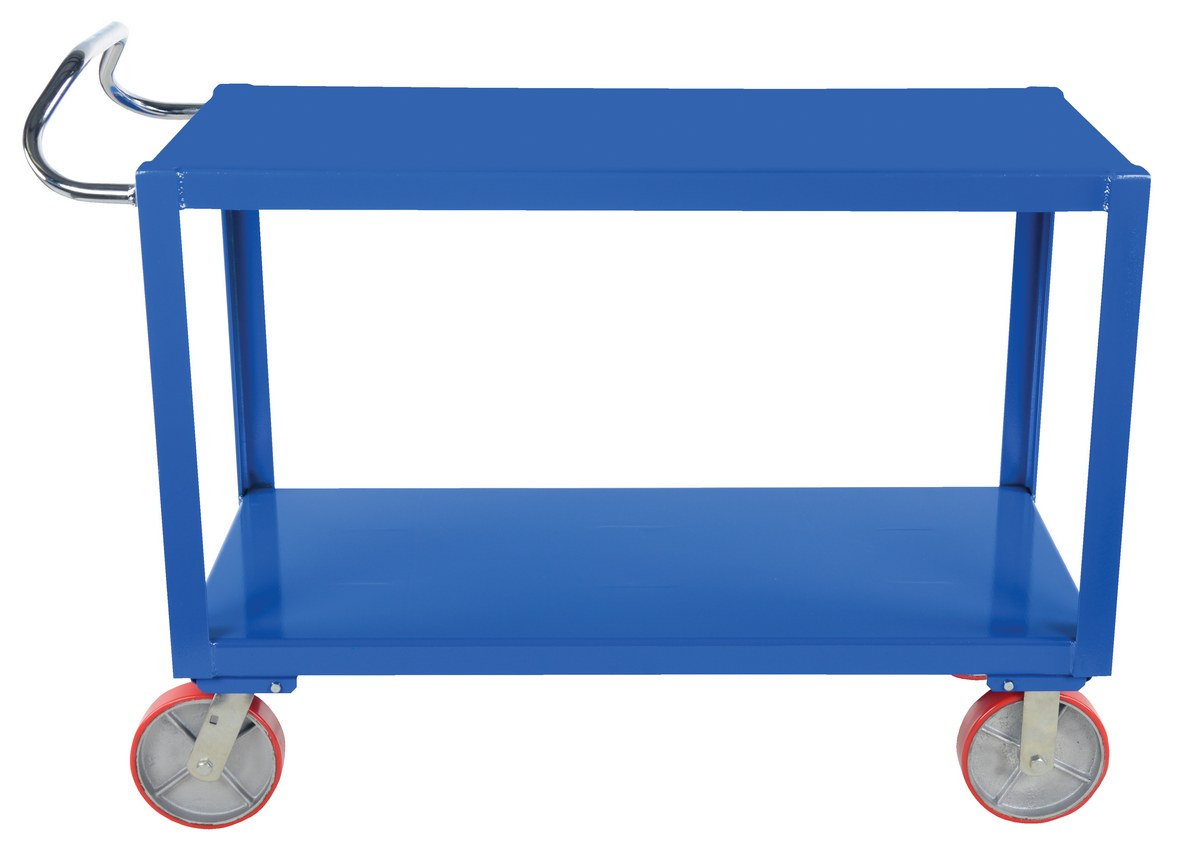

DH-PU2.4-2448

model DH-PU2.4-2448

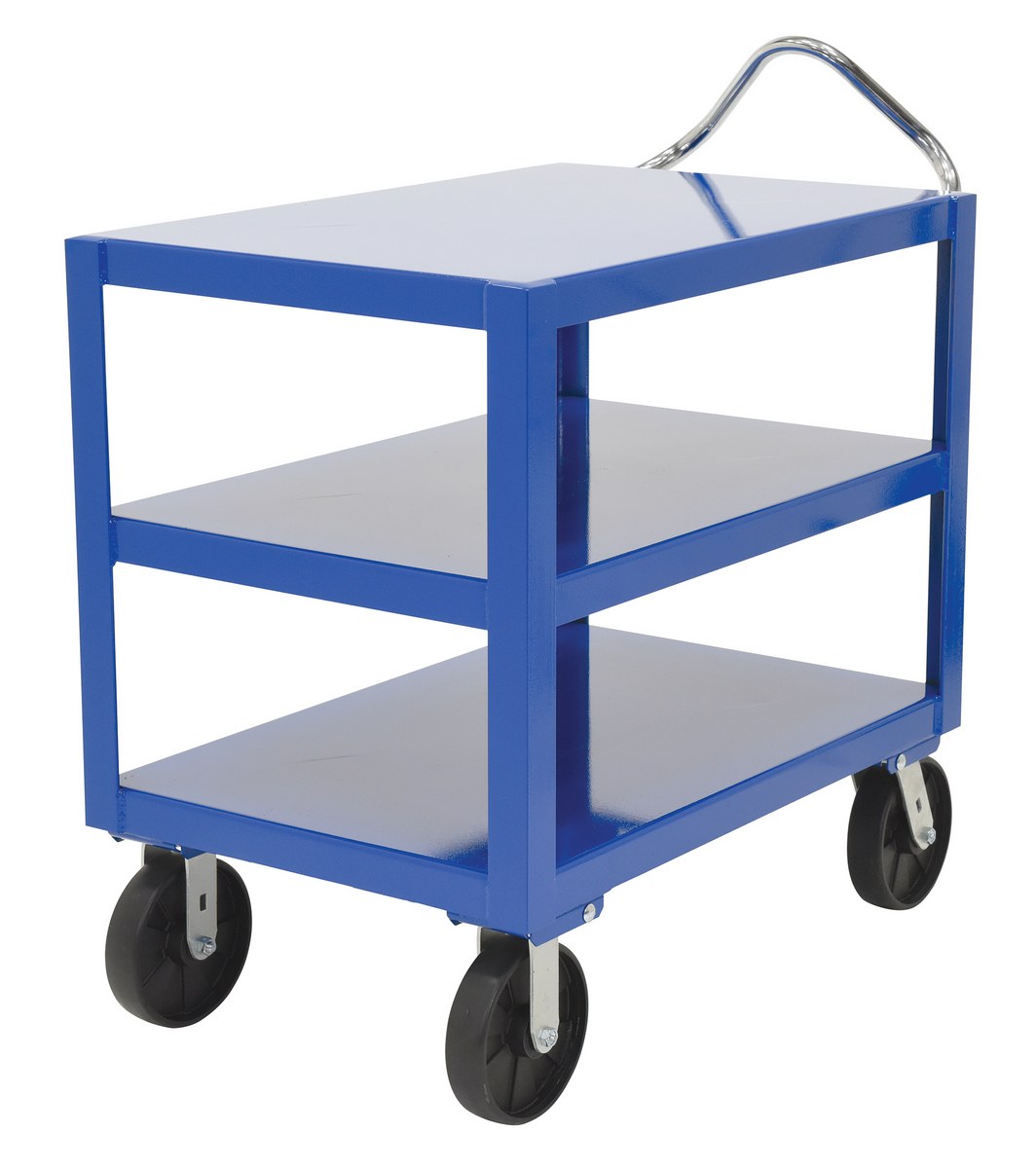

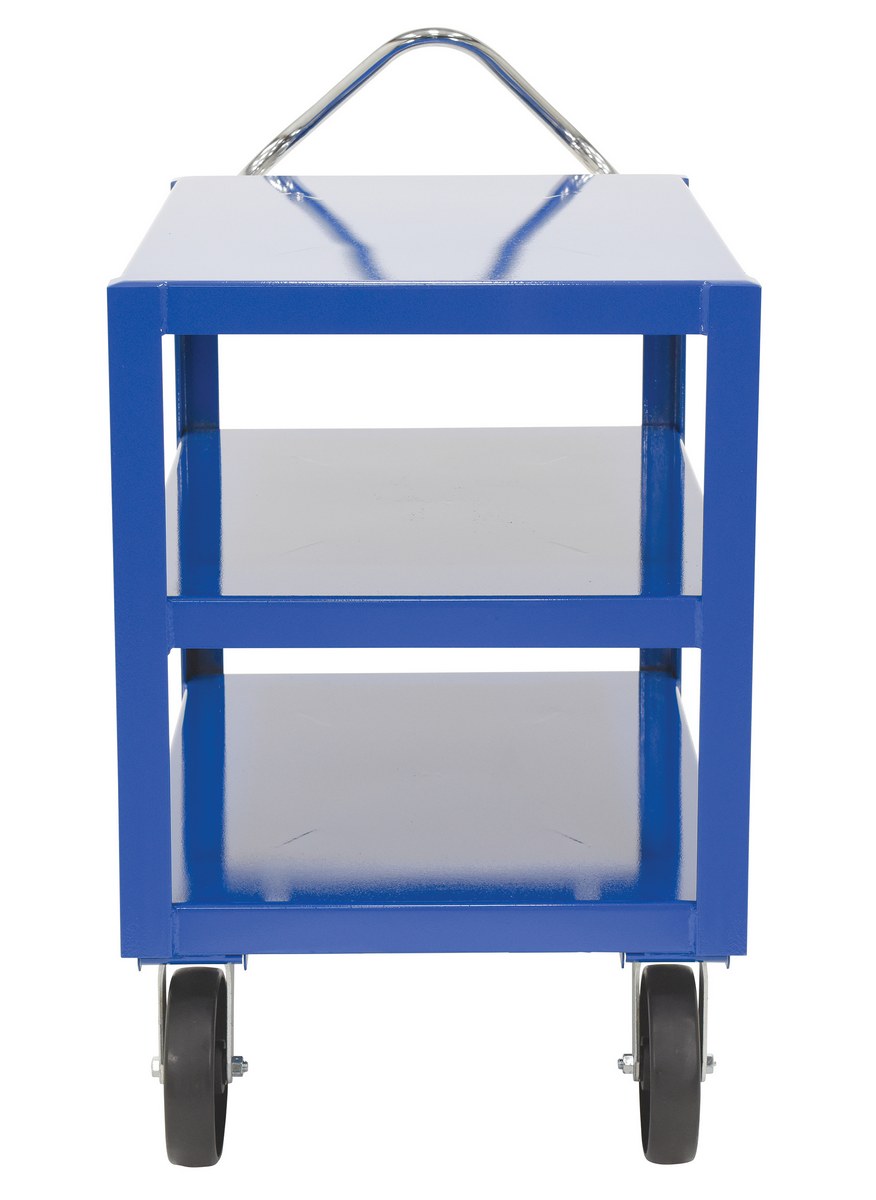

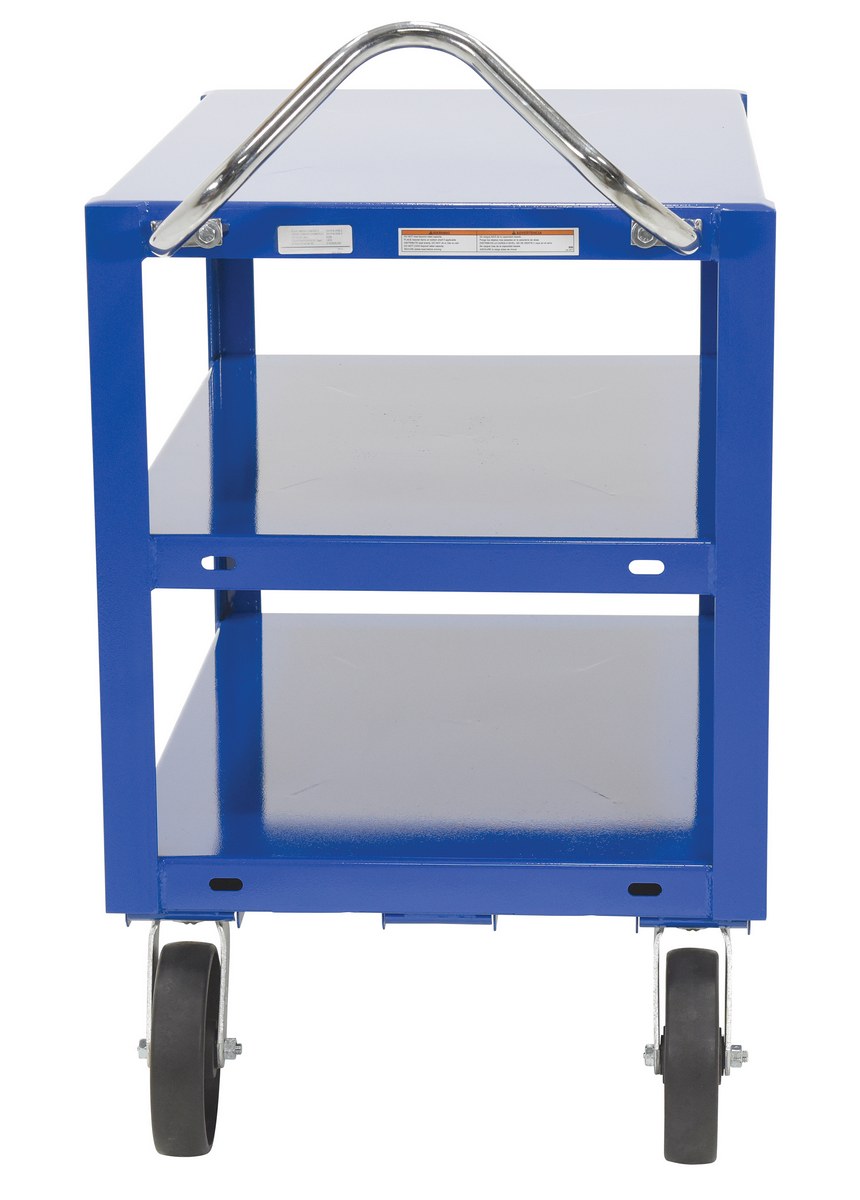

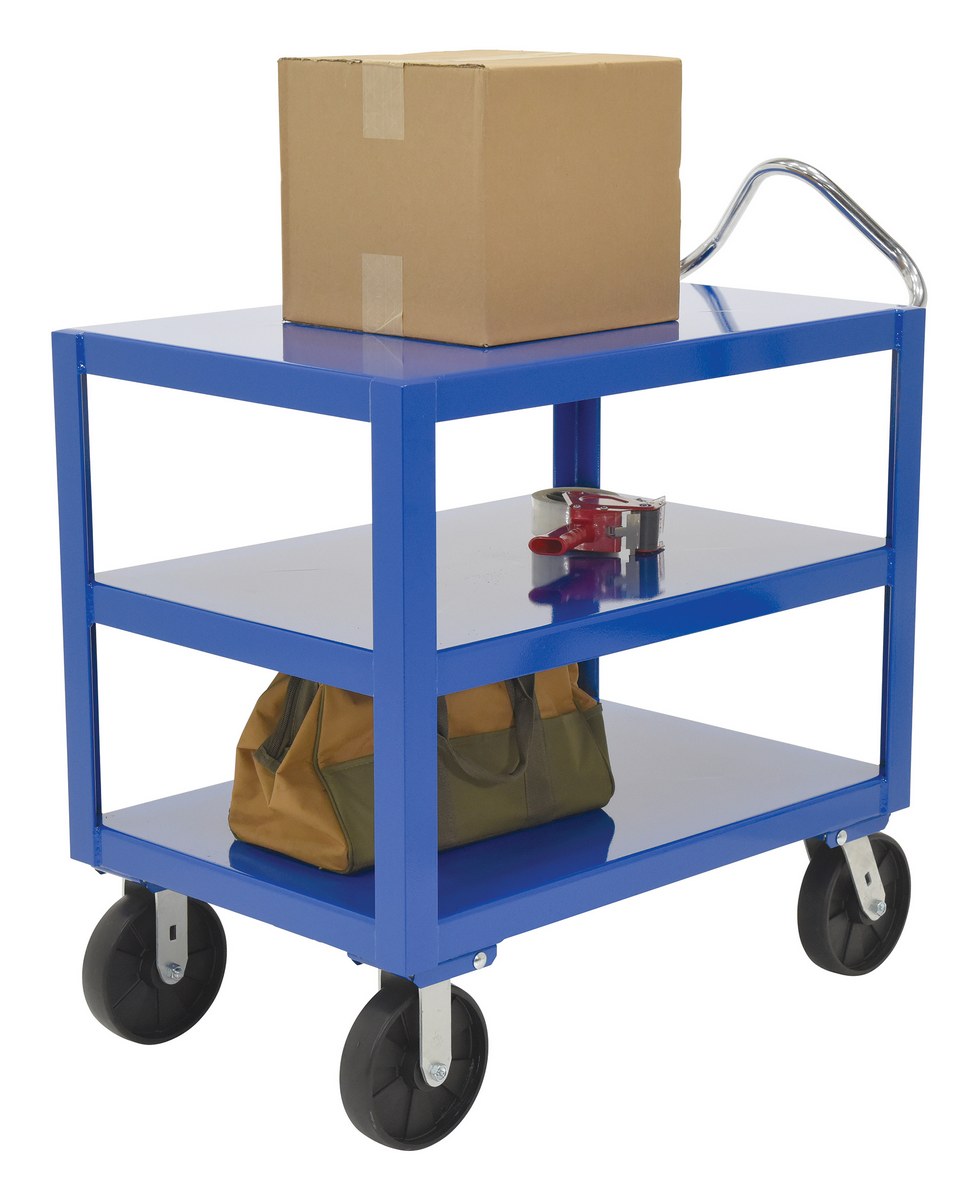

DH-PH4-2436-3

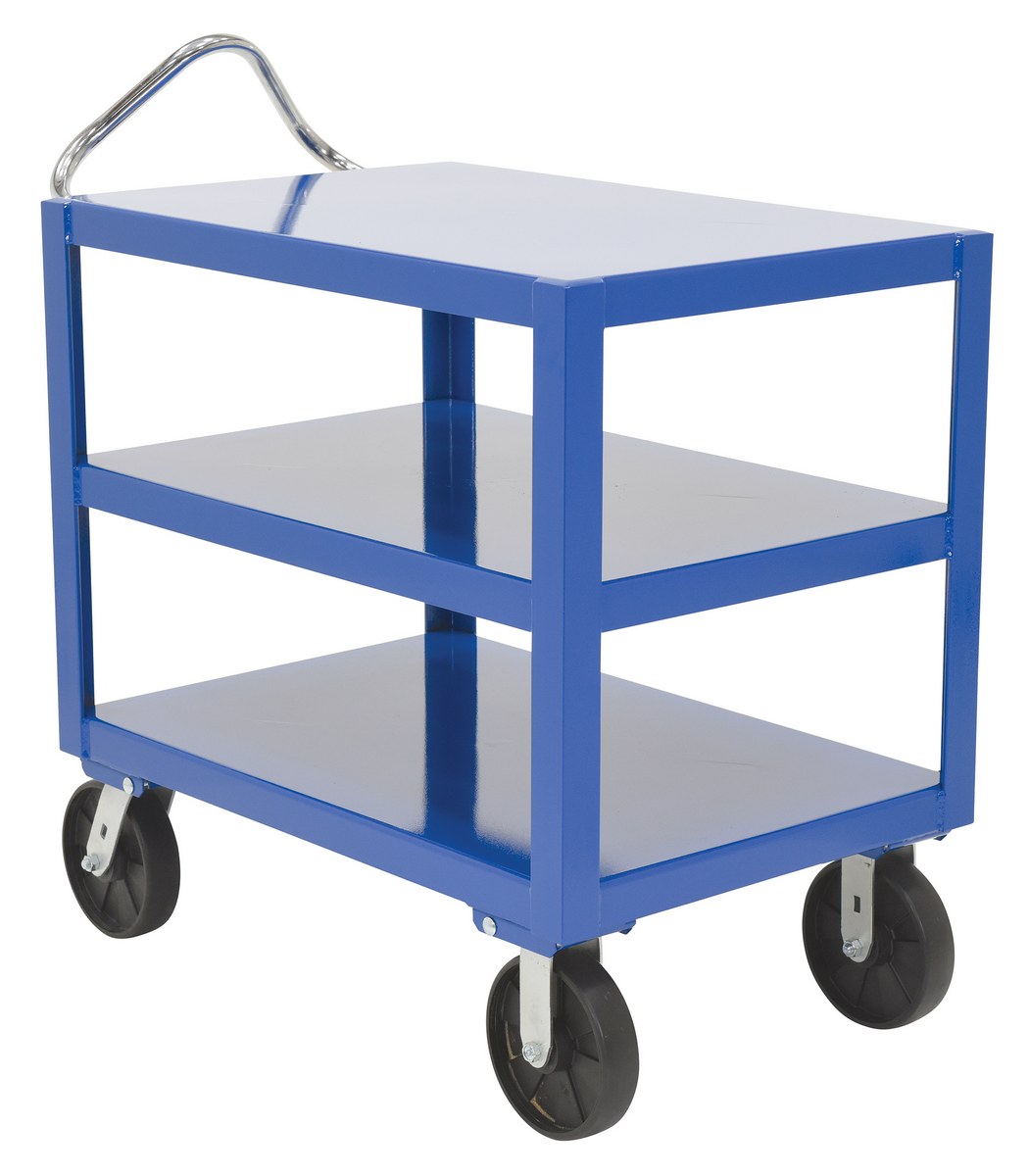

model DH-PH4-2436-3

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Ergo-Handle Carts
Model PDF's Platform Size (WxL) Shelf
Clearance
Top Shelf Height Maximum Capacity Cart/ Shelf Weight
(lbs)
8" x 2" Glass Filled Nylon Casters
2-Shelf Units

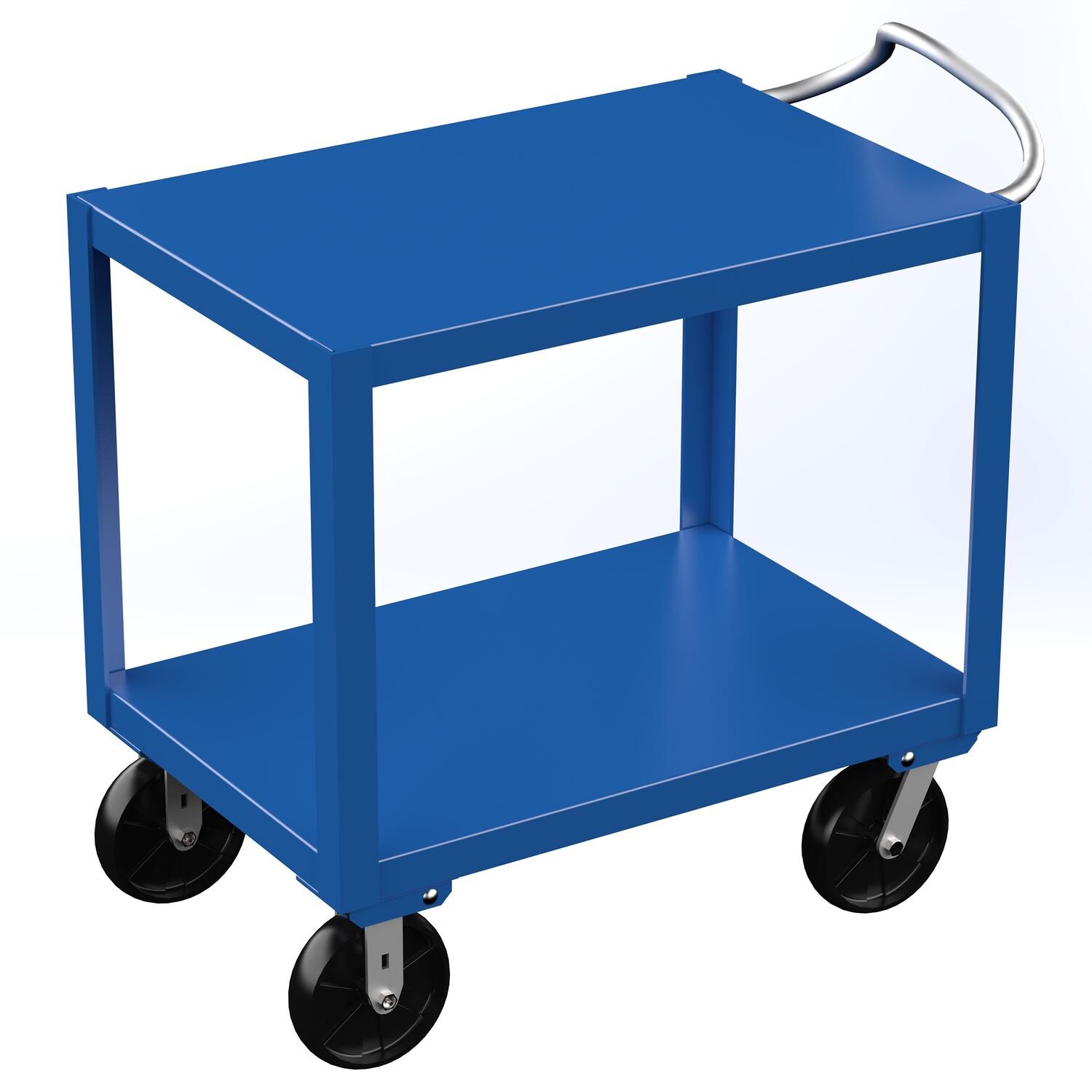

DH-PH4-2436 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-3/16" 4,000/2,000 lb. 220

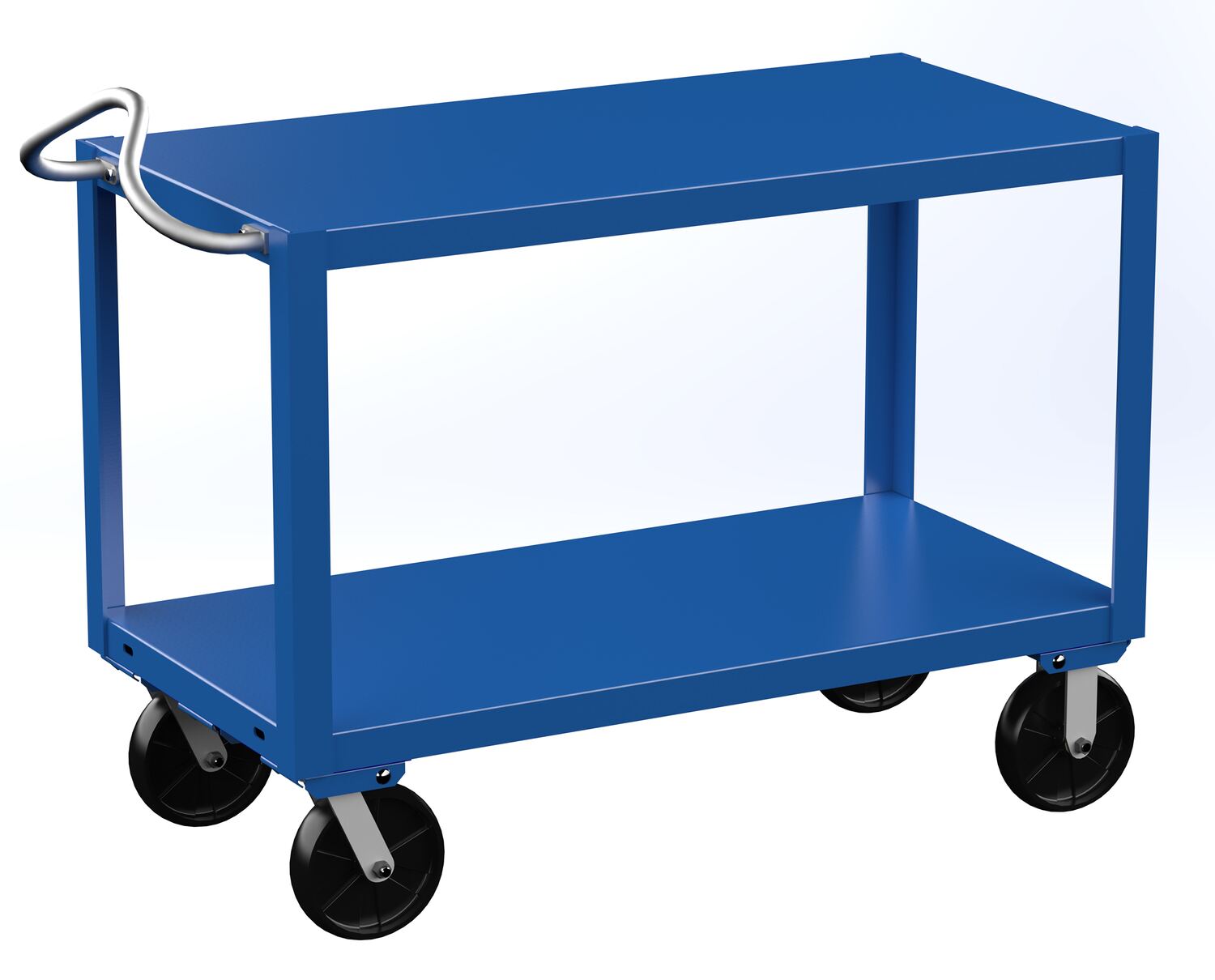

DH-PH4-2448 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-3/16" 4,000/2,000 lb. 233

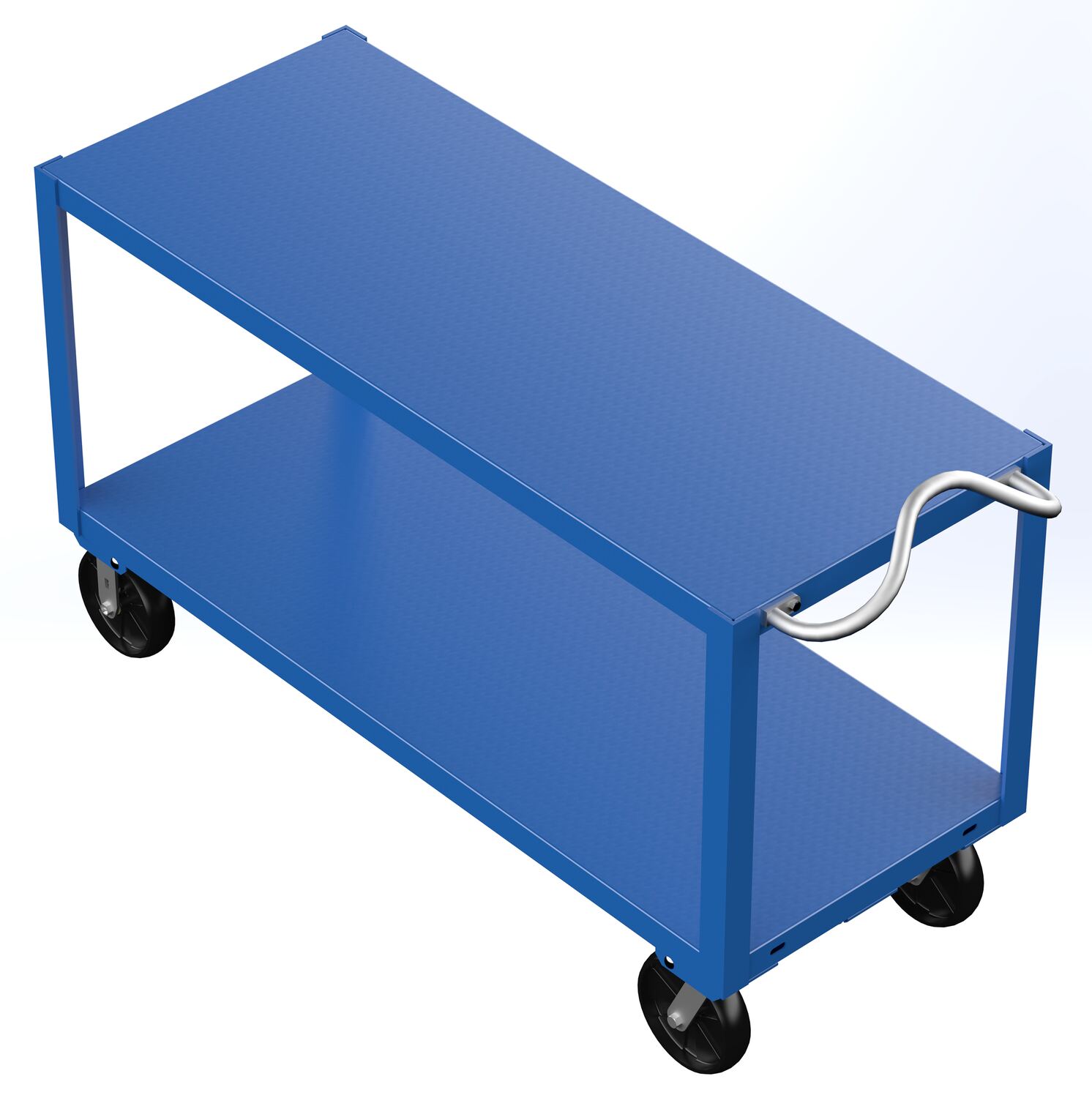

DH-PH4-2460 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 60" 22-1/2" 36-3/16" 4,000/2,000 lb. 275

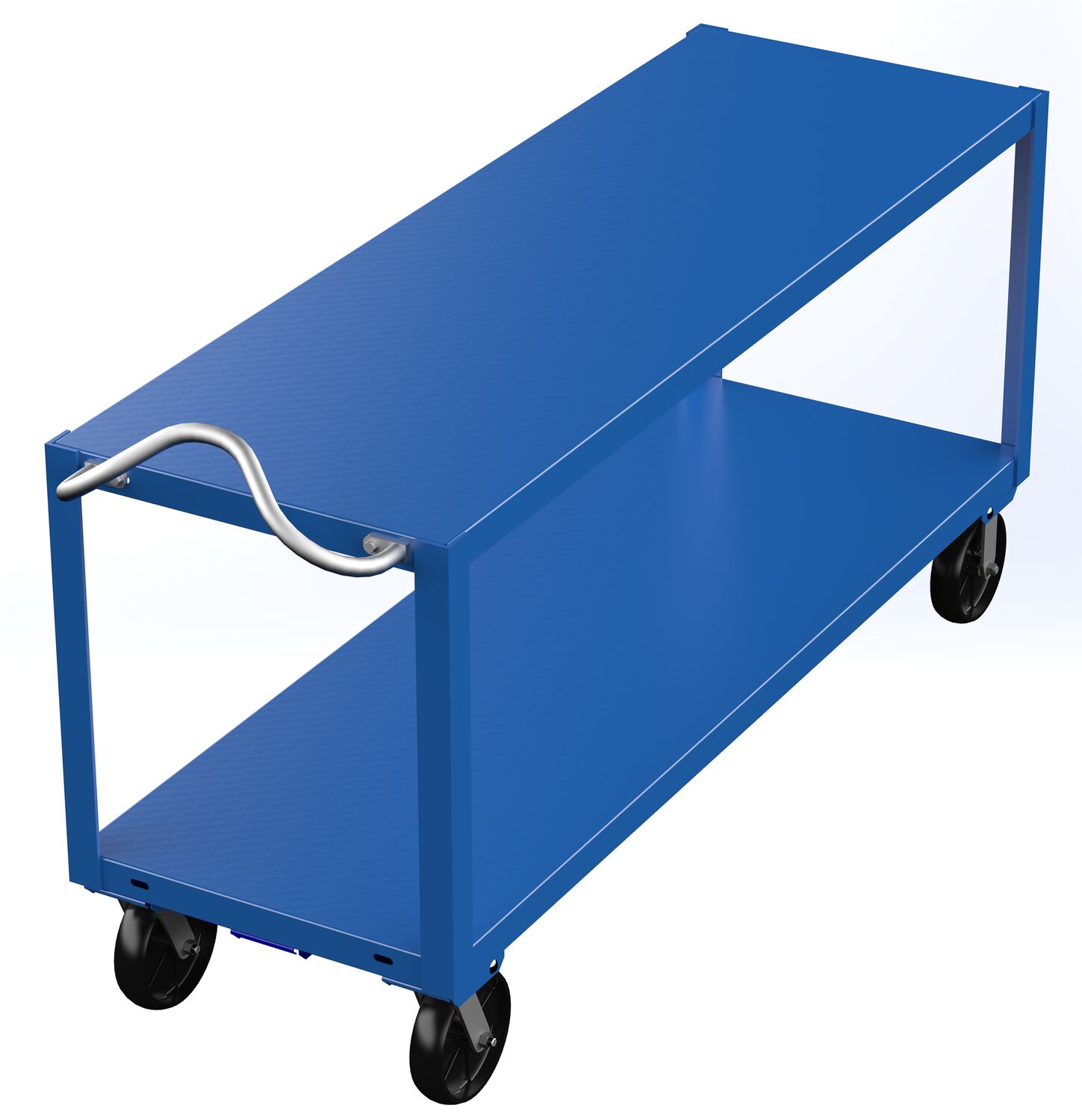

DH-PH4-2472 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x72" 22-1/2" 36-3/16" 4,000/2,000 lb. 280

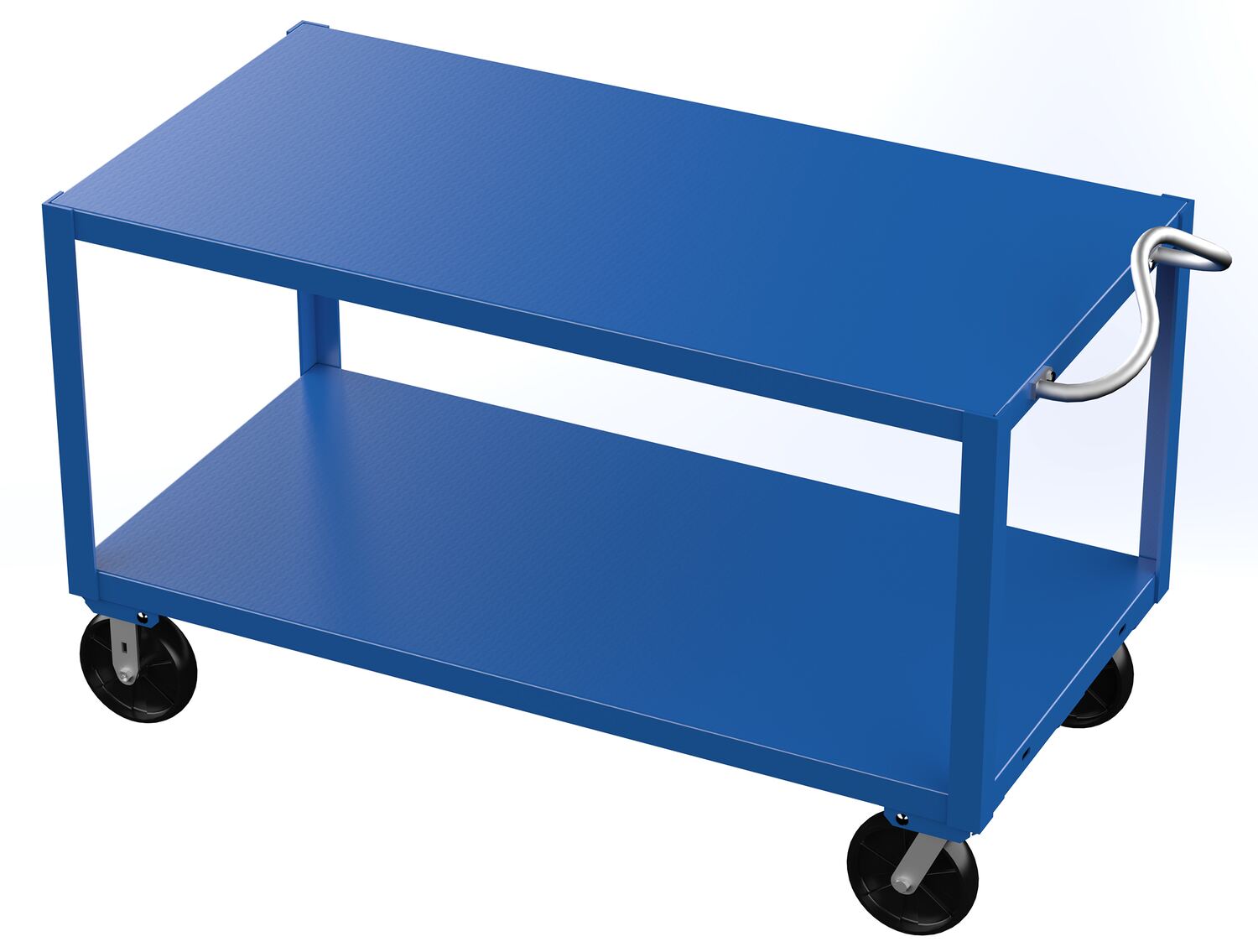

DH-PH4-3060 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" x 60" 22-1/2" 36-3/16" 4,000/2,000 lb. 285

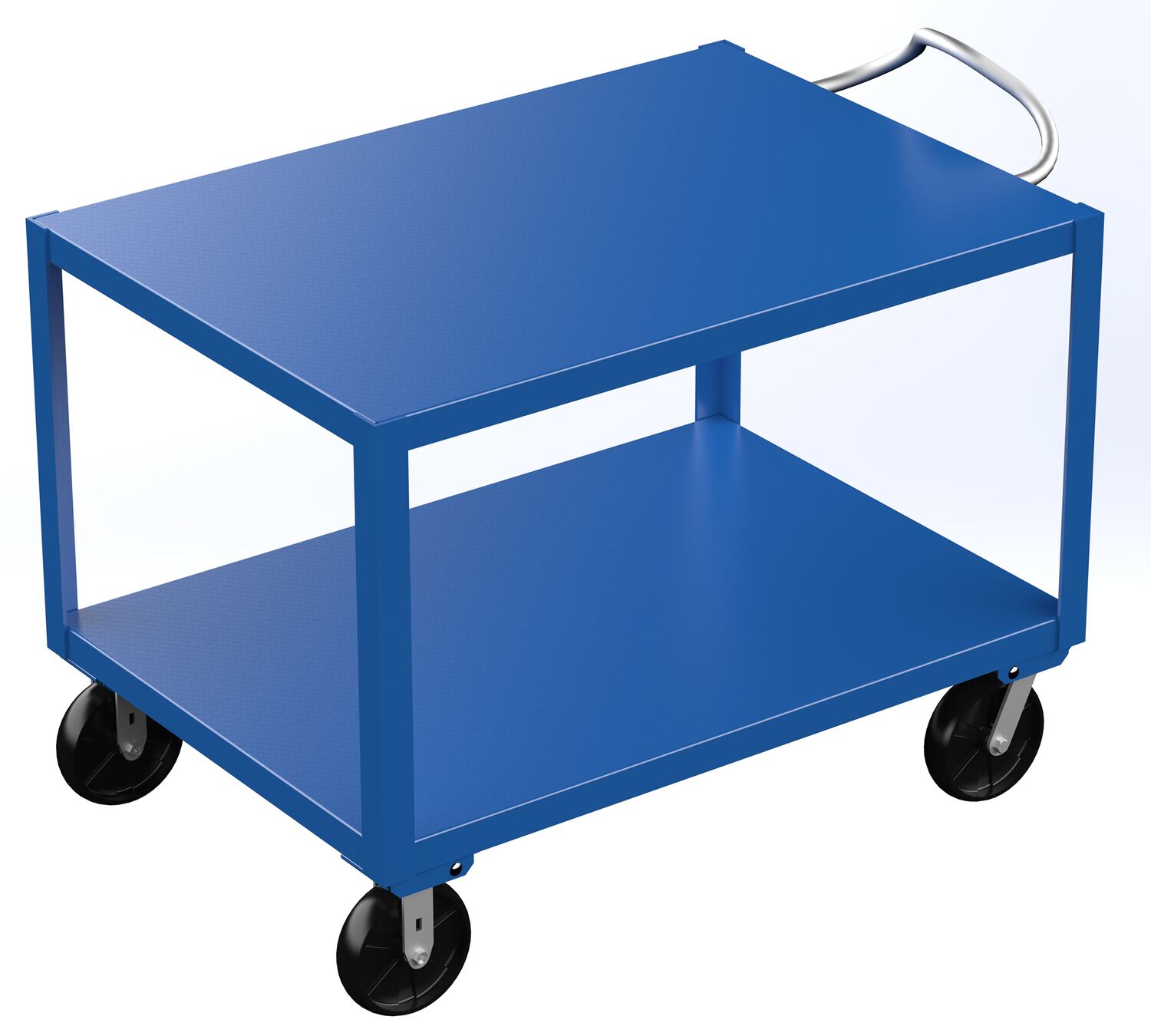

DH-PH4-3448 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x48" 22-1/2" 36-3/16" 4,000/2,000 lb. 287

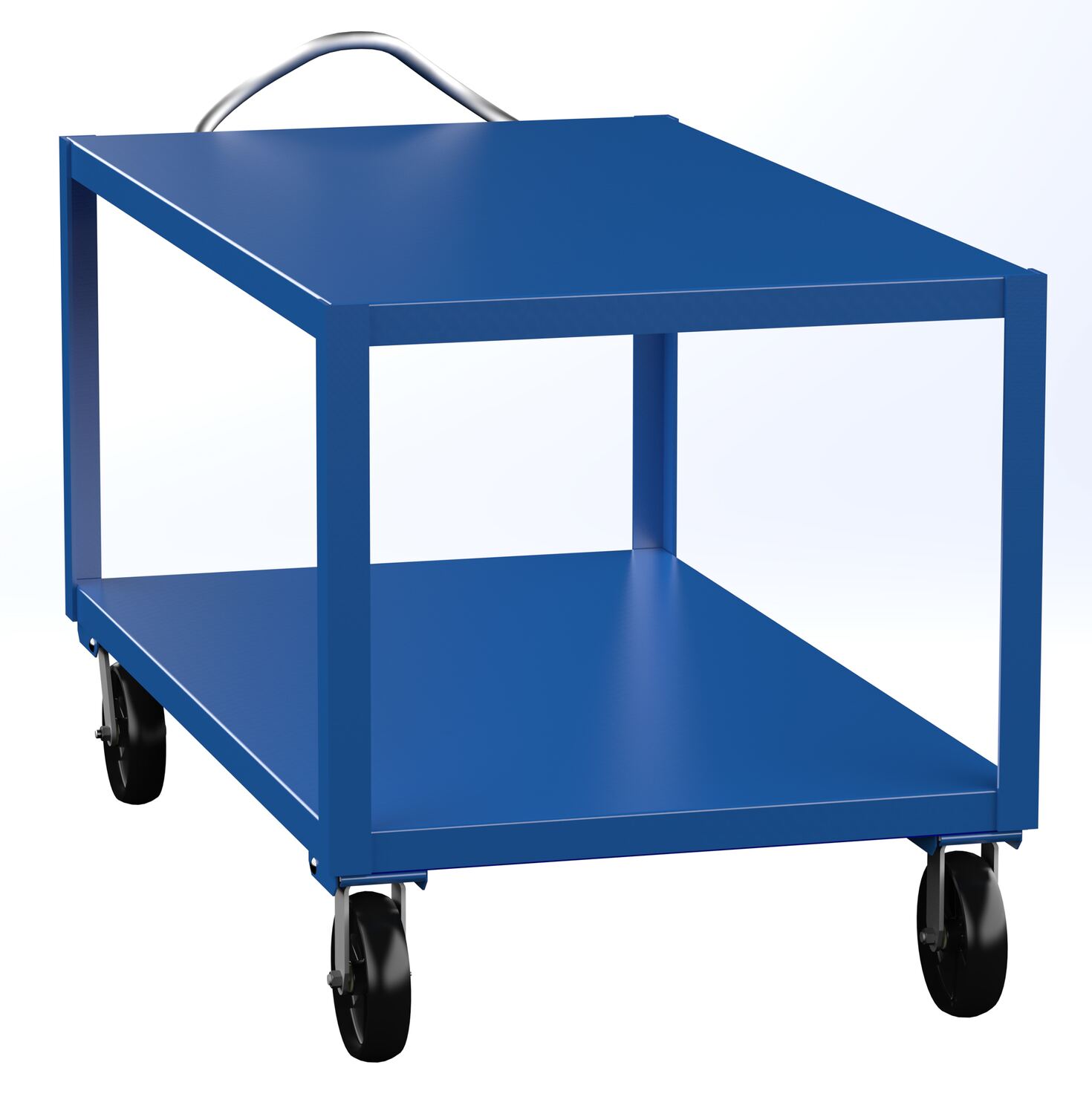

DH-PH4-3460 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x60" 22-1/2" 36-3/16" 4,000/2,000 lb. 316

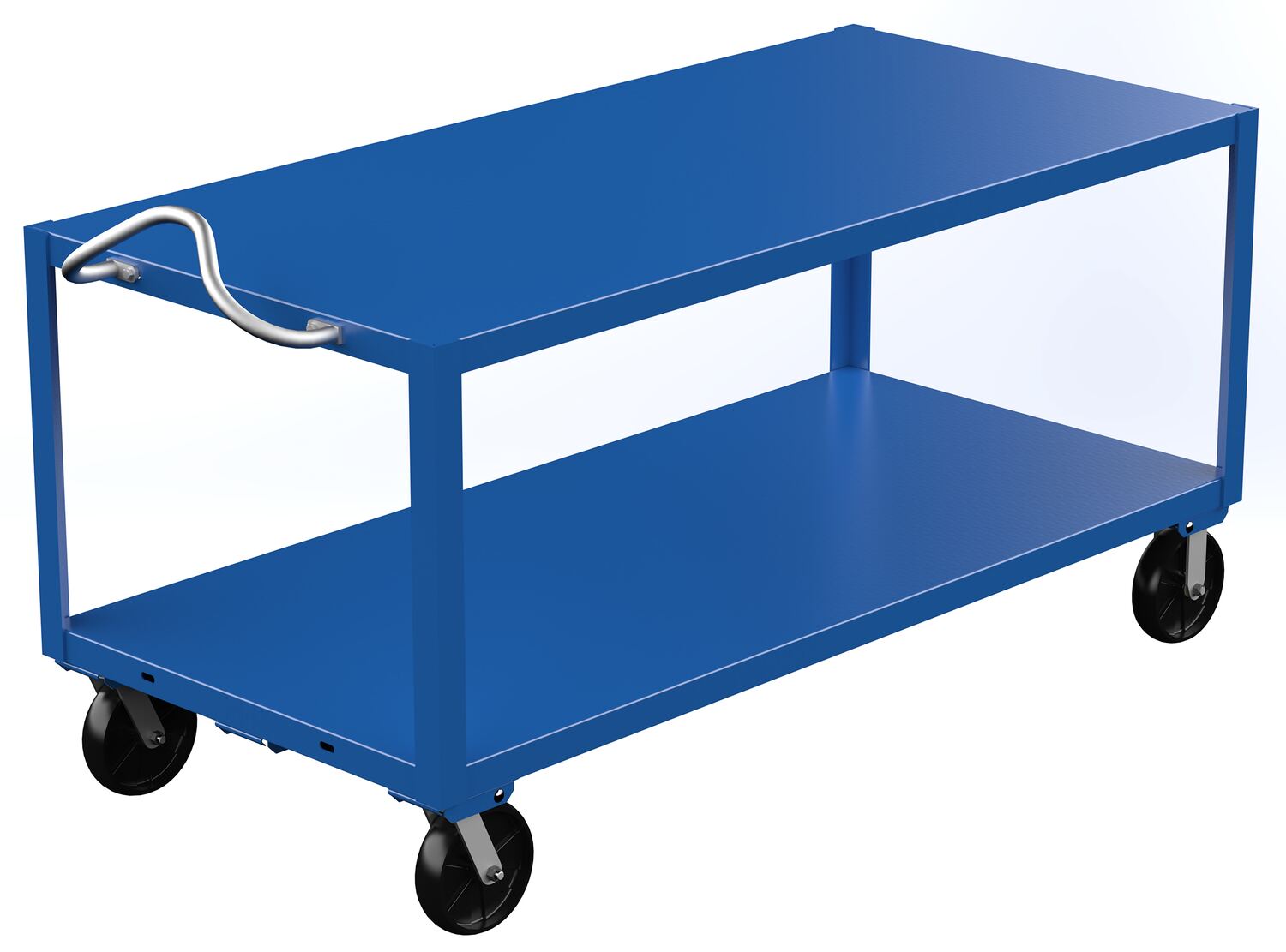

DH-PH4-3472 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x72" 22-1/2" 36-3/16" 4,000/2,000 lb. 339
3-Shelf Units
DH-PH4-2436-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x36" 10-1/4" 36-3/16" 4,000/2,000 lb. 230

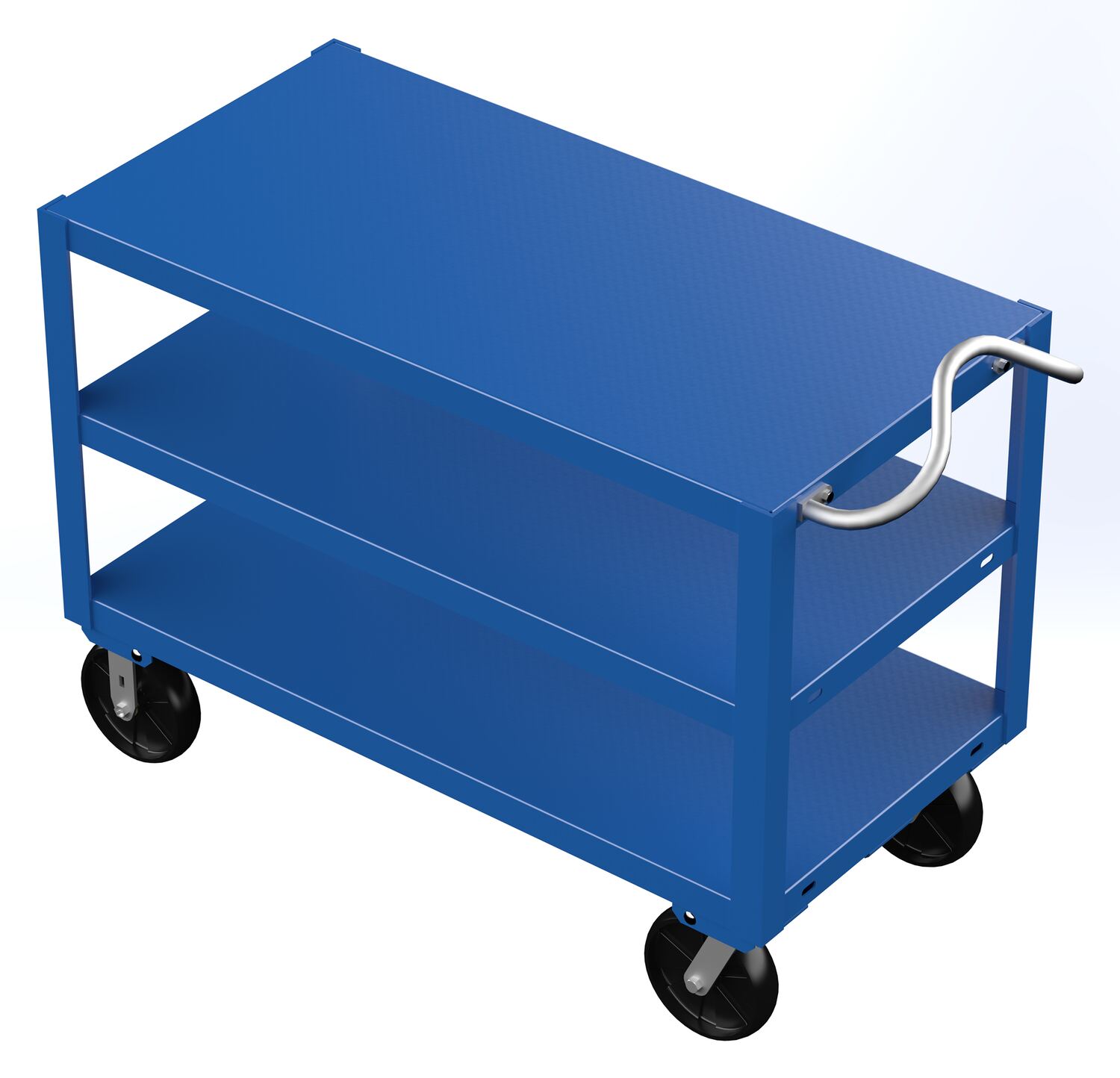

DH-PH4-2448-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x48" 10-1/4" 36-3/16" 4,000/2,000 lb. 286

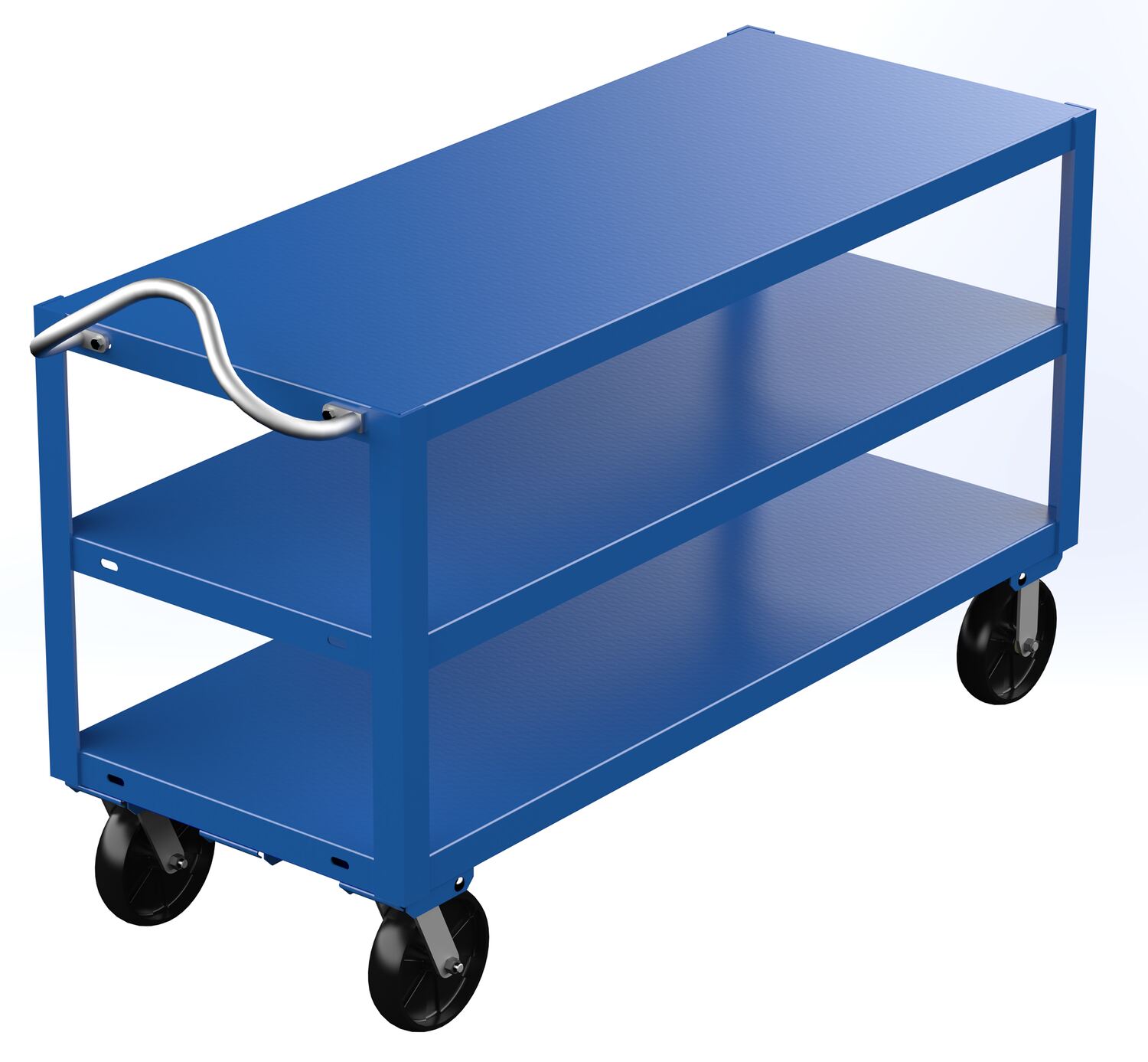

DH-PH4-2460-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x60" 10-1/4" 36-3/16" 4,000/2,000 lb. 291
DH-PH4-2472-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x72" 10-1/4" 36-3/16" 4,000/2,000 lb. 326

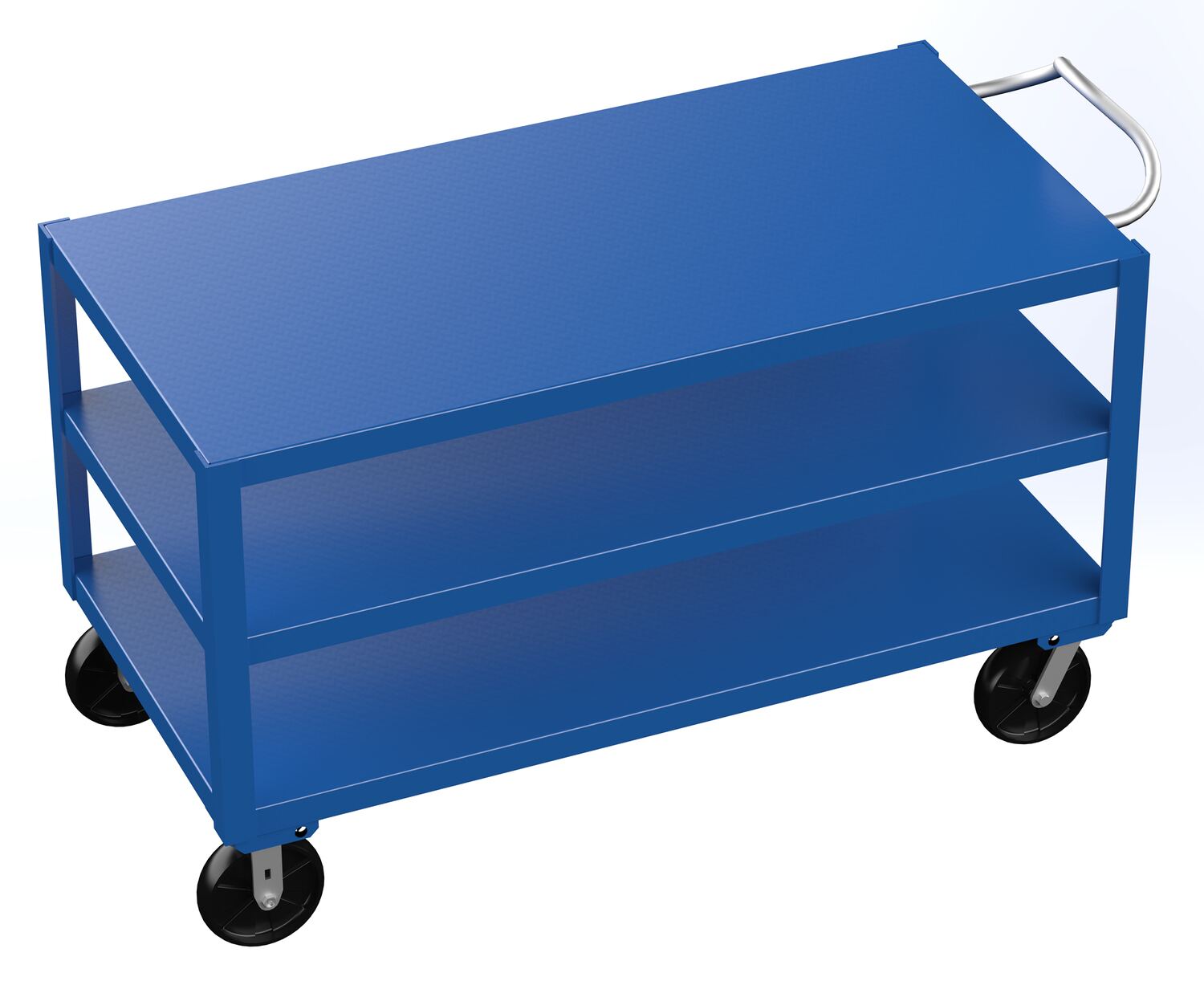

DH-PH4-3060-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30"x60" 10-1/4" 36-3/16" 4,000/2,000 lb. 427

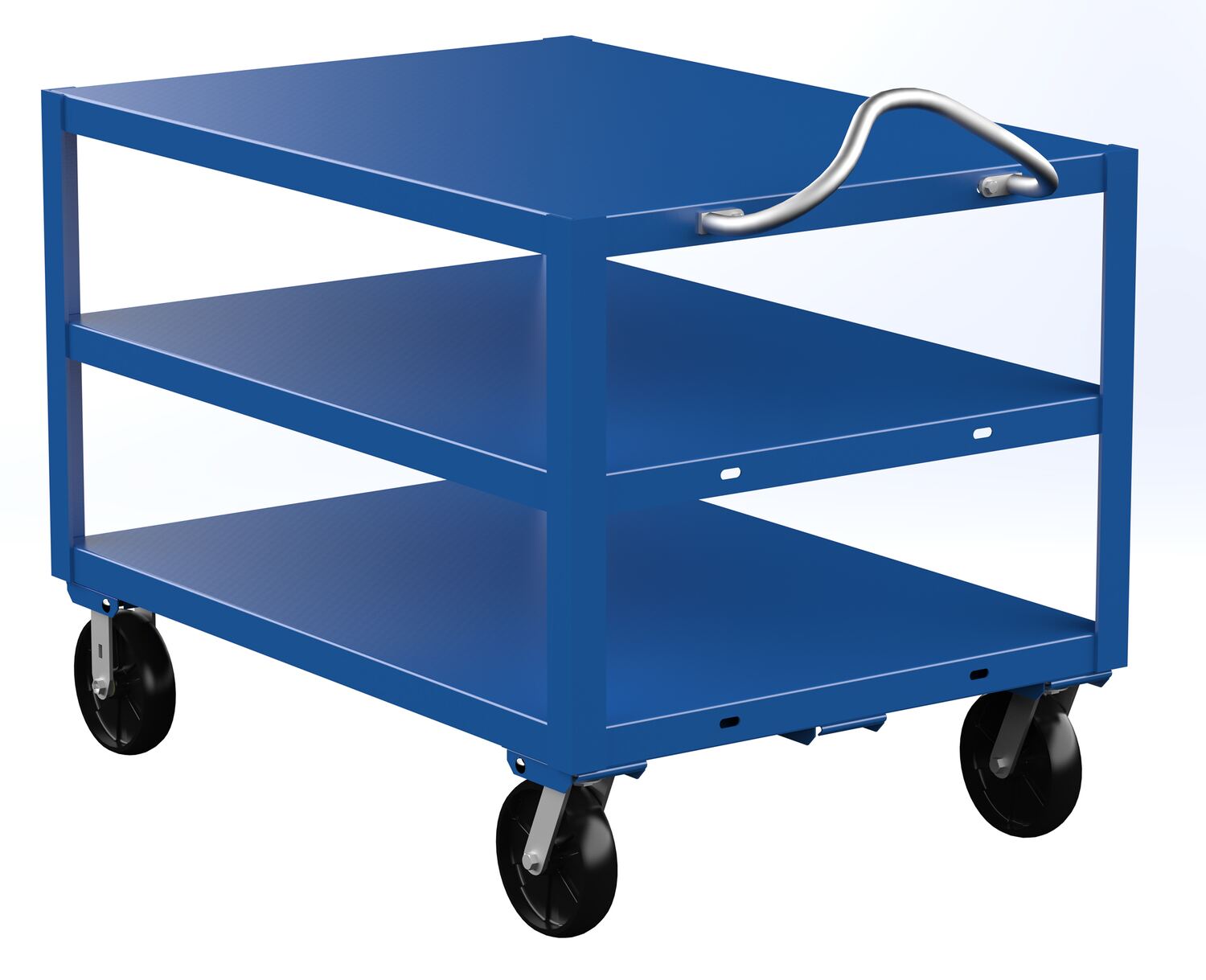

DH-PH4-3448-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x48" 10-1/4" 36-3/16" 4,000/2,000 lb. 313

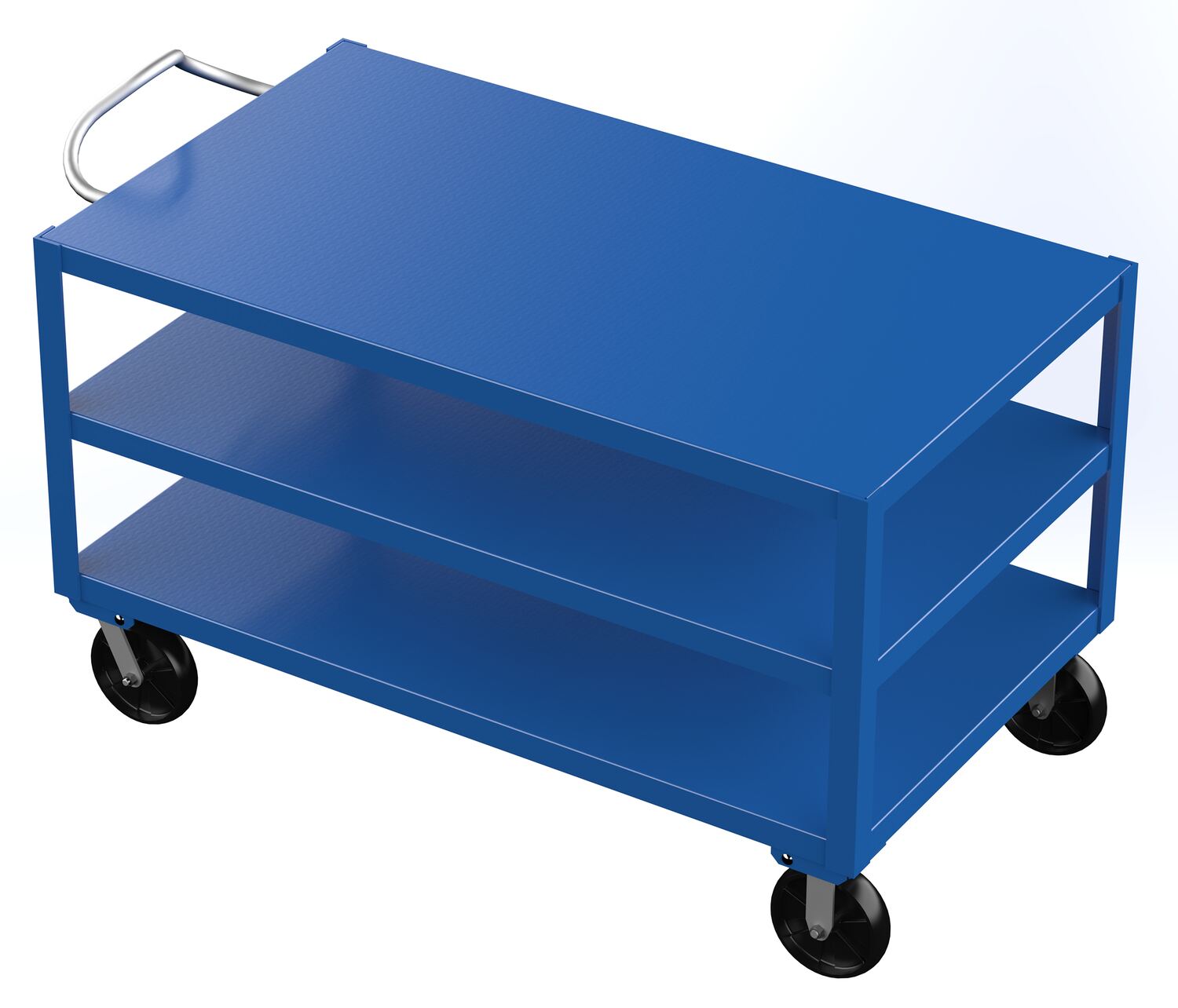

DH-PH4-3460-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x60" 10-1/4" 36-3/16" 4,000/2,000 lb. 358

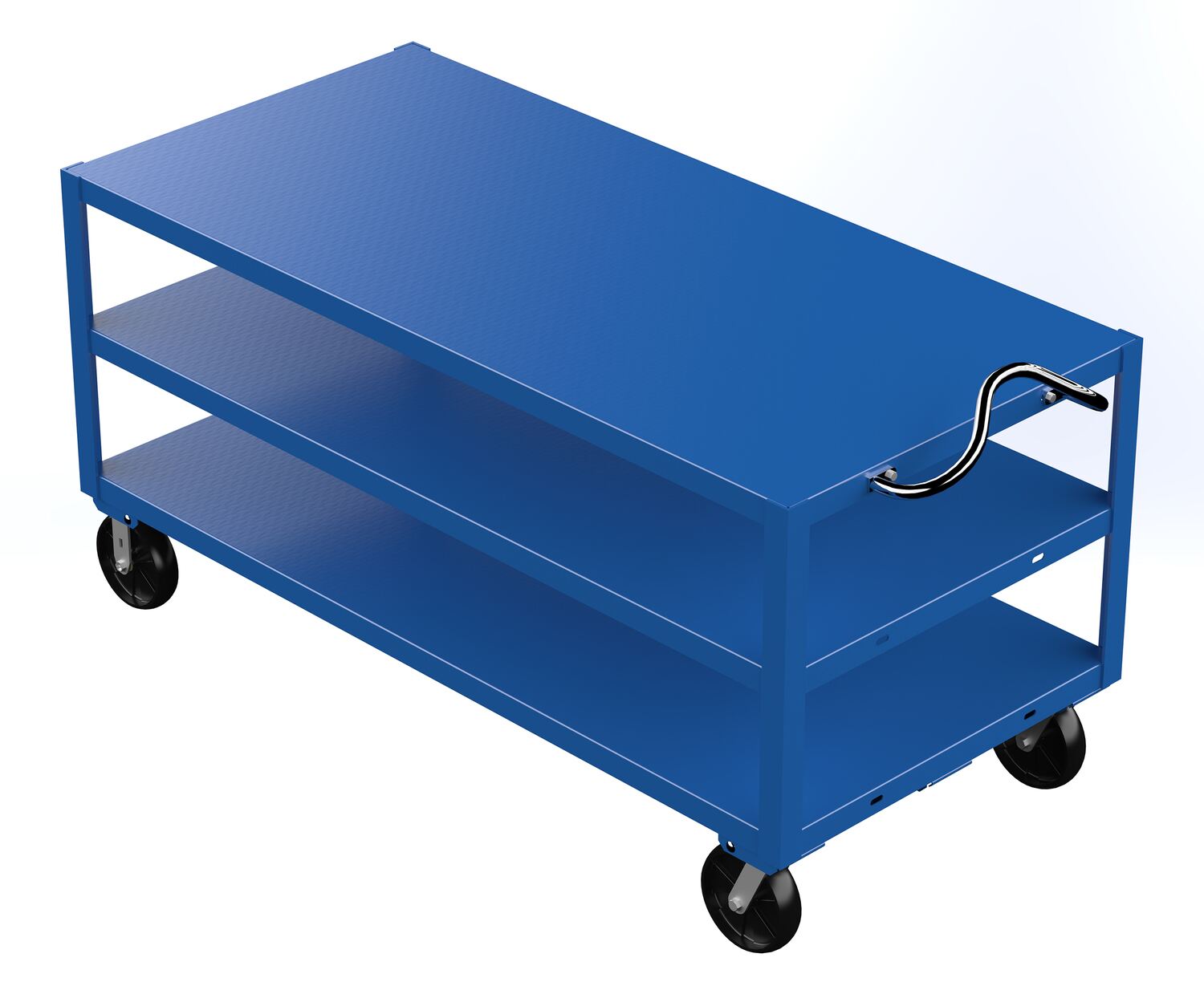

DH-PH4-3472-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34"x72" 10-1/4" 36-3/16" 4,000/2,000 lb. 403

8"x 2" Polyurethane Casters

2-Shelf Units

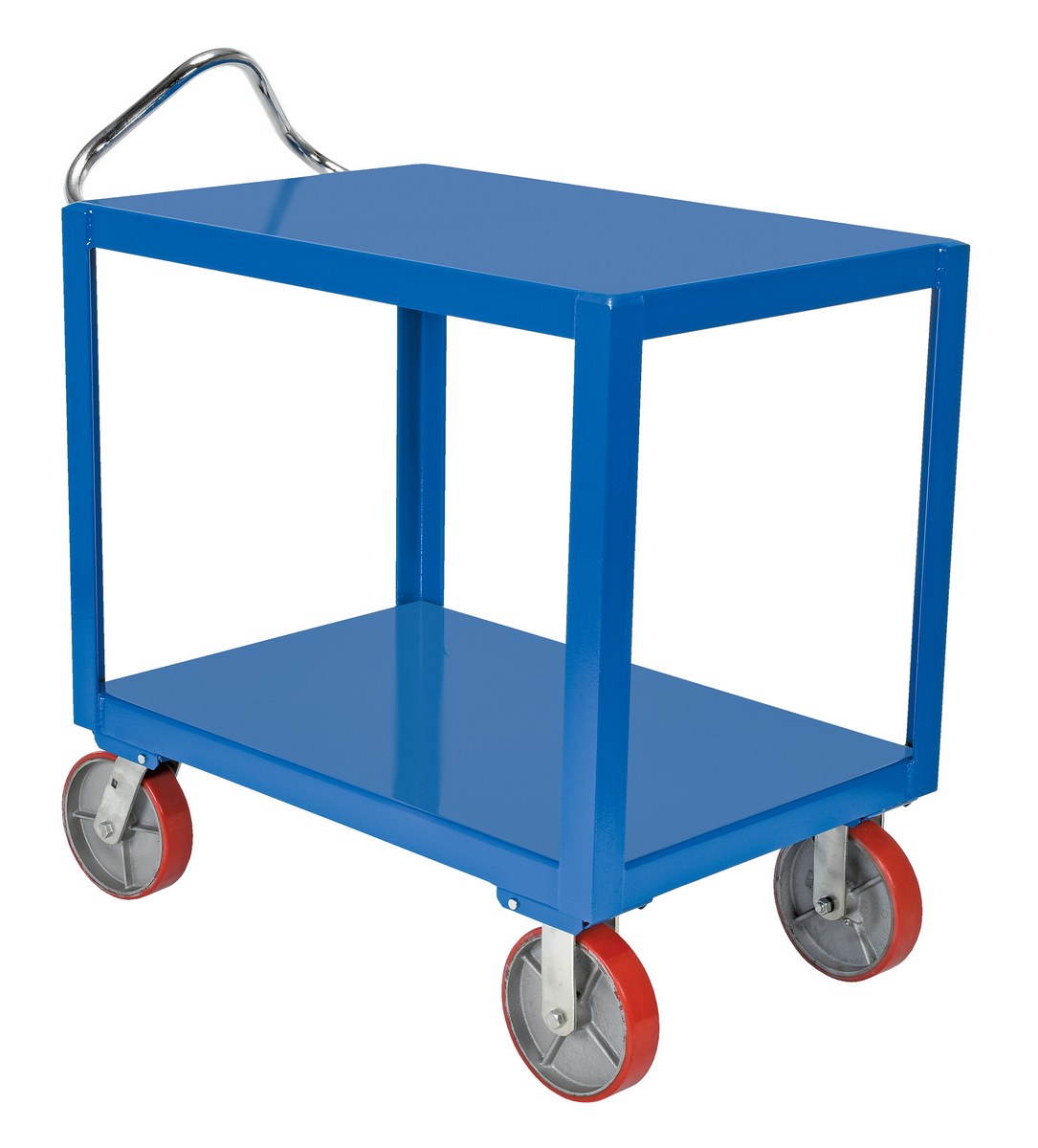

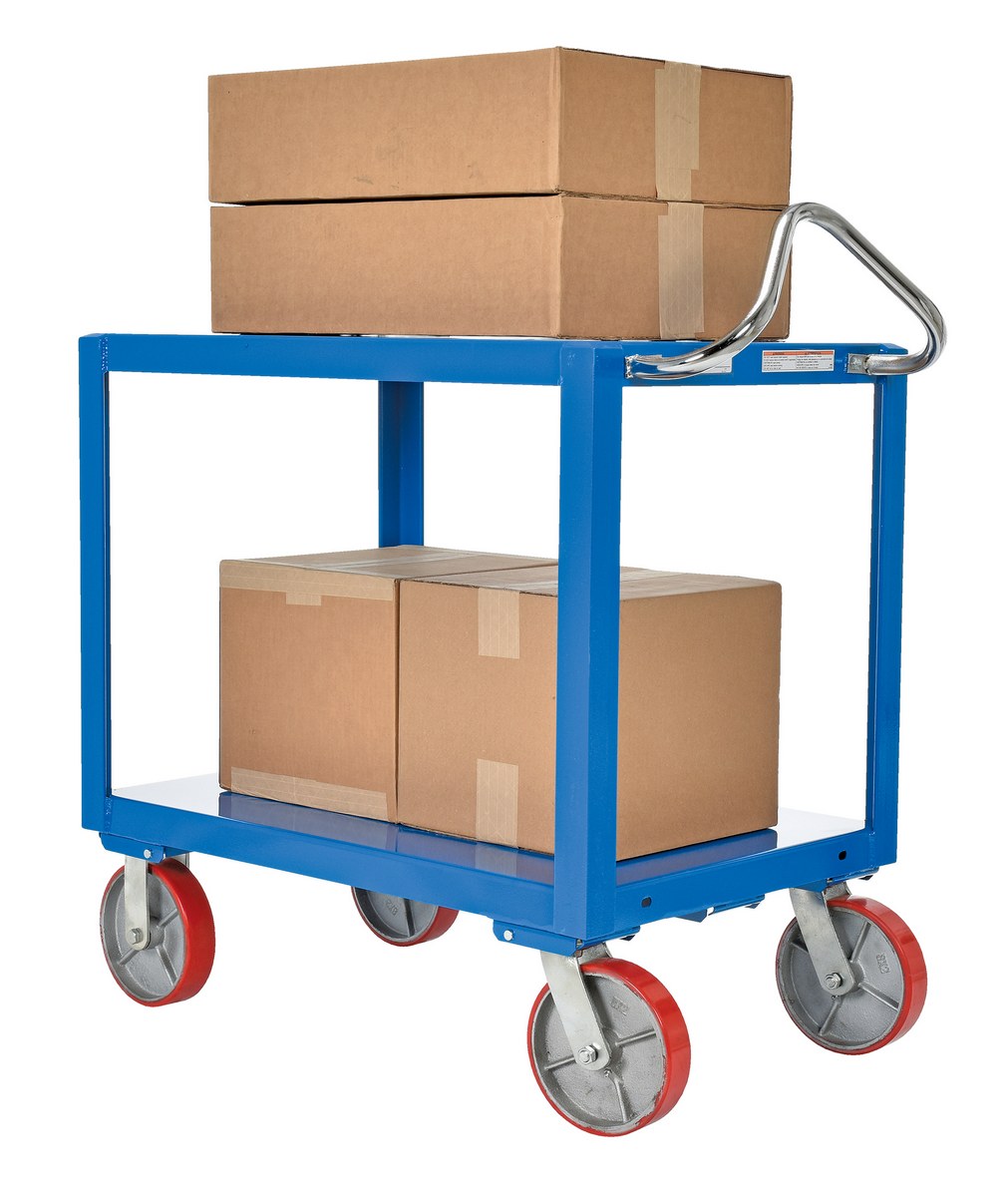

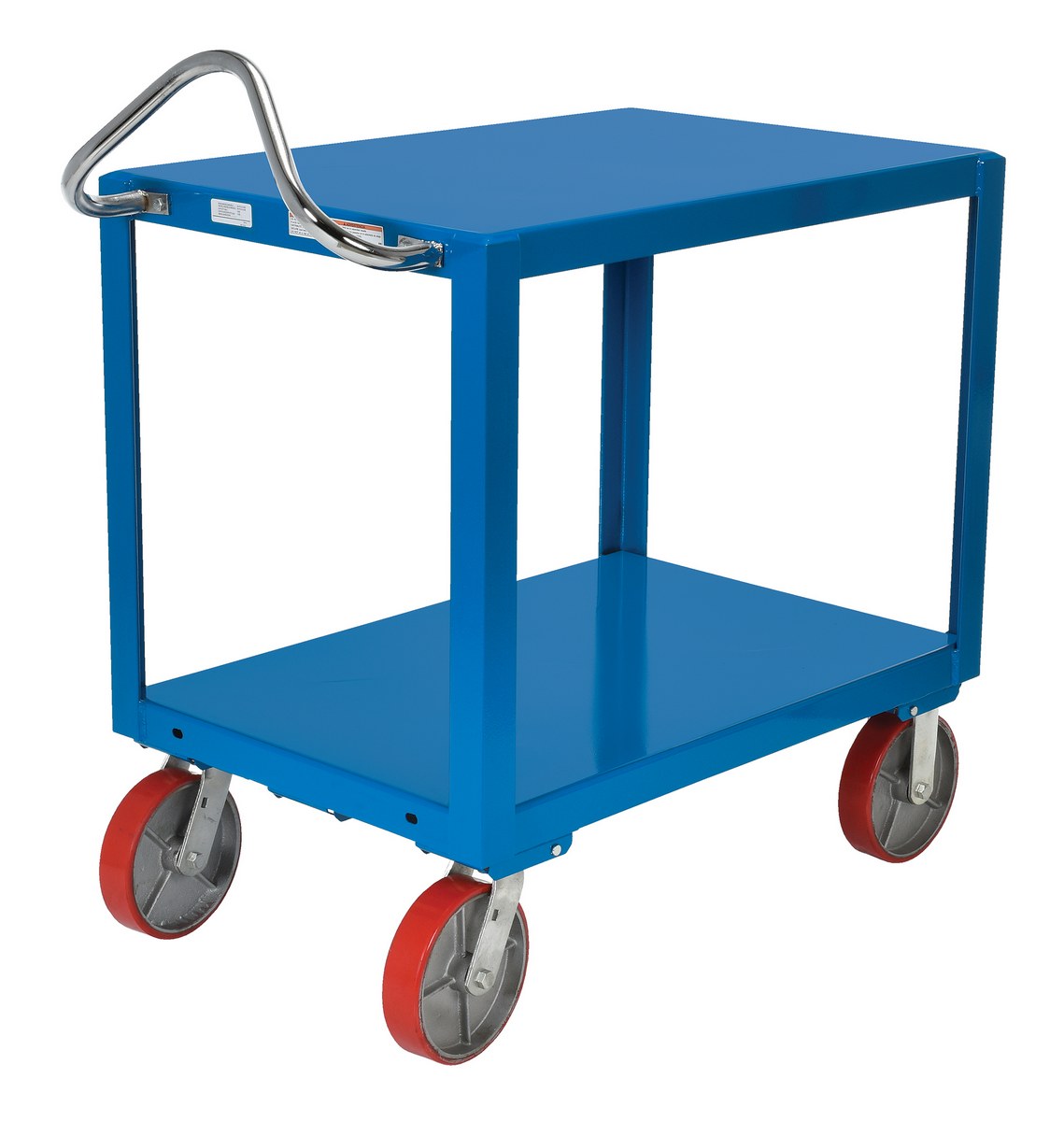

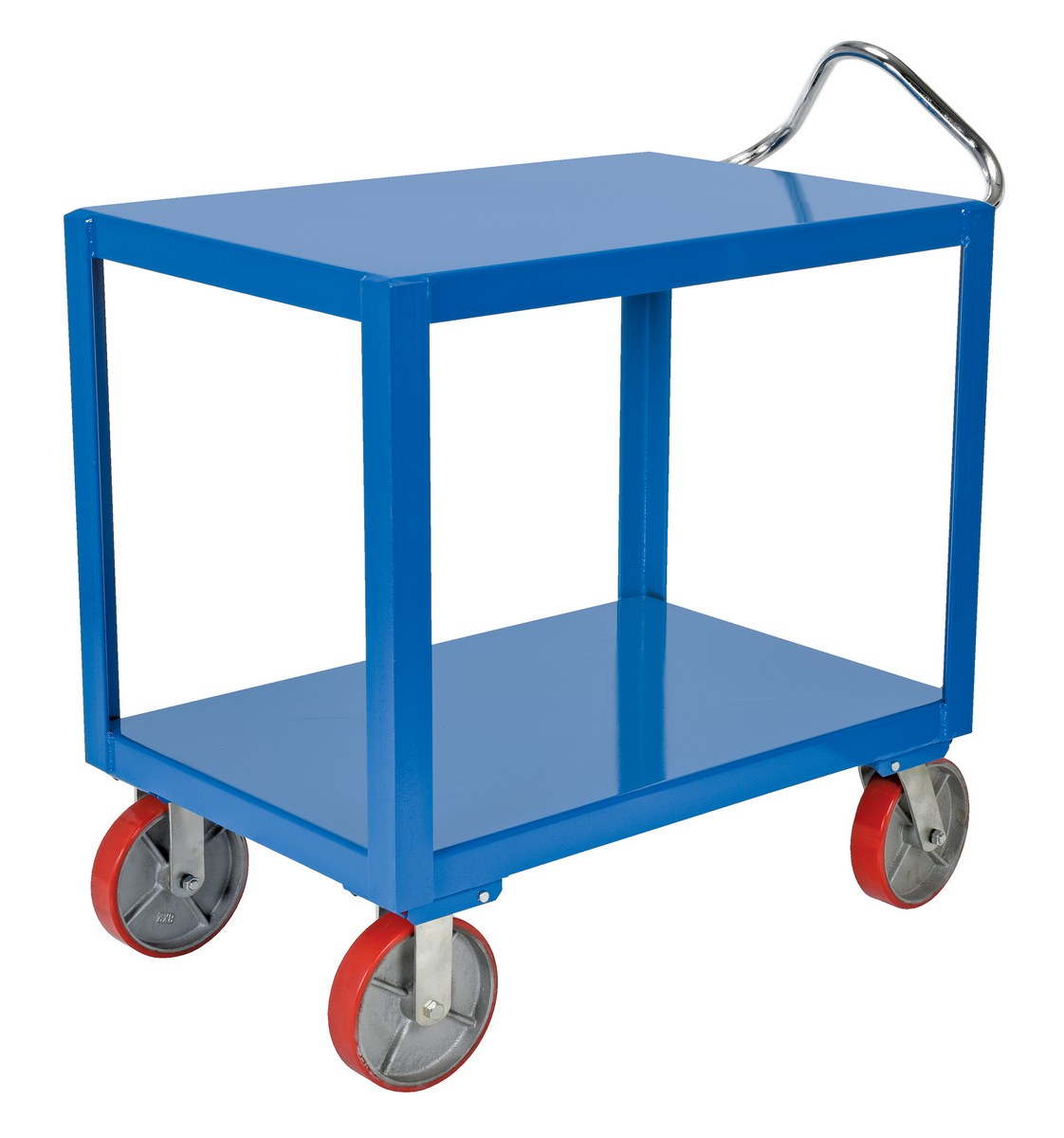

DH-PU2.4-2436 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-1/8" 4,000/2,000 lb. 202

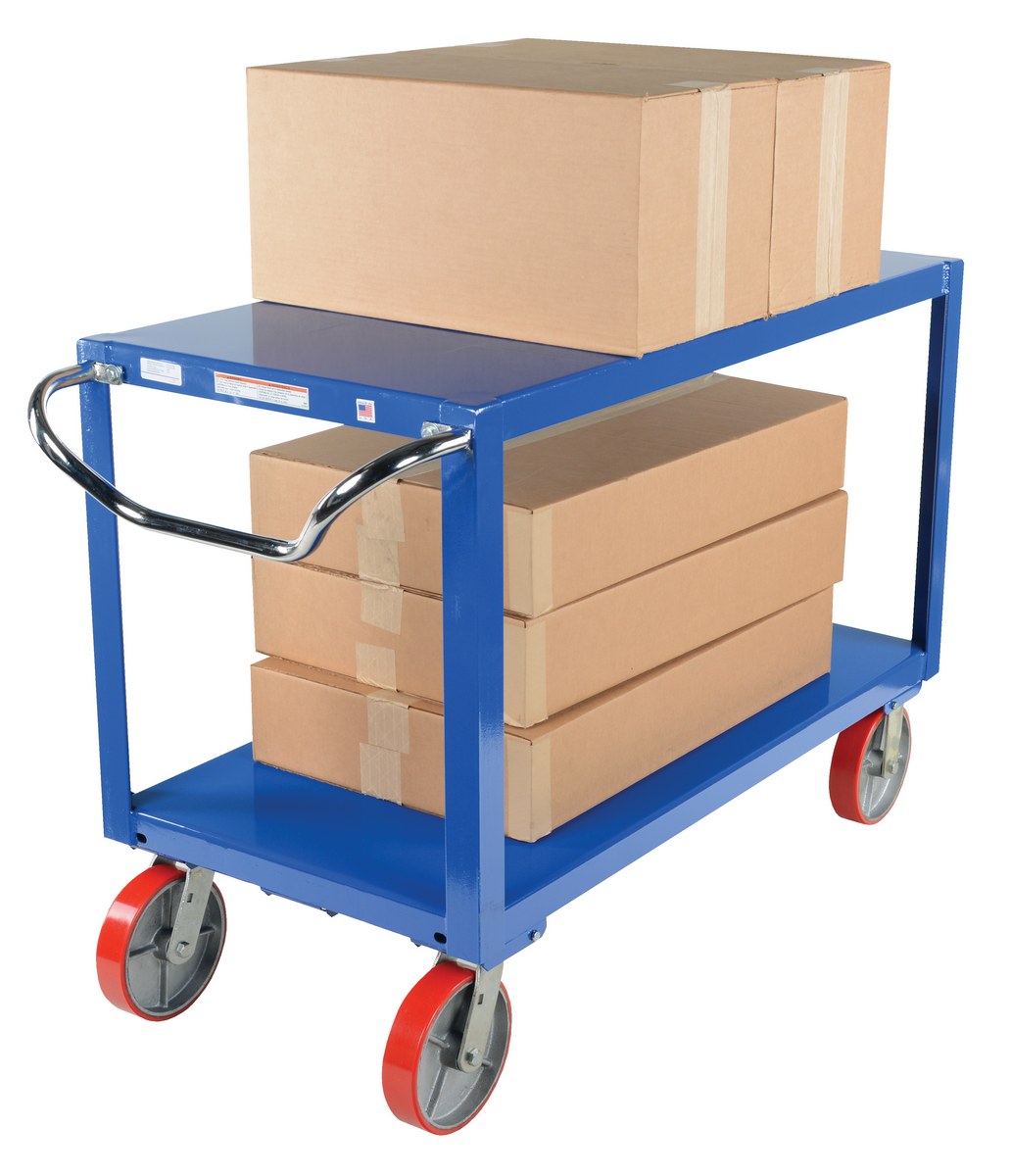

DH-PU2.4-2448 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-1/8" 4,000/2,000 lb. 216
DH-PU2.4-3060 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" x 60" 22-1/2" 36-1/8" 4,000/2,000 lb. 298

8"x 2" Mold-On-Rubber Casters

2-Shelf Units

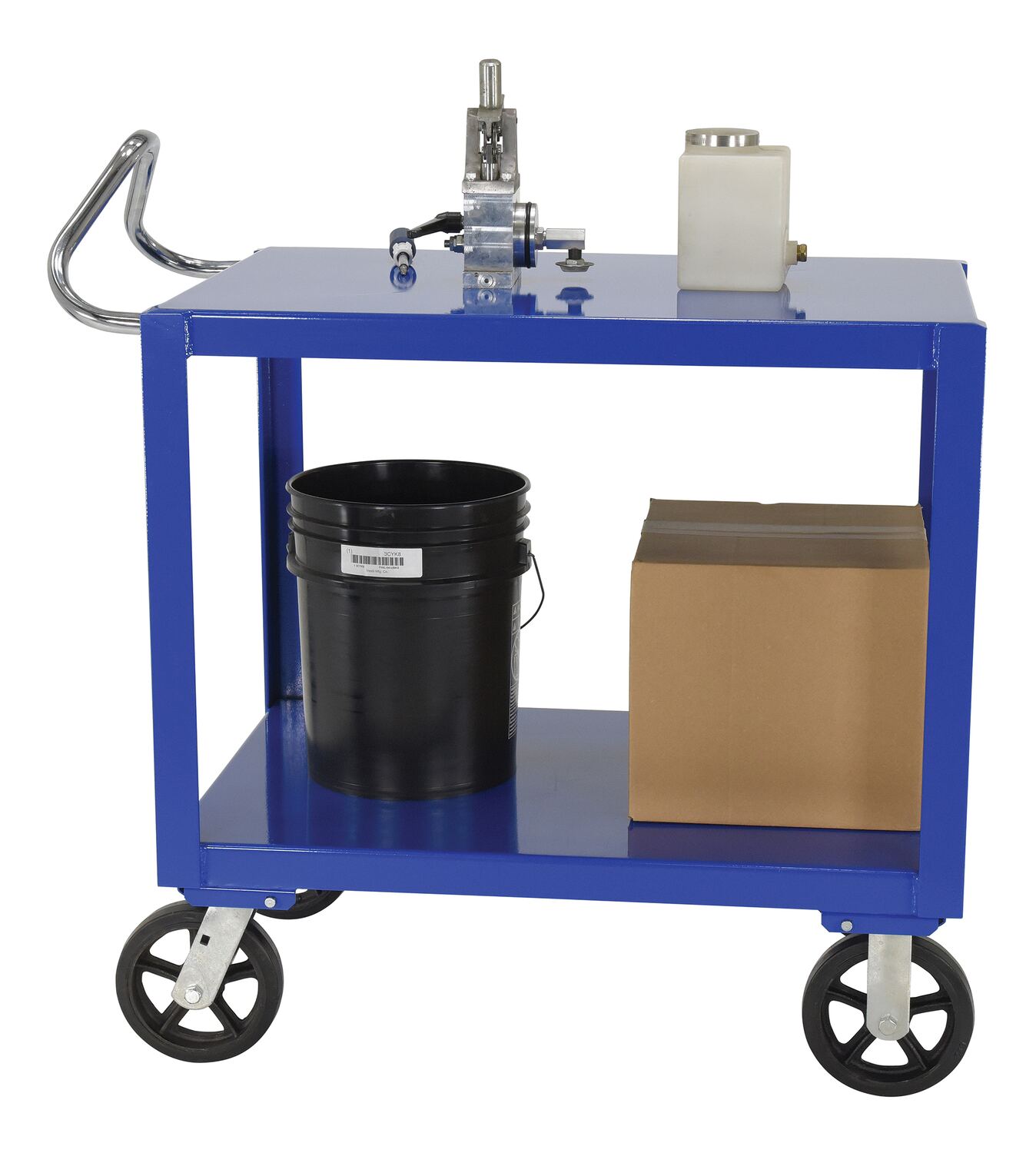

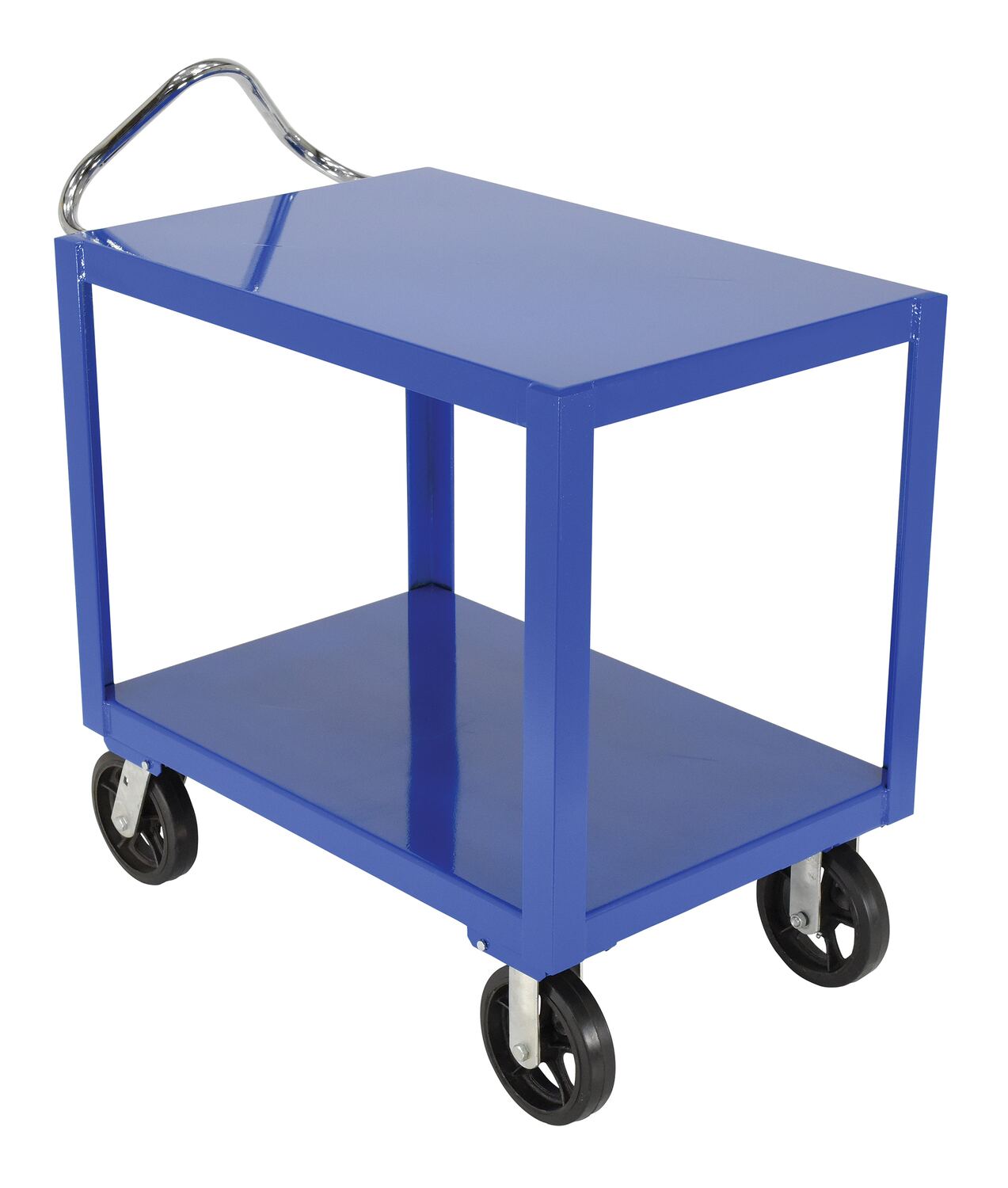

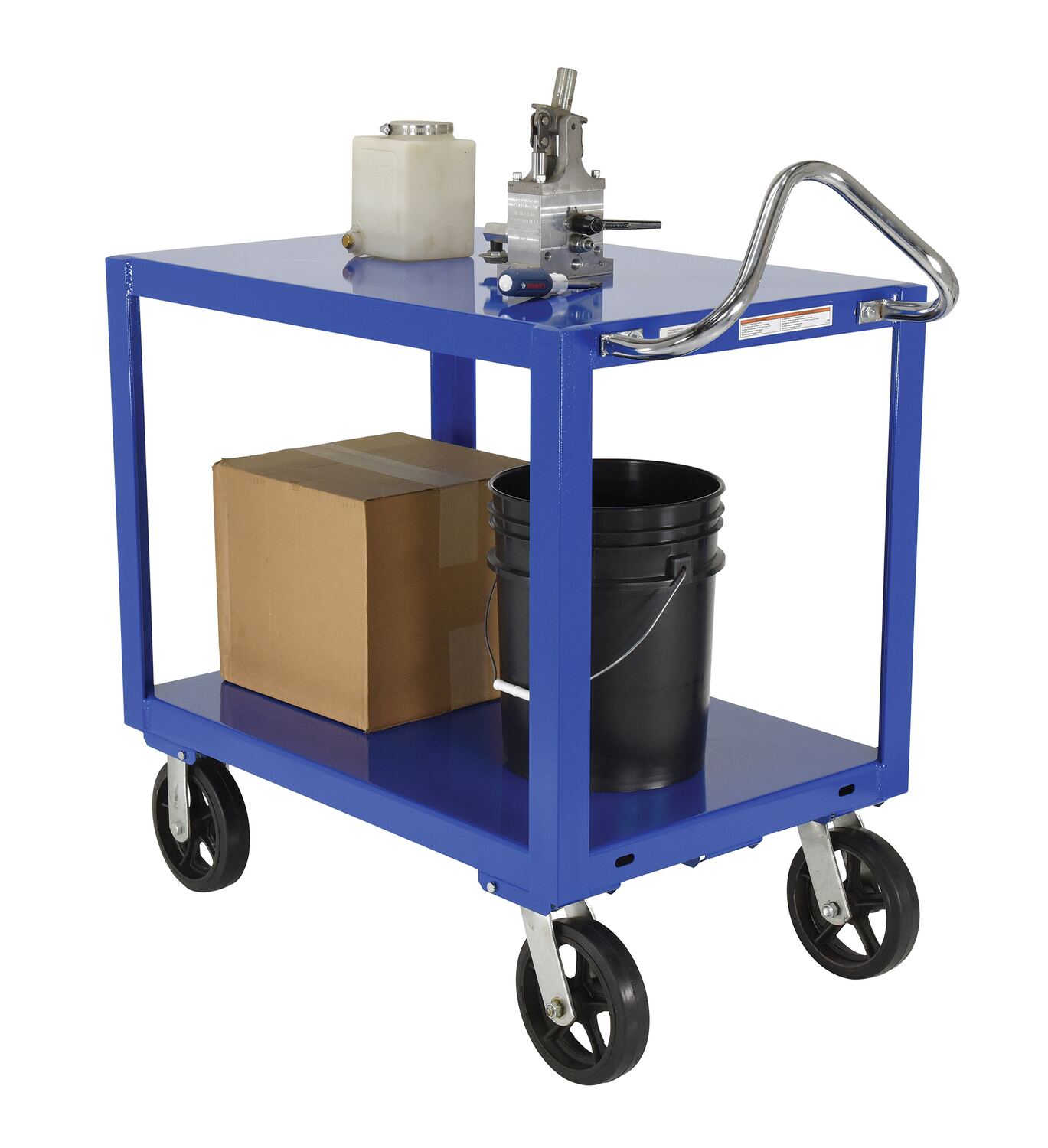

DH-MR2-2436 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 36" 22-1/2" 36-1/8" 2,400/2,000 lb 225

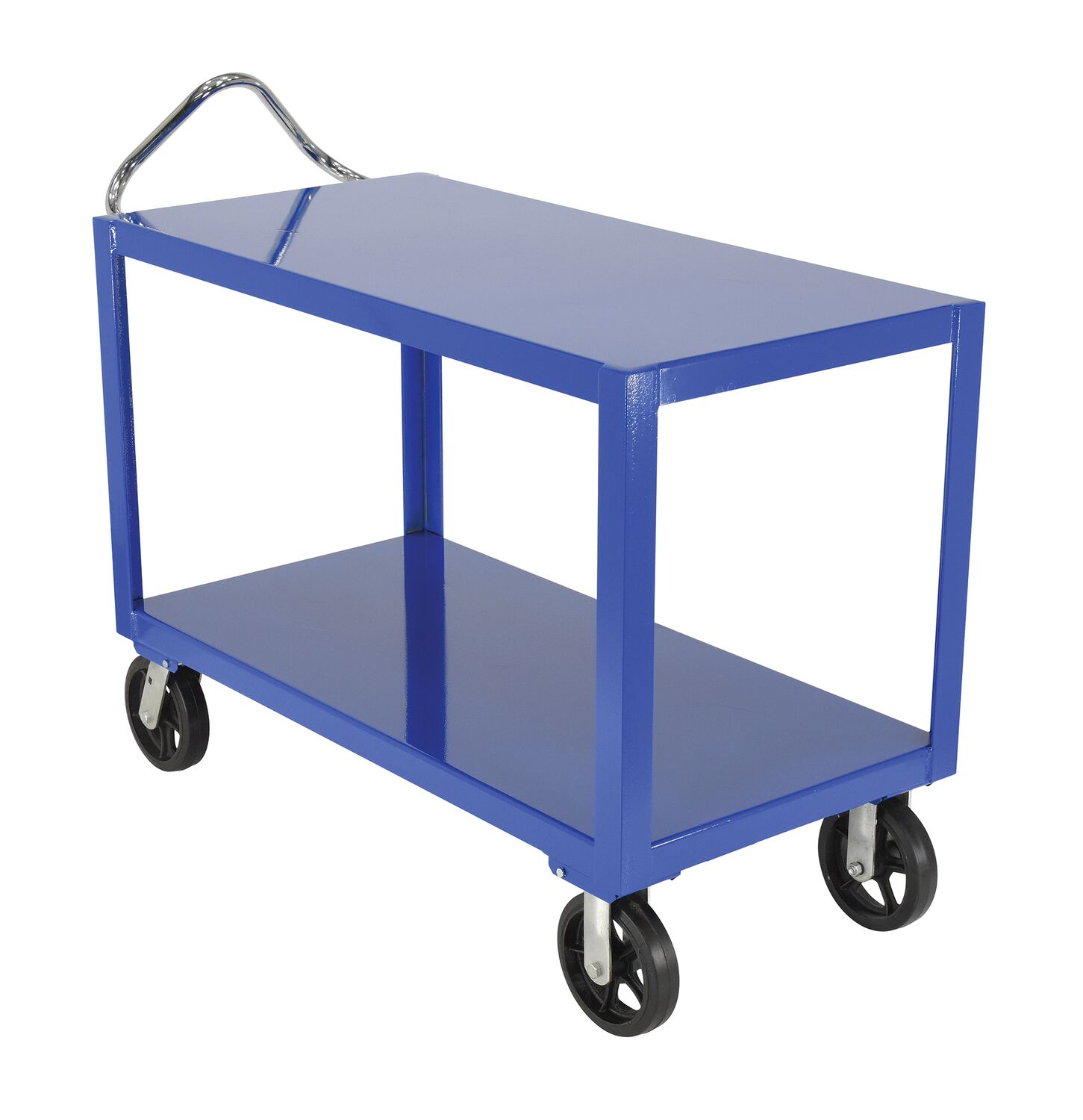

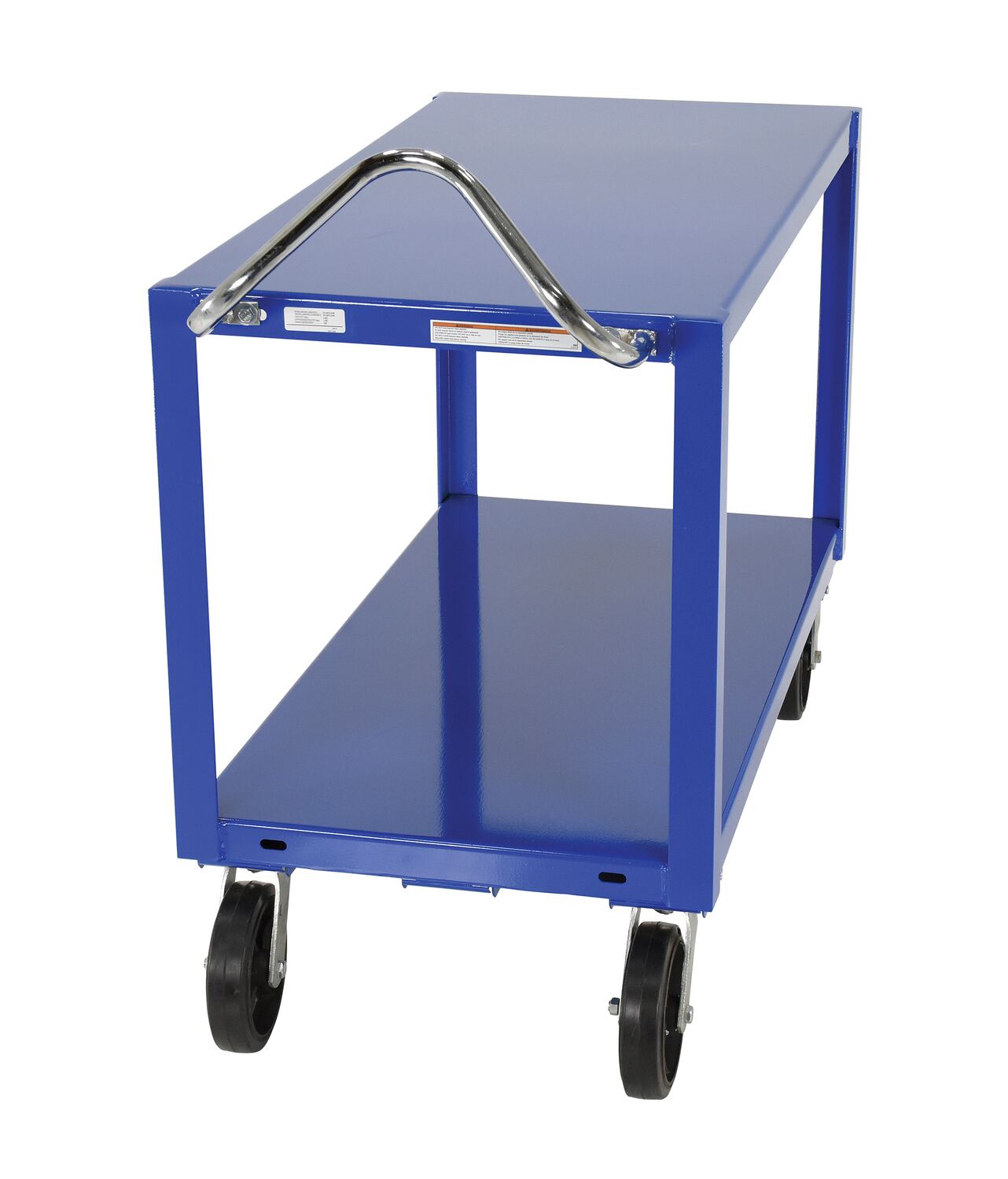

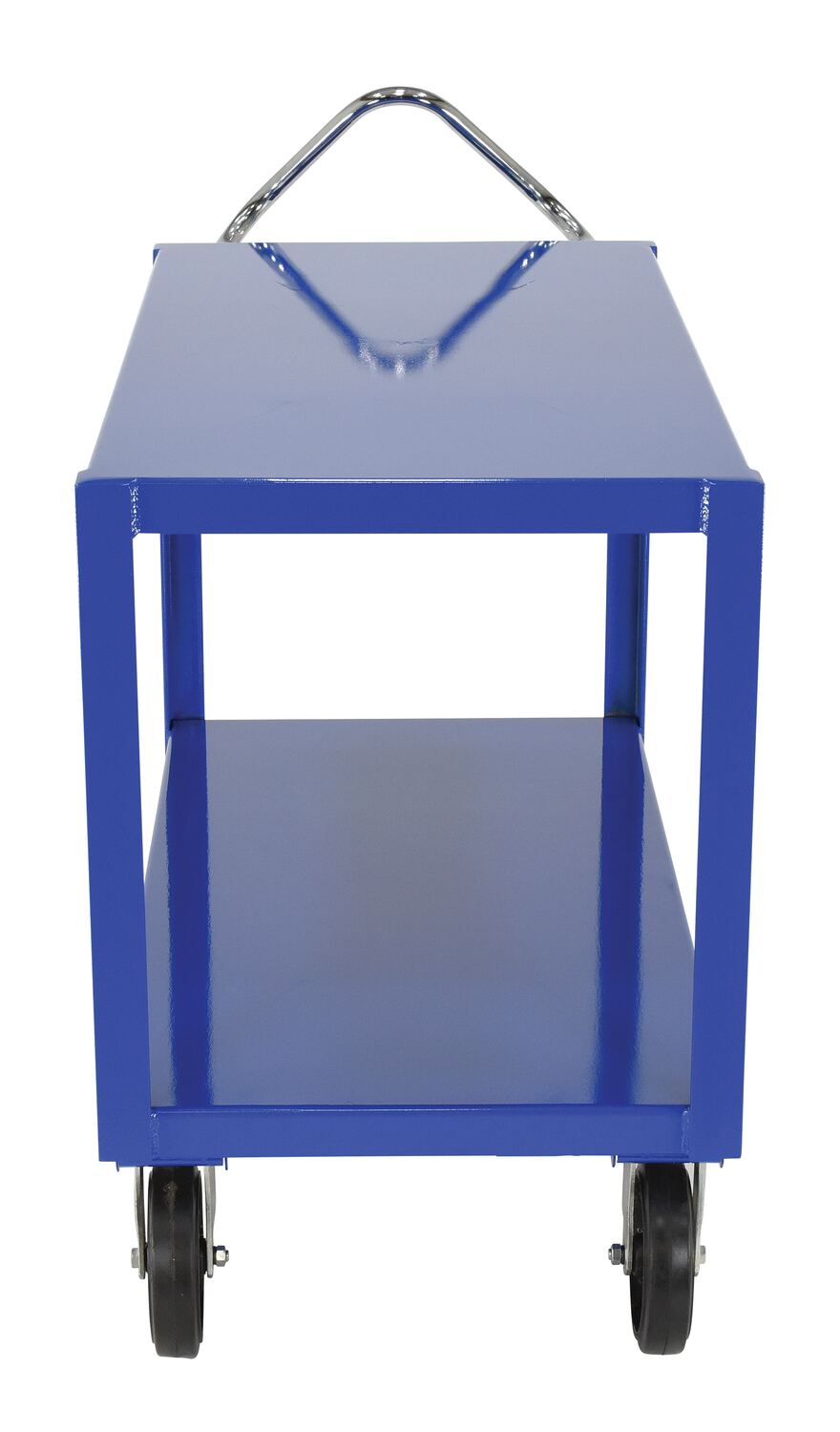

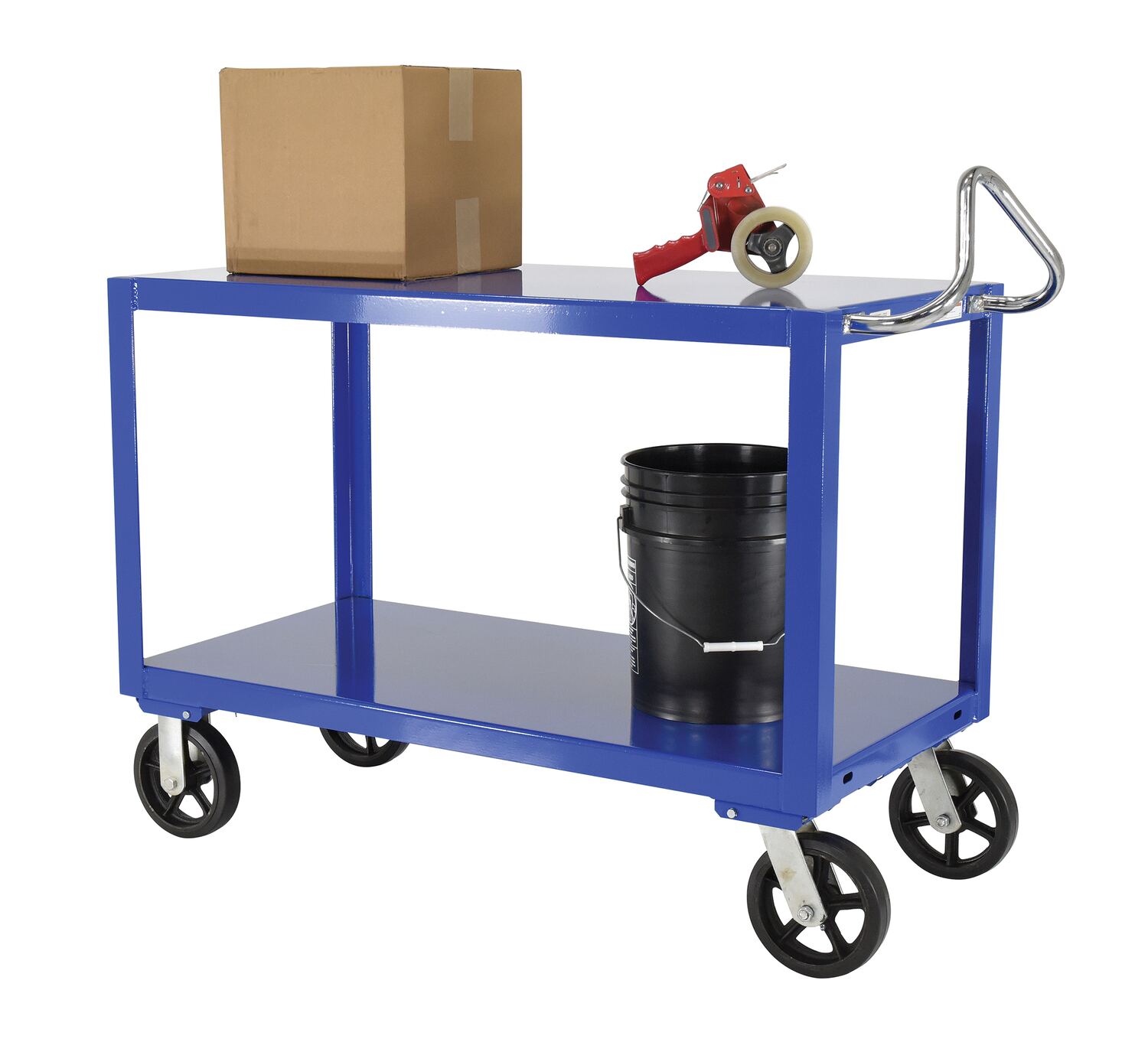

DH-MR2-2448 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24" x 48" 22-1/2" 36-1/8" 2,400/2,000 lb 229

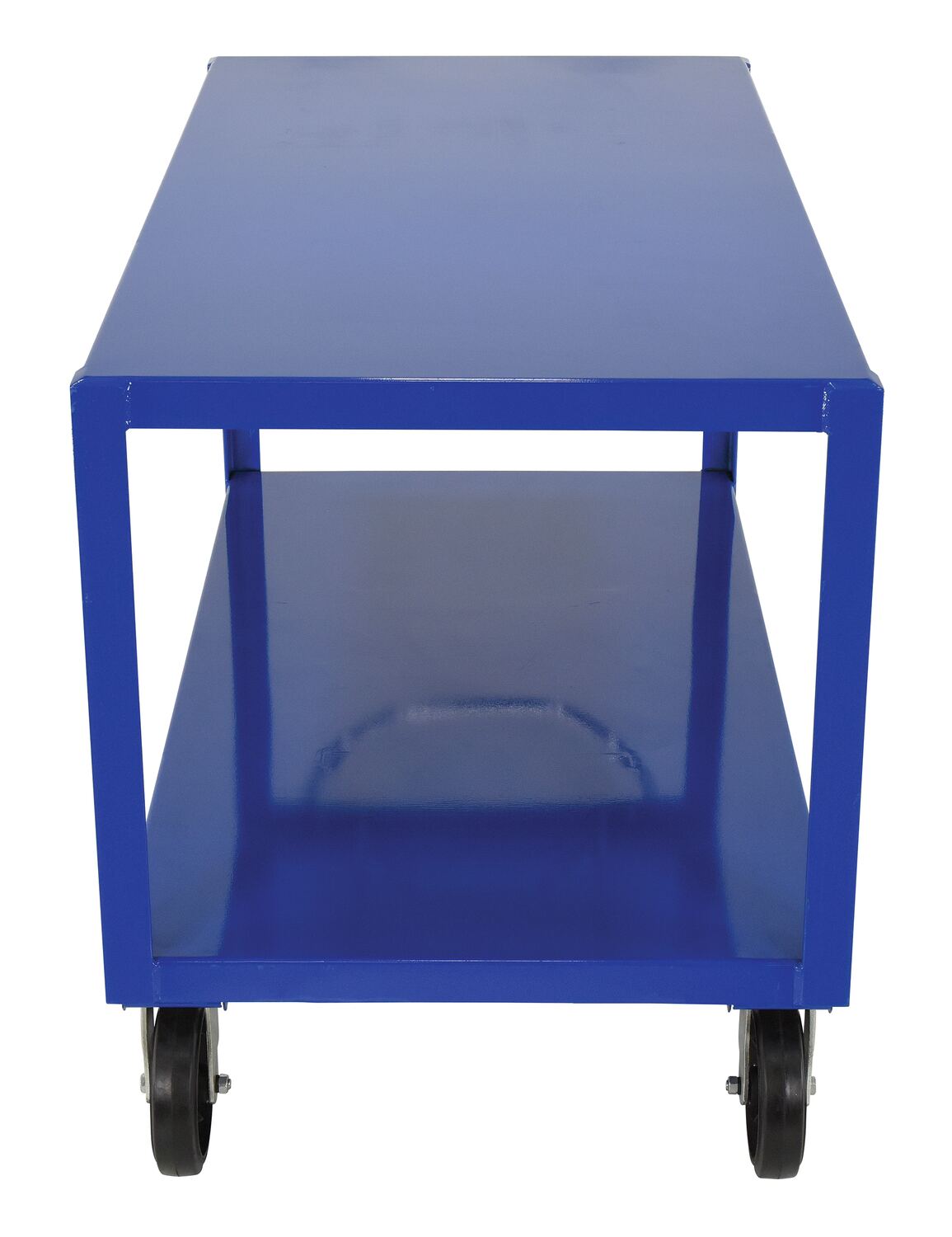

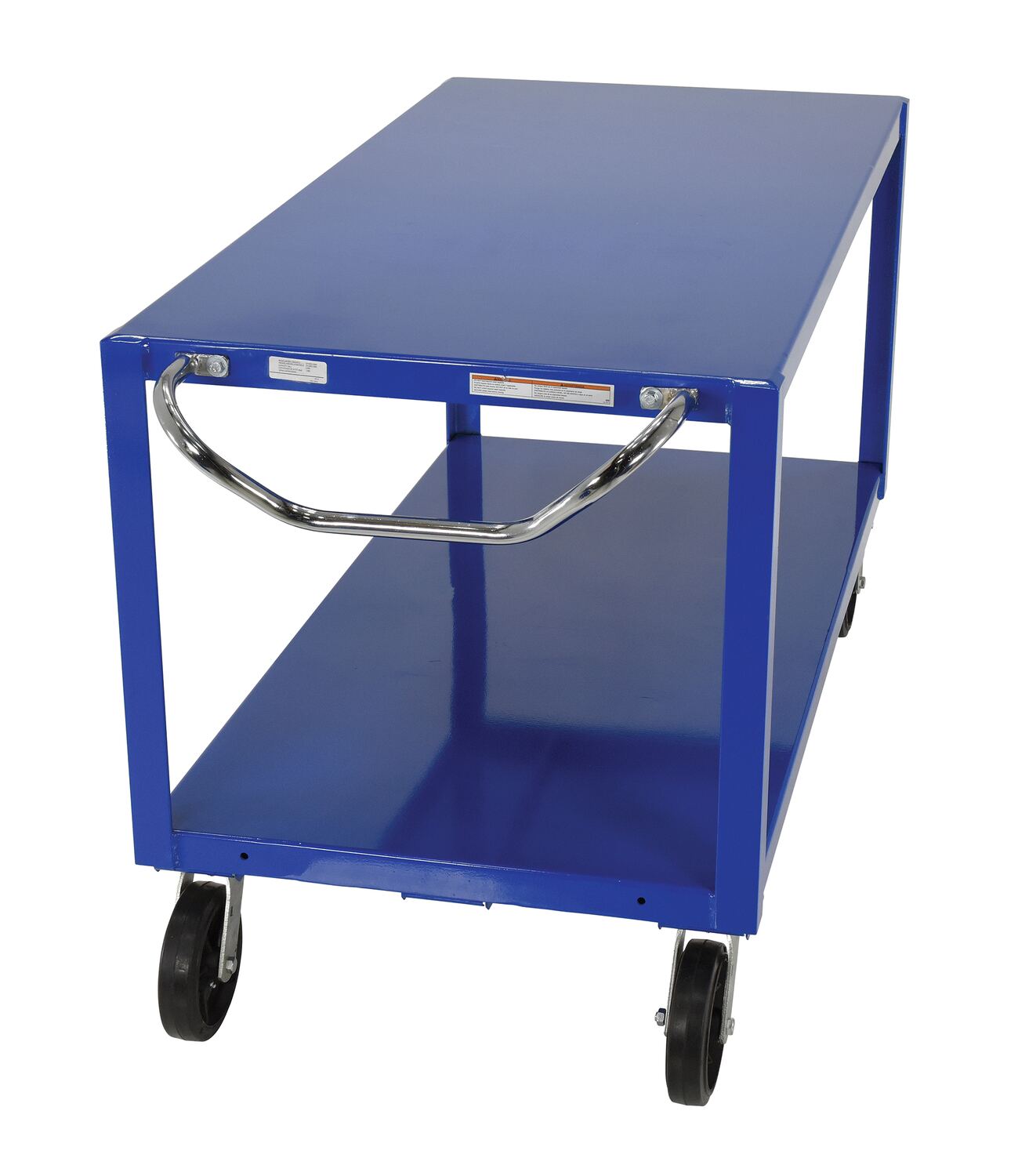

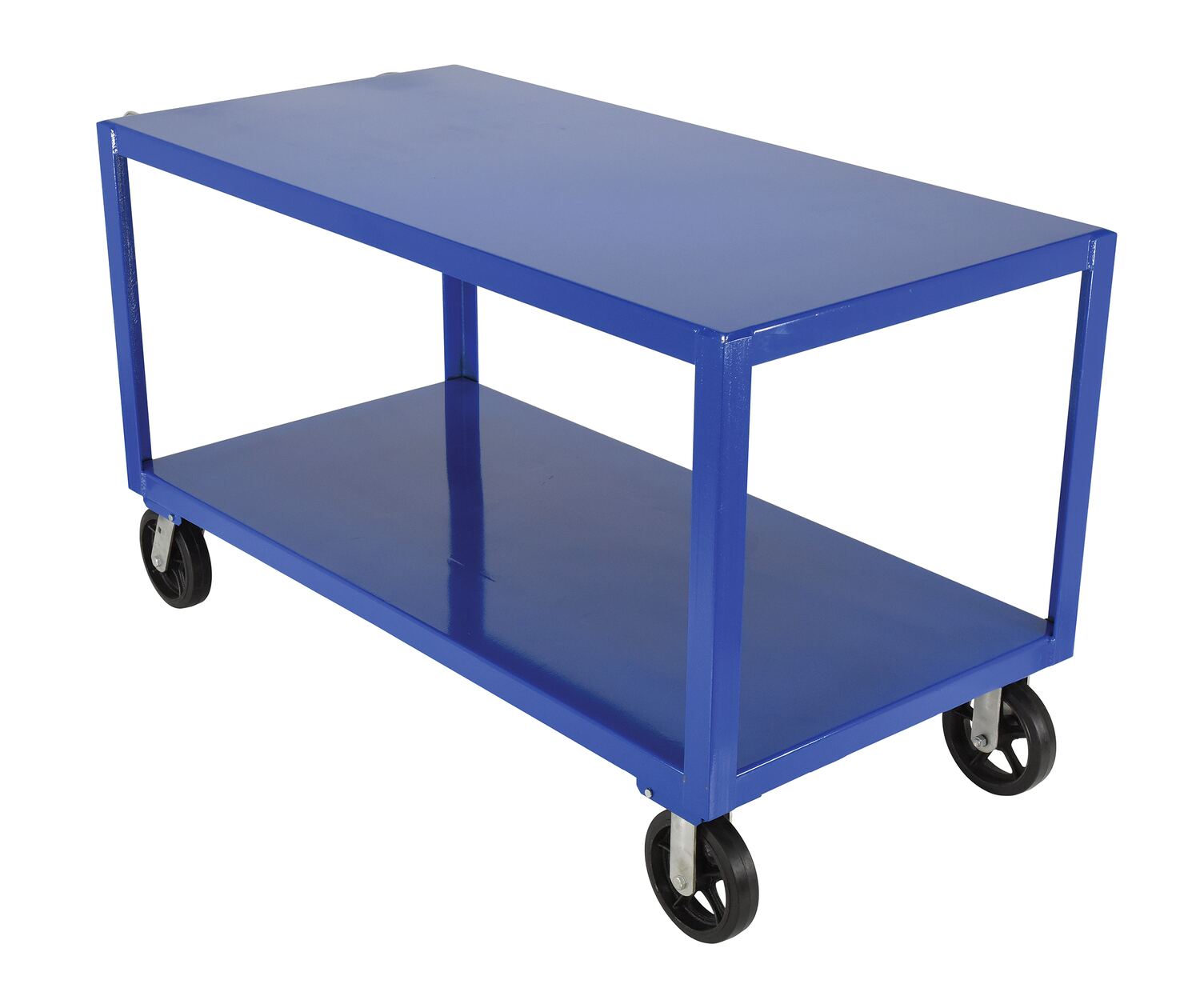

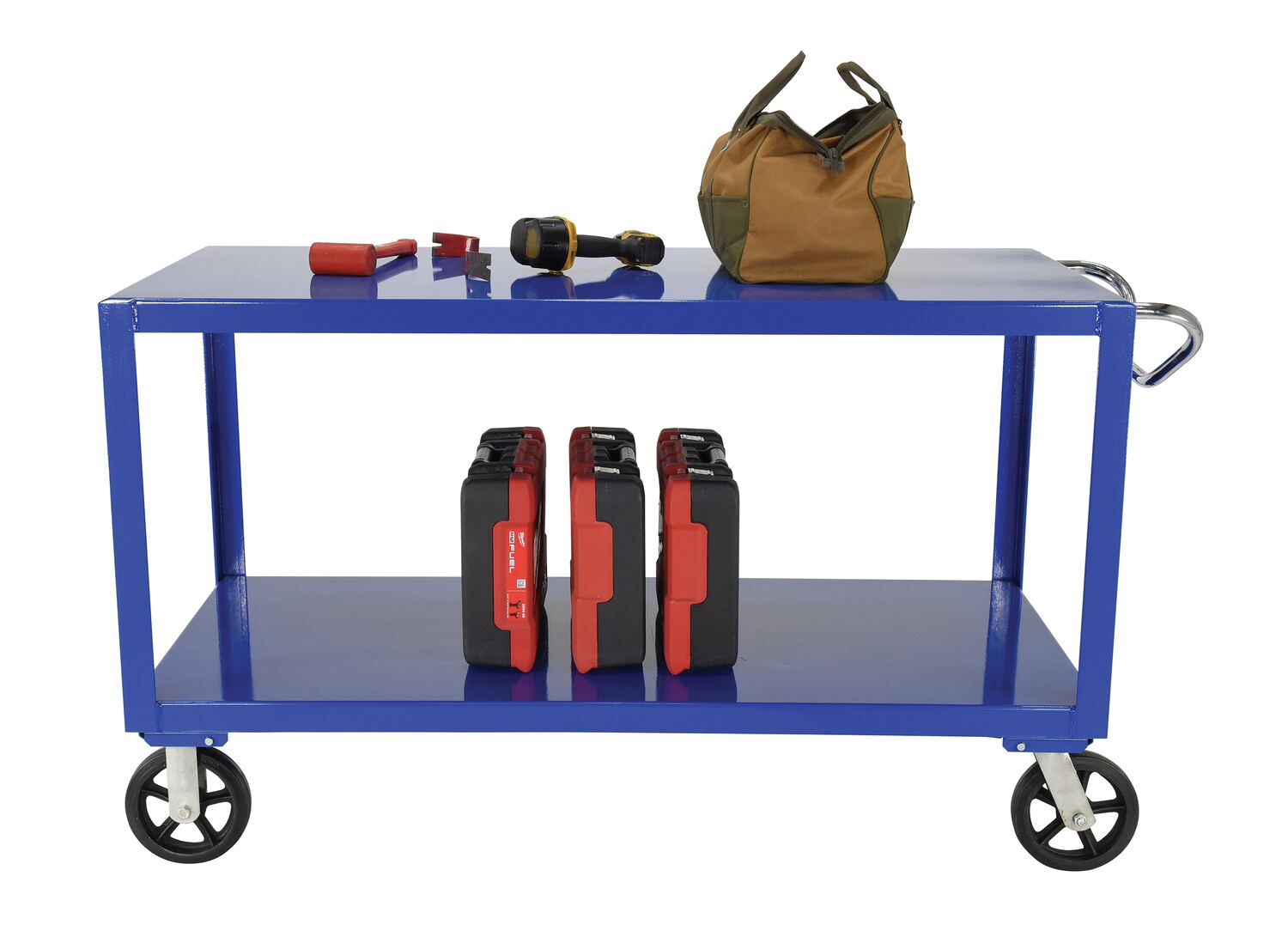

DH-MR2-3060 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 30" x 60" 22-1/2" 36-1/8" 2,400/2,000 lb 295

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets


Approval Drawings

DH-MR2-2436
DH-MR2-2448
DH-MR2-3060
DH-PH4-2436
DH-PH4-2436-3
DH-PH4-2448
DH-PH4-2448-3
DH-PH4-2460
DH-PH4-2460-3
DH-PH4-2472
DH-PH4-2472-3
DH-PH4-3060
DH-PH4-3060-3
DH-PH4-3448
DH-PH4-3448-3
DH-PH4-3460
DH-PH4-3460-3
DH-PH4-3472
DH-PH4-3472-3
DH-PU2.4-2436
DH-PU2.4-2448
DH-PU2.4-3060

Testing Certificates

DH-MR2-2436
DH-MR2-2448
DH-MR2-3060
DH-PH4-2436
DH-PH4-2436-3
DH-PH4-2448
DH-PH4-2448-3
DH-PH4-2460
DH-PH4-2460-3
DH-PH4-2472
DH-PH4-2472-3
DH-PH4-3060
DH-PH4-3060-3
DH-PH4-3448
DH-PH4-3448-3
DH-PH4-3460
DH-PH4-3460-3
DH-PH4-3472
DH-PH4-3472-3
DH-PU2.4-2436
DH-PU2.4-2448
DH-PU2.4-3060

Other PDF's


Directory Links Of Available PDF's For All Products

Options

Options

Model PDF Description Size
(WxL)
Lip
Height
Wt.
(lbs)

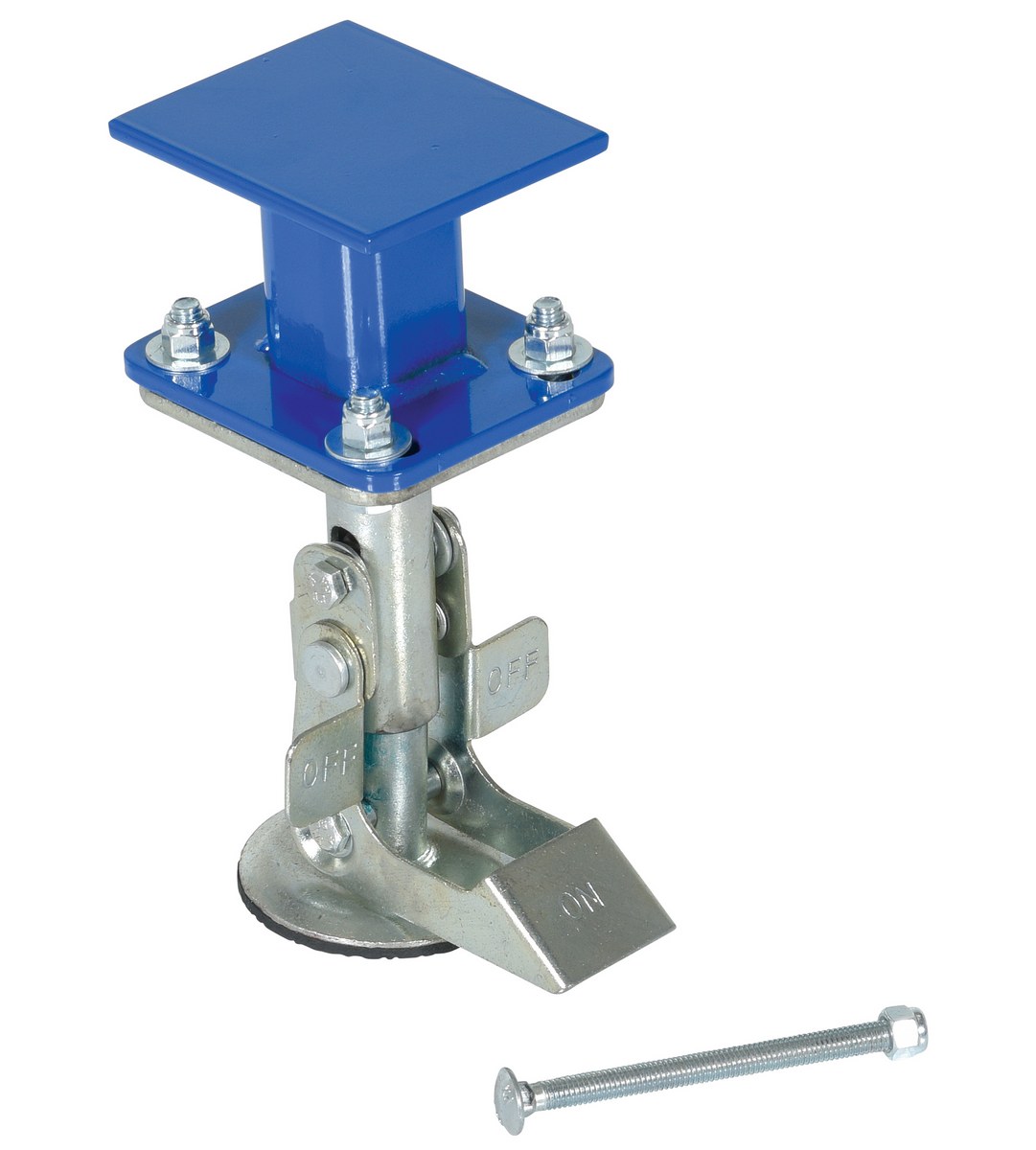

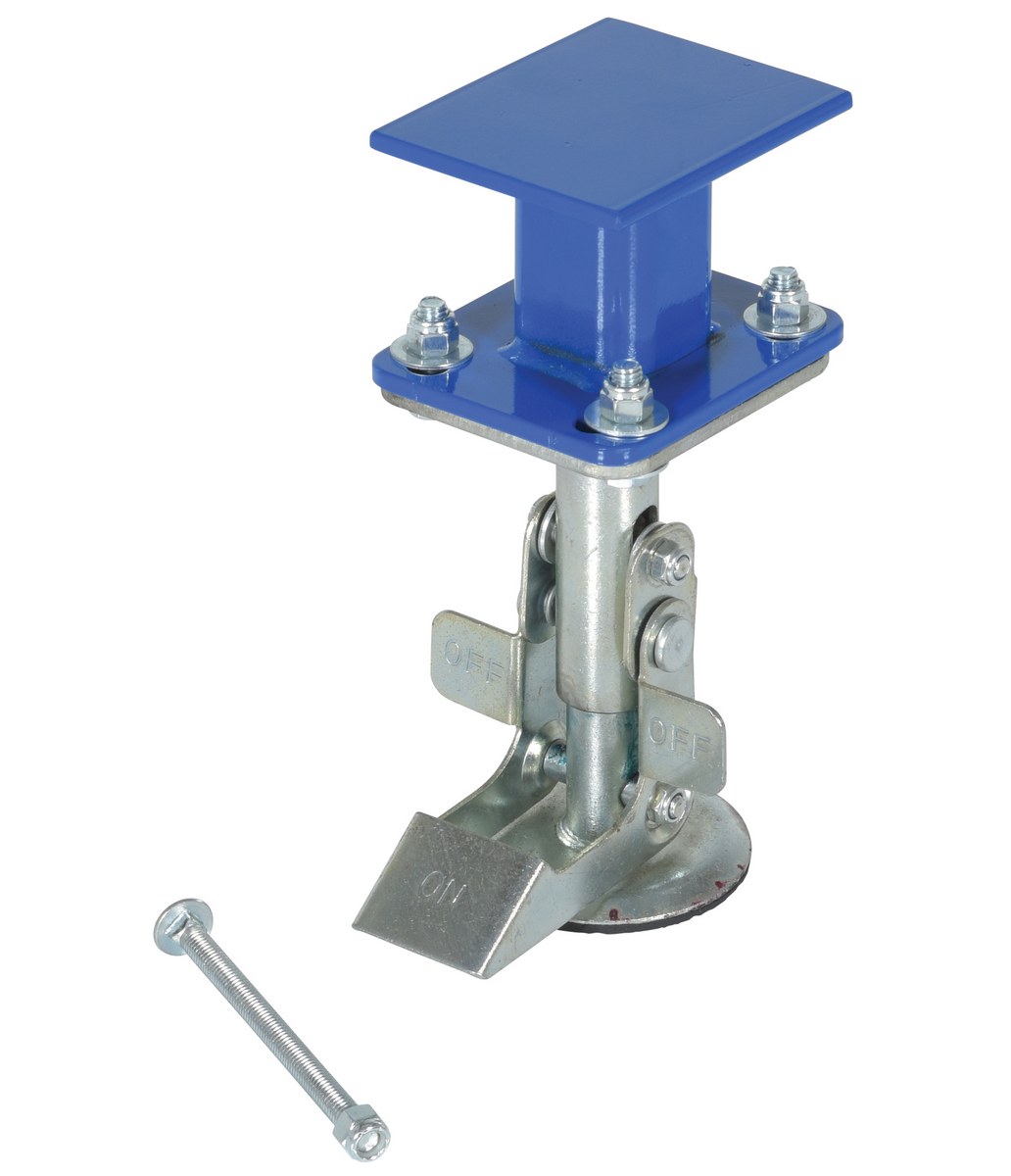

ERGO-FL  OPTIONAL MANUAL FOOT-OPERATED FLOOR LOCK 6
