model: SCS2-2848

SERIES: SCS/SCA
Service Carts

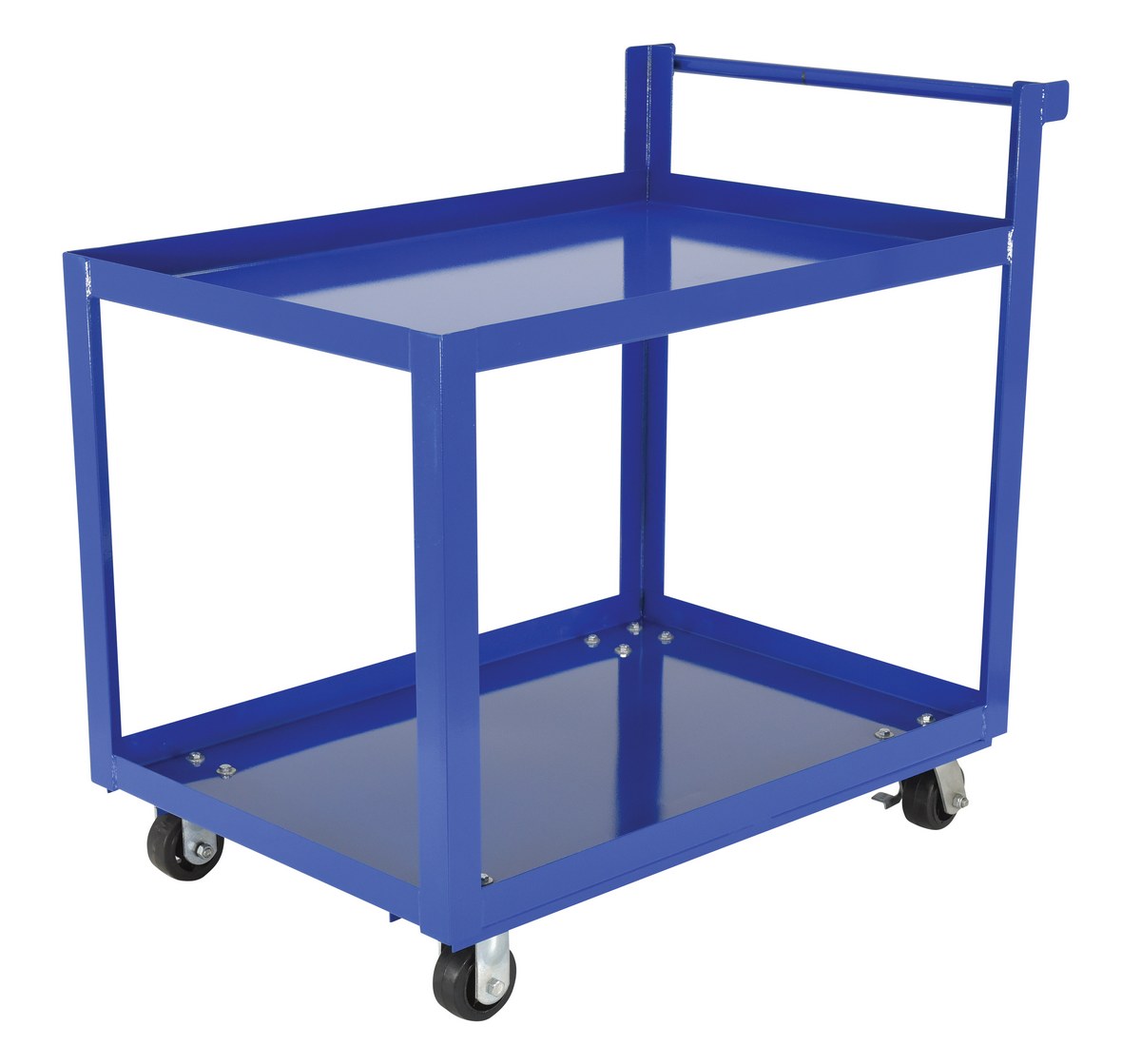

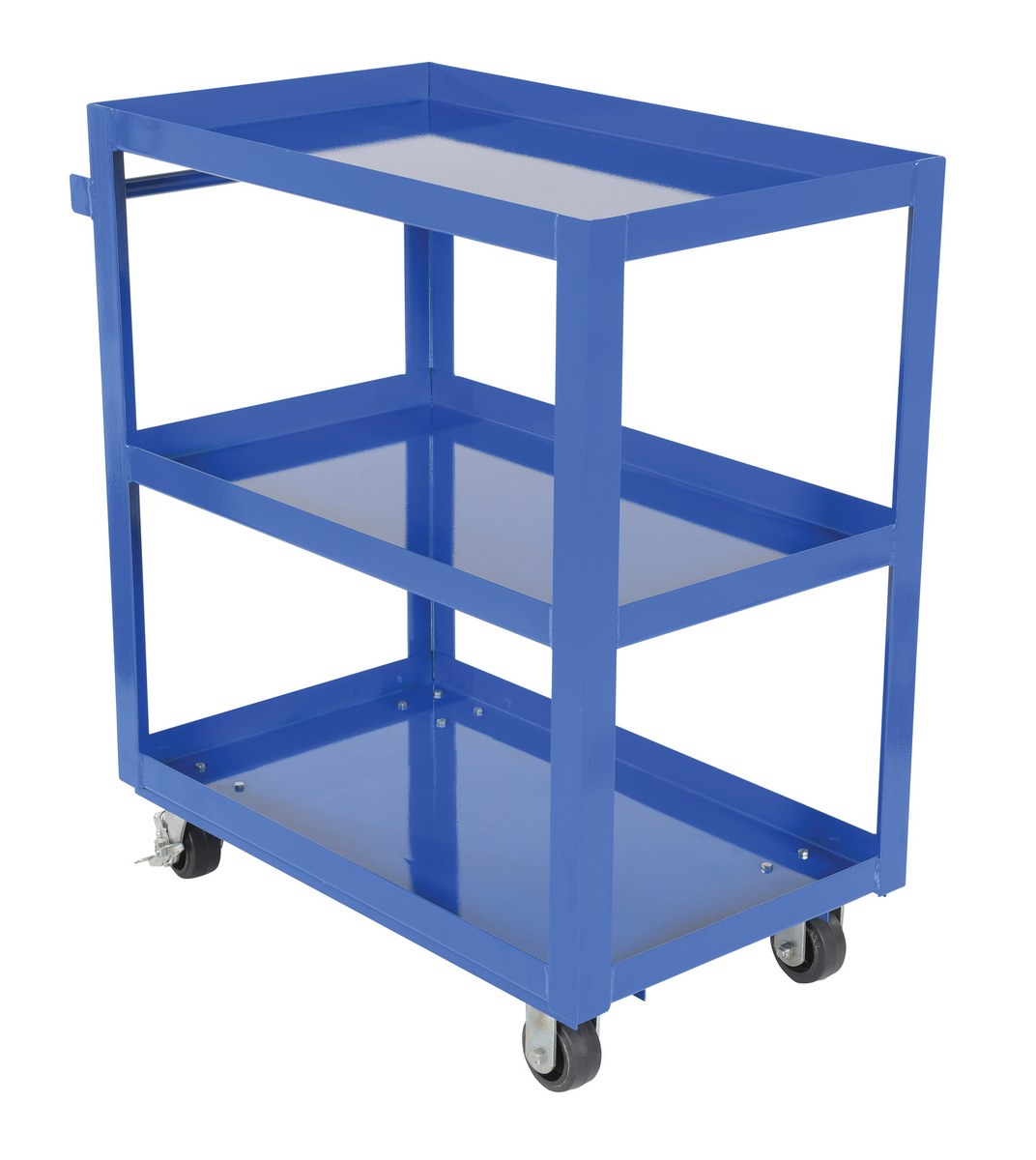

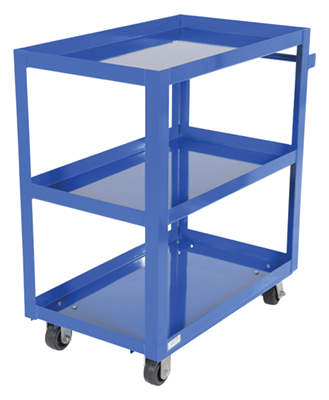

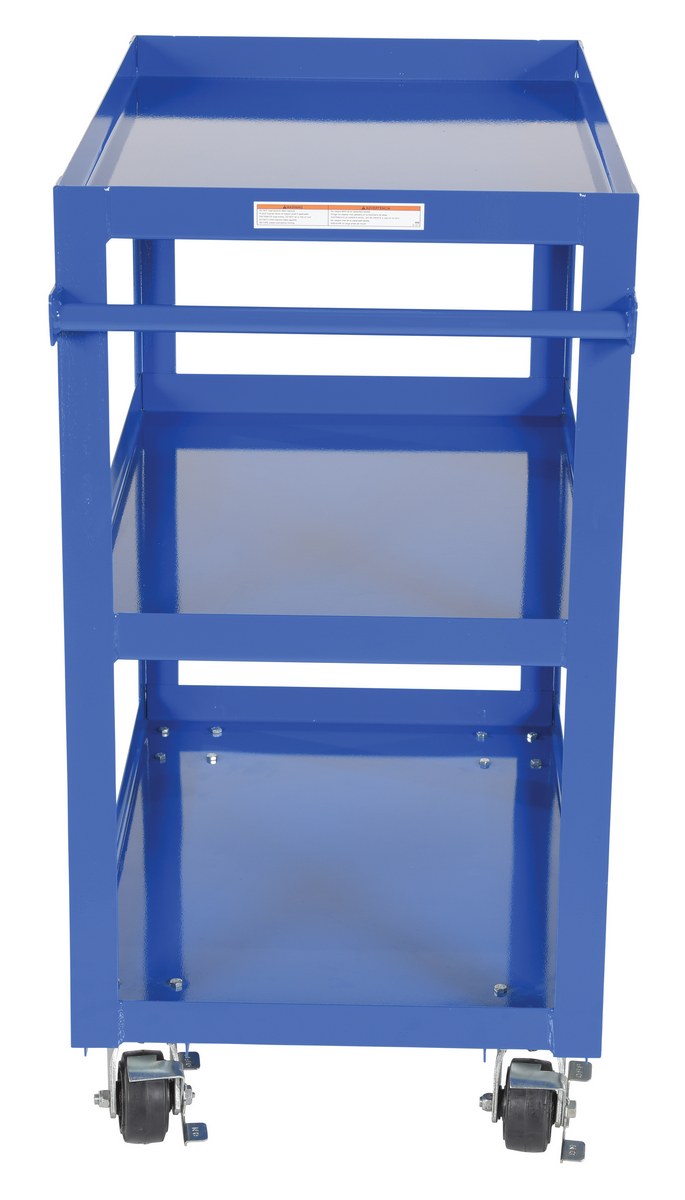

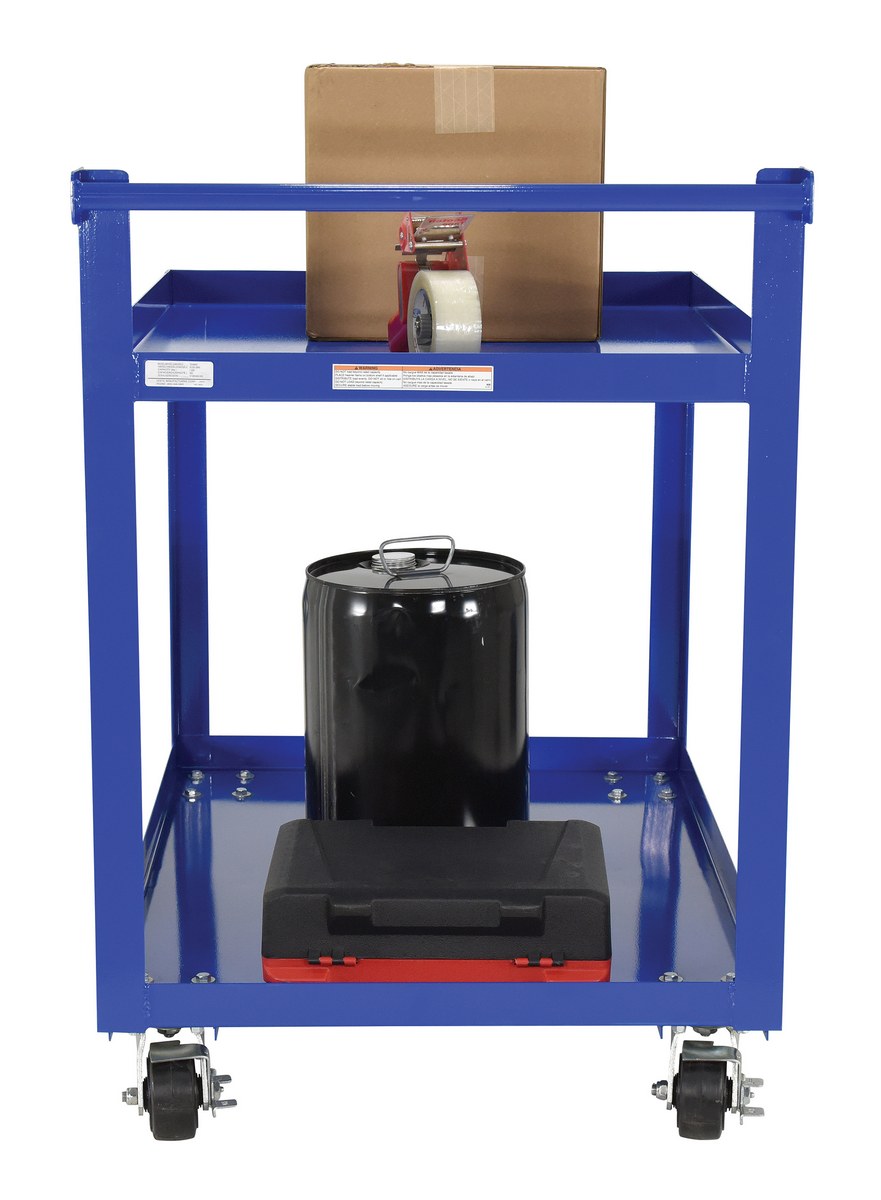

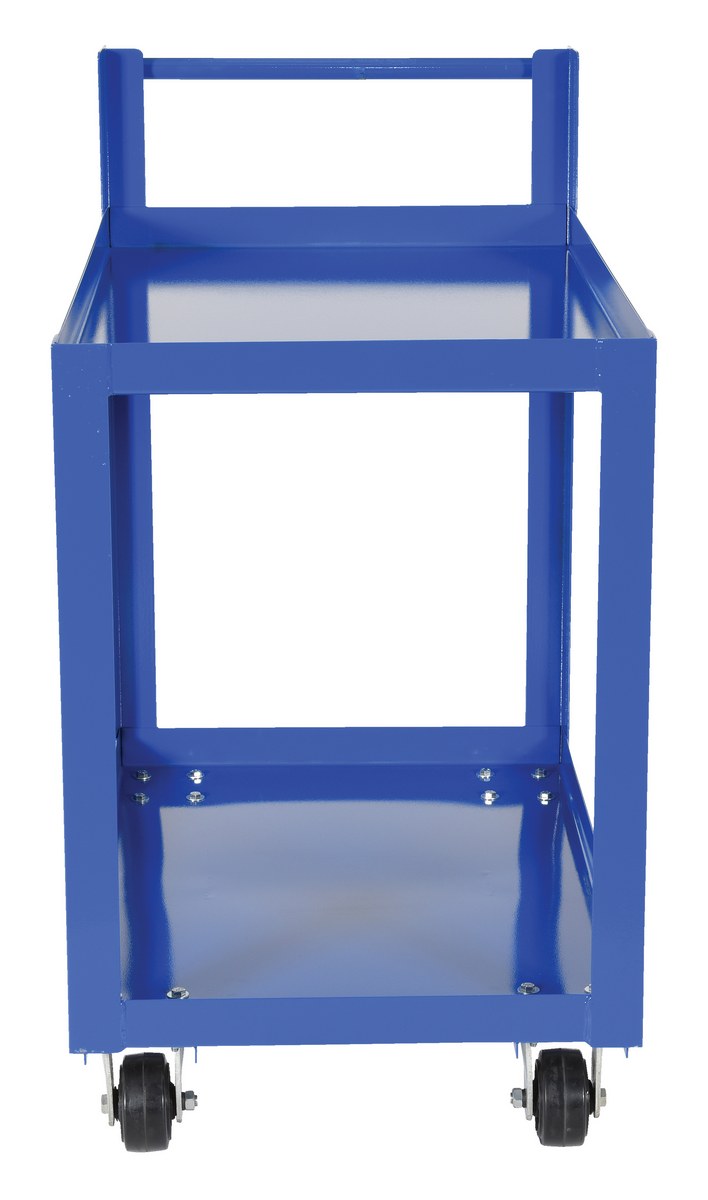

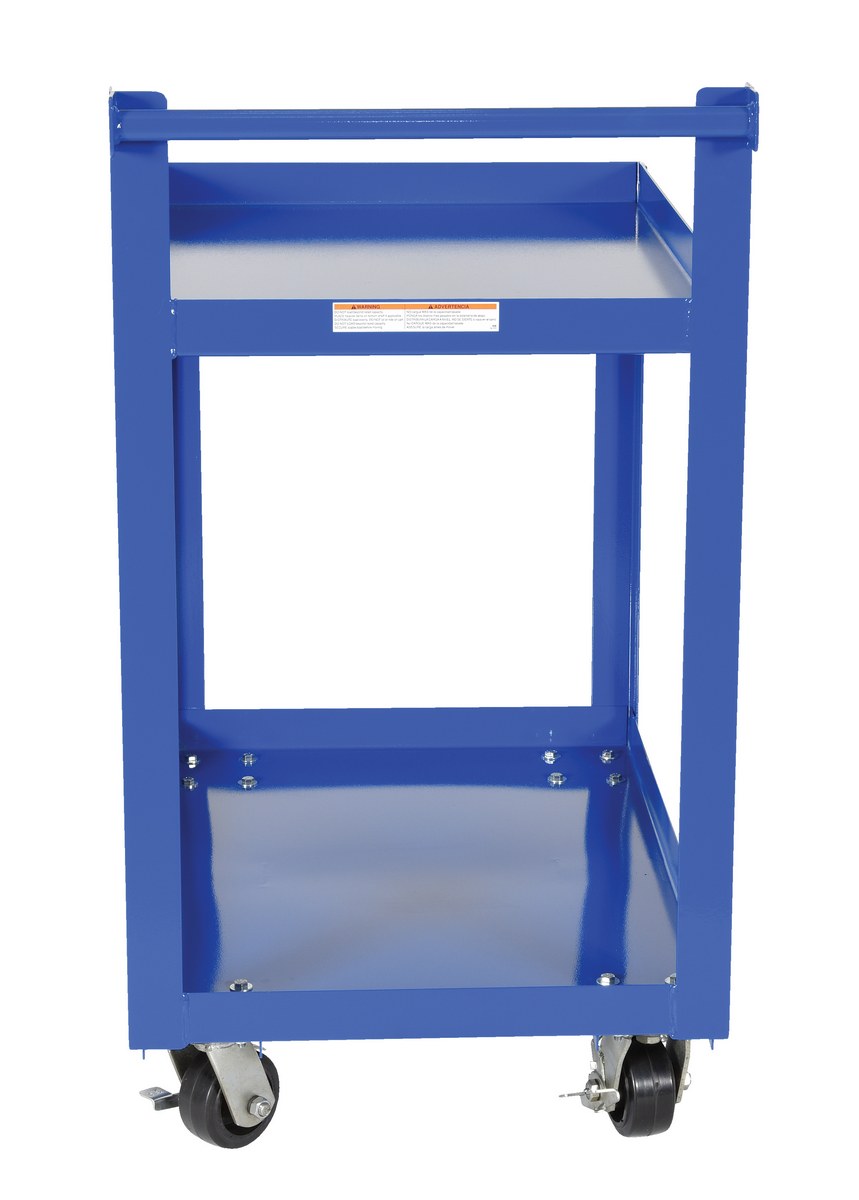

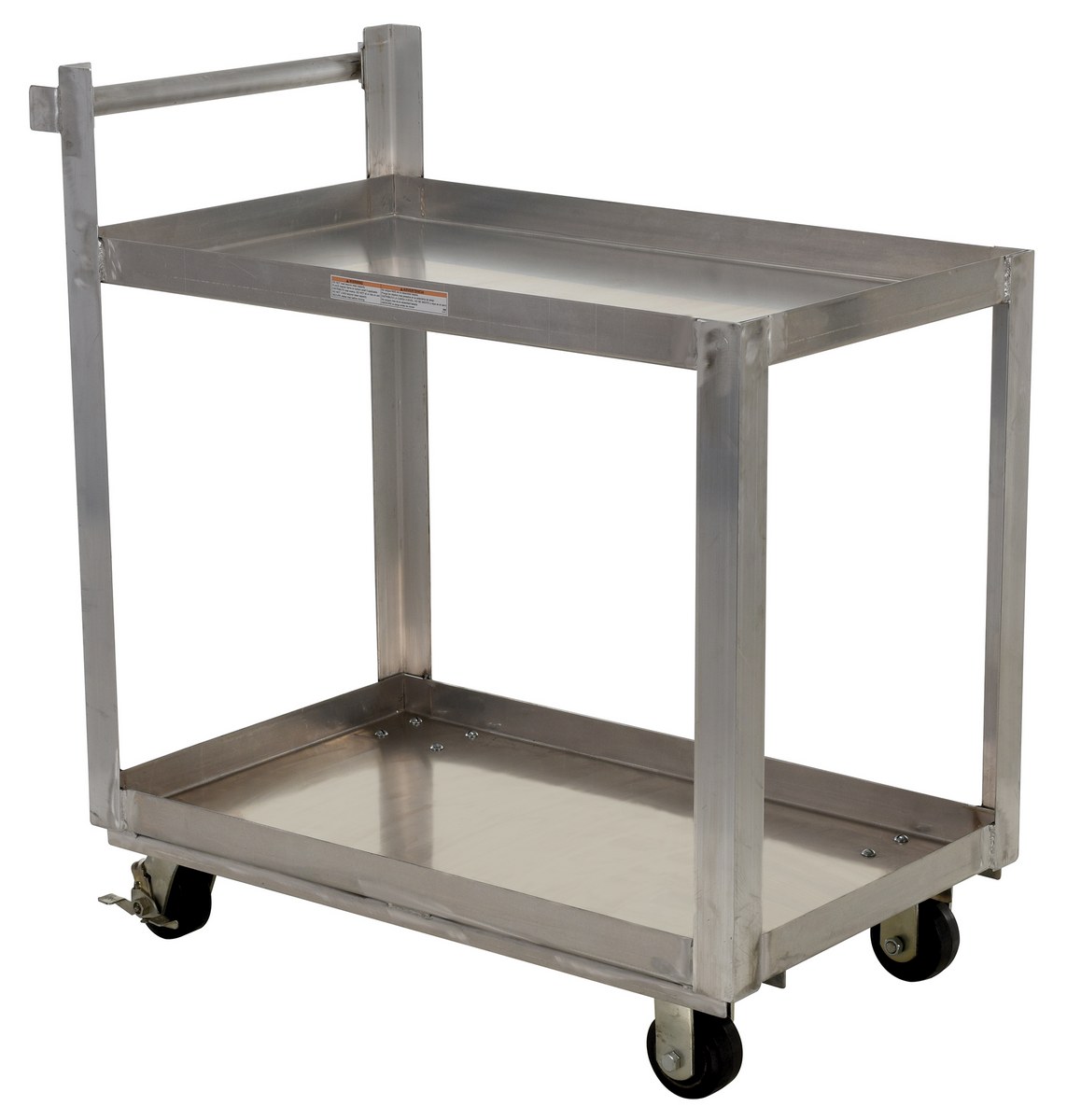

All welded service carts made of steel or aluminum are ideal for transporting parts and boxes. A 2" lip is turned up on all shelves to prevent items from sliding off. Standard 4" x 2" mold-on rubber casters, two (2) rigid and two (2) swivel with brake. Steel units are powder coated blue.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Service Carts
Model PDF's Shelf Size (WxL) Shelf Clearance Top Shelf Height Capacity Per Shelf Total
Capacity
Wt. (lbs)

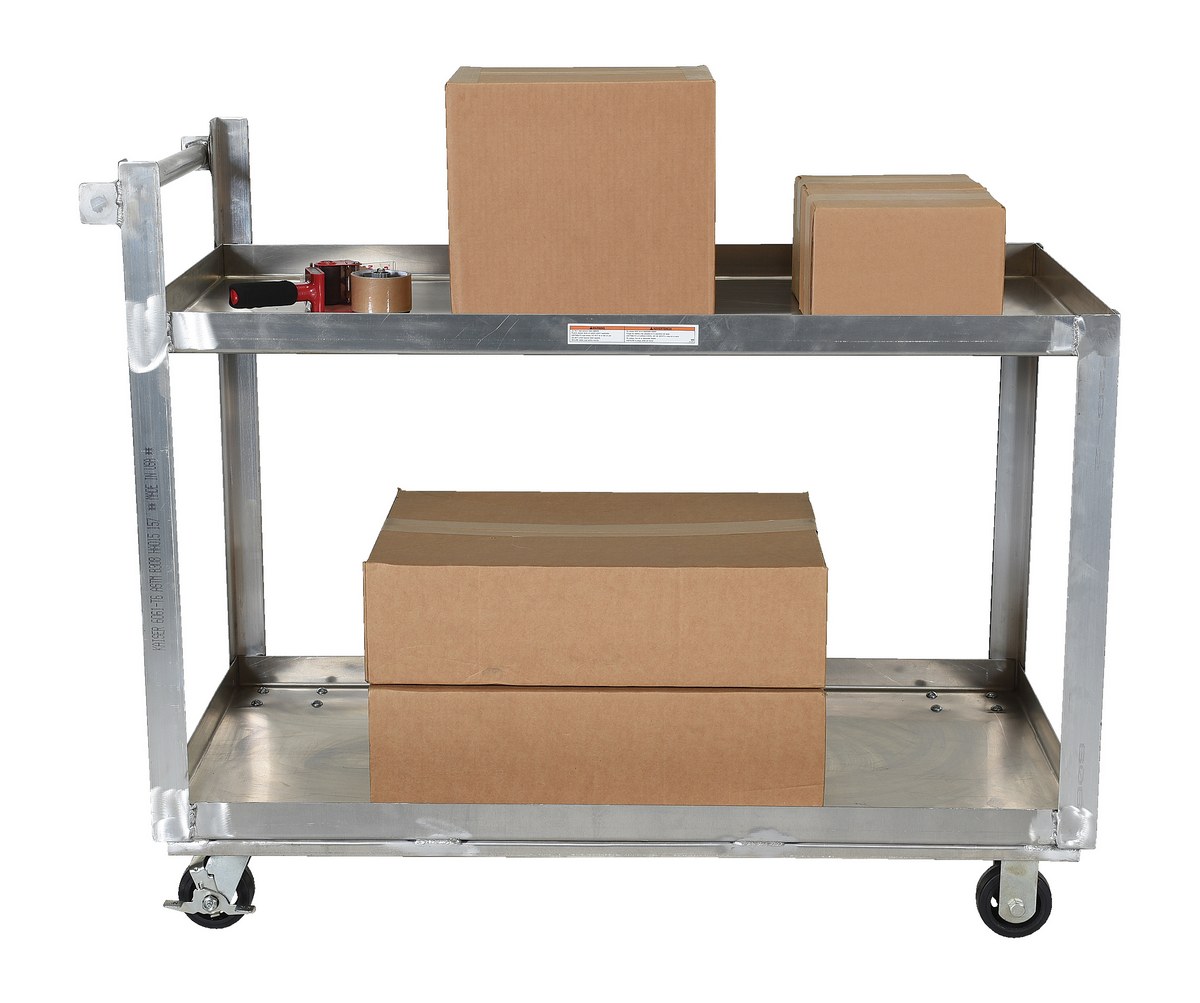

Aluminum Construction

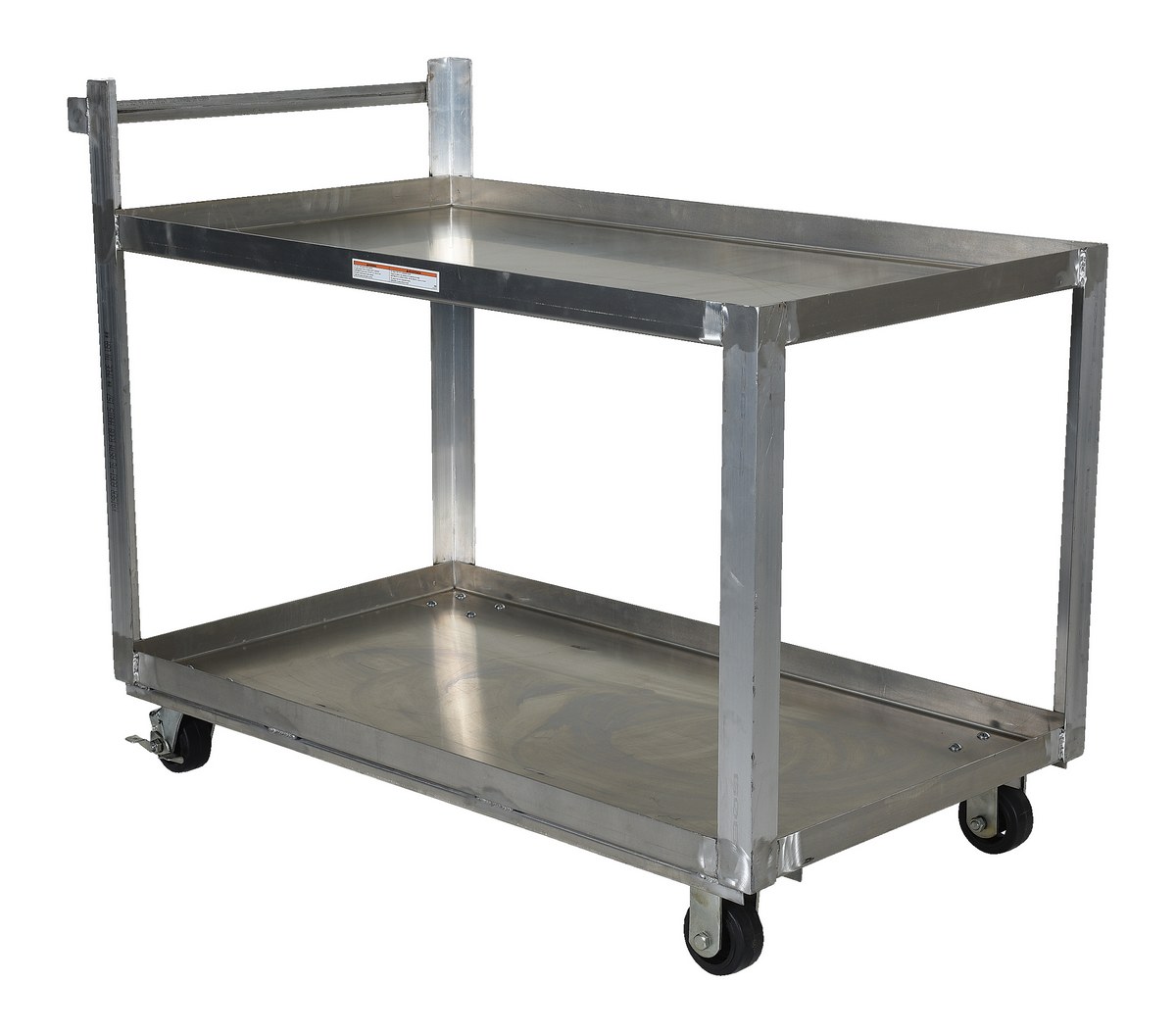

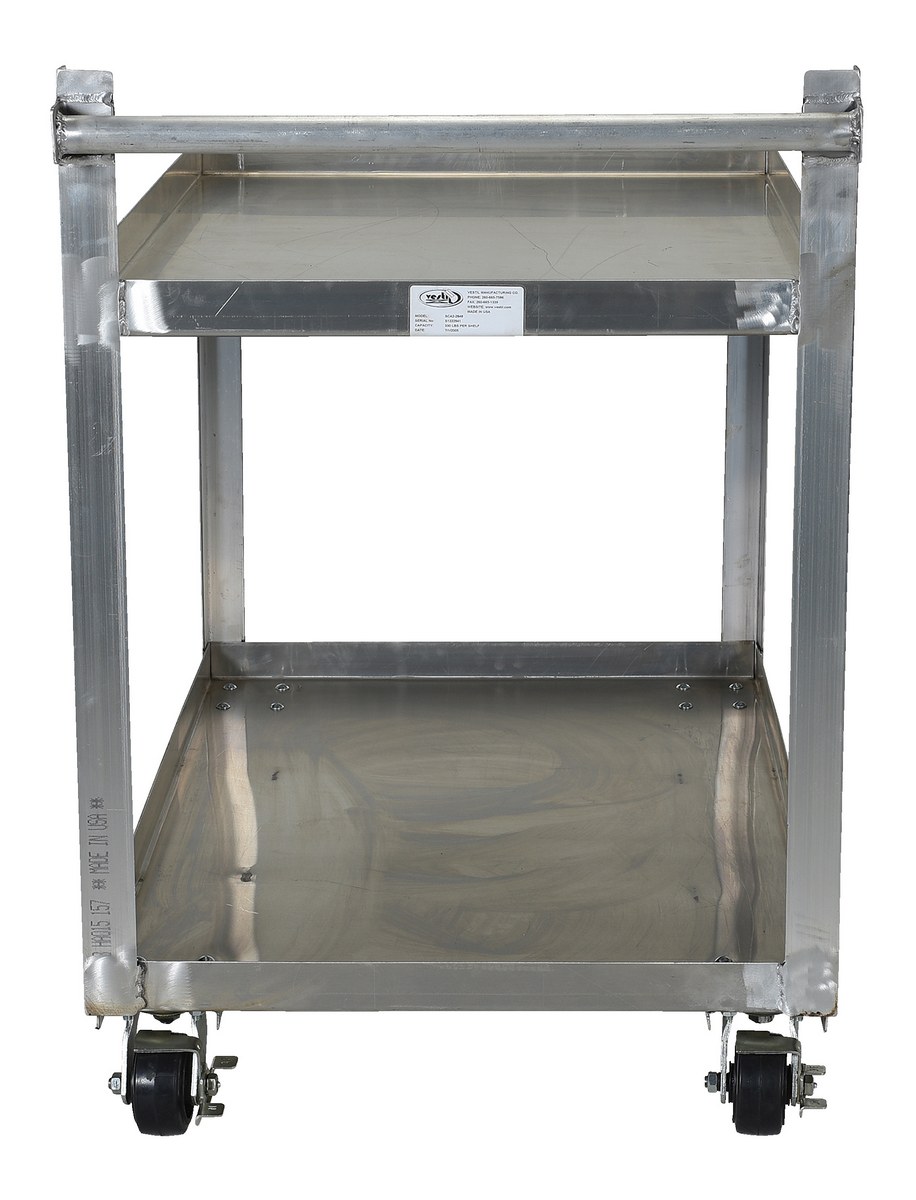

2-Shelf Units

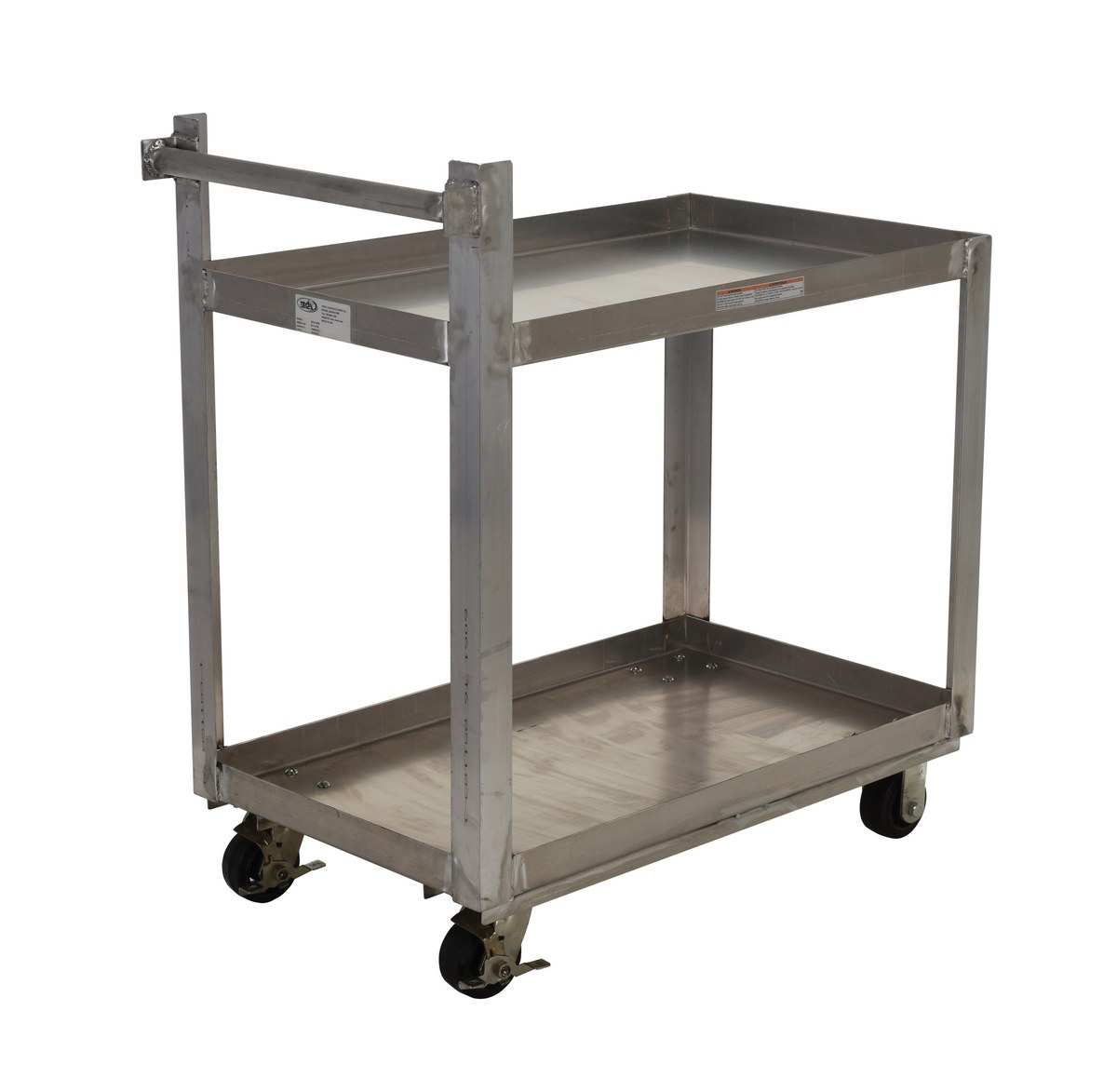

SCA2-2236 Compliance Certificate 21-5/8" x 36" 23-1/2" 33-1/4" 330lbs. 660lbs. 102
SCA2-2840 Compliance Certificate 27-5/8"x 40" 23-1/2" 33-1/4" 330lbs. 660lbs. 106

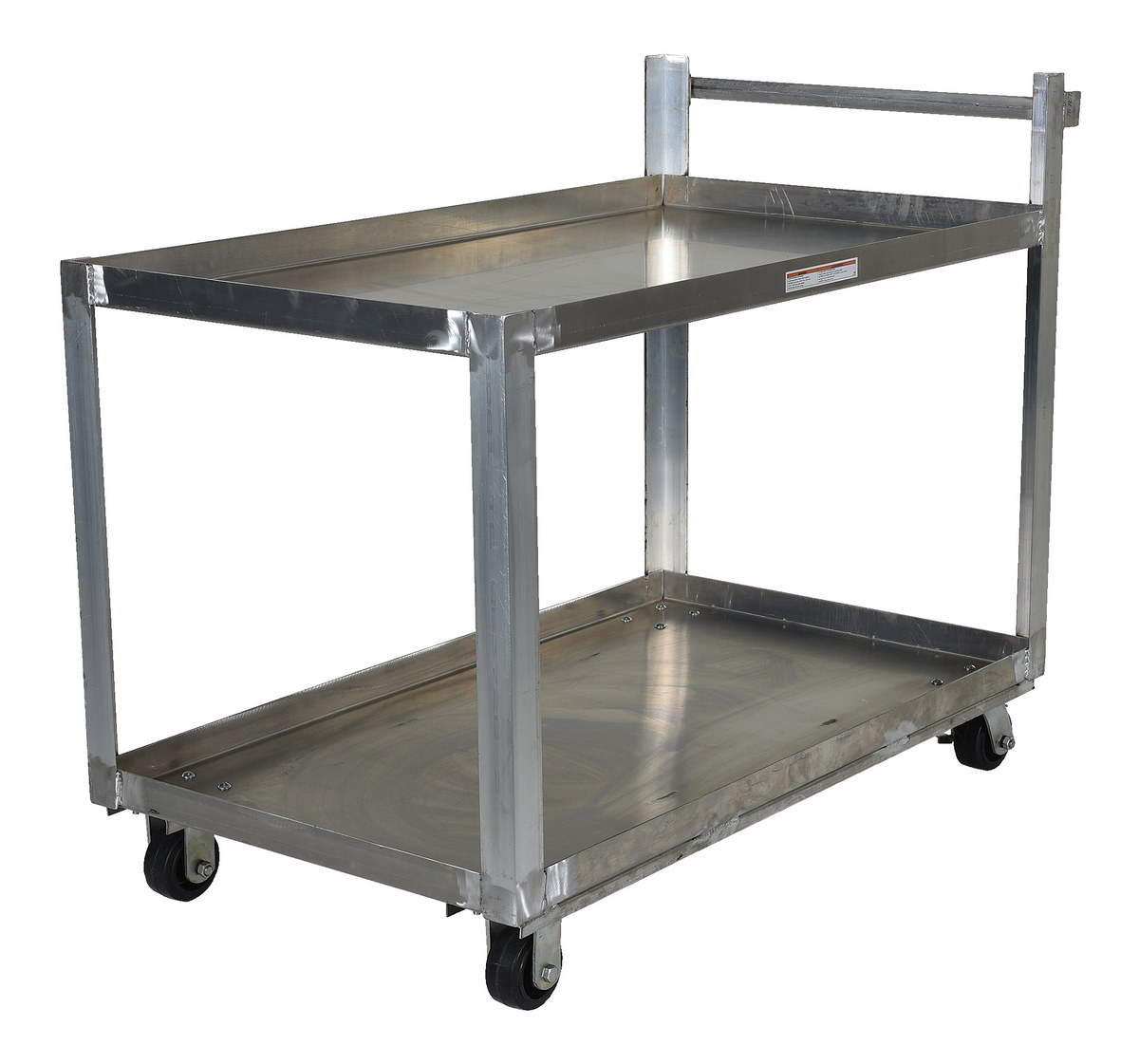

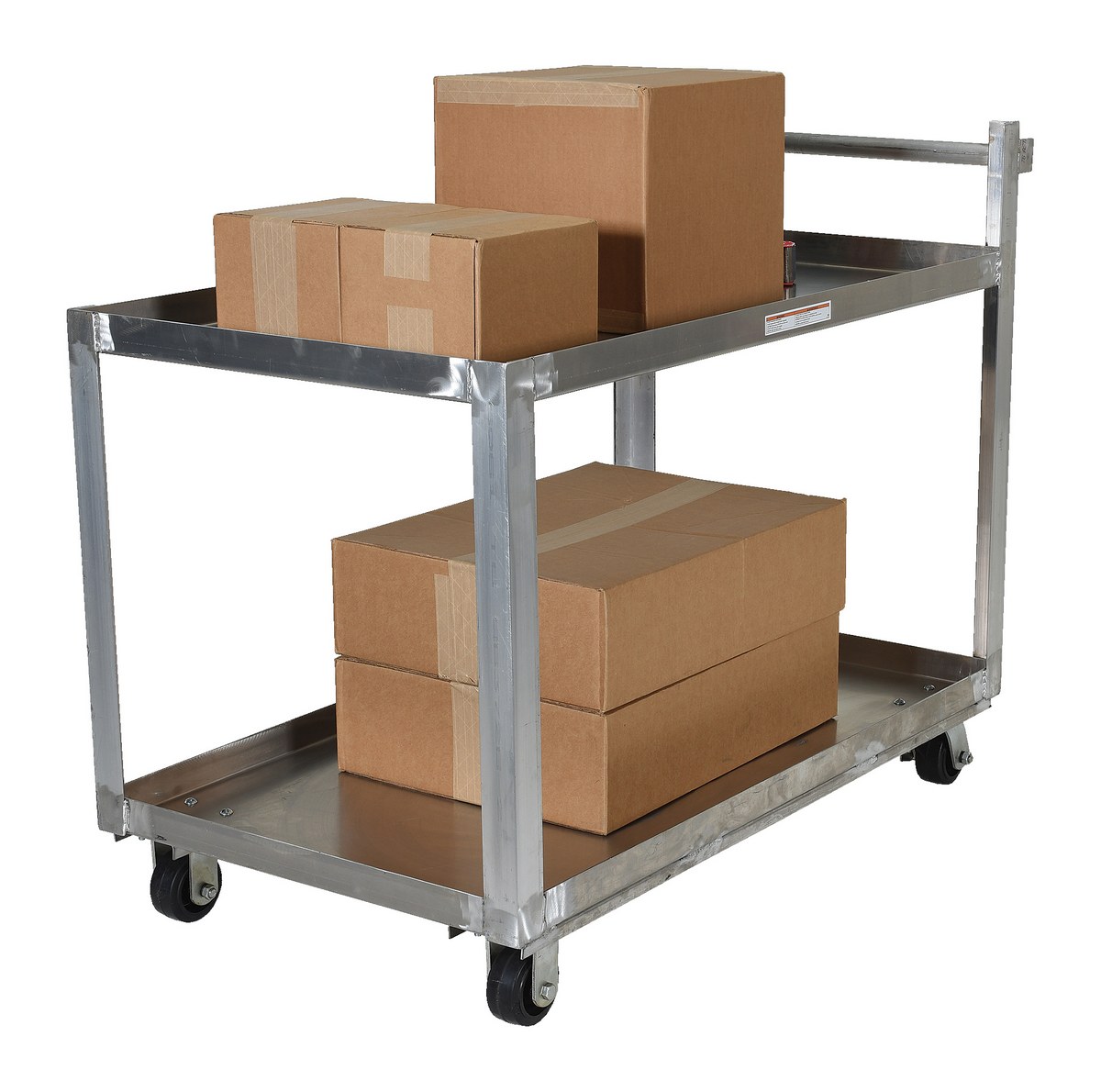

SCA2-2848 Compliance Certificate 27-5/8"x 48" 23-1/2" 33-3/8" 330lbs. 660lbs. 114

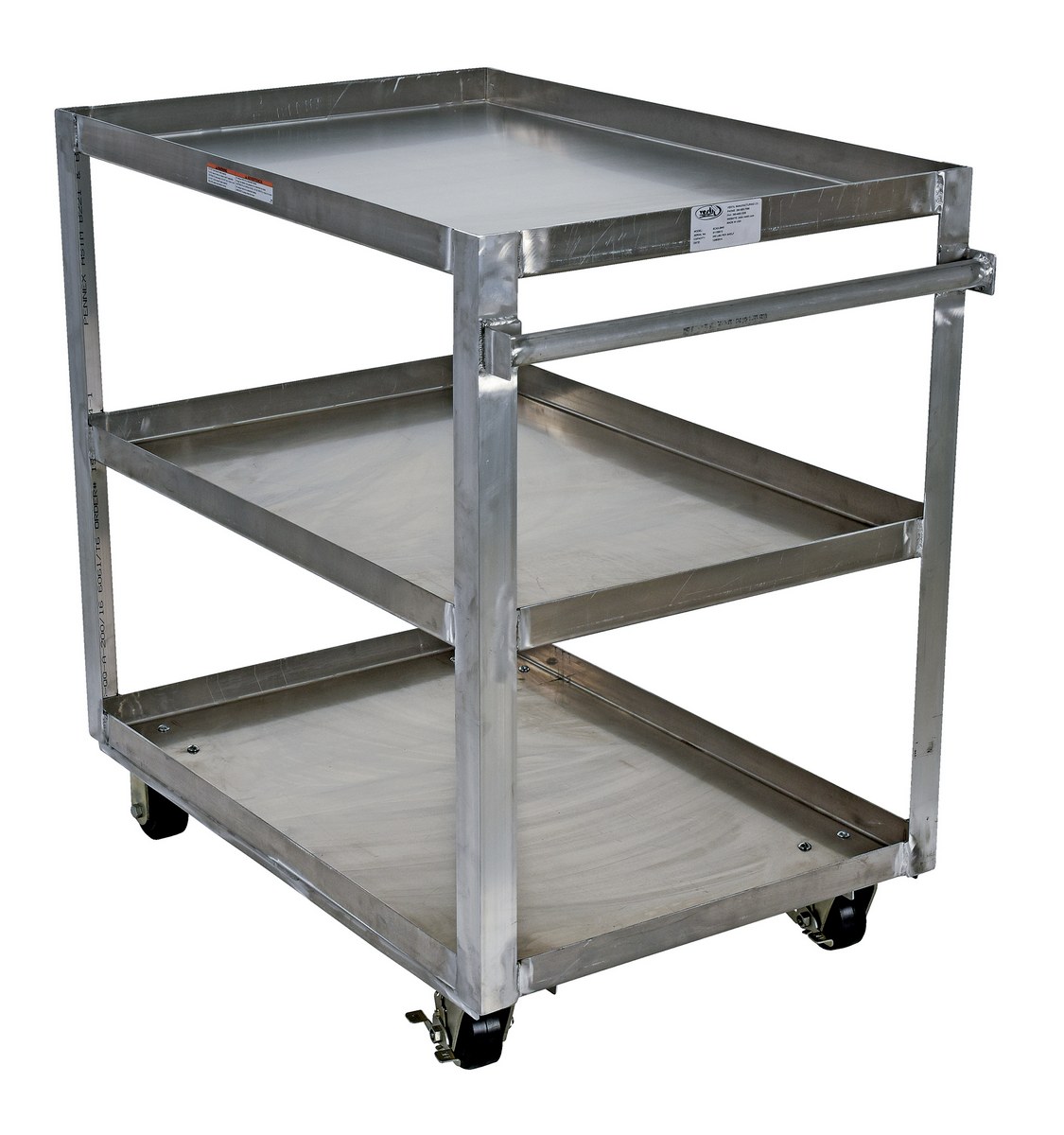

3-Shelf Units

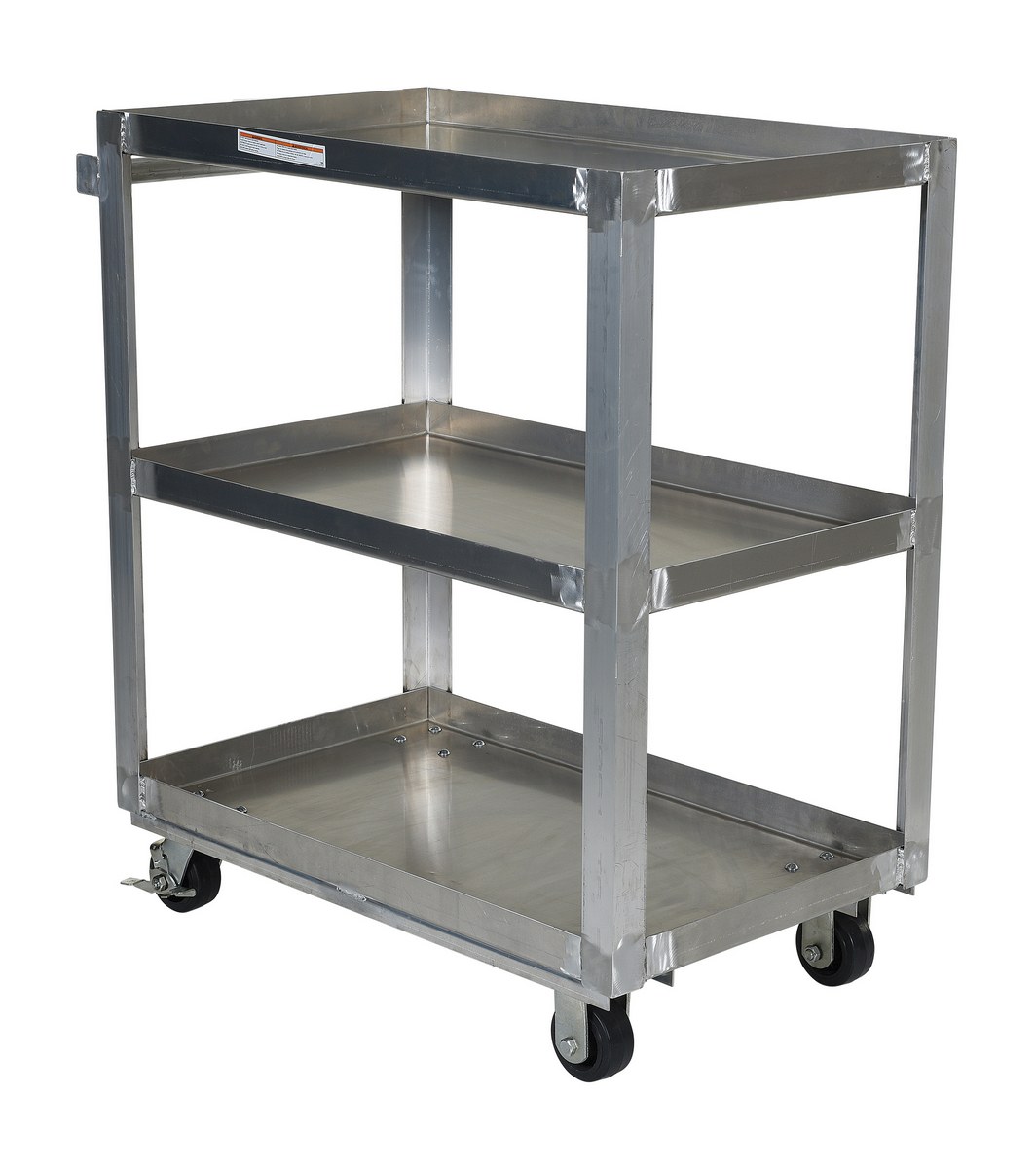

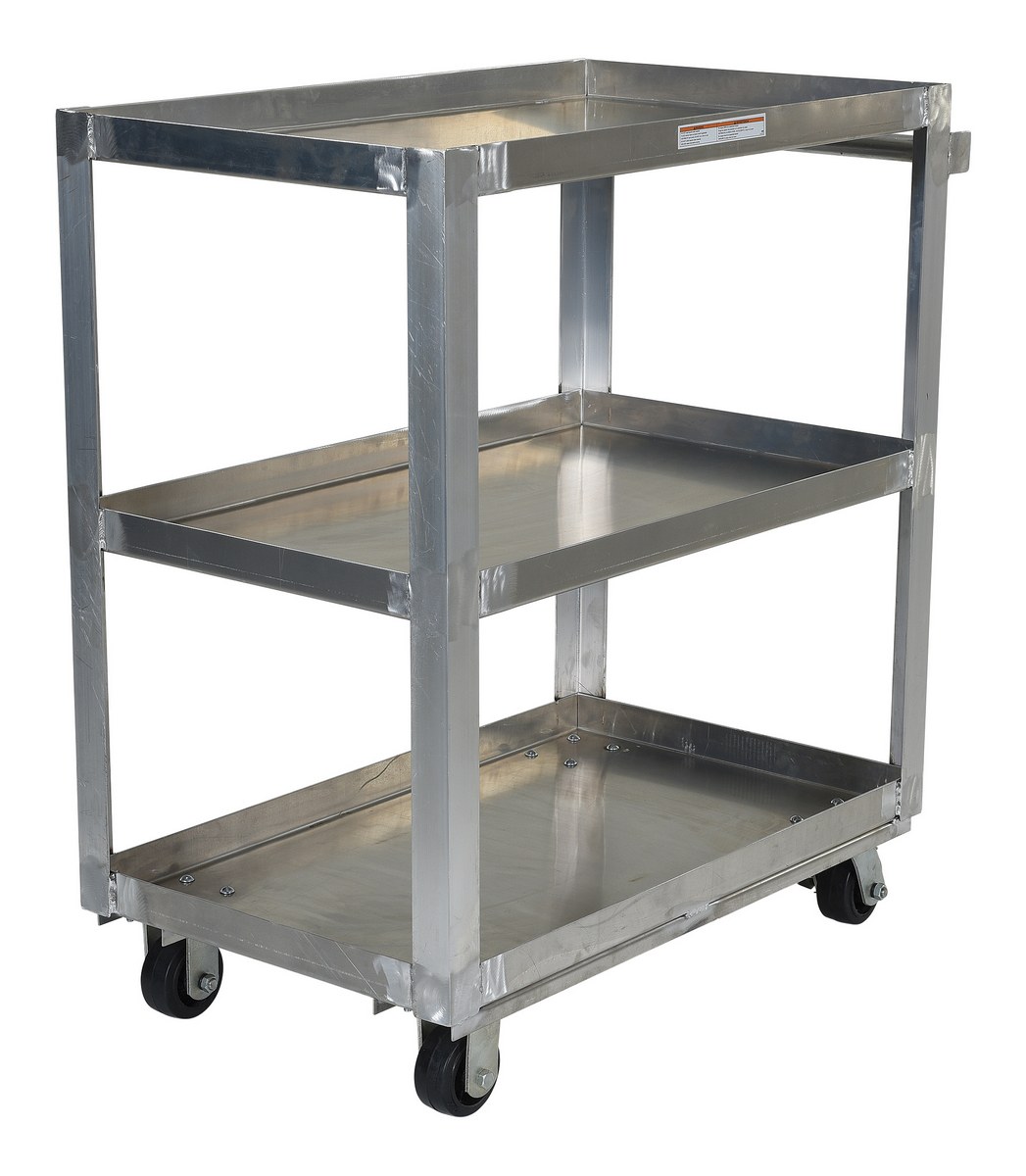

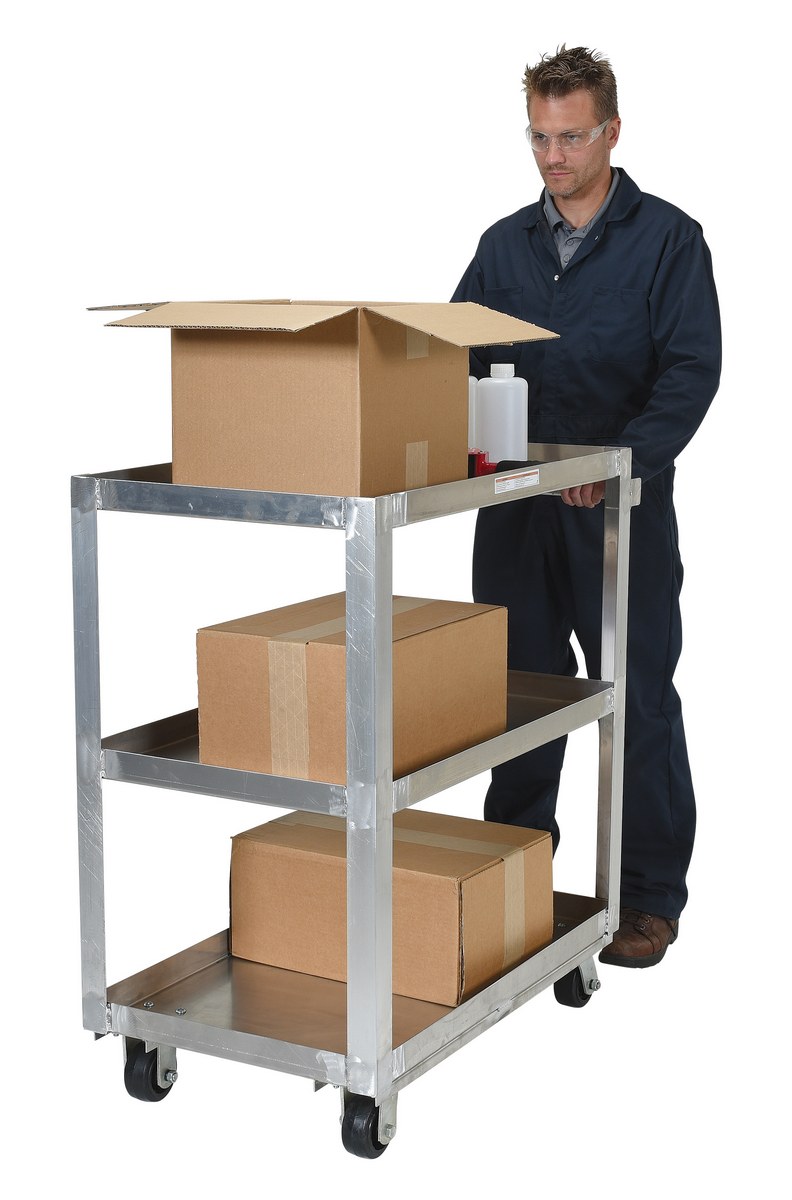

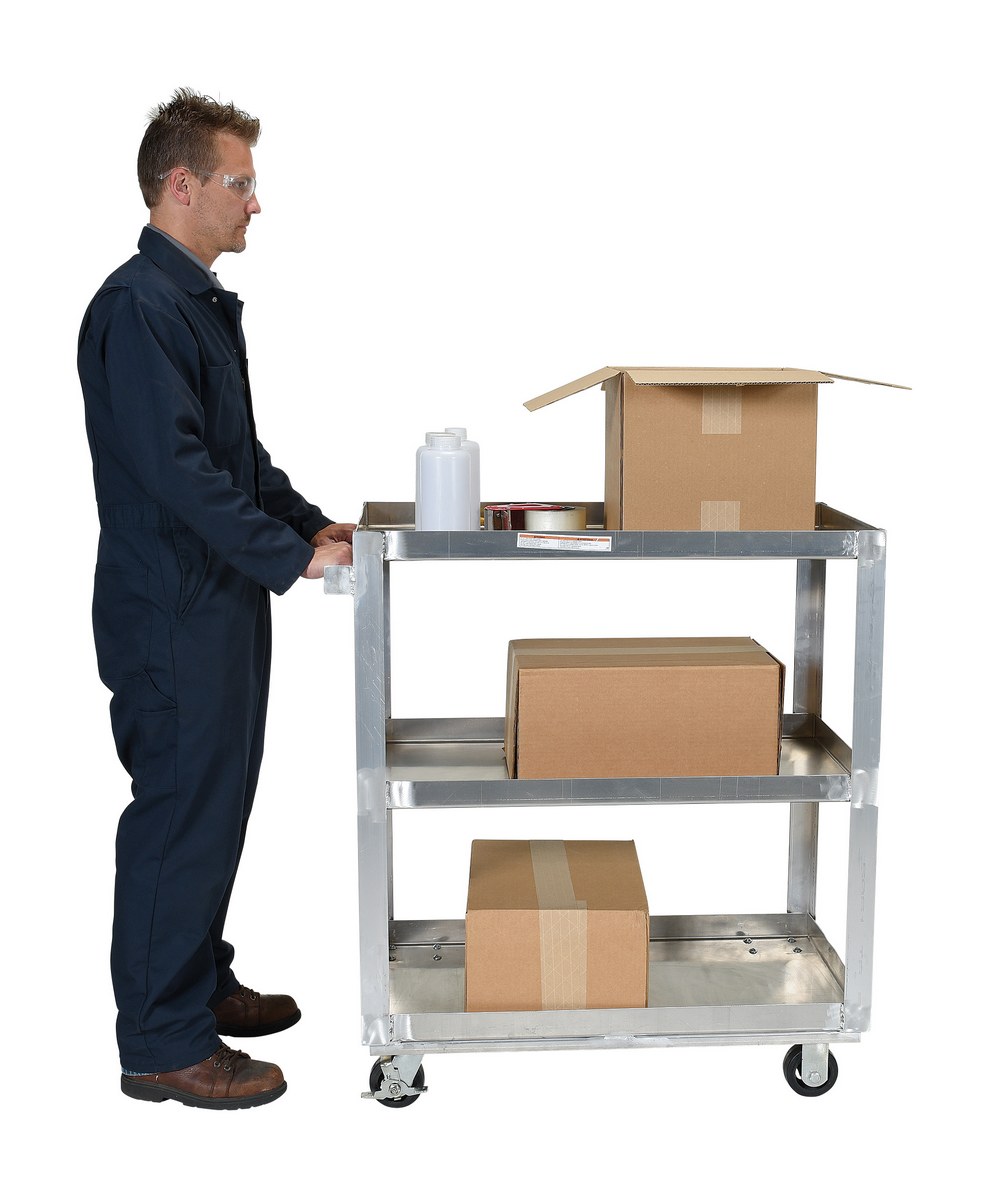

SCA3-2236 Compliance Certificate 21-11/16"x 36-1/16" 15" 41-3/4" 330lbs. 660lbs. 124

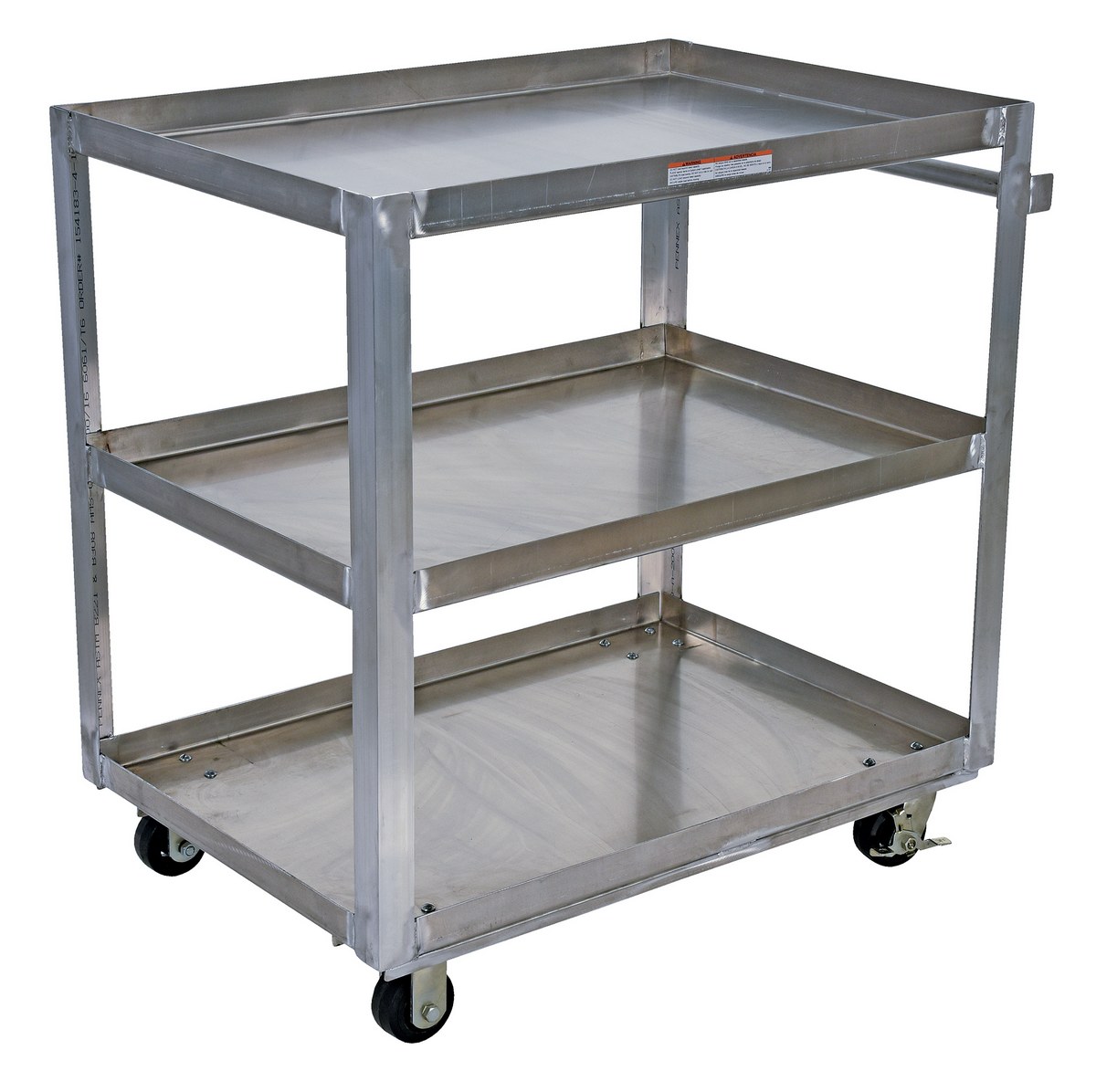

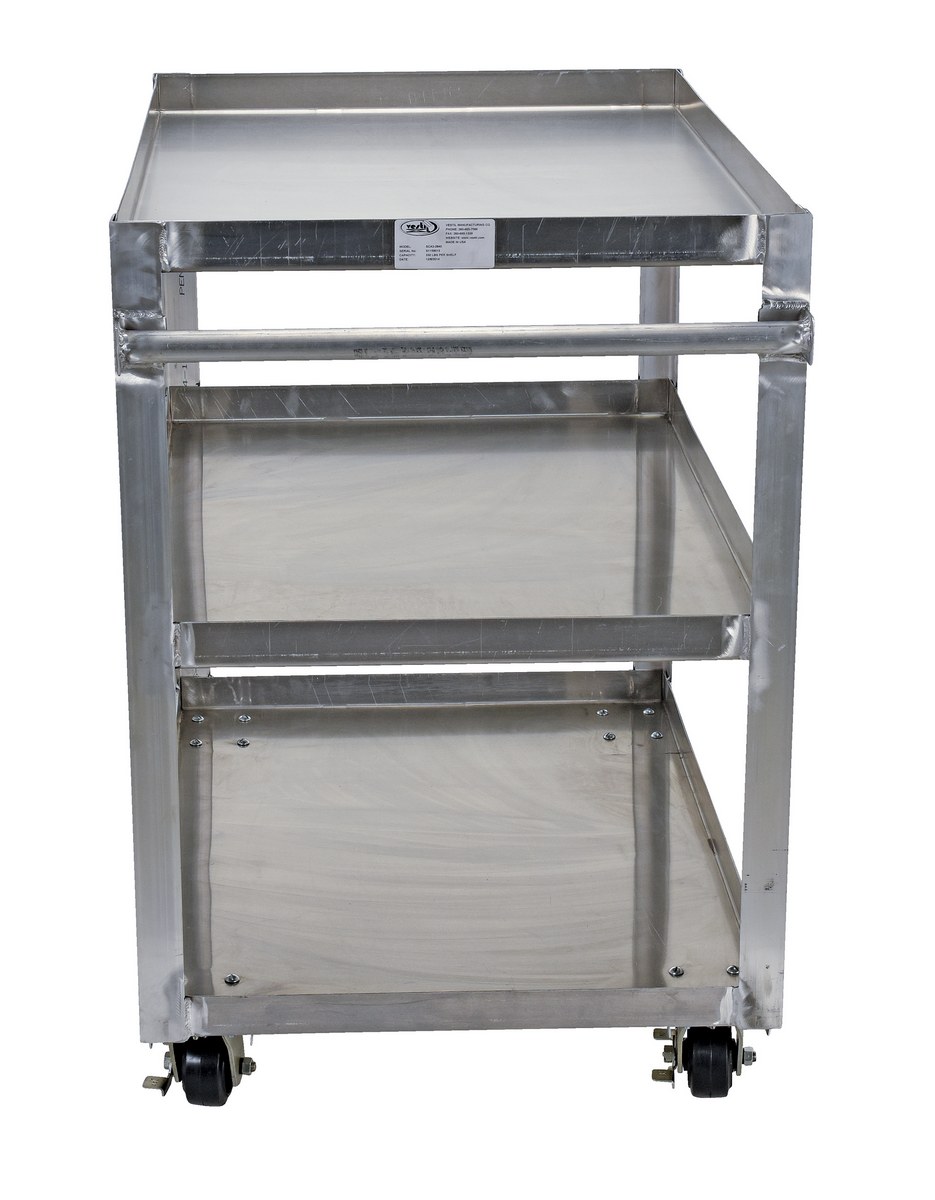

SCA3-2840 Compliance Certificate 27-11/16"x 40-1/16" 15" 41-3/4" 330lbs. 660lbs. 128
SCA3-2848 Compliance Certificate 27-11/16"x 48-1/16" 15" 41-7/8" 330lbs. 660lbs. 136

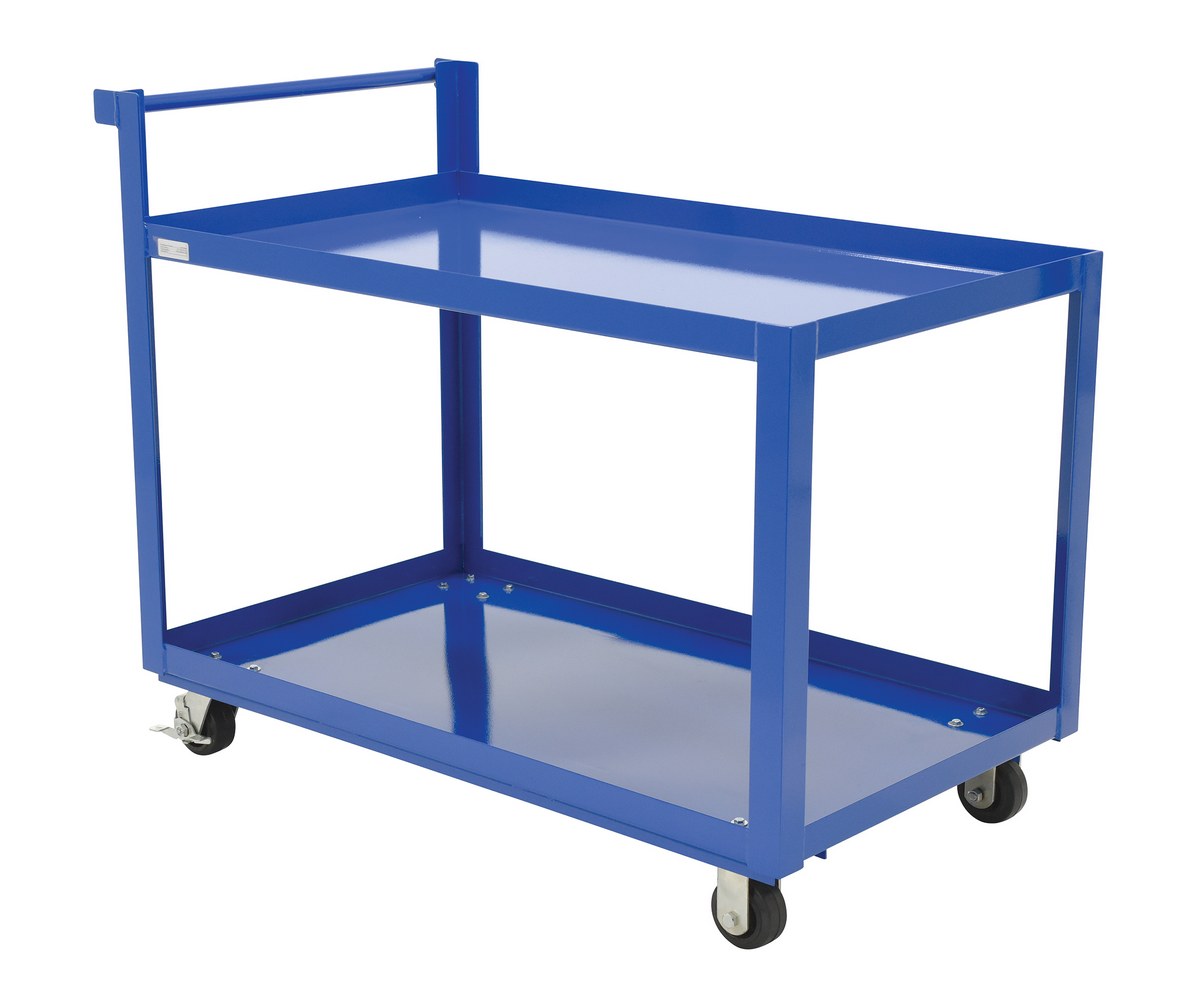

Steel Construction
2-Shelf Units

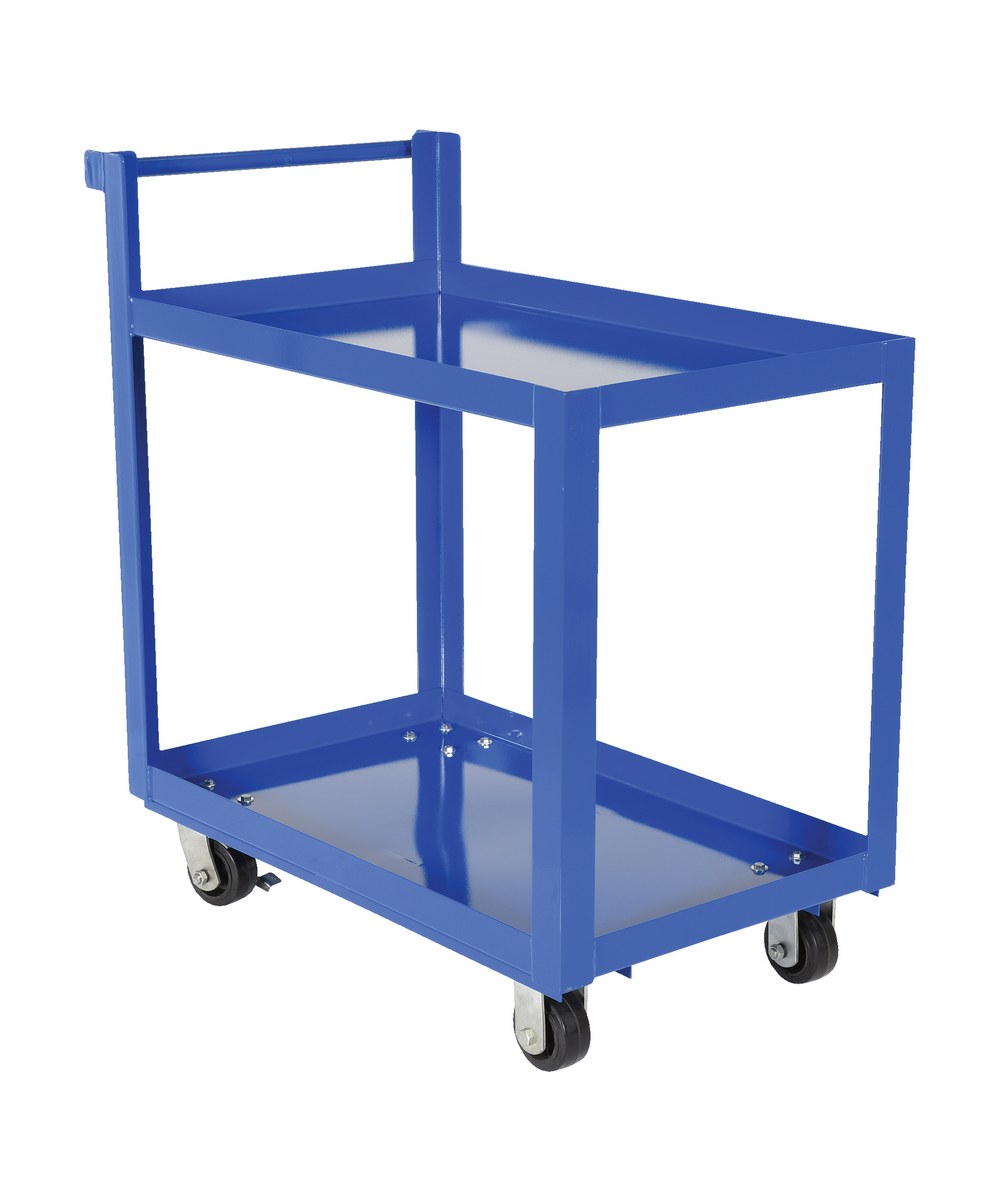

SCS2-2236 Compliance Certificate 21-7/8" x 36" 23-1/2" 33-3/16" 550lbs. 1,000lbs. 151

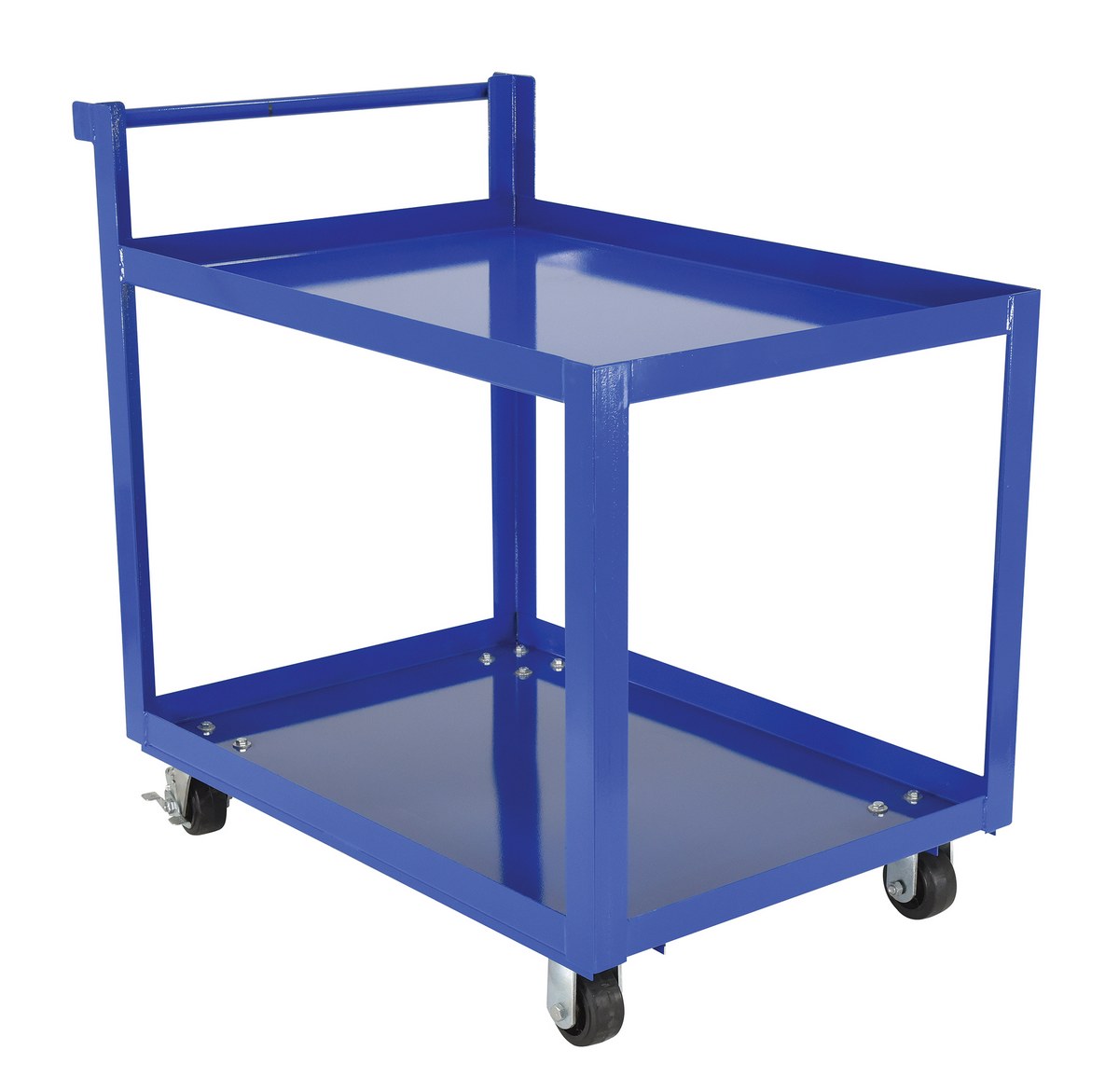

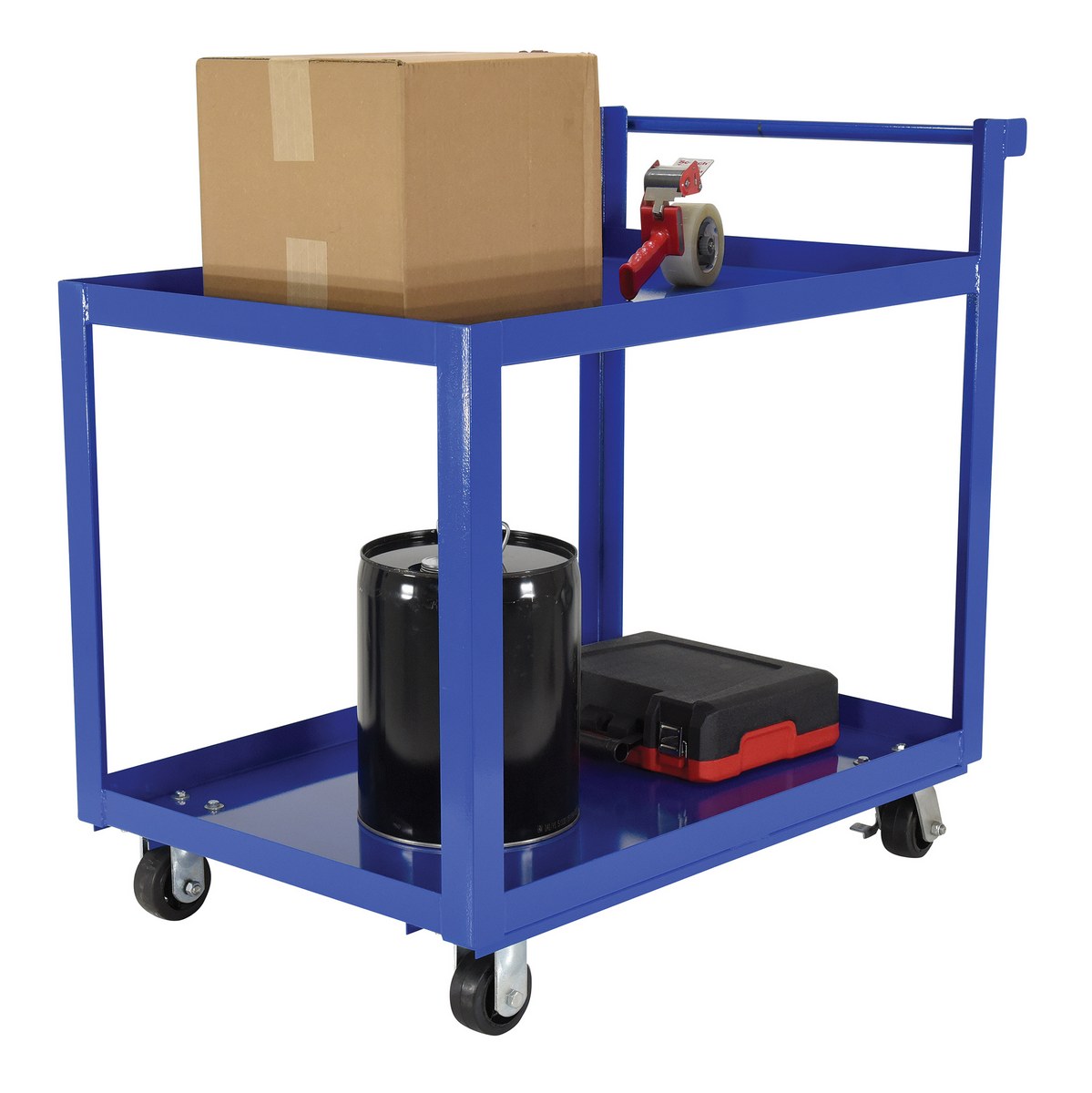

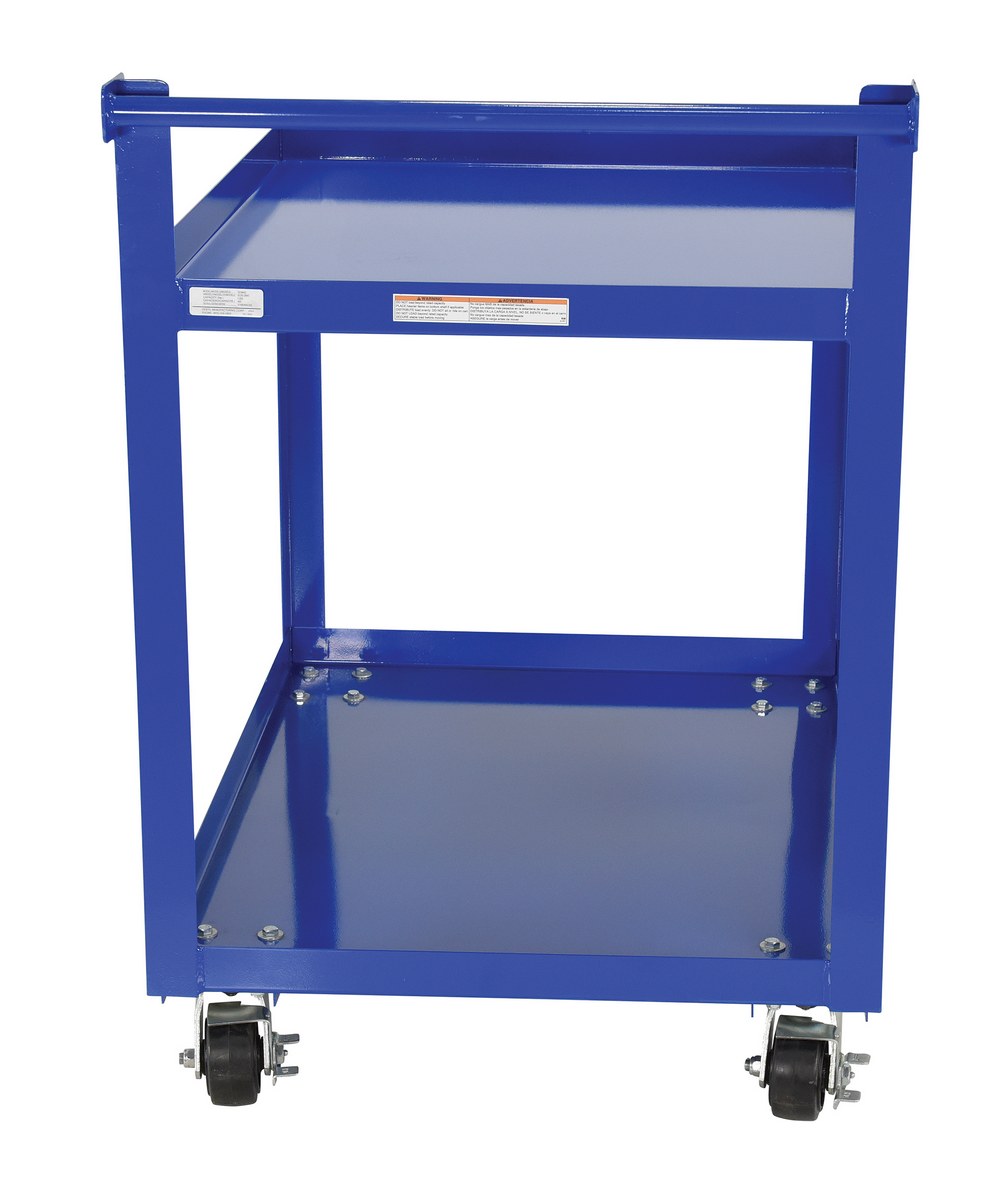

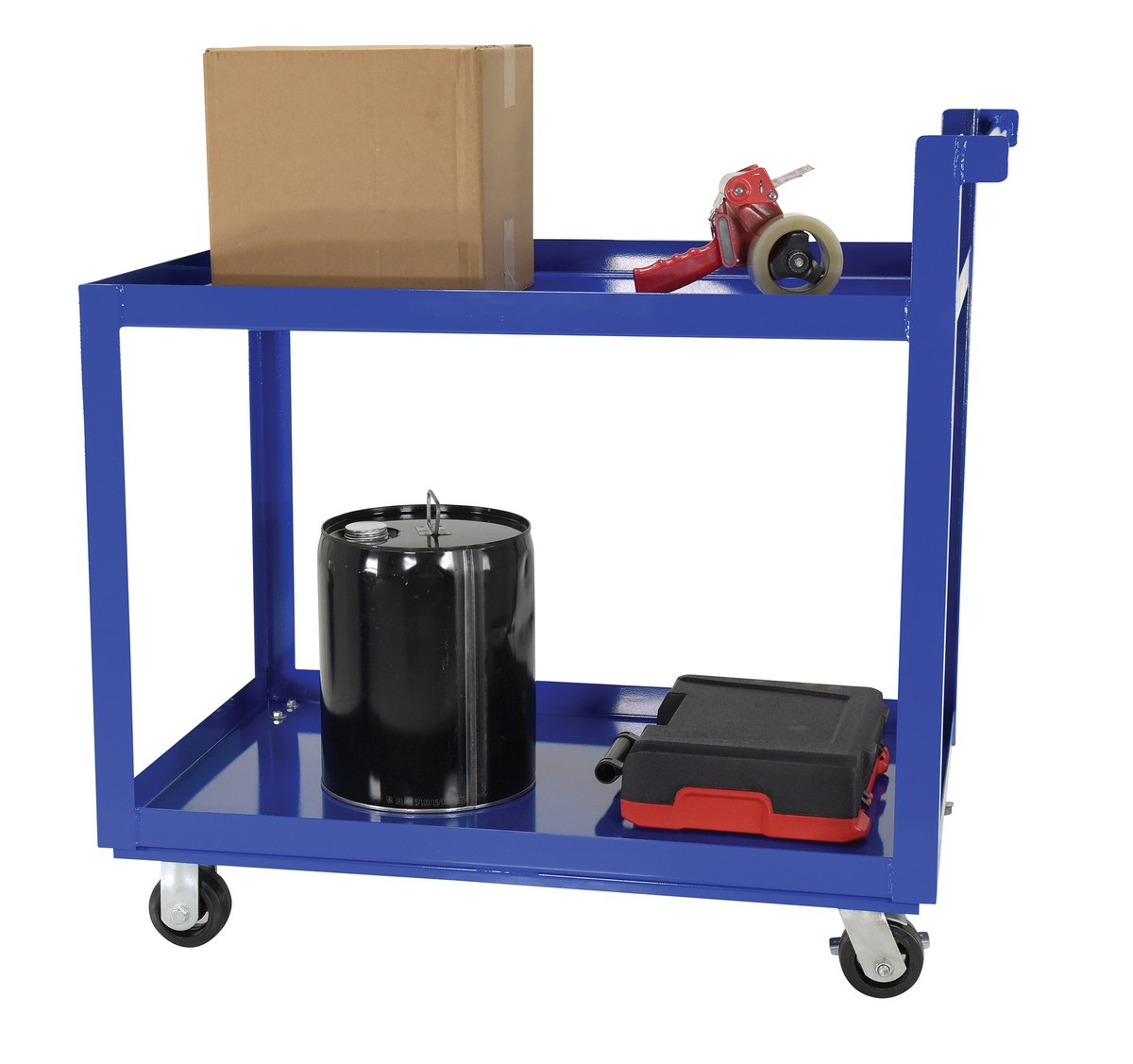

SCS2-2840 Compliance Certificate 27-7/8"x 40" 23-1/2" 33-3/16" 550lbs. 1,000lbs. 155

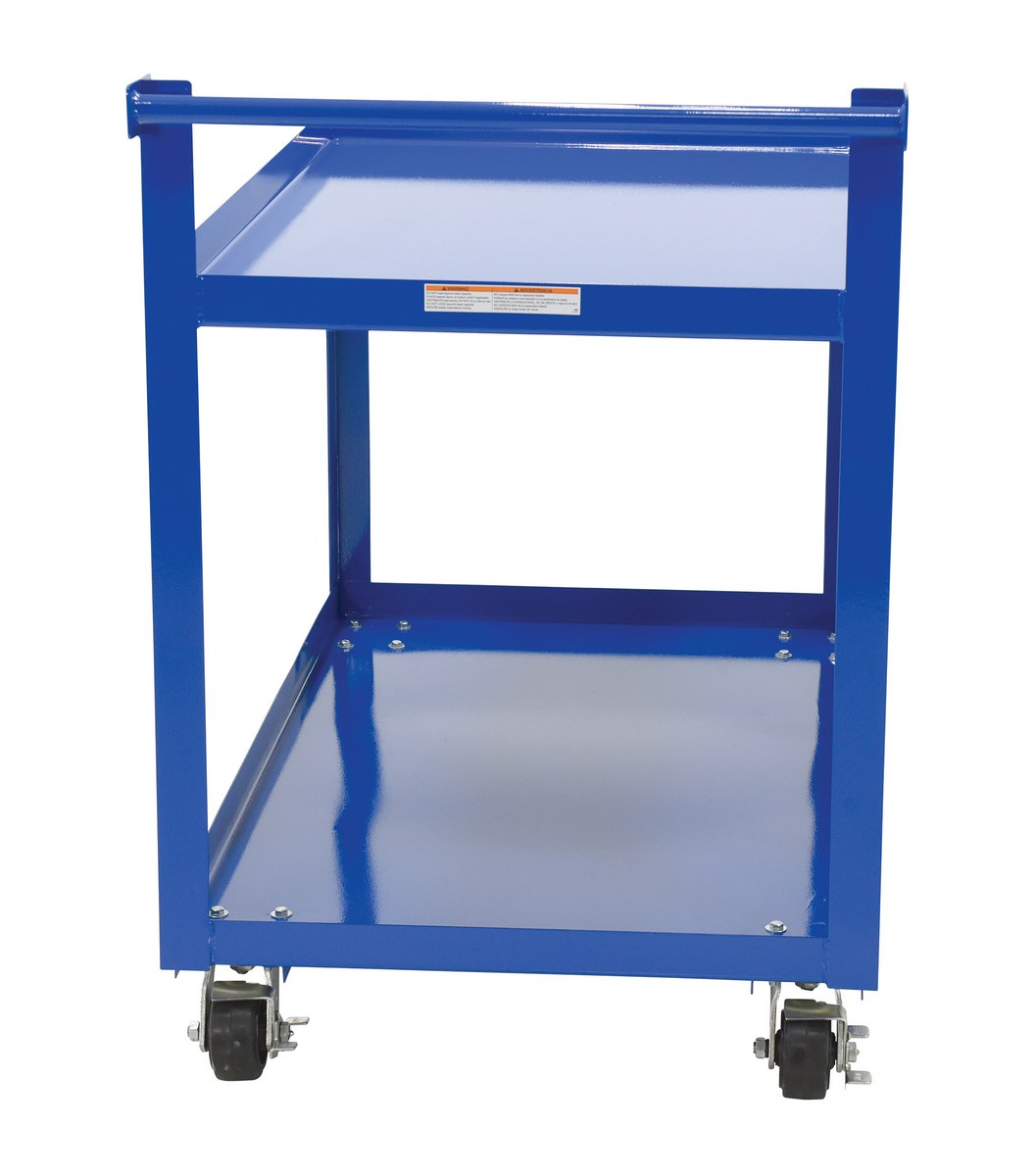

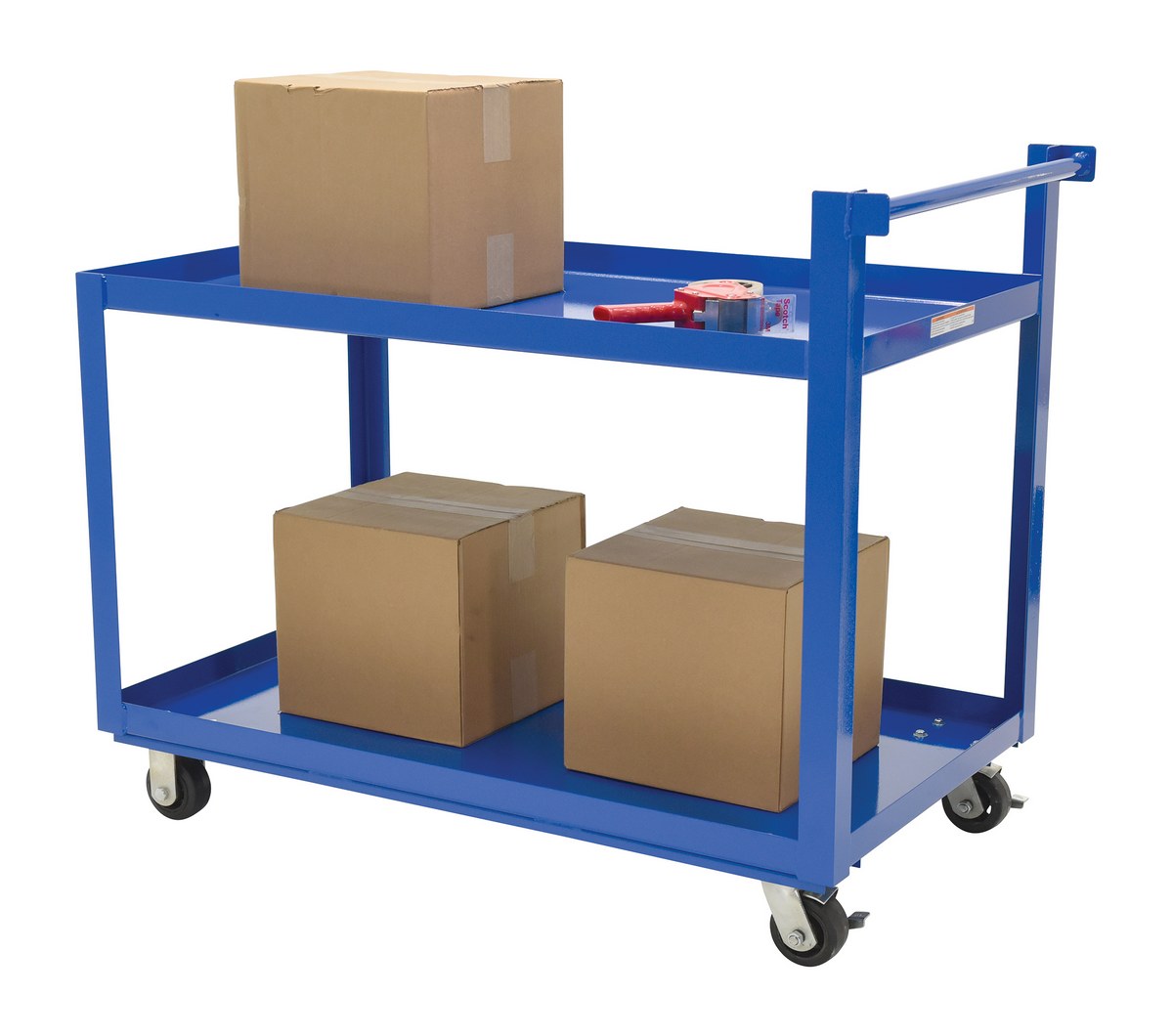

SCS2-2848 Compliance Certificate 27-7/8"x 48" 23-1/2" 33-3/16" 550lbs. 1,000lbs. 158

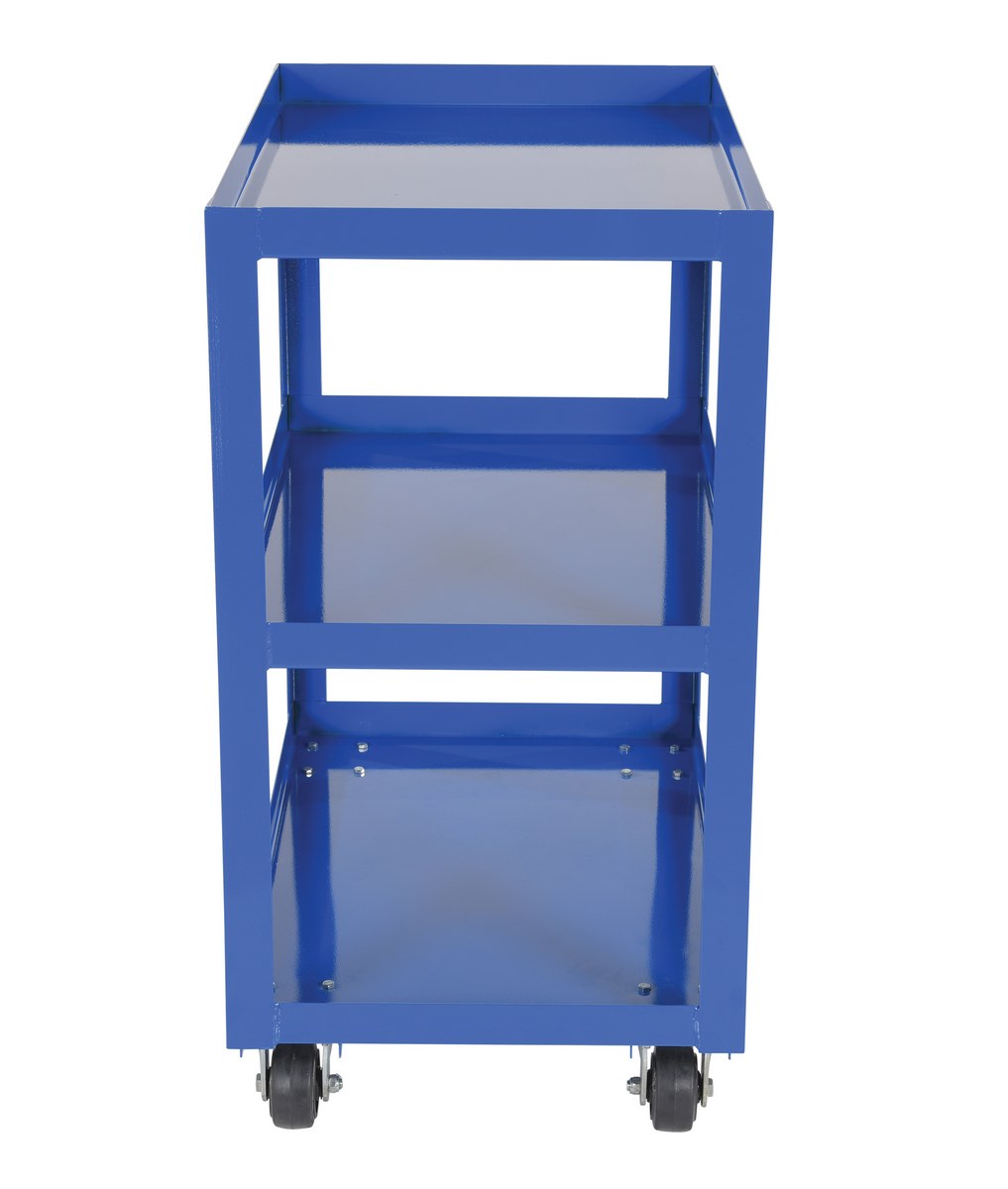

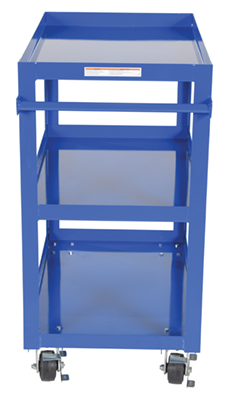

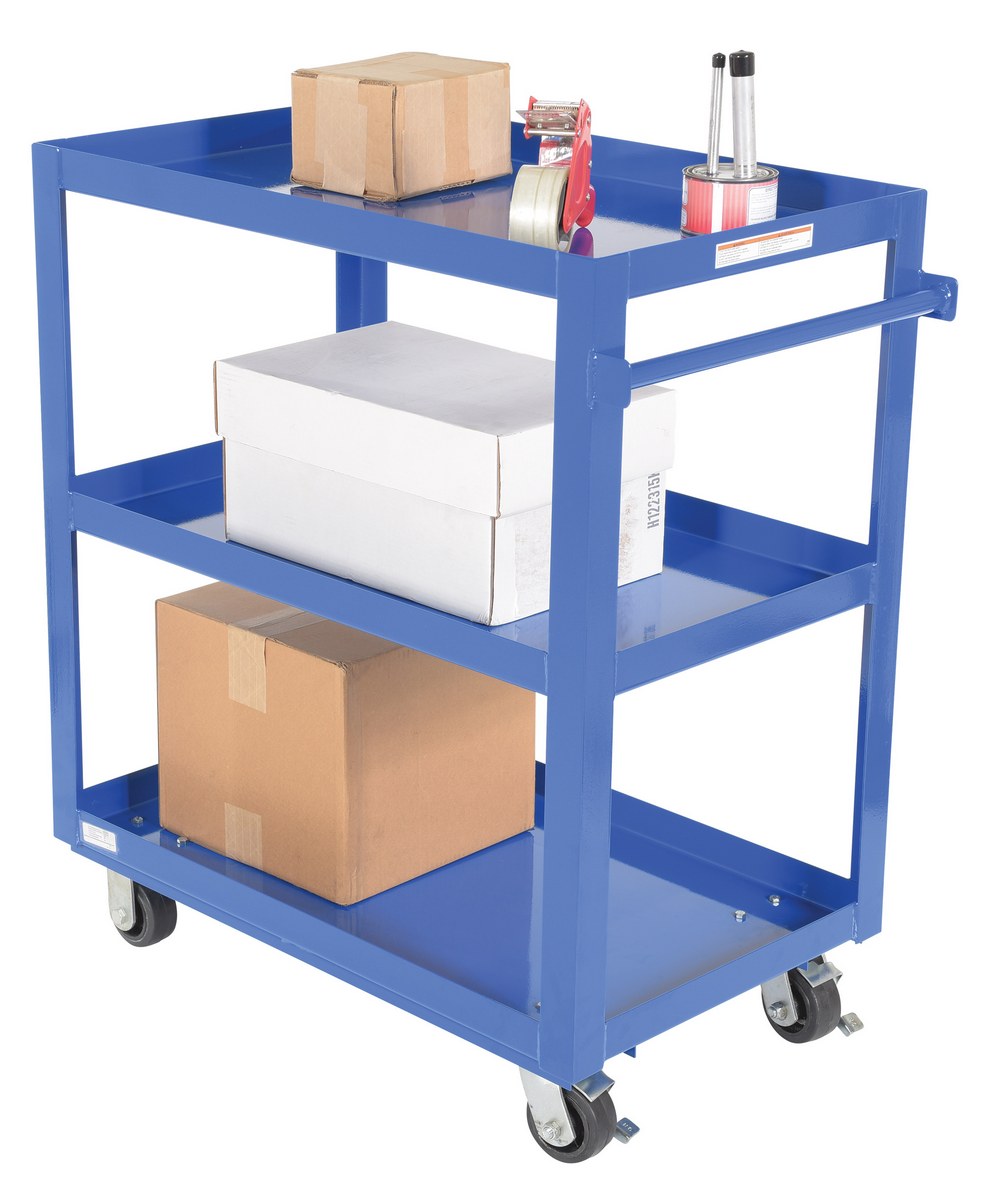

3-Shelf Units

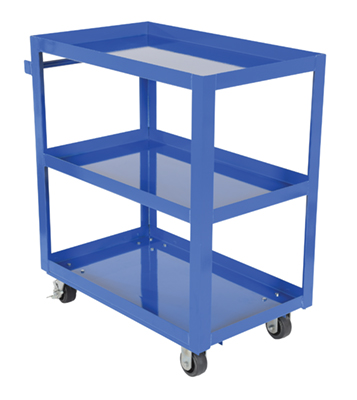

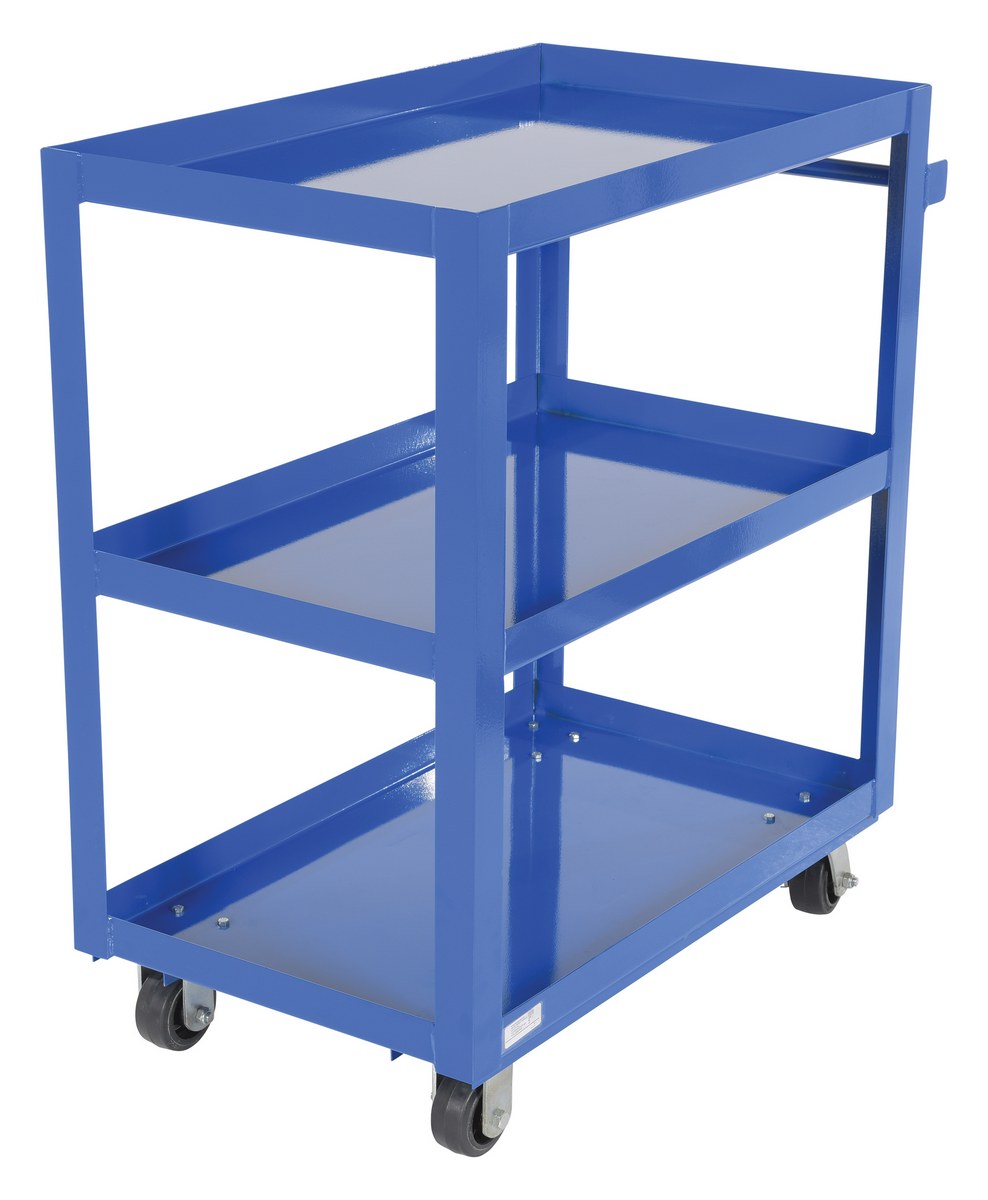

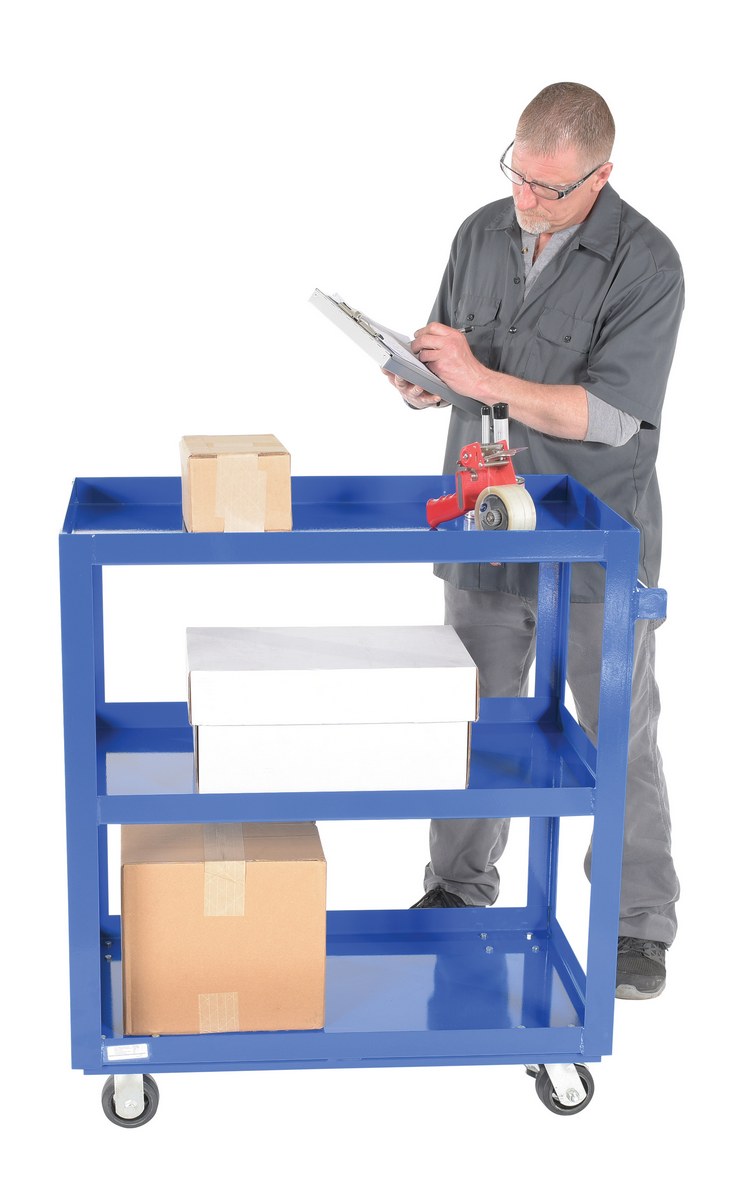

SCS3-2236 Compliance Certificate 21-7/8"x36" 15" 41-11/16" 550lbs. 1,000lbs. 180

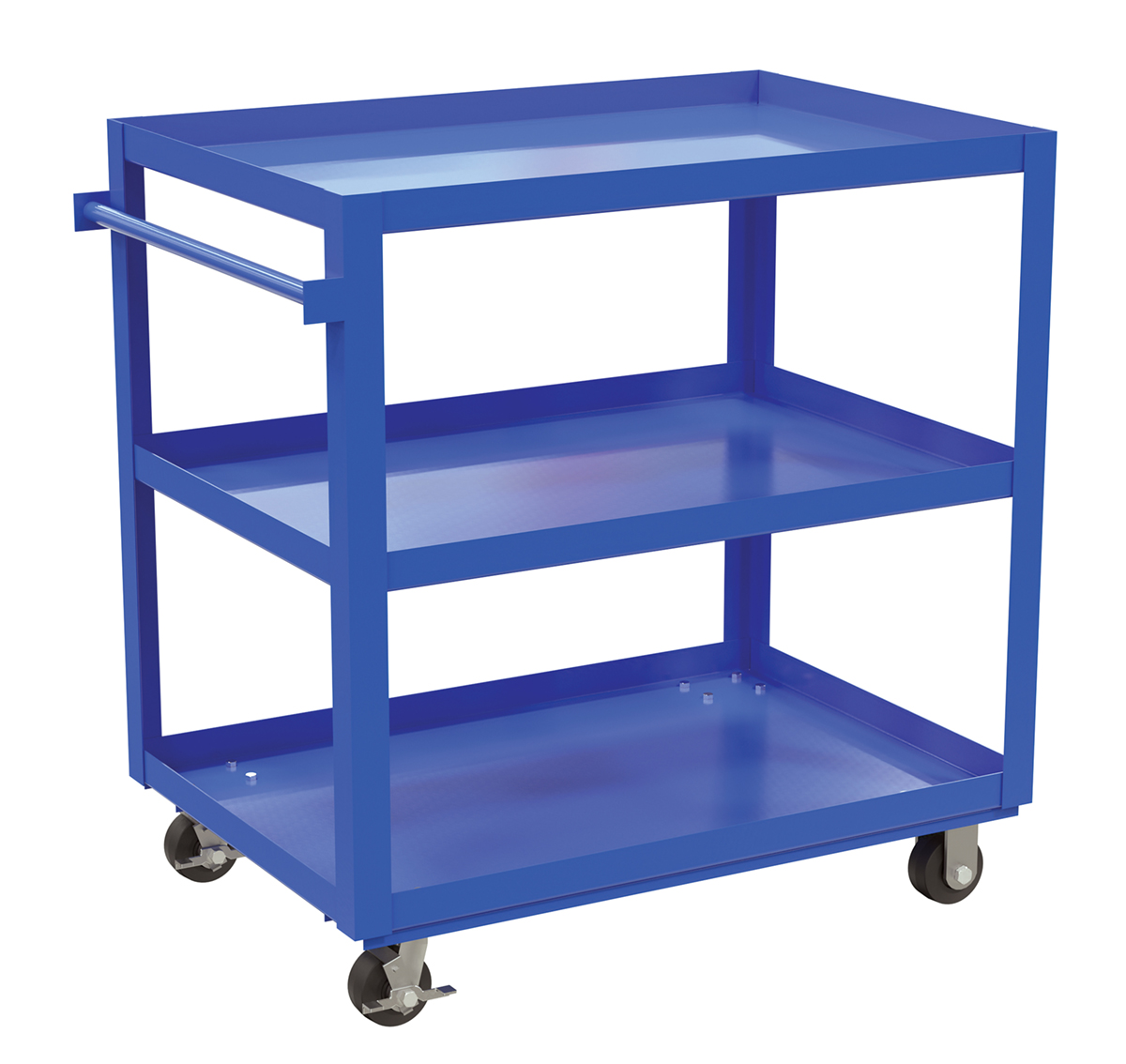

SCS3-2840 Compliance Certificate 27-7/8"x40" 15" 41-11/16" 550lbs. 1,000lbs. 219

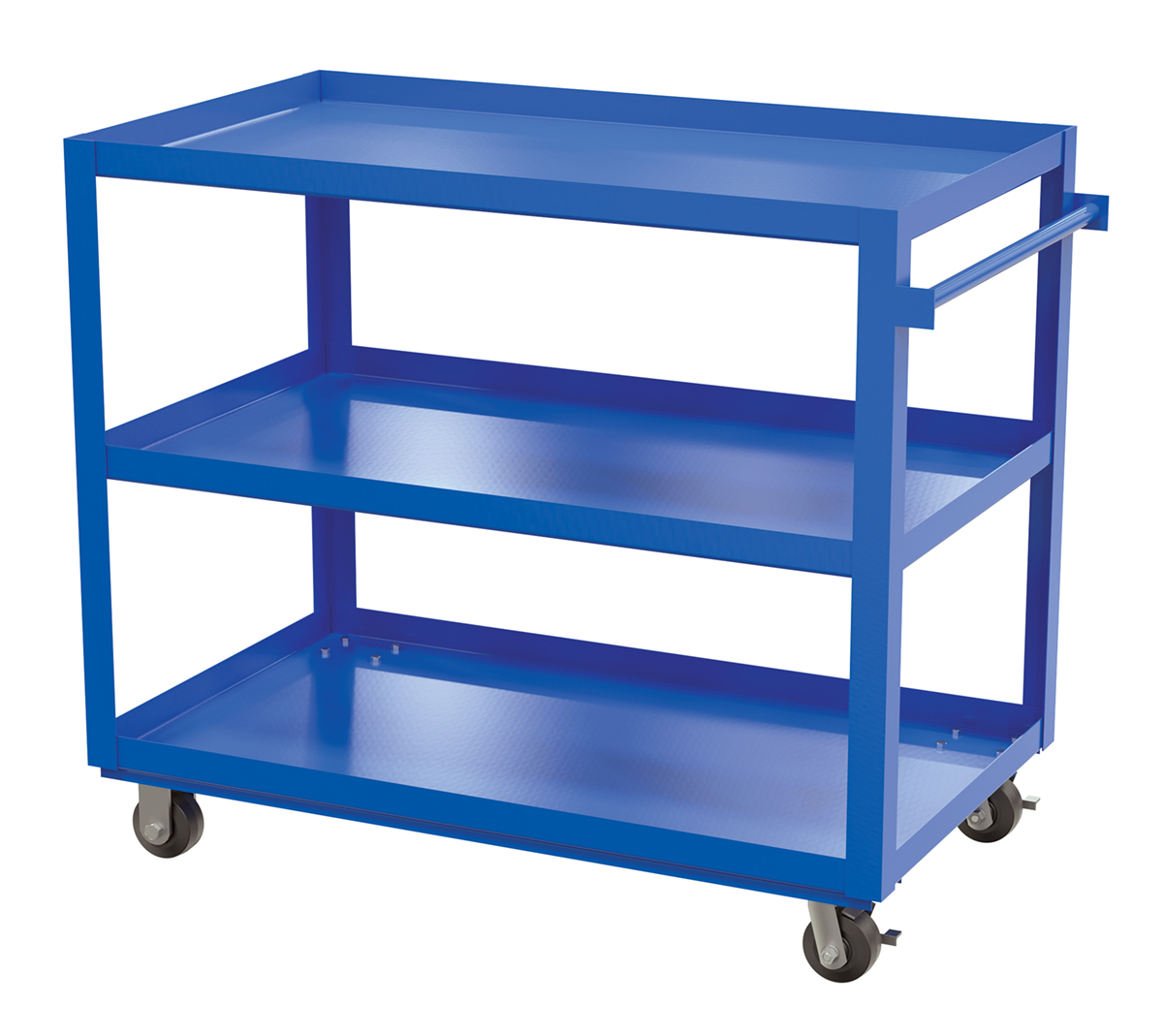

SCS3-2848 Compliance Certificate 27-7/8 "x48" 15" 41-11/16" 550lbs. 1,000lbs. 238
